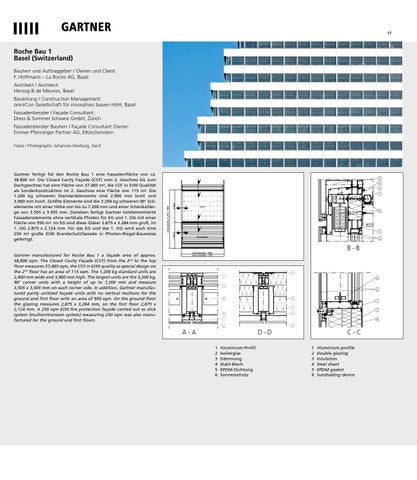

Roche Bau 1 Basel (Switzerland) Bauherr und Auftraggeber / Owner und Client: F. Hoffmann – La Roche AG, Basel Architekt / Architect: Herzog & de Meuron, Basel Bauleitung / Construction Management: omniCon Gesellschaft für innovatives bauen mbH, Basel Fassadenberater / Façade Consultant: Dress & Sommer Schweiz GmbH, Zürich Fassadenberater Bauherr / Façade Consultant Owner: Emmer Pfenninger Partner AG, Münchenstein Fotos / Photographs: Johannes Marburg, Genf
Gartner fertigt für den Roche Bau 1 eine Fassadenfläche von ca. 38.800 m². Die Closed Cavity Façade (CCF) vom 2. Geschoss bis zum Dachgeschoss hat eine Fläche von 37.485 m², die CCF in EI30 Qualität als Sonderkonstruktion im 2. Geschoss eine Fläche von 115 m². Die 1.200 kg schweren Standardelemente sind 2.900 mm breit und 3.960 mm hoch. Größte Elemente sind die 3.200 kg schweren 90° Eckelemente mit einer Höhe von bis zu 7.200 mm und einer Schenkellänge von 3.505 x 3.505 mm. Daneben fertigt Gartner teilelementierte Fassadenelemente ohne vertikale Pfosten für EG und 1. OG mit einer Fläche von 950 m². Im EG sind diese Gläser 2.875 x 3.284 mm groß, im 1. OG 2.875 x 2.124 mm. Für das EG und das 1. OG wird auch eine 250 m² große EI30 Brandschutzfassade in Pfosten-Riegel-Bauweise gefertigt.
B-B B-B Gartner manufactured for Roche Bau 1 a façade area of approx. 38,800 sqm. The Closed Cavity Façade (CCF) from the 2nd to the top floor measures 37,485 sqm, the CCF in EI30 quality as special design on the 2nd floor has an area of 115 sqm. The 1,200 kg standard units are 2,900 mm wide and 3,960 mm high. The largest units are the 3,200 kg, 90° corner units with a height of up to 7,200 mm and measure 3,505 x 3,505 mm on each corner side. In addition, Gartner manufactured partly unitised façade units with no vertical mullions for the ground and first floor with an area of 950 sqm. On the ground floor the glazing measures 2,875 x 3,284 mm, on the first floor 2,875 x 2,124 mm. A 250 sqm EI30 fire protection façade carried out as stick system (mullion/transom system) measuring 250 sqm was also manufactured for the ground and first floors.
AA -- A
-D DD- D 1 Aluminium-Profil 2 Isolierglas 3 Dämmung 4 Stahl-Blech 5 EPDM-Dichtung 6 Sonnenschutz
C-C
C-C
1 Aluminium profile 2 Double glazing 3 Insulation 4 Steel sheet 5 EPDM gasket 6 Sunshading device
