ARCHITECTURE PORTFOLIO

Pavel Martínez Lara

INDEX

2020 HOUSES

Sustainable Houses

Built

TONALÁ HOUSING

Collective housing

National Competition (Finalist)

FUTURE LOGISTIC

Urban proposal

Academic

INNO VATION HUB

BIM Methology

Academic

MIDWIFE HOUSE

Health building

Built

EARTHBAG HOUSE

Superadobe

Built

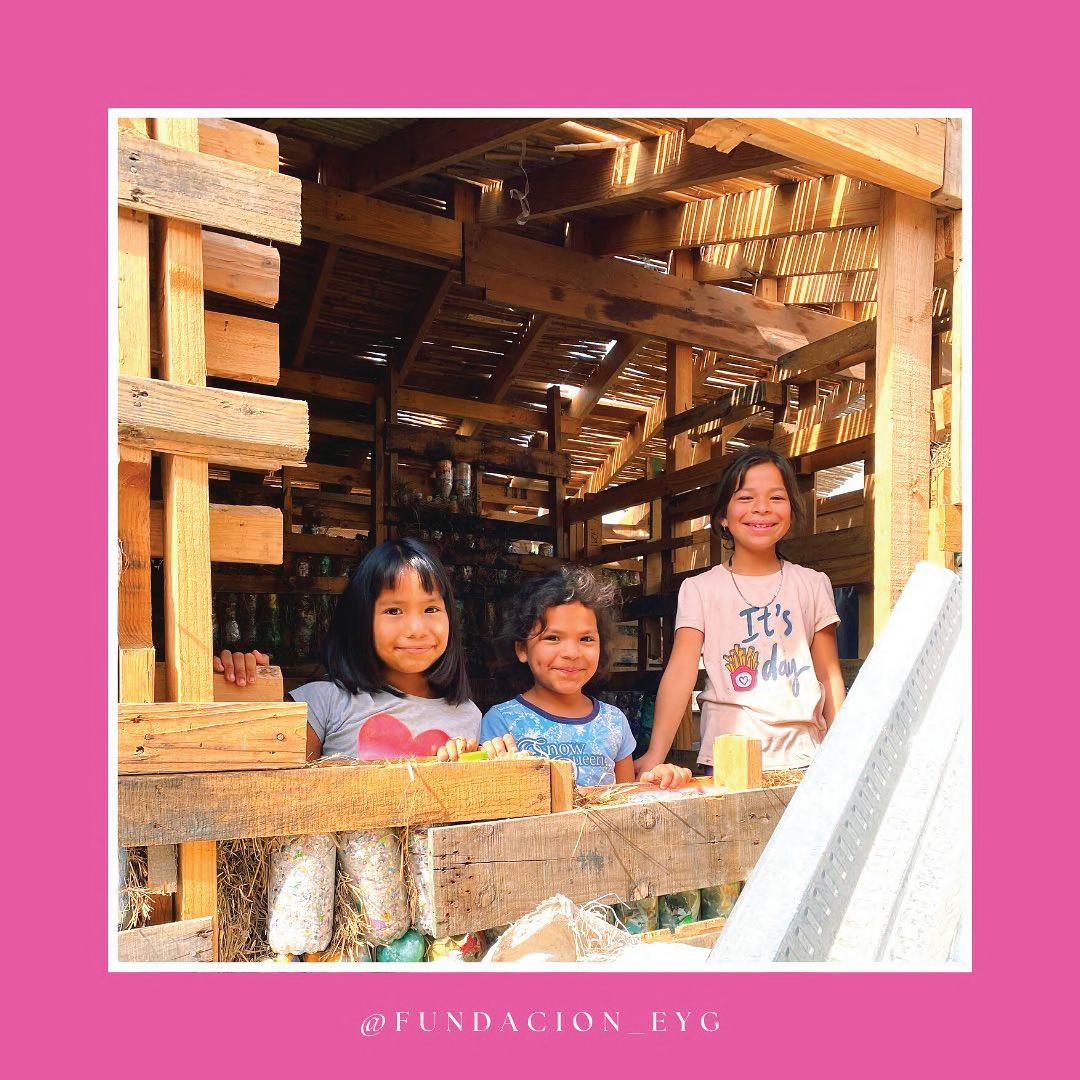

As we all know, 2020 was the year of the pandemic, COVID 19 hit the world by surprise, causing loss of life and a crisis in all aspects of our lives. Despite this complicated year, a project was created to help families living in extreme poverty of La Alianza. Giving them an ability to build with sustainable materi

La Alianza has 2.3% of extreme poverty in the entire metropolitan area. There is a huge housing shortage, and loan opportunities are out of reach.

HOUSING COST

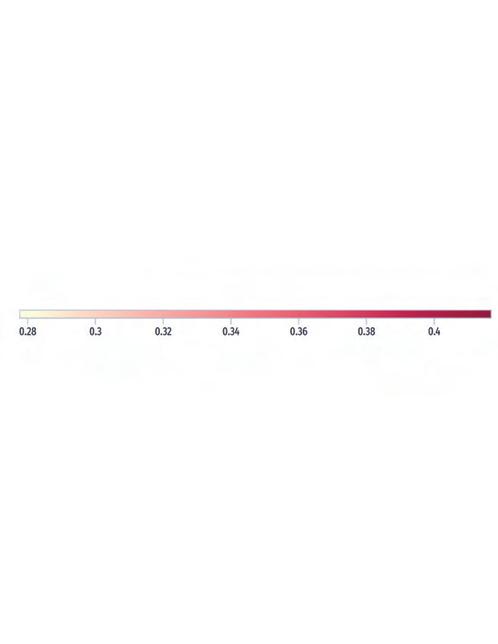

SOCIAL INEQUIALITY BY CITY

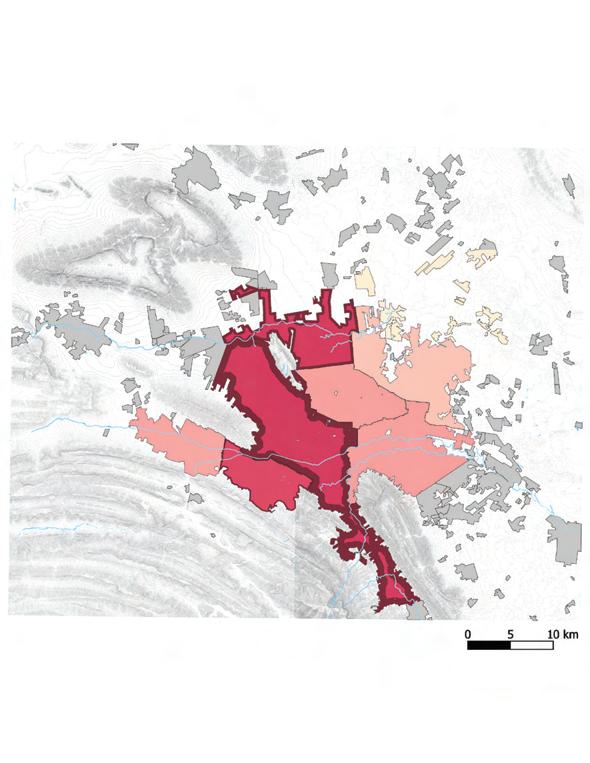

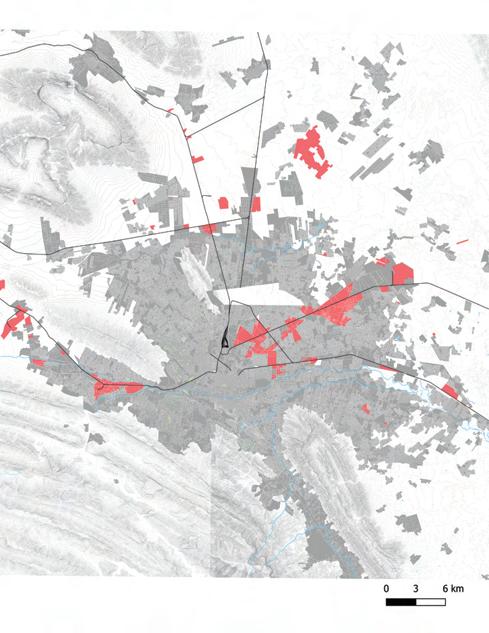

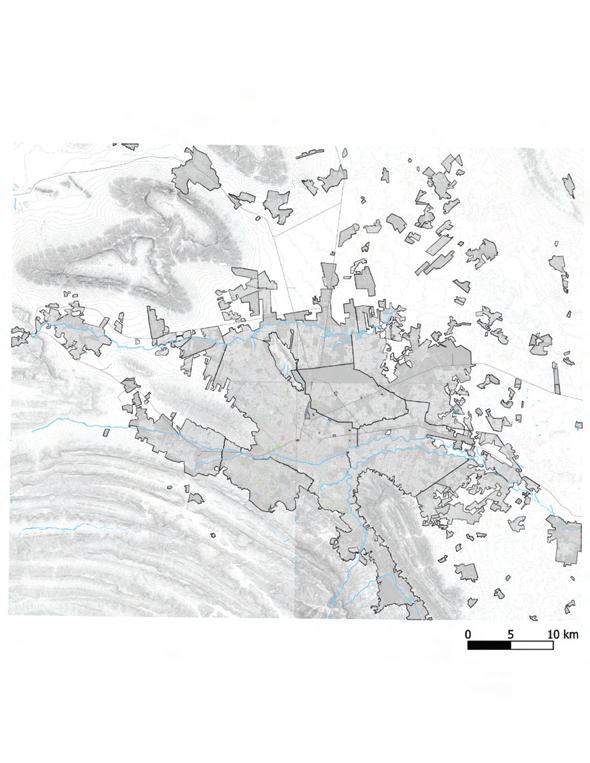

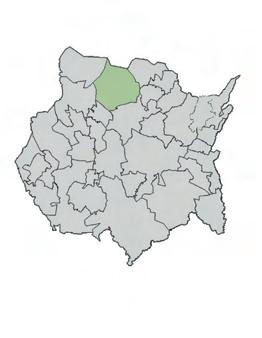

METROPOLITAN AREA (MUNICIPALITIES)

Despite the high quality of life that some citizens have, the metropolis has the highest rates of economic inequality in LATIN AMERICA (CONVEAL 2021).

All Mexicans who have mortgage credit can request a loan to pay for their government housing, but because the interest rates are high, the average final payment time is 35 to 40 years. Thus generating a cost of almost double if paid in cash. Compared to newly built homes, which feature larger sizes, sustainable materials like adobe, and thermal comfort for extreme climates, these new homes are worth almost a tenth of the cost of a traditional government-financed home.

The metropolitan area of Monterrey is made up of 6 cities, with the first 3 being one of the cities with the best quality of life in Mexico.

Living space: 50 m²

Bedrooms: 2

Bathrooms: 1

Cost: 585,000 Pesos

Living space: 69 m²

Bedrooms: 3

Bathrooms: 1

Cost: 65,000 Pesos

Living space: 55 m²

Bedrooms: 2

Bathrooms: 1

Cost: 45,000 Pesos

C. Housing program

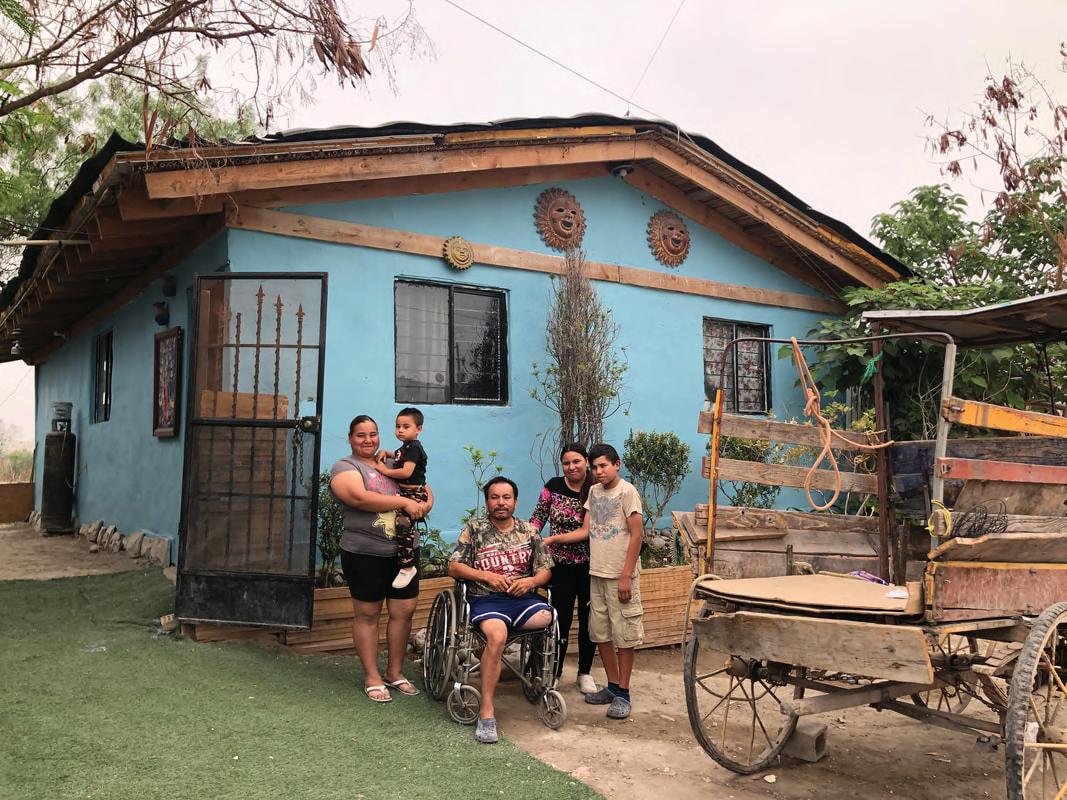

A. House for Rosa

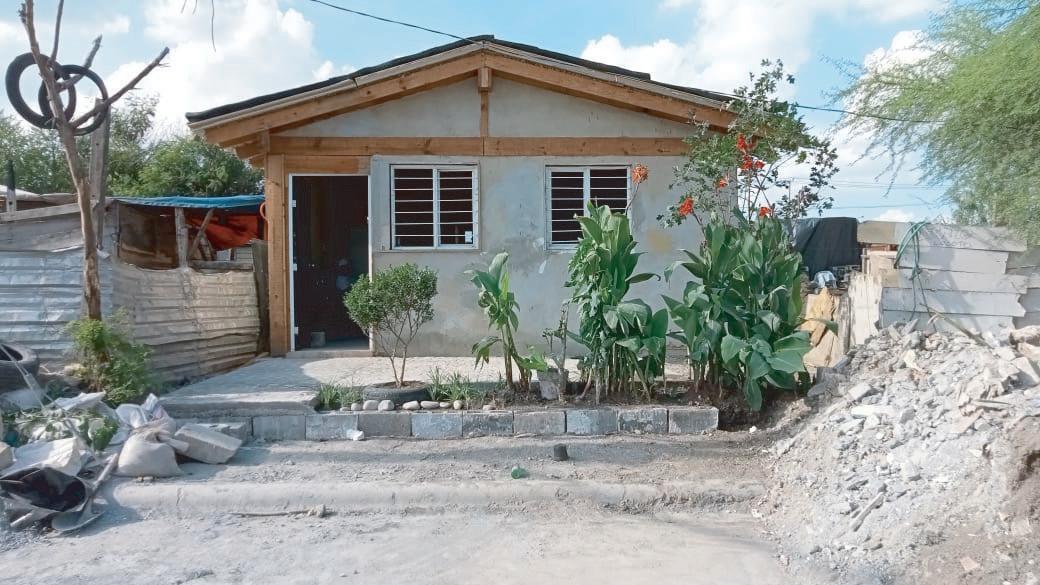

B. House for Gregoria

0400km

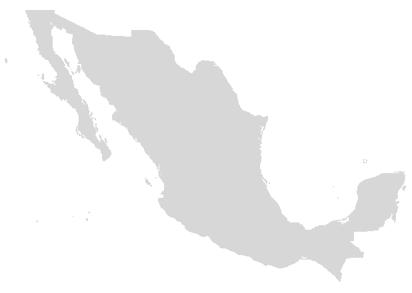

Nuveo León Monterrey

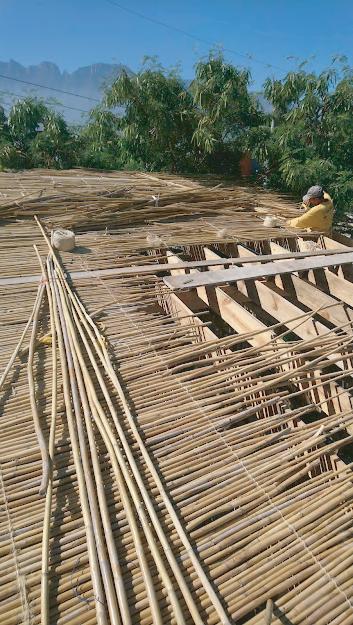

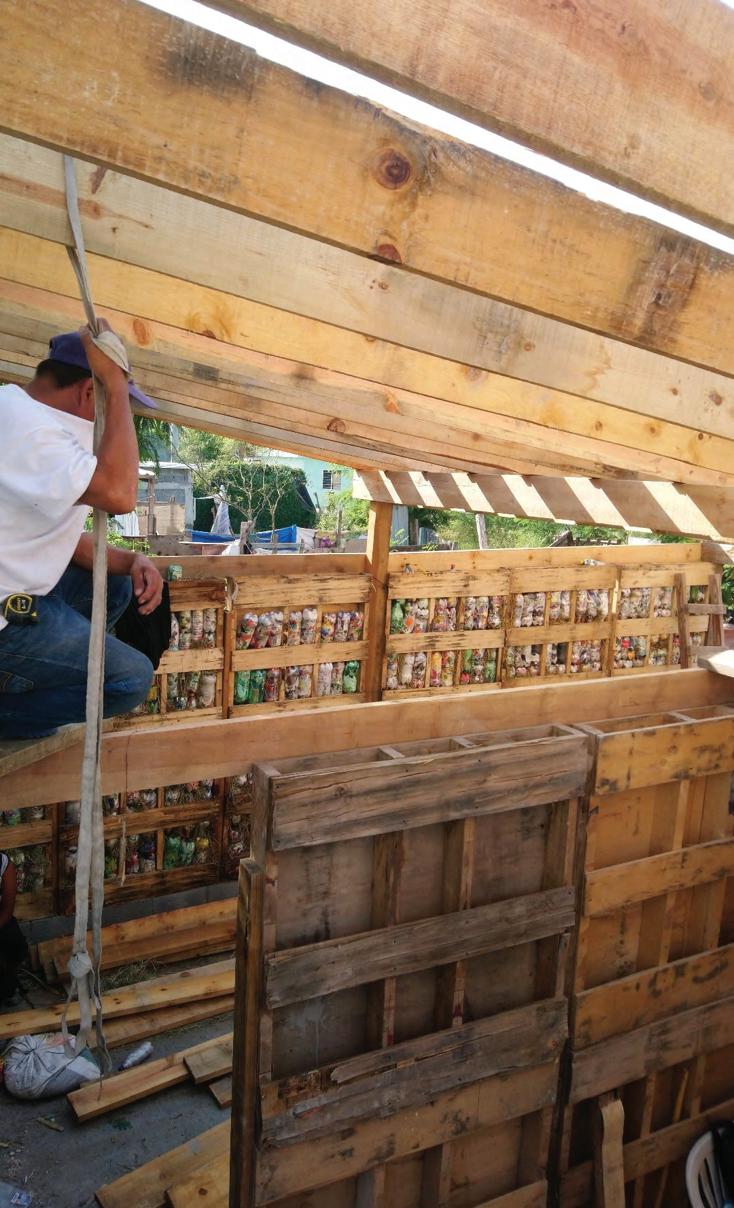

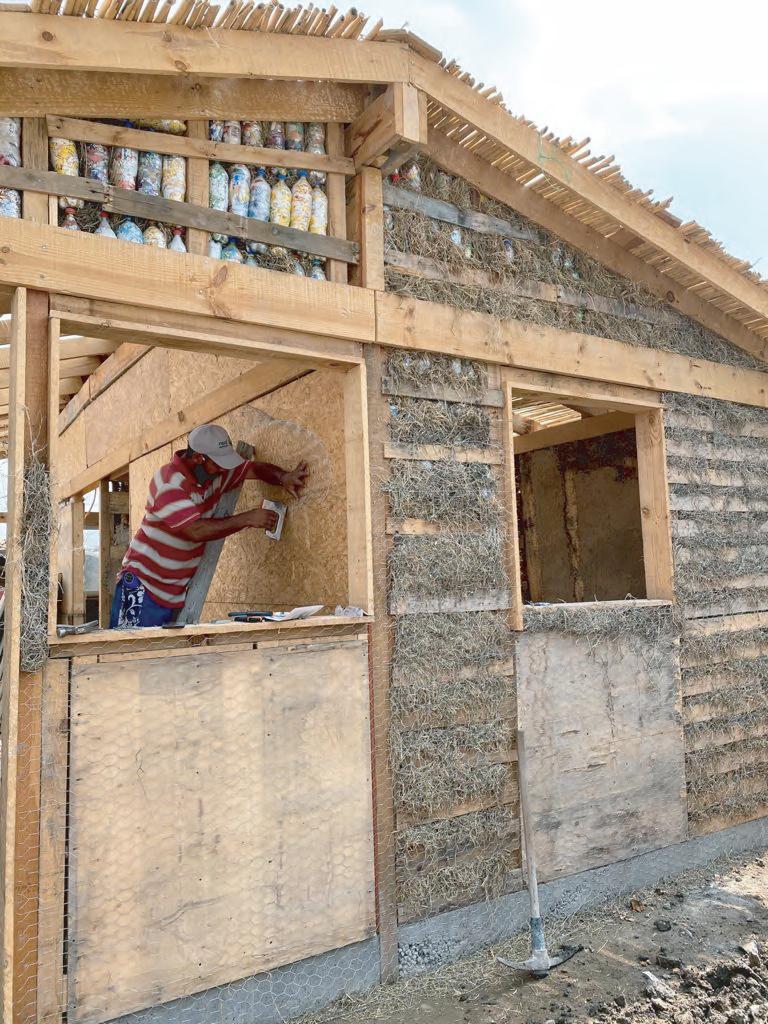

In order to keep the cost of housing low, it was decided to use only materials that the Pesqueria River provides, such as reeds and the raw material for adobe, in addition to recycling tires to make tiles, pallets per wall.

1. REUSED TIRES 2- REUSED ISULATION 3. RIVER REED 4. 8”x2” WOOD BEAMS 5. ADOBE FINISH 6. PALLET WALL

And it is the same people who live there will be the same ones who build the house, learning vernacular architecture techniques from the Monterrey area to have a decent home.

It is in the floor plans where it can be understood that the walls are modulated by the pallets and the wooden columns.

A. ROSA HOUSE

B. GREGORIA HOUSE

B. ISOMETRY

1. TIRE FOUNDATION

2. COLUMNS

3. BEAM FOUNDATION

4. FLOOR SLAB

6. PALLET WALLS

7. WOOD BEAMS

8. ROOF BEAMS

5. BRICK BASE

9. RIVER REED

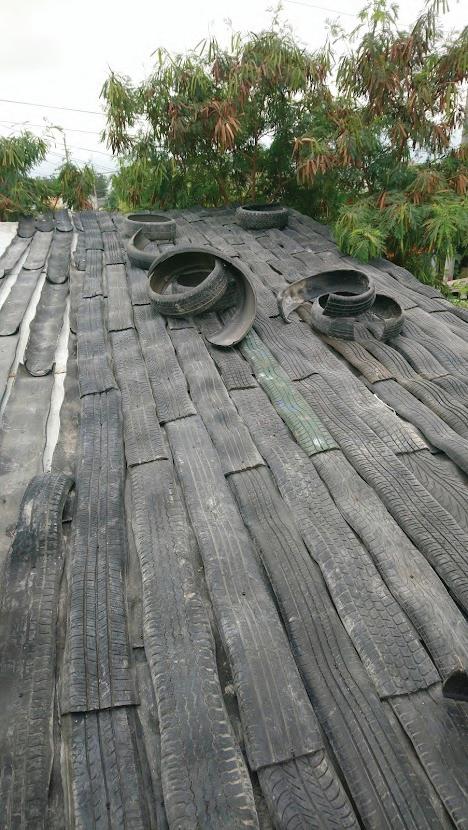

11. TIRE TILES

13. SECOND TILES 15. ECO-BRICKS

12. TOP TILES

14. FINAL TILES

16. ADOBE FINISH

10. INSULATION PANEL

Project type: Residential Location: Tonalá, Mexico

COLLECTIVE HOUSING

The projects was developed in a housing complex located in the city of Tonalá, with the idea of provide housing blocks that are interrelated with other bocks with green areas, recreational areas and a sense of community with the terrace in every facade of the block. The density of this interurban hosing is the concept of the future social housing in Mexico and

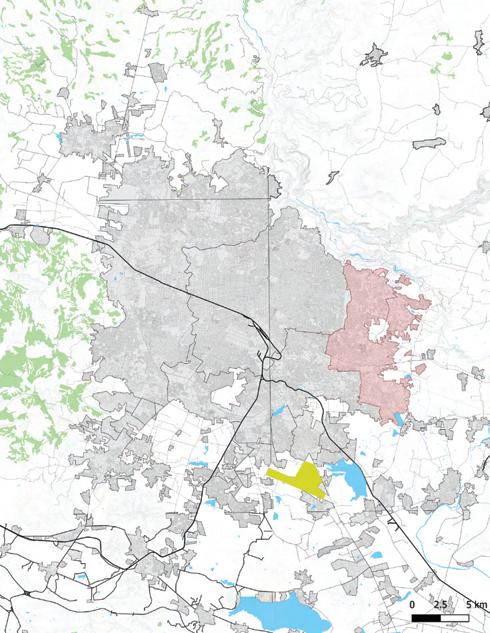

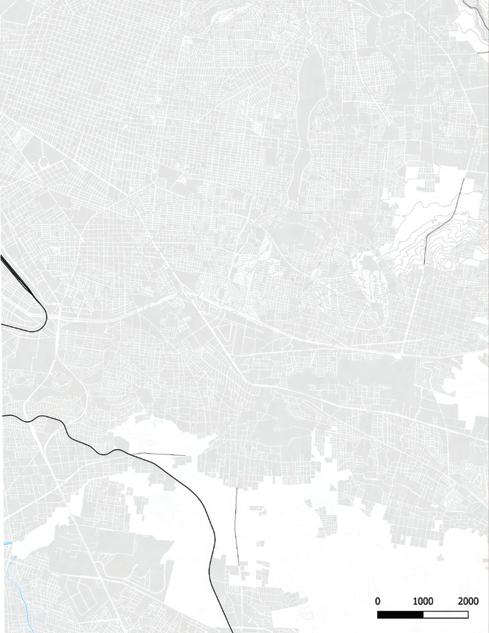

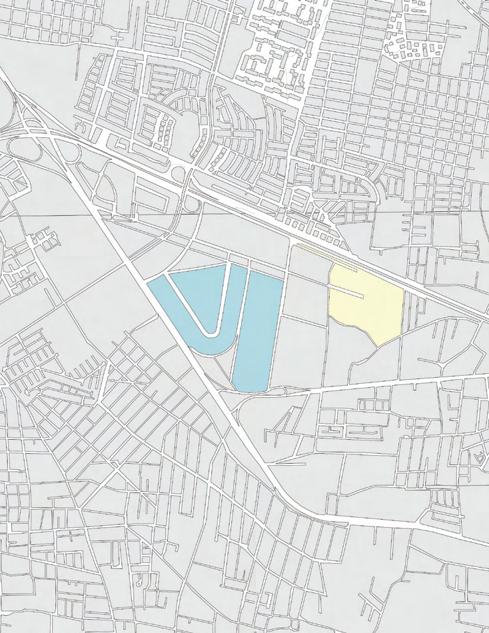

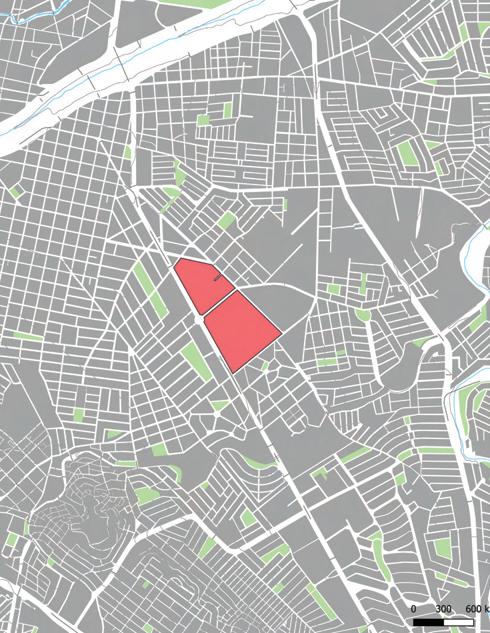

NEIGHBORHOOD SITE

TONALÁ CITY

Collaborators: Ivette Caveli

The site is divided into two sections, a public road runs through the entire lot.

Due to the regulation, parking spaces must be included for homes.

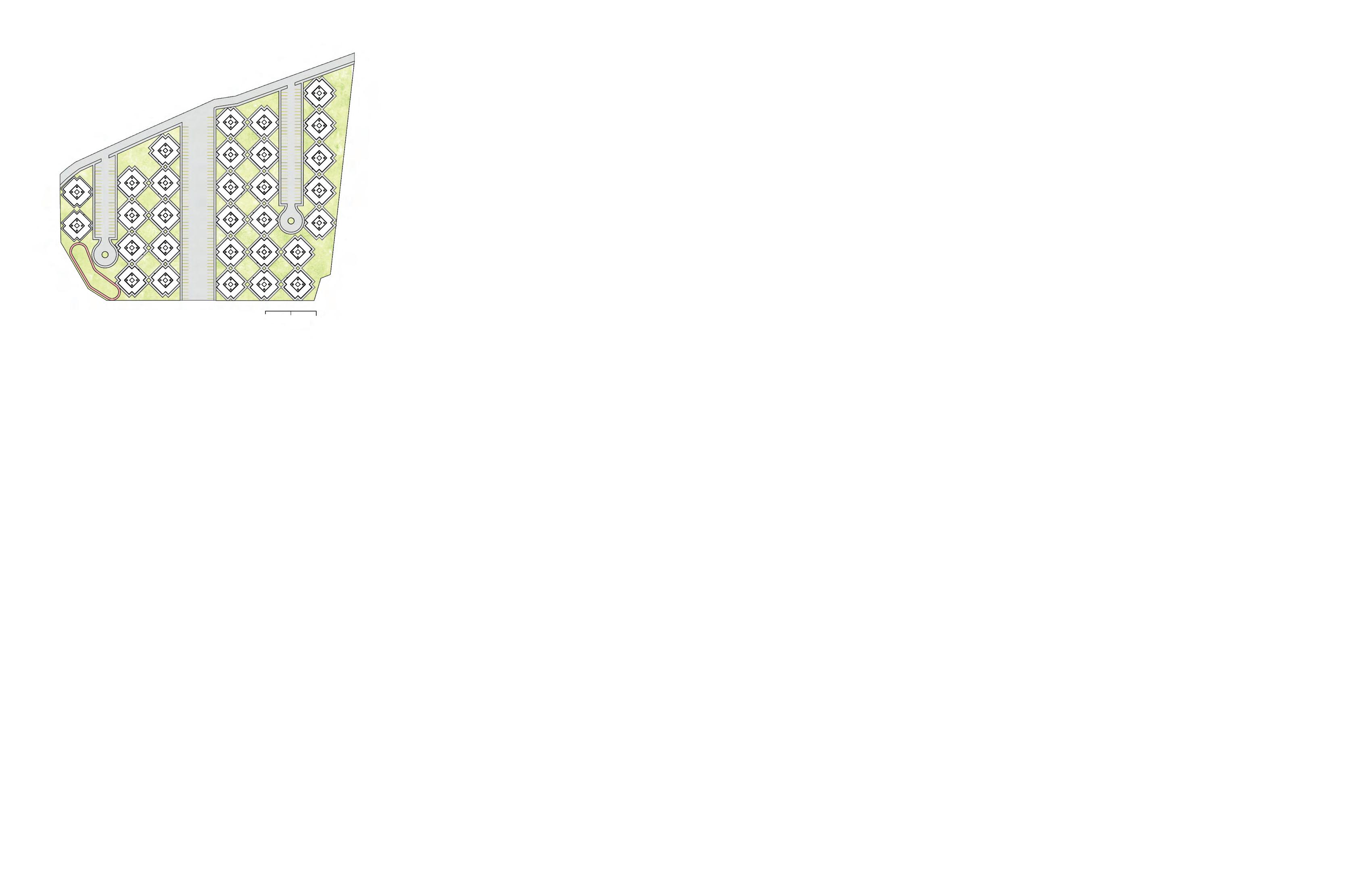

The housing blocks are spread throughout the land, leaving key meeting points.

1. SITE

2. ROADS

3. HOUSING BLOCK

Jalisco

Guadalajara

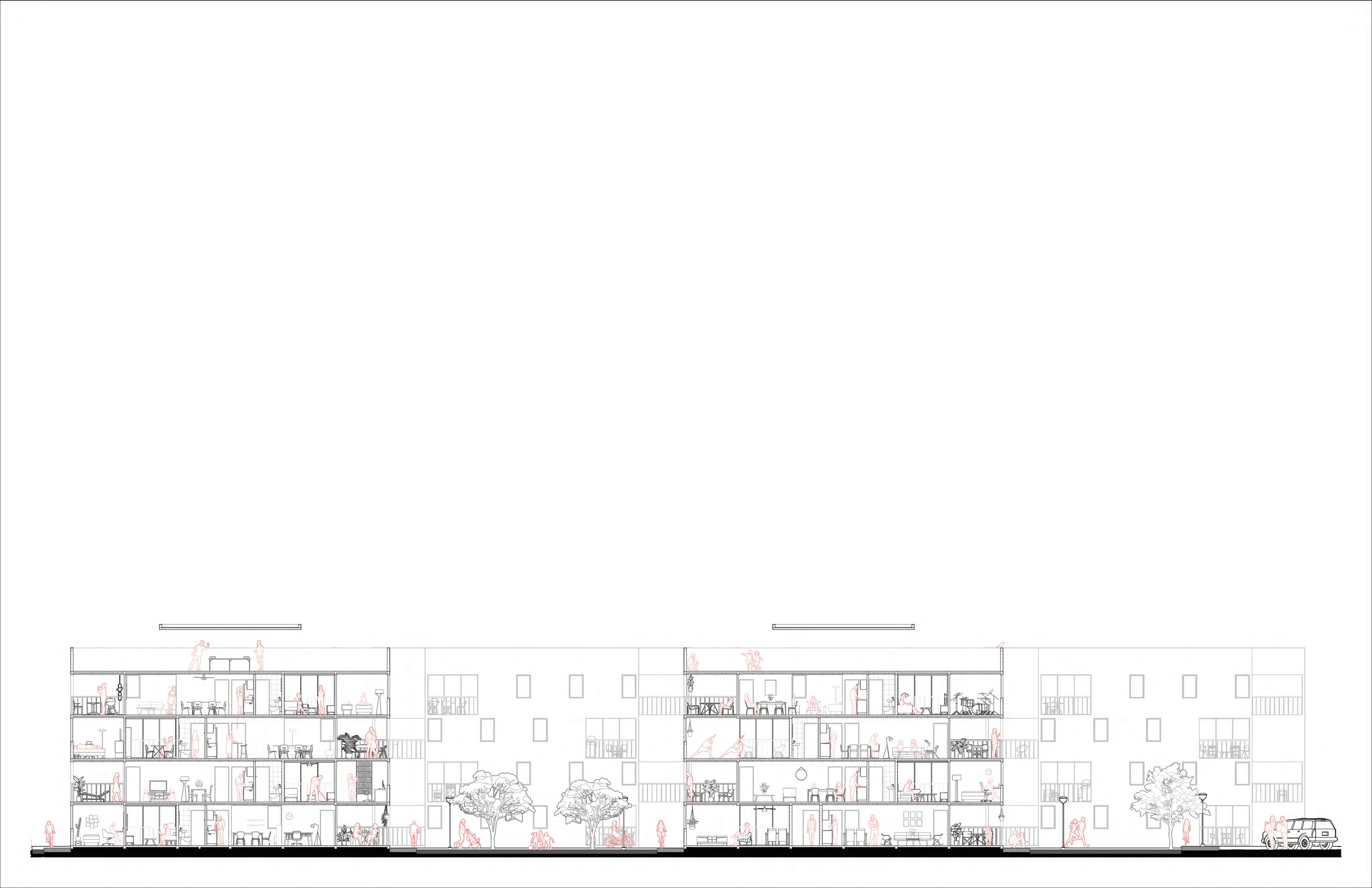

The block generate terraces for EACH unit but without compromising privacy. Also generate that all the blocks are visually connected of all angles.

The units of the blocks have the chance to change according to the needs of the owners, for big families or even only one bedroom without compromising the structure.

FLOOR

2-4 FLOOR

3 FLOOR

Couple - 3 Children 1 Couple - 1 Baby

INSTALLATIONS

Couple - 1 Single

Single- 1 Workspace

The electrical installations can change in every unit

Although the block may have all the different units, the installations are concentrated in the center, allowing the resident freedom to change their home.

The hydraulic installations are all in the same block

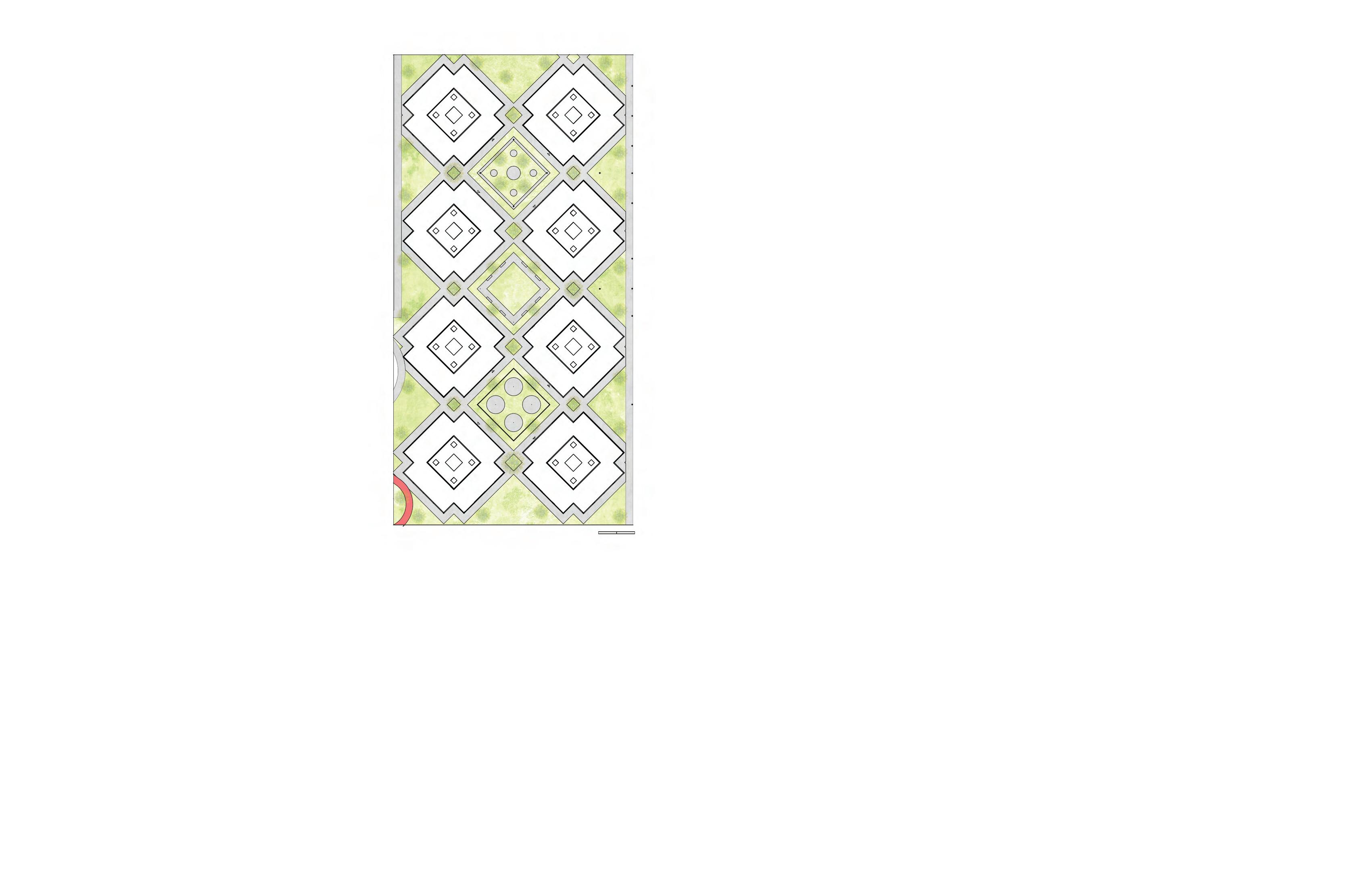

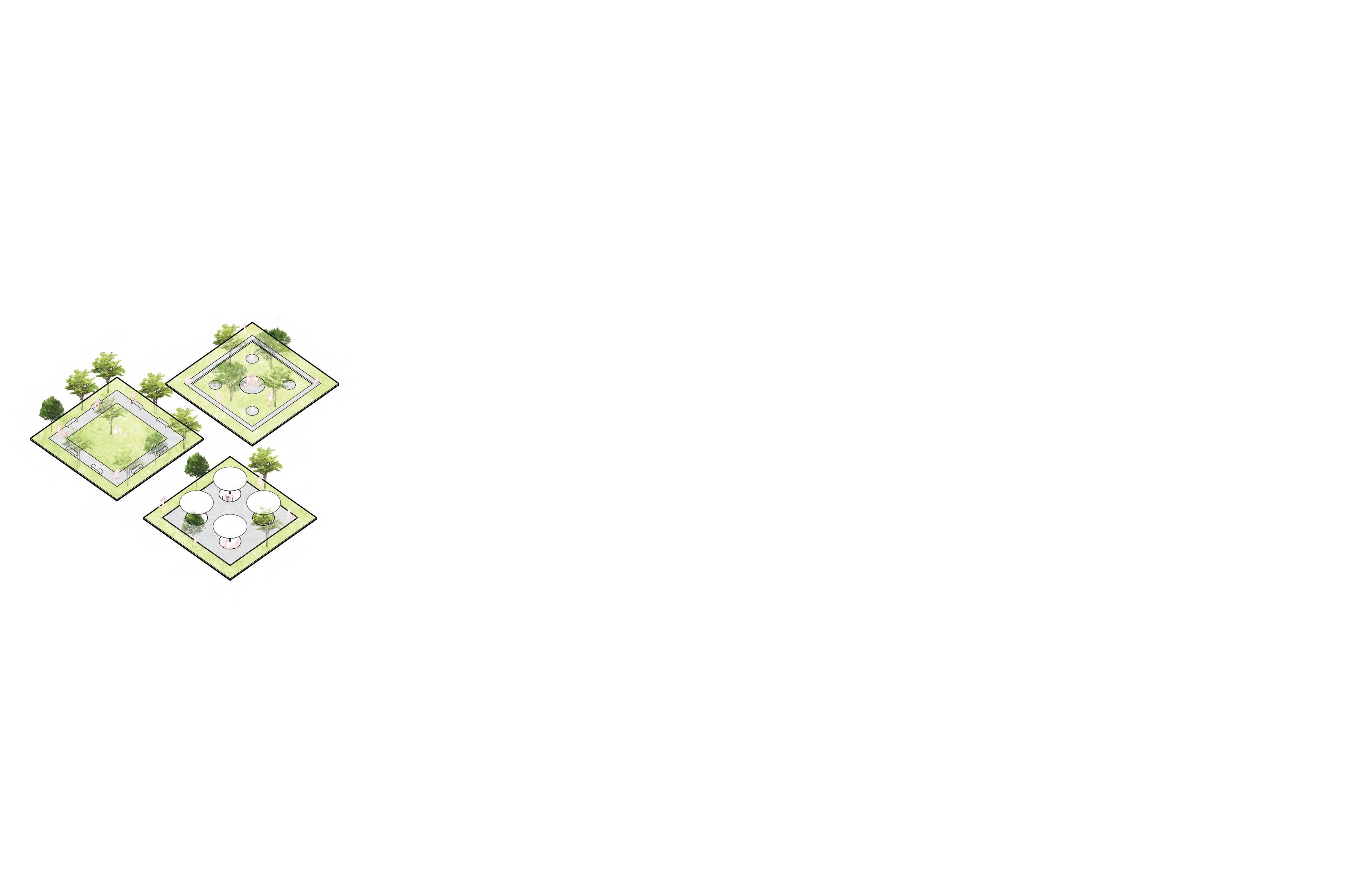

The relationship between blocks is based on the parks in the center, generating green areas for all residents. Each one being different for the interaction.

FUTURE LOGISTICS

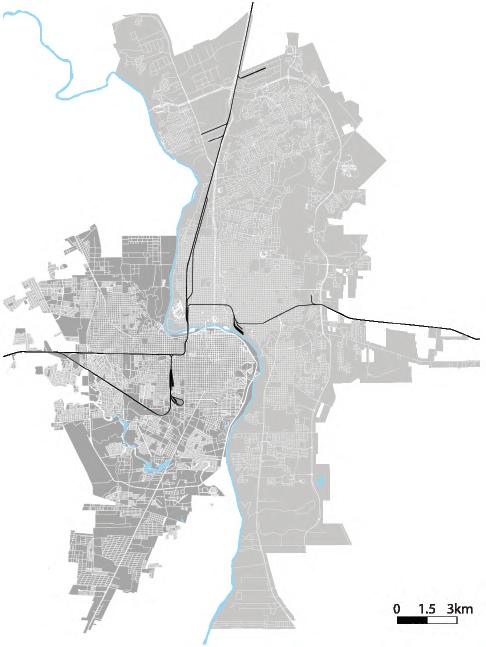

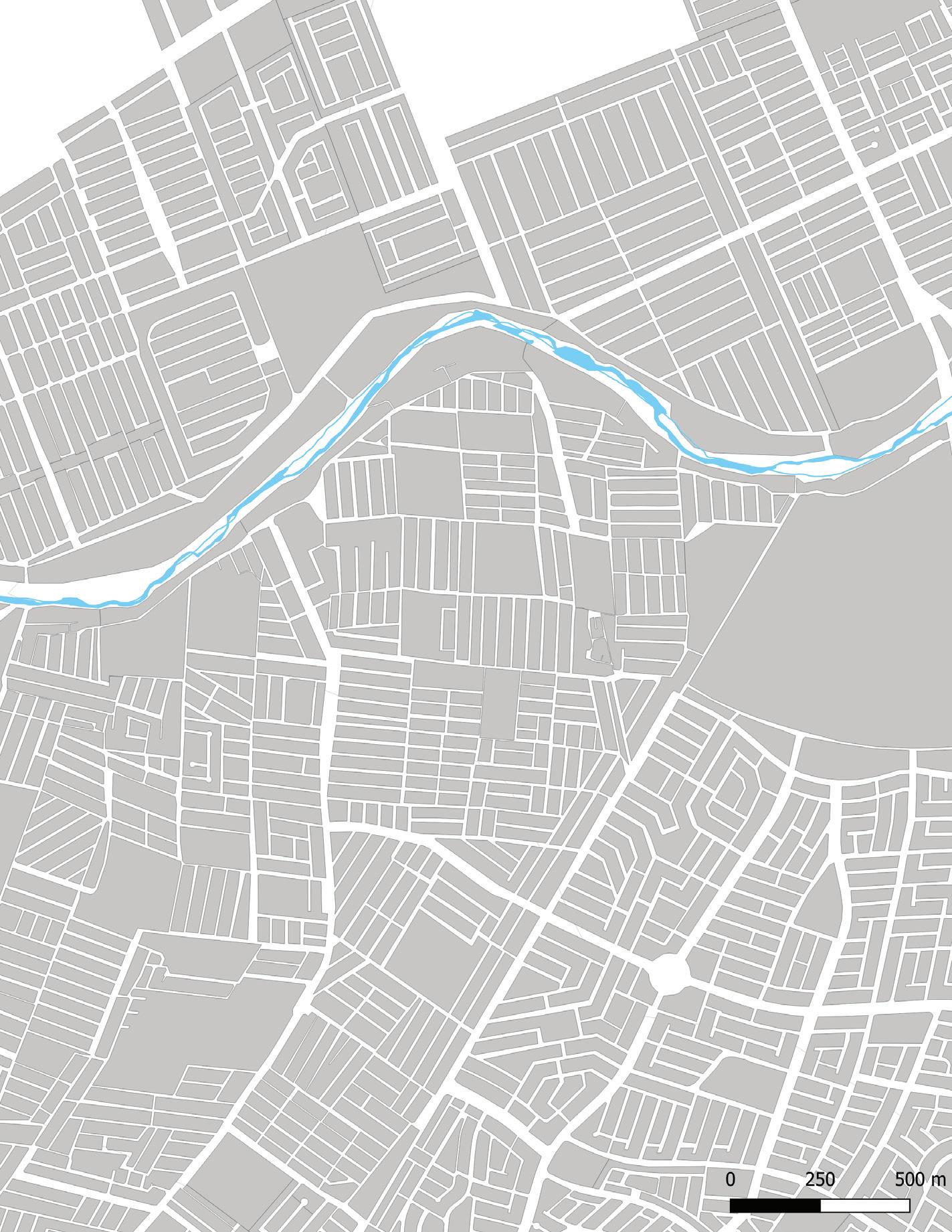

Los Laredos is a single city that over time was divided by the border between the United States and Mexico.

The 80% of comercial trade between Mexico and US circulates trough this border point.

There is 2 veicular and 1 railway bridges, the arrival of the railway to the cities represent a rapid growth creating gaps and segregation in the mobility of each city.

Laredo became the first official port of entry on the border in 1851 and today is the #1 inland port with 231 billion in trade in 2019 with a 135% increase over the previous decade.

Collaborators:Daniela Barreto Batlle

Mexico National Railroad

Laredo/Nuevo Laredo border

The 47% of international trades from US to Mexico cosses through the Laredo port of entry.

The 39% of international trades in Mexico to the world cross by Nuevo Laredo.

International Railway Bridge

LAREDO

RIO GRANDE

NUEVO LAREDO

1° Mayo Park

Museum Gabriel Garcia Marquez

Rio Grande

Laredo

Nuevo Laredo

800km 0400

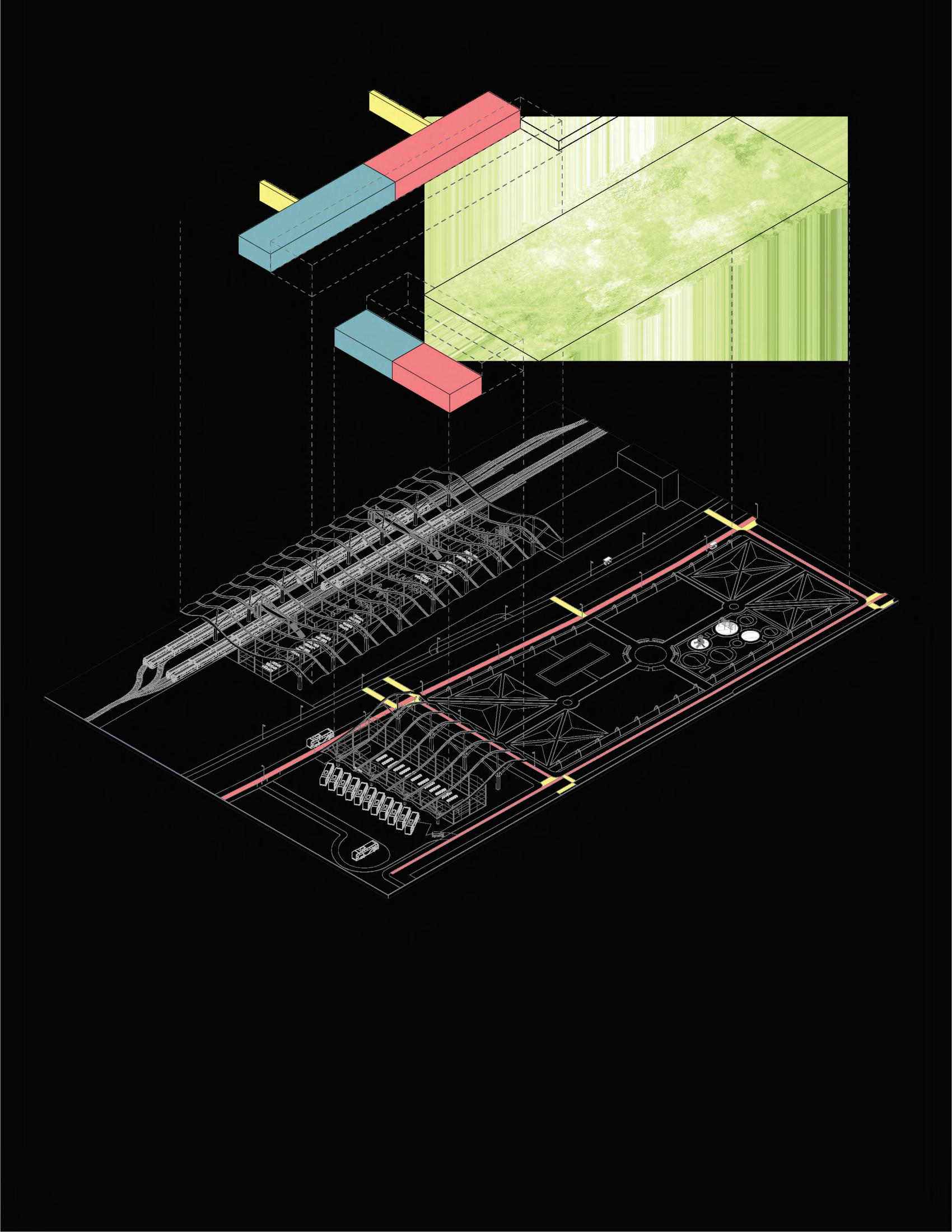

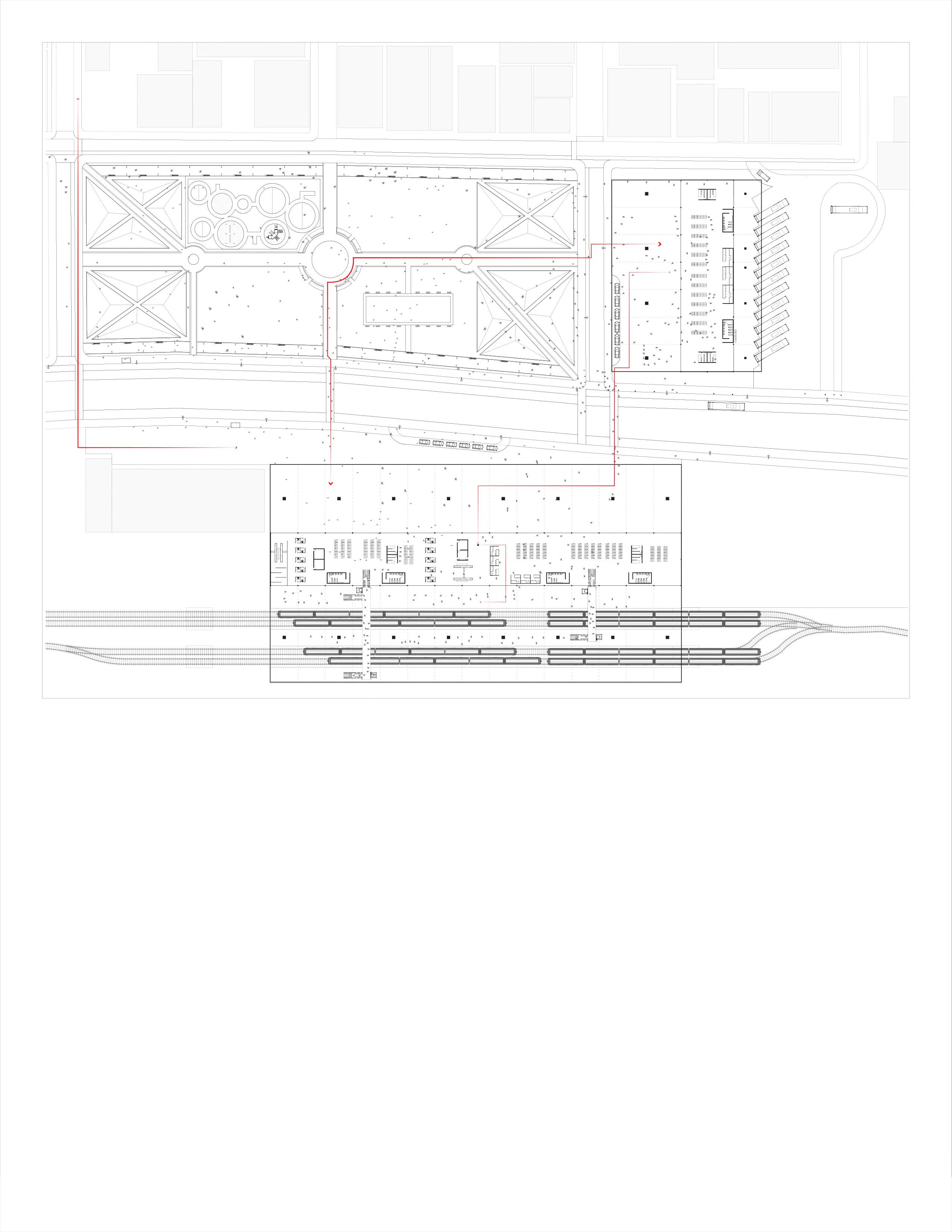

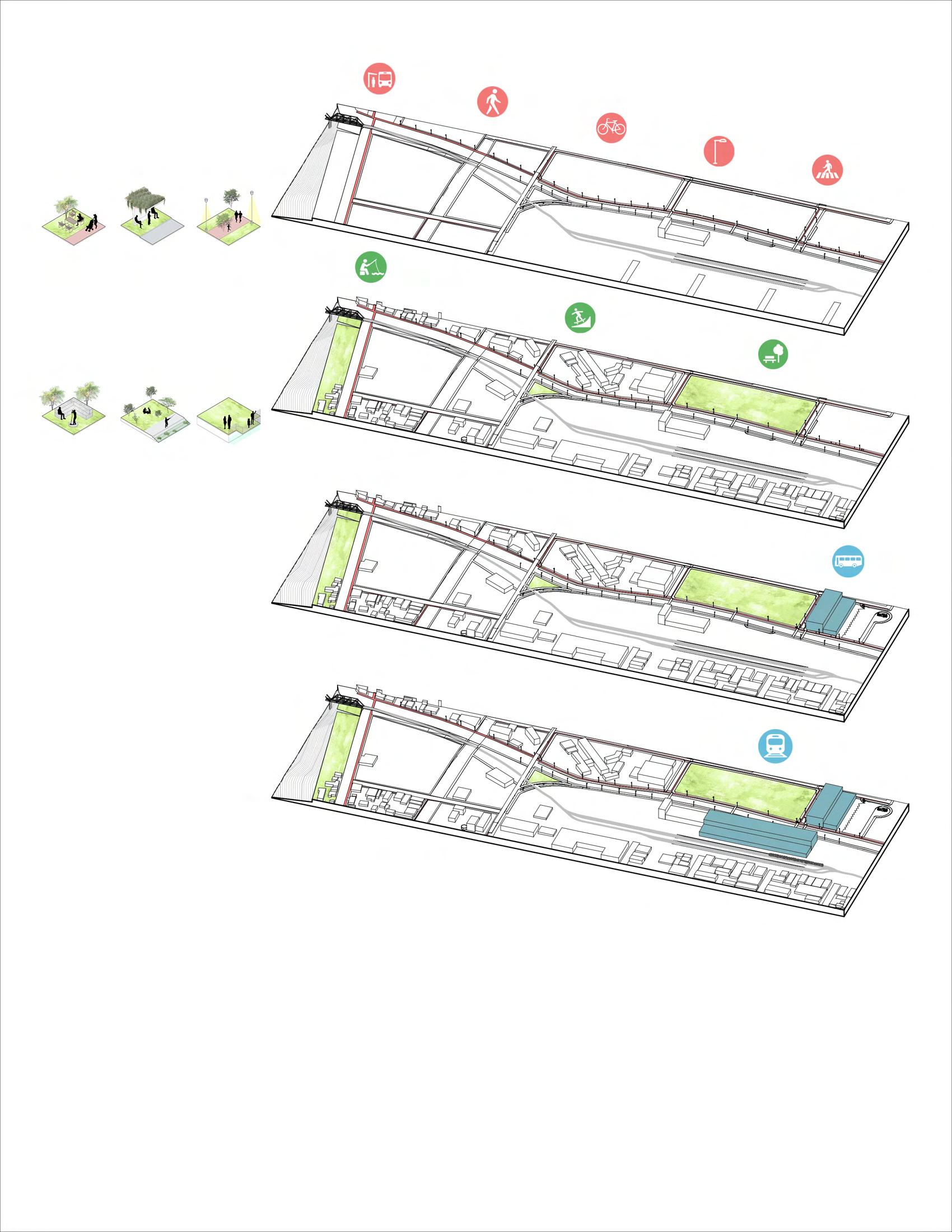

STAGE 1

Reconfiguration of streets, urban furniture, adequate lighting, signaling of intersections, universal accessibility.

STAGE 2

Conditioning of public space, use of area near bridges, reactivation of the Rio Grande areas with urban program.

STAGE 3

Change and centralization of public transportation of city buses to the new CETRAM Nuevo Laredo terminal.

STAGE 4

Incorporation of the railway to the mobility system, direct connection with the Word Gabriel Garcia Marquez station

STAGE 1

STAGE 2

STAGE 3

STAGE 4

GABRIEL GARCIA MARQUEZ

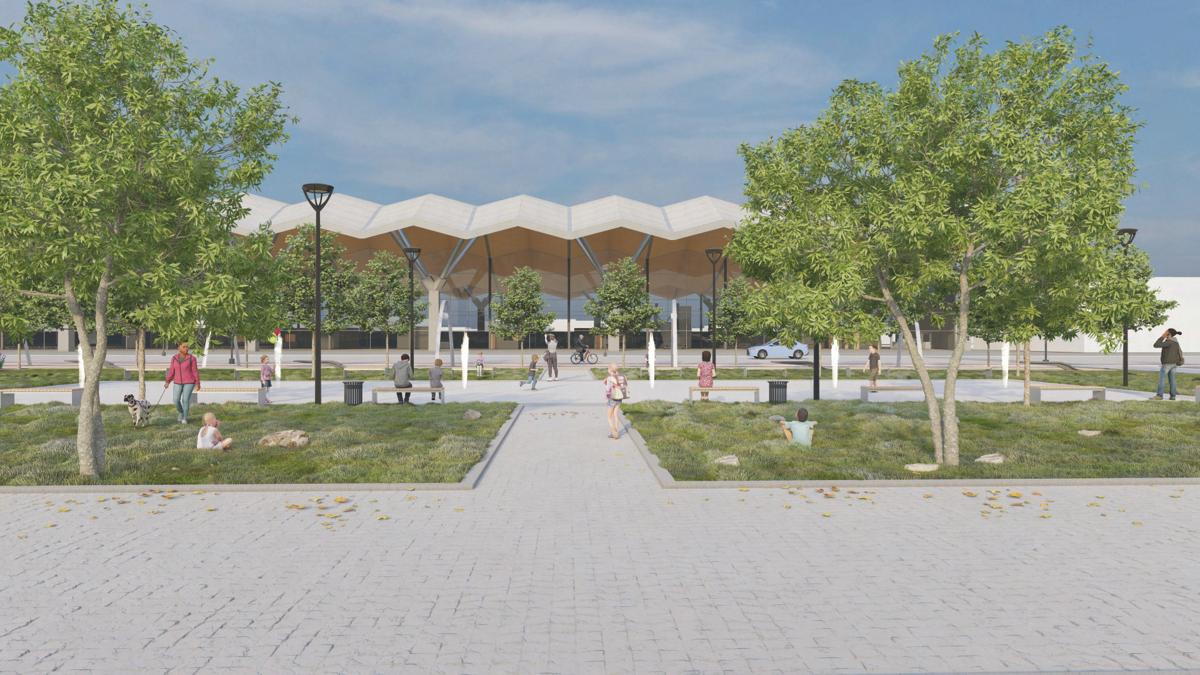

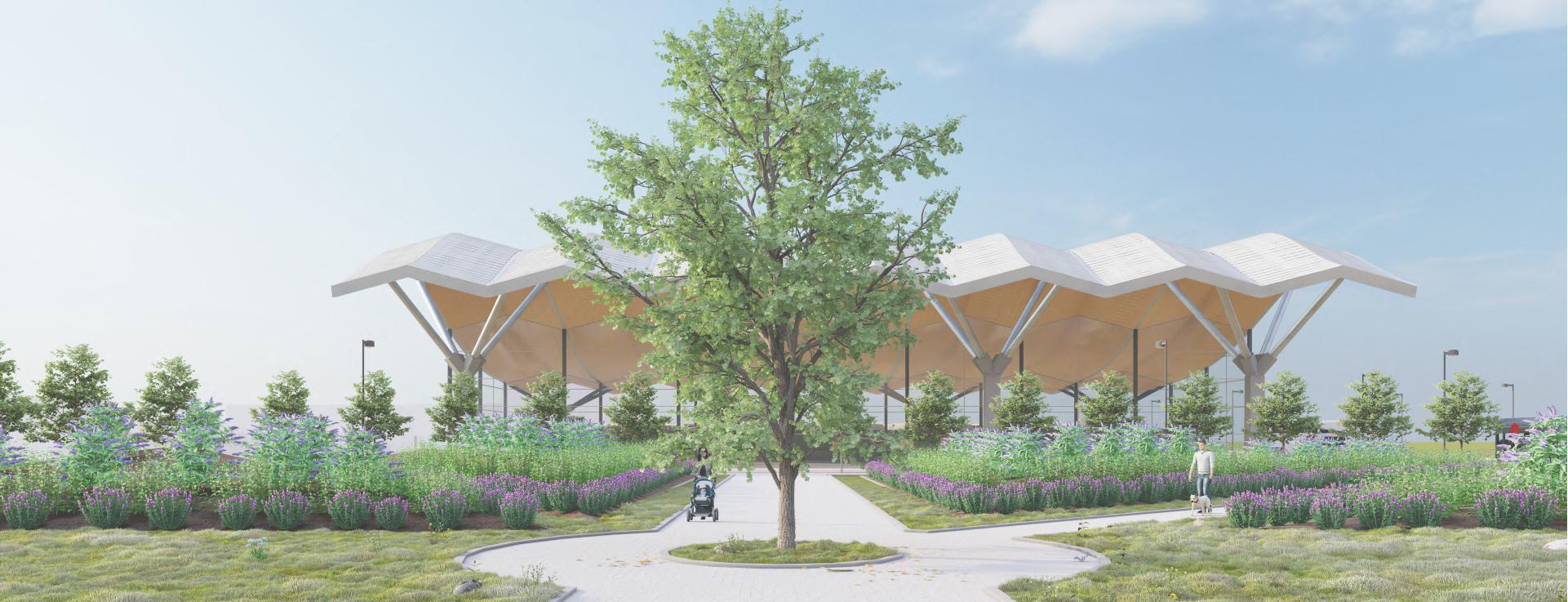

I. TRAIN STATION VIEW

II. BUS STATION VIEW

Collaborators: Sofia Garza, Sara Nahle, Jose Pablo Macias, Alejandro Loya

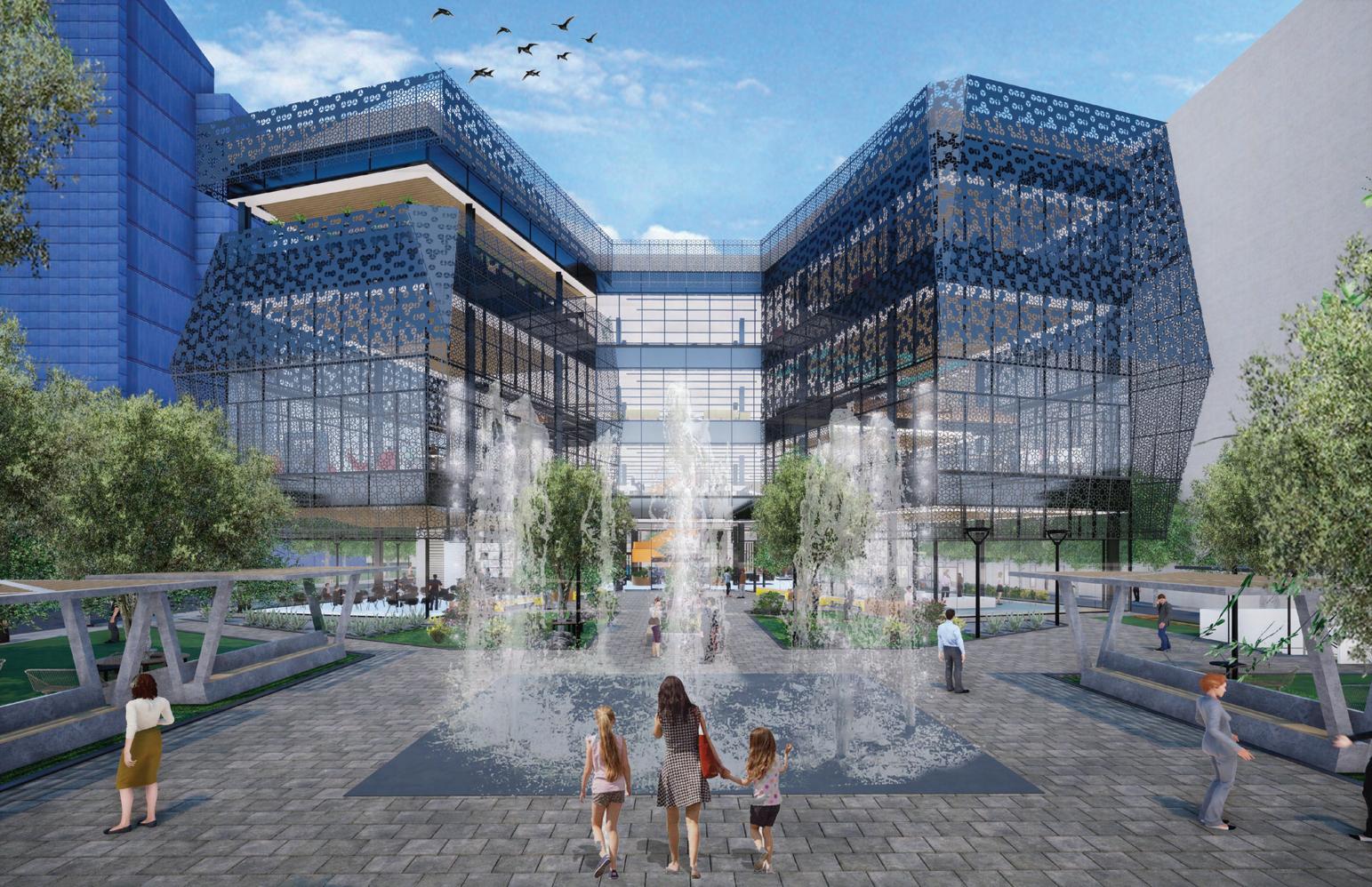

INNOVA HUB

The main concept of the HUB is the integration of academic spaces that had the function to be multidisciplinary and the promotion of the exchange of knowledge, with the idea of the new necessities of the 21 century student. The spaces in Innova-Hub is against the old concept of separating the students but instead a place with all students, workers, investors and teacher can reunite to promote entrepreneurship.

SITE UNIVERSITY CAMPUS

Since 2014 the Tec District has been building high-tech buildings for education. In the center of the new district the HUB will be built.

ACTUAL CAMPUS

INTERVENTION

In Tecnologico de Monterrey university have 60,000 students, making one of the

The metropolitan area is the third largest economy in the country, constributing 7.6 GDP. Over 11% of the foreign investment in the country is in this area.

This side of the campus is going to be renovated for the academic needs of tec 21

Due to the historical importance of some buildings, this side of the campus will be preserved.

The actual campus with 1/4 of the site in parking lots, a cafeteria and the mayority of student dorms. The only building that is going to be preserve is CETES

In the intervention is going to be biotechnology faculty, students dorms, engineering center, a parking building and local business.

2024

In the center of the new campus is the Innova-Hub with the idea of with the idea of uniting all the academic areas of the university for entrepreneurship.

Nuveo León State

Monterrey

In the new academic district, the intention is to create a focal point for the hub, where students meet.

The new HUB also be extended to the other school deparments so that eveyone has them close.

Not only interior spaces are a priority fir the HUB, it seeks to attract entrepreneurs outside in the green areas.

The New Distric of TEC Historic District of Tec

building Doorms

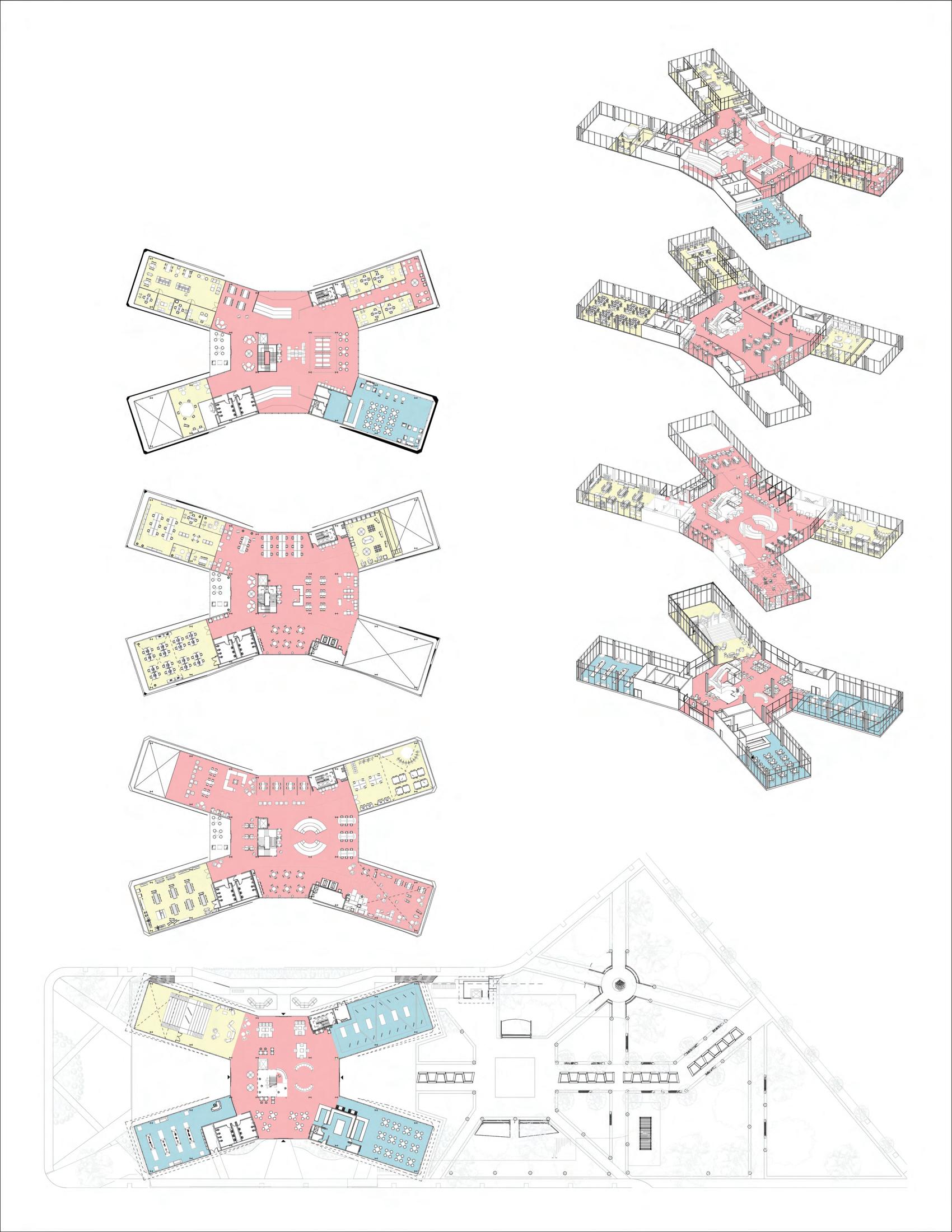

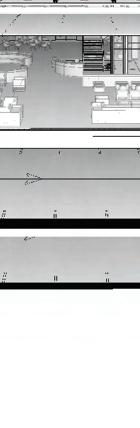

FLOOR PLANS

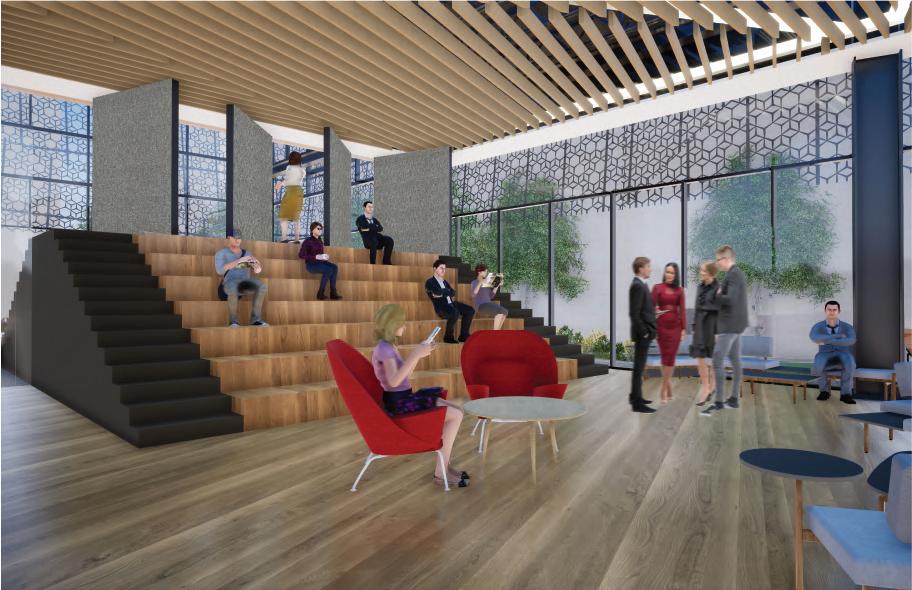

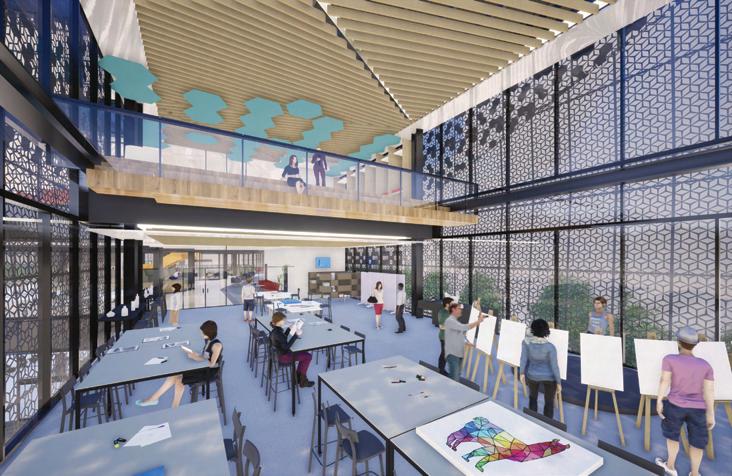

The floors of the HUB have diverse spaces: office workshops, exhibition space and an amphitheater. All this to promote entrepreneurship on the new university campus.

The first floor shows the accessibility connection in all four directions, as well as a large outdoor public space.

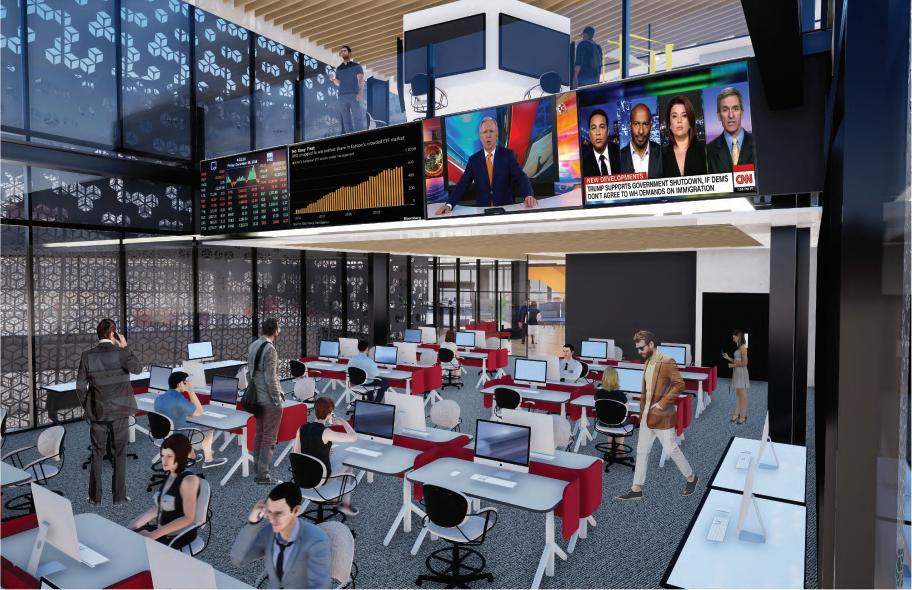

WORKSHOP EDUCATION SPACE AMENITIES

FOURTH

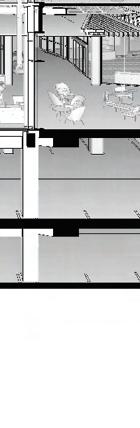

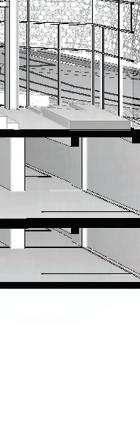

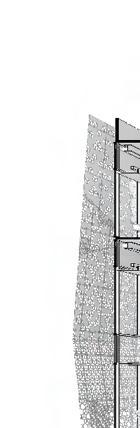

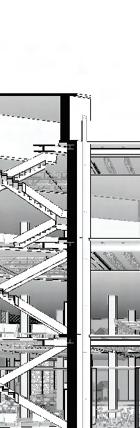

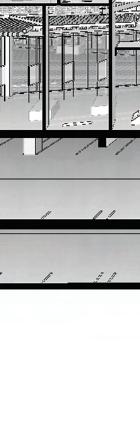

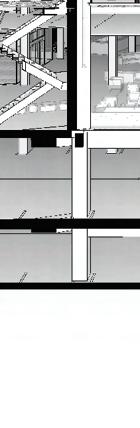

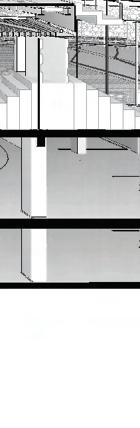

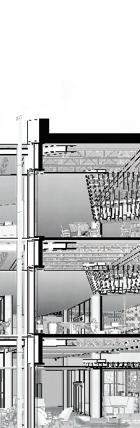

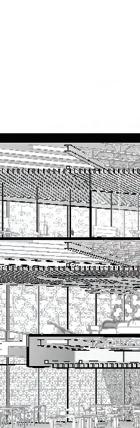

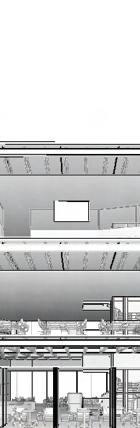

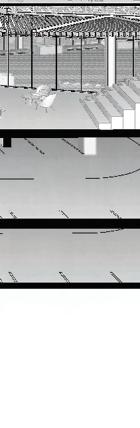

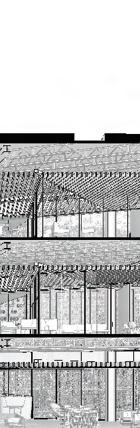

A-SECTION

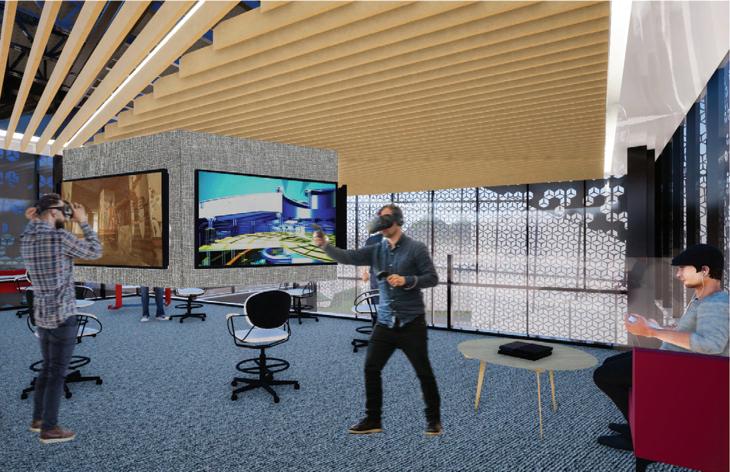

3. VR TEST

4. STOCK ROOM

1. ART SPACE

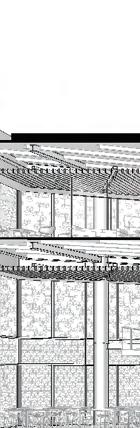

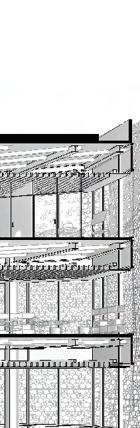

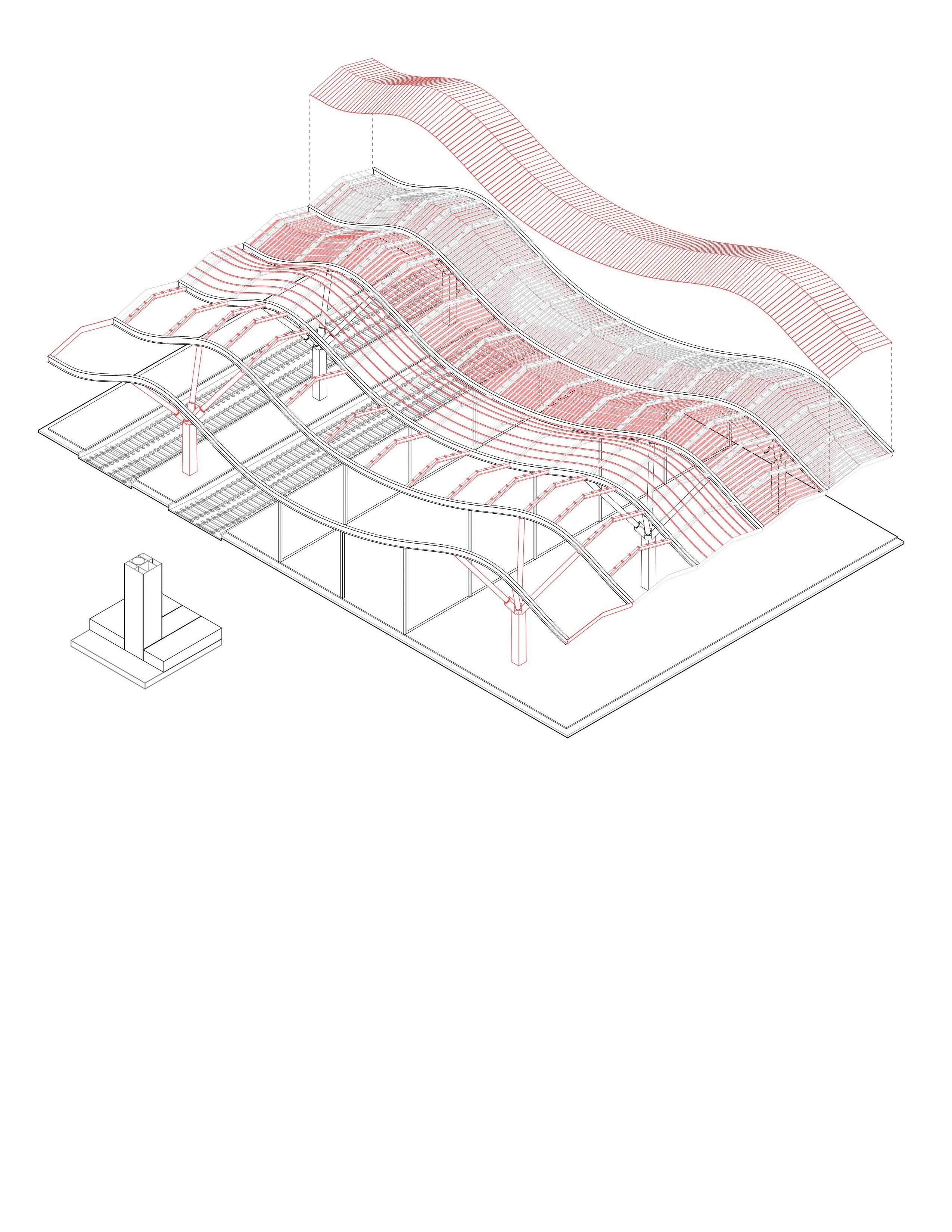

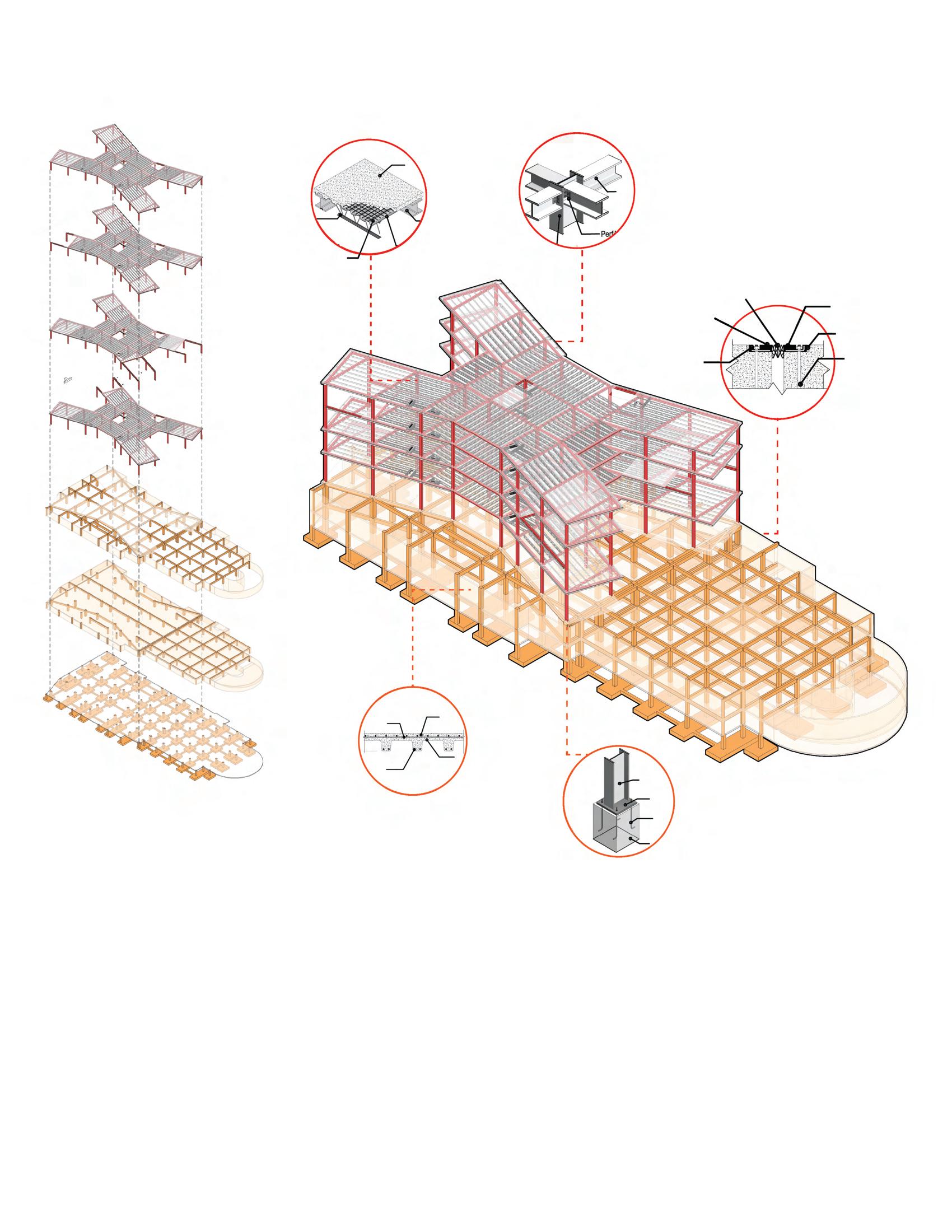

STRUCTURAL ISOMETRY

JOIST 20LH10 @1.20m

REINFORCED SLAB

CONCRTE F’C 250

IPR W12X136

GALVADECK CAL 20

ELECTROWELDED WIRE MESH 10X10 cm

BEAM AND COLUMN JOINT

IPR BEAM W12x136

WELDED STEEL PLATE STEEL BOLTS 5/8

IPR COLUMN W21x122

JOINT OPENING 51mm ELASTOMERIC SEAL

STEEL REINCFORMENT

CONCRETE (UNDERGROUND PARKING) STEEL (BUILDING)

ELECTROWELDED WIRE MESH 10x10cm LIGHTENED SLAB

COFER 60x60cm

CONCRETE F’C 250

COFER 60x60cm

IPR STEEL COLUMN W21x122

STEEL BAR ANCHOR

CONCRETE COLUMN

CONCRETE-STEEL COLUMN JOINT

CONSTRUCTION

SCAN FOR MODEL

HIDRAULIC

ALL INSTALATIONS

00.51m

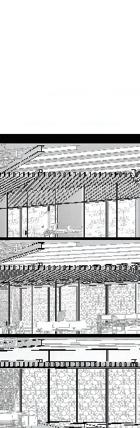

Use of materials from the region or culturally accepted: wood, stone, blocks (with the desire to use more sustainable construction techniques in the future)

4”x4”Wood beams

2”x2”Wood beams

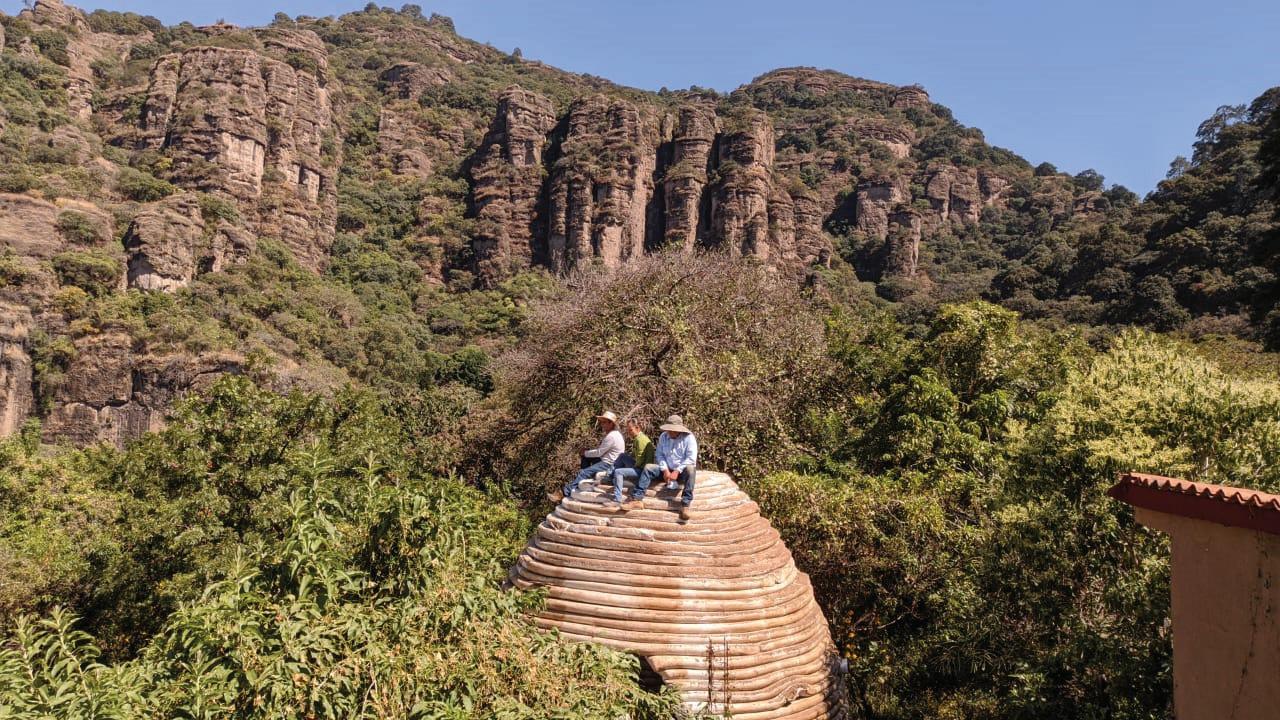

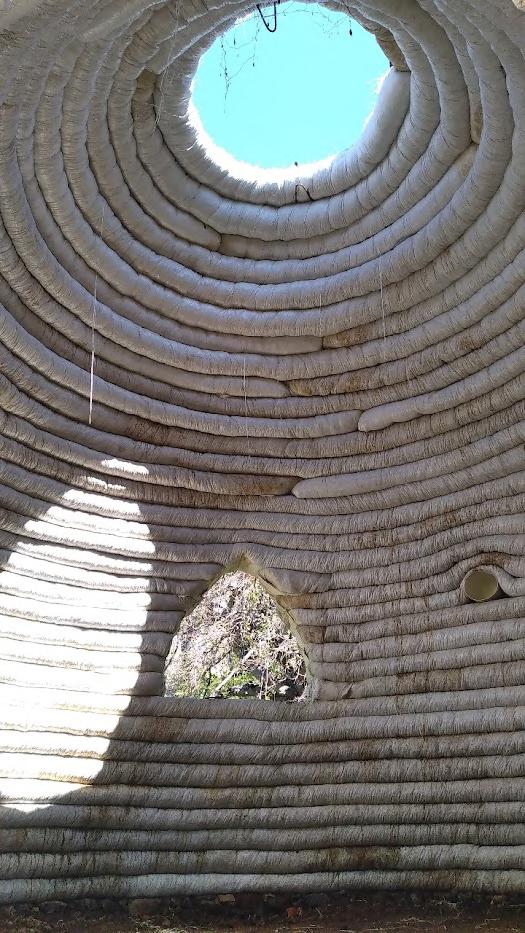

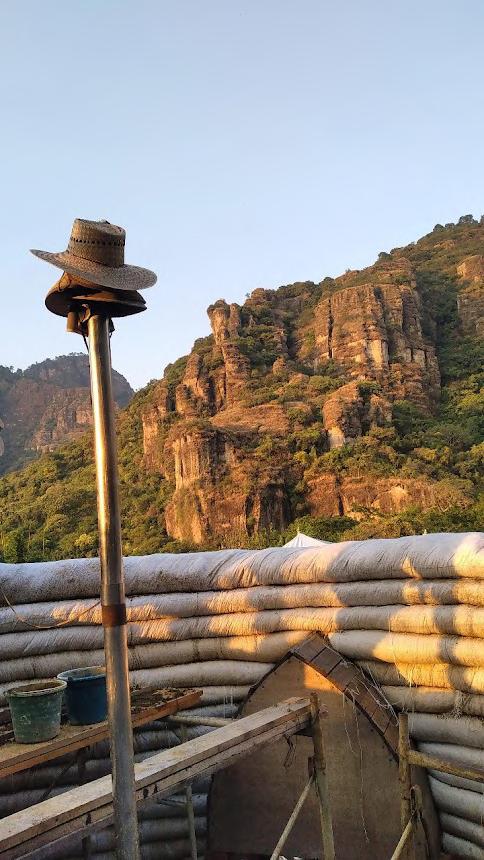

EARTHBAG DOMES

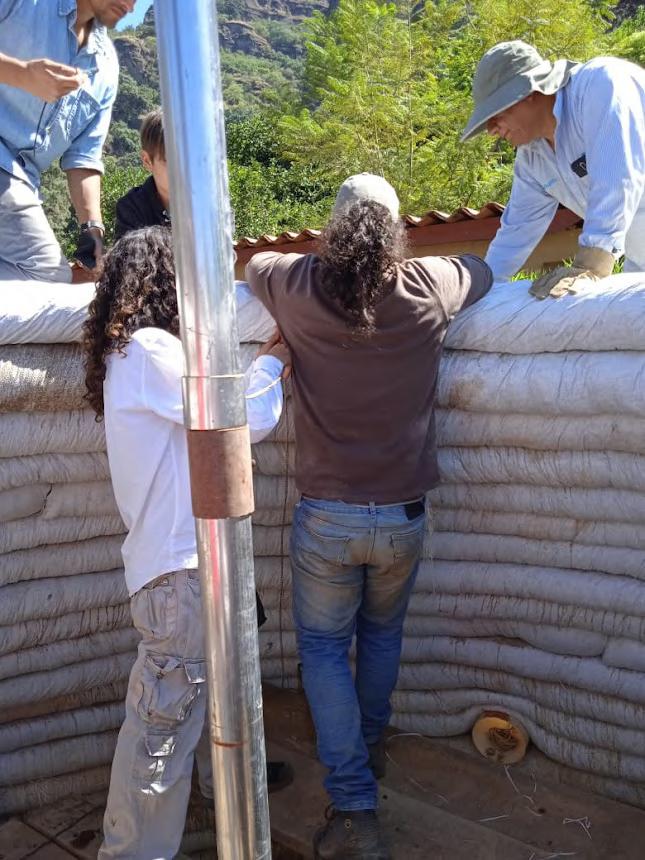

Earthbag domes are a method of construction with natural materials, the methodology of domes that were built in Amatlan are with the theory of Nader Khalili, following the guide of Cal-Earth, with the construction regulations approved by the state of California in the United States, the strictest in the world due to the San Andreas fault. With this method low-cost houses are built, with great structural capacity against earthquakes and an incredible thermal capacity against any climate.

FLOOR PLAN

Door frame

Steel pipe

frames

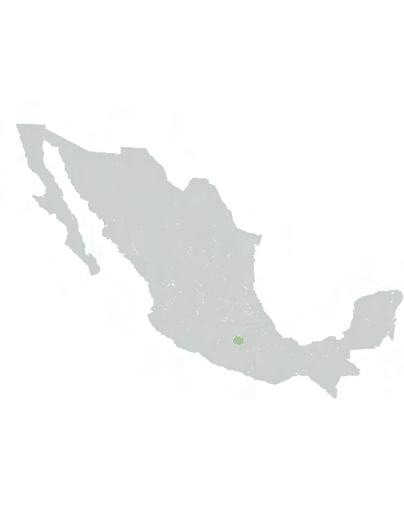

Morelos state

The city of Amatlan is located in the center of Mexico, a highly seismic zone. 00.51m

Like an arch, a dome is only as strong as its buttressing. A dome, however, is self-supporting and does not need any structural formwork other than the arched window and door openings. Geometric accuracy is essential in earthbag domes

GEOMETRY SOLUTION

MATERIALS

Rubble trench foundation

Earthbag wall

dormer

Concrete slab

Compacted earth

“Doing more with less” R.B Fuller
