Recent events about the future of oxford street by the Mayor of London Masters Thesis Project // Alternative Technologies // 65,000 sqm
We aimed to design the new John Lewis building into a place for the “100 People of Westminster”demographic study of sample set of 100 people.
Hybrid. Resiliant.
JOHN LEWIS
Future of Oxford Street imagined as fully pedestrainsed with the new John Lewis Departmental Store on the right. (Revit, Rhino+Grasshopper, Vray, Adobe Suite)
Buffet
Cavendish
Oxford Street (Ground) Level Plan. (Revit, AutoCAD, Illustrator)
1:Intensive green roof soil 200mm | 2:Textile Drain for bed soil | 3:Root protection layer | 4:Waterproofing membrane | 5: C-channel to fix rooftop railing to deck slab | 6: 150mm thk Concrete deck slab | 7: Box channel profile to support railing | 8: Concrete deck slab end capping | 9: 15mm thk Plaster board to fixate insulation | 10: Internal insulation | 11: Castellated I-Beam girder to support roof canopy entension | 12: Secondary I-Beam to support canopy | 12:50mm x 75mm Acoustic wooden ceiling panels | 13: 50mm x 75mm Acoustic wooden ceiling panels | 14: 12mm thk Timberboard finishing | 15: Double Glazed Glass Curtain Wall | 16: Elevation Component ending at canopy | 17:Gap for housing HVAC and lighting fixtures | 18: Cable Suspendors | 19:Composite Wooden ceiling frame | 20: Elevation component attached to steel grid frame | 21:100mm x 50mm Box steel grid frame | 22:250mm x 100mm C-channel frame to support box steel grid frame | 23:External Insulation | 24:Raised access flooring system to house services | 25:Anchor bolts to support grond floor canopy | 26: Insulation covering | 27: 1.2m wide canopy.
CULTURE MILE URBAN PARK
140 London Wall popularly known as Museum of London has been a controversial site in the recent years. With the planning permission to be demolished, the decision was criticised by the public and now the council looks for newer solutions for the site without demolishing the museum. This project celebrates the forgotten heritage of the Roman Fort Wall whose ruins still exist adjacent to the museum. Culture Mile Urban Park is an attempt to culturally expose the north part of the City of London. Urban Park take you on a journey from podium to the rooftop.
Initial Conceptual Sketch (Hand Sketching)
City Walkway Level Plan - Museum Entrance (Blue - exsiting; Orange - additions) (Rhino+Grasshopper, Revit)
Proposed Museum of London retained on Site - Internal View (Revit, Rhino, Vray, Adobe Suite)
Proposed Museum of London retained on Site - External View (Revit, Rhino, Vray, Adobe Suite)
Recycled Aluminium Sub frame
Glulam Main Frame with steel bracketts Existing Waffle Slab
Detail
ROTHSCHILD COMPLEX
Llabres Tabony Architects // Mixed-use Skyscrapers // 540 residential units
Role: Architectural Assistant (RIBA stages 1-3)
Site Boundary
Existing Green space
Commerical space
Existing Parking space
Existing Car route
Potential Pedestrian Connection
Proposed Pedestrian Connection
Potential Green space
Proposed Green space
Proposed Site Plan
Option 1: Three towers 30 storeys each
Option 2: Three towers 60/45/30 storeys each
Option 3: Two towers 60/45 storeys each

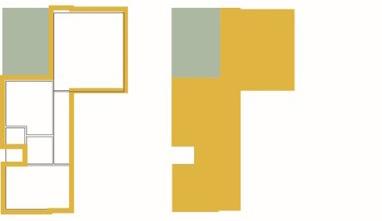

Overall massing diagram
Residential Unit Type A
Residential Unit Type B
Residential Unit Type C
ORCHARD RESIDENCE
Traction Studio // Private Residential Villa Architecture // Landscape // Interior Design // Drawing Packages Sampling and Construction
SECTION 7-7'
ENTRANCE GATE (PEDESTRIAN) WITH LOCK
10MM THK, 3MM DEEP GROOVES IN
LEGEND
JASHN VILLAS
reD Architects // Sustainable Self Sufficient Villas
Role: Junior Architect (RIBA stage 0 to 3)
Concept Collage (SketchUp, Vray, AutoCAD)

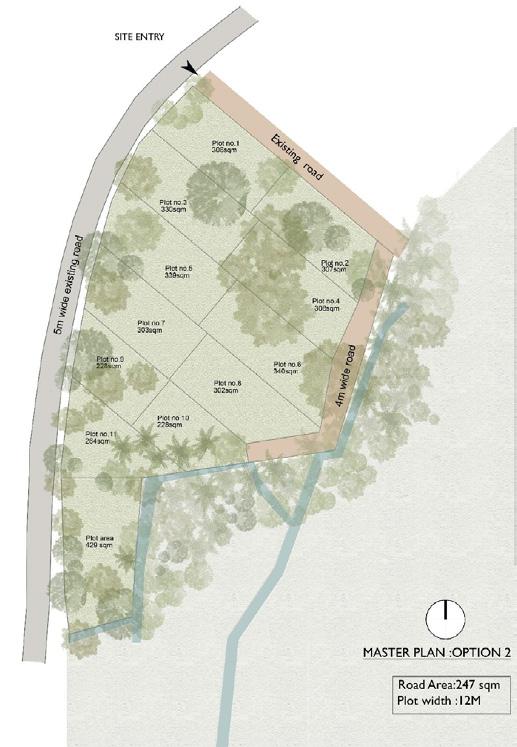

Overall masterplan for the villas

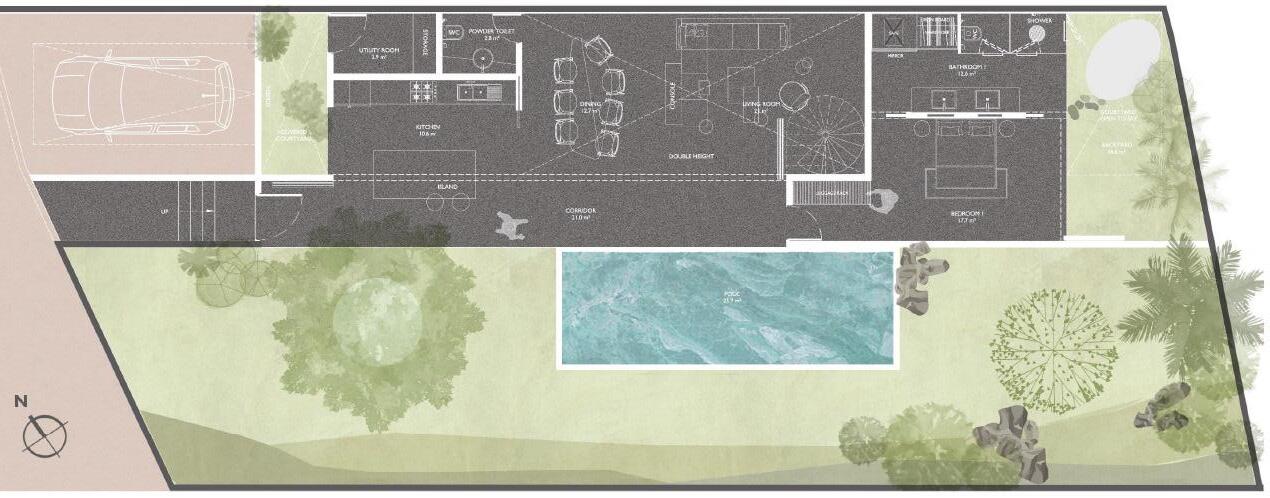

Ground Floor Plan
from the Front Yard of the brief was to create a recreational element - Plunge pool pairs perfectly with the warm and humid climate of Goa
Living and Dining Room
Master Bedroom
Archisource - Drawing of the Year
Visaulization Category // Special Mention
DESIGN AND MAKE
reD Architects // Furniture Design // CNC Fabrication // Assembly
