ERC HOUSING (Staff quarter) by pallavi shrestha

•

PROFESSORS, TEACHERS AND STAFFS ABOVE 50

10AM TO 5PM WORKING SCHEDULE, MORNING WITH JOGGING AND EXERCISES

SOME OF THEM POUR INTEREST ON READING BOOKS.

WIFES MOSTLY HOME MAKERS

AGE 21-35 SPORTS, READING ,EXCERSING

SUBMITTED TO :

DATE

OF ENGINEERING DEPARTMENT OFARCHITECTURE DHARAN, SUNSARI

TRIBHUVAN INSTITUTE

SANJAYA MAHARJAN AR. KUBER SHRESTHA

AR.

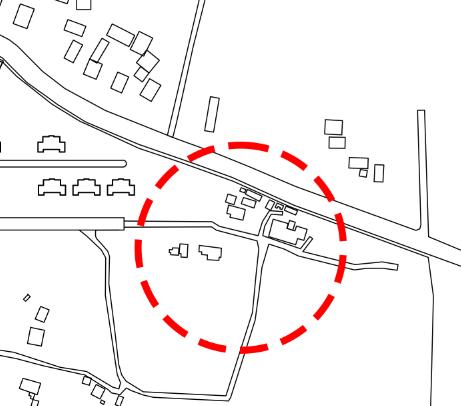

11-20 SCALE : SITE OVERVIEW

LOCATION : DHARAN

OWNERSHIP:

AREA

BACKGROUND PURWANCHAL TRADE STUDENTS WERE NUMBER RATIO THERE IN THE PROXIMITY MAP SECTION ATAA’ TOTAL NUMBER OF TEACHERS 99 TOTAL NUMBER OF STAFF 63 SUB TOTAL 162 TOTAL NO OF QUARTER 69 LACK NUMBER OF QUARTER 93 USER

ORIENTATION :

ANALYSIS

INVENTORY (HOUSING TYPOLOGY )

3BHK DETACHED

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

3BHK ATTACHED

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

2BHK ATTACHED

ROW HOUSING

SWISS QUARTER

SUBMITTED TO :

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

DATE : 11-20

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

SCALE

UNPLANNED STAFF QUARTER

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

PLANNED STAFF QUARTER

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

PROBLEMS FACED BY THE RESIDENTS :

▪ SNAKES

▪ WASTE MANAGEMENT PROBLEM INADEQUATE DRINKING WATER DURING DRYAND WINTER SEASONS.

▪ SEEPAGE OF WALLS AND ROOF

▪ INSUFFICIENT NUMBER OF ROOMS.

▪ SOUTH FACED UNIT , ARTIFICIAL COOLING IS REQUIRED LIKE FAN AND COOLER.

• SEPTIC TANK : EACH FOR EVERY UNIT.

• WASTE MANAGEMENT :DEGRADABLE WASTES ARE BURIED AND NON DEGRADABLE ARE BURNED.

• DRINKING WATER : FROM ADP, EVERYALTERNATE DAYS, DIRECT WATER TANK - 150L, OUTSIDE WATER TANK - 300L.

• ELECTRICITY : NEA.

• TYPE OF STRUCTURE : LOAD BEARING WALLS

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

KUBER SHRESTHA

DATE : 11-20

AR.

SANJAYA MAHARJAN

SCALE

Types of housing Plot size per unit Built up per unit Built up area per person Total plot (sq.m) Total Built upArea Ratio of built up & plot area Seniority of staffs 3BHK detached 360 65 19.11 1440 260 5.53 Associate professor 3BHK attached 340 65 19.11 3400 650 5.23 Associate professor, deputy instructor, assistant professor 2BHK attached 345 65 19.11 1380 260 5.30 Assistant professor 2BHK attached (row) 290 65 19.11 1160 260 4.461 Assistant professor Swiss quarter 85 65 19.11 680 520 1.30 Assistant professor Row Housing 90 61 19.11 720 488 1.475 Assistant professor TEACHING STAFF QUARTER NON- TEACHING STAFF QUARTER TEACHING STAFF QUARTER SERVICES Types of housing Total plot area(sq.m) Total built up area(sq.m) Ratio of built area by plot area Seniority of staffs UnitA 1377.84 399.24 3.45 Maintenance staff Unit B 1042 199.99 5.21 Cleaners, Maintenance staff Unit C 1357.70 450.98 3.01 Assistant professor Unit D 723.97 221.27 3.27 Permanent

Unit E 347.84 150.67 2.30 Unit F 469.19 195.4 2.40 Unit G 352.24 103.03 3.41 Unit H 318 136.89 2.32 Unit I 878 562.26 1.56 Office helper Unit J 518 117.46 4.41 Technical assistant Unit K 1000 342.18 2.92 Permanent

staff(driver), librarian

staff (driver)

1. SITE PLANNING PROBLEM

CUL-DE-SAC

2 STREET PROBLEM

UNMANAGED STREET LIGHT

3.. LACK OF DEDICATED SPACES

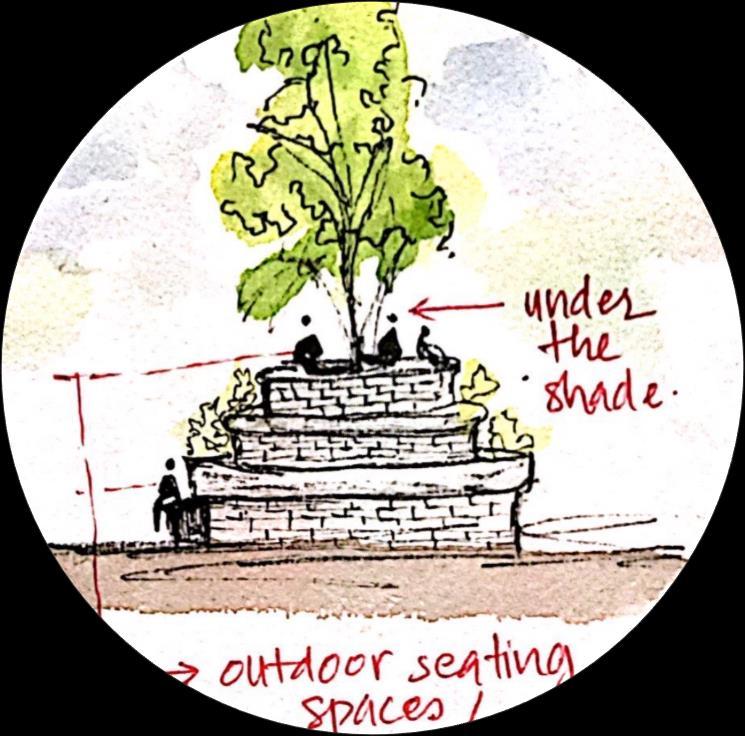

LACK OF OUTDOOR SEATING SPACES

4. . SERVICES

UNMANAGED SOLID WASTE MANAGEMENT

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

PROBLEM IDENTIFICATION

UNMANAGED PLANNING

USE OF MORE SPACES FOR ONE BUILDING UNUSED OPEN SPACES LACK OF SUFFICENT ROOM

BASE MAP

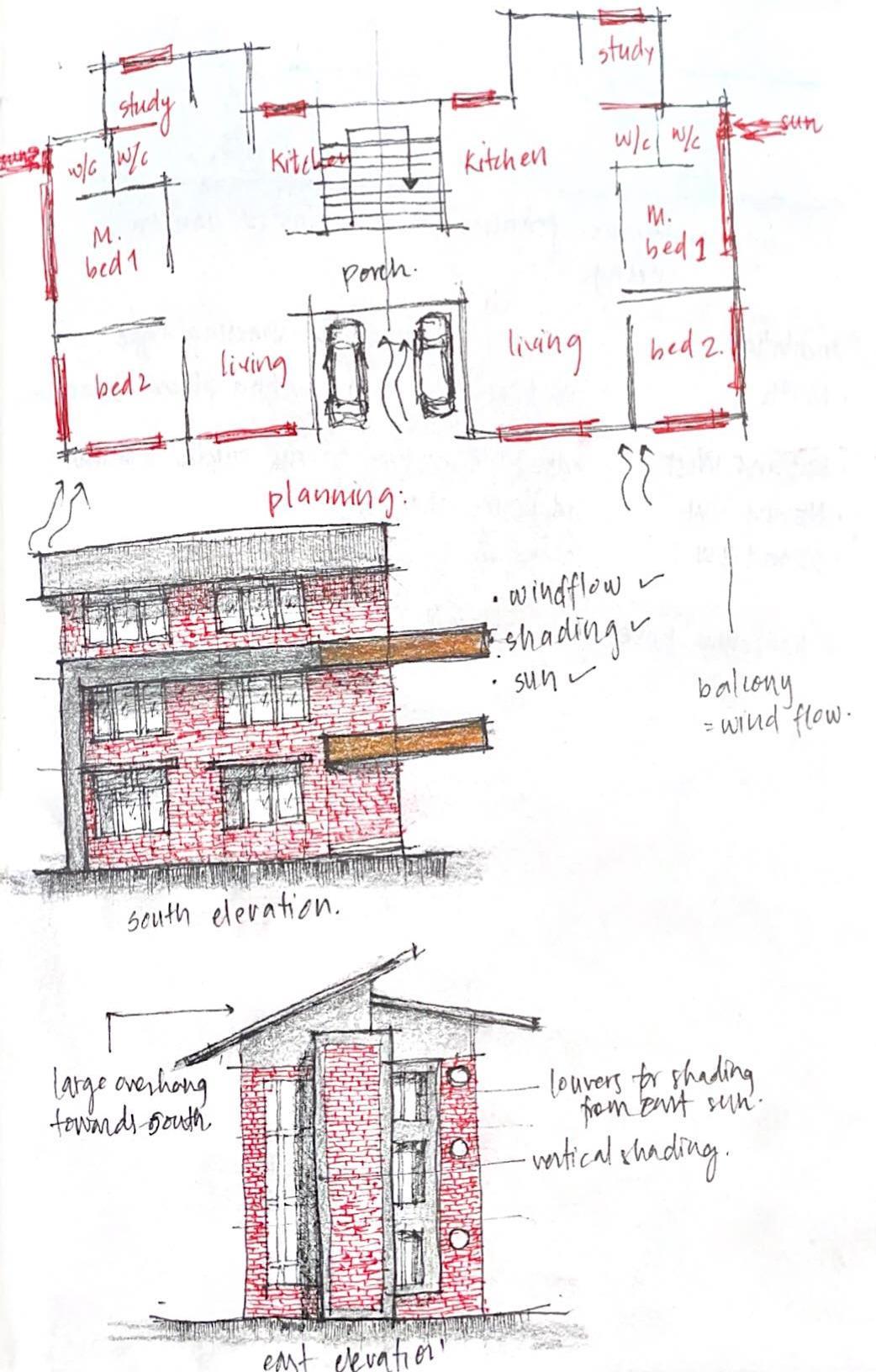

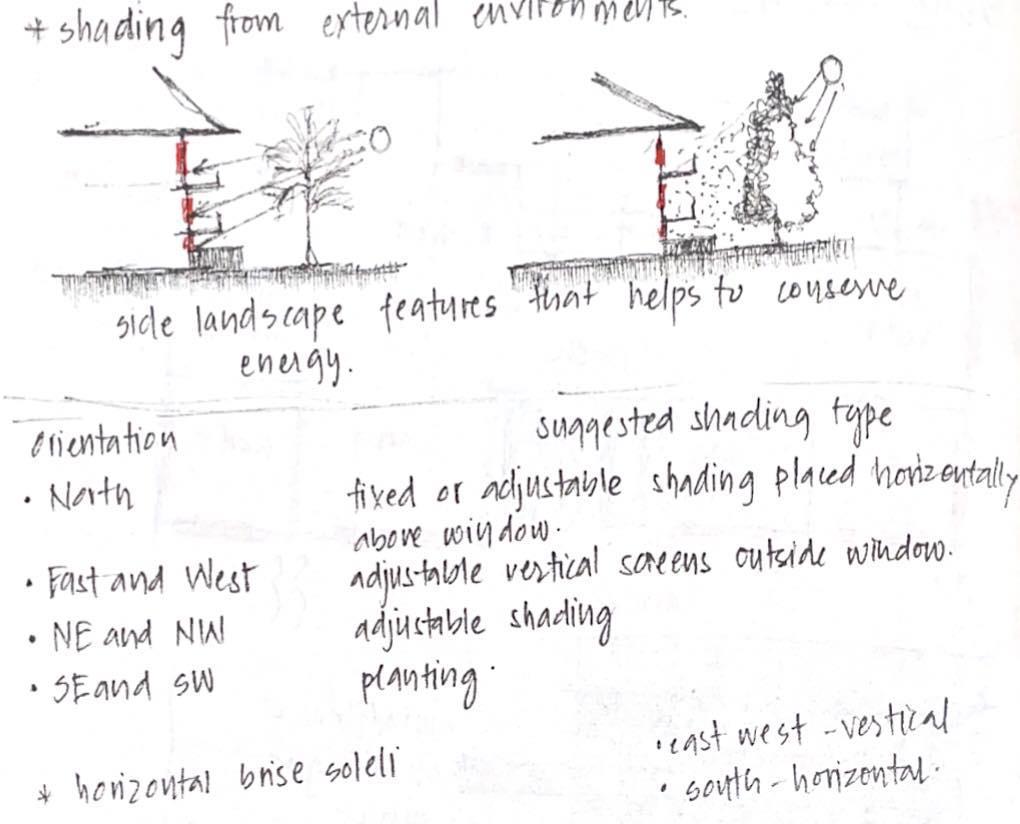

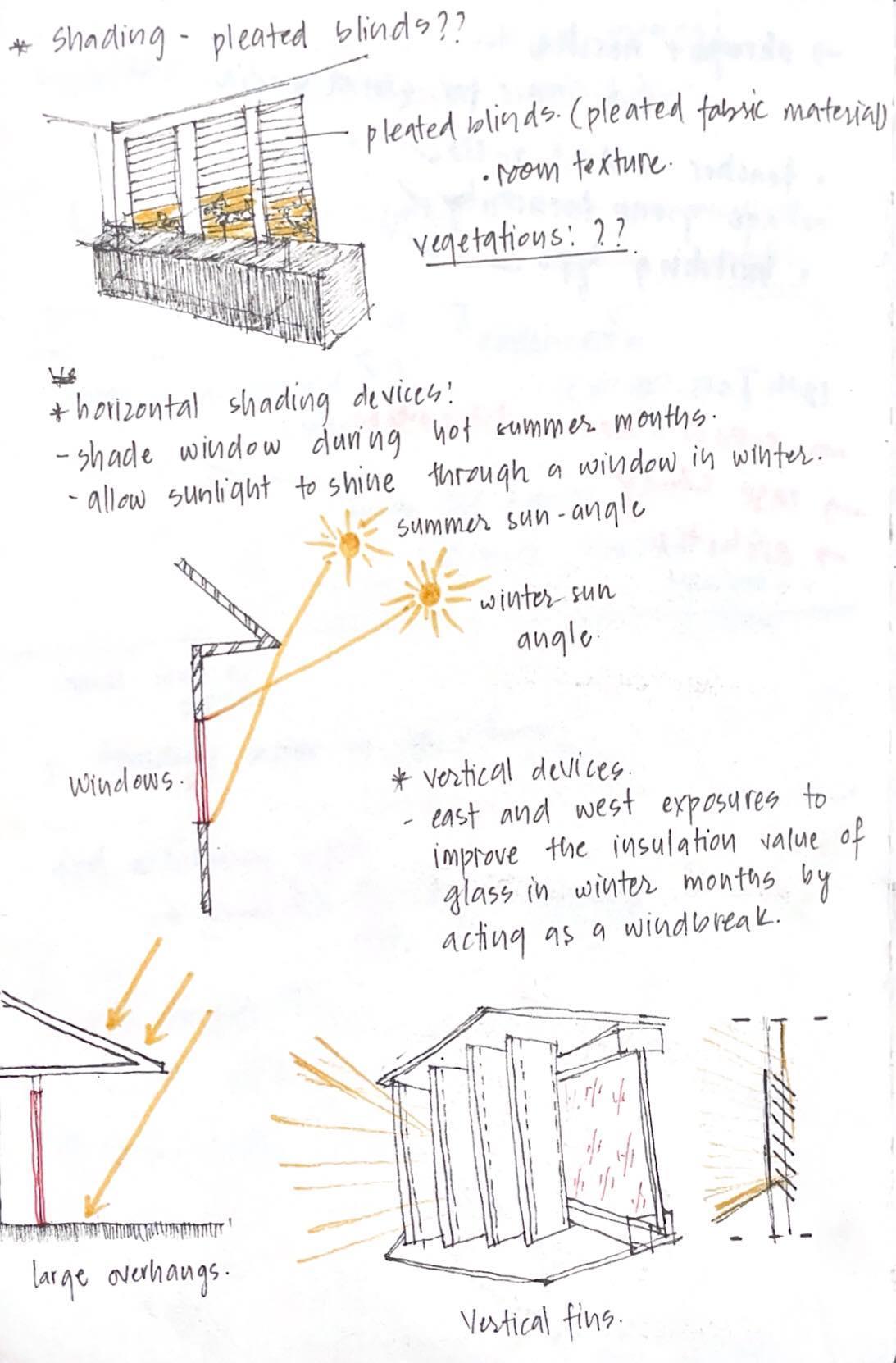

LACK OF SHADING DEVICES IN SOUTHERN FAÇADE

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

LACK OF COMMERCIAL SPACE

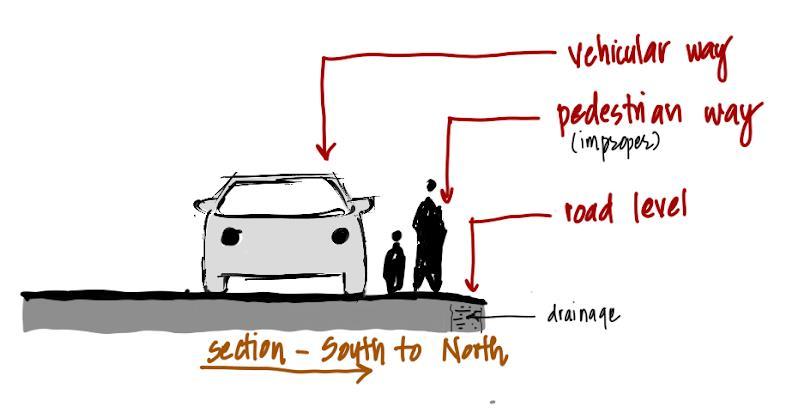

LACK OF SAFETYAND PROPER DRAINAGE LACK OF FOOTPATH

LACK OFACTIVE SPACE FOR DIFFERENTAGES

LACK OF GREEN SPACES

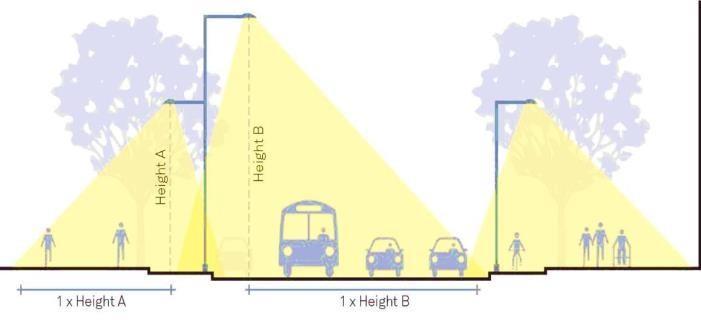

LACK OF STREET LIGHT

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

LACK OF DUSTBIN

DATE : 11-20

SCALE :

LITERATURE

1. TYPE OF HOUSING

SEMI-DETACHED HOUSING

CORRUGATED SHEET ( METAL)

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

LITERATUREAND CASE STUDY REFERNCES

IIT GANDHINAGAR, GUJARAT

DETACHED HOUSING

LOW RISE HOUSING

FRAME STRUCTURE ECONOMIC WALLING TECHNIQUES

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

• CREATING POCKET SPACES IN CERTAIN INTERVAL

• USE OF SOLAR PANEL FOT

THE LIGHT IN OPEN ARES

• USE OF DIFFERENT COLOR OF DUSTBIN AS PER WASTAGES

ARTIST VILLAGE, CBD BELAPUR

CCT CAMPUS

• GIVING ENOUGH SPACES FOR EACH PLOT FOR PROPER WIND FLOW AND ENOUGH OUTDOOR SPACES FOR EACH USERS

DHANKUTA MULTIPLE CAMPUS

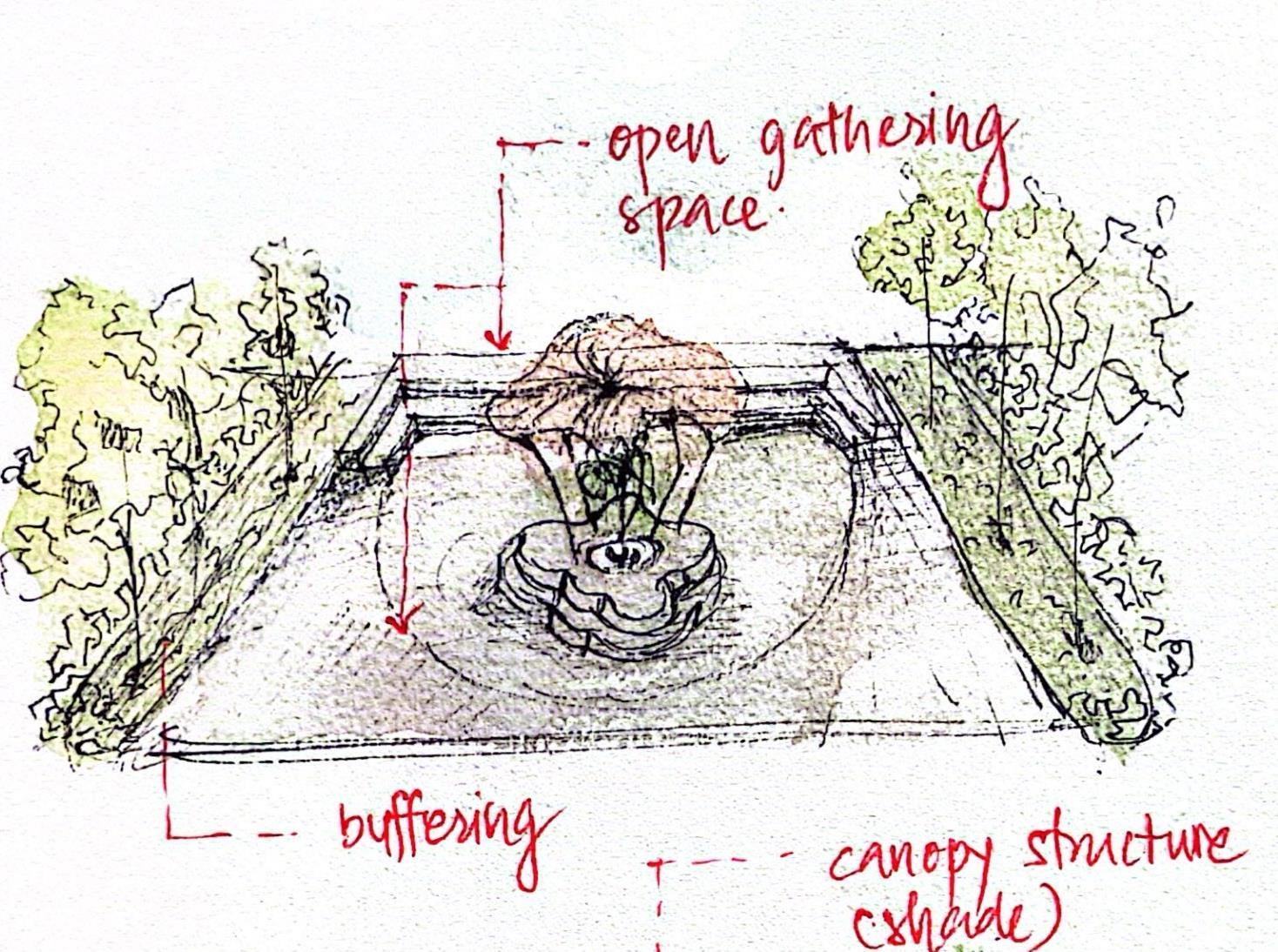

• CREATING CHAUTARI SPACES

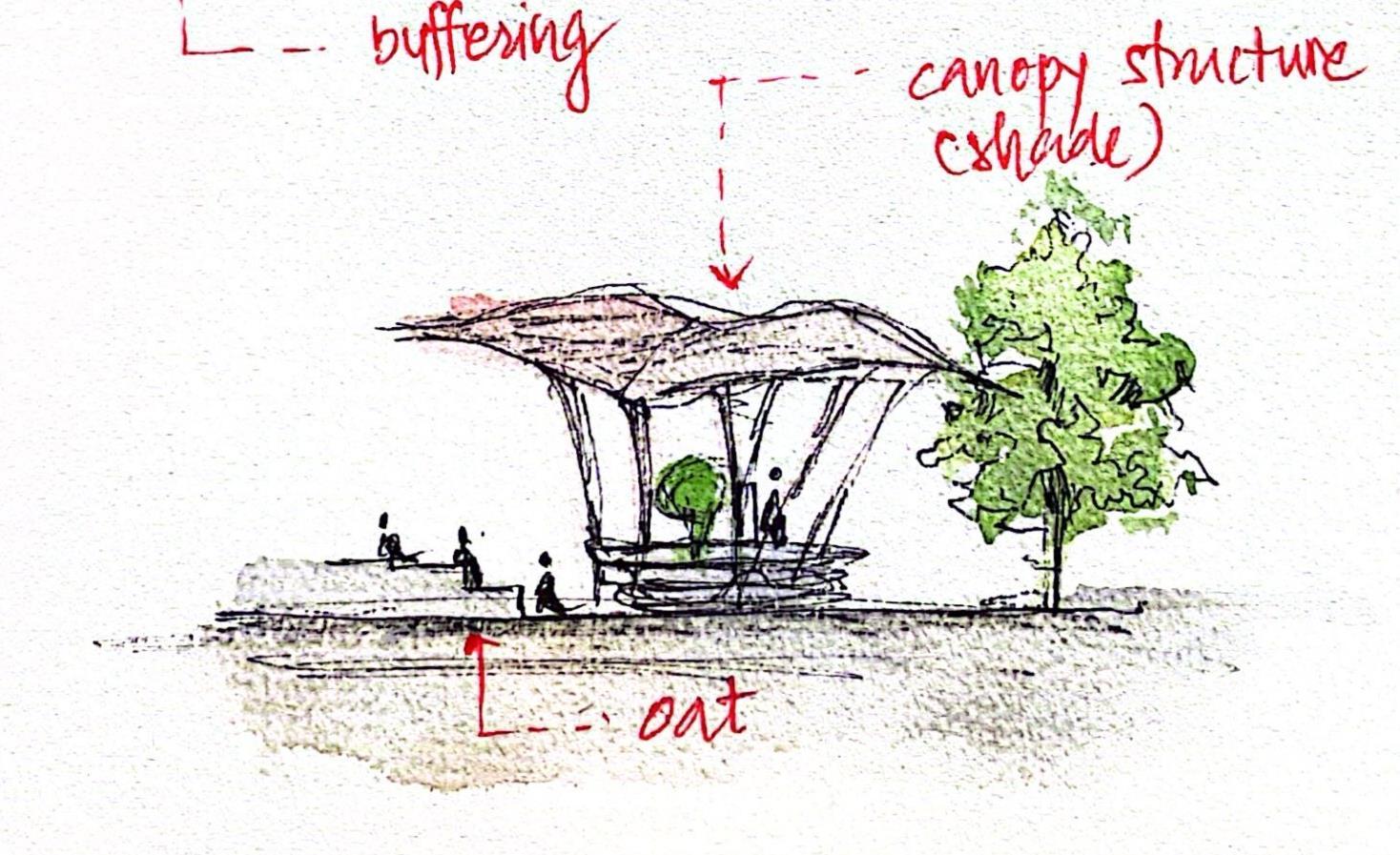

• OAT SPACES AS GATHERING SPACE

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

• DISPERSE PLANNING

• CREATING DIFFERENT GATHER SPACES FOR DIFFERENT SECTOR

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

DESIGN STRATEGIES

CONNECTING SPACES CLUSTER PLANNIG POCKET SPACES

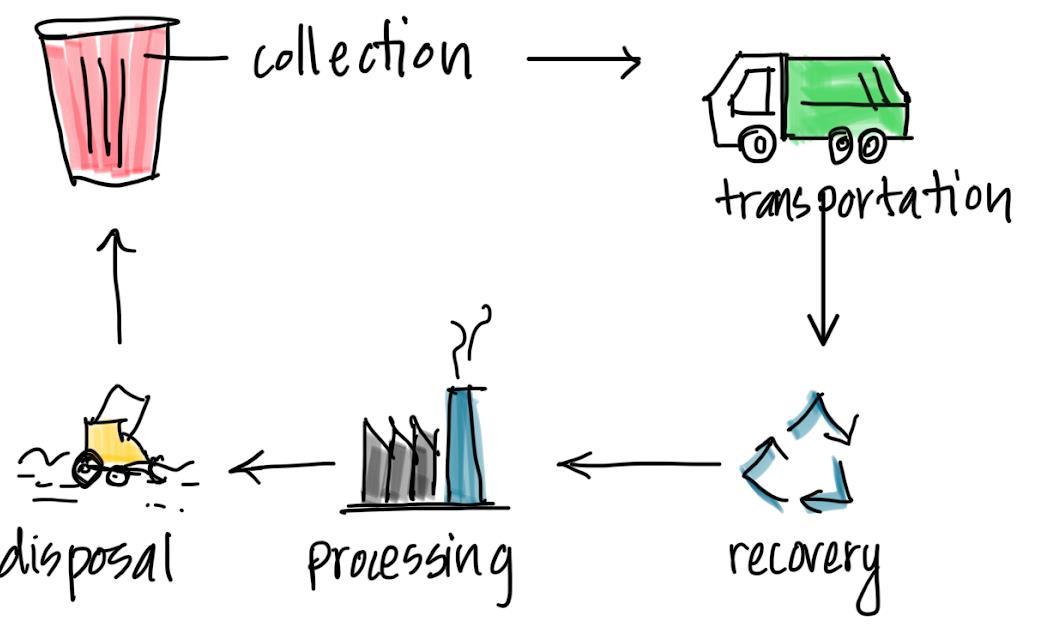

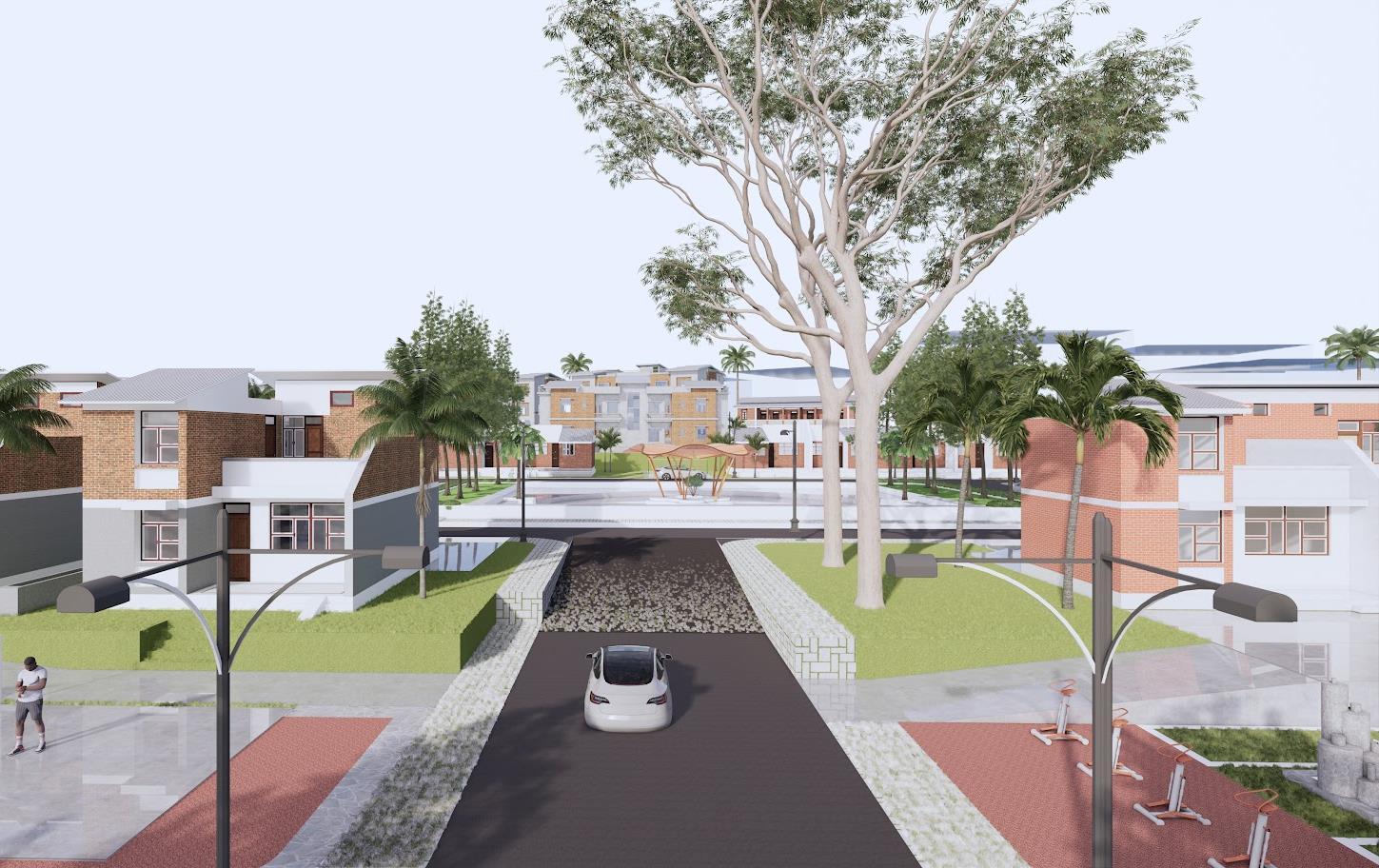

CALISTHENICS PARK WASTE MANAGEMENT USER FRIENDLY ROAD

CONCEPT

THEME: “ENHANCING CONNECTIVITYAND COLONY ENVIRONMENT

OBJECTIONAND OBJECTIVES

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

STRUCTURAL PLAN

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER

DATE : 11-20

SHRESTHA

SCALE :

LOW RISE HIGH DENSITY CHILDREN PARK SAUCER DRAINAGE GROCERY STORE GROCERY STORE WALKWAYS

RESIDENTIAL ZONE

RECREATIONAL ZONE

COMMUNITY HALL

COMMERICAL ZONE

RESIDENTIAL ZONE

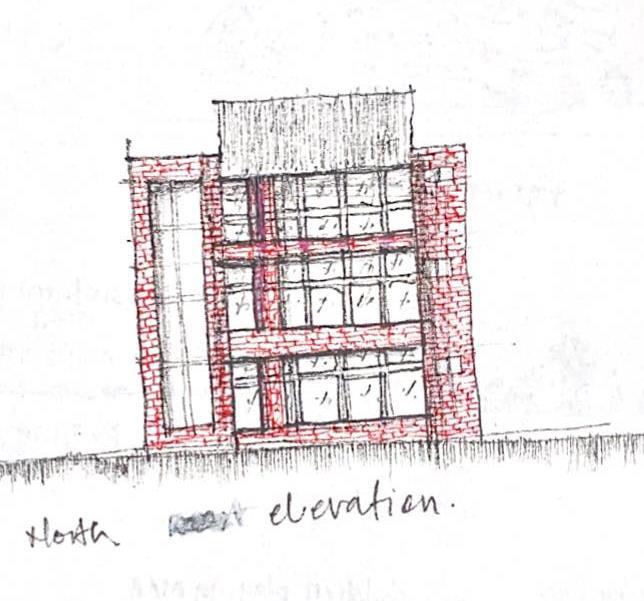

ELEVATION

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

ZONING

EXISTING ALLOCATION

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

DEVELOPING ROAD LINKAGE PROPOSED LAND DVELOPMENT PROPOSED HOUSING TYPOLOGY PLOTS ZONING OPEN SPACES ZONING

BUBBLE DIAGRAM

3BHKATTACHED: (ERC TYPEA)

• FOR PROFESSOR AND ASSOCIATE PROFESSOR , NO OF UNITS :=8 NOS

• EXISITNG = 4 UNITS

• BUILT UPAREA = . 135 SQM

• PLOTAREA EACH = 367 SQM

PROGRAM FORMULATION

2BHKATTACHED: (ERC TYPE B)

• FOR ASSISTANT PROFESSOR AND HIGH RANKING NON TEACHING STAFF. NO OF UNITS := 54 NOS.

• EXIXITNG = 22 UNITS

• BUILT UPAREA = 204.97 SQM

• PLOTAREA = 489.72 SQM

2BHKATTACHED HOUSING: (ERC TYPE C)

• FOR NON TEACHING STAFF , NO OF UNITS = 54 NOS.

• EXISITNG BLOCK FOR BACHLEOR STAFF AND GUEST = 16 UNITS

• BUILT UPAREA= 247SQM

• PLOTAREA = 447 SQM

AREA CASE STUDY 2 (C.C.T) CASE STUDY 1 (IIT GANDHINAGAR) AREACASE STUDY 2 (C.C.T) REQUIREMEN T SQ.M. 1. LIVING 1 17 21.422 19 18 2. KITCHEN 1 9.48 8.29 6 9 3. DINNING 1 7.2 - 8.2 7 4. MASTER BEDROOM 1 15.12 14.435 13.3 14.5 5. BEDROOM 2 12.6 13.322 12.2 26 6. BATHROOM 2 3.40 4.37 3.25 9 7. OFFICE/STUDY ROOM 1 - 10.037 3.34 10 8. BALCONY 1 - 6.57 - 7 9. LAUNDRY ROOM 1 5.4 4.18 - 4 10 . STORE ROOM 1 4.90 4.38 5 11 . POARCH / PARKING 1 15 - 2.97 15

COMMERCIAL SPACE

COMMUNITY HALL

• TOTALAREA: 292 SQM

• PHARMCAY= 27 SQM

• TAILOR SHOP= 25 SQM

• SALON = 46.64 SQM

• GROCERY SHOP= 64.71SQM

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

• HALLAREA : 264 SQM

• W/C: 17 SQM *2

• CHANGING ROOM:

• REHEARSHAL ROOM :35 SQM

• PANTRY :13.89 SQM

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

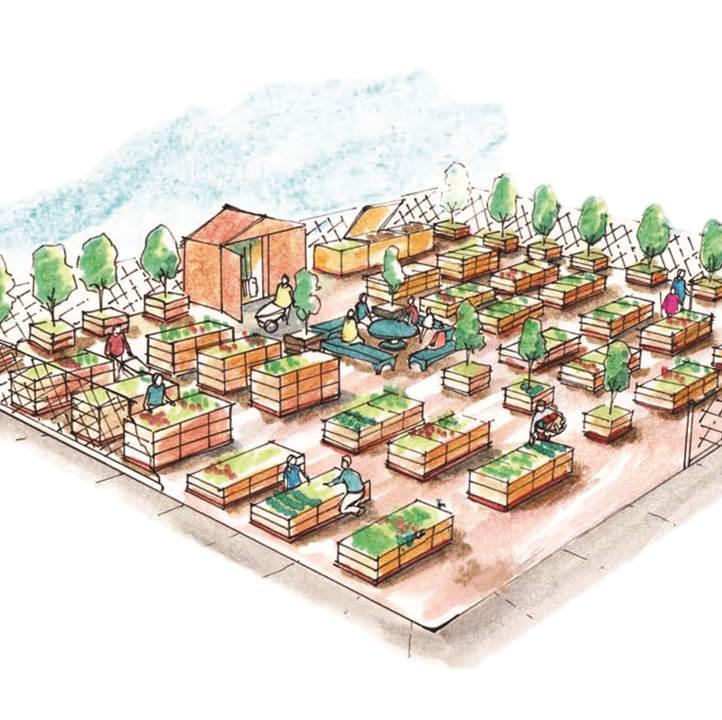

COMMUNITY FARMING

• TOTALAREA 3400 M2

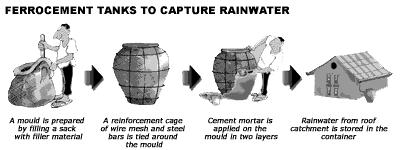

RAINWATER HARVESTING

• TOTALAREA 516 M2

S.N. SPACES NOS. AREA STANDARD SQ.M.

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

REQUIREMENT AREA SQ.M. 1. LIVING+DINNING 1 24 21.422 27 22 2. KITCHEN 1 9.48 8.29 6 9 3. BEDROOM 2 12.6 13.322 13.3 26 4. BATHROOM 2 3.40 4.37 3.5 9 5. BALCONY 1 6.57 9 7 6. LAUNDRY ROOM 1 5.4 4.18 - 4 7. STORE ROOM 1 4.90 4.38 5 8. POARCH / PARKING 1 3 - 5.57 6 S. N. SPACES NOS. AREA STANDARD SQ.M. AREA CASE STUDY 1 (IIT GANDHINAGAR) CASE STUDY 2 (C.C.T) AREA REQUIREMENT SQ.M. 1. LIVING+DINNING 1 24 21.422 27 22 2. KITCHEN 1 9.48 8.29 6 8 3. MASTER BEDROOM 1 15.12 14.435 13.3 14.5 4. BEDROOM 1 12.6 13.322 12.2 13 5. BATHROOM 2 3.40 4.37 3.25 9 6. OFFICE/STUDY ROOM 1 - 10.037 3.35 10 7. BALCONY 1 - 6.57 9 7 8 . LAUNDRY ROOM 1 5.4 4.18 - 4 9. STORE ROOM 1 4.90 4.38 5 10. POARCH / PARKING 1 3 - 4.27 3

CASE STUDY 1 (IIT GANDHINAGAR) N. SPACES N OS STANDAR D SQ.M.

• CAFÉ = 145 SQM

LAND USE PLAN

DENSITY BASED PLAN

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

ROAD NETWORK PLAN

HEIGHT BASED ZONING

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

• TOTALPROPOSED AREA= 39334.69 SQM

• ROAD = 15%OF TOTAL SITE PROPOSED AREA

• PLANNING CONSIDERING THE CONTOUR

TYPES OF HOUSING

DUPLEX

ATTATCHED

LOW RISE

ATTACHED

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

LOW RISE

DATE : 11-20

SCALE :

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO : AR. SANJAYA MAHARJAN

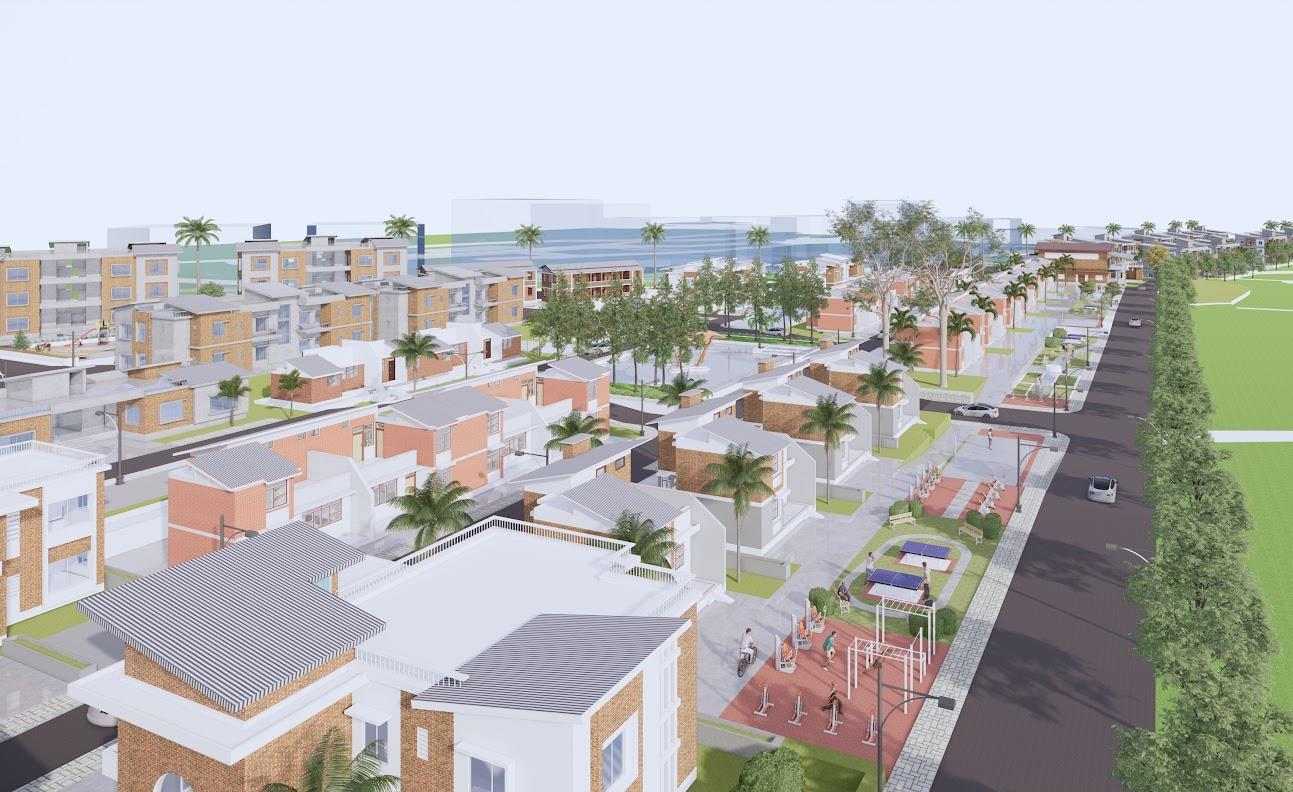

DATE : 11-20 SCALE : MASTER PLAN

AR. KUBER SHRESTHA

10 A

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO : AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

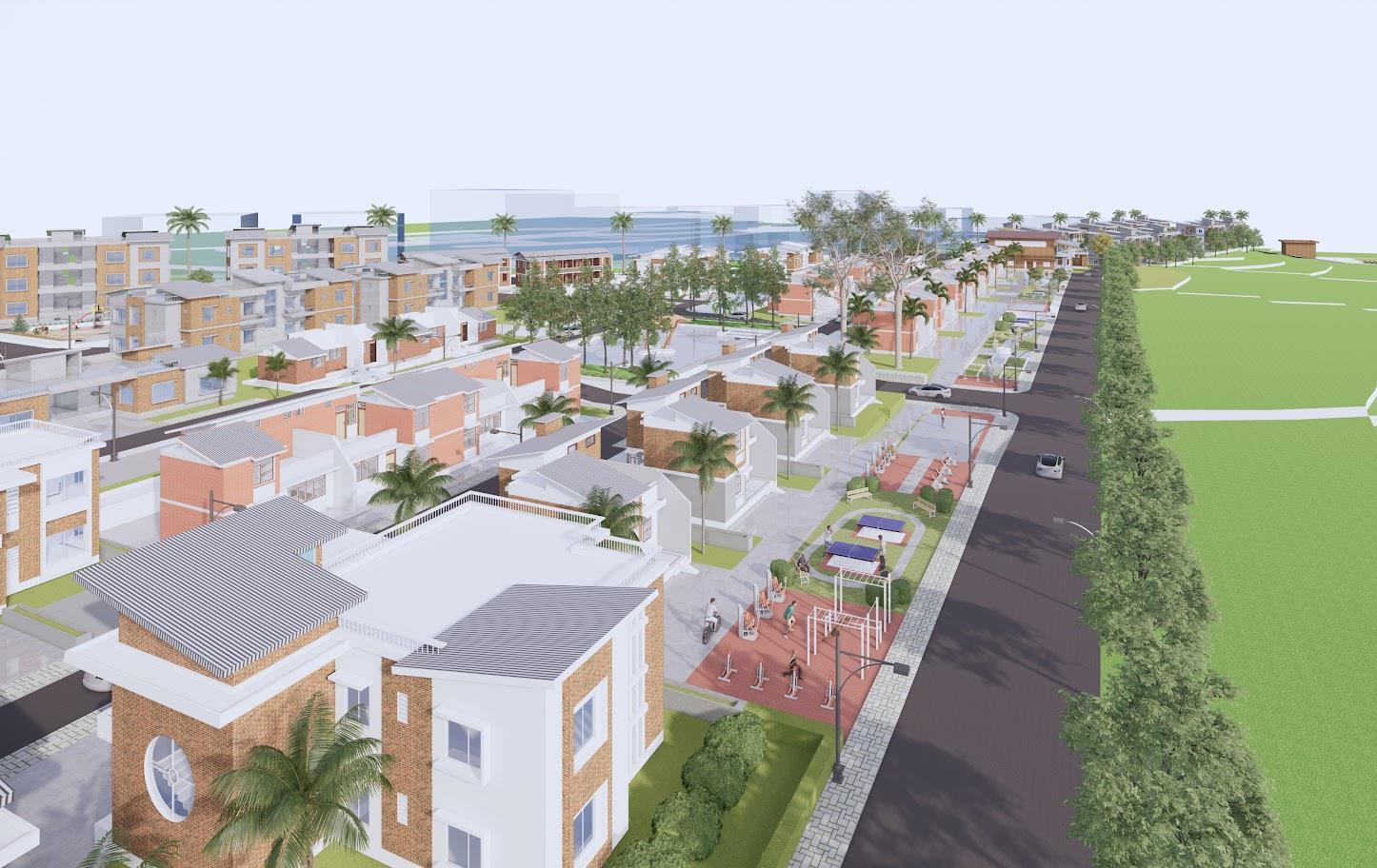

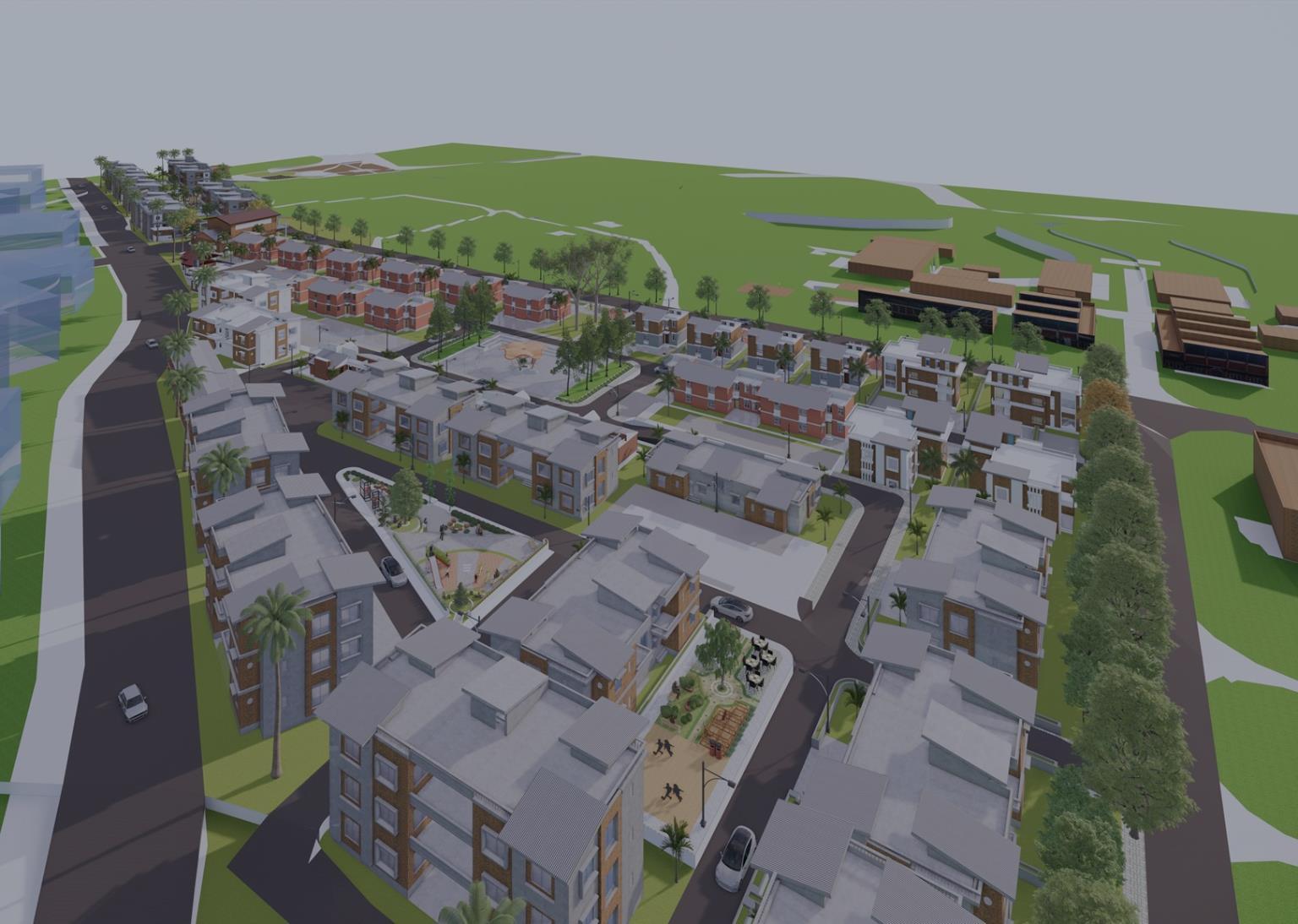

MASTER PLAN

TRIBHUVAN UNIVERSITY

WATER SUPPLYAND HYDRANT PLAN

• PVC PIPE FOR DRAINAGE

• MINIMUM SLOPE 2%

• WATER FROM DRAINAGE PIPE

• CHANNELED TO COMMUNTIYFARMING

• TOTALCONSUMERS : 500 TOTALWATER REQUIRED : 500 X100 = 50000 LTR.

FIRE HYDRANT SPACING NOT MORE THAN 100M

• WATER TO FIRE HYDRANT SUPPLIED THROUGH WATER SUPPLYPIPE

• 12” DIAMETER HYDRANT (150 M MAX SPACING )

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

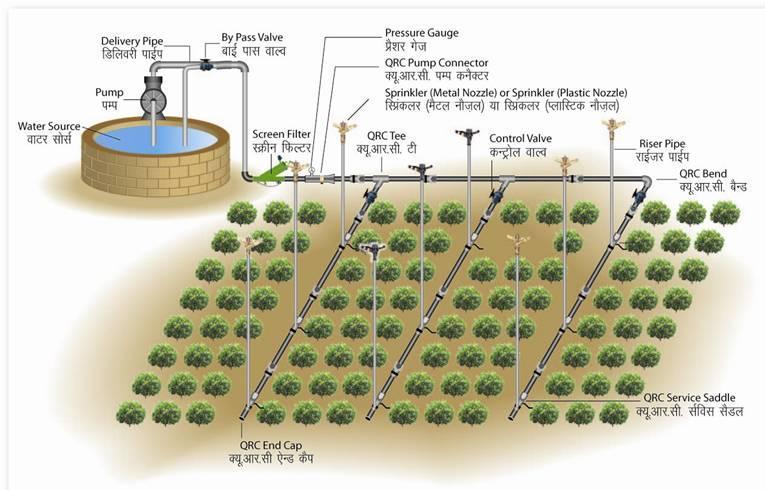

• MAIN LINE CONVEYS WATER FROM THE SOURCE DISTRIBUTES IT TO THE SUBMAINS.

• THE SUBMAINS CONVEYWATER TO THE LATERALS

• LATERALS TURN SUPPLYWATER TO THE SPRINKLERS. DRAINAGE PLAN

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

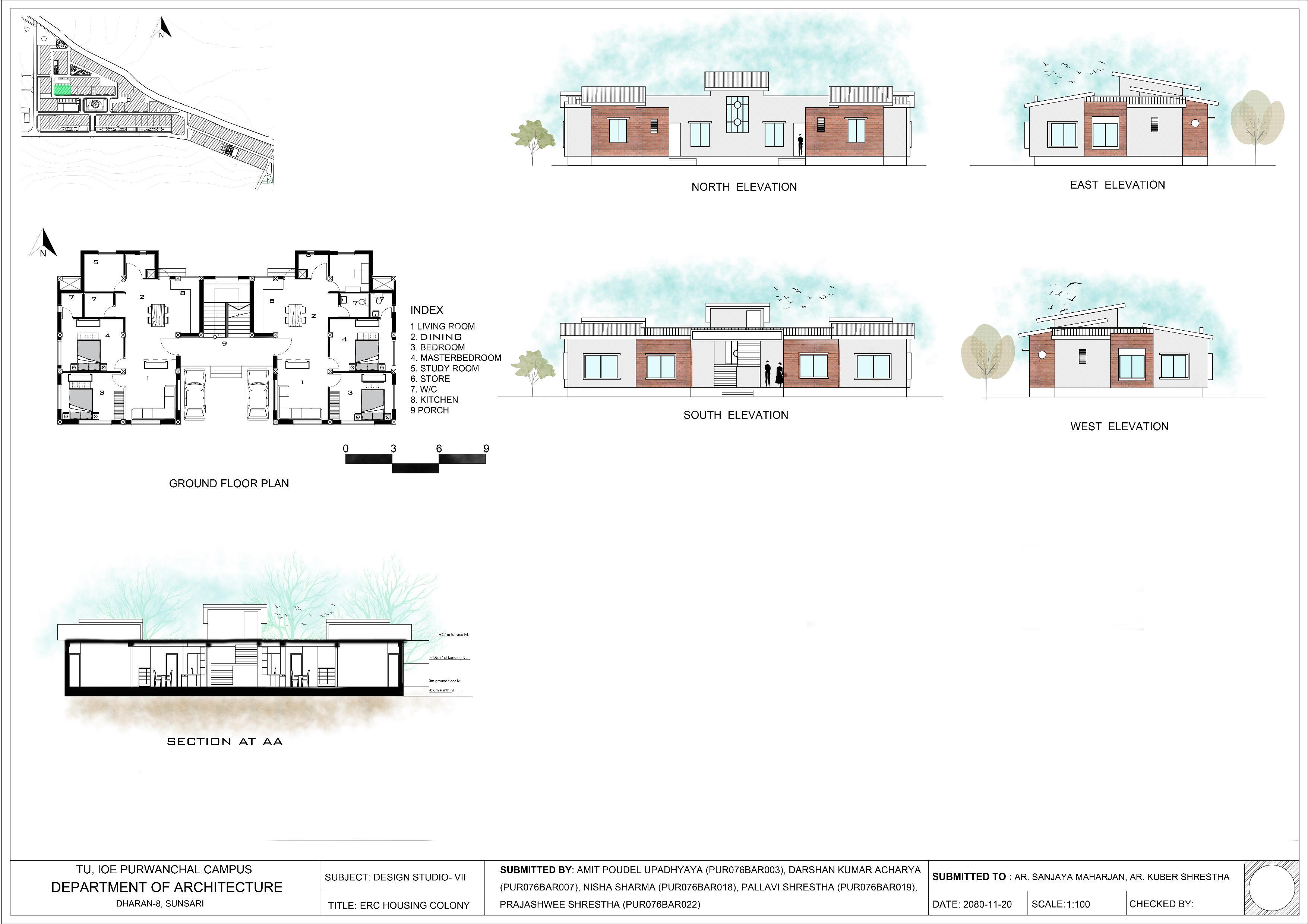

3BHK DETACHED QUARTER

• BUILT UPAREA = . 135 SQM

• PLOTAREA EACH = 367 SQM

KEY PLAN 13

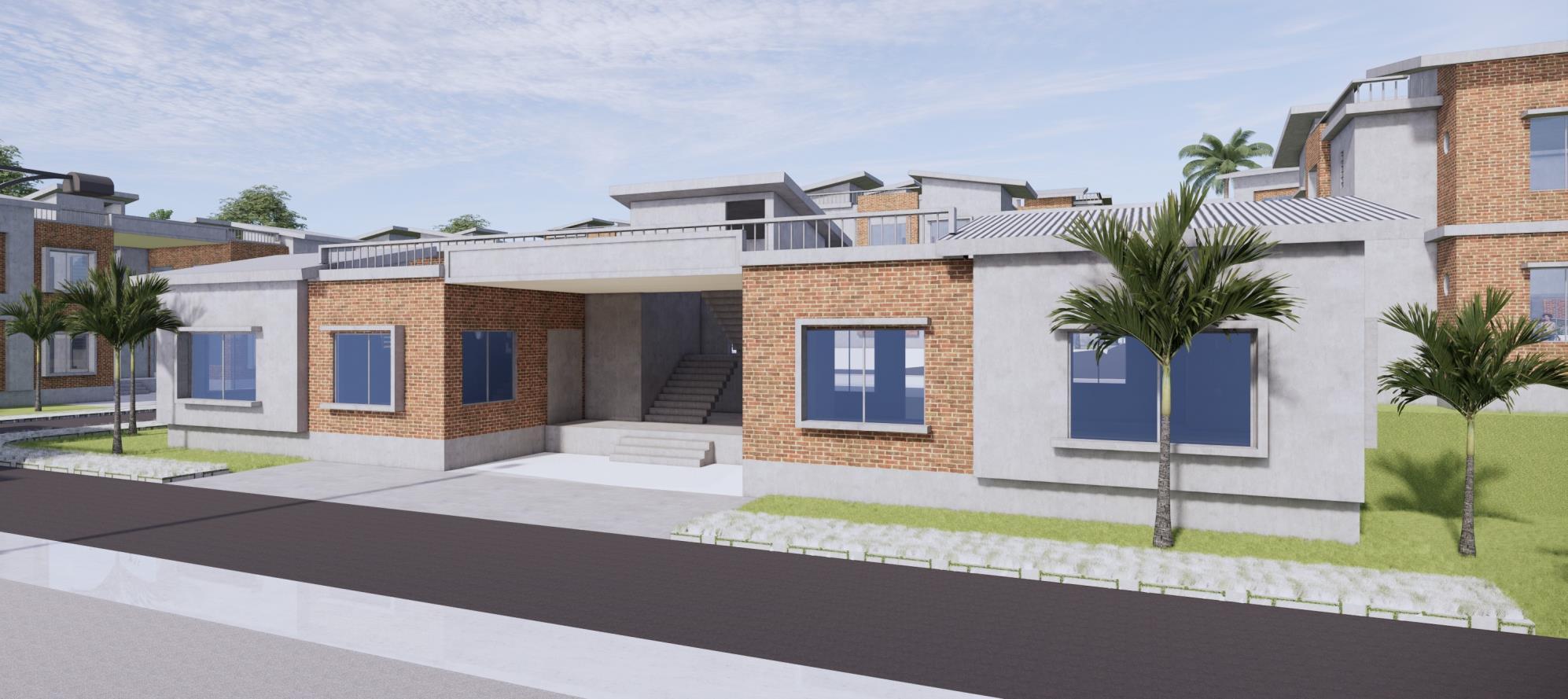

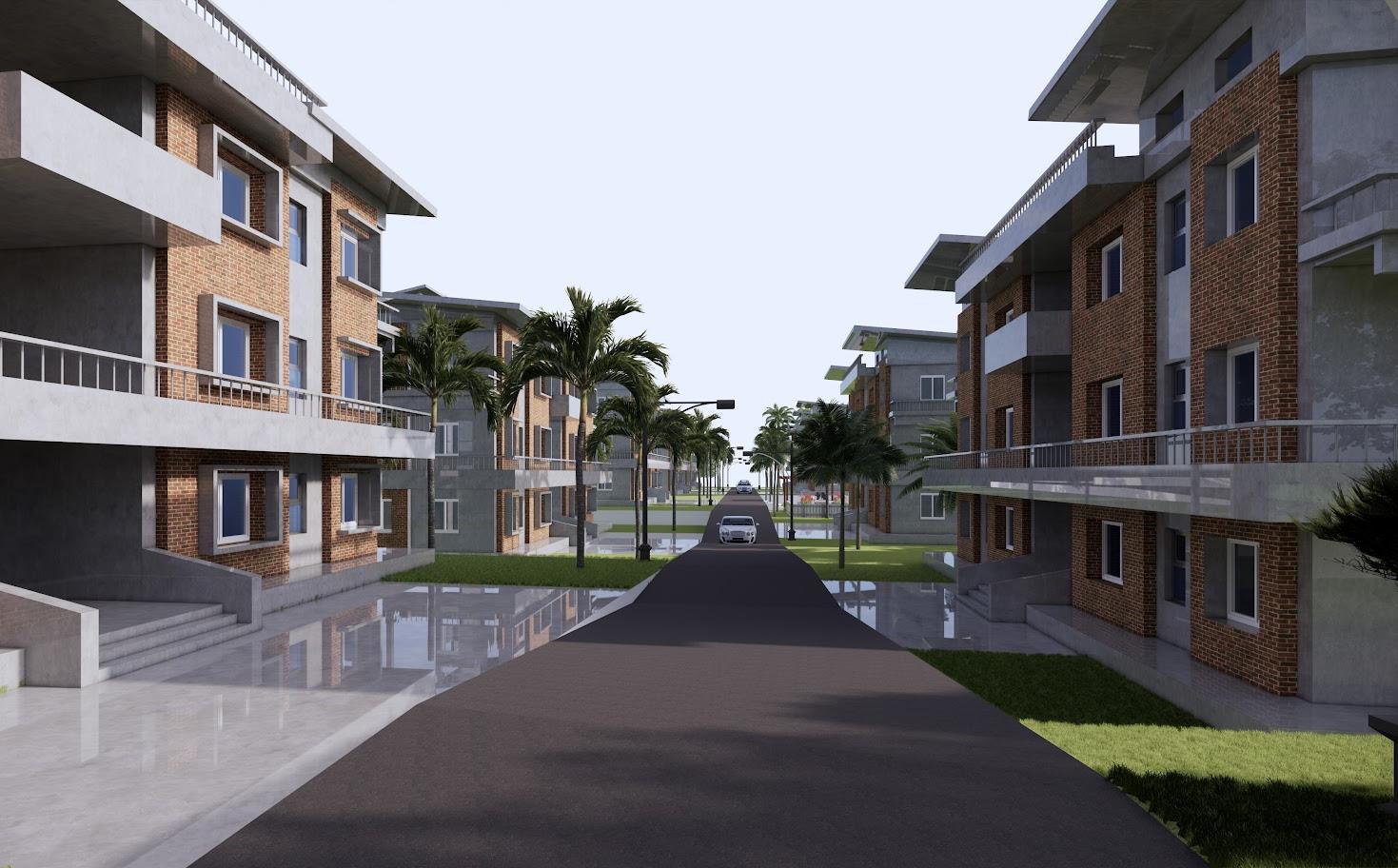

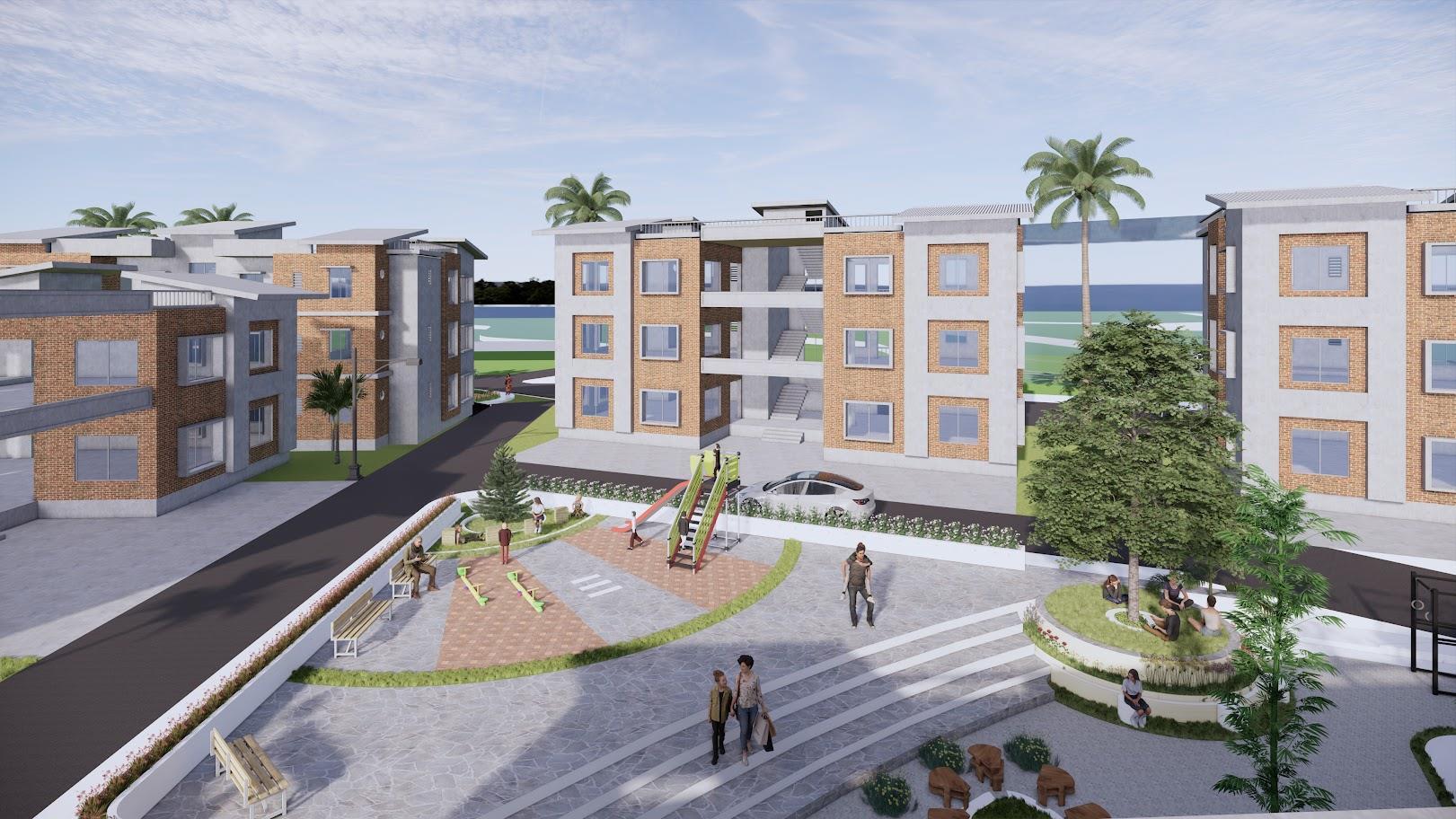

3D VIEWS

2BHKATTACHED QUARTER

• BUILT UPAREA = 204.97 SQM

• PLOTAREA = 489.72 SQM

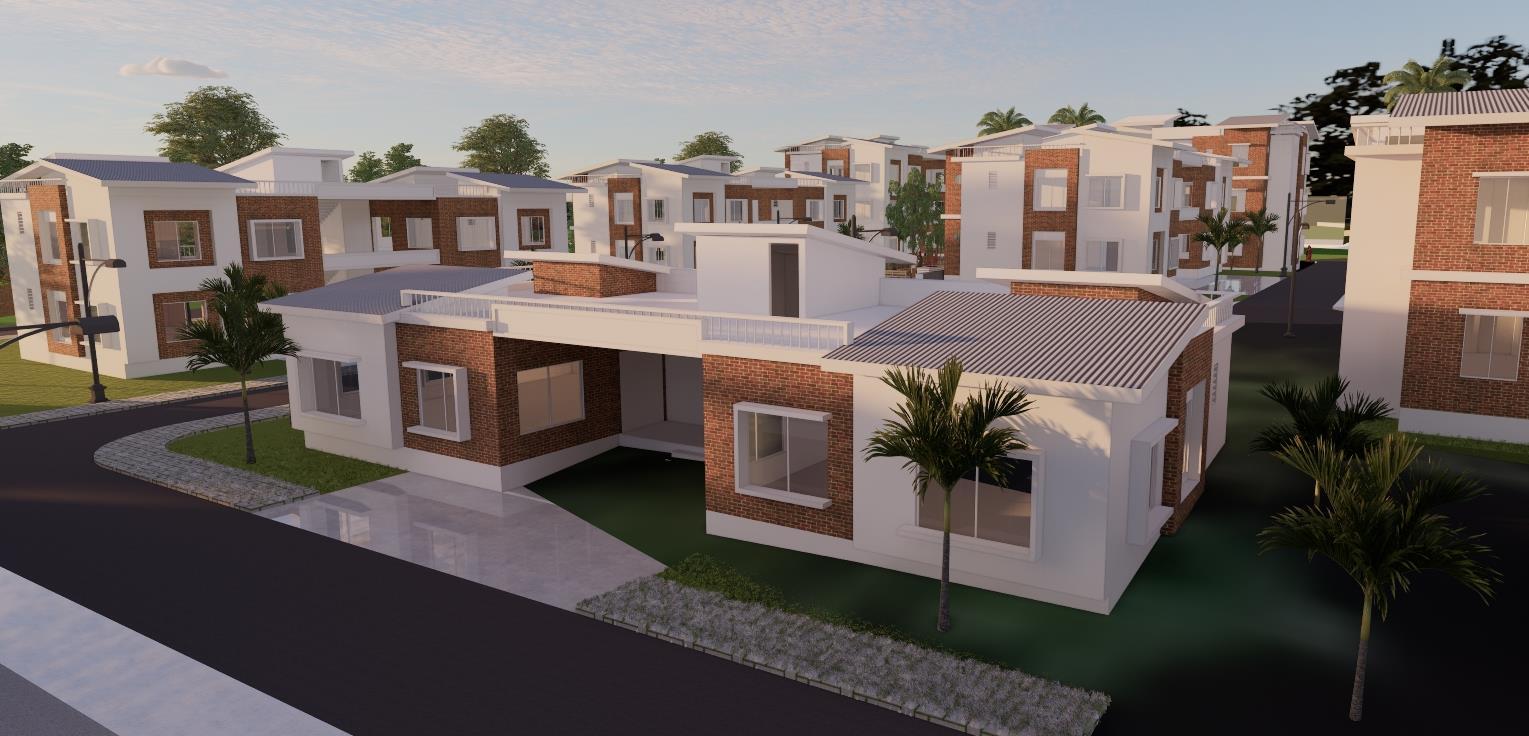

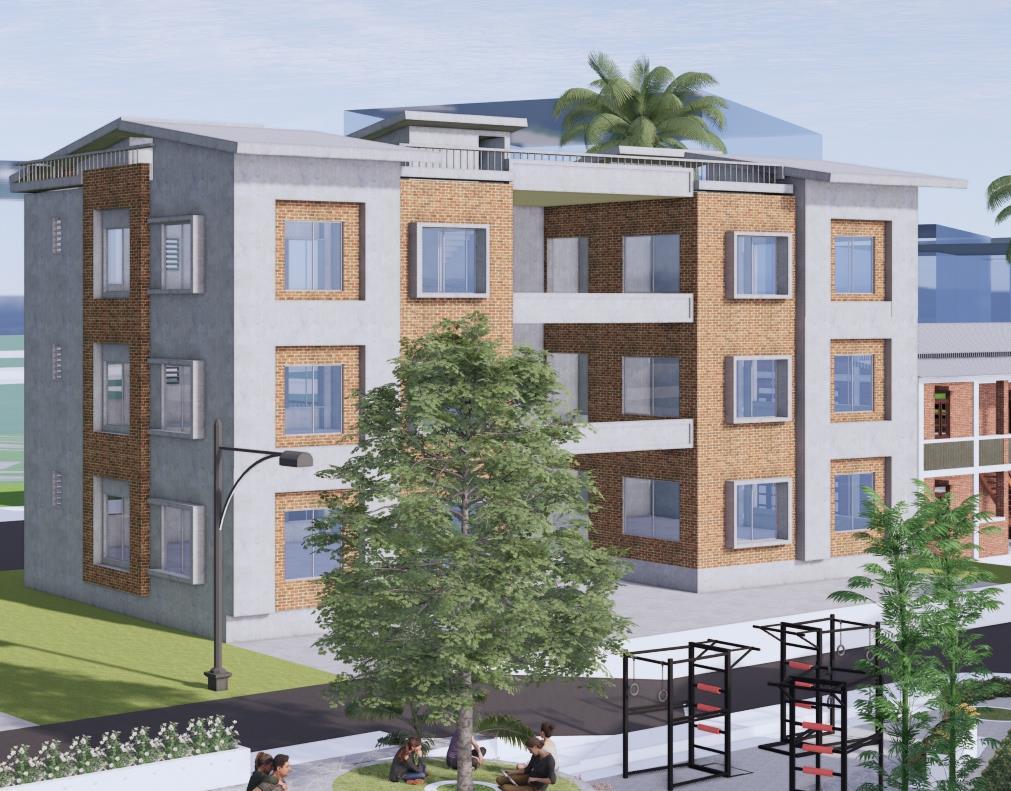

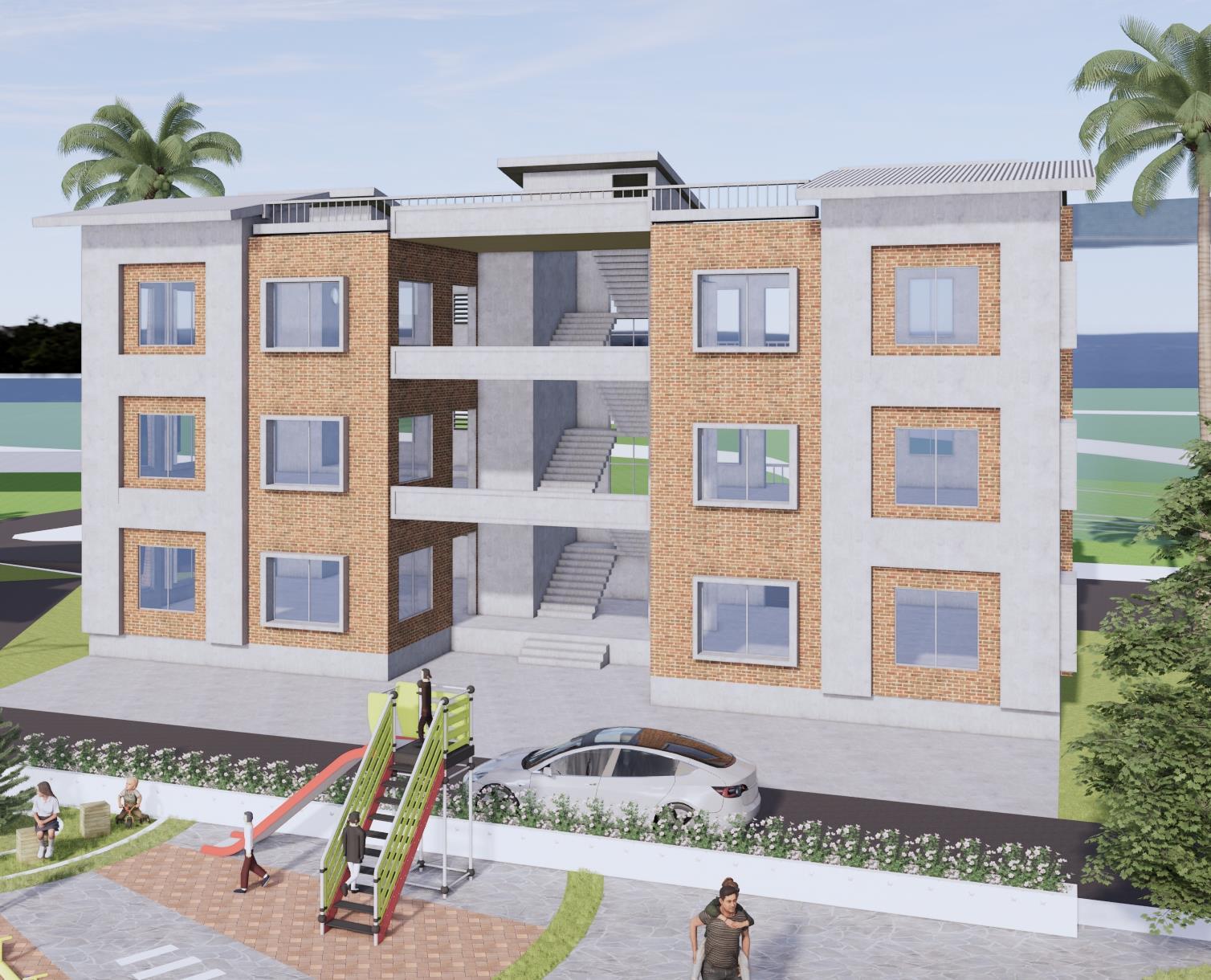

3D VIEWS

KEY PLAN

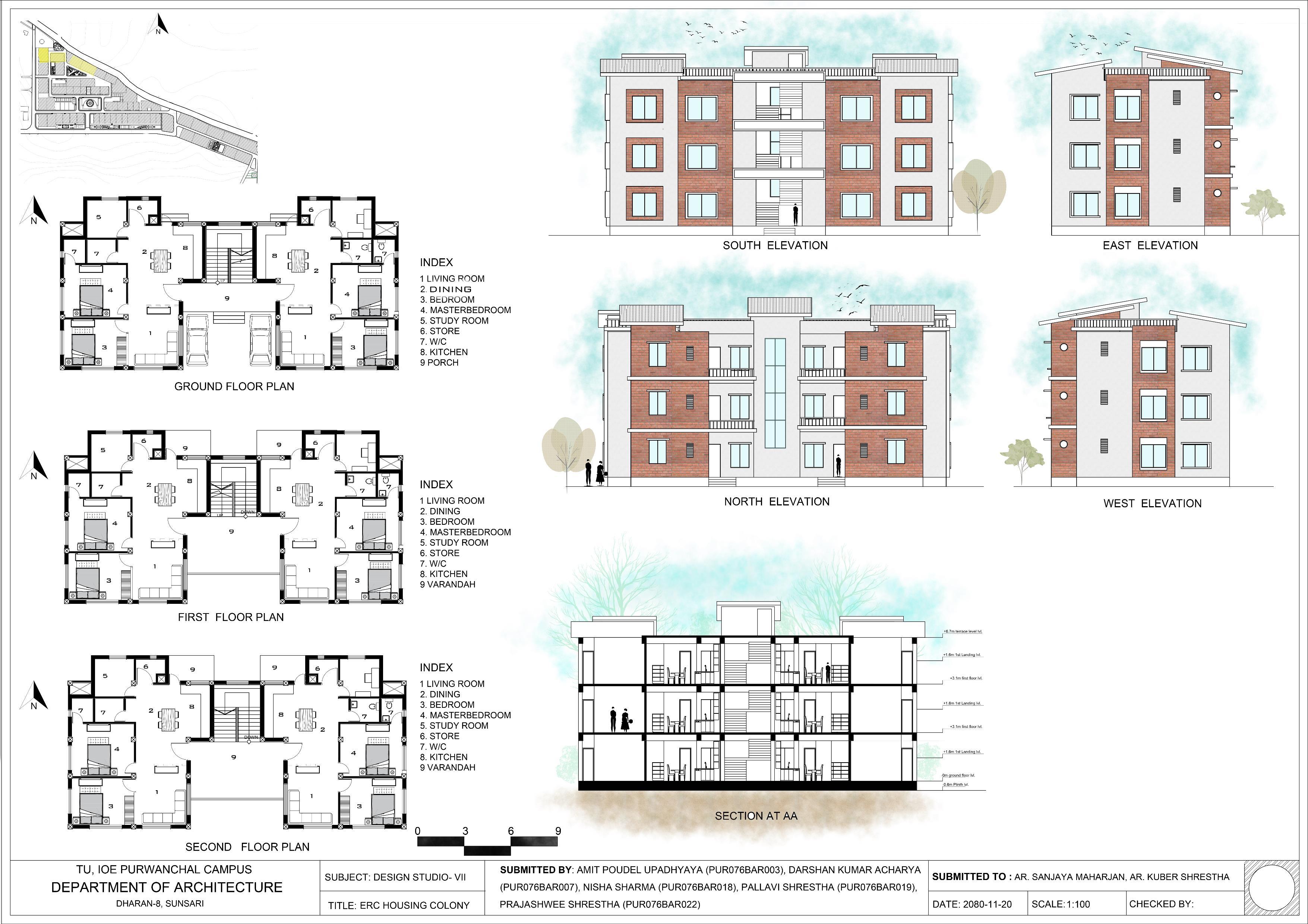

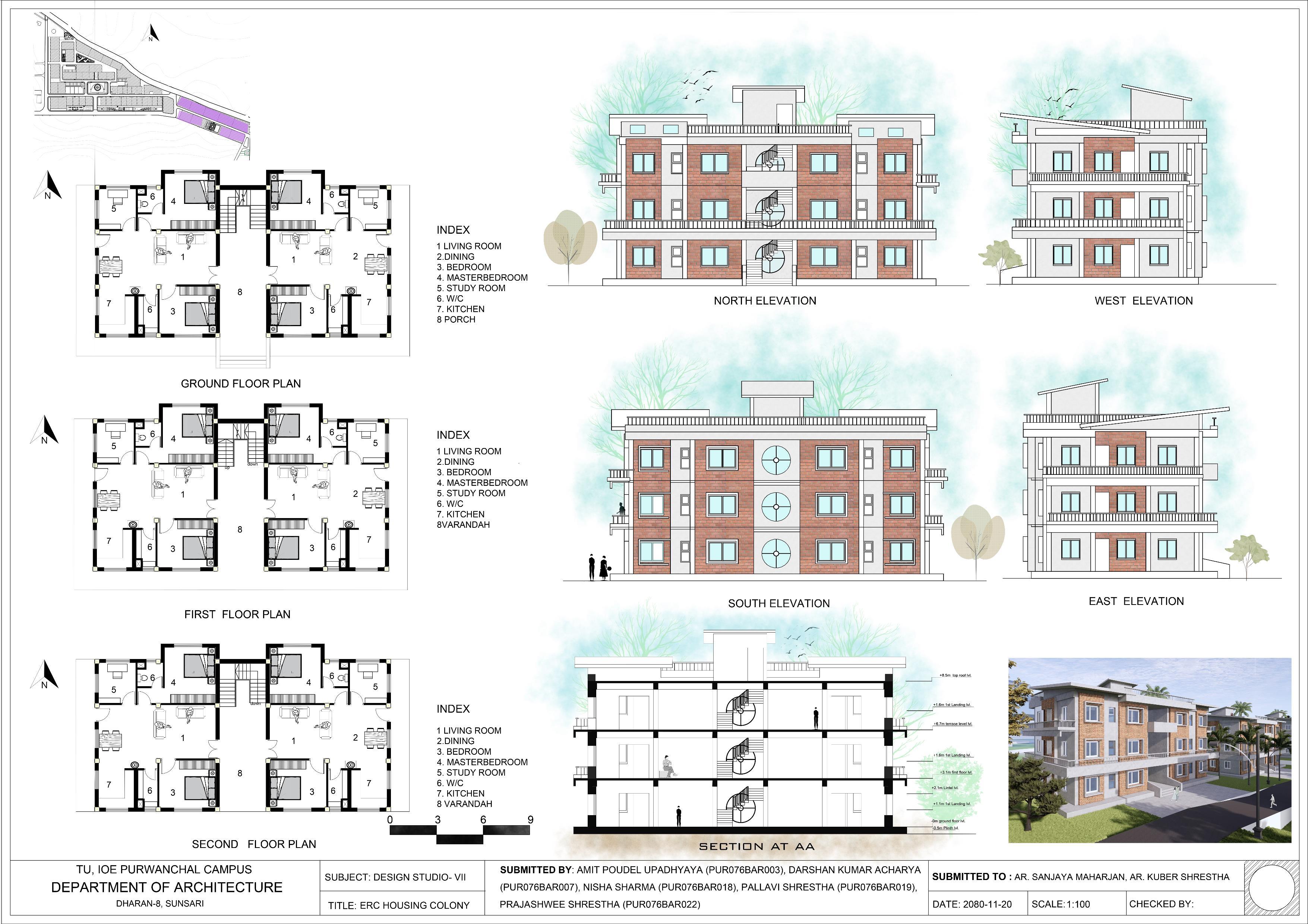

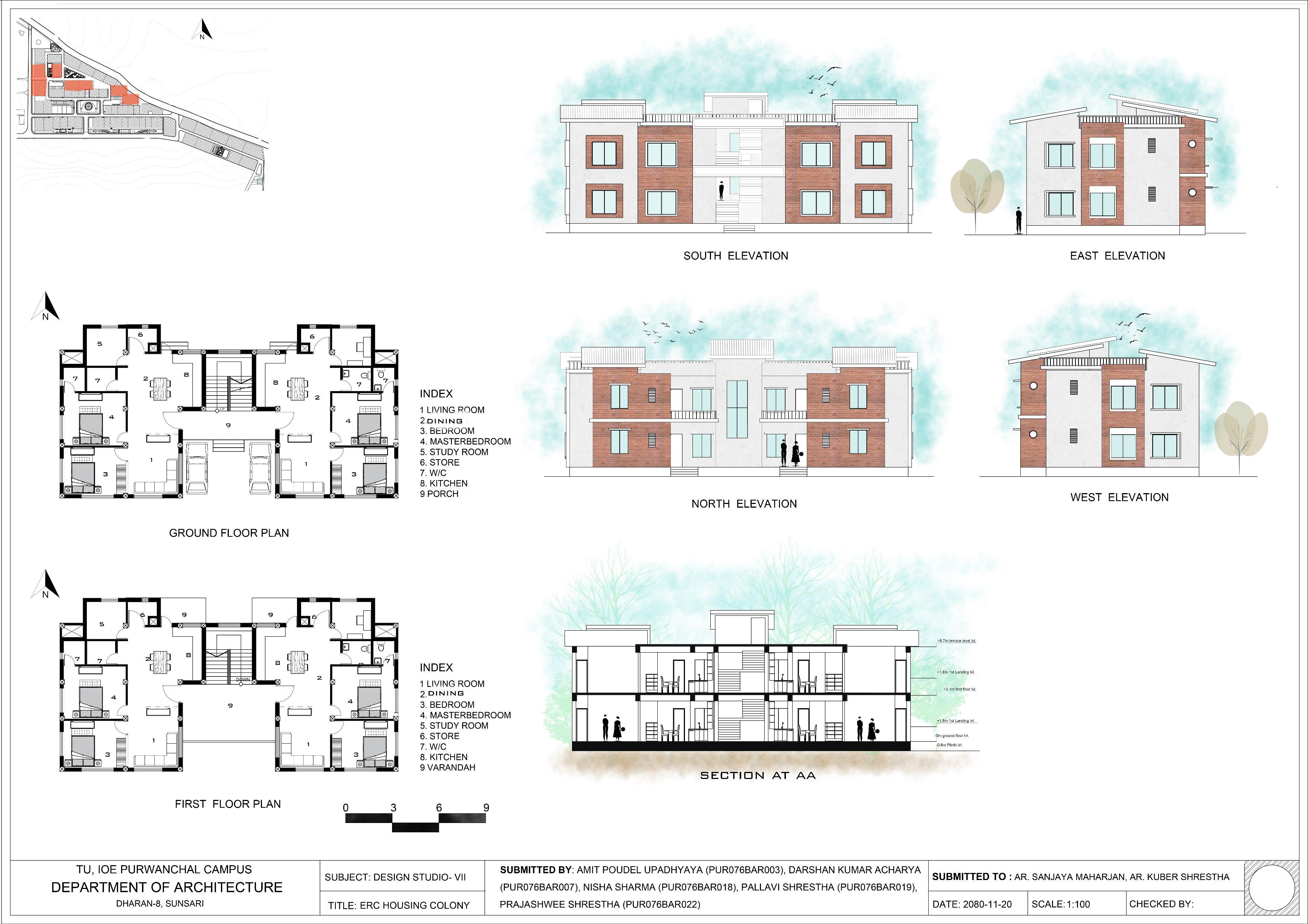

2BHKATTACHED(LOW RISE ) QUARTER

2 FLOOR

• BUILT UPAREA = 204.97 SQM

• PLOTAREA = 489.72 SQM

PLAN

KEY

VIEW

KEY PLAN 2BHKATTACHED LOW RISE QUARTER 16 3D VIEW

2BHK LOW RISE QUARTER

• BUILT UPAREA= 247SQM

• PLOTAREA = 447 SQM

KEY PLAN

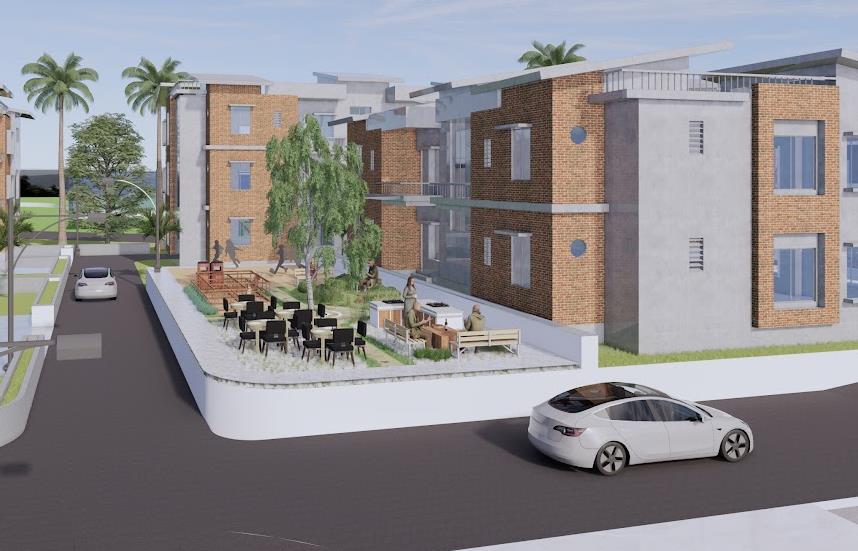

3D VIEW

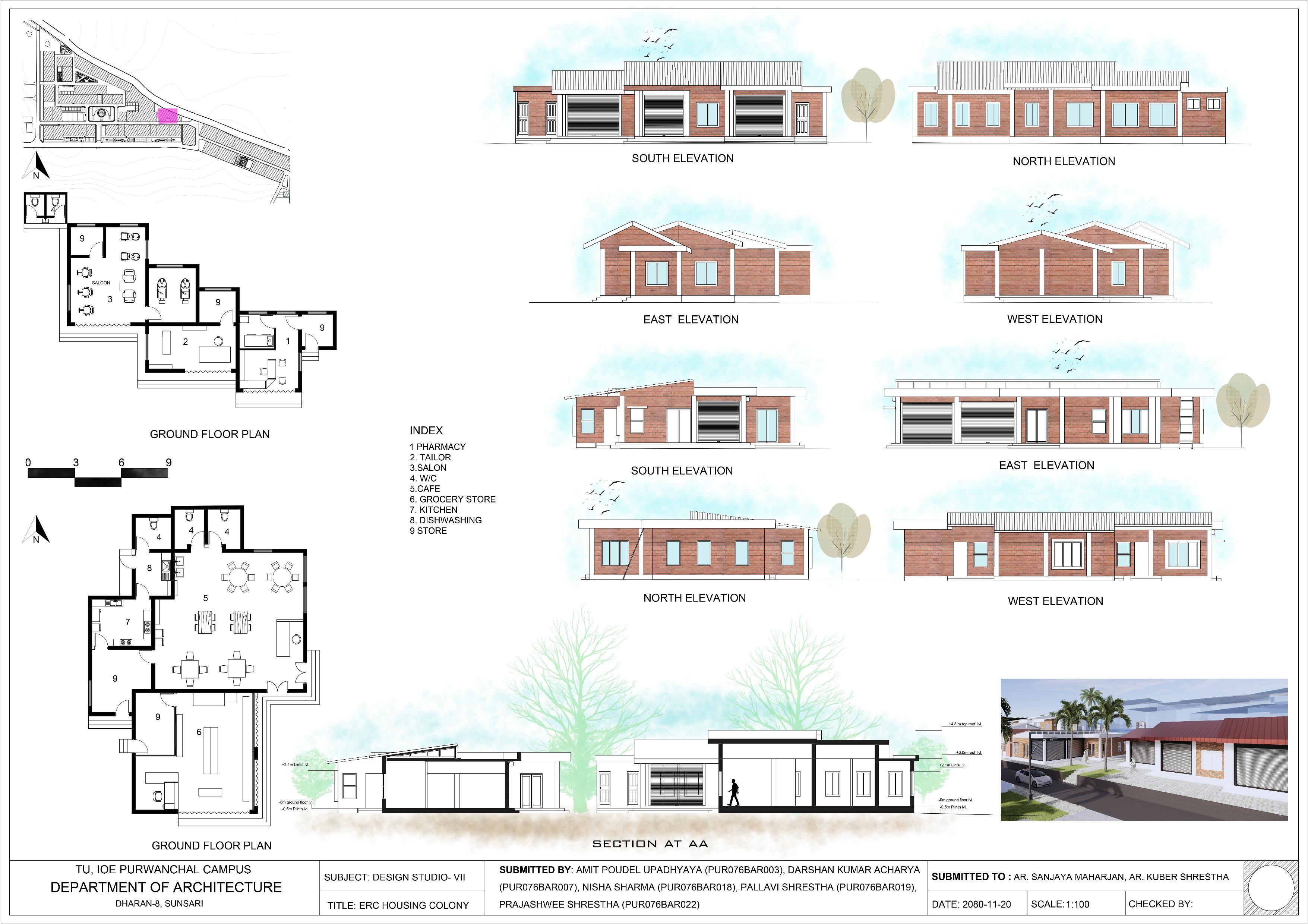

COMMERCIALSPACE

• CENTRAL COMMON SPACE FOR THE COMMERCIAL SPACE

• DIFFERENT PROGRAMS WERE ALLOCATED AS PER THE REQUIREMENT OF THE USERS

• BUILT UP 325 SQM

KEY PLAN 18

3D VIEW

KEY PLAN

• TOTAL BUILT UPAREA: 483.05SQM

• CAPACITY :100

• INDOOR GATHER SPACE FOR SOCIETY

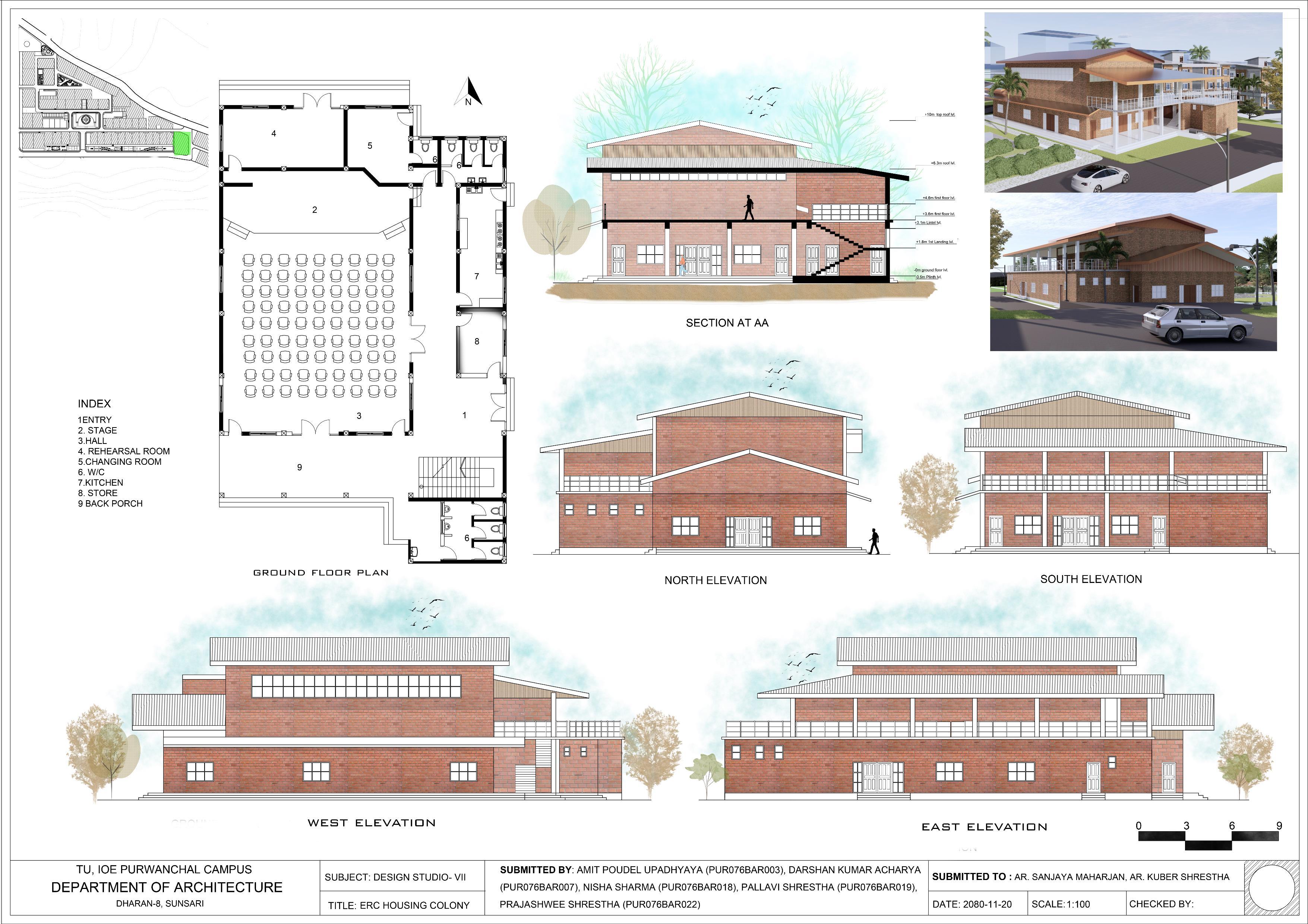

COMMUNITY HALL

3D VIEWS

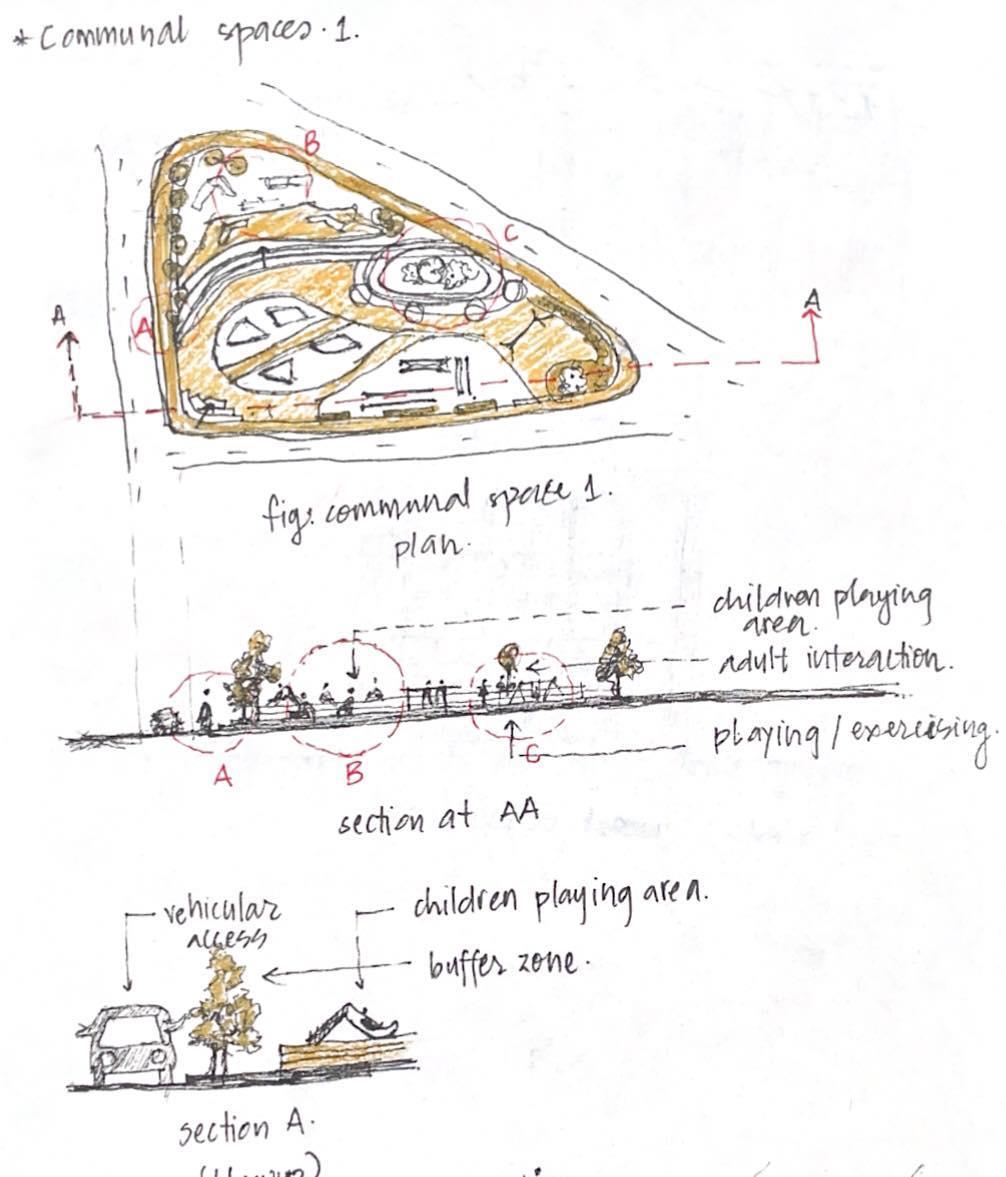

COMMUNAL SPACEAPPROACHES

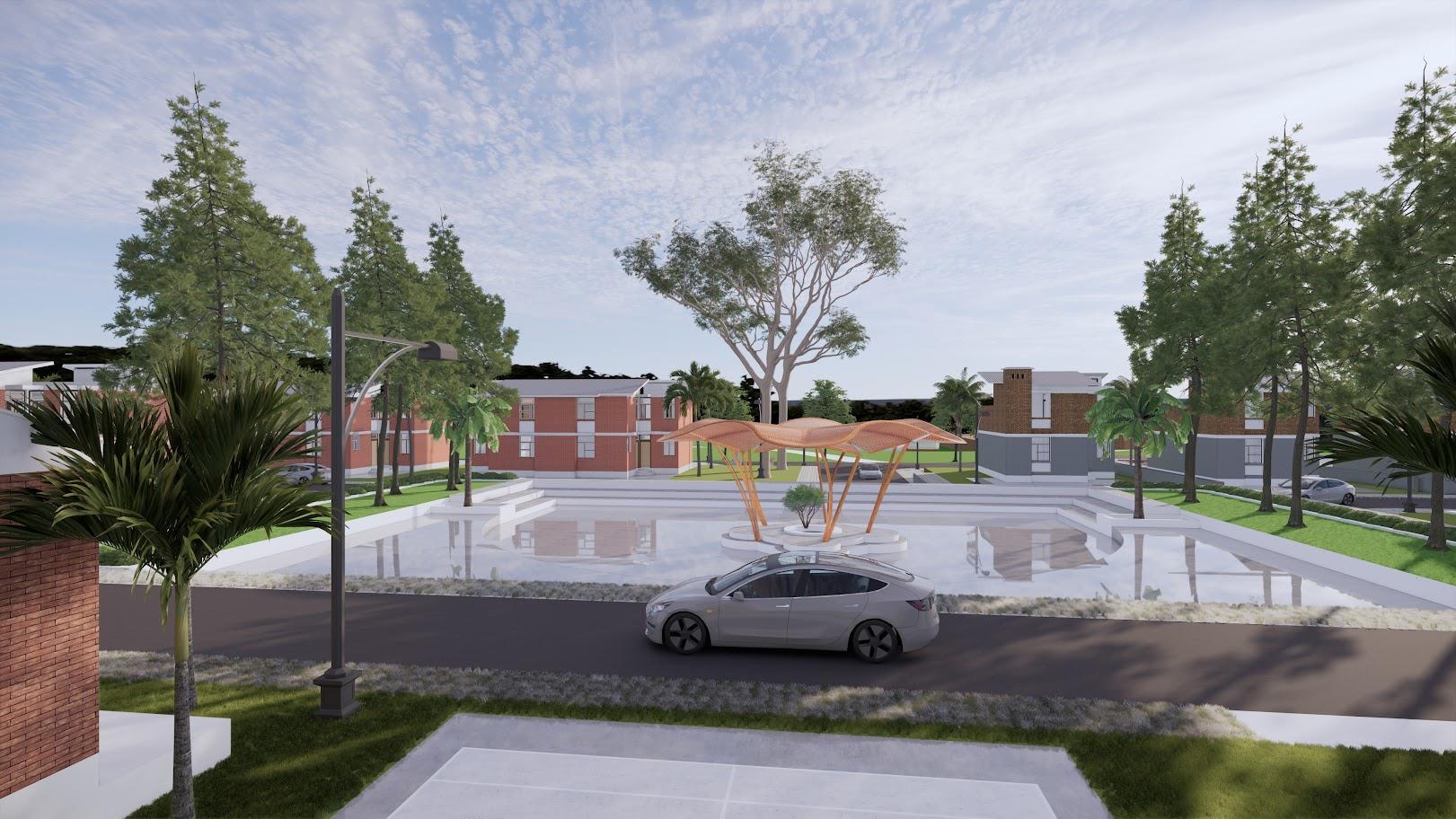

Water feature

OPEN SPACES DETAILS

VIEWS

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO :

AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

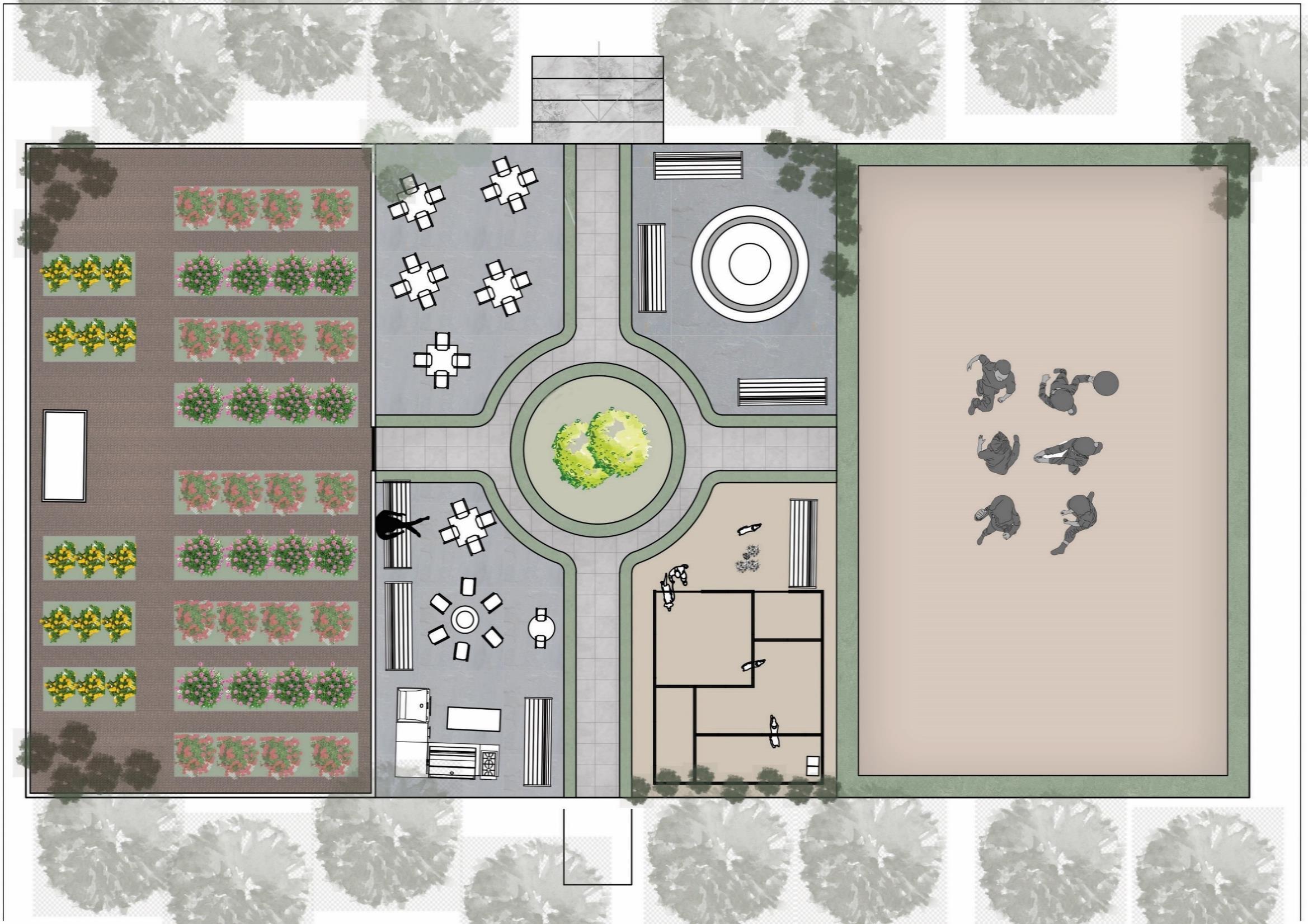

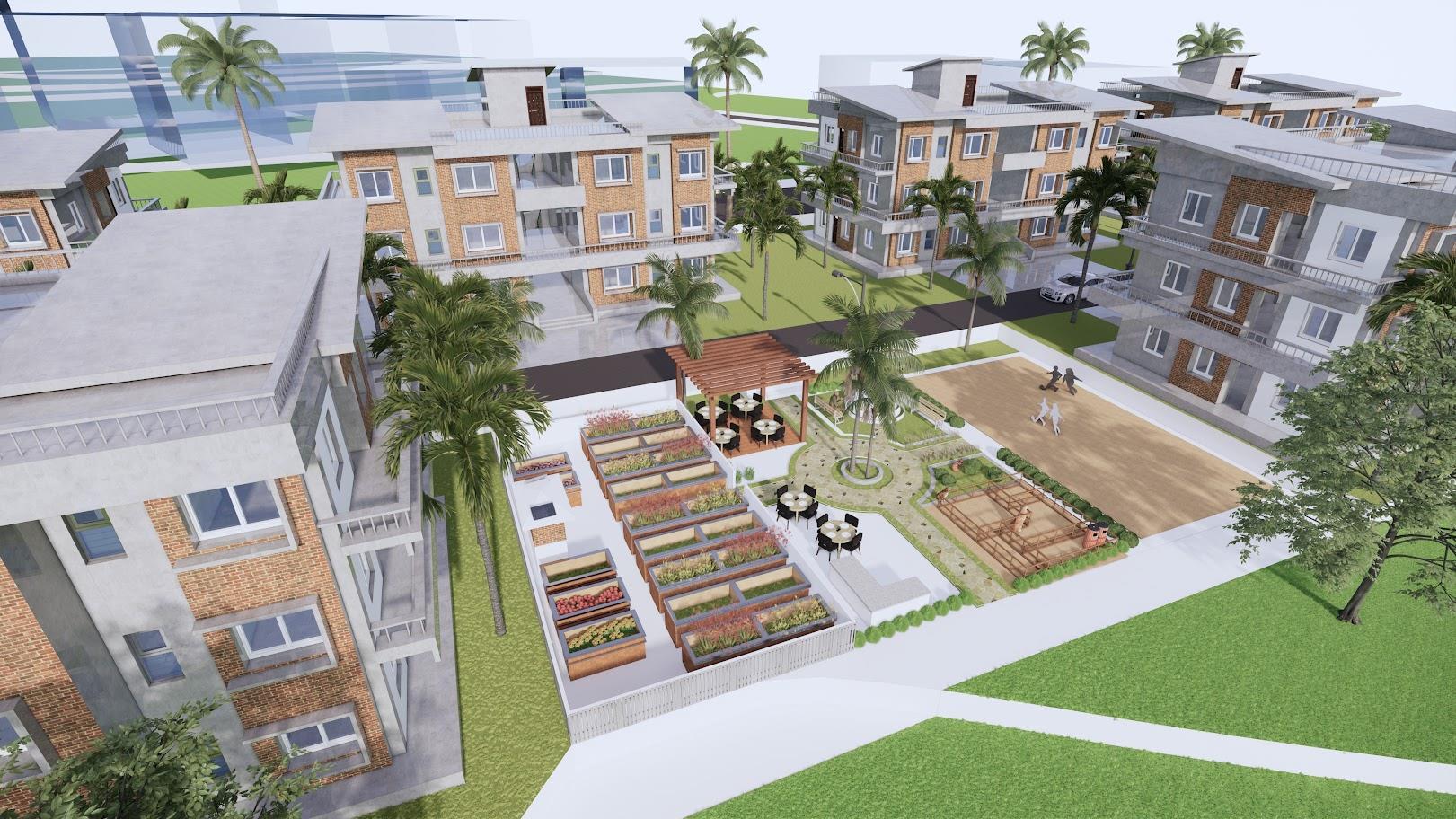

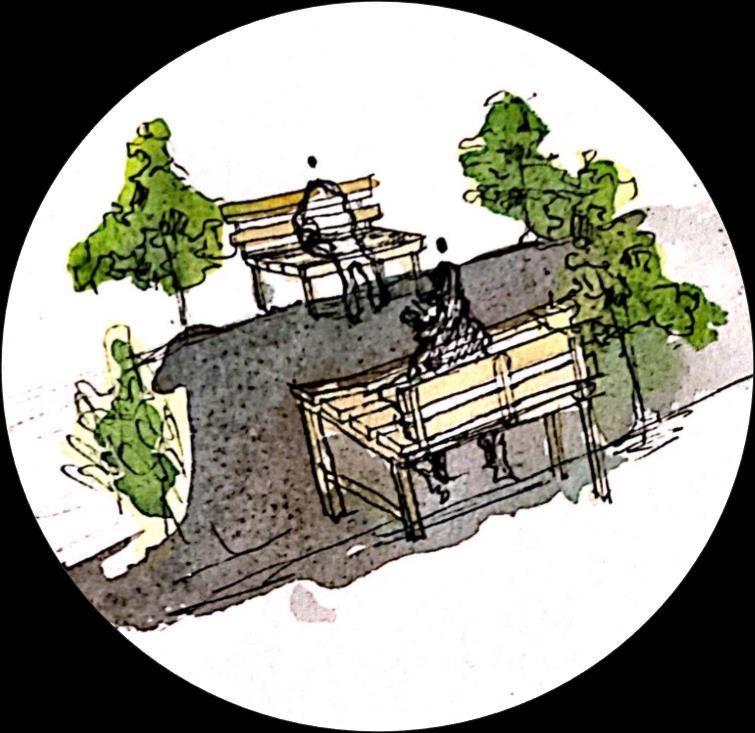

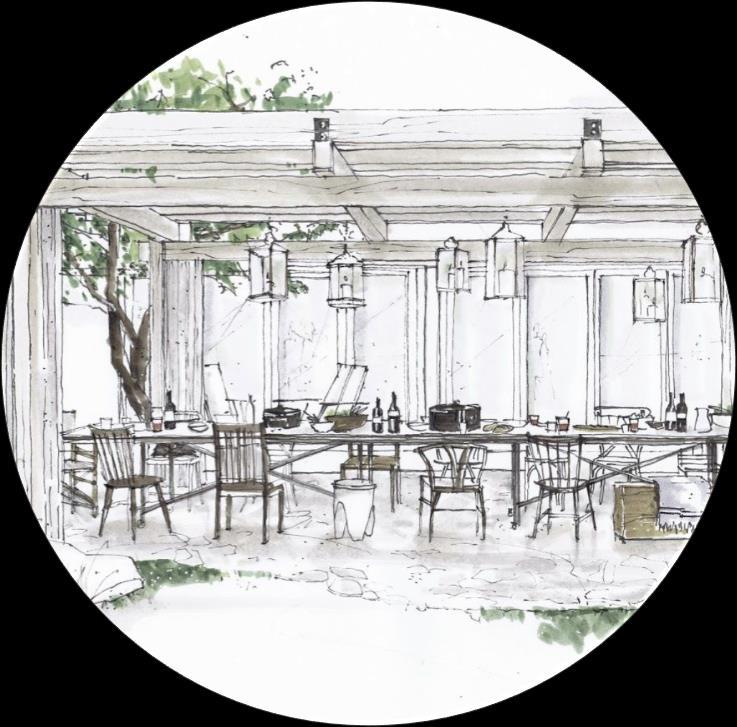

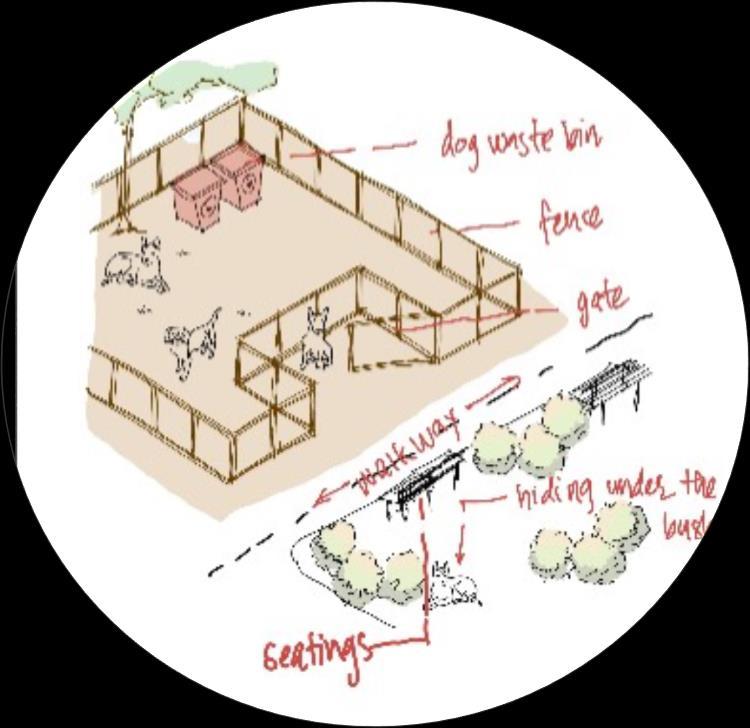

Community garden Outdoor seating area Playground space Pet friendly spaces Cookout areas BLOW UP PLAN- SCALE 1:100

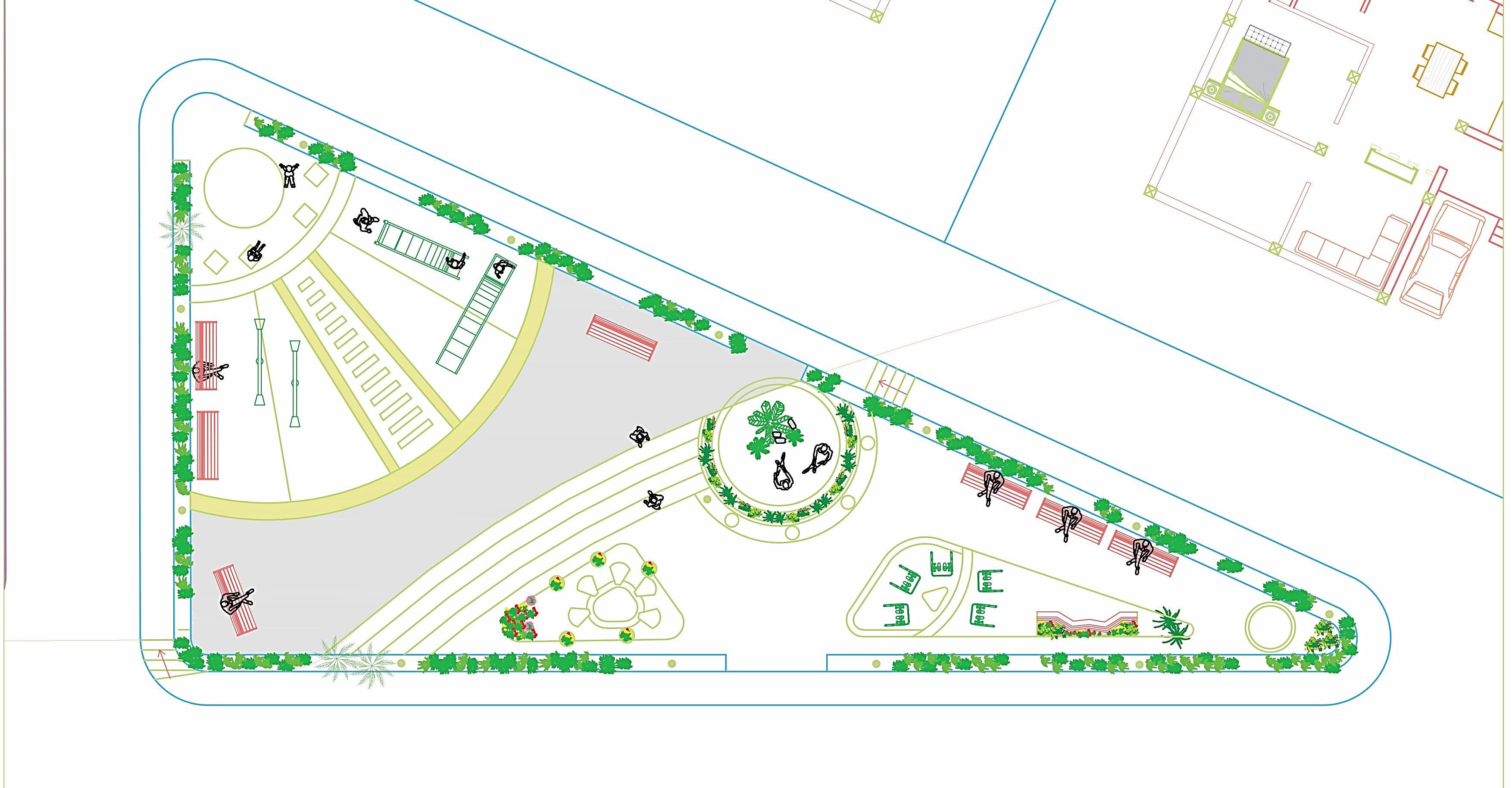

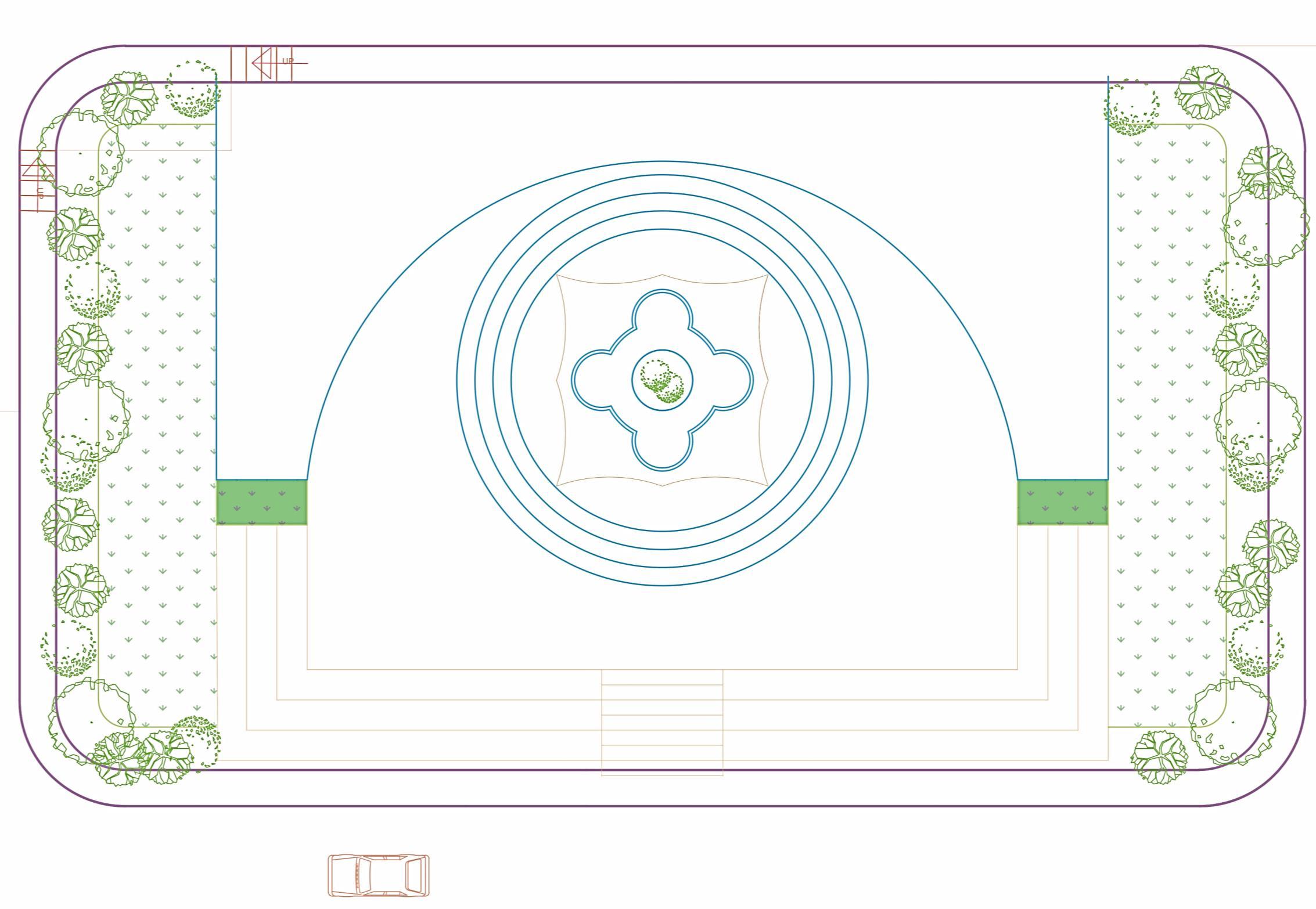

BLOW UP PLAN- SCALE 1:100

COMMUNAL SPACEAPPROACHES

OPEN SPACES DETAILS

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO : AR. SANJAYA MAHARJAN

AR. KUBER SHRESTHA

DATE : 11-20

SCALE :

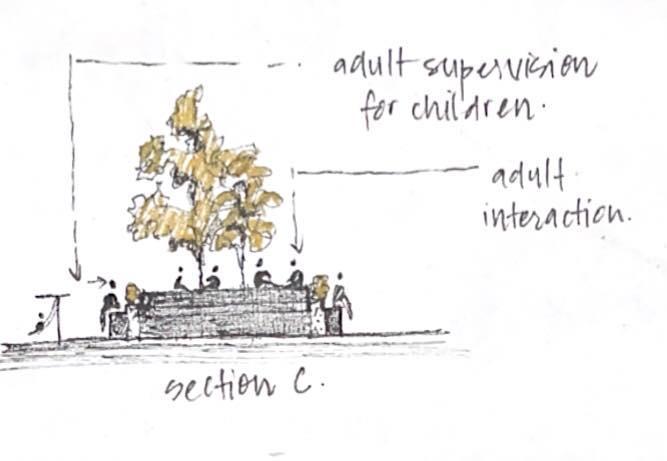

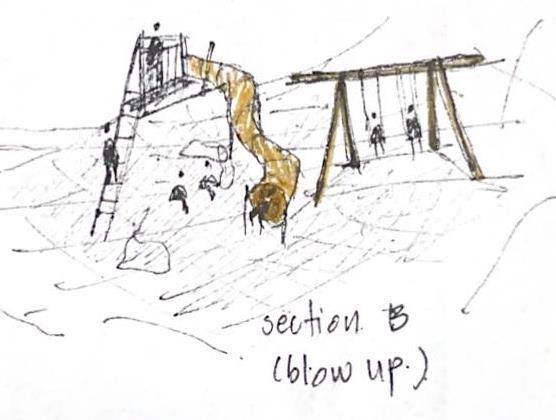

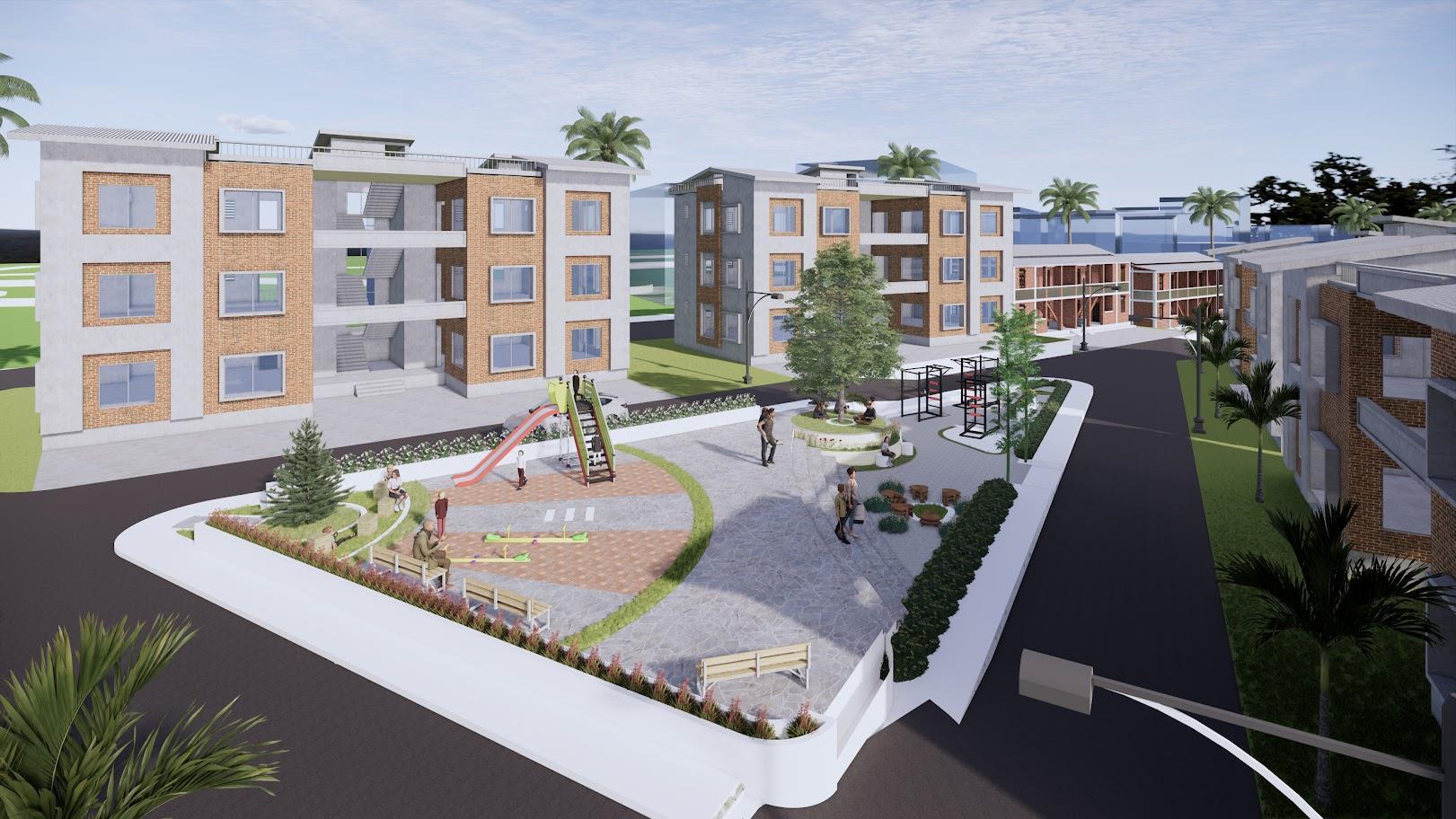

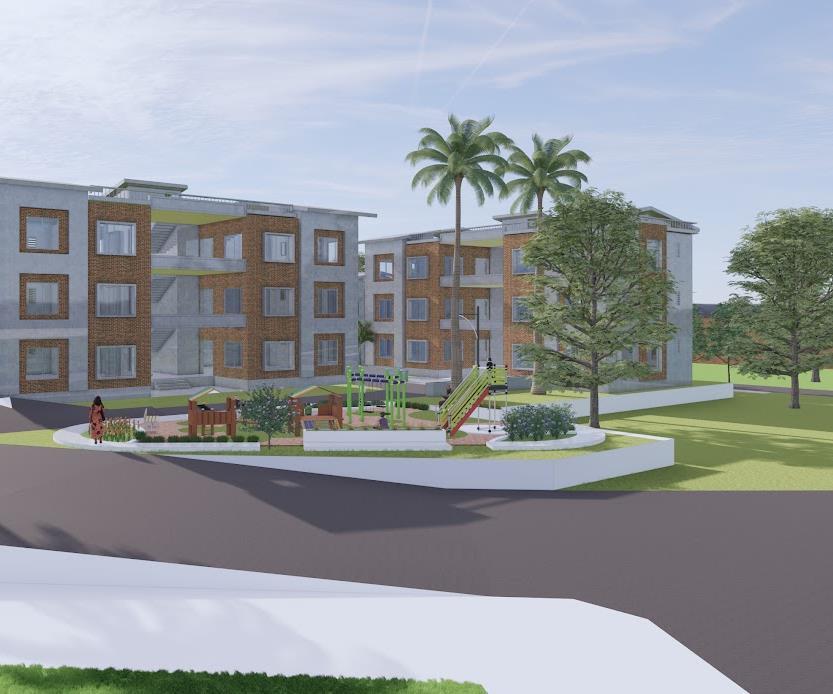

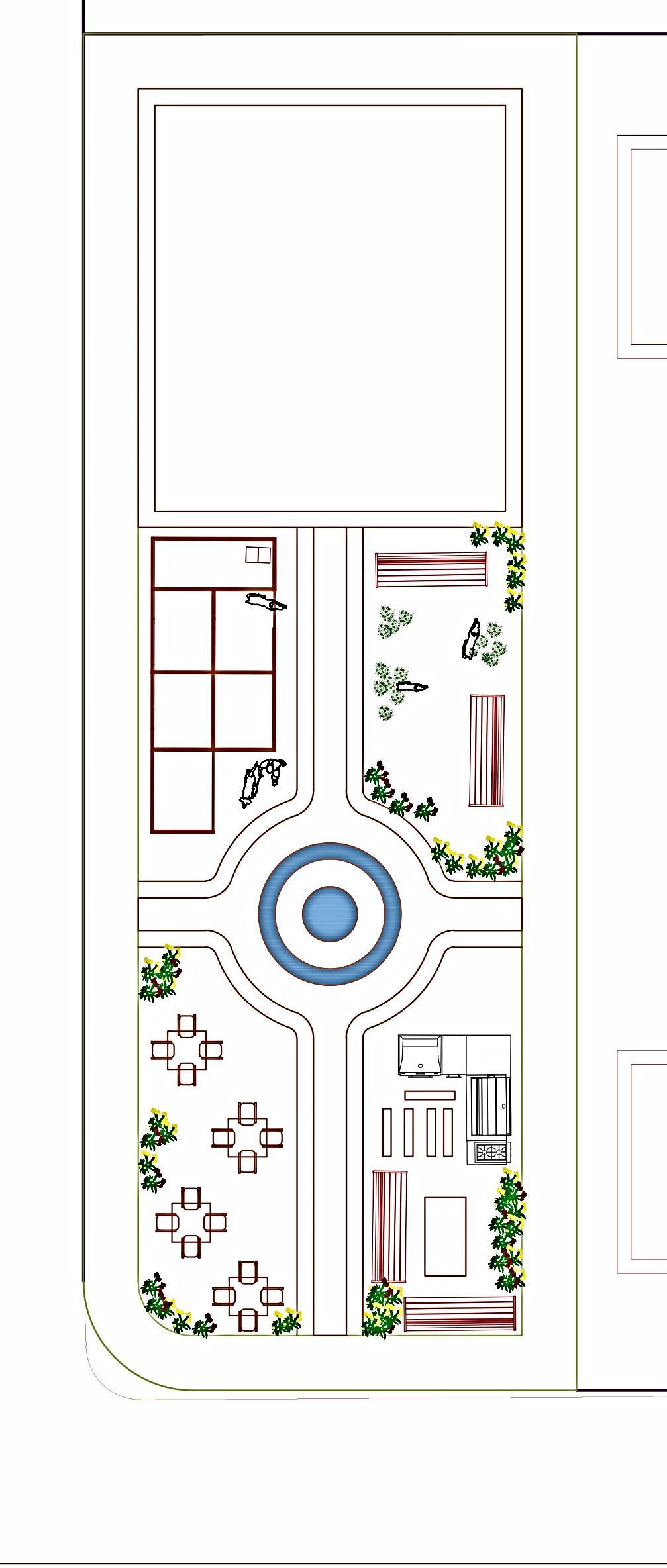

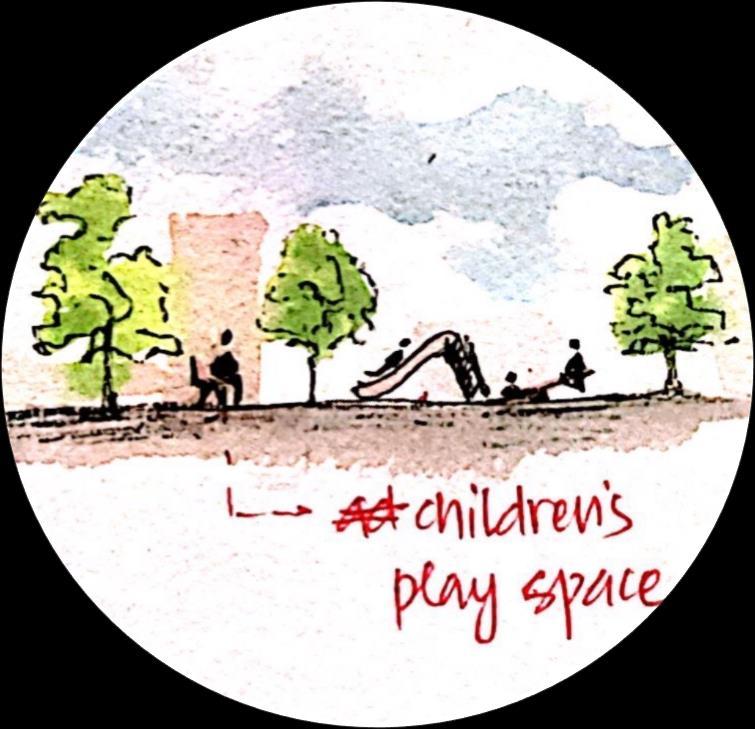

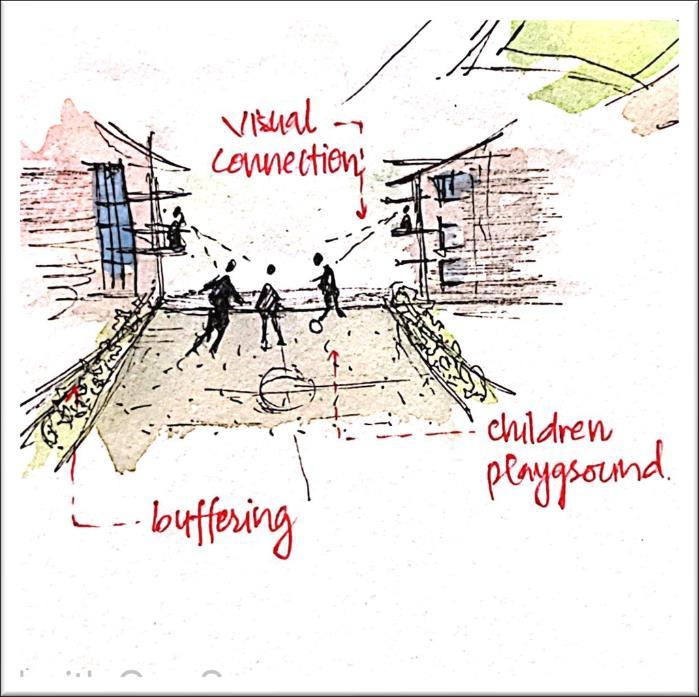

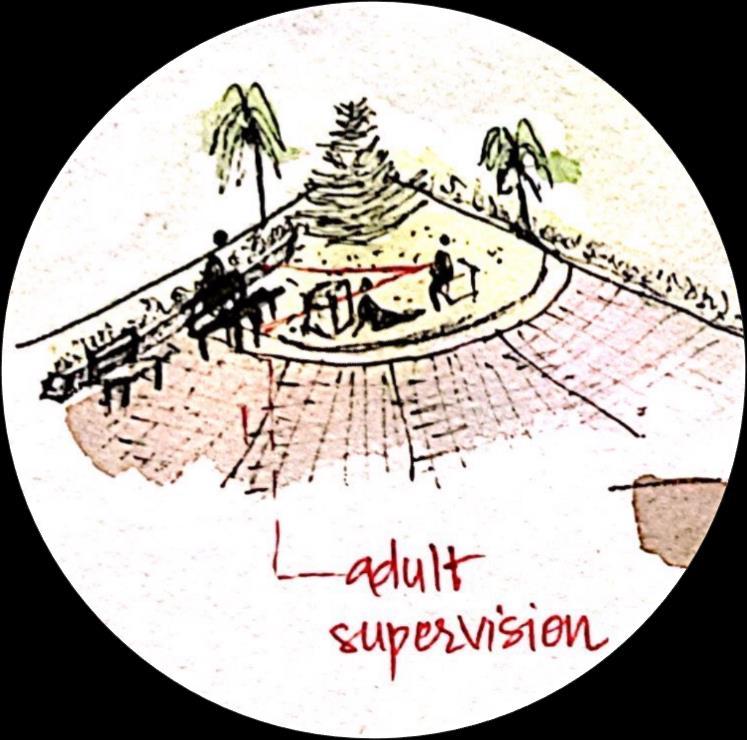

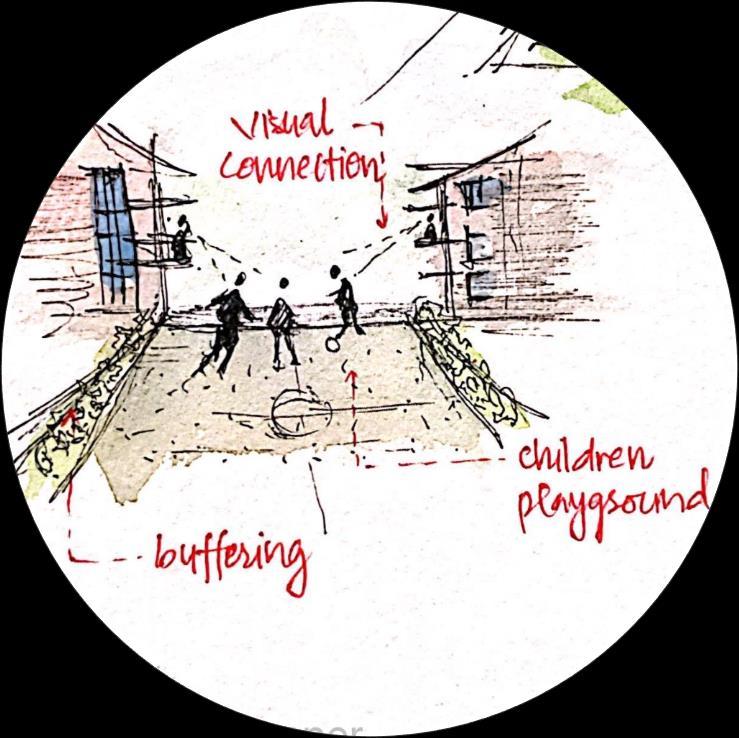

Children playground Outdoor seating area Supervising adults PLAN – SCALE 1:150 VIEWS

PLAN – SCALE 1:100 VIEWS

CONSTRUCTION TECHNOLOGY

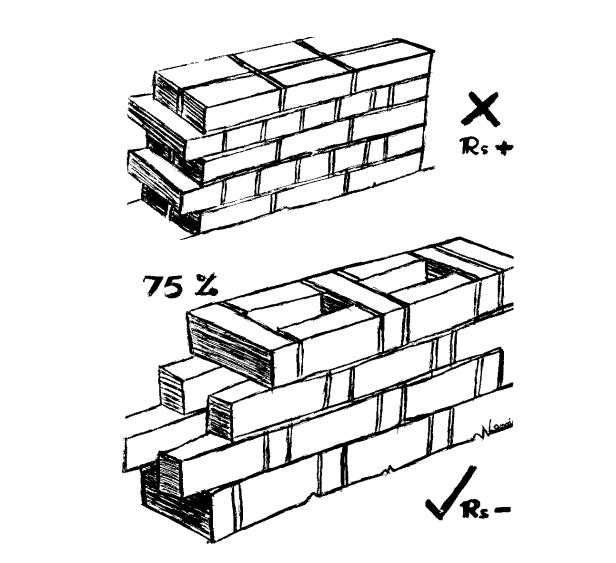

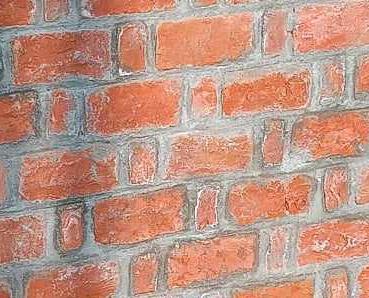

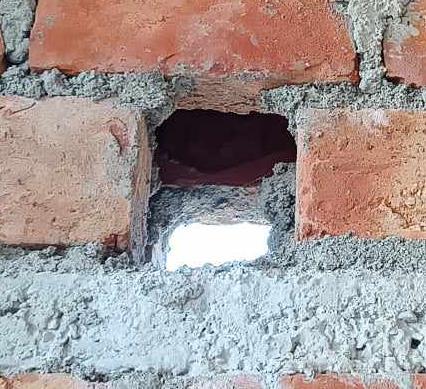

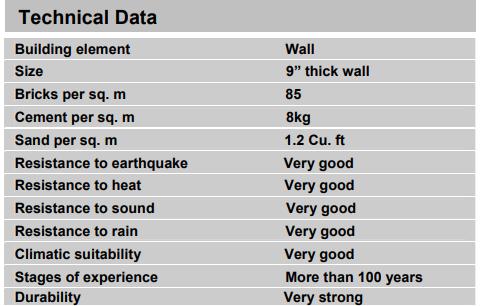

WALL CONSTRUCTION : RAT TRAP BOND

MATERIALS : BURNT CLAY BRICK

• BOND TYPE : RAT - TRAP BOND

•ADVANTAGES : REDUCED IN MATERIAL USE BY AROUND 25 %AND INCREASED THERMAL INSULATION

•DISADVANTAGES : HOLLOW BOND MAY ACT AS SOUND CHAMBER. NEED SPECIAL ATTENTION IN EDGE AND BOND CONNECTION..

SPECIFICATION FOR ITSAPPLICATION

• CEMENT: SAND RATIO

> FOR ASINGLE STORIES BUILDING – 1:6

> FOR ADOUBLE STOREY BUILDING

>> 1:4 FOR GROUND FLOOR

>>1:6 FOR THE UPPER FLOOR

• MOST SUITABLE BRICK SIZE : LENGTH 230MM, WIDTH 110MM, THICKNESS 55-65MM

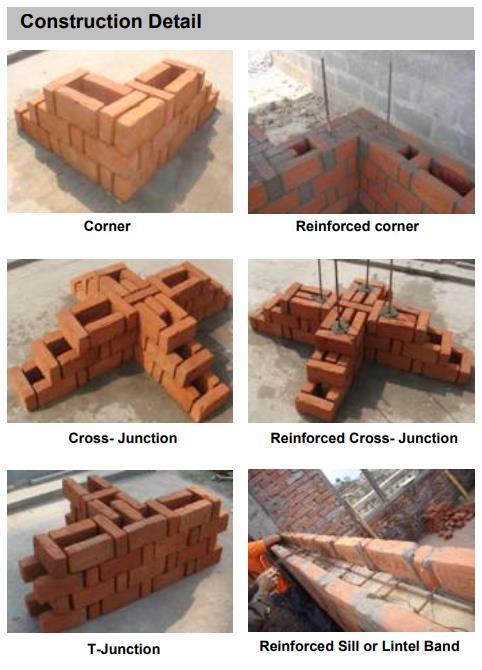

• EARTHQUAKE RESISTANCE

>REINFORCED CONCRETE BANDS AT SILL, LINTEL AND ROOF LEVEL.

>CORNERS, SIDES OF OPENINGS, T - JUNCTIONS OF LOAD BEARING MASONRY REINFORCED WITH 12MM STEEL BARS GROUTED IN M20 CONCRETE FILLED IN CAVITY

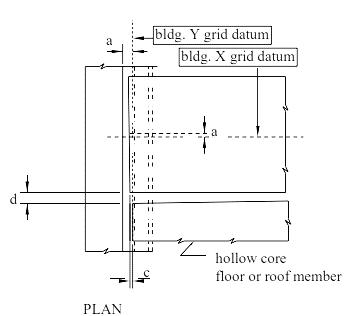

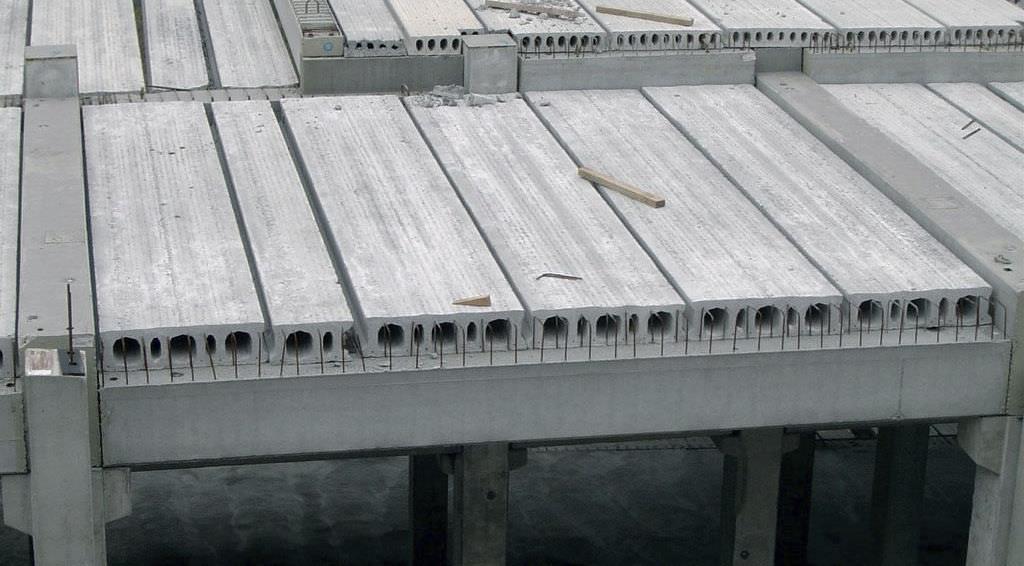

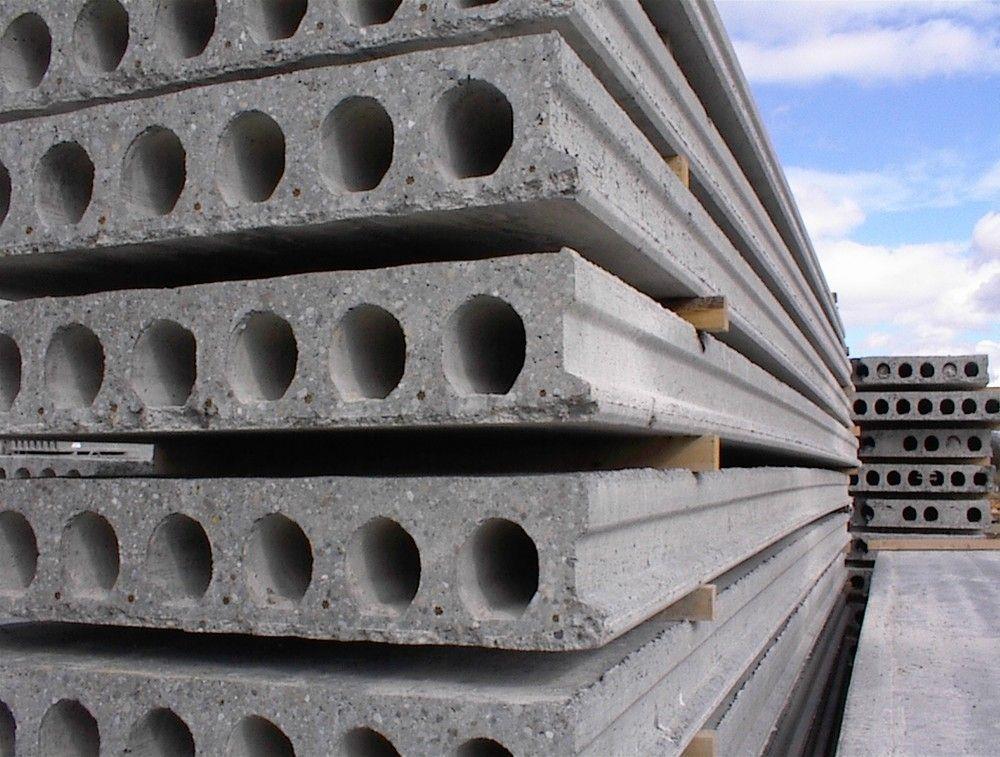

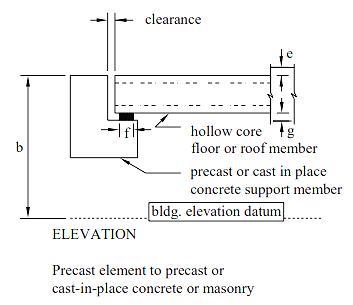

SLAB CONSTRUCTION : PRESTRESSED PRECAST HOLLOW CONCRETE SLAB

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE

DHARAN,

SUBJECT : DESIGN STUDIO

TITLE : ERC HOUSING

VII

SUBMITTED TO :

DATE : 11-20

SCALE

SUNSARI

COLONY SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

AR. SANJAYA MAHARJAN AR. KUBER SHRESTHA

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO : AR. SANJAYA MAHARJAN

DATE : 11-20

AR. KUBER SHRESTHA

SCALE :

VIEW FROM THE NODE OVERALL VIEW USER FRIENDLY SPACES

MAIN ENTRANCE

TRIBHUVAN UNIVERSITY

INSTITUTE OF ENGINEERING

DEPARTMENT OFARCHITECTURE DHARAN, SUNSARI

SUBJECT : DESIGN STUDIO - VII

TITLE : ERC HOUSING COLONY

SUBMITTED BY :AMIT POUDEL UPADHYAYA (PUR076BAR003) , DARSHAN KUMAR ACHARYA (PUR076BAR007), NISHASHARMA (PUR076BAR017), PALLAVI SHRESTHA(PUR076BAR018), PRAJASHWEE SHRESTHA(PUR076BAR022)

SUBMITTED TO : AR. SANJAYA MAHARJAN

DATE : 11-20

AR. KUBER SHRESTHA

SCALE :

3D VIEWS Outdoor communal spaces Central open space AERIALVIEW Pet friendly spaces 2BHK attached colony Calisthenic park Children’s park

Road junctions
