General notes:
A. All work performed per these drawings must conform with the latest Edition of state building code, local ordinances, and the ada. Local building Inspector to have jurisdiction.
B. The contractor shall be fully familiar with appropriate documents. Contractor shall review contract documents and notify architect of any Discrepancies in writing before starting work
C. The contractor shall verify existing conditions and dimensions of existing work in field before . Starting work. The contractor shall coordinate all discrepancies with this work, and notify the architect in writing of any discrepancies. Work includes coordination with existing conditions.
Contractor is responsible for informing all inspecting and approval officials of relevant clarifications or changes to the work.
D. Do not scale drawings. Contractor shall review documents and identify in writing to the architect additional dimensions or clarifications required before starting work.
E. Work not by M.A designs, inc. To be included as part of the work:
- Structure work
- Plumbing systems - Acoustic systems - Fire protection systems - Electrical systems - Mechanical systems
- Emergency power systems
F. Mechanical, electrical, plumbing and fire protection symbols reflect desired locations.
G. Repair and finish all existing surfaces as required by new construction.
H. These drawings show design intent only. Means and methods of construction are the responsibility of the contractor. Requests for clarification of the design intent shall be made in writing to the architect.
Project Description :
Architectural Abbreviations A ACM ASBESTOS CONTAINING MATERIAL ACP ACOUSTICAL CEILING PANEL ADA AMERICANS WITH DISABILITIES ACT AFF ABOVE FINISH FLOOR AL ALUMINUM ALT ALTERNATE C CJ CONTROL JOINT CMU CONCRETE MASONRY UNIT COL COLUMN CONC CONCRETE CPT CARPET CT CERAMIC TILE CONT CONTINUOUS D DIA DIAMETER DIM DIMENSION(S) DR DOOR DWG DRAWING E EA EACH EL ELEVATION EQ EQUAL EWC ELECTRIC WATER COOLER EX EXISTING EXP EXISTING, PAINT EXIST EXISTING F FD FLOOR DRAIN FE FIRE EXTINGUISHER FEC FIRE EXTINGUISHER CABINET FFE FINISH FLOOR ELEVATION FV FIELD VERIFY G GA GAUGE GALV GALVANIZED GSF GROSS SQUARE FEET GWB GYPSUM WALLBOARD H HM HOLLOW METAL HOR HORIZONTAL HR HOUR(S) I INS INSULATED L LAV LAVATORY M MAX MAXIMUM MIN MINIMUM MIN MINUTES MFG MANUFACTURER MTL METAL N NIC NOT IN CONTACT NO NUMBER NOM NOMINAL NTS NOT TO SCALE O OC ON CENTER OD OUTSIDE DIAMETER OPP OPPOSITE P PF PREFINISHED PT PAINT S SCH SCHEDULE SF SQUARE FEET SIM SIMILAR STC SOUND TRANSMISSION CLASS STL STEEL T TYP TYPICAL U UON UNLESS OTHERWISE NOTED UL UNDERWRITERS LABORATORY V VCB VINYL COVE BASE VCT VINYL COMPOSITION TILE VERT VERTICAL W W/ WITH WC WATER CLOSET WD WOOD W01 View Name Sheet No. 1t Drawing Symbols Wall Section Level Door Tag Window Tag Curtain Wall Tag Lighting Fixture Tag Material Tag ? WL 01 1i Earth Gravel Cement mortar Stone Wall Reinforced concrete Concrete Thermal insulation Water insulation WPC

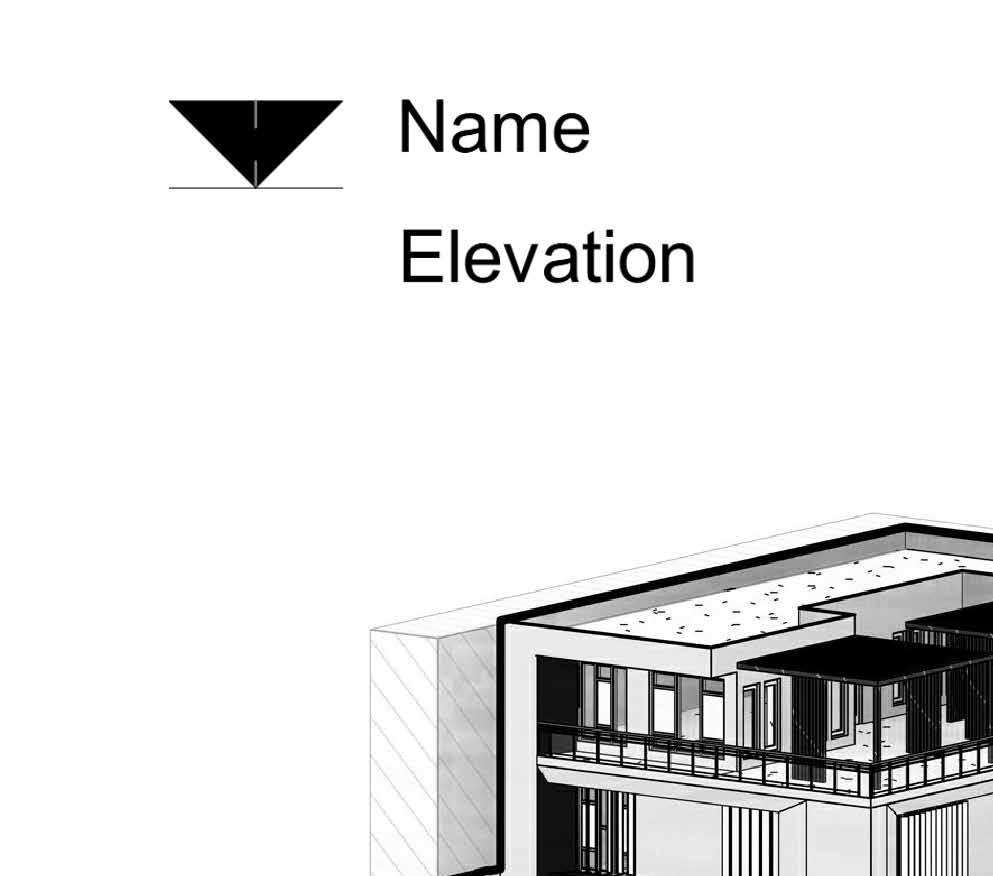

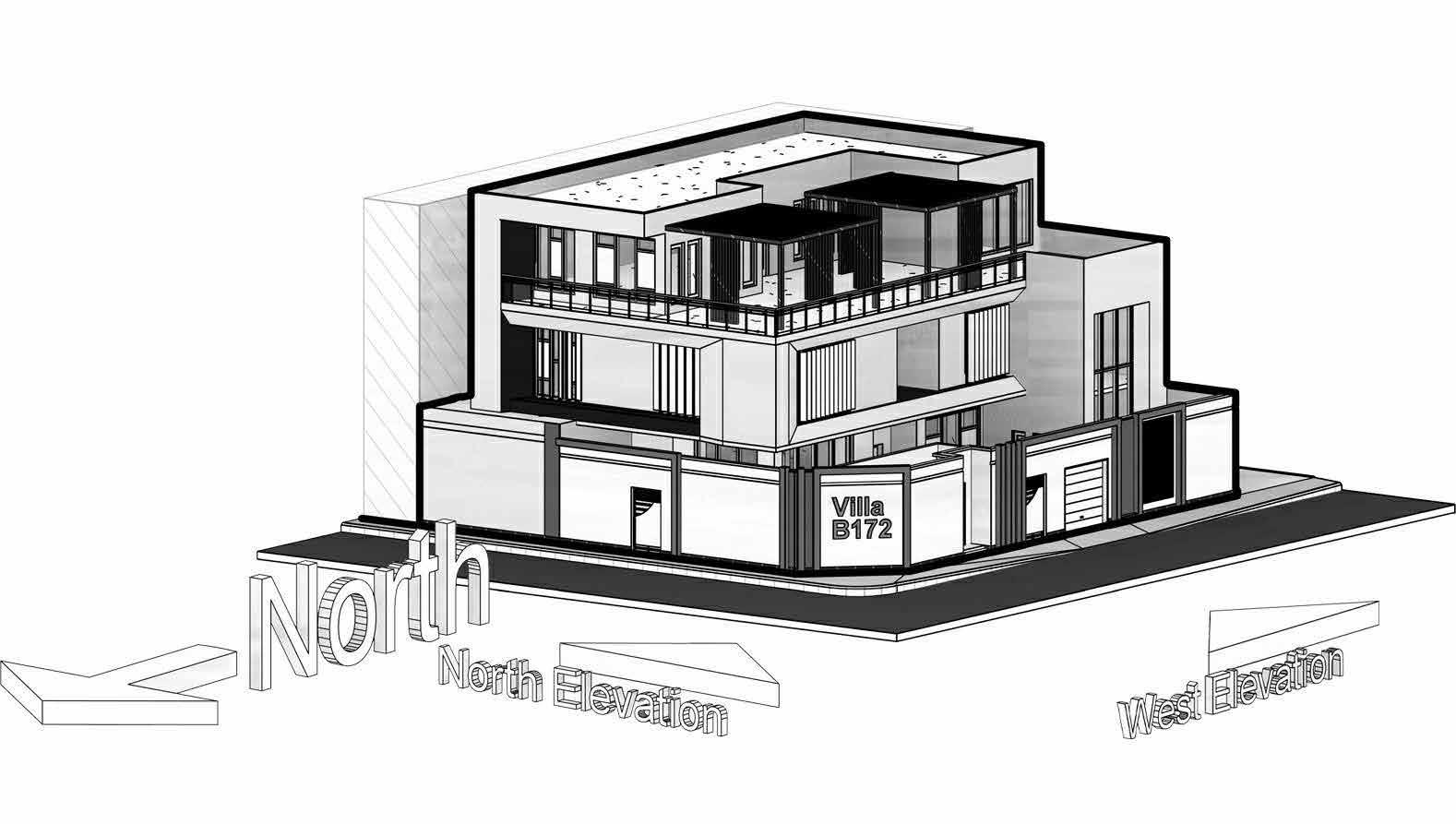

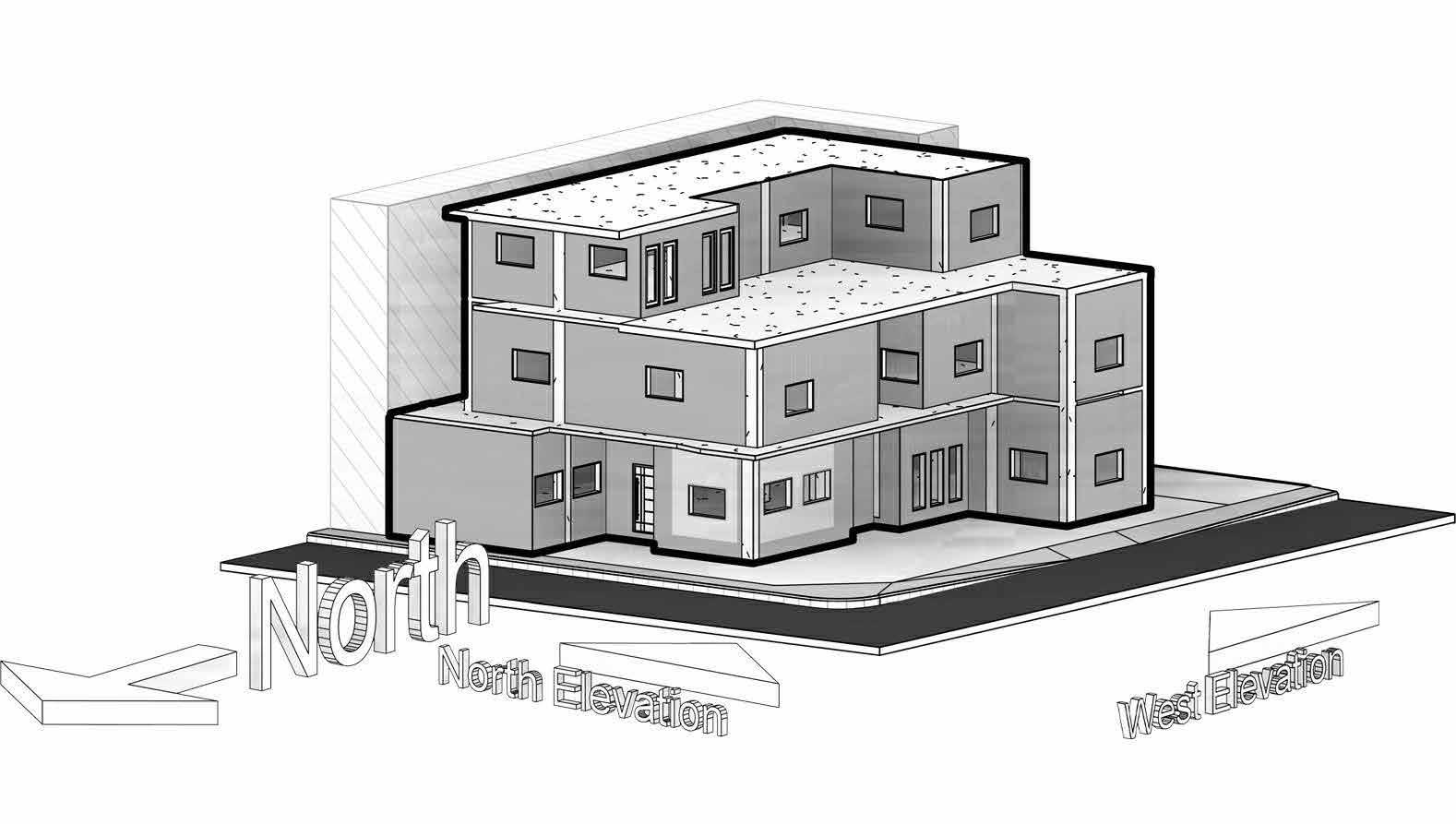

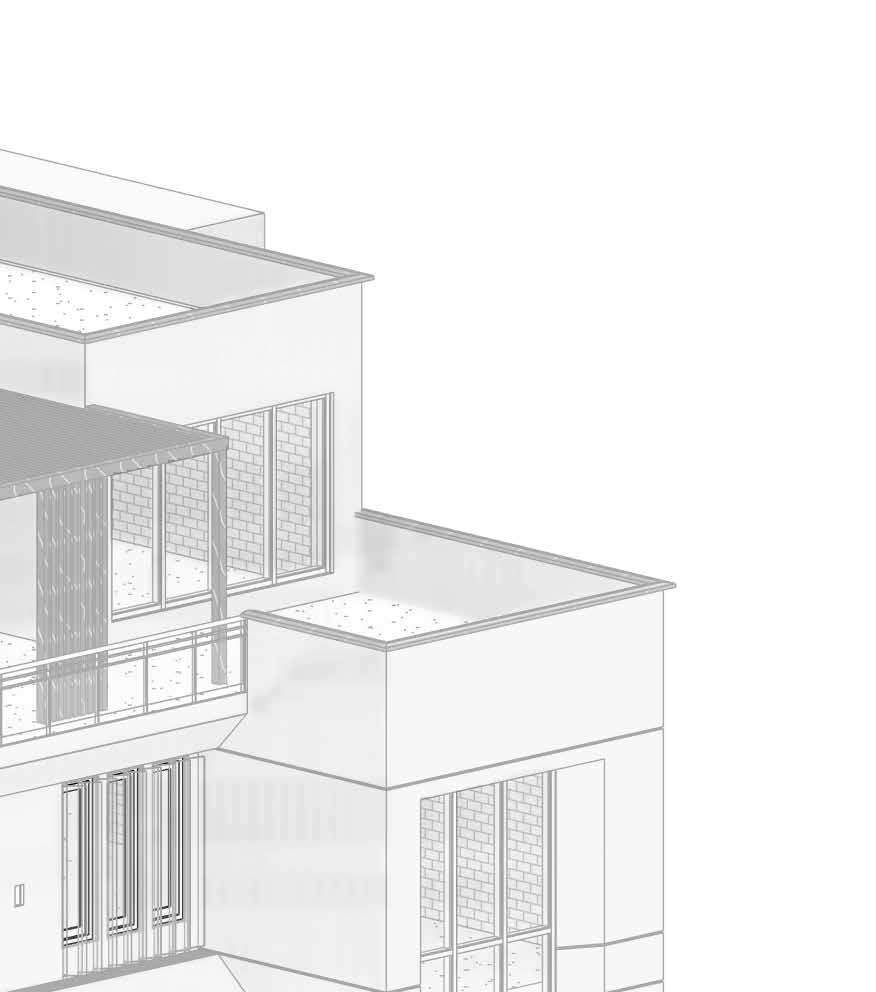

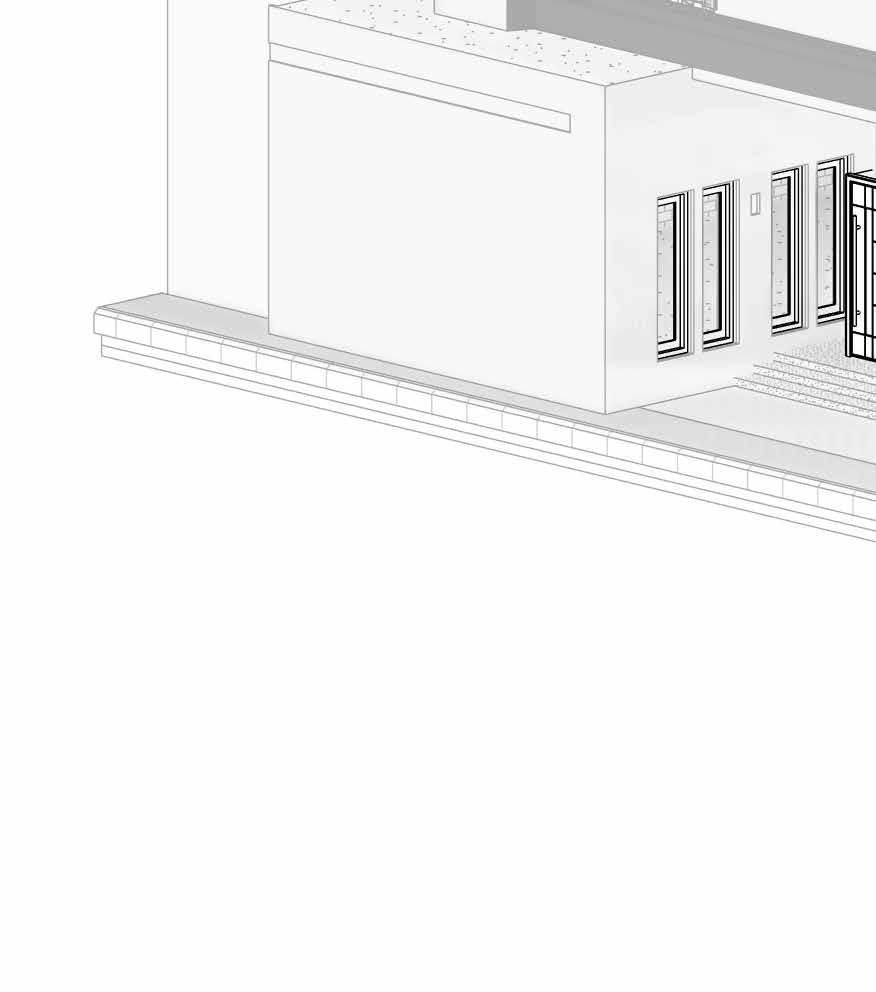

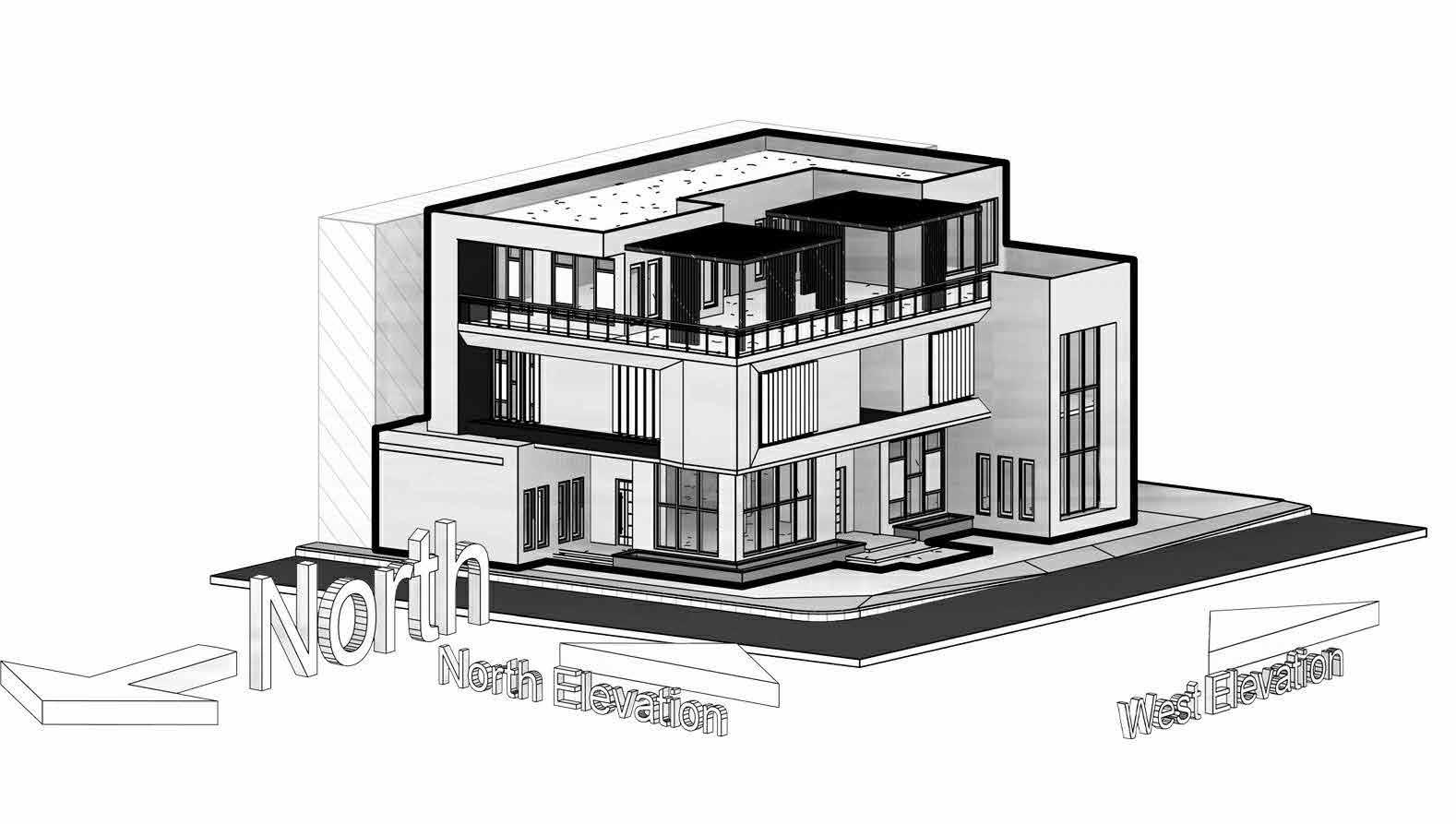

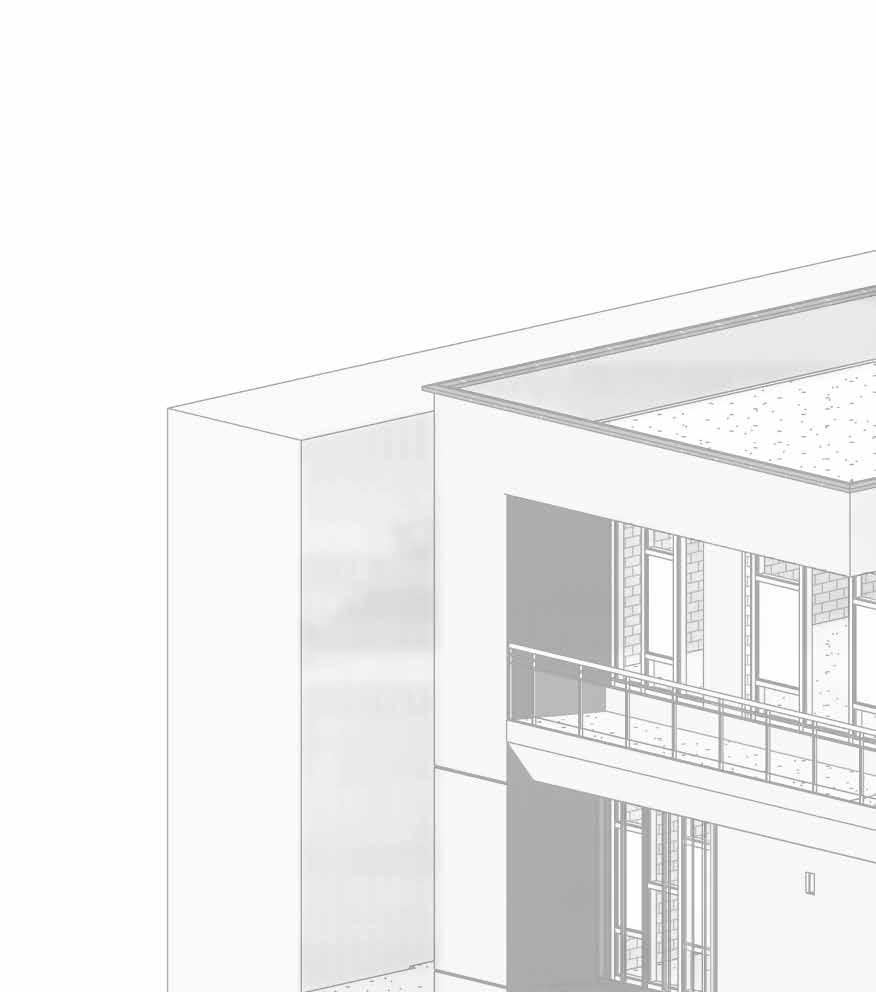

Owner : Ahmed Khaled Project Name : VIlla B 172 Work Type : Dev. Elevation Project Type : Residential, villa Project Address : El Yasmeen 1 New Cairo, Cairo Project Issue Date : 17-Dec-2022 Start Date : 13-Dec-2022 Building Name : B 172 Sheet List Sheet Number Sheet Name Type Sheet Issue Date Drawn By Scale A101 As built As built elev. 12-Dec- 2022 Mohannad A.ullah 1:50 A102 Demolition Demolition Elev. 12-Dec- 2022 Mohannad A.ullah 1:50 A103 Elevations Elev. 13-Dec- 2022 Mohannad A.ullah 1:50 A104 Fence Elevations Elev. 13-Dec- 2022 Mohannad A.ullah 1:50 A105 Elevations Lighting Electric Elev. 14-Dec- 2022 Mohannad A.ullah 1:50 A106 Fence Elevations Lighting Electric Elev. 14-Dec- 2022 Mohannad A.ullah 1:50 A107 Elevations With fence Elev. 14-Dec- 2022 Mohannad A.ullah 1:50 A108 Curtain Walls Details 15-Dec- 2022 Mohannad A.ullah 1:25 A109 DoorsWindows Details 15-Dec- 2022 Mohannad A.ullah 1:20 A110 Details Details 15-Dec- 2022 Mohannad A.ullah 1:10 *This version does not contain a complete project and documentation, and this version is intended for publishing and marketing only. Developing a villa facade and fence to the villa, preparing working drawings. online publishing version
Zero
C D E F G H
10.61
Zero 0.00 1FL 4.00 Ground 0.30 Roof
4.80
1 : 50
0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
4.00 3.70 3.00 5.23 0.94 1.38 1.38 0.94 0.83 10.70
7.61 4.00 0.30
7.70 T.O.R 10.70 1 2 3 4 5 3.15 10.70 4.90 1.00

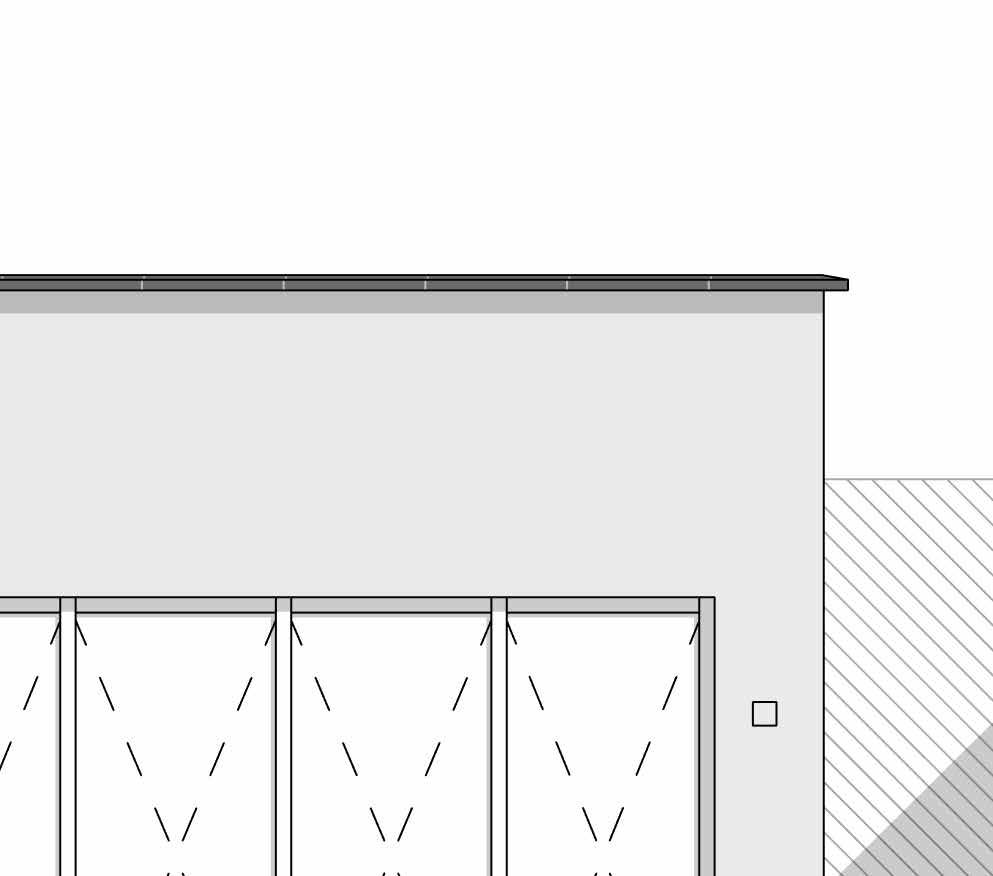

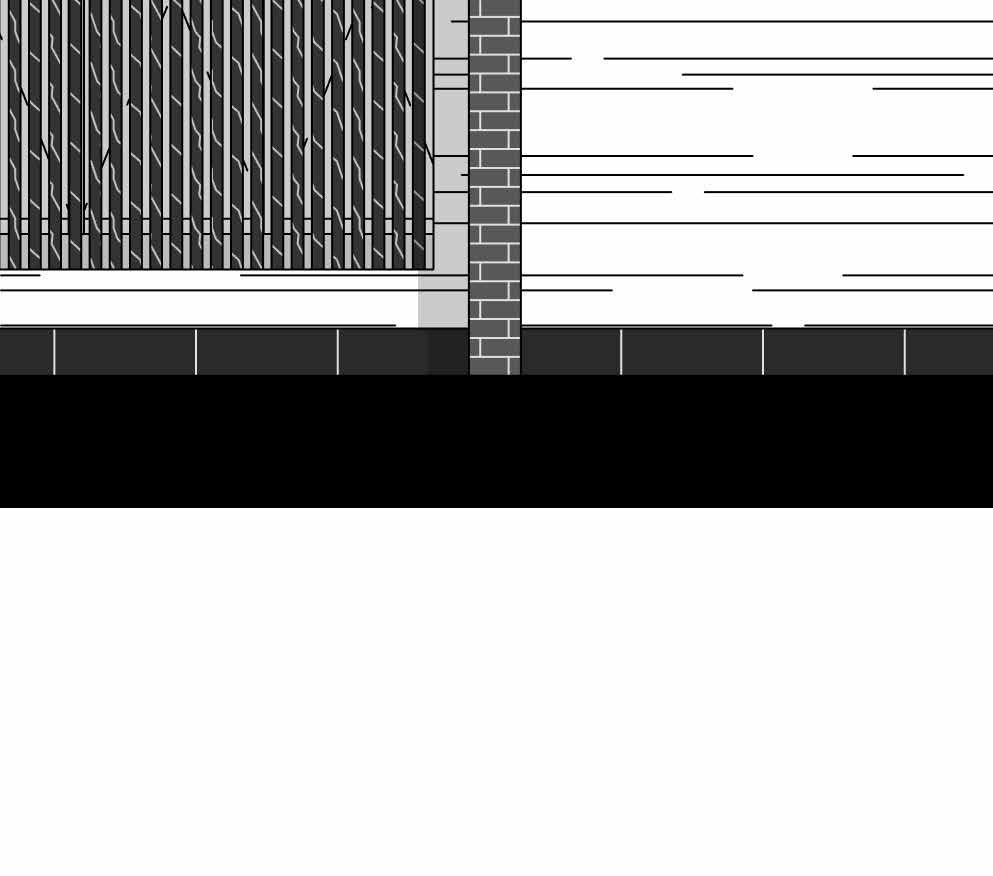

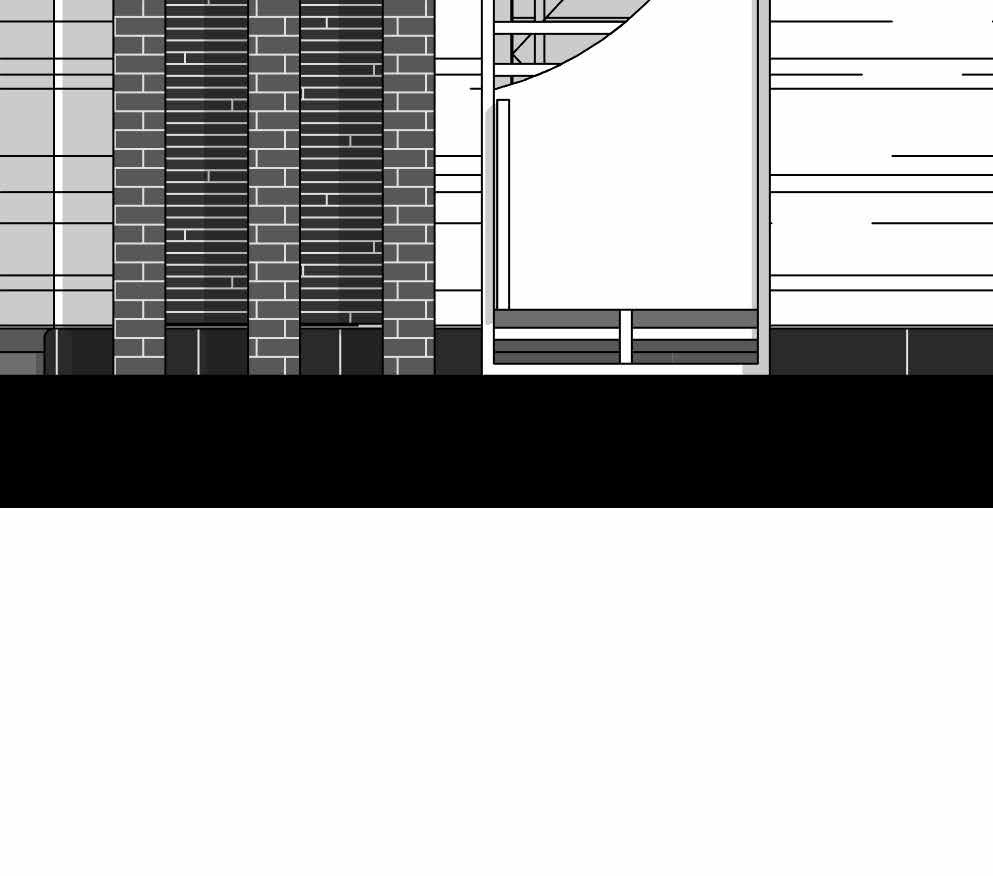

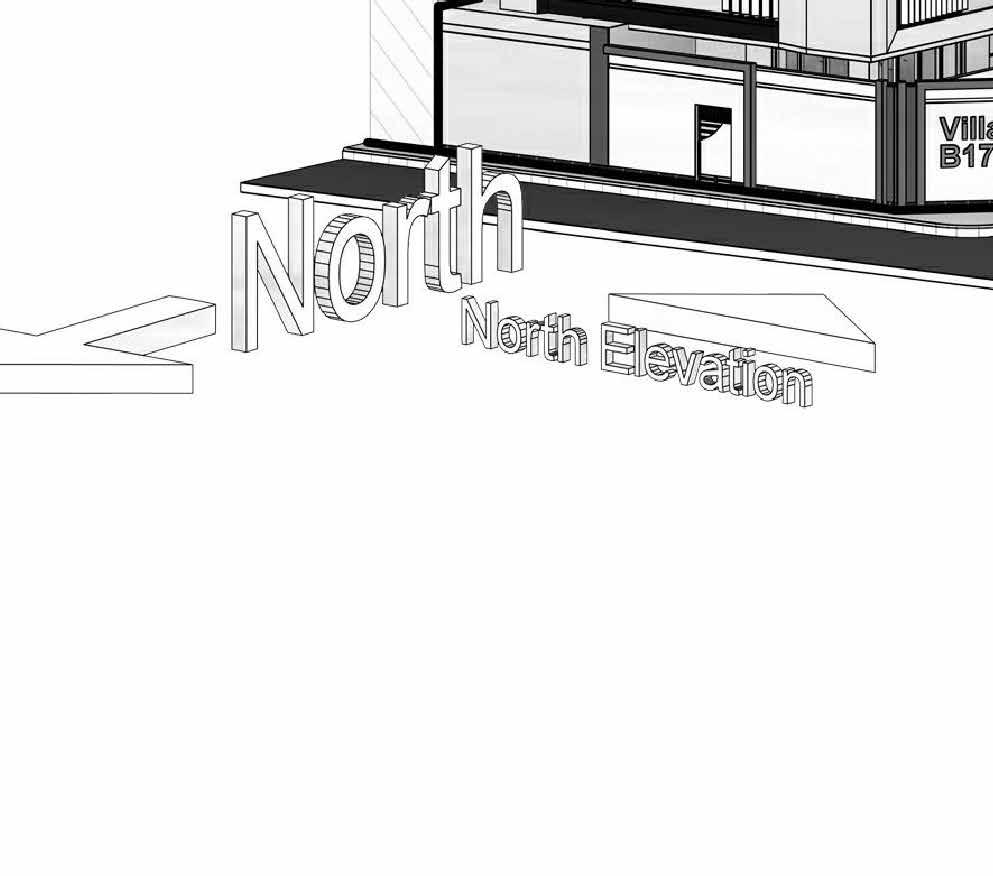

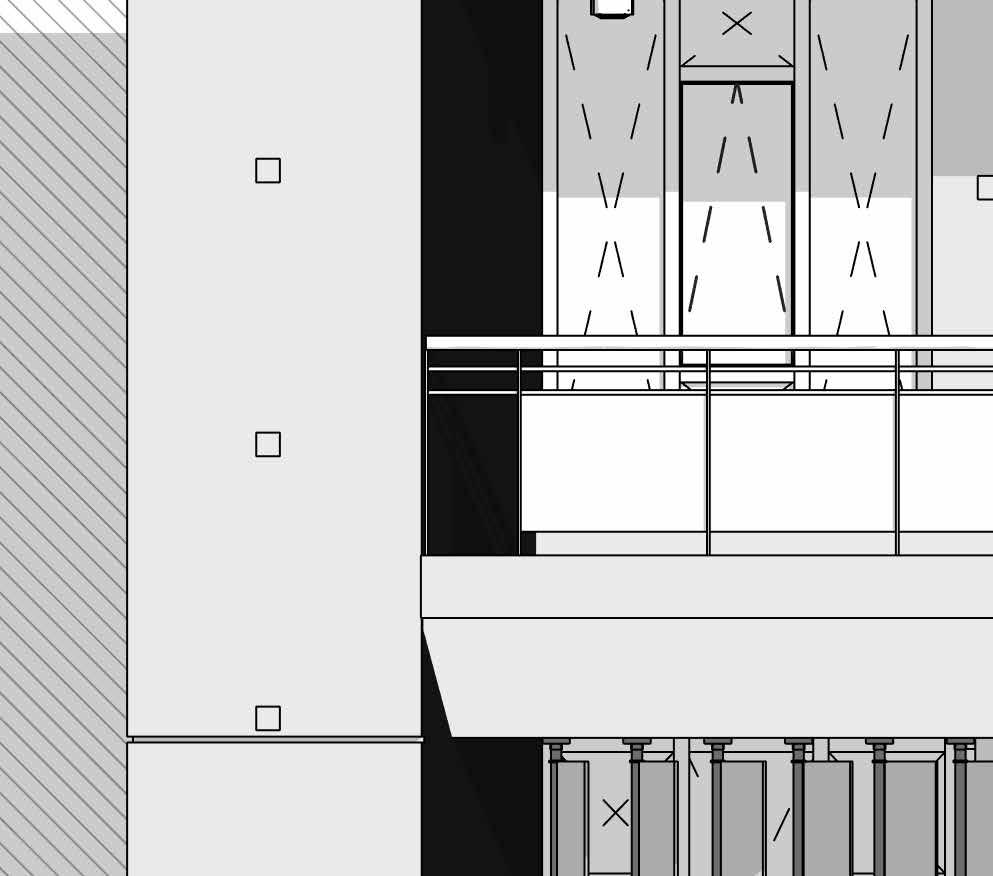

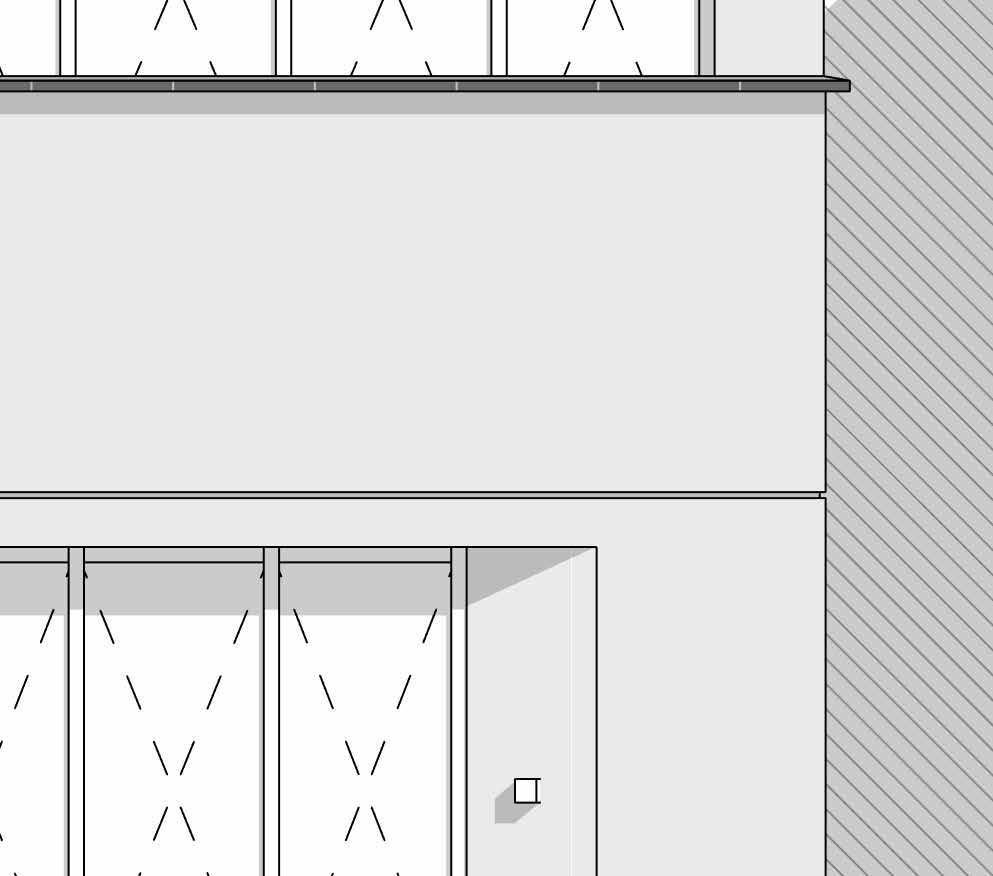

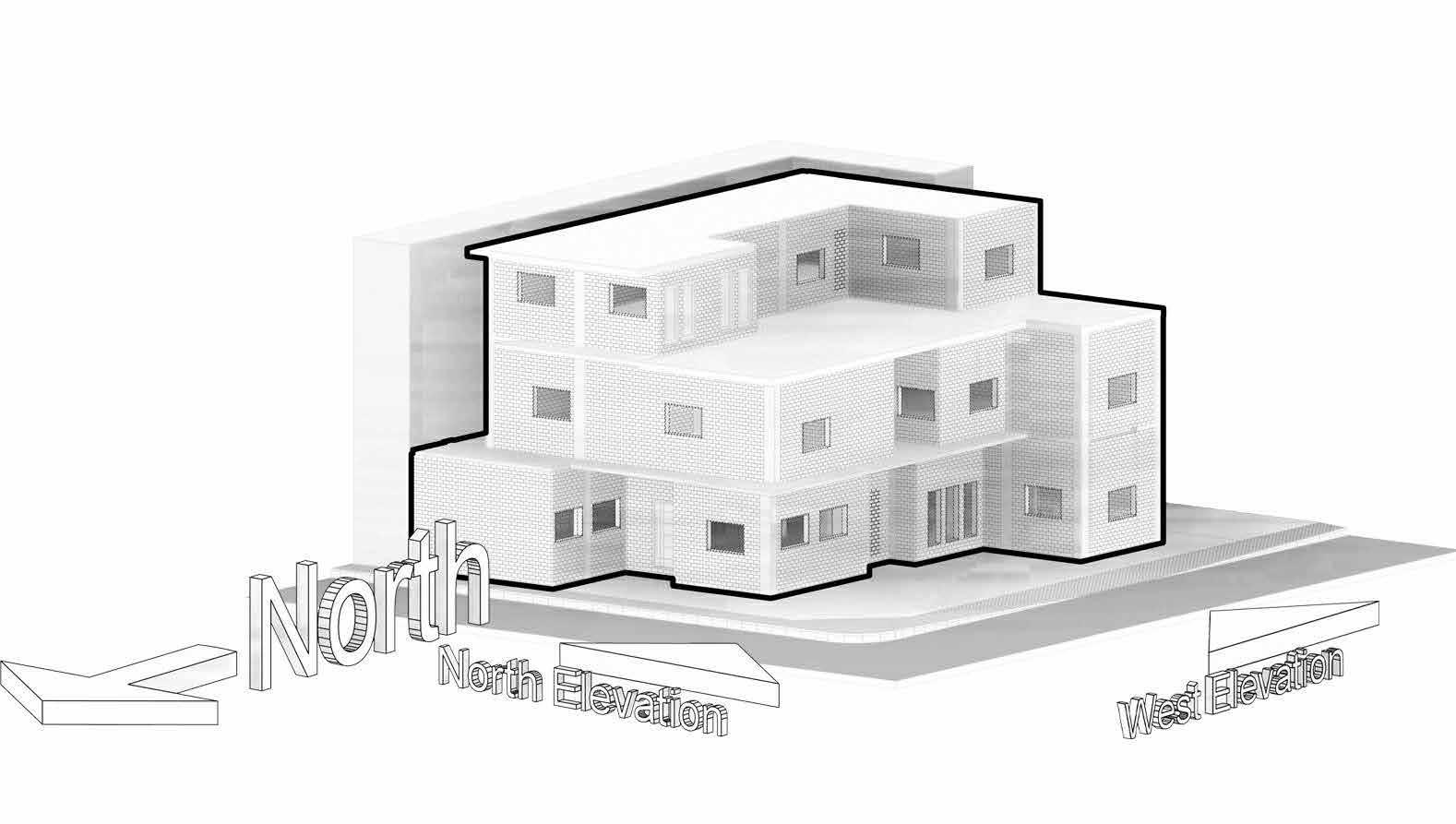

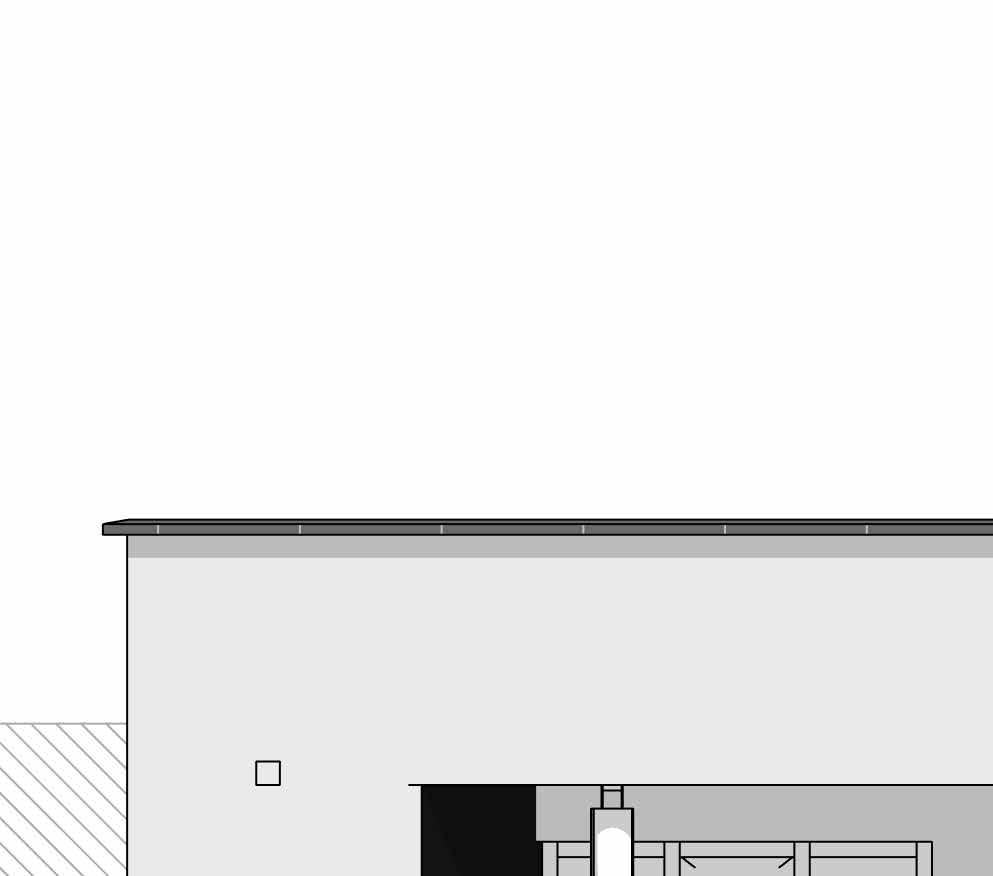

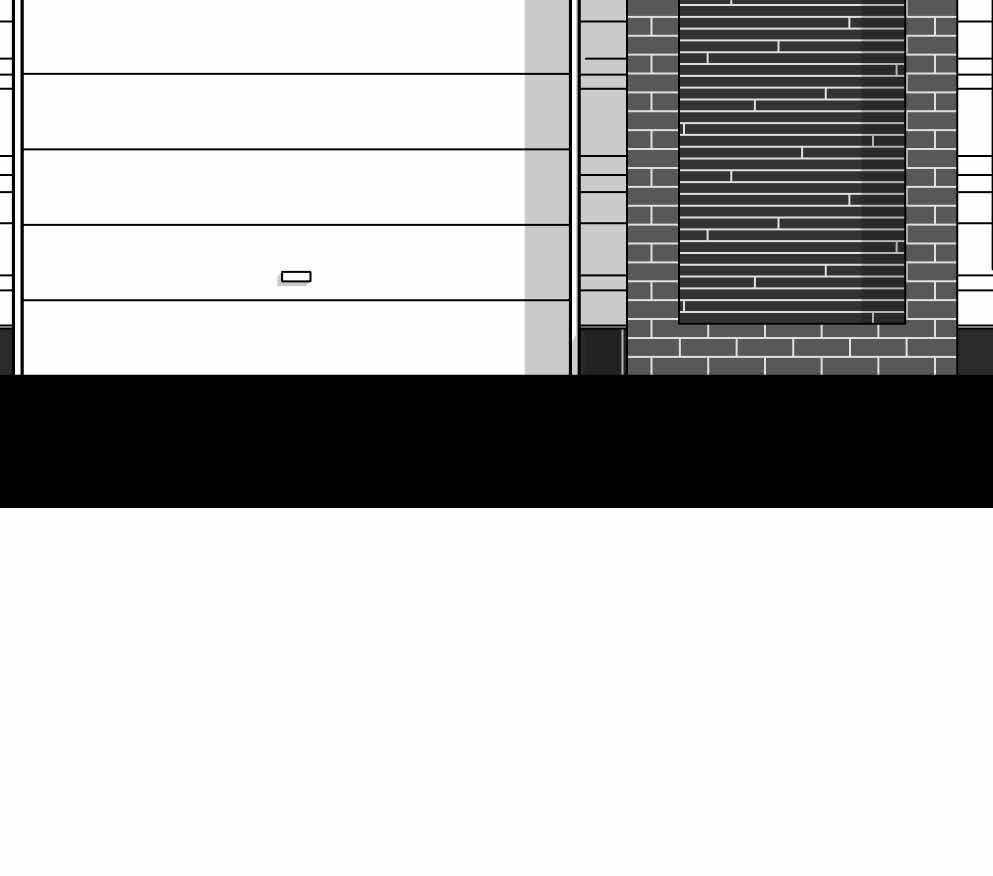

1.55 1.80 0.50 1 : 50 North Elevation as built

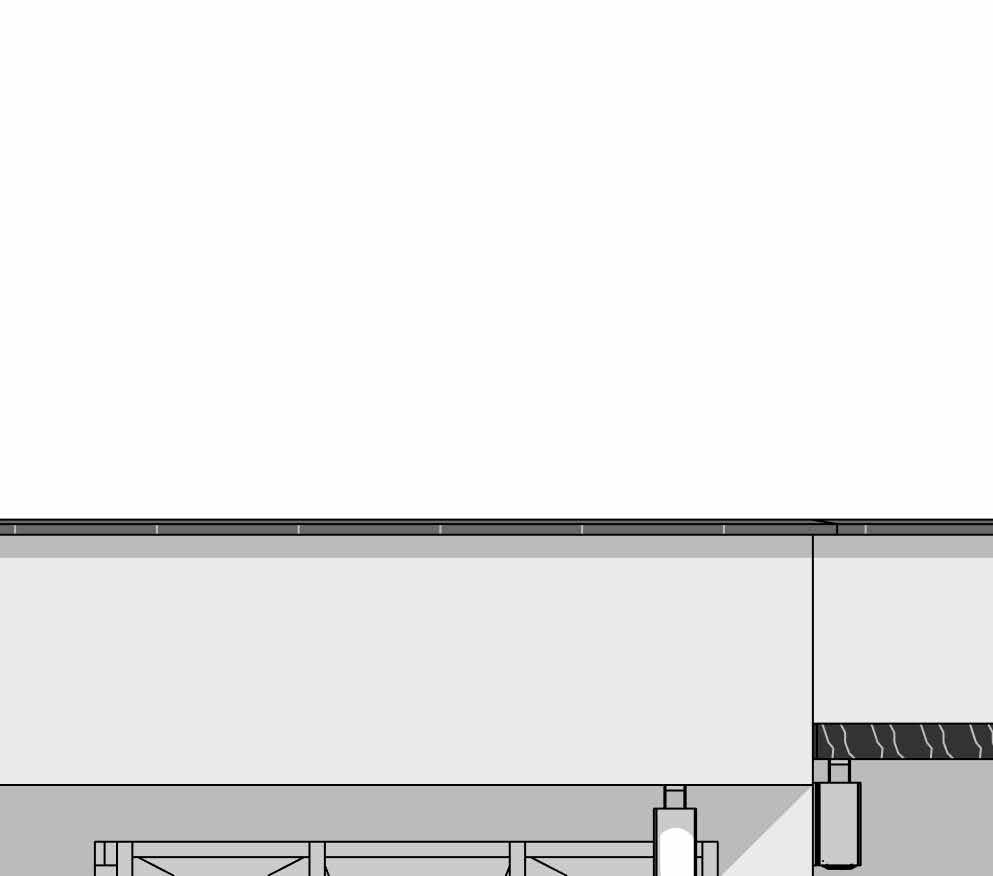

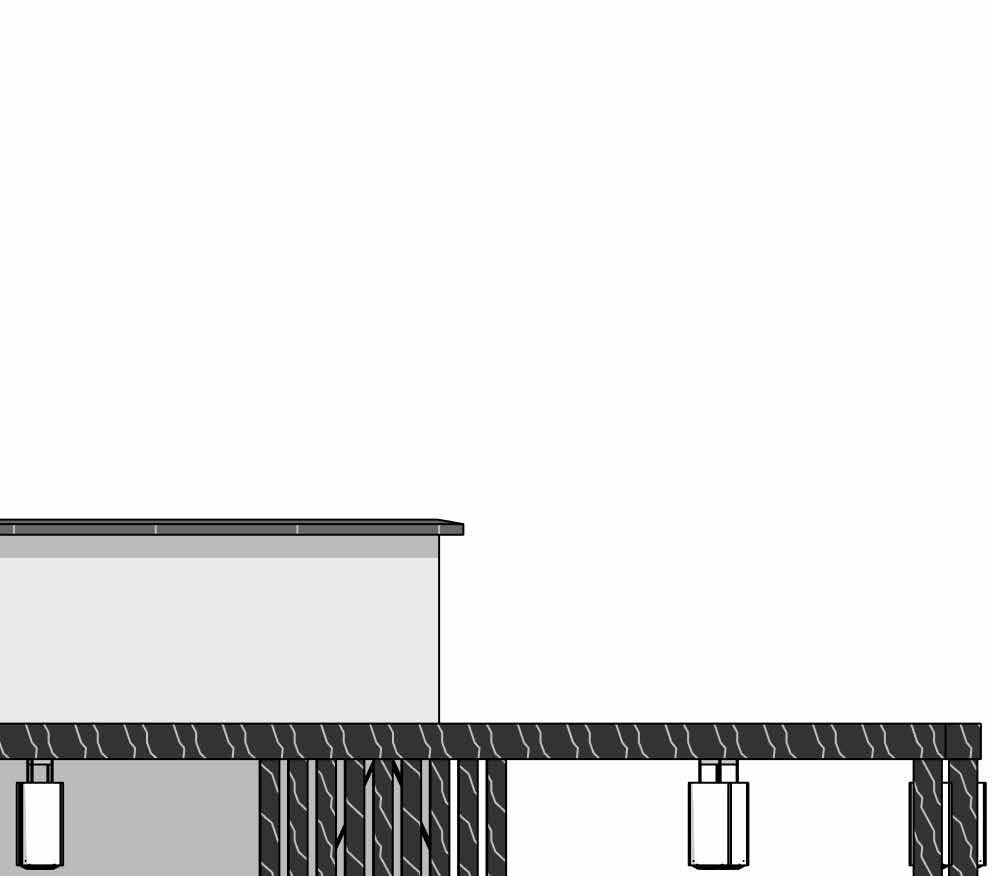

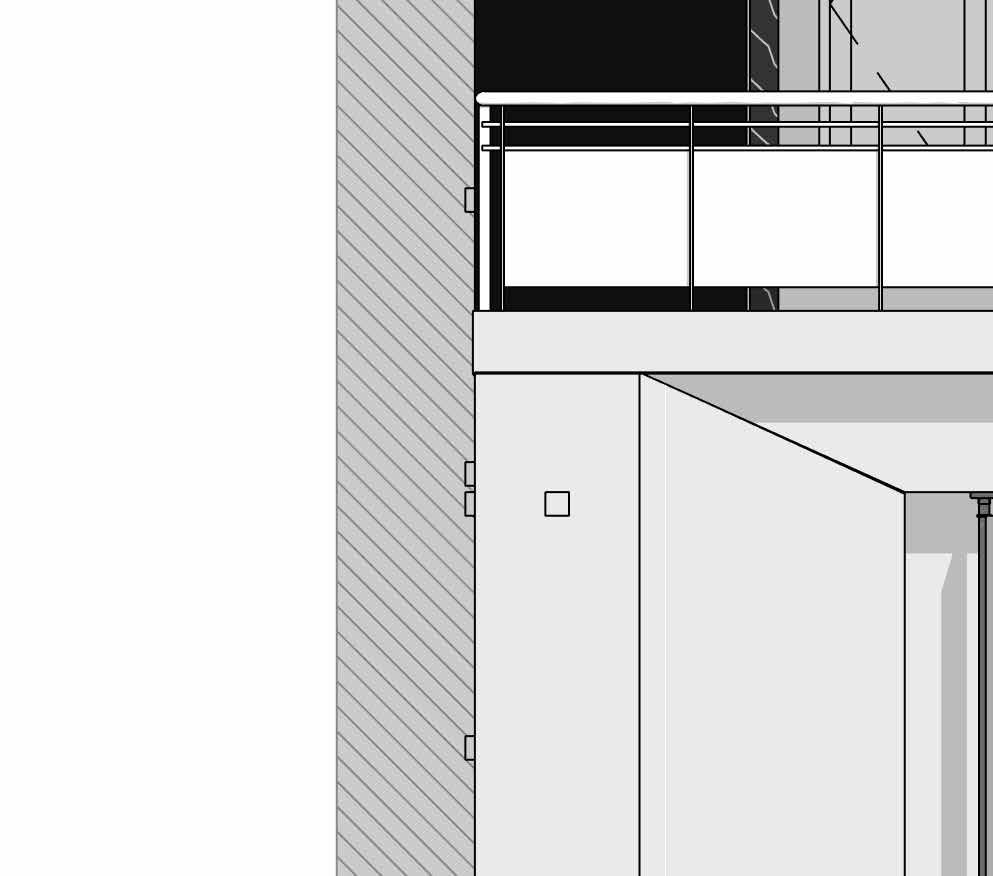

West Elevation as built
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 A B 2.50 1.35 1.35 1.00 1.50 1.20 1.00 0.80 Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 6 7 1.20 1.00 0.80 1.90 1.00 0.80 1.90 1.00 1.10 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 12-Dec- 2022 No : A101 Sheet : As built Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For
elements refer to mechanical drawings. -For
fixture refer to electrical drawings. -This sheet
review of the current situation.
hvac
lighting
is only a
C D E F G H 3
3
2 3 4
3
1
1 : 50
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
5
3 Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 1 2 3 4 5
4
6

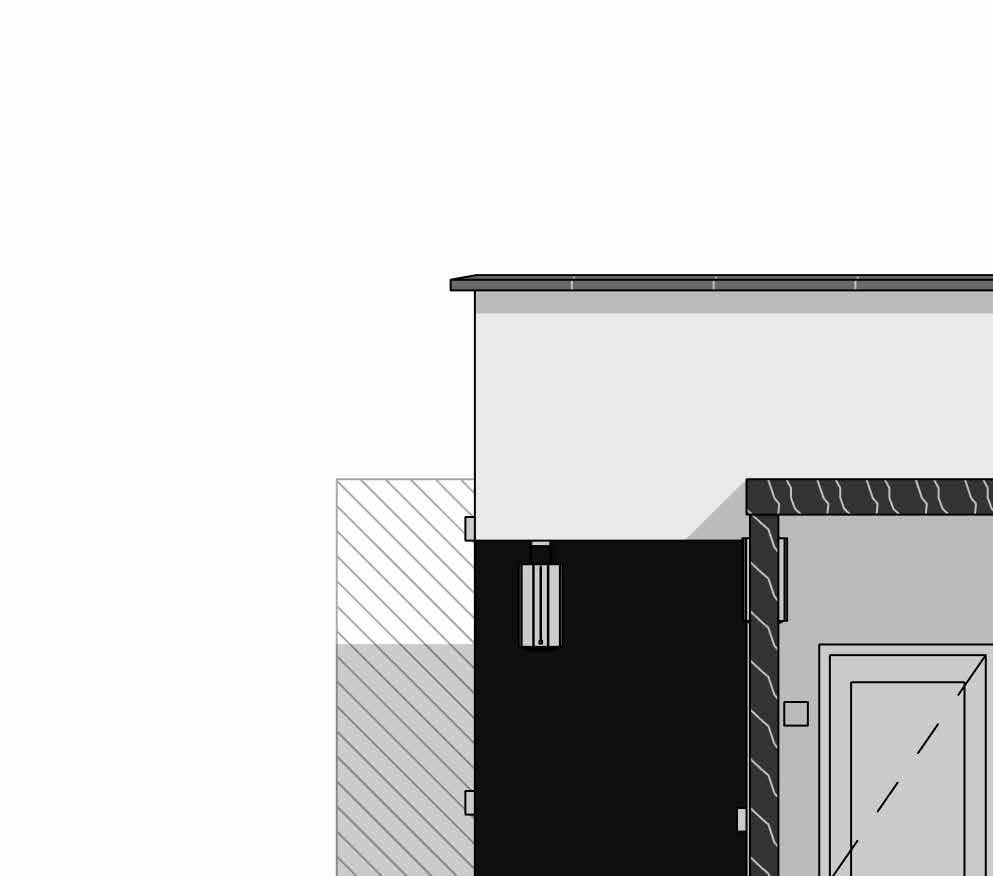

: 50 North Elevation Demolition
West Elevation Demolition
A B
6 7 1 4 3 4 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 12-Dec- 2022 No : A102 Sheet : Demolition Designed By : M.A Architect Drawn By : Mohannad A.ullah
Note No. Note 1 Expand the windows to cover the mass 2 Expanding windows to a curtain wall and adding windows 3 Expanding windows to a curtain wall 4 vertical expansion to the windows 5 Expand the windows 6 Enlarge the width of the door to have two panels -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings.
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
4 Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70

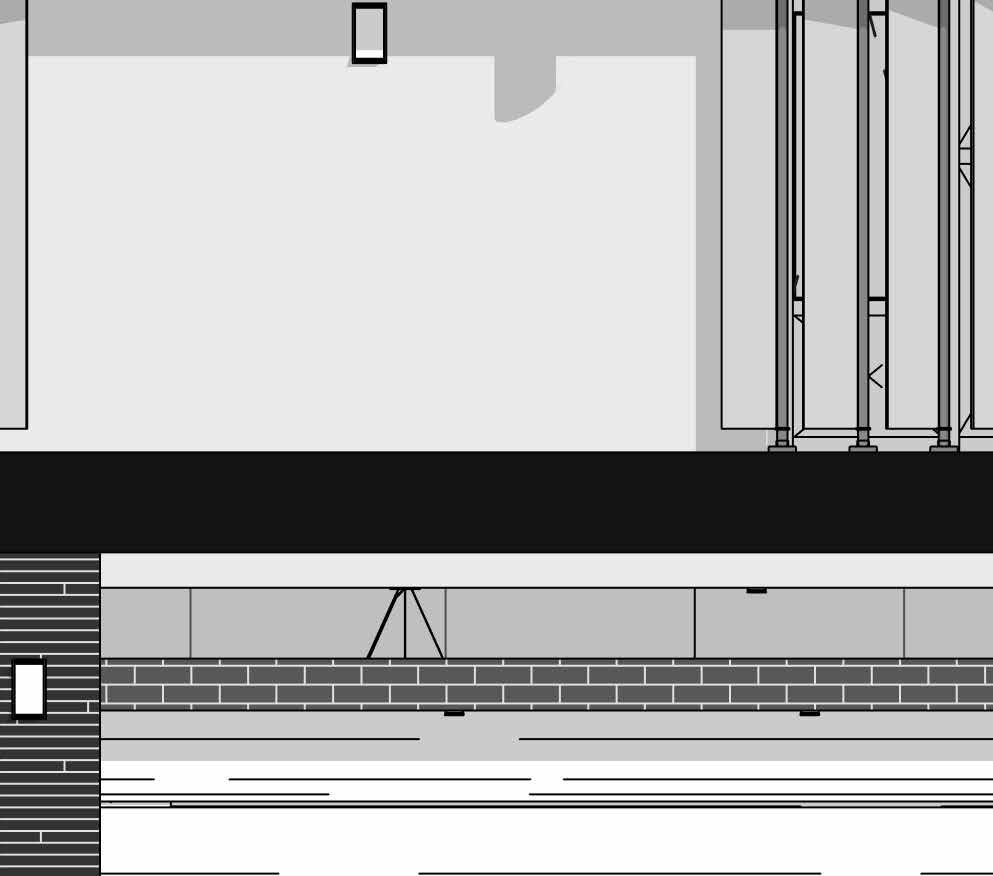

Demolition

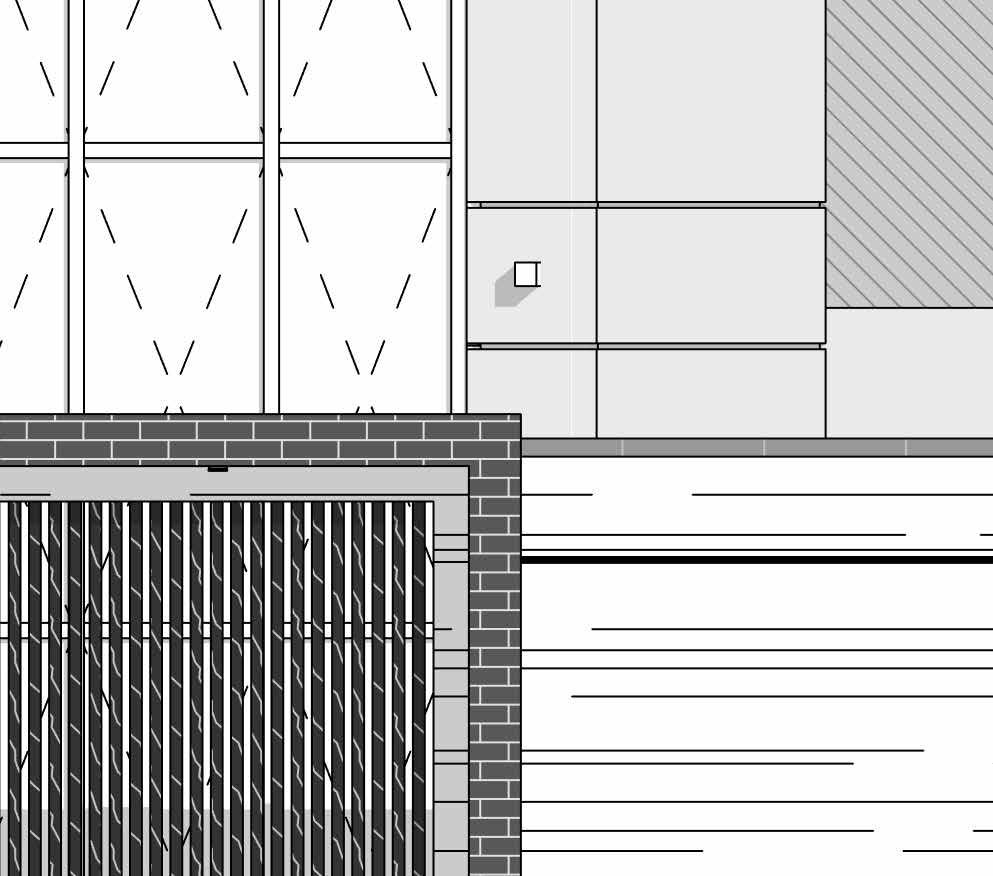

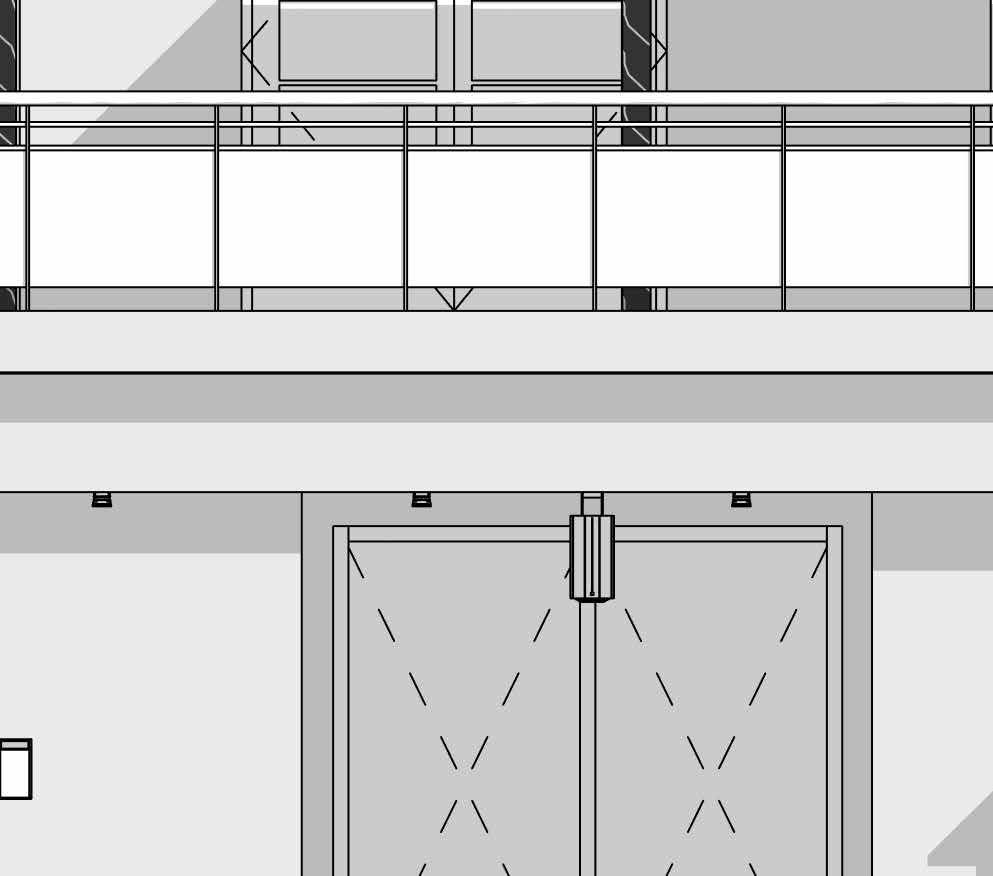

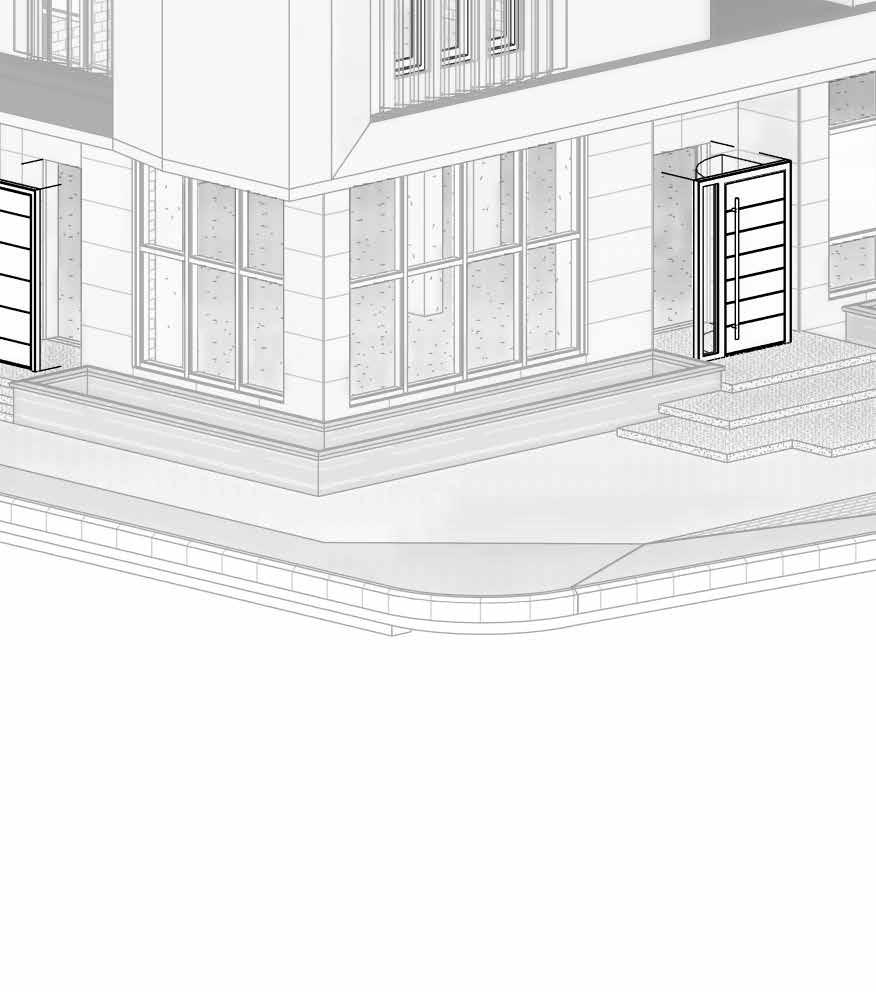

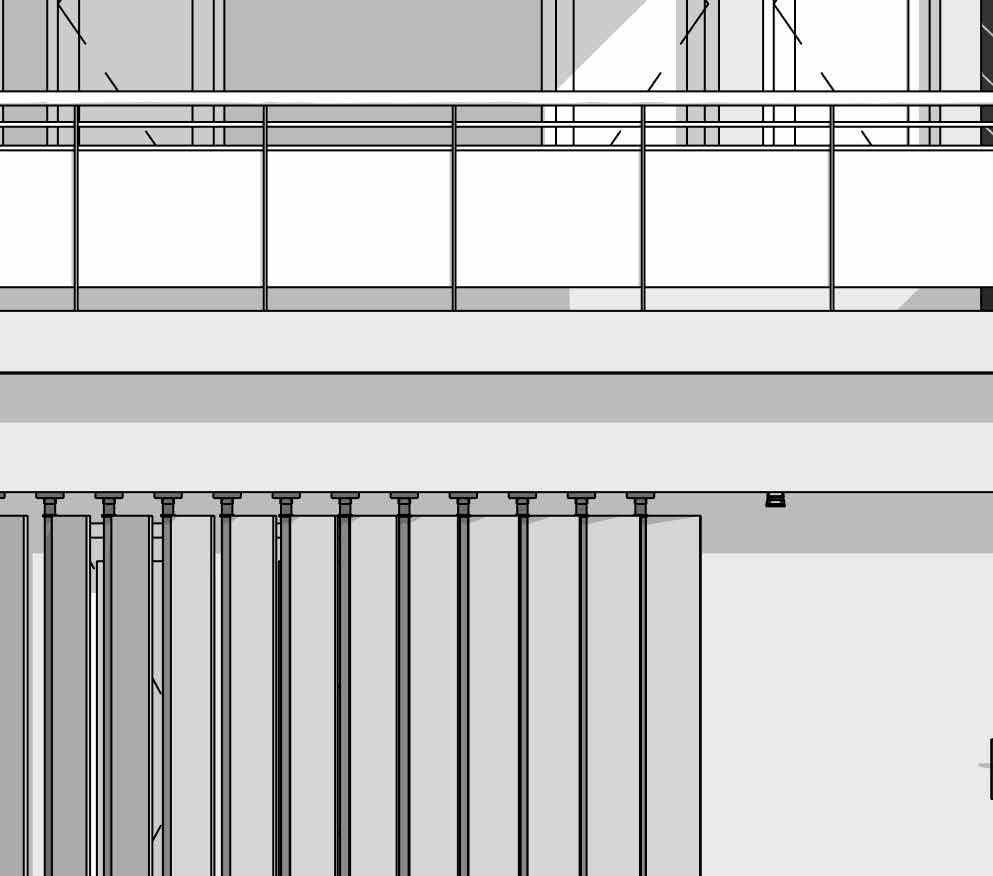

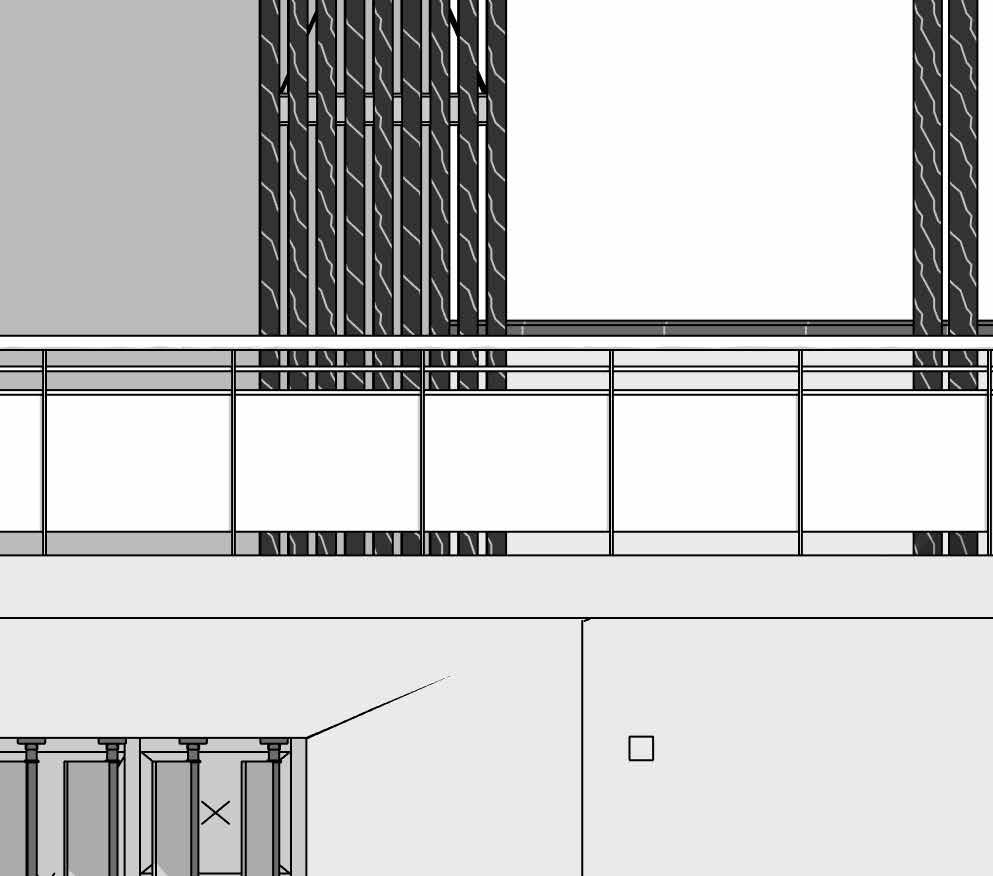

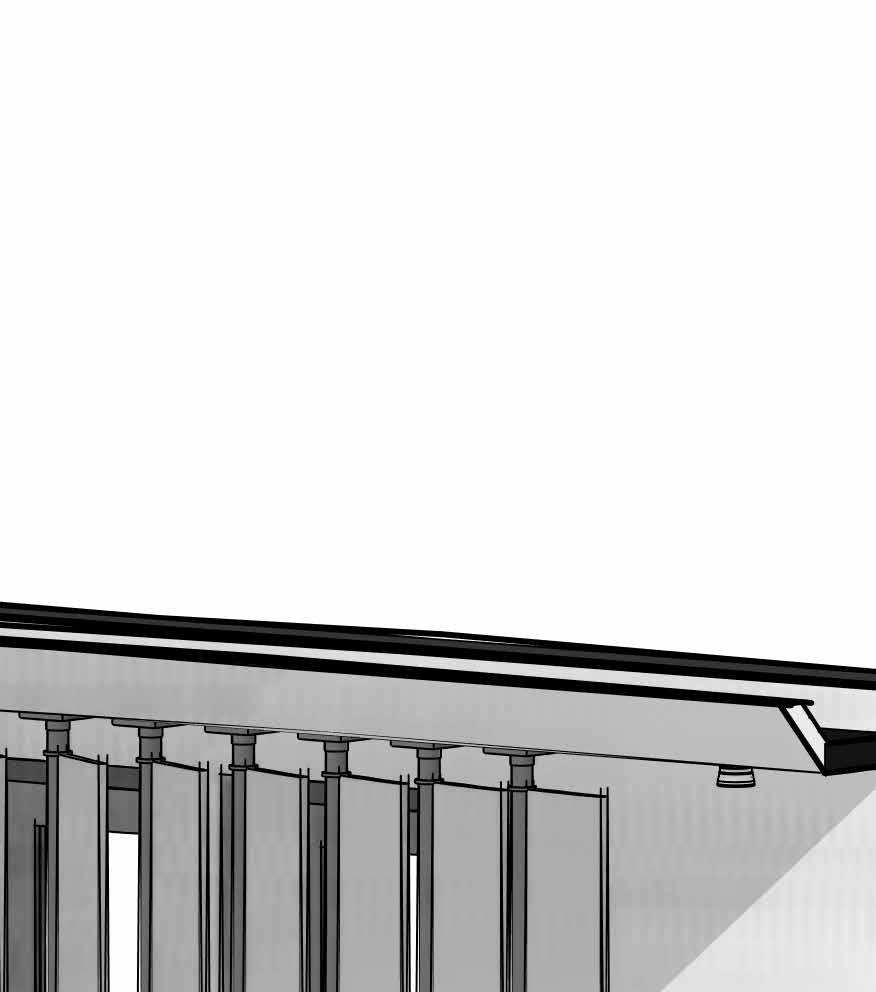

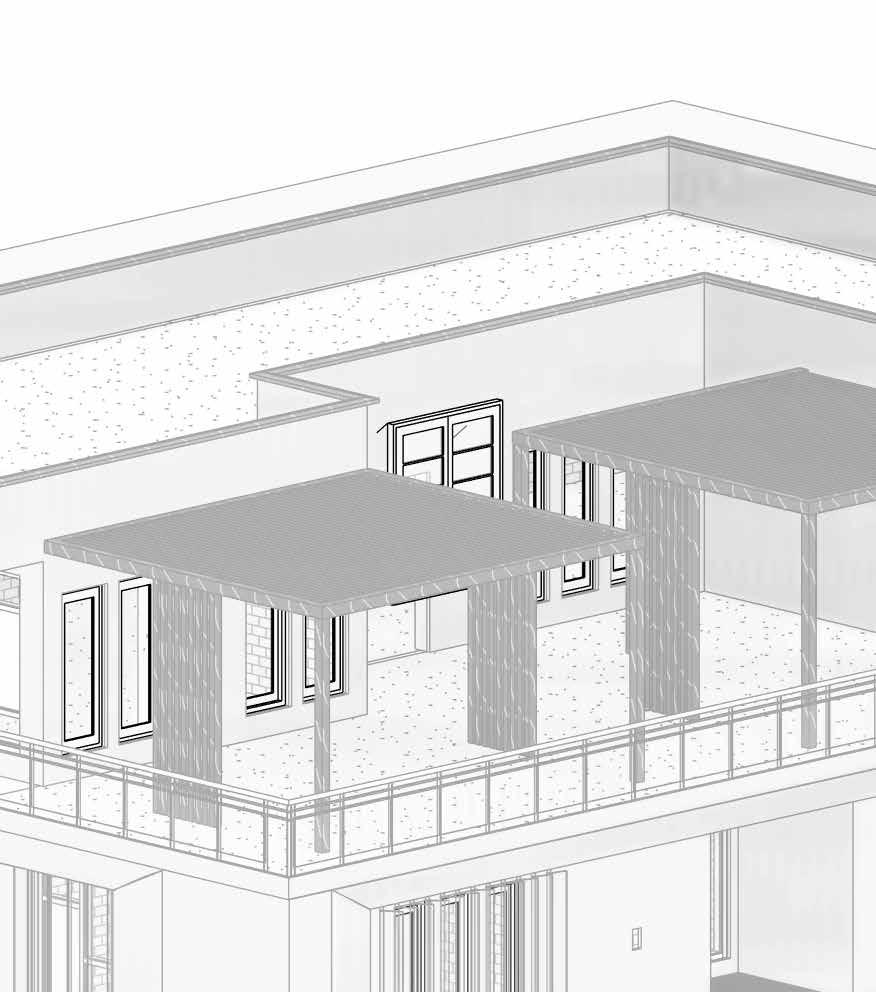

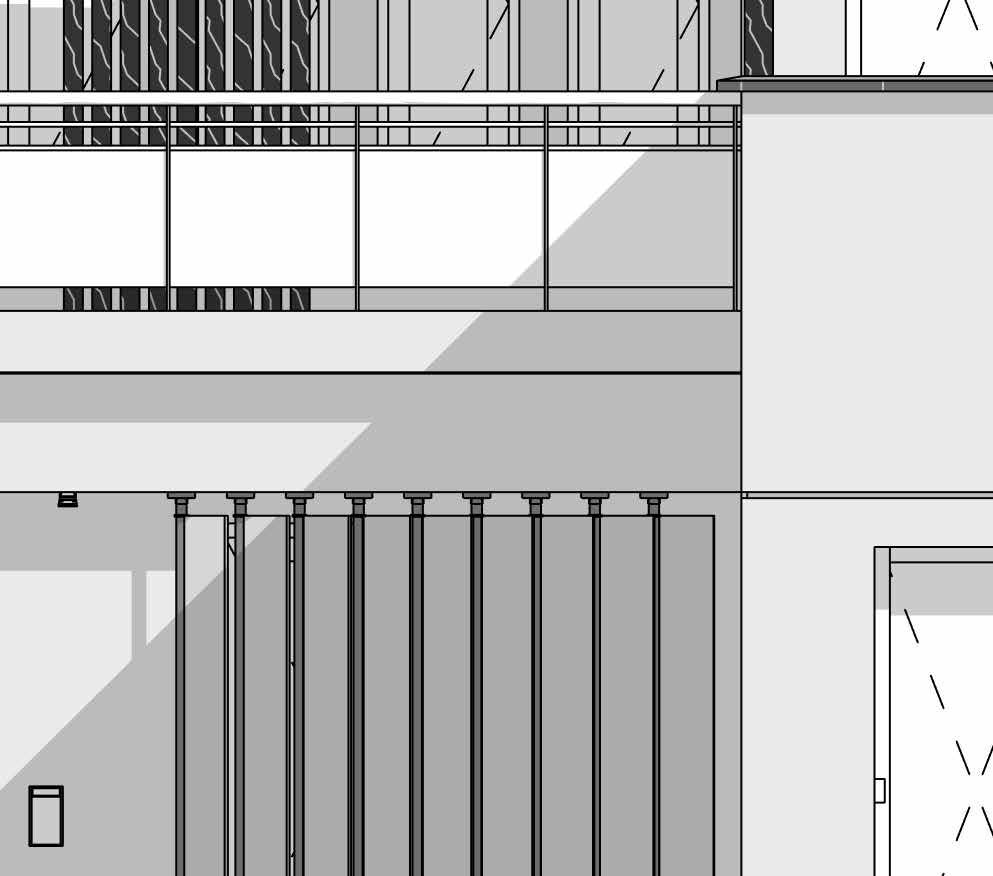

Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 C D E F G H 3.33 0.22 0.45 0.42 2.50 0.51 0.27 2.74 1.06 4.00 7.50 11.50 10.70 7.70 4.00 0.30 4.42 7.78 10.78 11.50 6.93 0.30 2.20 1.35 0.15 0.42 2.50 0.77 0.93 1.57 0.24 0.11 0.15 3.50 0.60 58 ° 3.33 0.300.200.10 CE01 CE01 CE02 CE02 CE03 CE04 CE05 04 moving louvers 06 flowers box 02 handrail 01 Steps Concrete Curtain wall A108 WS 04 A110 Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 1 2 3 4 5 6 45 ° 40 ° 0.50 2.00 1.35 0.15 0.42 2.51 0.77 0.87 2.13 0.80 7.50 4.00 11.50 10.78 10.78 7.78 7.78 4.08 4.08 0.38 0.30 0.20 0.10 CE01 CE03 CE04 CE06 CE01 01 Steps Concrete 02 handrail 03 Wooden Pergola 04 moving louvers 04 moving louvers WS 02 A110 WS 01 A110 1 : 50 North Elevation 1 : 50 West Elevation

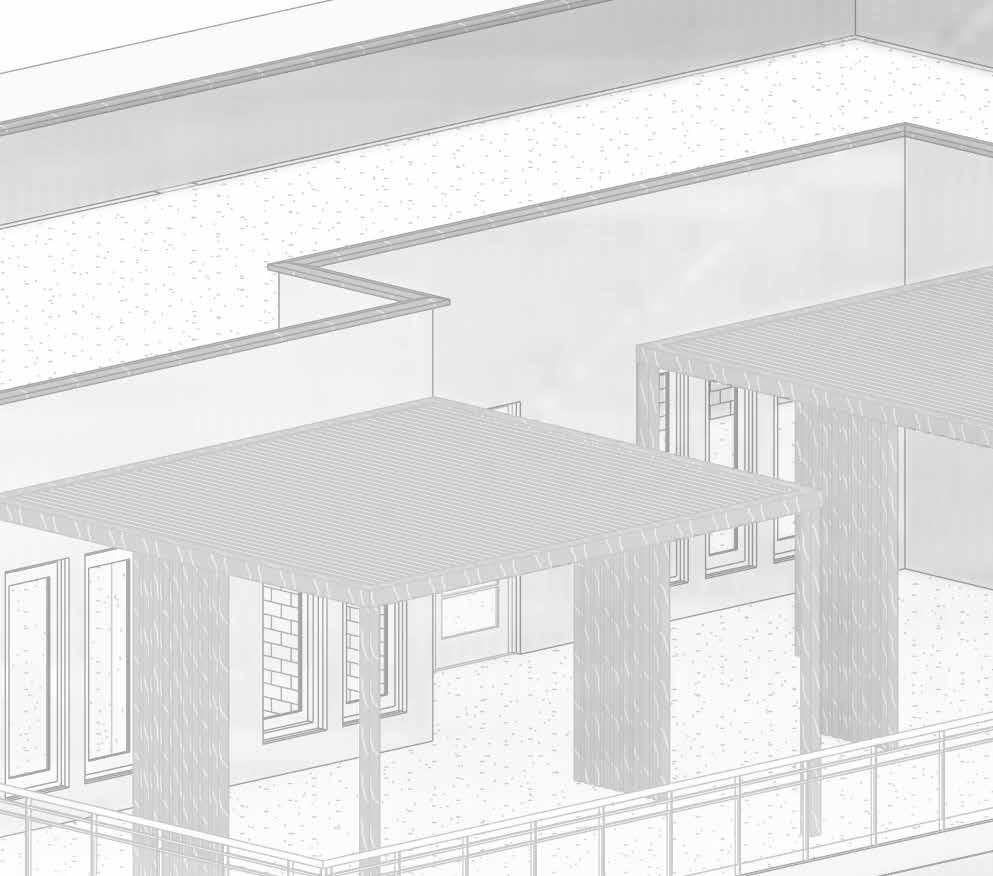

Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 A B 0.30 0.30 2.03 1.22 4.78 2.07 0.80 8.63 2.07 0.80 11.50 0.30 4.00 7.70 CE01 CE01 CE06 05 Reveal 03 Wooden Pergola Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 6 7 0.50 2.00 1.50 4.63 2.87 2.87 4.63 4.00 11.50 10.78 7.78 4.08 0.38 CE01 CE06 05 Reveal WS 03 A110 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 13-Dec- 2022 No : A103 Sheet : Elevations Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. Elevations Materials Mark Name MFG Description Area CE01 White stone Alrowwad Stone artificial stone smooth size 51*108cm gapless white 408 m ² CE02 Wood WPC egyptian suppliers WPC wall cladding texture bamboo dark color size 75x25 cm 29 m ² CE03 stone beige Alrowwad Stone artificial stone smooth size 51*108cm gap 1cm beige 45 m ² CE04 coping Beige Alrowwad Stone artificial stone beige costum profile 17 m ² CE05 Saveto Beige Saveto Saveto thin render color S 065 27 m ² CE06 brown coping Alrowwad Stone artificial stone brown costum profile 39 m ² Elevations notes No. note 01 Concrete, Cast-in-Place gray fine concrete texture 02 Handrail height 90cm With glass panel 03 Wooden Pergola 04 Motorized Aluminium Louvers 05 Reveal profile Depth 2.5 cm Height 2.5 cm 06 artificial flowers box Tag key 01 01 Material Tag Note Tag

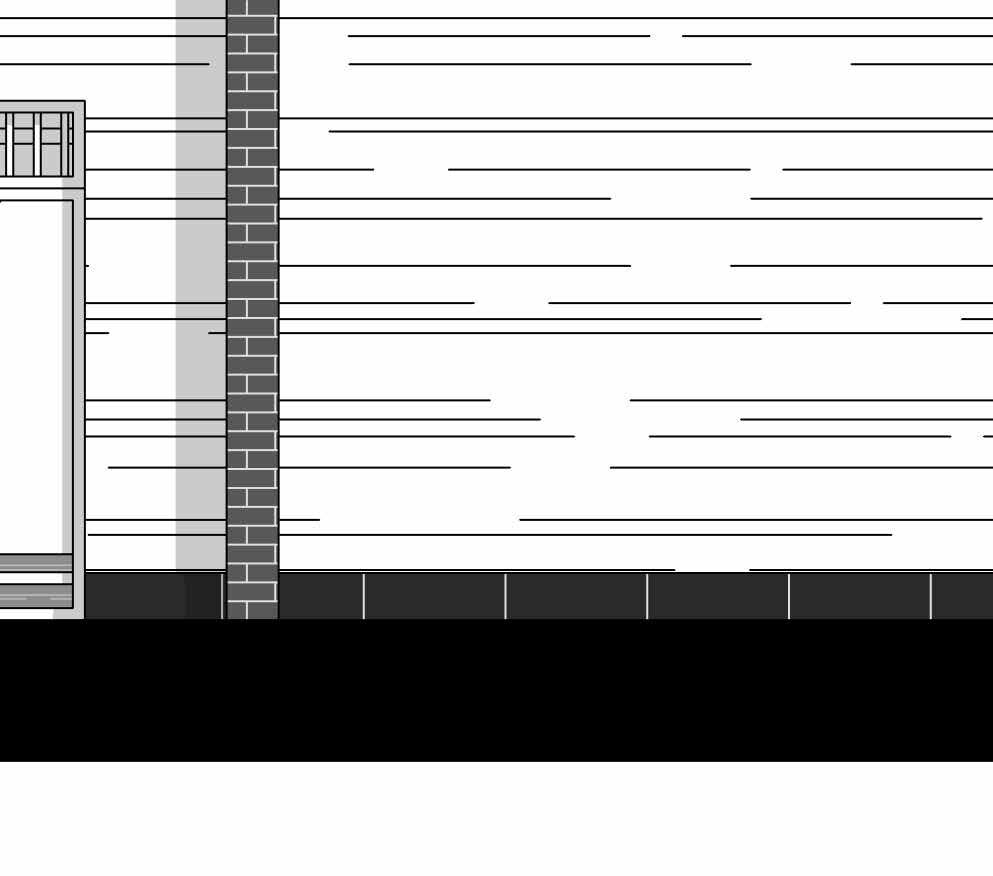

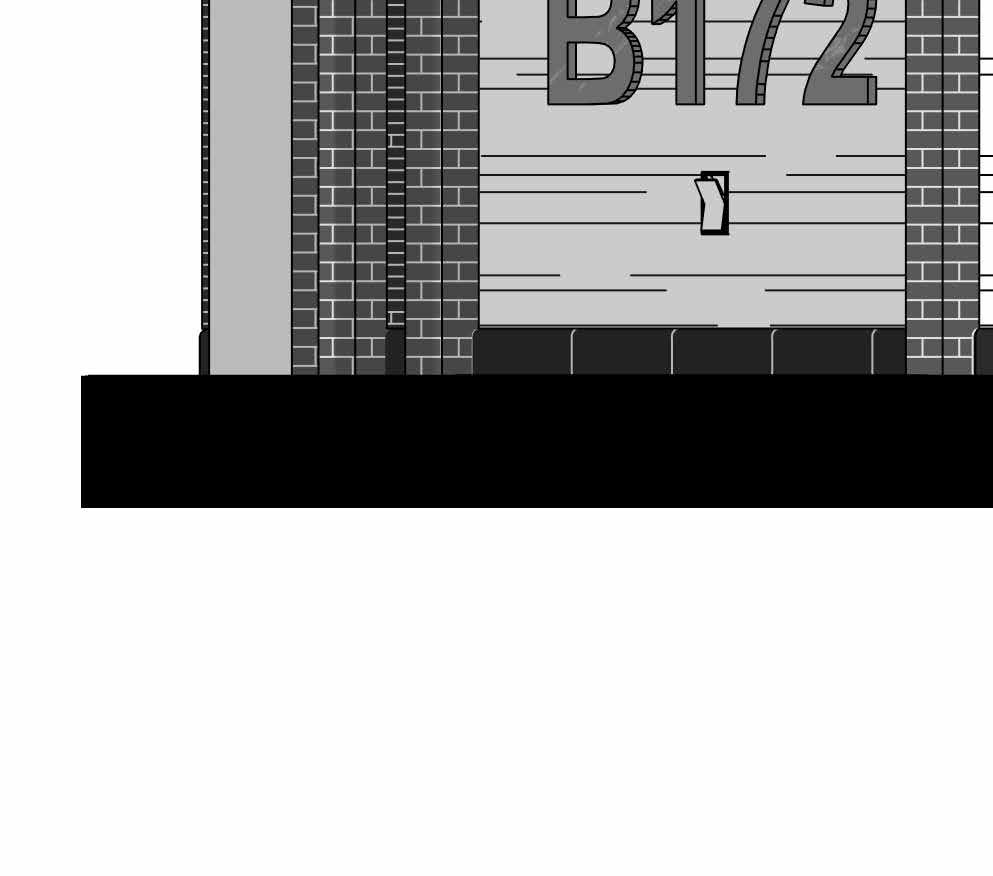

F4 F5 WF01 WF05 WF04 0.20 0.95 1.36 0.83 0.22 3.55 2 Reveal 4 Projected F9 F10 WF03 WF02 WF01 5 Existing 6 Reveal 3.85 3.55 3.45 3.37 0.00 0.20 2.20 2 Reveal 0.20 3.13 0.22 0.30 3.85 WF01 F7 F8 2.95 3.55 WF01 WF02 WF04 WF02 WF05 0.00 0.20 WF03 0.20 2.72 0.03 0.42 0.08 0.10 3.45 0.94 1.36 0.95 0.20 0.22 0.30 0.22 1 2 Reveal 3 Text metal 4 Projected 1 : 50 West Fence Elevation 1 : 50 North Fence Elevation 1 : 50 Corner Fence Elevation
F1 F2 F3 7 Columns WPC WF03 WF02 WF04 WF01 WF01 4 Projected 1 2 Reveal 0.10 0.40 0.03 2.72 0.20 3.45 0.00 0.20 0.45 3.18 3.55 3.37 WS 05 A110 WF03 WF05 WF04 WF01 3.37 4 Projected 0.20 0.95 1.36 0.42 0.03 0.50 0.10 0.00 3.55 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 13-Dec- 2022 No : A 104 Sheet : Fence Elevations Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. Fence Materials Mark Name MFG Description Area WF 01 Off White paint Saveto Saveto smooth render color S 053 310 m² WF 02 Gray stone Alrowwad Stone artificial stone dark gray size 6*25cm 49 m² WF 03 WPC egyptian suppliers WPC wall cladding texture silver maple chocolate Brown size 75x15 mm 20 m² WF 05 beige coping Alrowwad Stone artificial stone beige costum profile 30 m² Fence notes No.

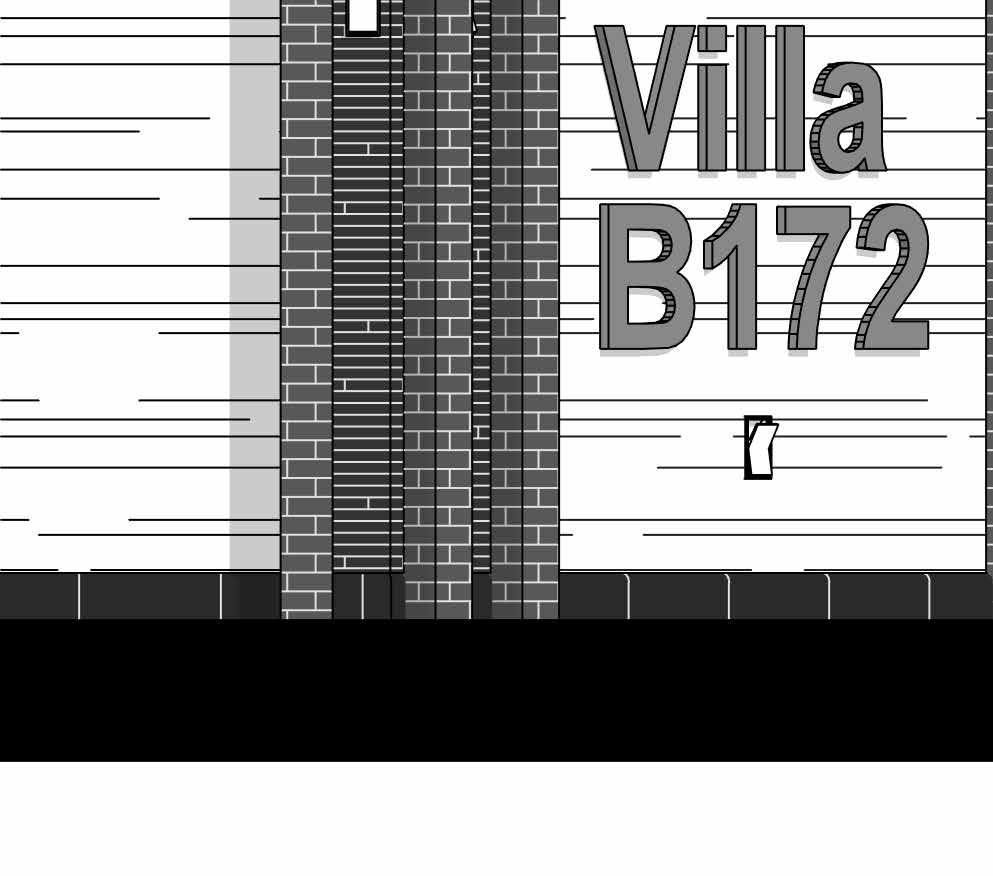

1 slope one direction coping profile 2 Reveal profile Depth 2.5 cm Height 10 cm 3 Metal Text building sign size 2 * 1.4 m "DWG file attached" 4 Projected wall with stone 22cm 5 An existing wall that has not been edited 6 Reveal profile Depth 2.5 cm Height 22 cm 7 wood mahogany color 21 Columns WPC Cross section 5*12cm Height 2.74 cm Tag key 01 01 Material Tag Note Tag WF 04 Granite SG egyptian suppliers Granite star galaxy 20*60cm 24 m²
note

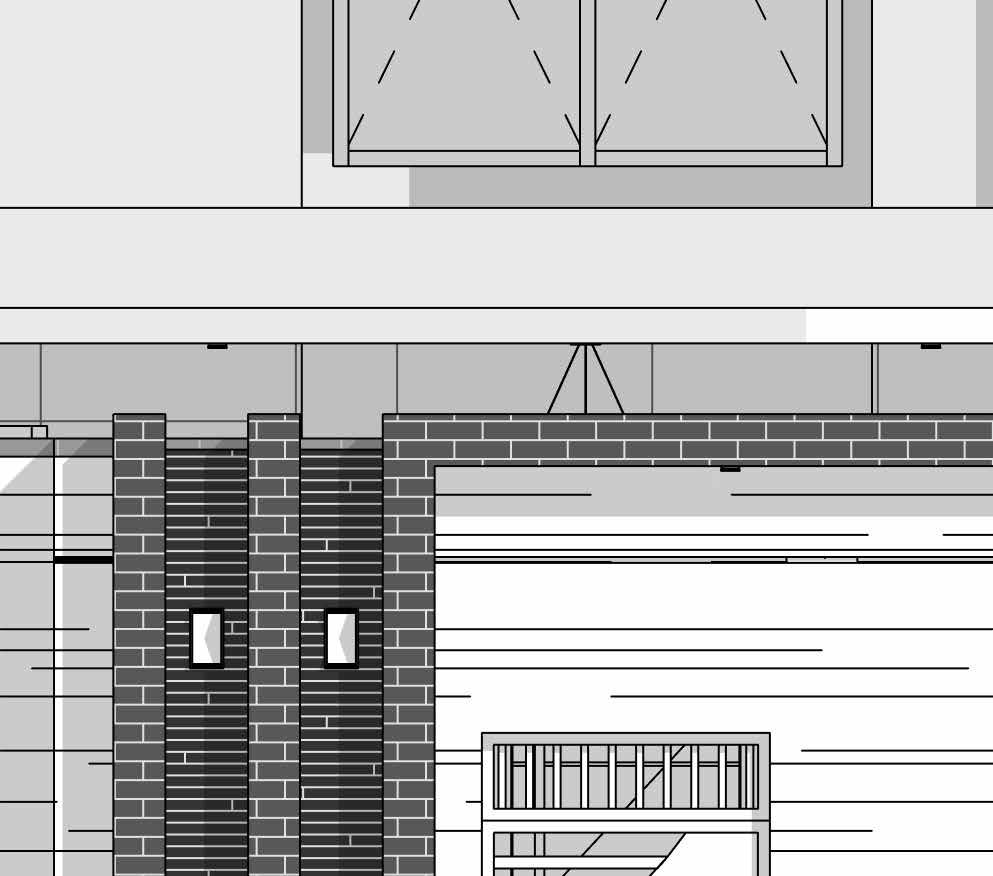

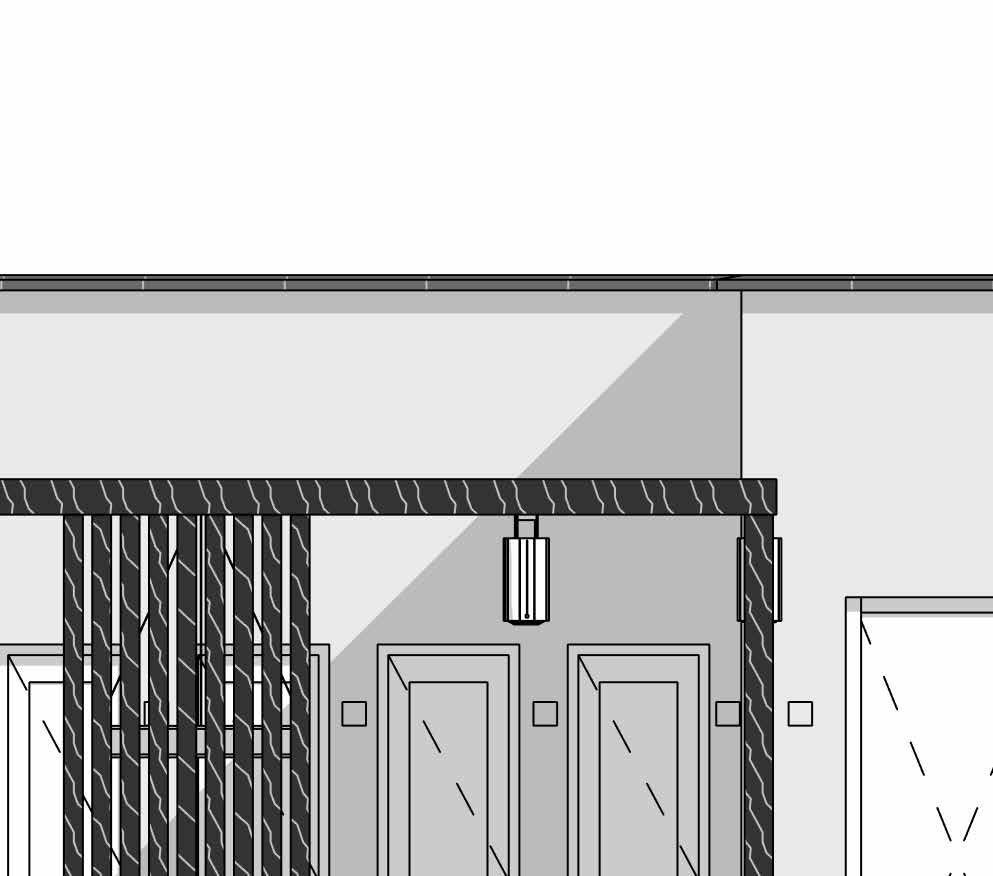

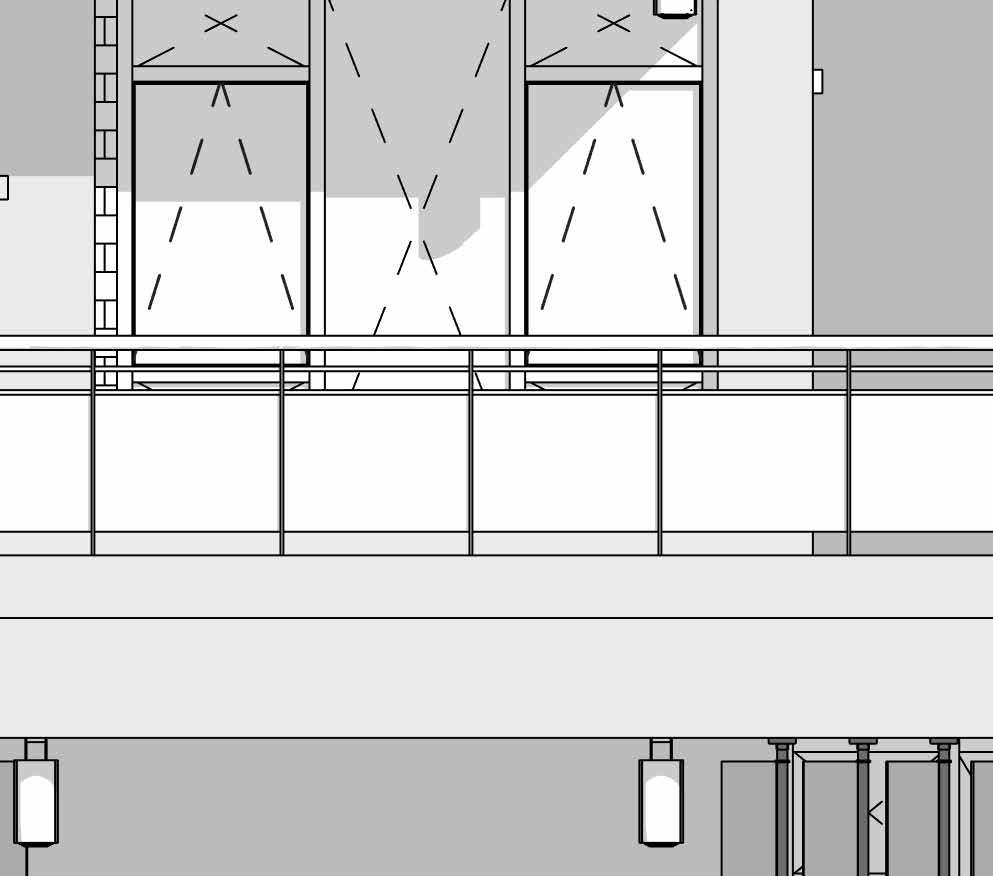

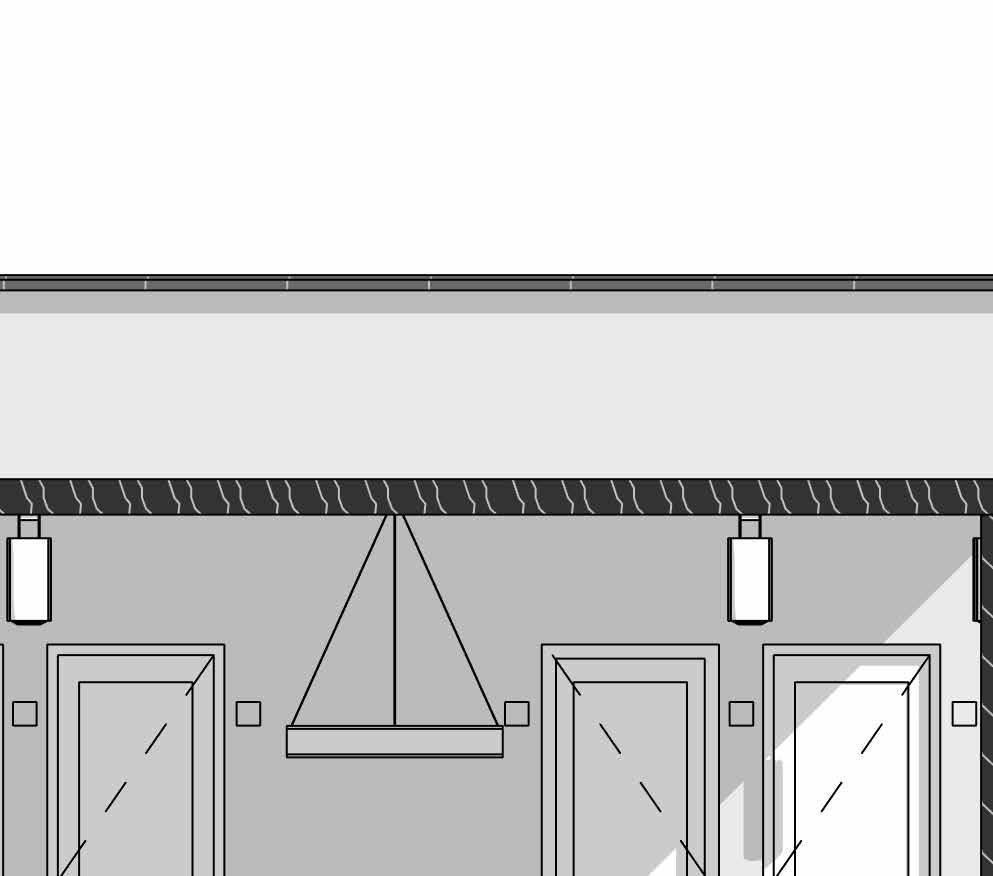

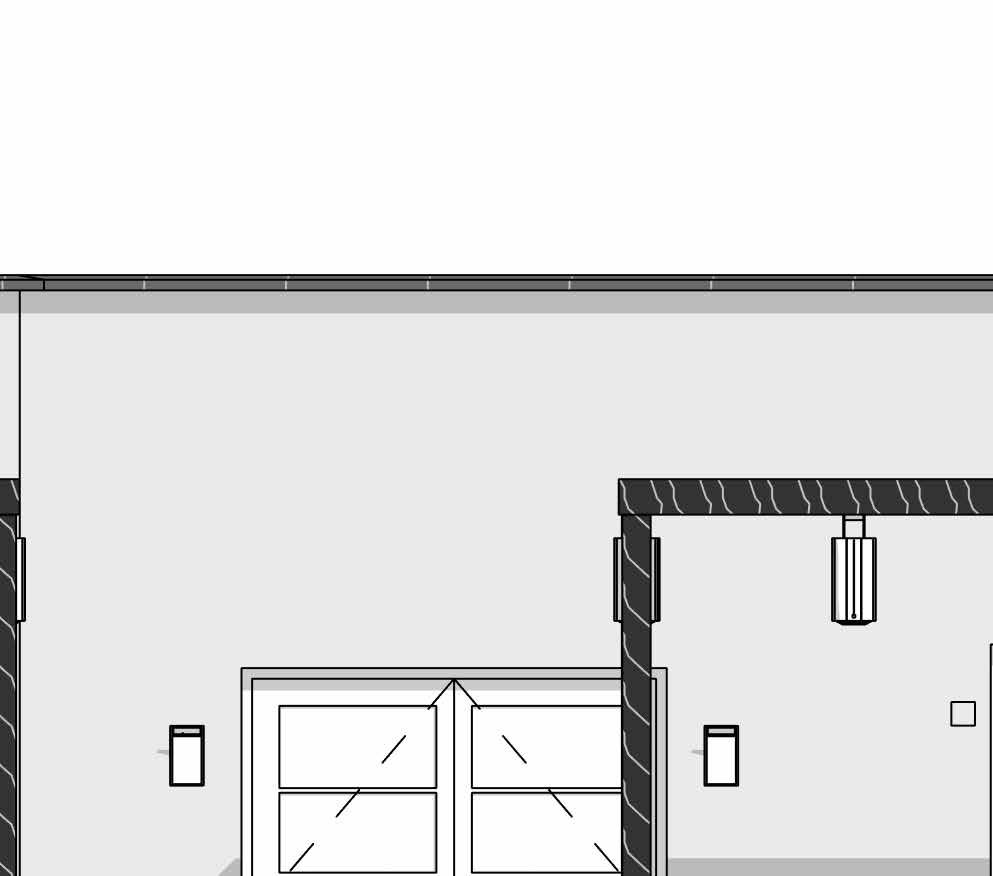

North Elevation Lighting
C D E F G H PL01 SL SL01 SL01 SL01 WL 02 WL 02 PL02 WL 03 PL02 WL 01 WL 01 WL 01 WL 01 WL 01 PL02 PL02 PL01 PL02 PL02 WL 01 WL 01 WL 01
1 2 3 4 5 PL01 PL02 PL01 WL 02 SL01 SL01 SL01 SL01 SL01 SL01 SL01 WL 03 PL02 SL01 SL01 SL01 SL01 SL01 WL 03 WL 03 WL 01 WL 01 WL 01 WL 01 WL 02 PL02 PL01 PL02 PL02 PL02 PL02 PL02 PL02 PL02 WL 01 WL 01 WL 01 WL 01 WL 03 WL 03 WL 01 WL 01 WL 01 WL 01 WL 01 WL 01 WL 01 WL 01 WL 01 1 : 50
1 : 50 West
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
Elevation Lighting
Lighting
PL01 Lumenwerx Fortex 4-33, HIGH EFFICIENCY LAMBERTIAN OPTIC (HLO) - Matte white side reflectors, size 3*3', FINISH matte white & aluminum.
PL02 FLASH&DQ Mounting: surface mounted, Body: top quality anodized aluminum with carbon fiber structure finish, Colour: black, Power: 220-240 V 50/60Hz, Includes light source
SL01 Kreon inti 80 fixed, LED, black matt, full dimensions height 103mm diameter 80mm
WL 01 SOLAR A/S CUBE lighting LED Wall Mounted
WL 02 Vibia Wall light with basic lines and cubic volumes that form sculptures integrated into the architecture.
WL 03 FARO Barcelona DOMINO LED Plaster recessed wall lamp, matt white
A B C SL01 SL01 WL 01 WL 01 WL 01 WL 01 WL 01 WL 01 PL02 PL02 WL 03 WL 03 Zero
6 7 WL 01 WL 01 WL 01 WL 01 SL01 WL 01 WL 01 PL02 WL 01 WL 01 WL 01 WL 01 WL 01 WL 03 WL 03 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 14-Dec- 2022 No : A105 Sheet : Elevations Lighting Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings
elements refer to
drawings. -For
fixture refer to electrical drawings. -Fixture placement as indicated in drawing, not by dimension
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
-For hvac
mechanical
lighting
Description
Fixture Schedule Mark MFG
Tag
Tag Lighting Fixture TAG0
key
F4 F5 WL 03 WL 03 WL 03 WL 03 SL01 SL01 SL01 SL02 SL02 SL02 SL01 WL 05 WL 05 WL 03 F9 F10 SL02 SL02 SL02 WL 03 SL01 SL01 F7 F8 WL 03 WL 03 SL02 SL02 WL 05 WL 05 WL 03 1 : 50 West Fence Elevation Lighting 1 : 50 North Fence Elevation Lighting 1 : 50 Corner Fence Elevation Lighting
F1 F2 F3 WL 03 SL01 SL02 WL 03 WL 03 SL01 SL02 SL02 WL 05 WL 05 WL 03 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 14-Dec- 2022 No : A 106 Sheet : Fence Elevations Lighting Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified.
structure elements refer
str. Drawings.
pluming and drainage elements
mechanical drawings -For hvac elements
-For lighting fixture refer
electrical drawings. -Fixture placement as indicated in drawing, not by dimension Lighting Fixture Sched. Mark MFG Description SL01 Kreon inti 80 fixed, LED, black matt, full dimensions height 103mm diameter 80mm SL02 Linea Light Linea Light Group WL 03 FARO Barcelona DOMINO LED Plaster recessed wall lamp, matt white WL 05 FARO Barcelona ROB Bronze wall lamp Tag key Tag Lighting Fixture TAG 0
-For
to
-For
refer to
refer to mechanical drawings.
to

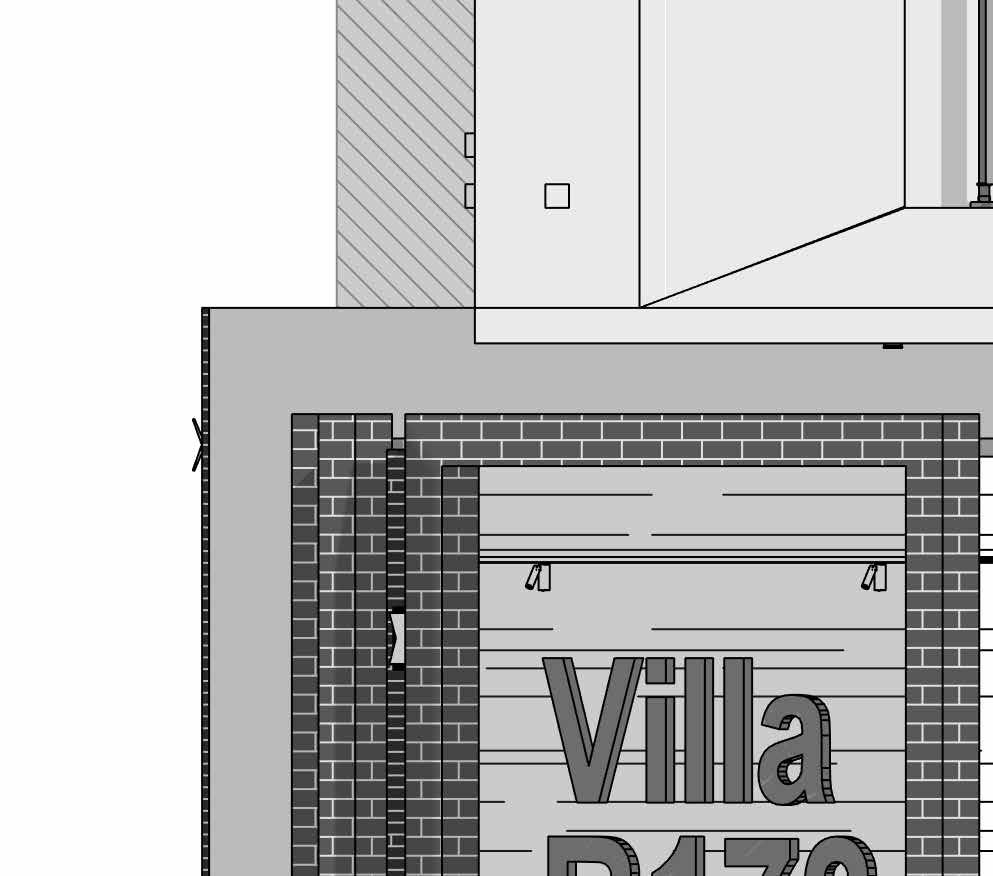

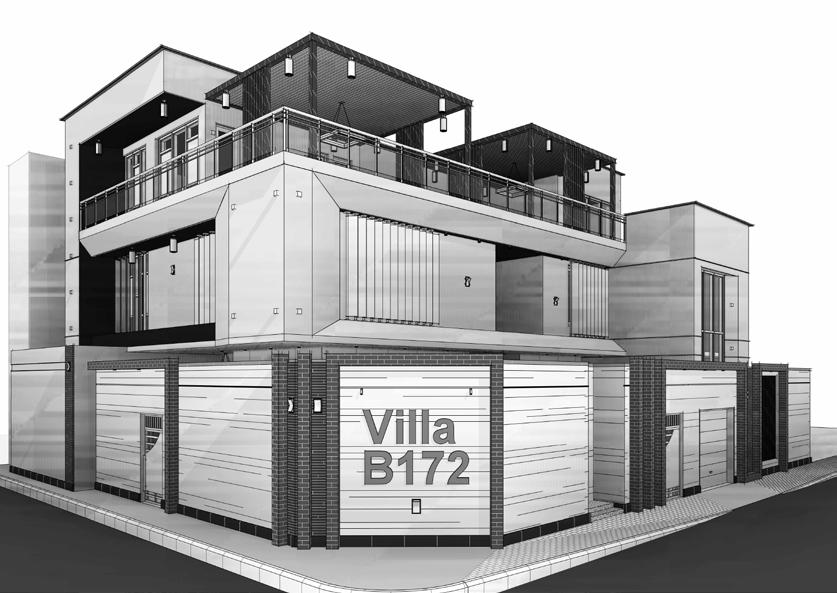

Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 B C D E F G H Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70 1 2 3 4 5 6 1 : 50

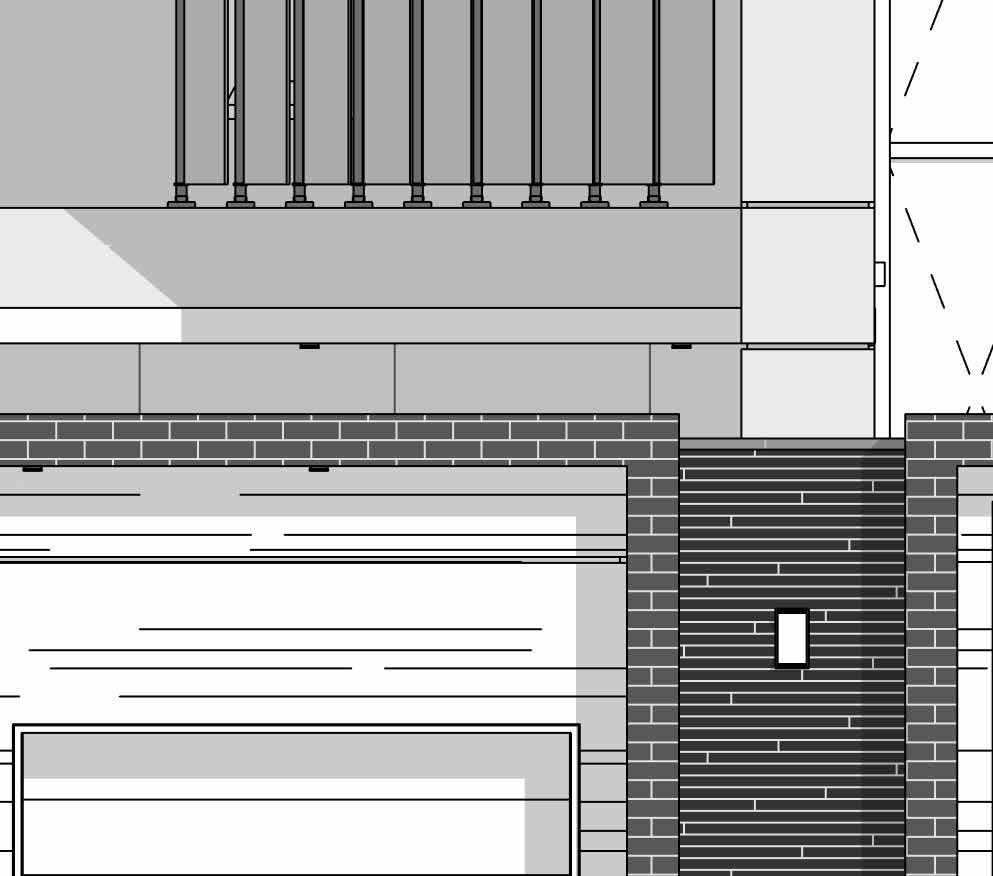

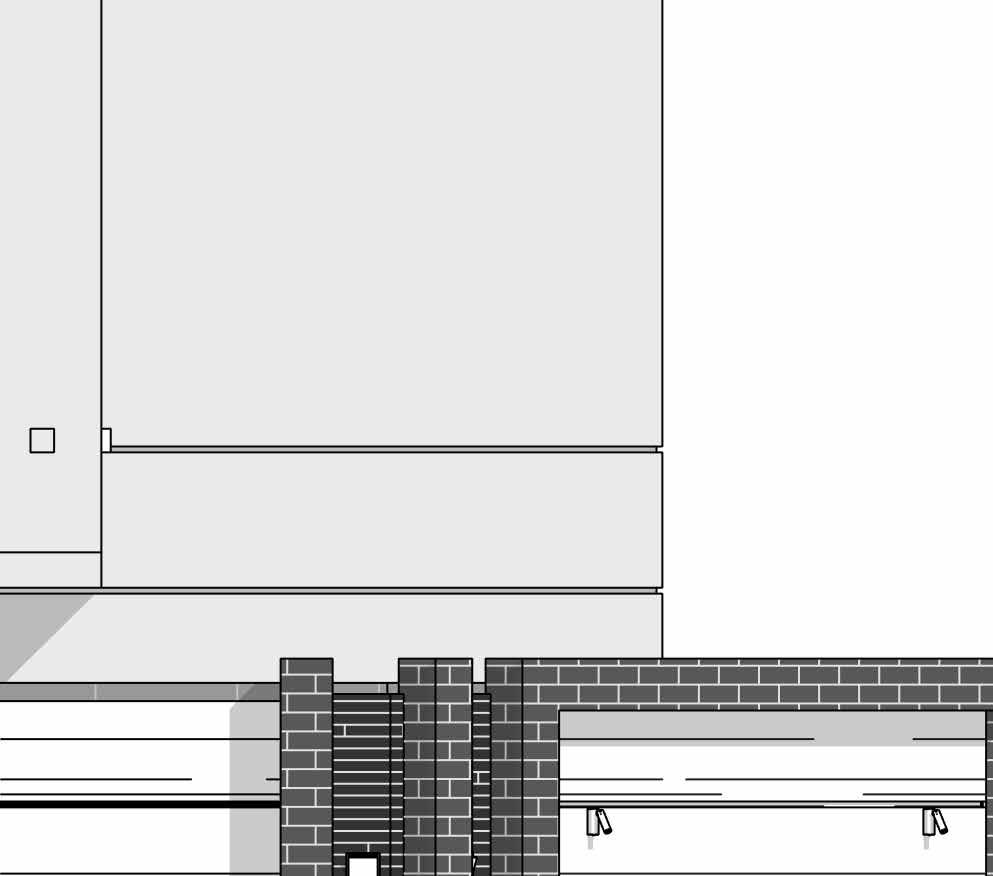

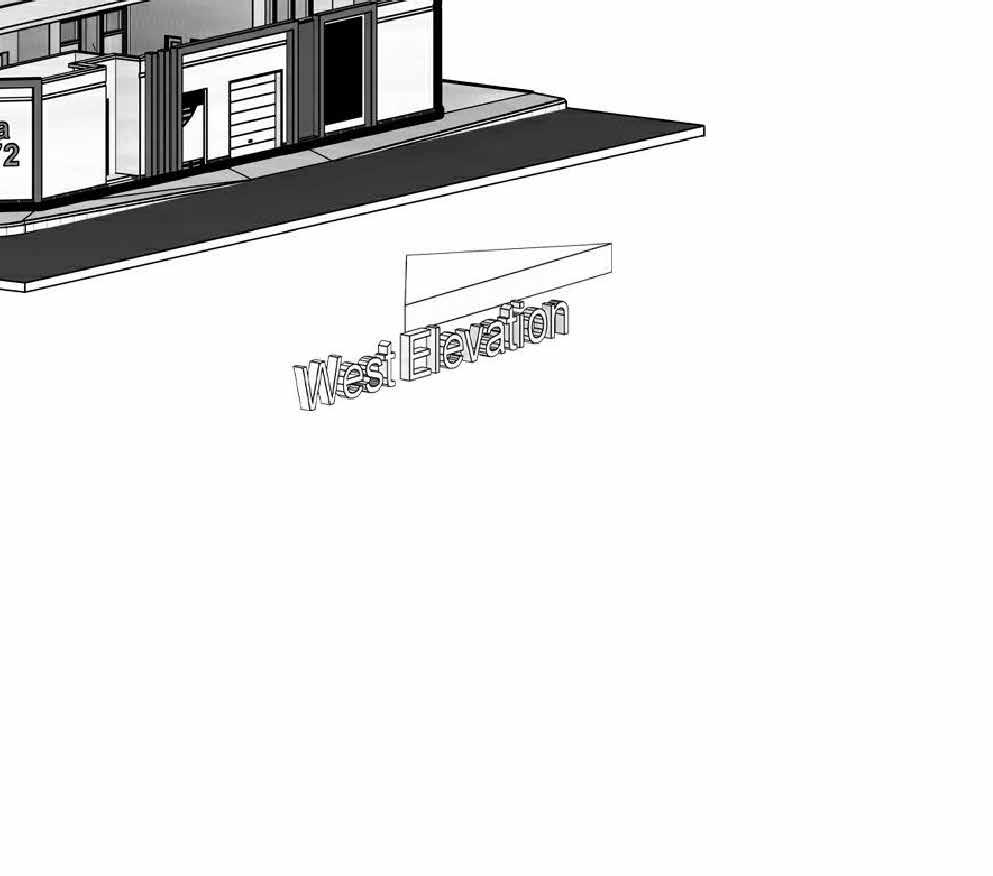

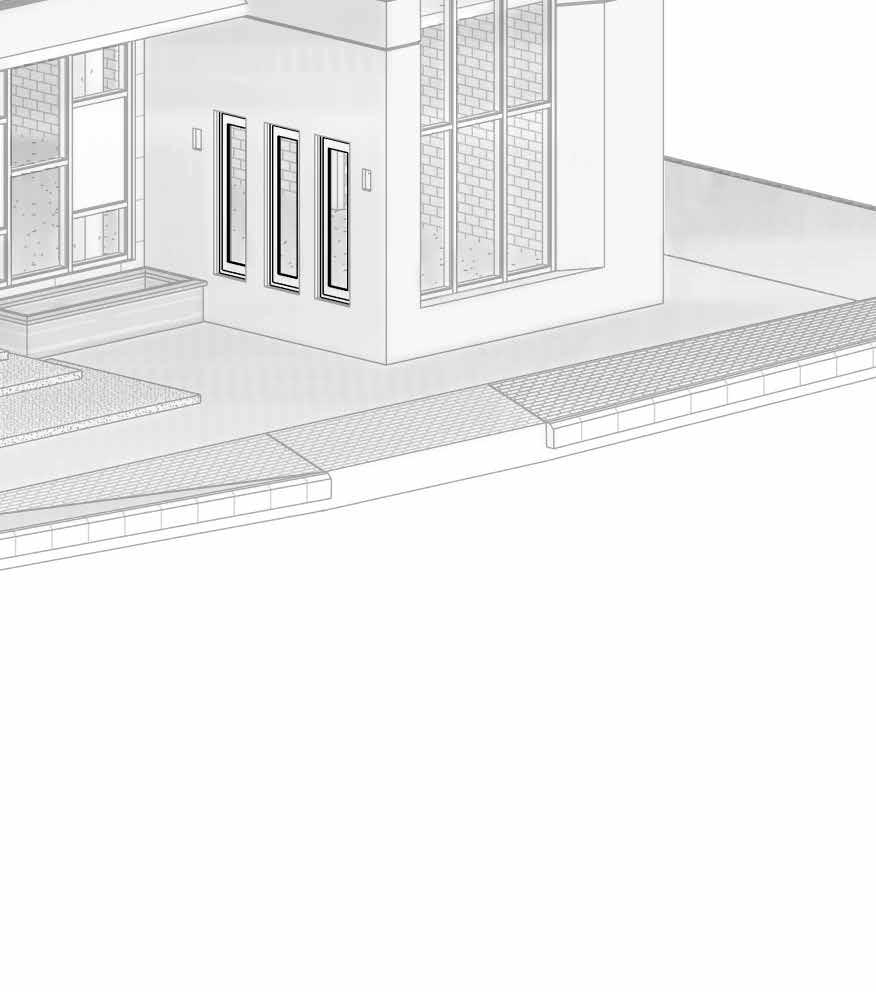

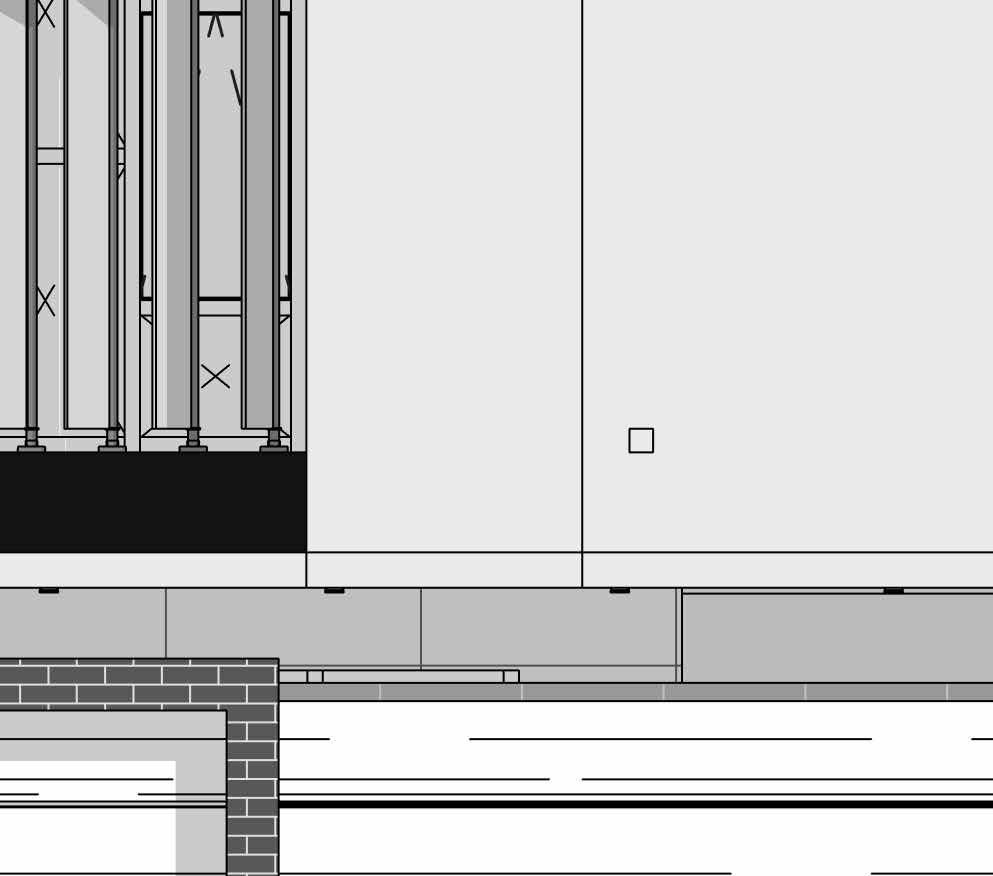

fence 1 : 50 West Elevation With fence

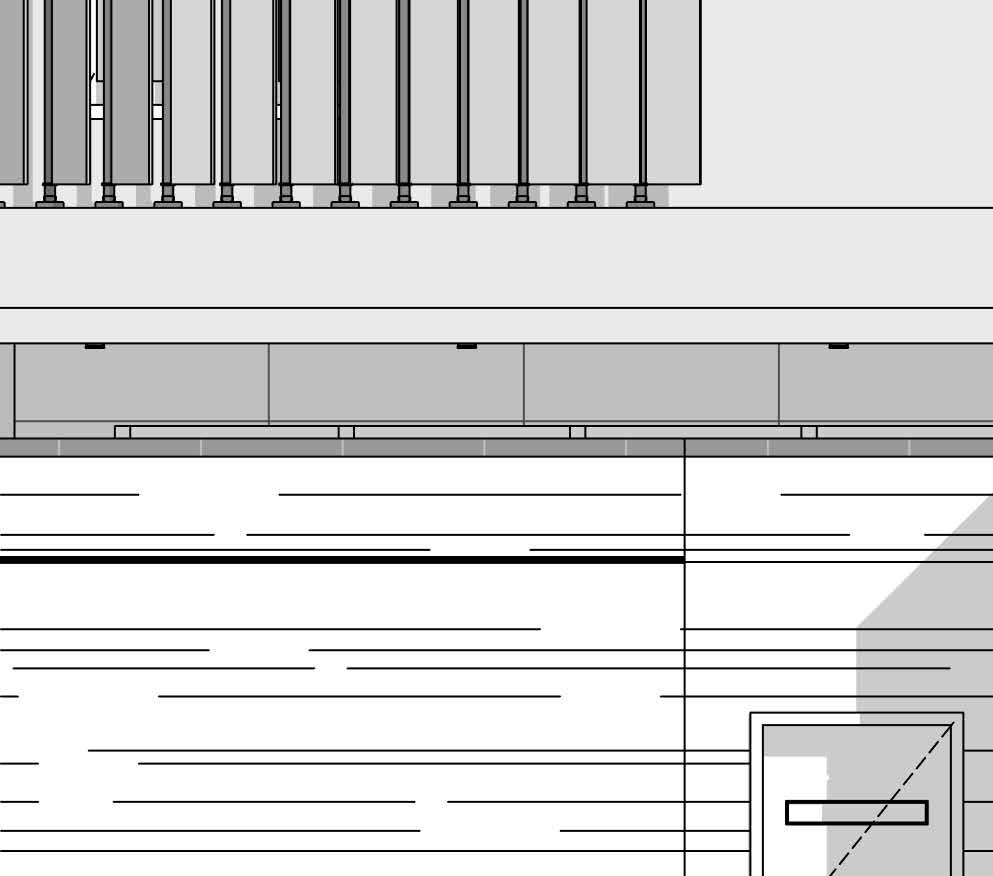

North Elevation With
A B Zero
Ground
7 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 14-Dec- 2022 No : A107 Sheet : Elevations With fence Designed By : M.A Architect Drawn By : Mohannad A.ullah
by
softwares without prior
Zero 0.00 1FL 4.00 Ground 0.30 Roof 7.70 T.O.R 10.70
0.00 1FL 4.00
0.30 Roof 7.70 T.O.R 10.70
-These drawings are revit files. should not be altered
any
notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. Tag key
0.07 1.94 0.07 1.97
0.60
0.98 0.07 0.98
2.16

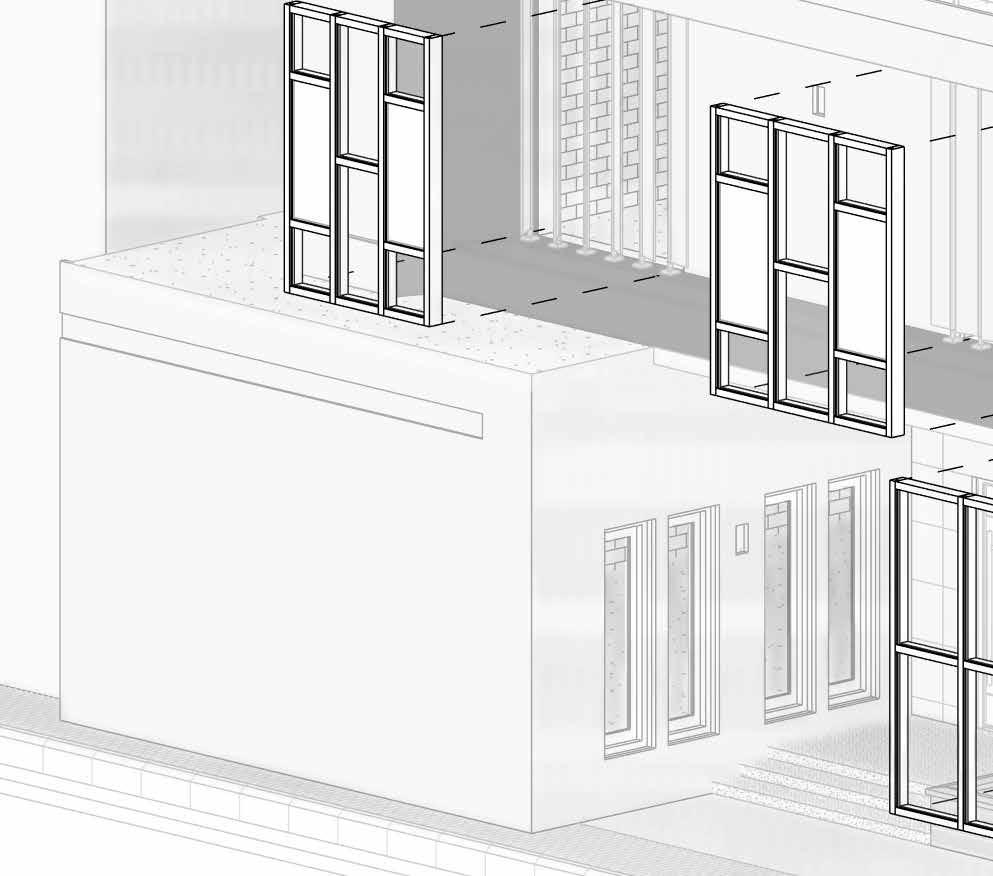

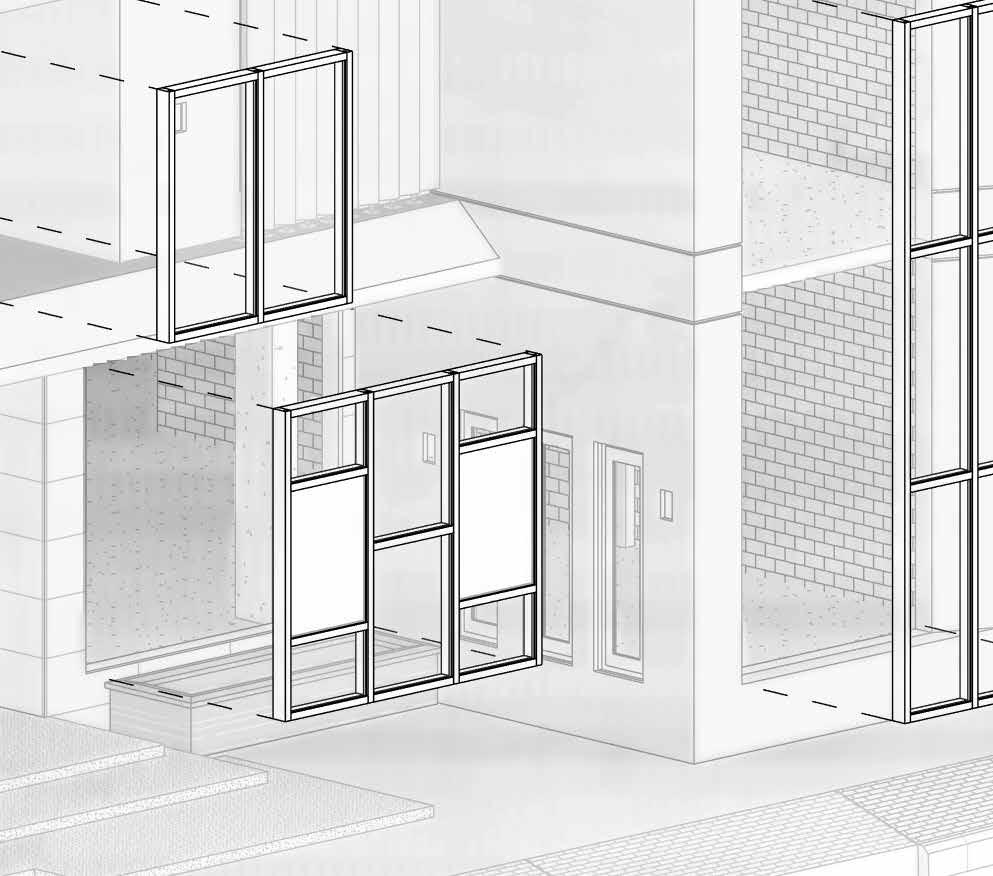

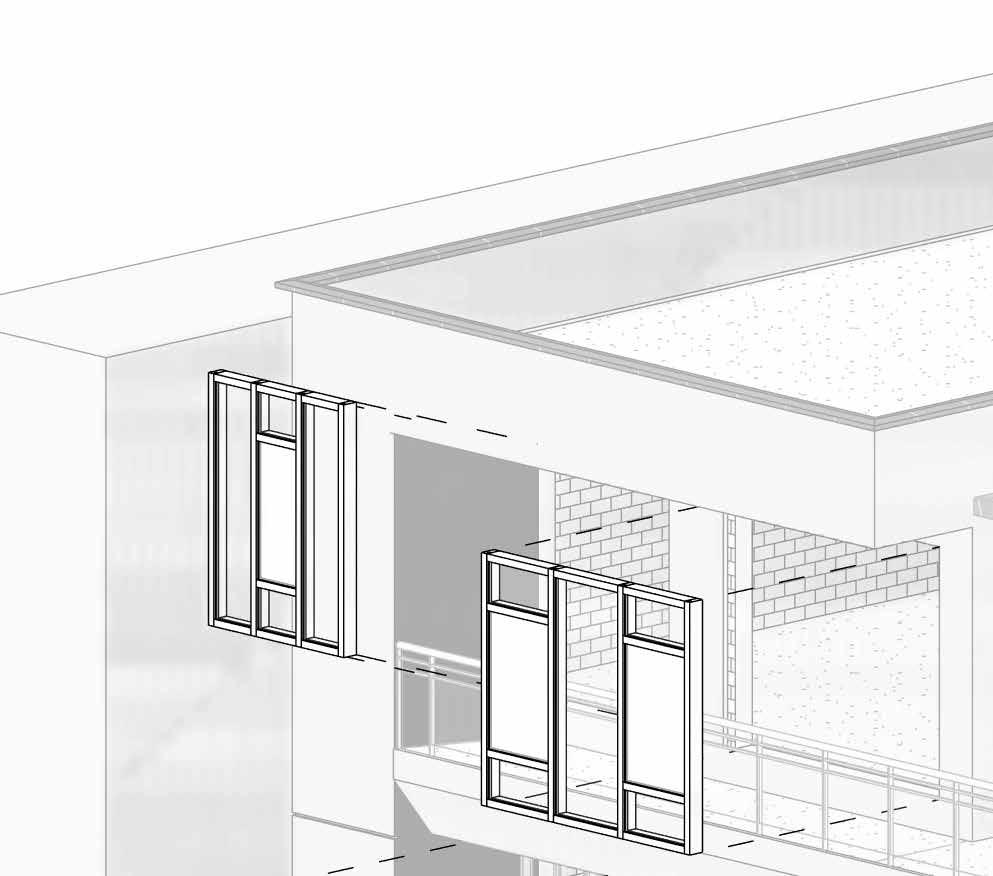

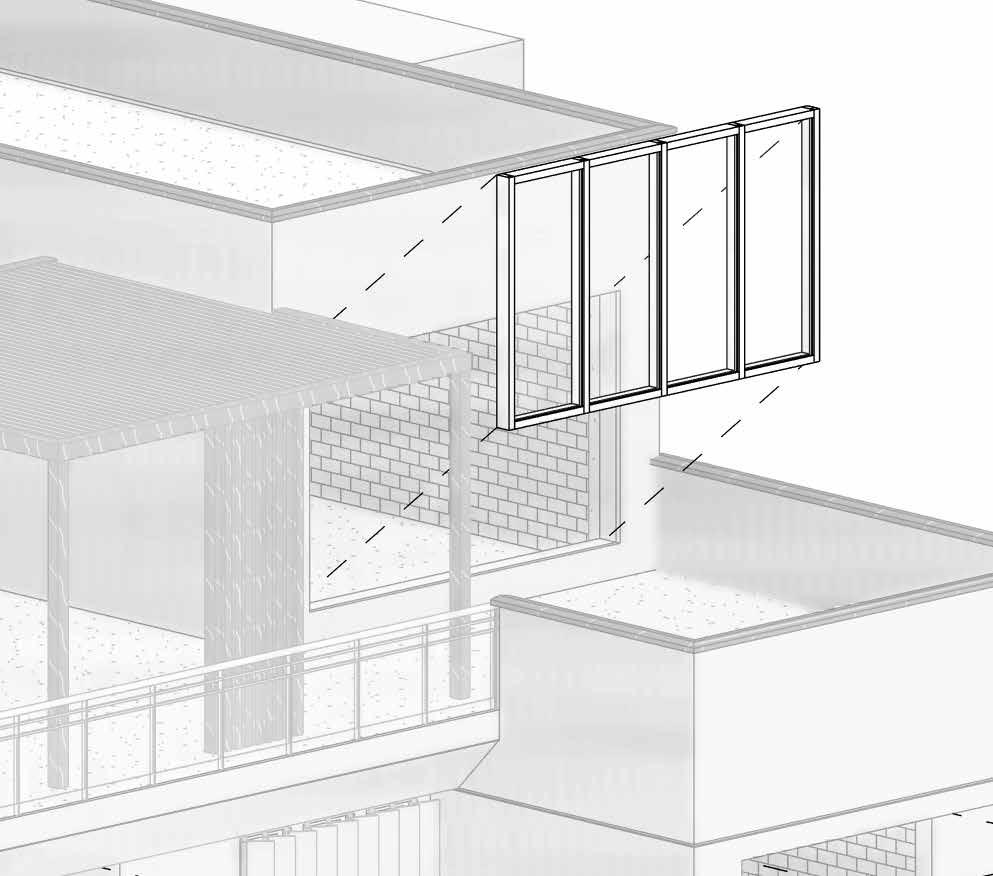

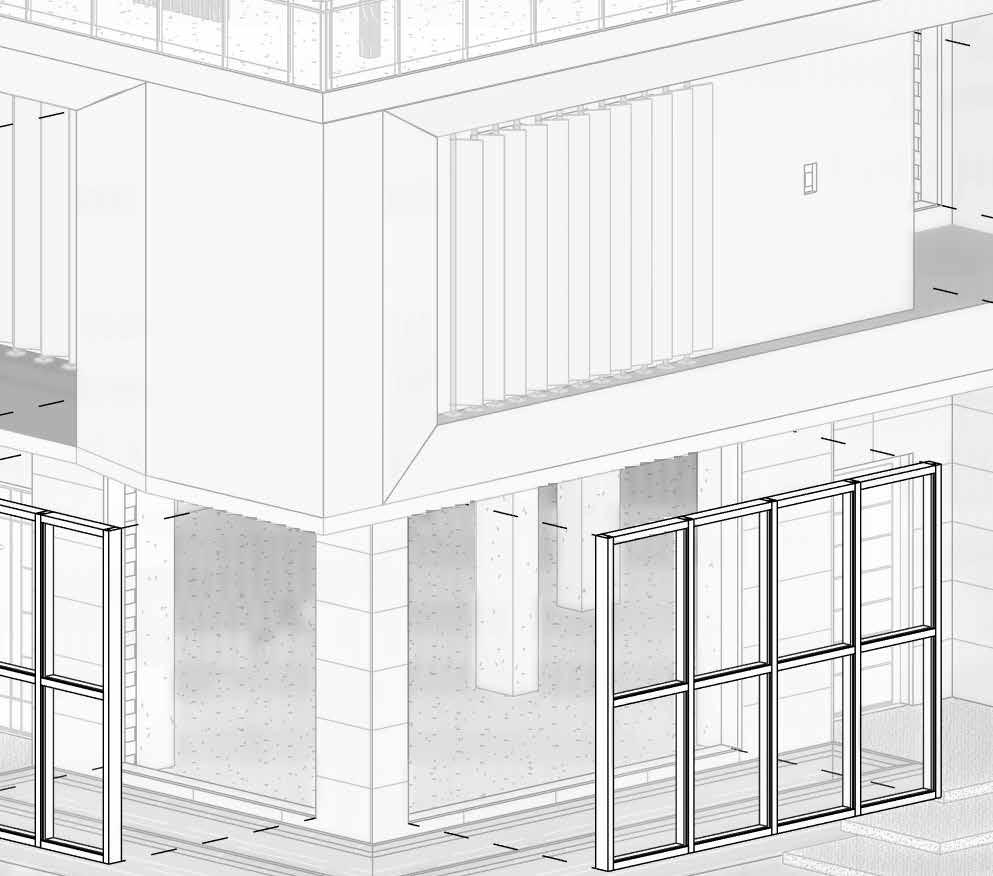

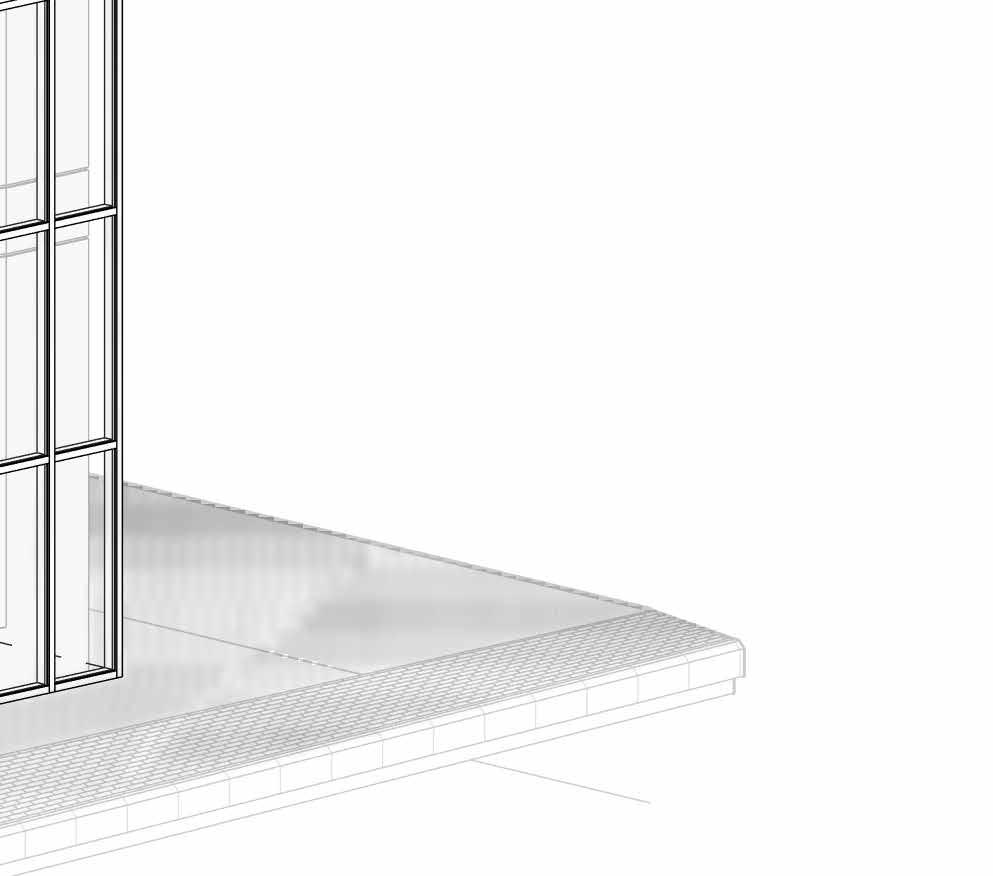

CW 01 CW 02 CW 03 CW 04 CW 8mm Tempered Clear Glass (Sısecam) + 9mm Air Double Glass EPDM Gasket Aluminum Covering Profile Hex Head Self Drilling Screws Brick wall aluminum hinge chrome handle Aluminum Covering Profile 1 : 25 CW 01 1 : 25 CW 02 1 : 25 CW 03 1 : 25 CW 04 1 : 25 CW 06 1 : 25 CW 07 1 : 25 CW 08 1 : 25 CW 10 1 : 5 Curtain wall
0.07 0.45 0.07 0.49 0.07 0.45 0.07 0.07 0.36 0.07 1.21 0.07 0.37 0.07 10.20 8.00 1.65 2.20 0.07 0.75 0.07 0.78 0.07 0.75 0.07 2.54 0.07 0.36 0.07 1.21 0.07 0.37 0.07 2.20 10.20 8.00 0.07 0.49 0.07 0.53 0.07 0.49 0.07 1.77 0.07 0.51 0.07 1.22 0.07 0.51 0.07 2.51 1.16 0.07 1.16 6.93 4.42 0.07 0.64 6.93 4.42 0.07 0.88 0.07 0.91 0.07 0.91 0.07 0.88 0.07 3.92 0.07 1.35 0.07 1.35 0.07 2.90 3.50 0.60
0.07 1.94 0.07 0.79 0.07 0.76 0.07 0.73 0.07 2.48 6.10
6.70 0.07 0.91 0.07 0.94 0.07 3.02 0.60 3.30 0.07
0.07
2.19 0.07 2.06 0.07 6.79 4.60
0.07 0.67 0.07 0.64 0.07 2.21
0.07 0.77 0.07 0.80 0.07 0.77 0.07 2.59
CW 06 CW 05 CW 07 CW 08 CW 09 CW 10 Notes Project : VIlla B172 Owner : Ahmed Khaled Date : 15-Dec- 2022 No : A108 Sheet : Curtain Walls Designed By : M.A Architect Drawn By : Mohannad A.ullah Scale : 1:25 1 : 25 CW 05 1 : 25 CW 09
0.07 0.51 0.07 1.22 0.07 0.51 0.07 2.51
1.16 0.07 1.16 3.50 0.60
0.07 1.35 0.07 1.35 0.07 2.90 0.07 0.91 0.07 0.07 0.58 0.07 1.29 0.07 0.58 0.07 2.70 0.88 0.07 0.85 0.07 0.85 0.07 0.82 0.07 0.07 2.07 0.07 2.20 3.65 10.20 8.00
W01 D01
1 : 20 W 01 1 : 20 W 02
0.07 0.97 0.07 1.11 0.13 1.98 0.09 2.20 0.08 0.25 0.09 1.02 0.08 1.53 0.06 2.14 2.22
0.06 0.10 1.68 0.10 0.06 2.00 0.060.08 0.33 0.080.06 0.60 0.05 0.51 0.05 0.06 0.10 1.68 0.10 0.06 0.060.08 0.48 0.080.06 0.75 0.05 0.66 0.05 2.00 1 : 20 D01 1 : 20 D02
Project : VIlla B172
Owner : Ahmed Khaled Date : 15
Designed By : M.A Architect
Drawn By : Mohannad A.ullah
Sheet : Doors - Windows
No : A 109
0.05 0.86 0.86 0.05 1.80
D02 W01 W02 W01 W01 W01 D03 Notes Scale : 1 : 20
0.06 2.14
2.20
-Dec- 2022
1 : 20 D03
Hex Head Self Drilling Screws 50mm frame cramp
cast aluminium member 30*6cm 6mm THK
Polycarbonate bushing

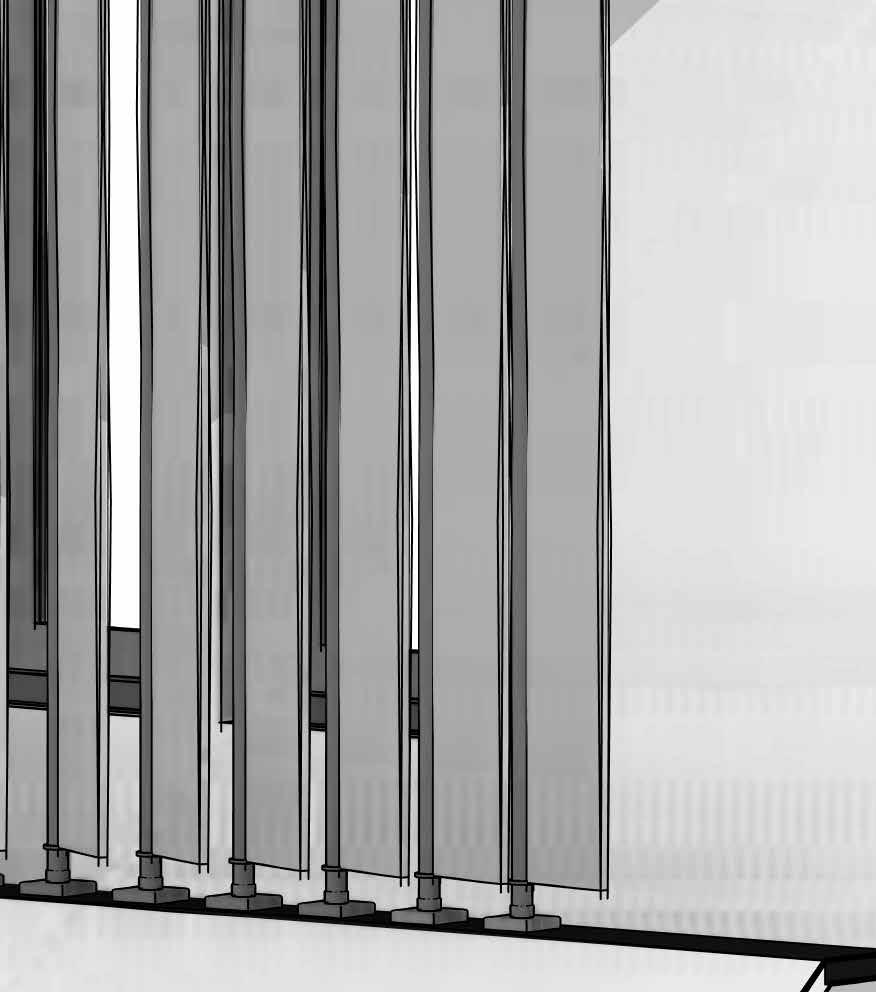

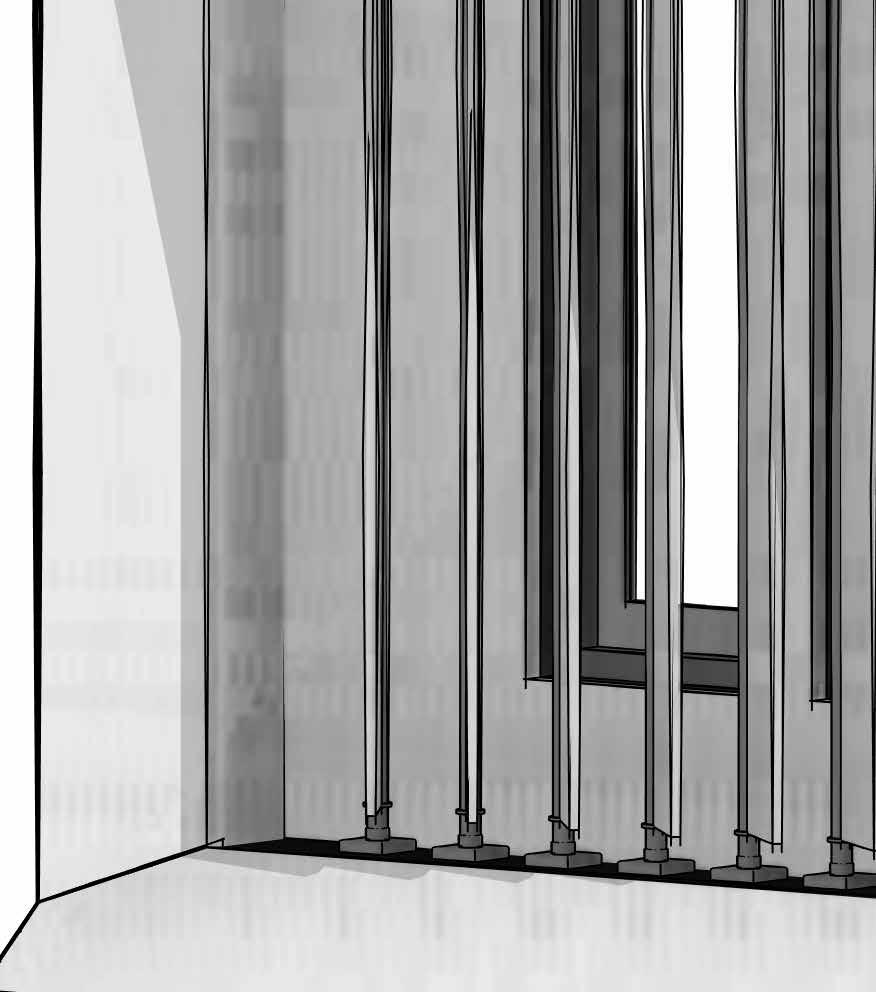

AF. shading Panel
endcap
Polycarbonate bushing
Hex Head Self tapping Screws 35mm
Stone coping water proof membrane clay gravel Concrate Drain system soil brick

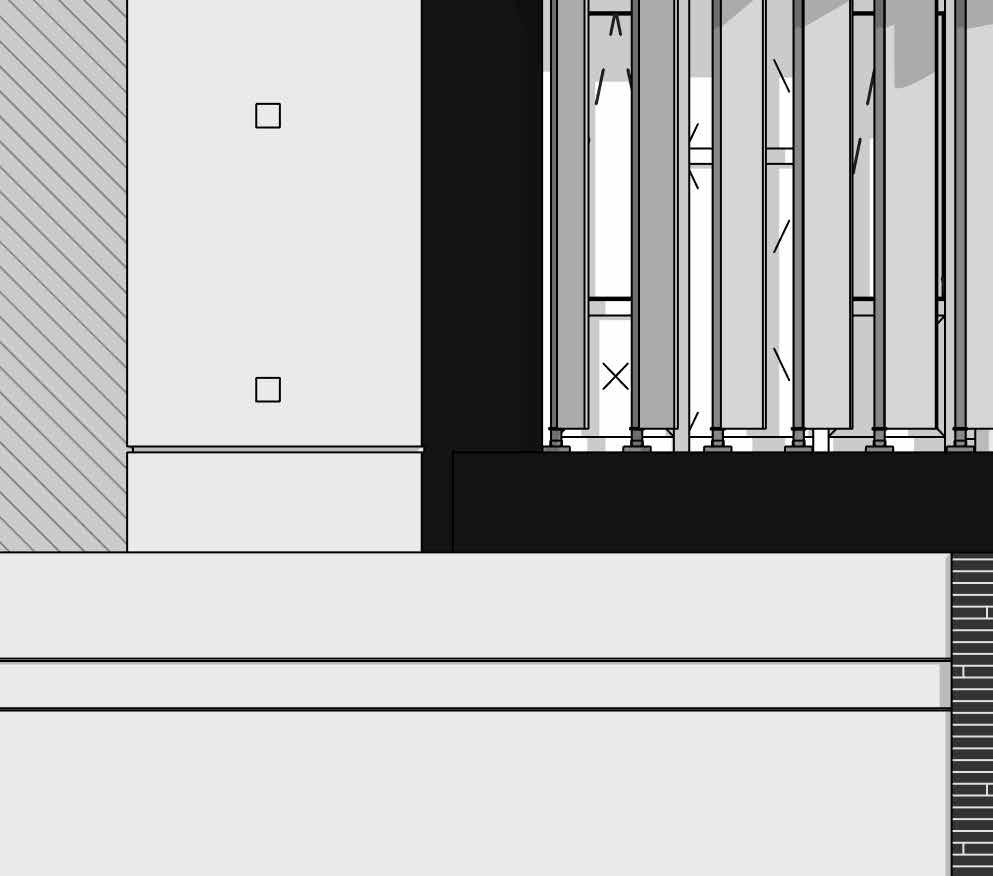

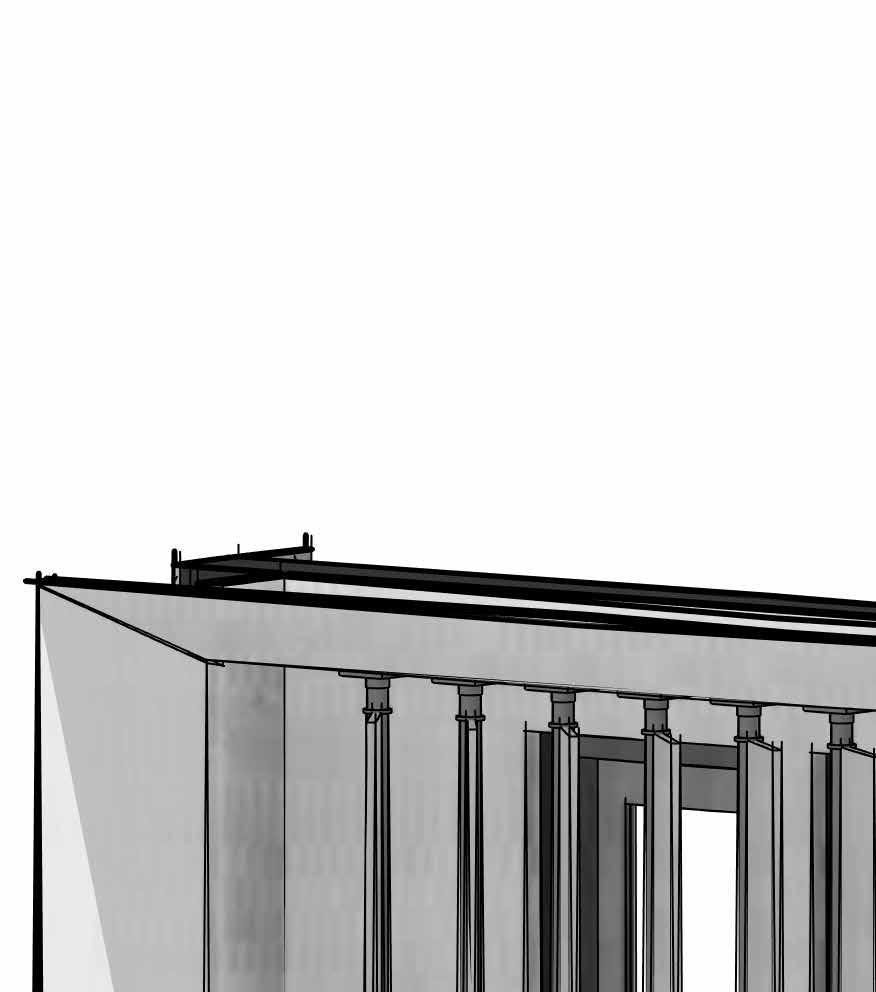

1 : 10 WS 02 : Flower box 1 : 10 WS 01 : shading panel detail 1 : 10 WS 03 : Stone semi-mechanical
01
Support frame STX05 type for compression load brick Thermal insulation Cement Anchor steel mesh Embeded steel wire Rough surface for enhanced adhesion Stone Gap 9-11mm Reveal 2cm
WS
cement coping stone Structural skelton brick WPC Coulmn standard mounting track Anchor Steel bracket Frame cramb empty gap saveto Rough surface for enhanced adhesion aluminum host Support brachet Support Bar WPC panel Channel track Safety screw Anchor Bolts Hook to host lighting fixture Steel Shear Plate Notes Scale : 1 : 10 Project : VIlla B172 Owner : Ahmed Khaled Date : 15-Dec- 2022 No : A 110 Sheet : Details Designed By : M.A Architect Drawn By : Mohannad A.ullah 1 : 10 WS 05 : Fence detal 1 : 10 WS 04 : WPC Detaill WS04 WS03
