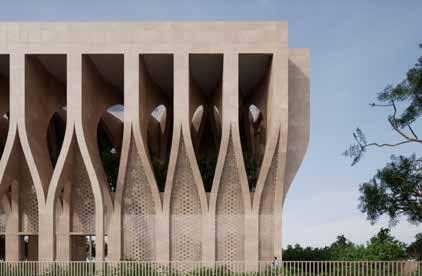

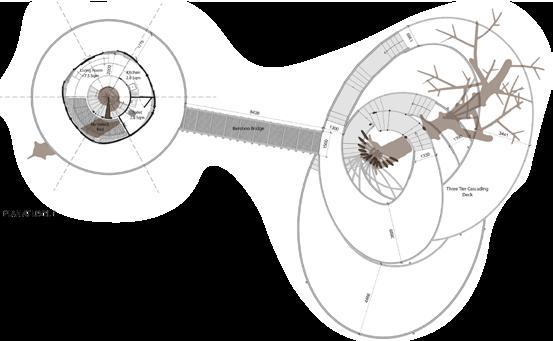

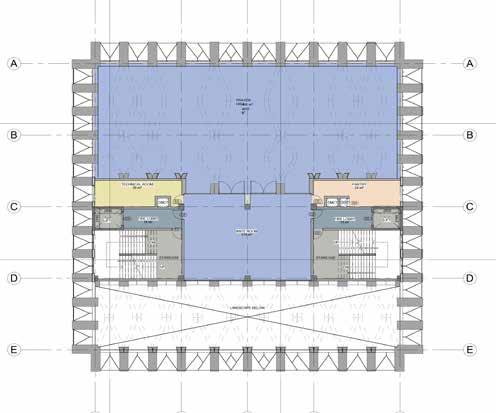

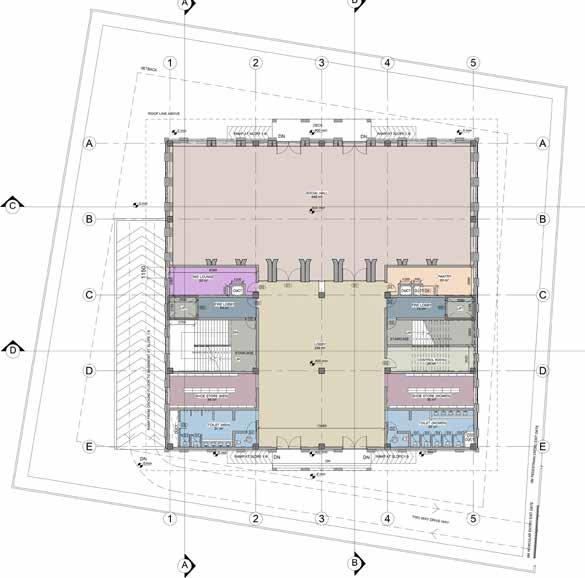

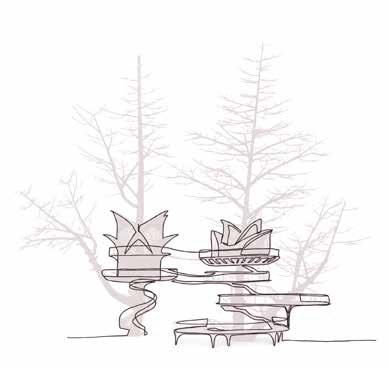

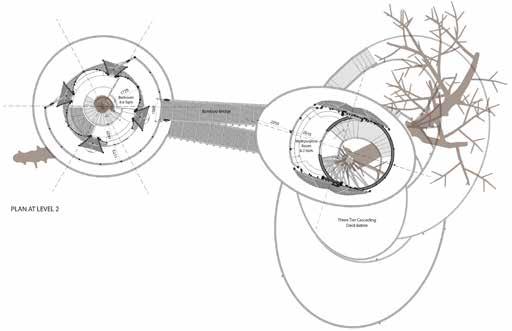

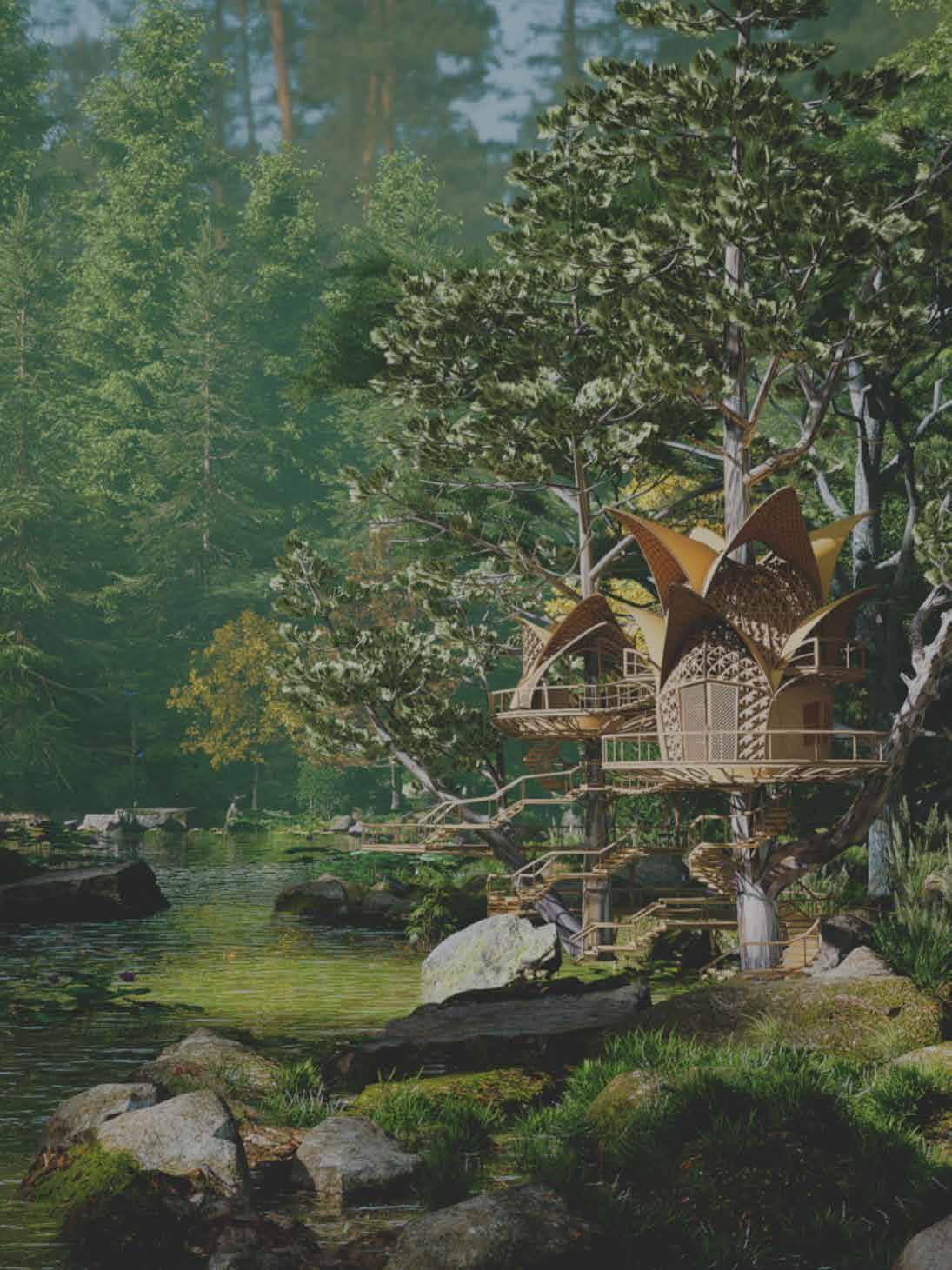

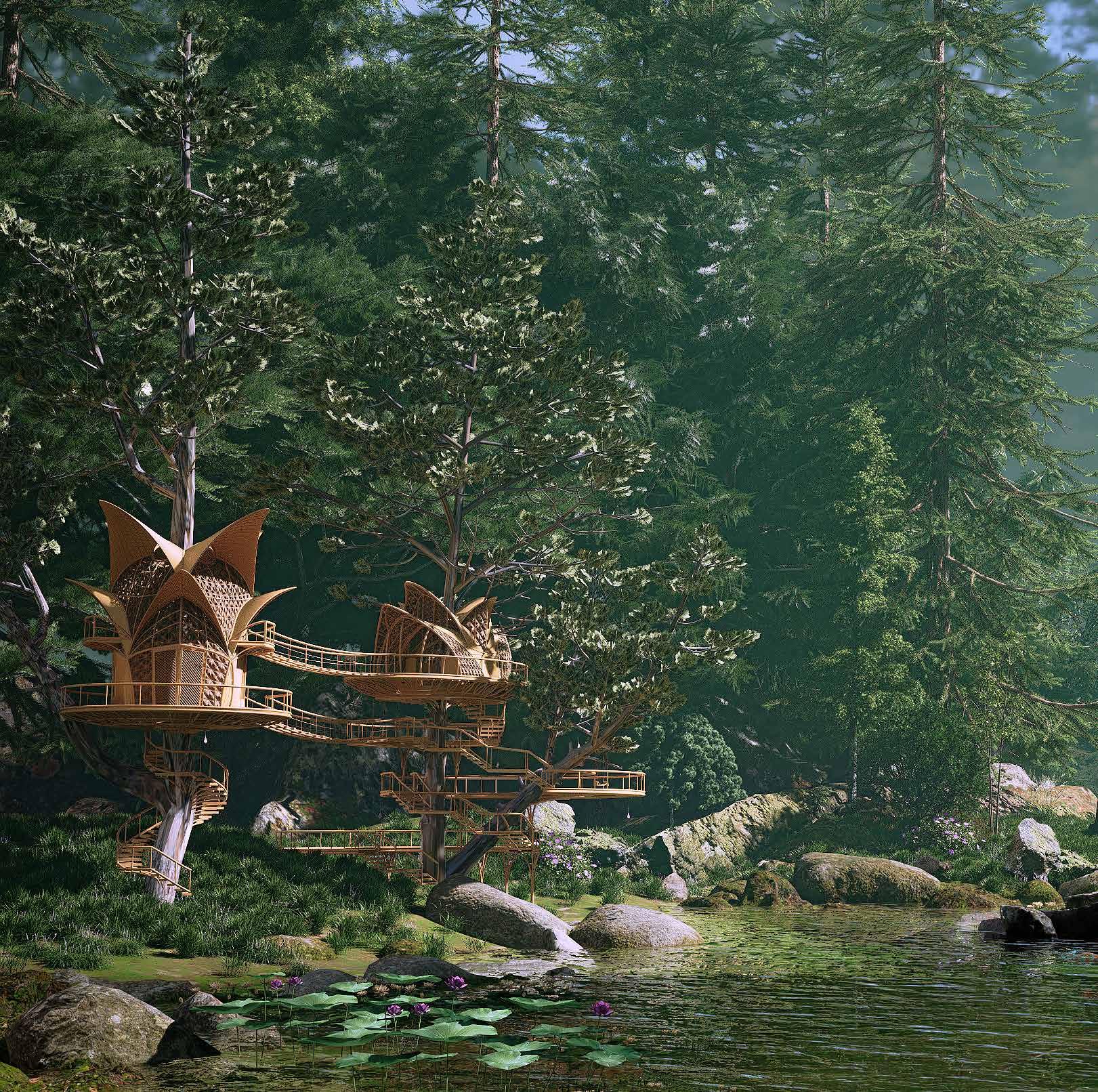

TREE HOUSE 2024,
Location - Meghalaya Area- 30 sqm
a tree house for two individuals, emphasizing sustainable and traditional design.

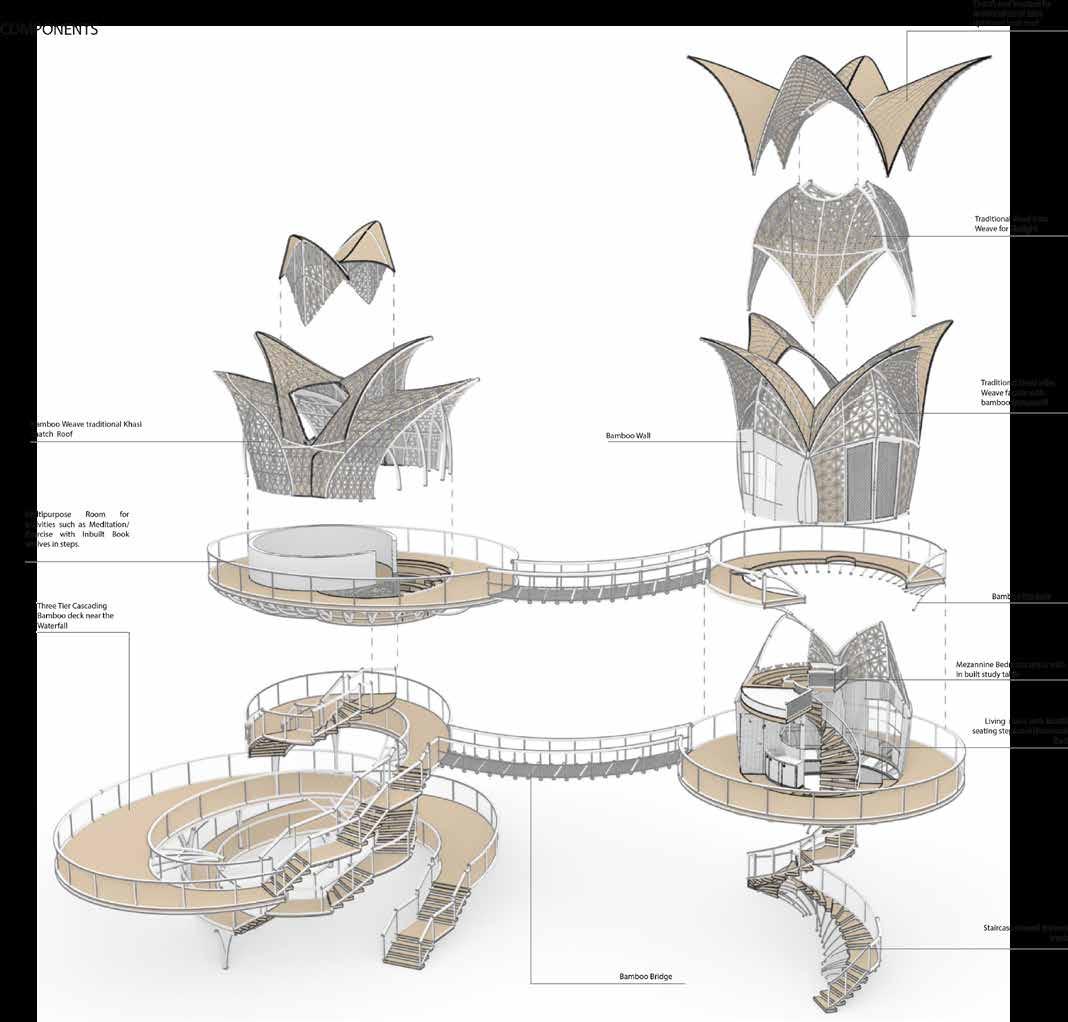

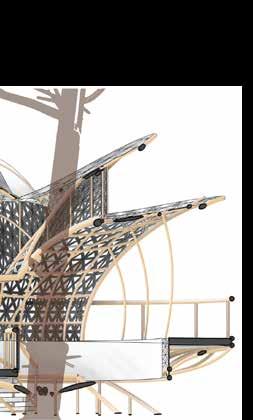

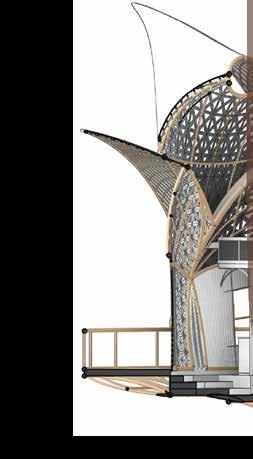

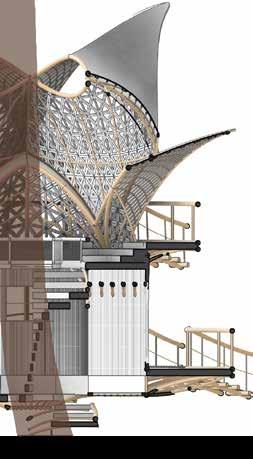

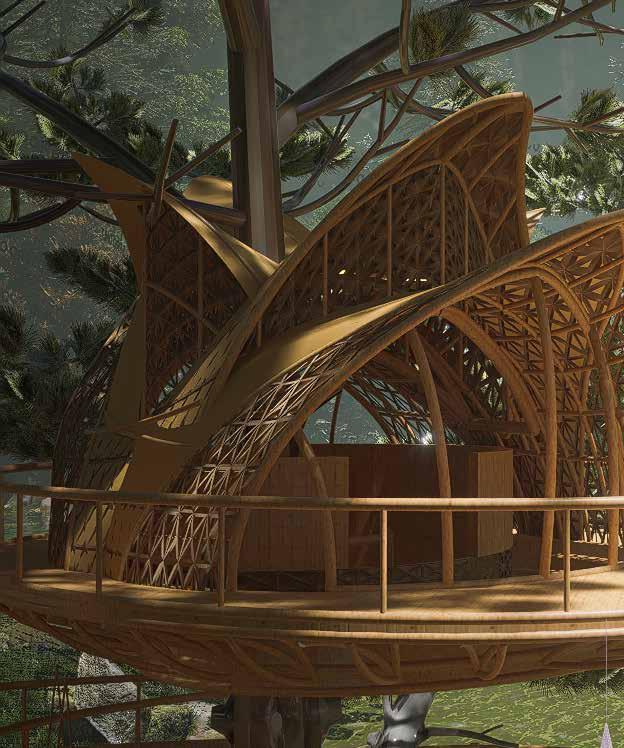

Thatch roof

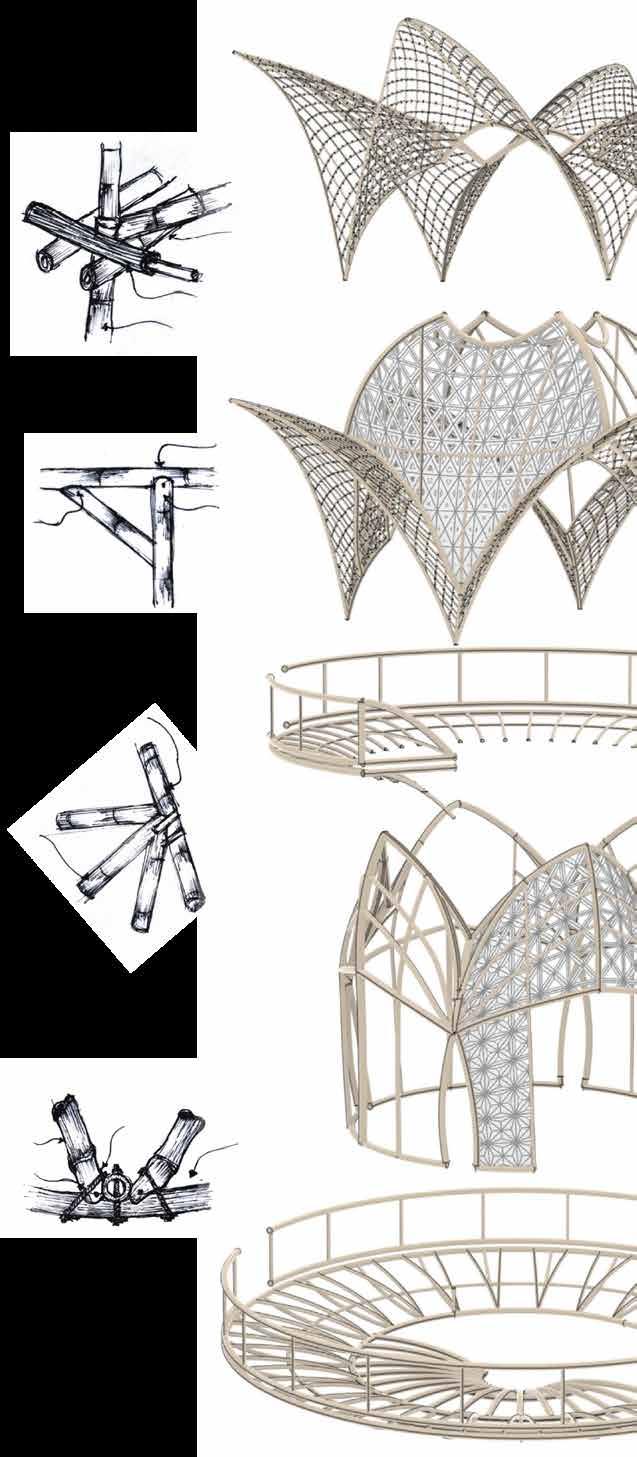

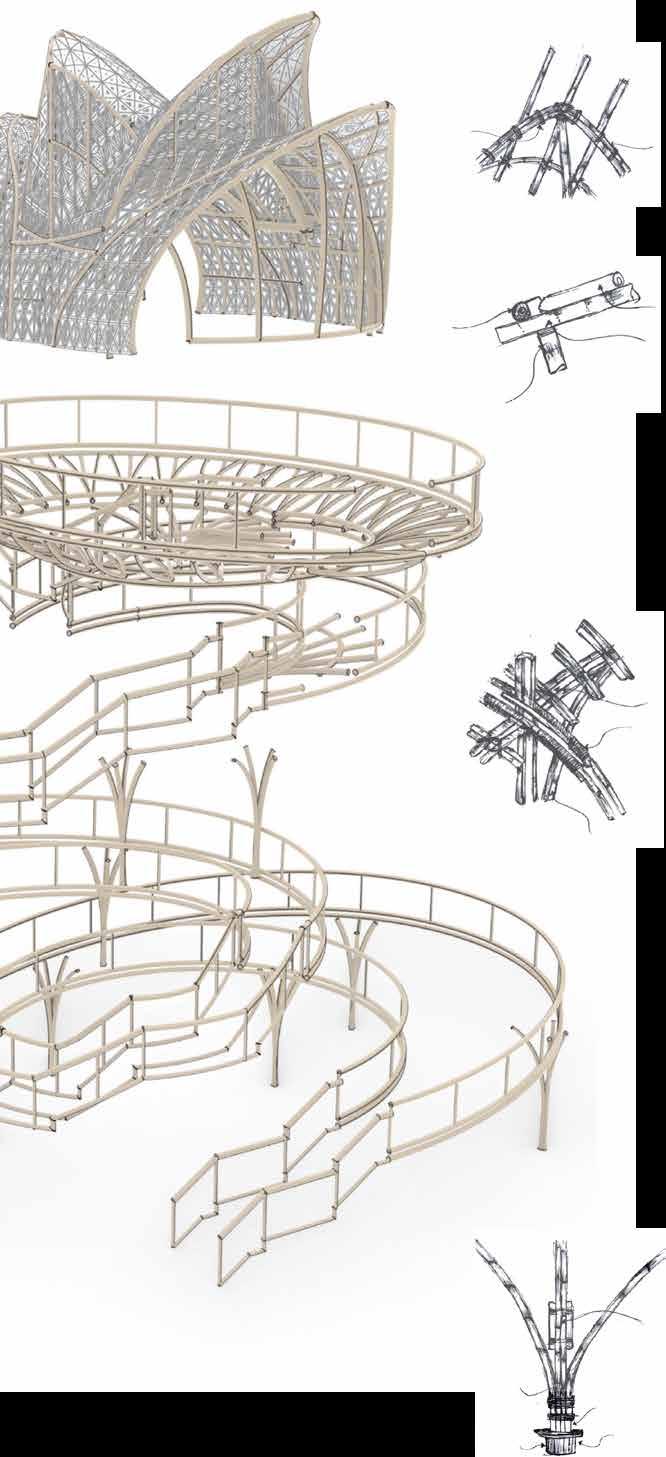

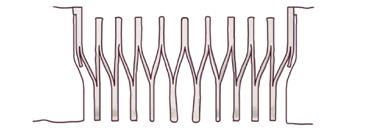

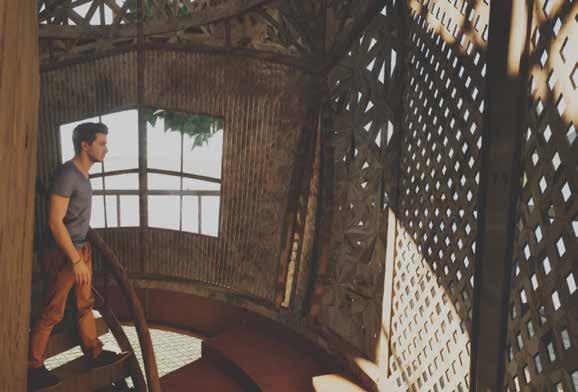

Bamboo framework with bamboo weave
Bamboo framework with wood veener finish floor wired cover double arches roof support long drad
Bamboo Bracket
Bamboo framework with bamboo weave
Tied up rattan
Bamboo Deck
Inbuilt shelves

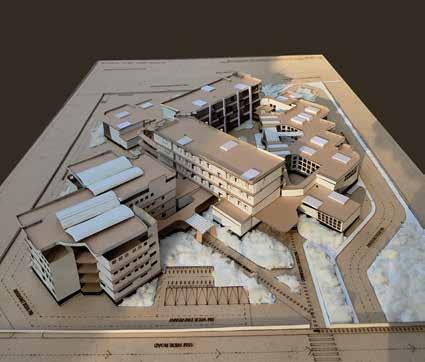

Location – Seawoods, Navi Mumbai.
Fsi –1.1 basic Connectivity
The site is situated within a one-kilometer radius of Seawoods Station, and it is conveniently located next to the bus and auto stand.
Area –15,000sqm.i.e 3.7 acres
Site condition – It is a square shaped site. This site has flat terrain and is vacant for commercial zone.

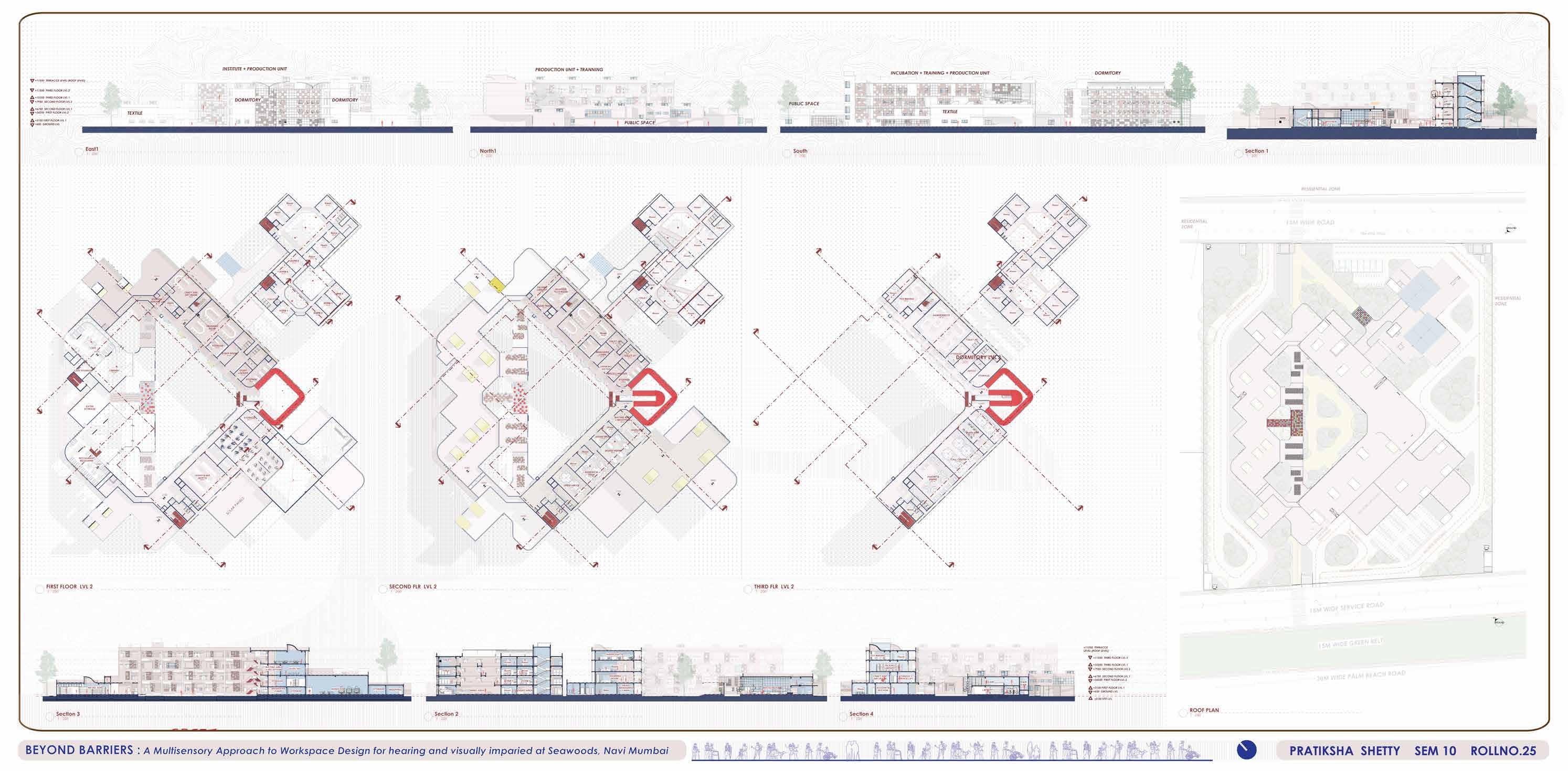

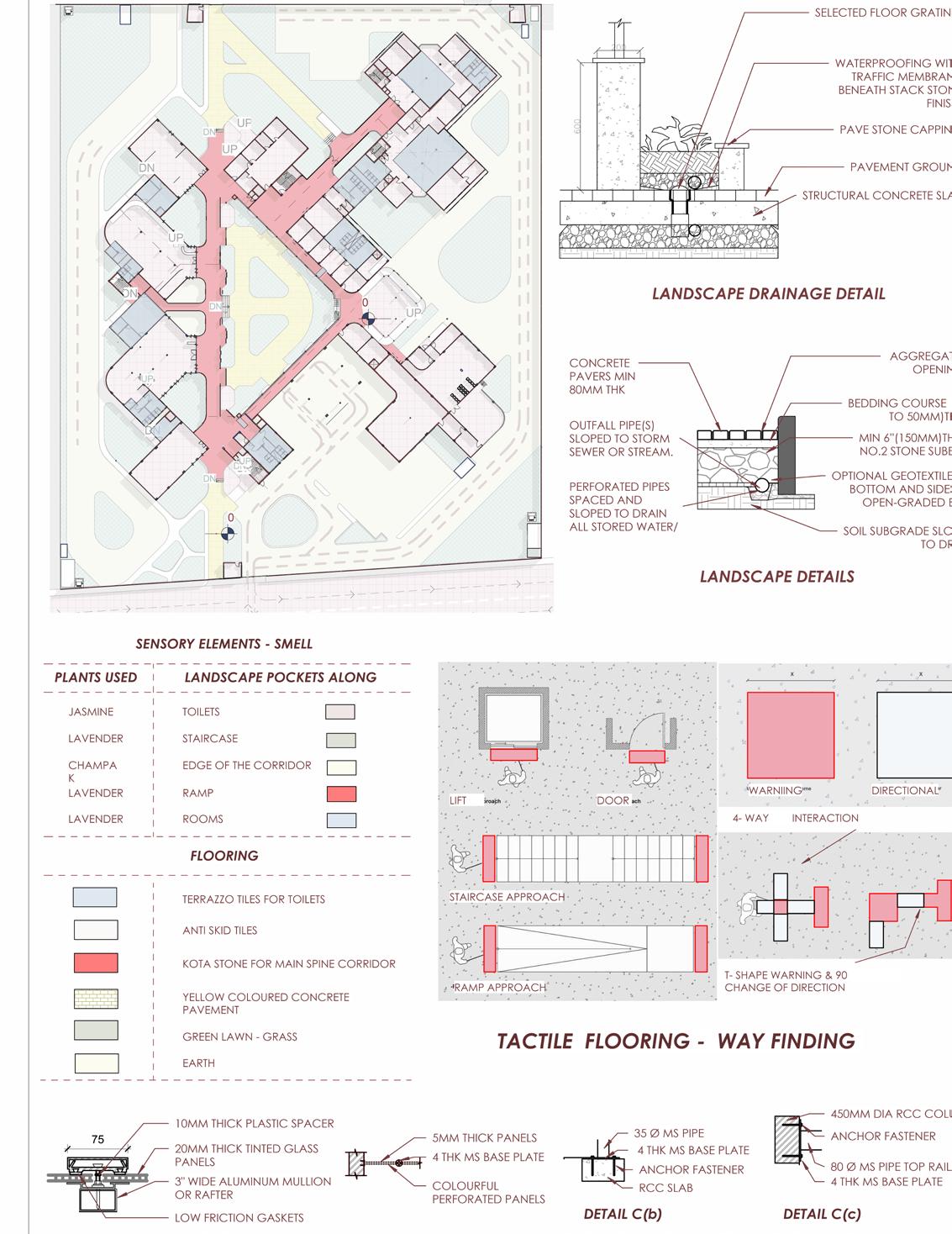

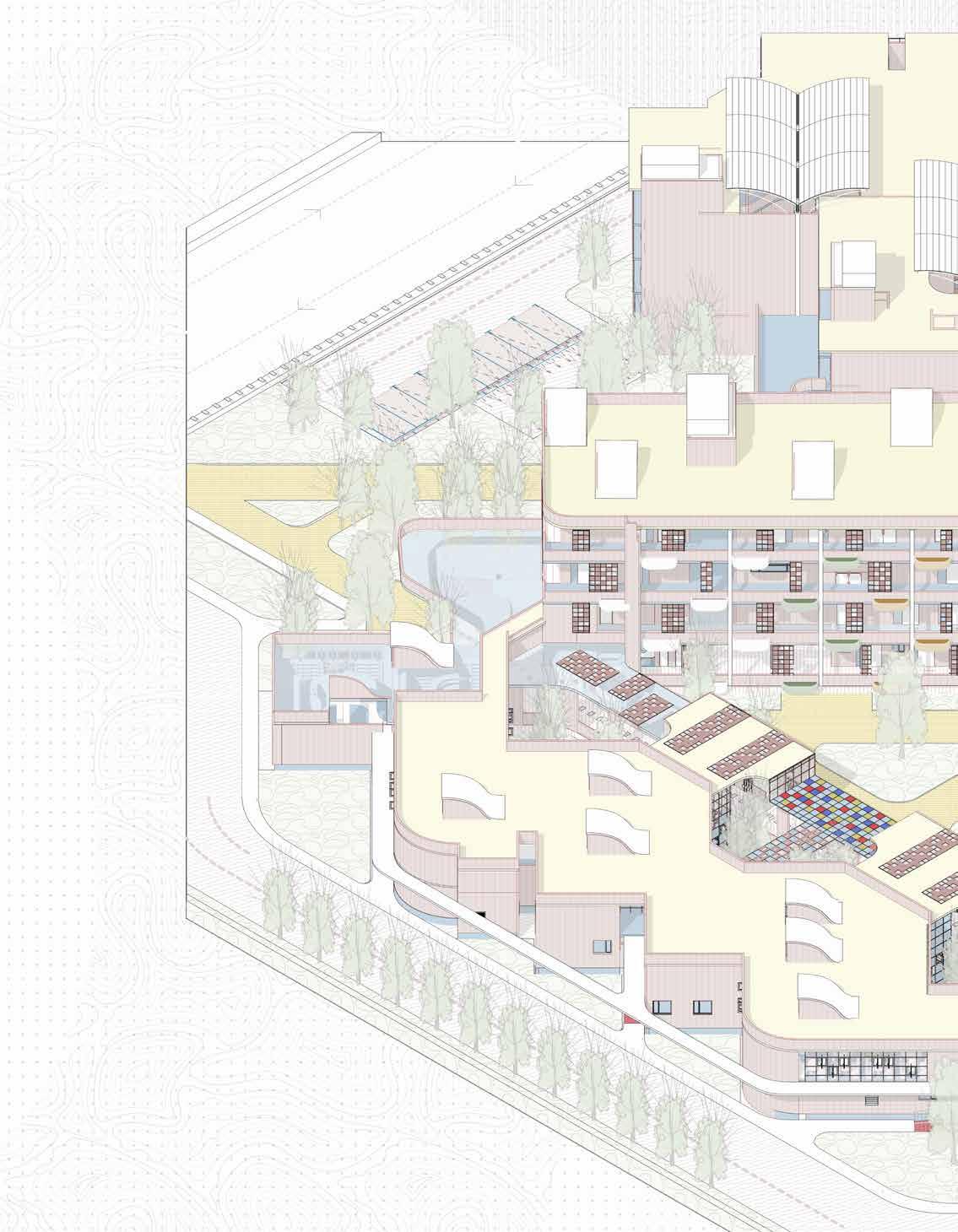

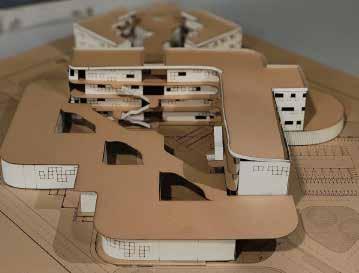

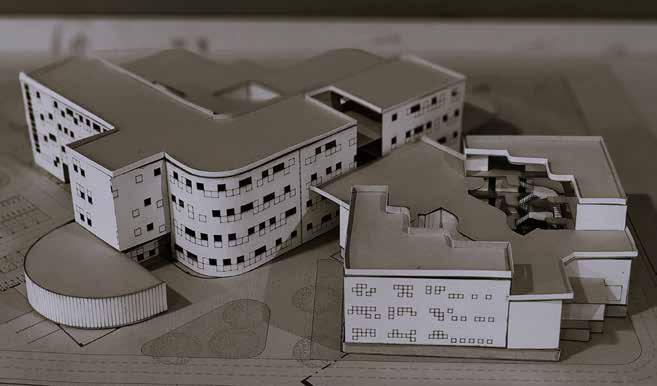

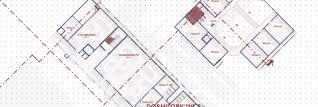

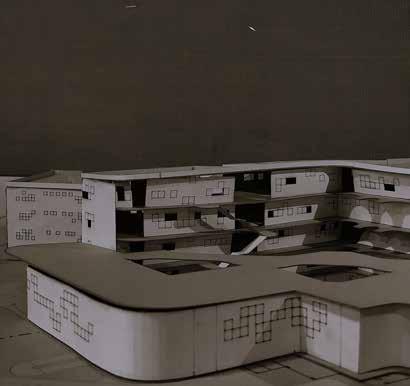

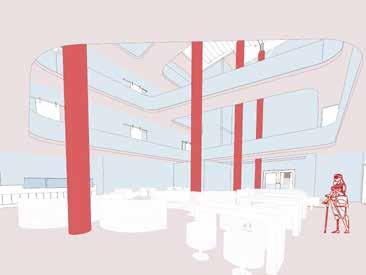

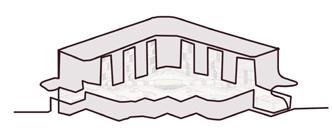

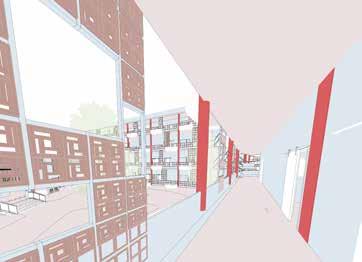

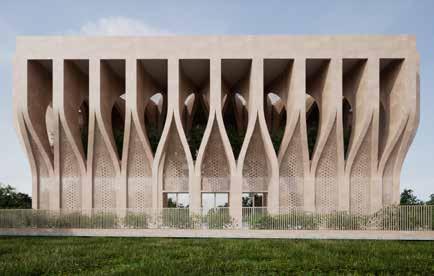

BEYOND BARRIERS:
A Multisensory Approach to Workspace Design for hearing and visually imparied

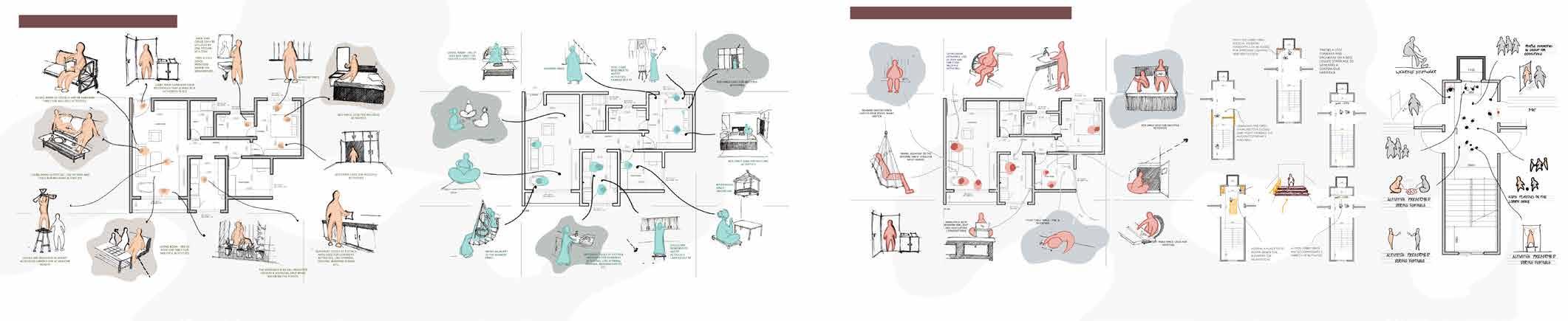

Universal design goes beyond just physical access; it’s about creating a society where everyone feels included and valued. When we follow these principles, buildings become places where people of all abilities can work, learn, and connect with their communities. Limited job opportunities, especially for those without financial support, combined with inaccessible buildings, make life even tougher. This exclusion affects not only employment but also participation in public life. We need to address these issues to build a more inclusive world that acknowledges diverse abilities and lets everyone thrive. Similarly, dreams take us to a magical place where reality bends, and our imagination runs wild. In the quiet theaters of our minds, we experience

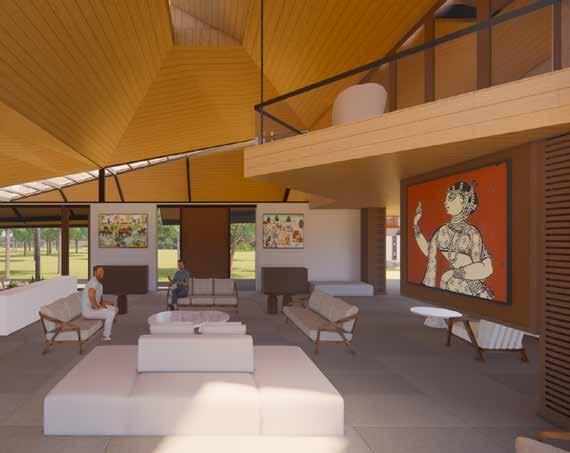

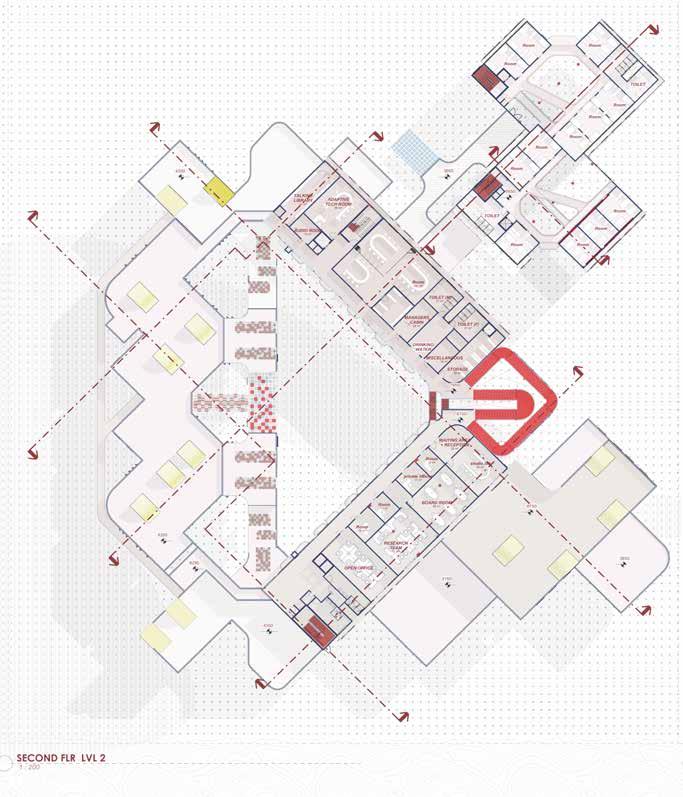

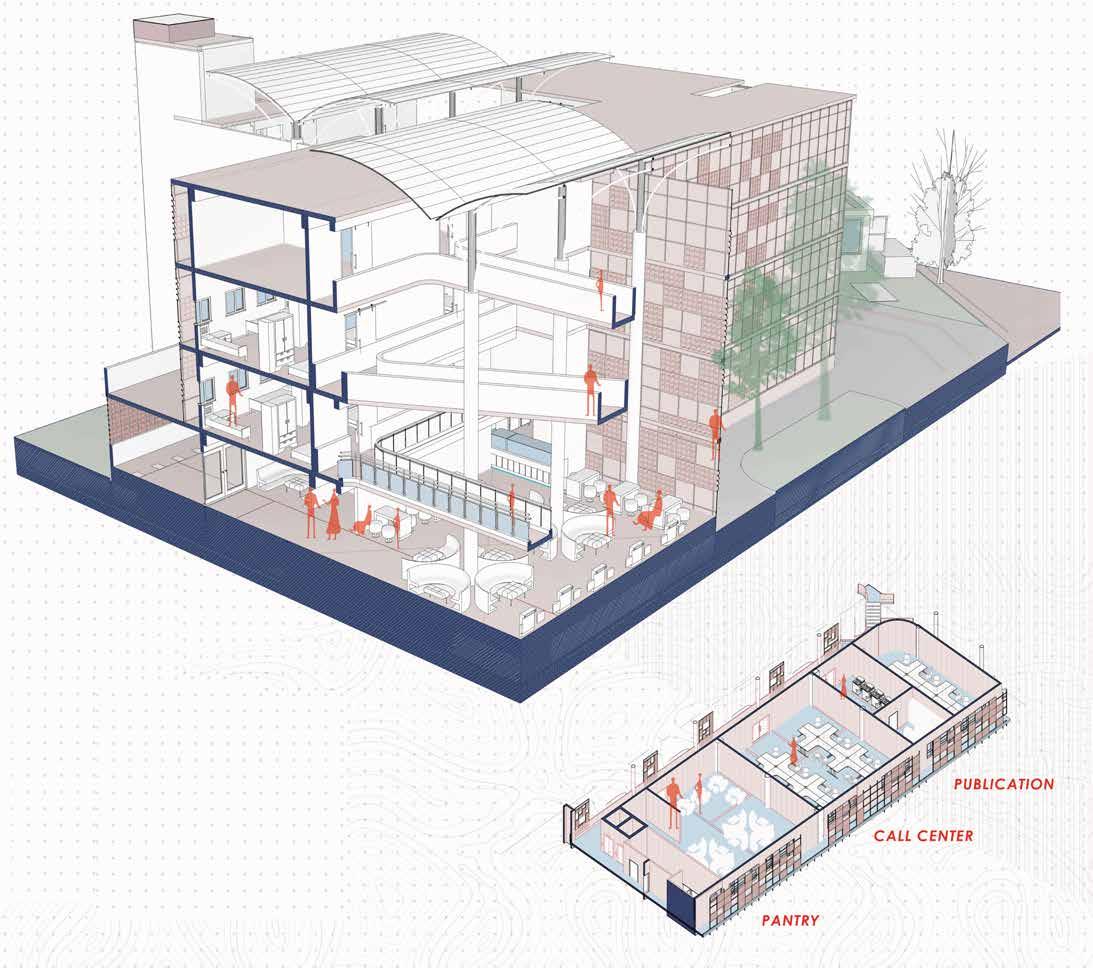

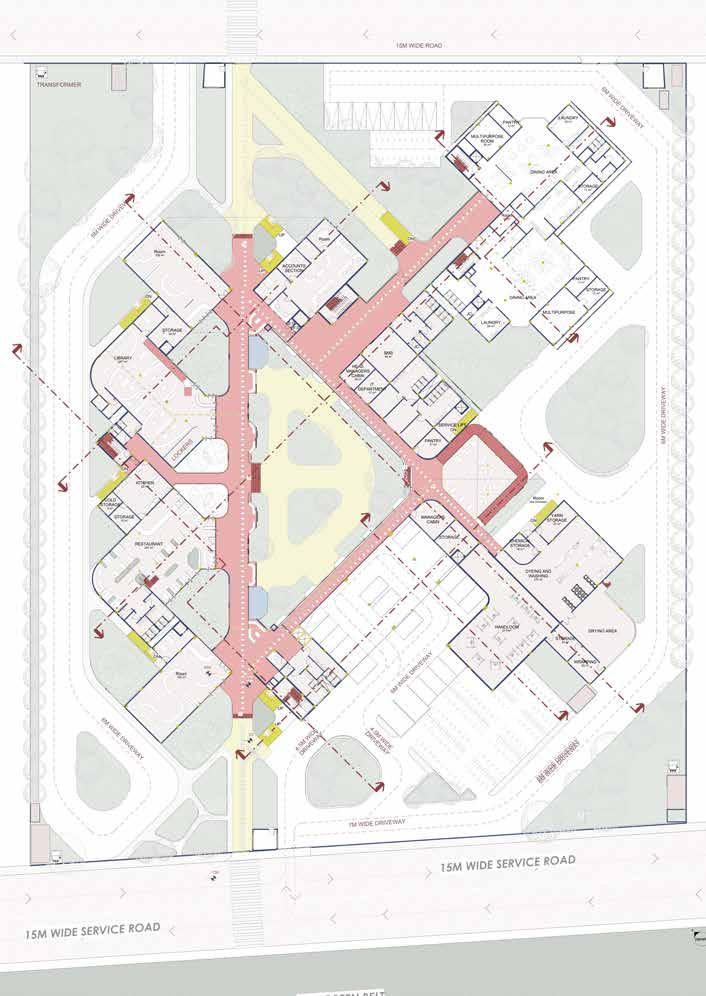

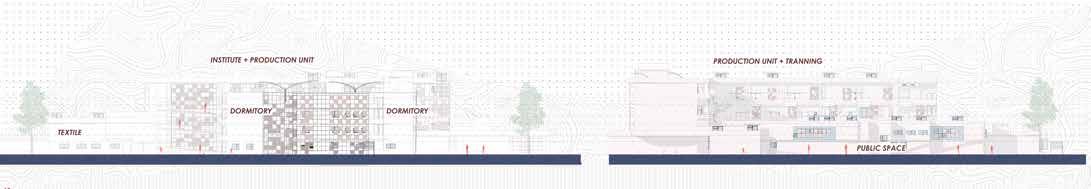

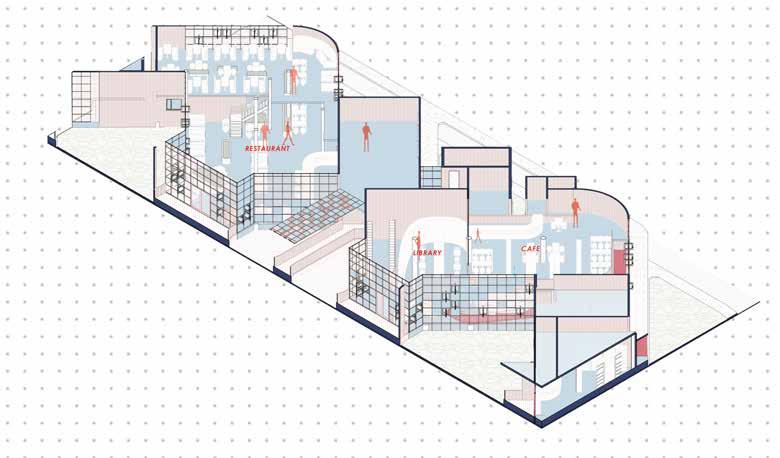

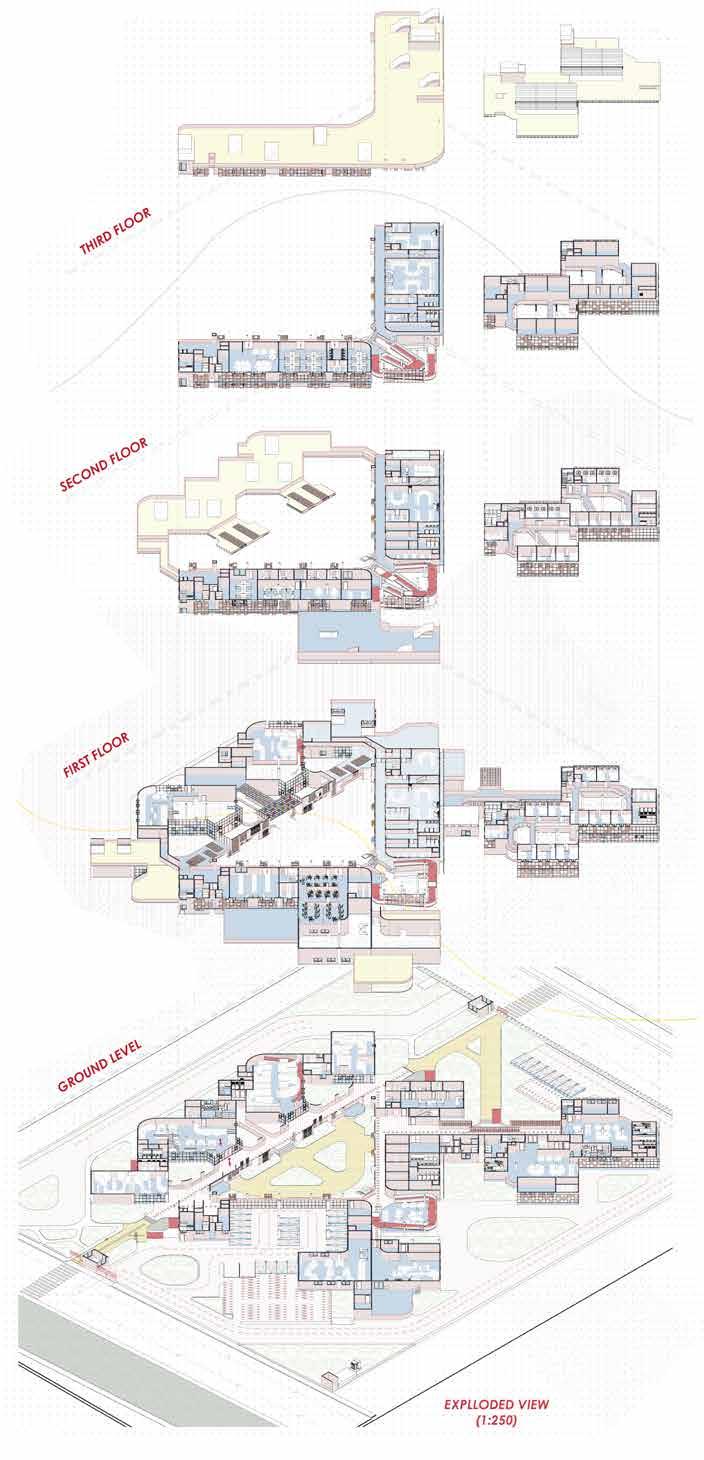

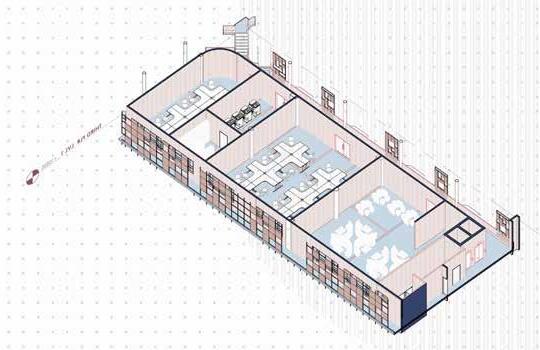

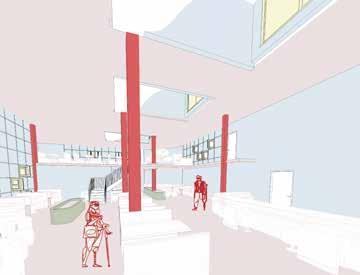

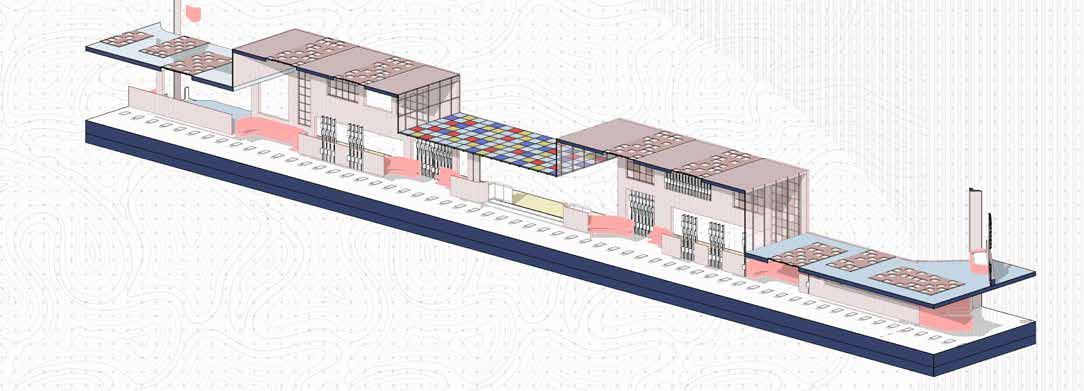

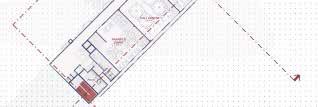

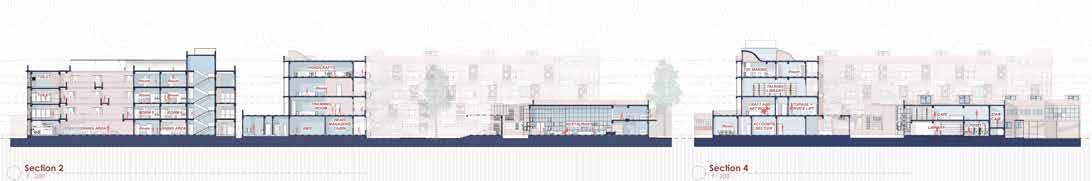

Workspace zone

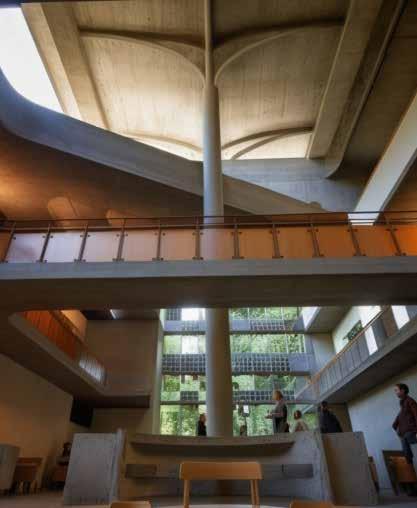

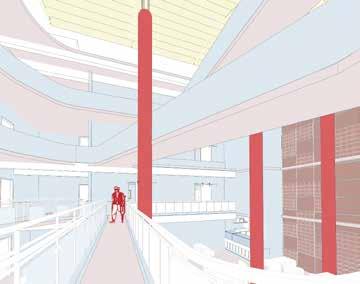

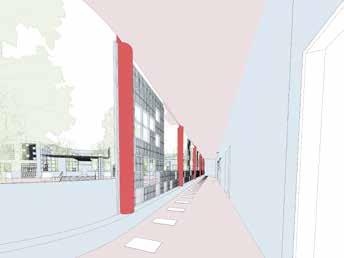

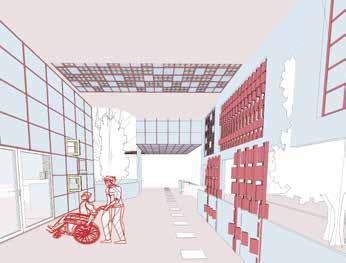

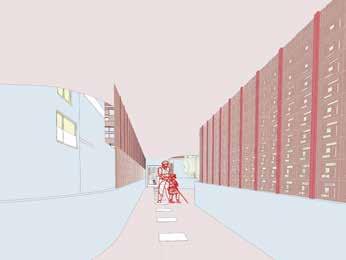

Central Promenade

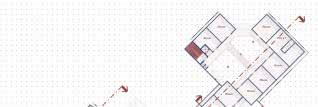

DORMITORY SECTION

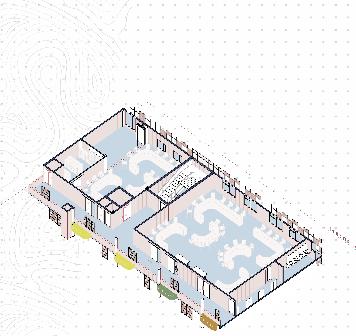

HANDICRAFT AND TOY MAKING WORKSPACE
DYNAMIC CLAY
FACADE WITH MS PIPE
T SECTION MS FRAME WITH COLOURED GLASS PANELS
400MM TREAD EXTERNAL STAIRCASE
150MM THICK PCC BED
230 MM THICK BRICK WALL
300 X 400MM RCC BEAM
1 : 10
15MM THICK LAYER OF GEOTEXTILE WATER PROOFING
200X200X60MM TERRACOTTA CLAY AMBER CLAMP BLOCKS
2100 MM HIGH DYNAMIC CLAY FACADE WITH MS PIPE
WIDE OPENING WITH WATER BODY
ETFE CUSHION
2" BOX SECTION TOUGHENED GLASS 12MM MS MESH
50MM THK T SECTION
200 X 200 X 50 CLAY JAALI 2" L ANGLE
SUPLLEMENTAL STRUCTURAL STEEL ANCHORAGE CHANNEL 3/8"
CONTINUOUS EXTRUSION
900MM PARAPET WALL
150 MM THICK CONCRETE SHELL
150 THK BRICK BAT COBA WATER PROOFING LAID AT SLOPE
200MM THICK HOLLOW CONCRETE BLOCK HOURDI SLAB
115MM THICK POROTHERM BRICK WALL ( FOR SOUND INSULATION)
150MM DEEP RCC LINTEL 12MM THICK WOODEN TEXTURED SINGLE SLIDING DOOR
20MM THICK KADAPA STONE
200X200X60MM TERRACOTTA CLAY AMBER BLOCKS
MS BOX FRAME
300MM X 600MM RCC BEAM
CONTINUOUS WATERPROOF MEMBRANE
CONTINUOUS STAINLESS STELL GUTTER FULLY-WELD AND GRIND SMOOTH.

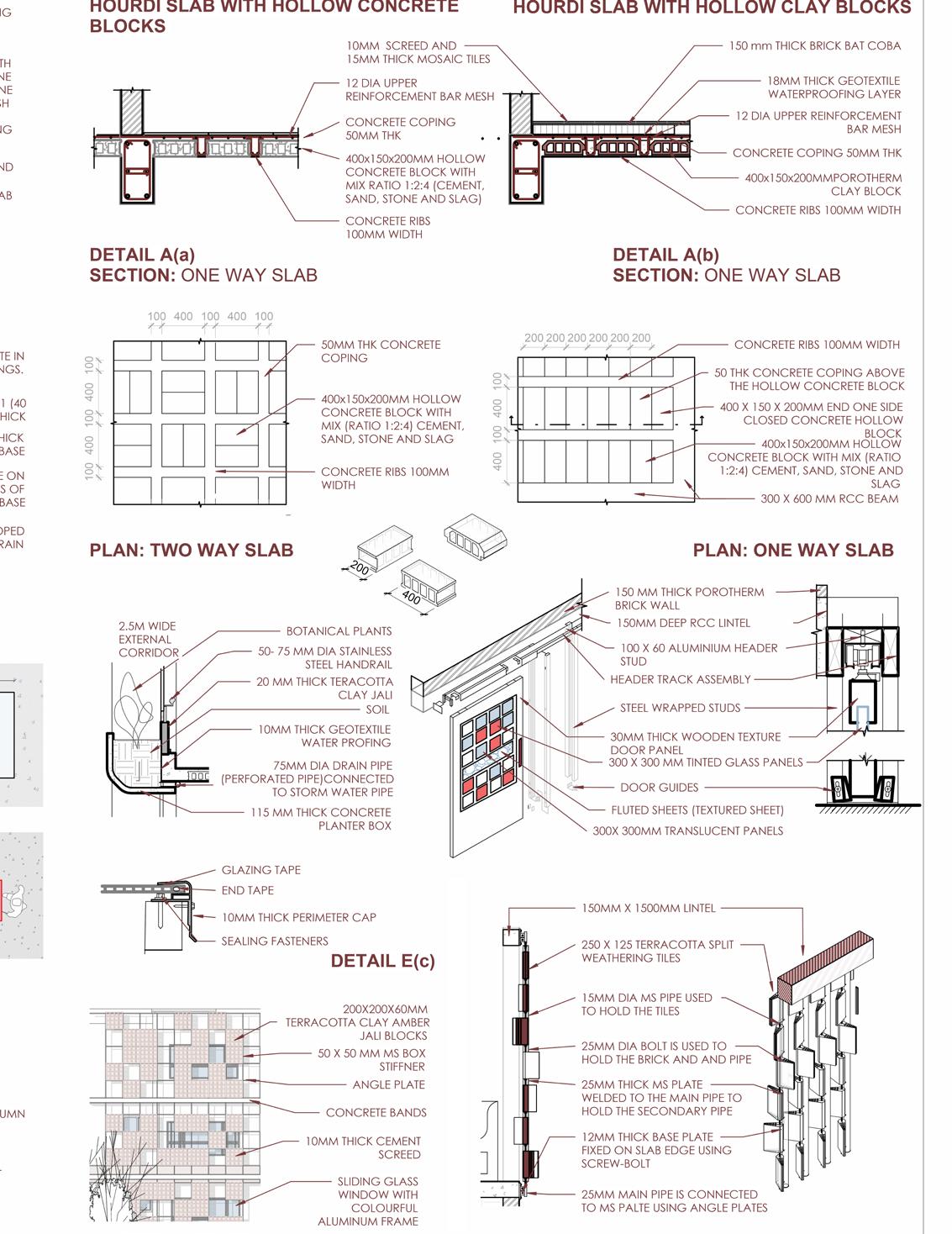

DETAIL E(b) 1 : 10
PRIMARY STRUCTURE
DETAIL D(b)
2MMM THICK ETFE CUSHION ONTOP OF THE STEEL TRUSS
25MM X 25MM SUPPORTING MEMBER
75MM DIA STEEL SUPPORTING MEMBER
50MM DIA CURVED WAREN STEEL TRUSS
200 X 120 MM CHANNEL OF CONTINUOUS STAINLESS STELL GUTTER FULLY-WELD AND GRIND SMOOTH.
SUPPORTING ANDLE PLATE WELDED TO STEEL COLMN AND THE BASE PLATE
20MM THICK METAL PLATE AND BLOT CONNECTING
450MM DIA HOLLOW CIRCULAR COMPOSITE COLUMN (STEEL AND CONCRETE)
200X200X60MM TERRACOTTA CLAY AMBER JALI BLOCKS
300MM X 500MM RCC COLUMN
150MM THICK PCC BED COMPACTED EARTH
300 X 600MM PLINTH BEAM
300MM DEEP BRICK WALL
EPDM
STAINLESS STEEL BOLTS, SEAL ALL
SUPLLEMENTAL
SS WASHER AND OVERSIZE
ELECTRICAL ATTACHMENT CONCEALED WITHIN
400MM X 400MM COLORFUL ACP PANELS FOR INFORMATION BOARD
250 X 125
TERRACOTTA SPLIT WEATHERING TILES
290 X 215 X 75 PARTITION BLOCKS
CONTINUOUS ALUMINIUM
EXTRUSION CLAMPING STRIP
EPDM SEALING STRIP
STEEL ANCHORAGE ALL PENETRATIONS
STRUCTURAL STEEL CHAIRS AND LOCKING NUT OVERSIZE HOLE IN CHAIR
ELECTRICAL CONDUIT AND ATTACHMENT CLIPS TO BE WITHIN STRUCTURAL STEEL CHAIR.
DORM ROOM
DORM ROOM
ROOM
200X200MM AMBER JALI WITH 12MM TOUGHENED GLASS SENSORY LANDSCAPE
300X 450 MM RCC BEAM
50 MM DIA MS PIPE BALUSTER HOLDING THE SECONDARY MS PIPE
15MM DIA MS PIPE USED TO HOLD THE TILES
SIX CAVITY BUILDING BLOCK PLASTER
12MM THICK PLASTER
50MM BOX ALUMINIUM FRAME
300 X 300 MM PIVOTED GLASS WINDOW
1500X 900 MM FIXED GLASS WINDOW
290 X 215 X 150 PARTITION BLOCKS 1 : 50
SCREW AND BOLT USED TO CONNECT THE SLAB AND PIPE
CAVITY WALL
DETAIL B(b)
F 1 : 20 DETAIL E(a) PLAN 1 : 10
200MM THICK POROTHERM CLAY BLOCK HOURDI SLAB
18MM THICK LAYER OF GEOTEXTILE WATER PROOFING
150 MM THK CONCRETE SHELL
10MM THK KOTA STONE TILES
150 THK BRICK BAT COBA WATER PROOFING LAID AT SLOPE
20MM SCREED
300X 600 MM RCC BEAM
100MM THICK RCC COPING
900MM HIGH RCC WALL
290X 215 X 150 MM SIXCAVITY BUILDING POROTHERM CLAY BLOCK
200X200X60MM TERRACOTTA CLAY AMBER CLAMP BLOCKS
150MM THICK BRICK WALL
200MM THICK HOLLOW CONCRETE BLOCK HOURDI SLAB
900 MM HIGH PARAPET WALL WITH RCC COPPING
10MM THICK WATERPROOFING LAYER
200X200X60MM TERRACOTTA CLAY AMBER CLAMP BLOCKS
20MM THICK GLASS PANELS
10MM THICK PERFORATED PANELS FOR RAILING
50 X 50 MM MS BOX STIFFNER
CONCRETE BANDS
300 X 600MM RCC BEAM
1500 X 1200MM SLIDING GLASS WINDOW WITH BLINDS
1200MM HIGH SILL LEVEL WITH 20MM THICK KADAPA STONE
50MM DIA WALL MOUNTED RAILING
150MM THICK PCC BED
10MM THICK CEMENT MORTAR BETWEEN TWO CLAY TILE
150 mm THICK RCC SLAB
25MM X 25MM BOX MS FRAME
300 X 600MM BEAM
150 mm THICK PCC SLAB
300MM DIA CIRCULAR COLUMN

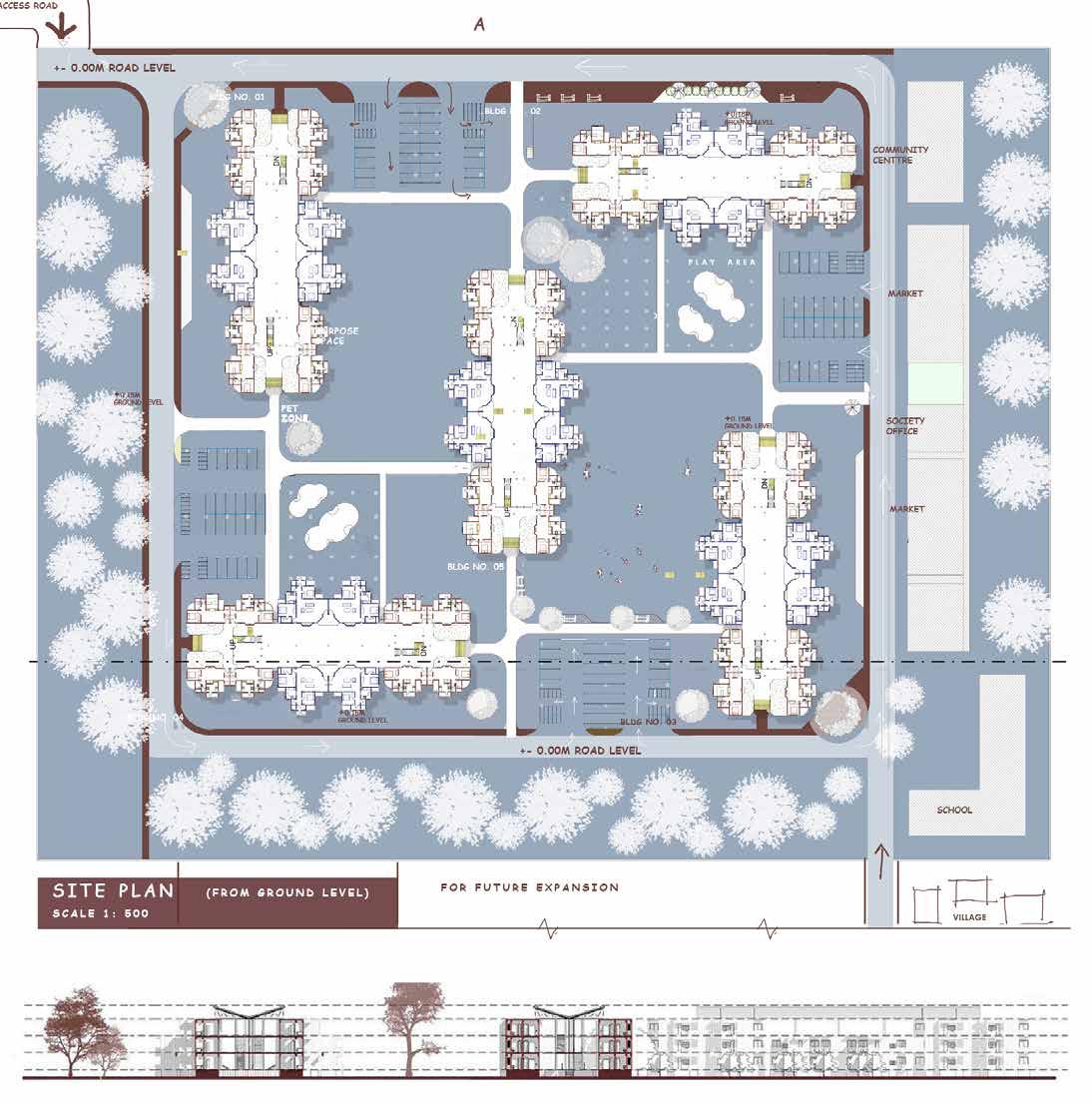

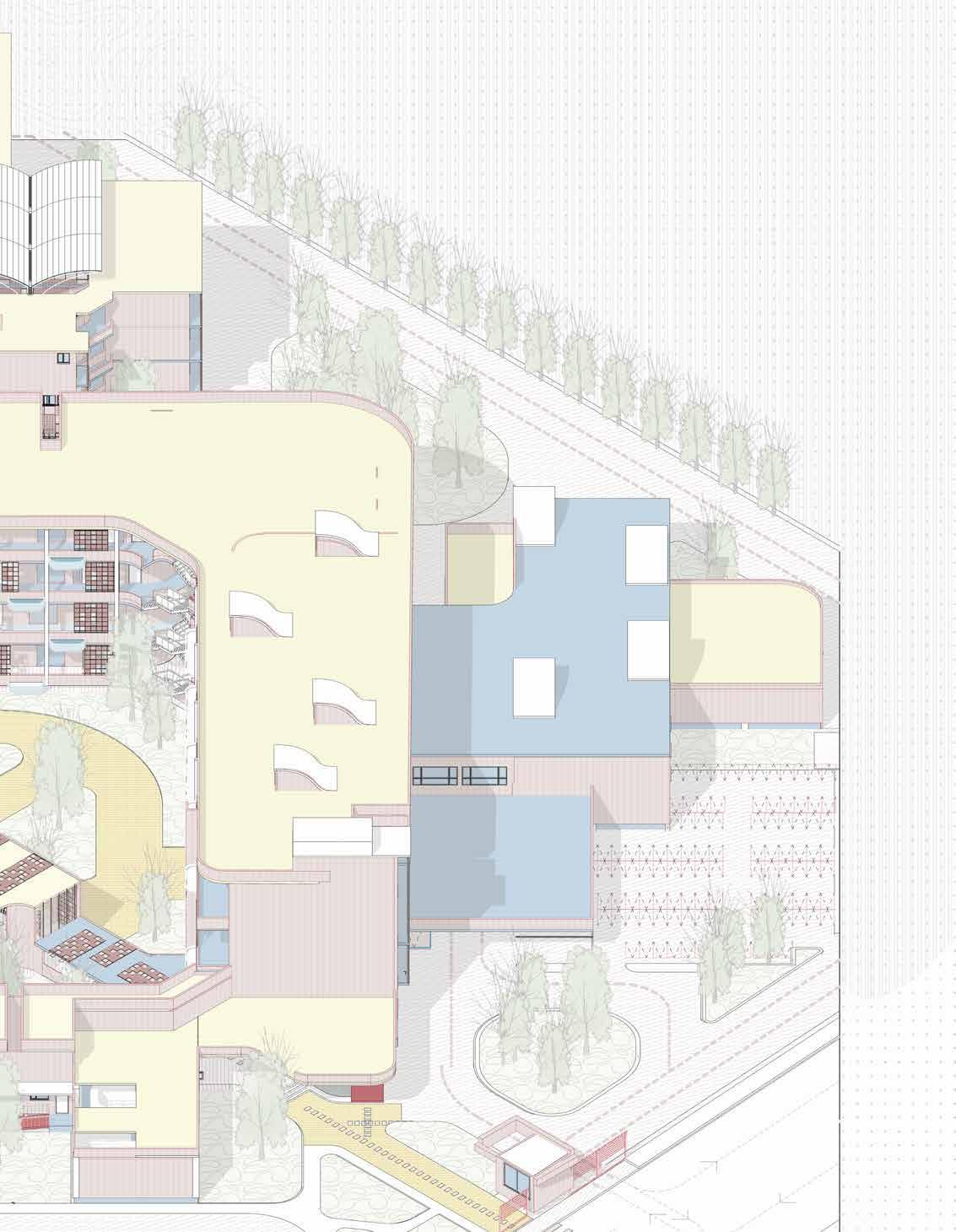

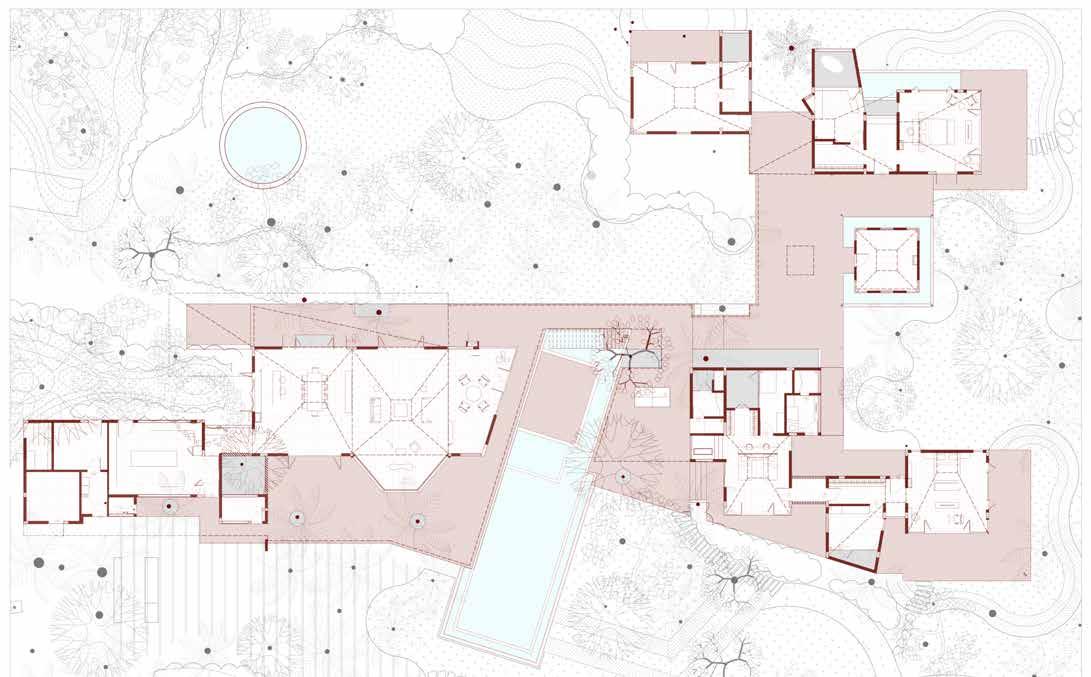

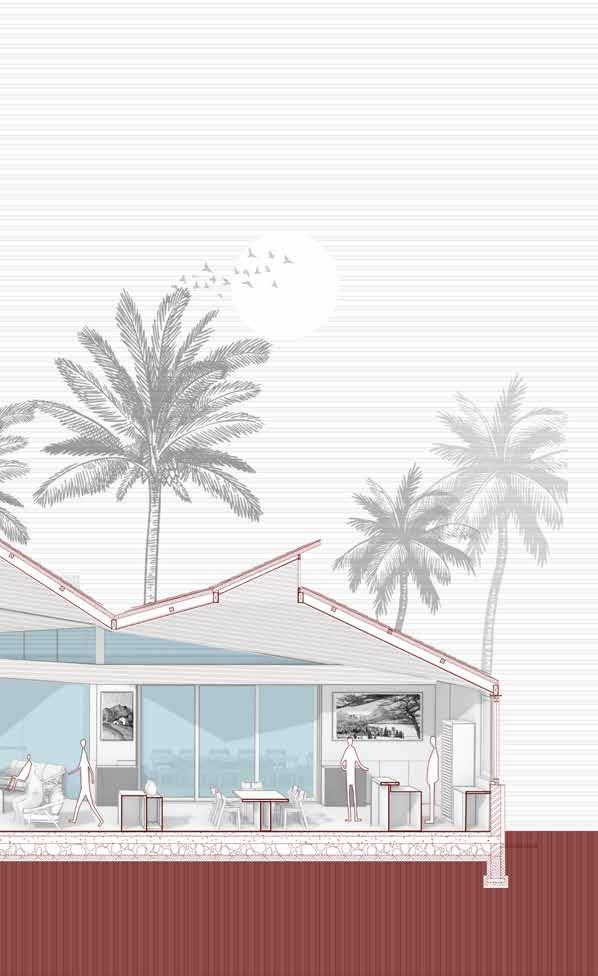

Location- DOLVI, Pen, Maharashtra
Site Area- 39.5 acres (159889 sqm)
Climate- dry and humid
Wind direction- Generally the direction is from southeast
Soil Type-

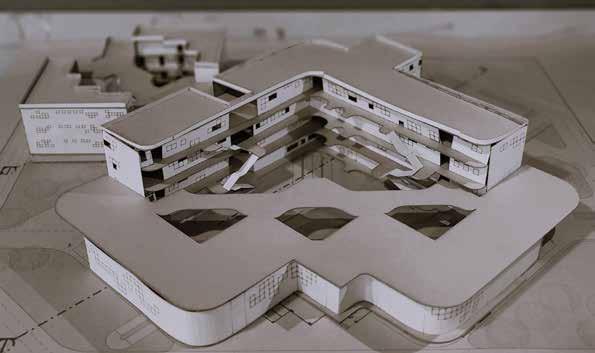

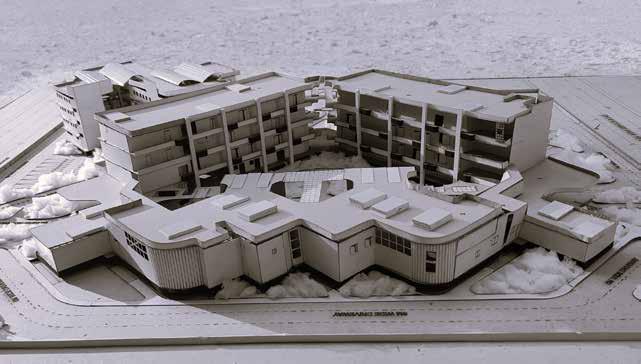

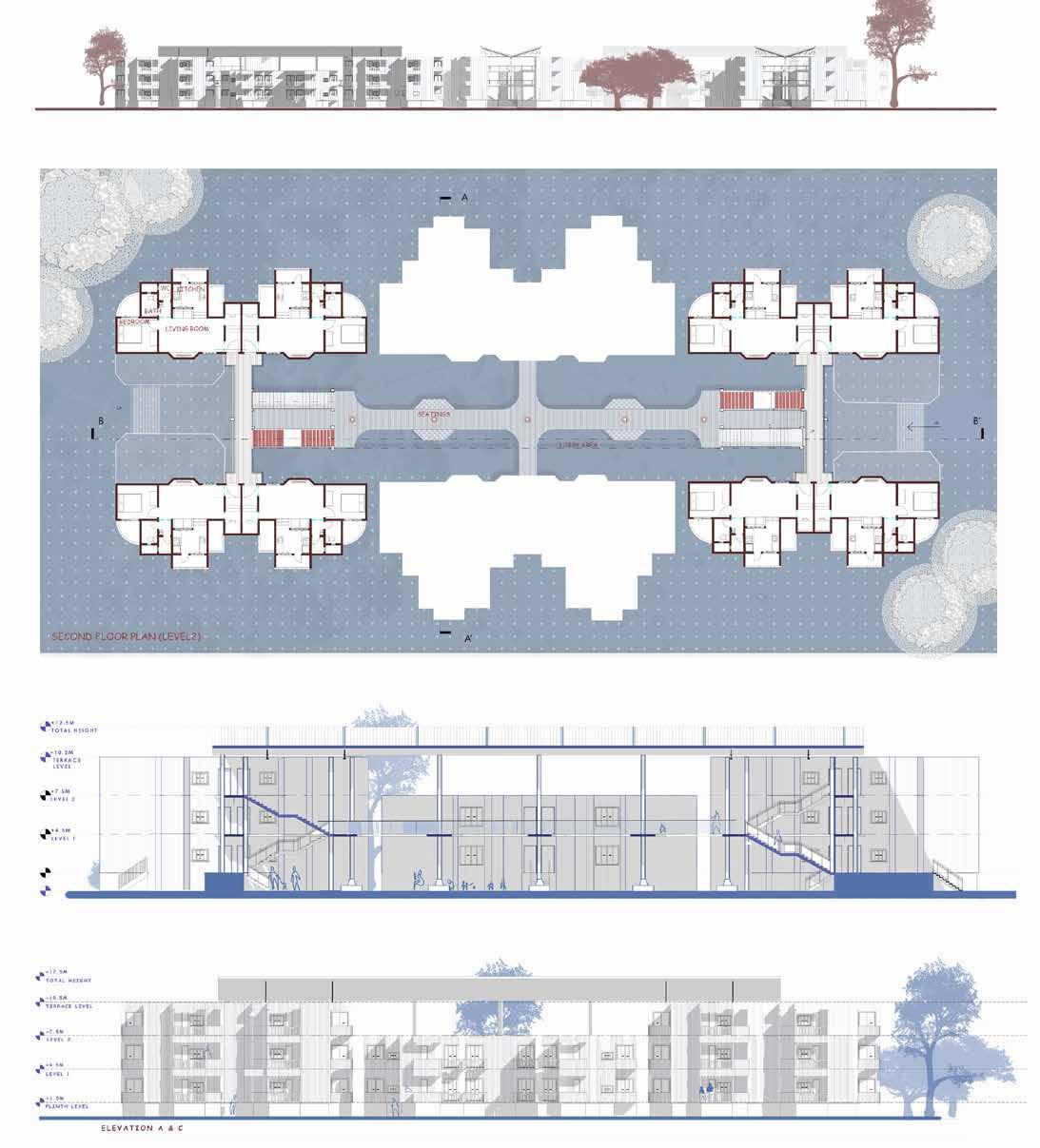

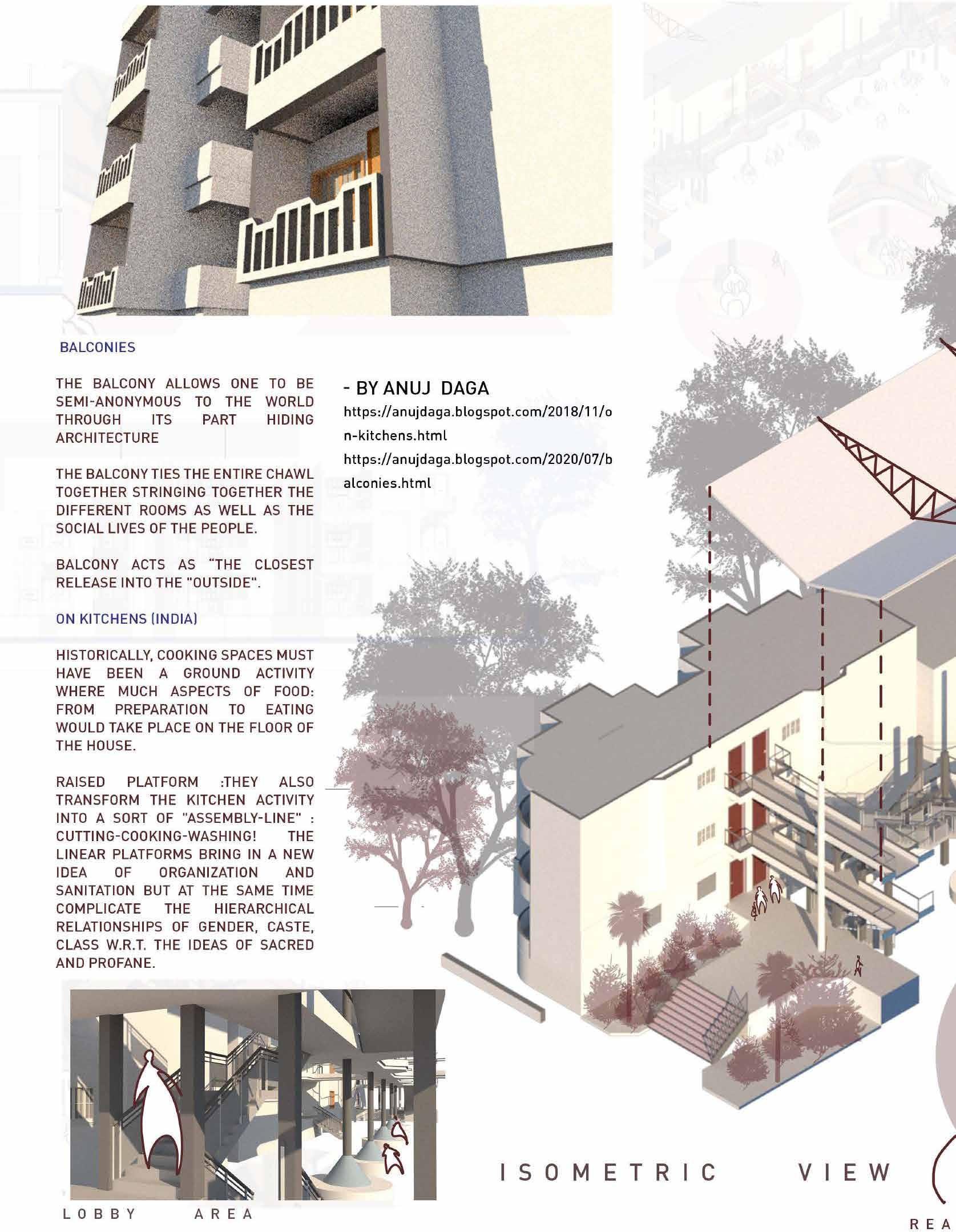

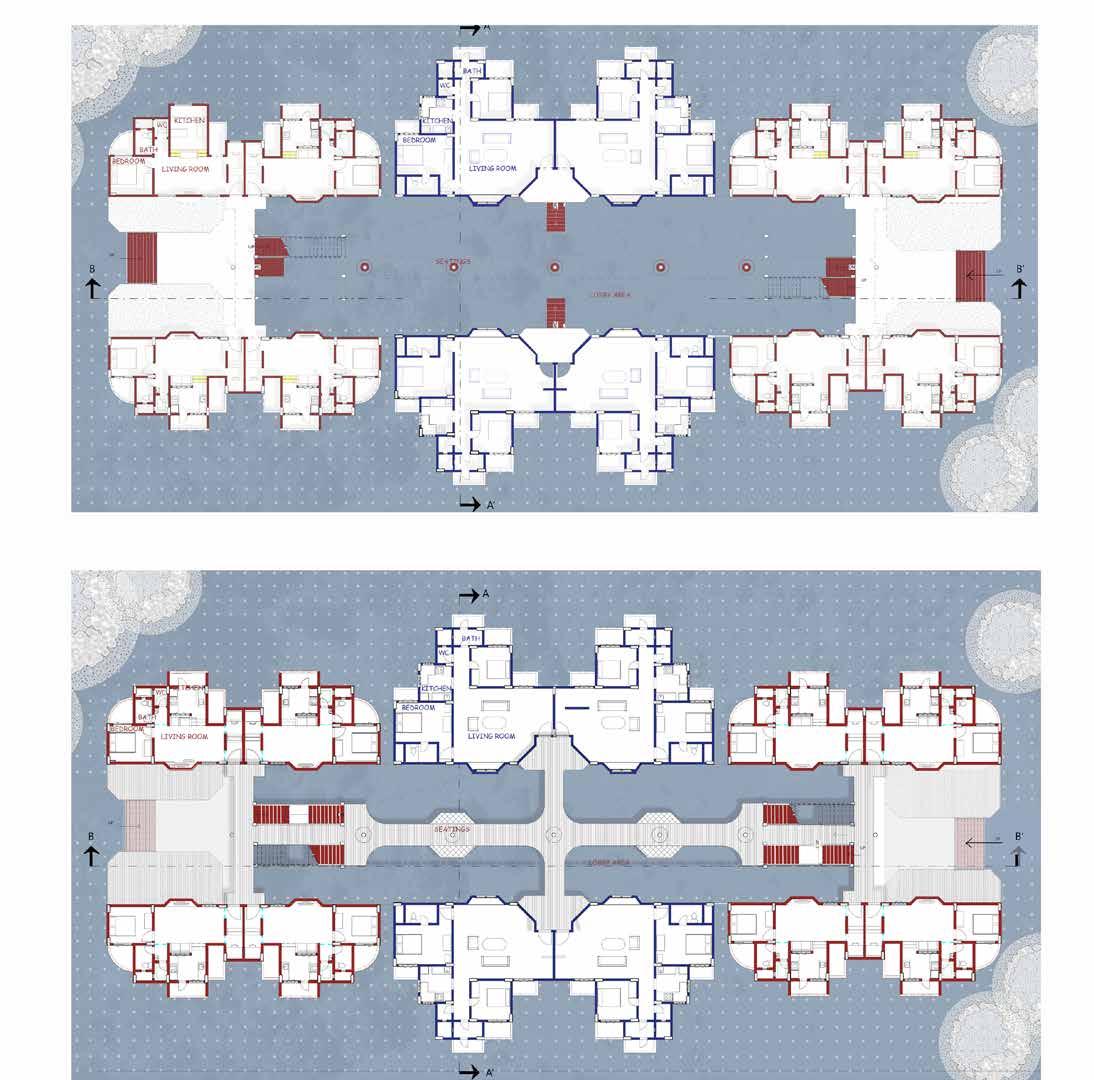

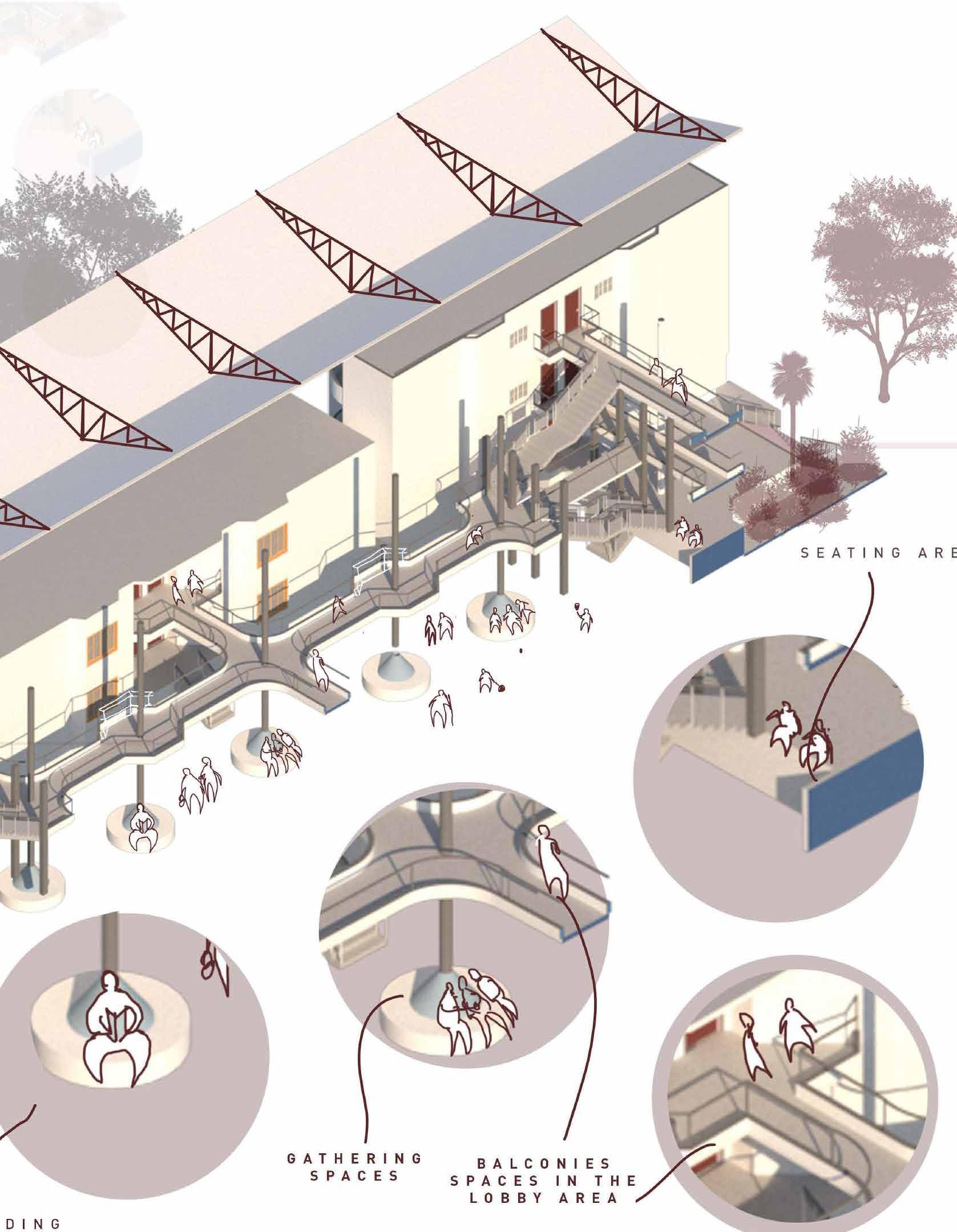

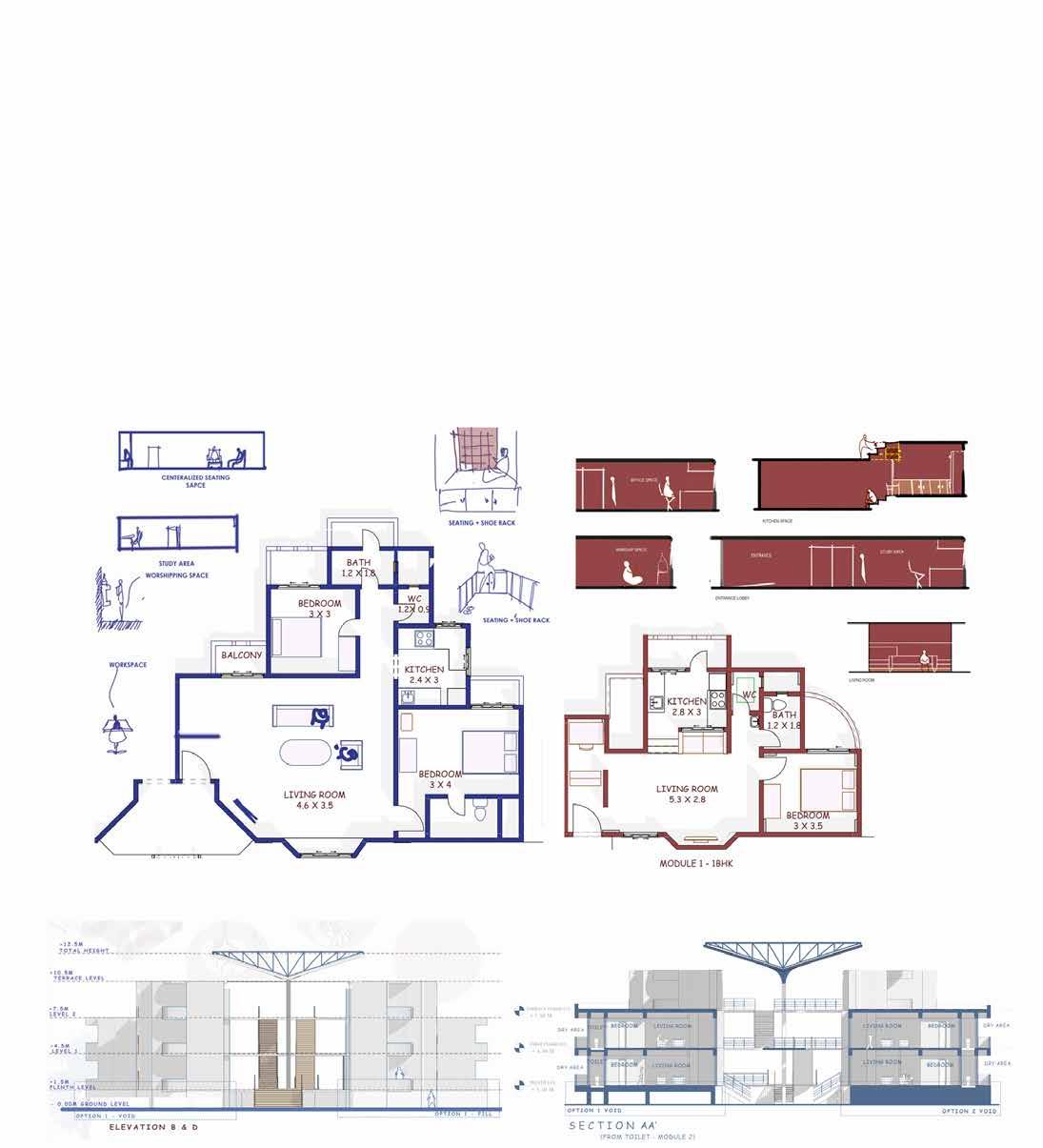

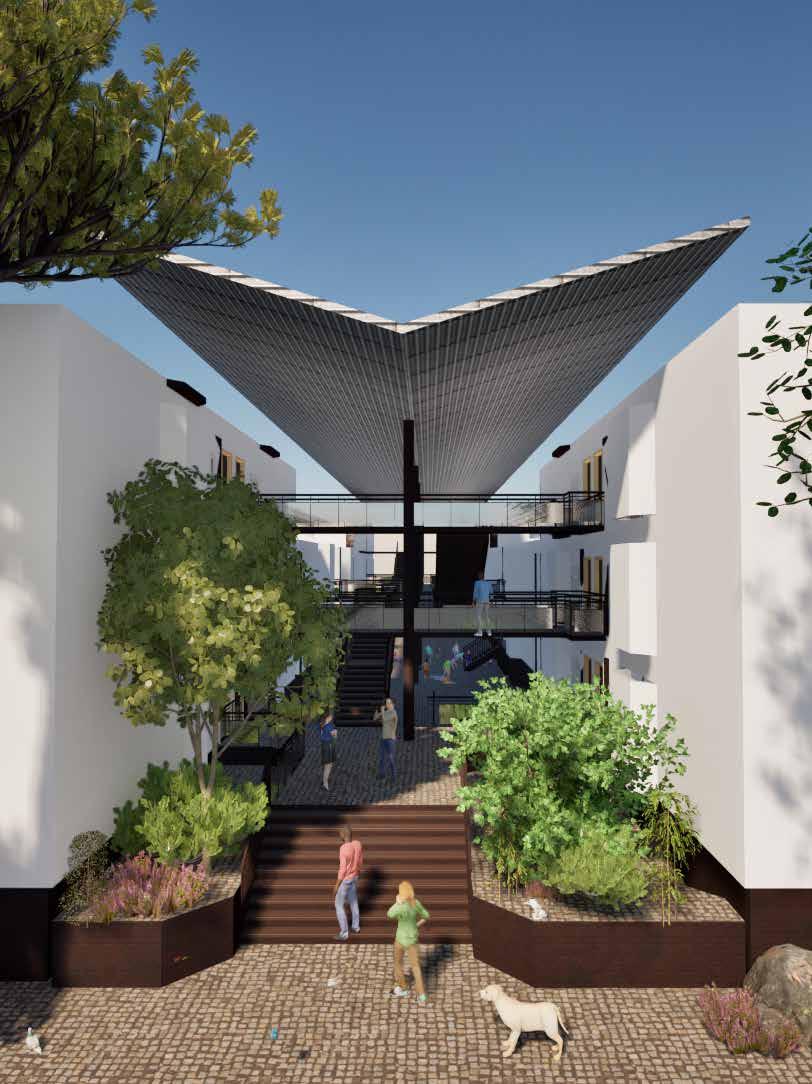

MASS HOUSING: nudging
architecturethro the acts of a home
