A Slice of Life

Toronto, Canada

Design Studio ARCH 193 (Winter 2022)

Rhinoceros 7, Adobe Illustrator, Adobe Photoshop, Adobe InDesign, Enscape

How can a building bring together a diverse new community in a developing neighbourhood?

A slice of life – of everyone’s life - is food. It transcends culture, language, and age. Situated in the West Donlands, a developing neighbourhood with a wide variety of ethnic heritages, the Slice of Life Library and Community Hub encourages community involvement, collaboration, and interaction across the life cycle of food, emphasized through program and circulation.

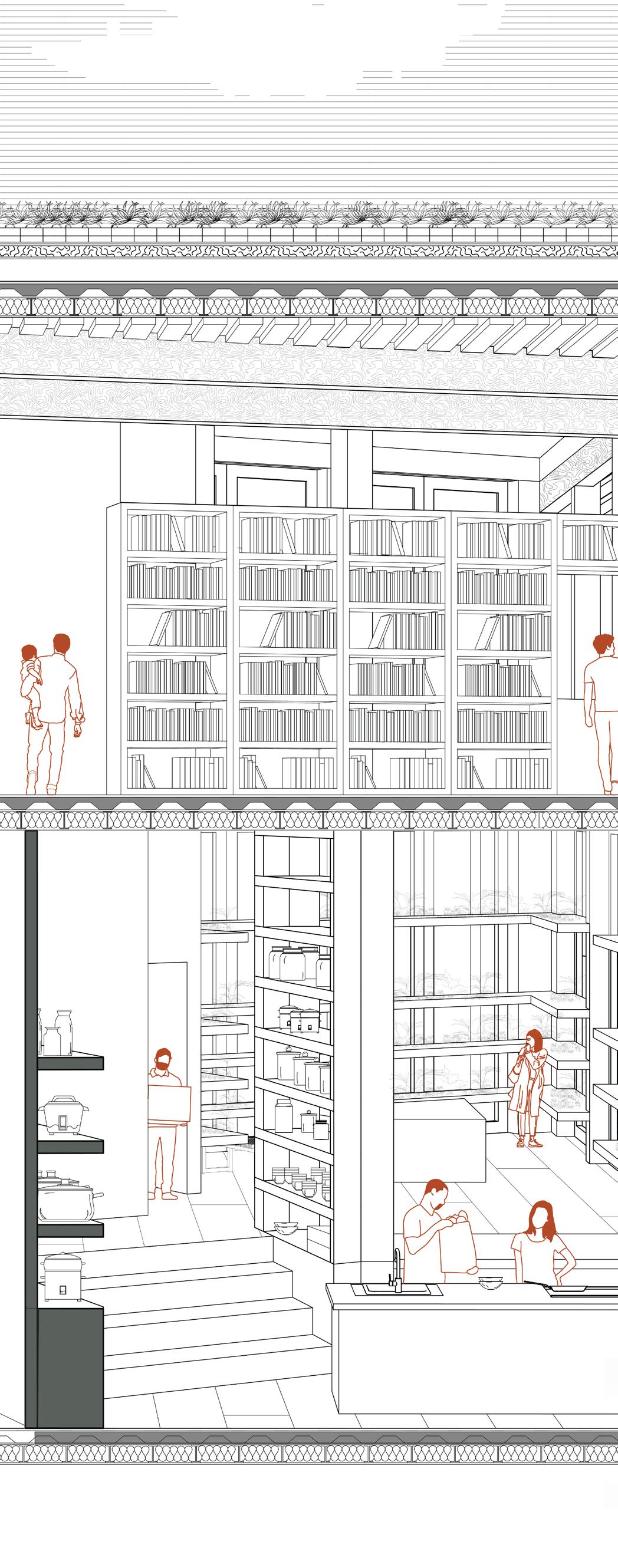

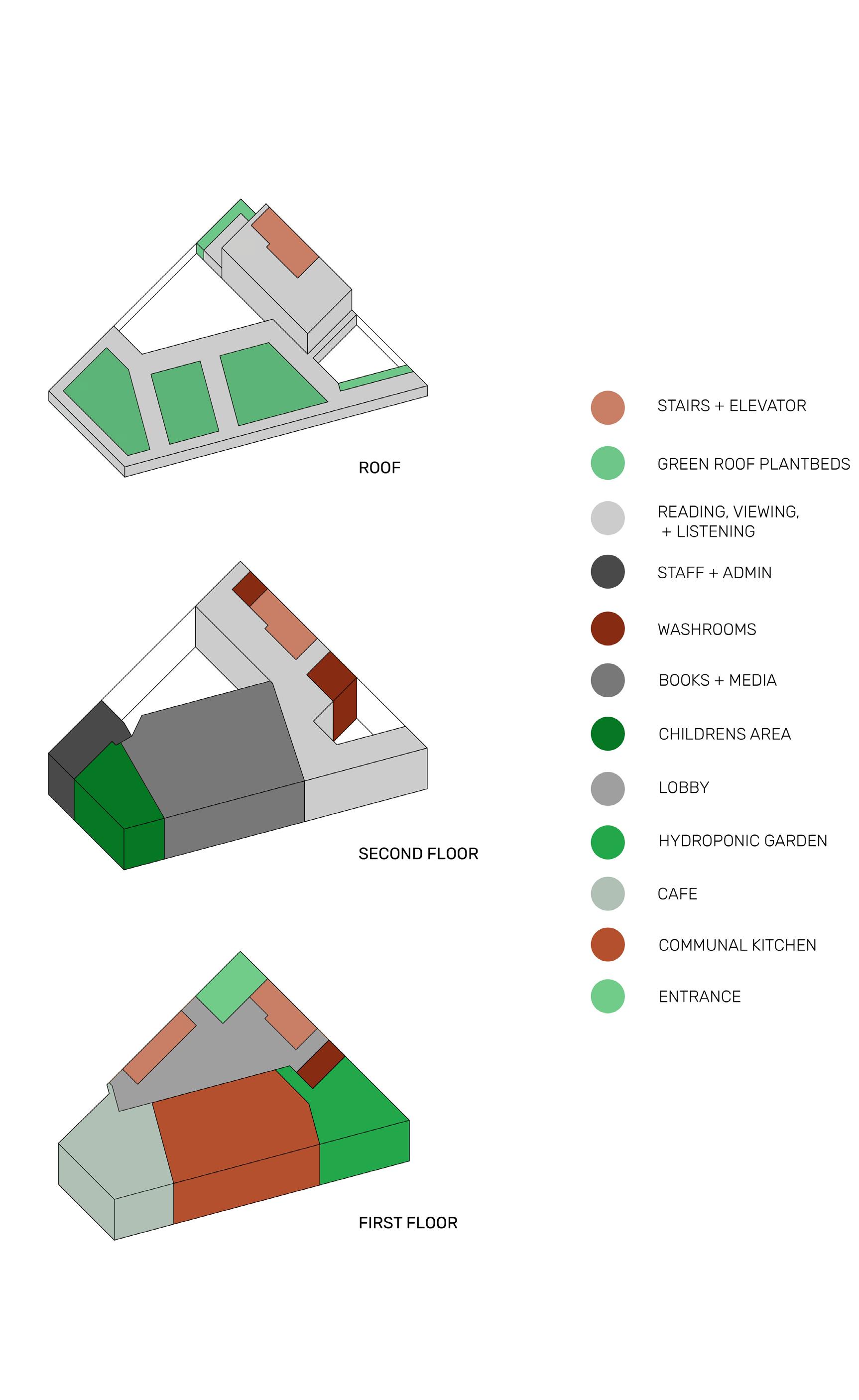

A hydroponic garden leads straight to a communal kitchen, which seamlessly flows into an indoor/ outdoor cafe, providing a platform for diverse cultures to be shared and celebrated. A bright and open library program, as well as an accessible green roof, offer moments of both socialization and rest, and a stepped sunken courtyard helps ground the building.

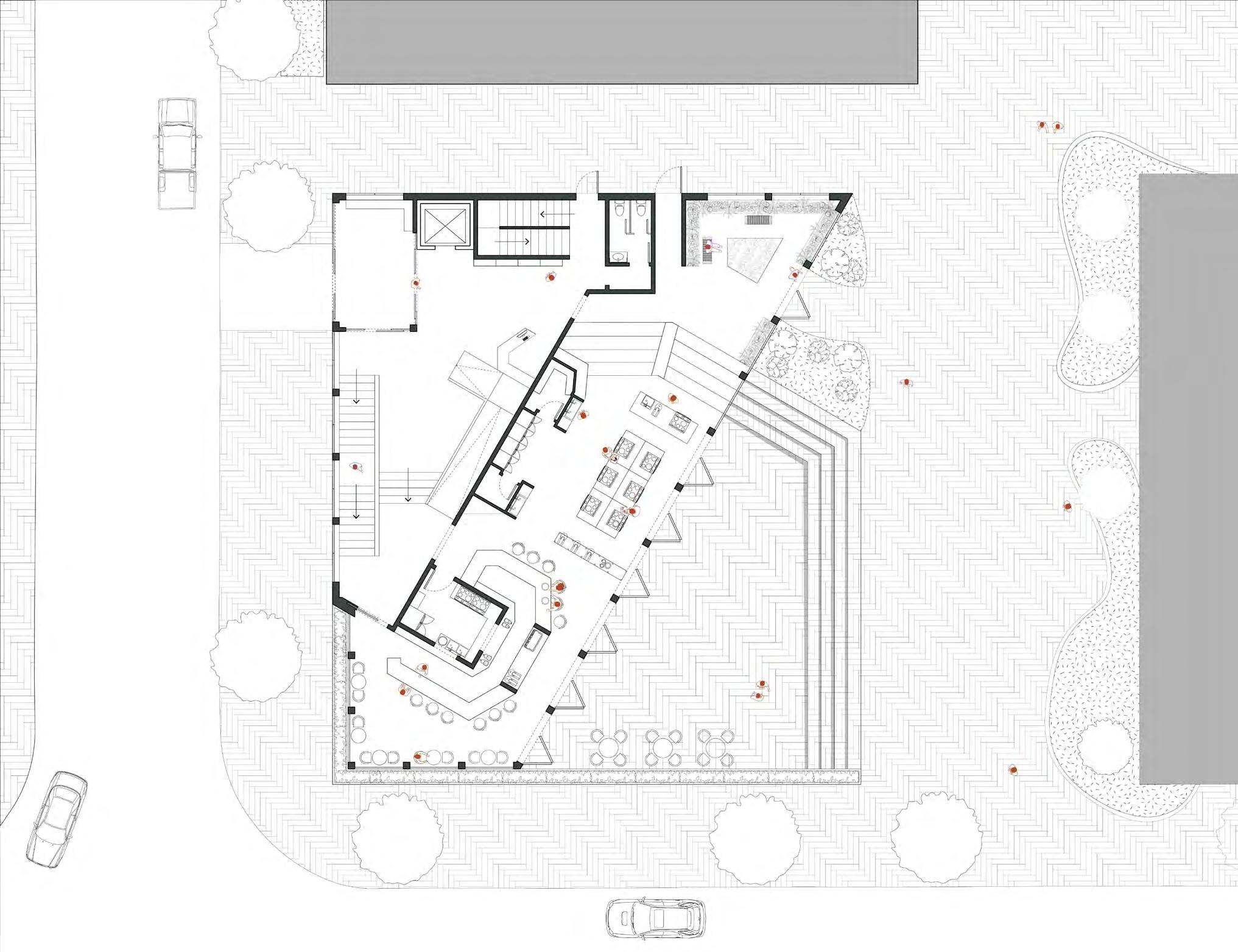

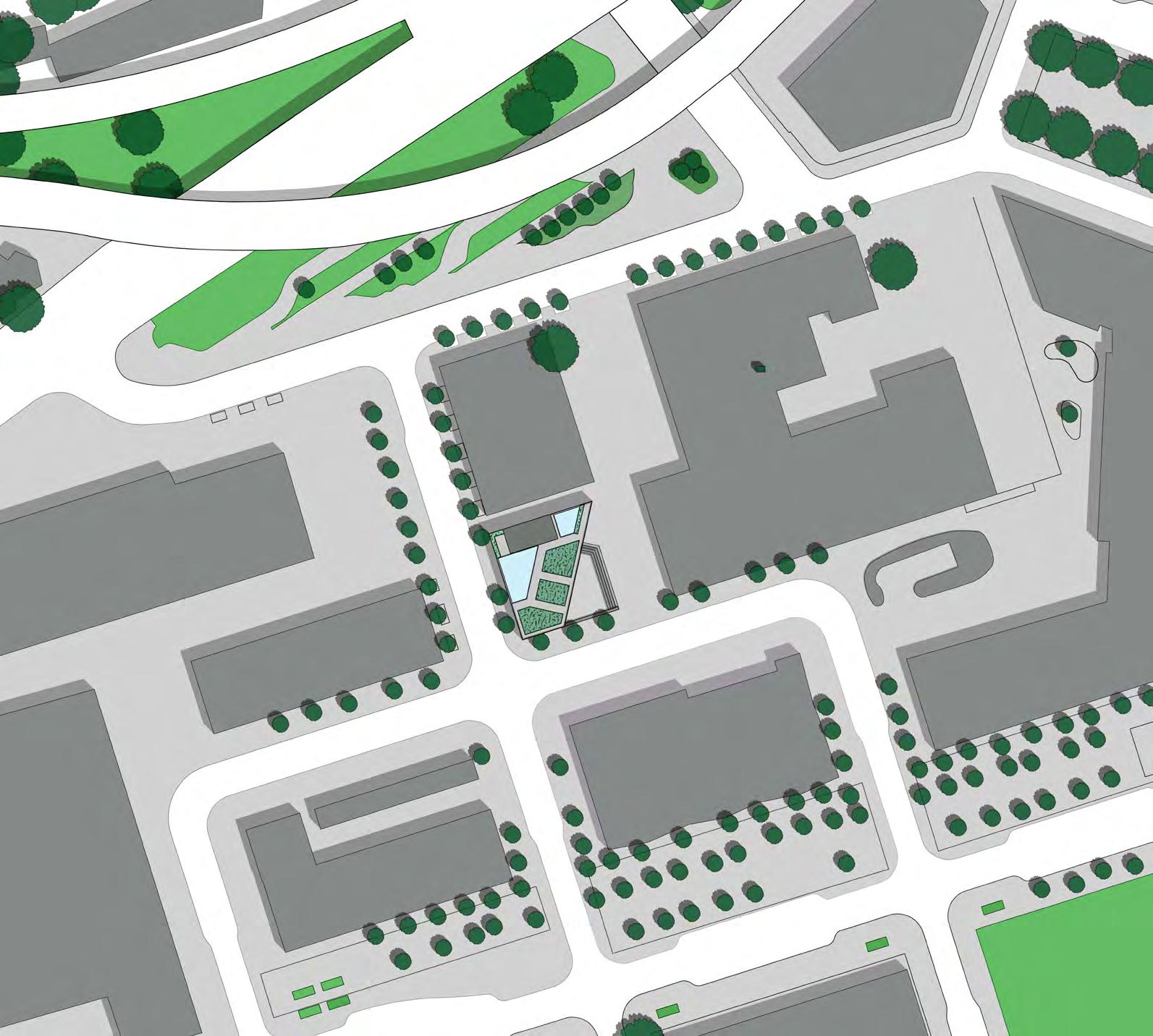

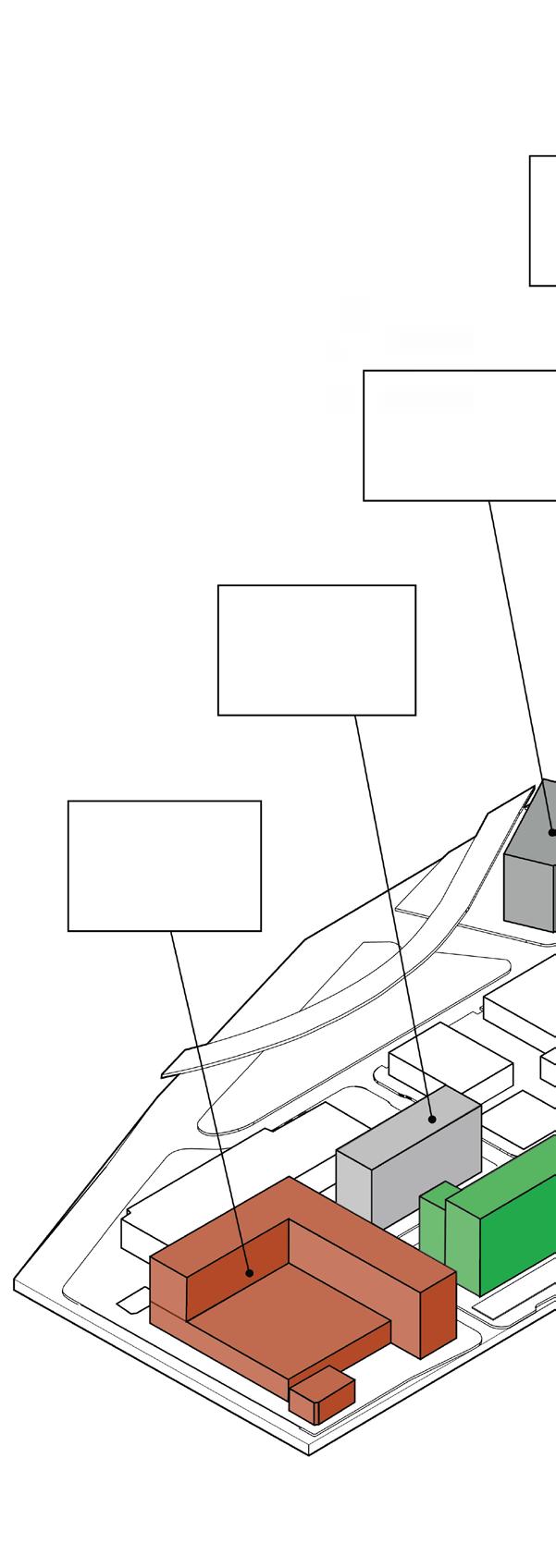

Site Plan Demographics

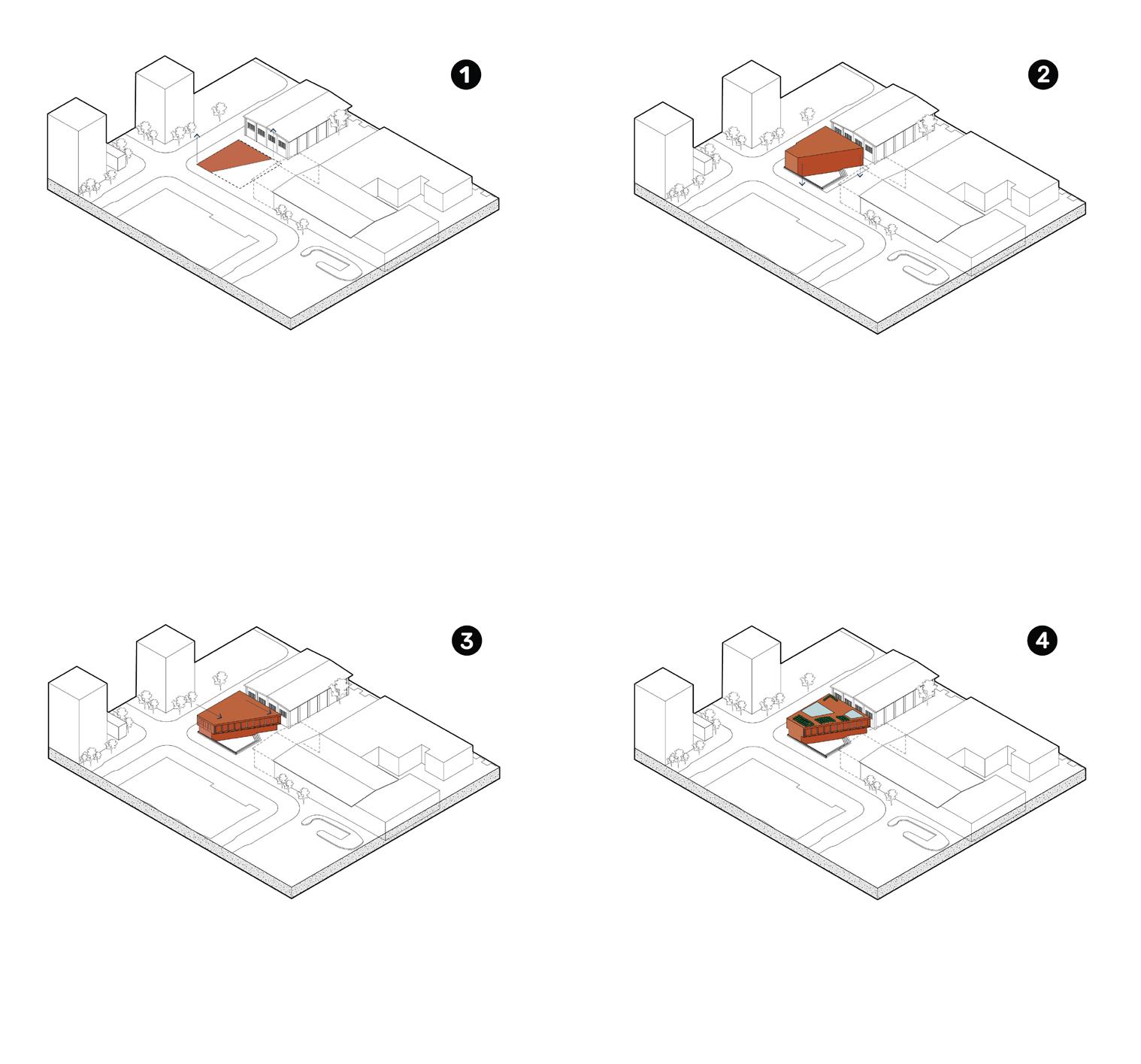

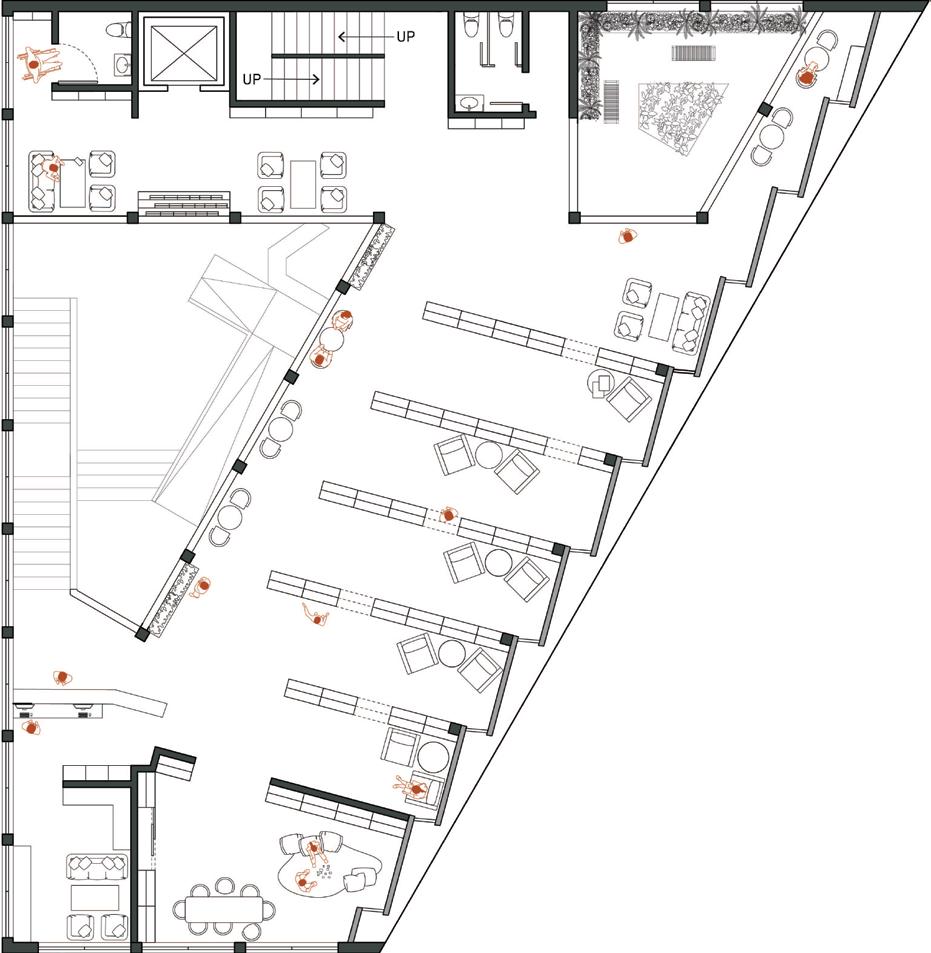

The library occupies a triangular shape that faces southeast, engaging the surrounding pedestrian space and forming an unabridged path from one side of the block to the other

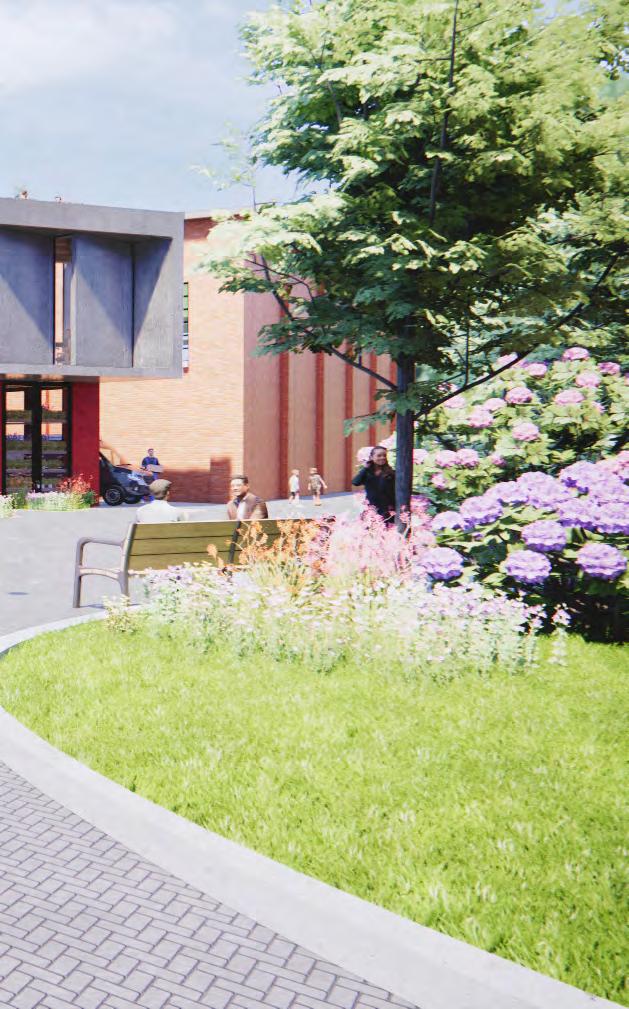

The exterior space of the southeast side of the building is lowered, forming a stepped sunken courtyard that ties together the exterior and interior

CANARY DISTRICT

APARTMENTS AFFORDABLE HOUSING

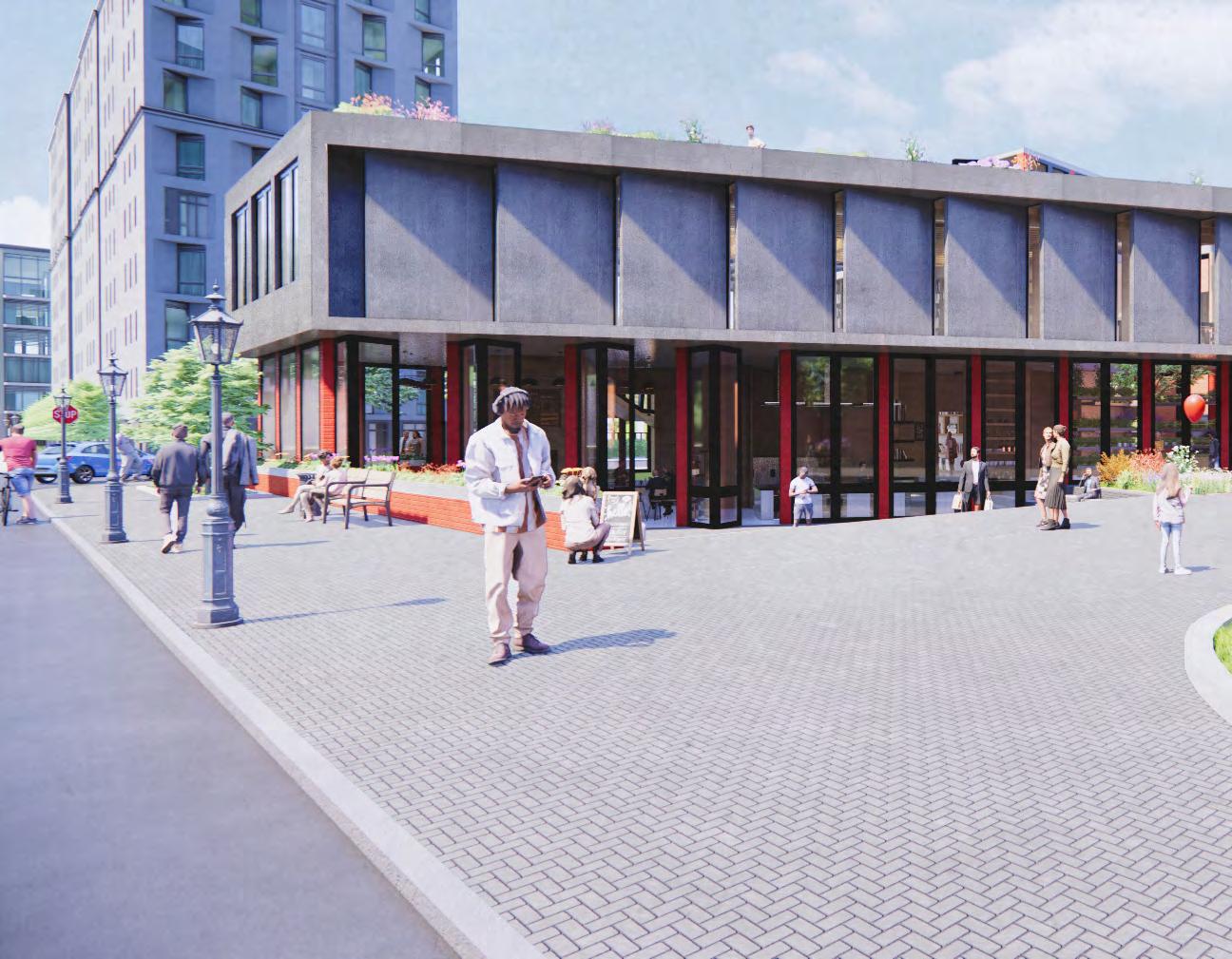

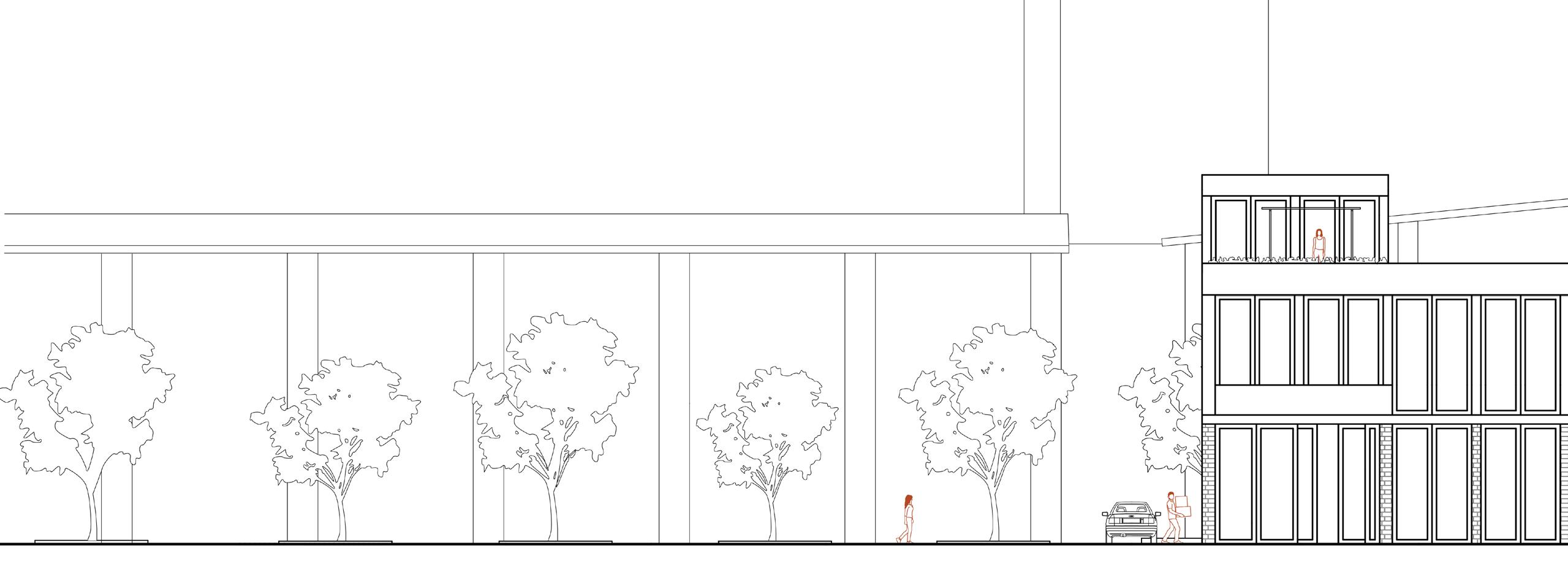

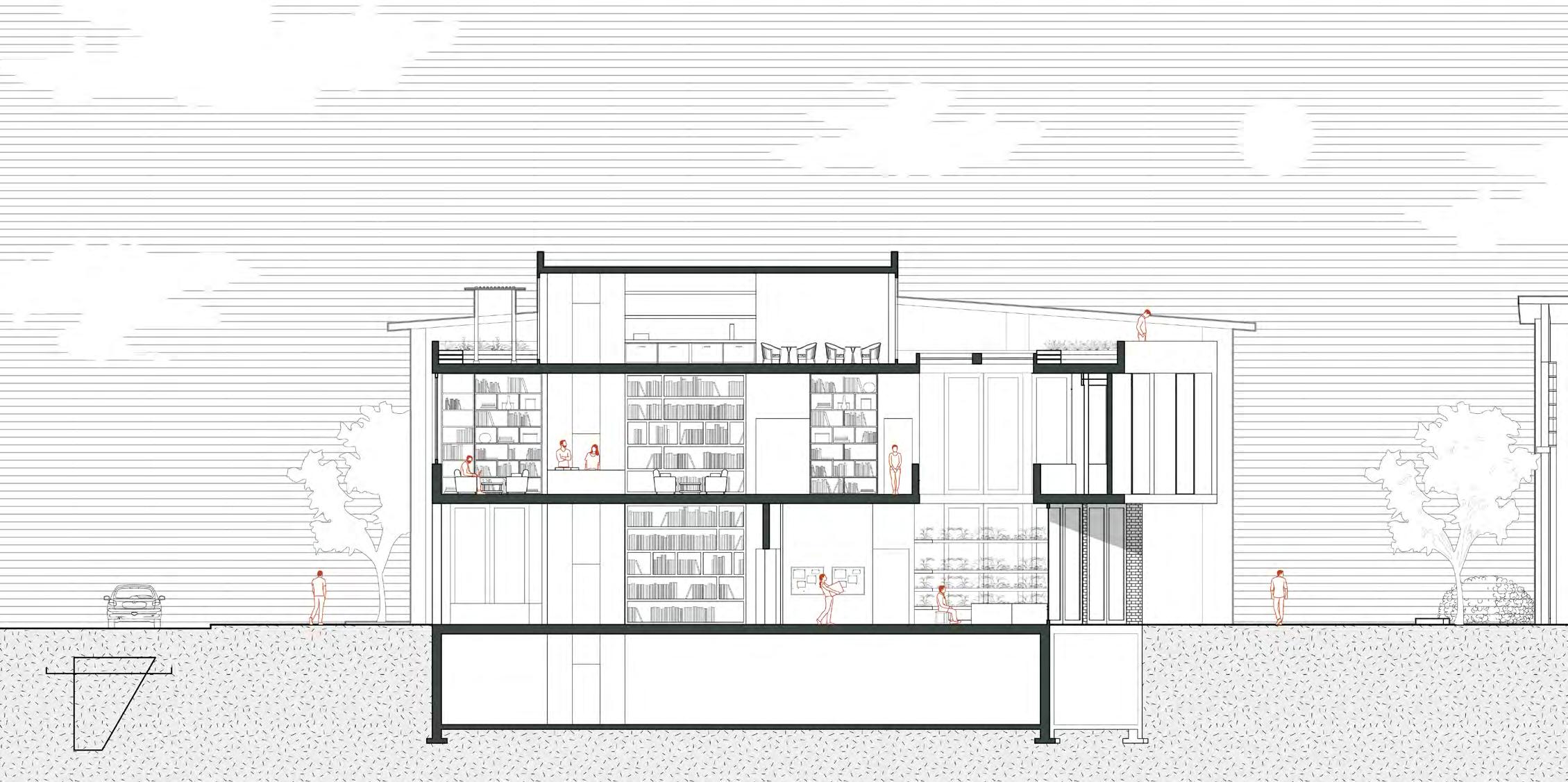

The second floor is extruded to provide shade for the courtyard below, and structural south-facing louvers regulate solar gain and light penetration

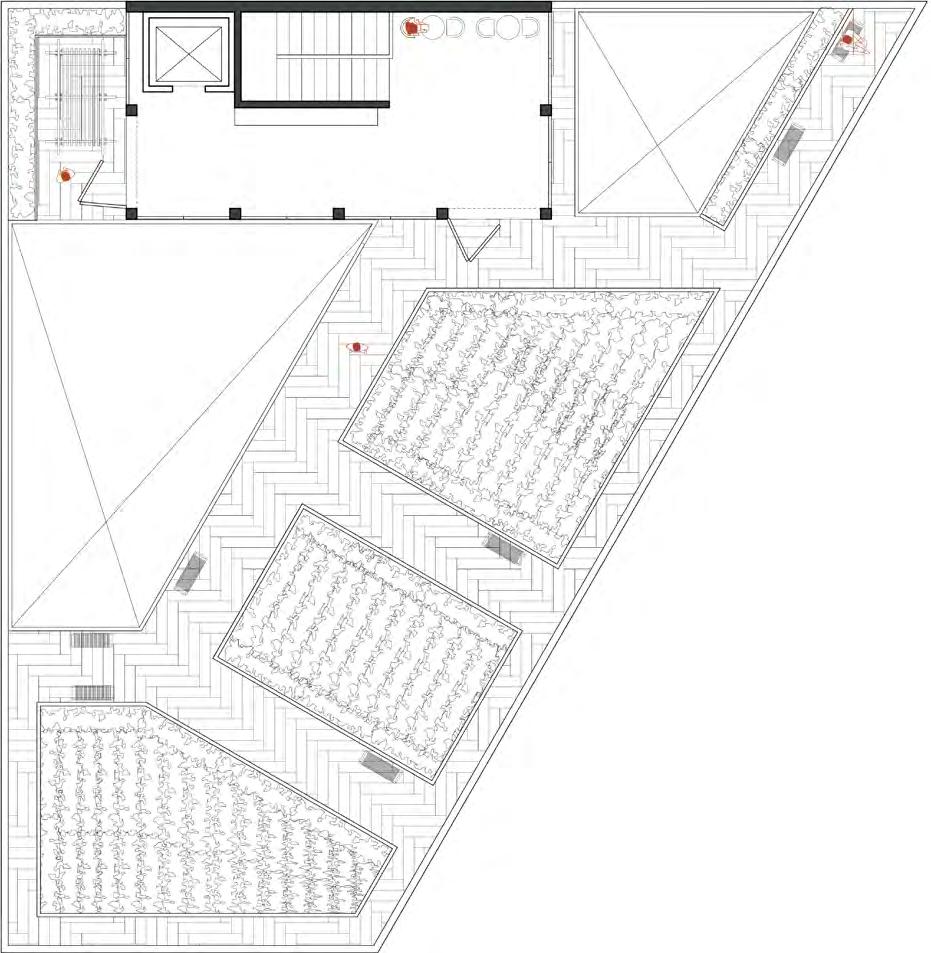

A green roof, benches and skylights are added to the library to maximize natural daylight and enhance the building’s connection with nature

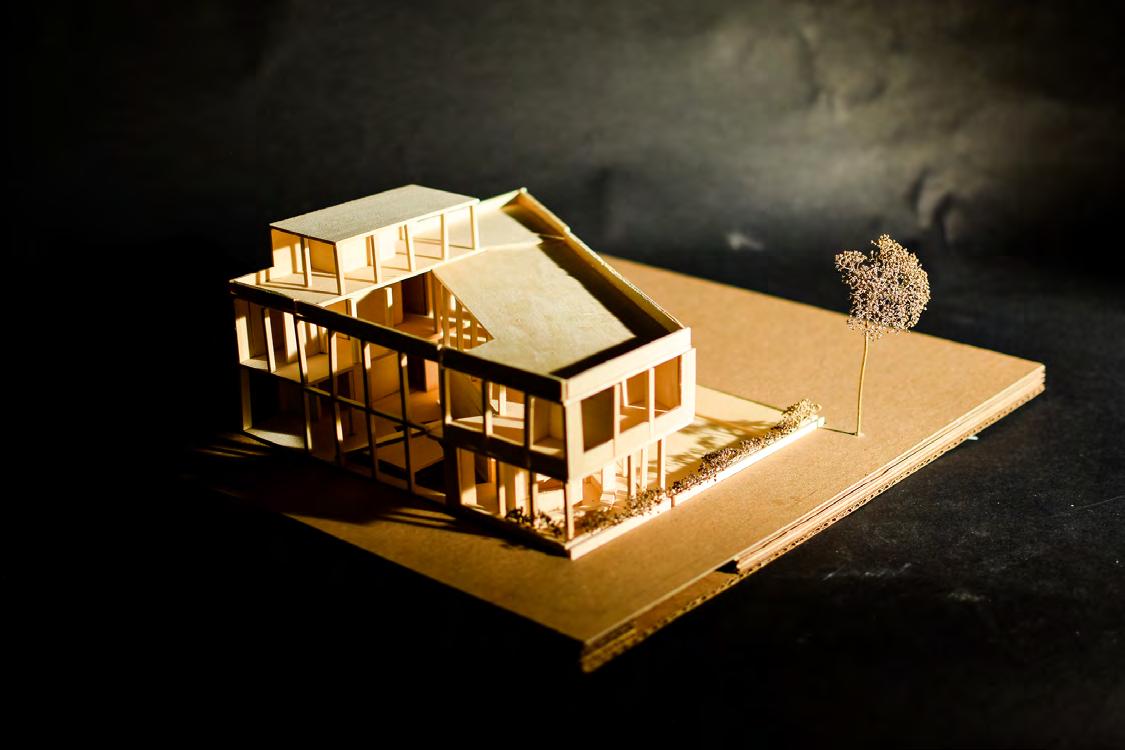

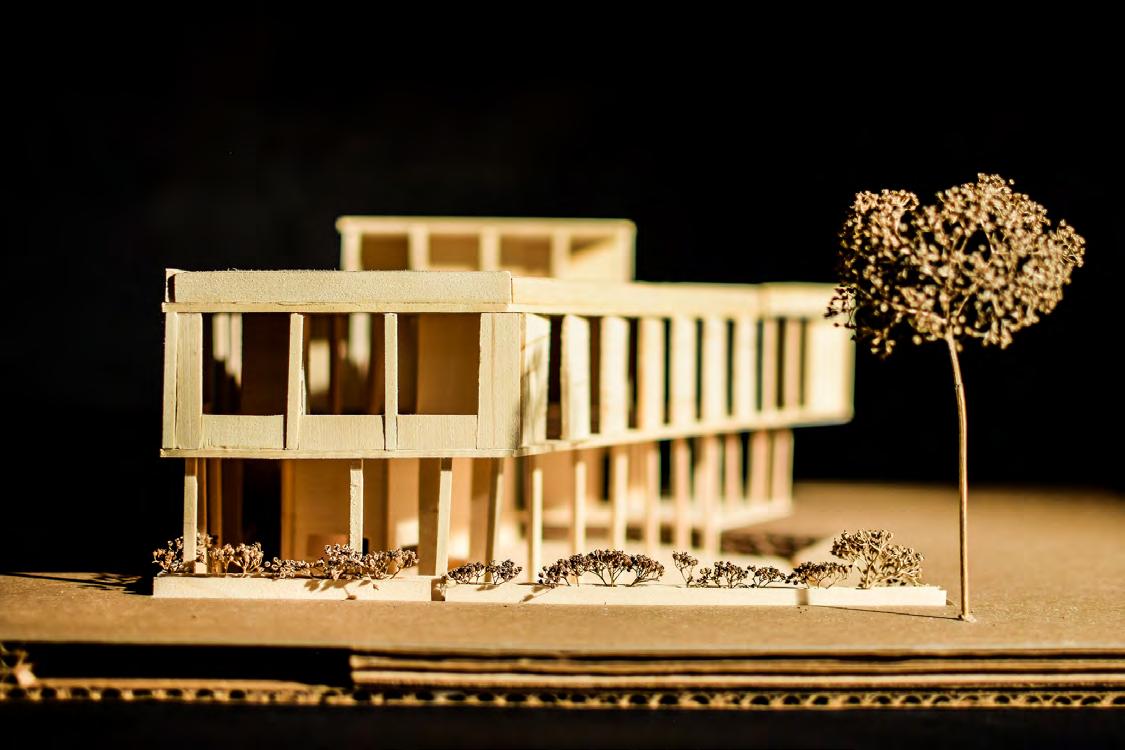

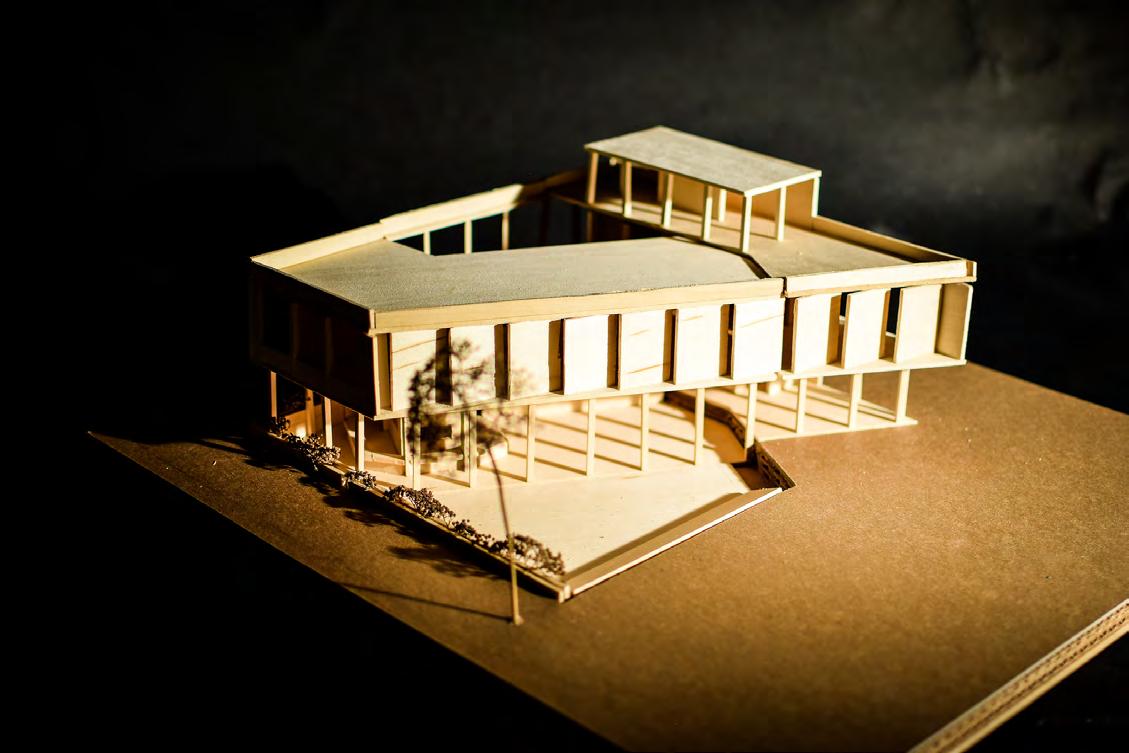

PM physical model

Collaborator

Derek Shin

Skills Instructors Courses

Building Construction ARCH 173

Visual Communications ARCH 113 (Winter 2022)

Terri Boake

Isabel Ochoa

Rhinoceros 7, Adobe Illustrator, Adobe Photoshop, Adobe InDesign, Enscape ground plan force diagram

How can a bridge provide a walkable view of a national treasure?

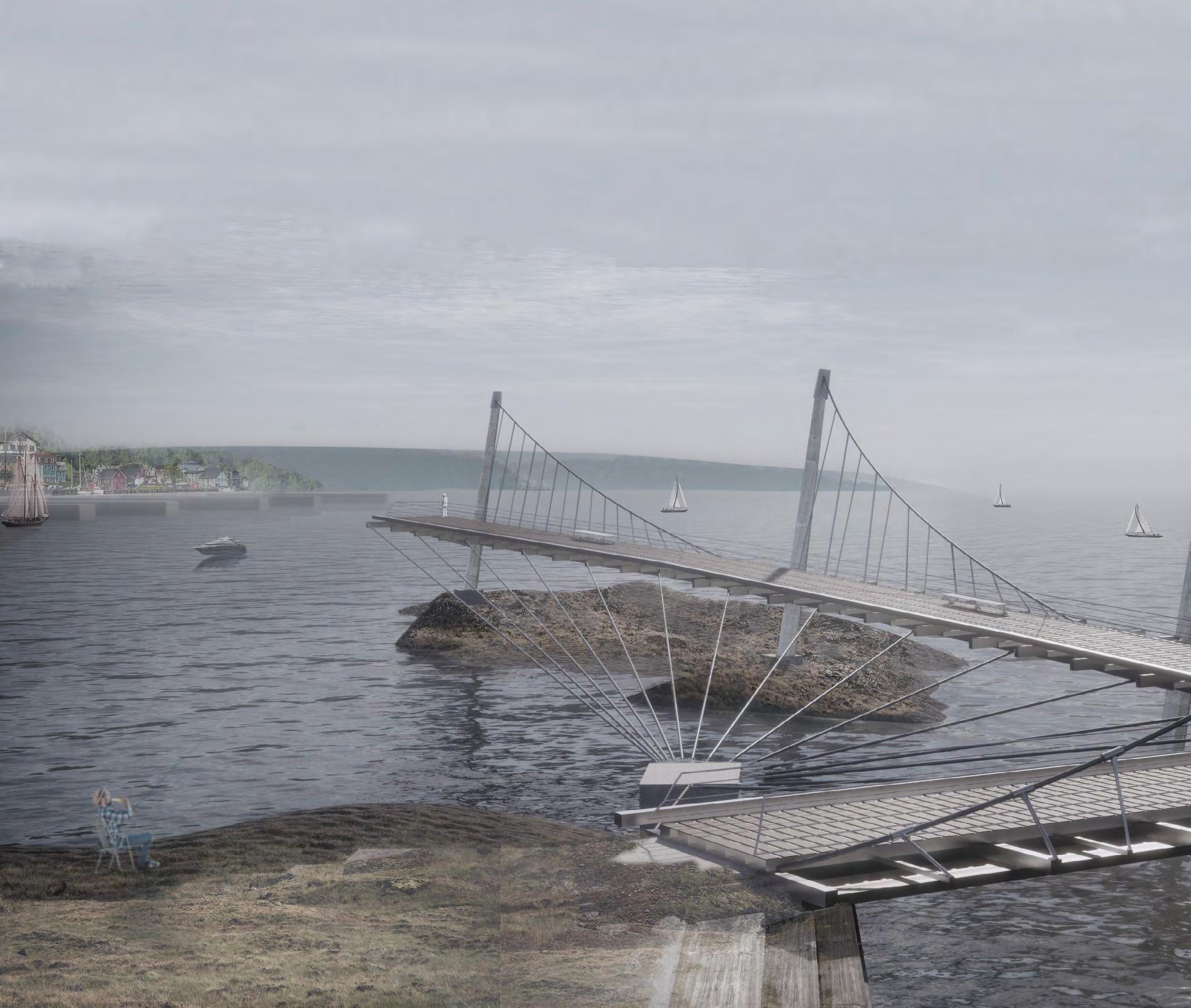

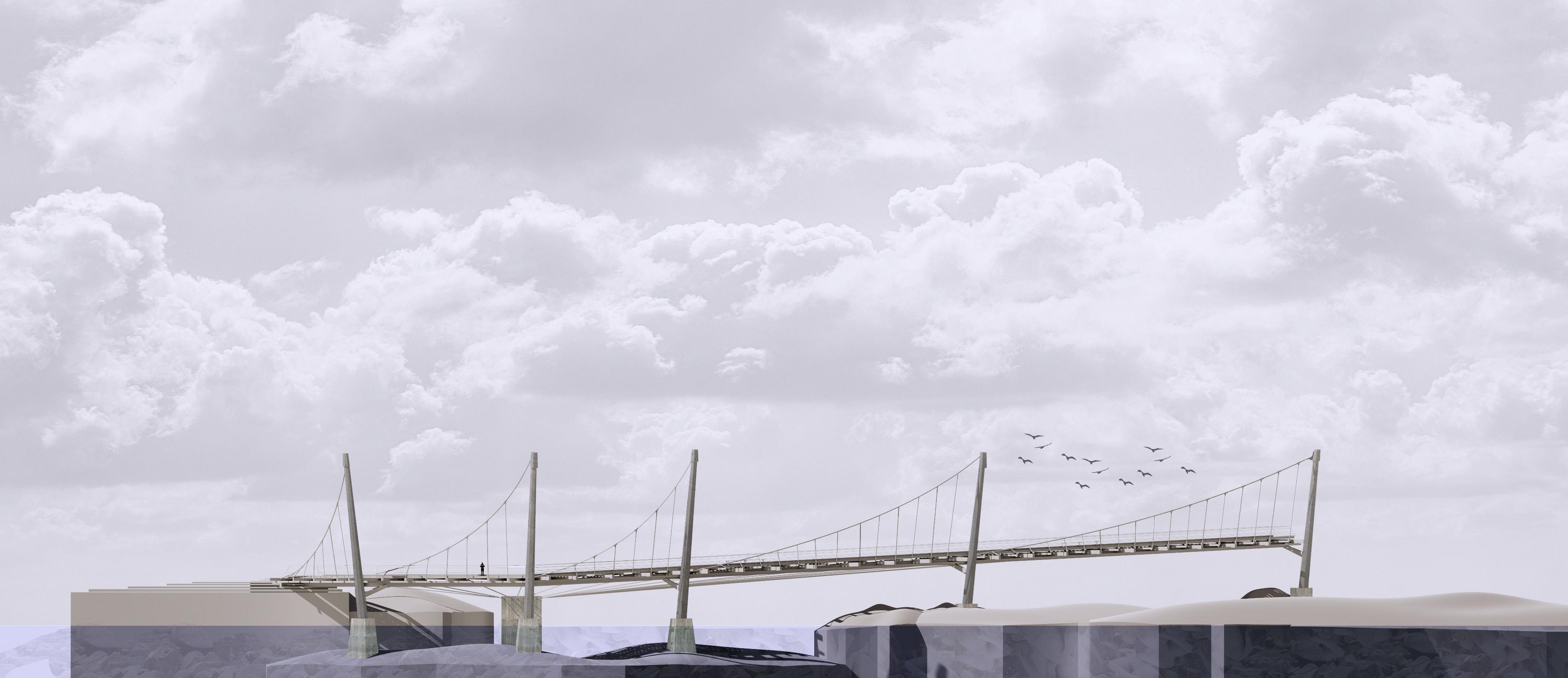

Located in the Most Beautiful Small Town in Canada of Lunenburg, Nova Scotia, Anchored is a bridge to a view of the quaint port town’s colourful waterfront and its surrounding peninsula. Inspired by the town’s main attraction of Bluenose II, a replica of an early 1900’s racing ship and vessel that served as a provincial icon for Nova Scotia, the bridge presents itself as an historic ship anchored to a dock. The main structure is supported by 5 masts placed at the junctions between each section with sloping supporting cables that represent sails, and a steel tieback system that invokes a traditional capstan.

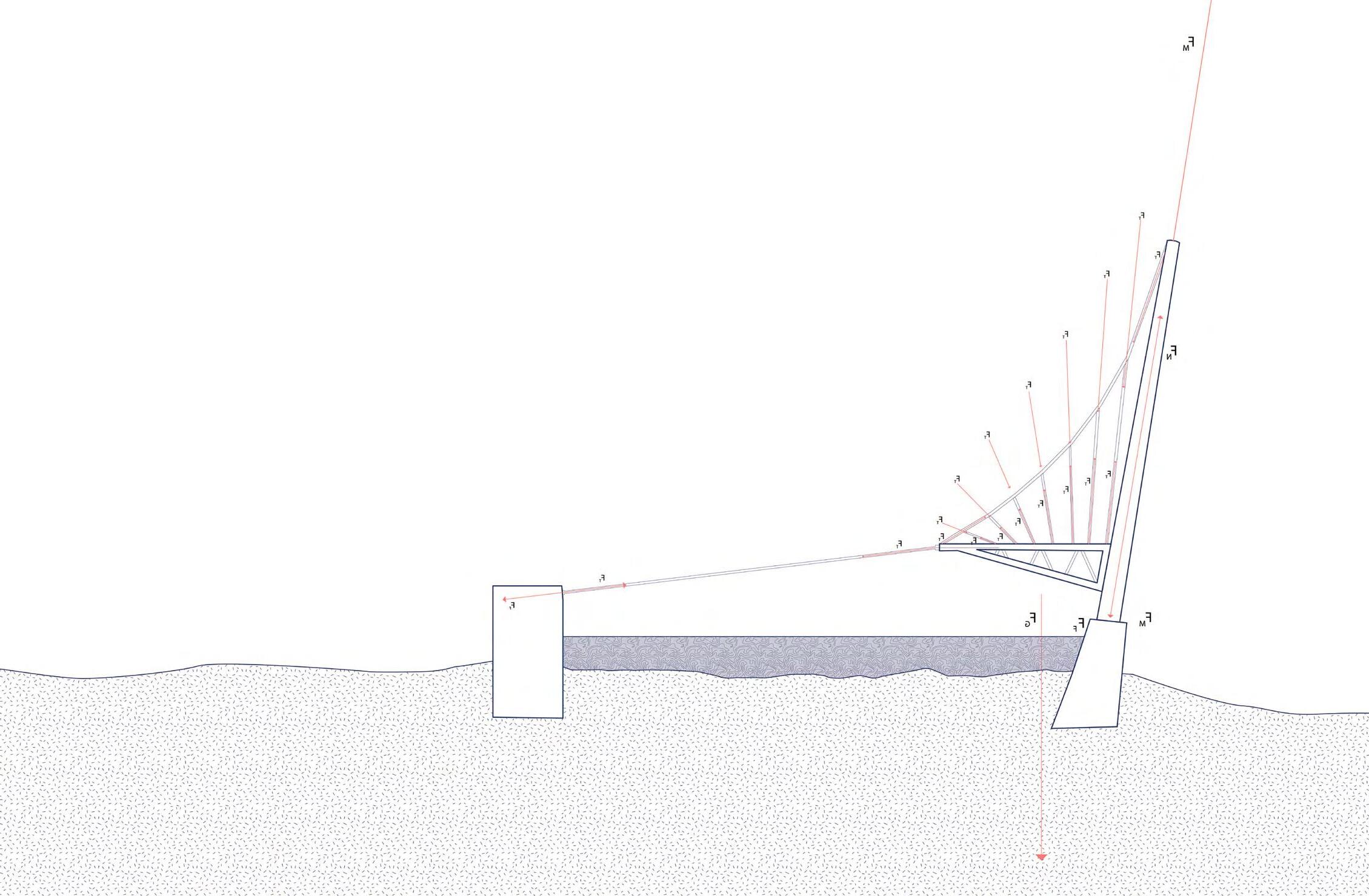

In order to achieve the “anchored” effect, the bridge had to be designed accordingly. The tensile forces of the steel tieback system (which is anchored by a concrete deadman) are equaled by the mast and tension cables.

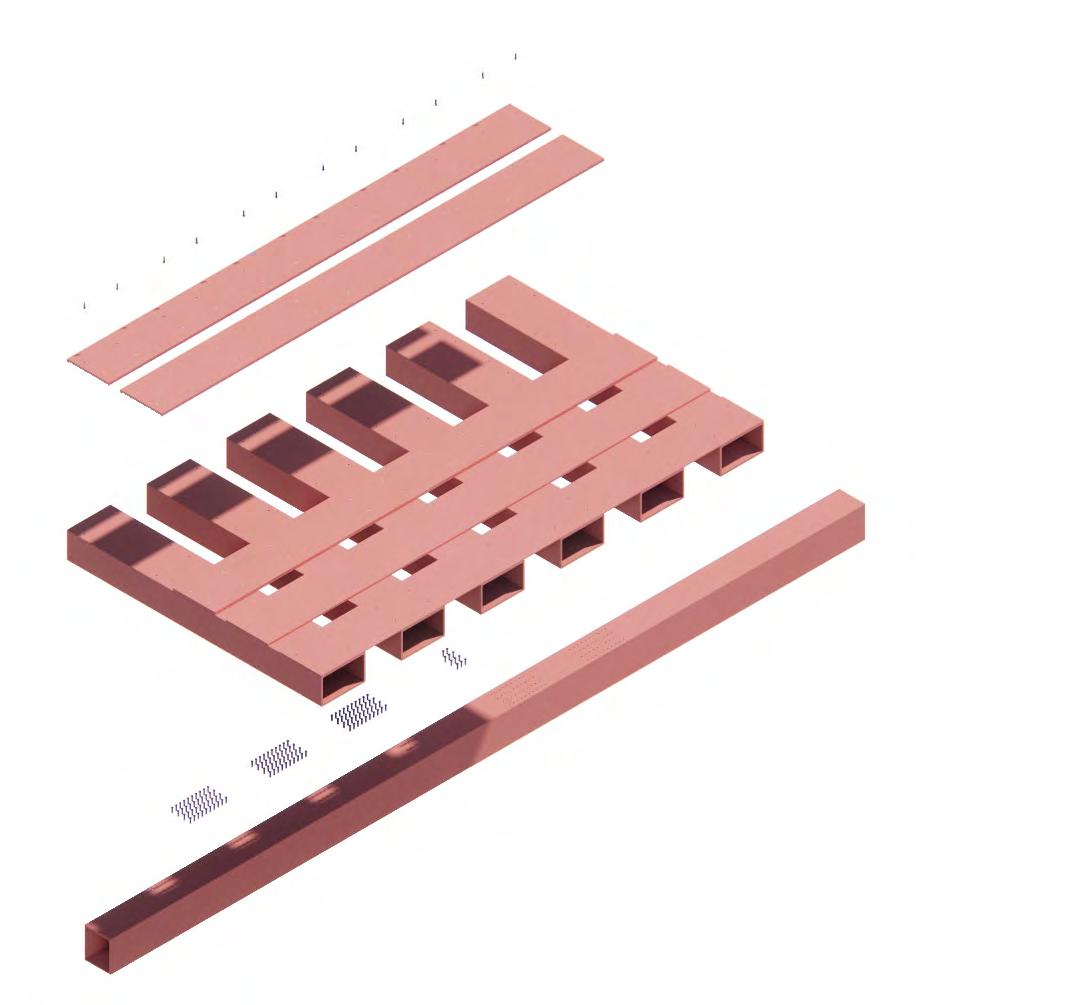

Octagonal HSS sections, welded together

Dual-Pitch Steel Truss

500mm x 300 x 20 rectangular HSS sections

Stainless Steel Fasteners

Engineered Oak Planks

Welded Connections

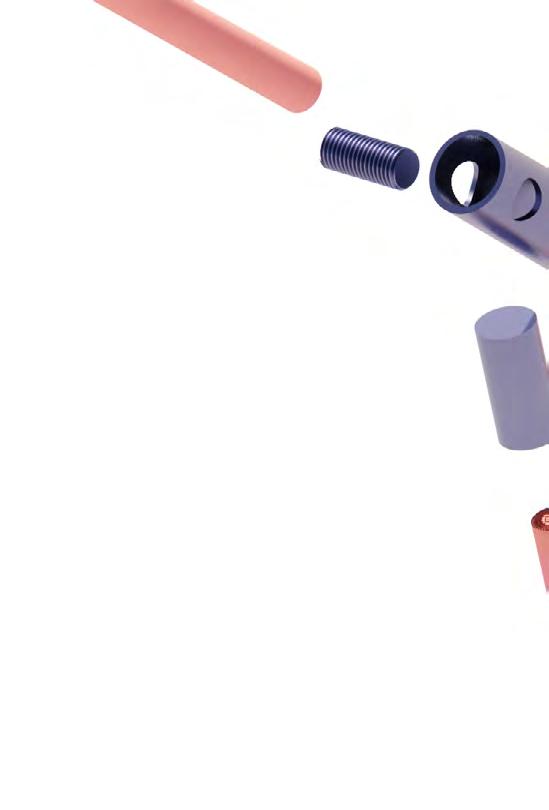

Hex Bolt

Gusset Plate

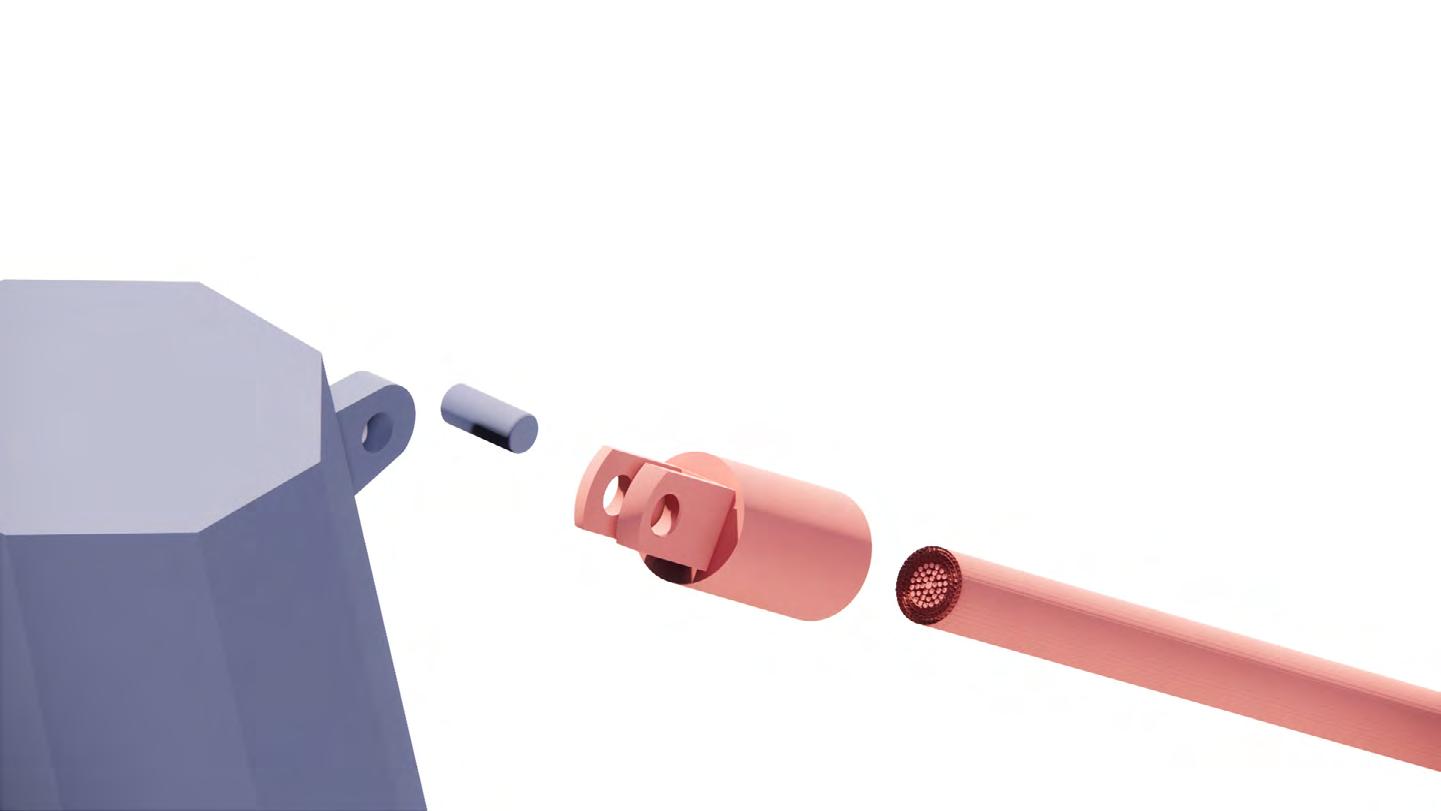

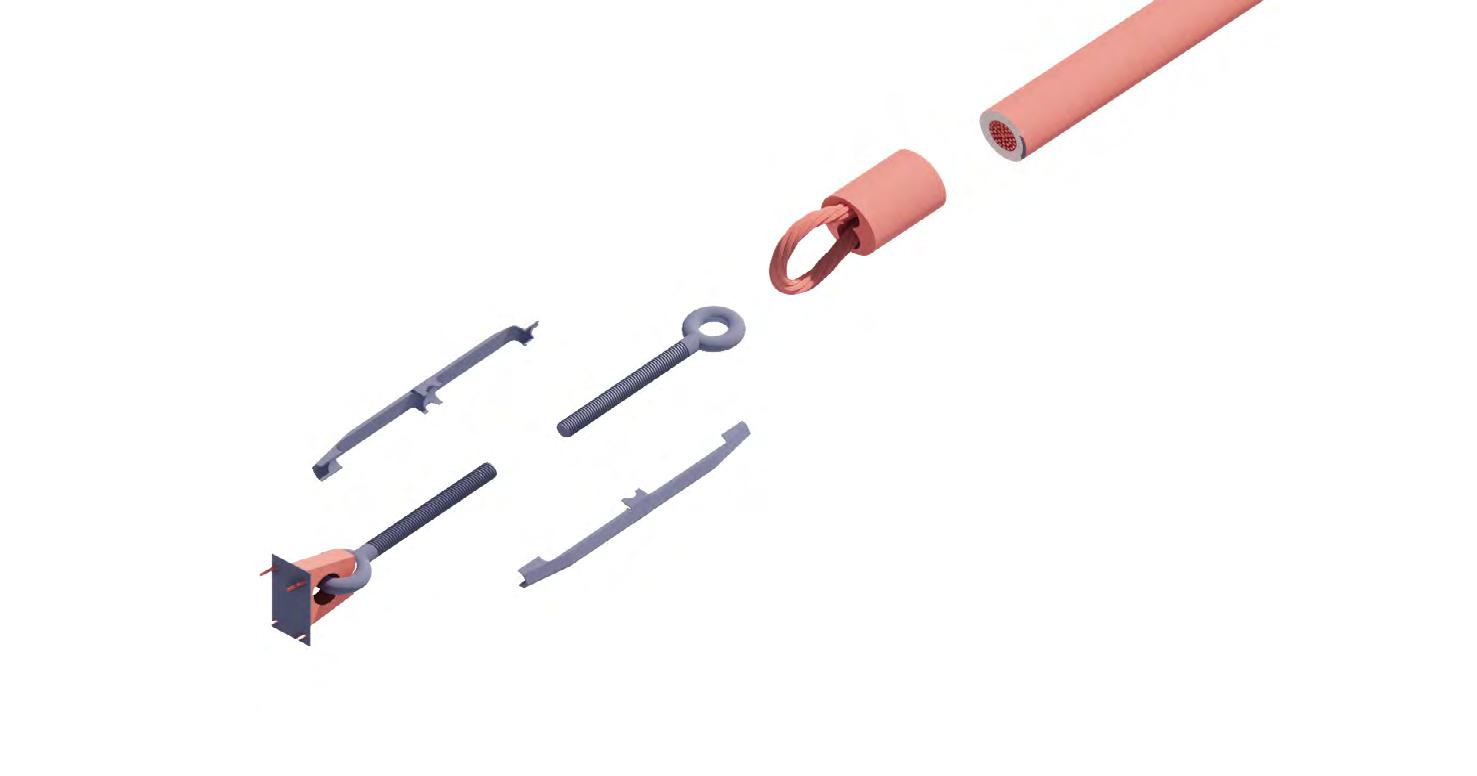

Flemish Eye Cable Connector

Steel Catenary Cable (3 layers of interlocked

Z-shaped galvanized wires with internalblocking compound

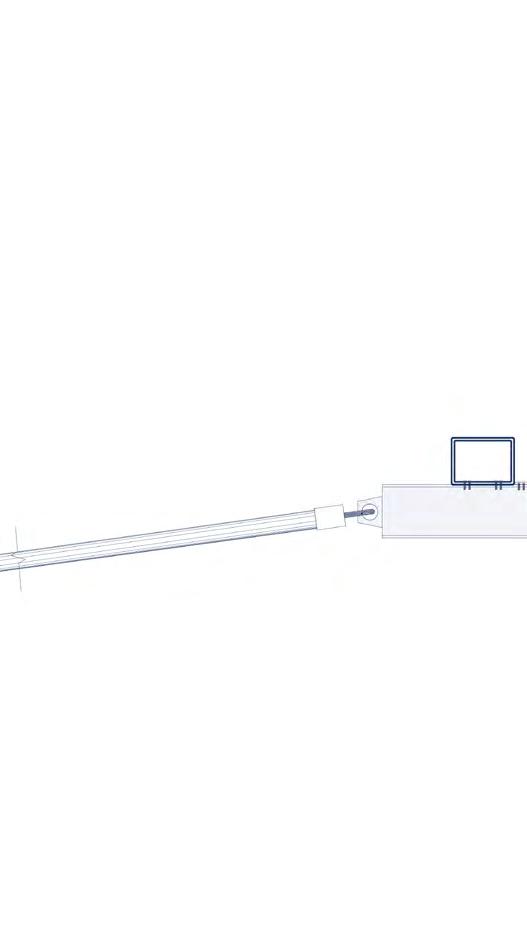

Detailed Structural Section

stainless steel fasteners

500mm x 300 x 200 rectangular HSS sections

500mm x 400 x 200 rectangular HSS section pre-expanded expansion anchors concrete foundation ; precast concrete piles drilled into the rock / ocean floor filled with concrete on-site flemish eye cable connector engineered oak planks hex bolts base plate
