How can a bridge provide a walkable view of a national treasure?

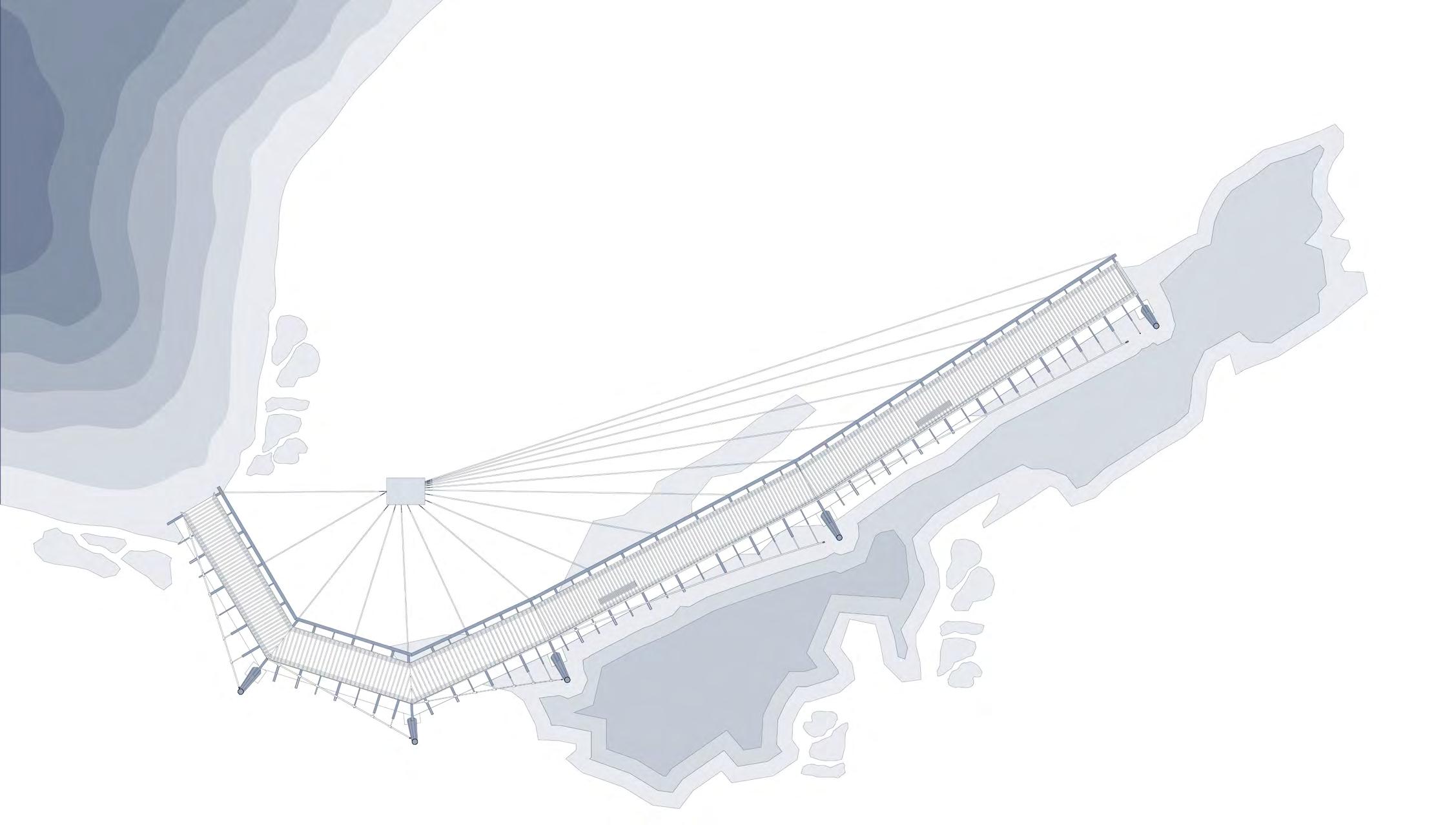

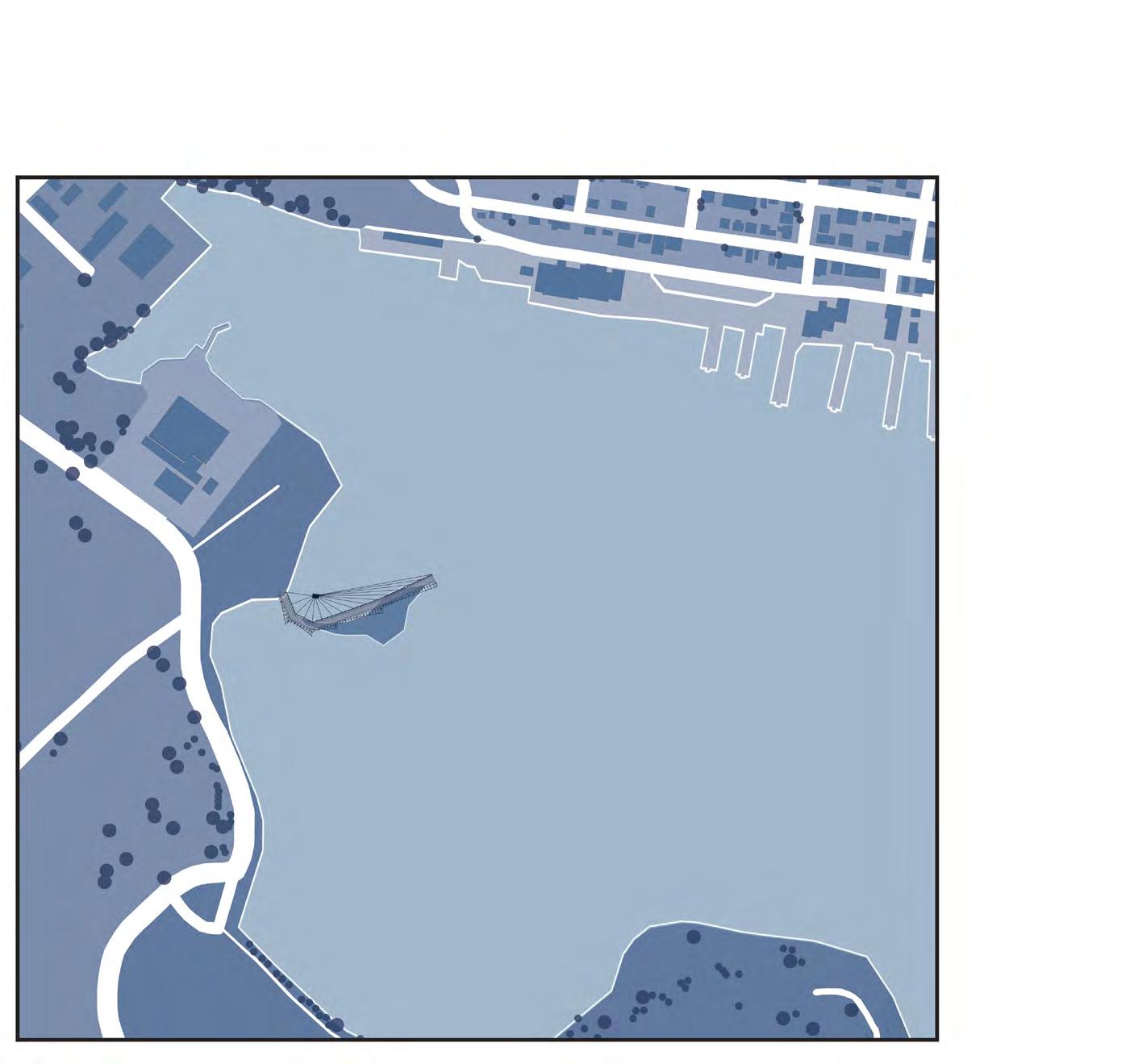

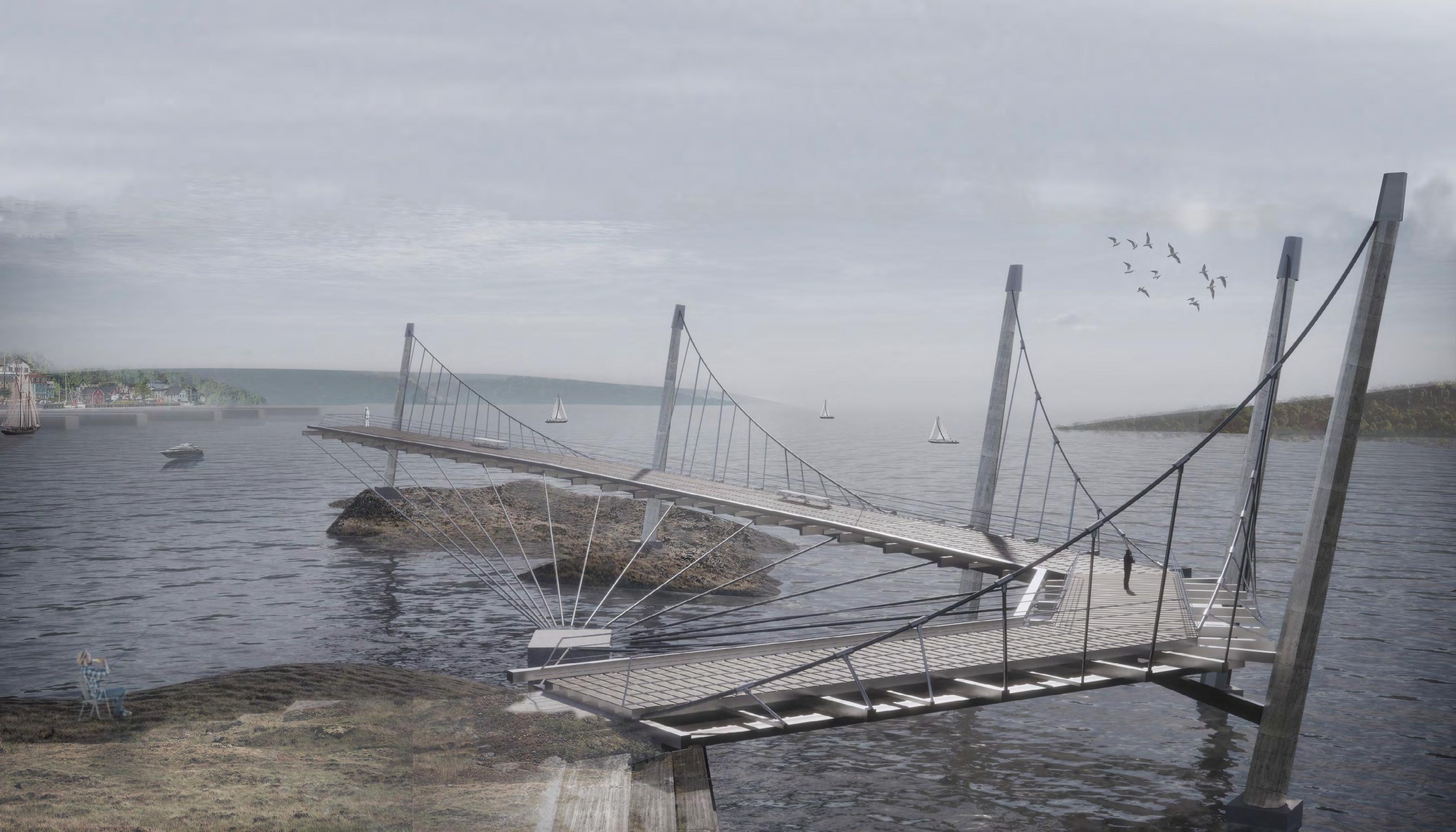

Located in the Most Beautiful Small Town in Canada of Lunenburg, Nova Scotia, Anchored is a bridge to a view of the quaint port town’s colourful waterfront and its surrounding peninsula. Inspired by the town’s main attraction of Bluenose II, a replica of an early 1900’s racing ship and vessel that served as a provincial icon for Nova Scotia, the bridge presents itself as an historic ship anchored to a dock. The main structure is supported by 5 masts placed at the junctions between each section with sloping supporting cables that represent sails, and a steel tieback system that invokes a traditional capstan.

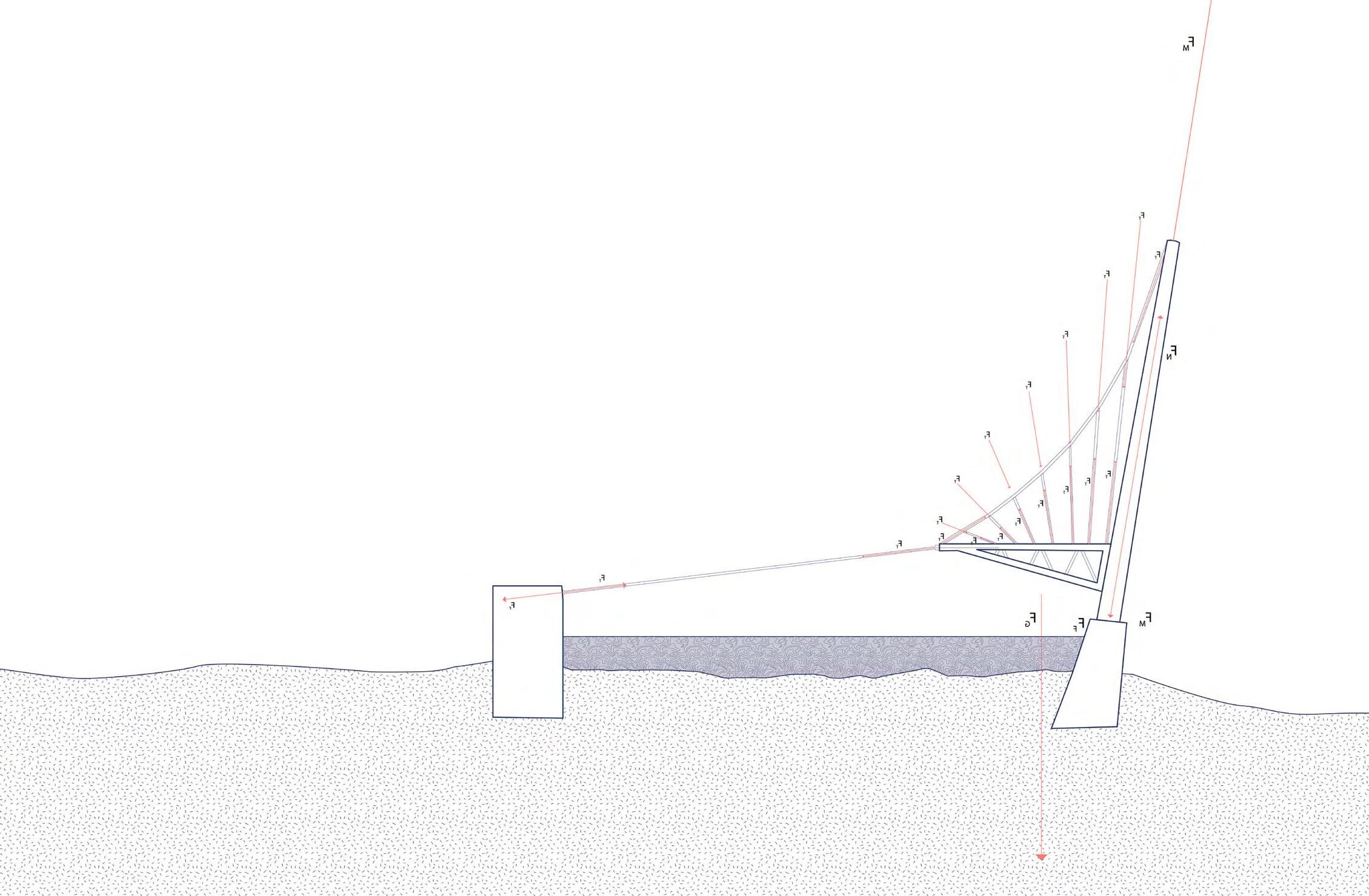

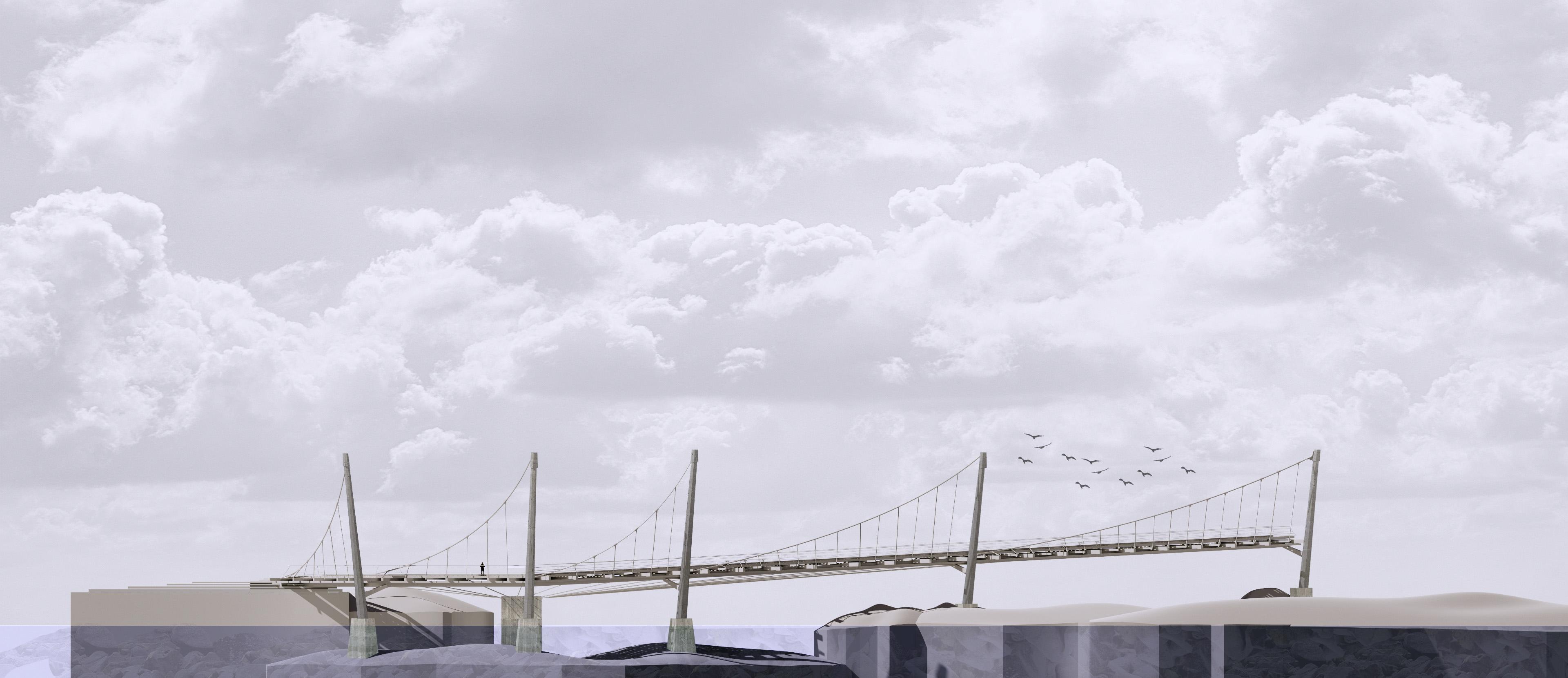

In order to achieve the “anchored” effect, the bridge had to be designed accordingly. The tensile forces of the steel tieback system (which is anchored by a concrete deadman) are equaled by the mast and tension cables.

Octagonal HSS sections, welded together

Dual-Pitch Steel Truss

500mm x 300 x 20 rectangular HSS sections

Stainless Steel Fasteners

Engineered Oak Planks

Welded Connections

Hex Bolt

Gusset Plate

Flemish Eye Cable Connector

Steel Catenary Cable (3 layers of interlocked

Z-shaped galvanized wires with internalblocking compound

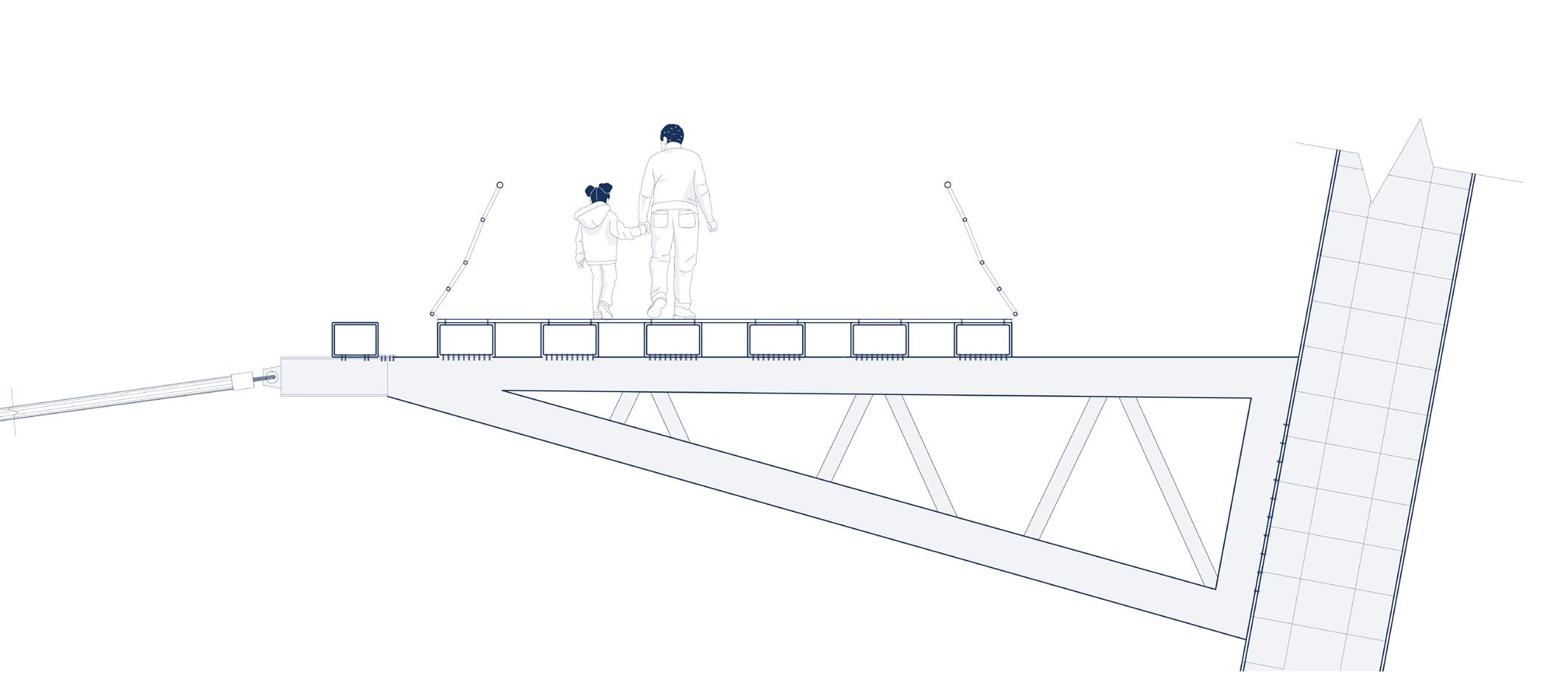

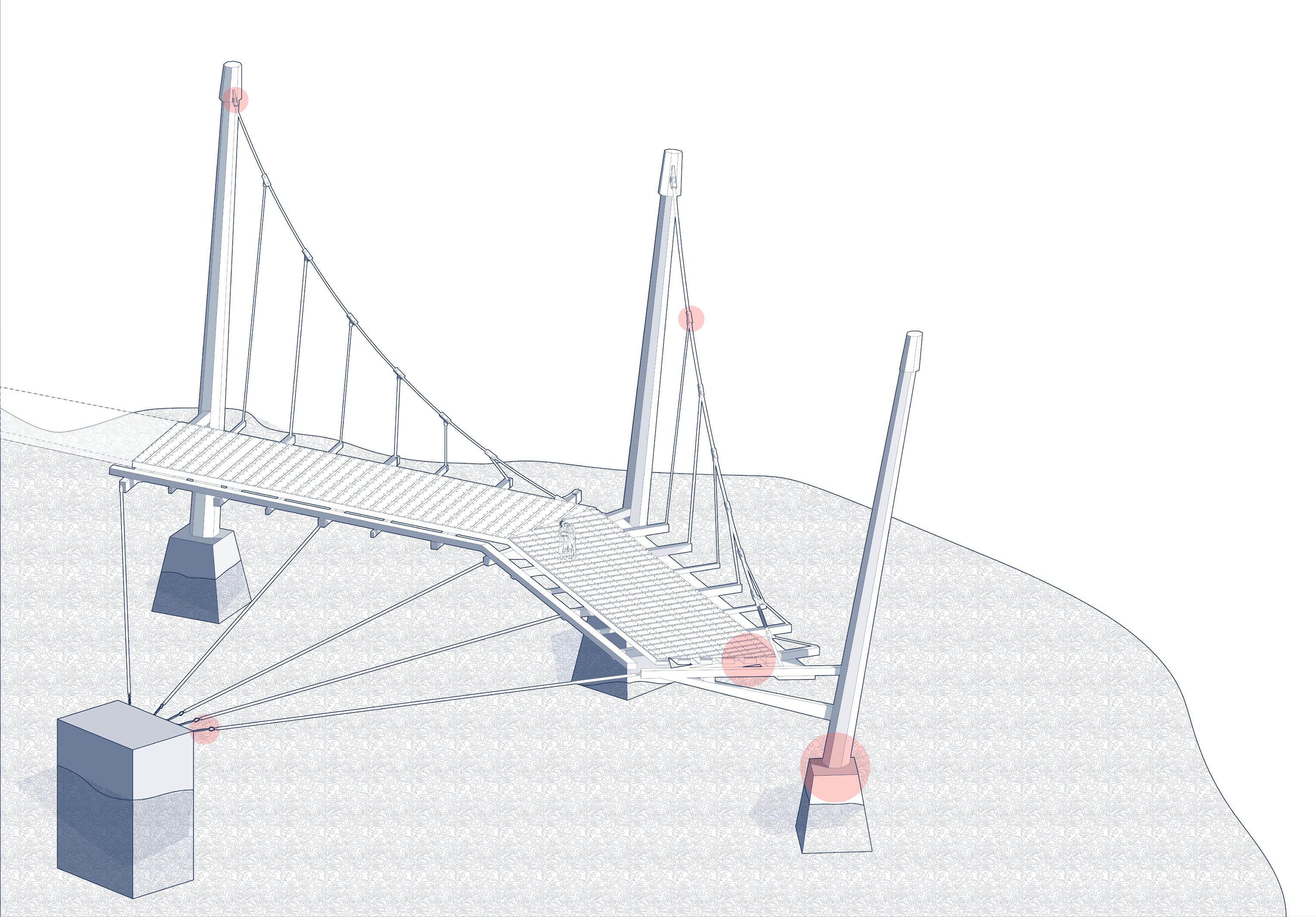

Detailed Structural Section

octagonal HSS sections

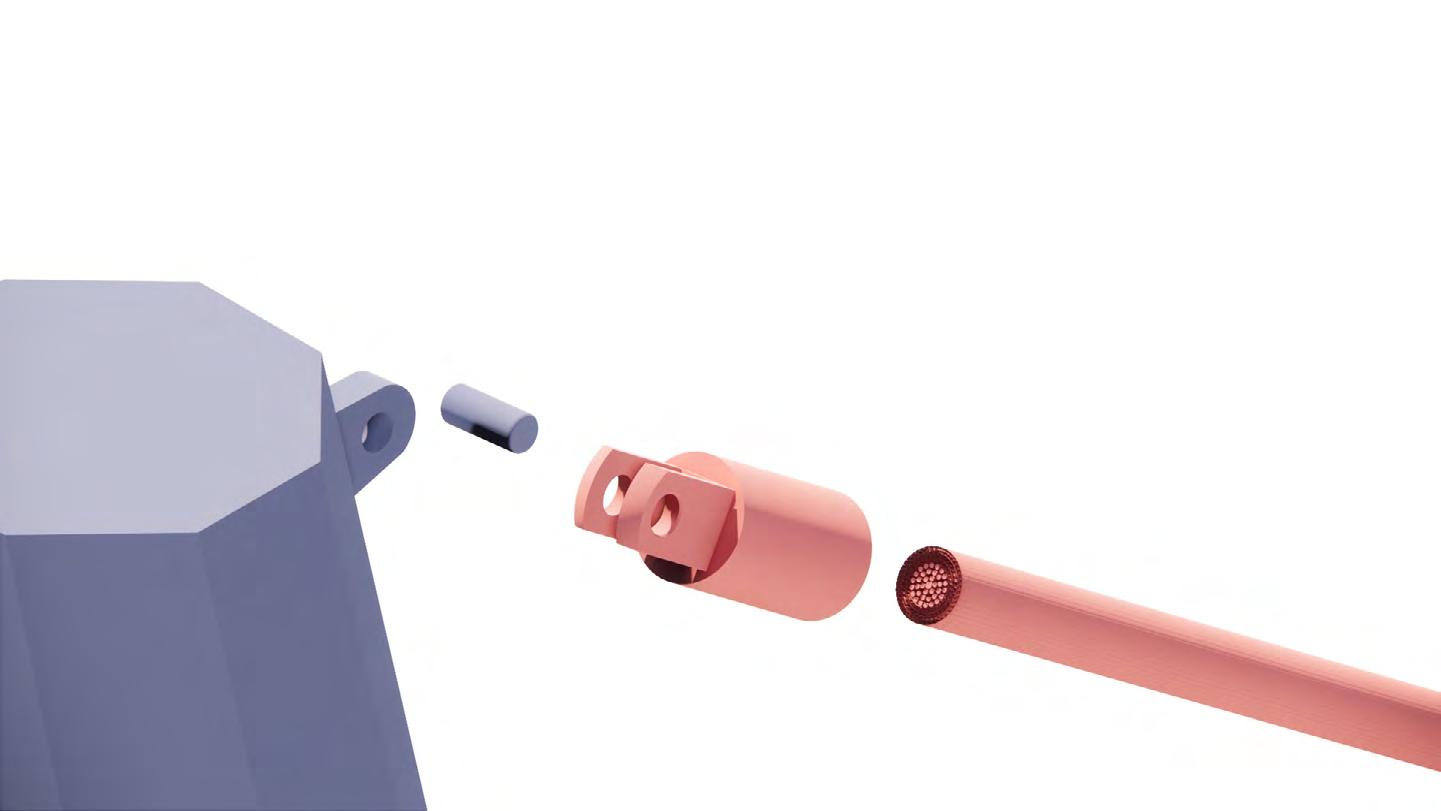

mast - cable connection

galvanized clevis pin

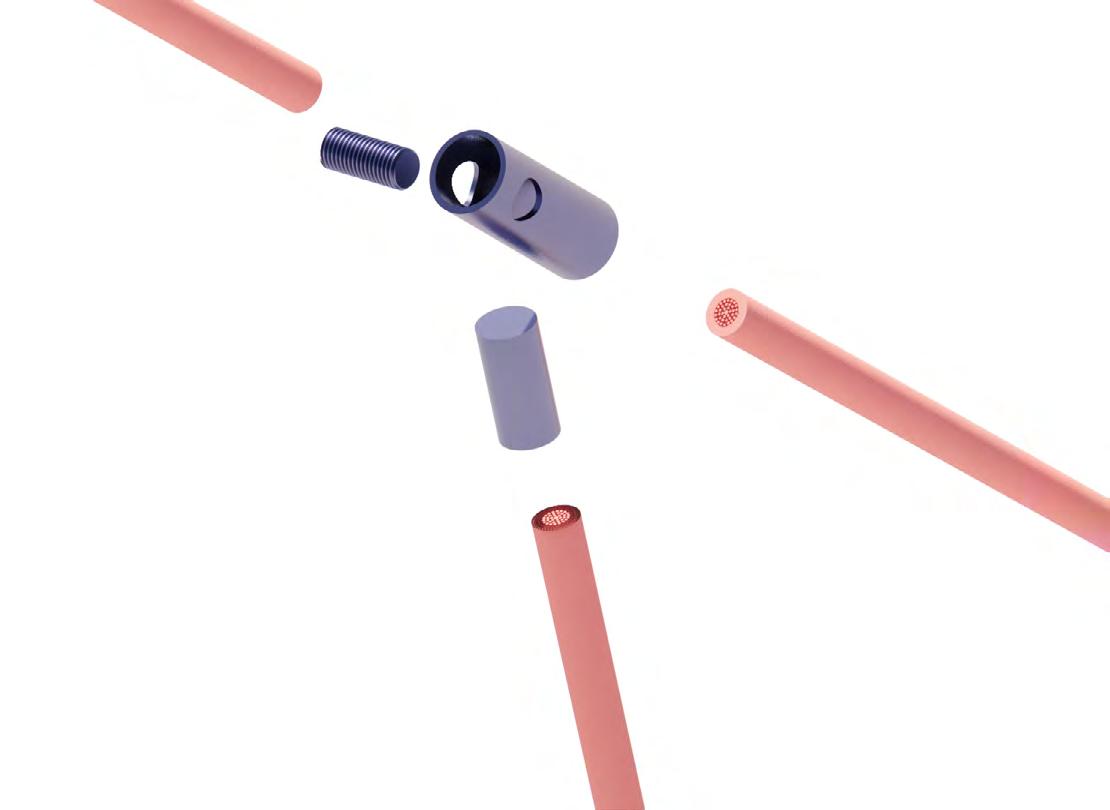

cable - cable connection deck - substructure connection

grub screws steel clevis steel end connector galvanized locked coil strand galvanized locked coil strand galvanized steel cross clamp stainless steel fasteners

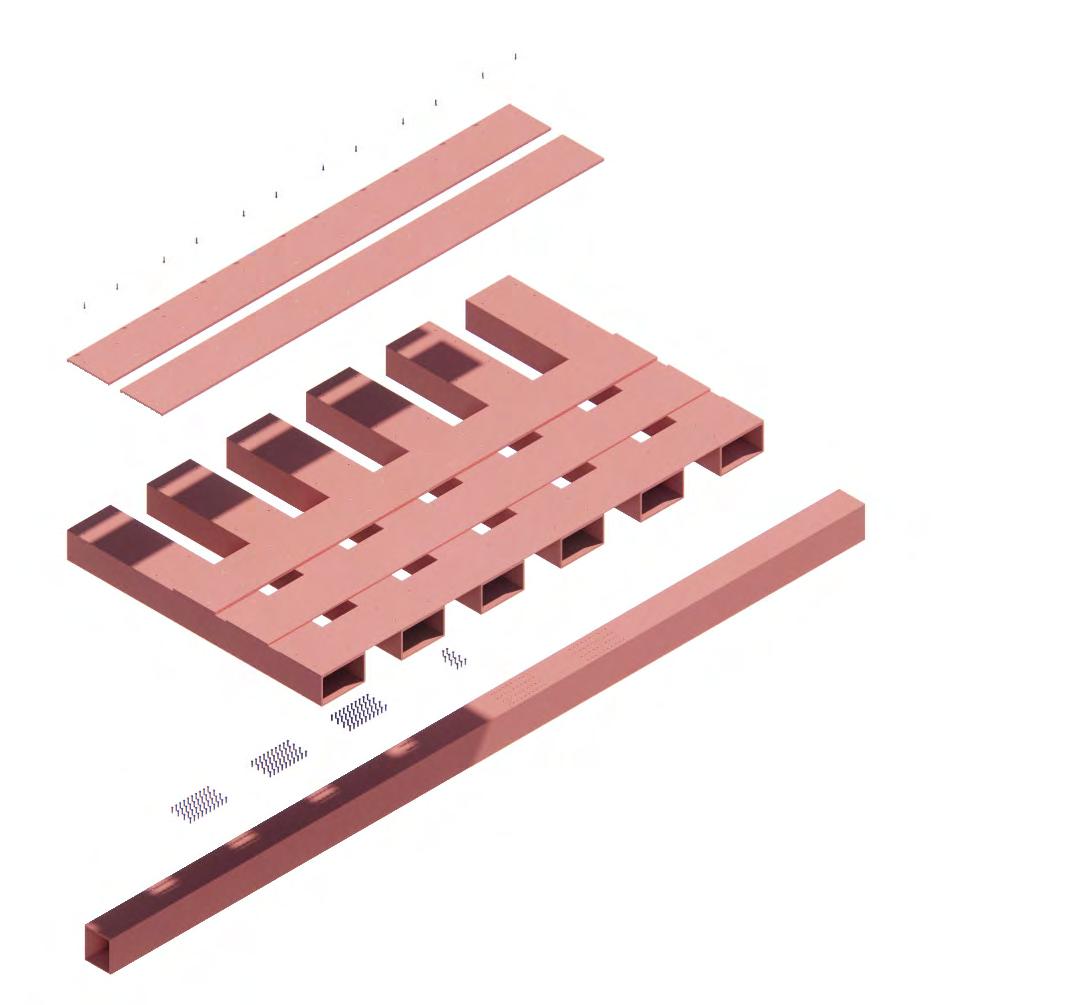

500mm x 300 x 200 rectangular HSS sections engineered oak planks hex bolts

500mm x 400 x 200 rectangular HSS section

mast - foundation connection

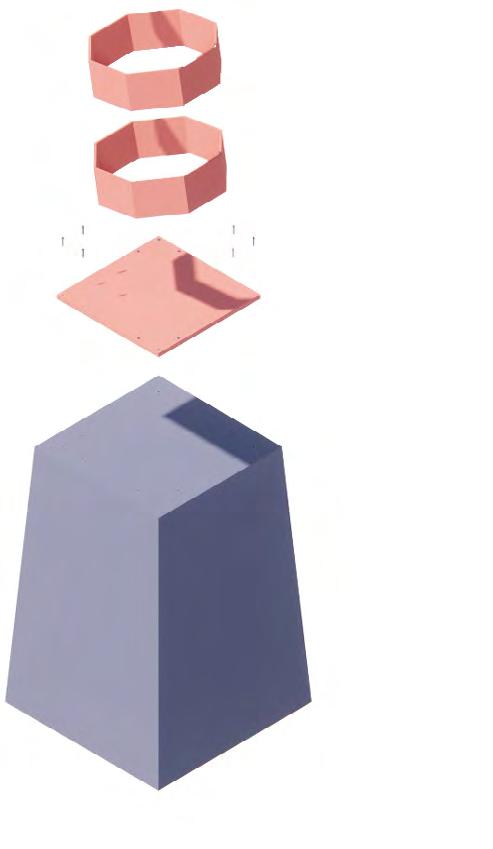

pre-expanded expansion anchors octagonal HSS sections; able to be assembled on-site base plate concrete foundation ; precast concrete piles drilled into the rock / ocean floor filled with concrete on-site

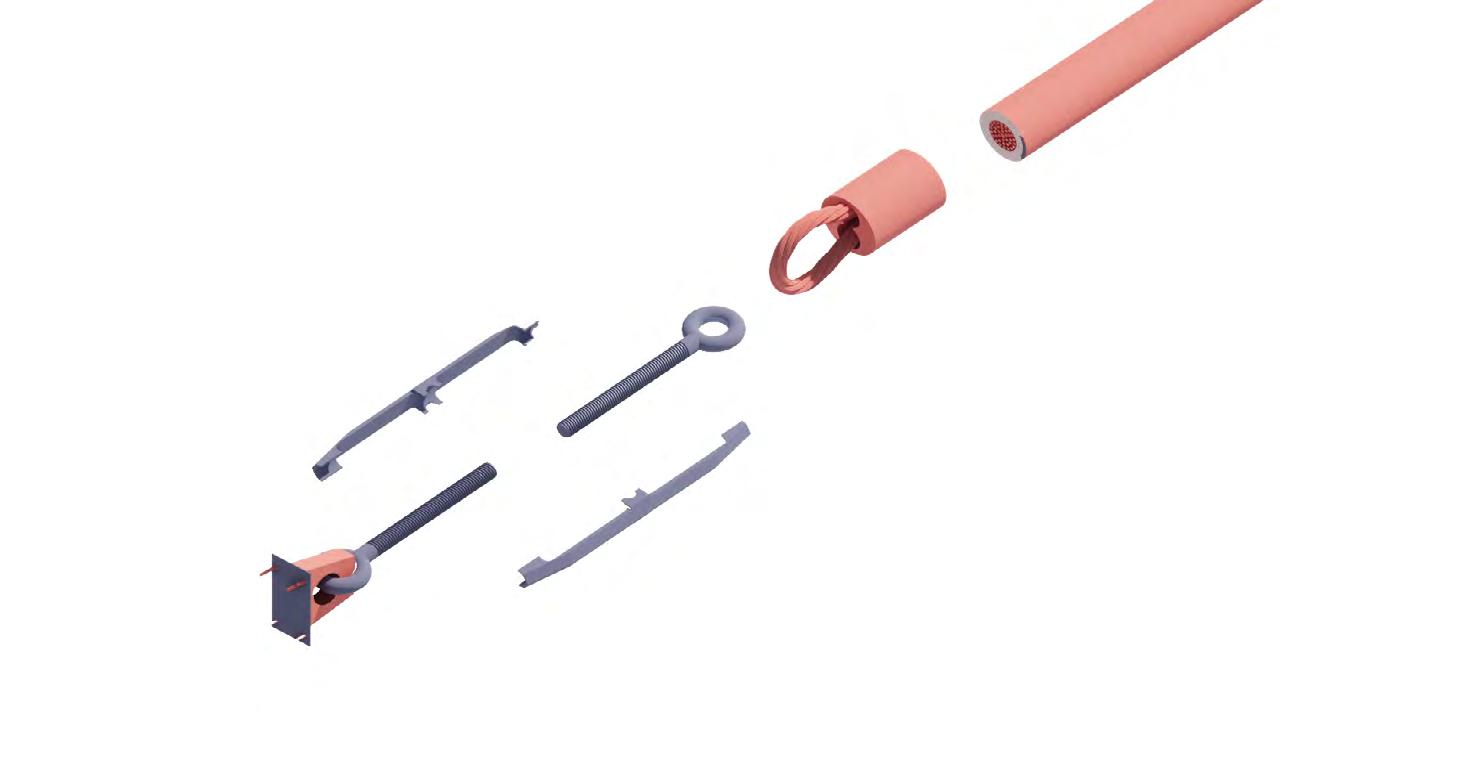

tieback - cable connection

flemish eye cable connector galvanized steel turnbuckle galvanized locked coil strand pre-expanded expansion anchors concrete deadman (hidden)
