Maternity Center

Hello!

I am Nitish Singh, a 4th year Architecture student from School of Planning and Architecture, Bhopal.

As an aspiring architect, I am passionate about creating innovative, sustainable designs that harmonize functionality and aesthetics. I strive to design efficient spaces which are user-centric.

My diverse projects showcase creative thinking, technical skills and commitment to enhancing the human experience. I am excited to collaborate on innovative architectural design that enriches people’s lives.

NITISH SINGH

Secondary School (2013-18)

CONTACT

Jawahar Navodaya Vidyalaya, Ranti, Madhubani, Bihar

EMAIL : nitishkumar2162@gmail.com

PHONE : +91 6203185480

ADDRESS : Madhubani, Bihar, India PIN - 847227

INSTAGRAM : https://www.instagram. com/nitish5ingh/?__ pwa=1#

LINKEDIN : https://www.linkedin. com/in/nitish-ku-

2

EDUCATION

Madhubani, Bihar, India.

DOB : 05/04/2001

Senior Secondary School (2018-20) Jawahar Navodaya Vidyala, Ranti, Madhubani, Bihar

Bachelors in Architecture (2021-Present) School of Planning and Architecture, Bhopal, Madhya Pradesh

LANGUAGE Hindi | English | Maithili | Bhojpuri

SOFTWARE SKILLS DRAFTING

COMPUTATION

BIM

Autocad

Grasshopper

Revit

3 D MODELLING VISUALISATION SketchUp Rhinoceros Blender

Enscape Lumion D5 Render Twinmotion

PRESENTATIONPhotoshop Illustrator InDesign

Maternity Center

ACADEMIC PROJECTS 1st YEAR :

Kindergarten Design | Bhopal

2nd YEAR :

Ecologist’s Residence Design | Jaipur Bank Design | Bhopal

3rd YEAR :

Exihibition Pavillion and Auditorium Design | Bhopal Residence | Working Drawing I | Bhopal Shop Cum Office Complex Design | Bhopal Bank | Working Drawing II | Bhopal Expo 25 | Structural System Design | Osaka, Japan

4th YEAR :

5 Star Hotel Design | Bhopal, Cafe Design | Interior Design | Tamilnadu

COMPETITIONS 2022-23 :

Architopia, Discover Arch | Architect’s Residence Design | Bhopal Canopy Design | SPA Bhopal

2023-24 :

Maternity Center | Kaira looro | South Senegal, Africa IISER Gate Design | IISER Bhopal

WORKSHOPS Nov 2022 :

Aagaur Studio | Arch Construction Workshop

Feb 2023 :

Studio Coolent | Honeycomb Wall Construction Workshop

July 2023 :

Advanced 3D and Rendering Technique | SketchUp & Enscape Workshop

OTHER INTERESTS Sketching and painting Photography Sports and Fitness Stock Market and Finance

3

Maternity Center

CONTE

4

01

02

NURTURING NEST

SERAPH PLAZA

Maternity Center South Senegal, Africa Competition | 2024

Shop cum Office Complex Bhopal, Madhya Pradesh Academic project | 2024

Maternity Center

ENTS

03

04

IISER GATE DESIGN

MISCELLANEOUS

Gate Design Bhopal, Madhya Pradesh Competition | 2024

Working Drawing Portait Sketch Photography Hands on Workshops

5

Maternity Center

01

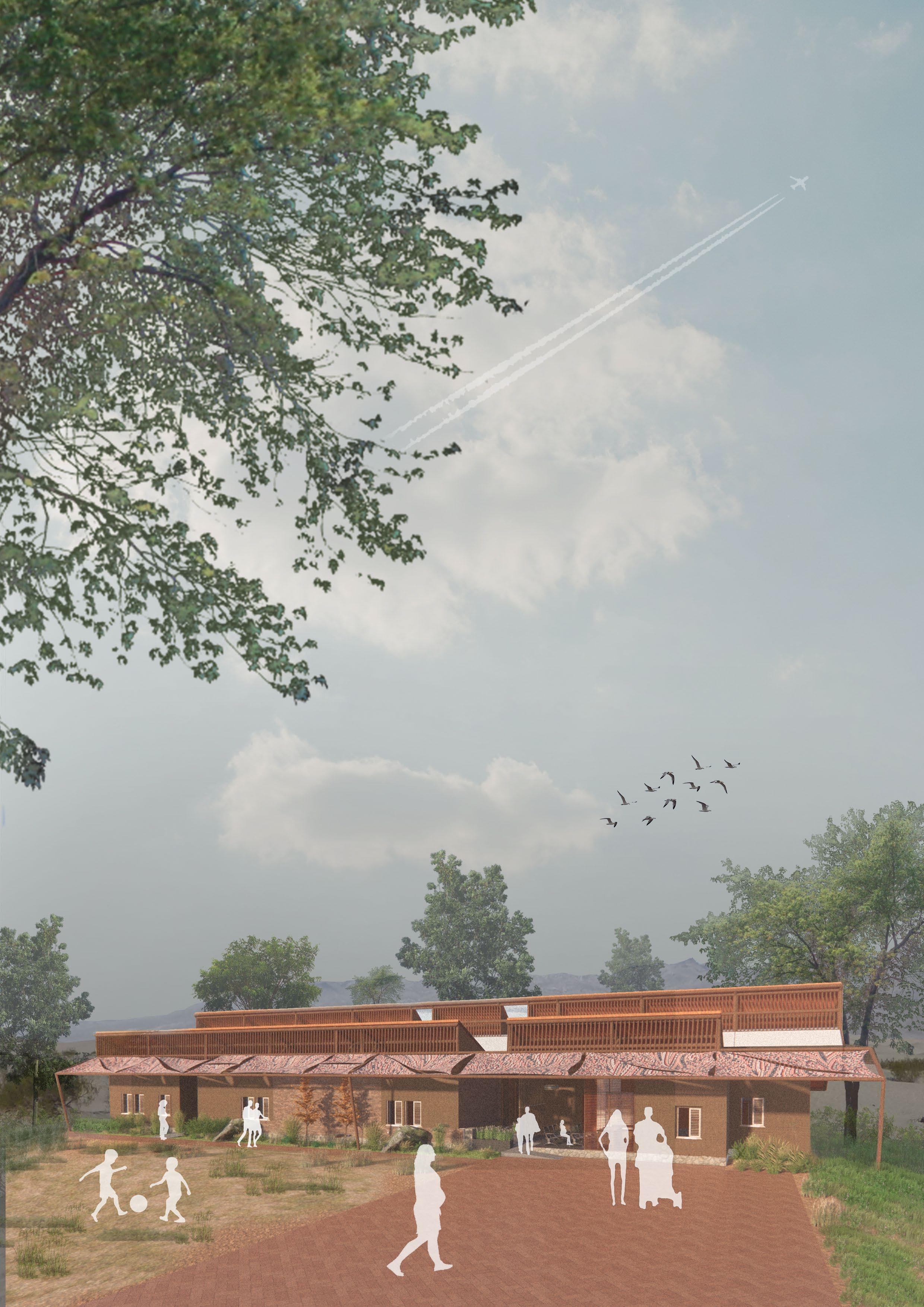

Nurturing Nest Maternity Center South Senegal, Africa

Year : May 2024 Keywords : Maternity Center, Community Living, Suistainable Team : Group of 3 Softwares : Autocad, Revit, SketchUp, Rhino, Enscape, Photoshop Nestled in the heart of the serene landscapes of southern Senegal, the maternity centre stands as a beacon of hope and support for expecting mothers and their newborns in the village of Djibanar. Designed with meticulous attention to the needs of our users - the mothers, nursing, and medical staff - our centre aims to provide the best possible medical and healthcare support throughout the journey of motherhood. In a region where inadequate facilities contribute to heartbreaking child mortality rates and sanitation challenges for new mothers, our centre emerges as a vital lifeline.

Constructed using locally sourced materials like bamboo, rammed earth, straw, and locally crafted bricks, our centre seamlessly blends with its natural surroundings, preserving the ecological balance of the area. Rooted in the principles of healing architecture, the design not only aims at providing essential healthcare services but also nurtures a sense of belonging and support for mothers and their precious babies in southern Senegal.

6

Maternity Center

7

Maternity Center

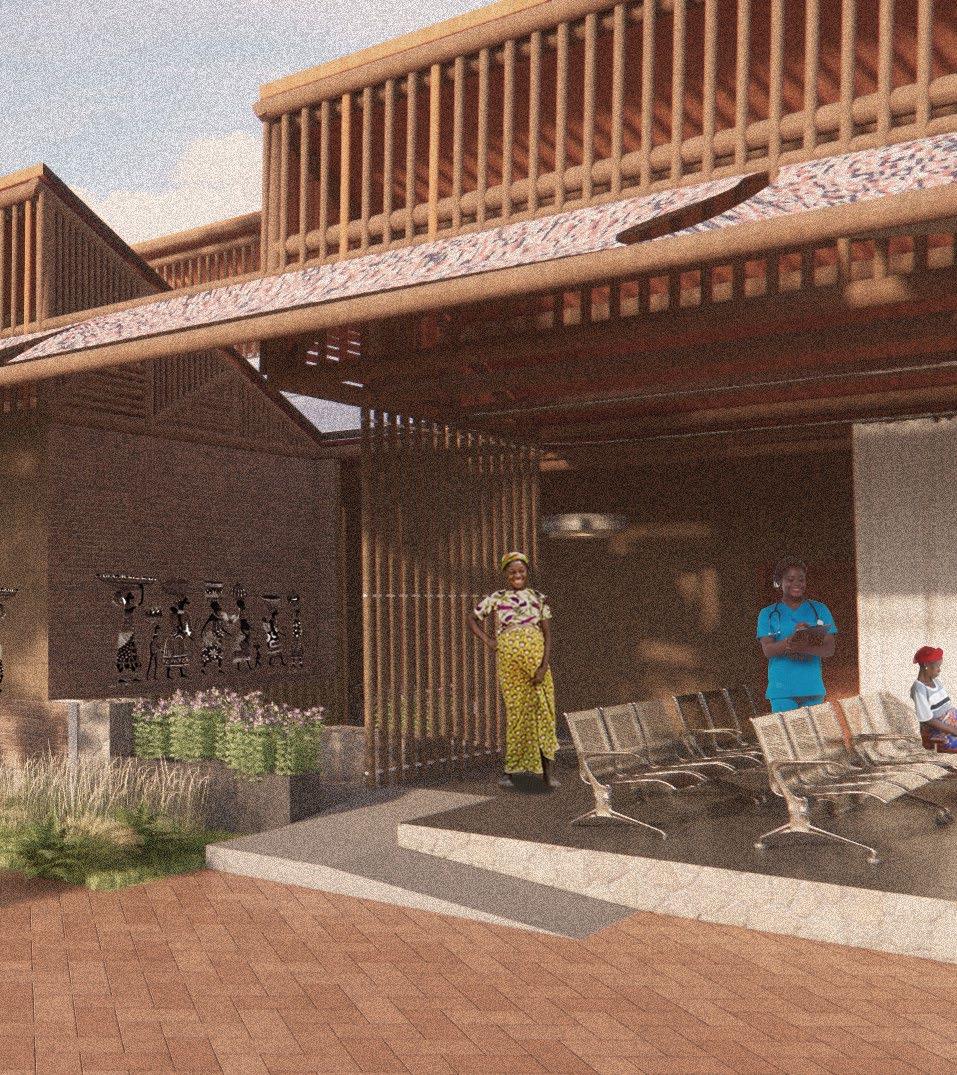

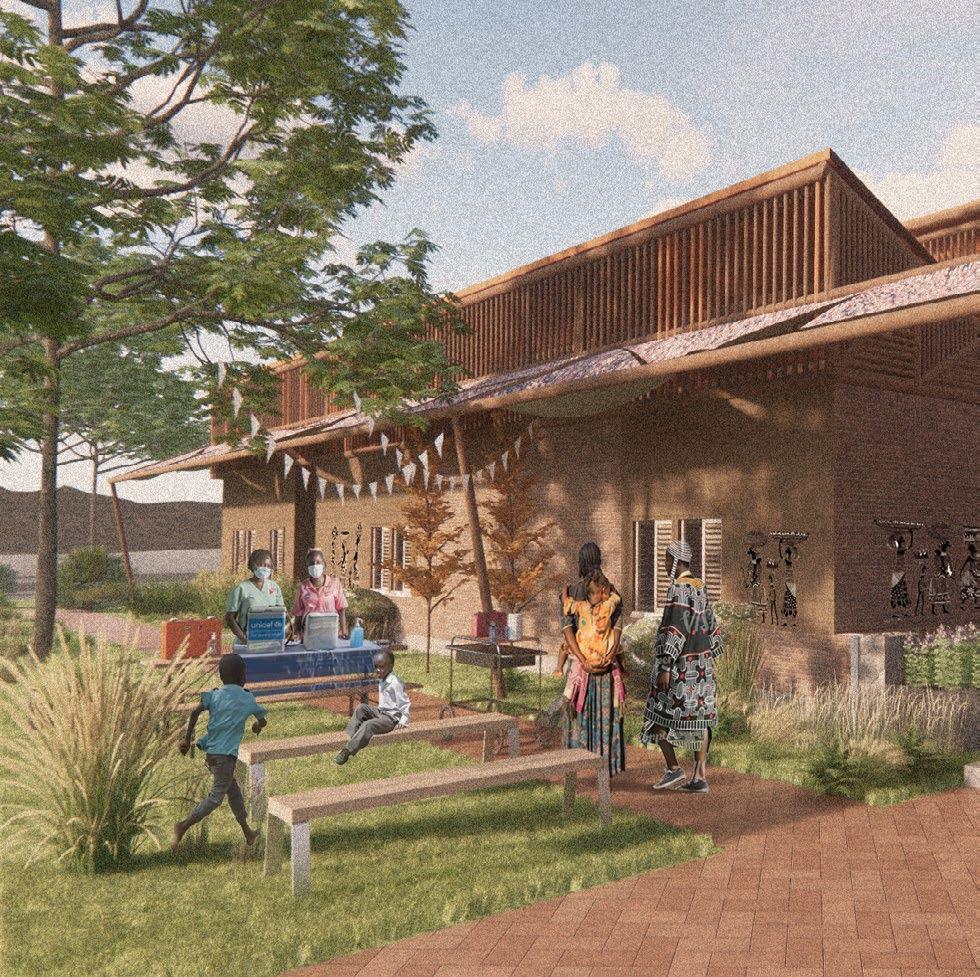

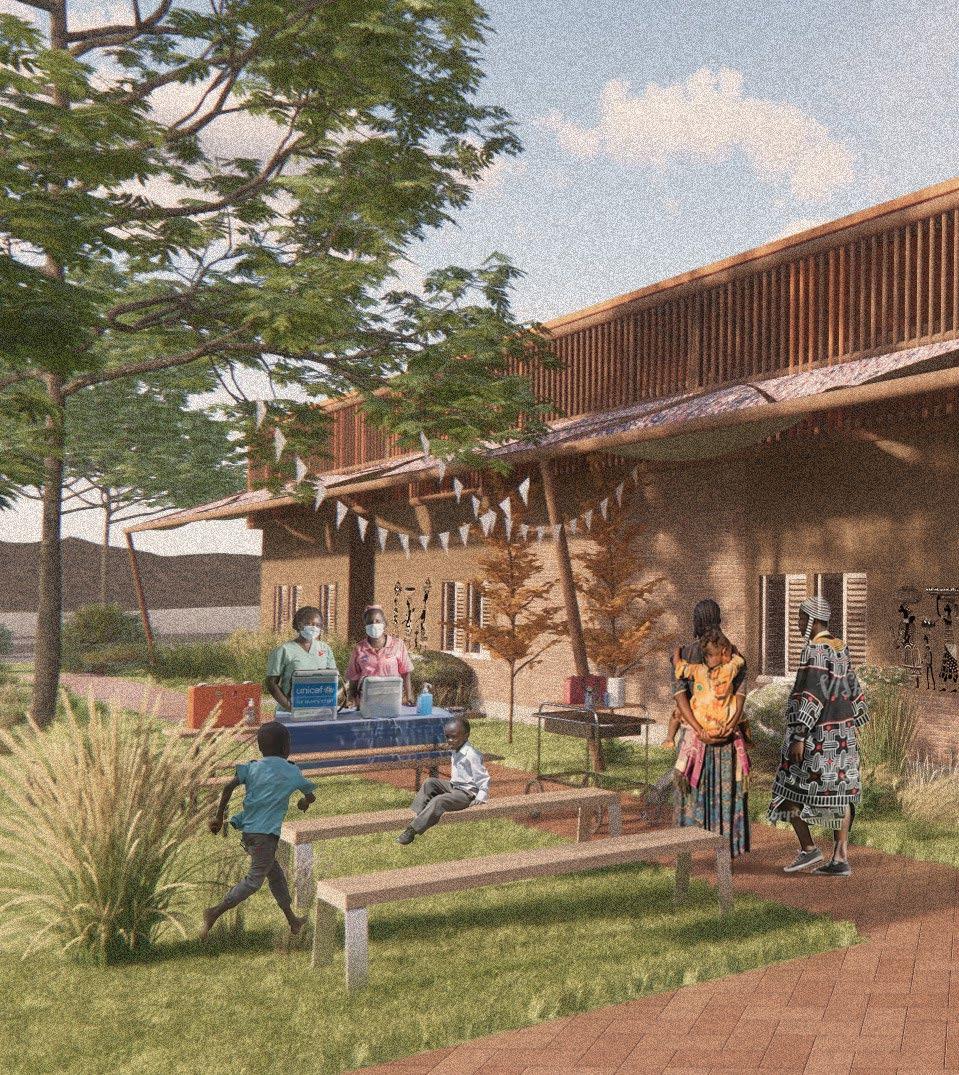

The spaces designed in such a way that makes an open interaction bet text includes waiting areas, recreational space, kids play zone and spaces

8

Maternity Center

tween built structure and its surrounding context. The surrounding cons for movement. The space caters functional as well recreational purpose.

9

Maternity Center

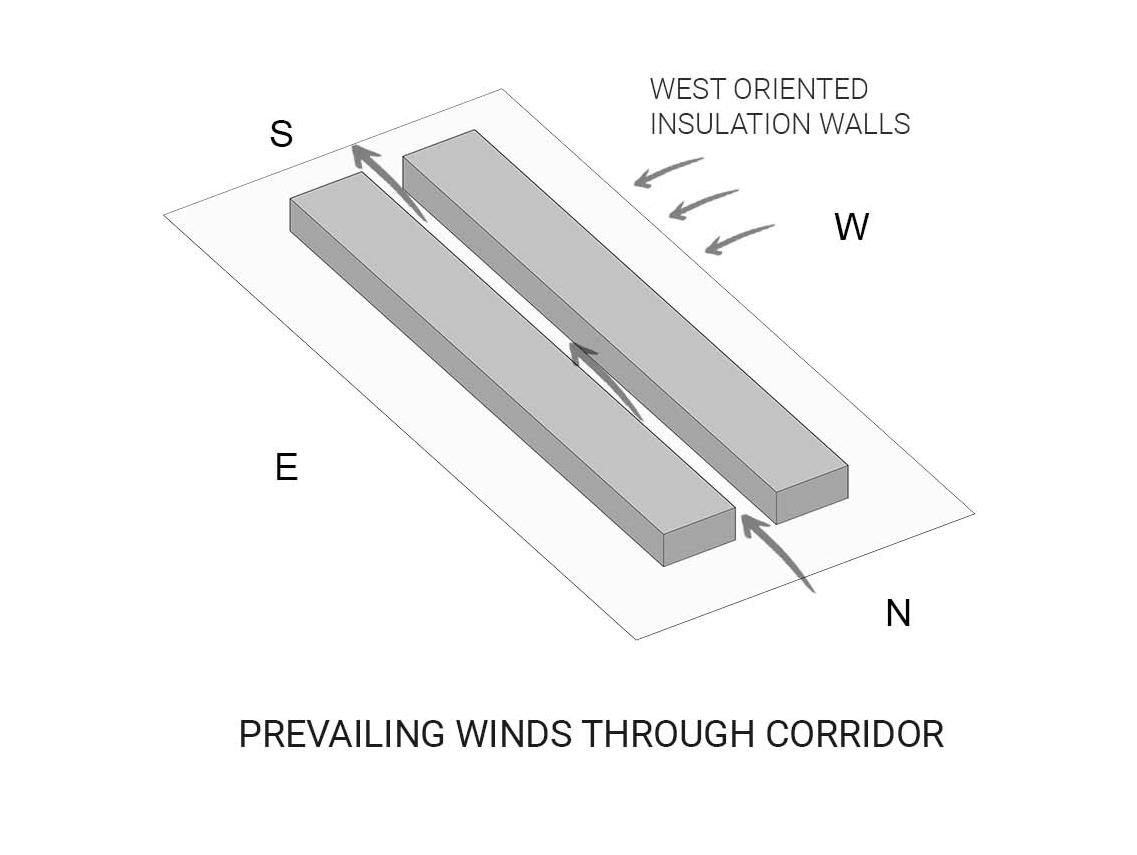

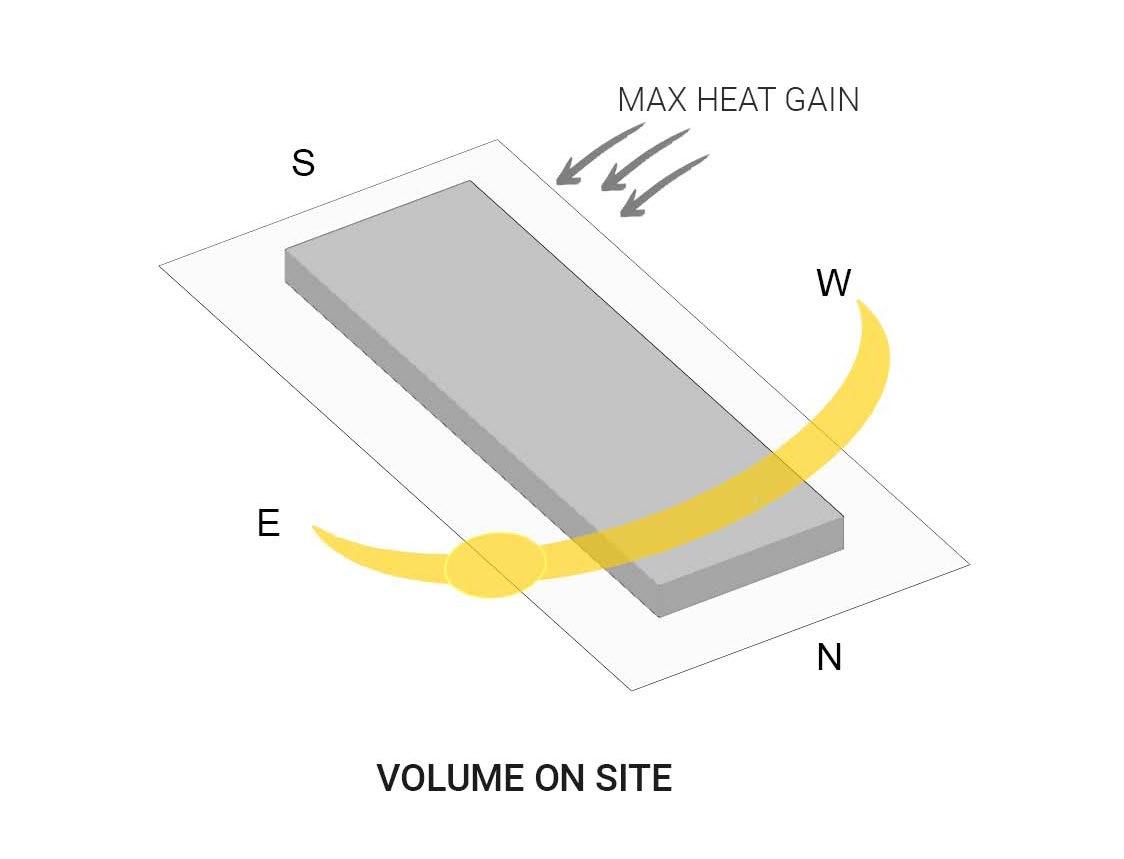

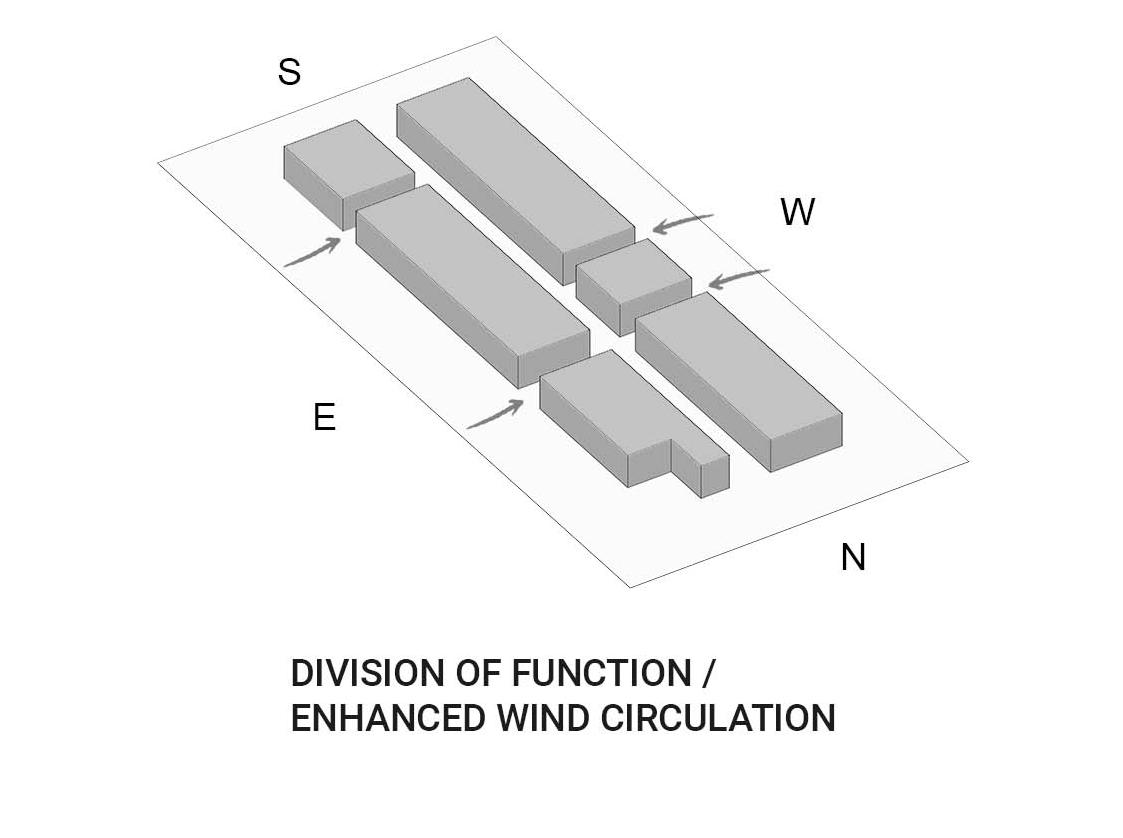

Concept Diagram

10

Maternity Center

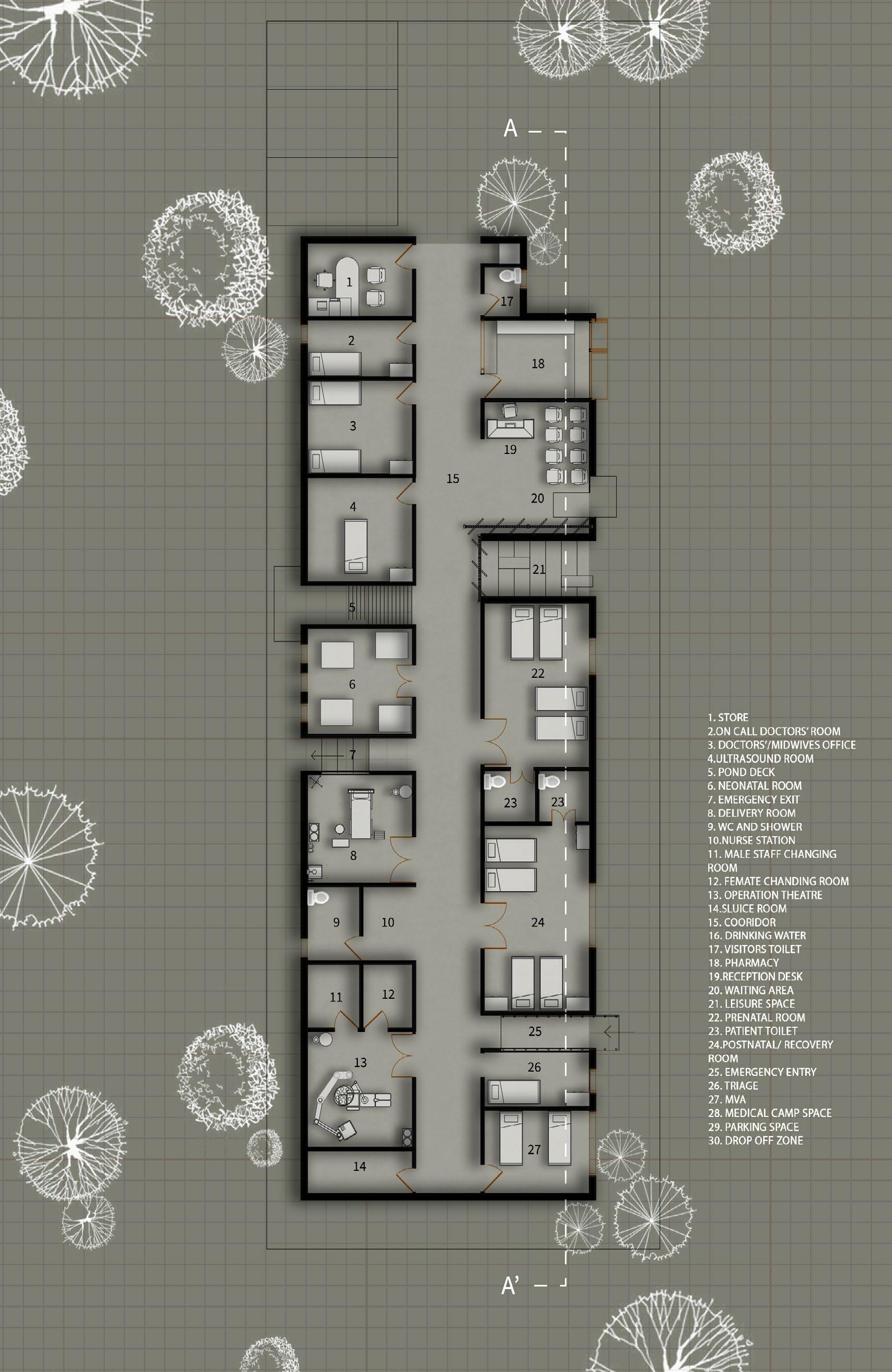

Floor Plan

11

Maternity Center

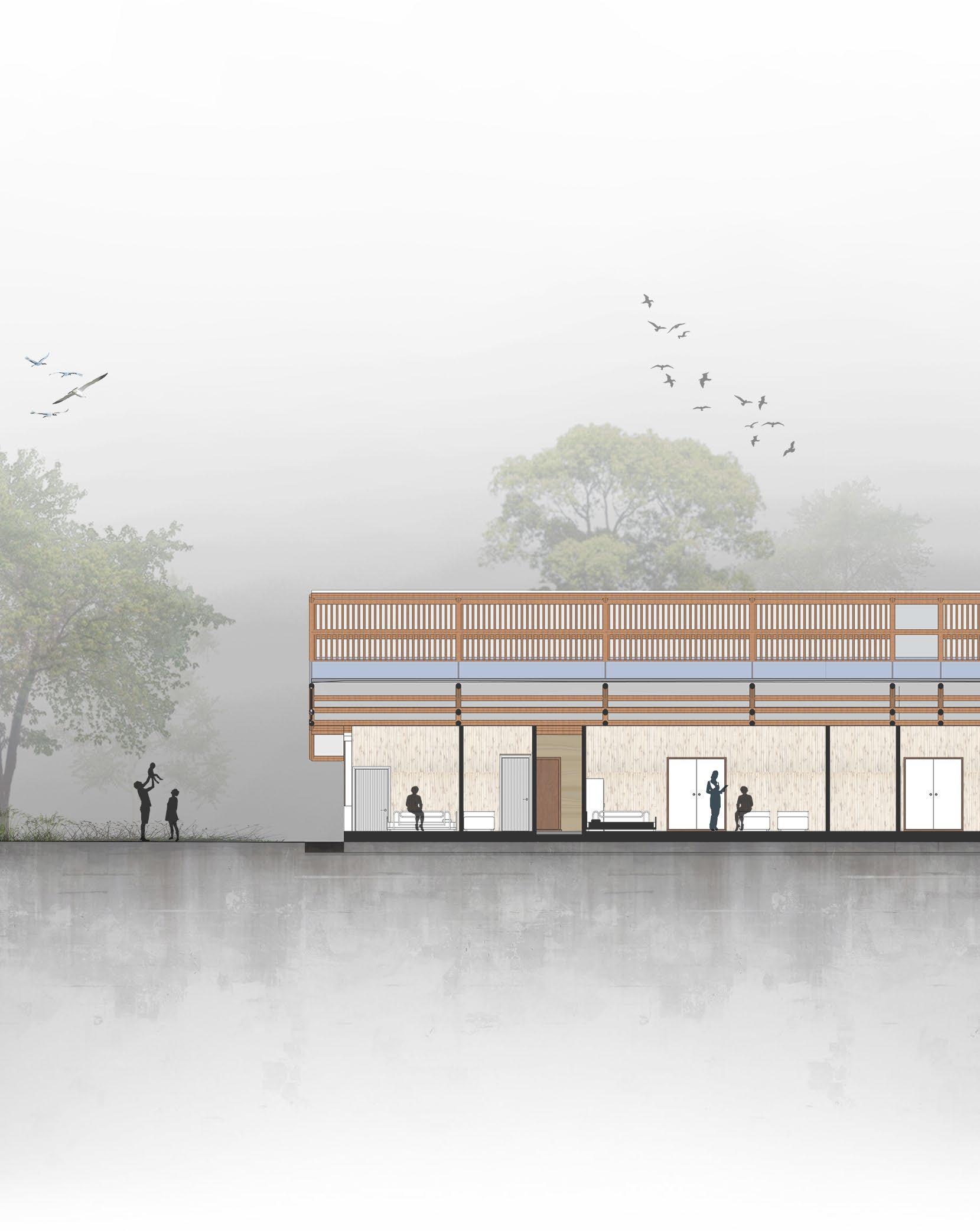

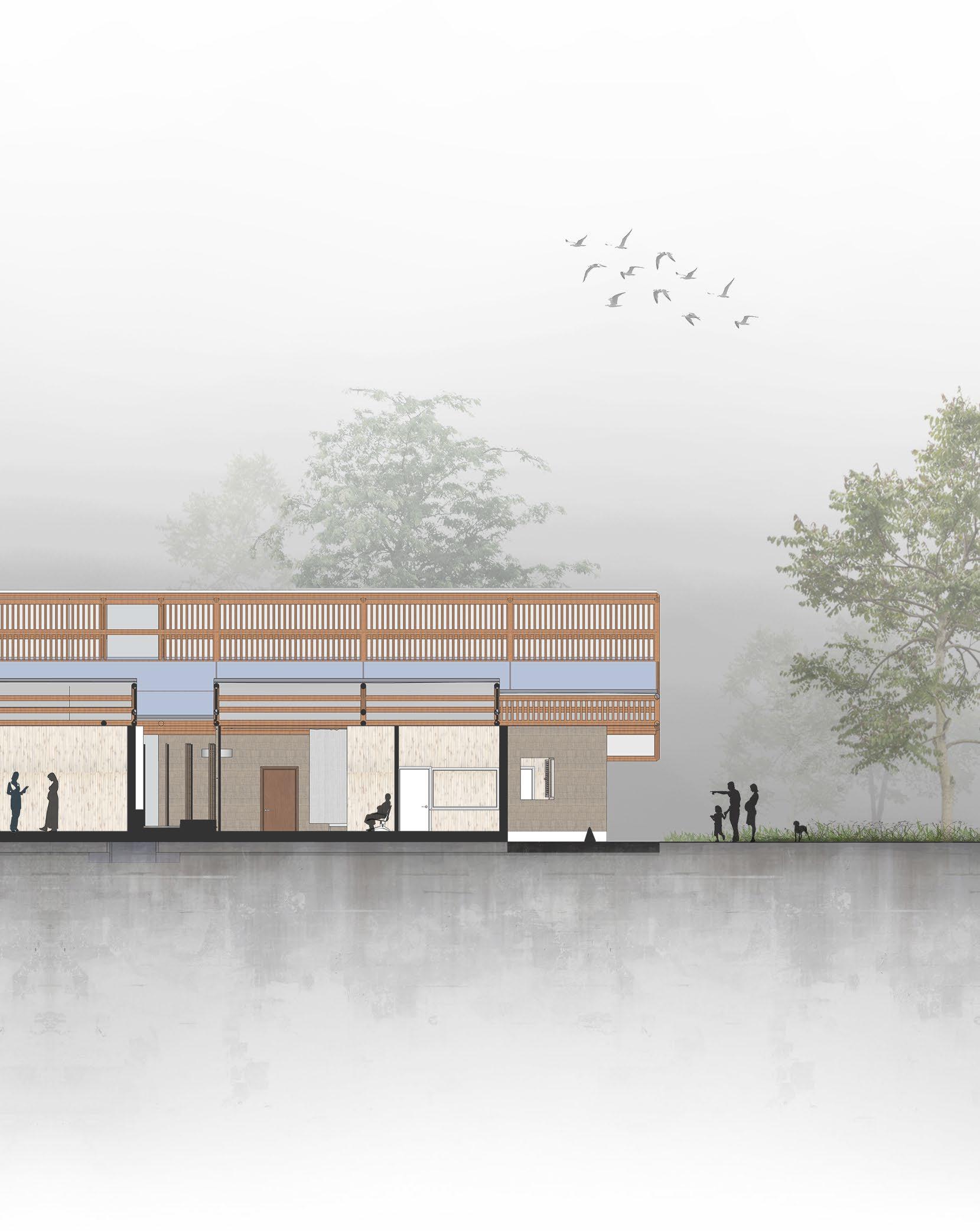

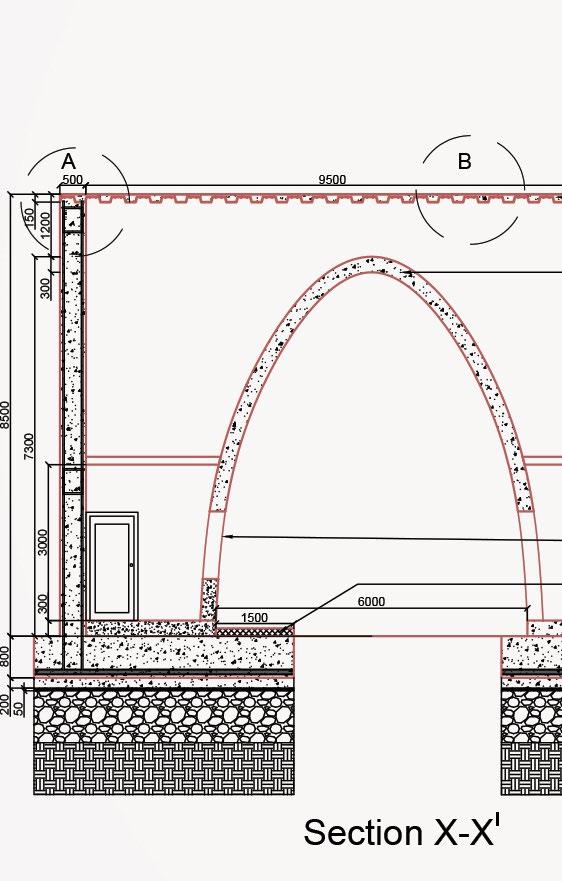

Section A-A’

Spaces like Antenatal, Prenatal, Postnatal, Nurse Station, Operation Theatr circulation as well as to reduce the spread of infection. Also waiting areas a

12

Maternity Center

re, Doctor’s Office were placed in hierarchial way to manage the better and Pharmacy were kept aside to reduce the rush and provide privacy.

13

Maternity Center

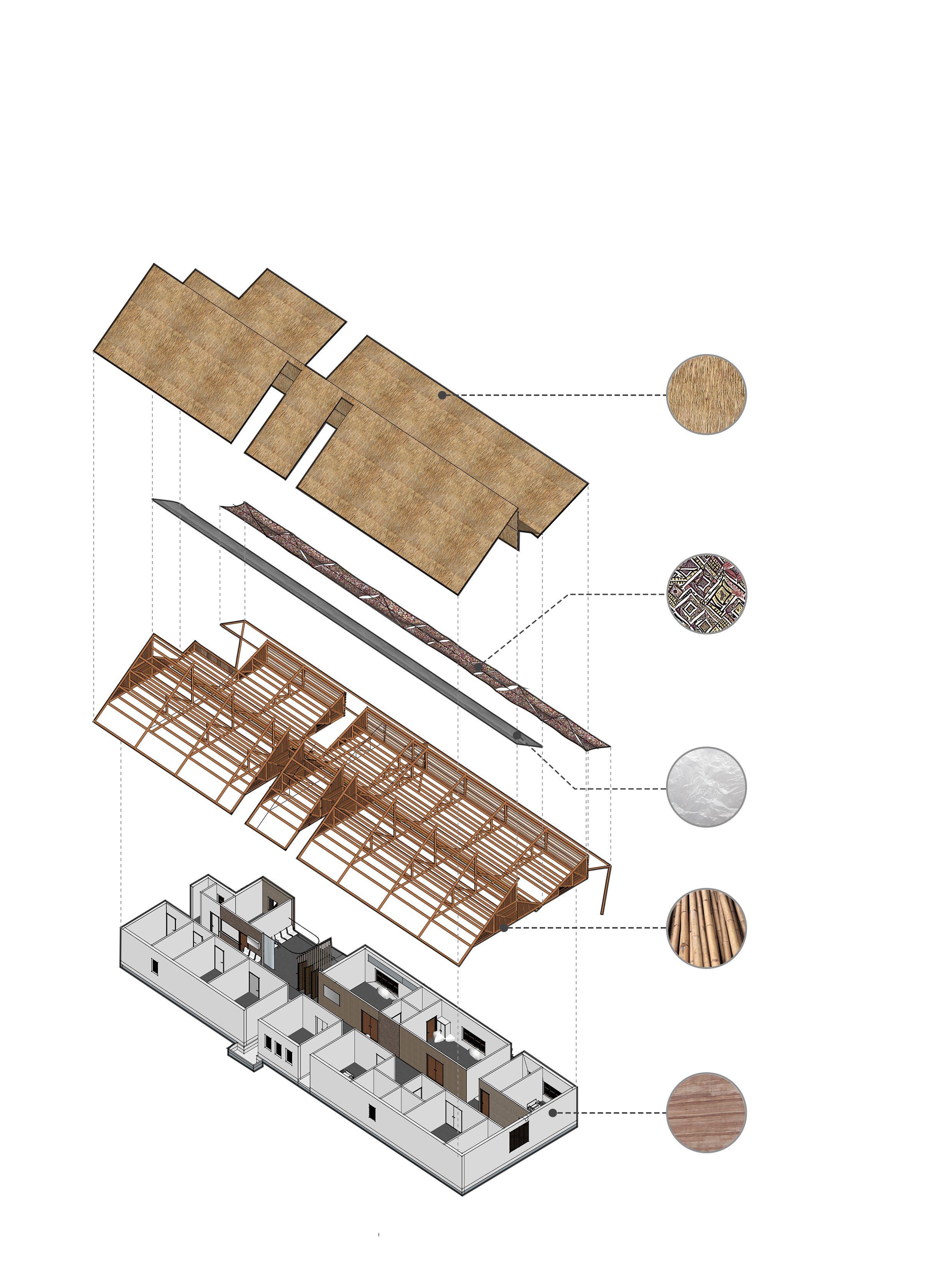

Roof (Exploded View) Locally available materials were used to make the building cost effective and to give a regional value. The Construction technology of building is easy and can be made by unskilled labour itself. Non-conventional materials like bambo, rammed earth, straws and fabrics used to make the building more sustainable.

Straw

Fabrics

Plastic Sheets

Bamboo

Rammed Earth 14

Maternity Center

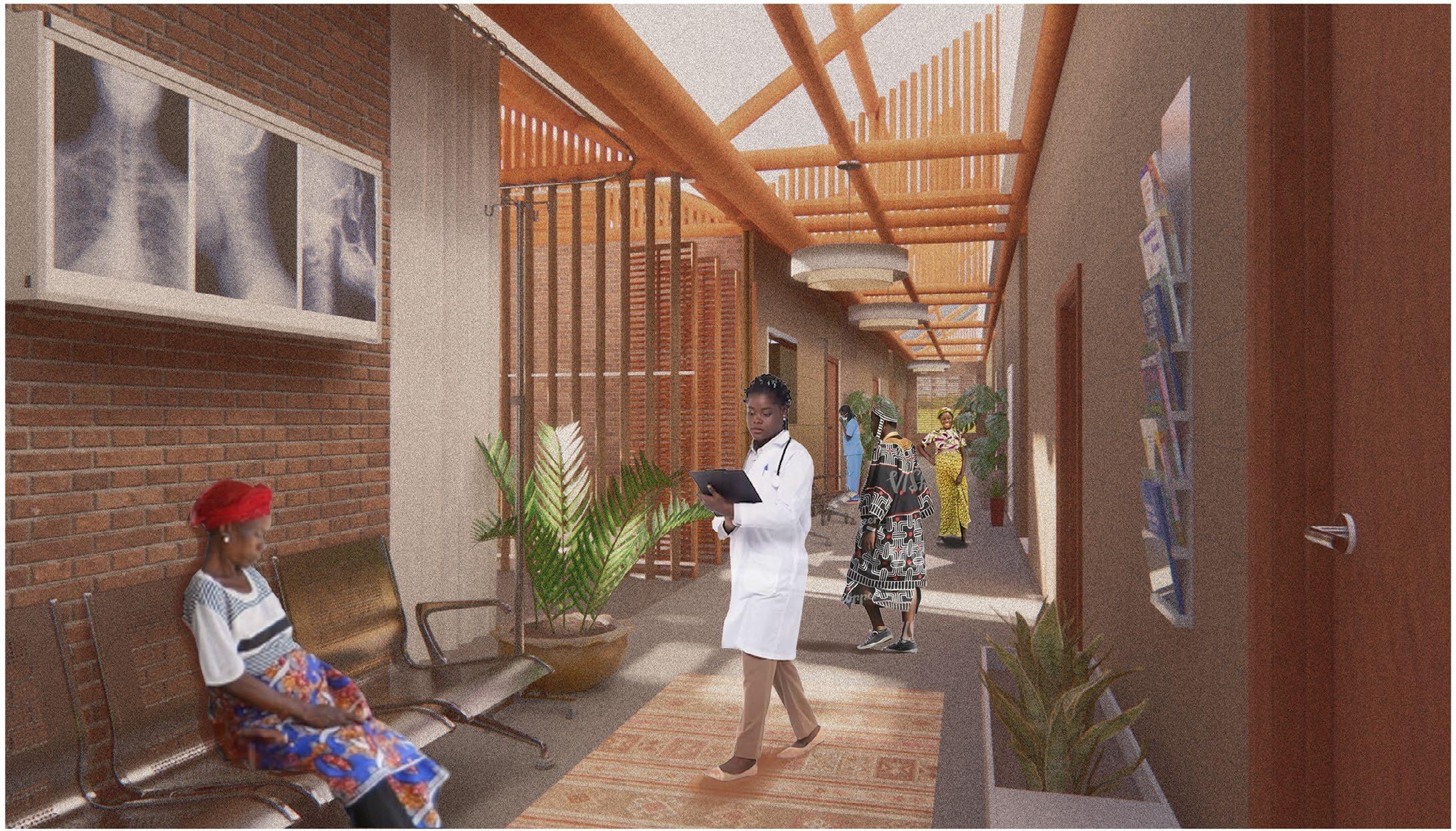

Naturally illuminated corridors using recycled plastic cover as skylight to enhance the overall quality of spaces. It shows the perfect blend of vernacular and contemporary materials.

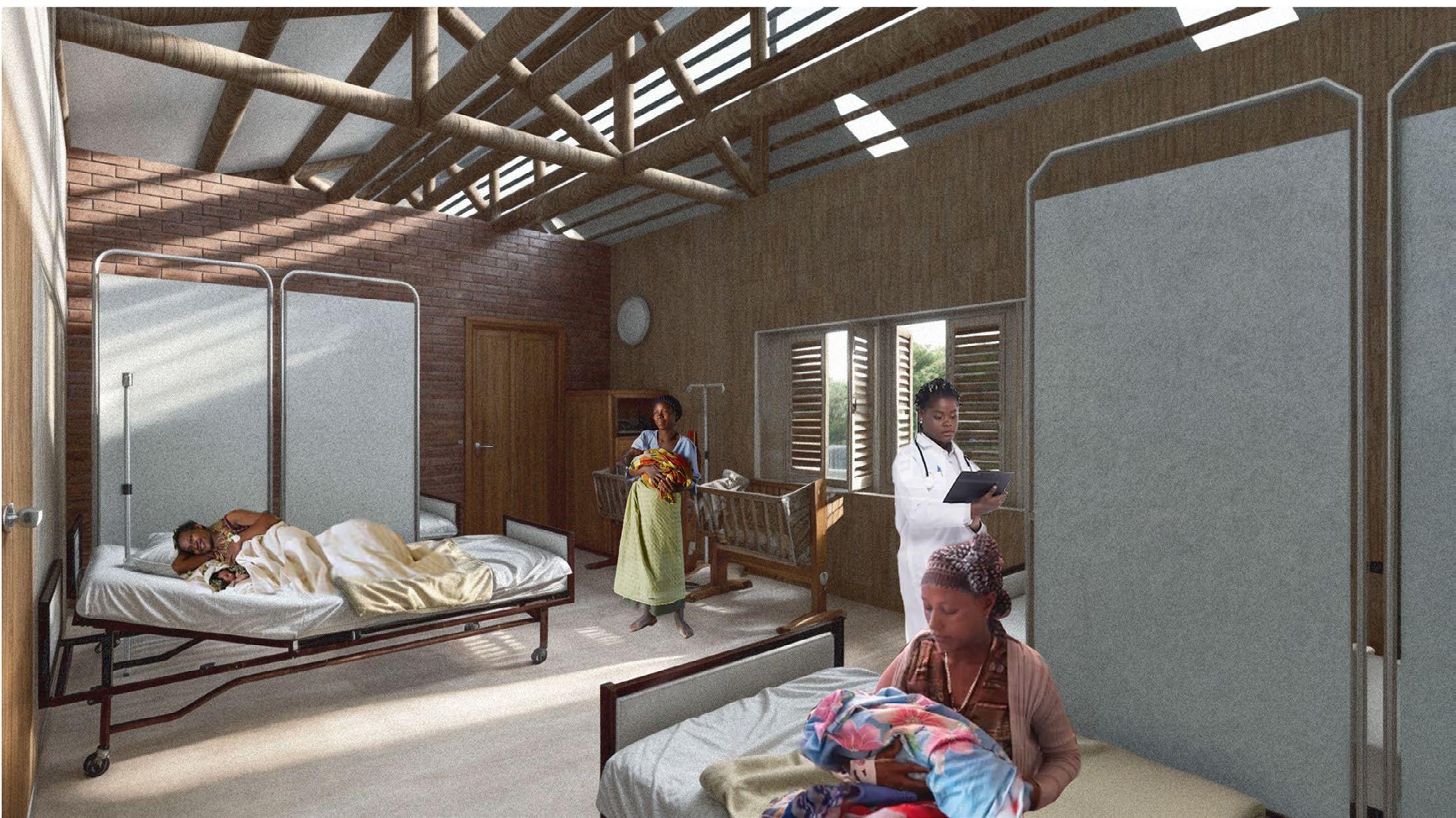

Spaces segregated for different purposes will help in reducing the spread of infection. The spaces has provided all required sanitary and washroom facilities along with regular cleaning.

15

Seraph plaza

02

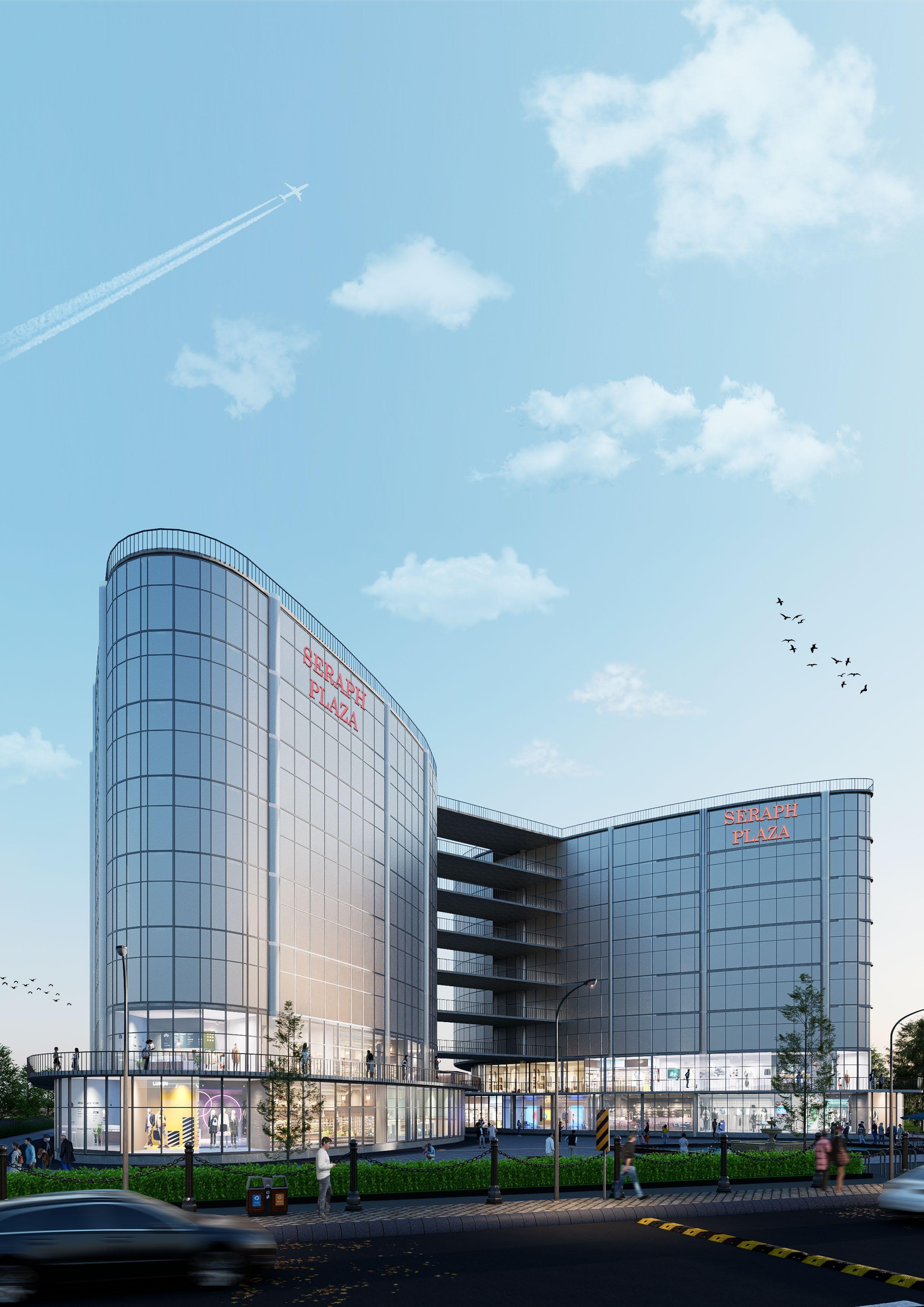

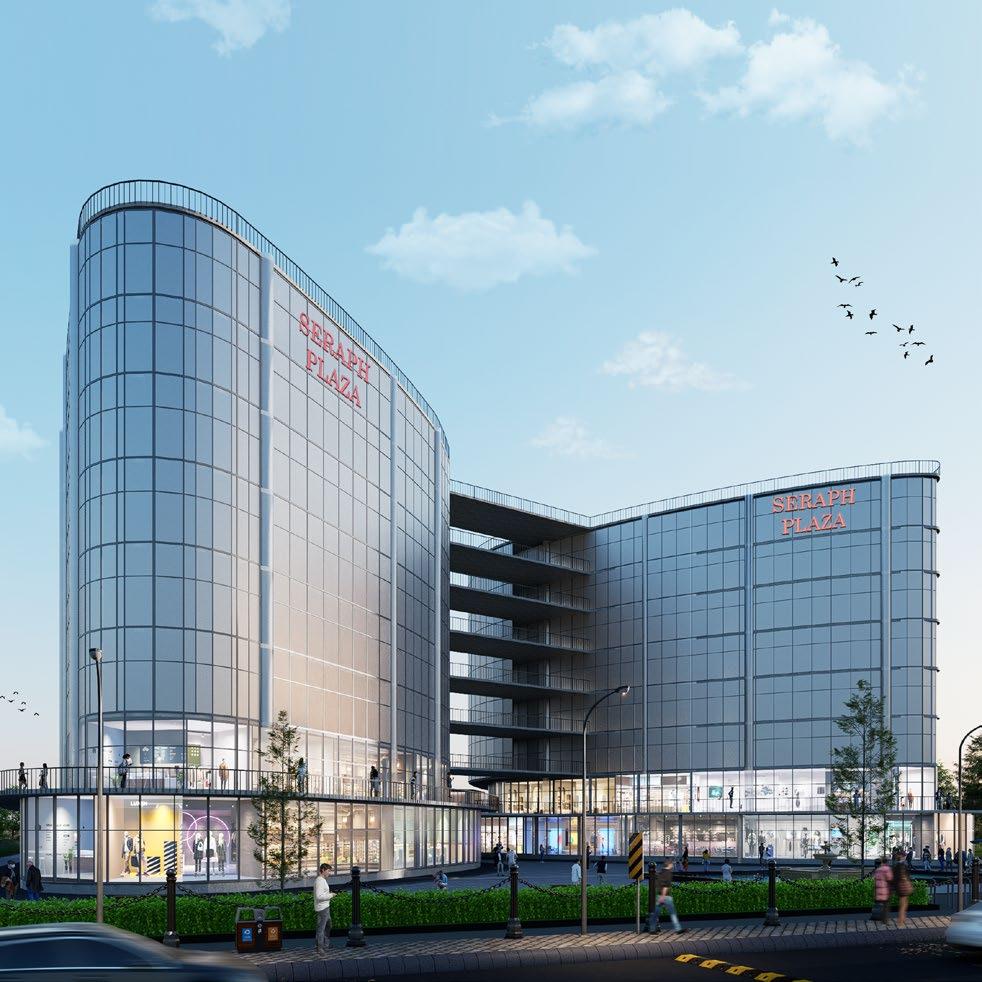

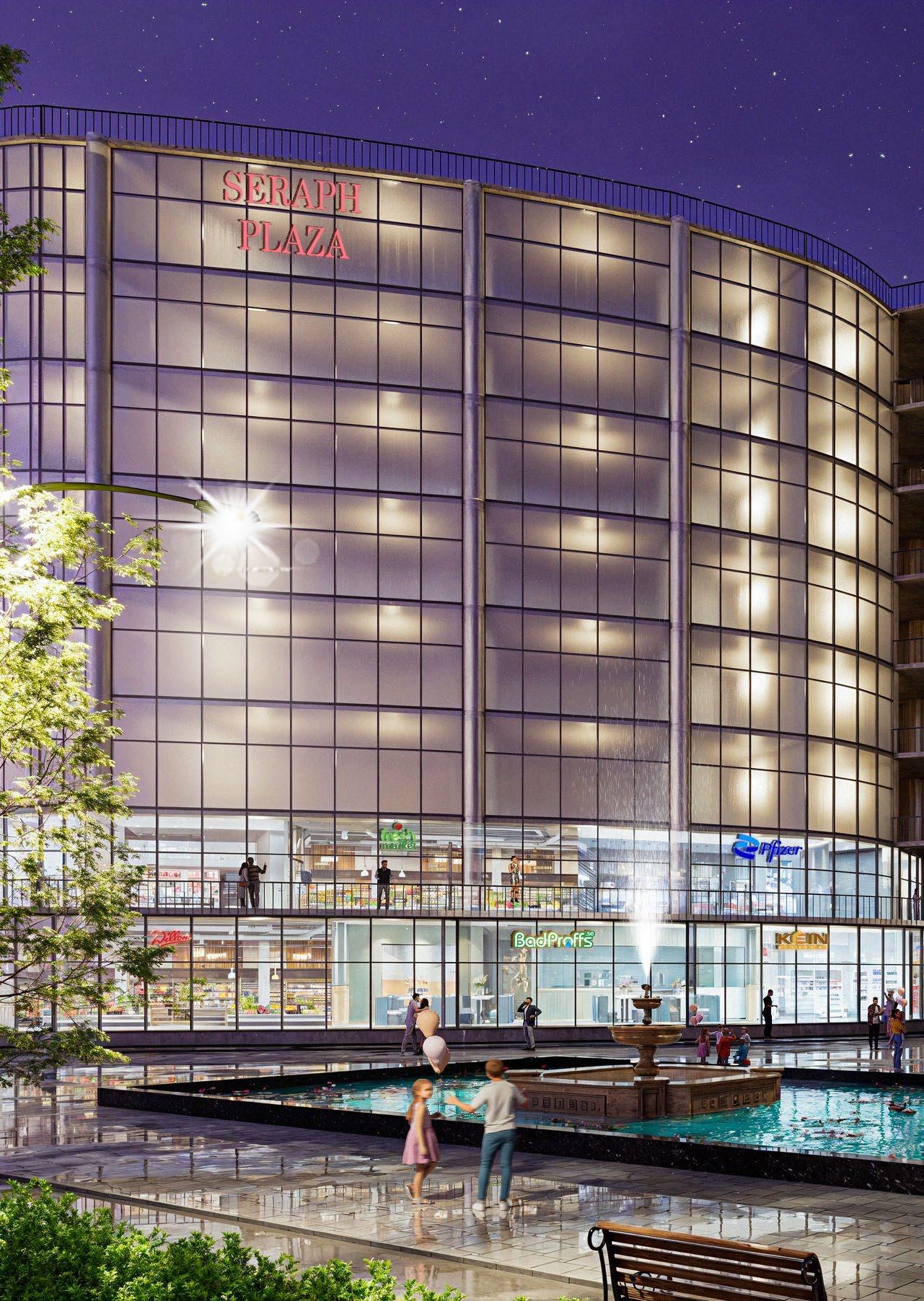

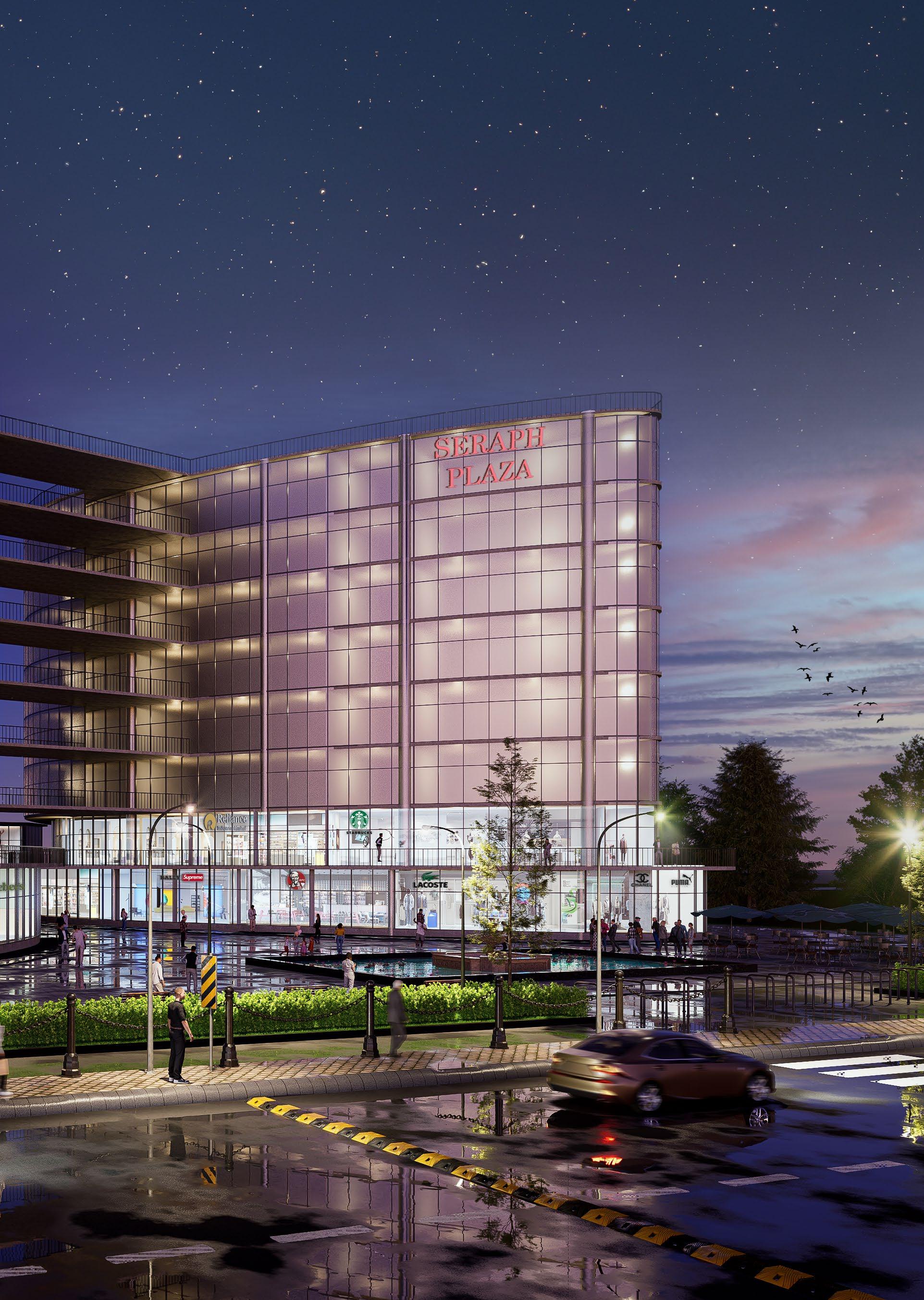

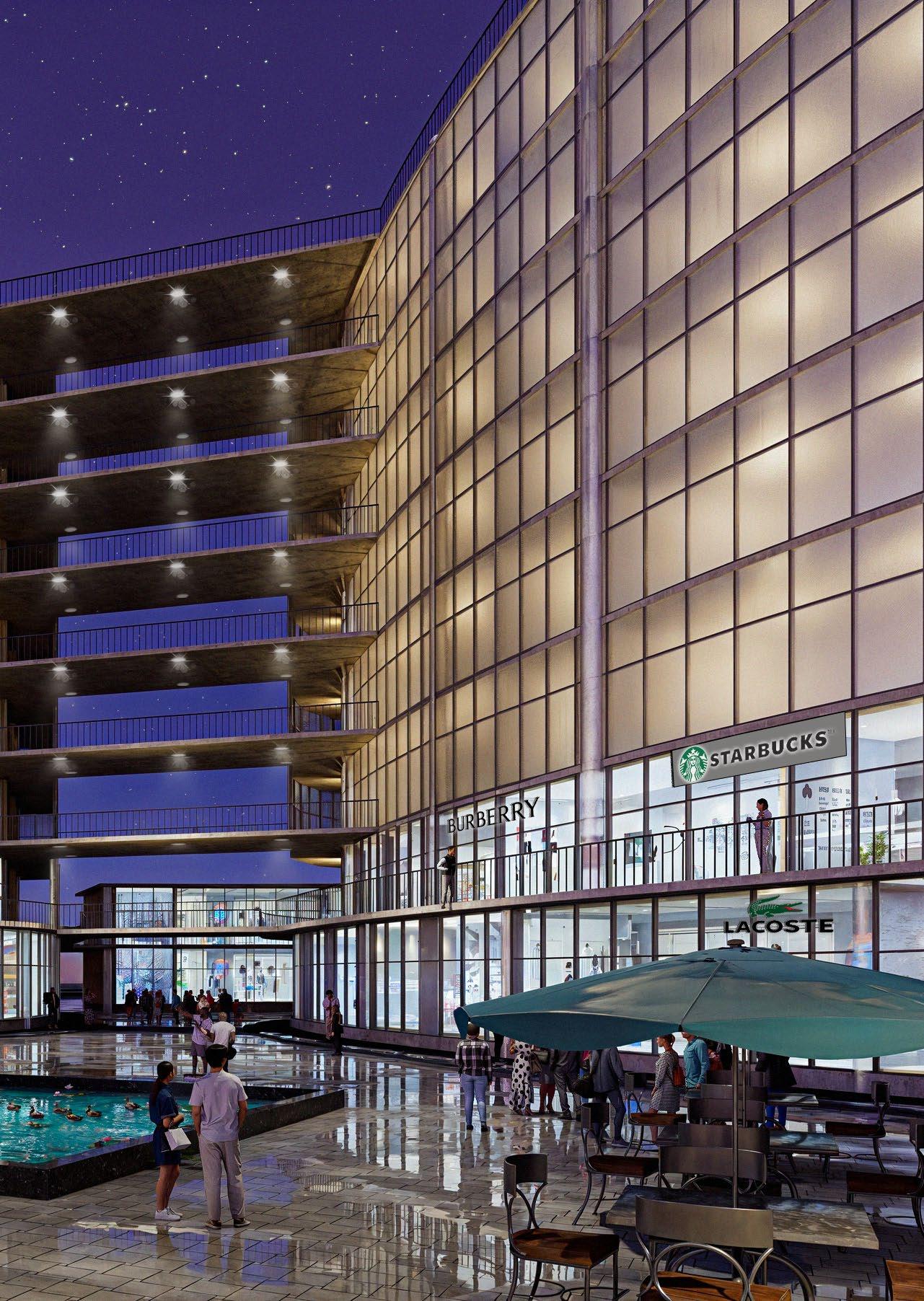

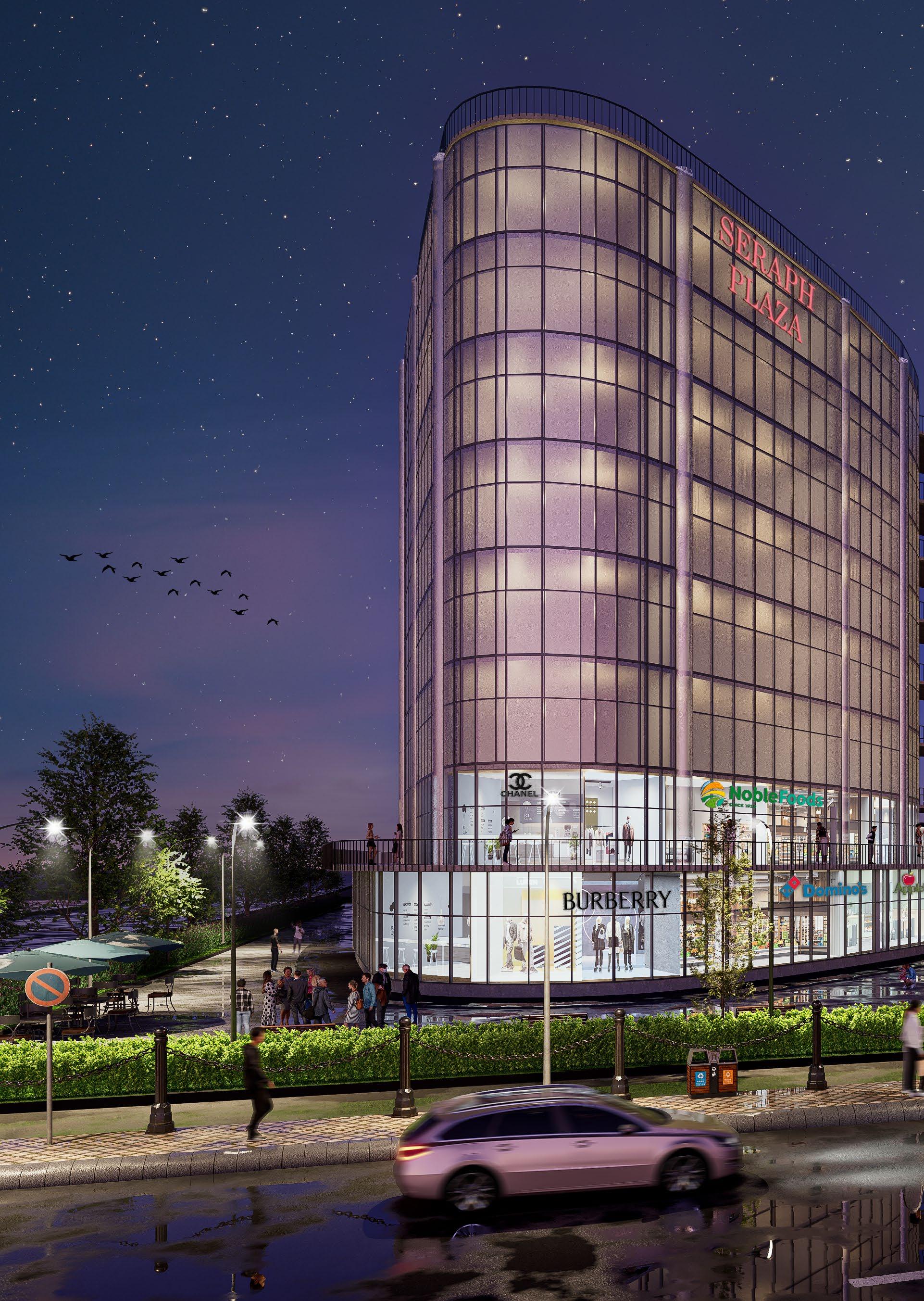

Seraph Plaza Shop cum Office Complex Bhopal, Madhya Pradesh

Year : April 2024 Keywords : Shopping Center, Office space, Contemporary Team : Individual Softwares : Autocad, Revit, SketchUp, D5 Render, Photoshop Seraph Plaza is a modern, high-end shop cum office complex that aims to blend sophistication with functionality. The design and name are inspired by the ethereal beauty of butterflies and celestial seraphs, symbolizing transformation, lightness, and upward movement. The project is set to become a landmark in Bhopal, providing an inviting, dynamic space for businesses, retail, and corporate professionals. The plaza will serve as a hub for businesses seeking an inspiring and elegant environment, encouraging creativity, innovation, and progress. Just as a butterfly gracefully navigates through the air, Seraph Plaza will foster seamless business interactions, creating a space where companies and entrepreneurs can thrive.

16

Seraph Plaza

17

Seraph plaza

18

Seraph Plaza

19

Seraph plaza

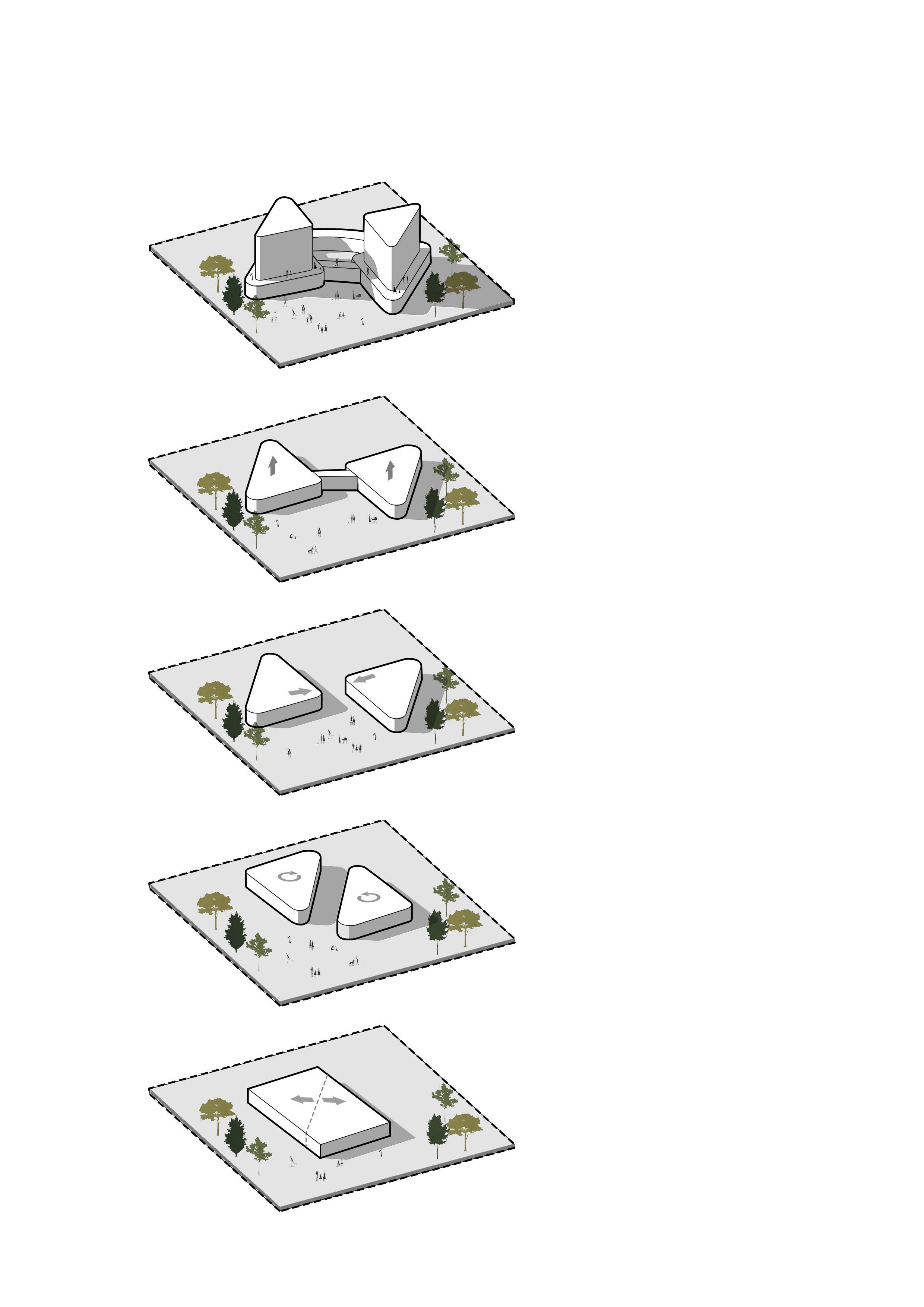

Concept Developement

5. Built Office floor built above shops for hub of corporate professinals and business meetings.

4. Bridge Strategically connected steel bridges to both blocks, to maximize the connectivity.

3. Rotate Better exposure of shops and facades to visitors, to explore every available shops.

2. Divide Block divided into 2 parts to increase the circulation and manage services much better.

1. Block Starting with the layout of site, centrally placed block to manage the circulation.

20

Seraph Plaza

Ground Floor Plan

Office Floor Plan 21

Seraph plaza

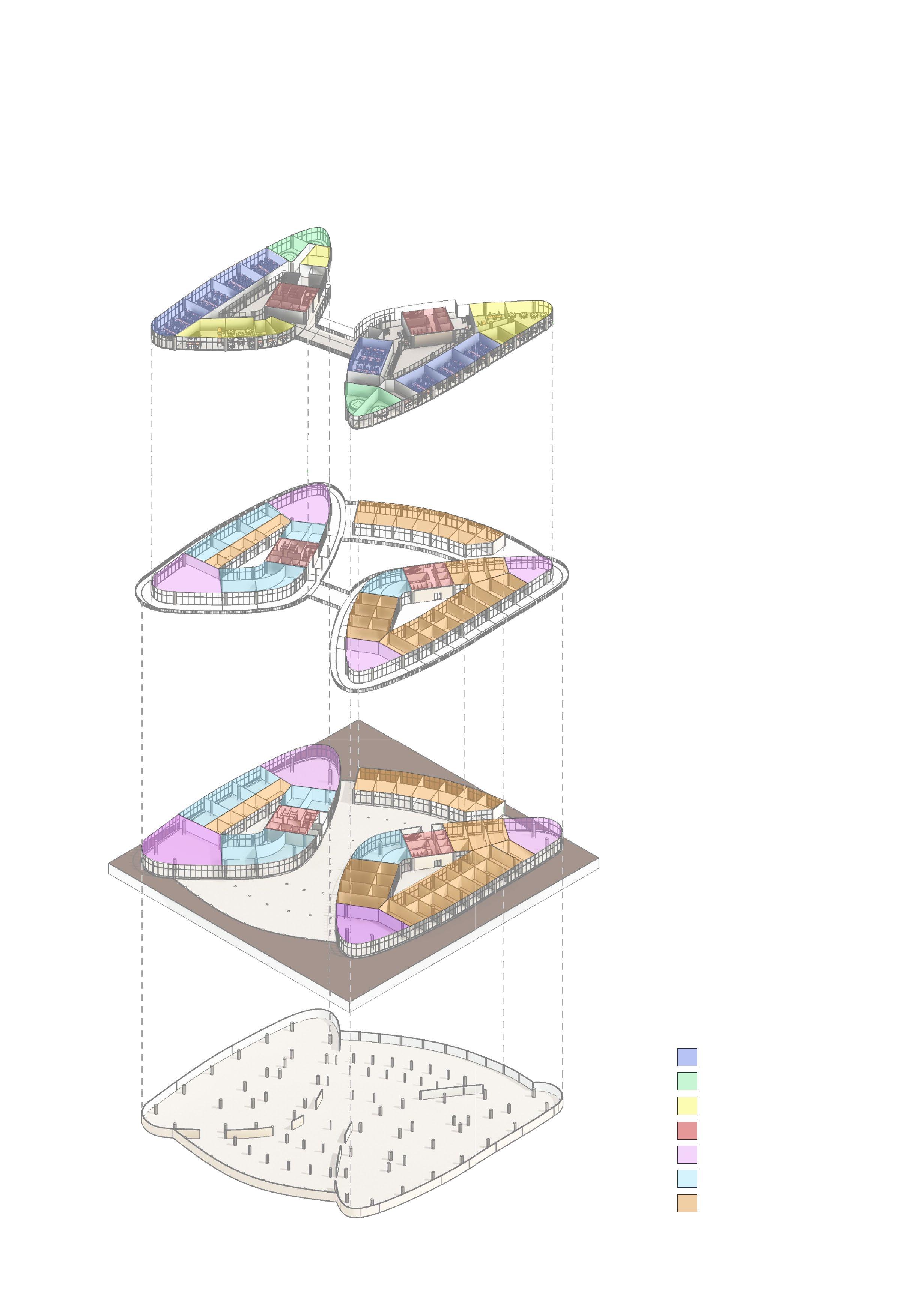

Exploded View

X6 Second Floor

First Floor

Same number of shops provided on 1st floor, additionally 2.5m wide cantilever projected for circulation around.

Ground Floor

Ground floor designated for shopping purposes. 3 different size of shops anchor, speciality and retail provided.

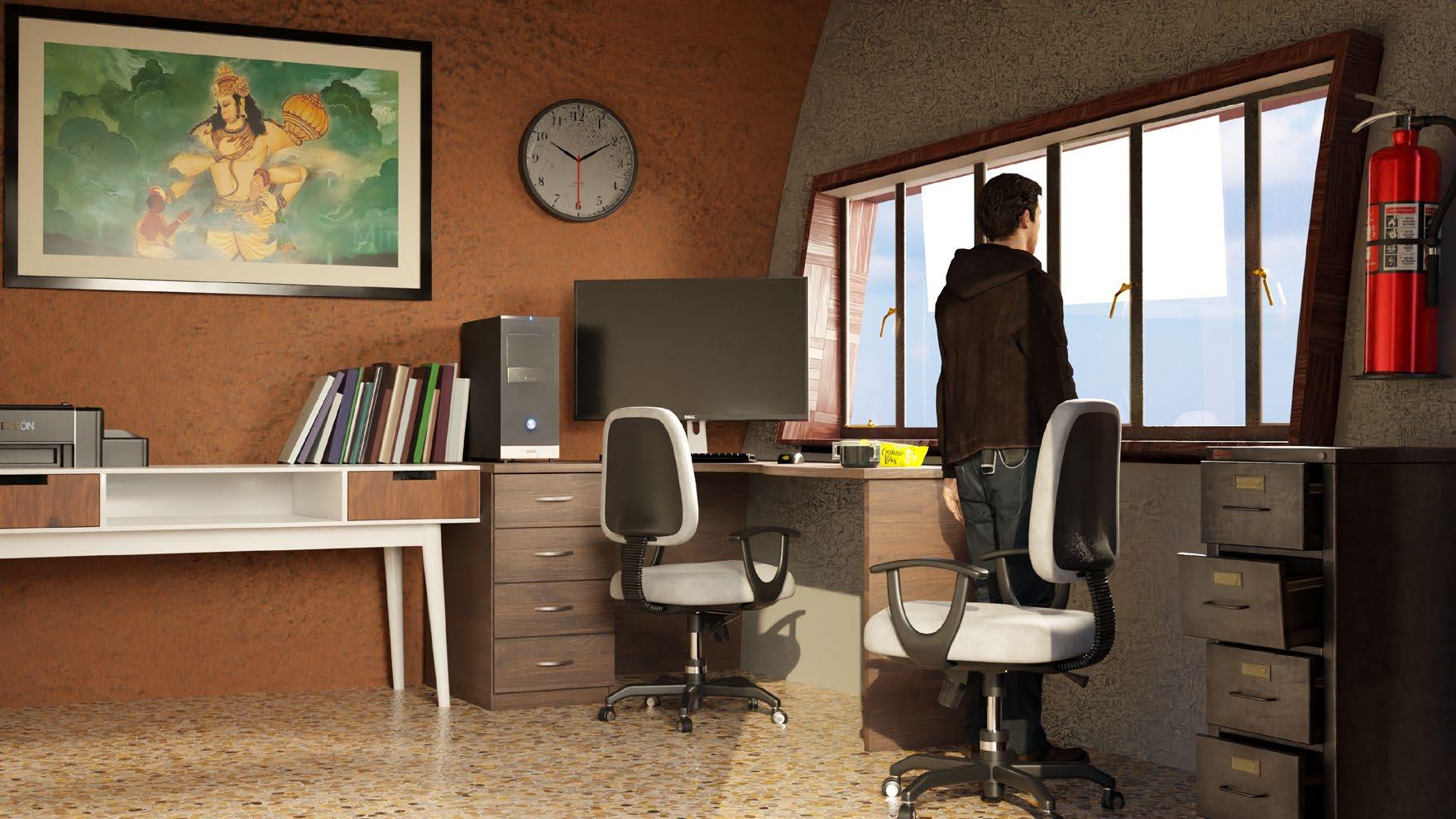

Working Office Meeting Room

Basement Floor

X2

22vv

Spaces like Working area, Administrartive offices, Meeting Rooms, Dinning Areas, Staff Room, Waiting area placed hiercharcial order according to circulation.

Admin Room Service Core Anchor Shop Speciality Shop Retail Shop

Seraph Plaza

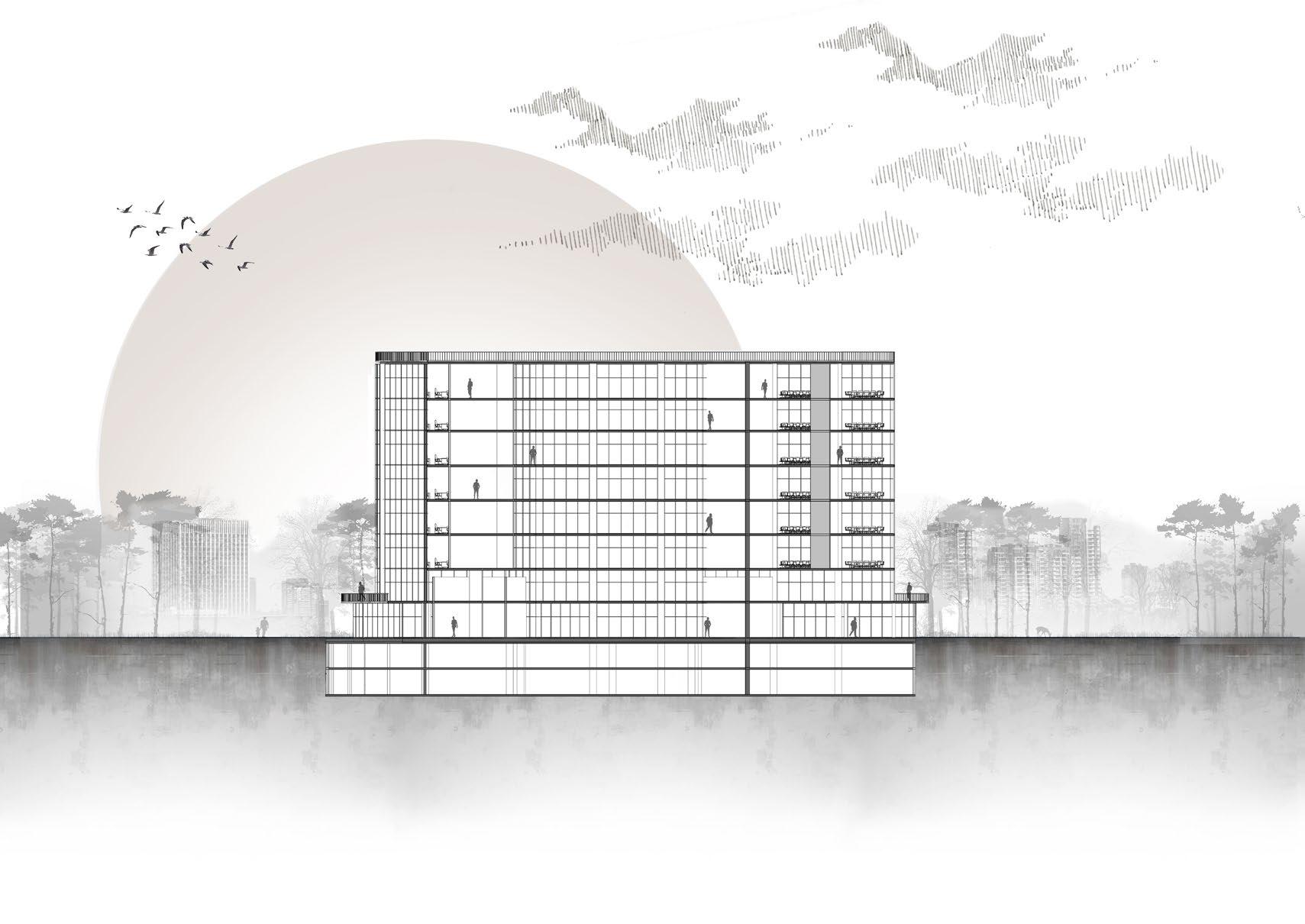

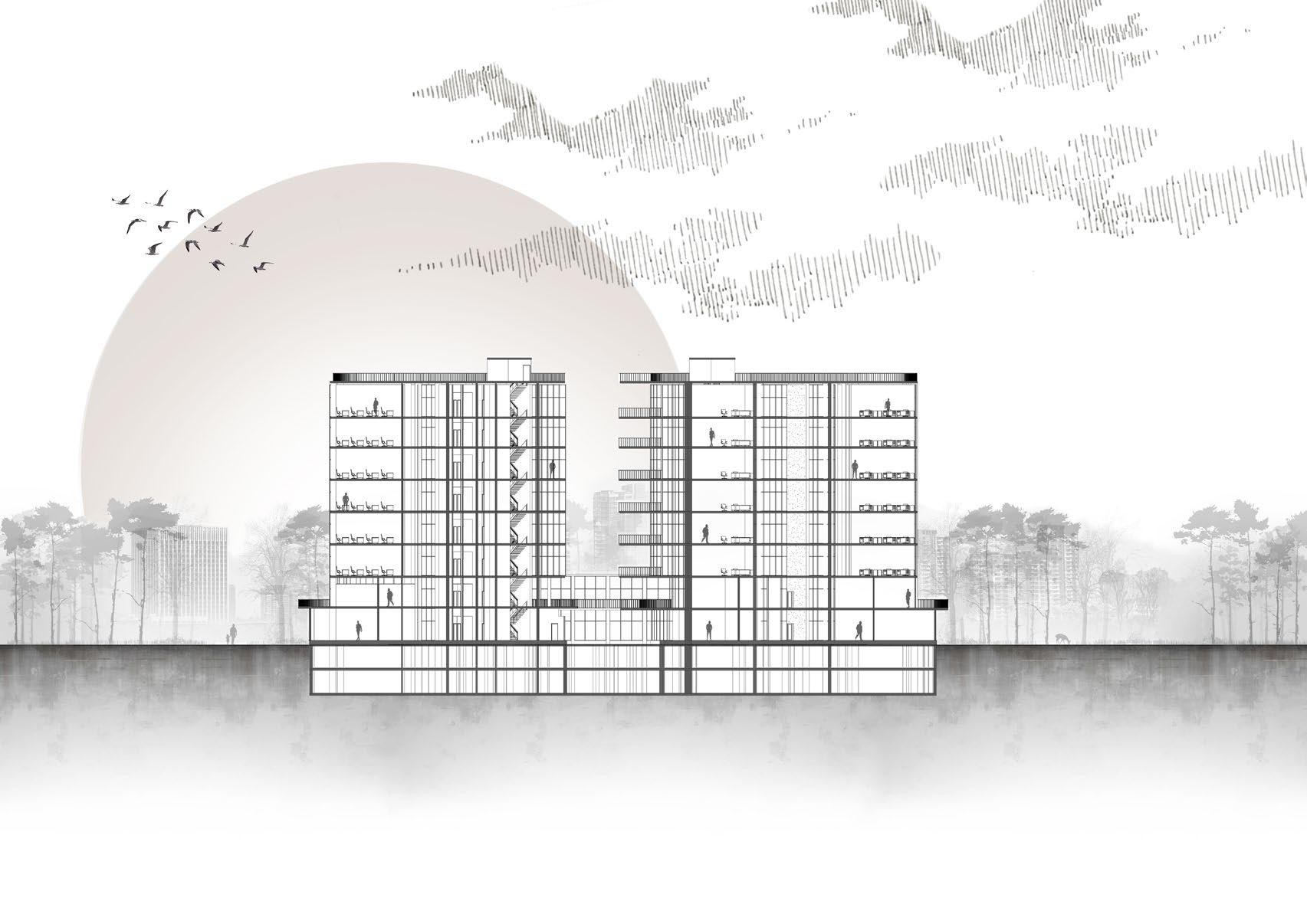

Section A-A’

Section C-C’

23vv

Seraph plaza

24

Seraph Plaza

25

IISER Gate

03

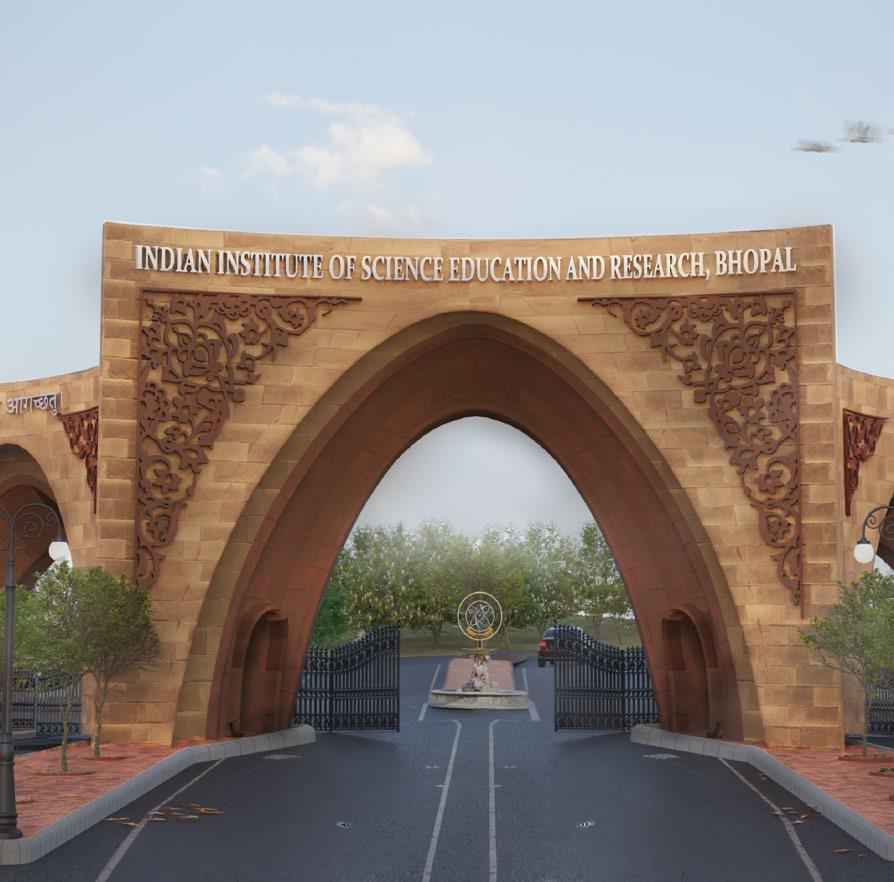

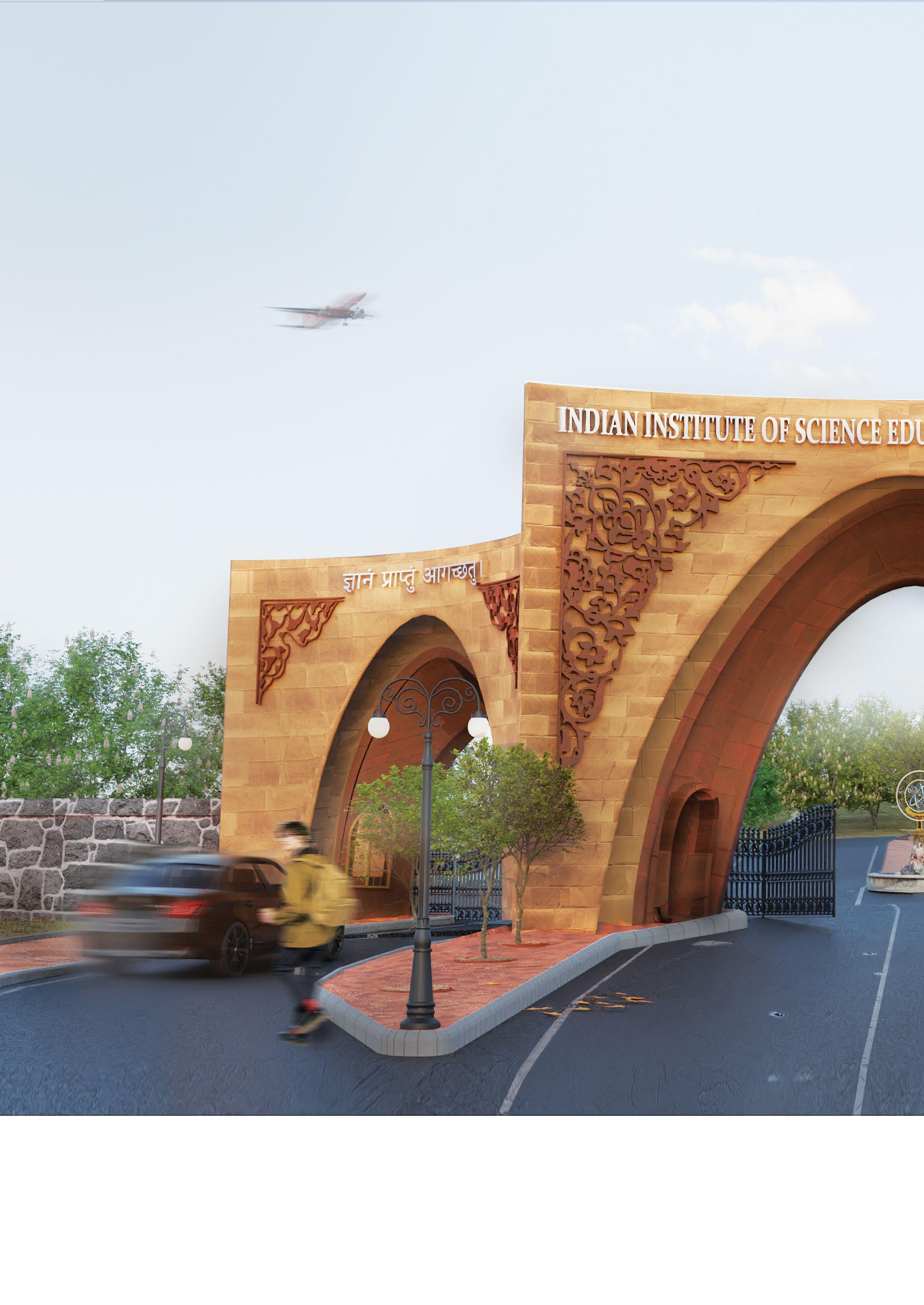

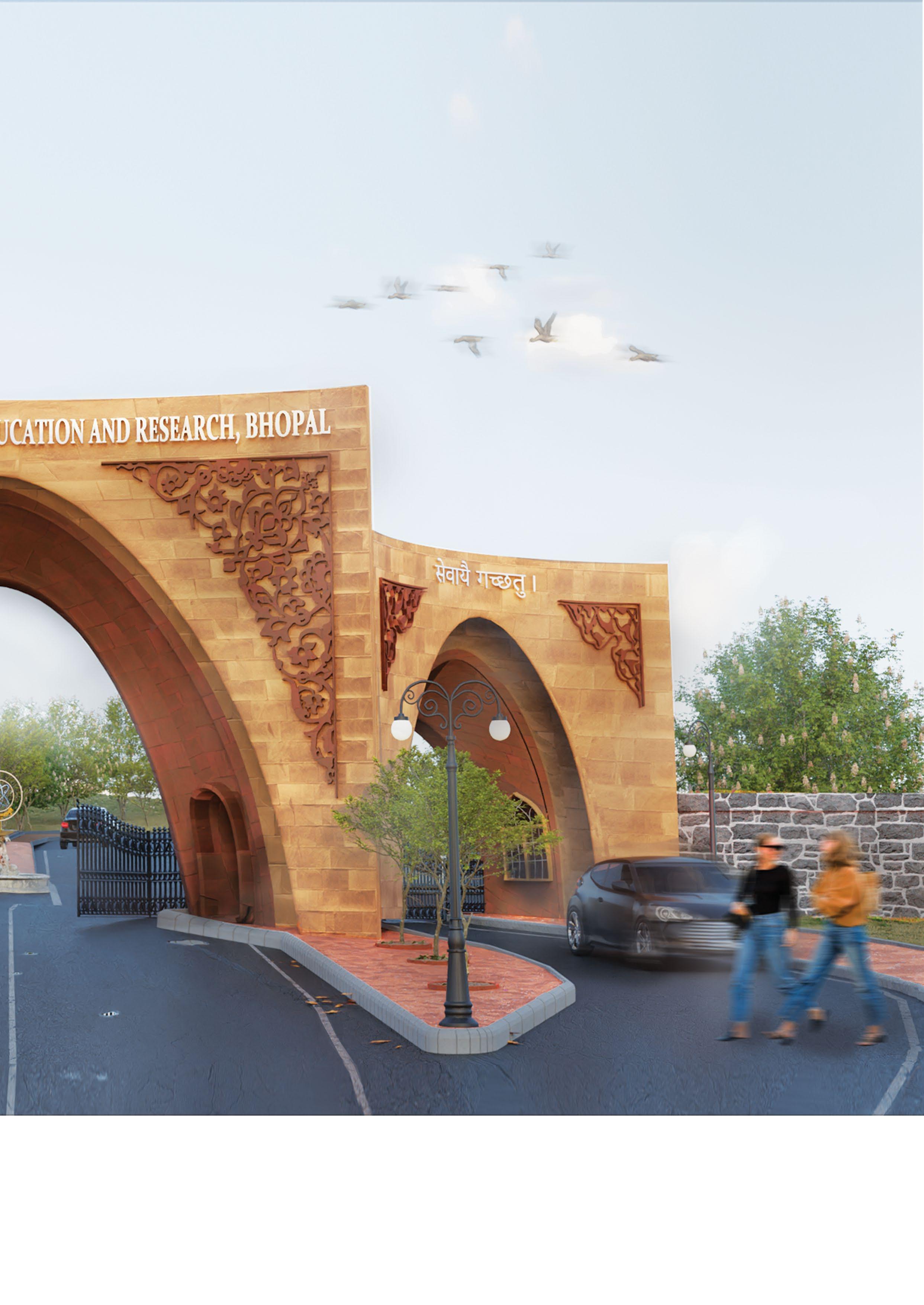

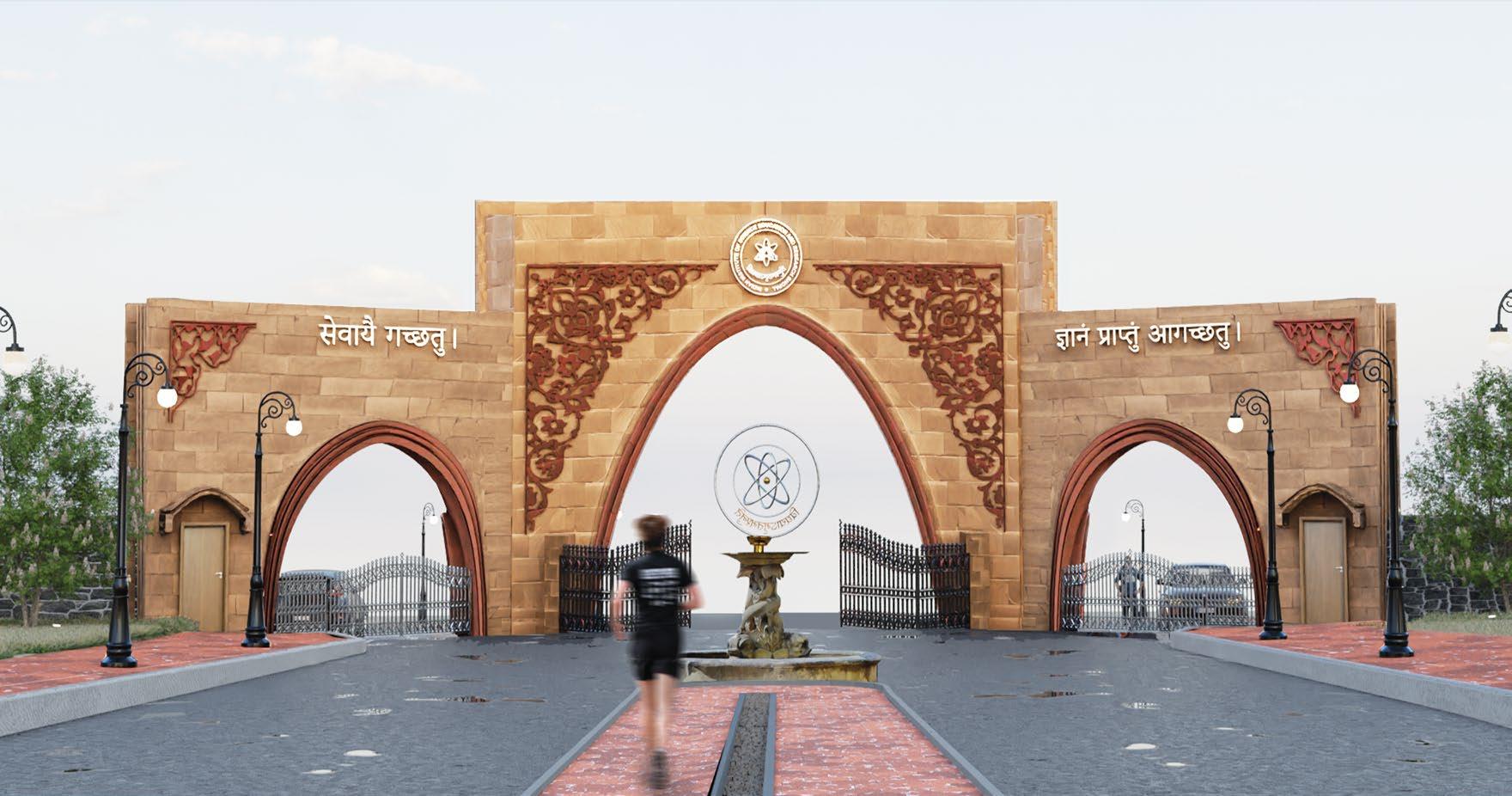

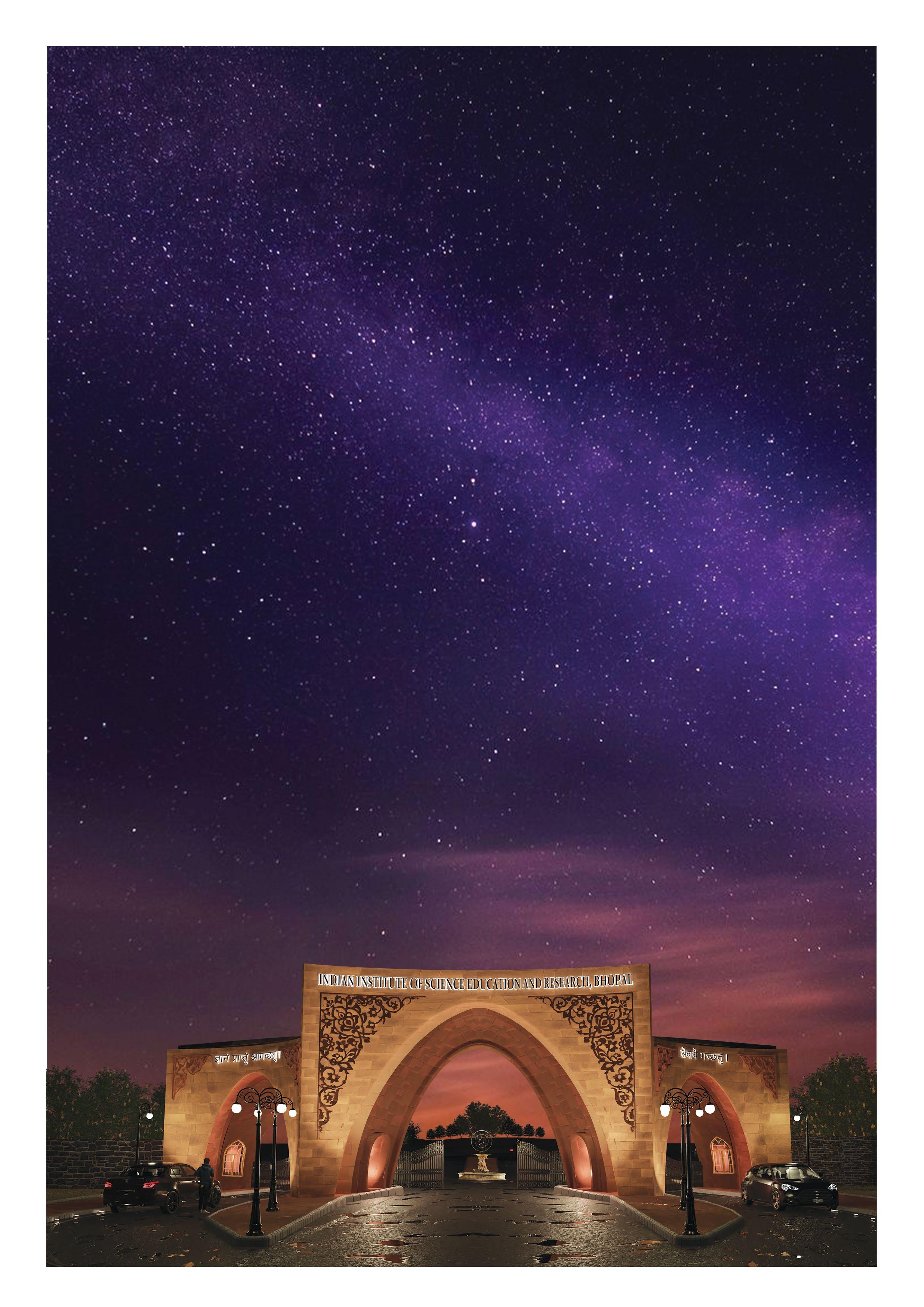

IISER GATE DESIGN Gate Design Bhopal, Madhya Pradesh

Year : Sept 2024 Keywords : Historic Relevence, Aesthetic, Grandeur, Reverse Catenary Arch Team : Group of 3 Softwares : Autocad, Blender, D5 Render, Photoshop The gate design for IISER Bhopal features three distinct pathways: one for entry, one for exit, and a ceremonial entrance that converge to manage circulation efficiently. To highlight the importance of the ceremonial entrance, we used scale to create a sense of grandeur, setting it apart from the entry and exit points. The design integrates traditional architectural elements to honor historical styles while adopting a minimalist approach to reflect the institute’s values of discipline and formality. The use of an inverted catenary arch in the design provides stability by converting vertical forces into compressive forces. We employed visual and spatial hierarchy techniques to emphasize the ceremonial entrance, directing attention to the centrally placed IISER logo. This design creates a focal point that inspires students by symbolizing focus and goal achievement. The overall structure combines shear walls and composite materials to ensure both durability and long-span stability.

26

IISER Gate

27

IISER Gate

We employed visual and spatial hierarchy techniques to emphasize the placed IISER logo. This design creates a focal point that inspires stu 28

IISER Gate

ceremonial entrance, directing attention to the centrally udents by symbolizing focus and goal achievement.

29

IISER Gate

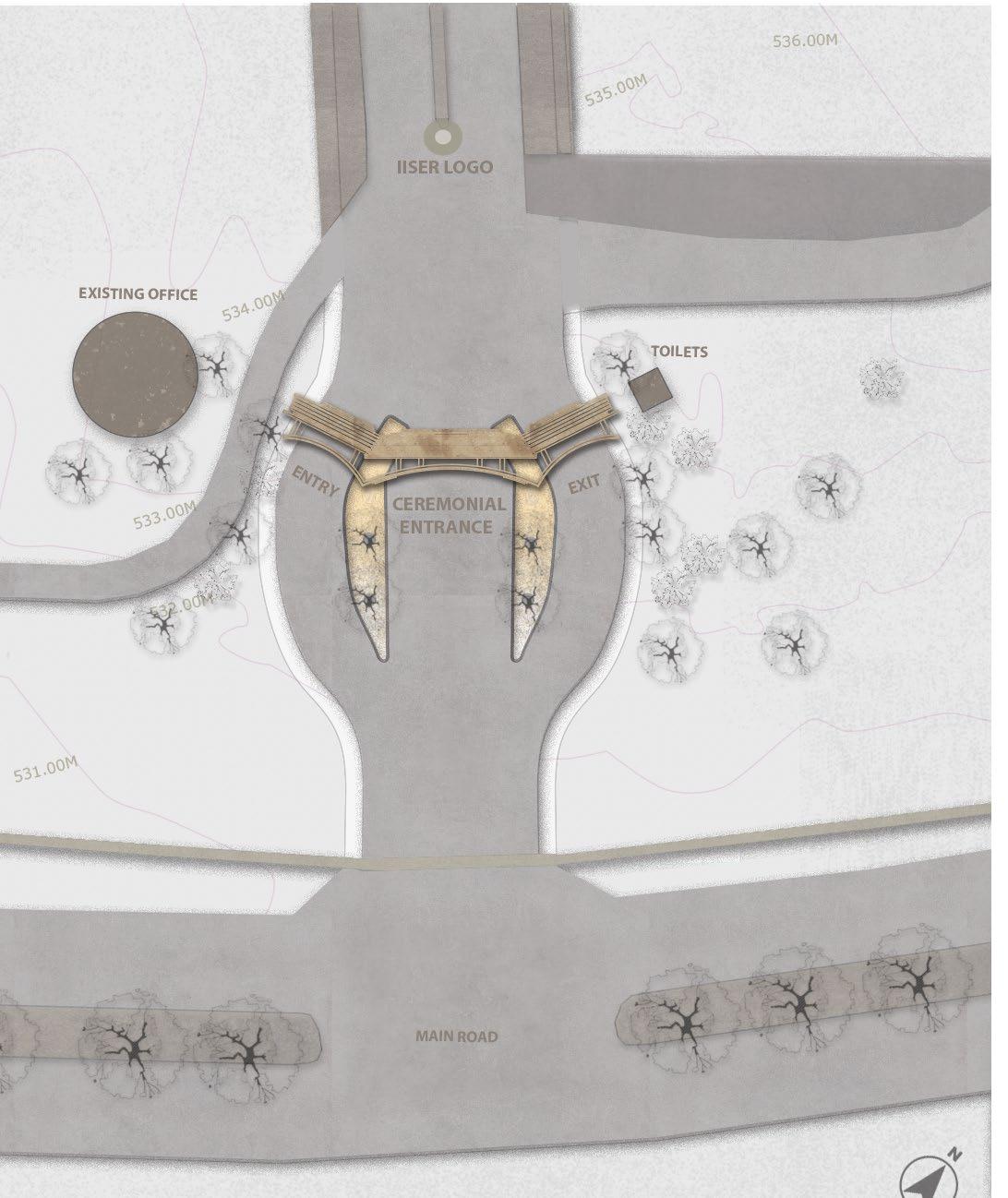

SITE PLAN

30

IISER Gate

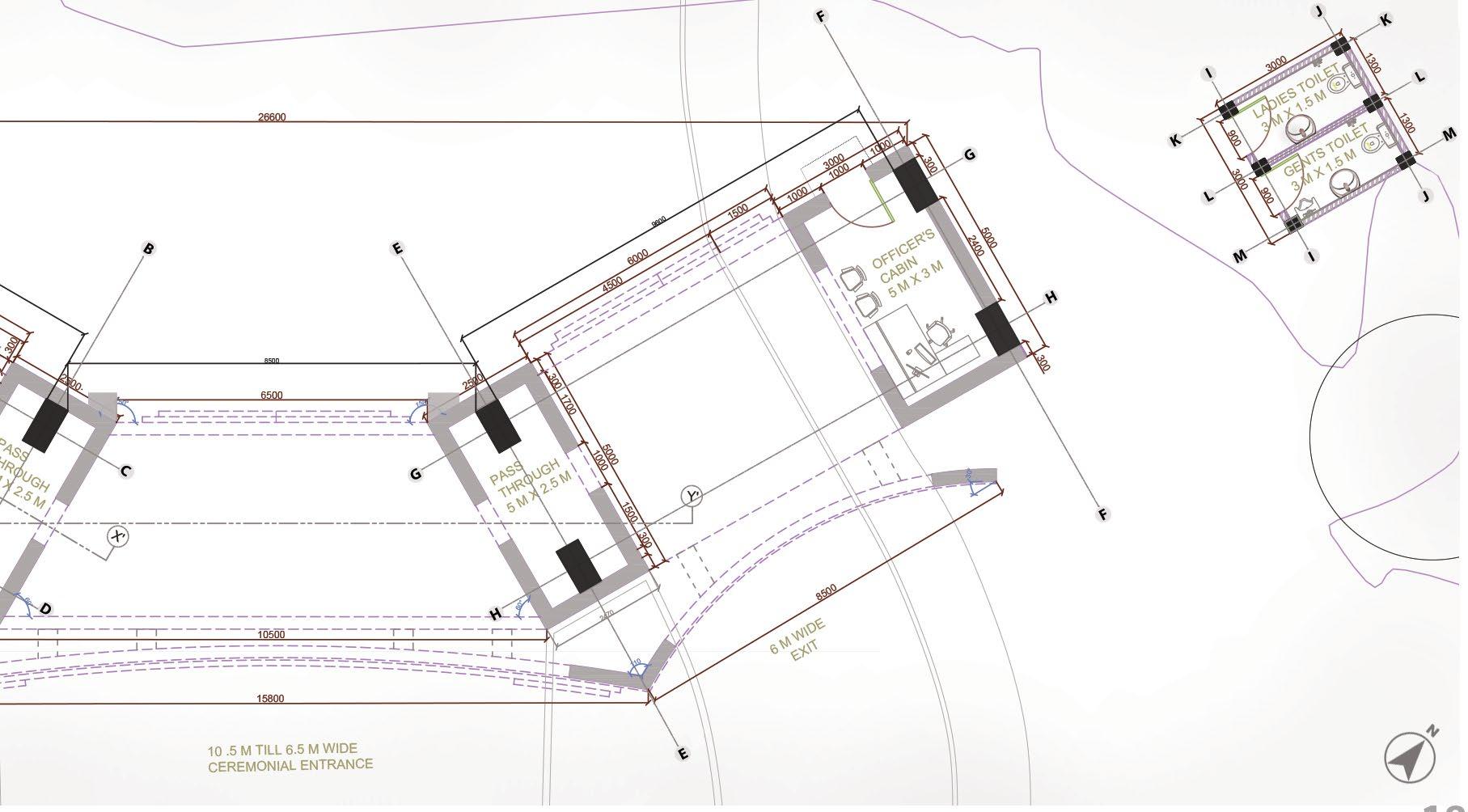

FLOOR PLAN

31

IISER Gate

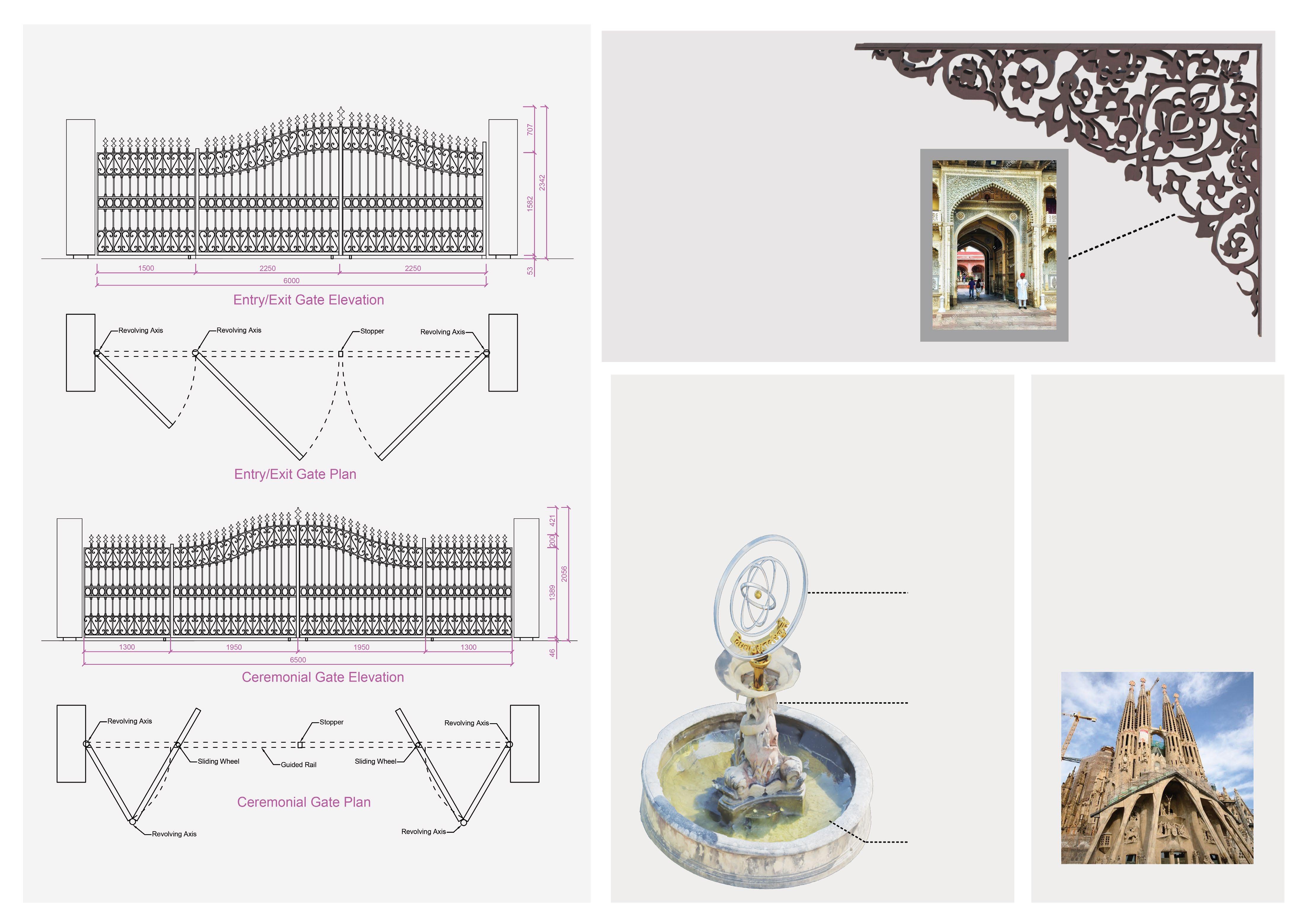

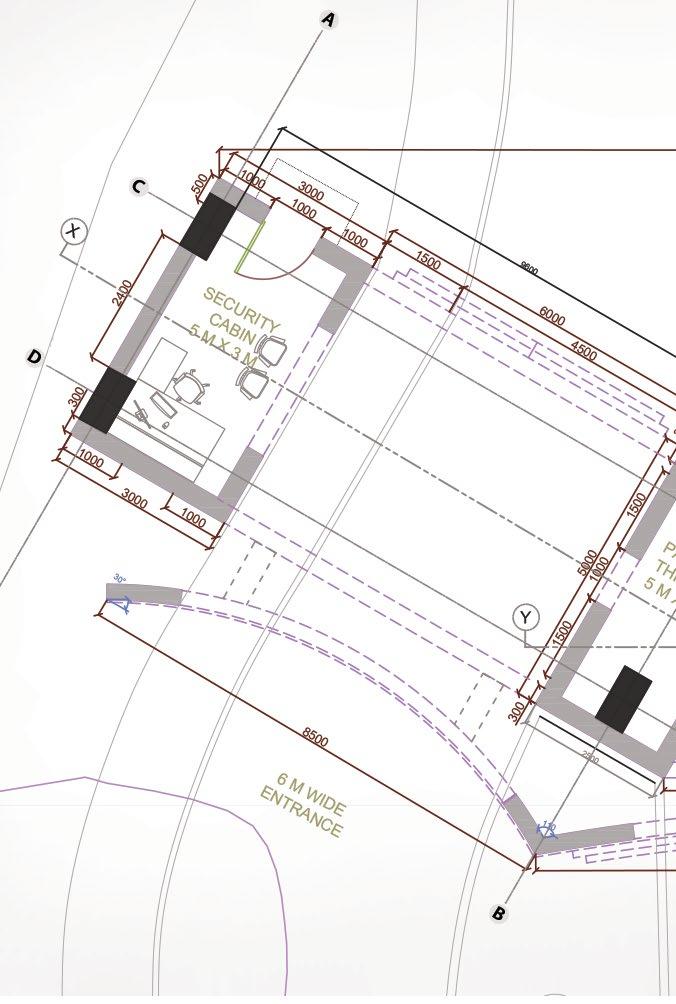

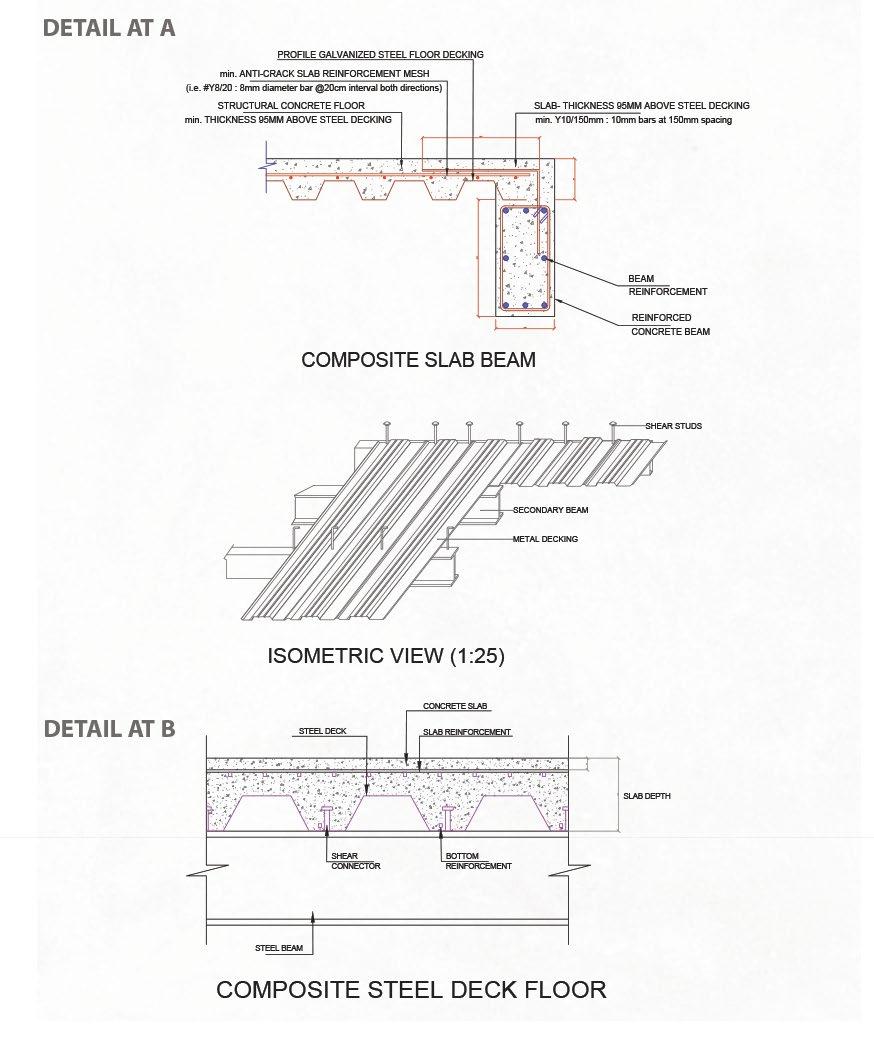

STEEL GATE DETAILS STEEL GATE DETAILS

RELE HISTO

The desig were tak significa Jaipur, c Historic for the r

It was us royal pro its impor Jaipur ro

The gate visitors, Jaipur's p

IISE

THE LO WHICH AND TH THE CO TANK F

32

IISER Gate

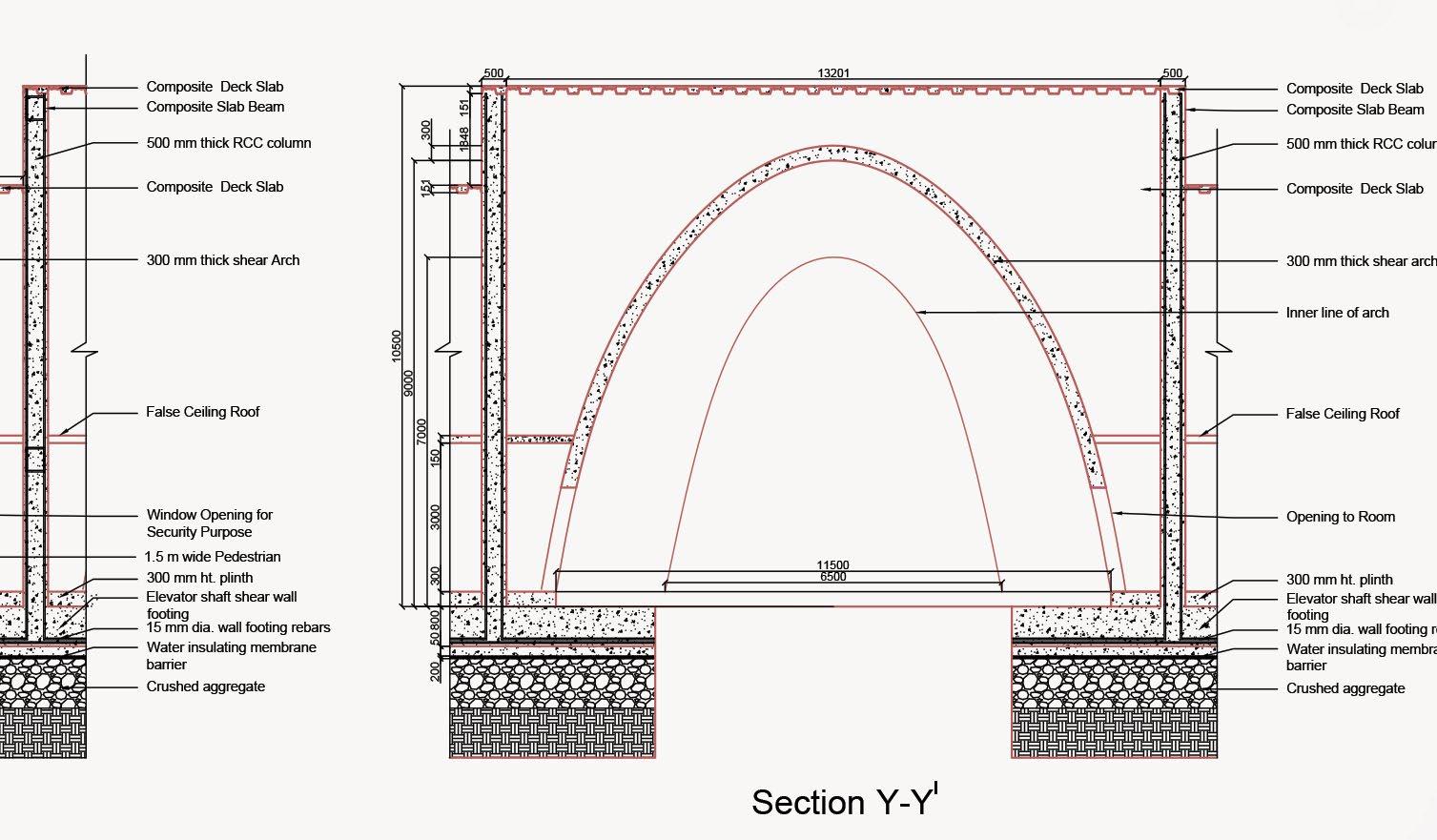

The gate is amalgmation of cultural motifs and hstorical sandstone material along with the contemporary shear concrete and reverse catenary arch.

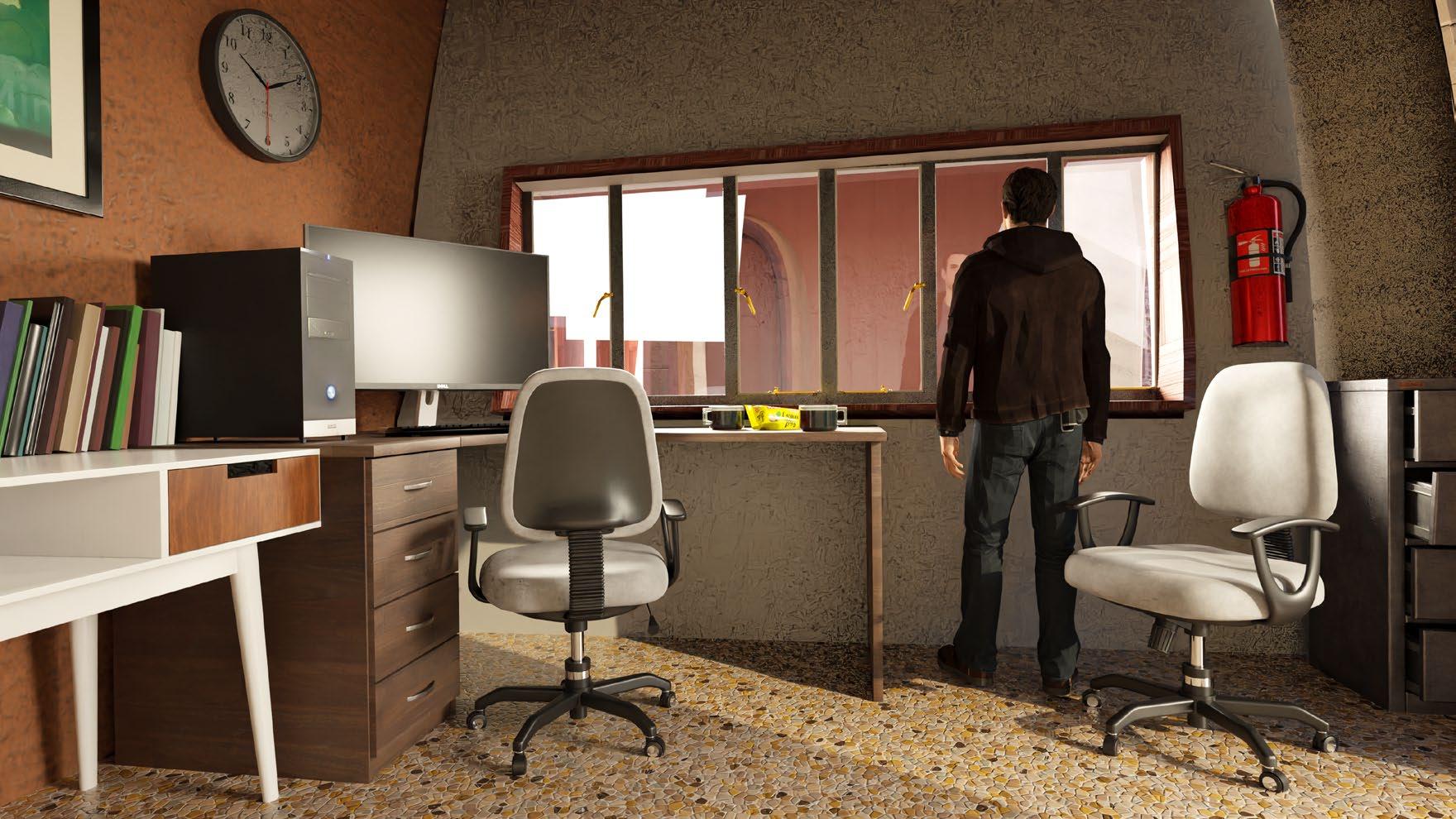

One rooms on each side provided for security guard and Officer’s cabin. The space is about 12 sq.m that is enough for 3-4 people and working space.

33

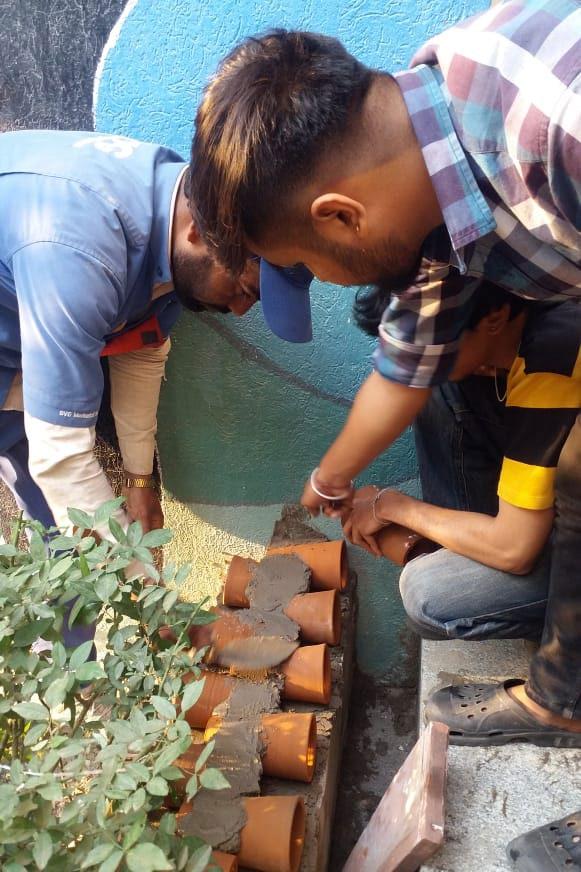

MISCELLANEOUS 1. Working Drawing 2. Portrait Sketch 3. Photography 4. Workshops

Working Drawing

WORKING DRAWING (TOILET DETAILS)

NOT 1.

A

B

5588

585

2397

2.

3.

4.

456

6.

695 650 50

URINAL

7.

3590 785

URINAL

50

230 482

244 2114

D1

115

600

D1

400

TOI

870 3125

MALE TOILET

PROJEC

898

50

700

URINAL

360

50 762

700

URINAL

DATE

50 MM ROUGH COTA STONE

50

19/04

750

URINAL

783

345

230

972

580

D2

BA

2229

244

381

2300

10 MM TILE DROP

1500 X 1000 W.C

494

WO

SHEET T

481

D2

644

76 MM DIA. WASTE WATER PIPE

E'

404

100 MM THICK WALL FINISHED IN PLASTER 10 MM TILE DROP

1500 X 1000

100 MM DIA. SOLID WASTE DOWNTAKE PIPE

REV S.NO

GRANITE ON WASHBASIN COUNTER TOP

244

471

900 1704

900

D2

644

494

596

FEMALE TOILET

872 870

10 MM TILE DROP

1500 X 1000

SPECIFICATIONS

928

2879

129

482

D2

652

W.C

W.B

W.B

928

GRANITE ON WASHBASIN COUNTER TOP

10 MM TILE DROP

1500 X 1000 W.C

494

D'

URINAL

1100

W.B

427

655

494

URINAL

894

D2

W.C

494

307

597

W.B

550

10 MM TILE DROP

1500 X 1000

870

655

76 MM DIA. WASTE WATER DOWNTAKE PIPE

643

447

597 50

1282

GRANITE ON WASHBASIN COUNTER TOP

W.B

D1

100 MM DIA. SOIL PIPE LINE

1907 910

550

700

MALE TOILET

1153

411 871

871 of 1037 This drawing is copyright and property 'CONSULTANT' and is not to be reproduced, copied or used for any other purpose.

D All dimensions shall be checked on the prior to commencement of work.

Written dimensions shall be followed.

Any change required shall be confirmed from the architect prior to commencement of work.

This drawing shall be read in conjunction with other pertinent drawings.

If there is any discrepancy, it shall be referred to the architect for clarification.

All dimensions are in millimeter.

E

SYMBOL

703

794 100 MM THICK WALL FINISHED IN PLASTER

2230

655

3590

546

1615 871

244

482

7.

10 MM TILE DROP

871

5.

C' URINAL

650 50

2194 324 870

10 MM TILE DROP

471

6.

D2

D2

129

1500 X 1000

50 MM ROUGH KOTA STONE

1500 X 1000

10 MM TILE DROP

D2

5699

5.

545

061

3.

4.

154 553 1500 X 1000

D1

1254

2.

500

129

870

1205 603

3918

1.

W.C W.C

112 512

655

FEMALE TOILET

925

NOTES

1500 X 1000

10 MM TILE DROP

351

611

556

W.B

D2

545

925

C

GRANITE ON WASHBASIN COUNTER TOP

321

602

346

MAT FINISHED VITRIFIED TILE ( AS PER SELECTION)

15 MM DIA. COLD WATER SUPPLY LINE 25 MM DIA. GI COLD WATER SUPPLY LINE

5658

25 MM DIA RECYCLED WATER LINE

DES

B'

A'

50 MM DIA. GI RECYCLED WATER LINE

DRA

CHE

DETAILED TOILET PLAN REVISION : S.NO DATE

SHE

SCHO ARC

DESCRIPTION

600

EXHAUST FAN

PAINT FINISH

PAINT FINISH

PAINT FINISH

12 MM THK PLASTER LINE

12 MM THK PLASTER LINE 100 THK BRICK WALL @ 2400 MM THK 3000

100 THK BRICK WALL @ 2400 MM THK

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

300 MM SUNK

100 MM THK SOIL PIPE WITH 1 CM FALL FOR EVERY 40 CM

19/04/2024

SCALE - 1:25 600

DESIGNED BY

NITISH KUMAR SINGH 000

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION MIRROR PASTED ON BWP CHECKED BY

SECTION AA'

12 MM THK PLASTER LINE

PAINT FINISH

NITISH KUMAR SINGH

12 MM THK PLASTER LINE

36 DRAWN BY

COUNTER THICK RO

300 MM THICK SLAB

SIGN

EXHAUST FAN

W.C AS/ SELECTION

300 MM SUNK

300 MM THICK SLAB

DATE

URINA

850 767 430 248

848 430

242 772

848 430

242 772

430

848 242 772

BANK

430

PROJECT TITLE

430

W.C AS/ SELECTION

242 772

242 772

848

WATER SUPPLY & SANITATION

848

SHEETJET TITLE SPRAY AS/ SELECTION

Ar. SANJEEV SINGH

PAINT FINISH

MIRRO PLY B

300 X 300 TILE AS/ S

1981

2400

WORKING DRAWING II

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

12 MM T

PAINT FINISH 100 THK BRICK WALL @ 3000 MM THK

300 X 300 GLAZED VITRIFIED

@ 2400 MM THK 3000

@ 2400 MM THK

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

Working Drawing

1981

2400

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

850 767 430 248

848 430

242 772

848 430

242 772

848 430

242 772

848 430

242 772

W.C AS/ SELECTION

430

242 772

848

SPRAY JET AS/ SELECTION

300 MM SUNK

100 MM THK SOIL PIPE WITH 1 CM FALL FOR EVERY 40 CM

W.C AS/ SELECTION

300 MM SUNK

300 MM THICK SLAB

300 MM THICK SLAB

SECTION AA'

REVISION S.NO

12 MM THK PLASTER LINE 600

EXHAUST FAN

PAINT FINISH

PAINT FINISH

PAINT FINISH

12 MM THK PLASTER LINE 100 THK BRICK WALL @ 3000 MM THK

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION 3000

MIRROR PASTED ON BWP PLY BACKING

WORK SHEET TITLE

COUNTER TOP WITH 20 MM THICK ROUGH GRANITE TOP

1981

300 MM SUNK

300 MM SUNK

300 MM THICK SLAB

300 MM THICK SLAB

BANK

URINAL AS/ SELECTION

600

850

1412

300 MM THICK SLAB

TOILET

PROJECT TITLE

1412 600

1412 600

1412 600

600

50 MM THK ROUGH KOTA STONE PARTITION

600

1412

URINAL JET AS/ SELECTION

1412

1981

2400

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

DATE

DOOR AS/ SELECTION

19/04/202

100 MM THK SOIL PIPEWITH 1 CM FALL FOR EVERY 40 CM

SECTION BB'

DESIGNE

N

DRAWN1B

CHECKED

SHEET N 2

SCHOOL3 ARCHITE4 12 MM THK PLASTER LINE

600

EXHAUST FAN

5

PAINT FINISH

12 MM THK PLASTER LINE

3000

300 MM THICK SLAB

76 MM THK WASTE PIPE WITH 1 CM FALL FOR EVERY 60 CM

W.C AS/ SELECTION

1412

100 MM THK SOIL PIPEWITH 1 CM FALL FOR EVERY 40 CM

300 MM SUNK

COUNTER TOP WITH 20 MM THICK ROUGH GRANITE TOP

URINAL AS/ SELECTION

600

848 430

848 430

242 772

850 767 430 248

850

COUNTER TOP WITH 20 MM THICK ROUGH GRANITE TOP

242 772

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

7

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

2400

MIRROR PASTED ON BWP PLY BACKING

6

100 THK BRICK WALL @ 2400 MM THK

100 THK BRICK WALL @ 2400 MM THK

300 MM THICK SLAB

SECTION CC'

600

R S

PAINT FINISH

603

PAINT FINISH

12 MM THK PLASTER LINE EXHAUST FAN

THK PLASTER LINE

R TOP WITH 20 MM OUGH GRANITE TOP

1357

T

300 X 300 GLAZED VITRIFIED TILE AS/ SELECTION

300 MM SUNK 300 MM THICK SLAB

SECTION DD'

850

COUNTER TOP WITH 20 MM THICK ROUGH GRANITE TOP

246 430 767

850

1023

2397

3000

1354

3000

1412

AL AS/ SELECTION

600

GLAZED VITRIFIED SELECTION

W

SH

2400

OR PASTED ON BWP BACKING

MIRROR PASTED ON BWP PLY BACKING

300 MM SUNK 300 MM THICK SLAB

PR

B

DA

1

COUNTER TOP WITH 20 MM THICK ROUGH GRANITE TOP

D

SECTION EE'

D

C

S

37

S A

Portraits

M.S. Dhoni

P O R T R A I T S Rowan Atkinson as Mr. Bean 38

Portraits

The Old Man

Annahita

Virat Kohli

Smiling Girl 39

Photography

In Frame Humanyun’s Tomb

Ruins of Buddha a

P H O T O G R A P H Y Sunset, Upper Lake

40

Jal Mahal,

at Sanchi Stupa

, Jaipur

Photography

Reflection of Humanyun’s Tomb

Perspective, SPA Bhopal

Shadow, Hanuman Tekri

Light, deepawali

41

Portraits

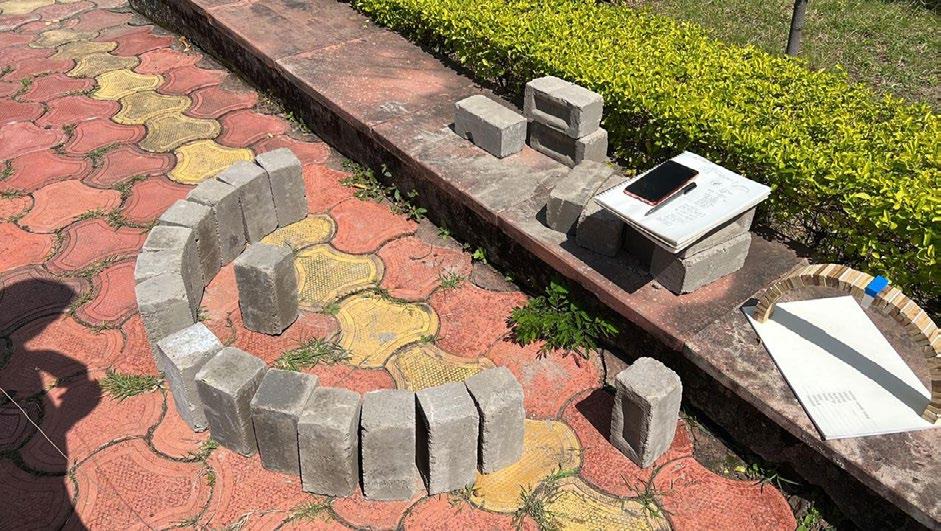

A R C H W O R K S H O P Arches, Domes & Vaults in Contemporary Times Studio Aagaur Organised on 24-25th September 2022, the workshop aimed at teaching young builders and designers on the basics of building arches using local building techniques guided by the local skilled masons.

The main aim of workshop was to understand the structure of the arch and its construction technique in the building. This workshop encouraged experimentation with innovative concepts, materials, and construction methods.

42

Workshops

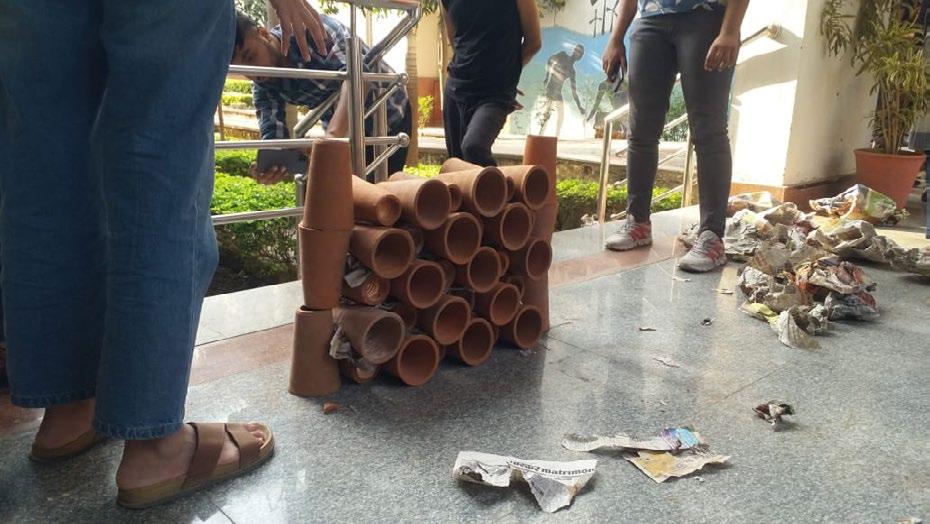

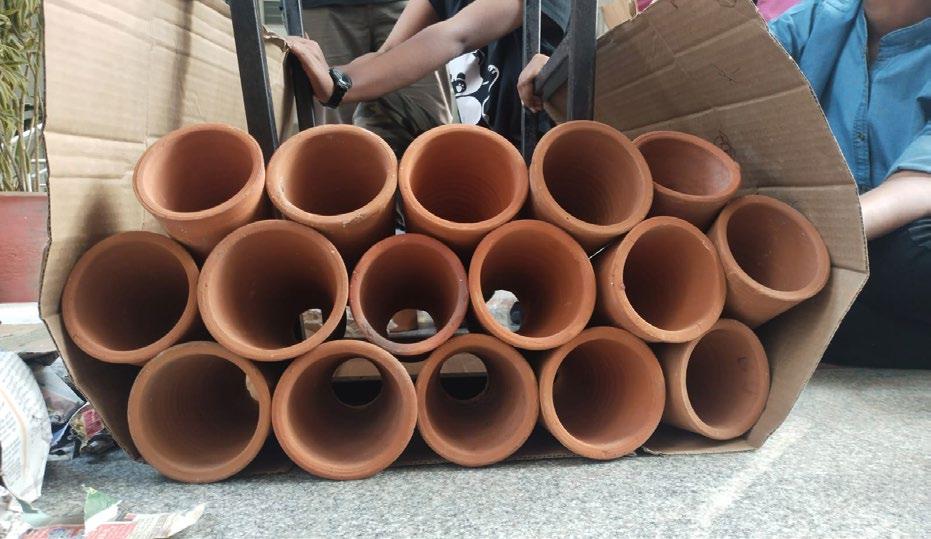

H O N E Y C O M B W A L L Honeycomb Wall Construction technique Studio Coolant Organised on 28th Februrary 2023, the workshop aimed at teaching young Architects on the basics of building Honeycomb wall using local terracotta pots guided by the local skilled masons.

The studio who organised the workshop aims to promote vernacular building materials and building construction techniques which has been passed on through generation can use this for a better sustainable future.

43

THANK

YOU

Nitish kumar Singh +91 6203185480 nitishkumar2162@gmail.com
