FRAMED FRAMES - PARTITIONING SYSTEM 360
45 degrees cut and welded metal box section
420
Bamboo Frame work
2
1
Bamboo is split into strips, flattened and cleaned using a grinder.
15
30
420
WORK IN PROGRESS
630
A formwork is made of plywood upon which the bamboo strips are fired and bent. frames are made in half to avoid nodes while bending. Two halves are then joined by rivets.
3 30
4
420
5
2190
Bamboo frames are then drilled and bamboo sticks of 4mm dia are fixed to weave wood onto them.
630
360
2080
420
630
30
Metal frames welded
7
6
600
630
5
5
Wood weaved (20mm width) in 5mm bamboo sticks
Wood weaving work
5
630
2080
320
30
360
15
30 360
30
360
30
30 600
ELEVATION
150
Metal frames welded
Wood weaved (20mm width) in 5mm bamboo sticks
Metal frame ( 30 x30 box)
5
Bamboo strip frame ( 25mm width)
9
8
Hinge welded to the metal frames
630
Metal frame (strip 5mm thk)

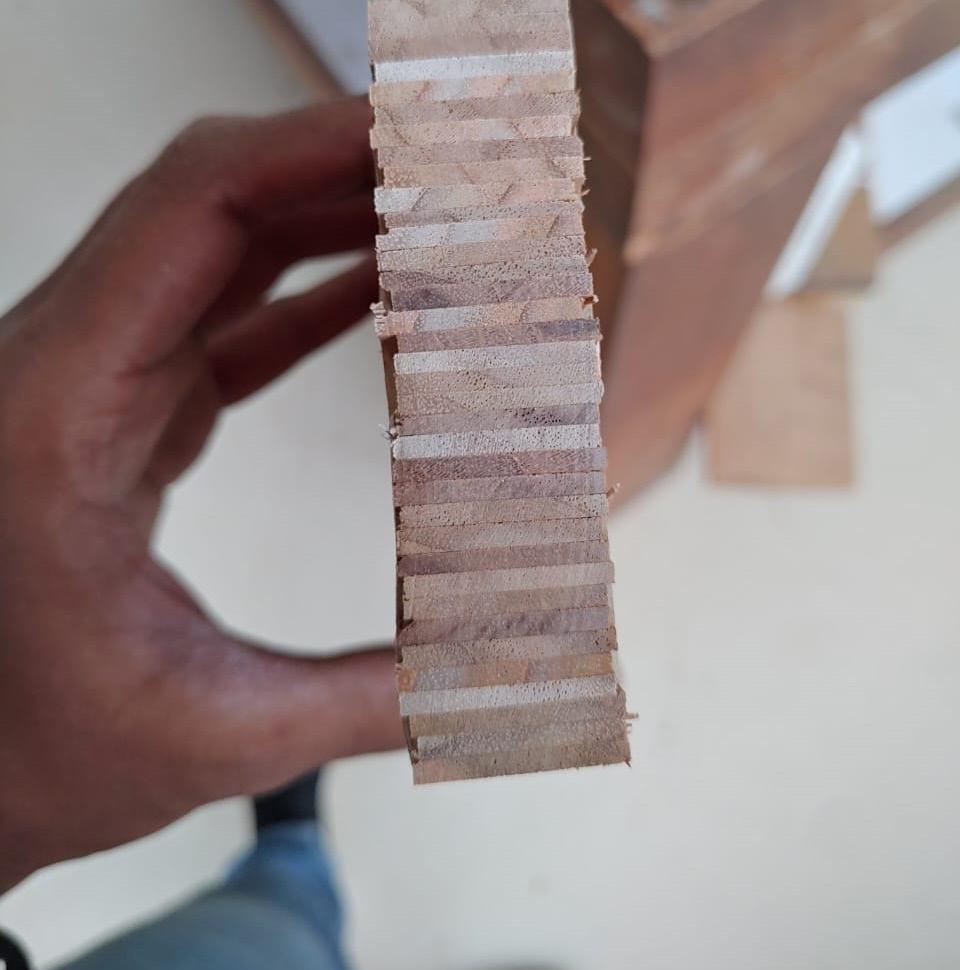

Wood blocks are sliced into 20mm width strips of 1 mm thickness and are weaved in the bamboo frames on the bamboo wefts.
320 PLAN
360
30 360
360
Bamboo frame to Metal frame using pivots.
30
30
ELEVATION
Metal frame (strip 5mm thk)
10
11
12
13
14
15
Hinge welded to the metal frames
Bamboo strip frame ( 25mm width)
al frame ( 30 x30 box) PLAN
Bamboo frame joinery using pivots. Bamboo wefts and wood warps to bamboo frame.
LEARNINGS
- Explorations in structural properties of the materials - bending in bamboo and steel while slicing and weaving in wood. - Decisions on the tectonics and assembly of the partition - instead of welding the bent metal frames a small spacer and a concealed joinery would give proper finishing. - The coherence between two materials is heavily influenced by the composition of material like, the fibrous composite of bamboo heavily limits it’s use as a frame as opposed to the brittle composition of metal. - The structure’s stability are bette with a broader base and the choice of materials for weaving , the wood strips and bamboo wefts are decisions influenced by the weight of the pivoted frame.
GROUP 4
Lennart Reidelbach - EXUA8922 Niranchana G - PID22226 Shefali Gabada - PID22321 Shiv Mistry - UA6617
Metal work
16
Metal box sections are cut 45 deg and welded to form the outer frames while metal strips are cut and bent with a radius of 55 mm and welded to connect the box frames.
17
The weaved bamboo frames are then fixed to the metal frames using the pivot screws on both ends, allowing the frames to align in rotation.
Spring Semester, 2023 | Faculty of Architecture
ID 4633 Interior Fabrication and Manufacturing Processes
Mandatory Course Course Tutor - Vishal Wadhwani Teaching Associate - Chinmayee Parikh
