RECYCLING LEARNING CENTER
CampusLife++
Exhibition Area CampusLife++ Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth
Since KMUTT is the sustainable university and in Bangkhunthian campus also has programs that support this system, one of them is having “Municiple Solid Waste Management Learning Center” which located at the back part of the campus. The existing program is hard for public access and the area is too small to be the learning center. So, I proposed this project with the location that easier for the public access.
This project is located at the East side of the moon shaped pond and the middle spot of KMUTT Bangkhunthian Campus site. From the campus site zoning this site is in the green space zoning which is the space that connect between the private zone, the institution, laboratory, and service part, and the public zone. This location is suitable to this project according to the project’s programming that has both public part and private part.
Vehicles Circulation
Pedestrian/Bicycle Circulation
Selected Site
KMUTT BKT Existing Waste Management Center
Main Entrance/Exit
Entrance/Exit of the project
ANALYSIS
SITE
48 m. 61 m. 164 m. Recreation space Residential Green space Institution Laboratory Service Waste management CampusLife++ Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth
PROGRAM ANALYSIS
CONCEPTUAL DIAGRAM
Design Concept
The recycling process has the scale of waste changing during the process. Starting with original form of waste then to recycling, they need to crush into small pieces or separate elements apart for the process of creating new product. This scale changing applied on the scale and height of the project building, the arrangement of programs are divided into two main part according to privacy of the program and each program need different kind of space. So, the scale different is fit to the project.
PROGRAMS
Existing Situation

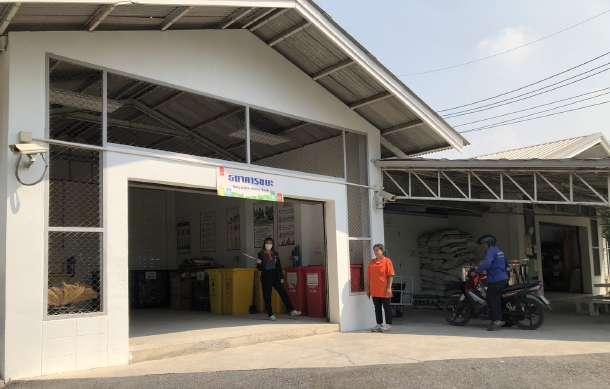

- Current user is only staff and maids, rarely has students or people from outside the campus come to use this building.
- Total area is approximately 200 sq.m.
- Current program: Waste storage / Waste separation / Office
ZONING DIAGRAM
The North part of the project is the waste management programs which is the more private area relate to the site of the campus that the North part has more privacy. And the South part of the project is the educational programs that connect to the public part of the campus site and easier for public access. In the middle part is the main entrace of the project building which has public programs for the users that come from outside of the camapus.
Plastic Recycling Learning Center Educational Waste collection Administration office Loading area Researching department Recycling center exhibition Public space Paper Glass Organic Waste Waste Management Plastic Paper Glass Organic Waste Workshop Seminar room Total area: 3,480 sq.m. Total area: 2,640 sq.m. Total area: 930 sq.m. Total area: 680 sq.m. Total area: 1,030 sq.m. Total area: 865 sq.m. Total area: 470 sq.m. Total area: 320 sq.m. Total area: 50 sq.m. Organic Waste Recyclable Waste 4.4% 5051.2 Kg. Hazardous Waste 6.2% 7,176.64 Kg. General Waste 77.7% 89,724.84 Kg. 11.6% 13,356.48 Kg. Number of Waste per year Aluminium 4.8% 534 Kg. Clear Plastic Bottle 12.3% 1,359.6 Kg. PP Plastic Bottle 2% 217.96 Kg. White Paper 13.8% - 1,525.28 Kg. Colored Paper 5.5% - 606.36 Kg. Mixed Paper 9.9% - 1,095.2 Kg. Can 1.4% - 153.08 Kg. Glass bottle 17% - 1,883.2 Kg. Cardboard 32.2% 3,558.8 Kg.
per year
Number of Recyclable Waste
Administration Office Waste Collection and Loading Area Public Space Researching Department Recycling Center Exhibition Shared Space / Restroom / Service room CampusLife++ Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth

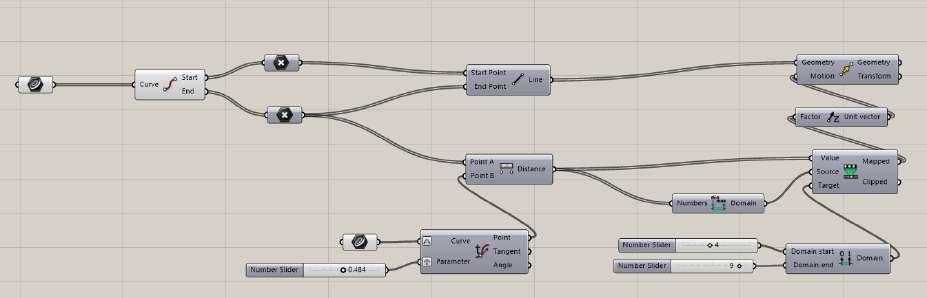

COMPUTATIONAL SYSTEM/STRATEGY

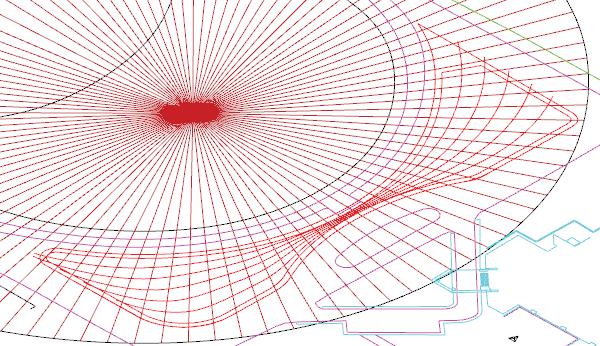

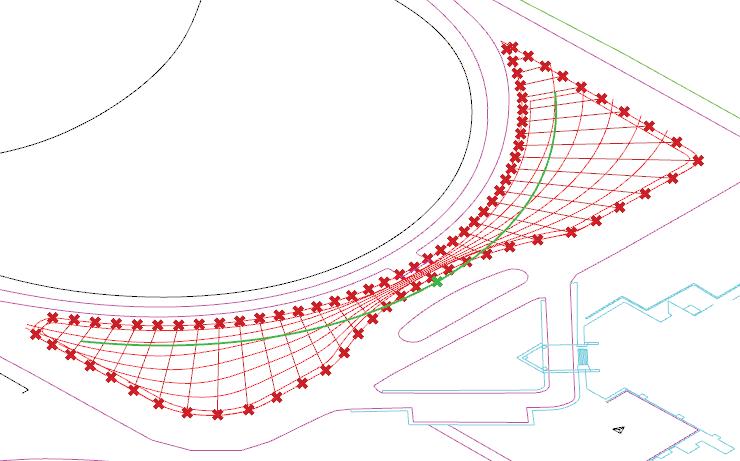

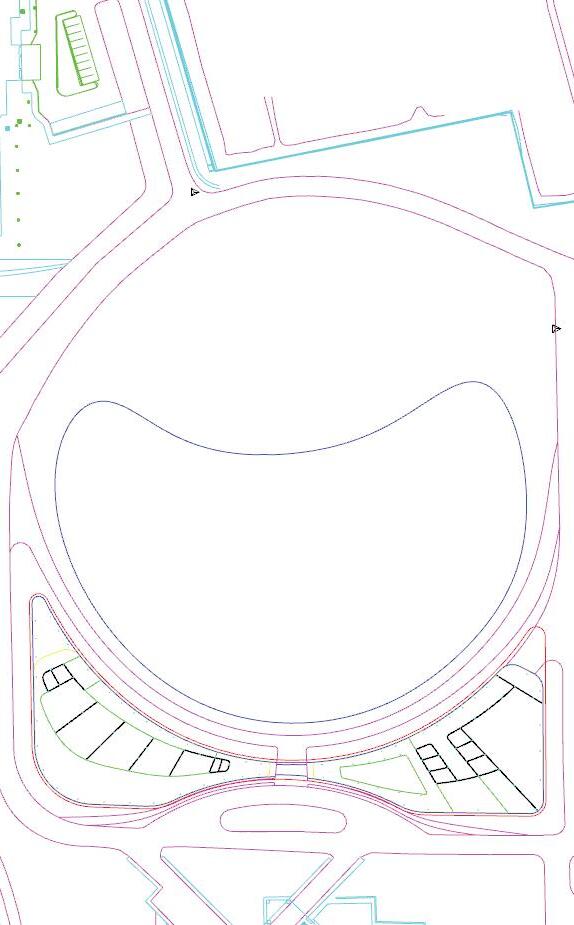

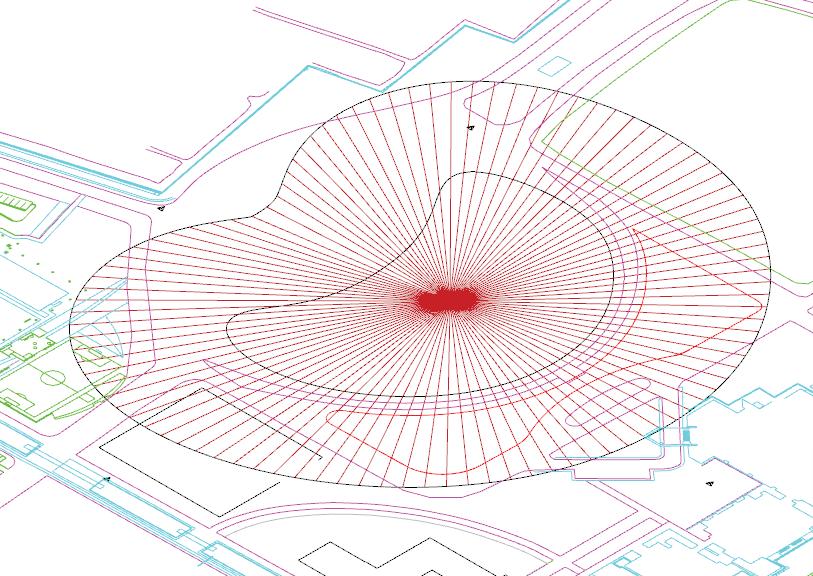

First, define grid line for the project using the center of the pond as the center point and spread out the radius lines. And for another direction using the outer lines of the site’s shape to control the vertical lines.

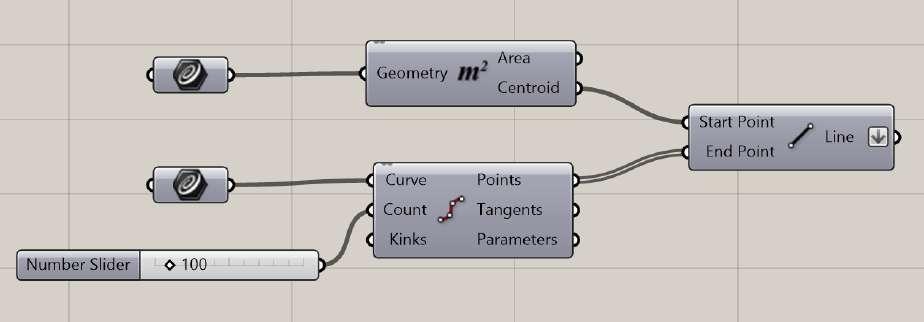

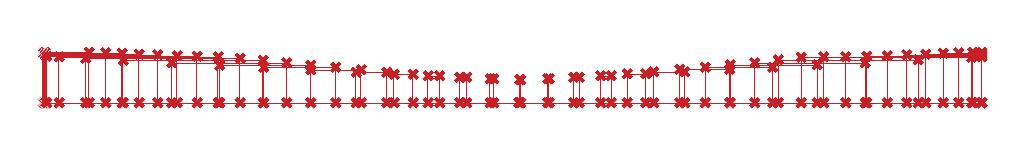

Then using point attractor to manipulate and control the height of the roof to create different scale of the space according to the project concept.

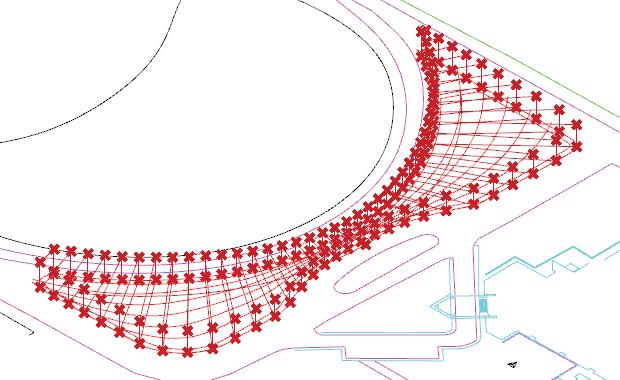

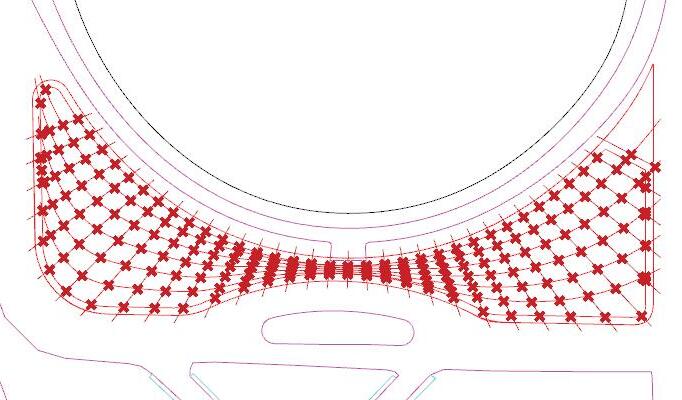

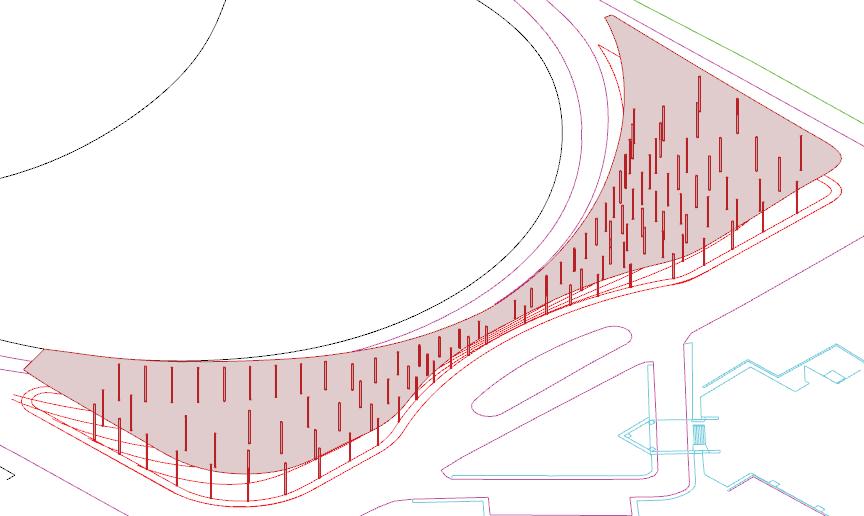

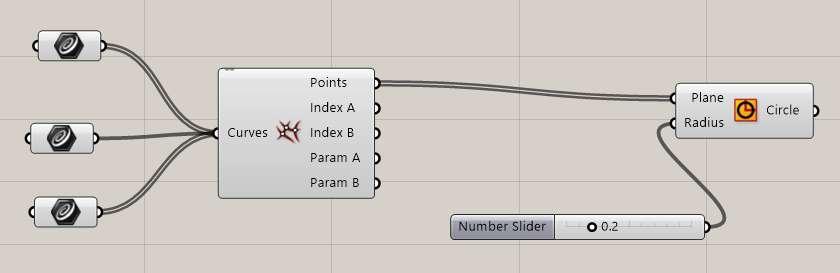

Then create columns position by find the intersection points between grid lines. And extrude to make the columns follow the height of each area.

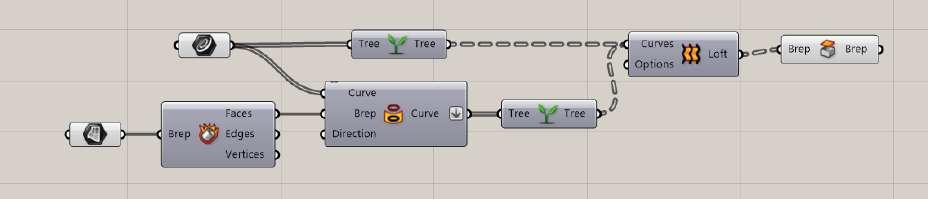

Lastly use the same script from creating columns to create the walls, glazing, and partition in the building. Using plan lines to create those components.
CampusLife++ Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth
0 20 50 10 SITE PLAN SCALE 1:250 Loading area MDB & EE Waste collection Storage Pantry Meeting room Work space Workshop area Entrance lobby Entrance lobby Seminar room Plastic researching Exhibition area Paper researching Glass researching Organic waste researching Researchers’ shared space Shared space CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth
CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth 0 50 10 0 50 10 SECTION A SCALE 1:500 SECTION B SCALE 1:500

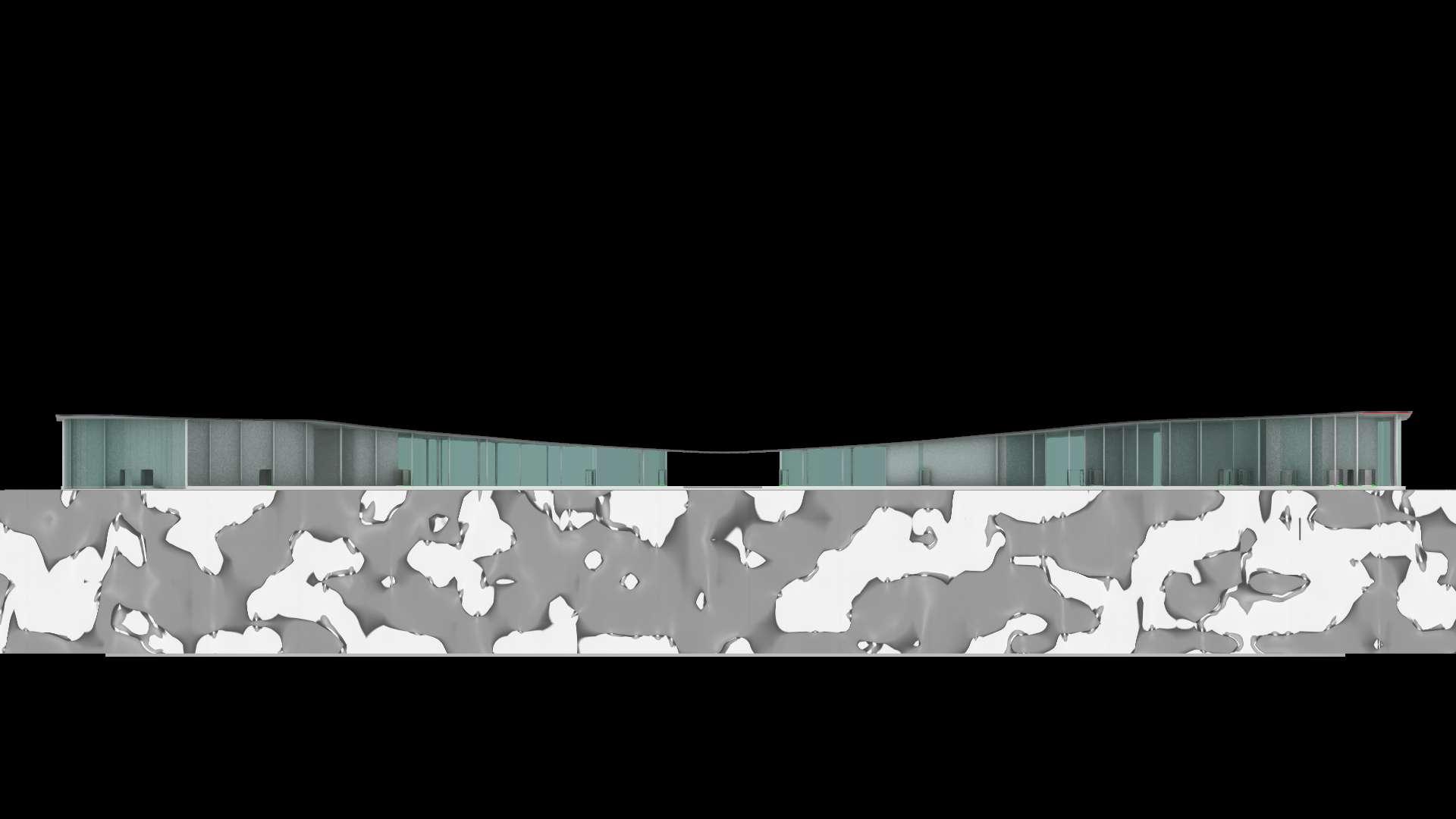

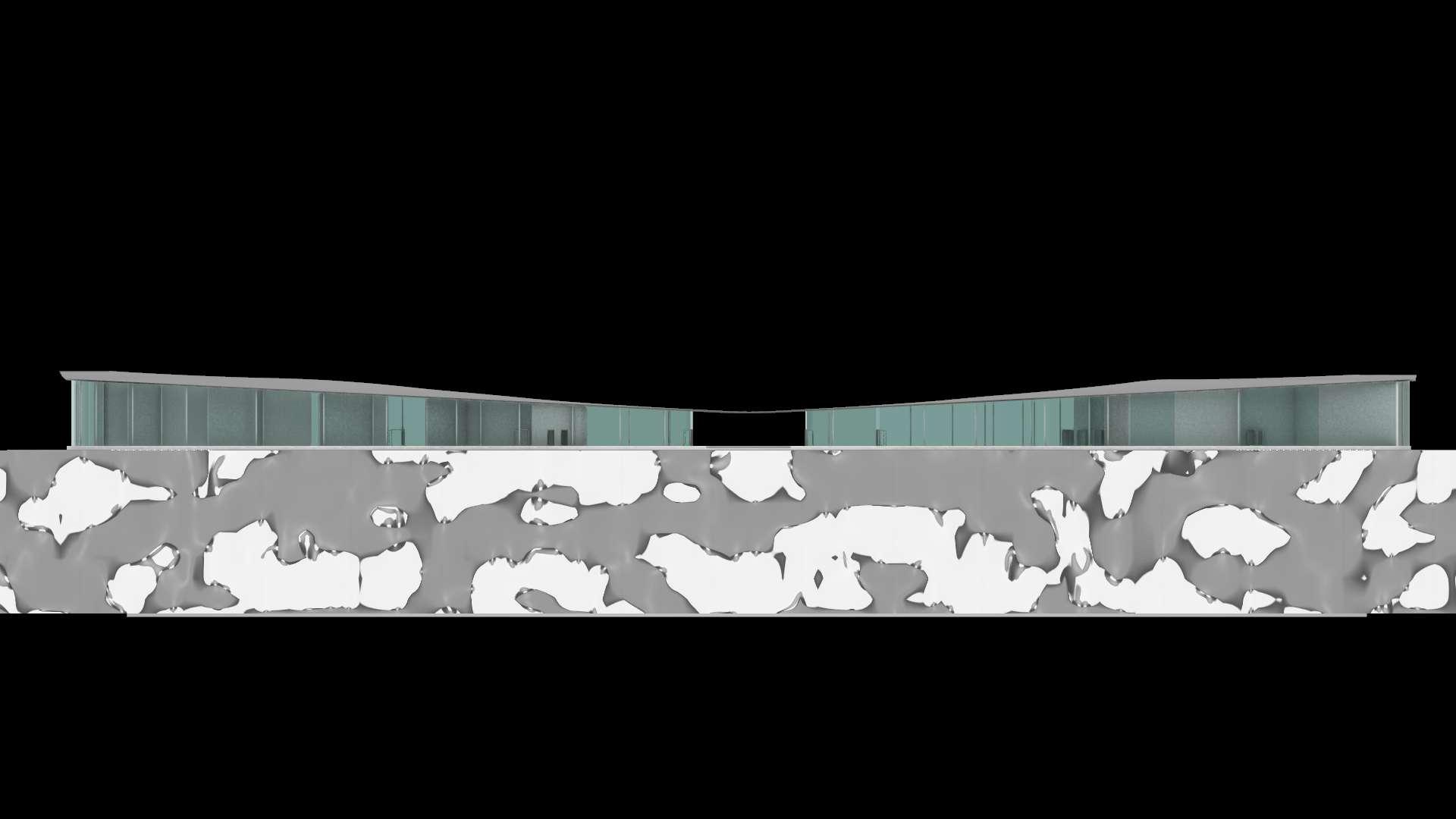

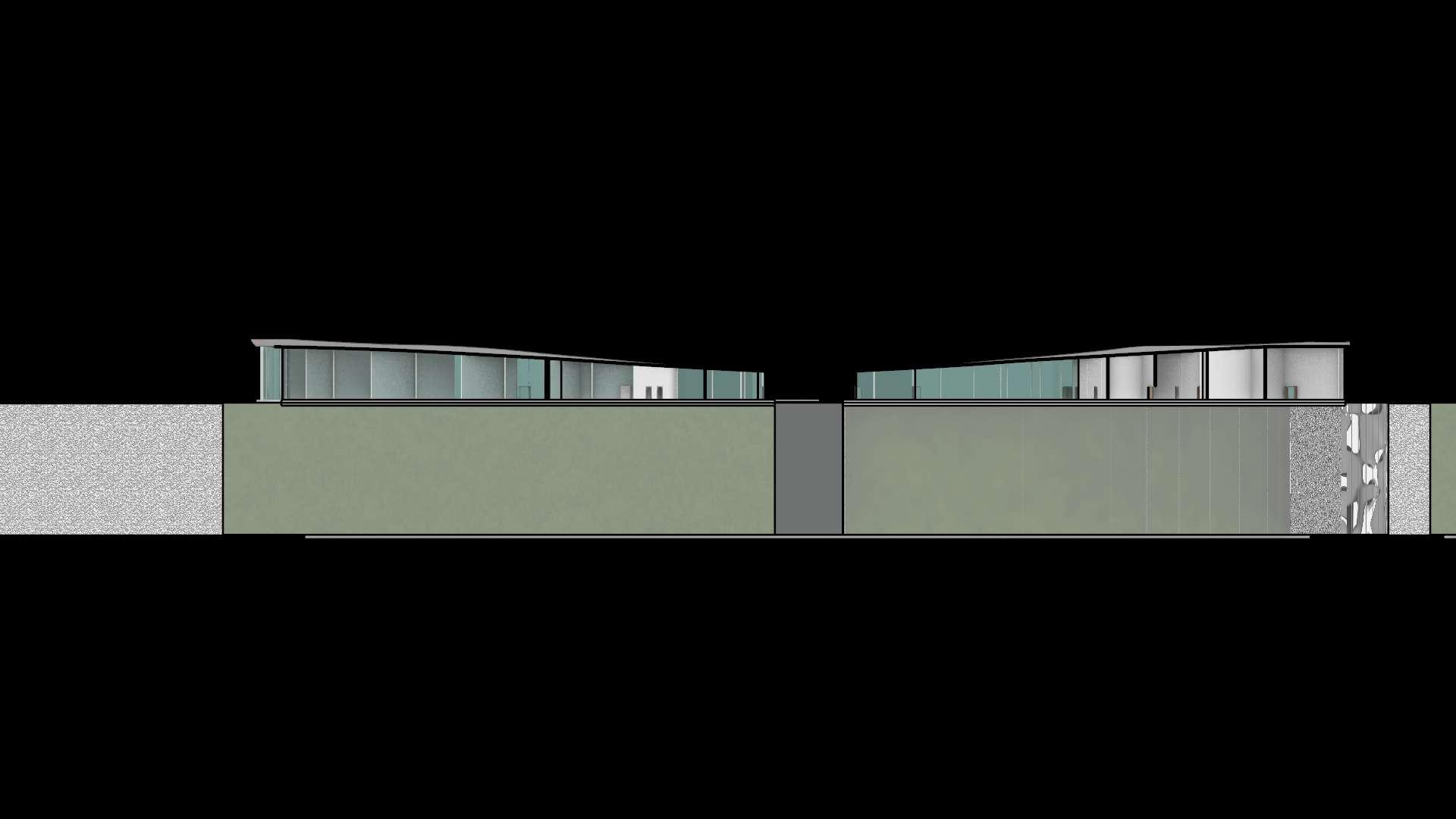

Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth NORTH ELEVATION SCALE 1:500 EAST ELEVATION SCALE 1:500 0 50 10

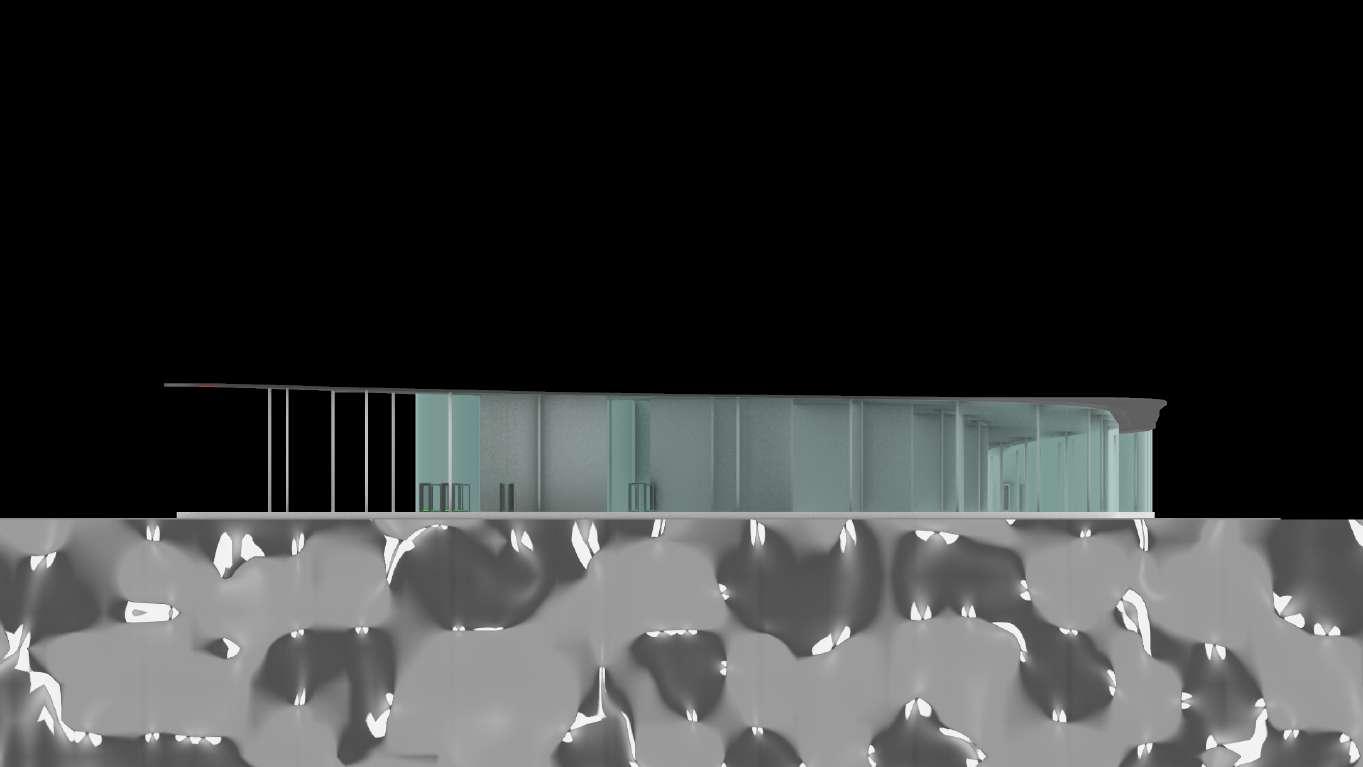

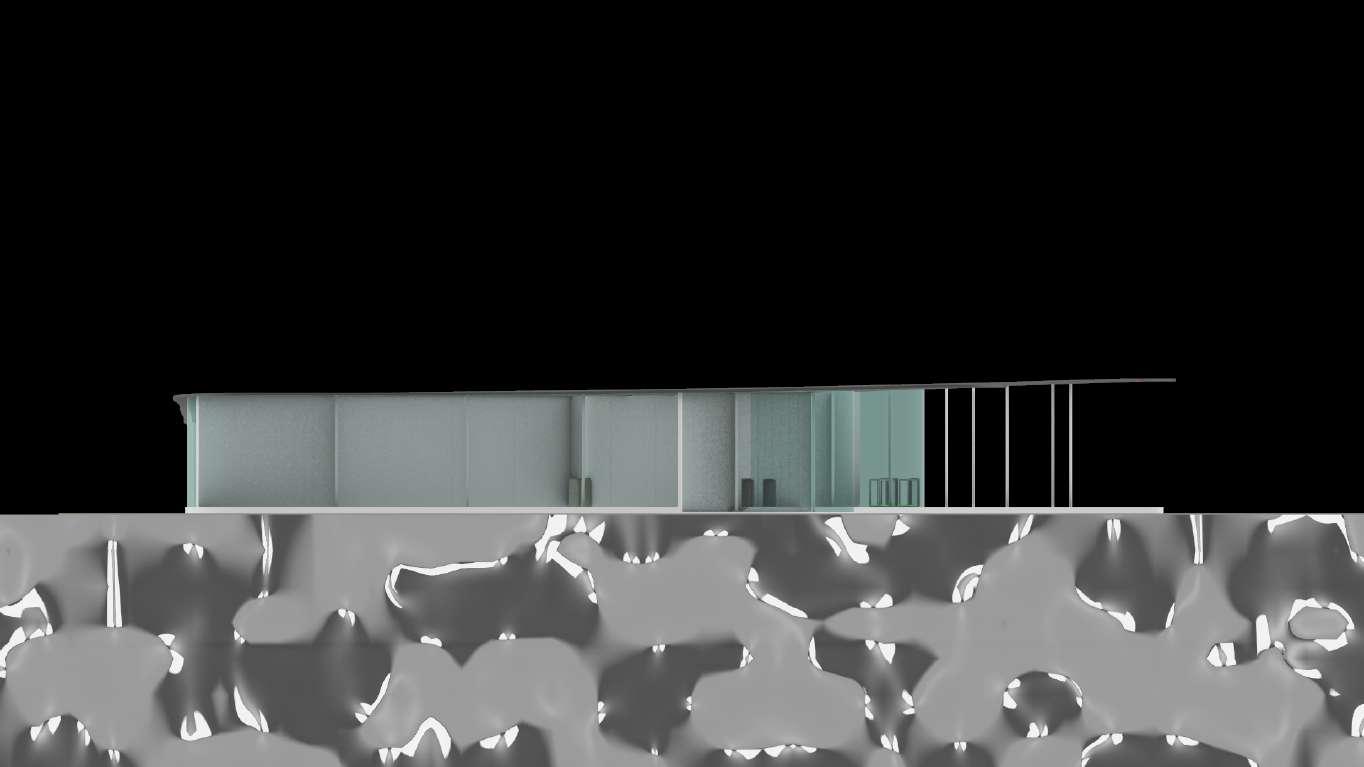

CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth 0 50 10 SOUTH ELEVATION SCALE 1:500 WEST ELEVATION SCALE 1:500
STRUCTUAL DIAGRAM
MECHANICAL DIAGRAM
CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth

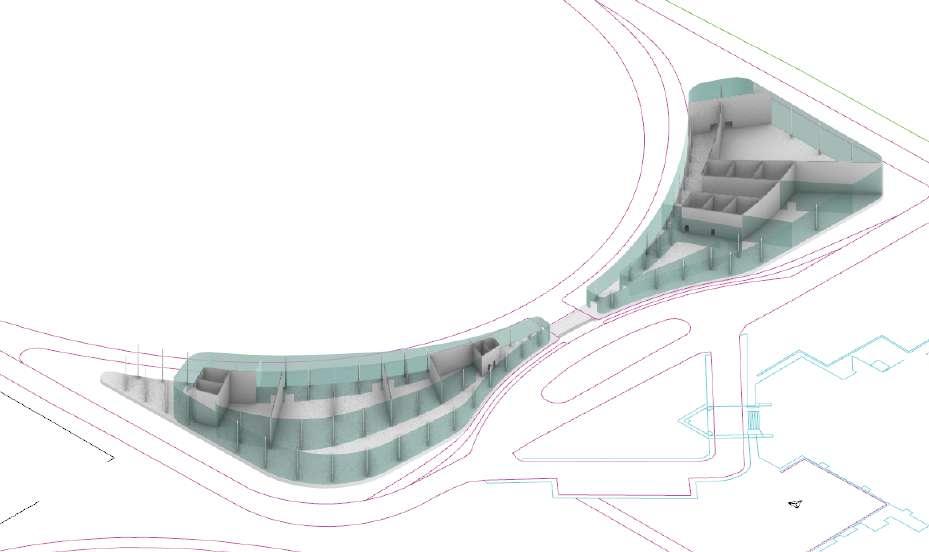

Double Glazing Glass Facade Concrete Wall 200 mm RC Slab 300 mm RC Column 200x200 Truss Standing Seam Metal Roof AXONOMETRIC
Public Water Supply and Water Supply Tank Underground Waste Water Tank Underground Waste Water Tank MDB room
AXONOMETRIC
CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth Research Center Corridor Exhibition Area
Research Lab
Waste Collection Corridor
CampusLife++ - Recycling Learning Center Niracha Limsirisakul 64120500009 ARC344 Architecture Design Studio IV Semester 2/2023 Instructor: Elliott Voth
Main Entrance
Main Entrance
Loading Area
Outdoor Pathway
