PORTFOLIO | NG ADRIAN

PORTFOLIO NG ADRIAN

SELECTED WORKS

2023

ARCHITECTURE & LANDSCAPE

NG ADRIAN

SELECTED WORKS

2023

ARCHITECTURE & LANDSCAPE

CV Education

Experience

Cellular : +61 403869873 Email : adrianng_ben@hotmail.com Residence : Western Australia, Perth

2023 - 2026

Bachelor of Environmental Design | Architecture A + B

2019 - 2022

Diploma in Landscape Architecture

2014 - 2018

Sijil Pelajaran Malaysia ( SPM )

2023 - 2024

Junior Landscape Architect

University of Western Australia Singapore Polytechnic

Sekolah Jalan Mengkibol

Earthscape Concepts Pte Ltd | Design & Build Firm Key Projects : - Sanofi (Schematic Design, Design development , Construction Drawings, Tender & Project scheduling) - Ministry of National Development (Design development, competition) - Ministry of Home Affairs (Design development - competition Schematic Design, Construction Drawings, Tender & Project scheduling)

2022

Freelance Renderer and Drafter Fiverr | Freelance Platform

Job Scope : - Utilizing LiDAR to create 3D models effeciently - Using AI software such as Mid-Journey and Dall-E to help with conceptual mood images requested from clients.

- Drafter for simple interior or landscape projects.

2022

Landscape Architect Trainee

Ramboll Studio Dreiseitl. | Landscape Architecture Practices Key Projects : - The Line - Neom (Conceptual Design) - Singapore Institute of Technology Campus (Schematic Design)

2021

Landscape Architect Intern

Broadway Malyan | Multidisciplinary Key Projects : - Mahindra Affordable Housing (Conceptual Diagram) - Emaar Iraq (Masterplan ROW + Circulation Diagram) - Luohu South District (Landscape Concept Design) - New Clark City (Landscape Masterplanning Schematic Design) - GEMS XCL World Academy (Landscape Concept Design)

Softwares

Language AutoCAD

2D & 3D

SketchUp Rhinocheros Grasshopper Revit

English

Enscape Renders

Lumion Twinmotion V-ray

Chinese

Photoshop Illustrator Adobe

Indesign Premier Pro After effect Powerpoint

Microsoft

Words Excel

Hi! 您好! Selamat!

I’m Ng Adrian hailing from Malaysia and currently navigating the world of architecture at the University of Western Australia, majoring in Environmental Design. My architectural journey kicked off with a Diploma in Landscape Architecture at Singapore Polytechnic.

I’ve had the privilege of working in various firms with expertise in construction and consultancy, as well as pursuing freelance projects. My passion lies in the design process, where I bring ideas to life through detailed drawings and explore diverse architectural styles.

Here’s the scoop: I’m on a mission to shake things up in the architecture industry. I want to revolutionize the working culture, business practices, and reputation of this amazing field. My vision includes fostering collaboration, sustainability, and overall excellence in architectural design.

Having worn many hats in different roles, I’m well-aware of the challenges and opportunities within the industry. And you know what? It’s only fueled my determination to create a more inclusive and collaborative work environment.

Malay

ENDORSEMENT COLLECTIONS

21 February 2023 To Whom it may concern Letter of recommendation for Ng Adrian

It is my pleasure to provide this letter of recommendation for Ng Adrian for any opportunities he may be pursuing in the field of architecture and the built environment. Despite his young age and lack of experience, he has proven to be a committed landscape designer, contributing to the company’s growth.

Adrian is a reliable team player when it comes to carrying out design work. When in doubt, he is not shy from asking and questioning design decisions. It shows that he is thinking and not merely doing rote work. His positive impact on the workplace environment and team morale can be seen in his willingness to share knowledge, take time to guide interns and develop their skills, and his enthusiasm when participating in company social activities.

Adrian is a self-motivated learner exploring new knowledge and skills beyond landscape design. In a pharmaceutical facility project, Adrian has a keen interest in construction knowledge by referring to online references and Astrid Zimmerman’s books on construction detailing. Adrian has been a vital help during critical submission periods for several projects and design competitions, such as the revitalization of the roof garden on top of a 1950s government building and the construction of a swale for a Buddhist temple.

I highly recommend Ng Adrian to further his study in higher education, which would provide him with a design foundation and help develop his skills as a designer. Adrian's ability to juggle work and employ his focus in different facets of design and project work is a testament to the adaptability required in the industry.

Yours sincerely, Earthscape Concepts Pte. Ltd.

Tan Jing Xiang Landscape Architect

7 October 2021

TO WHOM IT MAY CONCERN Dear Sirs, TESTIMONAL FOR NG ADRIAN This letter serves to confirm that Adrian has completed a 12 weeks internship with Broadway Malyan Asia Pte. Ltd. from 7 June 2021 – 27 August 2021 as part of Singapore Polytechnic curriculum. Upon mutual agreement, we have further extend his internship from 27 August 2021 – 8 October 2021 during his semester break.

During his internship, Adrian was mentored by our Landscape Architect. He participated in some of our studio’s live projects and competitions and was involved in the various stages of the design process. Project details and stages as below: Mahindra Affordable Housing (Landscape Concept Design) • Concept Design Model (Sketchup) • 2D Sectional-Elevation Drawings (with rendering for Presentation Report) Brighton College (Construction Administration) • Site Visit Report • Nursery Visit (For Plant proposals) LuoHu South District (Landscape Concept Design) • Urban Street Furniture Kit of Parts • Enscape Rendering (For In-house CGIs) • Supergraphics Design, Incorporations and Modelling New Clark City (Landscape Schematic Design) • Contribution to Schematic Design Drawing Package (CAD) o GA / General Plans (Base, Hardscape, Softscape, Furniture & Fixtures Plan) and Sections (MP/Overall) • Contribution to Central Park’s General Kit of Parts Bandar Dato Onn (BDO) (MasterPlan Massing Sketchup) • Assisting Masterplan team to generate Massing Model (Sketchup) and CAD works Emaar Iraq (Masterplan ROW + Circulation Diagram) • Assisting Masterplan team in generating ROW graphical diagram • And overall MP Circulation Diagram GEMS XCL World Academy (Landscape Concept Design) • Updating Landscape Concept Design Model (Sketchup) for Ground floor, Landscape Terraces in Study Blocks • Furniture Design Modelling and assisting in overall spatial planning

During his internship with us, Adrian proves to be a reliable team member to the Landscape team. He has participated in several projects with tight timeline and yet meeting up to every expectations from the teams.

Adrian has displayed a set of great works with clarity. He is always consistent in providing support and updates to his team during the project processes and always willing to provide great assistance to other sectors and projects during crucial submission periods.

Adrian is hardworking and kept an open mind to take up new knowledge and skills beyond Landscape Design. He has also shown tremendous improvement in operating computer-aided design programs through his internship period which are crucial for all tasks that are assigned to him.

With these qualities and capabilities, he is a joy to work with and is much sought after as a team resource within the studio. We believe with his continued training, he will hone and improve his design capabilities, develop stronger design sense and become a better architect.

Overall, Adrian has perform beyond our expectations and it was a pleasure to be a part of Adrian’s learning journey. We wish him all the best in his future endeavors.

Yours sincerely, Broadway Malyan Asia Pte. Ltd.

Cindy Han Practice Principal I Business Director

CONTENTS

01 02 03

ACADEMICS University of Western Australia | Architecture Studio 2 Breath Bloc

University of Western Australia | Enviromental Design Fisher House | Living House

Singapore Polytechnic | Final Year Project Nature’s Carnival : Para - Mount

PROFESSIONAL Earthscape Concepts Pte Ltd

Ministry of National Development Sinagapore Earthscape Concepts 2024 Office

Rhamboll Dreiseitl Neom : THE LINE

PERSONAL Hobbies

BREATH BLOC

In 2099, the Breathe Bloc thrives as a climate-adaptive, communal space designed for a dynamic population. Modular h expand their homes by adding modular cubes, adapting the building structure to their evolving needs. Communal space crafted for connection, offer shaded outdoor seating, collaborative work areas, and shared gardens where residents gat

The architecture prioritizes environmental integration, using stacked modular boxes that support green terraces on expo Woolly Bush, Kangaroo Paw, and Coastal Cushion Bush thrive on the rooftop terraces and in the swales that surround th built environment but also serve as natural cooling zones. Water in the swales evaporates, reducing local temperatures allowing sunlight and water to reach plants, creating a lush, verdant landscape within this urban setting.

Buildings are stacked to allow ventilation gaps that channel the southwestern breeze through the spaces. Operable vent heat, the facade treatments vary based on orientation: operable louvers on the east and west sides block direct sunlight CLT (Cross-Laminated Timber) in walls reduces embodied carbon and provides insulation, further mitigating urban heat embraces them, adapting nature and design for a sustainable future.

1.1 - UWA | ARCHITECTURE STUDIO 2

1 | ACADEMICS

housing forms the backbone of this neighborhood, built to accommodate fluctuating family sizes. Families easily es are essential, encouraging interaction in a largely digital era where socialization has shifted online. These spaces, ther, fostering real human connection.

osed roofs. Native vegetation, inspired by Kings Park, has been carefully selected to adapt to the warming climate. he buildings, enhancing biodiversity. Swales under the cantilevered structures not only bring vegetation closer to the and contributing to a cool, pleasant microclimate. Elevated pathways with metal grating promote growth beneath,

tilation louvers angled toward the breeze catch and channel air effectively, cooling interiors passively. To combat urban t while preserving views, while horizontal wooden louvers shield the north walls from harsh midday sun. The use of t effects. This approach creates a neighborhood that not only withstands the anticipated heat extremes of 2099 but

DESIGN STRATEGY

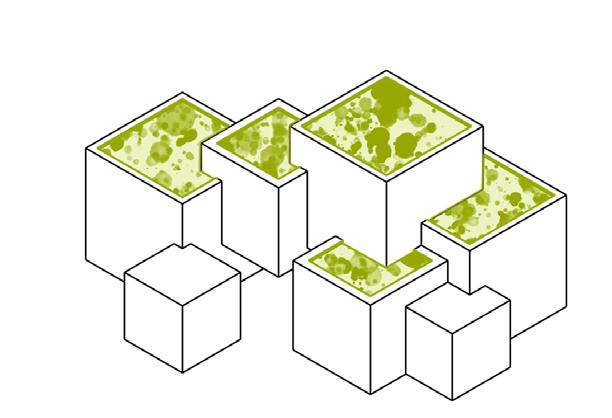

MODULAR

RETAIN 80% EXISTING BUILDING

ELEVATED PATHWAY USING GALVANISED STEEL GRATING

SWALE FOR EVAPORATIVE COOLING

70% RESIDENTIAL 30% COMMERCIAL

GREEN ROOF COMMUNAL GARDEN

1 | ACADEMICS

ELEMENT DIAGRAM ACCESIBILTY

RESIDENTIAL

COMMERCIAL SHOPLOTS

ELEVATED PATHWAY

EXISTING BUILDING

SITE

S2

11

10

S1

S1

2

5

3 9 8

10

9

4

1

1

10

6 8 6 8

8

9

11

4

10

4 6 5

6

4

7

7

GROUND FLOOR PLAN

2ND FLOO

1 LOBBY

1 STUDY ROOM

2 MAIL ROOM

2 JANITOR RO

3 MEETING ROOM

3 COMMUNAL

4 TOILET

4 MAIN CORRI

5 RECEPTION

5 LAUNDRY RO

6 GYM

6 TWO ROOM

7 OFFICE

7 ONE ROOM

8 COMMERCIAL SHOP LOTS

8 STANDARD R

9 KITCHEN

9 LIFT

10 LIFT

10 FIRE ESCAPE

11 FIRE ESCAPE STAIRS 12 SWALE

1 | ACADEMICS

S2

S2 6

4

S1

2

5

1

3

3

9

5 3

10

2

6

9

4

5 1 3 2

3 2

OR PLAN

3RD FLOOR PLAN

M

1 MAIN CORRIDOR

OOM

2 TWO ROOMS APARTMENT

L GARDEN

3 STANDARD ROOM APARTMENT

IDOR

4 LAUNDRY ROOM

OOM

5 LIFT

MS APARTMENT

6 FIRE ESCAPE STAIRS

APARTMENT

ROOM APARTMENT STAIRS

ELEVATION 1 NORTH

ELEVATION 2 EAST

ELEVATION 3 WEST

ELEVATION 4 SOUTH

1 | ACADEMICS 6

3

2

3

4

5

1

SECTION 1 | EAST WEST

7 1

LOBBY

2

TOILET

3

STUDY ROOM

4

LIFT

5

COMMERCIAL SHOP LOTS

6

RESIDENTIAL HOUSINGS

7

SWALE

1

MAIL ROOM

2

JANITOR ROOM

3

LOBBY

4

GYM

5

COMMUNAL GARDEN

6

MAIN CORRIDOR

6 2 5

1

3

4

SECTION 2 | NORTH SOUTH SUN PATH FOLLOWS THROUGH NORTH DURING NOON

SOUTH EAST WINDS FLOW THROUGH SITE

PHYSICAL MODEL

TYPICAL WALL DETAIL This assembly uses CLT for structure and insulation, minimizing the need for additional framing and offering high environmental value due to its carbon-storing properties. This setup would yield a total wall thickness of around 150mm.

Exterior Cladding (Fiber Cement) 5mm Water-Resistive Barrier (House Wrap) Air Gap - 25mm CLT WOOD PANEL - 100mm Insulation (Fiberglass or Mineral Wool) 50mm Vapor Barrier Interior Sheathing (Drywall) 13mm

TYPICAL FACADE DETAIL NORTH HORIZONTAL EXTRUSION FACADE The north-facing facade features extruded wooden panels extending across the wall, designed to block direct sunlight. These panels are cantilevered 500mm outward, effectively deflecting sunlight and reducing heat gain on the north sun.

N W

E S

EAST/WEST OPERABLE VENTILATION LOUVERS Operable ventilation louvers is installed on the building’s west and east facades, angled towards the west-south orientation to act as a wind catcher, directing airflow into the building’s interior and enhancing natural ventilation. Also blocks direct sunlight from both direction.

SOUTH VERTICAL PRIVACY SCREEN The south-facing facade features large, operable window panels that maximize natural light and allow users to engage with the landscape balcony below.

Positioned to take advantage of minimal sun exposure, the design integrates 500mm vertical extrusions on both sides of the south-facing wall, acting as barriers against the east and west sun. These extrusions also enhance privacy for interior spaces.

1 | ACADEMICS

TYPICAL APARTMENT PLAN

BB 6

2000

3000

7

3000

2000

4

1500

1500

4000

5

4000

2500

5

2500

AA

2500

1

2

3 4000

3000

2500

3000

4000

1

LIVING ROOM / KITCHEN

2

BEDROOM

3

MASTER BEDROOM

4

STORAGE/LAUNDRY ROOM

5

TOILET

6

MAIN DOOR

7

CORRIDOR

Northern sun during midday

Ventilation transoms are installed along the north-facing walls to facilitate airflow throughout the interior spaces.

3000MM

SECTION BB - 1:50 | NORTH SOUTH

3000MM

2500MM

2500MM

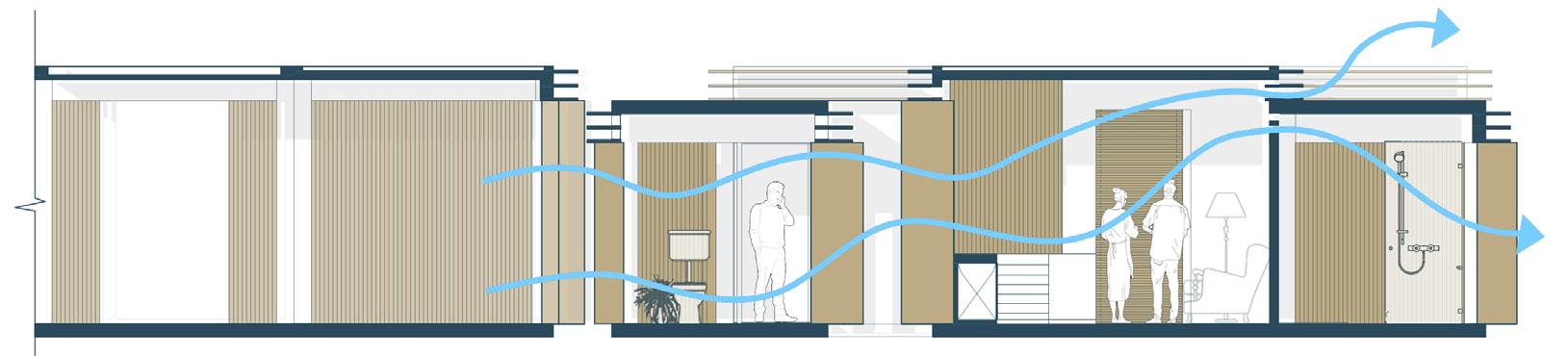

SECTION AA - 1:50 | EAST WEST

Operable ventilation louvers act as wind catchers, effectively channeling winds from the east-south direction to enhance natural ventilation.

ORIGINAL FISHER HOUSE

This project involved analyzing an existing architectural design by a environmental conditions. The objective was to refine and evolve th the core design concept of the house.

Throughout the project, we explored various analytical tools to eval wind direction, and temperature. This process helped us understan environmental aspects, ensuring a harmonious balance between a

1.2 - UWA | ENVIROMENTAL DESIGN

1 | ACADEMICS

MUTATION LIVING HOUSE

a renowned architect and adapting it to a new location with distinct he original design to achieve a high level of comfort while preserving

luate factors such as sun paths, material performance, humidity, nd how design decisions influence and respond to these aesthetics, functionality, and sustainability.

FISHER HOUSE | SITE ANALYSIS

1 | ACADEMICS

LIVING HOUSE | SITE ANALYSIS

FISHER HOUSE | SUMMER ANALYSIS

1 | ACADEMICS

LIVING HOUSE | SUMMER ANALYSIS

FISHER HOUSE | WINTER ANALYSIS

1 | ACADEMICS

LIVING HOUSE | WINTER ANALYSIS

FISHER HOUSE | MATERIAL ANALYSIS

1 | ACADEMICS

LIVING HOUSE | MATERIAL ANALYSIS

MUTATION CONCEPT

1 | ACADEMICS

PARA-MOUNT

Para-mount will become catalyst to revitalize Somerset Belt and breathe new life into the area. A shared space for nature and humans created through the integration of softscape and hardscape on mounted form. The inclusion of unique features with Somerset Branding to elevates and builds a unique sense of youth identity.

1.3 - SP | FINAL YEAR PROJECT

1 | ACADEMICS

PARA-MOUNT PARA-MOUNT CONCEPT CONCEPT HARDSCAPE

BALANCE

SOFTSCAPE

The contour of the landform creates a delicate balance between the manmade and natural spaces in ParaMount. With the mixture of Hardscape & Softscape with balance, this space allows users to enjoy skating activities on a mounted hardscape, or simply act as a spectators in the softscape area, while appreciating the lush greenery.

The 2 elements give rise to each other as they interrelate to one another, hence, manifesting a yin-yang concept.

PARA-MOUNT STREET PROFILE

MULTI – LINKWAY PEDESTRIAN CROSSING SOMERSET MRT

COVERED LINKWAY REST SPOT ( EVERY 160 M ) BUS-STOP

CYCLE PATHWAY ( 2.5M )

PLANTING AREA ( 2M )

The Somerset Belt’s streetscape was meticulously planned with preestablished guidelines to embody the vision and essence of Nature’s Carnival. It features a 2.5m cycle pathway, covered linkways, and an ample green area ratio seamlessly integrated throughout the site.

1 | ACADEMICS

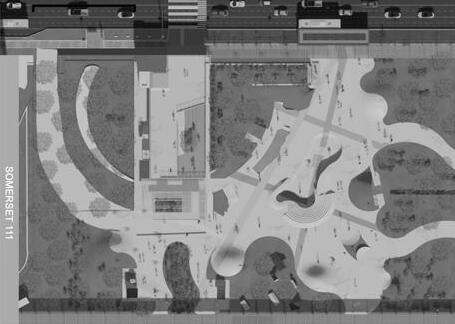

PARA-MOUNT LANSCAPE LAYOUT

ORCHARD ROAD

BIRD EYE DECK

SPECTATOR STAGE

THE COVE SKATE PLAZA

FOOD STREET

TREE-TOP WALK

N

PARKOUR ZONE

EXETER ROAD

TREE-TOP WALK ( PASSIVE ACTIVE )

FOOD STREET ( PASSIVE )

PARKOUR ZONE ( ACTIVE )

SKATE PLAZA ( ACTIVE )

THE COVE ( PASSIVE )

SPECTATOR STAGE ( PASSIVE )

PARA-MOUNT TREE-TOP-WALK

The tree-top-walk plays a key part in the Team’s vision of nature’s carnival since it is the spine that links the entire Connection of Somerset belt together. It also functions as a Carnival corridor, transporting people to different emotions on different sites as they go through.

PARA-MOUN FOOD STREET

Food stalls would be set up on this space to allow people to get a bite before or after participating in vigorous activities. Benches are also placed along the food street to give resting spots.

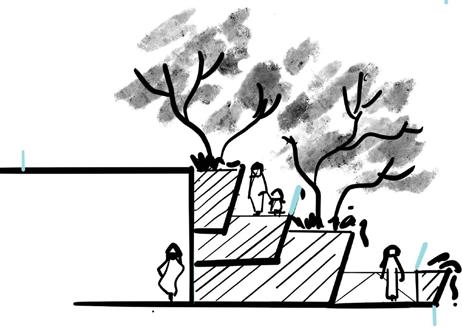

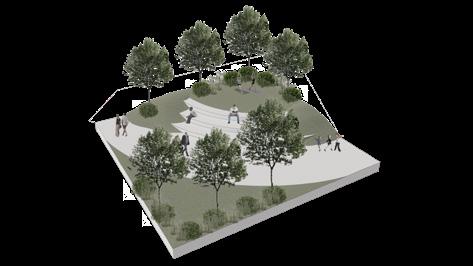

PARA-MOUNT SPECTATORS STAGE

The spectator stage area is blended with green mounted slopes to provide a natural and nature view around the site. Softscapes take up most of the space to prevent skaters from skating in the area, allowing people who wished to spectate

PARA-MOUNT

1 | ACADEMICS

SPECTATORS STAGE

The spectator stage area is blended with green mounted slopes to provide a natural and nature view around the site. Softscapes take up most of the space to prevent skaters from skating in the area, allowing people who wished to spectate

PARA-MOUN BIRD EYE DECK

The bird eye deck is allocated on the roof of Somerset MRT and also serves as a pathway to the Tree-top-walk. It is constructed with amphitheater seating to reflect the design language of the Spectators seating below.

PARA-MOUNT SKATE PLAZA

As the existing function of Somerset skate park, the skate plaza acts as the site’s major space. The skate area has no limitations and restrictions with the integration of mounting Landform and versatile skate pieces.

BIKE PARKING STRUCTURE DETAIL

Bike parking with a bright pink branding logo and strap. When users initially enter or leave the building, an appealing entryway is created by integrating a Somerset Brand Logo. The bike rake and Logo board has a lighted feature, to create a great ambience as an entry during the night DIMENSION : 5000 x 12000 X 6000mm CAPACITY : 50 SLOTS OF BIKE

1 | ACADEMICS

PARA-MOUNT PARKOUR ZONE

The parkour zone is intended to inspire people to have fun by utilizing the elevations in Nature and Hardscape.

Several parkour features are built based on the Somerset Branding forms that Luminate at night to catch the user’s attention.

T E N D E R

D R A W I N G

T E

T E N D E R

D R A W I N G

T E N D E R

D R A W I N G

PARA-MOUNT THE COVE

EXTENSIVE ZINCO GREEN ROOF SYSTEM ARCH STRUCTURE FRAME TIMBER BENCH with Somerset Branding

DROUGHT PLANTINGS

DIMENSION : 5000 x 12000 X 6000mm CAPACITY : 10 PEOPLE Mounted form semi shaded shelter to integrate the shape of the landscape form on Para-mount. Luminous supergraphics to give a vibrant and attractive look on the shelter itself at night.

TIMBER DECKING with luminous supergraphics

1 | ACADEMICS

T E N D E R

D R A W I N G

T E N D E R

D R A W I N G

T E N D E R

D R A W I N G

PARA-MOUNT

SECTION ELEVATION ( SOMERSET MRT – THE COVE )

PARA-MOUNT

SECTION ELEVATION ( PARKOUR ZONE – FOOD STREET )

1 | ACADEMICS

2.1

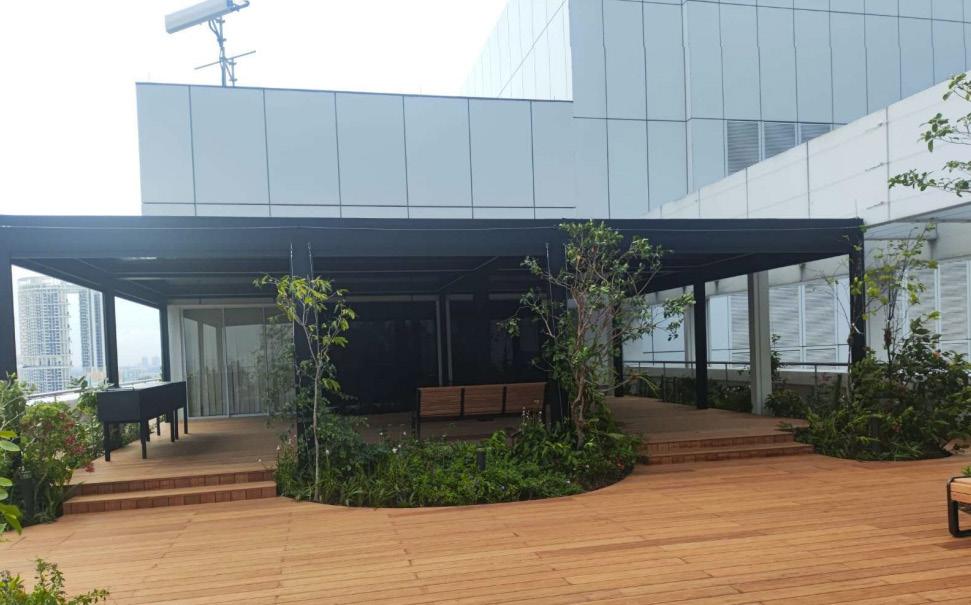

Ministry of National Development Singapore ( UNDER CONSTRUCTION ) Earthscape Concepts Pte Ltd

Design Development | Schematic Design | Construction Phase | Tender | Project Scheduling

Description :

Responsibilities:

The Level 23 Landscape Project within the Ministry of National Development stands as a testament to Singapore’s commitment to harmoniously blending urban living with natural elements. Facilitated through the Gbez portal as a tender for Design and Build, this remarkable endeavor was realized in collaboration with Earthscape Concepts, culminating in the successful execution of a project valued at 1.5 million.

- Collaborated with Project Lead Landscape Architect Tan Jing Xiang throughout Design Development for the Tender.

The fundamental objective of this project was to fashion a Landscape Sky Garden that seamlessly embodies Singapore’s renowned identity as a Garden City within an urban metropolis. Designed primarily for government officials to host esteemed international dignitaries, the garden serves as a tangible reflection of Singapore’s allure and ethos.

- Refined design requirements in multiple tender meetings based on the tenderer’s specifications.

- Calculated the project’s overall cost pre-execution to align with the budget and company margins.

- Transitioned to Project Management post-tender win, creating project schedules for execution.

- Ensured eligibility of company construction workers and subcontractors for on-site work.

- Prepared for the SIC (Safety Induction Course) and coordinated closely with subcontractors during demolition.

- Monitored deadlines, managed on-site changes, facilitated weekly update meetings, and controlled changes to prevent exceeding the budget.

2 | PROFESSIONAL

SPACE DIAGRAM

8 AM

SHADOW ANALYSIS DIAGRAM

8 AM

4 PM

Sun path was studied to analyze the shadow throughout the day for softscapes selection and ensure sufficient sunlight to enter the function and lounge room.

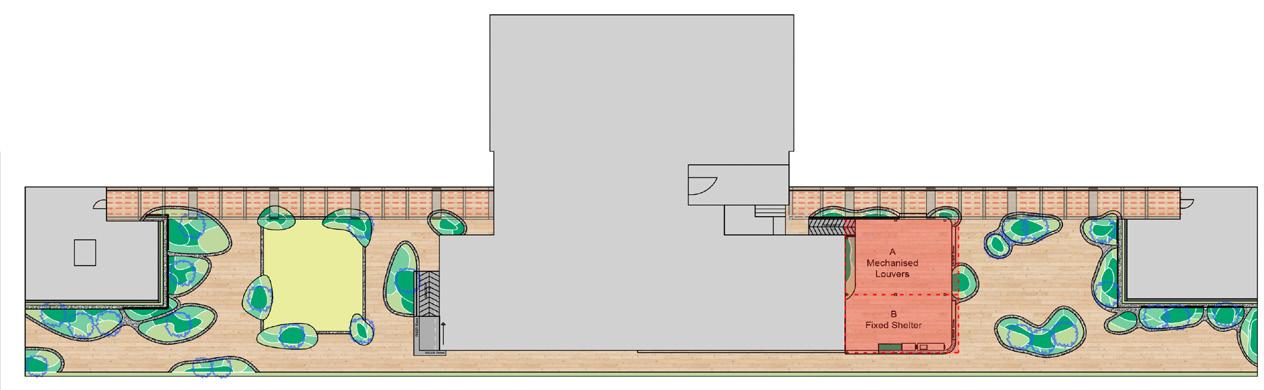

LANDSCAPE DIAGRAM PLAN

Tall plants Tallheight Height

Mid plants Midheight Height Short plants Shortheight Height 4 PM

Turf Turf

Predominantly small leaf plants Predominantly Small Leaf Predominantly large leaf plants Predominantly Large Leaf

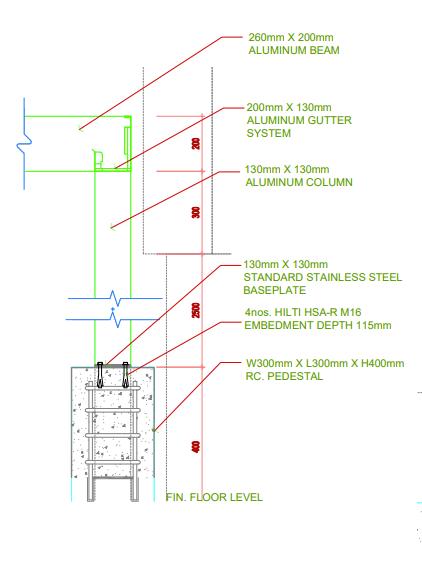

TECHNICAL PLANS TEMPORARY SITE OFFICE

TEMPORARY SITE OFFICE

FD

FD

FD

ELECTRICAL ROOM

RAMP 1:10

3500

200mm CREEPER PLANTING

ACU ROOM

200

200

200

LANDSCAPE STORAGE

1220

TIMBER DECK SAME LEVEL AT FUNCTION ROOM

200 200

150mm THK GREEN WALL 600

600

400 400

200

200

600

200

400

400

600

200 600

800

200

600

400

400

400 200 200

200

400

600

800

EASTSIDE 200

200

ACU ROOM

400

800

600

400

WESTSIDE

200

400

400

800

600

400

200

200

FUNCTION ROOM

200

200

200

GRADIENT 1 : 12

200 400

600

800

400 200 800

400 200

600 800

200

600

200 400 200

200

200

400 400 200

400

200 200

Riser 150mm Thread 400mm

600 600

200

400 200

200

400 200

400 200

400

200 400

400 200 200

FD

200

200

200

FD

200

200 400

400

FD

FD

FD

EXISTING COLUMN AT WESTSIDE AREA (Qty :4nos.)

SECTION 1 - 1 : 50 FD

FD

TEMPORARY SITE OFFICE

WEST SIDE INNER WALKWAY

C2

C1 EXHAUST ROOM

C3

C4

C5

EXIS GAR

OPEN ROOF SLAB

FUNCTION ROOM

FD

FD

FD

WEST SIDE LEVEL 23 PLAN

SECTION 1 - 1 : 50

SECTION 2 - 1 : 50

SECTION 2 - 1 : 50

COLUMN BASEPLATE PLAN

SECTION 3 - 1 : 50

RW

SECTION 3 - 1 : 50 COLUMN BASEPLATE SECTION

RWDP DETAIL 1:5

RENDERS

2 | PROFESSIONAL

CONSTRUCTION | DEMOLITION PHASE

CONSTRUCTION | COMPLETION PHASE

2 | PROFESSIONAL

2.2

Earthscape Concepts 2024 Office ( UNDER CONSTRUCTION ) Freelance

Interior Design | Design Development | Construction Documentation | Project Scheduling | Project Management

Description :

Responsibilities:

During the semester break spanning from November 2023 to March 2024, I embarked on a compelling three-month project that entailed redesigning the new office space for my former employer, Earthscape Concepts, which was set to relocate in February 2024.

Taking on the role of project lead, I was tasked with orchestrating the interior design, tailoring it to meet the unique preferences and requirements of each team member. Facilitated by my previous affiliation with the company, as many of my colleagues were now clients, I fostered seamless communication and a deep understanding of their needs, resulting in a tailored and efficient design process.

Collaborating closely with Timber Story, the main contractor for the project responsible for carpentry and partition works, I honed my skills in interior design, carpentry detailing drawings, electrical and plumbing works, and lighting design. This multifaceted experience not only showcased my adaptability and leadership capabilities but also marked a significant enhancement of my proficiency across various facets of the design and construction spectrum.

- Designing custom office layouts for each department.

- Creating detailed construction drawings for lighting, electrical plans, and carpentry details.

- Documenting carpentry specifications for tables, cabinets, shelves, and doors.

- Adapting designs to cut costs without sacrificing quality.

- Collaborating with the main contractor for decision making for on-site changes - Conducting regular progress assessments and providing updates to stakeholders.

- Coordinating electrical and plumbing works for seamless integration.

- Communicate with code officials and compliance officers to ensure adherence to safety guidelines and regulation.

2 | PROFESSIONAL

CONSTRUCTION DRAWINGS BASE PLAN BASE 2023.12.18 1 : 50 PLAN

ELECTRICAL PLAN ELECTRICAL 2023.12.16 1 : 50 PLAN

DROP CEILING -1200MM

3

ACCESS CONTROL AFFL. +1250

W 1 WINE BOX

W

2

WINE BOX

ELECTRICAL TV POINT AFFL. +1250

D

GLASS WALL THICKNESS 15mm

A

SHOE CABINET

SHOE CABINET

W

TELEVISION

B CMEETING TABLE

ACCESS CONTROL AFFL. +1250

9-10pax

TELEVISION

U 2 TABLE MEETING

2

9-10pax

2

W

W

X1 SINGLE POWER SOCKET CCTV AFFL. +3500

X1 SINGLE POWER SOCKET CCTV AFFL. +3500 W 1 W 1

C

AFFL. +1000

- MD

A

2

- HR/$

- MD

D

PORTABLE PRINTER

PORTABLE PRINTER

W

- HR/$

B

AFFL. +1000

- HR/$

W

W 1

- HR/$ W

TYPE A

ACCESS CONTROL AFFL. +1250

2

U U

3

X4 SINGLE POWER SOCKET PRINTER AFFL.+1250

PRINTER

2

ACCESS CONTROL AFFL. +1250

TYPE A

1

- HOD

W U

4 W PRINTER

X1 SINGLE POWER SOCKET PRINTER AFFL.+1250

W 1

J

U

2

U

2

U

2

U

2

U

2

J J

- HOD

3

U 3 U - HOD 3

U U

U 3 U- HOD 3

U U

3

U U

3

3

3

W

U 3 3 U- HOD

- HOD

W FLOOR TRAP

2

FLOOR TRAP

W 1 WATER POINT

WATER POINT

COUNTER

COUNTER

3

x1 DOUBLE POWER SOCKET MICROWAVE AND OVEN x1 SINGLE POWER SOCKET WATER DISPENSOR

W 1

X1 DOUBLE POWER SOCKET

W

2

W

ELECTRICAL LEGEND

DINING TABLE 10pax

1 2

3 4

4

ELEVATION 1

W U

J

TELEPHONE SINGLE POWER SOCKET DOUBLE POWER SOCKET 3 POWER SOCKET 4 POWER SOCKET LAPTOP - VIDEO CABLE HDMI & VGA TV POINT ACCESS CONTROL CARD READER ACCESS CONTROL RELEASE BUTTON WALL MOUNTED UNDER TABLE MOUNTED JUNCTION BOX LAN POINT

6 10 14 13 1 1 1 1 2 21 21 3 5

W 1 W 1 2

DINING TABLE 10pax

W 1

OUTDOOR WATERPROOF IP65 SOCKET POINT AFFL. +200

x1 SINGLE POWER SOCKET FRIDGE AFFL. +1250 x1 SINGLE POWER SOCKET WATER DISPENSER AFFL. +900 x1 SINGLE POWER SOCKET CCTV AFFL. +3500 OUTDOOR WATERPROOF IP65 SOCKET POINT AFFL. +200

NOTE : LIGHTING POINTS DO NOT REFLECT QUANTITY OF LIGHT FITTINGS. FOR LIGHT FITTINGS, REFER TO REFLECTED CEILING PLAN

TELEVISION

TELEVISION

ELEVATION 1.1 1 : 50 ELEVATION 1.1 1 : 50

ELEVATION 2 PRINTER

PRINTER

TELEVISION

SHOWER AREA

N S O

TELEVISION

SHOWER AREA

N S O

ELEVATION 1.2 1 : 50 ELEVATION 1.2

KEY

SITE MOCK UP

SETTING OUT WAS DONE ON SITE TO ENSURE ACCURACY OF DRAWINGS

SKETCHES

CUSTOMIZED TABLE DETAILS FOR OUTLET PLUG AND STORAGE DETAILS FOR INDOOR GREEN PLANTERS ON OFFICE CEILING

PROGRESS WORK

RENDERS

2 | PROFESSIONAL

2.3

Image courtesy of Neom

Neom : The Line ( UNDER CONSTRUCTION ) Ramboll Studio Dreiseitl Conceptual Design

Description :

Responsibilities :

Upon graduation from Singapore Polytechnic in my Diploma in Landscape Architecture. I was found upon my Rhamboll Dreistl for a Diploma Graduate Temporary Engagement Arrangement Scheme. Due to my showcase at the Graduation show and compeling portfolio, Ramboll had chosen me as a suitable candidate to help them out for the honorable Project, Neom : The Line toegther with the great Architecture firm O.M.A Architect, specifically in producing and showcasing sectional conceptual diagram.

- Demonstrated flexibility and adaptability in a temporary engagement arrangement, showcasing your ability to contribute meaningfully to projects even within a limited time frame.

Due to this project being only on Conceptual Stage, I am unable to share to much in my portfolio due my signing an NDA. But during the process I am able to learn with the big firms on how they normally protray their conceptual diagrams, Presentation decking.

- Contributed conceptual diagrams in showcasing the activities and landscape qualities of the project.

- Prepared and collated presentation decks from O.M.A and Rhamboll using the company templpate guidelines.

- Worked alongside professionals from different companies involved in the Neom project including attending meetings, providing input, and ensuring alignment with project goals.

2 | PROFESSIONAL

MASTERPLAN VISIONING LANDSCAPE BLOCK

1. Base terrace configuration

2. Topography & Planting for Privacy /

5. Planter & Resting area

6. Restaurant overspill

7. Playground on terrace

8. Terrace theater

Public space

3. Planter integration

4. Planter & Access integration

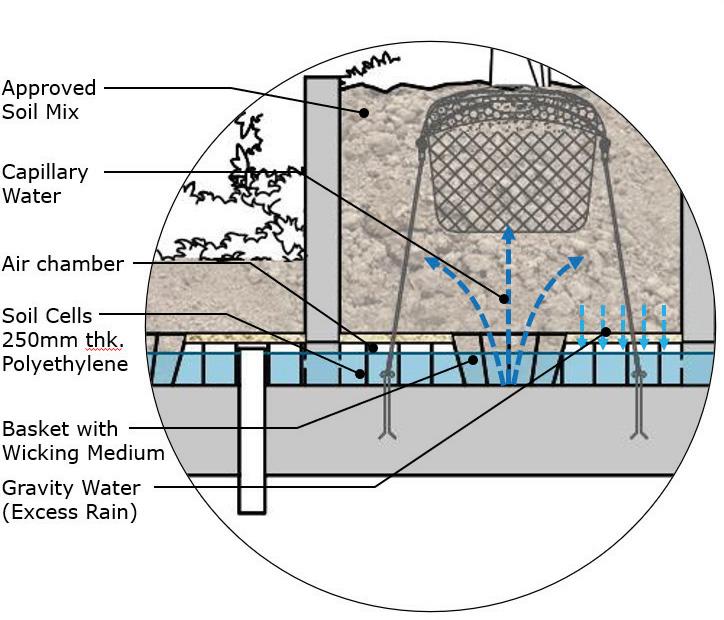

DETAIL SECTION FOR PLANTERS

MATuRE TREES 10M>

Example image : Changi Airport

M 4

3 2 1

MID SIZE TREES 5M>

SECTION DIAGRAMS The Oasis | +94m

The Dessert Plain | +498m

The Wadi ( Dry River ) | +194m

2 | PROFESSIONAL The Oasis | +94m

The Dessert Plain | +498m

HOBBIES

Outside of architecture, I love diving into a variety of hobbies like composing songs, playing instruments, swimming, soccer, drawing and many much more! I also had a lot of fun being part of the Judo Club at Singapore Polytechnic and University of Western Australia, where I got to represent the school in a few competitions.

These experiences have taught me a lot about adaptability and staying disciplined—skills that I think will come in handy in the world of architecture.

3 | PERSONAL
