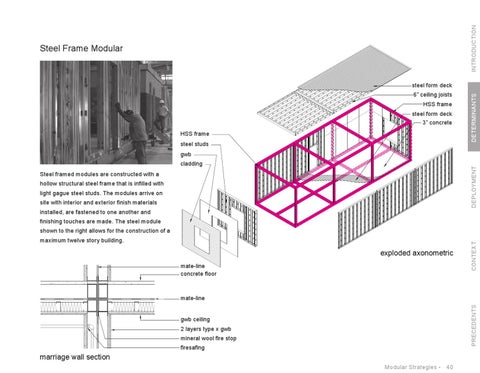

Steel Frame Modular
6” ceiling joists HSS frame steel form deck 3” concrete HSS frame steel studs
DETERMINANTS
steel form deck
gwb DEPLOYMENT
cladding Steel framed modules are constructed with a hollow structural steel frame that is infilled with light gague steel studs. The modules arrive on site with interior and exterior finish materials installed, are fastened to one another and finishing touches are made. The steel module maximum twelve story building.
exploded axonometric mate-line concrete floor
CONTEXT
shown to the right allows for the construction of a
PRECEDENTS
mate-line gwb ceiling 2 layers type x gwb mineral wool fire stop firesafing
marriage wall section Modular Strategies • 40
