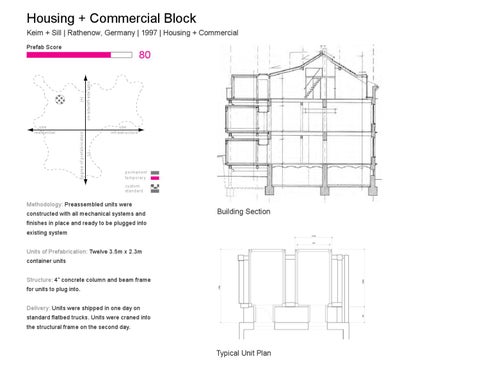

Housing + Commercial Block Keim + Sill | Rathenow, Germany | 1997 | Housing + Commercial Prefab Score
use infrastructure
(-)
(+) degree of prefabrication
use residential
on-site/off-site ratio
80
permanent temporary custom standard
Methodology: Preassembled units were constructed with all mechanical systems and
Building Section
finishes in place and ready to be plugged into existing system Units of Prefabrication: Twelve 3.5m x 2.3m container units Structure: 4� concrete column and beam frame for units to plug into. Delivery: Units were shipped in one day on standard flatbed trucks. Units were craned into the structural frame on the second day.
Typical Unit Plan
