2.4 Elevator Layout
arc G 6 9 1 ty polog y pattern b ook
43

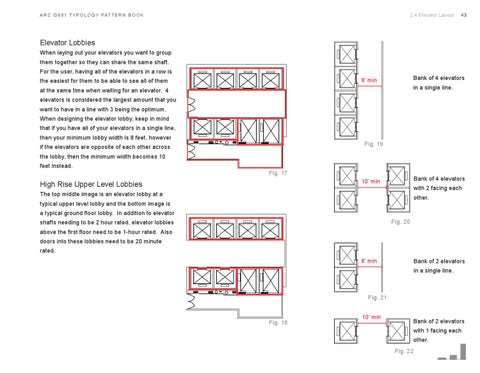

Elevator Lobbies When laying out your elevators you want to group them together so they can share the same shaft. For the user, having all of the elevators in a row is
Bank of 4 elevators
8’ min
the easiest for them to be able to see all of them
in a single line.
at the same time when waiting for an elevator. 4 elevators is considered the largest amount that you want to have in a line with 3 being the optimum. When designing the elevator lobby, keep in mind that if you have all of your elevators in a single line, then your minimum lobby width is 8 feet, however
Fig. 19
if the elevators are opposite of each other across the lobby, then the minimum width becomes 10 feet instead. Fig. 17
Bank of 4 elevators
10’ min
High Rise Upper Level Lobbies
with 2 facing each
The top middle image is an elevator lobby at a
other.
typical upper level lobby and the bottom image is a typical ground floor lobby. In addition to elevator Fig. 20
shafts needing to be 2 hour rated, elevator lobbies above the first floor need to be 1-hour rated. Also doors into these lobbies need to be 20 minute rated. 8’ min
Bank of 2 elevators in a single line.
Fig. 21
Fig. 18
10’ min
Bank of 2 elevators with 1 facing each other. Fig. 22
