NETA World Journal | Winter 2011

WINTER2011

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS PAGE 20

2012

Harness the Power!

CONFERENCE BROCHURE INSIDE

The DELTA4000 12-kV Insulation Diagnostic System Megger, the first to bring you Dc insulation testing in 1890 now brings you the latest in Ac insulation with the DeLTA4000 Series, a fully automatic 12-kV insulation power/ dissipation factor test set.

Smarter! n

n

NEW built-in intelligent temperature correction (patent pending) allows you to estimate the actual temperature dependence on the test object.

Generates own test signal independent of line frequency enabling a clean, reliable signal and the highest accuracy.

Lighter! n

n

Lightweight, rugged two-piece design with unit weights of 31 lb and 48 lb.

Easily transportable and convenient for field use, yet built sturdy and robust.

Faster! n

Advanced signal acquisition and noise suppression circuitry results in 25-50% shorter measurement times.

And More! n

n

n

PRIORITY ACCESS provides guaranteed support and other valuable services to ensure that you get the best out of your investment in Megger DELTA Power Factor Test Equipment.

Accurate and repeatable measurement results with high noise suppression.

WWW.Megger.coM/uS

n

Quick test times - dynamic noise suppression minimizes measurement time in situations with low interference.

Easy to use with automatic and manual operation.

Want to know more? To learn more about the new Megger DELTA4000 Series contact us today at 1 800-723-2861 or email us for a copy of our new 2012 Power catalog at: sales@megger.com.

Megger 4271 Bronze Way Dallas, Texas 75237-1019 USA. The word “Megger” is a registered trademark

Made in the USA

TABLE OF CONTENTS

C o ver S t o ry

Feat ures

7 PRESIDENT’S DESK

20

Mose Ramieh, Power & Generation Testing, Inc. NETA President

10 NETA TURNS 40!

31 SIGNIFICANT CHANGES TO 2012 NFPA 70E Ron Widup and Jim White,

Shermco Industries

20 PPE Requirements for Installation of Temporary Protective Grounds

By Scott Blizard and Paul Chamberlain

57 WHEN IS AN ENERGIZED ELECTRICAL WORK PERMIT REQUIRED Lynn Hamrick,

Shermco Industries

– American Electrical Testing Co., Inc.

SAFETY ISSUES

WHEN PLACING EQUIPMENT IN AN ELECTRICALLY SAFE CONDITION

The goal is to work safely, and the best way to do that is to have the equipment deenergized. However, checking to see that the equipment is, in fact, deenergized requires PPE and special test equipment designed to mitigate the hazards that exist when the equipment is energized and determine that the hazards no longer exist.

table of contents

57

NETAWORLD

•

3

TABLE OF CONTENTS I N E V E RY IS S UE

INDUST RY T O PICS

26

16

38

43

48

MAINTENANCE CORNER Switching 2 Maintenance Kerry Heid, Magna Electric Co.

TECH QUIZ

Placing Equipment in an Electrically-Safe Work Condition Jim White, Shermco Industries

THE NFPA 70E AND NETA

Lockout/Tagout Taking it for Granted Jim White and Ron Widup, Shermco Industries

NICHE MARKET TESTING

TECHNICAL BRIEF

78

NO-OUTAGE INSPECTION CORNER

Additional Safety Features Jim Bowen, Powell Electrical Manufacturing Co.

Top Ten Finds Using Handheld PD Detectors Don A. Genutis, No-Outage Electrical Testing, Inc.

88

98

NETA Handbooks

65

73 MEDIUM VOLTAGE STARTER CONTROL CIRCUIT SAFETY ISSUE Al Havens, E-Hazard.com

84

NETA NEWS

29

NETA AND FRIENDS AT IEEE PCIC 2011

41

CE POWER SOLUTIONS, LLC OF OHIO NAMED AS NETA ACCREDITED COMPANY

62

POWER SOLUTIONS GROUP IS PROUD TO JOIN THE RANKS OF NETA ACCREDITED COMPANIES

95

PACIFIC POWERTECH INC.

SAFETY CORNER

Communication is a Key Element to Electrical Safety in the Workplace

107 TECH TIPS

Ground Testing Safety Jeff Jowett, Megger

116 ANSI/NETA STANDARDS UPDATE

ALL FACTORIES ARE NOT CREATED EQUAL Paul Hartman, DLB Associates

TESTING ROTATING MACHINERY Insulation-Resistance Test Vicki Warren, Iris Power LP.

THE FORGOTTEN WORKPLACE– HOME Don Brown, Shermco Industries

Using Personal Protective Grounds in Industrial Facilities Lynn Hamrick, Shermco Industries

53

REAL WORLD LEARNING AT YOUR FINGERTIPS

103 SHERMCO INDUSTRIES RECOGNIZED AS A "BEST PLACE TO WORK" FINALIST FOR FIFTH YEAR 111 NETA BOARD OF DIRECTORS AND MEMBER MEETING 120 NETA ACCREDITED COMPANIES 126 ADVERTISER LIST

4

•

WINTER 2011

TABLE OF CONTENTS

How Do You ensure Safety and Reliability?

Hire a NETA Accredited Company!

NETA has been connecting designers, specifiers, architects and users of electrical power equipment and systems with independent, third-party electrical testing companies since 1972.

NETA Accredited Companies test the complete system in accordance with industry codes and standards to provide accurate test reports you can count on every time.

For a complete listing of NETA Accredited Companies turn to page 120 or visit www.netaworld.org.

For more information on NETA or our ANSI/NETA Standards give us a call at 888-300-NETA (6382)

3050 Old Centre Avenue, Suite 102 Portage, MI 49024 Toll free: 888.300.NETA (6382) Phone: 269.488.NETA (6382) Fax: 269.488.6383 neta@netaworld.org www.netaworld.org EXECUTIVE DIRECTOR: Jayne Tanz, CMP NETA Officers PRESIDENT: Mose Ramieh, Power & Generation Testing, Inc. FIRST VICE PRESIDENT: David Huffman, Power Systems Testing Co. SECOND VICE PRESIDENT: Ron Widup, Shermco Industries SECRETARY: Walt Cleary, Burlington Electrical Testing Co., Inc. TREASURER: John White, Sigma Six Solutions NETA Board of Directors Ken Bassett (Potomac Testing, Inc.) Scott Blizard (American Electrical Testing Co., Inc.) Jim Cialdea (Three-C Electrical Co., Inc.) Walt Cleary (Burlington Electrical Testing Co., Inc.) Roderic Hageman (PRIT Service, Inc.) Kerry Heid (Magna Electric Corporation) David Huffman (Power Systems Testing) Alan Peterson (Utility Service Corporation) Mose Ramieh (Power & Generation Testing, Inc.) John White (Sigma Six Solutions) Ron Widup (Shermco Industries) NETA World Staff

TECHNICAL EDITOR: Roderic L. Hageman ASSOCIATE EDITOR: Diane W. Hageman MANAGING EDITOR: Jayne Tanz, CMP ADVERTISING MANAGER: Jill Howell

DESIGN AND PRODUCTION: Newhall Klein, Inc.

NETA Committee Chairs

CONFERENCE: Ron Widup; MEMBERSHIP: Ken Bassett;

PROMOTIONS/MARKETING: Kerry Heid; SAFETY: Lynn Hamrick; TECHNICAL: Alan Peterson; TECHNICAL EXAM: Ron Widup; WORLD ADVISORY: Diane Hageman;

CONTINUING TECHNICAL DEVELOPMENT: David Huffman; TRAINING: Kerry Heid; FINANCE: John White;

NOMINATIONS: Alan Peterson; STRATEGY: Mose Ramieh; AFFILIATE PROGRAM: Jim Cialdea

© Copyright 2011, NETA

NOTICE AND DISCLAIMER

NETA World is published quarterly by the InterNational Electrical Testing Association.

Opinions, views and conclusions expressed in articles herein are those of the authors and not necessarily those of NETA. Publication herein does not constitute or imply endorsement of any opinion, product, or service by NETA, its directors, officers, members, employees or agents (herein “NETA”).

All technical data in this publication reflects the experience of individuals using specific tools, products, equipment and components under specific conditions and circumstances which may or may not be fully reported and over which NETA has neither exercised nor reserved control.

Such data has not been independently tested or otherwise verified by NETA. NETA MAKES NO ENDORSEMENT, REPRESENTATION OR WARRANTY AS TO ANY OPINION, PRODUCT OR SERVICE REFERENCED OR ADVERTISED IN THIS PUBLICATION. NETA EXPRESSLY DISCLAIMS ANY AND ALL LIABILITY TO ANY CONSUMER, PURCHASER OR ANY OTHER PERSON USING ANY PRODUCT OR SERVICE REFERENCED OR ADVERTISED HEREIN FOR ANY INJURIES OR DAMAGES OF ANY KIND WHATSOEVER, INCLUDING, BUT NOT LIMITED TO ANY CONSEQUENTIAL, PUNITIVE, SPECIAL, INCIDENTAL, DIRECT OR INDIRECT DAMAGES. NETA FURTHER DISCLAIMS ANY AND ALL WARRANTIES, EXPRESS OF IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. ELECTRICAL TESTING SHALL BE PERFORMED ONLY BY TRAINED ELECTRICAL PERSONNEL AND SHALL BE SUPERVISED BY NETA CERTIFIED TECHNICIANS/ LEVEL III OR IV OR BY NICET CERTIFIED TECHNICIANS IN ELECTRICAL TESTING TECHNOLOGY/LEVEL III OR IV. FAILURE TO ADHERE TO ADEQUATE TRAINING, SAFETY REQUIREMENTS, AND APPLICABLE PROCEDURES MAY RESULT IN LOSS OF PRODUCTION, CATASTROPHIC EQUIPMENT FAILURE, SERIOUS INJURY OR DEATH.

PRESIDENT’S DESK

As you read this the sound of jingle bells is in the air and the holiday spirit has started to distract us from the task at hand, WORKING SAFELY. This issue focuses on the goal of safety.

Safety allows us to get home and enjoy our families and friends during the holidays. The wearing of PPE, thinking through the work plan, and executing the plan as written requires focus and discipline. During this time of year that can be a difficult but necessary task. Please read this issue cover to cover and put what you read into every day practice. If you see an area that has been missed or not covered in as much depth as you would like, contact the NETA office and volunteer to help out.

It is hard to believe that PowerTest 2012 is just two months away! Are you planning to attend? The Ft. Worth venue is a great one for our conference. Here is your opportunity to see what is left of the Wild West and at the same time learn a few things, or at least sharpen your skills in testing and diagnostics.

I encourage all of the NAC’s to send as many technicians as possible to this once a year event.

The last Member Meeting of the year was held in Boston in September.

We had a good turnout, but we would like to see more participation and input from the membership. These meetings allow the membership to provide input and direction for the association. The association needs to hear from you so that it can create a strategic plan that will guide the association in the coming years.

Merry Christmas and a safe and prosperous New Year to all!

Mose Ramieh NETA President

President’s desk

NETAWORLD

•

7

MI 2592 PowerQ4

MI 3121 SMARTEC Insulation / Continuity

Electrical Insulation Safety Metrel offers a wide variety of Single, and Multi-Function testers for measuring Insulation Resistance up to 10kV, Earth Resistance, Line Tracers, Continuity, Loop and Line Impedance, and Phase Rotation.

MI 3200 TeraOhm 10kV

High Voltage Insulation Diagnostics

Single and Three Phase Power Quality Analysis

Technical demands require high performance measuring instruments capable of measuring polarization index (PI), dielectric absorption ratio (DAR), dielectric discharge (DD), time programmable step voltage test, insulation system's capacitance, etc.

Metrel offers a line of 1kV, 5kV, and 10kV insulation resistance meters for these tests.

Metrel power quality analyzers are proven tools for expert designers of filtering systems, power correction equipment, over voltage protection and UPS systems. Wide range of testing possibilities are supported: voltage sags and swells, resonant states, high neutral conductor currents in 3-phase systems, asymmetry, transients, etc.

Exclusive U.S. Distributor for Metrel AVOX Technologies Industrial Test Equipment 90A Randall Avenue Woodlyn, PA 19094

Avoxtechnologies.com

800-272-2818

Call today for delivery on: • State-of-the-Art Technology • Broadest Inventory Available • Fast Responsive Delivery

FEATURE

OVER THE HUMP but NOT OVER THE HILL!

TURNS ANSI/NETA MTS-2011

ANSI/NETA ATS-2009

Standard for

STANDARD FOR

STANDARD FOR

TESTING SPECIFICATIONS

TESTING SPECIFICATIONS

ACCEPTANCE

Acceptance Testing Specifications

FOR

ELECTRICAL

MAINTENANCE

POWER

FOR

EQUIPMENT AND SYSTEMS

2009

WINTER 2011

NETA WORLD JOURNAL

Visit us at

SPRING2011

Picture: www.omicronusa.com/paintings

2/19/09 2:00:58 PM

PowerTest booth #30

My Dad Tests Transformers

... and OMICRON is his New Standard in Transformer Diagnostics!

The OMICRON CPC 100 + CP TD1 is a multifunctional test system which can perform a wide range of standard diagnostic tests including:

You can also perform advanced transformer diagnostic tests including:

• Overall Power Factor and Capacitance • Exciting Current • Transformer Turns Ratio • Leakage Reactance • DC Winding Resistance • Bushings, Surge Arresters

• Dynamic Winding Resistance

TransformerPainting_NETA_8.5x11.indd 1

•

POWER

for Electrical Power Equipment and Systems

• Advanced Power Factor Variable Frequency (15 HZ - 400 Hz) OLTC Tap Check (Ripple and Slope)

• Advanced Leakage Reactance FRSL (Frequency Response Stray Losses)

Now with the OMICRON Primary Test Manager (PTM) software application, you can manage your entire workflow during transformer diagnostic testing while being guided through the process step-by-step.

ARC ENERGY

MITIGATION TECHNIQUES PAGE 12

Benefits include: Asset Data Management, Dynamic Test Generation, Guided Test Procedures, and Comprehensive Reports.

OMICRON offers you a NEW choice in Transformer Diagnostics.

www.omicronusa.com

10

ELECTRICAL

EQUIPMENT AND SYSTEMS

SPRING2011

w w w. n e t a w o r l d . o r g

ANSI/NETA STANDARD FOR ACCEPTANCE TESTING SPECIFICATIONS

ATS09cover-1.indd 1

ANSI/NETA ATS-2013

ANSI/NETA Standard for Acceptance Testing Specificaitons 2009

NETA wasn’t always so well-known. Originally, NETA was founded as the National Electrical Testing Association in 1972 on April 14 at the first recorded meeting, with the first association logo developed by the nine charter members. Wasting no time at getting down to business, NETA published its first Acceptance Testing Specifications document in 1973, followed by the first Maintenance Testing Specifications in 1975. NETA’s founding fathers worked hard at forging a path on which today’s members continue to travel. They recognized that being small in numbers meant that they would have to work even harder to get the word out about the importance of electrical testing. While holding an original copy of the Acceptance Testing Specifications, it is hard not to feel pride and more than a little awe that this modest collection of typed pages is now an American National Standard referenced around the globe. NETA became international in scope in 1983 and is proud to have representatives based in the United States and Canada, who travel worldwide as duty calls.

|

THE EVOLUTION OF NETA PA GE 8

1-800-OMICRON

1/4/2011 4:34:09 PM

NETA TURNS 40!

FEATURE

NETA World, this beautiful, four-color technical journal that now spans over 124 pages once was a humble newsletter, affectionately titled NETA News. It was fostered over the years by ambitious technical editors, Rod and Diane Hageman, and championed by Executive Director, Mary Jordan, whose torch is carried today by Jayne Tanz, soon to be celebrating twenty years with NETA. NETA’s first, four-page, newspaperstyle publication came out in 1979, the same year as the first technical conference. Some of these excellent articles will be published again over the year to come, hearkening back to years past. The meat of this publication would not exist without the tireless efforts of the many authors that have put pen to paper and fingers to keys over the past forty years.

These individuals have provided readers with over 1,200 technically-relevant, educational articles in the course of four decades. Quite an accomplishment.

While the hot-button issues of the day have changed over the years, one thing is constant. NETA’s desire to be positioned on the leading edge of the latest in technology has always placed the association at the forefront of the industry. One way that the association kept up with technology was to begin offering electrical testing and maintenance schools. These programs, started in 1983, have evolved into what is now known as PowerTest, a NETA hosted event. In the 1980’s, PCB was a focal point, and as years have passed everything from cables to relays to the new buzz of smart grids have been covered by the talented individuals who volunteer their time and expertise at PowerTest. PowerTest has always served to unite individuals seeking to expand their knowledge of that for which they are passionate. NETA has always provided an environment that encourages reaching out to bring in those that have a desire to learn and grow, while those more experienced and seasoned veterans are able to benefit from an infusion of new ideas and youthful enthusiasm to get the job done. At one time, the conference was limited to members only, but over the years this week of learning and networking has grown to encompass anyone and everyone involved with electrical testing. NETA Accredited Companies always make a good showing, but the attendees now include architects, engineers, manufacturers, and field technicians not necessarily associated with a NETA Accredited Company.

FEATURE NETA certification and accreditation are two things that really set this organization apart from many other professional associations in existence today. An emphasis on quality, whether that be the quality of a testing technician, the quality of the company backing that individual, or the quality of the test results and services provided, is a philosophy shared across generations and geography alike. These items, coupled with safety and breadth of service, are what have made the services of NETA Accredited Companies and NETA Certified Technicians highly sought after. In the early days of NETA, the charter members saw a void that needed filling. Early pioneers in electrical testing performed invaluable services. Before NETA, there simply was nowhere else to obtain a consensus

After NETA was recognized as an American National Standards Developer (ANSI SDO) in 1996, NETA worked to get its first ANSI standard published. The long-standing NETA certification program that had taken shape over the years was embodied fully in the ANSI/NETA Standard for Certification of Electrical Testing Technicians, the first edition of which was published in 2000, followed by the current 2010 revision. NETA then worked within the parameters of the ANSI process to successfully publish two additional ANSI standards. NETA’s firm foundation in technical knowledge has lent itself to the development of other NETA publications and training materials. The NETA Handbooks and Self-Paced Technical Seminars are products that reflect the materials

standard for comprehensive testing and maintenance services.

Coming together for a common cause and establishing consensus standards was something in which many of NETA’s members were well versed. Participation on committees of other industry codes and standards such as NFPA and IEEE committees helped NETA gain a voice at the table where it counts and paved the way for NETA to develop its own set of standards that address electrical testing requirements specific to field installations. This was a goal early on, and one that came to fruition in the 1990’s and 2000’s.

produced in NETA World and at PowerTest. NETA’s On-Line Training Courses, now available to the general public, as well as NETA Affiliates and NETA Accredited Companies, are based on the ANSI/NETA standards and are geared toward testing technicians.

NETA TURNS 40!

NETAWORLD

•

13

At this time of reflection on the past and looking to the future, it is interesting to read sentiments of a past NETA President, John Moore, from the early days of the organization. From NETA News, Spring 1983, his Letter From the President reads, “NETA has grown… primarily through the unselfish volunteer efforts of several fine testing companies. NETA’s presence has clearly been felt by our industry through our testing specifications, technical certification programs, and annual conferences. There is a strong continuing need for NETA’s support of our industry in the areas of technical development, safety, governmental support, codes and standards, and market development. These activities can only be accomplished effectively through dedicated committee action…. As our membership grows, we will be able to afford more outside services; however, like the IEEE, NFPA, and other industry associations, the backbone of our organization will remain your voluntary committee support.” Words that got to the core of it nearly thirty years ago still ring true today. NETA, safety, standards, quality of life--all of these threads woven together create and support the infrastructure that supports our global community. These threads are not things, but people – people who have devoted themselves to a life of high achievement through serving others. NETA’s birthday belongs to them and to those who follow in their footsteps today. Come help us celebrate these outstanding individuals and count yourself among those helping to make the vision that is NETA possible.

If you have ever been to a NETA event, you know that the old adage “work hard, play hard” is this group’s unofficial motto. Burning the candle at both ends remains a tradition today, with members of the NETA family traveling to help each other on the job site when occasion calls for it, jumping from field work to code panel meetings, and from time to time, celebrating another NETA member’s life milestone with those who have become family over the years. There could not be a group of individuals that better embodies growing older with grace, celebrating wisdom and life experience with a healthy dose of laughter. The best part is that there is always room for everyone, and everyone is always welcome.

40 YEARS!

NETA’s Birthday Celebration will officially take place at PowerTest 2012 at the Dallas Cowboy’s Stadium on Monday, February 27, 2012. The towering glass and steel stadium will host the party of the year (and the conference will be pretty great as well)! Live music, great food, and lots of fun birthday traditions will ring in the next decade for NETA, and it wouldn’t be the same without you being there.

14

•

WINTER 2011

NETA TURNS 40!

Transformer Handbook Volume 1 Published by InterNational Electrical Testing Association

ing Handbook Protective Relay

Michigan 49024

FEATURE Transformer Handbook

REAL WORLD LEARNING

Volume 1

AT Y O U R F I N G E RT I P S

Protective Relaying Handbook

In 2012 NETA celebrates 40 years of service to the electrical systems industry – Establishing industry standards and delivering leading-edge technical information and educational resources based on real-world experience.

Published by InterNational Electrical Testing Association

Volume 1

6/5/09 9:38 AM

Volume 1

Online Diagnostics Handbook

nal Electrical Testing

Published by InterNatio

024

ation Published by cal Testing Associ InterNational Electri

Volume 1

Volume 1

Association

Online Diagnostics Handbook

AM 6/5/09 9:37

Published by InterNatio

IR Scanning Hand

nal Electrical Testing

IR Scanning Handbook

ortage, Michig an 49024 2 org

Association

book

Published by InterNational Electri cal

Testing Association

6/5/09 9:36 AM

Insulating Oils

nal Electrical Testing Association

ation Published by cal Testing Associ InterNational Electri

AM 6/5/09 9:35

nal Electrical Testing

Maintenance

Published by InterNatio

Circuit Breaker

r Circuit Breake Maintenance Handbook

Portage, Michig an 49024 82 d.org

Association

Volume 1

e1 Handbook Volum

Published by InterNational Electri cal Testing

Association

The NETA Handbooks were first released as a series in 2009. They are a go-to source for highly relevant information about testing procedures, troubleshooting, and real-life solutions to situations encountered everyday in the field. The Handbooks were initially created in response to requests from the electrical industry, the general public, NETA

Accredited Companies, and NETA’s technical community seeking a comprehensive, subjectspecific technical resource to use for training and reference materials.

A SALUTE TO NETA’S MANY AUTHORS All NETA technical materials, publications, and events are authored by industry experts – leadingedge, highly knowledgeable individuals who have many years of experience in the field. NETA is extremely grateful for their contributions.

The NETA Handbooks bring together a collection of over 200 of the very best articles from past issues of NETA World Journal and the most well- received technical presentations from past PowerTest events.

6/5/09 9:35 AM

Arc-Flash Safet

nal Electrical Testing

y Handbook

Published by InterNatio

9024

Volume 1

Association

Arc-Flash Sa Handbook fety

ation Published by cal Testing Associ InterNational Electri an Portage, Michig

Volume 1

N E TA T E C H N I C A L H A N D B O O K S !

49024

nal Electrical Testing

Published by InterNatio

age, Michigan

Insulating O Handbook ils

Handbook

Published by InterNatio

49024

NETA was founded with the goal of advancing the industry’s focus on safety and reliability.

The Association’s contribution is fullfilled through the development of the ANSI/NETA Standards and the creation of educational and training resources that include the NETA Self-Paced Technical Seminars, the annual PowerTest conferences, the quarterly NETA World Journal, as well as a 14 volume series of NETA Handbooks.

Association

Published by InterNational Electri cal Testing

Association

BUY THE 14 VOLUME SET

6/5/09 9:32 AM

FOR ONLY $140*!

OR CHOOSE FROM SEVEN TECHNICAL SUBJECTS. • $10* PER BOOK (REGULARLY $15) *Plus shipping

For more detailed information on the NETA Handbooks or other NETA publications, visit the NETA Bookstore at www.netaworld.org or call the NETA Office at (888) 300-NETA (6382)

You’re Invited!

Come Celebrate NETA’s 40th Birthday!

WHAT: WHERE:

NETA’s 40th Birthday 2012

Dallas Cowboys Stadium WHEN: February 27, 2012 TIME:

6:30 – 10:30 PM

RSVP:

www.powertest.org to register Complimentary attendance for conference registrants

COVER STORY

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS B Y S CO TT B L I Z A R D AND PAUL CH AM BERL AIN, American Electrical Testing Co., Inc.

The purpose of temporary protective grounds is to protect the personnel servicing the equipment and to create a safe work environment.

20

•

WINTER 2011

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS

COVER STORY

The purpose of temporary protective grounds is to protect the personnel servicing the equipment and to create a safe work environment. Prior to servicing a piece of electrical equipment, it is important to ensure that it is in a safe state and to verify zero voltage before applying temporary protective grounds. In many situations, more than one set of grounds or grounding apparatus must be applied.

When identifying the placement of temporary protective grounds, ensure all work will be performed within the zone of protection. For correct placement and sizing of temporary protective grounds and grounding apparatus, refer to OSHA 29 CFR 1910.269 Electric Power Generation, Transmission and Distribution Standard. It states under paragraph (n) Grounding for the protection of employees that grounding must be utilized as a means of protecting employees on de-energized lines, and that “For the employee to work lines or equipment as de-energized, the lines or equipment shall be de-energized under the provisions of paragraph (m) of this section and shall be grounded as specified in paragraphs (n)(3) through (n)(9) of this section. However, if the employer can demonstrate that installation of a ground is impracticable or that the conditions resulting from the installation of a ground would present greater hazards than working without grounds, the lines and equipment may be treated as de-energized provided all of the following conditions are met:” 1. The lines and equipment have been deenergized.

2. There is no possibility of contact with another energized source.

3. The hazard of induced voltage is not present.

1910.269 then states under (n)(4) that “Protective grounding equipment shall be capable of conducting the maximum fault current that could flow at the point of grounding for the time necessary to clear the fault. This equipment shall have an ampacity greater than or equal to that of No. 2 AWG copper.”

WHAT LE V E L OF P PE IS R EQUIR ED W HEN IN STAL L IN G T EMPORA RY P R OTEC TIVE GR OUN D S? Any work on or near exposed energized equipment that encroaches within the Restricted Approach Boundary or the Arc-Flash Protection Boundary requires some form of additional personal protection.

The level of protection required depends on the incident energy level and proximity to the circuit.

A copy of the 2012 NFPA 70E, Standard for Electrical Safety in the Workplace© should be referenced prior to beginning the grounding operation. A lot of the tasks can be found within Table 130.7(C) (15)(a), formerly known as Table 130.7(C)(9) in the 2009 version. When using the table, take notice of the notes at the end of the table because they may change the requirements of PPE required to perform the task.

Applying protective grounds to a circuit comprised of the same equipment, within the same voltage range, reference Table 130.7(C)(15)(a) and back to (C)(16) to determine what is needed for personal protective equipment when applying the grounds.

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS

NETAWORLD

•

21

COVER STORY Tasks Performed on Energized Equipment

Hazard / Risk Category

Metal Clad Switchgear, 1 kV Through 38 kV

Rubber Insulating Gloves

Insulated and Insulating Hand Tools

Parameters: Maximum of 35 kA short-circuit current available; maximum of up to 0.2 second (12 cycle) fault clearing time; minimum 36 inches working distance Potential arc-flash boundary with exposed energized conductors or circuit parts using above parameters: 422 inches

Application of temporary protective grounding equipment, after voltage test TABLE 1

4

Y

N

The table terminology now coincides with OSHA. It states that they are temporary protective grounds, and that it is being done after voltage test. This means that even with the presence of zero voltage, the application of grounds must be done when wearing personal protective equipment at a Hazard / Risk Category Level 4, with rubber insulating gloves as a means of protecting the personnel. The following table shows the PPE required for Hazard Risk Category Level 4.

HAZARD / RISK CATEGORY 4

FR Clothing - Minimum Arc Rating of 40 (Note 1)

FR Protective Equipment

 Arc Rated Long Sleeve Shirt (Note 9)  Arc Rated Pants (Note 9)  Arc Rated Coveralls (Note 9)  Arc Rated Arc Flash Suit Jacket (AR (Note 9)  Arc Rated Arc Flash Suit Pants (AR) (Note 9)  Arc Rated Arc Flash Suit hood (Note 9)  Arc rated Jacket, Parka, or Rainwear (AN)  Hard Hat  FR Hard Hat Liner (AR)  Safety Glasses or Safety Goggles (SR)  Hearing Protection (Ear Canal Inserts)  Arc Rated Gloves (Note 2)  Leather Work Shoes (AN)

TABLE 2 Application of the clamp to the grounded side can be achieved without the use of the full level of PPE unless encroaching within the approach distance of some piece of equipment. Clamping the ground to equipment that has been removed from service and de-energized should be accomplished using a shotgun stick while wearing full gear. Table 130.7(C)(15)(a) requires gloves to perform the task and the notes state that they need to be rated for the “maximum line-to-line voltage upon which work will be done.”

22

•

WINTER 2011

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS

COVER STORY RE COMME ND ED PR ACTICES Here are some valuable steps that should be taken prior to commencing work: 1. Be familiar with the equipment being serviced.

2. Check drawings and one-lines.

3. Walk the site to identify any physical hazards.

4. Check the equipment for a recent Arc Flash Hazard Analysis 5. Write a switching and tagging order, or utilize the lockout/tagout procedure specific to the equipment.

6. Write a Job Hazard Analysis, and / or the prejob briefing, identifying all site and task specific hazards.

7. Discuss the prejob briefing with coworkers, and see if they have any insight into past successes or failures in dealing with similar tasks.

8. Put on the required level of PPE after verifying that the task has a known or calculated Hazard / Risk Category. Ensure that no additional PPE will be necessary when applying protective grounds.

9. De-energize equipment.

10. Verify that the voltage testing device is functional against a known source.

11. Verify zero voltage, and have someone double check it.

12. Reverify that the test device is functional against a known source.

13. Apply the grounding side of the clamp and ensure that it is No. 2 AWG or larger ground cable.

14. Apply grounds to the equipment utilizing a reach or remote method such as a shotgun.

15. Remove the PPE when the task is complete.

C ONCL US IO N Refer to industry standards such as the NFPA or OSHA as necessary and wear the required PPE when installing temporary protective grounds. Be safe; when in doubt, always err on the side of caution.

While reviewing the 2012 NFPA 70E in research for this article, the author noted that 130.8(C)(7) does not exist anywhere within the body of the Standard, except in the reference indicated. The author has submitted a proposal to the NFPA to amend this typographical error.

RE FE RE NCE S 1) OSHA Standards for General Industry, 29 CFR Part 1910.269, Electric Power Generation, Transmission, and Distribution Standard 2) NFPA 70E – Standard for Electrical Safety in the Workplace, 2012 and 2009 Editions.

Paul Chamberlain has been the Safety Manager for American Electrical Testing Co., Inc. since 2009. He has been in the safety field for the past 12 years, working for various companies and in various industries. He received a Bachelor’s of Science degree from Massachusetts Maritime Academy.

Scott Blizard is the current Vice President-Chief Operations Officer and the former head of Safety for American Electrical Testing Co., Inc. Scott is a master electrician and a NETA Level 4 Test Technician with over 30 years of experience in the electrical industry.

PPE REQUIREMENTS FOR INSTALLATION OF TEMPORARY PROTECTIVE GROUNDS

NETAWORLD

•

23

STOCKING NEW AC-PRO-MP MASTERPACT RETROFIT KITS, FINALLY A SOLUTION FOR NUISANCE TRIPPING ASSOCIATED WITH STR TRIP UNITS. DATASHEET AVAILABLE FOR DOWNLOAD AT AMPTEKS.COM

CIRCUIT BREAKER REFURBISHMENT SERVICE We are uniquely qualified to refurbish or repair your circuit breakers, going on 2 decades of hands-on experience, or to put it another way 30,000+ hours honing our skill set to achieve excellence is what makes the difference.

ABPM

ACPM

AMPM

Ampteks Basic Preventative Maintenace provides the most economical service while providing a thorough 30 point workscope: Breaker will be received and inspected functionally tested to determine if any additional work is required.

To receive the full workscope please email mclark@ampteks.com

Ampteks Comprehensive Preventative Maintenace is the most common scope performed at our facility.

In addition to ABPM the pole pieces and contact structures will be disassembled to component level then cleaned and burnished.

To receive the full workscope please email mclark@ampteks.com

Ampteks Major Preventative Maintenace is the most thorough scope. The entire breaker is disassembled to component level, all parts are inspected and processed for di-chromate zinc plating as well as new silver plating on all copper.

To receive the full workscope please email mclark@ampteks.com

All you need to do is prepare your breakers for shipment and we will arrange the freight.

We also have an inventory of 40+ secondary injection test sets available for rental.

Ampteks, Inc. ~ 44268 Fremont Blvd., Fremont, CA 94538 ~ Toll Free: 888-KnowAmp Local: 510-651-2561 ~ www.ampteks.com

We Put Switchgear in High Gear!

Providing electrical solutions worldwide

CirCuit Breakers Low & MediuM VoLtage • General Electric • Westinghouse • Cutler Hammer • Siemens • Allis Chalmers • ITE/ABB • Federal Pacific • Square D transforMers 1000 – 5000 kVa • Dry type transformers from stock • Cast resin from stock • Load break switch & fuse Life extension Let us design a prograM to extend the Life of your switChgear • Vacuum retrofill • Vacuum retrofit • Solid state conversion • Vacuum motor control upgrades

MediuM VoLtage Motor ControL air & VaCuuM Motor ControL • New General Electric available from stock • Reconditioned starters and contactors serViCe & repair • Field service and testing • Shop repair of all switchgear and circuit breakers

• Universal circuit breaker remote racking system • Safety switch for remote switchgear operation Circuit Breaker Sales is a charter member of the Professional Electrical Apparatus Recyclers League

MoLded Case CirCuit Breakers & Low VoLtage Motor ControL • Circuit breakers • Motor control components • Upgraded buckets • Panel mount switches switChgear 480V – 38kV new and surpLus • New General Electric switchgear in 4 weeks • Match existing lineup • Reconditioned from stock • Complete unit substations • Indoor and outdoor available renewaL parts switChgear & CirCuit Breaker parts • All low & medium voltage renewal parts, 1945–today • Obsolete vacuum interrupter in stock • www.circuitbreakerpartsonline.com

24 hour emergency service

800-232-5809 fax: 940-665-4681 www.cbsales.com info@cbsales.com

MAINTENANCE CORNER

SWITCHING B Y KER RY HE I D ,

Magna Electric Corp.

MAINTENANCE

One thing is for sure - if personnel are to establish an electrically safe work condition, electrical power systems apparatus must be switched.

(I’m talking operating, opening, racking, removing, resetting, etc.)

Any time there is interaction with the power distribution equipment, the risk of some type of failure increases. Switching an electrical device can be a dangerous act when regular maintenance on the equipment is not performed.

So where does maintenance rank when doing a hazard analysis and a risk assessment during planned switching operations? Here are a few items to consider especially if your system is not properly maintained: 1 . INSULATION FAIL U RE Switching the distribution equipment can initiate surges in the power system.

Insulation systems that are not maintained can become weak over time. Partial discharge activity may cause the insulation to slowly decrease its resistance value phase-to-phase and phase-to-ground. Transient voltage spikes during switching can sometimes exceed the insulation dielectric values. This is of particular concern during the switching processes as workers are interacting with the equipment during the switching procedures.

Regular maintenance involving cleaning, inspecting, insulation resistance testing, and partial discharge testing will help eliminate these issues.

2 . SWITC HING DEV IC ES D O NOT OPER ATE PRO PERLY One of the key facets of performing regular maintenance is to ensure that the switching devices will operate when called upon either during routine switching activities or during a fault condition. During regular maintenance, equipment is operated numerous times to ensure that it operates

26

•

WINTER 2011

as originally designed. From a 2011 NETA survey, we know that most of the issues with these devices are related to mechanical problems. The fact that the device has not operated in years is not a good thing. Often these dormant devices will not open when called upon in a critical fault condition or when trying to perform normal switching operations. Routine testing requires the devices to be operated numerous times to perform the various tests and assures that the equipment will operate when called upon. Some of the serious issues that have been experienced are: CIRCU IT B RE A KE R CLO S E D WHE N RA CKIN G This is a legitimate concern as it can cause a serious arc flash if the device is racked in or out in this state. If the mechanism operated and the mechanical indicator says open, are you sure that all three power contacts actually opened?

NETA maintenance testing is designed to ensure that these devices operate correctly between service intervals.

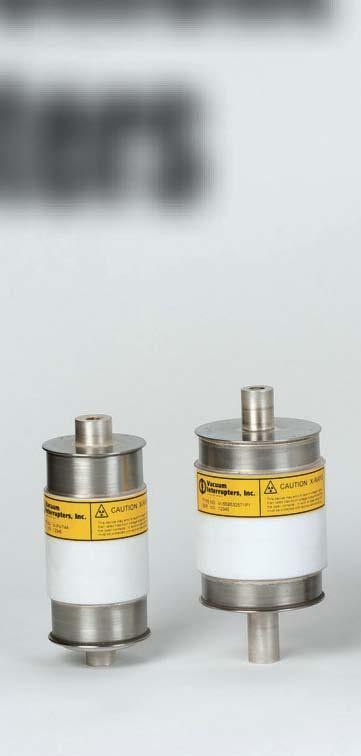

O N LY TWO O F THRE E VA CU U M B O TTLE CO N TA CTS O P E N Not only does this pose the same arcflash issues as above, it can cause the misconception that the circuit is deenergized fully, particularly in contactors that do not rack out. In one instance an electrical worker at a mine opened the boltin contactor on a 4160 volt mine circuit. The electrical worker received an electrical shock at phase-to-ground voltage in the motor connection box as one of the motor leads was still energized.

SWITTCHING 2 MAINTENANCE

MAINTENANCE CORNER

D IS CONNEC T SWIT CH ARC BLAD E S TAYS IN (See figure 1) This is a serious concern when switching. It is very important to check the arc blade through the viewing window on medium-voltage switches or visually on outdoor switches.

The main blades of the disconnect switches may open, but the arcing blades may not as the arcing blades release after the main blades.

This can cause a misconception that the circuit is fully isolated.

3 . PROTE CTION FAILS It is not difficult to notice electrical systems that are poorly maintained, dirty, or appear to be in terrible condition. Precautions can be taken when switching to avoid putting workers in dangerous switching scenarios.

This is not always the case with the relaying protection scheme. Older solid-state relaying

SWITTCHING 2 MAINTENANCE

protection can fail without notice and what is worse – if the protection does not operate at all or even operates milliseconds slower than designed, there will be a large impact on incident energy during an arc-flash event. This causes higher risk to workers and will result in major equipment damage as the fault clearing time extends. Here are some things to ensure when maintaining the relaying protection systems:

Figure 1: Main Contacts Open with Arcing Contacts Closed on a Medium Voltage Disconnect Switch

S E TP O IN TS Always ensure the settings are current with a recent arc-flash hazard analysis and coordination study. With newer vintage relays, review the entire set point file and compare it to the original engineered design.

NETAWORLD

•

27

RELAY FUNCT ION AND T RIP T EST ING Make sure the relay itself works according to the manufacturer’s functional design.

Ensure the inputs are being received from the power system and the associated switching devices operate when called upon. Utilize the up-to-date and accurate drawings to prove this vital interaction of the protection scheme.

CL EAN AND C AL IB RATE Particularly on vintage electromechanical relays, additional steps are required to clean and calibrate the devices.

NETA 20 1 1 SURV EY At the recent PCIC in Toronto, Ontario, the results of our latest NETA survey were released.

After asking a number of questions regarding the reliability of electrical power systems, the following results were obtained. To learn more about this survey you can attend PowerTest 2012 and listen to the entire presentation.

The most common reasons facilities do not perform maintenance are challenges surrounding scheduling, financial or technical constraints, or having a run-to-failure philosophy.

The highest failure mode was mechanical problems edging out protection relaying (including settings) and well ahead of electrical diagnostic issues such as insulation resistance and contact resistance.

C ON C L U SION : Maintenance testing assures that the equipment is ready and capable of being operated safely when establishing an electrically safe work condition. Partnering with a NETA Accredited Company using NETA Certified Technicians who follow the ANSI/NETA Standard for Maintenance Testing Specifications for electrical Power Equipment and Systems, 2011 edition, will give you everything you need to keep your electrical system safe and reliable.

If you do not have a regular maintenance plan for your electrical power distribution equipment, it might be time for a switch.

Highest reliability by equipment type: Fuses Lowest Reliability: Molded-Case Circuit Breakers Highest failure rate by Industry: Mining Lowest failure rate: Commercial facilities Highest Failure Rate during acceptance testing: Molded Case Circuit Breakers Lowest Failure Rate during acceptance testing: Fuses Other survey results indicated that equipment reliability is the worst once the equipment is over 25 years old.

Kerry Heid is the President of Magna Electric Corporation, a Canadian based electrical projects group providing NETA certified testing and related products and solutions for electrical power distribution systems. Kerry is a past President of NETA and has been serving on its board of directors since 2002. Kerry is chair of NETA’s training committee and its marketing committee. Kerry was awarded NETA’s 2010 Outstanding Achievement Award for his contributions to the association and is a NETA senior certified test technician level IV. Kerry is the chair of CSA Z463 Technical committee on Maintenance of Electrical Systems. He is also a member of the executive on the CSA Z462 technical committee for Workplace Electrical Safety in Canada and is chair of working group 6 on safety related maintenance requirements as well as a member of the NFPA 70E – CSA Z462harmonization working group.

There were some significant performance issues found during the acceptance testing phase of the equipment life cycle.

28

•

WINTER 2011

SWITTCHING 2 MAINTENANCE

NETA AND FRIENDS AT IEEE PCIC 2011 Magna Electric, Shermco, and NETA co-hosted a suite at IEEE PCIC 2011 on Tuesday, September 20, 2011, in Toronto, Ontario. The theme for the suite was the NETA All Star Sports Bar, and featured air hockey, open bars, bar food, and a big screen TV with hockey footage. Each sponsor had a booth space and was able to interact with the attendees. NETA gave away USB drives that held copies of the ANSI/NETA Standards along with some additional materials. Attendees asked about the ANSI/ NETA Standards and handbooks, PowerTest 2012, and training opportunities available through NETA. Many attendees were interested in the services offered by NETA Accredited Companies.

Giveaways included an iPad, iPod Touch, Nook, and digital camera. These giveaways were done every half-hour in conjunction with some other items purchased by Shermco. Comments from attendees were positive about NETA’s new presence at PCIC, noting that there was no NETA presence until recently. The impression was NETA is relevant to this audience and a welcome addition to the line-up of hospitality suites.

Kerry Heid and Ron Widup were awarded the opportunity to make a technical presentation at PCIC 2011 on Wednesday, September 21, 2011, at 8:00 AM. Their 45-minute presentation discussed the importance of electrical testing, both acceptance and maintenance, and was supported by case studies and survey data collected from NETA accredited companies. The paper was well-attended, with between 60-70 attendees. During the Q&A session at the end of the paper, two individuals had questions, one individual asked what data was collected about the number of failures caused by maintenance, and one gentleman had no question, but spoke about his company’s LOTO procedures for grounds that significantly reduced the number of failures caused by grounds left attached to a system following maintenance. The presenters responded to the gentleman with the maintenancecaused failures by stating that this is something that does occur from time to time, but the benefit of performing routine maintenance by a qualified company and technicians far outweighs the cost of the incidents of maintenance-related failures. In general, the attendees approved of the topic and found the presentation to be well-presented, useful, and relevant information.

DIAGNOSTIC SOLUTIONS • ENHANCING TRANSFORMER RELIABILITY With substations regularly overloaded and equipment often near the end of its life, electric grid operators are challenged to improve overall system reliability. Our mission is to provide our clients with actionable information that can be used to better manage the overall life cycle of their critical electrical assets in a manner that is convenient, easy to understand, and assists in critical decision-making.

WEIDMANN DIAGNOSTIC SOLUTIONS INC. provides the vital knowledge you need to help you lower risk and improve your electrical system’s reliability. We provide actionable information through our extensive range of diagnostic products and services. WEIDMANN DIAGNOSTIC SOLUTIONS INC. is a leader in developing condition assessment methods for transformers and all oil-lled electrical equipment, such as OCB’s, LTC’s, regulators, rectiers, and network units.

• • •

• Engineering Consulting Services Analytical Testing Services • AIM 2.0 Customer Information Portal Specialized Diagnostic Programs • Education Services Engineering Diagnostic Evaluations ® • InsuLogix Monitoring Products

WEIDMANN DIAGNOSTIC SOLUTIONS INC. One Gordon Mills Way, PO Box 799, St. Johnsbury, VT 05819-0799, USA T +800 811 2284, +916 455 2284, F +916 455 0191, www.weidmann-electrical.com A Member of the WICOR Group

The MENTOR 12 is the Best Three Phase Test System PERIOD! The Mentor 12 Offers: FREE LIFETIME UPGRADES While other manufacturers develop new sets, the Mentor will continue to EVOLVE meaning that you will always have the state of the art testing abilities.

FIELD UPGRADABLE Need more power or ready to add GPS? No Problem!

The Mentor is ready to go in minutes with Plug-n- Play.

FIELD SERVICEABLE If your Mentor needs attention, no need to send it anywhere, SMC will handle it on the spot.

Noram-SMC Inc. Tulsa, OK 74155

Contact us today! Call 918-622-5725

Or visit us at www.noramsmc.com

FEATURE

SIGNIFICANT CHANGES TO 2012 NFPA 70E

BY RON WIDUP AND JIM WHITE,

Shermco Industries The 2012 edition of NFPA 70E is finalized at last!

In addition to the Report on Proposals (504 public and eight committee proposals) and the Report on Comments (433 public and 11 committee), there were 11 NITMAMs (Notice of Intent to Make a Motion) and six appeals (the last gasp to change something).

It is actually unusual to see appeals made as they really get no traction, but obviously someone did not like parts of the 2012 edition. And while this article does not contain all of the changes, it does contain some of the more interesting ones to look for, and often times we refer to the differences between the 2009 edition and the 2012 edition. At 103 pages, the 2012 edition is packed full of guidance and direction on how to deal with electrical hazards while on the job, and it should be in the toolbox and back pocket of every electrical worker out there.

WHY DO YOU CAR E? You probably have several articles on NFPA 70E, and you might ask yourself “Why do I care? I’m not involved in all that regulation and rules stuff; I’m just a [worker, engineer, manager, circus performer, etc.]”

Here is the first answer to the question of “Why do I care?”: You just made it through the first 225 words of the article and you are still reading! Here is the second reason why you care: Because whether you are working in, around, on, or near electricity you have the ultimate challenge of doing so without getting hurt or killed. Knowledge of safe work practices and the hazards of electricity are key if you are to lead an injuryfree existence.

Do do you cut the blue wire or the red wire? Let’s try to better understand the 2012 edition 70E and see if we can figure it out together.

SIGNIFICANT CHANGES TO 2012 NFPA 70E

FIGURE 1: Flame Resistant (FR) PPE is Now Arc-Rated PPE. Look for the ATPV or EBT Rating.

NETAWORLD

•

31

FEATURE G L O B AL CH ANGES Here are a couple of important terms to understand and use as you go through the day: Fine print notes (FPN) have been changed to informational notes (IN) in order to harmonize with the NEC style manual.

When referring to PPE, the term flame-resistant (FR) will be replaced by arc-rated in the standard. It is important to note that all arc-rated clothing is FR, but not all FR is arc-rated.

This is important to those of us who want protection from effects of electrical arcs and not just protection from fire and flames. It is a good idea to start saying “Do you have your arcrated PPE?” instead of “Do you have your FR?” Look for the ATPV or EBT rating in clothing as that’s how electrical PPE is designated. (See Figure 1 for an example of arc-rated PPE.) A RT ICLE 100 DEF INITIONS A new definition of incident energy analysis was added.

It reads “A component of an arc-flash hazard analysis used to predict the incident energy of an arc flash for a specified set of conditions.”

ART IC L E 1 1 0 G EN ERAL REQU IRE M E N TS F OR EL EC T RIC AL SAF ET Y-REL AT E D W O RK PRAC T IC ES The previous Sections 110.1 through 110.4 in the 2009 edition were separated into a new Article 105 for 2012 entitled Application of Safety-Related Work Practices. These items had more to do with the general document than just Article 110 and now serve as an introduction. Article 110 went through many changes. All of 110.8 was moved to Article 130 so that all information relating to electrical hazards or PPE could be in one place. 110.1(C) Relationships with Contractors (Outside Service Personnel, etc), Documentation was added requiring that the meeting between the host and contract employers be documented. This was required in the 2004 edition, but dropped in the 2009. Now it is back – so make sure you document those meetings!

Working On (energized conductor or circuit parts) – the words Intentionally coming in contact with… were added. The intent was to clarify that accidental contact was not working on, it was accidental contact. See the full definition in the call-out box.

2012 Edition of NFPA 70E: Working On (energized electrical conductors or circuit parts).

Intentionally coming in contact with energized electrical conductors or circuit parts with the hands, feet, or other body parts, with tools, probes, or with test equipment, regardless of the personal protective equipment a person is wearing.

There are two categories of “working on”: Diagnostic (testing) is taking readings or measurements of electrical equipment with approved test equipment that does not require making any physical change to the equipment; repair is any physical alteration of electrical equipment (such as making or tightening connections, removing or replacing components, etc.).

FIGURE 2: 110.1(C) Requires a Documented Meeting Between the Host Employer and the Contract Employer 110.2(C) Training Requirements now require that all employees responsible for taking action during an emergency be trained in CPR, methods of release, and a new requirement for annual AED training, if one is at the site. While the source is only known as an old safety manual, see Figure 3 for an old school method of release. This is probably not the way you would do it today.

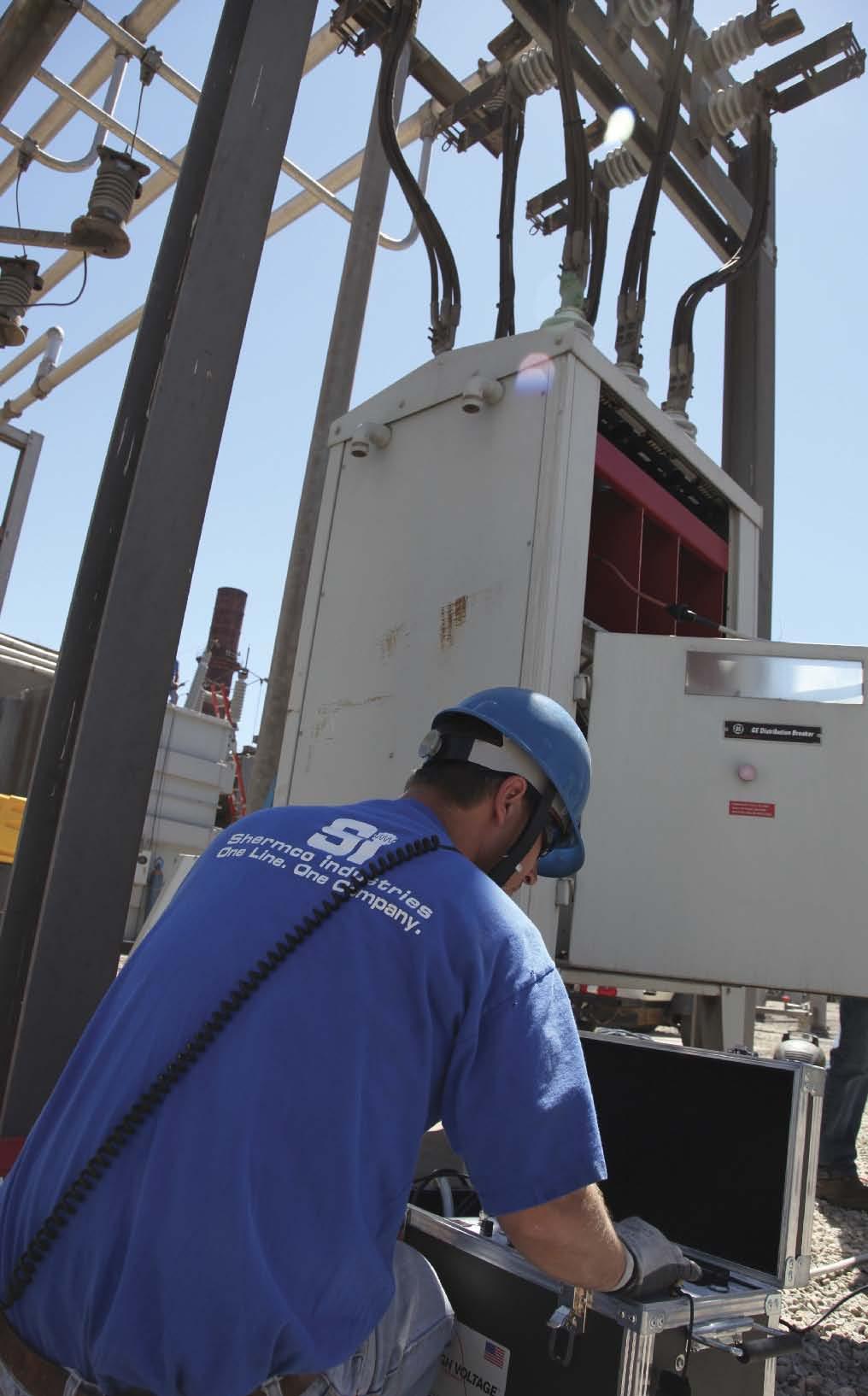

PICTURE 1

32

•

WINTER 2011

SIGNIFICANT CHANGES TO 2012 NFPA 70E

FEATURE

FIGURE 3: Method of Release, Early Electrical Pioneers 110.2(D)(1)(f ) Employee Training takes wording very closely from OSHA 29 CFR 1910.269(a)(2)(iii) which states: The employer shall determine, through regular supervision and through inspections conducted on at least an annual basis, that each employee is complying with the safety-related work practices required by this section.

110.2(D)(1)(f ) of the 70E has essentially the same language, except for one small difference in that: The employer shall determine, through regular supervision or through inspections conducted on at least an annual basis, that each employee is complying with the safety-related work practices required by this standard.

110.2(D)(3)(d) Employee Training. Retraining for qualified persons must now be conducted at least every three years.

This requirement was included because NFPA 70E has a threeyear cycle, and employers that are following its requirements should train their personnel using the current edition.

FIGURE 4: Training of Qualified Persons Must also Include the Content of Training.

110.4(C)(1) Test Instruments and Equipment requires that GFCI protection be provided to employees where required by code, standard or laws. It permits the use of listed cord sets and GFCI protection for portable electric tools.

110.4(C)(2) Test Instruments and Equipment requires the use of GFCI protection for portable electric tools and cord sets supplied by 125 V 15 A, 20 A or 30 A circuits. If the tools are rated for other voltages or currents, an assured grounding program must be implemented.

110.2(E) Employee Training, Qualified Person. The required documentation now includes the content of the training as well as the employee’s name and dates of training. There was a lot of discussion as to the wording (content vs. description).

Content means something more than an outline, but not necessarily the handouts and text.

FIGURE 5: GFCI Protection is Required When Outdoors and Operating Portable Tools.

SIGNIFICANT CHANGES TO 2012 NFPA 70E

NETAWORLD

•

33

FEATURE A RT ICLE 130 WOR K INVOLVING E L ECTRICAL HAZ AR D S Arguably, Article 130 is one of the most valuable and widelyused sections of the 70E. Providing guidance to management, safety professionals, and electrical workers actually performing the work, Article 130 supplies many answers to the difficult aspect of working on, near, and around electrical equipment.

Article 130.1 specifies that all the requirements of Article 130 must be met whether the table method is used or an incident energy analysis (arc-flash study) is performed. So no matter how you get there, you need to follow the requirements of Article 130.

One of the more controversial changes was to Article 130.

Per Article 130.2 Electrically Safe Working Conditions, electrical equipment that you are going to work on or might be exposed to must be placed into an electrically safe work condition (turned off ) if: 1. The employee is within the limited approach boundary.

2. The employee interacts with equipment where conductors or circuit parts are not exposed, but an increased risk of injury from an exposure to an arc-flash hazard exists.

There is an exception to this which essentially states that equipment that has been properly installed and maintained and is opened or racked out to achieve an electrically safe work condition does not have to be turned off in order to operate it as long as the risk assessment agrees with that thought process.

Additionally, there were changes (see underlined text) to Article 130.2(B)(1) Energized Electrical Work Permit: An Energized Electrical Work Permit is required when working within the limited approach boundary or the arc flash boundary of exposed energized electrical conductors or circuit parts that are not placed in an electrically safe work condition. The words arc flash boundary were highlighted because this is a new, and somewhat controversial, change to the 70E. But remember, you are working on an energized piece of equipment with exposed parts – don’t you think you should have plan as to why?

FIGURE 6: Be Familiar With Article 130 When Working on Electrical Equipment.

34

•

WINTER 2011

FIGURE 7: An Energized Electrical Work Permit is Required When Working Within the Arc-Flash Boundary of Exposed Parts.

SIGNIFICANT CHANGES TO 2012 NFPA 70E

FEATURE 130.3(1) Energized Electrical Conductors and Circuit Parts. “Before an employee works within the Limited Approach Boundary energized electrical conductors and circuit parts to which an employee might be exposed shall be placed in to an electrically safe work condition, unless work on energized components can be justified according to 130.2(A).”

EQ U IPM EN T L AB EL IN G One of the best ways to communicate to the electrical worker in the field is to put a comprehensive label with pertinent hazard information directly on the equipment he is about to work on. Article 130.5(C) Arc Flash Hazard Analysis, Equipment Labeling uses the wording from NEC Article 110.16 to specify that the labeling requirement does not apply to all electrical equipment, only equipment that requires inspection, maintenance, adjustment, or servicing while energized. The label requirements have also changed.

Each label must have at least one of the following: 1. Available incident energy and the corresponding working distance 2. Minimum arc rating of clothing 3. Required level of PPE 4. Hazard/Risk Category (HRC) for the equipment Second, the label must also include the nominal system voltage, and third, the label must contain the arc-flash boundary information.

Also, an additional new requirement states that the method used to calculate the values and the supported data must be documented. It does not necessarily have to be on the label, but it must be available for inspection, if needed.

FIGURE 8: You Must Place Turn Off Exposed Equipment When Working Within the Limited Approach Boundary Unless Allowed by 130.2(A).

130.5 Arc Flash Hazard Analysis, IN No. 5 – This IN replaces Exception No. 1 that was in 130.3. It points out that an Arc Flash Hazard Analysis may not be necessary for some threephase systems rated less than 240 volts and refers the reader to IEEE 1584, Guide for Performing Arc Flash Hazard Analysis.

There is good information in 130.5 that you should read and become familiar with. We could probably write an entire piece on just this article of the standard.

130.5(A) Arc Flash Hazard Analysis, Arc Flash Boundary (AFB) eliminates the previously allowed precalculated 4-foot AFB and requires that the AFB be calculated as the distance where a worker would receive 1.2 cal/cm2 incident energy exposure. No more default to a four foot boundary – you need to figure out what it really is.

SIGNIFICANT CHANGES TO 2012 NFPA 70E

An exception was included that allows the use of labels placed onto equipment prior to September 30, 2011, if it has the available incident energy or the required level of PPE. ART IC L E 1 3 0 .7 PERSON AL AN D O T H E R PRO T EC T IV E EQ U IPM EN T Within Article 130.7(A), Personal and Other Protective Equipment, an IN was added that states the normal operation of an enclosed switch, disconnect, or circuit breaker that has been properly maintained probably does not expose the worker to an electrical hazard. The exact wording of IN No. 2 is: It is the collective experience of the Technical Committee on Electrical Safety in the Workplace that normal operation of enclosed electrical equipment, operating at 600 volts or less, that has been properly installed and maintained by qualified persons is not likely to expose the employee to an electrical hazard.

NETAWORLD

•

35

FEATURE Article 130.7(C)(5) requires that whenever you are working within the arc-flash boundary you shall wear hearing protection. An arc-flash event can be a very large and loud acoustic event. It is a good idea to protect your hearing from damage.

category 600 V Class Motor Control Centers (MCC), was split into two parts to reflect the difference in hazard level from working inside the bucket and working on the main bus.

The first nine tasks are in one section that has limits of 65 kA short-circuit available current and 0.03 second operating time.

There has been a long-standing argument about whether or not electrical equipment doors provide a quantifiable degree of protection form an arc-flash event. Article 130.7(C)(15) IN No. 2 and No.3 help to clarify the issue that cabinet doors do not provide enough protection to eliminate the use of PPE. The exact wording is: Informational Note No. 2:The collective experience of the task group is that, in most cases, closed doors do not provide enough protection to eliminate the need for PPE for instances where the state of the equipment is known to readily change ( for example, doors open or closed, rack in or rack out).

Informational Note No. 3: The premise used by the task group in developing the criteria discussed in Informational Note No. 1 and Informational Note No. 2 is considered to be reasonable, based on the consensus judgment of the full NFPA 70E Technical Committee.

T H E TA BLE S H AVE TUR NED The tables in Article 130 are one of the most-used sections of the 70E, and extensive work was done on and with the tables for the 2012 edition, all of which was to help make the tables easier to understand and use.

The table that outlined tasks and corresponding hazard risk categories and selection of PPE is now Table 130.7(C)(15)(a) which was formerly Table 130.7(C)(9). Notes 1, 2, 3, and 4 that provided the limits for this table were moved from the notes section and put in the headers for each type of equipment. Not only are the short-circuit current and operating time of the overcurrent protective device (OCPD) in the headers, but also the arc-flash boundary at the maximum short-circuit current and operating time and the working distance. Voltage protection limits, the arcflash boundary and working distances for medium-voltage equipment were also provided, something that has not been provided previously. Also in Table 130.7(C)(15) (a), the device Switchboards in the category Panelboards or Switchboards Rated >240 V and up to 600 V was moved to category 600 V Class Switchgear (with power circuit breakers or fused switches). In Table 130.7(C)(15)(a), the equipment

36

•

WINTER 2011

FIGURE 9: The Tables in 130.7 Provide Guidance on PPE Use and Hazard Risk Categories.

The second section has three tasks and has limits of 42 kA short circuit available current and 0.33 second operating time.

Table 130.7(C)(15)(b) is new for the 2012 edition of NFPA 70E. This has the same general format as the table for ac electrical power systems but is used for dc electrical systems.

SIGNIFICANT CHANGES TO 2012 NFPA 70E

In Table 130.7(C)(16), formerly Table 130.7(C)(10), Hazard/Risk Category (HRC) 2* has been eliminated.

All HRC 2 tasks now require the use of either an arc-rated balaclava and arc-rated face shield or an arc-rated hood.

The format is unchanged from the 2009 NFPA 70E. A ND FINALLY – LET’S TALK A L IT T L E MA INTE NANC E! IF you have a single-line diagram, take note. Article 205.2 Single Line Diagram states that single-line diagrams must be kept in a legible condition and must be kept current. Since not all facilities have single-line diagrams, this would not require one to be produced. A single line diagram, where provided for the electrical system, shall be maintained in a legible condition and kept current.

If you read Article 205.3 General Maintenance Requirements, electrical equipment is required to be maintained in accordance with the manufacturer’s recommendations or, if they are not available, with industry consensus standards.

There are only two industry consensus standards; NFPA 70B, Recommended Practice for Electrical Equipment Maintenance and ANSI/NETA MTS-2011, Standard for Maintenance Testing Specifications for Electrical Power Equipment and Systems.

As was stated earlier, there are many other changes to the 2012 edition of the 70E. For you to be the very best you can be, and more importantly, for you to work safely while on or near electrical equipment, you really need to understand this very important safety standard.

Ron Widup and Jim White are NETA’S representatives to NFPA Technical Committee 70E (Electrical Safety Requirements for Employee Workplaces).Both gentlemen are employees of Shermco Industries in Dallas, Texas a NETA Accredited Company. Ron Widup is President of Shermco and has been with the company since 1983. He is a Principal member of the Technical Committee on “Electrical Safety in the Workplace” (NFPA 70E) and a Principal member of the National Electrical Code (NFPA 70) Code Panel 11. He is also a member of the technical committee “Recommended Practice for Electrical Equipment Maintenance” (NFPA 70B), and a member of the NETA Board of Directors and Standards Review Council. Jim White is nationally recognized for technical skills and safety training in the electrical power systems industry. He is the Training Director for Shermco Industries, and has spent the last twenty years directly involved in technical skills and safety training for electrical power system technicians. Jim is a Principal member of NFPA 70B representing Shermco Industries, NETA’s alternate member of NFPA 70E, and a member of ASTM F18 Committee “Electrical Protective Equipment for Workers”

RENT RELAY TESTERS FROM ELECTRO RENT Large inventory includes equipment from motor testers to borescopes Megger SMRT36

Doble F6150

Manta MTS-5000

Noram-SMC Mentor 12-36

• Cost effective daily, weekly and monthly rentals.

• Electro Rent’s inside application representatives have 15+ years average experience and are ready to help you get what you want.

800-304-4744 Visit Our New Informative Website!

Delivering Results You Can Trust Since 1965

Industrial.ElectroRent.com

TECH QUIZ

No. 97

PLACING EQUIPMENT IN AN ELECTRICALLY-SAFE WORK CONDITION B Y JI M W H IT E, Shermco Industries

38

•

2. Which OSHA regulation contains the requirements for electrical lockout/tagout? a. 1910.147 b. 1910.335 c. 1910.333 d. 1910.137 3. How does electrical lockout/tagout differ from mechanical lockout/tagout? a. Equipment is not considered deenergized until it has been tested. b. Electrical equipment has to be disconnected from energy sources. c. Electrical lockout/tagout requires the use of nylon cable ties or their equivalent. d. They are the same.

WINTER 2011

4. Which NFPA 70E article covers placing equipment in an electrically-safe work condition? a. Article 100 b. Article 110 c. Article 120 d. Article 130 5. Name the hazard involved with placing an electrical system in an electrically-safe work condition. a. Backfeeds b. Induced voltages c. Misreading single-lines or inaccurate single-lines d. Inaccurate or incomplete procedures e. Assumptions made by workers and employers f. All the above

See answers on page 113.

Jim White is the Training Director for Shermco Industries and the principal Shermco representative on the NFPA 70B committee.

Jim is the alternate NETA representative on the NFPA 70E committee and serves as the NETA representative on the IEEE/ NFPA Arc-Flash Hazard Work Group (RTPC) Ad Hoc Committee. He served as the Chairman of the 2008 IEEE Electrical Safety Workshop. Jim is a NETA Certified Level IV Electrical Testing Technician and a member of the NETA Safety Committee.

1. List the seven steps involved with placing equipment in an electrically-safe work condition: a. ________________ b. ________________ c. ________________ d. ________________ e. ________________ f. ________________ g. ________________

TECH QUIZ

Knowledge is Power

Innovative solutions backed by Doble’s 90 year history.

The industry’s knowledge leader is your trusted partner.

For over 90 years, Doble has partnered with our utility, industrial and testing company clients to improve operations and optimize system performance. Doble offers diagnostic instruments, services and the world’s premier library of statistically significant apparatus test results for the benefit of energy generation, transmission, delivery, industrial and related companies worldwide. With a comprehensive suite of testing solutions, Doble has simplified asset management, infusing new technology with almost a century of knowledge, data and experience.

Survey, Detect and Monitor with Doble Products Rely on Doble for the equipment you need to safely, accurately and efficiently assess the assets under your watch. Whether you need to test a single transformer or monitor an entire substation, Doble has the answer - from our time-tested M and F Series products through our innovative survey tools.

Doble testing solutions include: PDS100 – Partial Discharge Surveyor PD-Smart – Partial Discharge Analyzer Domino USS – Portable Sampling System DFA100 – Dielectric Fault Analyzer

Find more information at

www.doble.com +1 617.926.4900 DobleinFo@doble.com

As well as our M Series for transformer diagnostics, F Series for protection testing and TDR Series for circuit breakers.

Doble iS an eSCo TeChnologieS CoMpany

GE Energy

The new reality Smarter protection than ever before.

At GE, we’re committed to providing protection solutions that meet the demands of your business. That’s why we’ve invested in developing innovative products, such as the award winning Arc Vault™ arc flash protection system.

Arc Vault is designed and built to perform under the most demanding conditions so you have the right solutions to protect your people and your equipment. It reflects our industry leadership in the kind of breakthrough products you’ve come to expect from GE. Look to GE for protection you can count on for a smarter, more efficient future, today.

GE is Leading the Future of Electrification.

www.geindustrial.com/arcvault follow us on twitter: @GE_IndSolutions Tell Me More!

Arc Vault™ is a trademark of General Electric Company

CE POWER SOLUTIONS, LLC OF OHIO NAMED AS NETA ACCREDITED COMPANY

CE Power Solutions, LLC of Ohio is pleased to announce that it became a NETA Accredited Company in September 2011. “This is something we have been working toward and we are looking forward to working with NETA to continue to raise the bar in the electrical testing industry,” commented CEO and President Bill McCloy.

CE Power Solutions, LLC of Ohio provides field testing and maintenance of electrical apparatus for utilities and industrial and institutional facilities as well as acceptance testing and energization services for new installations at electrical generation, transmission, and distribution facilities. The company provides substation maintenance and testing for systems through 500 kV including relay testing and commissioning and NERC and FERC compliance strategies. In recent years, an increasing number of plant and facility managers have grown to call upon CE Power to provide assistance with annual outage maintenance and testing needs in addition to providing additional upgrade and repair services when needed as identified through the testing and maintenance efforts.

CE Power Solutions was once again named to Cincinnati’s Fast 55 for 2011, an honor recognizing CE Power as one of the fastest-growing private firms in greater Cincinnati. Two Thousand Eleven marks the 10-year Anniversary for CE Power, but the technicians, engineers, management, and staff average more than 20 years in the electrical power industry. Many of the team members worked together in the 1980’s and 1990’s providing testing, maintenance, repair, and upgrade services for electrical power apparatus. In 2001, CE Power Ohio employed approximately five people. Since that time, CE Power Solutions Ohio has grown to 35 employees, while fostering relationships with other CE Power companies in Florida, Kentucky, and Wisconsin (CE Power Solutions of Wisconsin, LLC also a NETA Accredited Company).

®

THE NFPA 70E AND NETA

L OC K OUT / TA GOU T TA K I N G I T F O R G R A N T E D

All of us in the field have had repeated training on lockout/tagout.

NETA technicians can have annual training, then training at each customer’s site, and often several other times throughout the year and their career. It is often the topic of tailgate meetings and safety briefings. It is probably human nature to hear something so often and from so many sources that we go on auto-pilot at times.

Instead of going through the procedures deliberately, even the best of us may not hit it as hard as we should. The following true case study illustrates this point:

BY JI M WHI TE AND R ON WI DU P,

Shermco Industries

Figure 1: Switchgear Involved in the Incident

The project involved maintenance work that was being performed by several contractors at a company’s location in the Midwest (the host). The work involved medium-voltage switchgear in a building and an outside substation. The switchgear was of a standard metalclad, drawout, vacuum interrupter design and was in excellent condition. As can be seen in Figure 1, the switchgear also was marked with the single-line on the front of the gear.

LOCKOUT/TAGOUT TAKING IT FOR GRANTED

NETAWORLD

•

43

THE NFPA 70E AND NETA The worker involved in the incident was assigned to clean the switchgear and vacuum bottles in a section of equipment that had been properly locked out, tagged out, tested and grounded. The work on this section of switchgear had been ongoing for a couple of days. One of the other contractors asked the worker to clean and test a circuit breaker cell that was not on the original list of equipment to be maintained.

The host company that owned the equipment approved the addition of this circuit breaker cell to the list. The circuit breaker cell was to a bus tie breaker that had been deenergized the evening before, but had been returned to service.

(See Figure 2).

Figure 2: Location of the Incident

Figure 3: Location of the Incident

It was believed that it was communicated to all the companies that were considered to be either authorized or affected that the bus tie breaker had been returned to service. Locks, tags and signage were in place from all parties except the worker who was asked to do the maintenance. Since the company that the worker was employed by was not scheduled to perform any maintenance on that particular circuit, the company was not perceived to be affected or authorized when the LOTO was performed. The involved worker had completed a Job Safety Analysis ( JSA) prior to the start of work that day, but did not include the newly-added circuit breaker cell, so the backfeed hazard caused by the tie breaker was not addressed.

The affected worker did not place his own locks or tags on the switchgear as it was already secured (see Figure 3). The locks and tags were on the back side of the circuit breaker cubicle.

The worker involved in the incident opened the door on the front of the circuit breaker cell in order to perform the assigned maintenance. He did not test the circuit. The worker knelt down on one knee and manually opened the shutters over the bus stabs. Figure 4 shows the exposed energized bus stabs with the shutters open.

As the worker extended his hand to begin cleaning the tie breaker cell, an arc flash and shock to the worker occurred.

Other maintenance personnel in the area immediately came to his aid and extinguished the fire on his clothing and called 911. The injured worker was transported to a burn center where he received the appropriate medical attention.

The worker survived this incident and received burn injuries to his right hand and a blow-out injury to his knee (Figures 5 and 6). After a fairly long recovery period, this worker should be able to continue on with his life, an option that many people in his situation would not have had under similar circumstances.

Figure 4: Exposed Bus Location

44

•

WINTER 2011

LOCKOUT/TAGOUT TAKING IT FOR GRANTED

THE NFPA 70E AND NETA

Figure 5. Burn Injuries to Hand

Figure 6. Blowout Injury to Knee

Under similar circumstances, companies have been known to fire employees for violating safety rules. That is one approach.

He did not test the circuit prior to working on it. He did not complete a JSA. He did not consider how dangerous working bus tie circuits can be. No arc-flash protective clothing or PPE was worn. We could point to several mistakes that were made, but the root cause does not belong entirely to the worker.

There were mistakes made by almost all parties involved.

The host company approved the additional cell maintenance without considering all the consequences. Neither the host nor the contractor requesting the circuit breaker cell be added to the list advised the affected worker that the circuit had been reenergized.

SU M M ARY Safety is not about just any one procedure or rule. It’s about slowing down, planning, and executing that plan. There are plenty of tools available to help us: policies, procedures, codes, standards, federal regulations, and state and local laws. I am not about to say that the worker involved in this incident was not taking safety seriously, but he failed to follow some fundamental safety rules like test-before-touch. If he had taken just that one step, there would be nothing to write about.

When I was in boot camp our Drill Instructor told us that assume makes an ass out of you and me. It was true then, and it is true today. In this instance, assumptions came into play several times, both by the worker and by the companies involved. The good news is that it did not result in a fatality, but that does not relieve the pain and suffering that the employee had to endure. This same type of scenario is likely repeated at many job sites throughout the U.S. Multiple contractors, dozens, maybe hundreds of workers, power system equipment and devices, all have to be taken into consideration when performing maintenance activities. It can become a blur.

Ron Widup and Jim White are NETA’S representatives to NFPA Technical Committee 70E (Electrical Safety Requirements for Employee Workplaces).

Both gentlemen are employees of Shermco Industries in Dallas, Texas a NETA Accredited Company. Ron Widup is President of Shermco and has been with the company since 1983. He is a Principal member of the Technical Committee on “Electrical Safety in the Workplace” (NFPA 70E) and a Principal member of the National Electrical Code (NFPA 70) Code Panel 11. He is also a member of the technical committee “Recommended Practice for Electrical Equipment Maintenance” (NFPA 70B), and a member of the NETA Board of Directors and Standards Review Council. Jim White is nationally recognized for technical skills and safety training in the electrical power systems industry. He is the Training Director for Shermco Industries, and has spent the last twenty years directly involved in technical skills and safety training for electrical power system technicians. Jim is a Principal member of NFPA 70B representing Shermco Industries, NETA’s alternate member of NFPA 70E, and a member of ASTM F18 Committee “Electrical Protective Equipment for Workers”.

People are people, and people make mistakes. That is why we have OSHA, NFPA 70E, procedures, policies, etc. Most, if not all of us have either been involved in accidents or know people who have been. It’s not like it’s a secret that people make mistakes, but to talk to some, they seem to think only others have that failing.
