ARCHITECTURE PORTFOLIO

PORTFOLIO

NEHA REDDY HN

C O N T E N T

Whispering Pines- GATED COMMUNITY DESIGN

Anthill TOWER-MIXED USED HIGH-RISE DESIGN

AURA - MASTER BEDROOM DESIGN

RESONANCE -RECORD ROOM DESIGN

ORTHO-WELLNESS CENTRE

WORKING DRAWING

MISCELLANEOUS

This portfolio displays the work I did while an undergraduate at PES University. The chosen projects showcase a variety of scales, concepts, and situations, showcasing the varied knowledge and abilities acquired during the period 2019–2023.

Whispering Pines

GATED COMMUNITY DESIGN

SITE LOCATION - HINNAKKI, BENGALURU

SITE AREA - 8.24 ACRES

MASTER PLAN

SITUATED IN THE TRANQUIL HINNAKKI VILLAGE OF BENGALURU DISTRICT, THIS HOUSING COMMUNITY DESIGN IS A HARMONIOUS BLEND OF AFFORDABILITY AND MODERN LIVING WITH A DIVERSE RANGE OF HOUSING OPTIONS TO SUIT INDIVIDUALS FROM ALL INCOME LEVELS, THE COMMUNITY PROVIDES AN INCLUSIVE ENVIRONMENT WHERE RESIDENTS CAN FIND THEIR IDEAL HOME SURROUNDED BY LUSH GREEN SPACES, INCLUDING WELL-MAINTAINED GARDENS AND PARKS, THE COMMUNITY OFFERS A SERENE RETREAT FROM THE BUSTLING CITY THOUGHTFUL SEGREGATION ENSURES A BALANCED MIX OF RESIDENTS, FOSTERING A SENSE OF UNITY AND BELONGING. THE WELL-PLANNED LAYOUT PROMOTES EFFICIENT CIRCULATION, MAKING IT EASY FOR RESIDENTS TO ACCESS ESSENTIAL AMENITIES AND ENJOY A CONVENIENT LIFESTYLE. EMBRACING THE SPIRIT OF BENGALURU'S EXPANDING ERA, THIS COMMUNITY DELIVERS AFFORDABLE HOUSING WITHOUT COMPROMISING ON COMFORT AND QUALITY

THE COMMUNITYHOUSINGPROJECT IN HINNAKKI, BANGALORE CONSISTS OF 76 EWS (ECONOMICALLY WEAKER SECTION) UNITS, 117 LIG (LOW-INCOME GROUP) UNITS, 32 MIG (MIDDLE INCOME GROUP) UNITS, AND 16 HIG (HIGH-INCOME GROUP) UNITS. THE ALLOCATION OF A HIGHER NUMBER OF LIG UNITS IS BASED ON THE LARGER POPULATION OF LOW-IN- COME INDIVIDUALS IN THE AREA THE PROJECT INCORPORATES A GRID SYSTEM CONCEPT, WHICH EFFECTIVELY DIFFERENTIATES EACH TYPE OF HOUSING AND ENSURES PRIVACY FOR ALL RESIDENTS THIS SYSTEM DIVIDES THE HOUSING UNITS INTO DISTINCT SECTIONS BASED ON INCOME GROUPS, ALLOWING FOR A WELL-ORGANIZED AND EFFICIENT LAYOUT. IN TERMS OF AMENITIES, THE COMMUNITY HOUSING PROJECT PROVIDES DESIGNATED CAR PARKING SPACES FOR HIG AND MIG UNITS ADDITIONALLY, TWO-WHEELER PARKING SPACES ARE PROVIDED FOR LIG AND EWS UNITS, CONSIDERING THE TRANSPORTATION PREFERENCES AND NEEDS OF THE RESIDENTS IN THESE INCOME GROUPS OVERALL, THE PROJECT AIMS TO ADDRESS THE HOUSING NEEDS OF VARIOUS INCOME GROUPS IN THE HINNAKKI AREA OF BANGALORE, PROVIDING APPRO PRIVATE HOUSING UNITS, MAINTAINING PRIVACY THROUGH THE GRID SYSTEM, AND CATERING TO SPECIFIC PARKING REQUIREMENTS BASED ON INCOME GROUP

3D EXTERIOR VIEWS

MIXED USE HIGHRISE

BUILDING

Location: Neeladri Rd, Electronics City Phase 1, Electronic City, Bengaluru, Karnataka 560100

Total Site Area: 12 Acres (48,562.3 sq m)

The Site is situated along Neeladri Road and an integrated 80 Feet Road connecting directly to Infosys Avenue, the Electronic City Fly-over and Hosur Road / the Bengaluru - Chennai Highway. The site has a gradual slope of 3m from 938m to 935m.It slopes to-wards the South-West direction which can be used for drainage purpose. NW directed road leads towards Srirampura. SE directed road leads towards Mylasandra.

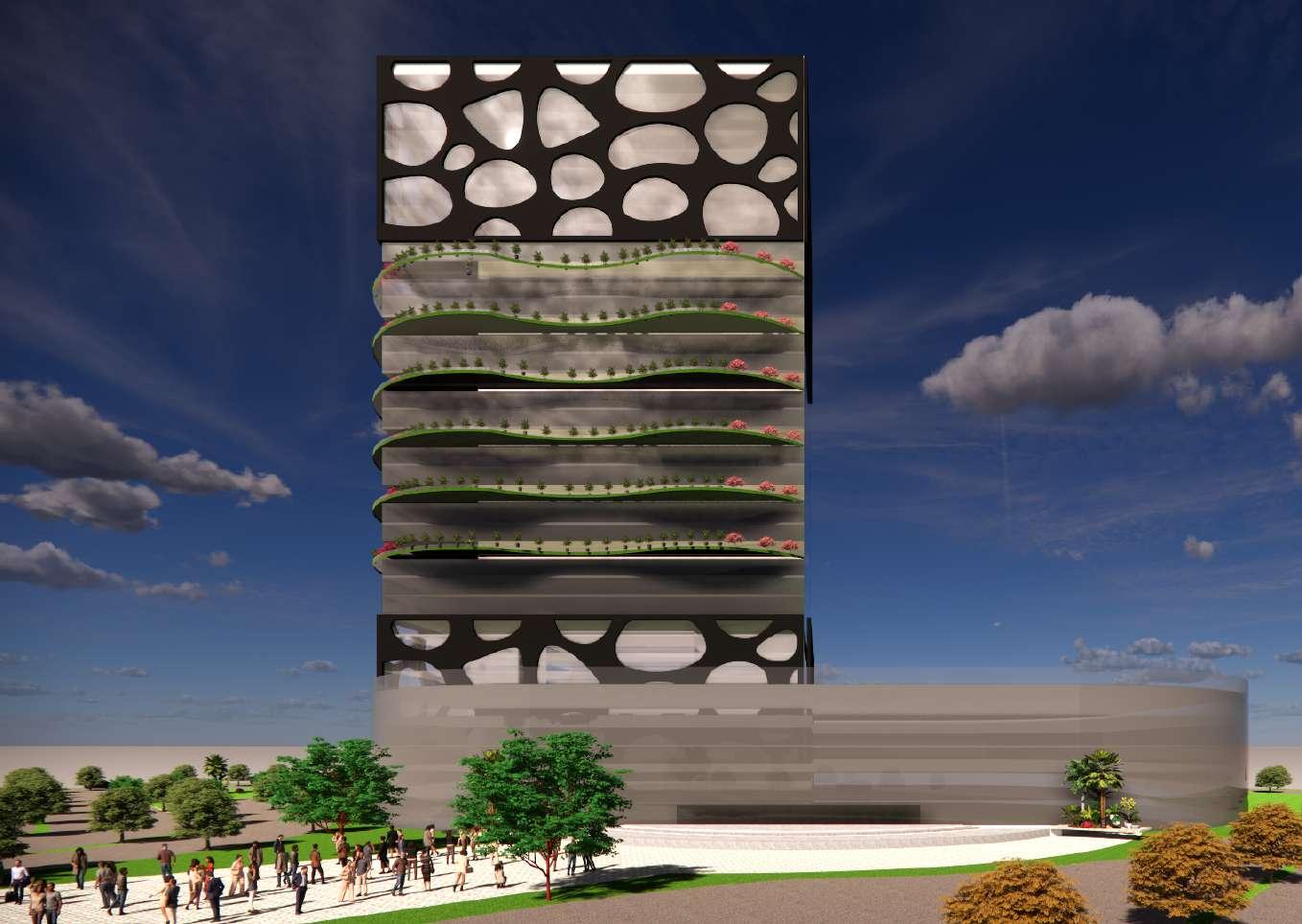

Anthill TOWER

CONCEPT: ANT NEST

Ants build nests that are complex, efficient, and sustainable structures that can serve as a model to create functional and environmentally friendly high-rise buildings. One key aspect of ant nests that inspired is their ventilation system. Ants build their nests with a sophisticated ventilation system that allows for airflow and temperature regulation. This same principle can be applied to high-rise buildings to create a natural ventilation system that reduces the need for mechanical cooling and heating systems, thereby reducing energy consumption and carbon emissions.

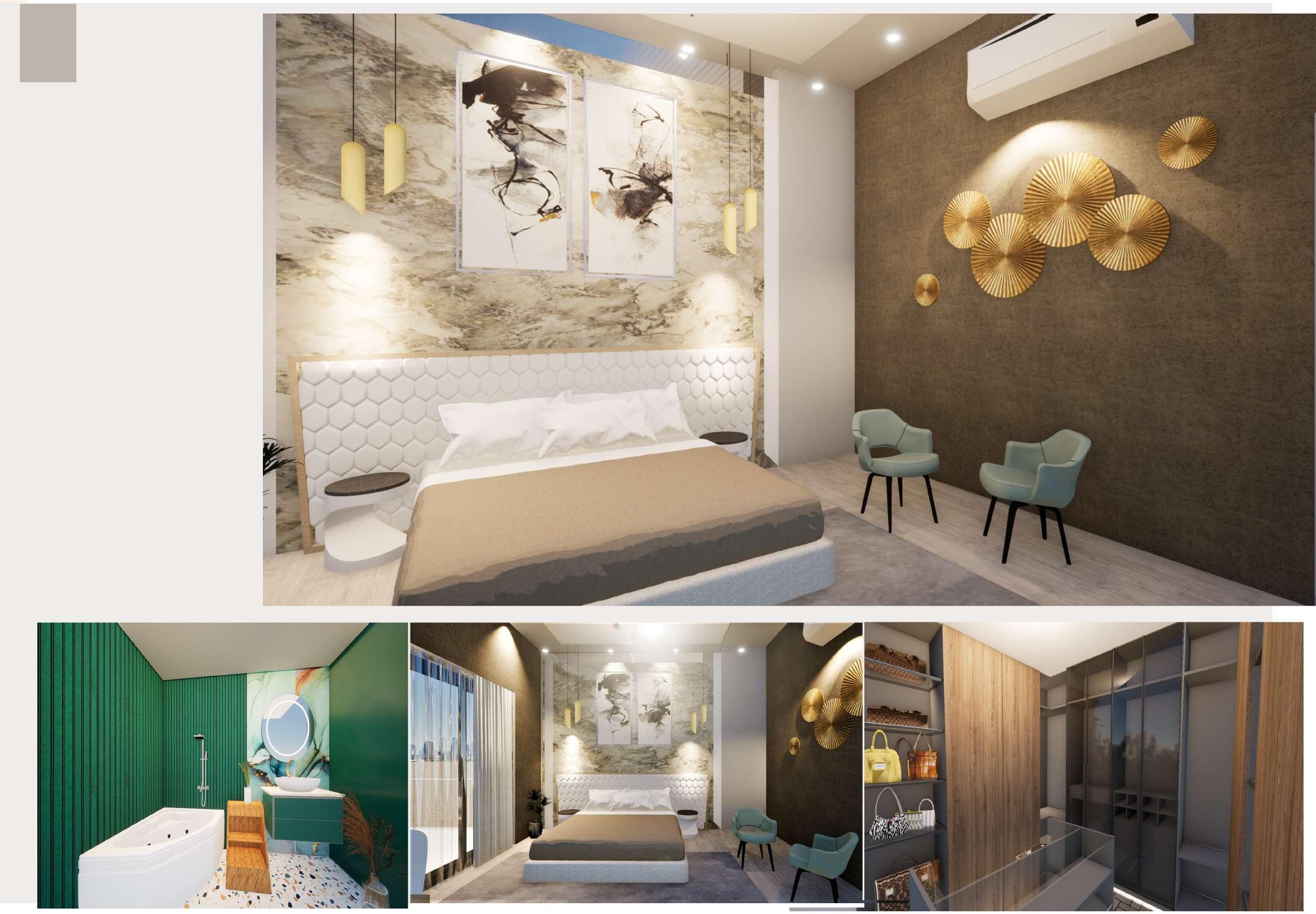

BEDROOM DESIGN AURA

INTRODUCING A LUXURIOUS AND MINIMALIST MASTER BEDROOM DESIGN THAT EMBODIES THE PREFERENCES OF A COUPLE INCLINED TOWARDS MINIMALISM AND LUXURY. THE THE ROOM SHOWCASES A CAPTIVATING BEIGE COLOR PALETTE, COMPLEMENTED BY CAREFULLY SELECTED MATERIALS SUCH AS WOODEN FLOORING, MARBLE WALL FINISHES ON ONE SIDE, AND TEXTURED MATT FINISHES ON THE REMAINING WALLS. THIS THOUGHTFUL COMBINATION ACHIEVES A HAR•

MONIOUS BALANCE BETWEEN MINIMALISM AND OPULENCE.

THE FURNITURE PIECES ARE SLEEK AND MINIMALISTIC, WHILE THE LIGHTING FIXTURES EXUDE SIMPLICITY. WINDOW TREATMENTS ARE ELEGANT AND UNOBTRUSIVE, ALLOWING NATURAL LIGHT TO ENHANCE THE SPACE.

THOUGHTFULLY CURATED ACCESSORIES AND DECOR ITEMS ADD A TOUCH OF LUXURY WITHOUT OVERWHELMING THE MINIMALIST AESTHETIC. STORAGE SOLUTIONS ARE SEAMLESSLY INTEGRATED TO MAINTAIN A CLUTTER-FREE ENVIRONMENT. THE RESULTING MASTER BEDROOM DESIGNS ASERENE ANDLAVISHSANCTUARY THAT SEAMLESSLY BLENDS THE COUPLE'S DESIRE FOR SIMPLICITY AND REFINED LUXURY.

RECORD ROOM DESIGN

R O C K E R Y U N I T

OVERHEADOPENCABINETOFSIZE480X600X400mmOF19mm

THKPLYWOODF NISHW THWOODVENEER

WINEGLASSSTORAGEOFSIZE800X400MADEOF19mm

PLYWOODFINISHEDWITHMATTEBLACKLACQUERPAINT

BACKRESTOF12mmTHKSIZE930X600X1160OF19MMTHK

PLYWOODFINISHEDWOODVENEER

GLASSDOOROFSIZE800X6X1330mm

OPENCAB NETOFSIZE280X600X450mmOF19mmTHKPLYWOOD

FINISHW THWOODVENEER

WINERACKOFSIZE360X600X100MADEOF12mmPLYWOOD

FINISHEDW THMATTEBLACKLACQUERPAINT

19mmTHKPLYWOODFINISHWITHWENGEVENEER

12mmPLYWOODFINISHEDWITHMATTEBLACKLACQUERPA NT

UNDERDRAWEROFSIZE800X540X180MADEOF19MMPLYWOOD

FINISHEDW THWENGEVENEER

UNDERCUPBOARDOFSIZE900X600X780MADEOF19MM

PLYWOODFINISHEDWITHWENGEVENEER 100MMSK RTING

SCALE1:20

OVERHEADOPENCABINETOFSIZE480X600X400mmOF19mm

THKPLYWOODF NISHW THWOODVENEER

WINEGLASSSTORAGEOFSIZE800X300MADEOF19mm

PLYWOODFINISHEDWITHMATTEBLACKLACQUERPAINT

BACKRESTOF12mmTHKSIZE930X600X1160OF19MMTHK

PLYWOODFINISHEDWOODVENEER

GLASSCABINETOFSIZE1600X600X1330

OPENCAB NETOFSIZE280X600X450mmOF19mmTHKPLYWOOD

FINISHW THWOODVENEER

WINERACKOFSIZE360X600X100MADEOF12mmPLYWOOD

FIXINGDETAILOF CHANNELTODRAWER

SCALE1:20

SCALE1:20

UNDERDRAWEROFSIZE800X540X180MADEOF19MM

PLYWOODF NISHEDWITHWENGEVENEER

UNDERCUPBOARDOFSIZE900X600X780MADEOF19MM

PLYWOODFINISHEDWITHWENGEVENEER

PUSHOPENMAGNETATTACHEDTOTHESHUTTER

OVERHEADOPENCABINETOFS ZE480X600X400mmOF19mm

THKPLYWOODFINISHWITHWOODVENEER

DETAILBPUSHOPEN MAGNETPISTON SCALE1:5

230mmMASONRYWALLTHICKNESS

PUSHOPENMAGNETATTACHEDTOTHESHUTTER

GLASSCABINETOFSIZE1600X600X1330

BACKRESTOF12mmTHKS ZE930X600X1160OF19MMTHKPLYWOOD

FINISHEDWOODVENEER

PUSHOPENMAGNETATTACHEDTOTHESHUTTER

OVERHEADOPENCABINETOFSIZE480X600X400mmOF19mm

THKPLYWOODFINISHWITHWOODVENEER

PLANATLEVEL1900MMSCALE1:20

SECTION AA'

SECTION BB'

SECTION CC'

A R D R O B E D E S I G N

SECTIONCC' SECTIONBB'
