Neha Bhat about me

Age: 21 Date of Birth: 9 October 2001 Nationality: Indian Language: English, Hindi, Kannada

hello! I’m Neha Bhat, currently pursuing a Bachelor’s degree in architecture at Manipal School of Architecture and Planning MAHE, Karnataka, India.

My vision is to produce design solutions that respects the user and context and create functional built environments integrated with the surroundings.

Through this portfolio, I present the skills I have developed and I look forward for opportunities to further learn, refine and grow as an aspiring architect.

contact 9535680826 nehabhat0910@gmail.com ‘OM’, 5-1-D, near Dr. Bhagavath eye clinic, Ambalpady- 576103, Udupi, Karnataka, India

1. Bookstore(Single user kiosk), Manipal 2. 4BHK Residence, Manipal 3. Kindergarten, Manipal 4. Hillside resort, Pune 5. Construction worker’s housing, Faridabad 6. Public Library, Pune 7. MIG High RiseResidential Apartment, Manipal

electives

1. Vastuvidya 2. Interior Design 3. Advanced Computer Graphics 4. Seeing through photography - Coursera 5. Greek and Roman Architecture- Coursera 6. Research Methodoloy- Cousera

achievements

College exhibition for DesignUru 3.0

IV semester design works displayed at the DesignUru event organised by IIID, Bangalore

software skills 2d Drafting

Autodesk AutoCAD

3D Modeling

Autodesk Revit SketchUp

Rendering

Lumion Twinmotion V-ray

Presentation

MS Office Suite Adobe Photoshop Adobe InDesign

Energy Simulation 02 | CURRICULUM VITTAE

Design Builder

contents

01. high-rise residential apartment(MIG),

02. public library

03. hillside resort

04. working drawings

05. miscellaneous 03 | CONTENTS

01. HIGH-RISE RESIDENTIAL APARTMENT (MIG) Located in udupi’s brahmavar This project attempts to design apartments for local families in the middle-income bracket.

There are 8 blocks with 480 apartments totaling 1 bhk, 2 bhk, and 3 bhk spread out across an area of 8 acres.

PROJECT DETAILS • Site Area= 32611 m2 • Total built up area= 77120 m2 • FAR achieved= 2.41 • Ground coverage= 36.2%

04 | high rise residential apartment

05 | high rise residential apartment

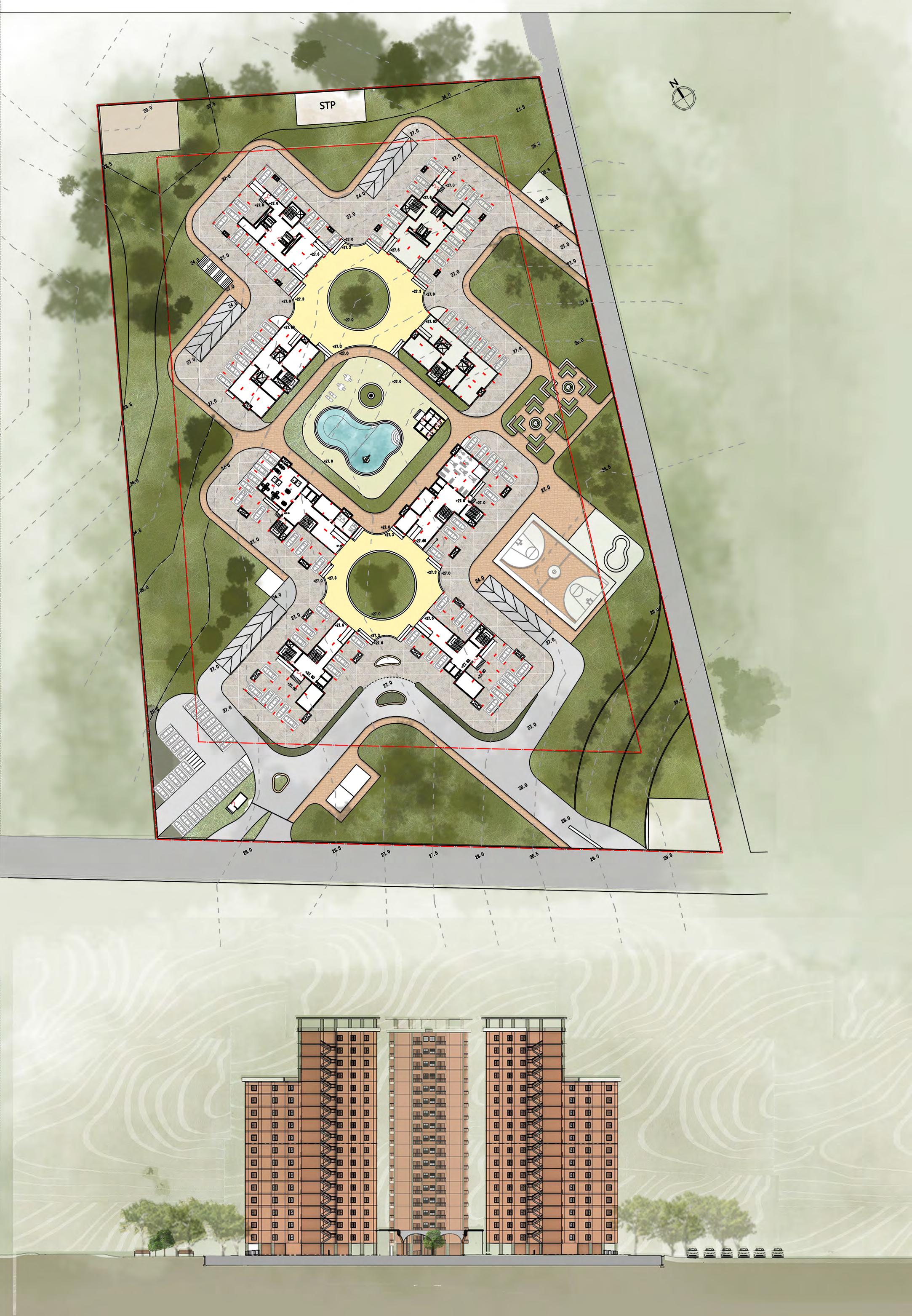

site plan

7.

LEGEND 1. Vistor’s parking 2. Courtyard 3. UG tank + fire tank 4. Gas bank 5. Swimming pool + landscaping 6. Rainwater harvesting tank 7. Sewage treatment plant 8. Garbage disposal 9. Garden + seating area 10. Kid’s play area 11. Basketball court 12. Transformer yard

R AM P

U

P

6.

8.

R AM P

D

O W N

2.

9.

5.

10.

4.

2.

11.

RA

P

UP

R

AM

P

D

O W N

M

DROP OFF

1.

3.

12.

ENTRY

EXIT ENTRY

EXIT

site section Landscaping

06 | high rise residential apartment

Cluster 2- 2BHK cluster

Road

Visitor’s parking

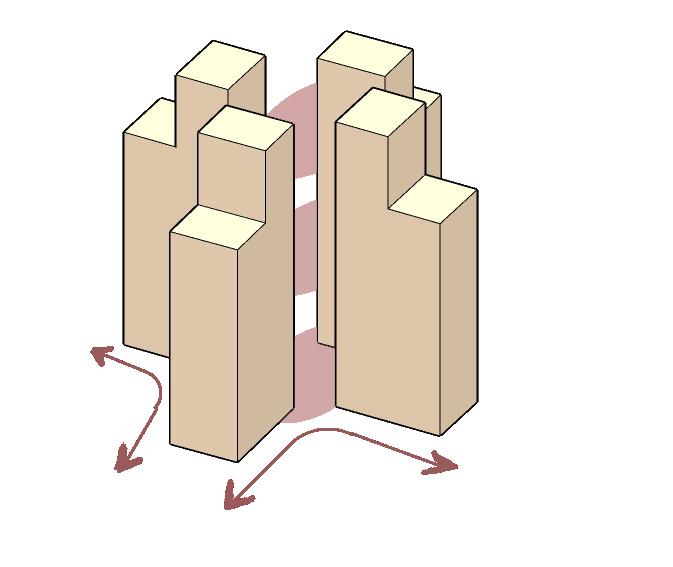

CONCEPT - Interaction

v an ent d ial da at yl ion ig ht

Spaces are planned to promote interaction with the nature, users, surrounding context and views. User interaction has heirarchial approach where different zones have been created to allow unit wise and cluster wise interaction. Blending the lines between exterior and interior by the use of courtyards, roof garden and exterior landscaping areas.The central circulation core ensures that the units experience abundant daylight and ventillation throughout the day.

CLUSTER 1- 1BHK + 2BHK

gr id

m as si n

g

This cluster consists of two 1BHK(65m2) units and two 2BHK(100.34m2) units. planned such that the circulation space is reduced to 15% while the interior spaces

Units planning

CLUSTER 2- 2BHK units

This cluster consists of four 2BHK(110.34m2) units. The circulation area is reduced to 17%. This arrangement allows maximum ventilation and dayighting into the units and opens up to capture splendid views.

seating space + garden

Cluster planning 4 clusters are grouped togther such that they face outside without disturbing the views and are tied to each other by the courtyard below.. The change in levels also allows landscaping in higher floors.

07 | high rise residential apartment

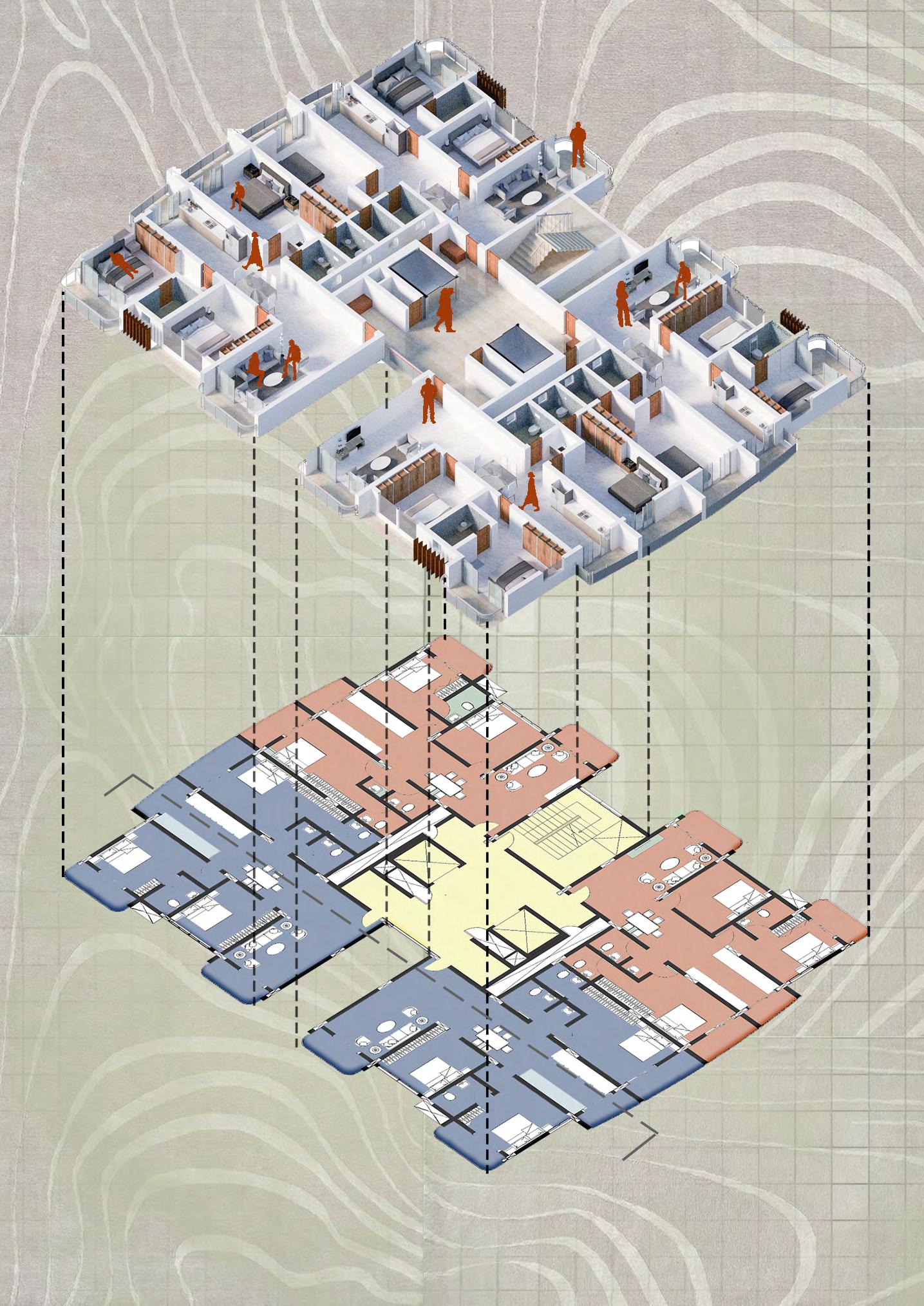

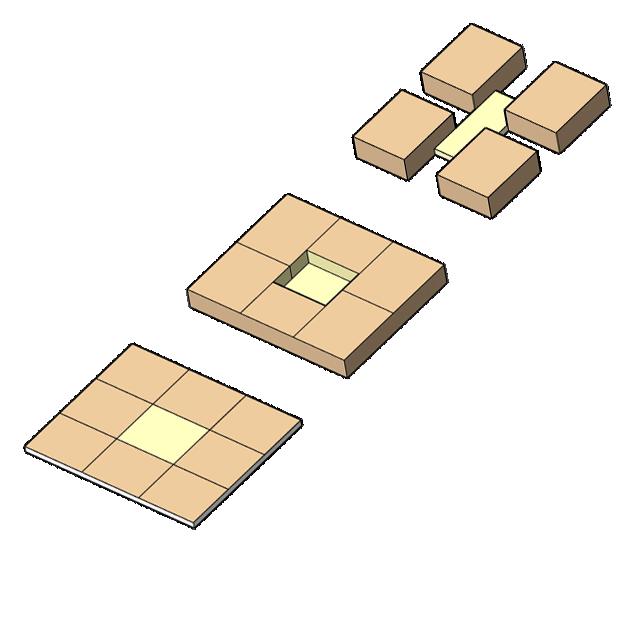

isometric breakup of 3BHK cluster

A

A’ CLUSTER 3- 3BHK units

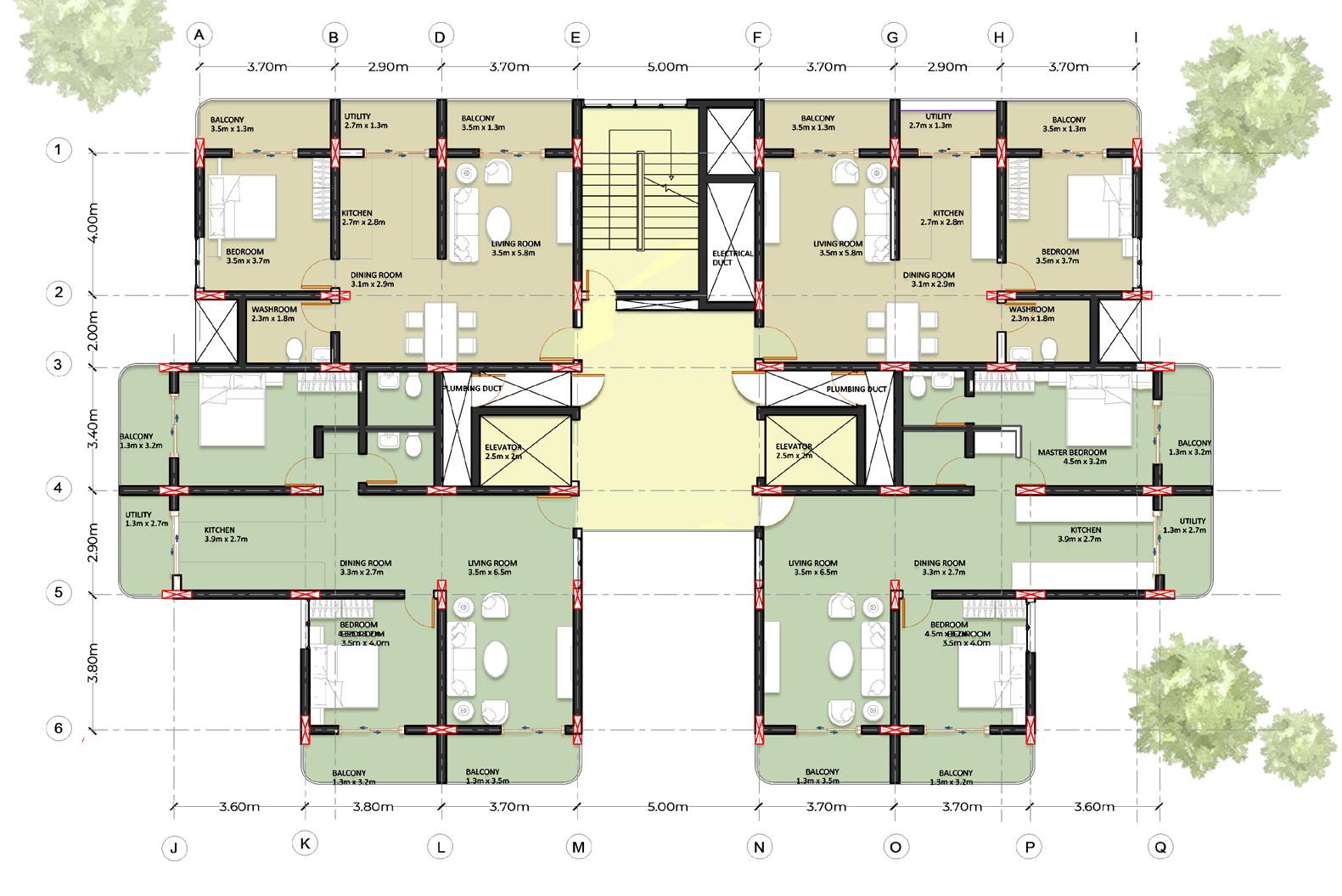

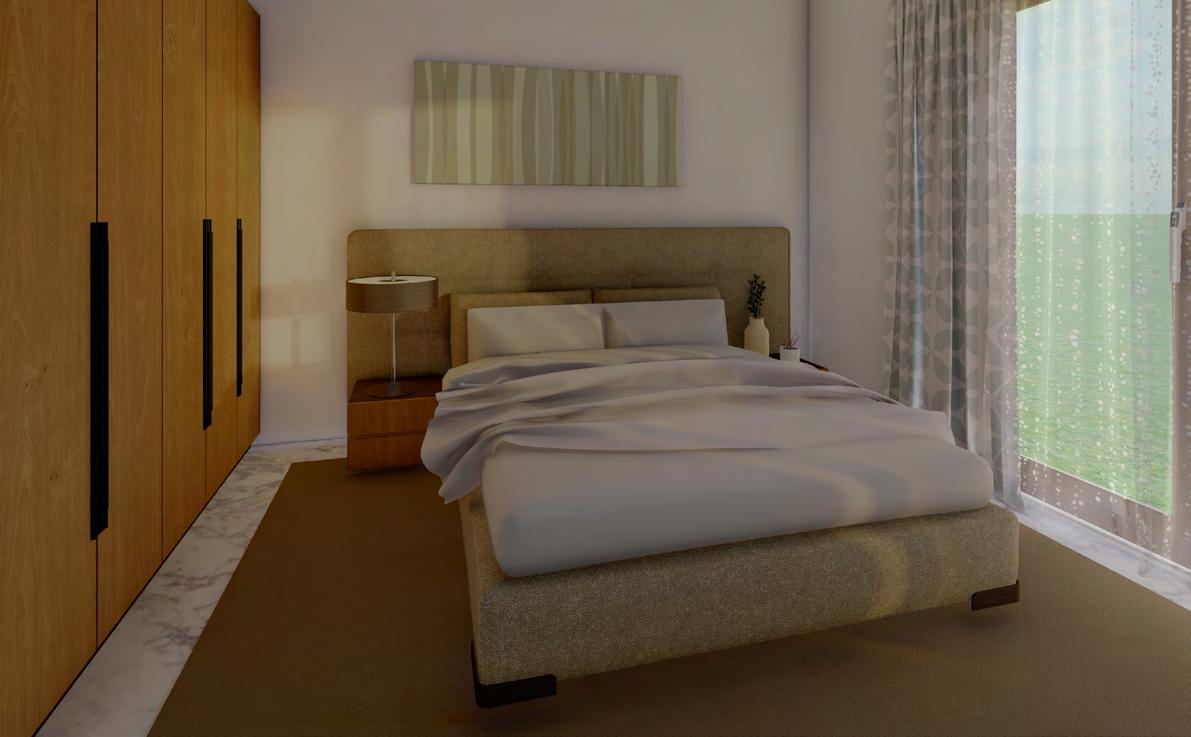

typical floor plan with 4 units having 3BHK type 1 (128.4m2) and 3BHK type 2 (148.6m2) interior views of (from left) bedroom, living room

08 | high rise residential apartment

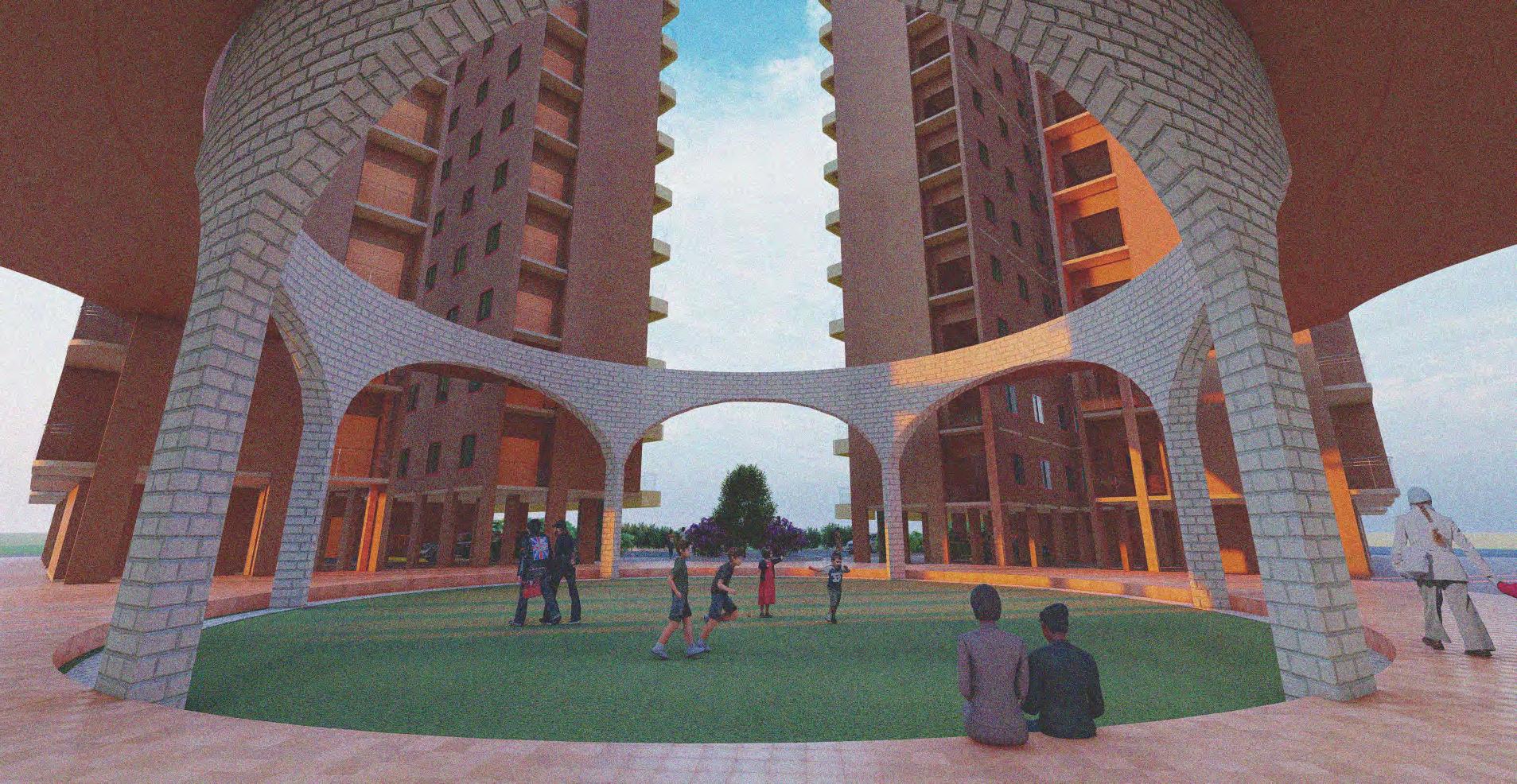

courtyard space acts as intractive zones and integrates nature in the built areas

east elevation of 3BHK cluster

section AA’

09 | high rise residential apartment

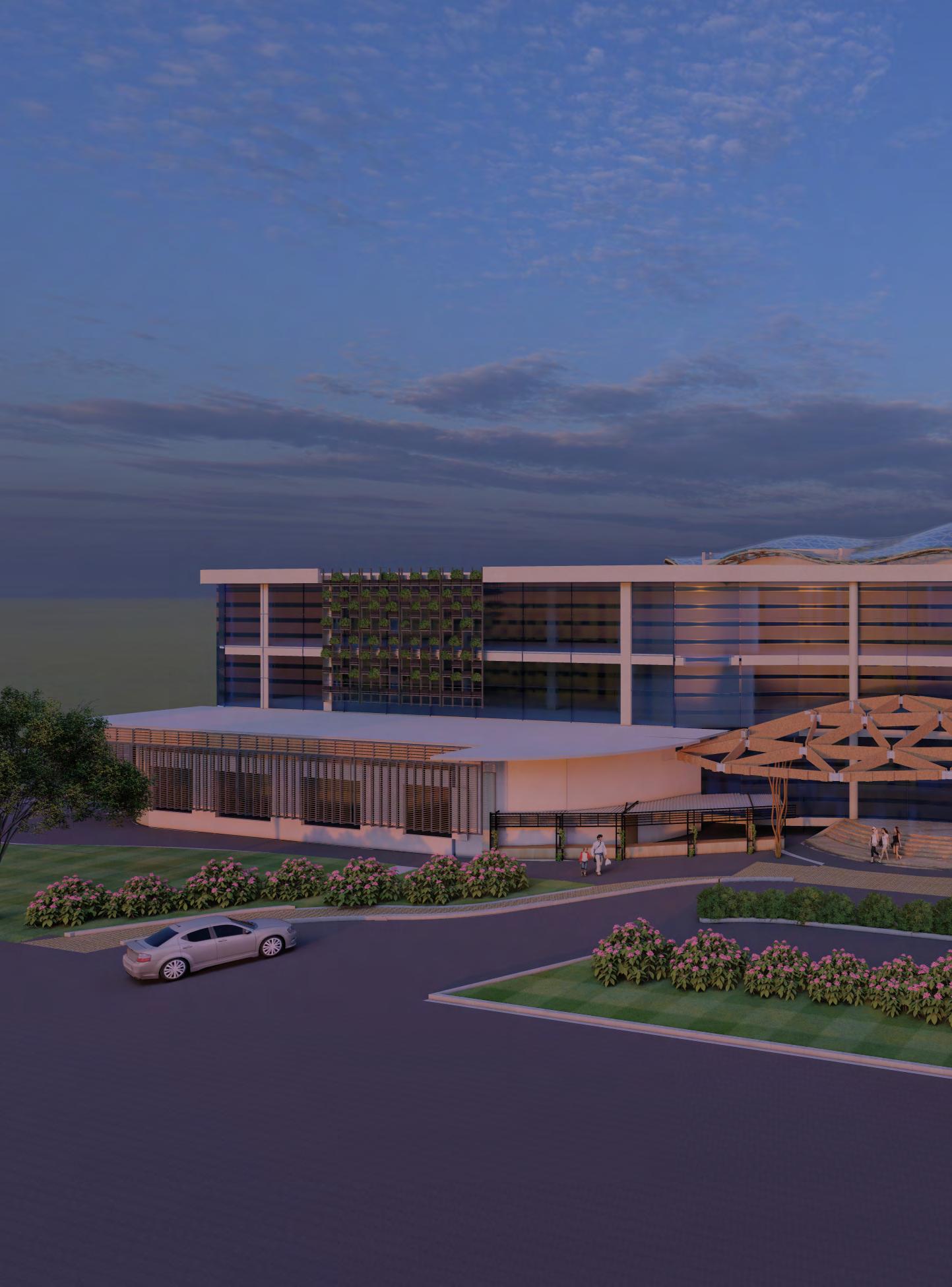

02. PUBLIC LIBRARY

10 | public library

The brief is to design a public library at Khandala, Pune that harmonizes technology and design guidelines to encourage creativity and motivation by including inspirational, learning, meeting and performative spaces.

PROJECT DETAILS • Site Area= 15400 m2 • Total built up area= 8760m2 • FAR achieved= 0.56 • Ground coverage= 23.6%

11 | public library

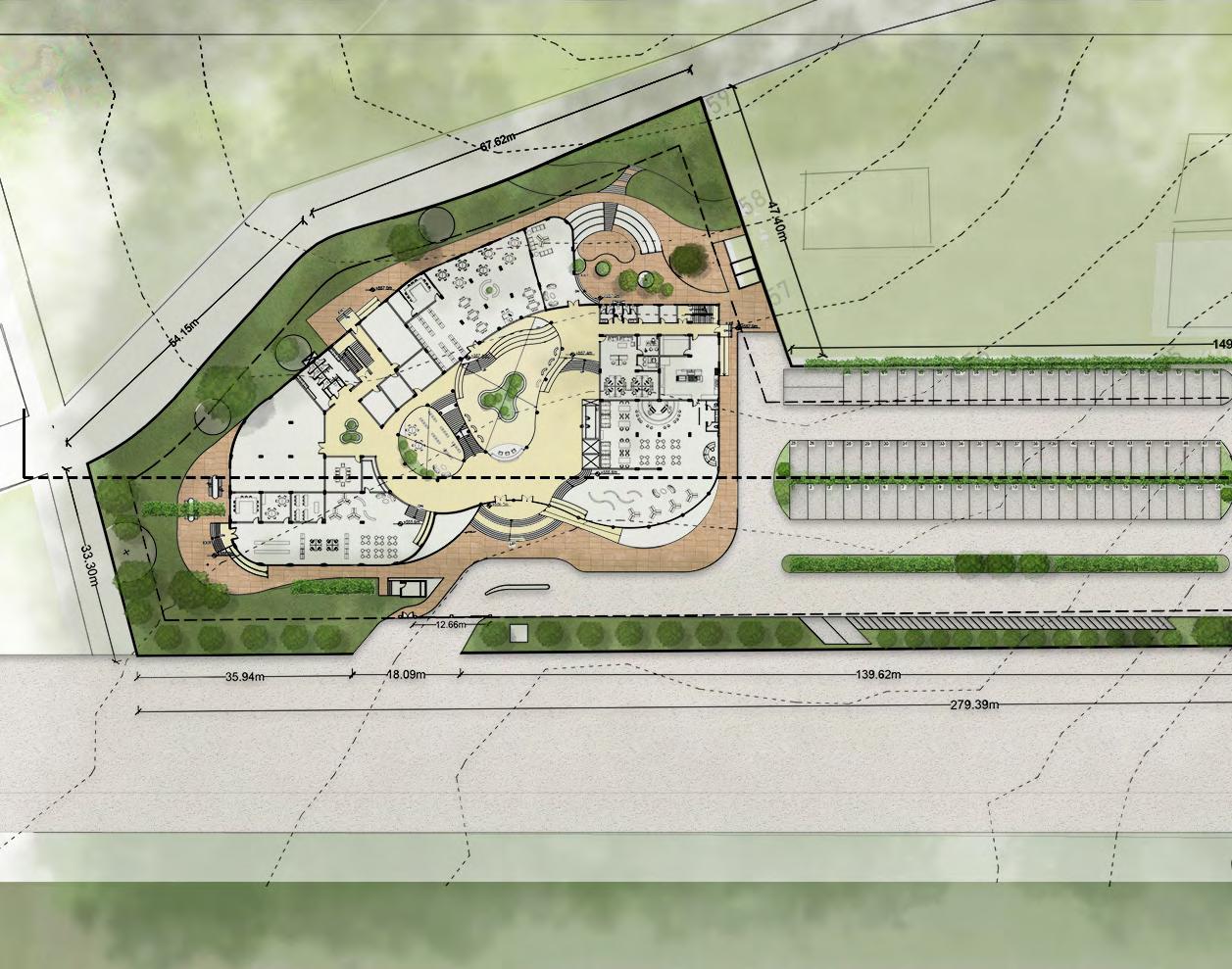

site plan

6

7

8

5

9

2 3 1.

4

10

11

The design follows the shape of the site and its contours. The ground floor has 3 different levels- the cafeteria and the and the atrium at 556.5m level and finally the group discussion area at 557.4m. The first floor is recessed a little at fro of attraction is the staircase which tying the two atriums while serving the vertical movement. A reading lounge has encouarge outdoor discussions. Auditorium block has been separated to help the visitors to access it without having

site section

Landscaping

12 | public library

Library block

4 wheeler parking

LEGEND 1. Entry/Exit 2. Drop off for library block 3. Security booth 4. Fire sump 5. Outdoor reading area z 6. Amphitheatre 7. Outdoor discussion area 8. Transformer yard 9. 4 wheeler parking 10. Accessible parking 11. 2 wheeler parking 12. Drop off for auditio-

13. Future expansion 14. Sewage treatment plant 15. UG sump 16. Natural pond + recharge pits 17. Service entry/exit

12.

13

16

14 15

17

e makerspace on the lowest level(555.6m), the reception ont to cater a grand double heighted reception. The centre s been provided which opens up to the amphithetare to g to enter the library.

Auditorium block

Future expansion

13 | public library

2

1 b

c

5

6

15 13

3

4

4

3

16

a

14 10

9

LIFT

12

8

7

11

first floor plan

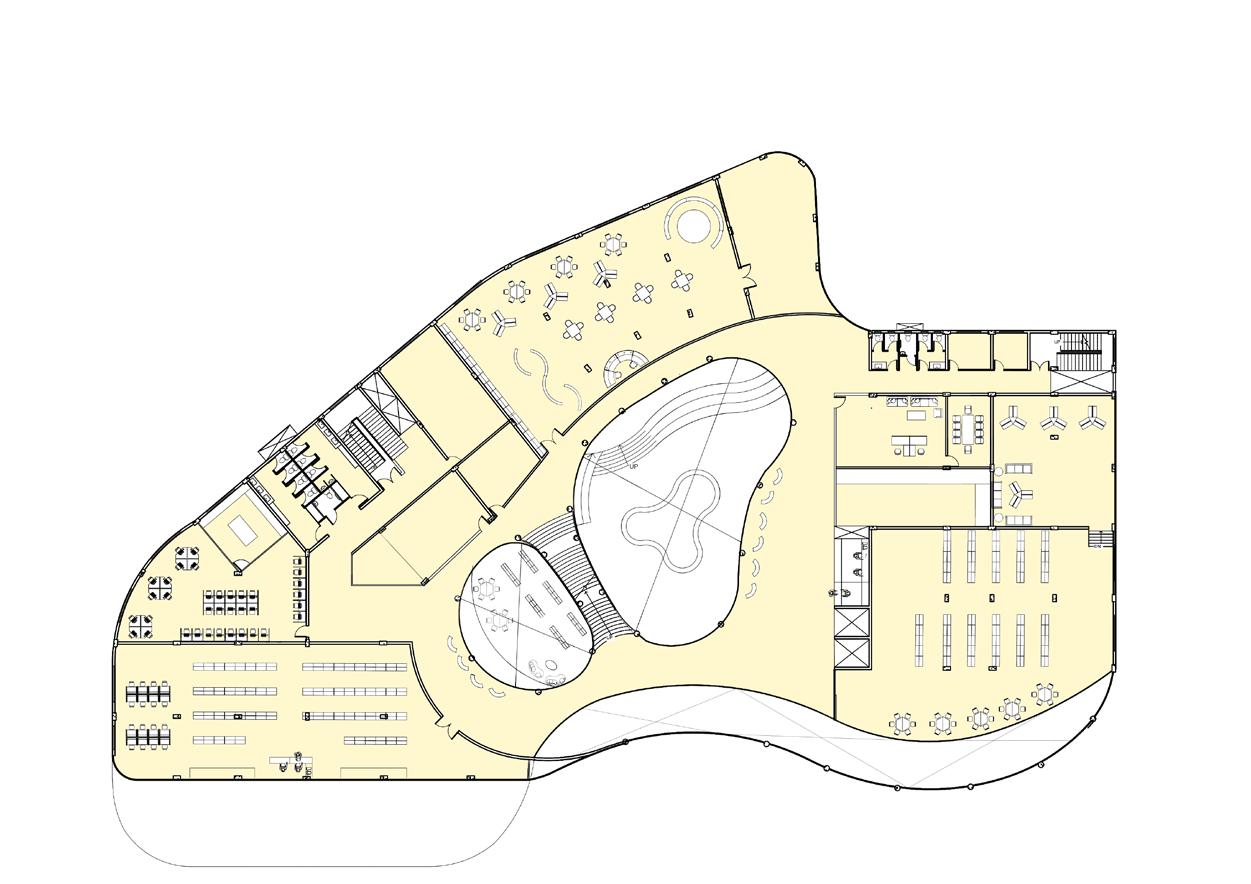

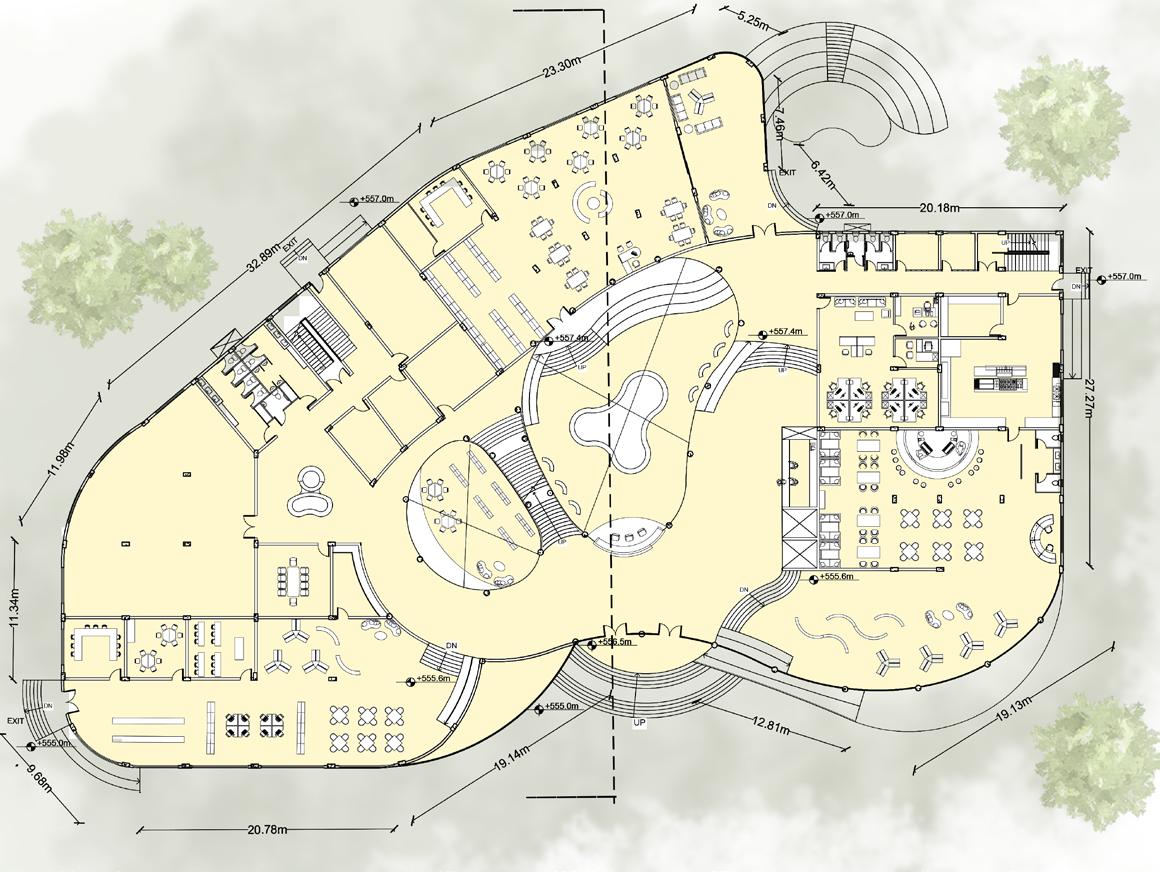

ground floor plan

periodicals

group discussion room

multipurpose hall

reading lounge amphitheatre

makerspace

office storefront entrance atrium exhibition hall

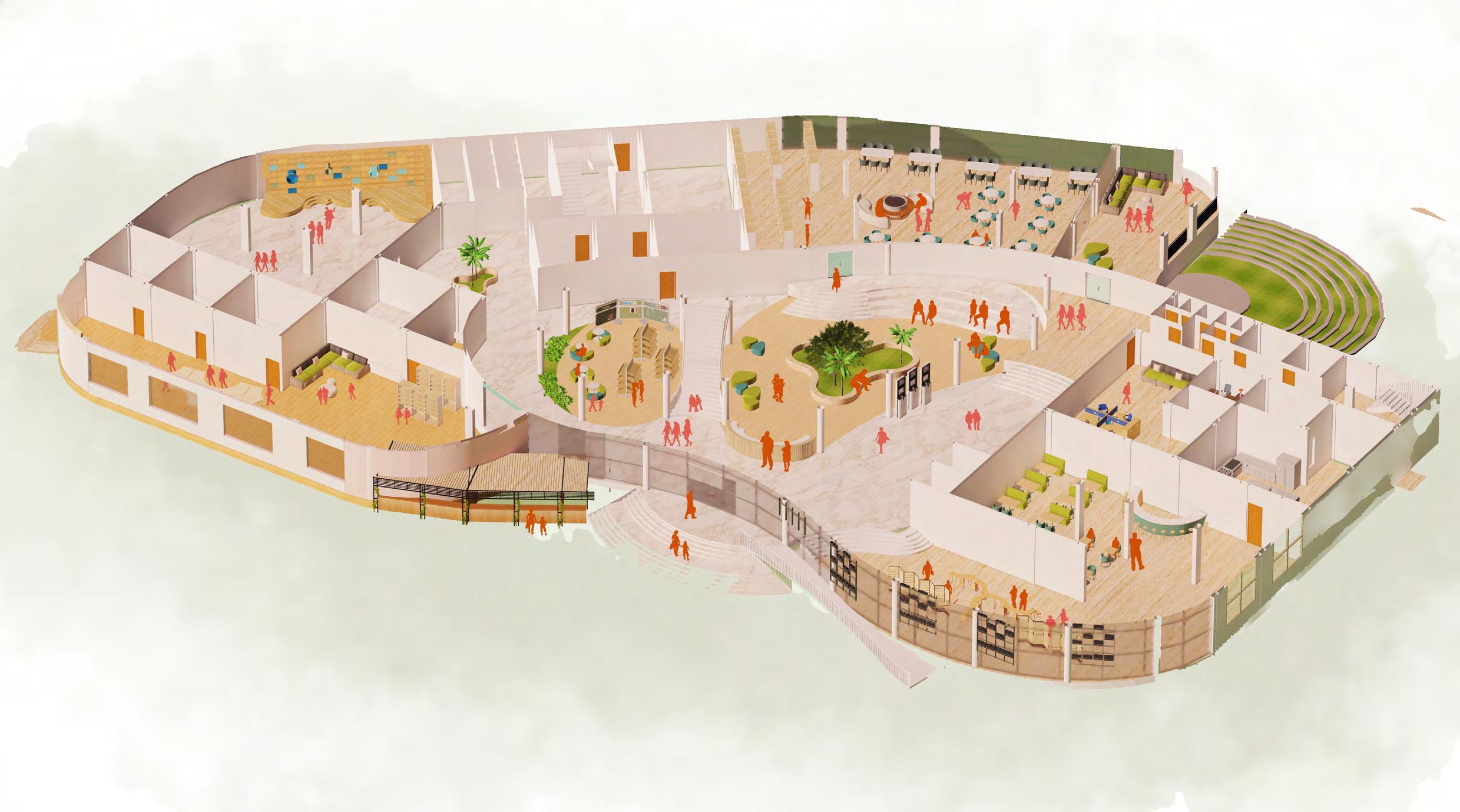

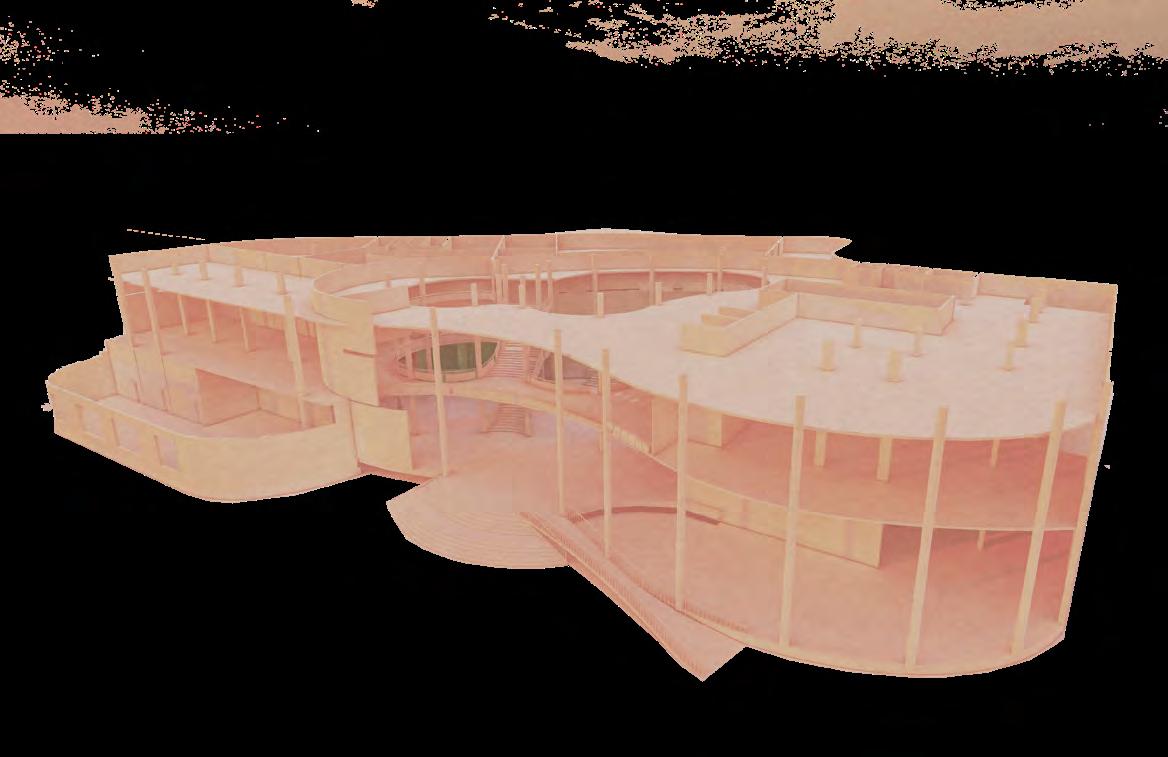

ground floor- isometric section

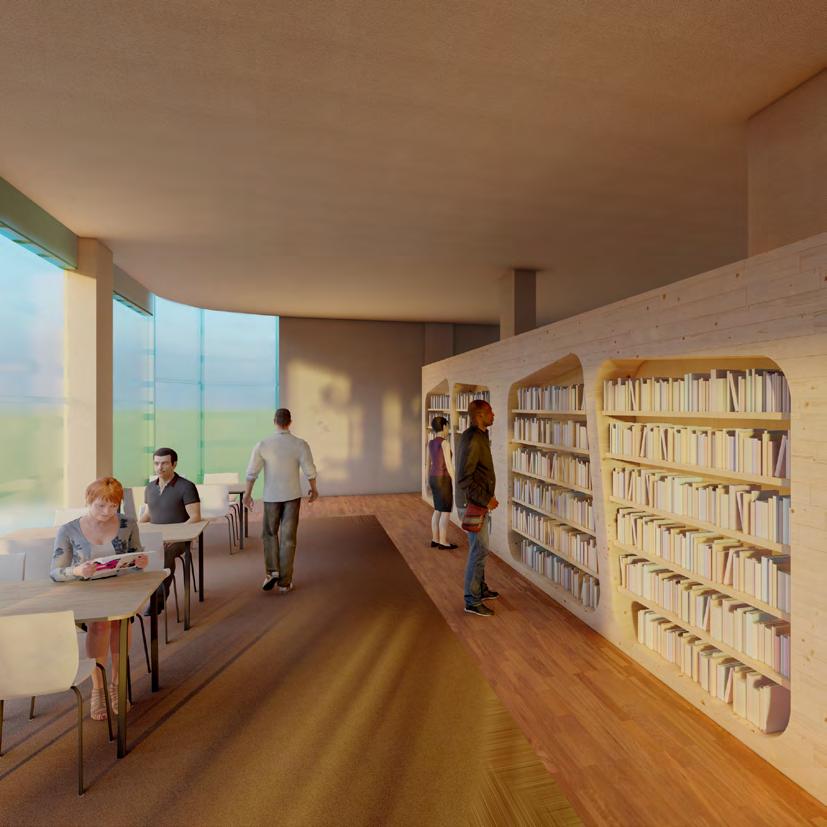

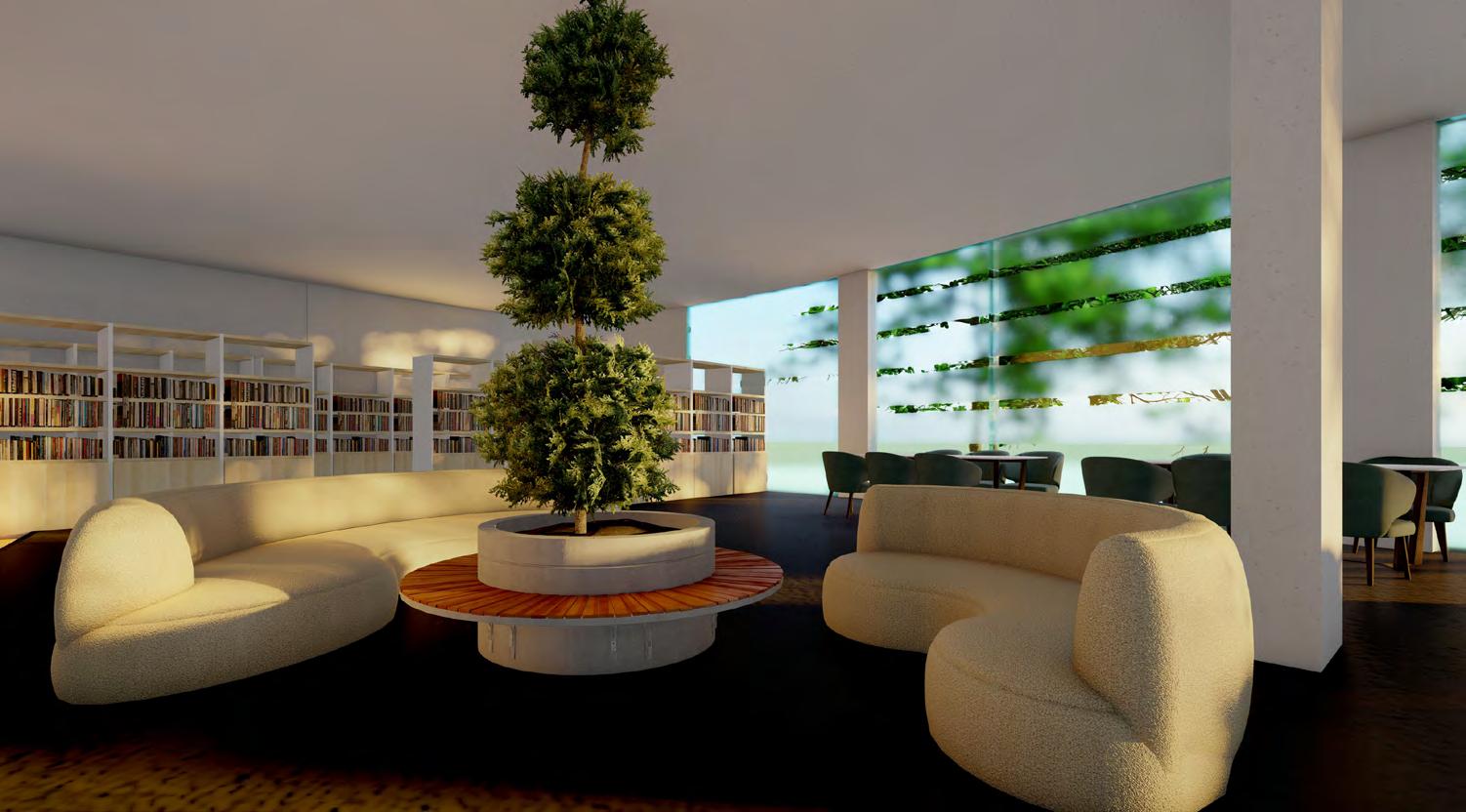

interior views of the library(from left) group discussion area, reading space w with book shelves

14 | public library

cafeteria

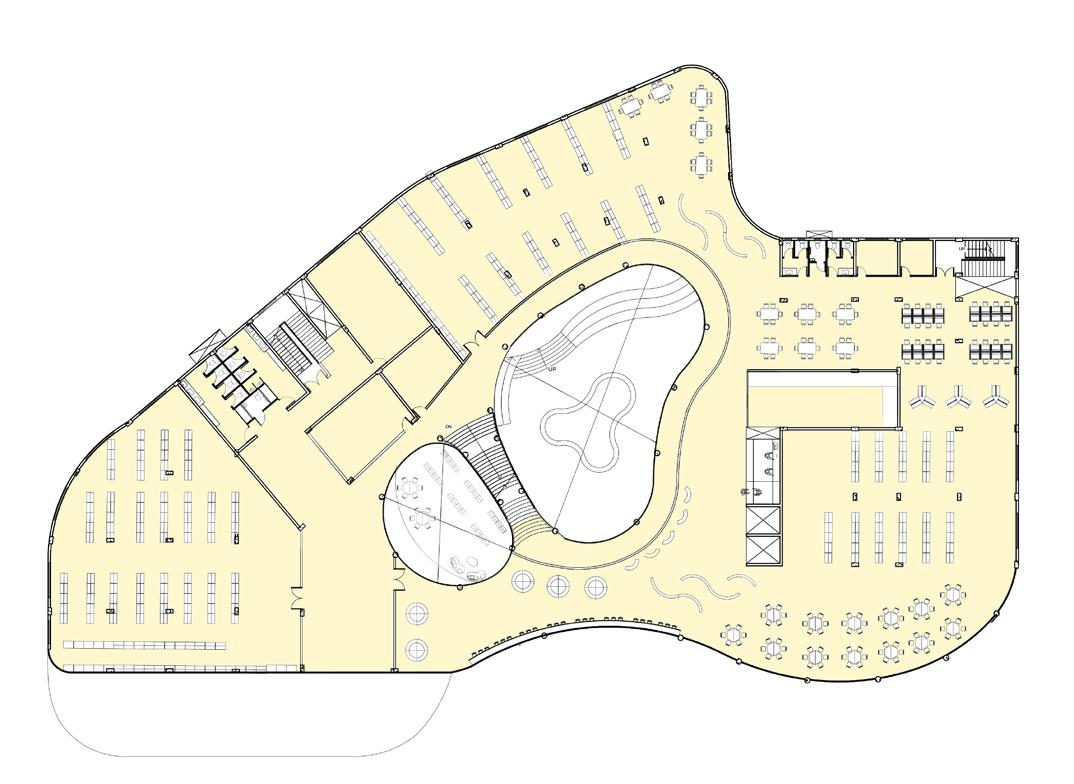

second floor plan

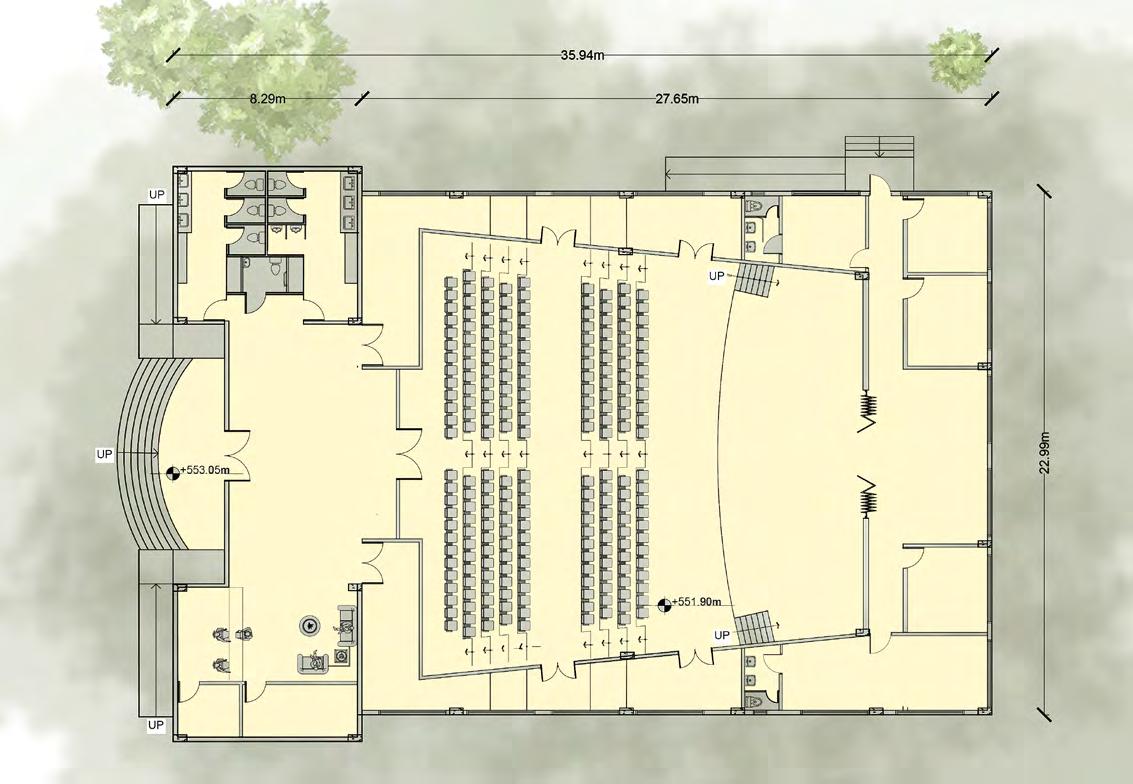

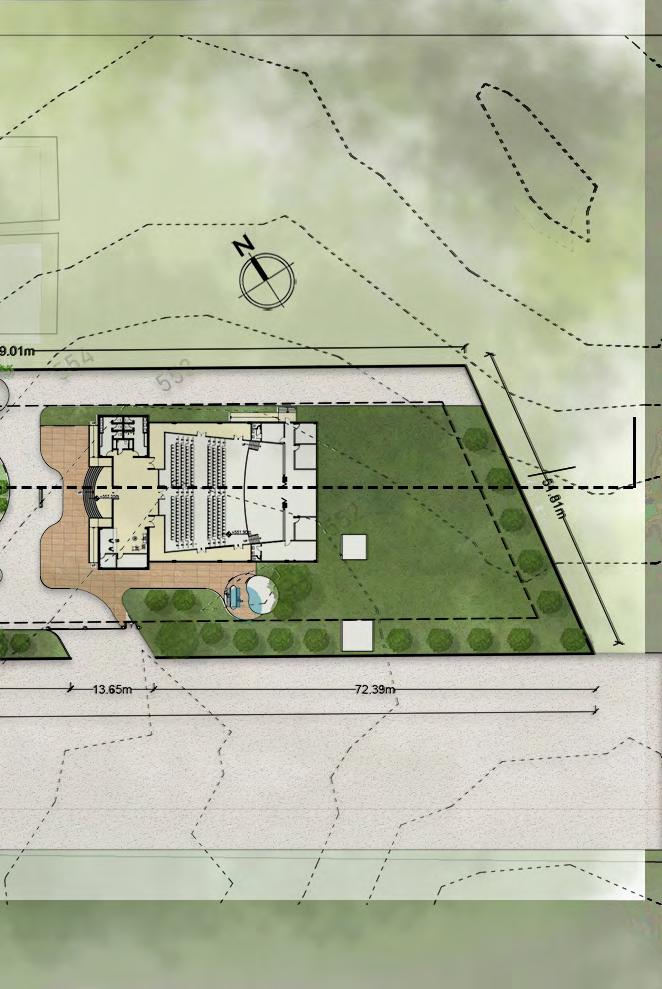

auditorium- ground floor plan

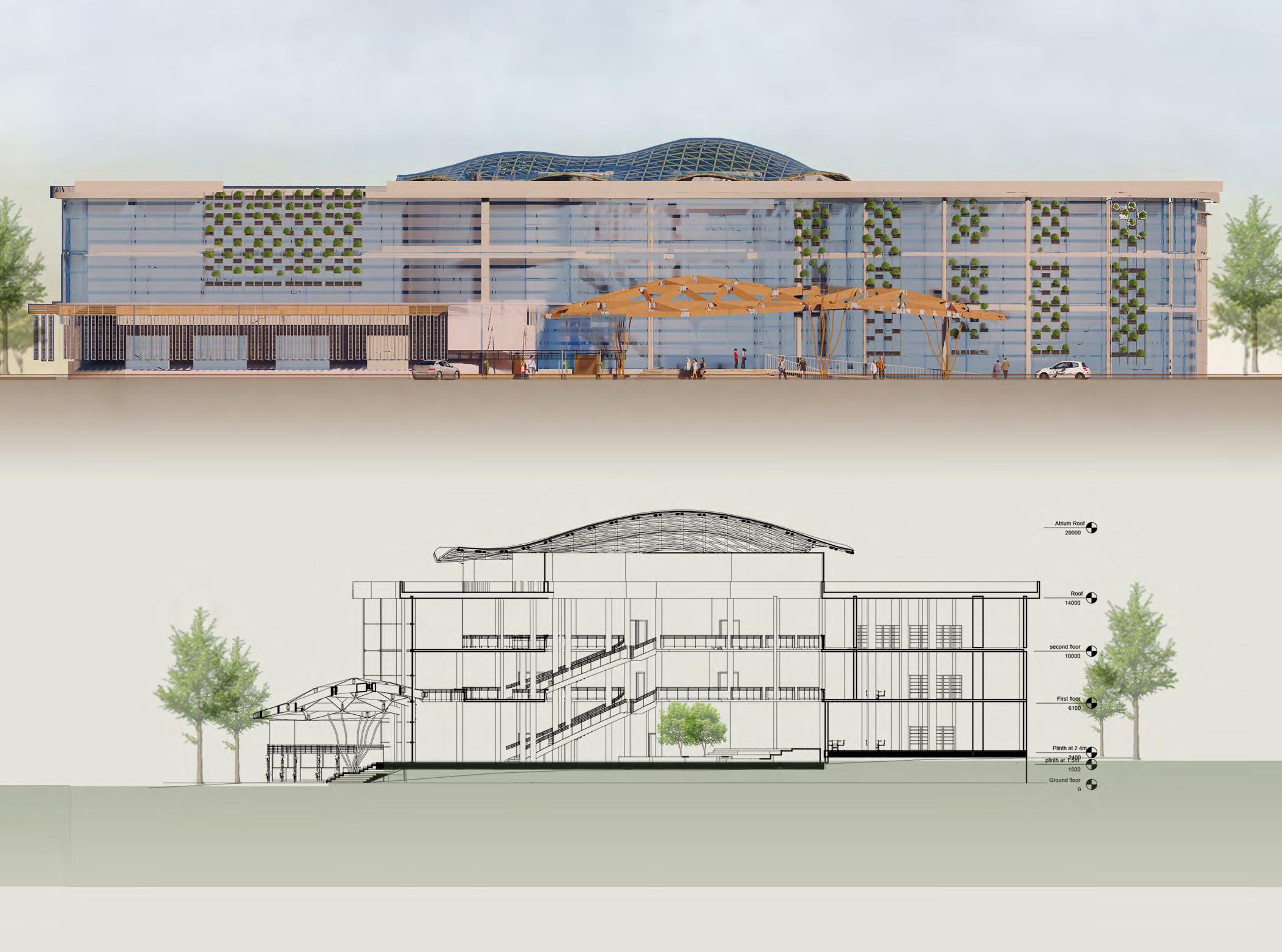

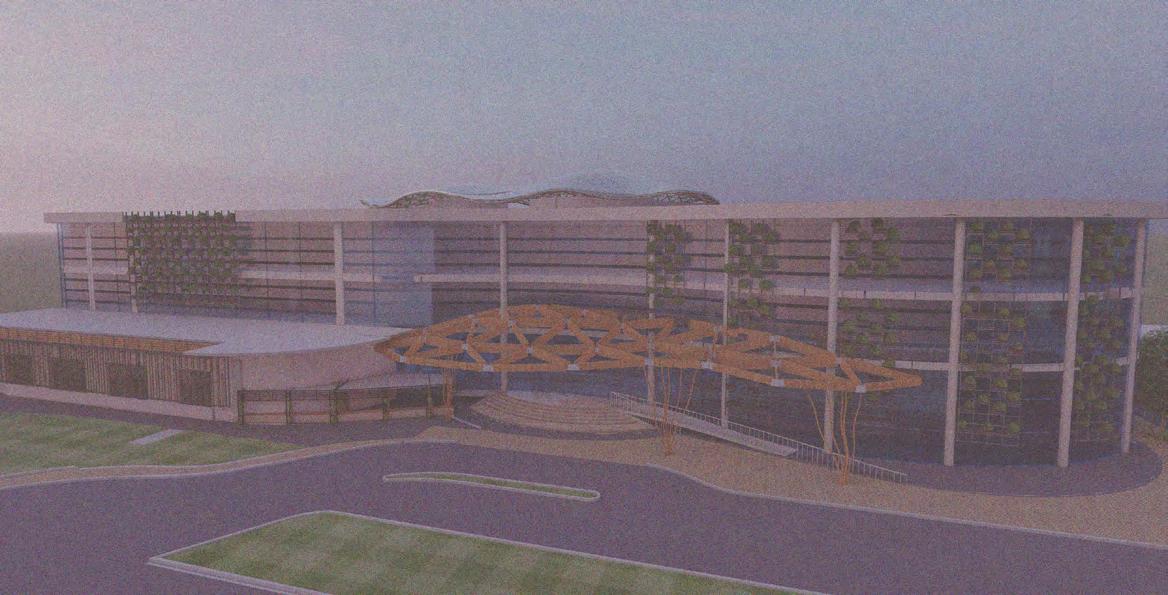

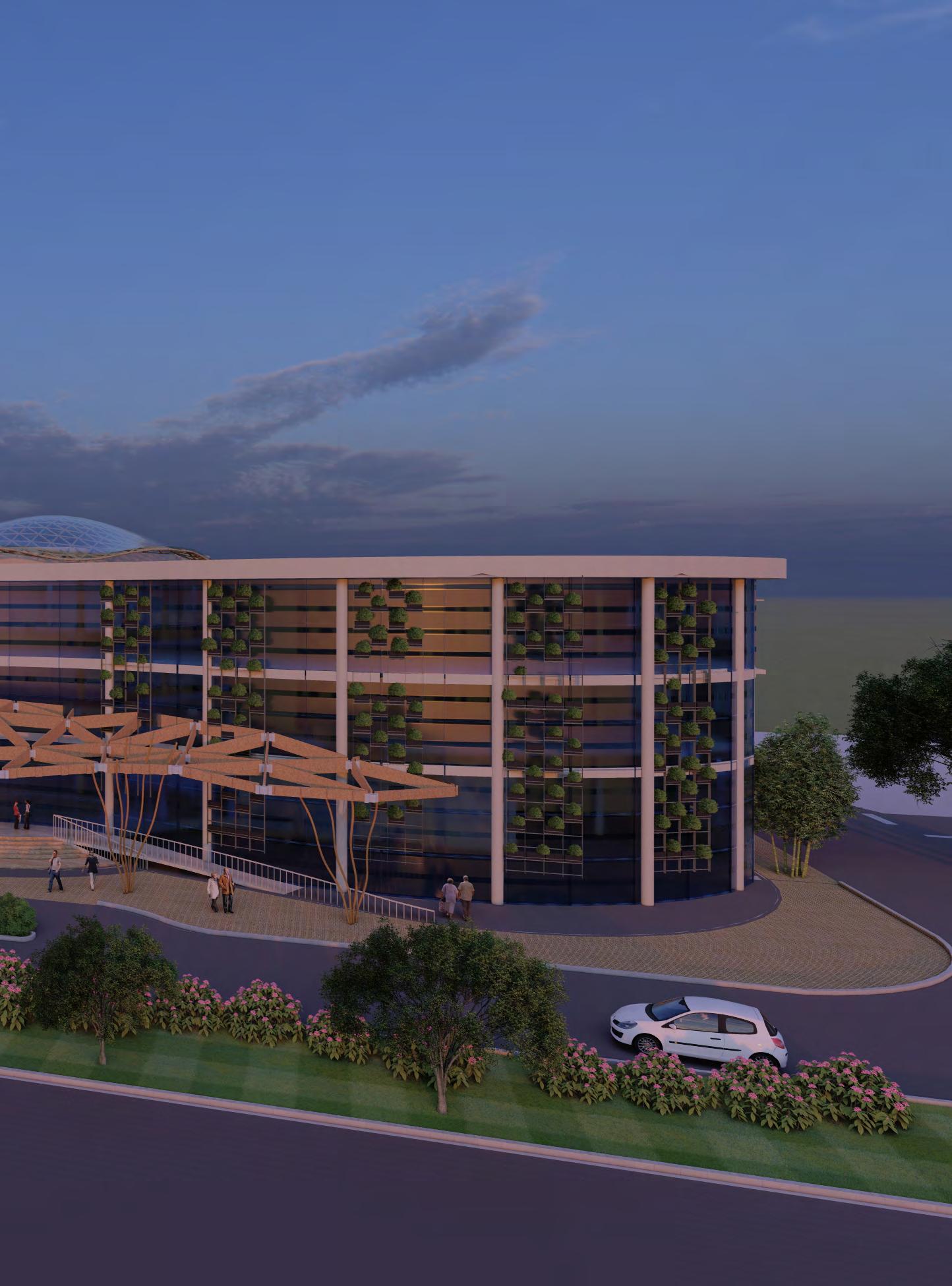

southwest(front) elevation

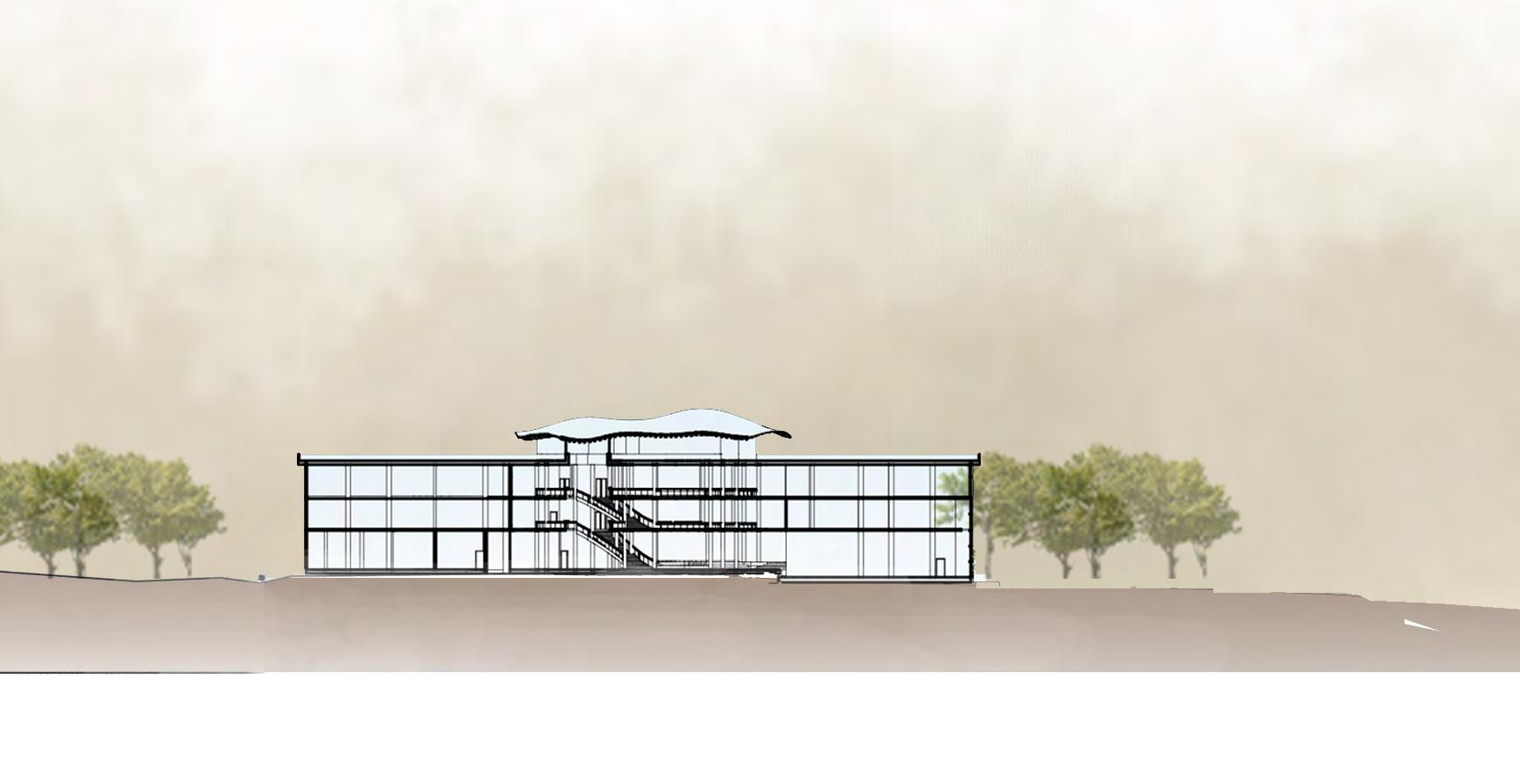

section AA’

view of the atrium

15 | public library

03.HILLSIDE RESORT

The brief is to design a 3 star Hillside resort in Khandala, Pune. Inspired by the scenic locations and natural elements, the design translates the site’s contoured landscapes into a series of cottages enjoying splendid views from the southside lakes as well as the hills towards the west and also by incorporating alternative building materials, ie. rammed earth & bamboo

16 | hillside resort

17 11 ||hillside public library resort

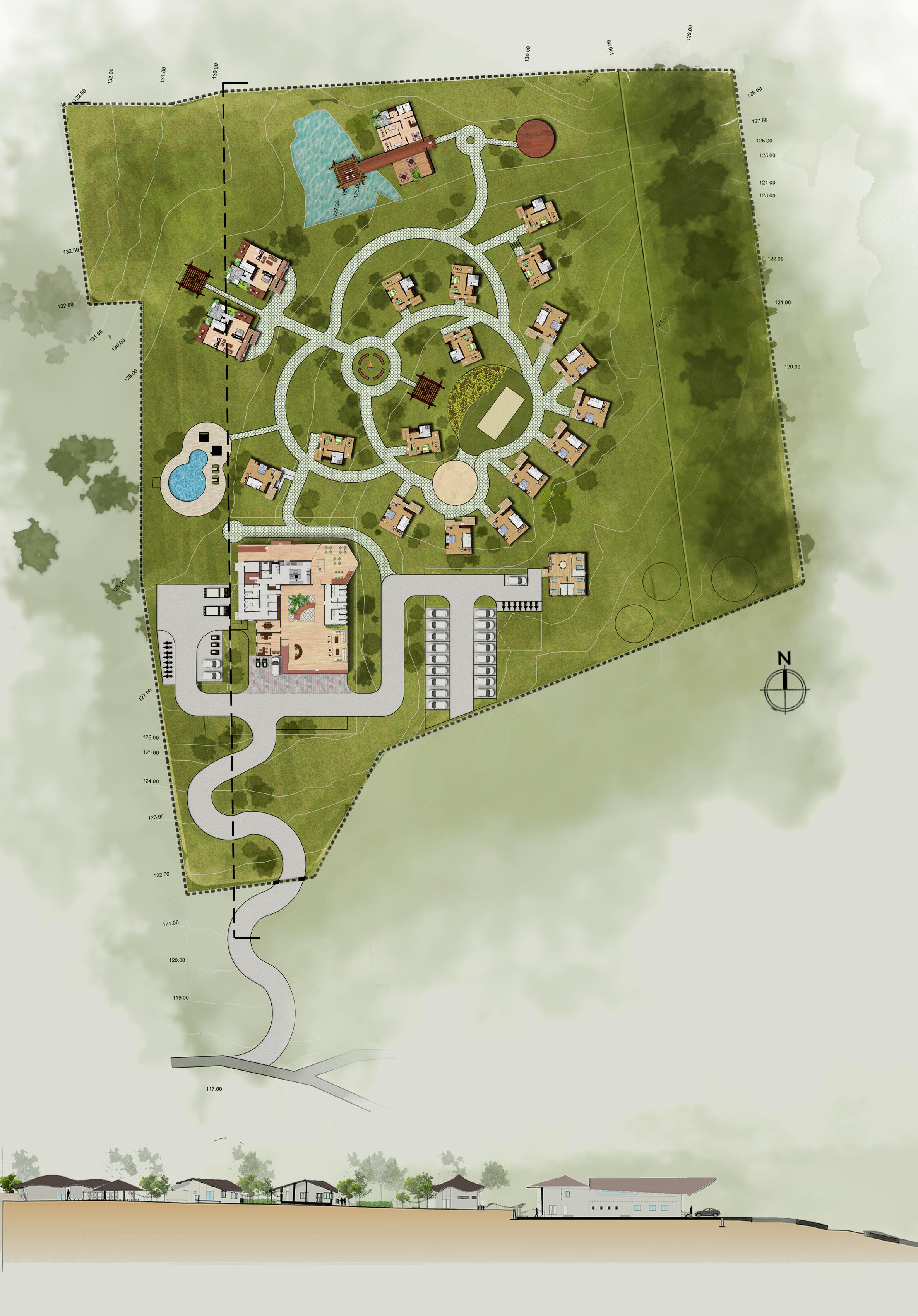

site plan 17 15.

14.

13.

16

11.

10.

7.

9.

12.

8.

19

6.

5.

18.

3.

4.

2

LEGEND 1. Main gate 2. Drop off 3. staff/service parking 4. Administratio block 5. Visitor’s parking 6. Staff quarters 7. Swimming pool 8. Kid’s play area 9. Badminton court with garden seating 10. Bonfire and shaded seating area

1.

11. Villa 12. Standard cottages 13. Deluxe cottages 14. Viewpoint 15. Spa 16. Gazebo 17. OHT 18. Sump and rainwater harvesting tank 19. STP

site section Spa

18 | hillside resort

Villa

Landscape

STD rooms

administration block

parking for admin

entry road

CONCEPT - Mushrooming “Mushrooming” refers to rapid growth and development.

The idea is to create a space that acts as an escape from the clean-cut geometrical buildings of daily life by the use of simple, organic forms that can be viewed as emerging from the ground. Cottages are placed in clusters resembling the growth of mushrooms and for easy access to visitors. The concept is also seen in the form develeopment of the cottages.

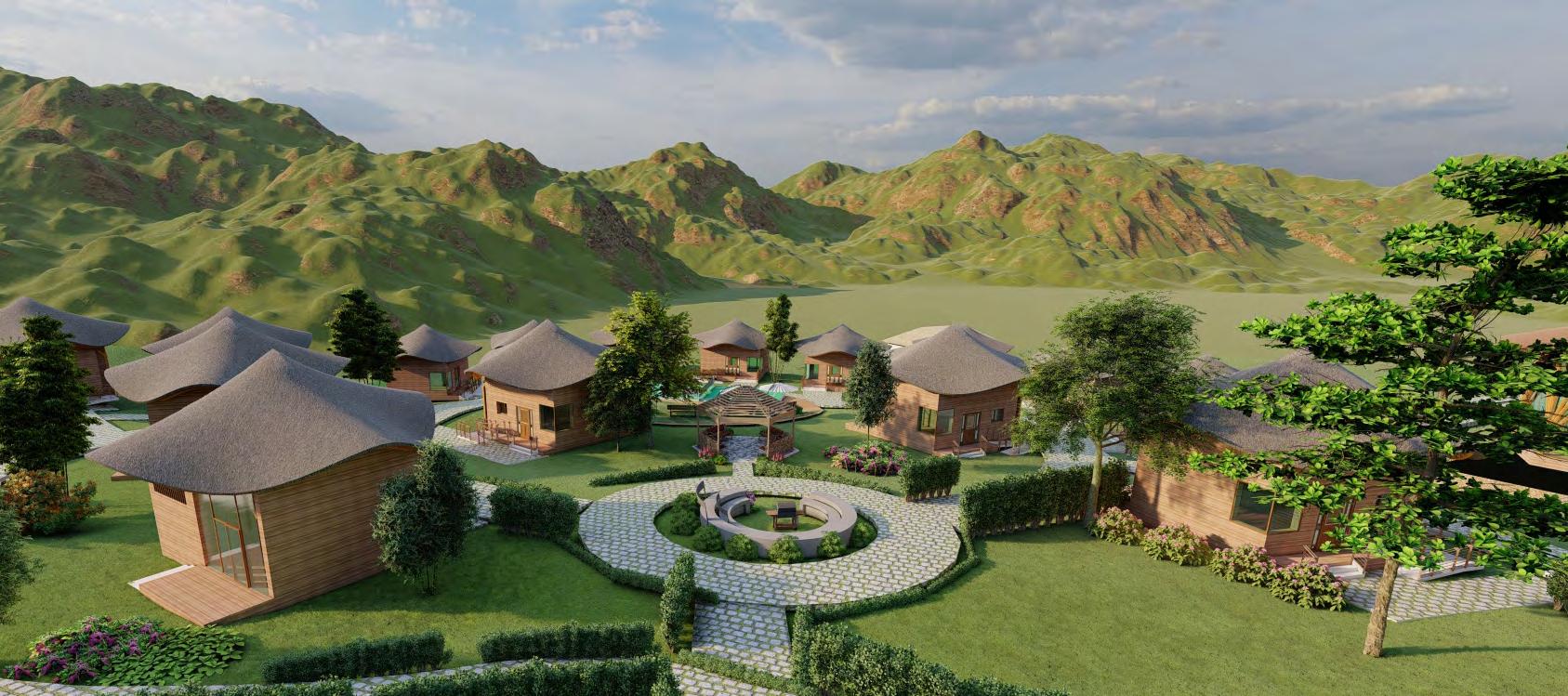

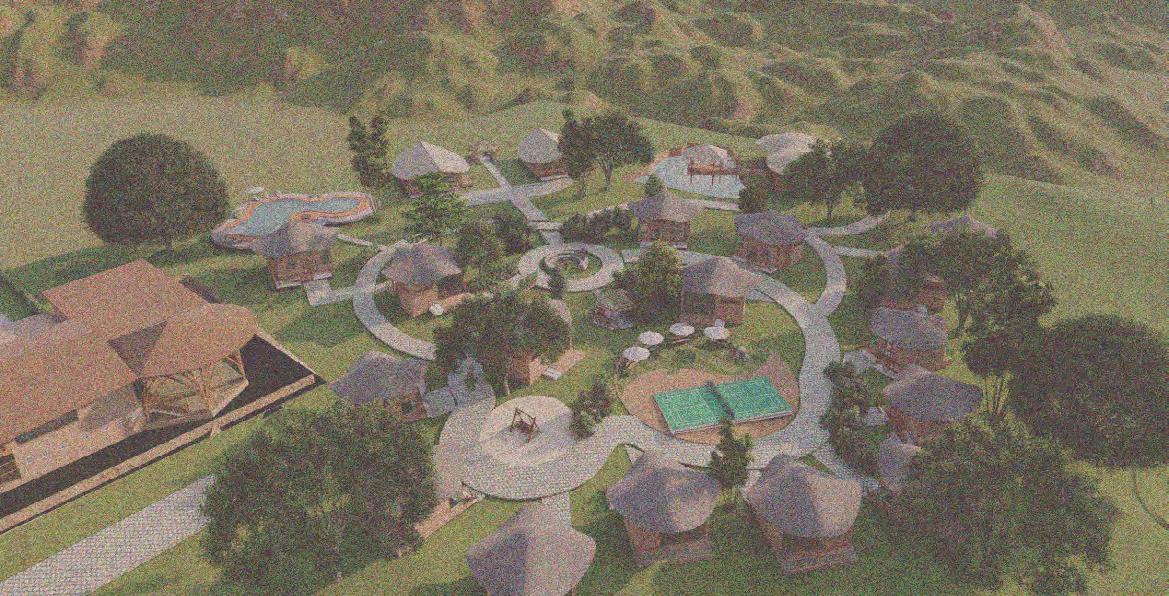

bird’s eye view

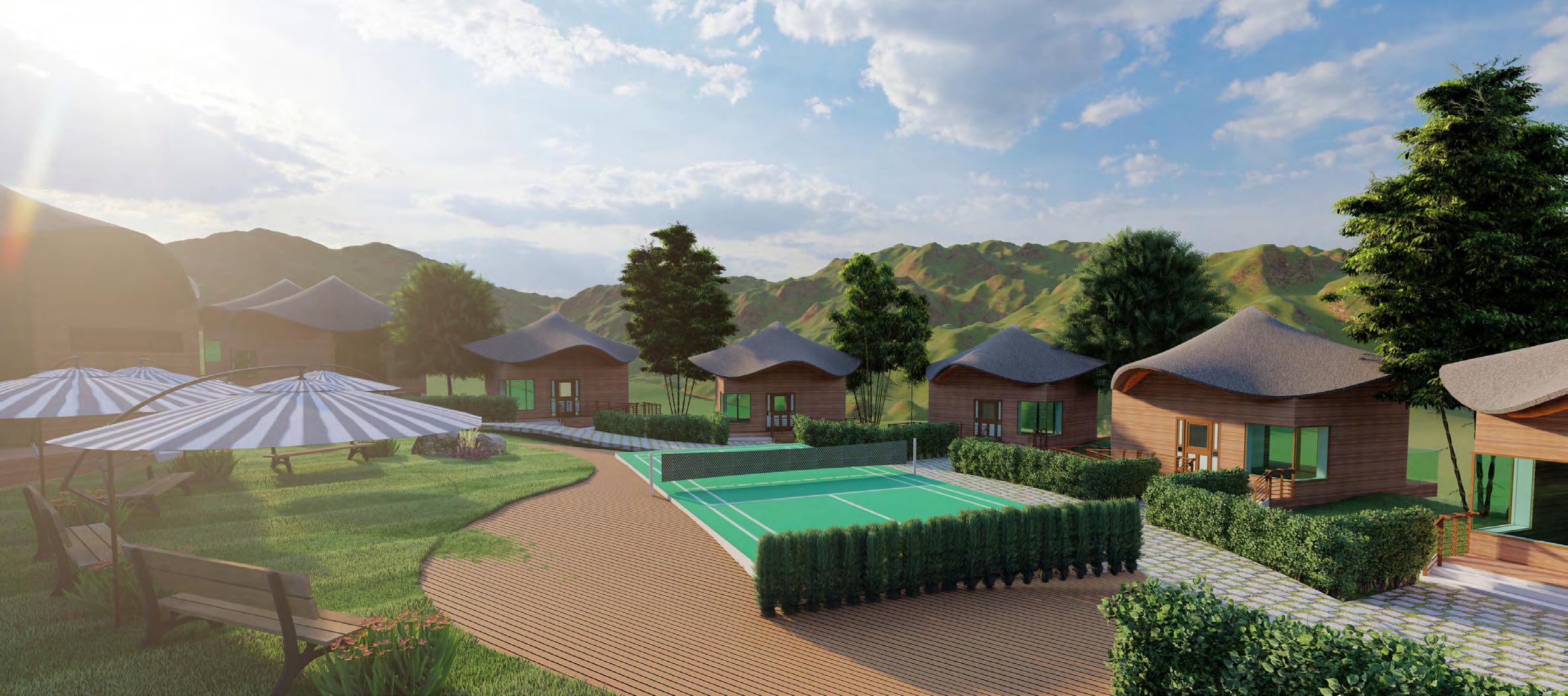

view of the badminton court and the cottages

19 | hillside resort

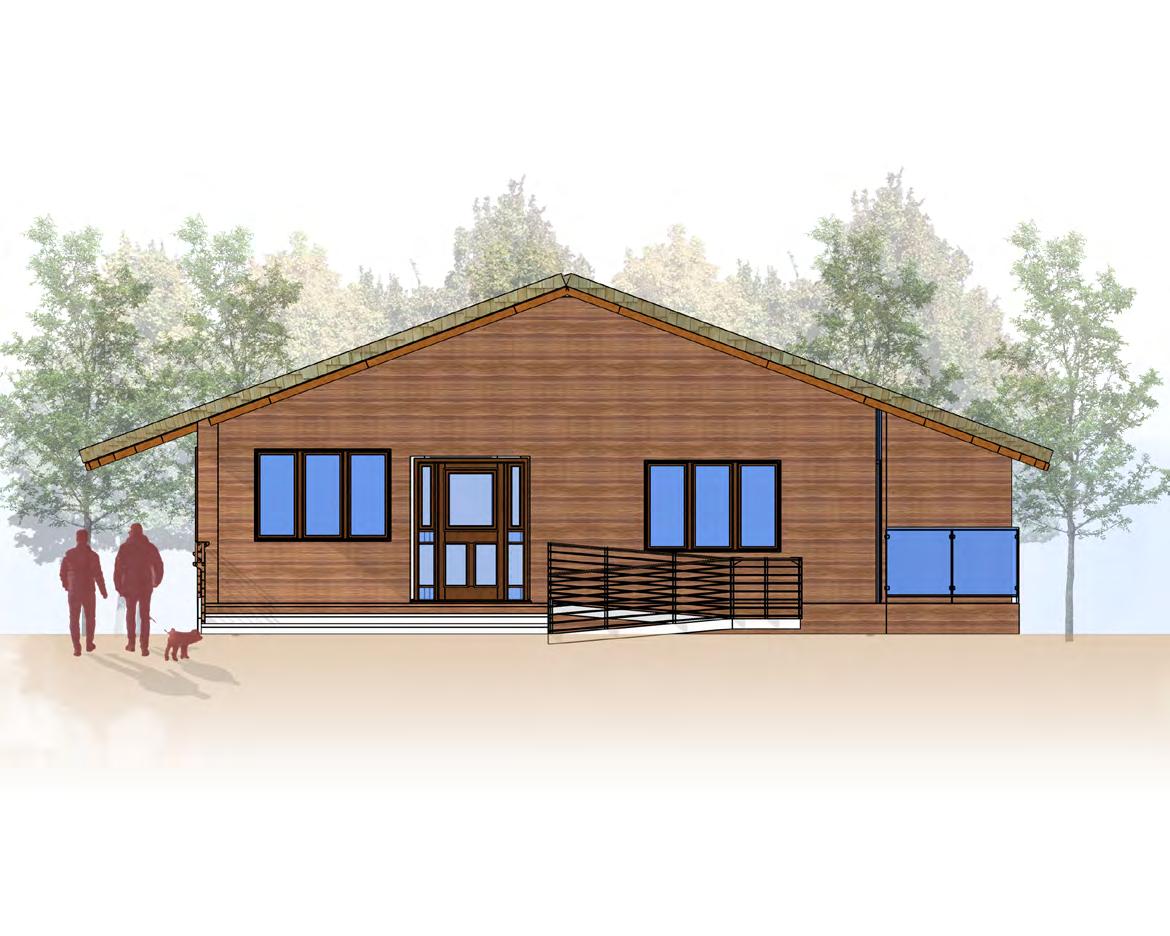

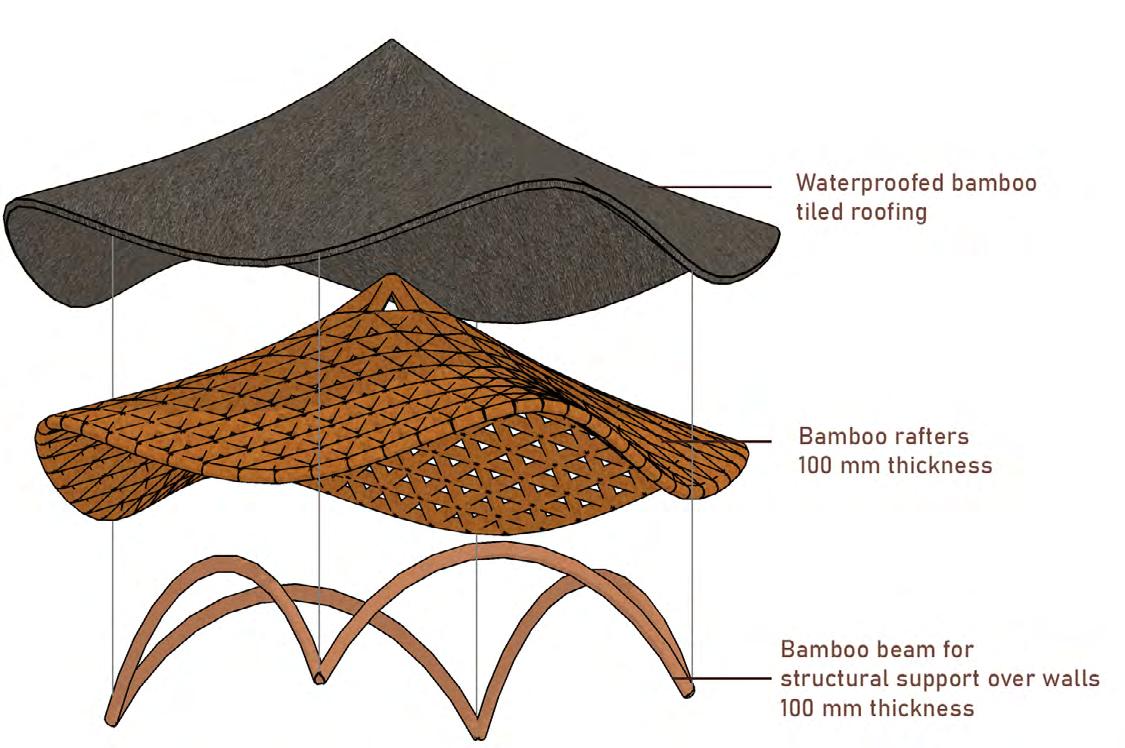

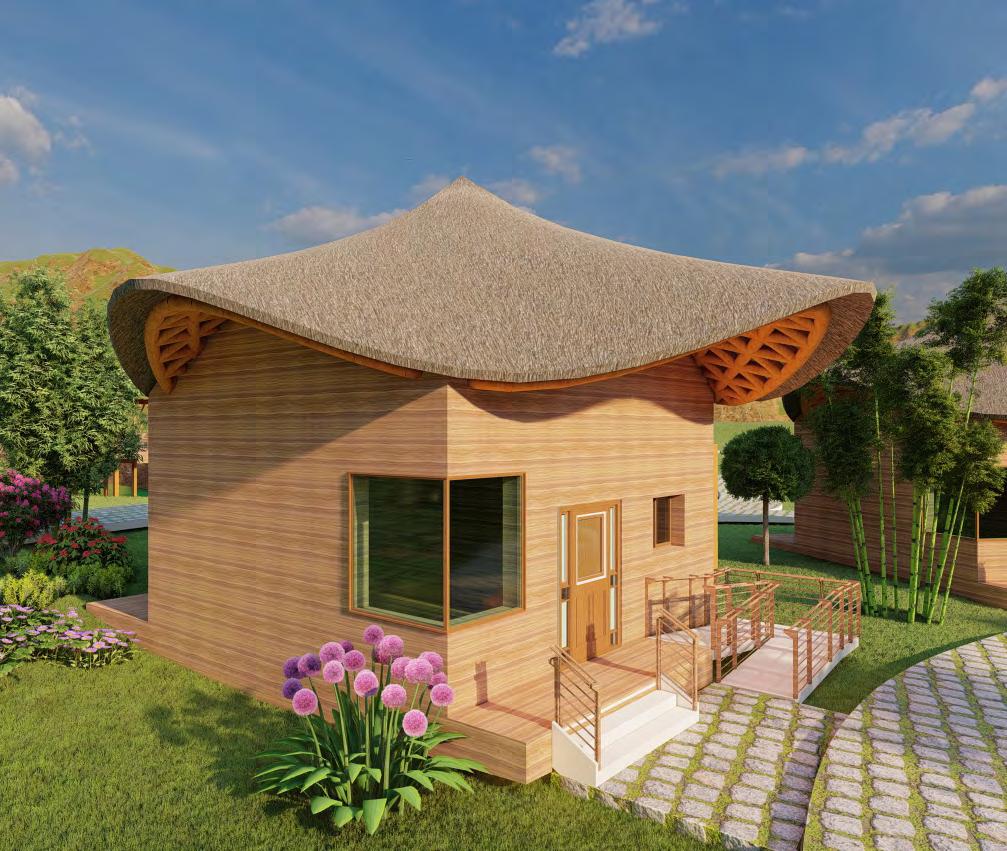

standard rooms- front elevation The standard rooms with rich textures of wooden flooring, rammed earth walls and bamboo roofs reflects the natural accents of the site. The deck helps to blend lines between the built spaces and the surroundings.

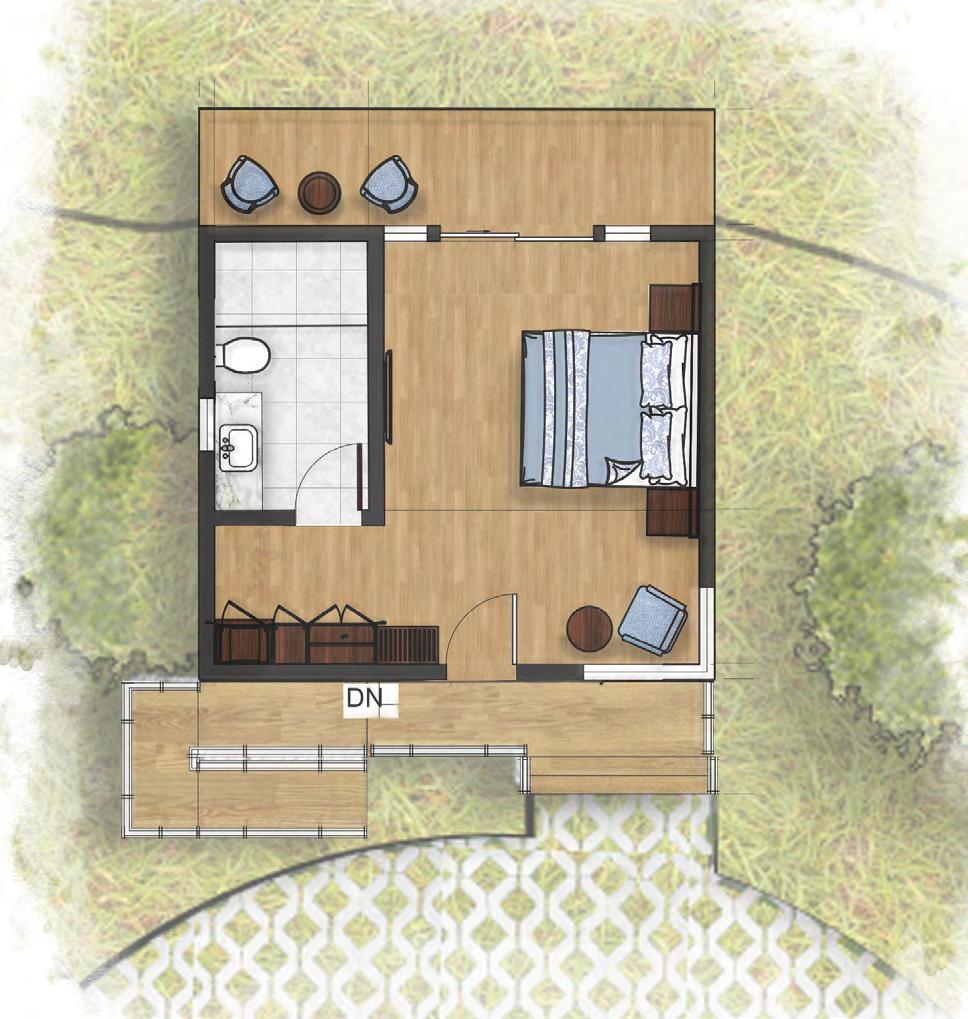

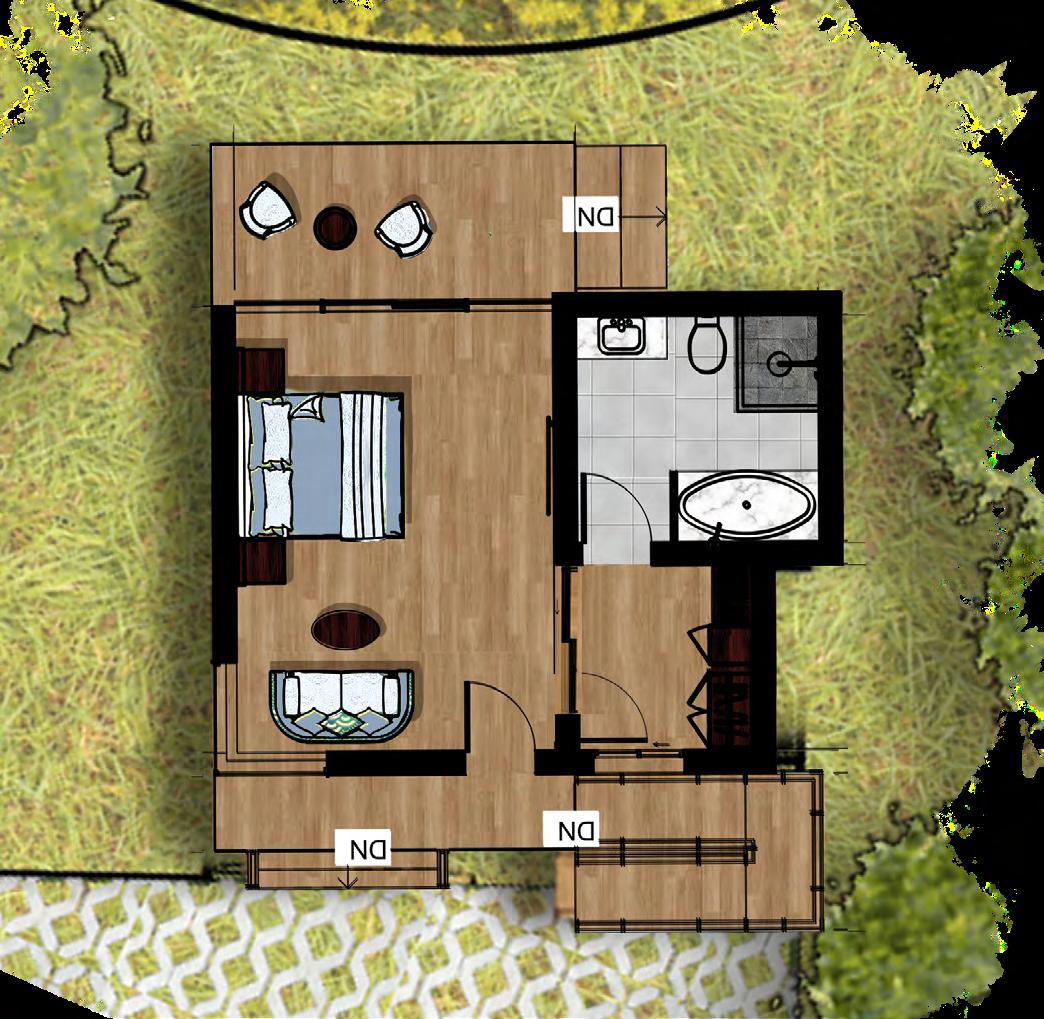

standard rooms plan(57sqm)

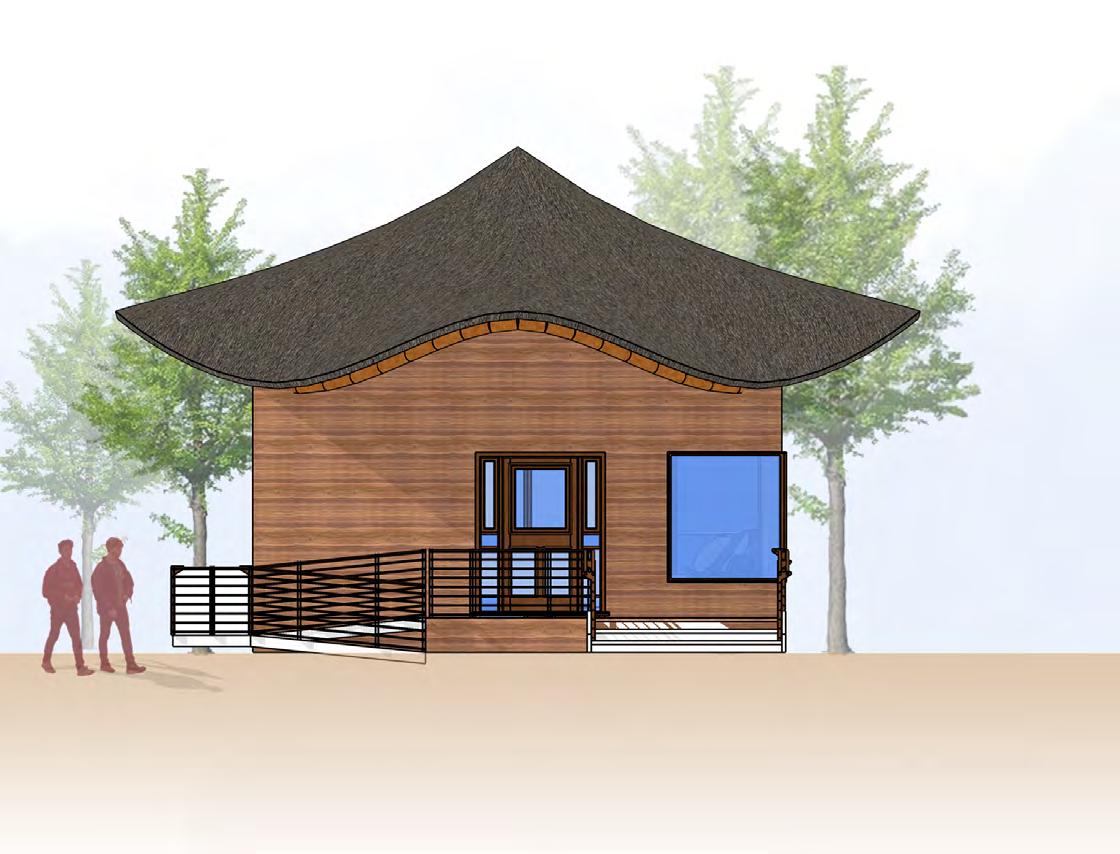

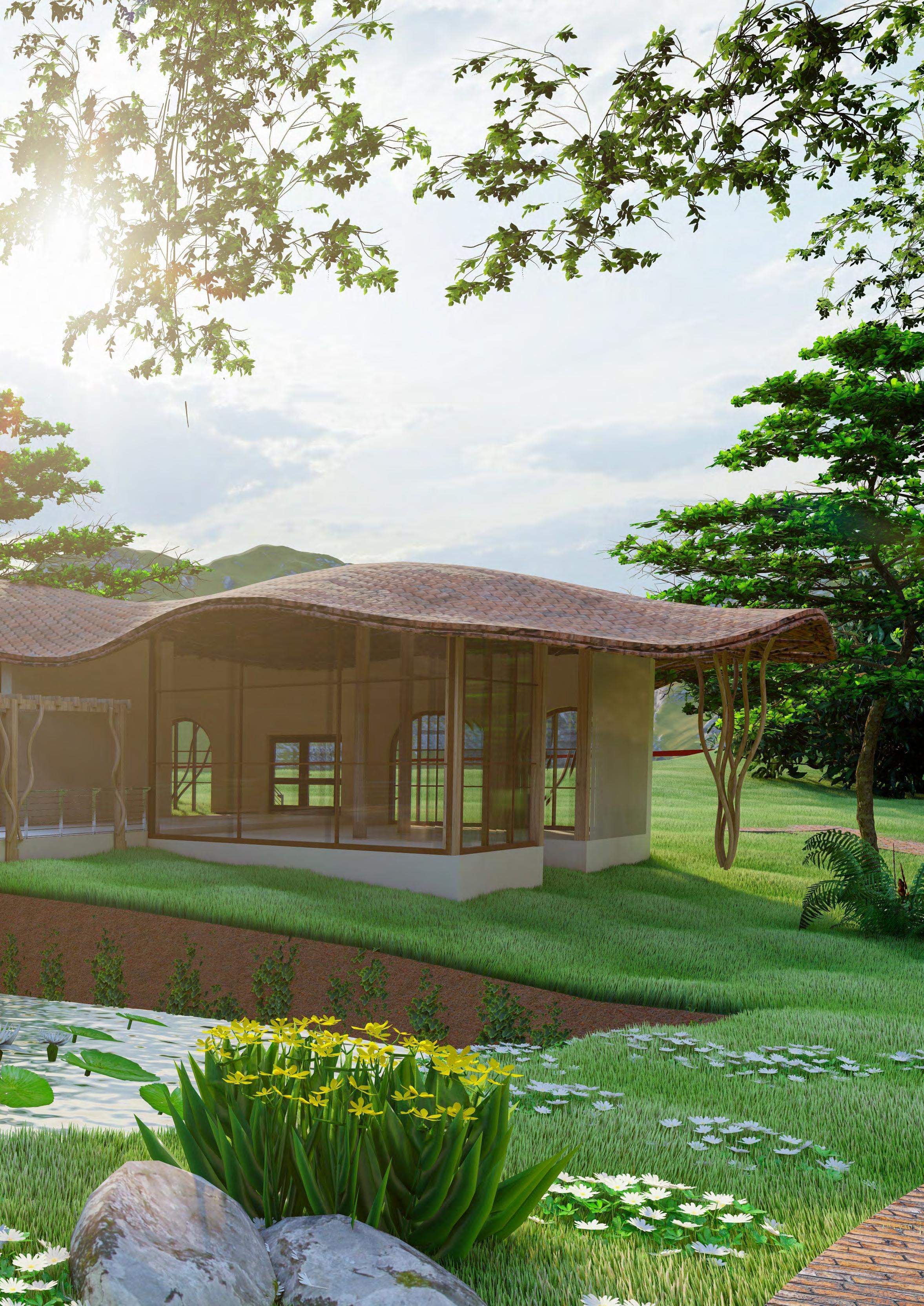

deluxe coattages The deluxe rooms are more spacious compared to the standard rooms with additional seating space provided insidde the cottage.

deluxe rooms plan(65sqm)

villa front elevation

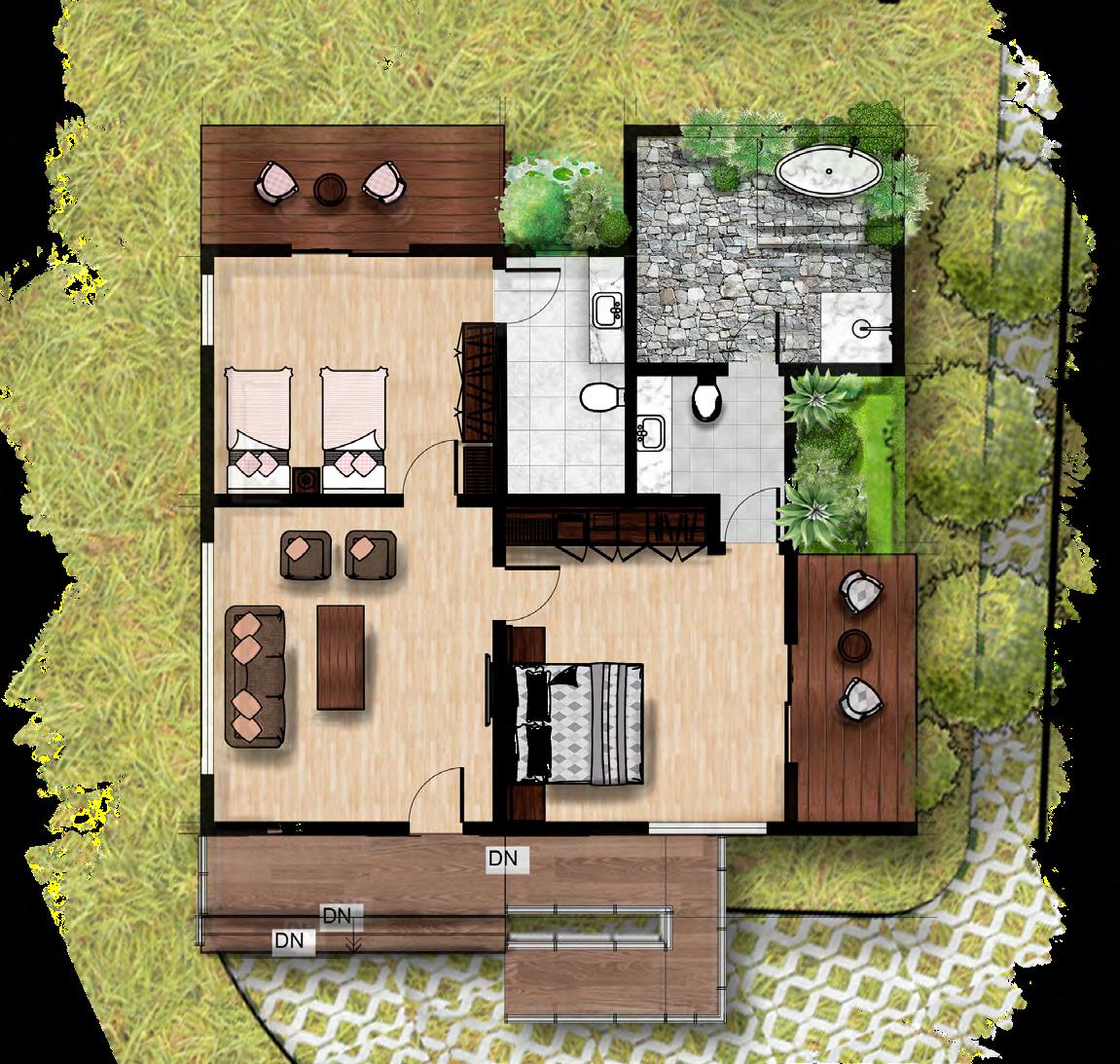

villa plan(112sqm) 20 | hillside resort

The two bedroom villa perfectly caters to a family. A living space with TV unit is given anf both the bedrooms are provided with private decks and washrooms. It also features an outdoor bath and a private garden. Two of such villas have been strategically placed at the NW o the site to capture maximum views.

sectional view of the administration through the restaurant; indoor garden; waiting lounge

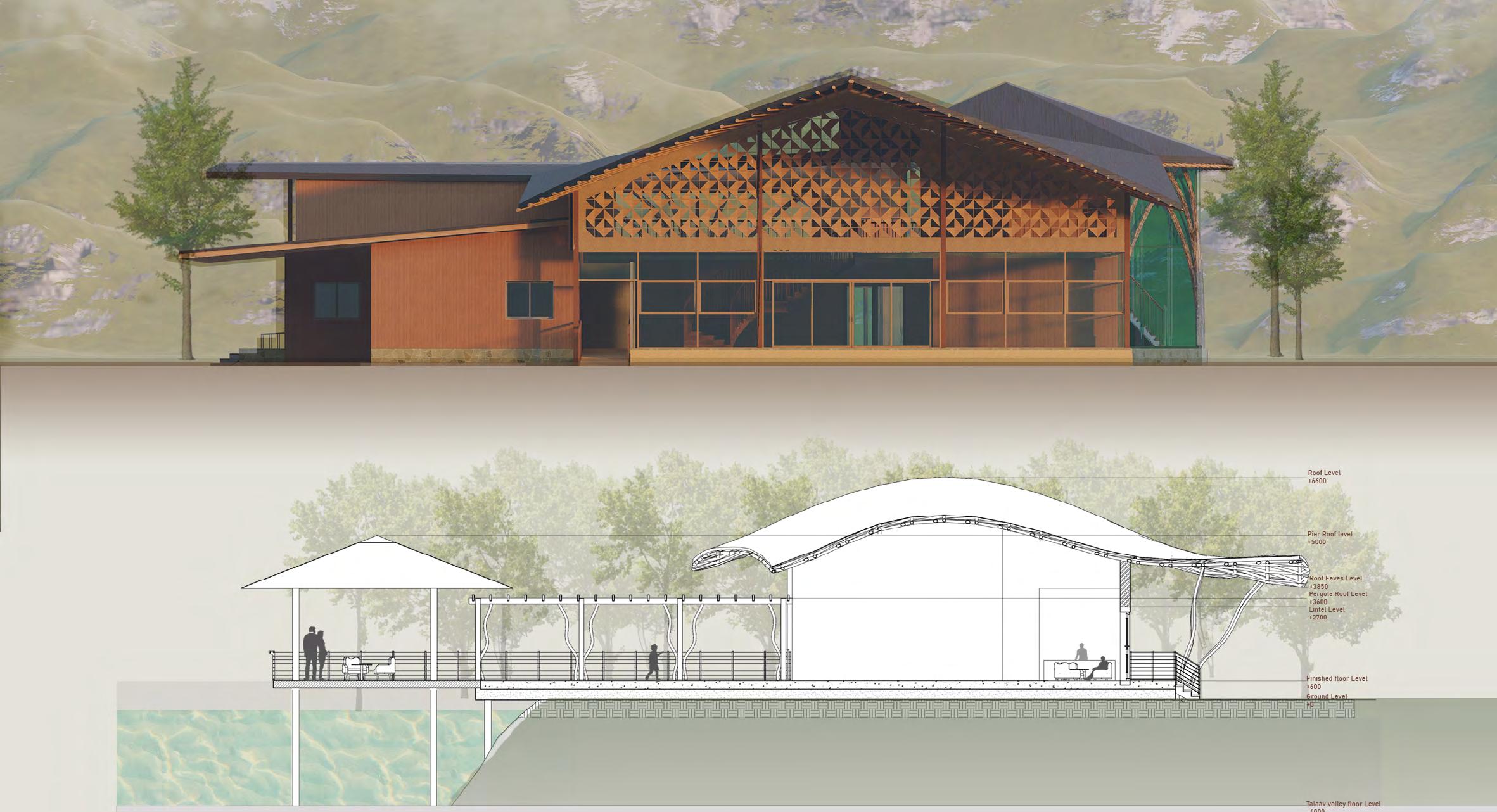

administration block front elevation

spa section through the building and the lake

21 | hillside resort

interior views of (from left) deluxe rooms; administration block- waiting lounge

0.4 WORKING DRAWINGS

KEY PLAN AND SPECIAL NOTES

19.0m 16.4m 1.2m

W3

V

C

C

0.8m

2.6m

5.4m

2.3m

W1

0.8m

D1

3.2m

0.8m 2.0m

W3

C

12 13

6

14

5

15

4

16

3

17

2

18

1

19

FFL +0.5m

4.0m

11

8

UP

C

3.0m

9

7

D2 D2

DRESSING 3.0m x 2.0m

MASTER BEDROOM 4.1m x 4.2m

2.0m

4.0m

5.0m x 4.3m

0.4m 1.7m

W2

6.2m

LEGENDS

D1

20

C

6.0m

C

6.0m

0.5m

1. ALL DIMENSIONS ARE IN MILLIMETERS ONLY, UNLESS OTHERWISE MENTIONED ON DRAWING. 2. DO NOT SCALE THE DRAWING. 3. ALL MEASUREMENTS MUST BE CHECKED AT SITE BY CONTRACTOR AND ANY DISCREPANCIES SHALL BE INFORMED TO ARCHITECT 4. THE CENTER LINE DISTANCES OF COLUMNS SHALL BE CHECKED AND CORRELATED WITH THE RELEVANT ARCHITECTURAL DRAWINGS. 5. COPYRIGHT OF THIS DRAWING BELONGS TO ARCHITECT AND SHALL NOT BE COPIED WITHOUT PRIOR PERMISSION.

2.3m

10

LIVING ROOM

NOTES-GENERAL:

C

WASHROOM 3.0m x 2.0m

3.0m 2.6m

4.9m

W4

C

FFL +1.5m

2.3m

C

8.6m

2.0m

1.1m

2.4m

0.5m

C

4.4m

2.1m

9.0m

2.4m

8.5m

1.4m

0.5m

W3

6.5m

3.2m

2.3m

0.7

1.9m

3.3m

4.4m

3.3m

6.5m

1.5m

10.8m 3.2m

WEST INTERIOR ELEVATION

KITCHEN 5.0m x 4.0m 6.2m

1.5m

FFL +0.5

WASH ROOM 2.0m x 3.0m

C

4.0m

2.7m

1.4m

C

W1

1.2m

3.1m

1.4m

C

V

4.0m

3.0m 3.2m

1.5m

2.8m

0.3m

2.2m

STORE ROOM 3.0mx1.9m

D2

C

W2

13.0m

0.5m

03

DD-MM-YYYY

02

DD-MM-YYYY

01

DD-MM-YYYY DATE

REV.

DESCRIPTION

RE-SUBMISSION

W4

0.9m

C

5.6m

1.4m

2.0m

W1

D2

1.2m

STUDIO 4.8m x 4.0m

C

1.0m

UTILITY 3.0mx1.9m

4.0m

4.0m

PARKING 5.5m x 4.2m

W3 3.2m

5.1m

2.0m

D2

8.0m

7.5m GL 0.0m

C 0.9m

4.3m

PLINTH +0.6m

5.9m

0.9m

4.1m

C

3.9m

0.5m

4.0m

C

4.2m

0.5m

D1

0.9m

1.8m

2.0m

0.2m

7.5m

C

C

+0.15

GL 0.0

DINING ROOM 9.3mx3.8m

PLINTH +0.6

GL 0.0

1.9m

2.0m

W1

3.7m

4.0m

8.5m

12.75m

D3

SITOUT 3.0mx4.0m

PROJECT NAME:

C

G+1 Residential Project for Mr. XYZ at Manipal.

2.0m

0.8m

4.2m

6.2m

0.8m

9.2m

4.0m

0.5m

10.0m

0.5m

0.8m

5.2m

0.8m

TITLE OF DRAWING: GROUND FLOOR PLAN

DOOR SCHEDULE

GROUND FLOOR PLAN

GROUND FLOOR PLAN

NOTATION

DIMENSION(m)

NO.

D1

0.92 x 2.10

7

D2

0.76 x 2.10

7

D3

1.8x 2.10

2

SCALE KEYDATE PLAN AND SPECIAL NOTES

NOTATION

19.0m 9.7m

3.2m

1.4m

2.3m

1.4m

W3

1.2m

2.5m

2.0m

1.1m

DIMENSION(m)

PROJECT/ SHEET NO.

NO.

8

W2

2.00 x 1.70 2.00 x 1.30

W3

1.60 x 1.45

4

W4

1.00 x 1.35

4

V

0.60 x 0.60

5

W1

SOUTH INTERIOR ELEVATION 1:2

27/03/22

WINDOW SCHEDULE

NORTH

E

N

4

5

S W

ARCHITECTURAL CONSULTANCY/ STUDENT NAME NEHA BHAT Regd. No: 193701004

4.9m

6th Sem

W4

V

0.8m

1. ALL DIMENSIONS ARE IN MILLIMETERS ONLY, UNLESS OTHERWISE MENTIONED ON DRAWING. 2. DO NOT SCALE THE DRAWING. 3. ALL MEASUREMENTS MUST BE CHECKED AT SITE BY CONTRACTOR AND ANY DISCREPANCIES SHALL BE INFORMED TO ARCHITECT 4. THE CENTER LINE DISTANCES OF COLUMNS SHALL BE CHECKED AND CORRELATED WITH THE RELEVANT ARCHITECTURAL DRAWINGS. 5. COPYRIGHT OF THIS DRAWING BELONGS TO ARCHITECT AND SHALL NOT BE COPIED WITHOUT PRIOR PERMISSION.

2.3m

3.0m

NOTES-GENERAL:

2.6m

WASHROOM 3.0m x 2.0m

2.6m

10

11

8

12 13

6

14

5

15

4

16

3

17

2

18

1.5m

2.5m

D2

BEDROOM 1

DRESSING

W2

4.15mx4.25m

3.0m x 2.0m

0.4m 1.7m

5.9m

LEGENDS

D1

DOWN

6.0m

3.0m

6.0m

BALCONY 2

FIRST FLOOR +3.0m

1.8m

0.9m

20

1.5mx3.7m

1.3m

NORTH INTERIOR ELEVATION

D3

MULTIPURPOSE ROOM

8.0m

9.3mx3.75m

4.0m

BALCONY W1

V D1

2.5m

2.0m

1.6m

FFL +2.9m

5.0m x 4.0m

0.2m

2.6m

4.0m

W2

2.6m

1.4m

1.2m

1.2m

2.3m

WASHROOM 3.0mx1.9m

DRESSING 3.0m x 1.9m

1.4m

3.1m

V

4.0m

3.0m

0.8m

5.2m

0.9m

D2

2.0m x 3.0m 2.0m

3.5m

BEDROOM 3

WASH ROOM

W1

2.5m

D2 1.5m

2.2m

4.0m

1.0m

4.3m

8.5m

4.1m

BEDROOM 2 4.8m x 4.0m

4.1m

D1 1.8m

5.7m

03

DD-MM-YYYY

02

DD-MM-YYYY

01

DD-MM-YYYY

REV.

2.0m

3.4m x 8.1m

0.9m

12.80 m

8.0m

D2 2.0m

19

1

D1

FFL +2.9m

4.0m

9

7

2.3m

5.4m

8.5m

LIVING ROOM 5.0mx4.25m

DATE

DESCRIPTION

RE-SUBMISSION W4

PROJECT NAME:

W2

G+1 Residential Project for Mr. XYZ at Manipal.

FIRST FLOOR PLAN FIRST FLOOR

PLAN

NOTATION

DIMENSION(m)

D1

0.92 x 2.10

D2

0.76 x 2.10

D3

1.8x 2.10

NO.

7 7 2

WINDOW SCHEDULE NOTATION

W1

DIMENSION(m)

NO.

8

W2

2.00 x 1.70 2.00 x 1.30

5

W3

1.60 x 1.45

4

W4

1.00 x 1.35

4

V

0.60 x 0.60

5

FIRST FLOOR PLAN DATE

SCALE

27/03/22

1:2

PROJECT/ SHEET NO. 5

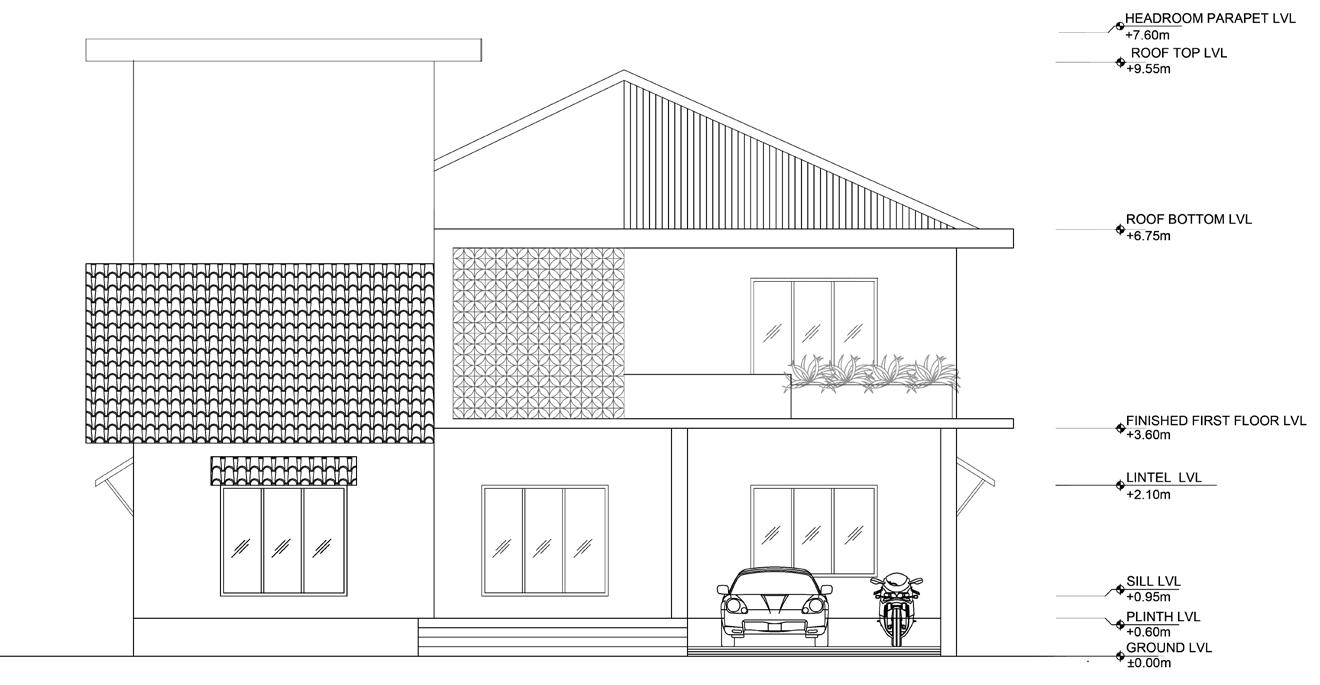

WEST/ FRONT ELEVATION

NORTH

E

N

S W

ARCHITECTURAL CONSULTANCY/ STUDENT NAME NEHA BHAT Regd. No: 193701004

22 | working drawing

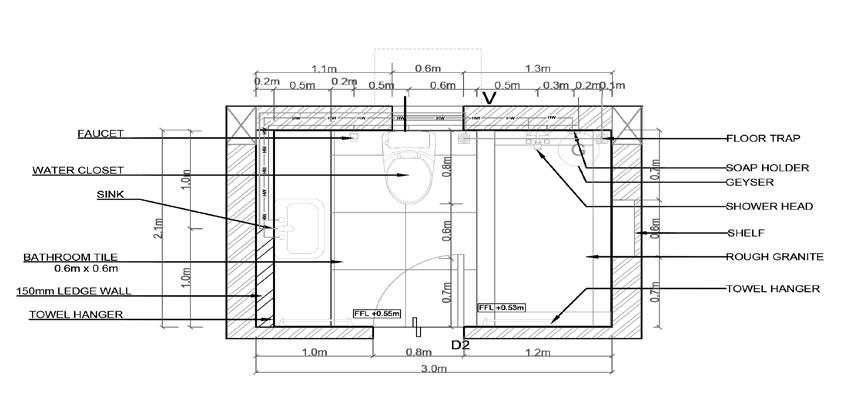

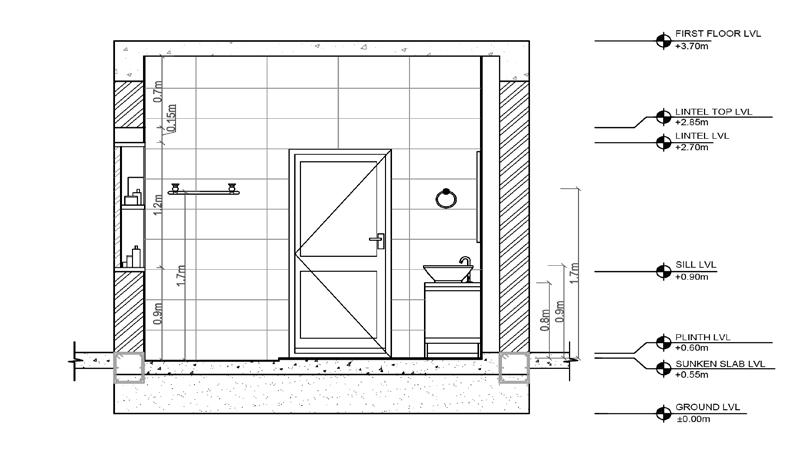

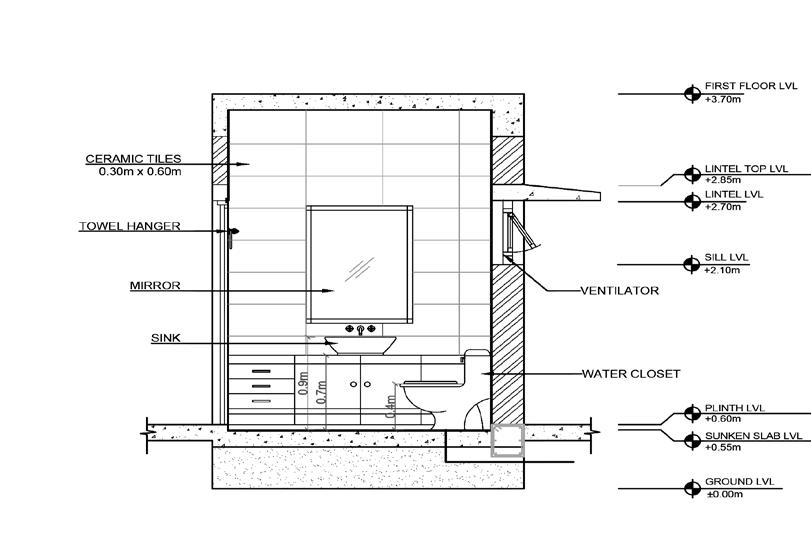

TOILET PLAN

TITLE OF DRAWING: DOOR SCHEDULE

6th Sem

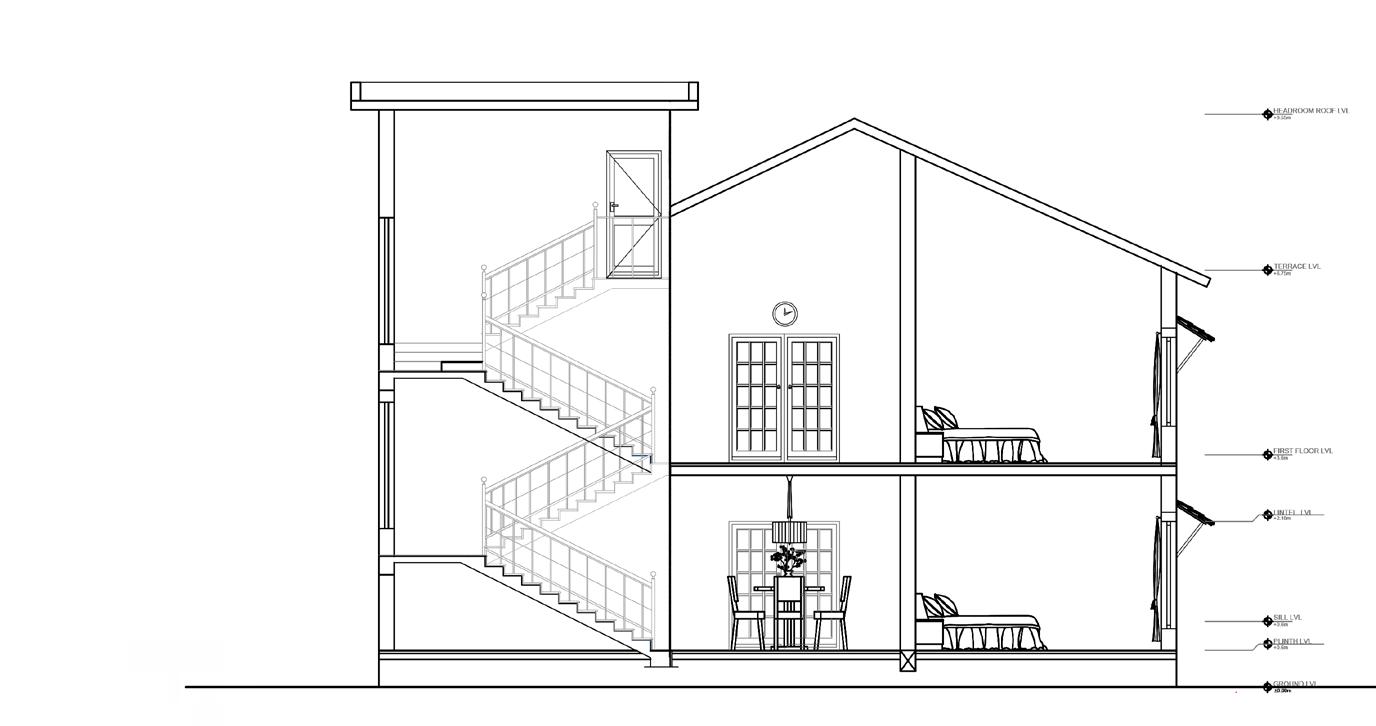

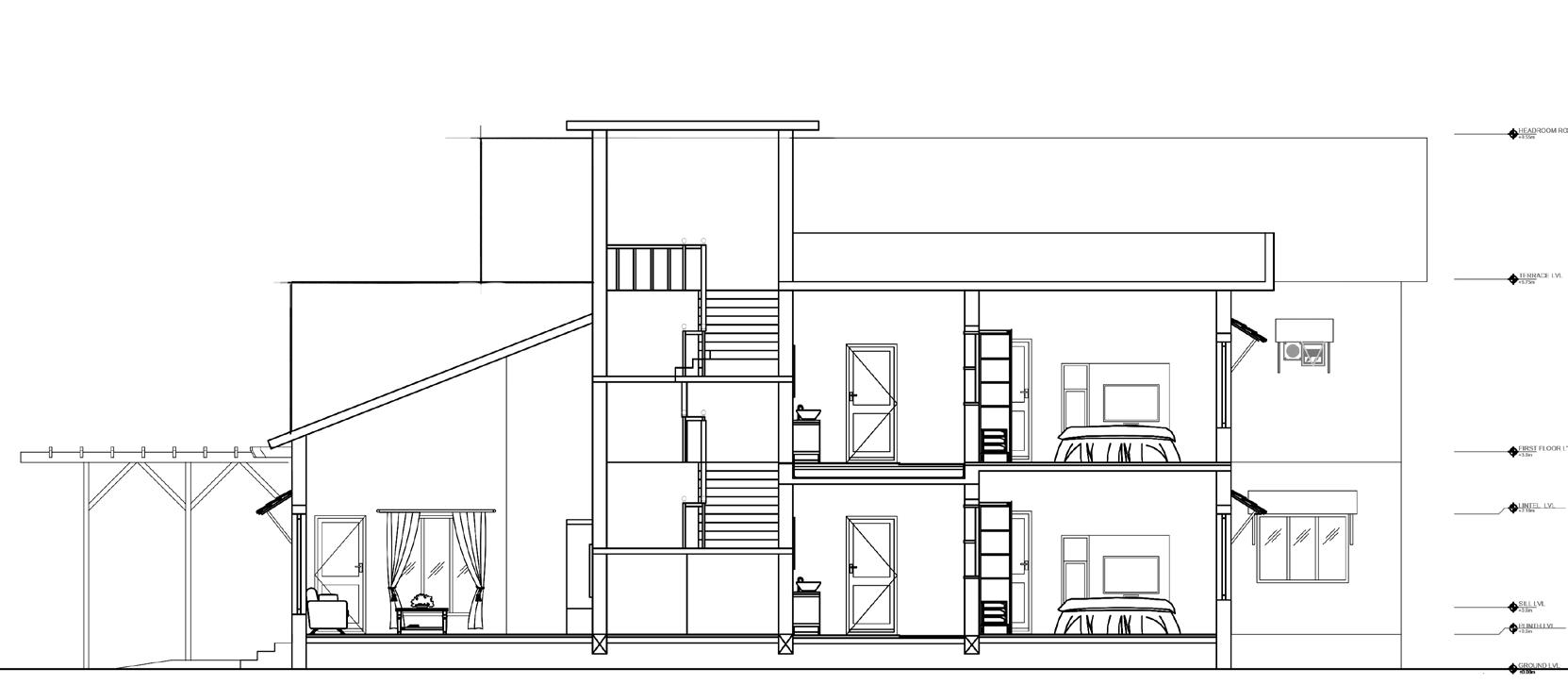

SECTION AA’

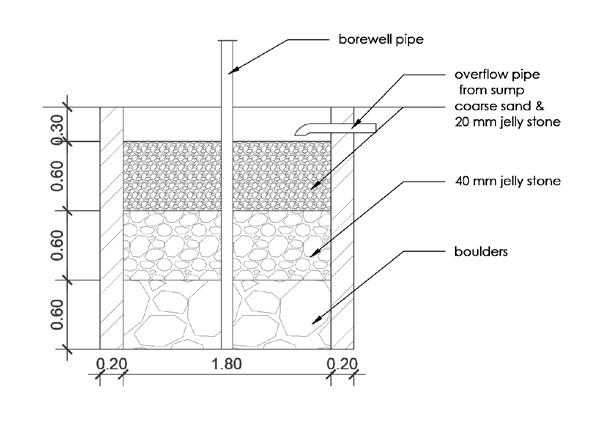

RECHARGE PIT DETAILS

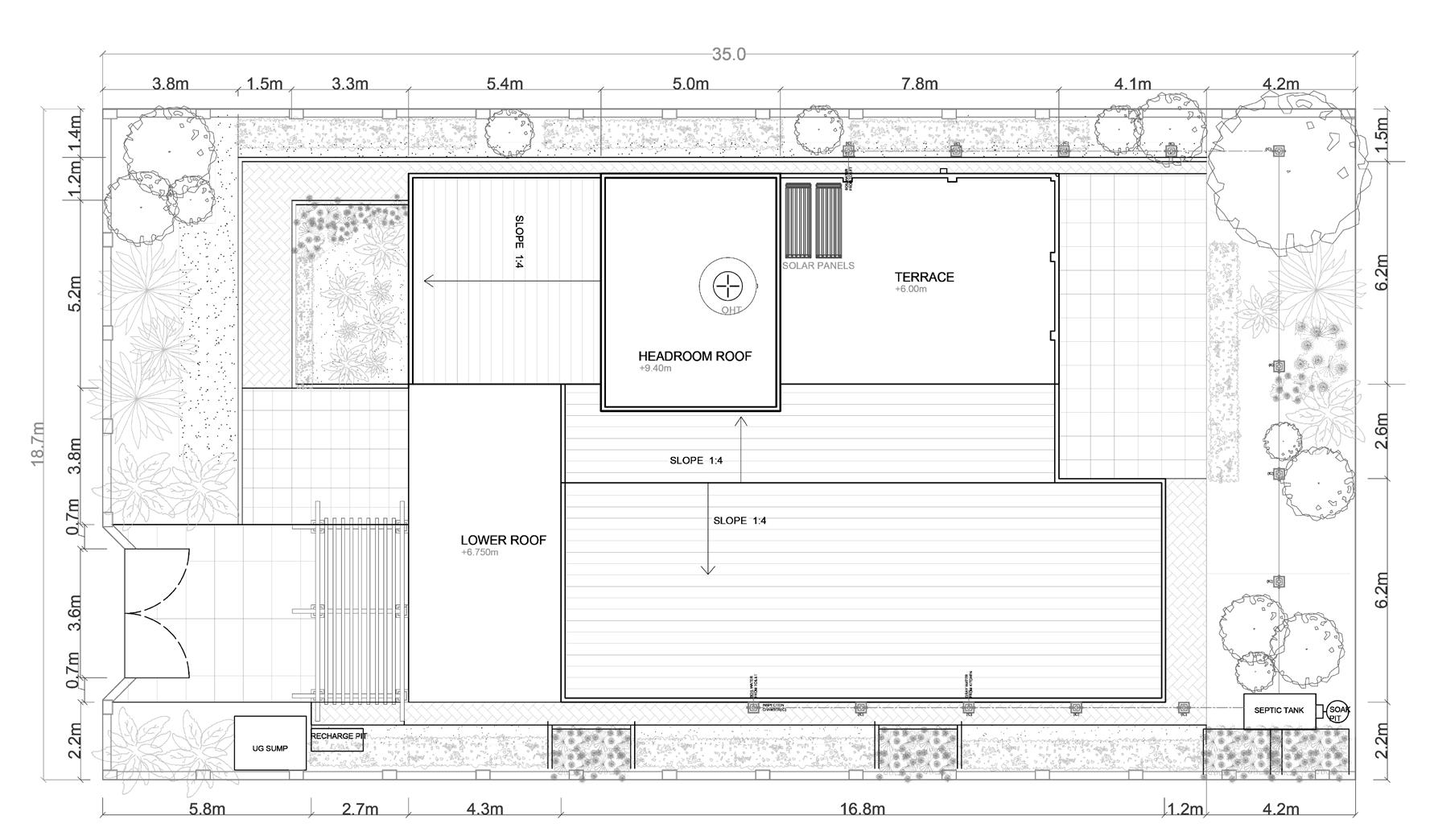

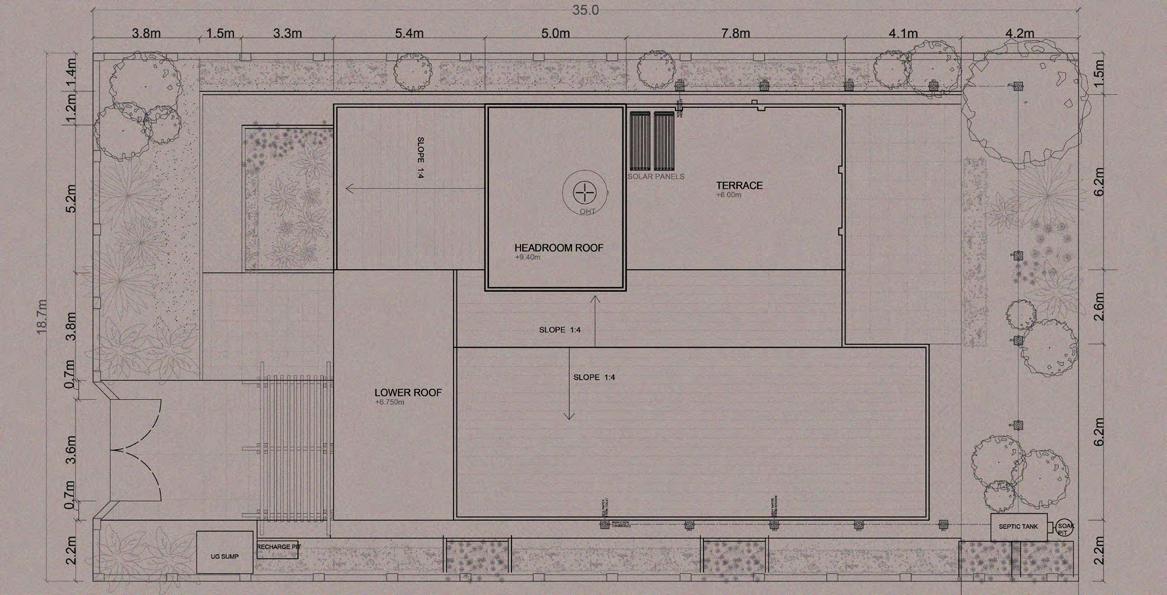

SITE PLAN

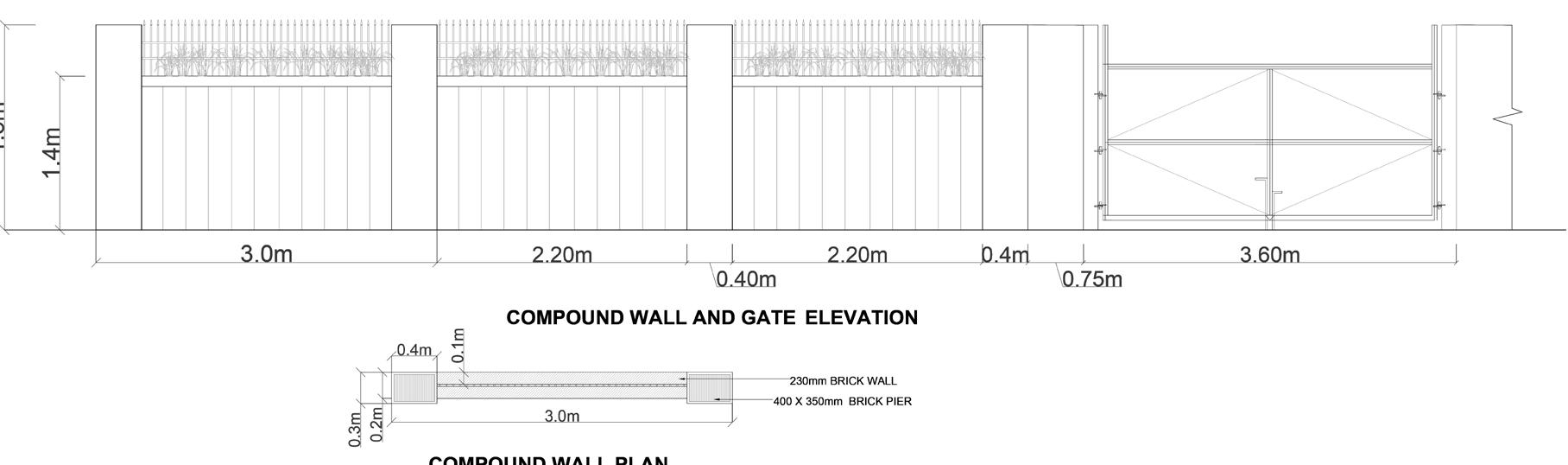

DOOR AND WINDOW DETAILS COMPOUND WALL AND GATE ELEVATION

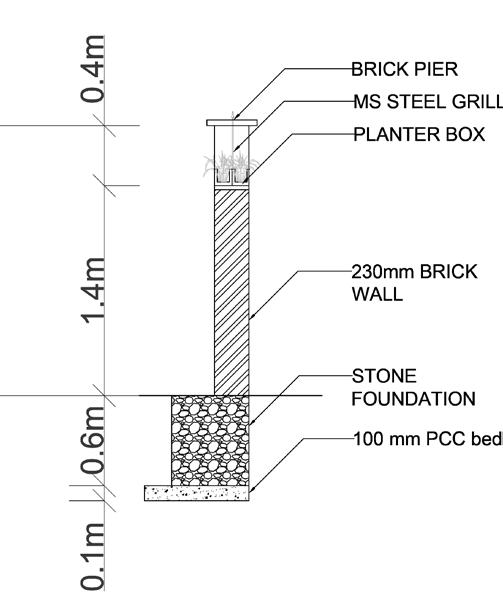

COMPOUND WALL SECTION

COMPOUND WALL PLAN

76'-23 8" 2'-13 8" 4'-23 4"

DOOR AND WINDOW DETAILS

KEY PLAN SCALE 1:250

76'-21 4" 4'-23 4"

4'-23 4"

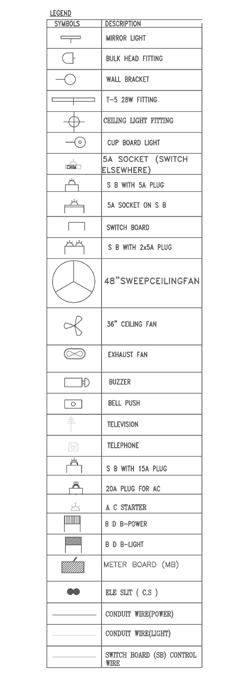

GROUND FLOOR ELECTRICAL PLAN

DOOR DETAILS

76'-23 8"

ENTRANCE DOOR DETAIL SCALE 1:25

2'-13 8" 4'-23 4" 76'-21 4" 4'-23 4"

23 | working drawings

4'-23 4"

SECTION BB’

ENTRANCE DOOR DETAIL SCALE 1:25

WINDOW DETAILS

LIVING ROOM WINDOW DETAIL SCALE 1:25

05. MISCELLANEOUS painting and photography

24 | miscellaneous

walkthrough and renders click on the images to view video

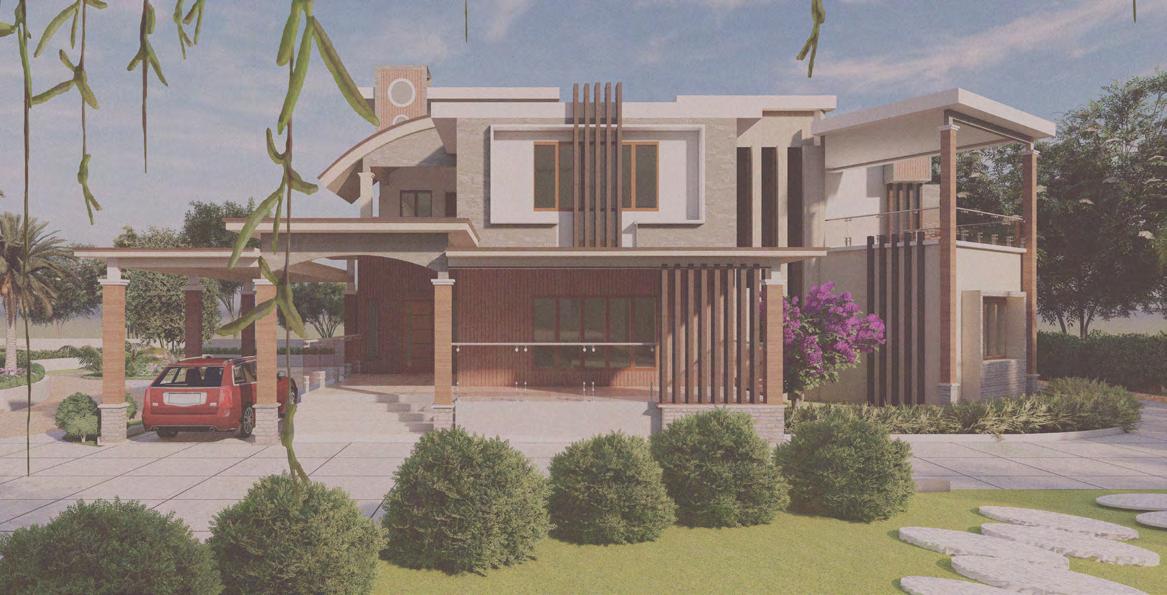

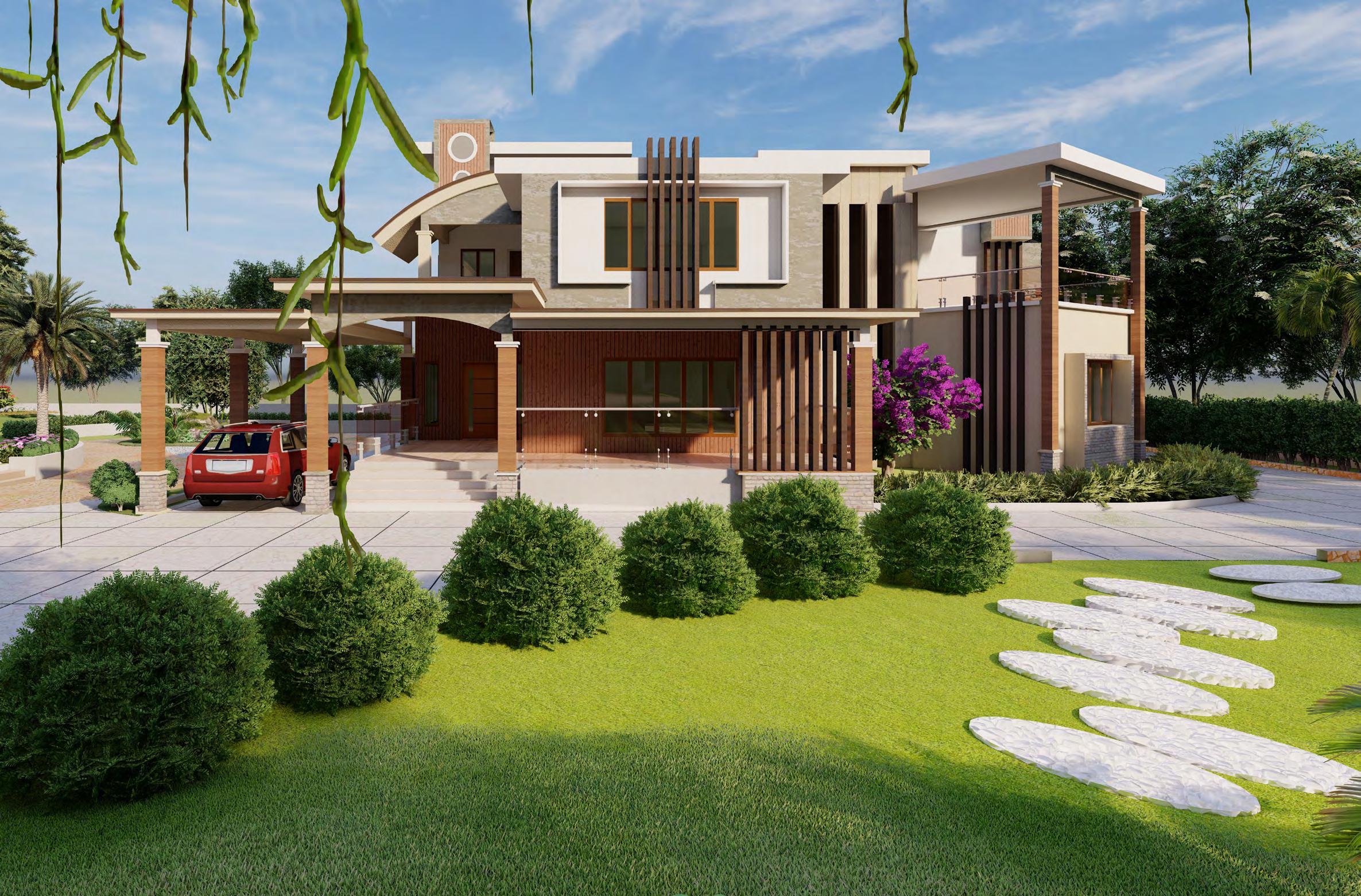

landscape design, exterior renders and walkthrough done for a 3bhk residential house at Yadthady, Udupi

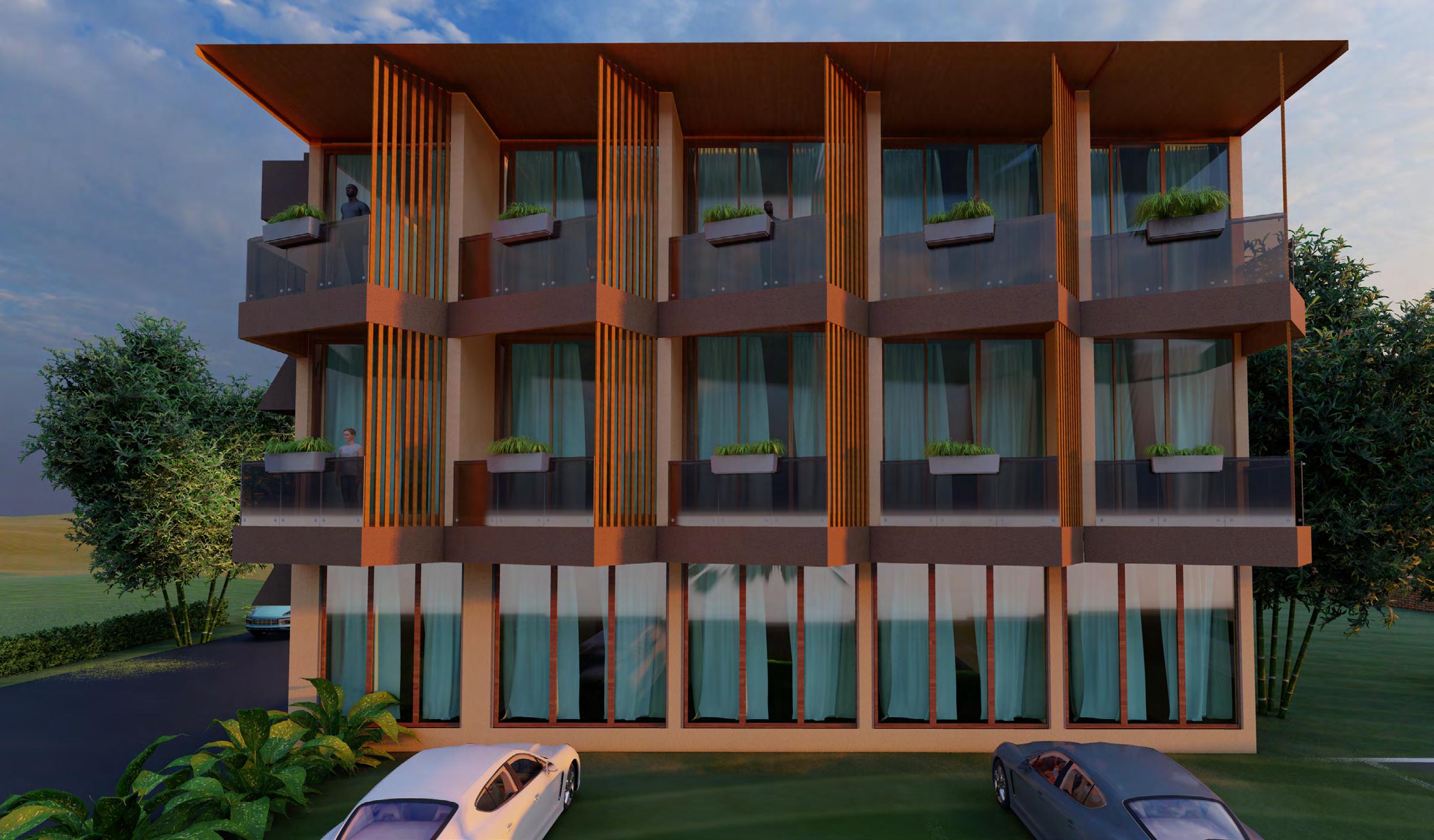

Elevation design and walkthrough done for a beachside resort

25 |miscellaneous
