Pallet Stackers
L10 – 12 B AS
Capacity 1.0 t – 1.2 t | Series 4596
Agile specialist

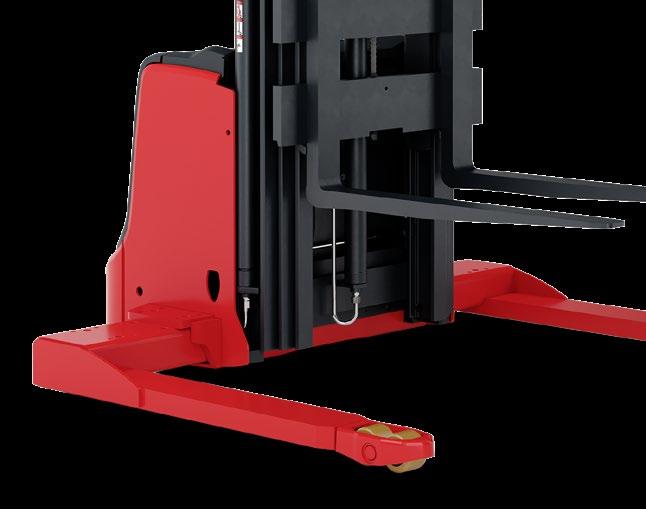

→ Electric pedestrian straddle stacker (AS) for loads up to 1.2 tons and lifting heights up to 4.7 meters
→ ISO forks ideal for handling loads with low under-clearance
→ Ideal for stacking closed (bottom boarded) pallets
→ For light to medium-duty applications in dispatch, warehouse or production areas
→ Narrow stacking aisle and adjustable straddle arms for flexibility in application
MAST TABLES
STANDARD MAST (in mm)
DUPLEX MAST (in
TRIPLEX MAST (in
mm)
STANDARD AND OPTIONAL EQUIPMENT
Active foot bumper – foot protection system
Long tiller and low chassis skirt
Easily accessible emergency stop button
Warning buzzer – for operation in low noise areas
Horn – for operation in noisy environments
Log in PIN code
Linde BlueSpot – visual warning of truck presence integrated into chassis contours
CAN bus technology
Data transmission online
Data transmission WiFi
Linde connect:ac pre-shift check – allows operator to report truck condition before use
Linde connect:dt crash detection – allows impact damage monitoring
Basic display
Colour display
Soft landing of forks
Proportional speed control – speed dependent on tiller angle
Creep speed – for operation with tiller in vertical position
Ergonomic tiller head with easy access to all controls
Accessory support
Clipboard/scanner support with 24 V power supply
Lift limit switch – 1x or 2x lift stops
Linde Load Management (weight)
Coldstore protection to -35°C (in/out)
Standard mast
Duplex mast
Triplex mast
Mast protection, polycarbonate
Mast protection, wire mesh
Forks: ISO2B, length 800mm
Forks: ISO2B, length 1000mm
Forks: ISO2B, length 1100mm
Drive wheel: standard duty
Drive wheel: heavy duty, high grip
Drive wheel: solid rubber – for delicate floors
Single load wheels, polyurethane
Tandem load wheels, polyurethane
Tandem load wheels, polyurethane greasable
Maintenance-free AC motor
Electromagnetic braking system
Battery compartment, vertical compact
Battery compartment, 2 PzS, vertical change
Li-ION batteries – different battery capacities with front, laterally or vertically mounted opportunity charging
plug
Lead acid batteries
On-board charger 35 A or 70 A for lead-acid and Li-ION batteries
External chargers
Standard equipment
Optional equipment Not available
TECHNICAL DATA (according to VDI 2198)
Characteristics
Tyres/chassis
2.2 Axle loading, laden front/rear
2.3 Axle loading, unladen front/rear
3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane
3.2 Tyre size, front
3.3 Tyre size, rear
3.4 Auxiliary wheels (dimensions)
3.5 Wheels, number front/rear (× = driven wheels)
3.6 Tread, front
3.7 Tread, rear
4.2
4.3
4.4
4.5
4.9
4.10
Dimensions
4.21
4.21.2
4.22 Fork dimensions DIN ISO 2331
(mm)
(1070-1370-1520)1) 1204-1504-1654 (1070-1370-1520)1)
4.24 Fork carriage width b3 (mm) 775-975-1075 775-975-1075
4.25 Fork spread b5 (mm) 690-858-1026 690-858-1026
4.26 Distance between wheel arms/loading surfaces b4 (mm) 904-1204-1354 (910-1210-1360)1) 904-1204-1354 (910-1210-1360)1)
4.32 Ground clearance, centre of wheelbase m2 (mm)
4.34.1 Aisle width for pallets 1000 × 1200 crossways Ast (mm) 2468/2513/2588 (2321)6)7)8) 2468/2513/2588 (2321)6)7)8)
4.34.2 Aisle width for pallets 800 × 1200 lengthways Ast (mm) 2452/2513/2588 (2321)6)7)8) 2452/2513/2588 (2321)6)7)8)
4.35 Turning radius Wa (mm) 1575 (1567)1)8) 1575 (1567)1)8)
5.1
5.1.1
5.2 Lifting speed,
5.10 Service brake
6.3 Battery according to DIN 43531/35/36 A, B, C, no
6.4
1) (with Australian load arms) 2) from butterfly rotation axis; in creep speed position +5 mm (optional) 3) with
with
5) (Option)
6) Including a 200 mm (min.) operating aisle clearance.
7) with forks lenght 1200 mm and minimum / intermediate / maximum over all width b2; with Australian load arms -4 / -10 / -57 mm.
8) with tiller in the upper working position (10°) and fully turned clockwise; in creep speed position -12 mm. The Ast values in brackets are calculated for special case where the swivelling range R is free.
CHARACTERISTICS
Safety
→ Asymmetrical tiller enables optimum view of the fork and surroundings
→ Long tiller arm ensures generous safety distance from the truck
→ Low chassis and optional active foot bumper for increased safety
→ Load management monitors residual load capacity (optional)
→ Creep speed and proportional speed for safe maneuvering (optional)
Ergonomics
→ Ergonomic tiller head with easily accessible controls
→ One-handed operation of all functions, even with gloves
→ Long, low mounted tiller enables smooth steering movements
→ Ergonomically shaped tiller head gives a natural hand position
→ Storage compartments for important work equipment
Handling
→ Compact design and small stacking aisle width for precise operation
→ Flexibly adjustable straddle arm width (900, 1200, 1350 mm)
→ Powerful three-phase motor ensures fast, efficient operation
→ Optilift proportional lifting system enables sensitive and precise load handling
→ Soft landing of forks allows gentle lowering of the load
Service
→ Robust construction ensures long service intervals
→ Maintenance-free 1.1 kW three-phase motor increases vehicle availability
→ Easily accessible components for fast, efficient maintenance
→ Service data can be read out quickly via CAN bus
→ Optional data transmission for remote diagnostics and software updates
Nørregade
nc-nielsen.dk l info@nc-nielsen.dk
Active foot bumper (optional)
Ergonomic tiller head
Precise load handling
Easy access to truck data
