Architectural Visions: Portfolio Showcase by Nawaf Essam Badghaish

PORTFOLIO

NAWAF E. BADGHAISH

KING ABDULAZIZ UNIVERSITY ARCHITECTURE AND PLANNING DEPARTMENT. 2021-2024

,>345F=>'@DJ2I PDHJ?<552'@DJ2I >253<5'>3;<=L3<=?E'3?4'=?I;=2=?E'45I=E?I-'CK'I<3K=?E' G25I@'3?4'=??DL3<=L5'IDHJ<=D?I'<D'53>@';2DV5><-'AK'ED3H' =I'<D'>253<5'L=IJ3HHK'I<J??=?E'45I=E?I'<@3<'H53L5'3' H3I<=?E'=F;3><-

*2%3'$ !)45'/+

!"#!$%&!''($)"*('+,$-$.,/01,($%&"2.&2% !"#$%&'()*+,$'''-.&//,0'''''''''''''''''''''''123456'789 :'#';32<=>=;3<54'=?'<@5'A,B0#C,'!2DE23F'E=G<54'3?4'<3H5?<54'I<J45?< :'#';32<=>=;3<54'=?'(>DJ<I'GD2'GDJ2'K532I'3?4'25>5=L54'?JF52DJI'M34E5I' 3?4'3>>DH345I-

3,&!2('1$)2#122$-$,1&!"/2&/012 N#$1',C/)*,O#O')$#P&"(#+Q''-.&//,0'''''''''''''''''''''''123456'8-8R'S'T-U

3?4';2DV5><'I<J4=5I-

!01,2',)$,

*,1/-/"+2$,1&!"/2&/$789$#1,*!"&$)2%"#.21 (,CC,10'&$1#$&&"#$1'%X$()*+,$+(',$/',((X%#,+&'Y(&%,Z'''-.&//,0

#1,*!"&$)2%"#.21 (,B+'&/)%,+#X$'''-.&//,0

"./21.$,1&!"/2&/ 0X)(&'X]'&^!&"+:'],%)*+Q'X]',"%0#+&%+)"&',$/'!*,$$#$1'''-.&//,0 *,1/-/"+2$,1&!"/2&/ ,"%0#+&%+)"&'+&,A'''-.&//,0 5122(,.&2$#1,*!"&$)2%"#.21

*$+',-,.,)&/

#';32<=>=;3<54'=?'<@5',??J3H'&W@=M=<3<=D?'DG'<@5' %DHH5E5'DG',2>@=<5><J25'3?4'!H3??=?E#';32<=>=;3<54'=?'<@5'1#('&W@=M=<3<=D?'DG'<@5' %DHH5E5'DG',2>@=<5><J25'3?4'!H3??=?E#';32<=>=;3<54'3?4'45I=E?54'<@5'"XCX%X$' &W@=M=<3<=D?';25I5?<54'MK'<@5'%DHH5E5'DG' &?E=?552=?E#';32<=>=;3<54'=?'<@5'/",1'Y/2D?5I'%HJMZ'3<'N=?E' ,M4JH,[=[')?=L52I=<K#';32<=>=;3<54'=?'<@5'%@3HH5?E5'DG'/=E=<=[=?E'<@5' %JI<DF52'&W;52=5?>5'=?'<@5'"53H'&I<3<5':' ;2DL=454'MK'AJ?I@33< !2DL=454'MK'A=I\'3F4'N,)(+ #';32<=>=;3<54'3?4'45I=E?54'<@5'"XCX%X$' &W@=M=<3<=D?';25I5?<54'MK'<@5'%DHH5E5'DG' &?E=?552=?E#';32<=>=;3<54'=?'<@5'/",1'Y/2D?5I'%HJMZ'3<'N=?E' ,M4JH,[=[')?=L52I=<K-

JEDDAH MEDIA CENTER

- JEDDAH’S MEDIA CENTER 2024

URBAN DESIGN - URBAN PROJECT ( THE EDGE ) 2023

BOUTIQUE HOTEL - MOSQUE

- AL - KHURIJI FARM BOUTIQUE HOTEL - MOSQUE 2023

FREELANCE

2021 - 2024

- MULTIPLE PROJECTS

(( MORE INFORMATION WILL BE AVAILABLE UPON REQUEST ))

PART-TIME

- ARCHITECTURE TEAM

- SECA ( SABBAGH ENGINEERING CONSULTANTS & ASSOCIATES ) 2023

02

JEDDAH MEDIA CENTER

CONTAIN OF 2 PHASES ( URBAN & ARCHITECTURE PROJECT )

URBAN DESIGN

CONTAIN OF 1 ARCHITECTURAL PROJECT.

03

BOUTIQUE HOTEL - MOSQUE

CONTAIN OF 2 ARCHITECTURAL PROJECTS.

05

PART-TIME PROJECTS

CONTAIN OF MULTIABLE ARCHITECTURAL PROJECTS.

GRAPHIC/VISUALS PROJECTS

CONTAIN OF DIFFRENT ASPECTS OF PROJECTS.

( PHASE 1 )

01 Project Brief

The Edge epitomizes the fusion of academia, commerce, culture, and innovation, revitalizing the western edge of King Abdulaziz University (KAU) in Jeddah, Saudi Arabia into a dynamic Edge featuring four main Hubs: Business, Commercial, Cultural, and Academic. Its multifaceted design establishes a blueprint for integrated development, driving forward-thinking projects and fostering a vibrant sense of community.

02 Project Hubs

The Business Hub at King Abdulaziz University is a vibrant ecosystem that empowers businesses to thrive, fostering entrepreneurship and driving economic development while shaping the future of business innovation in the region.And its consest of: THE EDGE TOWER - BUISSNES PARK - BUISSNES INCUBATOR Business Hub

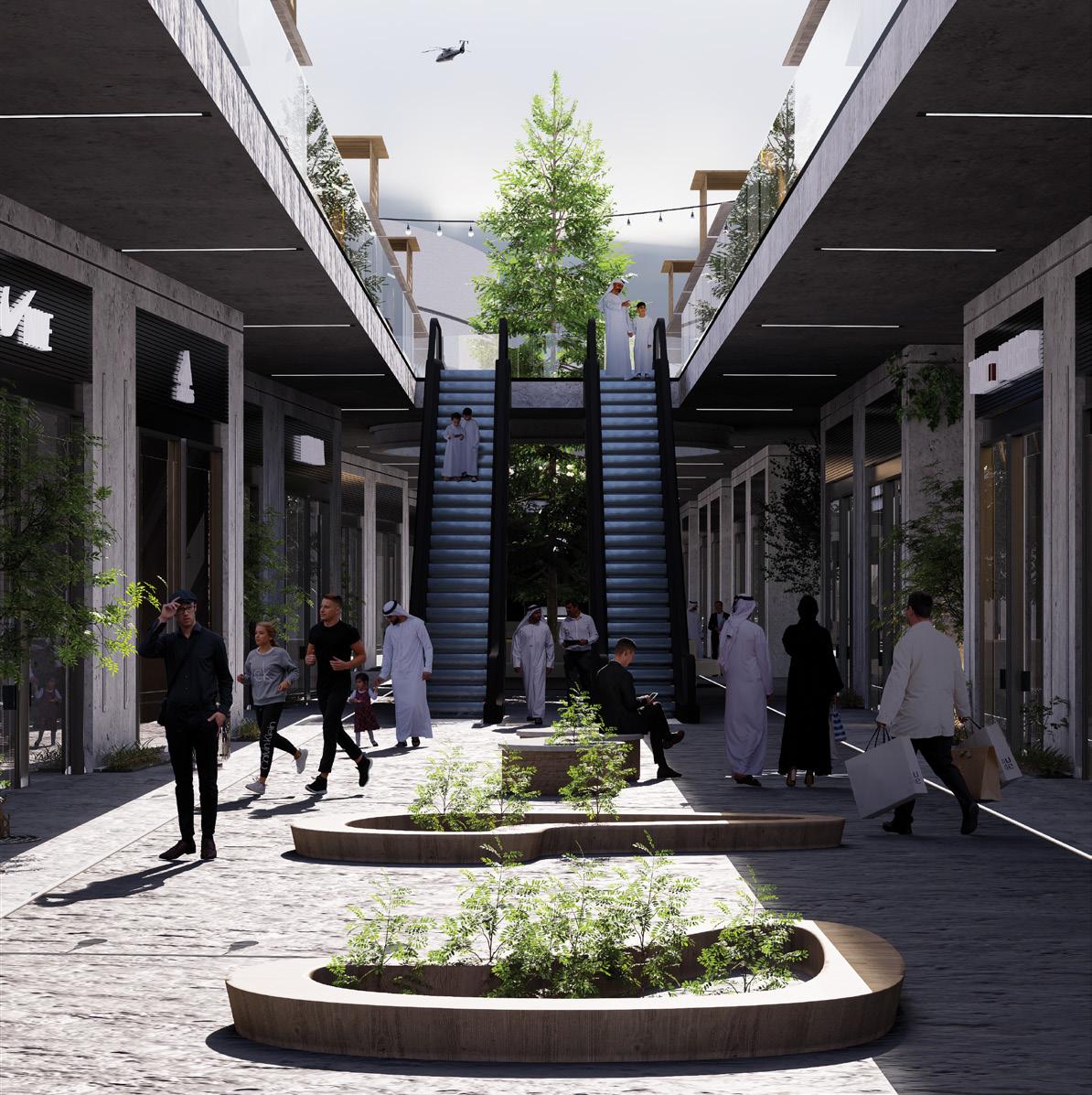

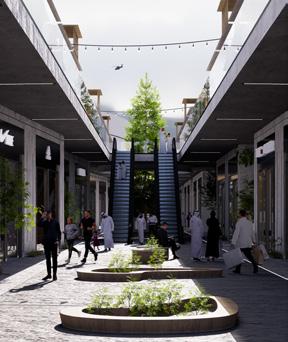

Commercial Hub

The Commercial Hub at King Abdulaziz University is a vibrant marketplace and social hub that enhances the university experience with diverse amenities and fosters convenience, innovation, and community. And its consest of: KAU FRONT - VIA TECHNO

The Cultural Hub at King Abdulaziz University celebrates the university's rich history and values through exhibits, events, and educational programs. It inspires pride, fosters dialogue, and strengthens the bond with the community. And its consest of: CULTURE CENTER - KAU MEDIA CENTER- MUSEUM & EXHIBITION CENTRE Culture Hub

Academic Hub

The Academic Hub at King Abdulaziz University empowers students and promotes academic excellence through comprehensive resources, a supportive environment, and collaborative initiatives, shaping the future of education and advancing knowledge. And its consest of:

SKILL SPRINT ACADEMY -STUDENT HUB

JEDDAHMEDIACENTER

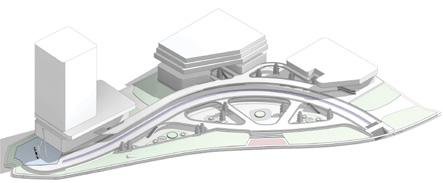

Plazas

The landscape was designed by creating plantings resembling buffer zones for the public, cooling the area, establishing pathways, and also adding water to certain areas to achieve specific goals on the site.

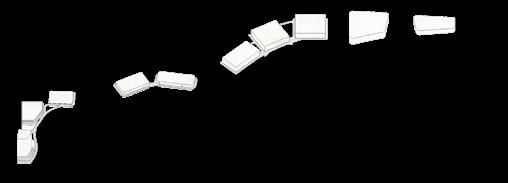

There are 10 buildings in the project, and each building is unique in order to create 10 quality projects that achieve the goals of the university.

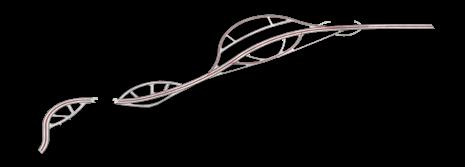

The movement areas consist of a main thoroughfare that cuts across the entire site from start to finish. Additionally, there are dedicated pathways for bicycles, as well as pathways for golf carts and scooters.

There are four zones in the project: the Business Zone, the Commercial Zone, the Cultural Zone, and the Academic Zone.

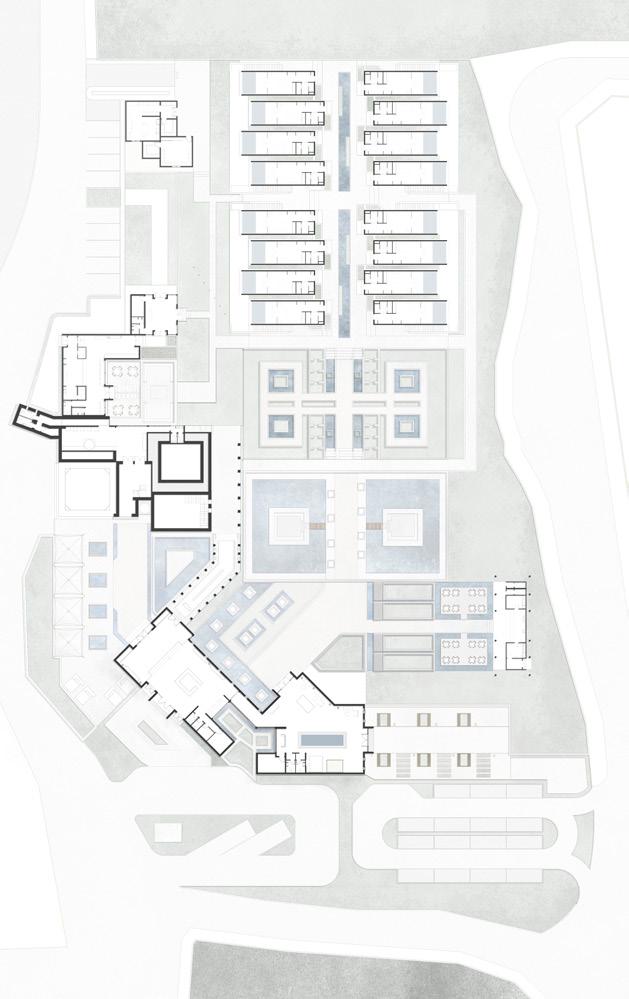

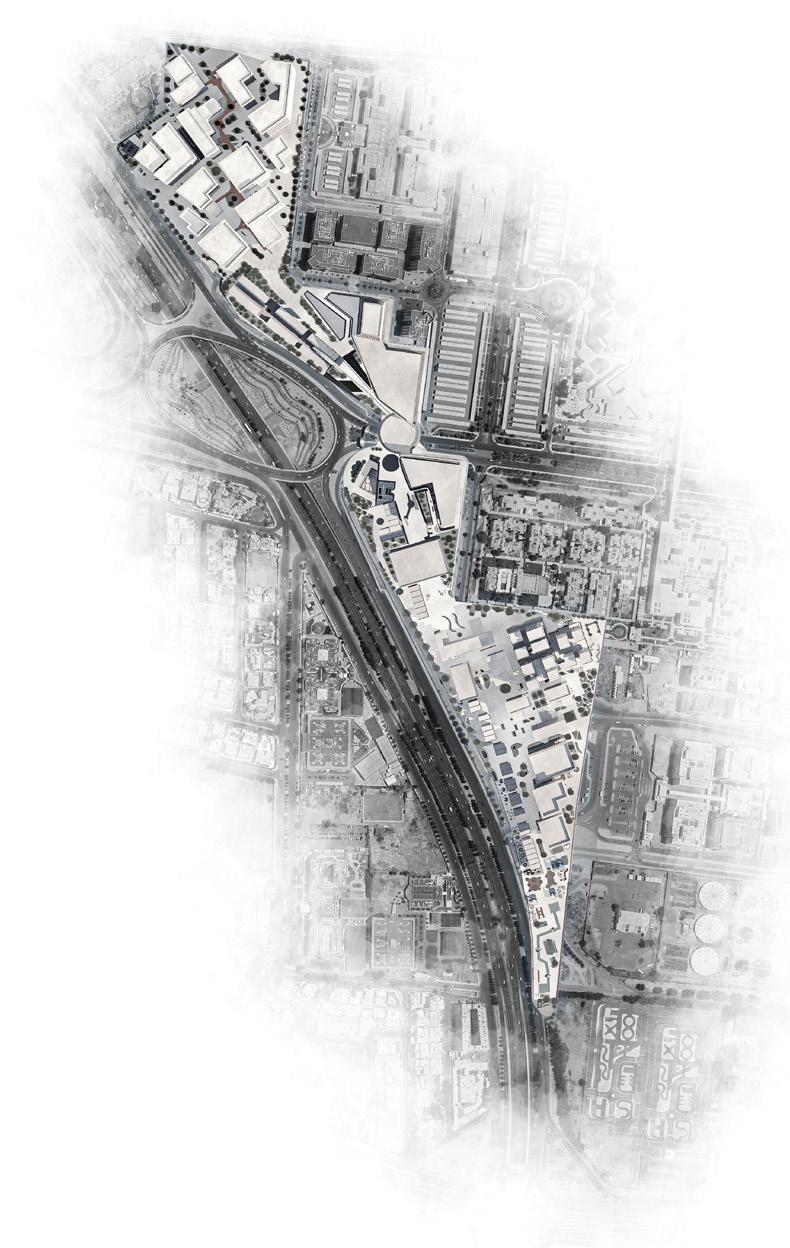

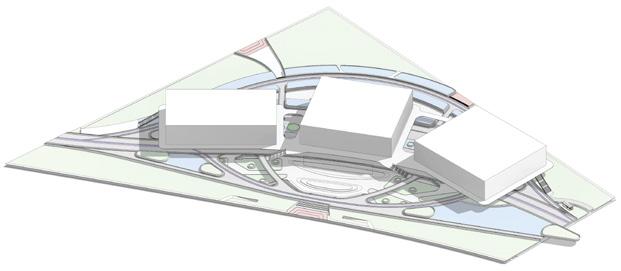

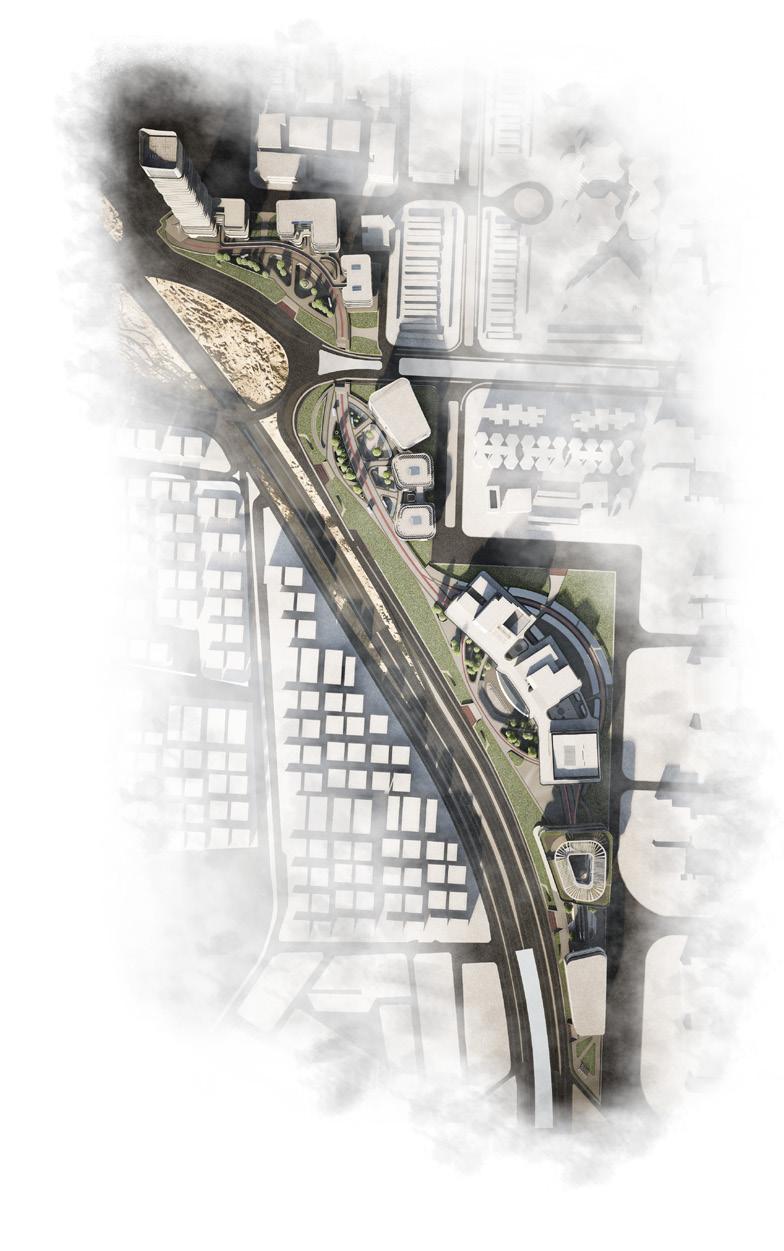

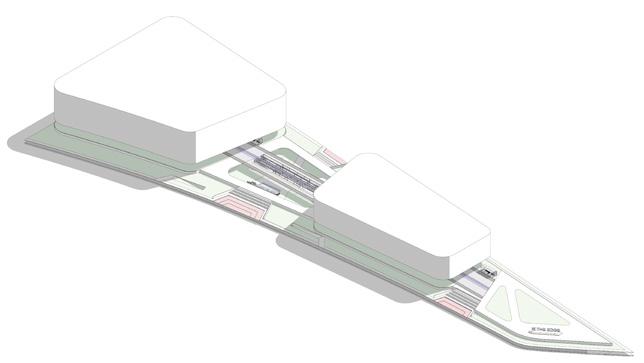

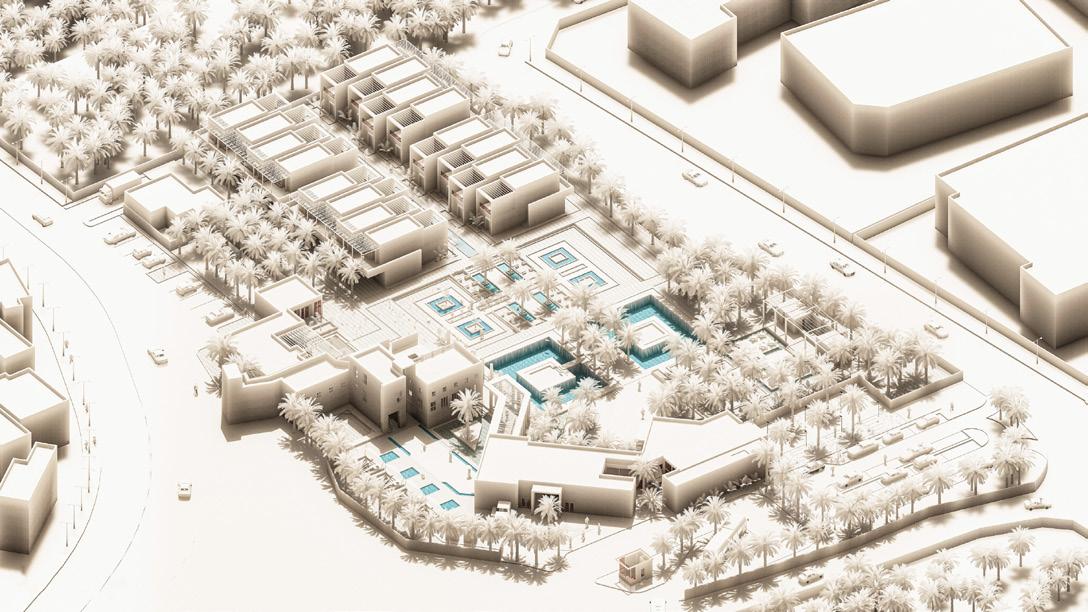

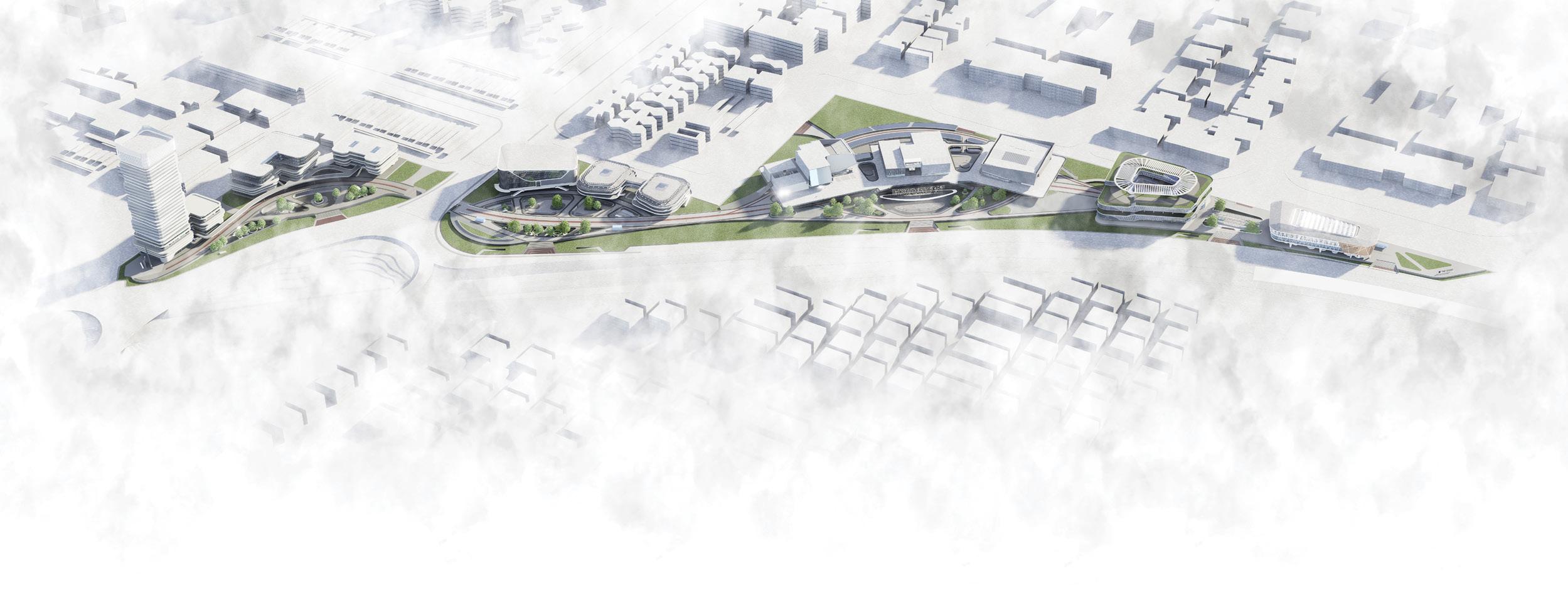

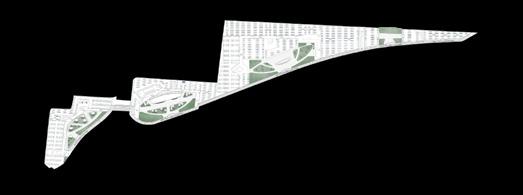

This is the complete layout of the site with all the aforementioned features, allowing us to visualize the proportions specific to the project.

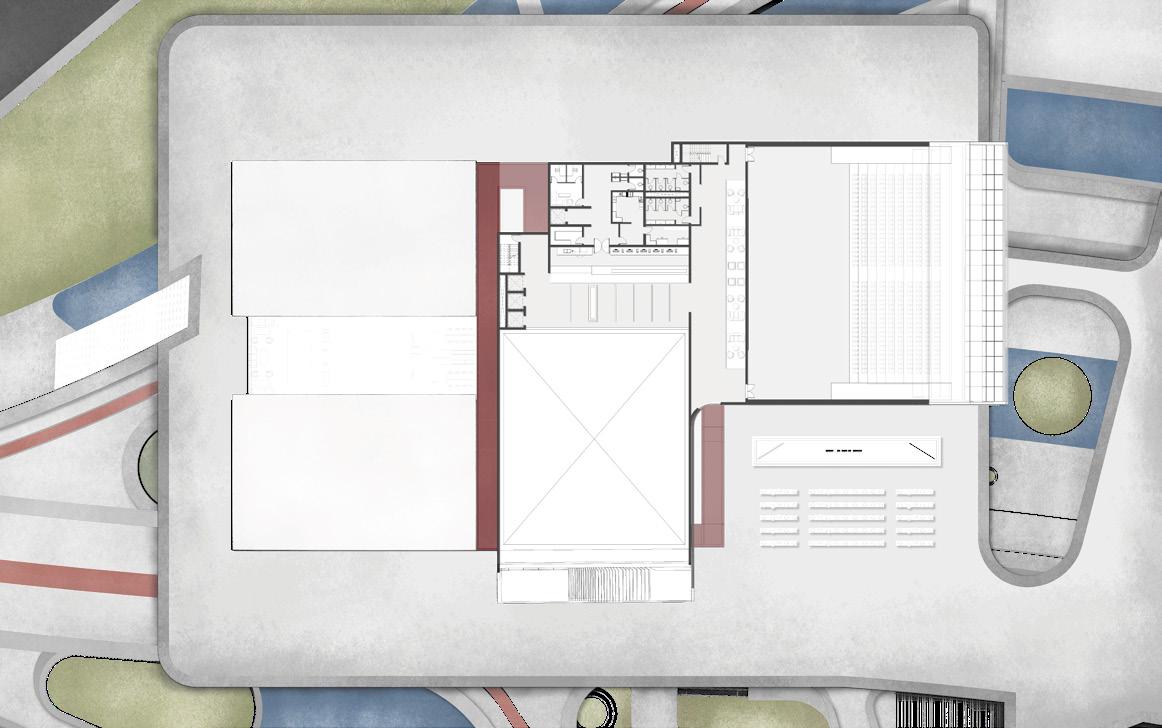

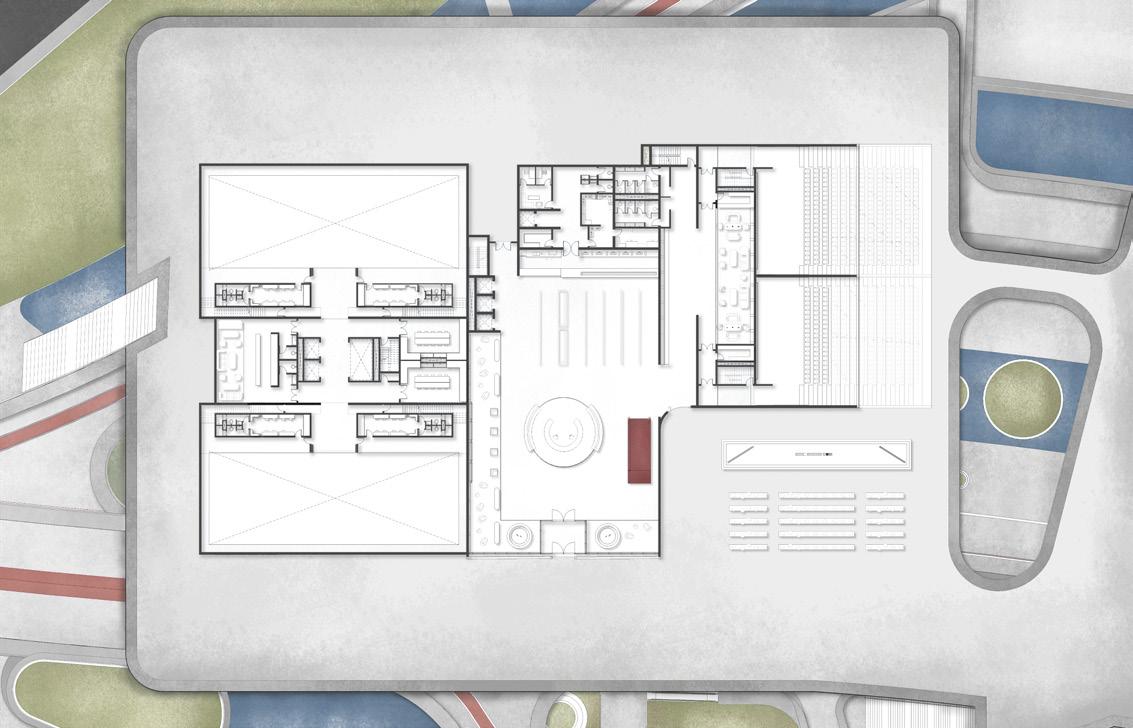

This is the basement level, which includes parking spaces, plazas, loading areas, pedestrian walkways, and car lanes.

Buissnes ACADEMIC

JEDDAH

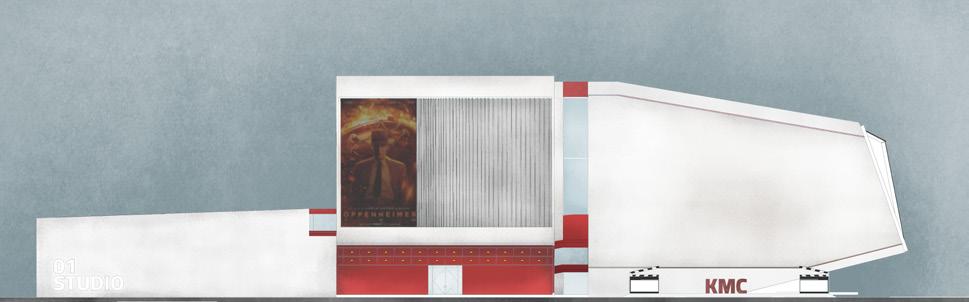

(PHASE 2 )

Film production refers to the process of creating a film or a movie. The prevailing problem at hand revolves around the conspicuous absence of a well-established cinema infrastructure in the Kingdom of Saudi Arabia, despite the promising emergence of the Saudi cinema industry. This critical deficiency of essential facilities and resources severely impedes the growth, enrichment, and overall advancement of the Saudi cinema landscape. Consequently, the lack of a comprehensive cinema ecosystem hinders the country's ability to fully embrace and nurture its burgeoning film industry, stunting its potential for creativity, cultural expression, and economic stimulation. Addressing this pressing issue and establishing a robust cinema infrastructure will be paramount in fostering the sustainable development and flourishing of the Saudi cinema sector.

05 CASESTUDIES

ARCHITECTURALLY

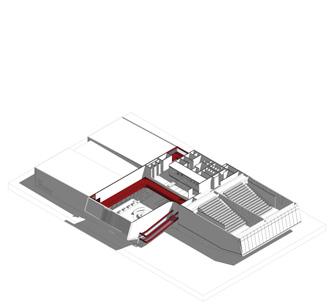

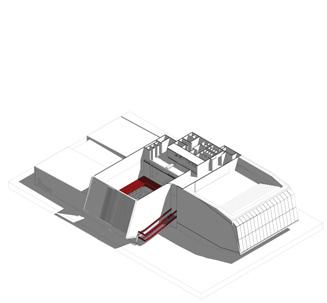

CONCEPTUAL STUDIO MASS

benefited from this example in terms of understanding and visualizing a similar shape for the mass

EARTH SMART HUB, US

This example was beneficial in understanding how the design of the studio plan and the spaces were created.

CIENMA CENTER, RUSSIA

I benefited from this similar example in terms of the layout Massing of the building and how it is work

STUDIO ARDETE, FRANCE

I benefited from this example in terms of the design for the walls and celling matrials

STUDIO BABELSBERG, GERMANY

benefited here from an architectural section example that illustrates the heights of the photography studio.

SONY PICTURES STUDIO, US

In this case study we see the functional program in it

ENVIROMENTALLY

MVRDV, NETHERLANDS

This project used green roofs for the studios and all project components.

OPENAIR CINEMA CZECH

I benefited from this similar example in terms of the distribution of blocks at the site plan level and how the entrances and exits of the site should be.

MVRDV, NETHERLANDS

This project used green roofs for the studios and all project components.

GRAND PALAIS CINEMA, FRANCE

The use of open facades was employed to rely on local winds as an alternative to air conditioning.

ECONOMICALLY

BERLIN MIXED USE STUDIOS

There are rental shops that can be utilized in the project.

SONY PICTURES STUDIOS, US

Sony is a company that rents out studios for filming movies, TV shows, and other productions.

HOLLYWOOD TOUR

In this project, external trips are organized to explore the interior of the project, learn, and enjoy the experience.

SOCIALLY

FILMSTATIONEN, DENMARK

This example was beneficial in realizing the existence of co-working spaces.

MVRDV, NETHERLAND

One of the key aspects of this project is the pre-cinema or pre-photography studio social spaces.

TONKREUZ, GERMANY

Inside the building, there are rental spaces such as offices, studios, dressing rooms, and storage rooms.

FILMSTATIONEN, DENMARK filmstationen is a company that rents out studios for filming movies, TV shows, and other productions.

D’LUCK CINEMATIC THEATRE

In this project, the hall is available for rent to make use of it as a cinema or theater.

FILMSTATIONEN, DENMARK

There are also dining areas, seating areas, and lounges where people can sit and relax.

MVRDV, NETHERLAND

In this project, there are dedicated spaces for learning through cinema.

CINEMA KØBENHAVN, DENMARK

I benefited from this similar example in terms of the distribution of blocks at the site plan level and how the entrances and exits of the site should be.

HISTORIC CENTER, BRAZIL

I benefited from this example in terms of the using the existing matrials from brazil old town

HOME FIRE STUDIOS, UTAH

Here we can see that there are cafes and outdoor seating areas within the site space.

CINEMA DE RIOM, FRANCE OPEN CINEMA HALL THAT BRINGS ALL THE PEOPLE TOGEATHER

SONY PICTURES STUDIO  STAGE 10

Studio placement within a complex like Sony Pictures Studios is typically designed to optimize space utilization and facilitate efficient operations. This includes considerations such as the size and number of sound stages, their proximity to each other, and their accessibility to support facilities.

Support facilities are strategically positioned to enhance the production process. These may include production offices, dressing rooms, makeup and wardrobe departments, construction workshops, and post-production suites. The placement of these facilities is designed to create a cohesive workflow and promote collaboration between different departments.

Studio Babelsberg is one of Europe’s largest film studio complexes, offering 21 state-of-the-art sound stages, flexible backlots and vast production facilities on a 42-acre lot. Take advantage of our exceptional production services, internationally experienced crews, and the diversity of attractive film locations, only a few steps from the vibrant city of Berlin that make Studio Babelsberg one of the most attractive film and TV production sites in Europe For Rent. POTSDAM ,GERMANY

STUDIO BABELSBERG

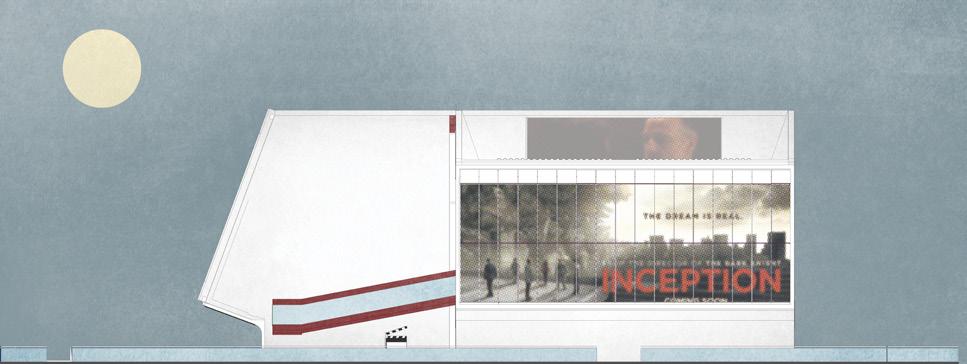

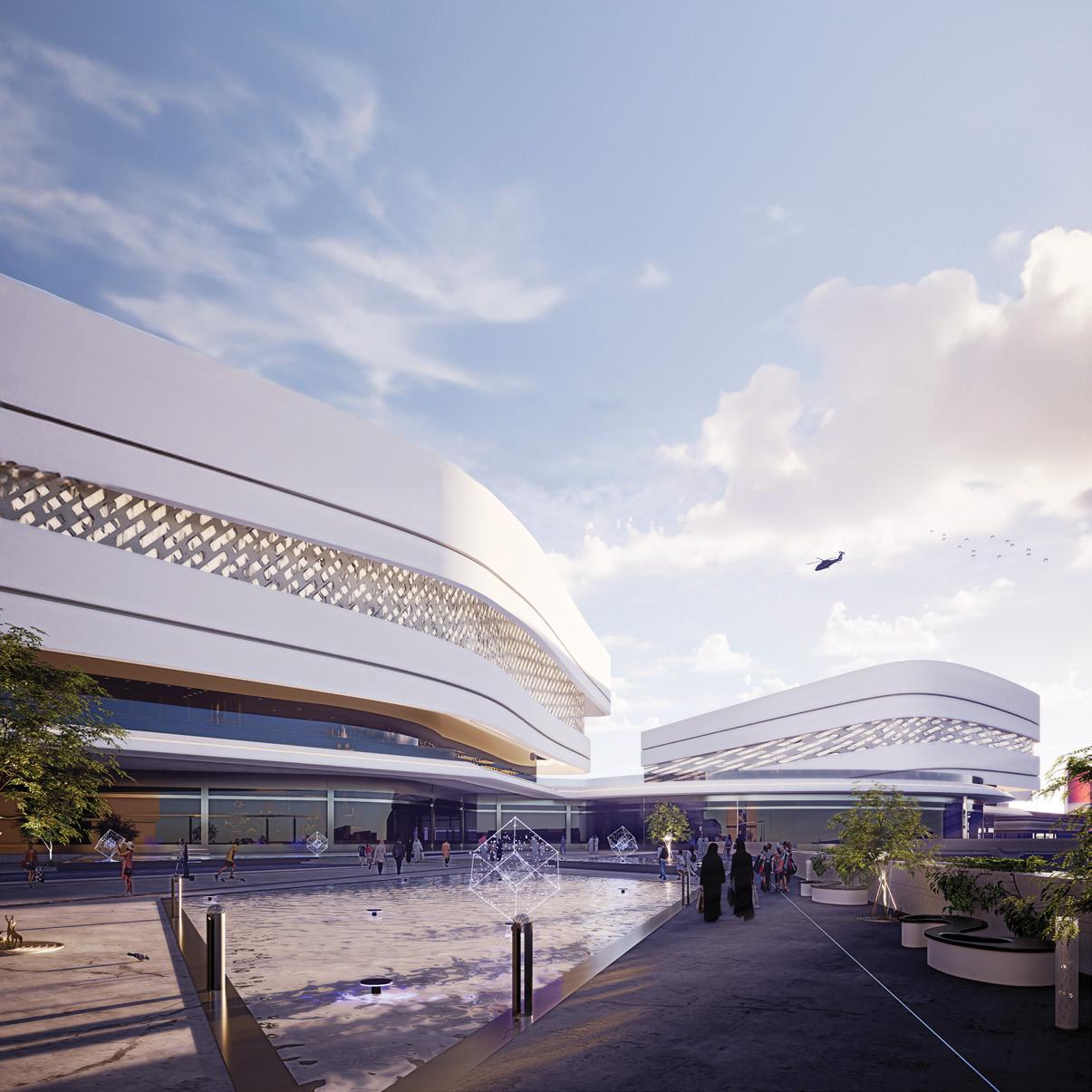

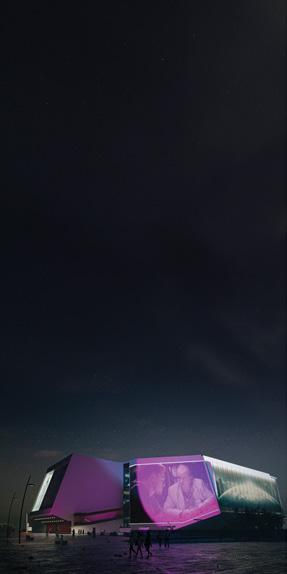

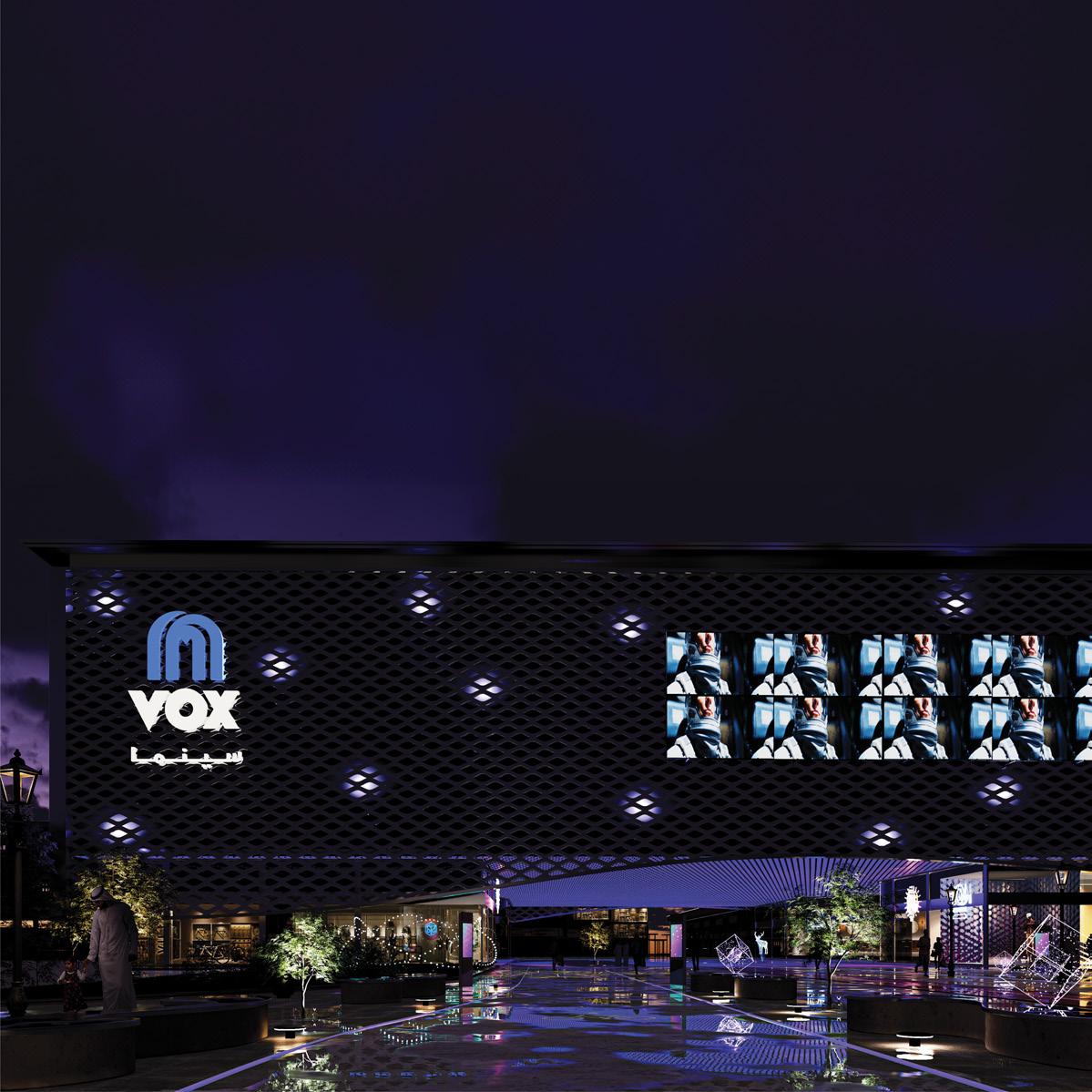

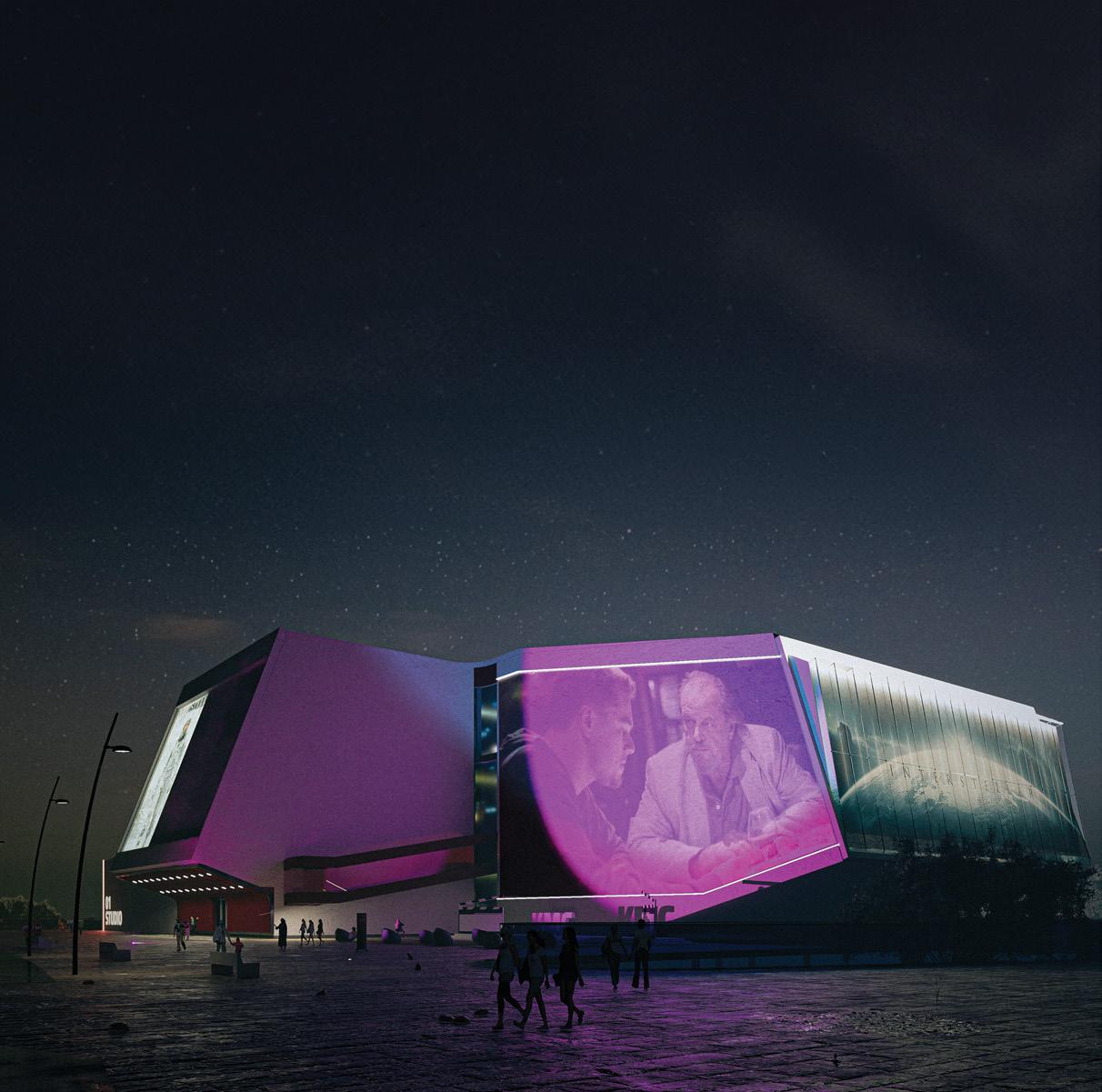

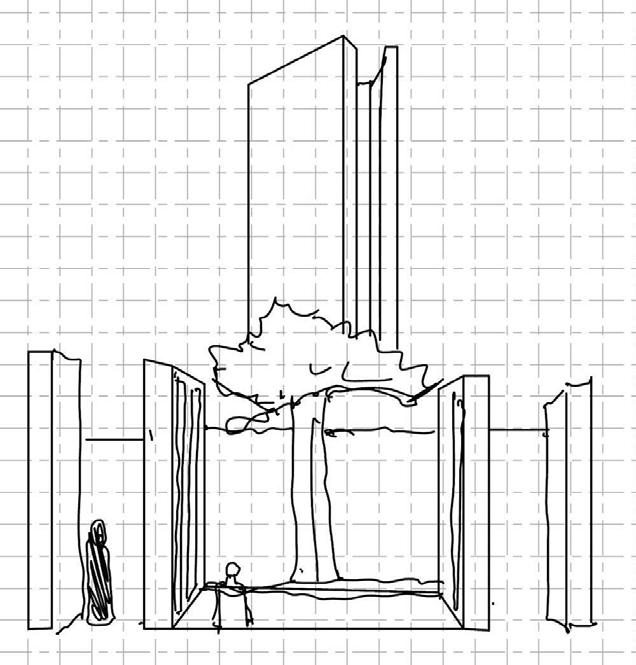

The project idea is to create a cinematic world within a building, where individuals can immerse themselves in this world and connect the film industry with the joy of watching movies.

09 PROJECT SYSTEMS

The Module Were Taken From The Dimension Of A Full Studio Spaces. The Dimension is 30x20m For One Module, And Each Companision Will Give Us A diffrent Space.

When taking the 1/2 module, we have two separate mini studios with their own services, and the actors and staff do not overlap.

Here begins the journey of the person from the ground floor to the first floor, passing through the studios, where they can see the actors without the pathways of movement overlapping.

The journey within the building starts at the main entrance, where visitors first enter. From there, they proceed to gather in the lobby area, which serves as a central meeting point. After spending some time in the lobby, the cinematic experience begins. Visitors ascend the ramp, which leads them to the film studios. Here, they have the opportunity to explore and observe the various movie sets and production areas. Following the studio visit, visitors settle down in a designated cinema space where they can enjoy either an indoor or outdoor screening,

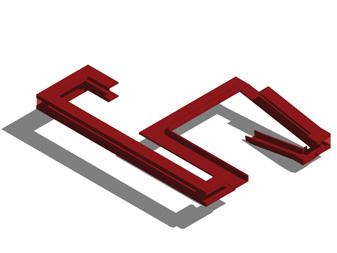

The circulation system in the plan is designed as an indirect path due to various points of interests.

BEGINNING OF JOURNEY

HERE WE SEE THE ENTERTAINMENT BUILDING, WHICH INCLUDES THE DOUBLE HEIGHTS LOBBY AND TWO CINEMA HALLS. WE ALSO SEE THE STUDIOS BUILDING WITH ITS DEDICATED SERVICES.

MIDDLE OF JOURNEY

ON THE FIRST FLOOR, WE CAN SEE THE COMPLETION OF THE JOURNEY WITH THE RAMP, WHERE THE CINEMA EXHIBITION IS LOCATED. WE CAN ALSO HOLD EXHIBITIONS SUCH AS THE RED SEA FILM FESTIVAL. ON THE OPPOSITE SIDE, THERE ARE TWO LARGER CINEMA HALLS. FIRST FLOOR SCALE 1/200

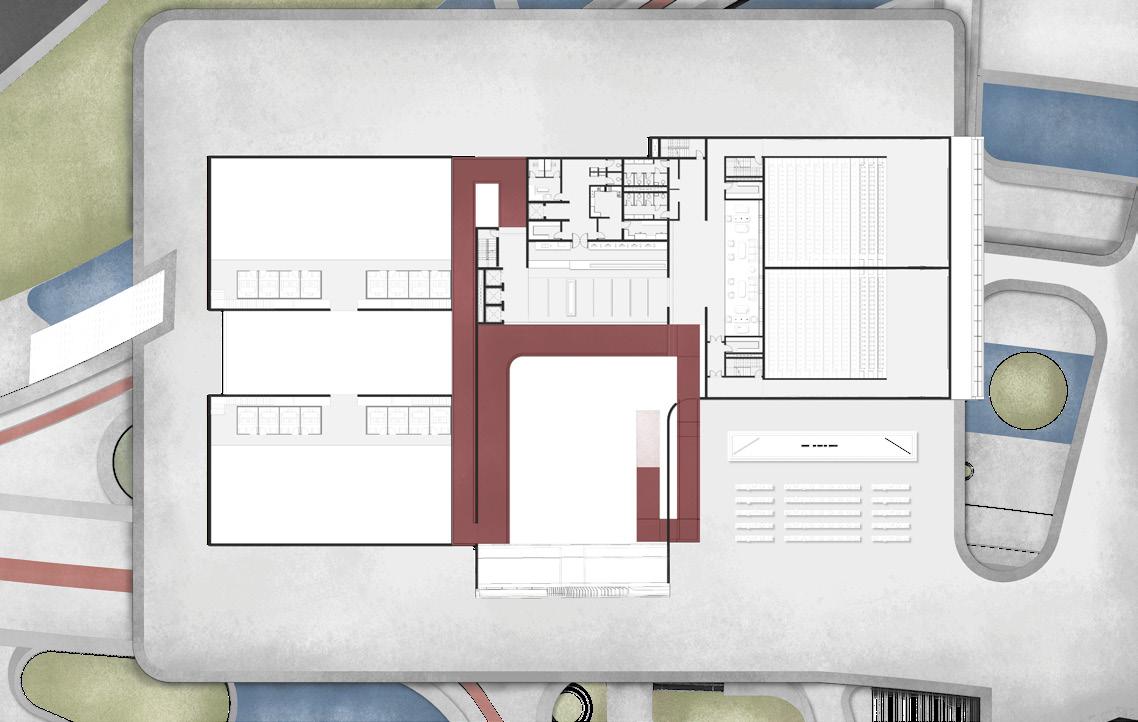

SECOND FLOOR SCALE 1/200

LEGEND :

25 CORE

26 CONCESSTION

27 BOH

28 WAITING

29 W.C

30 OUTDOOR CINEMA

EMERGENCY EXIT

END OF JOURNEY

FINALLY, THE JOURNEY CONCLUDES WITH AN OUTDOOR CINEMA ON THE ROOFTOP, OFFERING A UNIQUE AND EXCEPTIONAL EXPERIENCE.

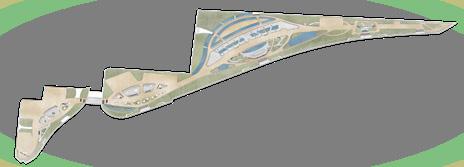

URBANDESIGN THEEDGE

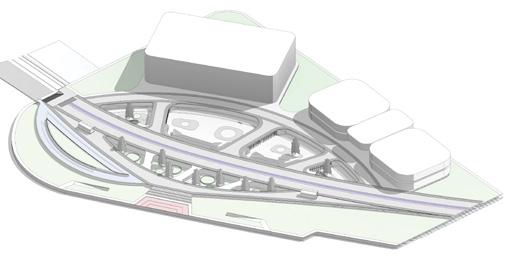

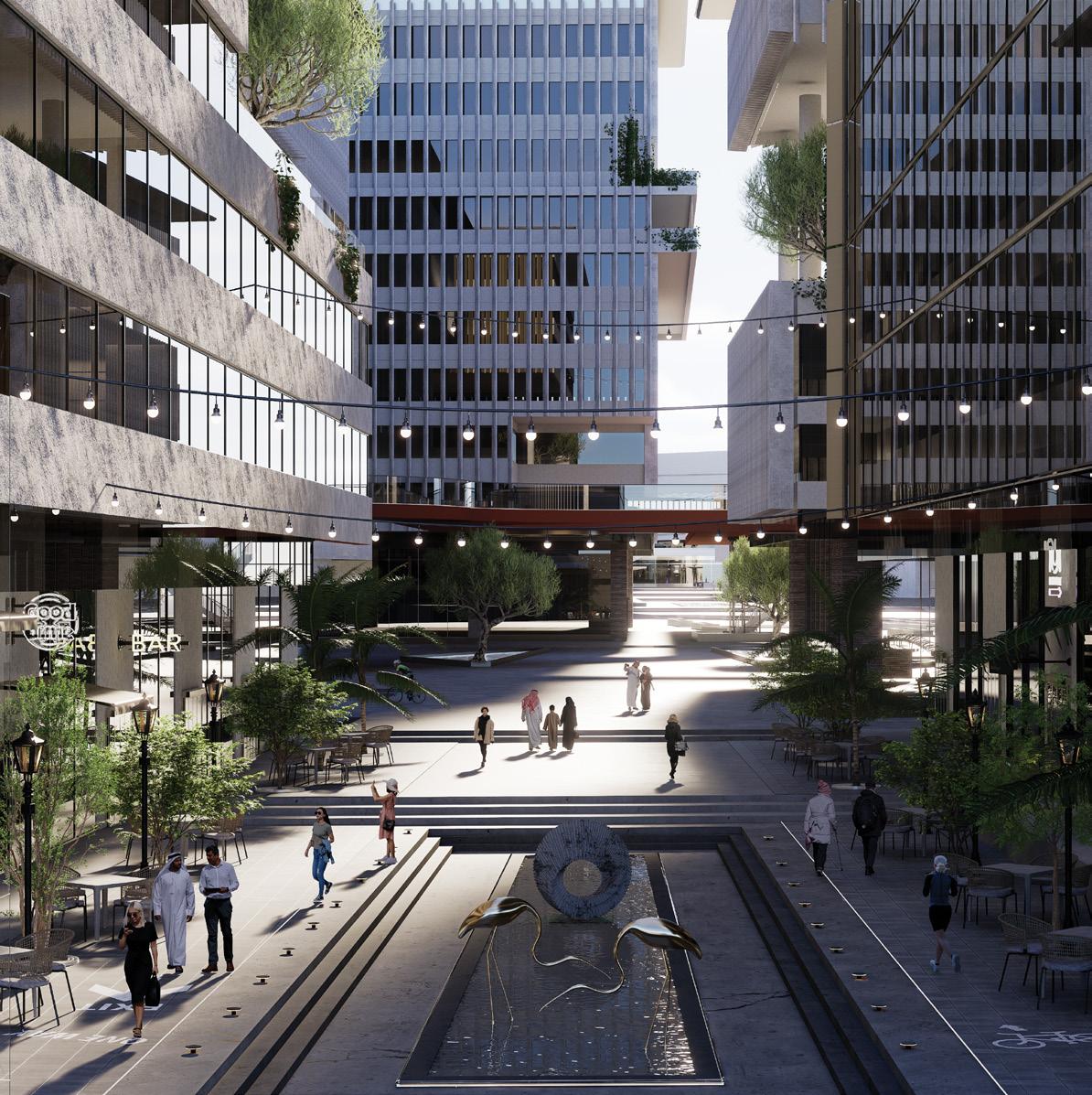

THE EDGE OVERVIEW

TRANSITIONING FROM A CURRENT IDENTITY TO A NEW IDENTITY THAT OFFERS NEW EXPERIENCES AND MAKES USERS COMFORTABLE CAN BE AN EXCITING PROCESS.

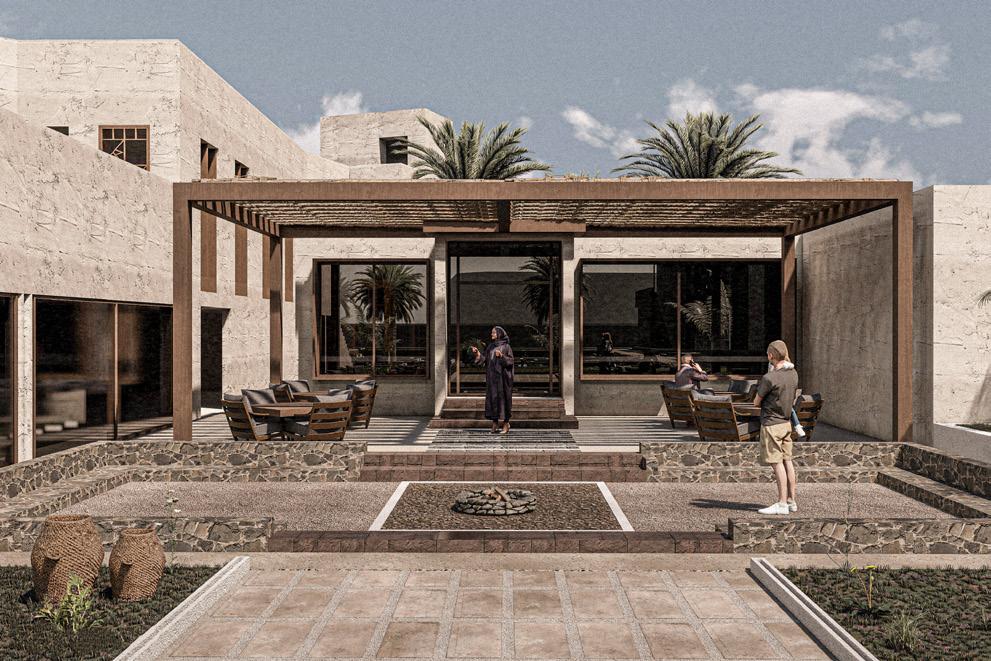

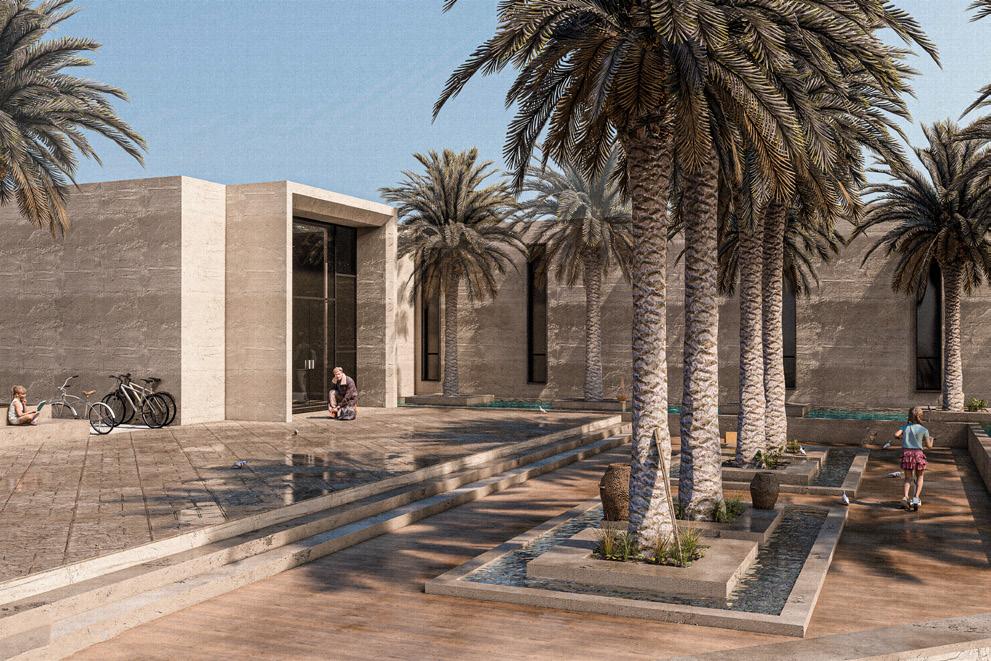

BOUTIQUEHOTEL AL-KHURIJI FARM

AL-KHURIJI FARM

OVERVIEW

On our last visit to the Madinah, we went to Al Masjid an Nabawi and visited several places, and then we went to the Quba Mosque and we noticed that there are campaigns for visitors to take them to visit Al Masjid an Nabawi and the Quba Mosque as a kind of tourism, so the idea came from here to take advantage of ( the well ) located in the farm to be a shrine for tourists and Then they will go to the museum (Al Khuraiji building) to learn about the history of the farm and the  building

PHASE 1

The idea of the project is to create a journey for the visitor with a unique experience about the story of the building on this farm. The person’s journey in the project consists of stages that tell about the past of the farm connected to the present to create a unique Experince

This is the percentage of the Target group to be present at the site

This is the percentage of the local visitors expected to be present at the site Take it the percentage of tourists expected to be on the site This is the percentage of the local visitors expected to be present at the site

PHASE 2

PHASE 3 PHASE 4

AL MASJID AN NABAWI QUBA MOSQUE THE WELL

To Achieve The Main Concept ( That The Vistor will experince the 4 phases of The farm throught time ) there are a 4 objectives which is :

1- Thermal Comfort

2- Experince

3- Social Connection

4- Respect The Existing Ratio & Craftsmanship

For Each Objective There Are 2 Design Guids That will guide us to achive our Main Goal ( Concept ) .

OBJECTIVE4: RESPECTTHEEXISTING

OBJECTIVE 1 : EXPERINCE

Interactive,pedestrian movement contributes to some kind of communication between people, whether visual, auditory or sensory

OBJECTIVE 1 : EXPERINCE

Creating different areas for hospitality that take care of all individuals, whether a visitor from the local area or from abroad

OBJECTIVE 2 : SOCIAL CONNECTION

The link between the past and the present to make the visitor feel a sense of the time difference and the development that took place on the farm

OBJECTIVE 4 : THERMAL COMFORT

Preserving the existing elements while consolidating them to make them better and to preserve the old handicrafts

OBJECTIVE 4 : THERMAL COMFORT

Preserving the old proportion of the openings for the facades to preserve the identity

OBJECTIVE 4 : RESPECT THE EXISTING RATIO

The same previous methods will be used to deal with the wind, such as the orientation of the buildings and the locations of the openings

OBJECTIVE 4 : RESPECT THE EXISTING RATIO

This Journey was designed on the basis of the time periods that the farm went through and the events that took place

OBJECTIVE 2 : SOCIAL CONNECTION Journey

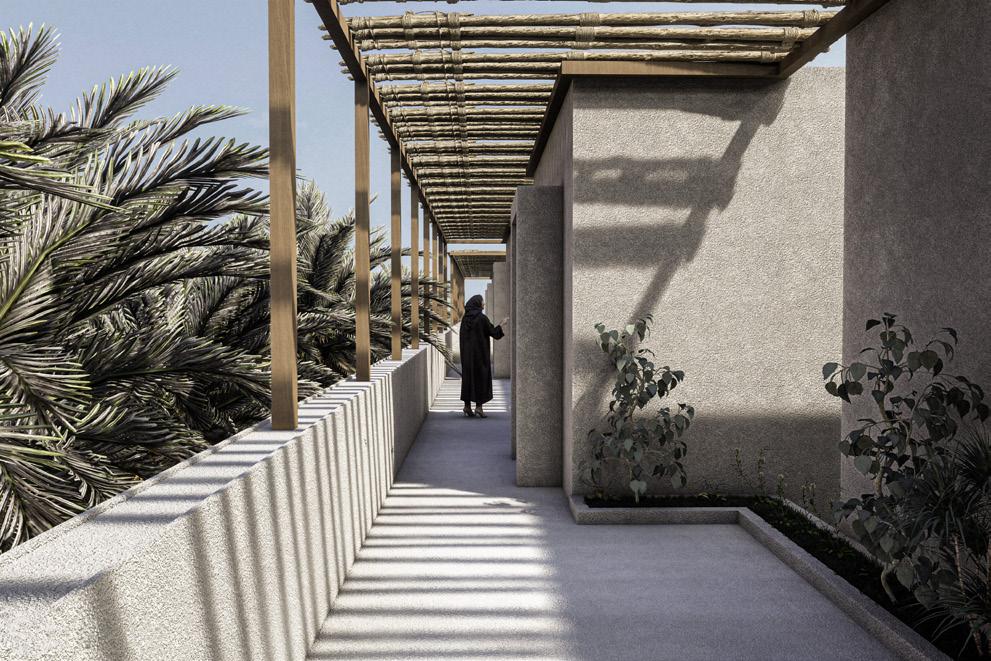

One of the most important things to achieve thermal comfort is to control natural lighting and shading

If the residential units are arranged in a way that they are adjacent to each other, it can lead to reduced privacy as well as reduced accessibility to the units. This is because the units may share common walls or spaces, which can result in more noise and disturbance from neighboring units. Additionally, the entryways to the units may be narrower or more difficult to access, making it challenging for residents to move in and out of their homes with ease. To address these issues, it is important to consider the design and layout of the residential units, as well as the use of soundproofing materials and other techniques to enhance privacy and accessibility If the residential units are shifted or staggered relative to each other, it can provide a balance between privacy and accessibility. This is because the units are not directly adjacent to each other, which can reduce noise and disturbance from neighboring units and provide more privacy. However, the units are still close enough to each other to allow for easy accessibility and a sense of community. To enhance the privacy and accessibility of these units, it is important to consider the design and layout of the residential area, as well as the use of landscaping and fencing to provide natural barriers between neighboring units. This can help create a comfortable and welcoming living environment for the residents.

Facade Ratio

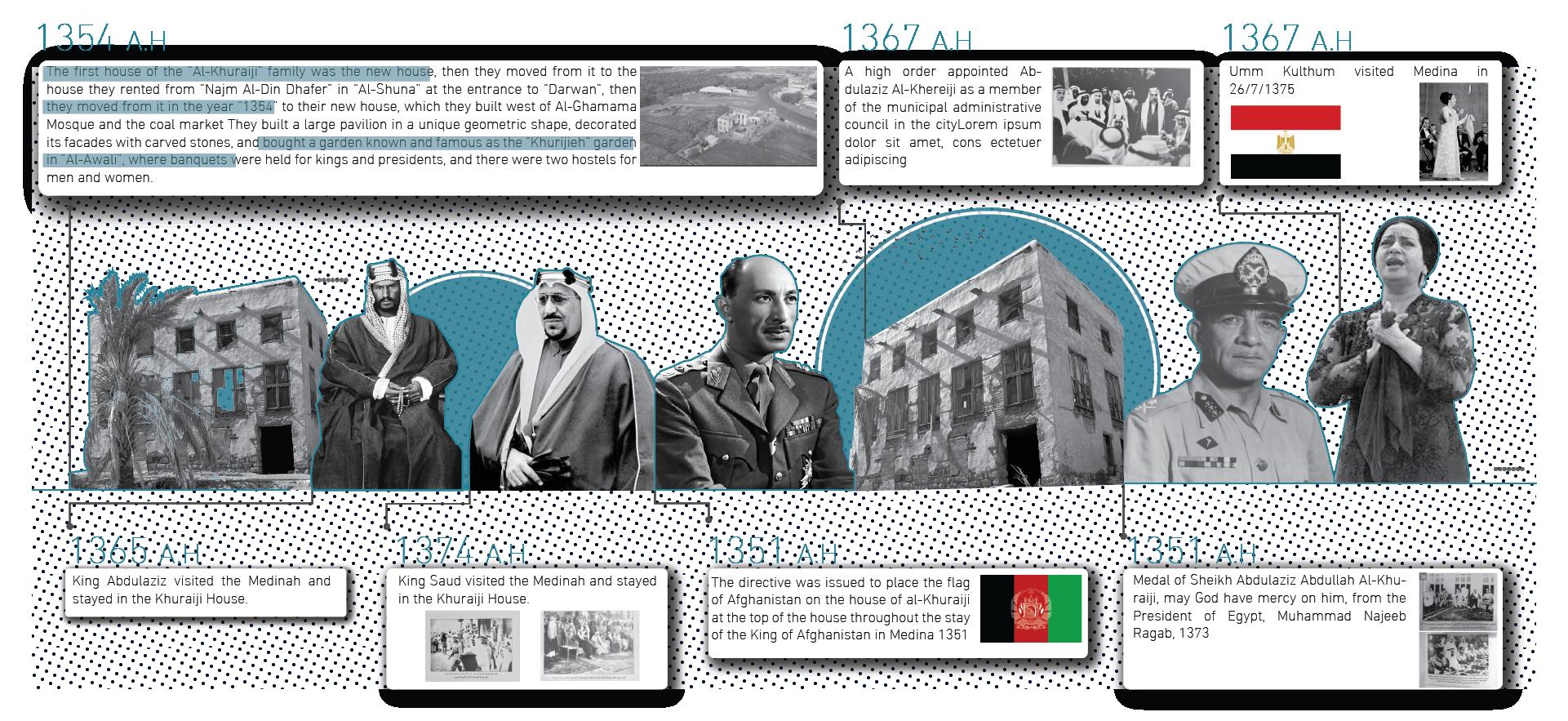

"THE HISTORIC BUILDING (AL-KHARJY'S BUILDING) WAS USED TO CREATE THE GRID SYSTEM CONSISTING OF 45 AND 90 DEGREE ANGLES. THE ANGLES WERE ROUNDED OFF TO CREATE CLEAN ANGLES."

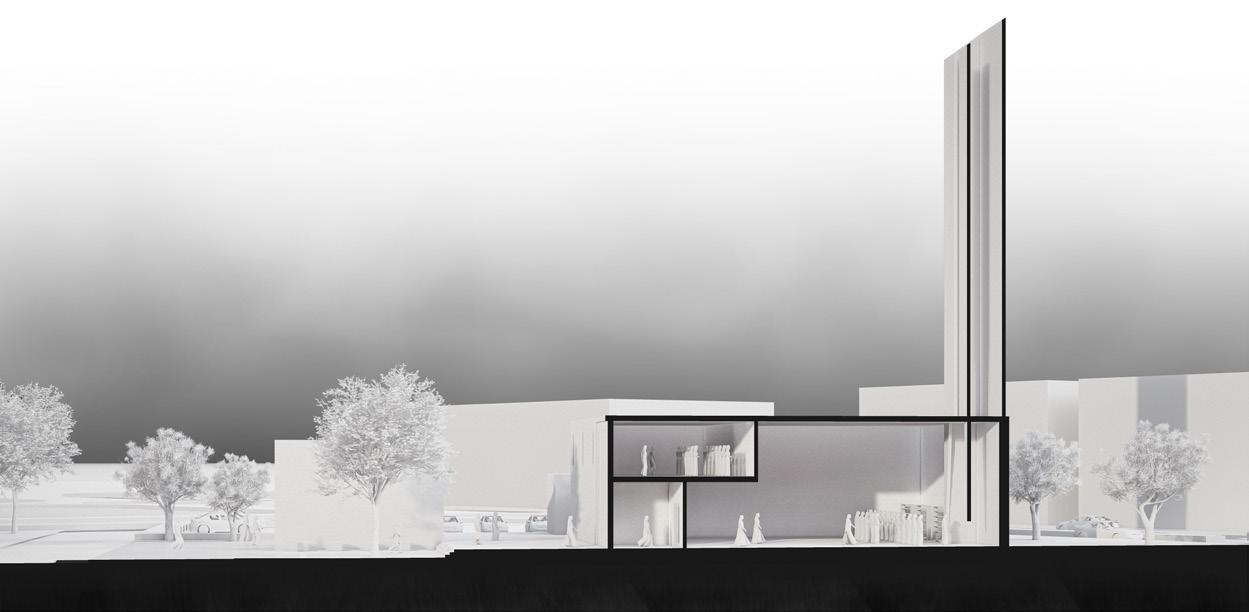

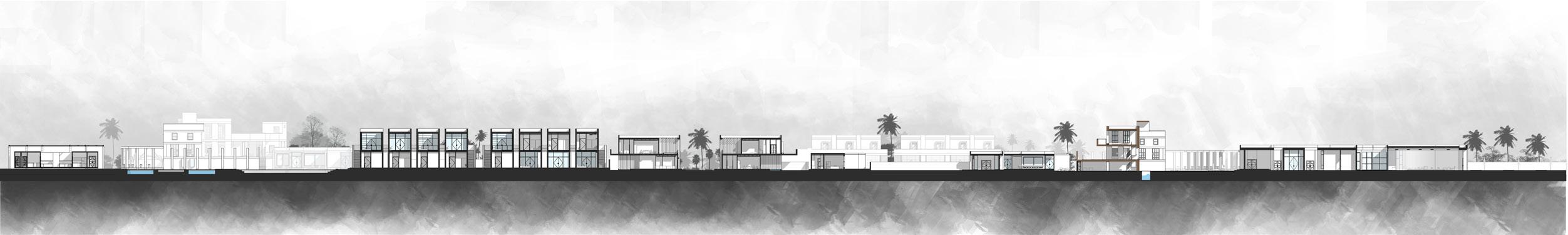

THE ARCHITECTURAL SECTION WAS TAKEN IN A CIRCULAR SHAPE, AND THEN THE SECTORS WERE SPREAD OUT AND ASSEMBLED TO FORM A SINGLE LONG SECTION.

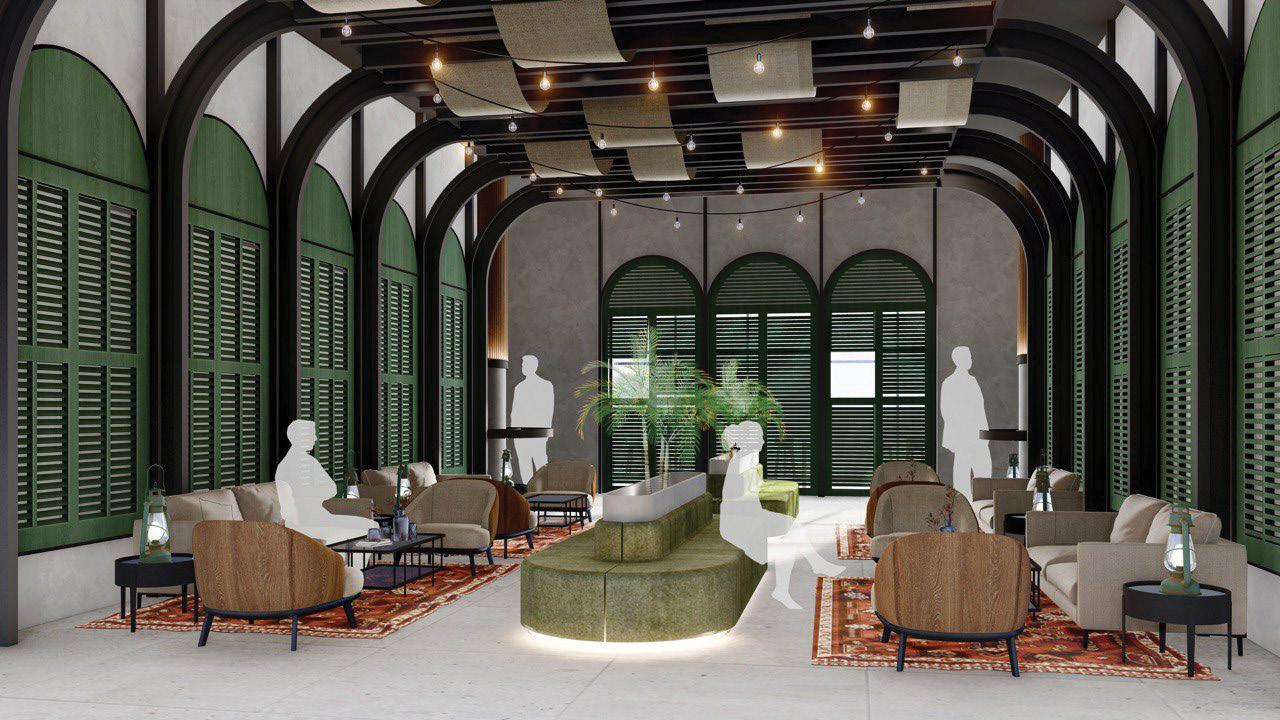

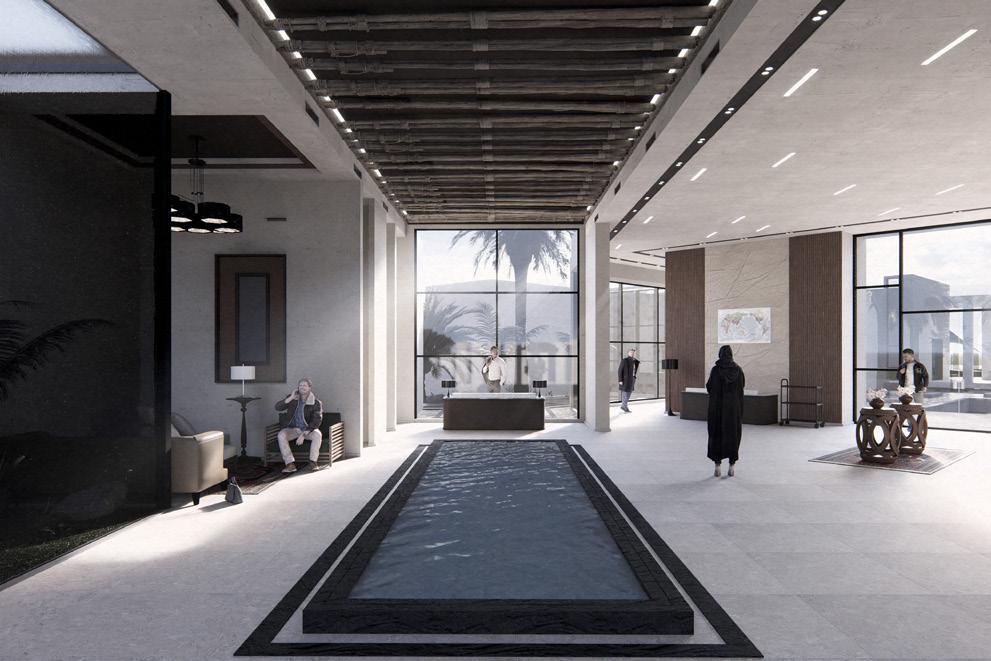

Visitors Lobby

Guests Lobby Cafe

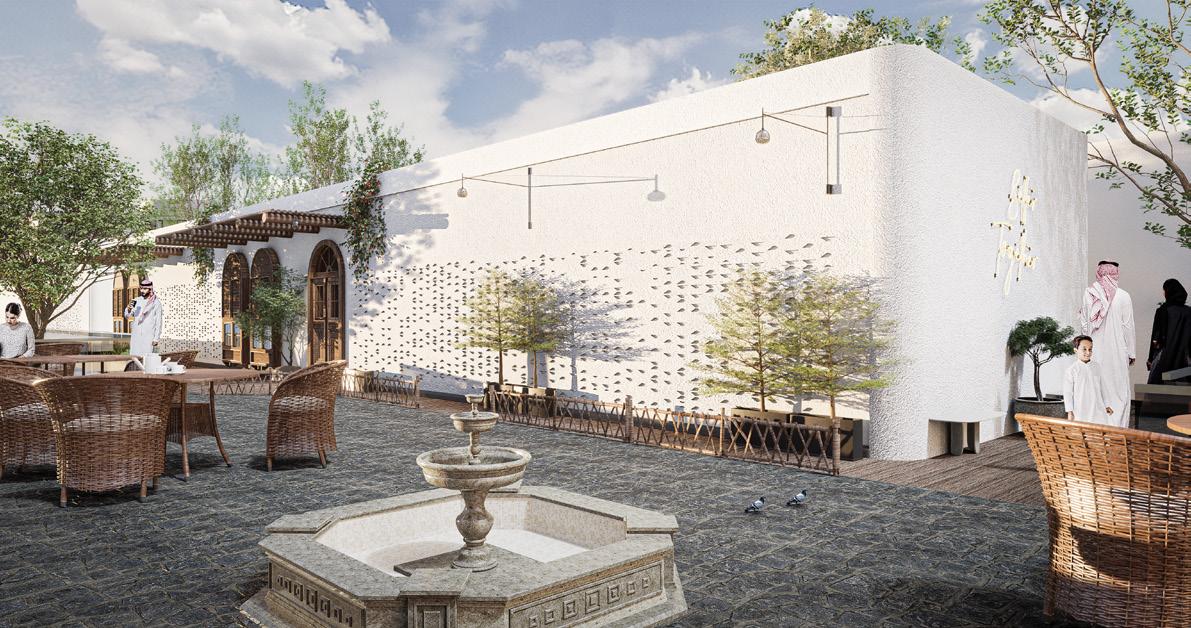

Khriji House

THIRD YEAR MOSQUE

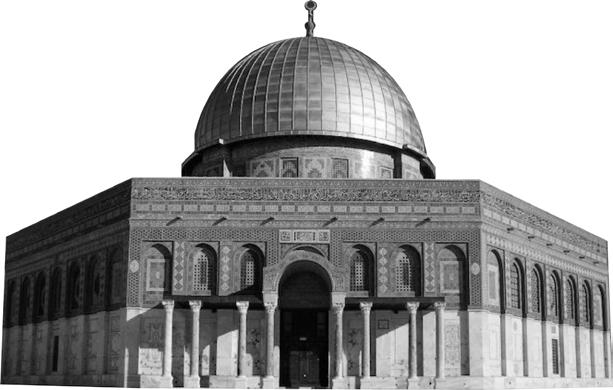

Umayyad Era:

Umayyad dynasty, also spelled Omayyad, the first great Muslim dynasty to rule the empire of the caliphate (661–750 ce), sometimes referred to as the Arab kingdom (reflecting traditional Muslim disapproval of the secular nature of the Umayyad state).

Umayyad dynasty, alsospelledOmayyad, the first great Muslim empire of the caliphate(661–750ce), sometimes referred to dom (reflecting traditionalMuslimdisapproval of the secular natureoftheUmayyad state).

Umayyad Era:

Umayyad dynasty, also spelled Omayyad, the first great Muslim dynasty to rule the empire of the caliphate (661–750 ce), sometimes referred to as the Arab kingdom (reflecting traditional Muslim disapproval of the secular nature of the Umayyad state).

Abbasid Era

also spelled Omayyad, dynasty to rule the aliphate (661–750 ce), as the Arab kingaditional Muslim disapnature of the Uma-

Fatimid Era:

Umayyad dynasty, also spelled Omayyad, the first great Muslim dynasty to rule the empire of the caliphate (661–750 ce), sometimes referred to as the Arab kingdom (reflecting traditional Muslim disapproval of the secular nature of the Umayyad state).

Ottoman Era:

Umayyad dynasty, also spelled Omayyad, the first great Muslim dynasty to rule the empire of the caliphate (661–750 ce), sometimes referred to as the Arab kingdom (reflecting traditional Muslim disapproval of the secular nature of the Umayyad state).

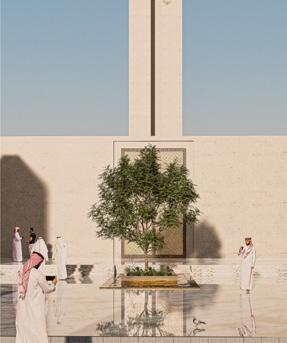

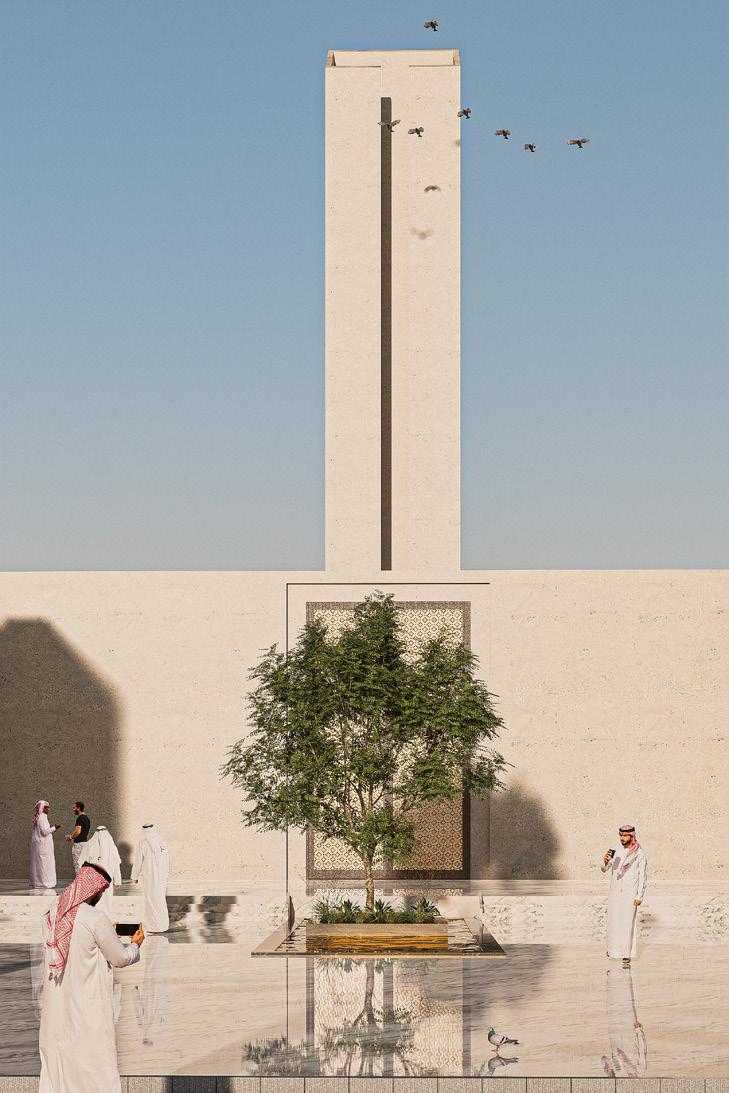

MOSQUE OVERVIEW

A MOSQUE (MASJED) IS A PLACE OF PRAYER FOR MUSLIMS, WHERE THE ACT OF SUJIOD IS PERFORMED. MOSQUES ARE USUALLY COVERED BUILDINGS, BUT CAN BE ANY PLACE WHERE PRAYERS ARE PERFORMED, INCLUDING OUTDOOR COURTYARDS, ETC... EARLY MOSQUES WERE EXTREMELY SIMPLE AND DEVELOPED ATTRIBUTES AND ELEMENTS THAT FORMS THE MOSQUES

PART-TIME ARCHITECT ARCHITECTURE TEAM

I DESIGNED AND PRODUCED THE BUILDING FACADE, AS WELL AS THE PLANS FOR THE TWO BUILDINGS, DURING MY INTERNSHIP WITH THE ARCHITECTURE TEAM.

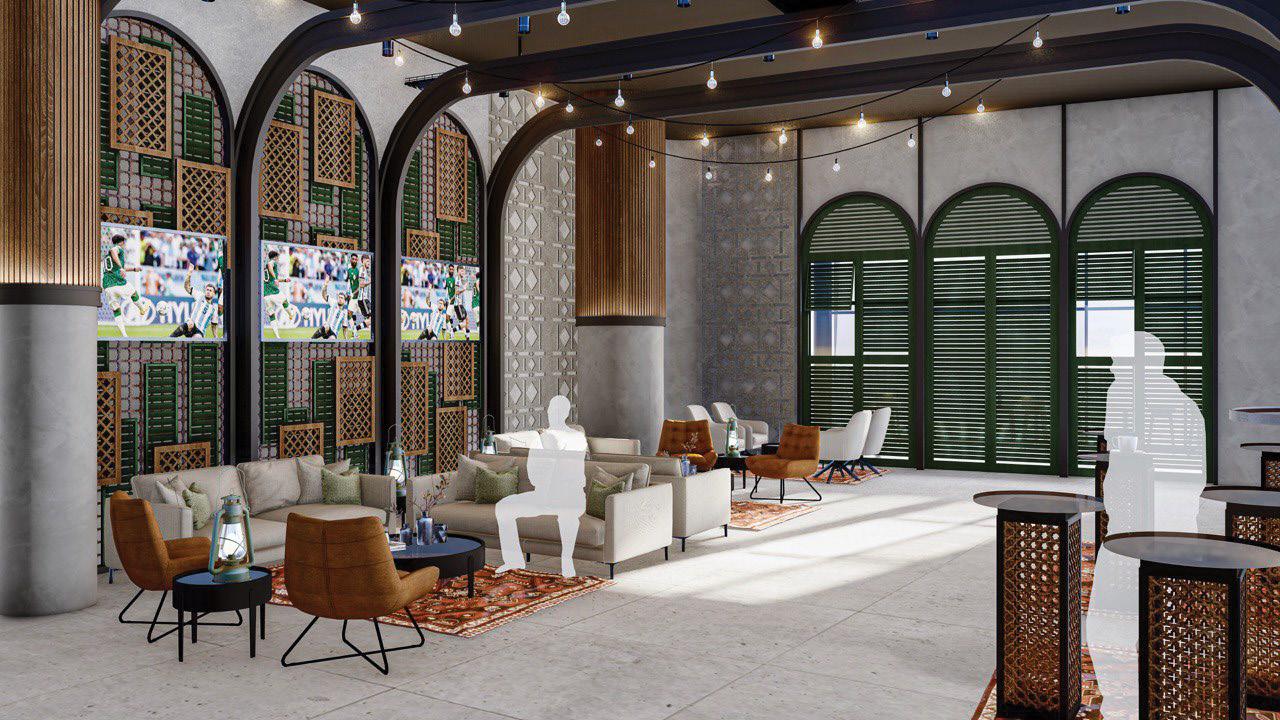

I DESIGNED AND PRODUCED THE SILVER LOUNGE, AS WELL AS THE PLANS FOR THE LOUNGE, DURING MY INTERNSHIP WITH THE ARCHITECTURE TEAM.

PART-TIME SECA

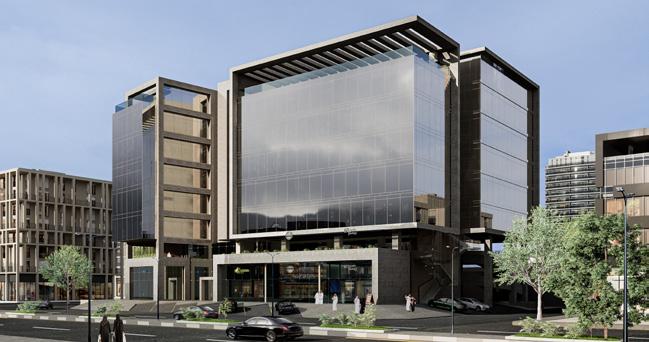

B935

This is one of the eight buildings in which I participated. The plan has been improved and optimized, including calculating the areas and quantities for each different building.

In addition, Photoshop was employed to enhance the visual representation of the building, creating a realistic simulation by accurately applying the materials and textures that would be present in the physical construction. This technique allowed for a more immersive and lifelike depiction, enabling stakeholders to better visualize the final outcome and make informed decisions regarding the design and aesthetic aspects. By utilizing the power of Photoshop, the building's appearance was brought to life, showcasing its potential in a visually compelling manner.

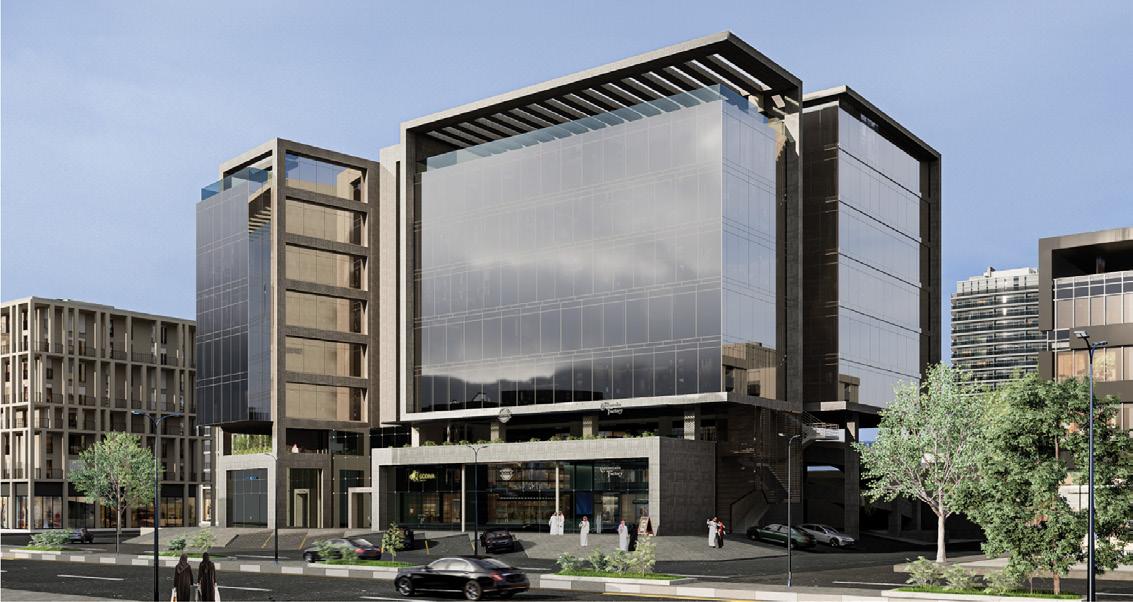

B834

Photoshop was employed to enhance the visual representation of the building, creating a realistic simulation by accurately applying the materials and textures that would be present in the physical construction. This technique allowed for a more immersive and lifelike depiction, enabling stakeholders to better visualize the final outcome and make informed decisions regarding the design and aesthetic aspects. By utilizing the power of Photoshop, the building's appearance was brought to life, showcasing its potential in a visually compelling manner.

GROUND FLOOR

FLOOR

FLOOR THIRD FLOOR

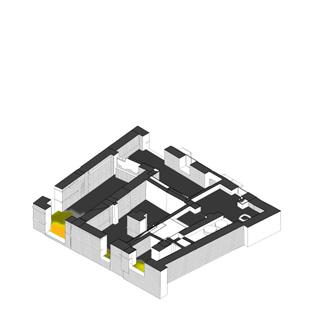

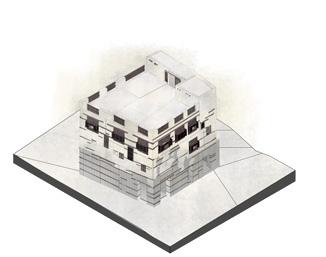

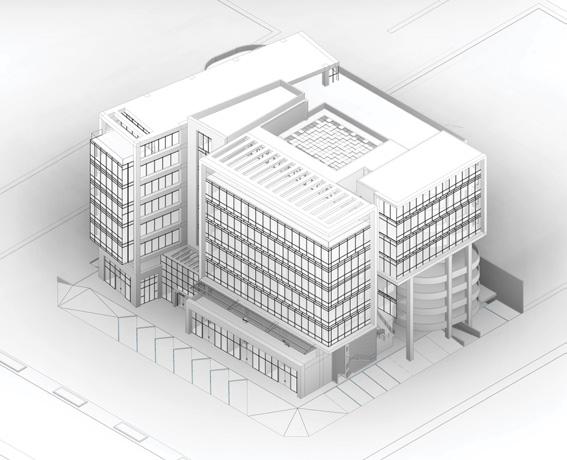

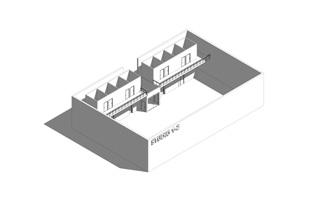

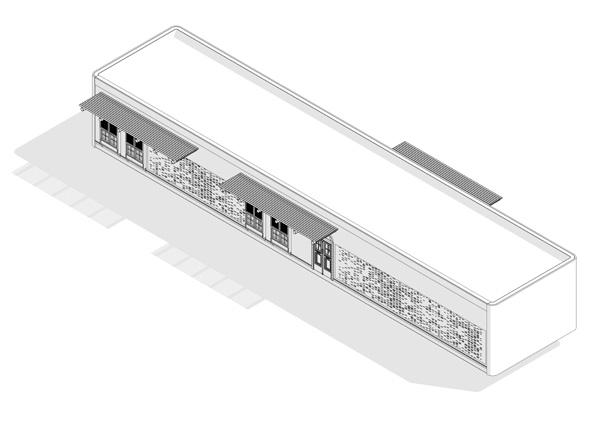

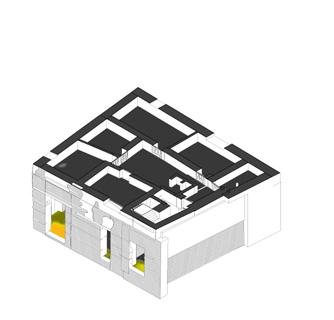

ISOMETRIC 1

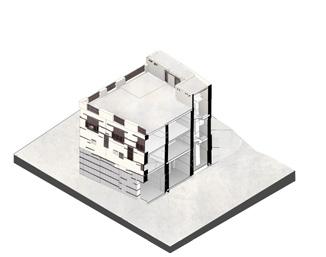

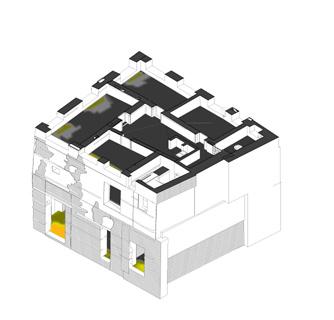

ISOMETRIC 2

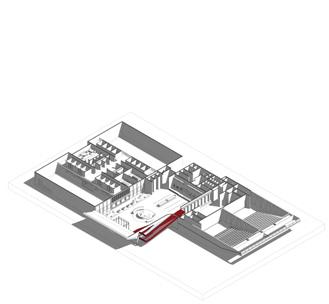

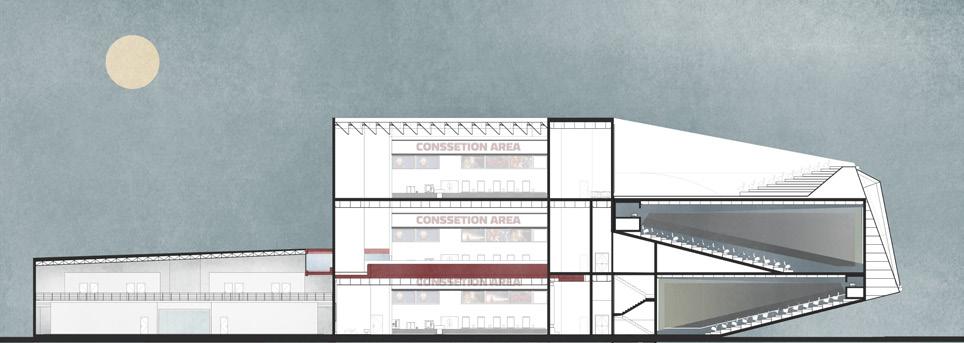

ISOMETRIC SECTION

ISOMETRIC SECTION

In addition, a comprehensive analysis was conducted for all the buildings, including the following assessments:

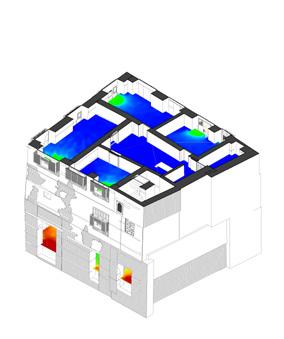

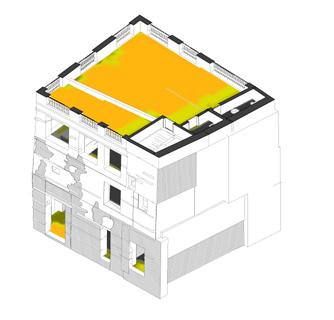

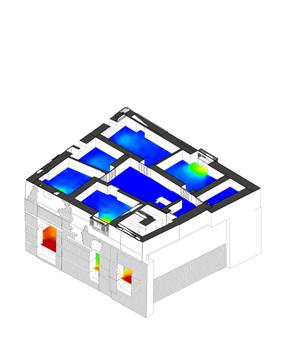

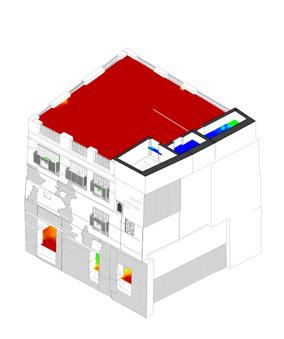

Illumination Analysis: The intensity of lighting was analyzed at different times of the day and across the months. This analysis helps in understanding how natural and artificial lighting would interact with the buildings' design, allowing for adjustments to optimize illumination levels and minimize potential glare or shadows.

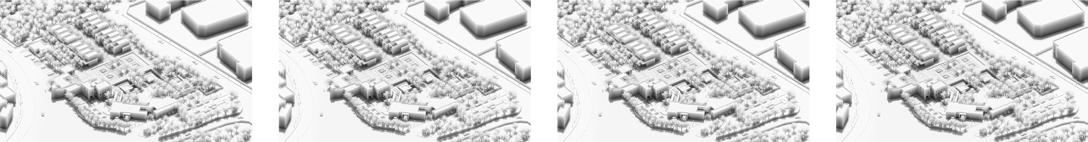

Shadow Analysis: The impact of shadows was analyzed throughout the day and over the course of the year. This analysis provides insights into how shadows cast by the buildings or surrounding objects would affect different areas and spaces. By understanding the shadow patterns, adjustments can be made to optimize natural lighting, mitigate undesirable shadowing effects, and ensure an optimal balance of light and shadow.

GROUND FLOOR

FLOOR SECOND FLOOR THIRD FLOOR

GROUND FLOOR

FLOOR

FLOOR

FLOOR
