Jacklyn Media Unit Let’s build the 23-0314 Scan me! Free Lifetime Warranty 80 80 M I NUTE ASSE MBLY SKU 75201
Ok, let’s get rolling
This should be easy, just follow our instructions and you will be back to Netflix in no time.
What’s included
What you need
• Some of your favourite bubbly or your preferred relaxant
•
2
assembly Description Qty 1 Top Panel 1 2 Left Side Panel 1 3 Right Side Panel 1 4 Bottom Panel 1 5 Top Divider Panel 1 6 Bottom Divider Panel 1 7 Center Shelf 1 8 Left Door 1 9 Right Door 1 10 Metal Side Frame 2 11 Metal Stretcher 2 12 Center Leg 1 13 Back Panel 2
Use the packaging carton as a working surface to prevent product damage during
assembly
top
Limitation
Help@nathanjames.com Nathanjames.com/help Scan me! Inspiration Digital Instructions Free Lifetime Warranty
Do not use a drill
80:00 Estimated time for
90 lbs for
Weight
Toll-free at 1-866-619-1004
24 lbs per shelf
The goods
IMPORTANT
1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes.
2. Do not over tighten screws and bolts to avoid stripping.
3. Please use hand tools to assemble this product. Do not use power tools.
3
6 8 6 6 13 6 13 6 11 6 11 6 12 6 10 6 10
What’s included
4
Description Qty A M6*30 Wooden Dowel 20 B M6*35 Cam Bolt 12 C 15x9.5mm Cam Lock 12 D Magnetic Door Catcher 2 E M3*12mm Philips Flat Head Screw 6 F Door Catch Plate 2 G M4*35 Philips Flat Head Screw 8 H Metal Hinge (Bottom) 2 I Metal Hinge (Top) 2 J Plastic Bushing 2 K M6*40mm Bolt 4 L Allen Key 1 M M4*14mm Philips Pan Head Screw 4 N Handle 2 O M3*12mm Philips Pan Head Screw 16 P PVC Sticker 6 Q M6*30mm Bolt 8
The goods
5
6 A 6 B 6 C 6 D 6 6 F 6 G 6 H 6 I 6 J 6 K 6 P 6 Q 6 L 6 M 6 N 6 O
Let’s get this thing fired up! Lay down packaging carton or use carpet as a working surface.

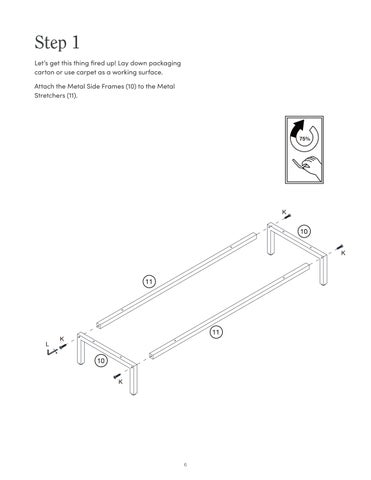

Attach the Metal Side Frames (10) to the Metal Stretchers (11).
6
6 10 6 10 11 11 L K K K K 75%
Step 1
Step 2
Place the Cam Bolts (B) into the Top Panel (1) and Center Shelf (7), Left Side Panel (2), and Right Side Panel (3).
And don’t forget to use the M3*12mm Screws (O) to attach the Magnetic Door Catchers (D)!
7
7 1 B B B B B B B B B D D O O O O B B B
8
7 5 G G A A
Secure the Top Divider Panel (5) to the Center Shelf (7).
Step 3
Attach the Bottom Divider Panel (6) to the Center Shelf (7). You’re starting to get the hang of this!
9
7 6 A A C C
Step 4
10
7 2 3 A A A A C C C C
Take the Left Side Panel (2) and Right Side Panel (3) from Step 2 and secure to the Center Shelf (7).
Step 5
After this step, you are OVER halfway there!! You got this!
Secure the Top Panel (1) to what you’ve built so far from Step 5.
11
5 A A A A A A C C C C C C 1
Step 6
Step 7
Carefully slide in the Back Panels (13). Now would be a good time to order that pizza you’ve been thinking about since Step 1.
12
7 6 6 13 6 13 1
Step 8
Secure the Metal Hinges (H) and (I) and Door Catch Plates (F) onto the doors.
13
Step 9
Don’t put those doors away quite yet! Finish securing the Metal Hinges (H) onto the doors.
14
H H I I O O O O O O O O O 8 H&I
Step 10
Take the doors and secure it to what you’ve built so far, being sure to line the Top Metal Hinge (I) with the corner hole on the unit. It’s all coming together!
15
I E E E N N E
Step 11
Now that the doors are secured, attach the Bottom Panel (4) to the unit.
16
J 4 G G G G G G A A A A A A J J 6 H
Time to attach the legs! For this step, please tighten to 100%.
Is that pizza here yet?
17
4 11 L Q Q Q Q Q Q Q Q 100% M M M M 12 M 100%
Step 12
Step 13
This may be our favorite step of all (and we have a feeling it’s going to be yours, too). Place the PVC Stickers (P) over the Cam Locks located on the inside of the cubbies. Ta-da!
Chip and Joanna Gaines would be so proud.
PWobbly or unlevel? Adjust feet until stable!
18
Is your cabinet door looking crooked or unevenly spaced?
If you’re still having trouble lining everything up, your next step should be to try to adjust the feet slightly to square up the cabinet & doors. Follow the illustrations below:
If the right door appears to be hanging low, you can adjust the adjustable leveler on the front right until the door is better aligned.
If the left door appears to be hanging low, you can adjust the adjustable leveler on the front left until the door is better aligned.
19
No heartburn, when we handle the return
We really don’t want you to go through the hassle of re-packaging your item and sending it back, because let’s be honest…nobody has time for that.
20 Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle.
Our way Their way Give us a call Replacement Replacement You Re-package item Schedule pick up Track package You
Safety first, fun later
We want your Izsak Media Unit to last as long as possible, so we recommend that you tighten the screws 2 weeks after assembly and for added safety check the tightness of all screws every 2 months.
For proper care and treatment of wood and metal please check our website at NathanJames.com/products
Safe use of this product starts with you.
Use this media unit responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use.
Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
Do not modify the structure of this product in any way.
Our products have been tested to meet specific safety measures as they were originally intended to be sold. Any modifications will present the risk of creating significant safety issues which NJ will not be responsible for.
Proper use
DO NOT use for commercial purposes
DO NOT climb on media unit
DO NOT exceed weight limit
DO NOT leave spilled liquid on media unit
DO NOT use if unit is damaged or broken
DO NOT make temporary repairs
DO NOT use outdoors
21
We are only in business if you’re happy For starters, thanks for being you.
Toll-free at 1-866-619-1004
Help@nathanjames.com
NathanJames.com/help
We do our best to ensure your furniture arrives without any problems, but occasionally mistakes happen—as humans we are imperfect beings. In the event that a part is damaged or missing, we will be more than happy to provide you with replacement part(s) for free.
Warranty
This product comes with a lifetime warranty from the date of purchase. Please use your phone to scan the QR code to register your product or visit https://goo.gl/i9dk3q
Brooklyn Burdon Founder, Nathan JamesDid we do alright? Please spread the love!
If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase.
22
