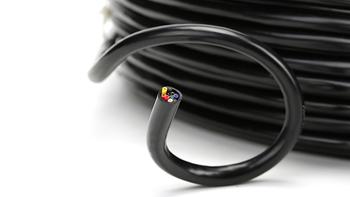

INTRODUCTION Cable insulation is a non-conductive material, or a material resistant to electric current, used to cover the conductive core of a cable or a wire.

It protects the cable from physical damage, prevents the conductors from coming in contact with one another, and prevents the cable from the impact of the environment.

Insulating materials are also used for the cable jacket, which serves as a protective layer of mechanical protection against physical and environmental hazards like impact, abrasion, moisture, chemicals, and temperature extremes.

This book presents a guide to the types of insulations used for electrical cables.

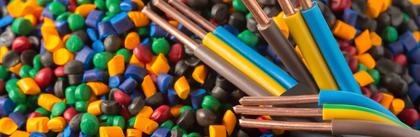

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER I

Groups Of Cable Insulations The three most popular groups of insulating materials for cables are thermoset, thermoplastic, and fluoropolymer. Let's look into their main properties.

Thermoplastic Insulations Are polymers that can be heated and cooled multiple times without altering their chemical properties. This makes them highly versatile and recyclable.

However, they typically have lower heat resistance compared to thermosets and fluoropolymers. Thermoplastic is a costeffective material for various residential, commercial, and industrial applications.

Thermoset Insulation Are polymers which cannot be remelted or reformed once cured. This makes them extremely heat resistant and less likely to deform under load at high temperatures. However, it also means they cannot be recycled in the same way as thermoplastics. These insulations are suitable for high-voltage cables and harsh environments Fluoropolymer Insulations is a type of polymer that contains fluorine atoms in their chemical structure. Fluorine gives these polymers exceptional resistance to heat, chemicals, and electrical conductivity.

As such, they are often used in highperformance applications, such as aerospace and industrial equipment.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER II

Types of Thermoplastic Insulations 1.Polyvinyl Chloride (PVC): Characteristics: Good insulator, flexible, flame-resistant, costeffective resistant to oxidation and degradation. One of the most popular insulations on the market. SR-PVC is the version with improved abrasion resistance.

Temperature Rating: Up to 105°C. Applications: Used in residential, commercial, medical,and industrial wiring.

2.Polyethylene (PE): Characteristics: Excellent electrical properties, high-insulating capacity, moisture resistant. Not for high temperatures and outside applications. Can be low-density or high-density. A low-density one is more flexible.

Temperature Rating: Up to 80°C. Applications: Used in low voltage applications, coaxial cable, and Ethernet cables.

3.Nylon (polyamide): Characteristics: Good toughness, abrasion-resistant, chemically resistant, good dielectric properties.

Resistant to cut-through.

Temperature Rating: Up to 105°C. Applications: Often used in THHN building wire as a protective outer cover over the PVC insulation. Most often used as a jacket. Used in automotive wire and appliance wiring.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

4.Thermoplastic Polyurethane (TPU): Characteristics: High abrasion resistance, good flexibility at low temperatures, excellent tear strength, and resistance to oil, grease, and various solvents.

Temperature Rating: Up to 125°C. Applications: Widely used in robotic and automation cables, industrial applications, and cables requiring superior abrasion resistance.

5.Polypropylene (PP): Characteristics: A thermoplastic polymer has excellent chemical resistance, low dielectric constant, lower heat resistance than PE. Temperature Rating: Up to 105°C. Applications: Mostly used in telecommunications, low voltage cables, and radio frequency signal transmission.

6.Polystyrene (PS): Characteristics: Low-cost, good dielectric properties, brittle.

Temperature Rating: Up to 75°C. Applications: Used in capacitors, cable spacers, and insulating panels.

8.Polycarbonate (PC): Characteristics: High strength, excellent heat resistance, and good electrical properties. It's also transparent.

Temperature Rating: Up to 125°C. Applications: Used in connectors, fiber optics, and other hightemperature applications.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER III

Types of Thermoset Insulations 1.Cross-Linked Polyethylene (XLPE): Characteristics: High dielectric strength, chemically stable, moisture resistant, excellent resistance to most solvents, and has better heat resistance than PE. Temperature Rating: Up to 90°C for normal operation, 130°C for emergency overload conditions, and 250°C for short-circuit conditions.

Applications: Used in power cables, control cables, and applications where heat resistance and mechanical strength are important.

2.Ethylene Propylene Rubber (EPR): Characteristics: Excellent dielectric strength, flexibility, good resistance to heat, oxidation, ozone, and weather, and a wide operating temperature range.

Temperature Rating: Up to 90°C. Applications: Widely used in MV and HV cables, mining applications, and flexible cords.

3.Silicone Rubber: Characteristics: Very common insulators good at high temperatures, flexibility, good electrical properties, resistance to weather, ozone, and UV light.

Temperature Rating: Up to 180°C. Applications: Used in appliance wiring, automotive wiring, and medical applications.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

4.Neoprene: Characteristics: Good flame retardant properties, excellent physical toughness, and resistance to oil, ozone, and oxidation.

Temperature Rating: Up to 90°C. Applications: Used in mining cables, portable power cables, and other heavy-duty applications.

5.Chlorosulfonated Polyethylene (CSPE or Hypalon): Characteristics: Outstanding resistance to ozone, oxidizing chemicals, oils, and flame spread.

Good physical properties and color stability.

Temperature Rating: Up to 90°C. Applications: Used in control cables and power cables, especially for outdoor applications due to their superior weather resistance.

5.Polyurethane (PUR): Characteristics: This polymer has excellent resistance to abrasion, oil, and ozone, good flexibility at low temperatures.

Temperature Rating: Up to 80°C. Applications: Used in robotic and automation cables, coil cords, and other applications requiring high flexibility and toughness.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

6.Silicone: Characteristics: Excellent flexibility at low temperatures, good heat resistance, good electrical properties.

Temperature Rating: Up to 180°C, some special types can withstand up to 250°C. Applications: Used in cooking appliances, medical devices, and other applications requiring high heat resistance and flexibility.

CHAPTER IV

Types of Fluoropolymer Insulations 1.Polytetrafluoroethylene (PTFE/ Teflon): Characteristics: Exceptional resistance to heat, chemicals, and electrical interference.

Temperature Rating: Up to 260°C. Applications: Used in aerospace, telecommunications, computer wiring, and military applications.

2.Fluorinated Ethylene Propylene (FEP): Characteristics: Similar to PTFE but with lower heat resistance and slightly different electrical properties.

Excellent resistance to chemical attack.

Temperature Rating: Up to 200°C. Applications: Used in data communication and instrumentation cables.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

3.Ethylene Tetrafluoroethylene (ETFE): Characteristics: Excellent resistance to heat, radiation, and chemical attack, good electrical properties.

Temperature Rating: Up to 150°C. Applications: Used in aerospace and solar cell applications.

4.Polyvinylidene Fluoride (PVDF/ Kynar): Characteristics: Excellent resistance to abrasion and impact, good resistance to most chemicals and UV radiation, good flame and smoke properties.

Temperature Rating: Up to 150°C. Applications: Used in plenum cables, aerospace, and other highperformance applications.

5.Polyvinyl Fluoride (PVF): Characteristics: Excellent resistance to heat, radiation, and chemical attack, good electrical properties.

Temperature Rating: Up to 150°C. Applications: Used in aerospace and solar cell applications.

6.Perfluoroalkoxy Alkane (PFA): Characteristics: Excellent heat resistance, chemical inertness, and electrical properties. It's very similar to PTFE and FEP but with better heat resistance.

Temperature Rating: Up to 260°C. Applications: Used in hightemperature, high-frequency applications such as computer wiring, medical equipment, and aerospace applications.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

7.Ethylene Chlorotrifluoroethylene (ECTFE): Characteristics: High mechanical strength, excellent chemical resistance, good electrical properties.

Temperature Rating: Up to 150°C. Applications: Used in aerospace and chemical processing industries for wire and cable insulation.

8.Perfluoroalkoxy Alkane (PFA): Characteristics: Very similar to PTFE in terms of its excellent resistance to heat, chemicals, and electrical interference, but with better mechanical properties.

Temperature Rating: Up to 260°C. Applications: Used in hightemperature, high-corrosion applications, such as semiconductor manufacturing, aerospace, and chemical processing industries.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER V

Understanding UL Ratings for Cable Insulating Materials Several Underwriter Laboratory Standards (UL) ensure the safety of common insulation materials. Let's look into them in more detail.

UL 44: Standard for Thermoset-Insulated Wires and Cables

This is the standard for thermoset applications, covering power and lighting circuits. It sets requirements for insulating materials' physical, electrical, and flame-retardant properties.

Most popular insulators that comply with UL 44 are XLPE, EPR, silicone rubber, PUR, and neoprene.

UL 83: Standard for Thermoplastic-Insulated Wires and Cables

The standard for thermoplastic insulations in general-purpose electrical wiring applications.

Insulations that comply with the standards outlined in this requirement include PVC, PE, PP, TPE. UL 758: Standard for Appliance Wiring Materials (AWM)

Сovers insulation materials used in appliance wiring, including flexible cords and cables. It ensures that cables perform well and are safe in appliances. The standard focuses on temperature rating, and flame resistance, among other factors. The standard must be met by thermoset, thermoplastic, and fluoropolymer insulations.

UL 83A: Standard for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables

UL 83A applies to thermoplastic-insulated underground feeder and branch circuit cables used in residential and commercial applications. The cables that fit these requirements are resistant to UV and moisture. Many popular insulators fit these standards, including PVC and PE. UL 1277: Standard for Electrical Power and Control Tray Cables

UL 1277 covers electrical power and control cables installed in cable trays or raceways.

Fitting insulators include PVC, XLPE, and EPR. The materials are expected to resist moisture, sunlight, oil, chemicals, and other factors that cables may encounter in cable trays or raceways.

UL 1441: Standard for Systems of Insulating Materials - General

UL 1441 provides general requirements for systems of insulation materials, such as those used in motors, transformers, or other electrical equipment. It covers factors such as electrical properties, thermal aging, moisture resistance, and flame resistance. Fitting materials include PVC, PI, and Mica.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER VI

Thermoplastic Materials Compared In this table, we compare thermoplastic materials based on their most important properties that contribute to different aspects of their performance.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER VII

Thermoset Materials Compared In this table, we compare thermoset materials based on their most important properties that contribute to different aspects of their performance.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER VIII

Fluoropolymer Materials Compared In this table, we compare thermoset materials based on their most important properties that contribute to different aspects of their performance.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER IX

Insulation Materials Ranking System

The three tables below grade thermoplastic, thermoset, and fluoropolymer materials based on the high school grading system to illustrate how different insulators compare to each other in terms of performance. In this grading, A+ stands for exceptional, A for excellent, B for great, C for adequate, D for below average, and F for poor.

Pricing is assigned the number, where 1 stands for the cheapest and most readily available insulation, while 5 stands for the most expensive one. Insulations are then assigned an average grade, where A+ = 4.0, A = 4.0, B = 3.0, C = 2.0, D = 1.0, F = 0.0.

These tables are only for educational purposes, and do not represent an objective score. Depending on the applications, insulating materials might have different requirements, which would deem some factors more important than the others.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER X

Thermoplastic Insulation Comparable Table Graded

CHAPTER XI

Thermoset Insulations Comparable Table Graded

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CHAPTER XII

Fluoropolymer Insulation Comparable Table Graded

CHAPTER XIII

Biodegradable Cable Insulation Materials Biodegradable cable insulations are being developed in the 21st century because of the need to reduce environmental impact, improve safety, and contribute to the improved waste management cycle.

As it stands in 2023, no biodegradable cable insulations are effective enough to be used on a mainstream level.

Here are some of the insulations that are currently in development: Polylactic Acid (PLA): PLA is a biodegradable thermoplastic monomer derived from renewable resources such as corn starch or sugar cane. It is commonly used in packaging and biomedical devices. However, its application in the field of electrical insulation still needs to be studied due to issues like moisture absorption and lower temperature resistance compared to traditional insulation materials.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

As it stands right now, polylactic acid demonstrates good insulation properties at temperatures between room and 70°C. For higher temperatures, PLA does not prove to be an effective insulator at higher temperatures, as suggested by research. Despite this, PLA demonstrates good electrical properties compared to its petroleum counterparts.

Thermoplastic Starch (TPS): TPS is produced by destructuring starch under heat and shear in the presence of plasticizers like water and glycerol. It's a fully biodegradable and renewable material. The negative side of the material is that it has limitations in terms of moisture resistance and thermal stability, which make it less suitable for use in highperformance electrical applications.

Polyhydroxyalkanoates (PHAs): PHAs are polyesters produced by bacterial fermentation of sugar or lipids in nature. They are fully biodegradable and are used in packaging, medicine, and agriculture. However, their cost and performance characteristics, such as long downtime for polymer recovery, have limited their use.

Bio-based Polyethylene (bio-PE) and Bio-Polyamides (bioPA): Bio-PE is similar to conventional PE but is made from renewable raw materials such as sugarcane. Likewise, biopolyamides bio-PA reflect the properties of bio-nylon. While it's technically not biodegradable, it is recyclable and has a lower carbon footprint compared to conventional PE. The strength of this type of insulation is that it is the most similar in properties compared to traditional types of insulation.

Materials like bio-PE and bio-PA have the most potential as long as their biodegradability can be improved because their physical properties are the closest to those of their petroleum counterparts.

So far, biodegradable materials are far from achieving mainstream status because more research, testing, and development is required.

As far as sustainability, the materials that are easily recyclable are the best in terms of environmental impact because recyclability is easier to achieve. These materials include PE, Nylon, and PP, among others. Most recyclable materials are thermoplastics, even though PVC, the most popular thermoplastic, is not recyclable.

INTRODUCTION TO WIRE AND CABLE INSULATING MATERIALS

CONCLUSION

With the abundance of various insulating materials on the market, there is a coverage for any kind of application/cable in residential, commercial, and industrial applications of any complexity. In the future, we will see new types of insulations and improved/ optimized types of existing insulating materials. The developers of cable insulations will be looking into improving flame retardance, high-temperature resistance, and environmental sustainability. With existing insulations, like the highly popular PVC, the experts will be looking at optimizing the formulation electrical, thermal, and mechanical properties. This includes using heat stabilizers and flame retardants to improve its performance at high temperatures in fire-prone environments, and improving its photostability with additives. Improving recycling properties of the PVC insulation.
