Micropolis_Urban Design for City of Lethbridge

Page 1

ARCH 688: CIVIC COMMON CATALYST; CITY OF LETHBRIDGE

Prerna Bhatia | Nai-Xin Cheng

Nitya Gupta | Twinkle Lakhani

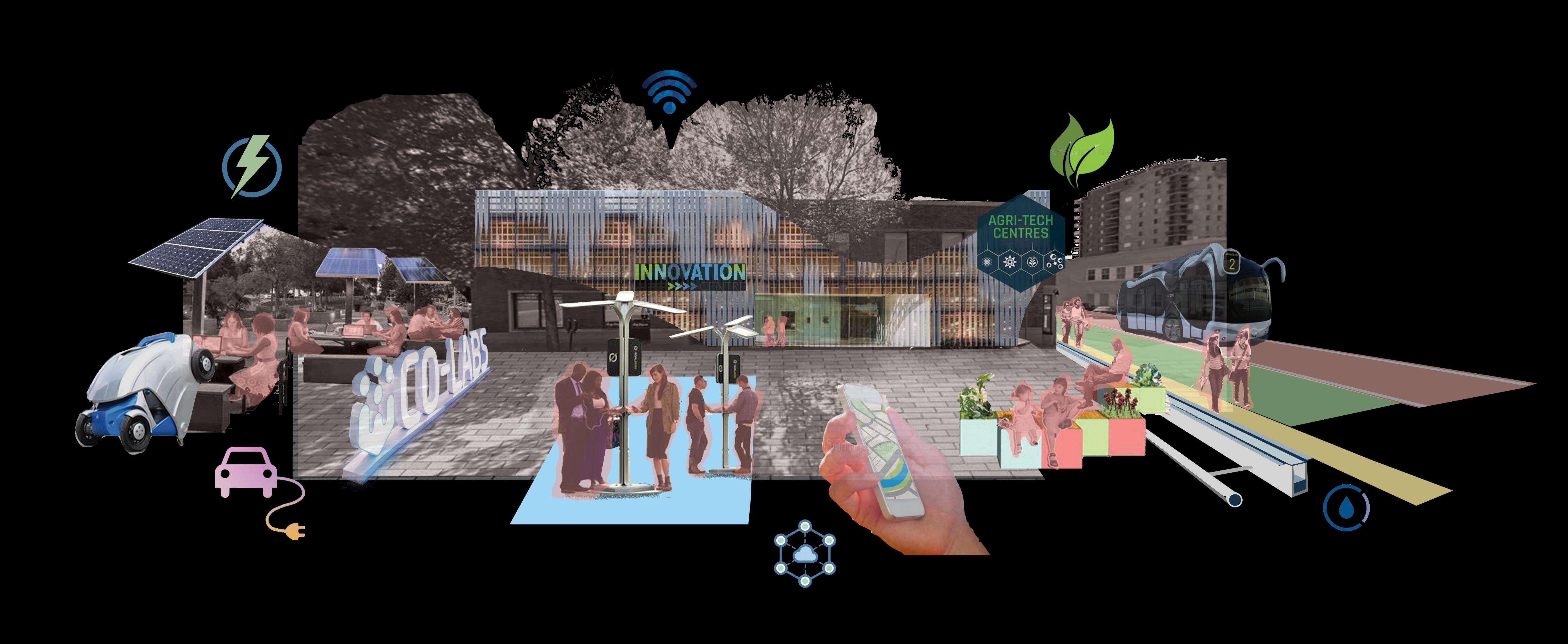

inference

Solar powered workstations

repurposing

Underutilized buildings

Autonomous bus

Eco-car

Public phone

Charging station

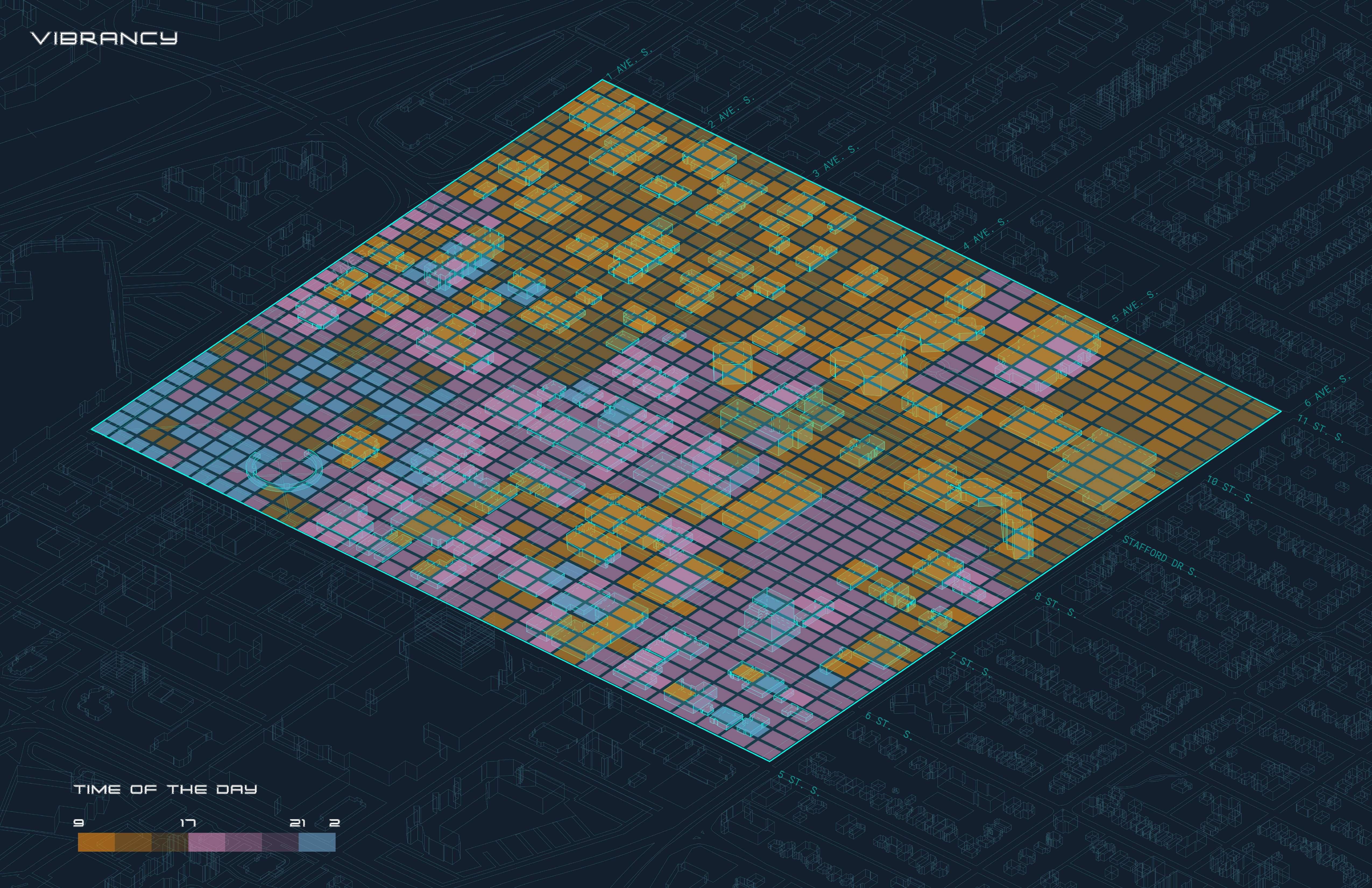

Place making

Real-time data

Water management

vision
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
Major vs local 0 10 20 40 60 100 200
Macro urban connections First nation reserve Renewable energy projects Major cities Unesco sites 0 10 20 40 60 100 200

Governance & education

RESEARCH & technology

infrastructure economy

Circulation & transportation

Human capital

Urban planning

International outreach environment

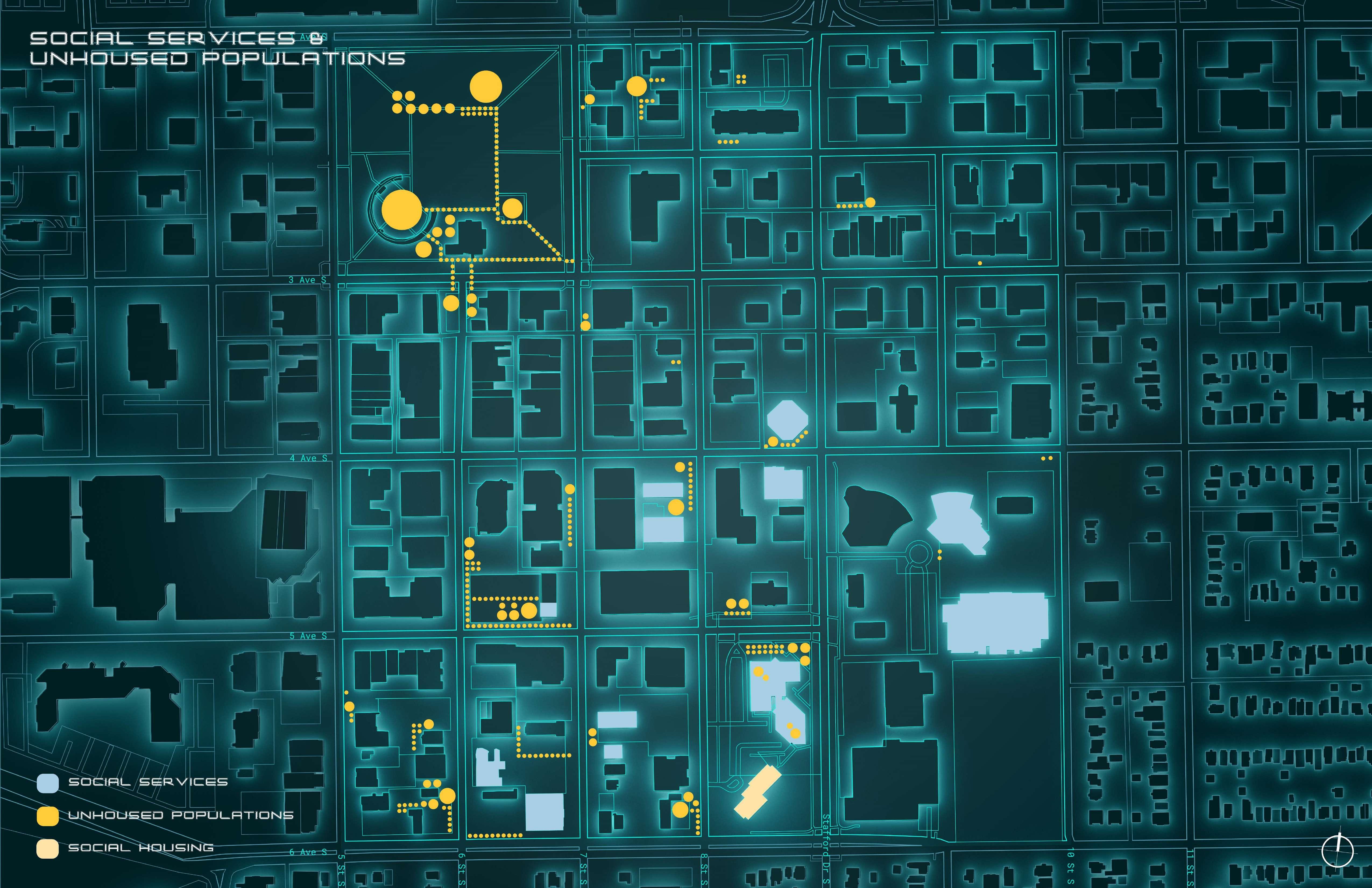

Social cohesion

Vision parameters

Circulation & transportation

Parking to parks 0 10 20 40 60 100 200

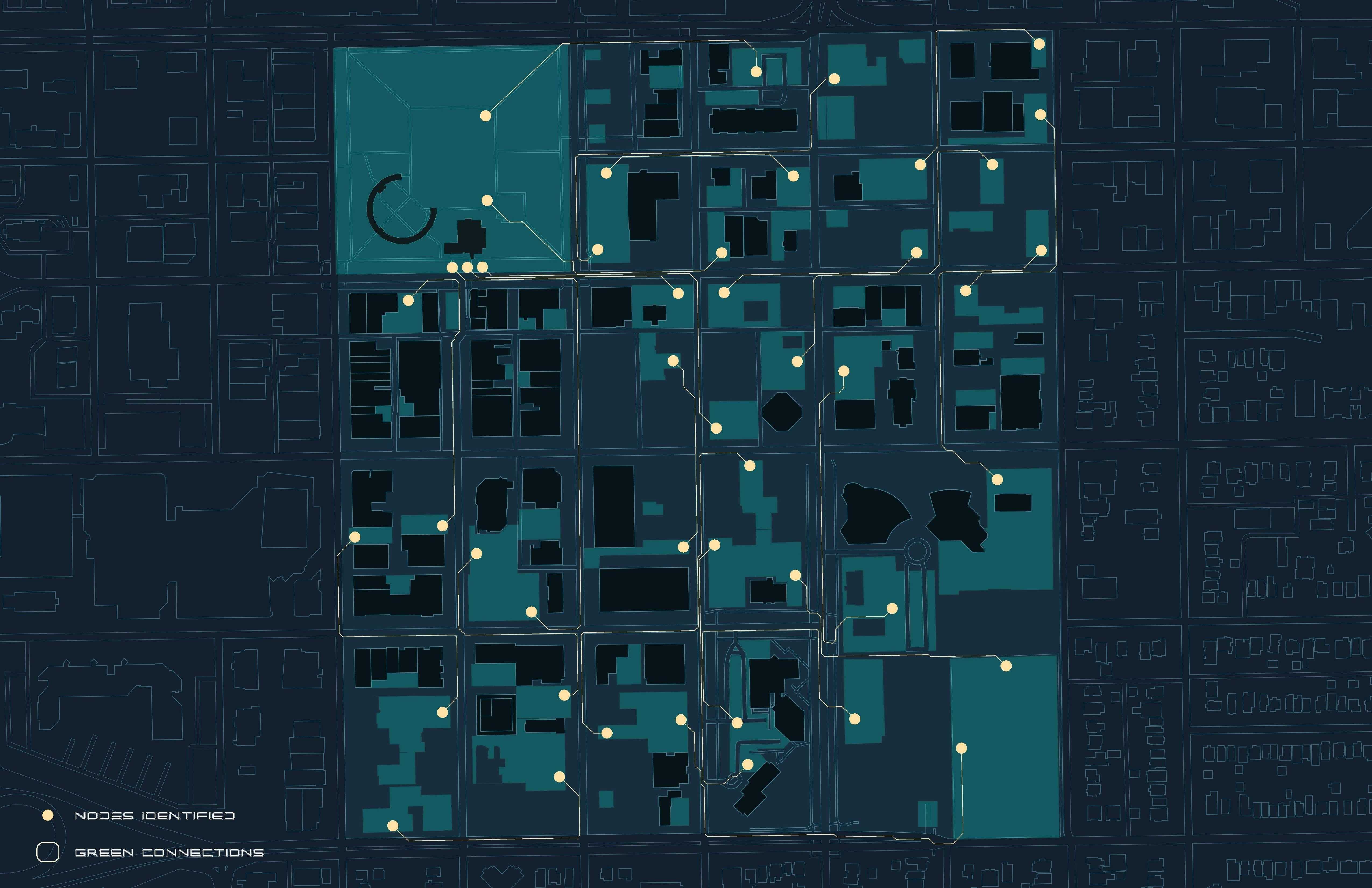

Connecting greens 0 10 20 40 60 100 200

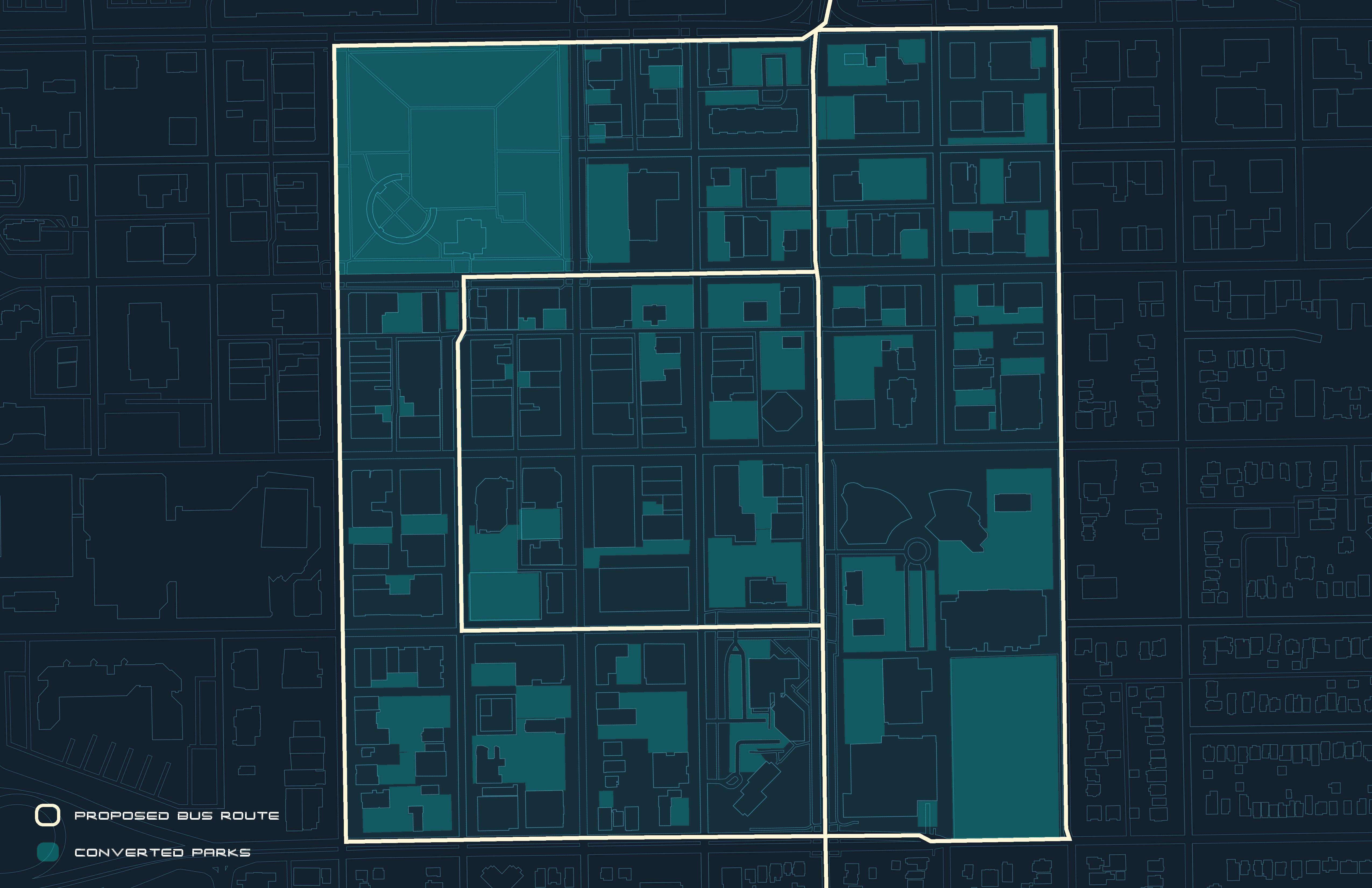

Bus transit 0 10 20 40 60 100 200

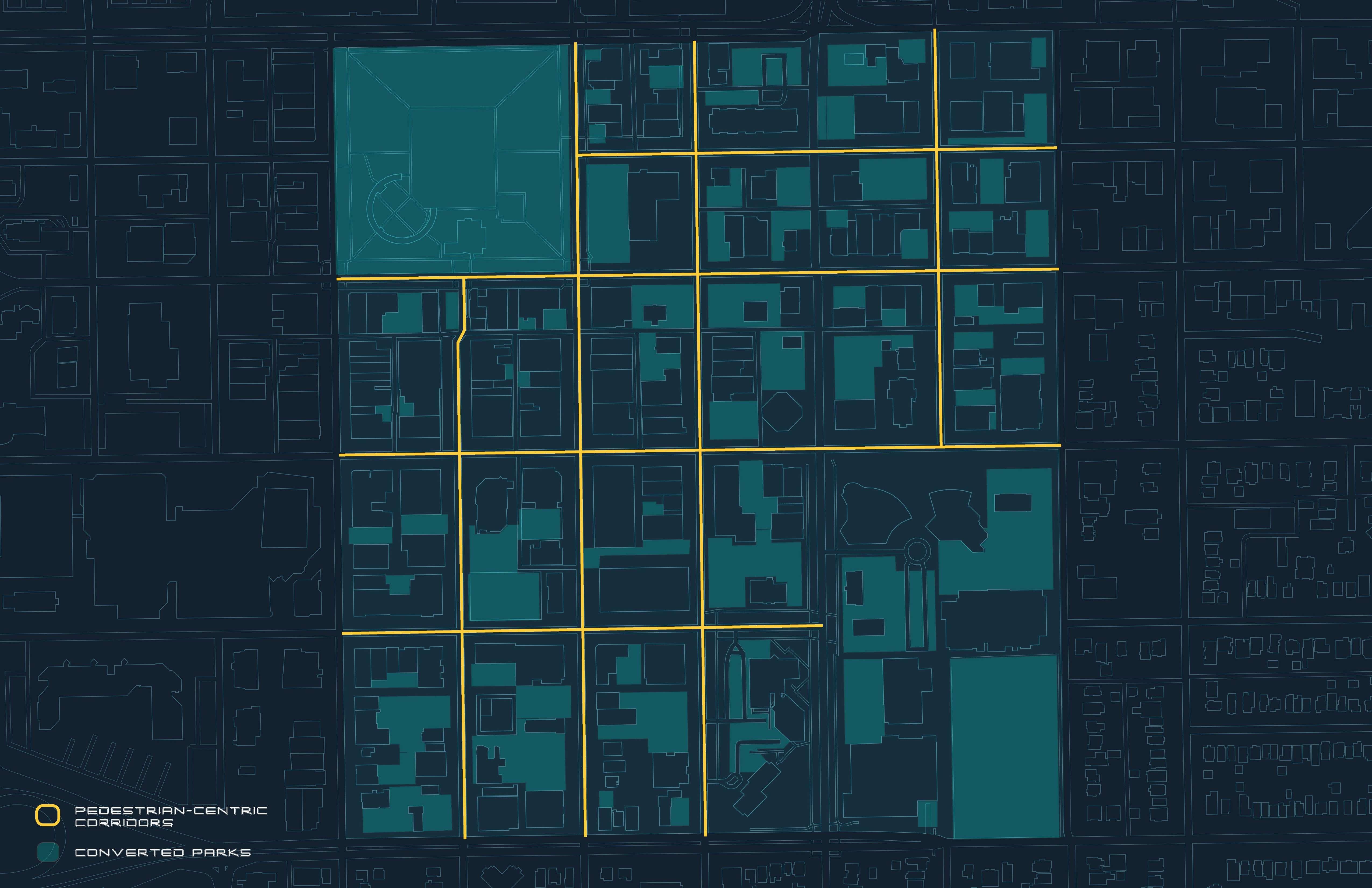

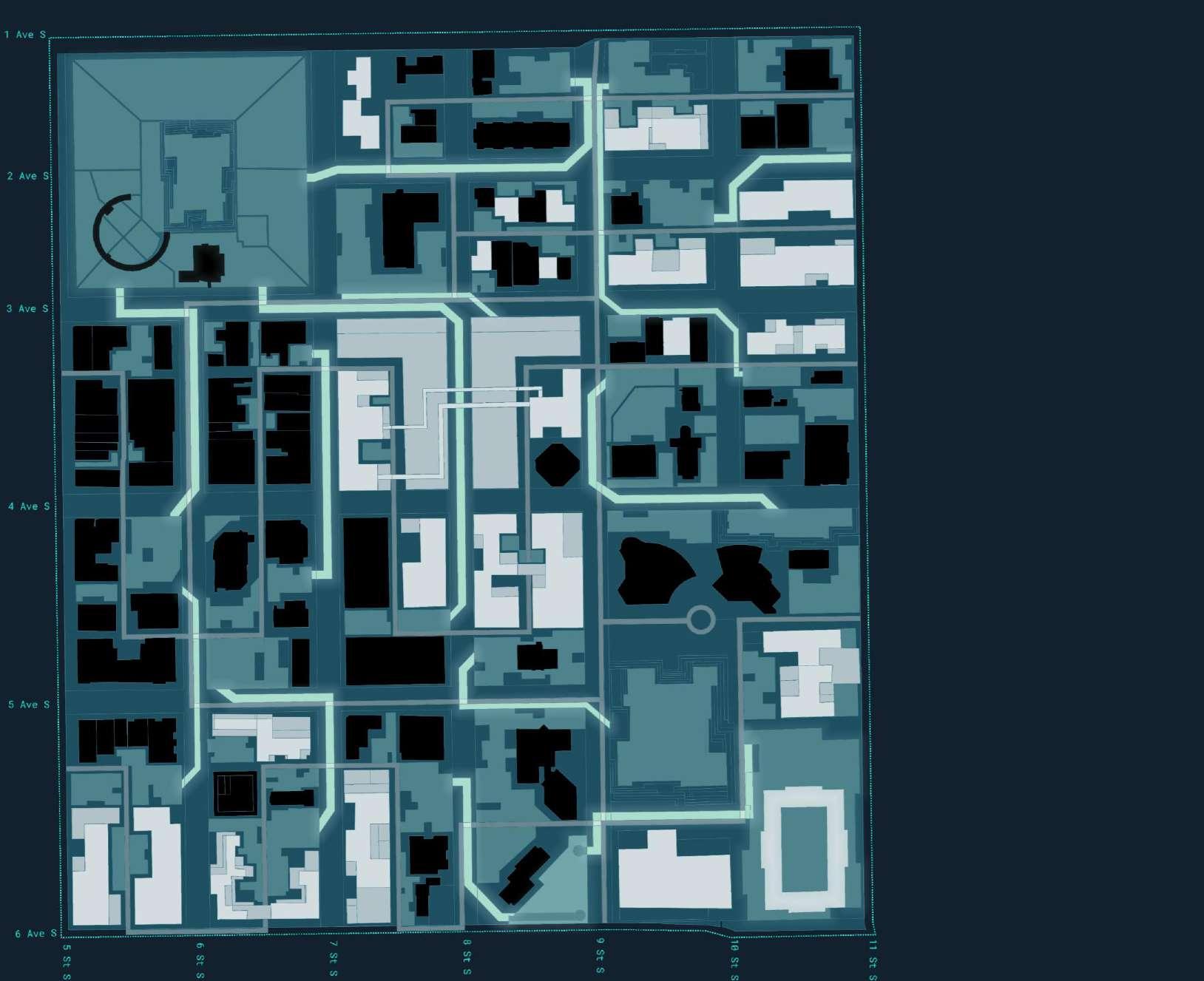

Pedestrian route 0 10 20 40 60 100 200

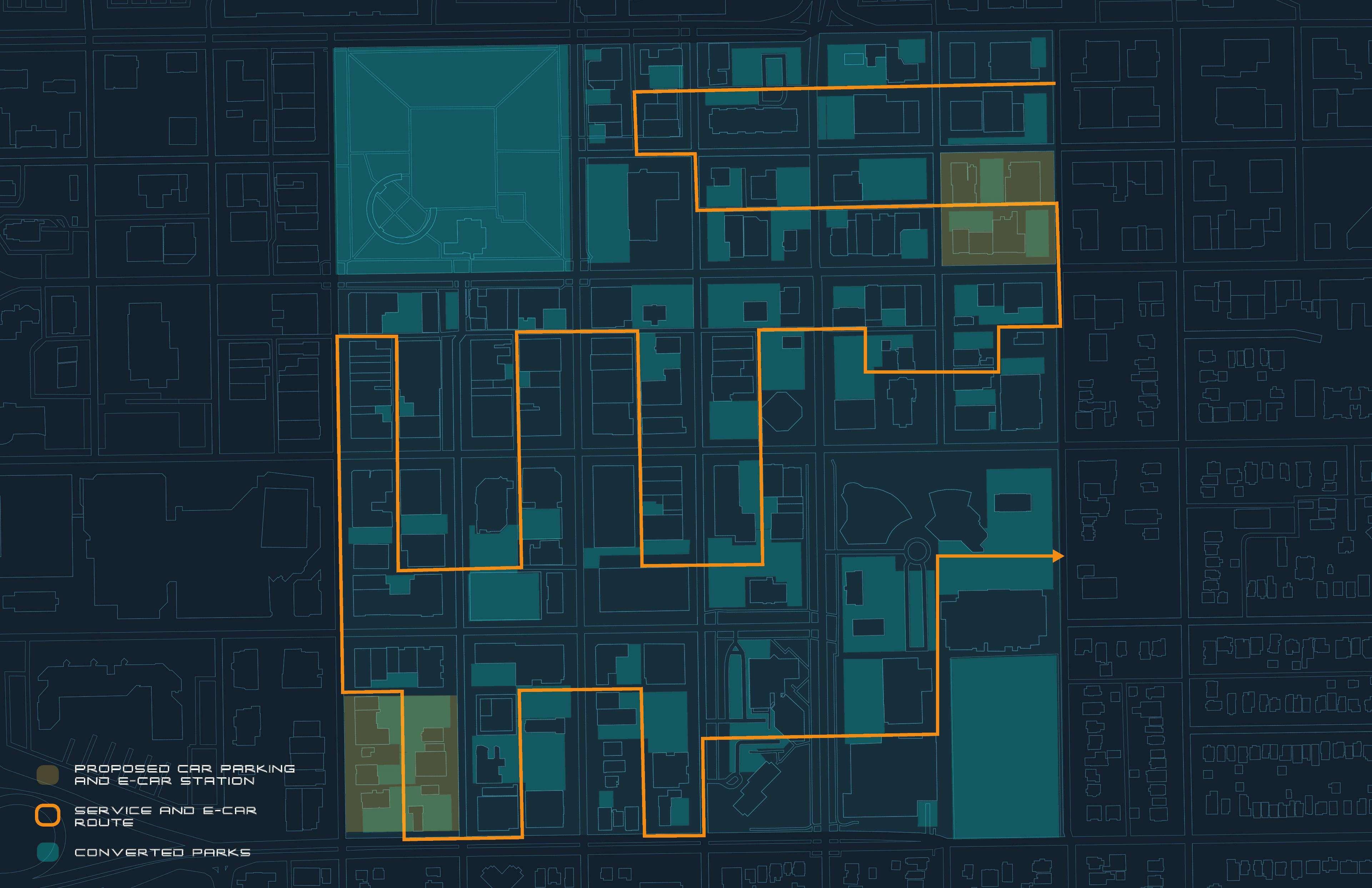

Service & e-car route 0 10 20 40 60 100 200

Urban planning

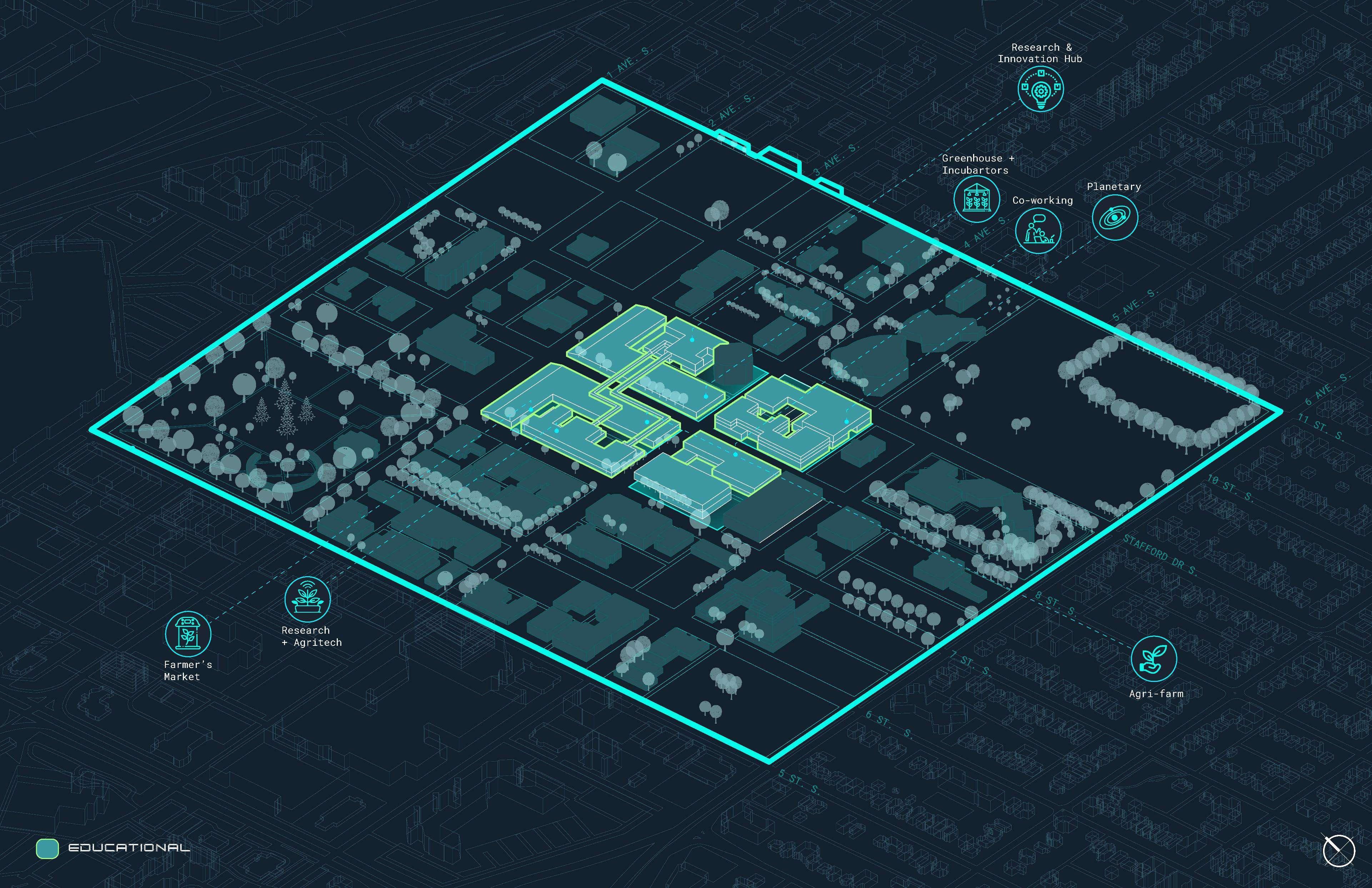

PRESERVATION 0 10 20 40 60 100 200

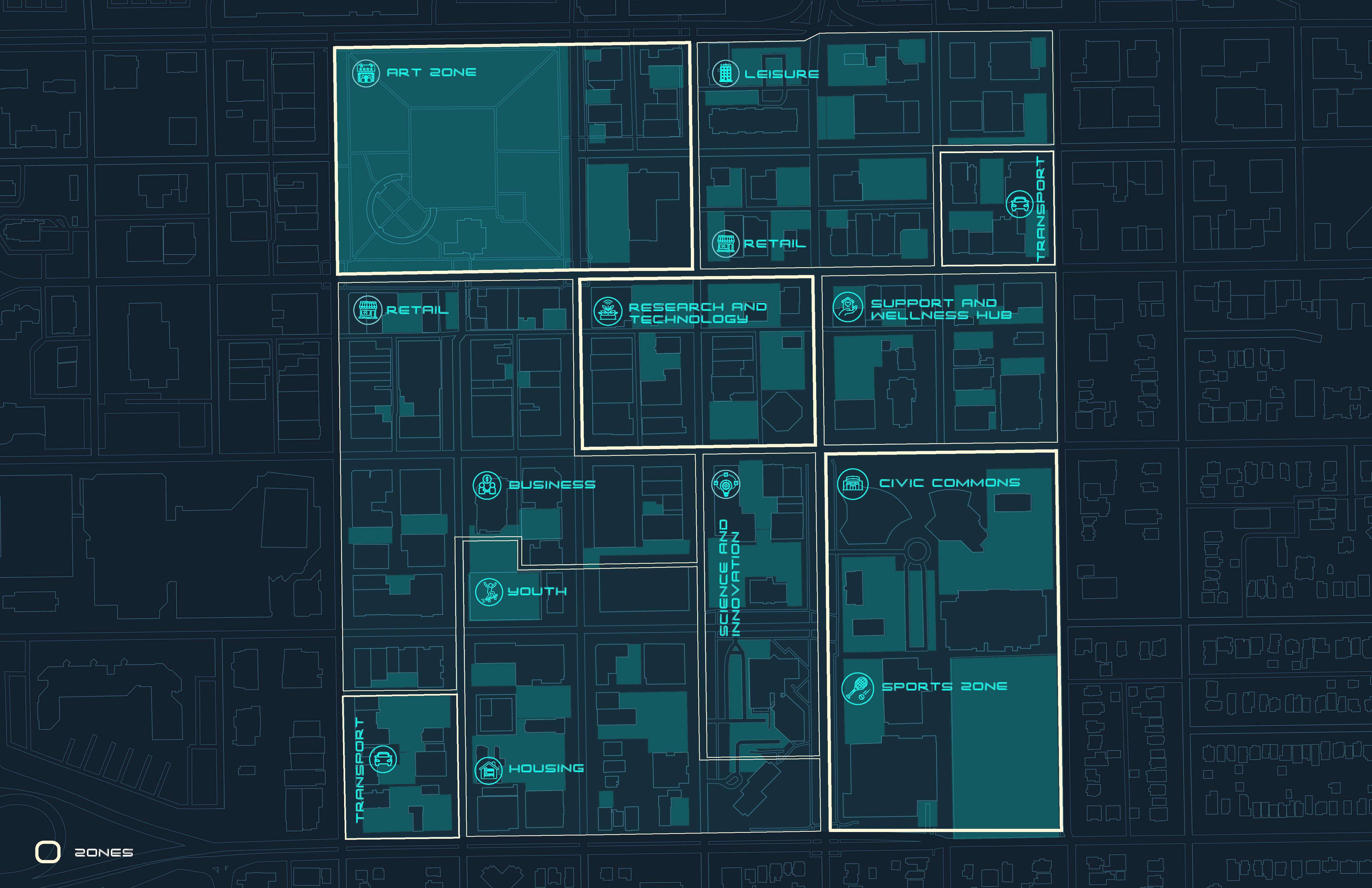

PROGRAMMING 0 10 20 40 60 100 200

ENVIRONMENT INFORMED DESIGN

Solar study 0 10 20 40 60 100 200
0 10 20 40 60 100 200
Proposed blocks sun-study

extrude Analyze design

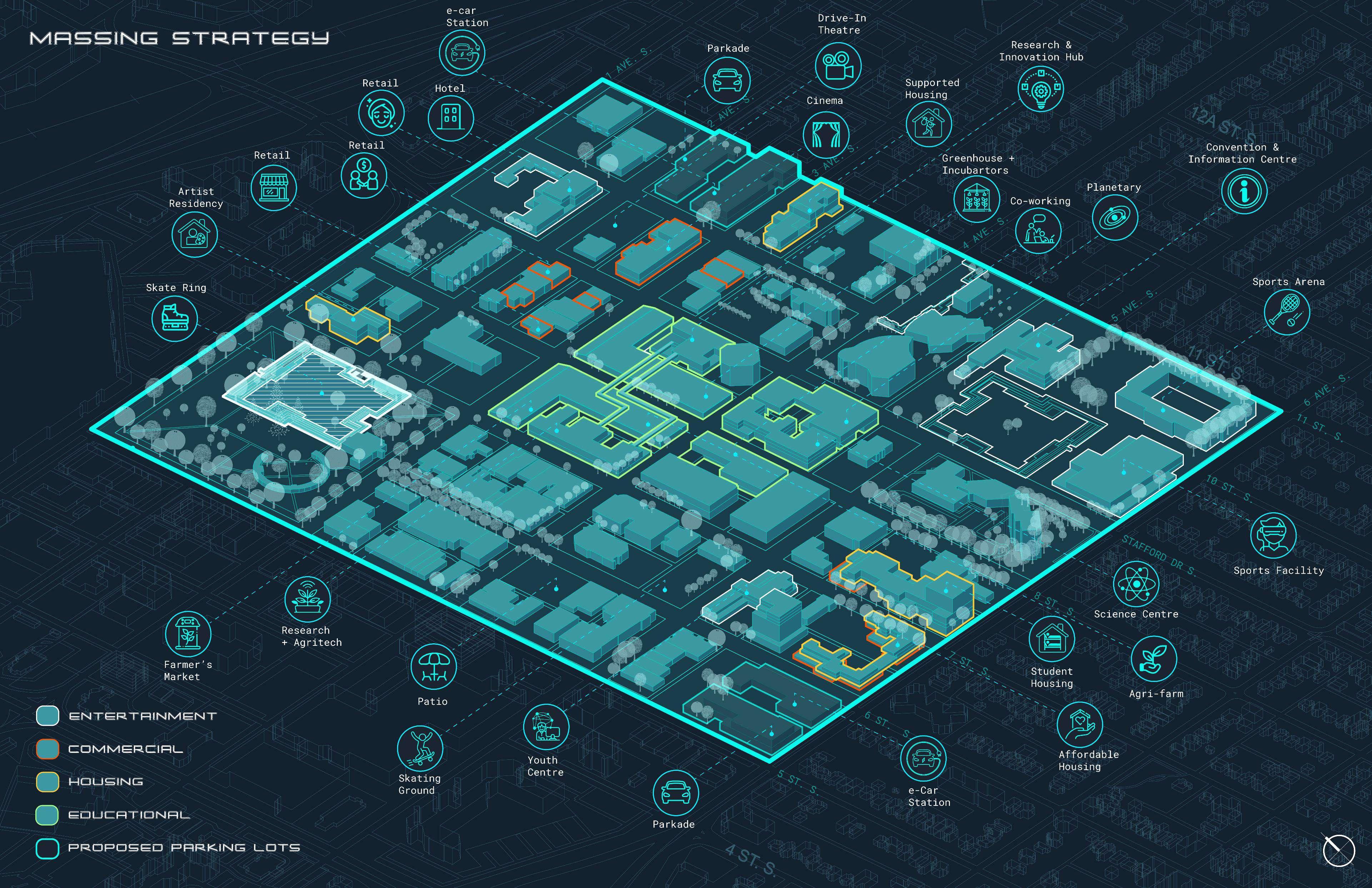

0 10 20 40 60 100 200 MASSING STRATEGY

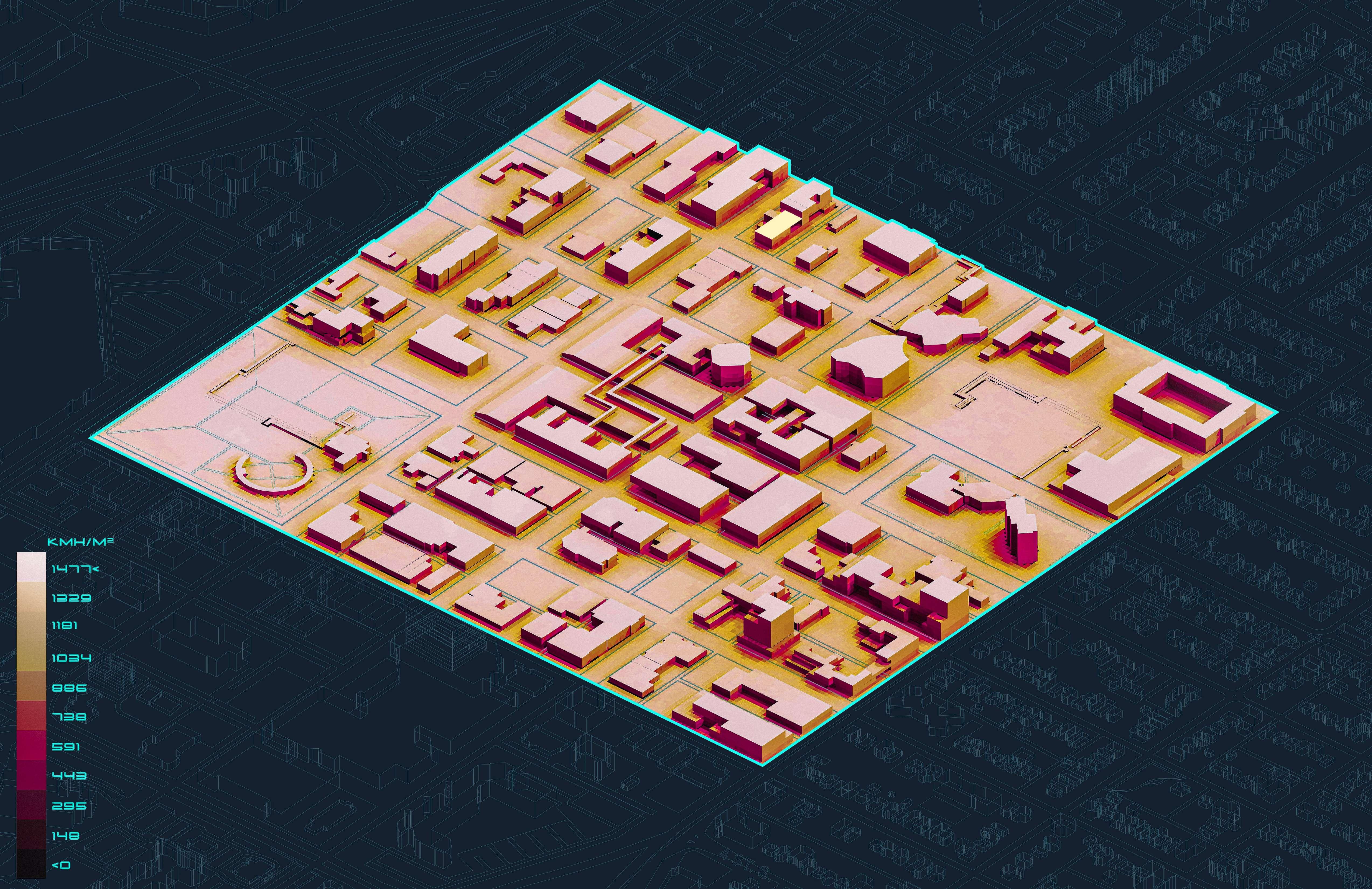

Sun analysis 0 10 20 40 60 100 200

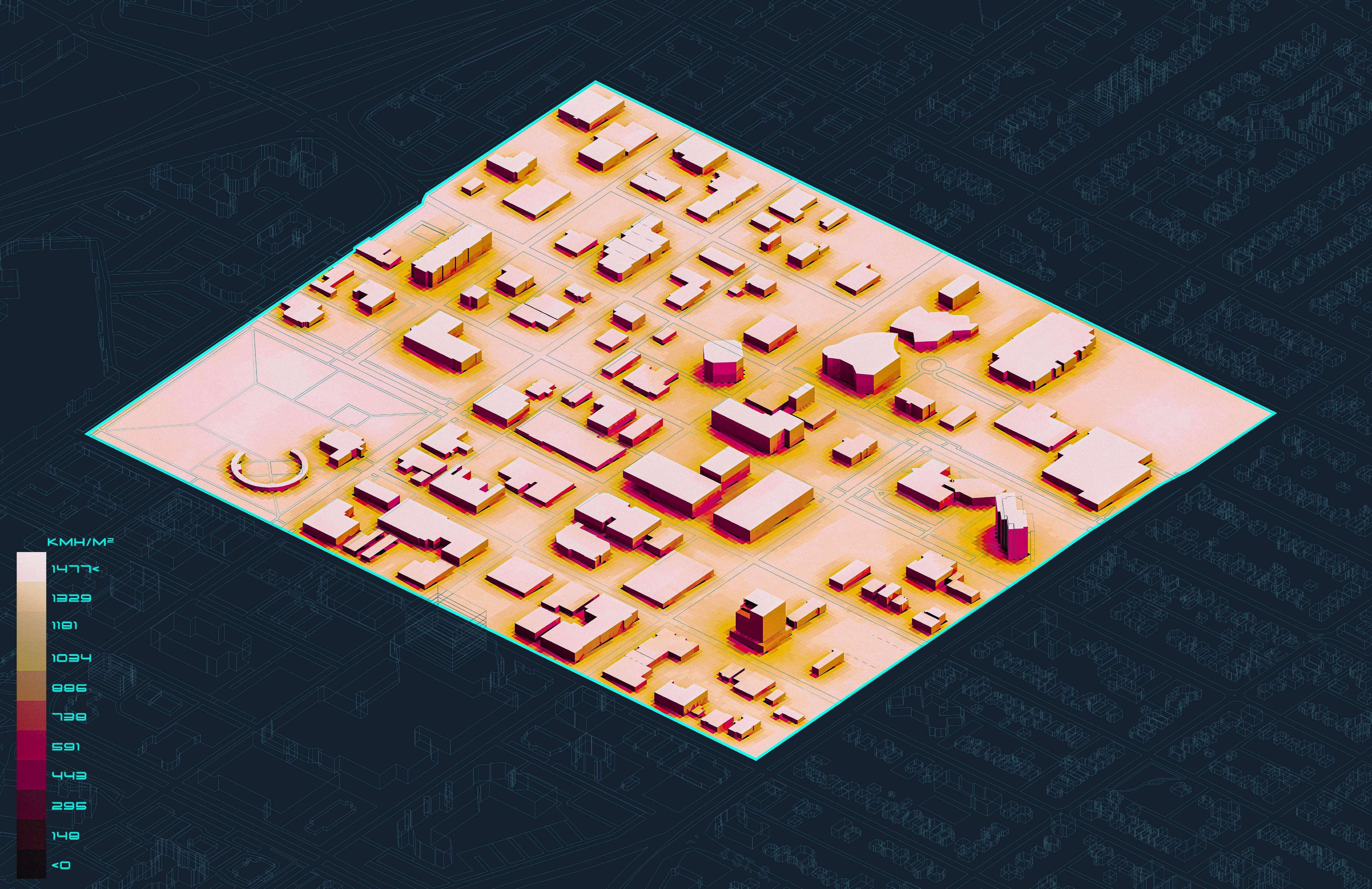

WIND analysis 0 10 20 40 60 100 200

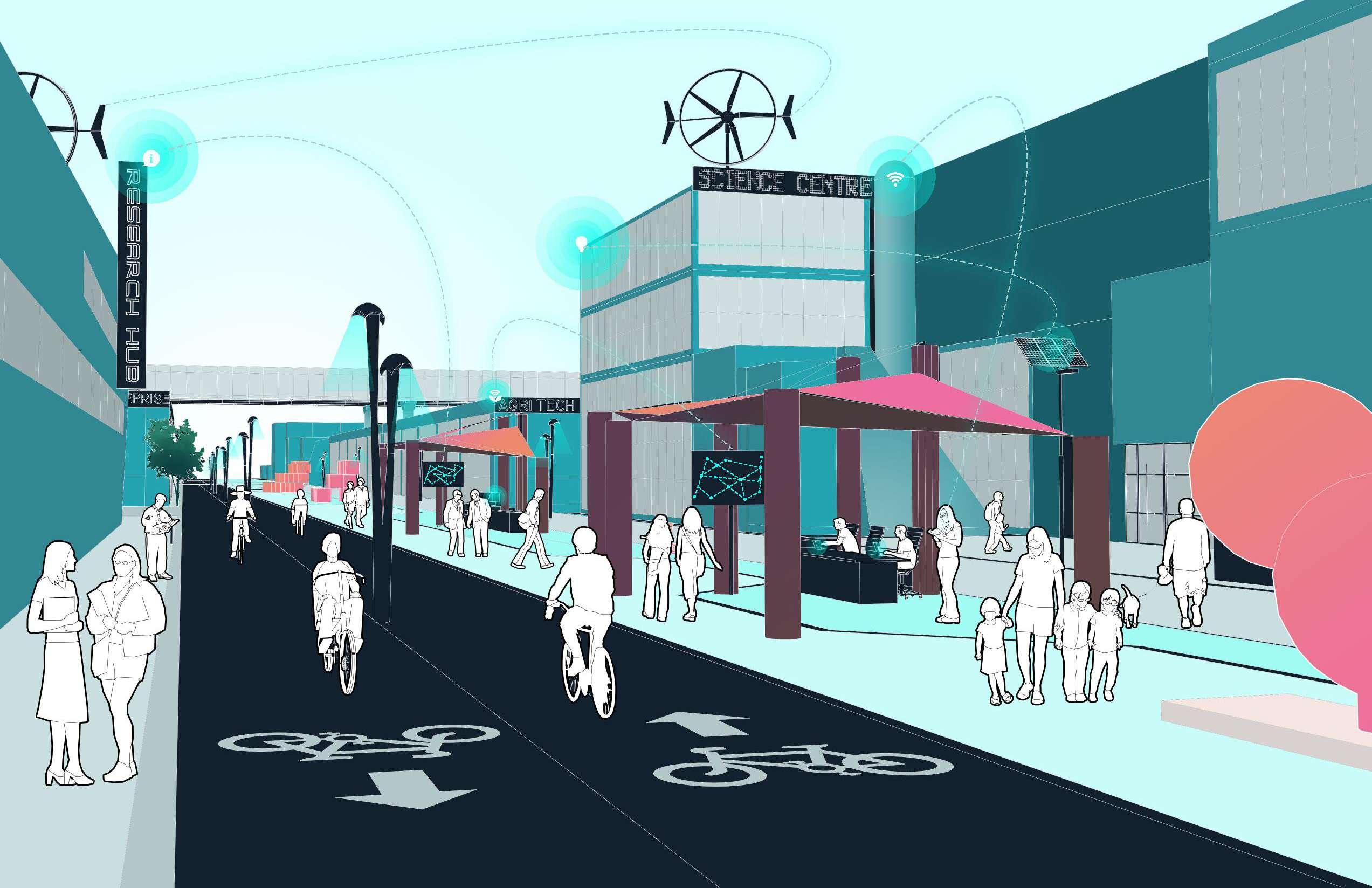

RESEARCH & TECHNOLOGY

0 10 20 40 60 100 200

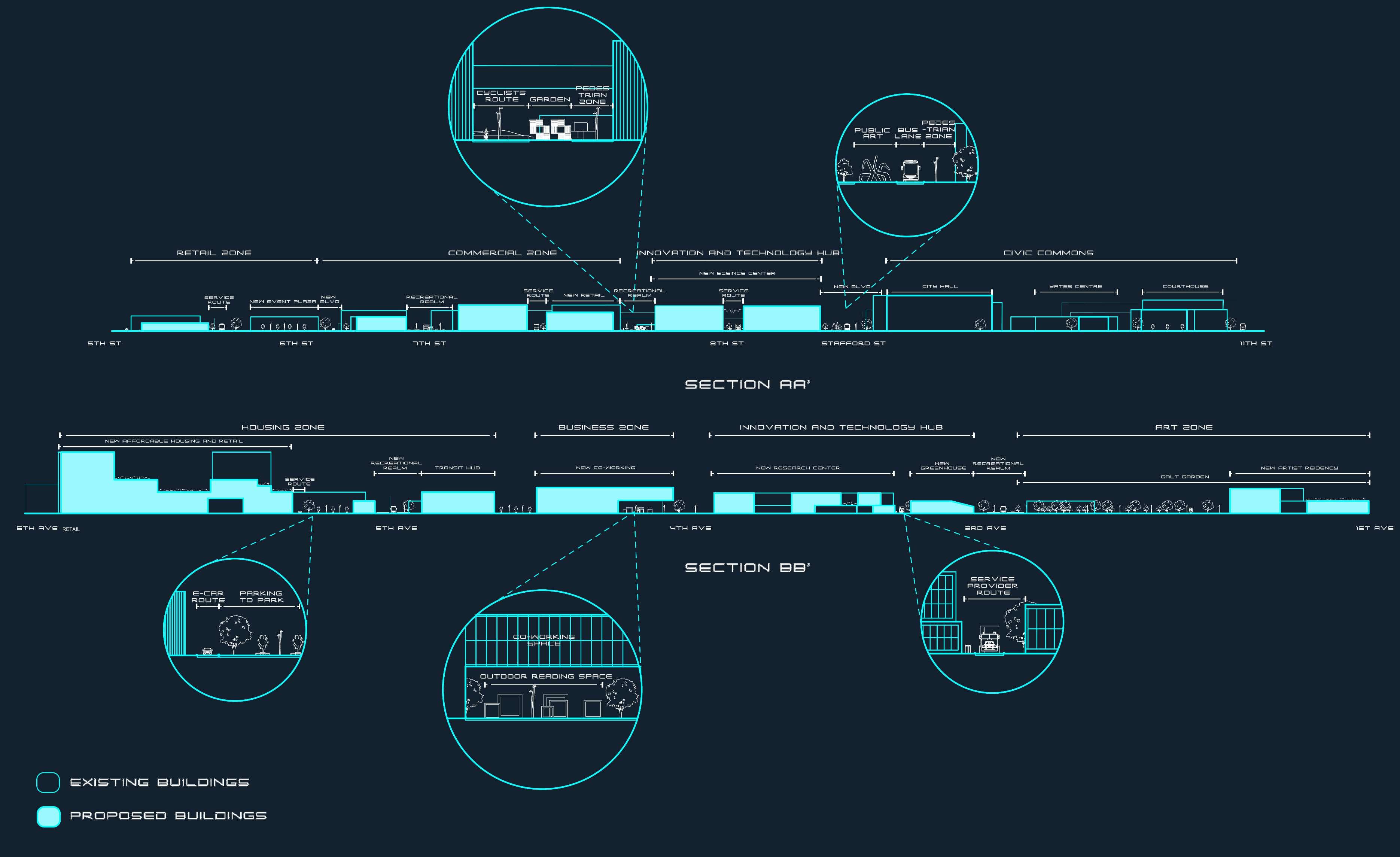

a A’ b B’ SITE SECTION 0 10 20 40 60 100 200

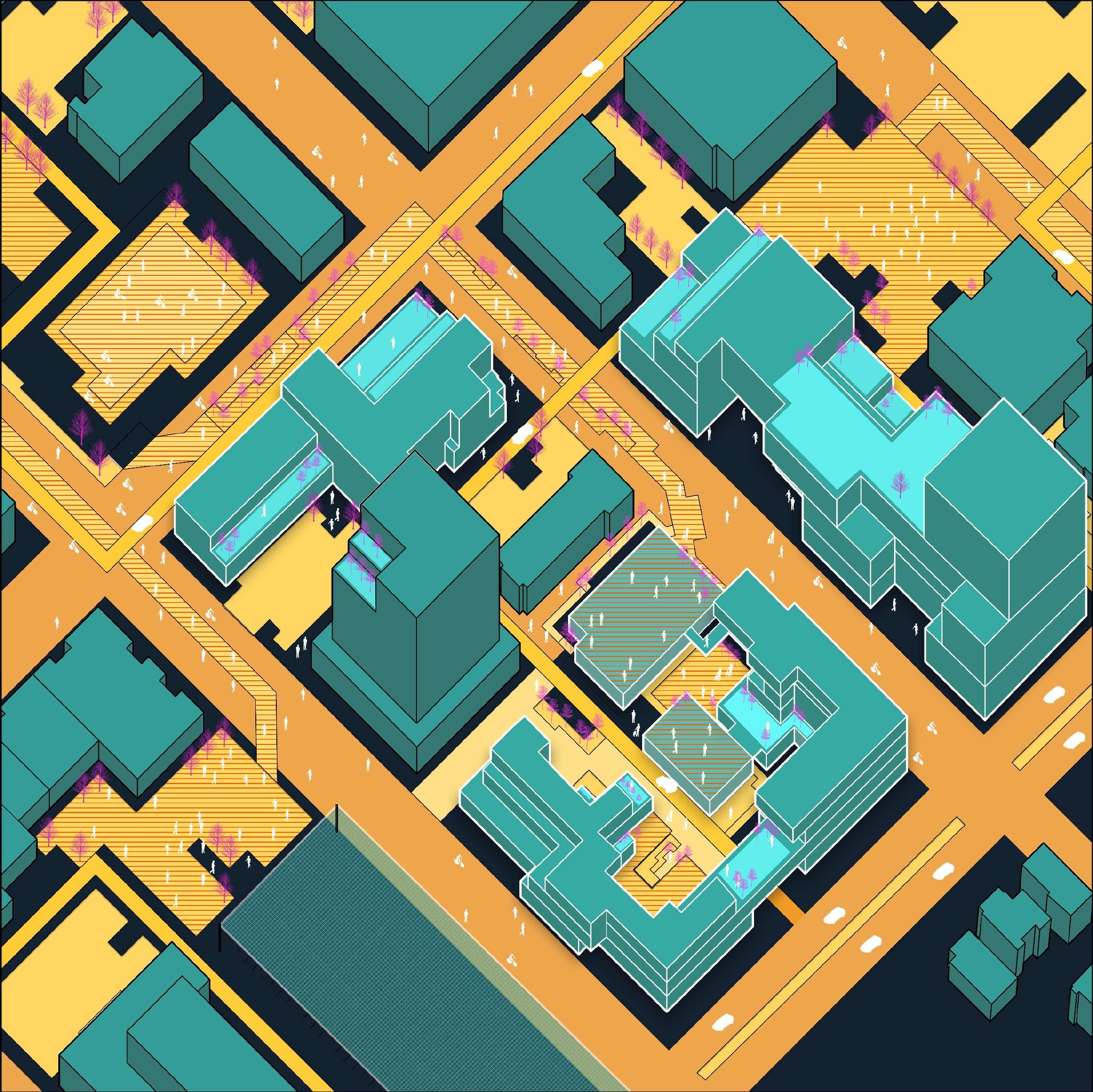

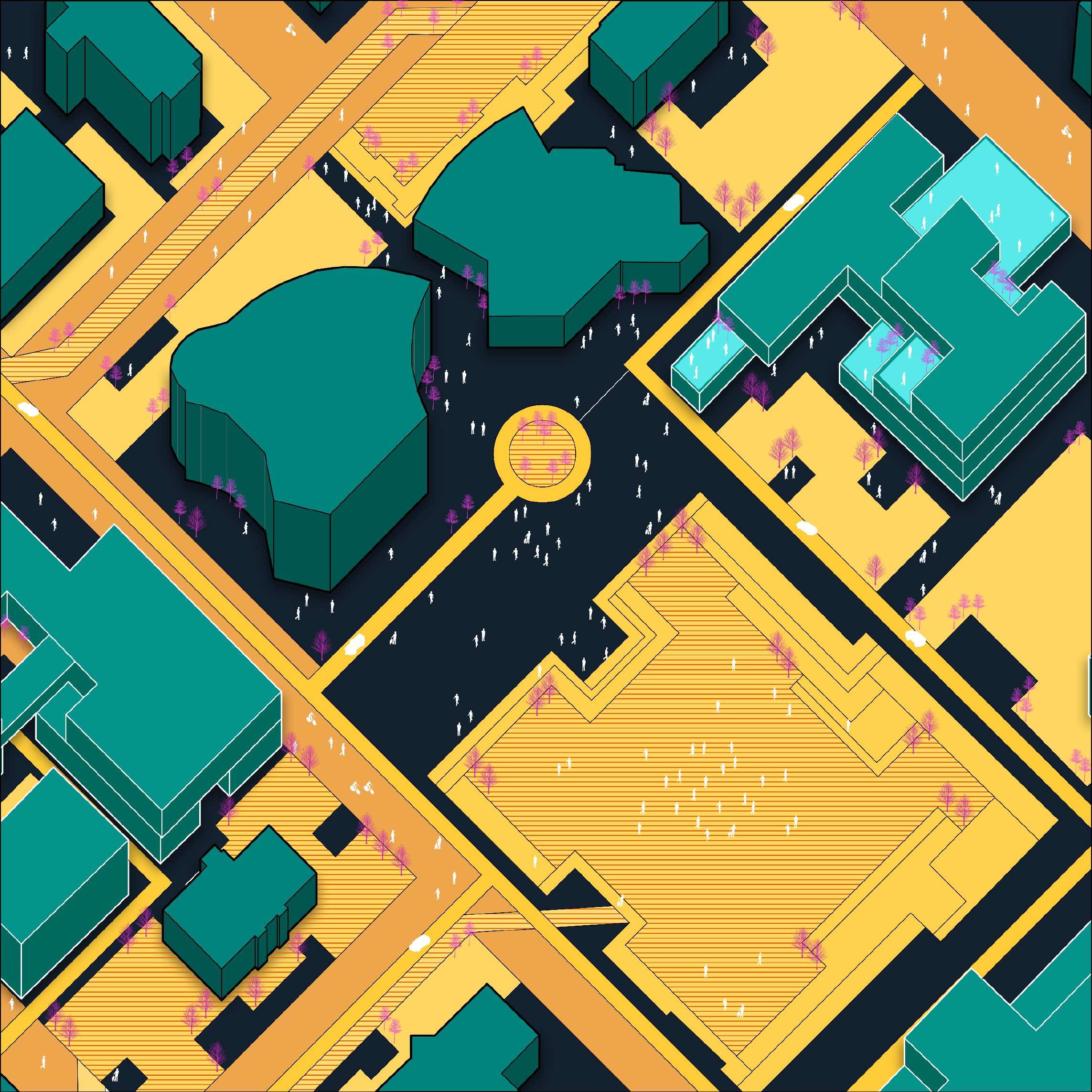

MASSING AXO
0 10 20 40 60 100 200
CASA REALM
MASSING AXO e – car parking 0 10 20 40 60 100 200
MASSING AXO
0 10 20 40 60 100 200

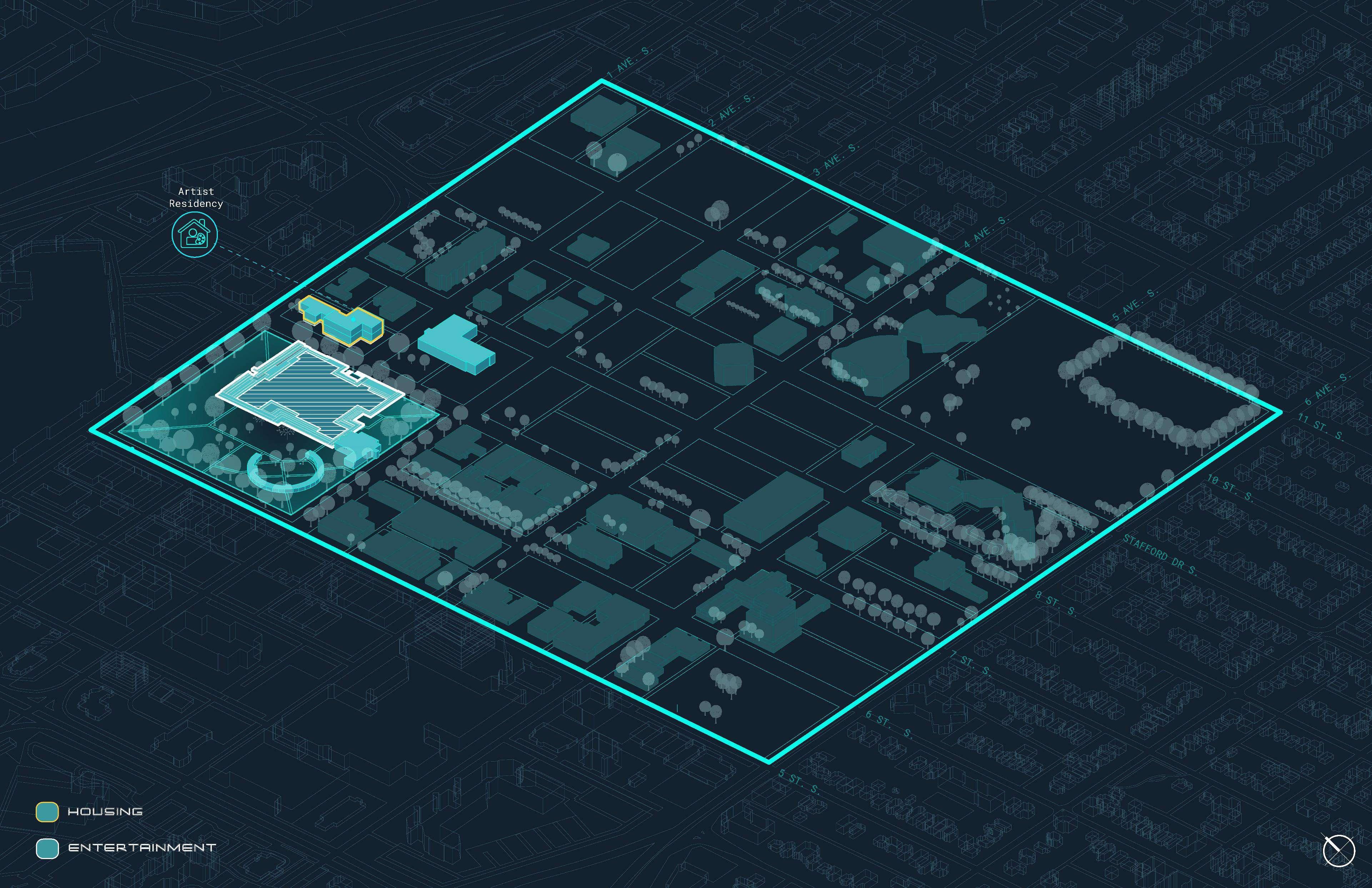

housing
MASSING AXO
0 10 20 40 60 100 200

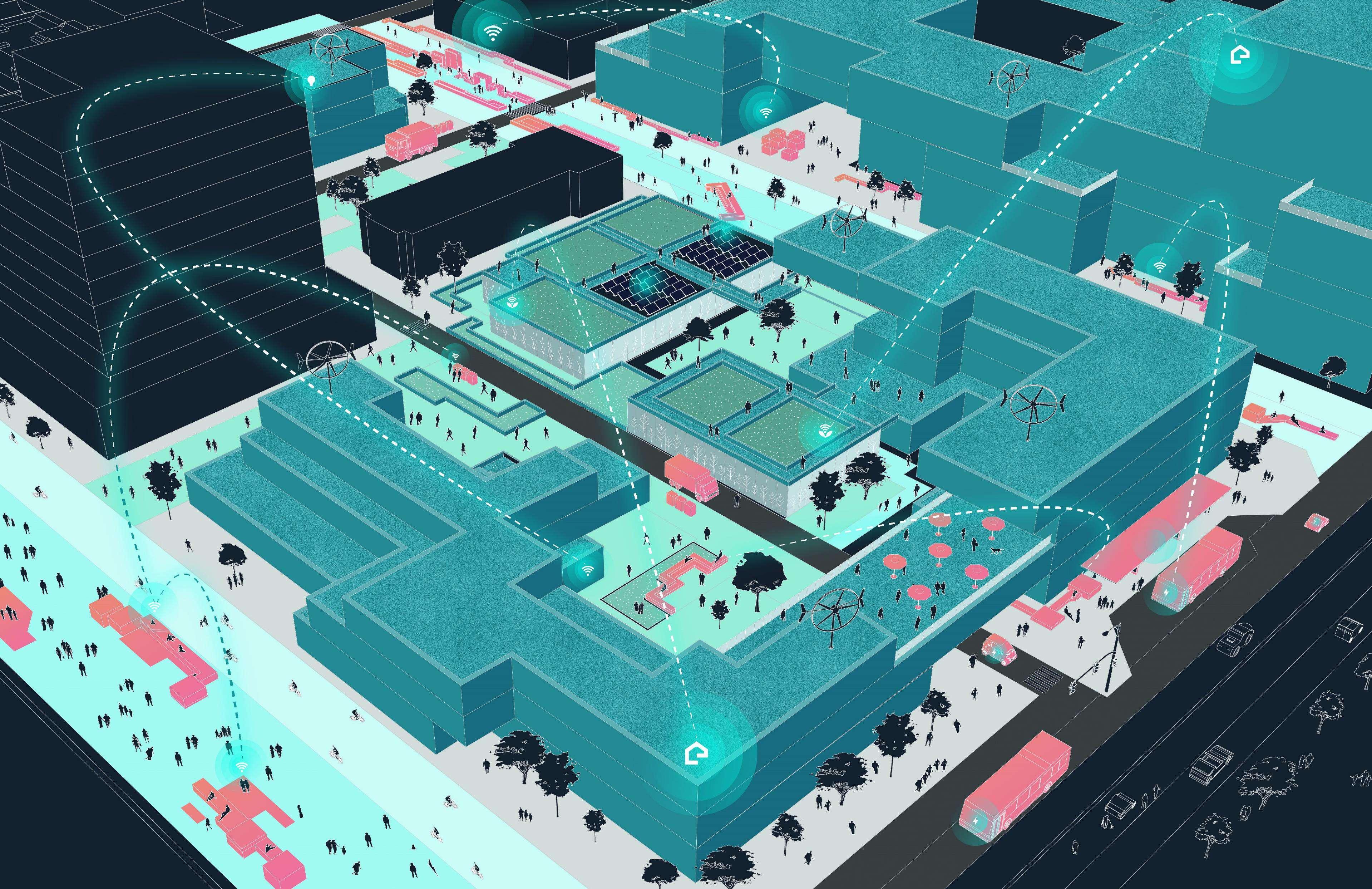

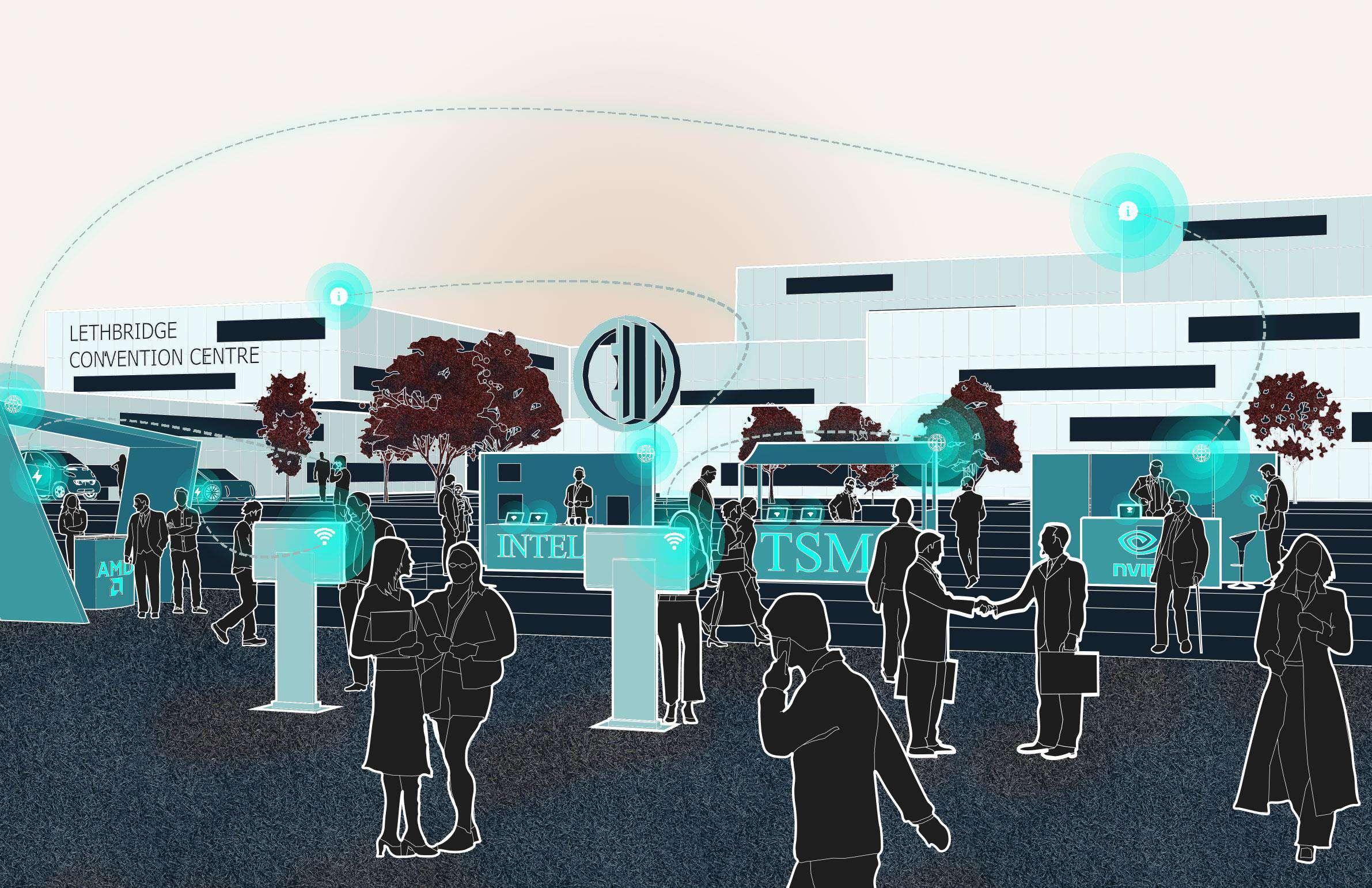

Civic common | convention Centre

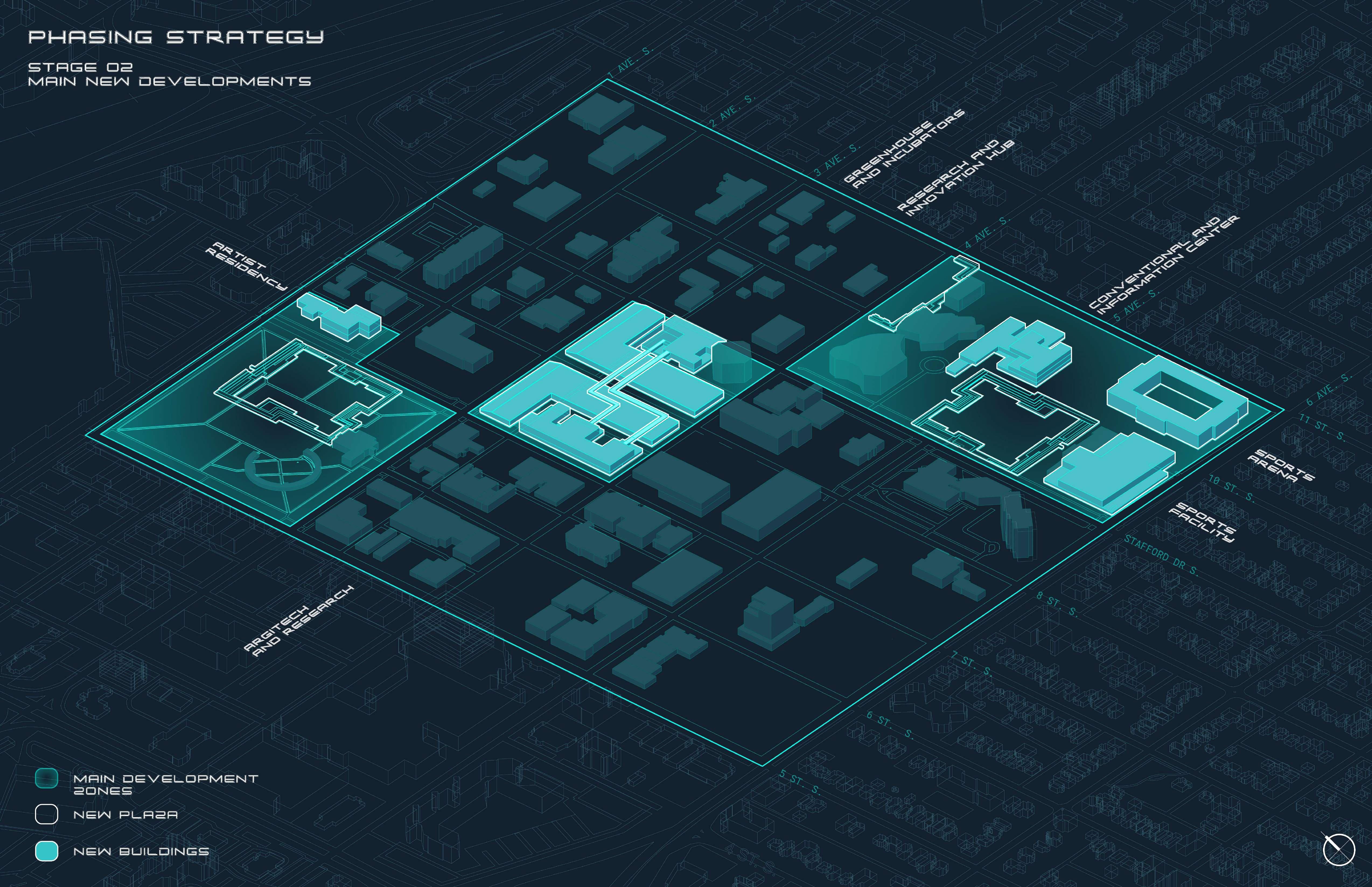

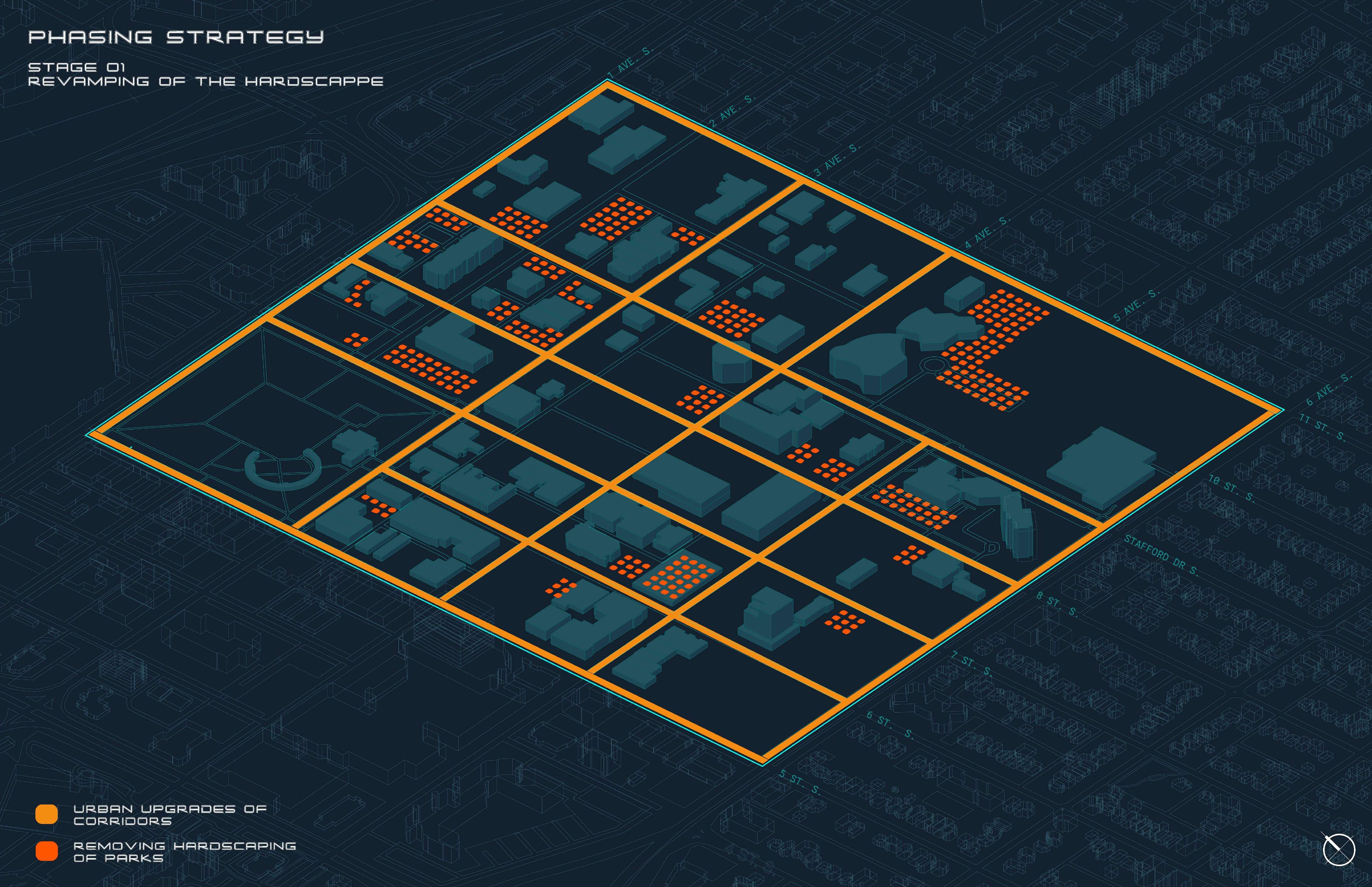

DESIGN STRATEGY – GALT 0 10 20 40 60 100 200
DESIGN STRATEGY – CIVIC COMMONS 0 10 20 40 60 100 200
DESIGN STRATEGY – RESEARCH & INNOVATION HUB 0 10 20 40 60 100 200
0 10 20 40 60 100 200
DESIGN STRATEGY –MIXED USE
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200
0 10 20 40 60 100 200

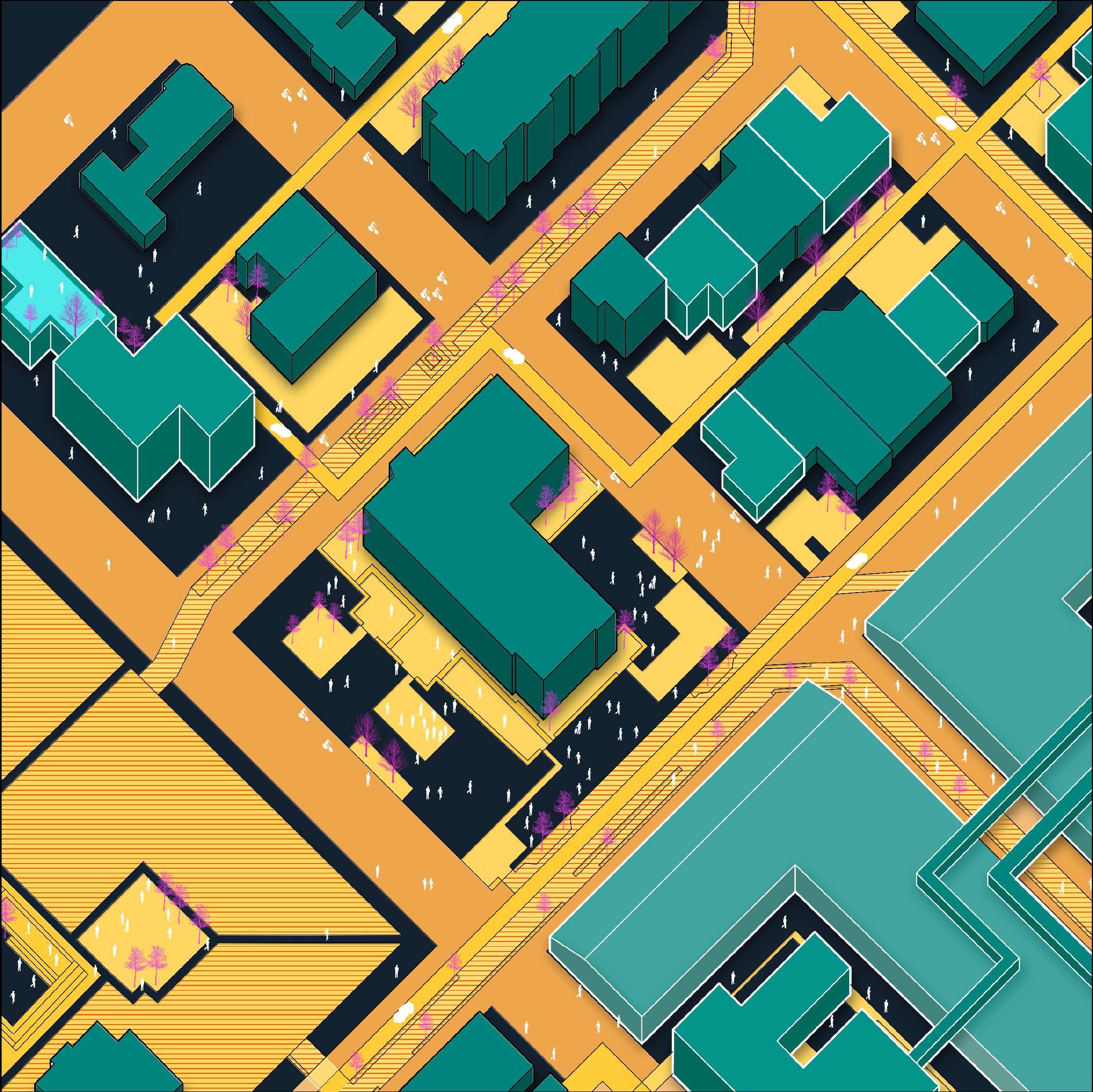

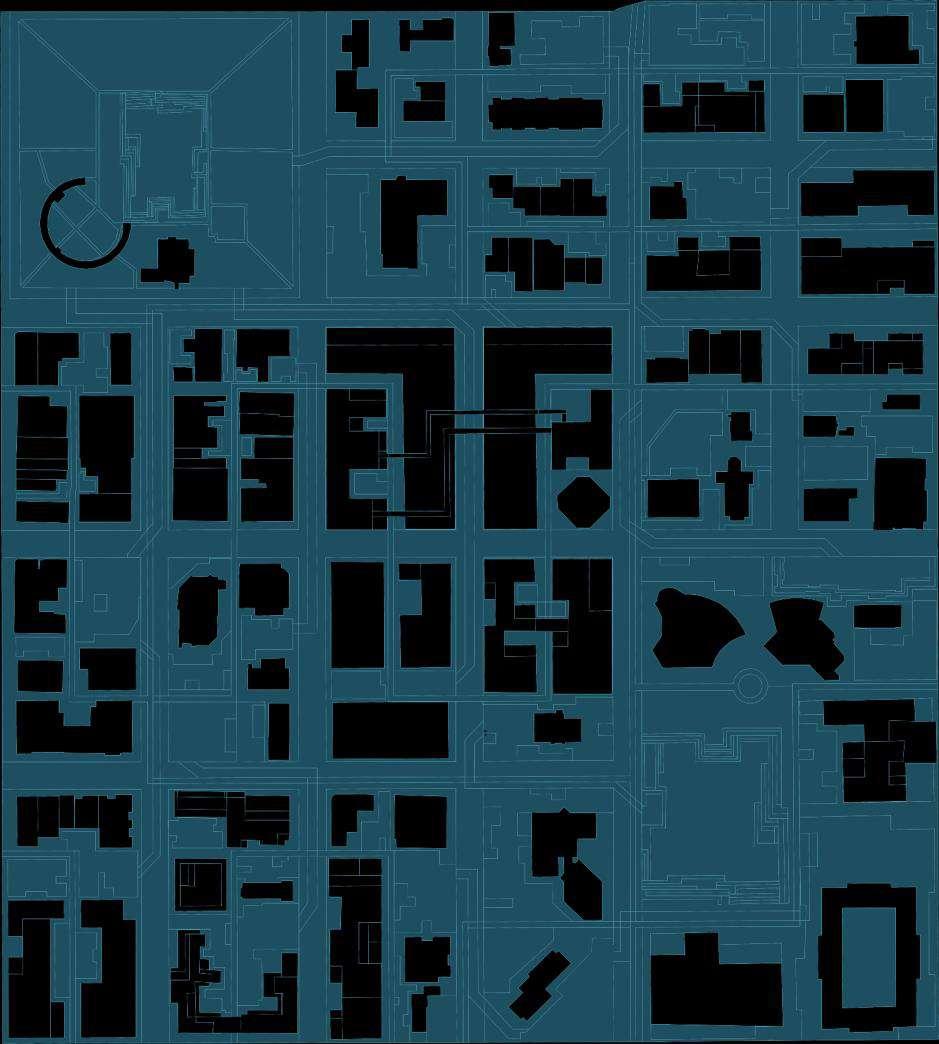

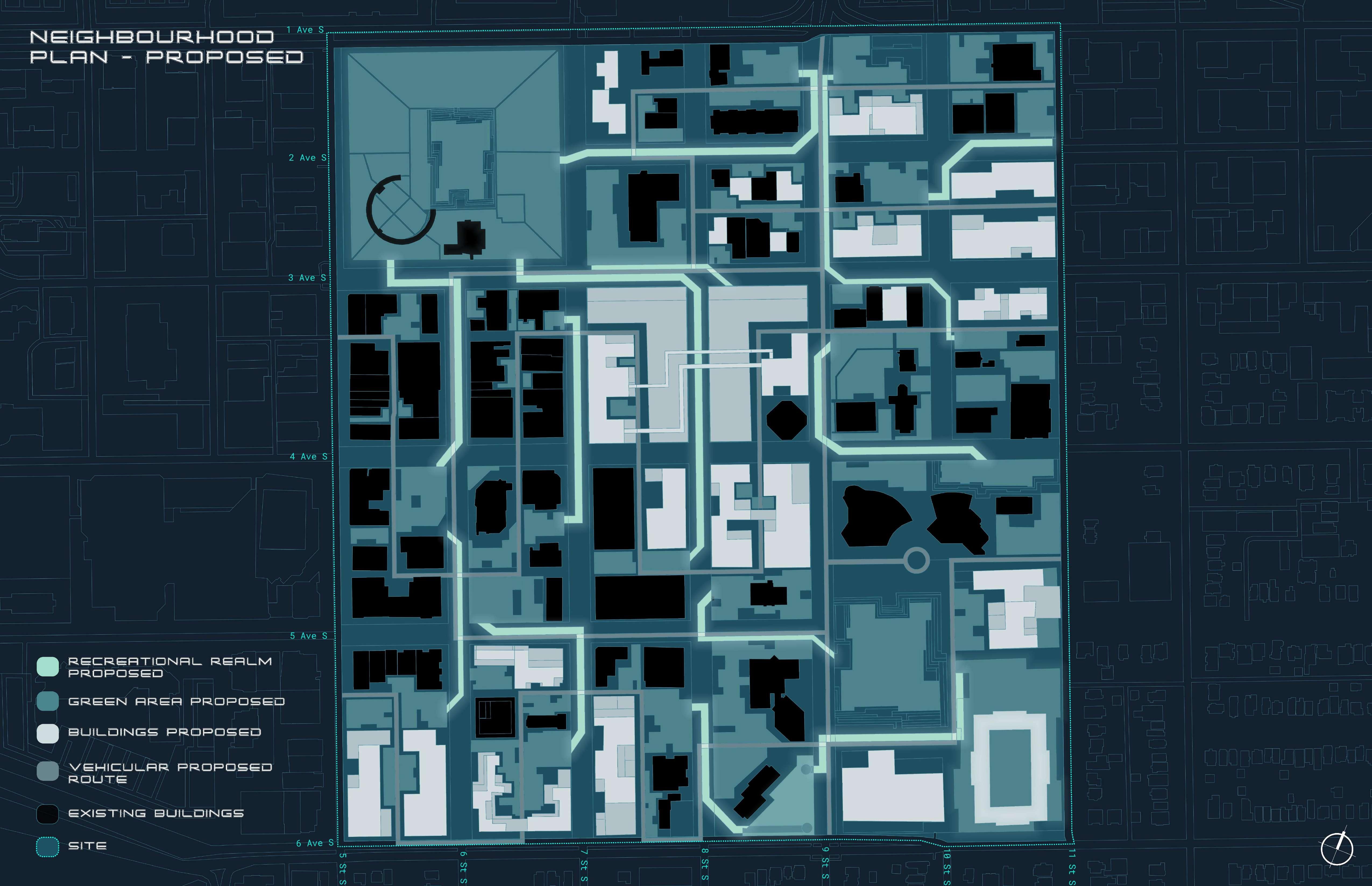

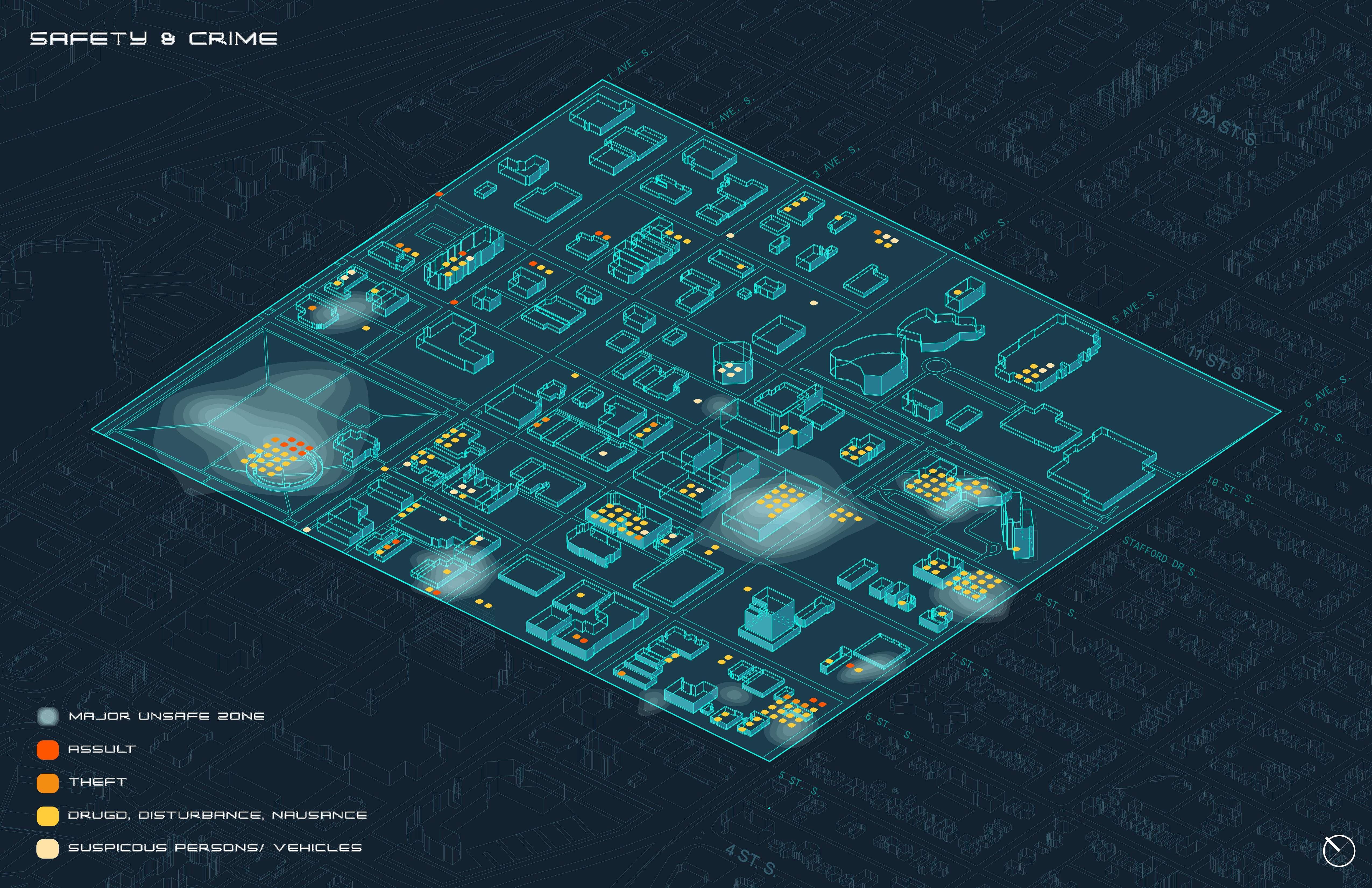

CONTEXT PLAN
