WASTE CALCULATION
ROOF NOTE 1: 255MM REINFORCED CONCRETE SLAB 60MM EPS INSULATION SCREED TO FALL: MIN= 30MM, MAX=100MM 4MM THICK DERBIGUM CG3 AND CG4 TORCH-ON WATERPROOFING LAYER ABE ALUMINIUM PAINT, TWO LAYERS
PLUVIA SYSTEM FULL BORE SYSTEMS
SOLAR PANEL NOTE: PANELS MEASURE 2100×1300 MM AND ARE FIXED TO SUPPORTS ON THE ROOF SLAB.
TILT ANGLE OF 20° FACING NORTH FOR OPTIMAL SUNLIGHT EXPOSURE AND DRAINAGE.
USE CORROSION-RESISTANT MOUNTING HARDWARE WITH UV-RESISTANT SEALS. APPLY DERBIGUM WATERPROOFING AND METAL FLASHING AROUND ALL PENETRATIONS TO ENSURE A WATERTIGHT SEAL.
ROOF NOTE 2: ATRIUM DETAIL
ATRIUM RUNS FROM FIRST FLOOR SLAB TO ROOF SLAB, WITH DOUBLE-HEIGHT GLAZING FOR MAXIMUM LIGHT PENETRATION AND VENTILATION. PROVIDE DERBIGUM WATERPROOFING ON ALL ATRIUM EDGES TO PROTECT AGAINST WATER INGRESS
BALCONY NOTE:
•
220MM PARAPET WALL, 1100MM HIGH 60MM STEP DOWN IN REINFORCED CONCRETE SLAB
30MM RIGID INSULATION SCREED TO FALL: MIN= 30MM, MAX=100MM 4MM THICK DERBIGUM CG3 AND CG4 TORCH-ON WATERPROOFING LAYER PLUVIA SYSTEM FULL BORE OUTLETS
200×100×20MM TILE AFRICA, GREY SANDSTONE PAVERS

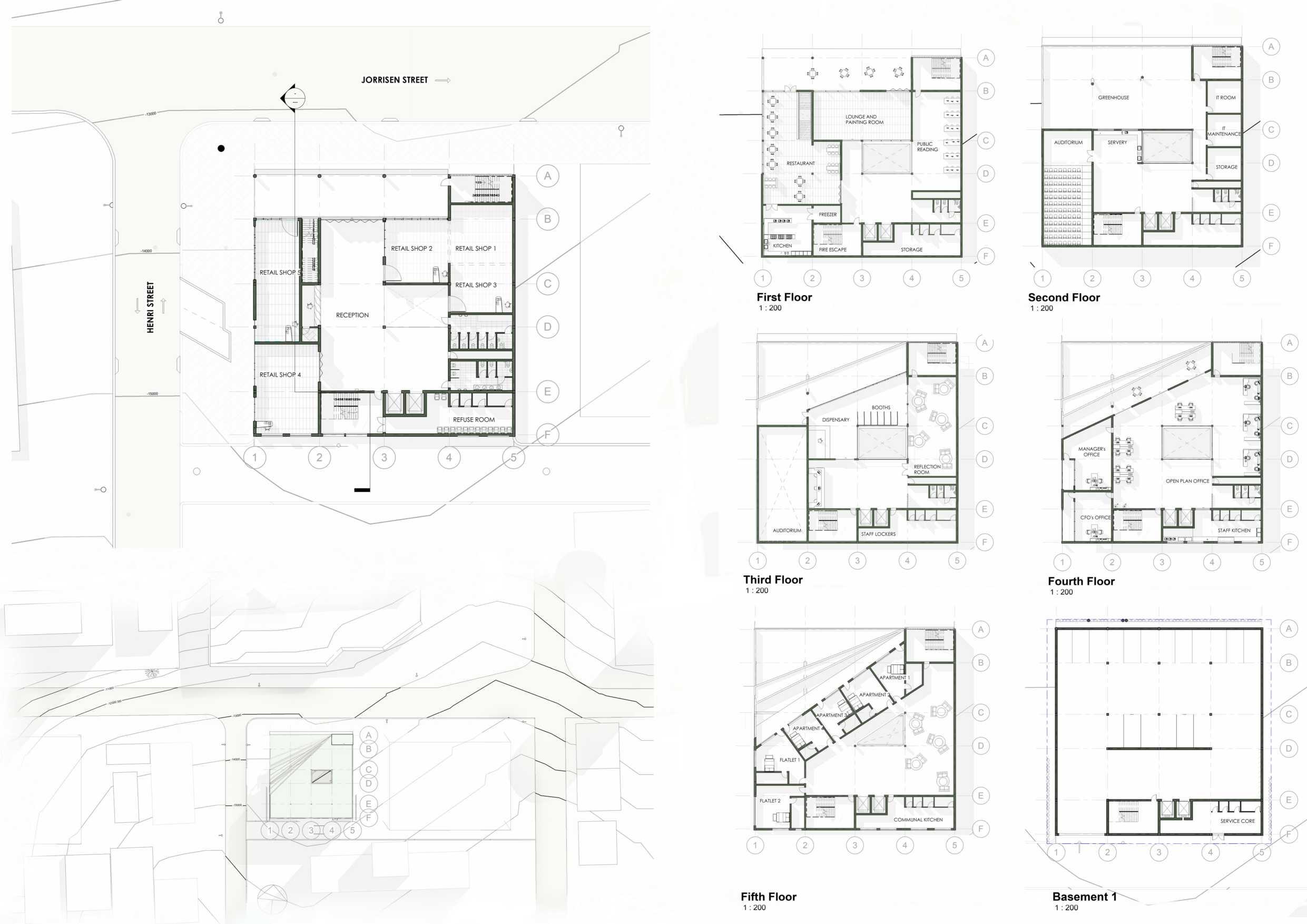

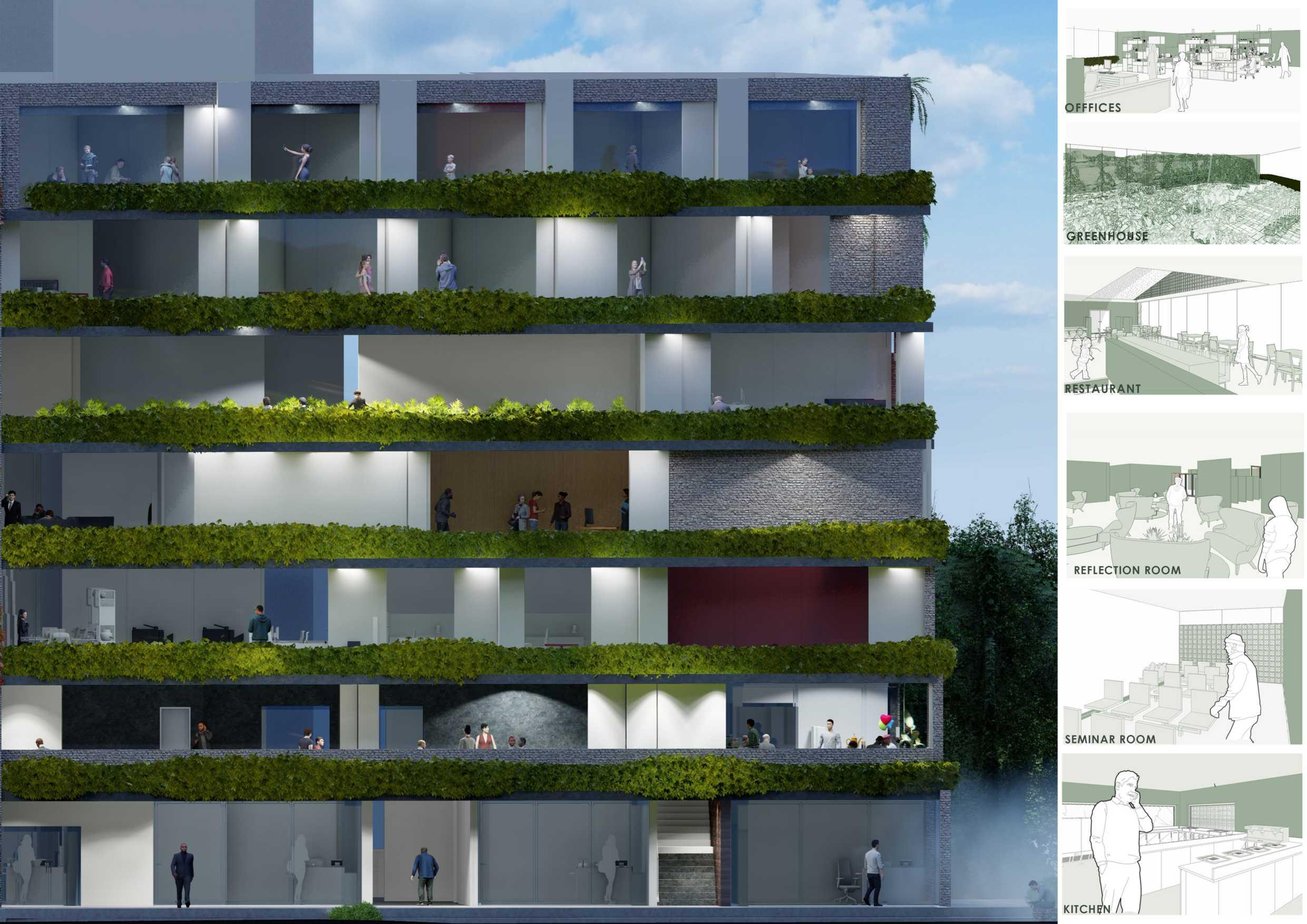

JORISSEN STREET
ROOF NOTE: NON-TRAFFICABLE FLAT ROOF WITH A PARAPET WALL, FEATURES SOLAR PANELS AND FIRE TANKS. 1 FIRE ESCAPE GIVING ACCESS TO ROOF FOR MAINTENANCE PURPOSES.
255MM REINFORCED CONCRETE SLAB 60MM EPS INSULATION SCREED TO FALL: MIN= 30MM, MAX=100MM 4MM THICK DERBIGUM CG3 AND CG4 TORCH-ON WATERPROOFING LAYER ABE ALUMINIUM PAINT, TWO LAYERS PLUVIA SYSTEM FULL BORE SYSTEMS

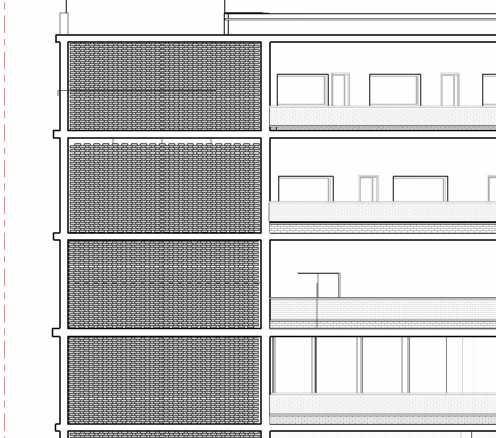

SLAB NOTE: BUILDING CONSISTS OF CANTILEVERING SLABS THAT EXTEND BEYOND THEIR STRUCTURAL SUPPORTS, REFER TO DRAWING SUITE AND ENGINEERING SPECIFICATIONS.

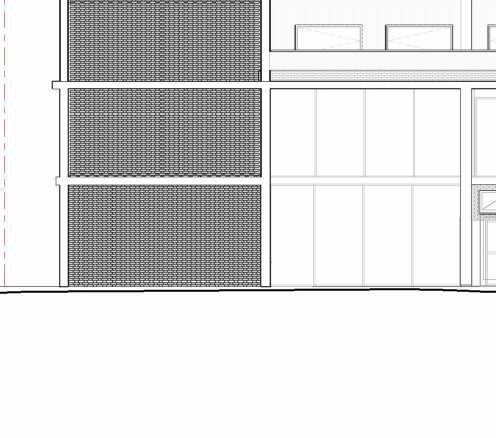

BALUSTRADE: 220MM BRICKWORK BALUSTRADE/PLANTER MADE UP OF 225×110×75MM COROBRICK,
225×110×75MM COROBRICK, PERFORATED BRICK SCREEN, SKU: CBPS225, SCREEN PATTERN CREATED THROUGH WIRE CUTTING, SPANS BETWEEN FLOORS
MODULAR VERTICAL GARDEN SYSTEM: HIGH-STRENGTH STAINLESS STEEL BOLTS AND ALUMINUM STRUCTURAL FRAME HOLDING 400×400MM MODULOGREEN, GREY PLANTING CELLS WITH A WATER CATCHING SYSTEM AT THE BOTTOM
220×110×75MM RECLAIMED BRICKS, RECYCLED FROM DEMOLITION OF THE WITS SOUTH COURT BUILDING

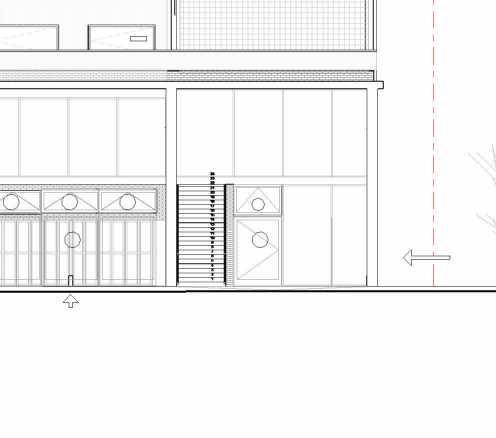

6MM LAMINATED GLASS SHOP FRONT ON AN ALUMINIUM FRAME 1830MM GLASS PANE WITH SUPPORTING MULLIONS

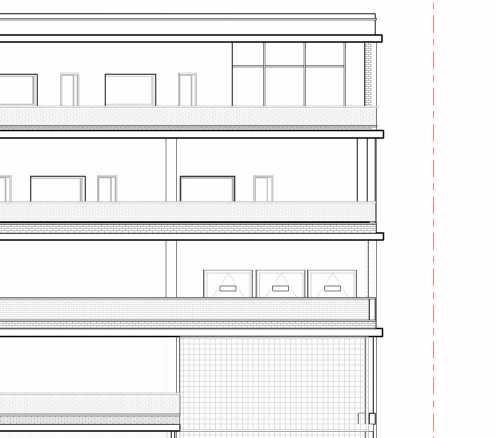

HENRI STREET
5MM DERBIGUM, TORCH-ON WATERPROOFING CG4
DOUBLE LAYER, APPLIED UNDERNEATH COPING, SCREED AND PARAPET WALL AS PER INSTALLATION INSTRUCTIONS SCREED LAYER TO FALL WITH DEPTH RANGING FROM 30 - 100MM
⌀89 KESSEL, GREY PLUVIA SIPHONIC SYSTEM FULL BORE OUTLET, SKU: 3abcd999, IMBEDDED INTO SLAB CONNECTED WITH ⌀80 DOWN PIPES
25×360MM SPAZIO, LIGHT SILVER HANGER WIRE, SKU: 81483716, SUSPENDED FROM SLAB
10×1200×2500MM LEROY MERLIN, WHITE CEILING GYPSUM BOARD, SKU: 674JDFguE4, TO BE SUPPORTED BY SUSPENSION WIRE
2340×2500MM LEROY MERLIN, ALUMINIUM SLIDING WINDOW NATURAL 1 PANE SLIDING DOOR, SKU: 81482200
22MM OGGIE, TONGUE-AND-GROOVE SAP TIMBER FLOORBOARDS, SKU: 1122, FIXED ON 50X152MM PRESSURE-TREATED PINE JOISTS SPACED AT 330MM CENTERS, SANDED AND SEALED WITH POLYURETHANE VARNISH, SECURED WITH COUNTERSUNK SCREWS
SQUARE REINFORCED CONCRETE COLUMN 20MPA @28
25×360MM SPAZIO, LIGHT SILVER HANGER WIRE, SKU: 81483716, SUSPENDED FROM SLAB
10×1200×2500MM LEROY MERLIN, WHITE CEILING GYPSUM BOARD, SKU: 674JDFguE4, TO BE SUPPORTED BY SUSPENSION WIRE
2640×2400MM LEROY MERLIN, BI-FOLD DOOR FIXED IN A STEEL FRAME WITH A 600MM WIDE ALUMINUM TOP HUNG WINDOW, FINISHED WITH EXTERIOR GRADE PAINT AND INSTALLED WITH HEAVY-DUTY HINGES AND SECURITY LOCKING MECHANISM
450×450MM SQUARE REINFORCED CONCRETE COLUMN 20MPA @28 DAYS
22MM OGGIE, TONGUE-AND-GROOVE SAP TIMBER FLOORBOARDS, SKU: 1122, FIXED ON 50X225MM PRESSURE-TREATED PINE JOISTS SPACED AT 330MM CENTERS, SANDED AND SEALED WITH POLYURETHANE VARNISH, SECURED WITH COUNTERSUNK SCREWS
265MM REINFORCED CONCRETE SLAB
⌀80 MARLYER PIPES, WHITE ROUND UPVC DOWNPIPE, SKU: 20370, CAST INTO COLUMN
PRINTED DESIGN FILM MADE OF DECORATIVE MATERIAL, FINISHED WITH A PRINTED WOOD PATTERN, SK: 9952 10MM PRIMELAY, PVC BASE LAYER FIXED AND ACTS AS THE MAIN SUPPORT FOR THE FLOORING SYSTEM, SK: 9975
265MM REINFORCED CONCRETE SLAB
360×130MM SMARTSTONE, PRECAST CONCRETE COPING, SLOPING TO THE INTERIOR AND A WATERPROOFING DRIP
40MM×40MM M-TEK GALVANISED STEEL ROOF CORNER FILLET, POWDER-COATED FINISH, FIXED USING GALVANISED FASTENERS
200×100×20MM TILE AFRICA, GREY SANDSTONE PAVER TILES, SKU: 17PAVGFRUUWBDV, TO BE INSTALLED PER MANUFACTURERS GUIDELINES 265MM REINFORCED CONCRETE SLAB 220MM REINFORCED CONCRETE PARAPET WALL
MARLYER PIPES, WHITE ROUND UPVC
SKU: 20370, CAST INTO COLUMN
25×50MM MAGNUS GROUP, MILD STEEL SPECIMESH SHEET
25×535MM
80MM ISOMOULDERS, WHITE EXPANDED POLYSTYRENE INSULATION, SKU:134DFz, TO BE PLACED UNDERNEATH LAYER OF SCREED ON ROOF SLAB
PROUDPLANTS, OLIENHOUT SHRUB, SKU: 18016
600MM ORGANIC SOIL, ROOT LAYER FIXED FOR OPTIMAL NUTRIENT AVAILABILITY AND PLANT GROWTH.
MODULOGREEN, GRAVEL DRAINAGE LAYER FIXED TO PROVIDE WATER FLOW AND PREVENT WATERLOGGING, SK: 3450
1.5MM MODULOGREEN, BITUMINOUS WATERPROOF MEMBRANE, WATERPROOF LAYER FIXED TO PROTECT THE STRUCTURE BELOW FROM WATER PENETRATION 3MM MODULOGREEN, NON-WOVEN GEOTEXTILE MAT, FILTER LAYER FIXED TO SEPARATE SOIL FROM DRAINAGE AND PREVENT CLOGGING
⌀89 KESSEL, GREY PLUVIA SIPHONIC SYSTEM FULL BORE OUTLET, SKU: 3abcd999, IMBEDDED INTO SLAB CONNECTED WITH ⌀
30MM ISOMOULDERS, WHITE EXPANDED POLYSTYRENE INSULATION, SKU:134DFz, TO BE PLACED IN 280MM BRICK WALL CAVITY
70MM×15MM MR CORNICE, ALUMINUM ARCHITRAVE INSTALLED AROUND THE DOOR FRAME, SKU: JD980
38×200×2500MM MENTIS AFRICA, GALVANISED BLACK MENTIS GRATE, SKU: 46598
KJWY34, LAID IN A HERRINGBONE PATTERN ON COMPACTED SAND BEDDING
MENTIS AFRICA, GALVANISED BLACK MENTIS GRATE, SKU: 46598 ⌀89 KESSEL, GREY PLUVIA SIPHONIC SYSTEM FULL BORE OUTLET, SKU: 3abcd999, IMBEDDED INTO
CONNECTED WITH
30MM ISOMOULDERS, WHITE EXPANDED POLYSTYRENE INSULATION, SKU:134DFz, TO BE PLACED IN 280MM BRICK WALL CAVITY
HIGH-STRENGTH STAINLESS STEEL BOLTS AND ALUMINUM STRUCTURAL FRAME, SKU: BSF9, SECURED TO PROVIDE STABILITY AND SUPPORT FOR MODULAR SYSTEM.
280MM MASONRY STOCK BRICK CAVITY WALL. PLASTERED AND PAINTED INTERIOR
85×1200MM MODULOGREEN, SELF REGULATING DRIP LINE
807×900×178MM MODULOGREEN, GREY PLANTING CELLS, SKU: GHU8, FIXED TO STRUCTURAL FRAME
300×270MM MODULOGREEN, GREY ANODISED WATER CATCHMENT AND FILTRATION TRAY, SKU: WCT8, FIXED TO STRUCTURAL FRAME.
materialstocreateaspacethatfeelsasgroundedinplaceasitisinculture

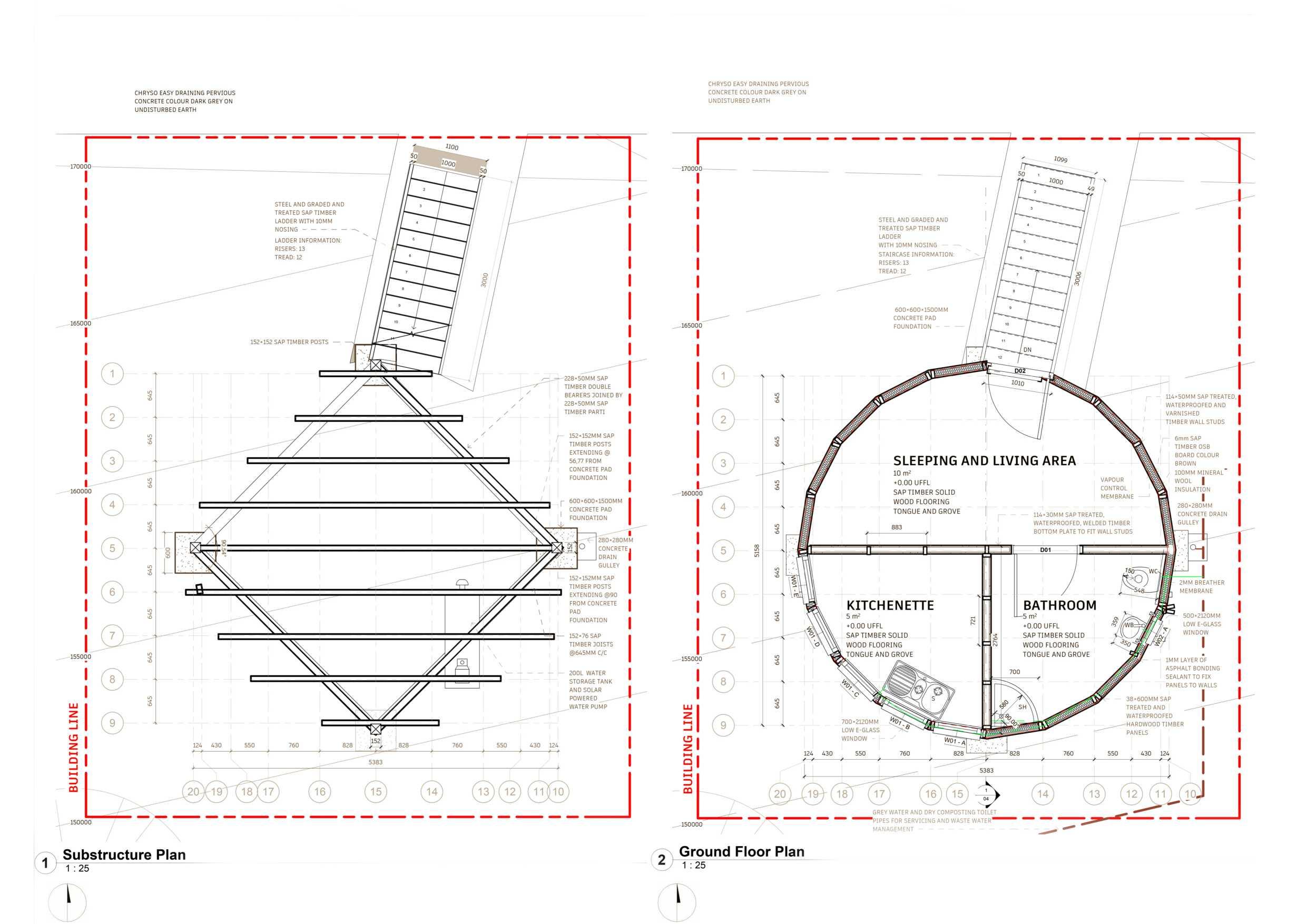

NestledwithintheenchantingindigenousforestsofTsitsikamma,thisoff-the-gridshelterstandsasatributetotheoncethrivingforestelephants,ofwhichonlyoneremainstoday
Theshelter’sform embodiessustainabilitywhilesymbolicallyraisingawareness,subtlyevokingthesilhouetteofanelephant whenviewedfrom adistance
Thisprojectseekstostrikeathoughtfulbalancebetweensustainableconstructionpracticesandthepreservationof endangeredspeciesByintegratingeco-consciousdesignwithconservationefforts,itemphasizesthecoexistenceofi nnovativearchitectureandenvironmentalstewardship
tofacilitate and accomodate formultifunctional spaces
tosupportthe well-being of users
tosimulate performance conditions
SCALE1:25
SCALE1:25
SECTION C-C
SCALE1:25
SECTION B-B
SCALE1:25
SECTION D-D
SCALE1:25
HYDRATION STATION
a place where perfformer canfillup theirwaterbottles and checknotice board forbookingsand anything pertaining the rehearsal space.
SLIDING ROOM DIVIDERS
creates2spacesinthe room to accomodate formulti-use and smallerpracticessuchassolos and duos.
1
2 3
