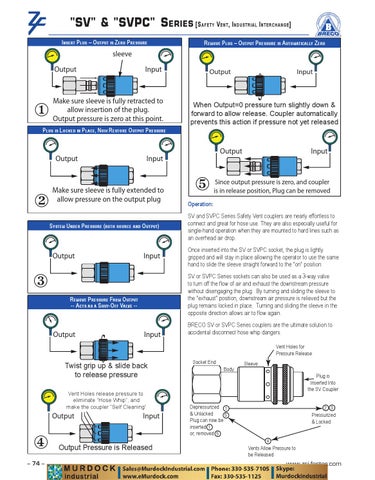

"SV" & "SVPC" S eries [Safety Vent, Industrial Interchange] Insert Plug – Output is Zero Pressure
Remove Plug – Output Pressure is Automatically Zero
sleeve Output
①
Input
Make sure sleeve is fully retracted to allow insertion of the plug. Output pressure is zero at this point.
Output
Input
When Output=0 pressure turn slightly down & forward to allow release. Coupler automatically prevents this action if pressure not yet released
Plug is Locked in Place, Now Restore Output Pressure
Output
②
Make sure sleeve is fully extended to allow pressure on the output plug
System Under Pressure (both source and Output)
Output
Input
③
⑤
Input
Since output pressure is zero, and coupler is in release position, Plug can be removed
Operation: SV and SVPC Series Safety Vent couplers are nearly effortless to connect and great for hose use. They are also especially useful for single-hand operation when they are mounted to hard lines such as an overhead air drop. Once inserted into the SV or SVPC socket, the plug is lightly gripped and will stay in place allowing the operator to use the same hand to slide the sleeve straight forward to the "on" position. SV or SVPC Series sockets can also be used as a 3-way valve to turn off the flow of air and exhaust the downstream pressure without disengaging the plug. By turning and sliding the sleeve to the "exhaust" position, downstream air pressure is relieved but the plug remains locked in place. Turning and sliding the sleeve in the opposite direction allows air to flow again.
Remove Pressure From Output -- Acts as a Shut-Off Valve --
Output
Output
Input
Input
BRECO SV or SVPC Series couplers are the ultimate solution to accidental disconnect hose whip dangers. Vent Holes for Pressure Release
Twist grip up & slide back to release pressure Vent Holes release pressure to eliminate “Hose Whip”, and make the coupler “Self Cleaning”
Output
④ – 74 –
Input
Output Pressure is Released
Socket End Body
Sleeve Plug is Inserted Into the SV Coupler
Depressurized 1 & Unlocked 5 Plug can now be inserted 1 or, removed 5
2 3
Pressurized & Locked 4
Vents Allow Pressure to be Released
