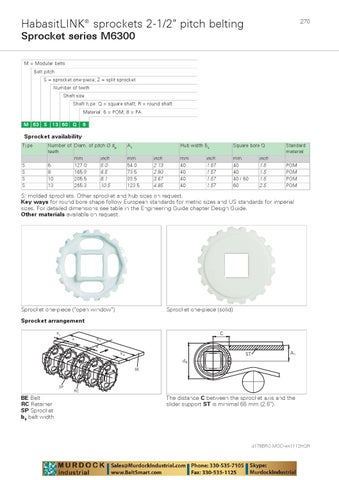

HabasitLINKÂŽ sprockets 2-1/2" pitch belting
270
Sprocket series M6300 M = Modular belts Belt pitch S = sprocket one-piece; Z = split sprocket Number of teeth Shaft size Shaft type: Q = square shaft; R = round shaft Material: 6 = POM; 8 = PA M 63
S
13 60 Q
6
Sprocket availability Type
S S S S
Number of Diam. of pitch Ă˜ dp teeth mm inch 6 127.0 5.0 8 165.9 6.5 10 205.5 8.1 13 265.3 10.5
A1 mm 54.0 73.5 93.5 123.5
inch 2.13 2.90 3.67 4.85
Hub width BL
Square bore Q
mm 40 40 40 40
mm 40 40 40 / 60 60
inch 1.57 1.57 1.57 1.57
inch 1.5 1.5 1.5 2.5
Standard material POM POM POM POM
S: molded sprockets. Other sprocket and hub sizes on request. Key ways for round bore shape follow European standards for metric sizes and US standards for imperial sizes. For detailed dimensions see table in the Engineering Guide chapter Design Guide. Other materials available on request.
Sprocket one-piece ("open window")
Sprocket one-piece (solid)
Sprocket arrangement
BE Belt RC Retainer SP Sprocket b0 belt width
The distance C between the sprocket axis and the slider support ST is minimal 66 mm (2.6").
