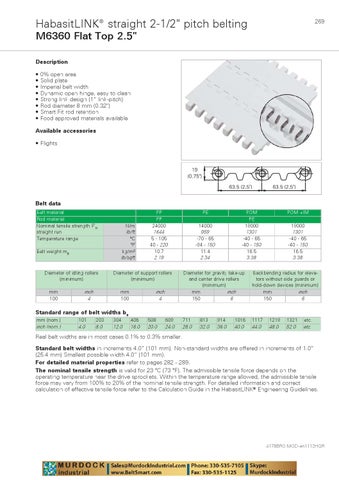

HabasitLINK® straight 2-1/2" pitch belting
269
M6360 Flat Top 2.5" Description • • • • • • • •
0% open area Solid plate Imperial belt width Dynamic open hinge, easy to clean Strong link design (1” link-pitch) Rod diameter 8 mm (0.32") Smart Fit rod retention Food approved materials available
Available accessories • Flights
Belt data Belt material Rod material Nominal tensile strength F'N straight run Temperature range Belt weight mB
Diameter of idling rollers (minimum) mm 100
inch 4
N/m lb/ft °C °F kg/m² lb/sqft
PP PP 24000 1644 5 - 105 40 - 220 10.7 2.19
Diameter of support rollers (minimum) mm 100
inch 4
PE
POM PE 19000 1301 -40 - 65 -40 - 150 16.5 3.38
14000 959 -70 - 65 -94 - 150 11.4 2.34
POM +IM 19000 1301 -40 - 65 -40 - 150 16.5 3.38
Diameter for gravity take-up and center drive rollers (minimum) mm inch 150 6
Backbending radius for elevators without side guards or hold-down devices (minimum) mm inch 150 6
711 28.0
1117 44.0
Standard range of belt widths b0 mm (nom.) inch (nom.)
101 4.0
203 8.0
304 12.0
406 16.0
508 20.0
609 24.0
813 32.0
914 36.0
1016 40.0
1219 48.0
1321 52.0
etc. etc.
Real belt widths are in most cases 0.1% to 0.3% smaller. Standard belt widths in increments 4.0” (101 mm). Non-standard widths are offered in increments of 1.0” (25.4 mm) Smallest possible width 4.0” (101 mm). For detailed material properties refer to pages 282 - 289. The nominal tensile strength is valid for 23 °C (73 °F). The admissible tensile force depends on the operating temperature near the drive sprockets. Within the temperature range allowed, the admissible tensile force may vary from 100% to 20% of the nominal tensile strength. For detailed information and correct calculation of effective tensile force refer to the Calculation Guide in the HabasitLINK® Engineering Guidelines.
