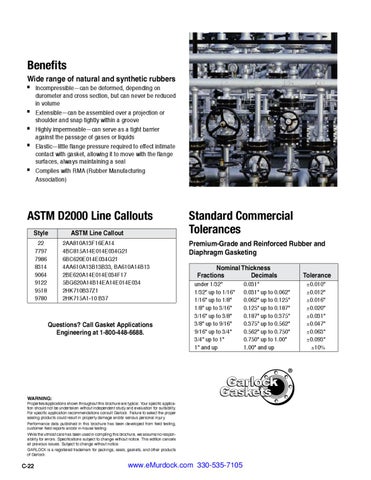

Benefits Wide range of natural and synthetic rubbers
Incompressible—can be deformed, depending on durometer and cross section, but can never be reduced in volume ■ Extensible—can be assembled over a projection or shoulder and snap tightly within a groove ■ Highly impermeable—can serve as a tight barrier against the passage of gases or liquids ■ Elastic—little flange pressure required to effect intimate contact with gasket, allowing it to move with the flange surfaces, always maintaining a seal ■ Complies with RMA (Rubber Manufacturing Association) ■
ASTM D2000 Line Callouts Style
22 7797 7986 8314 9064 9122 9518 9780
ASTM Line Callout 2AA810A13F16EA14 4BC815A14E014E034G21 6BC620E014E034G21 4AA610A13B13B33, BA610A14B13 2BE620A14E014E034F17 5BG620A14B14EA14E014E034 2HK710B37Z1 2HK715A1-10 B37
Questions? Call Gasket Applications Engineering at 1-800-448-6688.
Standard Commercial Tolerances Premium-Grade and Reinforced Rubber and Diaphragm Gasketing
Nominal Thickness Fractions Decimals under 1/32" 1/32" up to 1/16" 1/16" up to 1/8" 1/8" up to 3/16" 3/16" up to 3/8" 3/8" up to 9/16" 9/16" up to 3/4" 3/4" up to 1" 1" and up
Tolerance
0.031" 0.031" up to 0.062" 0.062" up to 0.125" 0.125" up to 0.187" 0.187" up to 0.375" 0.375" up to 0.562" 0.562" up to 0.750" 0.750" up to 1.00" 1.00" and up ®
Garlock Gaskets
WARNING:
Properties/applications shown throughout this brochure are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Garlock. Failure to select the proper sealing products could result in property damage and/or serious personal injury.
Performance data published in this brochure has been developed from field testing, customer field reports and/or in-house testing.
While the utmost care has been used in compiling this brochure, we assume no responsibility for errors. Specifications subject to change without notice. This edition cancels all previous issues. Subject to change without notice. GARLOCK is a registered trademark for packings, seals, gaskets, and other products of Garlock.
C-22
www.eMurdock.com 330-535-7105
±0.010" ±0.012" ±0.016" ±0.020" ±0.031" ±0.047" ±0.063" ±0.093" ±10%
