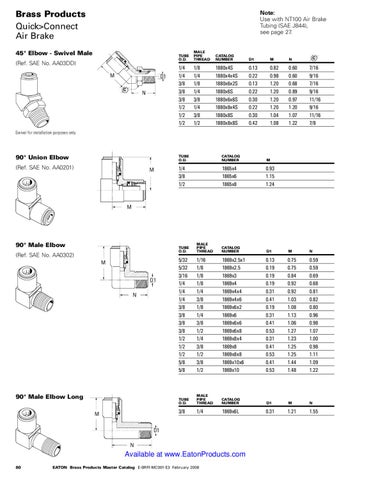

Brass Products Quick>Connect Air Brake
Note: Use with NT100 Air Brake Tubing (SAE J844), see page 27.
45째 Elbow - Swivel Male (Ref. SAE No. AA03DD) M
D1 C
N
Male Tube Pipe O.D. Thread
Catalog Number D1 M N
1/4 1/4 3/8 3/8 3/8 1/2 1/2 1/2
1880x4S 1880x4x4S 1880x6x2S 1880x6S 1880x6x6S 1880x8x4S 1880x8S 1880x8x8S
1/8 1/4 1/8 1/4 3/8 1/4 3/8 1/2
0.13 0.22 0.13 0.22 0.30 0.22 0.30 0.42
0.82 0.98 1.20 1.20 1.20 1.20 1.04 1.08
C
0.60 0.60 0.68 0.89 0.97 1.20 1.07 1.22
7/16 9/16 7/16 9/16 11/16 9/16 11/16 7/8
Swivel for installation purposes only.
90째 Union Elbow (Ref. SAE No. AA0201)
M
Tube O.D.
Catalog Number
M
1/4 3/8 1/2
1865x4 1865x6 1865x8
0.93 1.15 1.24
M
90째 Male Elbow (Ref. SAE No. AA0302) M D1 N
90째 Male Elbow Long M
Tube O.D.
Male Pipe Thread
Catalog Number
D1
M
N
5/32 5/32 3/16 1/4 1/4 1/4 3/8 3/8 3/8 3/8 1/2 1/2 1/2 5/8 5/8
1/16 1/8 1/8 1/8 1/4 3/8 1/8 1/4 3/8 1/2 1/4 3/8 1/2 3/8 1/2
1869x2.5x1 1869x2.5 1869x3 1869x4 1869x4x4 1869x4x6 1869x6x2 1869x6 1869x6x6 1869x6x8 1869x8x4 1869x8 1869x8x8 1869x10x6 1869x10
0.13 0.19 0.19 0.19 0.31 0.41 0.19 0.31 0.41 0.53 0.31 0.41 0.53 0.41 0.53
0.75 0.75 0.84 0.92 0.92 1.03 1.08 1.13 1.06 1.27 1.23 1.25 1.25 1.44 1.48
0.59 0.59 0.69 0.68 0.81 0.82 0.80 0.96 0.98 1.07 1.00 0.98 1.11 1.09 1.22
Tube O.D.
Male Pipe Thread
Catalog Number
D1
M
N
3/8
1/4
1869x6L
0.31
1.21
1.55
D1 N
Available at www.EatonProducts.com 80
EATON Brass Products Master Catalog E-BRFI-MC001-E3 February 2008
