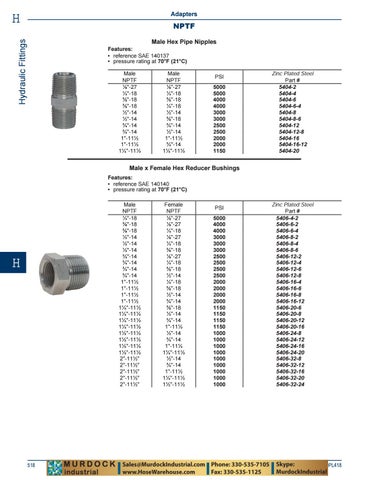

Adapters
Hydraulic Fittings
NPTF Male Hex Pipe Nipples Features: • reference SAE 140137 • pressure rating at 70°F (21°C)
Male NPTF ⅛"-27 ¼"-18 ⅜"-18 ⅜"-18 ½"-14 ½"-14 ¾"-14 ¾"-14 1"-11½ 1"-11½ 1¼"-11½
Male NPTF ⅛"-27 ¼"-18 ⅜"-18 ¼"-18 ½"-14 ⅜"-18 ¾"-14 ½"-14 1"-11½ ¾"-14 1¼"-11½
PSI 5000 5000 4000 4000 3000 3000 2500 2500 2000 2000 1150
Zinc Plated Steel Part # 5404-2 5404-4 5404-6 5404-6-4 5404-8 5404-8-6 5404-12 5404-12-8 5404-16 5404-16-12 5404-20
Male x Female Hex Reducer Bushings Features: • reference SAE 140140 • pressure rating at 70°F (21°C)
Male NPTF ¼"-18 ⅜"-18 ⅜"-18 ½"-14 ½"-14 ½"-14 ¾"-14 ¾"-14 ¾"-14 ¾"-14 1"-11½ 1"-11½ 1"-11½ 1"-11½ 1¼"-11½ 1¼"-11½ 1¼"-11½ 1¼"-11½ 1½"-11½ 1½"-11½ 1½"-11½ 1½"-11½ 2"-11½" 2"-11½" 2"-11½" 2"-11½" 2"-11½"
H
518
Female NPTF ⅛"-27 ⅛"-27 ¼"-18 ⅛"-27 ¼"-18 ⅜"-18 ⅛"-27 ¼"-18 ⅜"-18 ½"-14 ¼"-18 ⅜"-18 ½"-14 ¾"-14 ⅜"-18 ½"-14 ¾"-14 1"-11½ ½"-14 ¾"-14 1"-11½ 1¼"-11½ ½"-14 ¾"-14 1"-11½ 1¼"-11½ 1½"-11½
PSI 5000 4000 4000 3000 3000 3000 2500 2500 2500 2500 2000 2000 2000 2000 1150 1150 1150 1150 1000 1000 1000 1000 1000 1000 1000 1000 1000
877.963.4966 • dixonvalve.com
Zinc Plated Steel Part # 5406-4-2 5406-6-2 5406-6-4 5406-8-2 5406-8-4 5406-8-6 5406-12-2 5406-12-4 5406-12-6 5406-12-8 5406-16-4 5406-16-6 5406-16-8 5406-16-12 5406-20-6 5406-20-8 5406-20-12 5406-20-16 5406-24-8 5406-24-12 5406-24-16 5406-24-20 5406-32-8 5406-32-12 5406-32-16 5406-32-20 5406-32-24
