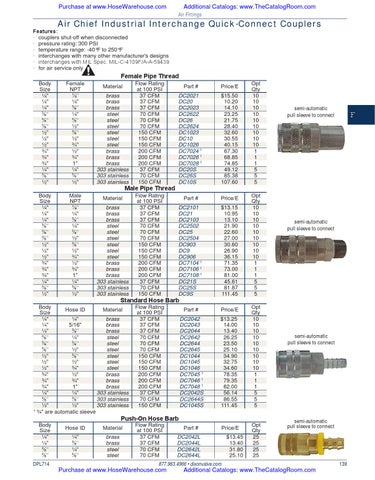

Air Chief Industrial Interchange Quick-Connect Couplers
Features: • couplers shut-off when disconnected • pressure rating: 300 PSI • temperature range: -40°F to 250°F • interchanges with many other manufacturer's designs • interchanges with MIL Spec. MIL-C-4109F/A-A-59439 • for air service only Body Size ¼" ¼" ¼" ⅜" ⅜" ⅜" ½" ½" ½" ¾" ¾" ¾" ¼" ⅜" ½"
Female NPT ⅛" ¼" ⅜" ¼" ⅜" ½" ⅜" ½" ¾" ½" ¾" 1" ¼" ⅜" ½"
Body Size ¼" ¼" ¼" ⅜" ⅜" ⅜" ½" ½" ½" ¾" ¾" ¾" ¼" ⅜" ½"
Male NPT ⅛" ¼" ⅜" ¼" ⅜" ½" ⅜" ½" ¾" ½" ¾" 1" ¼" ⅜" ½"
Female Pipe Thread
Material brass brass brass steel steel steel steel steel steel brass brass brass 303 stainless 303 stainless 303 stainless
Male Pipe Thread
Material brass brass brass steel steel steel steel steel steel brass brass brass 303 stainless 303 stainless 303 stainless
DPL714
Flow Rating at 100 PSI 37 CFM 37 CFM 37 CFM 70 CFM 70 CFM 70 CFM 150 CFM 150 CFM 150 CFM 200 CFM 200 CFM 200 CFM 37 CFM 70 CFM 150 CFM
Part #
Price/E
DC2021 DC20 DC2023 DC2622 DC26 DC2624 DC1023 DC10 DC1026 DC7024 1 DC7026 1 DC7028 1 DC20S DC26S DC10S
$15.50 10.20 14.10 23.25 21.75 28.40 32.60 30.55 40.15 67.30 68.85 74.85 49.12 85.38 107.60
Part #
Price/E
DC2101 DC21 DC2103 DC2502 DC25 DC2504 DC903 DC9 DC906 DC7104 1 DC7106 1 DC7108 1 DC21S DC25S DC9S
$13.15 10.95 13.10 21.90 22.60 27.00 30.60 26.90 36.15 71.35 73.00 81.00 45.61 81.87 111.45
Part #
Price/E
DC2042 DC2043 DC2044 DC2642 DC2644 DC2645 DC1044 DC1045 DC1046 DC7045 1 DC7046 1 DC7048 1 DC2042S DC2644S DC1045S
$13.25 14.00 13.40 26.25 23.50 25.10 34.90 32.75 34.60 78.35 79.35 82.00 56.14 86.55 111.45
Part #
Price/E
Standard Hose Barb
Body Hose ID Material Size ¼" ¼" brass ¼" 5/16" brass ¼" ⅜" brass ⅜" ¼" steel ⅜" ⅜" steel ⅜" ½" steel ½" ⅜" steel ½" ½" steel ½" ¾" steel ¾" ½" brass ¾" ¾" brass ¾" 1" brass ¼" ¼" 303 stainless ⅜" ⅜" 303 stainless ½" ½" 303 stainless 1 ¾" are automatic sleeve Body Size ¼" ¼" ⅜" ⅜"
Flow Rating at 100 PSI 37 CFM 37 CFM 37 CFM 70 CFM 70 CFM 70 CFM 150 CFM 150 CFM 150 CFM 200 CFM 200 CFM 200 CFM 37 CFM 70 CFM 150 CFM
Flow Rating at 100 PSI 37 CFM 37 CFM 37 CFM 70 CFM 70 CFM 70 CFM 150 CFM 150 CFM 150 CFM 200 CFM 200 CFM 200 CFM 37 CFM 70 CFM 150 CFM
Push-On Hose Barb
Hose ID
Material
¼" ⅜" ¼" ⅜"
brass brass steel steel
Flow Rating at 100 PSI 37 CFM 37 CFM 70 CFM 70 CFM
DC2042L DC2044L DC2642L DC2644L
$13.45 13.40 31.80 25.10
Opt Qty 10 10 10 10 10 10 10 10 10 1 1 1 5 5 5 Opt Qty 10 10 10 10 10 10 10 10 10 1 1 1 5 5 5 Opt Qty 10 10 10 10 10 10 10 10 10 1 1 1 5 5 5 Opt Qty 25 25 25 25
semi-automatic pull sleeve to connect
semi-automatic pull sleeve to connect
semi-automatic pull sleeve to connect
semi-automatic pull sleeve to connect
877.963.4966 • dixonvalve.com
