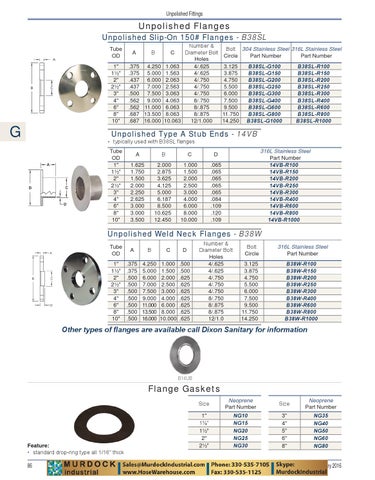

Unpolished Fittings
Unpolished Flanges Unpolished Slip-On 150# Flanges - B38SL Tube OD 1" 1½" 2" 2½" 3" 4" 6" 8" 10"
G
B
A
Number & Bolt 304 Stainless Steel 316L Stainless Steel Diameter Bolt Circle Part Number Part Number Holes 1.063 4/.625 3.125 B38SL-G100 B38SL-R100 1.563 4/.625 3.875 B38SL-G150 B38SL-R150 2.063 4/.750 4.750 B38SL-G200 B38SL-R200 2.563 4/.750 5.500 B38SL-G250 B38SL-R250 3.063 4/.750 6.000 B38SL-G300 B38SL-R300 4.063 8/.750 7.500 B38SL-G400 B38SL-R400 6.063 8/.875 9.500 B38SL-G600 B38SL-R600 8.063 8/.875 11.750 B38SL-G800 B38SL-R800 10.063 12/1.000 14.250 B38SL-G1000 B38SL-R1000 C
.375 4.250 .375 5.000 .437 6.000 .437 7.000 .500 7.500 .562 9.000 .562 11.000 .687 13.500 .687 16.000
Unpolished Type A Stub Ends - 14VB
• typically used with B38SL flanges Tube OD 1" 1½" 2" 2½" 3" 4" 6" 8" 10"
A
B
C
D
1.625 1.750 1.500 2.000 2.250 2.625 3.000 3.000 3.500
2.000 2.875 3.625 4.125 5.000 6.187 8.500 10.625 12.450
1.000 1.500 2.000 2.500 3.000 4.000 6.000 8.000 10.000
.065 .065 .065 .065 .065 .084 .109 .120 .109
316L Stainless Steel Part Number 14VB-R100 14VB-R150 14VB-R200 14VB-R250 14VB-R300 14VB-R400 14VB-R600 14VB-R800 14VB-R1000
Unpolished Weld Neck Flanges - B38W Tube OD
A
B
C
D
1" 1½" 2" 2½" 3" 4" 6" 8" 10"
.375 .375 .500 .500 .500 .500 .500 .500 .500
4.250 5.000 6.000 7.000 7.500 9.000 11.000 13.500 16.000
1.000 1.500 2.000 2.500 3.000 4.000 6.000 8.000 10.000
.500 .500 .625 .625 .625 .625 .625 .625 .625
Number & Diameter Bolt Holes 4/.625 4/.625 4/.750 4/.750 4/.750 8/.750 8/.875 8/.875 12/1.0
Bolt Circle 3.125 3.875 4.750 5.500 6.000 7.500 9.500 11.750 14.250
316L Stainless Steel Part Number B38W-R100 B38W-R150 B38W-R200 B38W-R250 B38W-R300 B38W-R400 B38W-R600 B38W-R800 B38W-R1000
Other types of flanges are available call Dixon Sanitary for information
B14UB
Flange Gaskets
Feature: • standard drop-ring type all 1/16" thick
86
800.789.1718
Size
Neoprene Part Number
Size
Neoprene Part Number
1" 1¼" 1½" 2" 2½"
NG10 NG15 NG20 NG25 NG30
3" 4" 5" 6" 8"
NG35 NG40 NG50 NG60 NG80
Dixon Sanitary 2016
