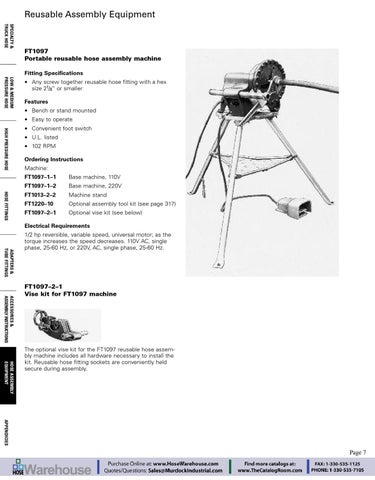

Reusable Assembly Equipment SPECIALTY & TRUCK HOSE
FT1097 Portable reusable hose assembly machine Fitting Specifications LOW & MEDIUM PRESSURE HOSE
• Any screw together reusable hose fitting with a hex size 21/8” or smaller Features • Bench or stand mounted • Easy to operate
HIGH PRESSURE HOSE
• Convenient foot switch • U.L. listed • 102 RPM Ordering Instructions Machine: FT1097–1–1
Base machine, 110V
FT1097–1–2
Base machine, 220V
HOSE FITTINGS
FT1013–2–2
Machine stand
FT1220–10
Optional assembly tool kit (see page 317)
FT1097–2–1
Optional vise kit (see below)
Electrical Requirements
ADAPTERS & TUBE FITTINGS
1/2 hp reversible, variable speed, universal motor; as the torque increases the speed decreases. 110V AC, single phase, 25-60 Hz, or 220V, AC, single phase, 25-60 Hz.
ACCESSORIES & ASSEMBLY INSTRUCTIONS
FT1097–2–1 Vise kit for FT1097 machine
HOSE ASSEMBLY EQUIPMENT
The optional vise kit for the FT1097 reusable hose assembly machine includes all hardware necessary to install the kit. Reusable hose fitting sockets are conveniently held secure during assembly.
APPENDICIES
Page 7 332
EATON Aeroquip Fluid Conveyance Products A-HOOV-MC001-E1 March 2011
