CHAPTER 01

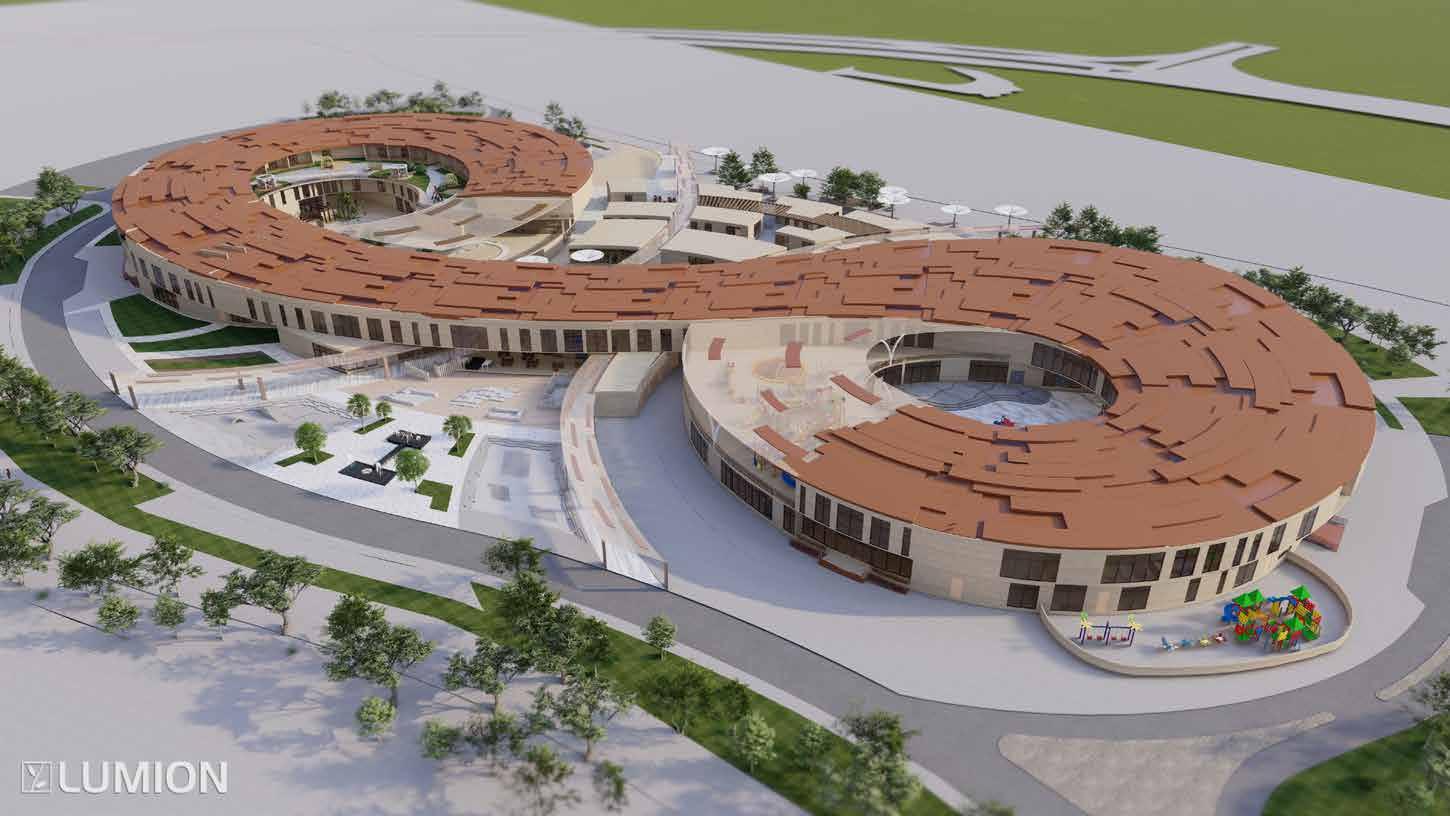

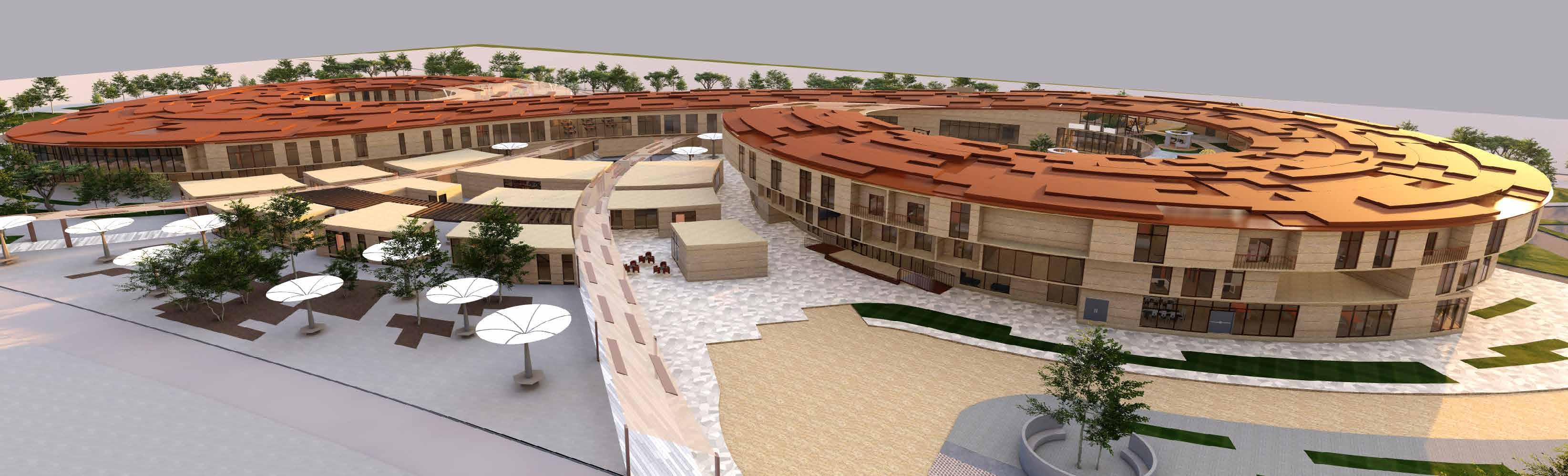

EXUBERENCE I N T E R G E N E R AT I O N A L COMPLEX

4

Project type: Individual Semester: 10 Category: Mixed-Use Project Location: Dubai Science Park, Al Barsha Subject: Architecture Thesis Built-up area: 14,256 sq.m Exuberance Intergenerational complex is an outcome of the thesis design topic that focusses on Intergenerational Spaces for senior citzens and children in built envionments. it is a proposed mixed-use complex includes recreational amenities as well as housing for the UAE’s older population. The recreational facility focuses on intergenerational zones that bring together children and the elderly. The aim of the project is to foster active ageing of senior citizens in UAE. Major requirements for the complex are residence for senior citizens, recreational and entertainment facilities, early learning centre and public services. The idea of a vertical village is devised, with Public plaza and facilities in the lower stratum, recreational facilities for seniors and children in the mid stratum, and a Community Park with apartments for senior citizens in the upper stratum. These three major requirements juxtapose the various building uses in a hierarchy to foster diversity of cross-programming and support inter-generational bonding and promote active ageing in place.

5

Architectural Portfolio | 2017-2022

Megha Pramod

SITE ANALYSIS

P H Y S I C A L A N A LY S I S TERRAIN

A C C E S S I B I LT Y

PA R K I N G

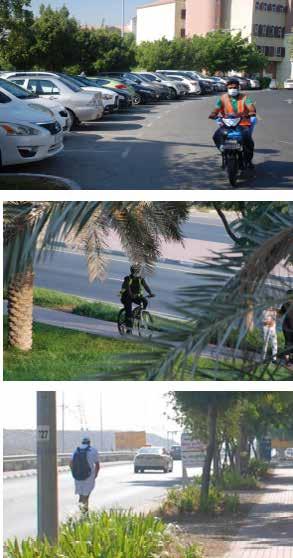

Circulation: There is a 2m wide pedestrian walkway to the northern periphery of the site. The are two pedestrian crossing located on the primary access.

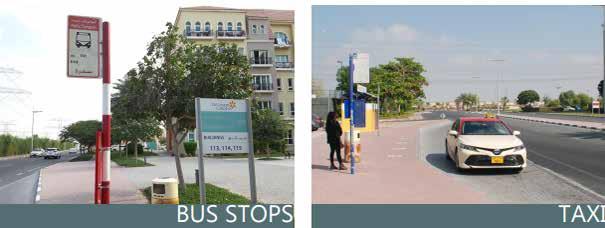

Bus stops: One bus stop is located at the northern edge of the site.

Public parking spaces, as well as accessible parking, are available on the site’s northern boundary.There are two pedestrian crossings situated along the edge of the site.

The site has a fairly plain topography with a gradual rise of 2m from the west to East of the site. The countours are levelled over the course of design.

S O I L C O N D I T I O N / V E G E TAT I O N The site has alluvial soil with little gravels. There is existing wild desert vegetation to the north and east of the site. The northern periphery of the site is bounded by trees of varying sizes.

Site Location: Dubai Science Park, Al Barsha South, Dubai, UAE Total Site Area: 31,369 sq.m

S W O T A N A LY S I S STRENGTH -The site is free from the hustle and bustle of the city -Calm and soothing environment -Location of school and kindergarten in close vicinity can promote intergenerational interaction -Accessibility from Umm Al Suqeim Road -Proximity to facilities including hospitals, mosque and leisure activities -Residential communities near the site -Connectivity to the Green Escape park

S I T E I N F O R M AT I O N NEIGHBOURING CONTEXT

OPPORTUNITY -Lack of nurseries nearby the site increases the potential for day-care and nurseries.

-The site has the potential to bring in elderly citizens due to its prime location within the residential areas - Lack of various facilities for senior citizens and children within the community creates the potential for incorporating these facilities within the complex -Developing an intergenerational center with optimum facilities, latest technologies and compactible design for the elderly and children could be the first of its kind to the communities of Al Barsha, Dubai.

-Potential for development of green spaces within to foster intergenerational interaction

THREAT -Since this project to build an intergenerational complex for the elderly and children is a unique approach in Dubai’s neighborhood, reaching out to senior citizens around the region could be challenging.

1 Al Barsha South 1

Jebal Ali Racecourse

Al Barsha 2

Dubai Hills Estate

Jumeirah Village Circle

Arjan-Dubailand

Built areas

The site is located in Dubai Science Park within Al Barsha South. It bounded by the neighborhoods of Al Barsha South 1, ArjanDubailand and Dubai Hills Estate.

S U N PAT H

T E M P E R AT U R E A N D P R E C I P -

S U N PAT H A N D S H A D O W A N A LY S I S SUMMER (JUNE)

AUTUMN (SEPTEMBER)

ROAD NETWORK 44

)

LAND-USE PLAN

IL

R

O

A

D

Site boundary Primary access road Secondary access

C L I M AT I C A N A LY S I S

E

3

Unbuilt areas

The site is located in a low density residential community. The neighboring plots to the site are unbuilt.

(

2

B U I LT / U N B U I LT P L A N

WEAKNESS -The presence of a one-way road around the site. Entrance, and exit to the site must be planned carefully for easy access.

Latutide: 25° 4’23.79”N Longitude: 55°14’38.30”E Site view 1

A

L

K

H

A

UMM AL SUQEIM ROAD (D63)

The site is lcoated in Dubai Science Park, Al Barsha South, Dubai, UAE. The total site area is area is 31,369 sq.m. The site can be accessed in the north by a secondary road and in the south by a tertiary road.

Residential

Facilities

Utilities

Green Space

Recreational

Commercial

Office/ Mixed-use

Transport

Primary roads

Tertiary Roads

Seconday Roads

Site

The community is predominently residential, with ample amenities available in close vicinity. There are religious mosques, schools, and easily accessible health-care facilities all within walkable distance. Commercial zones, such as retail establishments and shopping malls, are also prevalent. There are several wellconnected green spaces.

The site can be accessed by a secondary road (2-lane) from Umm Al Suqeim road located to the north of the site. There is also Access from Secondary roads connecting to the Al Khail Road. The closest metro stations are Mall of the Emirates and the Internet City Metro Station which are 14 minutes away located in the neighbouring Al Barsha community.

BUILDING HEIGHTS PLAN

F A C I LT I E S M A P

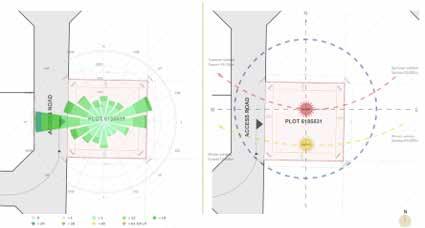

WIND-ROSE DIAGRAM

The climate of Dubai is warm and sunny due to its position near the line of the Tropic of Cancer.

The warmest month of the year is August, with an average temperature of 34.2 degree celcius and the lowest temperature is during the month of January with an average temperature of 18.6 degree celcius.

Rainfall in Dubai is infrequent and does not last for a long period. It mostly rains during the winter period between November and March in the form of short downpours and an occasional thunderstorm. On average, rain falls only 25 days a year.

HUMIDITY Average Humidity = 60%

Time

9:00 am

12:00 pm

3:00 pm

Time

9:00 am

12:00 pm

3:00 pm

Altitude

22.01

41.33

27.49

Altitude

34.40

64.41

45.39

Azimuth

131.47

178.81

222.43

Azimuth

108.35

164.66

242.27

Shadow length(m) Object level: 15m

37.12

17.06

28.83

Shadow length(m) Object level: 15m

21.91

7.18

14.80

WINTER (DECEMBER)

SPRING (MARCH)

I L L U M I N AT I O N R A N G E

6

1 floor

3 floors

2 floors

4 floors

11 floors 17 floors

18 floors

26 floors

32 floors

22 floors

28 floors

36 floors

The location has varying building heights ranging from Villas of 1-2 floors to the west of the site, 3-4 storeys to the north of the site and the outer periphery of Dubai Science Park embedded with high rise towers from 17-36 floors. Towards the south of the site, the Arjan community conmprises of buildings of 5-7 storeys.

There are a wide range of facilities available within a catchment of 1.8Km, including healthcare facilities, shopping destinations, educational facilties

The prevailing wind direction in Dubai is NorthWest. However, there are winds from south R A D I AT I O N R A N G E during some parts of the year.

The average wind speed is 9.2 mph.Generally, early mornings in Dubai are calm or with a slight southerly wind blowing offshore. Anytime from about 1000 or 1100 onwards, the wind turns north westerly and blows onshore. Usually the Dubai prevailing wind strength is then about 5 to 10 mph

Time

9:00 am

12:00 pm

3:00 pm

Time

9:00 am

12:00 pm

3:00 pm

Altitude

34.40

64.41

45.39

Altitude

37.66

65.42

42.70

Azimuth

108.35

164.66

242.27

Azimuth

110.09

172.68

245.46

Shadow length(m) Object level: 15m

21.91

7.18

14.80

Shadow length(m) Object level: 15m

19.44

6.86

16.26

7

Architectural Portfolio | 2017-2022

CONCEPT: ACHEIVING “IKIGAI” THROUGH

Megha Pramod

Elements in Design

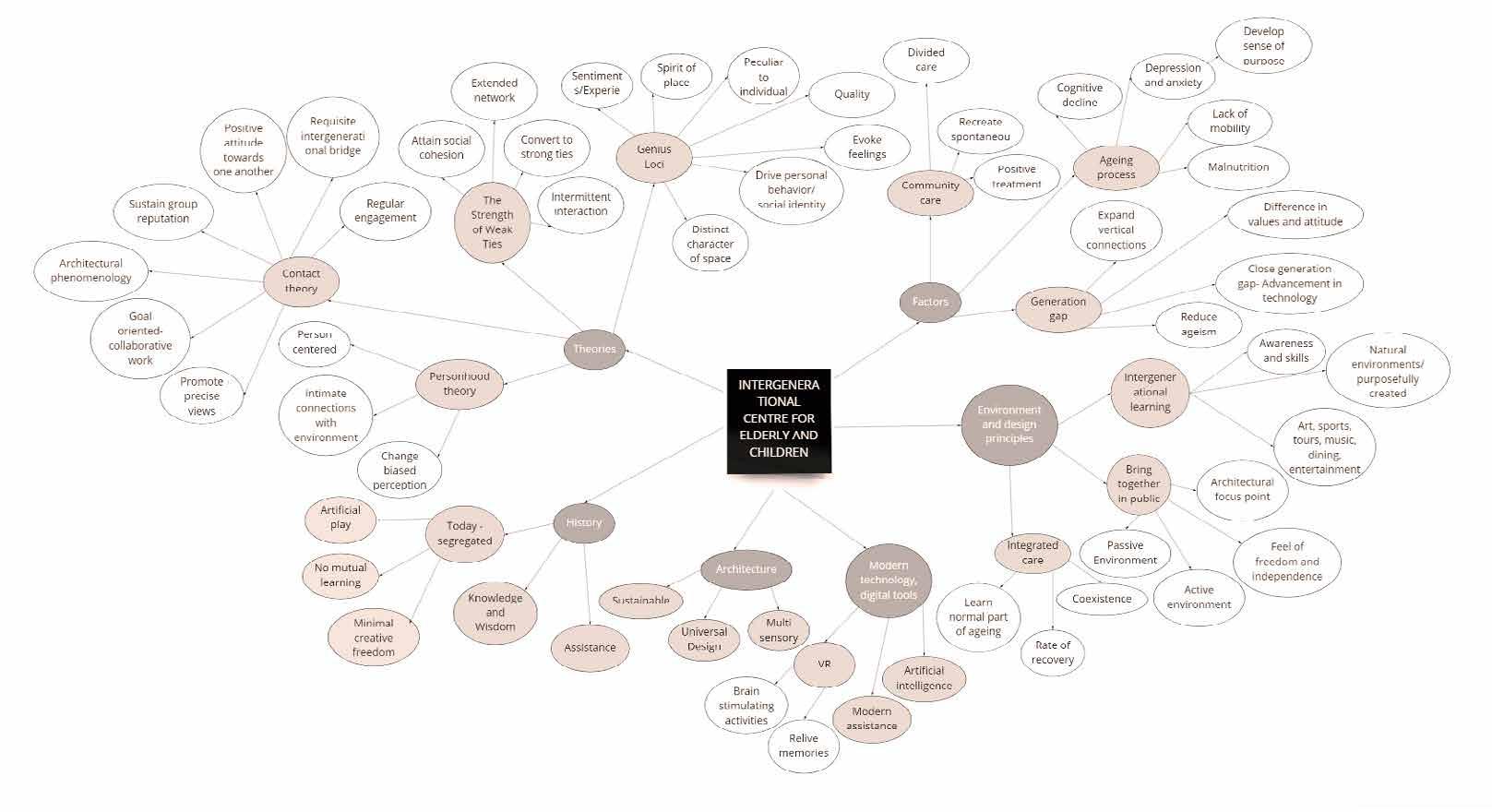

ARCHITECTURAL PHENOMENOLOGY

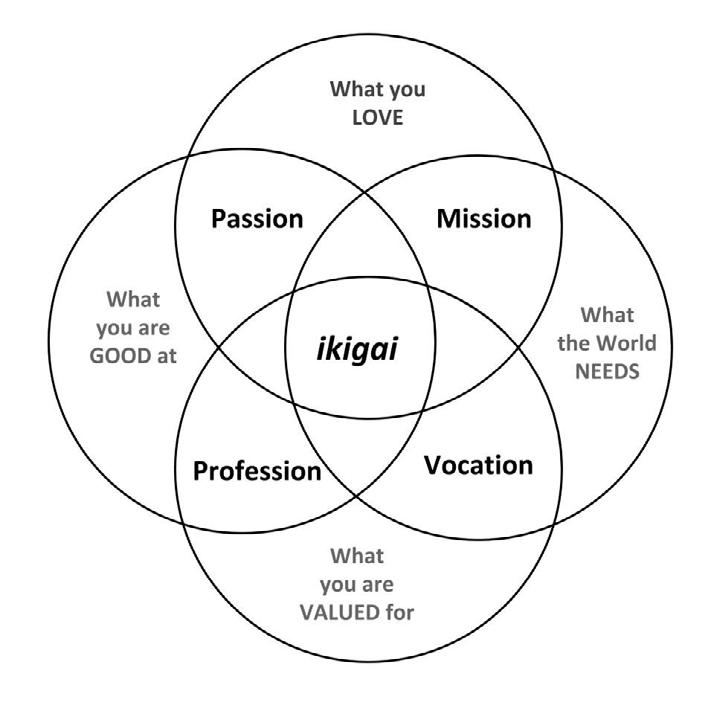

Ikigai (‘a reason for being’) is a Okinawan origin Japanese concept referring to something that gives a person a sense of purpose, a reason for living. It can be acheived from an early stage in life. Understanding ones ikigai can be from exploration by children to adopting passion by senior citizens. Architecture plays a predominant role in creating environments for attaining a sense of purpose within each individual.

These platforms can be created by incorporating Architectural phenomenology for all the desired spaces to foster growth and healing.

SPACE

LIGHT

NATURE

COLOUR

MATERIAL

SOUND

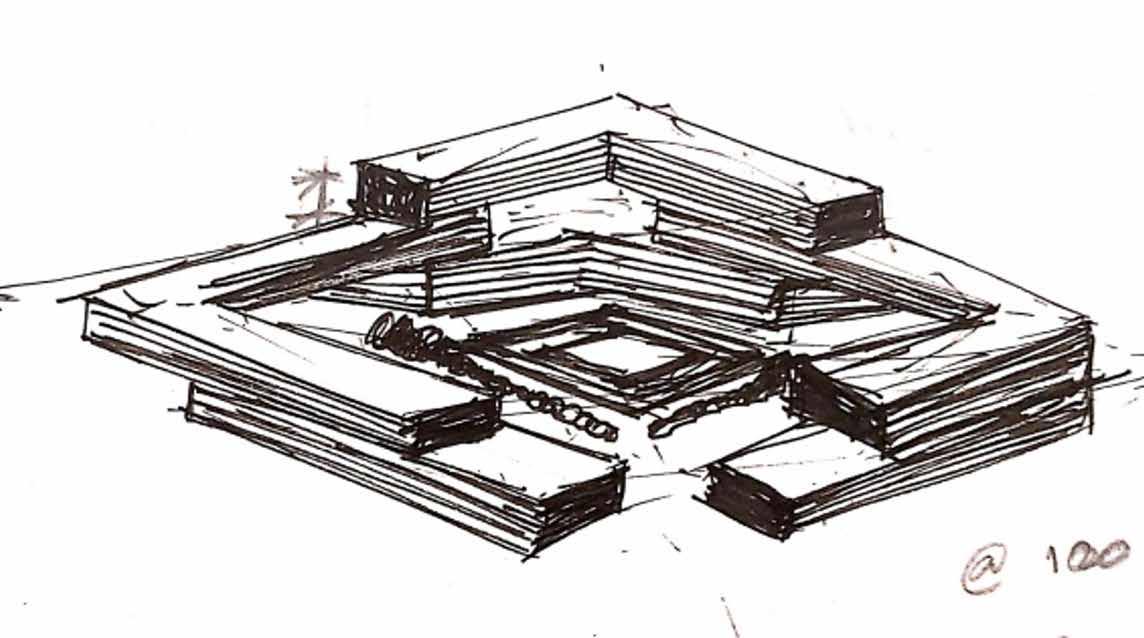

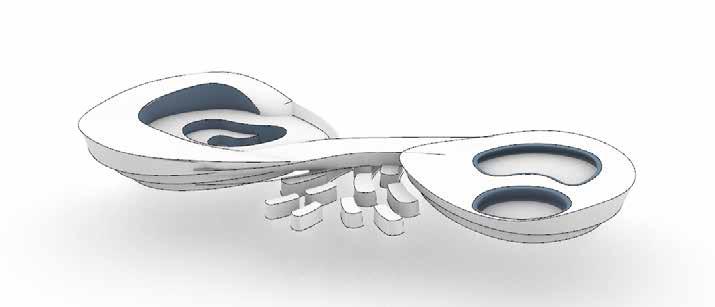

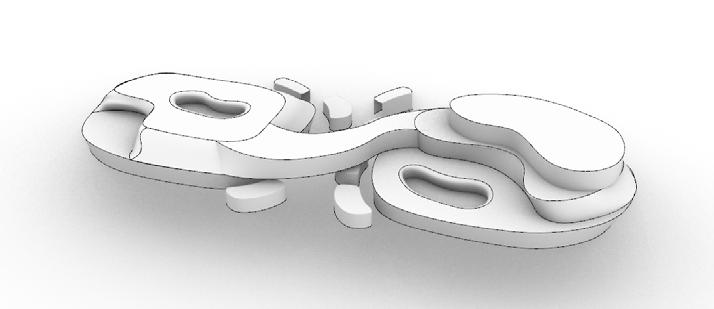

Form Iterations

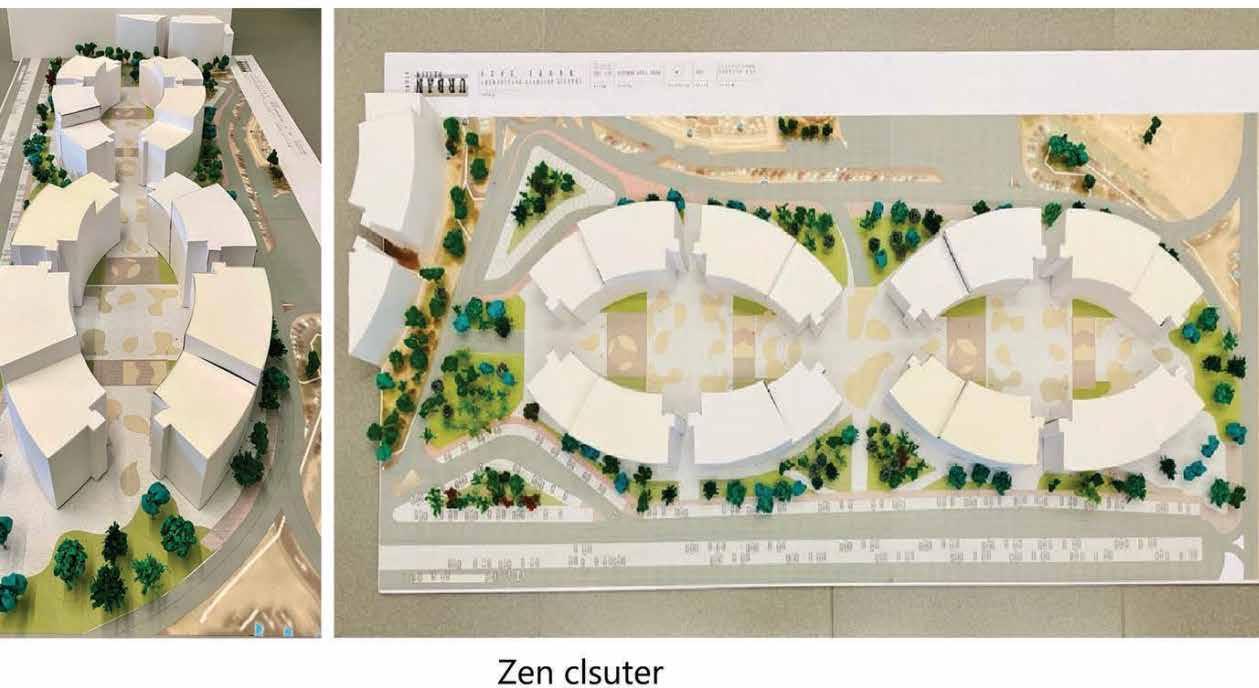

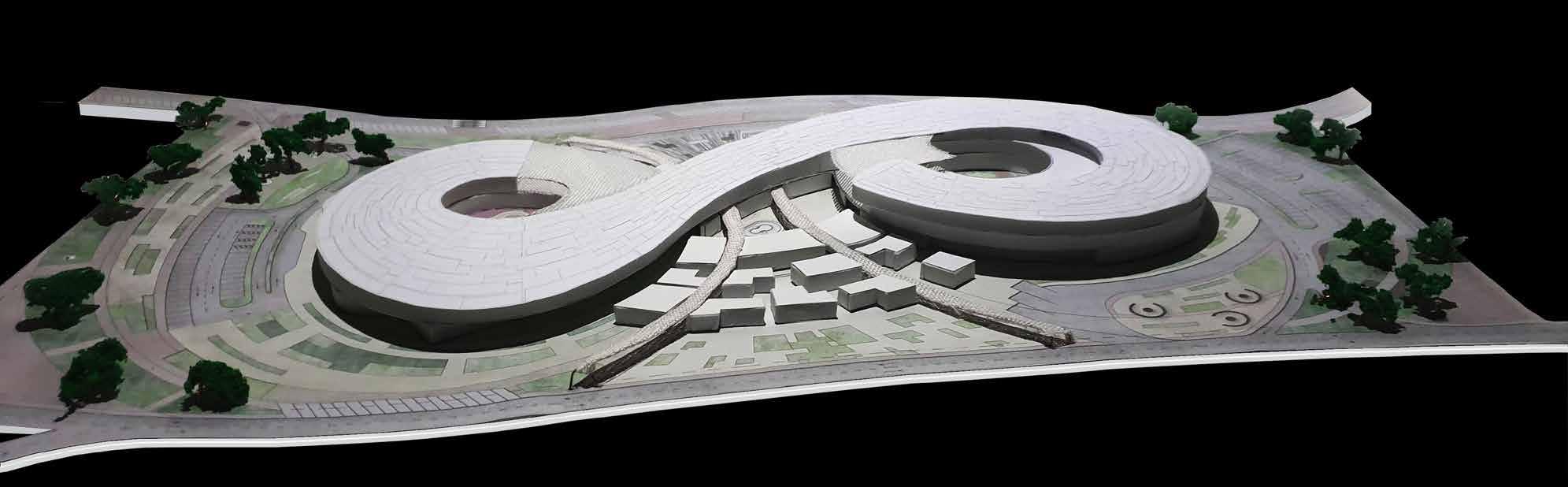

Design Development

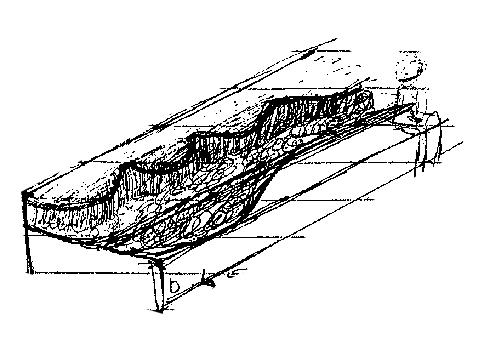

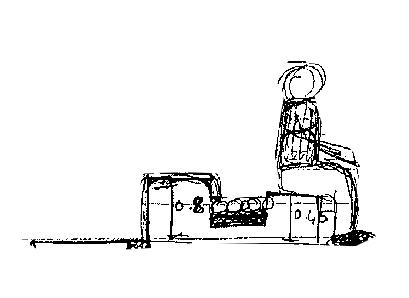

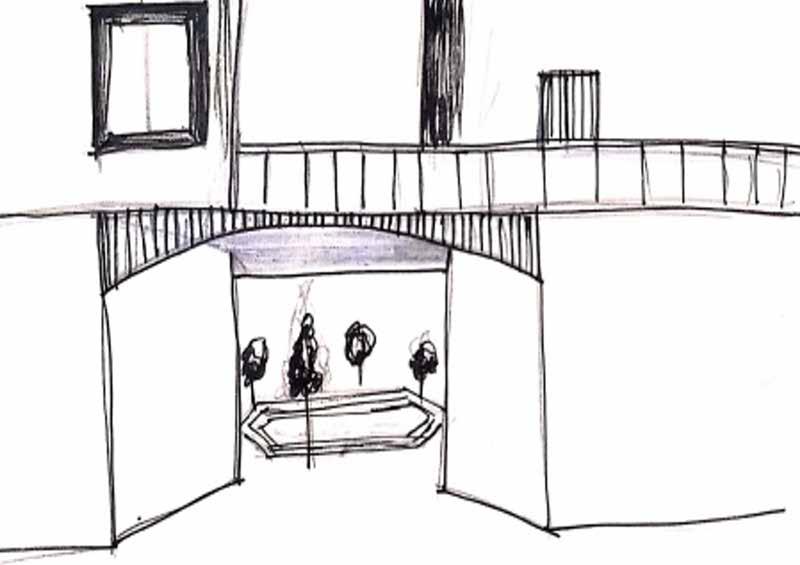

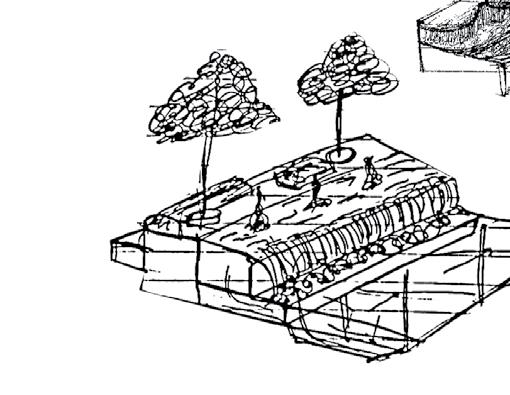

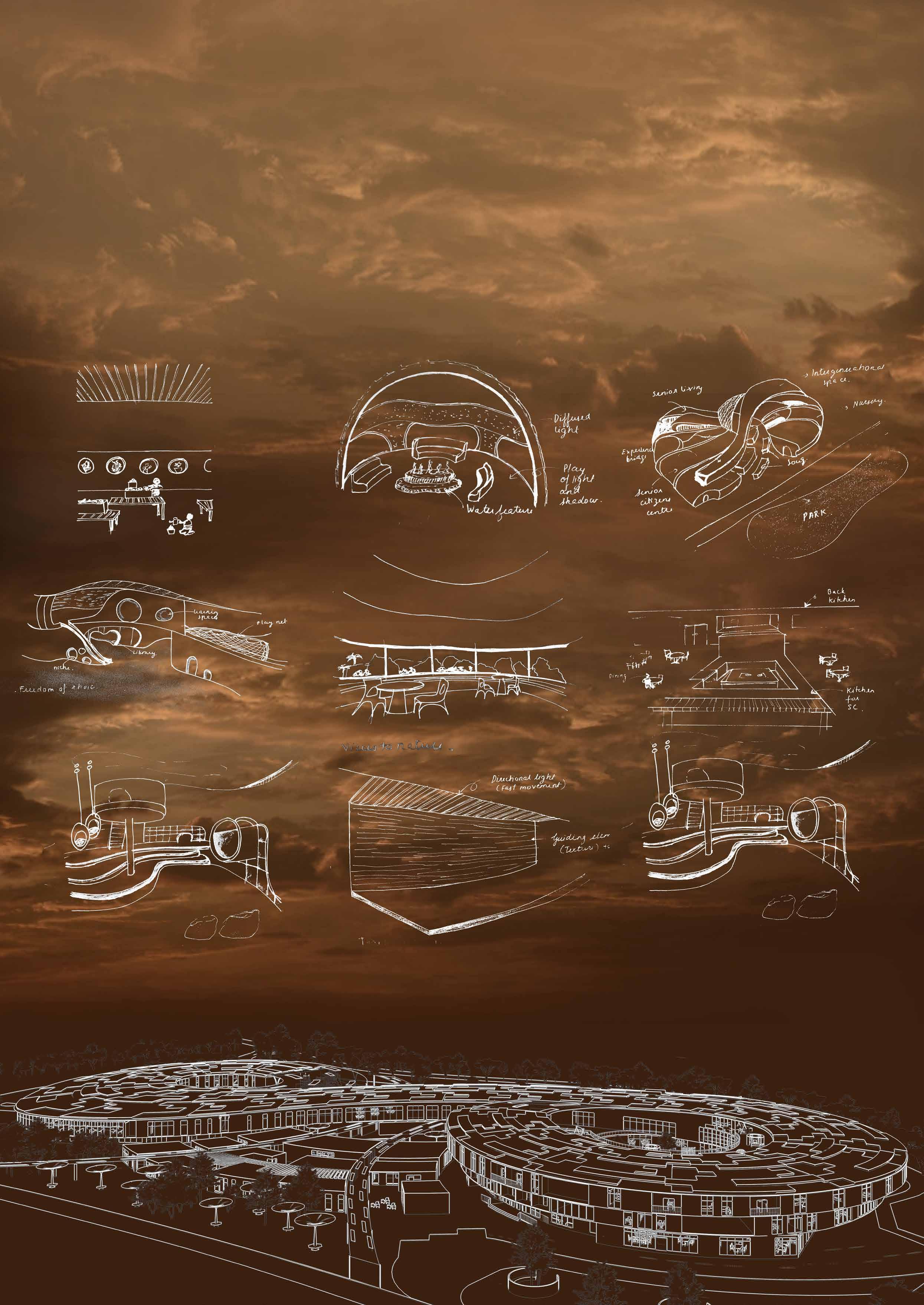

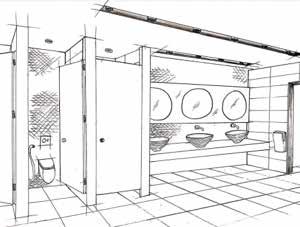

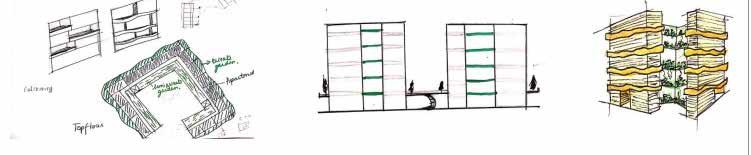

Sketches of Spaces

8

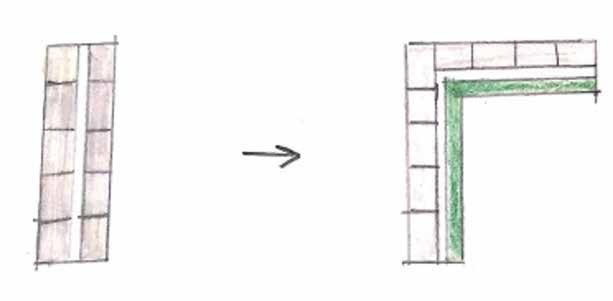

FUNCTIONAL ZONING The two major functions are placed on site. The senior citizens centre is placed towards the east of the side considering the north-east wind direction and larger mass of the component.

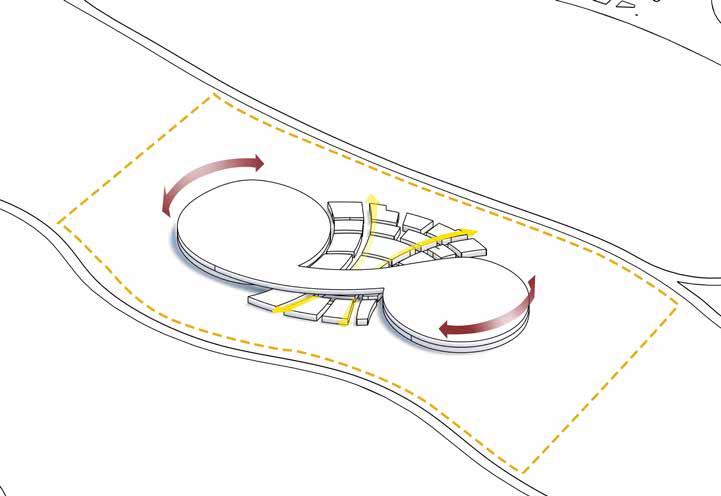

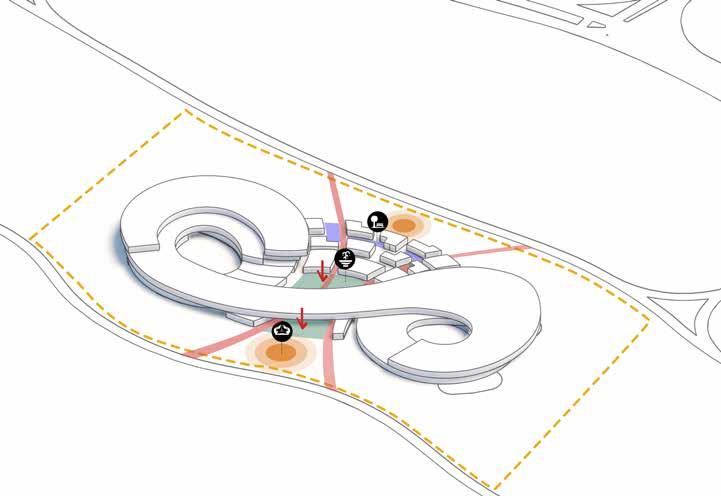

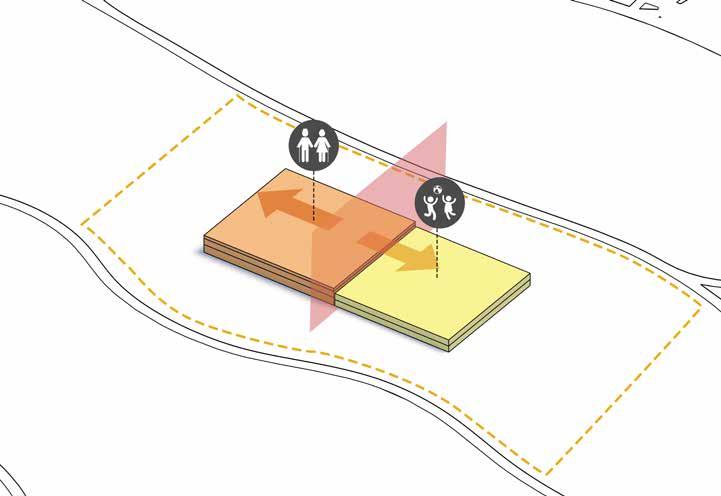

DISINTEGERATION The two blocks are stretched out to break away and create a retail space inspired by traditional souq in between. The intergenerational spaces are placed in the first level creting a more safe and secure environment to foster intergenerational interactions.

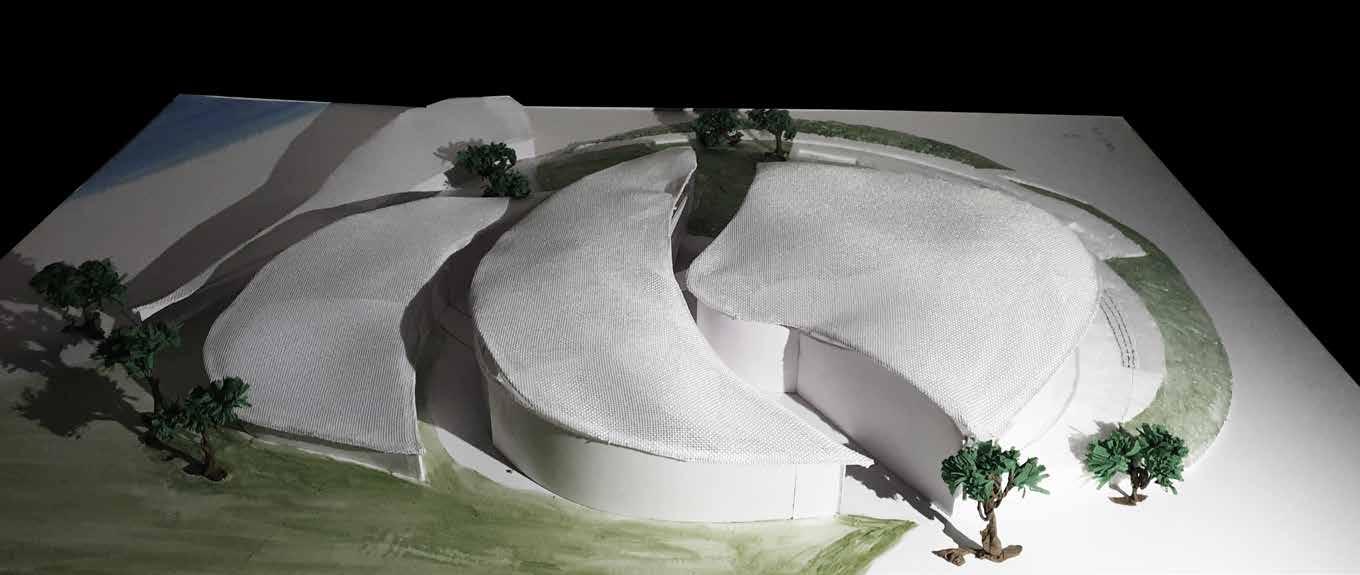

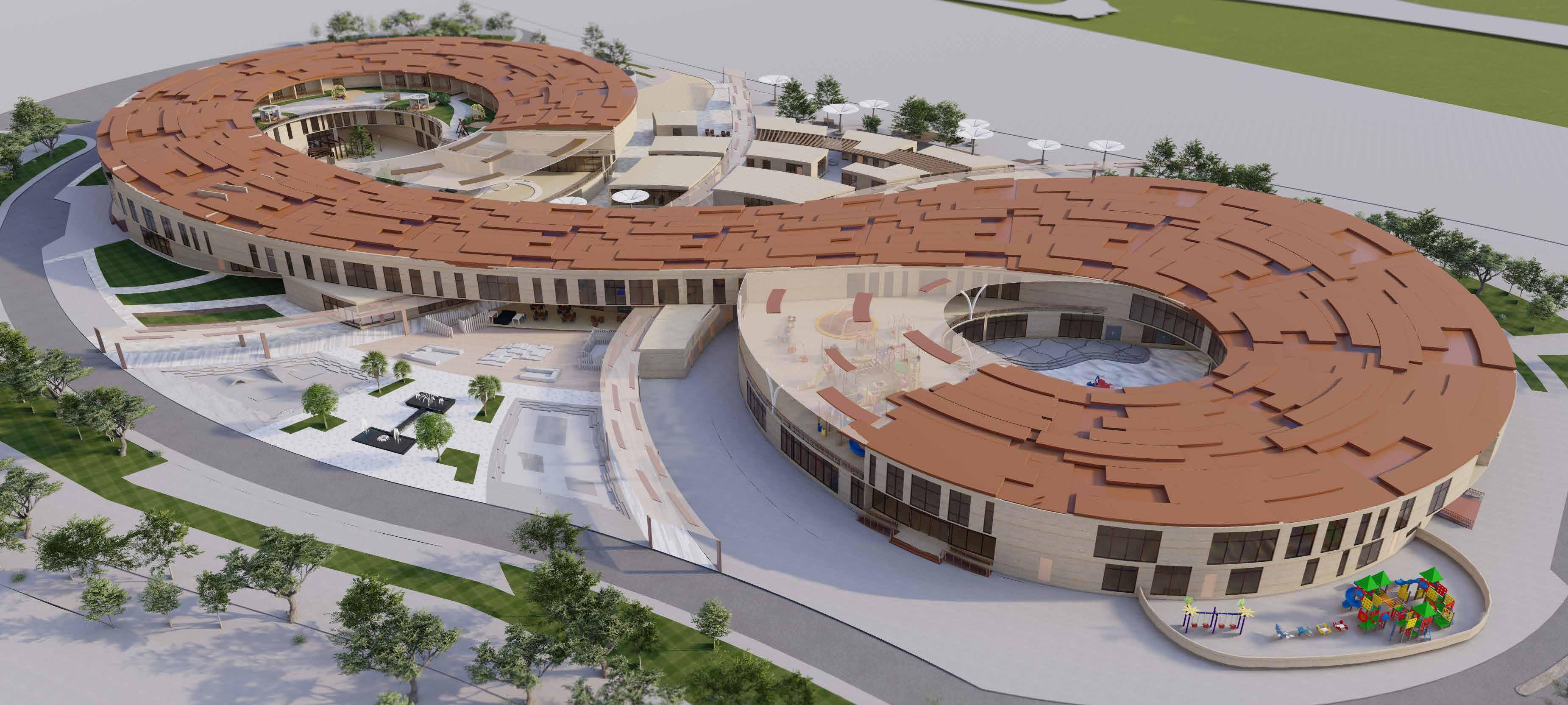

CURVATURE The building form is curved to blend in with the context of the community. The retail spaces are extended outward for better connectivity.

INTROVERTED ZONES Courtyards are added for creating introverted open spaces for the function. First floor is pulled outward for natural shade from the harsh solar radiation.

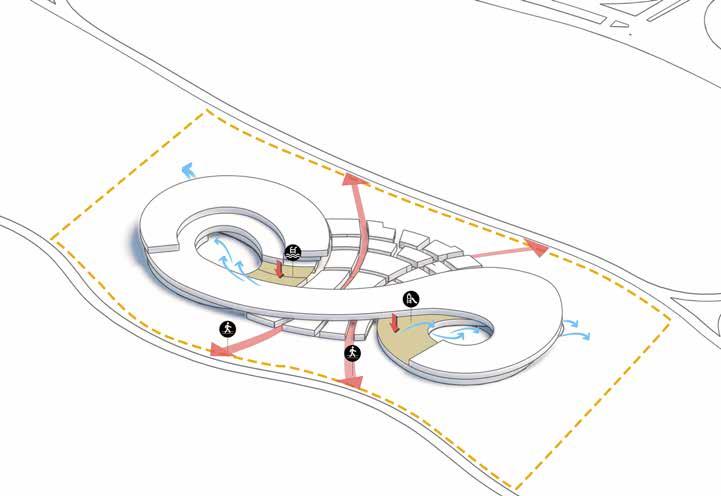

VISUAL CONNECTIVITY Two major streets are created for public engagement.

Opening on ground level and first level are made for cross ventilation and visual connectivity.

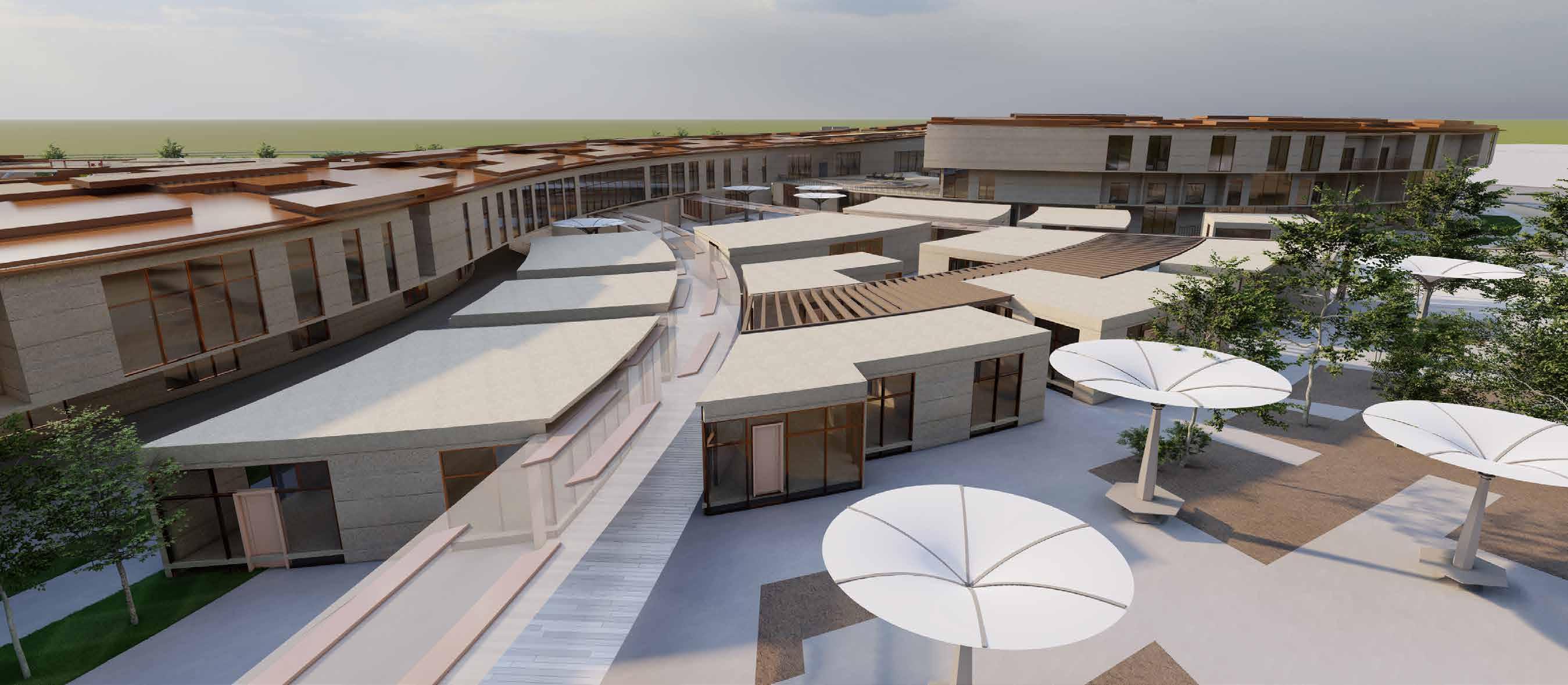

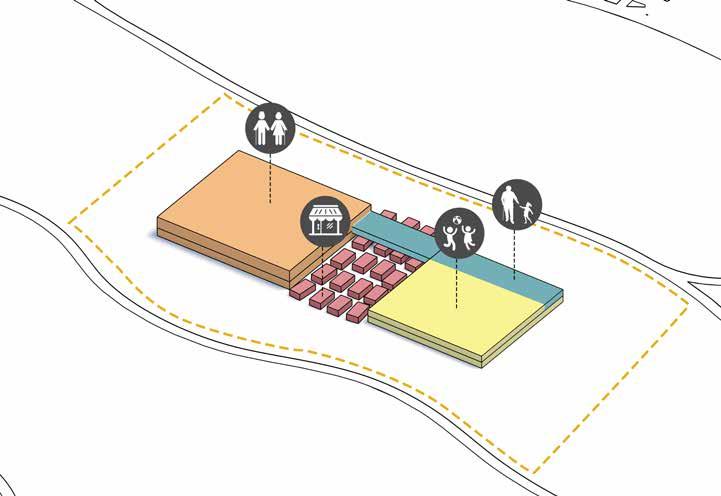

PUBLIC ENGAGEMENT Public plaza becomes a hub for bringing community together. Green pockets are provided with seating as socializing zones.

9

Architectural Portfolio | 2017-2022

Megha Pramod

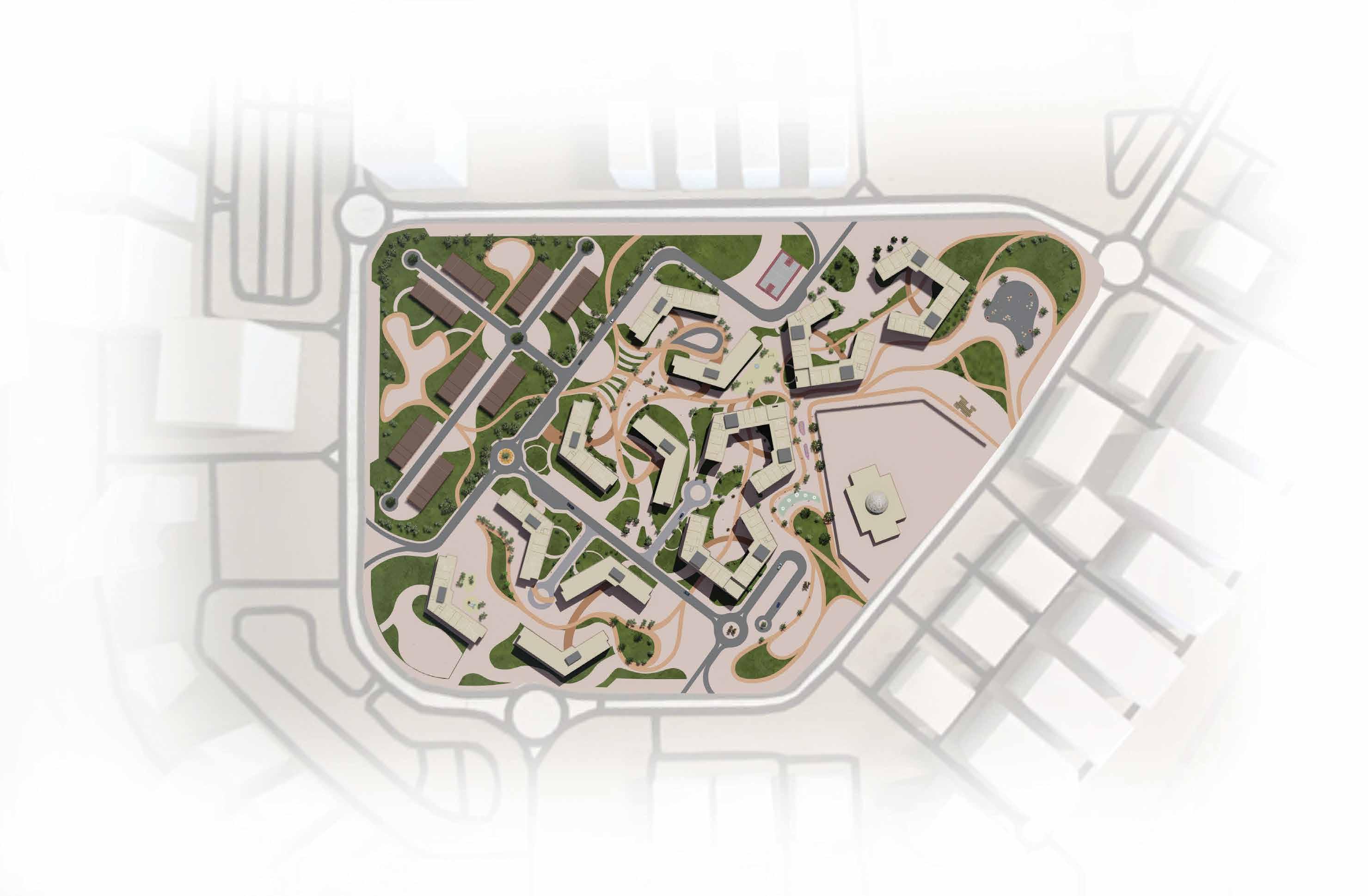

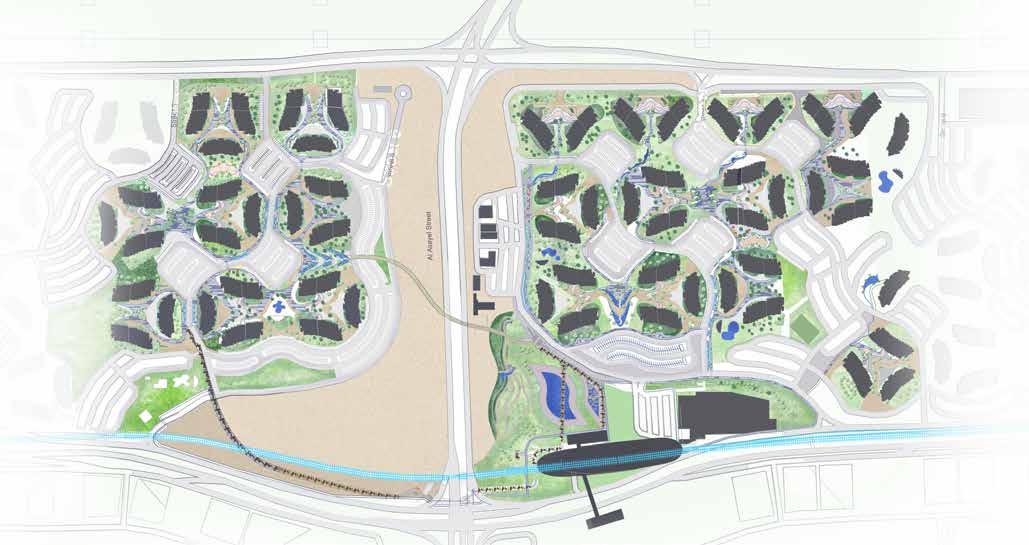

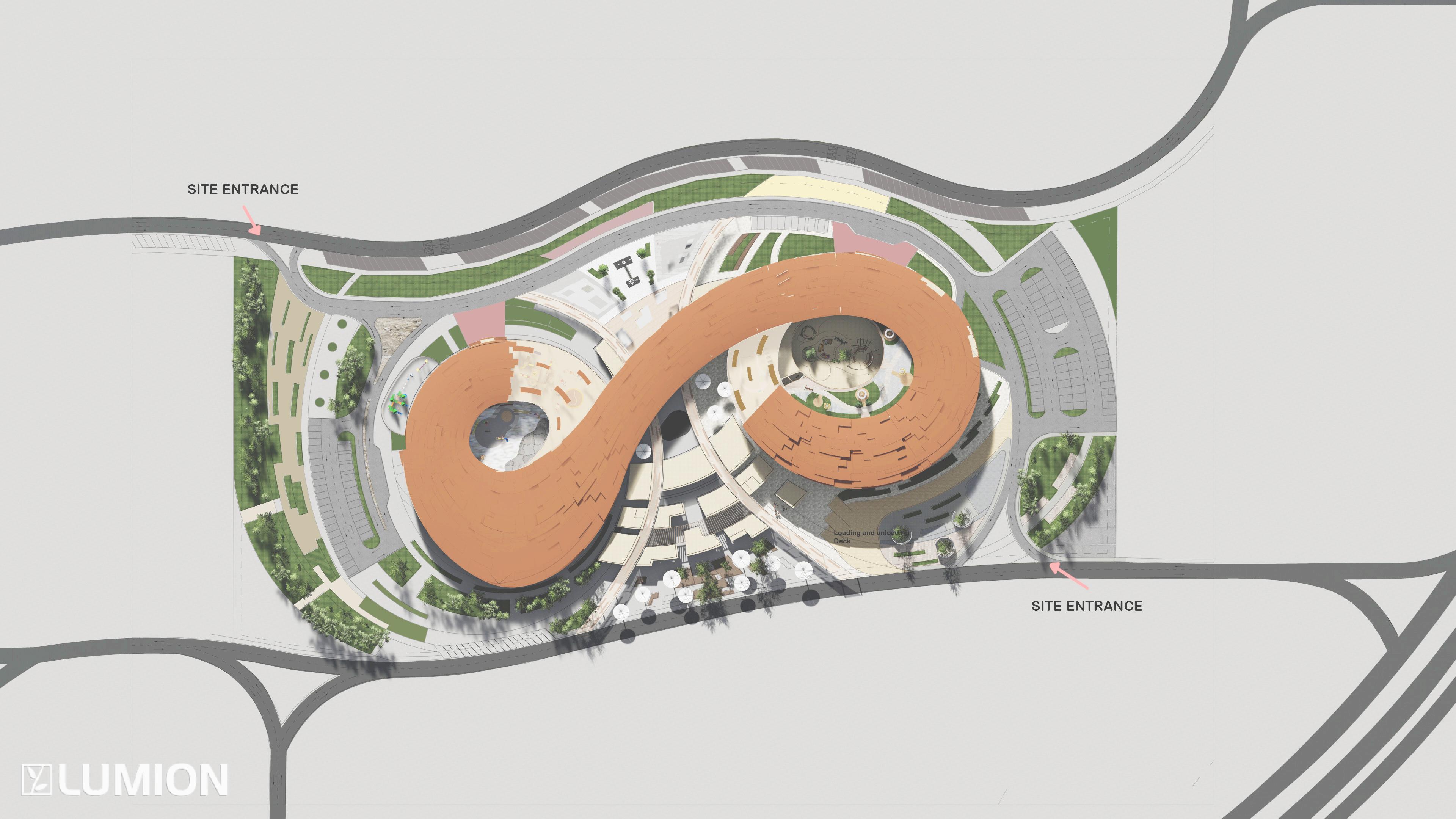

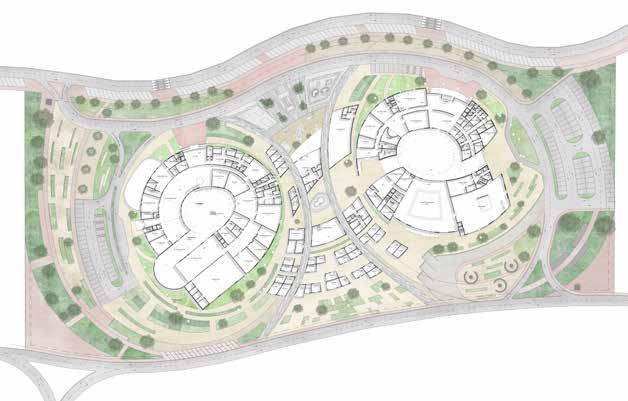

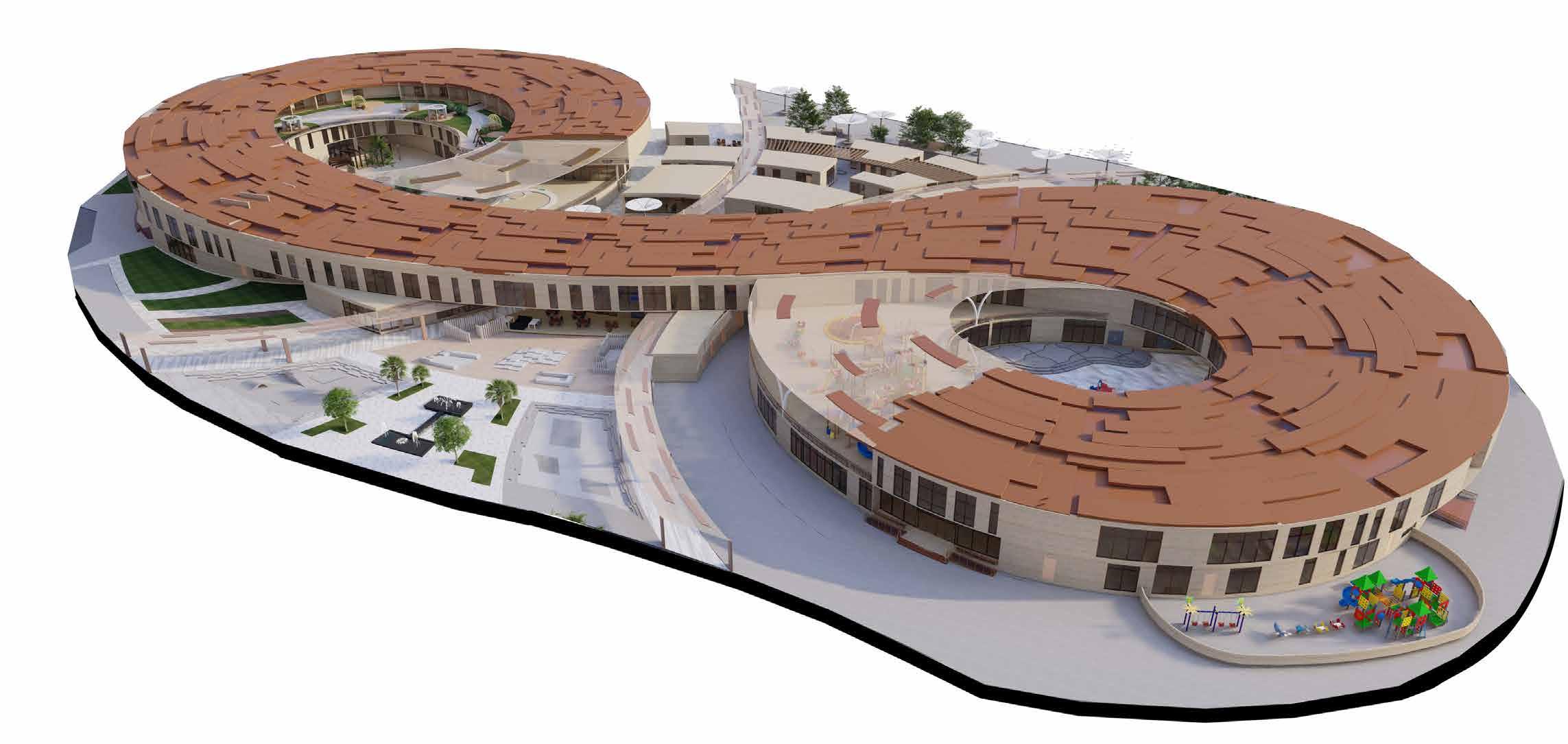

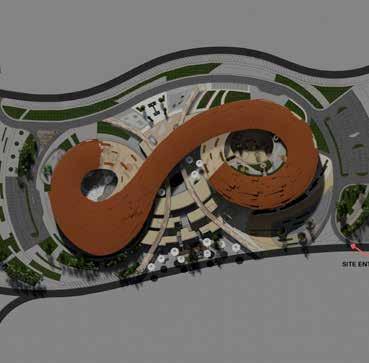

SITE PLAN

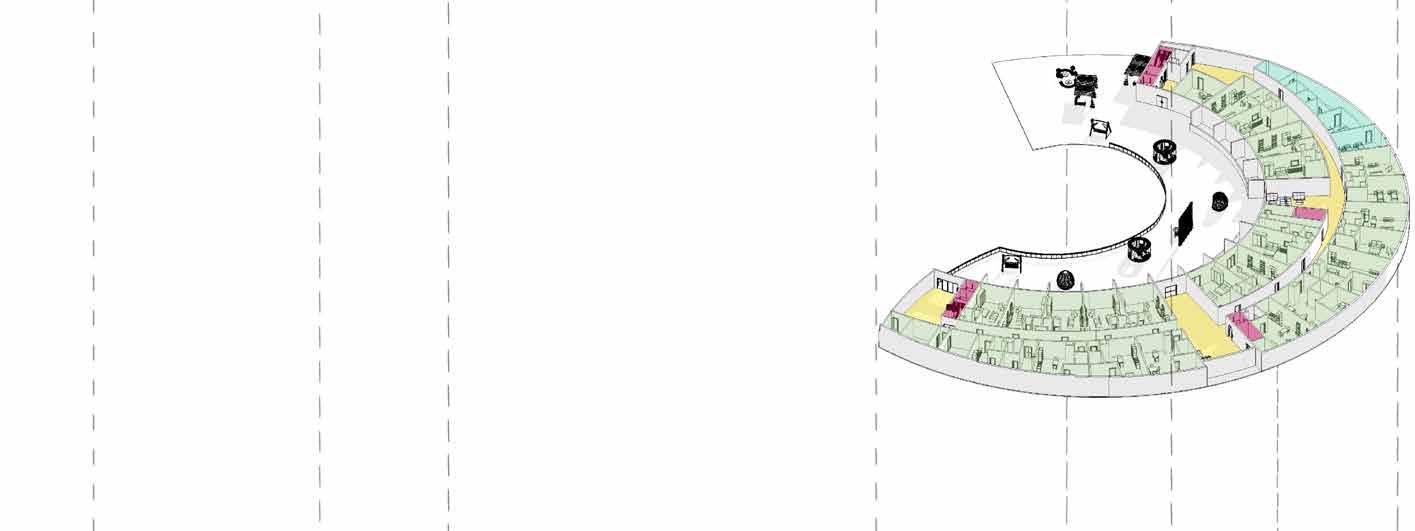

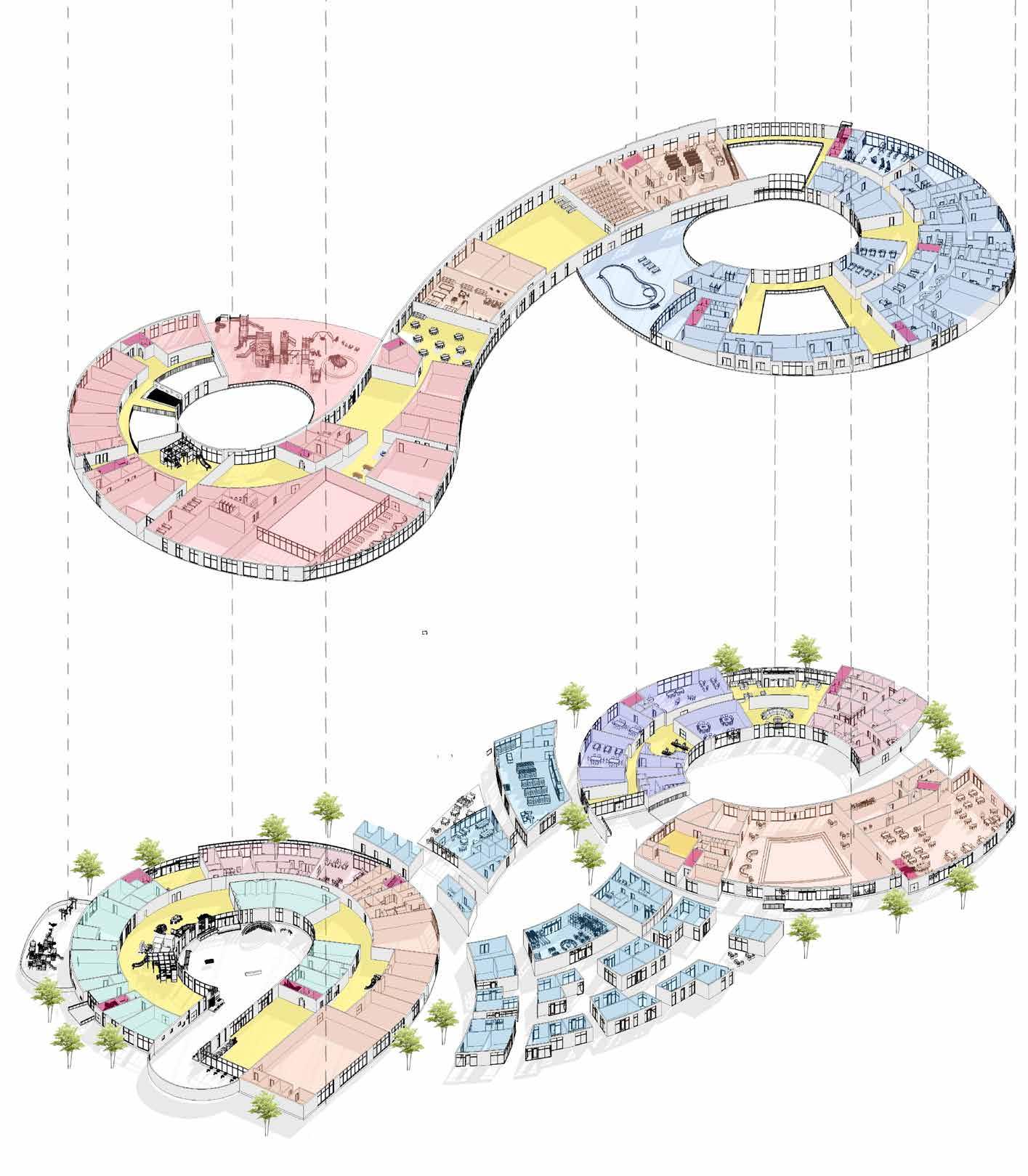

Zoning Diagram

4

1 7

6

5 6

2

9

3

6 9

2

Second Floor

8

10 1

LEGEND

1. Site enterance 2. ELC enterance 3. ELC Block 4. Seniors centre enterance 5. Senior Citizens Centre block TOTAL BUILT UP AREA: 18,108 sq.m

6. Drop off/Pick up 7. Public Plaza 8. Retail block 9. Parking 10. Loading Unloading deck

First Floor

SCALE 1:1000

Ground Floor

10

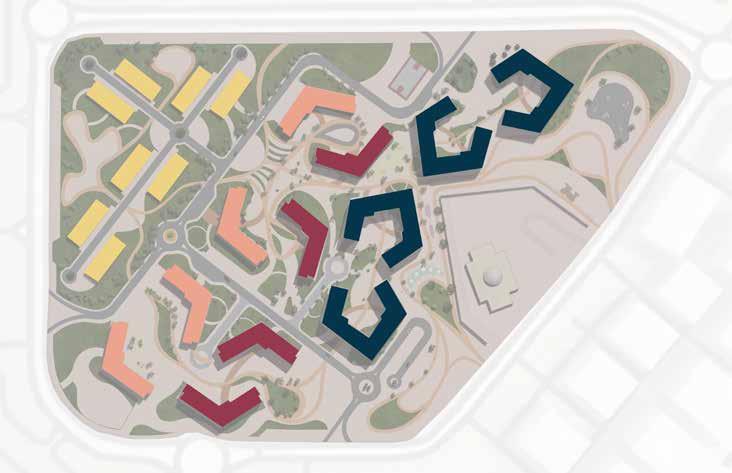

Administration block Learning zone Intergenerational Zone Recreational zone Retail block

Vocational Centre Wellness zone Residential block Staff accomodation zone

Circulation Service Core

11

Architectural Portfolio | 2017-2022

Megha Pramod

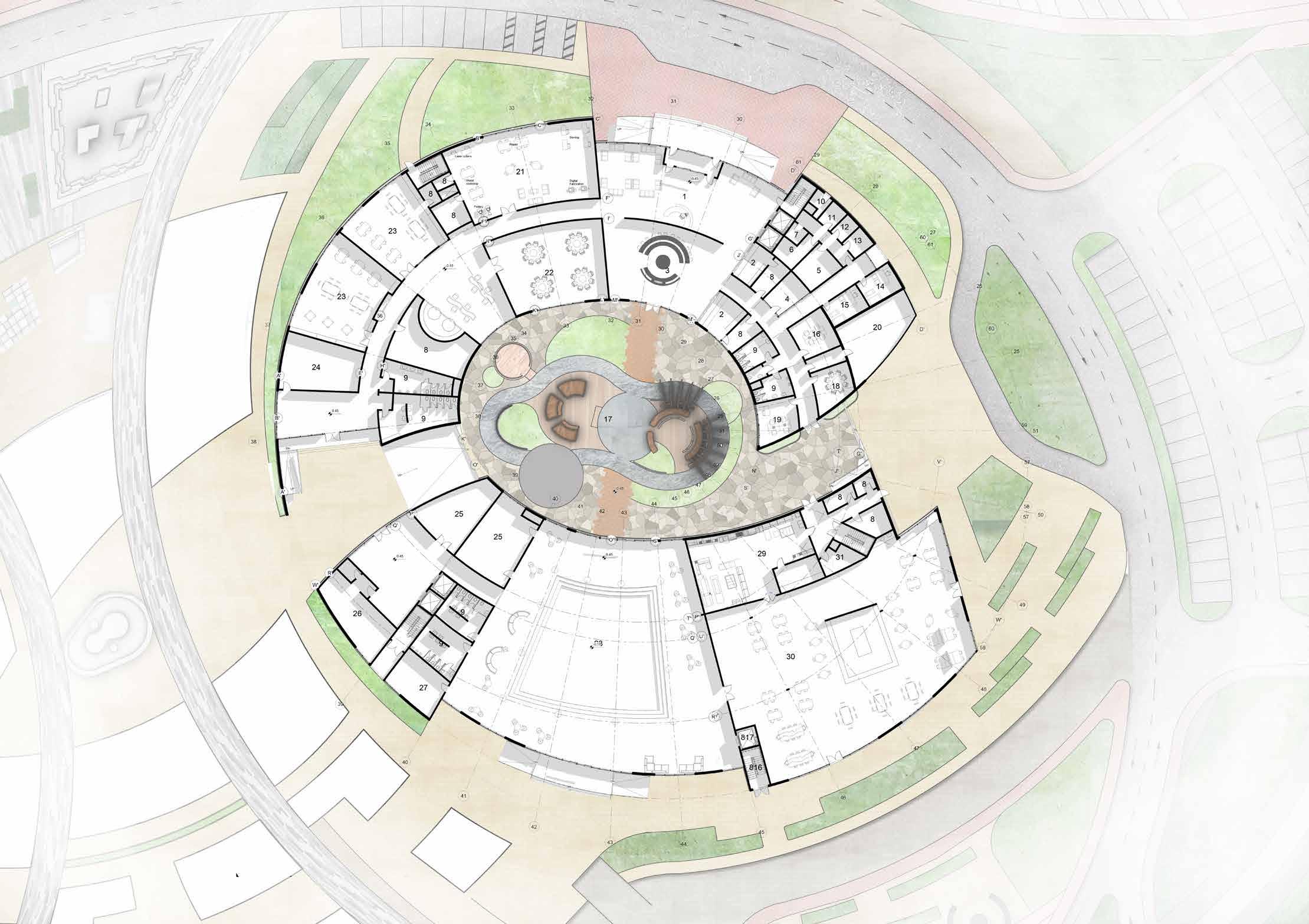

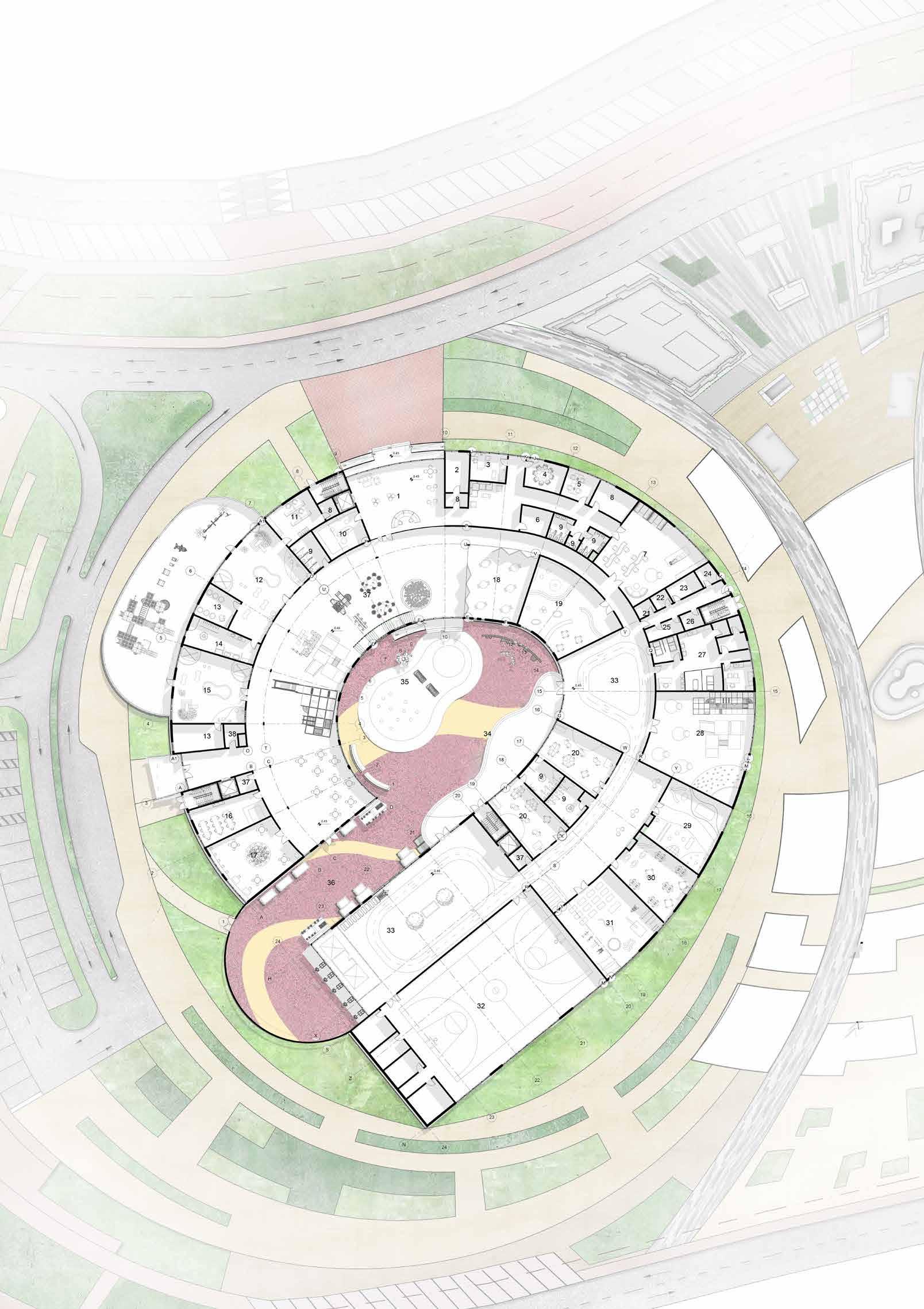

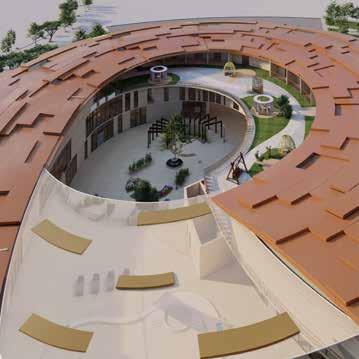

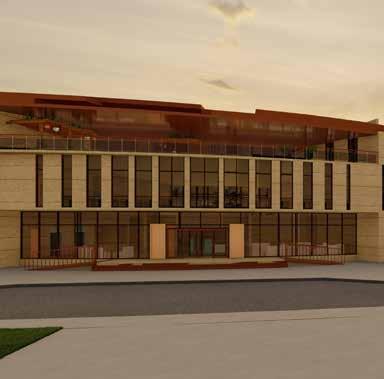

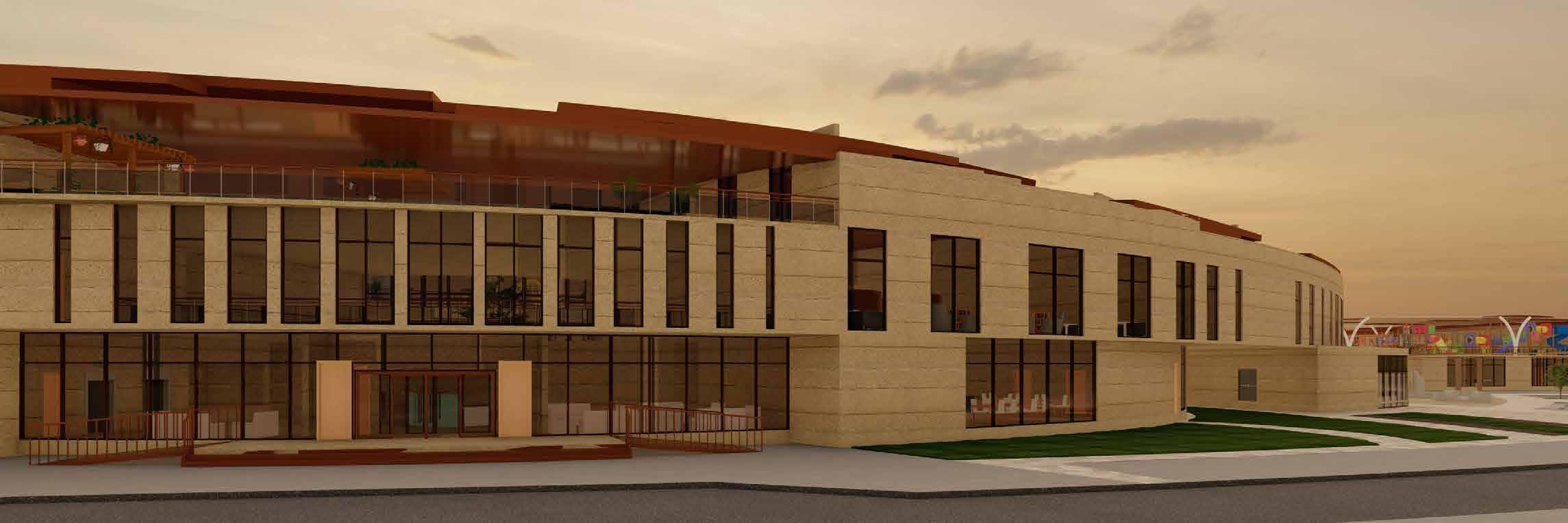

EARLY LEARNING CENTRE A

Ground Floor Plan

SCALE 1:400

A’

1.Lobby 2.Café 3.Directors room 4.Conference room 5.It department 6.Accounts department 7.Staff room 8.Storage 9.Toilet 10.Cloakroom 11.Baby Feeding room 12.Infant play room 13.Sleeping room 14.Infant/toddler washroom 15.Toddler play room 16.Kitchen 17.Dining hall 18.Activity room 19.Library

20.Classroom 21.Sanitization Room 22.Mechanical Room 23.BMS room 24.Telecommun.room 25.Surveillance Room 26.LVHV room 27.Clinic 28.Indoor play area 29.Multisensory room 30.Techno venture room 31.Indoor Gym 32.Sports Hall 33.Children’s Street 34.Outdoor Learning 35.Courtyard 36.Gardening Space 37.Gross Motor Area

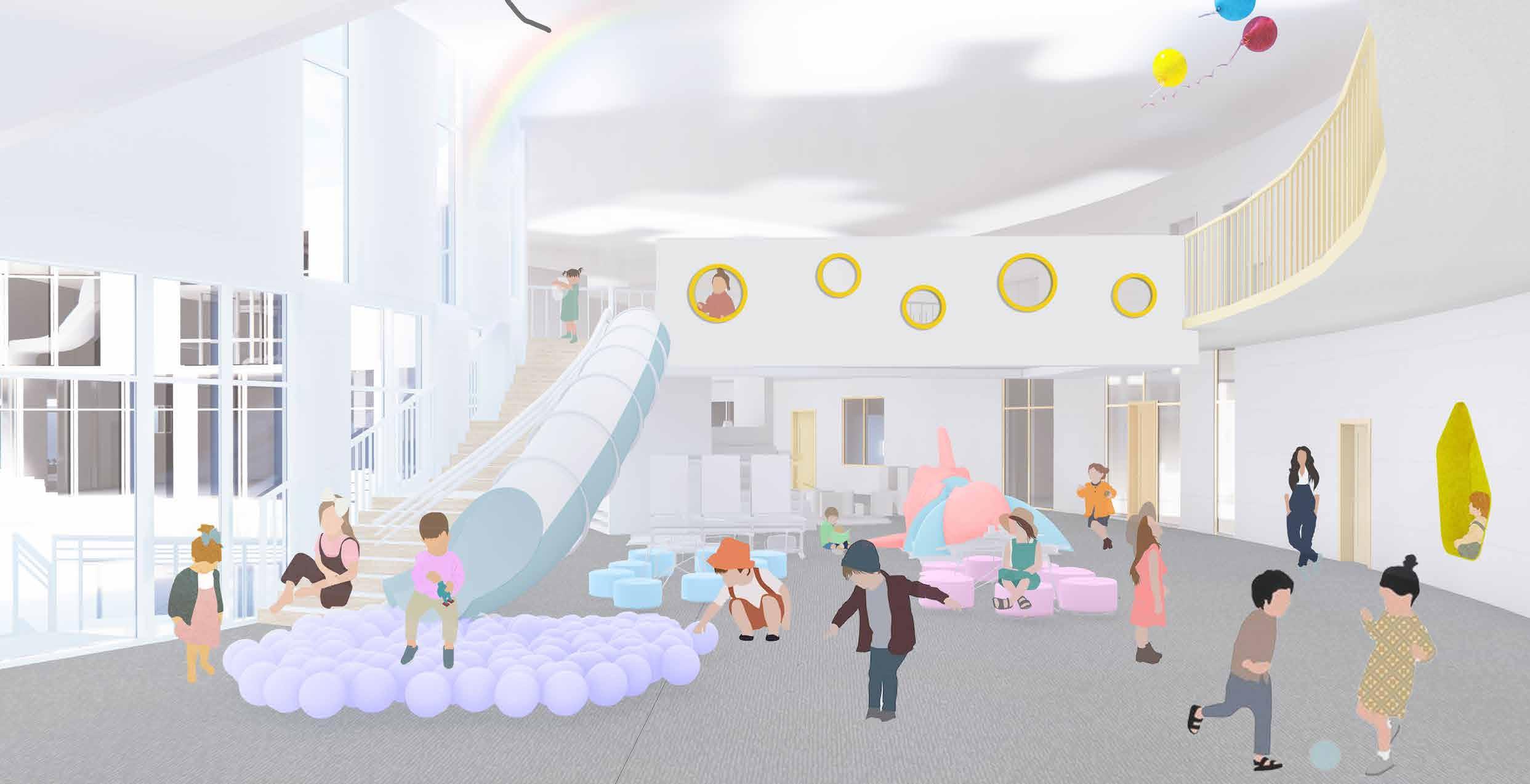

Gross Motor Area

The Early Learning Centre is a nursery/ daycare designed keeping children in mind. The world for children opens up different oppurtunities for them to explore and understand their passion better. The shape is curved in order to maintain the safety of the children as well as give them the freedom to explore all the spaces.

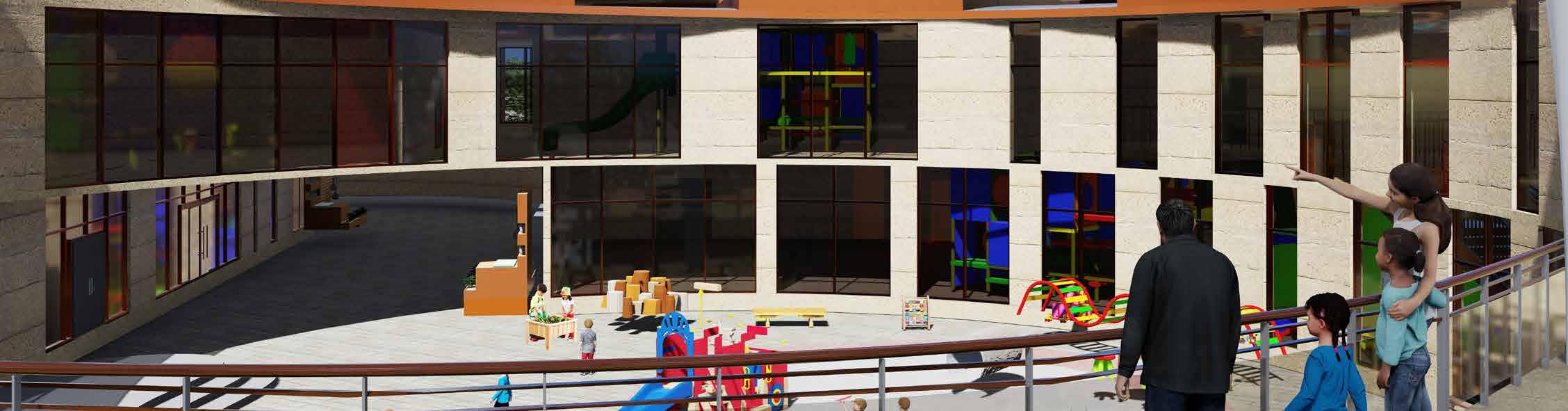

Visual Connectivity between Intergenerational Playground and nursery play area

12

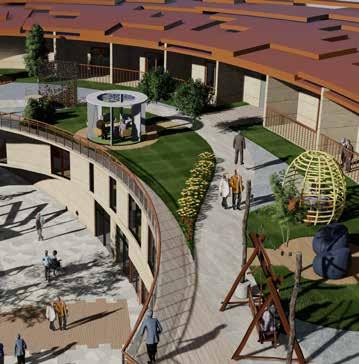

Nursery playground and outdoor learning space

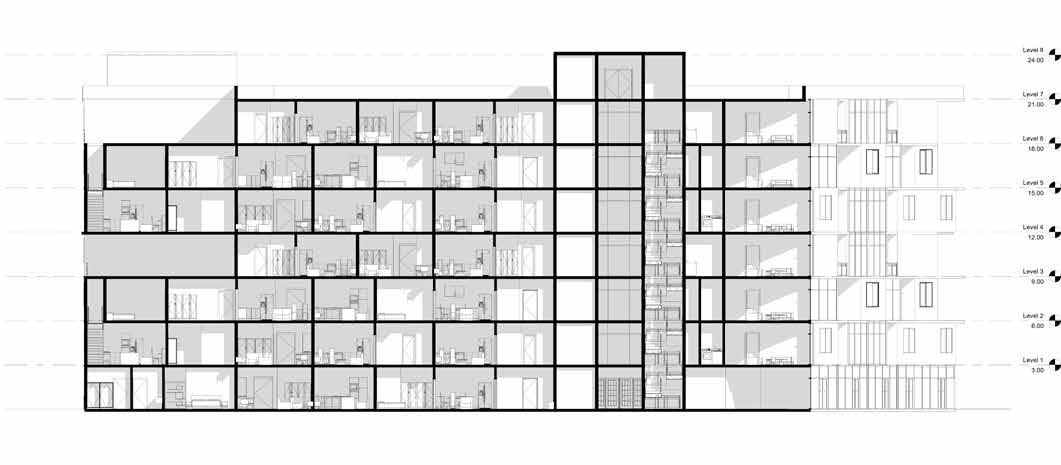

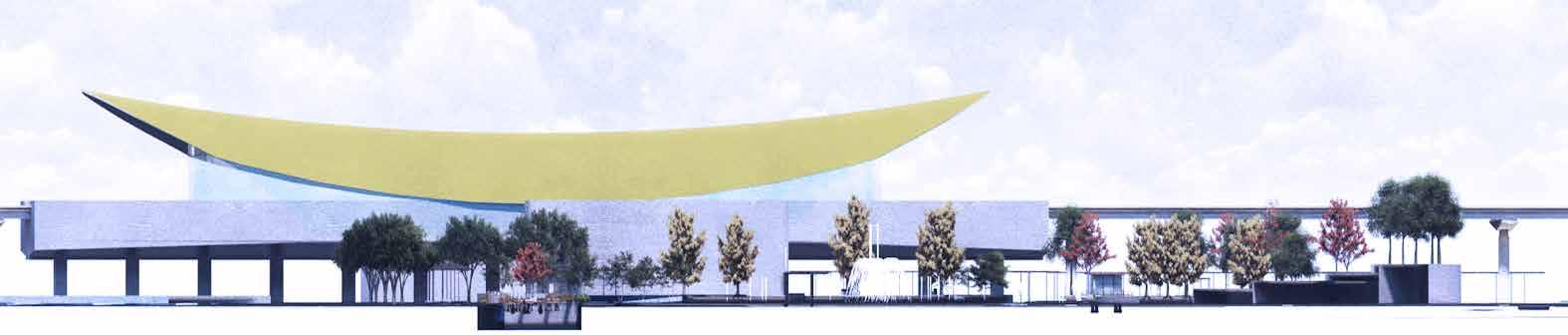

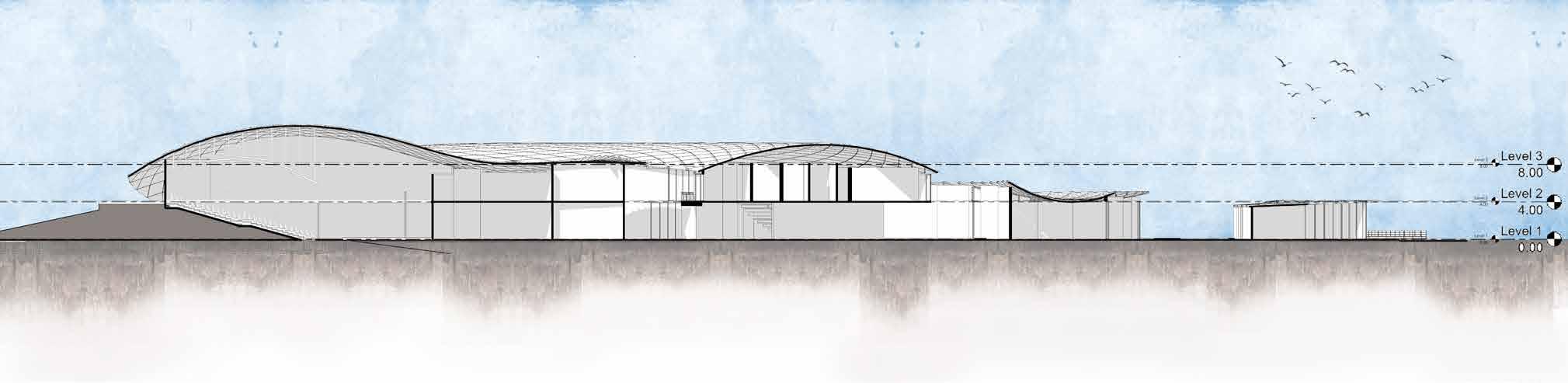

Section AA’

13

Architectural Portfolio | 2017-2022

Megha Pramod

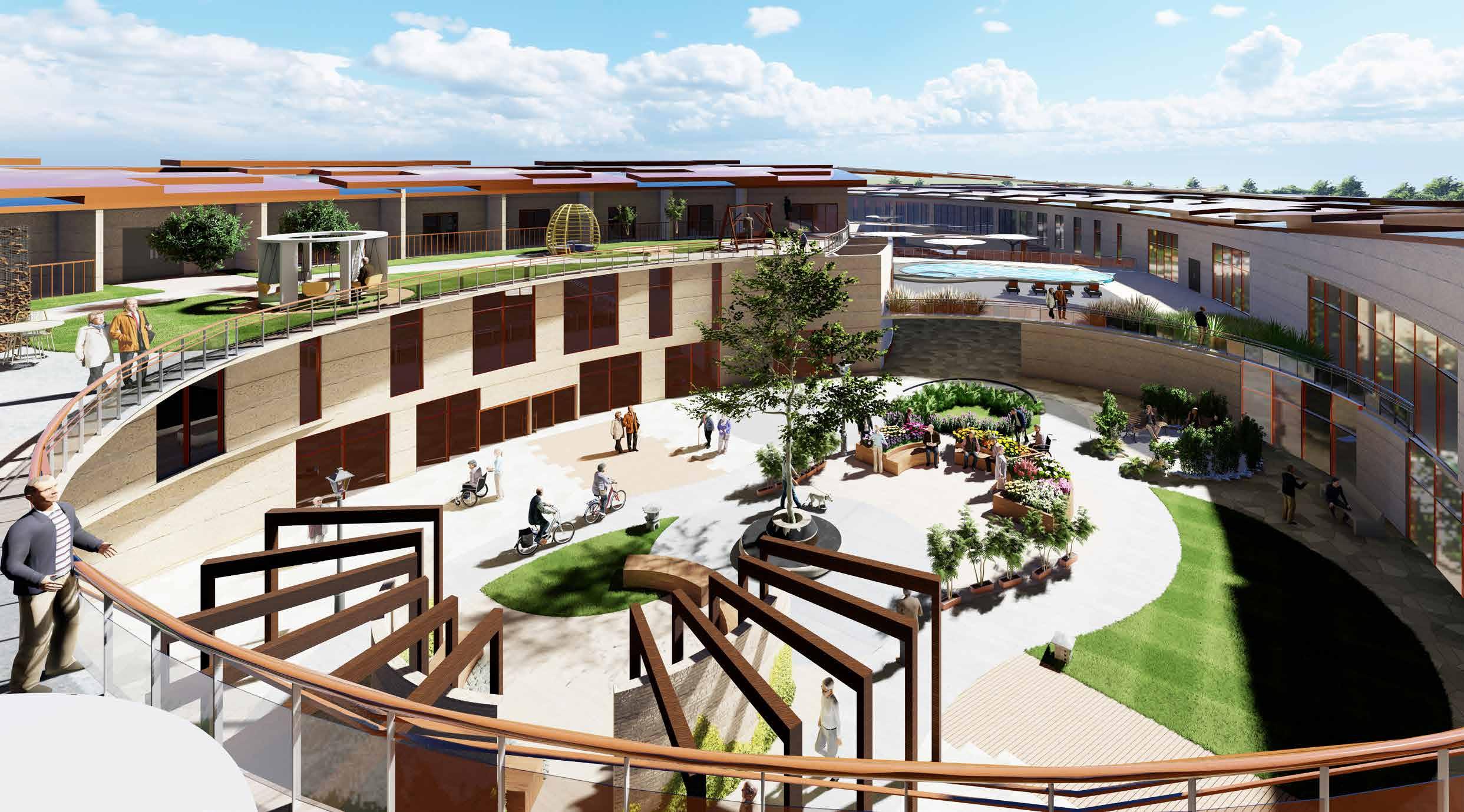

SENIOR CITIZENS CENTRE

Senior citizens centre is located to the east of the site. Functions are categorized within the building by analysisng the requirements of the senior citizens residing in UAE. The block is mainly divided into 4 zones: Vocational Centre, Recreational zone, Wellness zone and Residential zone.

A’

Main functional spaces Vocational Centre

Residential block

Sensory Garden

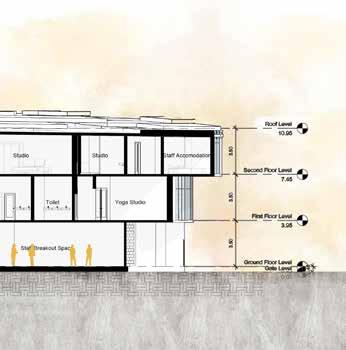

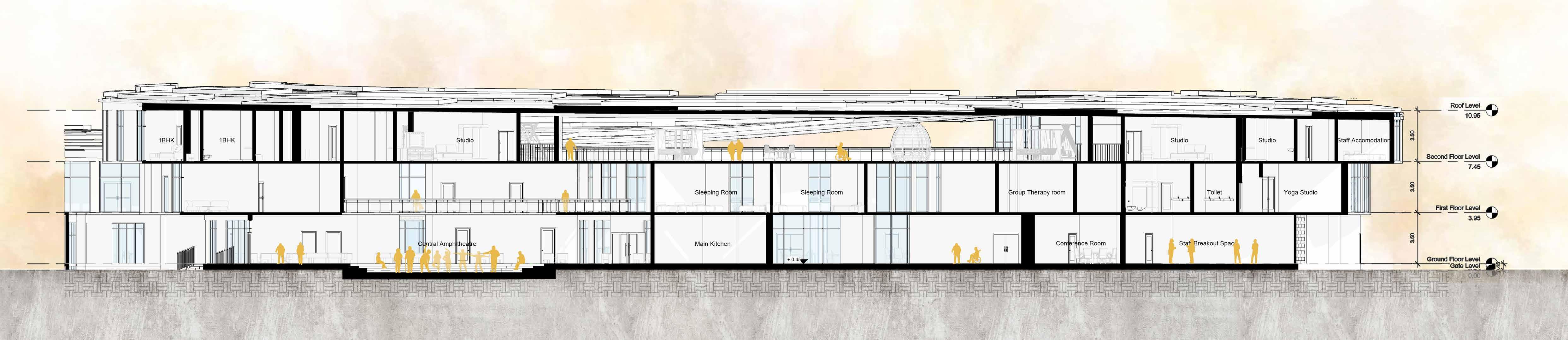

Section AA’ 14

Recreational spaces

Healthcare

Wellness areas

1.Lobby 2.Café 3.Formal loung 4.Marketing and commu department 5.AVAC control room 6.BMS Room 7.Surveillence room 8.Storage 9.Toilet 10.Electrical room 11.Mechanical room 12.Tele. Room 13.LV room 14.CEO room 15.Director’s Room

16.Accounts Room 17.Sensory Garden 18.Conference room 19.IT Dept 20.Staff Breakout Space 21.Makerspace Lab 22.Community room 23.Creative room 24.Pump room 25.Rehearsal room 26.Male prayer room 27.Female Prayer room 28.Central Amphitheatre 29.Main Kitchen 30.Dining hall 31.Garbage room

A

SCALE 1:400

Dining Hall

Section AA’

15

Architectural Portfolio | 2017-2022

Megha Pramod

FIRST FLOOR - INTERGENERATIONAL ZONE

32

31

33 34

C'

C'

30

B'

35

23

29 61

A4

D' 28

20 36

5

52

F'

29

869

I'

F'

G'

H' I'

28 A10

30 L'

27 A3 A4

37

10

11

8

20

K'

O'

47 710

54 14

O

P'

K U T

40

41

Q'

42

20

15

10 D 8

11

9

12

Q

13

4

15

4

4

5

5

W

B

2

19

1

19

20

52

B

40

7

X

16

43

17

Z

23

Y

14

5

18

7

M

11

8

N

H

19 20

13 X

52

48

Intergenerational Connectivity

47

48

46

A2

S

23

24 1

52

42

22

5

52

41

R

A

48

16

3.95

6

48

48

52

16A10

21

58

44 V'

17

C 2

48

39

M

Y

5 21

49 W'

49

22

D

9

20

46

48

52

20

20

50

39

45

50

42

L

5

HG

44

47 49 U'

15 R

Cooking/ Boardgame

20 A

5

53 18

17

18

40

5

43

T'

5

15

F 3

C

57

49

Dining area

T

O A1

3

51

5 G

51

57

35

35

R'

56

16

V'

58

5 14

59

Hydrotherapy pool

W'

23

7

6

35 38

41

S'

23

55

F

3

35

S'

46

43

O'

710

5

45

37

51

41

L

44

41

42

U'

N'

48

39

U

55 2

T'

49

A3 P

35 36

50

54

53

24

P

2

34

51 38

I

31

25

38

25

35

35

35

35

55

Lego Corner

6

27

52 B'

5

5

30

28

26

25

60 59

D'

30

29

37

Pin Wall

33

30

H'

13

7

30

M' N'

31

E'

K

I

1

32

33

36

A2

12

J

9

30

34

35

26

26

M'

K' L'

E'

54

27 61

32 Upper body training

5

53

60

Lower body traning

J'

12 S 21 Z

22

23 N

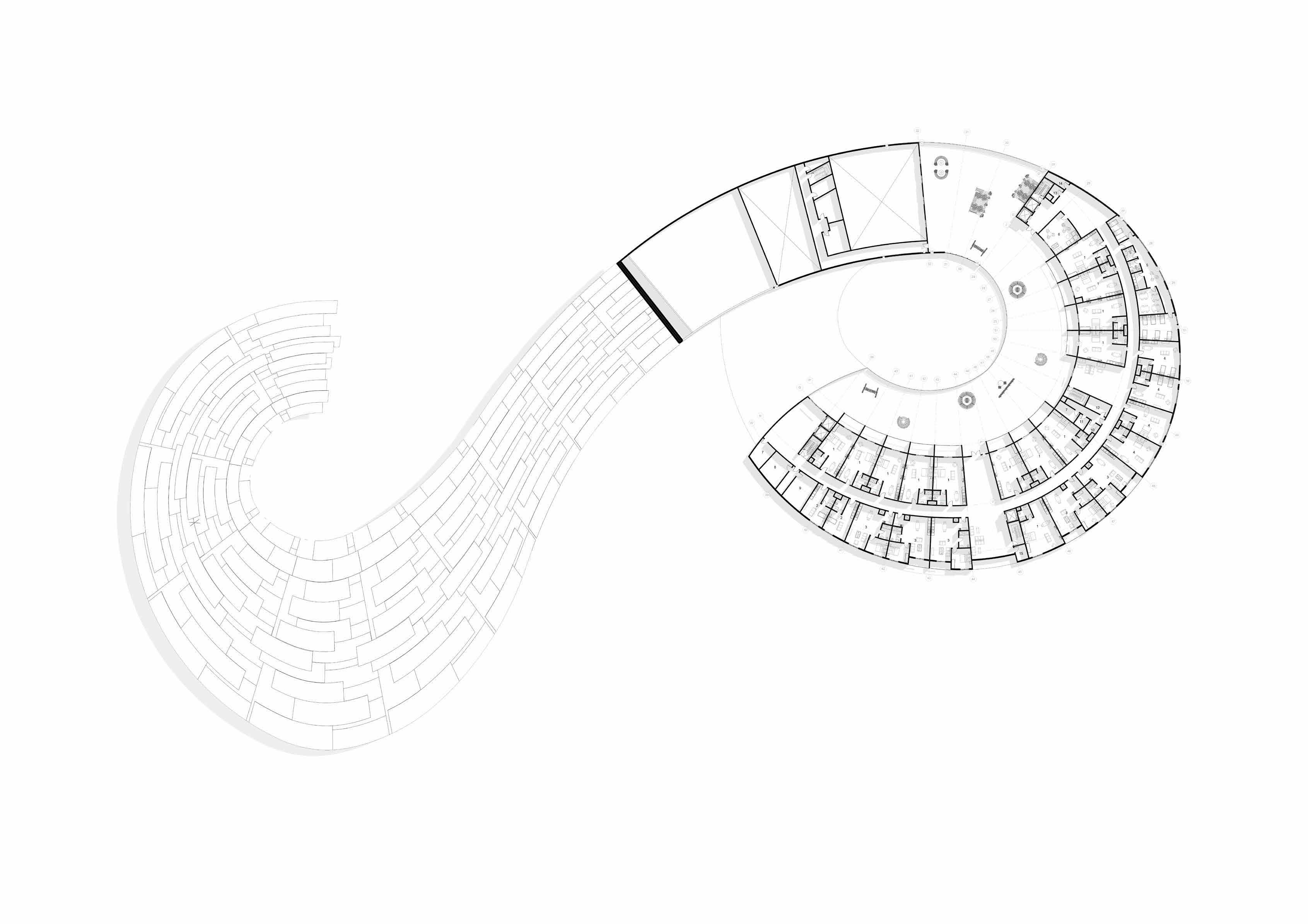

SECOND FLOOR - RESIDENTIAL ZONE 24

1.

2.

3.

4.

5.

6.

7.

8. ming Pool 9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

Room 19.

20.

21.

44

Makerspace Lab Class room Activity room Creative Play Room Toilet Cinema Theatre Sleeping Room Children’s Indoor Swim45

Play Area A Sports hall Multi- Purpose Room Viewing Deck Black Box theatre Intergenerational Space Rehearsal studio Performance Arts studio Intergenerational Game Laundry MEP Maintenance Room

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

Service Room Storage Game Room Dance studio Music studio Mini Golf Cinema Theatre Library Therapy Room Group Therapy room GYM Yoga Studio Facial room Treatment Room Sauna Jacuzzi Room VIP Treatment Room Laundry Toilet Changing room Reception Nurse’s Station Store

SCALE 1:400

Residential outdoor garden

SCALE 1:400

16

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

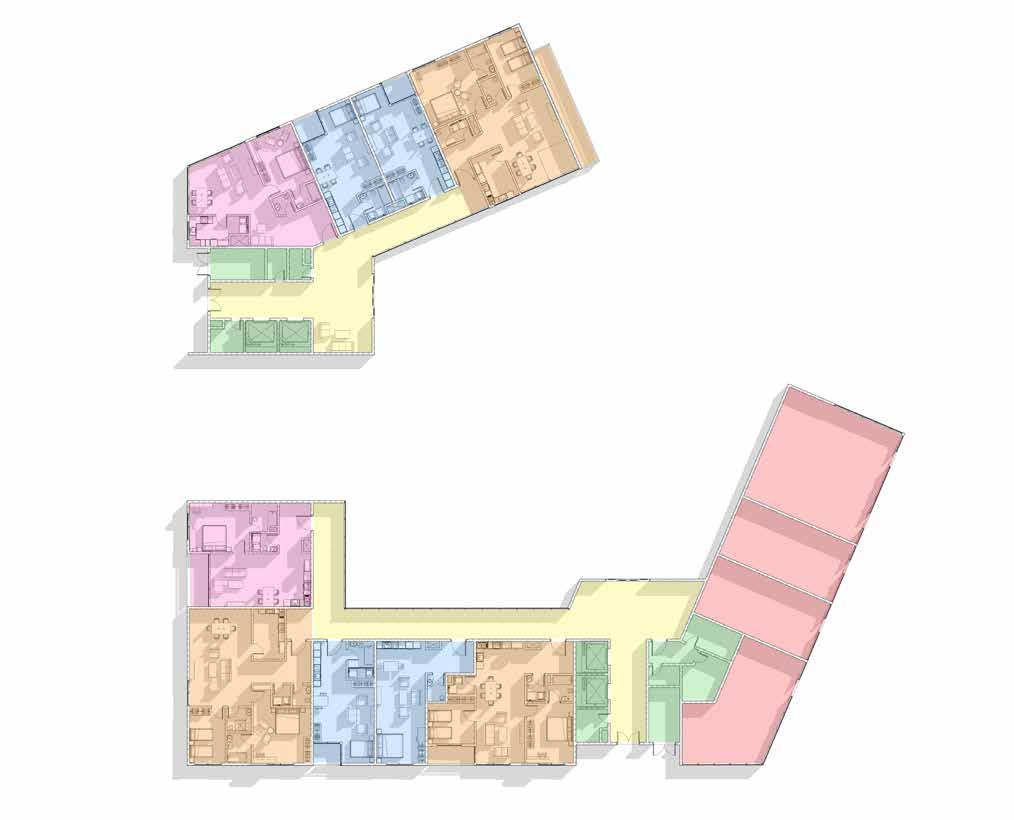

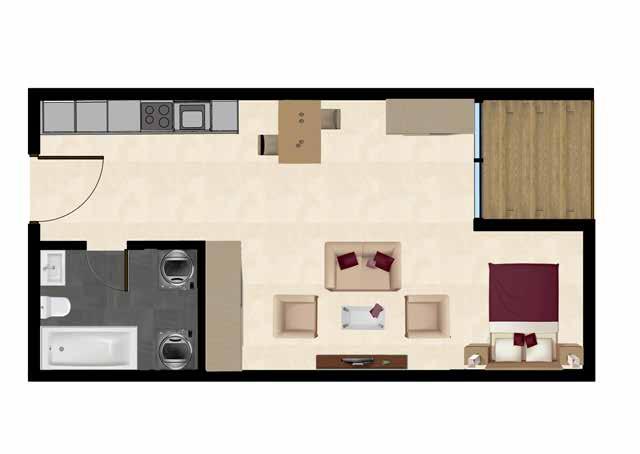

Studio Studio: Type B 1BHK Studio Double Occupancy Staff Accomodation Staff breakout Room store House Keeping Laundry Room Telcommu Room Control Room Maintainance Room Electrical Room Data Room

Visual Connectivity between all floors

17

Architectural Portfolio | 2017-2022

Megha Pramod

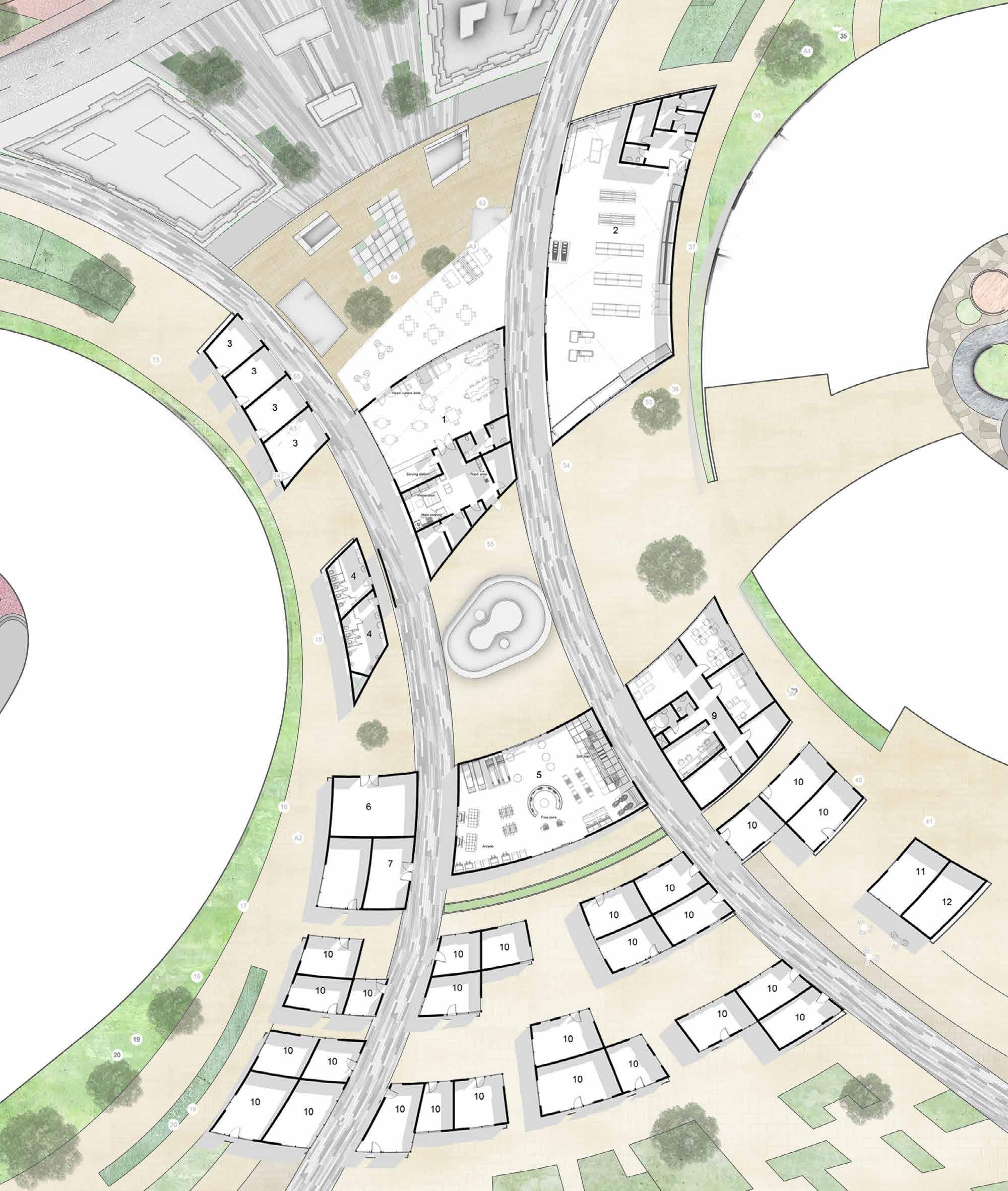

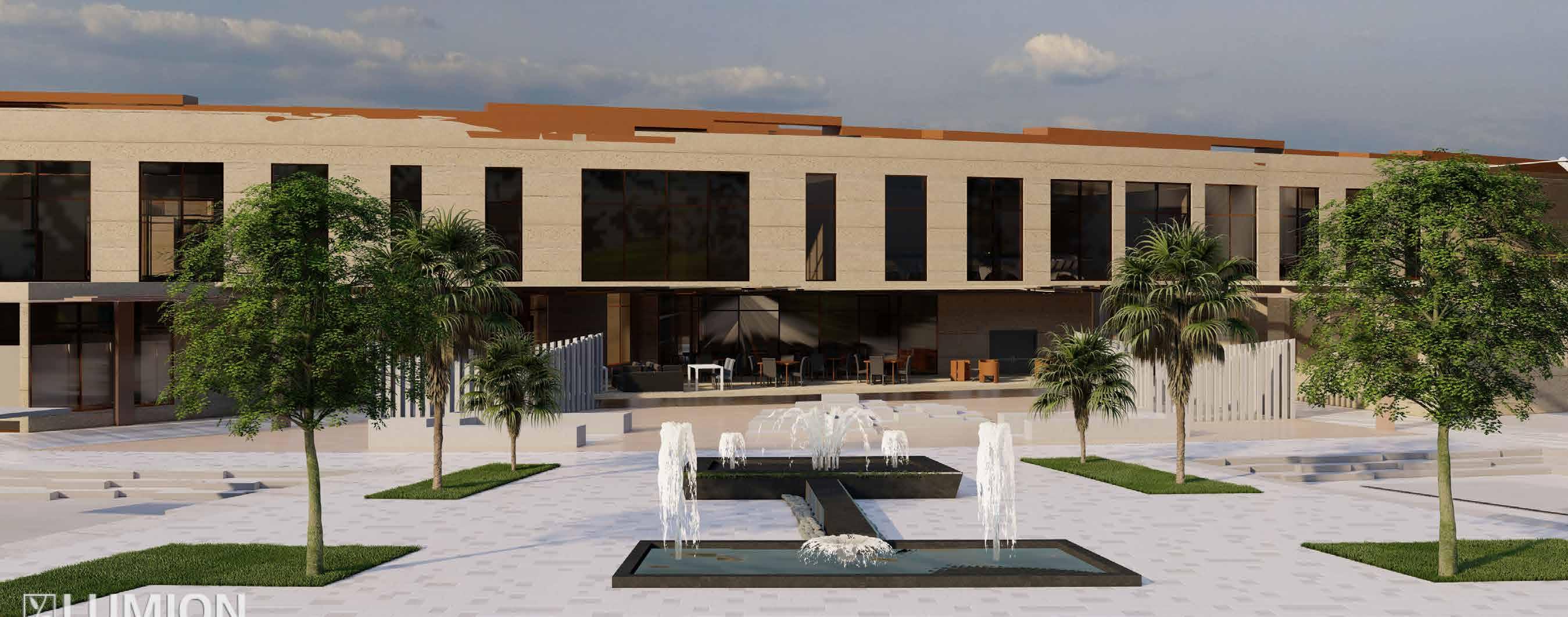

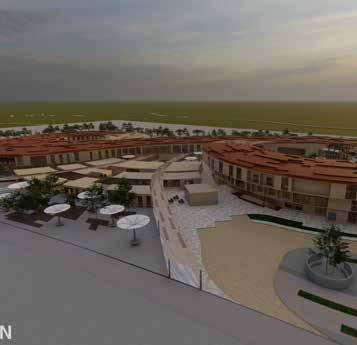

RETAIL ZONE

The retail zone is planned with the traditional souq layout. At the start the public is greeted by a public plaza and restaurants and food kiosks. Futher ahead the retail stores catering to the publics needs are placed along the two major streets with pocket green spaces in between.

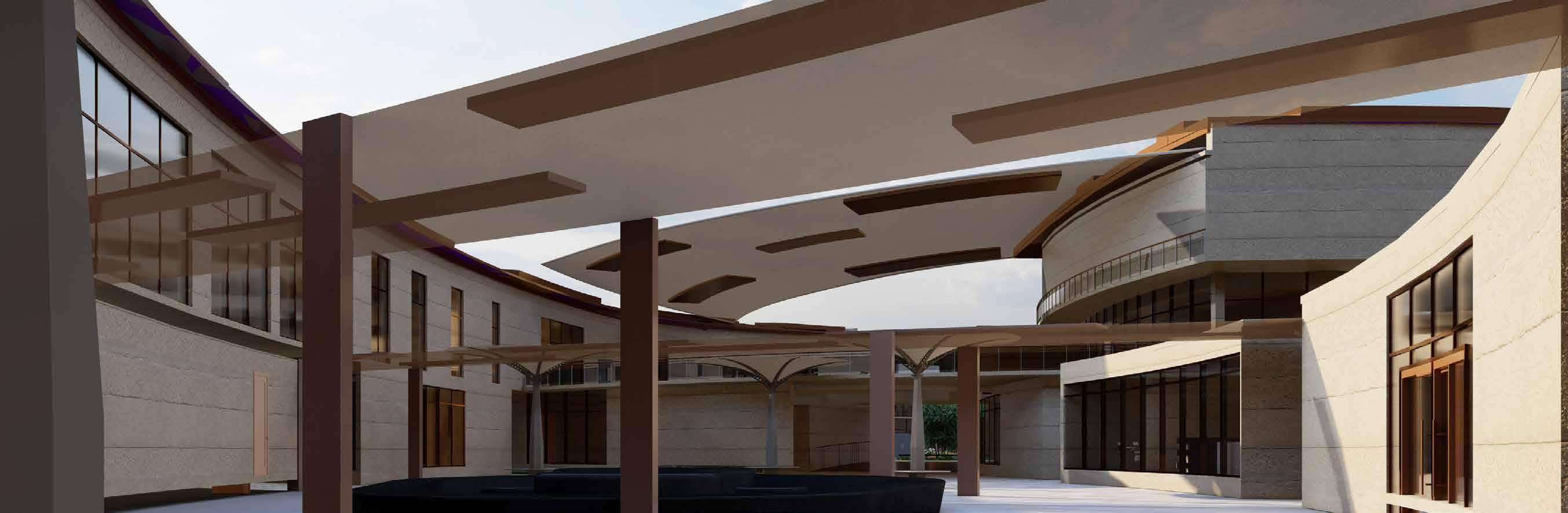

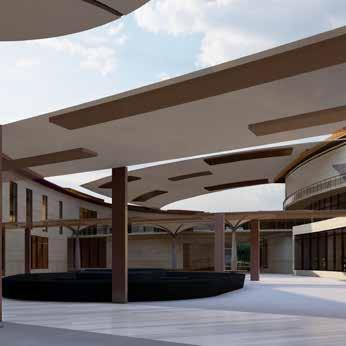

Shaded Walkways

Urban Plaza

SCALE 1:400

18

1.

2.

3.

4.

5.

Centre 6.

Room 7.

8.

Restaurant Supermarket Food Kiosk Toilet Children’s Filtration Pump Room Storage

19

Architectural Portfolio | 2017-2022

Megha Pramod

PASSIVE DESIGN STRATEGIES

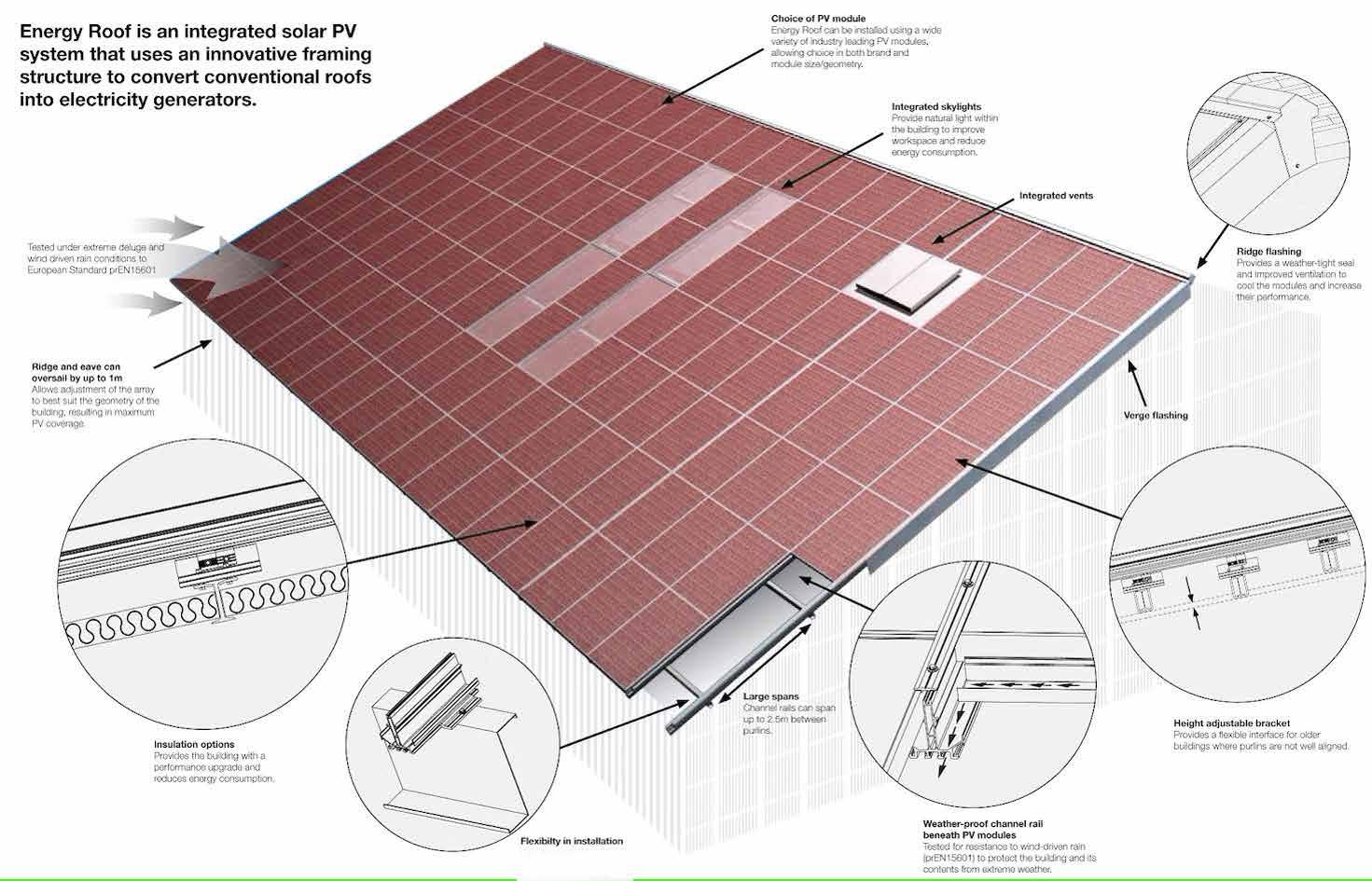

ROOFING DETAIL

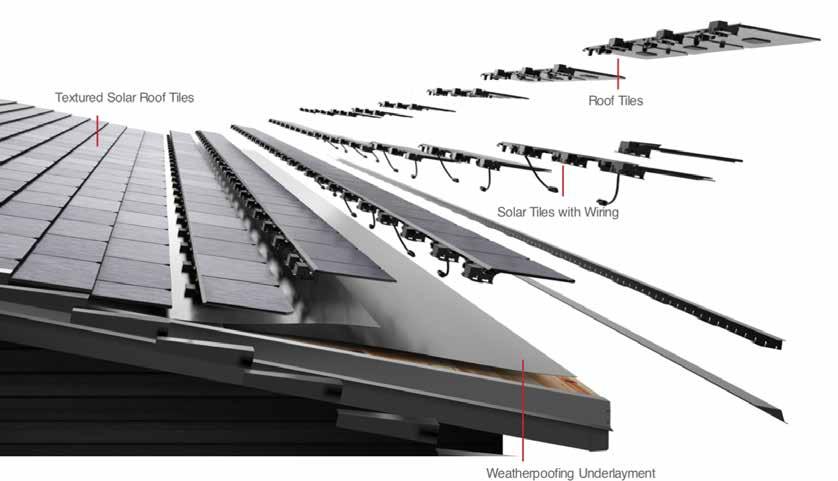

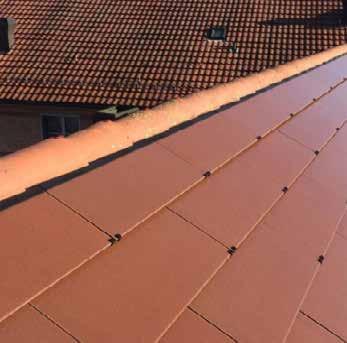

The roof comprises of Solar tiles.

These roof shingles are composed of three separate layers.

The innermost layer is the high-efficiency solar cell. The middle layer is film that covers the cell and makes it invisible to people. The outermost layer is tempered glass.

ORIENTATION

BUILDING FORM

COURTYARD

SOLAR -E GLASS

GREEN TERRACES

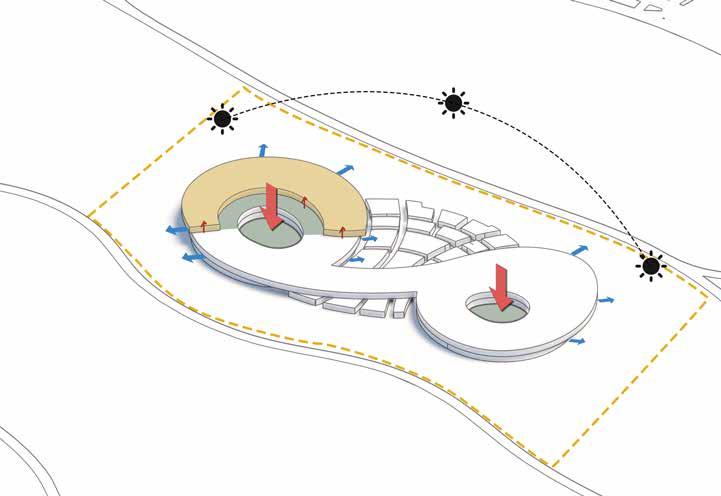

The building is oriented in the East- West Axis, thereby having the longer walls facing north to minimize exposure to sun in summer and maximise it in winter.

The building has adopted a circular form in order to minimize the solar heat gain.

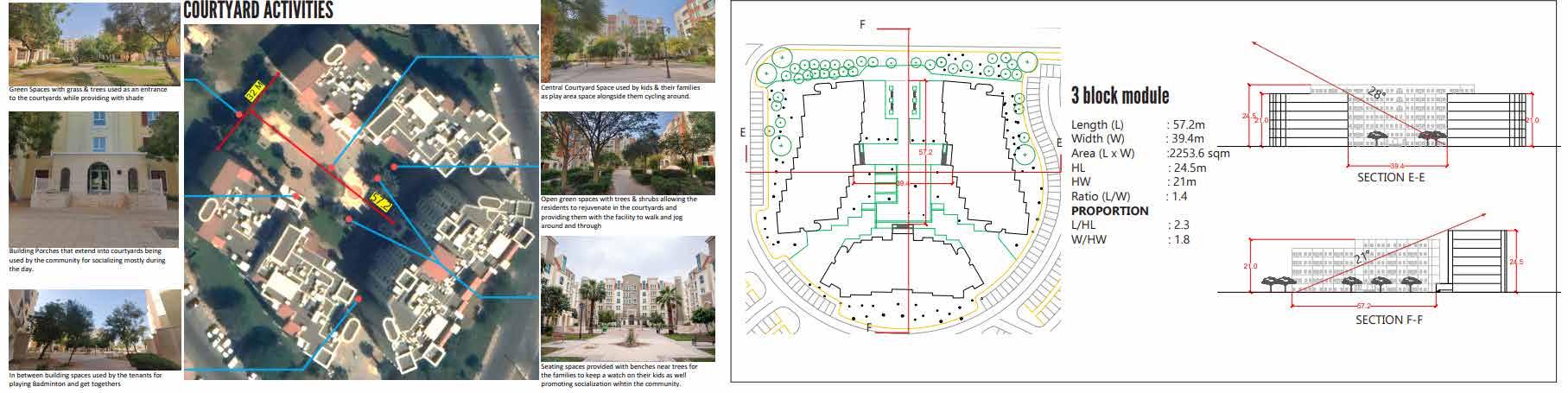

C o u r t y a r d s are created as punctures in each block to enhance the micro-climate.

Smart/ solar -e glass with u value of 0.3 and SHGC 0.35 is used for max. efficiency and maximum windows are provided on the northern facade to bring in daylight.

Green terraces provided on all floors purify the airand reduce the ambient temperature as well as regulate the indoor temperature.

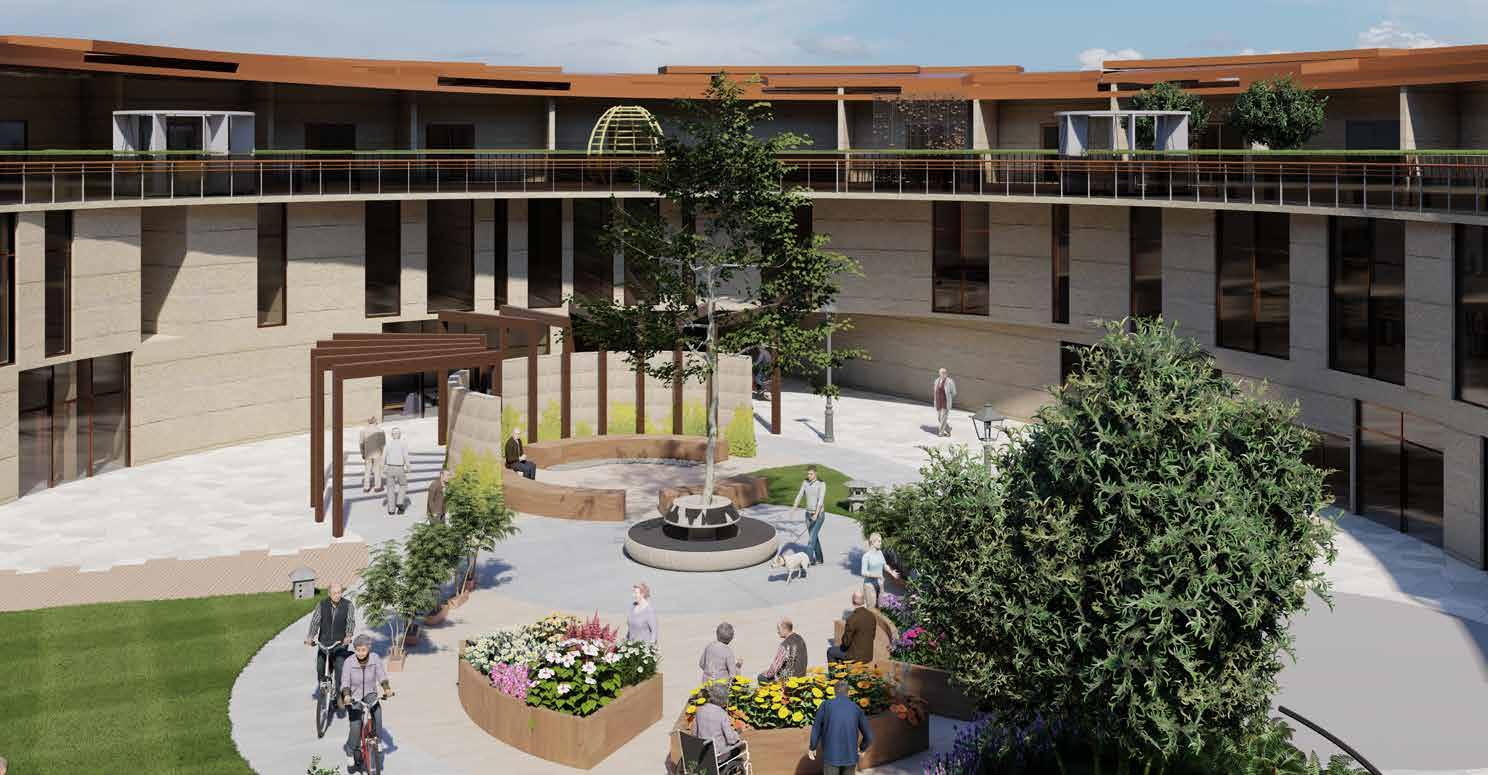

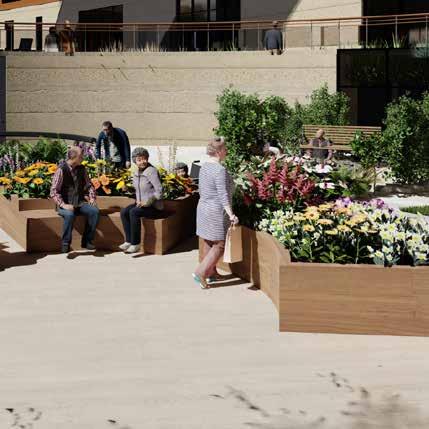

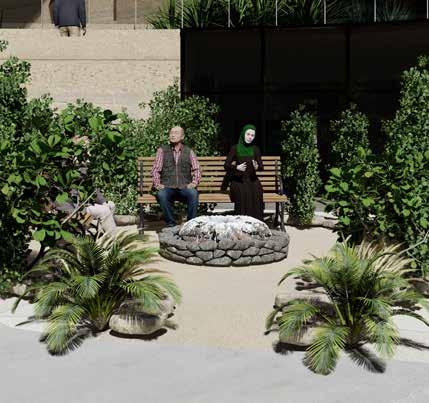

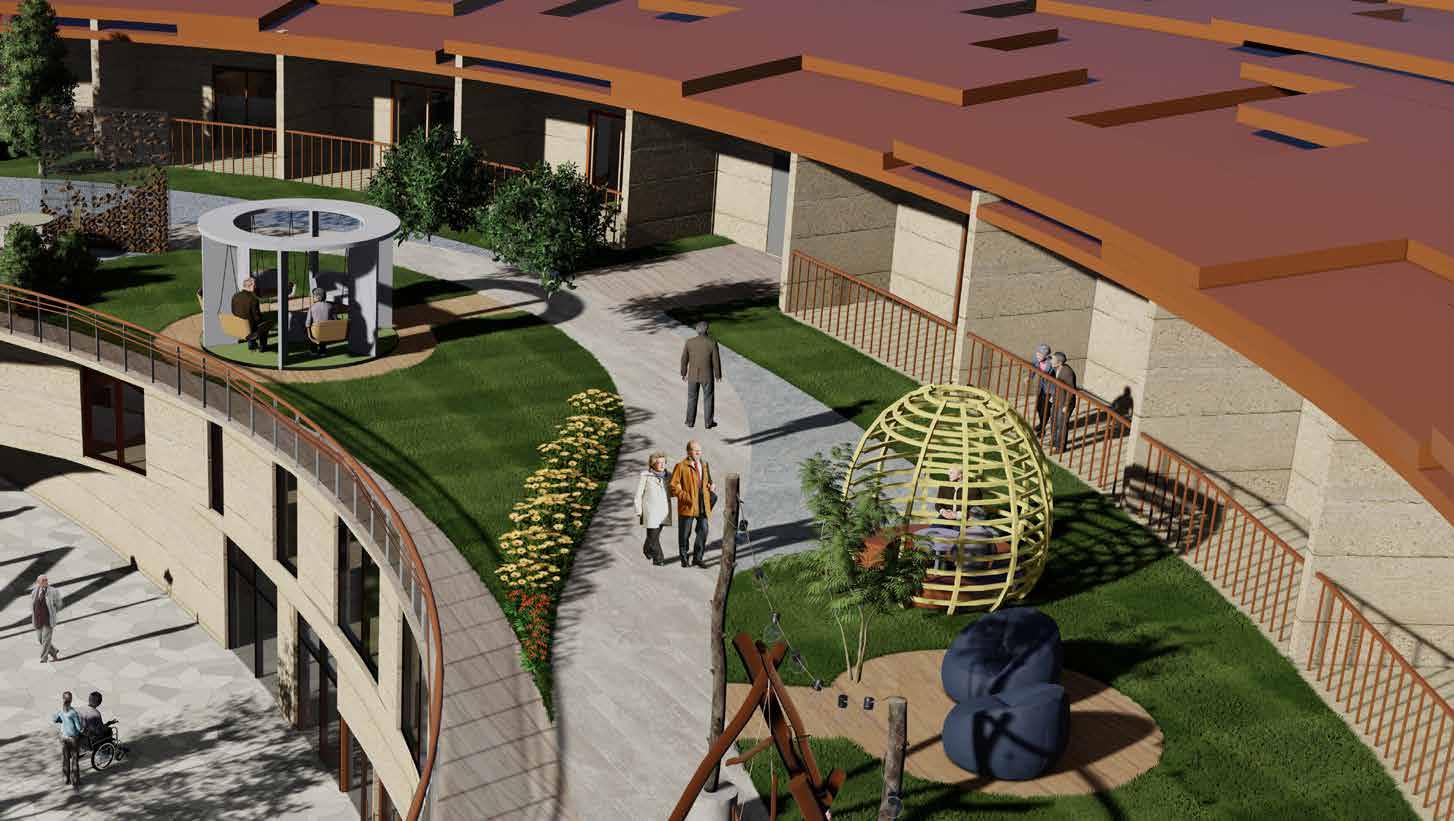

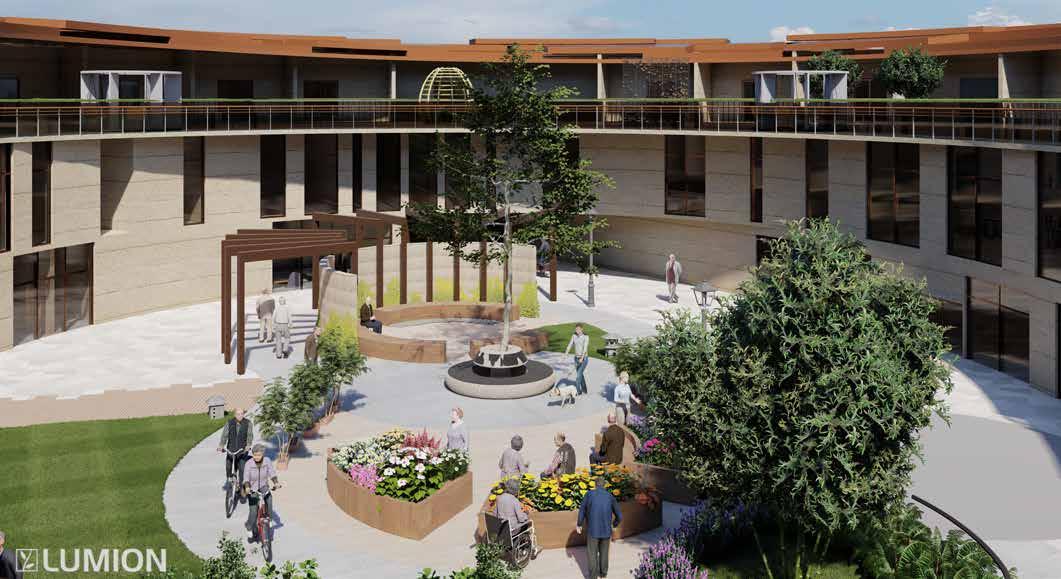

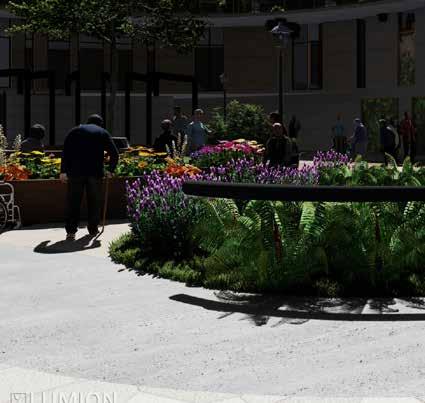

MULTI - SENSORY GARDEN Sensory gardens for the elderly provide intimate, colorful environments designed to allow visitors to soak up the sounds, smells, sights, and even tastes contained within the garden TEXTURE WALL WALKWAY

20

SENSORY GARDENING

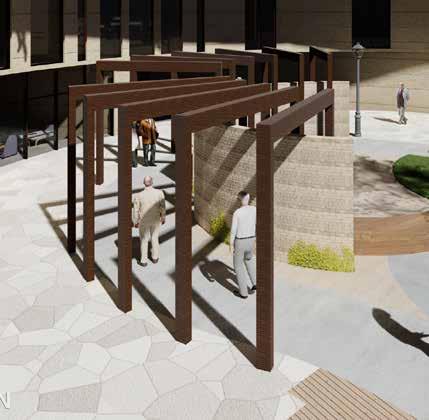

PATHWAYS

WATER FEATURE

WATER BODIES

SHADING STRUCTURE

M E S H MEMBRANE

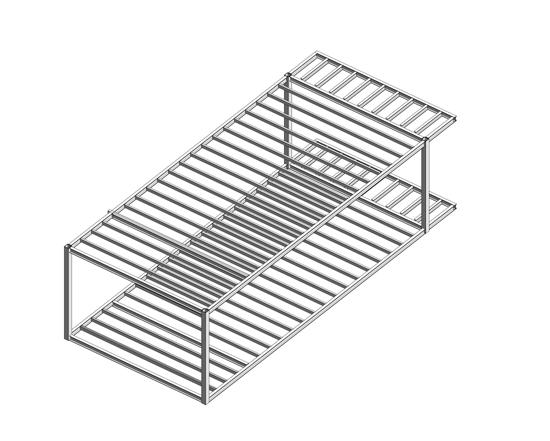

GAP FLOOR

SOLAR TILES

CANTELIVERD FLOOR

Water bodies are provided in the retail zone to improve the micro-climate.

These shading structures allow resting zones for the retail users

It creates a comfortable environment for the users

Throughout opening within the structure are provided at various blocks to create pockets for ventilation, improve sair circulation and reduce humidity.

Solar photovoltaic tiles on aluminium panels are used for the roof to harness max. solar energy to produce electricity required to function the structure.

Floors on the southern side are cantelivered in order to provide sufficient shade for the floor

21

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 02

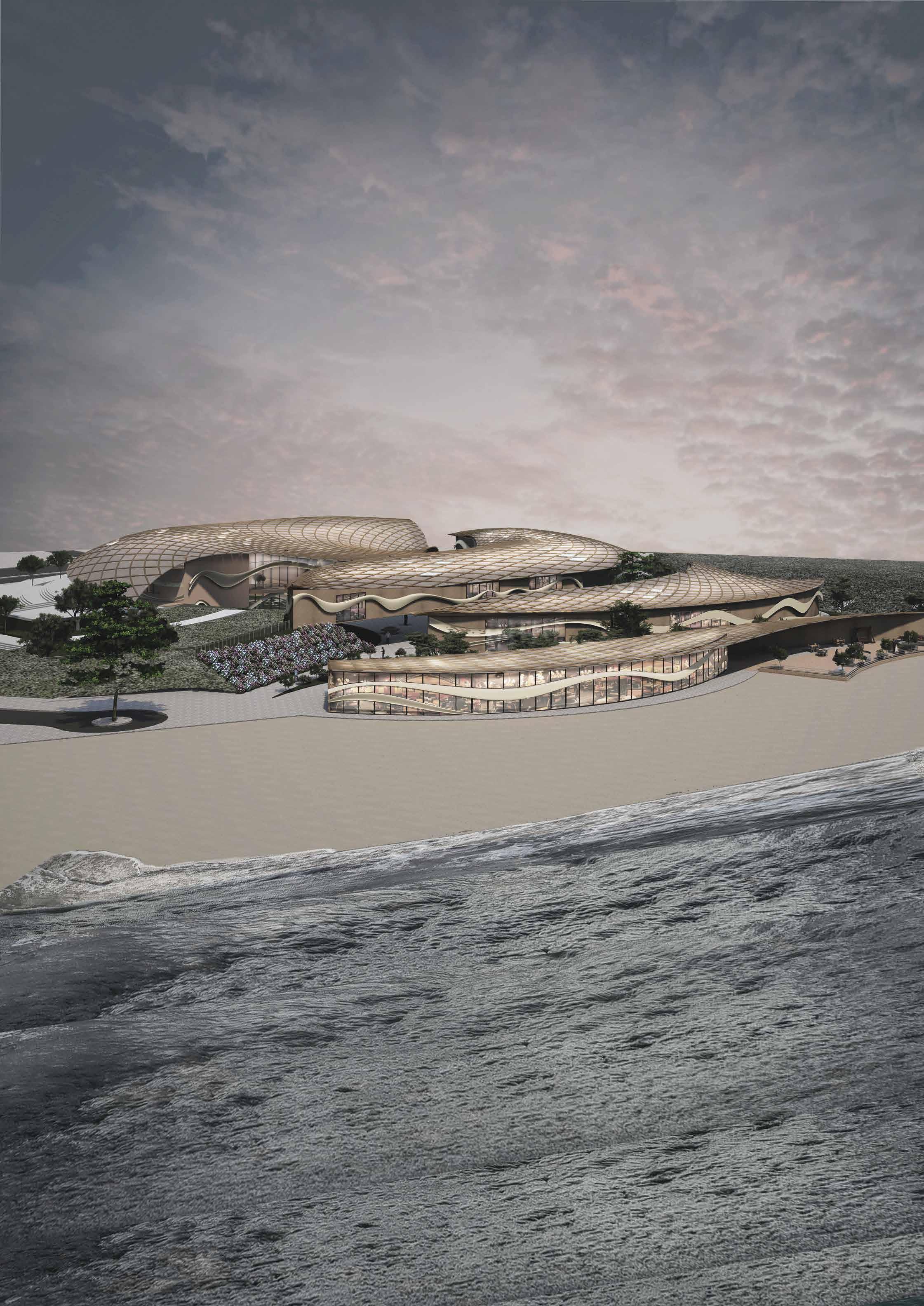

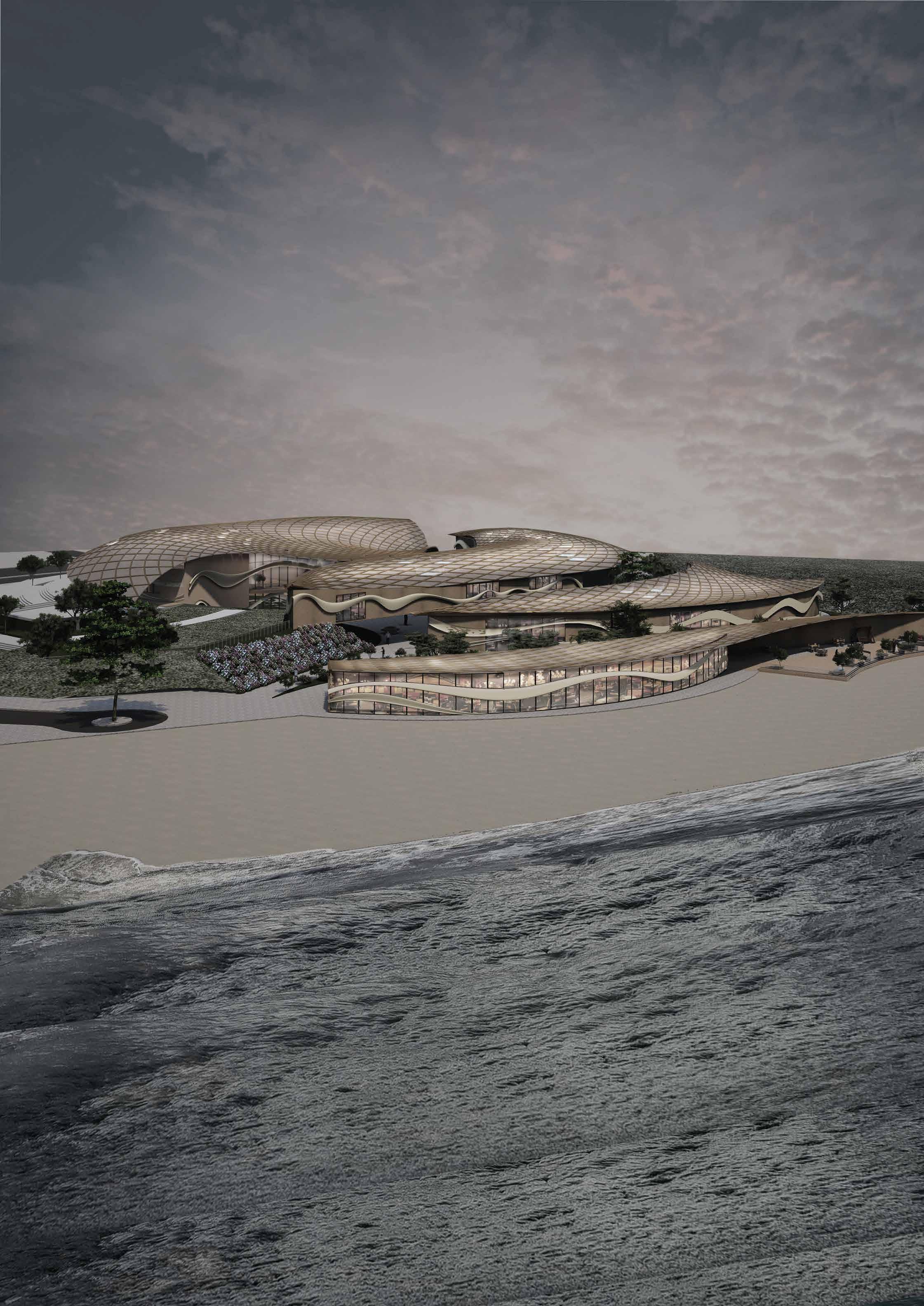

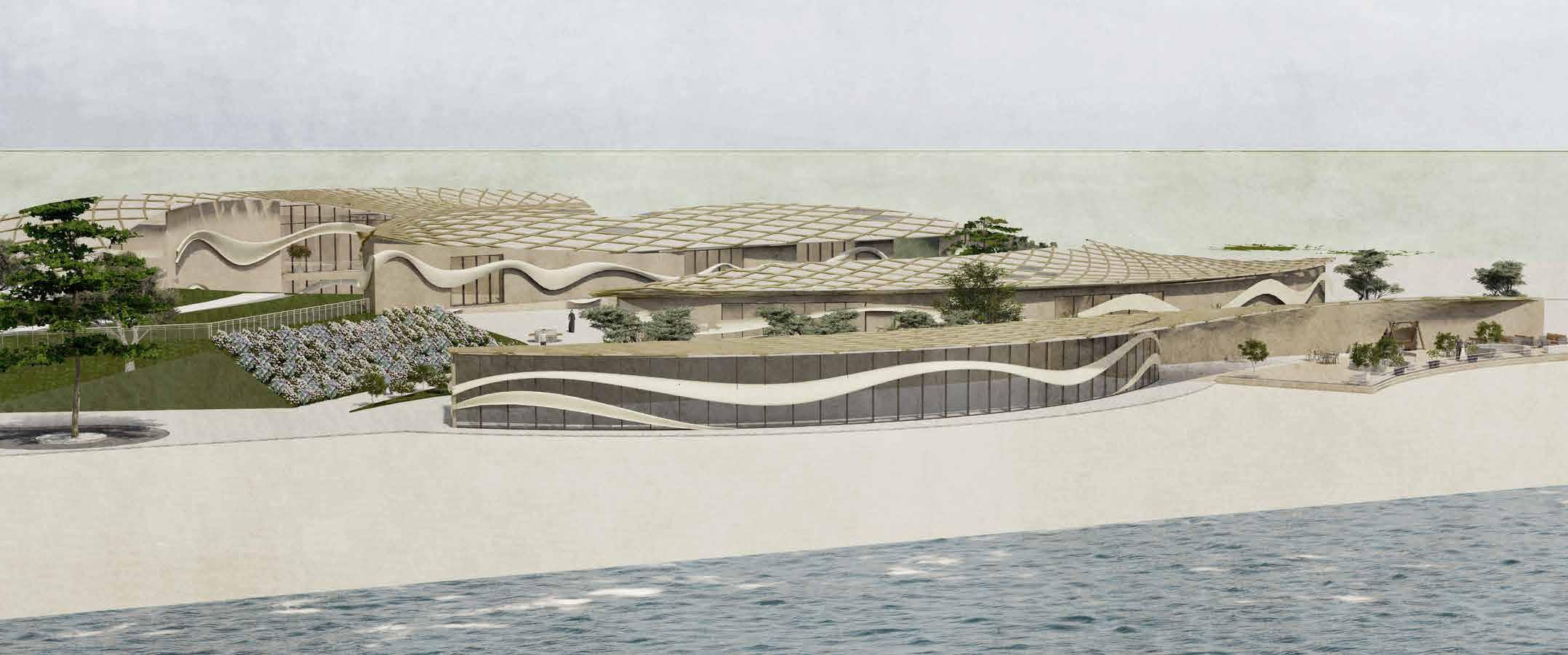

THE CADENCE OF CREEK

Project type: Individual Semester: 6 Category: Performance Arts Centre Project Location: Dubai Creek Park Subject: Architecture Design Built-up area: 8,568 sq.m

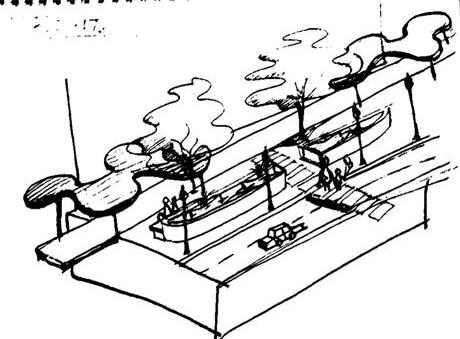

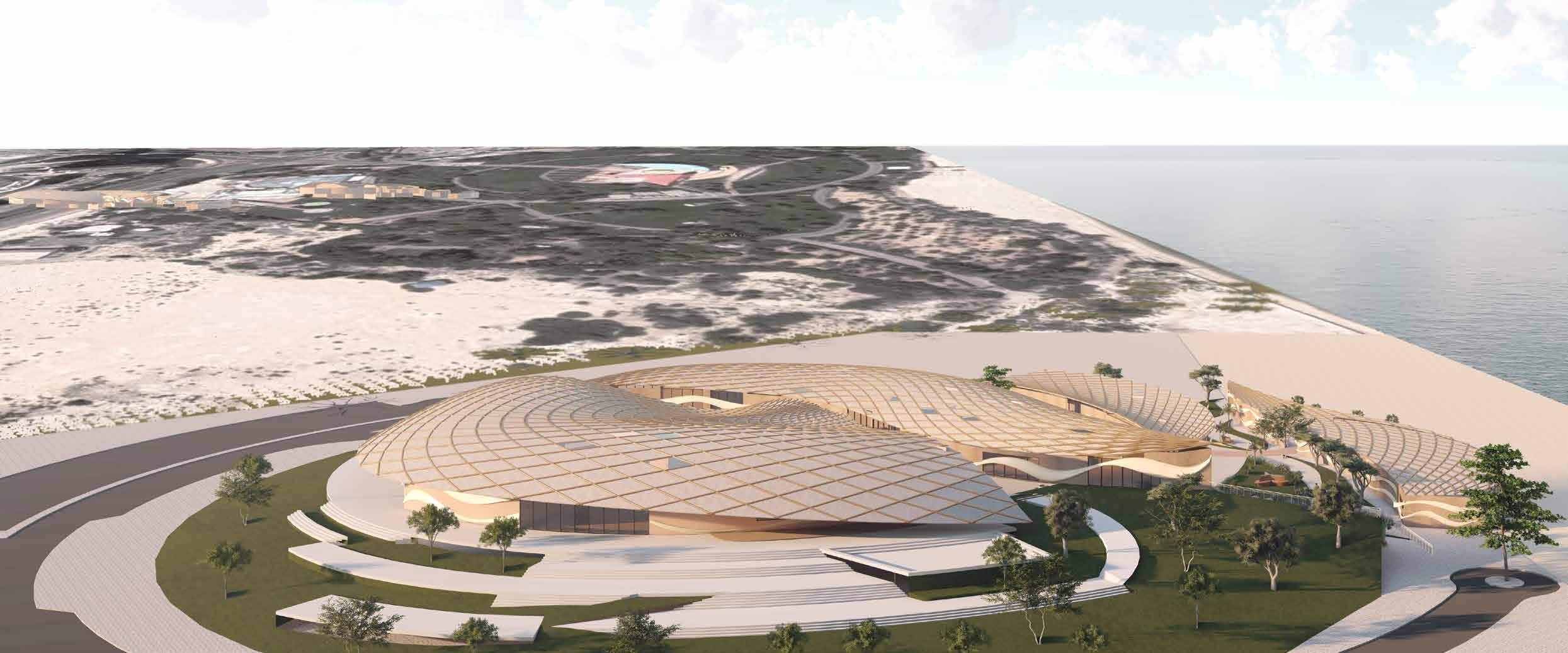

Performance Arts Centre design aims in creating a design that potentially brings the site and the surroundings within blending in with the functions of the centre to create a dynamic environment at all points. The design portrays the enegry of the centre itself through its form. The synchronization of the rhythm and harmony found in dance and the element existing site Creek that is water is picked up to develop the design.

In the way how creation of a dance involves a sequence of rhythmic movements which are linked together, water ripples created also involves a series of movements. The harmony in ripple effect is incorporated to develop the form of the structure. Instead of a concentric ripple effect, ripple effect is portrayed in a linear direction fading out towards the creek. and the functions are accomodated based of the energy levels generated within each of them.

22

23

Architectural Portfolio | 2017-2022

Megha Pramod

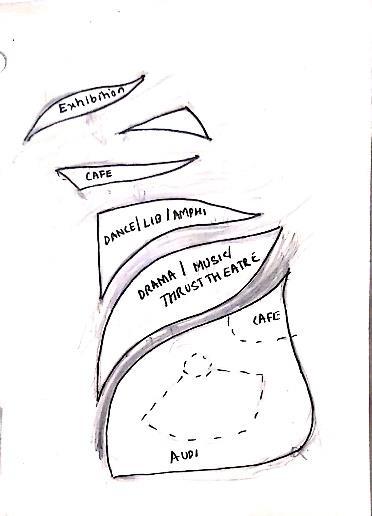

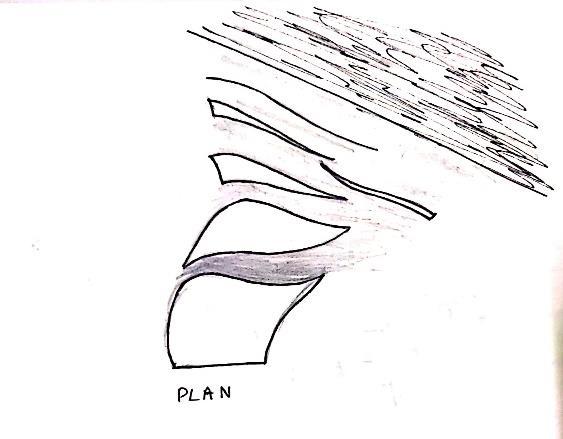

CONCEPT DEVELOPMENT : Harmony in Dance and Water

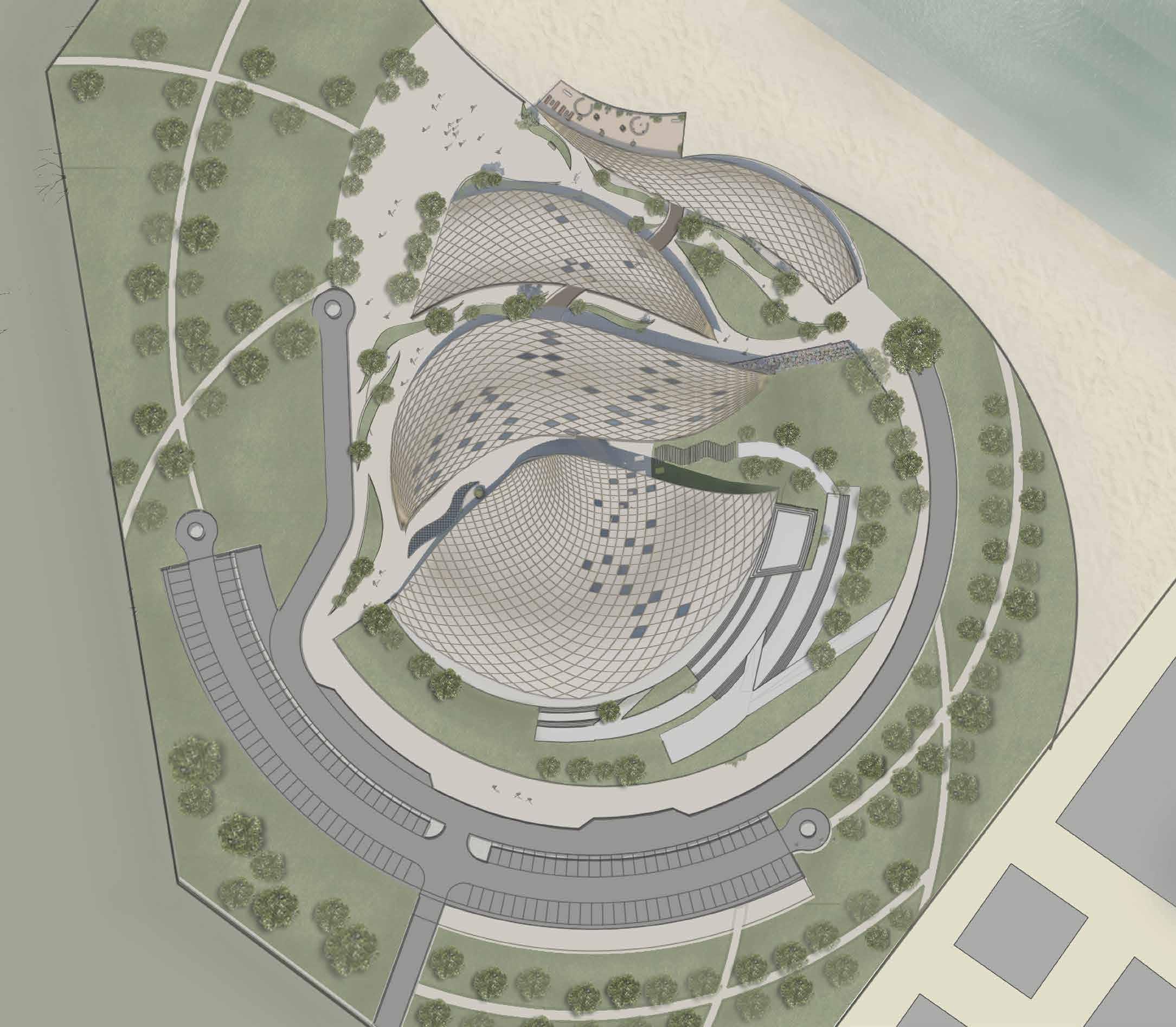

SITE PLAN

CONCEPT : HARMONY IN DANCE ANDofWATER Dance is a performing art form consisting purposefully selected sequences of human movement.

Similarly, water has its own gradual movement. Harmony is a combination of separate but related parts in a way that the uses their similarities to bring unity in any object.

DANCE IS A PERFORMING ART FORM CONSISTING OF PURPOSEFULLY SELECTED SEQUENCES OF HUMAN MOVEMENT. ALSO WATER HAS ITS OWN GRADUAL MOVEMENT. HARMONY IS A COMBINATION OF SEPARATE BUT RELATED PARTS IN A WAY THAT THE USES THEIR SIMILARITIES TO BERING UNITY IN ANY OBJECT. HARMONY OF FLOWING RHYTHM PROVIDES A MOTION OF MOVEMENT AND IS ORGANIC IN NATURE.

In the way how, creation of a dance involves a sequence of rhythmic movements which are linked together, water ripples created also involves a series of movements. The harmony in ripple effect is incorporated to develop the of structure instead of MOVEMENform T RHYTthe HM SEQUENCE HARMONY PERFa ECT concentric APPEALING PERFORMANCEripple effect, ripple effect is portrayed in a linear direction fading out towards the creek. Moreover, the zones are placed from high energies to calmer IN THE WAY HOW CREATION OF to A DANCE A SEQUENCE OF RHYTHMIC MOVEMENTS WHICH ARE imitating LINKED spaces in accordance theINVOLVES height requirements subtly the flow of energy in a ripple.

AMPPHITHEATRE MODIFICATION TOGETHER, WATER RIPPLES CREATED ALSO INVOLVES A SERIES OF MOVEMENTS. THE HARMONY IN RIPPLE EFFECT IS INCORPORATED TO DEVELOP THE FORM OF THE STRUCTURE INSTEAD OF A CONCENTRIC RIPPLE EFFECT, RIPPLE EFFECT IS PORTRAYED IN A LINEAR DIRECTION FADING OUT TOWARDS THE CREEK.

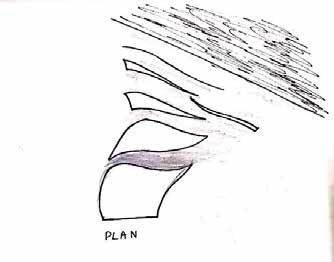

For design development, the dips in a linear pattern of a ripple were carved out to create different blocks serving different activities and fostering through movement and pockets of green spaces.

DESIGN DEVELOPMET HALF OF THE EXISTING AMPHITHEATRE IS CONVERTED TO AUDITORIUM BY ENCLOSING IT

AN

ES IS

E STAGE 1

LINKED ECT IS

STAGE 2

STAGE 3

STAGE 4

STAGE 5

AMPPHITHEATRE MODIFICATION

G OUT

1.

SCALE 1:750

2.

SITE ANALYSIS

The initial fromAMPHITHEATRE the The is divided inTO the form of multipleBY HALF OFform THEis derived EXISTING IS roof CONVERTED AUDITORIUM concept rhombus shapes to support the structure.

ENCLOSING IT

5.

3.

4.

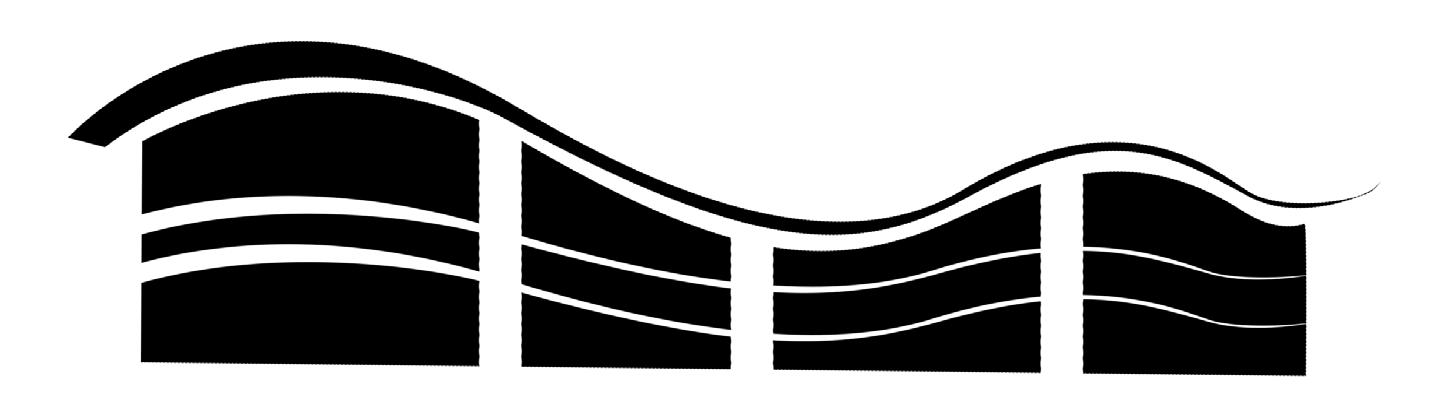

The waves of the water are mimicked of the walls of the facade establishing a relationship and connection with the site for users from any interior or exterior portion of the building.

24

A continous path is created that portrays the connectivity found in the ripples of water as well as the sequence of steps in a dance where each step to related and conneced to next.

STAGE 4

Punctures are created on the roof above the common spaces to create a play of light and shadow in the interiors similiar to the rays of light that can be expreienced from inside the water.

STAGE 5

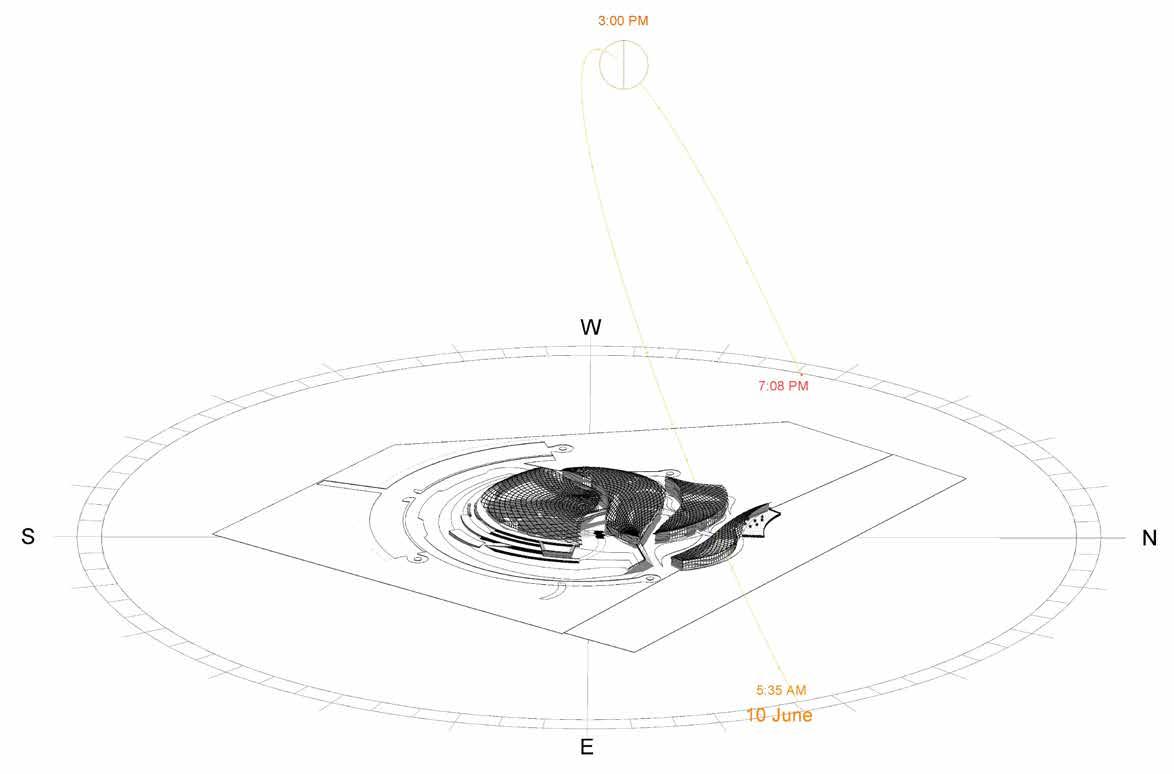

Sun Path and Shadow Study

Primary Roads

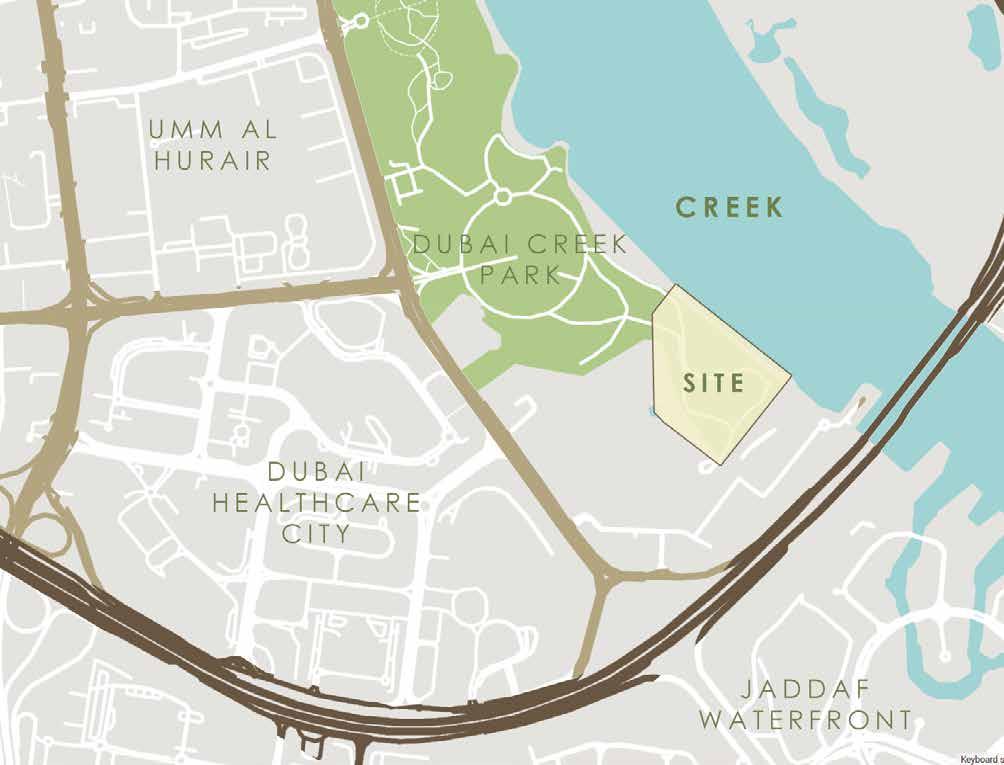

Site Location

Secondary Roads

Tertiary Roads

Road Network and Urban Context

25

Architectural Portfolio | 2017-2022

Megha Pramod

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

AUDITORIUM

GREEN ROOM

ACCOUNTS

4.

5.

6.

7.

8.

19.

20.

21.

22.

23.

24.

25.

26.

CAFETERIA AUDITORIUM BACK STAGE ROOM GREEN ROOM WASHROOM MINI AMPHITHEATRE THRUST THEATRE REHEARSAL ROOMS BLACKBOX THEATRE LIBRARY FOOD COURT KITCHEN OUTDOOR SEATING AREA

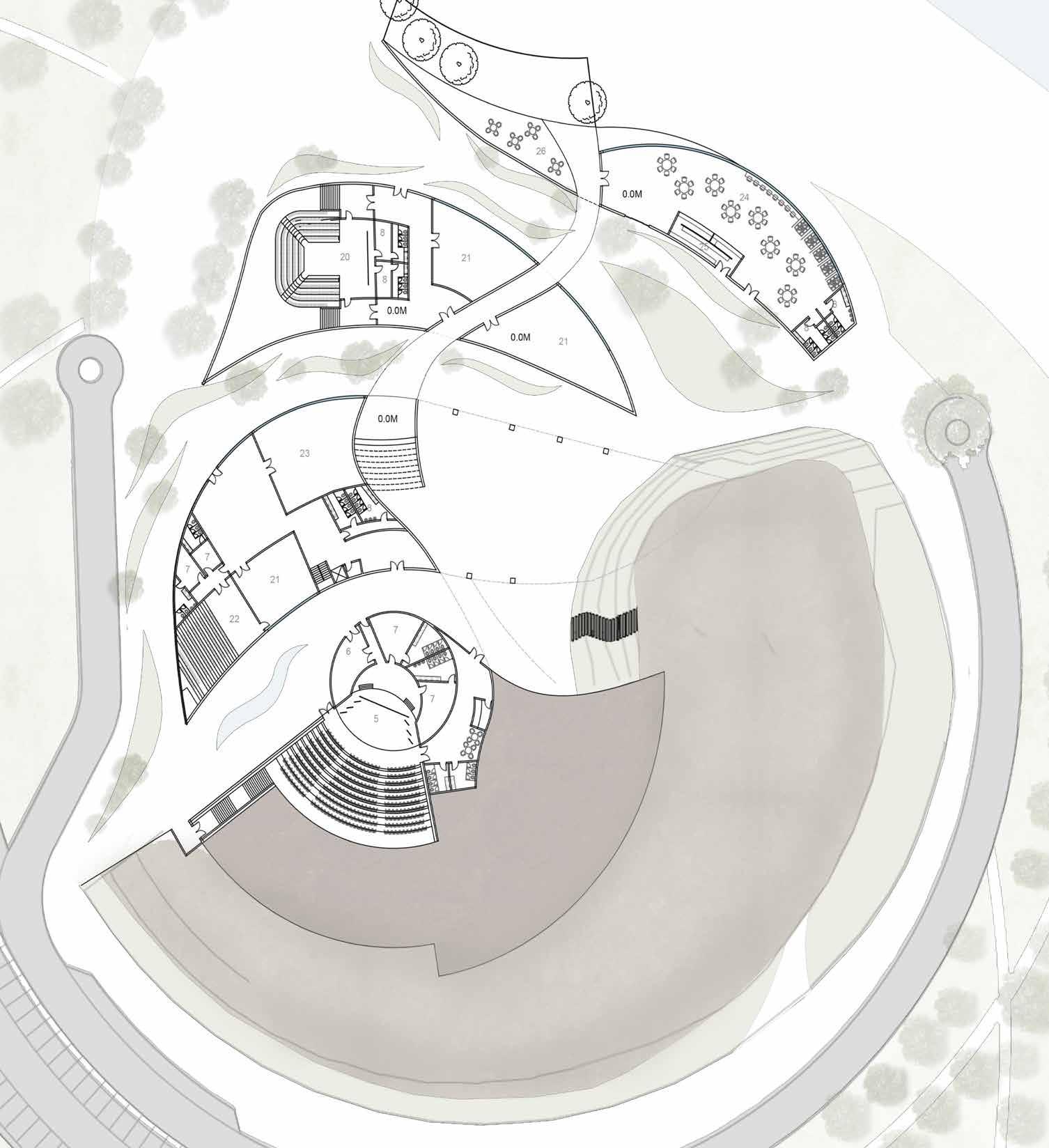

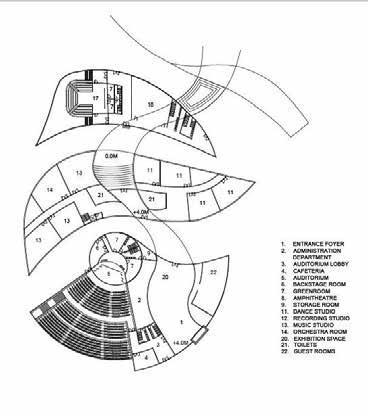

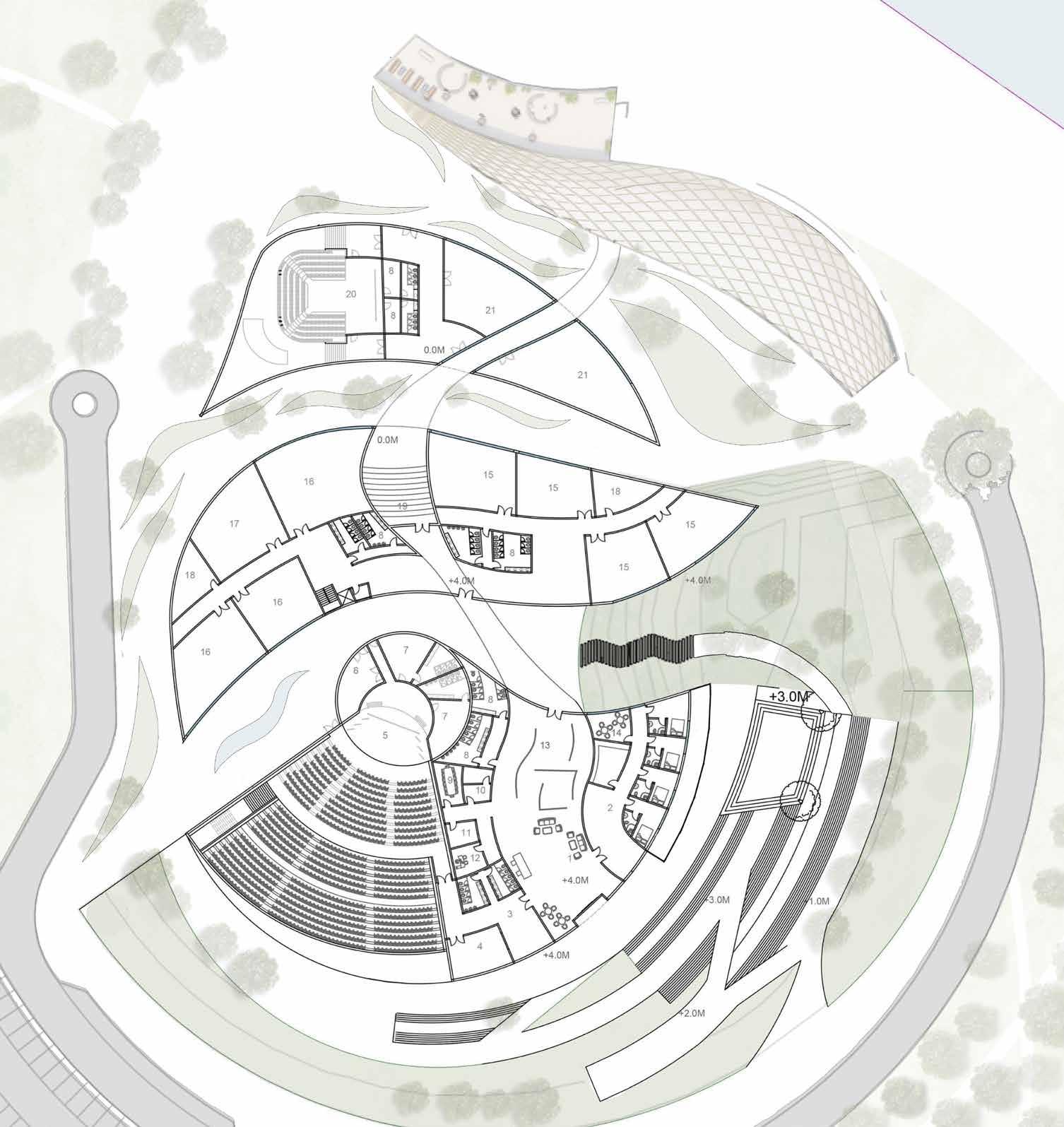

GROUND FLOOR PLAN

FIRST FLOOR PLAN

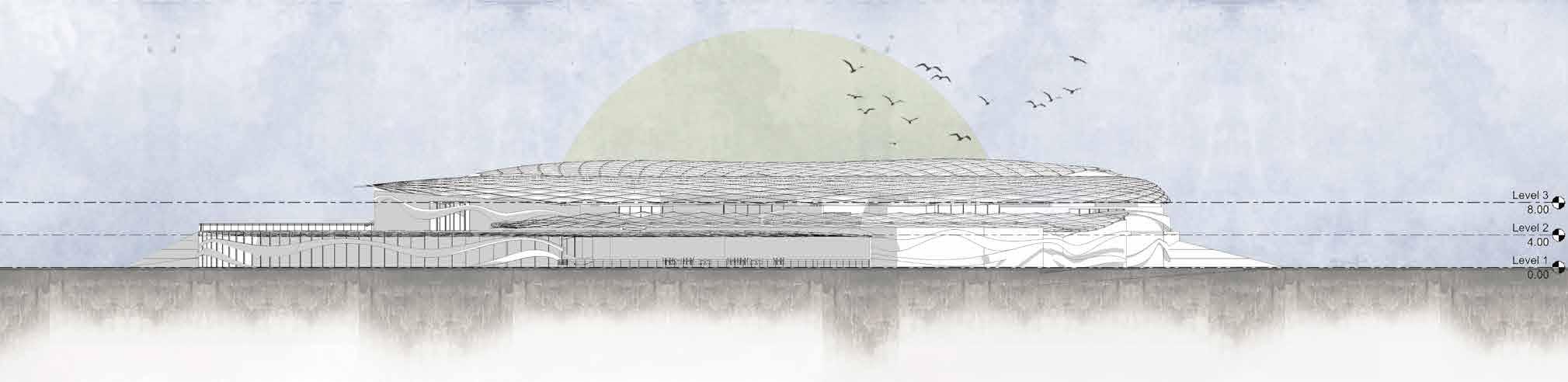

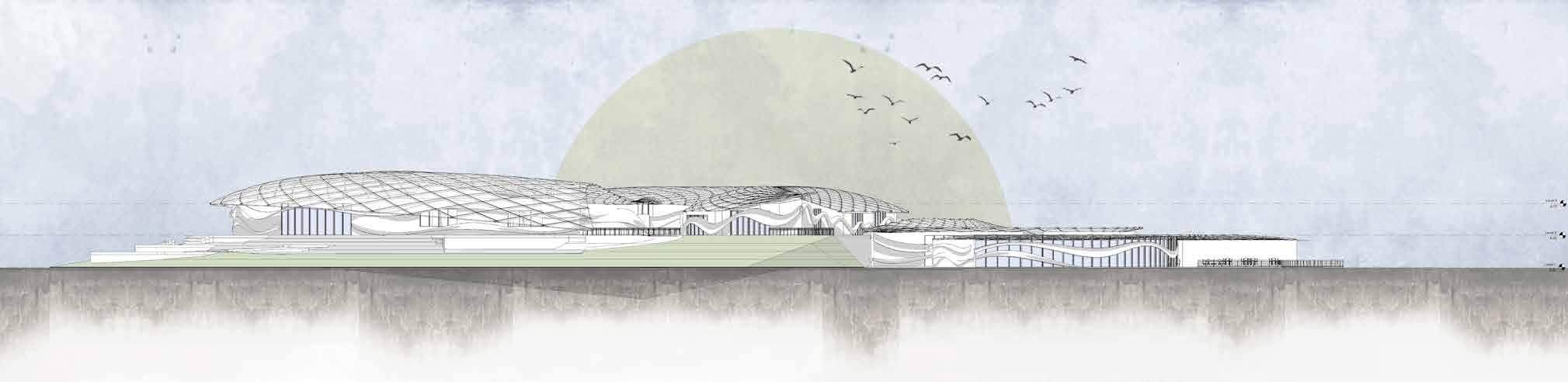

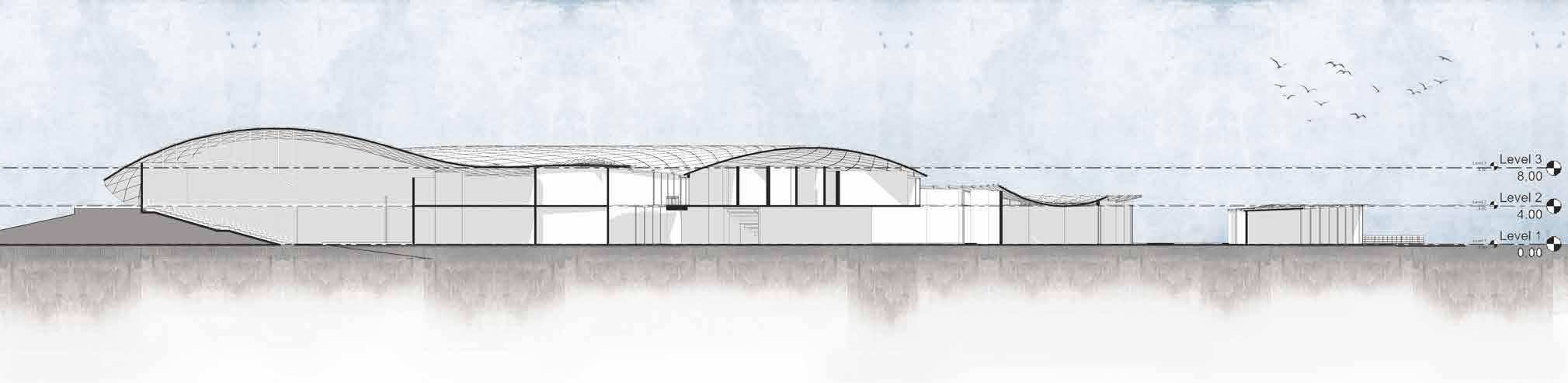

WEST ELEVATION

NORTH ELEVATION

SECTION A A’

SECTION B B’

DANCE STUDIO REHERSAL ROOM

26

ENTRANCE FOYER GUEST ROOMS AUDITORIUM LOBBY CAFETERIA AUDITORIUM BACKSTAGE ROOM GREENROOM WASHROOM CONFERENCE ROOM IT DEPARTMENT ADMISSIONS AND DEPARTMENT DIRECTORS ROOM EXHIBITION SPACE GUEST LOUNGE DANCE STUDIO MUSIC STUDIO RECORDING STUDIO STORE ROOM MINI AMPHITHEATRE THRUST THEATRE REHERSAL ROOMS

FOOD COURT

27

Architectural Portfolio | 2017-2022

Megha Pramod

DESIGN FEATURES

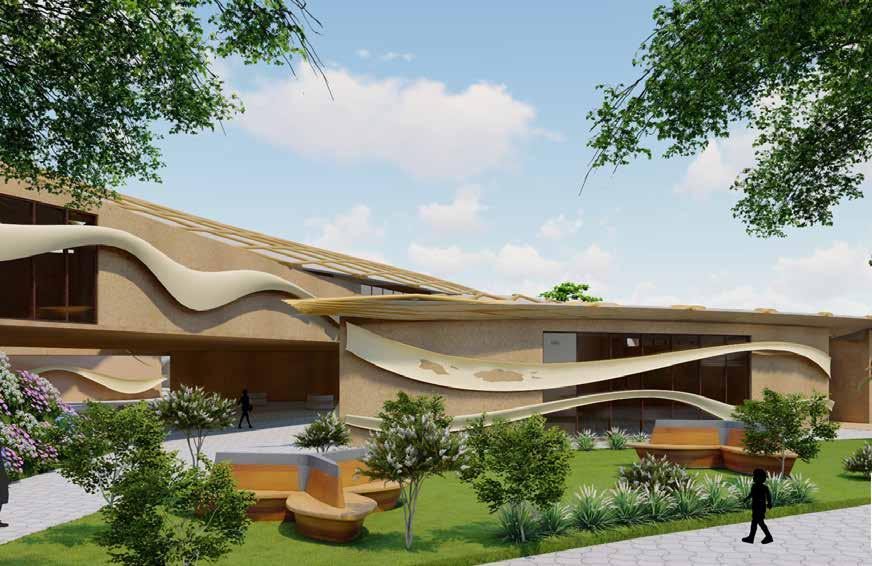

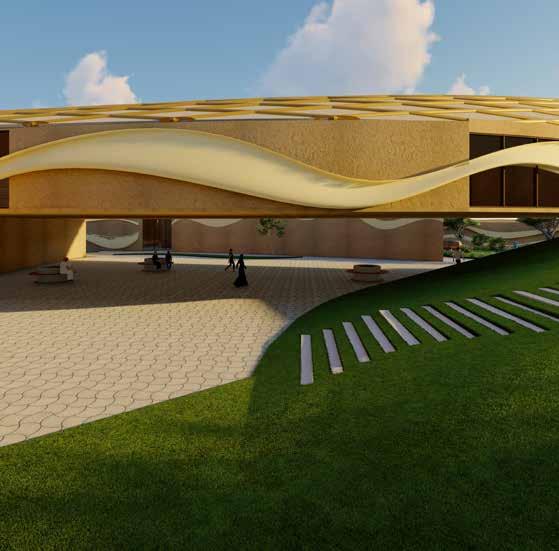

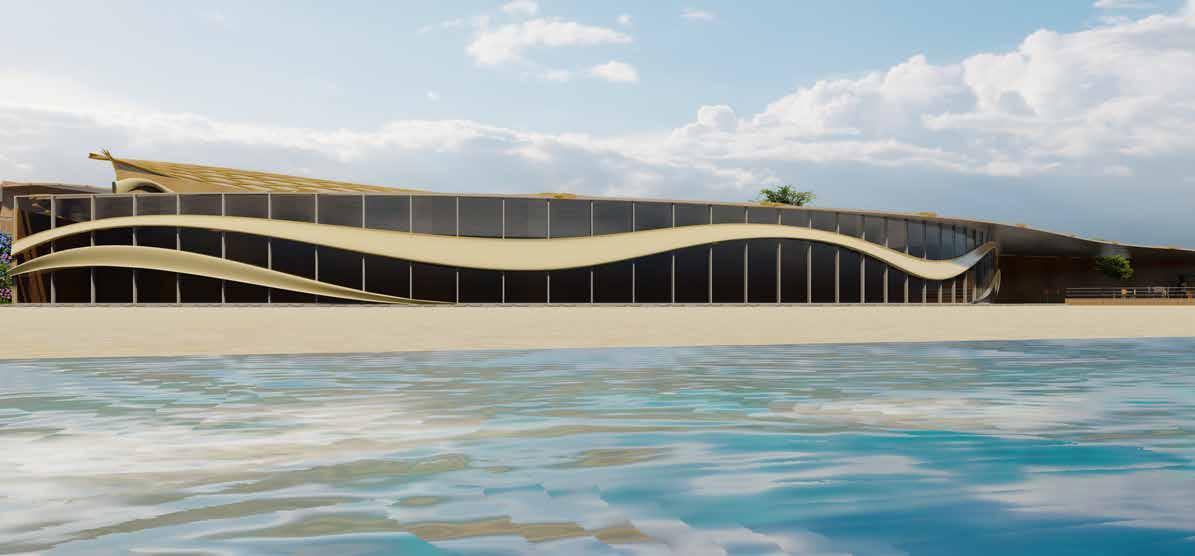

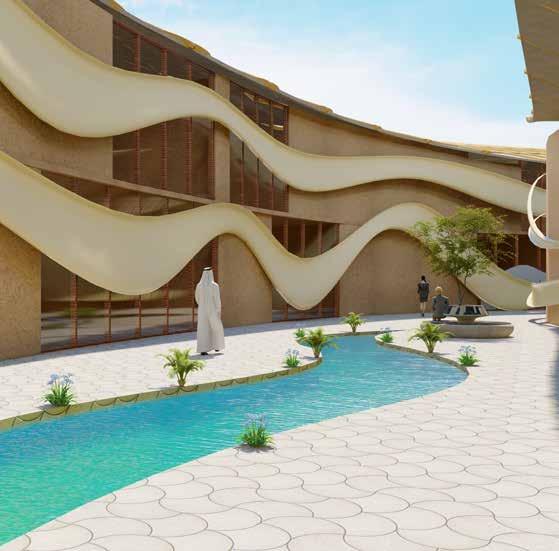

MATERIALS AND TECHNOLOGY UNDULATING FACADE Smooth beige textured light weight Aluminium facade cladding • mimics the waves of the the creek • visual treat for users • play of light and shadow in the interiors as the wave like facade depicts the same in the interiors.

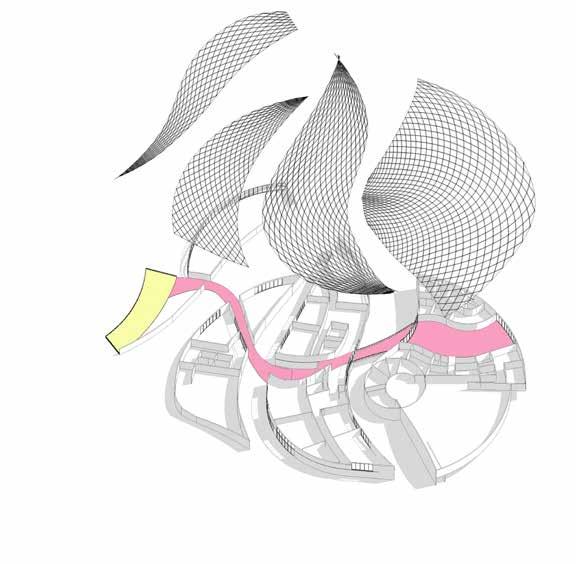

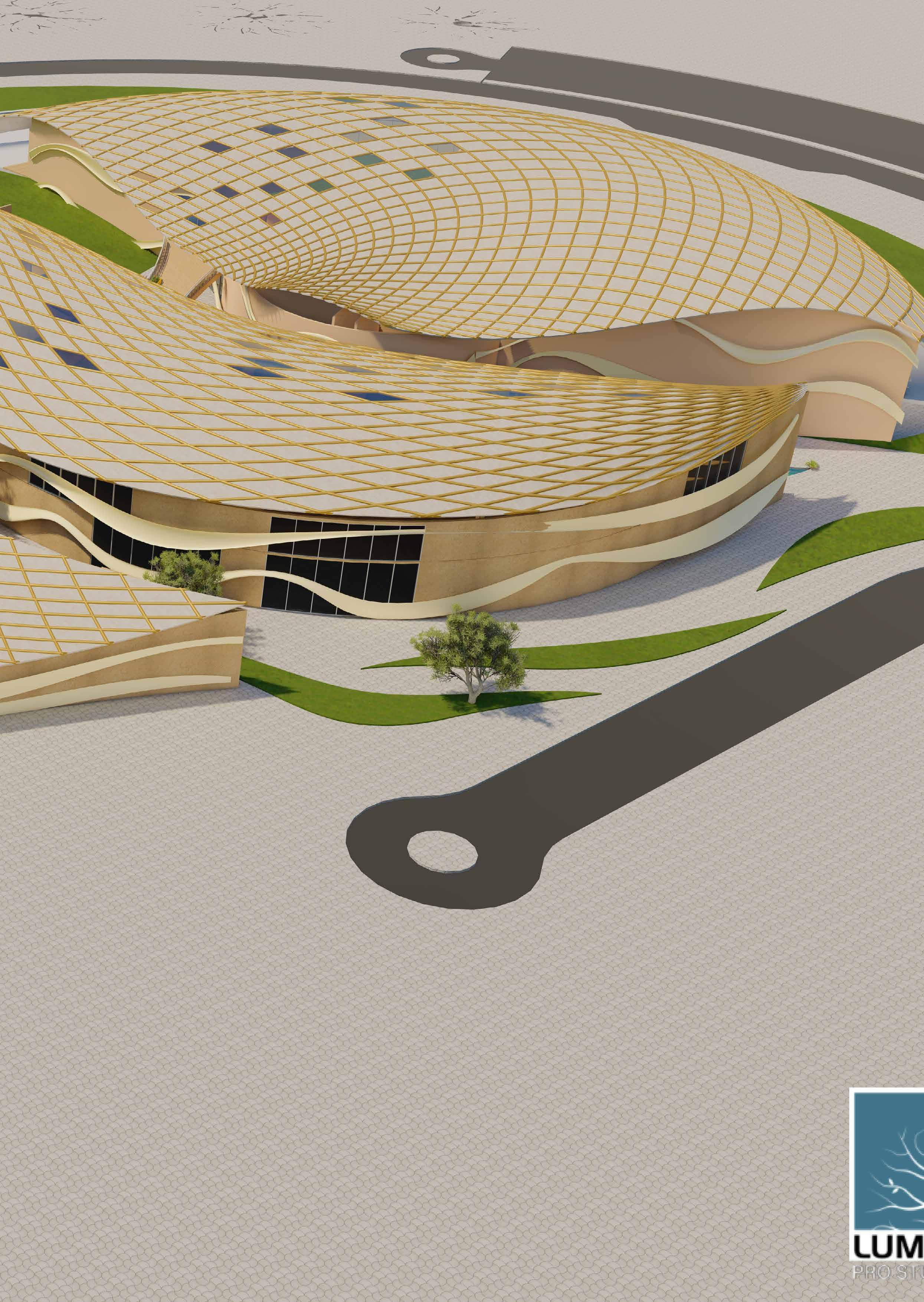

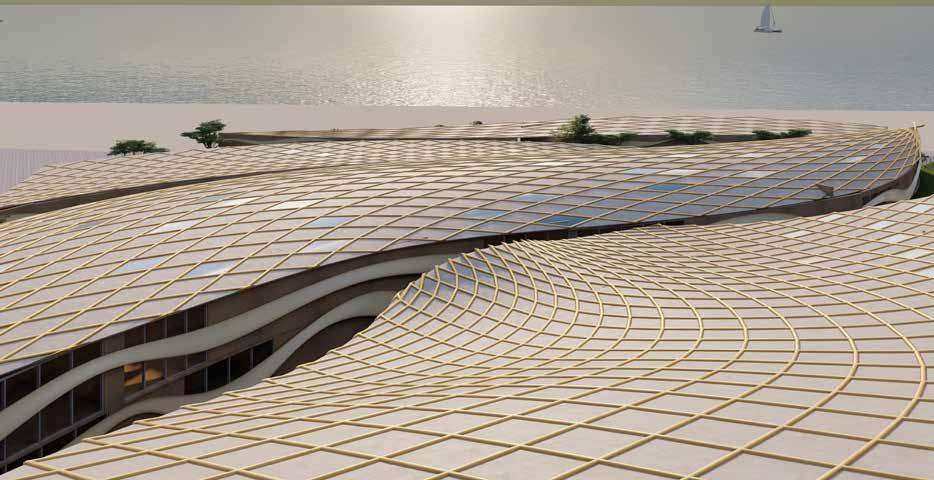

THE RIPPLE EFFECT ROOF A waterproof membrane, made of fiberglass and Teflon, covers the entire building and protects the structure from rain, sun and wind. The membrane is translucent, allowing 15% of the light to pass through it, revealing the rhombus structural system of the roof at night when the building is illuminated from the inside. This works similarly to how the surroundings generate reflections of light on water, causing it to sparkle at night.

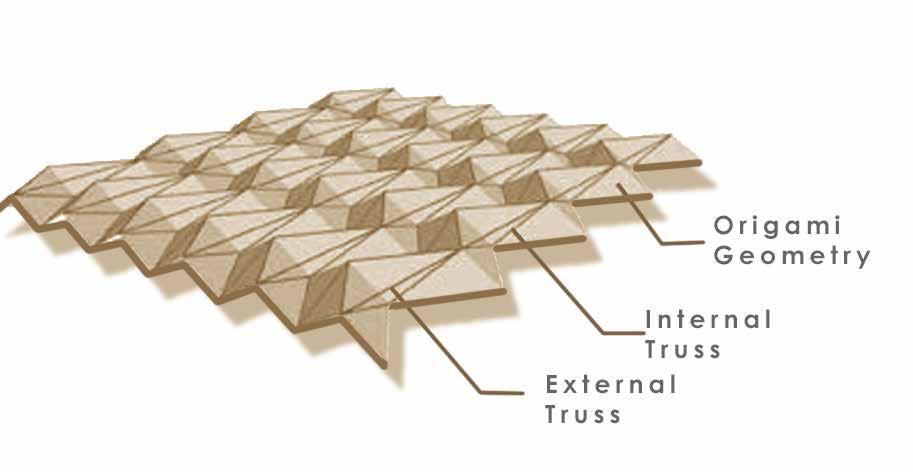

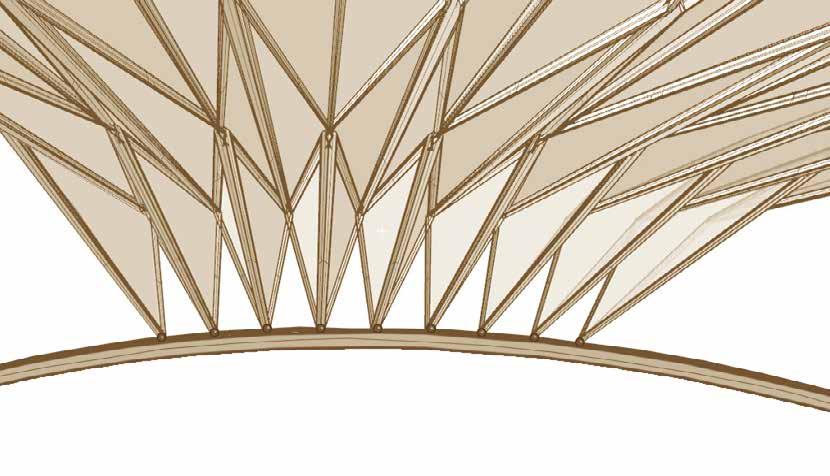

RETRACTABLE AUDITORIUM ROOF - yoshimura fold pattern Fibre glass and teflon membrane External Truss

Internal Truss

Water bodies: Improves micro-climate

Cantilivered block: Improves connectivity Larger open rehersal spaces

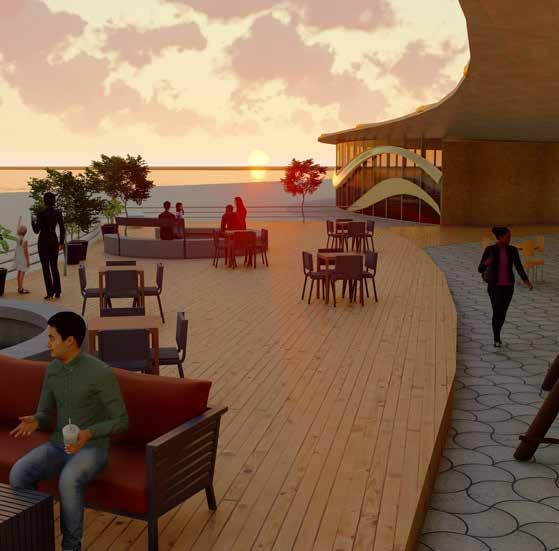

End of journey: Open food court and view deck Calm and relaxing

Motorised wheels Rail system

Wheel drive system mechanism of roof

The auditorium block consists of half retractable roof. The roof shelthers the auditorium and the foyer block hence the retraction of the roof can take place upto the edge of the auditorium. The roofs the yoshimura fold pattern of origami which can be produced with the rhombus pattern on the roof.

The roof uses wheel drive systems. These systems are based on rails. The wheels are motorised and slide the roof along the rails, using the friction between the wheels and rails. The roof is fixed on the drive system and can be thereby opened and closed.

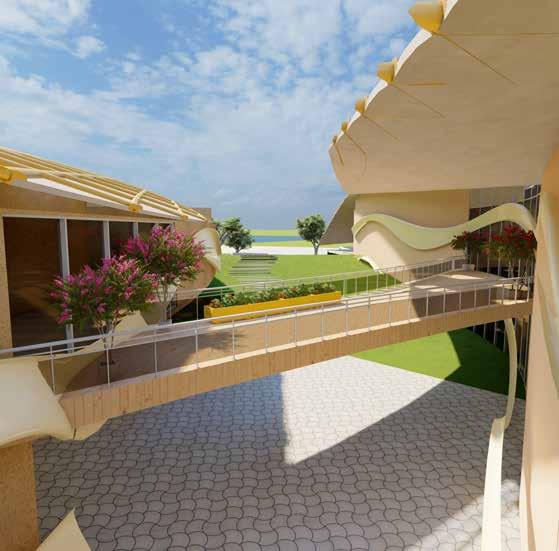

Connecting bridge: Feasible connectivity to auditorium

28

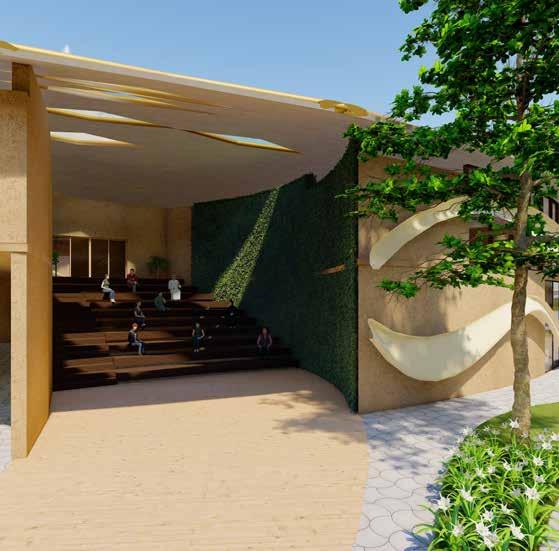

Shaded Amphitheathre: Practice and performance spaces

29

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 03

AV E C L’ E A U

Project type: Group Semester: 8 Category: Streetscape Design Project Location: Discovery Gardens, Dubai, UAE Subject: Urban Design

Avec L’eau meaning with the water is a proporsal for streetscape to enhance the journey and wayfinding to the Discovery Gardens Metro Station for the users from the residential community of Discovery Gardens located in Dubai, United Arab Emirates. All the environments within the route are efficiently designed considering the variety of users and all the challenges encountered were elimenated in the most effective way. The complete route was designed with the motive of creating an experience and bringing in new vitality with each journey.

30

31

Architectural Portfolio | 2017-2022

Megha Pramod

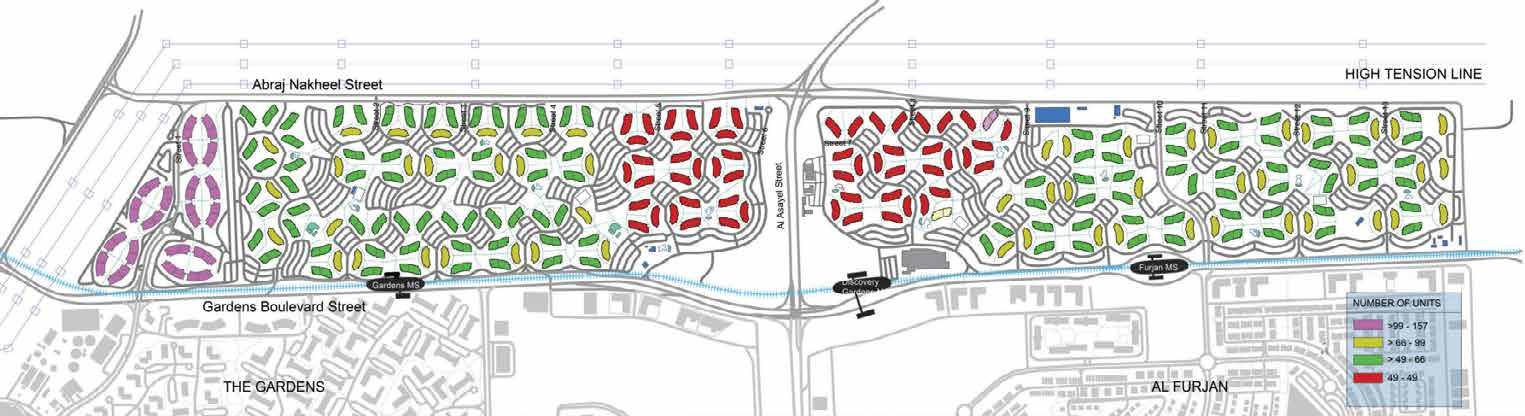

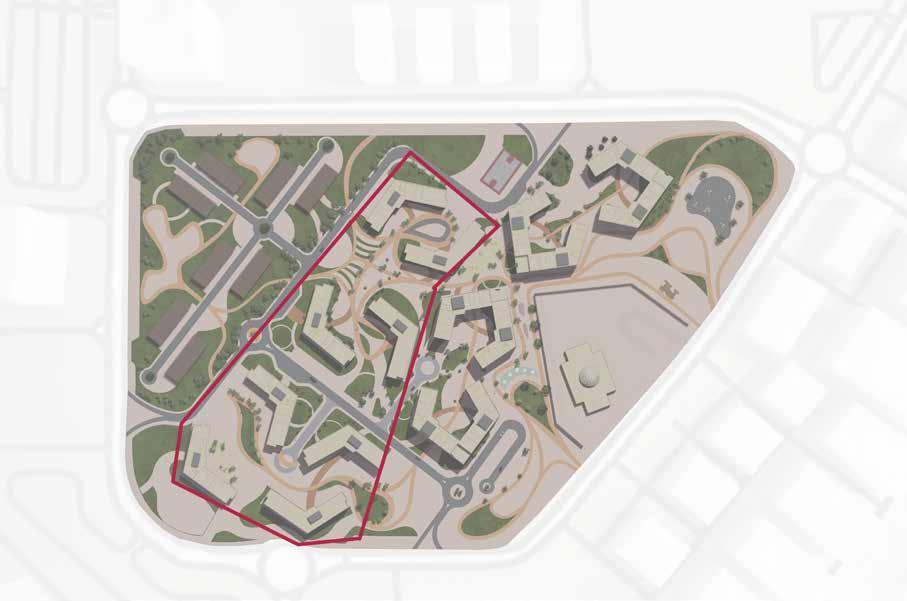

SITE ANALYSIS

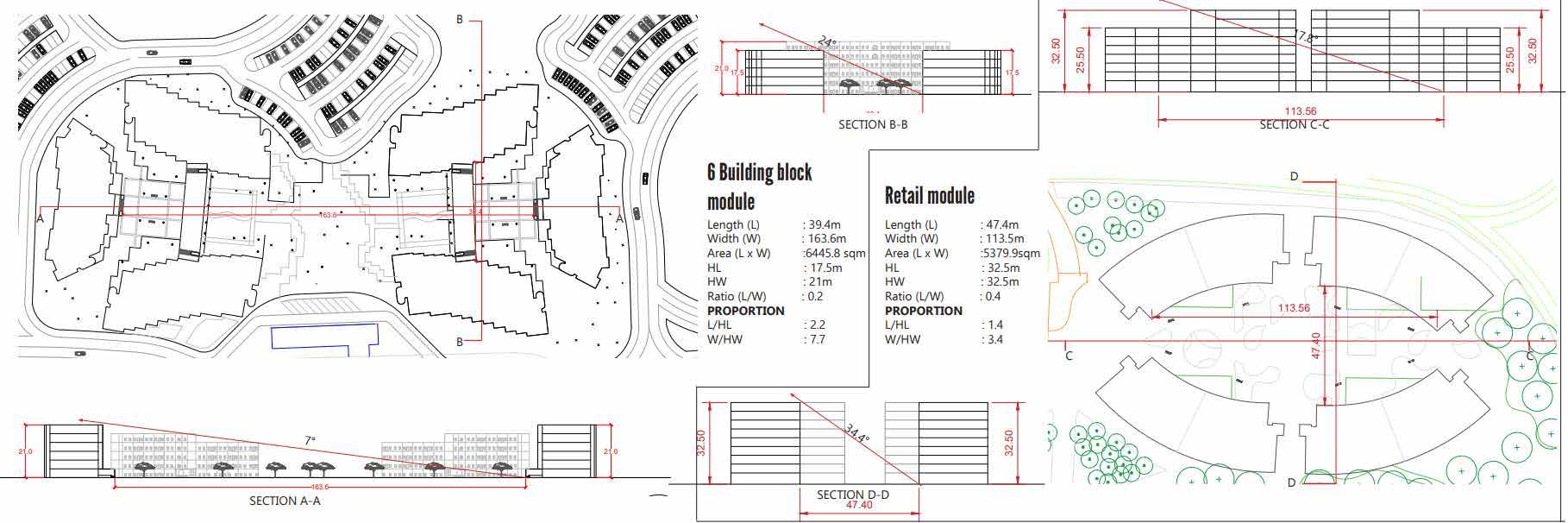

VOLUMETRIC STUDY

Density

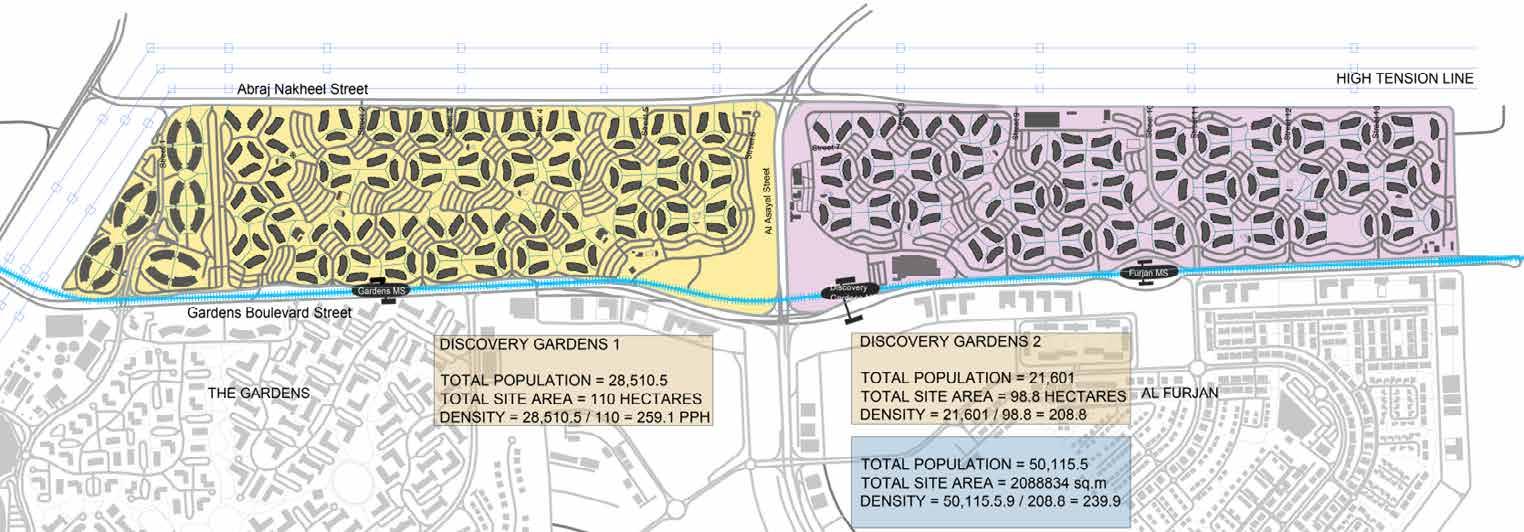

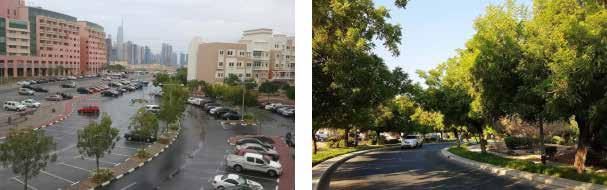

Discovery Gardens is a residential area located within the district of Jebel Ali between Sheikh Zayed Road (E11) and Sheikh Mohammed Bin Zayed Road (E311). Hence, it is also called Jebel Ali Discovery Gardens. The community was one of the popular family-friendly projects to take off near the Jebel Ali Free Zone. It is a particular favourite among expatriate families who commute frequently to the neighbouring commercial zones. Spanning 26 million sq. ft., it features spacious multi-sized apartment towers surrounded by lush foliage and manicured lawns.

SITE STUDY

Number of Units

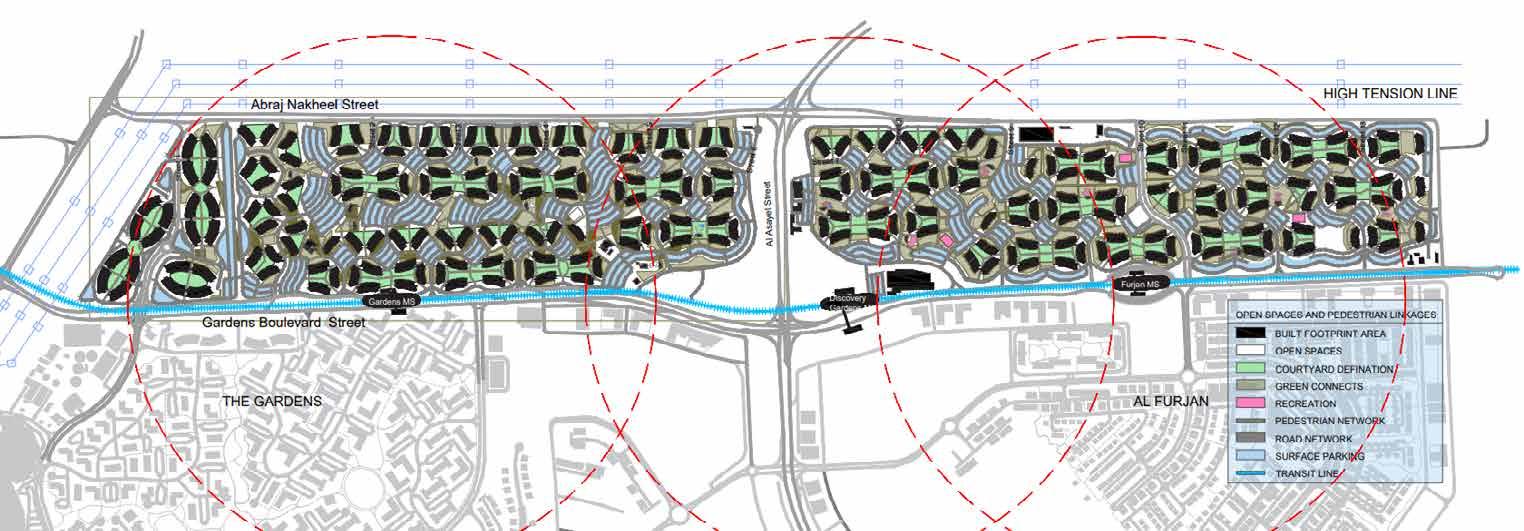

Open Spaces and Pedestrian Linkages

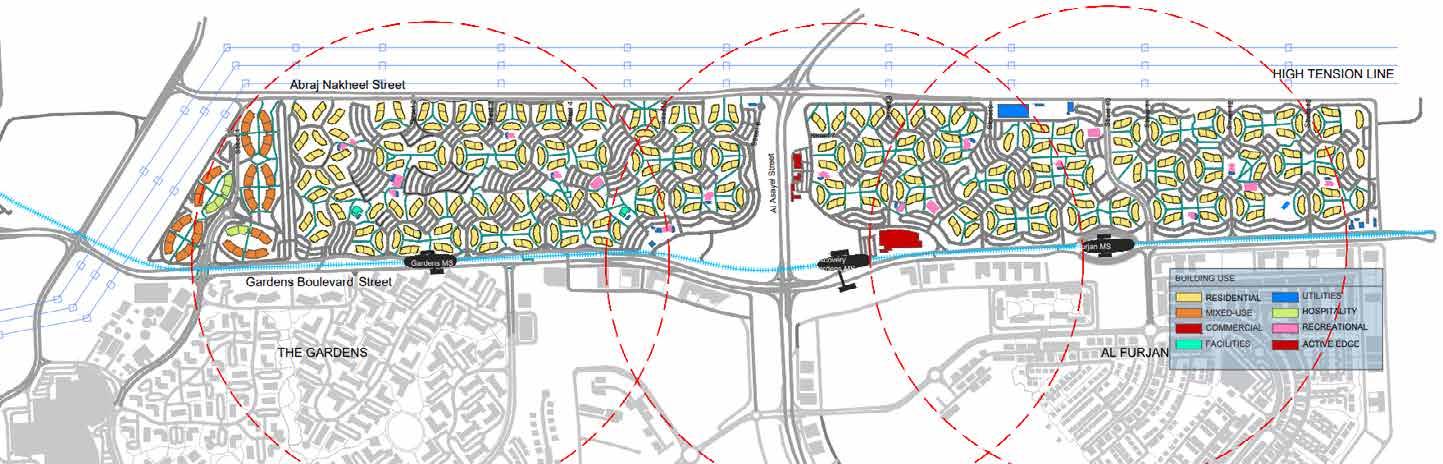

Building-Use

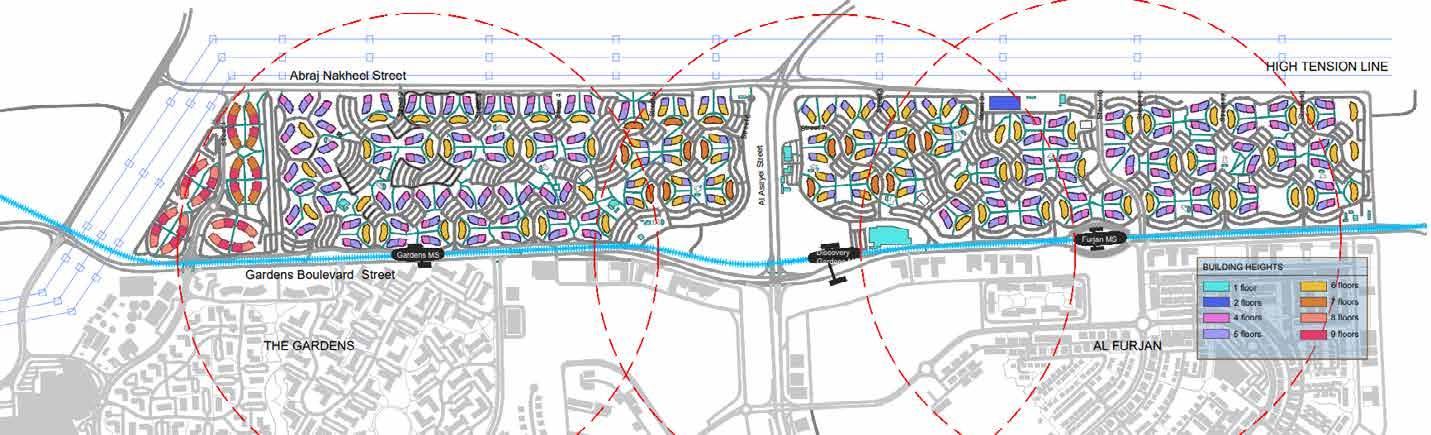

Building Heights

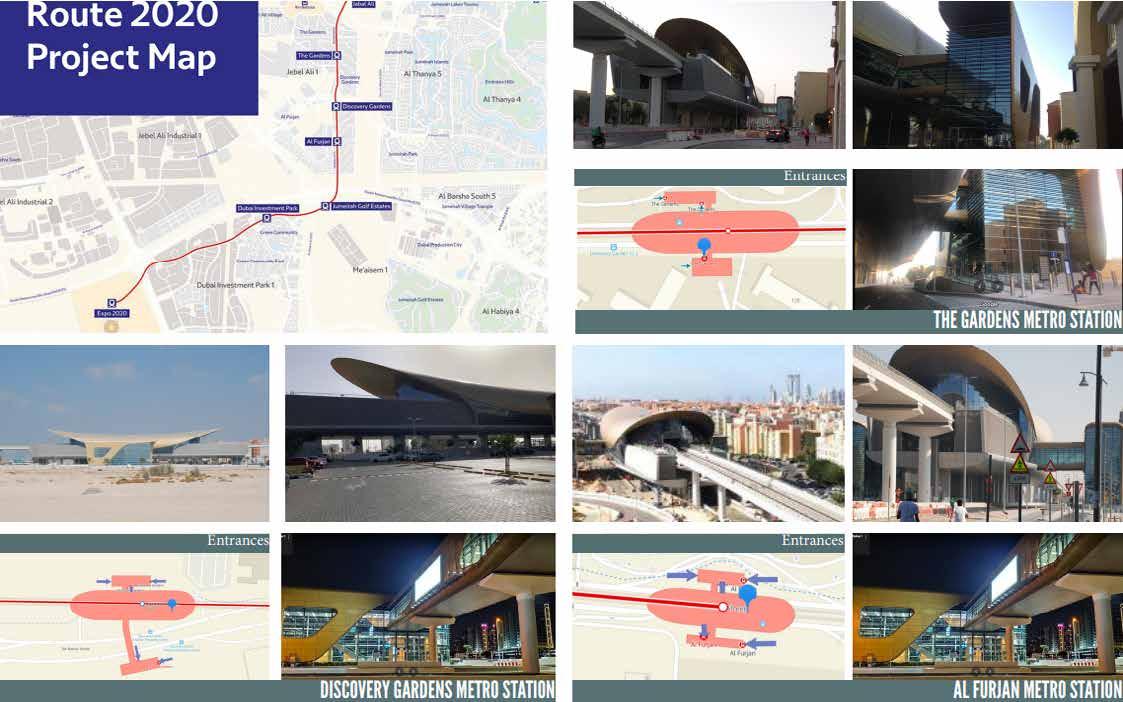

MODES OF TRANSPORT Mass Transportation - METRO The EXPO 2020 route runs along the south west periphery of discoverygardens with three operational stations - The Gardens, Discovery gardens and Al Furjan metro stations. Each station can serve 6770 riders per hour during peak times and 125,000 riders per day ( as per RTA). Also each station is accomodated with two rail barding platforms, four bus stands, 20 taxi stands and two parking slots for people of determination.

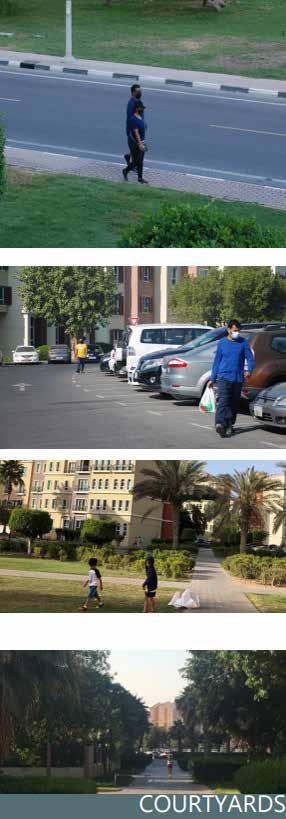

PEDESTRIAN

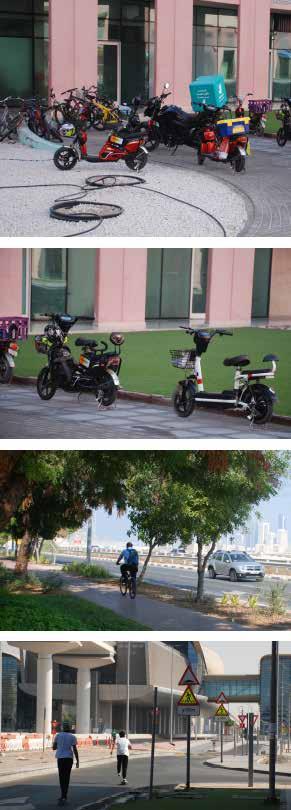

MICRO-MOBILITY The modes of micromobility in Discovery Gardens mainly comprises of escooters, cycles, skates and skateboards. They are mainly used by the residents to either access the retail cluster or the metro stations.

CAR The pedestrians have multiple walking environments provided within discovery gardens.

The residents predominately walk to the retail stores to get their day to day needs, to metro stations and to access community facilites

Discovery Garden Dubai can be accessed by the two Ibn Battuta exits on Sheikh Zayed Road ,Mohammed Bin Zayed RoadandAl Khail Roadmaking it easy for the neighborhoods communters. The curved roads are designed very thoughtfully keeping the speed limit of 40km/hr for the seconday roads

PUBLIC TRANSPORTATION- BUS/TAXI

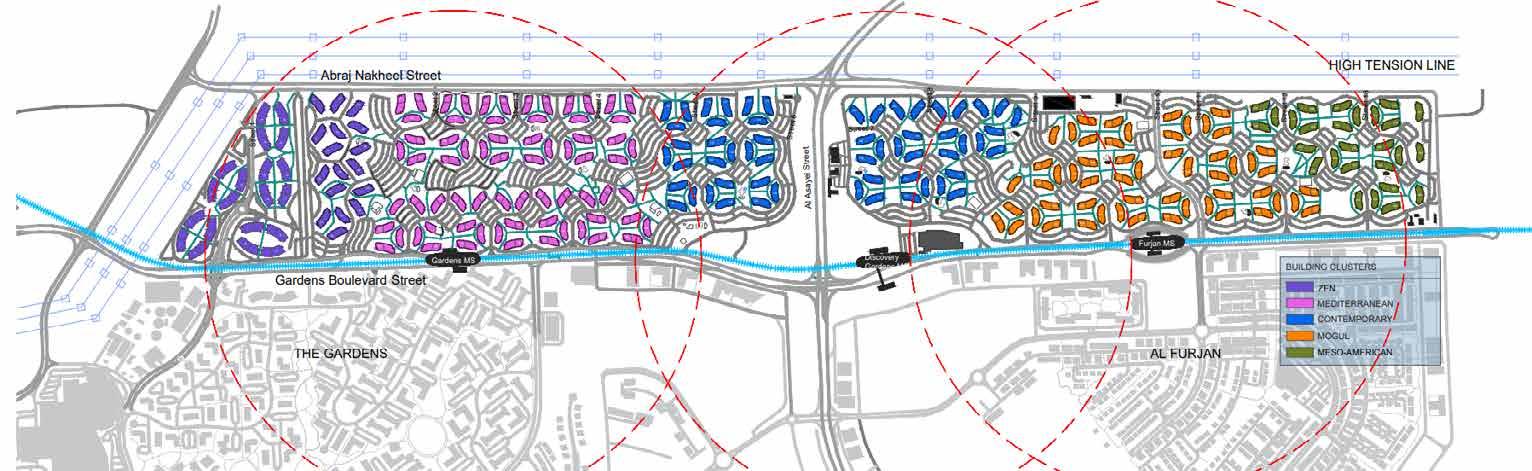

Building Clusters

The neighbourhood is extremely well connected by the bus network. The F42 and F43 feeder buses and Bus 85 from the station help you navigate within the community. They can also hop onto one of the RTA taxis that regularly circulate around the area.

32

33

Architectural Portfolio | 2017-2022

Megha Pramod

ENVIRONMENTS IDENTIFIED

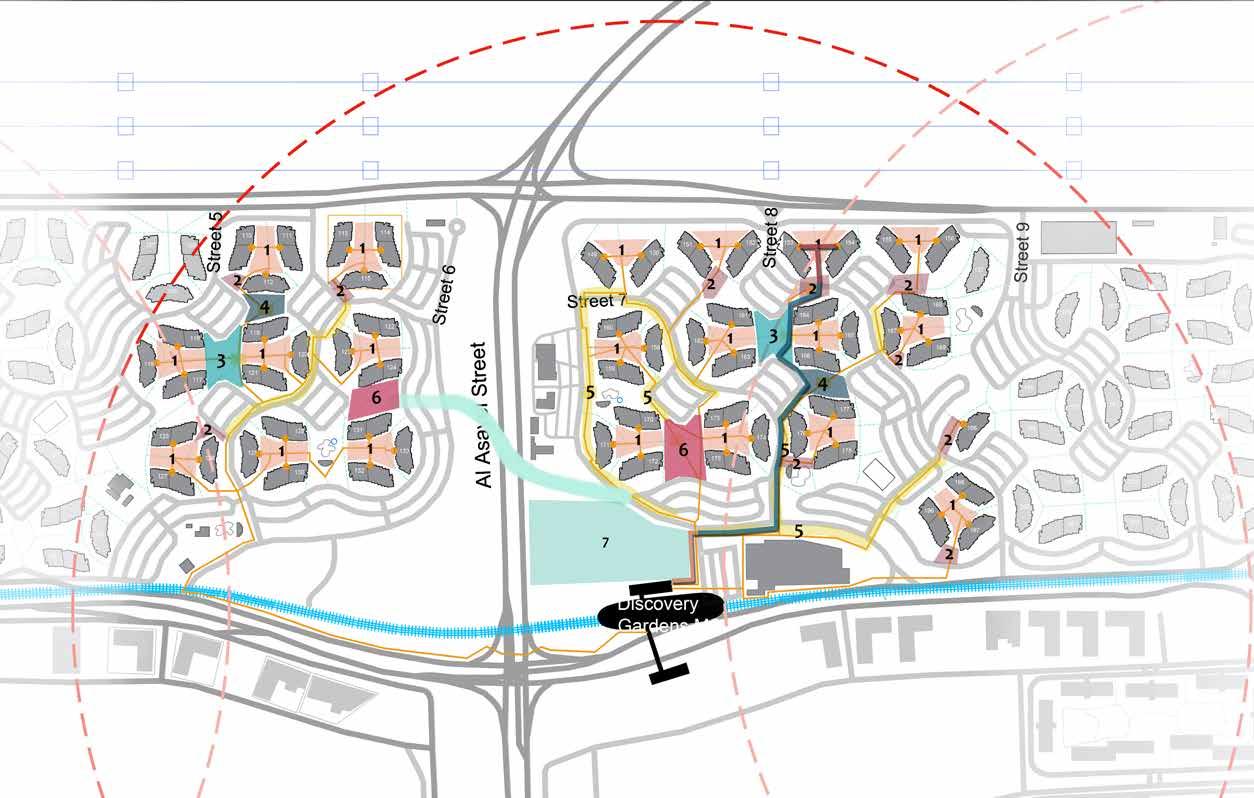

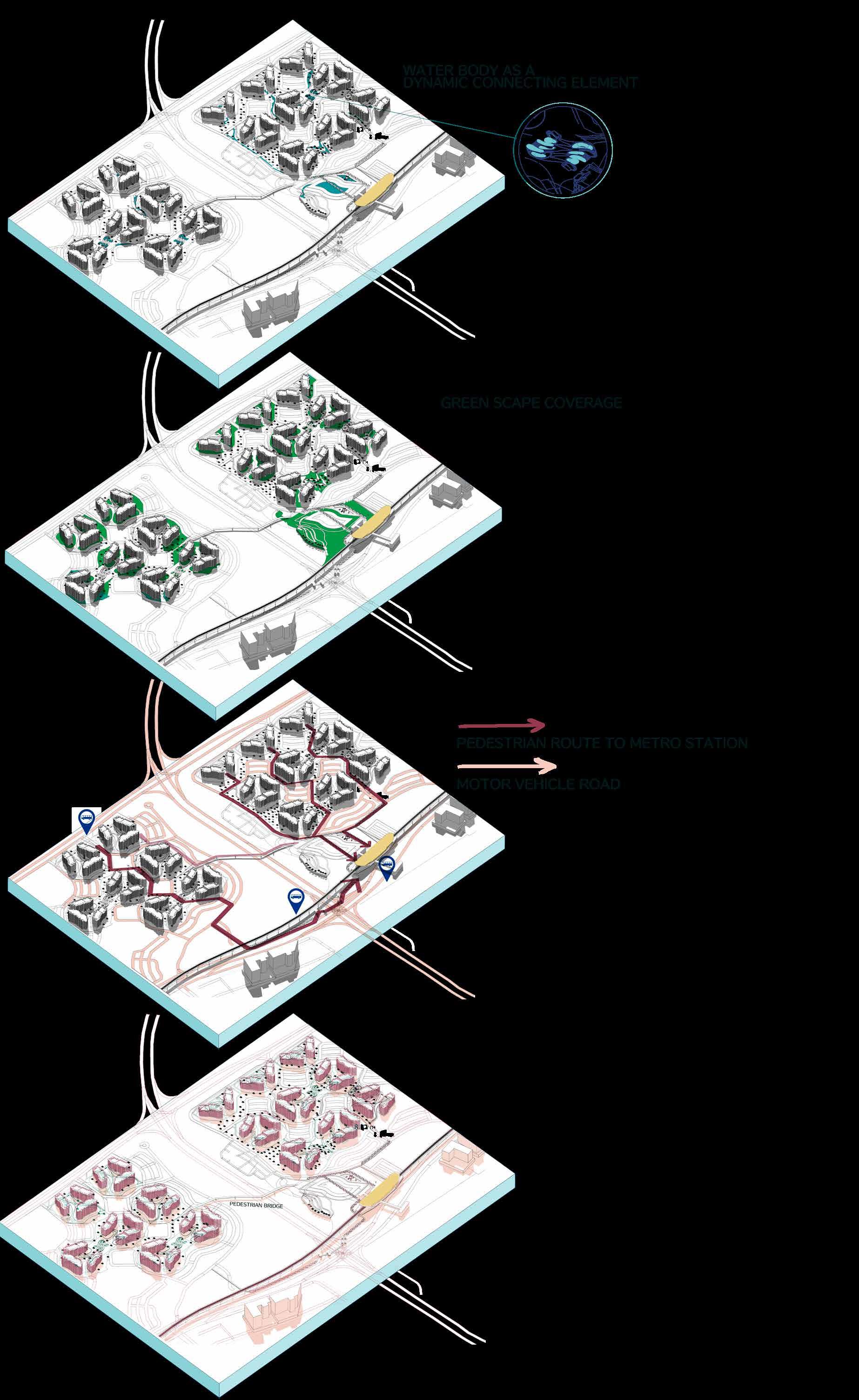

CONCEPTUAL ZONING DIAGRAM

After the analysis of the entire, design development began by wayfinding to the discovery gardens metro station. Since average walking distance is 800m, a catchment radius of 800m was plotted from the metro station to find the potential users of the station. The challenge of this station was to bring the users from Discovery Gardens 1, due to the harsh environment they have to pass through in order to reach the station.

Then the possible route that a user from each building would take was laid out along with the distance and time. Due to the overlap of the catchment areas, routes to neighboring stations were also marked and accordingly selected buildings were eliminated as shown in the table. Based on the typical routes different environments a person would encounter were identified

1. Courtyards 2. Transition space 3. In between courtyards 4. In between buildings

CONCEPT: WATER - A GUIDING ELEMENT When it comes to Discovery Gardens, be it the roads, the buildings, the green spaces, everything is perfectly connected except for the swimming pools which are disconnected both visually and physically.

Hence, taking up swimming pool or in the narrow sense taking up water as a concept to guide and aid graceful fluid movements right from the start of the journey upto their destination. Hence there is a subtle attempt to recreate the same motion of water as it emerges from a water source and finally terminates its journey onto a larger entity which is the sea or ocean onto our project. Incorporating water in the journey also provides various benefits including passive cooling and enhancing microclimate.

Water will be used for orientation and guiding the users from their courtyards to the station with a hierarchy of water elements smallest starting from the courtyards progressing to the largest in the station area.

PRINCIPLES WATERSCAPE

OF

Dominance or emphasis Contrast Balance Sound and Rhythm Flow and movement Scale and Proportion Repetition

34

35

Architectural Portfolio | 2017-2022

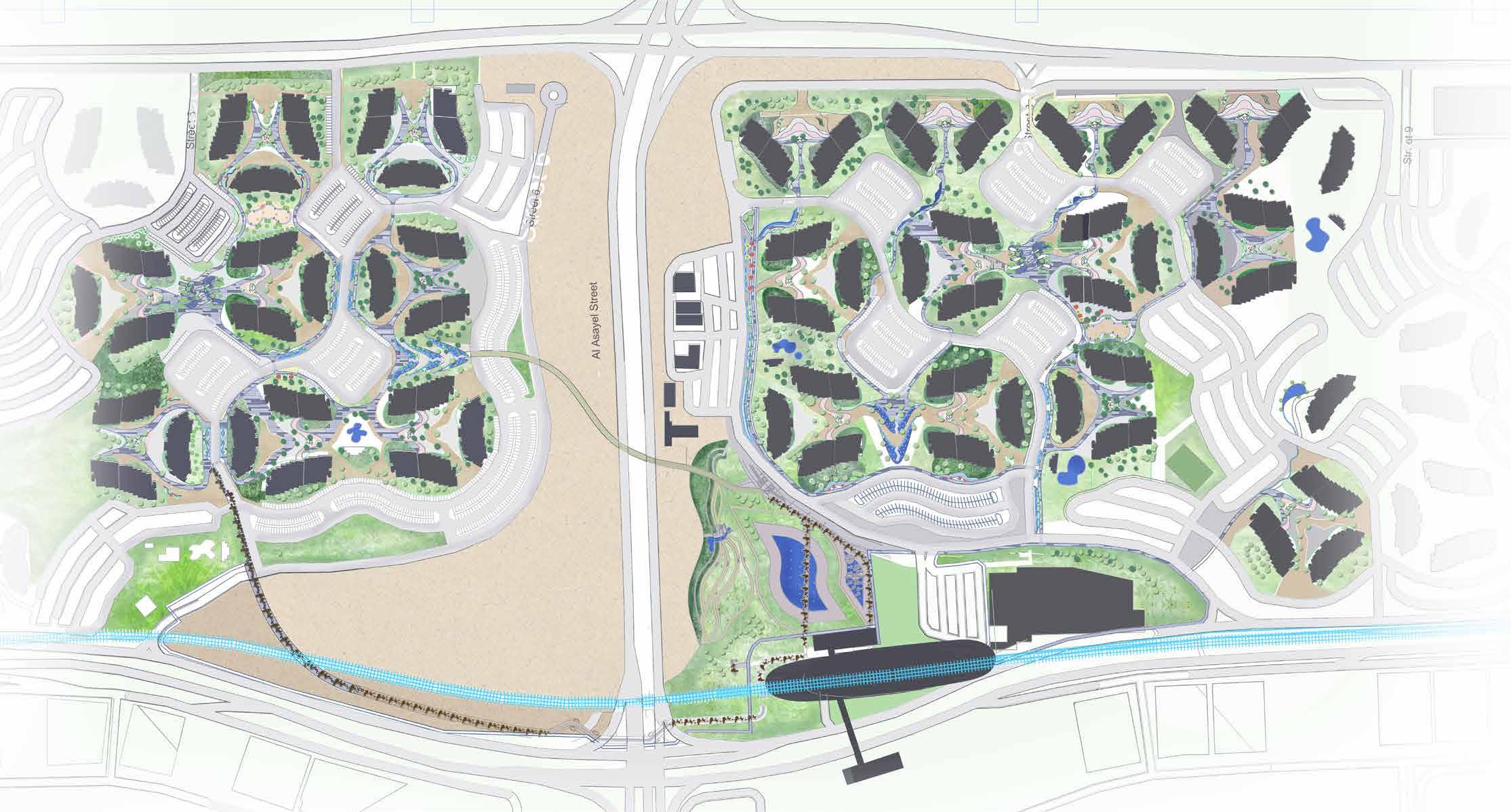

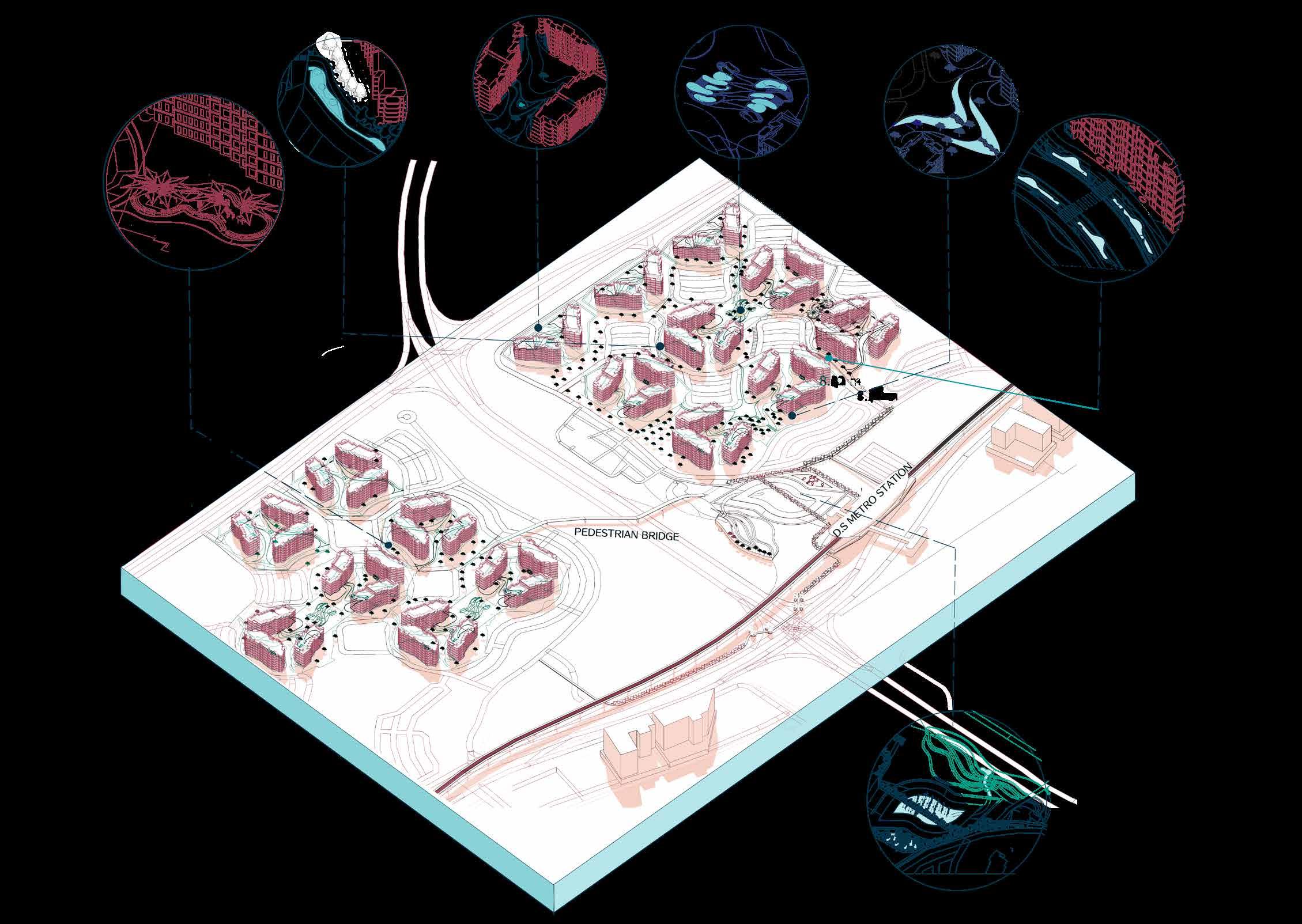

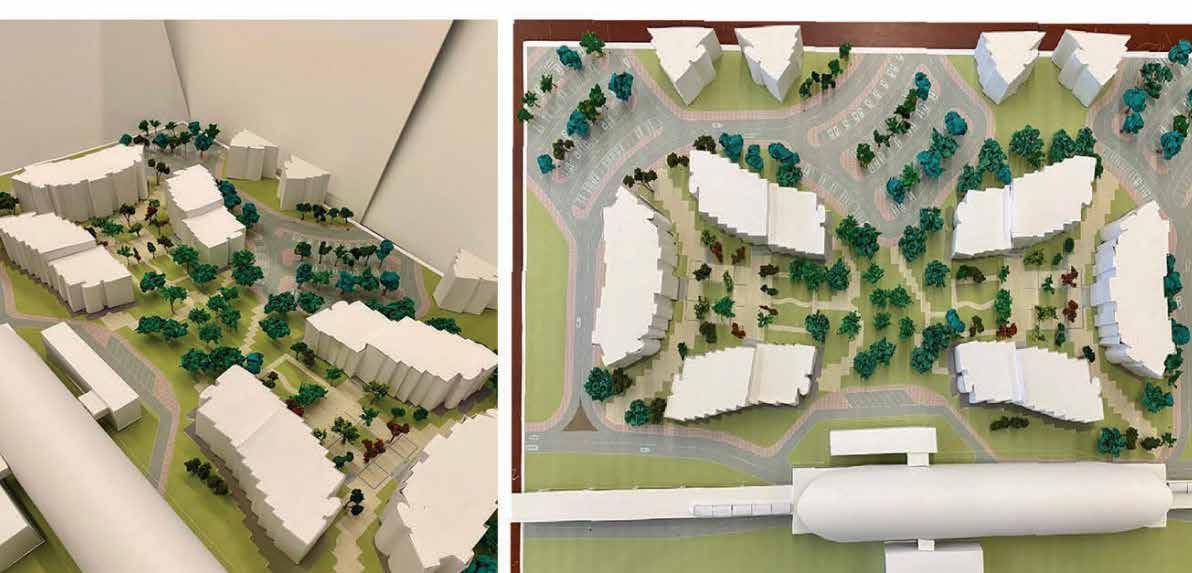

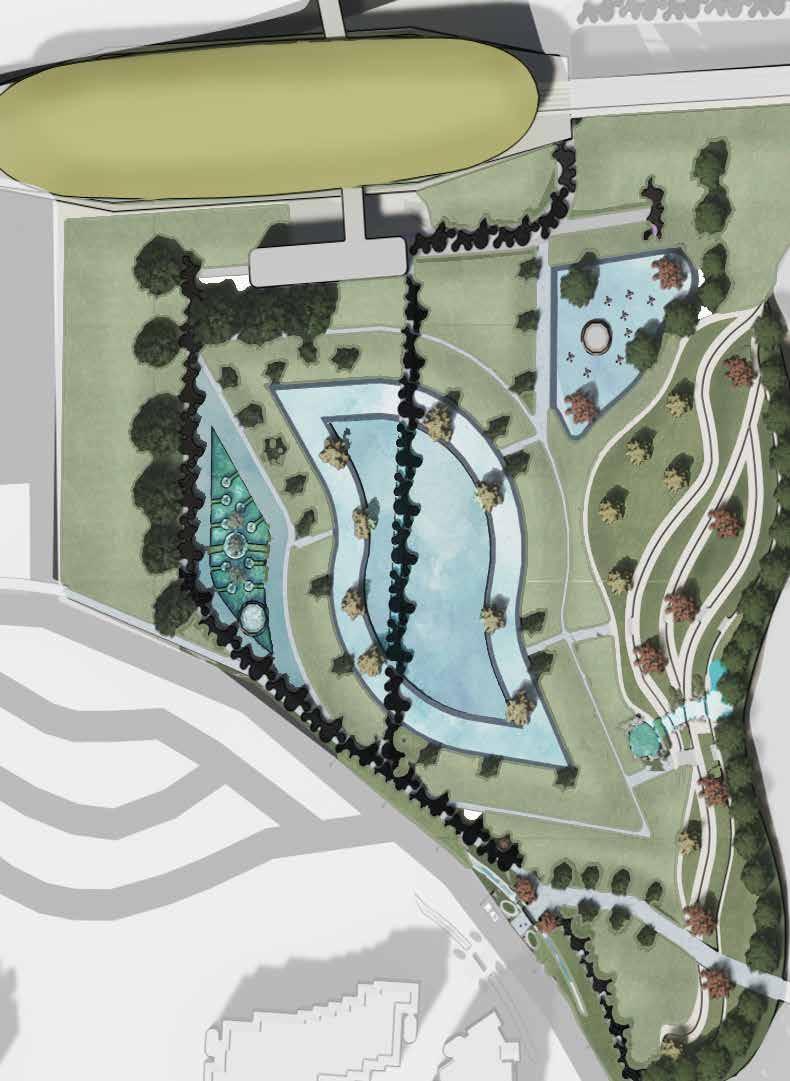

MASTER PLAN

Megha Pramod

STATION AREA DESIGN

The final stage before the user boards the metro and the grand entry for the users entering the community. It aims to create a mutifunctional zen space for users of all demographics The metro users of the community can enjoy vcaries water features and well managed microclimate which has a calming effect, especially when returning aftera long day after using metro. The space caters to entertainment, food outlets and transitional purposes.

36

37

Architectural Portfolio | 2017-2022

Megha Pramod A

A’

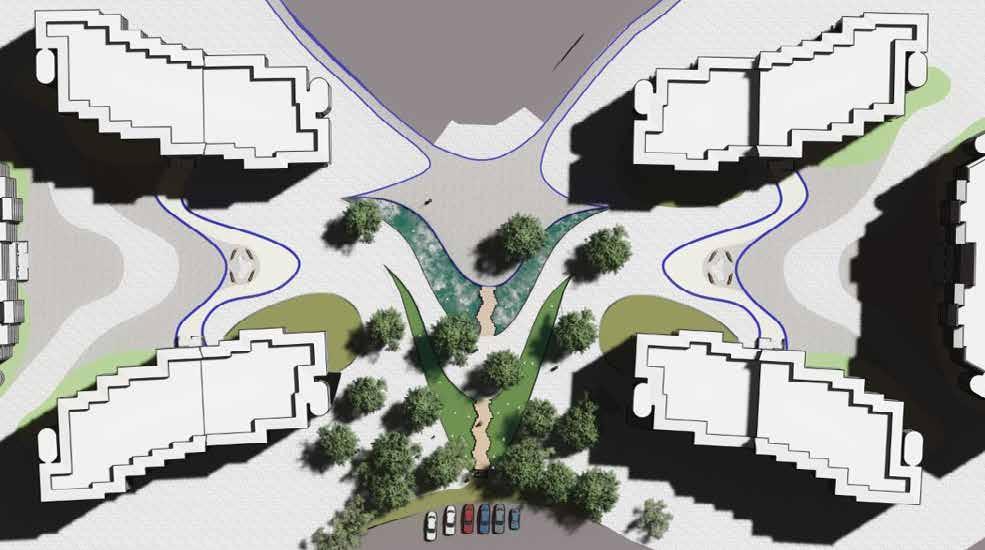

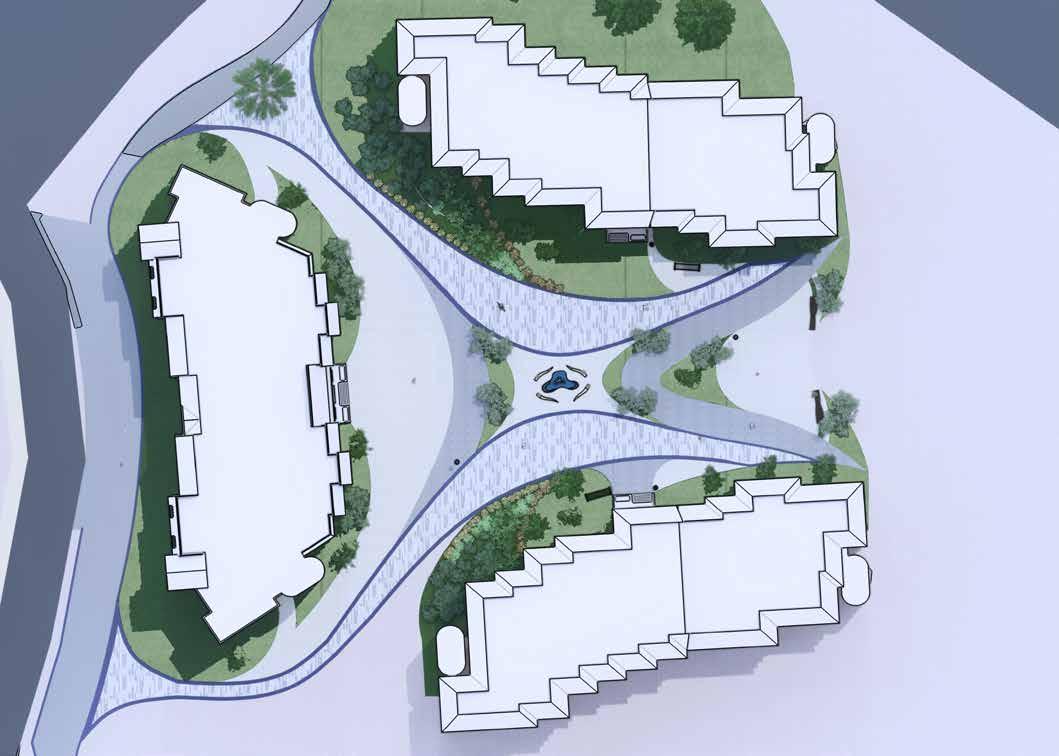

PLAN- COURTYARD TYPE A

PLAN- COURTYARD TYPE B

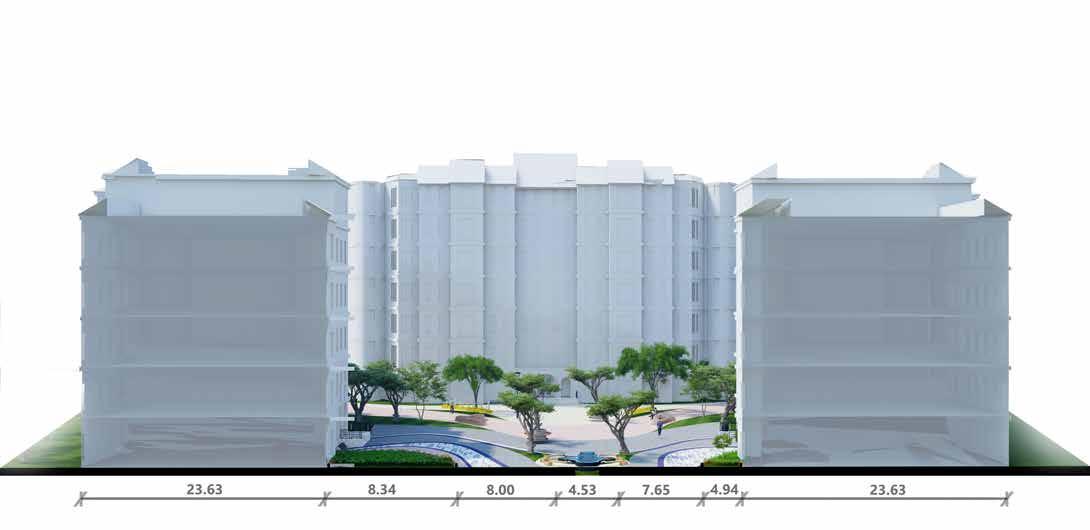

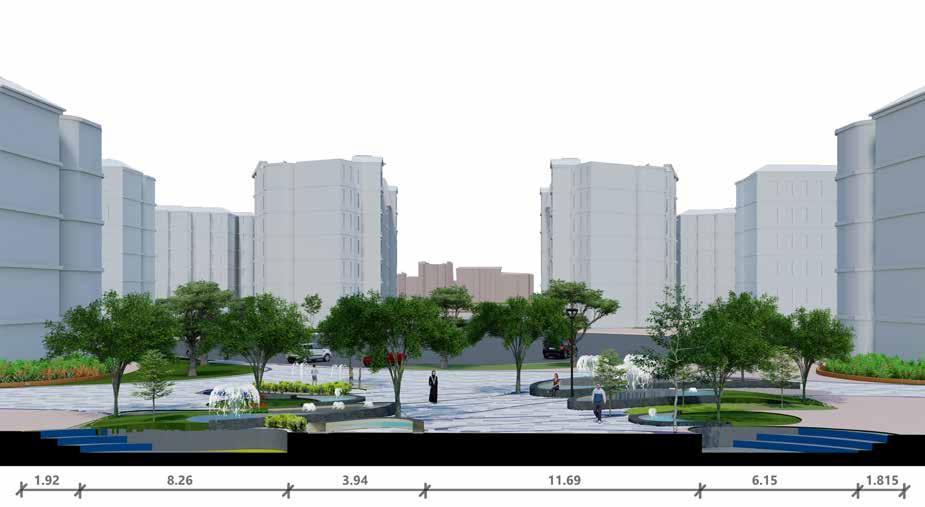

SECTION A A’

SECTION B B’

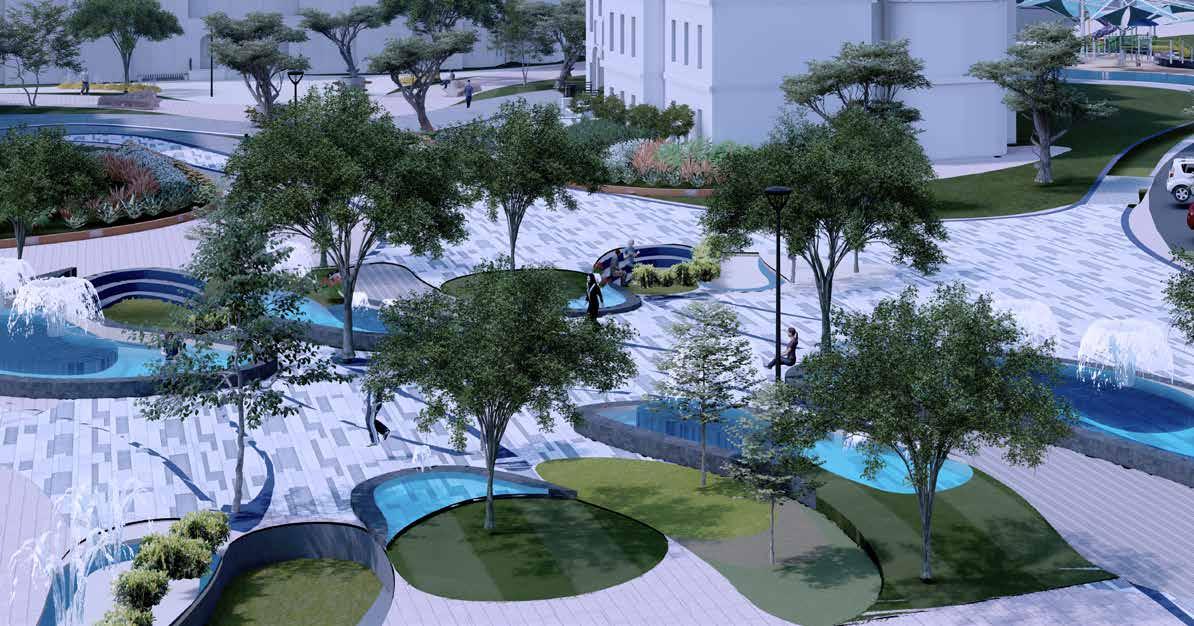

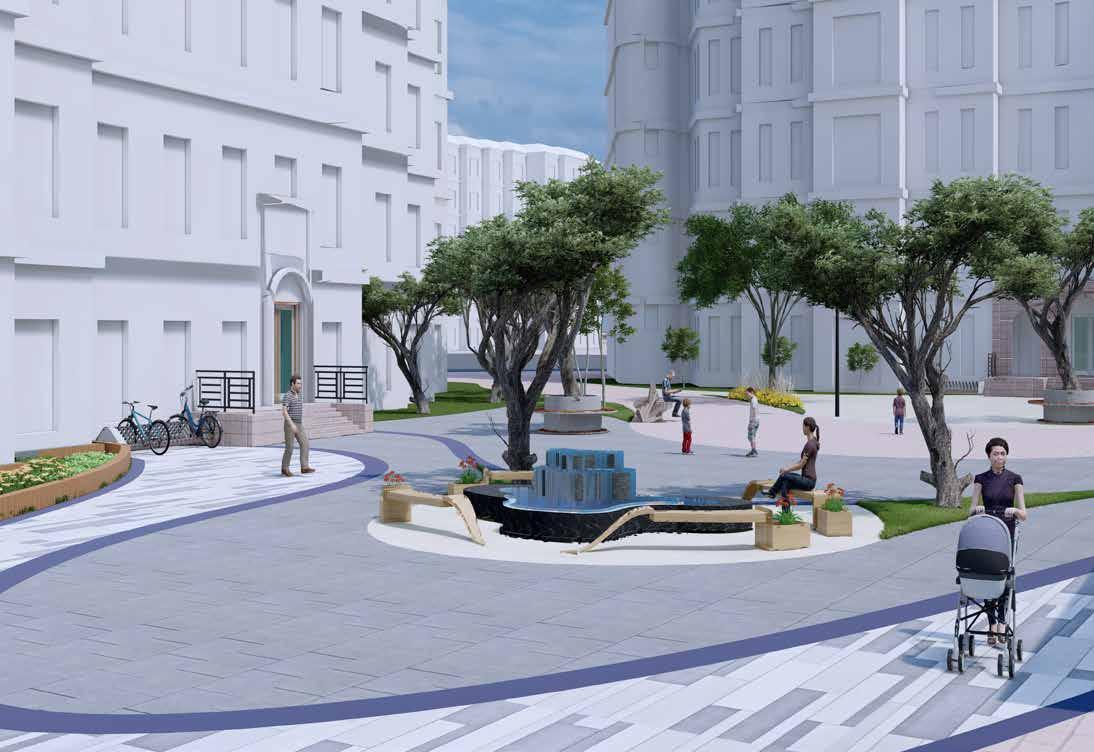

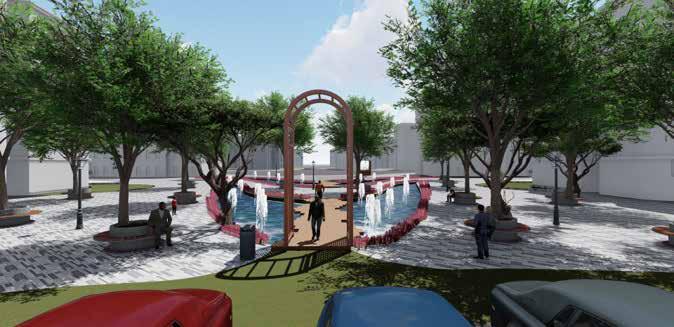

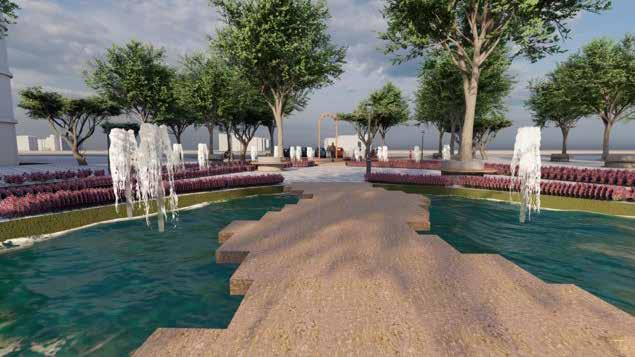

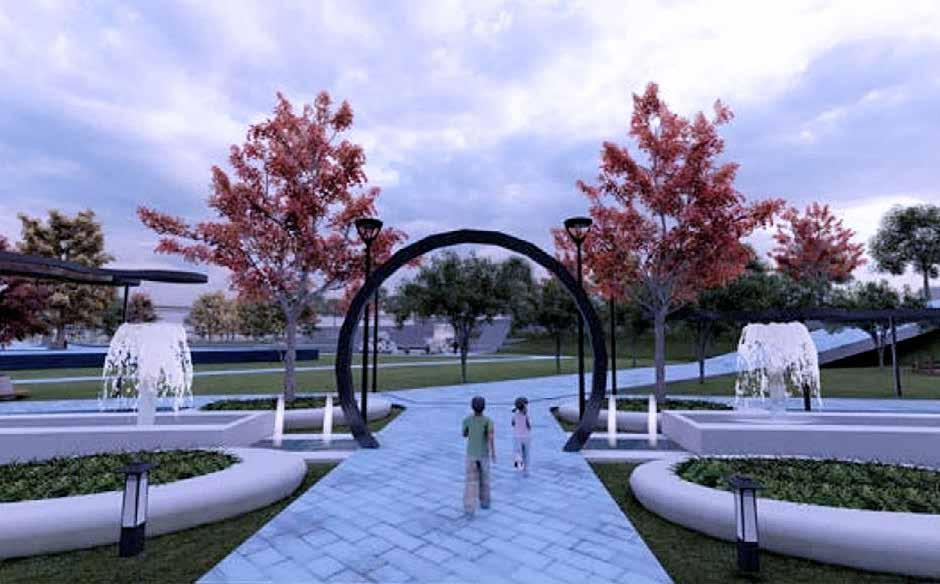

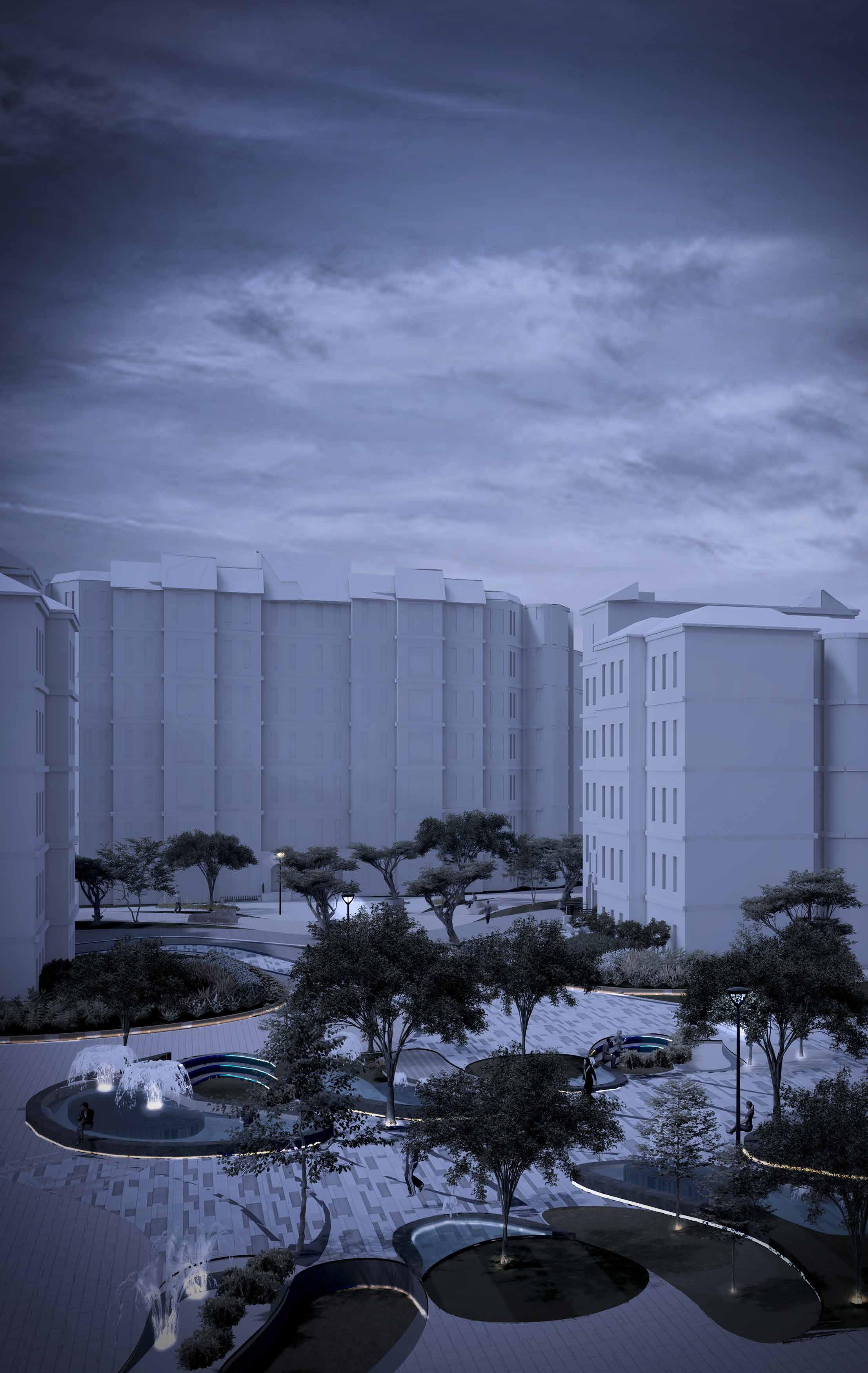

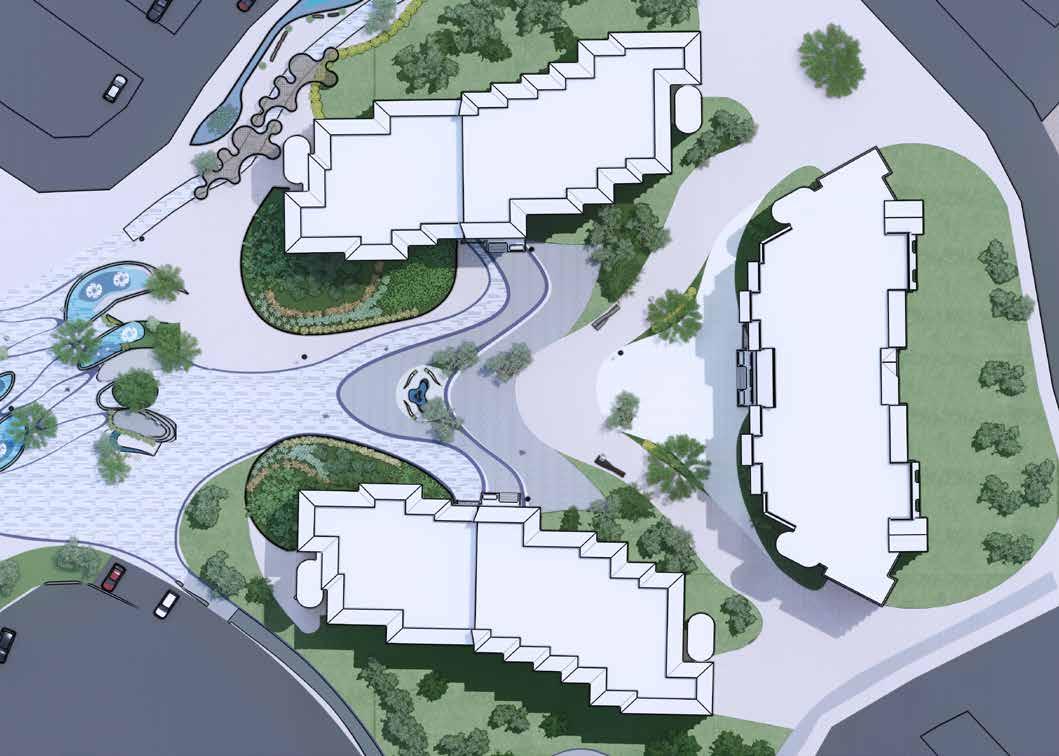

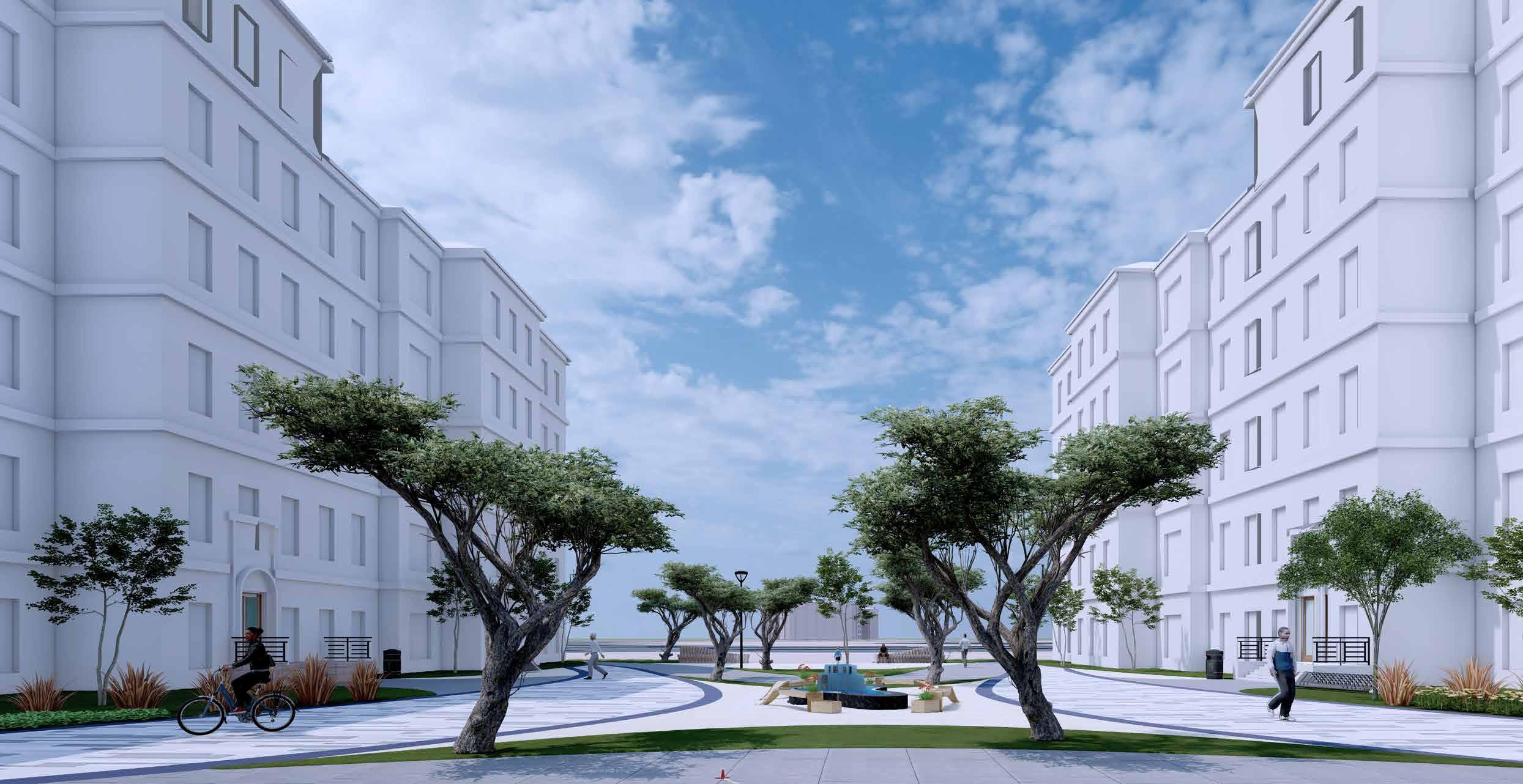

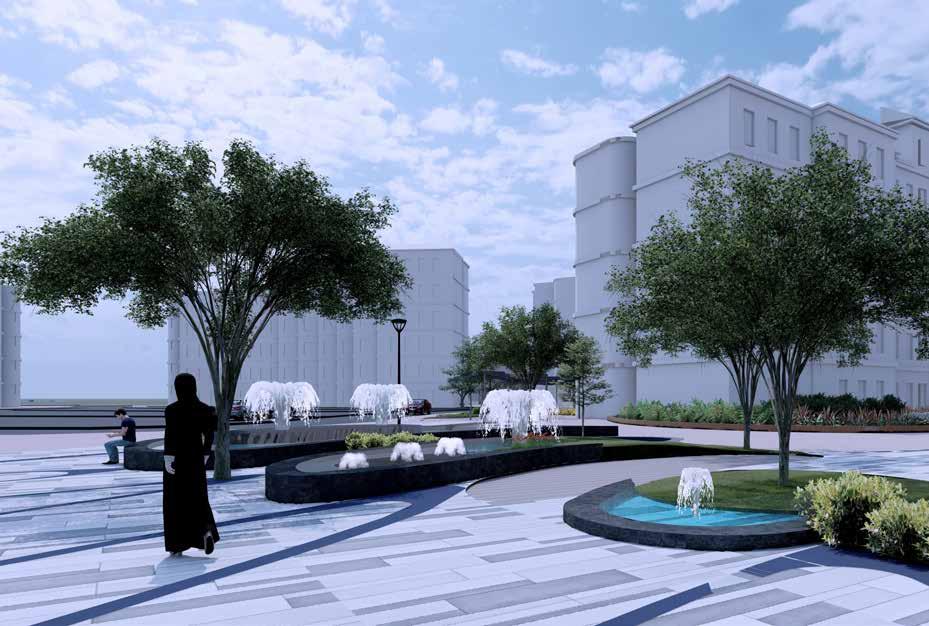

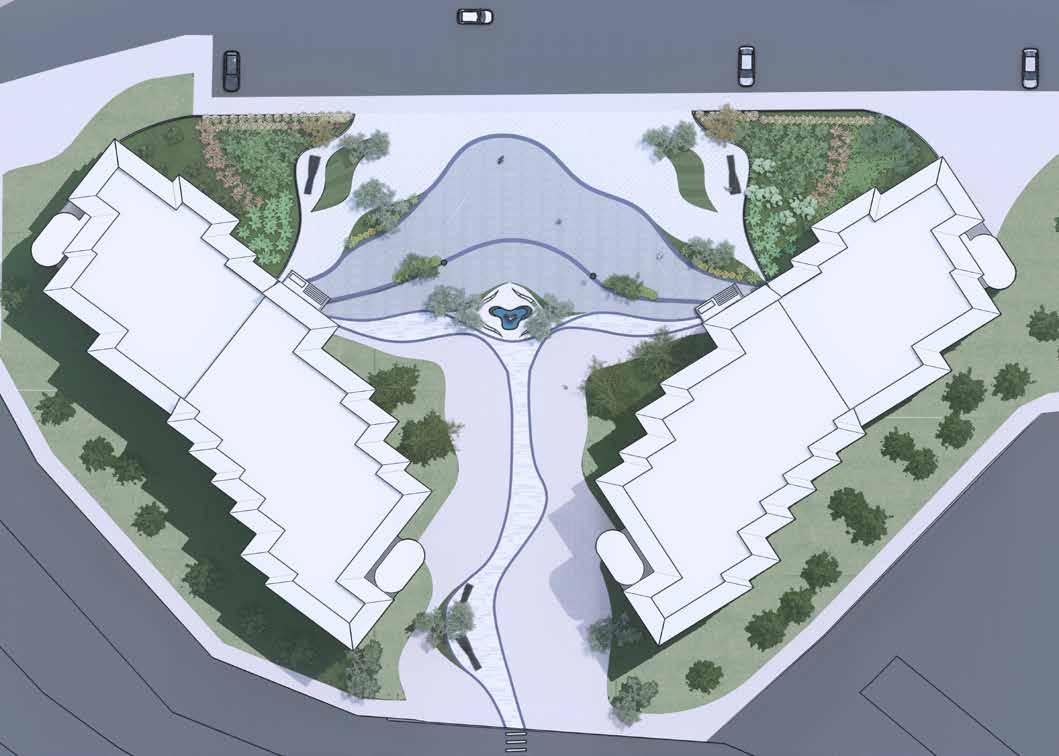

ENVIRONMENT 2: COURTYARD KEY SITE PLAN

B

The courtyards, being the first environment identified, marks the start of the journey.

Just like how water starts from a private water source to the larger unknown, through this design intervention, we intend to make the start of every voyager, be a cyclist or pedestrian with water, to mark their private entity. Water starts to mark its presence from here.

PLAN- COURTYARD TYPE B BW’

COURTYARD AREA: 1270sq.m

FUNCTIONALITY:

Seating area Water Body Landscaping and plants Starting point of the journey

38

39

Architectural Portfolio | 2017-2022

Megha Pramod

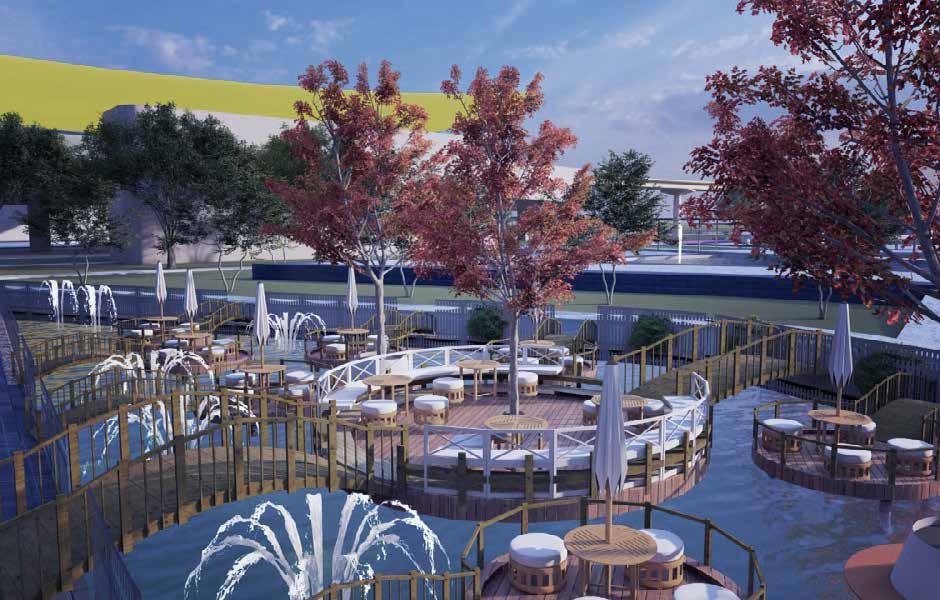

ENVIRONMENT 3: IN BETWEEN COURTYARDS

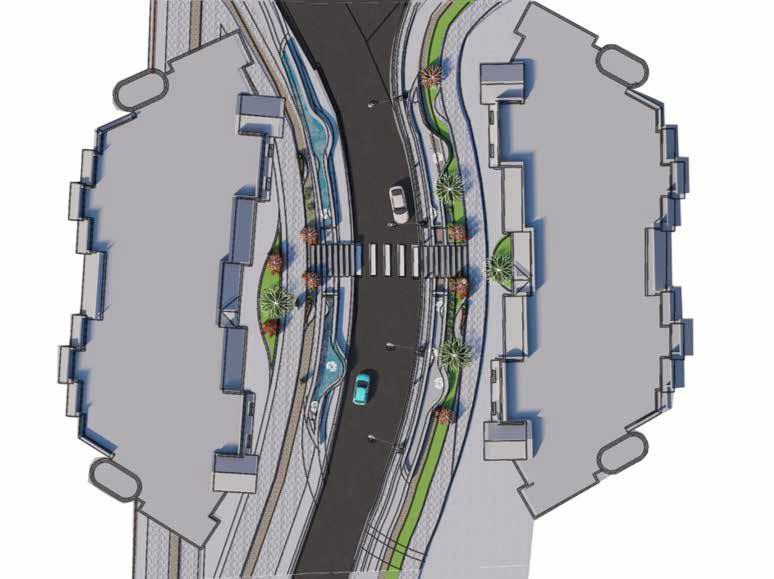

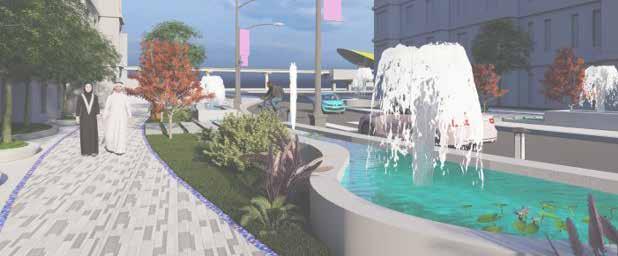

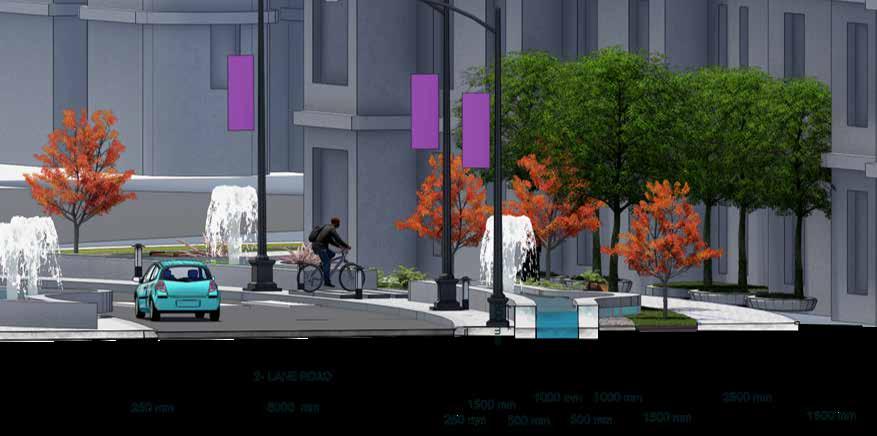

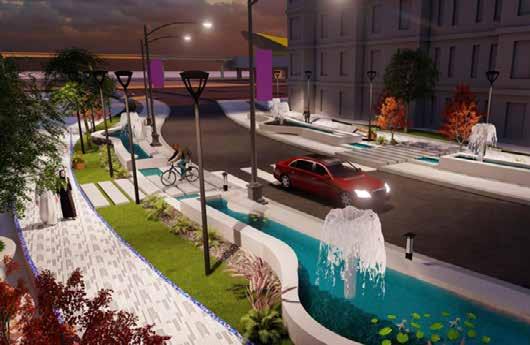

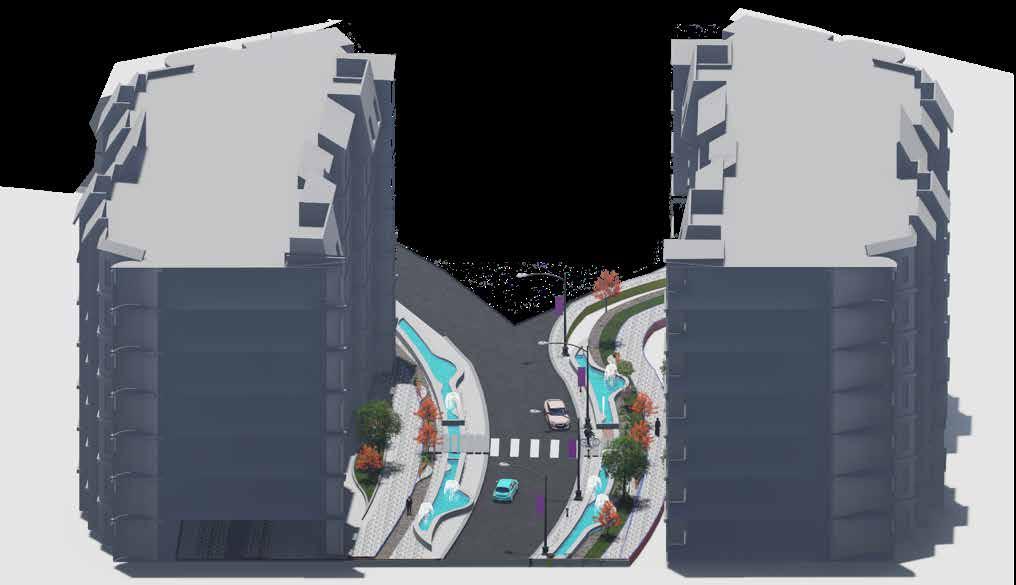

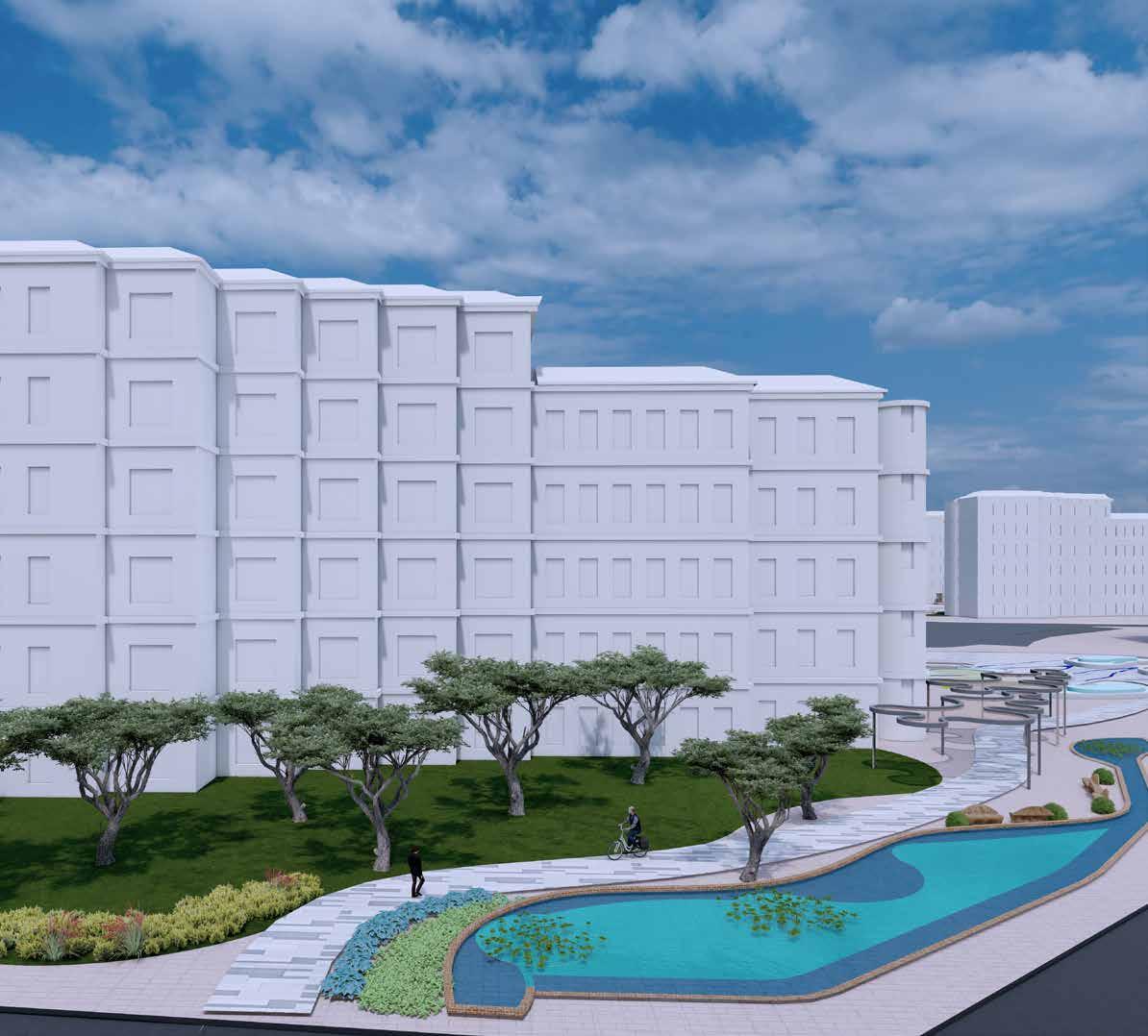

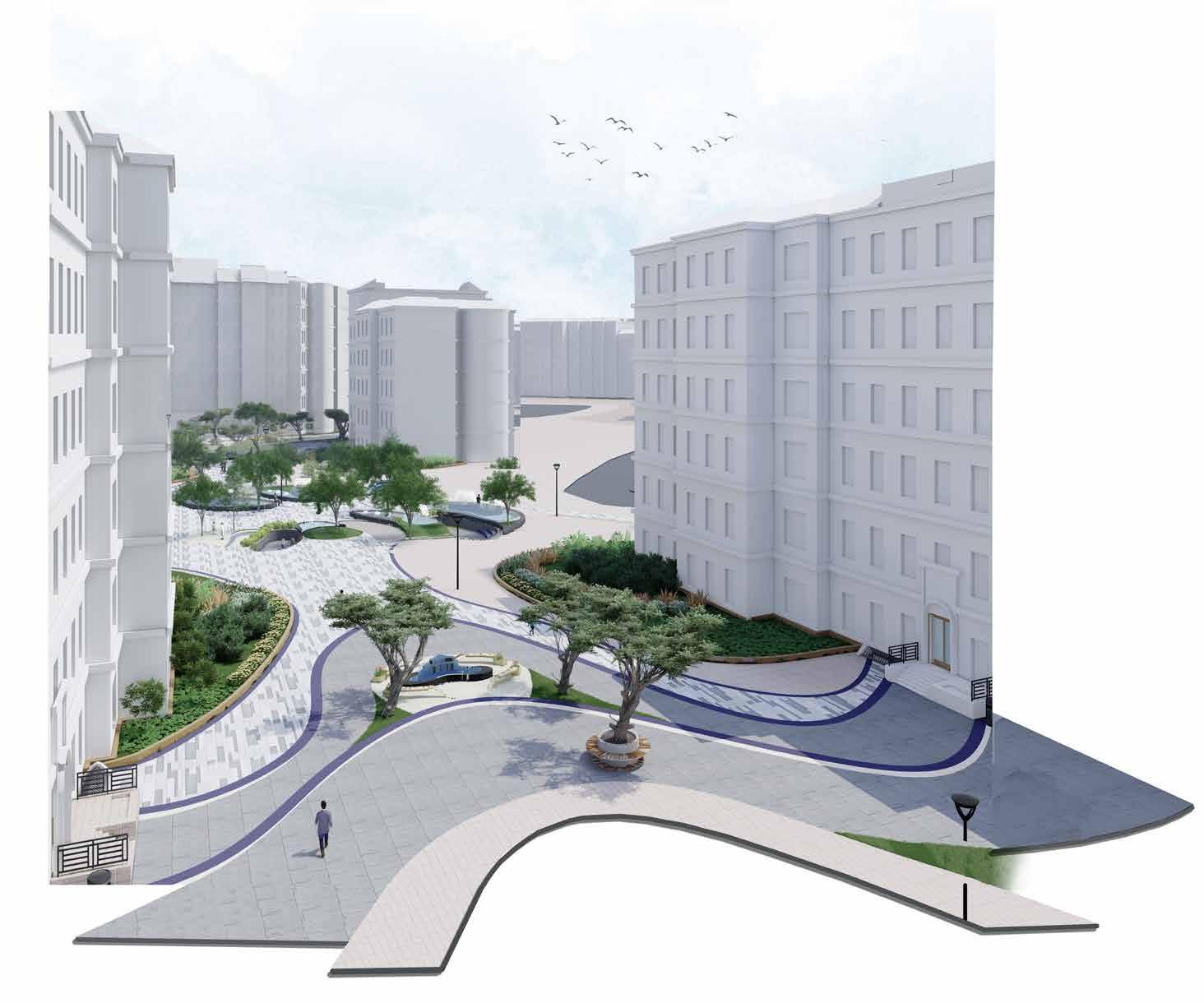

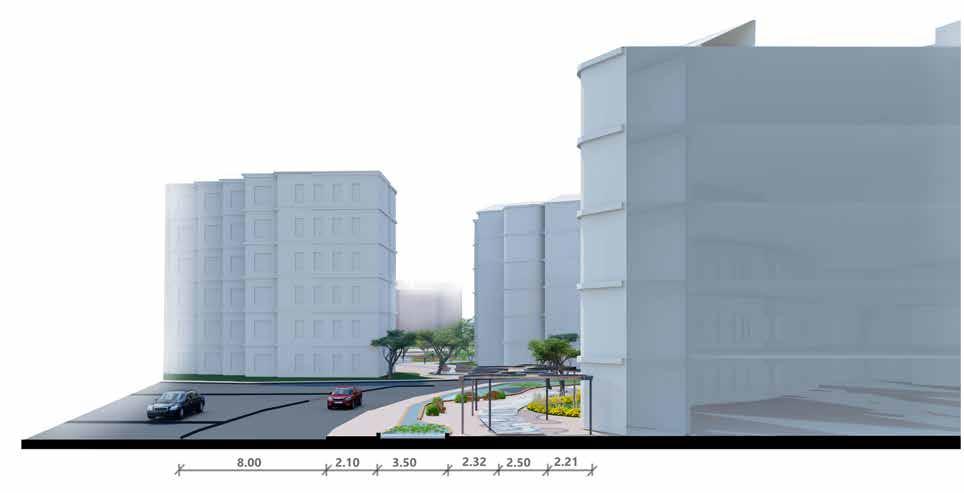

ENVIRONMENT 5: STREETS

This space in between the courtyards is an environment full of energy, where kids play, socialize and is another zone through which with out design intervention we intend to show that breakout space just like how water meanders and makes its way to next stream of water. A place where we can socialize and be guided by water.

Streets is one of the main environments when it comes to proper wayfinding and navigation. Hence emphasizing its beauty with water. This serves as a visual treat for both drivers and passengers along the street and water also segregates vehicular and pedestrian traffic keeping the momentum intact.

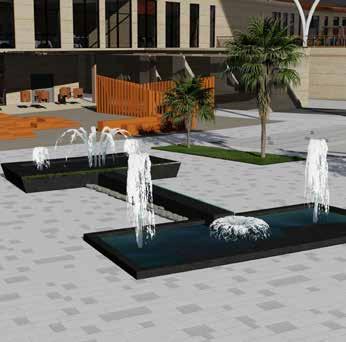

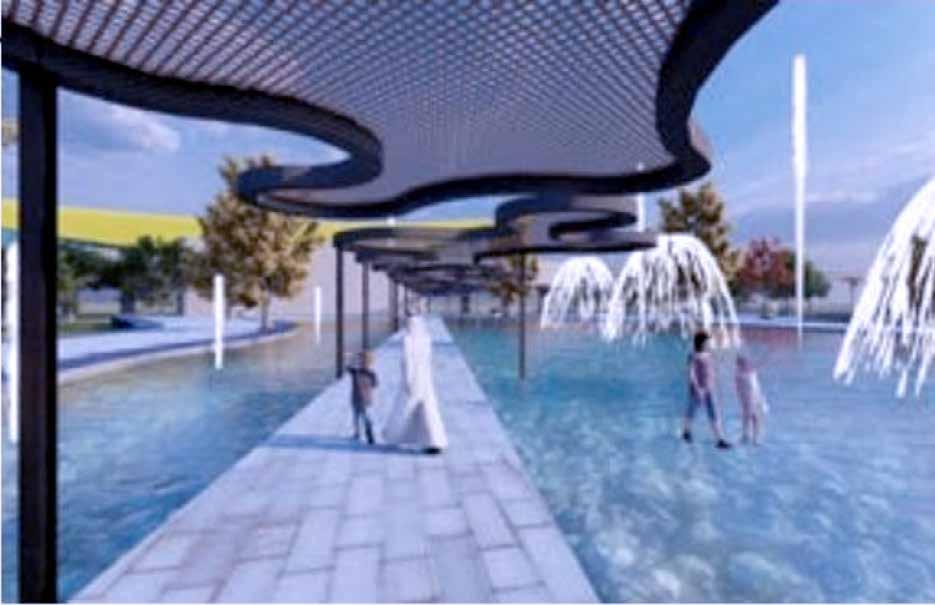

Water Jets

Dynamic Pathways

Amphitheatre seating

Water Barrier

Meandering ponds

ENVIRONMENT 4: TRANSITION SPACES

Wide pathways

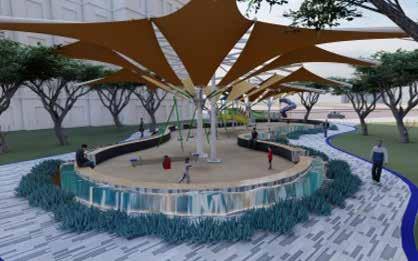

ENVIRONMENT 6: TOT LOT

Transition spaces are those spaces where people need a direction or a navigating element to lead them to their next possible destination, hence using water as a guiding element.

40

Pedestrian crossings

This is the place between the buildings, on the green space is where most children play, and hence the intervention aims to create a space for the tiny tots to play in, for the caretakers to rest and use water as element to effectively segregate the pedestrian movement from the kids spilling over.

41

Architectural Portfolio | 2017-2022

Megha Pramod

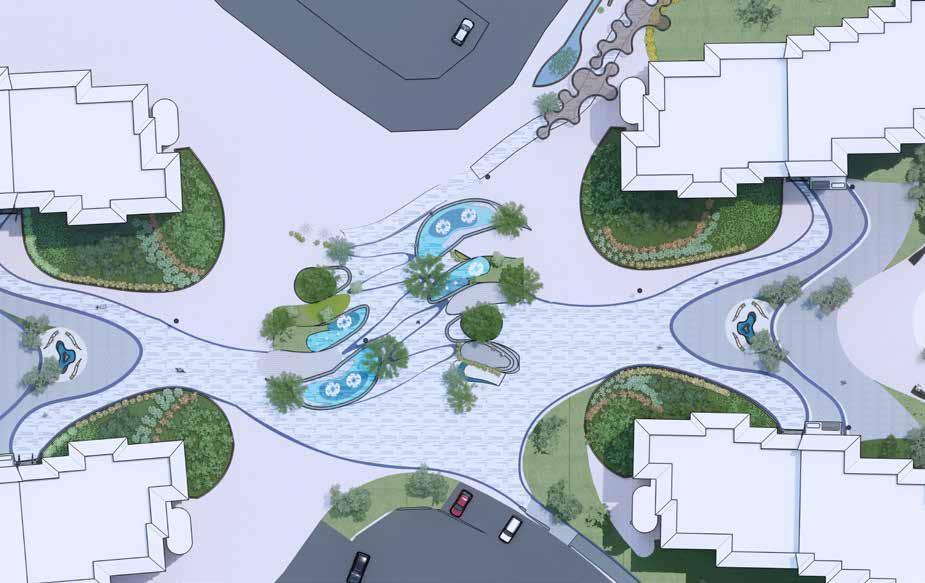

ENVIRONMENT 7: POTENTIAL NODE

HARDSCAPE MATERIALS

The potential node is so identified, because of its frequent use after the intervention of the metro station. Hence it was necessary to improve the environment such that it aids more and more people in using the discovery gardens metro station, along with incorporating our main concept of water as a guiding element.

Red Herringbone 45o Bond pavement

grey and white textured pavement

Beige Stretcher Bond pavement Phosphorus coated leading lines light grey stretcher bond pavement

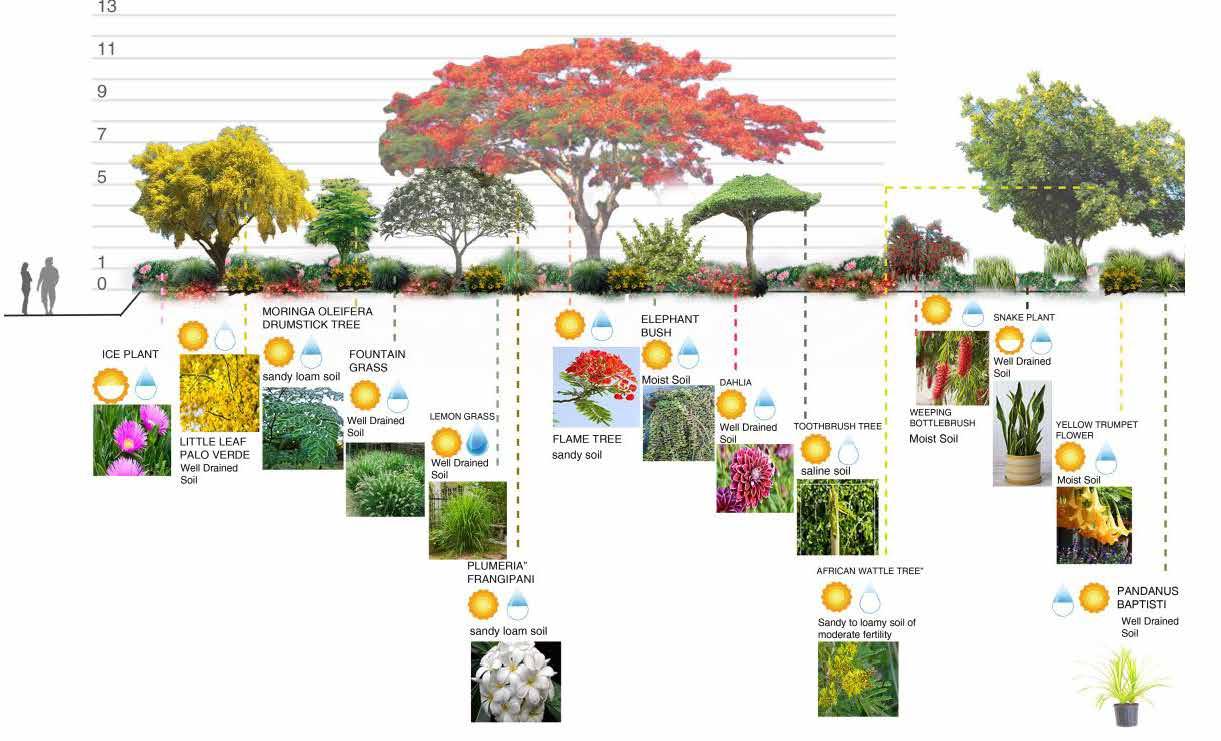

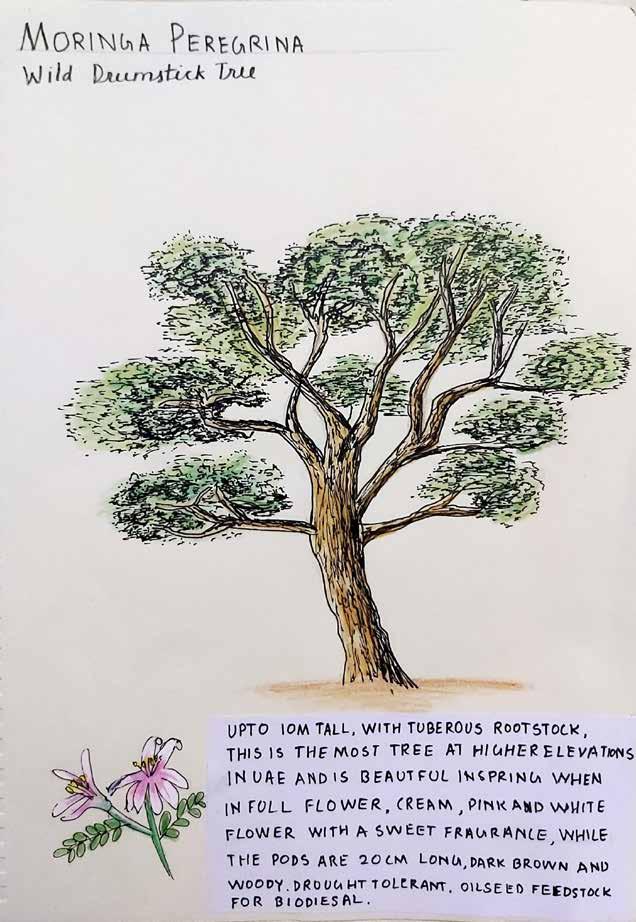

LANDSCAPE - PLANT PALETTE

Red Stretcher Bond pavement

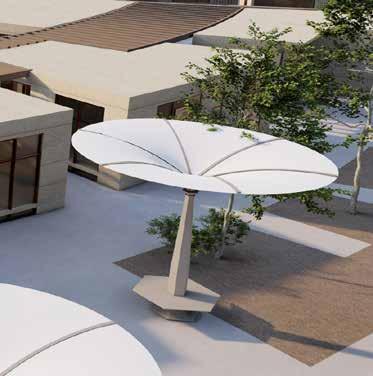

SHADING AND LIGHTING STRATEGIES Lighting - The Lighting of the various zones is done by the 1.Bollards 2. Pedestrian Lighting and 3.Streets.

The minimal and modern design blends with the streetscape and provides the necessary illumination.

Lighting below the water elements are also provided to navigate the users from each environments.

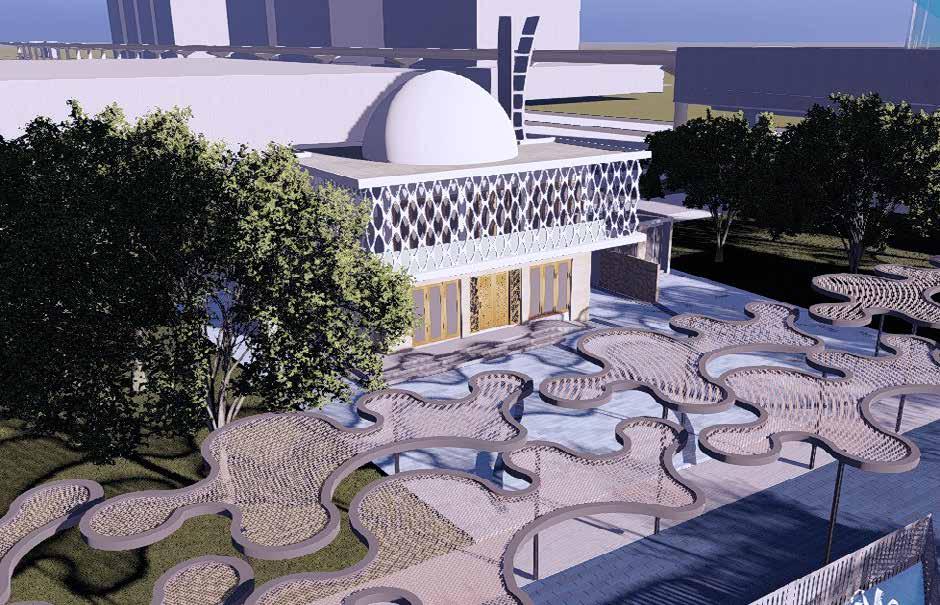

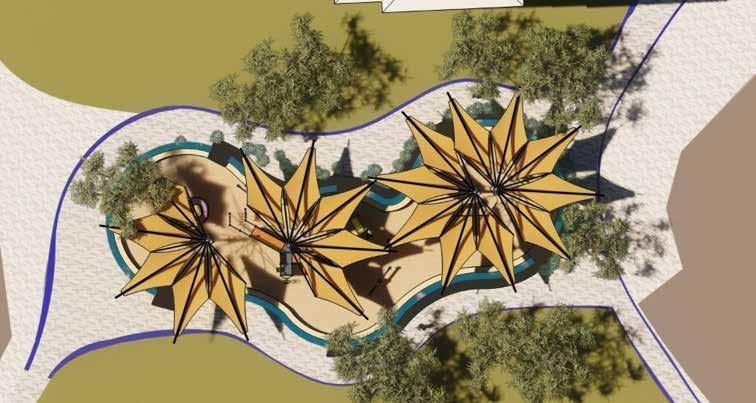

Shading - Following the same lines of fluidity from the urban design intervention concept, a shading structure was devised as shown. It performs its function efficiently while not overpowering the very root of the concept. For shading the streets and pathways a blend of shading structures and trees and used for creating a more harmonious environment.

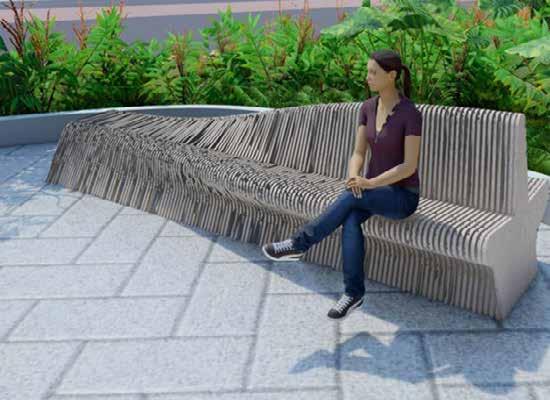

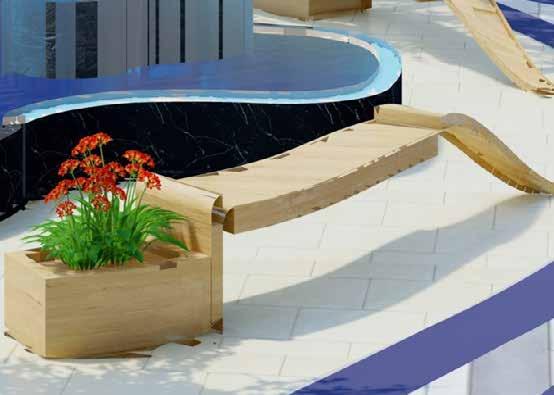

FURNITURE Seating :

Since streets are the main elements of our design, choosing flowering trees with red and white pallete accentuated the beautiful journey of walking along those streets.

When it comes to seating, an attempt was made to break free from the tradition straight line benches to a more ground emerging or a more blending with the concept of seating.

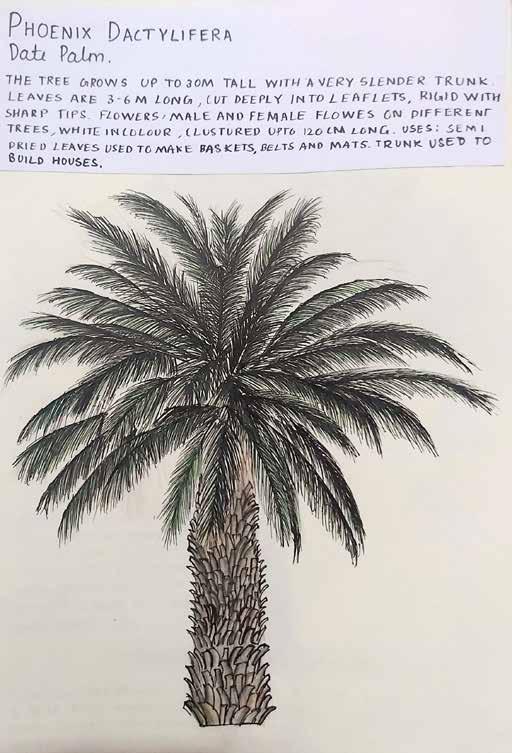

TREES: Flame Tree- Street Plumeria - Street Paulo Verde - Courtyards American Beechwood - Insside zones WATER PLANTS: Water lily Water Iris

42

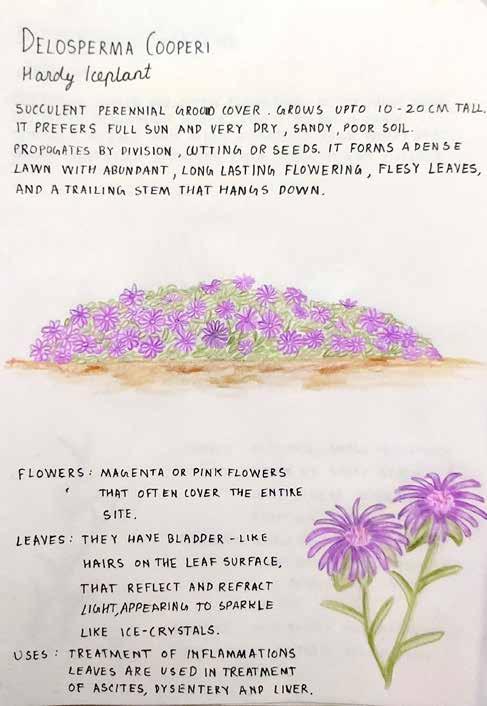

GROUND COVER: Dahlia Ice palnt

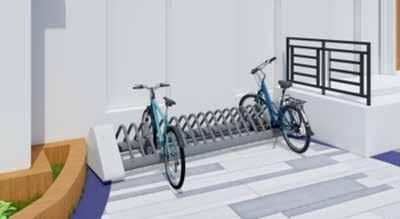

Cycle Stand: Cycle stands are provided in all the courtyards and near station area for ease in micro mobility.

43

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 04

THE URBAN STIGMERGY

Project type: Individual Semester: 7 Category: Housing Design Project Location: Al Nahda, Dubai, UAE Subject: Architecture Design

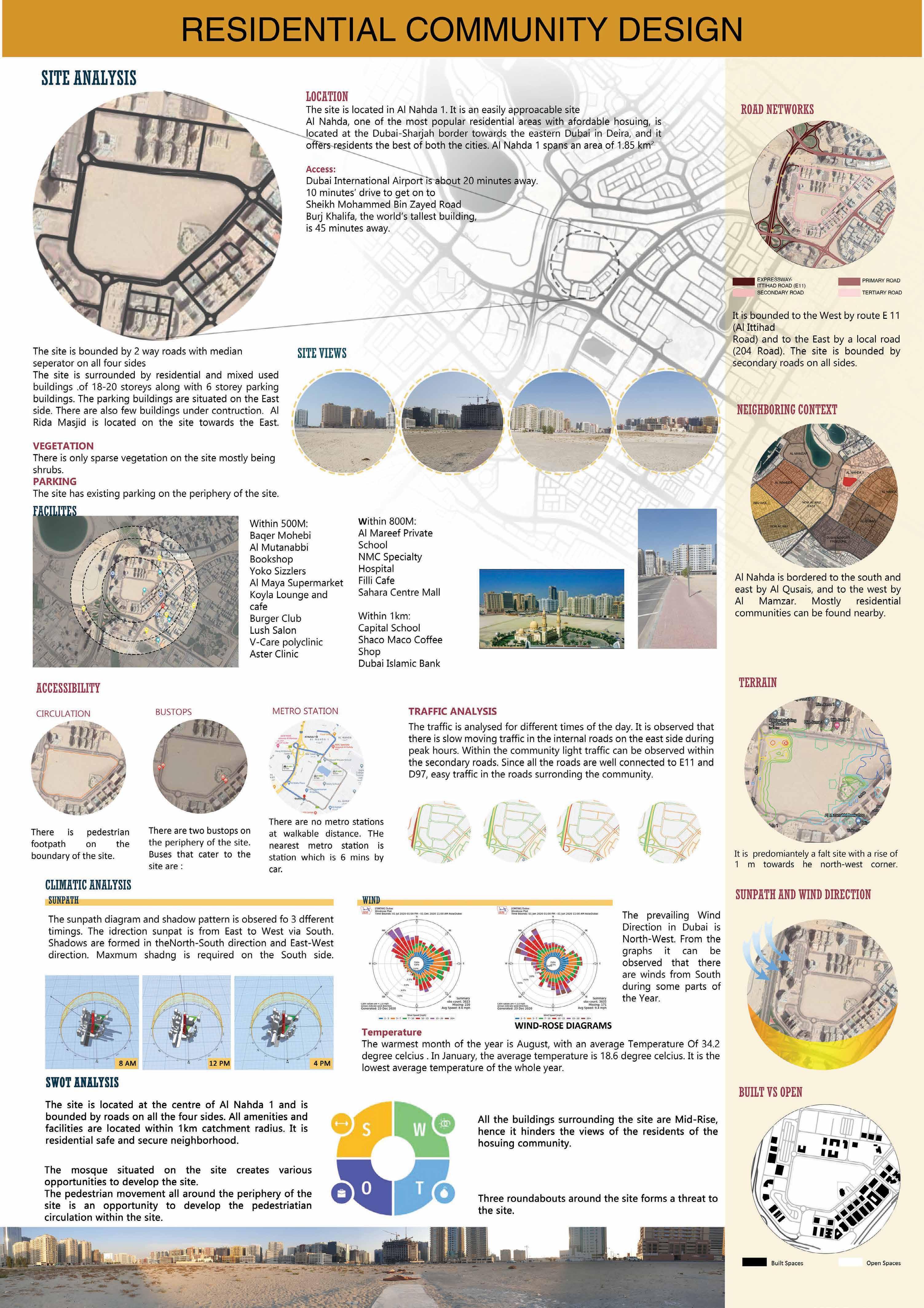

The project aims to develop a residential community in neighborhood of Al Nahda, Dubai with all facilites required for a medium density community. The design creates a complete environment for enriching the living experience by mimicking the stigmergy created within an ant colony. The behavioral patterns are analysed to carve out spaces for different levels of interaction and movement. All ameneties are provided in pockets for easy accessibilty and the retail facilities are seperated merging in with the public environment, thereby promoting peaceful living within the residential area.

44

45

Architectural Portfolio | 2017-2022

Megha Pramod

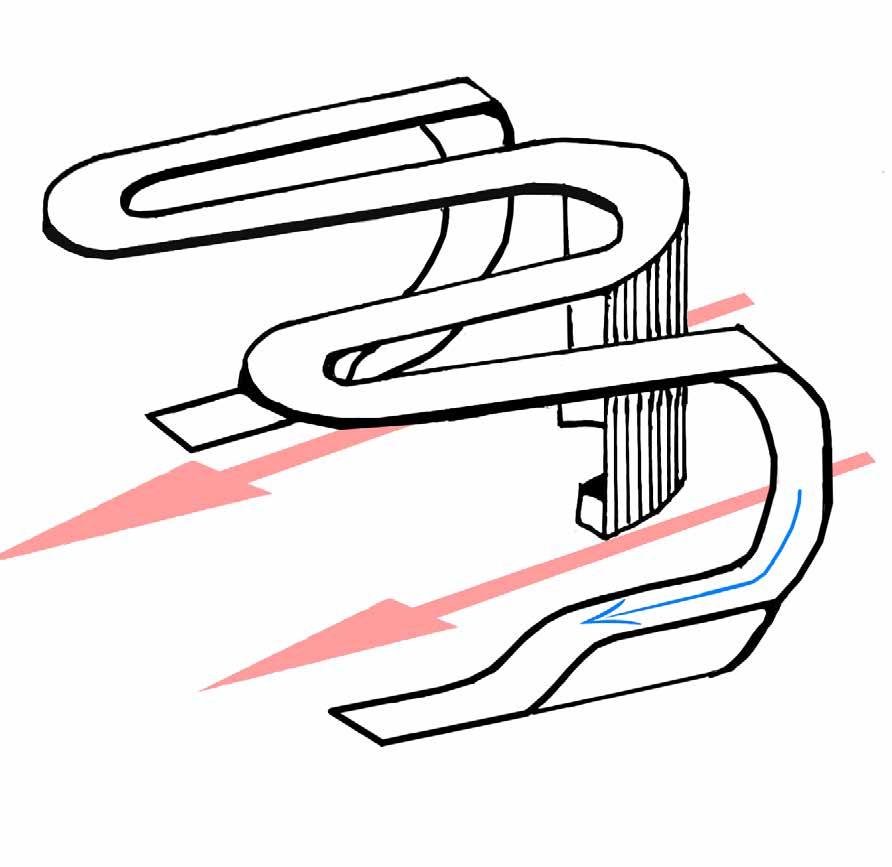

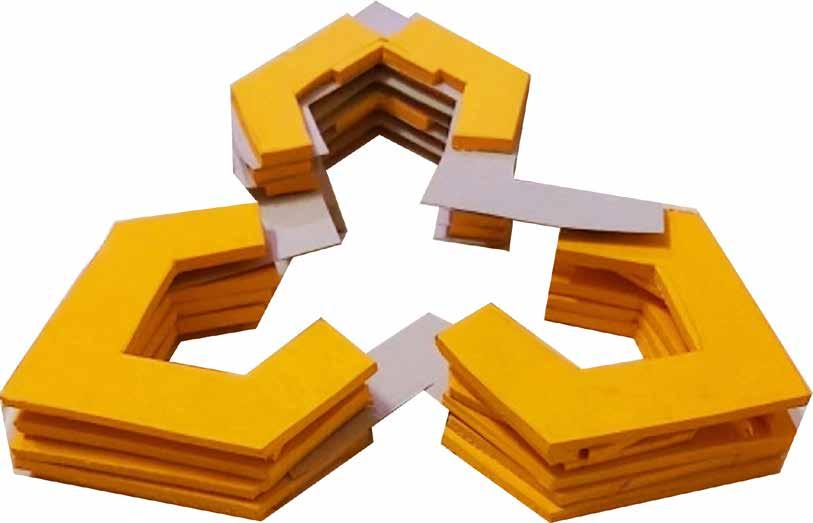

OPTIMIZATION WITH POLYDOMY, THE ANT COLONY The organization and adaptive function of complex nest systems in ants. Many species spread their colonies between multiple spatially separated but socially connected nests, this phenomenon is known a Polydomy.

Polydomous species are ecologically and phylogenetically diverse, and often economically significant as invasive pests. Benefits of polydomy may include risk spreading, efficient resource exploitation and ergonomic factors. Very little is known about the costs of polydomy; facultatively polydomous species are good candidates for identifying costs. Analysing polydomous colony structure provides insights into which costs and benefits are driving the colony organisation; for example, a cross-species analysis of inter-nest trail networks shows structural features related to long-distance transport efficiency.

• •

Spatial structure- multiple nests Potential to increase colony size irrespective of nest level constraints.

• Inter nest improves communication.

• Multiple entry points an several centres.

• Widespread social structure of multiple species of ants.

• Survival instinct is collective and effective • Progress by self organization- Stigmery This concept has been incorporated in the design to develop a user friendly community. In order to satisfy the needs and expectations of the neighborhood.

46

47

Architectural Portfolio | 2017-2022

Megha Pramod

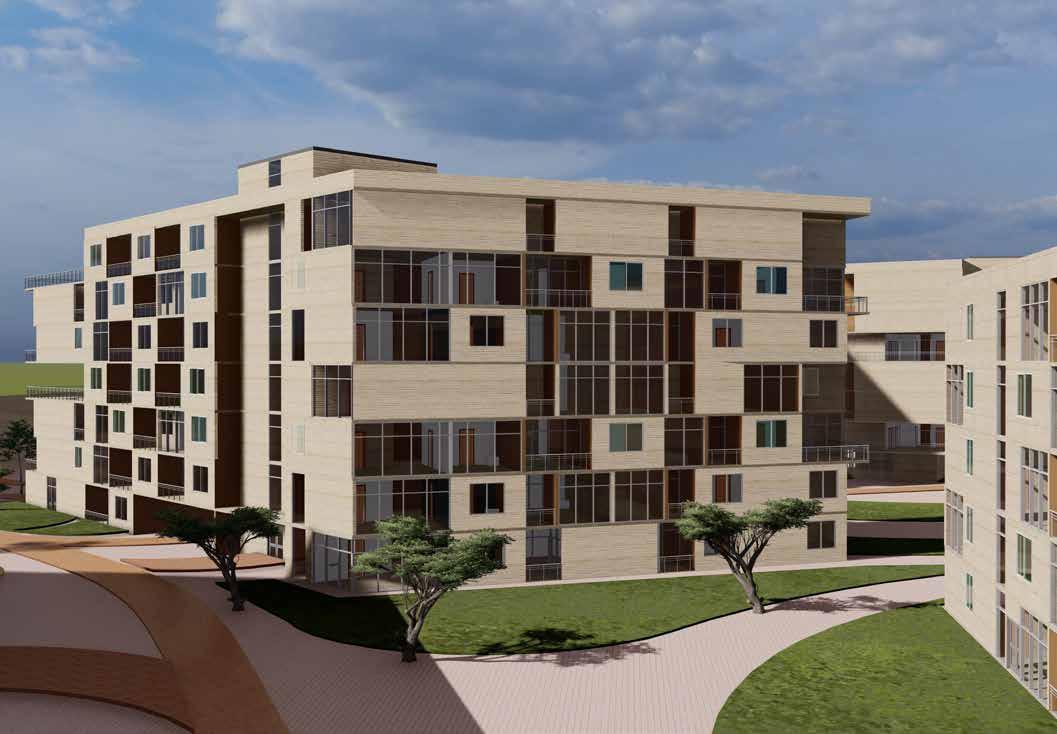

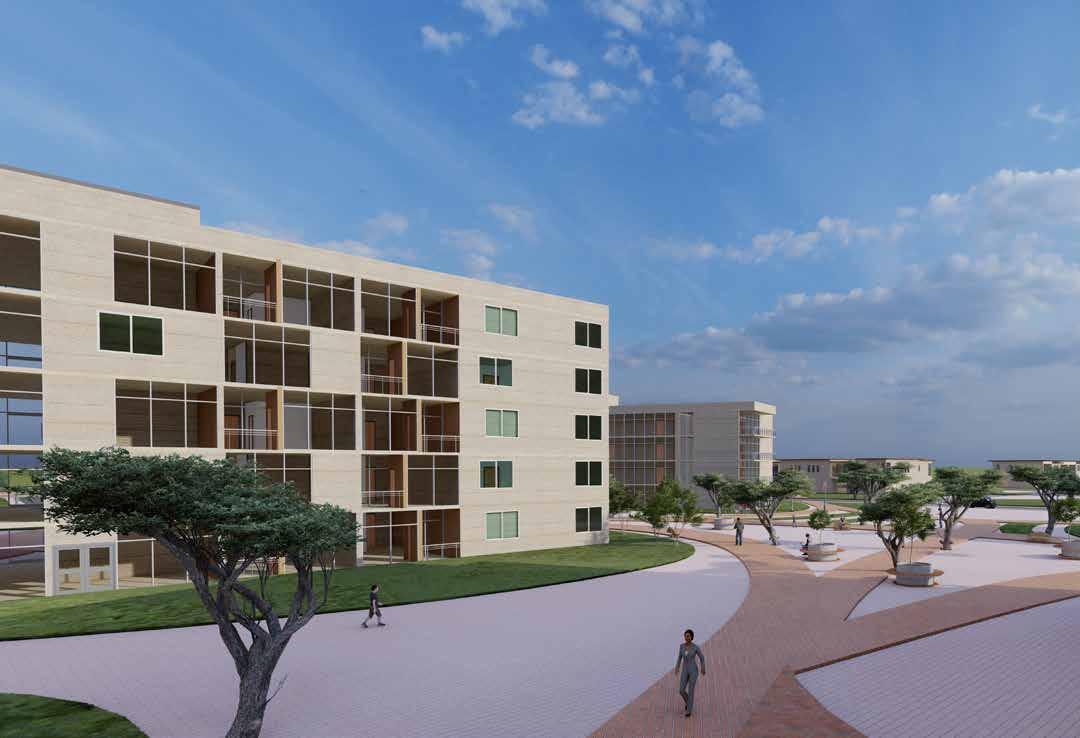

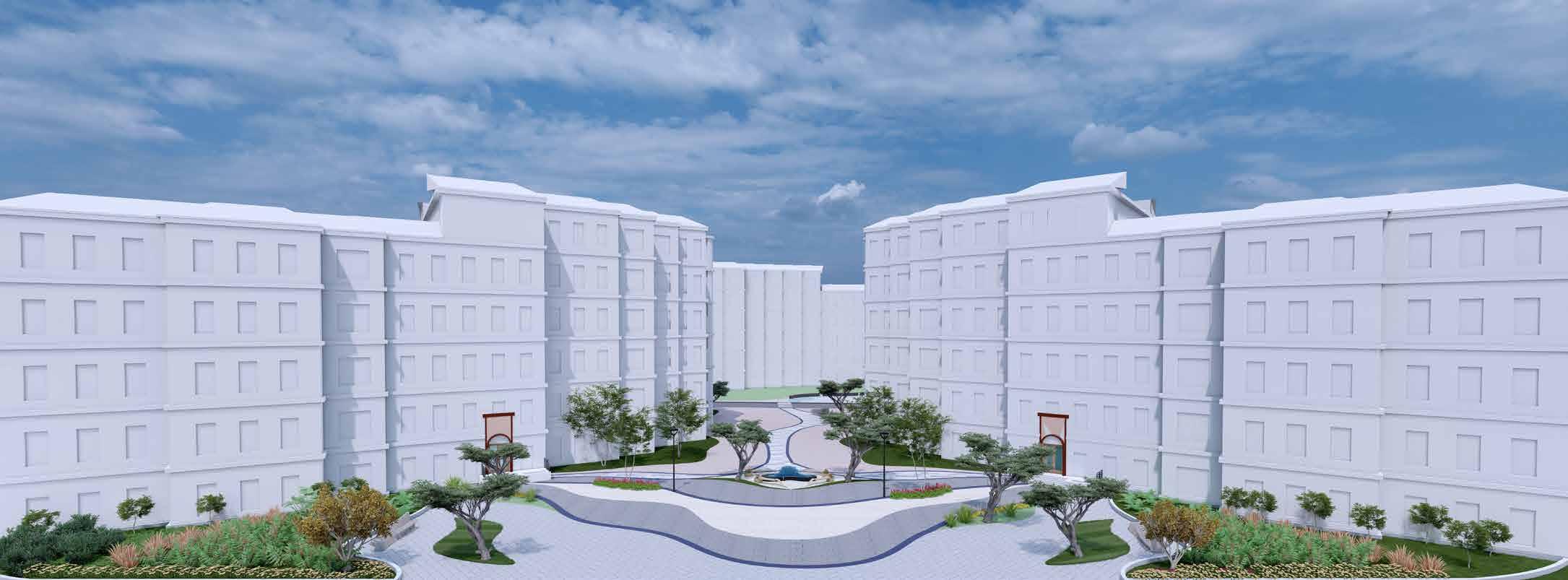

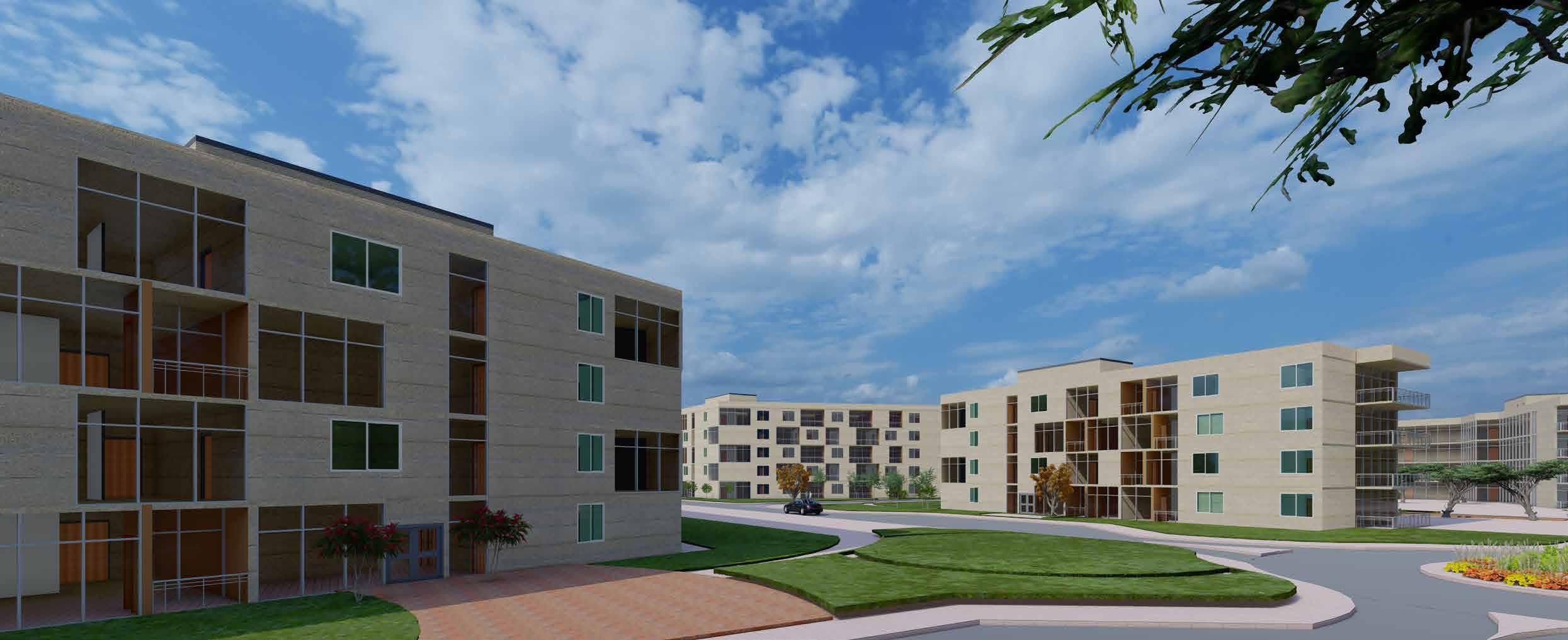

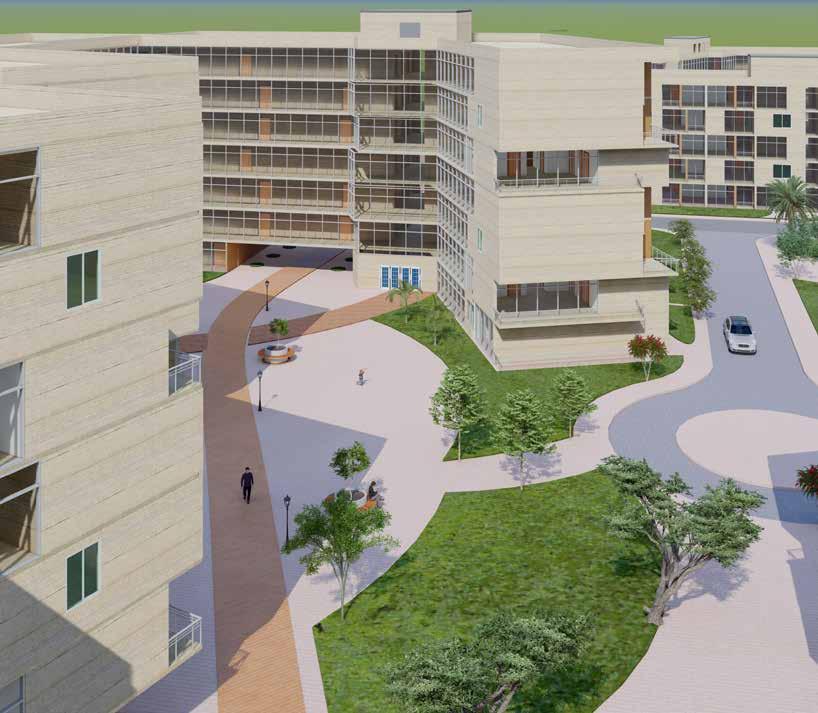

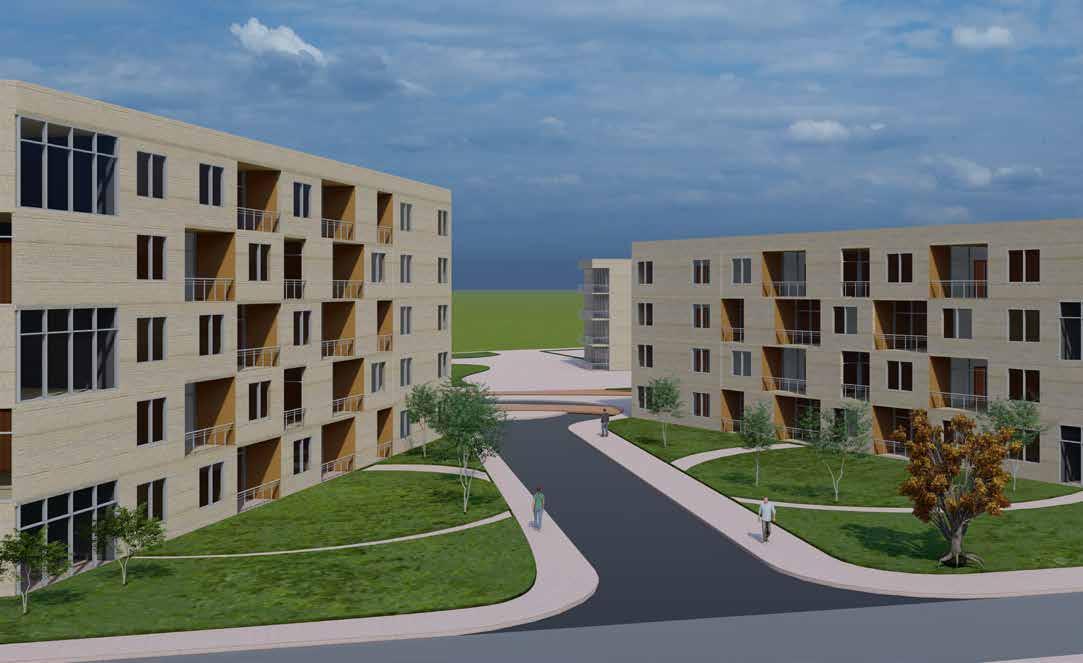

THE STIGMERGY APARTMENTS

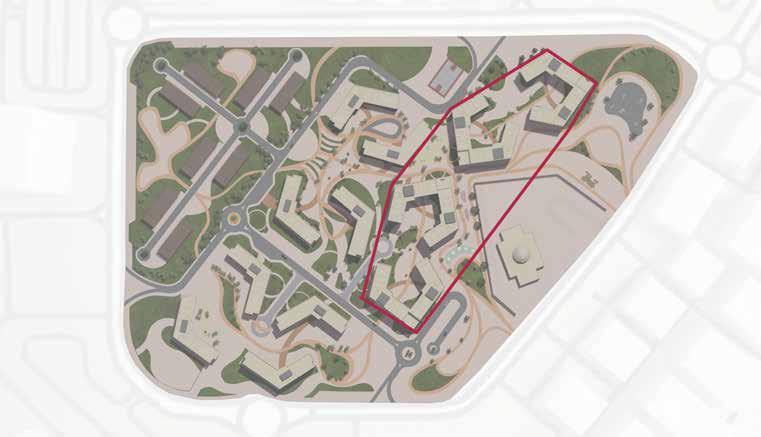

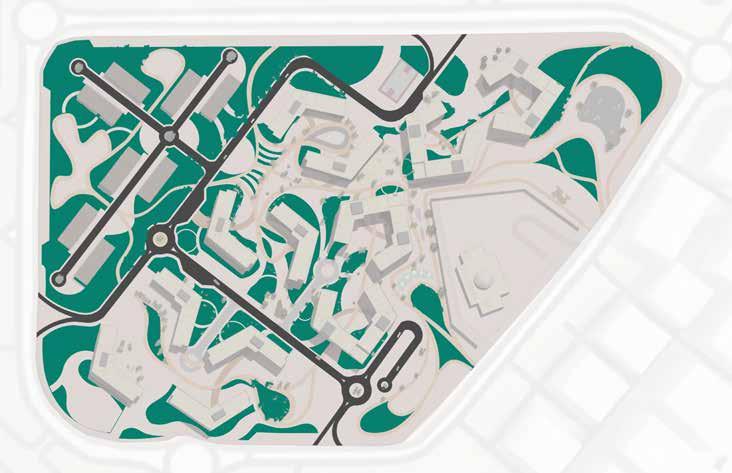

MASTERPLAN

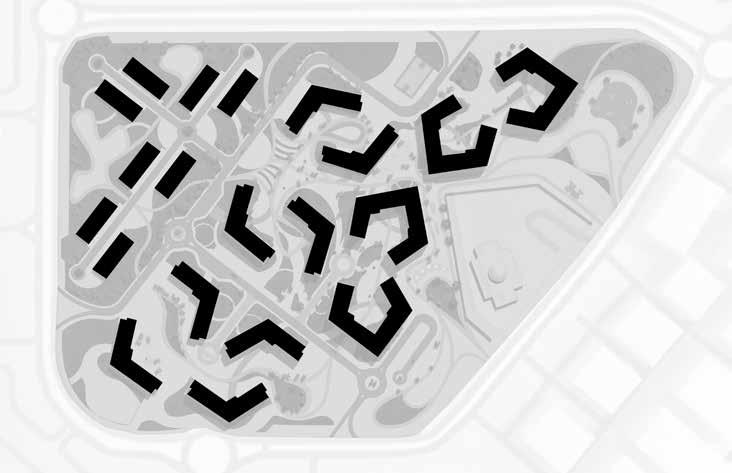

These apartments form the periphery of the community next to the mosque creating a powerful impact on it. This is the point where the spread of colony begins after originating from the powerful mosque already existing on the site. The cluster comprises of four horse shoe shaped buildings consisting of retail at the ground level. It creates an active edge facing the mosque and has a potential for bringing in users.

BUILDING HEIGHTS

48

BUILT VS OPEN SPACES

G+ 4 floors

G+ 6 floors

G+ 1 floor

G+ 5 floors

Open spaces

ROAD NETWORK AND GREEN SPACES

Built spaces

Green spaces

Retail

GROUND LEVEL

1ST, 4TH FLOOR

2ND, 5TH FLOOR

3RD, 6TH FLOOR

Studio

1 BHK

2 BHK

Loft unit

Services

Circulation

Road Network

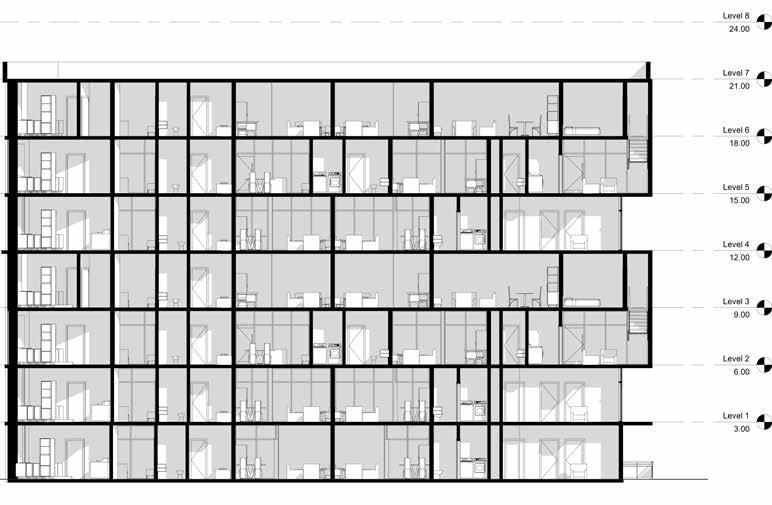

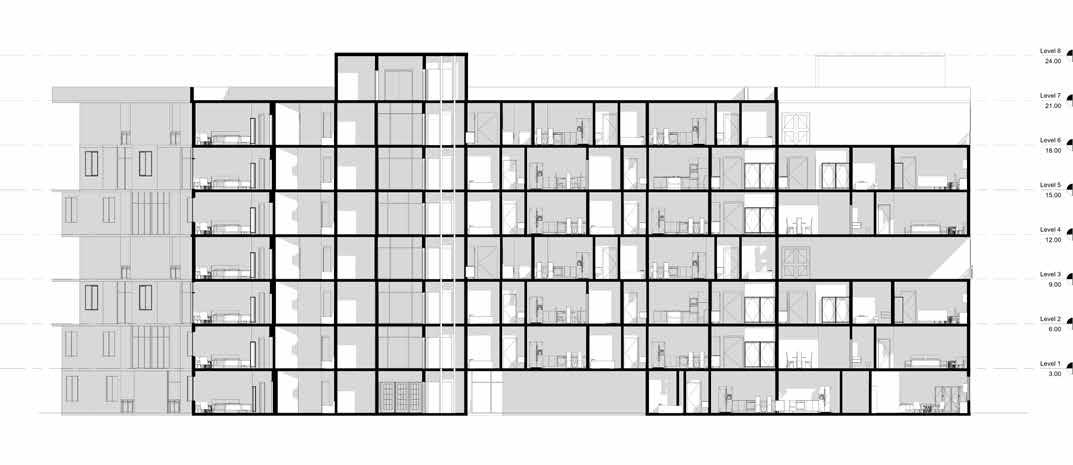

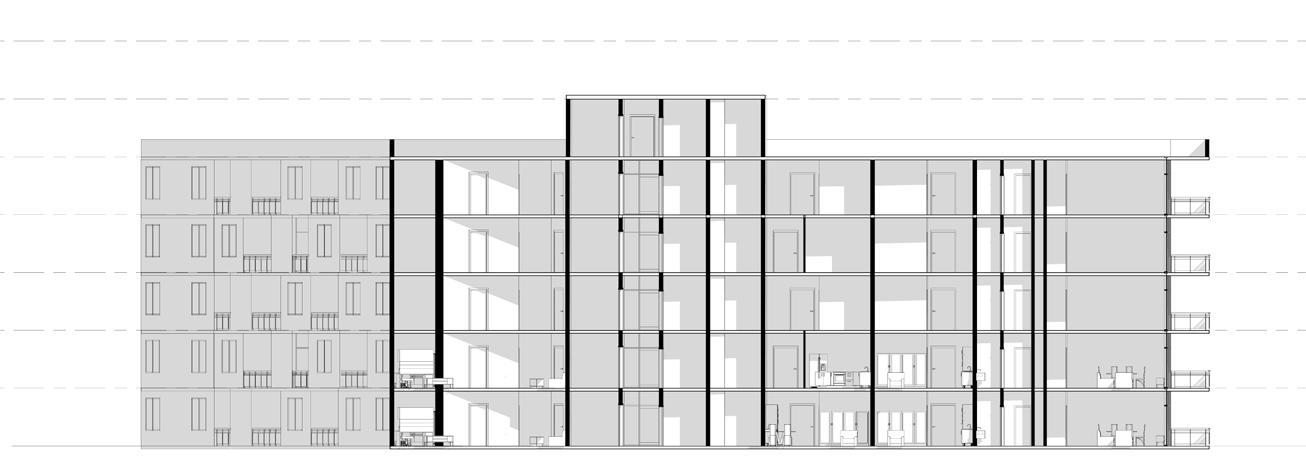

SECTION AA’

SECTION BB’

49

Architectural Portfolio | 2017-2022

Megha Pramod

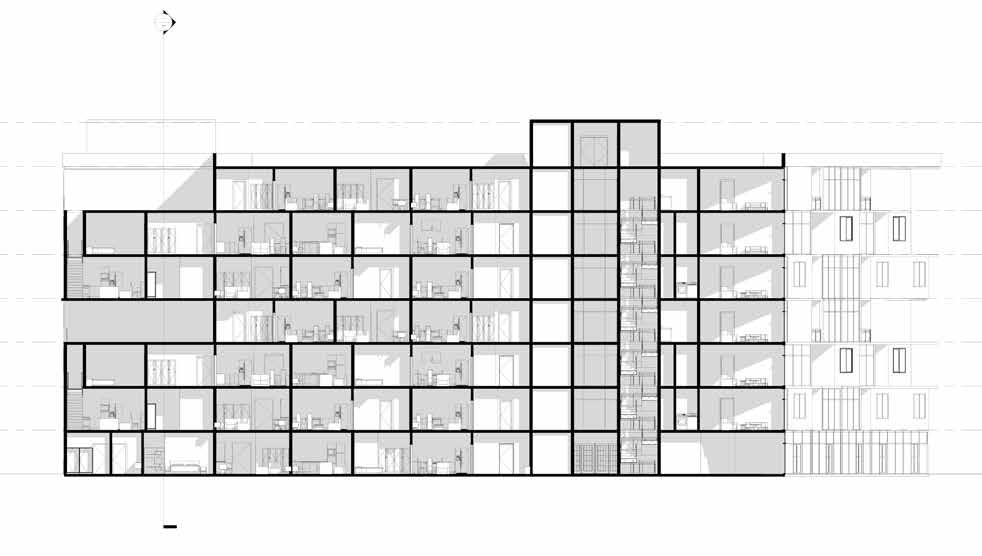

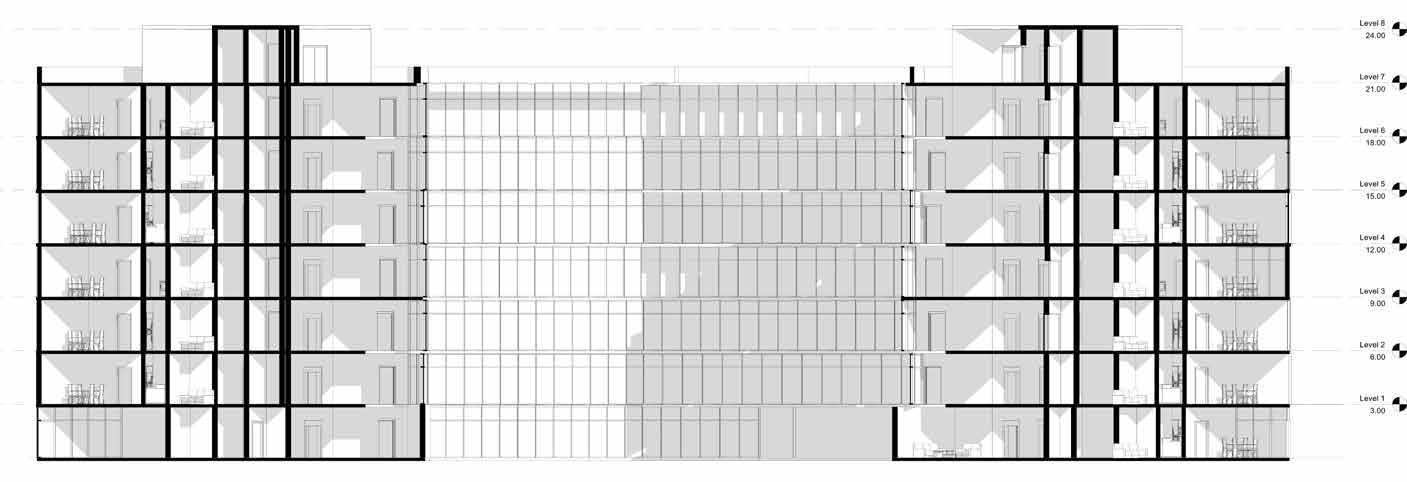

SECTION CC’

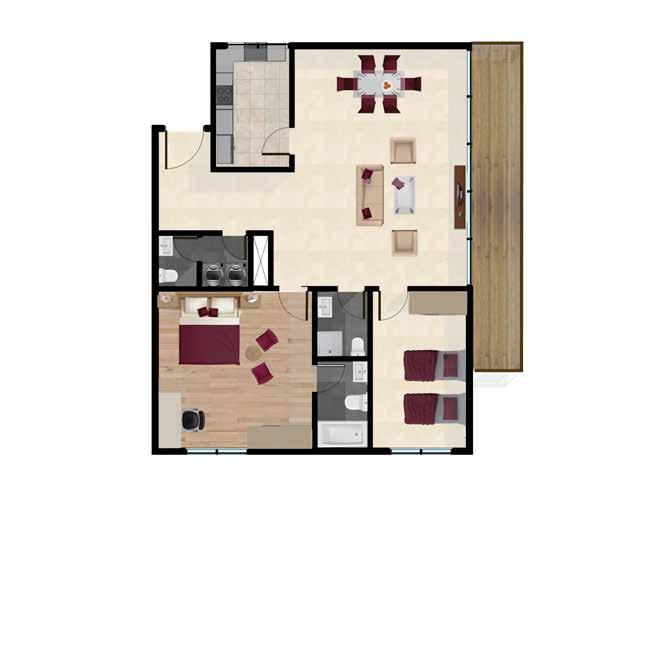

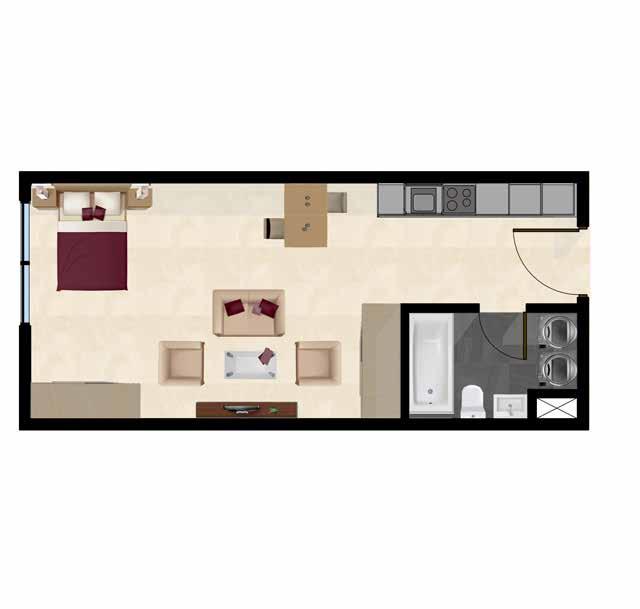

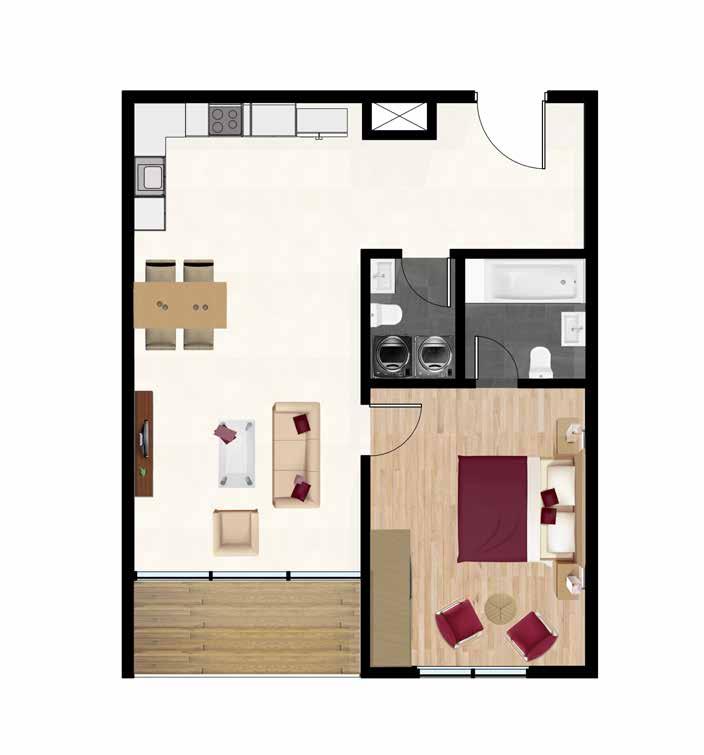

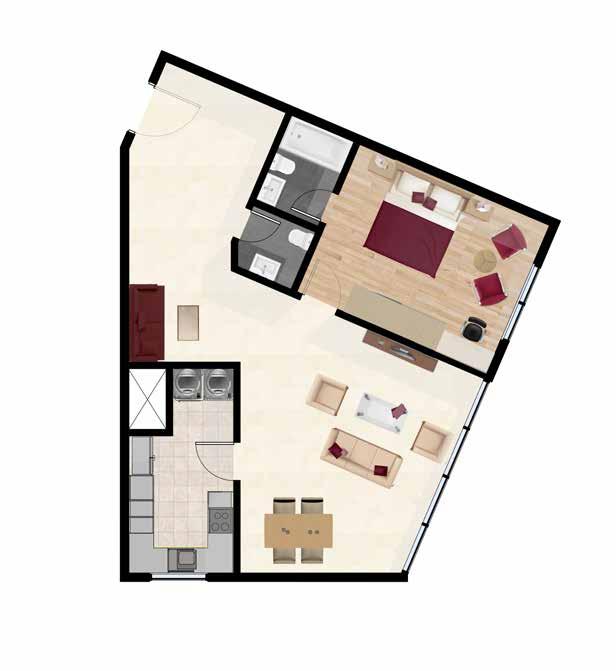

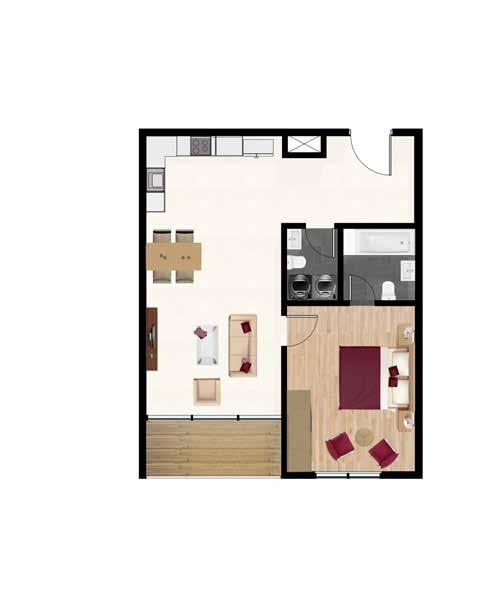

1 BHK TYPE A -

SECTION DD’

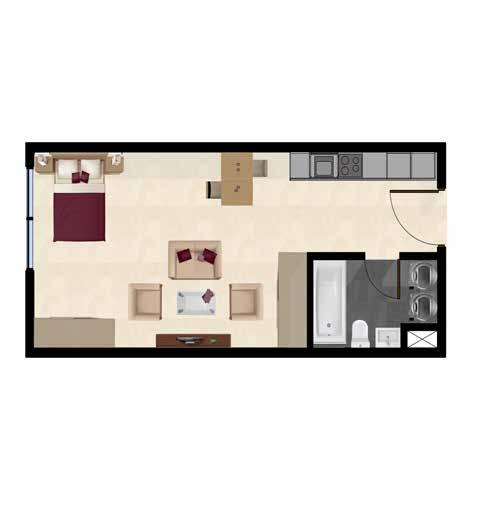

STUDIO TYPE A -

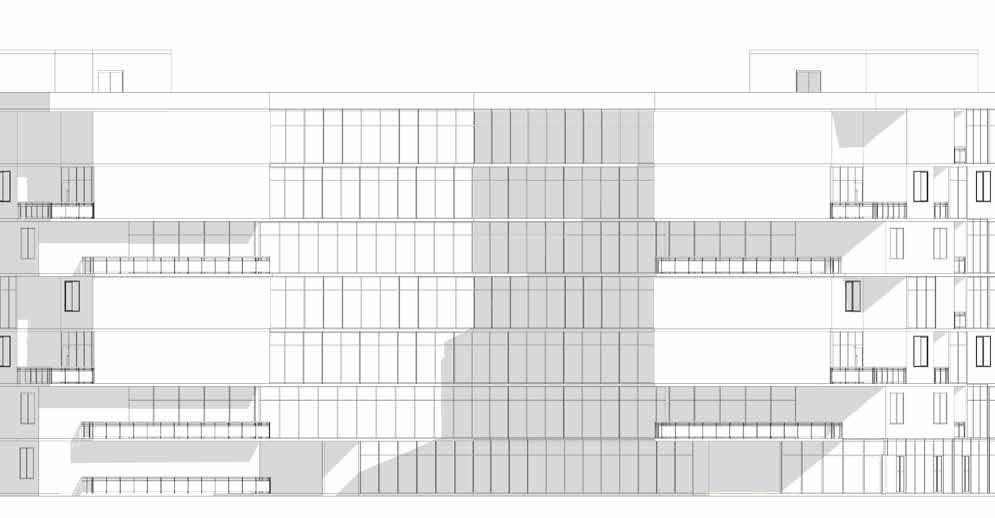

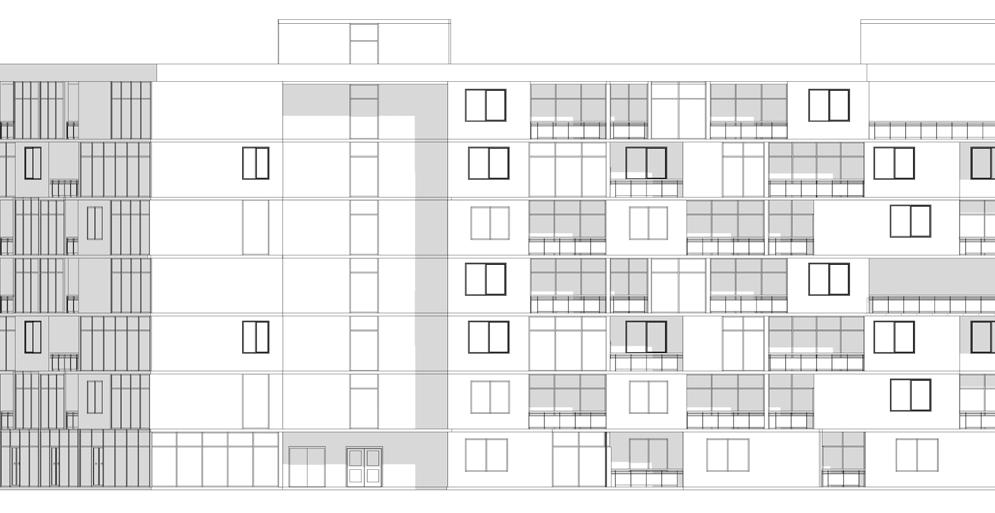

FRONT ELEVATION

BACK ELEVATION

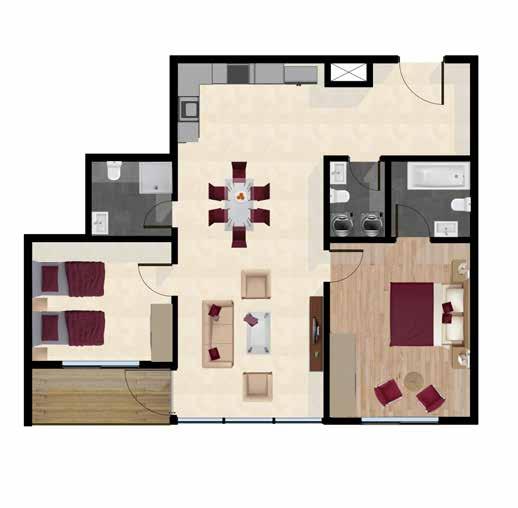

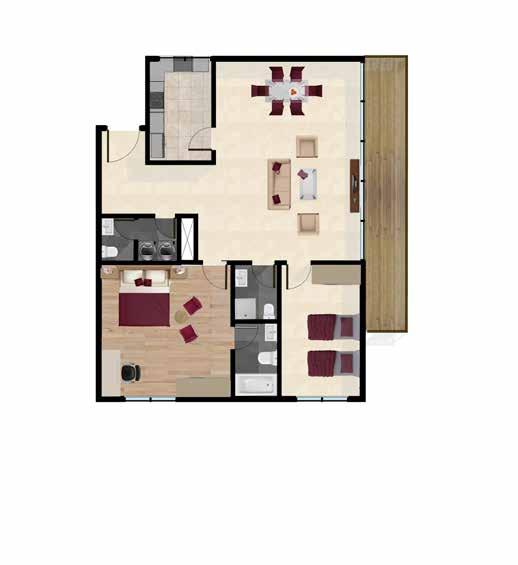

2BHK TYPE A -

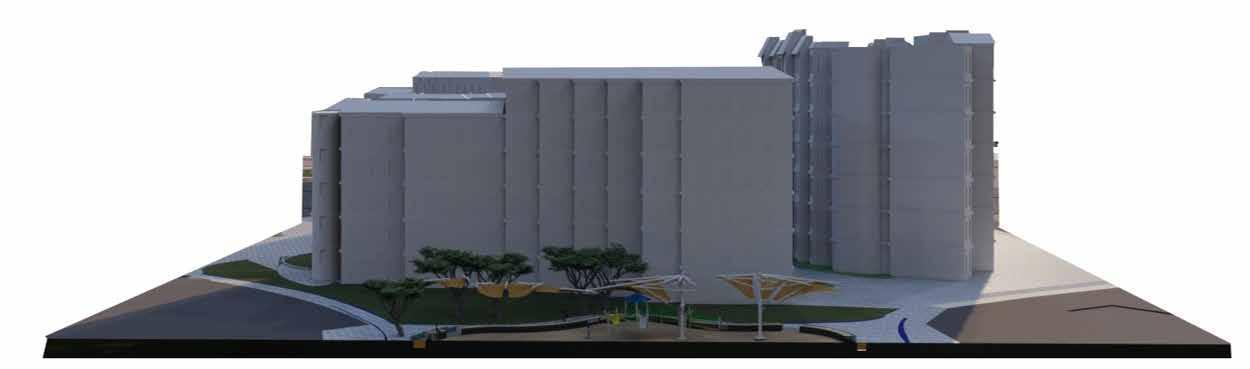

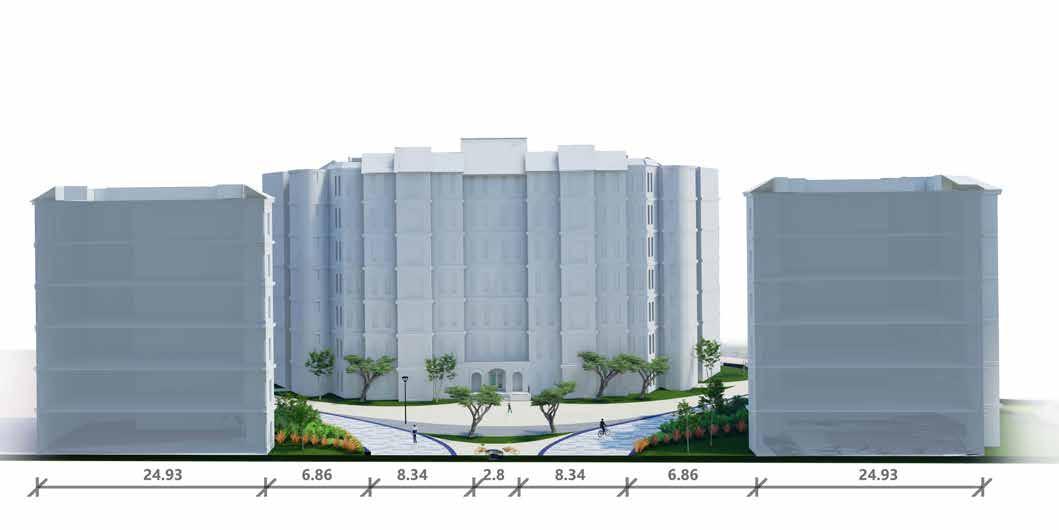

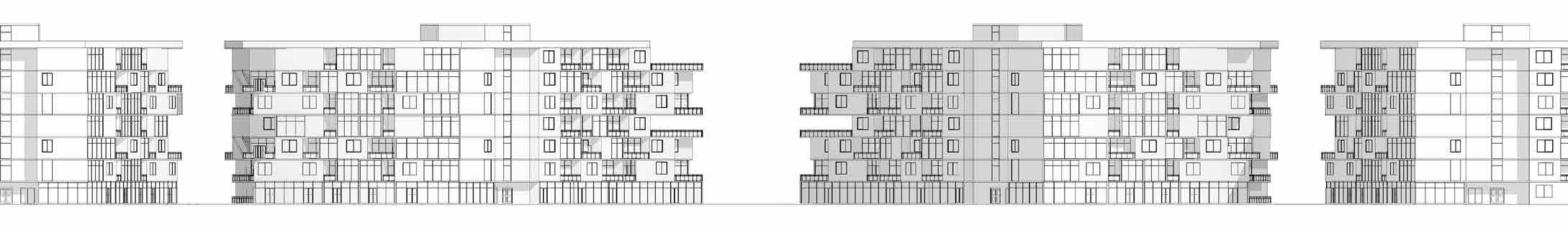

CLUSTER ELEVATION

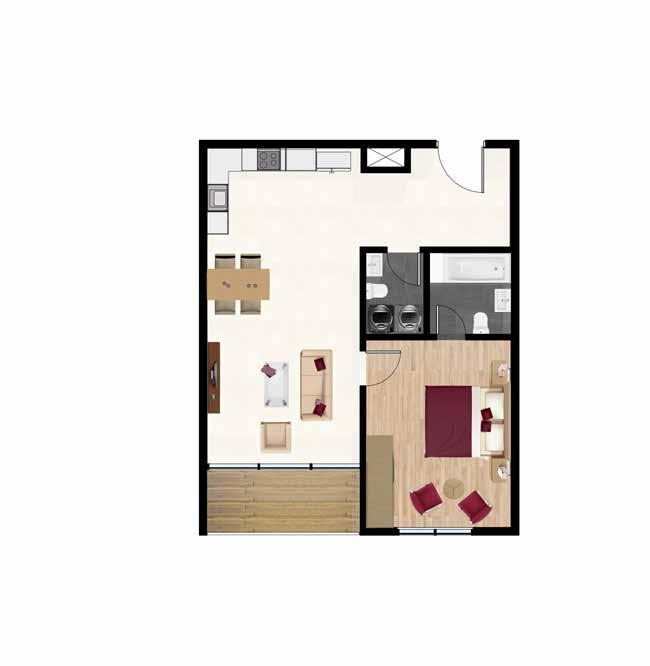

MODULE LAYOUT 1 BHK TYPE B -

STUDIO TYPE B -

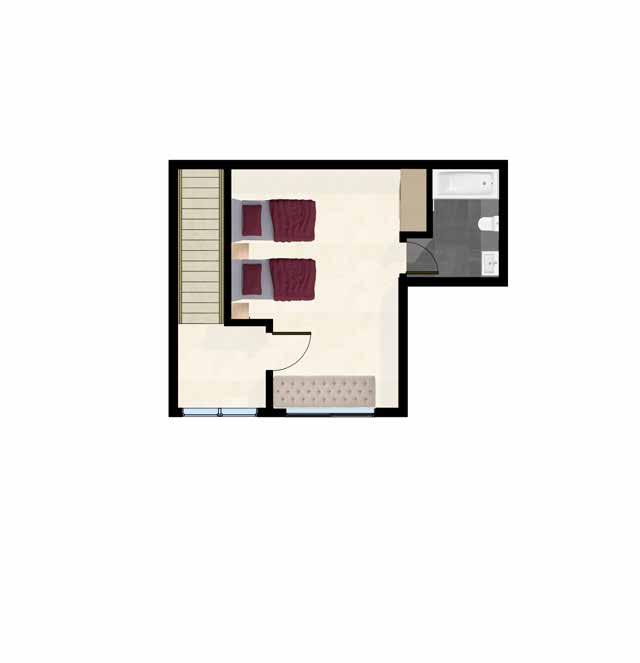

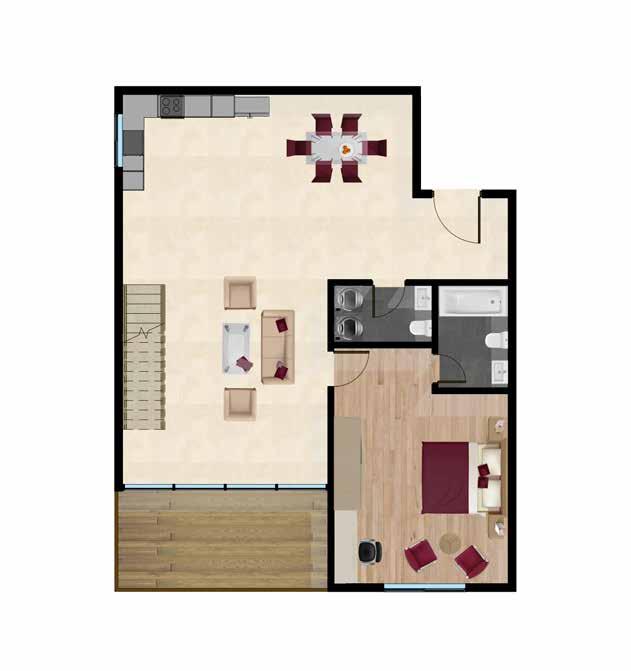

LOFT UNIT - LOWER FLOOR

50

2BHK TYPE B -

UPPER FLOOR

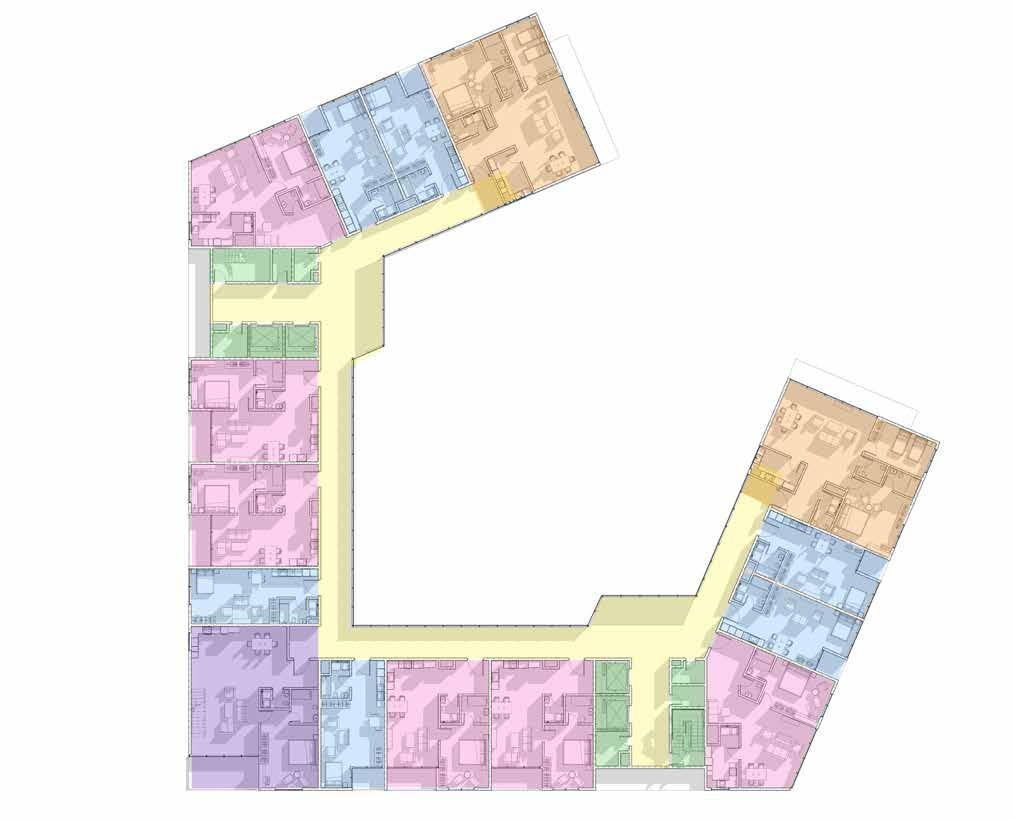

Corner supported module: These modules are designed to provide fully opensiders transfer of loads through the longitudinal edge beams to the corner posts. In this project they have been used to ensure complete access, smooth transition and circulation in the lobby of each floor.

Four sided module: Continuously supported or four-sided modules are supported on their longitudinal sides, which bear on the walls of the modules below. Most of the modules of this project belong to this category and serve the functions of studio apartments.

Partially open sided module: 4 sided modules can be designed with partially open sides by the introduction of corner and intermediate posts and by using a stiff continuous edge beam in the floor cassette. These kind of partially open sided modules are used in the larger apartments including 1BHK and 2BHK units.

51

Architectural Portfolio | 2017-2022

Megha Pramod

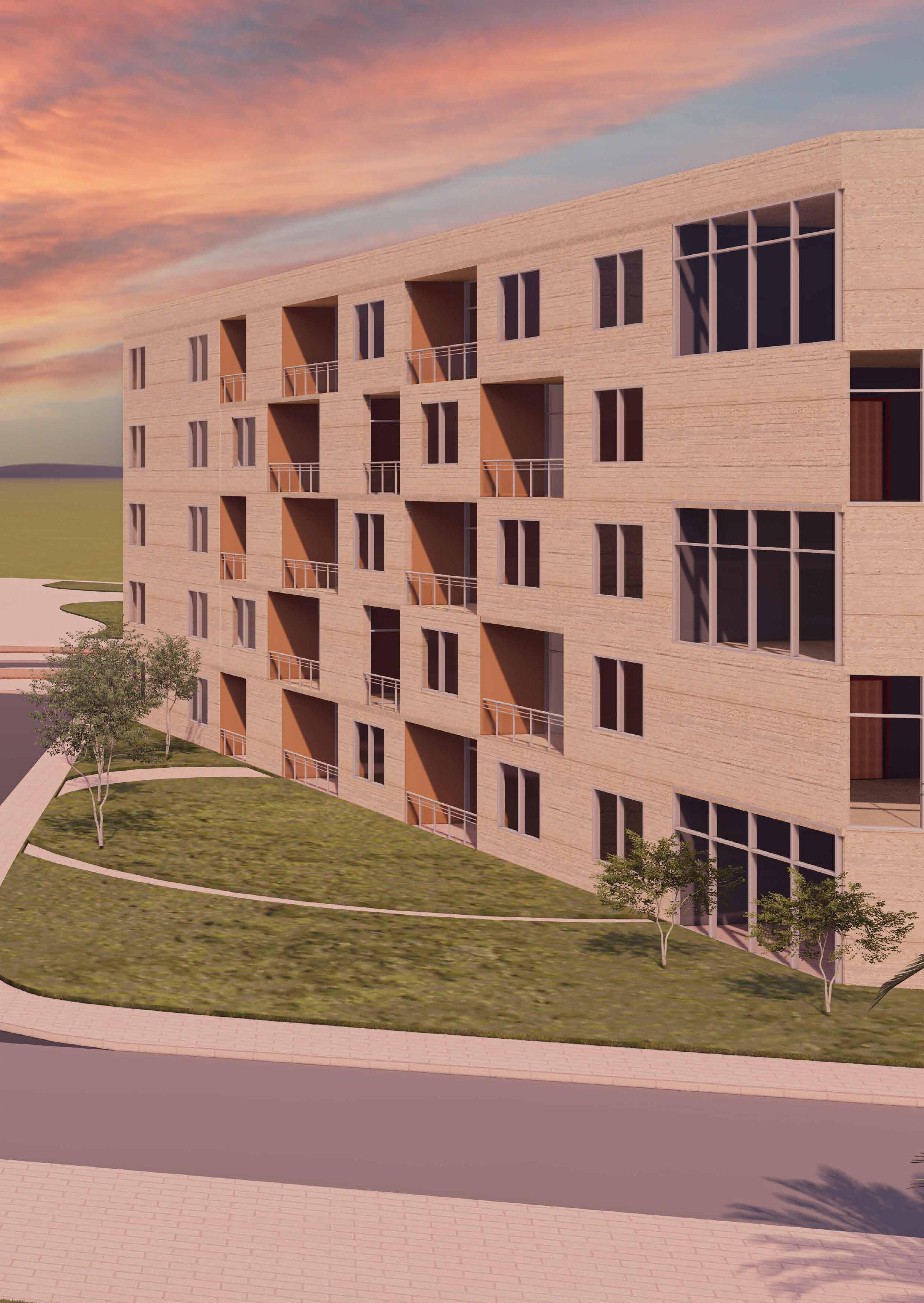

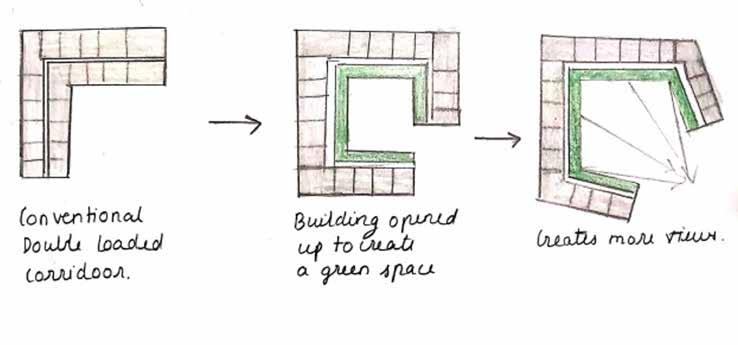

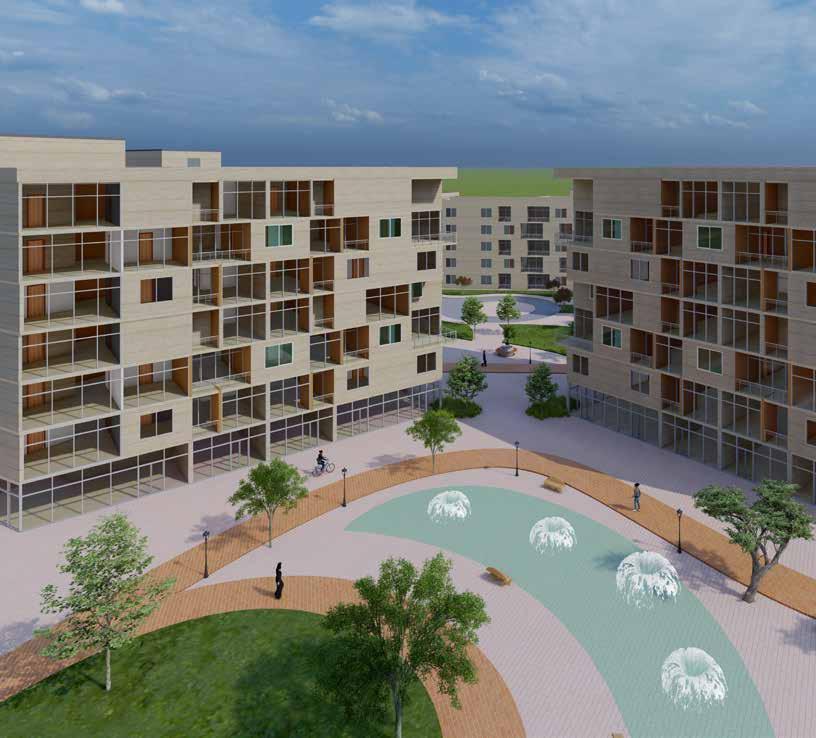

THE HARMONY APARTMENTS These apartments form the periphery of the community next to the previous creating a powerful impact on it. This is the point where the heirarchy of visible height difference can be observed The cluster comprises of 8 L shaped buildings consisting of 4-5 floors.

SECTION CC’

52

1 BHK

2 BHK

STUDIO TYPE A -

1 BHK TYPE B -

STUDIO TYPE B -

2BHK TYPE A -

2BHK TYPE B -

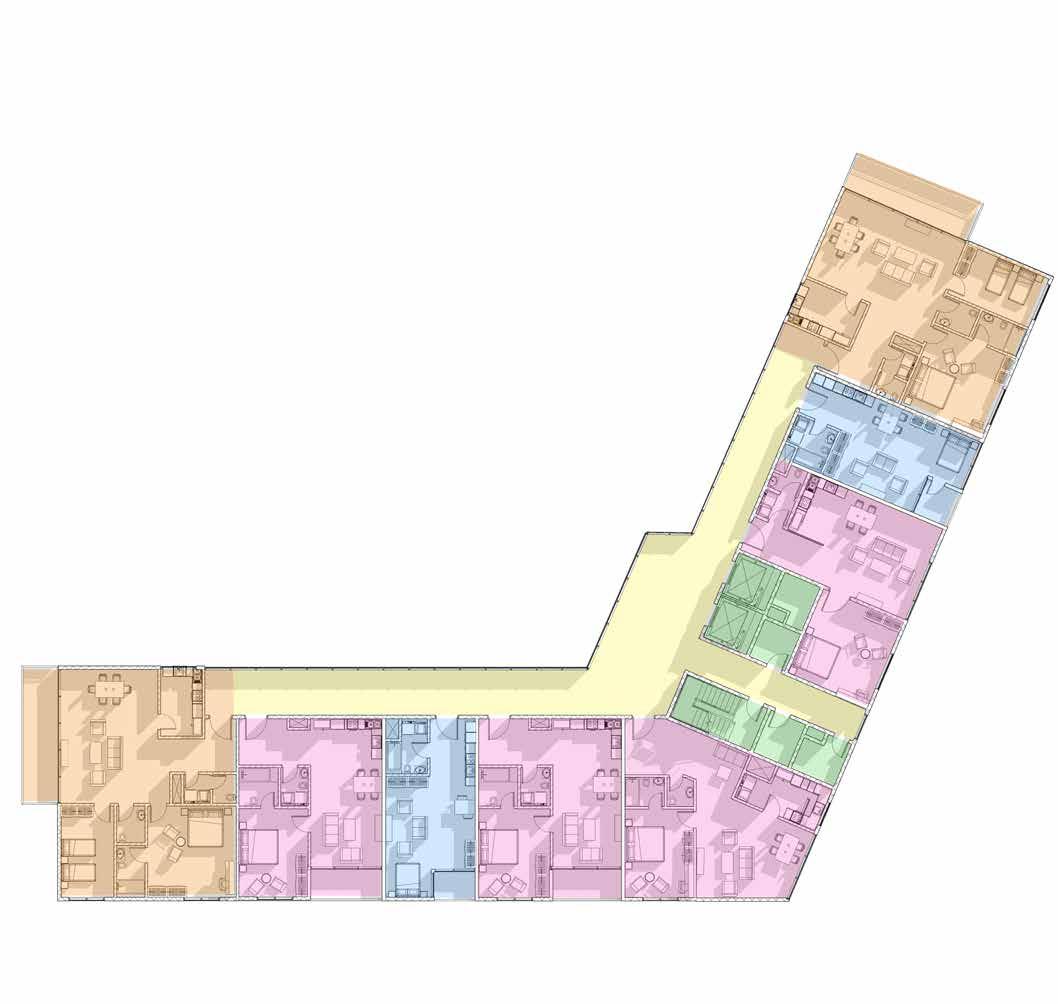

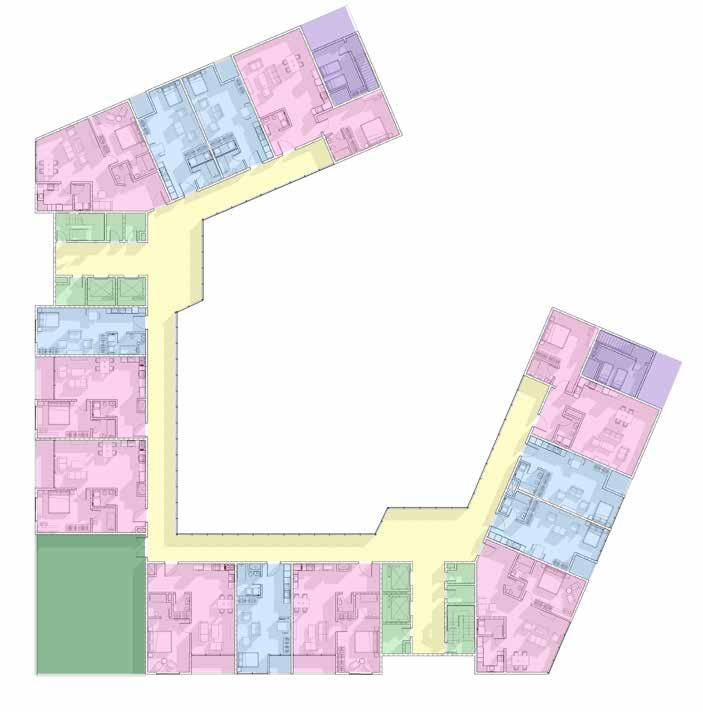

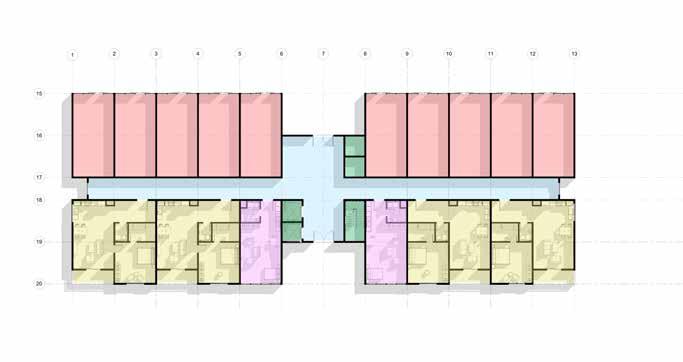

1ST, 4TH FLOOR PLAN

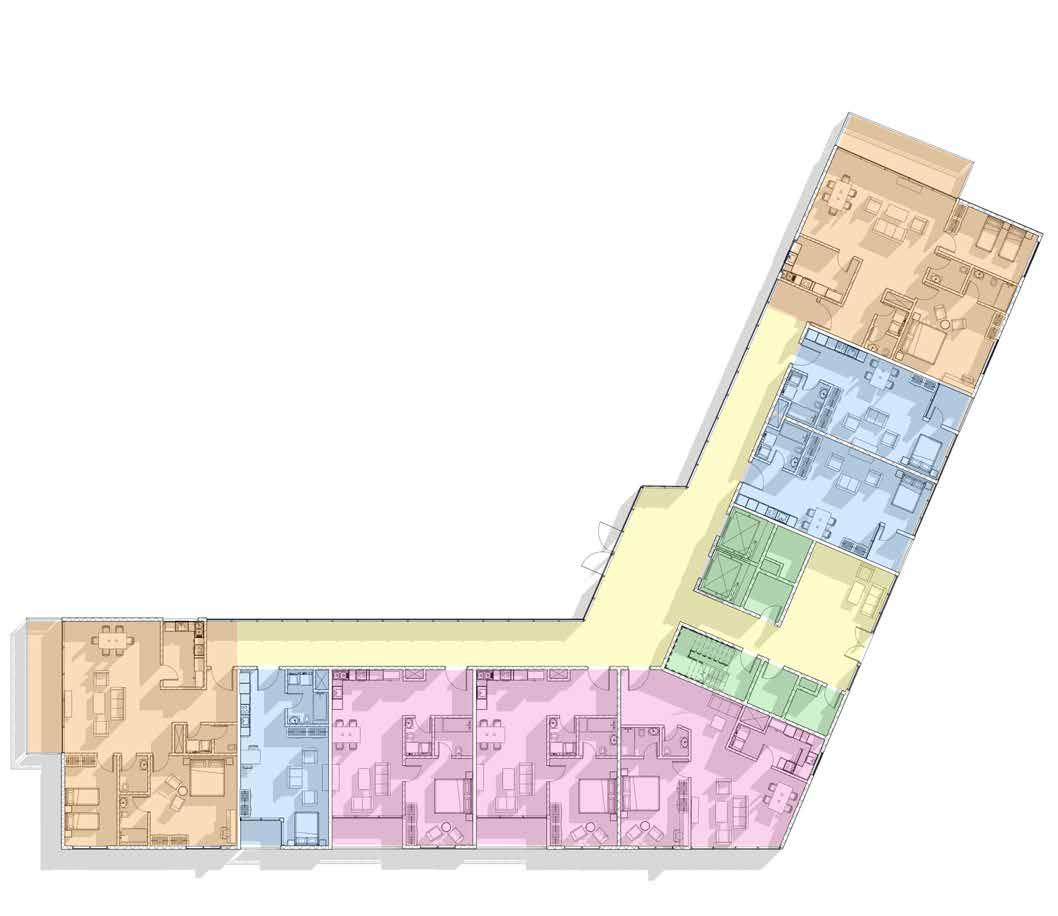

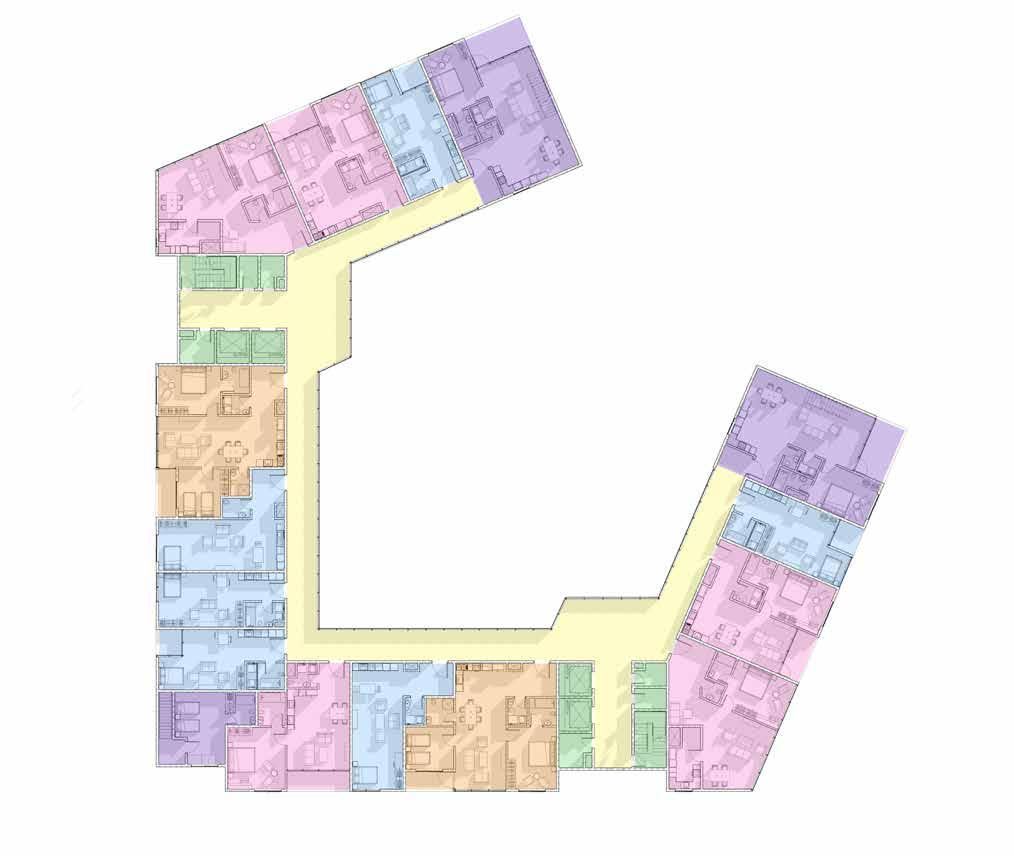

GROUND, 2ND AND 4TH FLOOR PLAN

Studio

1 BHK TYPE A -

Loft unit

Services

Circulation

SECTION DD’

53

Architectural Portfolio | 2017-2022

Megha Pramod

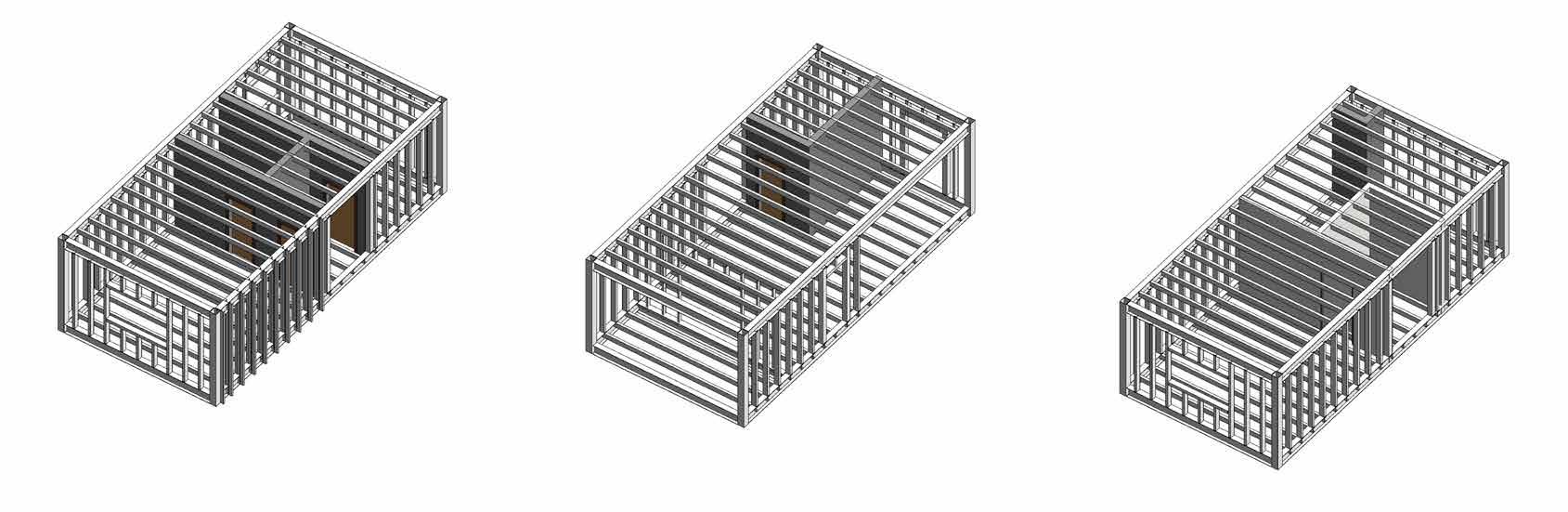

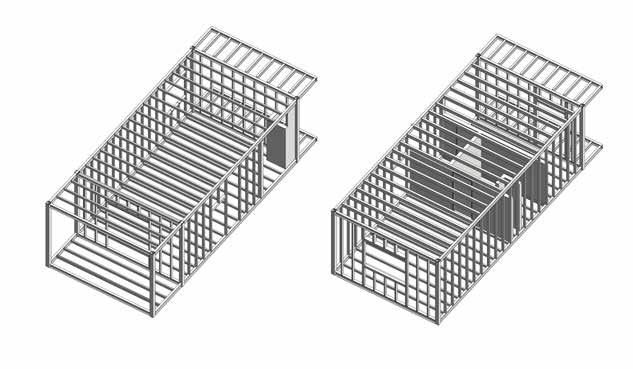

Module Typologies

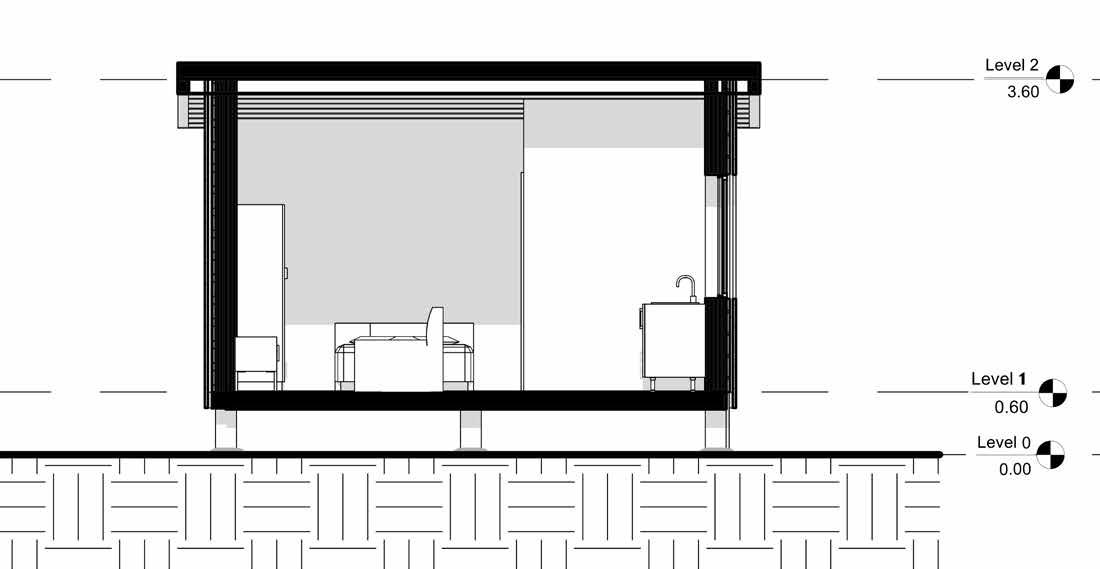

Section and connections

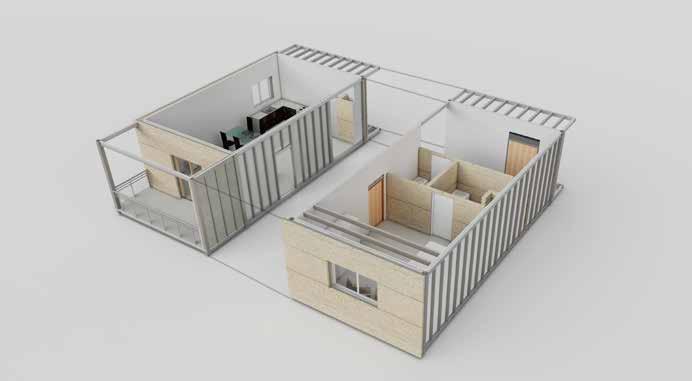

Partially Open Sided modules for 1 BHK

4 Sided module for studio

Corner Supported module for lobby

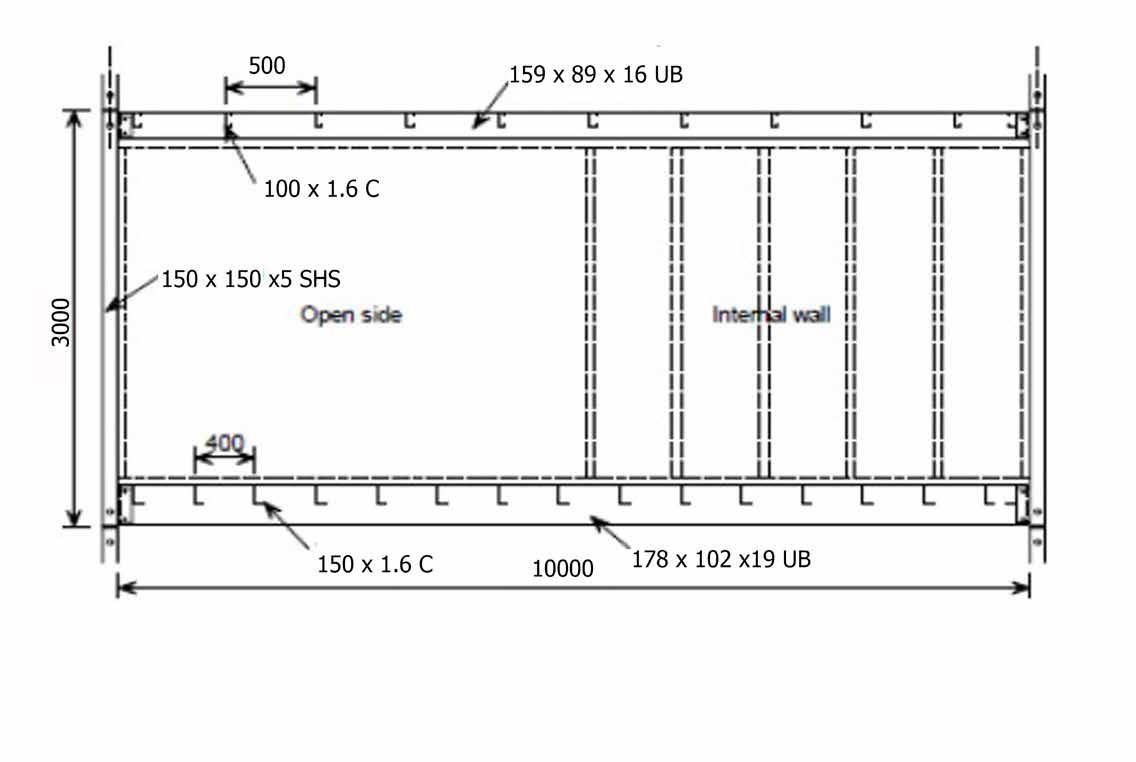

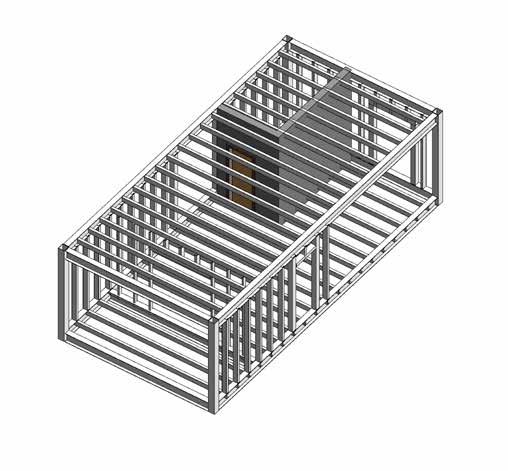

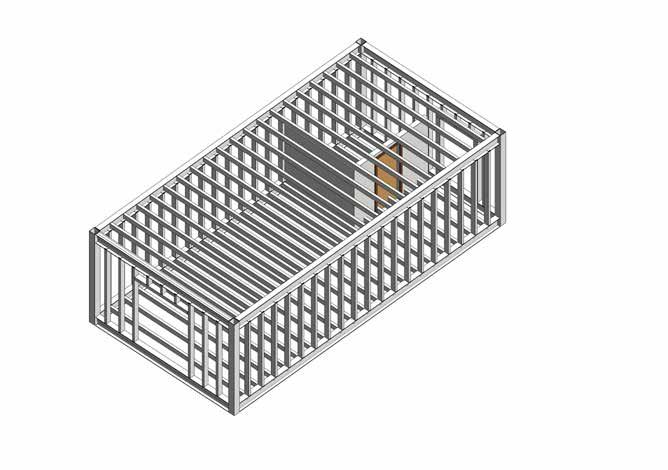

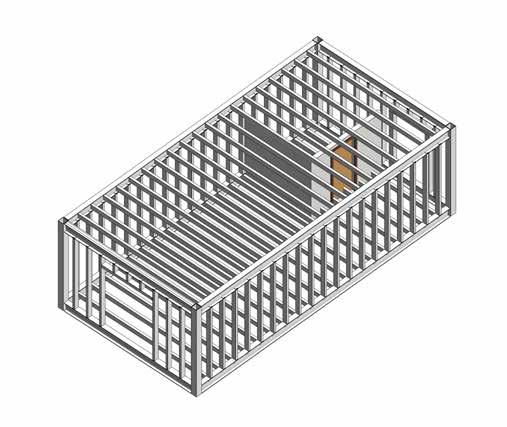

Module Frame: Integerated with balcony and corridoor module Connection between adjacent modules

Longitudinal section

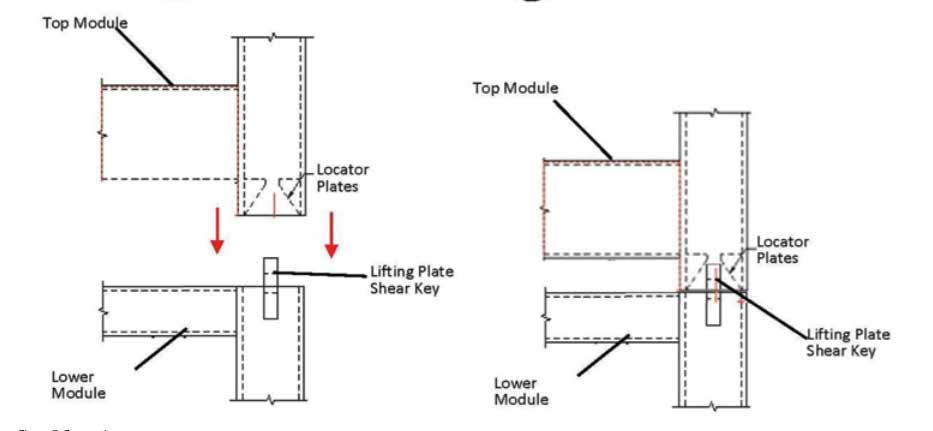

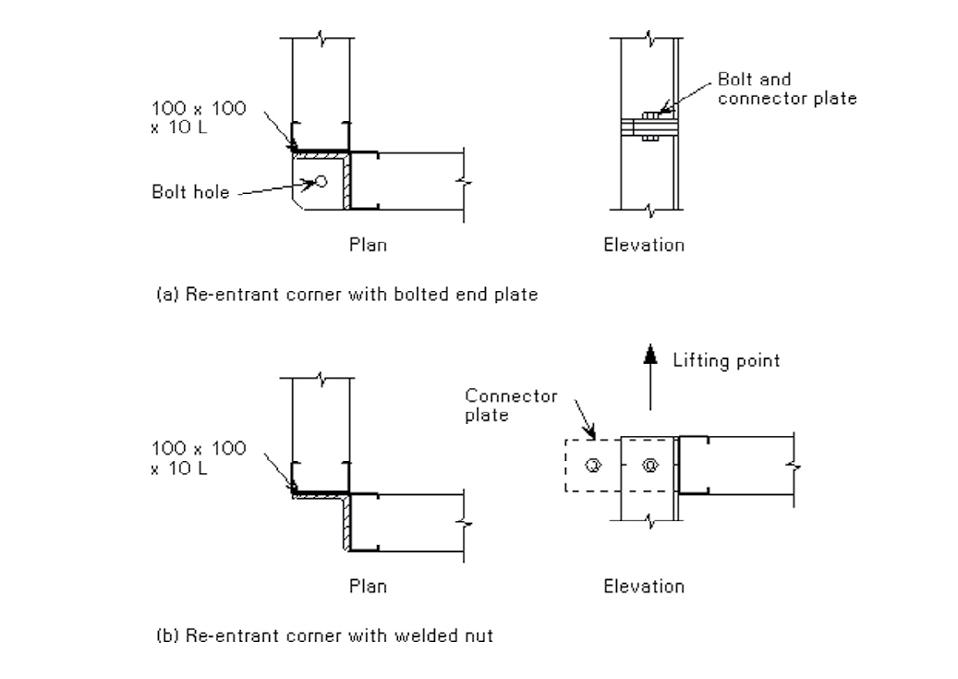

Connection between upper and lower modules

Partially Open Sided modules for 2 BHK

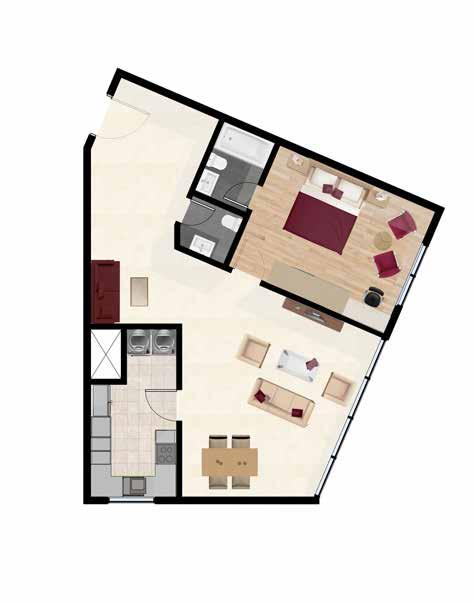

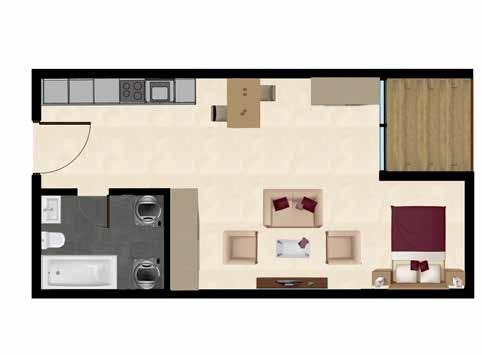

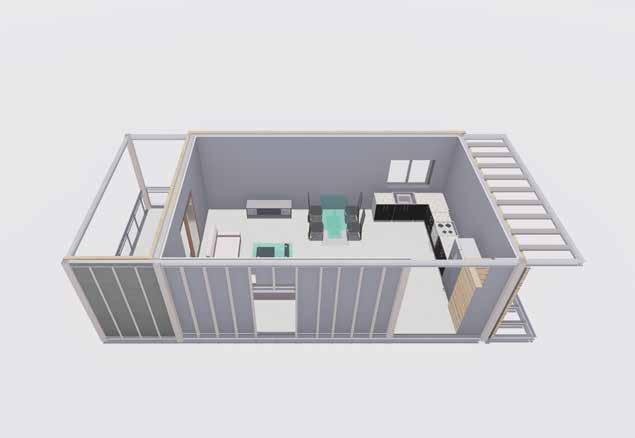

Planning The 1 BHK apartment comprises of 2 partially open modular units plus corridor module. Each module is of dimensions 5m x 11.25m. Both the modules have openings for the foyer and and door to the bedroom. The corner module is also integerated with a balcony.

Materials

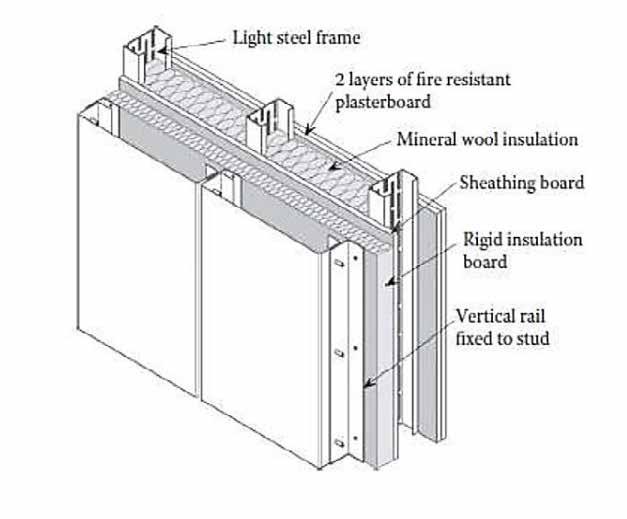

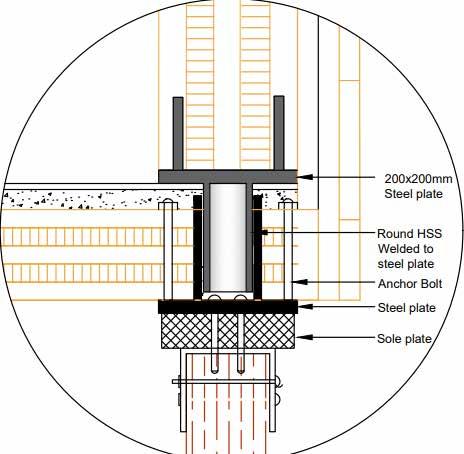

Light Steel Modular Construction Wall To Facade Detail

Drywall Ceiling

2.40

Plenium Space for services False Ceiling

Sheathing Board

11.25

8.00

Light steel modular construction

Rigid Insulation Board Modular Panel Cladding

5.00

5.00

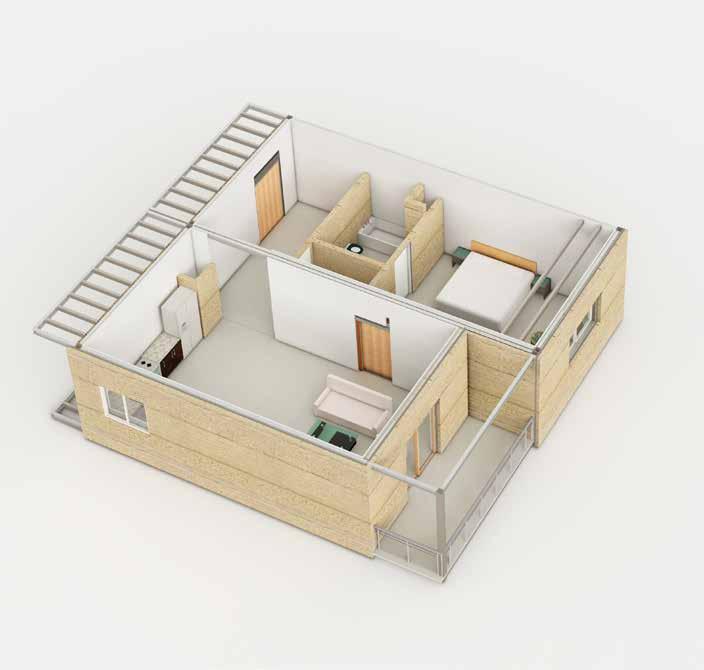

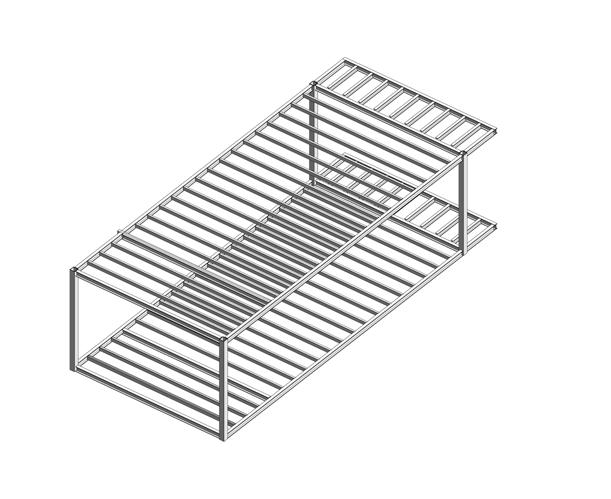

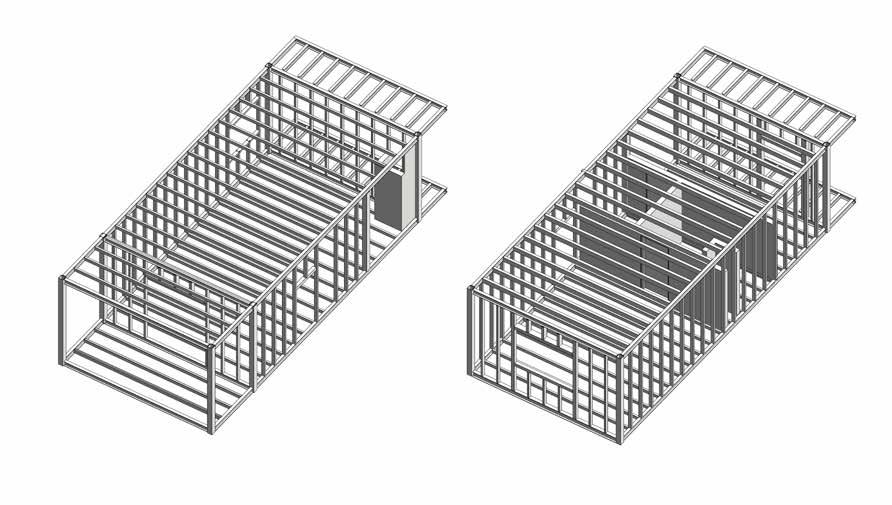

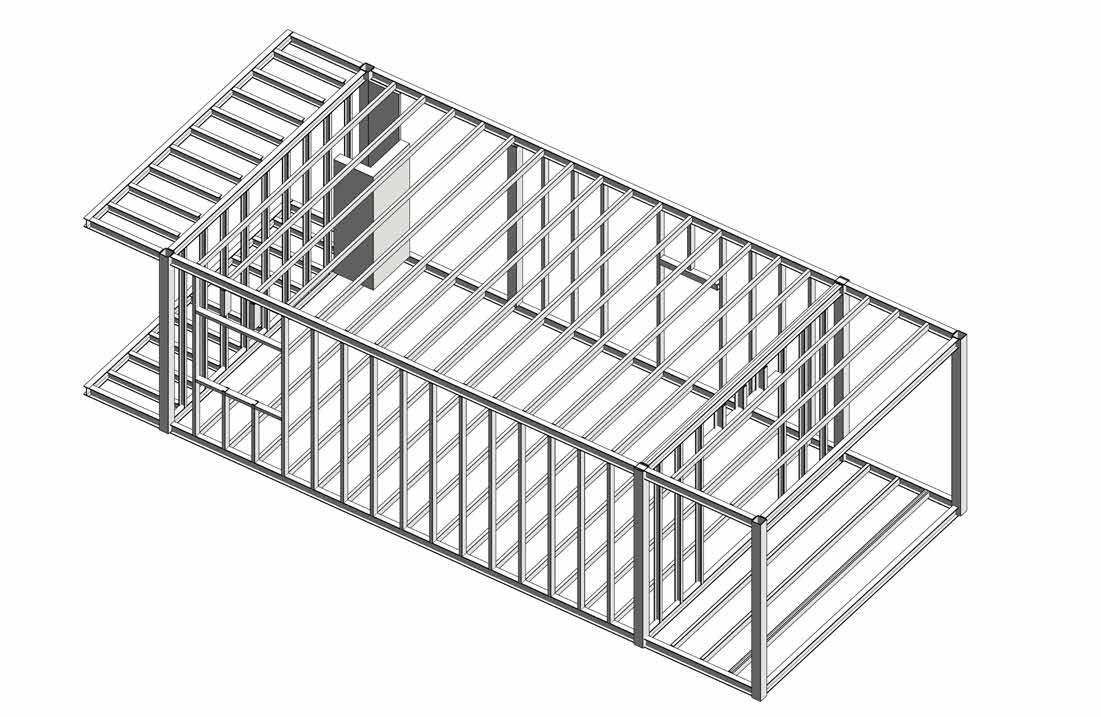

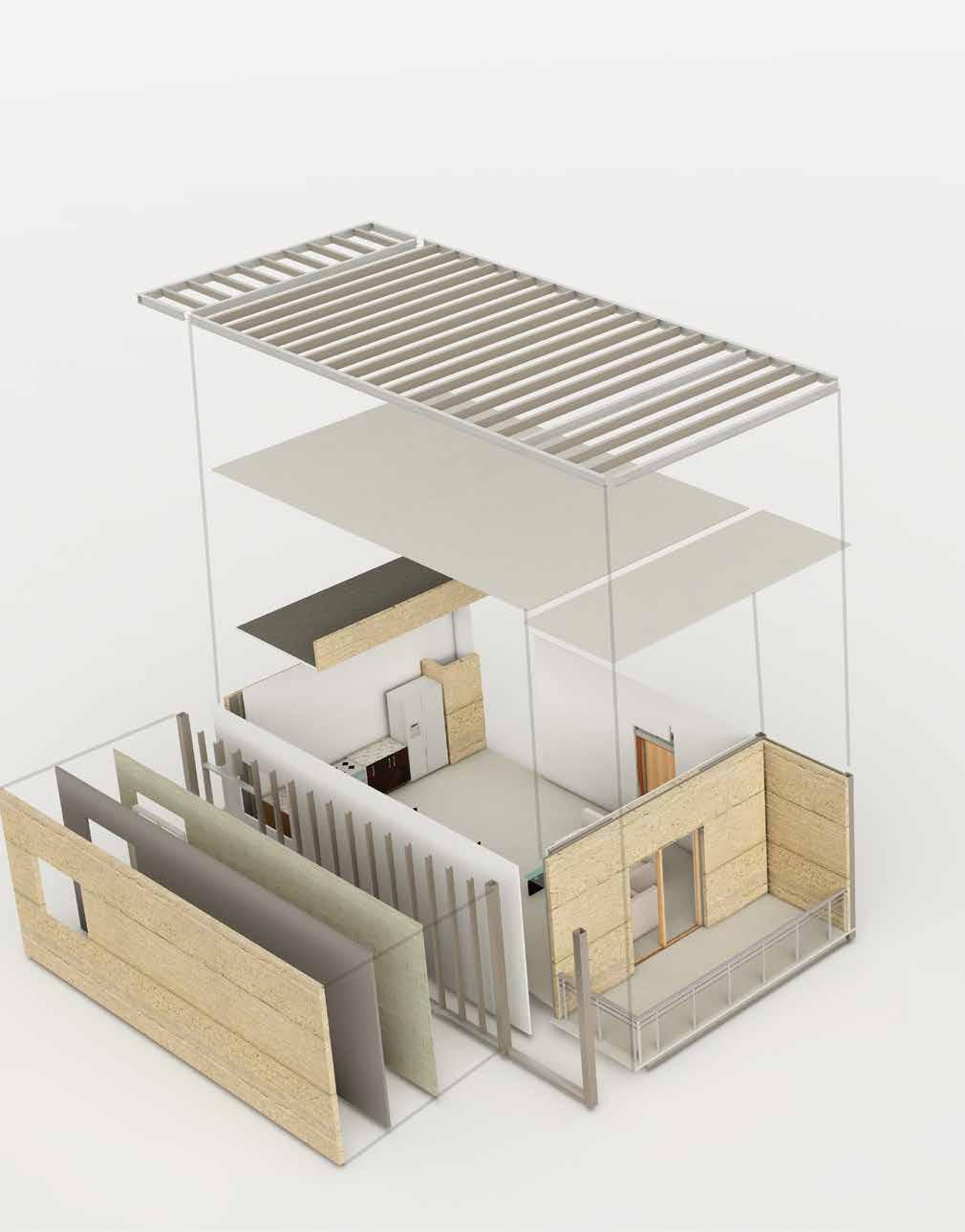

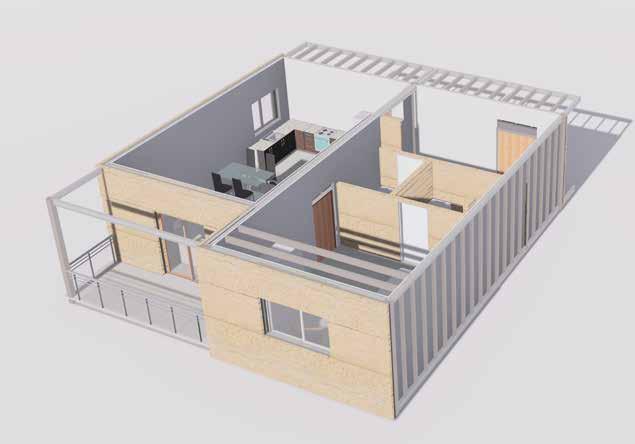

EXPLODED AXONOMETRIC VIEW OF ONE MDULE OF 1BHK APARTMENT

10.00

54

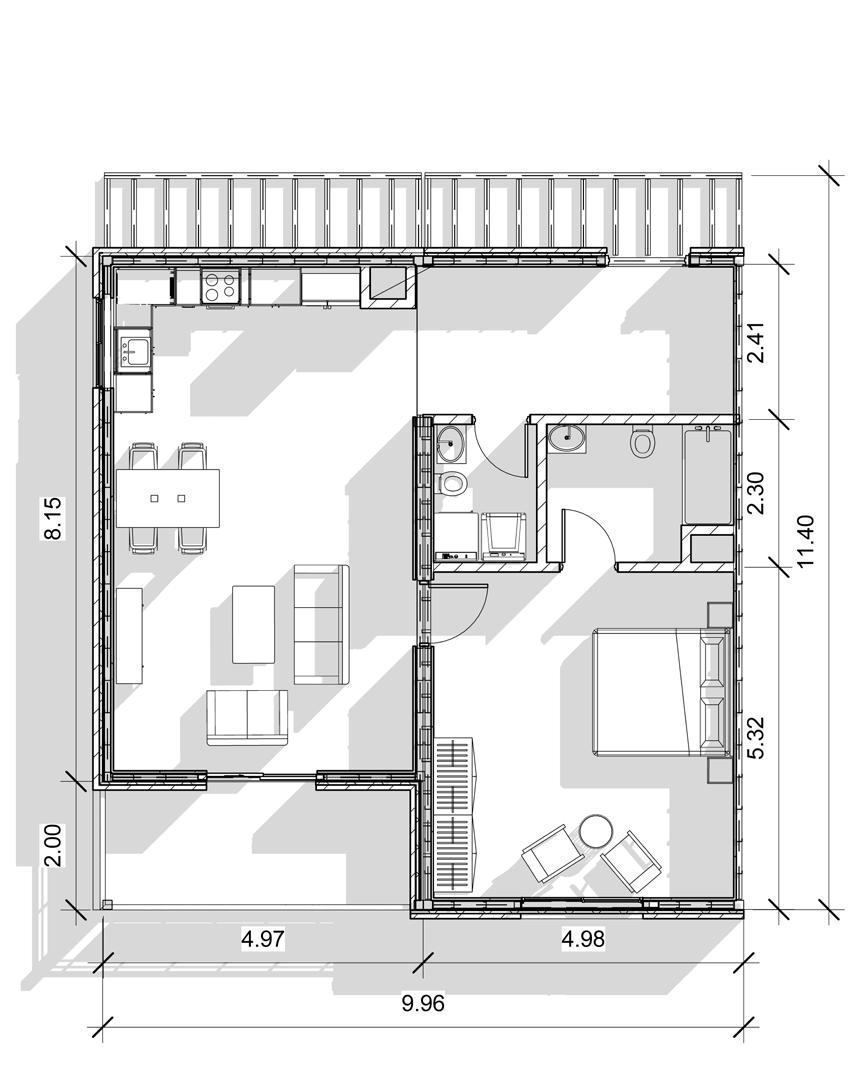

PLAN 2 Partially open modules used to make 1 BHK apartment

55

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 05

THE MODULOR

Project type: Individual Semester: 7 Category: Redevelopment Housing Development Project Location: Goa, India Subject: Building Construction

Even as India is the fastest growing economy in the world today—with a growth rate of 8.2 percent in the first quarter of 2018-2019 –63.67 million urban and rural households across India do not have adequate housing.

The redevelopment project in a low income slum neighborhood of India focusses on creating a modular housing systems that allows simple installation of the prefabricated elements by common man as well as sustaining their sense and comfort of home. Considering the current situation of the slum, a prototype of housing unit is developed that can be repeated as per the need of the users and families.

56

57

Architectural Portfolio | 2017-2022

SITE ANALYSIS

Megha Pramod

Housing Prototype

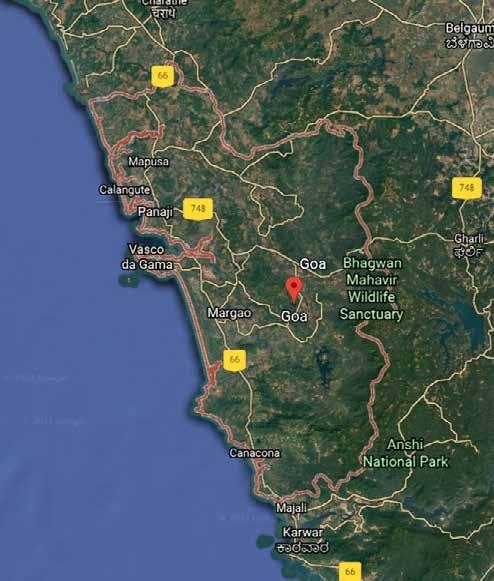

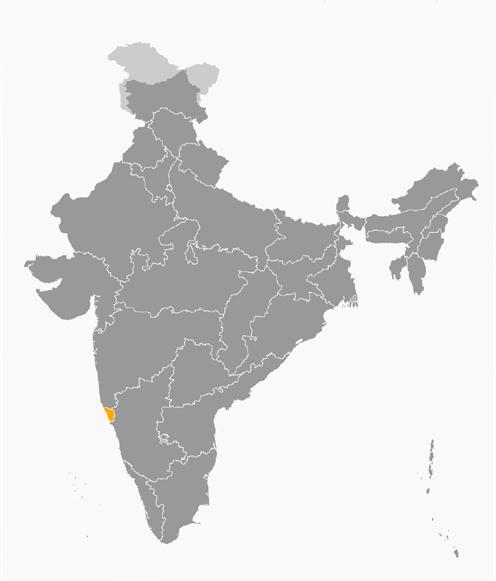

SITE SELECTION:

1

Even as India is the fastest growing economy in the world today—with a growth rate of 8.2 percent in the first quarter of 2018-2019 –63.67 million urban and rural households across India do not have adequate housing.

This number reflects an aggregate of those who live in non-liveable, temporary, overcrowded and dilapidated homes: those who live in unacceptable conditions as well as those who are homeless.

4

3 2

GOA

6

8

5

7

9

9

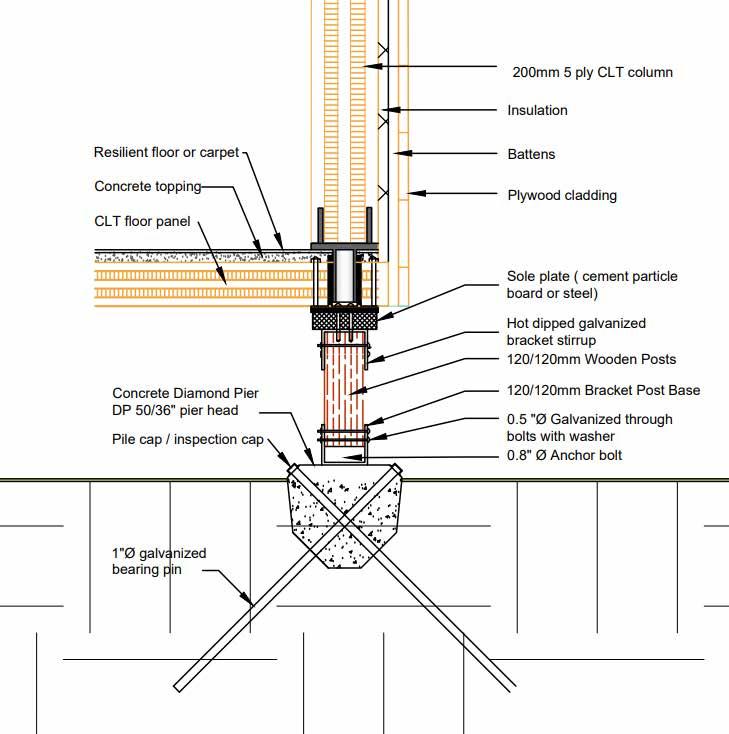

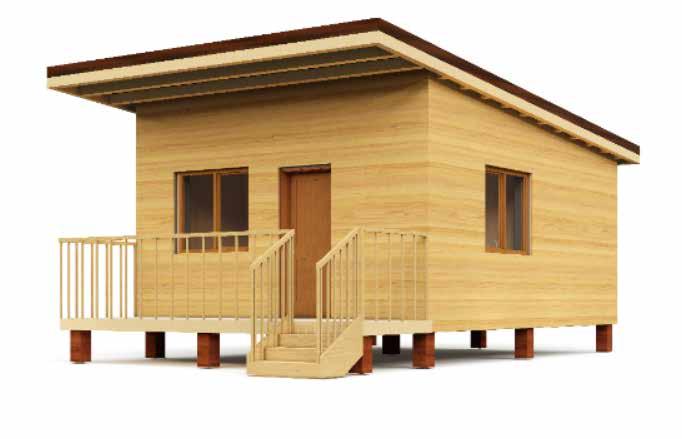

1. Plywood roof sheathing 2. CLT roofing 3. CLT beam 4. CLT rafters 5. Plywood panel cladding 6. CLT flush door 7. Timber window 8. Plywood railing 9. Wooden posts 10. Diamond Pier Foundation

B

Living

4.50

Bed Space

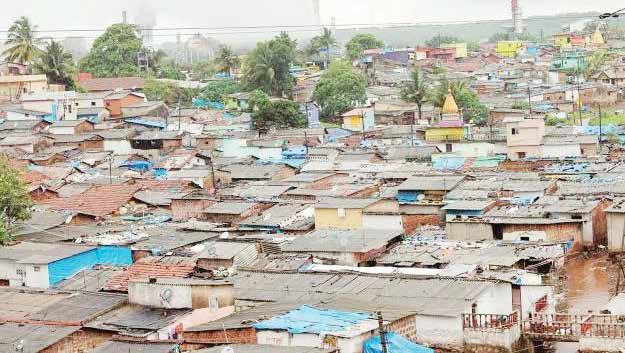

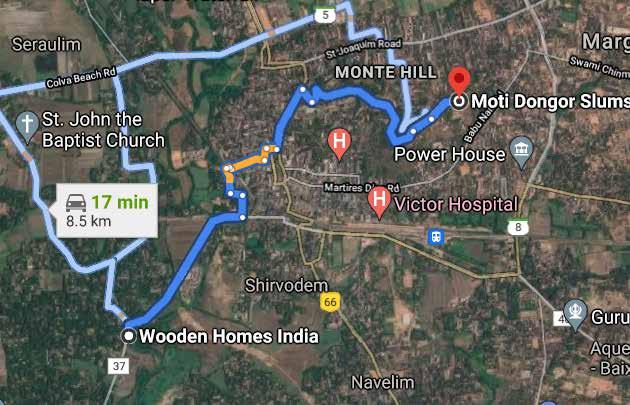

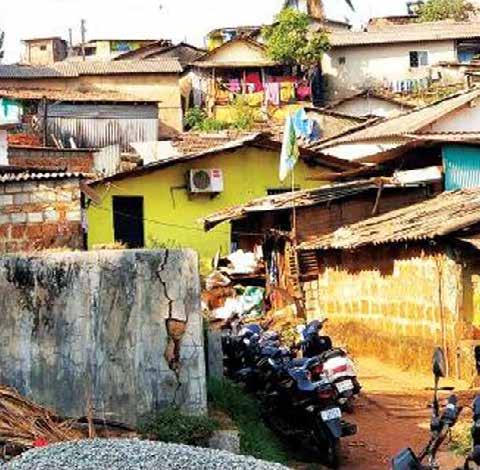

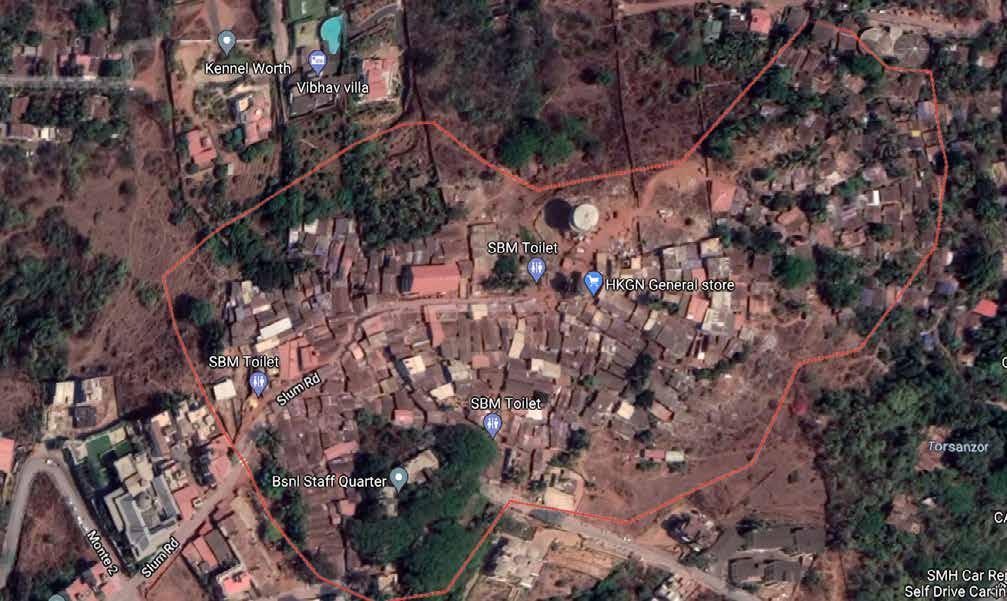

MOTI DONGUR SLUMS,GOA, INDIA The site selected for the project is in the state of Goa, India. Faced with the challenge of providing shelter to the hundreds of the homeless to restrain the spread of COVID-19, the Goa government has selected six places in South Goa district that would be redeveloped as shelters, one of them being the Moti Dongor Slums.

The locality Moti Dongor Slums falls in in the Margao city of South Goa district situated in Goa state, with a population 2248. The male and female populations are 1110 and 1138 respectively. The size of the area is about 0.82 square kilometer.

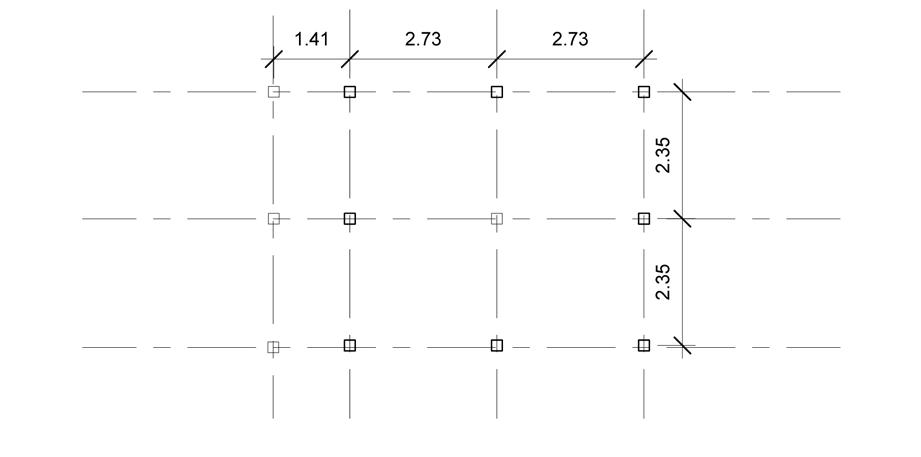

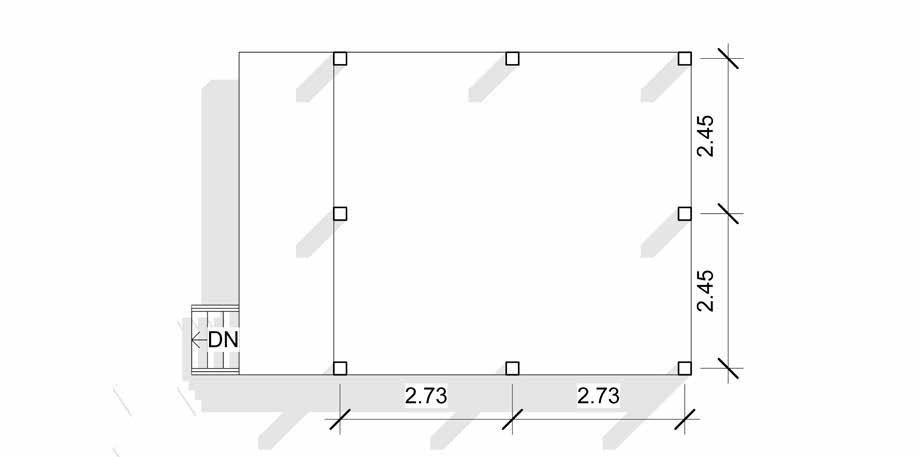

Column Layout

A’

A

+0.0m

+0.6m

Kitchen

Bathroom

5.50 B’

Foundation Post Layout

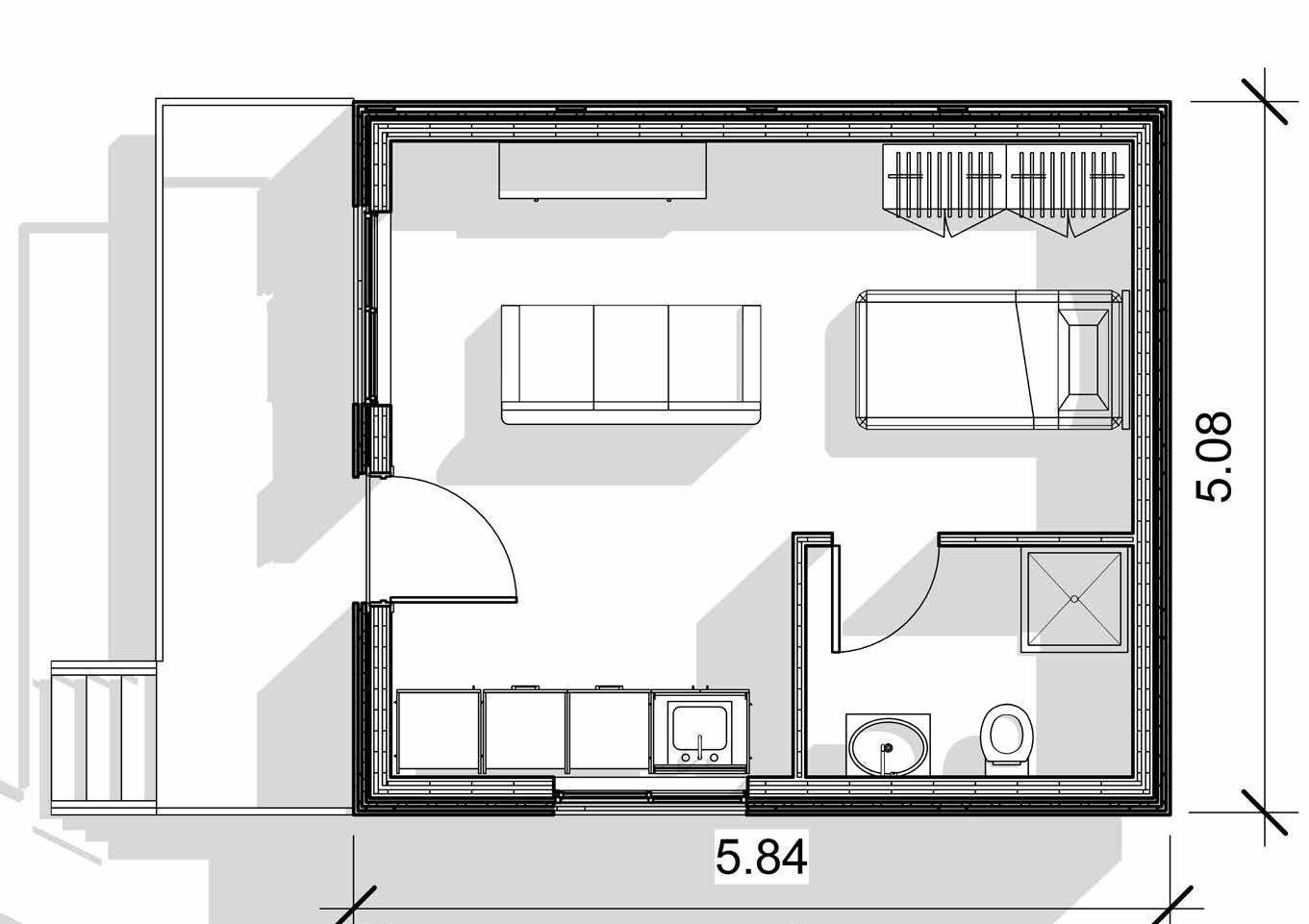

PLAN

The protype proposed has an area of 26.5 sq.m and is predominently composed of cross-laminated timber (CLT). It is a wood panel product made from gluing together layers of solid-sawn lumber, i.e., lumber cut from a single log. Each layer of boards is usually oriented perpendicular to adjacent layers and glued on the wide faces of each board, usually in a symmetric way so that the outer layers have the same orientation.

The module consists of a small porch, living space, kitchen, bed space and a bathroom. The entire protoype is rased on stilts, so tat it allows easy flow of ater during floods and it also comprises of a sloping roof thereby making the drainage effective .

Prefabricated housing arises as an ideal solution to the rising homeless in the state. The consructon method to be adopted is prefabrication as it these panels can be esaily customized and manufactured allowing for easy asembly on site. Since the site is located in Margao city, it has close proximity to Wooden Homes, a prefabrication and wood manufacturing company. This can increase the rate of constrction in a short span of time for the homeless citizens in the area.

58

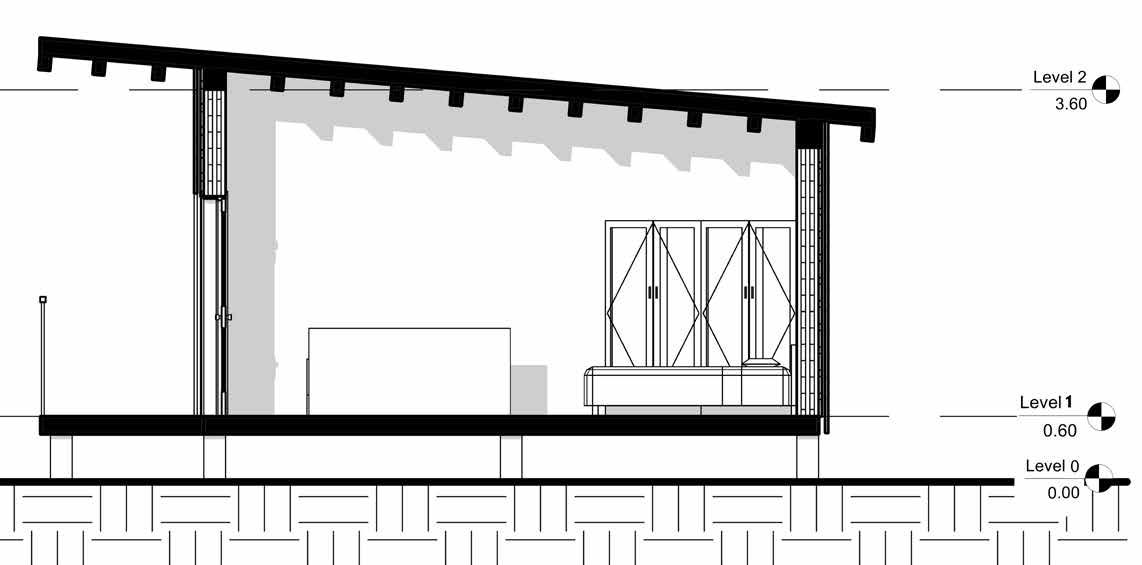

SECTION AA’

SECTION BB’

59

Architectural Portfolio | 2017-2022

Megha Pramod

Construction Details

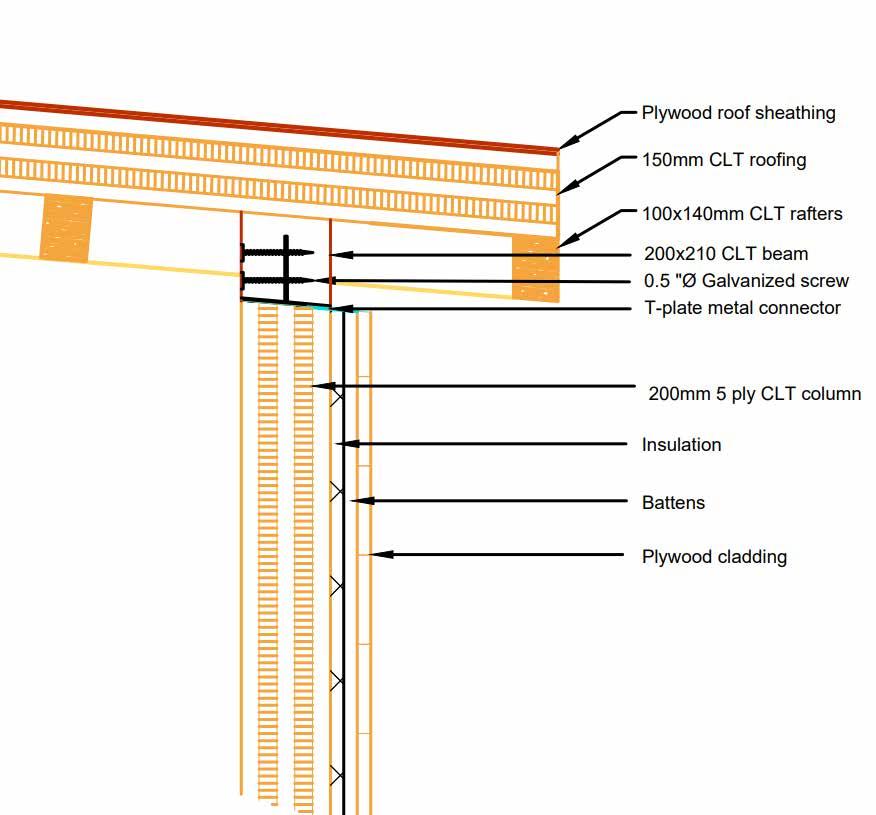

Wall -Roof connection detail

Wall -Foundation connection detail

The wall and roof is connected with T-plate metal connector screwed to the beam. The are additional rafters provides along with the beam to provide support for the CLT roofing which is topped with te roof sheathing.

The wall and foundation is connected with T-plate metal connector screwed to the beam.

The are additional rafters provides along with the beam to provide support for the CLT roofing which is topped with te roof sheathing.

1

2

CLT roofing

1

100x140m rafters

200x200m CLT beam

200m x200m CLT column

2

Wood floor panel

Wooden posts Diamond Pier foundation

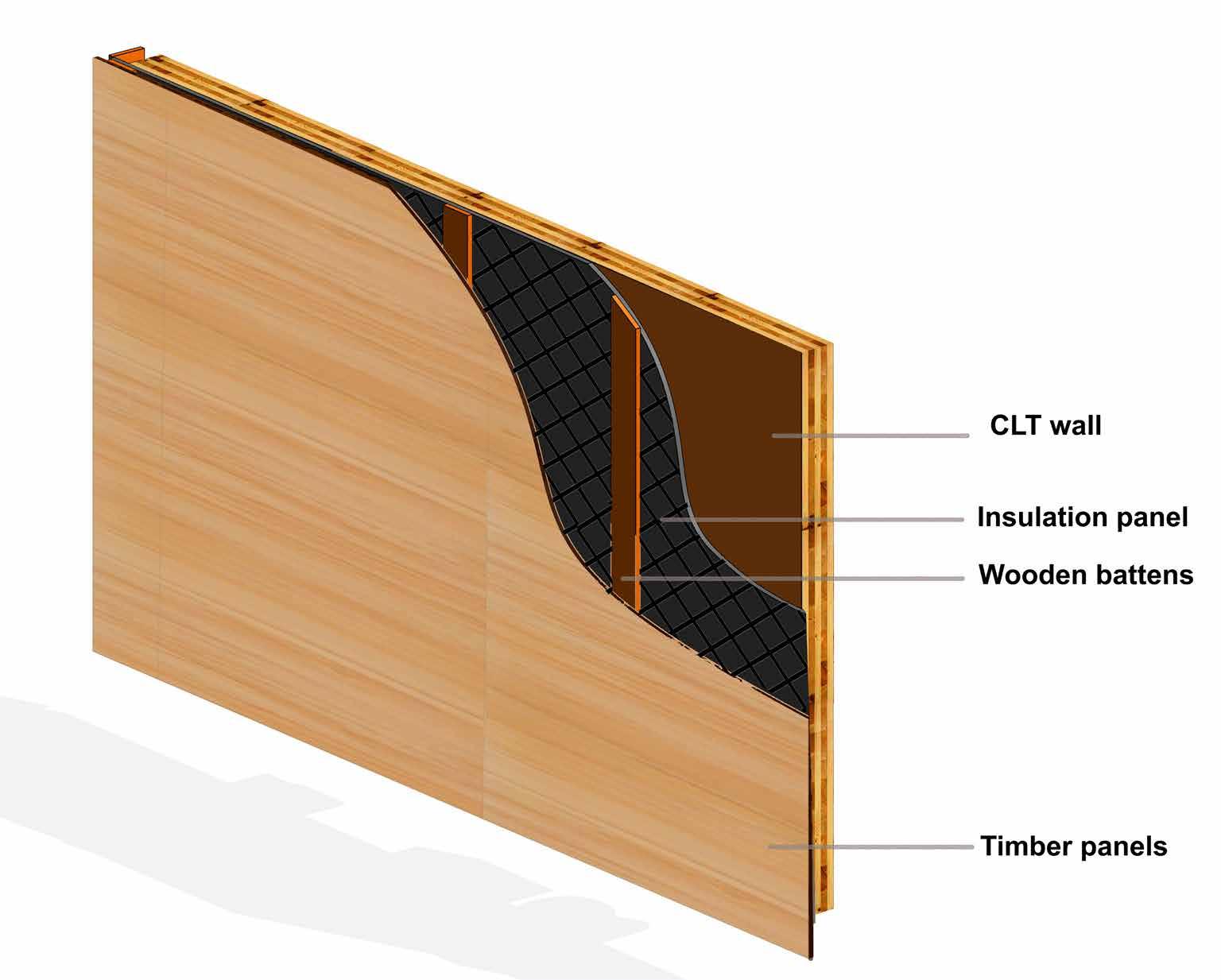

Axonometric exploded view of the structural system WALL PANEL ELEMENTS

DOOR DETAIL

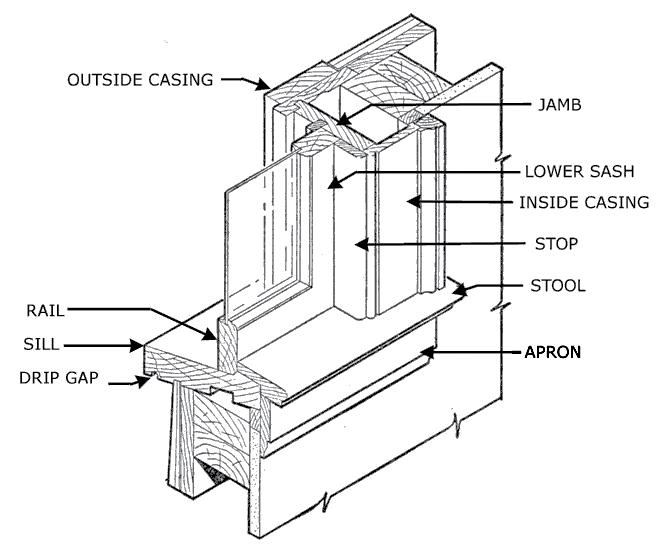

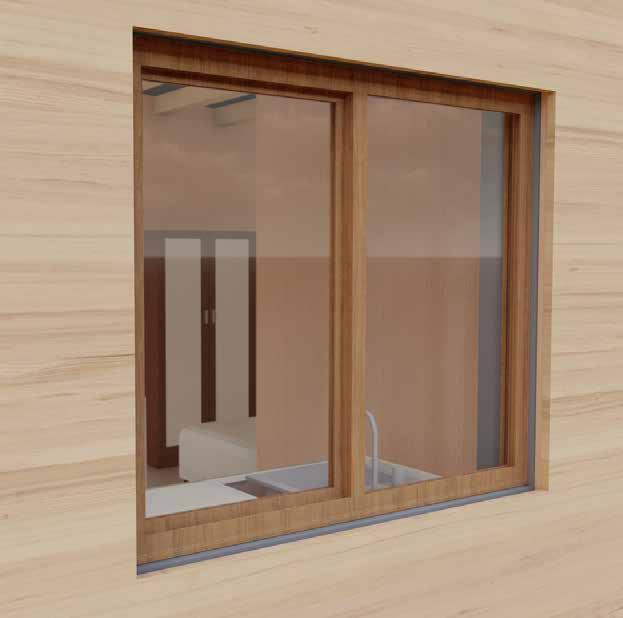

WINDOW DETAIL

CLT wall Door frame

Plywood door panel

View

Axonometric section

Stainless steel handle

Plan

Timber frame Double glazed glass panel

200mm 5 ply CLT column Insulation Resilient floor or carpet

Battens

Concrete topping

Plywood cladding

CLT floor panel

Sole plate board or steel) ( cement particle Hot dipped bracket stirrup galvanized 120/120mm Wooden Posts Concrete DP 50/36"Diamond pier headPier

0.5 "Ø Galvanized 120/120mm Bracket through Post Base

Pile cap / inspection cap

boltsØwith 0.8" Anchor washer bolt

1"Ø galvanized bearing pin

60

Section

5 ply CLT wall

Plan

61

Architectural Portfolio | 2017-2022

Megha Pramod

Modular Construction and Techniques FOUNDATION SYSTEM

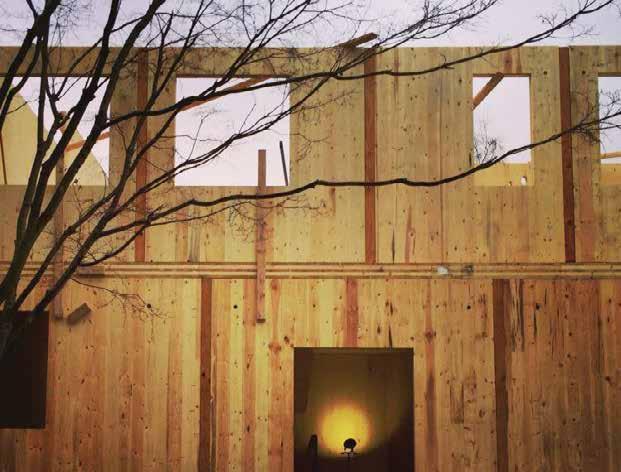

STRUCTURAL SYSTEM- Cross Laminated panels PFI’s innovation is to bring pin pile technology into common use with a superior connector—the Diamond Pier concrete head. This high-strength, precast component is a driving guide, a pin piling lock, and a structural connection all in one.

The structural system comprises of various types of cross laminated timber. A prefabricated building material, CLT is a panel made from planks of sawn and glued wood, which are layered perpendicular to each previous layer to create structural rigidity and resilience in both directions.

As a driving guide, the pier maintains the pin angles so that their capacity is definable and consistent. As a lock, the pier is designed to increase its grip on the pin cluster when loaded up, down, or sideways—getting stronger and tighter as loads increase. And as a connection, an embedded anchor bolt and precast, post-matching shape make it a simple and proportional complement to its supported structure.

The panels are custom-manufactured to meet the building’s specifications, then crane-guided onto the building site. CLT panels are usually three, five, seven, or nine layers of 2x6 lumber. For this prototype, 5 ply timber is used. CLT is also considered sustainable an economical, in part because it’s made from wood, which is a renewable resource.

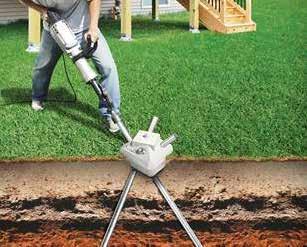

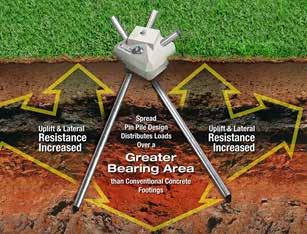

This composite pier combined with the bearing pin group forms the Diamond Pier system—a hybrid of familiar concrete and steel materials.

It provides a solid, stable, economical foundation that both captures and preserves the supporting strength and natural functions of the Earth’s soil .

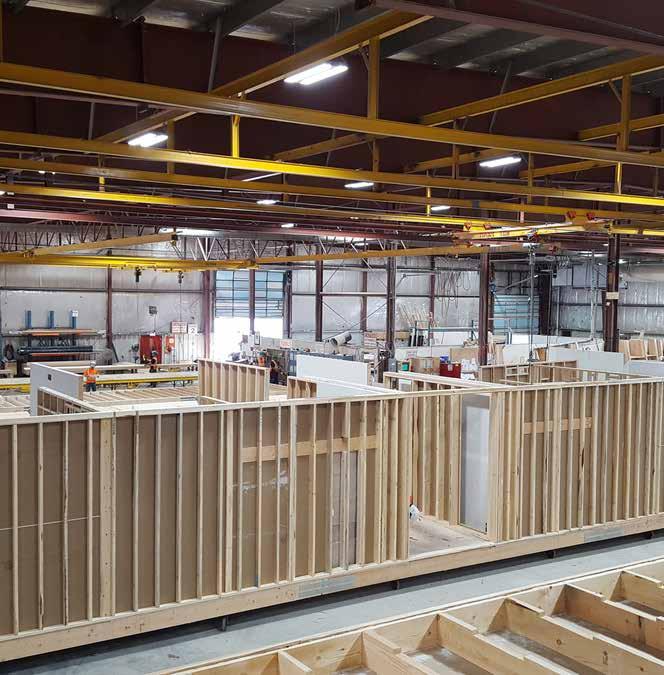

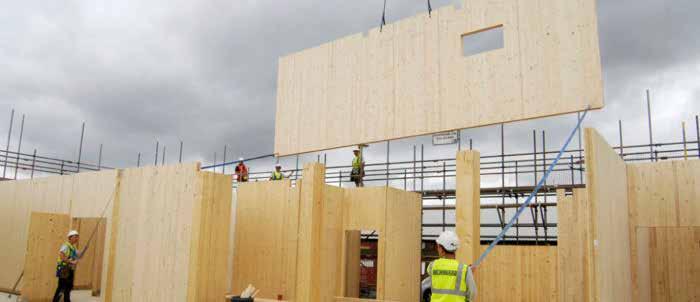

Constrction Method- Prefabrication

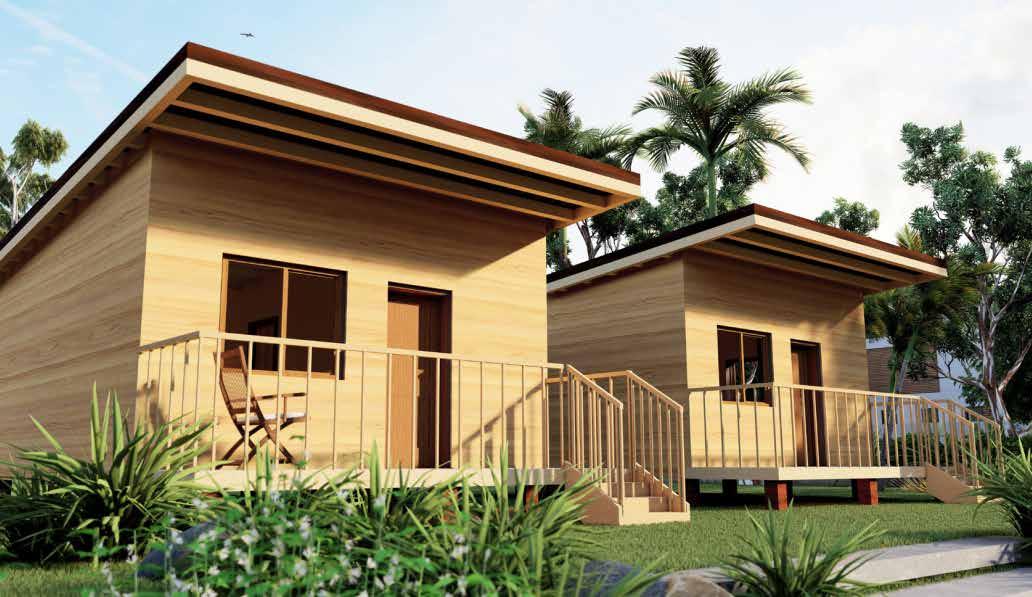

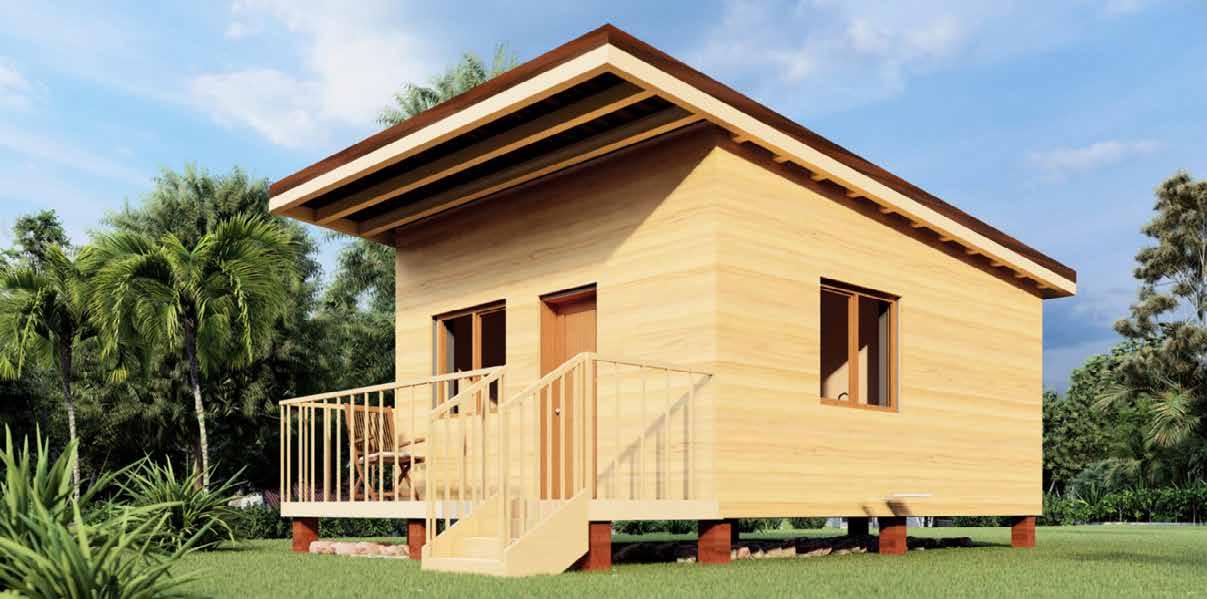

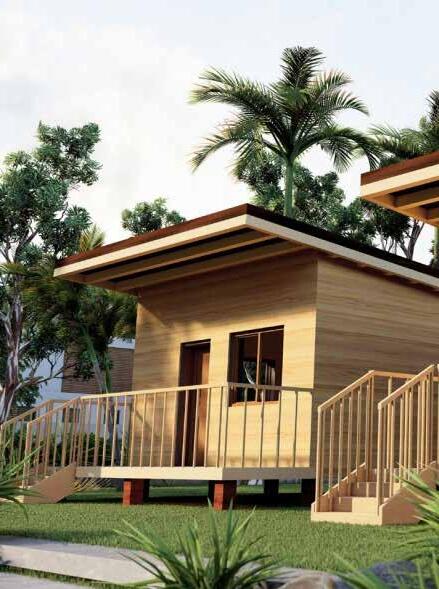

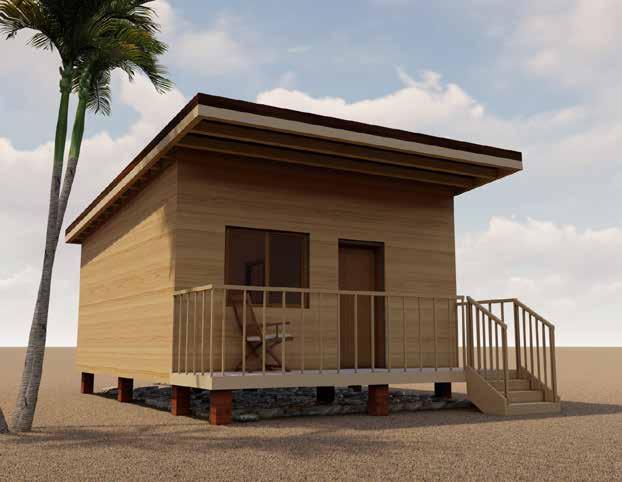

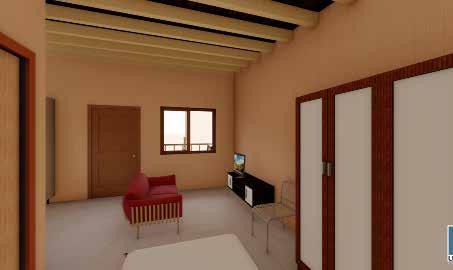

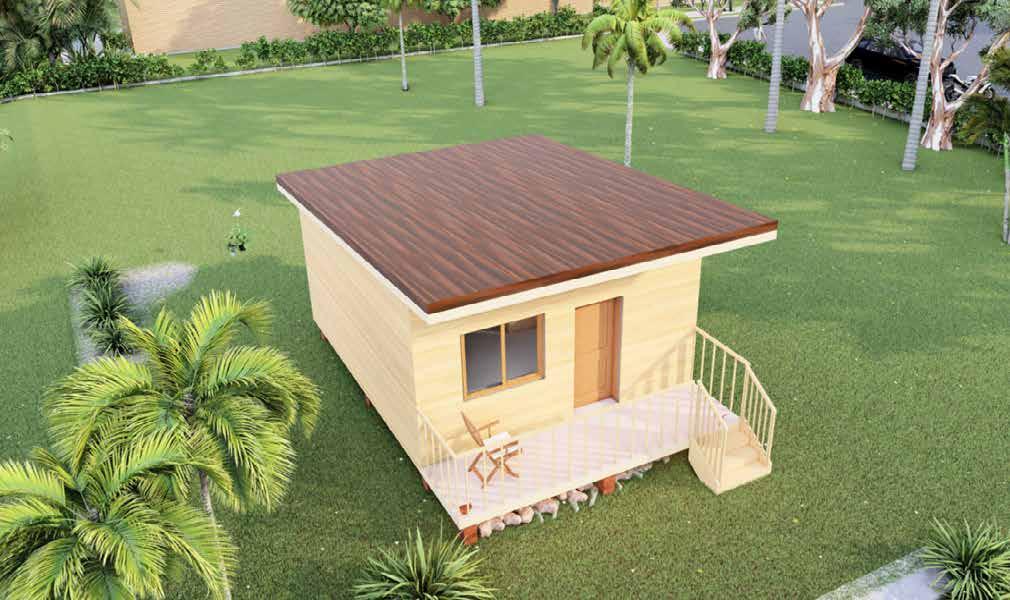

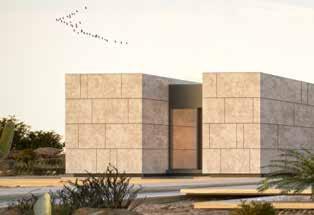

VIEWS

Prefabricated wood building kits are made up of prefabricated components delivered and assembled on site, much like life-sized Lego. This is most often achieved using prefabricated panels that can form entire sections of a building such as roofing components or structure (ceiling, decking and beams), building structure (wall panels, beams, columns and shear panelling) and even glazing packages (walls with built in windows and entrances).

Panels can be open—that is a preassembled wall that is later fitted with insulation, weather barriers and cladding—or closed, such as a total preassembled wall panel complete with windows, doors, plumbing, electrical and finishes.

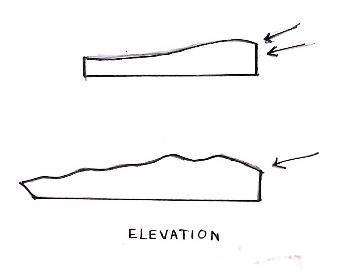

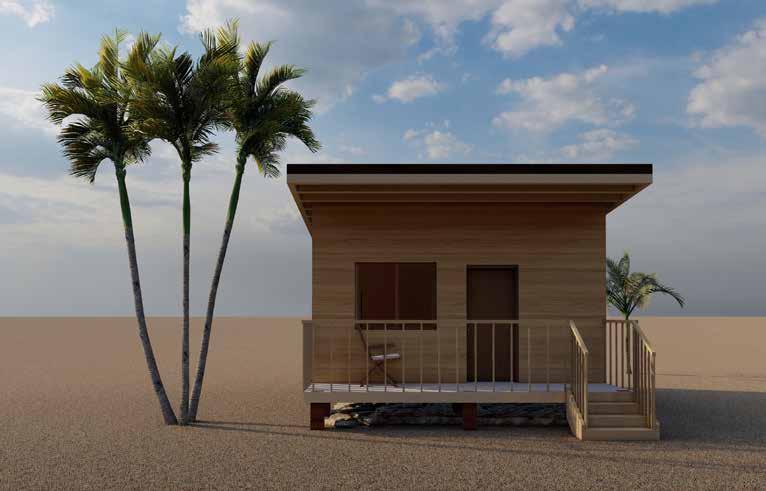

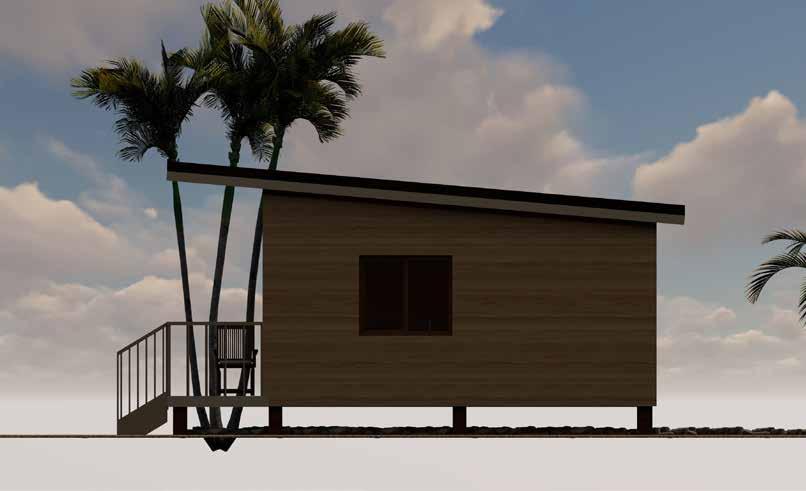

Front Elevation

East Elevation

Proximity from manufacturing site

The consructon method to be adopted is prefabrication as it these panels can be esaily customzed and manufactured allowing for easy asembly on site. Since the site is located in Margao city, it has close proximity to Wooden Homes, a prefabrication and wood manufacturing company. This can increase the rate of constrction in a short span of time for the homeless citizens in the area.

62

63

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 06

C O N V I V I A L- B R I D G I N G THE GAP OF R E J U V I N A AT I O N

Project type: Individual Category: Competition Installation Project Location: Dubai Design district

A multisensory seating and relaxation space. Convivial serves as a pause point during the journey through Dubai Design District. It may be used as seating as well as an element to elicit all of the senses within. The form derived from the waves of play moulds to create a multi-sensory functional installation as a point for seating, bicycle stand and for rejuvenation with music.

64

65

Architectural Portfolio | 2017-2022

Megha Pramod

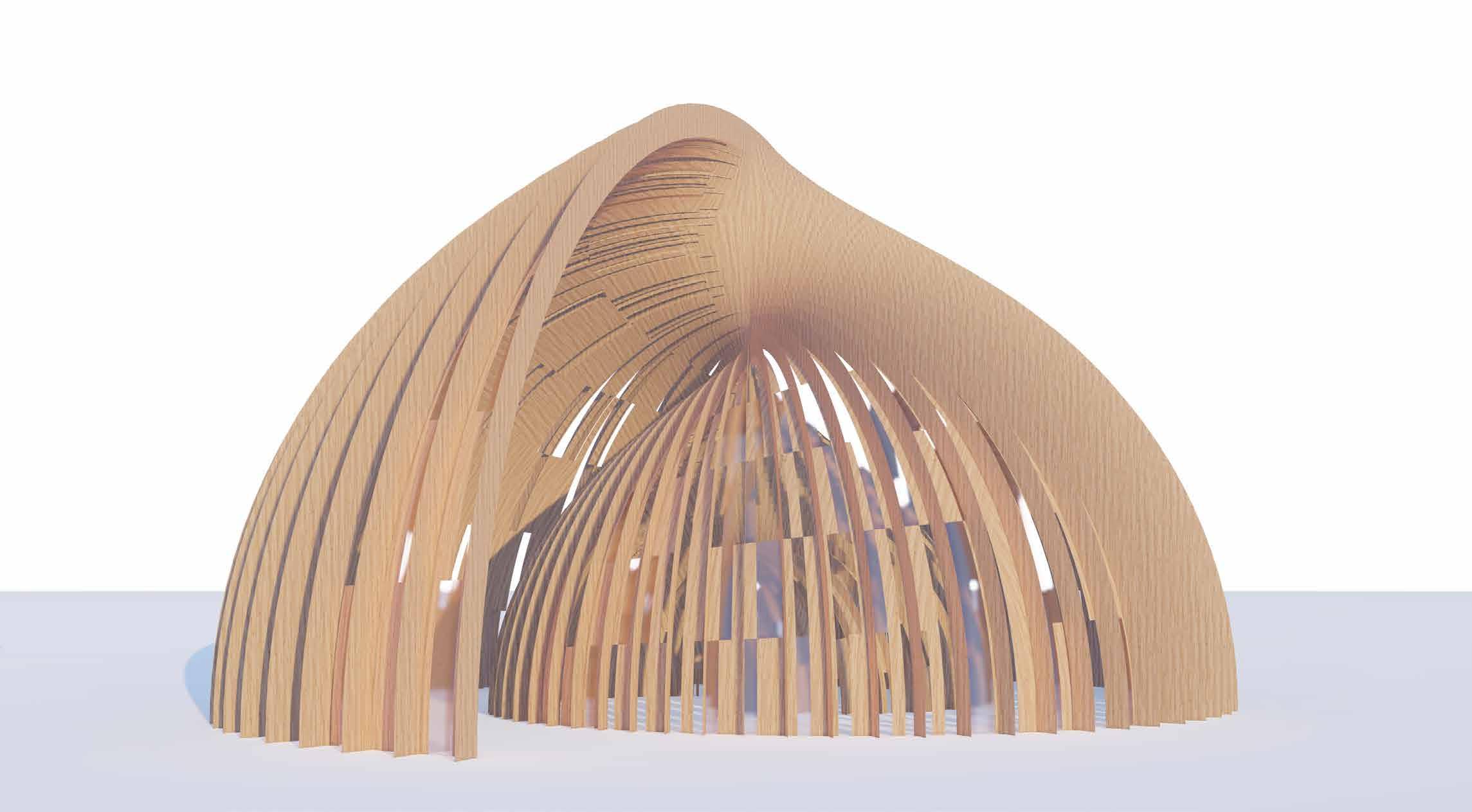

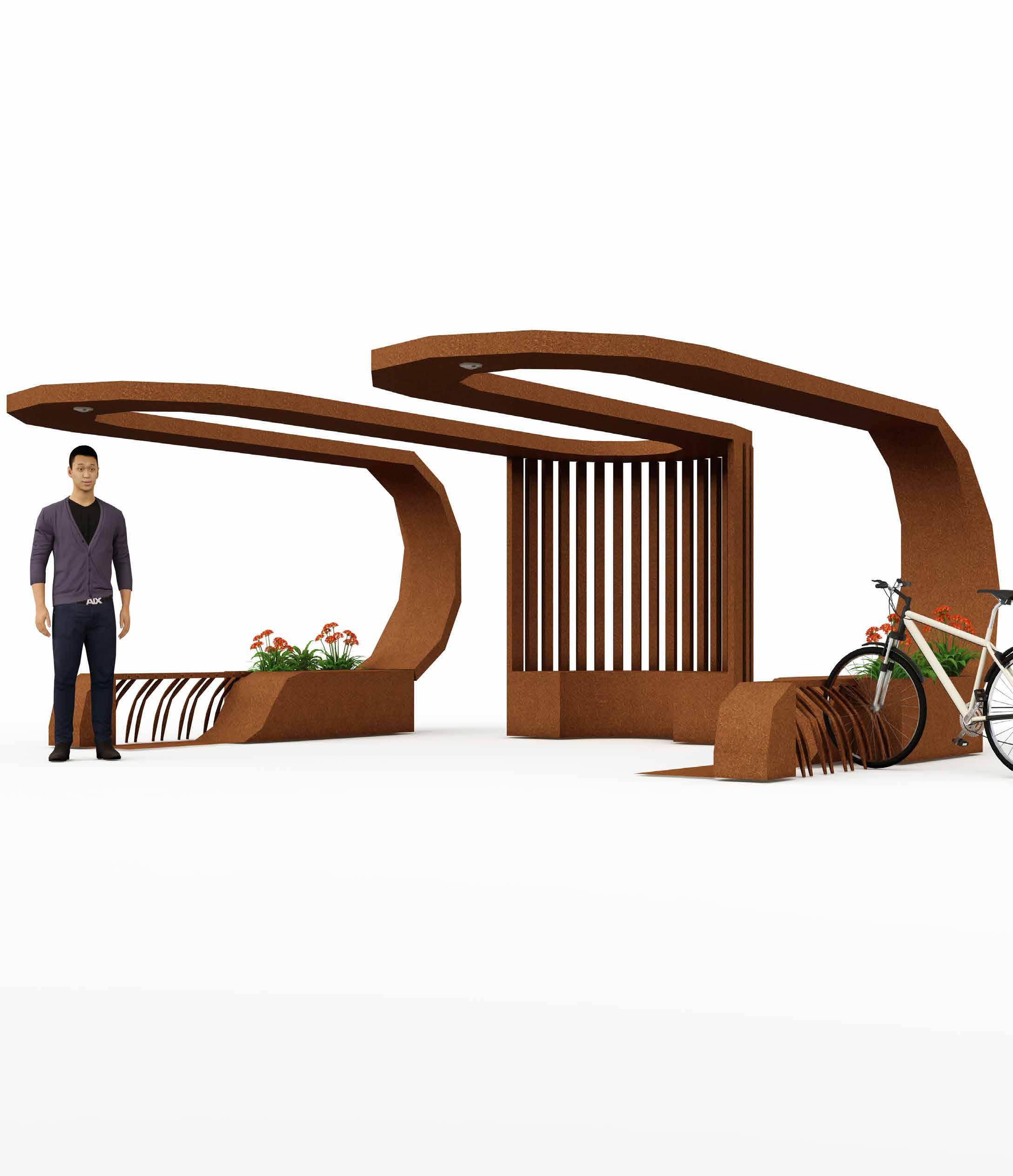

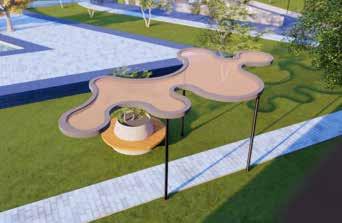

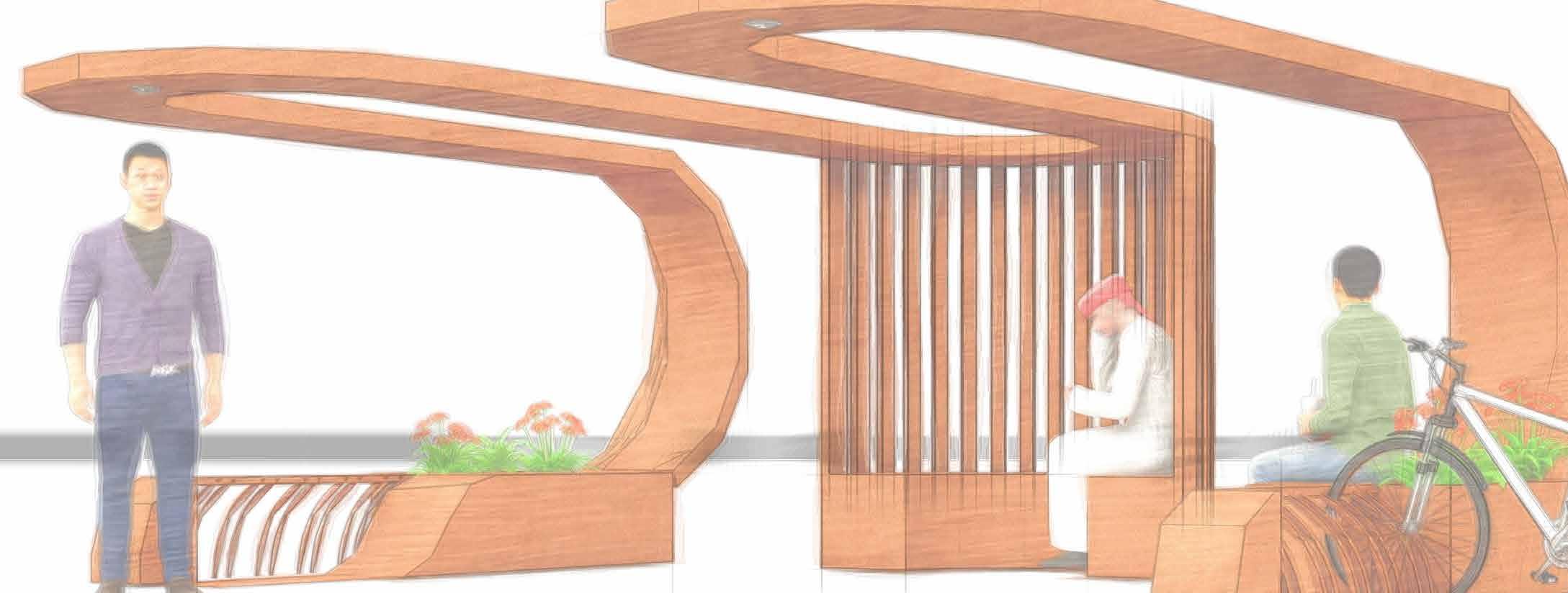

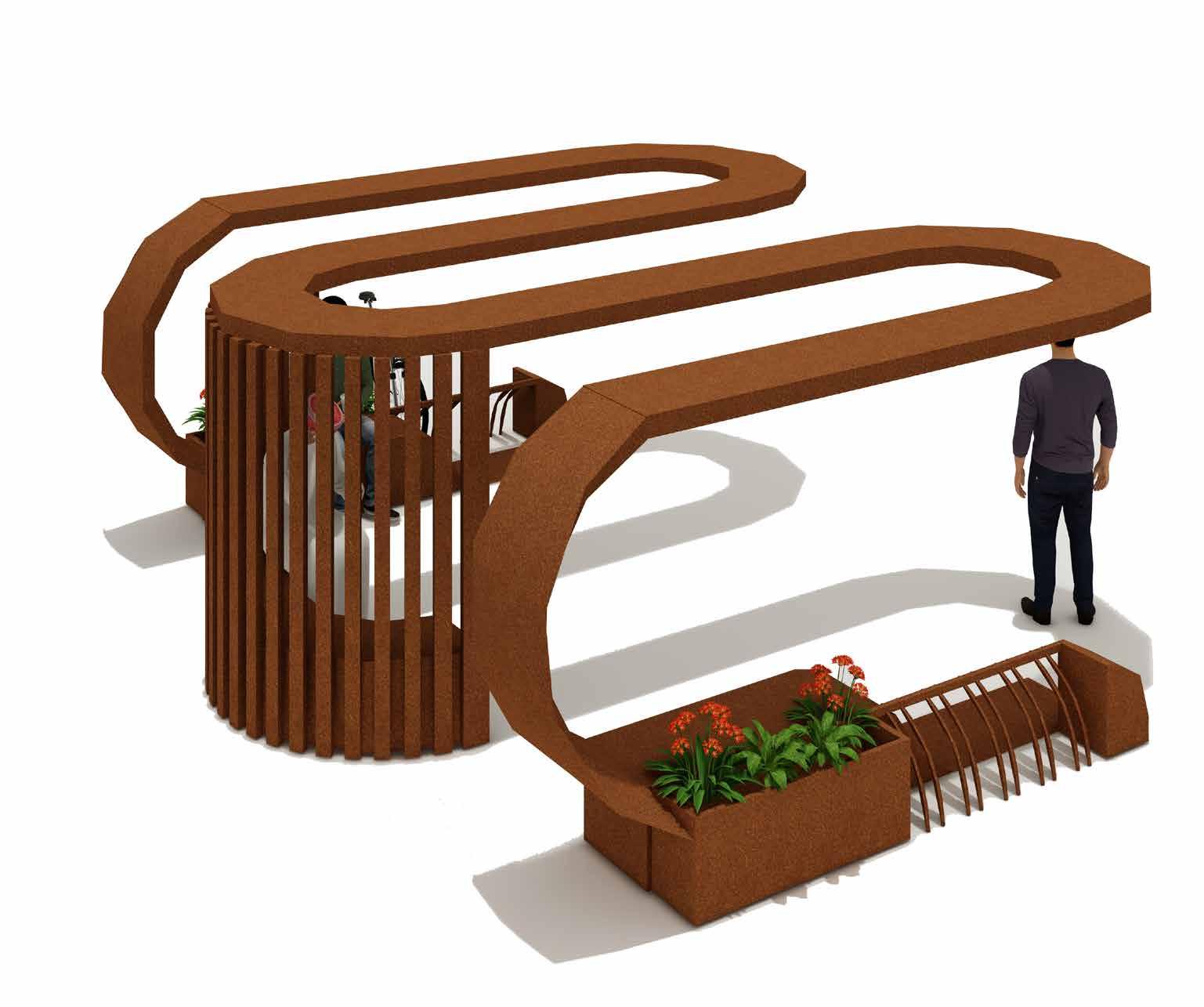

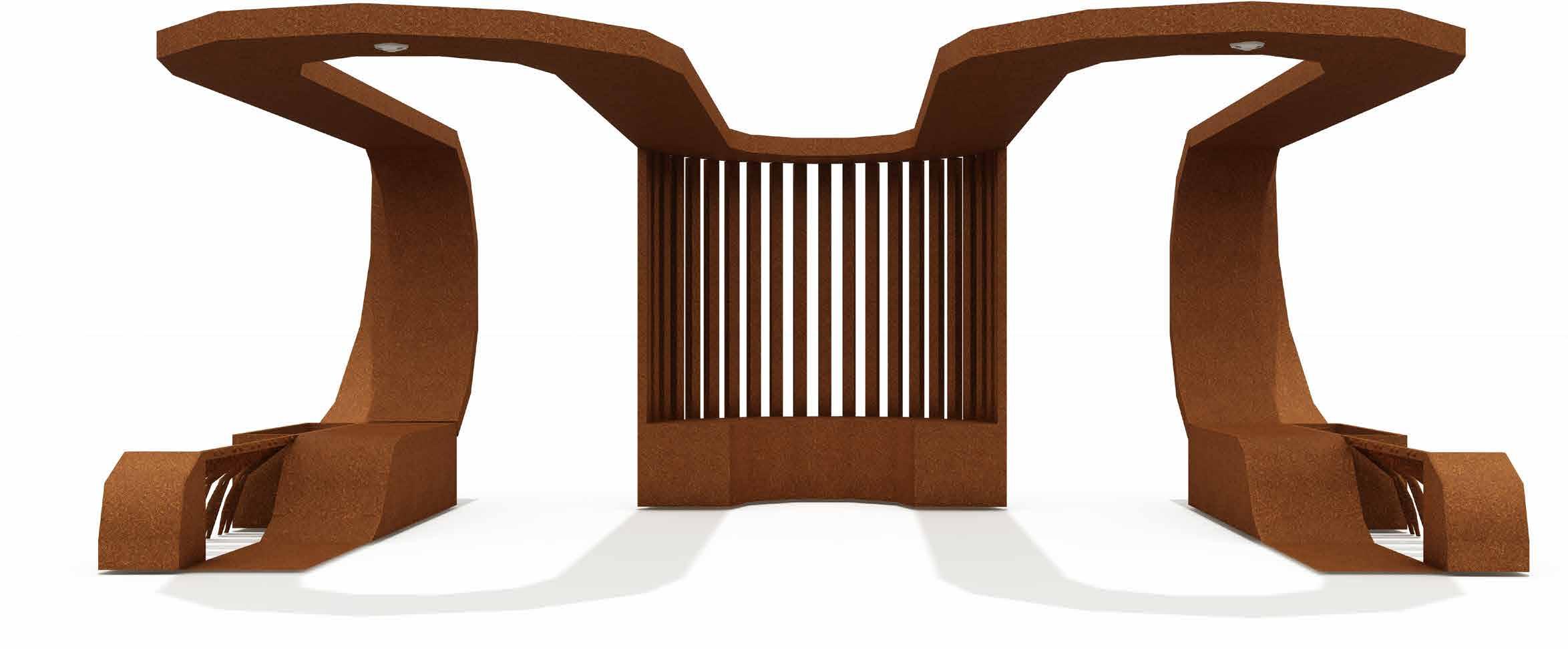

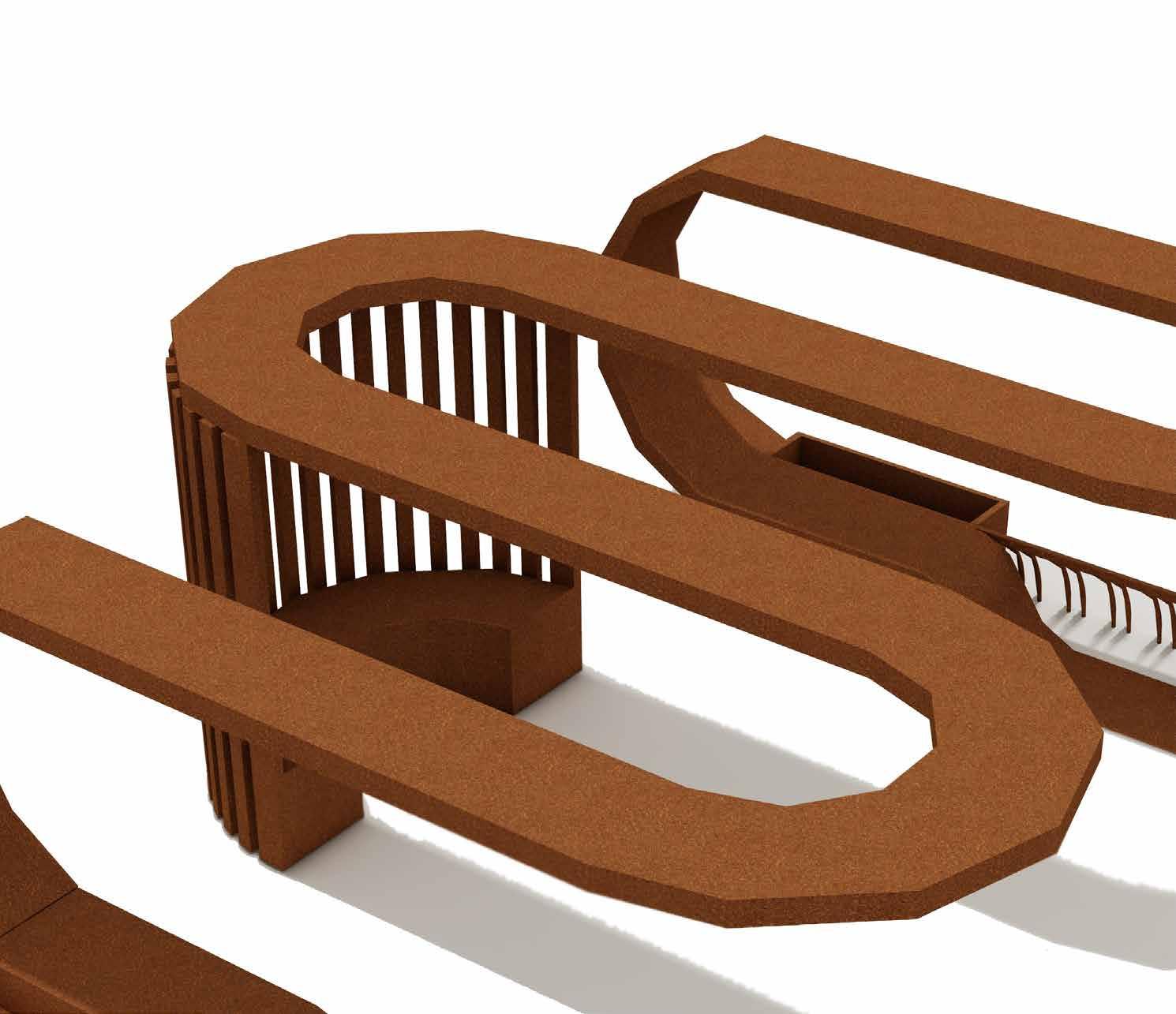

Seating Installation A multisensory seating and relaxation space. Convivial serves as a pause point during the journey through Dubai Design District. It may be used as seating as well as an element to elicit all of the senses within. The form derived from the waves of play moulds to create a multi-sensory functional installation as a point for seating, bicycle stand and for rejuvenation with music.

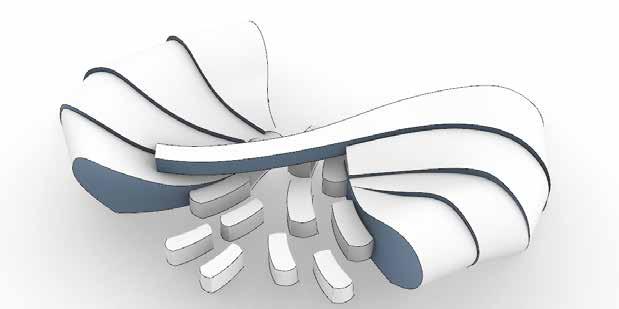

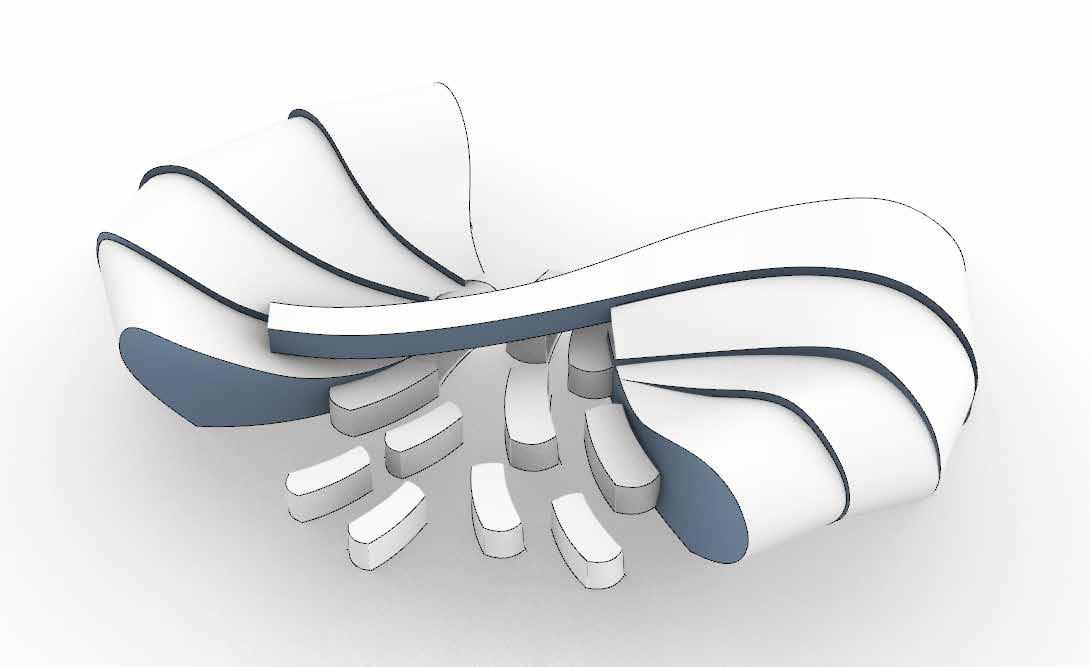

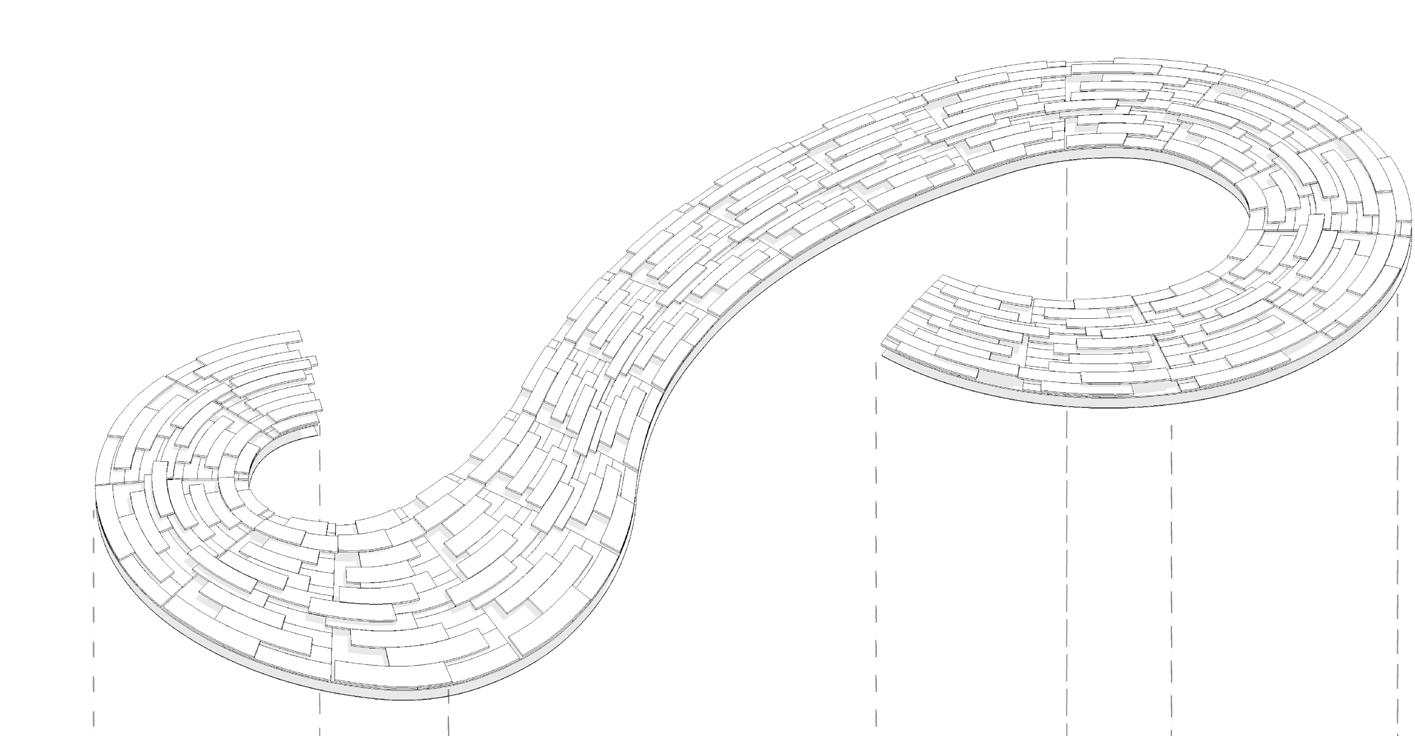

CONCEPT DEVELOPMENT: Multisensory seating

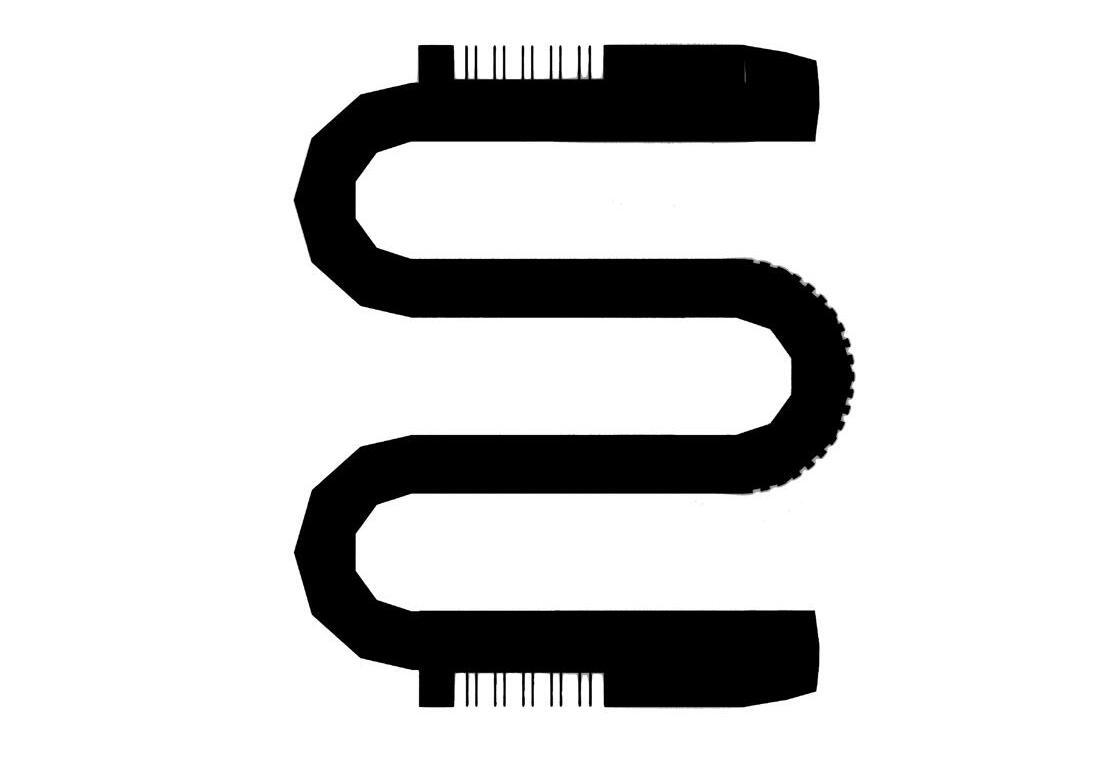

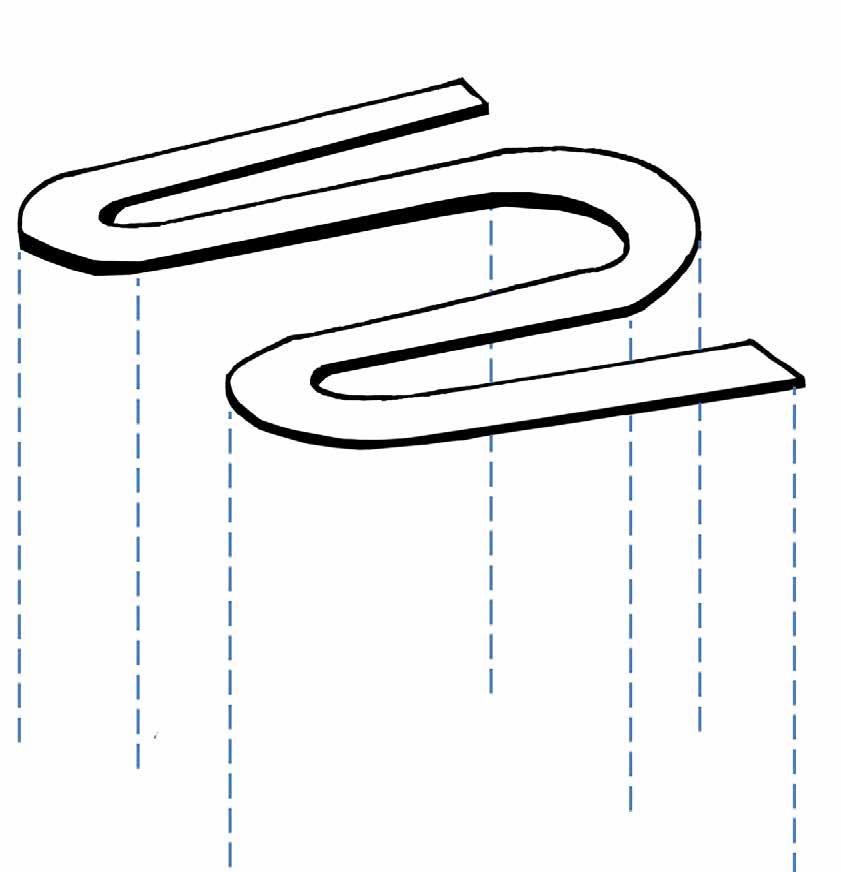

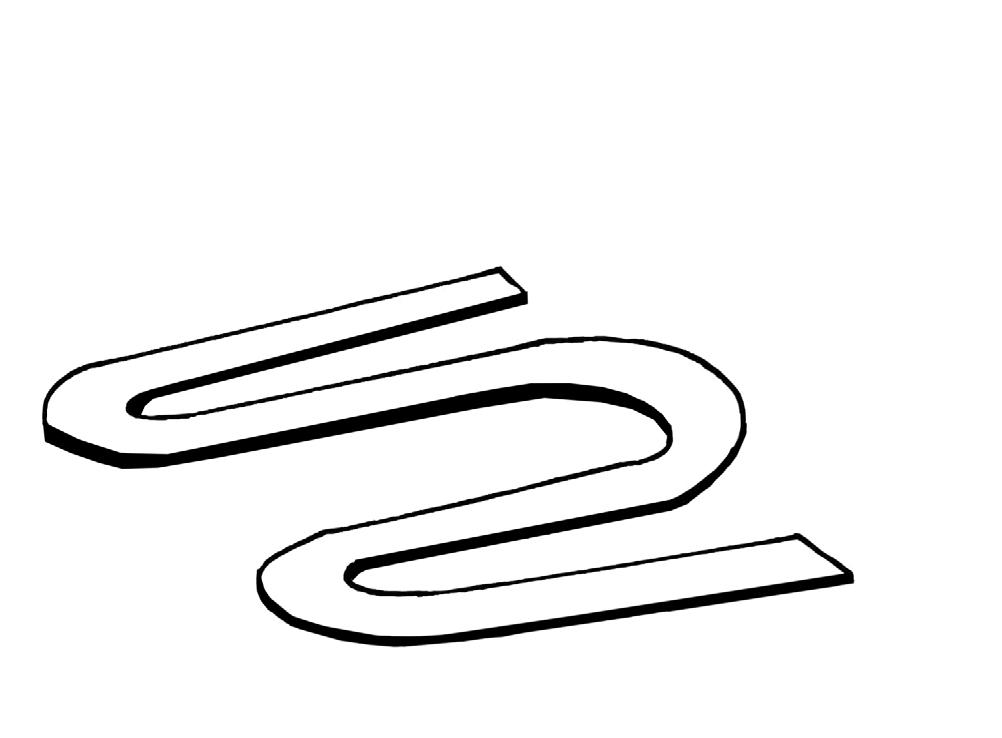

A simple wave form created. It is elevated to 2.1m

The roof is stretched and molded to create seating.

The porosity allows free pedestrian movement throughout.

The seating is extruded to create plater pods and bicycle stand.

SEATING

ARCHITECTURE PORTFOLIO

The roof molds in to create curvilinear and linear seating maintaining social distancing, one of the key aspects to be followed in today’s scenario. The linear seatings are provided with planters to evoke the sense of smell within the rest time. The curvilinear seating are enhanced with fluted backrest maintaining the warmth and comfort of the structure as well as plays a role in enhancing the microclimate as the gaps serve for faster wind flow.

66

67

Architectural Portfolio | 2017-2022

Megha Pramod

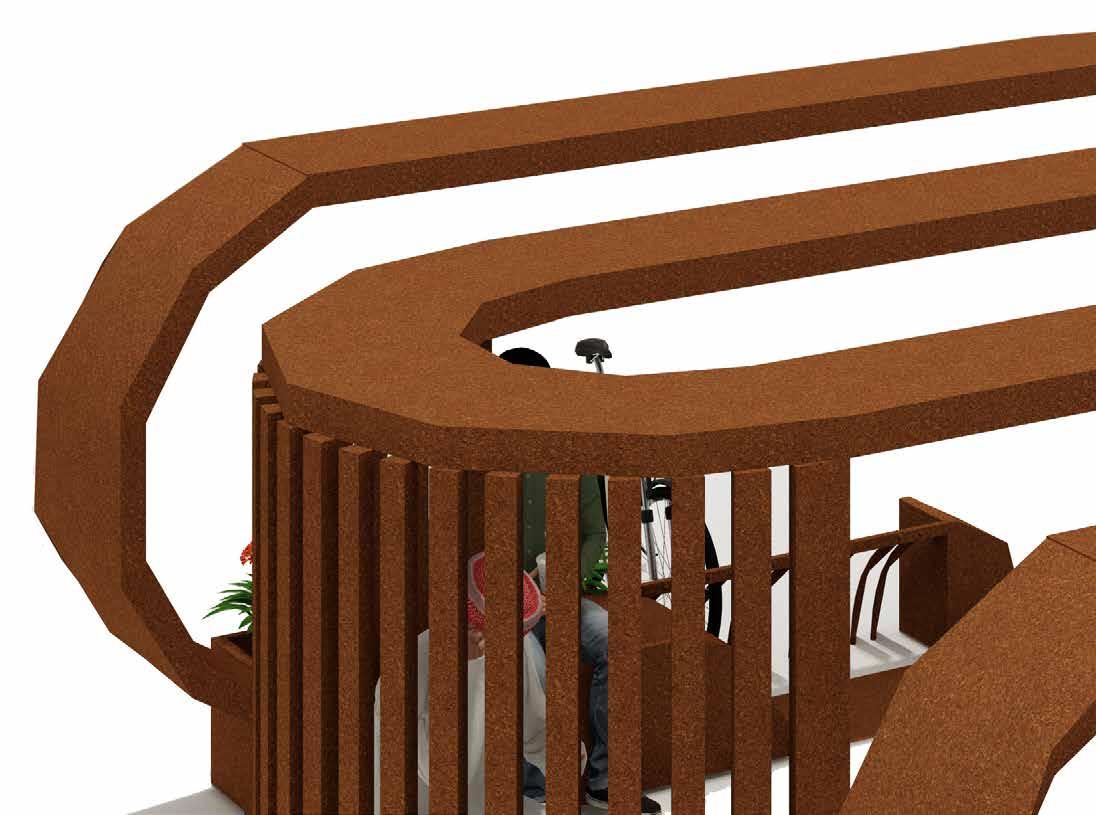

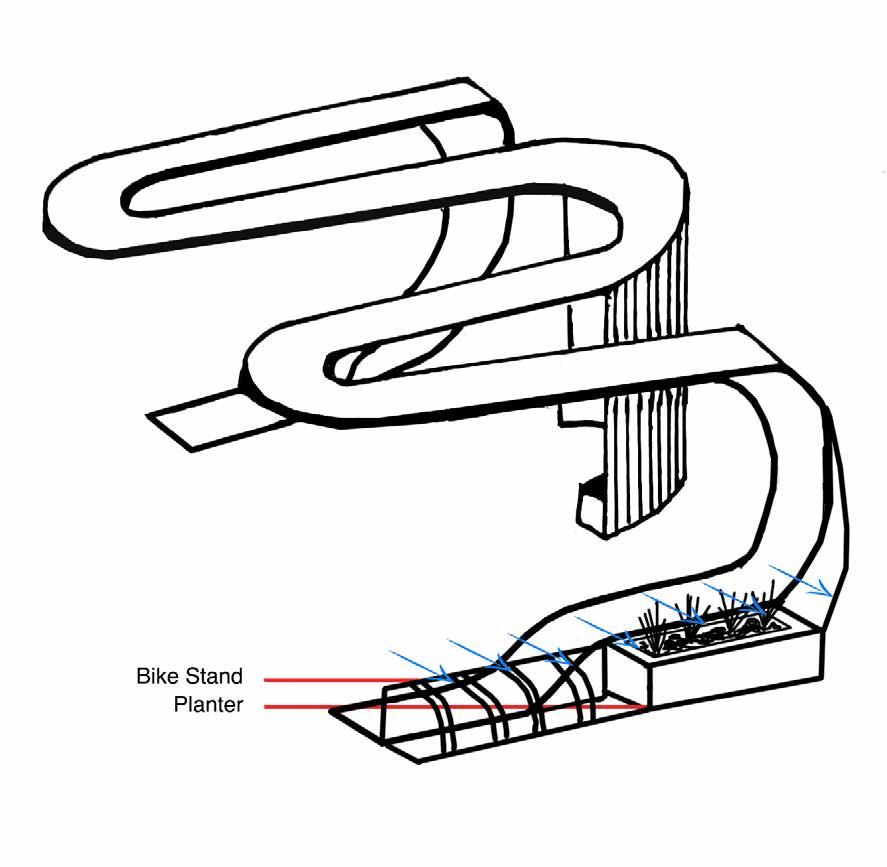

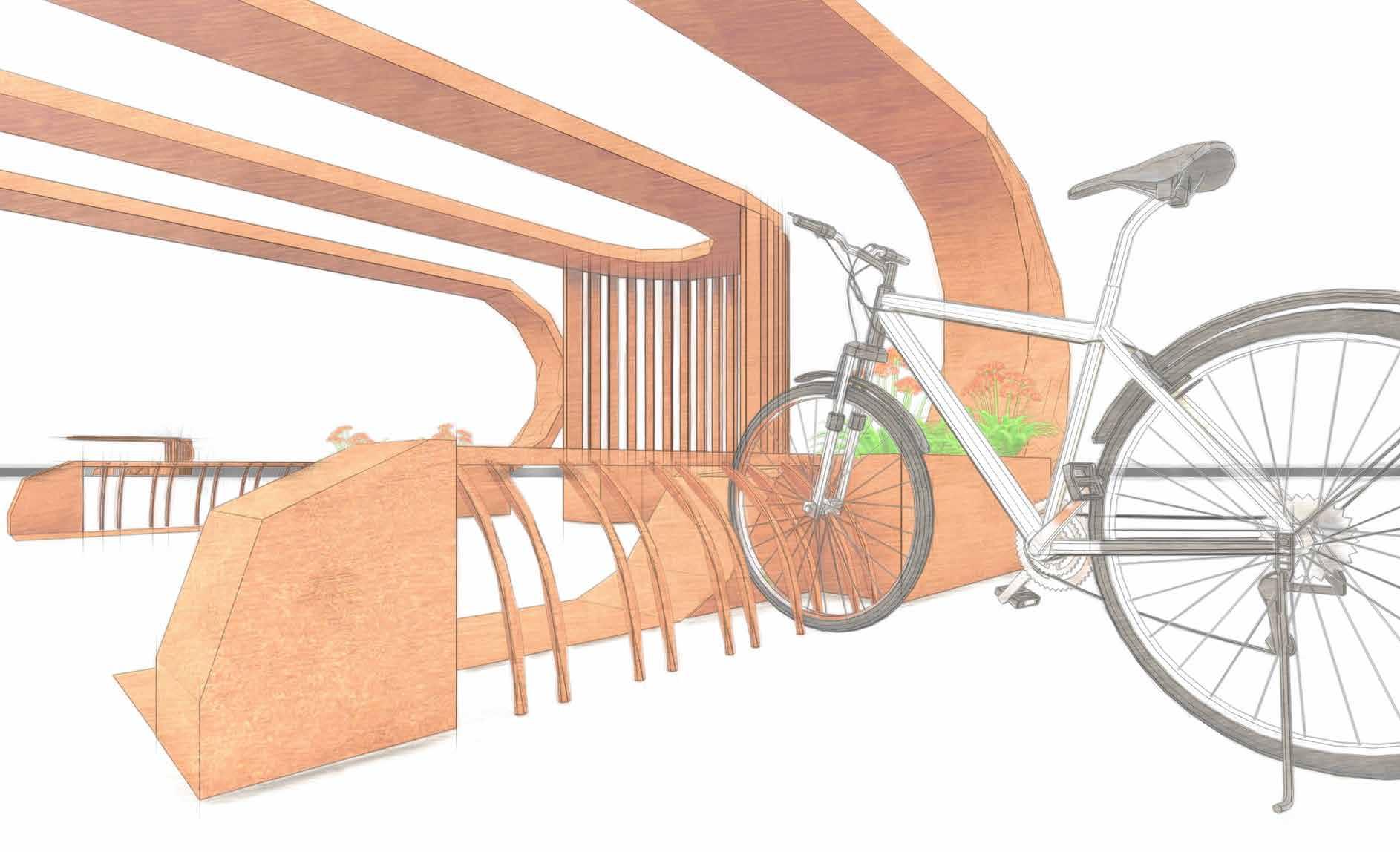

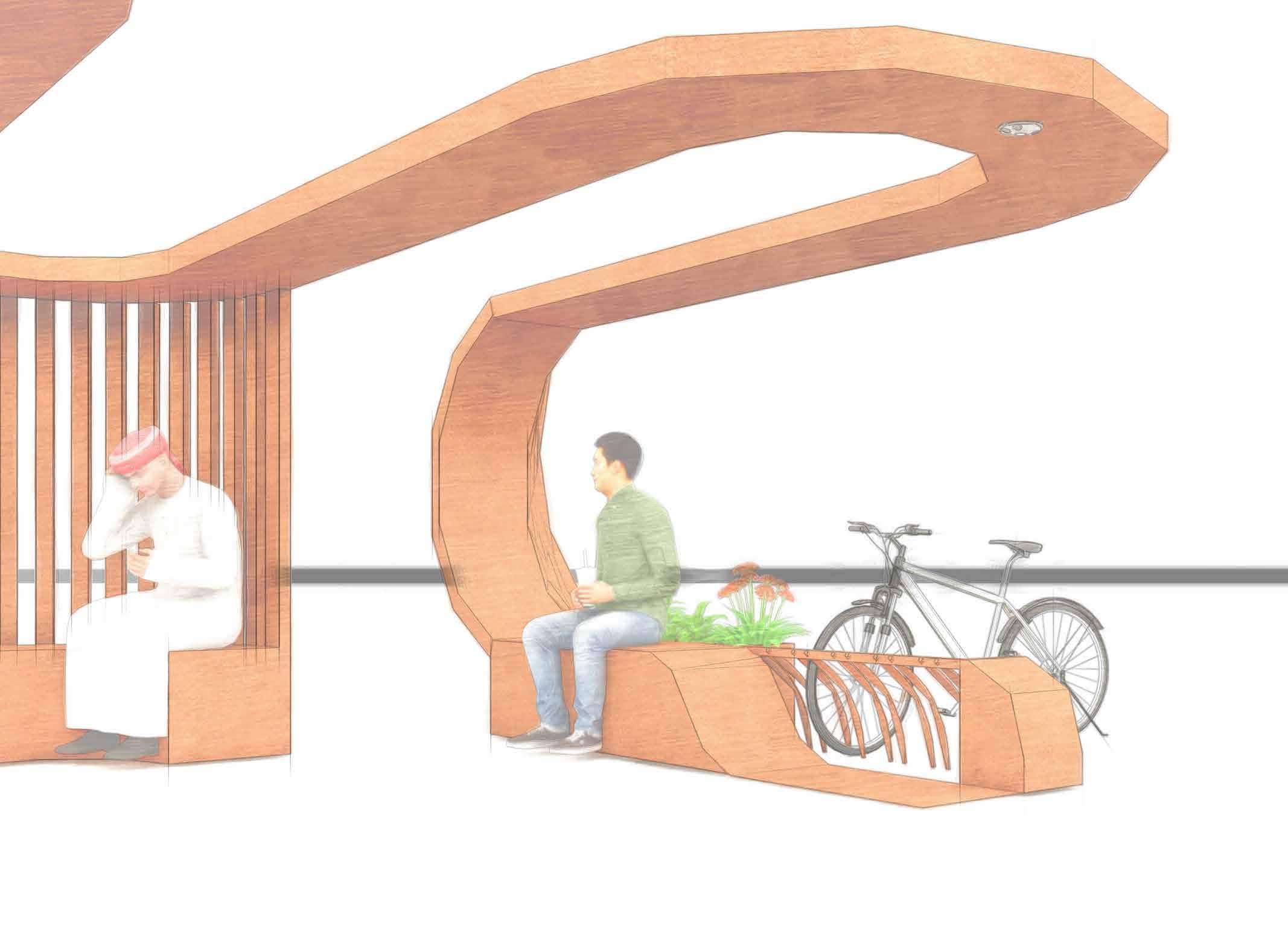

BICYCLE STAND The installation also creates space for bicycle stand next to the planters. The bicycle stands are provided behind both the linear seatings. Emerging from the curves of the seating the matte finish bicycle stand serves for 10 bikes maximum.

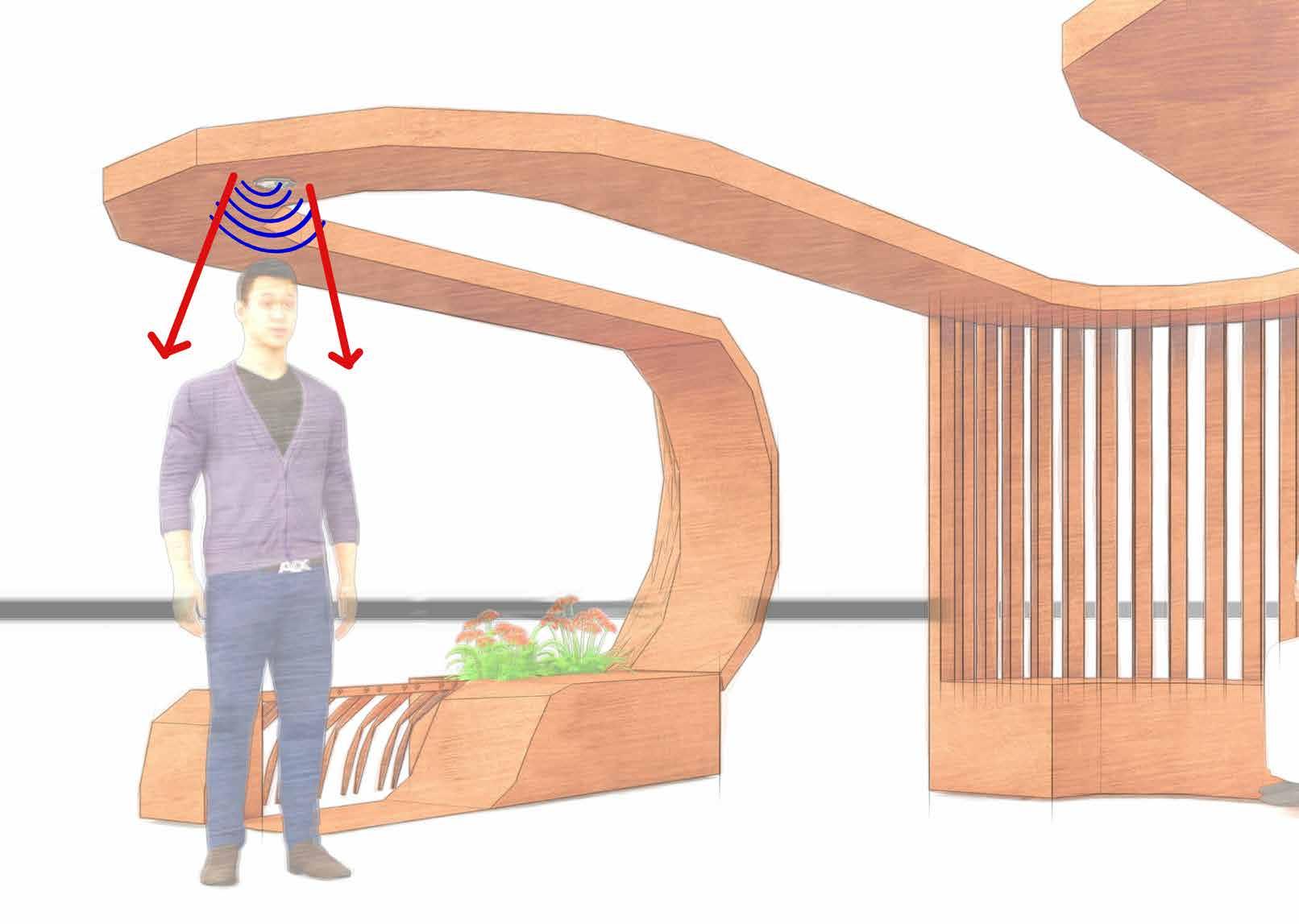

MUSIC PODS The edge of the roofs are fitted with speakers along with sensors that detects when a user stands below it and plays soothing music further enhancing their relaxation.

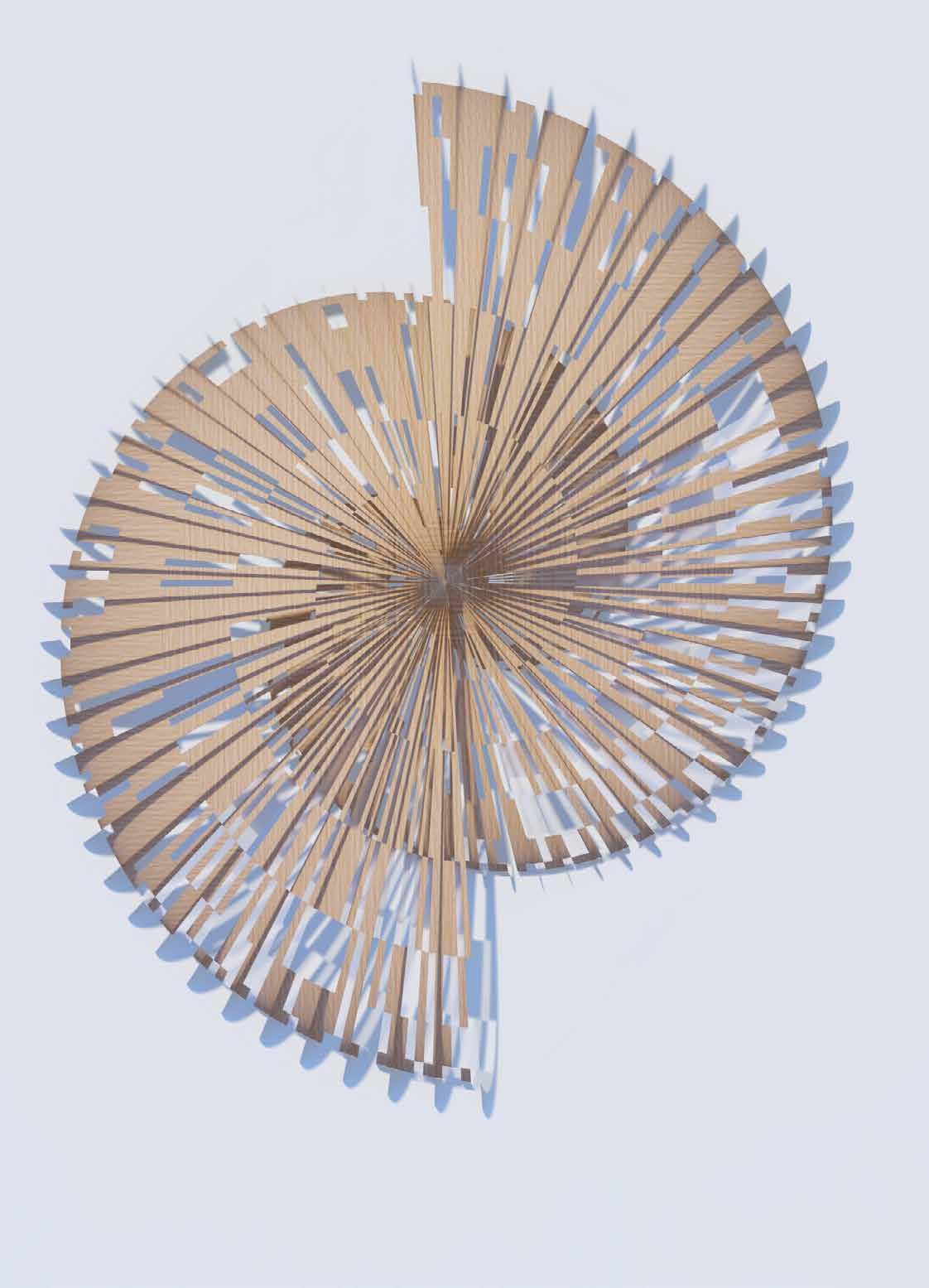

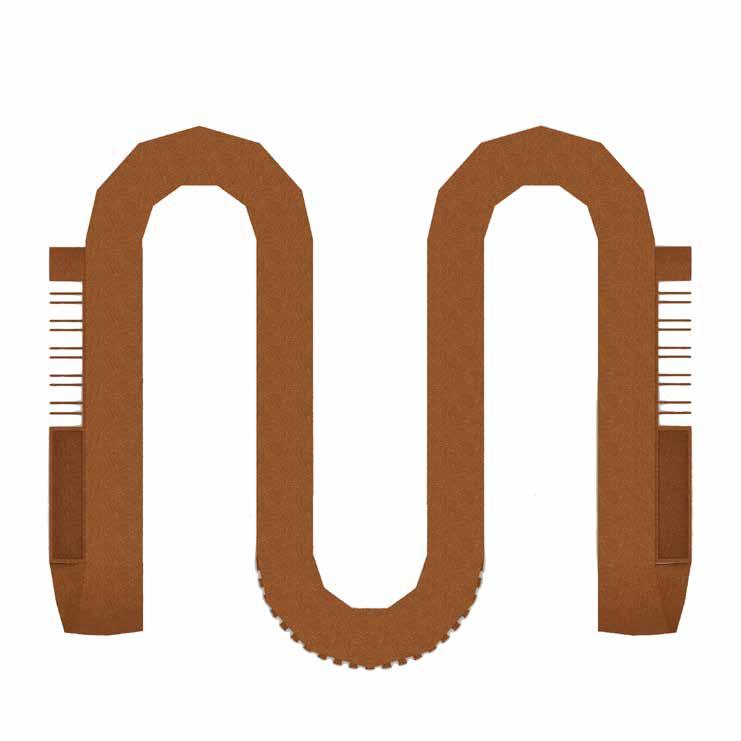

TOP VIEW

MATERIAL

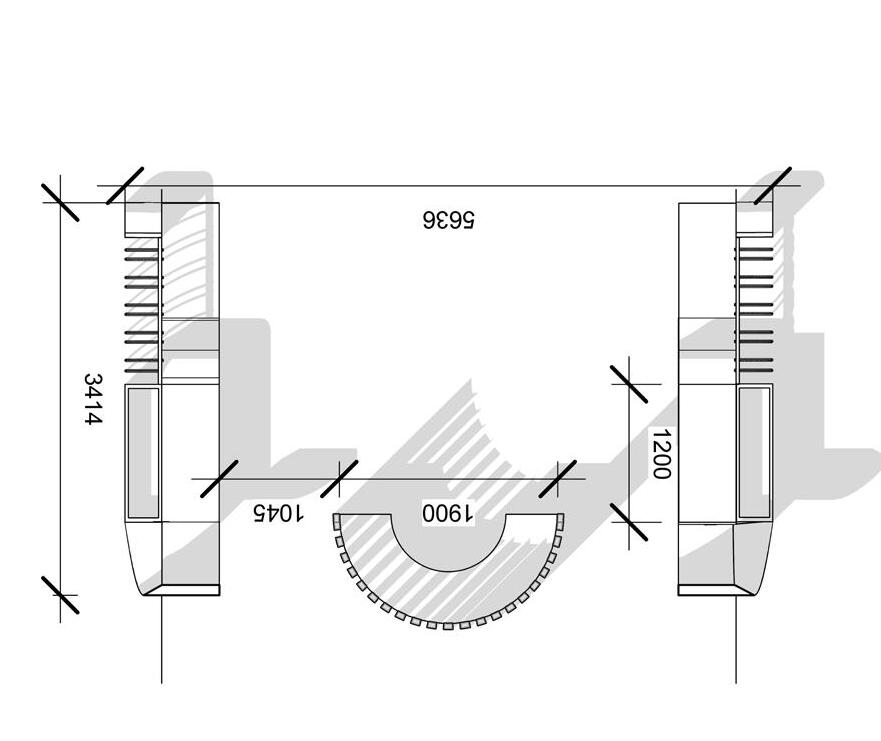

PLAN

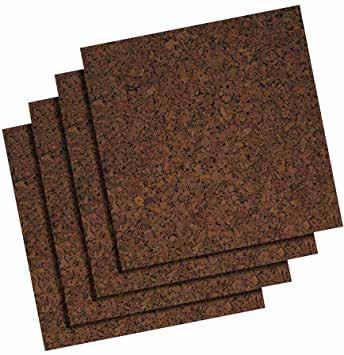

Cork is a unique material characterized by its porous texture, softness, and lightweight quality. There is a growing move to use sustainable materials in building construction, with cork is increasingly emerging as a durable, environmentally friendly option. The material used for the installation will be caramel cork. 15mm cork panels are sandwiched together to create the complete structure.

The texture of cork stimulates touch of the material and develops a warmth and relaxes the eyes.

5336

1405

1900

NOTE: All dimensions are in mm.

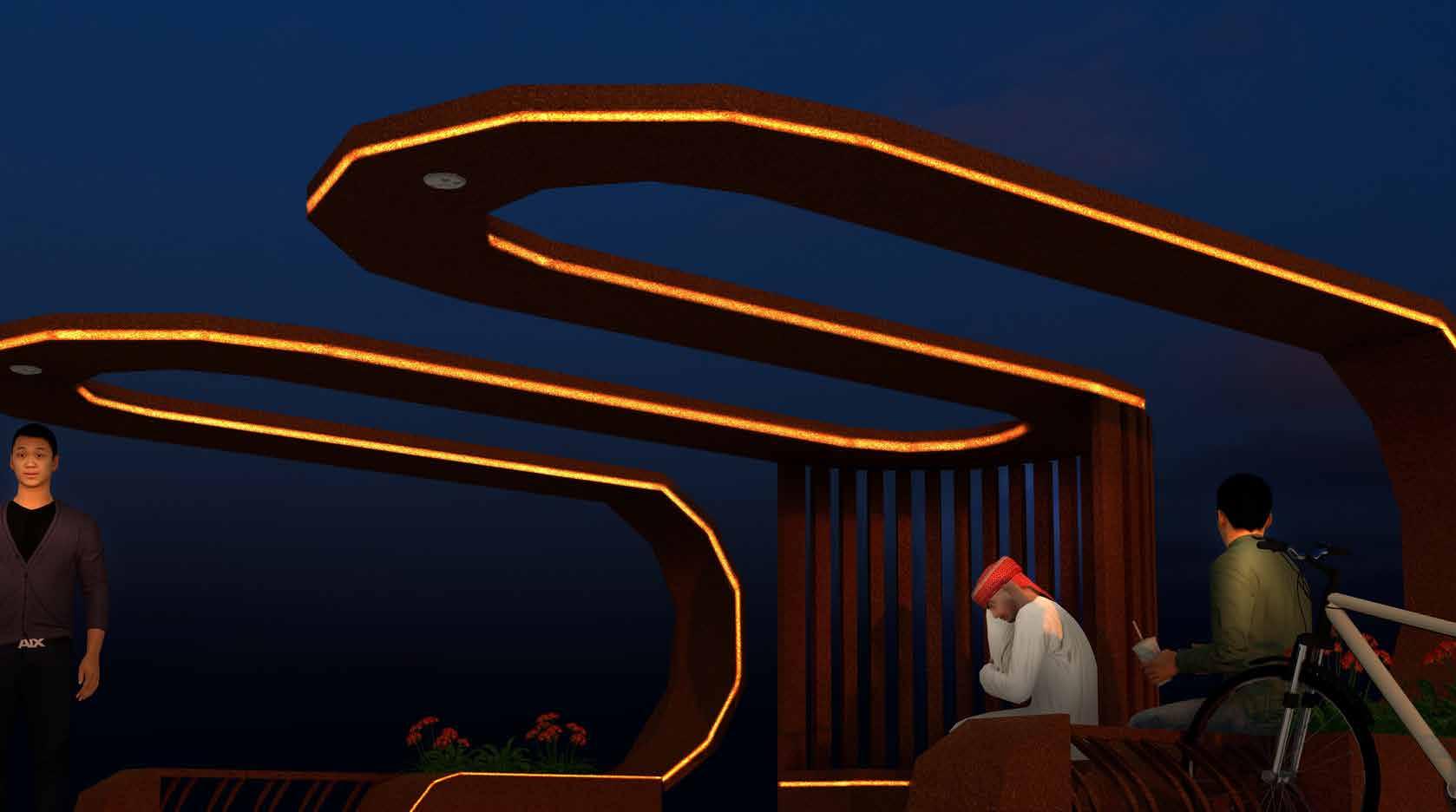

Lighting

68

The night lighting is suffixed with strip LED Light along the edges of the installation. The lighting also hightlights the seating for easy visual access.

69

Architectural Portfolio | 2017-2022

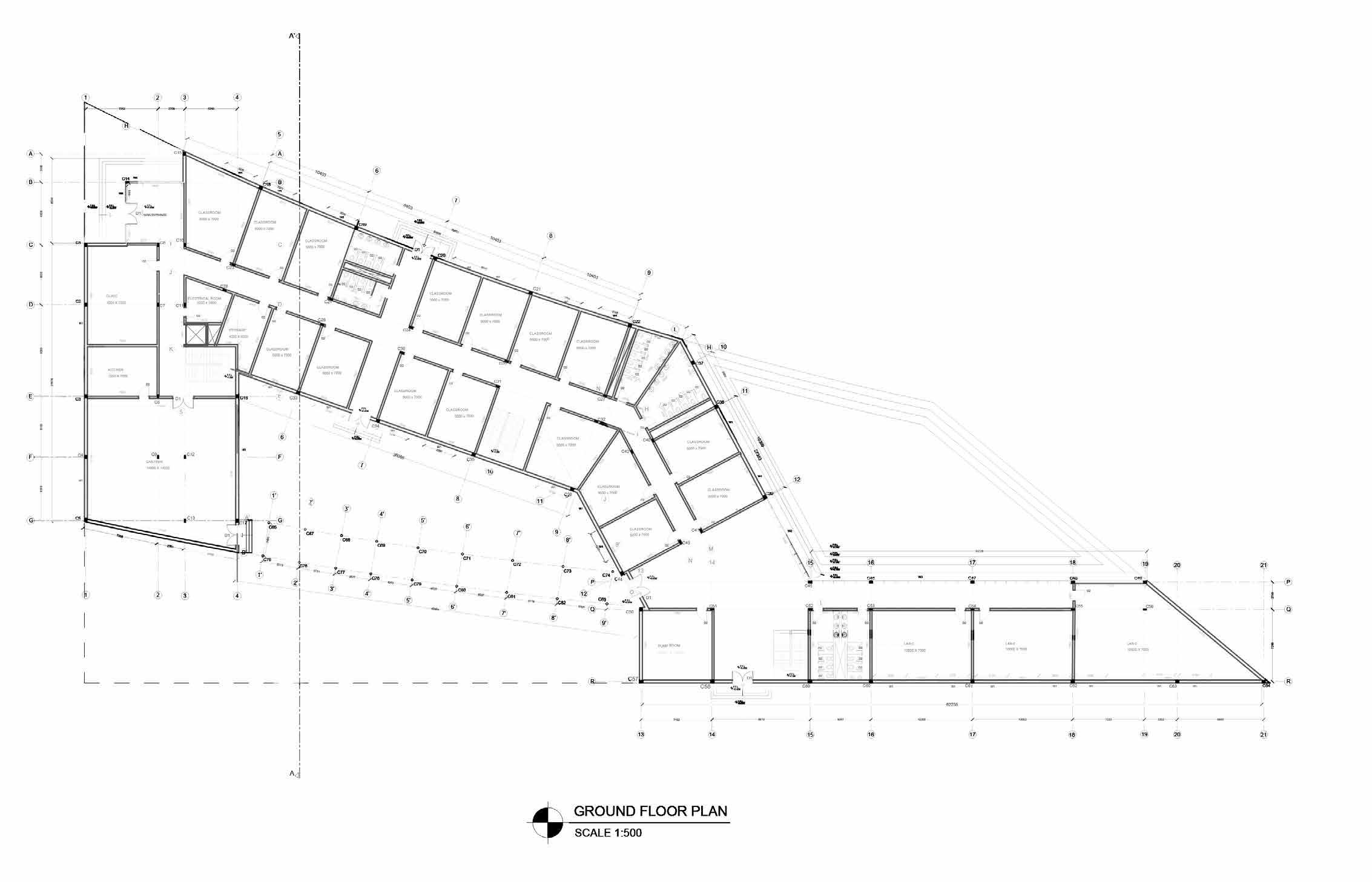

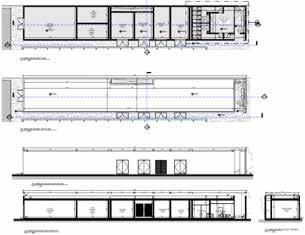

W O R K I N G D R AW I N G S

646

SLOPE1: 20

F.F.L +8.75M

PARA PET. LVL +9.65 M

16

SLOPE1: 20 LIFT MACHINE ROOM

F.F.L +8.75M

24

23

22

21

20

19 18

17

16

15 14

13

1

2

3

4

5

6

8

9

10

12

F.F.L +6.95M

7

11

PARA PET. LVL +9.65 M

58363

DN

SLOPE1: 20

PARAPET. LVL

+9.65M

F.F.L +8.75M

8

PARAPET. LVL

48

+9.65M

27

PARAPET. LVL +9.65M

PARAPET. LVL DN

+9.65M

SLOPE1: 20

24

2

23

3

22

20

6

19

7

18

16 15

12

+9.65M

17

9 10 11

PARAPET. LVL

16

08

9

21

5

8

F.F.L +8.75M

F.F.L +8.75M

1

4

+9.65M

33729

F.F.L +8.75M

PARAPET. LVL

PRODUCED BY AN AUTODESK STUDENT VERSION

CHAPTER 07

Megha Pramod

14 13

F.F.L +6.95M

O.H WATER TANK

SLOPE1: 20

119133

ROOF PLAN SCALE 1:500

PRODUCED BY AN AUTODESK STUDENT VERSION

70

71

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 08

PROFESSIONAL INTERNSHIP

Comapany Name: Wanders Werner Falasi Consulting Architects, Dubai Internship Duration: 3 months

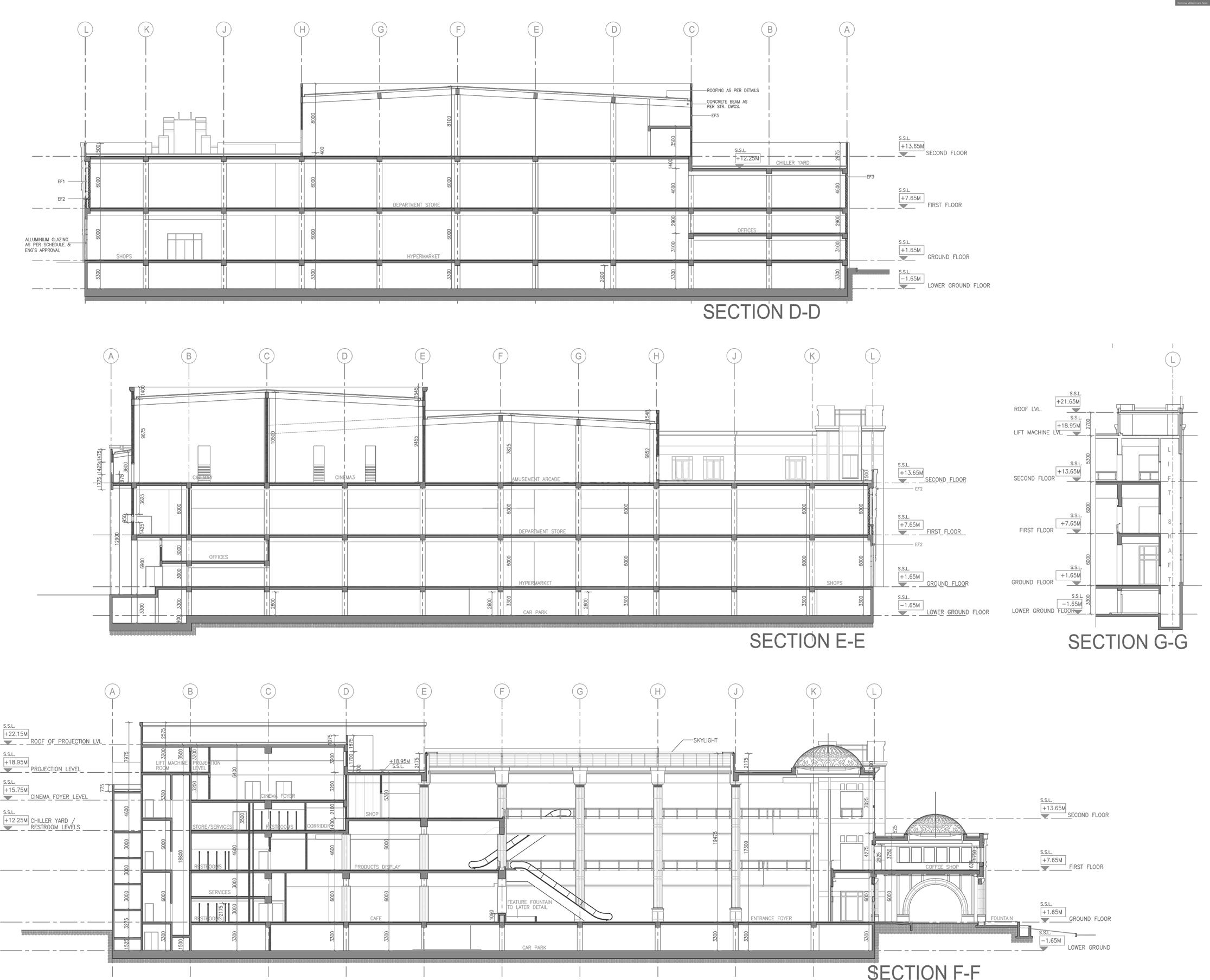

Worked as an Architectural Intern and fulffilled the following tasks: • Concept Design: Preparation of site analysis, layout proporsals, concept sketches/visualization, initial client presentation, initial concept layouts • Design Development: Developing concept design, details, schedules and preparation of necessary drawings for submission • Final Design: Finalization of drawings for site use, detailing layouts and Drawing revisions • Preparation of presentation for completed projects • Project Management: creating packages for EXPO Project, attending meetings. preparation of meeting minutes, contacting suppliers for samples, etc

72

73

EXISTING COLUMNS

Architectural Portfolio | 2017-2022 OT

PL

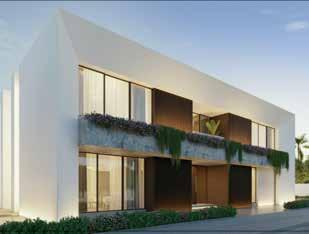

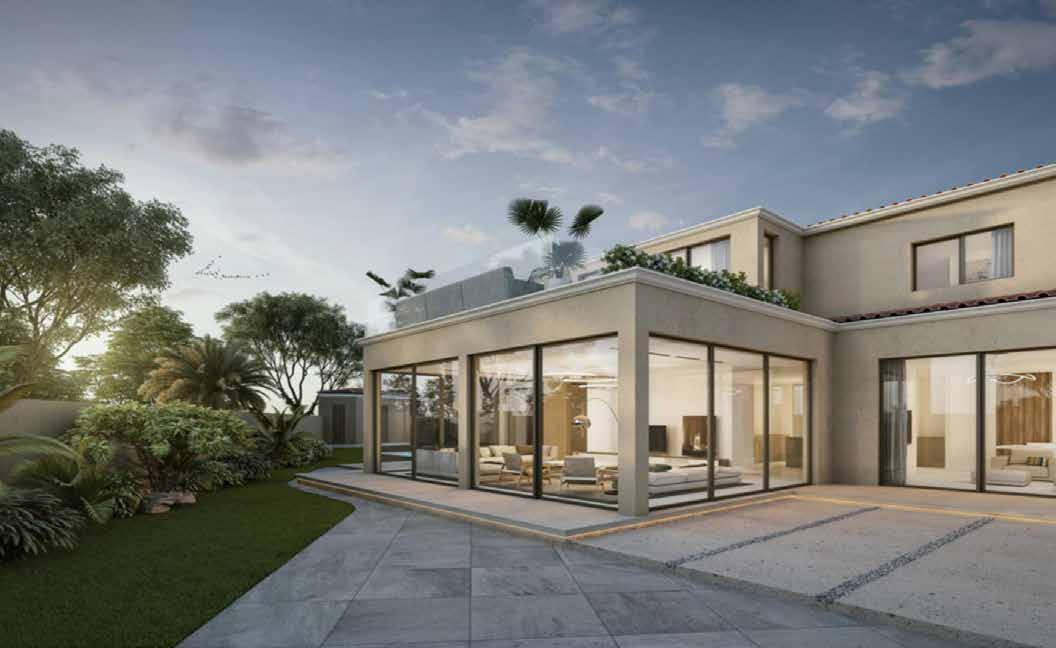

VILL A MOTOR CIT Y

PL

OT

L

0.50

Project Location: Motor City, Dubai, UAE Built -up Area: Year: 2021 Team: Megha Pramod, Mohammad Ismail

6D

5D

5.95

5.95

2.20

IT IM

+0.30

5.60

3.80

A-201

4.00

+0.30

2 A-301

18.10

14.64

27.17 m²

2.60

29.07 m²

LIVING

GF-03

3.60

3.60

GF-02

SWIMMING POOL

12.00

+0.30

ENTRANCE HALL

3.00

DD

4.35

4.30

7.62 m²

1.50 0.25 0.85

GF-01

3.25 m²

2.40

ENT. LOBBY

LOBBY

GF-18

1.45

ED FD

0.35 2.35

2.65

0

6.5

3.80

2.95

4.85

5.00

7.80 16.60

OT IT

LIM

4D

30

2

PL

5D

+0.00

BB QA RE A

1.65

17.11 m²

+0.30

1.65

GF-17

.80

4.50 STUDY ROOM

3.50

0.60

3.80

1Sb 6D

+0.15

CD

2.00

0.60

4.35

+0.15

DSb

IT

PL OT L

1.10 1.00

7.65

2.25

1

1.10

FD

2.20

1.05 0.55

2.45

4.17 m²

6.84 m²

S GA ERS D LIN CY

IMIT

TL

PLO

GF-16

1.65

0

ED

PWDR ROOM

GF-19 3.10

3.95

1.65 STORAGE

0

LIFT

4.95

6.75

4.30

+0.00

LIM

+0.30

SHOWER ROOM

1.70 4.15

2.00

6.98 m²

2.85

0.60

2.8

BD

SALON

GF-04

3.40

UP

GF-15

+0.30

OT

5.00 m²

6.46 m²

26.34 m²

+0.30

0.60

IRONING ROOM

+0.15

CSb

0.60 0.83

0.60 2.75 6.00

5.80 +0.30

PL PUMP ROOM

SB-08

2.85

0

3D

A-201

2D

1D

+0.00



2Sb

DSb

EXISTING TREES

3Sb

PL

OT

LIM

IT

1 A-301

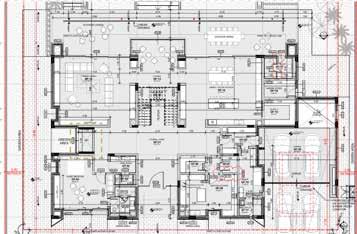

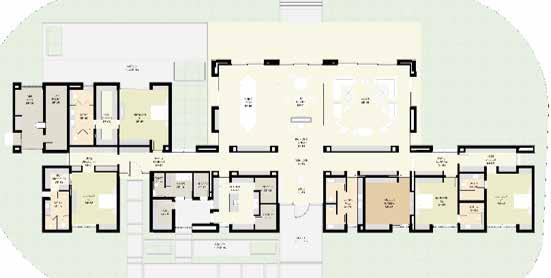

Ground Floor Plan

WANDERS WERNER FALASI

Consulting Architects

TYPE

W-01

IT

PLOT LIM

W-02

W-03

W-04

W-05

WANDERS WERNER FALAS

W-06

Consulting Architects

PO Box 75111 Dubai T +971 4 385 0700 E info@wwf-architects.co United Arab Emirates F +971 4 385 0600 W www.wwf-architects.co

0.86

0.14

0.30

0.80 3.04

SM-7

1.20

2 BATHROOM 1 RCP PLAN 1 : 25

+

+

GF F.F.L 0.30

+

GF F.F.L 0.30

GATE LEVEL 0.00

EQ

+

+

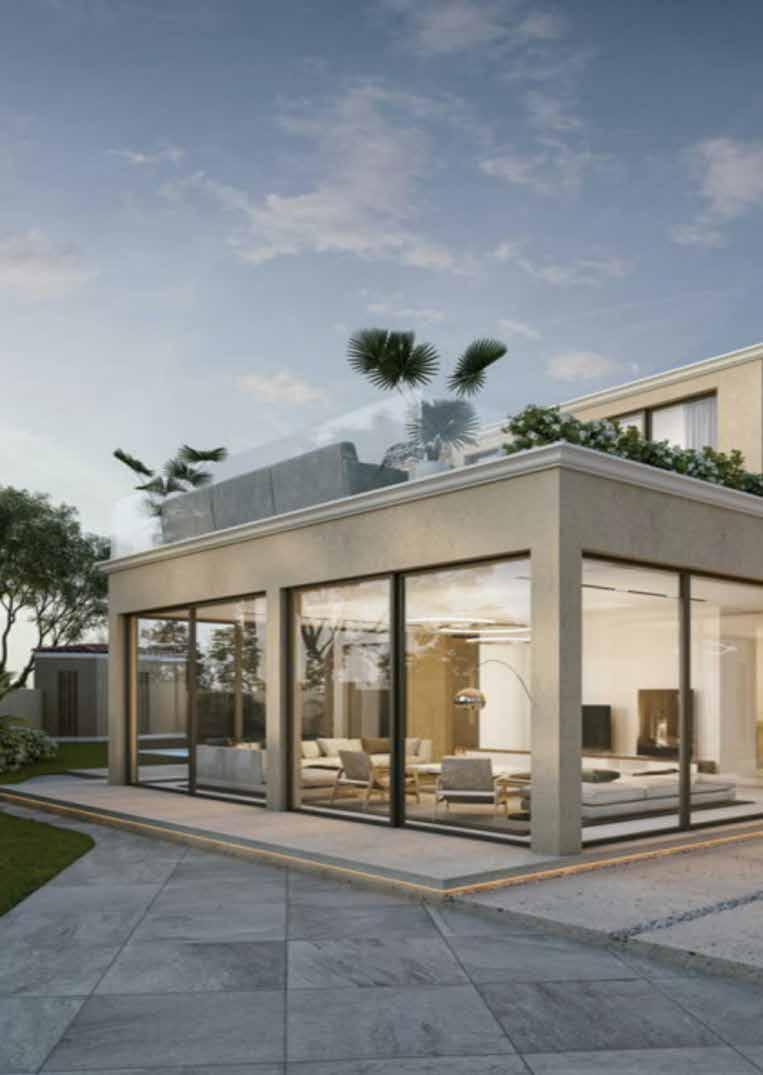

3D V I S U A L I Z A T I O N

+

+

EQ

EQ

GF F.F.L 0.30

GATE LEVEL 0.00

EQ

+

+

GF F.F.L 0.30

EQ

EQ

GF F.F.L 0.30

GATE LEVEL 0.00

EQ

GATE LEVEL 0.00

1.05

EQ 2.75

3.80

2.60

+

GF F.F.L 0.30

GATE LEVEL 0.00

GATE LEVEL 0.00

0.25

EQ 3.34

SW1

WASH BASIN

SW2

WATER CLOSET

SW3 0.60

FLOOR TILES as per client

FIRST FLOOR F.F.L 3.82

+ 3.82 F.F.L

A BATHROOM 1 ELEVATION - A 1 : 25

ED

3D

SW-2

0.45

0.30

1 BATHROOM 1 PLAN 1 : 25

+ 3.00 F.C.L

+ 3.00 F.C.L

K E Y

P L A N

1.46

0.30 1.28 2.15

+

P L A N

BATHTUB

0.30

0.87

+ 3.00 F.C.L

0.35

SA-1 SM-6

+ 3.00 F.C.L

LEGEND:

0.30

0.40

0.61

2.11

K E Y

WALL TILES as per client

2.35

0.82 EQ

ED

0.80

W-12

0.30 3.56

0.30 EQ

1.15

0.82

5.13 m²

0.35

W-12

TEMPERED GLASS PARTITION as per specialist

FF-08

PLAN

0.30

2.60 1.10

0.10

0.10

0.10

BATHROOM 1

WP

FLOOR TILES as per client approval

+ 3.00 F.C.L

2.70

0.30

1.18

MOISTURE RESISANT GYPSUM CEILING as per specification

EQ

0.35

2.60

+ 6.22 F.C.L

SA-1

SM-4

+ 3.00 F.C.L

0.28

2.70

0.60

2.70

0.60

2.70

0.60

0.64

EQ 0.35

WP

SP

0.45

2.70

1.21

0.05

Original Sheet Size

3D V I S U A L I Z A T I O N

2.70

0.75

ROOF LEVEL 6.92

C O N S U L T A N T

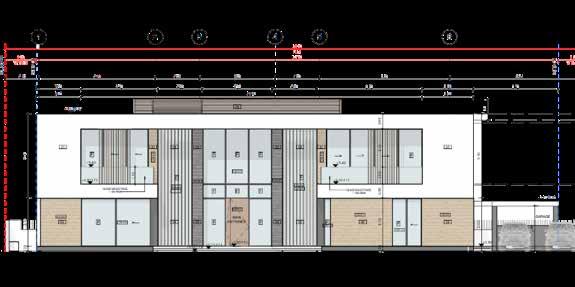

ELEVATION /exterior view/

0.51 1.10

4.03 m²

8.96 m²

3.4

1.70

0

1.18

19.6

0.71

0.60

1.20

GF-14

8.25 m²

PUMP ROOM

DINING

SERVER ROOM

2.40

0

0.05

SB-01

4.35

GF-05

1.08 m²

1.50

3.2

All rights reserved. No part of this drawing may be reproduced or transmitted in any forms by any means without written permission of the copyright holder.

1.5

EQ

STORAGE

SB-02

4.20

SERVICE LOBBY

GARAGE

N

0.85

DD

4.20 m²

+0.30

3.35

GF-10

1.55

0 4.1

5 5.8

0 2.4

A

FLOOR DRAIN

EQ

2.31 m²

1.30

2 3.3

0

0.60

4.68 m²

GF-12

2 A-301

BSb SB-03

DB

GF-11

SERVICE 1.08 m² CORRIDOR

GF-09

2.0

7.90 m²

CSb

GF-07

1.90

GF-13

LAUNDRY ROOM

EXISTING PERGOLA ABOVE

UTILITY ROOM

BSb

32.87 m²

1.97 m²

4.00

1.78 m²

1.10

3.65

AD

GF-21

20.41 m²

PWDR ROOM 02

1

CD

SB-05

1.85

29.24 m²

A-202

1.76 m²

0.90

KITCHEN

1.70

3

SB-07

0 1.4

0.85

0.30

+ 2.40 F.C.L

5.13 m²

0.70

4.95

5.95 5.60

ASb

A-203

0 1.4

0.15

B

ED

5.95

2.20

1 DRIVER'S BATH

1.45

10.25

0

3.3

1.10

BREAKFAST ROOM

GF-08

24.05

7.83 m²

0.60

IT

SB-06

0 3.3

0.05

4.40

2

DRIVER'S ROOM

1.55

+0.30

BD

+0.15

4.85

T LIM

ARTIFICIAL GREEN WALL

MAID'S ROOM

1.55

+0.30

1Sb

6 23.1

BATHROOM 1

SW-2

FF-08

38.65 m²

C O N S U L T A N T

2.60 1.70

SM-8

BATHROOM 1

GF-06

PLO

6 9.6

AD 2Sb

A1

A-610

+0.30

+0.30

EXHAUST FAN

SM-6

C

SEMI-OUTDOOR SEATING AREA

5.95

18.46 m²

3Sb

SP

SM-8

+0.30

GF-20

IMIT

0.86 0.77 1.05

D

.76

MULTI-PURPOSE ROOM

TL

MOISTURE RESISANT GYPSUM CEILING as per specification

WATER PROOF DOWN LIGHT

1.53

SW-1

31

4.65

6.05

PLO T

IT

LIM

PO Box 75111 Dubai T +971 4 385 0700 E info@wwf-architects.com United Arab Emirates F +971 4 385 0600 W www.wwf-architects.com

ED

3D 0.00

4.85

+0.30

PLO

Mood Board

2.28

0.30

1D

2.95

7.60

7.15

View 1 0.75

0.50

2D

16.60 2.65

 LIM IT

OT

PL

SB-04

0.90

3D

2

4.37

+0.30

MAID'S BATH

1.05

A-202

4D 2.35

4.22

ASb

0.67

0.50

+0.15

The project was a redevelopment project of an exiting villa in Motor City. Work included creating floor plans, floor finish plans, develpoing room details and door and window schedules.

0.57

IT

8

3.80

0.00

LIM

25.4

+0.15

3D

PROPOSED COLUMNS

1 A-301

PLOT LIMIT

IMIT

Megha Pramod

SM1

WASH BASIN MIXER

SM2

BATH MIXER WITH HAND SHOWER

SM3

SHOWER MIXER

SM4

SHOWER

SM5

BASIN MIXER

+

INSIDE

+

INSIDE

EQ

OUTSIDE 0.25

OUTSIDE

OUTSIDE

+

HAND SPRAY

SM7

WALL HUNG CONCEALED CISTERN

SM8

FLOOR DRAIN

SA1

TISSUE ROLL HOLDER

COMMENTS

LOCATION

1.30

OUTSIDE

2.60

+ EQ

+

+

EQ

EQ

OUTSIDE

+

OUTSIDE

+

EQ

EQ

+

1.06

INSIDE

2.75

3.80 INSIDE

01

01

01

01

01

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: EXISTING

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

LIVING GF-03

LIVING GF-03

LIVING GF-03

SALON GF-04

SALON GF-04

DINING GF-03

W-08

W-09

W-07

TYPE

AS REVISED

INSIDE

+

1.30

3.34

01

QUANTITY

SM6

3D

+

EQ

INSIDE

W-10

W-11

W-12 AS REVISED

2.60 2.28

2.30 0.48

0.60

0.60

0.91

0.65

0.06 0.17

0.42

0.62

0.15

0.85

REV. PURPOSE OF ISSUE

0.81

DATE REV. PURPOSE OF ISSUE

R E V I S I O N S

0.57

0.30 0.30

MOISTURE RESISANT GYPSUM CEILING as per specification

0.30 3.10

1.35

1.20

3.04

0.30

0.30

0.30

BATHROOM 1

SW-1

5.13 m²

WALL TILES as per client

SW-1

SM-6 SW-2

OWNER

0.50

0.45

FIRST FLOOR F.F.L 3.82

EXISTING VILLA @PLOT 674-246 , VILLA 45 FV-D , MOTOR CITY , DUBAI , UAE

SM-7

0.20

+ 3.82 F.F.L

0.30

0.30

0.50 0.20

FLOOR TILES as per client

P R O J E C T

FF-08

0.35

SM-3

SM-1

0.30

2.10

SM-1

1.10

1.46

WOODEN CABINET as per client

FIRST FLOOR F.F.L 3.82

+ 6.22 F.C.L

+ 3.82 F.F.L

FLOOR TILES as per client

FIRST FLOOR F.F.L 3.82

AMR ABDEL HAMID ABDEL RAHMAN

Drawing Title

BATHROOM 01 DETAILS Drawn

BS

Date

Checked

HW

Approved

Scale Project No.

B BATHROOM 1 ELEVATION - B 1 : 25

Original Sheet Size

C BATHROOM 1 ELEVATION - C 1 : 25

Bathroom Detail

D BATHROOM 1 ELEVATION - D 1 : 25

Approver

As indicated

Zone Code

Drawing No.

953

A-610

Municipality Dwg No.

Consecutive No.

Rev.

+ 3.00 F.C.L

+ 3.00 F.C.L

+ 3.00 F.C.L

0.80 EQ

EQ

GF F.F.L 0.30

GF F.F.L 0.30

EQ

EQ

GATE LEVEL 0.00

EQ

EQ 3.32

3.55

EQ

+

0.80

GF F.F.L 0.30

GATE LEVEL 0.00

EQ

4.95

+

GF F.F.L 0.30

GATE LEVEL 0.00

GATE LEVEL 0.00

EQ

+

2.70

+

2.70

+

2.70

0.30

0.30

0.30 0.30 0.30

0.80

W-12

0.30

MIRROR

0.30

0.15 0.20

0.50

0.30

SW-2

COUNTER TOP as per client

0.30

0.30

SW-1

0.35

2.40 0.30

5.13 m²

1.14

SM-4

0.30

1.20

3.50

0.30 0.30

BACKLIGHT FOR MIRROR as per specialist

BATHROOM 1

+ 3.82 F.F.L

TEMPERED GLASS PARTITION as per specialist

0.30

0.30

0.30 0.30

0.30

+ 6.22 F.C.L

MOISTURE RESISANT GYPSUM CEILING as per specification

+ 3.00 F.C.L

Structural Engineer : Mansoor Rahma Juma Abdullah Al Falasi : 46109

G E N E R A L

+

2.70

0.40

+ 3.00 F.C.L

+ 3.00 F.C.L

N O T E S

2.70

0.60

G E N E R A L

ELEVATION /exterior view/

0.60

Structural Engineer : Mansoor Rahma Juma Abdullah Al Falasi : 46109

1. This Drawing is copyright protected 2. Do not scale from the drawing 3. All dimensions shown are in meter, and do not take into account applied finishes, unless specifically indicated otherwise.

4. Any omissions or discrepancies found shall be reported to the Architect/Engineer immediately.

5. Levels are given in meters to three decimal places above survey datum.

6. This drawing should be read in conjuction with Dubai Municipality approved drawings and other relevant sections of specifications. Any discrepancies shall be reported to the engineer prior to the commencement of the work.

7. The contractor is responsible for confirming and correlating all quantities dimensions, fabrication progress and techniques of construction and coordinating his work with that of all other trades and performing his work in a safe and satisfactory manner.

8. The contractor has to submit full shop drawings for the engineer's approval prior to commencement of work on site.

9. Project zero ±0.00m equals to +5.36 DMD level

EQ

2.90

GF F.F.L 0.30

GF F.F.L 0.30

GATE LEVEL 0.00

GATE LEVEL 0.00

EQ 2.65

N O T E S

1. This Drawing is copyright protected 2. Do not scale from the drawing 3. All dimensions shown are in meter, and do not take into account applied finishes, unless specifically indicated otherwise.

4. Any omissions or discrepancies found shall be reported to the Architect/Engineer immediately.

5. Levels are given in meters to three decimal places above survey datu 6. This drawing should be read in conjuction with Dubai Municipality approved drawings and other relevant sections of specifications. Any discrepancies shall be reported to the engineer prior to the commencement of the work.

7. The contractor is responsible for confirming and correlating all quantities dimensions, fabrication progress and techniques of construction and coordinating his work with that of all other trades an performing his work in a safe and satisfactory manner.

8. The contractor has to submit full shop drawings for the engineer's approval prior to commencement of work on site.

9. Project zero ±0.00m equals to +5.36 DMD level P R O J E C T

EXISTING VILLA @PLOT 674-246 , VILLA 45 FV-D , MOTOR CITY , DUBAI , UAE

OUTSIDE

PLAN

0.60

Architectural Engineer: Ahmed Almahdi : 116925

All rights reserved. No part of this drawing may be reproduced or transmitted in any forms by any means without written permission of the copyright holder.

0.10

0.78

0.40

ROOF LEVEL 6.92 0.40

0.80

ROOF LEVEL 6.92

+ 6.22 F.C.L

FF-08

0.30

All rights reserved. No part of this drawing may be reproduced or transmitted in any forms by any means without written permission of the copyright holder.

74 A1

ROOF LEVEL 6.92

DATE

R E V I S I O N S

Architectural Engineer: Ahmed Almahdi : 116925

INSIDE

+

EQ

+

+

EQ

EQ

4.95

OUTSIDE

EQ INSIDE

OUTSIDE

OUTSIDE

EQ INSIDE

3.55

EQ

EQ 3.32

INSIDE

+

+

EQ

OWNER OUTSIDE

EQ 2.90

INSIDE

OUTSIDE

EQ

EQ 2.65

INSIDE

+

0.80

AMR ABDEL HAMID ABDEL RAHMAN

Drawing Title

02

QUANTITY

COMMENTS

LOCATION

A1

Original Sheet Size

01

01

01

01

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

SLIDING WINDOW. CONCEALED FRAME. ALLOW FINISHES TO FLUSH Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

SLIDING WINDOW. CONCEALED FRAME. ALLOW FINISHES TO FLUSH Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

SLIDING WINDOW. CONCEALED FRAME. ALLOW FINISHES TO FLUSH Frame= Aluminium with no thermal bridge Glass: Condition: PROPOSED

SEMI-OUTDOOR SEATING AREA GF - 06

SEMI-OUTDOOR SEATING AREA GF - 06

SEMI-OUTDOOR SEATING AREA GF - 06

BREAKFAST ROOM GF-08

BREAKFAST ROOM GF-08

Window Schedule

04 FIXED GLAZING. HIDDEN FRAME. Frame= Aluminium with no thermal bridge Glass: Condition: EXISTING POWDER ROOM GF-13, BATHROOM 3 FF-13, BATHROOM 2 FF-08, BATHROOM 1 FF-08

GLAZING SCHEDULE (SHEET 1 OF 2) Drawn

BS

Checked

HW

Scale Project No.

Date Approved

Approver

1 : 50

Zone Code

Drawing No.

953

A-501

Municipality Dwg No.

Consecutive No.

75

Rev.

Architectural Portfolio | 2017-2022

Megha Pramod

ADDITIONAL PROJECTS

Villa Navitand

Development of concept and material board. Exterior and interior material selection as per project requirements, floor finishing layout and material mood board presentation.

Villa Dr.imran

Redesign of guest bedroom and study and preparation of detail plans and floor finish layout and updating sections and elevations.

Villa JBI

Research was conducted to identify suitable exterior façade and cladding materials for the villa prior to the development of elevations Concept development, elevation preparation, and material selection

Enthrall Mall

Sketches for interior spaces with material specification

EXPO Legacy

Development of service block plan and sections, site planning and road layout

Villa Abdul Gaffer

Development of service block plan and sections, site planning and road layout

76

Villa Avinash

Design Revision: Redesigning the lift location and details, development of construction drawings. Research was done to find the appropriate lift location, type, and specifications

77

Architectural Portfolio | 2017-2022

Megha Pramod

CHAPTER 09 A R T W O R K S 3D Modelling

Bridge Design

78

Conceptual Design

Pavilion Design

79

Architectural Portfolio | 2017-2022

Megha Pramod

ART WORK S

Botanical Illustrations

Botanical Illustrations France Architecture Painting

80

Falling Waters, Frank Llyod Wright

Portrait Sketches

81

Architectural Portfolio | 2017-2022

THANK YOU

82
