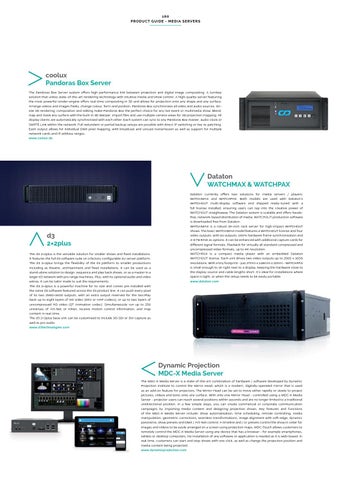

160 P RODUCT GUIDE - MEDIA SERVERS
coolux Pandoras Box Server The Pandoras Box Server system offers high performance link between projection and digital image compositing. A turnkey solution that unites state-of-the-art rendering technology with intuitive media and show control. A high-quality server featuring the most powerful render-engine offers real-time compositing in 3D and allows for projection onto any shape and any surface. Arrange videos and images freely, change colour, form and position. Pandoras Box synchronises all video and audio sources. Onsite 3D rendering, composition and editing make Pandoras Box the perfect choice for any live event or multimedia show. Blend, map and mask any surface with the built-in 3D Warper. Import files and use multiple camera views for 3D projection mapping. All display clients are automatically synchronised with each other. Each system can sync to any Pandoras Box master, audio clock or SMPTE Link within the network. Full redundant or partial backup setups are possible with direct IP switching or live re-patching. Each output allows for individual DMX pixel mapping, with broadcast and unicast transmission as well as support for multiple network cards and IP address ranges. www.coolux.de
Dataton WATCHMAX & WATCHPAX
d3 2×2plus The d3 2×2plus is the versatile solution for smaller shows and fixed installations. It features the full d3 software suite on a factory configurable 2U server platform. The d3 2×2plus brings the flexibility of the d3 platform to smaller productions including as theatre, architainment and fixed installations. It can be used as a stand-alone solution to design, sequence and play back shows, or as a master in a larger d3 network with pro range machines. Plus, with its optional audio and video extras, it can be tailor made to suit the requirements. The d3 2×2plus is a powerful machine for its size and comes pre-installed with the same d3 software featured across the d3 product line. It can push every pixel of its two 2560×1600 outputs, with an extra output reserved for the GUI.Play back up to eight layers of HD video (DXV or HAP codecs), or up to two layers of uncompressed HD video (QT Animation codec). Simultaneously run up to 256 universes of Art-Net or KiNet, receive motion control information, and map content in real-time. The d3 2×2plus base unit can be customised to include 3G-SDI or DVI capture as well as pro audio. www.d3technologies.com
Dataton currently offers two solutions for media servers / players: WATCHMAX and WATCHPAX. Both models are used with Dataton’s WATCHOUT multi-display software and shipped ready-tuned with a full license installed, ensuring users can tap into the creative power of WATCHOUT straightaway. The Dataton system is scalable and offers hasslefree, network-based distribution of media. WATCHOUT production software is downloaded free from Dataton. WATCHMAX is a robust 19-inch rack server for high-impact WATCHOUT shows. The basic WATCHMAX model features a WATCHOUT license and four video outputs, with six outputs, 100% hardware frame synchronisation and 2-8 TB RAID as options. It can be enhanced with additional capture cards for different signal formats. Playback for virtually all standard compressed and uncompressed video formats, up to 4K resolution. WATCHPAX is a compact media player with an embedded Dataton WATCHOUT license. Each unit drives two video outputs up to 2560 x 1600 resolutions. With a tiny footprint - just 27mm x 148mm x 22mm - WATCHPAX is small enough to sit right next to a display, keeping the hardware close to the display source and cable lengths short. It’s ideal for installations where space is tight, or when the setup needs to be easily portable. www.dataton.com
Dynamic Projection MDC-X Media Server The MDC-X Media Server is a state-of-the-art combination of hardware / software developed by Dynamic Projection Institute to control the Mirror Head, which is a modern, digitally-operated mirror that is used as an add-on feature for projectors. The Mirror Head can be set to move either rapidly or slowly to project pictures, videos and texts onto any surface. With only one Mirror Head - controlled using a MDC-X Media Server - projector users can reach several positions within seconds and are no longer limited to a traditional unidirectional position. In a few simple steps, you can create commercial or corporate communication campaigns by importing media content and designing projection shows. Key features and functions of the MDC-X Media Server include: show automatisation, time scheduling, remote controlling, media manipulation, geometric corrections, seamless transformations, image alignment with soft-edge, dynamic panorama, show presets and DMX / Art-Net control. A timeline and / or presets control the show in order for images and videos to be easily arranged on a screen using projection maps. MDC-Touch allows customers to remotely control the MDC-X Media Server using any device that has a browser - for example smartphones, tablets or desktop computers. No installation of any software or application is needed as it is web-based. In real time, customers can start and stop shows with one click, as well as change the projection position and media content being projected. www.dynamicprojection.com
