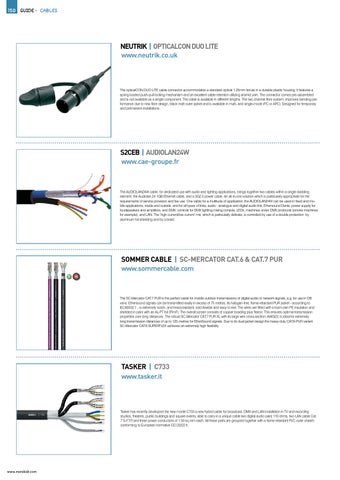

150 GUIDE - CAbles
NEUTRIK | OPTICALCON DUO LITE www.neutrik.co.uk
The opticalCON DUO LITE cable connector accommodates a standard optical 1.25mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths. The two channel fibre system, improves bending performance due to new fibre design, black matt outer jacket and is available in multi- and single-mode (PC or APC). Designed for temporary and permanent installations.
S2CEB | AUDIOLAN24W www.cae-groupe.fr
The AUDIOLAN24W cable, for dedicated use with audio and lighting applications, brings together two cables within a single cladding element: the Audiolan 24 1GB Ethernet cable, and a 3G2.5 power cable. An all-in-one solution which is particularly appropriate for the requirements of service provision and live use. One cable for a multitude of application, the AUDIOLAN24W can be used in fixed and mobile applications, inside and outside, and for all types of links; audio - analogue and digital audio link, Ethersound Dante, power supply for loudspeakers and amplifiers, and DMX: controls for DMX lighting mixing console, LEDs, machines under DMX protocols (smoke machines for example), and LAN. The ‘high current/low current’ mix, which is particularly delicate, is controlled by use of a double protection: by aluminum foil shielding and by a braid.
SOMMER CABLE | SC-MERCATOR CAT.6 & CAT.7 PUR www.sommercable.com
The SC-Mercator CAT.7 PUR is the perfect cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in OB vans. Ethersound signals can be transmitted easily in excess of 75 metres. Its halogen-free, flame-retardant PUR jacket - according to IEC60332.1 - is extremely notch- and tread-resistant, cold-flexible and easy to reel. The wires are fitted with a foam-skin PE insulation and shielded in pairs with an AL-PT foil (PimF). The overall screen consists of copper braiding plus fleece. This ensures optimal transmission properties over long distances. The robust SC-Mercator CAT.7 PUR XL with its large wire cross-section, AWG23, is ideal for extremely long transmission distances of up to 125-metres for EtherSound signals. Due to its dual jacket design the heavy-duty CAT.6-PUR variant SC-Mercator CAT.6 SUPERFLEX achieves an extremely high flexibility.
TASKER | C733 www.tasker.it
Tasker has recently developed the new model C733 a new hybrid cable for broadcast, DMX and LAN installation in TV and recording studios, theatres, public buildings and square events, able to carry in a unique cable two digital audio pairs 110 ohms, two LAN cable Cat. 7 S-F.T.P, and three power conductors of 1.50 sq mm each. All these parts are grouped together with a flame retardant PVC outer sheath conforming to European normative CEI 20/22 II.
