INSIGHT MALL: MIXED USE BUILDING
Tall high rise building with office space, retail space and open plazas.`
SCHOOL OF PLANNING & ARCHITECTURE
The school is a specialized university, only one of its kind to provide training in various levels.
ISLE: RESORT & SPA Resort & Spa Planning with variety of dwelling types and amenities
THE BOULEVARD: APARTMENT DESIGN
Extravagantly designed tower with grand entrance, airconditioned 3BHK duplexes and 2BHK apartments.
URBAN DESIGN GEORGE TOWN
Revitalization of older neighborhood to enhance lifestyle and activity patterns of inhabitants

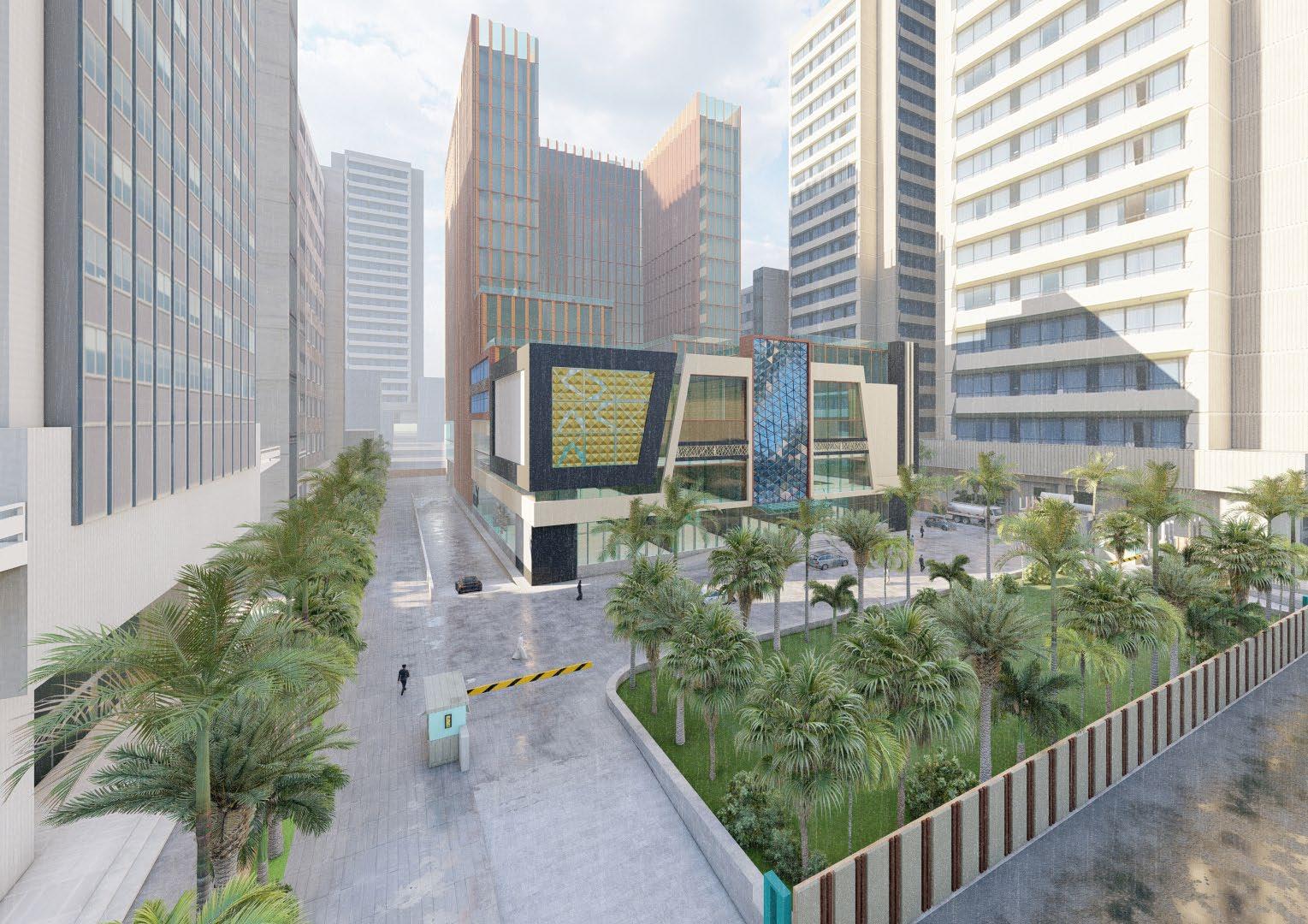

INSIGHT MALL: MIXED USE BUILDING
AT TAMIL NADU

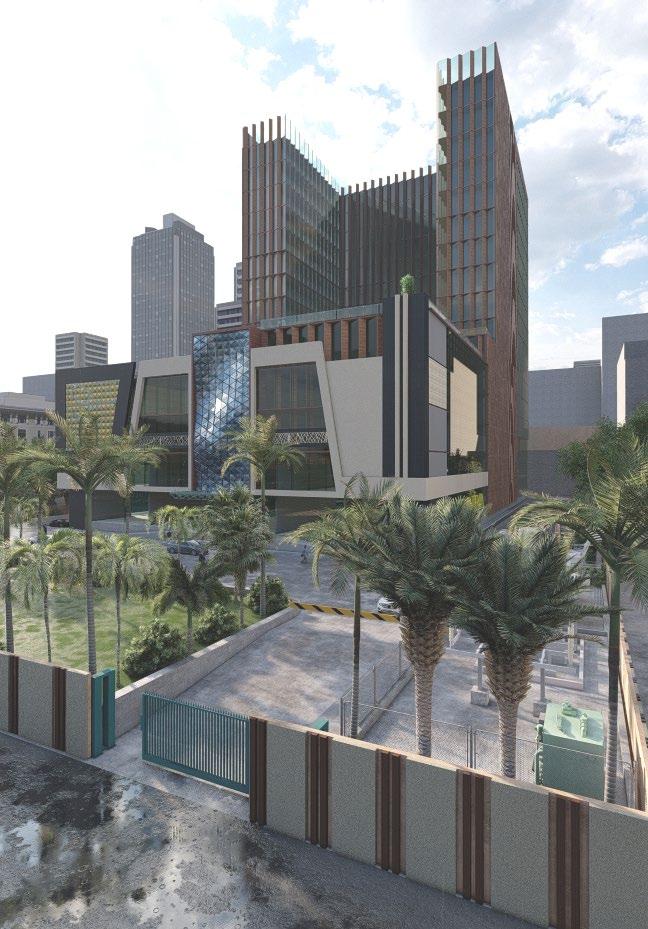

INSIGHT MALL: MIXED USE BUILDING
SITE CONTEXT & LOCATION:
A Mixed-Use High Rise Tower is proposed to be developed in a site of 3 Acres on OMR near Sholinganallur. Considering the requirements in the area it is proposed to have a mixed use of Office space along with shopping in it.
The idea of the conventional office is completely stripped of its formal essentials, and reinvented to be a dynamic, versatile and lively space fostering innovation and creativity in users.
While serving its purpose of being a work environment, the design needs to be evocative enough to radicalize how office buildings are looked at; and serve as a model that critically questions the present day functioning of the mixed-use office ‘workspace.’
SITE PLAN

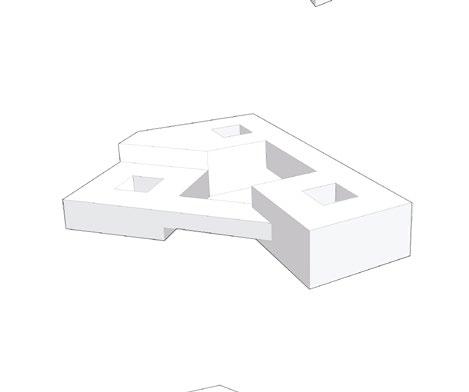

MASSING EVOLUTION:

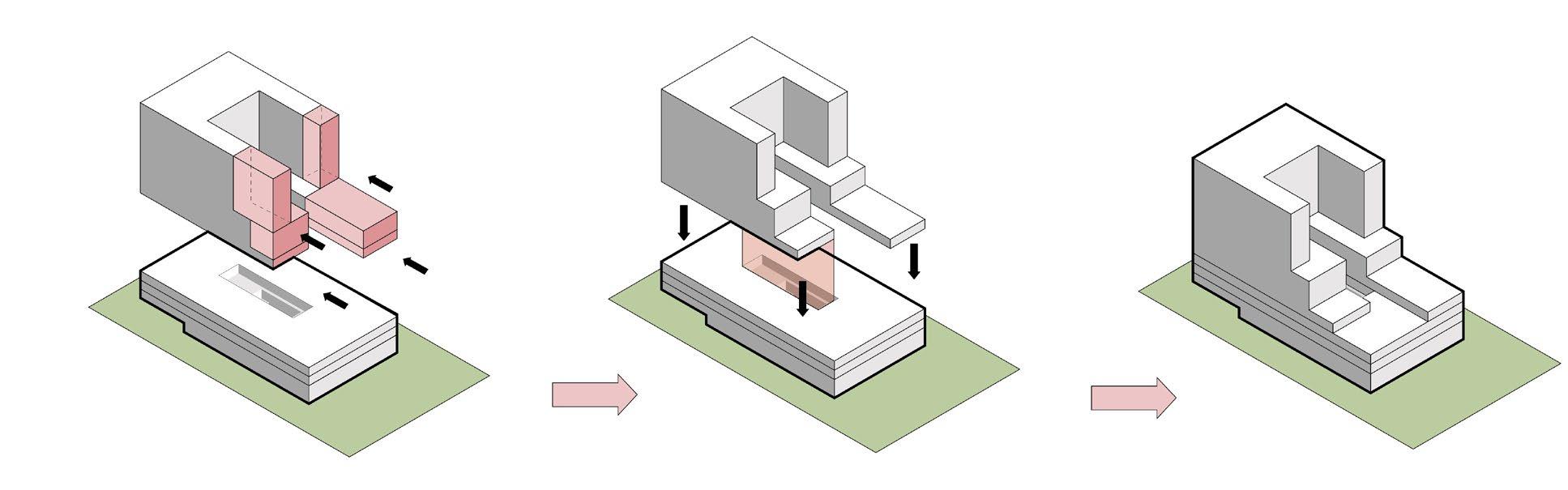

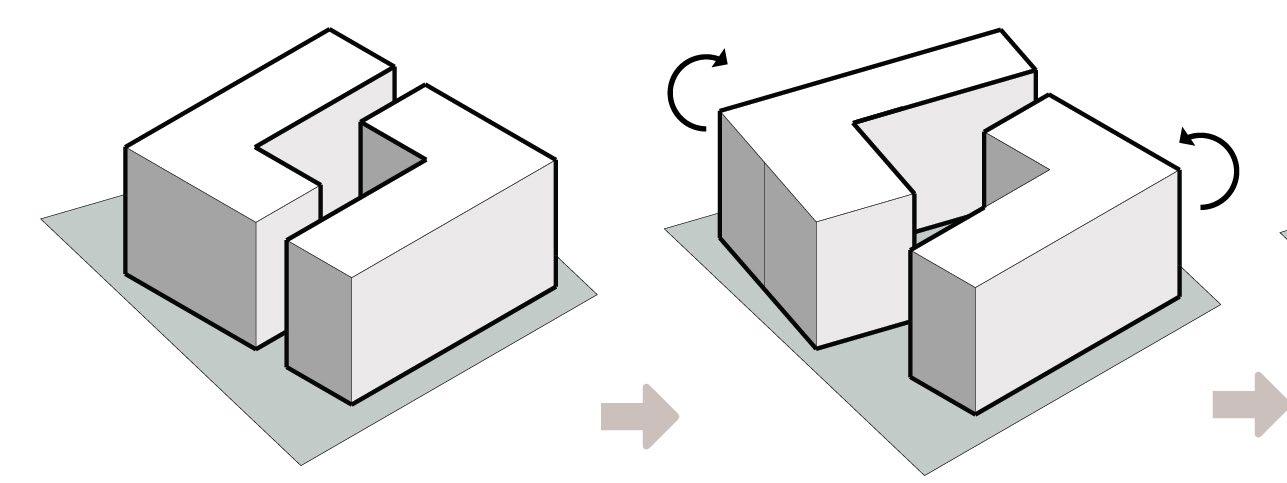

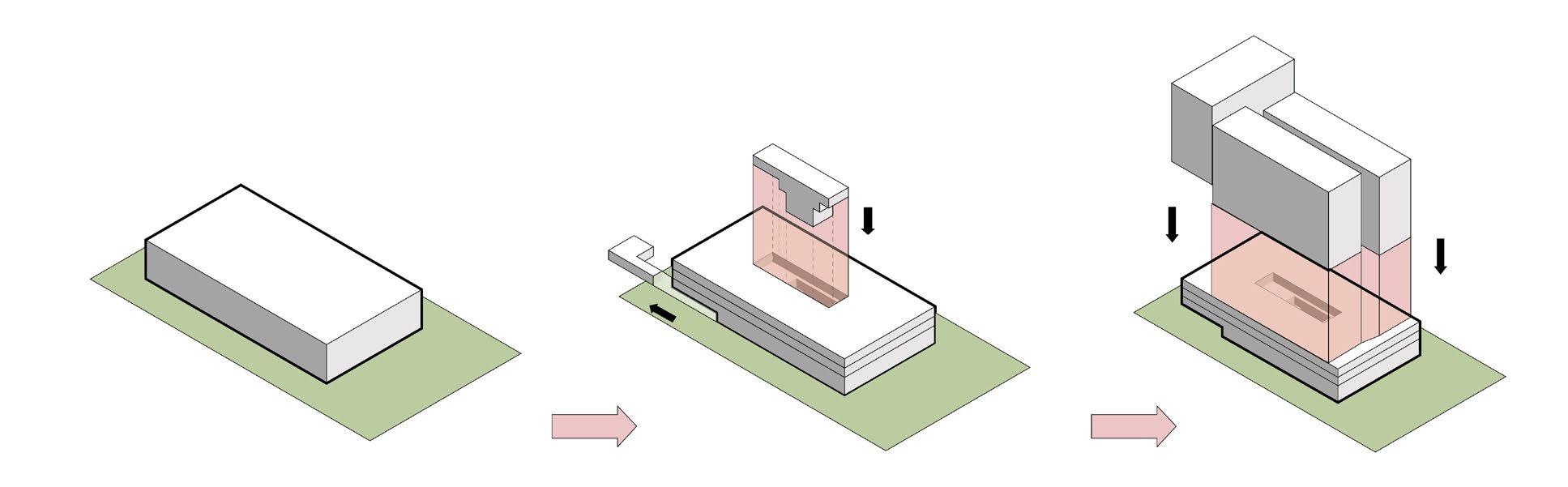

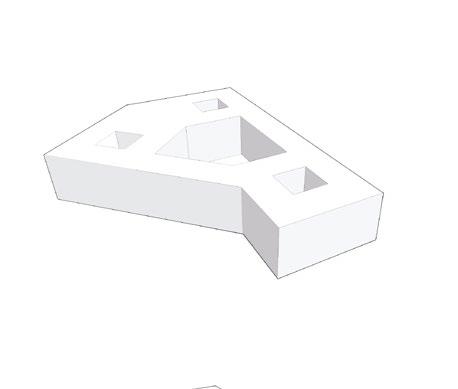

The concept is to eliminate closed atrium by creating an open space at the center of building. The entire concept is based on integrating central plaza to form an informal activity zone giving a visual as well as physical connection between the blocks.
Basic rectangle form to avoid any type of Anti space and increased usable space.
Form is carved from center to form a plaza and from the rear corner to create a porched entry.
Addition of blocks according to the required space for office use
Adding and subtracting the form according to requirement area to evolve the true from.
Carving out the final form achieved from adding and subtracting.
The final form achieved through requirement area.
INSIGHT MALL: MIXED USE BUILDING
USES & DESIGN PROGRAM

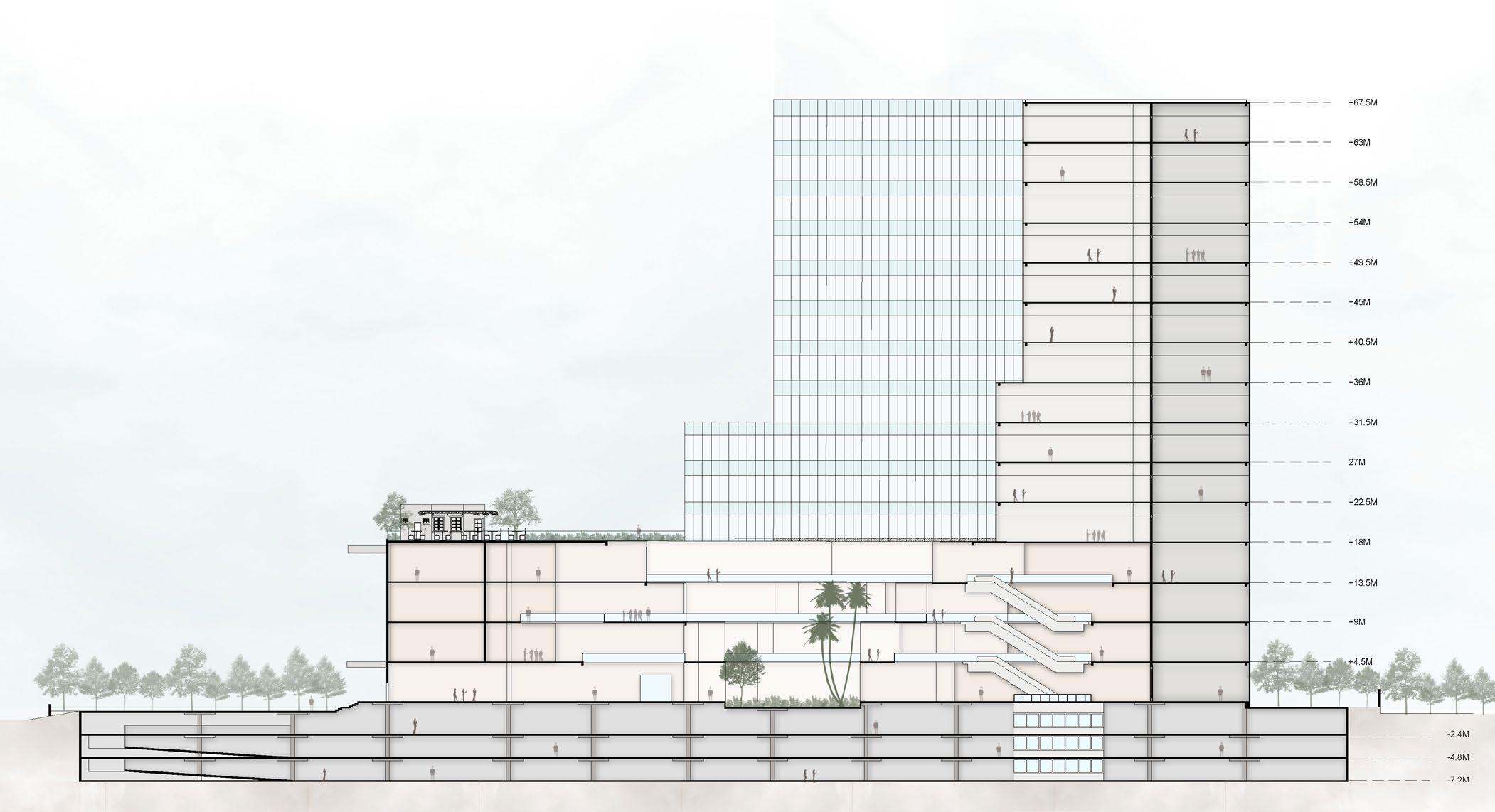

The blocks are separated based on their function, the first three floors consist of retail shopping complex with various outlets and many kiosks. The fourth-floor consist of food court and Back office. The tower consists of multiple coworking space for various purposes.

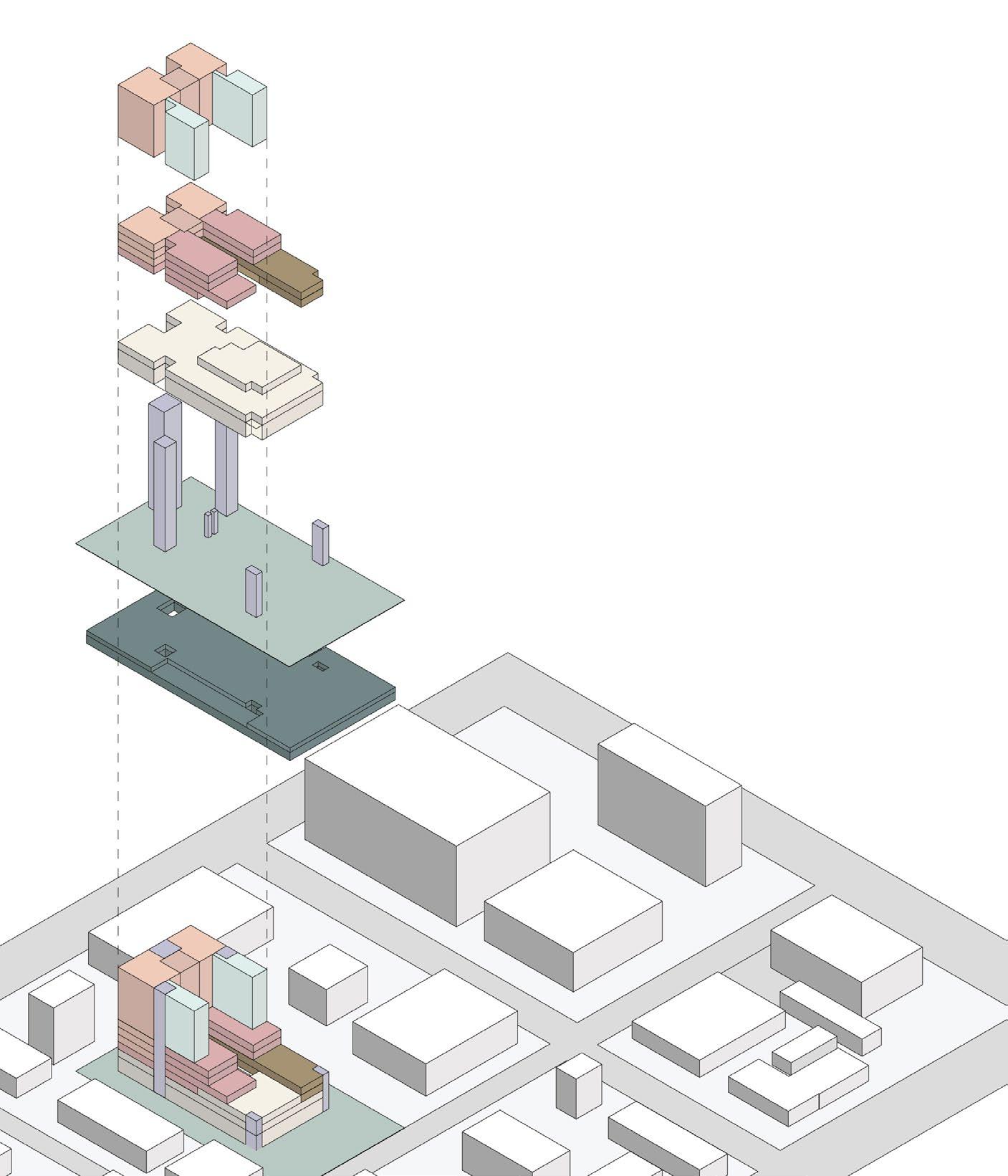

EXPLODED AXONOMETRIC
SMALL OFFICES
MEDIUM OFFICES
SERVICES
LARGE OFFICES

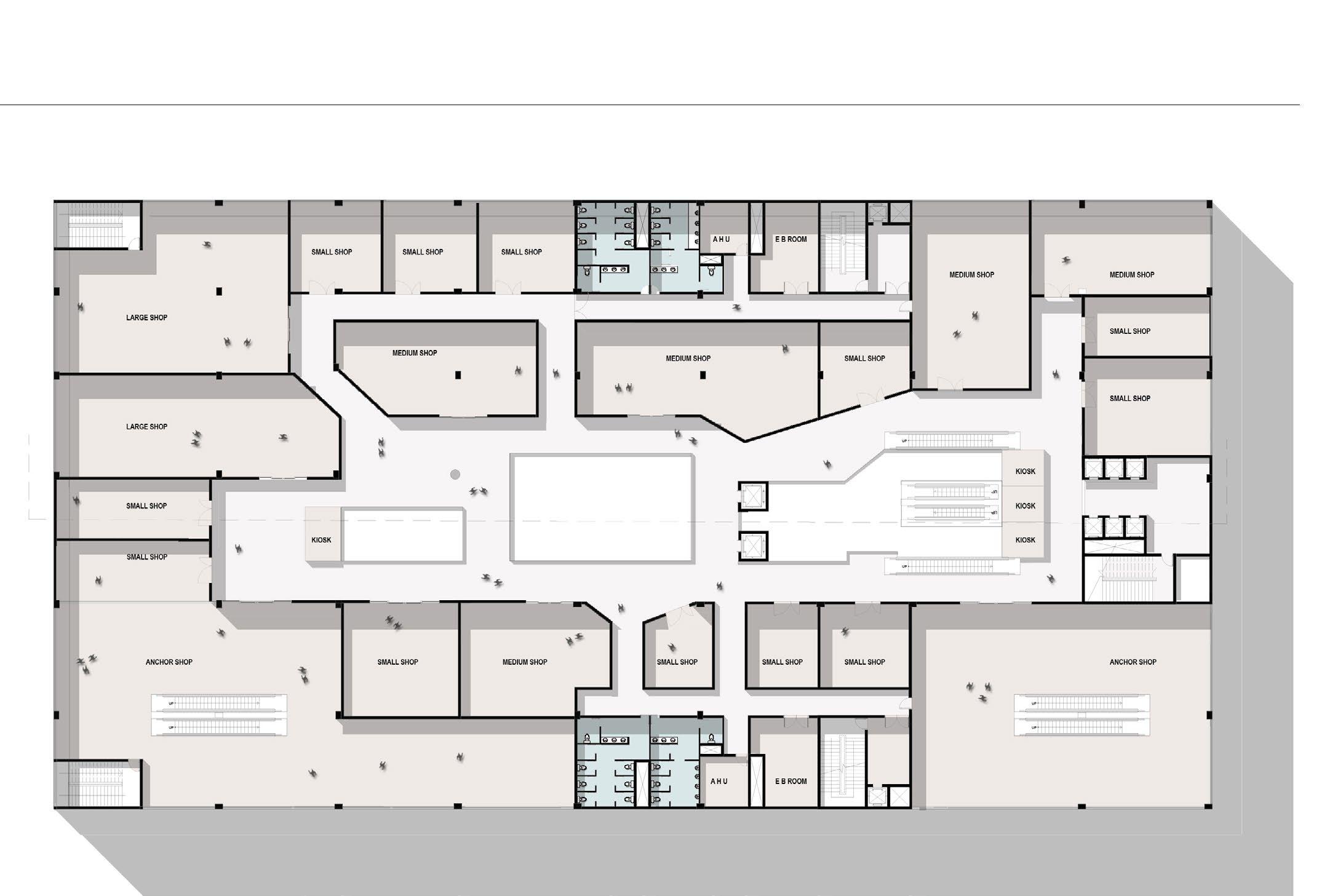

RETAIL SHOPS
VERTICAL CIRCULATION
INSIGHT MALL: MIXED USE BUILDING
07 TH FLOOR
This plan consists of small office spaces with separate conference hall and outdoor terrace interaction spaces.
06 TH FLOOR

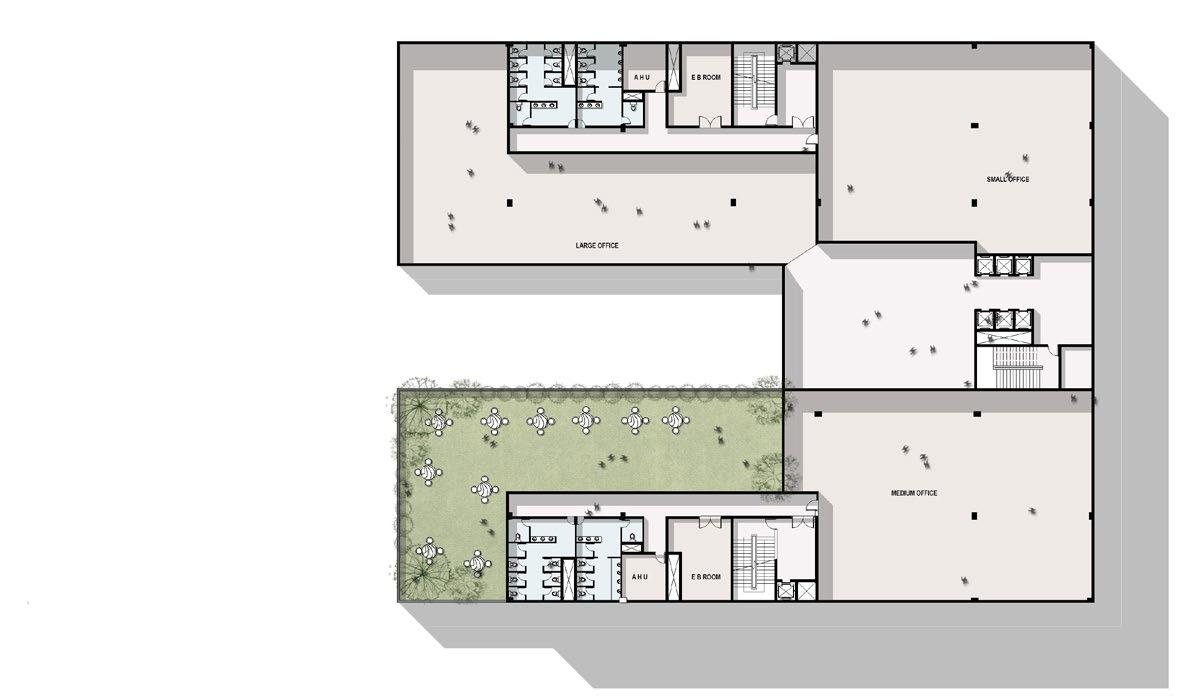

This plan consists of small and medium office spaces with outdoor interaction on the both the ends of the tower.

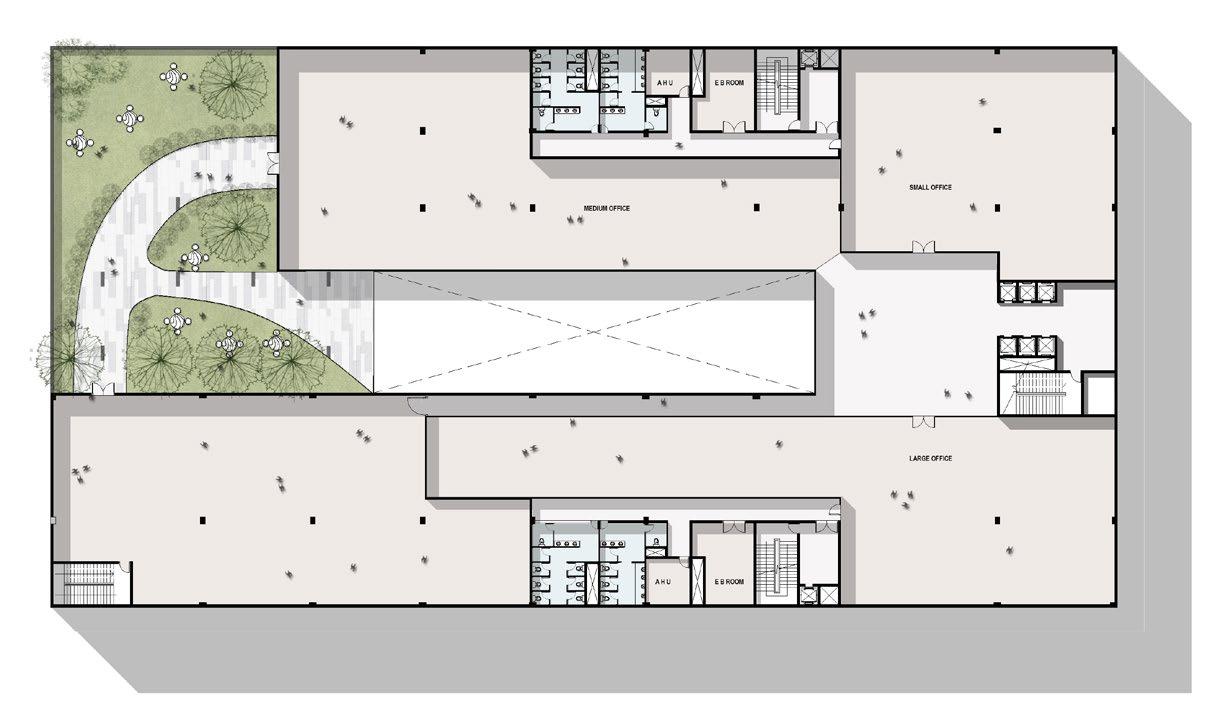

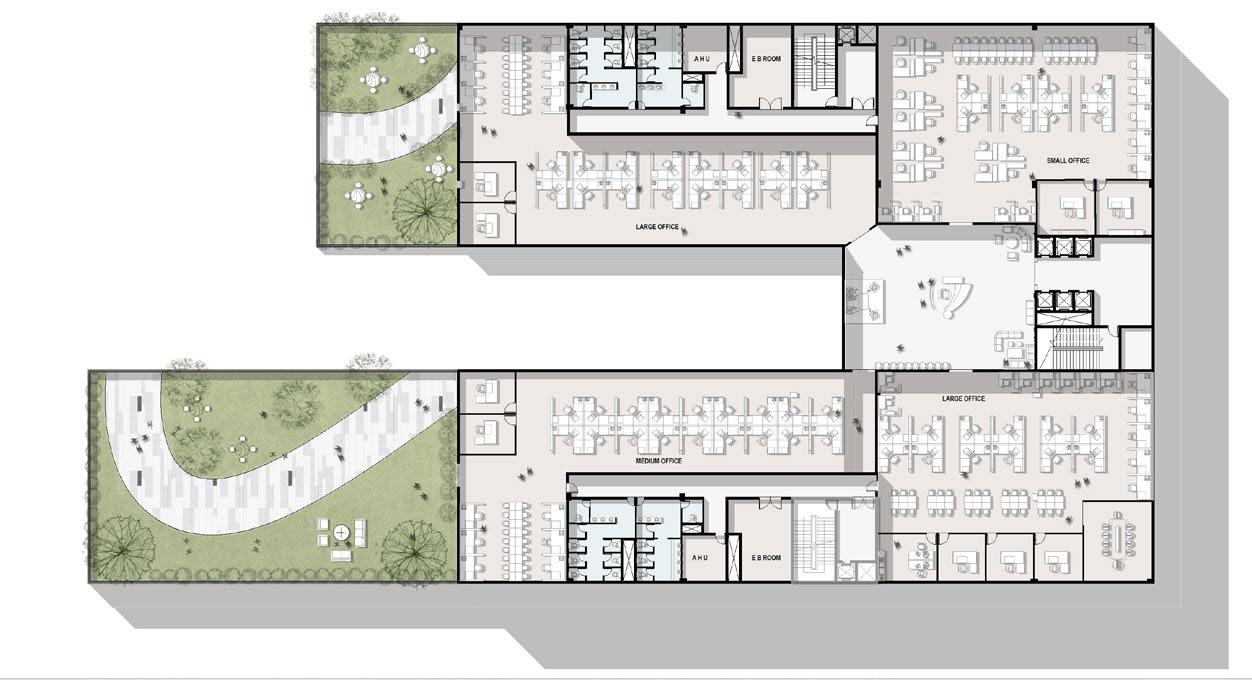

This plan consists of large office space and back-offices control rooms with open plazas.
SCHOOL OF PLANNING & ARCHITECTURE
AT TAMIL NADU
SCHOOL OF PLANNING & ARCHITECTURE 02
SITE CONTEXT & LOCATION:
Site Area: 28 Acres
Site Location: Madhavaram: Chennai - Srikakulam Highway Opposite St Annes college

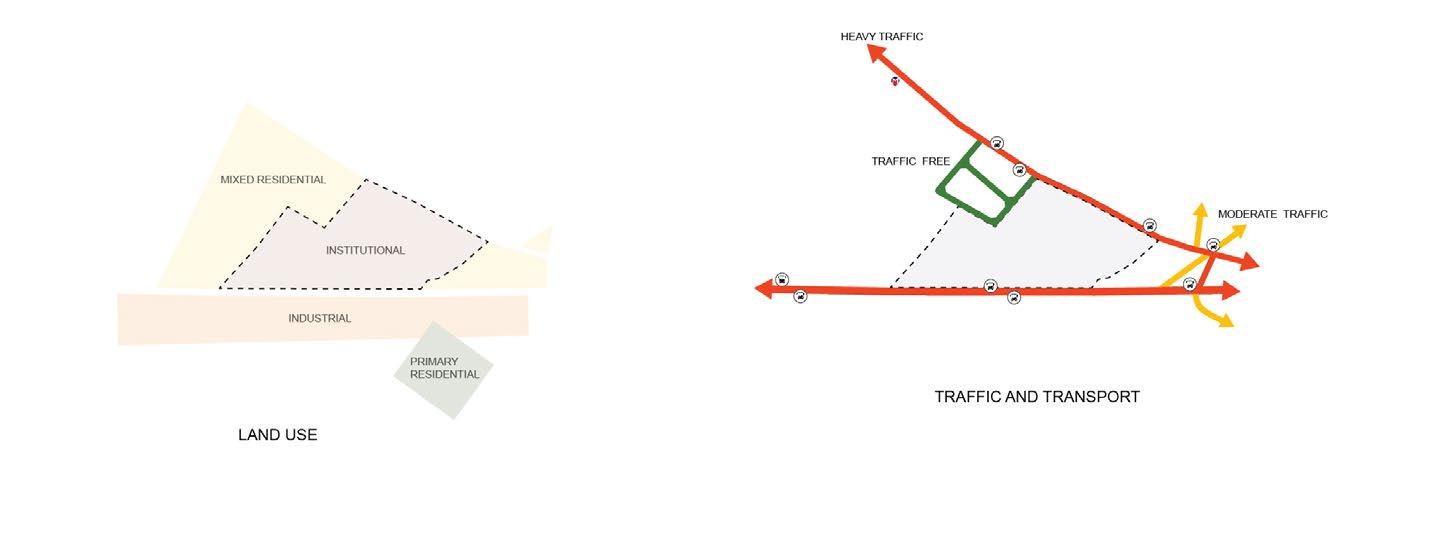

SITE ANALYSIS:
The proposed school of Architecture and Planning is desirous of meeting its academic mission reflecting in a manner that is socially, economically and environmentally sustainable. Concept of sustainability, green building and ecofriendly and energy conscious component are to be laid as main principle while deriving the design. By analysing the site, I have come to know the noise zone area and quite zone to place the building for a noise free zone.

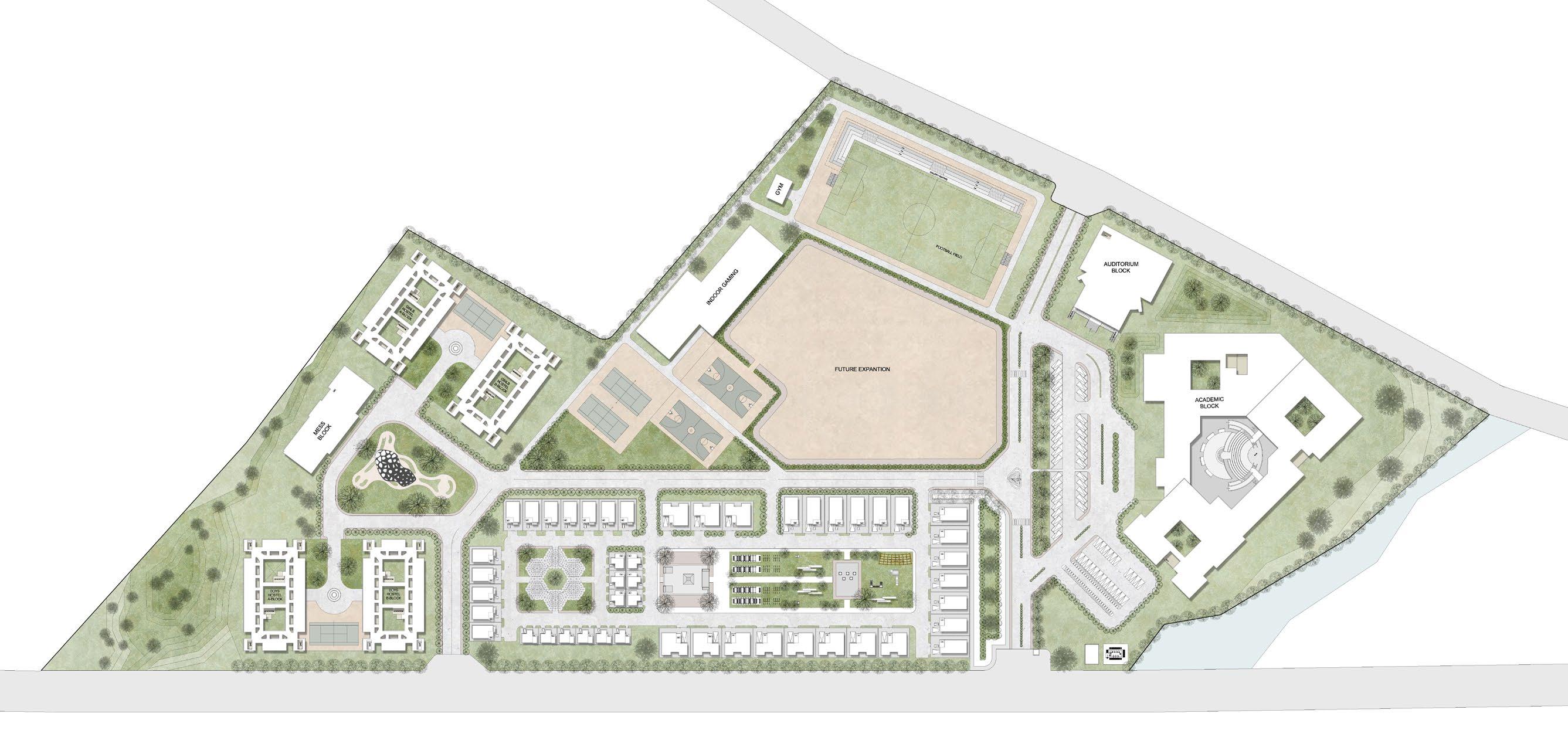

SITE CONTEXT & LOCATION:
The site is located on a prime location national highway (NH16) that runs from Chennai, along the east coast to Kolkata.
Initial stages of design represented as conceptual massing images of the academic block.
HOUSING
HOSTEL
HOSTEL

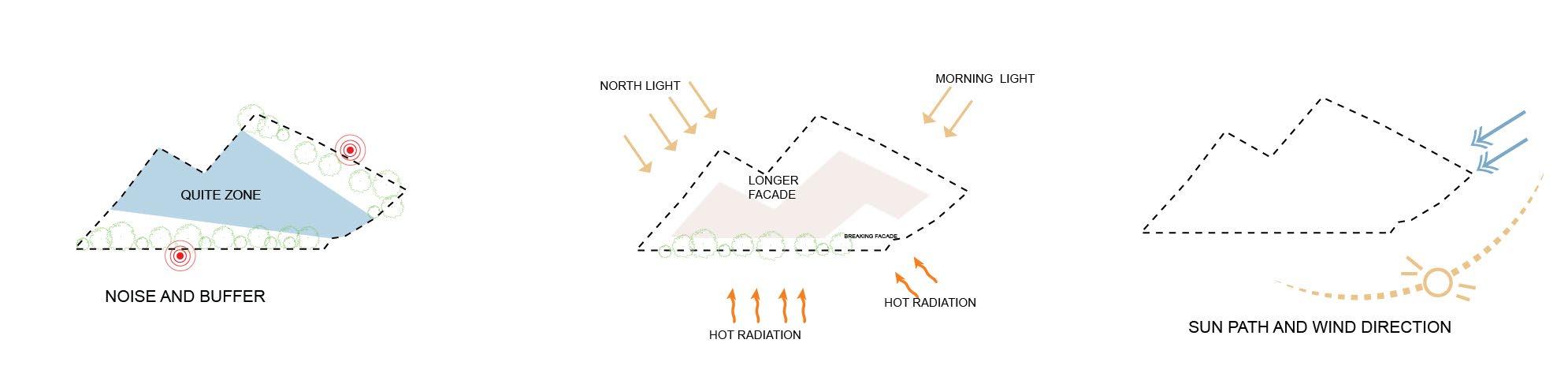

By knowing the direction of the sun, I have placed the longer side of the façade towards north and shorter side towards south
With the help of sun path direction, the orientation of the building has been done
SCHOOL OF PLANNING & ARCHITECTURE
ACADEMIC BLOCK MASSING STRATEGY:

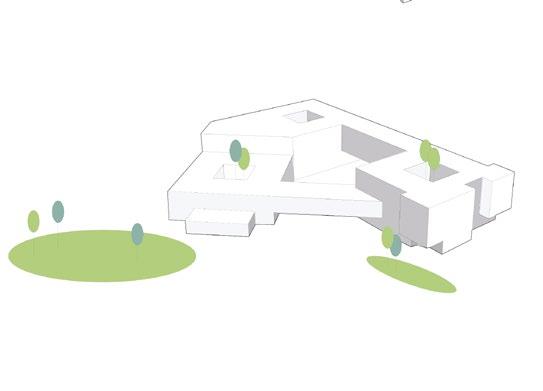

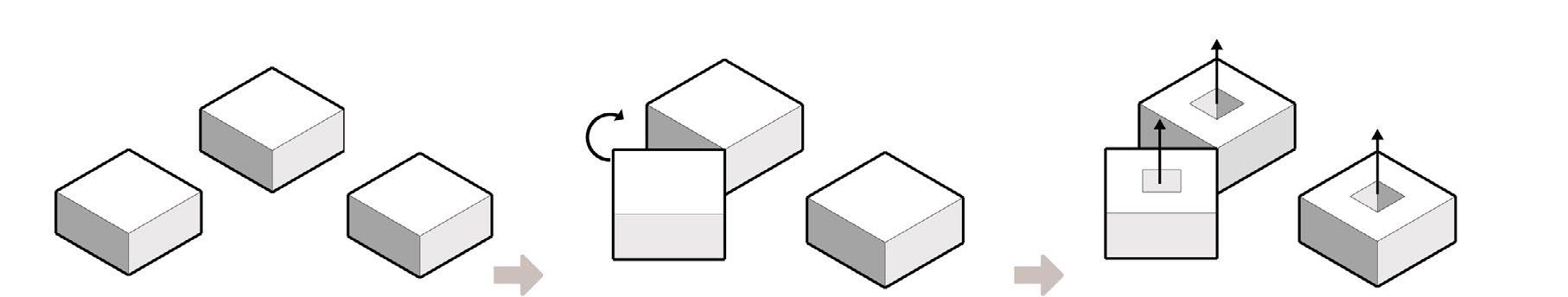

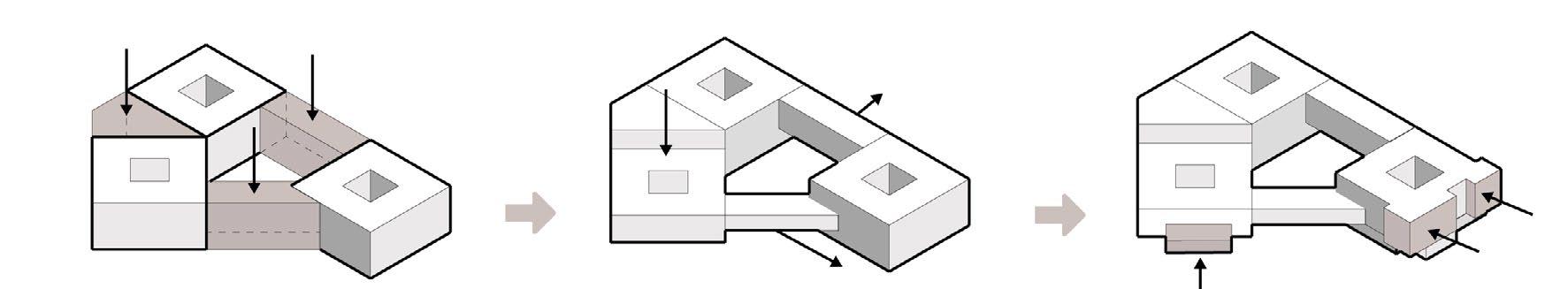

Initial stages of designs are started with basic cubes and cuboids with the concept of addition & subtractive form.

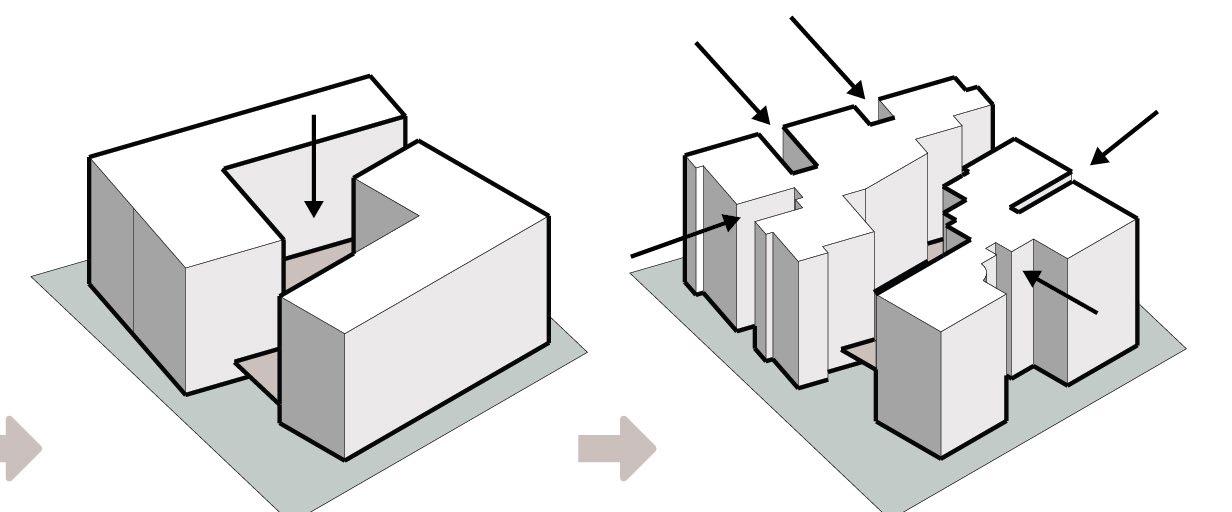

The longer side of the building is oriented towards the north & south direction to avoid harsh sunlight from east & west.
The opening created in the centre channelizes the wind to and fro into the building.
Cut openings or open courtyards provided in each block to increase ventilation and bring in more sunlight into the building.
Each block is connected to each other for easy access to the other block without getting out of the building.

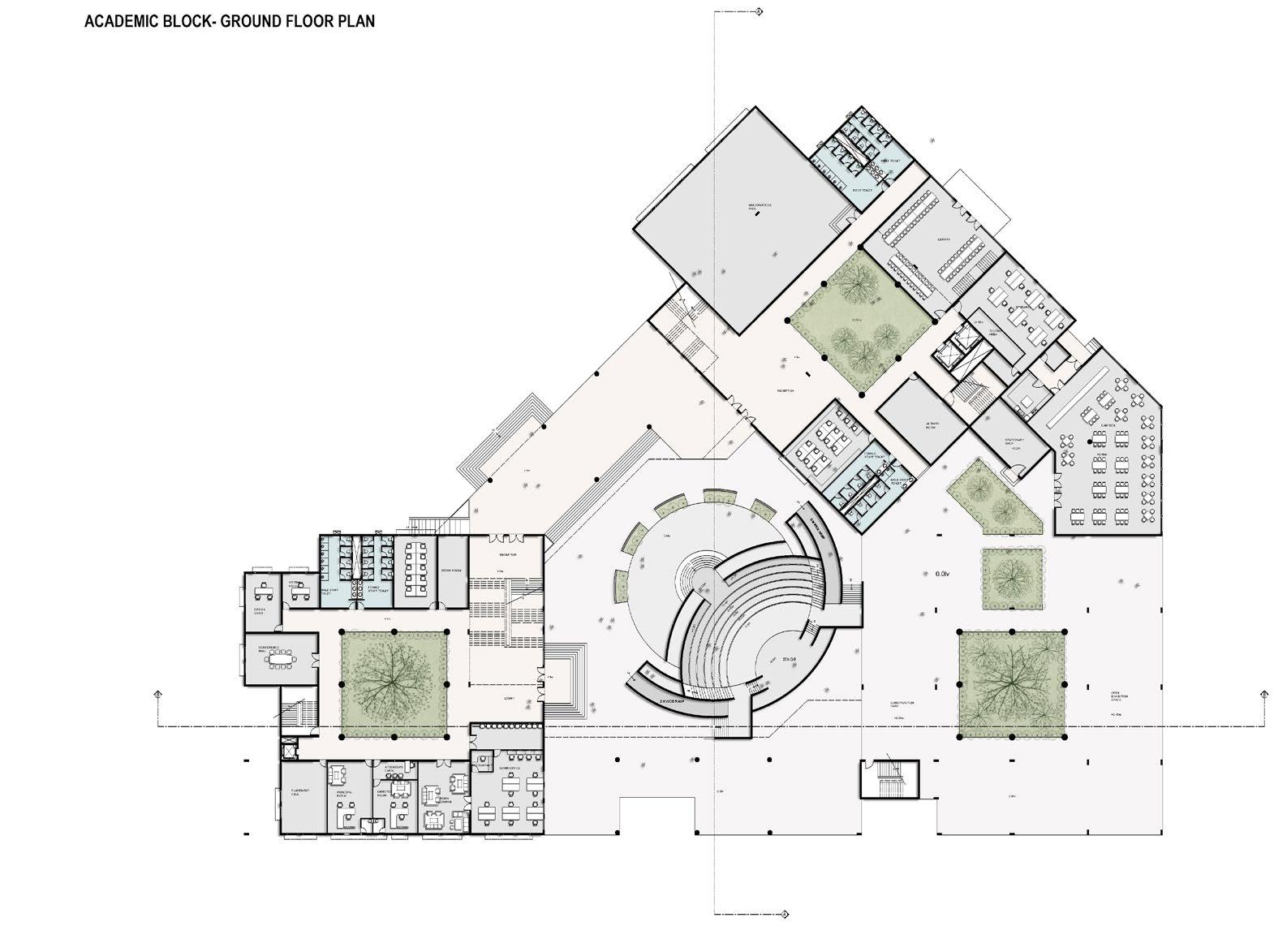

Final form achieved through the concept of addition and subtraction of forms. GROUND FLOOR PLAN

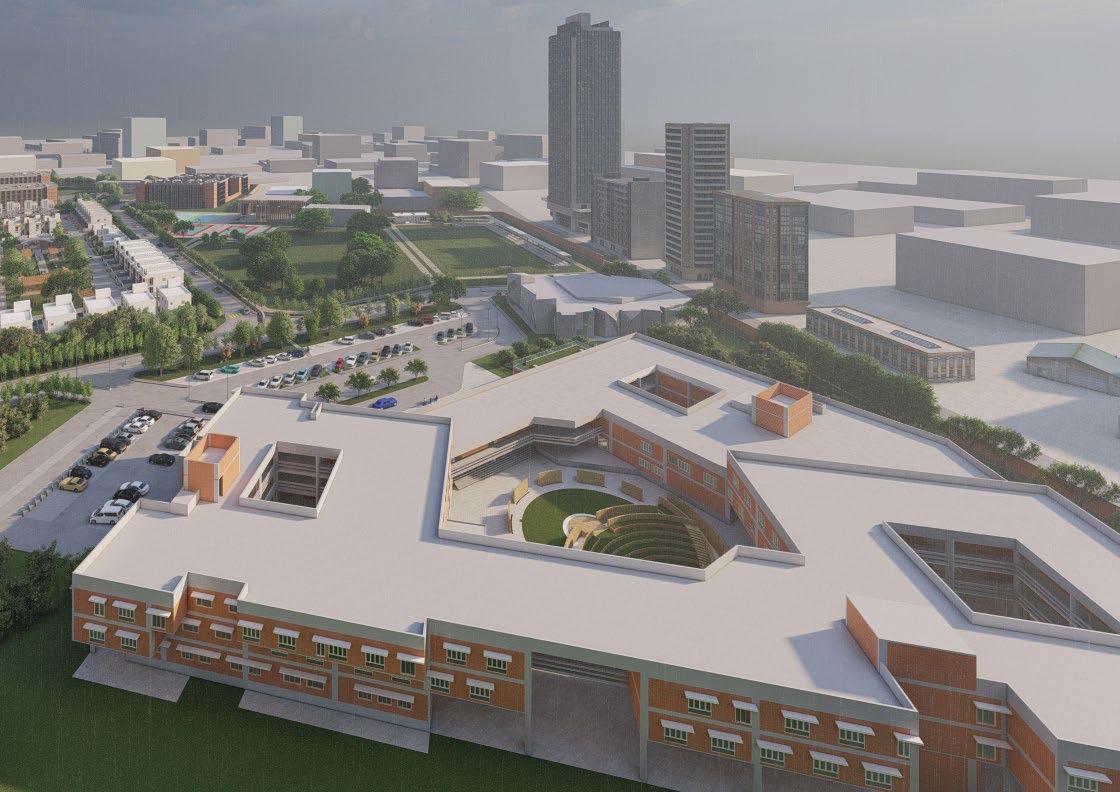

Campus and its buildings should reflect its uniqueness through form and patterns maintaining balance between public and private spaces, encouraging visual connectivity, hierarchy of spaces and responding to micro climate
An attempt to create a suitable learning environment for a creative institution has to be the central consideration in this proposal of the campus.

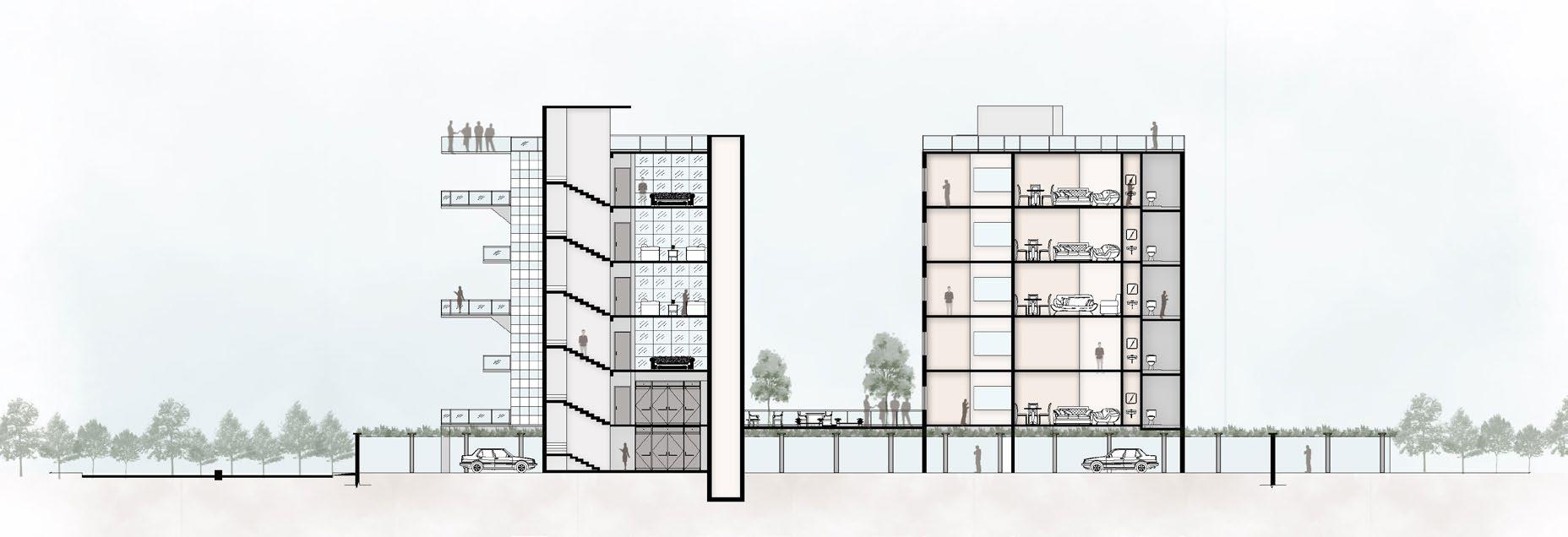

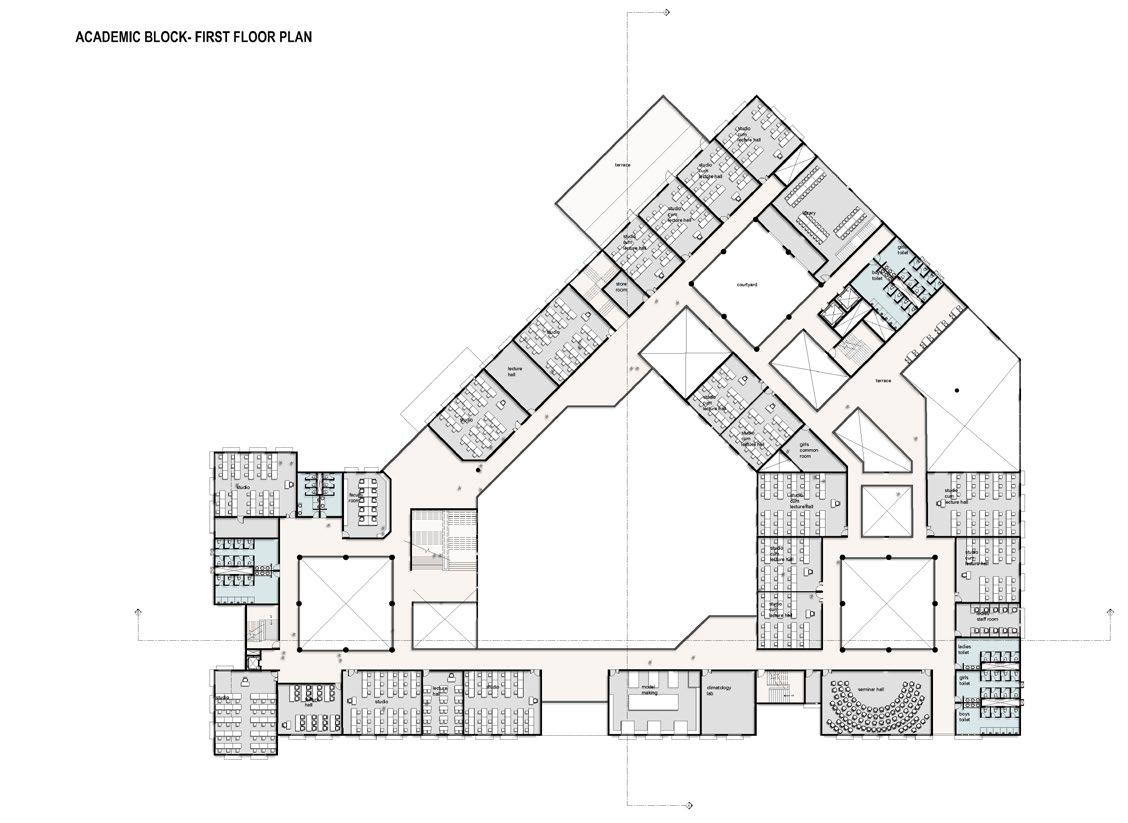

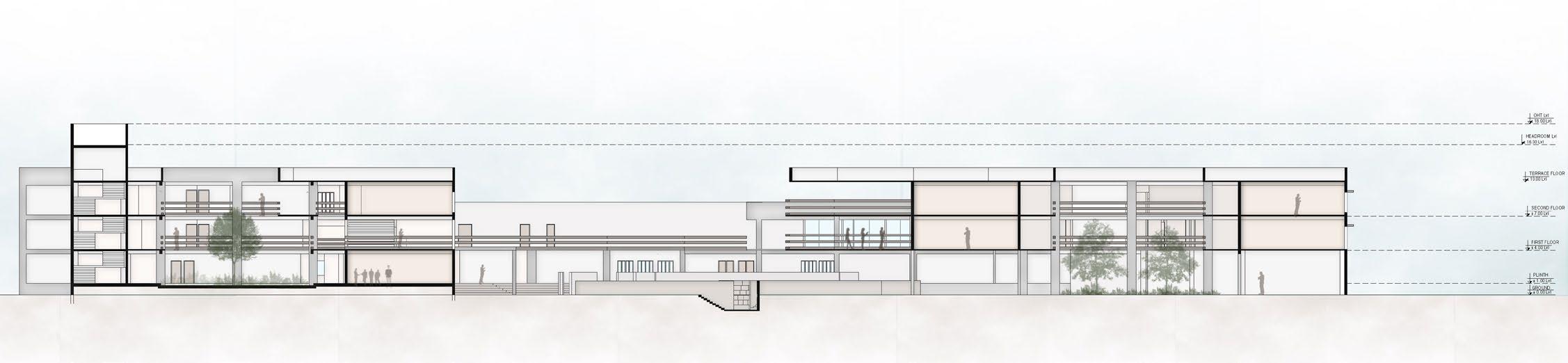

SECTION BB’
SCHOOL OF PLANNING & ARCHITECTURE

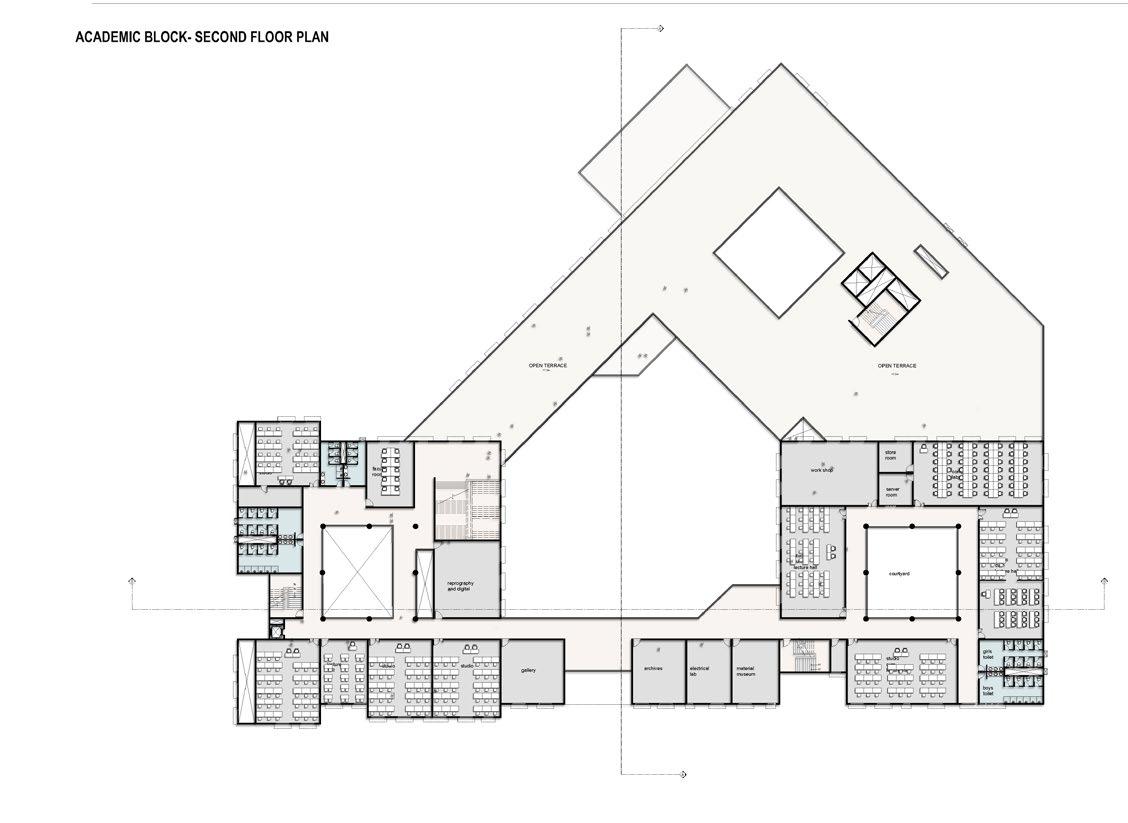

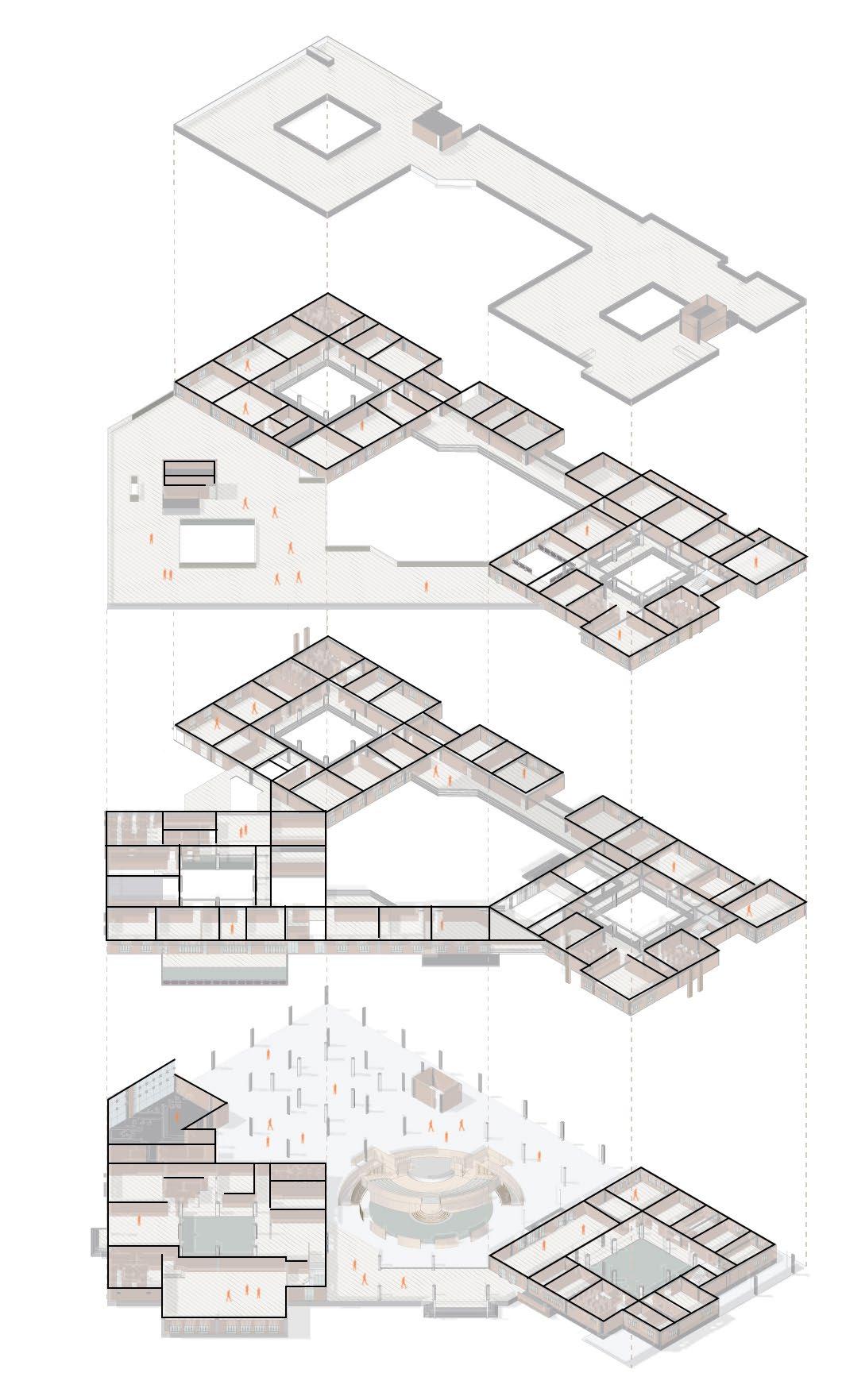

EXPLODED AXONOMETRIC OF ACADEMIC PLAN
Studios, terrace, interaction space, print shop, xerography section.
Studios, labs, faculty rooms, lecture halls etc.
Admin spaces, principal office, director’s office, conference room, visiting faculty and design chair.

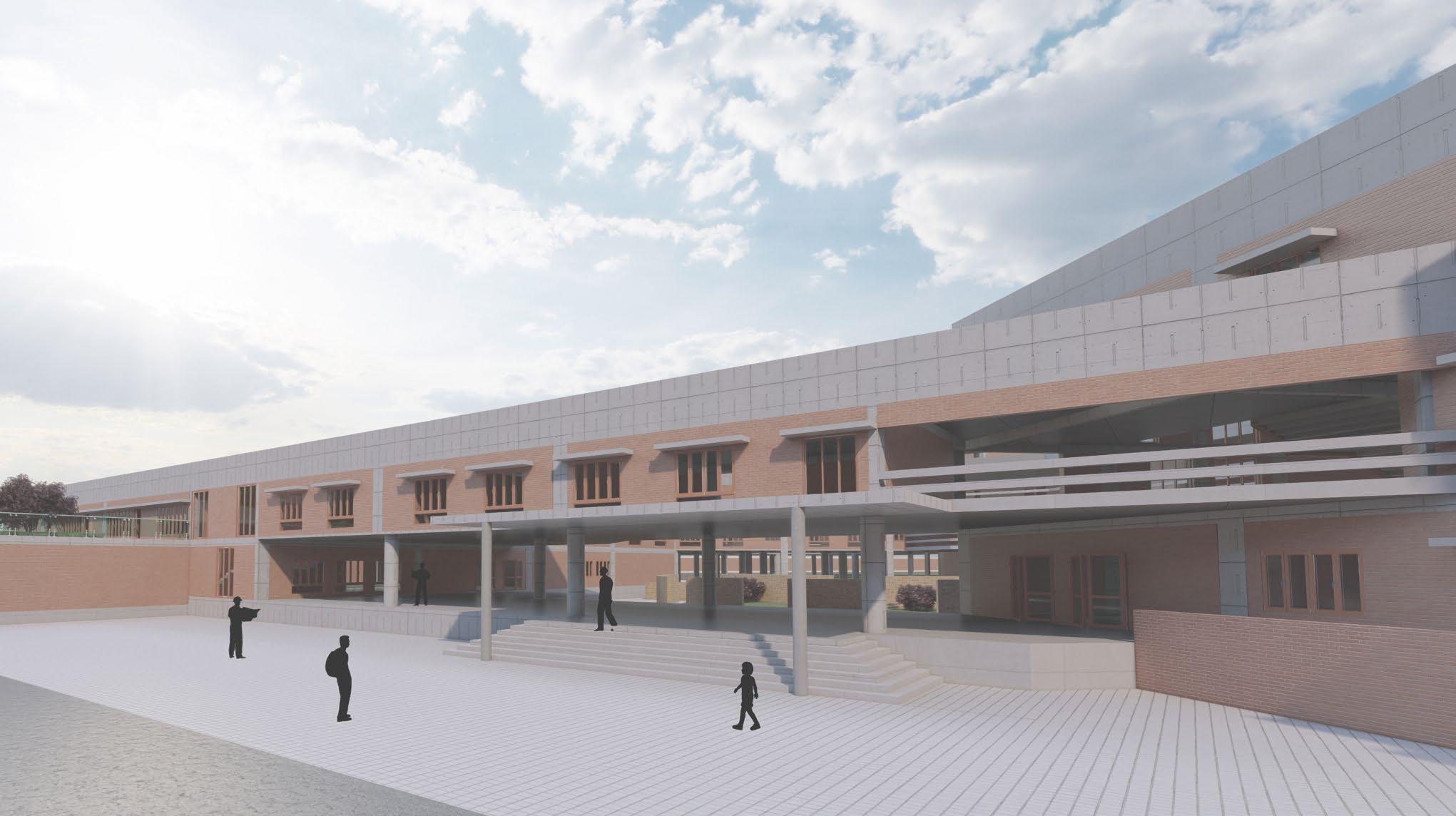

ACADEMIC BLOCK ENTRANCE

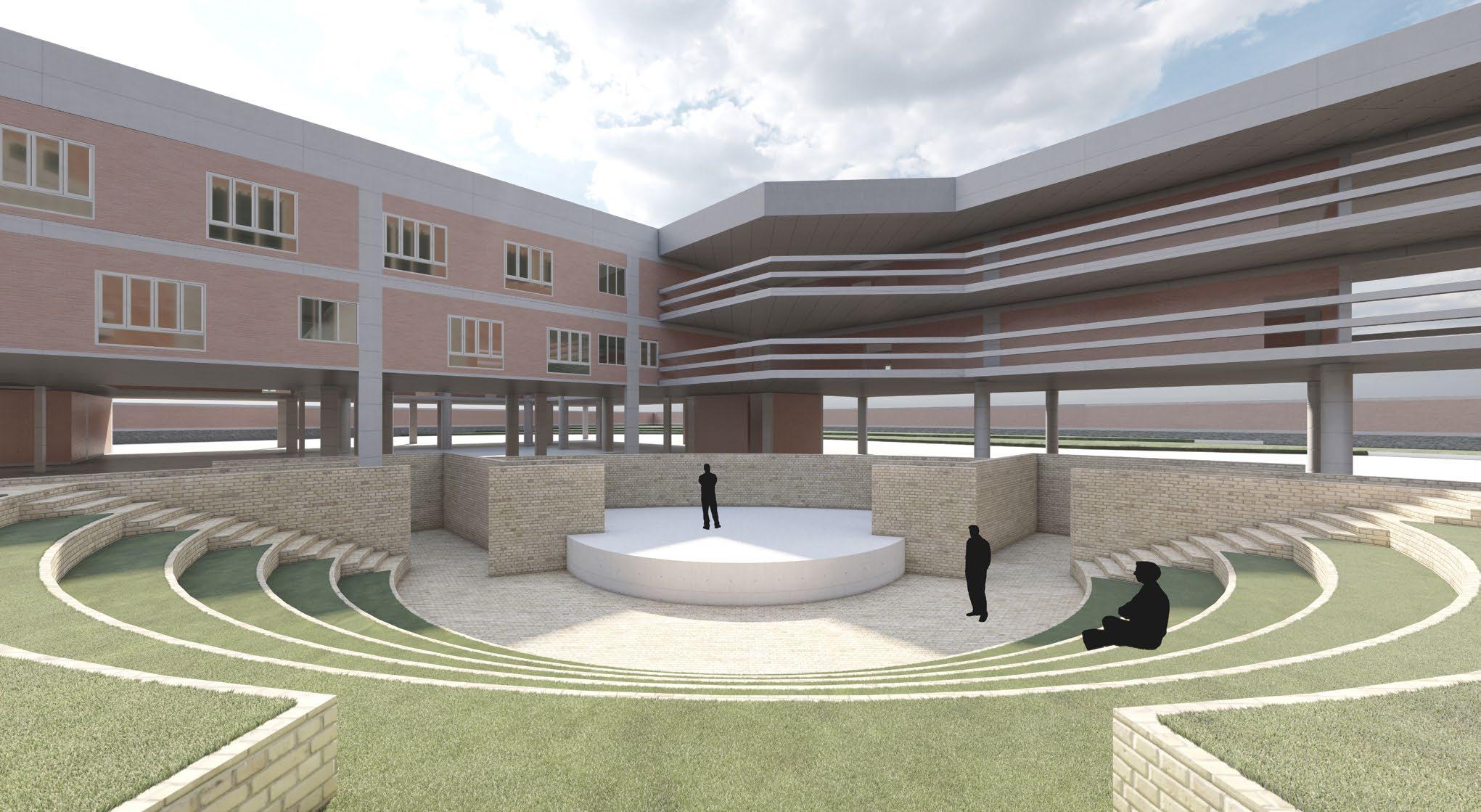

OPEN AIR THEATRE
THE ISLE: RESORT & SPA
AT KOCHI, KERALA
THE ISLE: RESORT & SPA

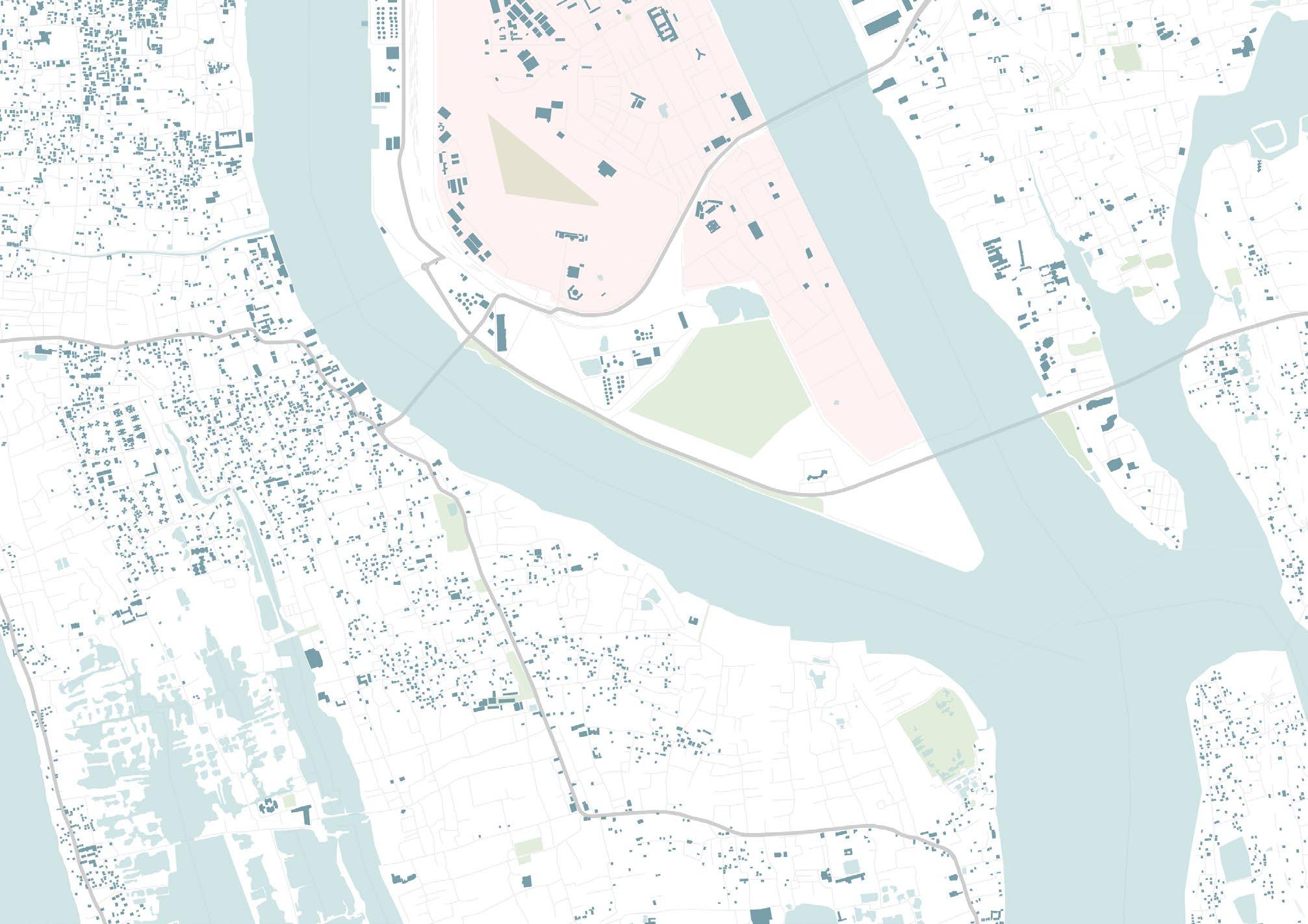

SITE CONTEXT & LOCATION:
The site is located in a prime location surrounded by 3 sides water which has the apt attributes of building a resort. The site itself complements the surroundings of the resort as a natural feature left to be untouched.
The site is located at the Vembanad Lake which is popular for hosting many water sport events every year. The main concept is to use the site as an advantage of its view points and its lush green landscape.
SWOT ANALYSIS
WSCOCHIN NAVY BASE
• Easy access to site
• Located at the heart of the city
• Potential growth in future in terms of development of the site surroundings.
• Traffic jam at the junctions
• One way roads
• Noise pollution
OWELLINGDON ISLAND
• Views
• Improve surrounding quality
• Connectivity increase
T• Natural calamities
• Design breakdown
USES & DESIGN PROGRAM
PROPOSED SITE
A self-contained destination that provides all of the travel needs in one location .Food, drinks, entertainment, shopping, and other activities all without needing to leave the property.
The resort consists of 5 different types of dwelling units, 2 types restaurants, activity center, botanical park, mini golf field, ayurvedic center and water sport facilities etc.
03 THE ISLE: RESORT & SPA

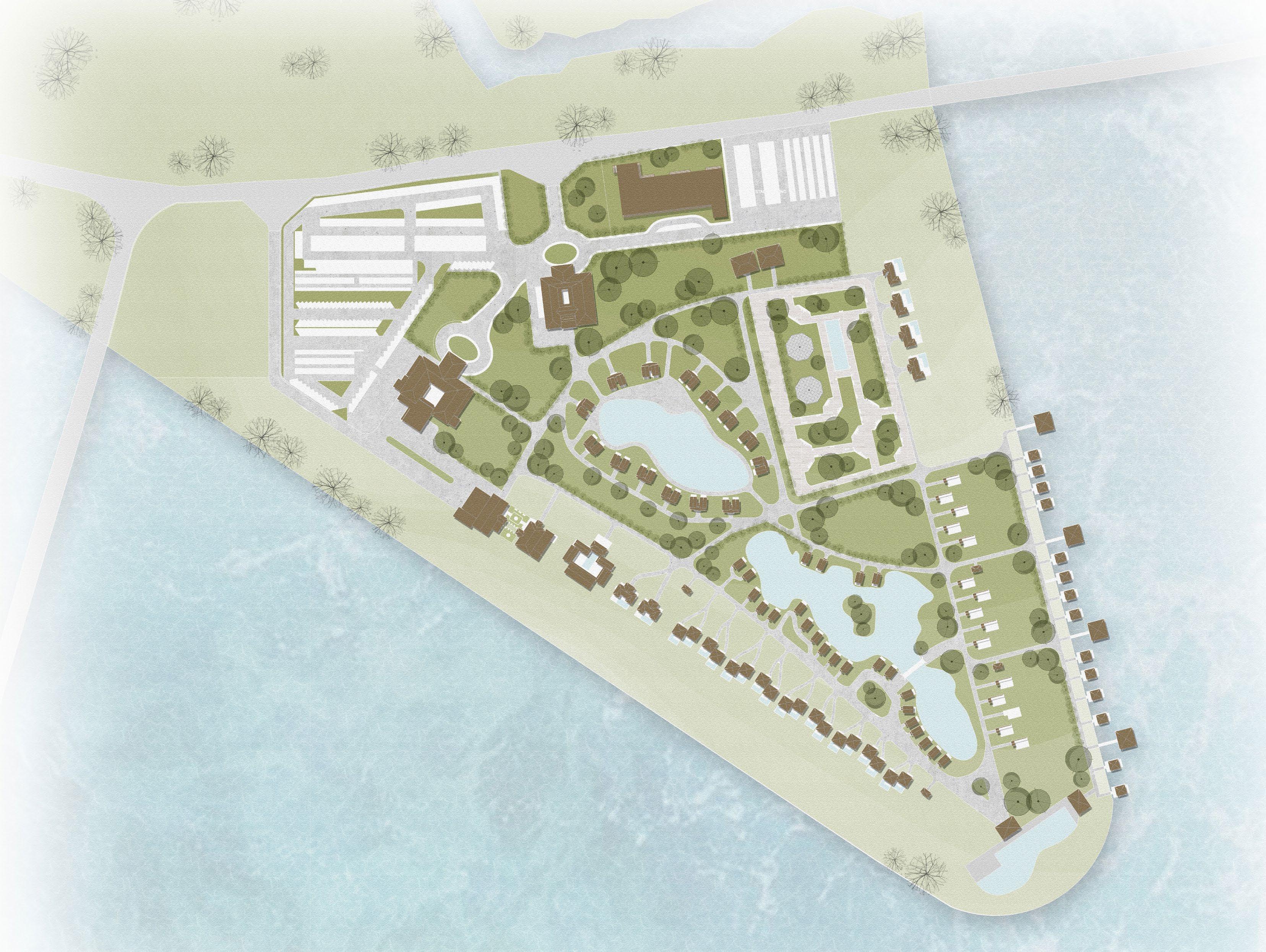

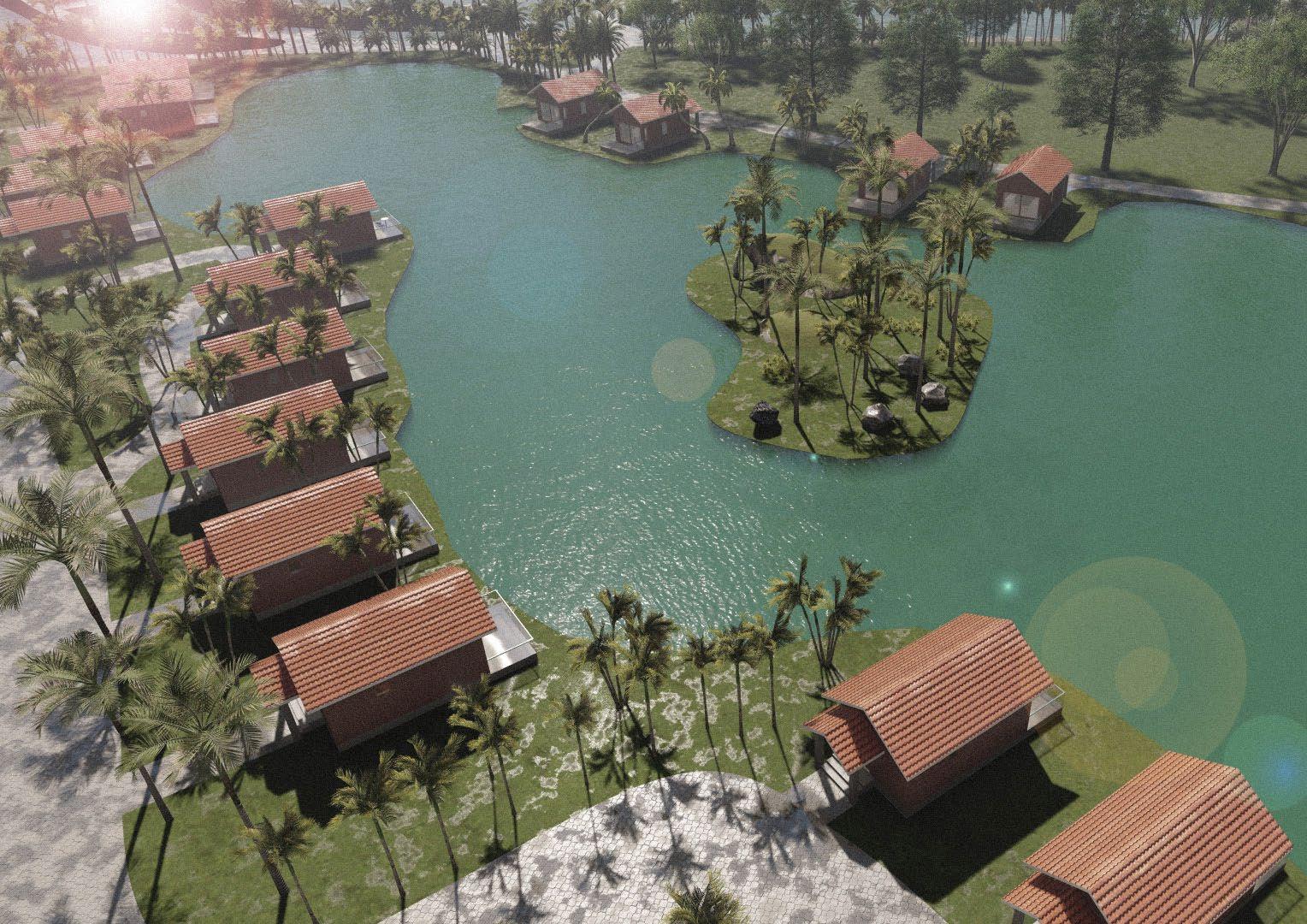

PROPOSED SITE PLAN
The planning is done in such a way that all the dwelling units face the water body for the stunning view of the vembanad lake. The concept is to use the site features as an advantage and modernize traditionalism. A artificial man made lake is created for more aesthetic value and appeal. The edge tip of the site has an Infinity pool which gives the feel of lake merging with the resort. The is well connected by roads and is easily accessible from all sides even by ferry through lake.
LEGEND:
THE ISLE: RESORT & SPA

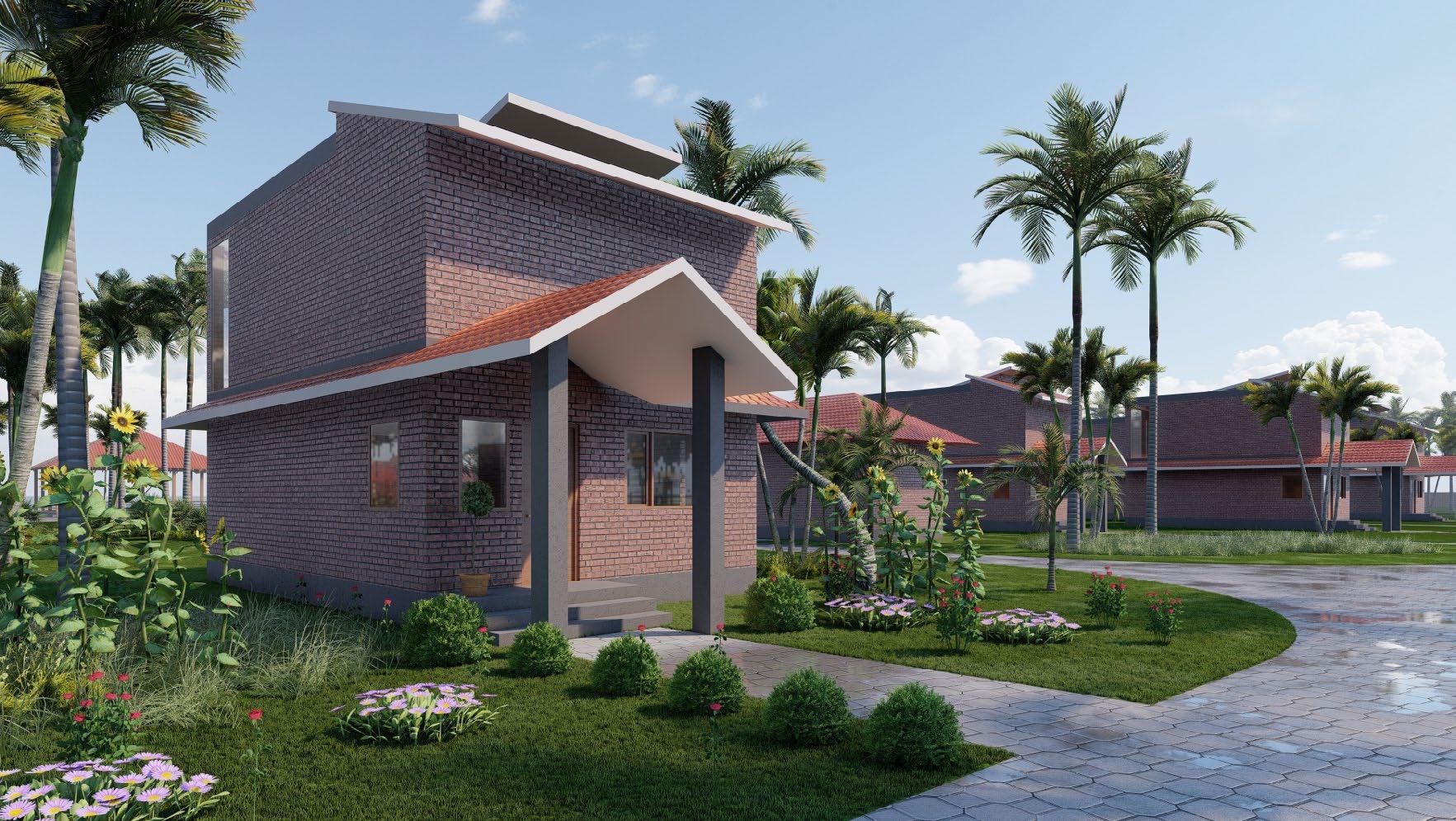

PREMIUM DUPLEX VILLA:

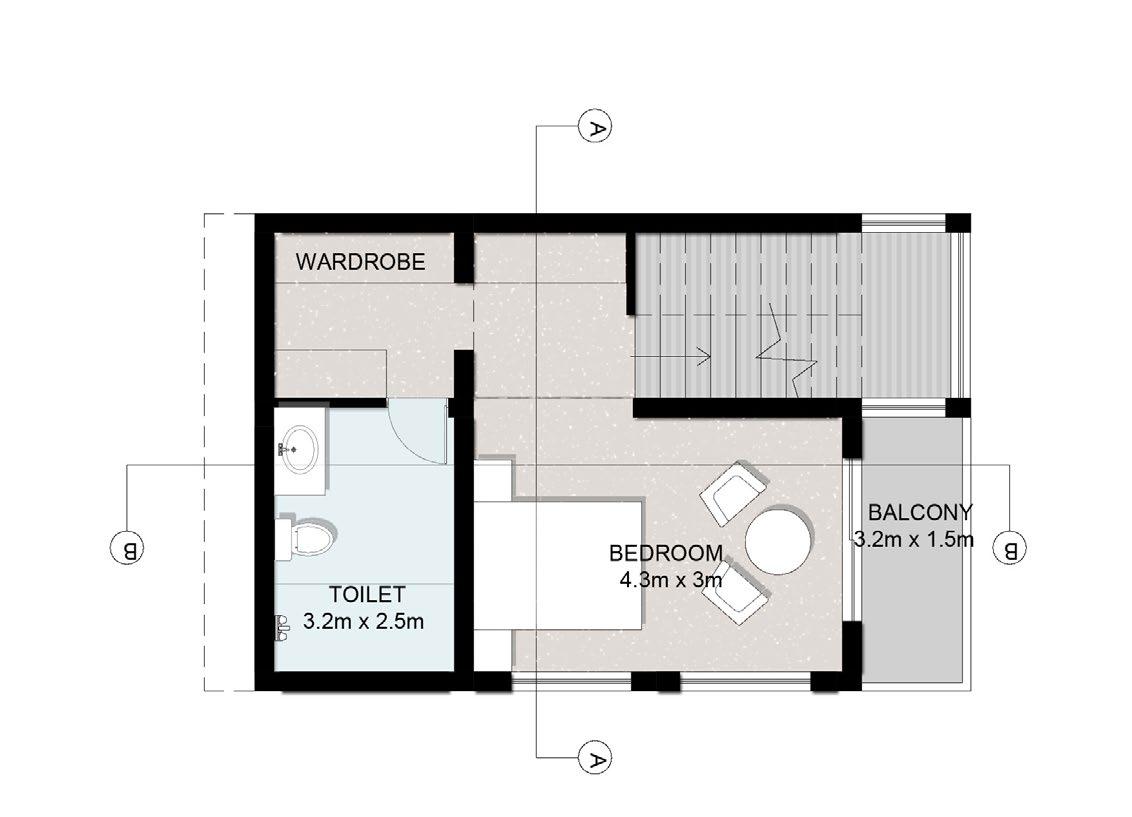

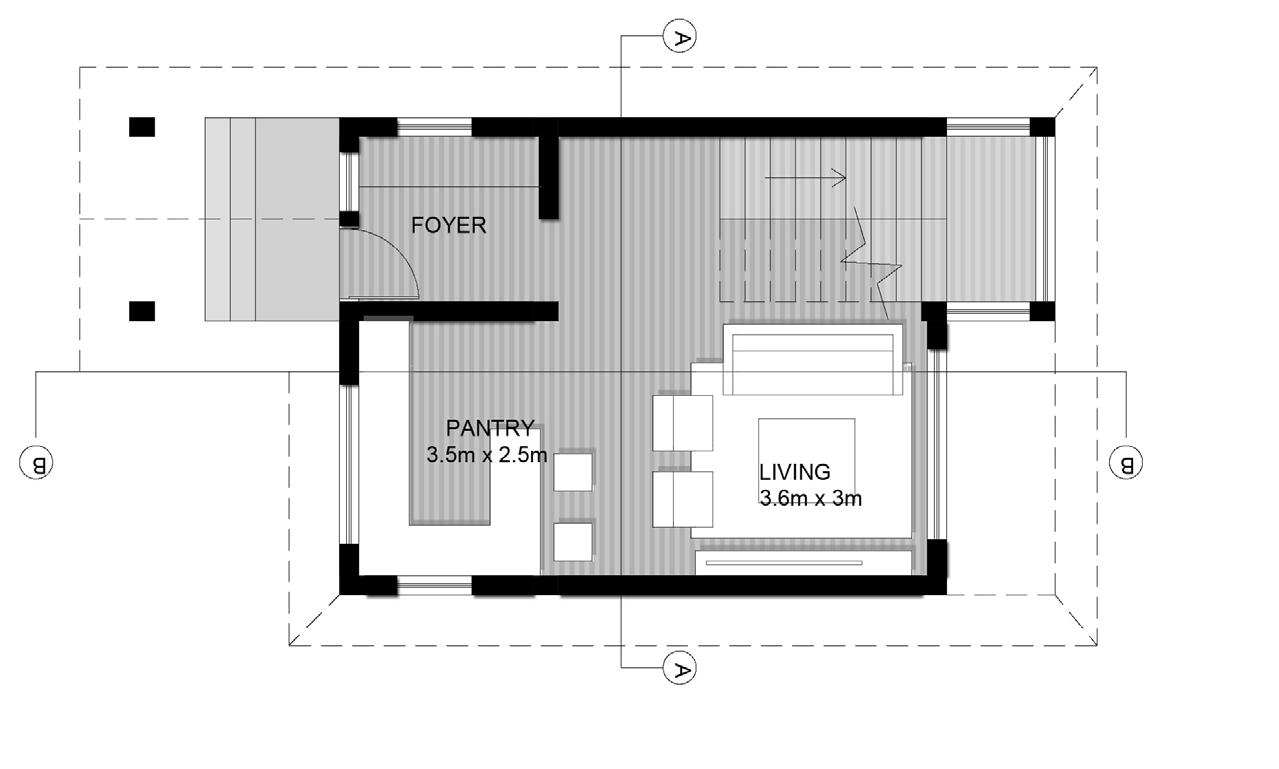

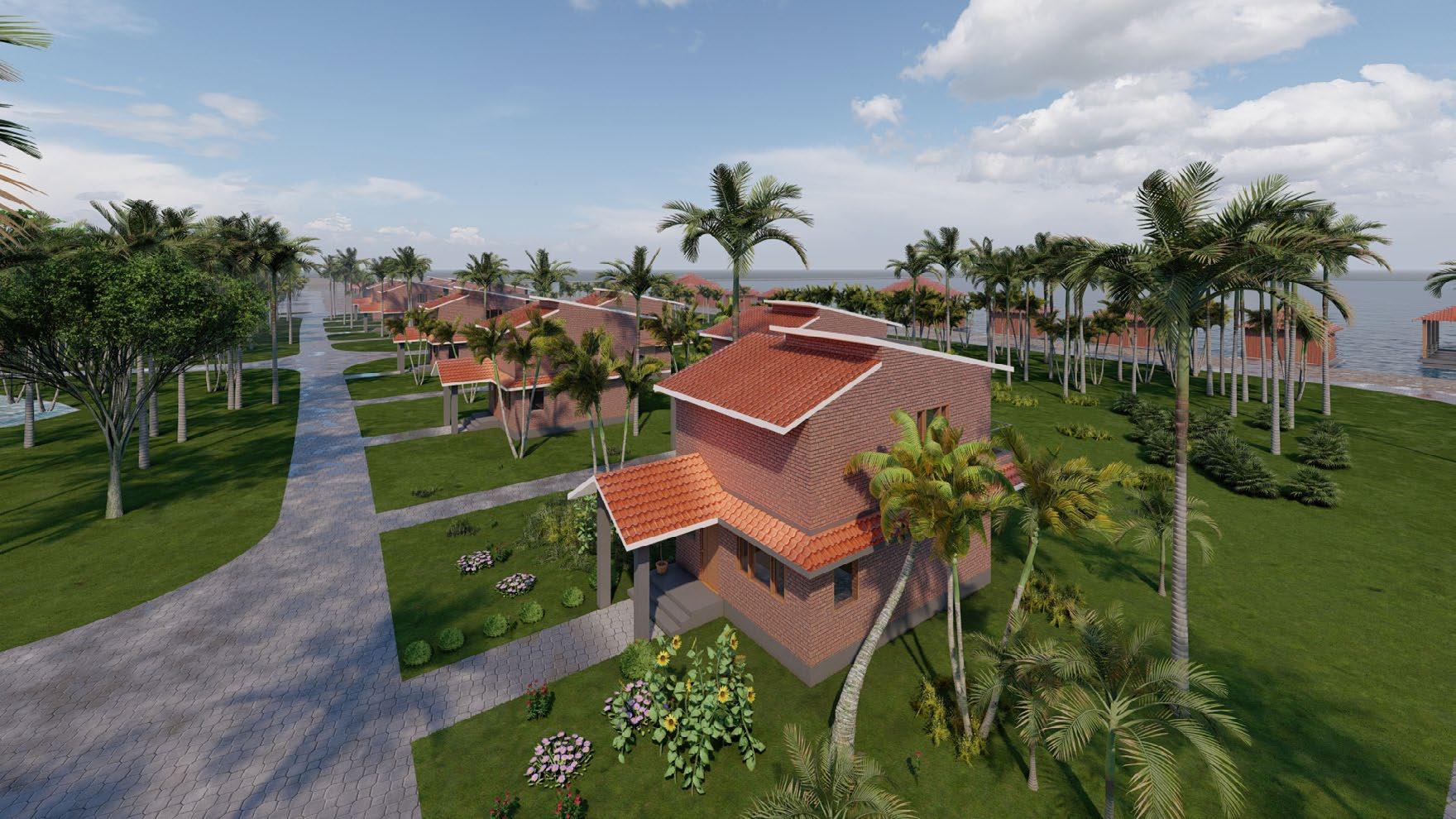

This type of villa consists of 2 floors -ground and first floor. The ground floor consists of a living room and the bedroom is placed on the top floor for better view of the shore and lake.The unit is placed at the gulf areas of the site and staggered in a way that all the units achieve panoramic views of the water.
Surrounded

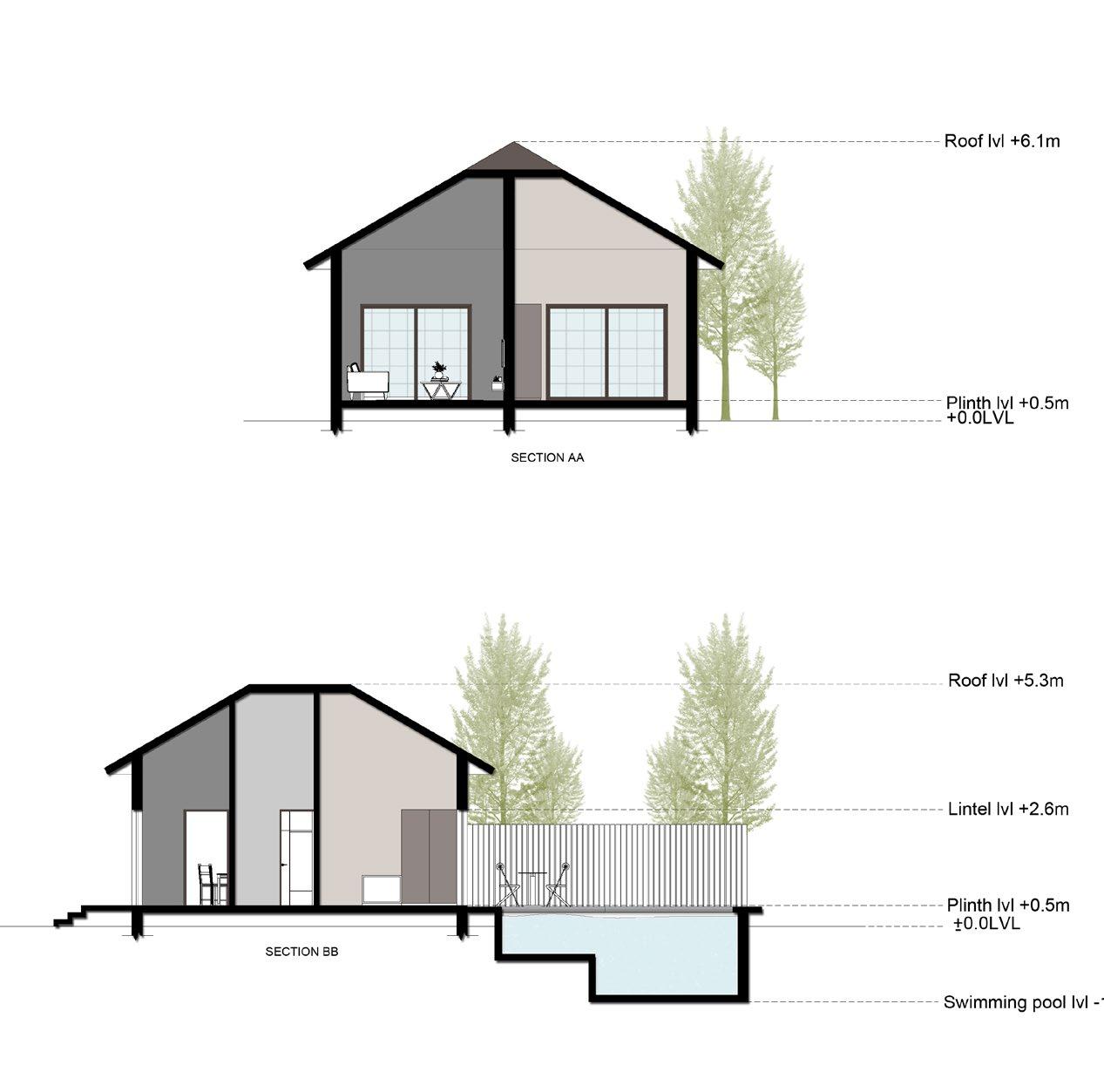

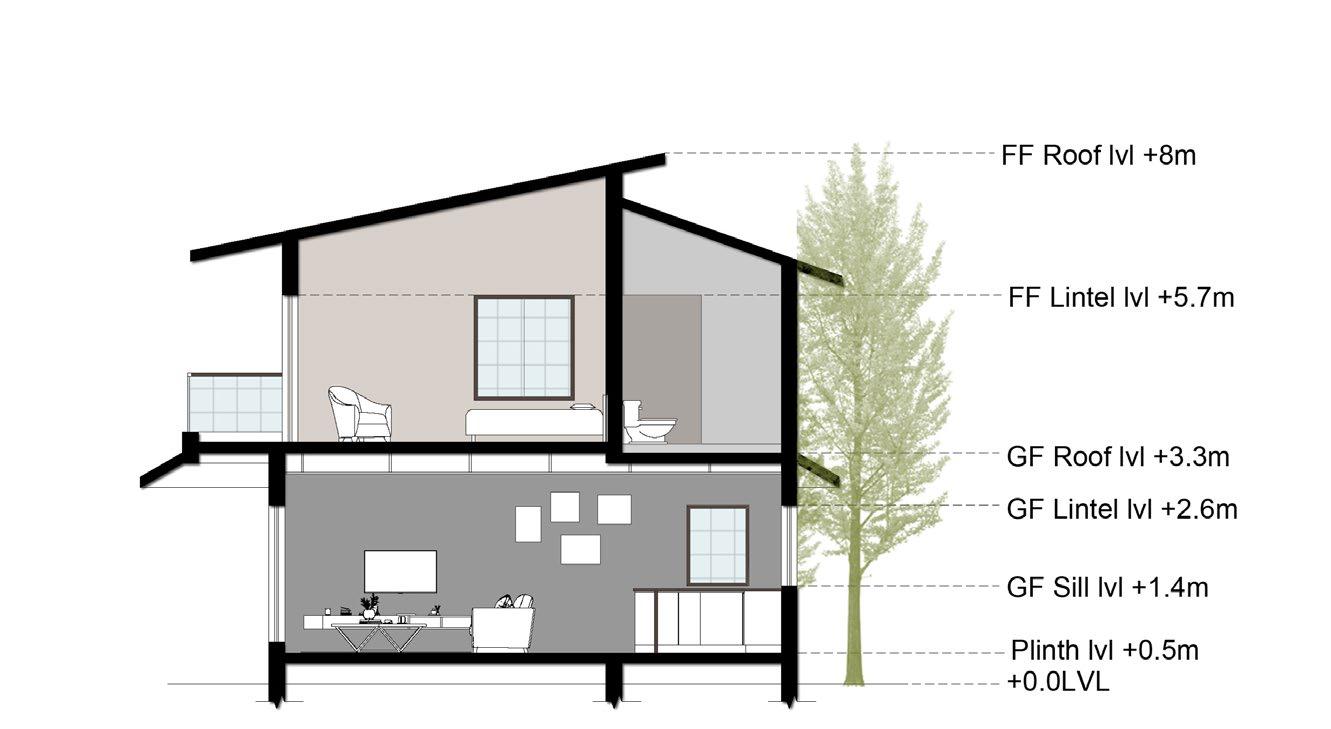

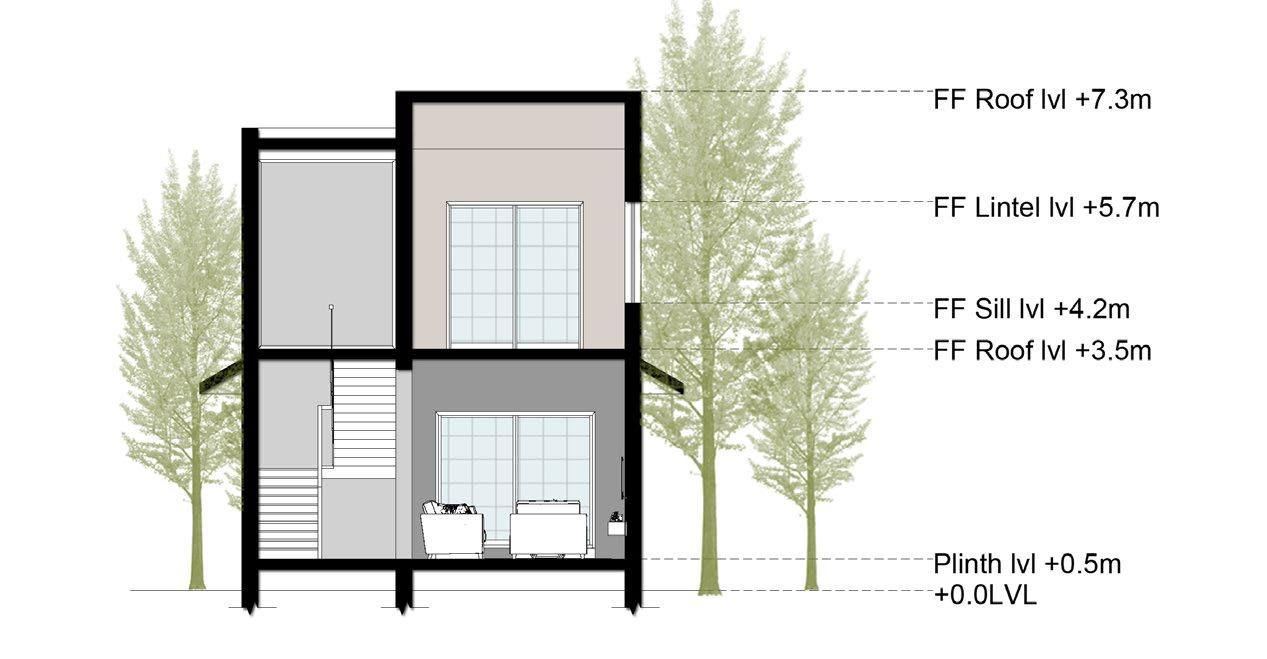

Section AA’
Section
THE ISLE: RESORT & SPA

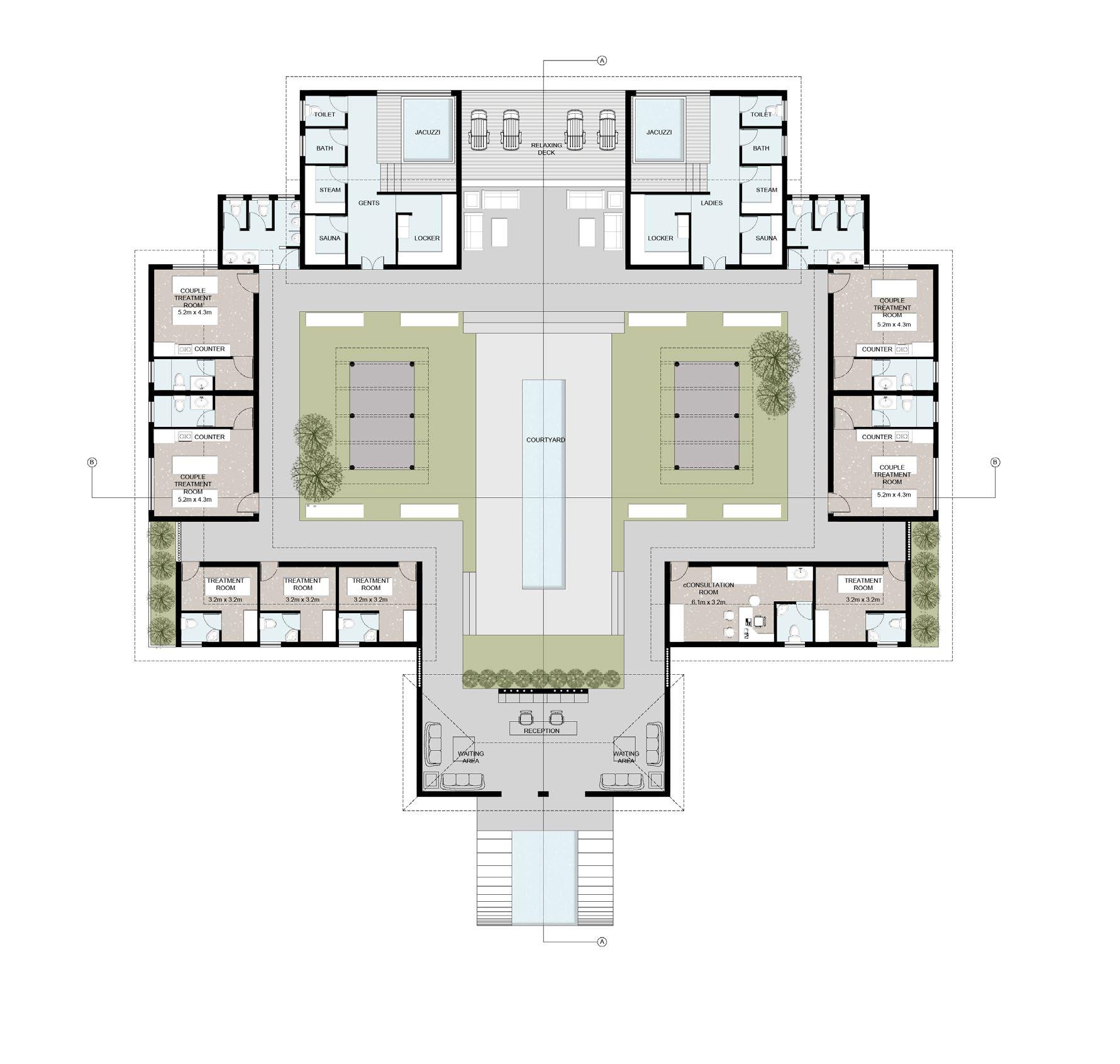

AYURVEDA CENTER:
The Ayurveda or the spa is the center of attraction as kerala is famous for ayurveda and traditional treatment. Ayurveda center consist of personal treatment rooms, couple treatment rooms, outdoor treatment area, A deck overlooking the lake for relaxation and SPA facilities etc.

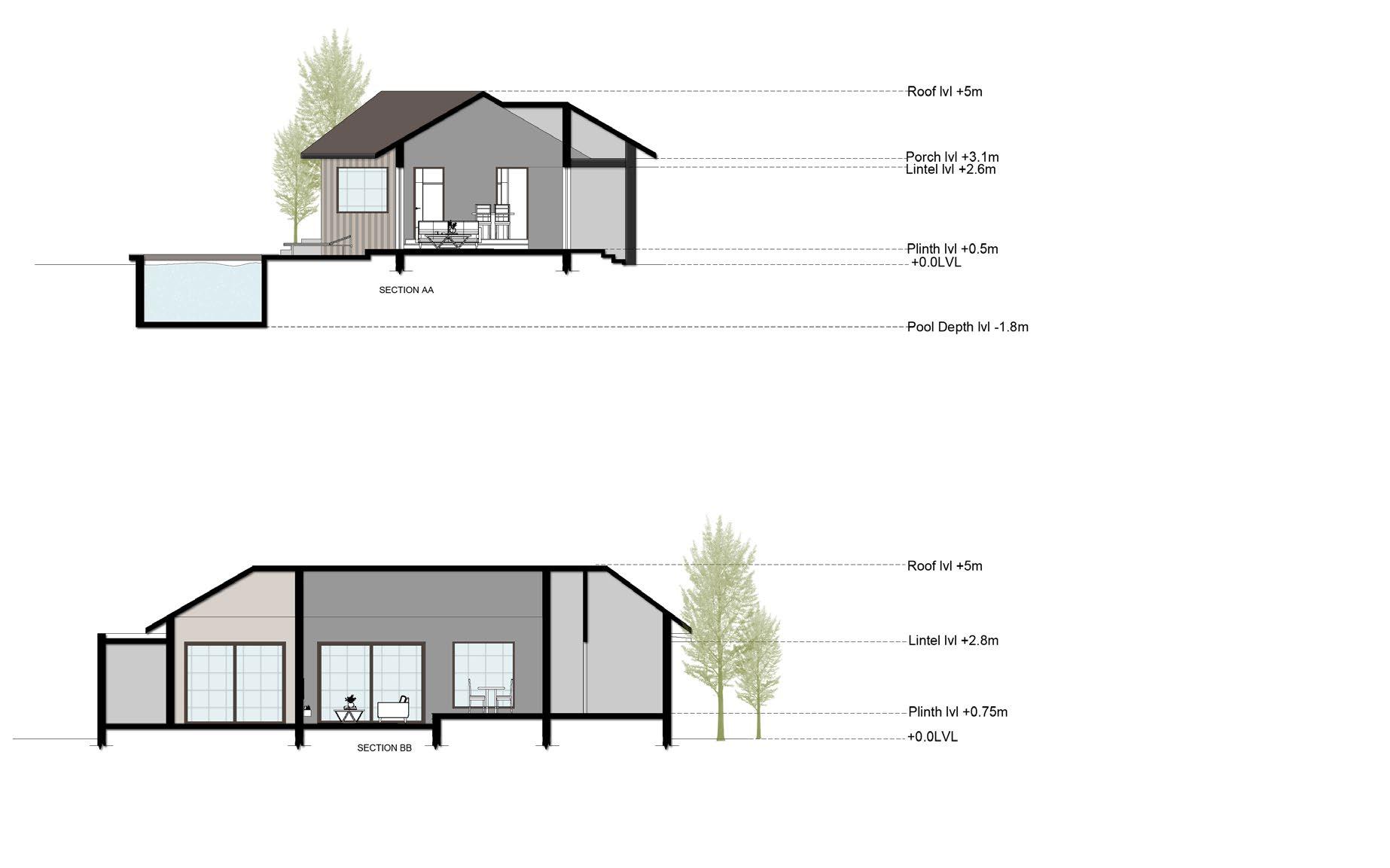

Section AA’

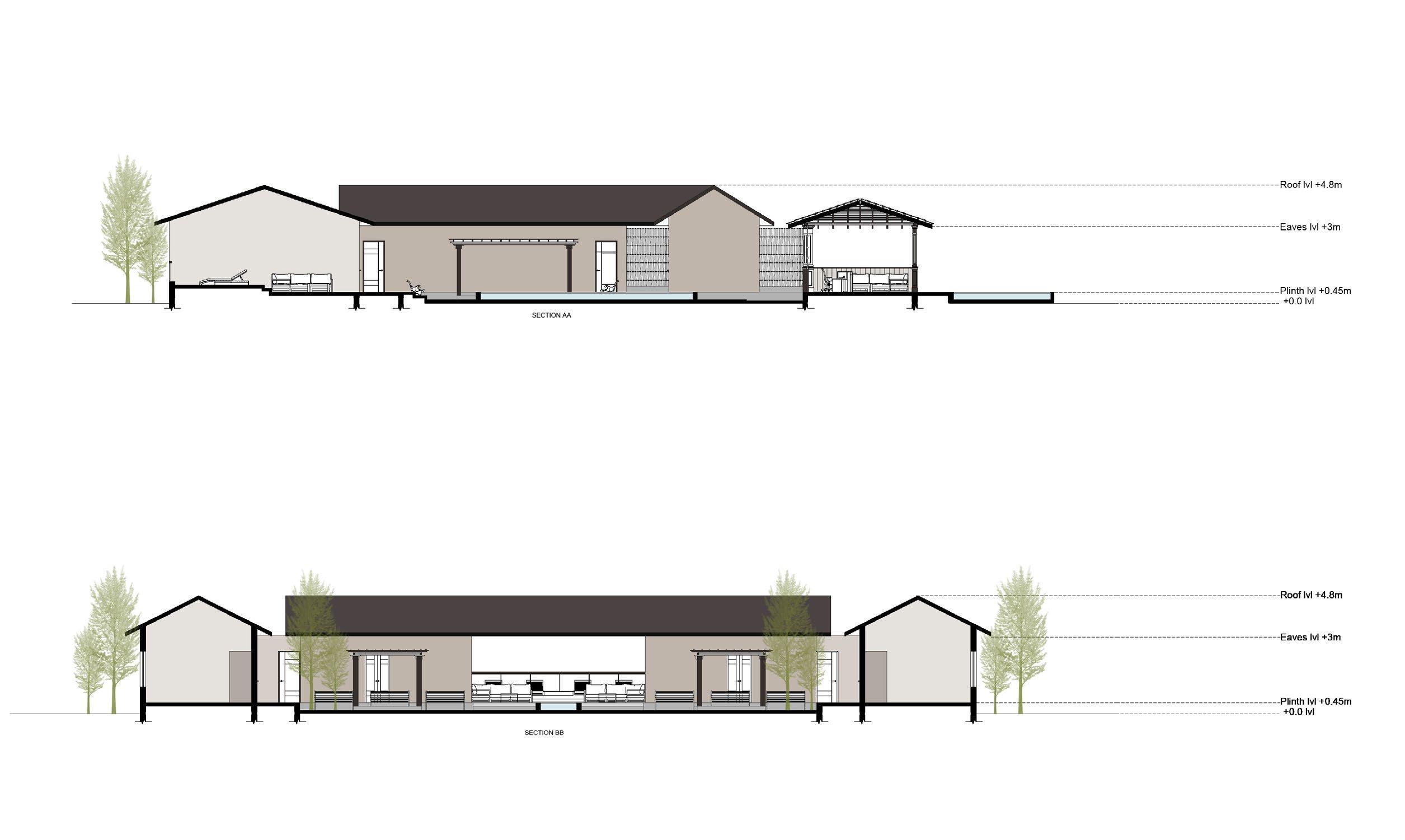

Section BB’
THE ISLE: RESORT & SPA

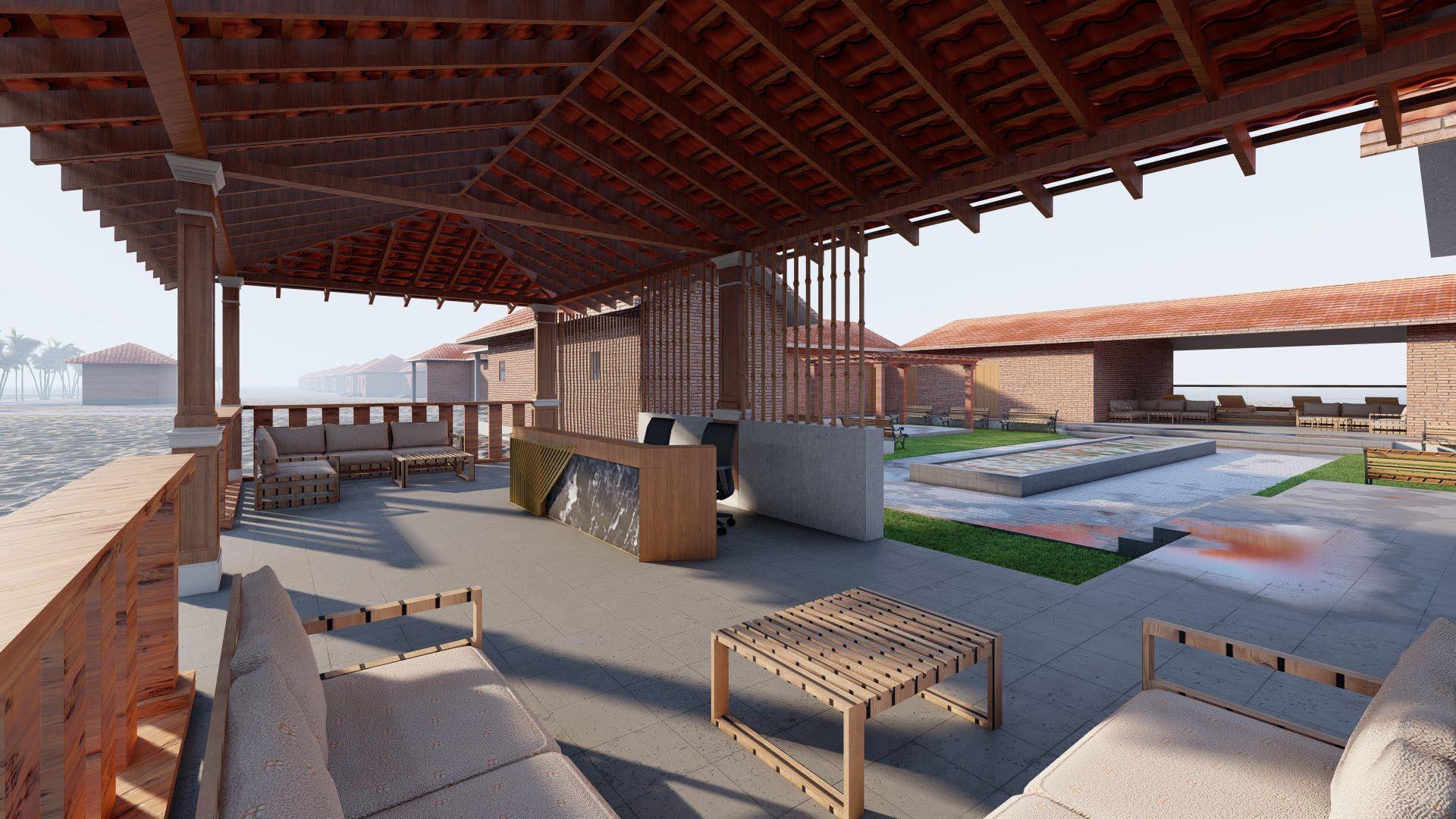

The reception is designed perfectly to match the style and concept of modern traditionalism with open free flowing plan. A traditional pitched truss roof and modern furniture gives the best relaxation feel to the design.

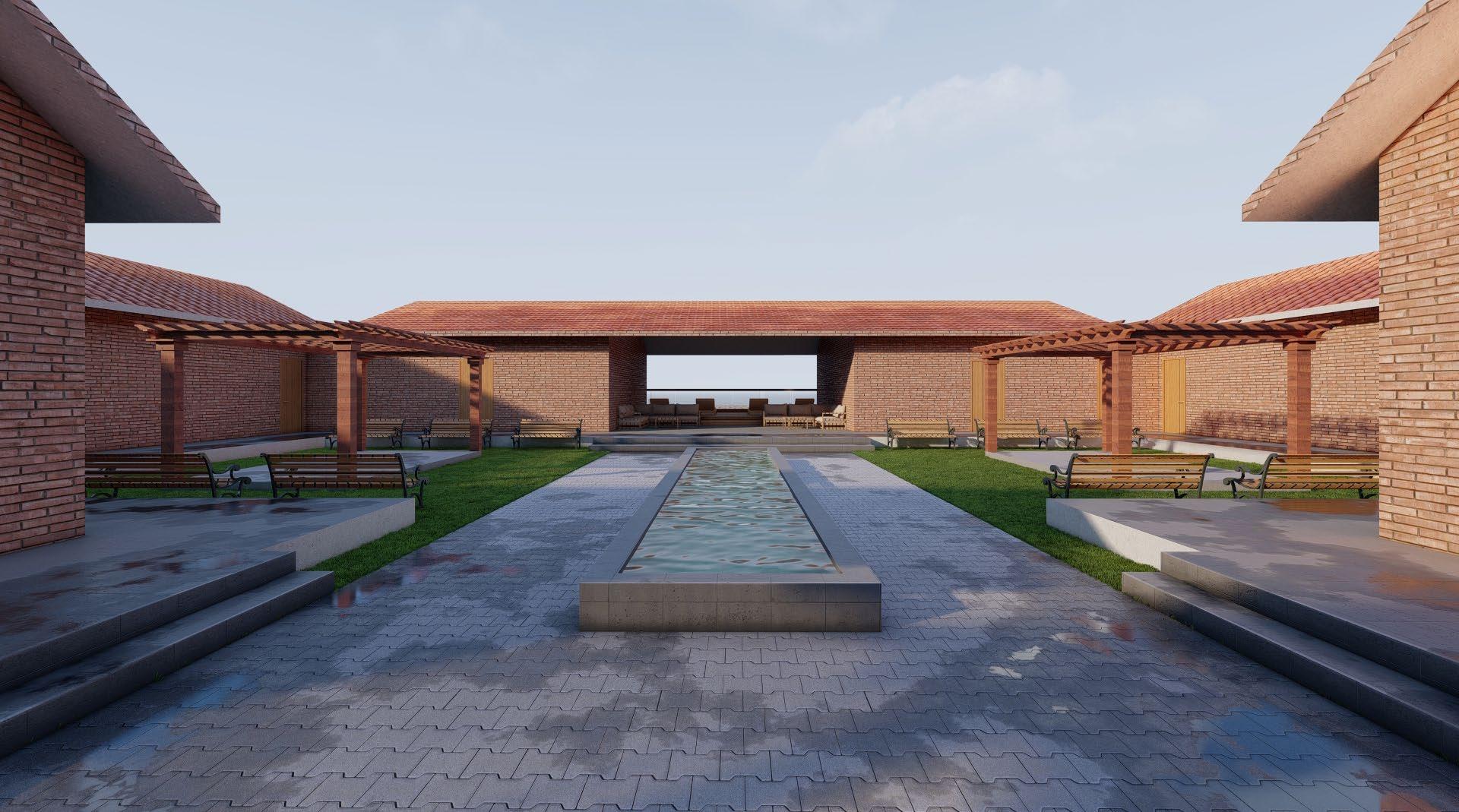

The open courtyard gives the feel of openness and gives a calm feeling while having an outdoor treatment.
THE ISLE: RESORT & SPA

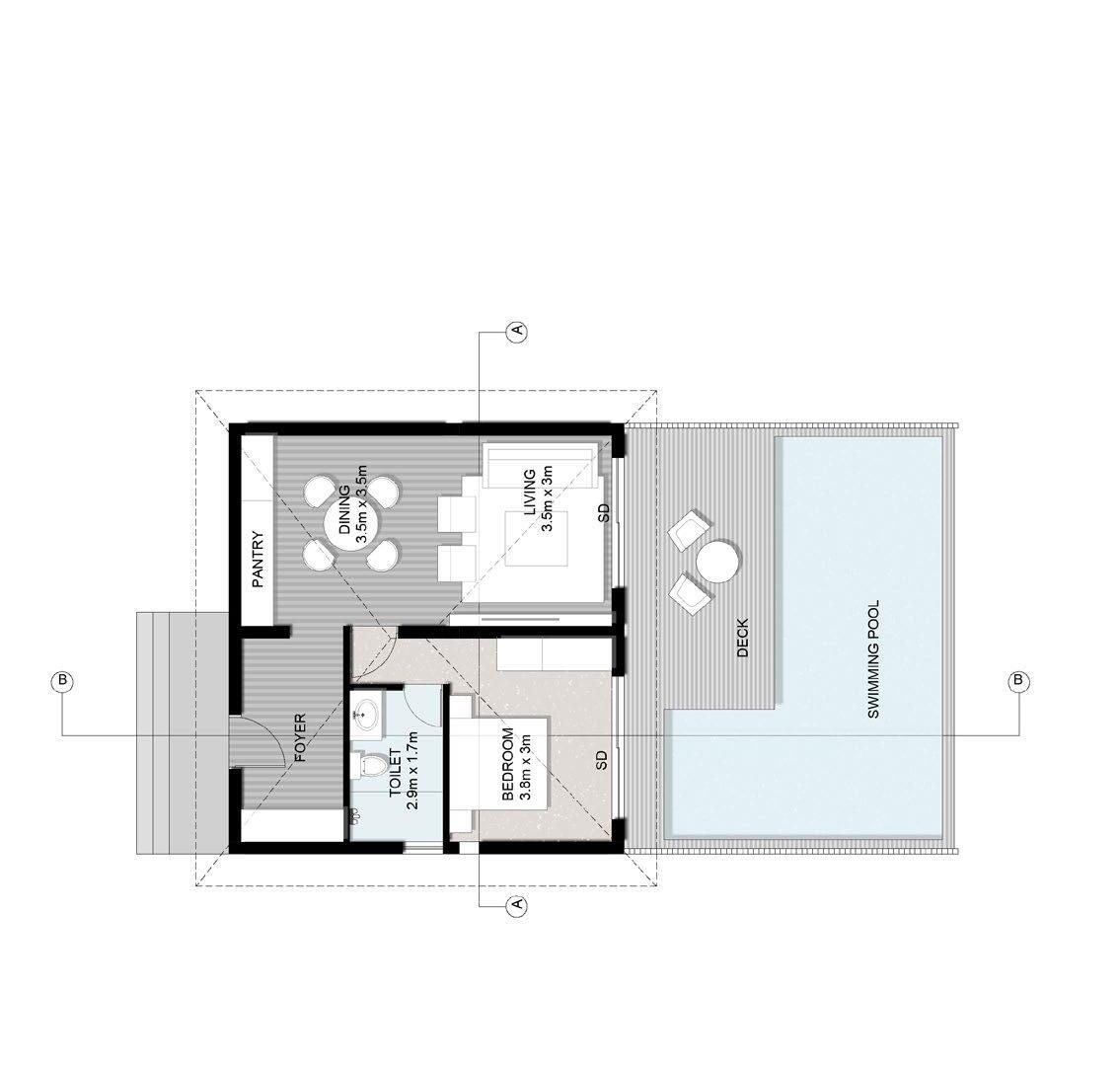

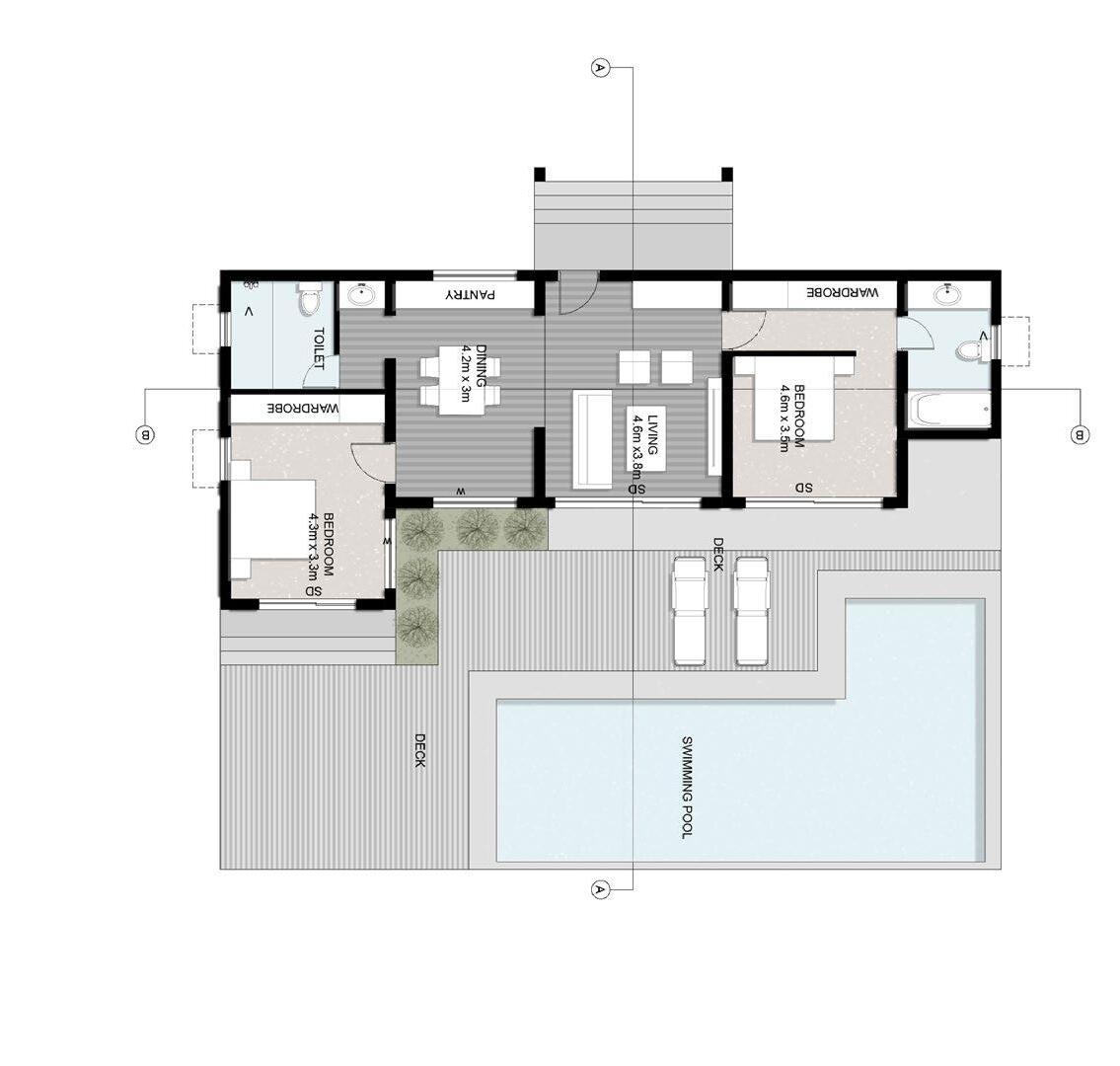

A luxury stand alone villa with a private pool. These rooms offer an unobtrusive view of the tranquil and generous water body. Wake up to placid blue waters which melt into the horizon, and dream of the shimmering incandescent reflections at night.
The Villa Accommodates 2 Occupancy With 85 Sqm Of Space With Private Pool Provided With Bamboo Batens Around For Privacy Is An Ultimate And Perfect For Relaxation.
These are specially designed for guests with a family. These villa consists of 2 spacious rooms, a living room, dining, private pool with a deck overlooking the sea.
The planning is efficiently done in such a way that both the rooms and the common areas overlook the sea.

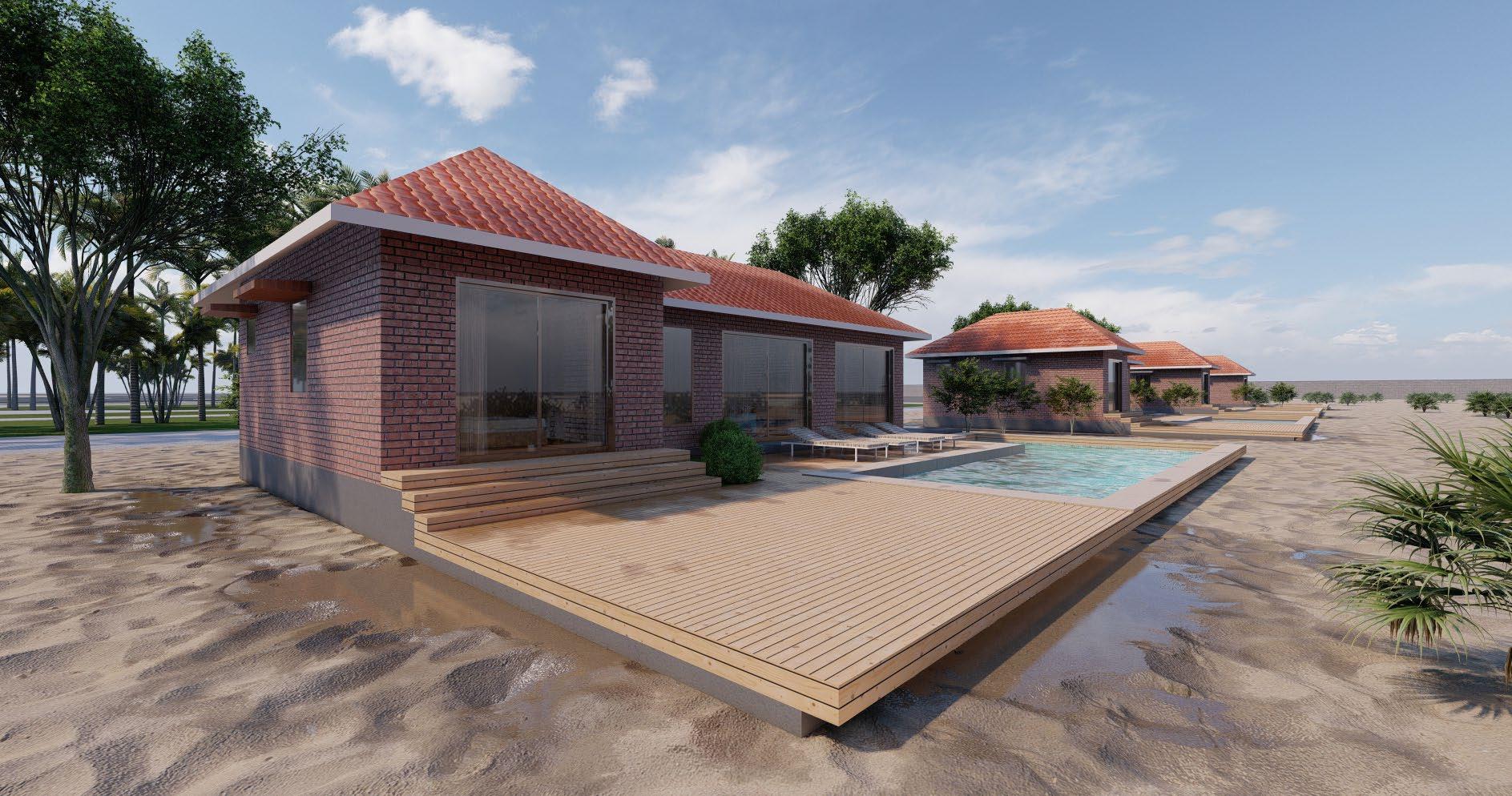

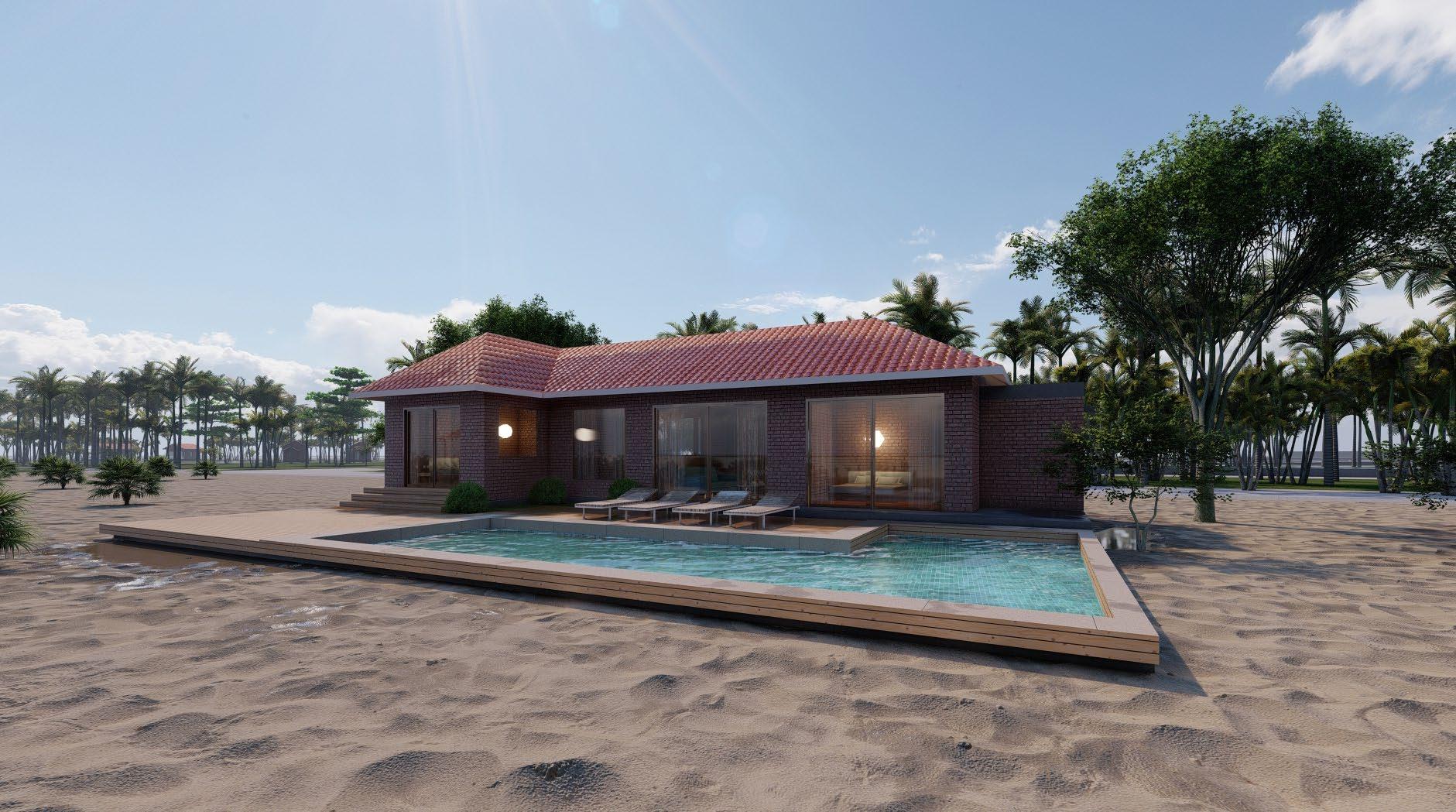

POOL VILLA: FAMILY VILLA:

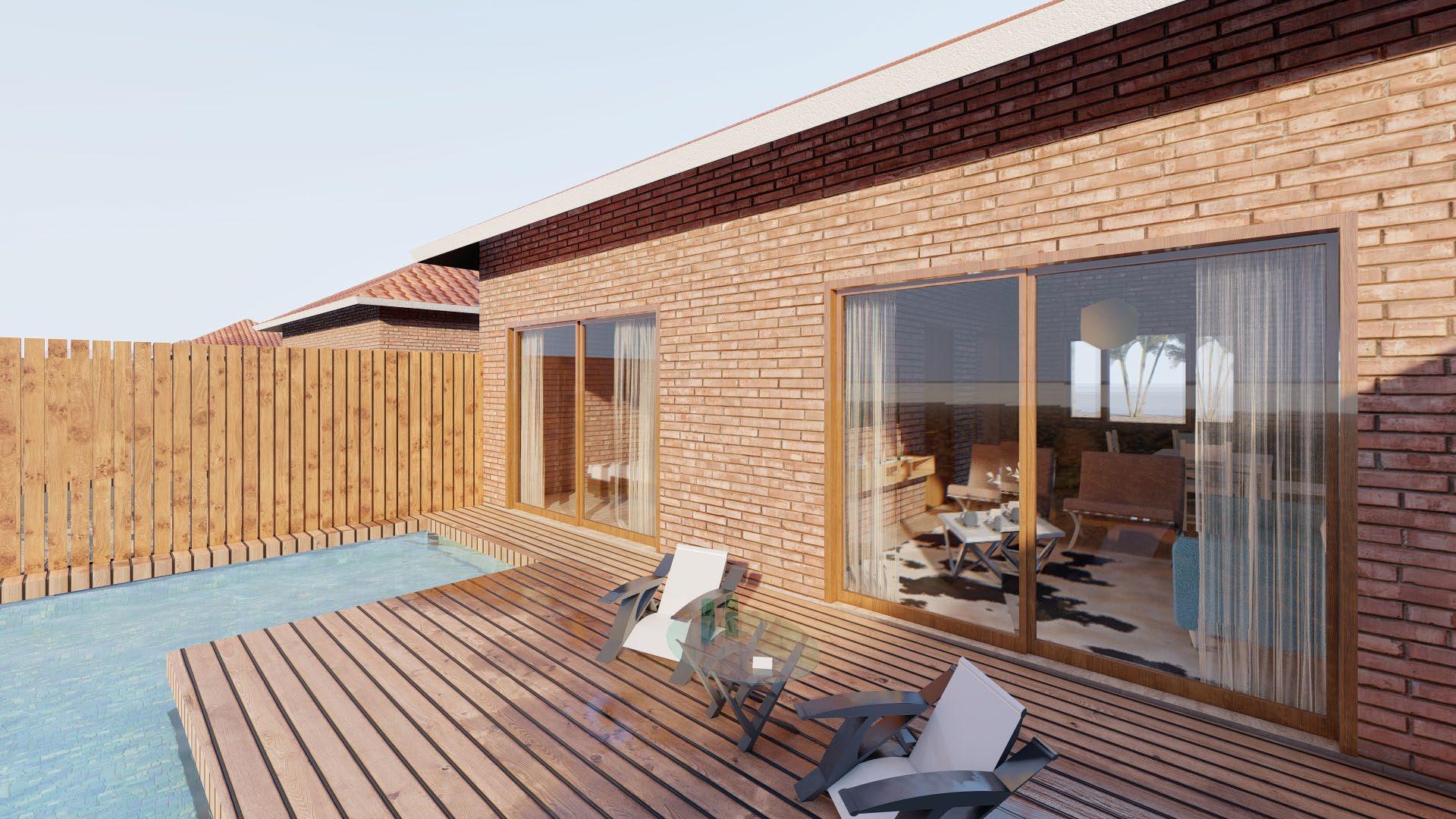

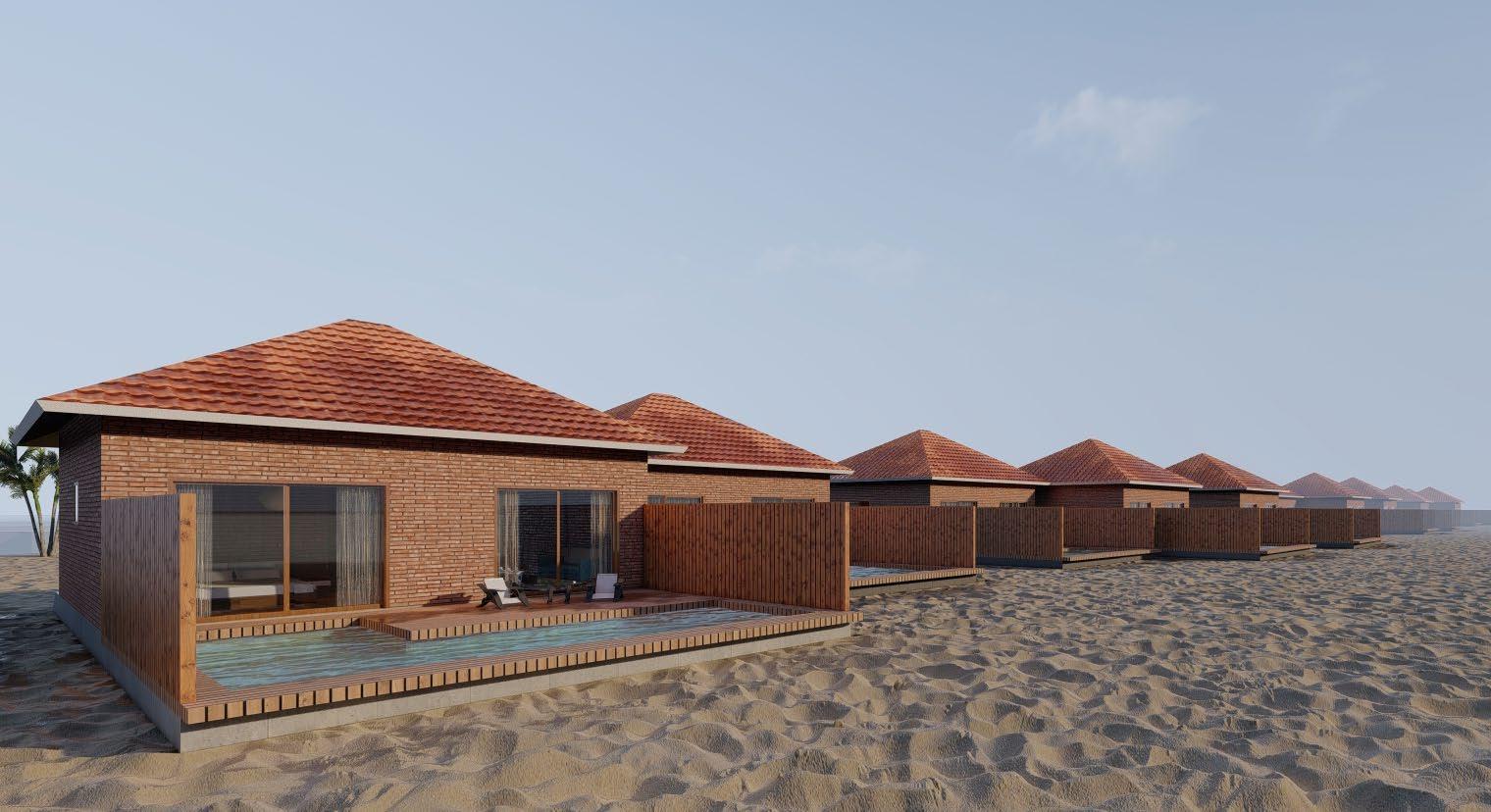

Pool Villa View
Pool Villa View
Family Villa View
Family Villa View
THE ISLE: RESORT & SPA

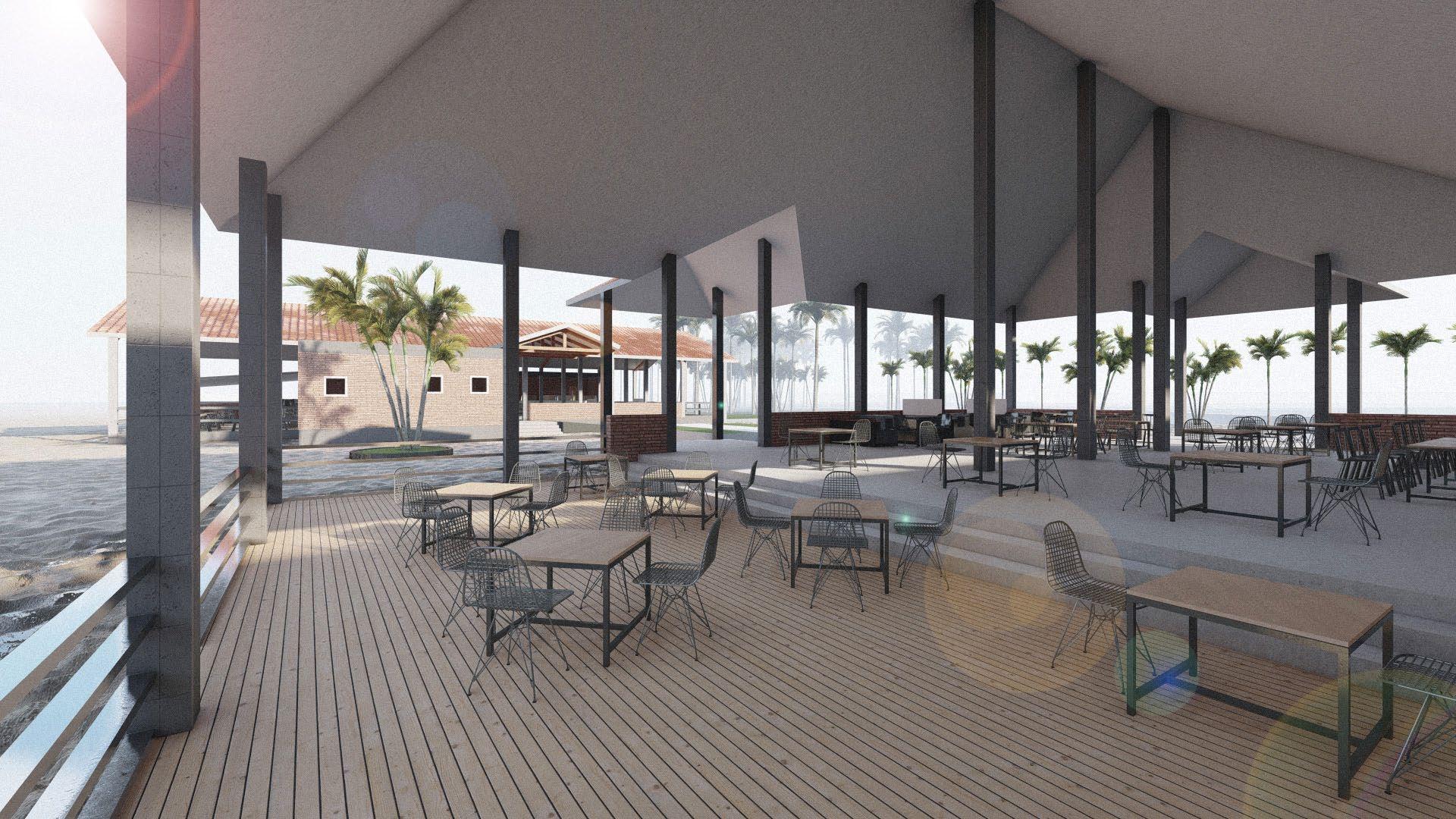

The resort has 2 types of restaurant - 1.Multi cuisine and 2.Seafood restaurant both overlooking the sea with private deck each and bar. These restaurants are semi closed to enjoy the scenic beauty of the site.
THE BOULEVARD: APARTMENT DESIGN
AT TAMIL NADU

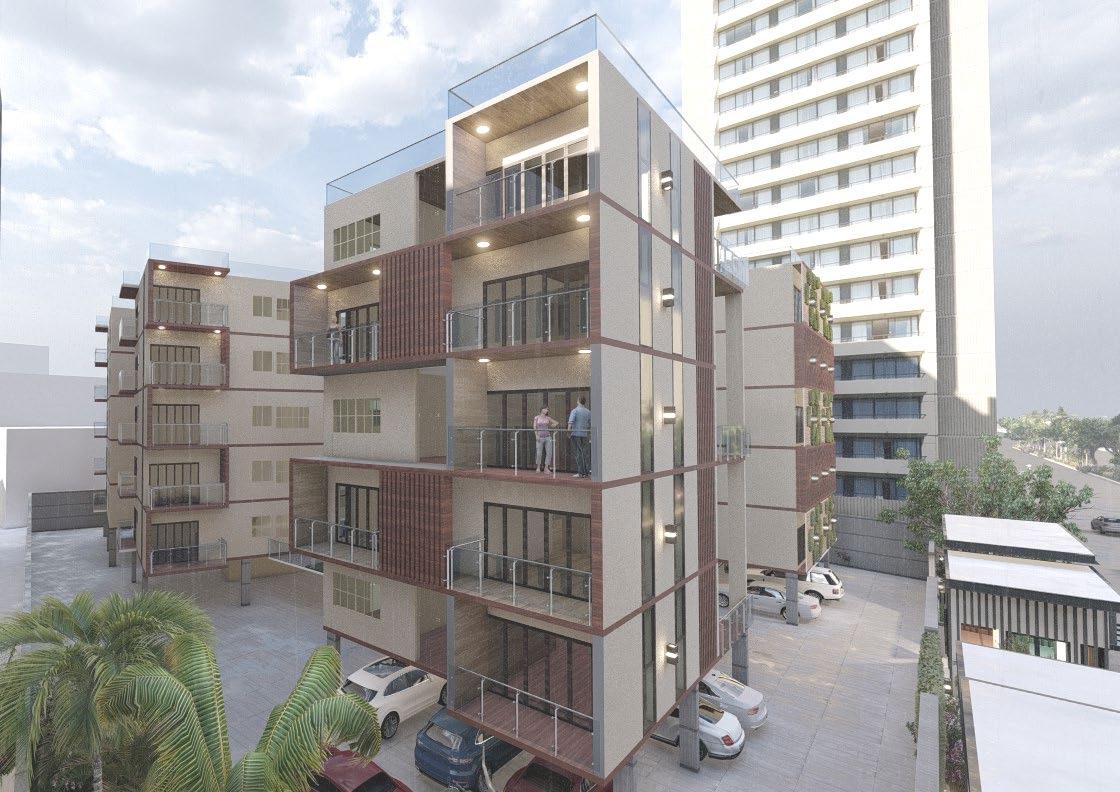

THE BOULEVARD: APARTMENT
DESIGN
SITE CONTEXT & LOCATION:
SITE AREA: 2391 SQ.M
SITE LOCATION: Valluvar kottam high road, Nungambakkam.
LANDMARK: less than 50m to Nungambakkam police station.;

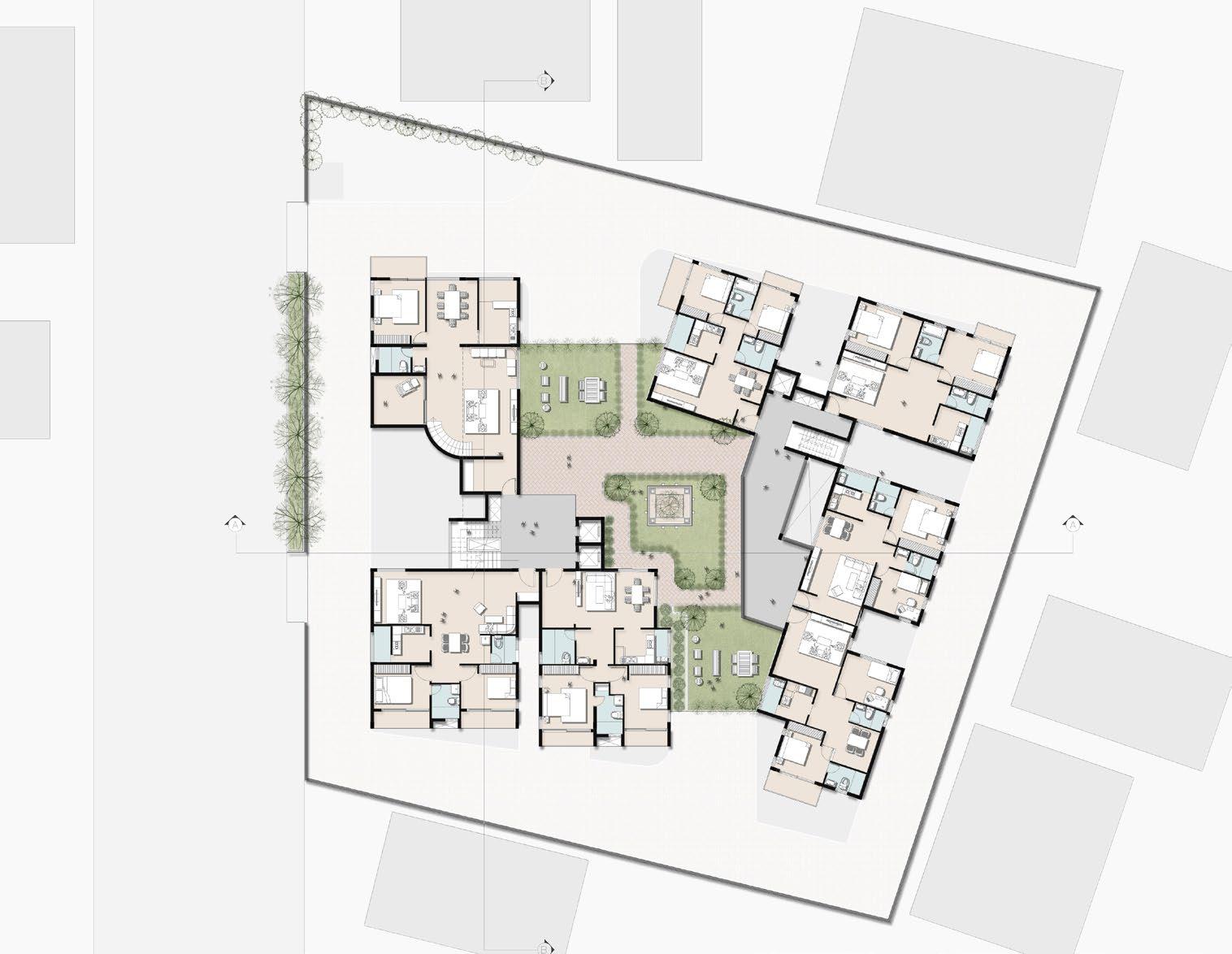

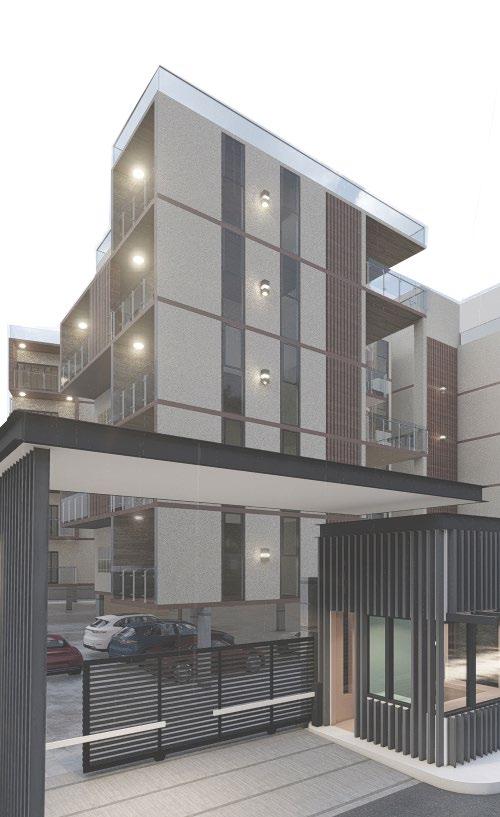

Apartment - the “contemporary urban dwelling” defines the residential quotient of the city fabric. In the urban context apartments are an ideal interpretation of a self-contained domicile. Apartment living has a strong social connotation where the building of space triggers human interactions and fosters communal living

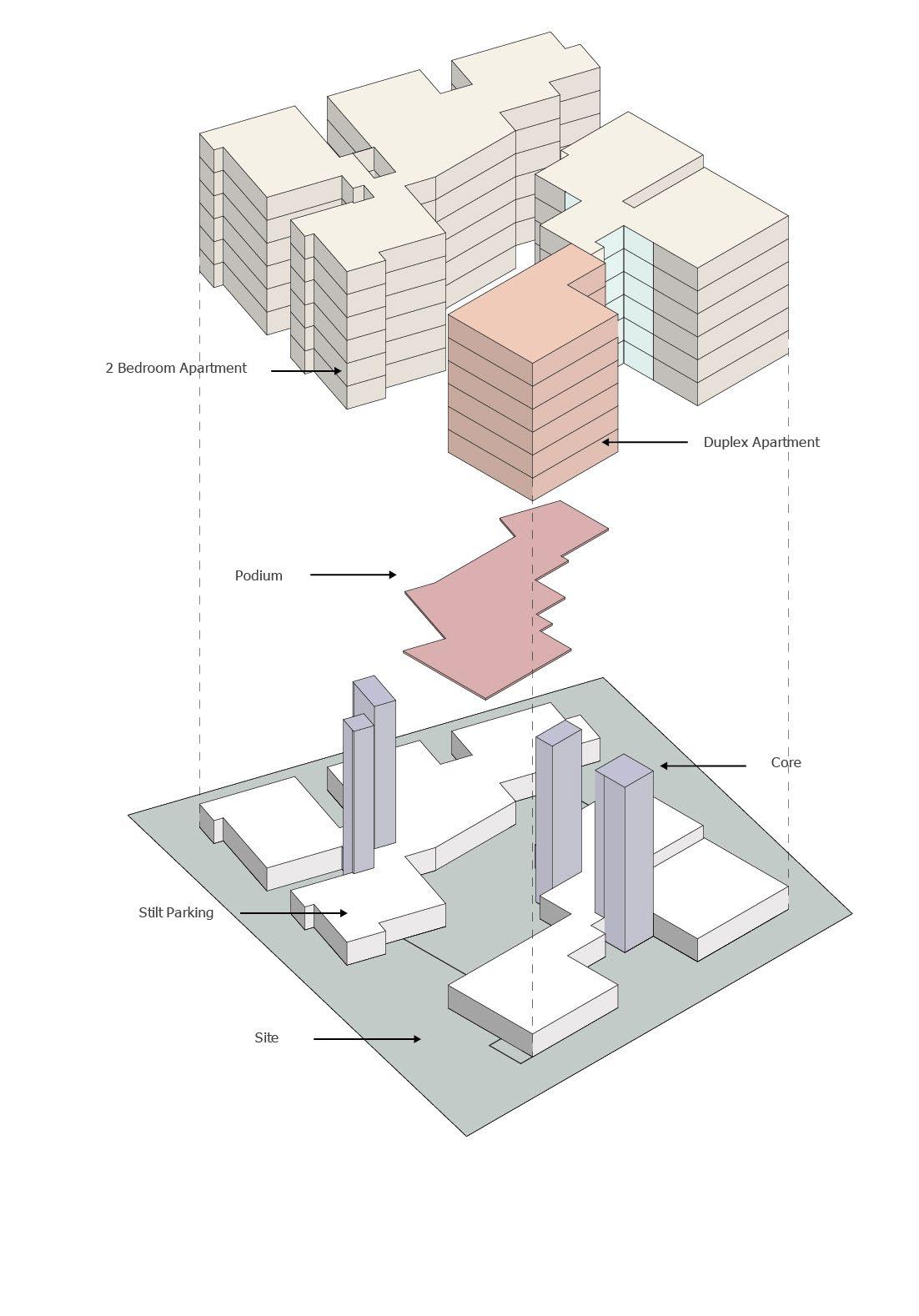

MASSING STRATEGY:

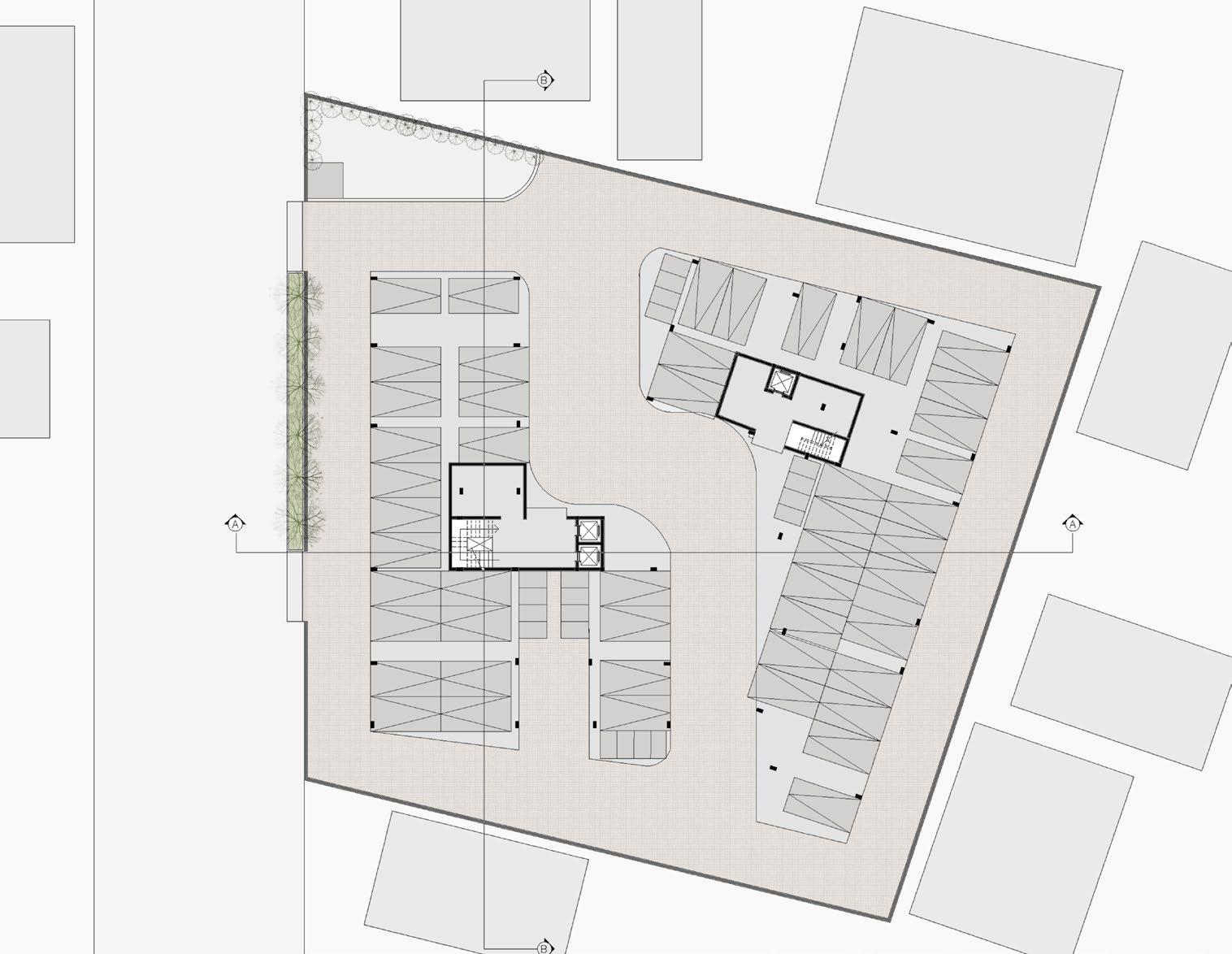

These blocks represent the 2 towers of the apartment.
One block is tilted in order to achieve maximum airflow between the two blocks.
These two blocks are connected by an interactive space as podium. The final form achieved by requirements and air flow considerations into the building.
SEMESTER IV

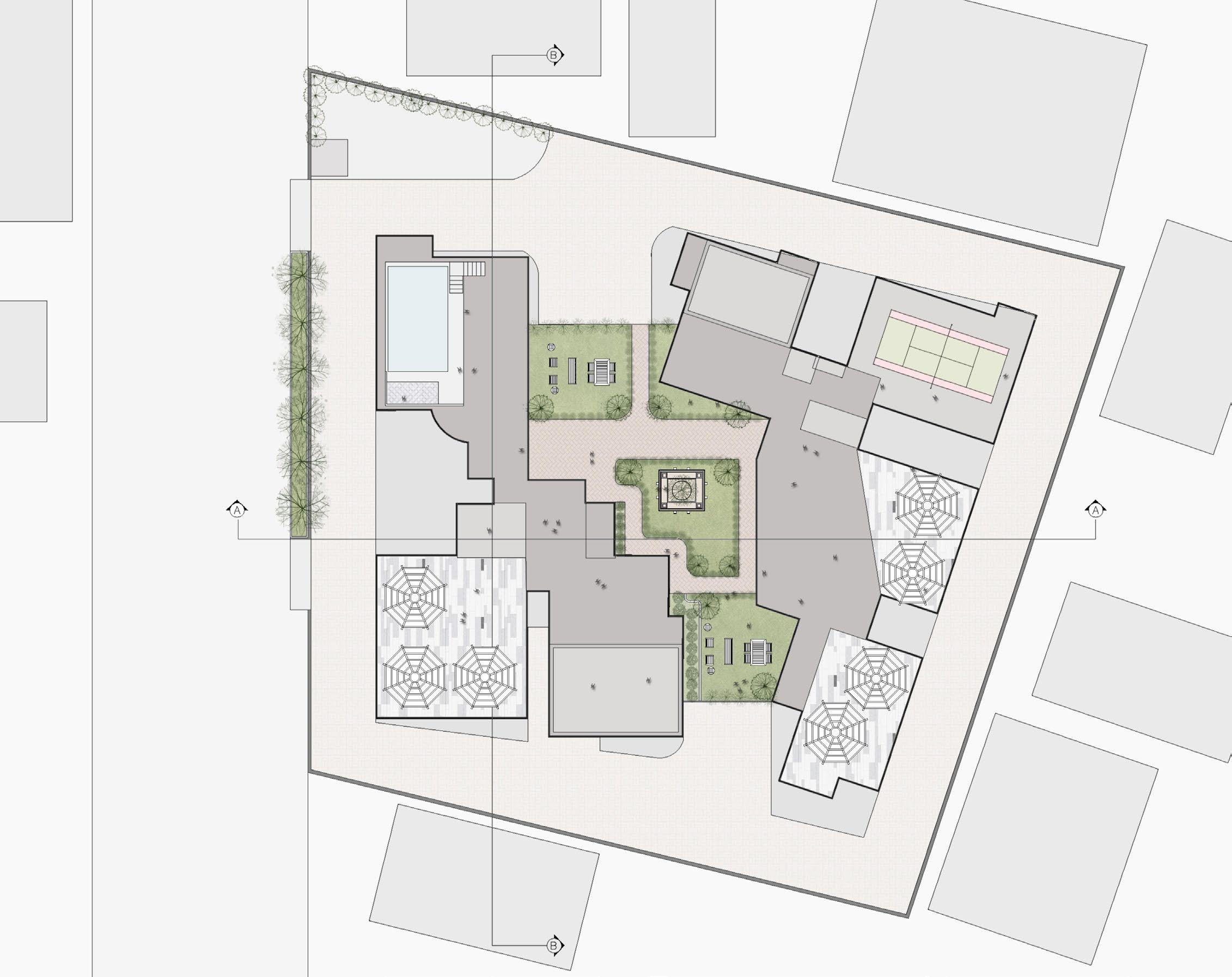

BADMINTON COURT LIGHT & VENTILATION SWIMMING POOL GAZEBOS

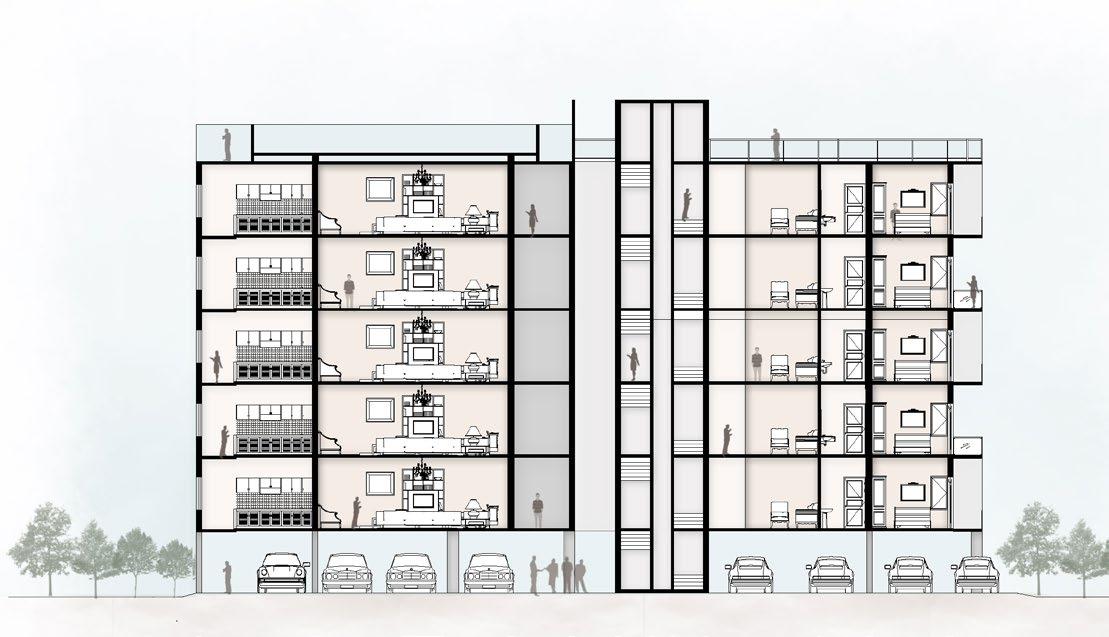

THE BOULEVARD: APARTMENT DESIGN

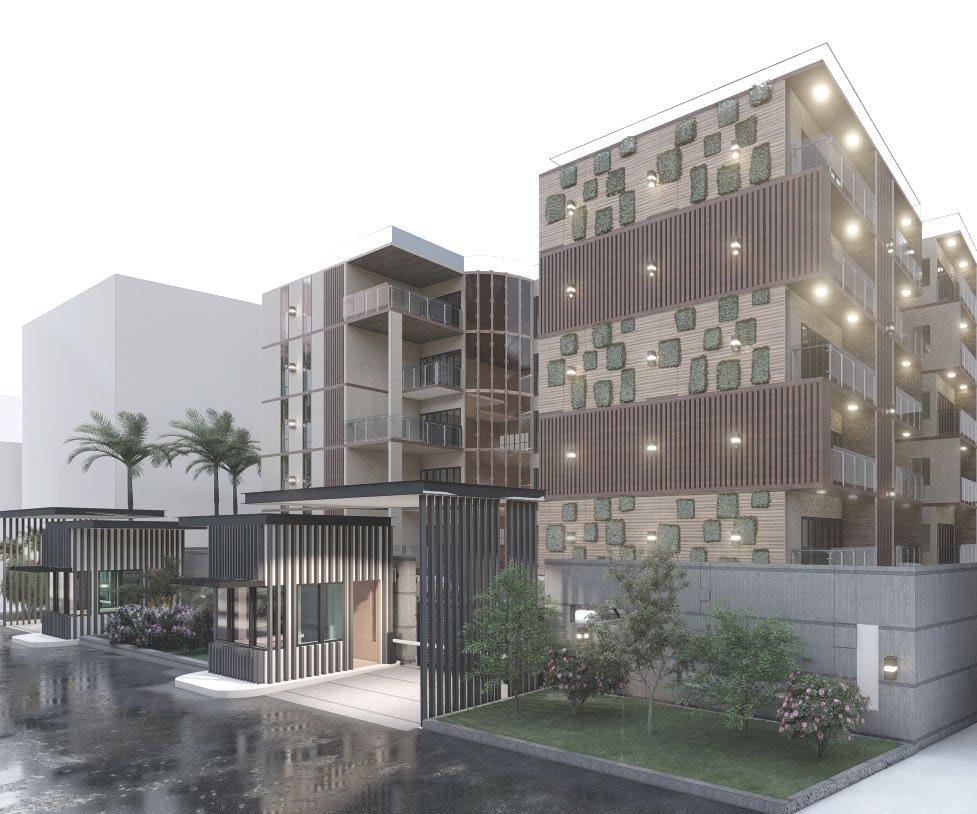

SITE CONTEXT & LOCATION:
Apartment Design is intended to create a private residential domain that reflects contemporary lifestyle, comfort, aesthetics and the personality of its inhabitants. Apartment design takes shape from the axiom of personal living space and the multitude of activities that occurs among the inhabitants. The basic approach in looking at the apartment: first is from the functional approach that an apartment is a home and second - an economic approach as that of an asset.
THE BOULEVARD: APARTMENT DESIGN
URBAN DESIGN
GEORGE TOWN
AT TAMIL NADU
URBAN DESIGN GEORGE TOWN

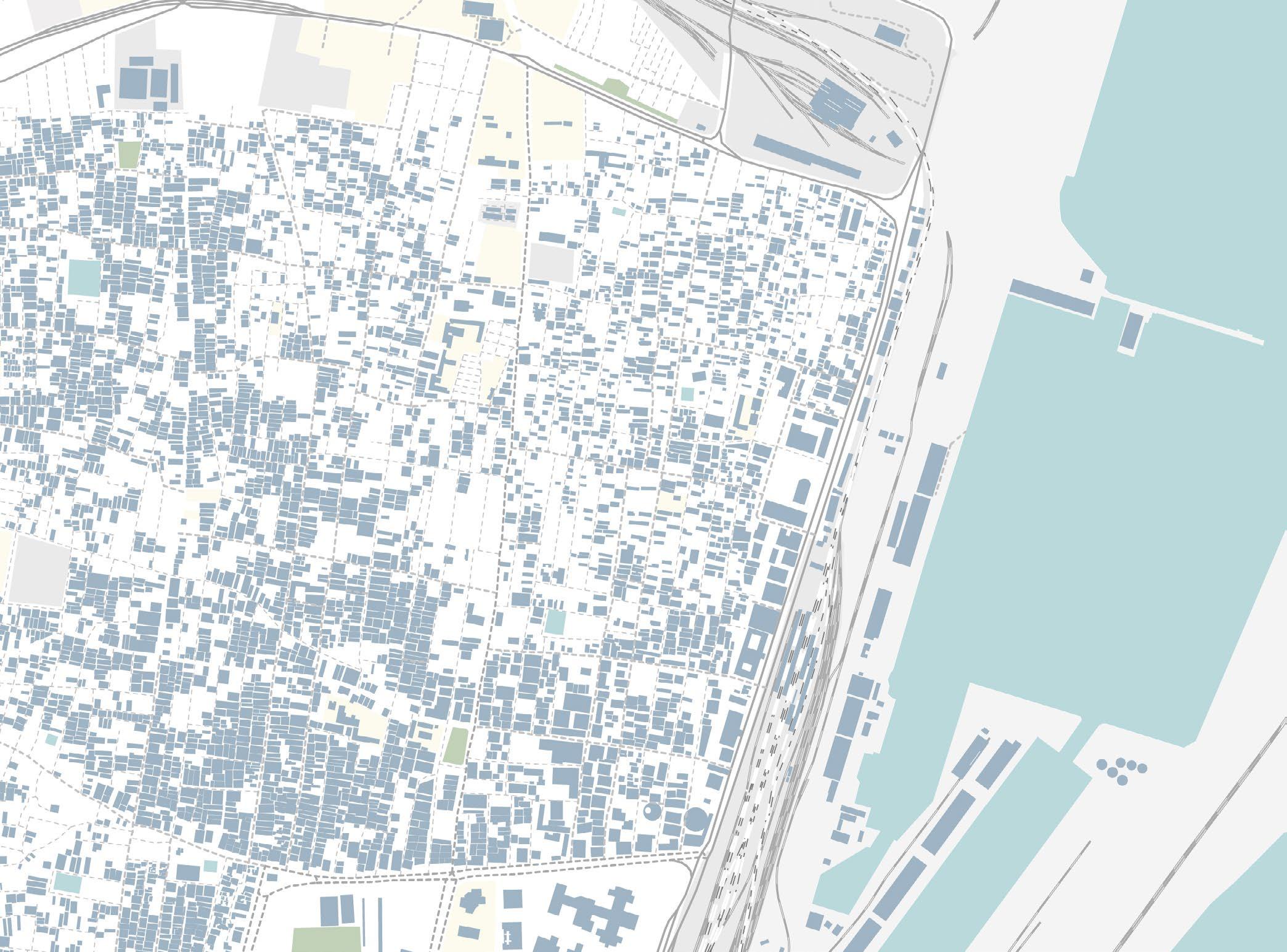

SITE CONTEXT & LOCATION:
Chennai, over the last 350 years, has evolved from a group of fishing hamlets and villages into the administrative and commercial centre of the Madras Presidency during the colonial period, and the capital of the State. The city gradually grew with the fort as the nucleus incorporating old settlements like George Town. There is a strong case for urban renewal to revitalize these decaying residential settlements which are at the inner core of the city.
To the north of Fort St. George is the George Town, a bustling commercial area, one of the CBD (Central Business District) of modern-day Chennai. George Town has a history going back to the early years of Fort St George.
GEORGE TOWN
DESIGN PROGRAM:
To consider Heritage Urbanism as a means of revitalization and enhancement of cultural heritage in spatial, urban, and landscape contexts, and to explore models for its inclusion in contemporary life. Heritage should not be viewed as isolated objects but rather as part of the immediate and wider environment.
The context/environment affects heritage and its revival, while finding new uses and re-purposing heritage to produce a stimulating effect on the environment and its development. The effects of this interaction can make heritage recognizable and can stimulate its sustainability The survival and future of heritage should be linked to urban and spatial planning, which takes into account the integrity of space and the cultural heritage in it.
DESIGN INTENT:
To prepare a comprehensive urban revitalization plan and urban intervention Proposals for George Town.

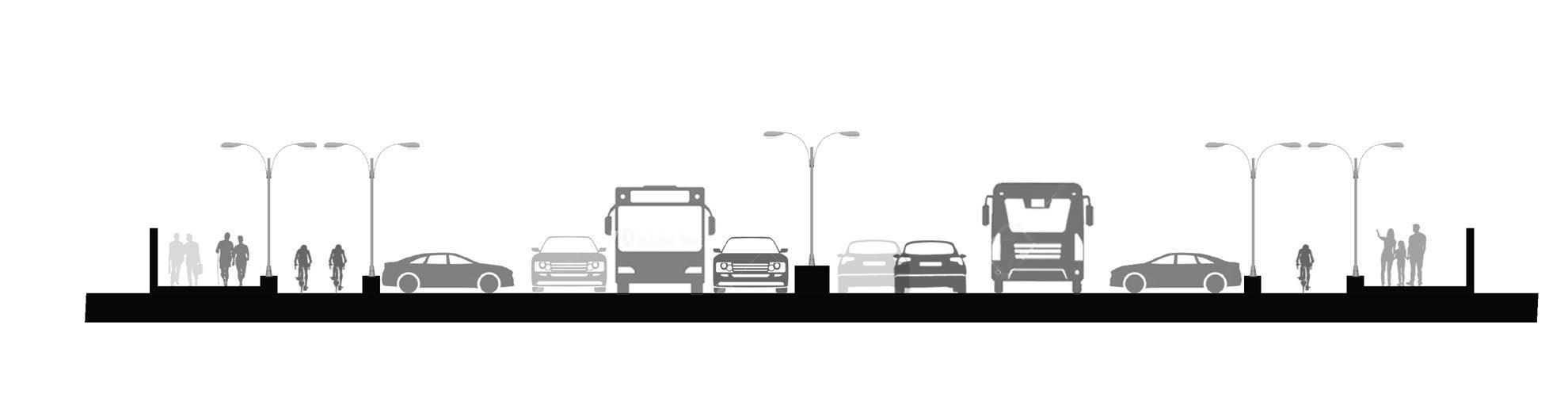

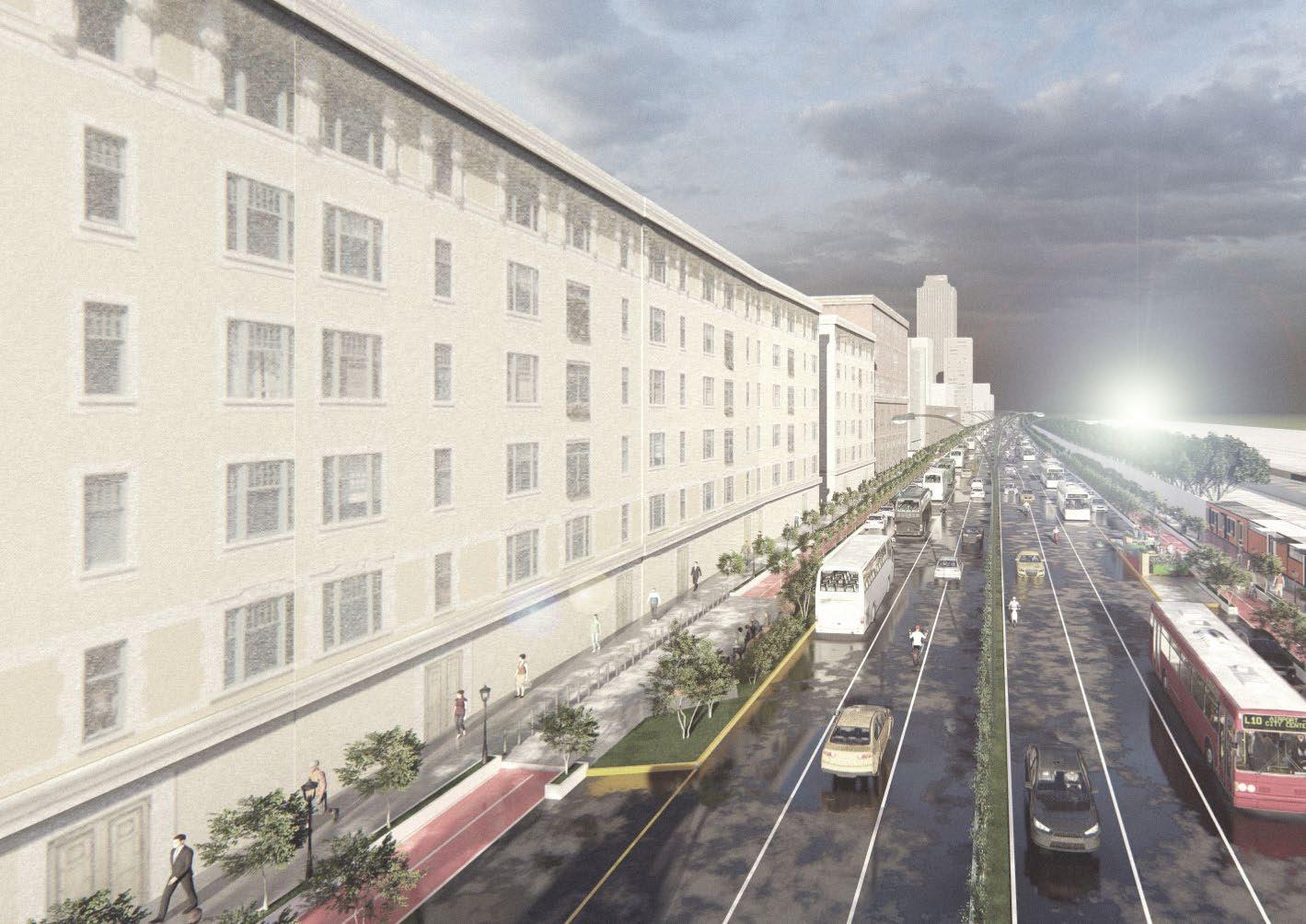

PROPOSED STREET SECTION:
URBAN PLAZA
PEDESTRIAN BRIDGE
05 URBAN DESIGN
GEORGE TOWN SEMESTER VIII

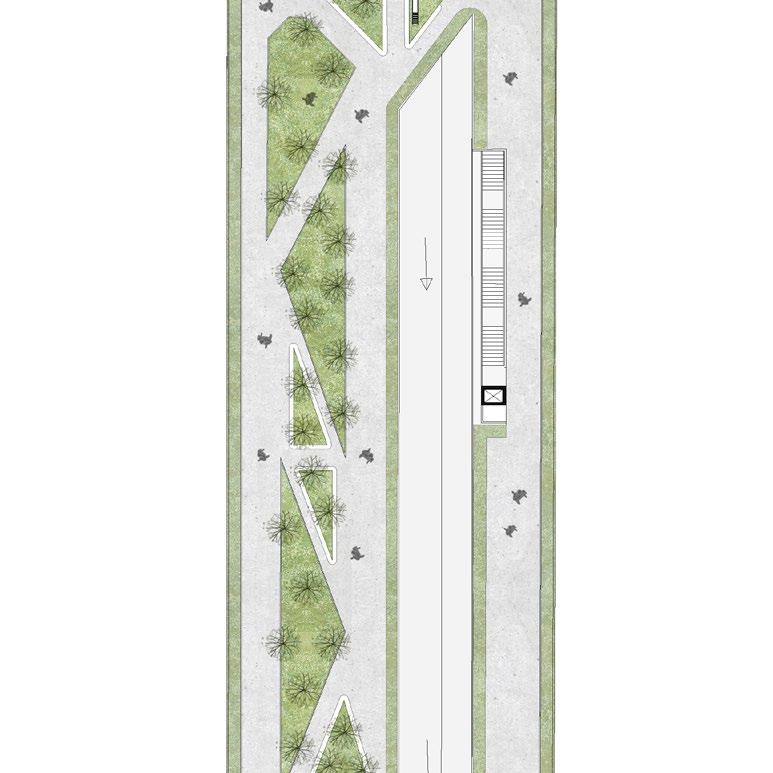

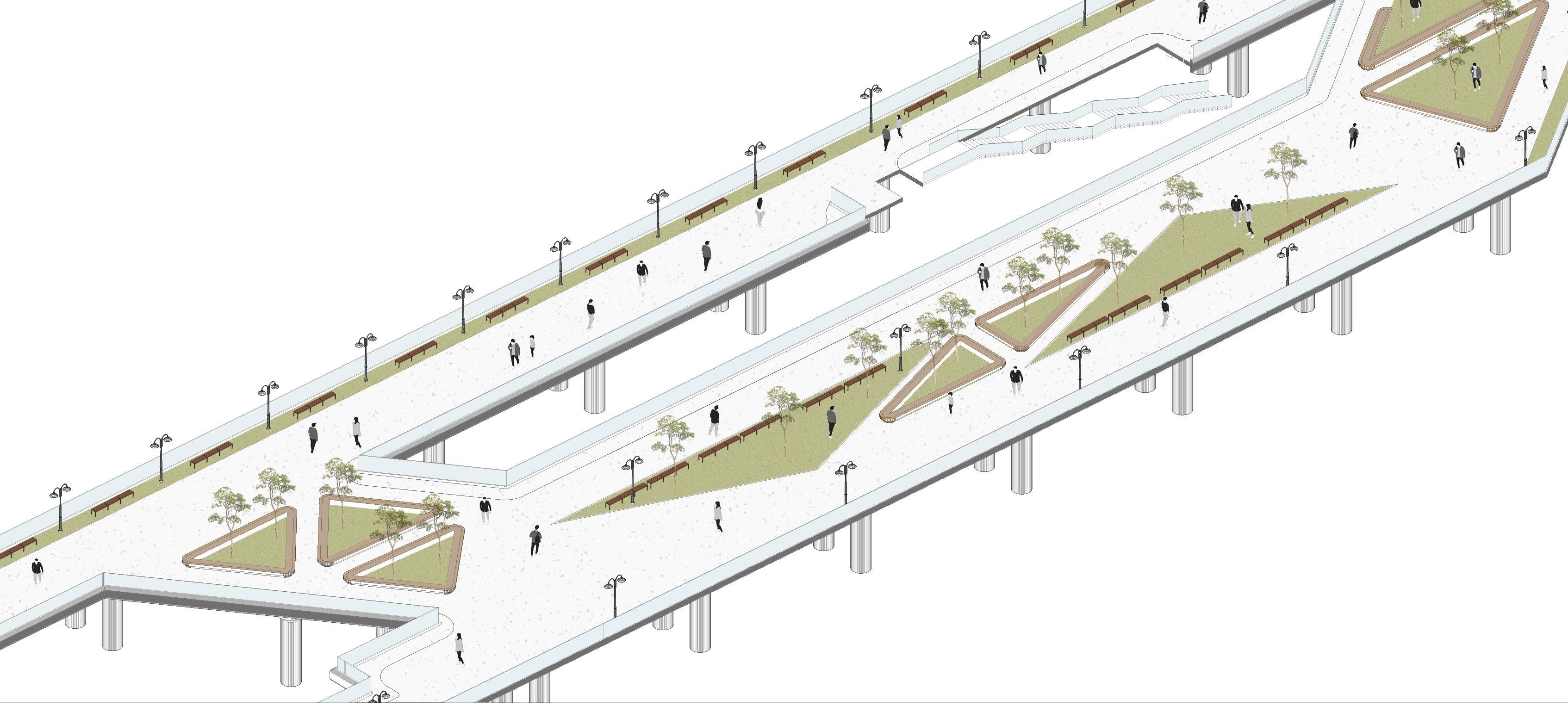

PEDESTRIAN BRIDGE DESIGN:
The proposal aims to transform the bridge into an eventful elevated park crossing the city offering a unique urban journey through one of the densest areas of chennai.
Seatings with central landscaped lawn
Pedestrian pathways and cycle lanes
Parks in between to act as a breaking space
05 URBAN DESIGN
GEORGE TOWN SEMESTER VIII
URBAN PLAZA: PEDESTRIAN BRIDGE:
Interim public plazas transform underutilized areas of roadway into public spaces for surrounding reside -ents and businesses. Using low-cost materials, such as epoxied gravel, movable planters, and flexible seating, interim public plazas reconfigure and revitalize intersections that might otherwise be unsafe or underutilized. Like parklets, interim public plazas are the result of a successful partnership between the city and a neighbourhood group or business association.
Landscaped parks with lush green lawn

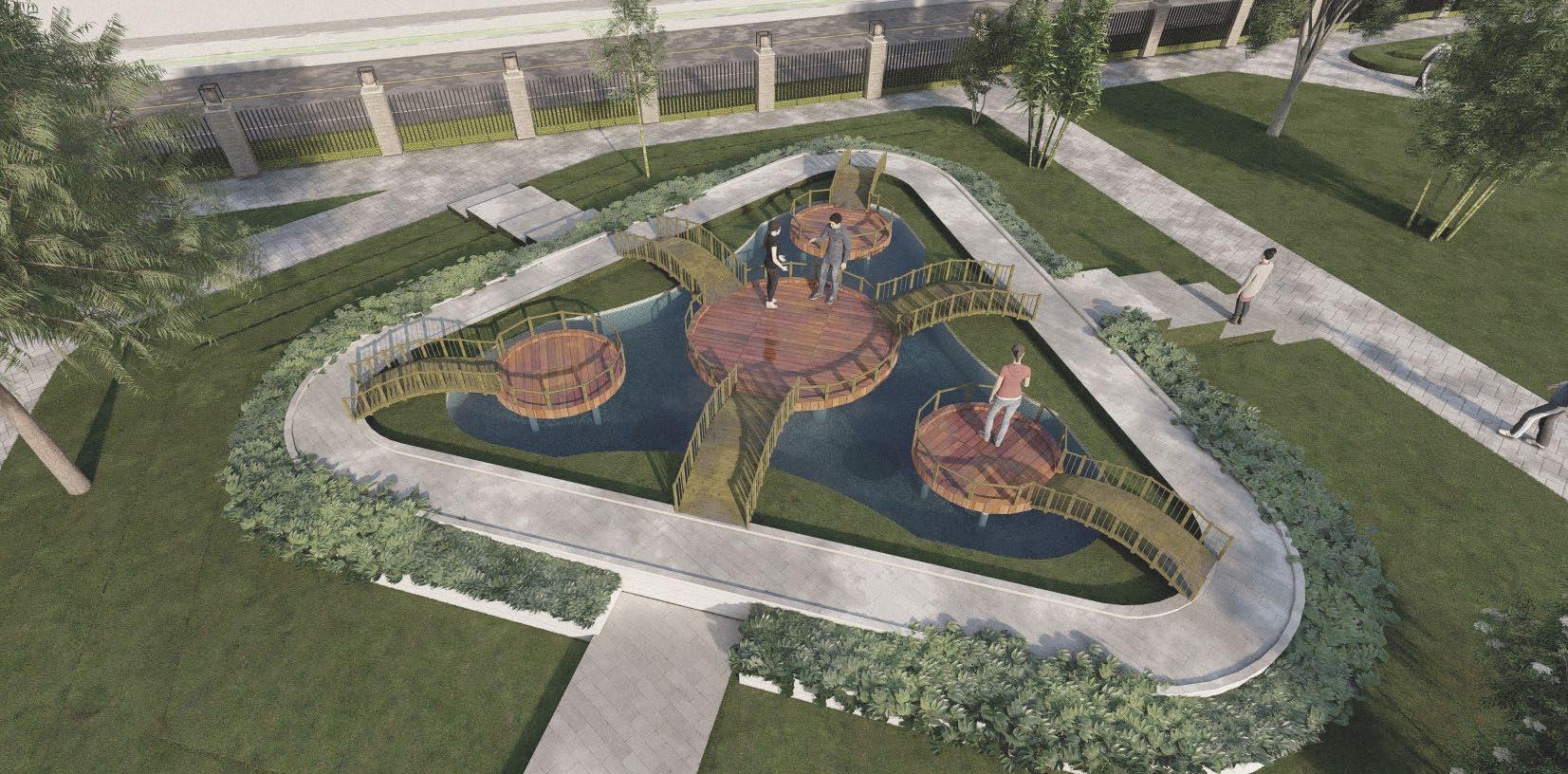

stepped well pond
The bridge extends over a kilometer in length as an elevated platform offering unique urban views from one of the most representative areas of chennai.
The bridge is provided with multiple entrances to make it easily accessible for the users from any part of the bridge.
The bridge have openings in between so that the road below is not fully covered and also acts as a see through feature for the viewers
05
URBAN DESIGN
GEORGE TOWN SEMESTER VIII

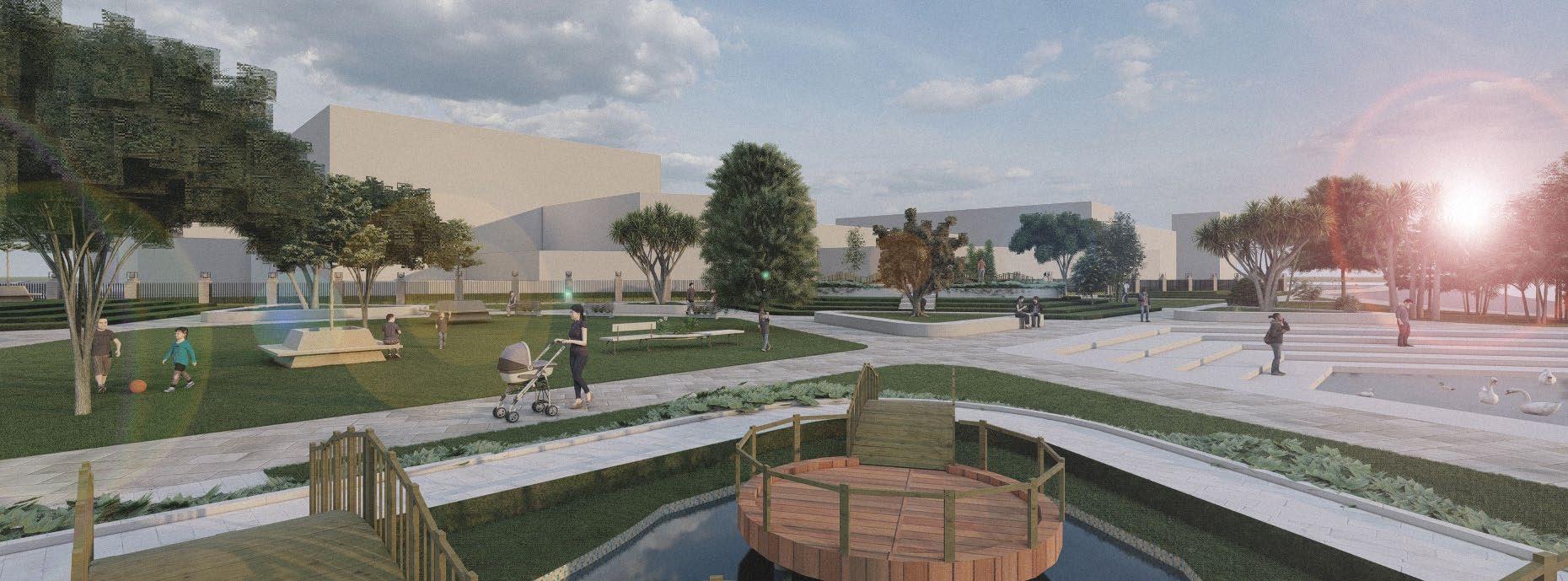

URBAN PLAZA:
Public plazas have the potential to: Make intersections safer, more compact, and easier to cross for pedestrians. Slow traffic speeds and mitigate potentially dangerous intersection conflicts.
Activate a public place by reclaiming space unused or underused by motorists. Energize surrounding streets and public spaces, creating foot traffic that can boost business and invigorate street life in a neighbourhood.
05 URBAN DESIGN
GEORGE TOWN SEMESTER VIII

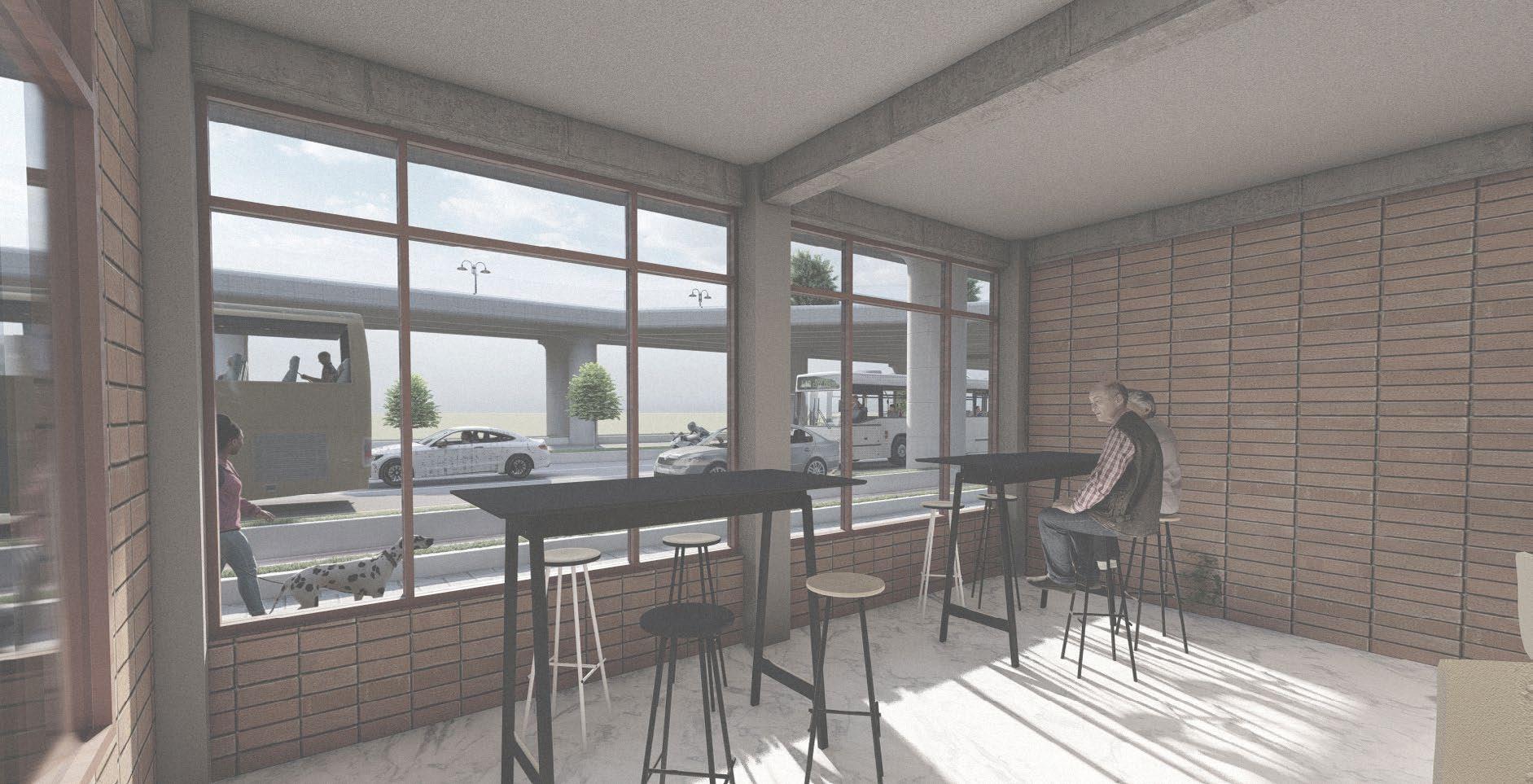

URBAN CAFE:

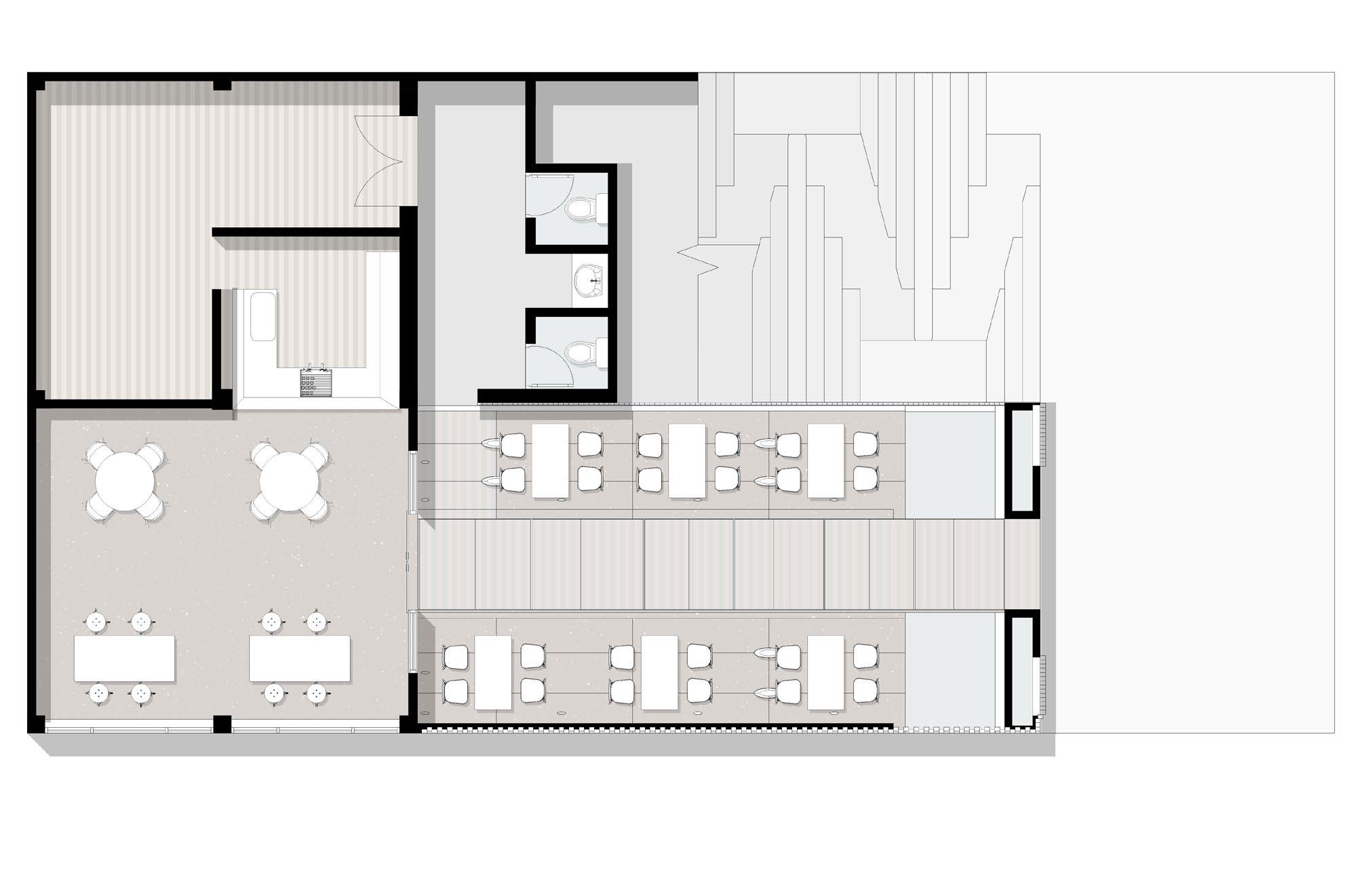

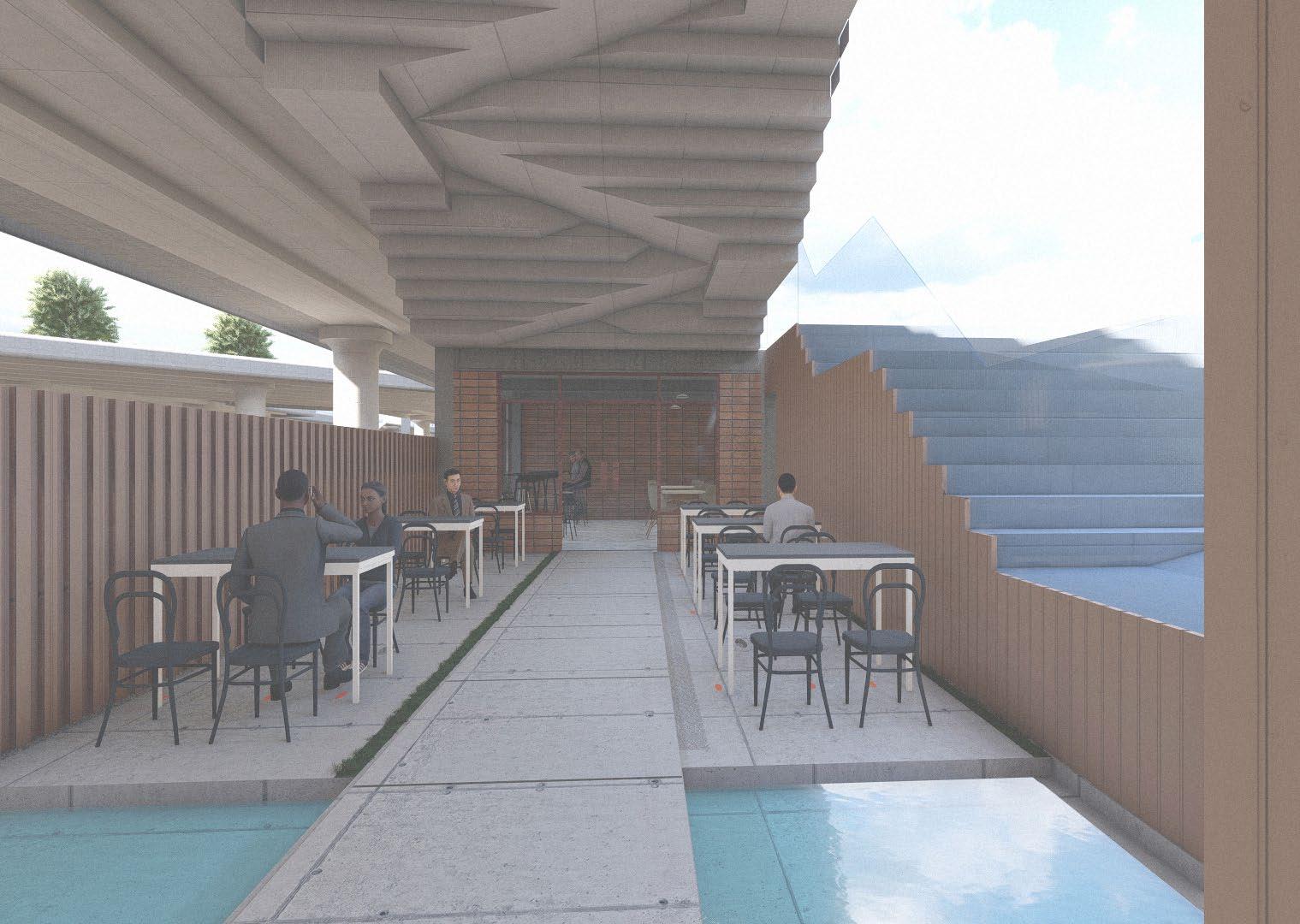

Bridge Cafe is a small cafe located beneath the grand robson square ramp blend staircase. The Cafe offers an indoor seating and outdoor seating for the public and also has a elevator facility to reach to the top, which leads the public to the Pedestrian Bridge
Outdoor dining
Indoor dining
Kitchen and reception
Storage and toilets
Staircase

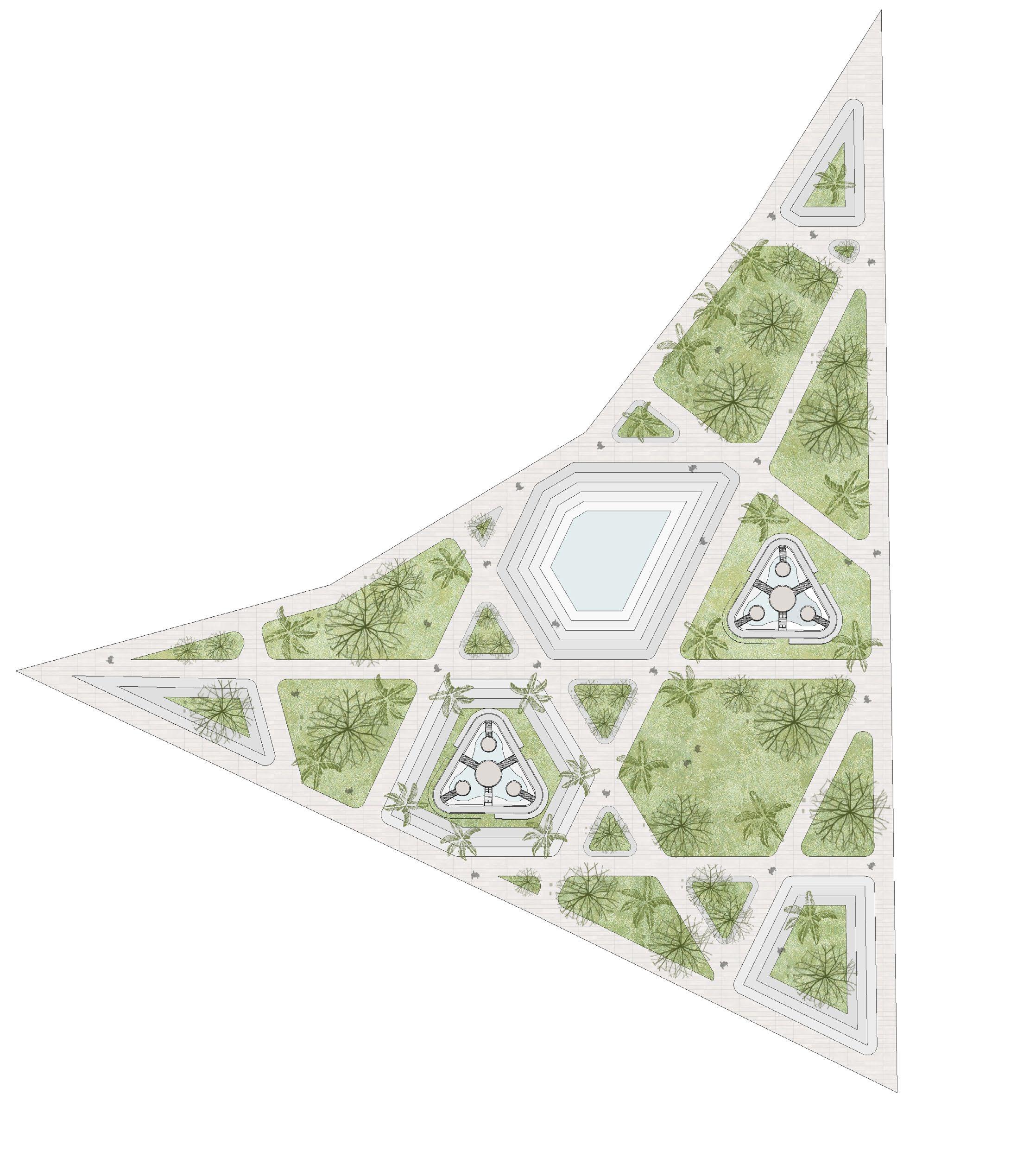

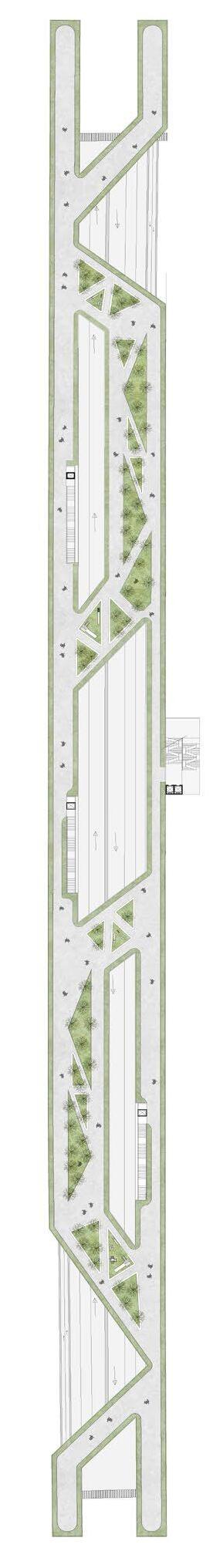

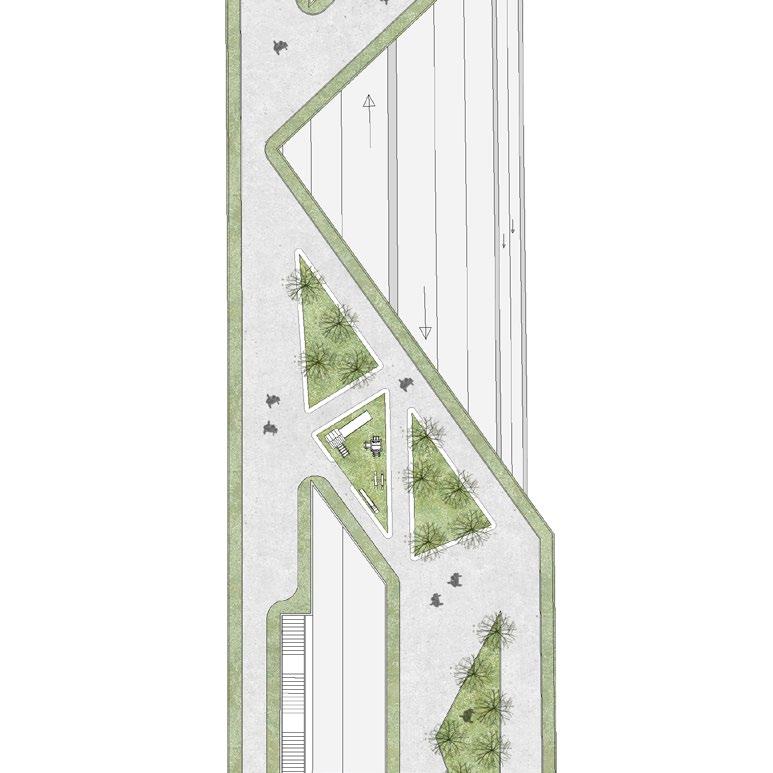

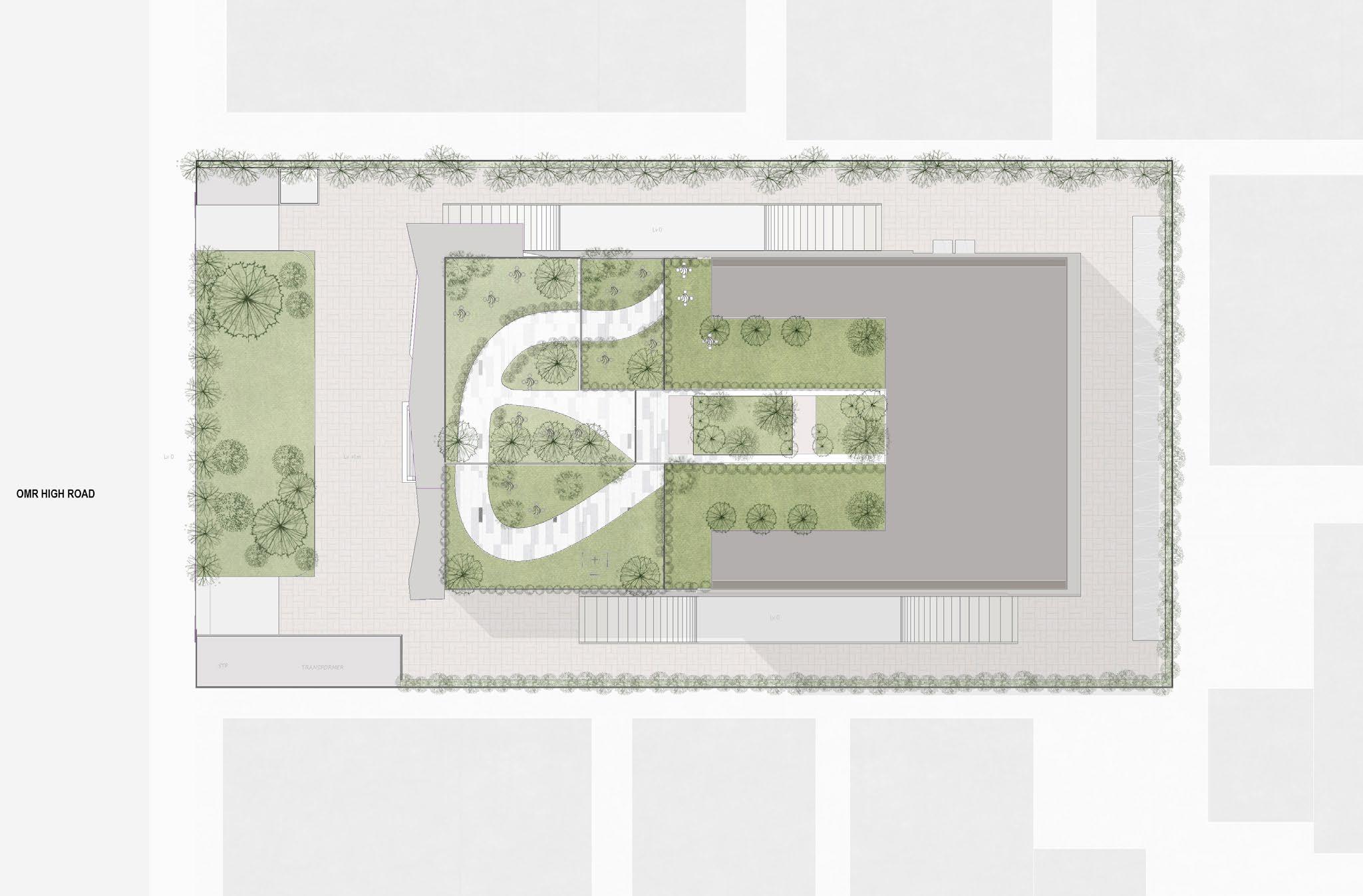

PROPOSED PLAN:
ROAD

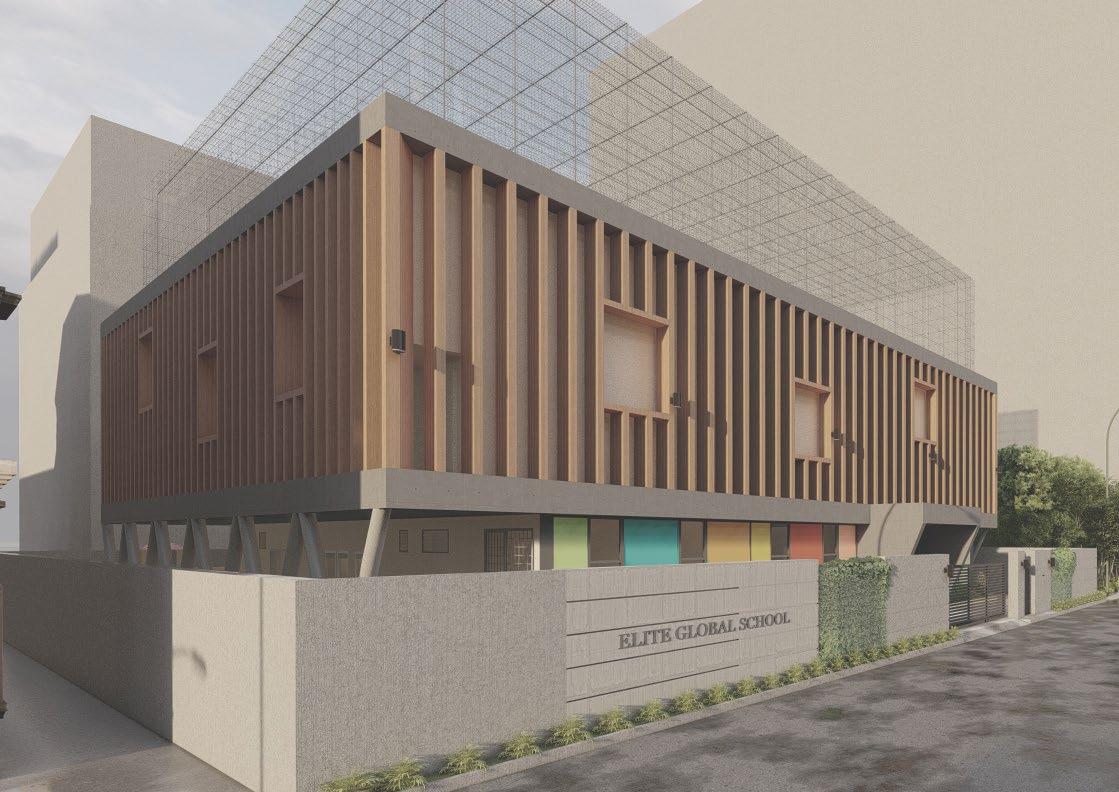

ELITE GLOBAL SCHOOL
AT TAMIL NADU
ELITE GLOBAL SCHOOL 06

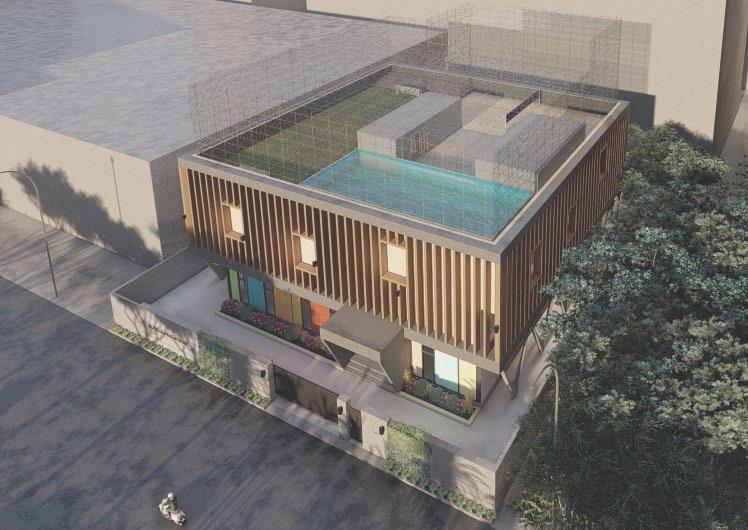

DESIGN BRIEF:
The proposed building is to be converted into a primary school. The interiors and exteriors of the building’s needs be altered and changed according to the requirements and regulation norms provided. The school building consists of classes from kinder garden to fifth grade, a principal room, staff rooms, prayer hall, labs and terrace play area.
Site area:7350 sq.ft
Built up area: 5790 sq.ft
Scope of work: Total planning of interior and exterior spaces
DESIGN PROCESS:
BRIEF STUDY
DESIGN PROGRAM PLANNING & CONCEPTUALISATION
PROFESSIONAL
INTERIORS & EXTERIORS EXECUTION

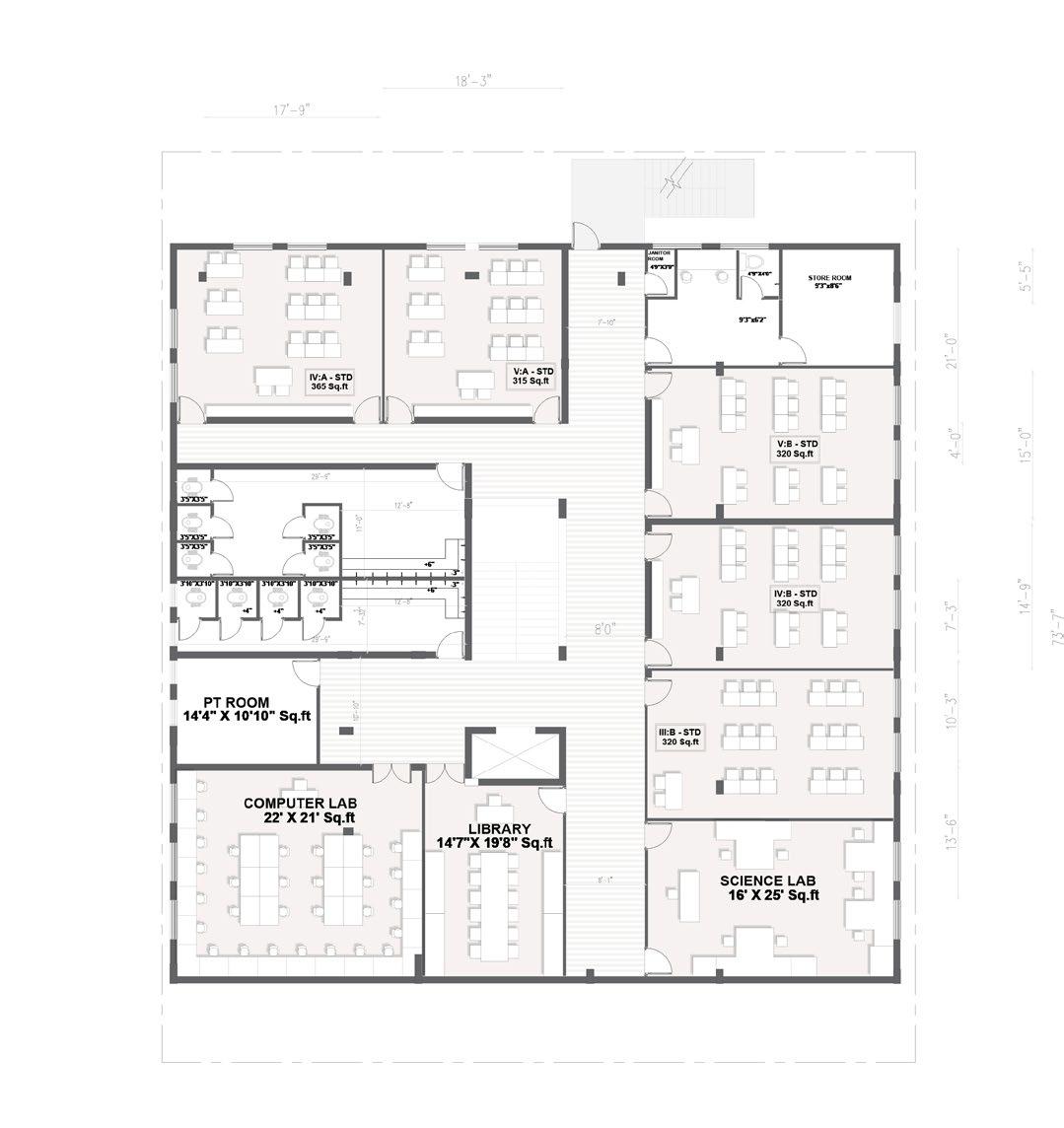

SECOND FLOOR TERRACE FLOOR

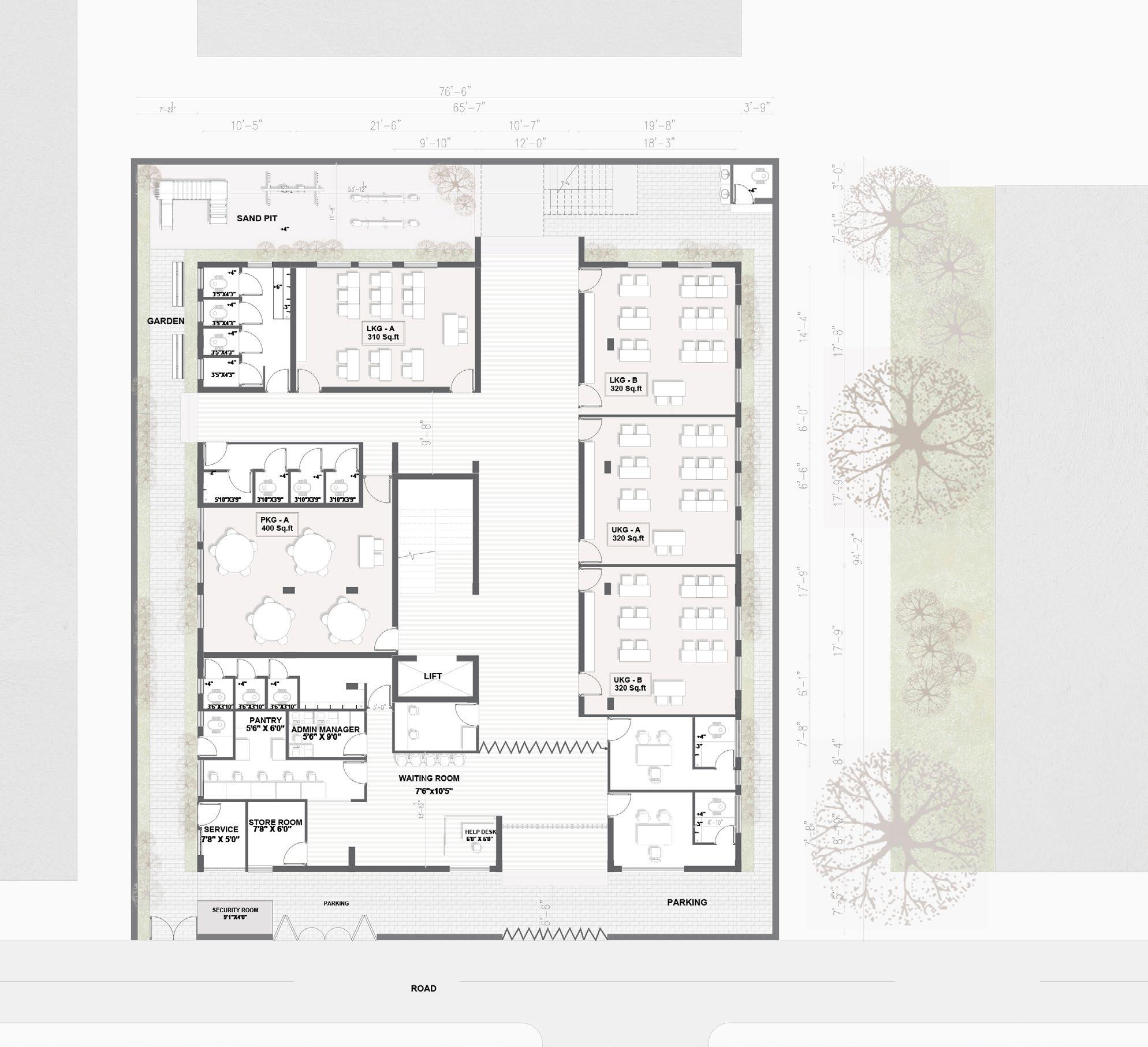

SITE PLAN WITH GROUND FLOOR
ELITE GLOBAL SCHOOL 06
PROFESSIONAL

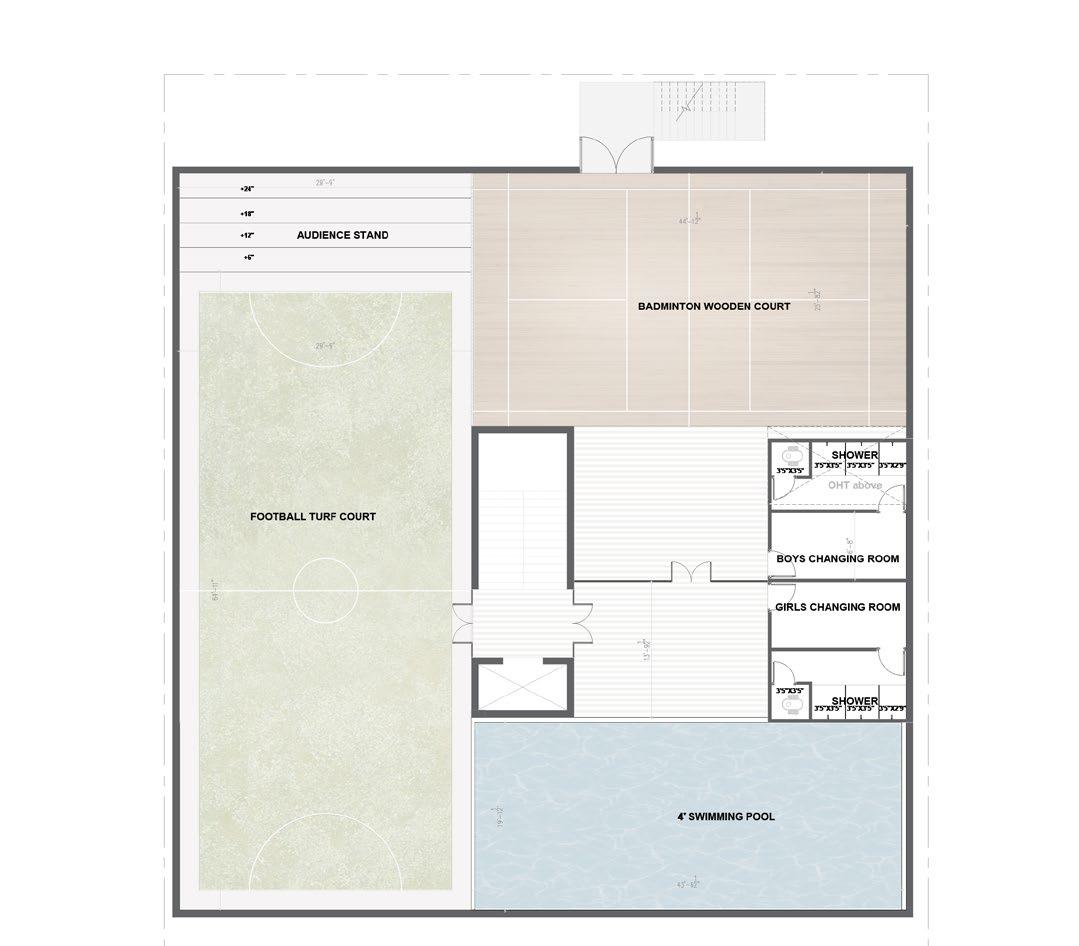

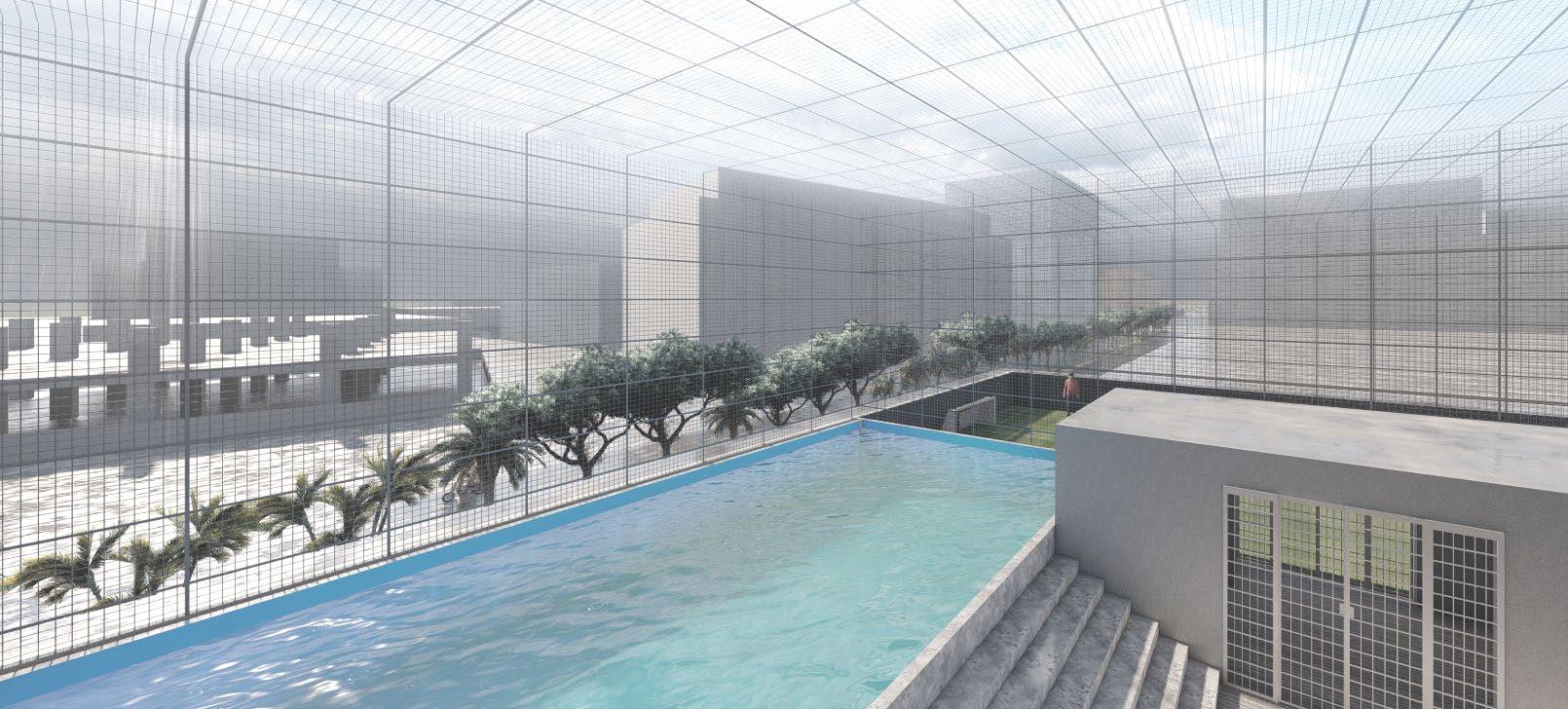

ROOF TOP SWIMMING POOL

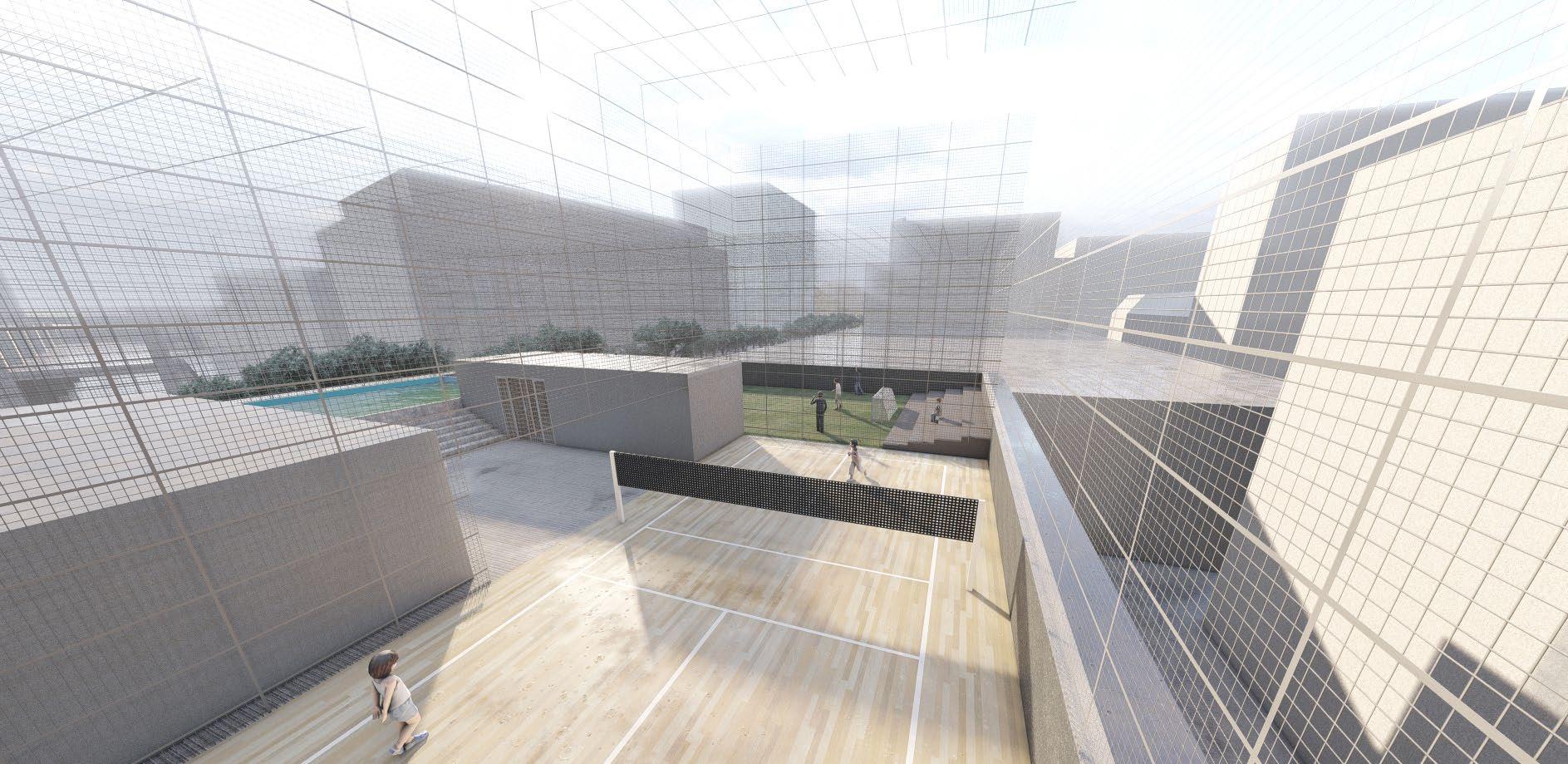

ROOFTOP BADMINTON COURT
PRIMARY CLASSROOM

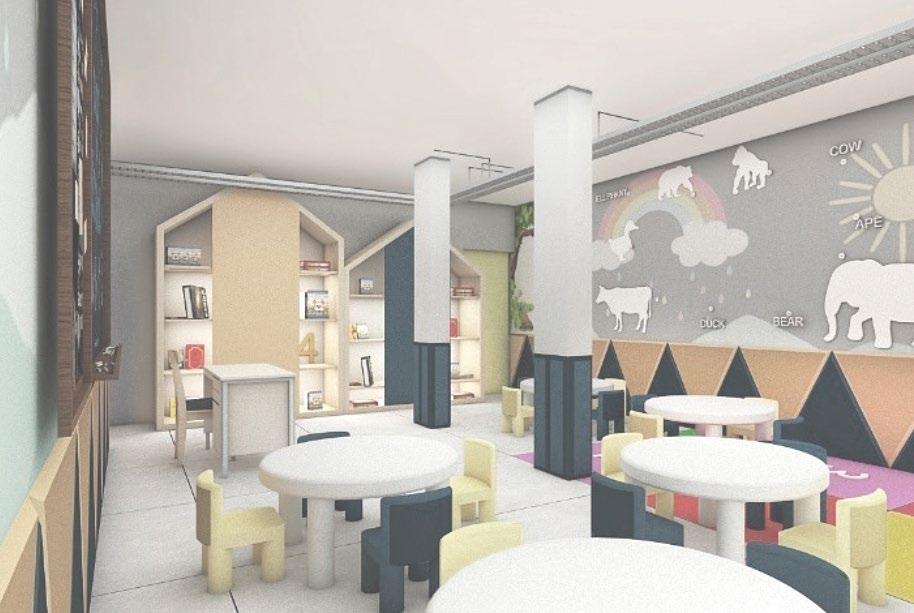

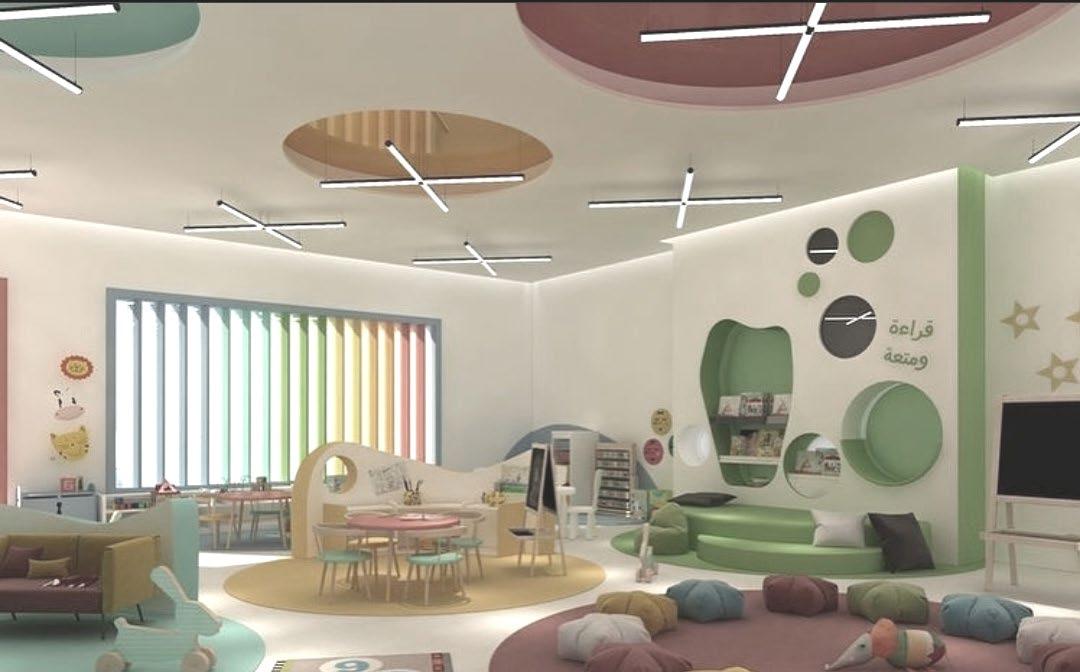

KINDER GARDEN CLASSROOM
PROFESSIONAL WORKING DRAWINGS
AT TAMIL NADU
PROFESSIONAL
WORKING DRAWINGS
PROJECT BRIEF:
The residence is 4 storey luxury villa of ground floor consisting of office, waiting area and lobby,first floor consists of master bedroom , living space with a double height ceilings second floor consists of guestroom, kids room and an entertainment room using a mood board of rich wooden textures complemented with a blend of warm and cool colors.
Site area: 4500sq.ft
Built up area: 3600sq.ft
DETAILED DRAWINGS:
SEMESTER IX

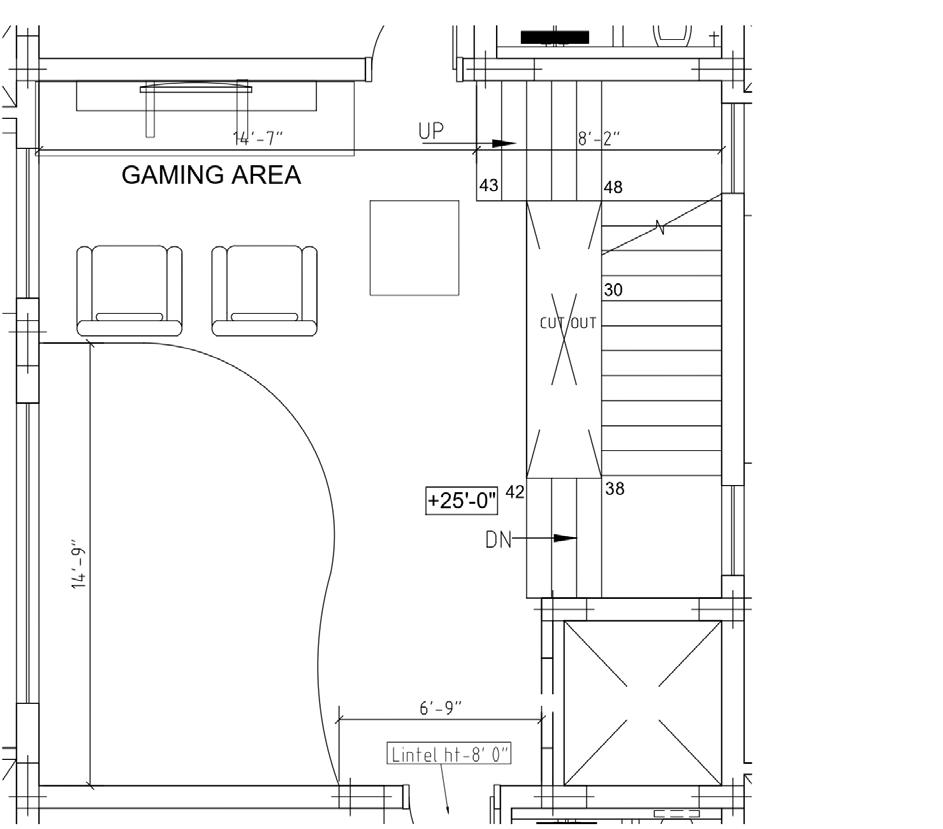

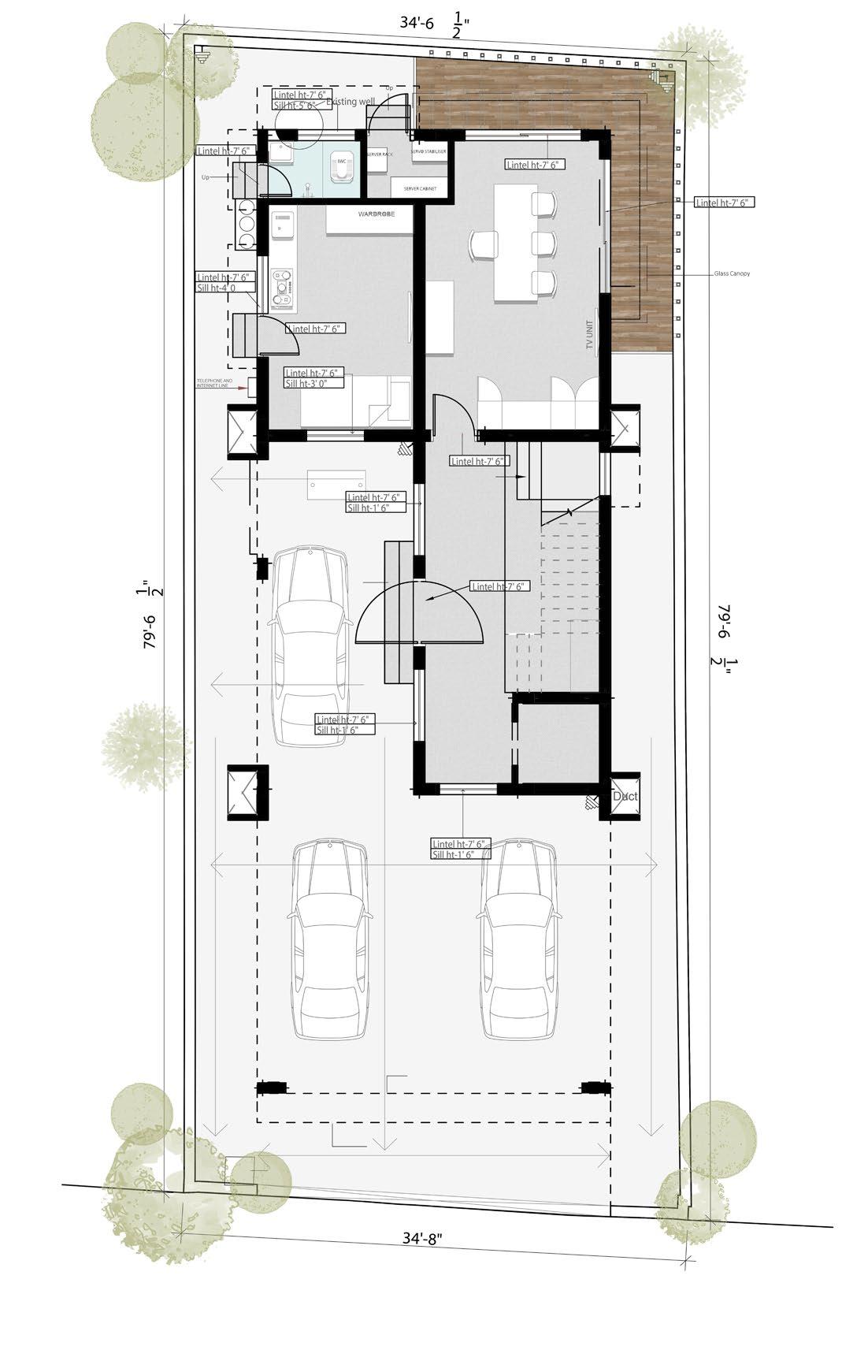

Detailed drawings consist of dimension to each space, False ceiling layouts with electrical drawings which allows the client to understand space in terms of area and visualize the size of each space.

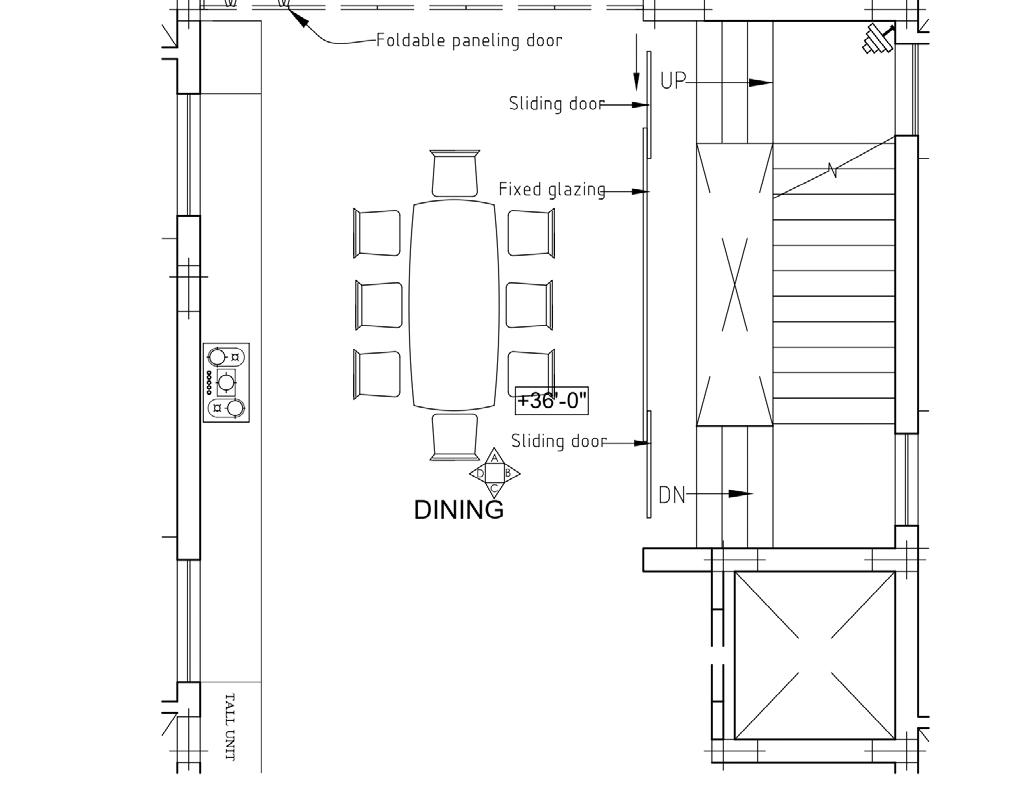

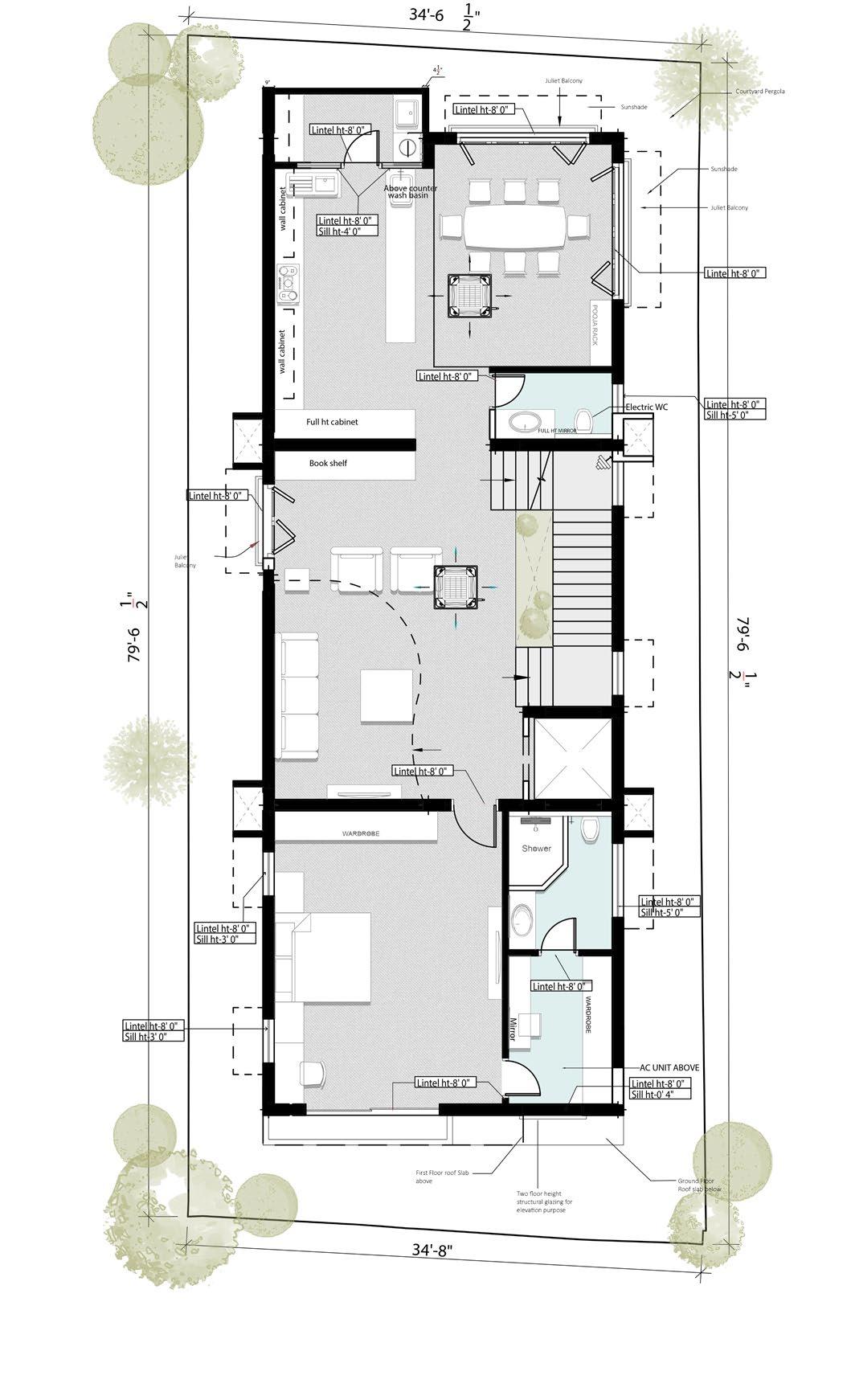

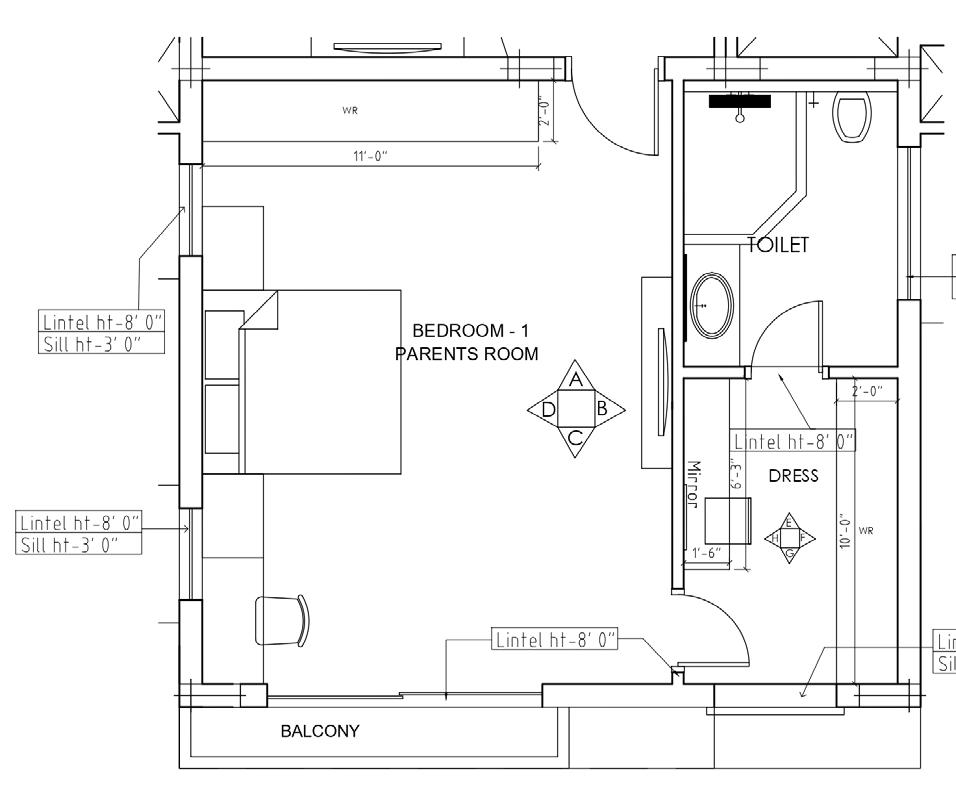

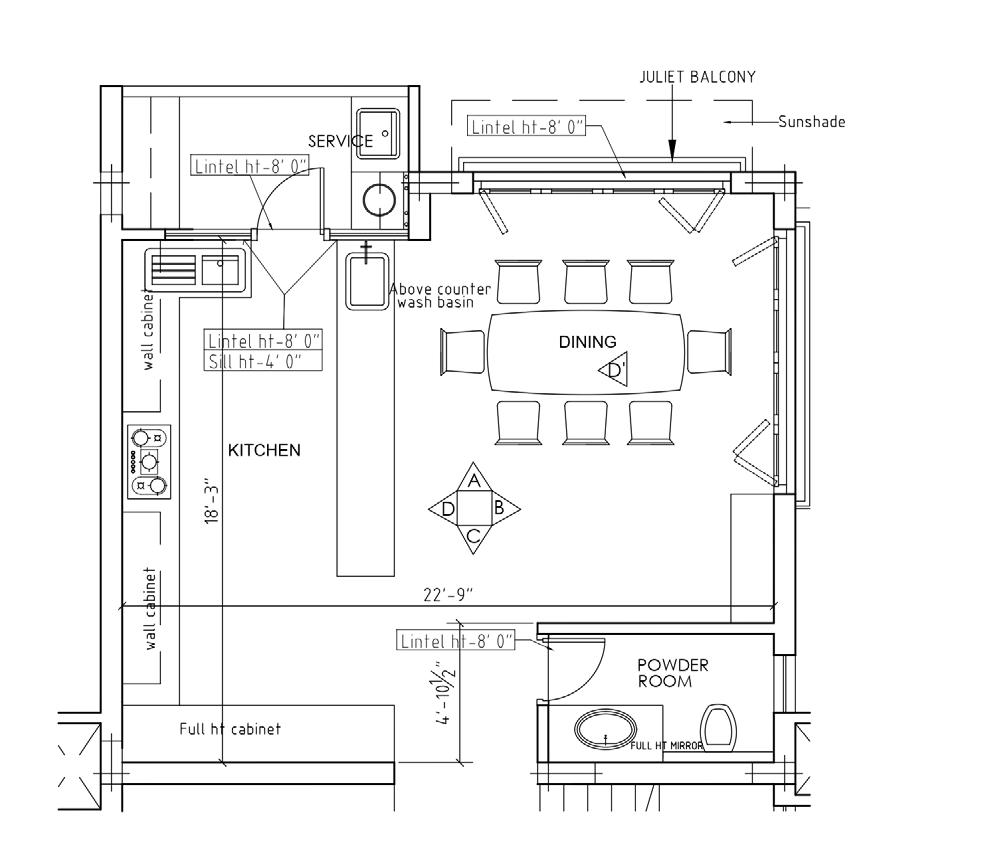

Dining Detailed Plan
Bedroom-1 Detailed Plan

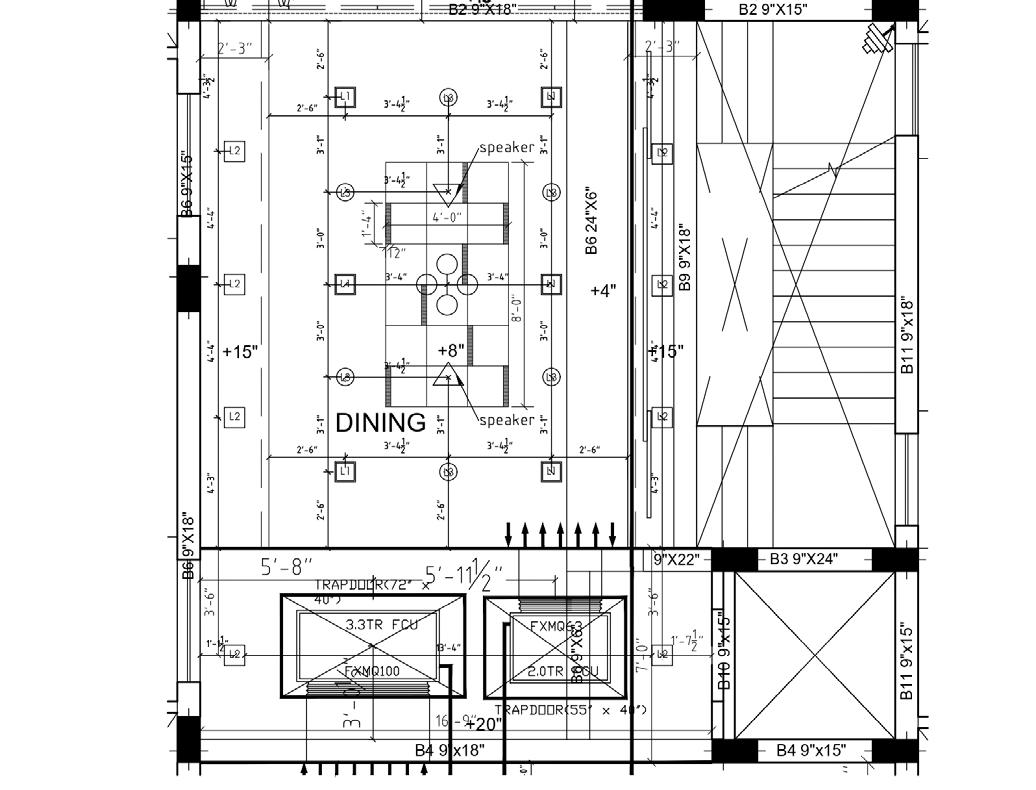

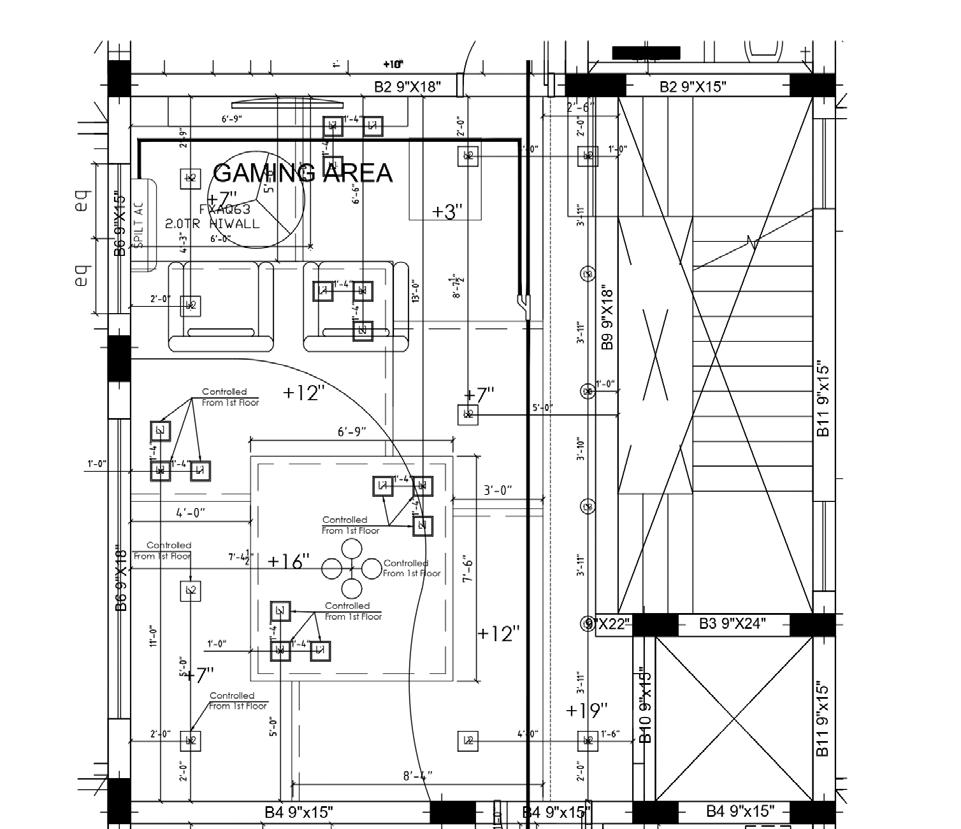

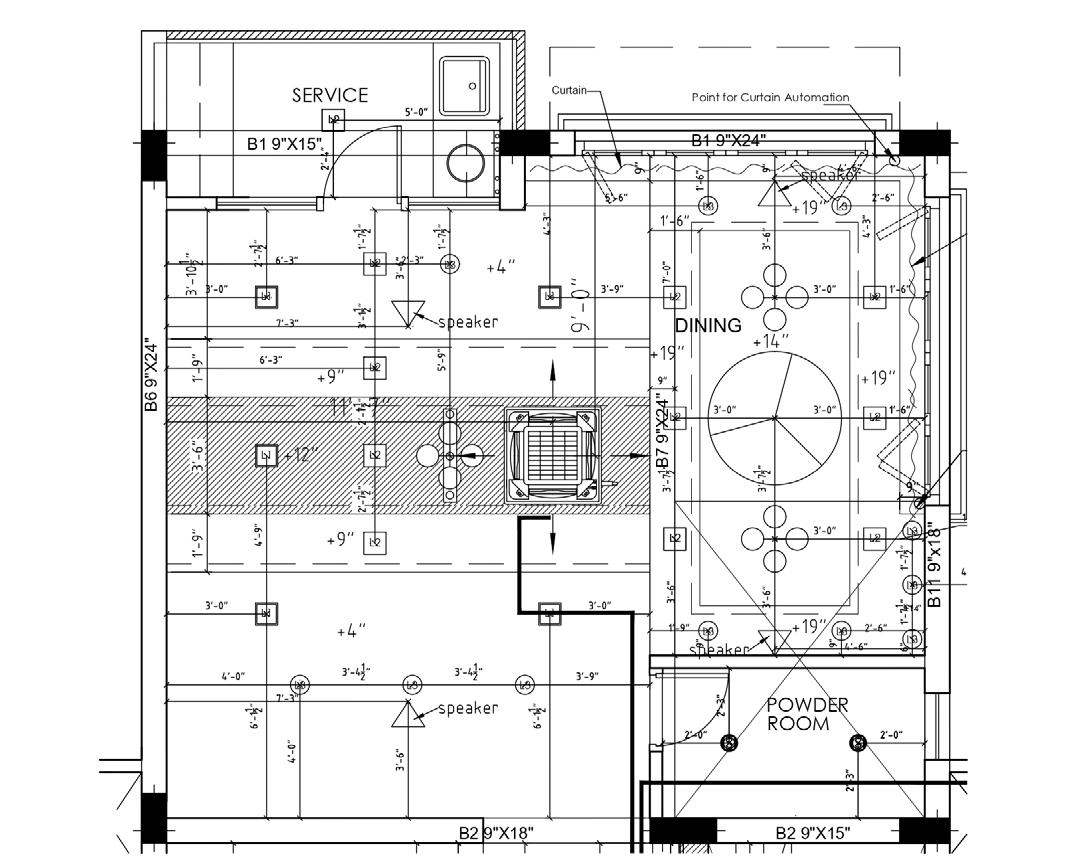

Dining False Ceiling layout

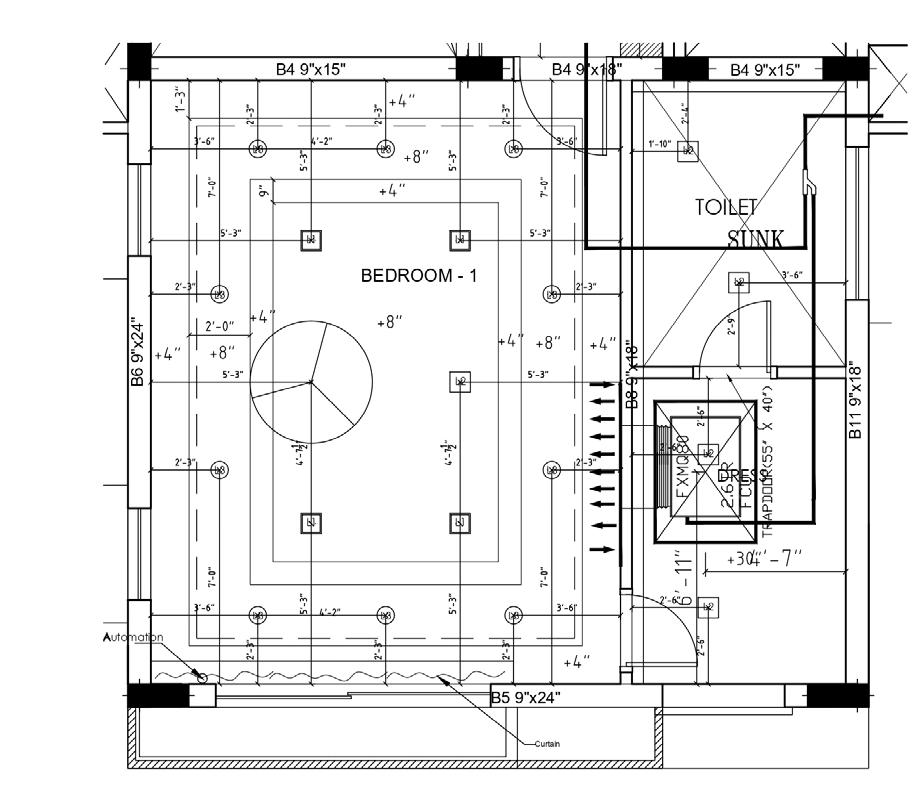

Bedroom-1 False Ceiling layout
WORKING DRAWINGS SEMESTER IX

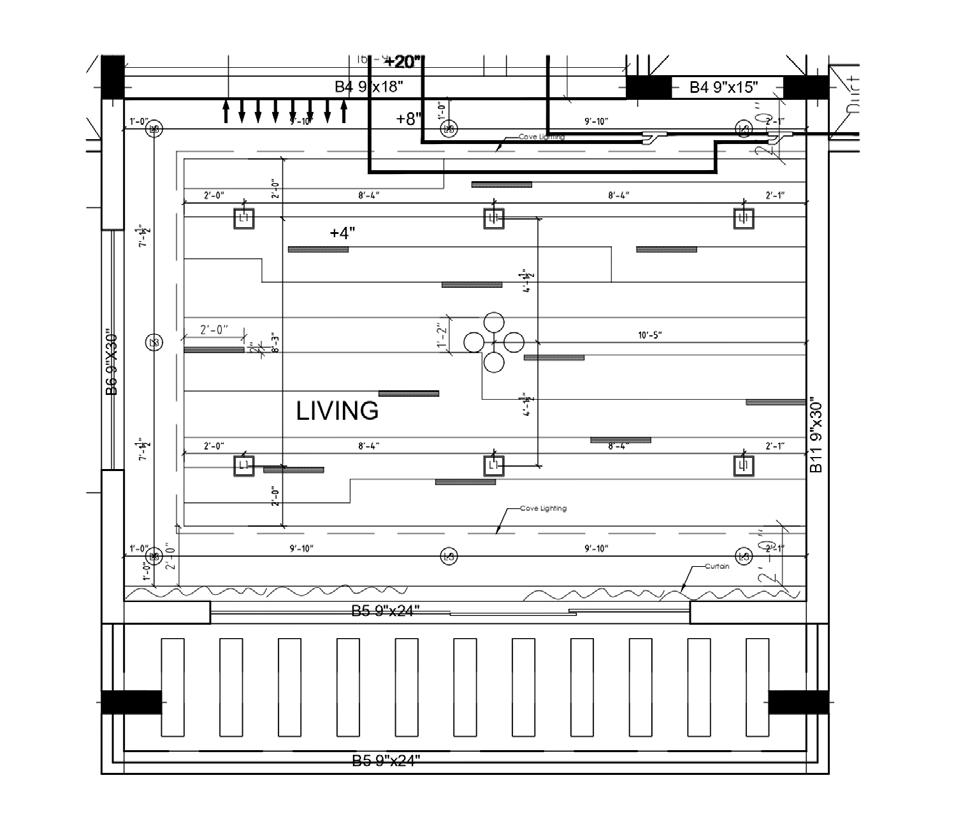

DETAILED DRAWINGS & FALSE CEILING LAYOUTS:

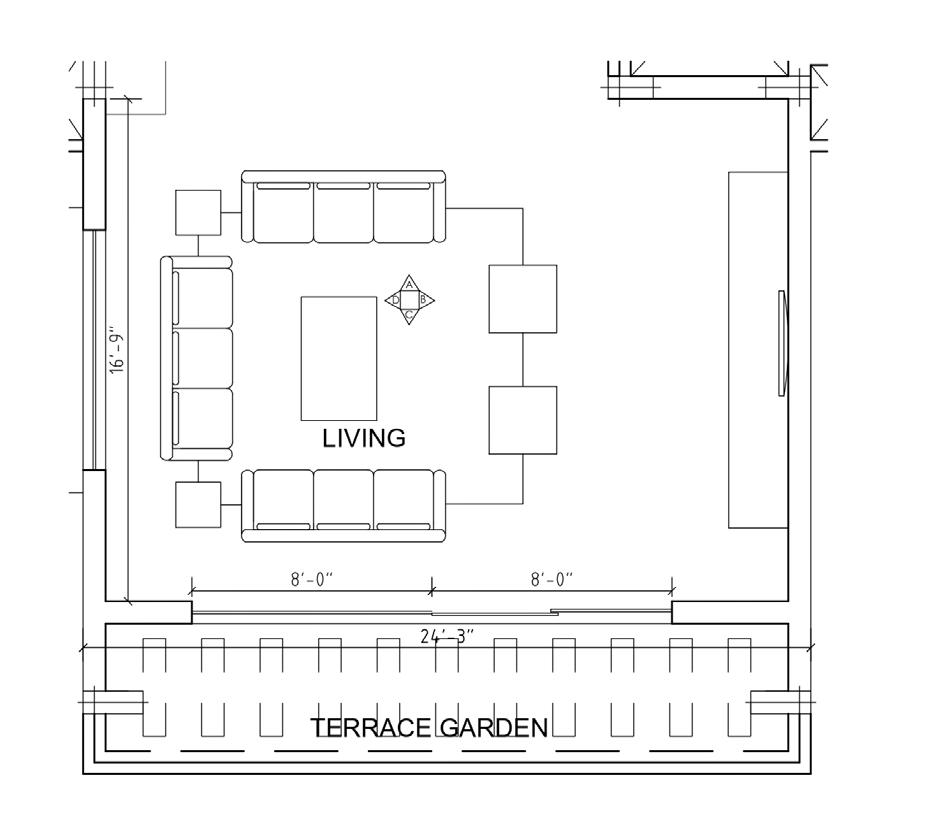

Living Room Detailed Plan
& Dining Detailed Plan

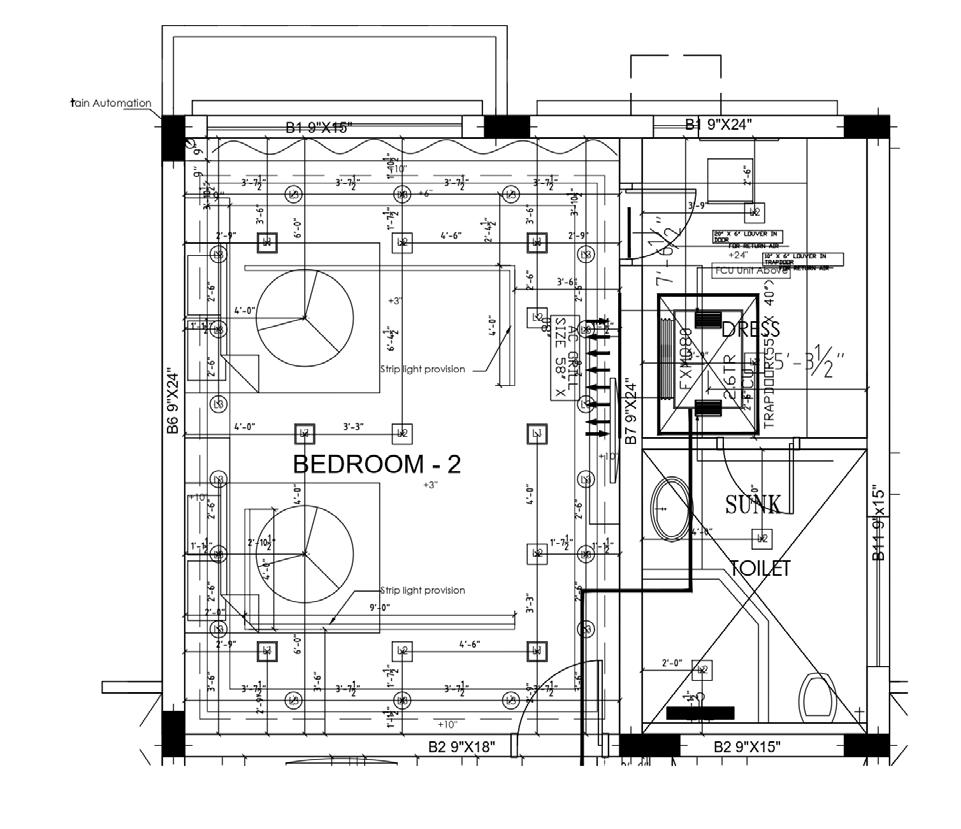

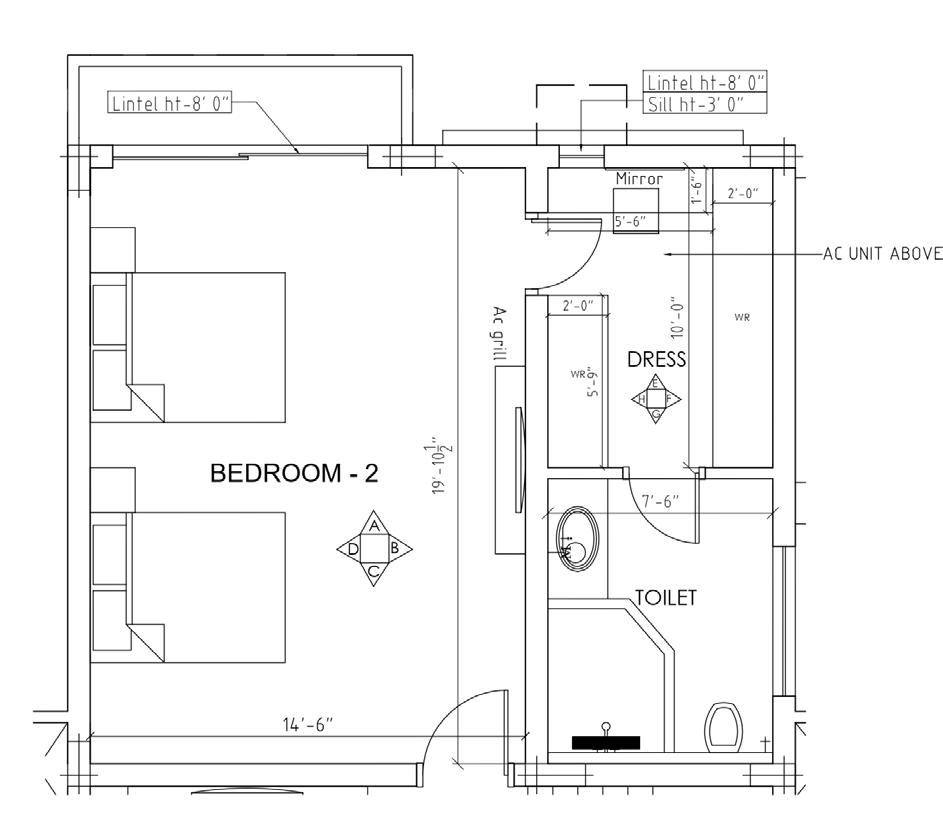

Bedroom-2 Detailed Plan
Room Detailed Plan Living Room Ceiling layout
& Dining Ceiling layout
Bedroom-2 False Ceiling layout
ELEVATION DETAILS: PROFESSIONAL
WORKING DRAWINGS

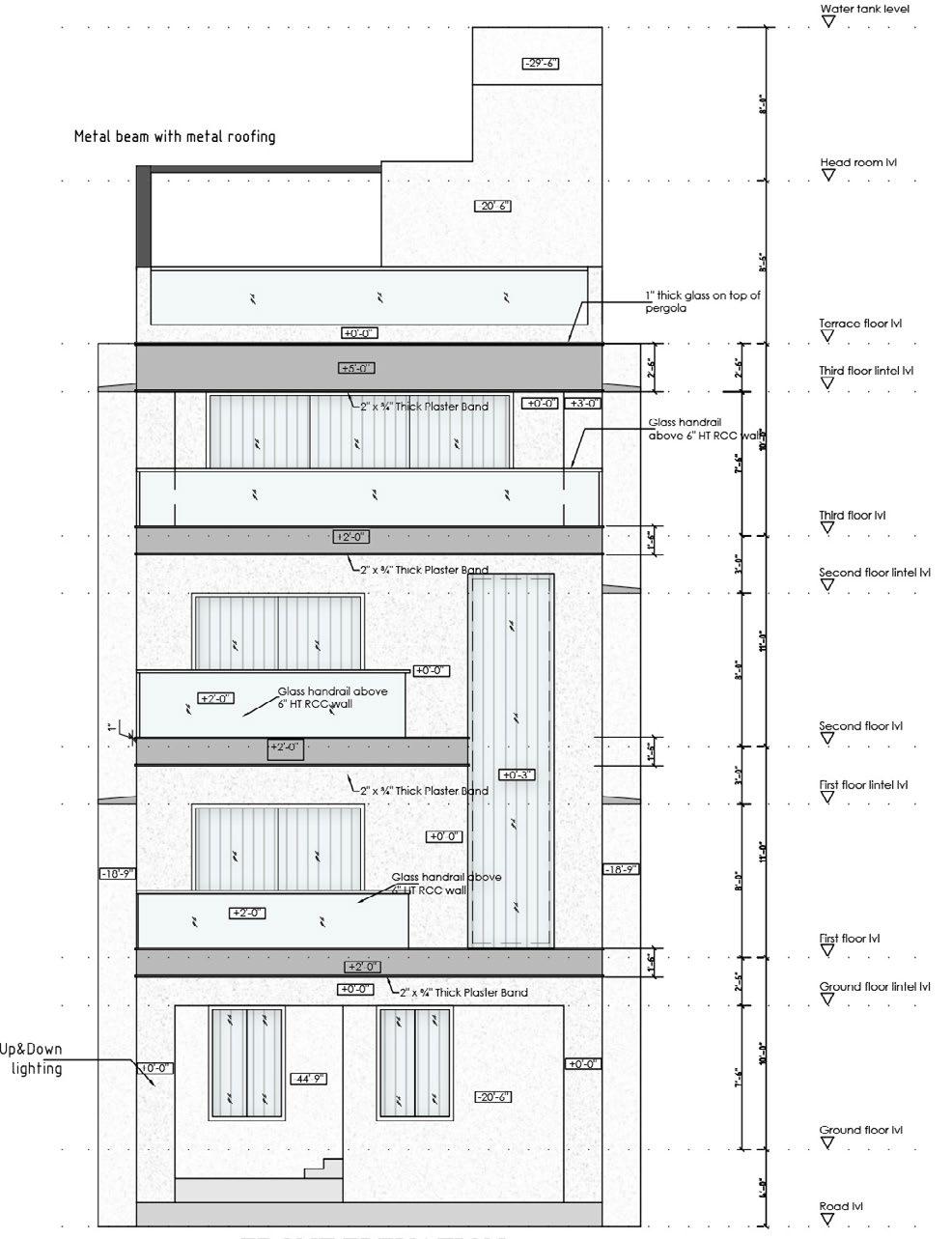

The front facade is designed keeping in mind the requirements to provide balconies with glass rails and a huge stick on glass that covers the double height space for maximum lighting.
The rear facade has Juliet balconies so that it does not violate the rules of deviation.

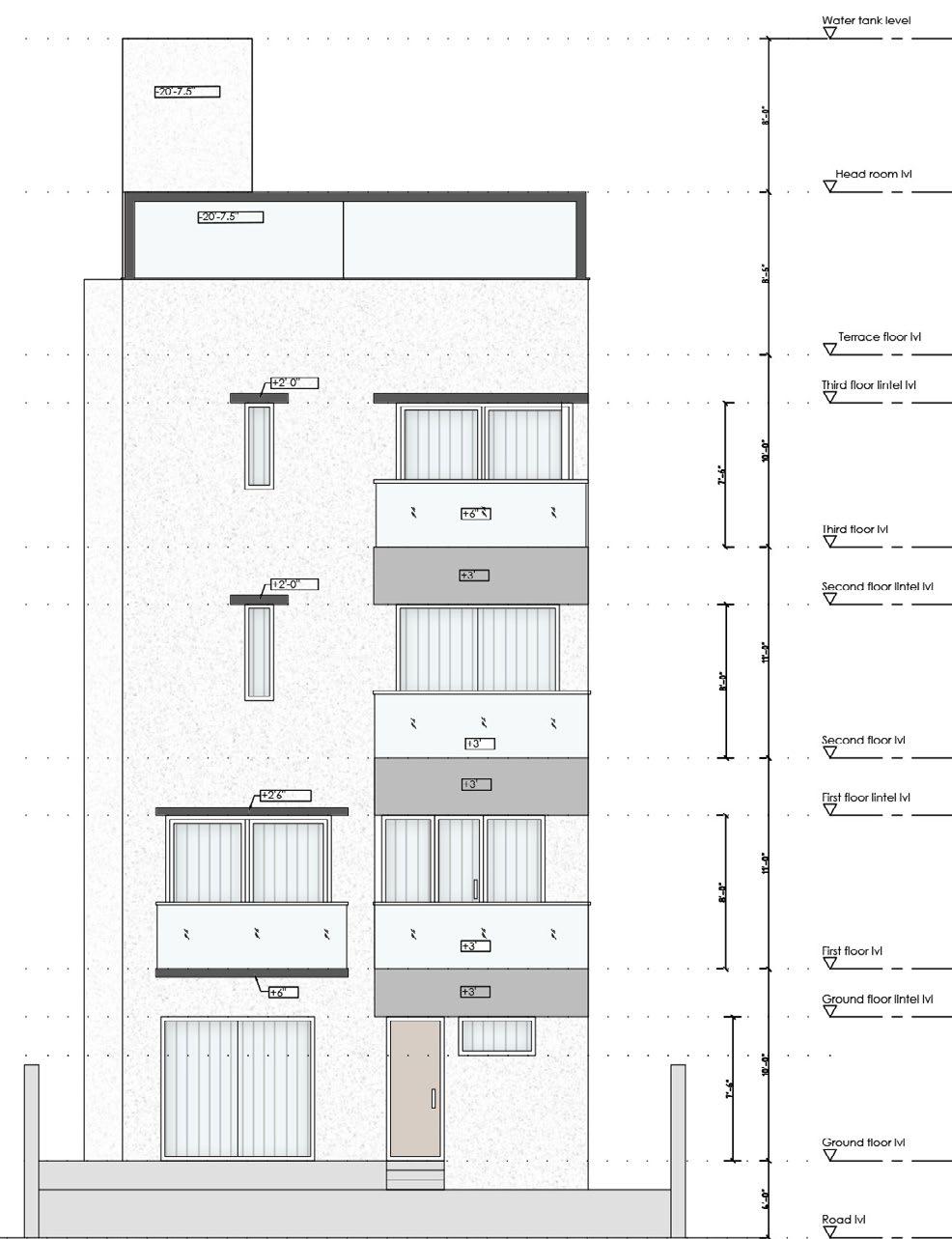

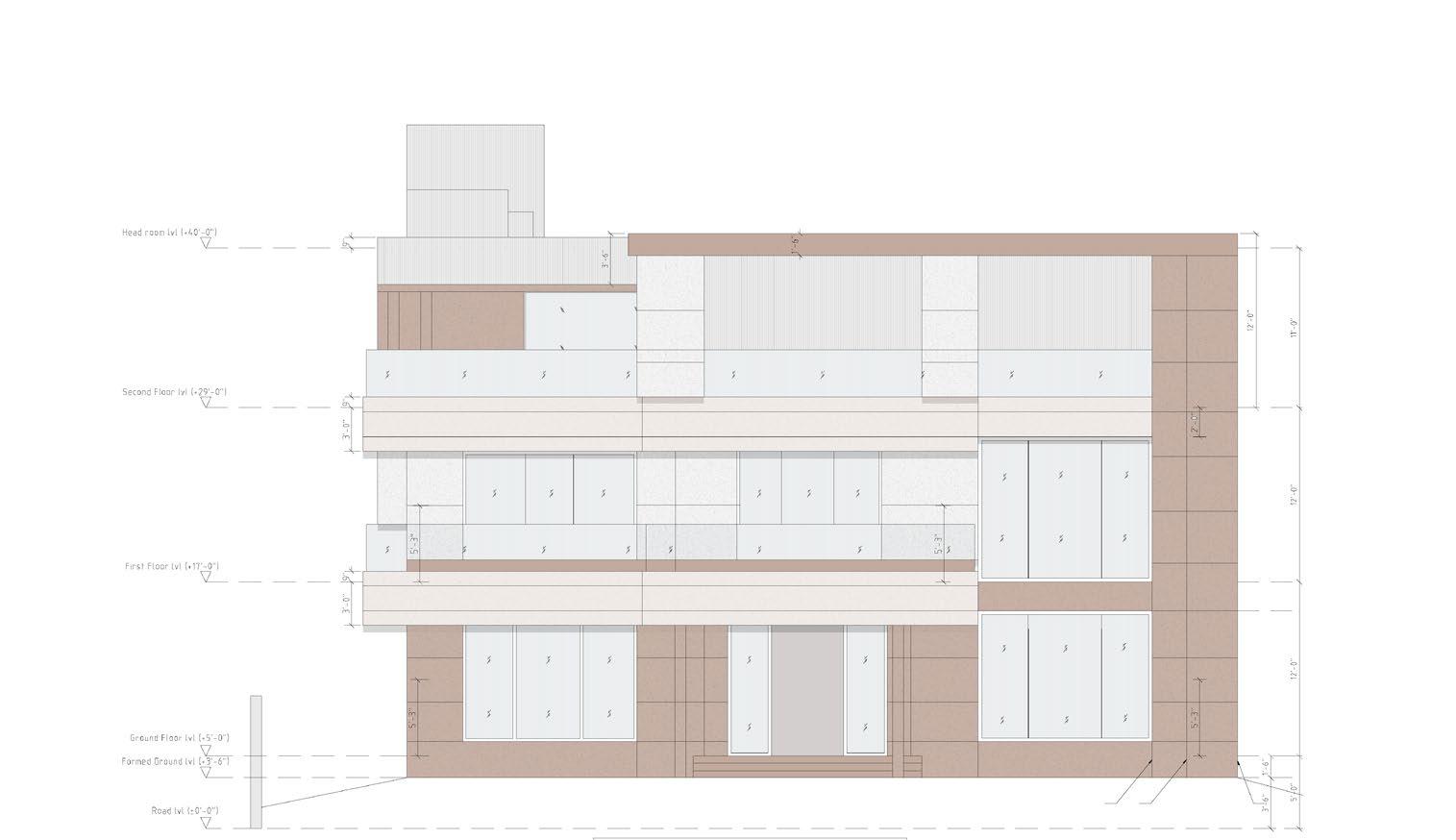

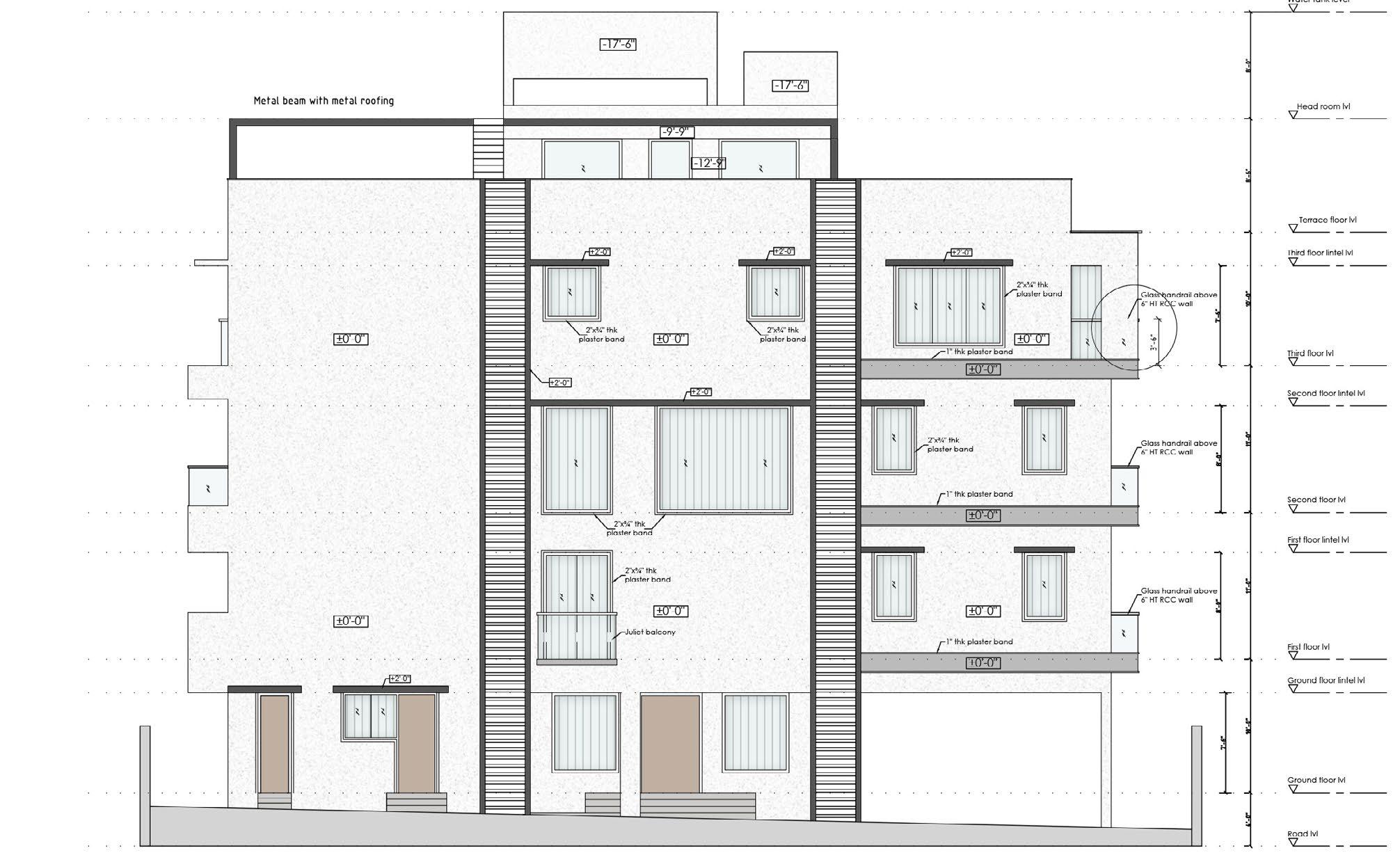

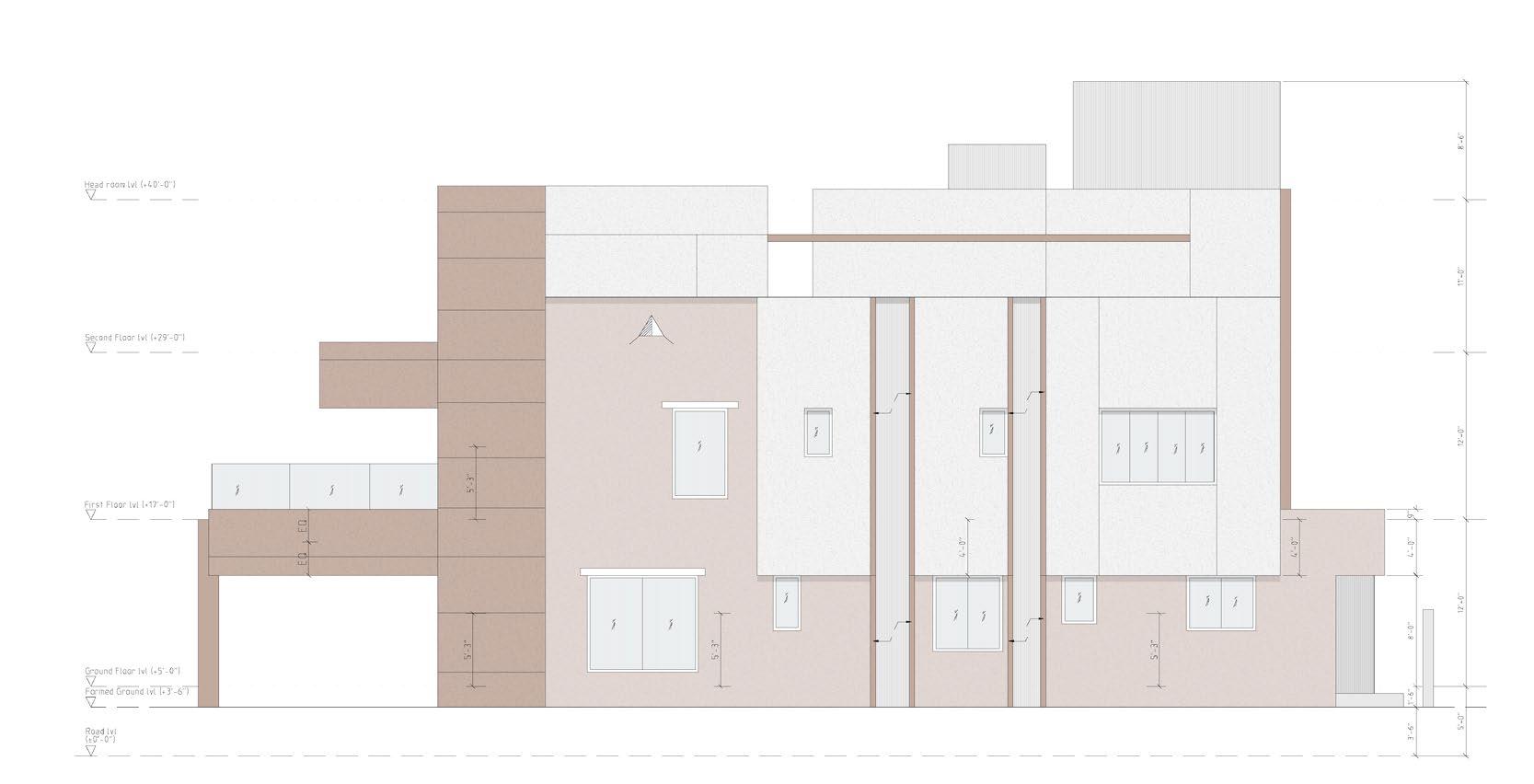

North Elevation
South Elevation
East Elevation
DRAWINGS
RESIDENTIAL BUNGLOW ELEVATION DESIGN

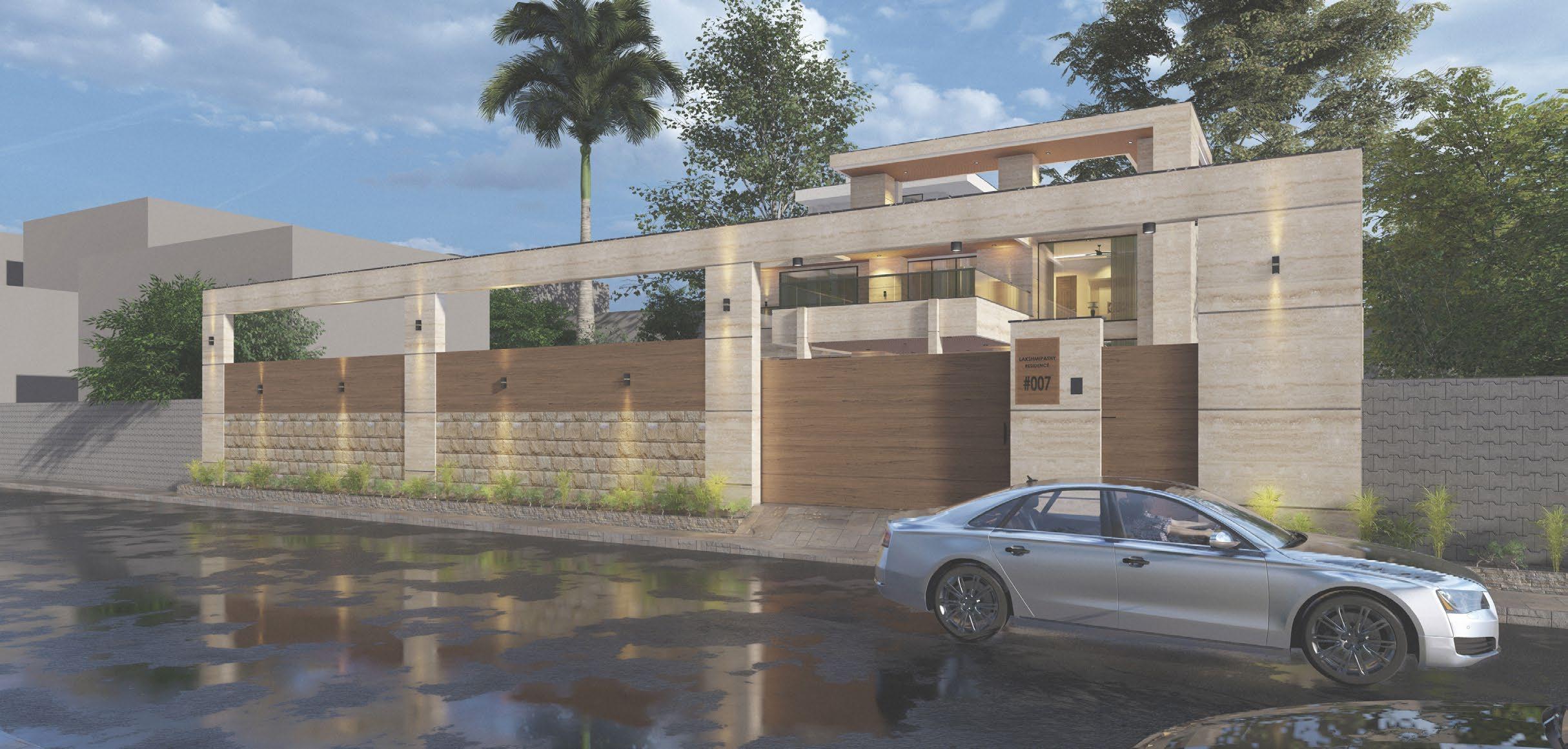

Luxury two storey villa with massive portico entrance for the grandeur effect and using how quality materials and marble cladding for the entire building.

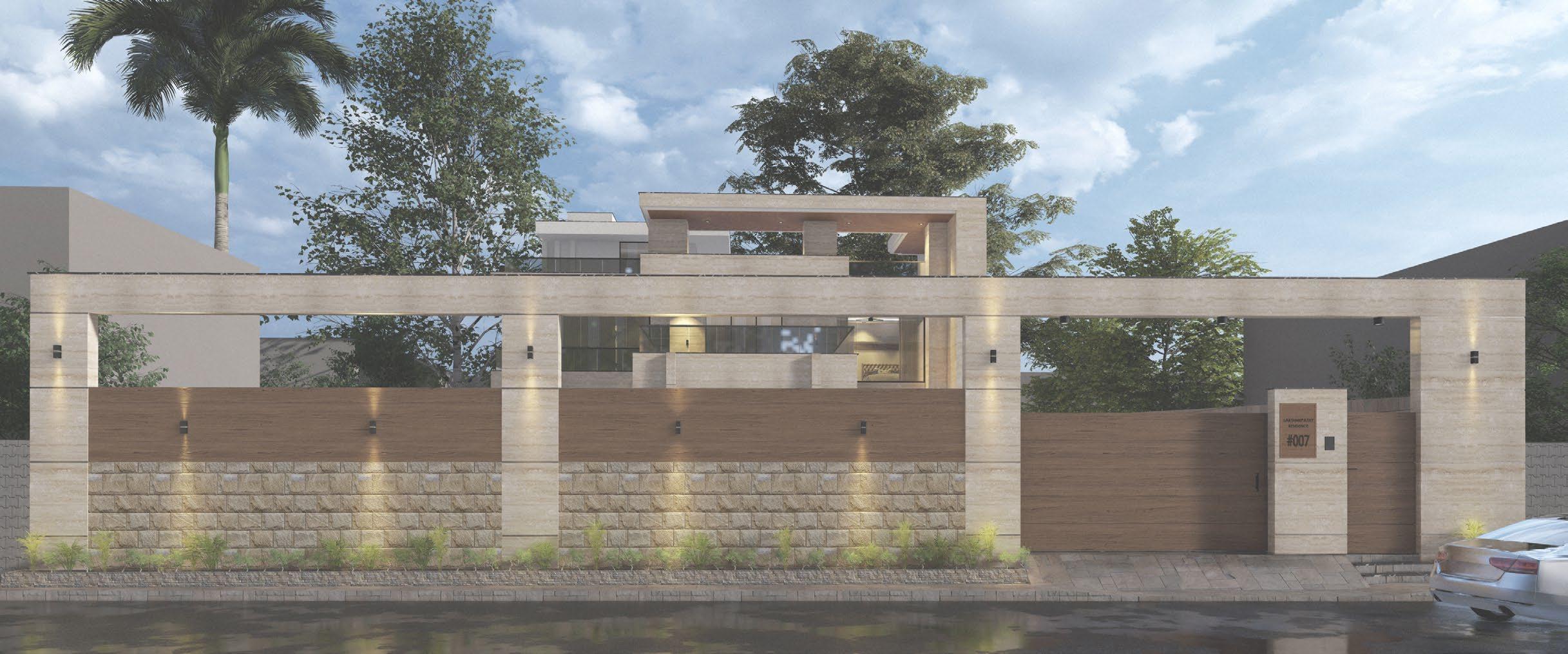

Front Elevation-view

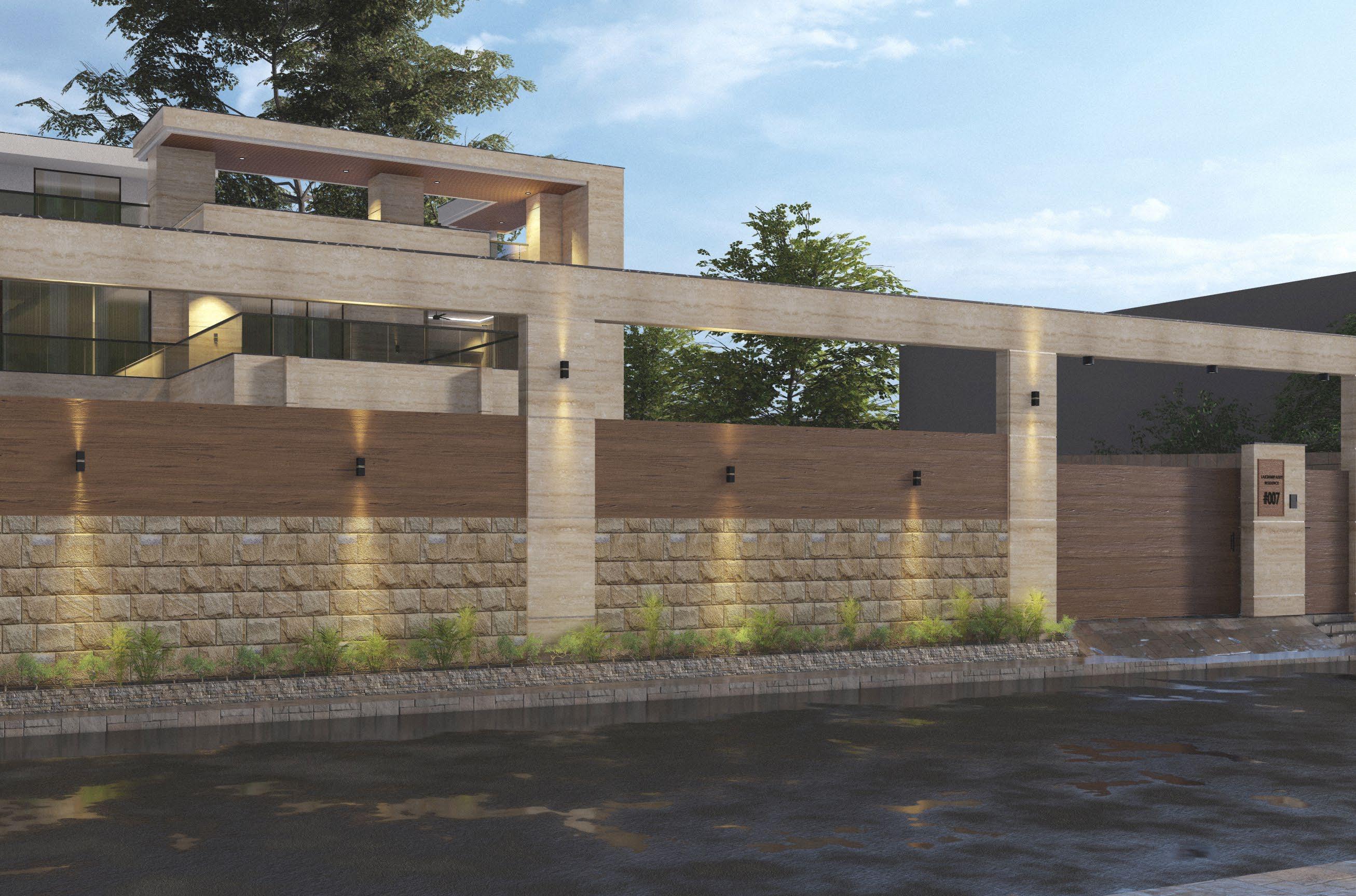

Exterior View
Elevation
Elevation
