Supervised by: Dr. Mohamed Fageir Dr. Rami Zein Elabdein 21, 2022
August
Prepared by: Abdelrahman Mahmoud Fageir Amani HassanMohamed Ahmed Mohamed Awadalla Mohamed Saeed Samia Sulieman Mohamed
GSPublisherVersion
University of Khartoum Faculty of Architecture Dept. of Planning and Urban Design Campus Remaking Omdurman Campus (Faculty of Education-University of Khartoum)
M.Sc. in Urban Design The
GSPublisherVersion Contents 1. Location 2. Community 3. Evolution of the Campus 4. Departments of the Faculty 5. Faculty's Organizational Structure 6. Nuber of Students, Teaching Staff, Teaching Assistants, Employees, and workers 7. Density Study and Space Calculations 8. Morphological Analysis 9. University Strategy for the Year 2000 10. Strategy for Preservation, Demolition, and Addition 11. Movement Strategy 12. Strategy for Greenness 13. Conservation, Character, and Sense of Place 14. Views and Vistas 15. The Masterplan ii 1 2 4 10 12 12 14 1 4 4 4 6 11 12 13
The Campus Photo
• The Faculty of Education- University of Khartoum is located in Wad Nubawi, Omdurman, Sudan. Wad Nubawi is one of the oldest and important Neighborhoods of the old city of Omdurman.
.
GSPublisherVersion
• It also includes the mosque of Imam Abd al Rahman al Mahdi, one of the sons of Muhammed Ahmed al Mahdi and founder of the Umma Party. Moreover, it includes the Ansar Affairs Center, Sheikh Greeballah Mosque and the sammaniyya Sufi Order Center

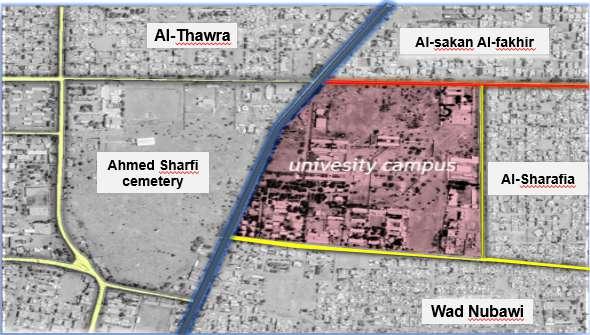

N 1. Location: Omdurman Campus (Faculty of Education – University of Khartoum) is located in Wad Nubawi, Omdurman Sudan. The campus is bounded by Al Wadi Street which connects wadi Saydna military base with the city of Omdurman- along with Ahmed Sharfi cemetary from the west. Also, it is surrounded by neighborhoods from the other directions. The Campus is accessible from Khartoum through the Wight Nile Bridge and the Victory Bridge. It is also accessible from Khartoum North through Shambat Bridge and Al-Halfaia Bridge. Additionally, from Omdurman via AlWadi Street.
The campus
• The name originatesfrom Wad Nubawi, one of the commanders of the armies of Mahdiyya, who is said to have killed General Gordon.
2.
1
Al-Wadi Street Adam Yagoub Street Sub roads Location's Aerial
• As mentioned above, Wad Nubawi is one of the oldest and one of the most important neighborhoods of Omdurman and mamy prominent Politicians including the former presdent of the Sudan Jaafar Nimeiry and Mr. Amin al Tom Satti have lived in. Community: Ahmed Sharfi Cemetery Al-Thawra Al-Sakan Al-Fakhir Wad Nubawi Al-Sharafia
3.1.2.2 Buildings and Structures of Phase Two: 3.1.2.2.1 H Shaped Main Building: It is the main building which distinguishes the institute and consists of lecture rooms, offices for the various divisions, and labs.
3.1.2 Phase Two: The establishment of the Higher Teachers Training Institute in Omdurman in the year 1961. 3.1.2.1 location of the Higher Teachers Training Institute: The Central Karari Girls School, which was located in the north of the city of Omdurman in particular, in the north of wad Nubawi which is the same location of the present Faculty of Education University of Khartoum.
Phase One and Two Map Scale 1:3000 H shaped main building Administration building Male students hostels Female students hostels Students club Workers hostels Library Dining hall Store Workshop Clinic House
N
GSPublisherVersion
3.1 Establishment and development of the Faculty of Educcation-U. of K.: Since its commence in 1961 with the assistance of UNESCO and the World Bank, the evolution of the Higher Teachers Training Institute (Faculty of Education University of Khartoum) can be divided into four phases: 3.1.1 Phase One: The training of secondary school teachers in the Sudan before the year 1961.
3. Evolution of the Campus:
3.1.2.2.3 Male Students' Hostels: They are located in the north eastern side and consisting of 4 buildings. 2.1.2.2.4 Female students' hostel: It is located in the south western corner of the institutes and it is an old building that dose not match the H shaped main building.
3.1.2.2.5 Dining Hall: It is located in the middle between the students' club and the H shaped main building. 3.1.2.2.6 students' club: The position of the students' club is to the west of the dining hall. 3.1.2.2.7 Libarary: It was commenced two years after establishment of the institute particularly in 1963 in a small hall that was originally a workshop. 2
OMDURMAN WADI SAYDNA ROAD
OMDURMAN WADI SAYDNA ROAD N N
GSPublisherVersion
3.1.3 Phase Three: In 1968, the academic supervision was transferred to the Senate of the University of Khartoum. While the administrative and financial supervision remained with the Ministry of Education 3.1.3.1 Buildings and Structures of Phase Three: 3.1.3.1.1 Library: The World Bank allocated funds for the construction of library for 150 students. 3.1.3.1.2 Staff Houses 3.1.3.1.3 Additional Male Students Hostels
Phase Three Map Scale 1:3000 H shaped main building Administration building Male students hostels Female students hostel Students club Workers' hostels Library Dining hall Store Workshop Clinic House Staff Houses
Phase Four Map Scale 1:3000 H shaped main building Administration building Male students hostels Female students' hostel Students club Workers hostels Library Dining hall Store Workshop Clinic House Staff Houses 3.1.4 Phase Four: The institute was completely incorporated into the University of Khartoum under the name of the Faculty of Education in 1974. 3.1.4.1 Buildings and Structures of Phase Four: This era witnessed the addition of (1) additional H shaped building to the north of the old one, (2) lecture theaters, (3) additional female students' hostels,(4) staff club, (5) primary schools, (6) cafeterias, and (7) parking lot 3
OMDURMAN WADI SAYDNA ROAD
GSPublisherVersion 4. Departments of the Faculty: It has 19 departments stated as follows: 3.1 General Education Bachelor Departments: • Department of Mathematics • Deparment of Physics • Deparment of Chemistry • Deparment of Biology • Deparment of Family Sciences • Deparment of Arabic Language • Deparment of English Language • Deparment of French Language • Department of Geography • Department of History • Department of preschool education • Department of Educational Psychology • Department of Special Education • Department of Physical Education 3.2 Assistant Departments: • Department of Curriculum and Teaching Methods • Department of Pedagogy and Educational Management • Department of Educational Technology • Department of Adult Education • Department of Art Education 5. Faculty's Organizational Structure: Dean Registrar for B Sc in Basic Education Registrar for B Sc in General Education Deputy Dean for B.Sc. in General Education Deputy Dean for B.Sc. in Basic Education Deputy Dean for Kindergartens and Schools 6. Nuber of Students, Teaching Staff, Teaching Assistants, Employees, and workers: 7. Density Study and Space Calculations: ● Building Density (Blue Line): (Built up area ÷ campus gross area (blue line)) * 100 (25775.71 ÷ 359020.87) * 100 = 7.18% ● Campus Area (Red Line) to Students Number: 173972.16÷2302 = 76.0 m² per student Number of student is less than that of the standard (10 m² per student). Thus, more students should be added. ● Teaching Blocks + Lecture Theaters Area to Students and Teaching Staff and Postgraduate: Total No. of person :2302 + 280 + 1151 = 3733 persons 3733 × 1.26 = 4703.58 m² Labs (Students and Teaching Staff and Postgraduate): 3733 × 1.67 = 6234.11 m² Total Area (Teaching Blocks + Labs) = 4703.58 + 6234.11 = 10937.69 m² Available now: 6379.63m2 Need: 4558.06 m² ● Administration offices Area to Employees 1116 05 ÷ 383 = 2.91 m² per employee ● Library Area to Students and Postgraduate: 2302 + 1151 = 3453 students 3453 × 1 = 3453 m² Available now: 1273.45 m² Need: 2179.55 m² ● Cafeterias Area to Students + Postgraduate: 3453×1= 3453 m² Available now: 459.77 m² Need: 2993.23 m² ● Car Parks to Teaching Staff and Employees (1:5) 280 + 380 = 660 person No. of Cars = 660 ÷ 5 =132 cars Available now: 10 car parks Need: 122 car parks ● Toilets Area to Students: (1 toilet for 15 student) 2302÷15 = 153.5 toilet 153.5 × 2 m² = 307 m² Available now: 174.30 m² Need: 132.7 m² = 66 toilets 4
GSPublisherVersion ● Housing Teaching Staff Housing University Policy: (80 % of teaching staff) =280 × 80% = 224 teaching staff 50 % Flat with Area =120 m² 50% Flat Area =150 m² Available now: 9 houses 224 - 9 = 215 teaching staff housing units Need: 215 teaching staff housing units 215 ÷ 2 = 108 108 × 120 = 12960 m² 108 × 150 = 16200 m² Total Flats Area = 7290 m² Need: 7290 m² FAR = 29160 ÷ 4 Blocks = 7290 m² 4 Blocks with total Area of 7290 m² 7290 ÷ 1400 m² = 5 floors (Ground + 4) Students' housing University Policy: (80% from student) =2302 × 80% = 1841.6 students 8 m² for sleep Area 1 m² for Dining 2 m² for Reading Room Total = 11 m² for student 1841.6 × 11 = 20257.6 m² Need: 20257.6 m² FAR = 20257.6 ÷ 5 Blocks = 4051.52 m² 5 Blocks with total Area of 4051.52 m² 4051.52 ÷ 800 m² = 5 floors (Ground + 4) Postgraduate Students Housing University policy: (50 % of student) = 1151 × 50 % = 575.5 students 575.5 ×10 % = 57.55 family 575.5 - 57.55 = 517.95 = 518 single 57.55 × 60 m² = 3453 m² 518 × 15 m² = 7770 m² Total = 11223 m² Need: 11223 m² FAR = 11223 ÷ 5 Blocks = 2244.6 m² 5 Block with total Area of 2244.6 m² 2244.6 ÷ 400 m² = 5.6 floors (Ground + 4) ● Current and Required Areas for Campus Buildings: 5
8.3 Spatial Configuration:
8.2 Compactness: The campus seems dispersed low dense campus so that there is a long travel time between the different campus facilities Thus, this reduces the ease of walking from one place to another, limiting the sense of community, and diminishing the sense of place and identity
Figure and Ground Map Scale 1:3000
8.
OMDURMAN WADI SAYDNA ROAD
The campus can be classified as a hybrid campus. On the one hand, most of its buildings appear as a free standing objects On the other hand, the building blocks have been well set and also have a strong character
Land-use Map Scale 1:3000 Workshops (188 00 m²) Sub power station (42 00 m²) Toilets (174 30 m²) Schools (4762 63 m²) Clinic (654 98 m²) Teaching blocks (4498 18 m²) Library (1273 45 m²) Lecture theaters (1881 45 m²) Administration (1116 05 m²) Stores (732 79 m²) Kindergarten (719 58 m²) Parking lot (724 98 m²) Staff club (239 18 m²) Mosques (704 82 m²) Cafeterias (459 77 m²) Library under construction (452 42 m²) Playgrounds (8401 97 m²) Theaters (188 28 m²) Green areas (11484 60 m²) Staff houses (7518 24 m²) Students hostels (5746 86 m²) Students club (425 99 m²) Workers buffet (40 00 m²) Design Guideline: Consolodating the mix of uses and adding more teaching rooms, libraries, labs, offices, theater (s), exhibitions, and another needed facilities.
OMDURMAN WADI SAYDNA ROAD N N Morphological Analysis
8.1 Land use Organization: The campus has the characteristics of both zoned and mixed campus. The teaching blocks, lecture theaters, library, and administration are centered in the middle of the campus while one of the lecture theaters is in adjacency to another facilities in the south of the campus In addition, the students’ hostels are located at the eastern part of the campus The southwestern part of the campus contains the staff houses Facilities such as the clinic, kindergarten, students’ club, and the schools are in the south of the campus. Moreover, stores, workshops, buffets, and toilets are dispersed around the campus
● The coverage area is 25775 71 m2 which represents 7 18% of the the gross campus area 6
GSPublisherVersion
● It is noticed that the administration a single story building is placed at the end of the main route of the campus which starts from the campus main gate. thus, its position represents a focal point.
Focal point Campus gate Main route
GSPublisherVersion OMDURMAN WADI SAYDNA ROAD C OMDURMAN WADI SAYDNA ROAD OMDURMAN WADI SAYDNA ROAD N N ● Passing through the teaching blocks creates a sequence of images and different impressions as result of the architectural qualities they have. Figure and Ground Map Scale Scale1:4000 1:2000 Design Guideline: The teaching blocks should be preserved at the final product of the campus remaking process by virtue of the visual qualities mentiond above.
Design Guideline: It is recommended that this position which forms a focal point-should contain a place or a building with a strong character that plays a role of a campus landmark.
Figure and Ground Map Scale 1:4000 Scale 1:2000
7 1 2 4 3 5
The repositioning of the on campus living (staff houses and students' hostels) can play a role of a magnet which can contribute positively in enhancing the walkability an the sense of community on the campus 8
Campus Housing Map Scale 1:3000 8.5 Campus Living: The livable campus is an appropriate description for the campus due to the on campus living which includes staff houses and students hostels.
The campus is considered as an isolated campus which has no any connectivity with the street network of the surrounding area. The campus is gated and has an only main entrance from Al Wadi Street which bounds the campus from the west 8.4 Connectivity: Movement Classification: The movement inside the campus encompases the movement of both pedestrians and vehicles. Movement Map Scale 1:4000 Pedestrian movement Vehicles movement Through traffic movement at Al Wadi Street Foot path Vehicles path
GSPublisherVersion
OMDURMAN WADI SAYDNA ROAD NN
Design Guideline: a) More access with controlled entrances should be added in order to connect the surrounding nieghborhood with the campus. b) a collector route should be provided to collect all campus parts together. c) enhancing the quality of both foot and vehicle path In addition, bicycle lanes can take place.
Staff houses (7518.24 m²) Students' hostels (5746 86 m²)
OMDURMAN WADI SAYDNA ROAD 14
Design Guideline: More housing typologies should be added especially for teaching staff houses. This is due to that there are only 9 staff houses available.
Trees and Green Areas Map Scale 1:3000 Design Guideline: Enhancing the quality of landscape and more shading trees should be planted to create lively open spaces. Also, native trees must be preserved.
.
OMDURMAN WADI SAYDNA ROAD NN

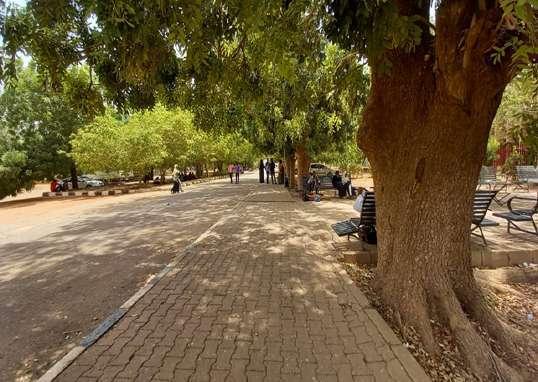

Shading trees are cultivated along the main route making a well defined shaded access. Furthermore, many shading trees appear in different parts of the campus
● Context is the character and setting of the area with in which a projected scheme will sit; the forms of the settlements, buildings and spaces. Context also includes people, the individuals living in or near an area. Athorough appreciation of the overall site context is the starting point for designing a distinct place We need a good study of the context to (1) strengthening local communities, (2) creating place of distinction, (3) harnessing intrinsic site assets and resources, (4) integrating with surroundings, (5) ensuring feasibility, and (6) providing vision. 9
1) mixed use development should take place along Al Wadi Street and the campus boundaries
The town gown relationship with the adjacent neighborhoods is limited to admission opportunities provided to surrounded neighborhoods’ pupils in the schools affiliated to the campus.
8.6 Greenness: It might be described as green campus and has green areas However, the campus suffers from lack of quality landscape
.
8.7 Context: The campus is an Urban Campus located in an urban area It is bounded by Al Wadi street and Ahmed Sharfi cemetery from the west It is also surrounded by neighborhoods from the other three directions. The campus has long boundaries without any mixed use development that is needed to create a strong relationship between the campus and its surrounding
Context Map Scale 1:8000 Design Guideline:
2) Creating place and buildings such as theaters that reflects the indiginous culture to strengthen the relationship and partnering with the surrounding communities
GSPublisherVersion
NN
GSPublisherVersion
• Administrative Use: Limited to the other units.
• Academic use: The Faculty of Education and the library should be preserved and have the ability to expand in their current location. The new centers for Distance Learning and Educational Technology should be added. In addition, the school of Additional Studies is to be added after being transferred from the central campus.
• Housing Use: The Teaching Staff housing, male students’ housing, and female students’ housing should be preserved. Students’ housing should expand in its surrounding Area and should also contain housing opportunities for postgraduate students (according to the new investment system).
• Social use: Students’ club should remain and expand in its current location. A new teaching staff club and a one for workers have to be established Moreover, the buffets have to be redistributed
.
.
The Proposed Land use Distribution Map Scale 1:3000 New buildings Buildings to be preserved Buildings to be demolished Academic use Administrative use Housing use Social use Investment use Land to be added 2000:
9. University Strategy for the Year
10
Buildings and their Proposed Utilization Map Scale 1:3000 New buildings Buildings to be preserved Buildings to be demolished Academic use Administrative use Housing use Social use Investment use Land to be added
Omdurman campus is one of the largest campuses which characterized by low occupation. The campus has the opportunity to contain new activities or activities that transferred from another congested campuses.
● The library under construction which is located in the north of the campus should be demolished
● A new administration building is to be built in the same location of the existing one
OMDURMAN WADI SAYDNA ROAD
10.1 Preservation:
● Demolition is also in need to be applied to facilities affiliated with students' hostels including libraries, cafeterias, mosques, theaters, and playgrounds.
● Additional library should be positioned to the west of the existing one
● More housing typologies for both teaching staff and students There are only 9 staff houses available thus, more teaching staff housing should be added in the north of the of the campus where the required land is available Additional students' hostels should take place in adjacency to the exixting ones.
Mixed use development Teaching staff housing Sport facilities
● Moreover, the staff houses at the south west of the campus have to be preserved
Lecture rooms and teaching staff offices Theater Research center Library Additional students' hostels Football ground with running track Park 11
● More lecture rooms and teaching staff offices should be added to the south of the teaching blocks
● Sports facilities can take place in the nothern side of the campus
● Clinic, kindergarten, schools, students' club on the southern side of the campus should be demolished.
Map Illustrating the Buildings to be Preserved and the Buildings to be Demolished Scale 1:3000 Buildings to be preserved Buildings to be demolished Map Illustrating the Proposed Addition Scale 1:3000 10.3 Addition:
● A theater can be added in the southern part of the campus which can be utilized for educational, cultural, and entertainment purposes. it also consolidates the town gown relationship.
● A mixed use development should take place in the campus boundaries especially along Al Wadi Street.
● Stores, workshops, administration offices, and workers' buffet which are located in adjacency to the teaching blocks have to be demolished
GSPublisherVersion
● The teaching blocks, library, and lecture theaters should be preserved due to their strong character besides the architectural and visual qualities they have.
OMDURMAN WADI SAYDNA ROAD N N 10. Strategy for Preservation, Demolition, and Addition:
● Furthermore, the students hostels located in the middle and on the northeastern side of the campus should be preserved.
● A Foodball ground with a running track can be placed on the eastern side of the campus. In addition, a park can take place onn the western side of the campus where the football ground is currently located Furthermore, additional parking lots should be provided
10.2 Demolition:
11. Movement Strategy: ● More access with controlled entrances should be added in order to connect the surrounding nieghborhood with the campus ● A collector route should be provided to link all campus parts together ● Enhancing the quality of both foot and vehicle path. In addition to encouraging cycling within the campus.
13.2 Character: An assessment of the roles and rela onships of the area or site to its strategic context, together with an apprecia on of the individual characteris cs of form and the way a place is used, will lay the founda ons for a new unique integrated design response. The educa onal university campus has a strong character that came from a clear routs and unique buildings structure crea ng a favorable image in the memory.
12. Strategy for Greenness: ● Enhancing the quality of landscape and more shading trees should be planted to create lively open spaces Also, native trees must be preserved
OMDURMAN WADI SAYDNA ROAD N Movement Map Scale 1:3000 Proposed entrances Proposed collector route
13. Conservation, Character, and Sense of Place: 13.1 Conservation: The major educational buildings view corridors ,pathways and landscape should be preserved in the implementation of The Campus Plan and managed over time to maintain views from encroachment of structures, trees, parking lots, and other elements that block or degrade their intrinsic attractiveness.
12
GSPublisherVersion
GSPublisherVersion 13.3 Sense of Place: The campus plan has structured around the principle of maximizing view opportuni es from many places on campus in order to provide a strong sense of place. 14. Views and Vistas: 13
The students' hostels are in the center of the campus to the east of the teaching blocks. Moreover, there are another students' hostels in the north eastern corner of the campus
A football ground with a running track is on the eastern side of the campus A park is located on the western side of the campus to the west of the teaching blocks. Furthermore, the research center is located in the southeastern part of the campus.
The south western part of the campus contains the single story teaching staff houses. Whilst the the teaching staff apartment buildings are in the north of the campus.
N N teaching blocks, lecture theaters, and administration located in the center of the campus
the
are
The north western side encompasses investment buildings; sports facilites including playgrounds, gymnastic hall, and swimming pool; mosque; and cafeteria.
The southern part of the campus comprises kindergarten, schools, clinic, and open air theater
Gymnastic hall (860 48 m²) Schools (5922 54 m²) Clinic (681 46 m²) Teaching blocks (7626 73 m²) Library (1485 67 m²) Lecture theaters (1399 12 m²) Administration (1914 05 m²) Changing rooms (53 76 m²) Parking lots (2800 98 m²) Swimming pool (1730 78 m²) Mosque (394 58 m²) Cafeterias (1513.77 m²) Playgrounds (15139 16 m²) Theaters (1458 12 m²) Staff housing (9850 43 m²) Students hostels (8321 07 m²) Investment buildings (2083 29 m²) Masterplan Scale 1:2500 Land Use Map Scale 1:3000 15.1 Land-Use: Power station (292 50 m²) Kindergarten (965 43 m²) Green areas (101320.32 Researchm²) center (1088.88 m²) Teaching blocks Football ground with a running track Schools Students hostels Teaching staff apartment buildings Clinic Kindergarten Single story teachibg staff houses Park Investment SportsMosquebuildings facilities 14

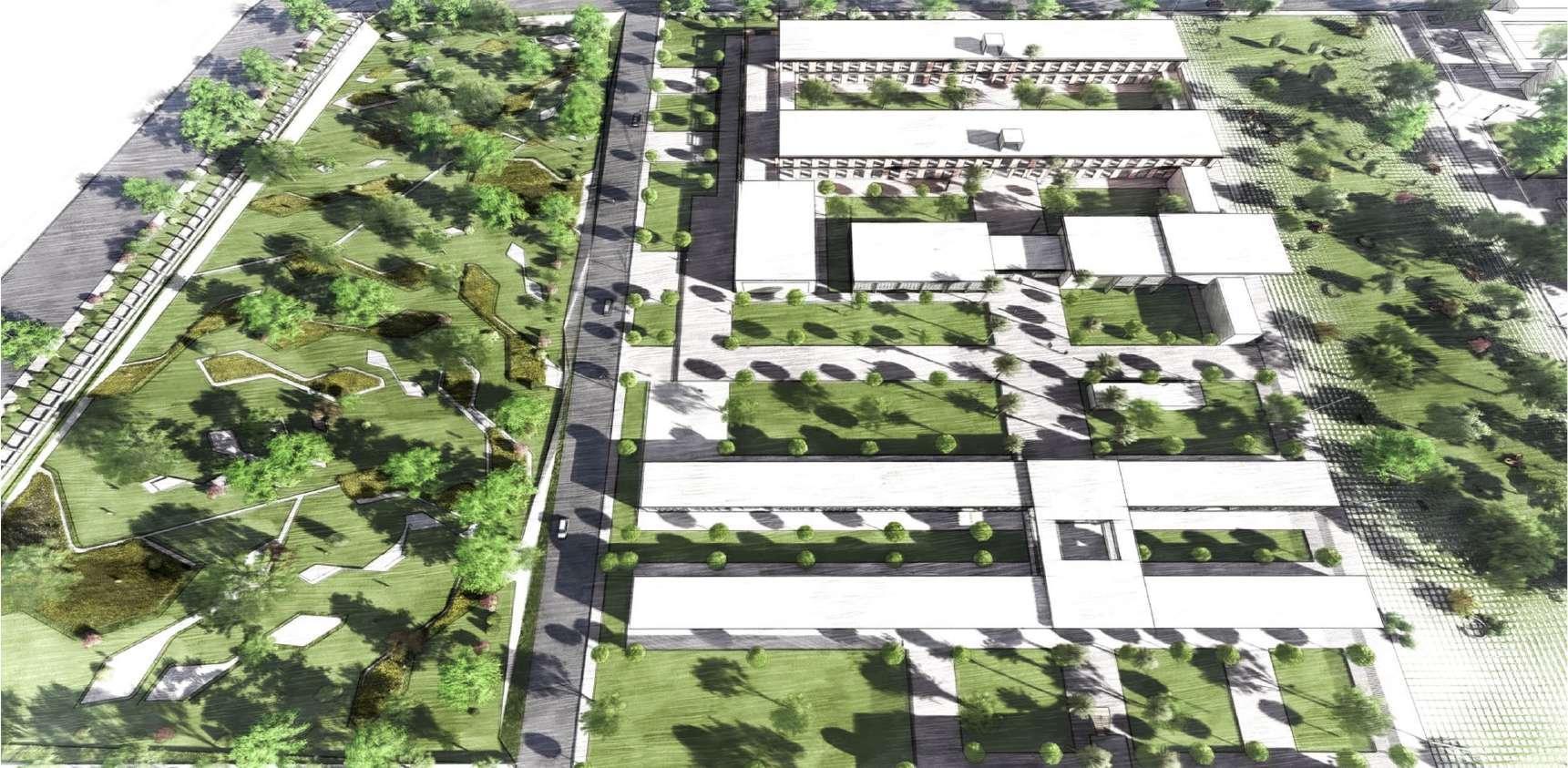

15. The Masterplan: The
GSPublisherVersion
Additional buildings have been added to students' hostels to the east of the teaching blocks. The northern side of the campus to the north of students' hostels contains newly added 20 apartment buildings for teaching staff.
The campus became independent of the national grid in terms of electric power due to the adoption of solar panels to generate the needed amount of electric power.
An open air theater and a research center have been added and placed on the southern side of the campus.
GSPublisherVersion
The administration building, clinic, kindergarten and schools have been redesigned to come up with their function in an efficient way and placed in their current location
The northwestern part of the campus includes the investment buildings, cafeteria, gymnastic hall, swimming pool, and the renovated mosque.
Green Areas Map Scale 1:3000
15.3 Greenness and Sustainability: The proposed masterplan provides generous quality green areas with a total area of 101320.32 m² with lots of shading trees to support the green campus strategy.
15
Preserved buildings Added buildings
N N Figure and Ground Map Scale 1:3000
15.2 Preserved and Added Buildings: The preserved buildings are the H shaped teaching blocks, the northern lecture theater, the library, students' hostels, and the single story teaching staff houses.
Three lecture rooms have been added between the existing teaching blocks Also, the lecture theater located between the existing teaching blocks has been expanded. In addition, a new library has been added to the west of the existing one Furthermore, additional H shaped teaching block has been placed to the south of the administration building
GSPublisherVersion N N N Movement Map Scale 1:3000 15.4 Movement: The campus has entrances from the four directions in order to consolidate the town-gown relationship. A collector route that enables vehicle movement, pedestrian movement, and cycling links all campus parts together. The campus also has pedestrian routes branching from the collector route. CollectorEntrances route 15.5 Opportunities for Future Expansion: The green space located in the center of the campus between the teaching blocks and the students' hostels forms an appropriate area for future expansion along with the green space located in the south of the campus Opportunities for Future Expansion Map Scale 1:4000 Figure and Ground Map Scale 1:4000 15.6 Density and Space Calculations: ● The coverage area is 43498.94 m2 which represents 12.12% of the the gross campus area 16
GSPublisherVersion ● Areas of buildings and facilities before and after the masterplan are as follows: 15.7 Views: 17
GSPublisherVersion ● Character Areas 18
GSPublisherVersion 19

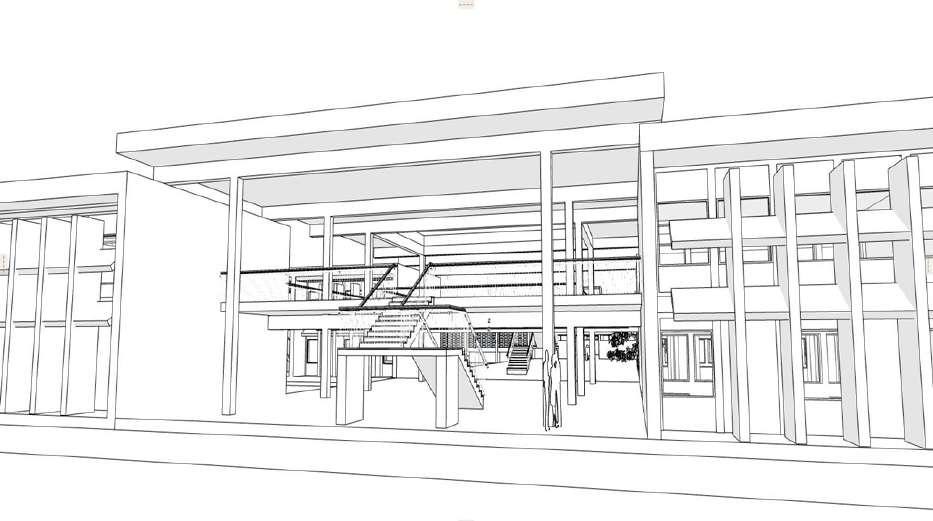

15.8 Panoramic Elevation: 20
GSPublisherVersion
● Since the campus has a low building density, the air is moving smoothly and improving the comfort through the increasing of heat loss
● The design has responded to the provision of high levels of natural light.
