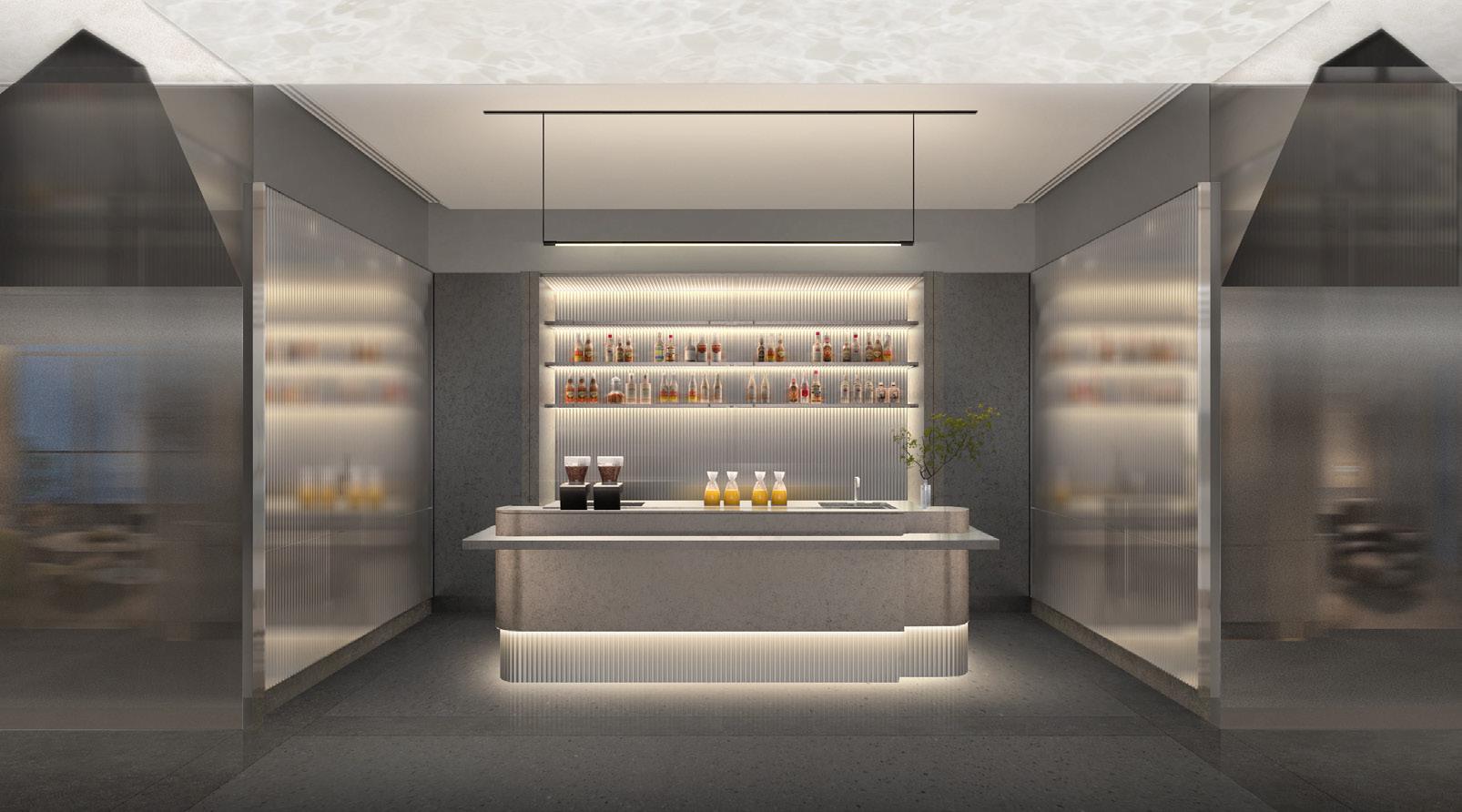

The lighting design takes “rhythm, softness and simplicity” as the core, aiming to provide people with a comfortable and artistic communication environment. The overall light layout adopts simple lines and soft brightness transition, avoiding overly complex or abrupt lighting effects, so that the space atmosphere is smooth and does not appear oppressive.

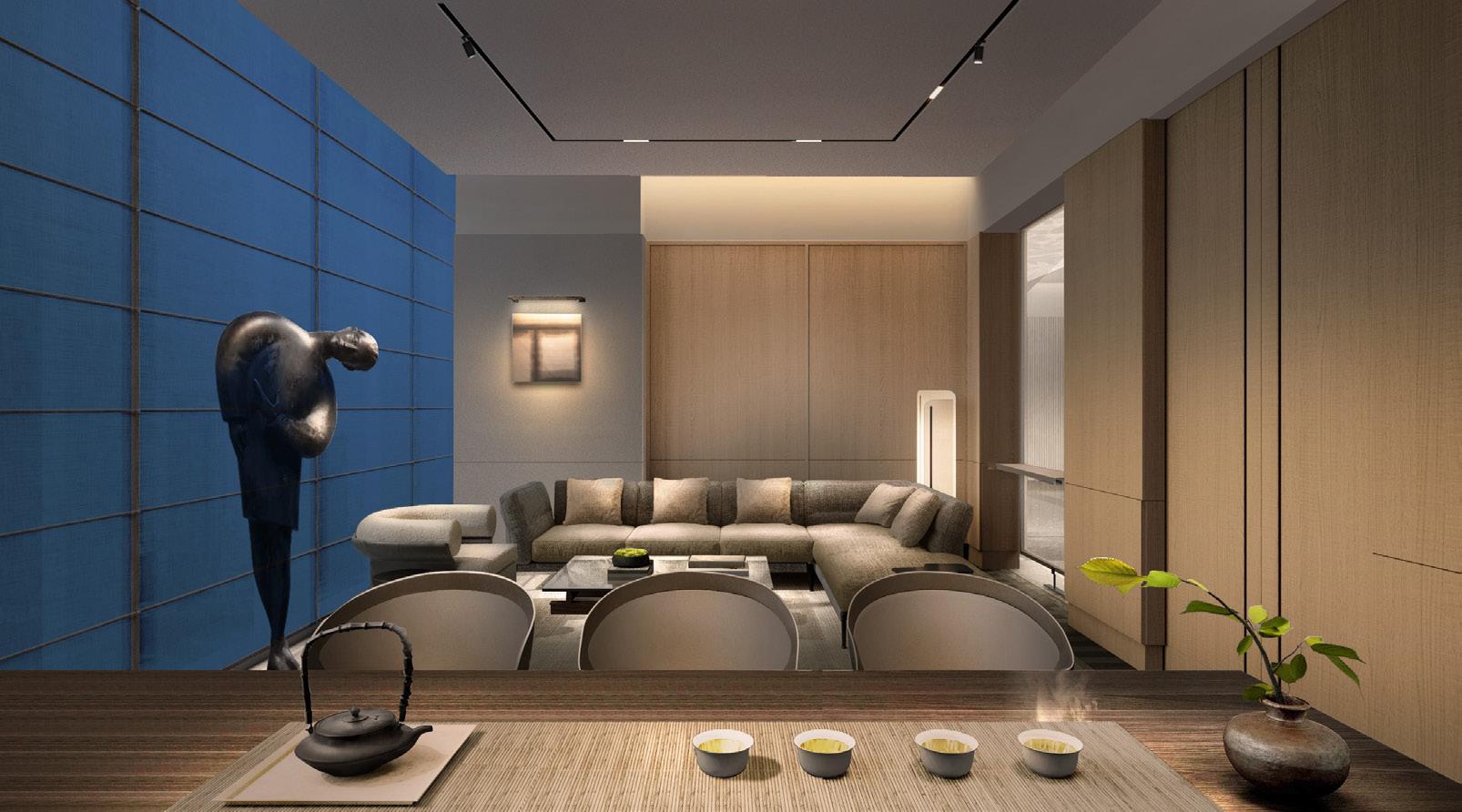

The lighting design of the negotiation room emphasizes functionality and comfort, adopting warm color temperature and adjustable light intensity to adapt to different communication scenarios. Accent lighting with indirect light source provides uniform lighting for each corner, avoiding glare while enhancing privacy and sense of concentration.
深圳瑞声科技后海总部艺术中心项目 前厅/休闲等候厅 天花灯槽/桌下
M Main Spec fications of Product 主要产品规格 乳白 / 无要求 ≥90
色 色度学参数 色温: 3500K 色容差: ≤3SDCM Ra: R9: ＞50
无要求
电 电器及控制 电器: 电器外置，集中供电 调光方式: ON/OFF 调光要求:
功 功率及芯片 单颗功率: 0.04W 芯片类型: 小功率芯片 芯片数量: 总功率: 6W/m
一米140颗
无要求
机 机械特性 IP等级: IP20 承重: 无要求 IK等级: 可调角度: 无要求
配 配件及安装 光学配件: 无要求 机械配件: 铝槽 安装方式:

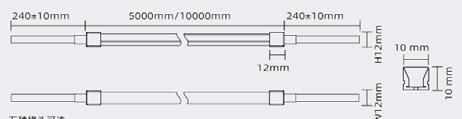

尺 尺寸 宽度: 10mm 高度: 10mm 长度: 铝槽安装
按现场需求提供不 同长度
Other Spec fications of Product 其他产品规格
1.LED芯片必须为Cree, Lumileds, Nichia和Osram中任一品牌。
2.透镜、封装、电路板集成须为上述芯片厂的认可或认证的品牌或工厂，灯具集成厂须五年以上LED灯具制造销售经验，最终灯具的组件、集成不得由超 过两家工厂完成。
3.寿命不低于50000小时，使用3年后光输出不低于80%。
4.以上仅为部分重要的规格描述，详尽规格要求应以审核通过的样灯为准。
品牌2：CDN 型号：CXGB1216B 品牌3：BACH 型号：BHSL1118-H
R Related P cture Information 相关图片资料

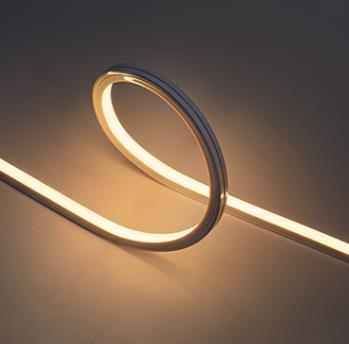

灯具图片 灯具尺寸 配光曲线 配件 正面出光侧出线

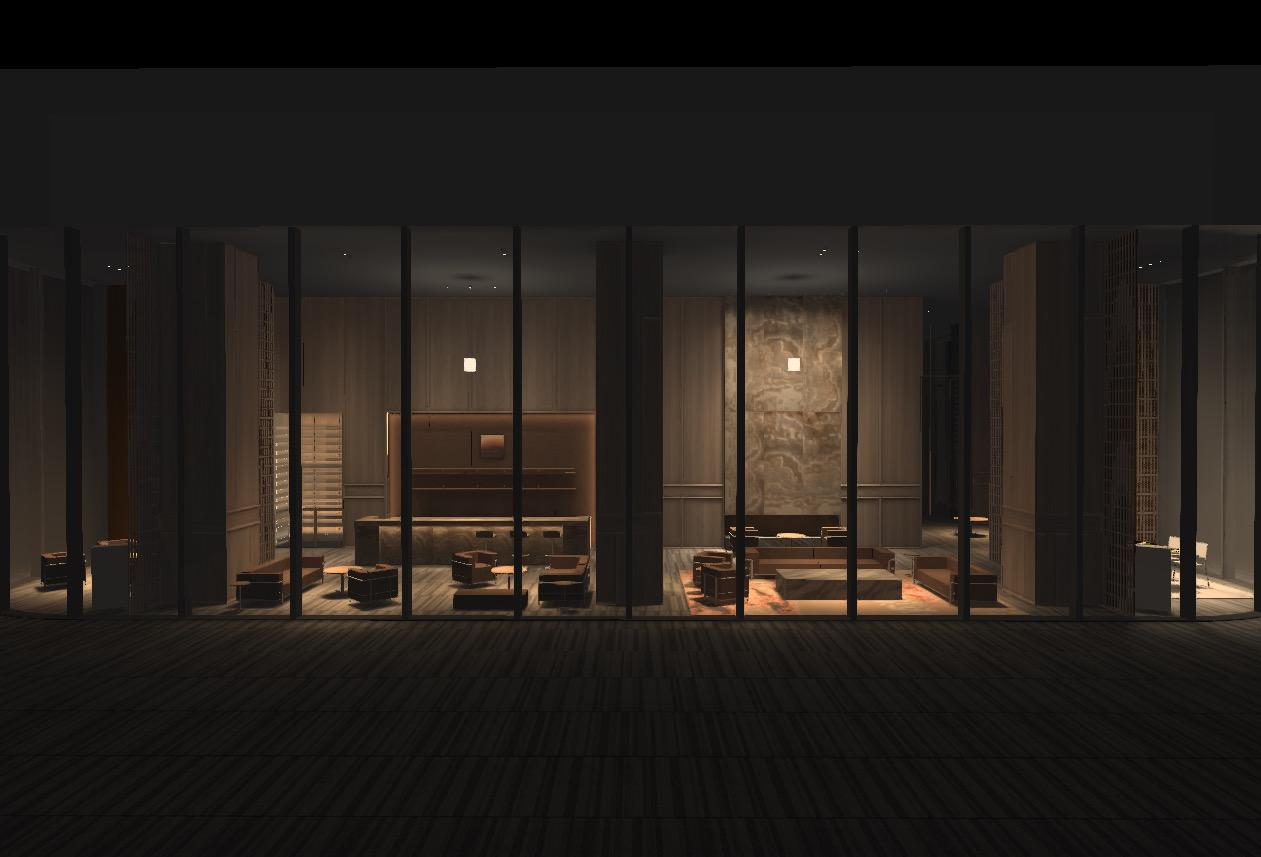

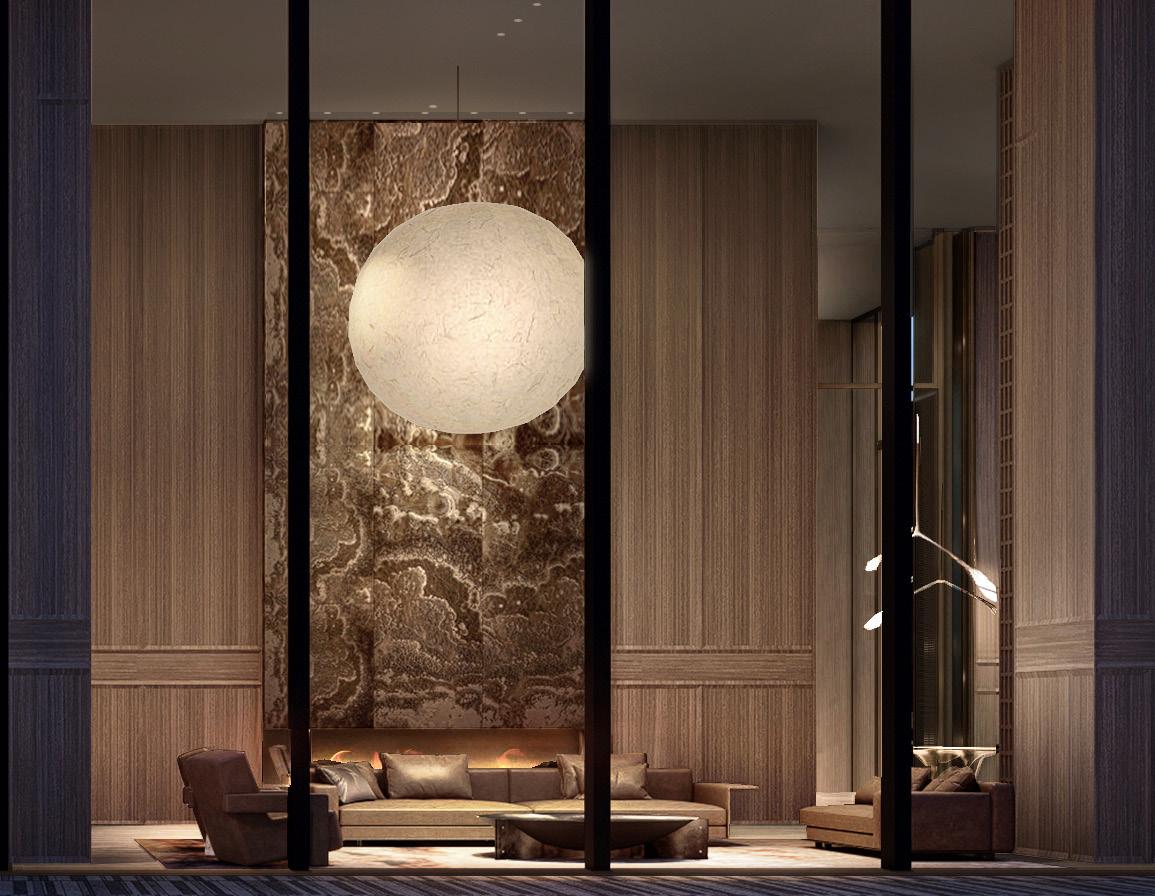

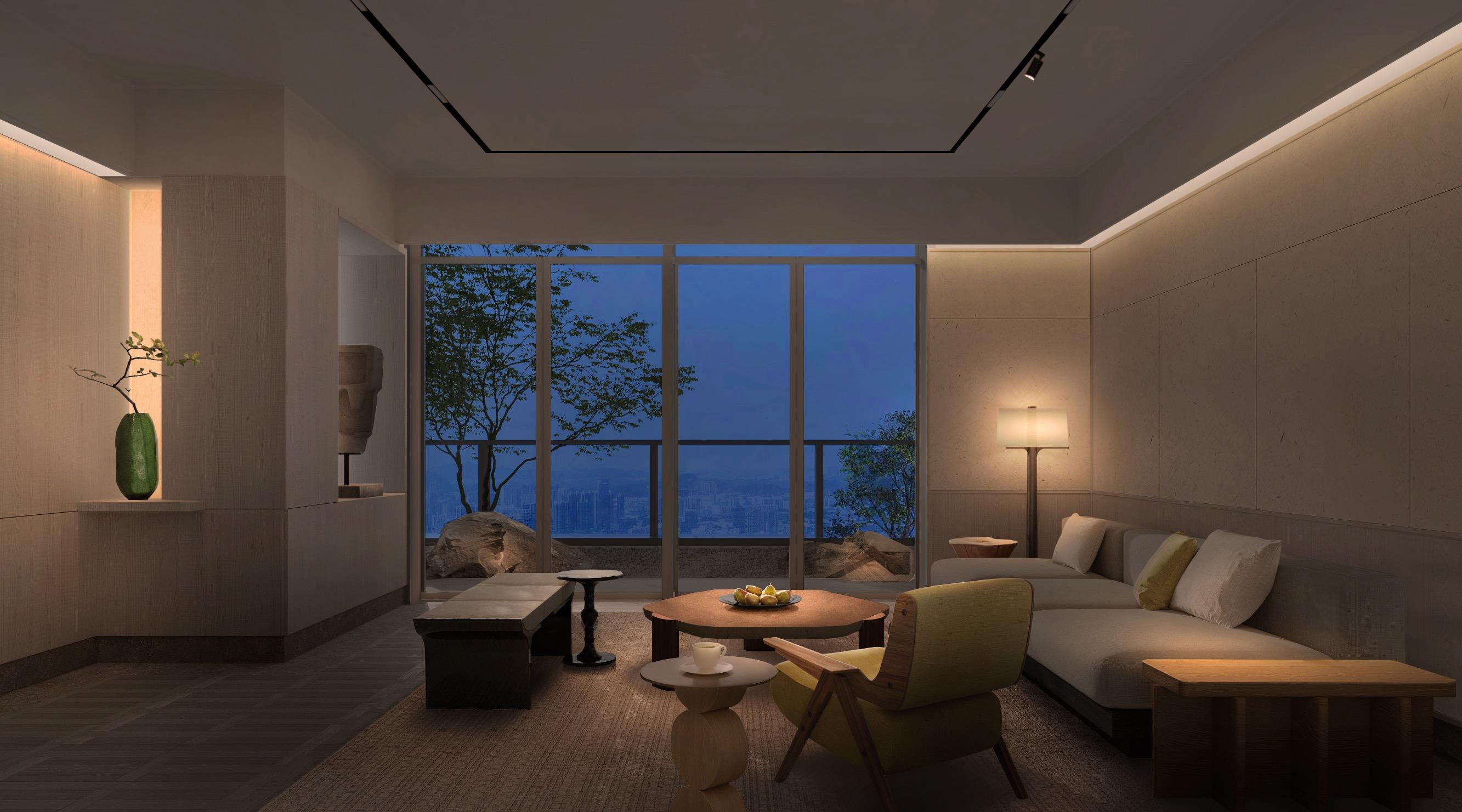

The lighting design of the hotel lobby aims to create a comfortable, gentle and relaxing atmosphere, avoiding the use of overly rough and straightforward lighting, and choosing a warm color temperature and soft light distribution to enhance the warmth of the space.

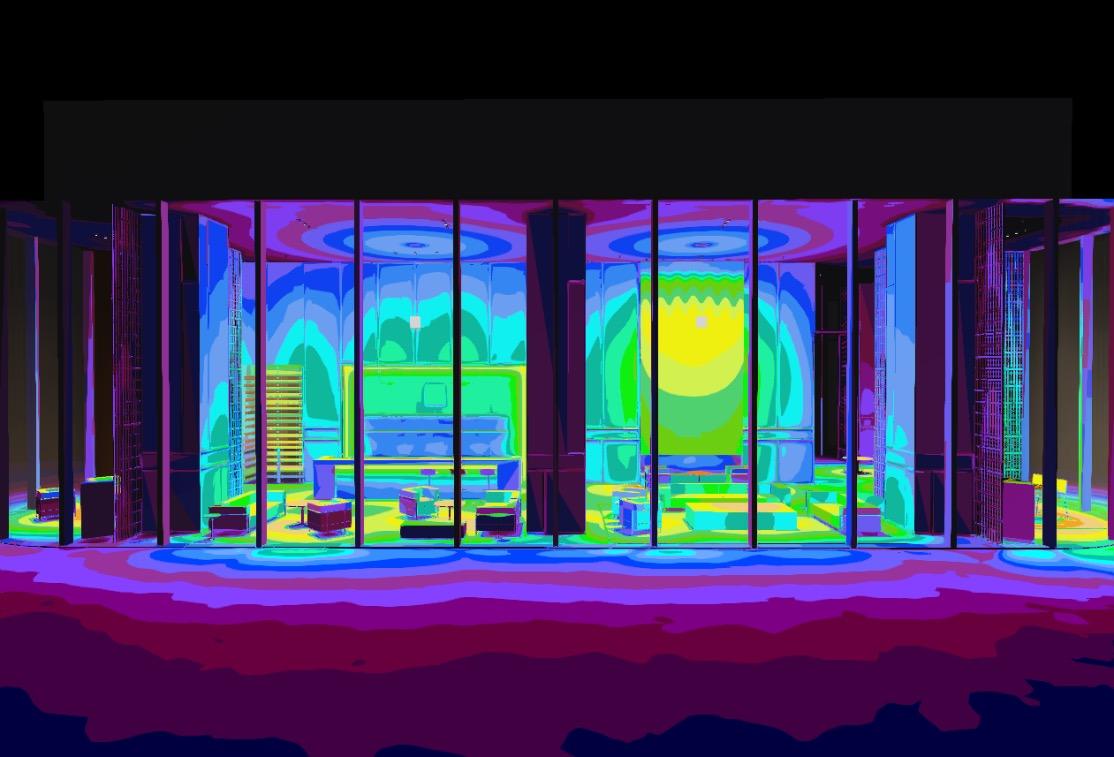

The illuminance calculation allows us to see the distribution of light more clearly. The combination of warm ambient light and accent lighting highlights the hierarchy and functionality of the space, while focusing on the even distribution of light to ensure appropriate illumination in each area. The combination of lighting design and materials such as wood and stone creates a comfortable, upscale atmosphere and enhances the overall visual effect of the lobby.

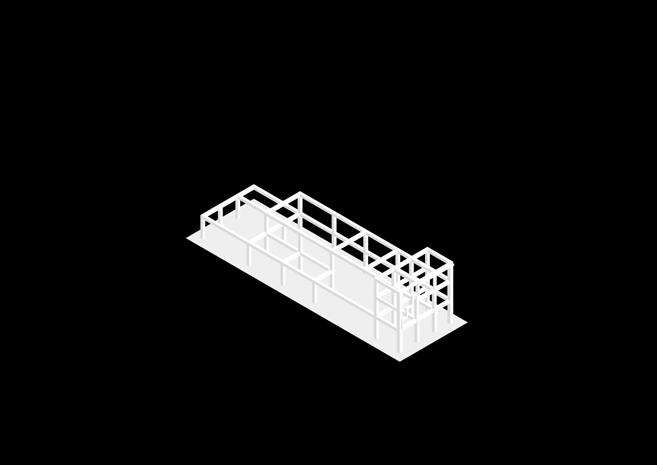

ORIGINAL STRUCTURE PRESERVE
ORIGINAL STRUCTURE PRESERVE

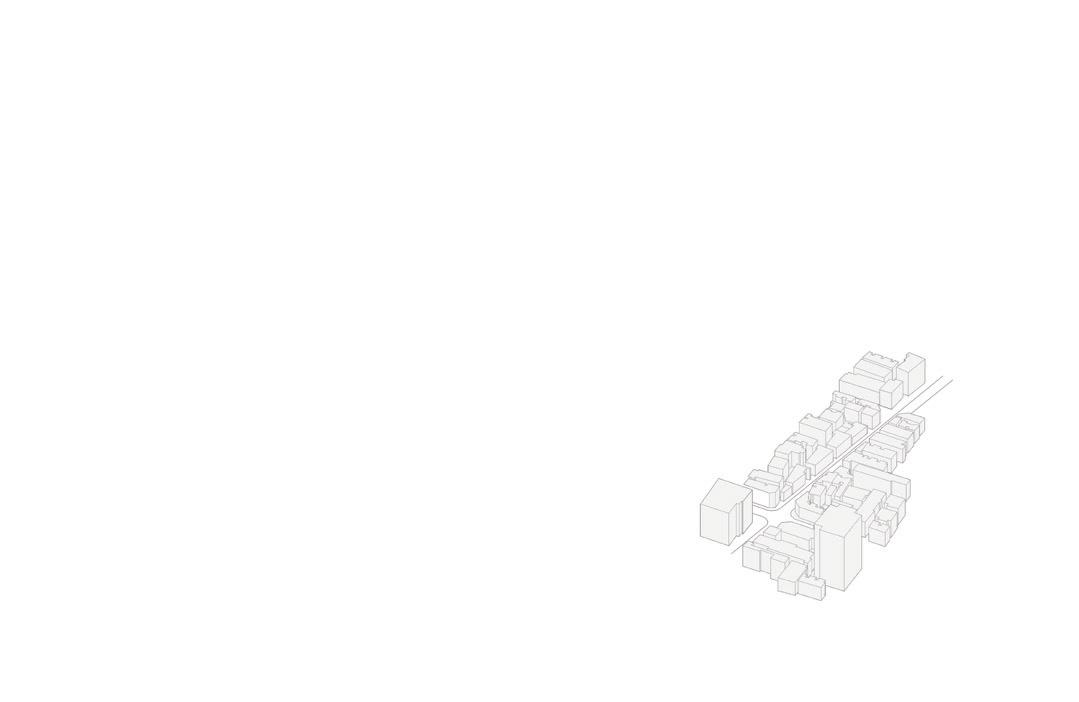

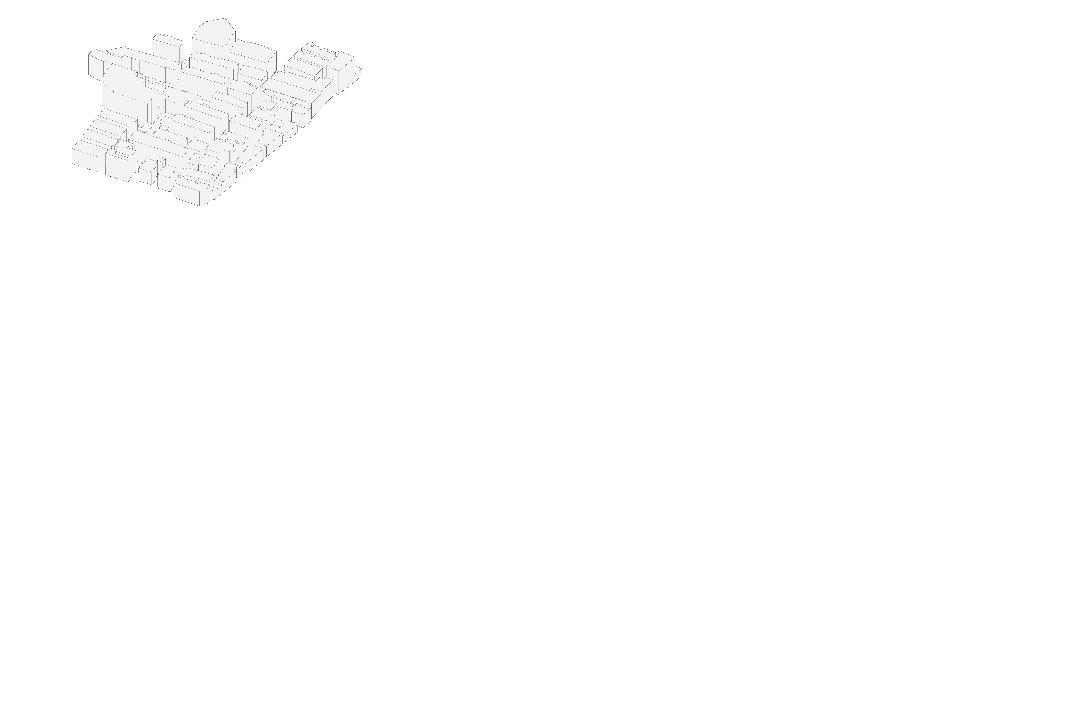

SITEPLAN NARROW
COMMUNITYPATH AISLE,PARK,SOUND
SITEPLAN NARROW
ORIGINAL STRUCTURE PRESERVE
VERTICAL,COMPLEX
ORIGINAL STRUCTURE PRESERVE
ORIGINAL STRUCTURE PRESERVE SITEPLAN NARROW VERTICAL,COMPLEX
WINDOWDAYLIGHTING,VIEW
INSERTCONTRAST
FUNCTIONSTOREYHEIGHT
STOREYHEIGHT
WINDOWDAYLIGHTING,VIEW BOXVERTICAL,COMPLEX
FUNCTIONSTOREYHEIGHT

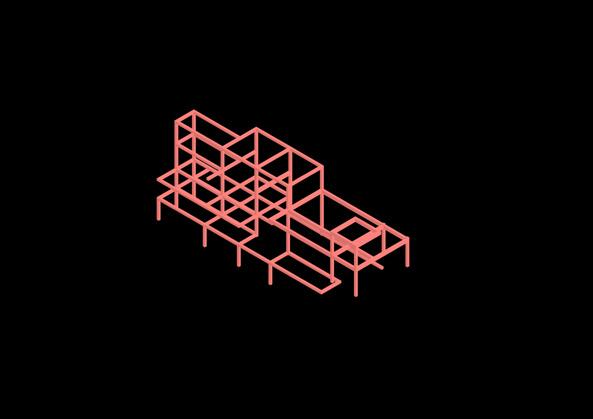

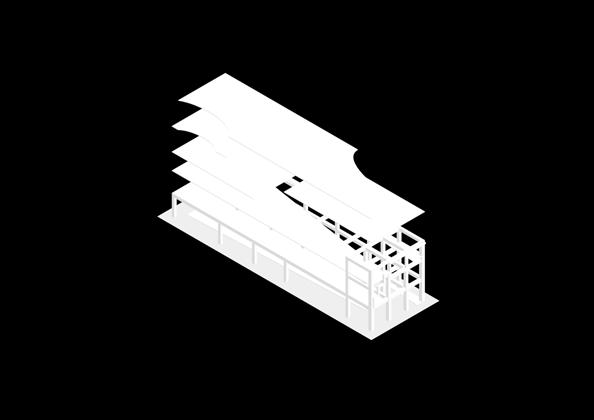

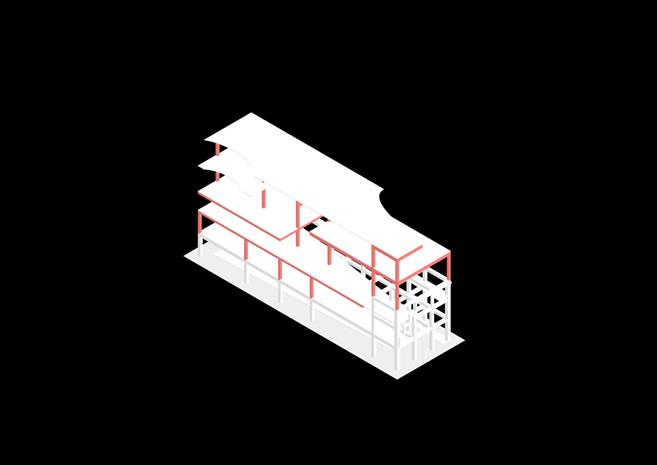

NEWSTRUCTURE BEAM,COLUMN
FUNCTION
COMMUNITYPATH AISLE,PARK,SOUND
NEWSTRUCTURE BEAM,COLUMN
NEWSTRUCTURE BEAM,COLUMN
INSERTCONTRAST
DAYLIGHTING,VIEW
WINDOWDAYLIGHTING,VIEW INSERTCONTRAST
NEWSTRUCTURE BEAM,COLUMN
SETUPCOMBINATION
SETUPCOMBINATION
SETUPCOMBINATION
URBANCONNECTED
URBANCONNECTED
URBANCONNECTED
The concept of the architecture is “The Resonance of Urban Sound”. I was inspired by the sound I heard during the field trip. There are a lot of sounds from cars, buses, bicycles and pedestrians on the main road.However the residential area is very quiet, can only hear some slight sound of kitchen cooking, wind blowing and conversation.These diverse groups of people can come and go like the sound waves to resonate on the site.
I believe that space can affect the magnetic field of relationships between people. When the space is taller and more open, people's emotions will be more comfortable and cheerful. They will be willing to communicate with others, create a lively atmosphere, and form a gravitational field of interaction between people; However, when the space is more narrow and low, people's emotions will inclined to be more peace and quiet. It is suitable for solitary activities, forming a separate gravitational field. So height is also an important variable.
“Ruinophiliaand oftheruin,which modernitieswith
andruinophosmeancollapse,butitisusuallyaboutremaindersandreminders.Iwanttosuggestadifferentlogic whichisnotromantic,notbaroque,notmelancholic,butaformoftolerationofdisharmony-atolerationofplural withwhichwelive.”

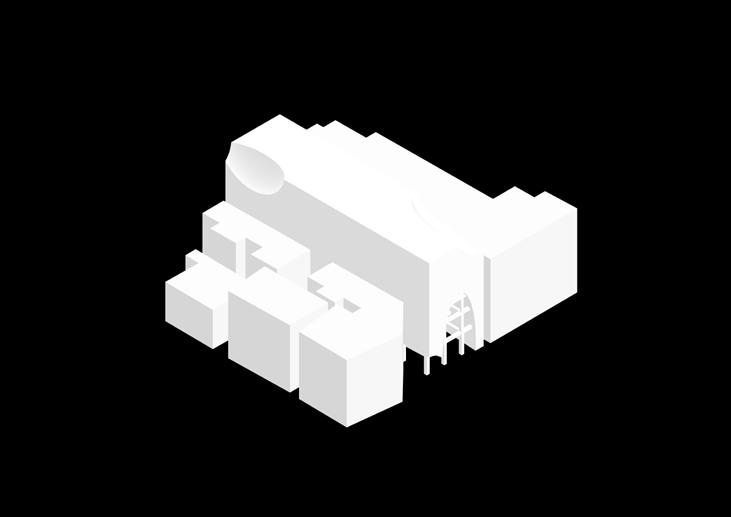

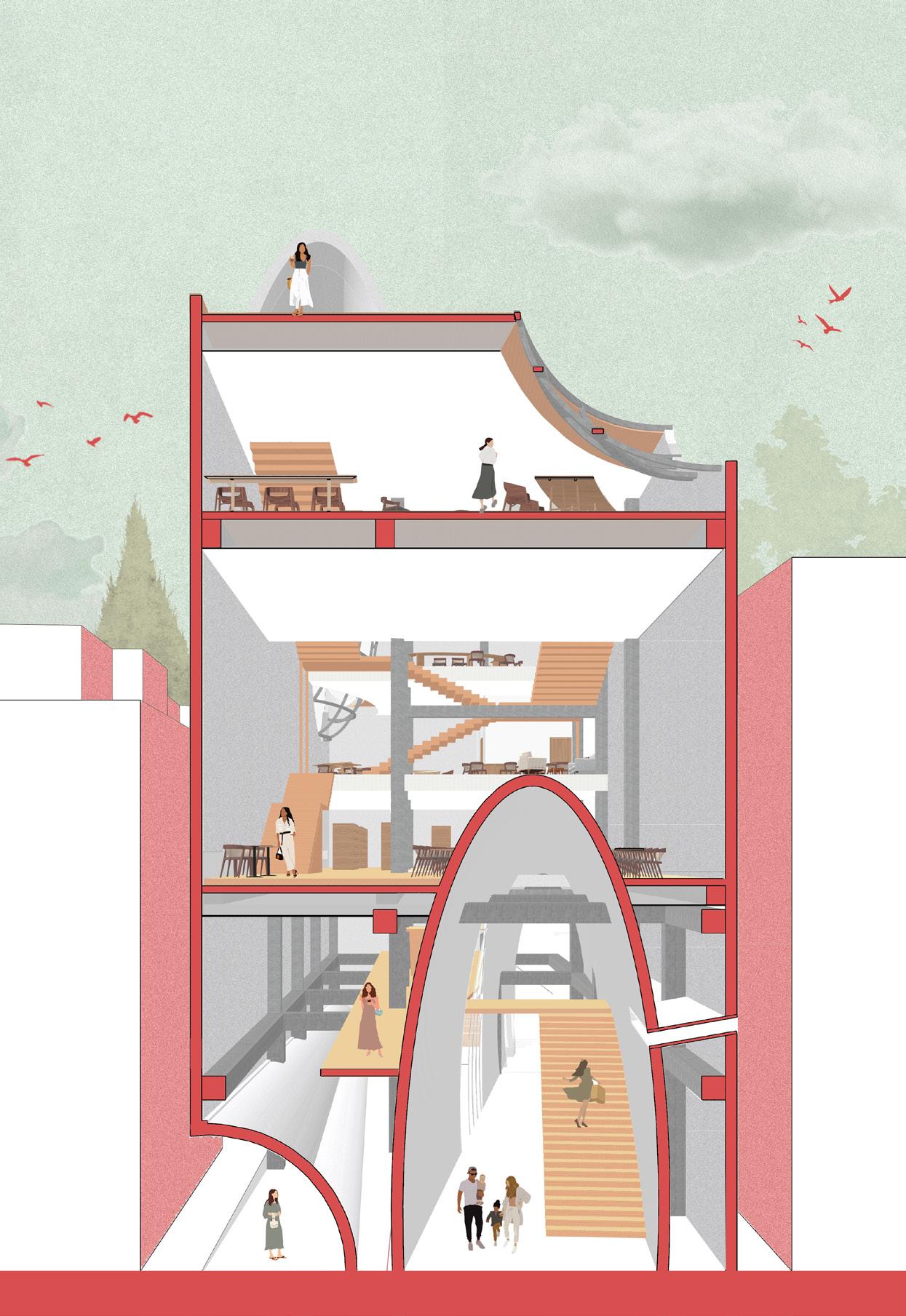

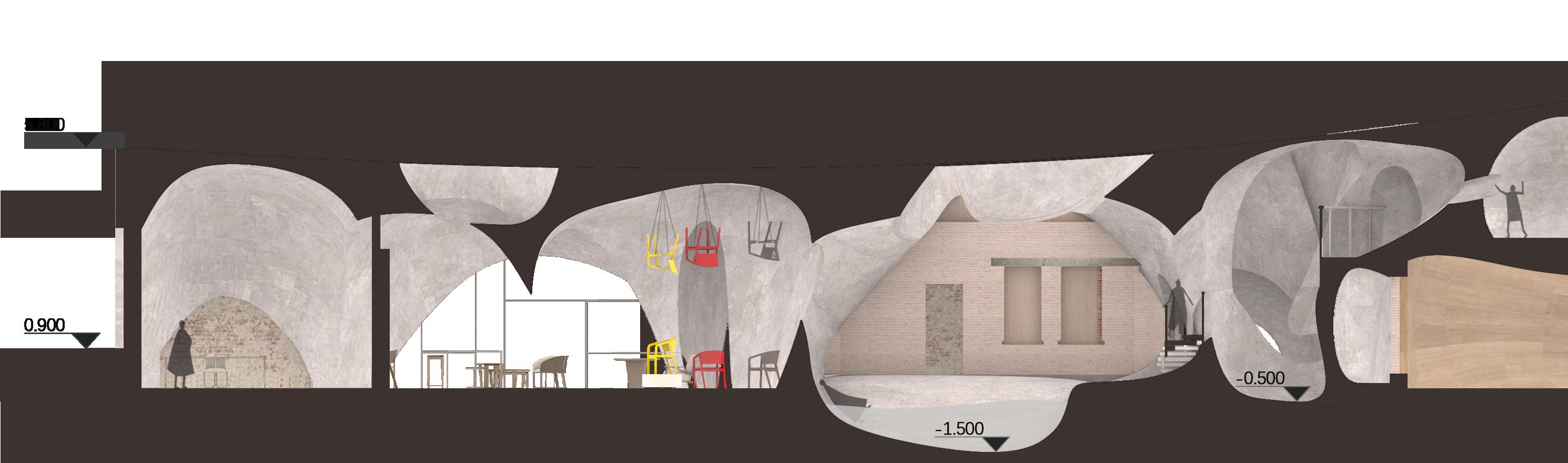

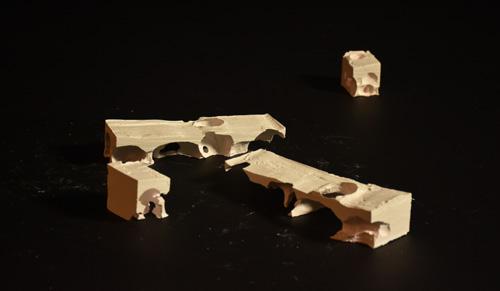

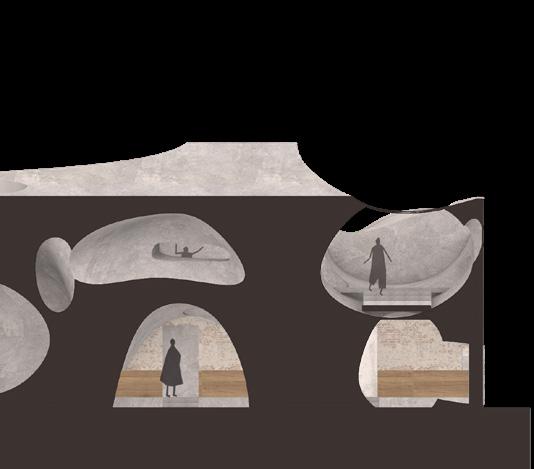

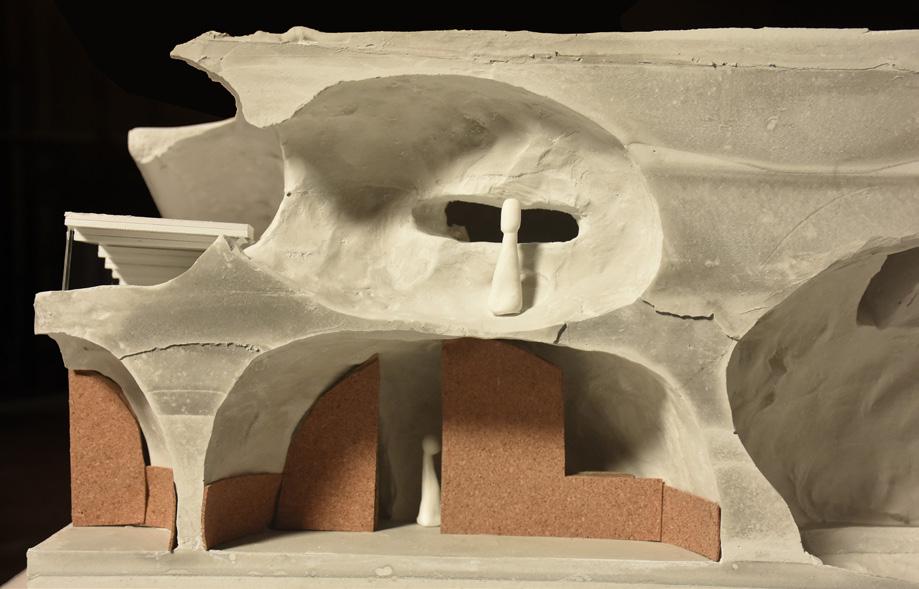

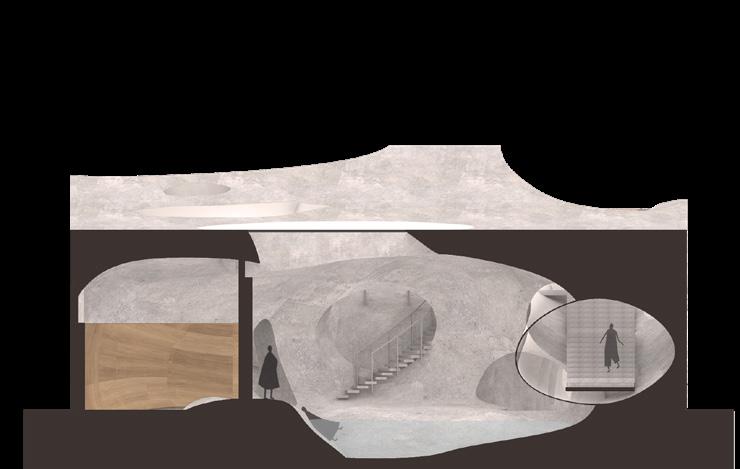

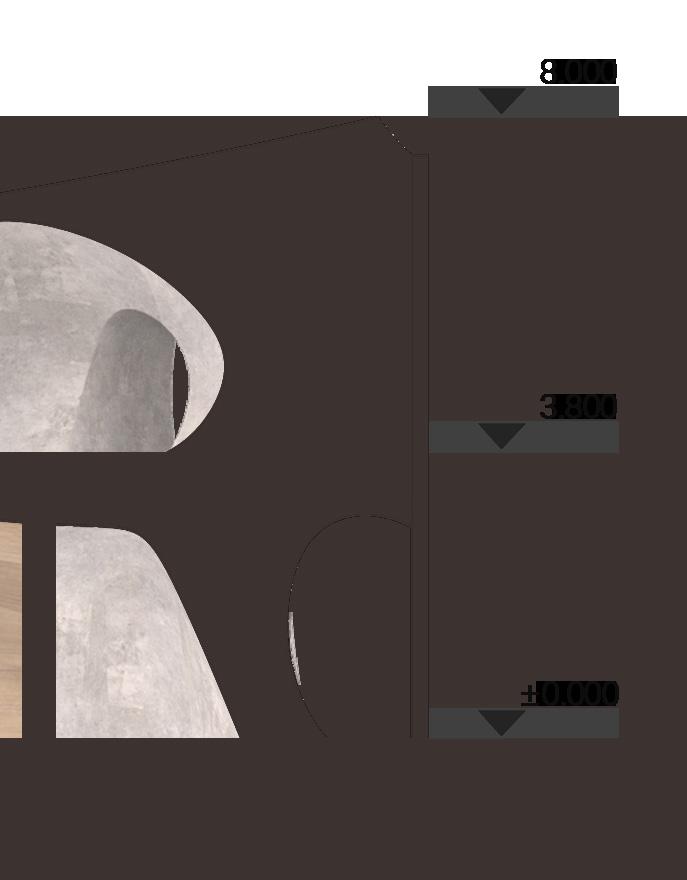

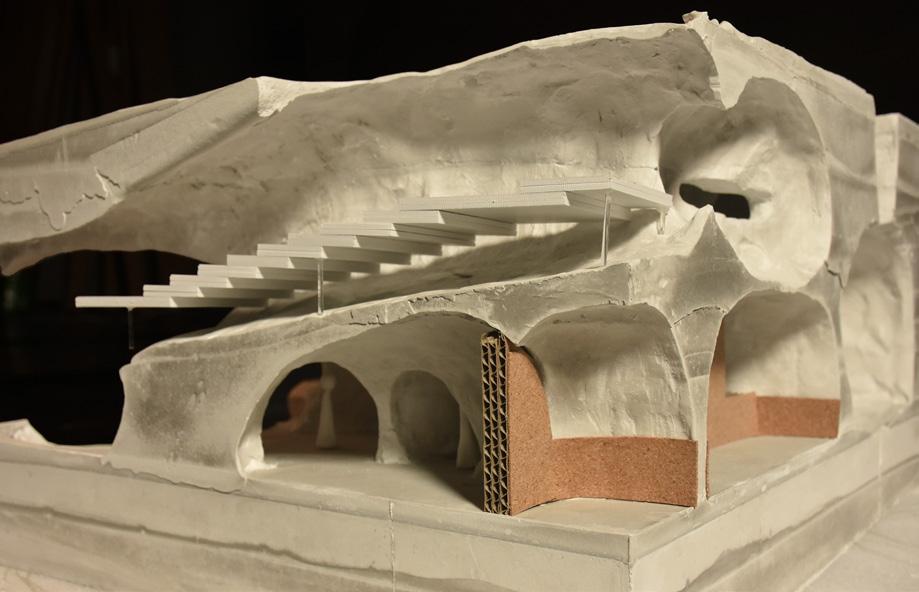

We first wrap the two building with a new cover, and can make the boring original outdoor space between the two buildings into indoor space(this way was used in OMA cases), we use irregular volume to erode, and create organic form cave shape building. We keep the old buildings and part of cutting into the old buildings, forming the contrast of red brick and concrete.
Our point of view on "revitalizing relics" and "renovating ancient buildings" is that "nostalgia is an unrepeatable thing", that is, there is no need to care old buildings. It is the common sense of all things to cover old buildings with new buildings and replace them with new things. So when dealing with by concrete, we chose to wrap it directly, like a fossil in the rock, following the natural law.
care so much about the demise of with the old building volume covered

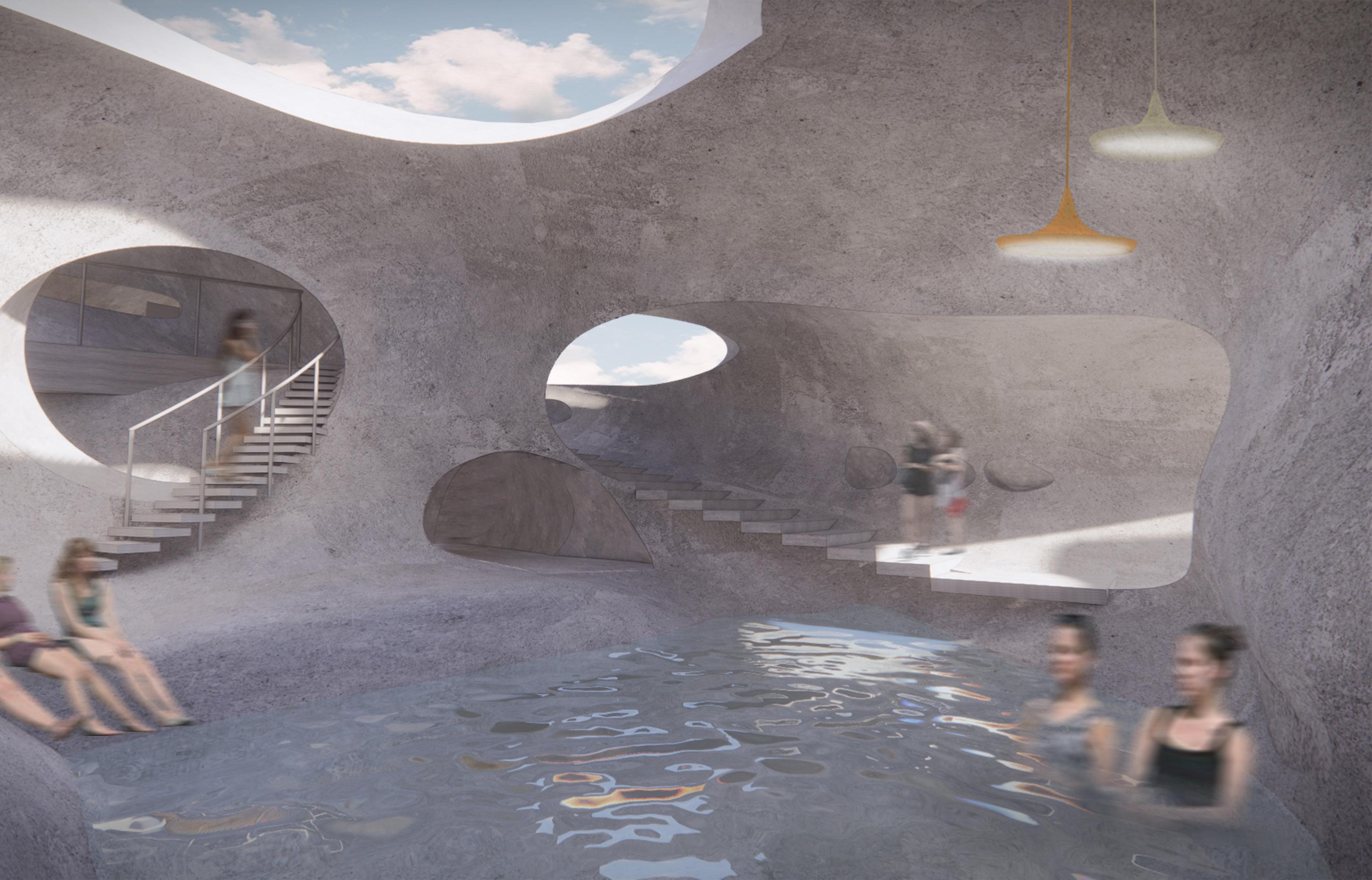

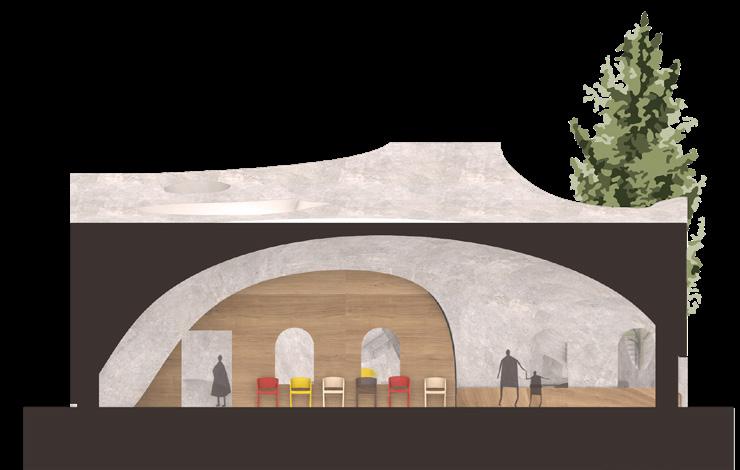

The hall is next to the largest hot spring pool, but the walls block the view so that only light can pass through the hole above. Therefore, at the right Angle, sunlight from the hot spring pool is reflected to the ceiling of this exhibition hall.
The display of furniture in the exhibition hall echoes this interesting phenomenon, hanging upside down from the ceiling.This particular exhibition hall is next to the largest hot spring pool, but the walls block the view so that only light can pass through the hole above.
Therefore, at the right Angle, sunlight from the hot spring pool is reflected to the ceiling of this exhibition hall. The display of furniture in the exhibition hall echoes this interesting phenomenon, hanging upside down from the ceiling.
Day clock records the pattern of activity of different organisms or natural phenomena during the day.
Flocks of birds begin to chirp and fly out of the bushes at 6 a.m. to feed.
Later in the day, fishermen walk out onto the bridge and start fishing.
In the late afternoon, when the sun is shining, butterflies flock to the bushes to feed.
As the sun is setting, it's dinner time for the hares.
The Night Clock is a record of how different organisms or natural phenomena move at night.
Hares begin to come out to feed in the evening and are most active at 8 or 9 pm.
Then the rats start to appear.
Butterflies hide in the grass in the middle of the night.
Slugs move slowly through the damp, dewy grass.

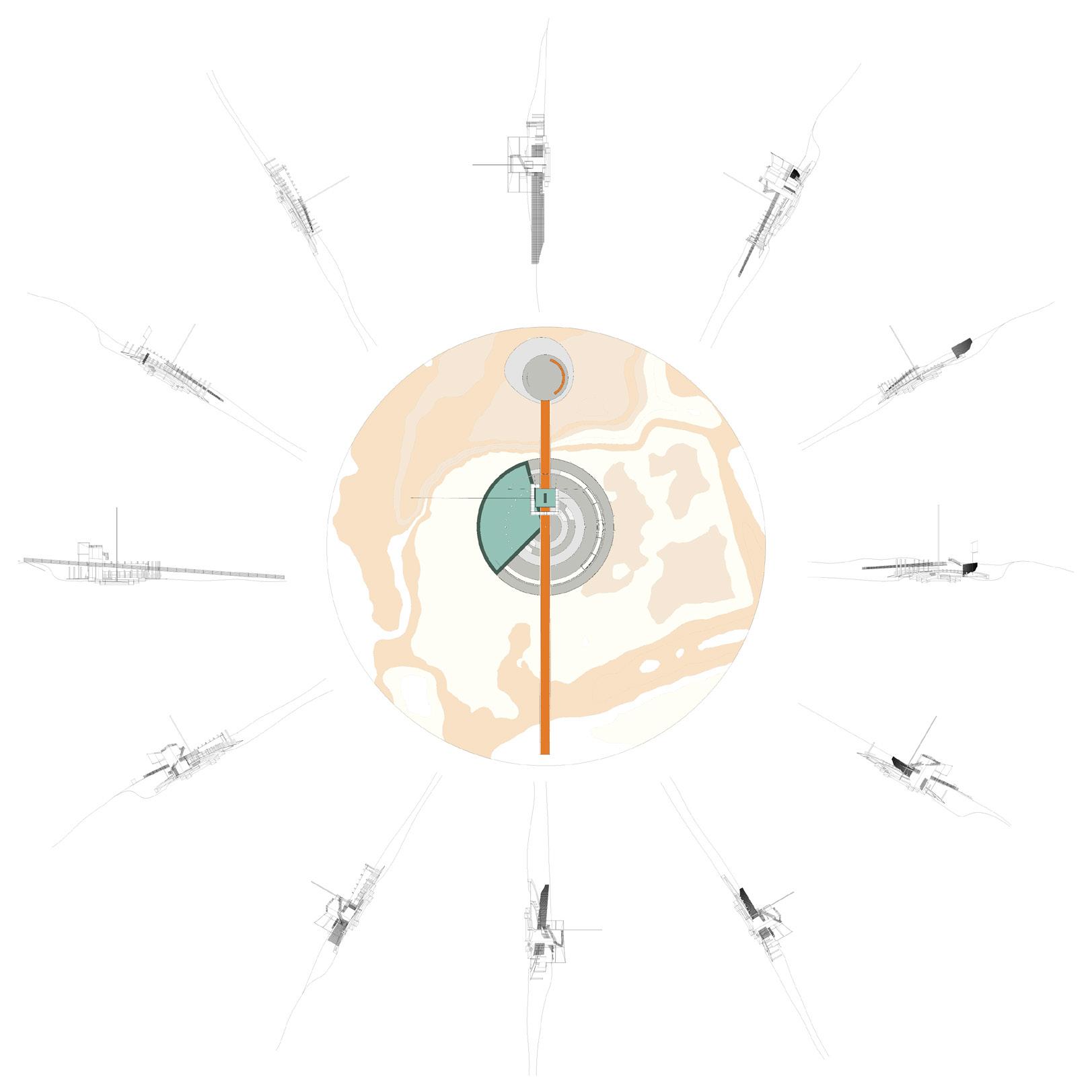

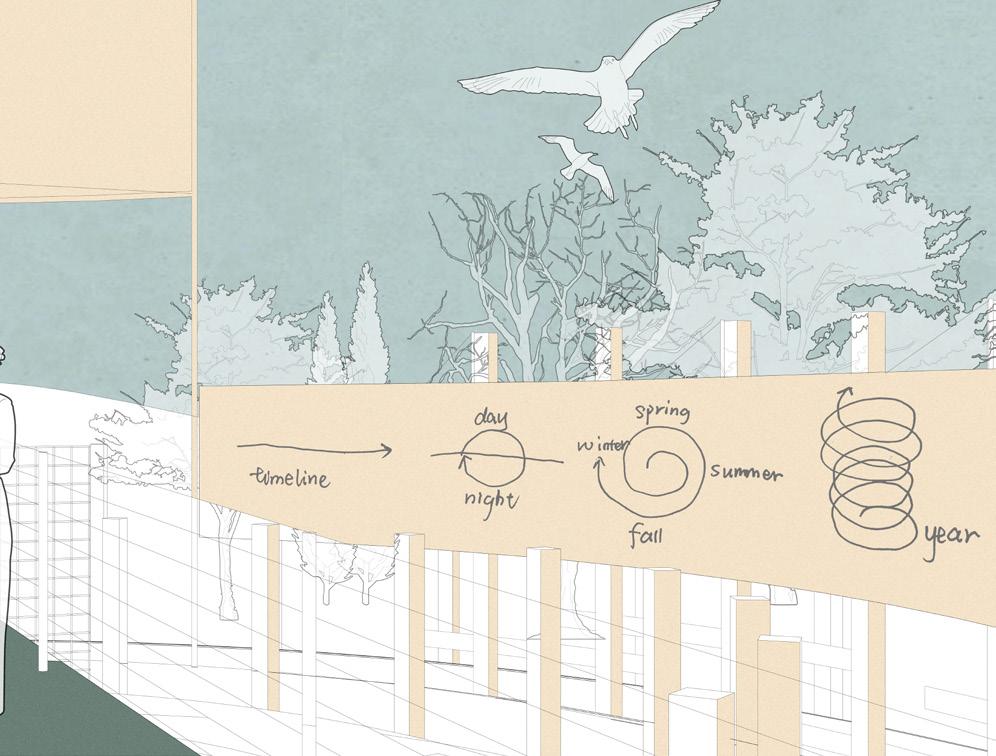

Time is objective, a uniform unit of measure developed by humans to facilitate life. But time perception is subjective. It is related to mental states, dreams, memories, and thoughts. Time can be point, linear, circular, rotating upward; past, present, future; human, animal, plant, or non-living.

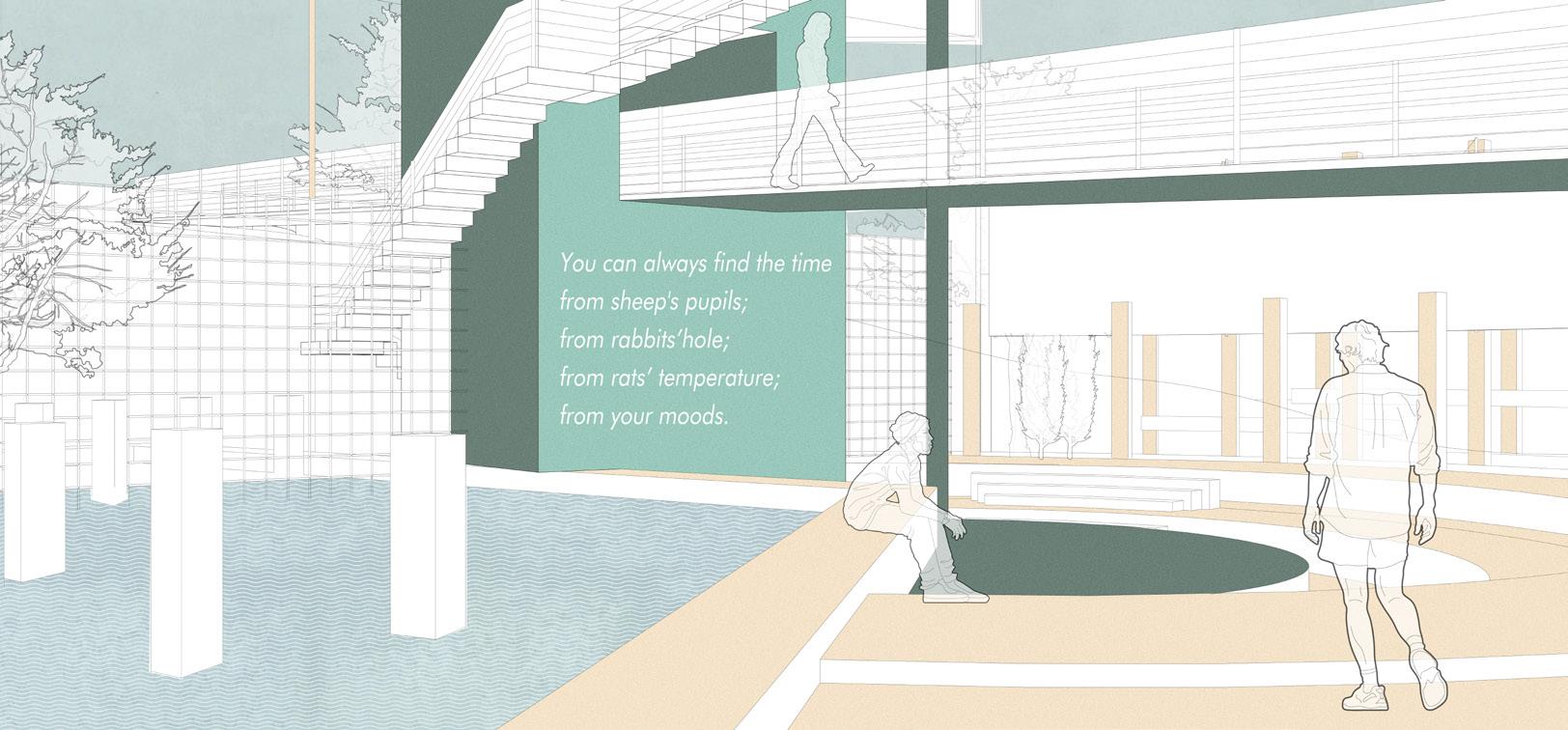

From here I can see the ocean across the harbor. Everything around me converges on this point. The rotating upward staircase is like the rotating upward time, the development of things. It's like I'm standing at the intersection of time; in the middle of the past and the future; on the rotating axis of a clock.
I'm a waterfowl living in the neighborhood. The pond is calm and friendly. It gives me a sense of familiarity. I can bathe, drink and nap here.
My rabbit hole is close by. The plants growing on these poles are delicious. I love playing hide and seek around these columns.
Walking down the long corridor of time, I could see the scenery around me falling as I ascended. Linear space, like linear time, has to keep going forward. No one can go backwards. Can anyone go backwards.

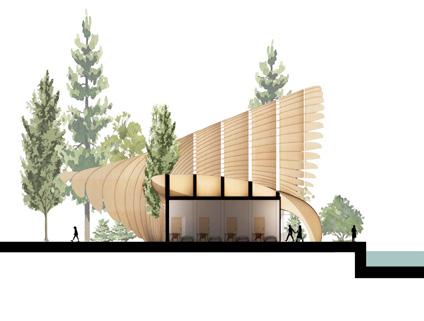

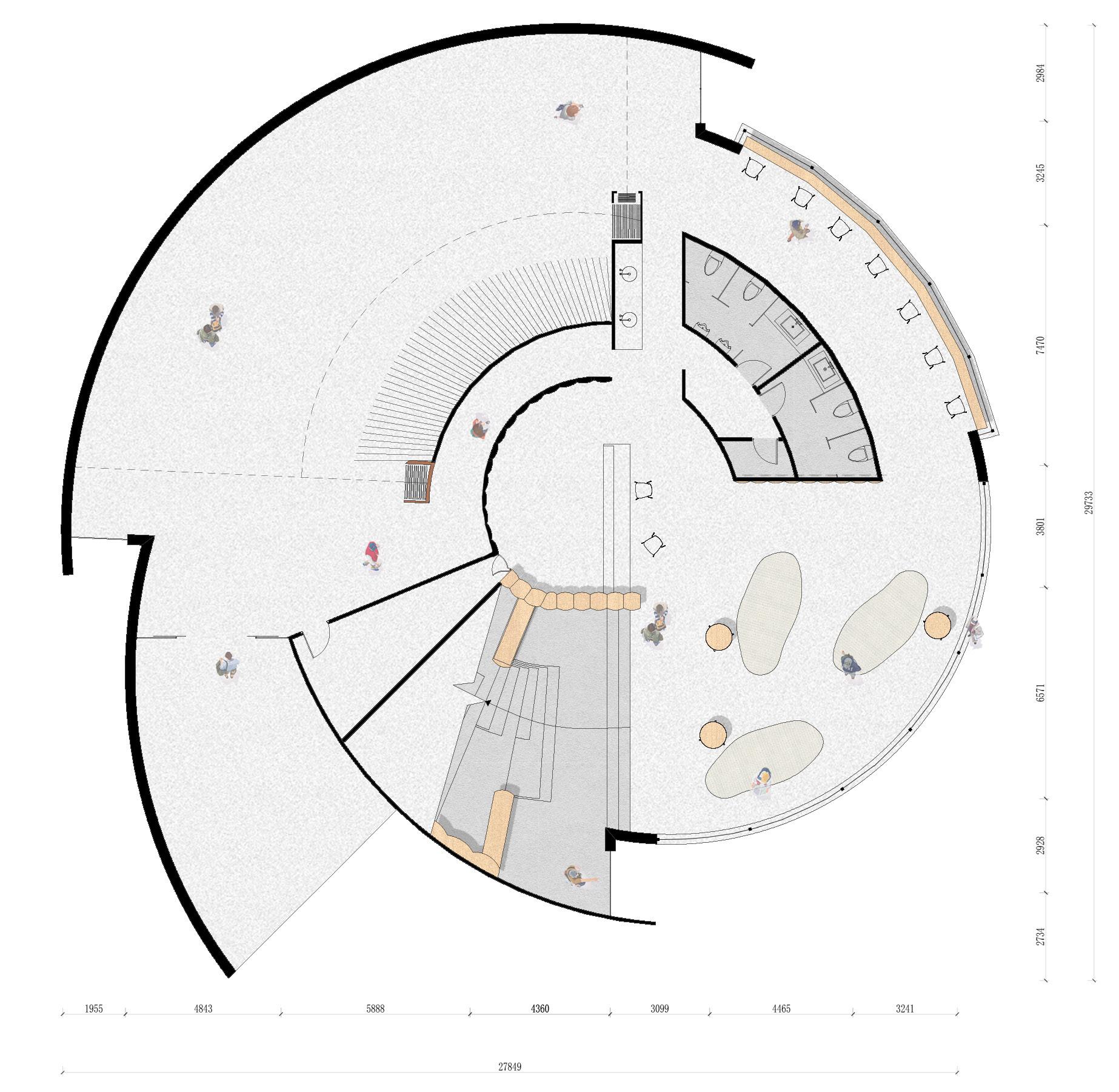

We enjoy hosting small party events here. The stage is very special with the pillars surrounding it, making him a focal point for people to explore and see.It's also a great place to meditate and laze around. People need to walk around the circle and through the outer corridor to get to the center of this venue. In the process of entering they also walk through the exhibition itself.
This pavilion has brought a lot of convenience to our neighborhood. It turns out that this park has no place for people to stay. I enjoyed bringing my puppy for a walk.
People enter according the pathways and reach the center. The center part can give some spaces to hold some activities.
You can also walk onto the bridge, go through

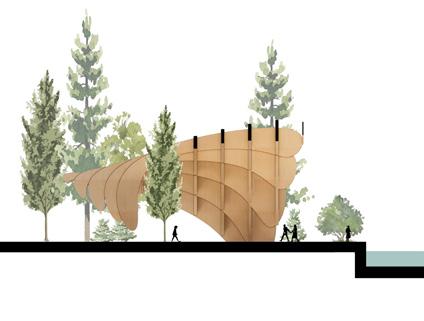

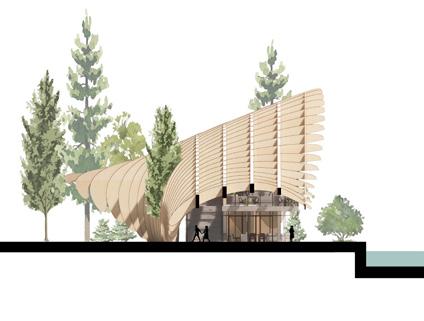

The pavilion can also be used by non human. Ducks and birds around can swim or drink in the pool. Rabbits can also eat plants growing on the pavilion and hide themselves in the pavilion.
through the building and arrive at the top of the cliff.
Today, with the development of the information age, we are occupied by a variety of reading media. But there are still people nostalgic for the warm, paper-based books with the unique touch of paper. The sound of turning pages, the ability to write and draw on a book, and the immersive and focused experience of reading a book.

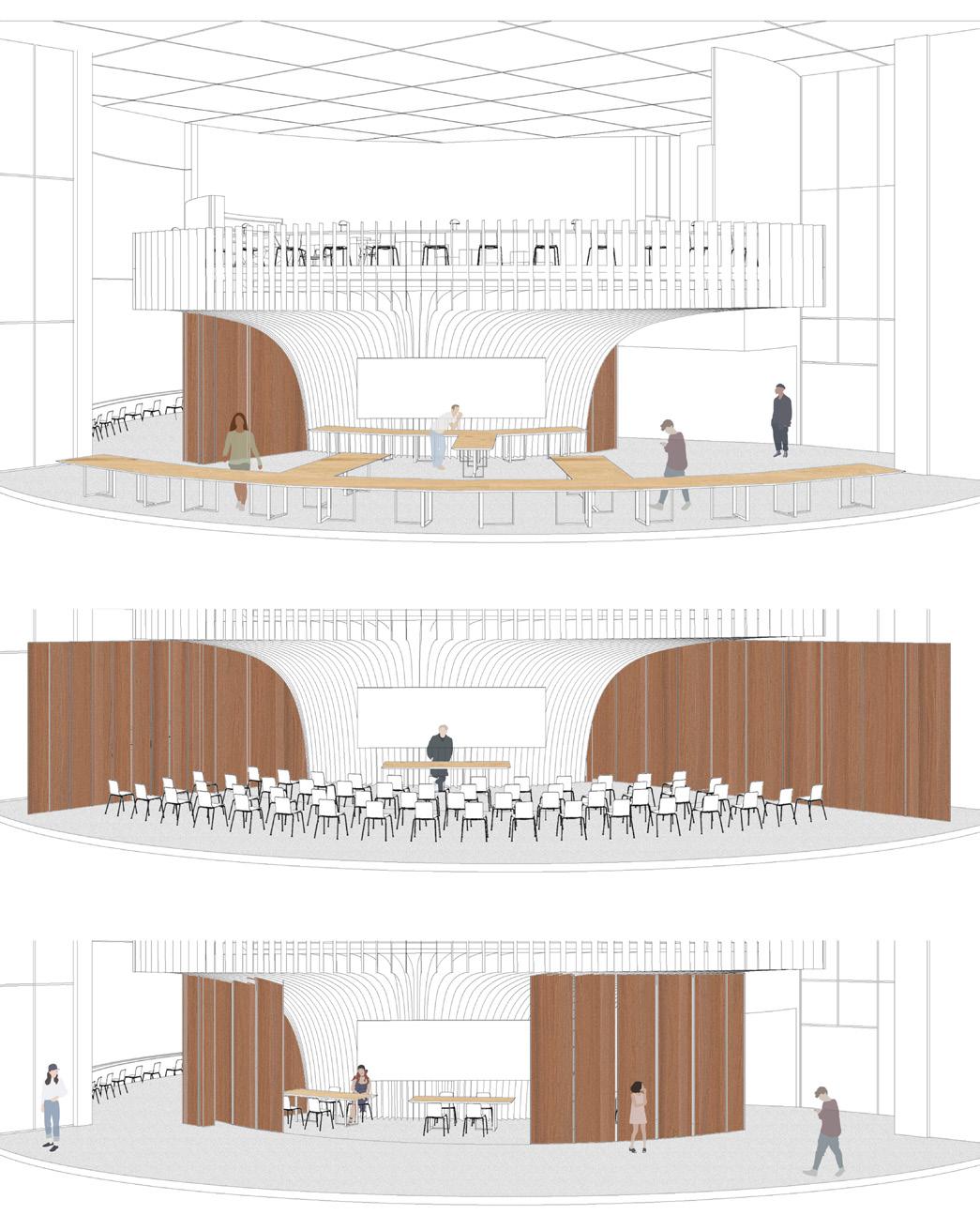

Usage scenarios of the function hall
Paper Book Memorial Hall

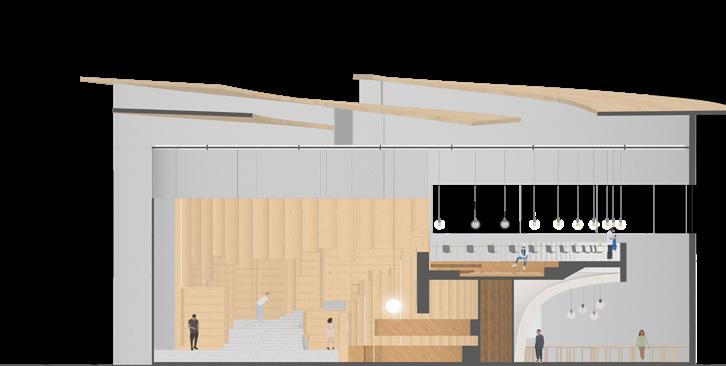

The design intention through the organic combination of height difference, light, vision and other elements, to guide people to explore and climb their own inner yearning and original heart.

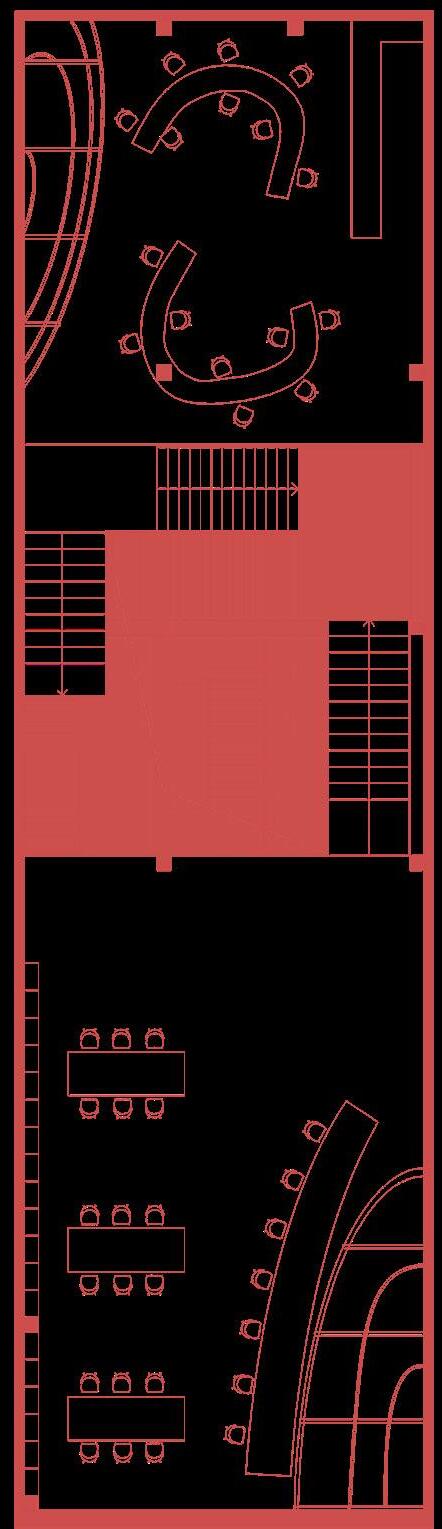

Located at the entrance of the building, As the function hall can be flexibly opened and Make up different functions of the space.
As part of the passage, and closed with the sliding door.
Working Day and Night

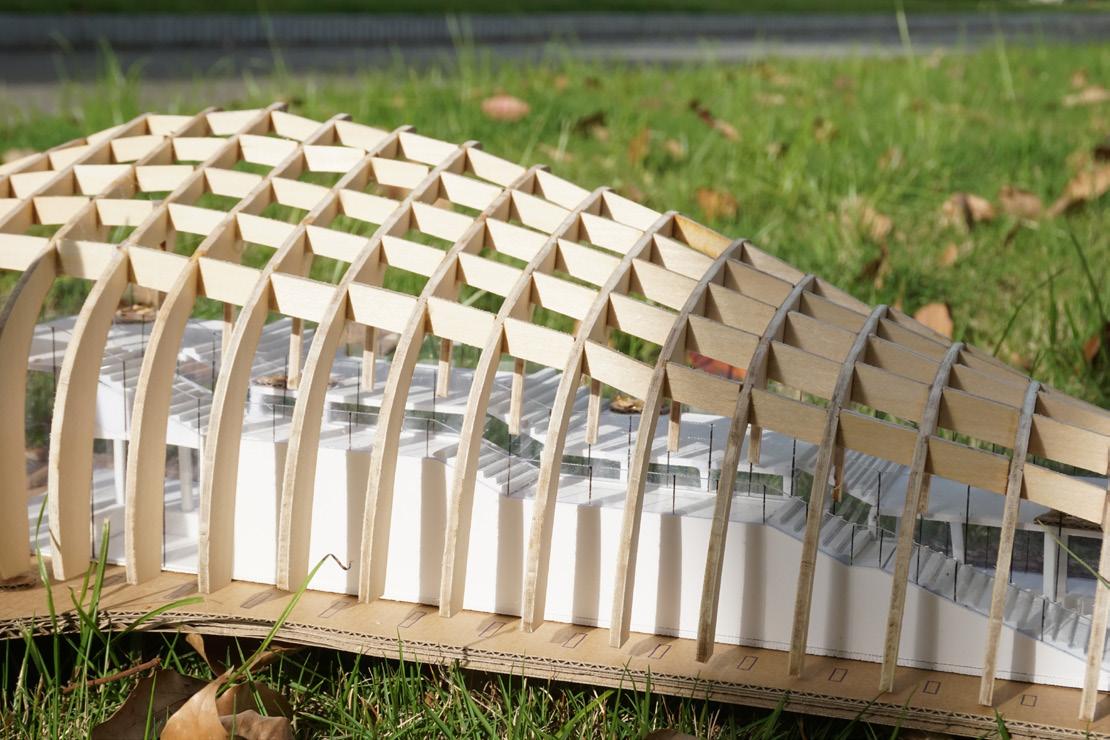

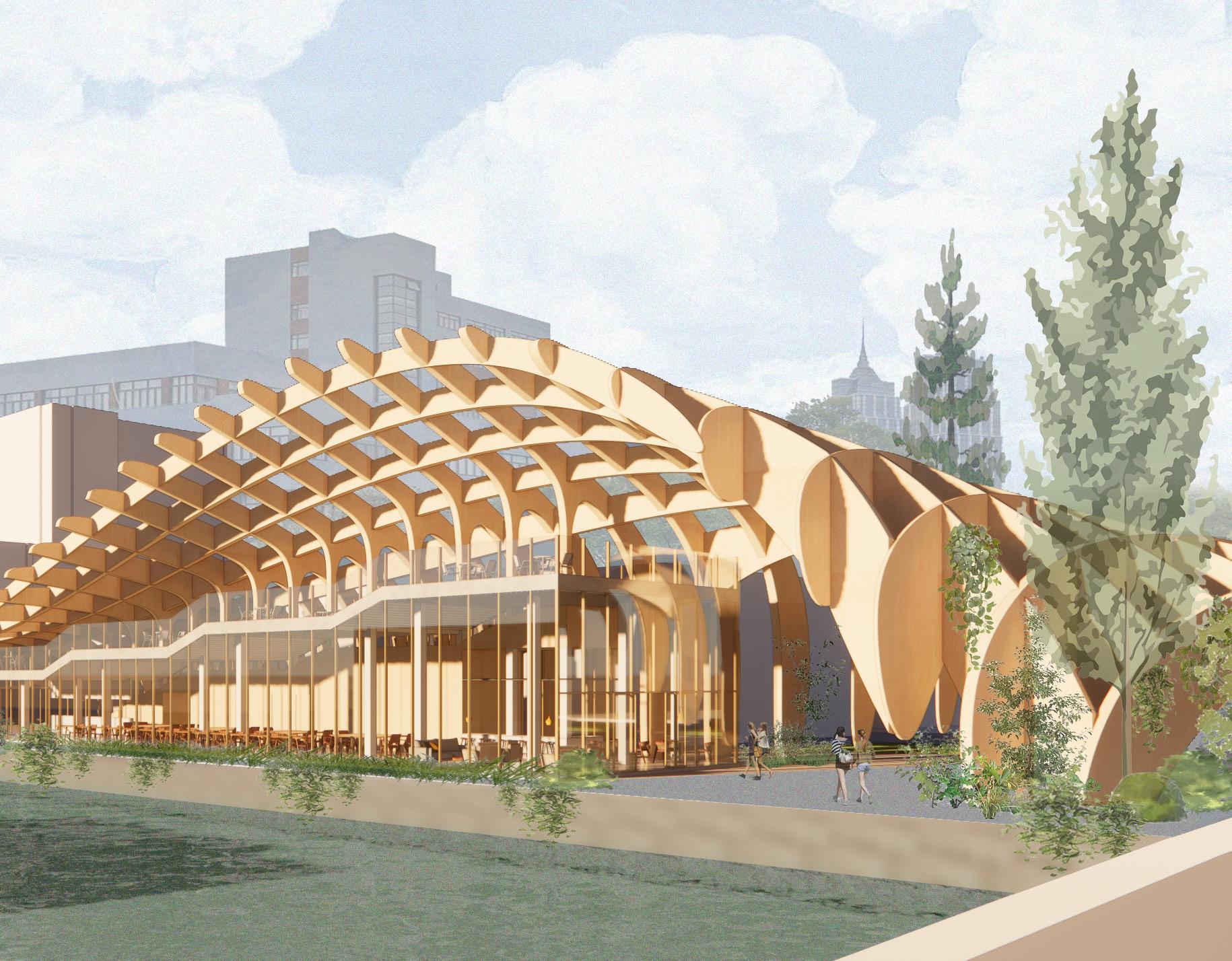

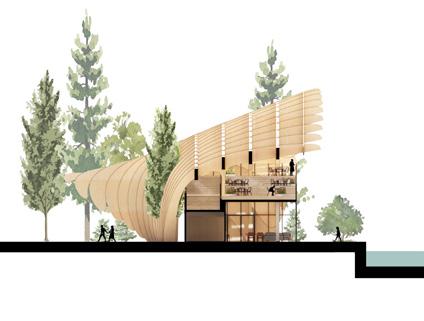

The student Activity Center is an important public space on campus In this design task, We highlight the sharing and public nature of space Through the preliminary base survey, We identified the need and lack of 24-hour space on campus Combined with the case study of the building structure We hope to realize "campus riverside public parasol" such space form and concept
8.00AM Function hall Group meeting
10.00PM Capsule space Sleep
10.00AM Roof Taking exercise

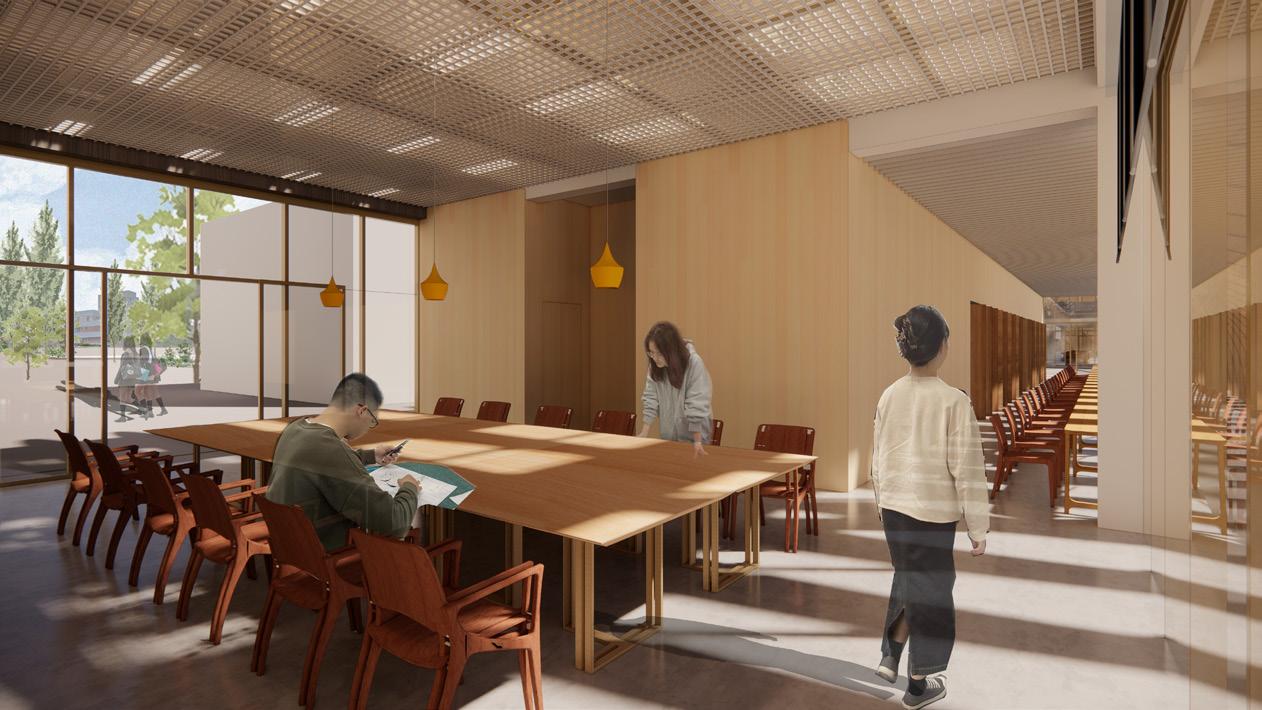

4.00PM Public study room Work, study
2.00PM Garden Go for a walk 12.00AM Cafe Have a break
