Come visit our condo! A perfect location - close enough to commute, yet away from the city stress, in the sunniest area of Lima!
Our building includes: modern construction, energy conservation, efficient recycling, solar energy, ecological concepts, and building security. There are a variety of suite sizes to suit each family. We have the following ammenities:
• Zona de juegos,
• Exercise room,
• Game room
• Swimming pool,
• Dedicated charging station for escooters and bikes.
In addition, the areas de comun will feel like an extension of living spaces. Our spaces are welcoming, bright pleasant atmospheres, designed for work-at-home employees.
You can invite and entertain friends in our gorgeous roof top amenities - areas for dance, bar b q, roof gardens!
SELECCIÓN DE SITIO
Existing site is an open plot of land that sits at the base of a mountain. It is situated between Avenida Melgarejo, and a raised residential neighborhood, 15 meters above street level.

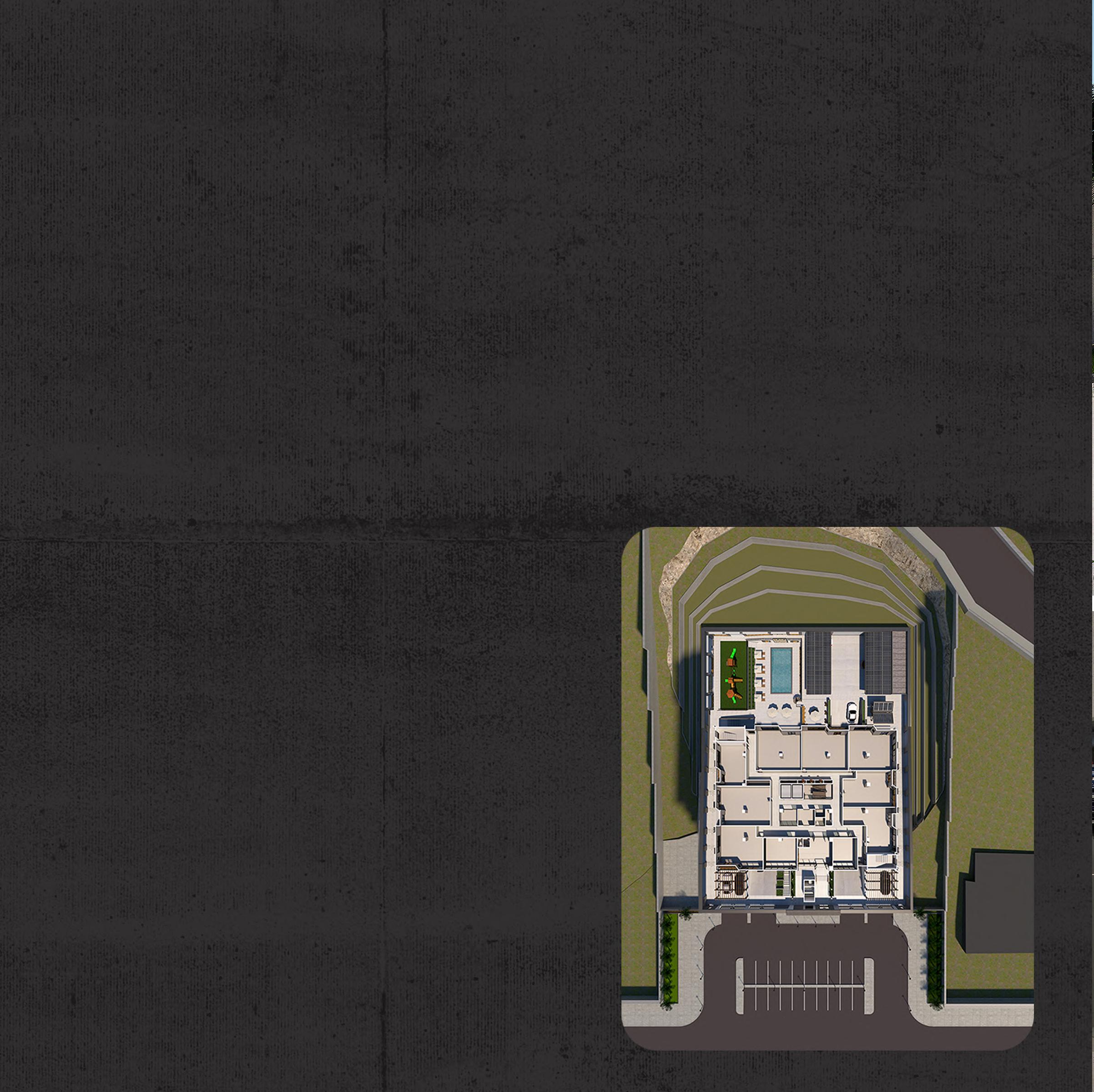

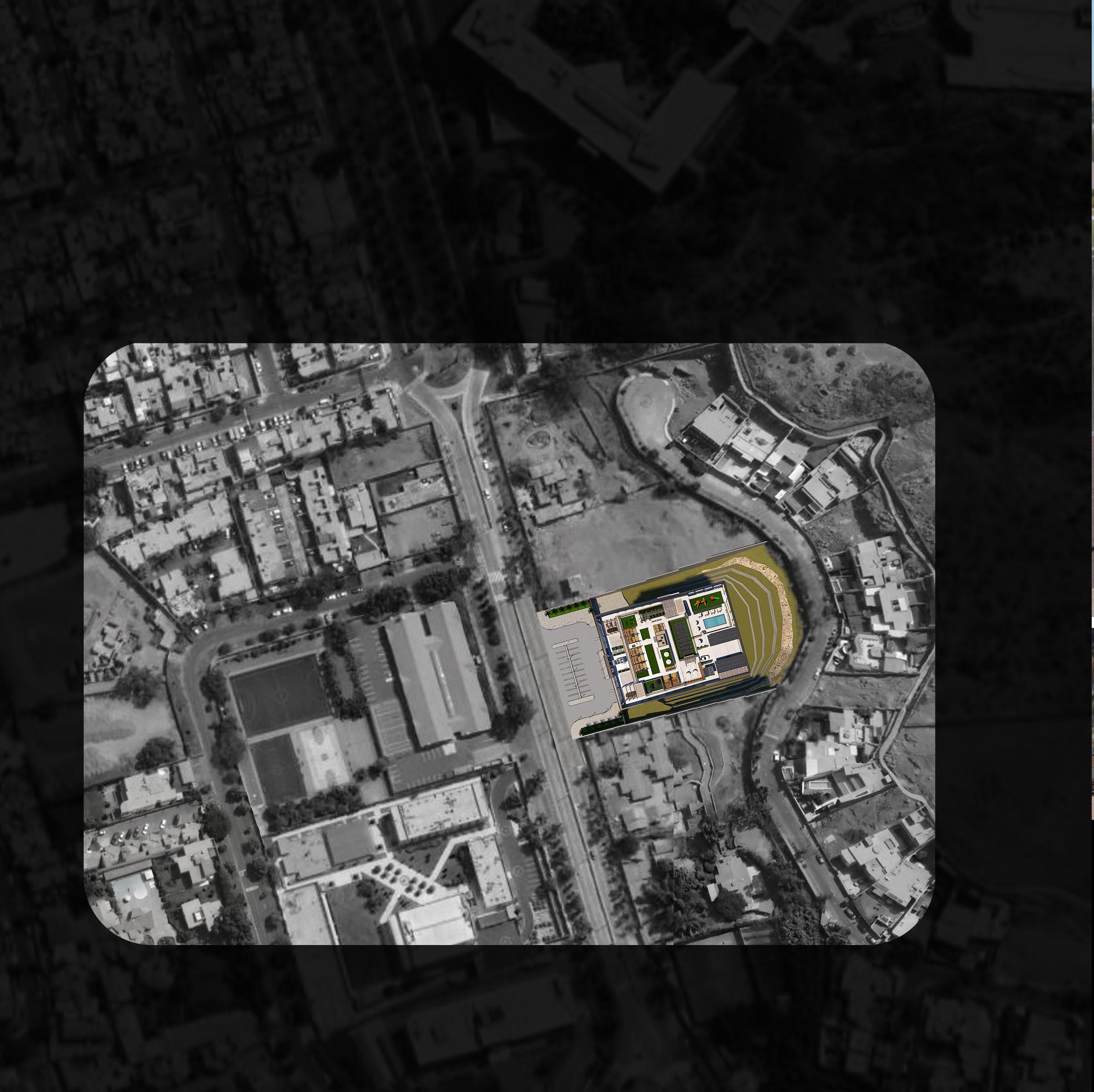

PLAN DEL SITIO
Av. Melgarejo
SIDE VIEW
PRIMERA PLANTA (FRENTE)

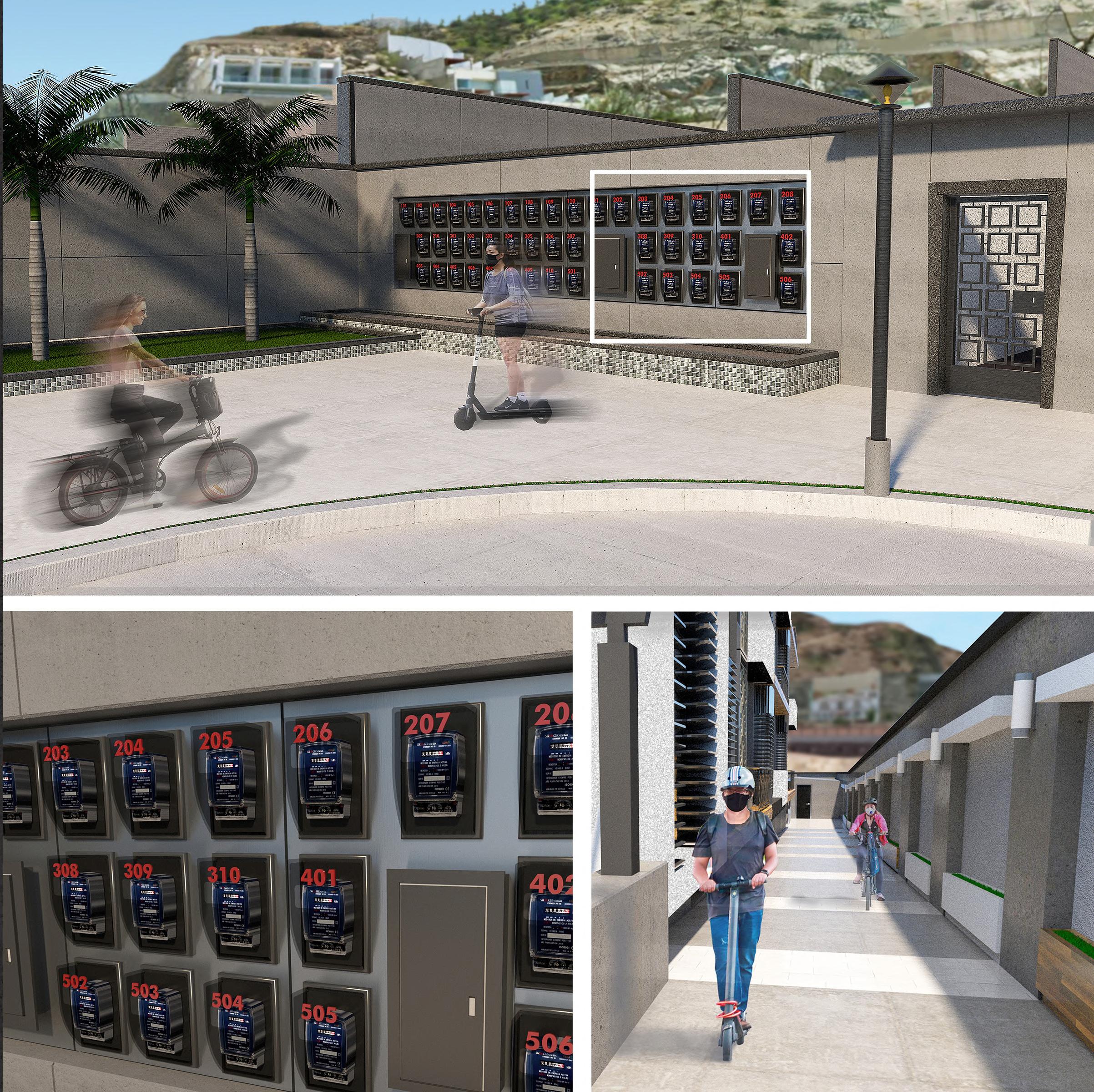

The front of the building has the following design elements: Medidores for 58 suites, located at both sides of front entrance. Medidores have the suite # listed on the front of the device.
• Overflow parking (20 spaces)
• Drive thru area to access building ramps
• Entrys to 2 Pasadizas (1 on each side of Building)
• Rows of Palm trees at each side of building and landscaping
VIEW ‘A’
VIEW‘B’

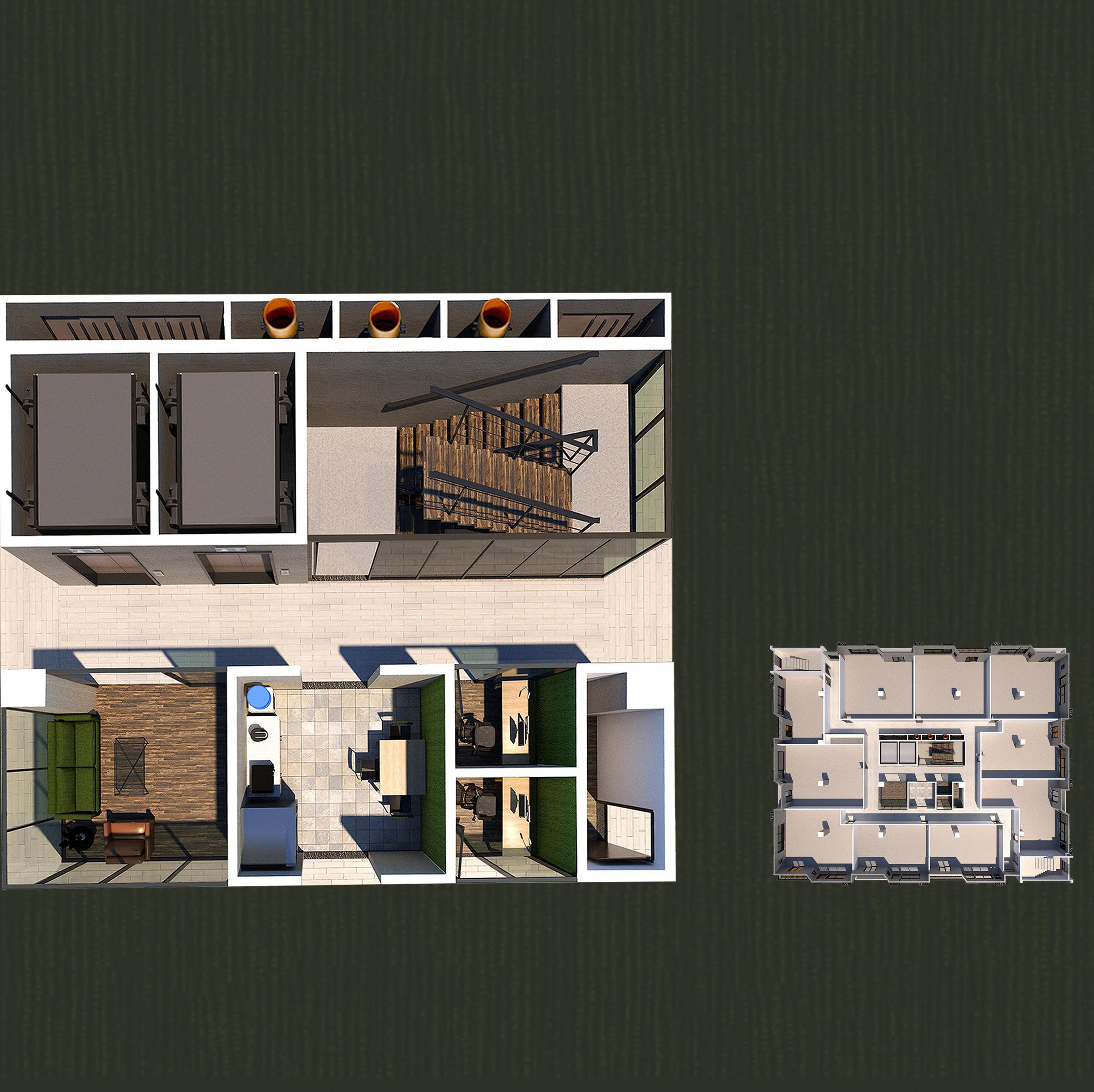

PRIMERA PLANTA - FRENTE (CASETA DE SEGURIDAD)
Caseta de seguridad is a security Command Center at front of building. Location of this space serves two functions:
• Attend to visitors at entrance.
2.4 m
SERVER ROOM
• Monitor the building for a safe environment via Technology/ security equipment.
4.5 m
ENTRADA
La Molina

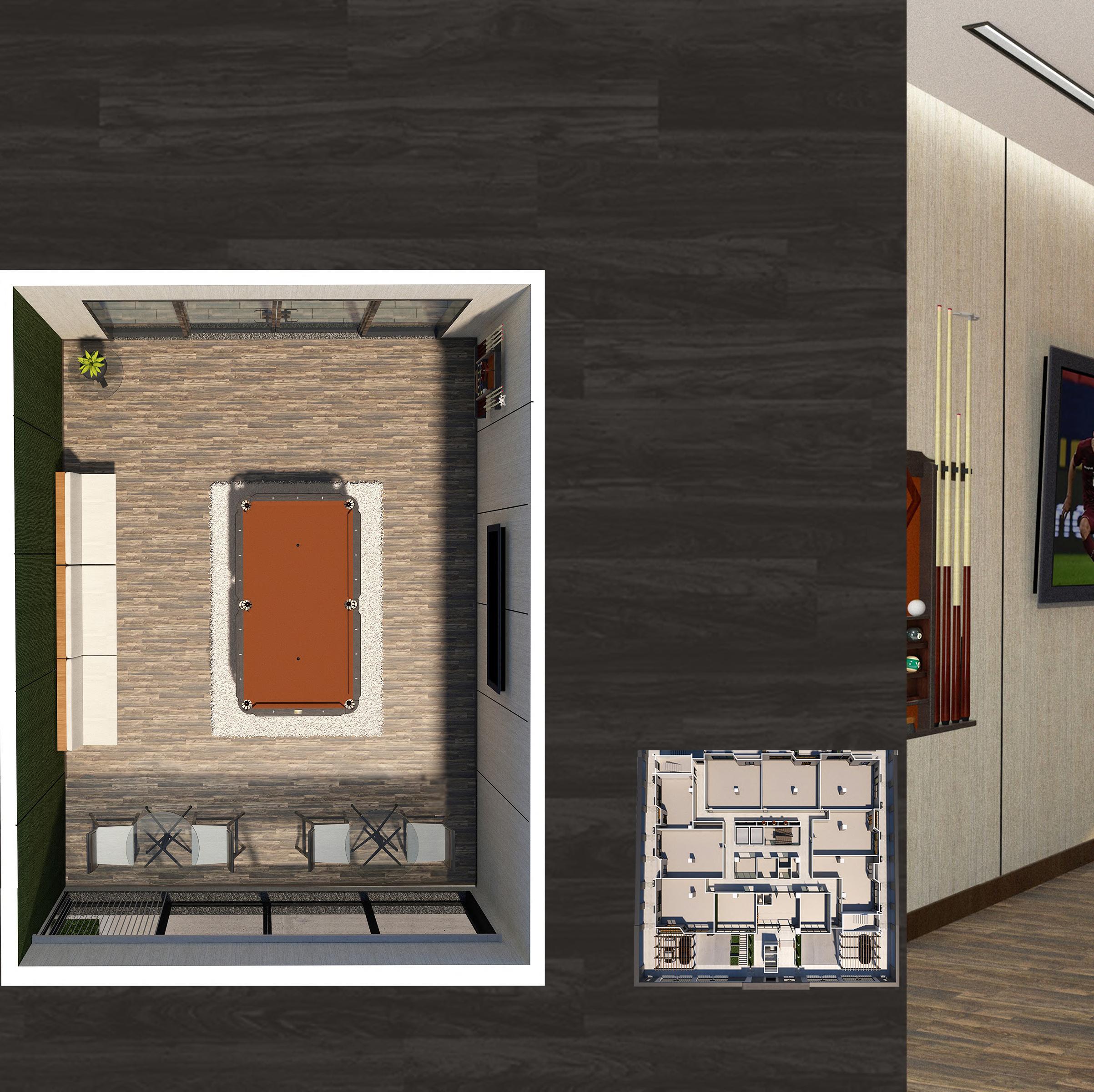

PRIMERA PLANTA (GIMNASIO)
Gimnasio is a space designed for weight lifting, stretch area, has a mirrored wall, spin bicycles, and tread mills. Views to the outside provide natural light into space, as well as controlled interior lighting per station.
6.8 m
ENTRADA
6.5 m
PRIMERA PLANTA (SALON
DE RECREACIÓN)
m
ENTRADA
- La Molina
Primera Planta
Condominio - La Molina
Primera Planta
5 8 7 7 10 9 6
PRIMERA PLANTA (PARTE TRASERA)

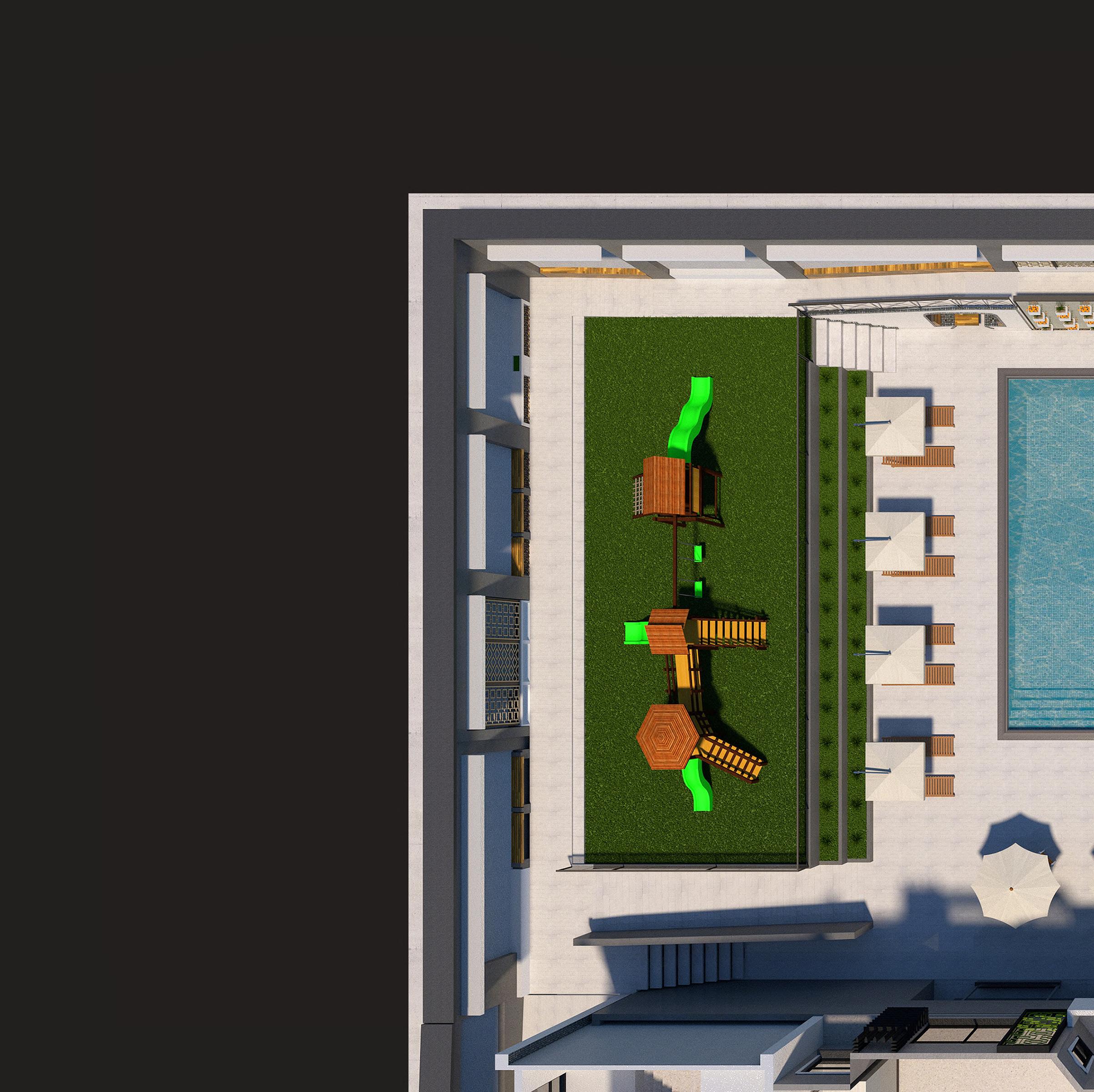

Back area is divided into 3 levels:
Parking (Nivel 1) Zona de Juegos (Nivel 2) Piscina. (Nivel 3)
This creates a flow of terrain, where people can move freely up and down different levels, providing a subtle variety of heights.
All areas handicap friendly, with access to elevators inside building.
NIVEL 3
NIVEL 1
NIVEL 2

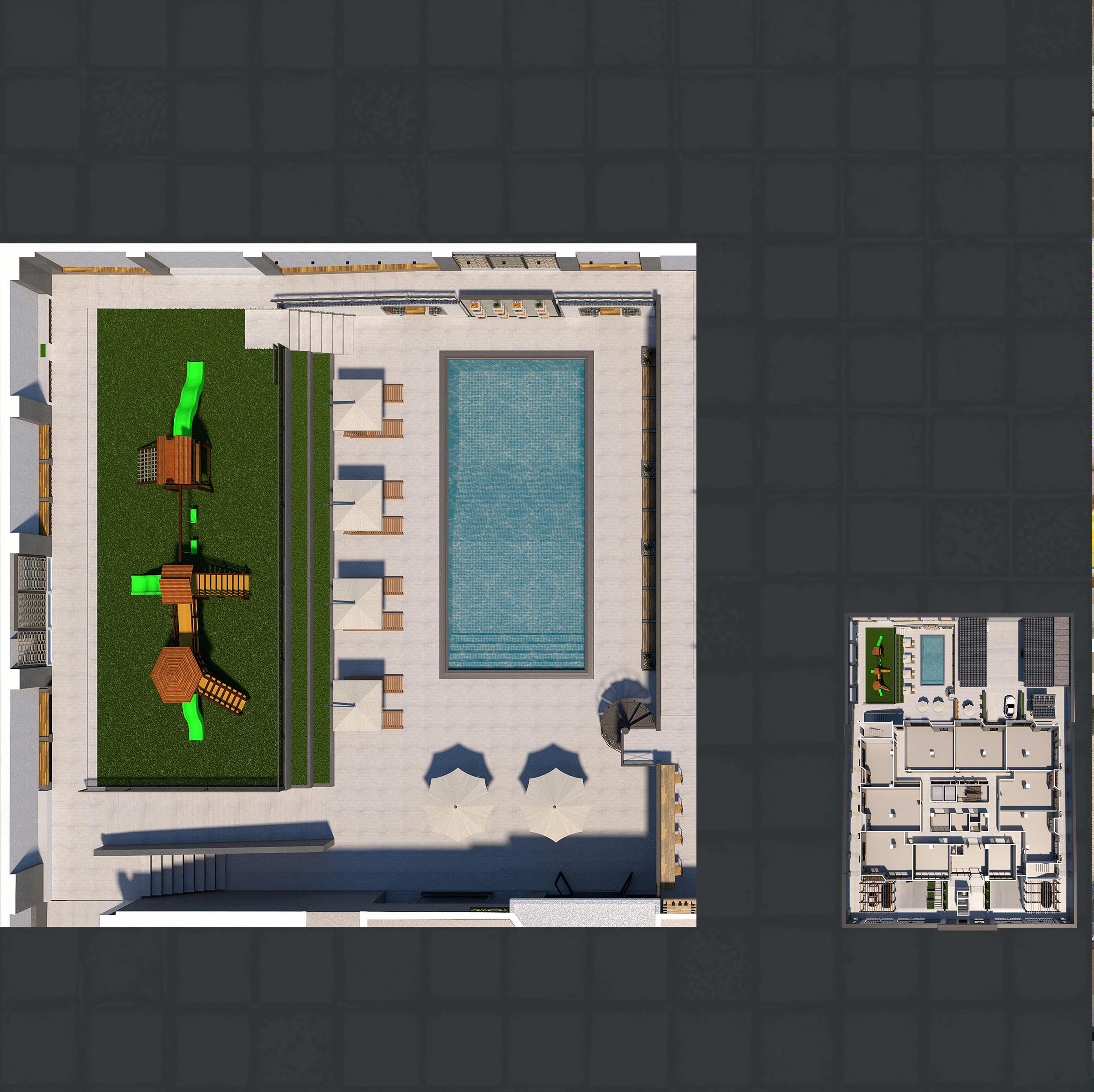

PRIMERA PLANTA (PISCINA)
AV. MELGAREJO
Molina

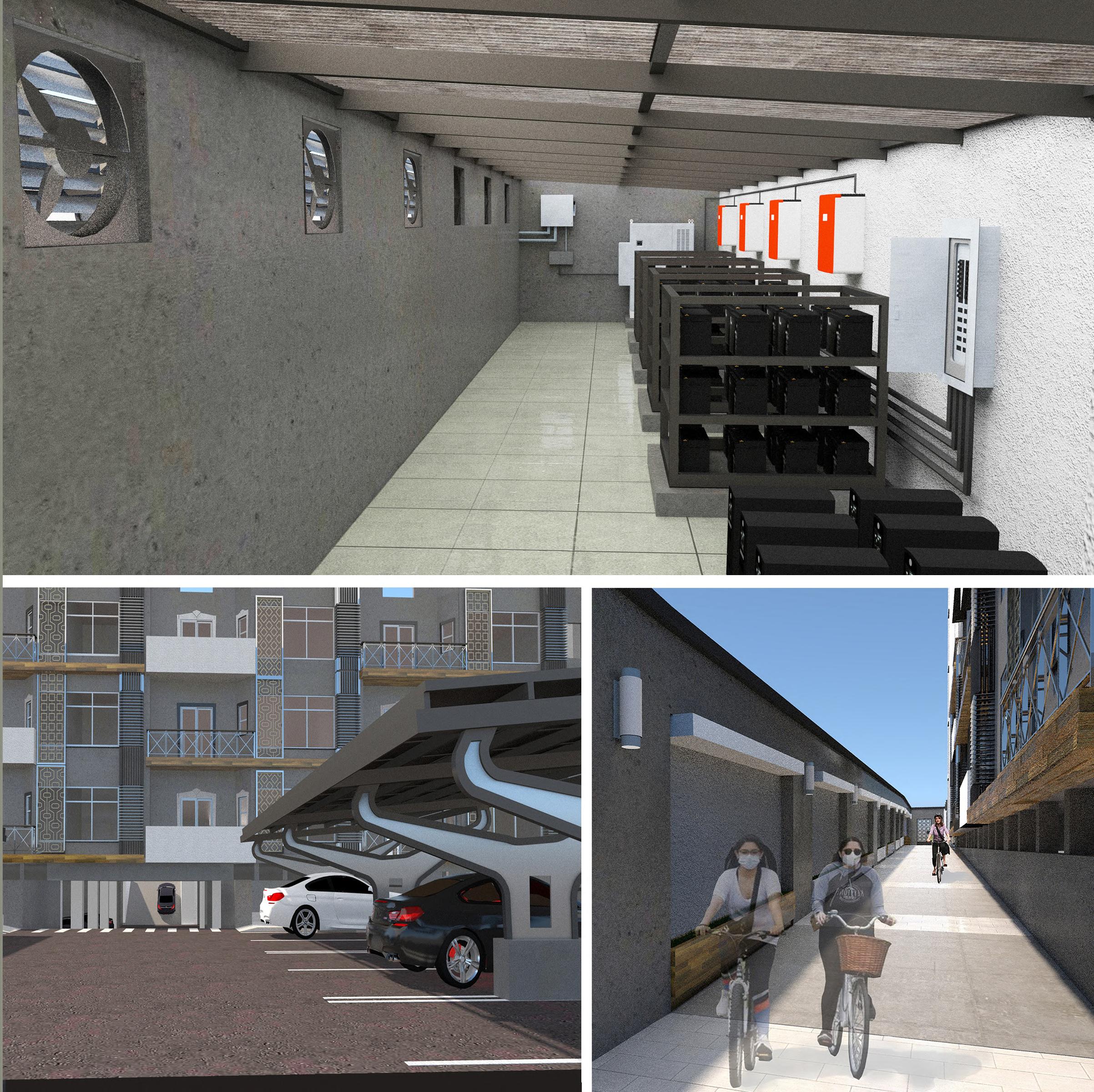

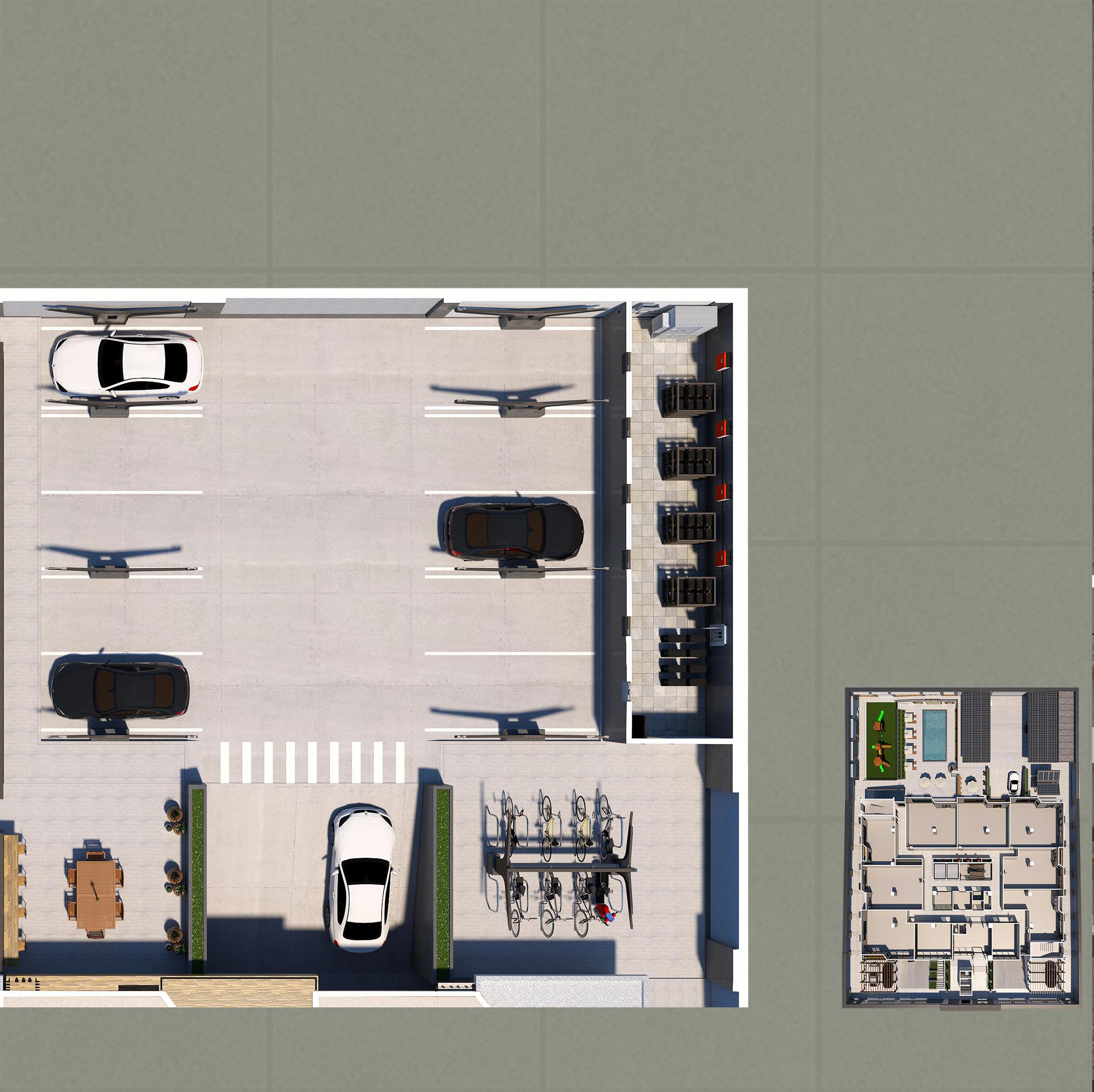

PRIMERA PLANTA (COCHERA SOLAR)
Controlador de Cargas
Inversor y Baterias
Medidor /Panel Elec 14 m
B- SALA DE ENERGIA SOLAR
PRIMERA PLANTA (COCHERA SOLAR)

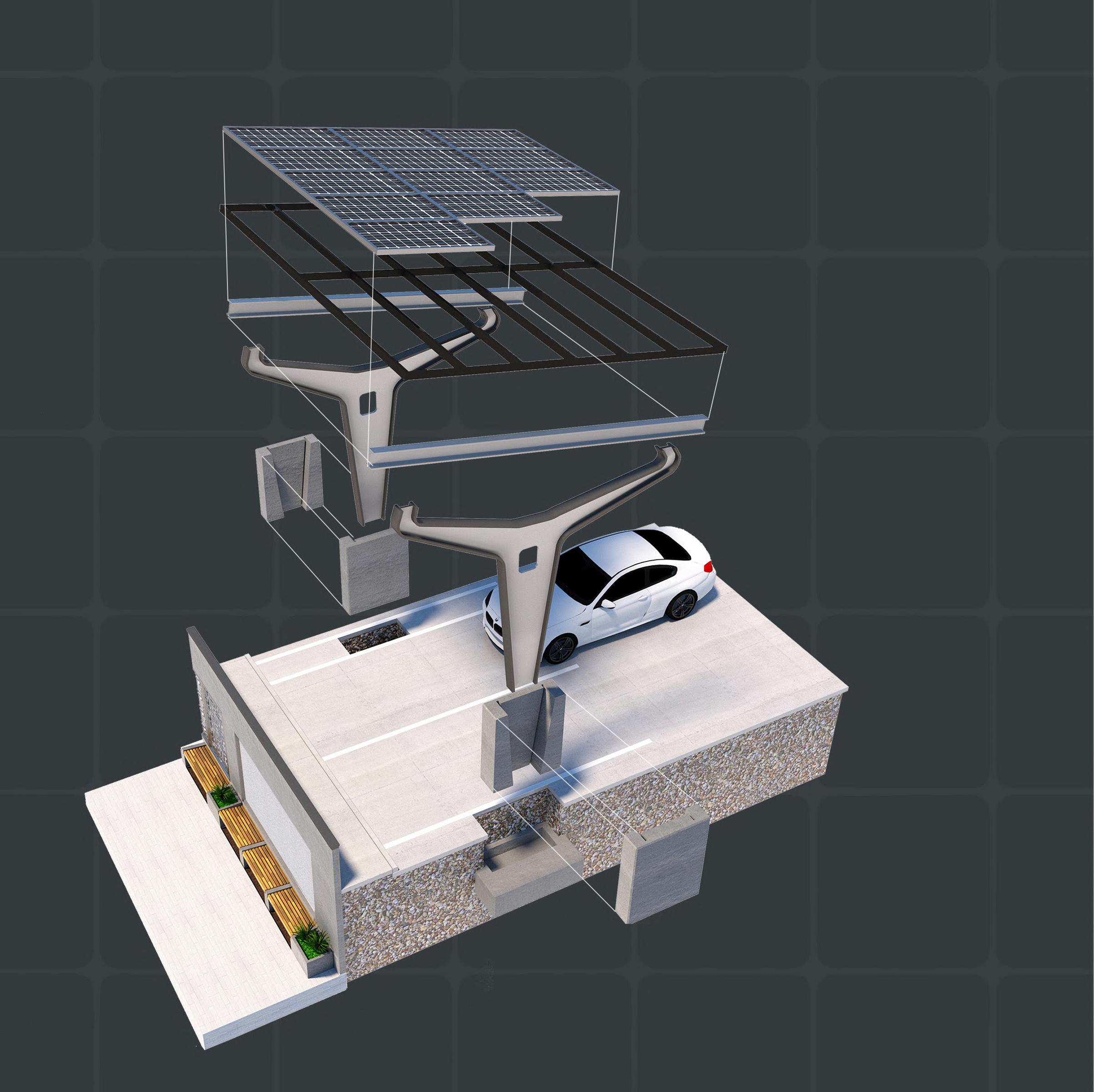

Paneles Solar Soportes Metálicos
Vigas de fierro
Columnas en forma curva
Bases de Concreto

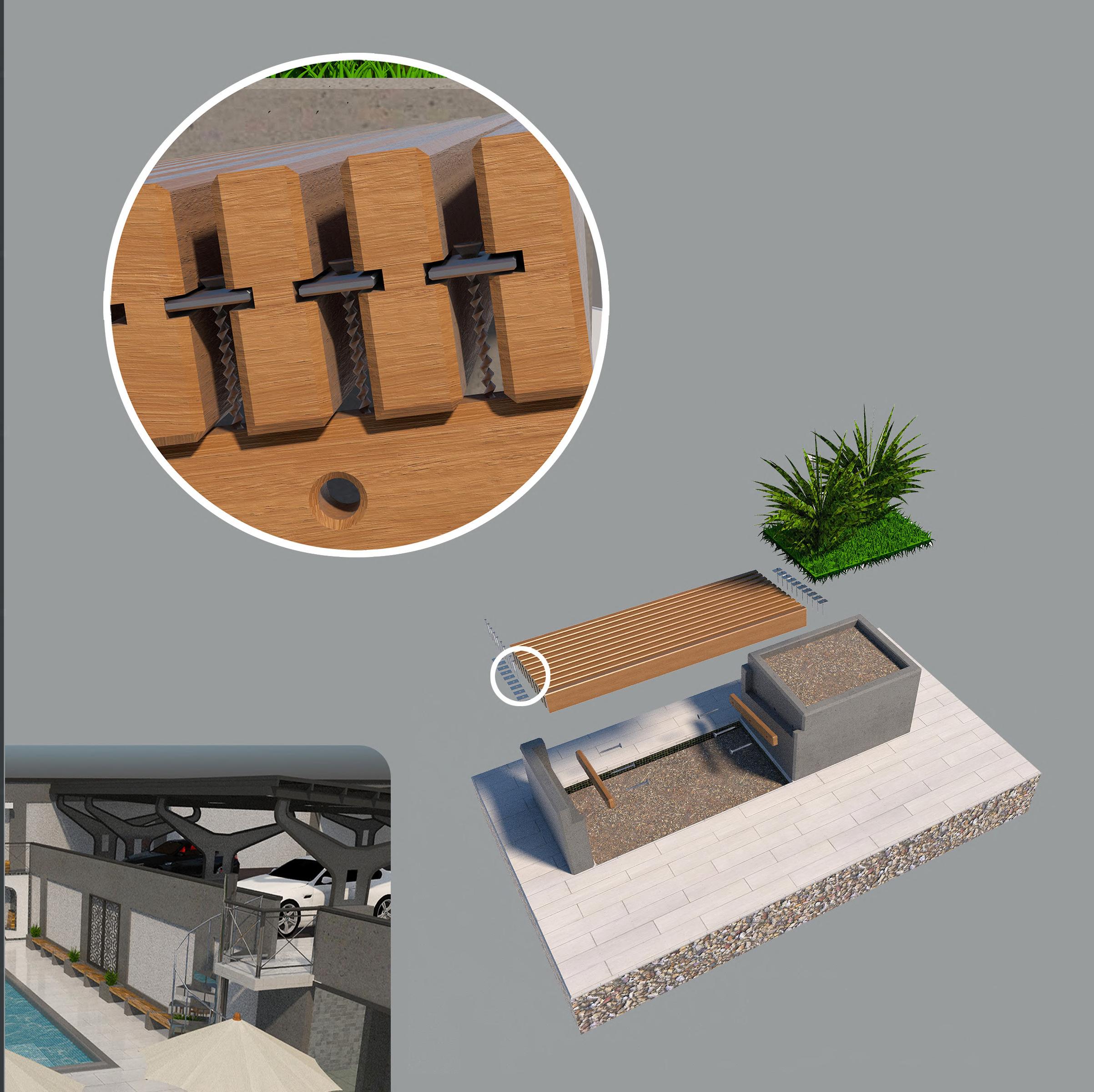

DETALLE DE HERRAMIENTA
BANCA DE MADERA

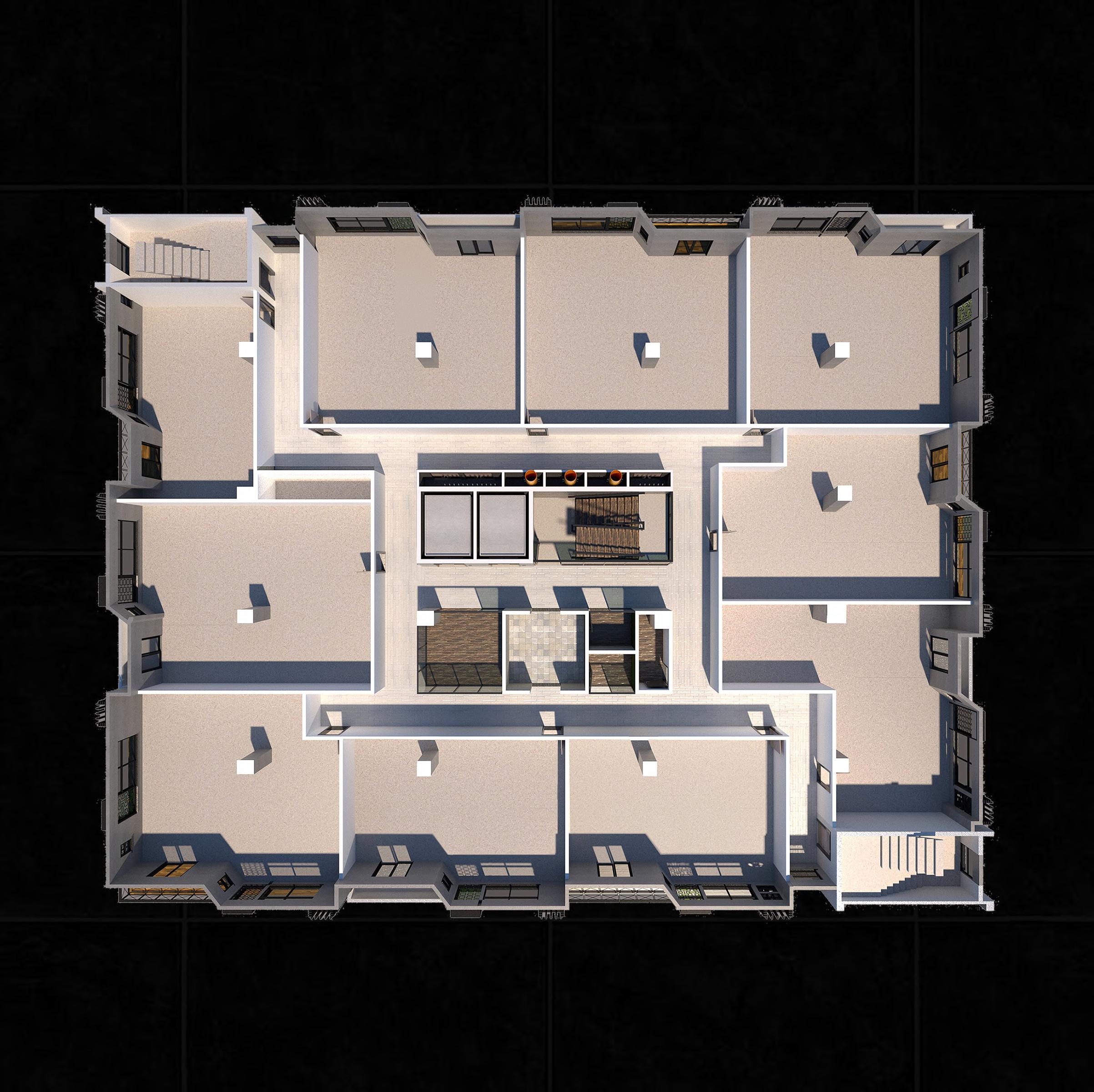

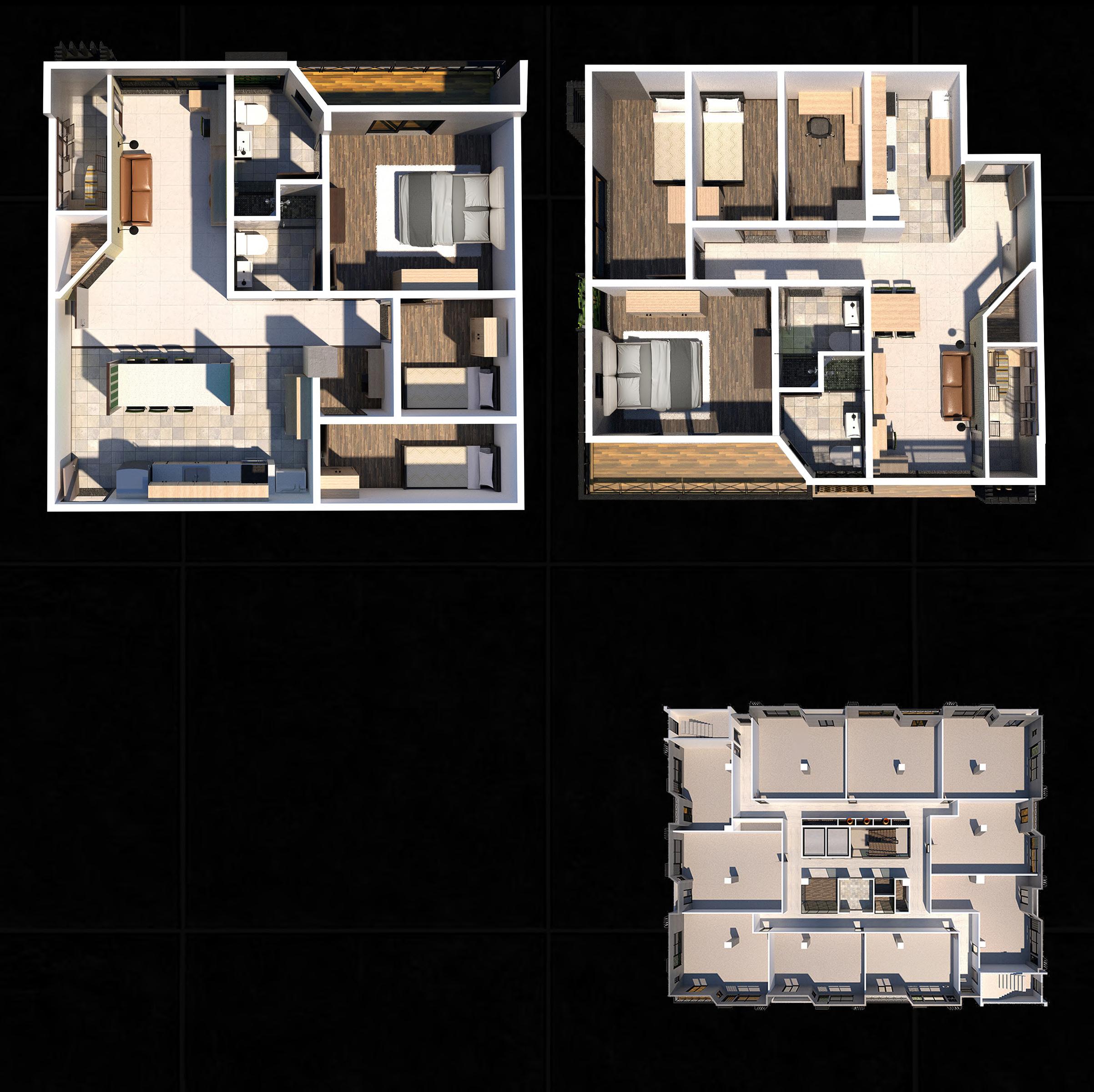

04 PLANTA TIPICA (PISOS 2-6)
La Molina
PLANTA TÍPICA
TIPO 2
TIPO 3
TIPO 1 TIPO 1 TIPO 1
TIPO 4
TIPO 5
TIPO 5
TIPO 7 TIPO 6
ENTRADA
ENTRADA

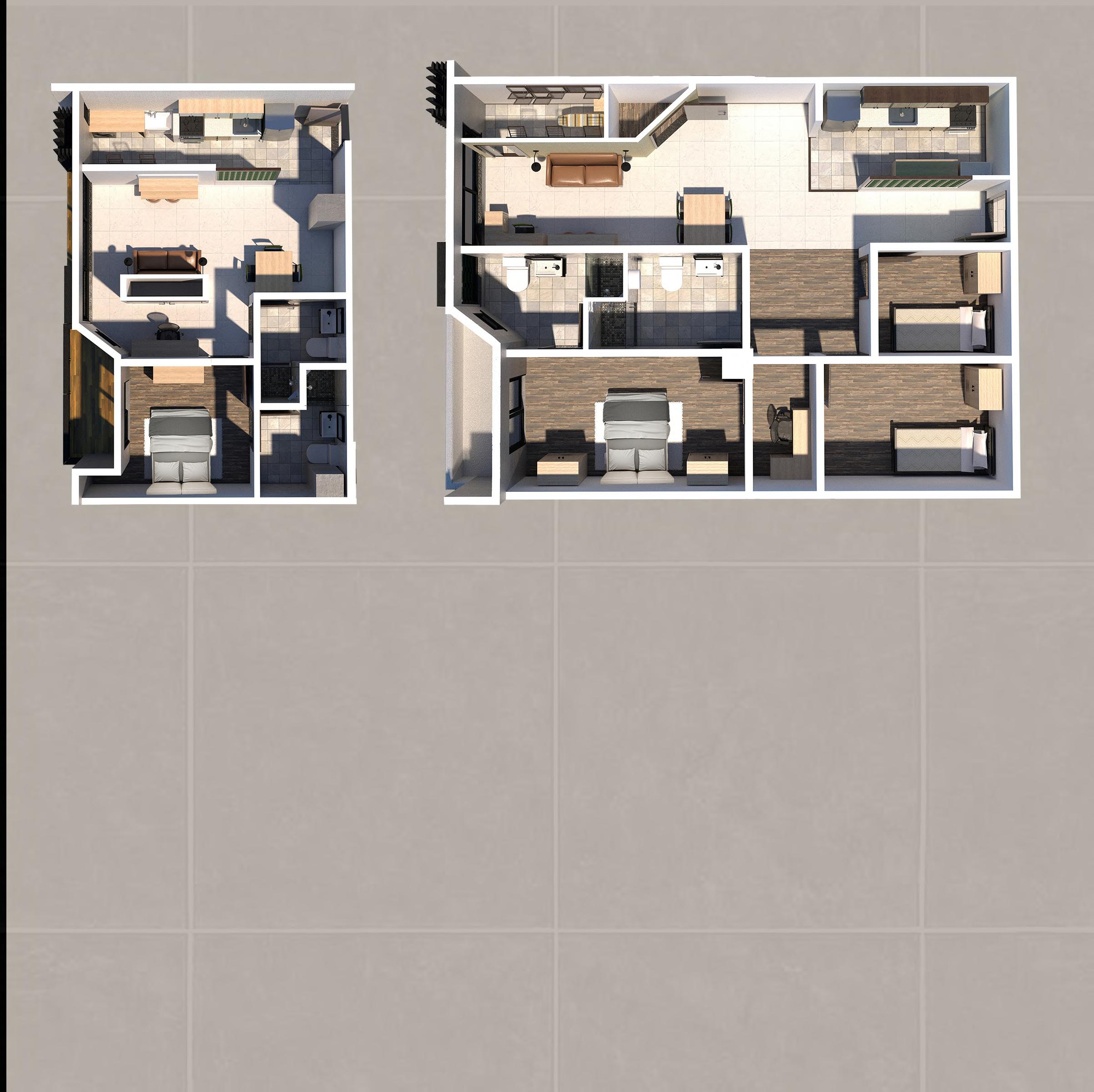

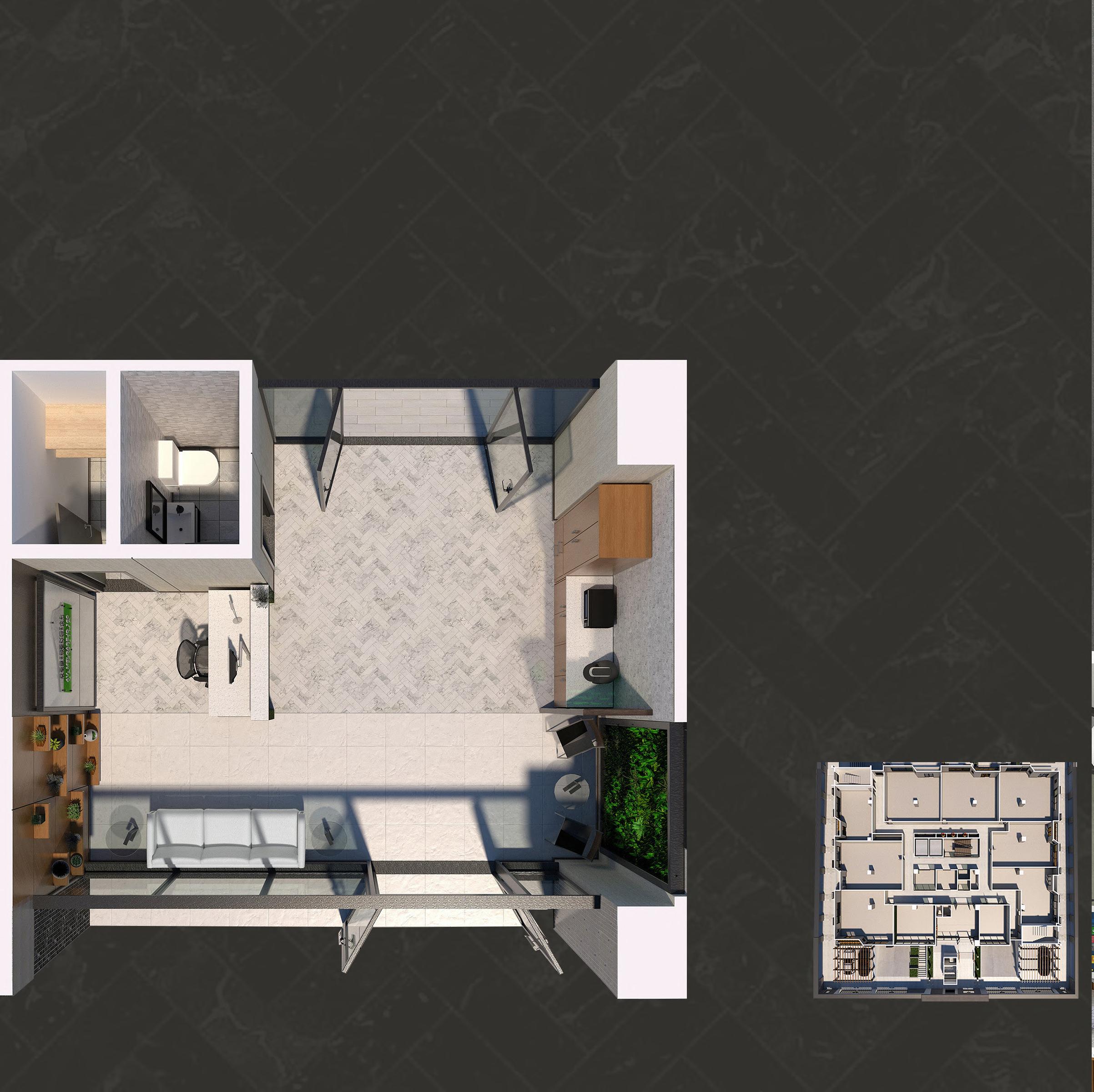

TIPO 7 (75 m2)
DESCRIPCIÓN
• DORMITORIO PRINCIPAL
• BANO PRINCIPAL
• SALA DE TV
• KITCHENETTE
• CUARTO DE LAVADO
• BANO SECUNDARIO
• BALCON
• OFICINA
• DORMITORIO SECUNDARIO
• MINI SALA / COMEDOR
TIPO 6 (73 m2)
DESCRIPCIÓN
• DORMITORIO PRINCIPAL
• BANO PRINCIPAL
• SALA DE TV GRANDE
• KITCHENETTE
• CUARTO DE LAVADO
• BANO SECUNDARIO
• BALCON
• DORMITORIO SECUNDARIO
• COMEDOR
• CUARTO DE SECADO

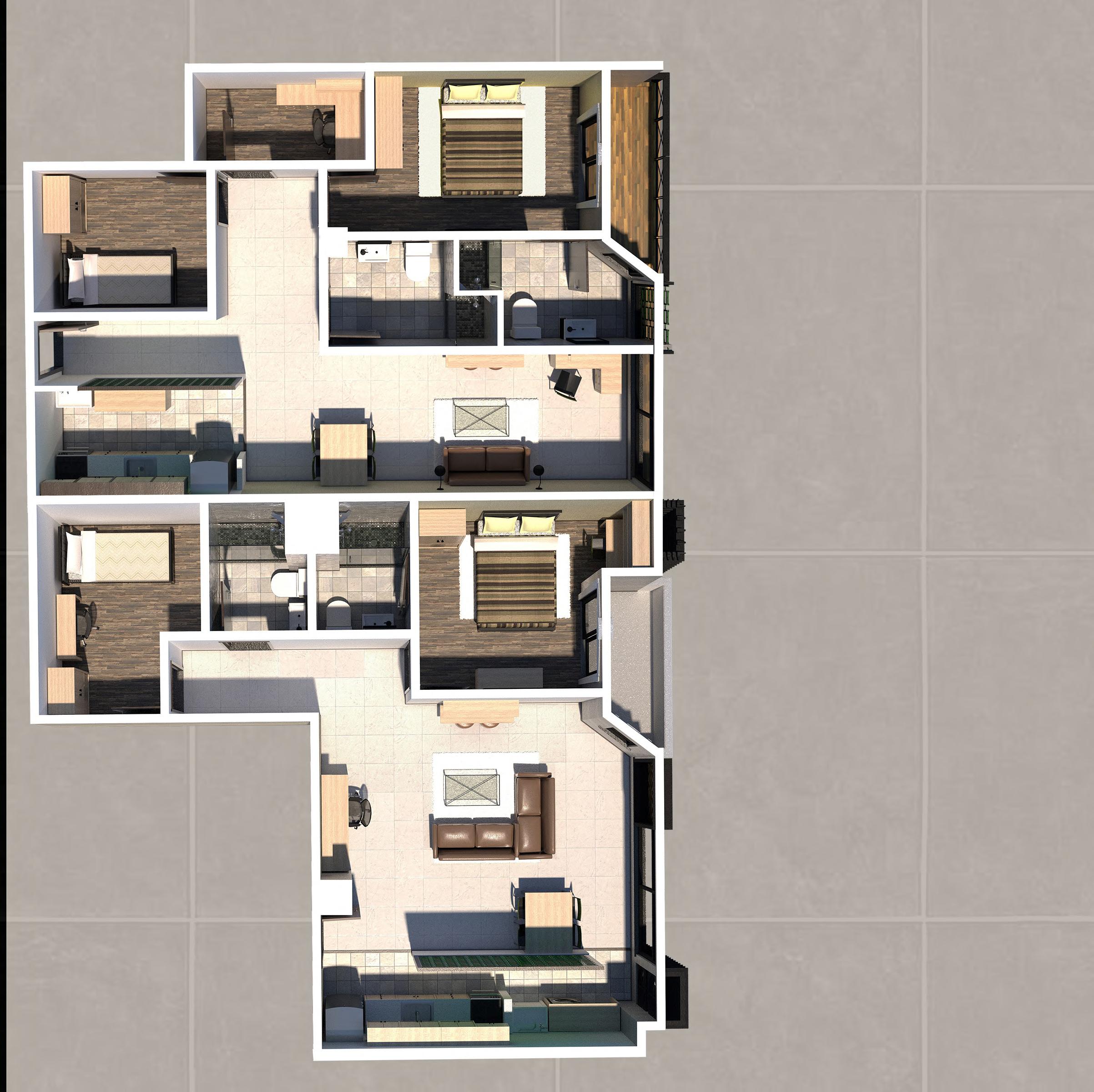

PLANTA TIPICA (TIPO 5)
DORM PRINCIPAL
OFICINA
LAVA ROPAS
COCINA ENTRADA
BALCÓN DORM PRINCIPAL
La Molina
TIPO 1 (80m ) TIPO 4 (79m )
DORMITORIOS 2 2
DORMITORIOS
TIPO 2 (51m ) TIPO 3 (85m )
1 DORMITORIO 2 2
3 DORMITORIOS
TIPO 1
PLANTA TÍPICA (AREAS DE COMÚN)
ESCALERAS PRINCIPALES
ENERGIA
MINI
BALCÓN (TIPO A)
• STEEL BANISTER DESCRIPCIÓN
• FLOORING - WOOD PLANKS
BALCÓN (TIPO B)
• FLOORING - STONE FLOORING
• CONCRETE WITH WHITE STUCCO FINISH DESCRIPCIÓN

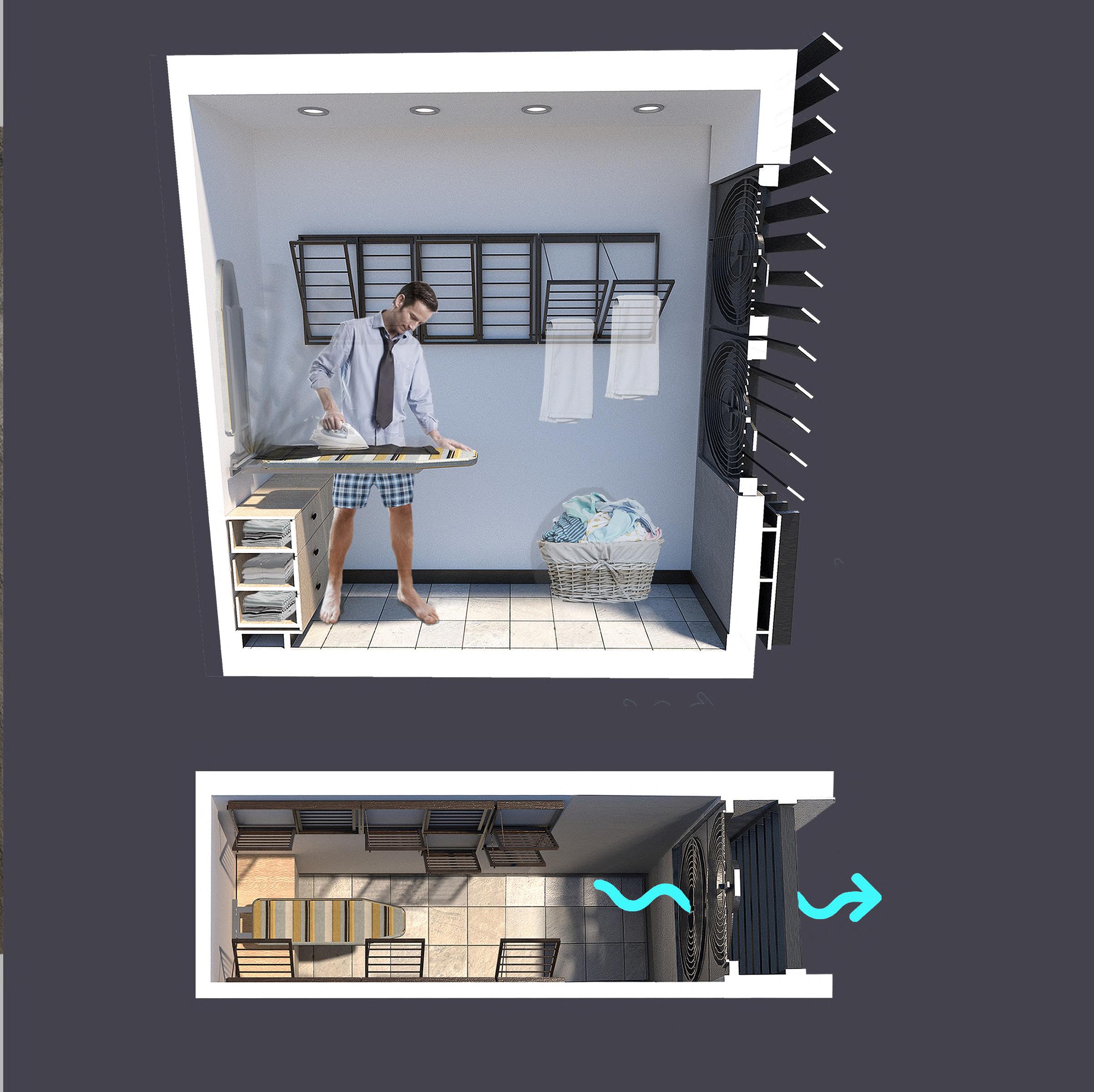

PLANTA TÍPICA (SALA DE SECADO)

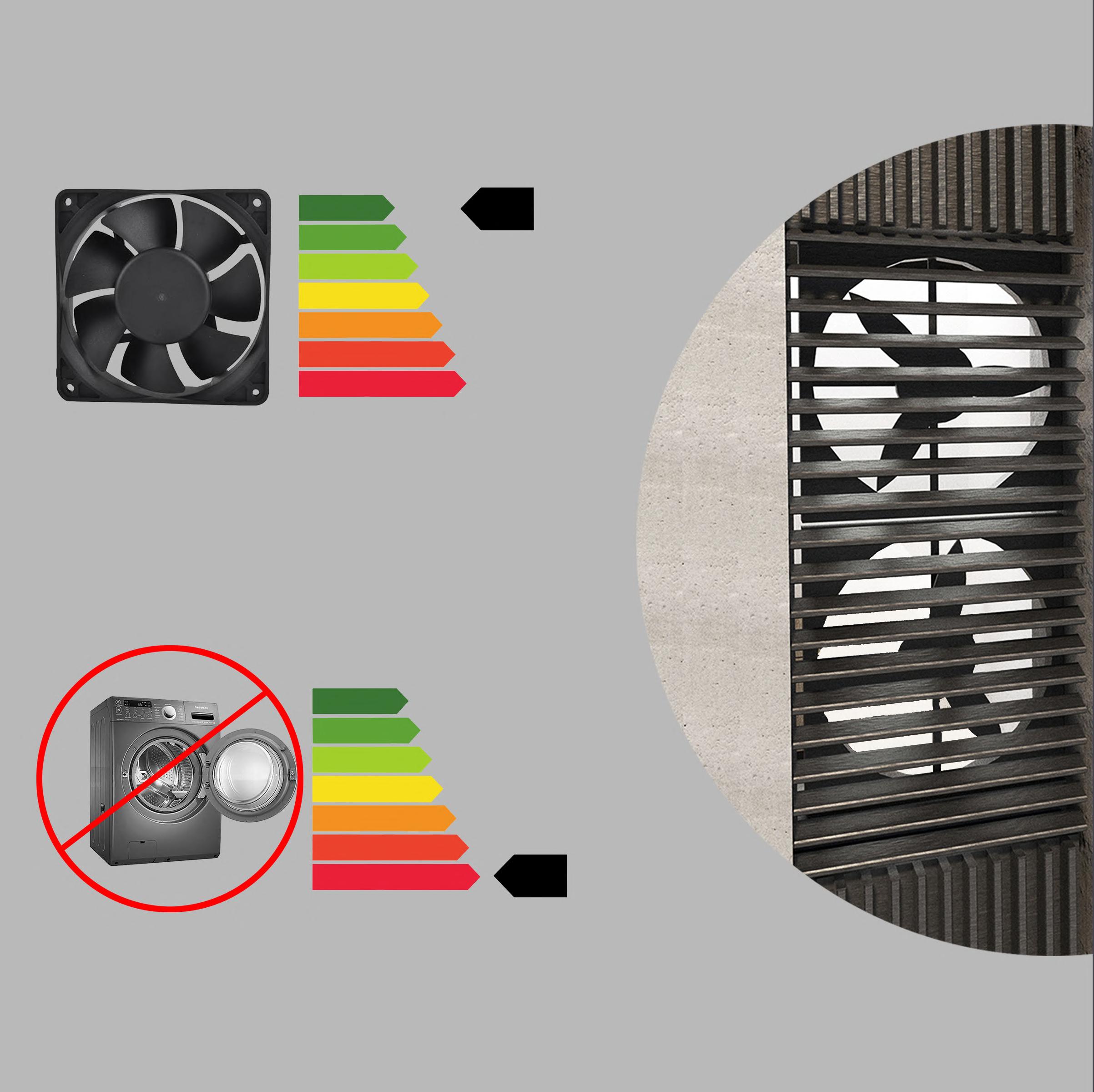

ENERGY COMPARISON
VENTILADOR
• LOW VOLTAGE FANS TO REMOVE HUMIDITY FROM ROOM AND DRY CLOTHES QUICKLY
• LOW ENERGY USAGE (70 WATT) - GOOD SOLUTION FOR ENERGY SAVINGS
SECADOR
• ELECTRIC DRYER NOT RECOMMENDED. USES UP TO 1,100 WATTS, AND IS ENERGY INEFFICIENT
SECTION PLAN
FLUJO DE AIRE
05 TERRAZA
Roof space is an important design feature for a Condo. It is a place for residents to escape everyday monotony without leaving home.
La Terraza es un piso importante para los Condos. Es un lugar ideal para escapar y pasar momentos de confort al aire libre, y escapar la rutina diaria.

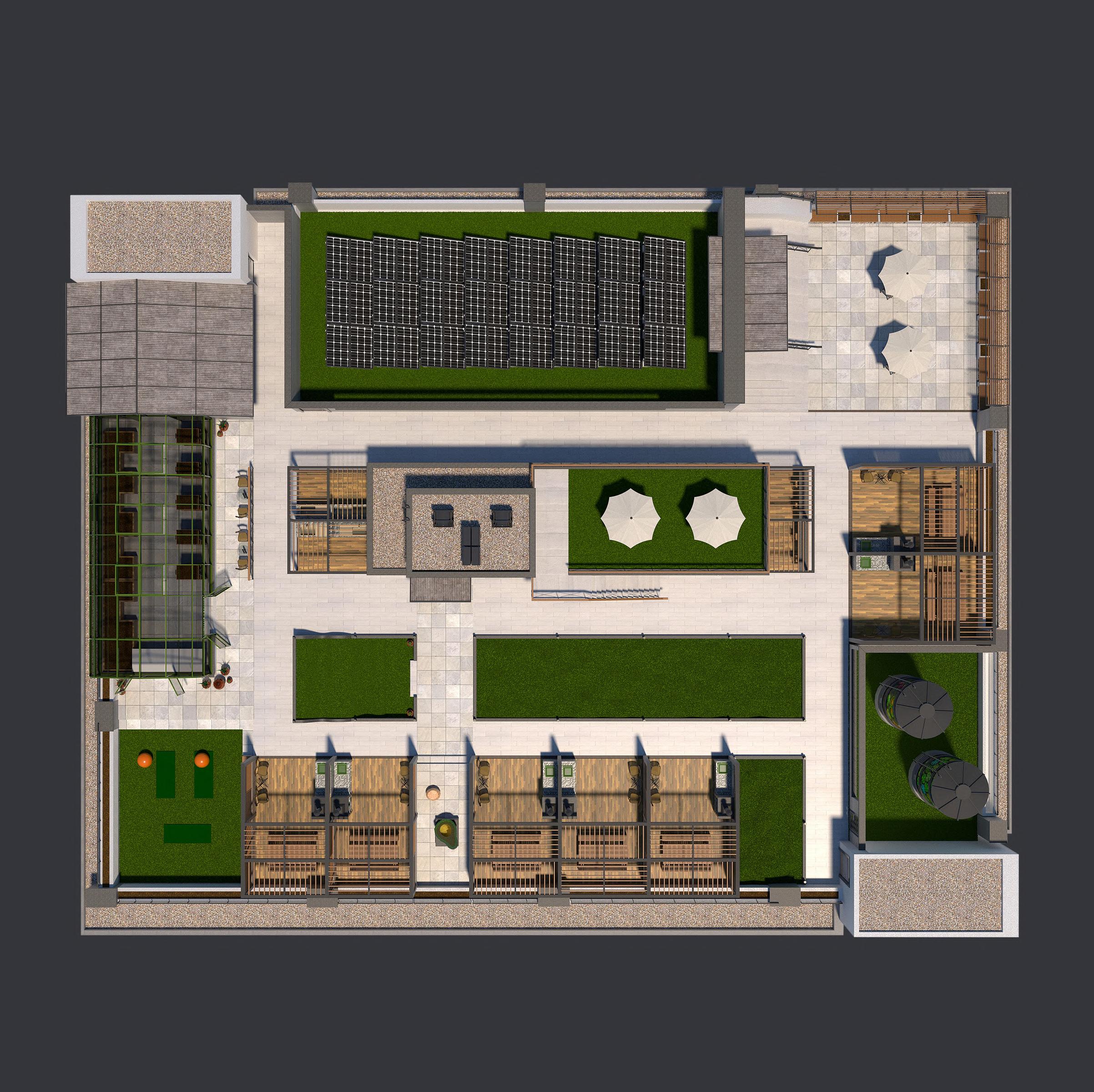

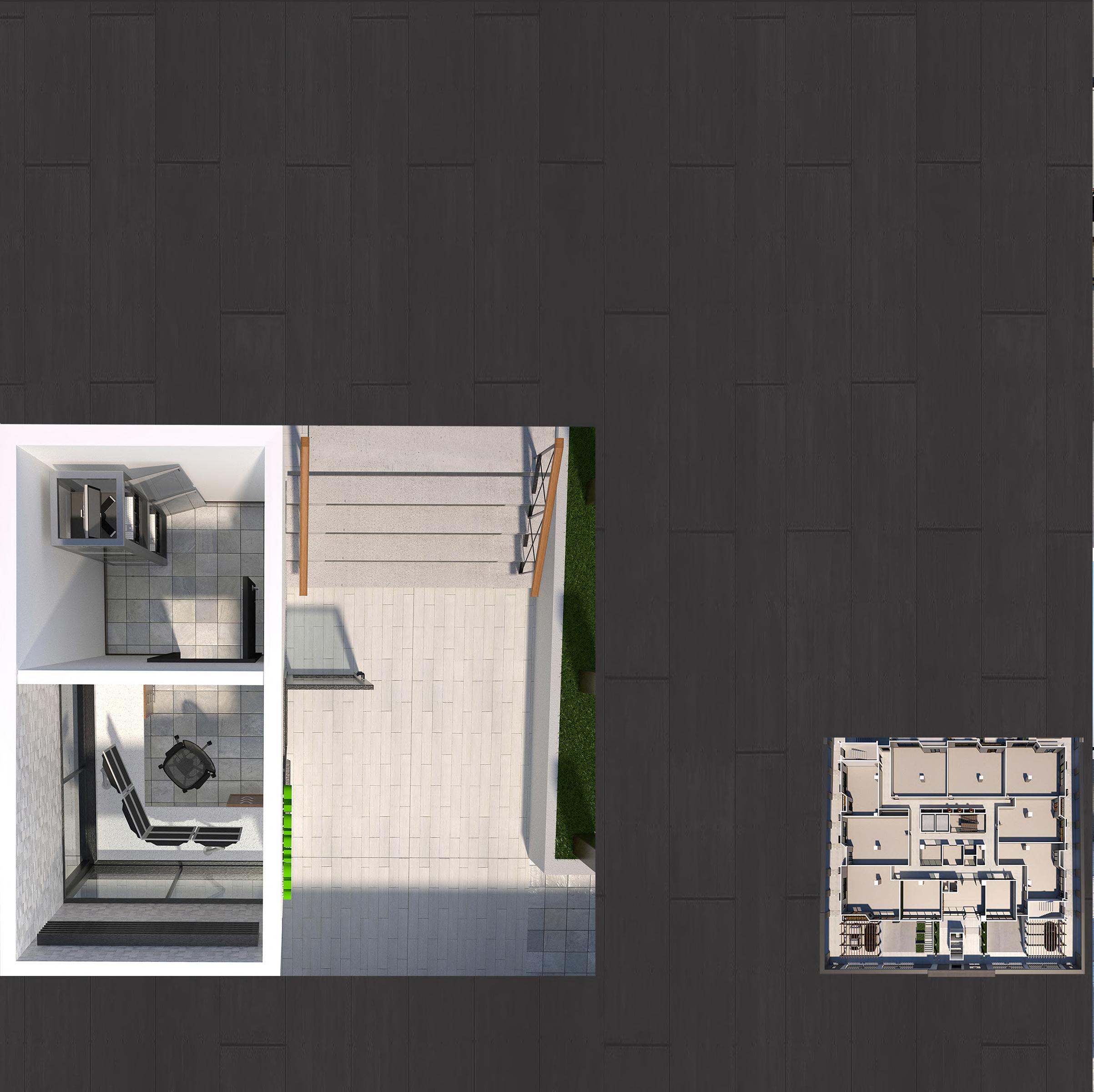

TERRAZA (PLANTA TERRAZA)
GREENHOUSE
SOLAR PANELS
ZONA DE RELAX
ZONA PARILLA ESCULTURA
ZONA DE FIESTA WATER TANKS
VIEW ‘A’ FROM ELEVATOR
VIEW ‘B’

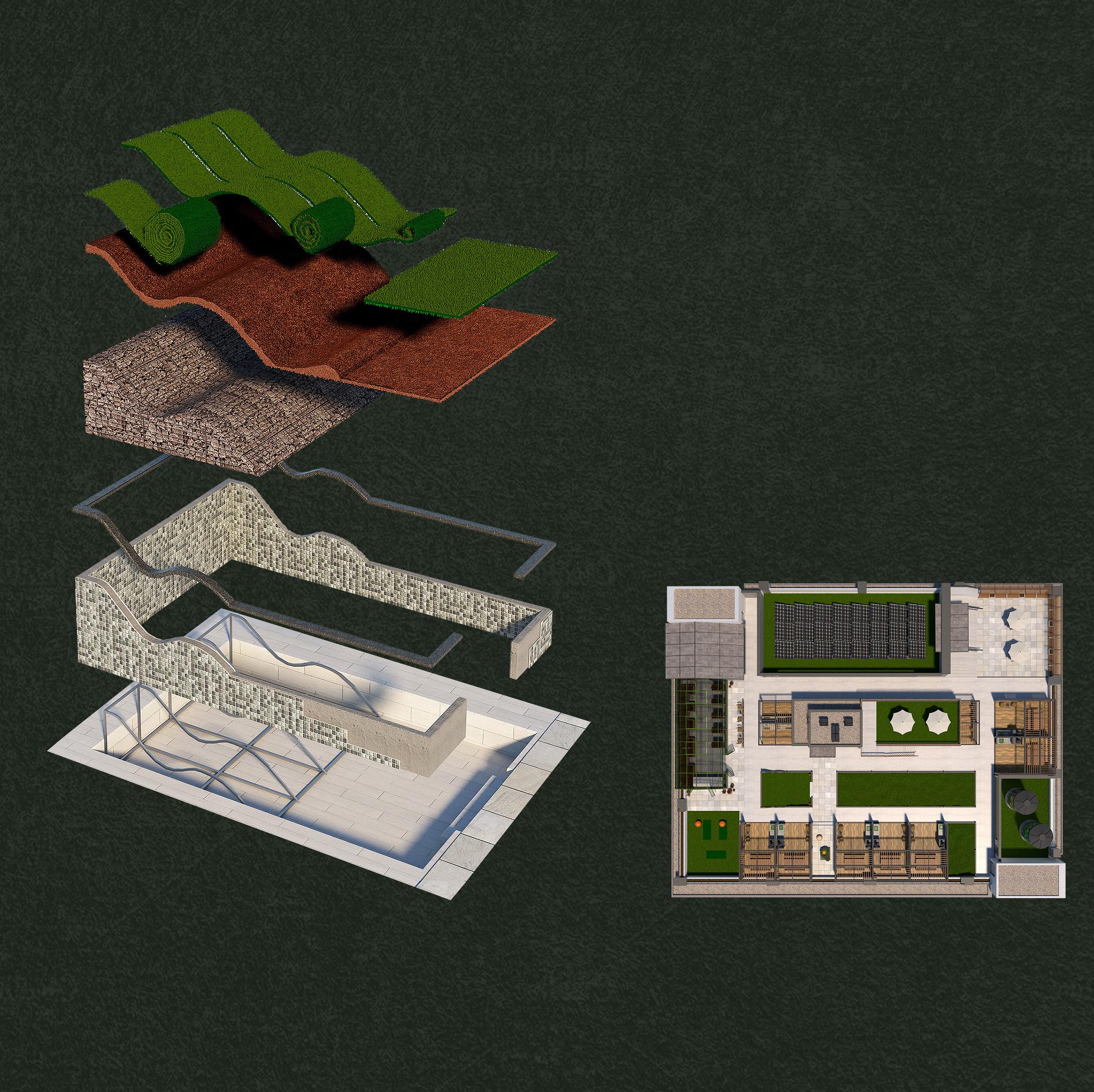

TERRAZA (ZONA VERDE)
Metal frame and support
Roll out grass (Manta de Germinacion
Soil / Tierra / Abono
Crushed Rocks (Piedras Machacadas
Stone Cap, concrete wall, Tile finish
AV. MELGAREJO
