OUR RANGE OF ENGINEERED PRODUCTS WILL ENSURE YOUR STRUCTURE IS OPTIMISED TO BE SAFE AND CODE COMPLIANT.
MITEK OVERVIEW
MiTek is a construction technology leader on a mission to advance the adoption of off-site construction. MiTek exists to transform communities through more efficient and sustainable building methods.
In 1955, MiTek changed residential construction with the invention of the Gang-Nail plate, providing an affordable and scalable way to manufacture wood trusses.
Today, MiTek serves residential and commercial customers delivering software, services, engineered products, and automated solutions that optimise a more integrated Design-Make-Build™ approach to construction.
By enabling upfront collaboration across the value chain, including architects, engineers, builders, component manufacturers, and more, we create a single source of truth that guides each design decision and unlocks the power of off-site construction.
With more than 6,000 team members worldwide, MiTek enables the delivery of exceptionally streamlined builds, offering higher quality, increased speed, less waste, and more value, and in turn, transforming how the world builds.
As a Berkshire Hathaway (NYSE: BRK-A, NYSE: BRK-B) company since 2001, MiTek has a record of continuous growth and innovation.
SOLUTIONS FOR YOUR BUSINESS
ENGINEERED PRODUCTS
Connector Plates, eCo Fasteners, Ultra-Span, Posi-Strut
AUTOMATION
Saws, Presses, Tables, Material Handling SOFTWARE
Component Design, Engineering, Job Management
Design, Drafting, Estimating, Engineering
OUR APPROACH
Design.
Make. Build.
Optimise build plans for off-site construction.
schedules.
Minimise resources, waste, and time onsite with off-site components.
HIGHER QUALITY INCREASED SPEED
LESS WASTE
LESS RISK
ECO
→ When using structural connectors on-site, especially load-bearing hangers & brackets, make sure to use the right product for the right application with the correct load capacity. Anything else could severely compromise the safety and stability of the building.
→ MiTek has an extensive range of engineered building products to meet specific on-site and off-site needs. All products are designed, engineered and tested to meet the specific requirements of each product application.
→ Don’t take risks; don’t take shortcuts – insist on MiTek engineered & tested building products. & tested building products.
ECO FASTENERS
THE SAFEST CONNECTIONS OF ANY BUILDING SYSTEM

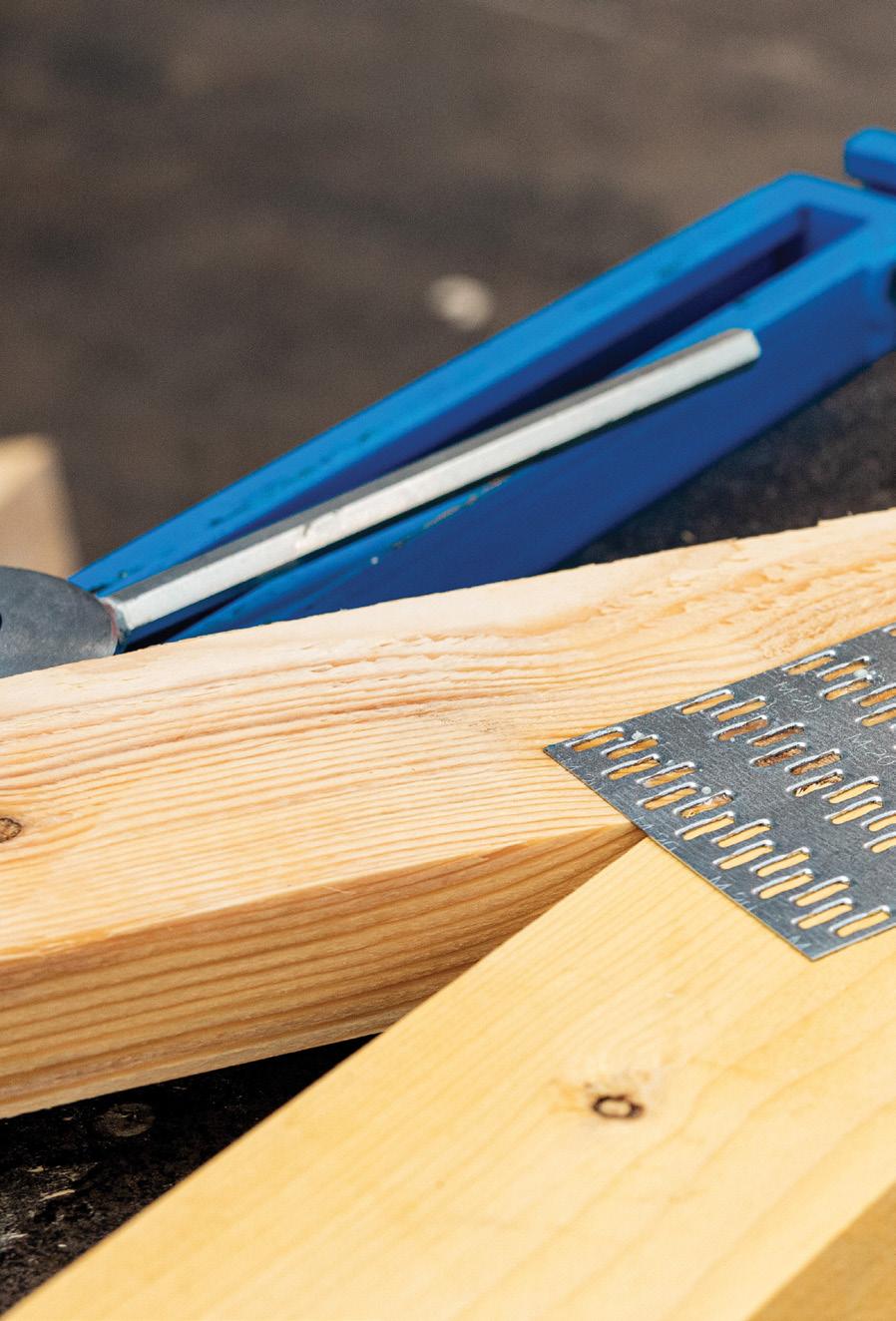

eCo Fasteners are timber and steel fastening devices that provide strong and rigid connections to every building structure. The use of the appropriate fastener, correctly applied, not only ensures a robust connection but enhances the structural integrity of the building.
eCo Fasteners are:
→ Uniquely designed and individually tested
→ Durable
→ Easy to use
eCo Fasteners are uniquely designed, durable, easy to use, load tested and marked for their respective applications. Thereby providing full compliance with CPA requirements.
DIY users, as well as building professionals, can use these fasteners with confidence. We provide full technical specifications as well as backup support from our dedicated team of experienced professional engineers.
WHY CHOOSE ECO FASTENERS?
Our range of structurally rated fasteners will ensure your structure is optimised to be safe and code compliant.
KEY BENEFITS OF MITEK ECO FASTENERS
→ Simple to use, fully engineered, and the most cost-effective solution of its kind.
→ eCo Fasteners are ideal for South African conditions and are also used extensively in other parts of the world. They are widely available - in over 800 hardware stores locally and are used by more than 130 licensed MiTek fabricators.
→ All eCo Fasteners are covered by our comprehensive product liability insurance.
→ eCo Fasteners offer multiple cost-effective solutions.
→ Designed and manufactured in accordance with strict quality standards.
→ Locally manufactured in South Africa.
Our eCo Fasteners are easily identified by a MiTek stamp and an engineered design value on each product.

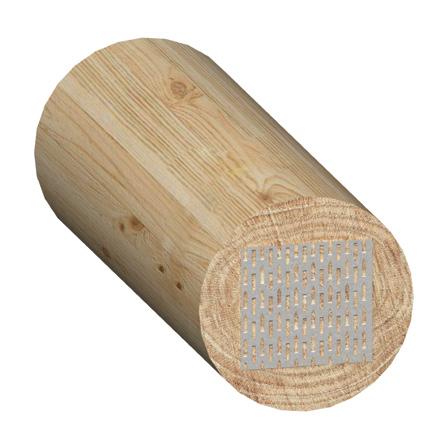

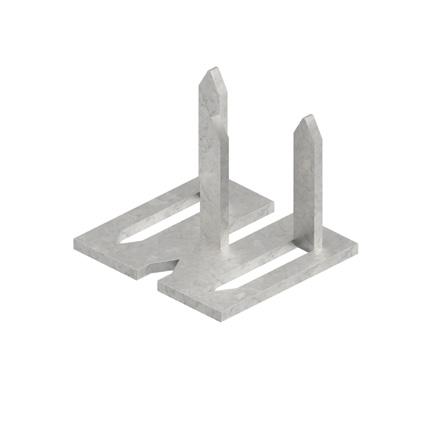

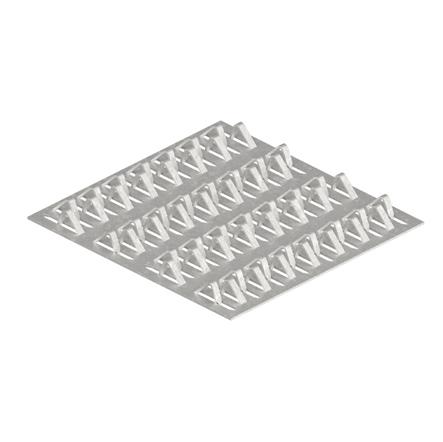

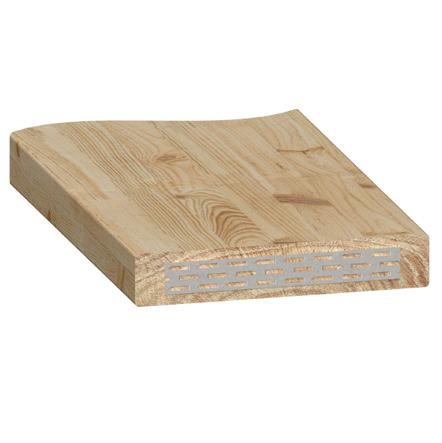

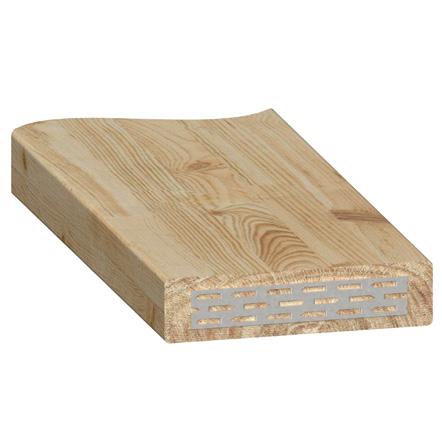

ANTI-SPLIT PLATES
ENGINEERED FOR PREVENTING TIMBER SPLITTING
Anti-Split Plates are available in different sizes and diameters. Each is engineered to offer efficient, economical splitting restraint. Can be used on hardwood poles, sleepers, and scaffolding boards. Sold per box.
Anti-Split Plate 02 x 10
Product Code: EA0210
Quantity per Box: 680
Weight per Box: 14.10kg
Anti-Split Plate 02 x 12
Product Code: EA0212
Quantity per Box: 540
Weight per Box: 13.45kg
Anti-Split Plate 02 x 16
Product Code: EA0216
Quantity per Box: 380
Weight per Box: 12.62kg
Anti-Split Plate 04 x 06
Product Code: EA0406
Quantity per Box: 600 Weight per Box: 12.48kg
ANTI-SPLIT PLATES
Anti-Split Plate 04 x 20
Product Code: EA0420
Quantity per Box: 200
Weight per Box: 13.86kg
Anti-Split Plate 05 x 06
Product Code: EA0506
Quantity per Box: 400
Weight per Box: 12.45kg
Anti-Split Plate 07 x 06
Product Code: EA0706
Quantity per Box: 280 Weight per Box: 11.64kg
Anti-Split Plate 07 x 08
Product Code: EA0708
Quantity per Box: 200
Weight per Box: 11.09kg
Anti-Split Plate 07 x 10
Product Code: EA0710
Quantity per Box: 350
Weight per Box: 16.86kg
ANTI-SPLIT PLATES
Anti-Split Plate 11 x 08
Product Code: EA1108
Quantity per Box: 220
Weight per Box: 15.25kg
Anti-Split Plate 11 x 10
Product Code: EA1110
Quantity per Box: 284
Weight per Box: 29.46kg

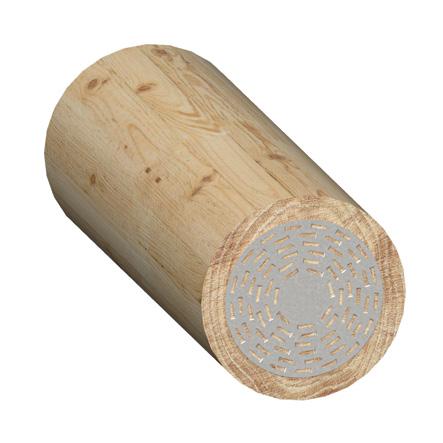

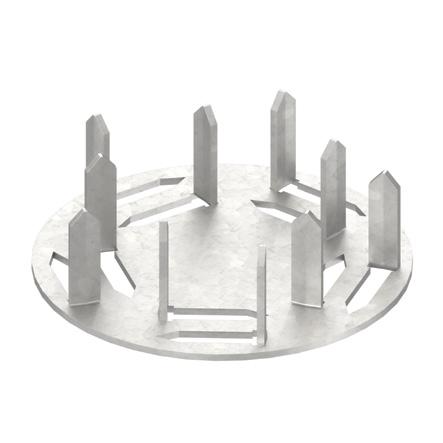

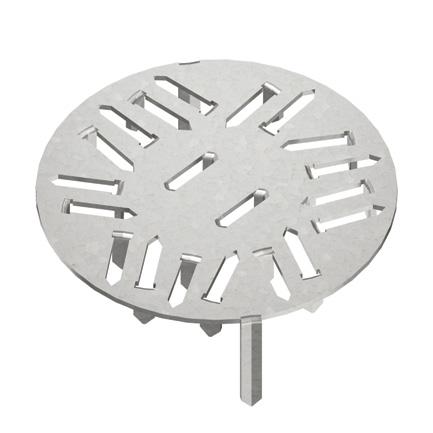

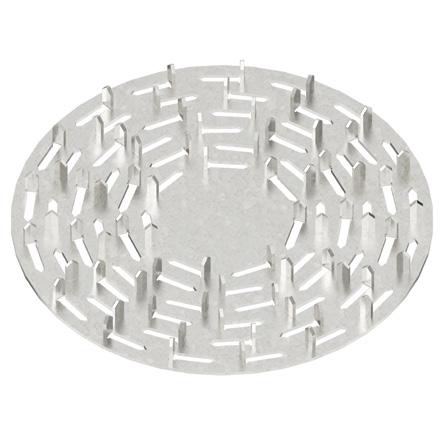

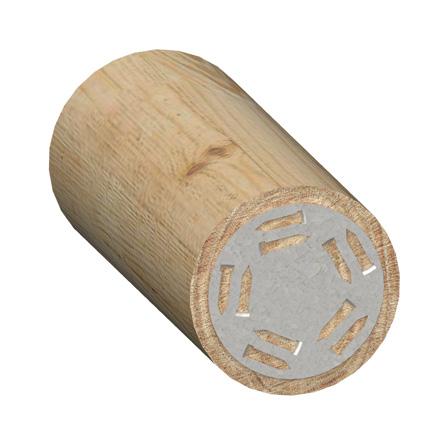

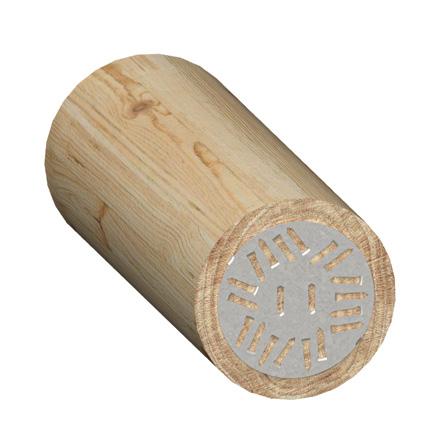

ANTI-SPLIT PLATES ROUND
ENGINEERED FOR PREVENTING TIMBER SPLITTING
Anti-Split Plate Round 50mm
Product Code: ERA50
Quantity per Box: 800
Weight per Box: 15.60kg
Anti-Split Plate Round 70mm
Product Code: ERA70
Quantity per Box: 400
Weight per Box: 14.93kg
ROUND ANTI-SPLIT PLATES
Anti-Split Plate Round 90mm
Product Code: ERA90
Quantity per Box: 200
Weight per Box: 12.34kg
Plate 07 x 06
Anti-Split Plate 07 x 08
ANTI-SPLIT PLATES ROUND Anti-Split Plate Round 50mm
Plate Round 70mm
Anti-Split Plate Round 90mm
Anti-Split Plate Round 135mm
Anti-Split Plate Round 135mm
Product Code: ERA135
Quantity per Box: 100 Weight per Box: 13.00kg

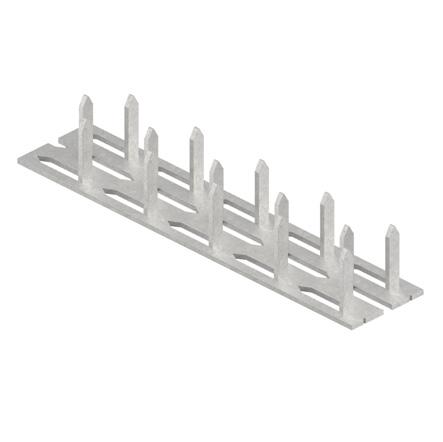

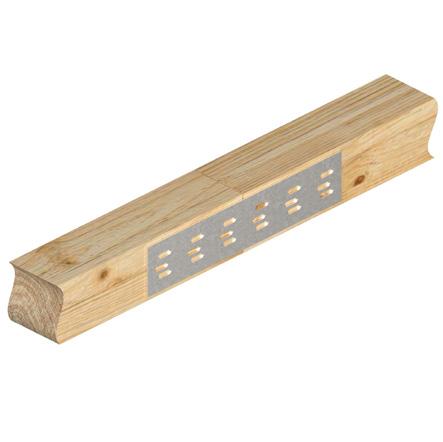

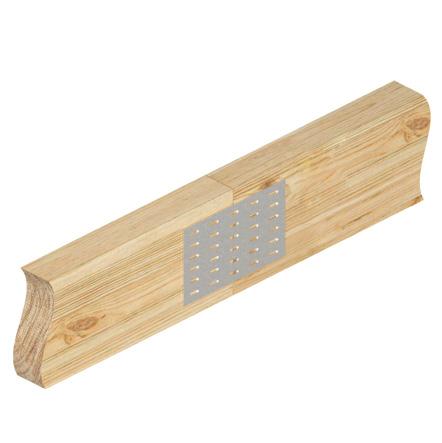

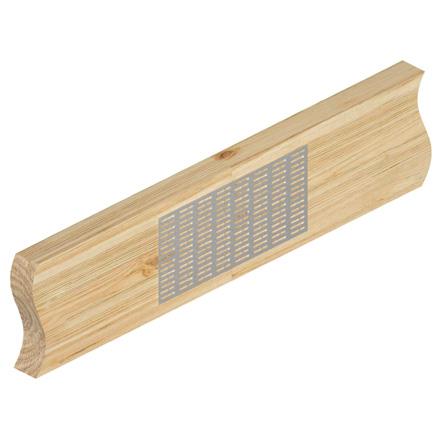

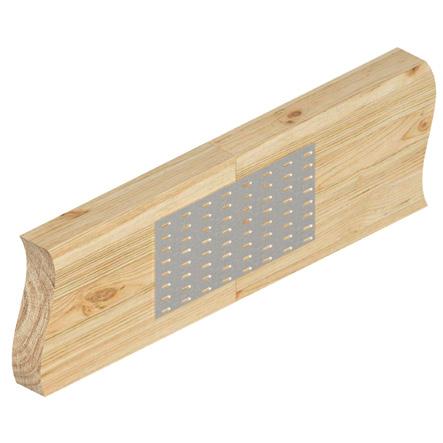

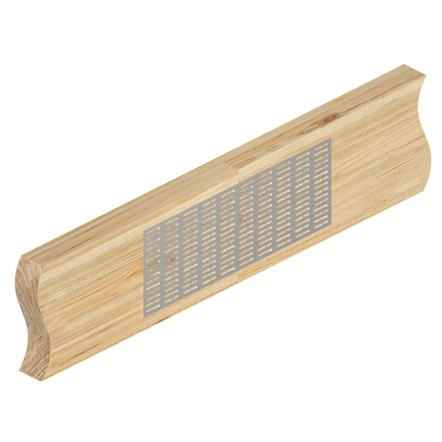

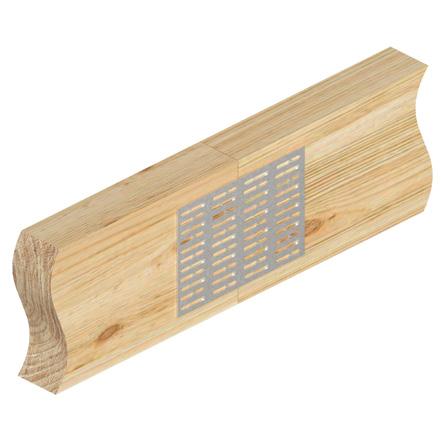

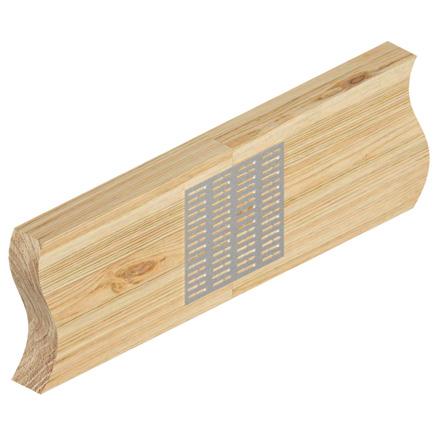

BATTEN SPLICE PLATES
ENGINEERED FOR SPLICING TIMBER BATTENS
Batten Splice Plates cater to most common splicing requirements for 38 x 38 timber battens. Sold per box.
Batten Splice Plate 32mm x 152mm
Product Code: EBS32X152
Quantity per Box: 450
Weight per Box: 17.50kg
Batten Splice Plate 38mm x 127mm
Product Code: EBS38X127
Quantity per Box: 400
Weight per Box: 15.70kg

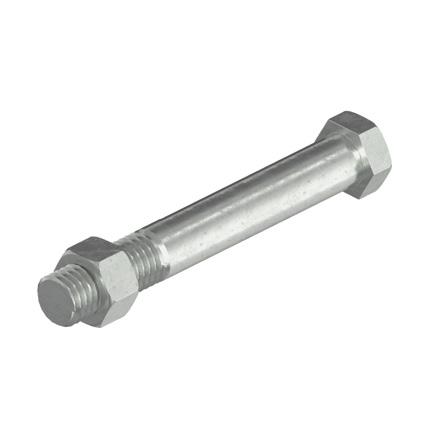

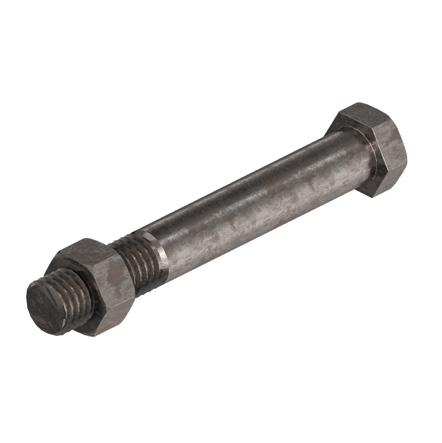

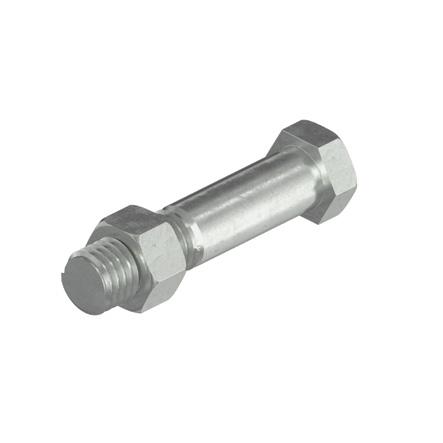

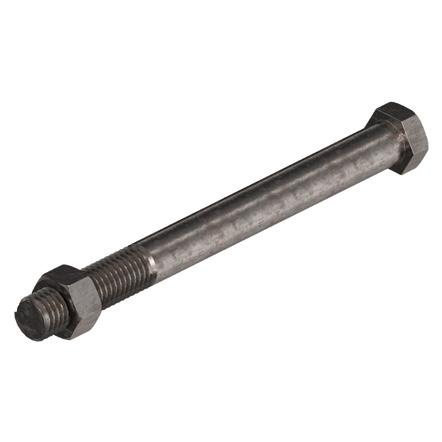

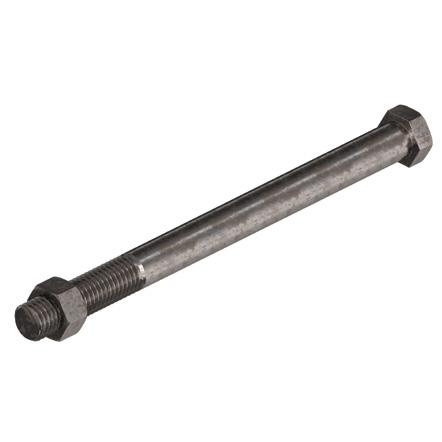

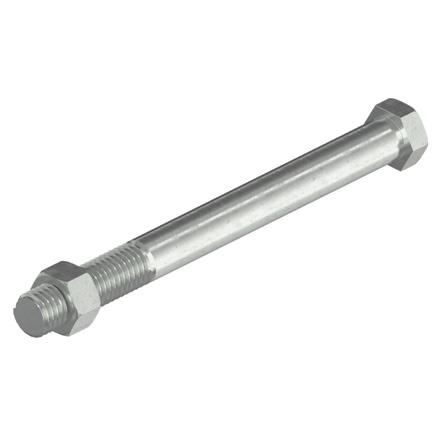

BOLTS & NUTS BLACK
ENGINEERED FOR BOLTED CONNECTIONS
Used on inland projects to fasten metal to wood, or join different types of timber together. Used for timber to timber connections, connecting MiTek engineered design cleats and multi-purpose brackets to timber. Sold per box.
Bolt & Nut Black M12 x 65mm
Product Code: BB12X65
Quantity per Box: 290
Weight per Box: 25.00kg
Bolt & Nut Black M12 x 100mm
Product Code: BB12X100
Quantity per Box: 213
Weight per Box: 25.00kg
Bolt & Nut Black M12 x 125mm
Product Code: BB12X125
Quantity per Box: 179
Weight per Box: 25.00kg
Bolt & Nut Black M12 x 150mm
Product Code: BB12X150
Quantity per Box: 155
Weight per Box: 25.00kg
BOLTS & NUTS BLACK
Bolt & Nut Black M12 x 180mm
Product Code: BB12X180
Quantity per Box: 133
Weight per Box: 25.00kg

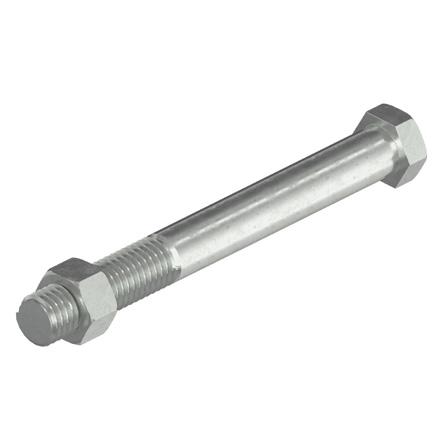

BOLTS & NUTS ELECTRO GALVANISED
ENGINEERED FOR BOLTED CONNECTIONS
Used on coastal and exposed projects to fasten metal to wood, or join different types of timber together. Used for timber to timber connections, connecting MiTek cleats and multi-purpose brackets to timber. Sold per box
Bolt & Nut Galvanised M12 x 65mm
Product Code: BG12X65
Quantity per Box: 290
Weight per Box: 25.00kg
Bolt & Nut Galvanised M12 x 100mm
Product Code: BG12X100
Quantity per Box: 213
Weight per Box: 25.00kg
BOLTS & NUTS ELECTRO GALVANISED
Bolt & Nut Galvanised M12 x 125mm
Product Code: BG12X125
Quantity per Box: 179
Weight per Box: 25.00kg
Bolt & Nut Galvanised M12 x 150mm
Product Code: BG12X150
Quantity per Box: 155
Weight per Box: 25.00kg
Bolt & Nut Galvanised M12 x 180mm
Product Code: BG12X180
Quantity per Box: 133
Weight per Box: 25.00kg
BOLTS & NUTS

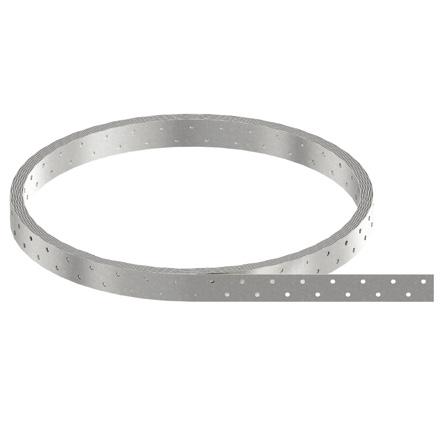

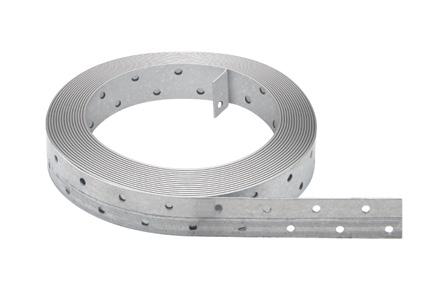

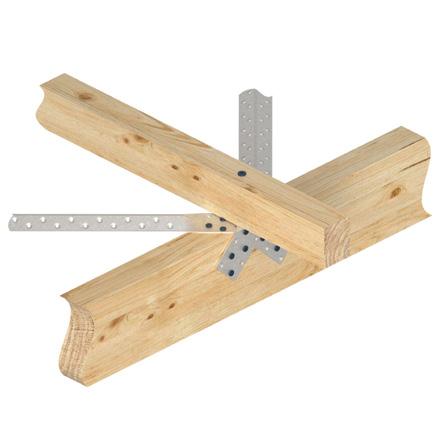

BRACING STRAP
ENGINEERED FOR TIMBER CONNECTIONS
Bracing Strap are 25mm x 1mm perforated galvanised steel strips with guaranteed minimum steel values. They’re used for crossbracing frames or bracing roof trusses during erection. The staggered perforations simplify fixing and prevent timber splitting while nailing Used for rafter to horizontal top chord connection for truncated trusses and girders. Sold individually.
Bracing Strap 10m
Product Code: EBSTR10
Quantity per Box: 1 x 30m
Weight per Box: 5.10kg
Used with: Permfix Nails. View on page 33.
Bracing Strap 30m
Product Code: EBSTR30
Quantity per Box: 1 x 10m
Weight per Box: 1.70kg
Used with: Permfix Nails. View on page 33.

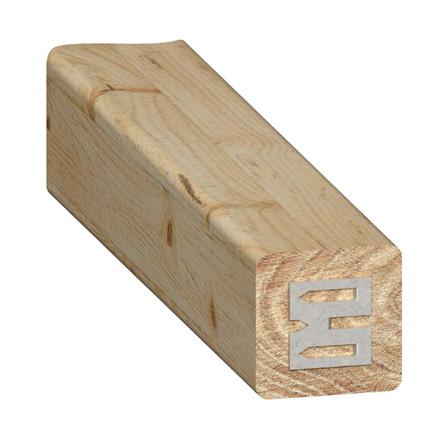

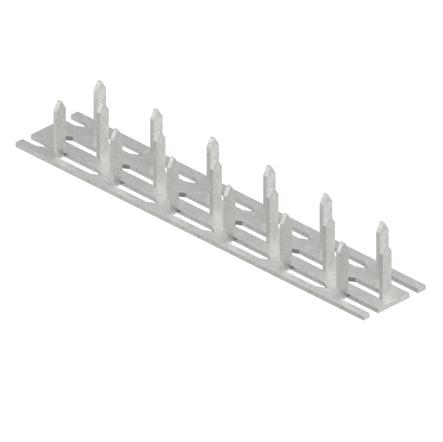

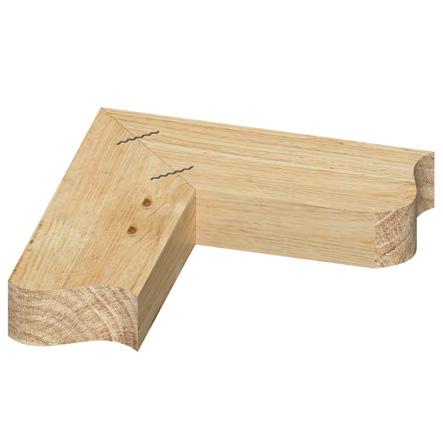

CORRUGATED FASTENERS
ENGINEERED FOR TEMPORARY TIMBER JOINT CONNECTIONS
Corrugated Fasteners are used on different types of wood joints like mitered or table joints, and for rough carpentry on components that are hidden from view. They’re also used to join small pieces of timber, which may be damaged by nails or screws. Sold per box.
Corrugated Fastener 25mm x 16mm
Product Code: EC0RR16
Quantity per Box: ± 6000 Weight per Box: 15.00kg
Corrugated Fastener 25mm x 19mm
Product Code: EC0RR19
Quantity per Box: ± 5170
Weight per Box: 15.00kg

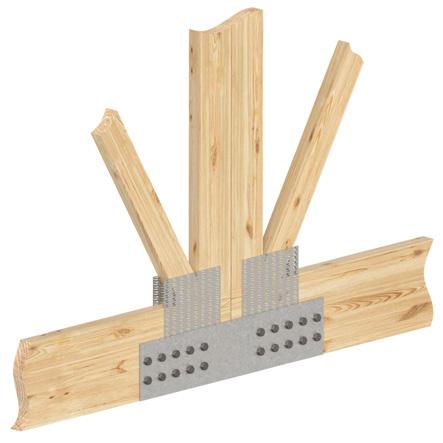

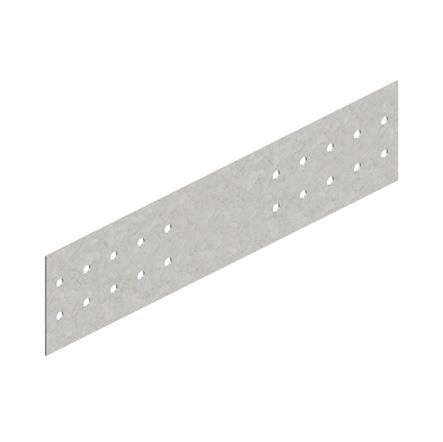

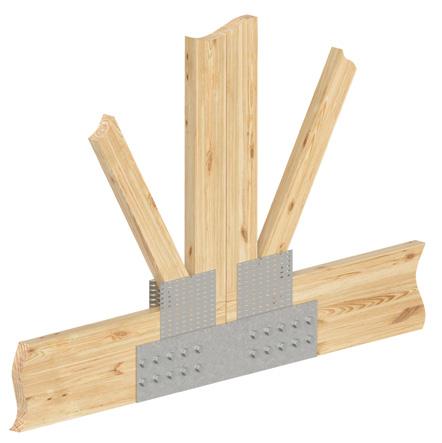

FISH PLATES
ENGINEERED FOR JOINING TIMBER MEMBERS FOR LARGE-SPAN TRUSSES
Fish Plates are designed to cater for most common splicing requirements. The same plate is used in all cases, for both bottom and top chords. Depending on the truss design criteria, different bolting arrangements may be used, so some of the pre-punched holes go unused. Sold individually.
Fish Plate 150mm x 650mm
Product Code: DFISHPL
Quantity per Box: Each Weight per Box: 1.61kg
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.

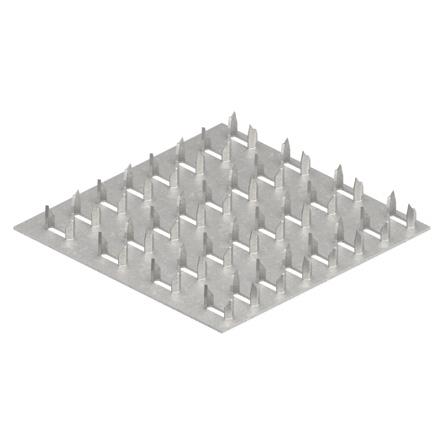

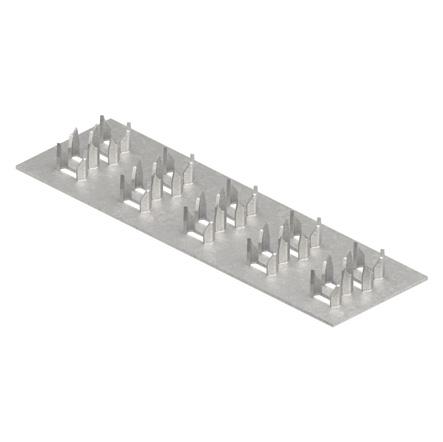

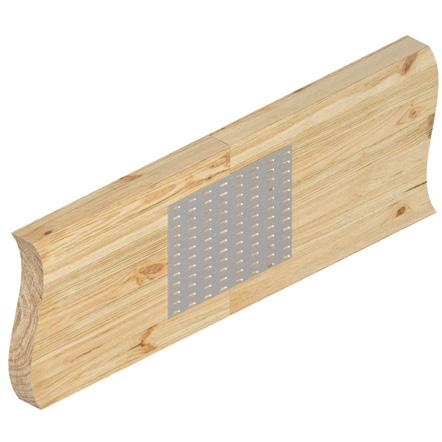

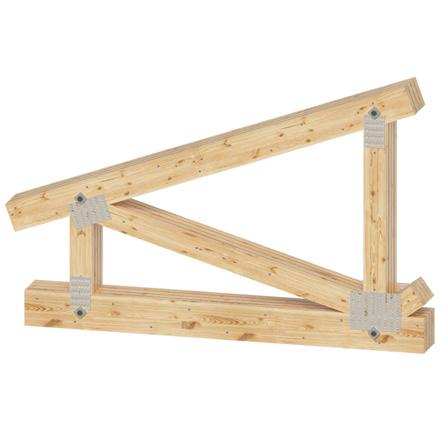

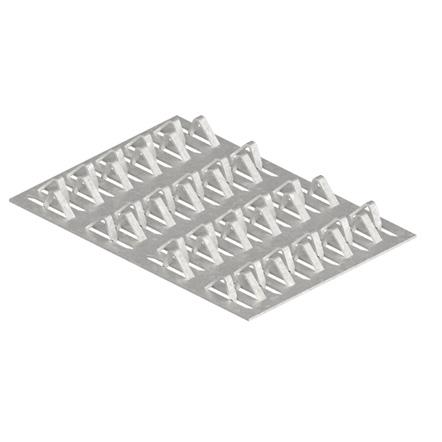

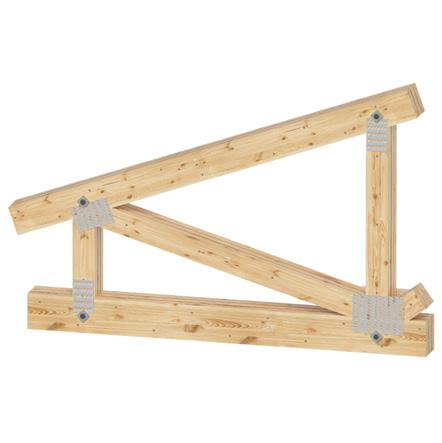

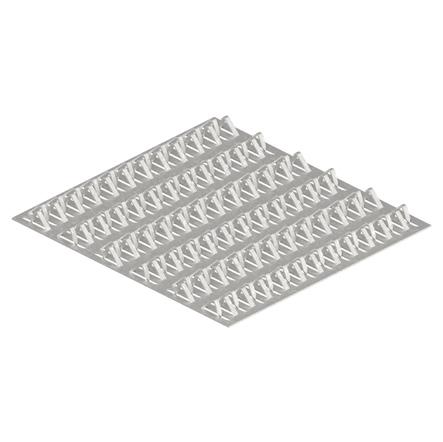

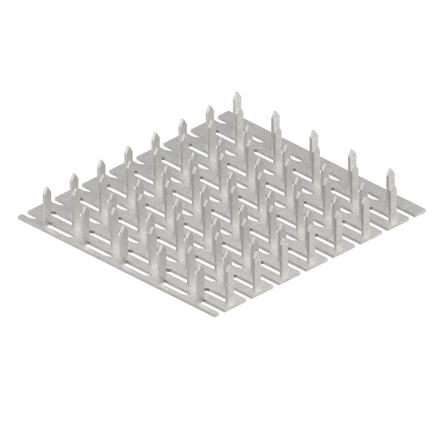

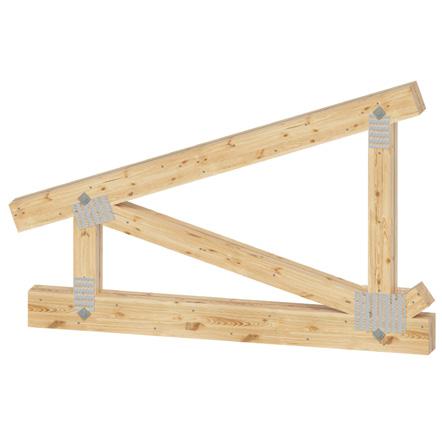

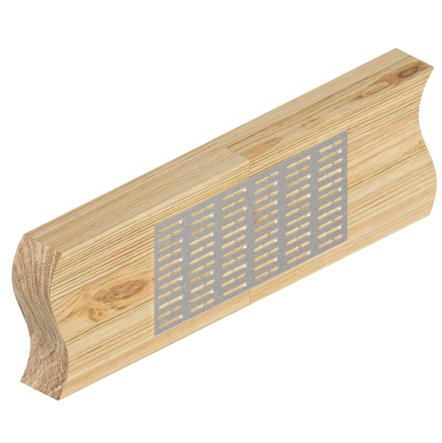

GRYPA CONNECTOR PLATES
ENGINEERED FOR TIMBER JOINT CONNECTIONS
Grypa Connector Plates are designed for the production of on-site engineered roof trusses. Plate application is as simple as positioning the plate and hammering home the teeth. Used for On-site timber-to-timber connections. Suitable for a wide range of timber joinery applications like site splicing, restraining end splitting, or wherever a strong connection is required. Sold per box.
Grypa 08 x 13 x 1mm
Product Code: ECG0813-B
Quantity per Box: 96
Weight per Box: 8.03kg
GRYPA CONNECTOR PLATES
Grypa 10 x 10 x 1mm
Product Code: ECG1010-B
Quantity per Box: 87
Weight per Box: 6.99kg
Grypa 10 x 15 x 1mm
Product Code: ECG1015-B
Quantity per Box: 51
Weight per Box: 6.14kg
Grypa 10 x 20 x 1mm
Product Code: ECG1020-B
Quantity per Box: 24
Weight per Box: 3.78kg
Grypa 15 x 20 x 1mm
Product Code: ECG1520-B
Quantity per Box: 20
Weight per Box: 4.73kg

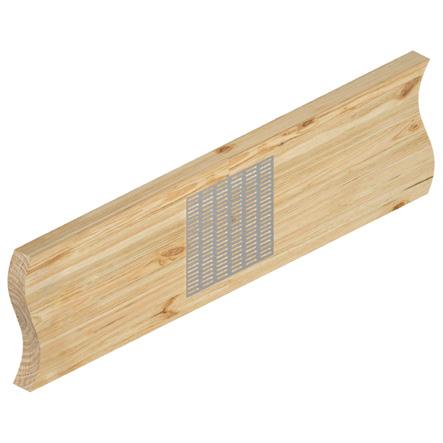

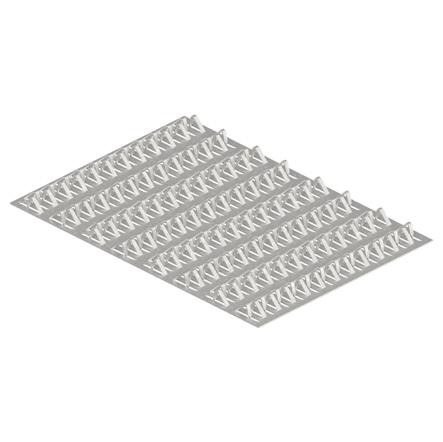

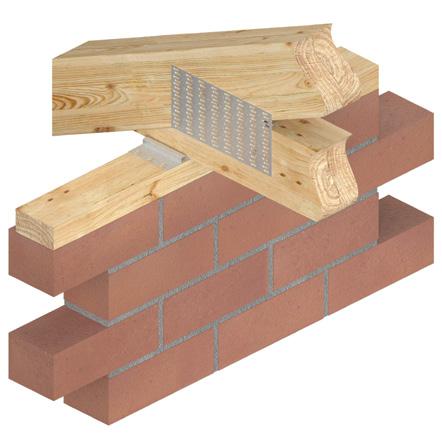

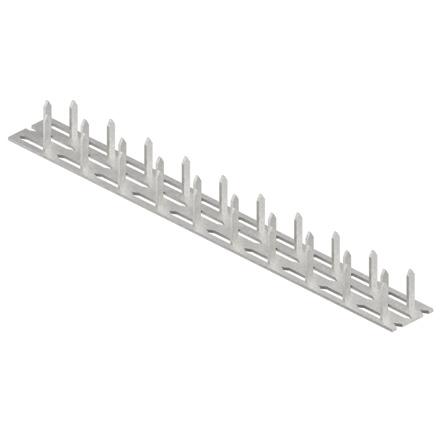

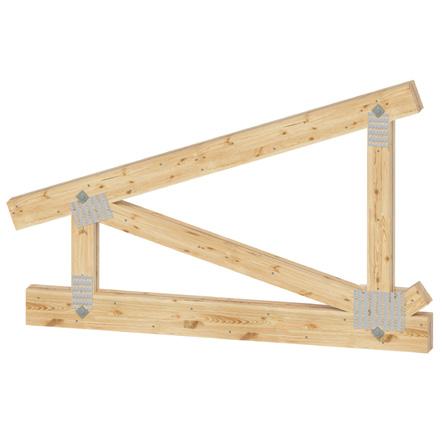

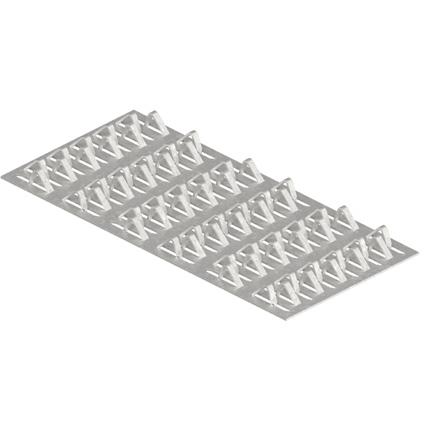

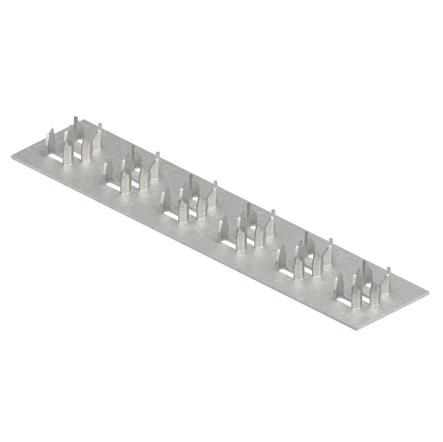

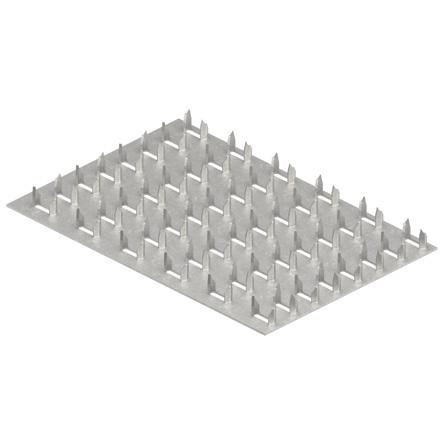

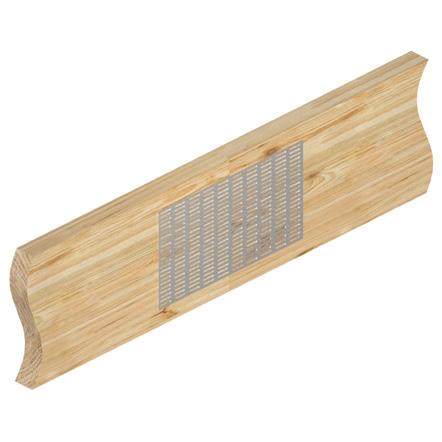

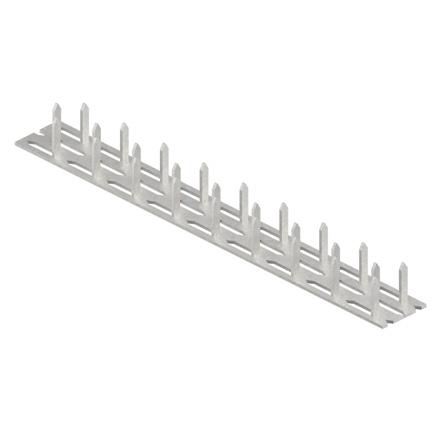

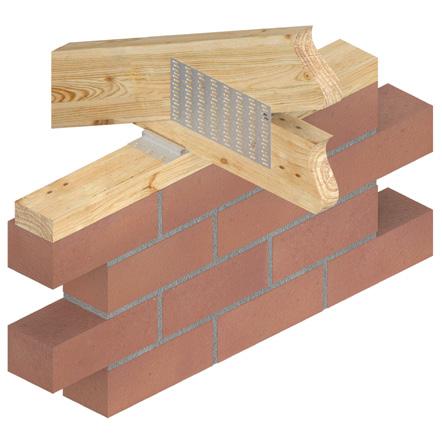

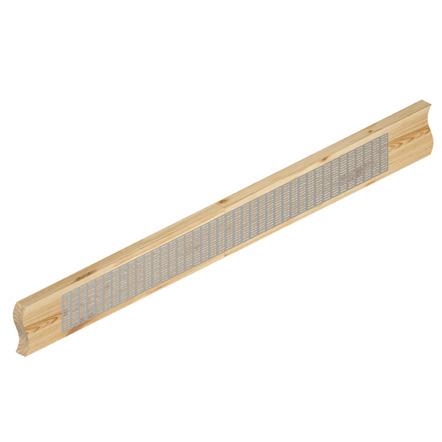

GRYPTITE CONNECTOR PLATES
ENGINEERED FOR TIMBER JOINT CONNECTIONS
Gryptite Connector Plates are designed for on-site timber-to-timber connections. Application is as simple as positioning the plate and hammering in the teeth. MiTek Engineering can provide an accurate design for using Gryptite Plates when manufacturing timber trusses. Sold per box.
Gryptite 08 x 12 x 1mm
Product Code: EGT0812-B
Quantity per Box: 30
Weight per Box: 2.31kg
Gryptite 08 x 18 x 1mm
Product Code: EGT0818-B
Quantity per Box: 30
Weight per Box: 2.33kg
Gryptite 08 x 24 x 1mm
Product Code: EGT0824-B
Quantity per Box: 30
Weight per Box: 4.62kg
Gryptite 08 x 120 x 1mm
Product Code: EGT08120
Quantity per Box: 10
Weight per Box: 7.90kg
GRYPTITE CONNECTOR PLATES
Gryptite 11 x 12 x 1mm
Product Code: EGT1112-B
Quantity per Box: 30
Weight per Box: 3.18kg
Gryptite 11 x 18 x 1mm
Product Code: EGT1118-B
Quantity per Box: 30
Weight per Box: 4.77kg
Gryptite 11 x 24 x 1mm
Product Code: EGT1124-B
Quantity per Box: 30
Weight per Box: 6.36kg
Gryptite 11 x 30 x 1mm
Product Code: EGT1130-B
Quantity per Box: 30
Weight per Box: 7.95kg
Gryptite 11 x 120 x 1mm
Product Code: EGT11120
Quantity per Box: 10
Weight per Box: 11.05kg
GRYPTITE CONNECTOR PLATES
Gryptite Connector Plate 08 x 12
Gryptite Connector Plate 08 x 18
Gryptite Connector Plate 08 x 24

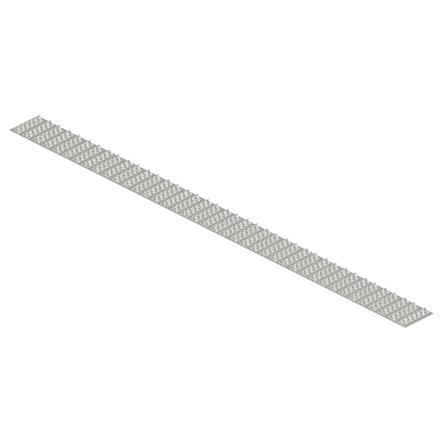

Gryptite Bar Stock 08 x 120
Gryptite Connector Plate 11 x 12
Gryptite Connector Plate 11 x 18
Gryptite Connector Plate 11 x 24
Gryptite Connector Plate 11 x 30
Gryptite Bar Stock 11 x 120
Gryptite Connector Plate 16 x 18
Gryptite Connector Plate 16 x 24
Gryptite Connector Plate 16 x 30
Gryptite 16 x 18 x 1mm
Product Code: EGT1618-B
Quantity per Box: 30
Weight per Box: 6.72kg
Gryptite 16 x 24 x 1mm
Product Code: EGT1624-B
Quantity per Box: 30
Weight per Box: 8.96kg
Gryptite 16 x 30 x 1mm
Product Code: EGT1630-B
Quantity per Box: 30
Weight per Box: 11.20kg

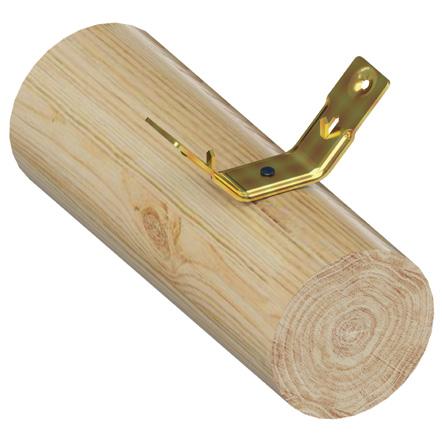

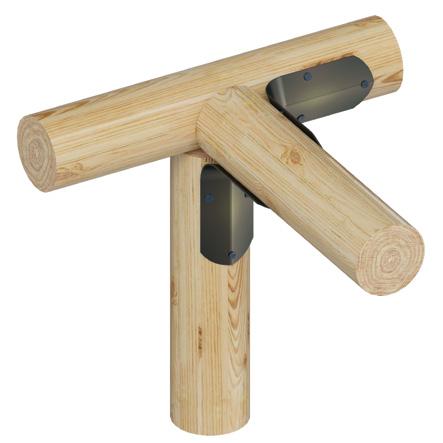

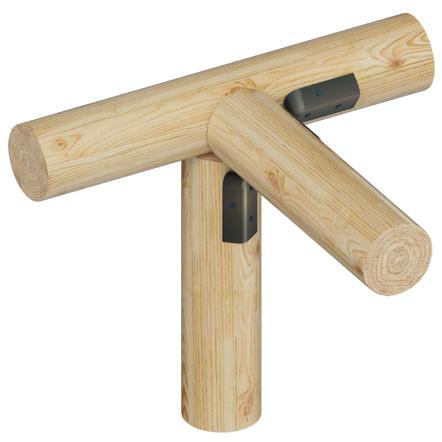

GUMBO BRACKET
ENGINEERED FOR TIMBER POLE CONNECTIONS
Gumbo Construction Brackets are metal connectors for round-pole timber structures. Used for constructing timber structures fast, where strong reliable joints are needed without negatively affecting the timber preservation treatment. Sold individually.
Gumbo Bracket Type 4
Product Code: GUMB4
Quantity per Box: Each Weight per Box: 0.03kg
Used with: Permfix Nails. View on page 33.
Gumbo Bracket Type 5
Product Code: GUMB5
Quantity per Box: Each Weight per Box: 0.01kg
Used with: Permfix Nails. View on page 33.
Gumbo Bracket Type 4
Gumbo Bracket Type

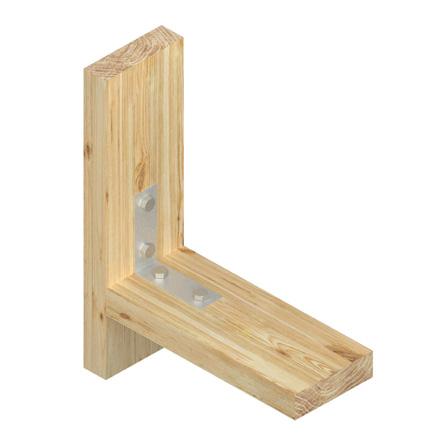

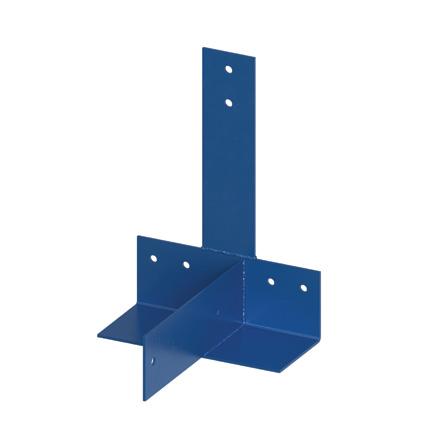

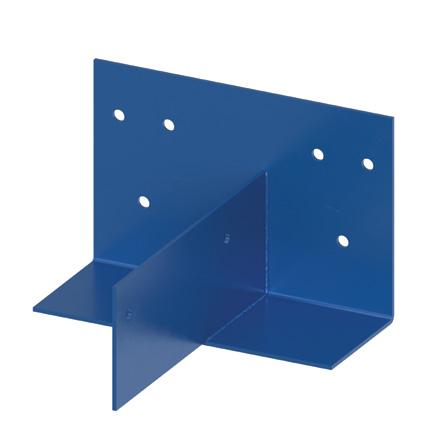

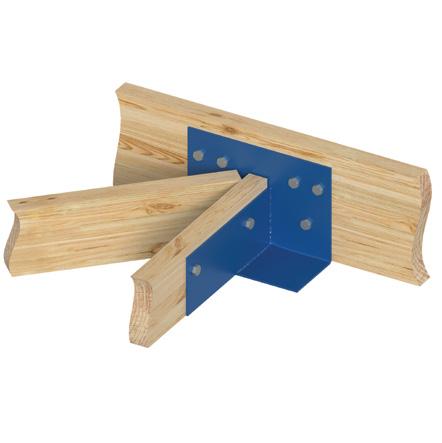

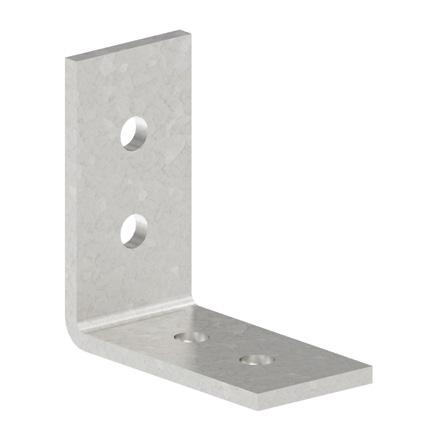

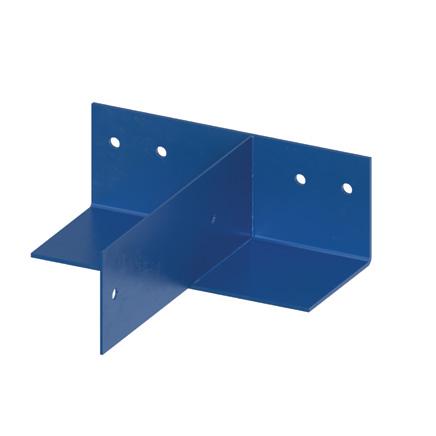

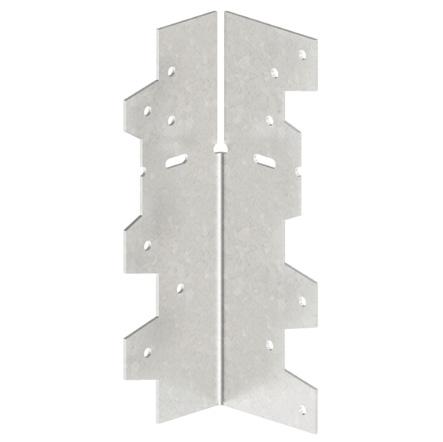

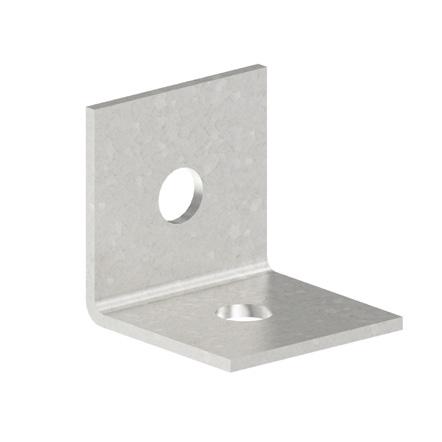

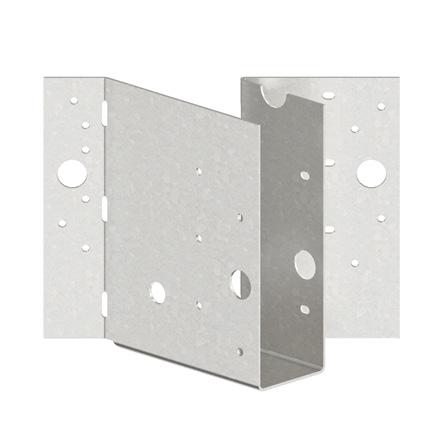

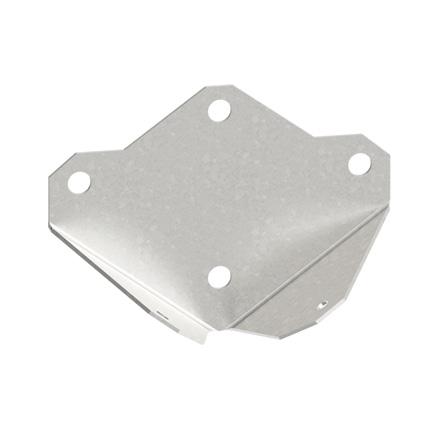

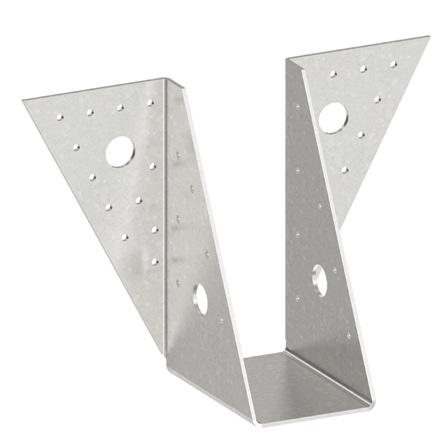

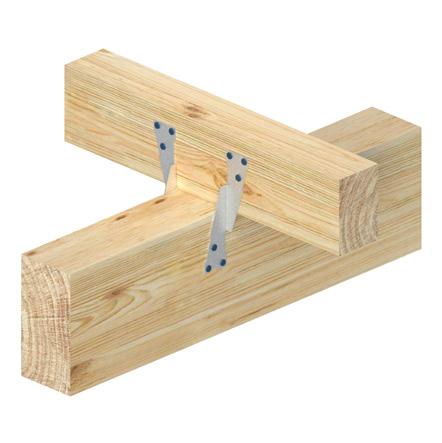

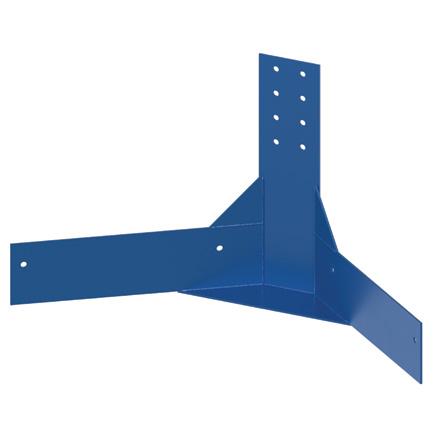

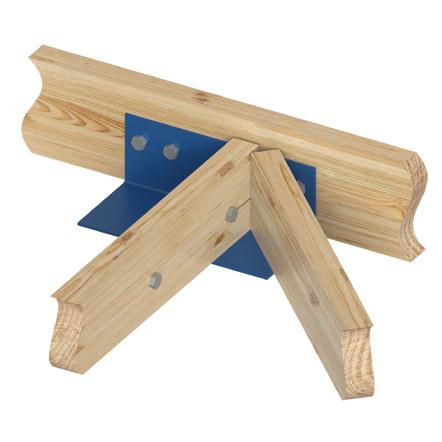

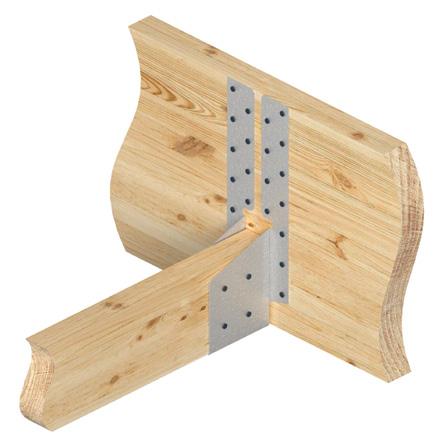

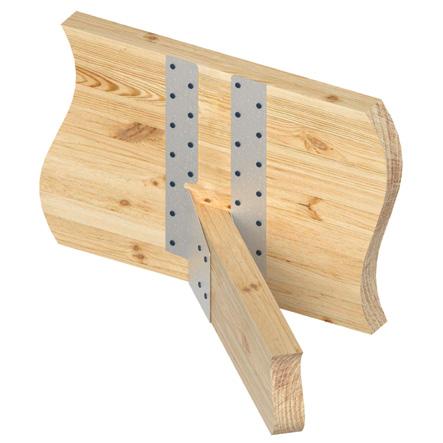

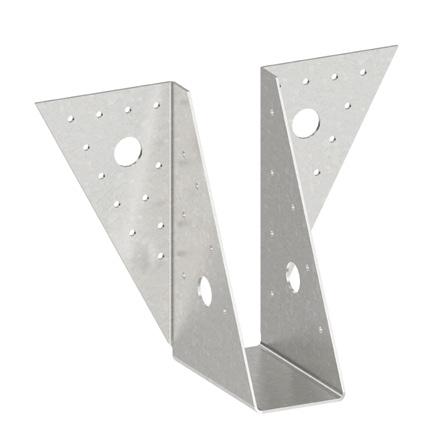

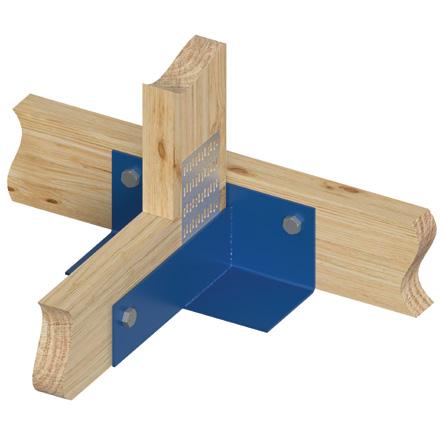

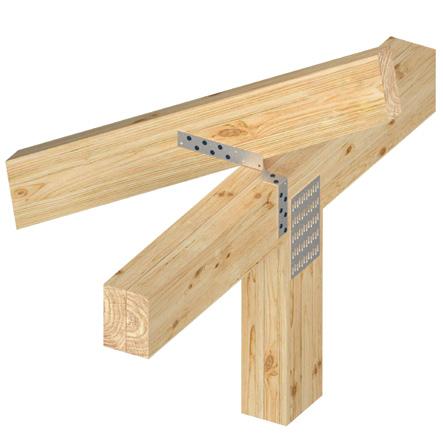

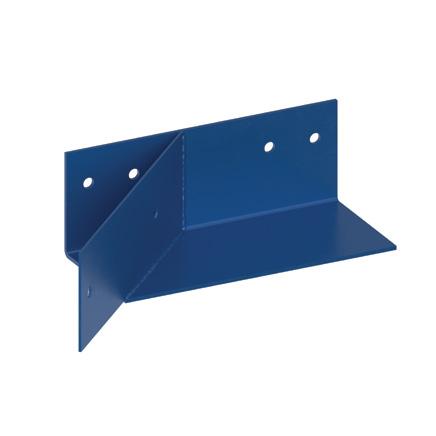

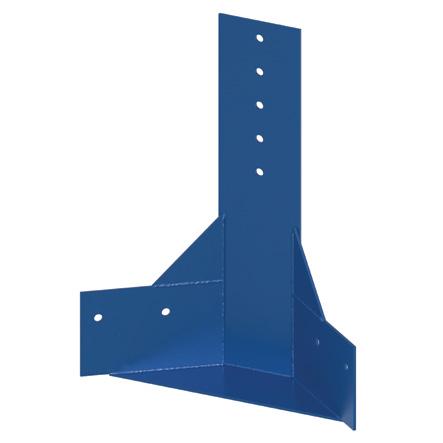

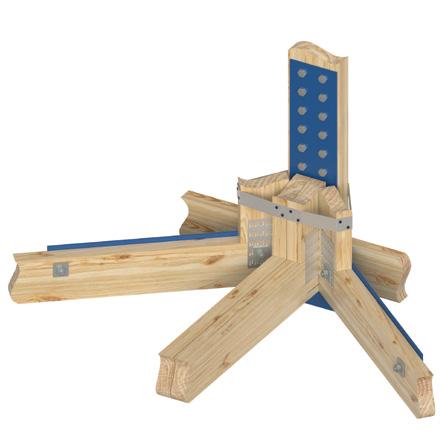

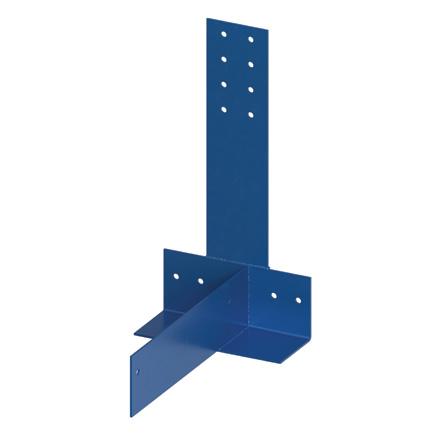

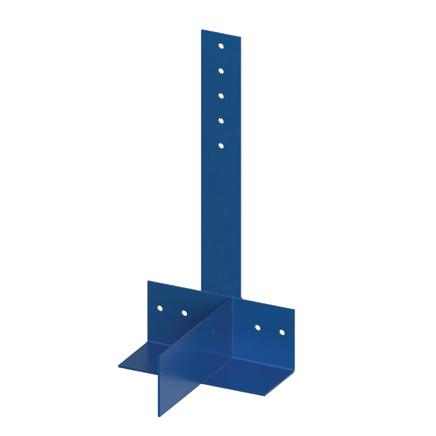

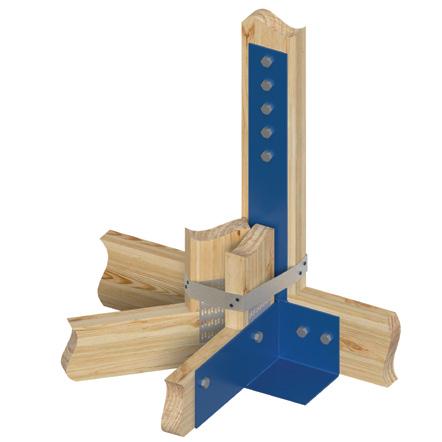

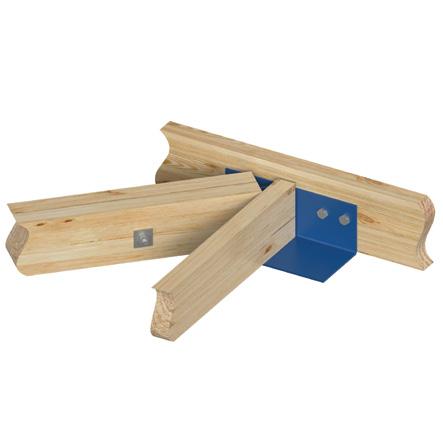

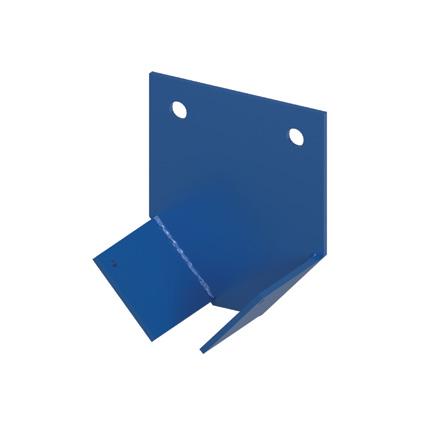

HEAVY DUTY CLEATS
ENGINEERED FOR SUPPORTING LARGE INCOMING LOADS
Type H Cleats are designed to ensure sound connections at timber truss and girder junctions. They can be specified in different configurations to suit different loads and structural arrangements. Three alternative vertical flanges are available to cater for 5, 8, or 12mm diameter bolts, alongside optional long flange plates, designed to prevent rotation of the incoming timber truss or girder. Each cleat engineered to hold a 10kN load. Sold individually.
Cleat H2 HFA90
Product Code: HFA90H2
Quantity per Box: Each Maximum Load: 10.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.
Cleat H45V5P1
Product Code: H45V5P1
Quantity per Box: Each Maximum Load: 15.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat H45V5P2
Product Code: H45V5P2
Quantity per Box: Each Maximum Load: 15.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat H45V8P2
Product Code: H45V8P2
Quantity per Box: Each Maximum Load: 25.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
HEAVY DUTY CLEATS
Cleat H45V12P2
Product Code: H45V12P2
Quantity per Box: Each Maximum Load: 37.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat HFA45L
Product Code: HFA45-L
Quantity per Box: Each Maximum Load: 6.8kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.
Cleat HFA45R
Product Code: HFA45-R
Quantity per Box: Each Maximum Load: 6.8kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.
Cleat HFA90
Product Code: HFA90
Quantity per Box: Each Maximum Load: 6.8kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.
Cleat HFA90M
Product Code: HFA90M
Quantity per Box: Each Maximum Load: 3.4kN

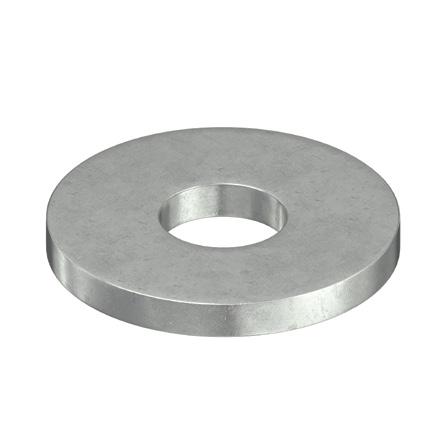

Used with: Bolts & Nuts. View on page 14. Washers. View on page 48.

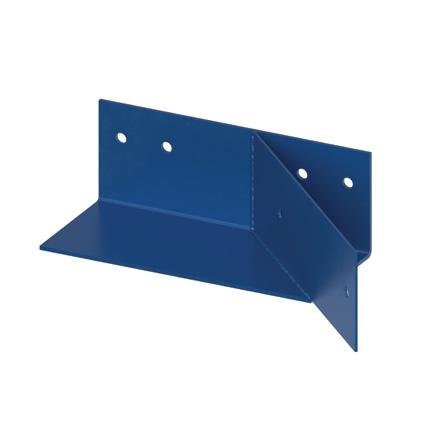

HEAVY DUTY CLEATS
Cleat HFAV2
Product Code: HFAV2
Quantity per Box: Each Maximum Load: 10.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat HFAV5
Product Code: HFAV5
Quantity per Box: Each Maximum Load: 20.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat HFAV8
Product Code: HFAV8
Quantity per Box: Each Maximum Load: 33.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
Cleat HFAV12
Product Code: HFAV12
Quantity per Box: Each Maximum Load: 45.0kN
Used with: Bolts & Nuts. View on page 14. Washers. View on page 48. Bracing Strap. View on page 17. Permfix Nails. View on page 33.
HEAVY DUTY CLEATS
Cleat
Cleat

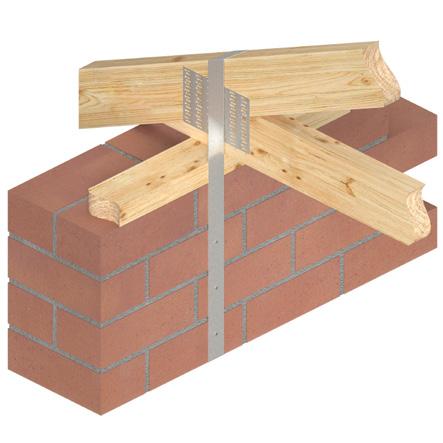

HOOP IRON
ENGINEERED FOR TYING DOWN TRUSSES TO A WALL
Hoop Iron is used for strapping and reinforcement, compliant with SANS 10400. Used for Fixing Hoop Iron straps to walls with Masonry Pins before plastering over. Sold individually.
Hoop Iron Large Rolls 80m
Product Code: HOOP25
Quantity per Box: Each Weight per Box: 25.00kg
Used with: Permfix Nails. View on page 33.

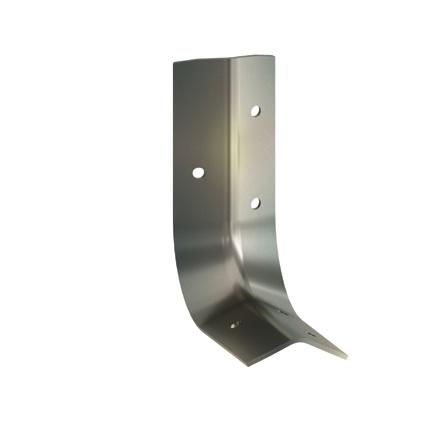

HURRICANE CLIPS
ENGINEERED FOR PURLIN-TO-TIMBER RAFTER CONNECTIONS
The Hurricane Clip is a galvanised steel framing anchor designed to connect structural timber members at right angles to each other. Typical applications include use in high wind areas and as truss-tobeam connectors. Clips are used in pairs, attached by nails through pre-punched holes. The design load of a pair is 1.4 2.1kN, fully nailed with Permfix Nails. Sold per box.
Hurricane Clips Mixed – L&R
Product Code: EHURR-MIX-B
Quantity per Box: 100
Weight per Box: 5.04kg
Used with: Permfix Nails. View on page 33.

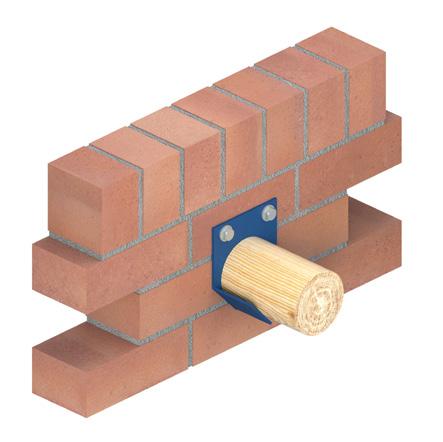

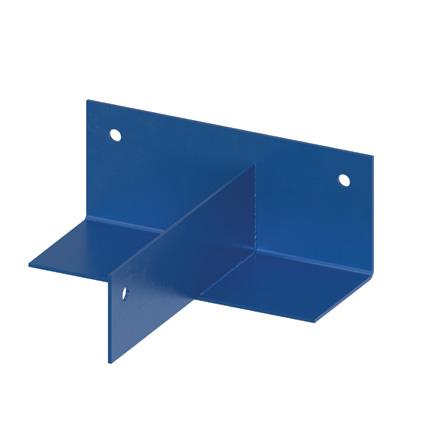

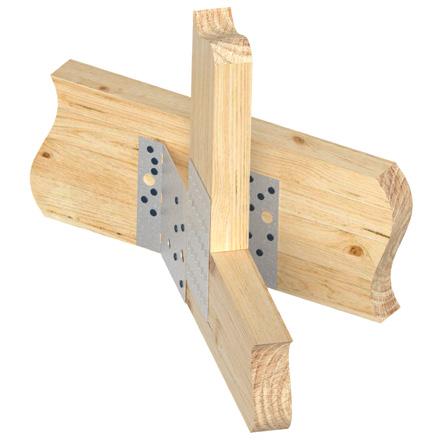

LOG DOG

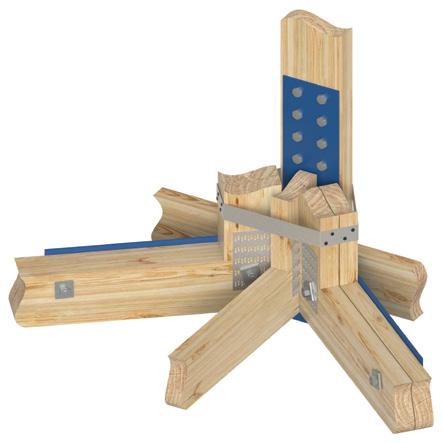

ENGINEERED FOR TIMBER POLE CONNECTIONS
A simple way to connect treated pine logs or gum poles at any angle. The fastener is a rigidly formed galvanised metal cradle which will accept the natural variations of log material, ranging from 90mm to 140mm diameter. Used for connecting logs and poles, quickly and easily. Four downward-facing spikes and two internal claws stabilise the connector in any position on round log surfaces. Sold per box.
Log Dog
Product Code: LOGD
Quantity per Box: 50 Weight per Box: 3.35kg
Used with: Permfix Nails. View on page 33.

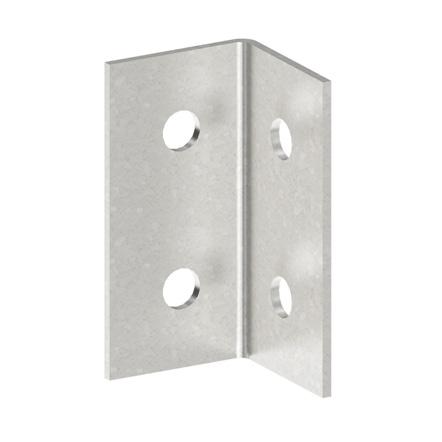

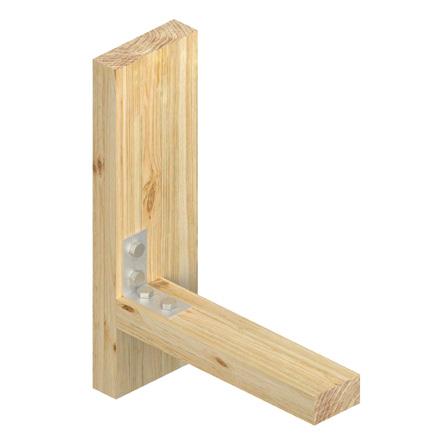

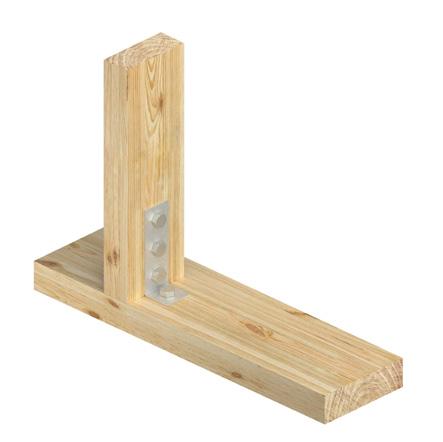

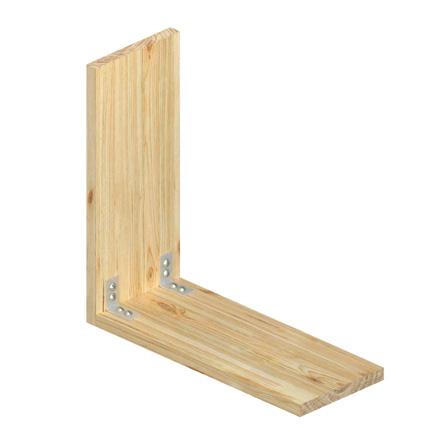

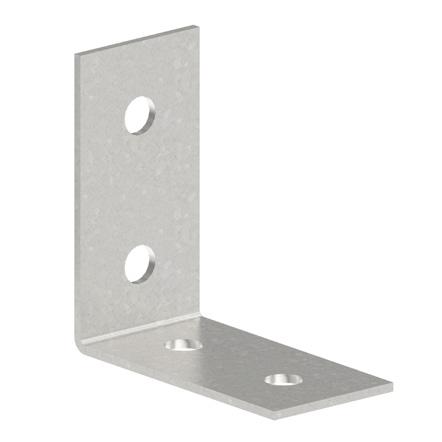

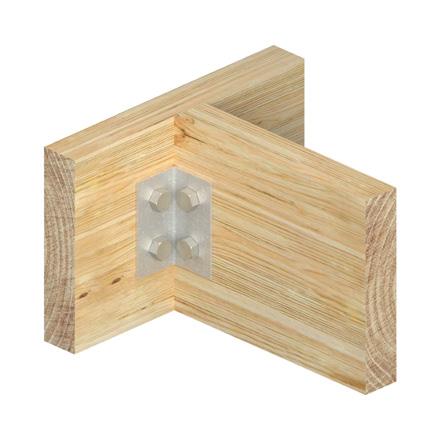

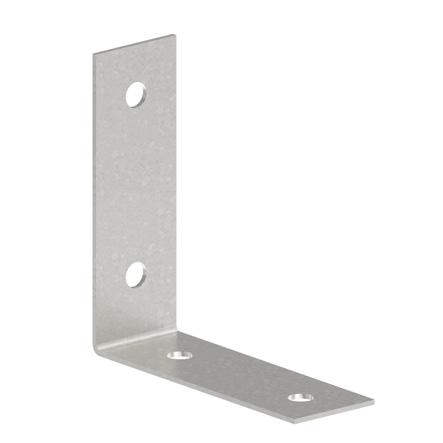

MULTI-PURPOSE
BRACKETS
ENGINEERED FOR GENERAL CONNECTIONS
Multi-Purpose Brackets are non-structural brackets suitable for a variety of structural and non-structural connections. Manufactured from 2.0mm galvanised steel, they provide a wide range of applications DIY users and builders. Used for securing and reinforcing structures like shelves, furniture, and frames with unmatched flexibility and exceptional load-bearing capacity. Sold individually.
Type A 150mm x 75mm x 55mm x 2.5mm
Product Code: EMPB-A
Quantity per Box: Each Weight per Box: 0.38kg
Used with: Bolts & Nuts. View on page 14.
Type B 50mm x 50mm x 50mm x 2.5mm
Product Code: EMPB-B
Quantity per Box: Each Weight per Box: 0.10kg
Used with: Bolts & Nuts. View on page 14.
Type C 50mm x 50mm x 20mm x 2.5mm
Product Code: EMPB-C
Quantity per Box: Each Weight per Box: 0.04kg
Used with: Bolts & Nuts. View on page 14.
Type D 100mm X 50mm X 50mm x 2.5mm
Product Code: EMPB-D
Quantity per Box: Each Weight per Box: 0.20kg
Used with: Bolts & Nuts. View on page 14.
MULTI-PURPOSE BRACKETS
Type E 150mm x 150mm x 50mm x 2.5mm
Product Code: EMPB-E
Quantity per Box: Each Weight per Box: 0.30kg
Used with: Bolts & Nuts. View on page 14.
Type F 150mm x 150mm x 80mm x 2.5mm
Product Code: EMPB-F
Quantity per Box: Each Weight per Box: 0.55kg
Used with: Bolts & Nuts. View on page 14.
Type G 100mm x 100mm x 50mm x 2.5mm
Product Code: EMPB-G
Quantity per Box: Each Weight per Box: 0.20kg
Used with: Bolts & Nuts. View on page 14.

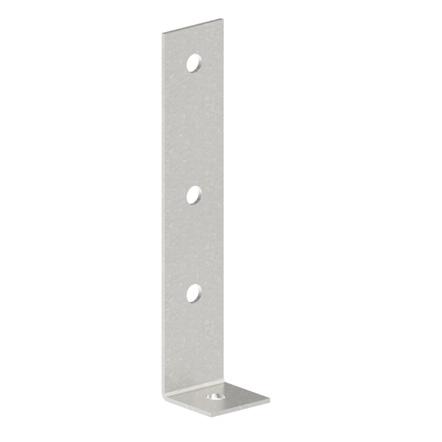

Type H 50mm x 250mm x 50mm x 2.5mm
Product Code: EMPB-H
Quantity per Box: Each Weight per Box: 0.30kg
Used with: Bolts & Nuts. View on page 14.
Type J 50mm x 150mm x 50mm x 2.5mm
Product Code: EMPB-J
Quantity per Box: Each Weight per Box: 0.20kg
Used with: Bolts & Nuts. View on page 14.
MULTI-PURPOSE BRACKETS
Multi-Purpose Brackets Type A 150mm x 75mm x 55mm x 2.5mm
Multi-Purpose Brackets Type B 50mm x 50mm x 50mm x 2.5mm
Multi-Purpose Brackets Type C 50mm x 50mm x 20mm x 2.5mm
Multi-Purpose Brackets Type D 100mm x 50mm x 50mm x 2.5mm
Multi-Purpose Brackets Type E 150mm x 150mm x 50mm x 2.5mm
Multi-Purpose Brackets Type F 150mm x 100mm x 80mm x 2.5mm
Multi-Purpose Brackets Type G 100mm x 100mm x 50mm x 2.5mm
Multi-Purpose Brackets Type H 50mm x 250mm x 50mm x 2.5mm
Multi-Purpose Brackets Type J 50mm x 150mm x 50mm x 2.5mm

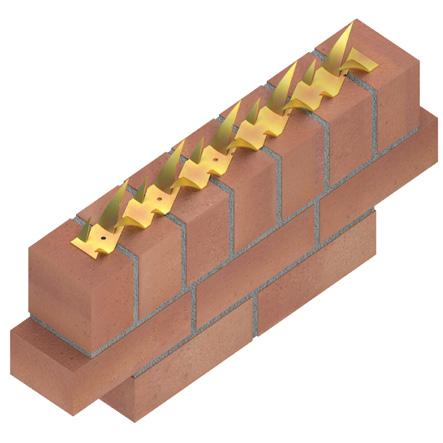

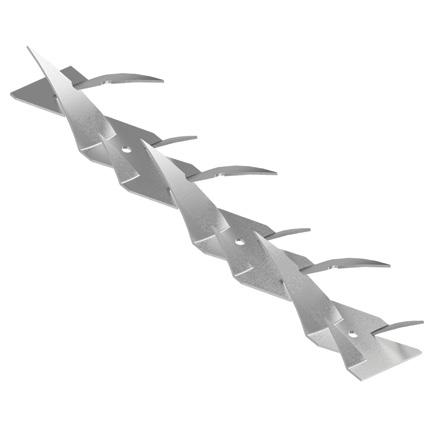

NINJA DIY WALL SPIKES
ENGINEERED FOR PERIMETER SECURITY
The Ninja Spike DIY security system has predrilled holes, allowing for secure connections to brick, steel, or timber surfaces. Available in gold or silver corrosive-resistant finish. Sold per box.
Ninja DIY Spike Gold 1.56m
Product Code: ENINJAGB
Quantity per Box: 10
Weight per Box:
0.30kg
0.20kg
0.30kg
0.20kg
Ninja DIY Spike Silver 1.56m
Product Code: EENINJASB
Quantity per Box: 10
Weight per Box:
NINJA DIY WALL SPIKES
Ninja DIY Spike Gold 1.56m
Ninja DIY Spike Silver 1.56m
PERMFIX NAILS
ENGINEERED FOR TIMBER CONNECTIONS
Permfix Nails are specifically designed for use with eCo Fasteners like truss hangers, hurricane clips, bracing strap, and speed braces. The shaft of the nail is serrated like a standard ring shank nail, with MII forged on the head for easy identification. Coated for corrosion resistance, a thickened collar ensures the head doesn’t break off during application. Used for connecting eCo Fasteners like truss hangers, hurricane clips, bracing strap, and speed braces. Sold per box. Available in 1kg and 25kg box.
Permfix 35mm x 3.15mm Blue
Product Code: DPERMFZ32-1KG
Quantity per Box: 392
Weight per Box: 1.00kg
POLE HANGERS
ENGINEERED FOR TIMBER POLE CONNECTIONS
Pole Hangers are designed to provide efficient and economical anchorage of gum poles to brick or concrete walls in the construction of car ports, pergolas, etc. They are easily affixed to walls using M12 anchors with a load capacity of up to 500kg. Used for Pole-to-pole or pole-to-flat-surface connections.

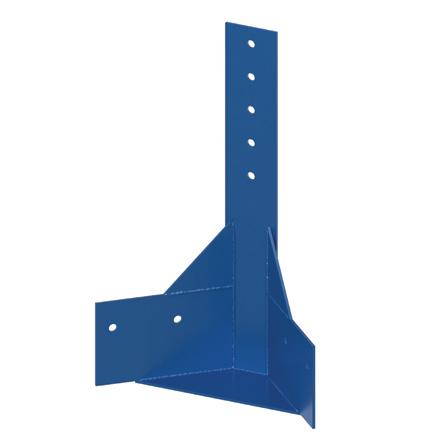

Pole Hanger 150mm Galvanised
Product Code: DPHLDG
Quantity per Box: Each Weight per Box: 0.90kg
Pole Hanger 150mm H/D
Product Code: EPH150
Quantity per Box: 10
Weight per Box: 1.94kg

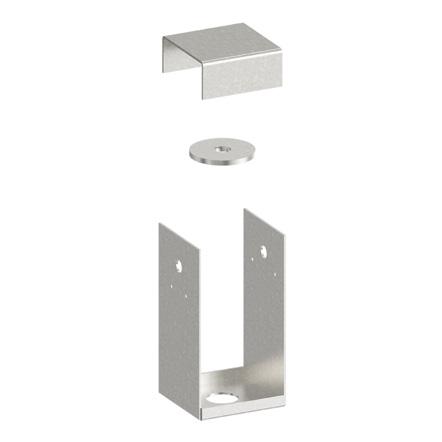

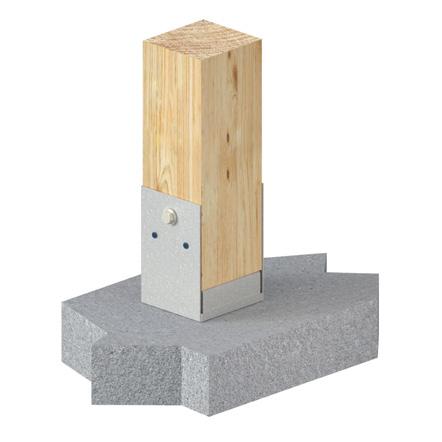

POST ANCHOR BASES
ENGINEERED FOR FIXING TIMBER COLUMNS TO BASE
The Post Anchor Base is designed to provide efficient and economical anchorage of timber posts to concrete slabs. Engineered to resist uplift from high winds, the bottom of the post is kept above ground level so that there is no contact with dampness. The Post Anchor Base is suitable for fixing to existing or new concrete, and can be adjusted after installation. Sold individually.
Post Anchor Base 70mm x 70mm
Product Code: EPAB70X70
Quantity per Box: Each Weight per Box: 0.44kg
Post Anchor Base 95mm x 95mm
Product Code: EPAB95X95
Quantity per Box: Each Weight per Box: 0.60kg
PURLIN CLIPS
ENGINEERED FOR PURLIN-TO-RAFTER CONNECTIONS
Purlin Clips connect purlins to rafters, suitable under normal wind conditions. One clip is required per connection except at the apex, eaves, and gables, which each require a pair of clips. The design load value is 1.21.8kN, fully nailed with Permfix Nails. Sold per box.
Purlin Clips
Purlin Clips
EPURCLIP-MIX
EPURCLIP-MIX-B
Purlin Clips
Product Code: EPURCLIP-MIX
Quantity per Box: 400 Weight per Box: 10.00kg
Used with: Permfix Nails. View on page 33.

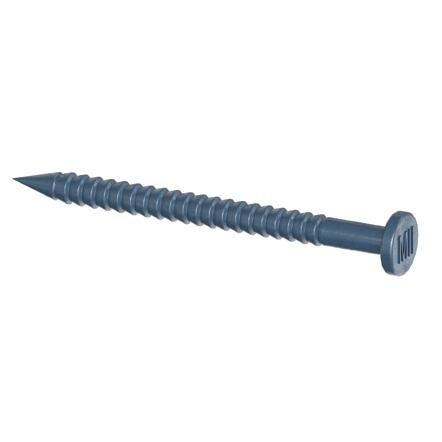

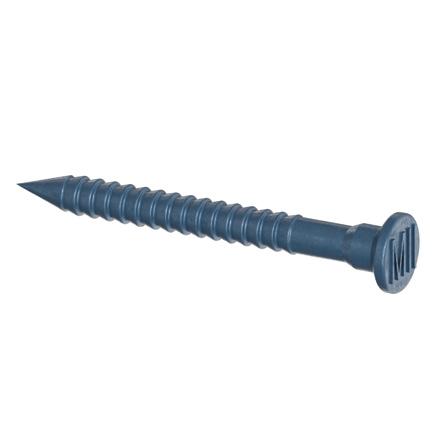

PURLIN NAILS
ENGINEERED FOR STEEL PURLIN-TO-TIMBER CONNECTIONS
Purlin Nails are specifically designed for use with steel purlins. The shaft of the nail is serrated, with MII forged on the head for easy identification. Coated for corrosion resistance, a thickened collar ensures the head does not break off during application. Used for Connecting steel purlins to timber rafters. Sold per box.
Purlin Nail 60mm x 4.0mm Blue
Purlin Nail 60mm x 4.0mm Blue
Purlin Nail 60mm x 4mm Blue
Product Code: DPURFIXZ60
Quantity per Box: ± 3200
Weight per Box: 2.00kg
DPURFIXZ60 ± 320 2.00kg
EPURFIXZ60 ± 4025 25.00kg

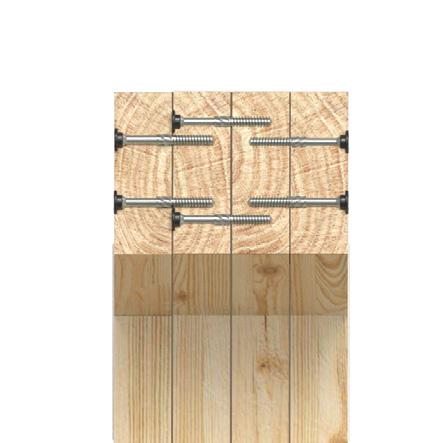

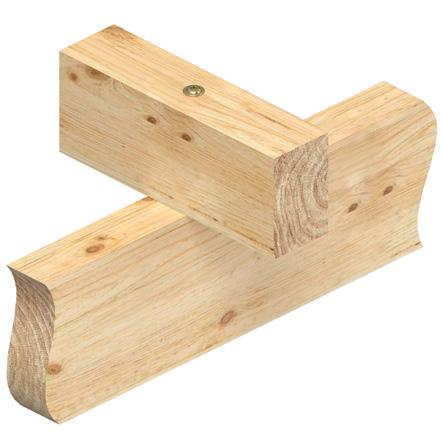

PURLIN SCREWS
ENGINEERED FOR TIMBER CONNECTIONS
Used to fix purlins to rafters in cases where nails don’t provide a strong enough wind uplift connection. Used for Connecting timber purlins to timber roof trusses. Sold per box.

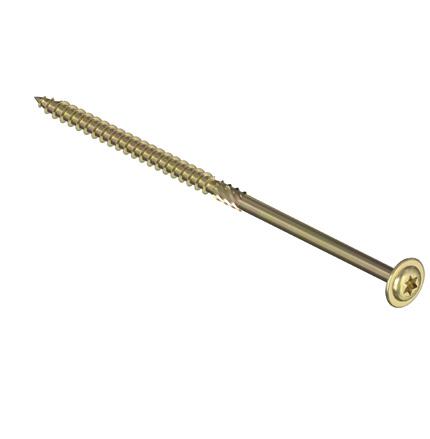

Purlin Screw 140mm
Product Code: EMFS6X140
Quantity per Box: 100
Weight per Box: 1.83kg
Purlin Screw 160mm
Product Code: EMFS6X160
Quantity per Box: 100
Weight per Box: 2.05kg
SELF-DRIVE SCREWS
ENGINEERED FOR TIMBER CONNECTIONS
Self-Drive Screws are designed for timber members and connections. Sold per box.
Self-Drive Screws 65mm
Product Code: ESDS65
Quantity per Box: 100
Weight per Box: 1.25kg
SHADE CLOTH FASTENERS
ENGINEERED FOR SHADE CLOTH TO TIMBER CONNECTIONS
Shade Cloth Fasteners provide the best method of securing shade cloth quickly and easily. The teeth of the fastener are designed to pierce freely through the shade cloth leaving the cloth free from tears. The fastener is secured by hammering it into place. Sold per box.
Shade Cloth Fastener 50mm x 50mm
Product Code: ESCF5X5
Quantity per Box: 396
Weight per Box: 8.61kg

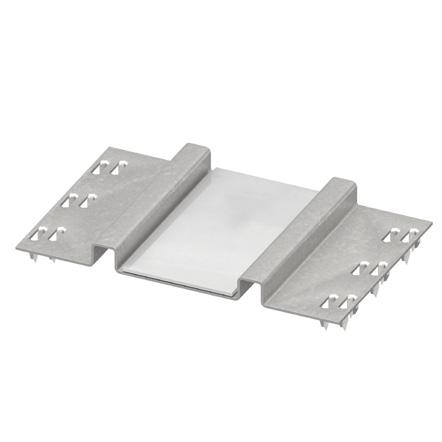

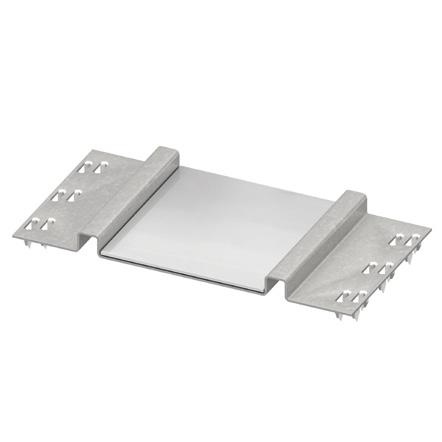

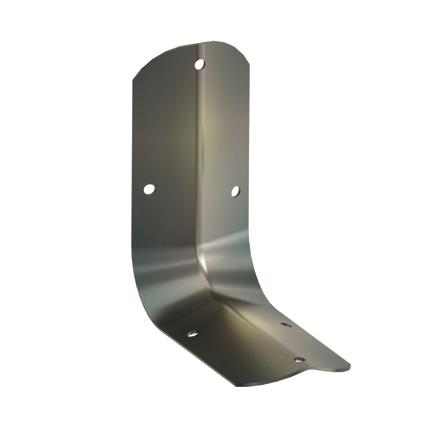

SLIDING SHOES
ENGINEERED FOR HORIZONTAL TRUSS MOVEMENT
Sliding Shoes are fitted at bearing points to allow for lateral movement of the timber trusses. The sliding mechanism ensures the amount of horizontal force transposed to the wall is significantly reduced and minimises the potential for structural damage. Used for allowing horizontal movement when trusses exceed the max of 10mm in the design package. Sold individually.
Sliding Shoes Small 40mm
Product Code: ESL40
Quantity per Box: Each Weight per Box: 0.12kg
Sliding Shoes Large 80mm
Product Code: ESL80
Quantity per Box: Each Weight per Box: 0.15kg
SPEEDBRACE
ENGINEERED FOR BRACING
Speedbrace is a pre-punched shallow V-profile galvanised metal tension bracing strip designed to brace top chords, bottom chords, and webs. The bracing and connecting details are designed to provide equivalent bracing and stiffening properties to timber bracing. Sold individually.
Speedbrace 3.6m
Product Code: ESBRACE
Quantity per Box: 12 / bundle
Weight per Box: 13.64kg
Used with: Permfix Nails. View on page 33.

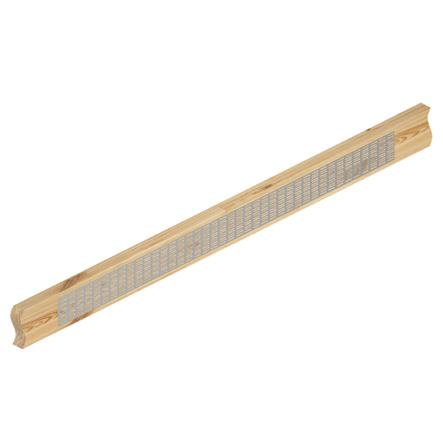

TI BOND STRIPS GALVANISED
ENGINEERED FOR BONDING BRICKWORK
Ti Bond is a continuous lug system designed to overcome problems associated with bonding brickwork to concrete columns, steel, or existing brick work at 90 degrees. Each strip is profile cut to give 4 pairs of lugs, 305mm long at 340 centers (every fourth course of brickwork). Sold per box.
Ti Bond Galvanised
Product Code: ETIBOND
Quantity per Box: 10
Weight per Box: 7.00kg
TORQUE BIT
ENGINEERED FOR FASTENING SCREWS
Torque bits are characterised by a 6-point star-shaped pattern, to achieve a higher torque by reducing slippage. Sold individually.
Torque Bit TX 30mm x 25mm
Product Code: ETORQ30X25
Quantity per Box: Each Weight per Box: 0.01kg
Used with: Purlin Screws. View on page 38.

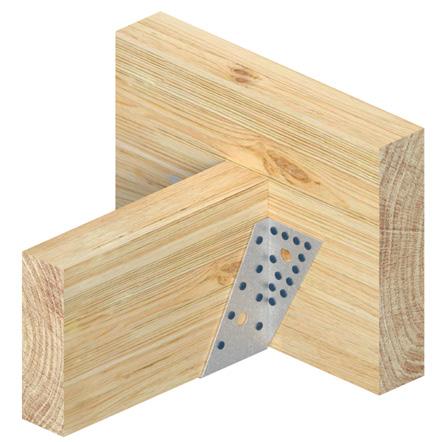

TRIP-L-GRIP
ENGINEERED FOR TIMBER CONNECTIONS
The Trip-L-Grip is the strongest and most versatile anchorage for timber joints. It has been engineered as an economical connecting unit to simplify structural joining in timber roof, wall, ceiling and floor framing in timber frame housing or timber carpentry. Trip-L-Grips can also be applied to steel connections. Sold per box.
Trip-L-Grip
Product Code: ETLGRIP
Quantity per Box: 100
Weight per Box: 10.30kg
Used with: Permfix Nails. View on page 33.

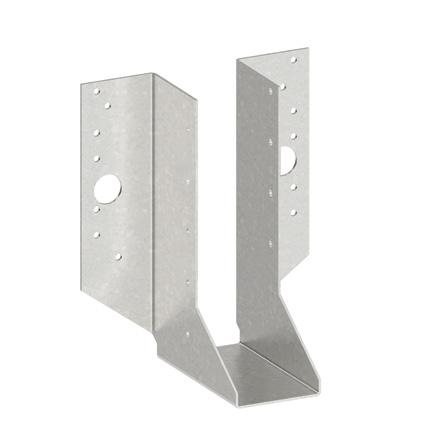

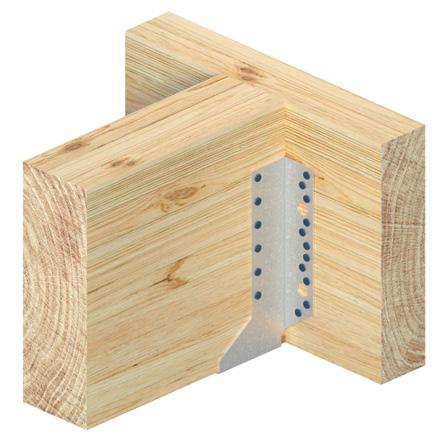

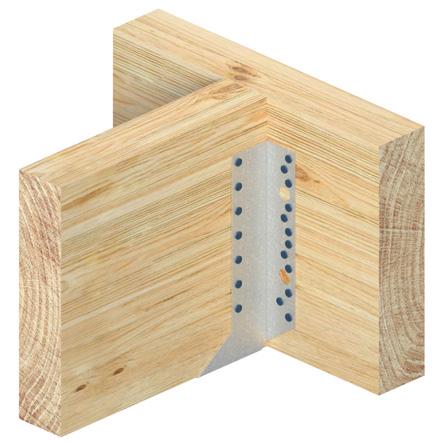

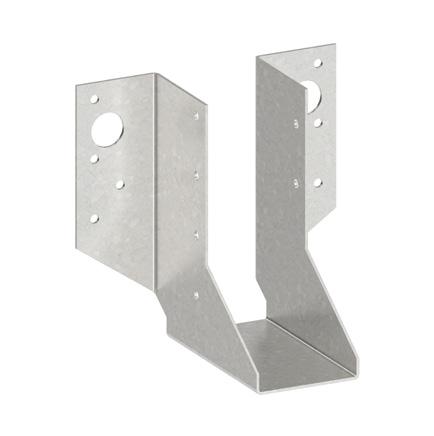

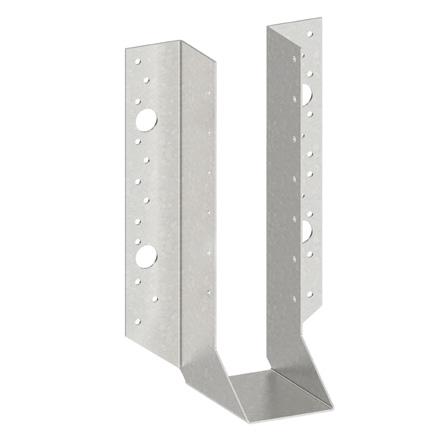

TRUSS/JOIST
HANGERS
ENGINEERED FOR SUPPORTING INCOMING LOADS
Truss Hangers connect beams, joists, or trusses securely. Available in three sizes for 38, 50, and 76mm-wide timber sections. The 38mm hanger is available for both 90 and 45 degree junctions in either left or right hand versions. Easily fixed using Permfix Nails or bolts through pre-punched holes. Sold per box.

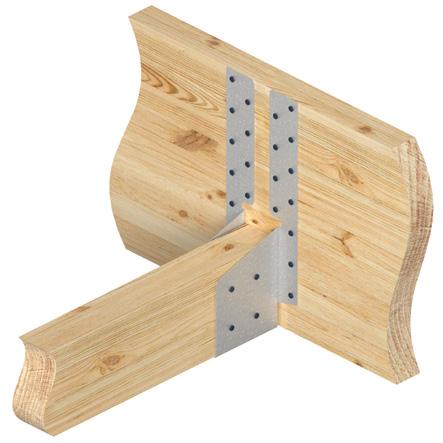

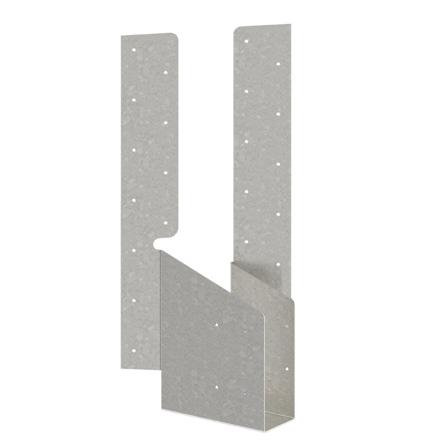

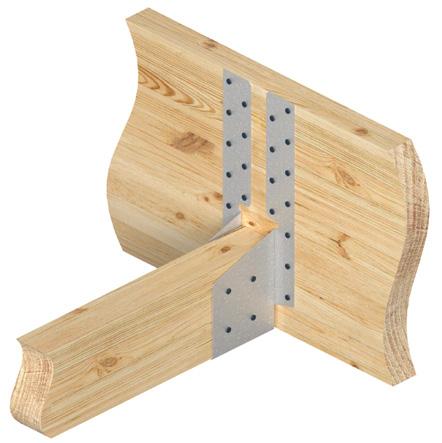

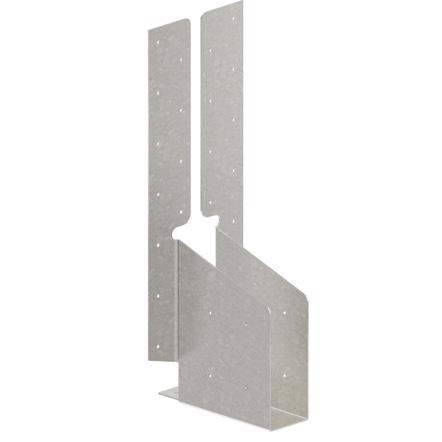

Strap Hanger 45° x 38mm x 1mm – L&R
Product Code: ESH45X38
Quantity per Box: 40 Weight per Box: 15.90kg
Used with: Permfix Nails. View on page 33.
Strap Hanger 90° x 38mm x 1mm
Product Code: ESH38X1
Quantity per Box: 40
Weight per Box: 15.90kg
Used with: Permfix Nails. View on page 33.

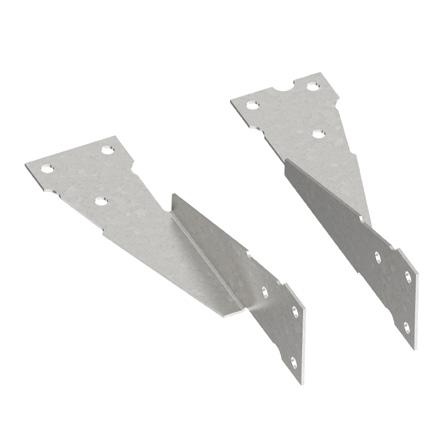

Truss/Joist Hanger 45° x 38mm x 1.2mm – L&R
Product Code: ETH45X38
Quantity per Box: 50
Weight per Box: 17.60kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.

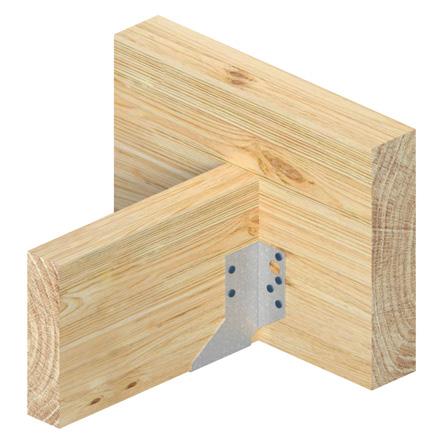

Truss/Joist Hanger 90° x 38mm x 1mm Mini
Product Code: ETH38X1M
Quantity per Box: 150
Weight per Box: 19.76kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
TRUSS/JOIST HANGERS
Truss/Joist Hanger 90° x 38mm x 1mm Short
Product Code: ETH38X1S
Quantity per Box: 60
Weight per Box: 10.90kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.

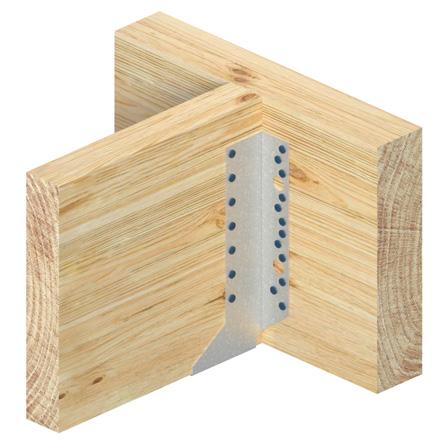

Truss/Joist Hanger 90° x 38mm x 1mm Long
Product Code: ETH38X1L
Quantity per Box: 40
Weight per Box: 10.94kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Truss/Joist Hanger 90° x 38mm x 1.2mm
Product Code: ETH38X1.2
Quantity per Box: 80
Weight per Box: 17.38kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Truss/Joist Hanger 90° x 38mm x 1.6mm
Product Code: ETH38X1.6
Quantity per Box: 80
Weight per Box: 23.16kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Strap Hanger 90° x 50mm x 1mm
Product Code: ESH50X1
Quantity per Box: 40
Weight per Box: 15.90kg
Used with: Permfix Nails. View on page 33.
TRUSS/JOIST HANGERS
Truss/Joist Hanger 90° x 50mm x 1mm Short
Product Code: ETH50X1S
Quantity per Box: 60
Weight per Box: 11.68kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Truss/Joist Hanger 90° x 50mm x 1mm Long
Product Code: ETH50X1L
Quantity per Box: 40
Weight per Box: 10.46kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Truss/Joist Hanger 90° x 50mm x 1.6mm
Product Code: ETH50X1.6
Quantity per Box: 80
Weight per Box: 23.16kg
Used with: Bolts & Nuts. View on page 14. Permfix Nails. View on page 33.
Strap Hanger 90° x 76mm x 1.6mm
Product Code: ETH76X1.6L
Quantity per Box: 40
Weight per Box: 17.00kg
Used with: Permfix Nails. View on page 33.
ECO FASTENERS PRODUCT RANGE
TRUSS/JOIST HANGERS
38mm STRAP HANGERS
Strap Hanger 45° x 38mm x 1mm – L&R
Strap Hanger 90° x 38mm x 1mm
38mm TRUSS/JOIST HANGERS
Truss/Joist Hanger 45° x 38mm x 1.2mm – L&R
Truss/Joist Hanger 45° x 38mm x 1.2mm – L&R
Truss/Joist Hanger 90° x 38mm x 1mm Mini
Truss/Joist Hanger 90° x 38mm x 1mm Mini
Truss/Joist Hanger 90° x 38mm x 1mm Short
Truss/Joist Hanger 90° x 38mm x 1mm Short
Truss/Joist Hanger 90° x 38mm x 1mm Long
Truss/Joist Hanger 90° x 38mm x 1mm Long
Truss/Joist Hanger 90° x 38mm x 1.2mm
Truss/Joist Hanger 90° x 38mm x 1.2mm
Hanger 90° x 38mm x 1.6mm
Truss/Joist Hanger
Truss/Joist Hanger
Truss/Joist Hanger 90° x 50mm x 1mm Long
Truss/Joist Hanger 90° x 50mm x 1mm Long
Truss/Joist Hanger 90° x 50mm x 1.6mm
Truss/Joist Hanger 90° x 50mm x 1.6mm
76mm STRAP HANGERS
Strap Hanger 90° x 76mm x 1.6mm
Strap Hanger 90° x 76mm x 1.6mm
UNIVERSAL ANGLE BRACKET
ENGINEERED FOR SUPPORTING INCOMING LOADS

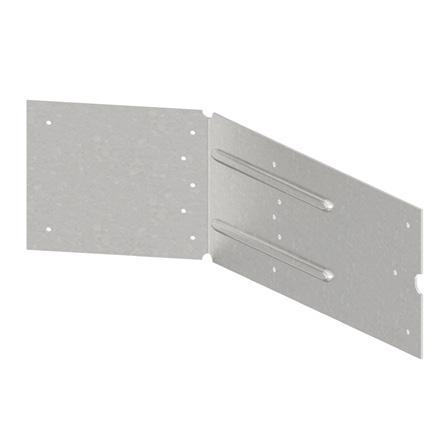

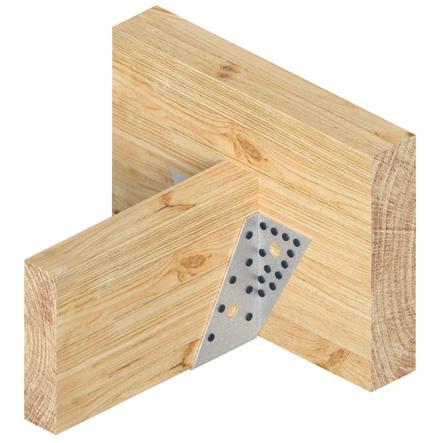

Universal Angle Bracket is designed for the connection of small jack trusses to hip girders in roofs. With no tight corner nailing the bracket is easy to install and secure with Permfix Nails. Sold per box.
Universal Angle Bracket
Product Code: EUAB80X1.2G
Quantity per Box: 10
Weight per Box: 2.30kg
Used with: Permfix Nails. View on page 33.
WALL TIES
ENGINEERED FOR TYING DOWN TRUSSES TO A WALL
The Wall Tie anchors timber roof trusses, rafters, beams, or steel roof trusses to the wall. Conforms to SANS 10400. Sold individually.
Wall Tie Roll 32mm x 1.2mm x 18m
Product Code: EMHDS32X1.2-18M
Quantity per Box: Each
Weight per Box: 5.60kg
Used with: Permfix Nails. View on page 33.
WASHERS
ENGINEERED FOR LOAD DISTRIBUTION
Apart from distributing torque and head loads more evenly, the large surface area of the washer also works as a shim under the crown of the bolt or screw. By taking up more space, it balances out any material surface irregularities, providing a level and secure hold. Sold per box.
Round Washers Electro Galvanised 40mm x 4mm
Product Code: EW40X13R
Quantity per Box: 100 Weight per Box: 3.60kg
Used with: Bolts & Nuts. View on page 14.
Square Washers Electro Galvanised 36mm x 36mm x 4mm
Product Code: EW36X13SQ
Quantity per Box: 100
Weight per Box: 3.44kg
Used with: Bolts & Nuts. View on page 14.
INDEX
ANTI-SPLIT PLATES
Anti-Split Plate 02 x 10 Page 9
Anti-Split Plate 02 x 12 Page 9
Anti-Split Plate 02 x 16 Page 9
nti-Split Plate 04 x 06 Page 9
Anti-Split Plate 04 x 20 Page 10
Anti-Split Plate 05 x 06 Page 10
Anti-Split Plate 07 x 06 Page 10
Anti-Split Plate 07 x 08 Page 10
Anti-Split Plate 07 x 10 Page 10
Anti-Split Plate 11 x 08 Page 11
Anti-Split Plate 11 x 10 Page 11
ANTI-SPLIT PLATES ROUND
Anti-Split Plate Round 50mm Page 11
Anti-Split Plate Round 70mm Page 11
Anti-Split Plate Round 90mm Page 12
Anti-Split Plate Round 135mm Page 12
BATTEN SPLICE PLATES
Batten Splice Plate 32mm x 152mm Page 13
Batten Splice Plate 38mm x 127mm Page 13

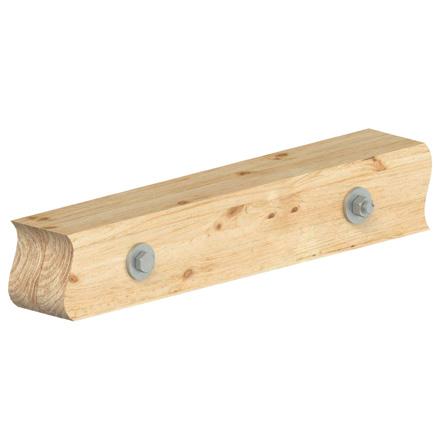

BOLTS & NUTS BLACK
Bolt & Nut Black M12 x 65mm Page 14
Bolt & Nut Black M12 x 100mm Page 14
Bolt & Nut Black M12 x 125mm Page 14
Bolt & Nut Black M12 x 150mm Page 14
BOLTS & NUTS ELECTRO GALVANISED
Bolt & Nut Black M12 x 180mm Page 15
Bolt & Nut Galvanised M12 x 65mm Page 15
Bolt & Nut Galvanised M12 x 100mm Page 15
Bolt & Nut Galvanised M12 x 125mm Page 16
Bolt & Nut Galvanised M12 x 150mm Page 16
Bolt & Nut Galvanised M12 x 180mm Page 16
BRACING STRAP
Bracing Strap 10m Page 17
Bracing Strap 30m Page 17
CORRUGATED FASTENERS
Corrugated Fastener 25mm x 16mm
Page 18
Corrugated Fastener 25mm x 19mm Page 18
FISH PLATES
Fish Plate 150mm x 650mm

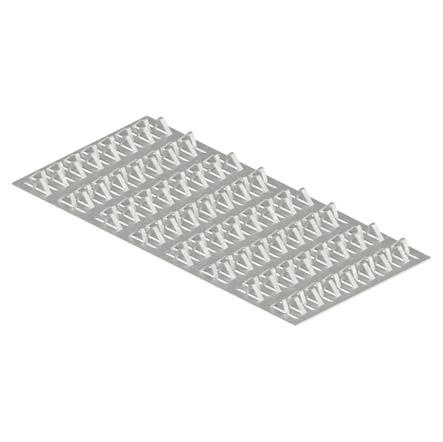

GRYPA CONNECTOR PLATES
Page 19
Grypa 08 x 13 x 1mm Page 19
Grypa 10 x 10 x 1mm Page 20
Grypa 10 x 15 x 1mm Page 20
Grypa 10 x 20 x 1mm Page 20
Grypa 15 x 20 x 1mm Page 20
GRYPTITE CONNECTOR PLATES
Gryptite 08 x 12 x 1mm
Page 21
Gryptite 08 x 18 x 1mm Page 21
Gryptite 08 x 24 x 1mm Page 21
Gryptite 08 x 120 x 1mm
Page 21
Gryptite 11 x 12 x 1mm Page 22
Gryptite 11 x 18 x 1mm Page 22
Gryptite 11 x 24 x 1mm Page 22
Gryptite 11 x 30 x 1mm Page 22
Gryptite 11 x 120 x 1mm Page 22
Gryptite 16 x 18 x 1mm Page 23
Gryptite 16 x 24 x 1mm Page 23
Gryptite 16 x 30 x 1mm Page 23
GUMBO BRACKET
Gumbo Bracket Type 4
Page 24
Gumbo Bracket Type 5 Page 24
INDEX
HEAVY DUTY CLEATS
Cleat H2 HFA90 Page 25
Cleat H45V5P1 Page 25
Cleat H45V5P2 Page 25
Cleat H45V8P2 Page 25
Cleat H45V12P2 Page 26
Cleat HFA45L Page 26
Cleat HFA45R Page 26
Cleat HFA90 Page 26
Cleat HFA90M Page 26
Cleat HFAV2 Page 27
Cleat HFAV5 Page 27
Cleat HFAV8 Page 27
Cleat HFAV12 Page 27
HOOP IRON
Hoop Iron Large Rolls 80m Page 28
HURRICANE CLIPS
Hurricane Clips Mixed – L&R Page 29
LOG DOG
Log Dog Page 29
MULTI-PURPOSE BRACKETS
Type A 150mm x 75mm x 55mm x 2.5mm Page 30
Type B 50mm x 50mm x 50mm x 2.5mm Page 30
Type C 50mm x 50mm x 20mm x 2.5mm Page 30
Type D 100mm X 50mm X 50mm x 2.5mm Page 30
Type E 150mm x 150mm x 50mm x 2.5mm Page 31
Type F 150mm x 150mm x 80mm x 2.5mm Page 31
Type G 100mm x 100mm x 50mm x 2.5mm Page 31
Type H 50mm x 250mm x 50mm x 2.5mm Page 31
Type J 50mm x 150mm x 50mm x 2.5mm Page 31
NINJA DIY WALL SPIKES
Ninja DIY Spike Gold 1.56m Page 32
Ninja DIY Spike Silver 1.56m Page 32
PERMFIX NAILS
Permfix 35mm x 3.15mm Blue Page 33
POLE HANGERS
Pole Hanger 150mm Galvanised Page 34
Pole Hanger 150mm H/D Page 34
POST ANCHOR BASES
Post Anchor Base 70mm x 70mm Page 35
Post Anchor Base 95mm x 95mm Page 35
PURLIN CLIPS
Purlin Clips Page 36
PURLIN NAILS
Purlin Nail 60mm x 4mm Blue Page 37
PURLIN SCREWS
Purlin Screw 140mm Page 38
Purlin Screw 160mm Page 38
SELF-DRIVE SCREWS
Self-Drive Screws 65mm Page 39
SHADE CLOTH FASTENERS
Shade Cloth Fastener 50mm x 50mm Page 39
SLIDING SHOES
Sliding Shoes Small 40mm Page 40
Sliding Shoes Large 80mm Page 40
SPEEDBRACE
Speedbrace 3.6m Page 41
TI BOND STRIPS GALVANISED
Ti Bond Galvanised Page 41
TORQUE BIT
Torque Bit TX 30mm x 25mm Page 42
TRIP-L-GRIP
Trip-L-Grip Page 42
INDEX
TRUSS/JOIST HANGERS
Strap Hanger 45° x 38mm x 1mm – L&R
Strap Hanger 90° x 38mm x 1mm
Truss/Joist Hanger 45° x 38mm x 1.2mm – L&R
Truss/Joist Hanger 90° x 38mm x 1mm Mini
Truss/Joist Hanger 90° x 38mm x 1mm Short
Truss/Joist Hanger 90° x 38mm x 1mm Long
Truss/Joist Hanger 90° x 38mm x 1.2mm
Truss/Joist Hanger 90° x 38mm x 1.6mm
Strap Hanger 90° x 50mm x 1mm
Truss/Joist Hanger 90° x 50mm x 1mm Short
Truss/Joist Hanger 90° x 50mm x 1mm Long
Truss/Joist Hanger 90° x 50mm x 1.6mm
Strap Hanger 90° x 76mm x 1.6mm
UNIVERSAL ANGLE BRACKET
Universal Angle Bracket
WALL TIES
Wall Tie Roll 32mm x 1.2mm x 18m
WASHERS
Round Washers Electro Galvanised 40mm x 4mm
Square Washers Electro Galvanised 36mm x 36mm x 4mm
Page 43
Page 43
Page 43
Page 43
Page 44
Page 44
Page 44
Page 44
Page 44
Page 45
Page 45
Page 45
Page 45
Page 47
Page 47
Page 48
Page 48
EASIER ORDERING
Easier, faster, smarter and user-friendly

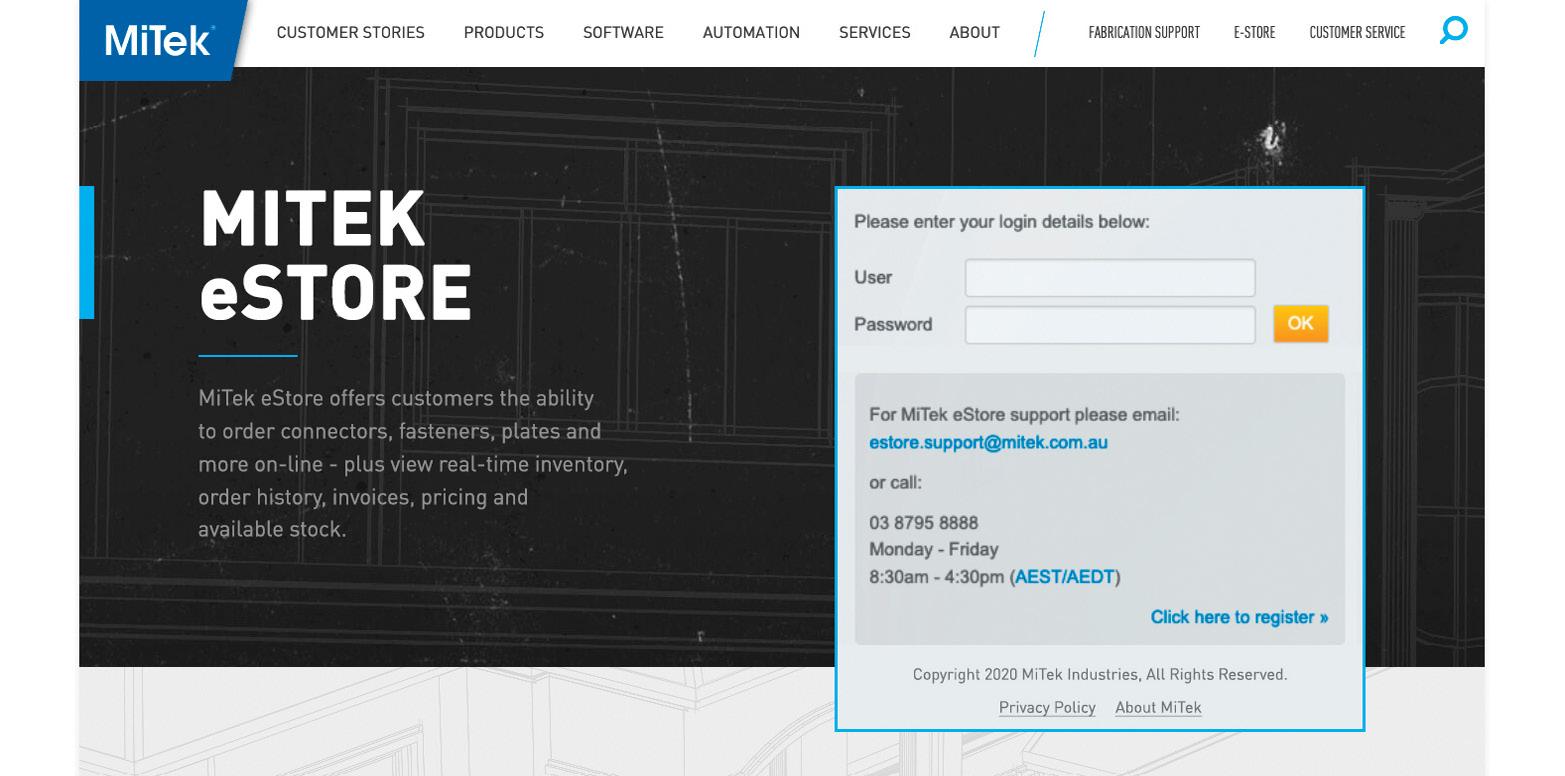

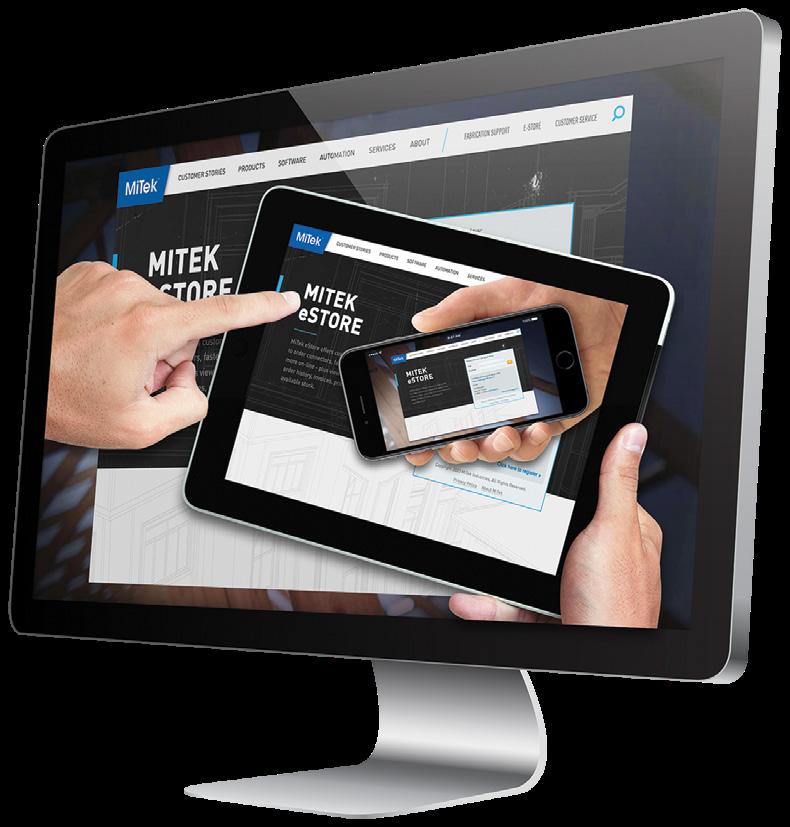

There’s never been an easier, faster or smarter way to order MiTek products than MiTek eStore. Everything can be done online, anytime, 24/7, so you don’t have to worry about late orders or errors, as you can double-check your order before submitting.
The e-store is designed to be intuitive and easy to navigate, making the ordering process smooth and hassle-free. You can place orders, check inventory, and access your account details anytime, making it highly convenient for your schedule.
Visit the MiTek eStore today.
*To use the MiTek eStore, you will need a MiTek account. To register for an account, please contact us today. +27-11-237-8700 | SAEnquiries@mii.com
MiTek Industries
South Africa (Pty) Ltd.
MiTek Park, 754 16th Road
Randjespark, Ext.34
Halfway House, 1685
South Africa
+27-11-237-8700 | SAEnquiries@mii.com
