INTERACT

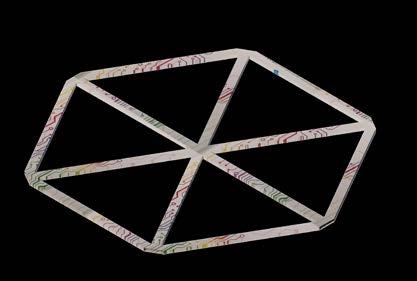

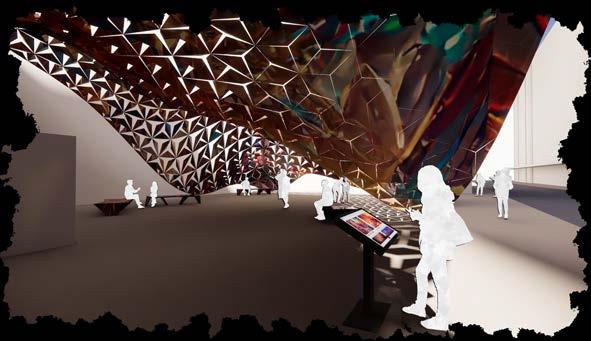

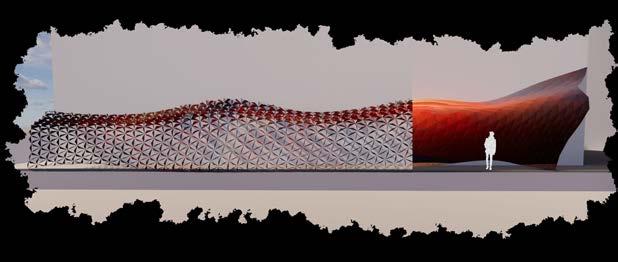

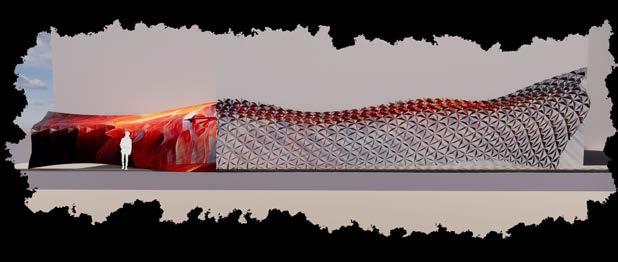

‘INTERACT’ is a responsive and interactive walkway/pavilion, located along Bentham Street in Adelaide CBD.
INTERACT’s goal is to create a form that shelters and changes as people pass through the space.

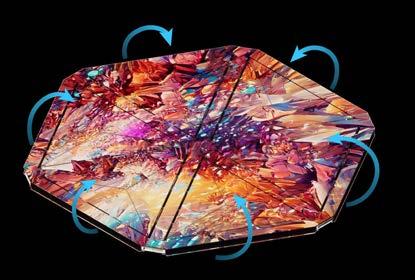

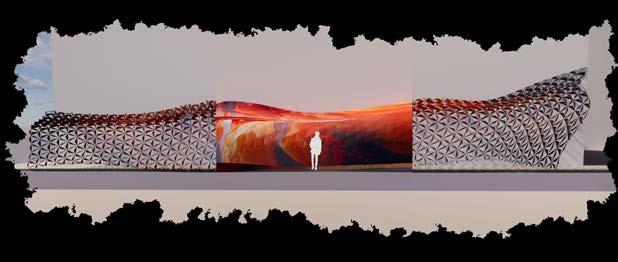

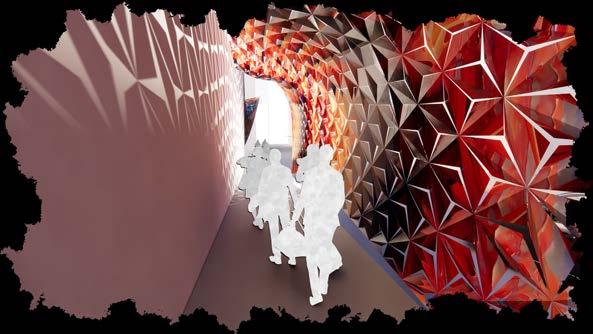

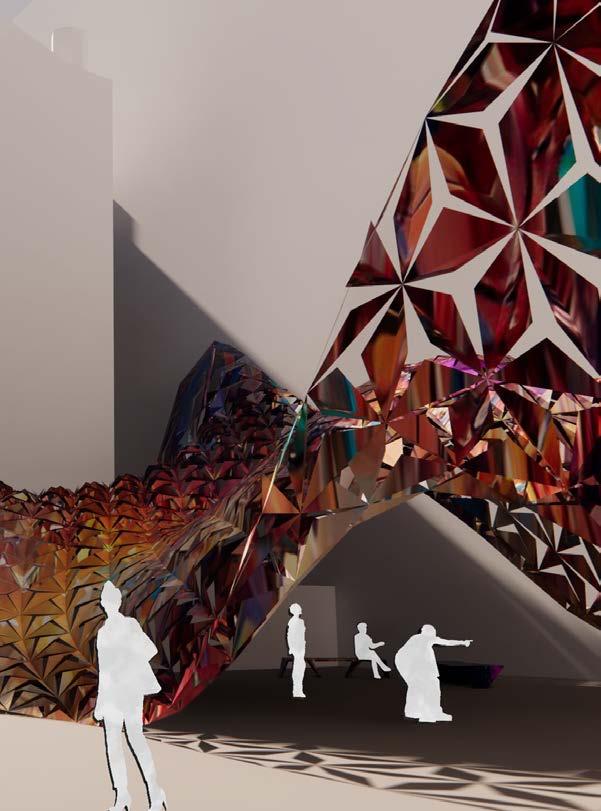

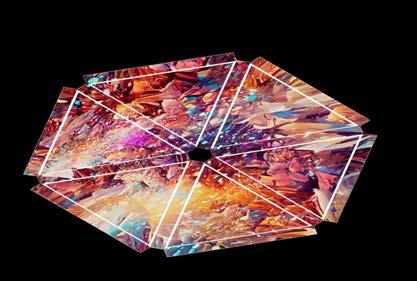

The new form of architecture adapts and reacts to people and movement in the space, triggering kinetic panels to open and close via sensors, providing shelter and dynamically revealing everchanging artworks.
The project implements a space that stimulates the human minds desire to create and interact; enabling the people that move through the space to control the architecture and be the artist.
INTERACT is an adaptive shelter system that creates form as you move.
Learn more about interact through a short explanatory video using the QR code above.

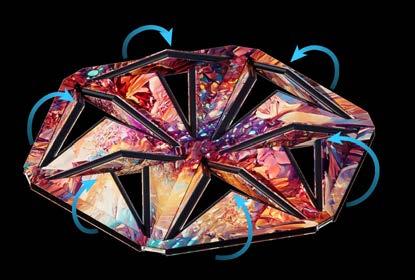

HOW IT WORKS STRUCTURE IN ACTION AXONOMETRIC

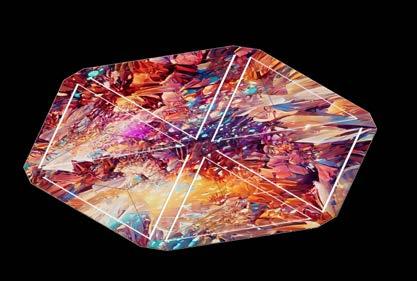

EXTERIOR LCD PANELS

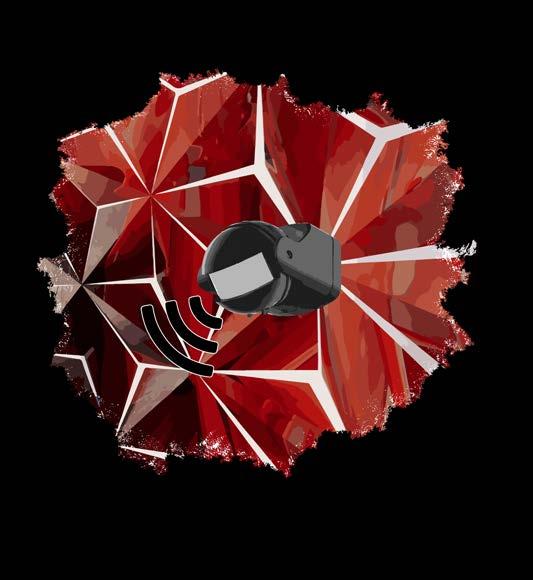

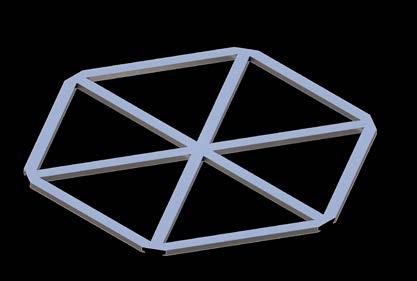

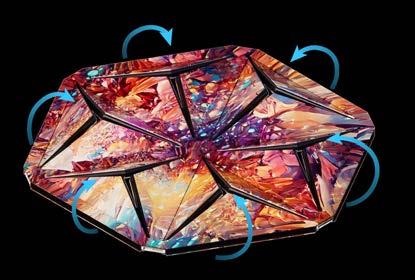

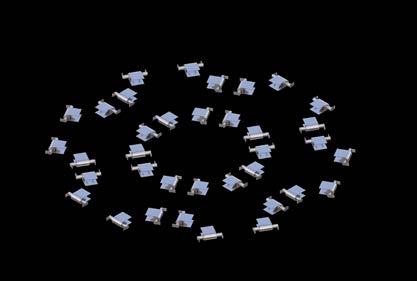

SENSORS DETECT MOVEMENT SENDS SIGNAL TO PANELS ACTIVATES AND CLOSES INTERIOR LCD PANELS BRACKETS & HINGES CSECTIONC10015 WIRING
STRUCTURE RUBBER SEAL
MOTION
DESIGN STUDIO VI
People | Movement | Interact | Shelter | Art
...01
INTERACT

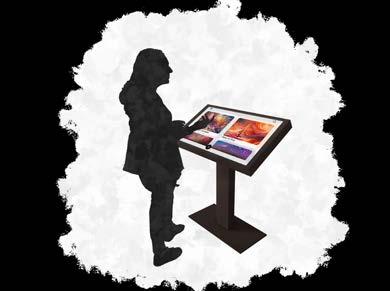

BROWSE OR UPLOAD
SELECT & CHANGE!
SECTION AA
50mm DIAMETER CHS
UNIVERSAL PIN CONNECTOR
RUBBER SEAL
LCD PANELS
12mm GALVANISED STEEL PLATE W/ FABRICATED ANCHOR
NON SHRINK GROUT
200mm CONCRETE SLAB
RAG BOLT AND CAGE FOOTING ASSEMBLY ELECTRONICS
C10015 C-SECTION
MOTORISED HINGE
ALUMINIUM BRACKET
ALUMINIUM
N16 REINFORCING BAR W/ THREADED END
800x600 32MPA CONCRETE
FOOTING
COMPACTED EARTH
50mm DIAMETER CHS
UNIVERSAL PIN CONNECTOR
12mm GALVANISED STEEL PLATE W/ FABRICATED ANCHOR
M12x150mm GALVANISED ANCHOR DYNABOLT INTO CONCRETE
EXISTING BUILDING
SECTION DETAIL 2
SECTION DETAIL 2 SECTION DETAIL 1 1:20 1:20 1:10
EDGE TRIM

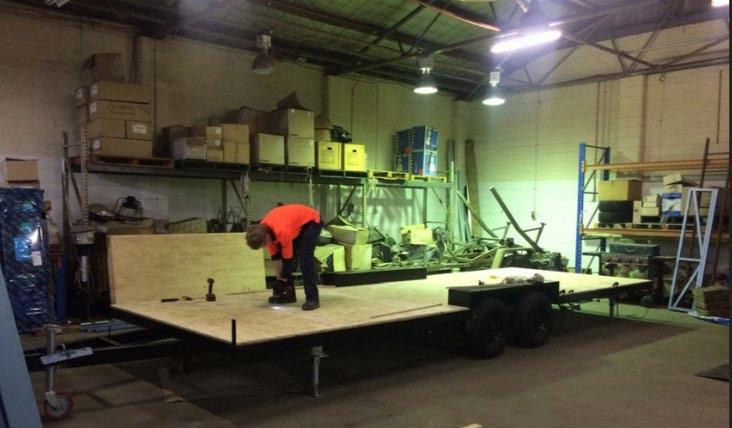

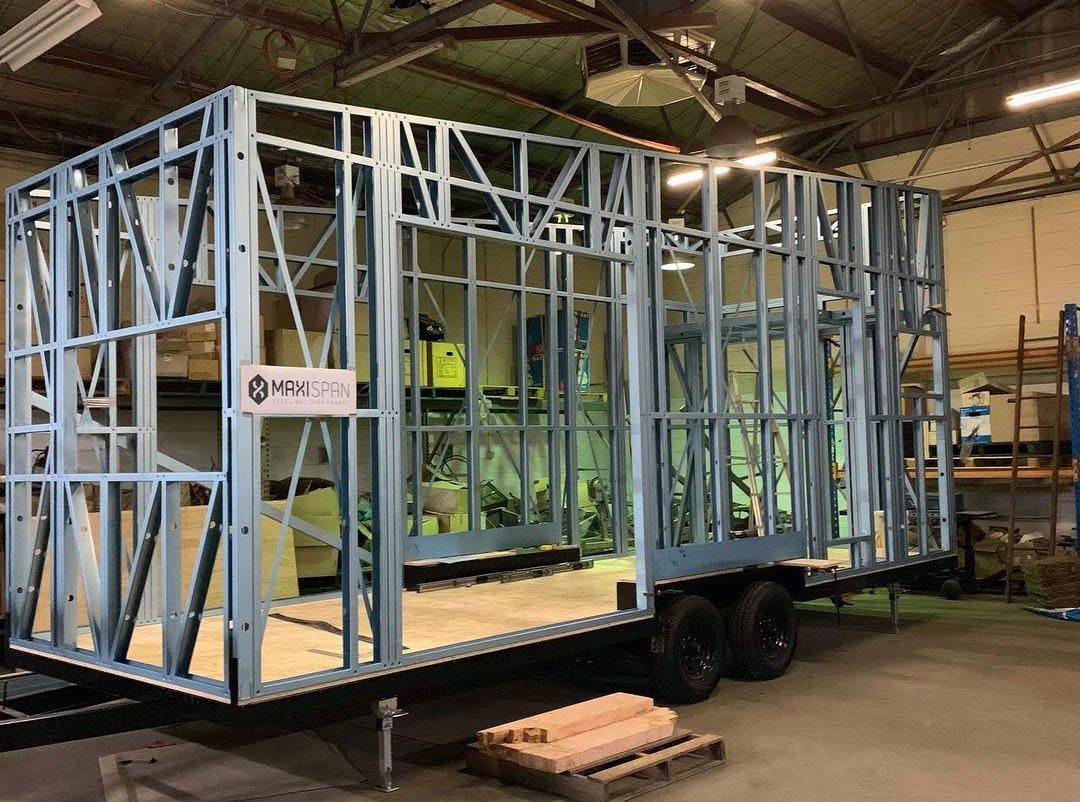

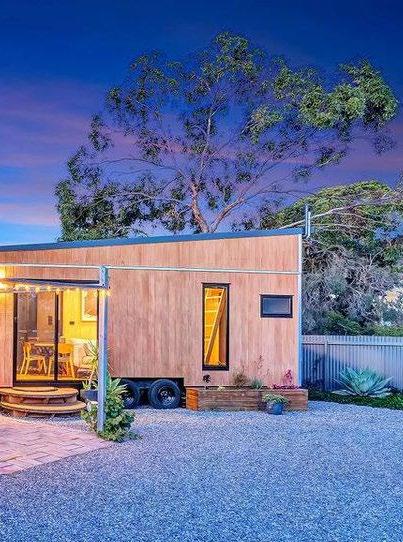

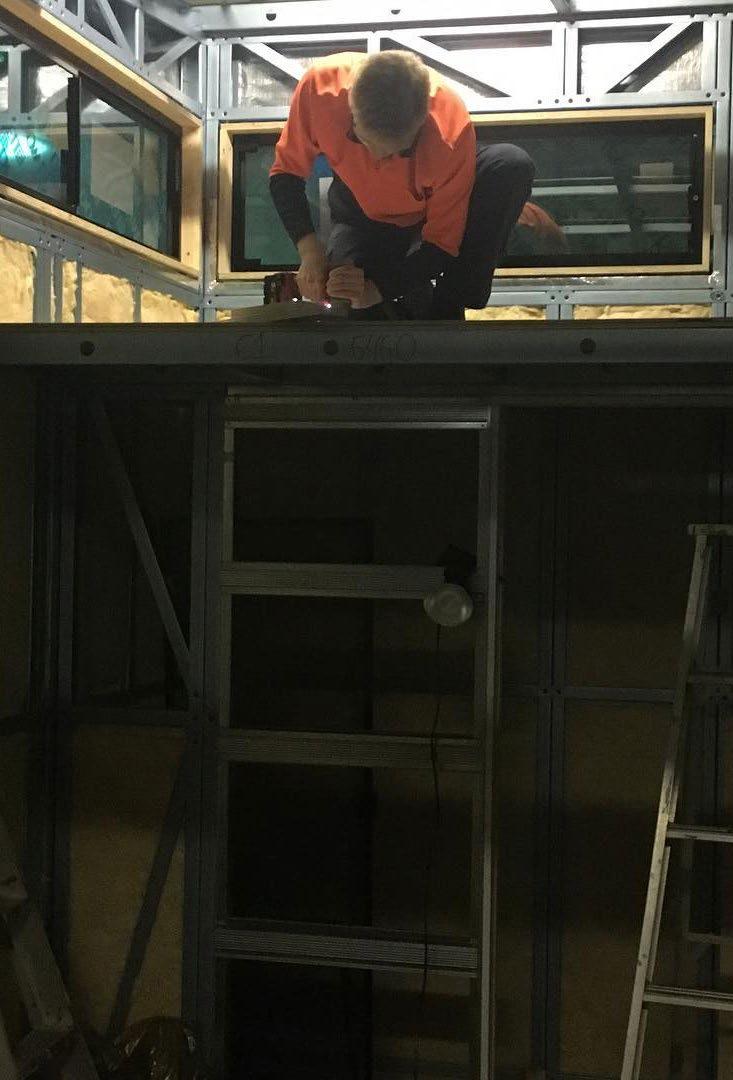

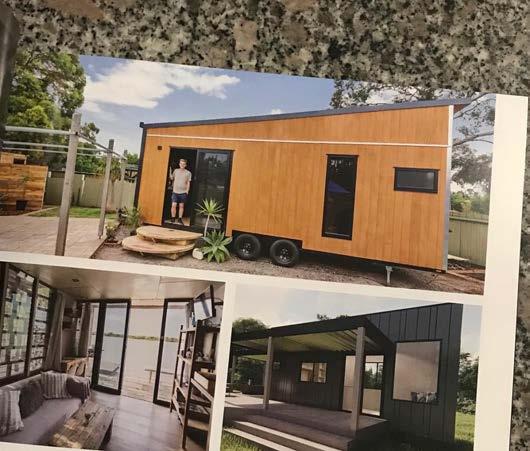

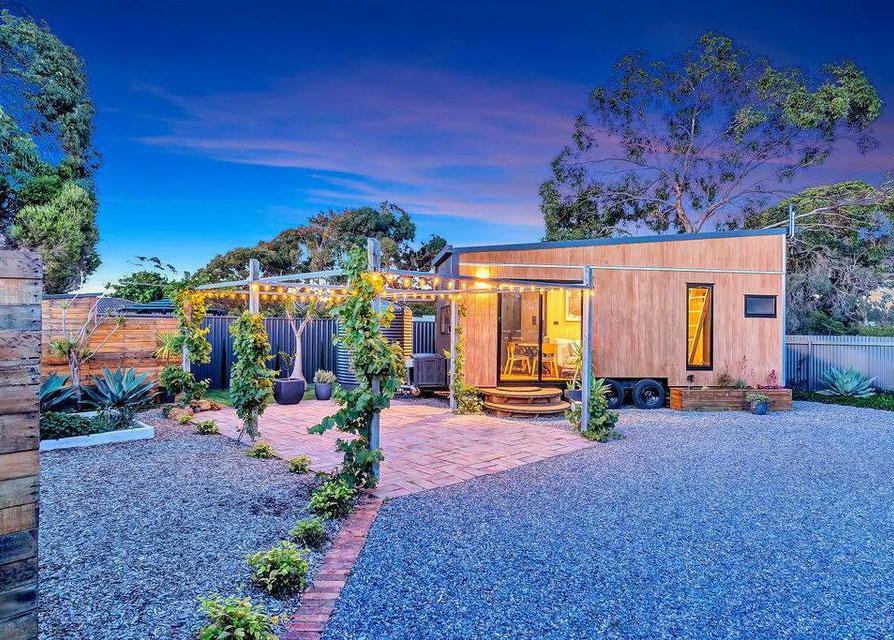

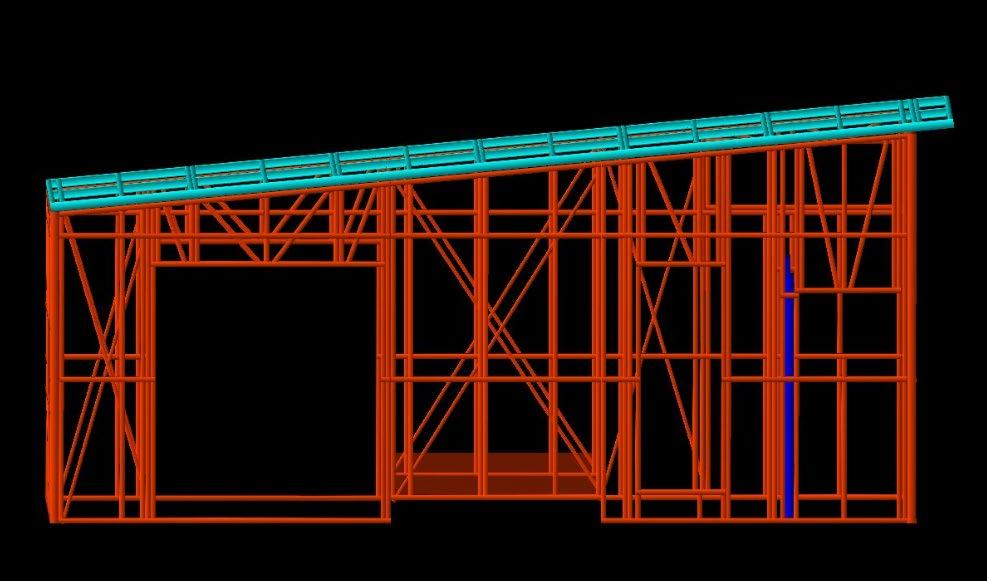

The main objective for my year 12 project was to personally design and build a complete Tiny House on Wheels, as an alternative pathway to home ownership and ultimately have my own home when I finished school.
The project included a thesis that compared this pathway to the more traditional approaches to home ownership.
One key goal of this project was to help me determine a career path. I wanted to get a hands-on taste of architecture and design while immersing myself in the construction side of the industry.
A personal objective was to prove to myself that I had the capability, personal drive, physical and interpersonal skills to see this project through.

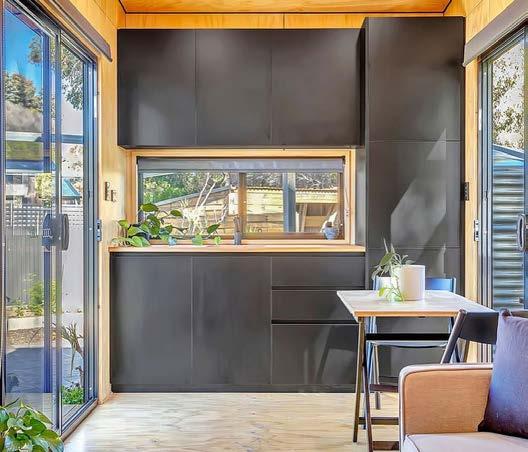

This project was the spark that led me to study architecture at Adelaide Uni, and I currently rent the Tiny House out for short stay accommodation through Airbnb to provide others the opportunity to experience alternative homes and to financially support my studies.
YEAR 12 PROJECT: TINY HOUSE ...02
ODDITY

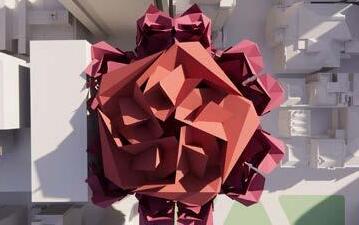

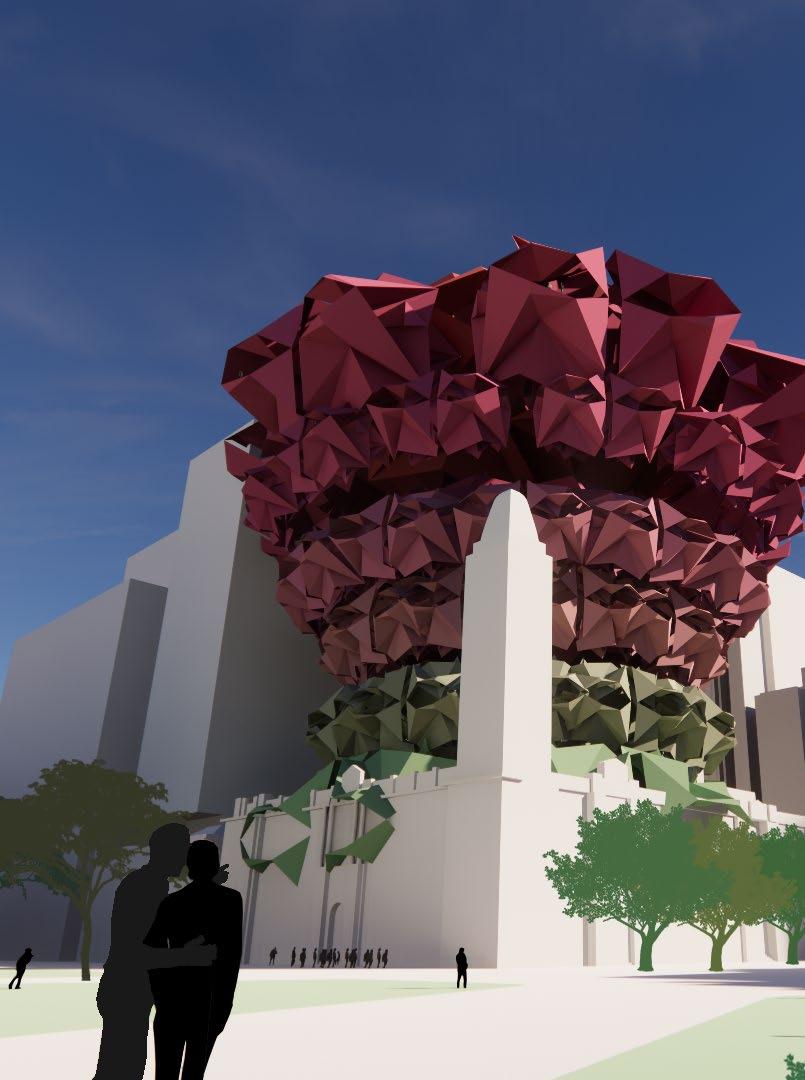

The Shattered Rose Casino stems from the idea of revolutionising the modern-day city by reintroducing nature to the forefront of the design and construction. The view of the city is easy to recognise due to the bareness and concrete jungle that it is, with only sparing places filled with nature or parklands. With climate change becoming more and more of a major discussion topic, it’s time to make a change, by bringing nature back into the city.
The Shattered Rose challenges the most urban and concrete jungle ideal of a casino and flips that concept on its head by creating a nature minded alternative. The commercial function of the Casino is used to assist with funding to help expand the key notion, while providing accommodation in a nature focused setting, in the heart of Adelaide, all aspects of the model strive for the desired change to be realised and bring nature back into the city.
B B A A N NUMBER a1798832 MITCHELL PHILLIPS SHEET TITLE 1ST FLOOR PLAN SCALE 1:100 NOV 2020 02 SHEET SIZE A3 141 KING WILLIAM ST KING WILLIAM ST FLINDERS ST VICTORIA SQUARE
SHATTERED ROSE
DESIGN STUDIO V ...03 the person that gave him the card, in hope that they can reverse his invisibility and provide him the ability to return to a normal life. The ‘space’ also needs to provide him with a family home once he finds the key to returning to a normal life so he can surround himself with family and friends. - Seating for public to watch performance - Access to the public seating - Multiple covert scanning stations - A private/hidden living space, large enough for a family of 4 - Living = 40m2 - 1 Master Bedroom = 30m2 - Bathroom = 9m2 - Ensuite = 8m2 - Laundry = 5m2 - Under Stage = 35m2 - Side Stage = 10m2 ! Attraction Access Seating Performance Recharge Client Background - Brief - Site - Process - Exploration - Program - Circulation - Final ...02 ATTENTION ACCOMMODATION ENTERTAINMENT FUNDING MAKING A CHANGE 11F RESIDENTIAL PLAN 1:500 N ID NUMBER a1798832 NAME MITCHELL PHILLIPS 1ST FLOOR PLAN SCALE 1:100 DATE NOV 2020 SHEET NO. 02 SHEET SIZE A3 SITE PLAN 1:2000
HIGH STAKES CASINO
BAR
VAULT
PENTHOUSE
HOTEL ROOM
INTERIOR GARDEN SPACE
RESTAURANT
GAMES ROOM
PUBLIC GARDEN SPACE
PUBLIC CAFE
MAIN LOBBY
HOTEL RECEPTION
UNDERGROUND CAR PARK
GF 1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F
13. 12. 13. 13. 12. 12. 11. 11. 10. 10. 10. 10. 10. 09. 09. 09. 09. 09. 09. 09. 09. 09. 08. 08. 07. 07. 07. 06. 06. 05. 05. 05. 04. 04. 03. 03. 02. 02. 01. 01. 01. SECTION AA
*DRAWINGS SCALED DOWN TO 1:400 @ A3
Kalzip 50/444 Deck Roof System
(Lightweight Aluminium Roof Sheeting)
139.7x3.5 CHS Space Frame System
273.1x6.4 CHS Roof Anchor Point
Circular Reinforced Concrete Columns
300mm @4th Floor w/
139.7x3.5 CHS Supporting Space Frame
Circular Reinforced Concrete Columns500mm @GF - 400mm
@1st Floor - 300mm @2nd & 3rd Floor
Reinforced Concrete Stair and Lift Cores
300mm Flat Plate Concrete Slab Flooring
Glass Curtain Wall
114.3x3.2 CHS Hexagon Facade
NAME: NUMBER: A1798832 N GROUND FLOOR PLAN 273.1x6.4 CHS ROOF ANCHOR POINT ROOF PEAK 29300 4TH FLOOR CEILING LOW POINT 19100 4TH FLOOR 16000 3RD FLOOR 12000 2ND FLOOR 8000 1ST FLOOR 4000 GROUND FLOOR CEILING 3200 1ST FLOOR CEILING 7200 2ND FLOOR CEILING 11200 3RD FLOOR CEILING 15200 GROUND FLOOR 0 MITCHELL PHILLIPS NAME: NUMBER: A1798832 273.1x6.4 CHS ROOF ANCHOR POINT SECTION AA
MITCHELL PHILLIPS

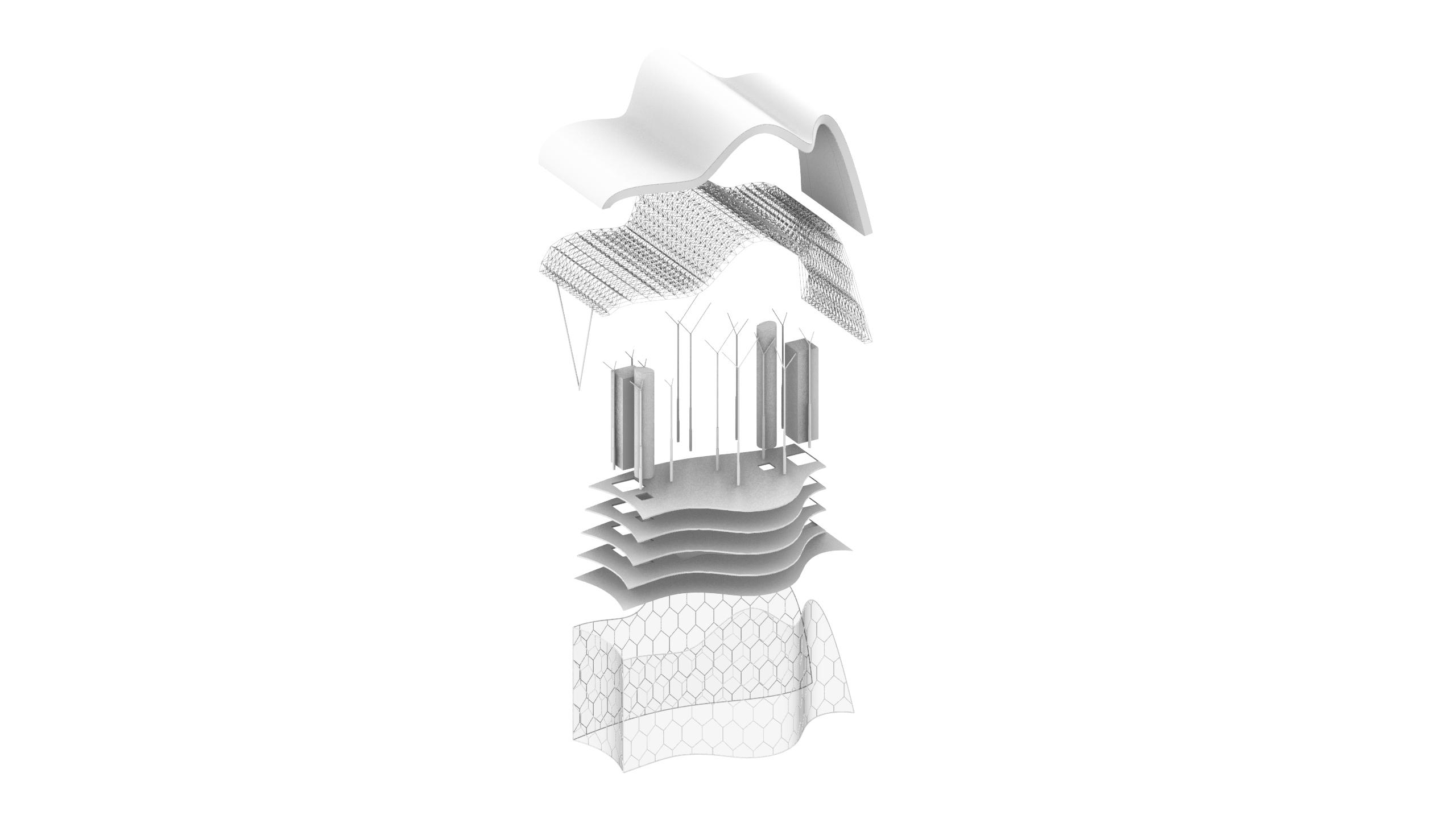

EXPLODED AXONOMETRIC STRUCTURE

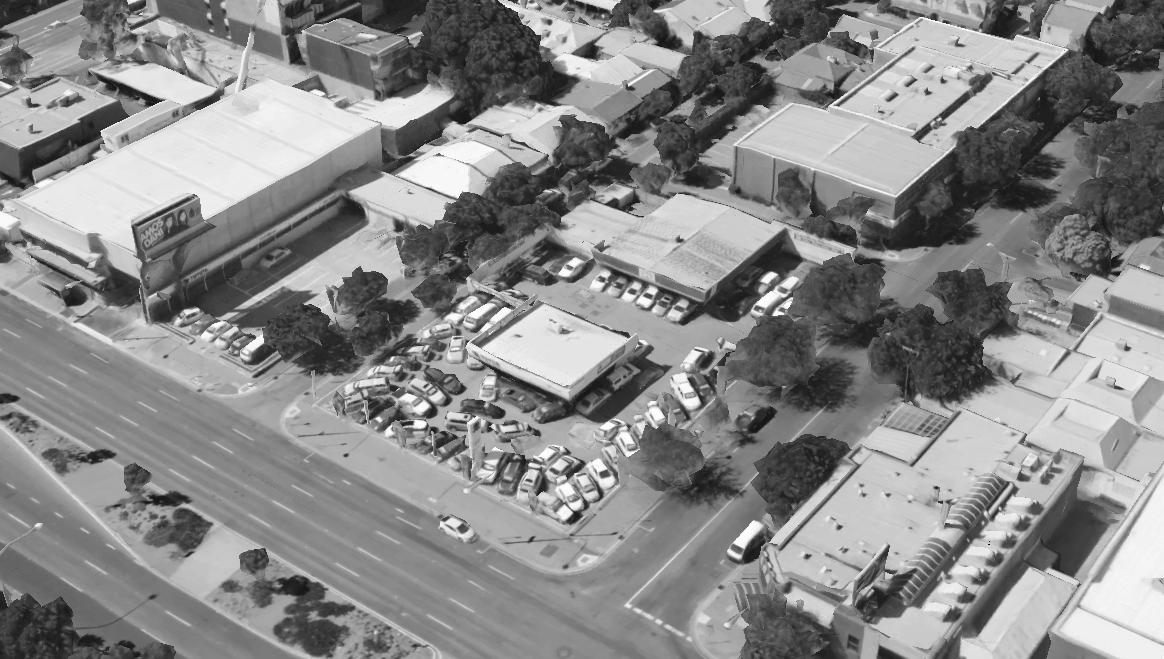

The site for this project is located at 135-139 West Terrace in Adelaide CBD and is approx. 2200m2. This site has been chosen as the potential location for a ‘Gateway to the City’. This project aims to host a significant cultural building that provides a minimum of 4 flexible spaces that can be used for multiple uses, such as exhibitions, workshops, cultural events, and office space.
GATEWAY TO THE CITY
Brief Requirments:
Total Building Area: 2000 - 4000m2
Brief Requirments:
4 Flexible Spaces:
Total Building Area: 2000 - 4000m2
Each Space min 500m2
4 Flexible Spaces:
Each Space min 500m2
The site located at 135-139 West Terrace in Adelaide CBD, has been chosen as the potential location for a ‘Gateway to the City’. This project aims to host on the 2200m2 site, a significant cultural building that provides a minimum of 4 flexible spaces that
Height 3-6 Storeys
Height 3-6 Storeys
AlfredSt
WestTerrace WrightSt

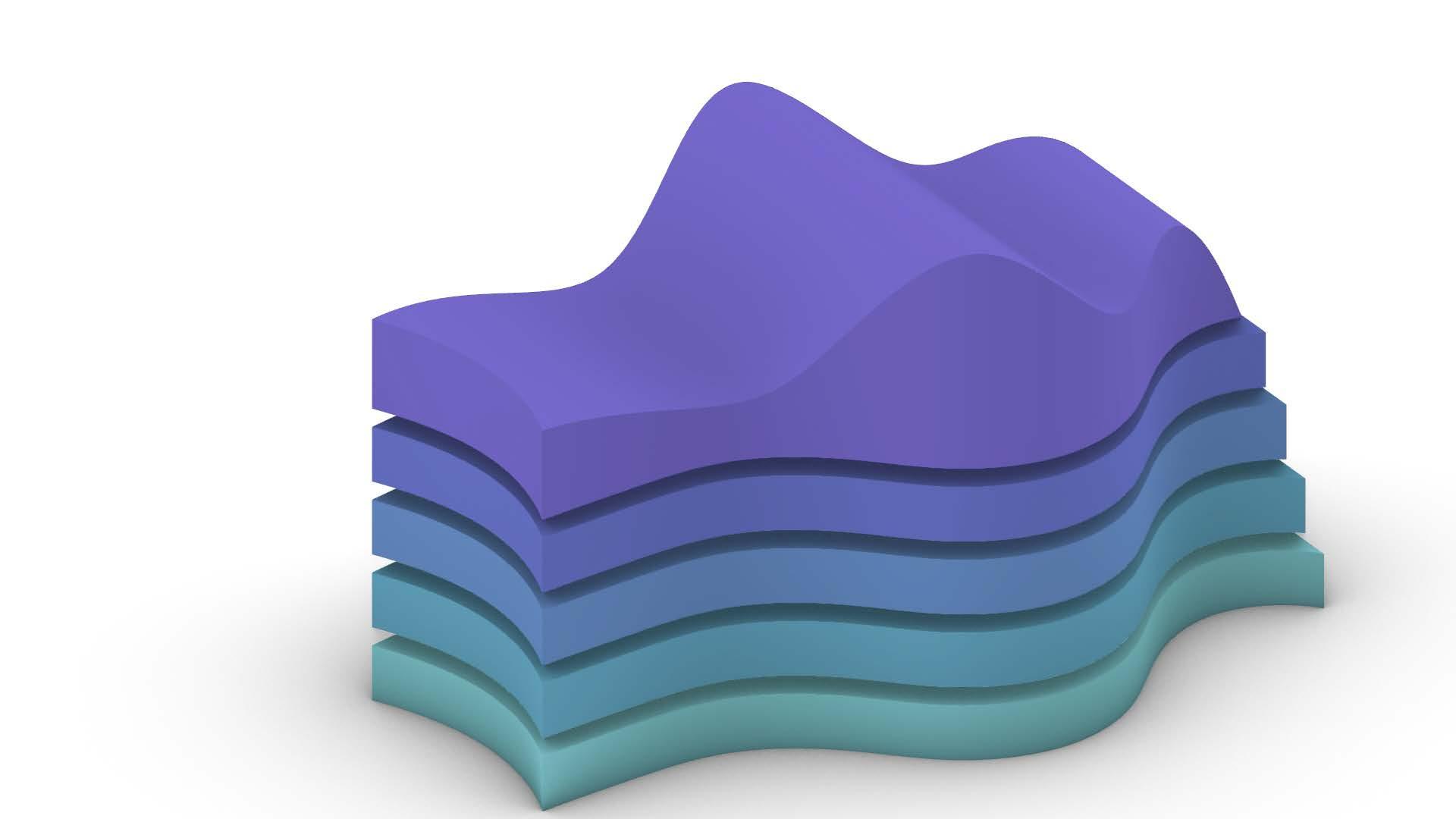

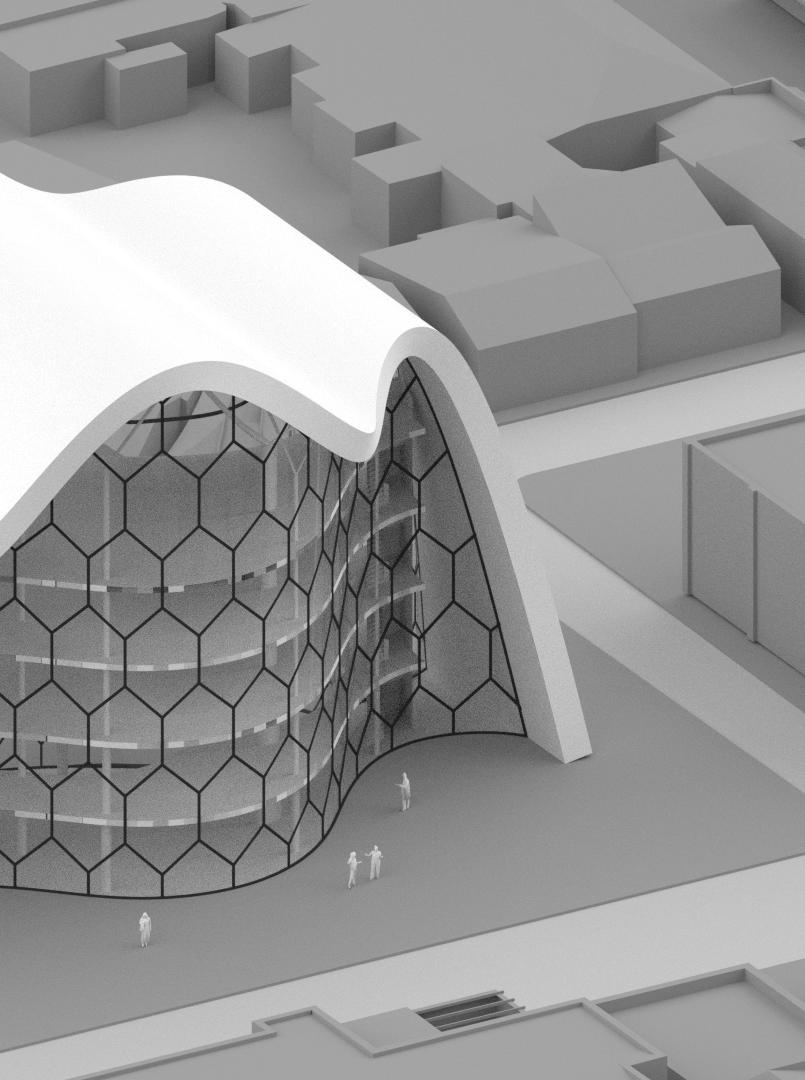

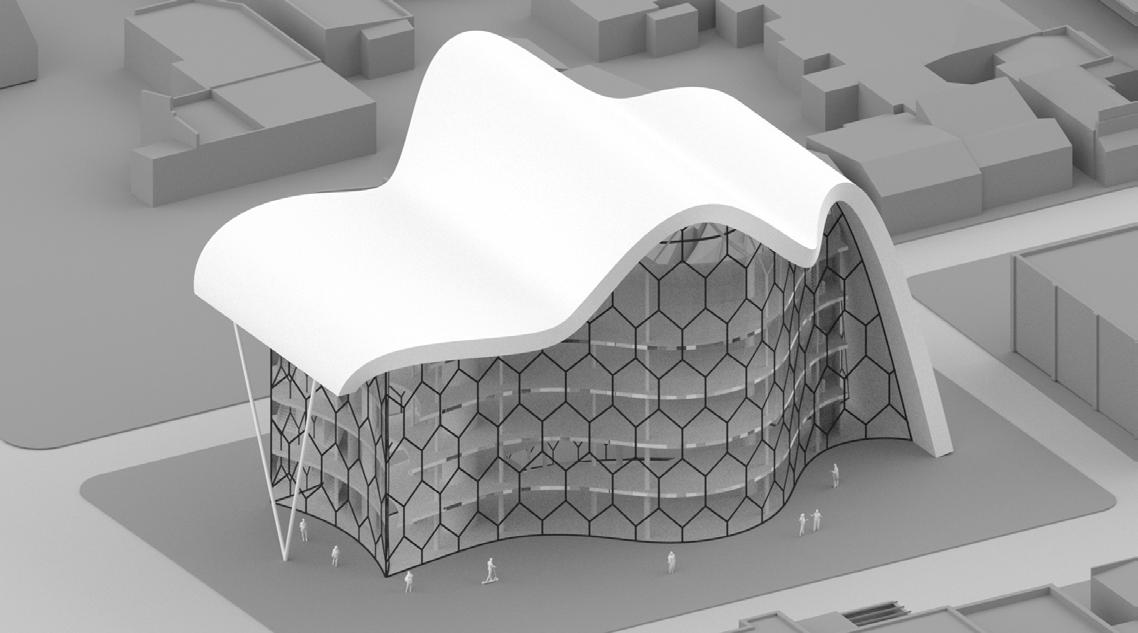

With the concept of being a ‘Gateway to the City’ in mind, this building needed to stand out and contrast the existing buildings. The surrounding structures are predominantly straight edged, and repetitive box like shapes. The solution was to utilise and incorporate natural and fluid like design practices.

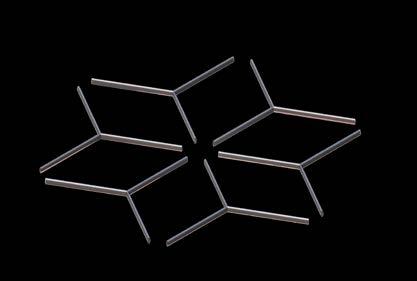

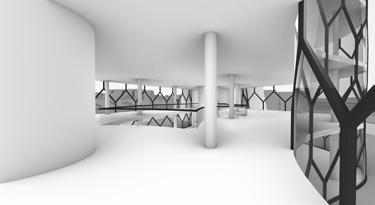

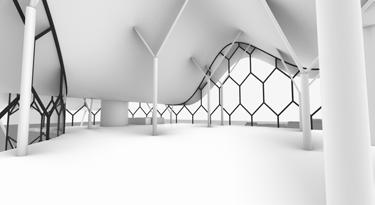

Providing access to the views of the parklands was key consideration, achieved by utilising a glass curtain wall that enabled direct views to the parklands from most vantage points on each floor level. The hexagon pattern adopted for the glass wall evolved from being structural to purely ornamental.
Assessment 1: Structural Concept ARCH 7033: Advanced Construction (M)
Student: Phillips, Mitchell (a1798832)
ADVANCED CONSTRUCTION ...04
Brief | Form Options | Structural Concept | Structural Analysis | Program & Circulation
Private Exhibition Space Event Space Office Space Workshop Space Open Foyer + Public Exhibition Space Entry and Exit Circulation Lift Circulation Stair Circulation Private Exhibition Space 740m Event Space 751m Office Space 761m Workshop Space 770m Open Foyer + Public Exhibition Space 780m 2 2 2 2 2 Total Floor Space 3,802m2

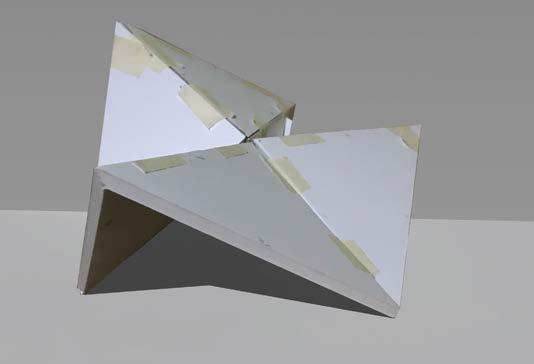

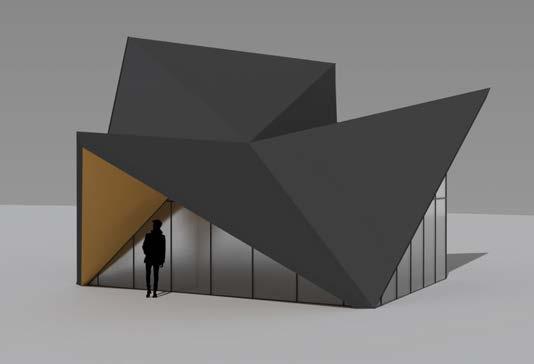

The Diagrid Pavilion was an independent study into an architectural structural system; this project was our first taste of construction and the documentation process behind our designs.
The structural design of my project has hints of a diagrid system and is a series of triangular pieces that combine by way of steel forms and bolt together brackets. Glass walls have been used extensively under the triangular canopy to provide a sense of space and openness, with natural flowing light creating interesting reflections of the beautiful natural timber contrasting the dark grey colorbond corrugated iron.
During this project, I learnt the importance and workflow of moving between sketches, physical models, 3D models, and 2D drawings.
ID NUMBER a1798832 NAME MITCHELL PHILLIPS SHEET TITLE SOUTH ELEVATION SCALE 1:50 DATE NOV 2020 SHEET NO. 03 SHEET SIZE A3 D1 SOUTH ELEVATION 1:50 5250 974 5250 327 4364 3650 1000 7967 8967 7000 209 1100 1100 2350 1100 1100 290 ID NUMBER a1798832 NAME MITCHELL PHILLIPS SHEET TITLE SECTION 01 SCALE 1:50 DATE NOV 2020 SHEET NO. 07 SHEET SIZE A3 D6 14 SECTION 01 1:50 16mm CGI ROOF SHEETING MONUMENT COLORBOND COLOUR D1 09 D5 13 5mm TOUGHENED GLASS 1025x2125 PANELS 75x75 SHS FRAME 138x19mm TONGUE AND GROOVE TIMBER PANELLING 110mm COVER 5mm SHADOWLINE 100mm CONCRETE SLAB POLISHED CONCRETE FLOOR 1M HIGH GLASS BALUSTRADE 1ST FLOOR FFL: 2590 STAIRCASE ID NUMBER a1798832 NAME MITCHELL PHILLIPS SHEET TITLE GROUND FLOOR SCALE 1:100 DATE NOV 2020 SHEET NO. 01 SHEET SIZE A3 ROOF OUTLINE GROUND FLOOR FFL 100.00 S1 07 S1 07 D1 GROUND FLOOR PLAN 1:100 S2 08 S2 08 7967 3984 3984 2884 2200 2884 12783 11965 5033 3750 4000 5033 5956 976 9942 5250 442 3276 974 PLAN
