Interior Design Portfolio - Misri Patel

Résu mé

Personal Information :

+91-9624419641

misripatel.id@gmail.com

Hello! I am an Interior Designer and graduate from Faculty of Design, CEPT university. I love to design spaces that not just provide a place to perform an activity but also provokes senses, emotions and create meaningful experiences. In my design process, I strive to achieve a balance between intuition and rational by informing the design with observation of user behavior and their needs. I seek to expand my knowledge and evolve as a designer to create more holistic experiences.

This Portfolio has selected works of my Academic Training of five years course of Interior Design and 2 years of Professional experience thereafter.

“ ”

2013 - Higher Secondary School Degree Sheth CN Vidhyalaya, Ahmedabad.

A-404, Belvista apartment, Iscon-ambli road, Ahmedabad, Gujarat, India.

D.O.B 15 Aug,1996

Nationality Indian Languages Gujarati, Hindi, English

Software Skills :

Research :

2019 - Thesis

Role of Installation Art in Retail Store Environments

Guided by : Ruchi Mehta

2018 - Research Paper Parallels between Craft and Mass Production Process, focused on factors of Customization & Cost.

2019 - Undergraduate Degree Bachelors of Interior Design CEPT University, Ahmedabad.

Skills :

• Design Research & Analysis

• Strategizing

• Space Planning

• Drafting

• Visual Representation

• Collaborating

2017 - Internship Space Matrix, Pune

2017 - Internship FRDC, Bangalore

2019 - Teaching Assistant Mandatory Course : Design as an outcome of living patterns in Domestic Realm, Spring Semester. CEPT University

2019 - Freelance project Belvista Residence, Ahmedabad

2020 - Teaching Associate Level 3 Design Studio : Brand Building Through Spatial Design, Spring & Monsoon Semester. CEPT University

2020 - Designer Hue Design Studio, Ahmedabad

Projects worked on : Private Residences

2021/2022 - Jr. Interior Designer HCP Interior Design (HCPID) Ahmedabad

Projects worked on :

Work Experience : Workshops :

1. Central Vista Redevelopment*

2.Ahmedabad International Airport (Terminal I & II)

2010 - Tie & Die Workshop, NID

2014 - Clay & Ceramic Workshop, CEPT

2015 - Wood Workshop, CEPT

2016 - Textile Weaving Workshop, CEPT

2016 - Make &Learn : Bamboo, CEPT

2019 - Hands on : Rammed Earth, CEPT

*This portfolio does not showcase any data of these project due to confidentiality agreement and concern regarding national security.

Academic Studio I Hospitality Adaptive Reuse Semester 8

Academic Studio II

Retail Brand Building through Spatial Design Semester 9

Thesis

Research

Role of Installation Art in Retail Store Environments Semester 10

FRDC - living Studio Apartments

Semester 7

Professional Work

HCP Interior Design (HCPID)

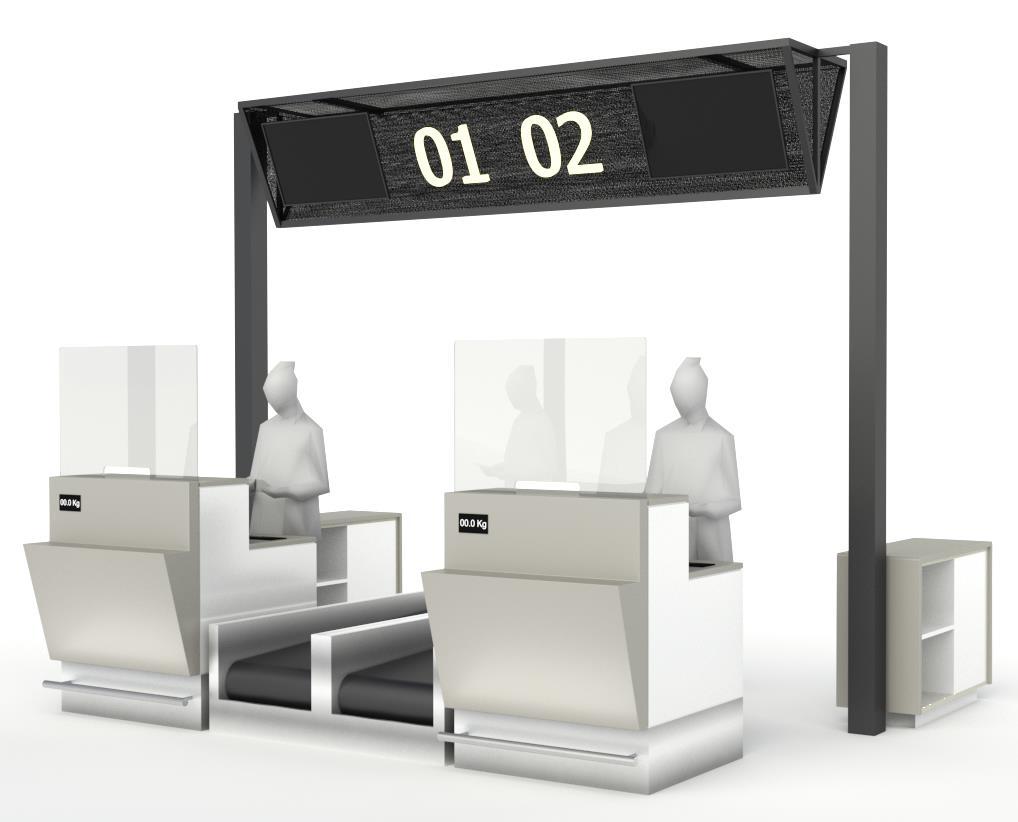

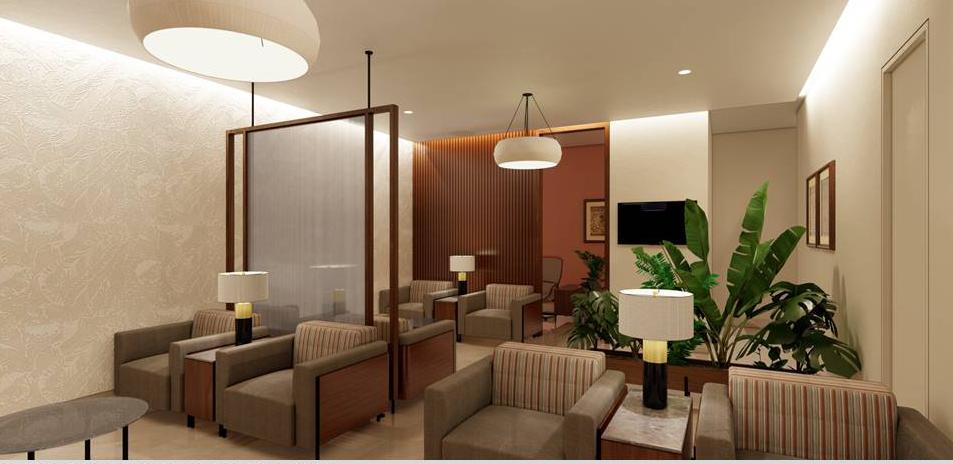

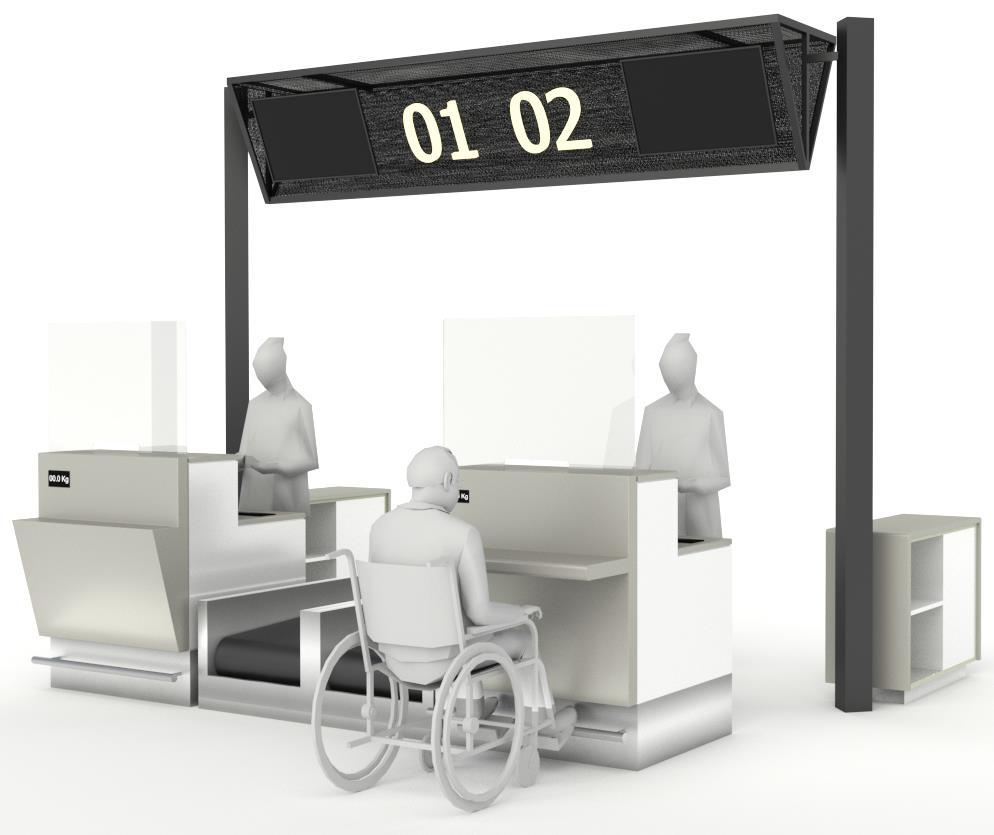

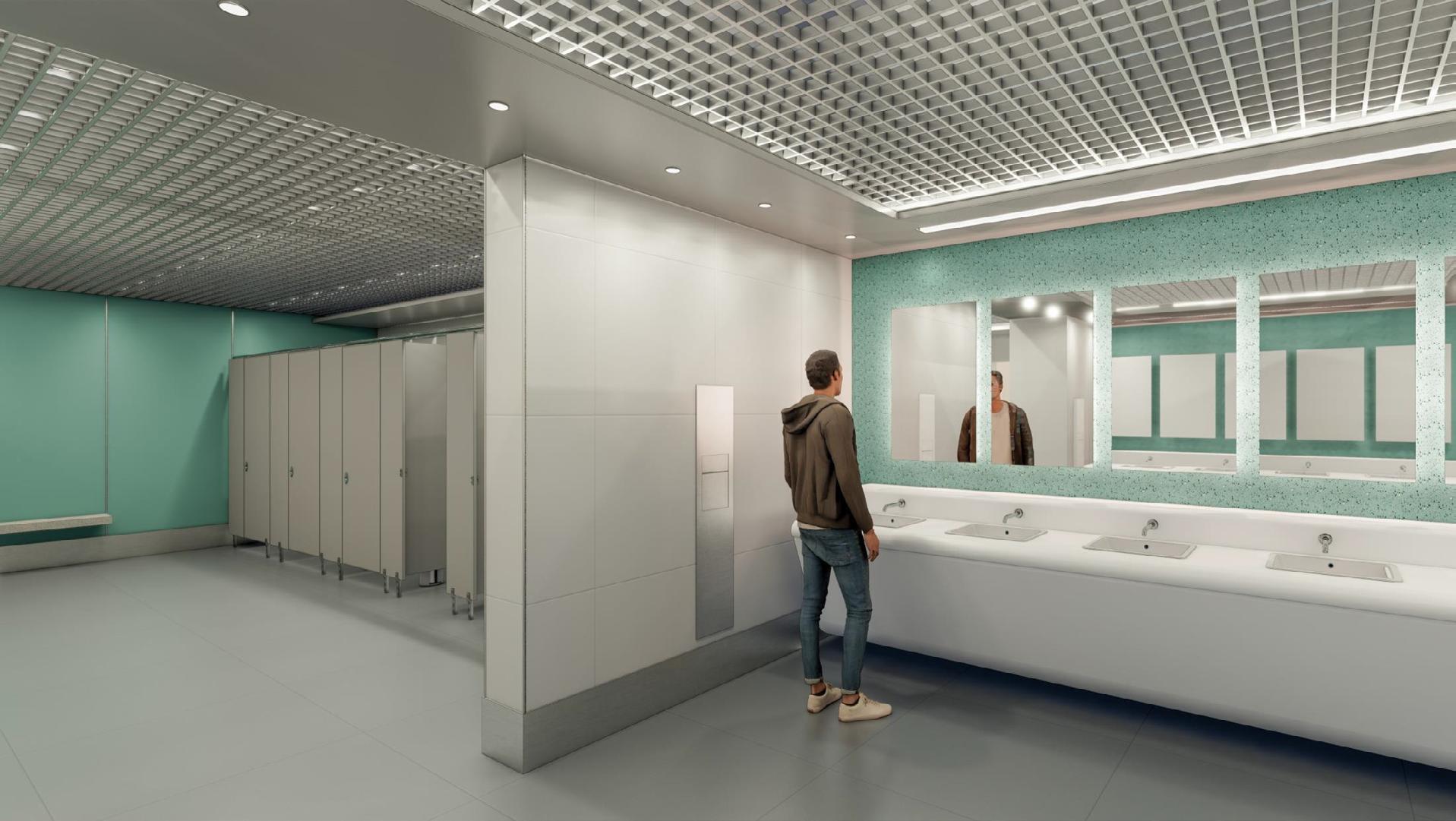

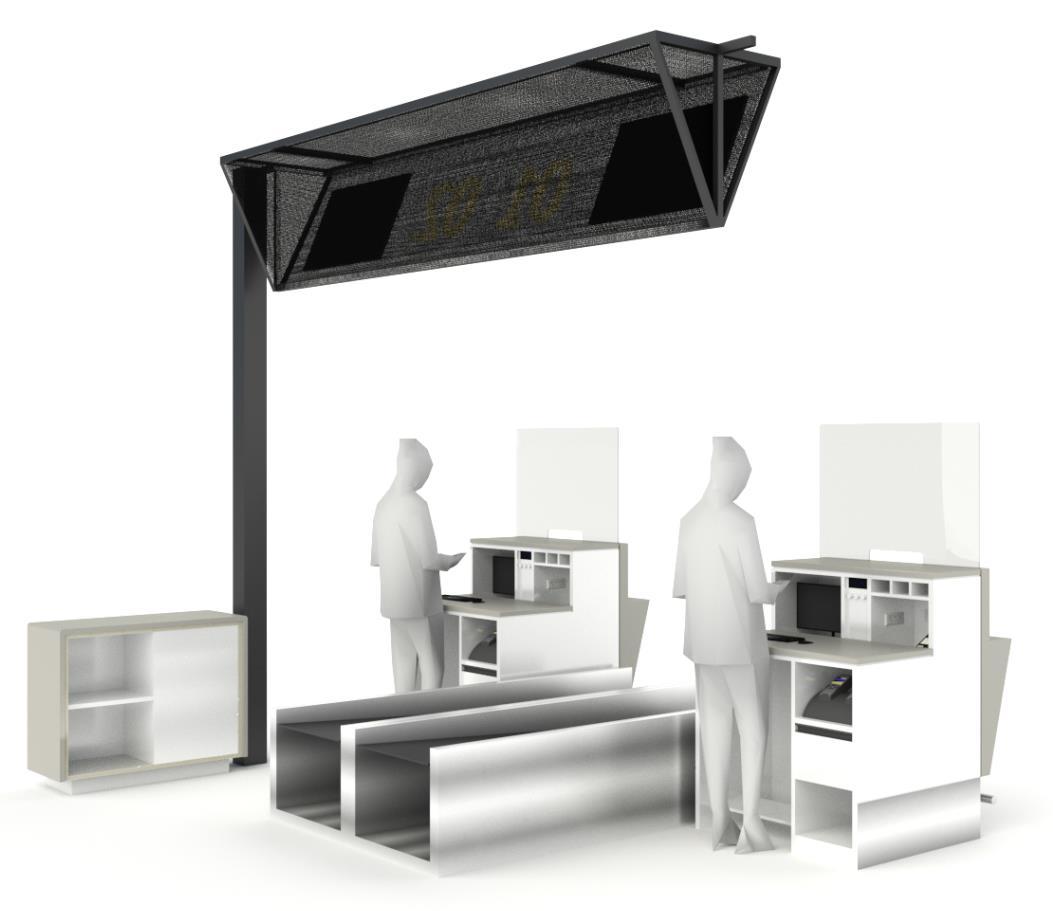

Ahmedabad International Airport (Terminal I & II) 2021/2022

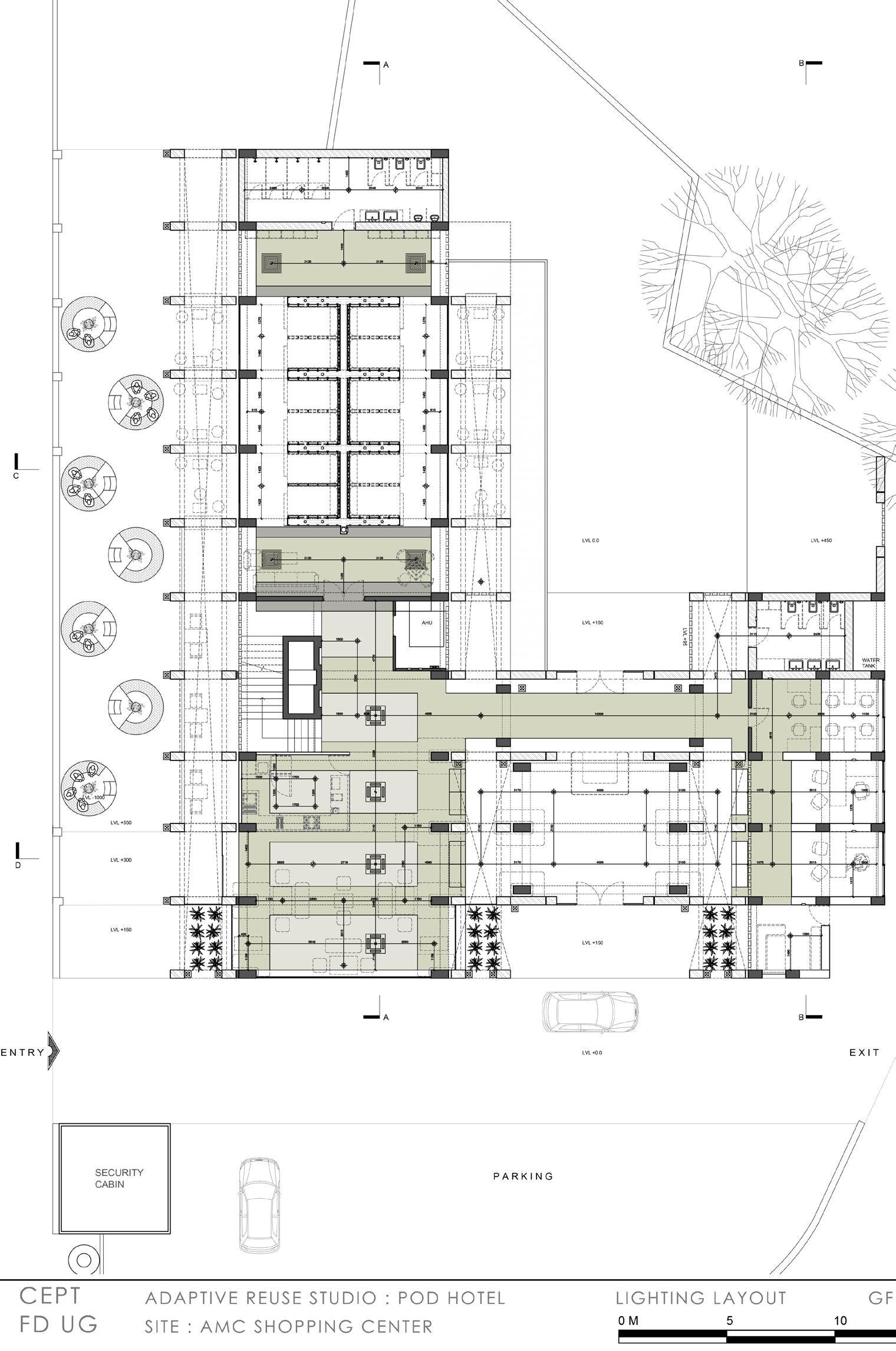

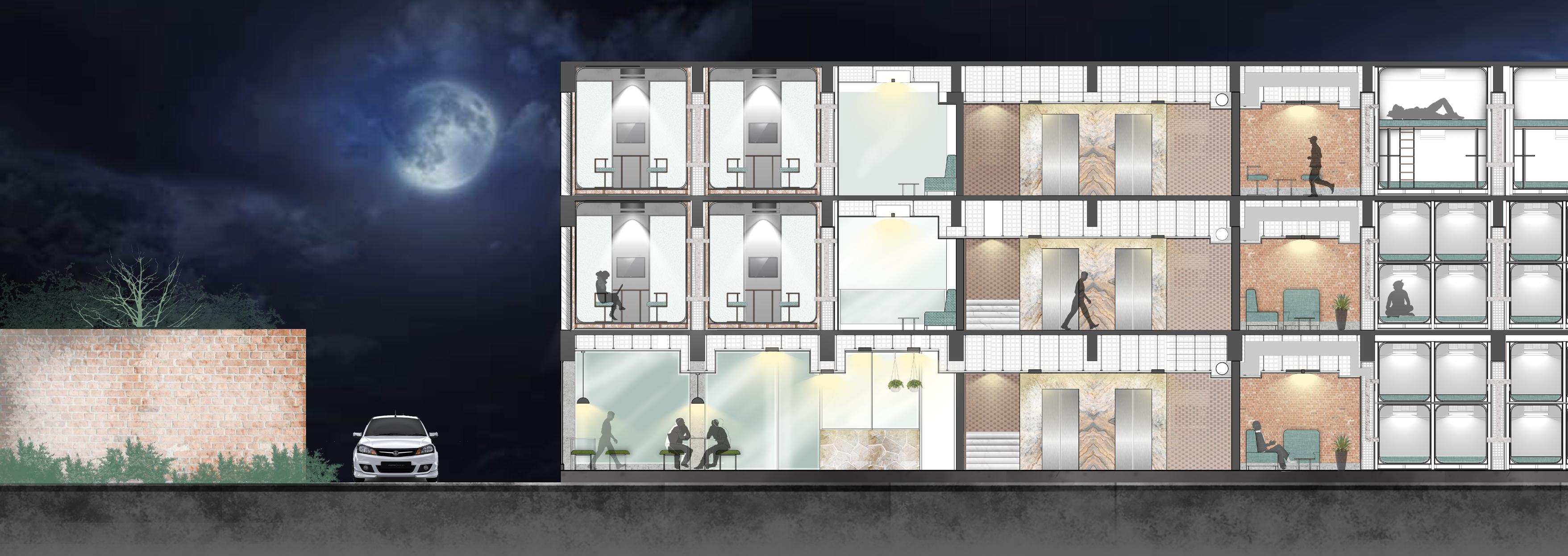

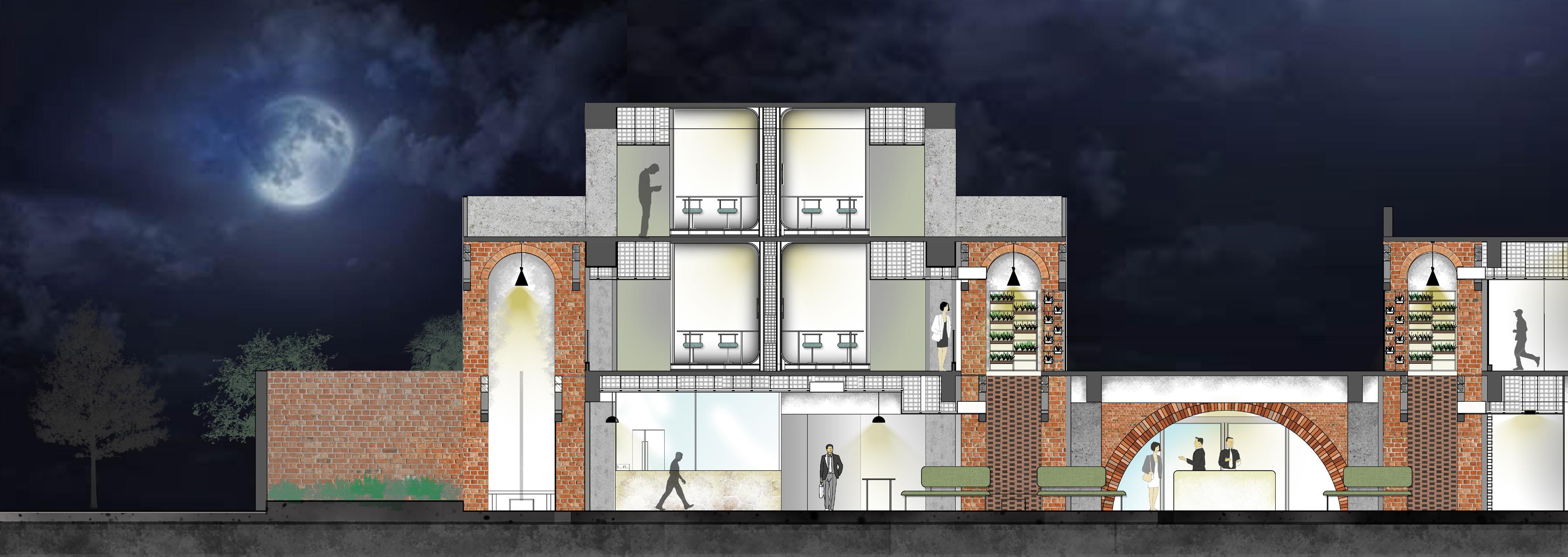

Advance Interior Design Studio Adaptive Reuse POD Hotel

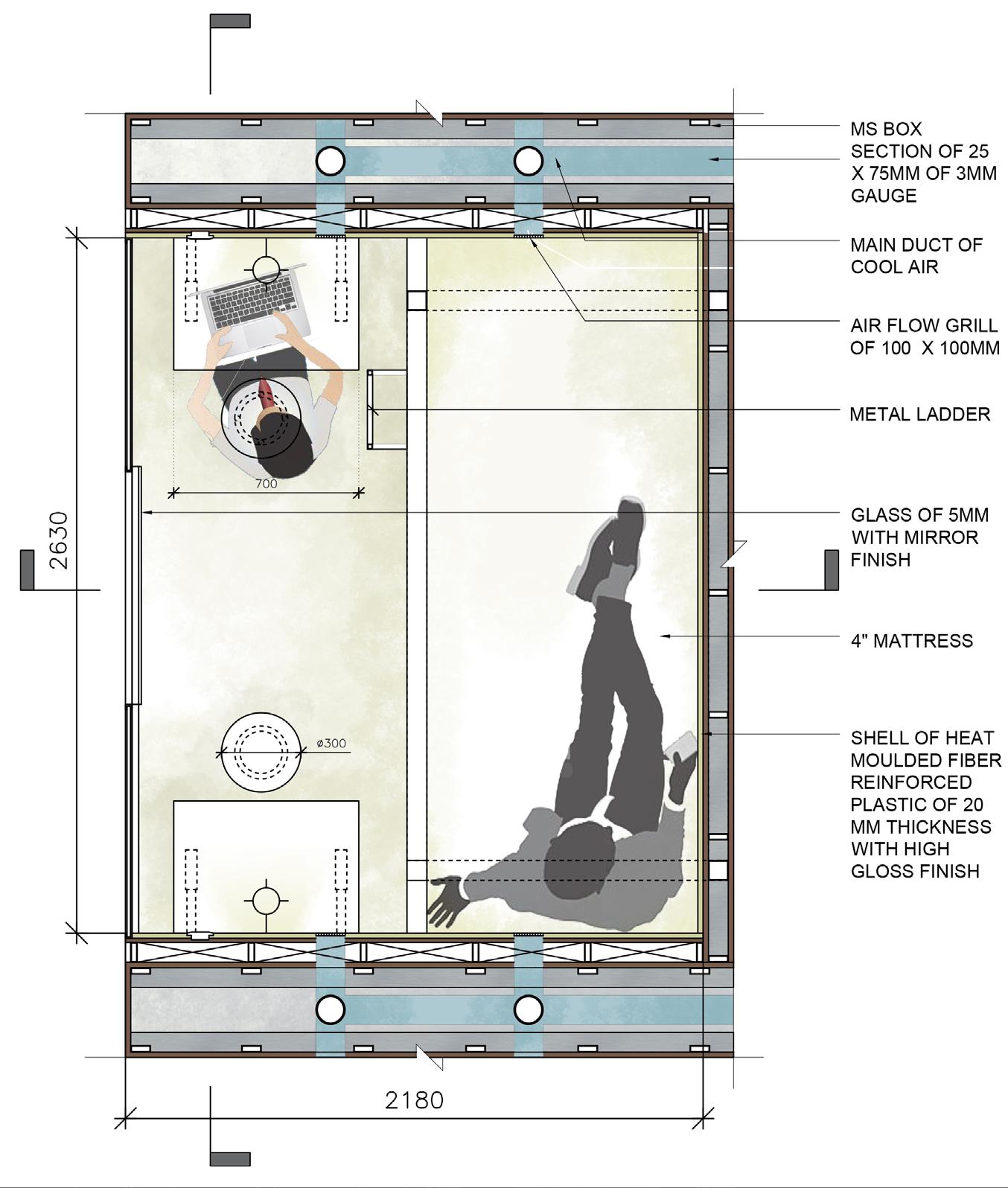

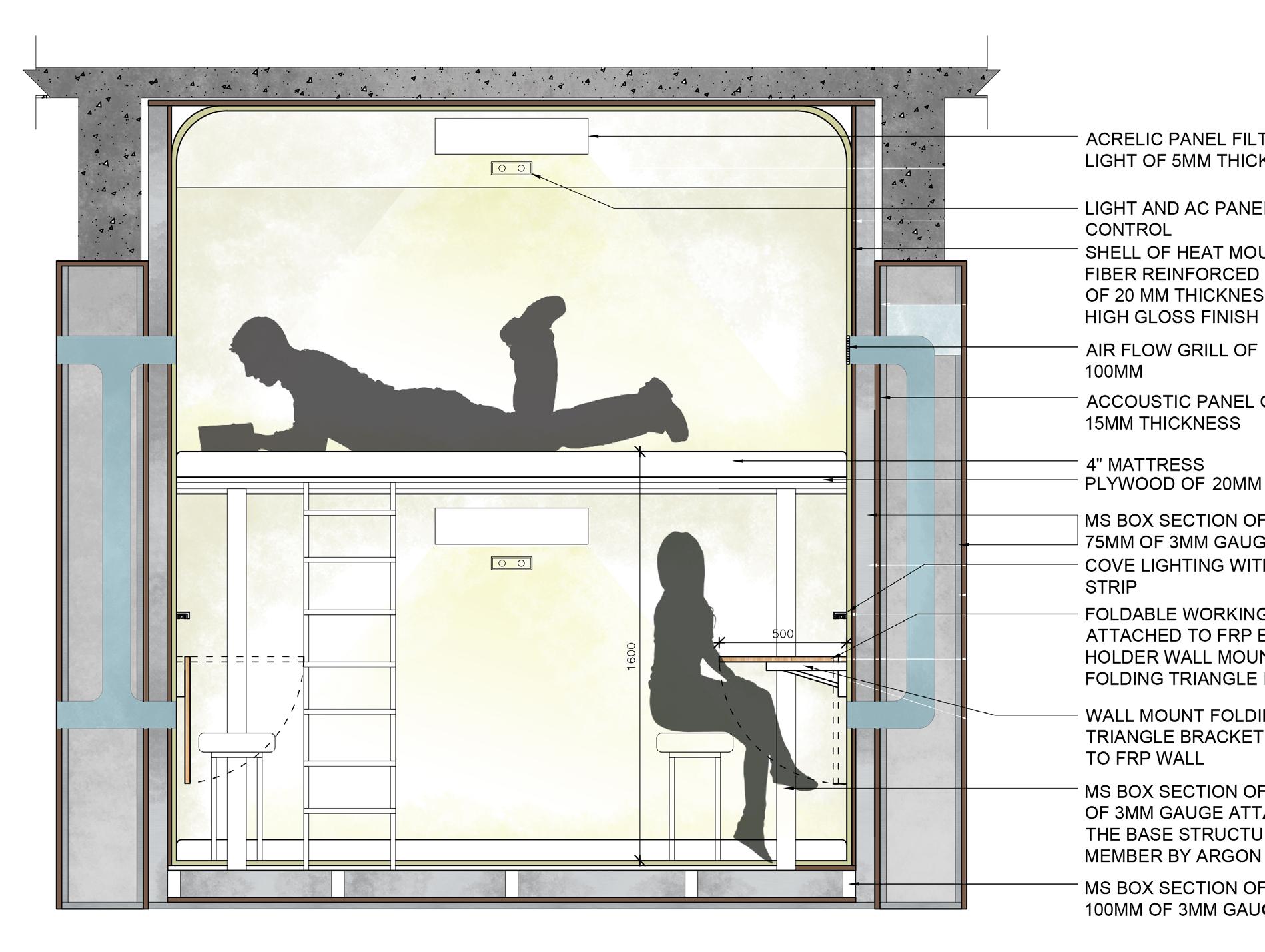

Double Occupancy Pod

The intent of the studio was to explore interior design as a tool for reading and acting within sites of rich historic and cultural significance. It was an adaptive reuse design studio.

Site : AMC Shopping center, Paldi, Ahmedabad

Area : 23,000 sqft

Length of the project : 16 weeks

Expected outcome :

To develop a complete interior design solution for a POD hotel in a 30 years old commercial building which is an integral part of city’s modern architecture. It consisted of developing your own program and approach to the adaptation to an old structure.

Design Approach :

The site has a very strong structural grid which creates cubical modules. The generic concept of pod hotel also resonates with the modular designs. Hence, the form, dimensions, and organization of the Pod module are derived from the existing structural grid, keeping the integrity of the existing structure and materiality intact.

Public area

Restricted area

Rooftop cafe

Single Occupancy Pod

Meeting Pod

Laundry Storage

Break-out zone

Performance stage

Public Entry

Single Occupancy Pod Cafeteria

Reception

Waiting area Staff Entry

Admin officesParking

Shower

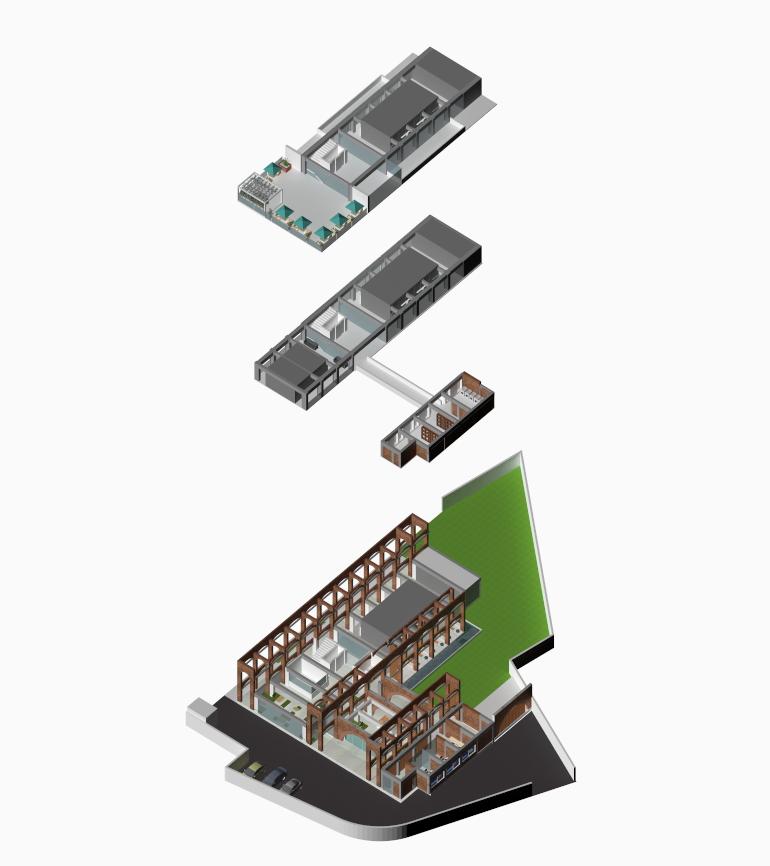

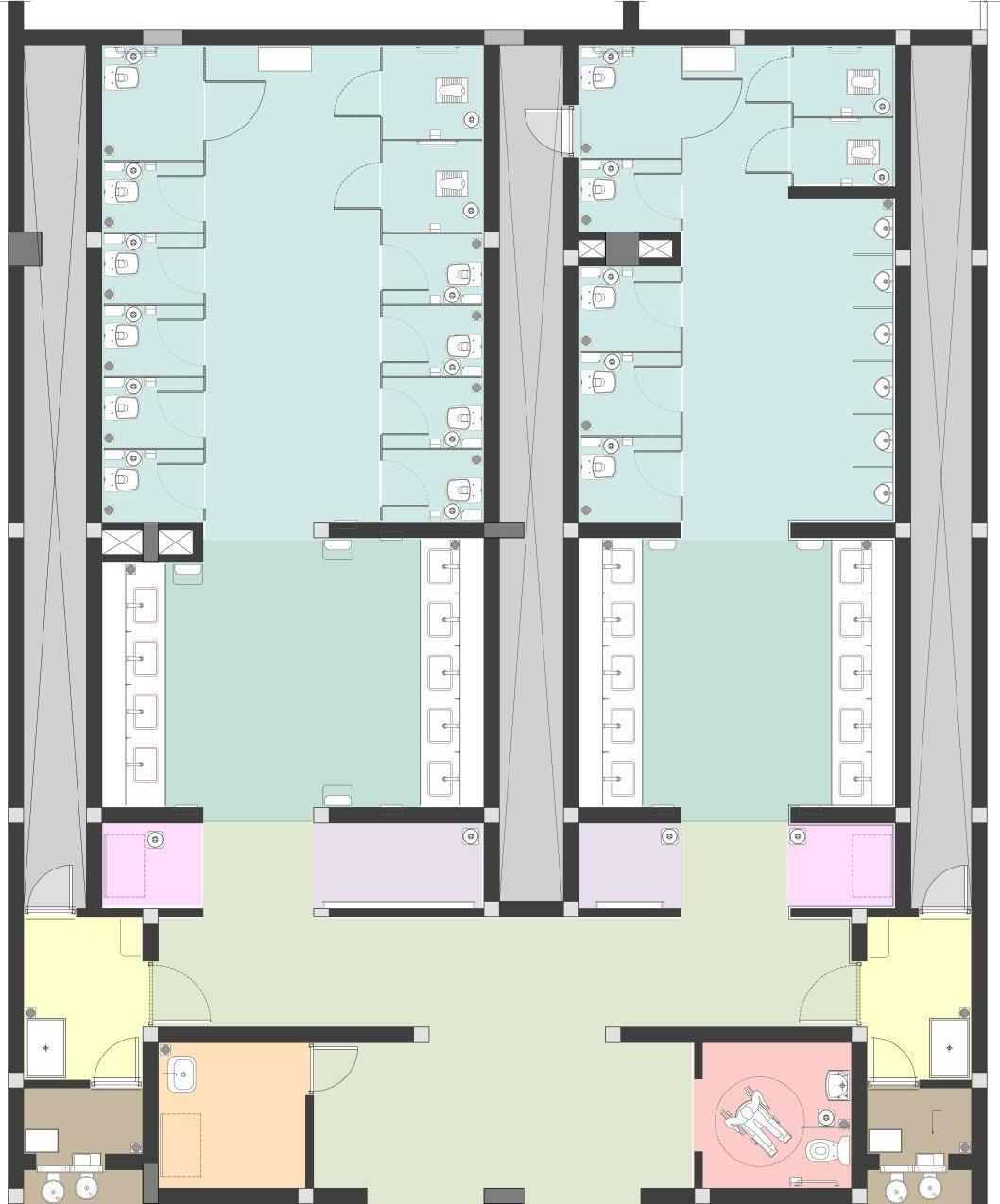

FIRST FLOOR

SECOND FLOOR

GROUND FLOOR

Shower

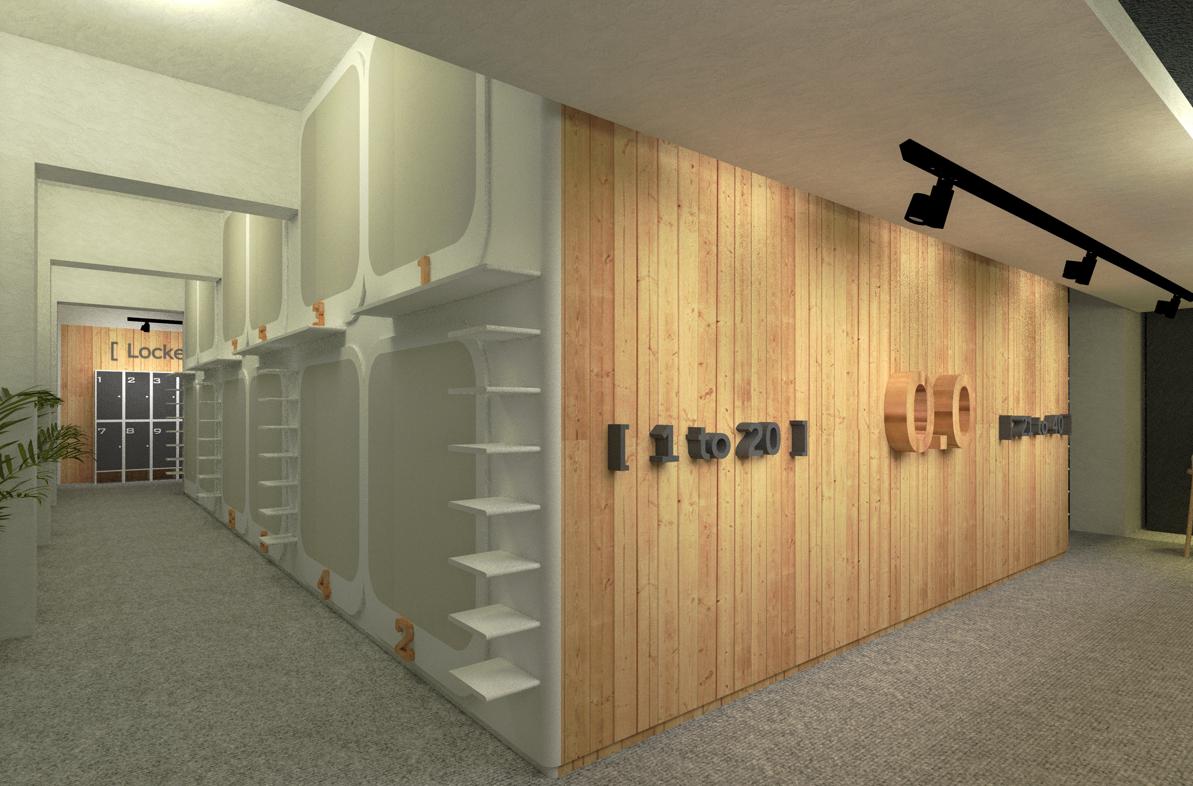

Rendered View of Ground floor single occupancy POD cluster.

Meeting podsParking Cafeteria

Waiting area Reception Single Occupancy Pods Indoor Break-out zone

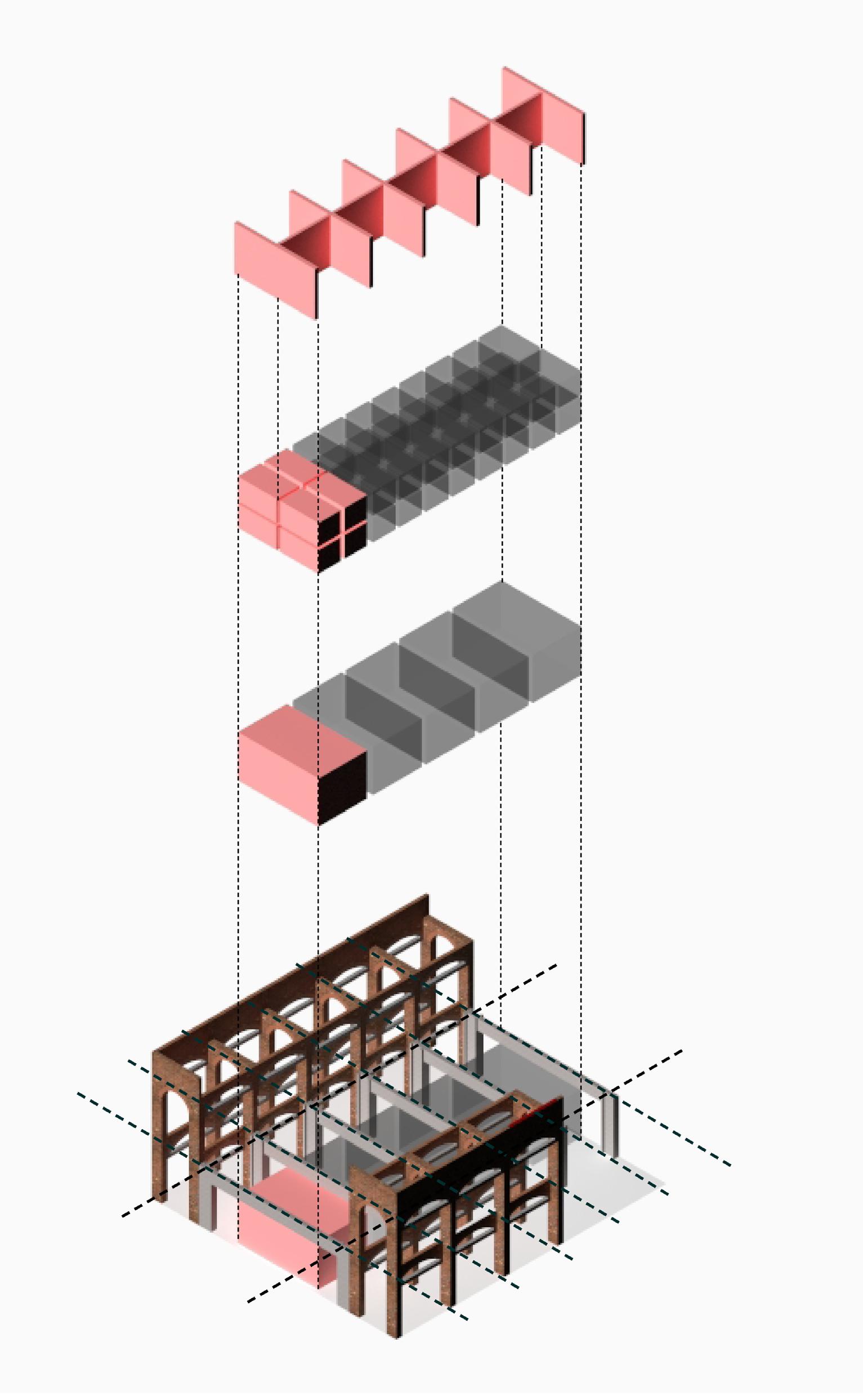

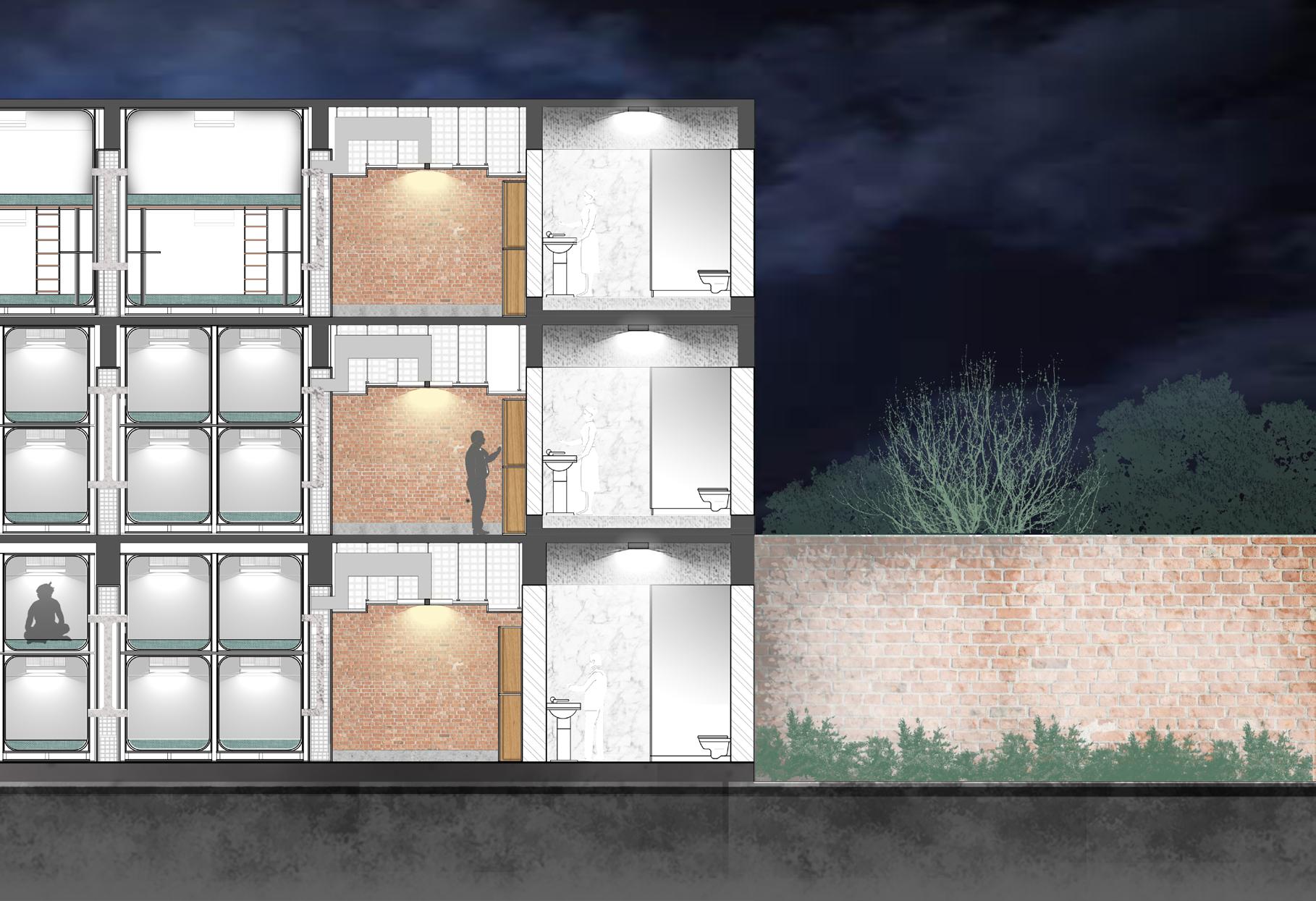

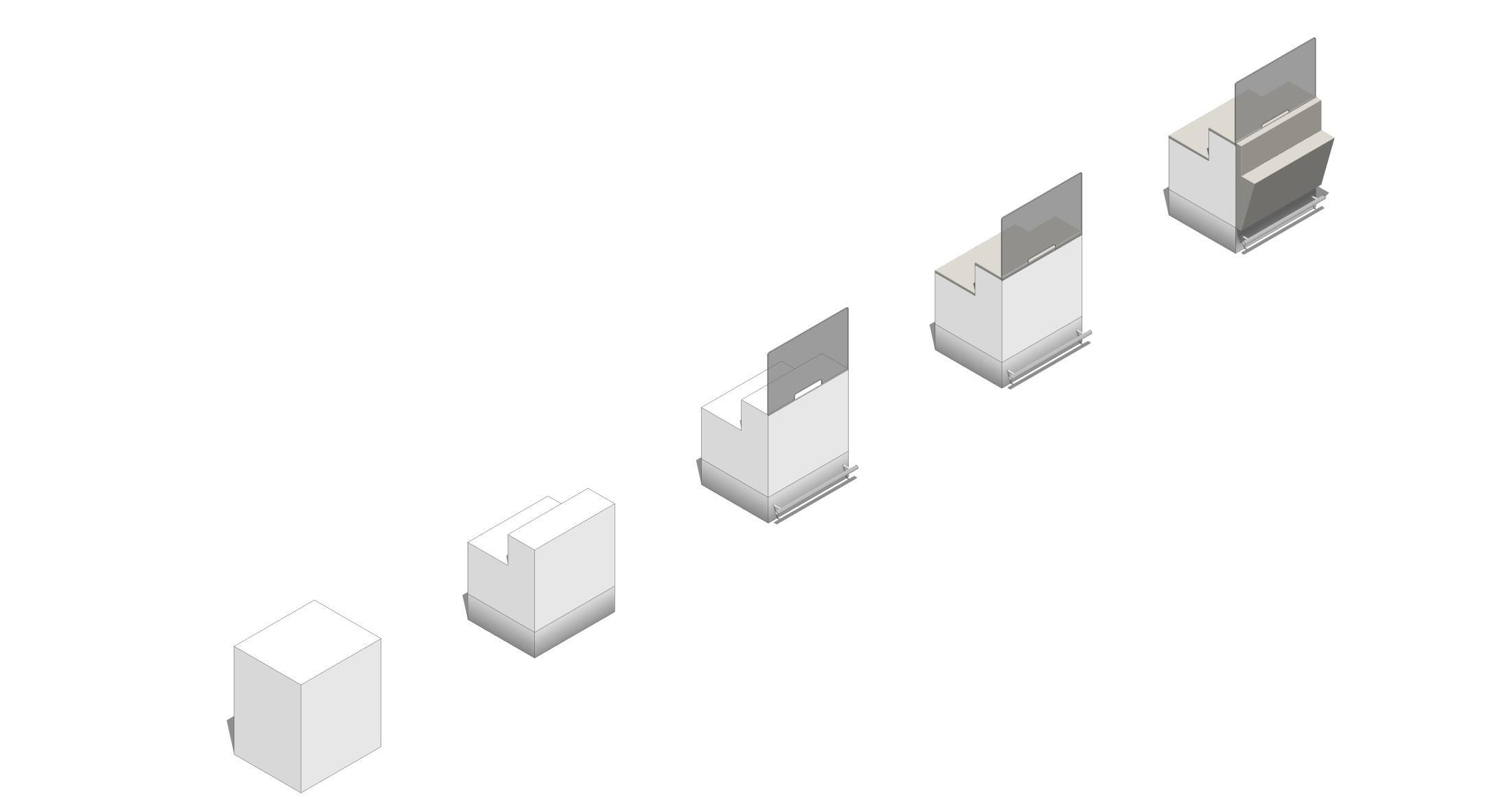

Volume between two beams

Divided volume into 8 parts, as each single occupancy pod

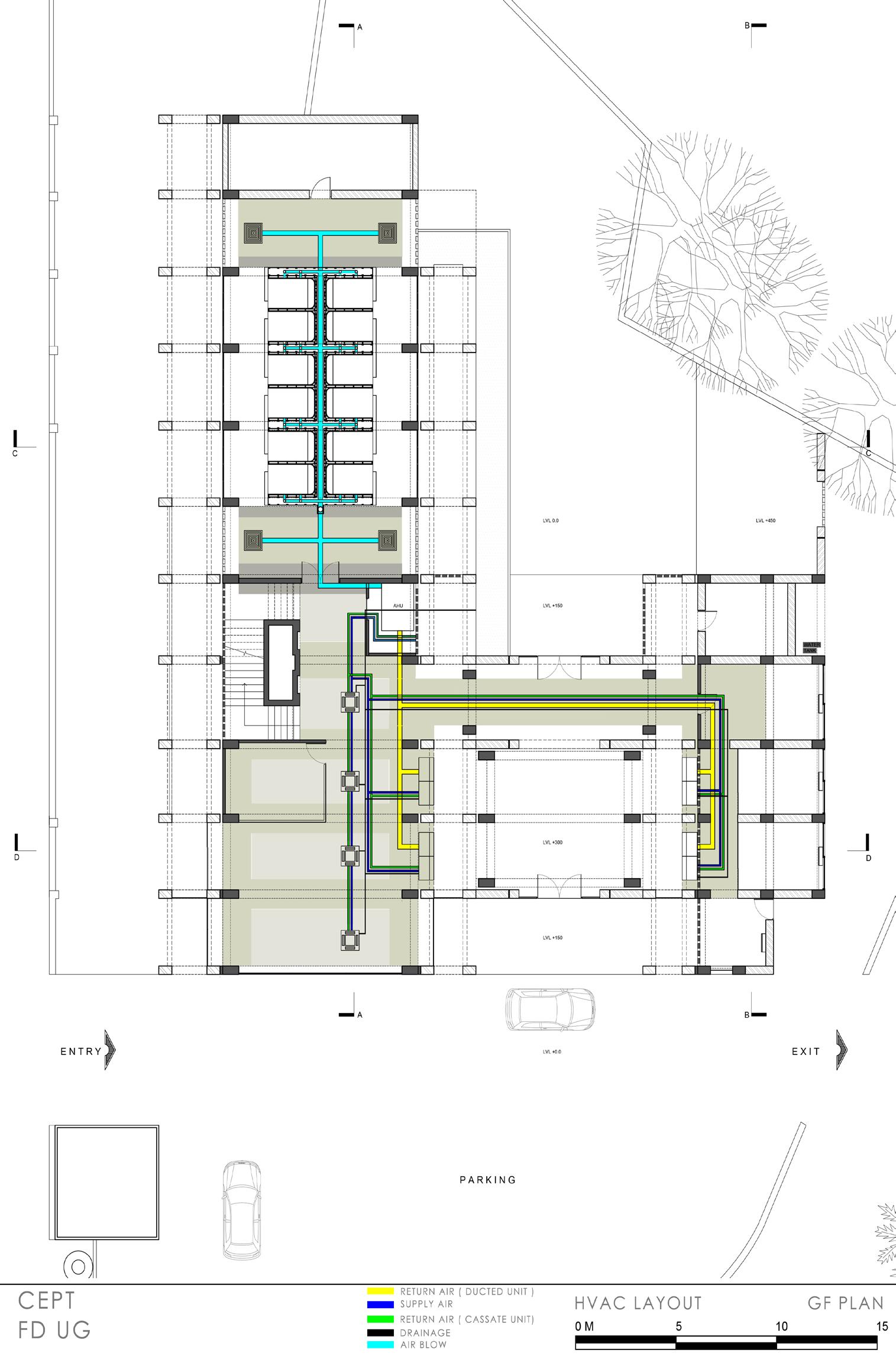

AC and Electrical services

Storage

Double Occupancy Pods Shower AdminLockers

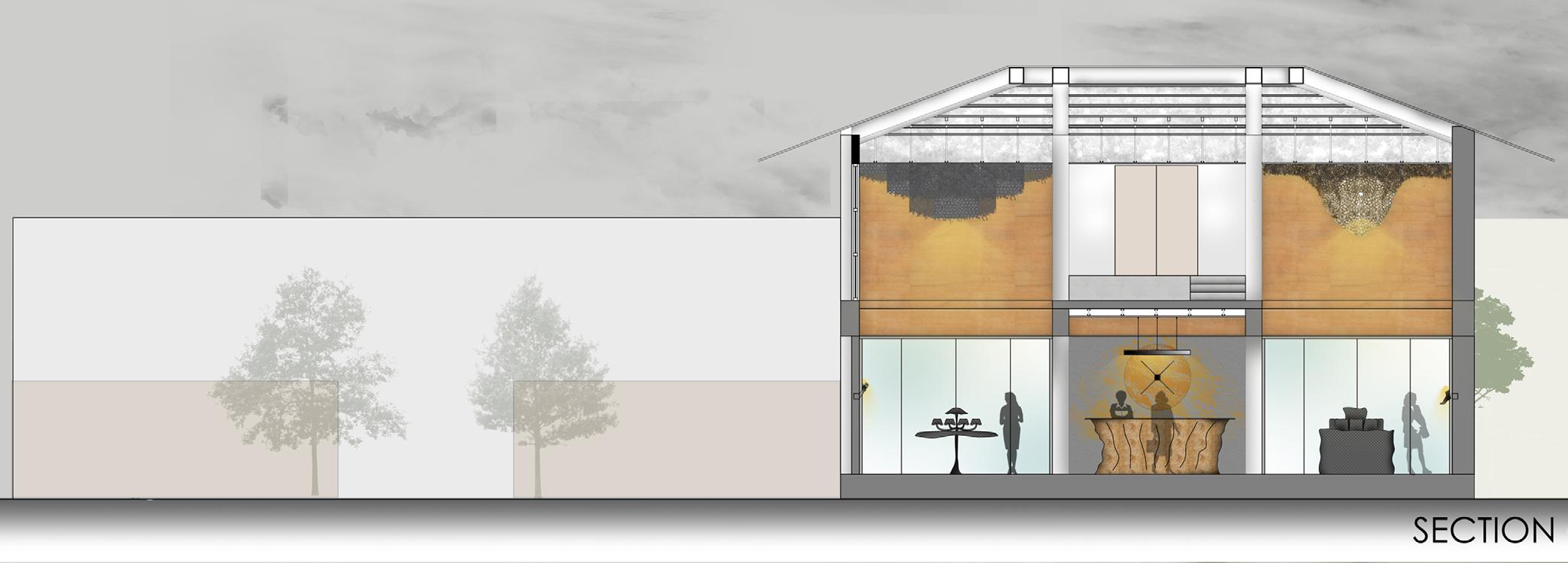

This studio focused on developing design approach for using spatial design as a tool for brand building. It included carrying out research to understand the brand, development of strategy and development of design details.

Client : Dookdi

(Category - Conceptual jewelery and wearable art from Copper & Brass)

Site : SBR, Ahmedabad

Area : 8000 sqft

Length of the project : 16 weeks

Expected outcome :

To generate spatial design solutions that contribute in building / strengthening the brand image, carrying out brand strategies and it’s implementation in a Flagship store.

Design Goal :

Since the idea of conceptual jewellery

wearable art is not established in Indian market, it is a great opportunity for the brand to create a destination for such kind of product. Hence, the design goal was to establish Dookdi as

jewellery and wearable art brand and create a destination that combines culture with ease of buying. The overall look and feel of the store is driven by the concept of bio-mimicry.

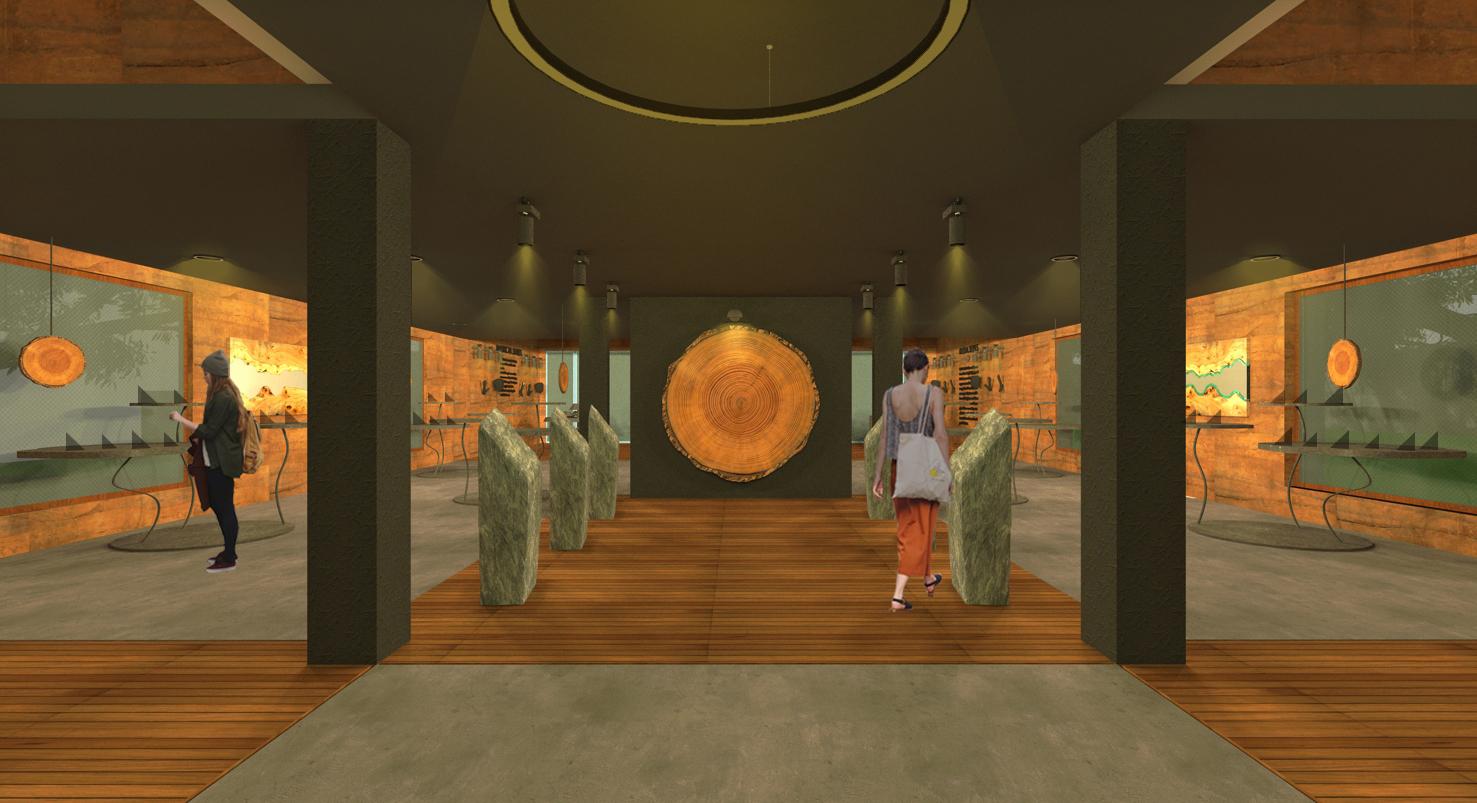

View on arrival showing the display of exclusive products.

Point of Sale

Exclusive Product

Secondary series of products

Primary series of Products

Major Product Segmentation

Brand Introduction :

Dookdi is a conceptual jewelery brand which makes handcrafted jewelry on the concept of biomimicry out of metals like brass and copper. The current product range includes earing, rings and brooches and the prospected product range is neck pieces, wrist wares, nose pins etc.

The brand is targeting mainly female audience who are in the age group of 18-60. Who belongs to upper middle class and higher class of society. Majorly creative professionals, social workers and people who are inclined towards nature. Geographically, foreigners and NRIs are also potential customers as they are aware with the concept of conceptual jewelry already.

Program :

Workshop

Administration area

Storage

Multi-purpose area

Retail

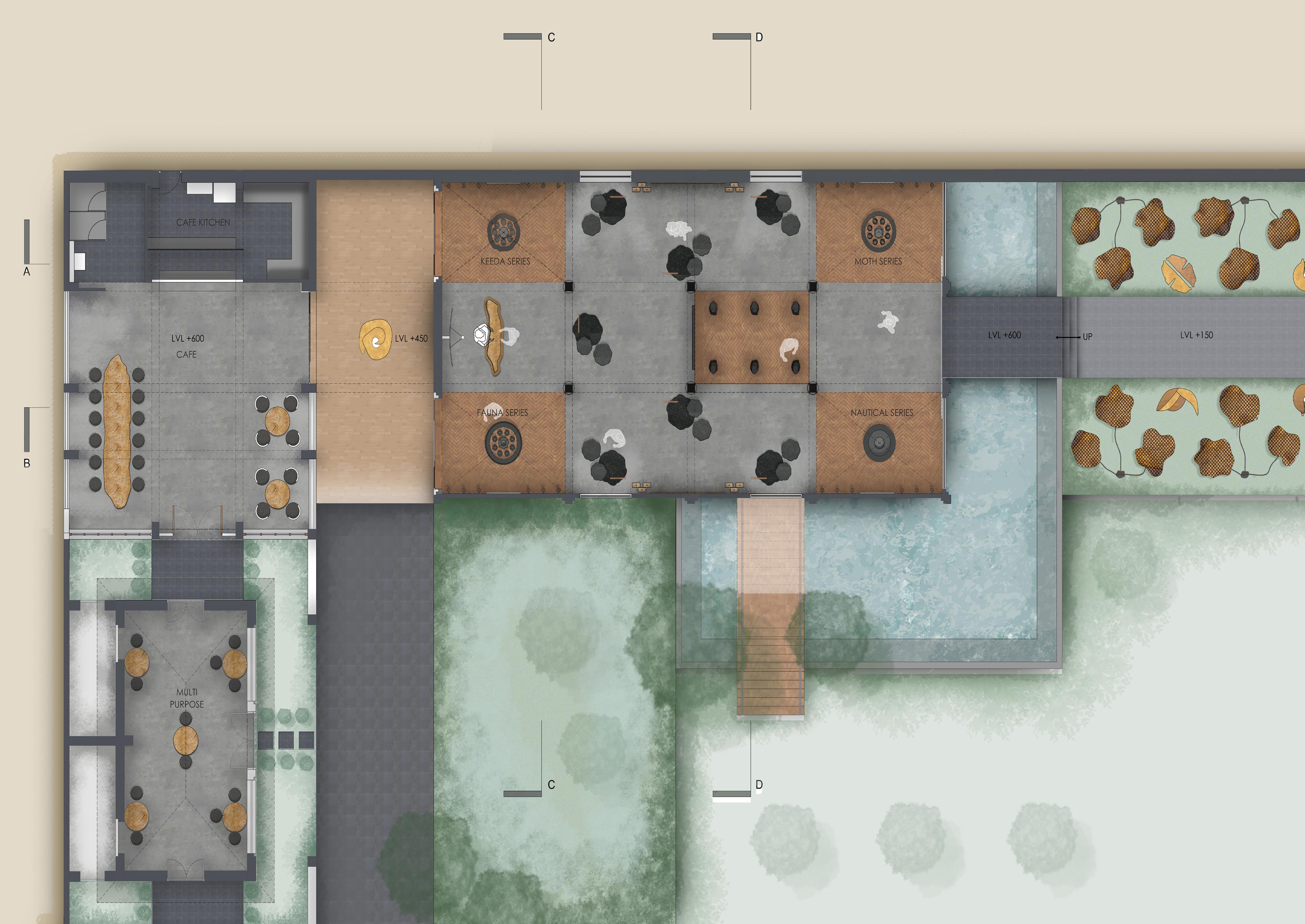

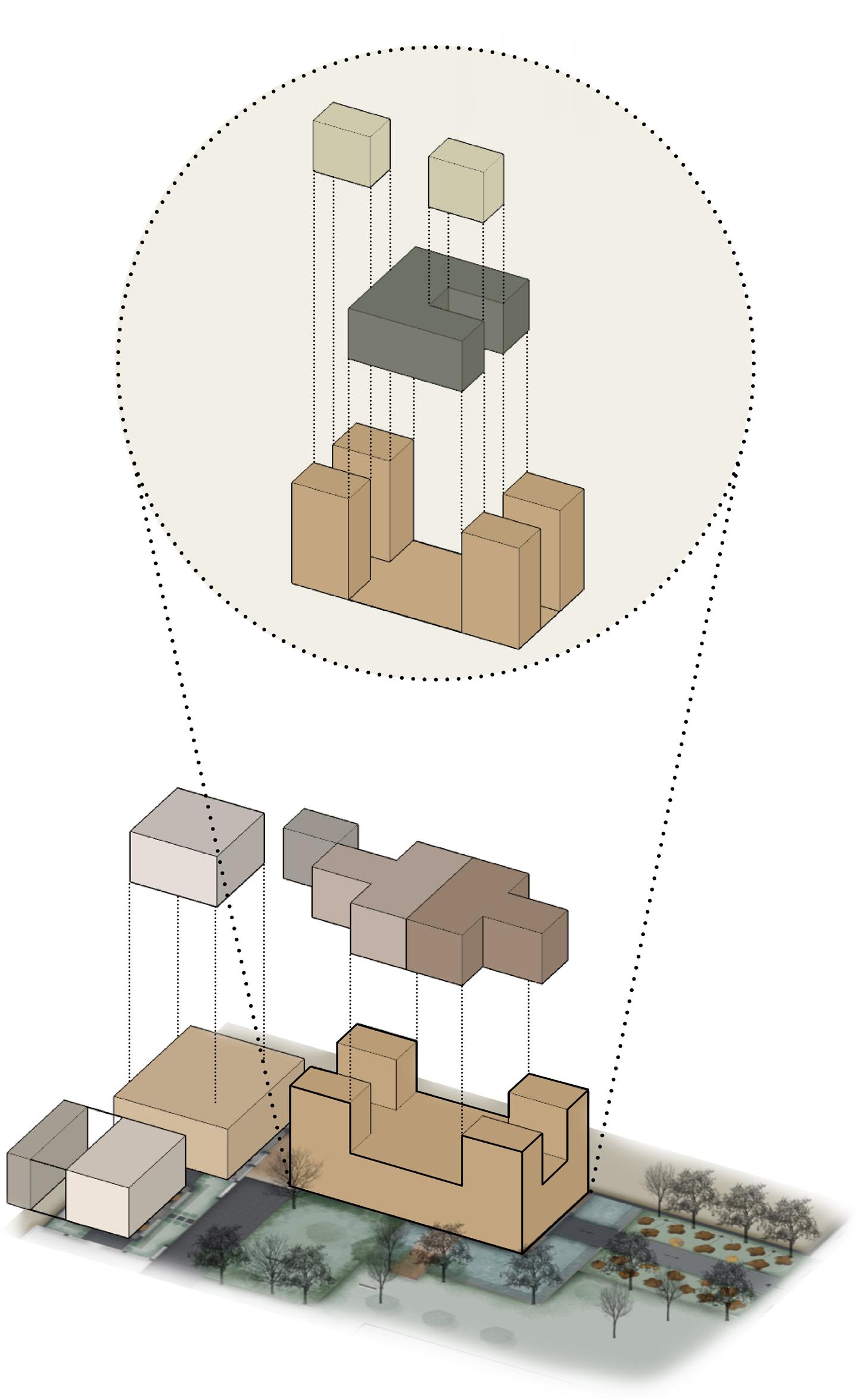

The ground level caters to public areas such as Retail, Cafe and Multipurpose area which caters to activities such as workshops, talks etc. These activities helps increase brand visibility. The upper part of the site caters to the production area. Which includes workshop for artisans, artist studio and private workshop and administration area. Having production unit in the same premise, hints towards the authenticity of the handcrafted product.

Public area

area

Zoning

Visual

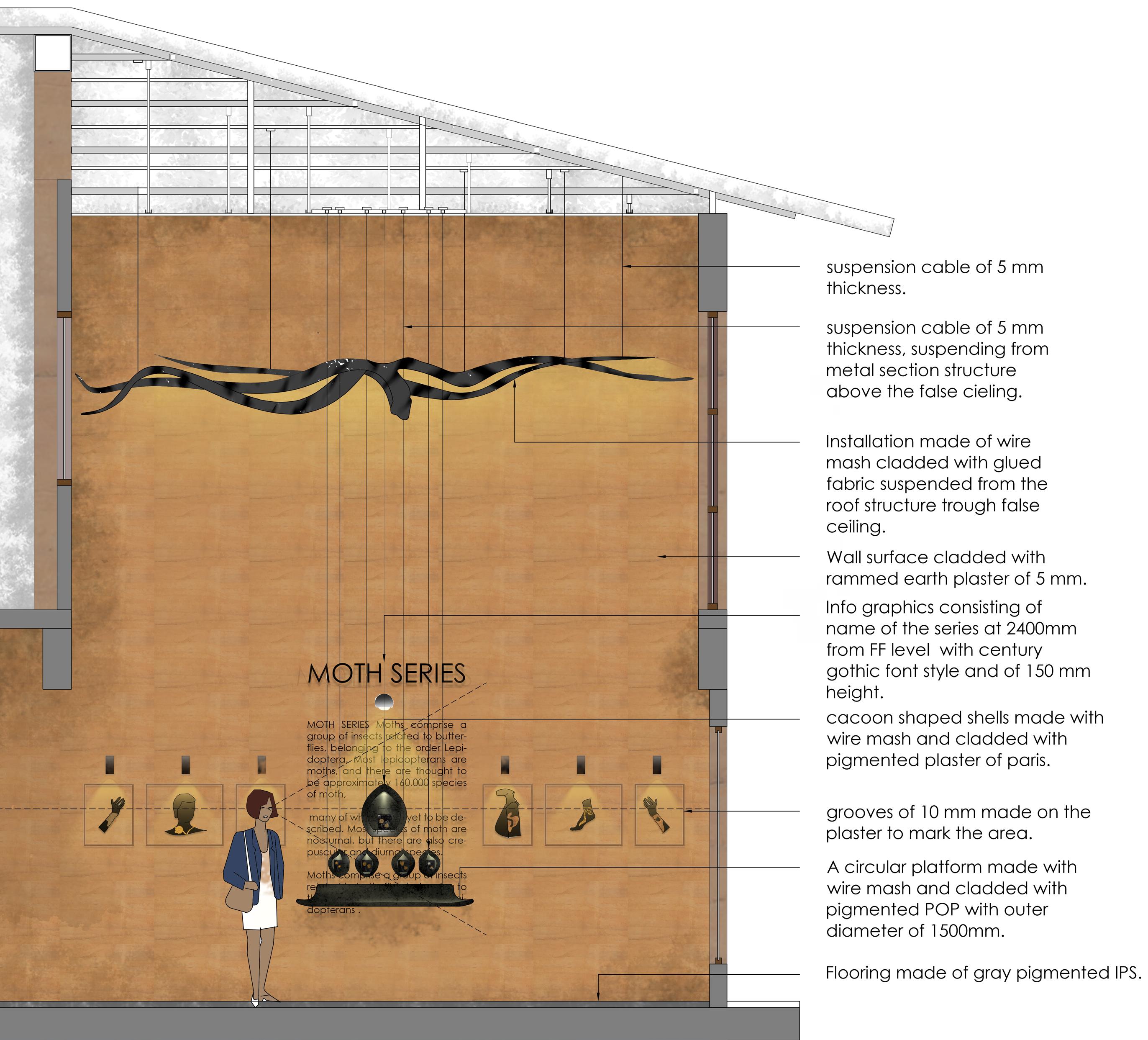

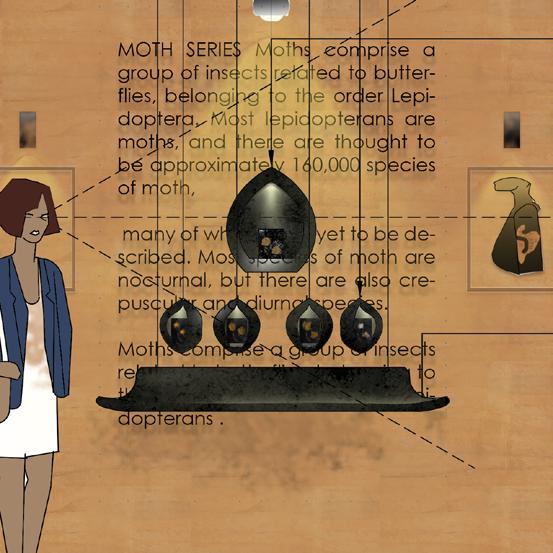

Moth Series :

Since the products in the series are abstraction of various moths the display elements are inspired from the cacoons, suspended from a tree branch like structure creating the false ceiling.

Keeda Series :

Since the products in the series are abstraction of various insects the display elements represents their natural habitat - mounds. Ceiling contains a canopy like structure which filters the light to add drama to the overall experience.

Nautical Series :

The products in the series are related to sea and nautical creatures, the display systems in the section aims to create an underwater like environment by creating display surfaces in the form of water ripples. The ceiling element made of sheer fabric also creates water like effects and adds to the experience

Fauna Series:

The product in the series are inspired by the flaura and fauna of our planet. The display elements aim to represent it by abstraction of the form of a flower while the ceiling is made out origami flowers creating a canopy for the light to filter.

Premium Range of the series

Other products of the series

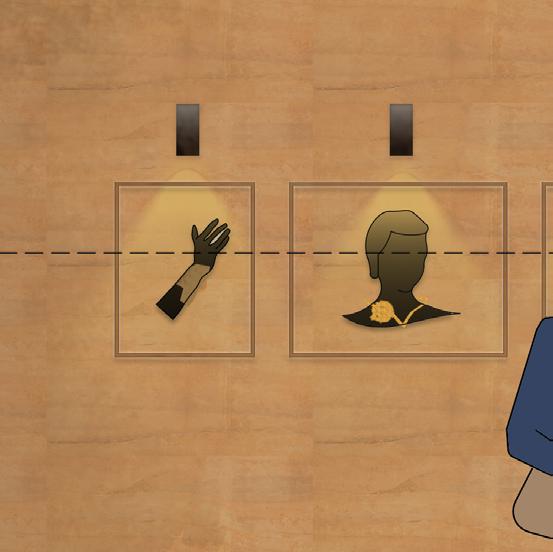

Display of Wearable Art

Signature piece of the series

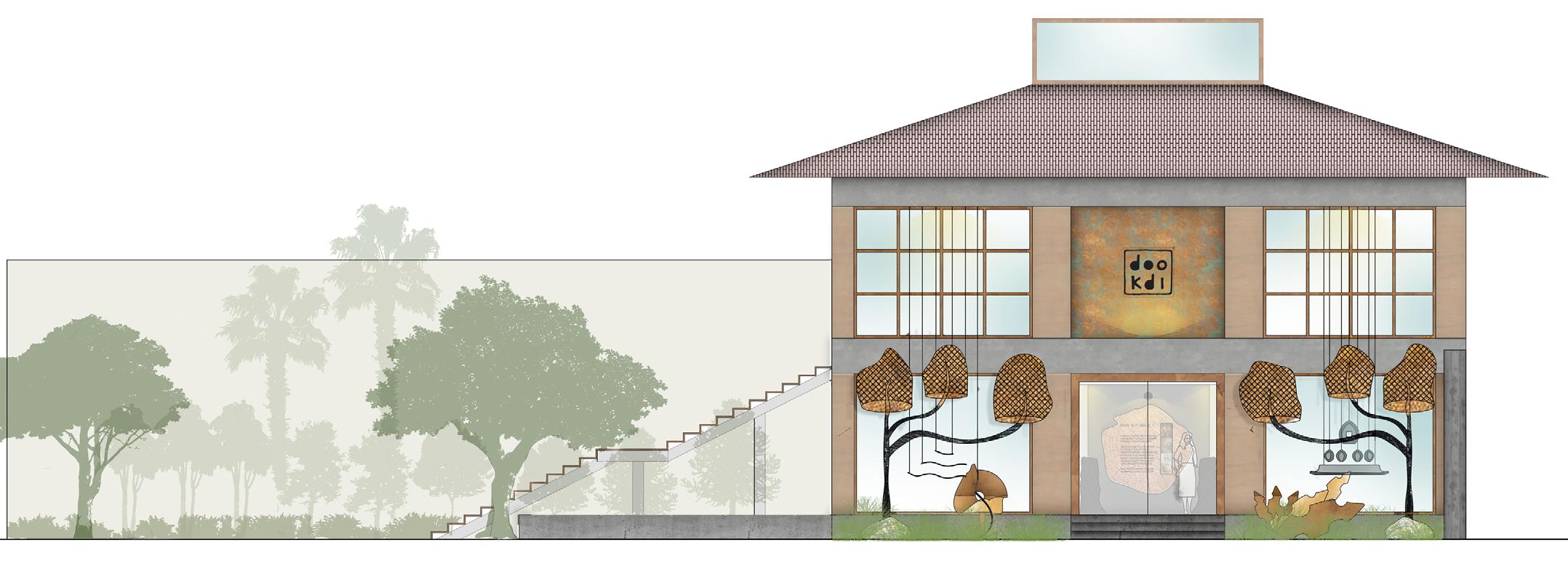

Store

Rammed earth plaster - creating earthy brand image.

Logo of the brand on a rusted copper sheet representing the raw and rustic brand image.

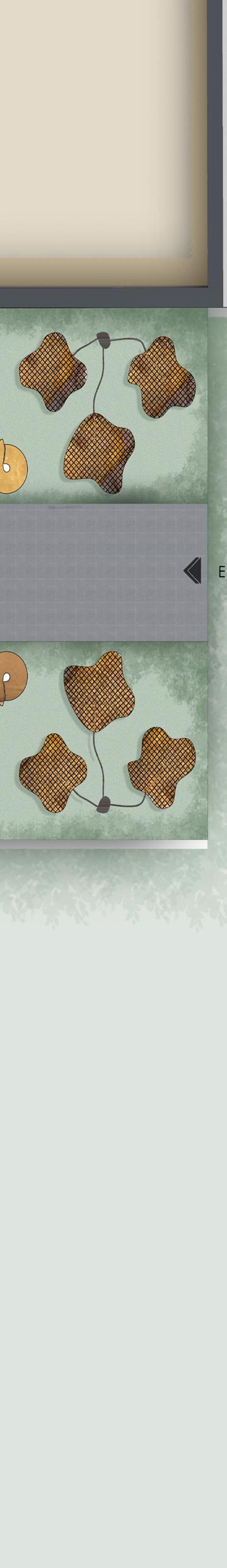

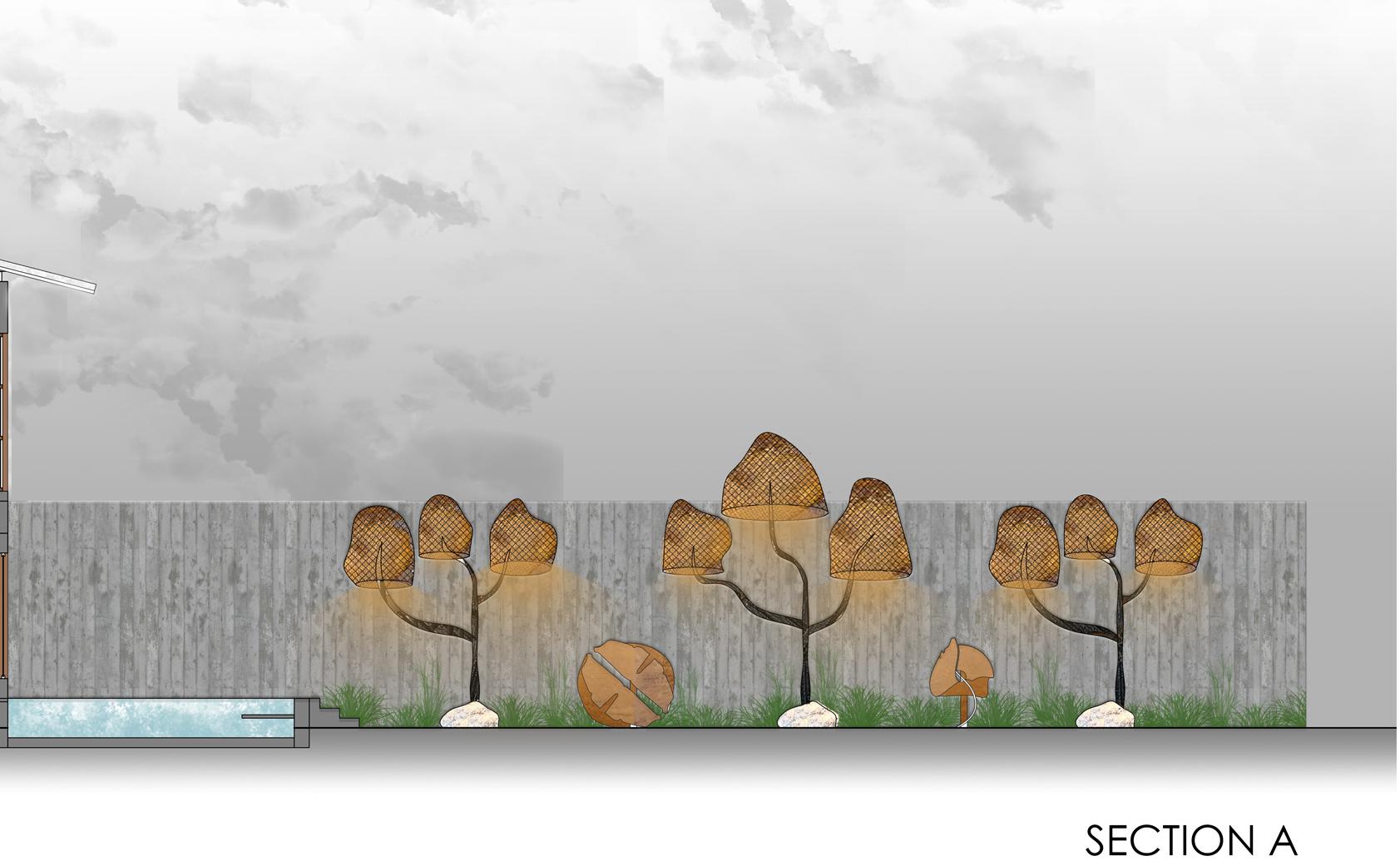

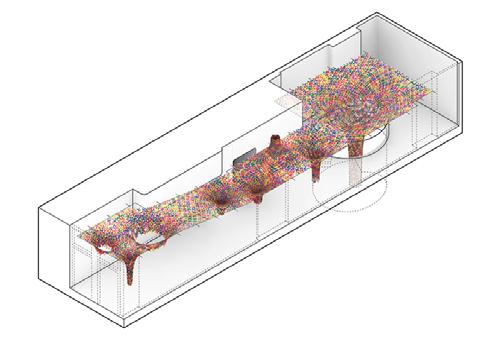

Installation resembling trees - giving idea of concept of bio-mimicry.

Clear glass window - to give an overview of the store.

Point of Sale

Sculptures made of brass and copper sheets, in the form of upscaled products.

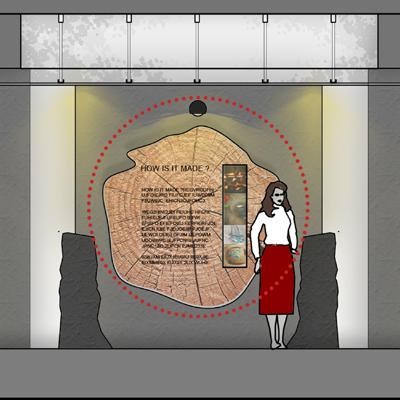

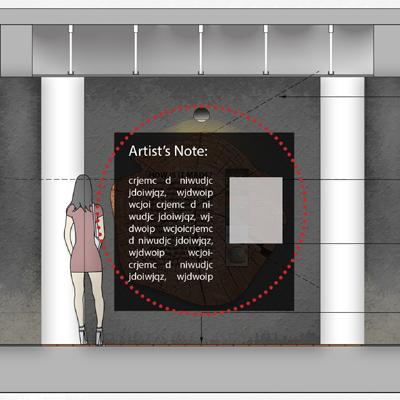

Environmental Graphics

To educate the customer about the concept of the products displayed in the front, which adds to the conceptual value of the product.

To inform the customer about founder, brand’s philosophy and vision.

To make customer aware about the crafting process and communicate the authenticity of hand crafted designer goods, which adds exclusivity to the product and adds to the value.

Material Palette

Introduction :

The Role of Installation Art in Retail Store Environments

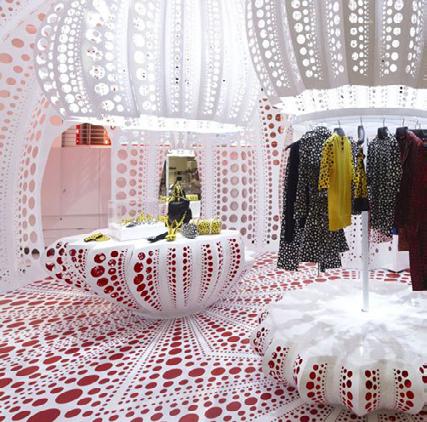

Installation Art is a relatively new genre of contemporary art , which involves the arrangement or “installation” of objects in a space. The emerging arrangement of material object and space that it resides in comprises the “artwork”. Since the artwork and the space it is displayed in influence the meaning on each other, Installation art has been used in non-museum settings to create richer spatial experiences. Installation Art has been introduced outside of the Art galleries and museums, by assuming its ability to transform spatial experiences into memorable ones.

With the urge of enhanced shopping experiences in Retail Environments, the focus has shifted from ‘product centric’ design to ‘consumer centric’ or ‘experience centric’ retail design. Thus, the role of retail designer extends from designing a space to display the product, to design a space where brand experience becomes the primary intent.

The emphasis on placing the viewer not as a passive spectator but an active agent in process of communication and experience generation is a common factor of this approach to Retail design and Installation Art. Thus Installation Art is finding its way into retail design.

INTERIOR ARCHITECTURETECHNOLOGY

Genesis of the study:

A study of Prada, focused on Brand Building at the Intersection of Design, Art and Technology.

Aim

To study the role of Installation Art and its various approaches and impact on Retail Store Environments.

Objectives

1. To derive generic features of Installation Art and its relation to design of various interior space.

2. To understand various approaches to Installation Art in Retail Environments.

3. To check the impact of Installation Art on Store perception.

ART

INSTALLATION ART Painting

Sculpture Murals

Digital art Photography

Performance Hospitality

Art Gallery

Public spaces Residence

Healthcare Offices

RETAIL ENVIRONMENT

Structure of the Study

Installation Art and Interior design

To enable an in depth study of the Role of Installation Art and its various approaches in Retail Environments, this study begins with understanding the role of Installation Art in interior settings.

1.1 Emergence and Evolution of Installation Art

1.2 Features of Installation Art

1.3 Installation Art in Different Environments

Installation art and Retail Store Environment

Then it delves into the impact of Installation Art on store design parameters which builds the store perception.

2.1 Retail Store Design Parameters

2.2 Integration of Installation art in Retail Environments

2.3 Impact of Installation Art on Store Perception

Case Study

The derivation of the analysis done in former part of the study will provide a lens through which the impact of Installation Art on store design parameters will be verified in the case studies.

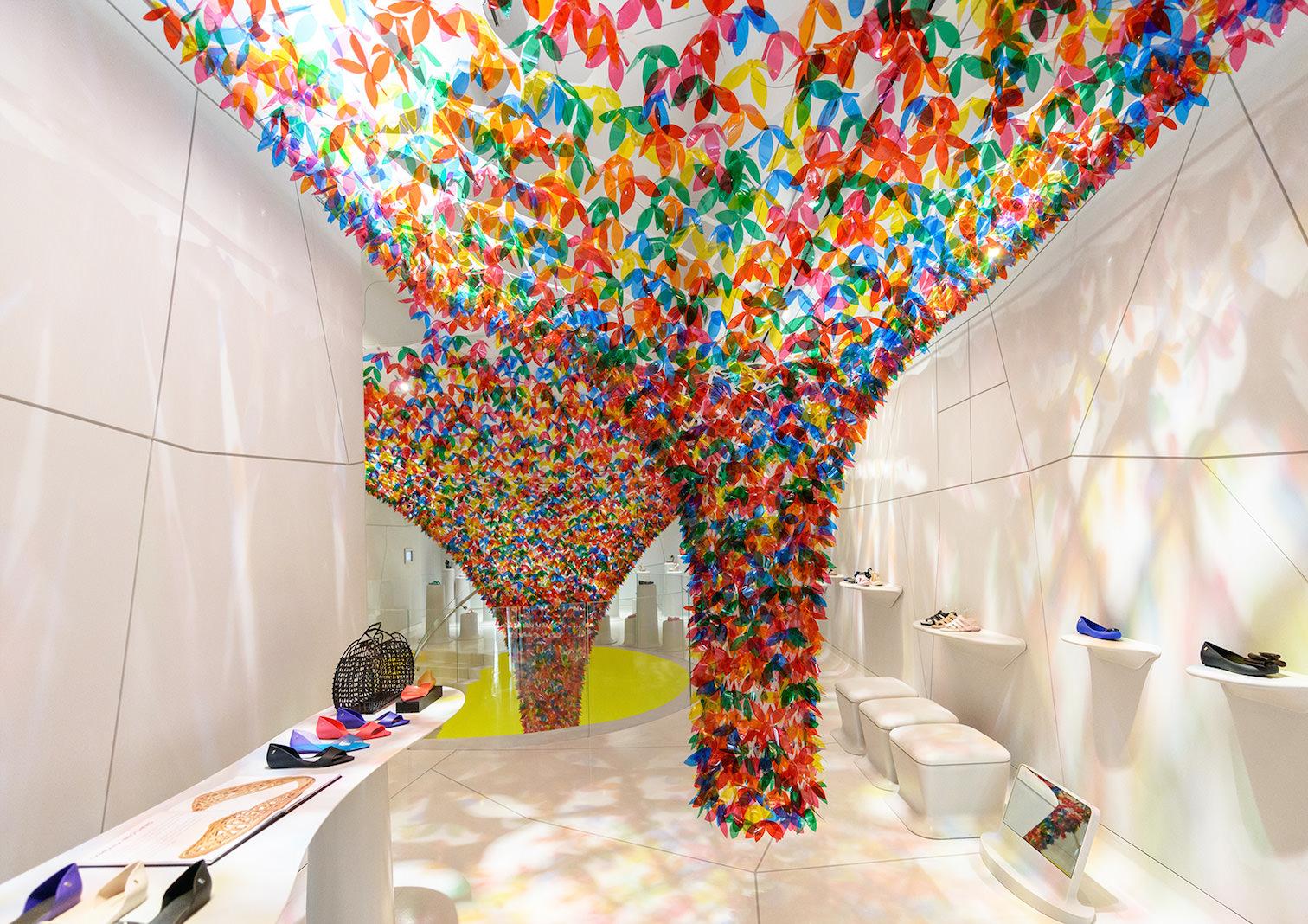

3.1 Overview 3.2 Melissa : We are flowers

Prada : The Wave

Case study inference

Conclusion

The study concludes the approaches taken by different brands and contribution of Installation Art in building a retail store perception.

What is the Role of Installation Art in Retail Environment?

Key Take-aways

Features of Installation Art :

Site specificity

Installation Art co-exist with the surrounding space. They use the environment to convey the intended meaning. They create a bond with surrounding space for the viewer to immerse fully and experience the artwork in totality.

Ephemeral Quality Materiality Viewer Centric Approach Interactivity

Installation Art exists in its suggested time and space. The transformation that a space faces under the impact of an Installation art is temporary, regardless of the sitespecificity of the artwork.

Installation art is not bound by any material or medium limitations unlike many traditional art forms. It does not follow any particular style of production. Rather it does allow the combination of other mediums and material in order to generate relevant experiences and portray the complexities of the artist’s idea.

02 Parallels between Installation Art and the field of Interior Design :

Installation Art can also be called as ‘Spatial art’ or ‘Spatial Installations’ as its relation to the physical space is very evident. The field of interior design also works on the relationship of the architectural shell and elements that resides inside it. As both fields aims at achieving a desired spatial experience in order to communicate a specific message and can take inspiration from each other, it is relevant to study Installation Art as a field and its impact on spatial parameters.

Installation art tends to impact the sensory perception of the viewer. In a way, it ‘installs’ the viewer into a curated system with the intention to impact the subjective perception of the viewer as its ultimate outcome.

Interactivity is often a key characteristic and goal of installation art and can occur on multiple levels, sometimes simultaneously. The study looks at interactions between Art+Viewer, Viewer+Viewer and also between multiple disciplines.

Site specificity

Ephemeral Quality Materiality

Viewer Centric Approach Interactivity

Interior Design

06

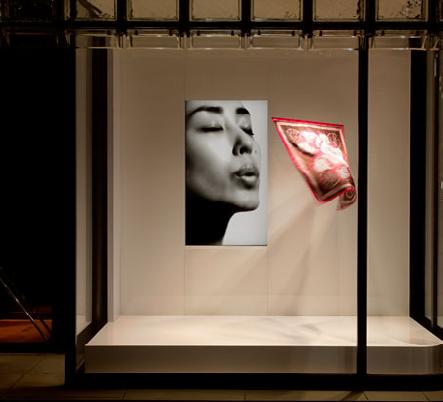

Impact of Installation Art on Store Space Perception:

After looking at examples of Installation art the study inferred that various attributes of Installation Art affect the various design parameters in different degrees. The transformation realized under the impact of Installation Art by its different attributes ultimately affects the perception of the brand in customer’s mind.

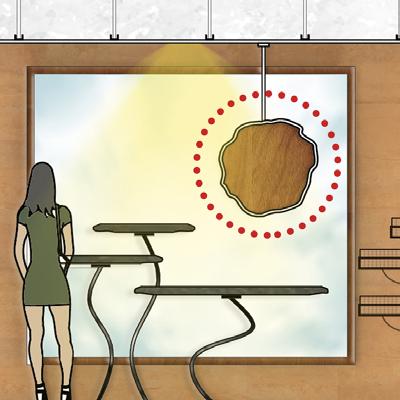

Inspiration Form & Material

Placement & Positioning

Various approach to Installation Art in Retail Environments:

From the case studies, the study inferred that even in different retail space, the function and meaning of Installation art varies according to brand’s intention and desired function. This defines the approach of a particular brand. The different approaches can be majorly concluded in three categories: 1. Aesthetic creation 2. Value creation 3. Educative approach.

These approaches do overlap in order to create multi sensorial experience and use the Installation art to its fullest in order to generate multi layered brand image to interpret Installation art in their retail environment.

i

Educative Approach

When Installation Art is used to educate the customer about the product or brand or to create awareness about other causes.

Aesthetic Creation

When Installation Art is used to educate the customer about the product or brand or to create awareness about other causes.

Value Addition

When Installation Art is used to educate the customer about the product or brand or to create awareness about other causes.

Role of Installation Art in Retail Environments:

Reinforces Brand Identity :

Installation Art also creates an identity for stores by representing brand’s presence in a creative way. It enables the brand to take the ownership of the store space and differentiate from other competitor’s. It acts like a memory trigger and enhance the shopping experience, which is paramount in today’s world of experience economy.

Provides Visual Appeal :

Installation Art adds an element of spectacle and adds visual drama to the store environment. Strategically designed and placed Installation art can help enhance the presence of the brand in Retail stores. Installation Art also acts as an indication of differentiation and taste along with creating an element of spectacle that engages customer in Retail Environments.

Multi - layered Function :

Installation Art used in Retail space can serve many functions. It can act as a backdrop to display the product or create a setting that gives different cues to the customer to build a story around the product. This installation can also provide a pause point in the experience path that attract customer’s attention by its experiential quality. It can also be placed as a pivot point in order to impact store circulation and guide the customers to a desired path.

Provides Flexibility :

Installation Art works as a tool to transform in-store experiences at different times in the same space. Its quality of being relevant for a particular time and space gives possibility to experiment and create different in store experiences in the same space. As it affects the store design parameters, it can be used strategically to modulate the store perception through its placement and positioning that influence the perceived volume and circulation inside the store, in order to generate different experiences.

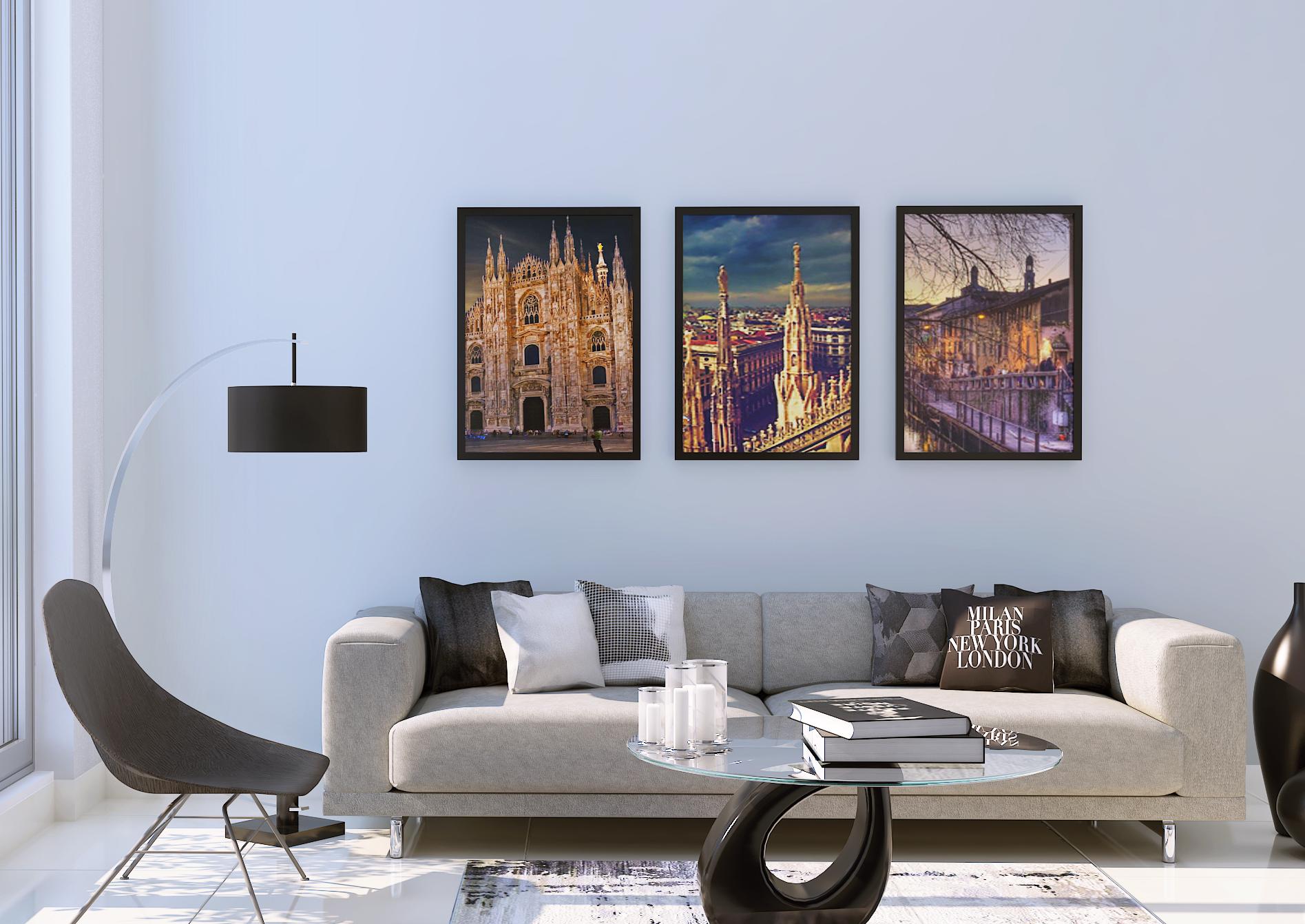

STUDIO APARTMENTS

10 studio apartments

Site : HSR Layout, Bangalore

Area : 200-300 sqft

Design Brief :

10 Studio Apartments to rent with different cities as themes for the interior. The building had 3 floors. Each floor had 4 apartments. Apartments on same floor had similar layouts. The top most floor had 2 apartments with attached terrace. Each apartment had been designed with keeping different cities such as Milan, Dubai, Tokyo, London as themes.

Scope of Work :

Living room with TV Unit

Kitchen (incl. refrigerator, microwave, washing machine)

Bar unit / folding dinning table

Bed/s Wardrobe Study table

This drawing is the copyrighted property FRDC pvt ltd. Any reproduction in part or as a whole permission from FRDC for any purpose for which it is intended is prohibited.

GENERAL NOTES :

1. ALL DIMENSIONS ARE IN MILLIMETRES UNLESS MENTIONED OTHERWISE.

2. ALL DIMENSIONS TO BE CHECKED AND VERIFIED CONTRACTORS PRIOR TO COMMENCEMENT OF 3. ANY DISCREPANCIES TO BE CLARIFIED IMMEDIATELY, CHANGES REQUIRED SHALL BE CONFIRMED FROM ARCHITECT.

4. WRITTEN DIMENSIONS SHOULD BE FOLLOWED.

5. THIS DRAWING SHALL BE READ IN CONJUNCTION OTHER PERTINENT.

REVISION DATE DESCRIPTIONREV

Washing Machine

Rerigerator MicroWave

R1 09-09-2017 SHOE RACK MODIFIED

R0 08-09-2017 NEW DRAWING

No-325, 5th Main, Koramangala 1st Block, Bangalore - 560034. T - 080-65391936, 080-41468424 www.frdc.inFuture Research Design Company

HSR 2751

Mr.

This drawing is the copyrighted property FRDC pvt ltd. Any reproduction in part or as a whole permission from FRDC for any purpose for which it is intended is prohibited.

Furniture Layout - First Floor - South East Flat

GENERAL NOTES :

1. ALL DIMENSIONS ARE IN MILLIMETRES UNLESS MENTIONED OTHERWISE.

DRAWN BY : Prasanth CHECKED BY PS

SCALE:

PROJECT : DWG TITLE : ITEM CODE

2. ALL DIMENSIONS TO BE CHECKED AND VERIFIED CONTRACTORS PRIOR TO COMMENCEMENT OF 3. ANY DISCREPANCIES TO BE CLARIFIED IMMEDIATELY, CHANGES REQUIRED SHALL BE CONFIRMED FROM ARCHITECT.

DATE:08-09-2017

4. WRITTEN DIMENSIONS SHOULD BE FOLLOWED.

5. THIS DRAWING SHALL BE READ IN CONJUNCTION OTHER PERTINENT.

REVISION DATE DESCRIPTIONREV

R0 08-09-2017 NEW DRAWING

PROJECT

HSR 2751 Mr.

DWG TITLE :

Furniture Layout - First Floor - South West Flat

DRAWN BY : Prasanth

CHECKED BY PS

SCALE:

DATE:08-09-2017

Rerigerator

Machine

Lighting

4.

1'-3"1'-2"1'-2"

1'-3"1'-3"1'-2"1'-2" 3'-10" 2' 2'-9"

DRAWN BY : Prasanth CHECKED BY PS

DATE:08-09-2017

Space for washing machine (clear height of 925mm to be provided)

Space for washing machine (clear height of 925mm to be provided)

1'-5" 1'-5" 1'-5" 1'-5" 1'-7"

1'-2"

2'-5" 2'-11" 2'-11" 2'-5" 1'-2"1'-2"

1'-5" 1'-5" 1'-5" 1'-5" 1'-7"

storage

2' 2'-9"

4'-9"

2'-5" 1'-10" 1' 1'

1'-10"

B

2'-7"

2'-7"

1'-3"

1'-3"

2'

2'

Cylinder and storage

and storage

ELEVATION A 10'-11"

ELEVATION A 10'-11"

2'-9"

WM ELEVATION B

WM ELEVATION B

2'-9"

A

3' 2'-1" 2'-2" 2'-1" 1'-10" 2'-4" 1'-10" 2'-4"

Pots and pans

B

6'-1" 8'-10"

8'-10"

A

3' 2'-1" 2'-2" 2'-1" 1'-10" 2'-4" 1'-10" 2'-4"

CutleryGroceries PLAN

Pots and pans

CutleryGroceries PLAN

Beading of 40mm x 533mm of sal wood.

Beading of 25mm x 533mm of sal wood.

Plywood of 12mm finished with putti and paint.

Beading of 25mm x 533mm of 19mm sal wood.

Pegs of Sal wood of 10mm attached to above ply with a groove.

Cupboard boxing of 19mm ply.

Shutter of 19mm ply.

Door handle of square metal section of 10mm x 10mm.

Legs of square metal section of 10mm x 10mm.

Beading of 40mm x 533mm of sal wood.

Beading of 25mm x 533mm of sal wood. Plywood of 12mm finished with putti and paint.

of 25mm x 533mm of 19mm sal wood.

Pegs of Sal wood of 10mm

to

ply with a groove.

19mm

FLOOR CABINET FLOOR CABINET

SIDE ELEVATION

5th Main,

1st Block, Bangalore 560034.

- 080-65391936, 080-41468424

This drawing is the copyrighted property of FRDC pvt ltd.

Any reproduction in part or as a whole without permission from FRDC for any purpose other than for which it is intended is prohibited.

GENERAL NOTES :

1. ALL DIMENSIONS ARE IN MILLIMETRES UNLESS MENTIONED OTHERWISE.

2. ALL DIMENSIONS TO BE CHECKED AND VERIFIED ON SITE BY CONTRACTORS PRIOR TO COMMENCEMENT OF WORK.

3. ANY DISCREPANCIES TO BE CLARIFIED IMMEDIATELY, AND CHANGES REQUIRED SHALL BE CONFIRMED FROM THE ARCHITECT.

4. WRITTEN DIMENSIONS SHOULD BE FOLLOWED.

5. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH OTHER PERTINENT.

DRAWN BY :

BY :

Area : 3.6 lac sqft

Ahmedabad

Work

(Terminal

Development

Design Brief :

The newly developed airport should cater to increased number of passenger flow with providing additional facilities such as new premium lounges, Kid’s area and other immersive experiences to bring out an impression of a modern yet rich in heritage city of Ahmedabad. For example, the Reserved Lounge was designed to provide calm, soothing, sophisticated environemnt.

Development

Scope of Work :

Renovation of existing Airport facilities including Check-in Areas, Immigration Area, Baggage Claim area, Waiting lounges, Reserved and Transfer Lounges, Restrooms, BOH & FOH offices of Terminal I & II.

Contribution:

• Research and References

• Space Planning

Design Development of Counters

Development

• Millwork Furniture Drawings (including Check-in, Immigration, Departure gate counters, Security area furniture , Lounge furniture and interior elements)

• Bought-out Furniture selections

• Material and Fixture selection

A solid mass with a base of 900x750mm, 1100mm high

Working top height reduced to 800mm, allowing for 300mm niche for screen &oth er electronic devices. 250mm skirting also added.

600mm high glass pane added as per Covid Guidelines, SS Gueard rail added.

Corian with curved edges added to the counter & working top, for ease of working.

Corian fascia with an in clined front added to acco modate a ledge.

Corian fascia with an inclined front added to accommodate a ledge

Corian with curved edges added to the counter & working tops, for easy working

Note : Example shown is for check-in counters. Other counters were also developed with similar design language.

1. Check-in Counters

1. Check-in Counters

1. Check-in Counters

Instead of

all counters

1. Check-in Counters

1. Check-in Counters

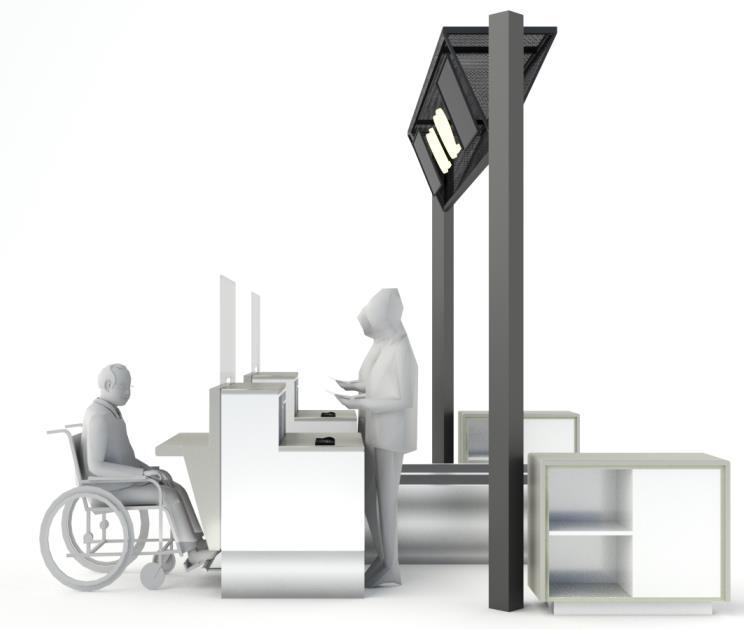

Isometric View of Check-in

Metal structure with square base and tapered joints to hold the FIDS & numbers above the counters.

Metal structure with square base and tapered joints FIDS & numbers above the counters.

Suspended bulkhead that holds the FIDS & counter numbers. Metal frame and intermediate supports with metal jali main fascia.

Suspended bulkhead that holds the FIDS & counter frame and intermediate supports with metal jali main

Glass/ acrylic screens provided as per COVID protocols.

Glass/ acrylic screens provided as per COVID protocols.

Additional storage for accessories & equipment. Top and shorter sides in Corian

Additional storage for accessories & equipment. Top sides in Corian

Tapered fascia, counter tops in accent shade & Corian finish. The tapered fascia allows for an integrated ledge in front side of the counter

Tapered fascia, counter tops in accent shade & Corian tapered fascia allows for an integrated ledge in front counter

Body of the counter in laminate finish with adequate structural support

Body of the counter in laminate finish with adequate support

250 MM SS Skirting with guard rails to avoid any damage to the counters

250 MM SS Skirting with guard rails to avoid any damage counters

Weight display for airline staff, with buttons to control baggage belt placed below it

Weight display for airline staff, with buttons to control placed below it

Storage to keep accessories such as baggage tags, paper rolls, etc.

Storage to keep accessories such as baggage tags, paper

Niche for telephone & barcode scanner with a charging socket

Niche for telephone & barcode scanner with a charging

All in one monitor screen (without CPU)

All in one monitor screen (without CPU)

Ticket printing machines

Ticket printing machines

Drawer with G profile handle to keep extra accessories

Drawer with G profile handle to keep extra accessories

Open storage for personal belongings of airline staff

Open storage for personal belongings of airline staff

:

DEVELOPMENT OF

CLIENT:

JOB No.

TITLE:
