WINDOWS & ROOFLIGHTS
Polyplastic offers a wide range of windows. In standard dimensions. Windows are available as top hung or framed version as fixed, opening or sliding version. Different screen prints (Black/Silver/Graphite), frame colours (Silver/Black) and acrylic colours opaque (white) privacy (black) transparent (grey) give the final bespoke touch for the perfect look. Image shown for illustration purposes, actual product may differ based on compaitable make and model descriptions below.
Polyvision Windows Principal Product Features And Competitive Benefits FRAME One-piece aluminium, with integrated hinge profile and thermal insulation SEALING RUBBER Supple, frost proof compound that seals directly onto the acrylic (no hinge step to cope with). ACRYLIC Cast 3mm acrylic, not thinner and extruded.
Acrylic Characteristics
LIGHTWEIGHT CONSTRUCTION Typically only 0.3kg heavier than a 4.26 window and approx 2kg lighter than a plastic framed version (based on a 900x550 unit).
EASE OF FITTING • Off line preperation needed. • Removal of the ‘human element’ of rubber windows. • Quicker to fit; fully assembled.
INCREASED VISIBILITY Lack of blind infringement into aperture giving increased clear field of vision (enabling smaller aperture sizes to be used, less weight and cost).
ALSO TO CONSIDER • Timberless aperture possibilities. • Automated sealant application. • Decreased inventory of parts ie, fully assembled. • Direct interchange with aperture for non framed windows; standardisation of side manufacture
HINGE Fixed by adding material (glue, not by routering and removing material.
Polyvision Best Selling Sizes
All windows come complete with stays and catches Code
Width
Height
Plates
06.25.527
500mm
400mm
8
06.25.532
500mm
550mm
10
06.25.523
600mm
250mm
6
06.25.509
600mm
550mm
10
06.25.502
700mm
350mm
10
06.25.505
700mm
450mm
10
06.25.510
750mm
550mm
12
06.25.526
800mm
400mm
10
06.25.506
900mm
450mm
10
06.25.501
900mm
550mm
12
06.25.554
1000mm
500mm
12
06.25.518
1000mm
550mm
12
06.25.511
1100mm
550mm
14
06.25.512
1300mm
550mm
14
• Shockproof • Lightweight • Thermo formable • Excellent transparency • Stronger than glass (due to molecule structure) • Chemical resistant • UV transmitting • Easy to work with (cut and drill)
Polyvision Best Selling Sizes
With black frames and privacy glass 6.25.001.97.00.06 (900 x 550mm) 6.25.006.97.00.06 (900 x 450mm) 6.25.009.97.00.06 (600 x 550mm) 6.25.001.90.61.06 (900 x 550mm) 6.25.011.97.00.06 (1100 x 550mm) 6.25.012.97.00.06 (1300 x 550mm) 6.25.018.97.00.06 (1000 x 550mm) 6.25.034.97.00.06 (350 x 550mm) 6.25.531.90.62.28 (350 x 500mm)
Polyvision Fixing Screw 9.25.000.00.05.08.00
Polyvision Fixing Bracket 9.25.522.00.00.30.00
We supply windows for ALL mainstream UK manufacturers past and present. We only supply Swift windows for any caravan over 8 years old. *Windows may be subject to a 4 week lead time depending upon specification.
CALL 01283 586060 EMAIL SALES@MIRIAD-PRODUCTS.COM OR ORDER ONLINE AT WWW.MIRIAD-PRODUCTS.COM
Horrex Duopliss Blind Code - 700x350mm - 256.002
Code - 600x500mm - 256.006
Code - 3350x500mm - 256.007
Code - 800x400mm - 256.008
Code - 900x500mm - 256.009
Code - 1450x600mm - 256.011
Code - 1300x550mm - 256.012
Code - 1000x550mm - 256.015
Code - 900x450mm - 256.016
Code - 700X520mm - 256.021
Code - 600x550mm - 256.022
Code - 500x550mm - 256.024
Code - 500x400mm - 256.027
Code - 350x550m - 256.028
Code - 600x250mm - 256.031
Code - 700x500mm - 256.032
Code - 1000x500mm - 256.033
Code - 800x550m - 256.034
Code - 1100x550mm - 256.036
Code - 430x600mm - 256.041
Code - 600x520mm - 256.055
Code - 700x450mm - 256.062
Code - 1450x550mm - 256.082
WINDOWS & ROOFLIGHTS

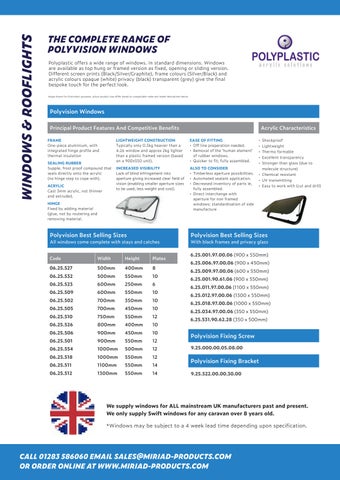

THE COMPLETE RANGE OF POLYVISION WINDOWS
