AL-ANDALUS CENTRE
Cultural Heritage Centre
COMMUNAL KITCHEN
Overbrook Community Collaboration
THE BRIDGE
Forest Educational Facility
AL-ANDALUS CENTRE
Cultural Heritage Centre
Set against the backdrop of Portugal's historical landscape, this project features a mosque alongside a discovery center. The initiative reflects a deep commitment to honoring and integrating the area's rich Islamic legacy within the broader cultural narrative, achieved through extensive on-site research in Portugal, comprehensive cultural and demographic analysis, and detailed historical studies. The mosque provides a vital space for worship and community gathering, while the adjacent discovery center serves as a vibrant hub for educational and cultural exchange. This project is strategically designed to bridge past and present, offering both a homage to historical influences and a forwardlooking approach to cultural dialogue and mutual understanding.
Lisboa, PT 2024

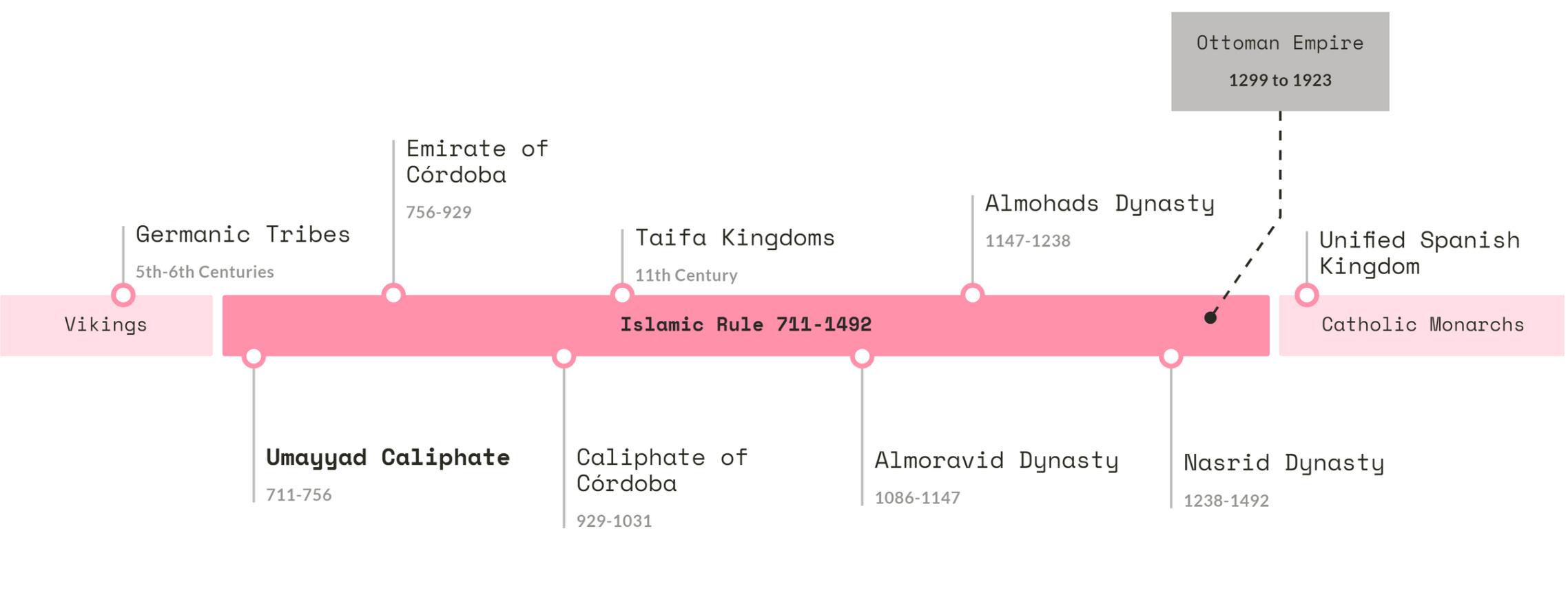

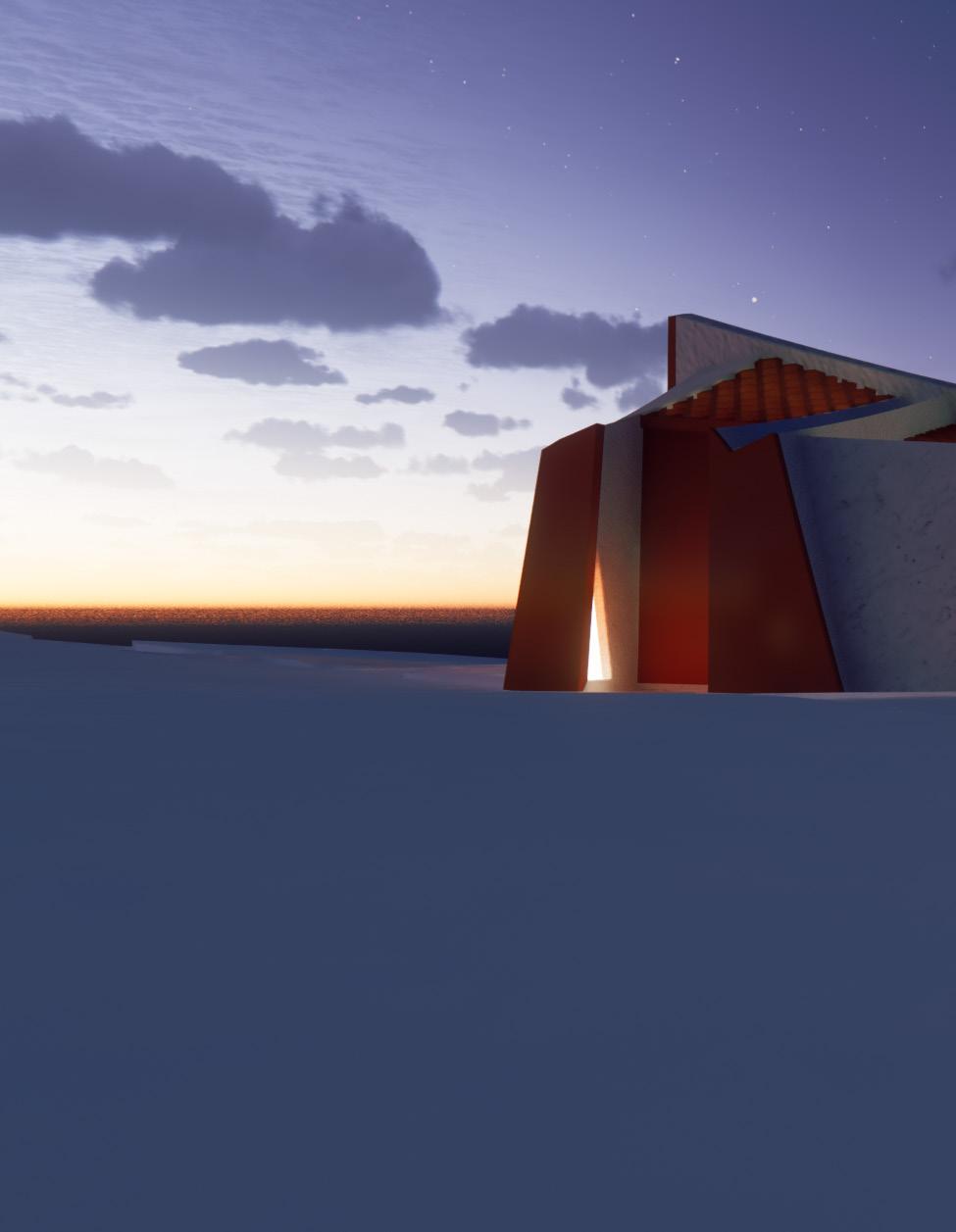

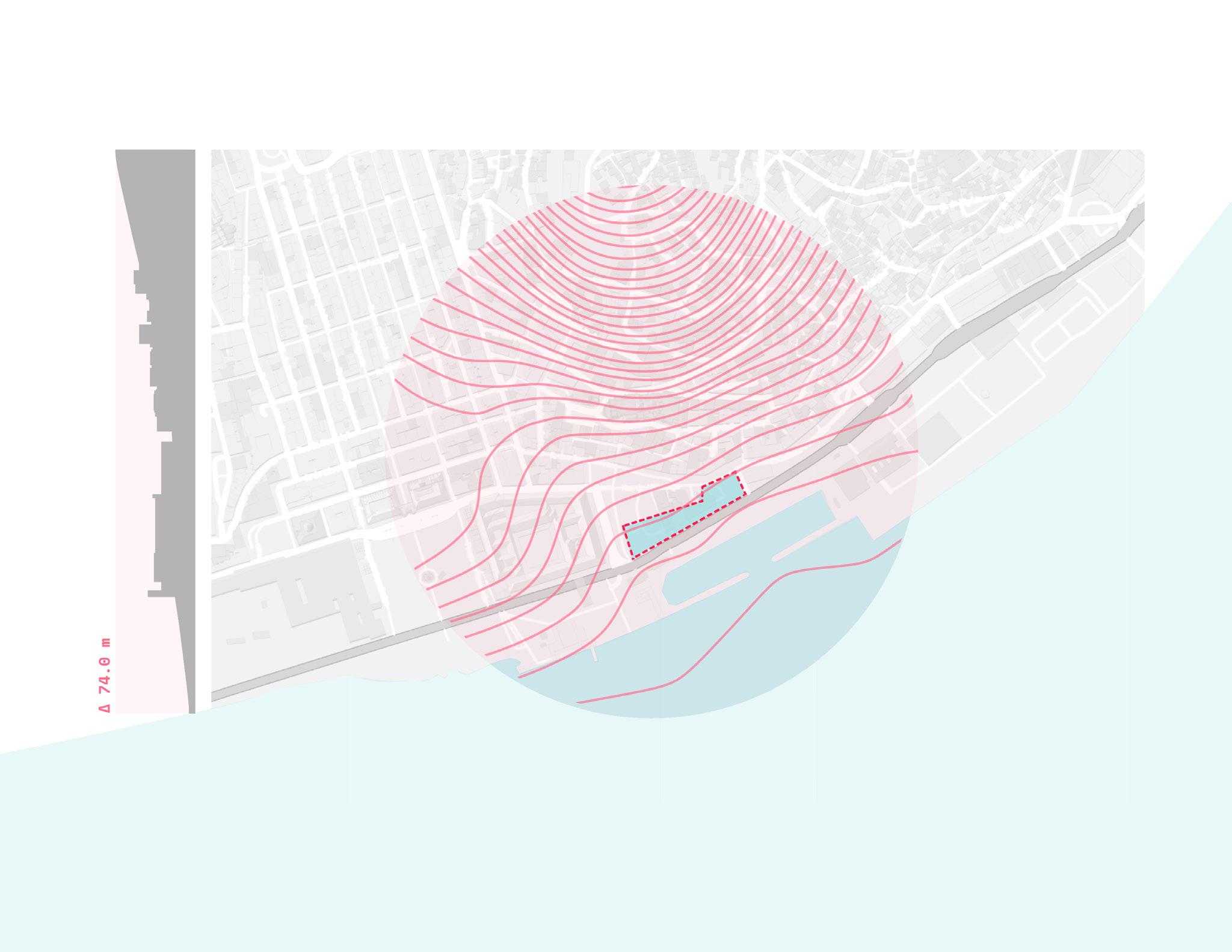

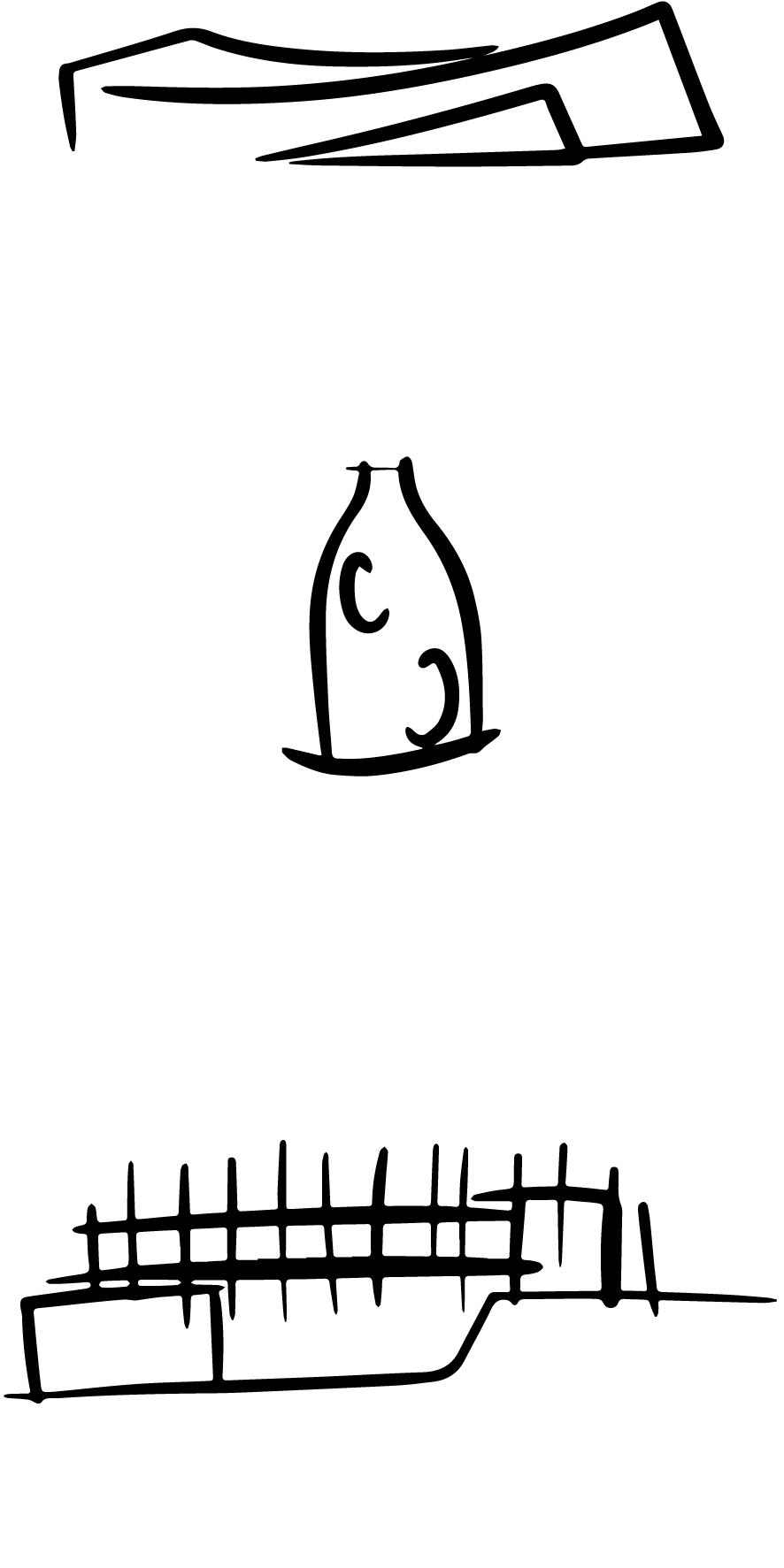

PROCESS DIAGRAMS

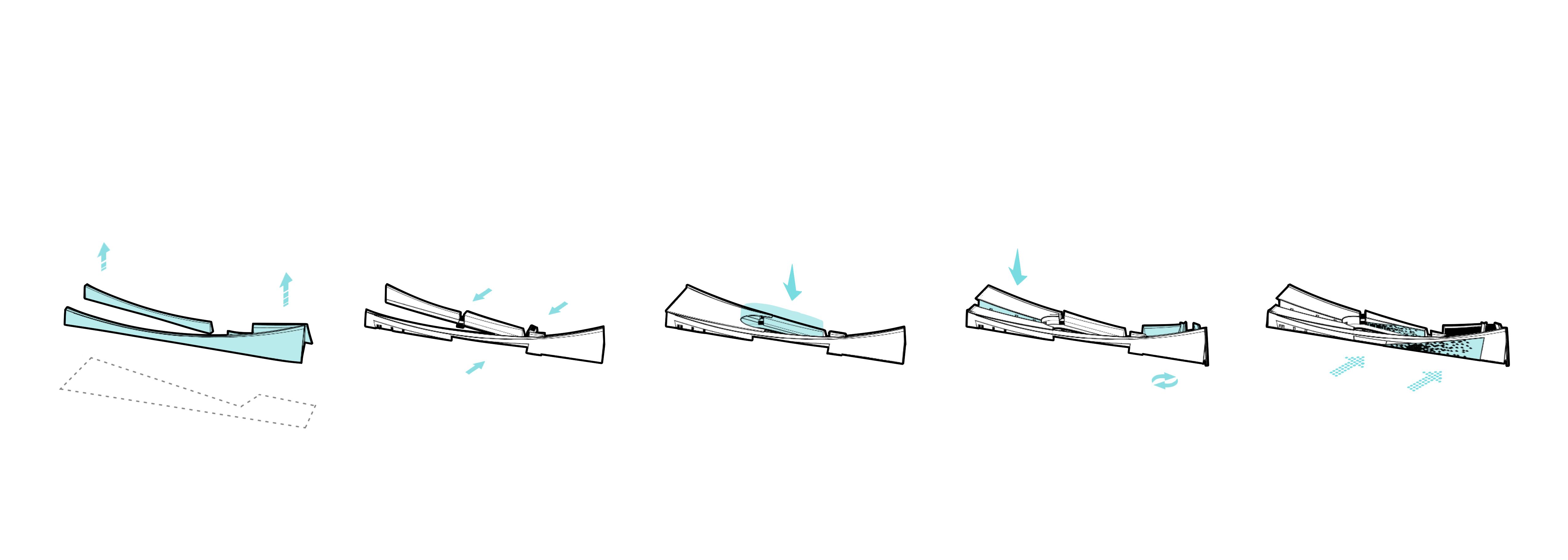

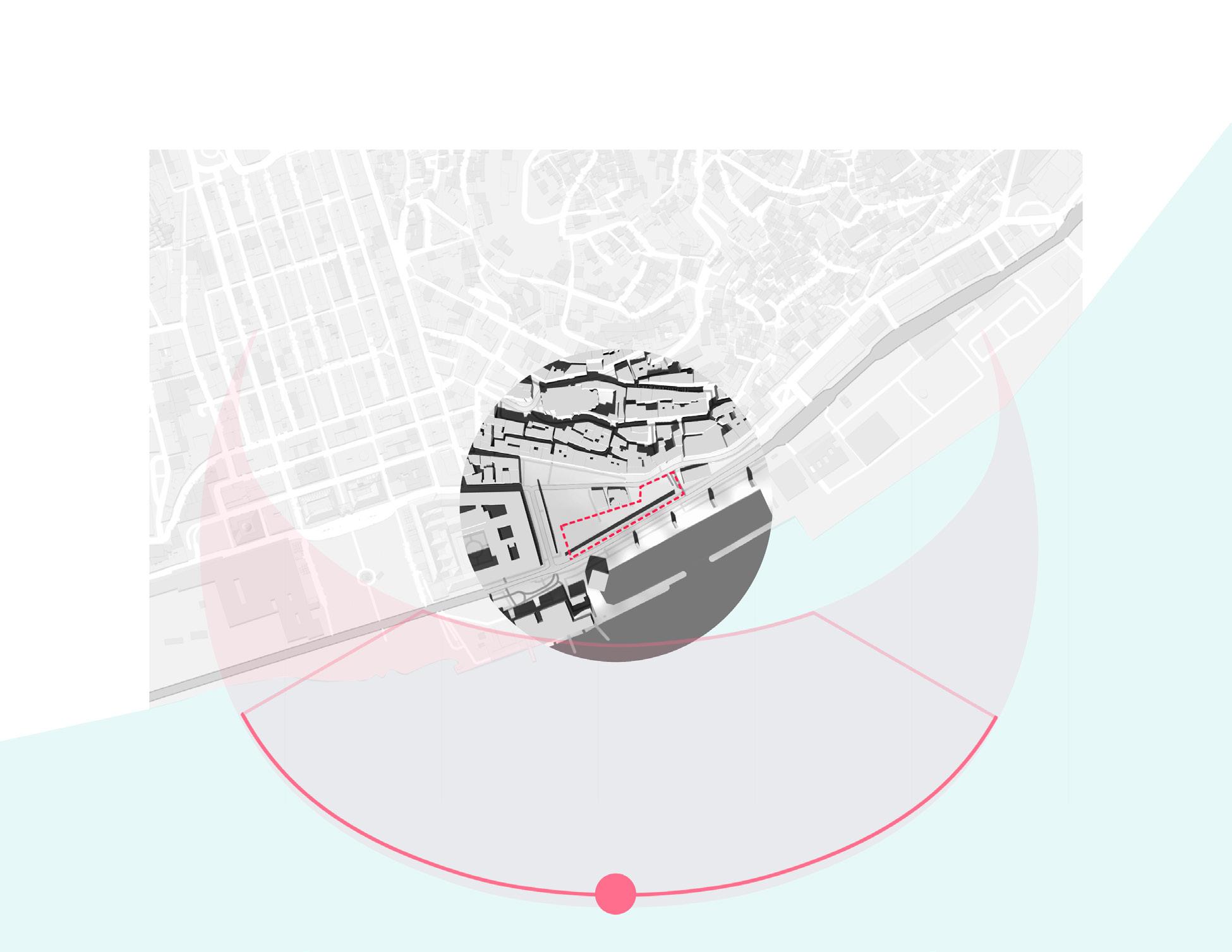

The process diagram illustrates the sequential integration of traditional Islamic forms into the design through iterative steps, alongside methodological actions that enhance the clarity of the design.
Extrude the initial mass to form spines, then lift one side higher to form a Dome and Minaret.
Cut openings and entrances into the center of the spine to establish the Gateway leading into the structure.
Hollow the center of incorporate the water become the focal point identity.
HOLLOW
EXTRUDE & LIFT CUT
South Side Traffic
North Side Traffic
10

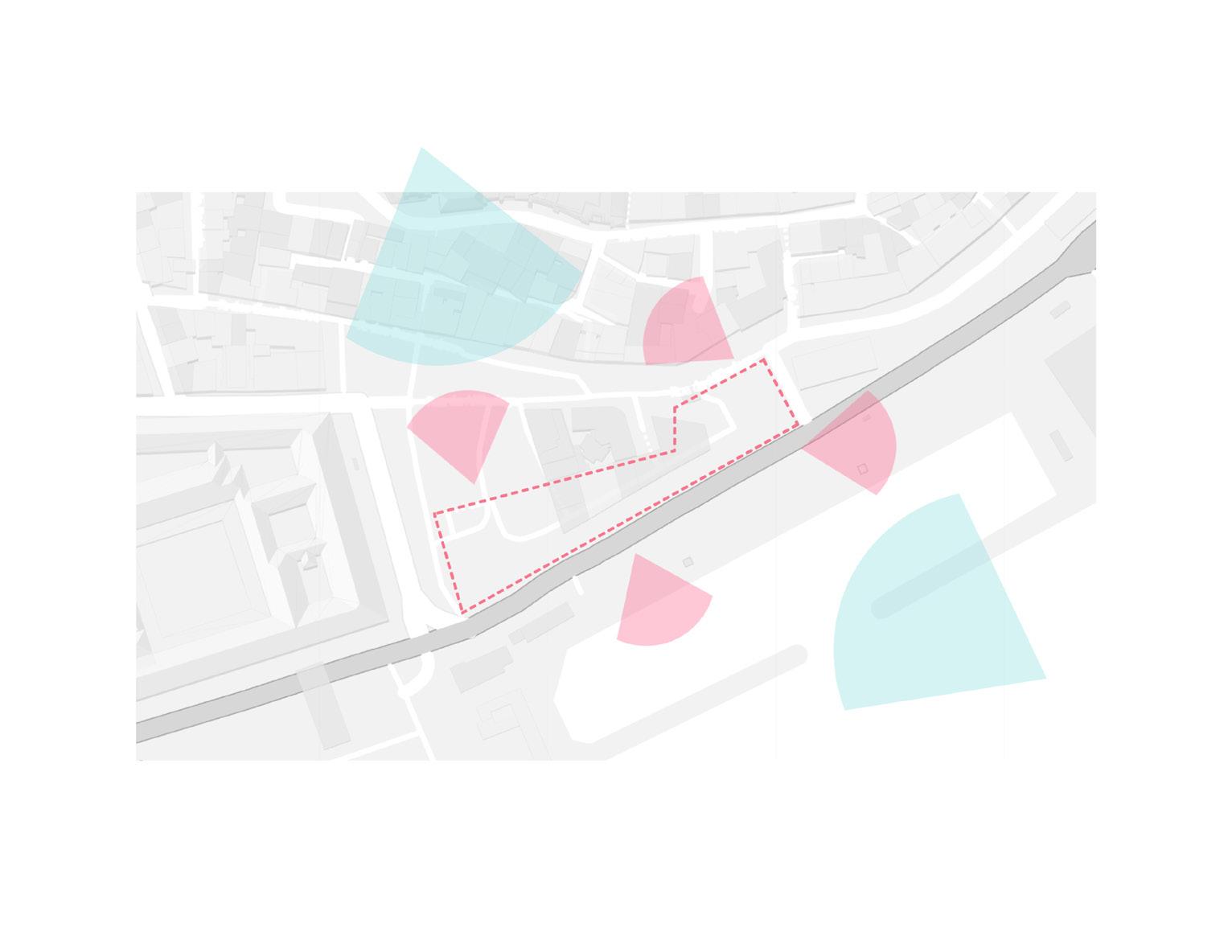

Circulation Diagram
HOLLOW TWIST & CARVE FILTER
of the structure to water feature, which will point of the Courtyard’s identity.
Twist the east end of the structure to align with the Qibla direction. Carve a passageway through the core of the mass to establish a vertical garden.
Add screens on the façade and roof that filter sunlight entering the structure, particularly illuminating the mosque and spiritual area.
930 m² 345 m² 495 m² 895 m² 685 m² 770 m² 380 m² 2330 m² Presentation Hall Spiritual Space Exhibition Spaces Admin & Library Retail Area Mosque Area Cafe Parking 11

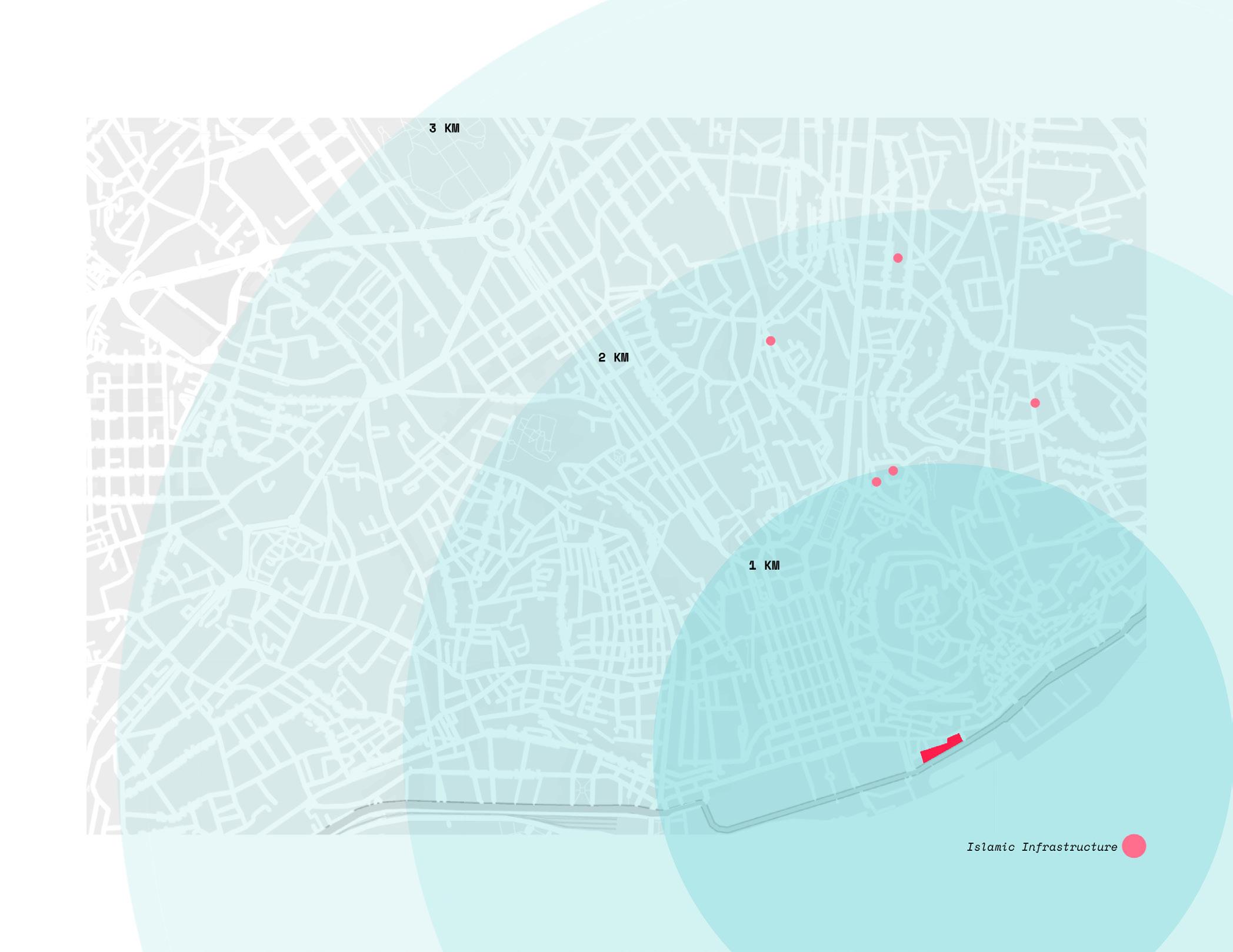

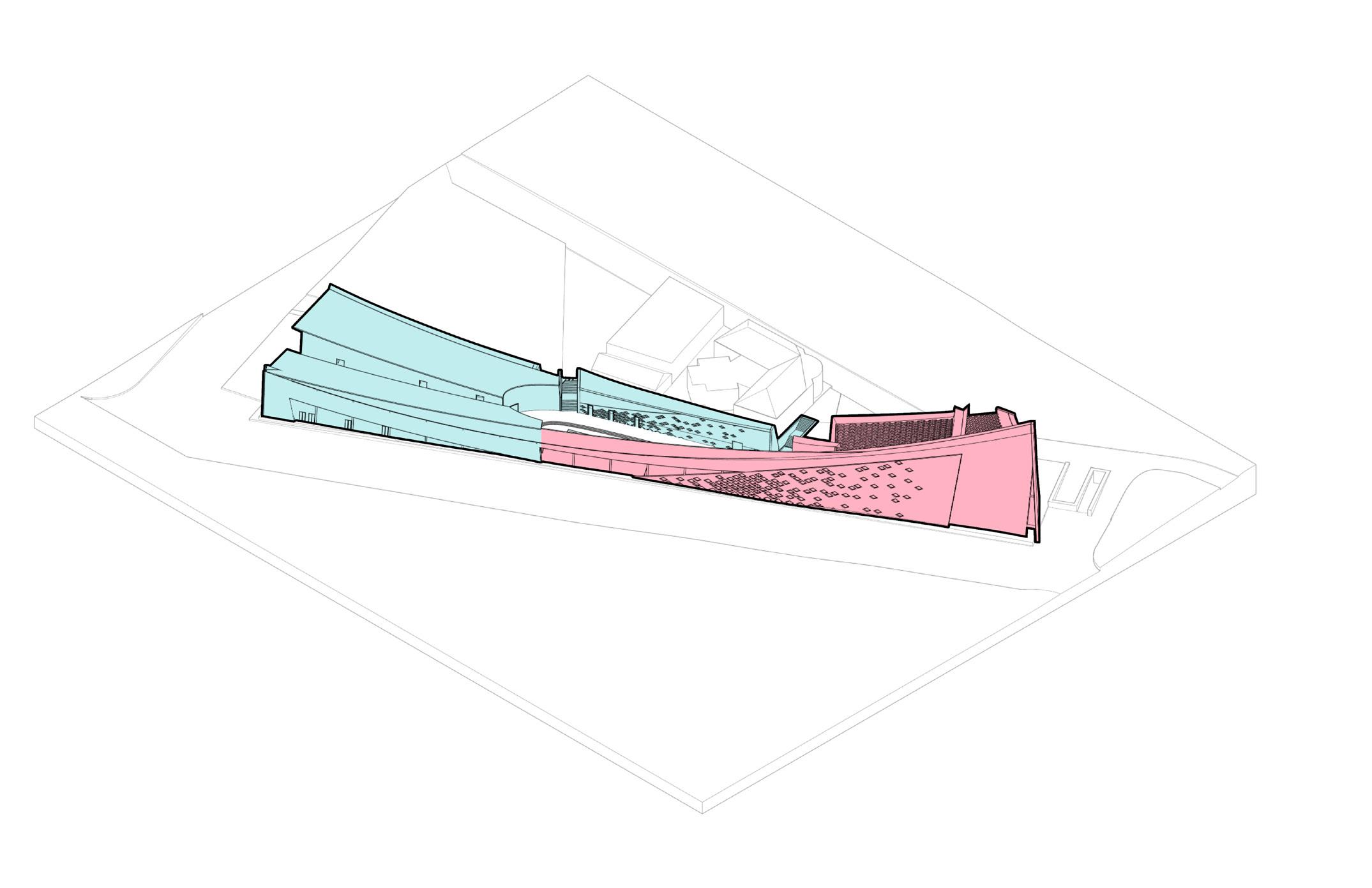

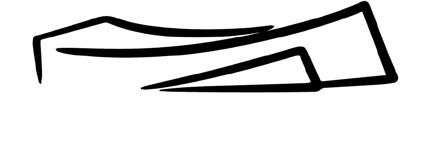

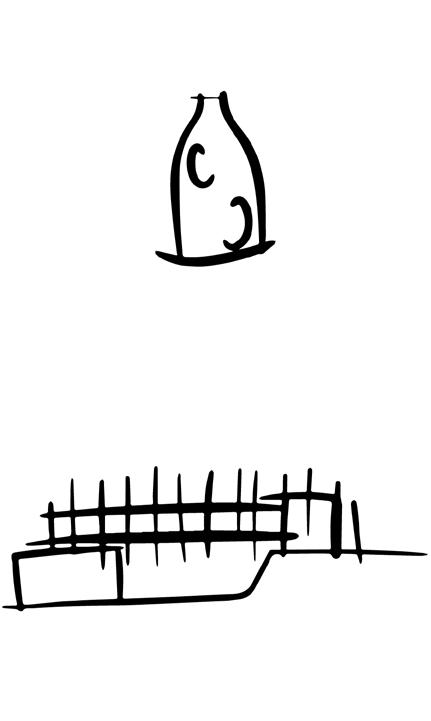

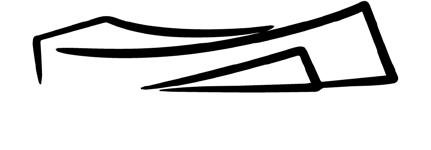

Parti Diagram

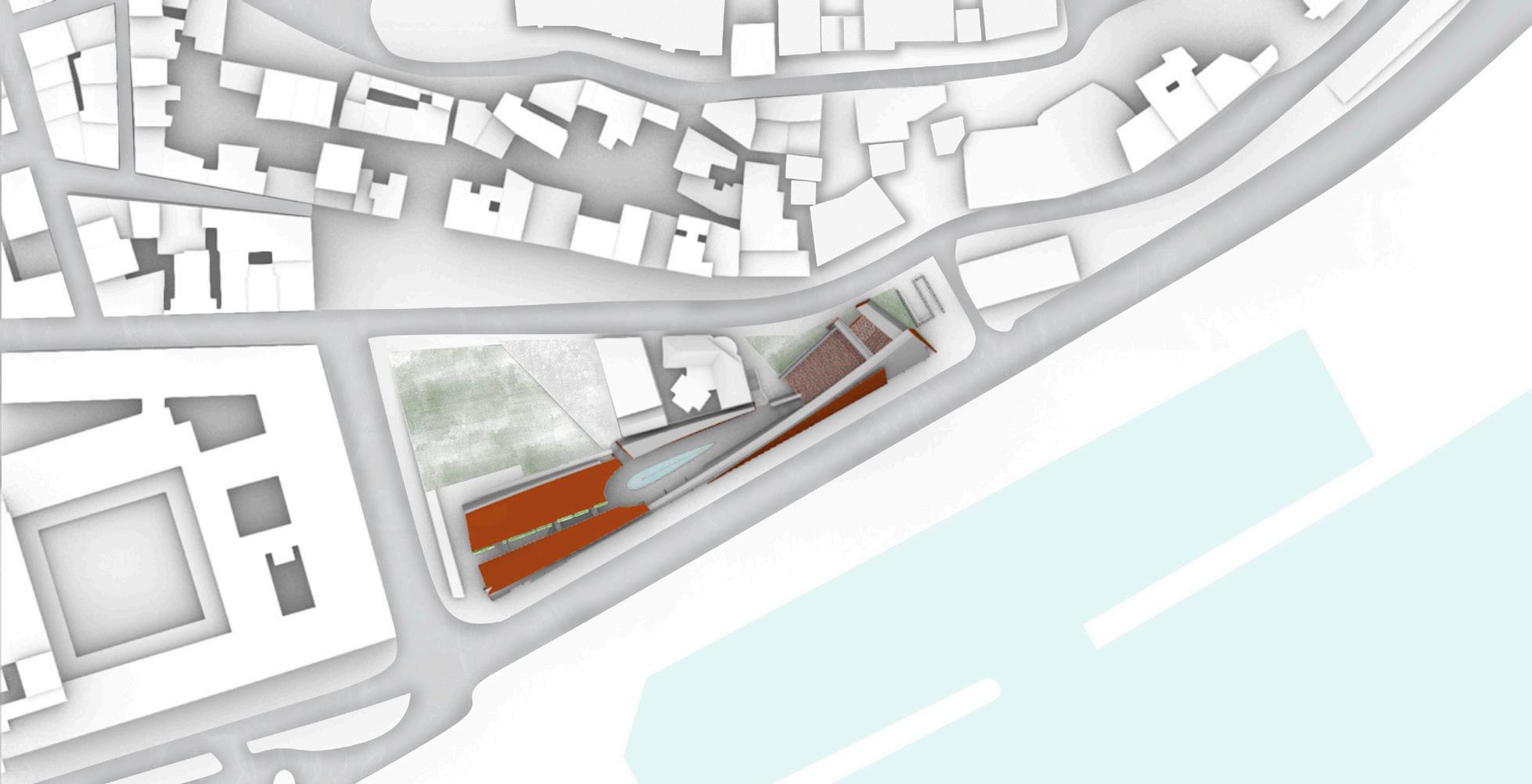

1. Courtyard 2. Cafe 3. Men’s Washroom 4. Women’s Washroom 5. Storage 6. Outdoor Water Feature 7. Office 8. Library 9. Storage Vault 10. Staff Room 11. Meeting Room 12. Staff Bathroom 13. Print Room 1 2 3 3 4 4 8 9 7 7 7 7 7 13 12 14 23 15 15 15 15 18 16 11 10 5 6 21 17 22 25 26 26 24 19 14. Reception 15. Retail 16. Coat Room 17. Ramp to Above 18. Elevator Bay 19. Janitor Room 20. Service Corridor 21. Kitchen 22. Parking 23. Fire Exit 24. Men’s Elevator 25. Women’s Elevator 26. Car Ramp Site Plan Ground Floor Plan 12 A B B' A' C C'
1. Main Entrance 2. Presentation Hall 3. Exhibition Spaces 4. Storage 5. Men’s Washroom 6. Women’s Washroom 7. Coat Room 8. Cafe Loft 9. Family Washroom 10. Multi-use Spiritual Space 1. Women’s Prayer Area 2. Corridor 3. Women’s Washroom 4. Women’s Ablution Area 5. Janitor’s Closet 6. Office 7. Open to Below 8. Study Area 11. Woman’s Mosque Entrance 12. Men’s Mosque Entrance 13. Men’s Prayer Area 14. Men’s Ablution Area 15. Fire Exit 16. Vertical Garden 17. Perimeter Water Feature 18. Gallery Corridor 19. Janitor’s Closet Third Floor Plan Second

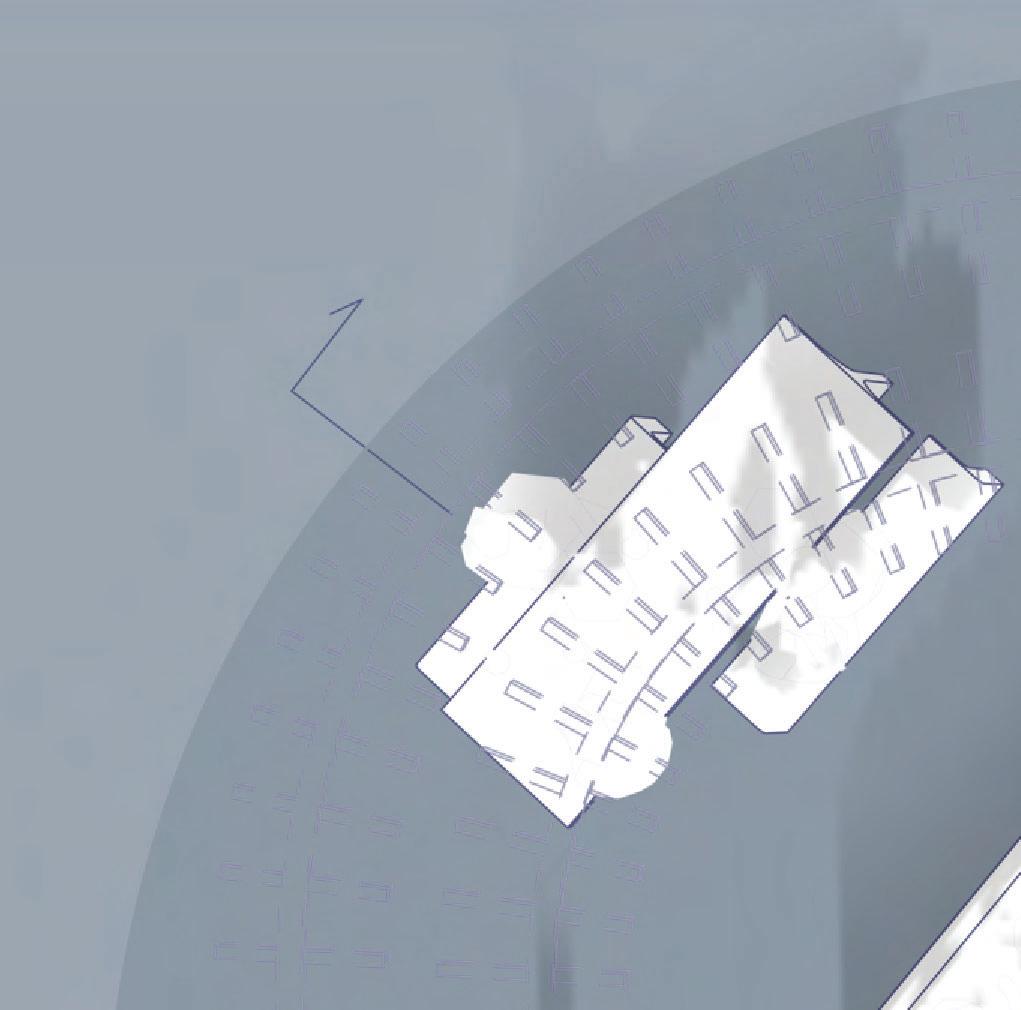

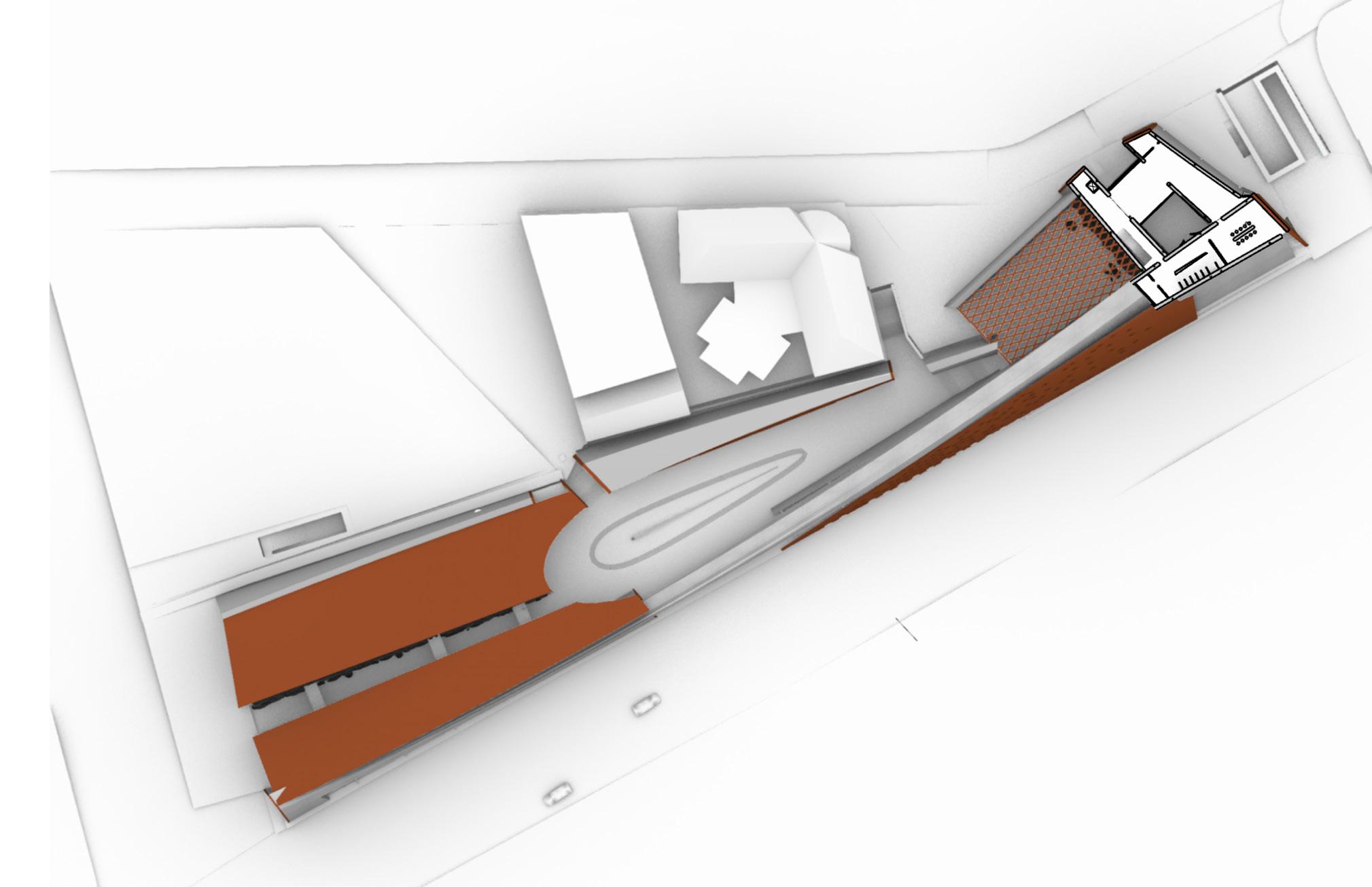

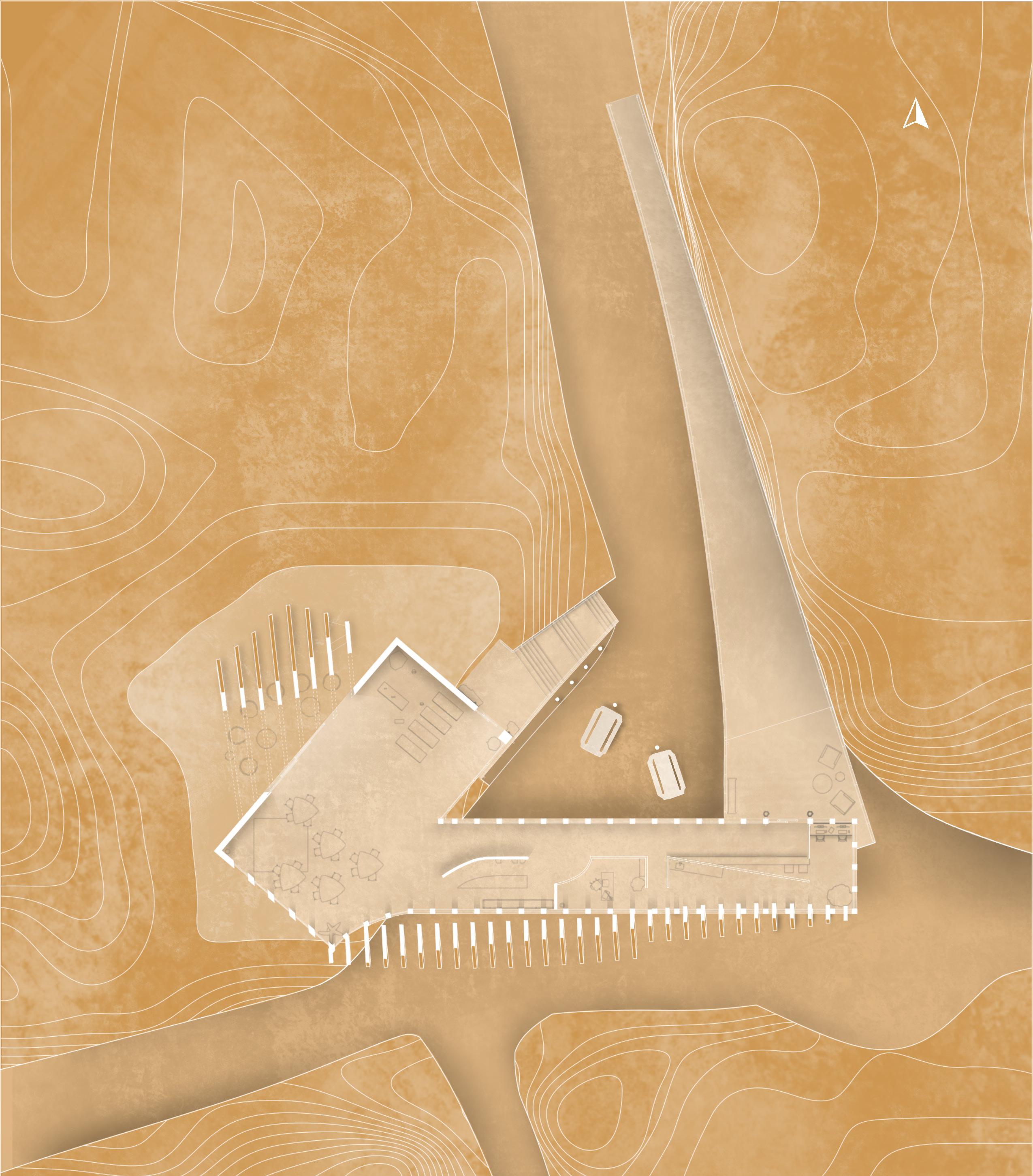

Plan 2 18 16 3 1 2 7 6 8 4 3 5 15 5 5 19 10 17 14 5 13 11 12 19 4 6 6 9 1 7 8 4 13 A B B' A' C C' A B B' A' C C'
Floor

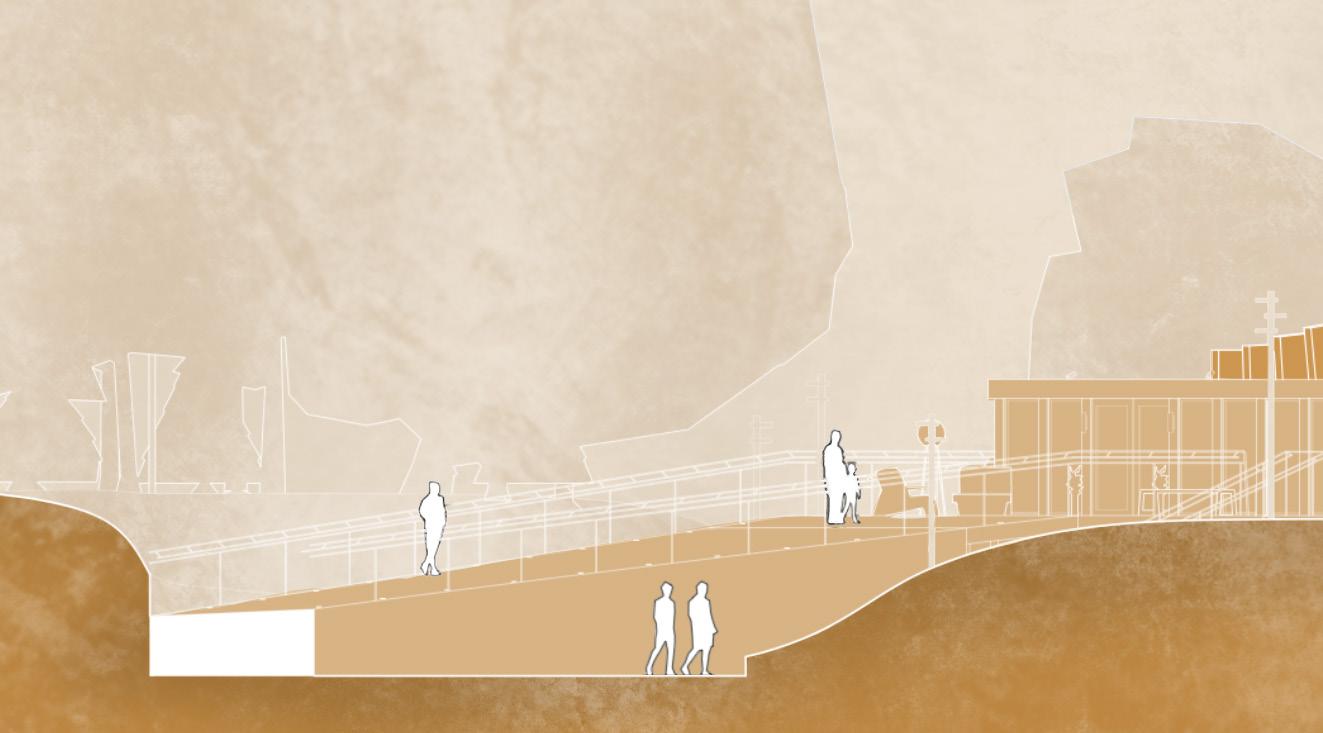

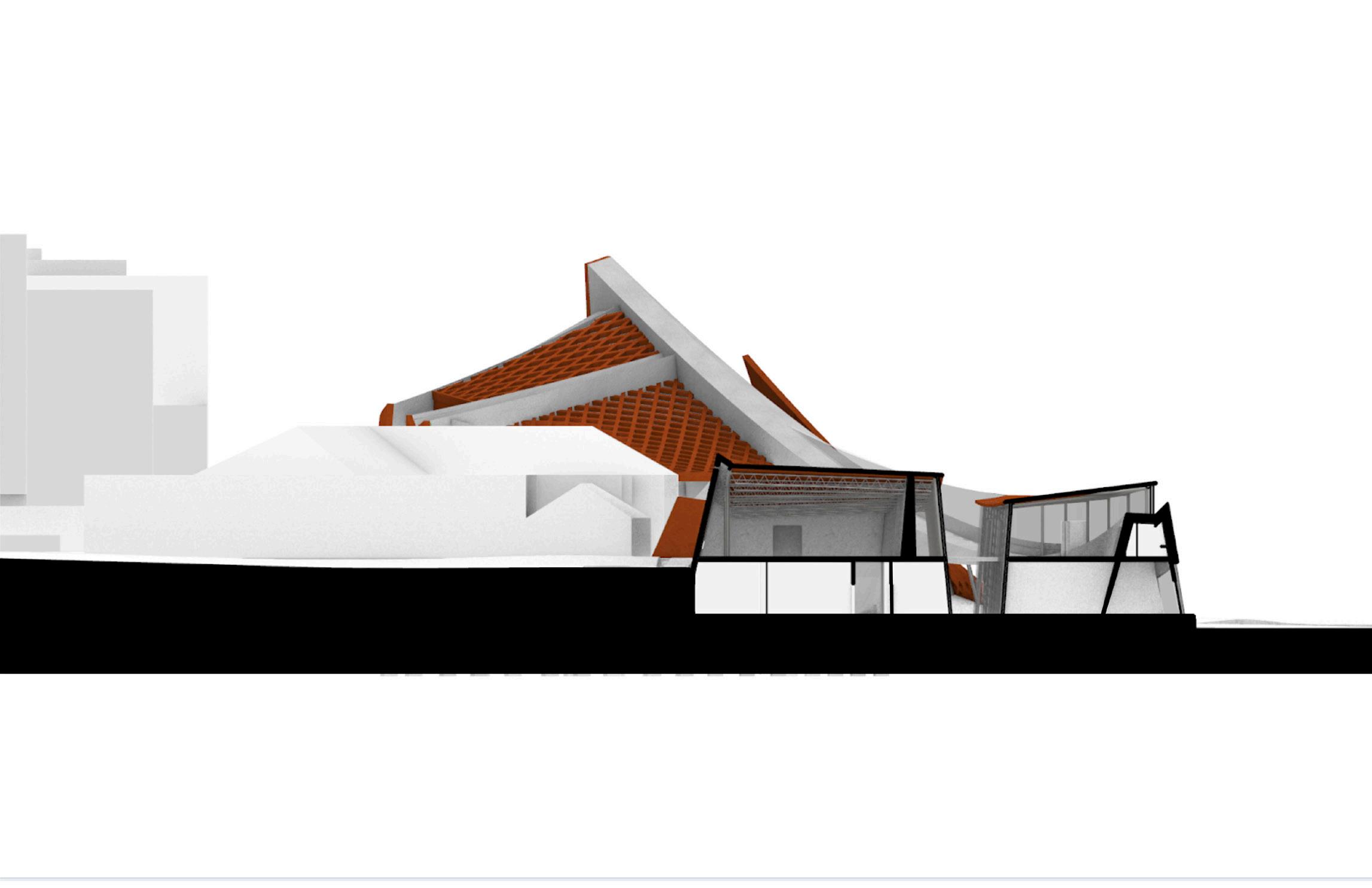

Section A-A' 14

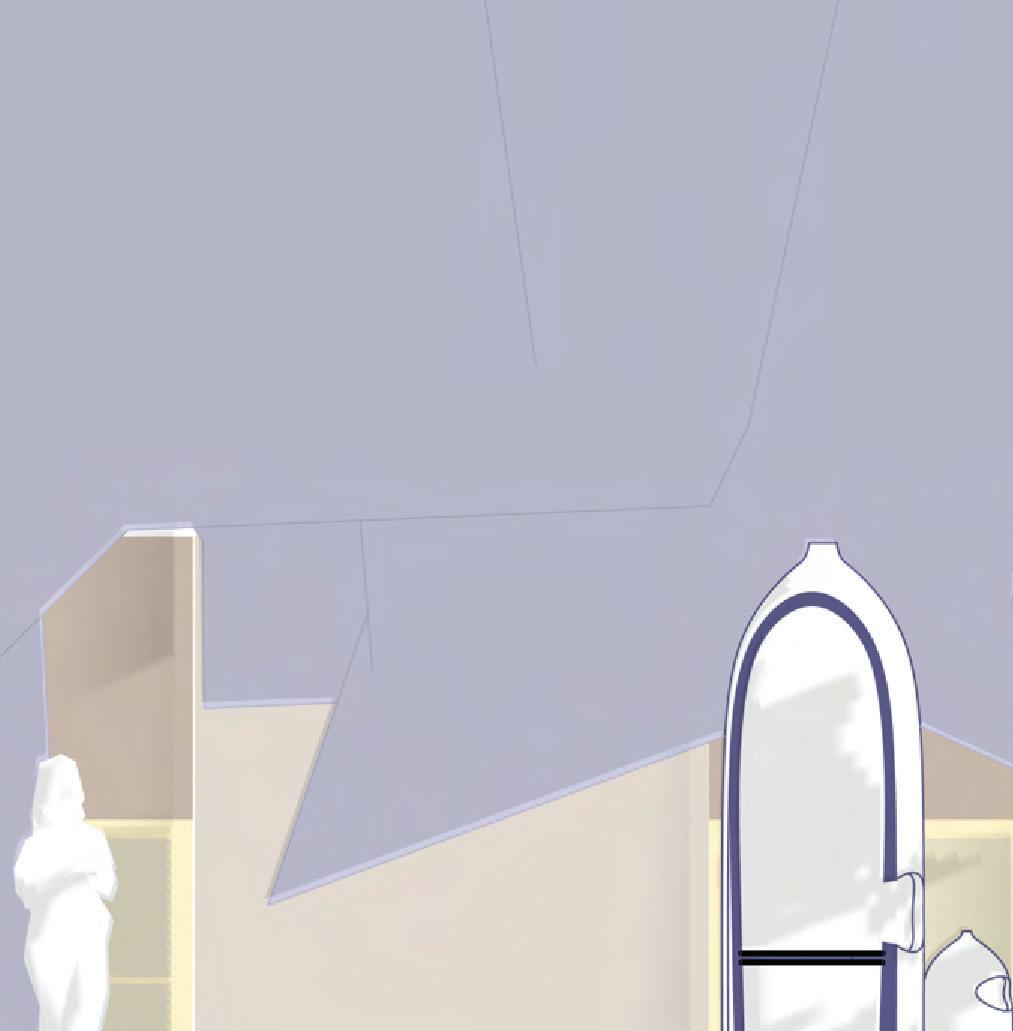

Section C-C'
Section B-B'
15

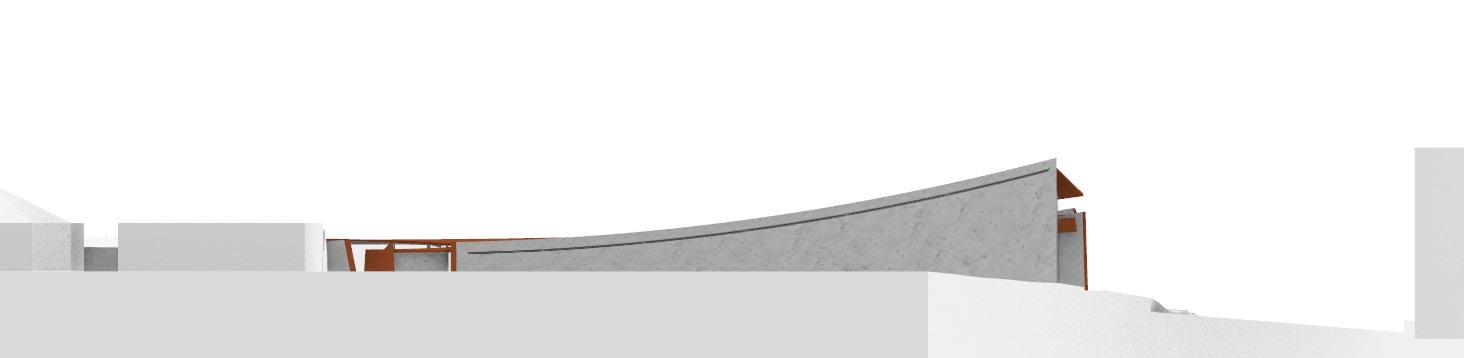

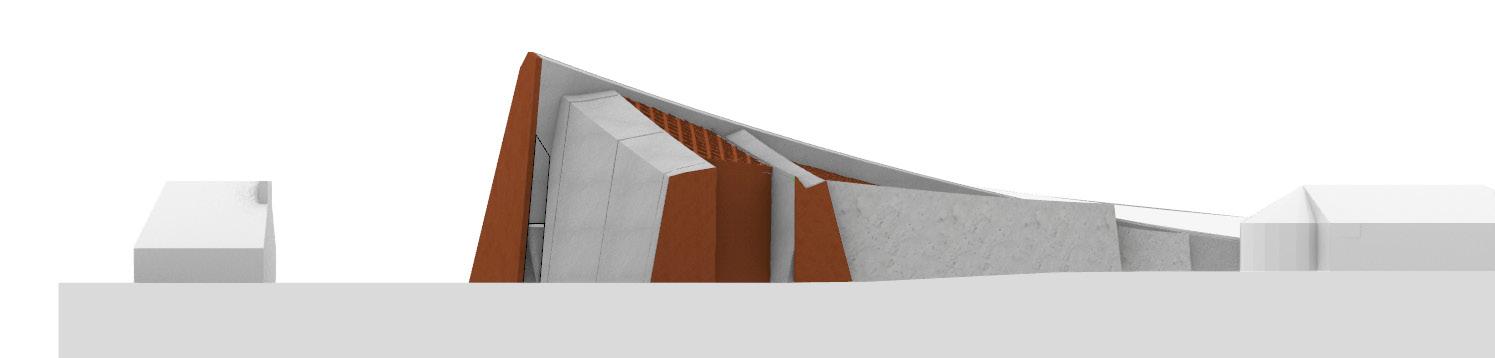

North Elevation
16

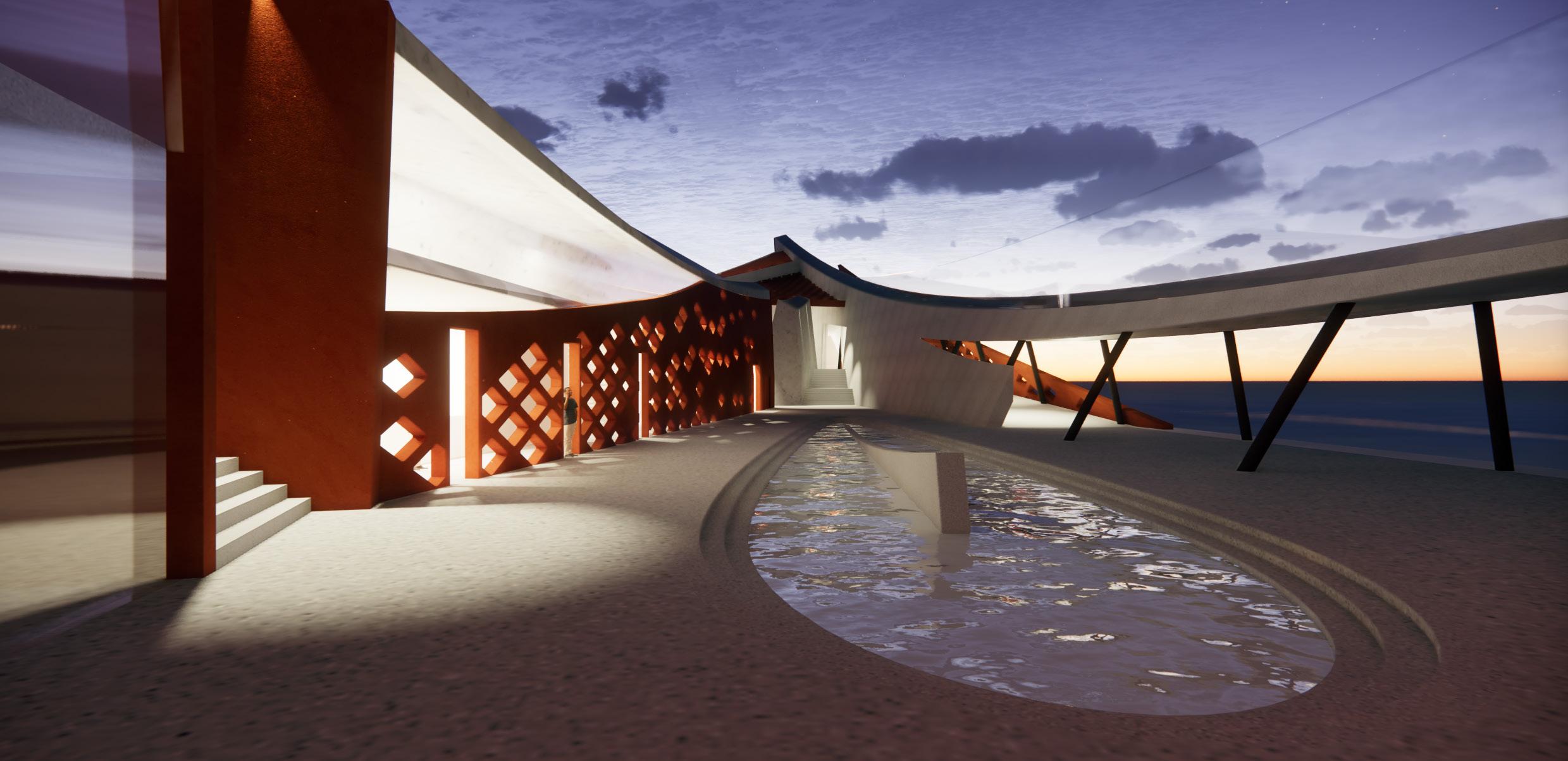

Central Courtyard
17

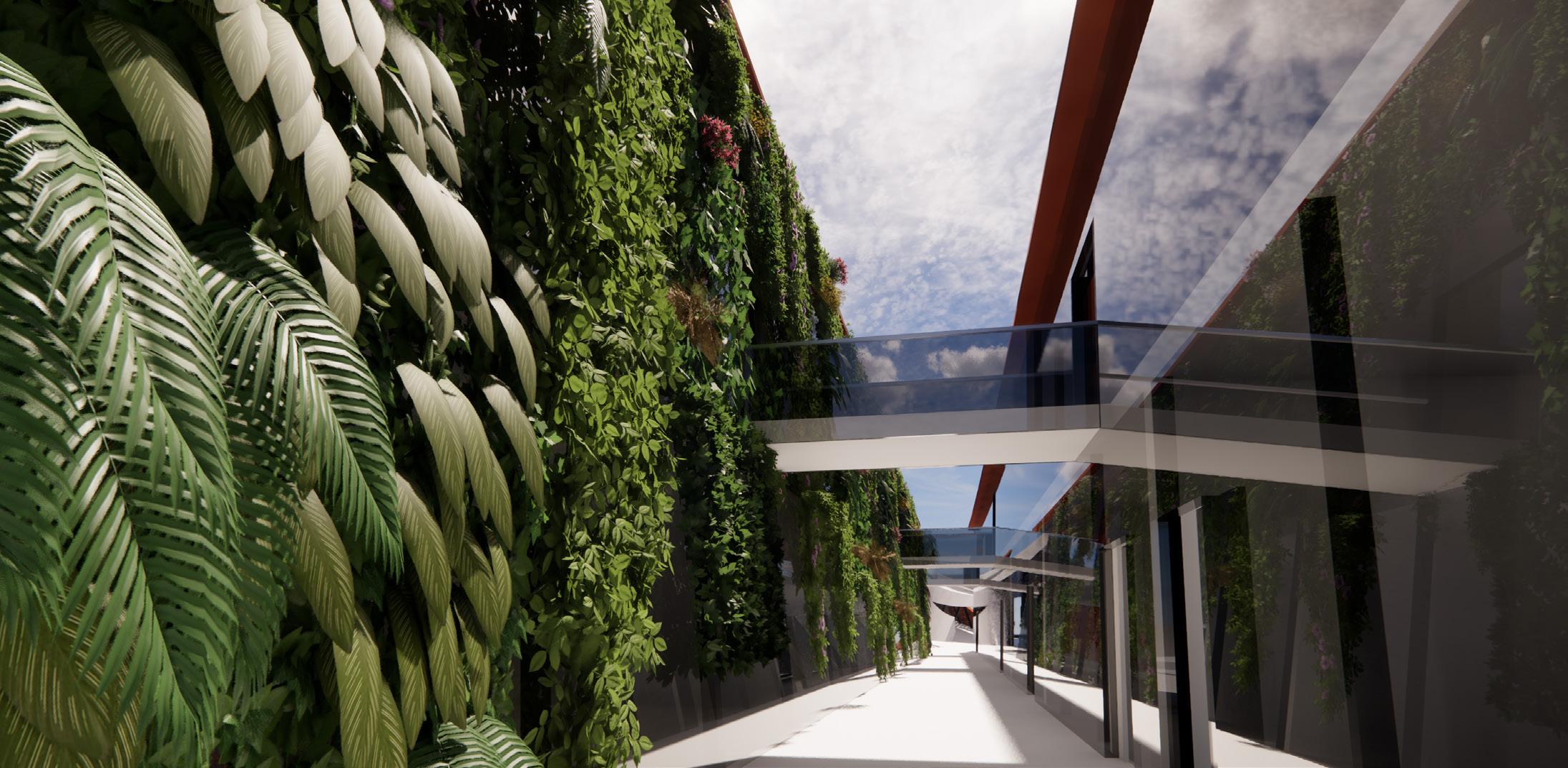

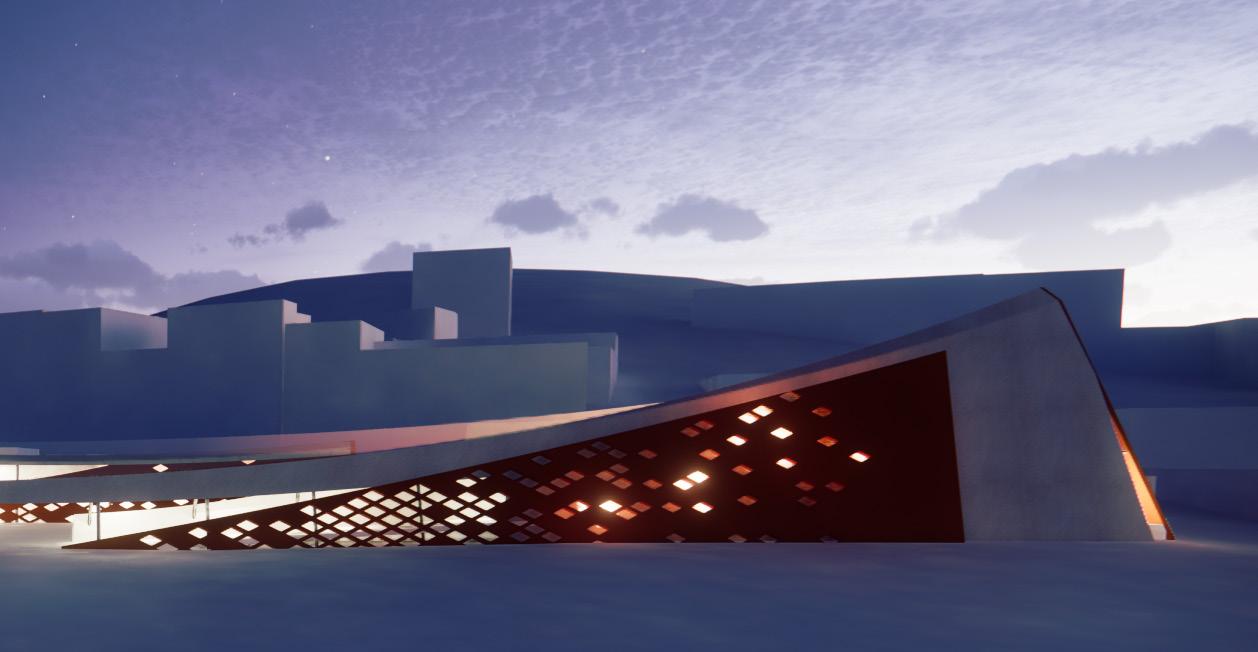

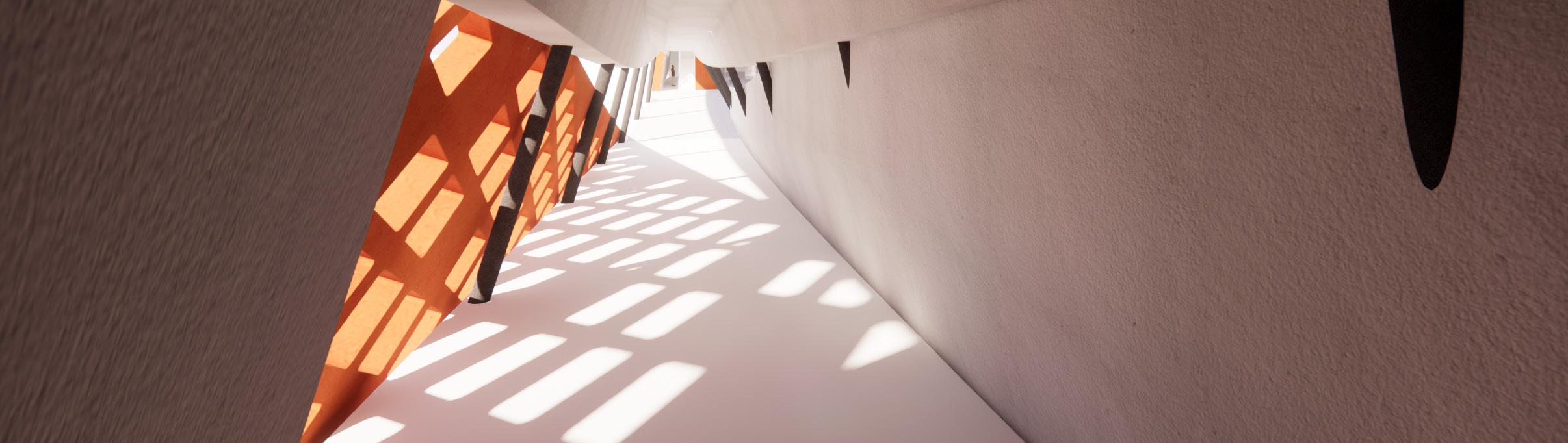

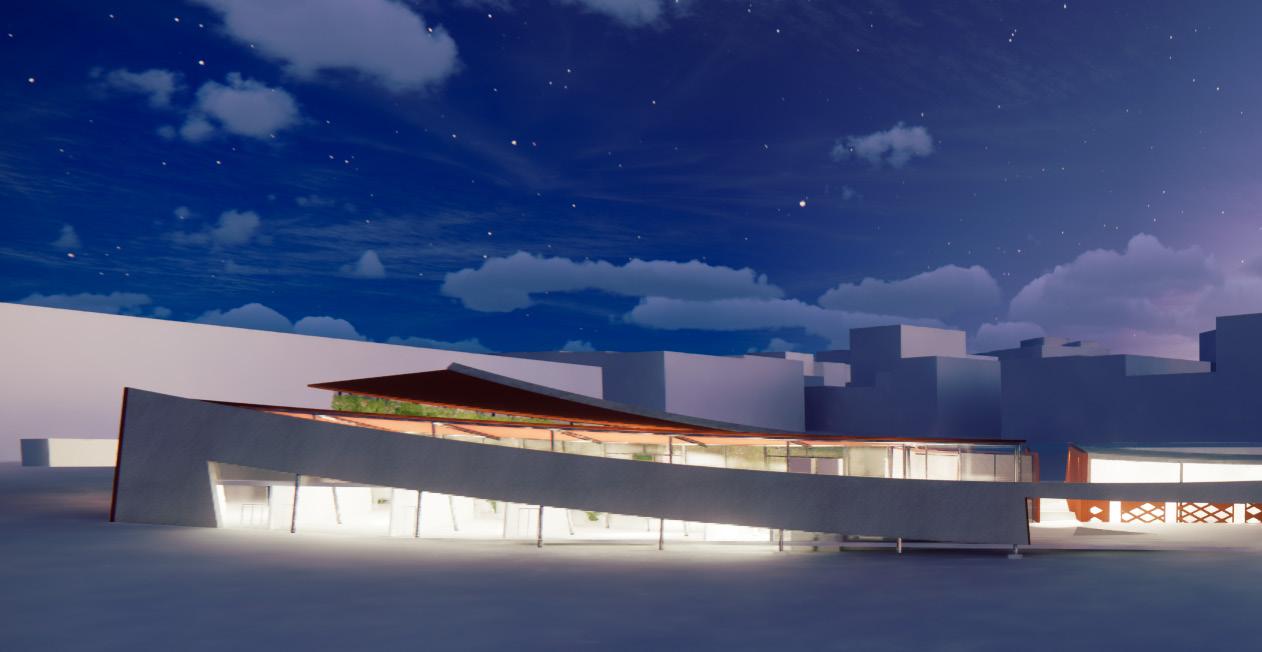

South Facade Lighting Service Corridor

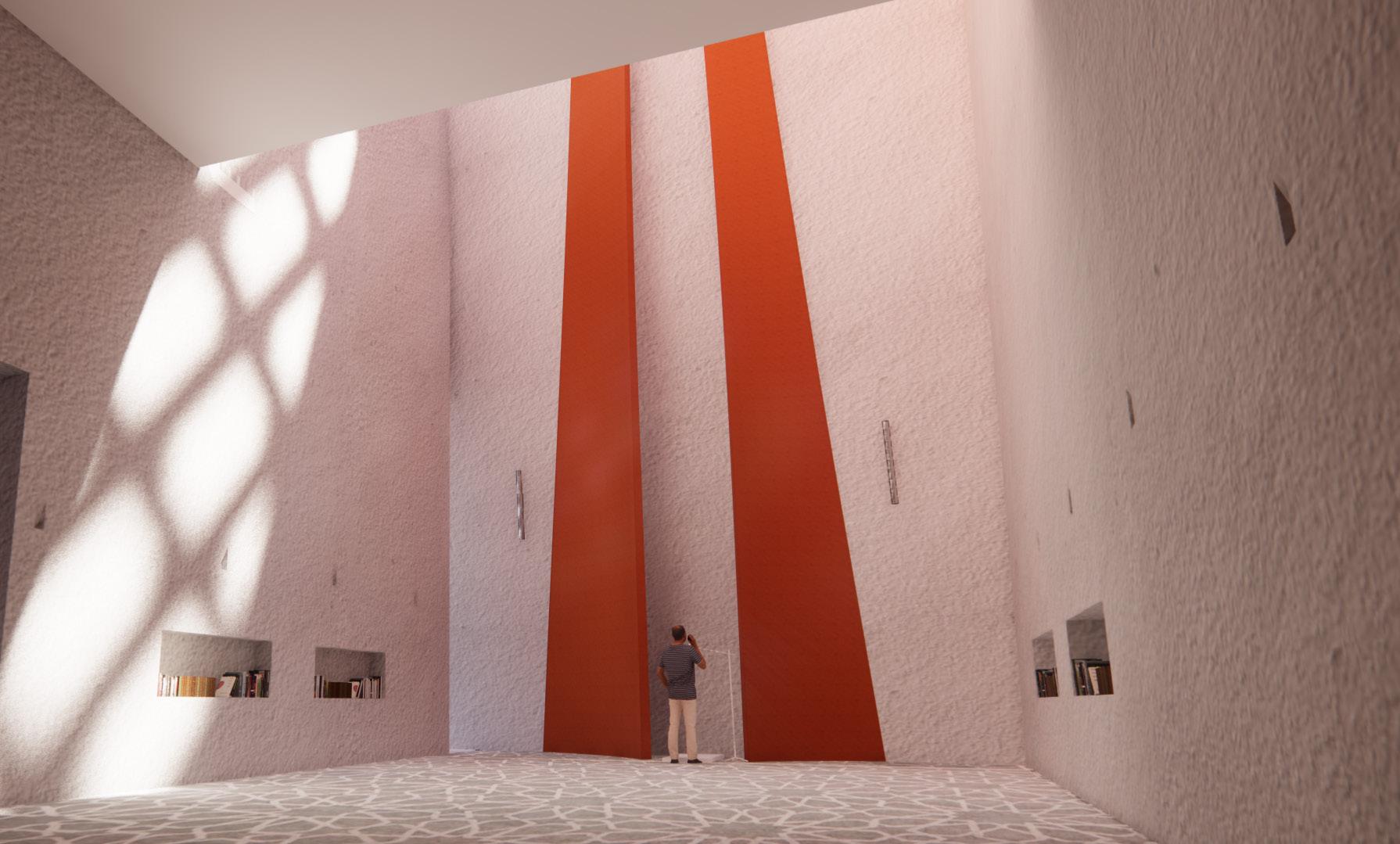

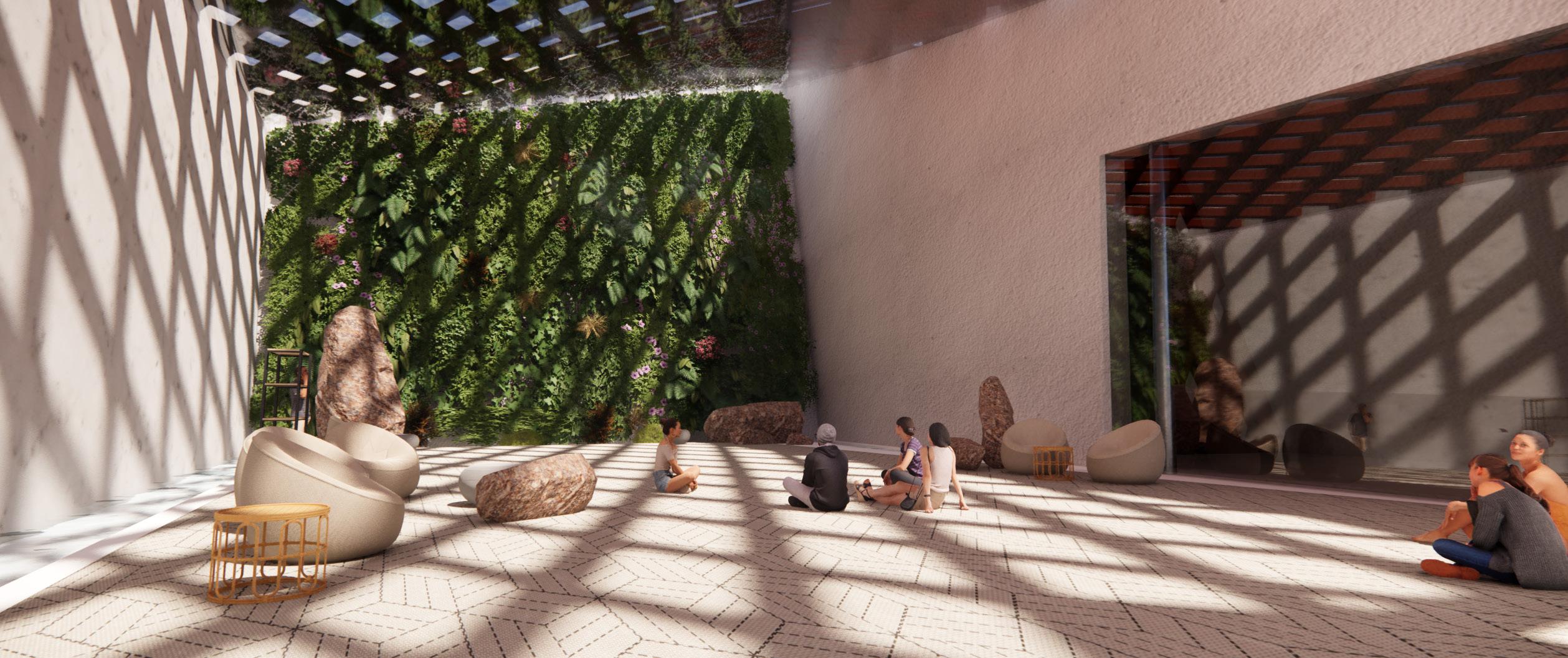

Multi-use Spiritual Space

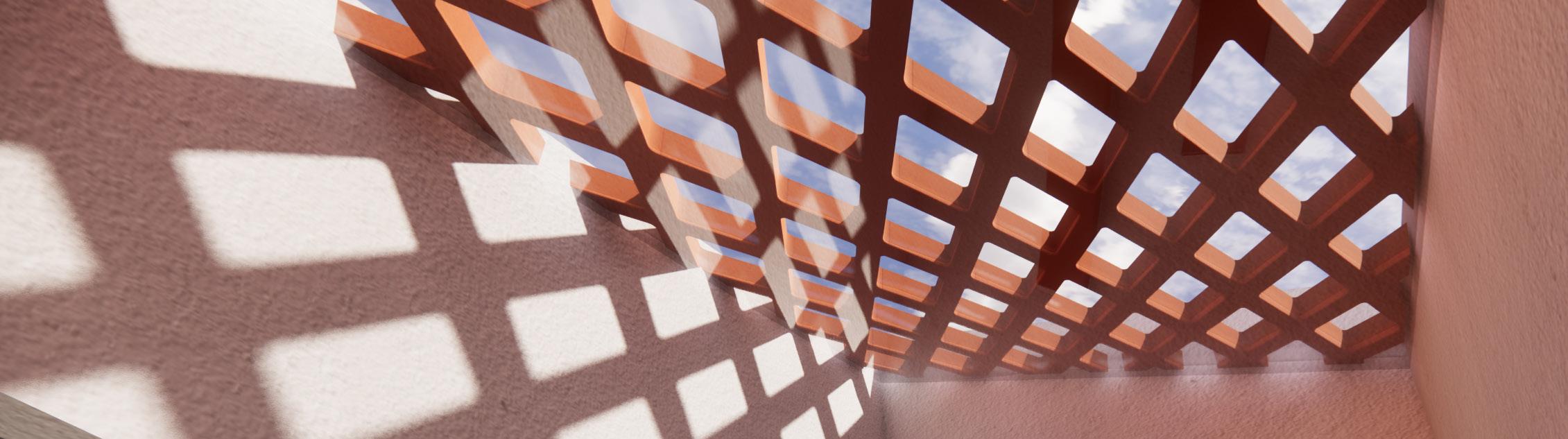

Prayer Hall Roof
18
Men's Prayer Hall

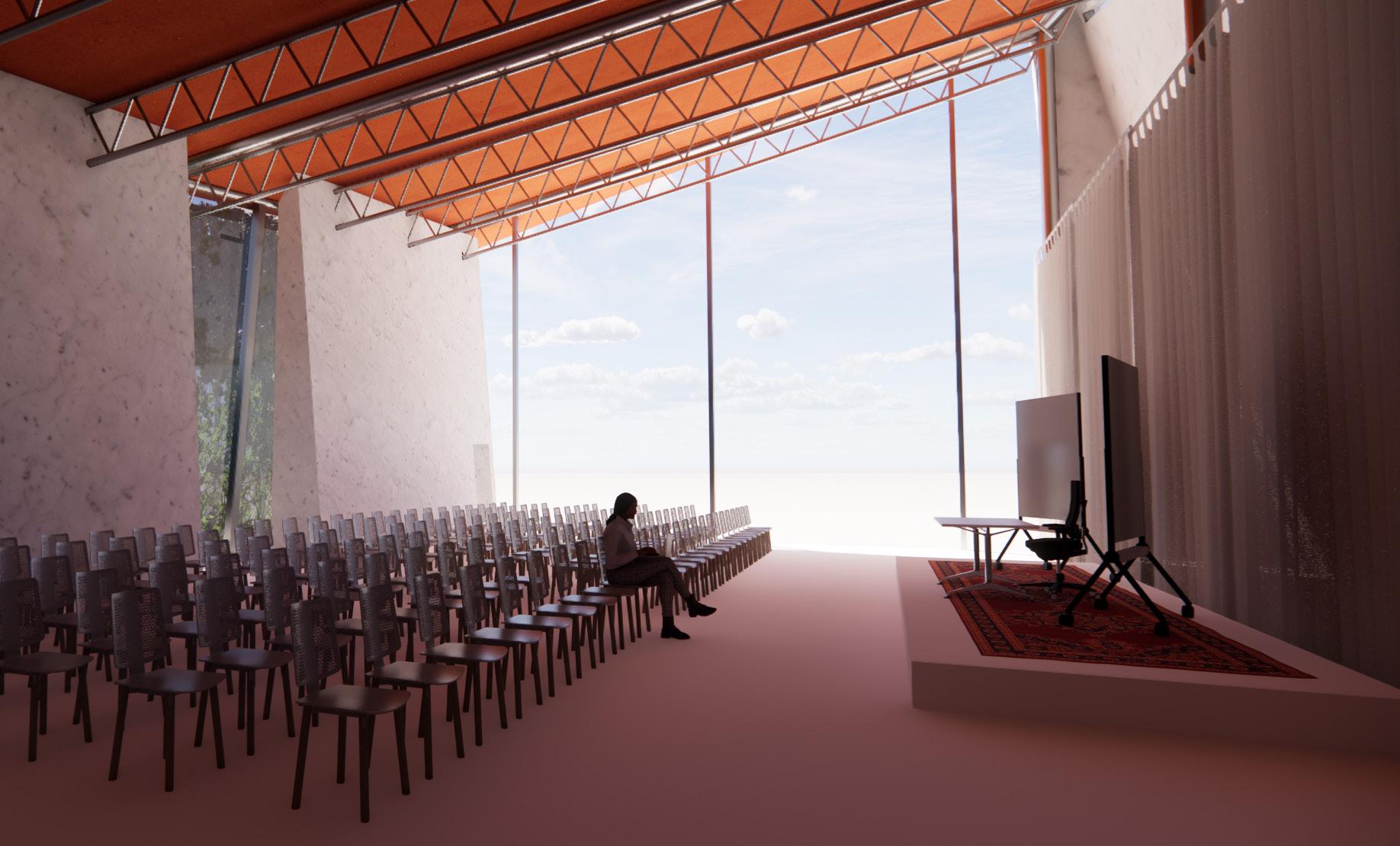

Main Presentation Hall
Ramp leading to Spirtual area
19

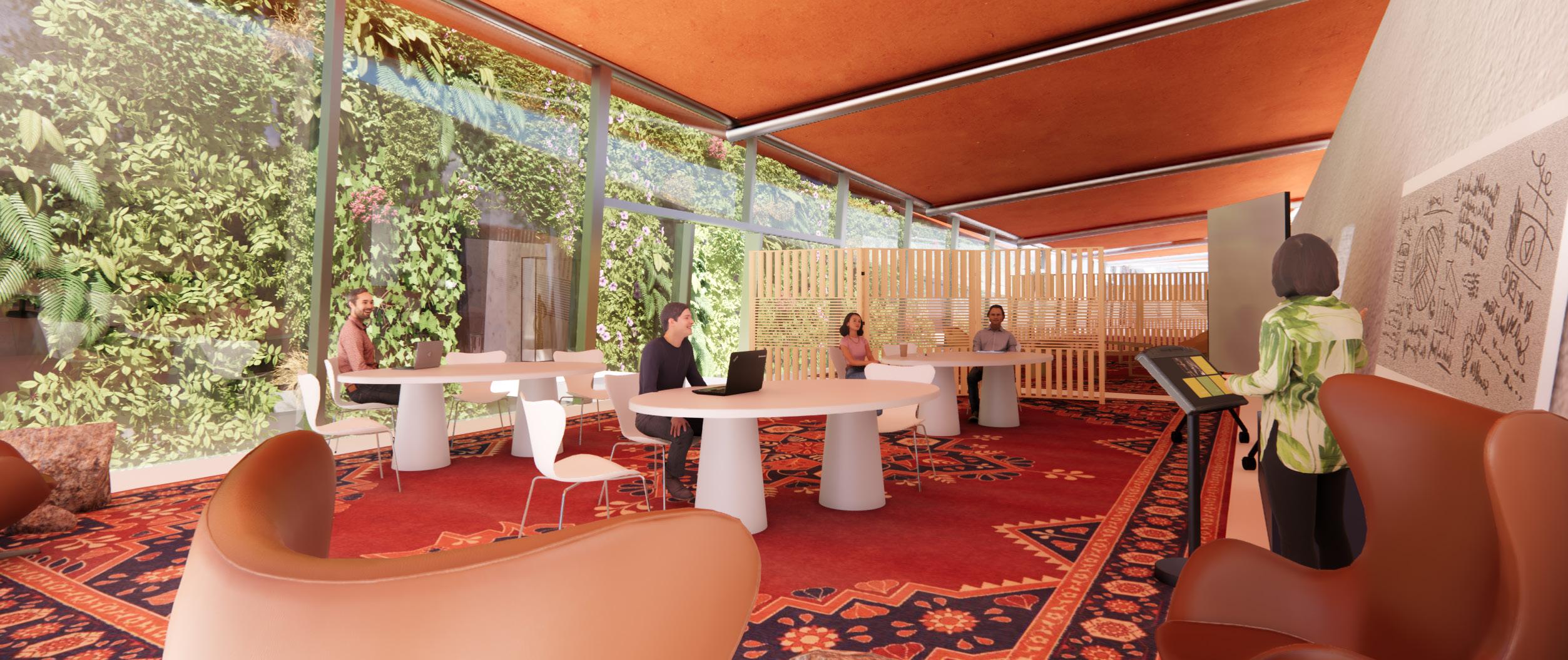

Exhibition Spaces

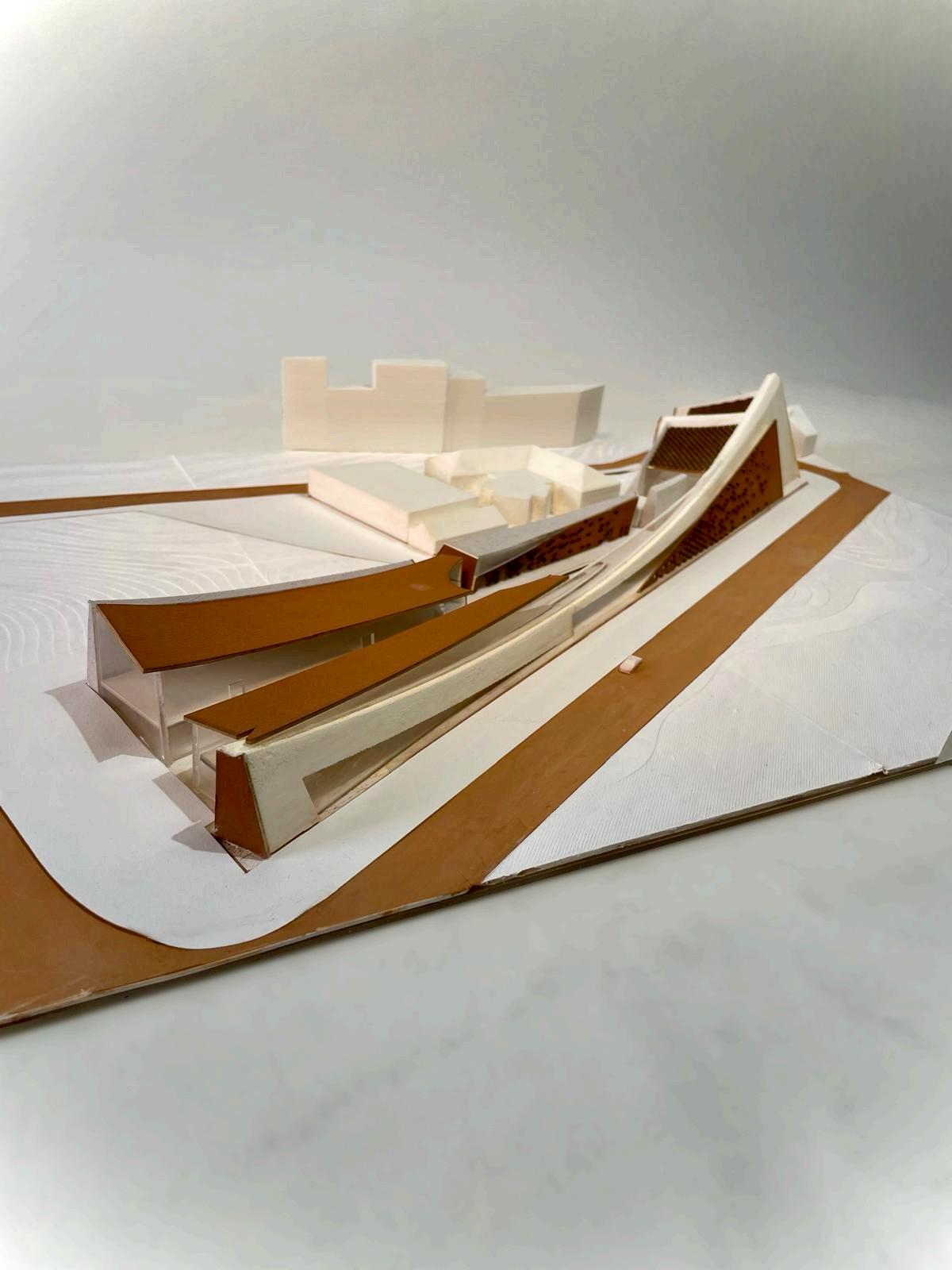

MODEL

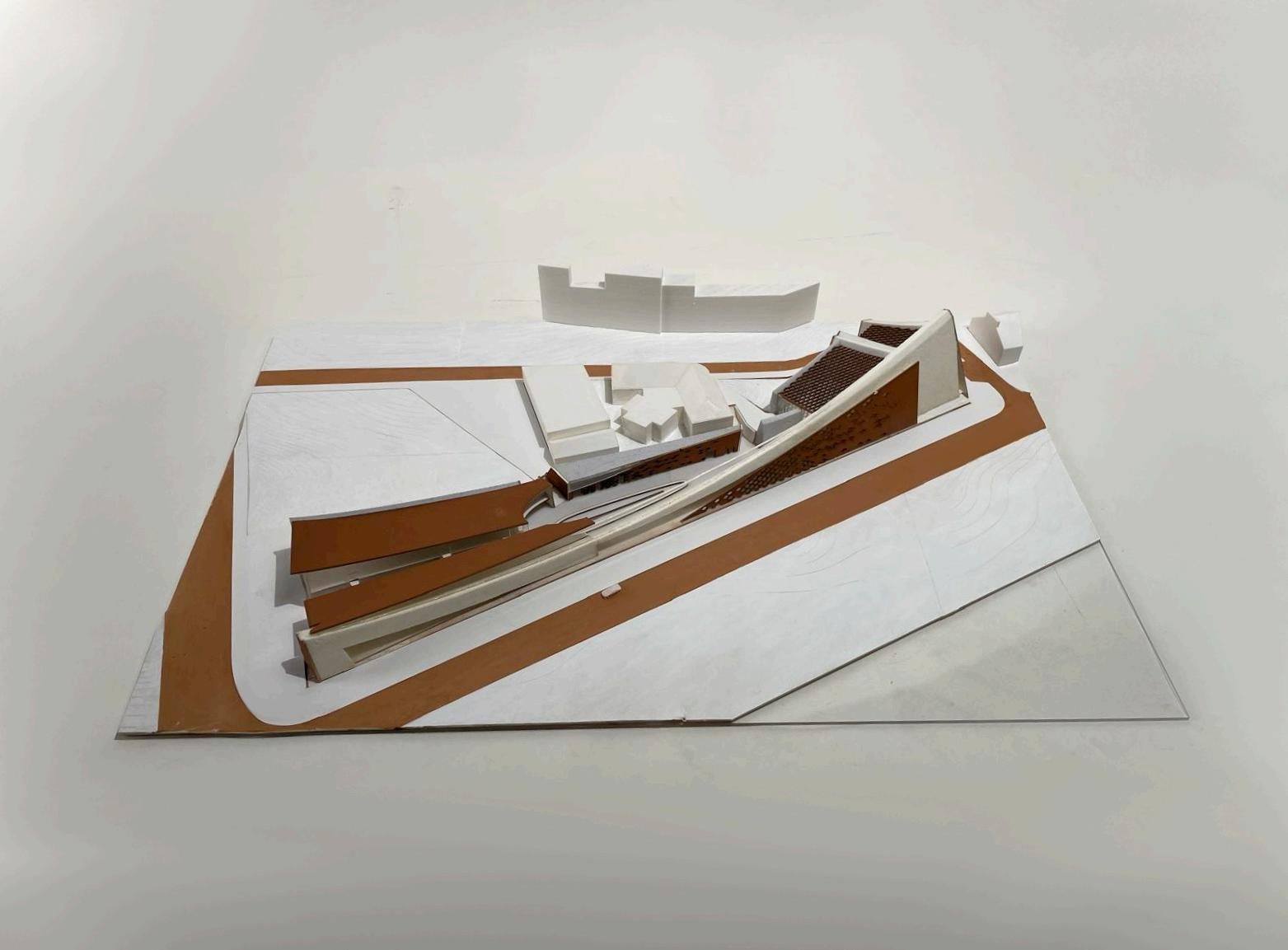

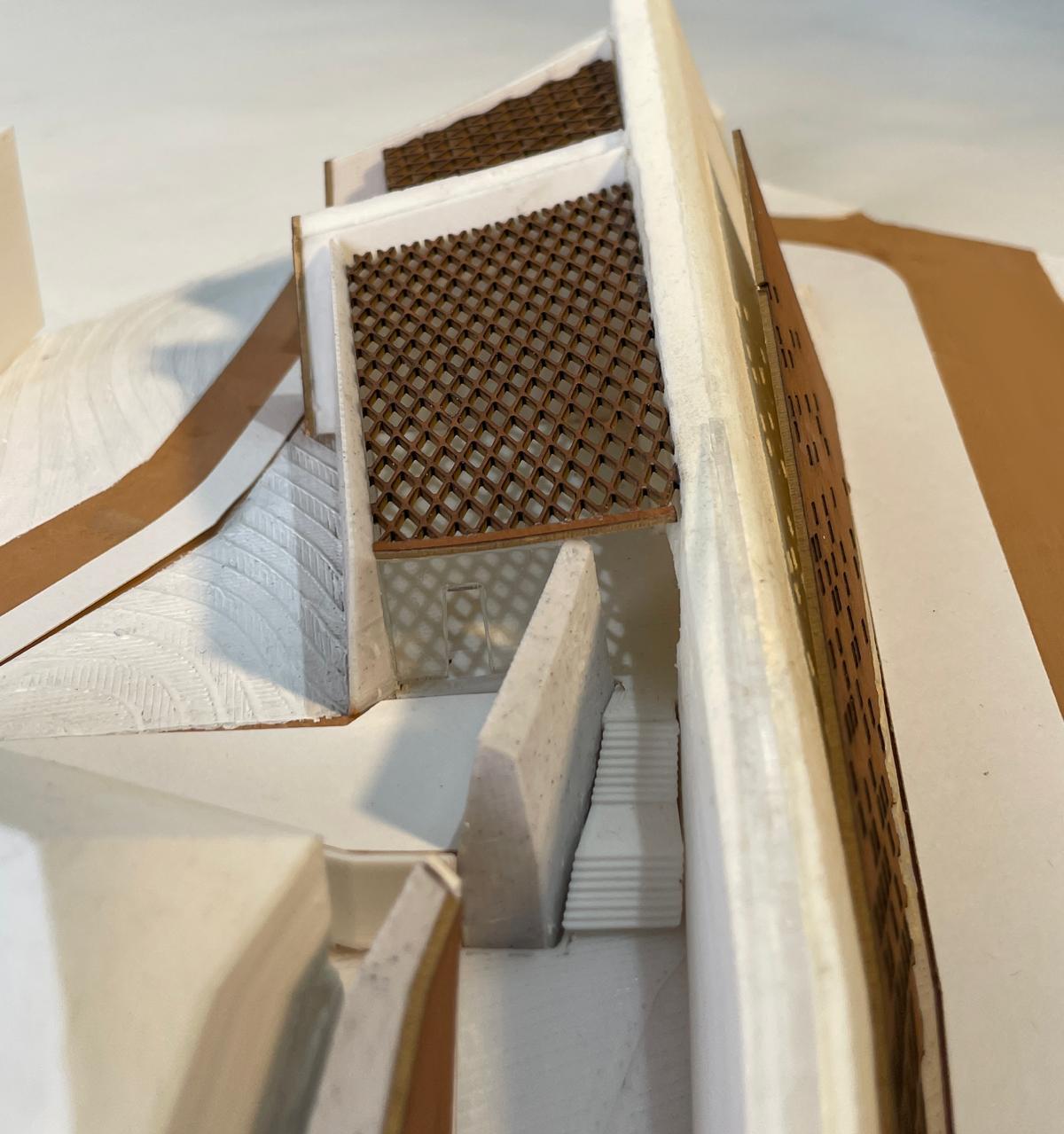

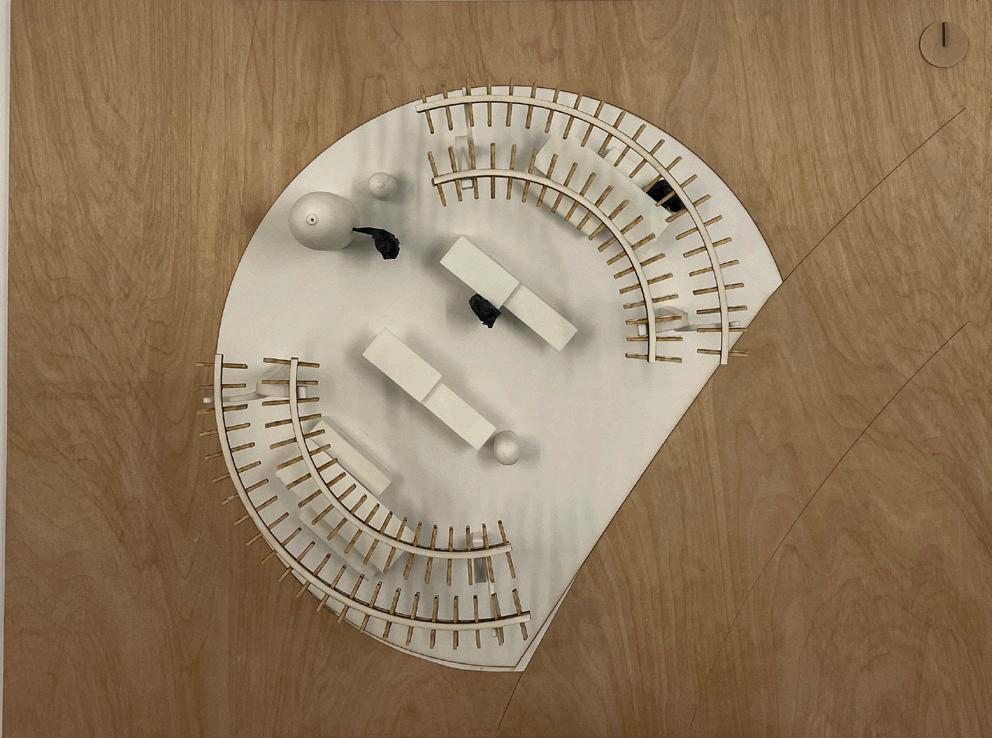

This model was crafted using 3D printing and laser cutting for precise structure and detail. To add texture, drywall compound and wood filler were applied to the building and landscape. The combination of digital fabrication and texturing techniques highlights the model's sophisticated design and intricate details.
20
COMMUNAL KITCHEN
Overbrook Community Collaboration

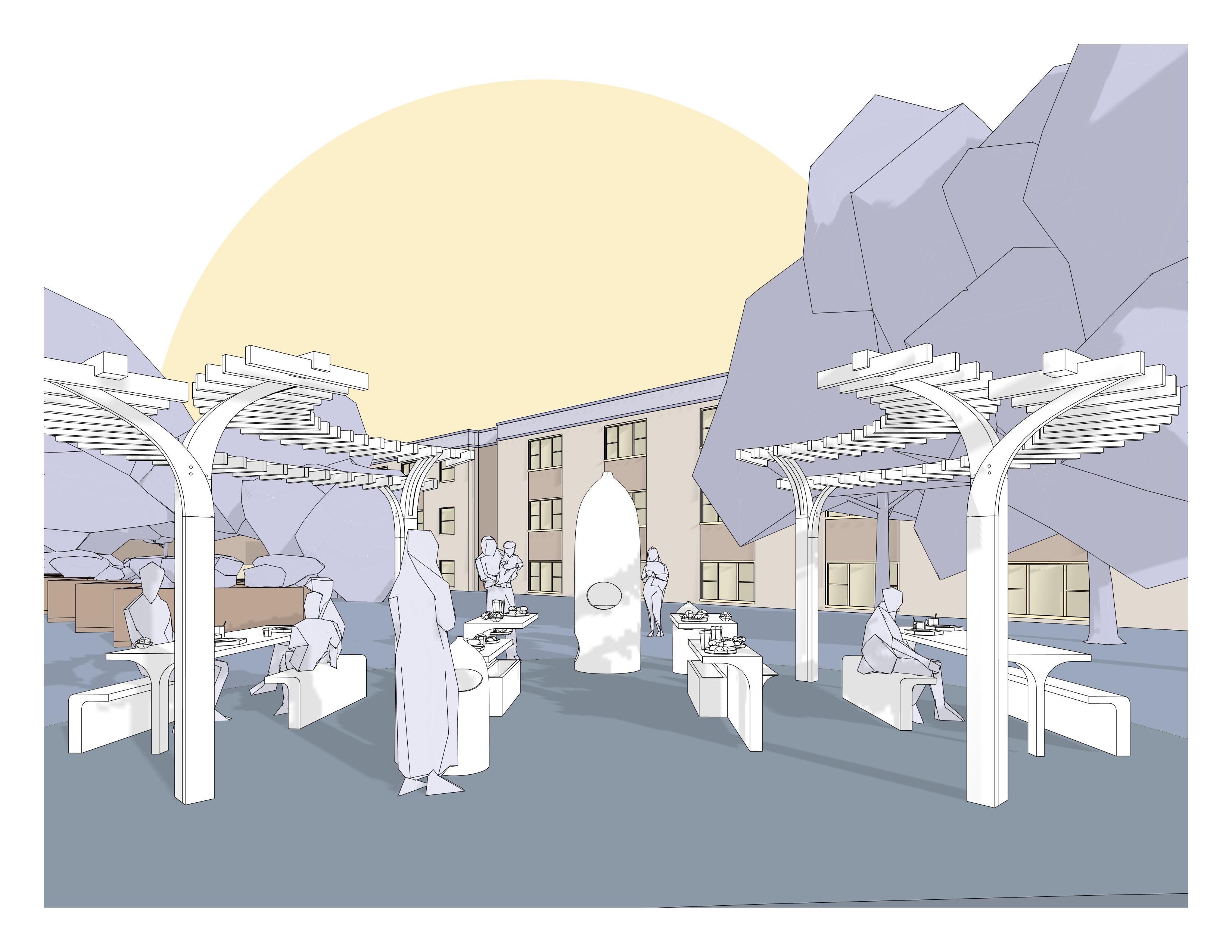

In the heart of a divided urban community, this project introduces a communal kitchen centered around the transformative power of an oven, serving as a beacon of unity and cultural exchange. The project is deeply rooted in comprehensive fieldwork, community consultations, and critical urban analysis. The communal kitchen is envisioned not just as a physical space for cooking, but as a social infrastructure that fosters interaction, bridges communities, and nurtures a shared sense of belonging. Through a careful selection of location, thoughtful program development, and innovative design considerations, the project emphasizes accessibility and the potential for communal activities centered around the oven.
Ottawa, ON 2023
Gathering
22
Spaces

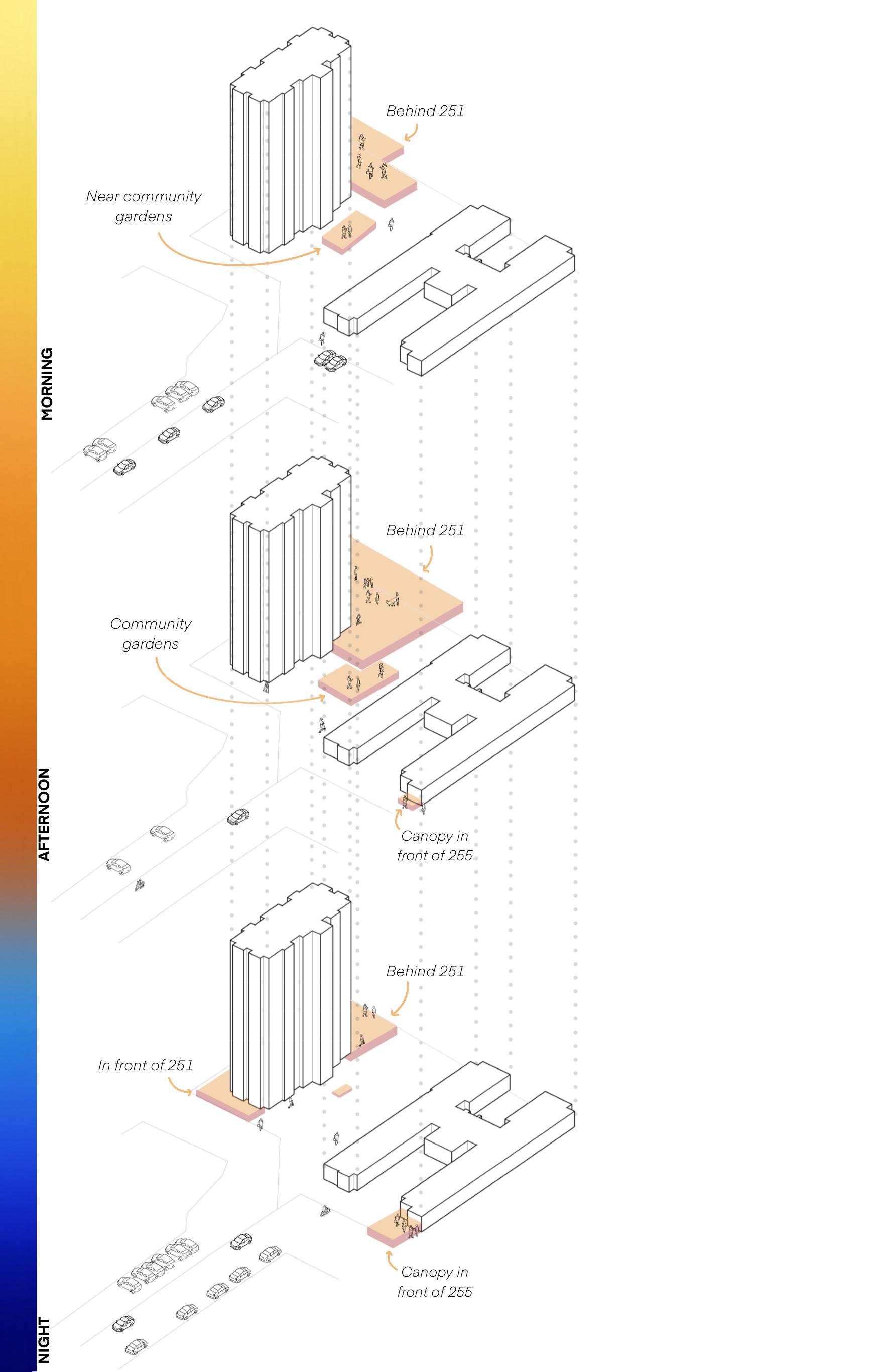

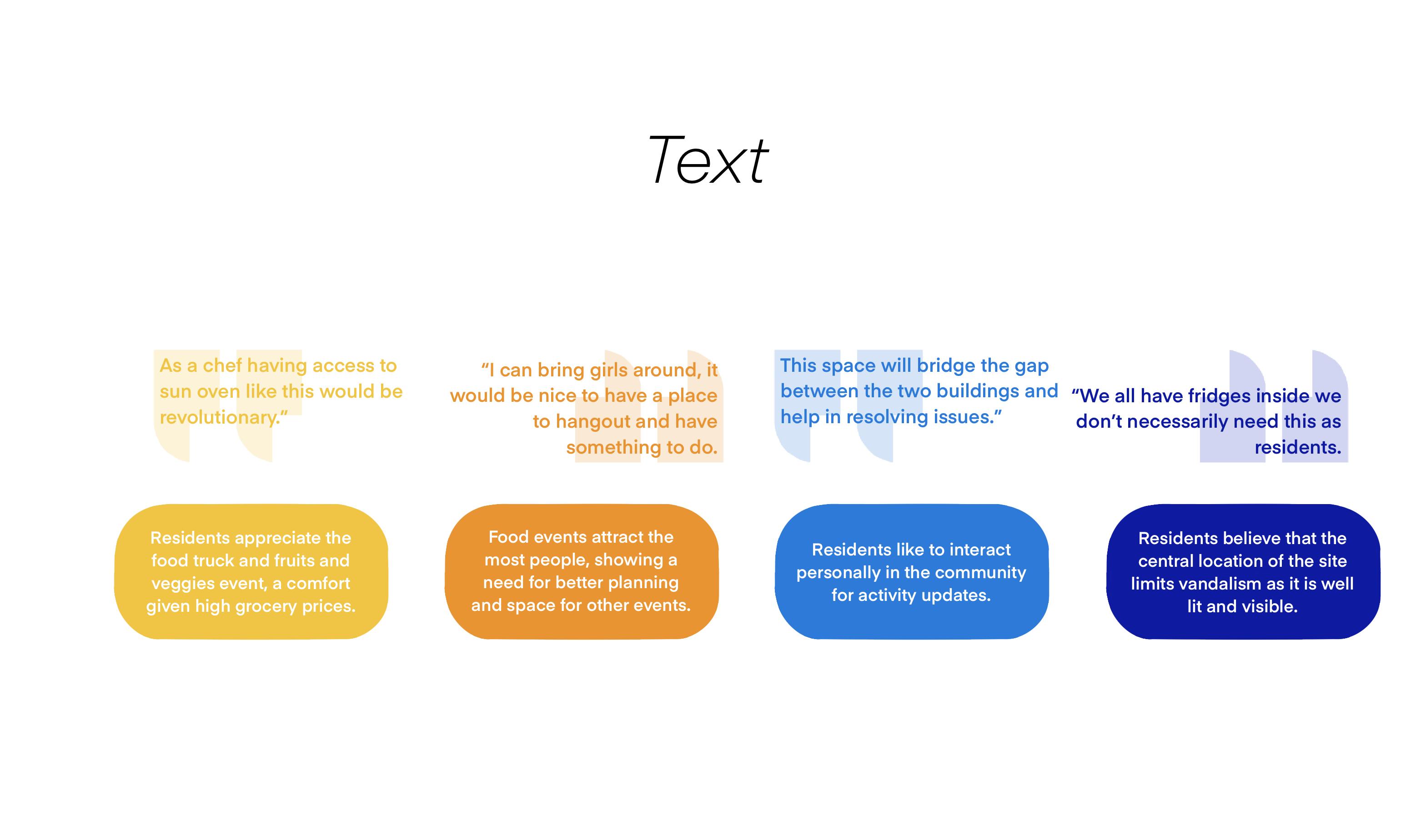

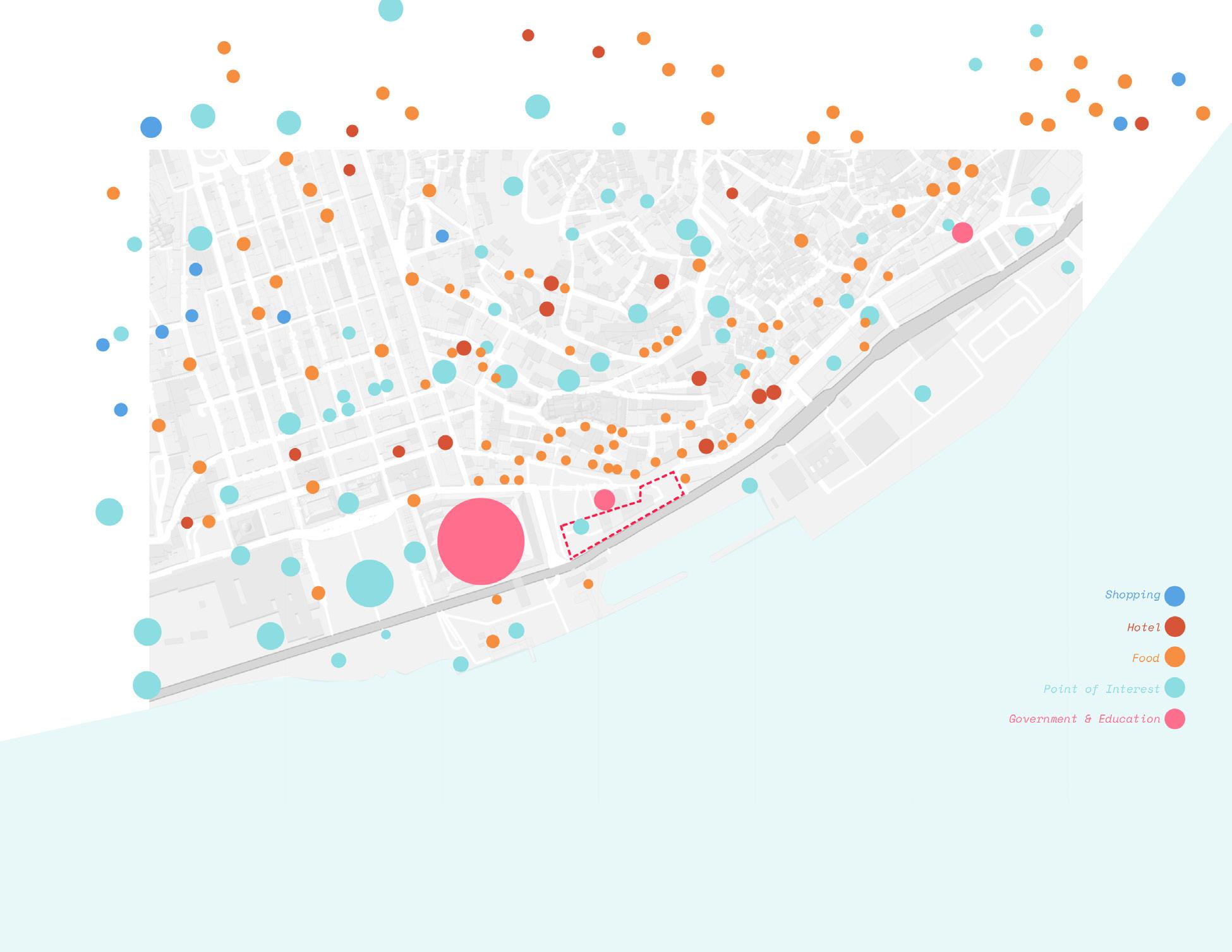

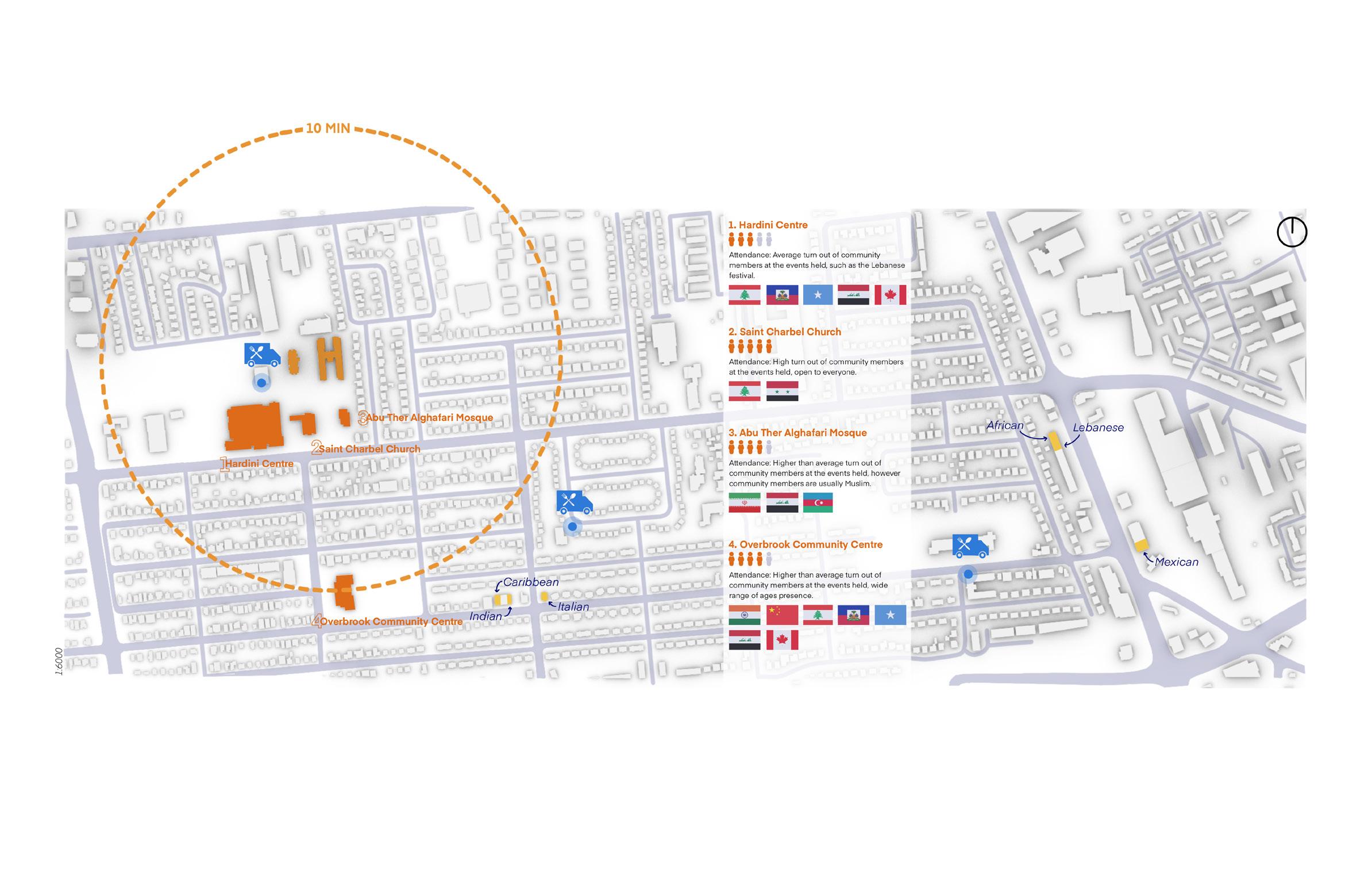

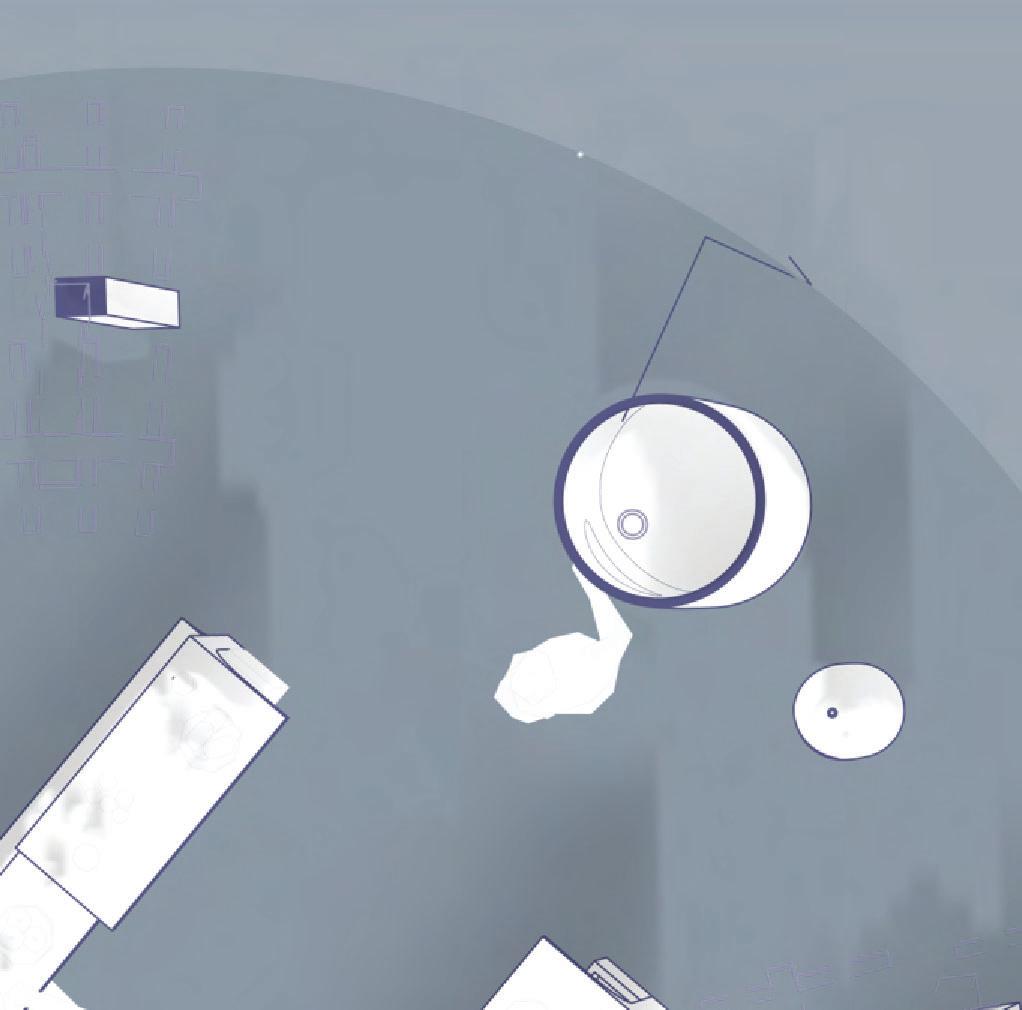

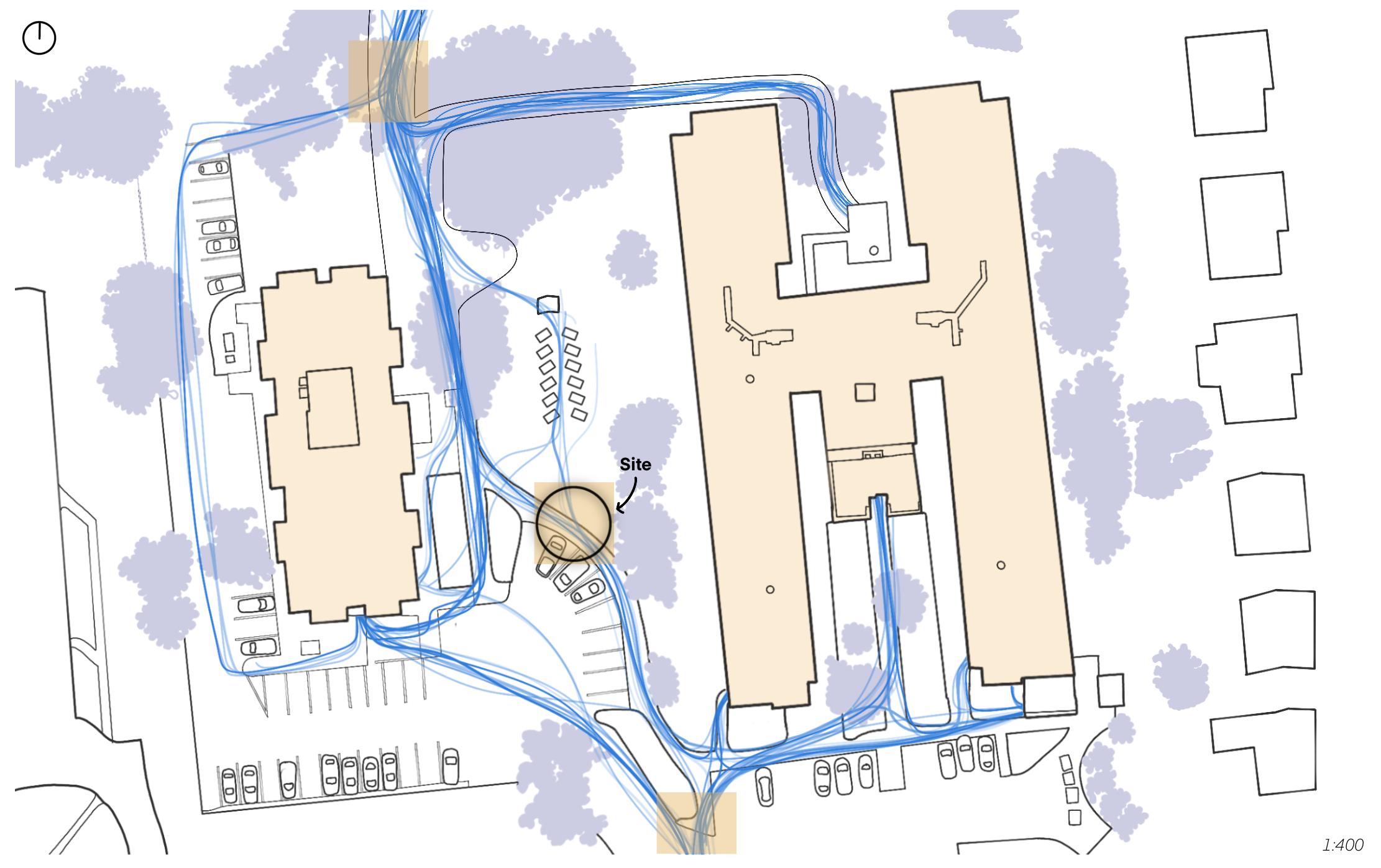

Observed Movement
Urban Critical Analysis 23
1 2 2 3 3 4 4 1. Community Oven 2. Accessible Seating 3. Garbage Bins 4. Accessible Counters 1 1:50 Plan A A B B Plan Site Axo 24
ARCS 3105 A Communal Kitchen Studio 4 Fall 2023 Project 4 1:350 Site Plan 1:50 Plan 1:50 Section A-A 1:50 Section B-B ARCS 3105 A Communal Kitchen Studio 4 Fall 2023 Project 4 1:350 Site Plan 1:50 Plan 1:50 Section A-A 1:50 Section B-B Section A-A'
B-B' 25
Section
26

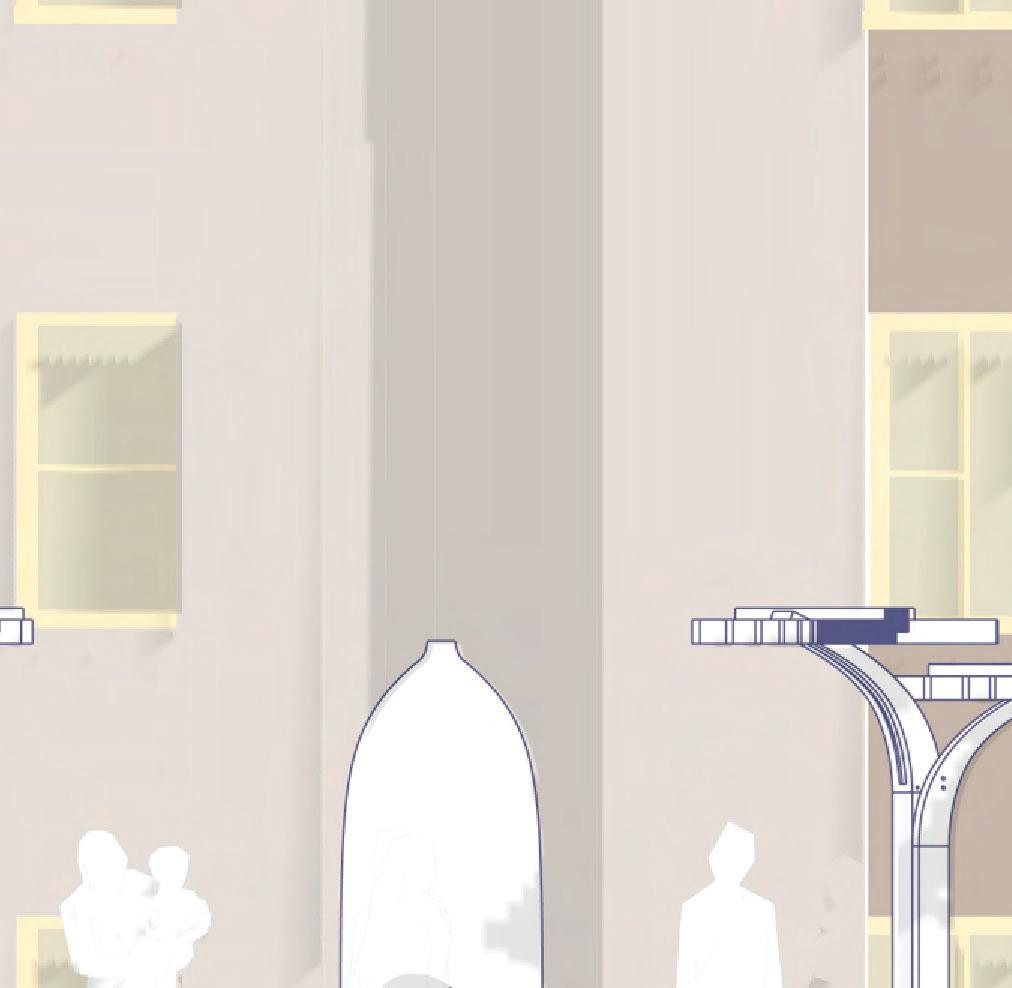

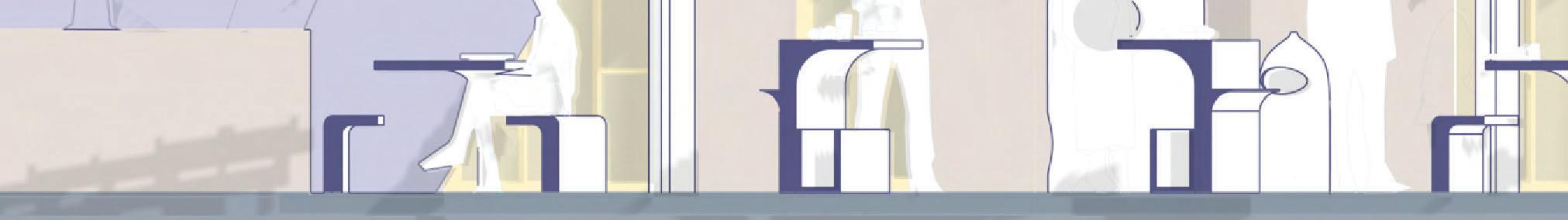

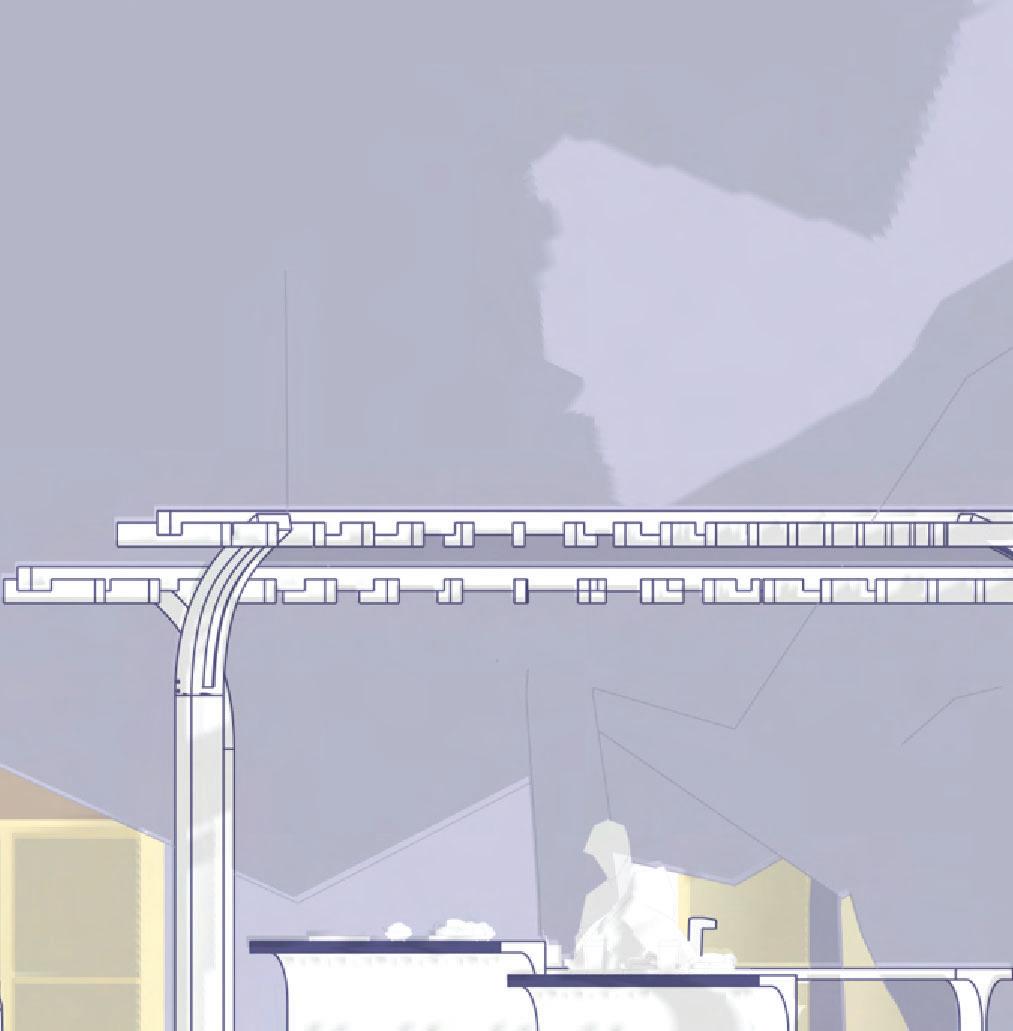

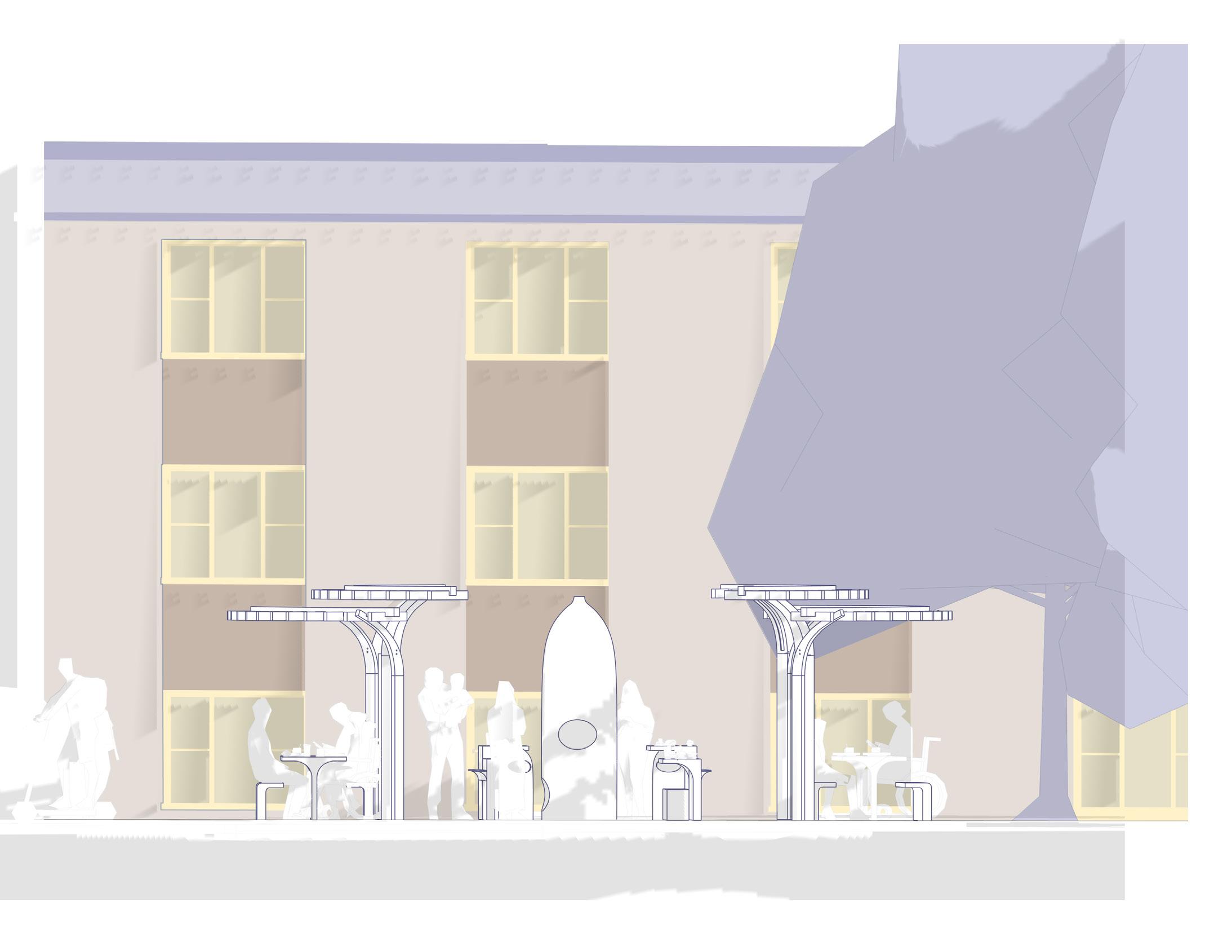

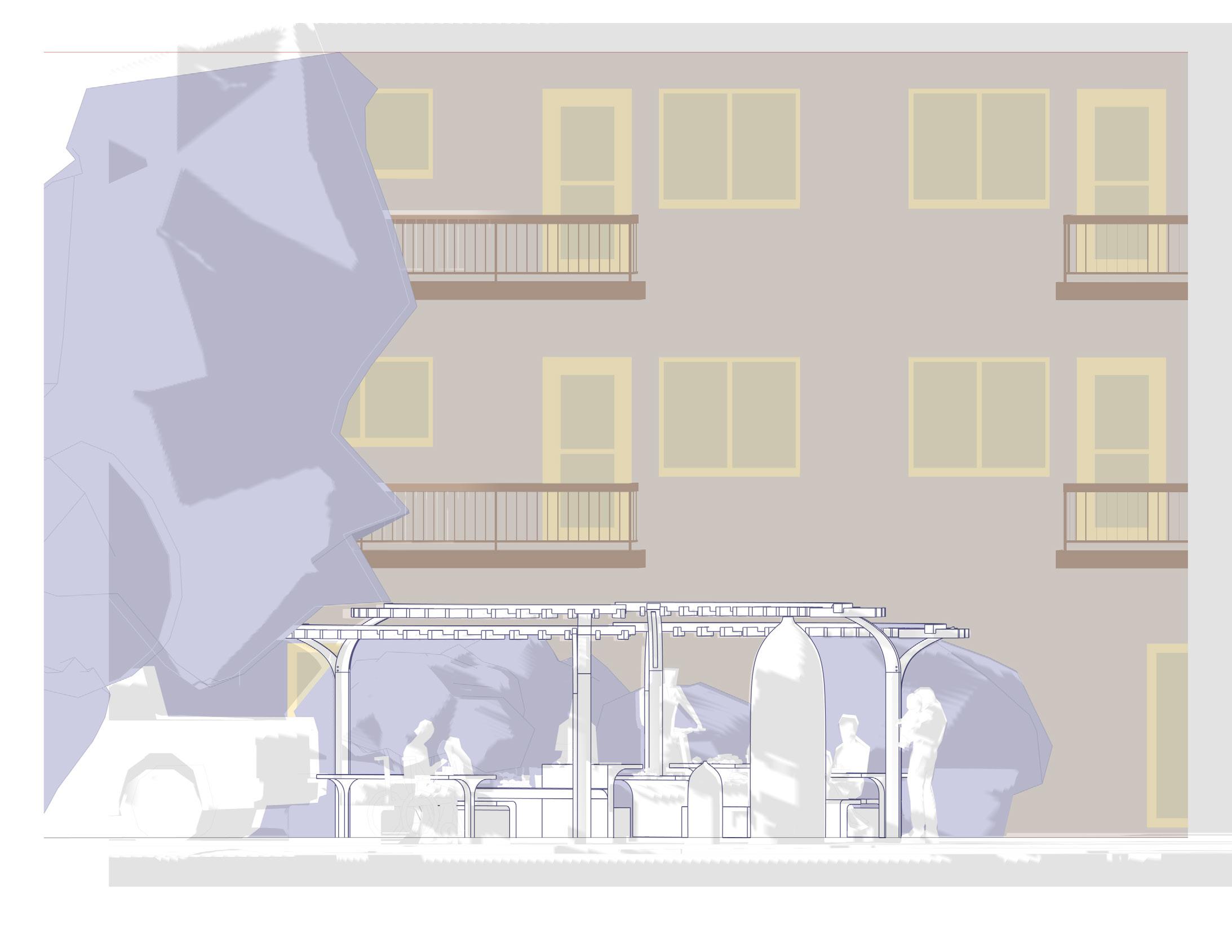

West Elevation East Elevation
picnic benches and coun-
accomodate for modevices including wheelchairs, medical

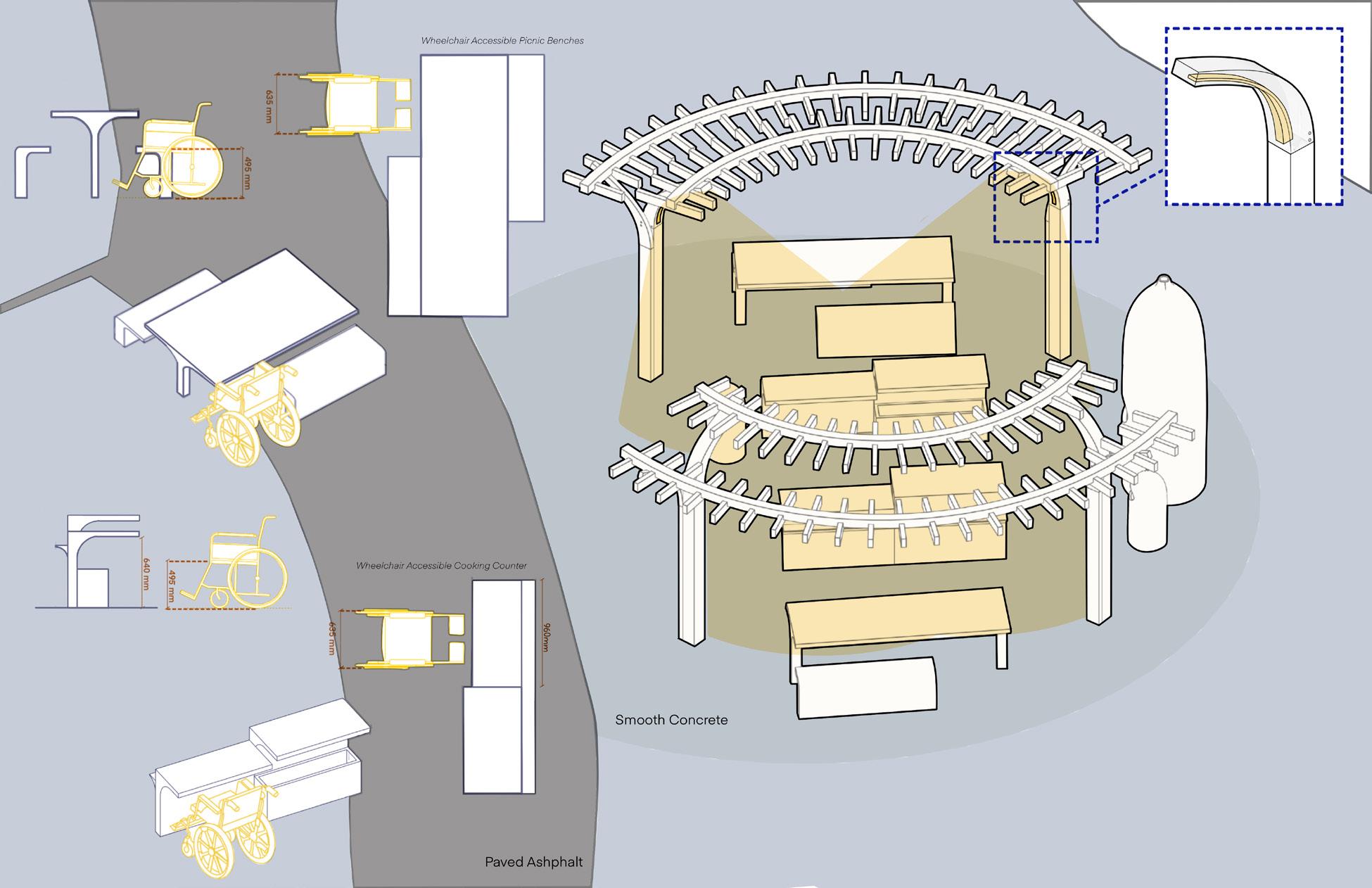

All picnic benches and countertops accomodate for mobility devices including wheelchairs.
Site is located beside paved ashphalt, making it accessible throughout the year. Site is placed on concrete pad.
All picnic benches and countertops accomodate for mobility devices including wheelchairs, medical
All picnic benches and countertops accomodate for mobility devices including wheelchairs, medical
Site is located beside paved ashphalt, making it accessible throughout the year. Site is placed on concrete pad.
Tables are near entrance and low too enable the movement of heavy loads off, on and around the site.
All picnic benches and countertops accomodate for mobility devices including wheelchairs, medical
Site is located beside paved ashphalt, making it accessible throughout the year. Site is placed on concrete pad.
Tables are near entrance and low to enable the movement of heavy loads off, on and around the site.
Site is located beside paved ashphalt, making it accessible throughout the year. Site is placed on concrete pad. Tables are near entrance and low too enable the movement of heavy loads off, on and around the site.
Site is located beside paved ashphalt, making it accessible throughout the year. Site is placed on concrete pad.
to enhance visibility without disturbing apartments
Tables are near entrance and low too enable the movement of heavy loads off, on and around the site.
to enhance visibility without disturbing apartments
Tables are near entrance and low too enable the movement of heavy loads off, on and around the site.
Four inner posts are outfitted with lights to enhance visibility without disturbing apartments
lights to enhance visibility without disturbing apartments
ARCS 3105 A Communal Kitchen Studio 4 Fall 2023 Project 4 Raschelle 101221972 Baked goods like croissants and bagettes Quiche Desserts Pastel de Choclo Arepas Gumbo Bobotie Cultural Accessibility Physical Accessibility lights to enhance visibility disturbing apartments
ARCS 3105 A Communal Kitchen Studio 4 Fall 2023 Project 4 Raschelle Aranha Minhajuddin Kareemuddin 101221972 101222290 Baked goods like croissants and bagettes Quiche Desserts like Macarons Pastel de Choclo Arepas Churrasco Gumbo Bobotie Cultural Accessibility Physical Accessibility
lights
Communal Kitchen Project 4 Raschelle Aranha Minhajuddin Kareemuddin 101221972 101222290 Baked goods like croissants and bagettes Quiche Desserts like Macarons Pastel de Choclo Arepas Churrasco Gumbo Bobotie
lights
tertops
ARCS 3105 A Communal Kitchen Studio 4 Fall 2023 Project 4 Raschelle Aranha Minhajuddin Kareemuddin 101221972 101222290 Baked goods like croissants and bagettes Quiche Desserts like Macarons Pastel de Choclo Arepas Churrasco Gumbo Bobotie Cultural Accessibility Physical Accessibility
Physical Accessibility 27

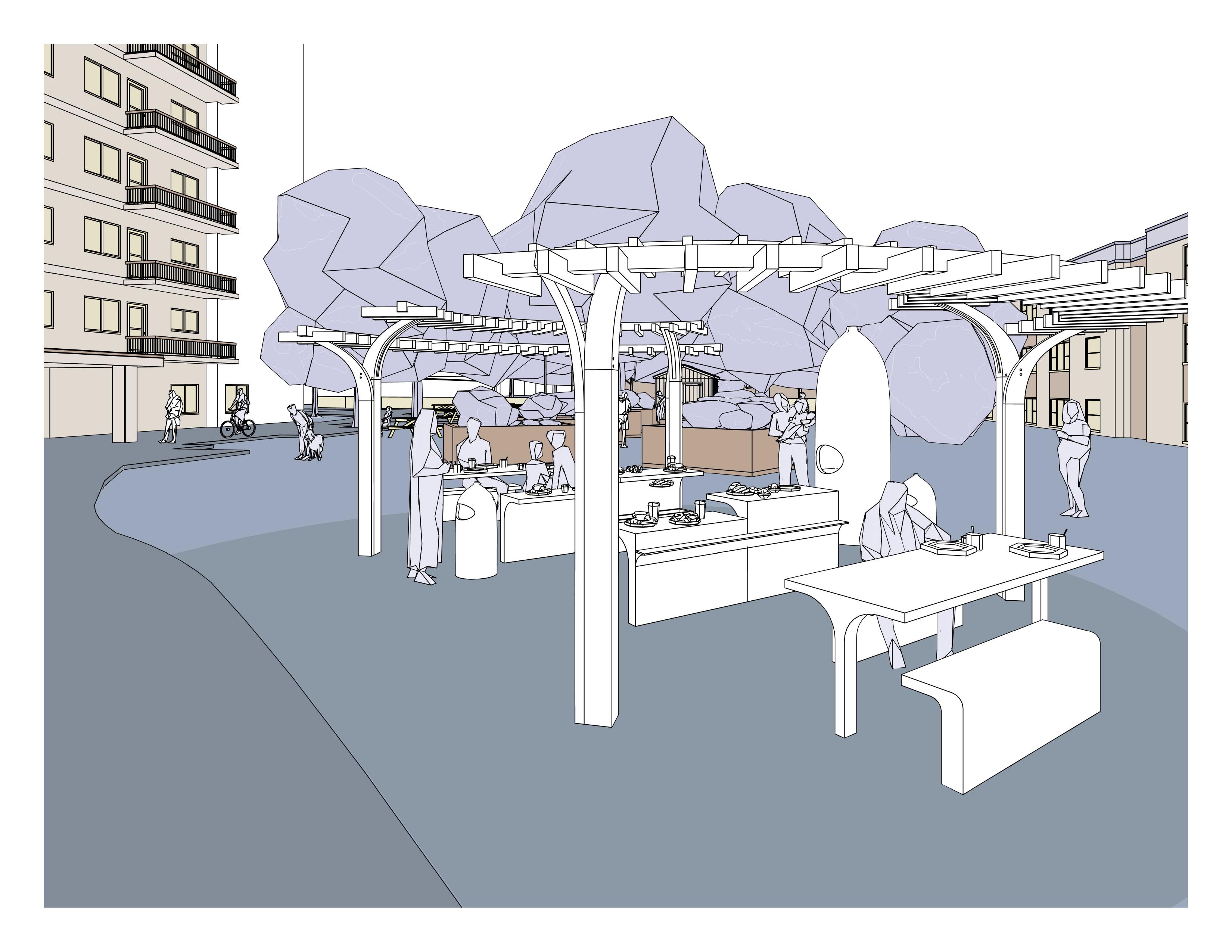

Vignette

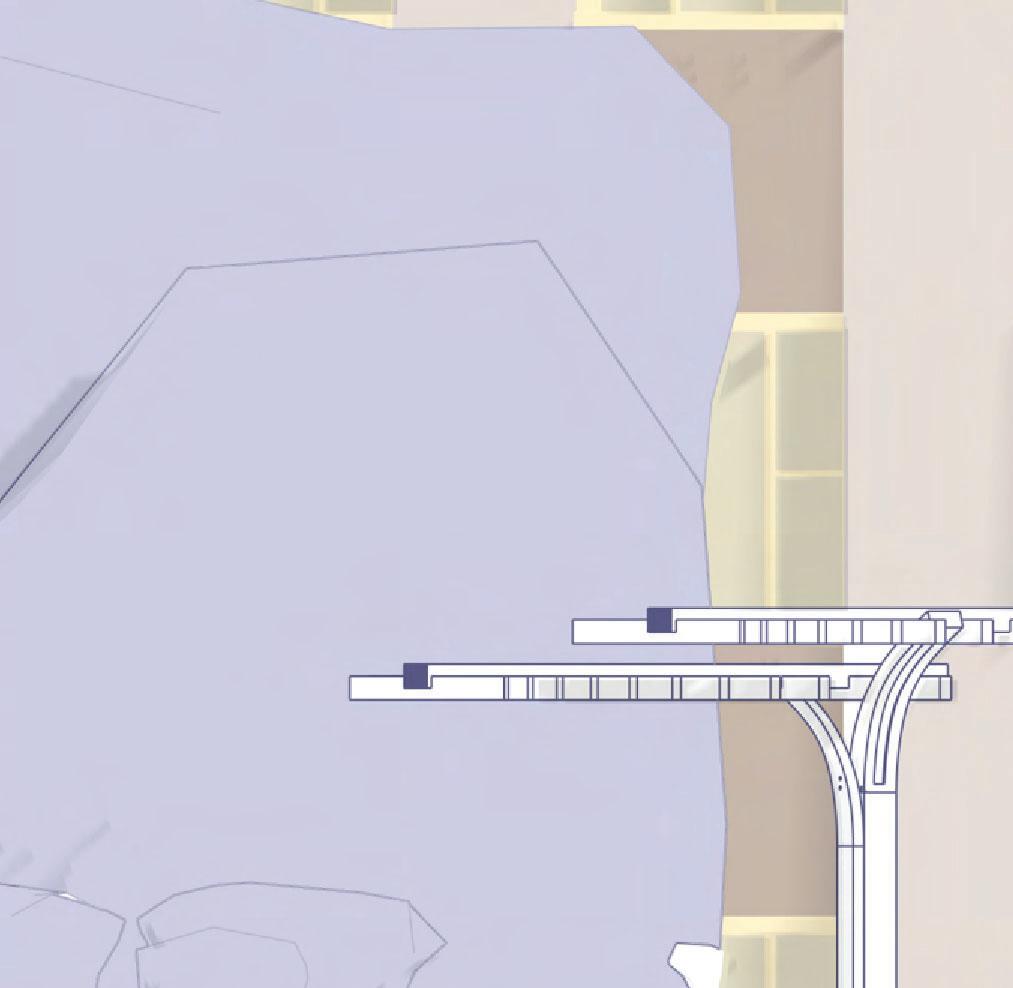

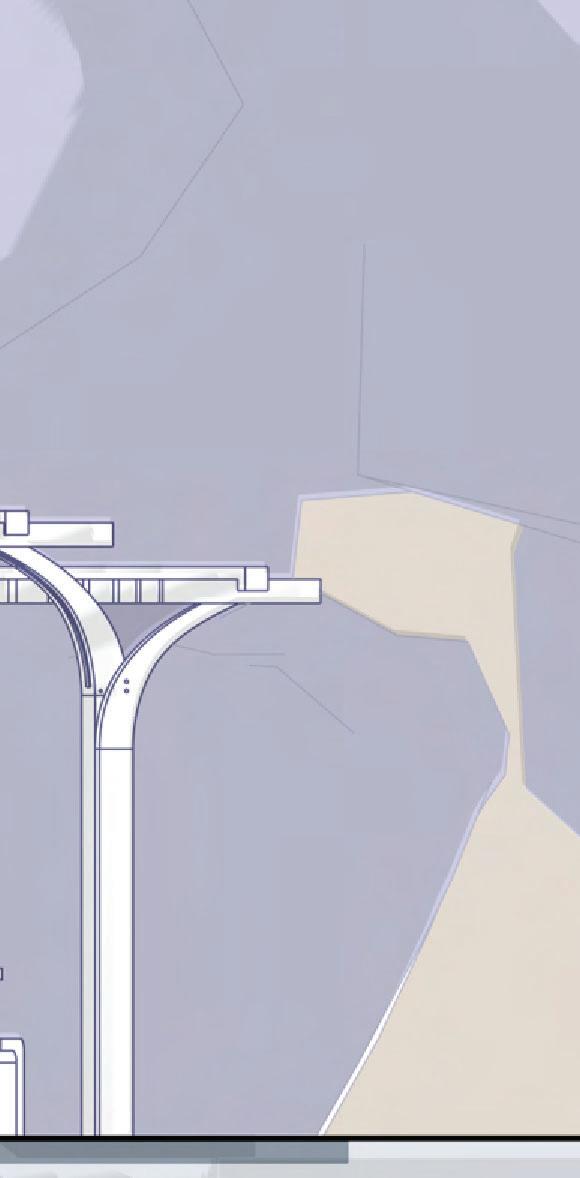

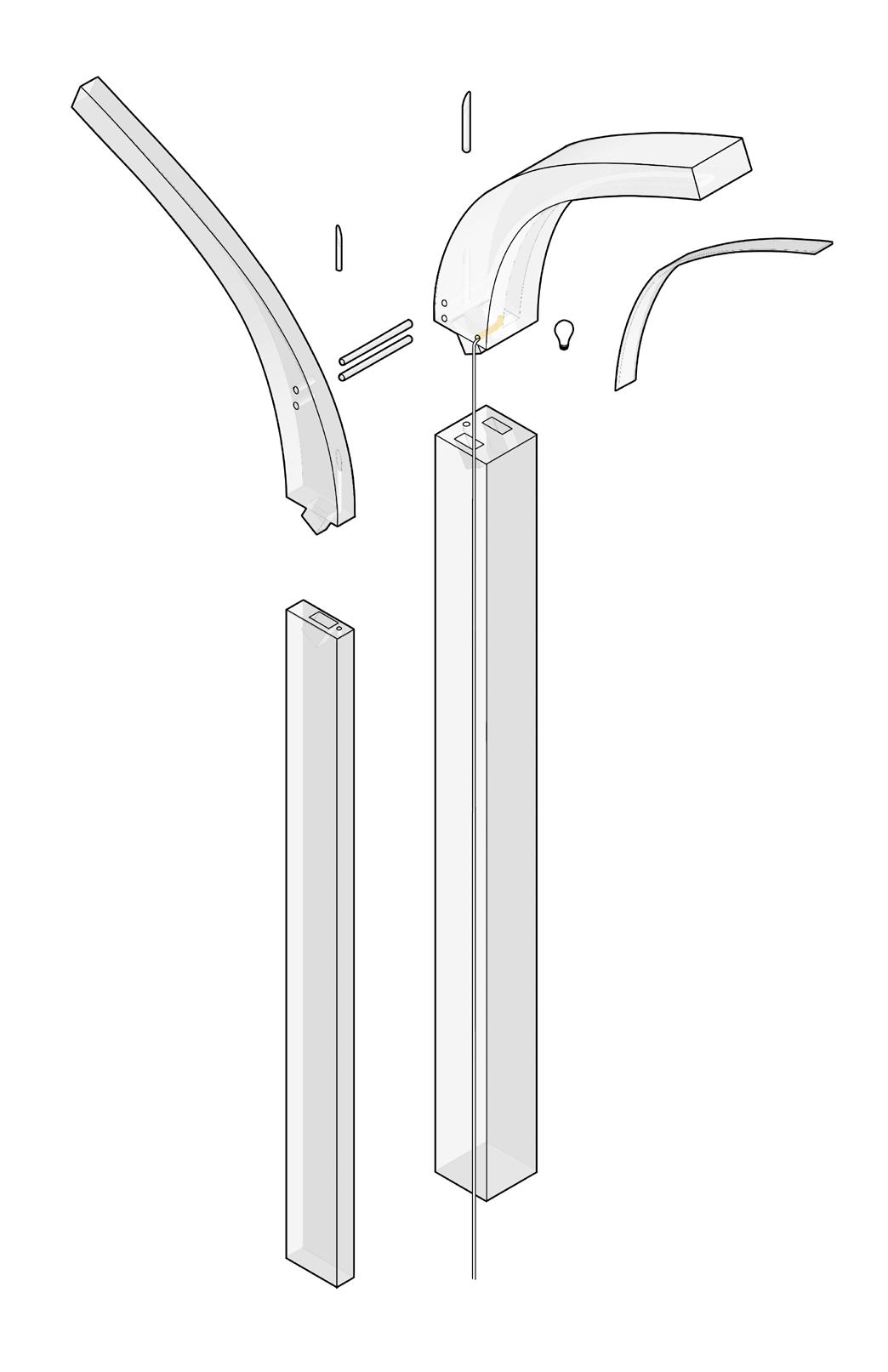

2” Supporting Arch
Mortise & Tenon Joint
Wooden Dowels
For added shear stability
2”x6” Pressure Treated Wood Posts
Mortise & Tenon Joint
Wooden Dowels
Connecting Arch to Post
6” Supporting Arch
Mortise & Tenon Joint
Lighting Cavity
Plexiglass Cover Wiring
6”x6” Pressure Treated Wood Posts
Mortise & Tenon Joint
Connection to Utility
28
3”
Floor Vent Cap
Smooth surface prevents peel from catching
2” Concrete Plate
Added insulation & provides fire and moisture protection
5” Concrete Base

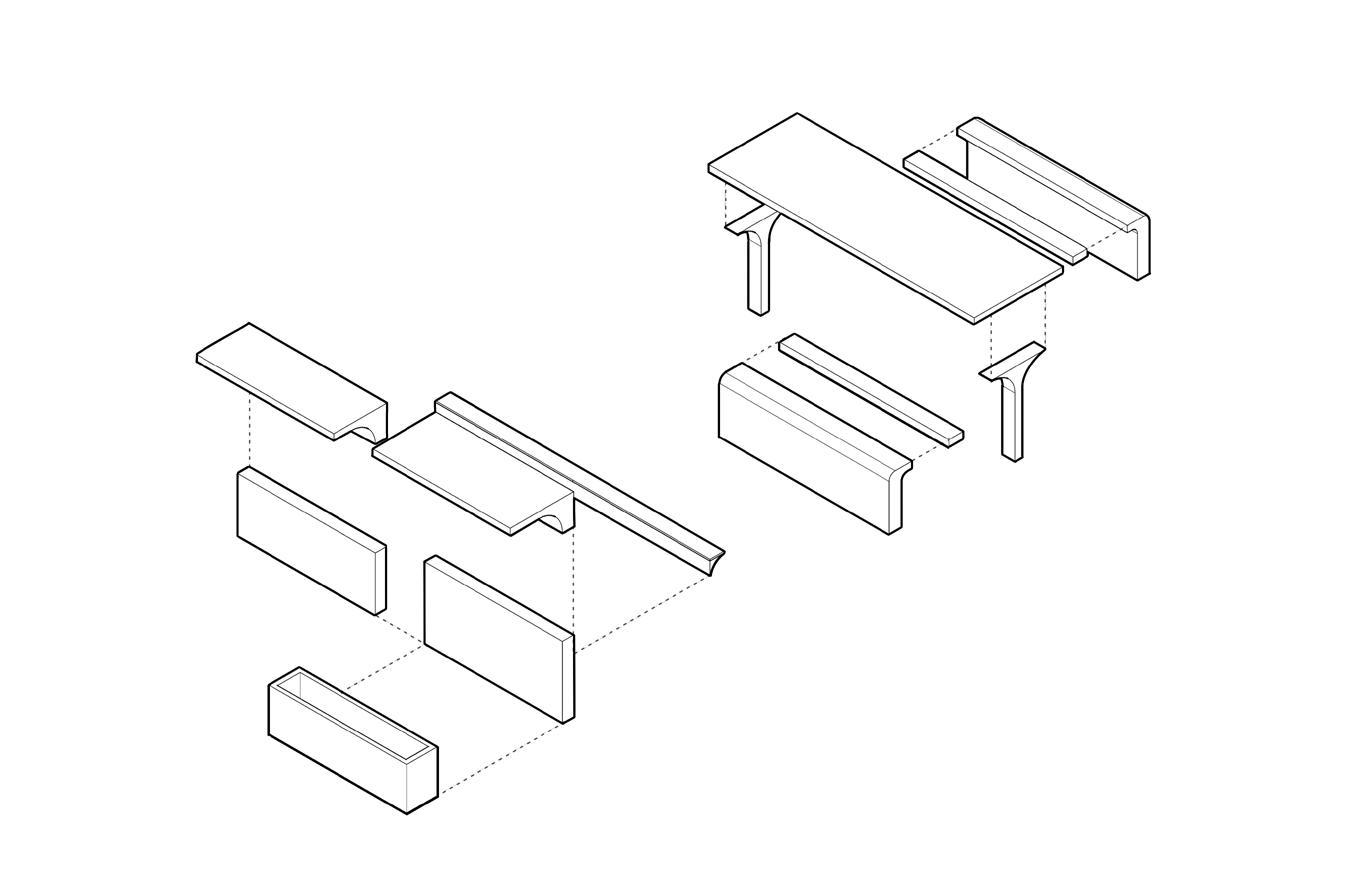

Accessible Counter
20 Gauge Stainless Steel Vent
2.5” Cob Layer
Engineered to vent moisture and keep oven dry Mix of sand, clay, nylon fibres and water
1” Stucco with Vapour Barrier
Wheelchair
Accessible Area
Calcite Board
Concrete
2.5” Concrete Thermal Mass
29
Wood Concrete Mud Stucco
EXCAVATE
Leave 1” above grade and attach particle board from top
COMPACT DIRT
COMPACT GRAVEL SCREED CONCRETE
Fill gravel until 4” from the top of the stake remains
Pour 4” concrete pad
Dig hole 4ft, below frost line
Pour 26” of concrete in Sonotube and install hardware
Use hardware to secure 6”x6” and 2”x6” wood posts
Pour 7” Concrete to secure posts
Pour 14” Gravel fill
Cover with floor finishing Purchase wood at 104” length
1/4 Bolts
2”x6” Galvanized Steel
Simpson Strong Tie
6”x6” Galvanized Steel
Simpson Strong Tie
3/8 Anchors
ON-SITE CONSTRUCTION
Cut into necessary increments
Laminate together Trace template onto final plank size
Using bandsaw, cut out shape
PRE-FABRICATED

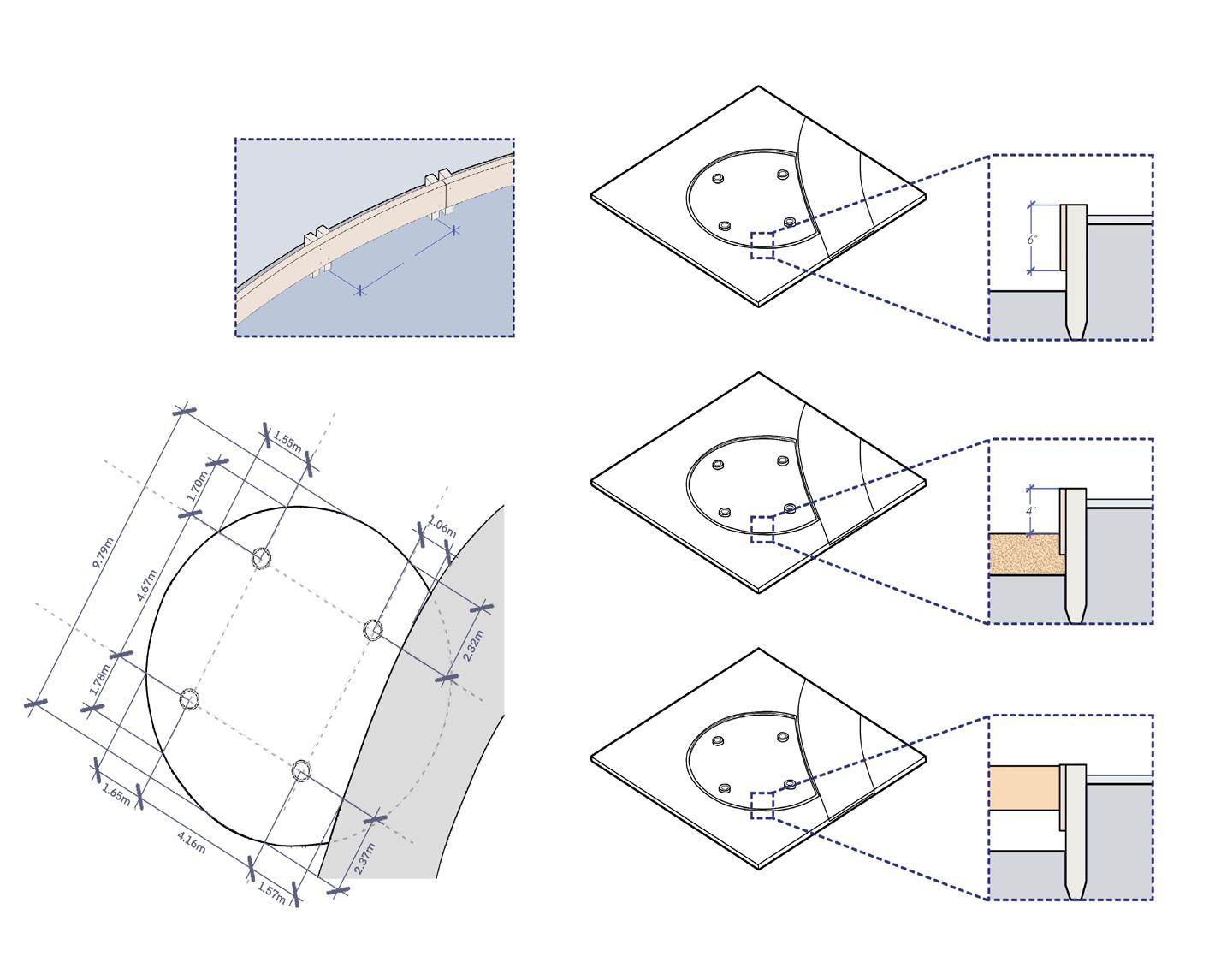

Excavate 6” deep and drive stakes into the ground at a distance of 3’ from each other. Following process, prep and pour concrete.

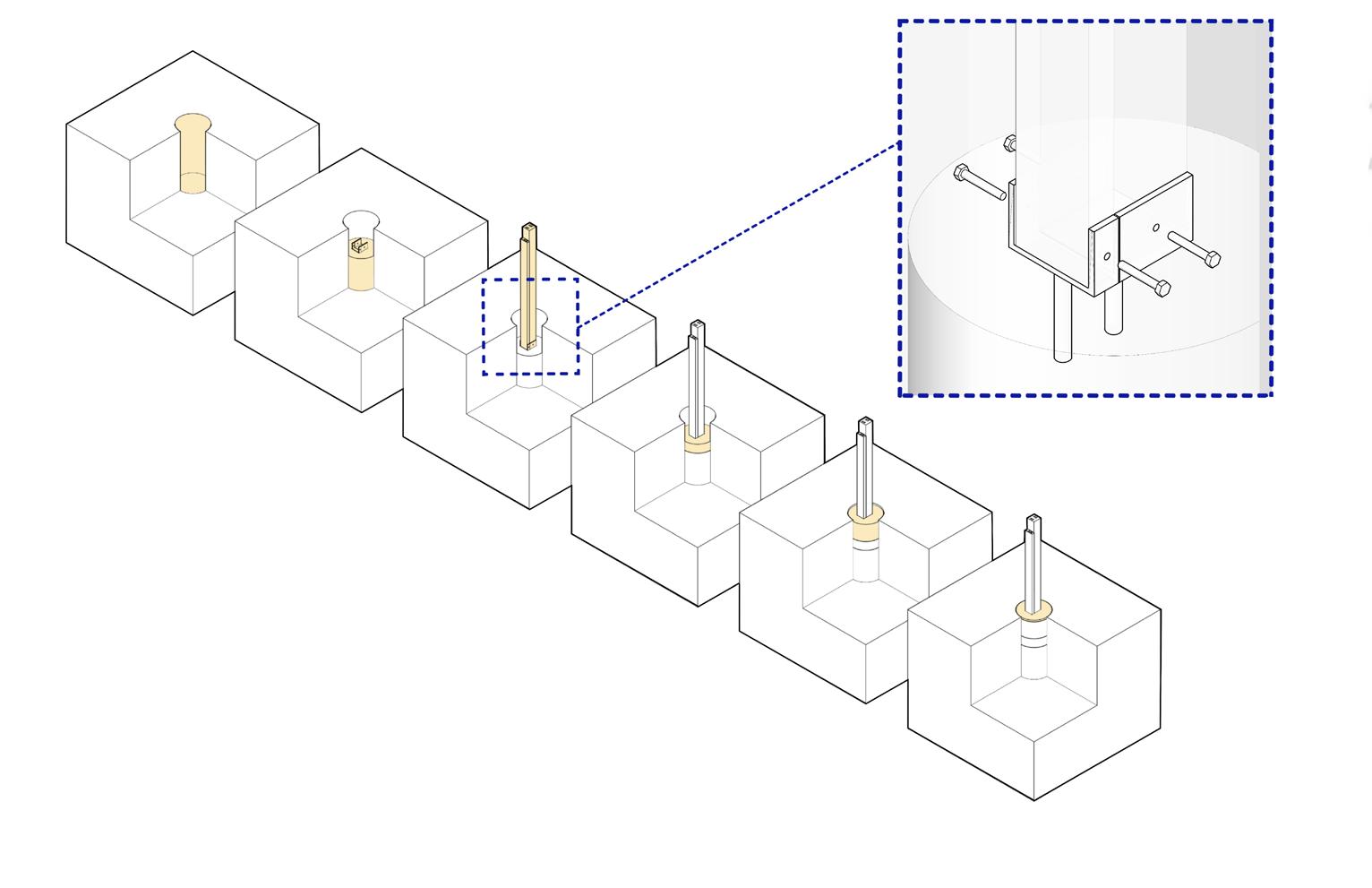

Footing Construction
After marking dimensions onto concrete slab, follow the process to secure all four posts into place.
Cob and Stucco Layer
Concrete Slab and Site Work at Carleton Woodshop
After mixing sand, clay, nylon straws and water together to specified consistency, using a trough, apply mud to the side. After drying, apply a stucco shell layer.
Concrete rings are casted and poured off-site in 4-inch increments then transported to site. Then each ring is cemented together.

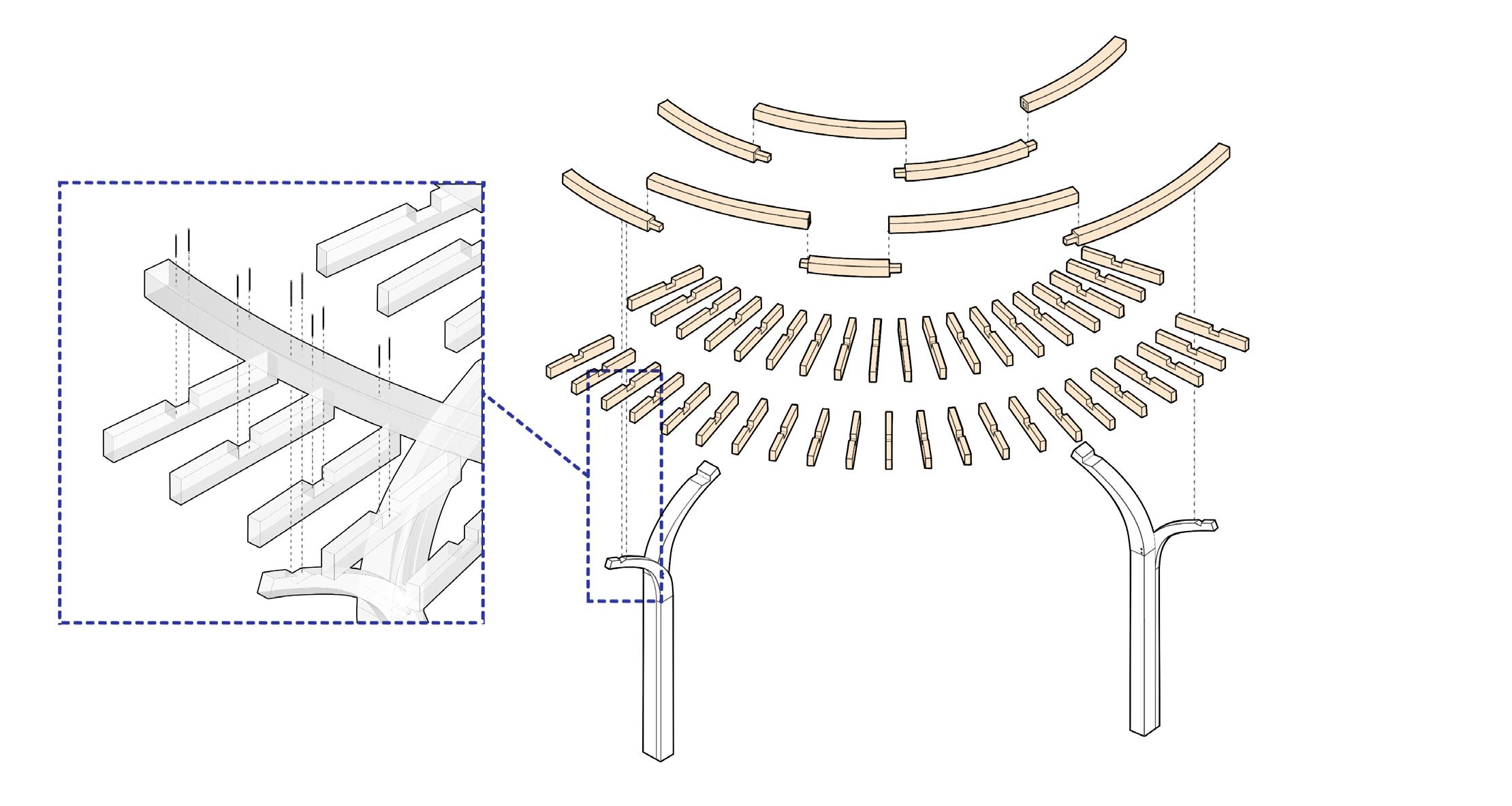

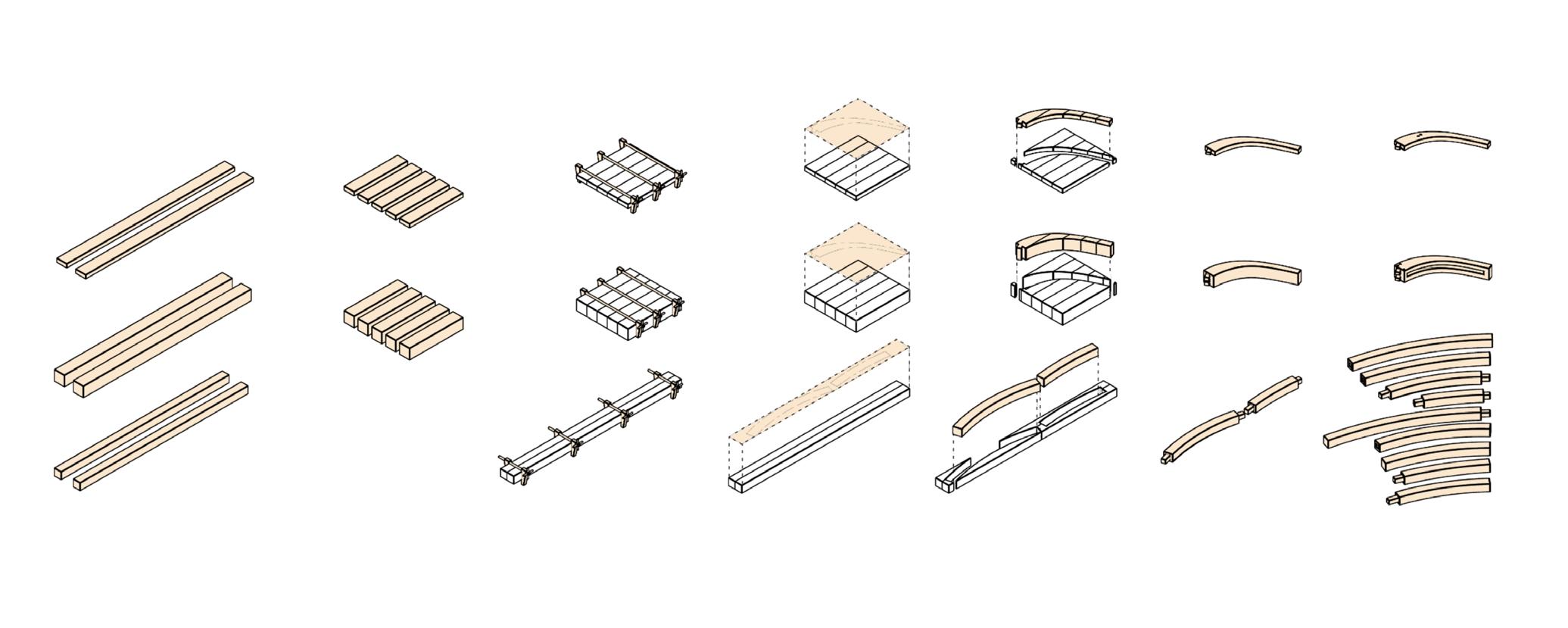

Curved wood elements in the post and pergola are made in sections at the woodshop then transported to site.
2”x6” 32”x33” 32”x33” 6”x6” 4”x4”
Make Mortise Tenon Joint
Add dowel holes & lighting recess
Glued together using contact cement
Metal casing is made off-site in three parts then welded to concrete in sections.
Welded in Sections Off-Site
Once arches and railing for the pergola are machined and ready, they will be transported to site. Railing will be assembled in sections then lifted and placed on top of posts.
Detail of concrete modules and contact cement appliaction
PRE-FABRICATED ASSEMBLED ON-SITE ~$14,932.49 at Carleton Metalshop Arches and Pergola ~$6,832.49 ~$3,100.00 $5,000.00
Material costs after applicable taxes Rough labour costs Final estimated cost Contingency fees

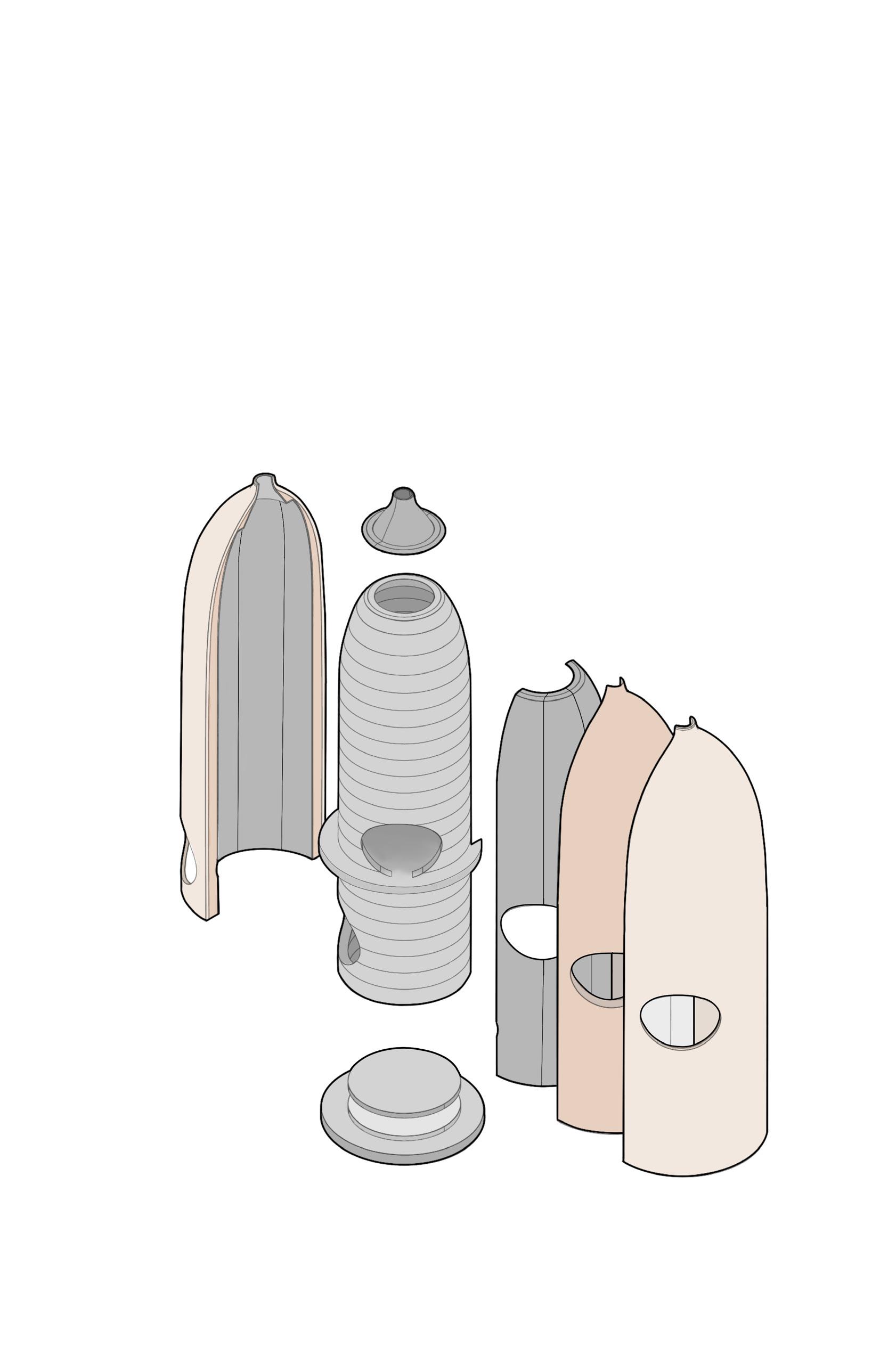

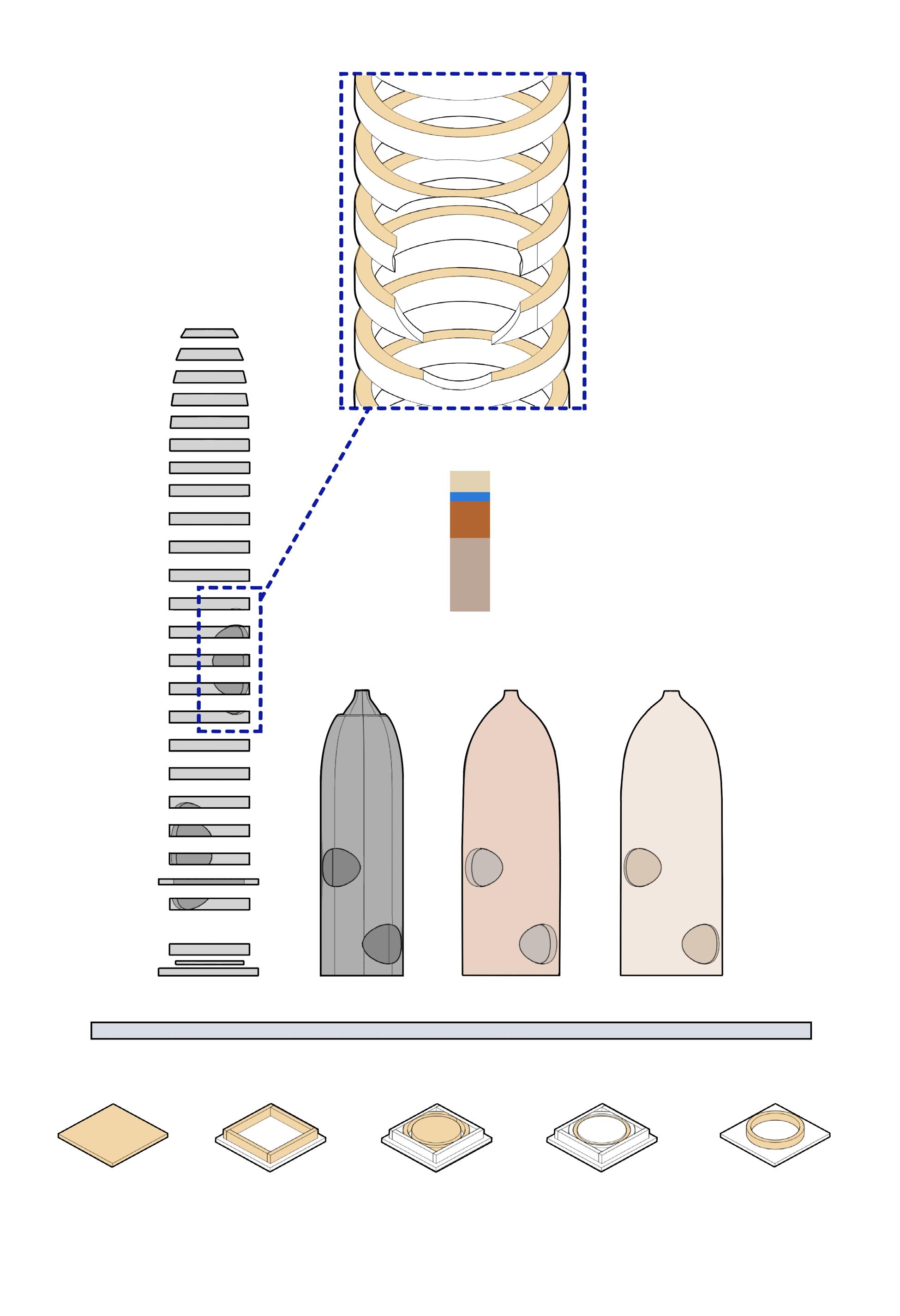

4” Pre-Cast Concrete Modules
20 Gauge Cold Rolled Steel Cob Layer Stucco Shell
Laminated particle board base
2”x4” Wooden stud border
Particle Board Form
Pour Concrete in Cavity
After concrete cures, remove mold Applied by
Hand Applied by Hand

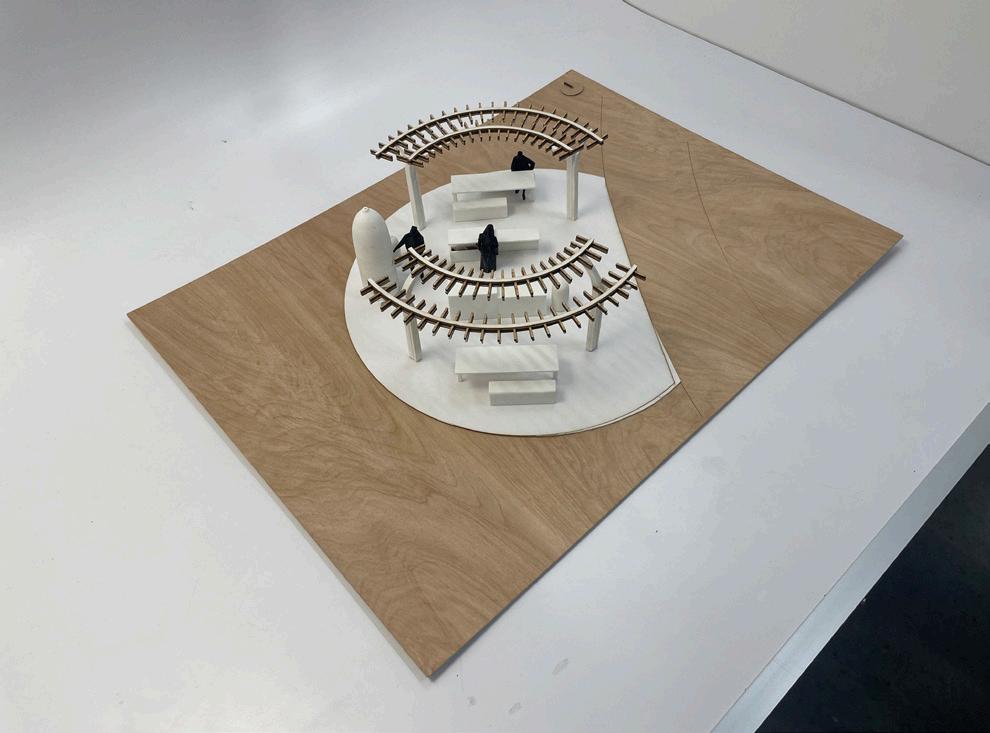

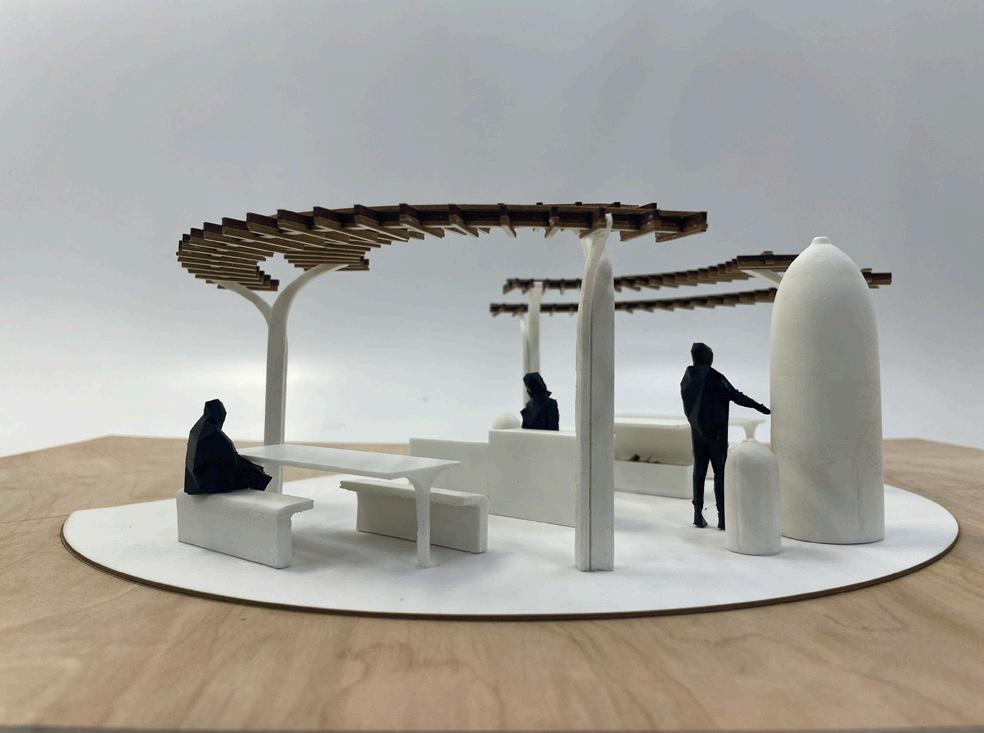

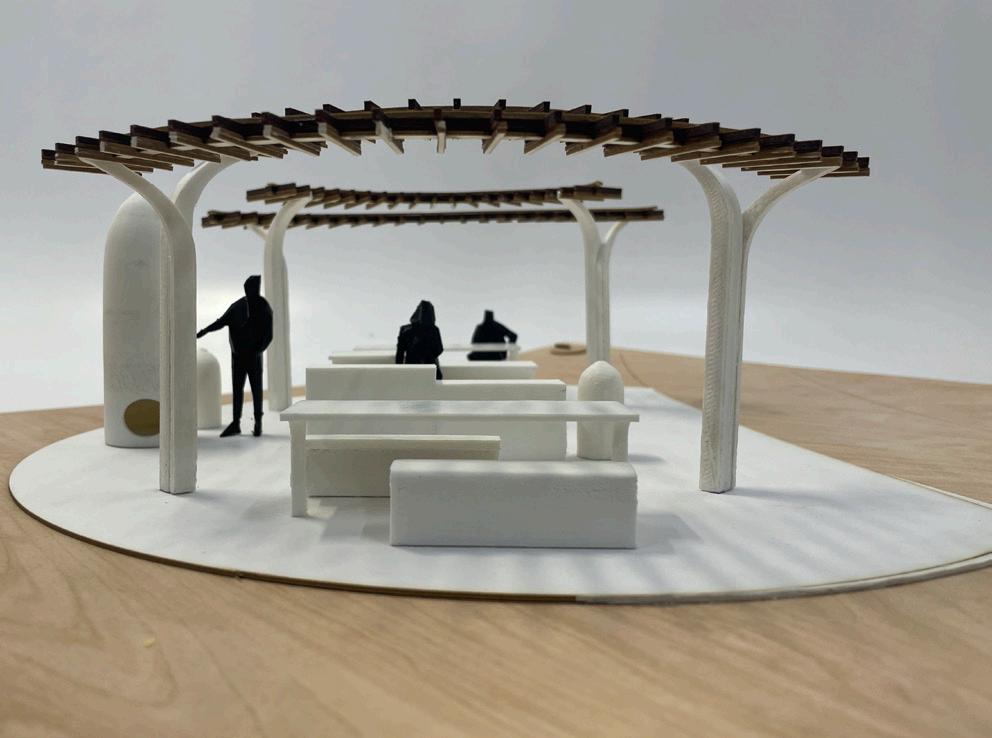

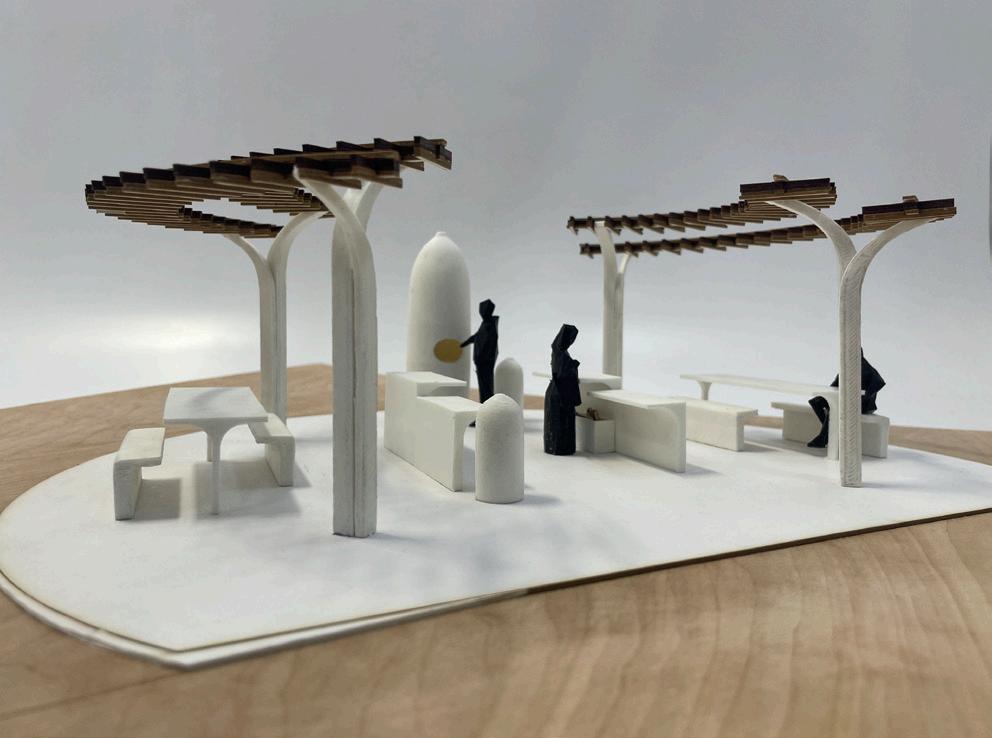

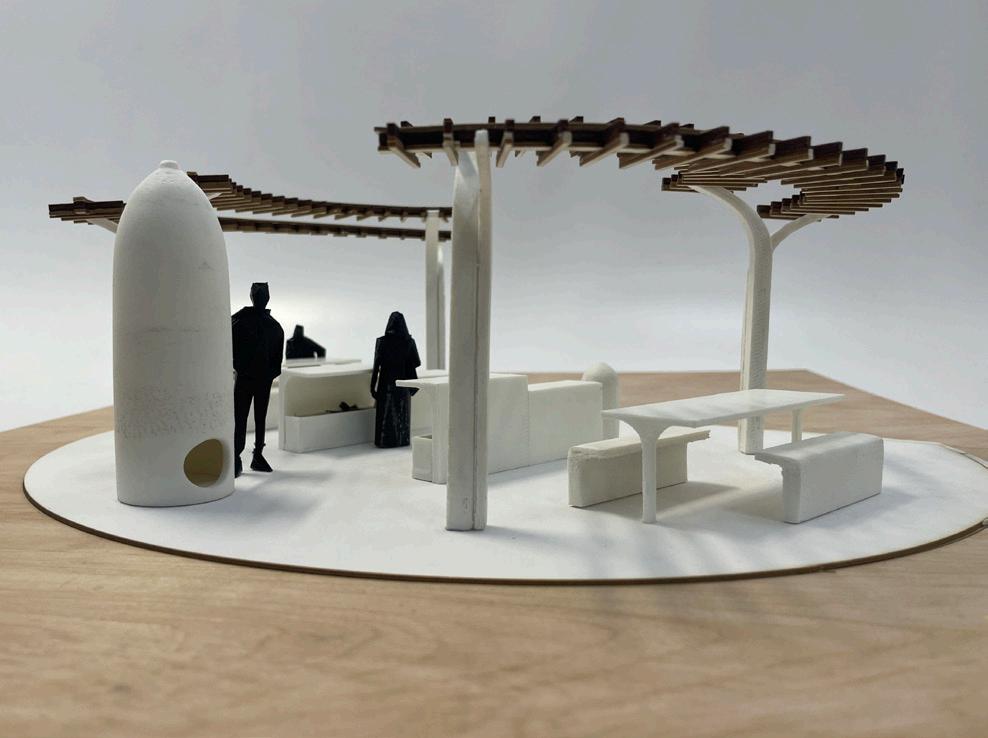

MODEL
This model was crafted through a process of combining advanced digital fabrication techniques with traditional woodworking techniques. Most parts were made with a 3D printer and a laser cutter for precise shapes and fits. The Oven component was then mounted on a lathe to give it a soft, smooth finish. This combination of 3D printing, laser cutting, and lathe work, resulted in a finely crafted model.
32
33
sketches, model explorations, and an immersive site visit to Forêt La Blanche, the design is informed by a deep understanding of the forest’s structural and spatial qualities, reflecting its intricate networks and organic forms. This approach ensures that the educational facility not only blends seamlessly with its natural setting but also amplifies the forest’s educational and experiential value, fostering a unique learning environment that encourages exploration and discovery.
Mayo, QC 2022

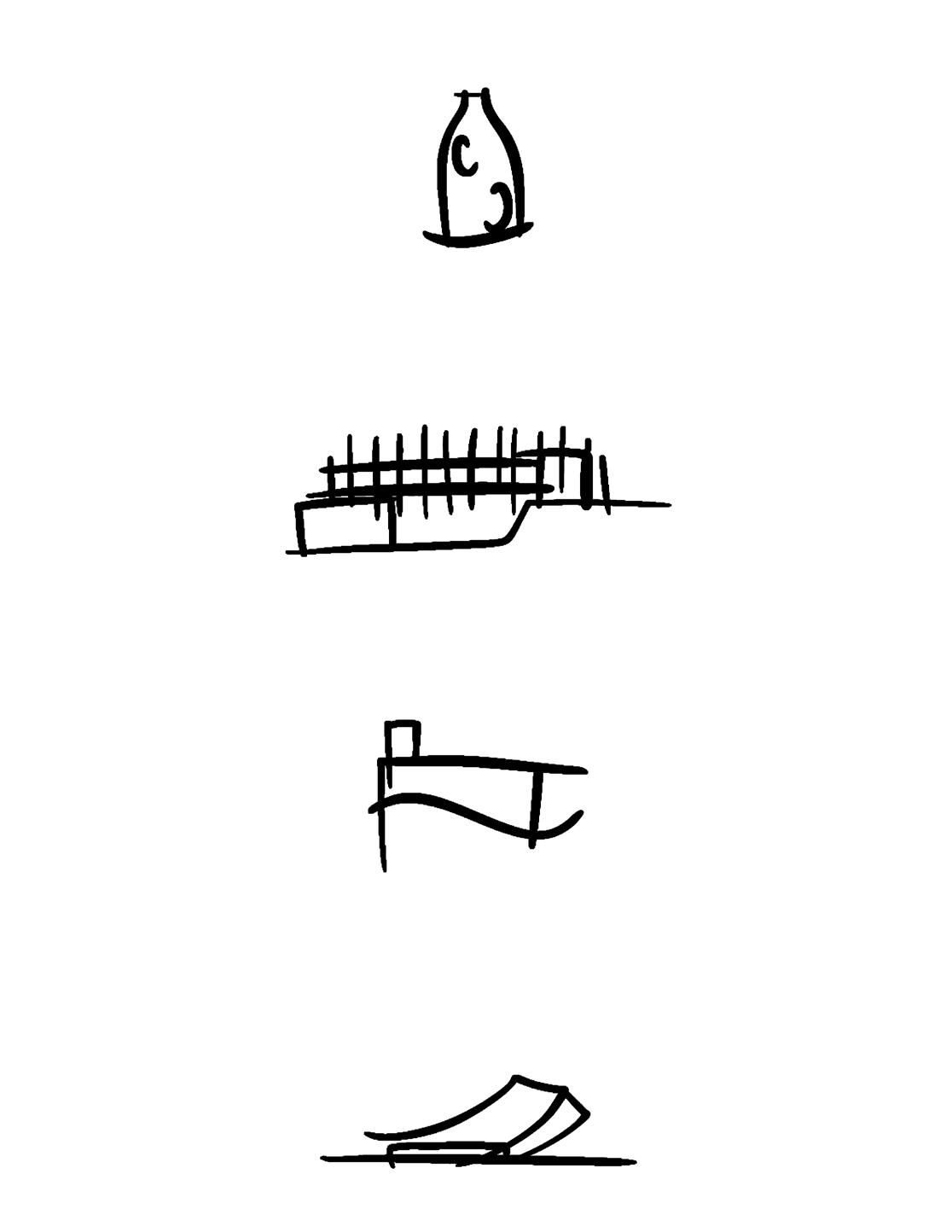

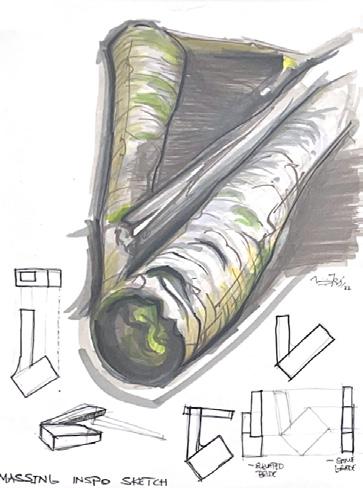

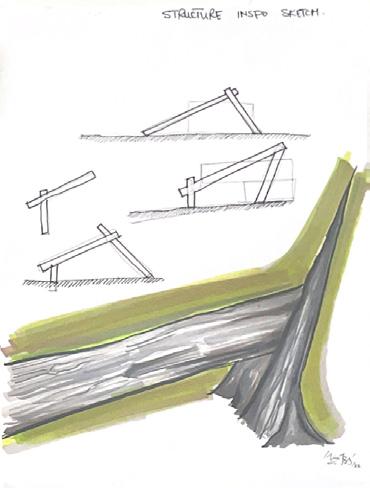

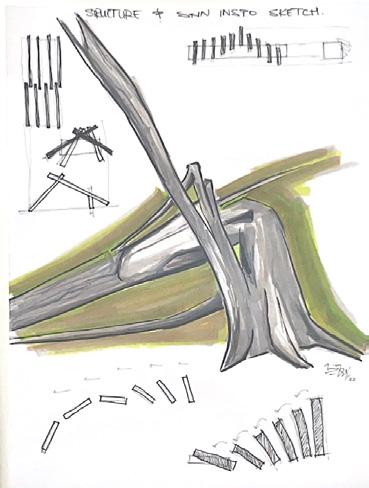

Structural System Inspiration Structural & Shading System Inspiration Massing Inspiration 3 2 1 1 2 3 36

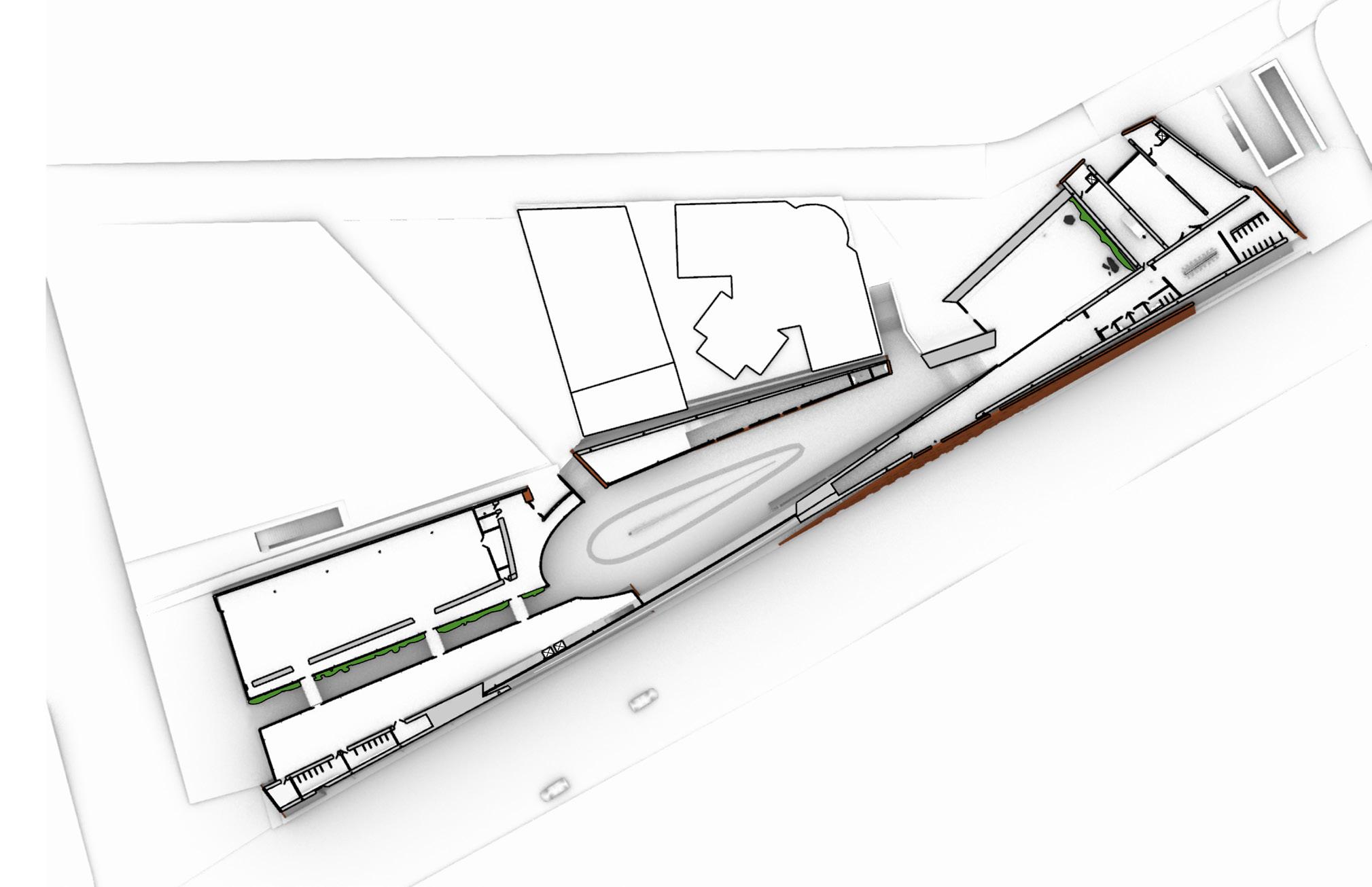

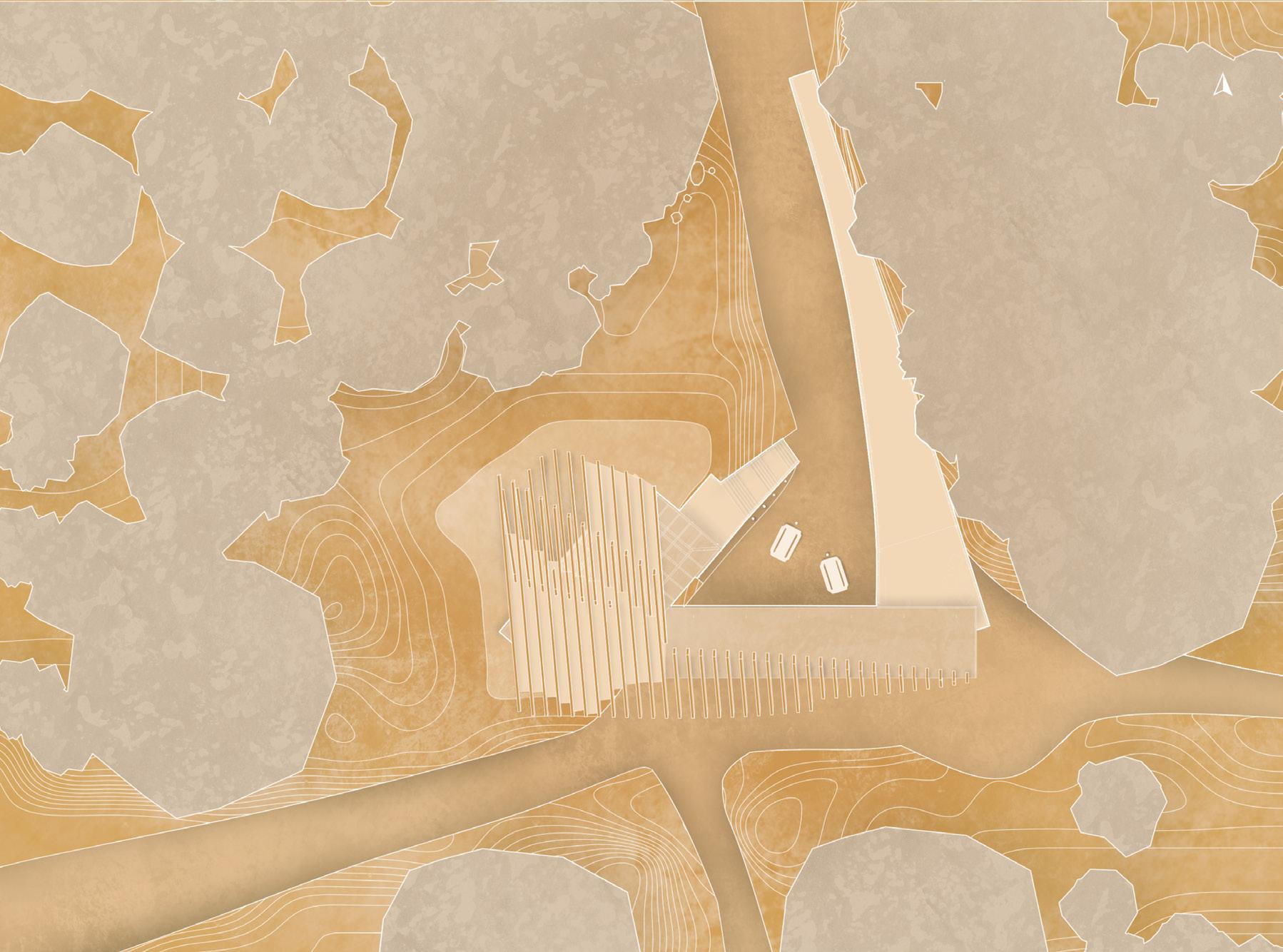

Site
37

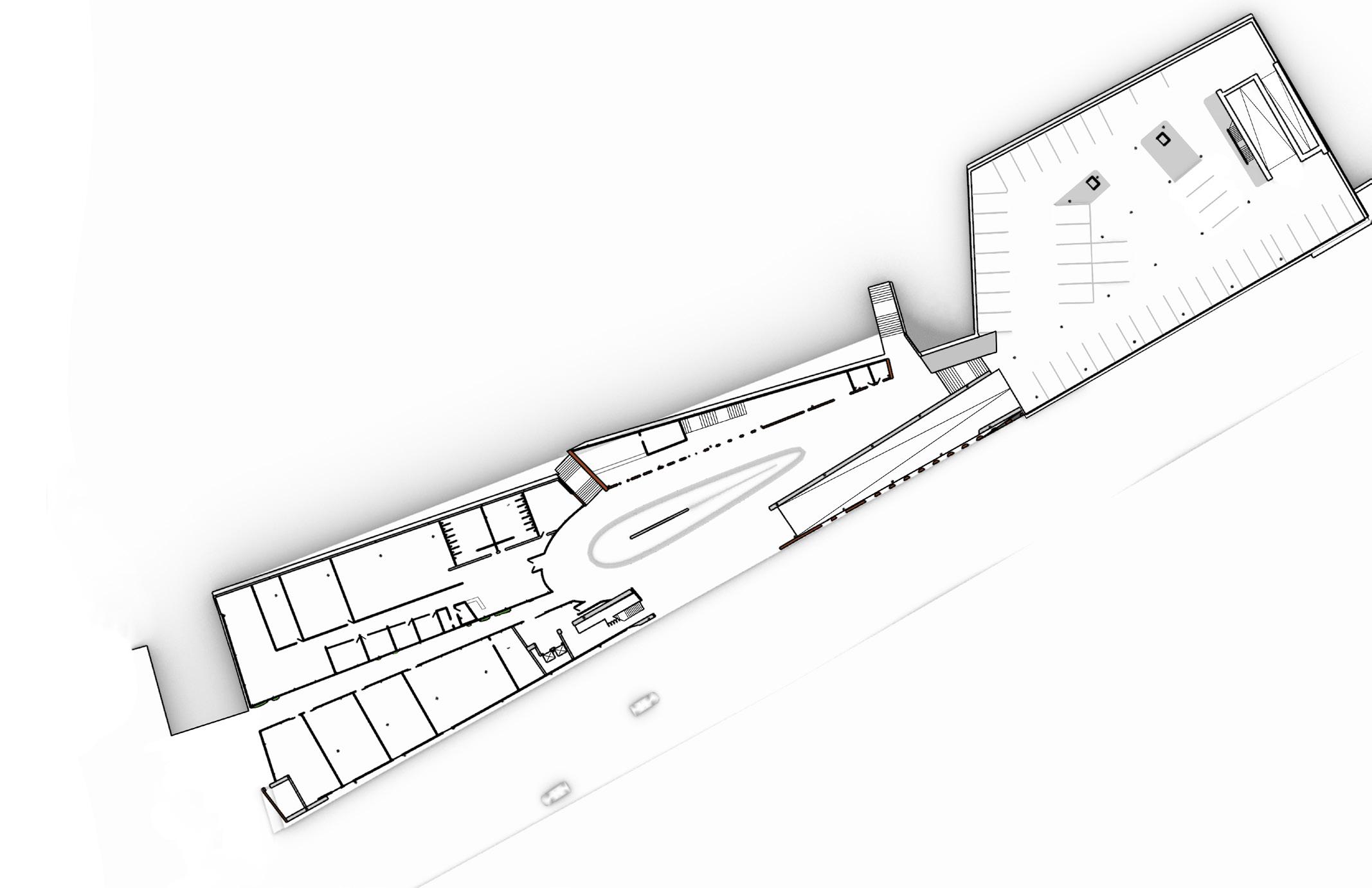

Plan
First Floor Plan Storage Men’s Washroom Accessible Washroom Women’s Washroom Janitor’s Room Outdoor Eating Area 38

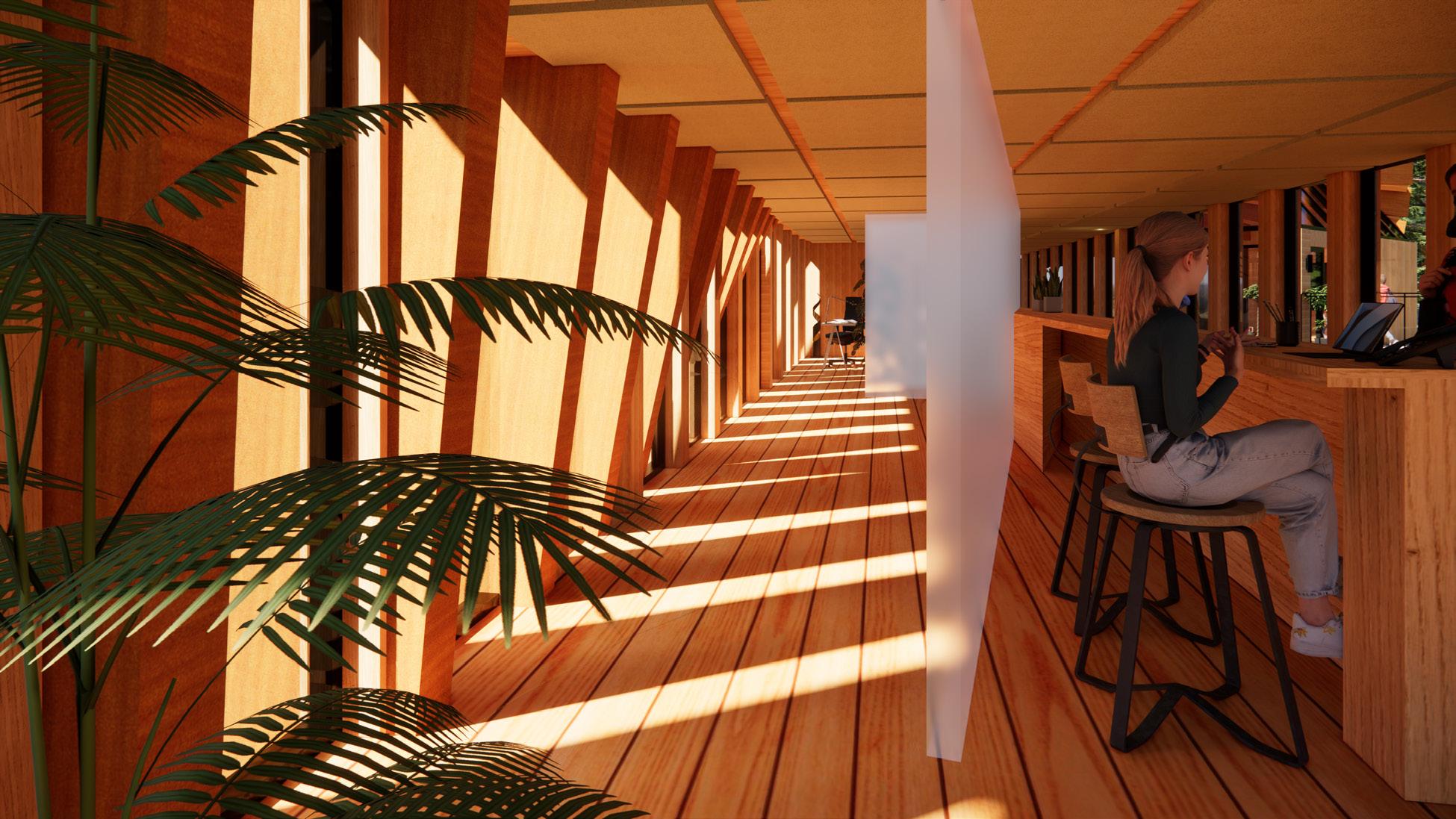

Second Floor Plan Coat & Locker Room Multi-use Area Outdoor Gathering Area Site Manager Office Foyer & Reception Ramp Employee Area 39
40

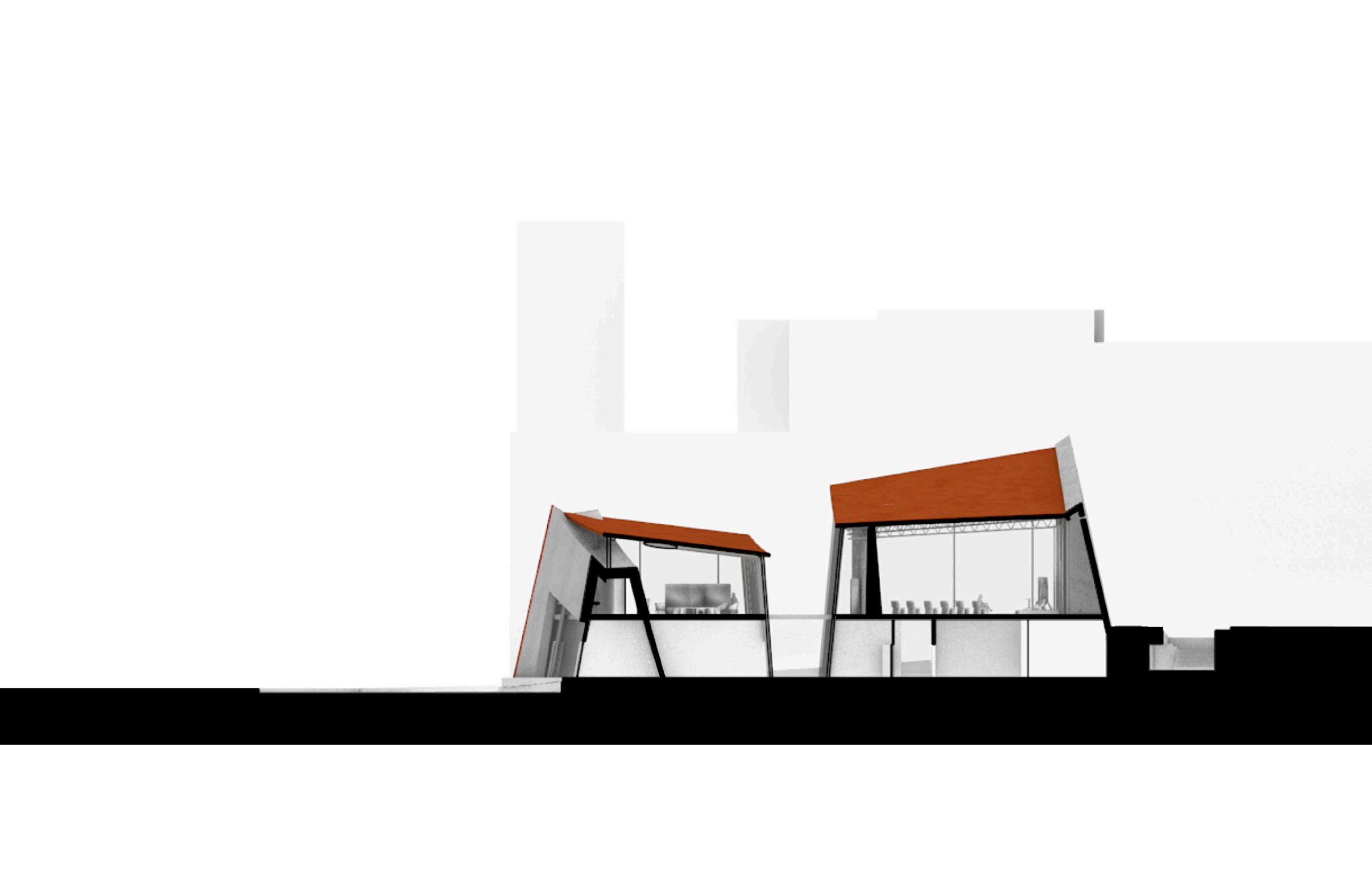

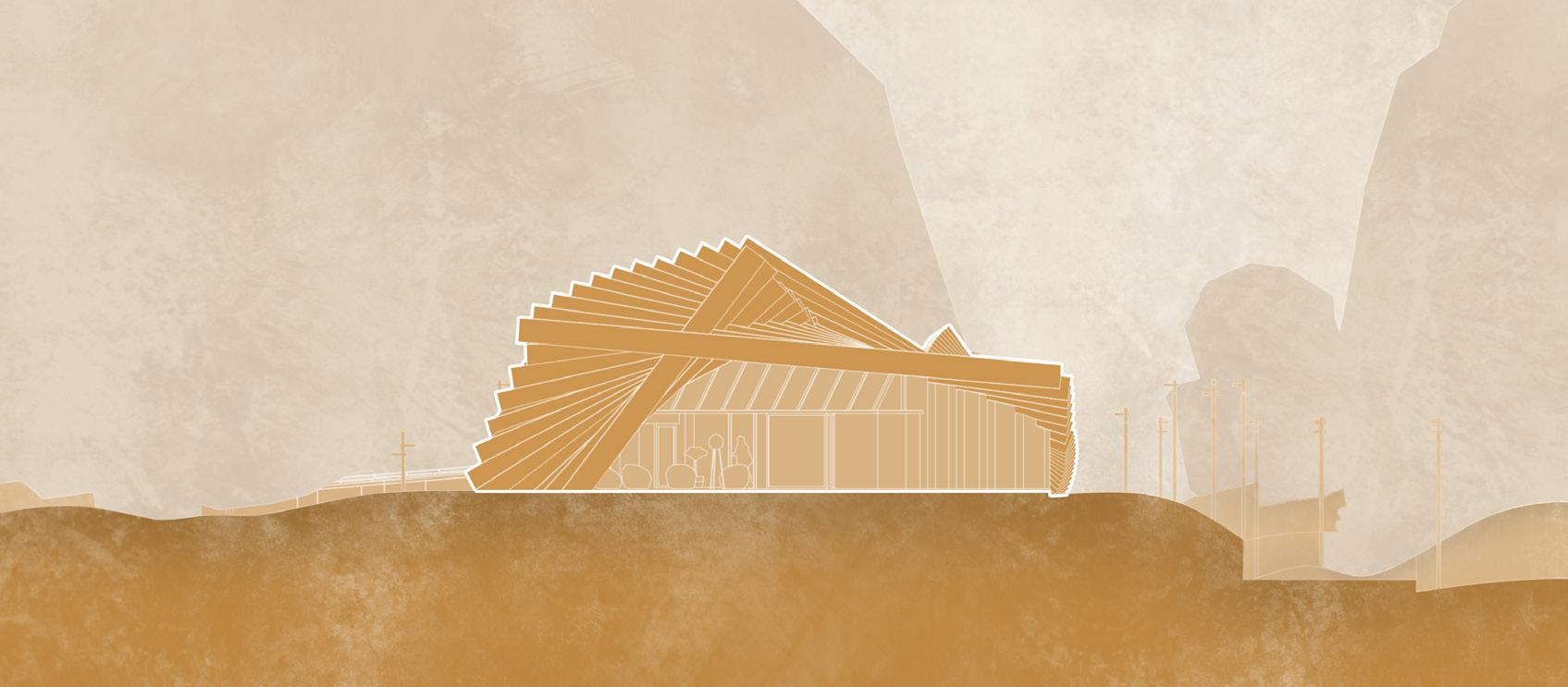

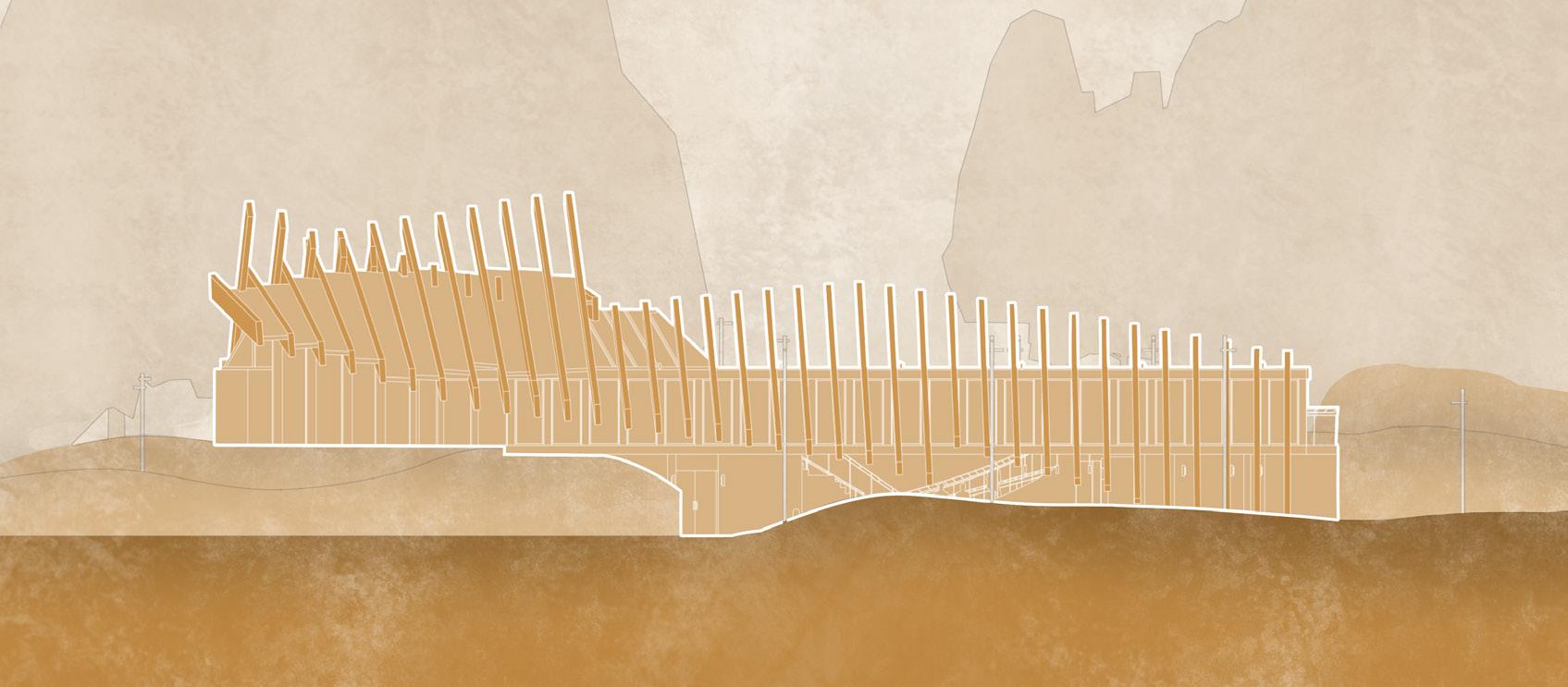

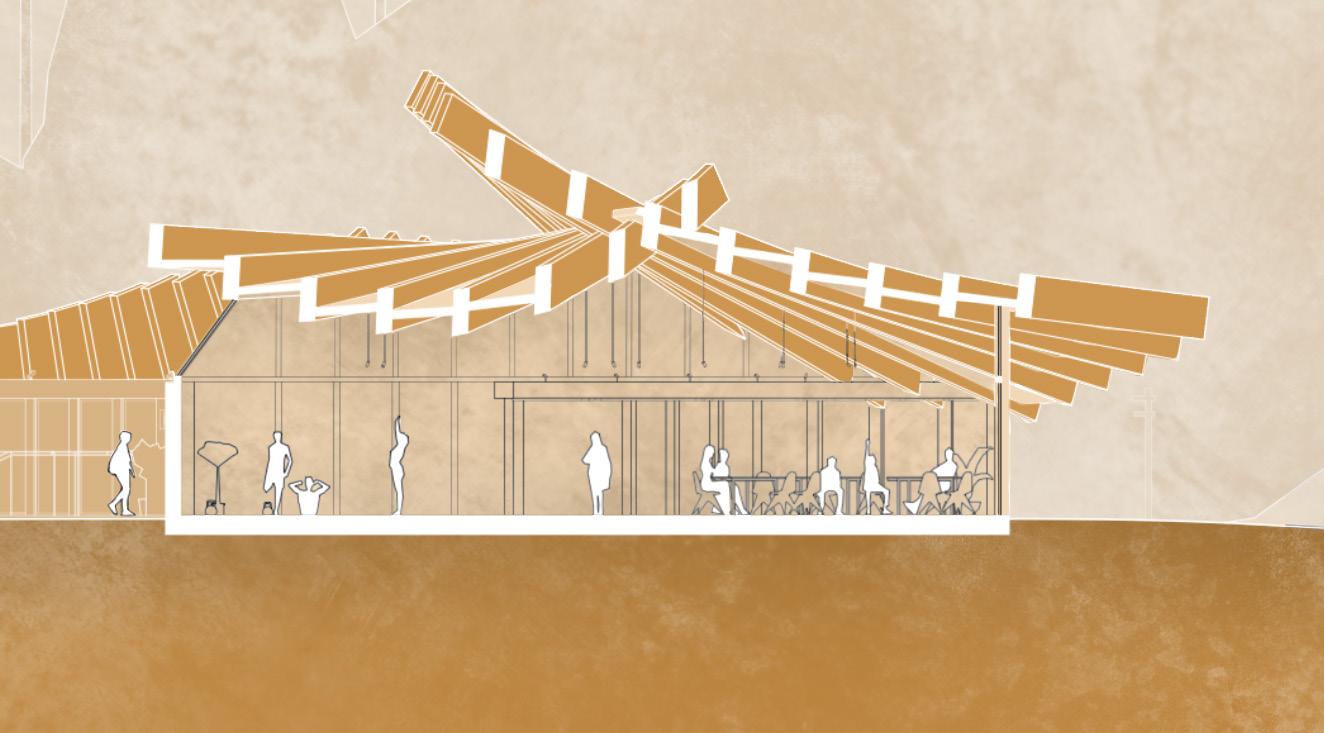

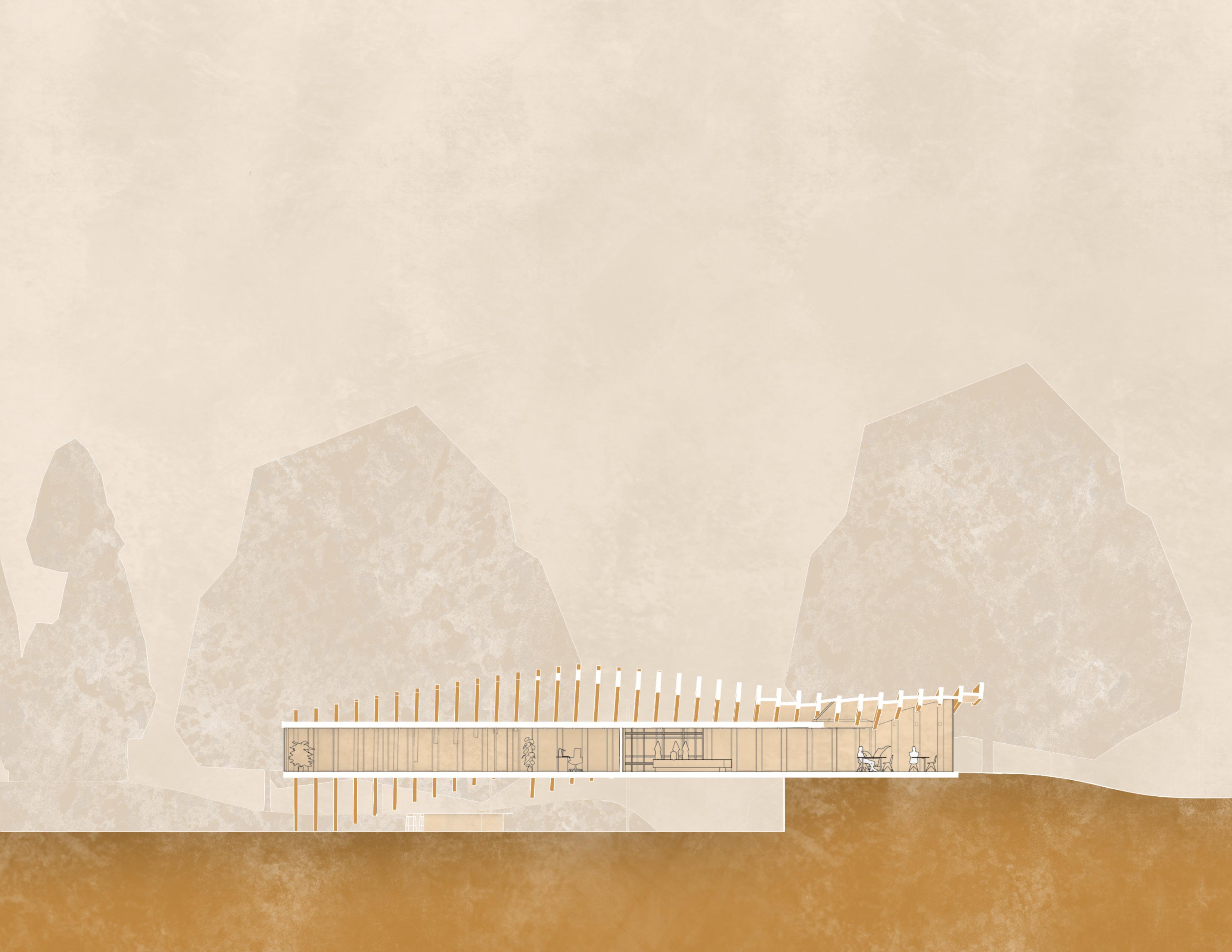

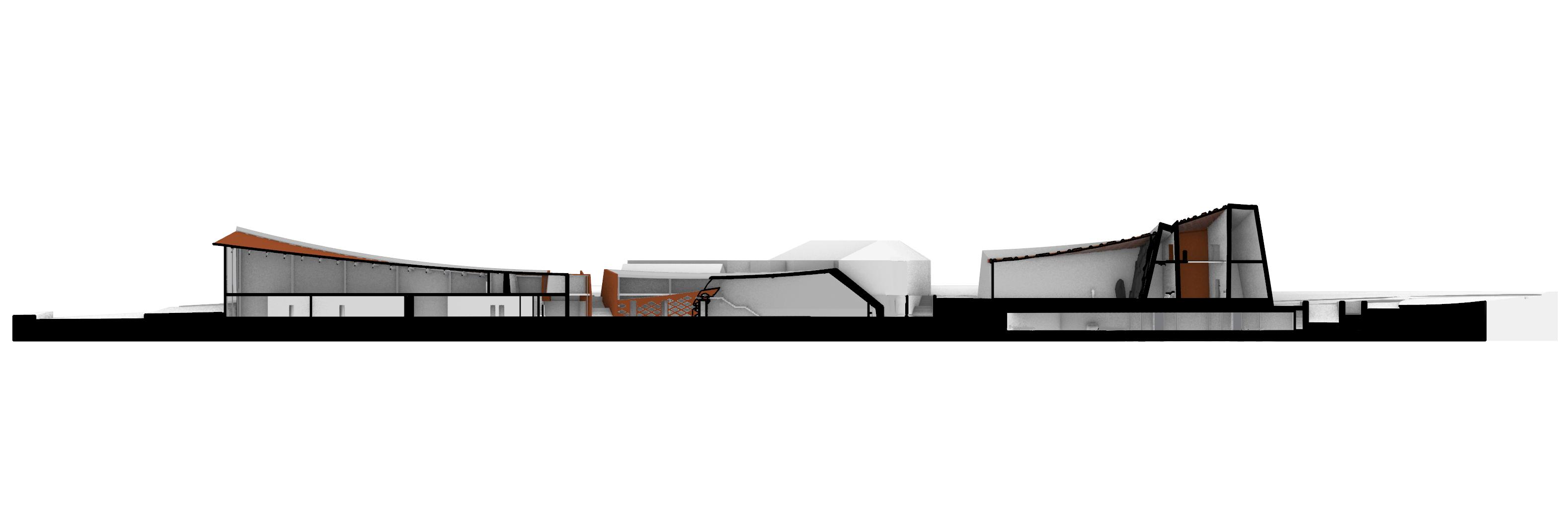

Longitudinal Section
41
Transverse Section
South Elevation
42
West Elevation
43

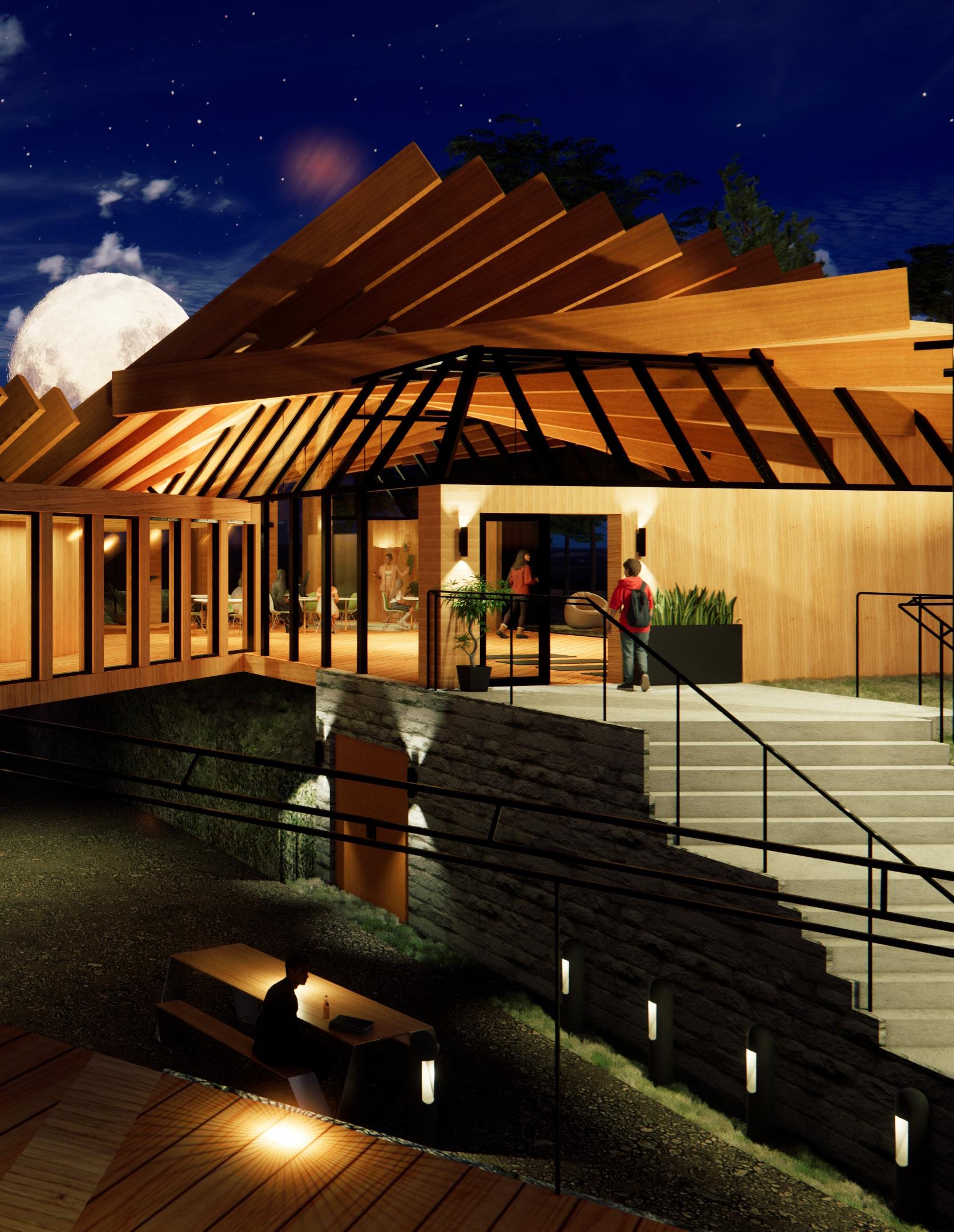

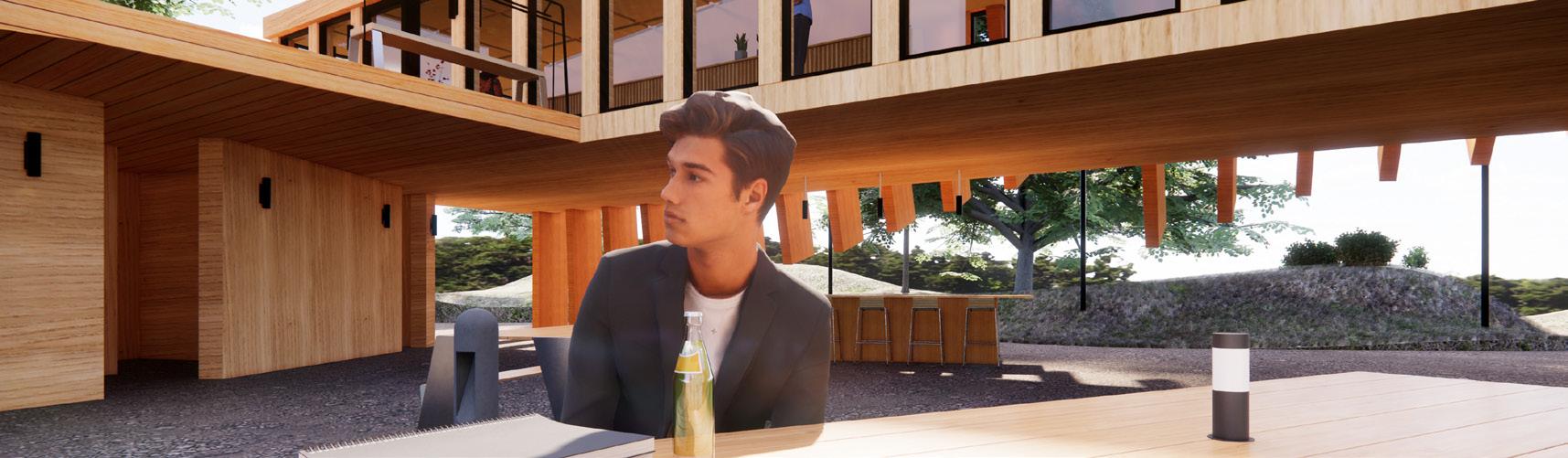

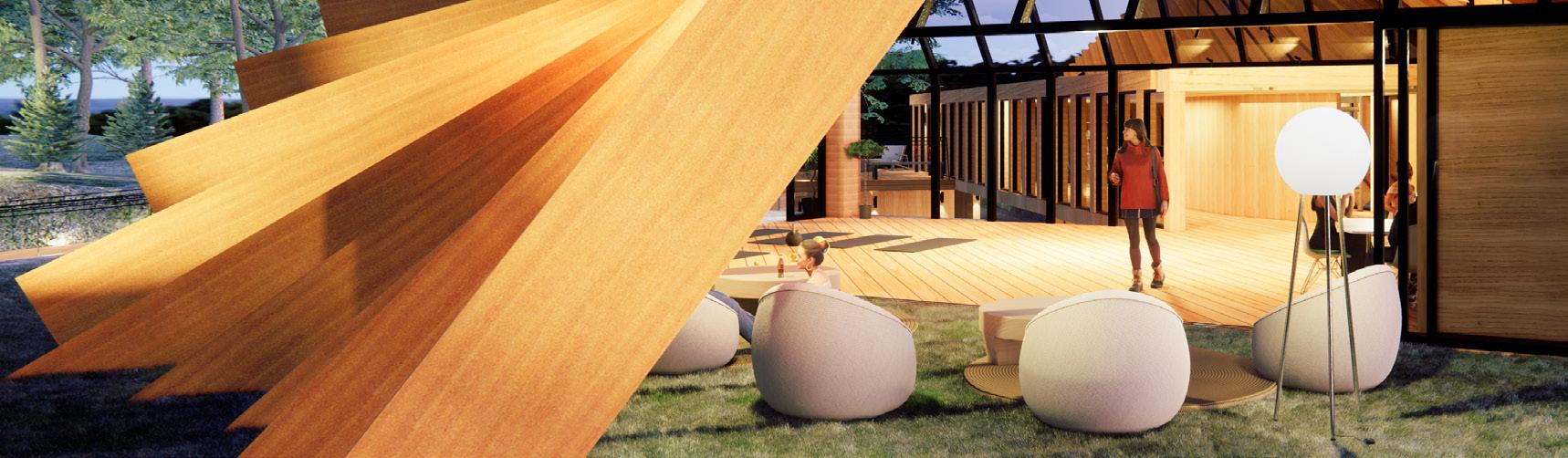

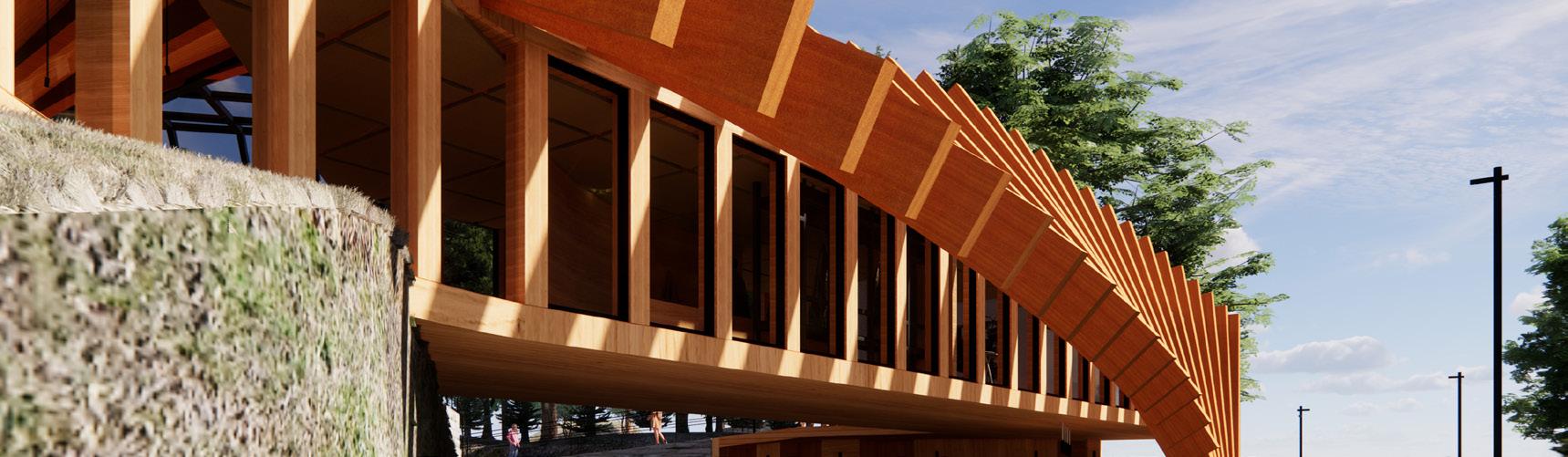

Entrance

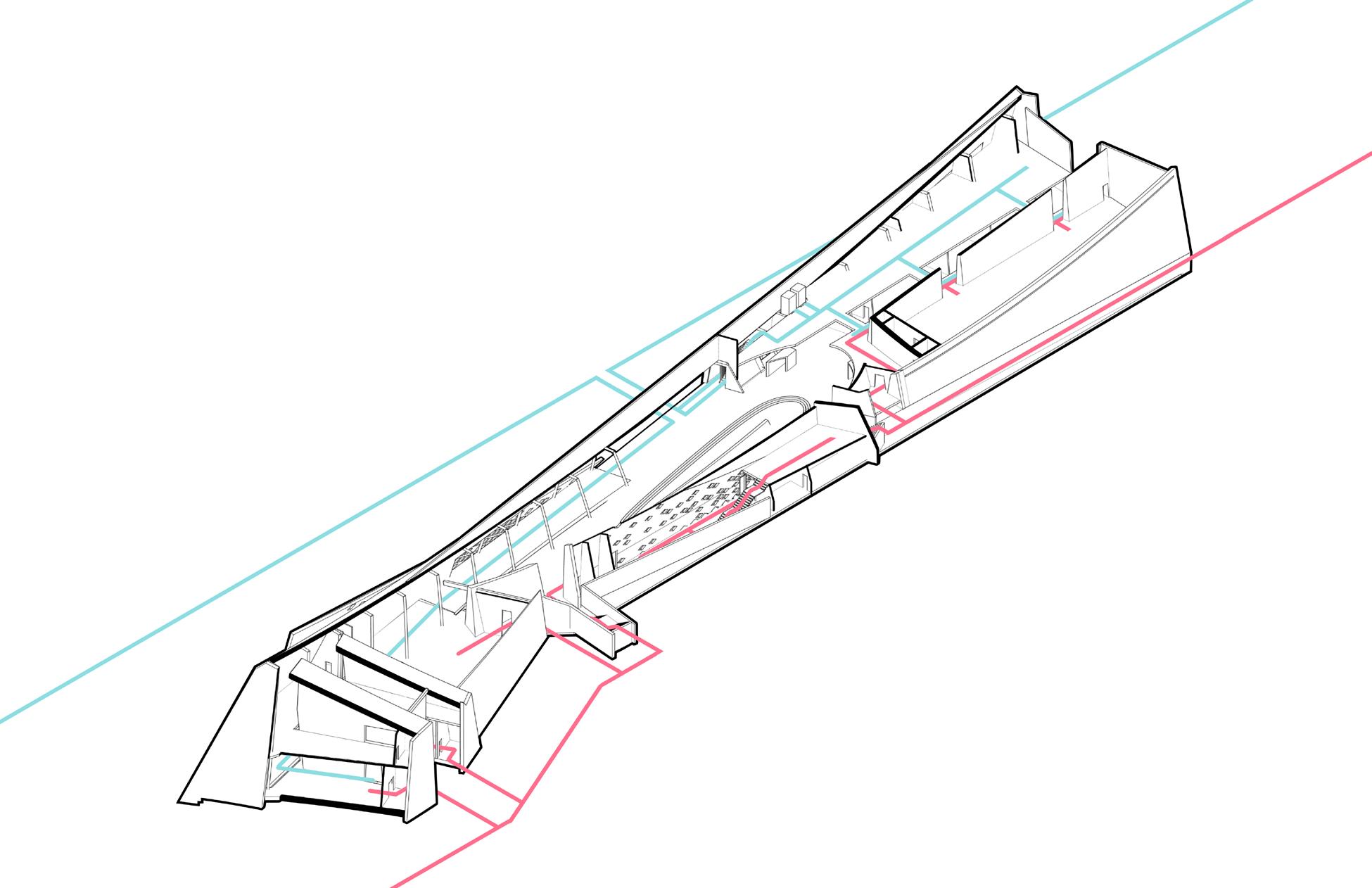

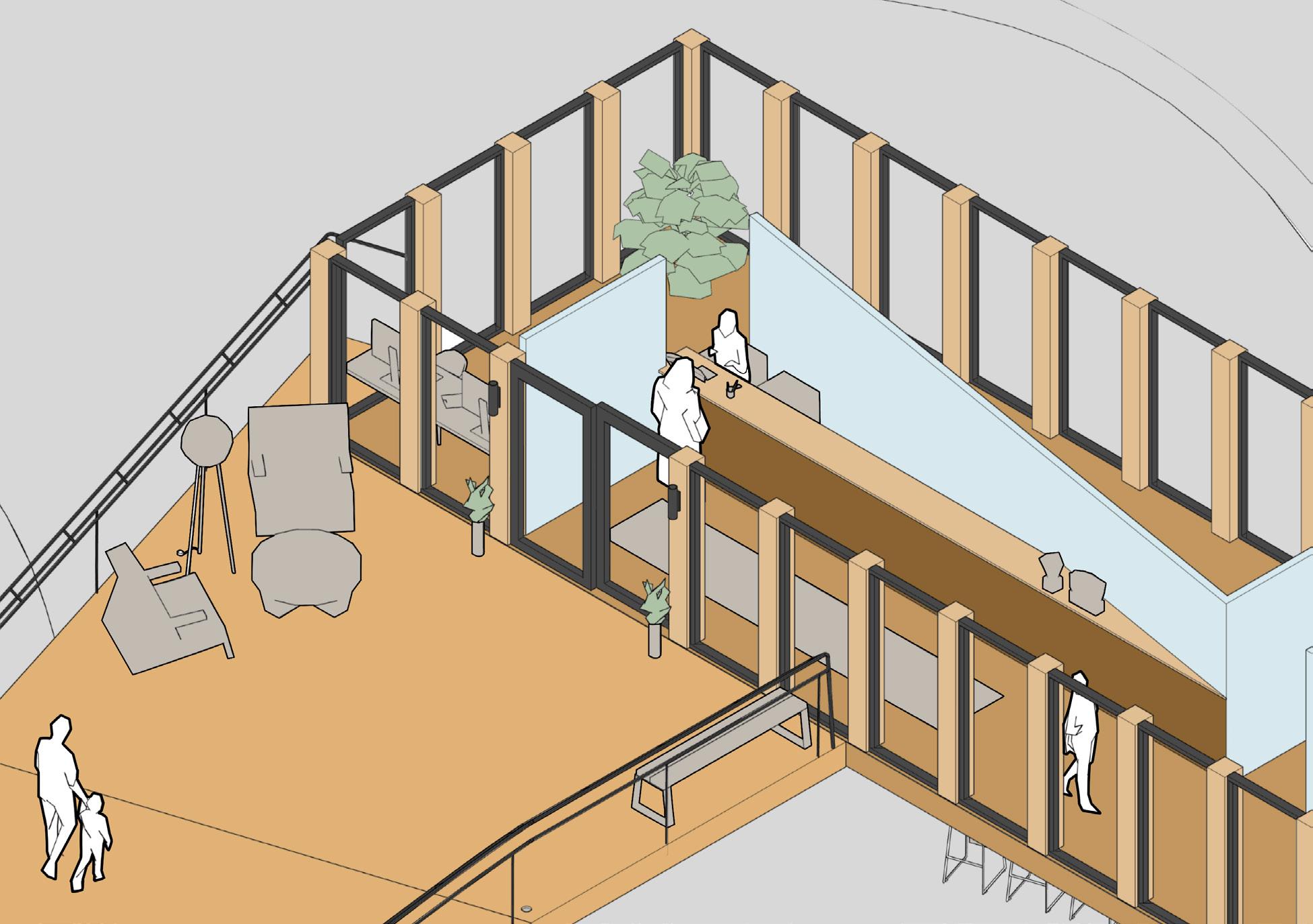

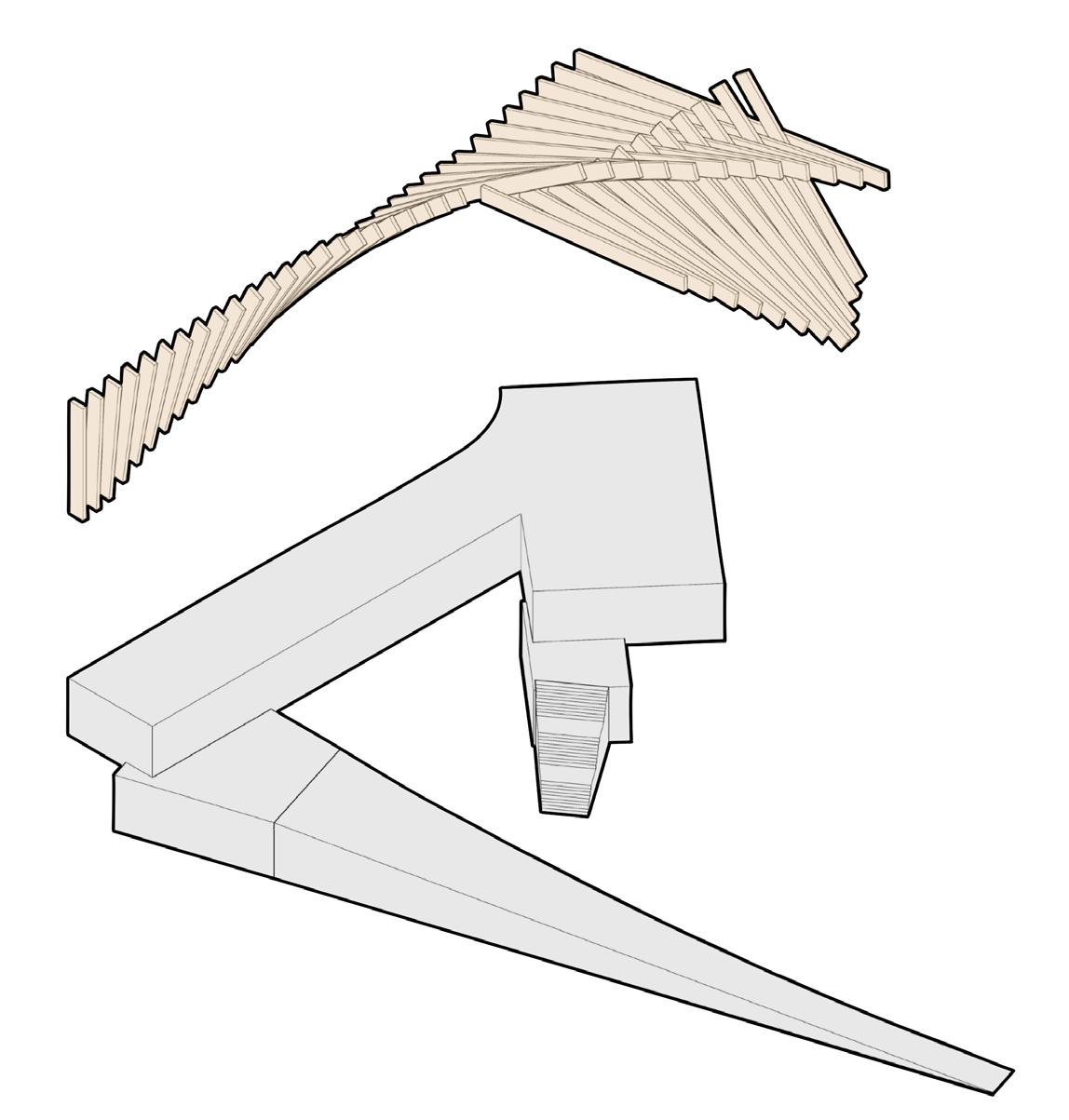

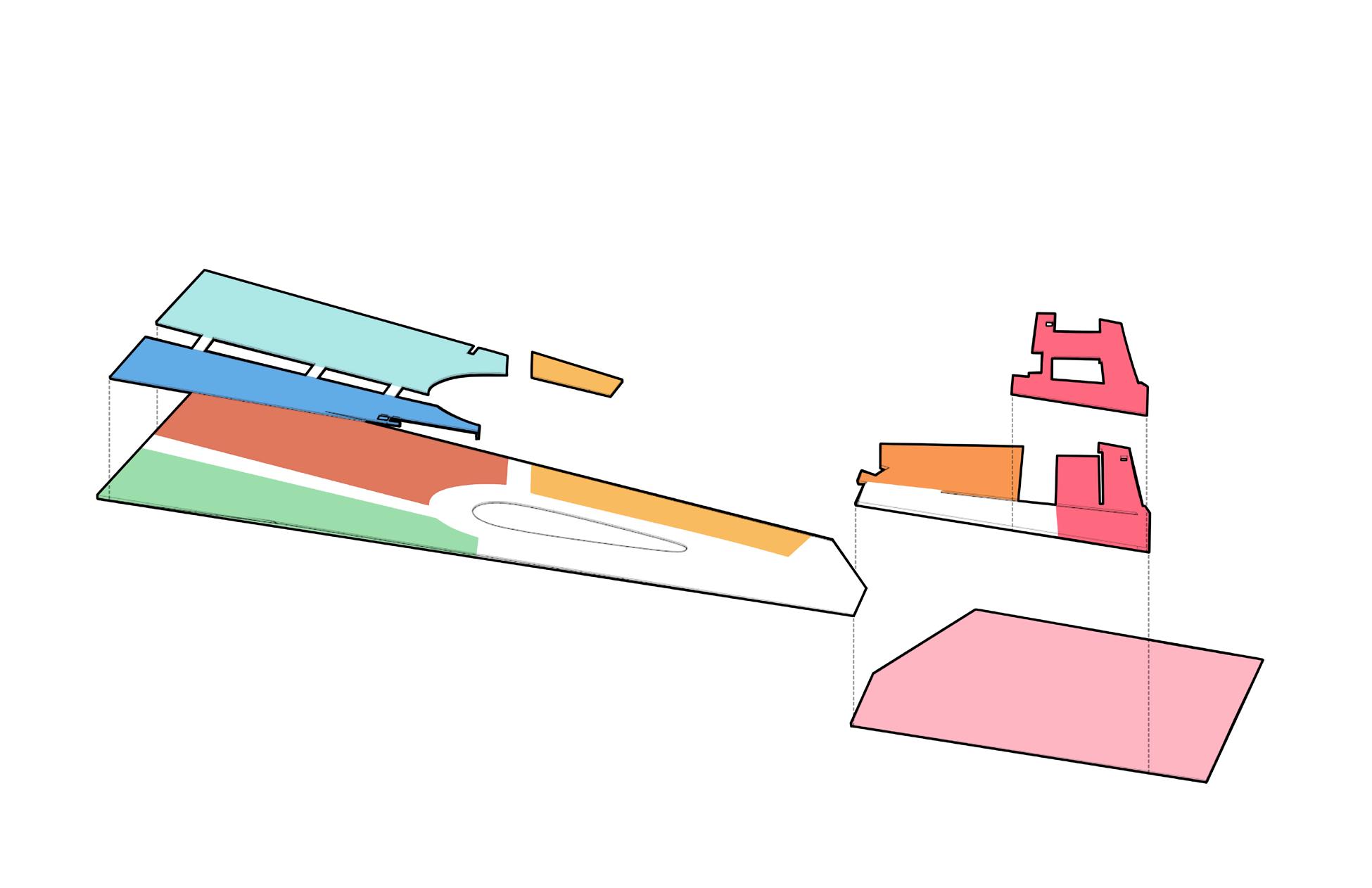

Exploded Axo
