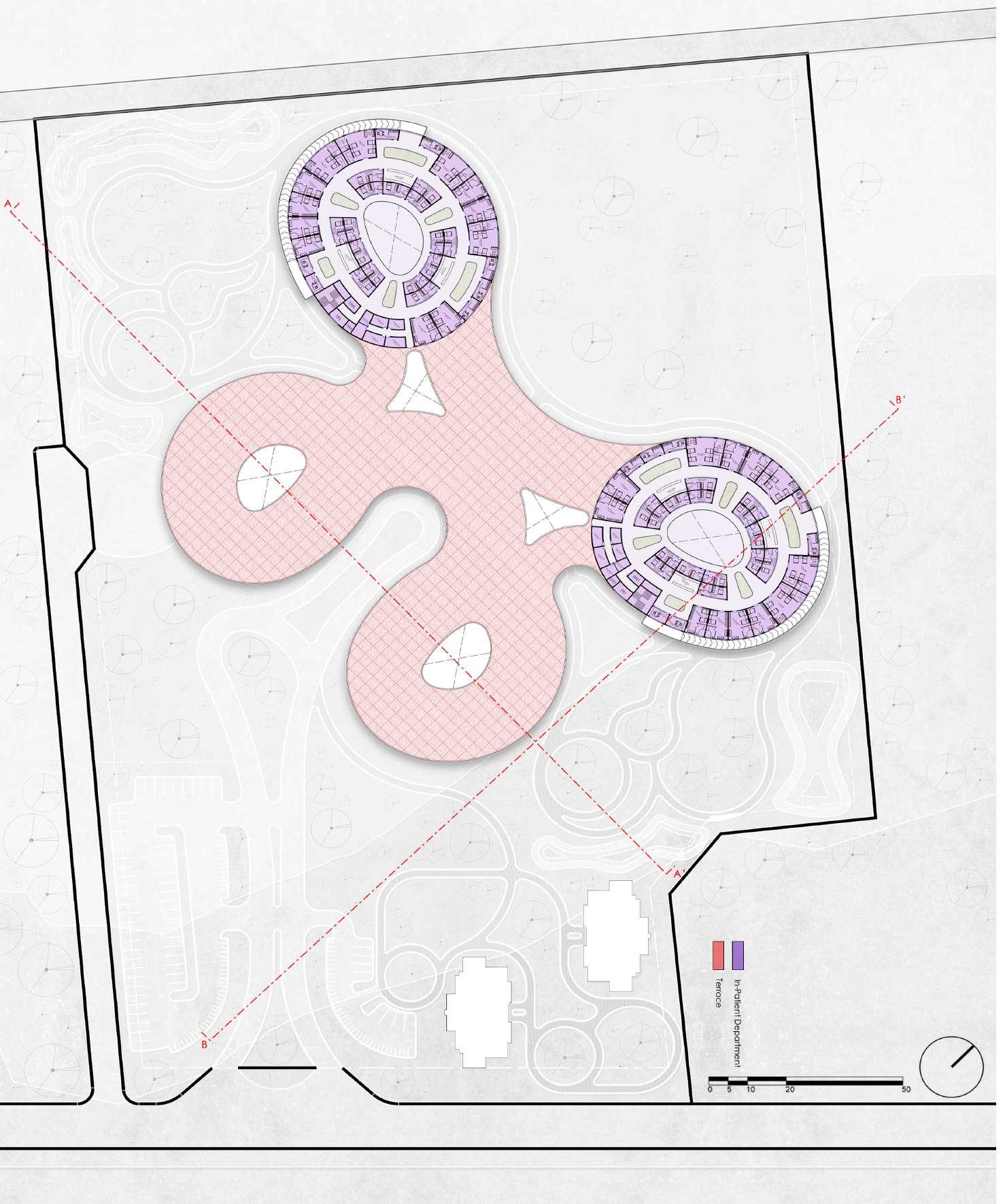

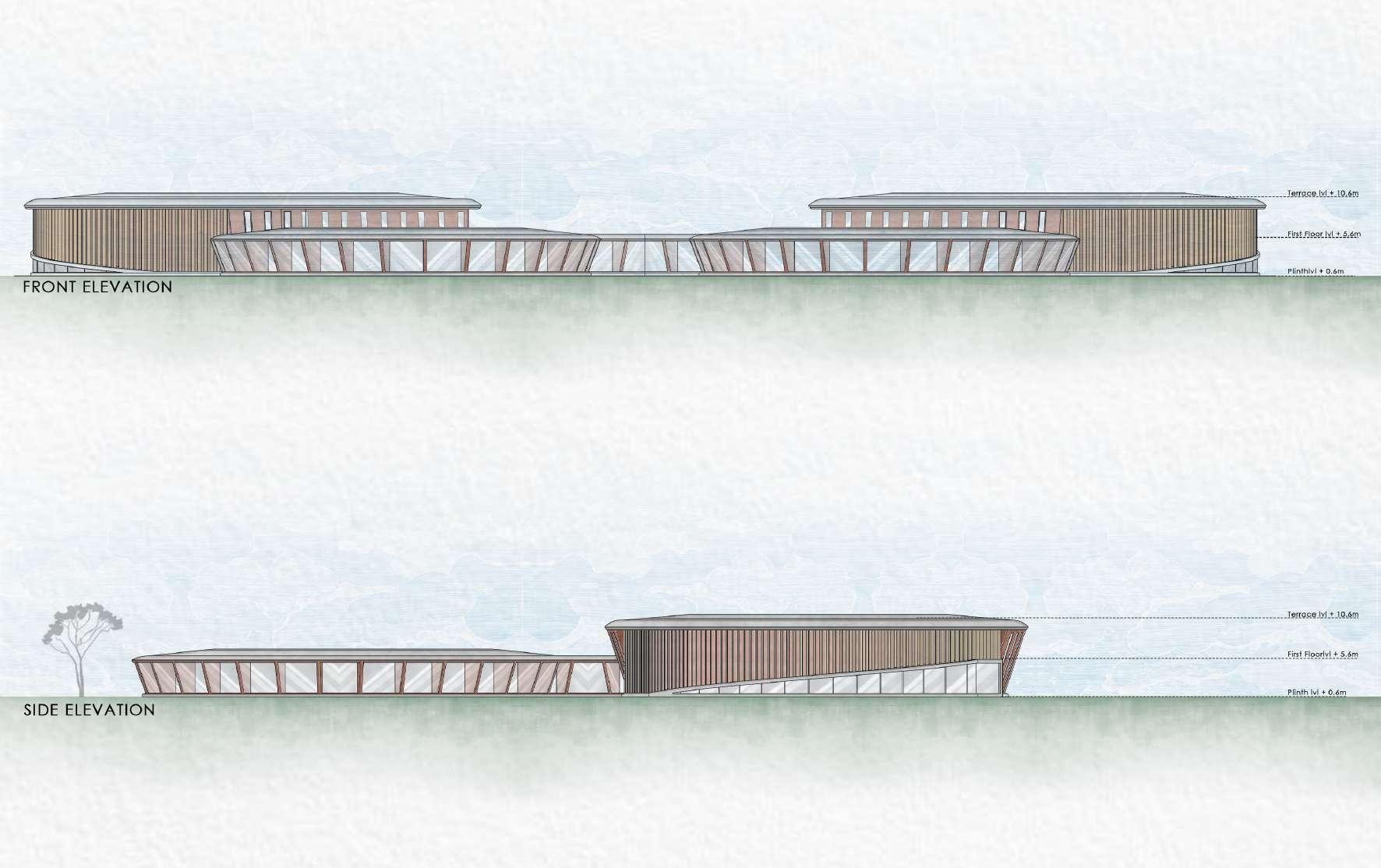

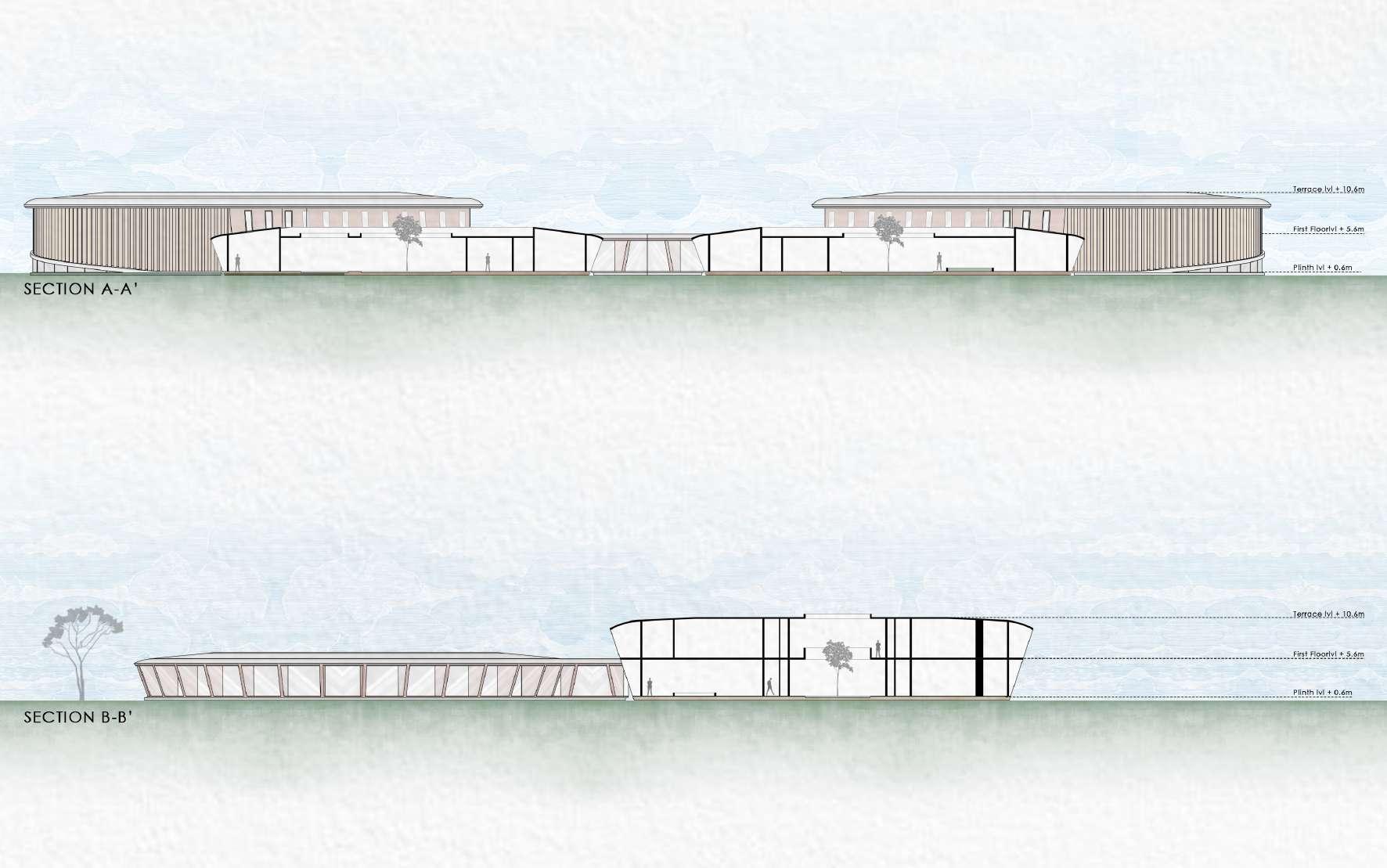

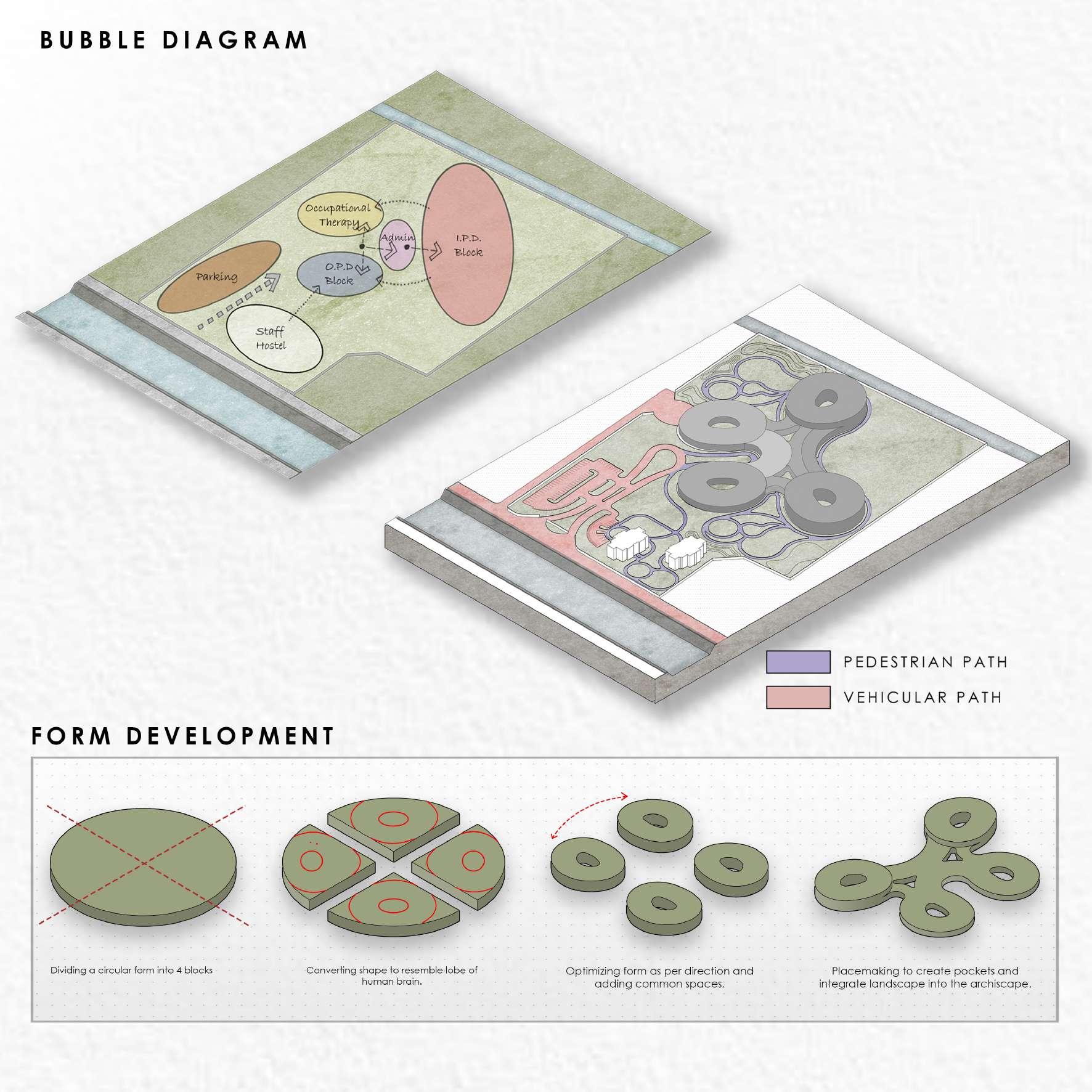

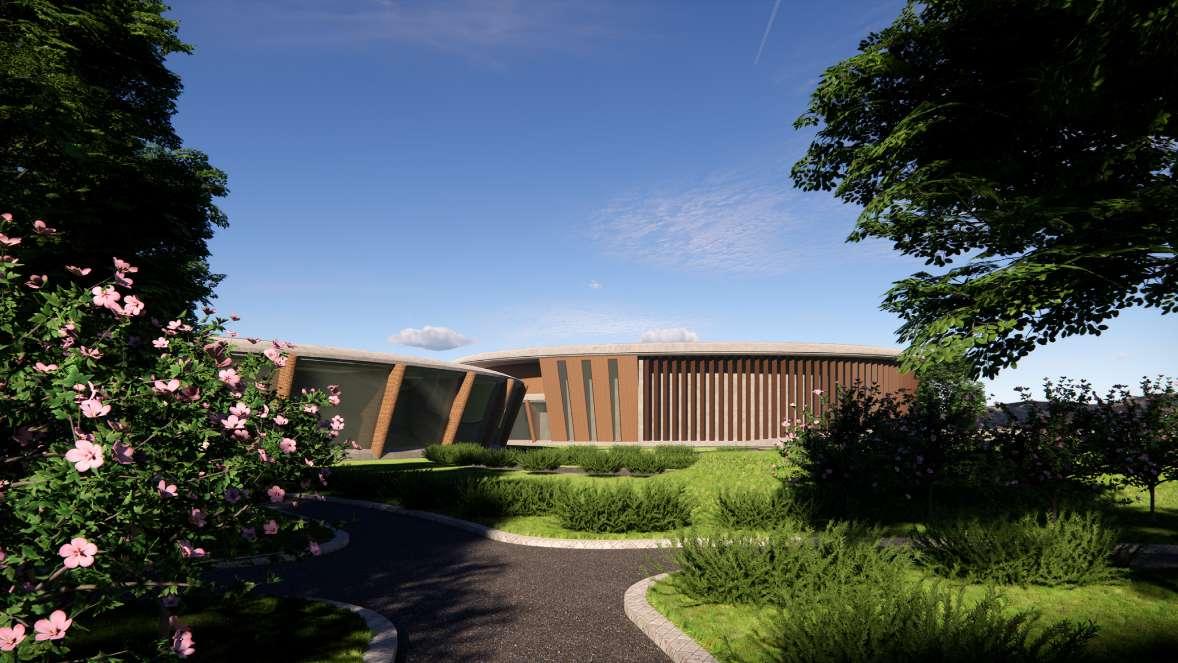

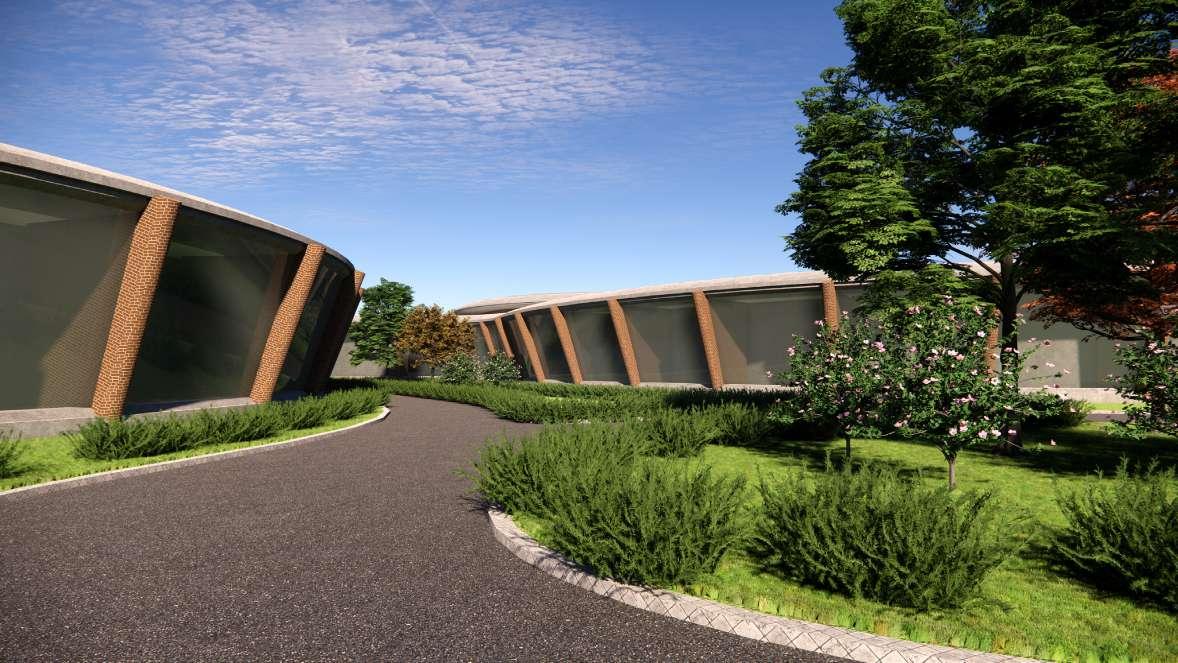

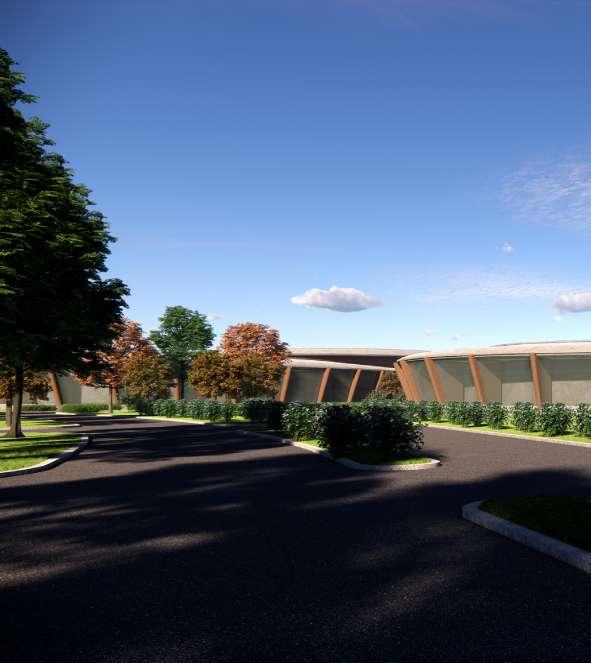

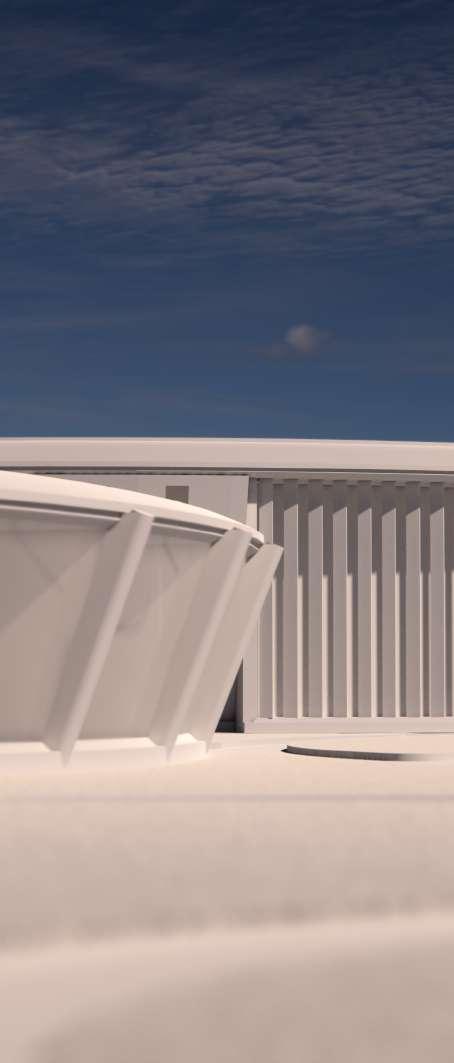

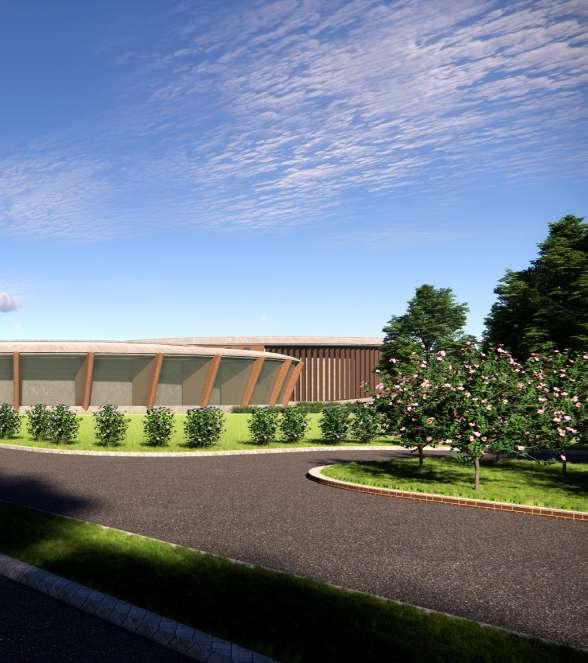

The Haven

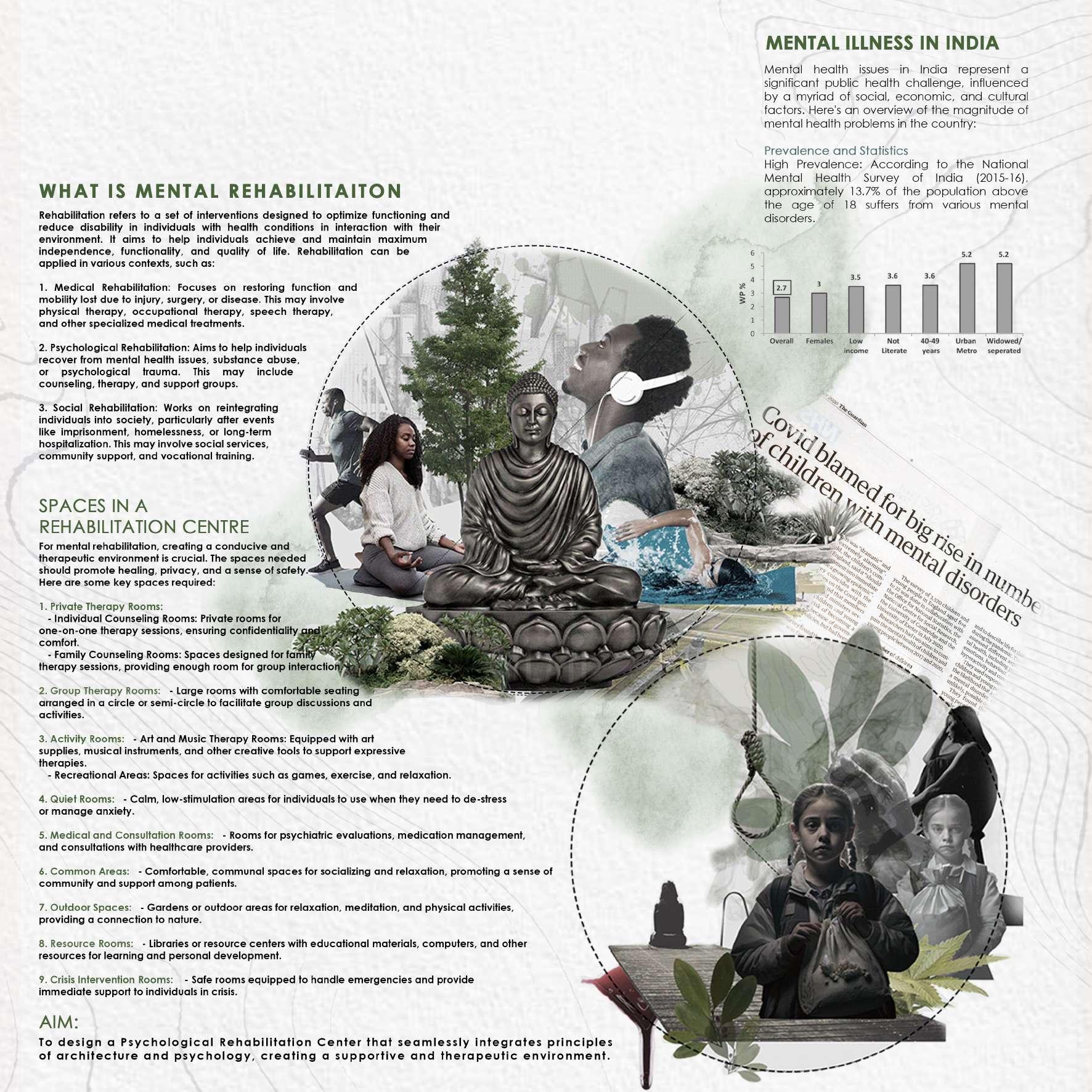

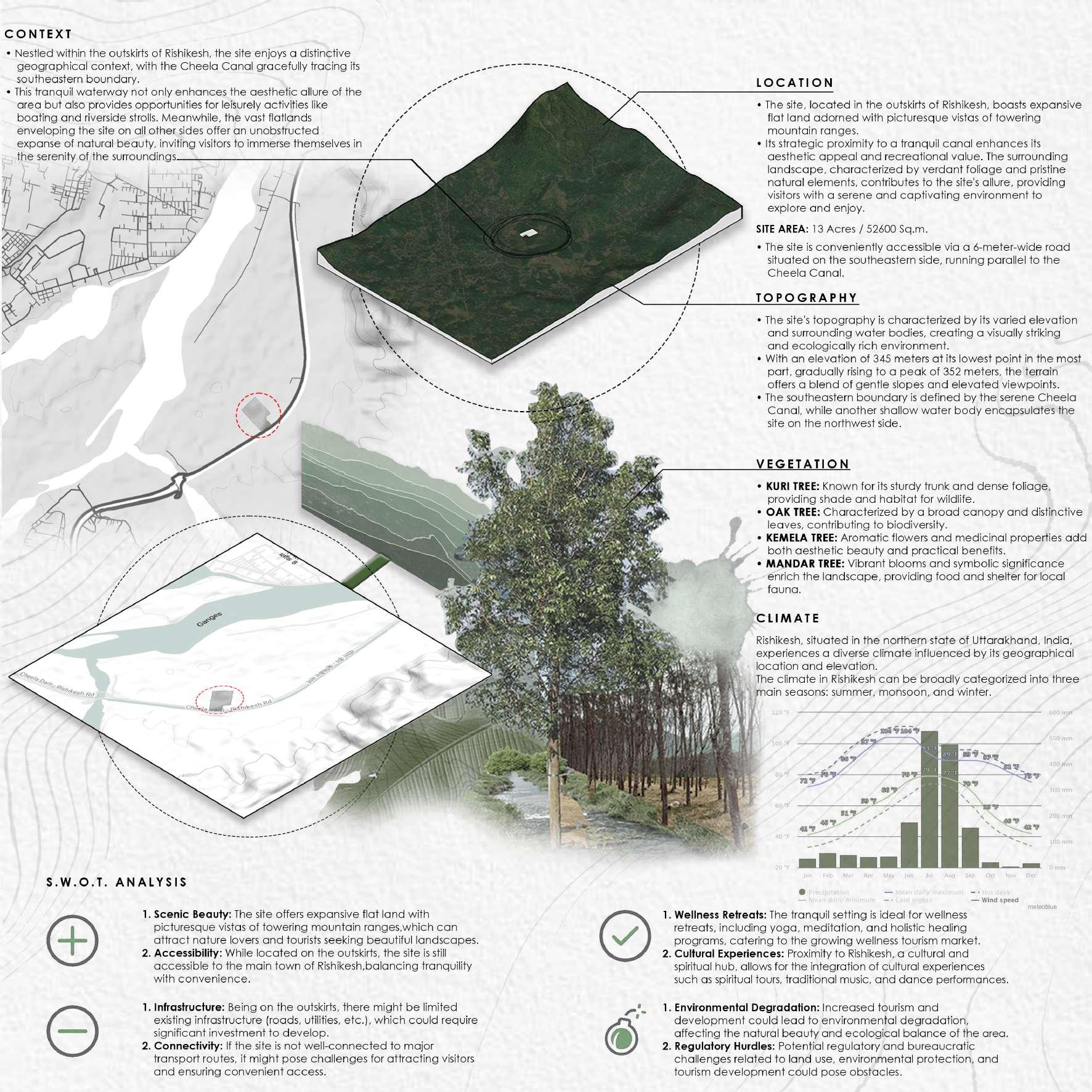

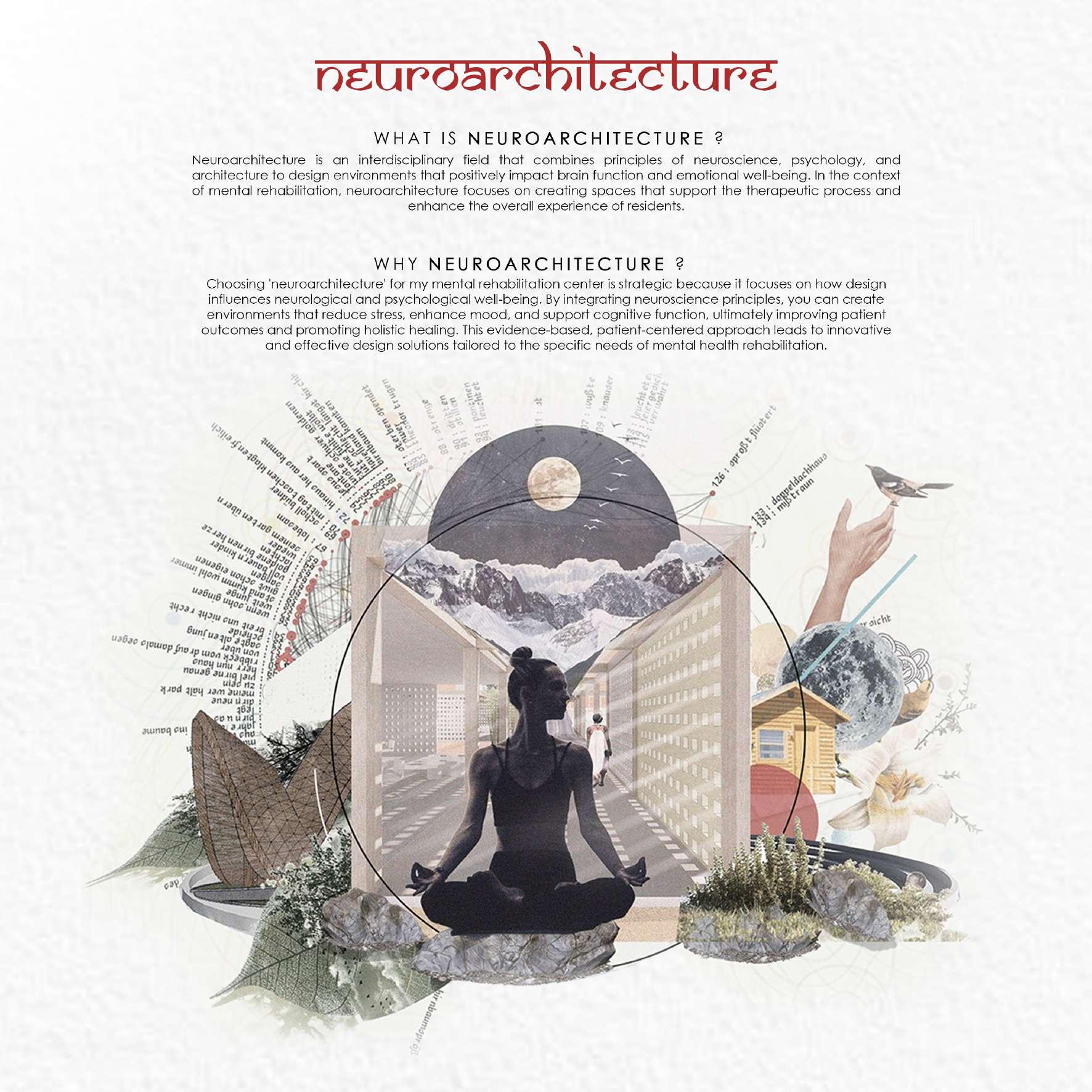

Mental rehabilitation centre

2 Seema Gujral

Flagship Store

DhanMill, New Delhi

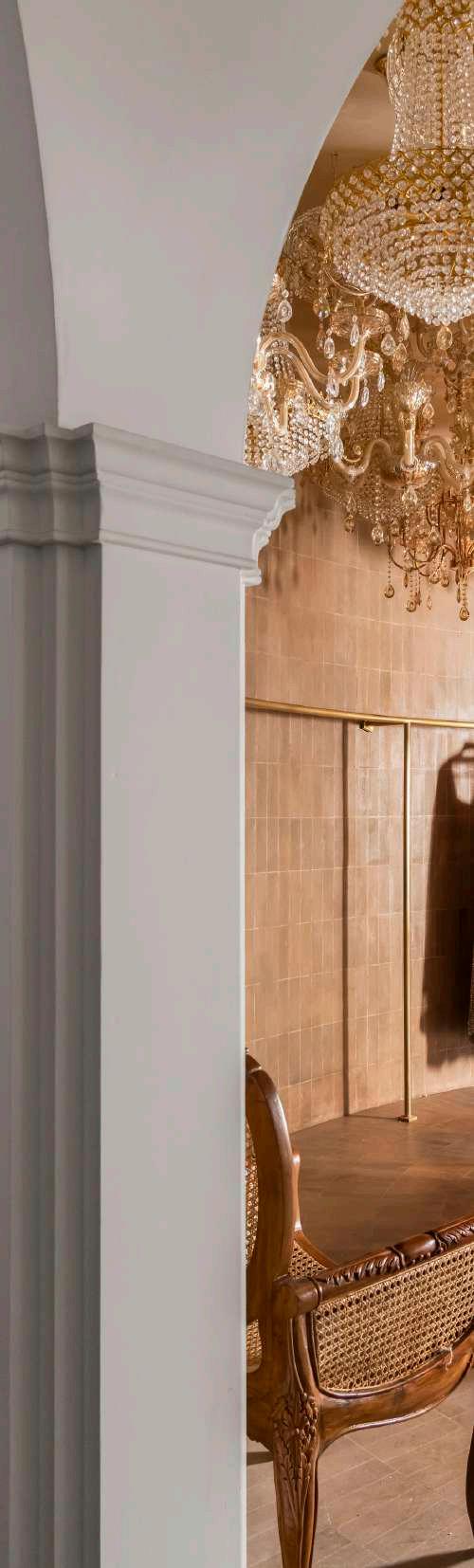

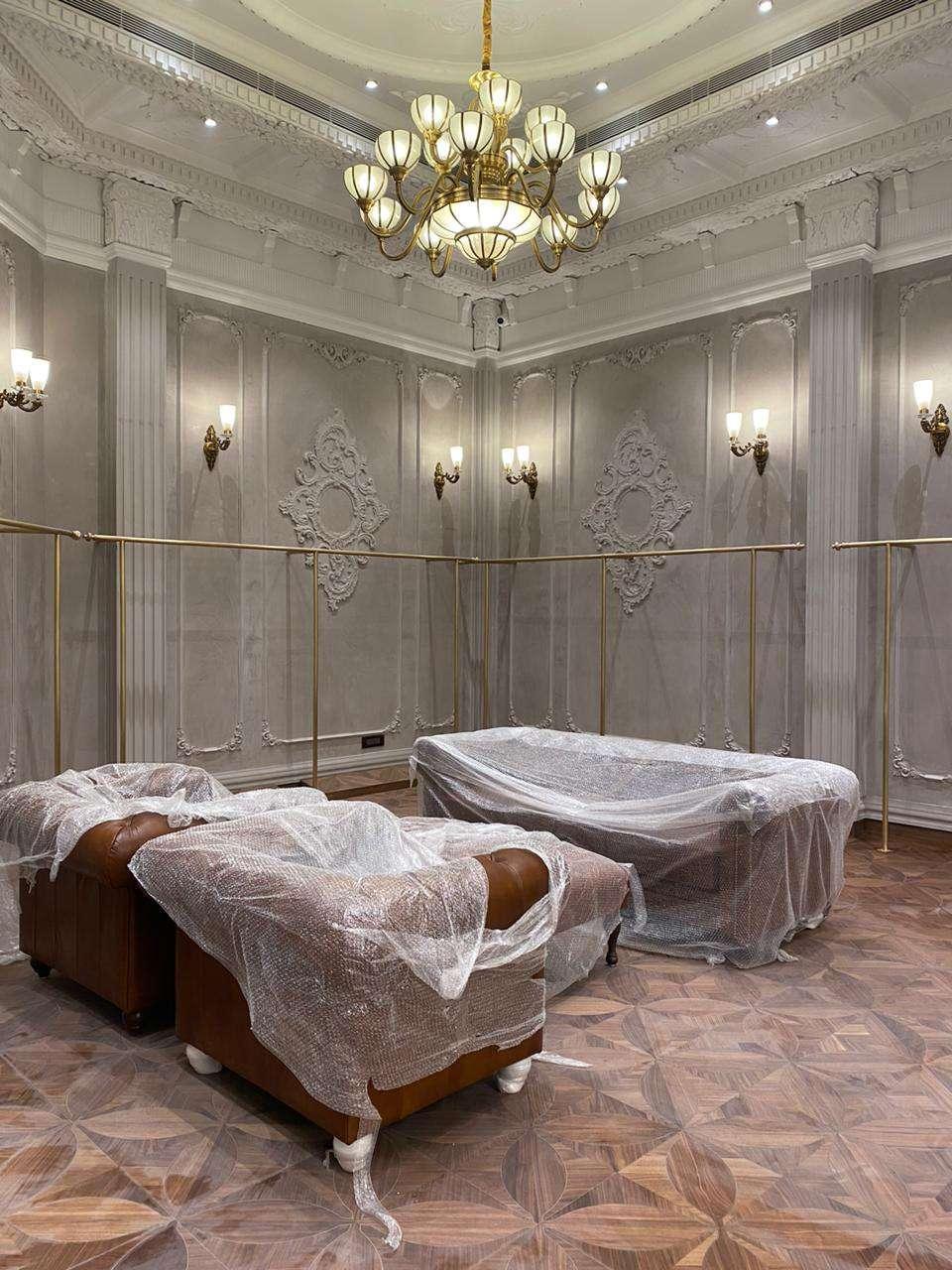

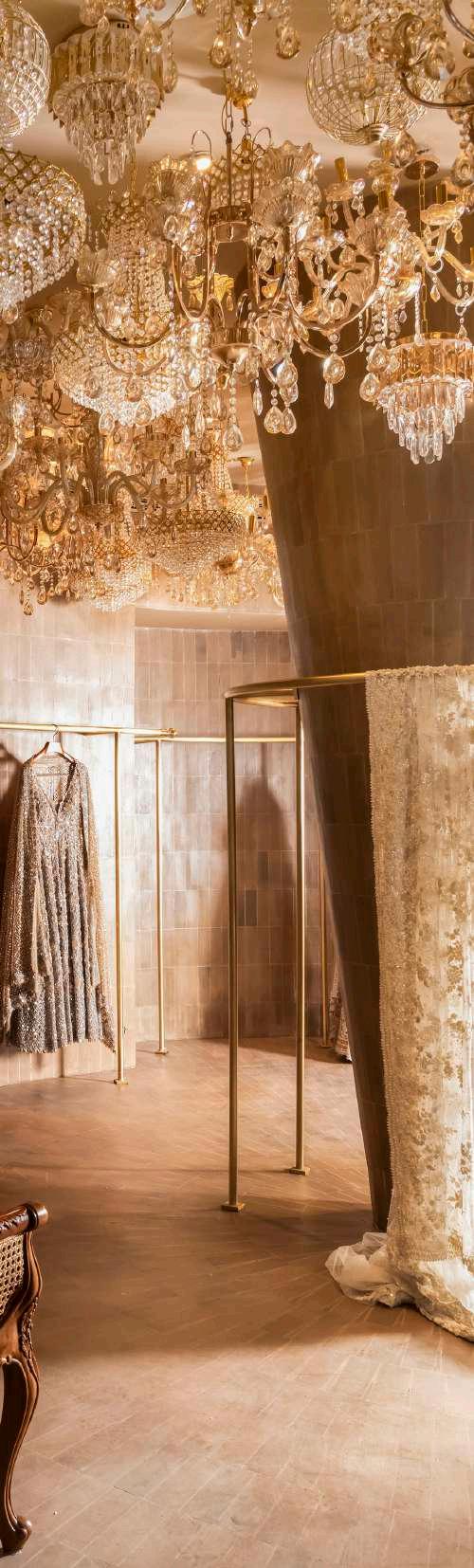

The SG flagship store at Dhan Mill, New Delhi, designed by Studio Renesa, is a 9000 sq.ft. retail space that exemplifies the fusion of traditional Indian architecture with modern design principles.

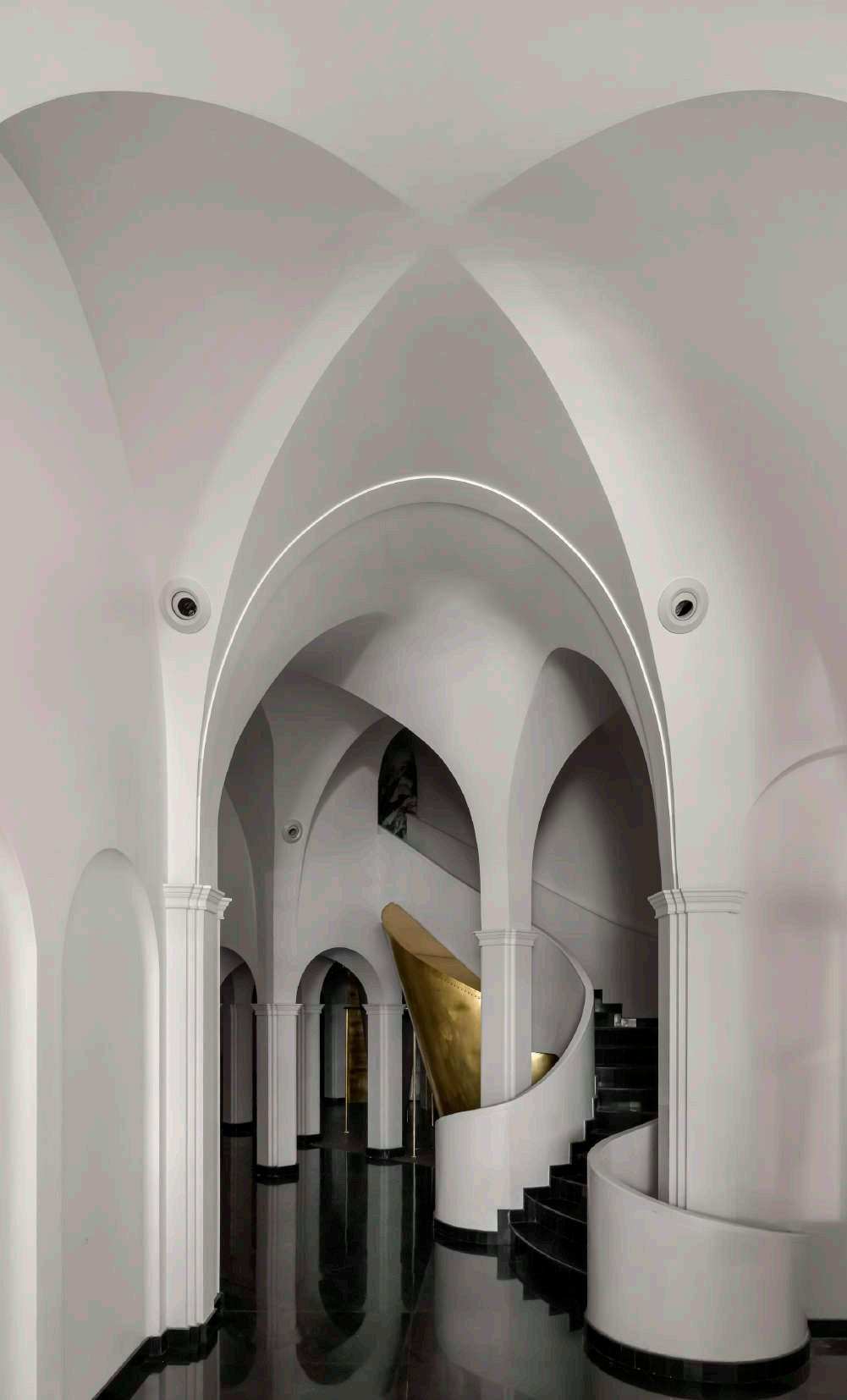

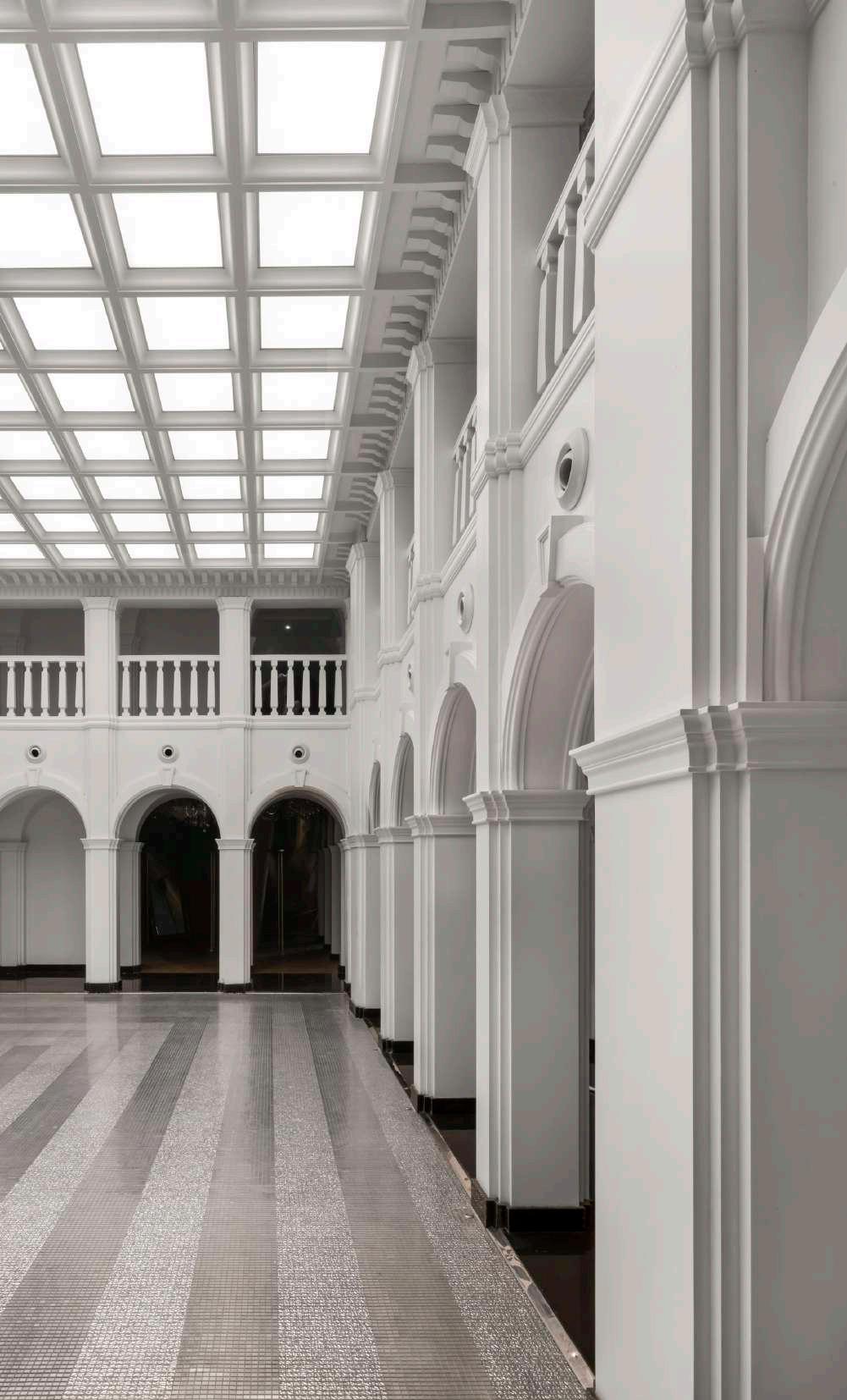

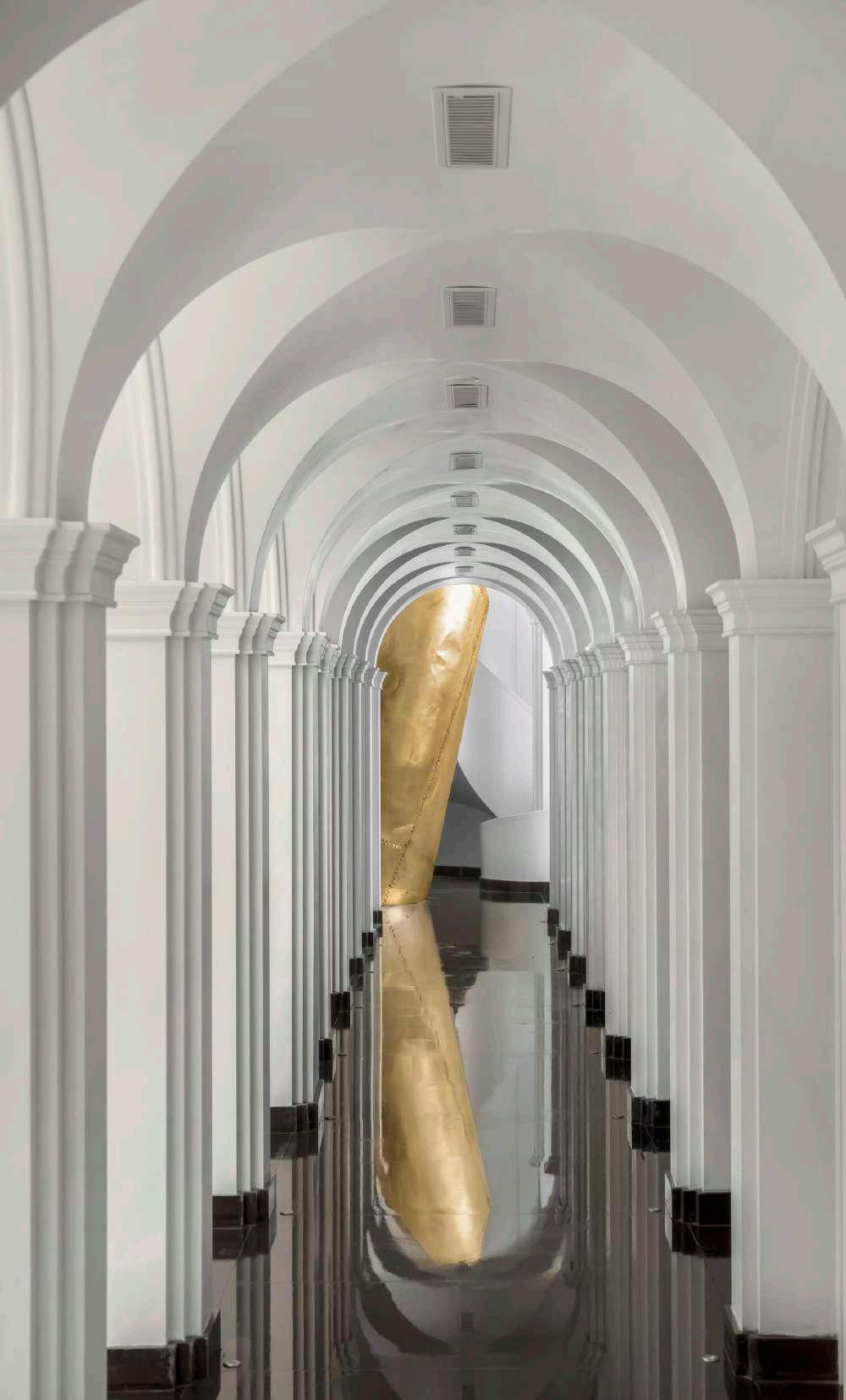

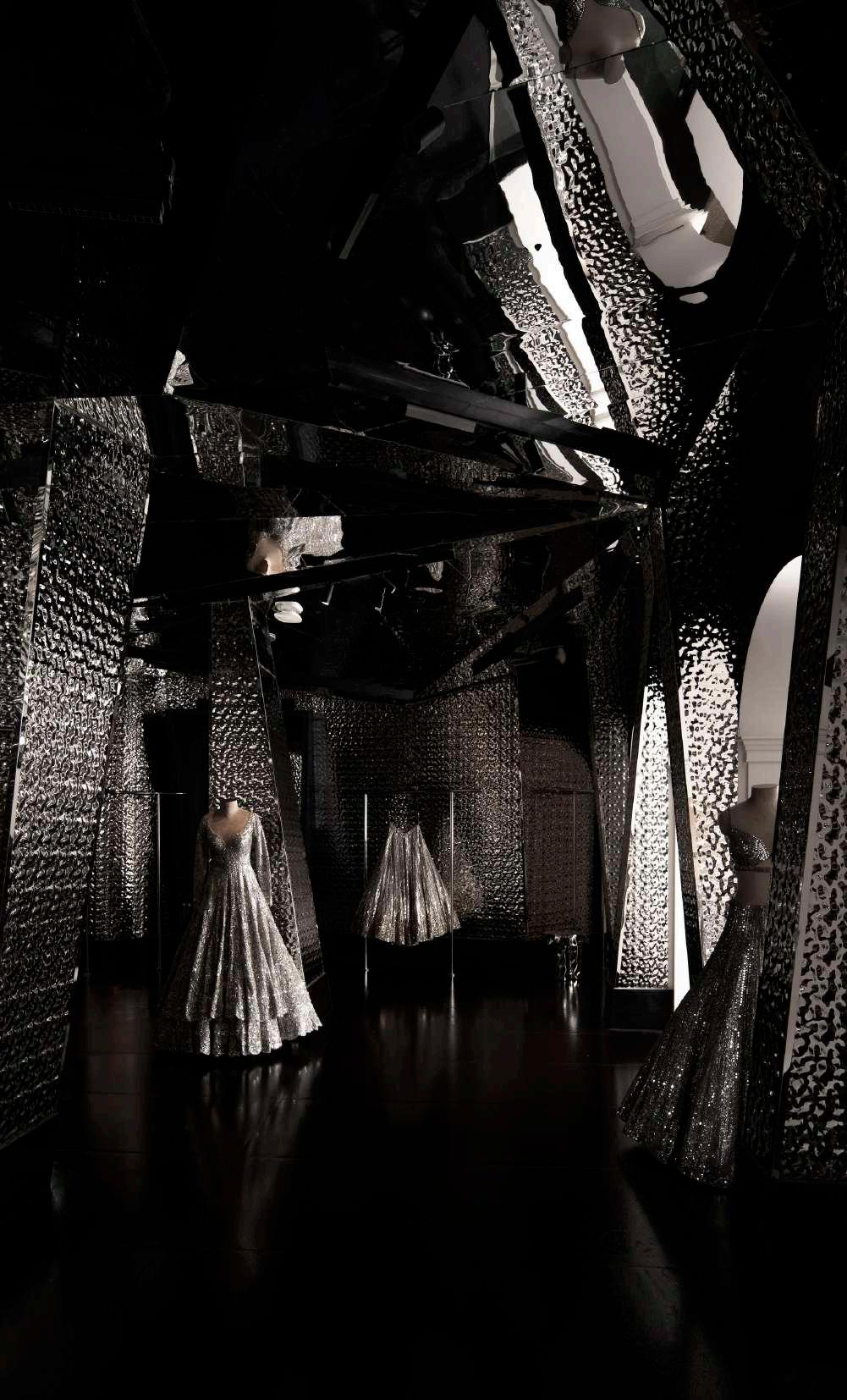

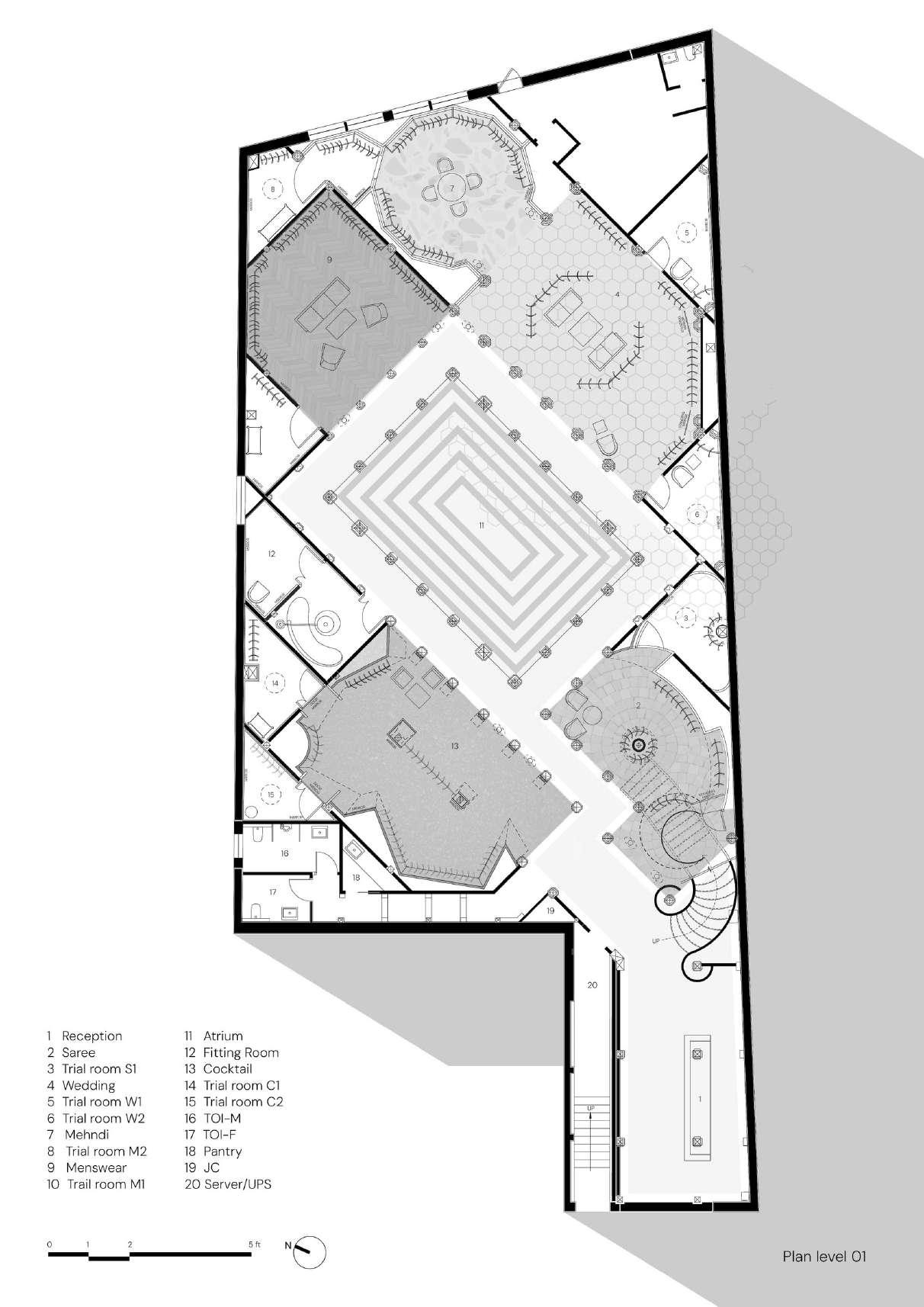

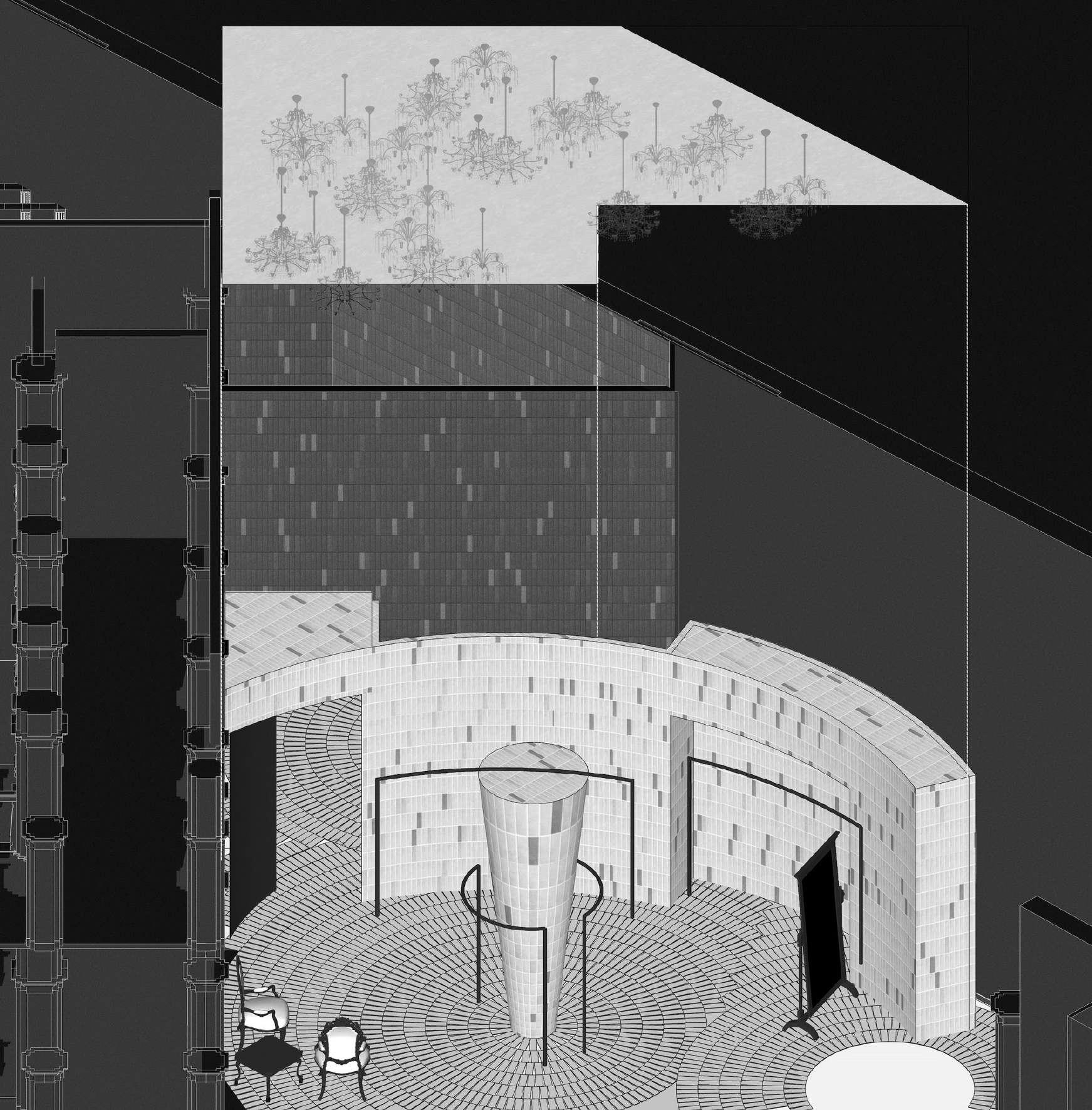

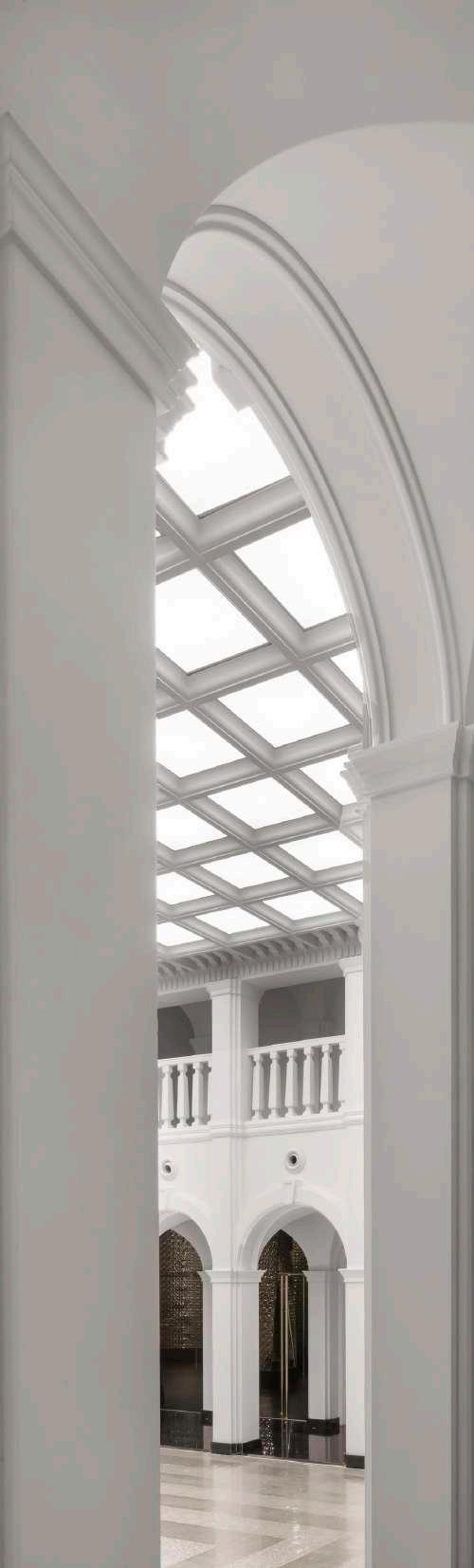

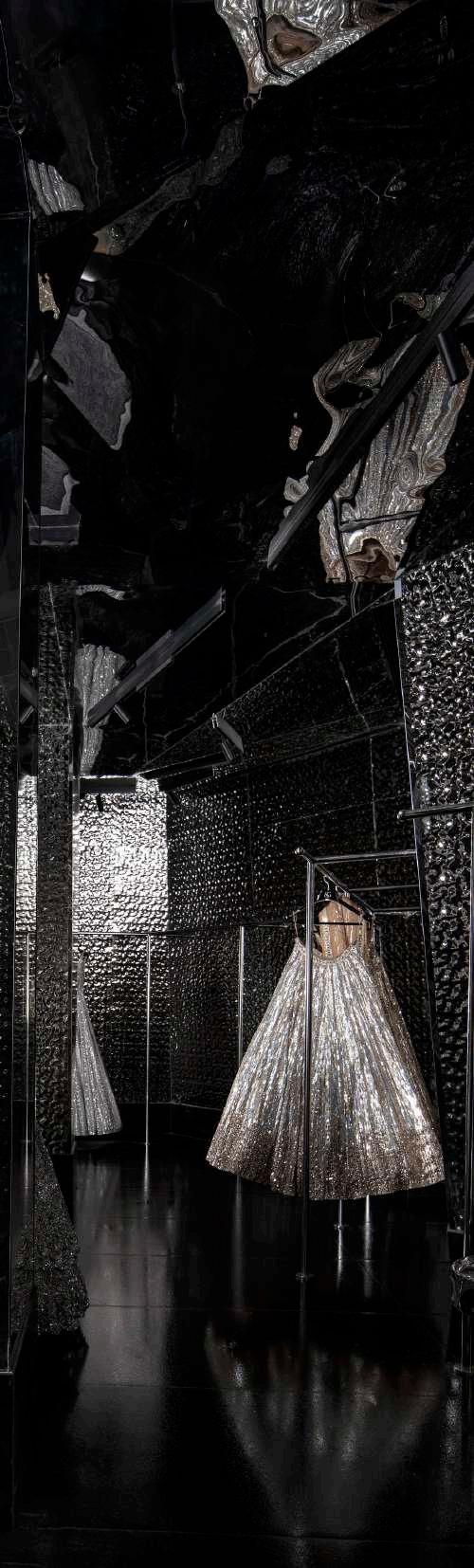

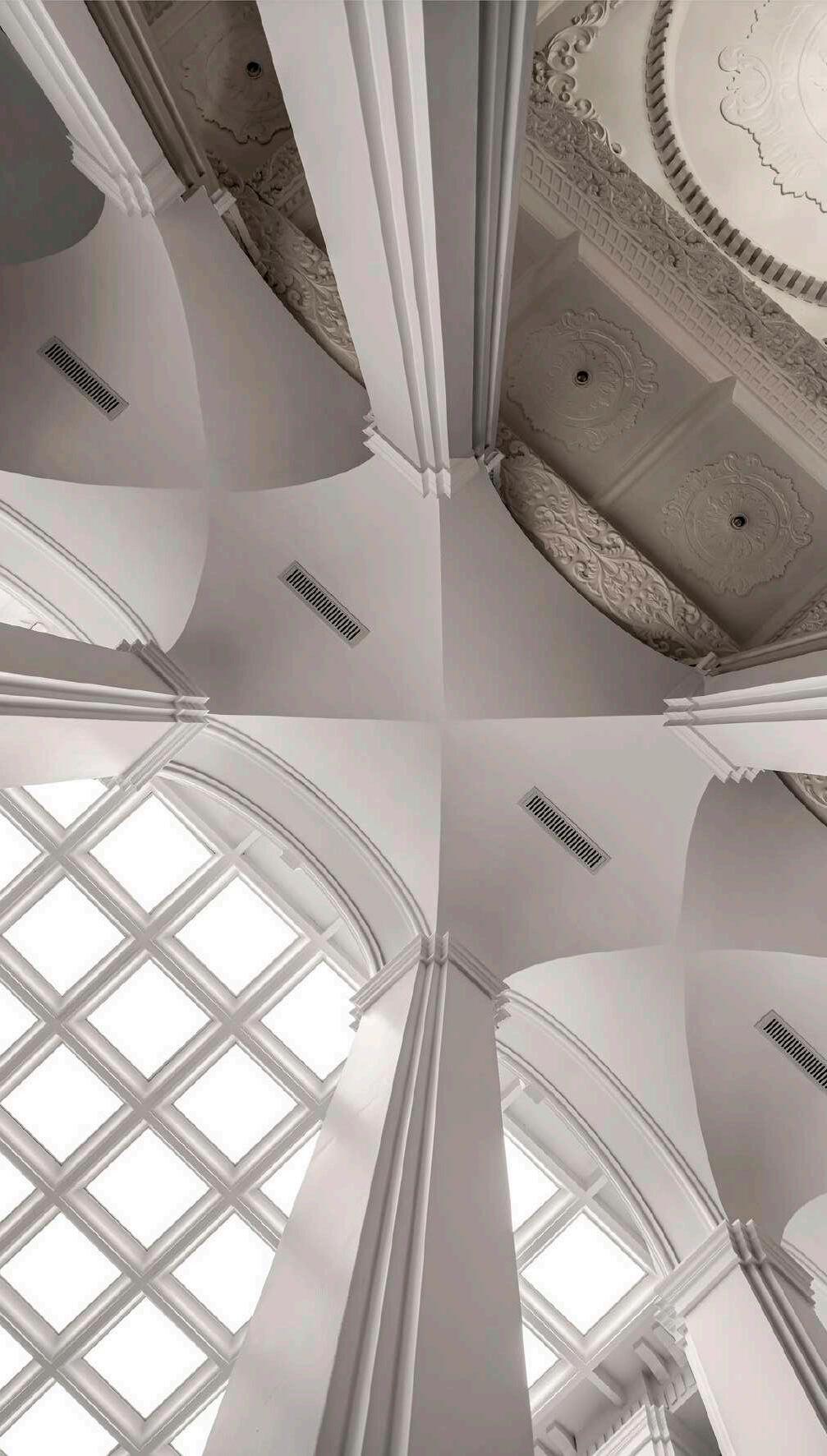

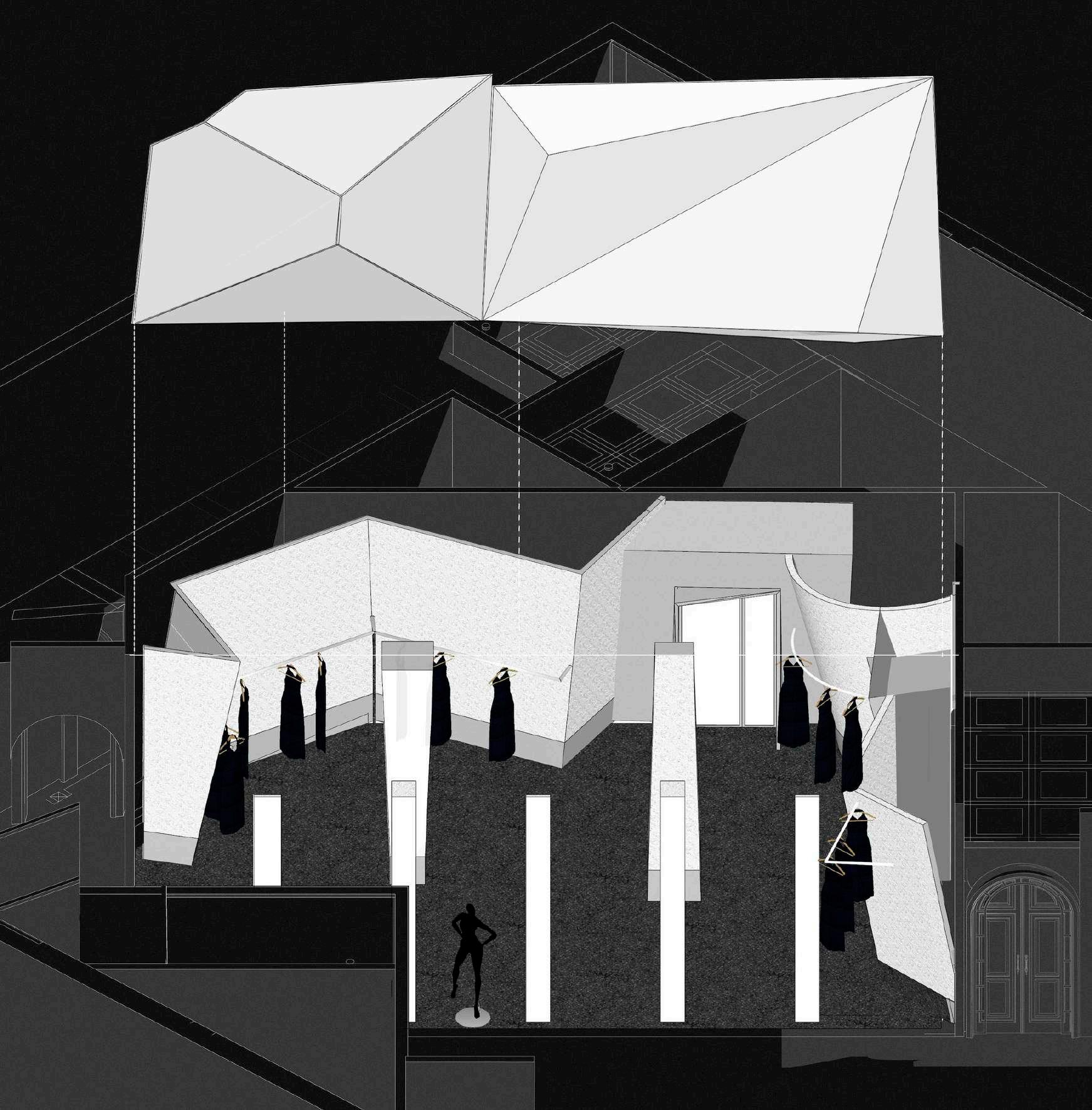

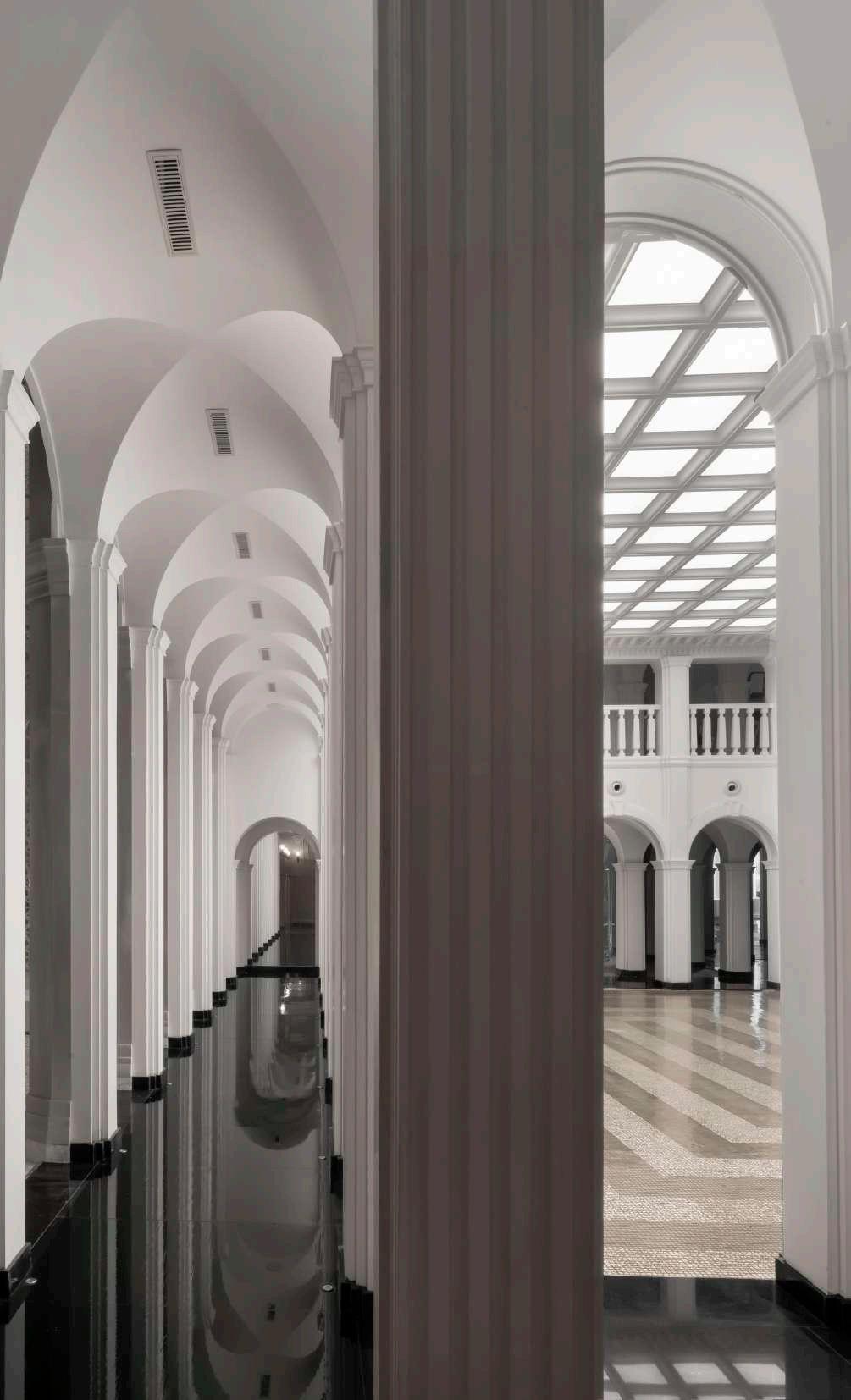

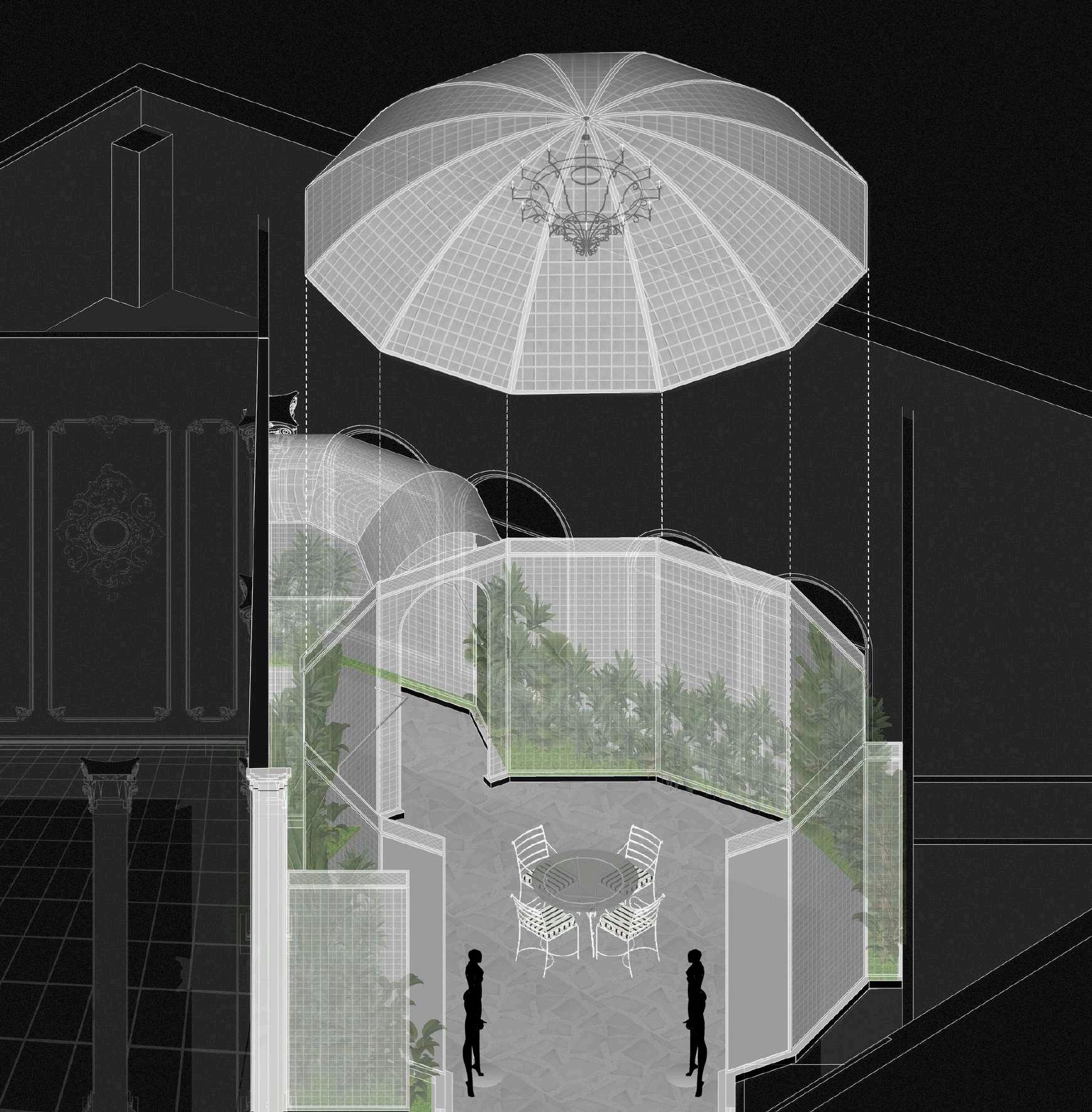

The store is divided into five distinct sections—Saree Area, Cocktail Area, Menswear, Mehendi Area, and Weddings Area—each embodying the design philosophy of a particular SG collection. These sections are seamlessly connected by minimalistic and elegant navigational spaces, allowing for intuitive circulation. The architectural highlight of the store is a grand double-height courtyard at the epicenter of the design, capped with a ceiling installed with light panels that mimic the effect of a skylight. This innovative use of lighting creates an uplifting ambiance, enhancing the sense of openness and bringing a soft, natural glow that makes the courtyard feel like an outdoor space while remaining indoors.

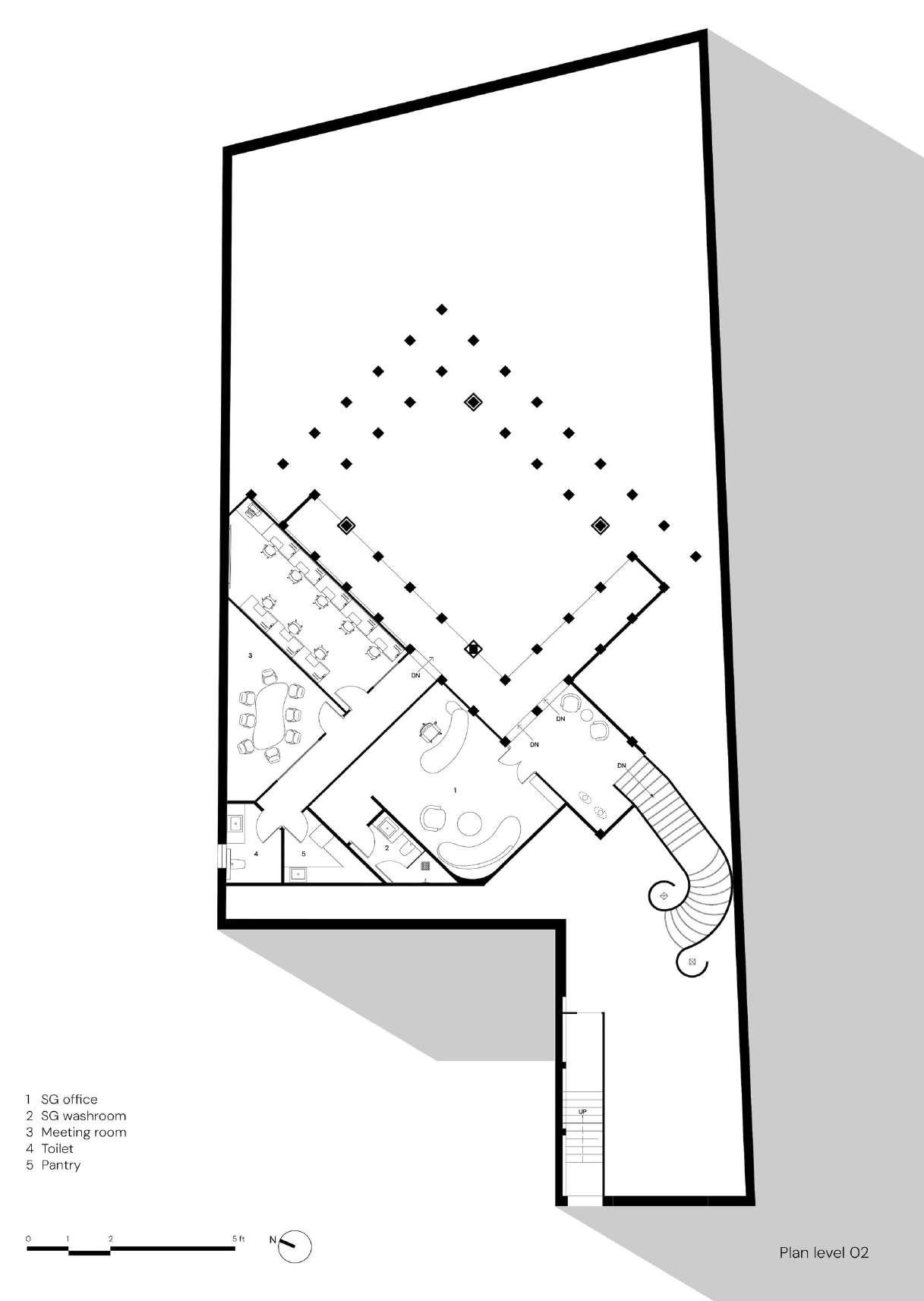

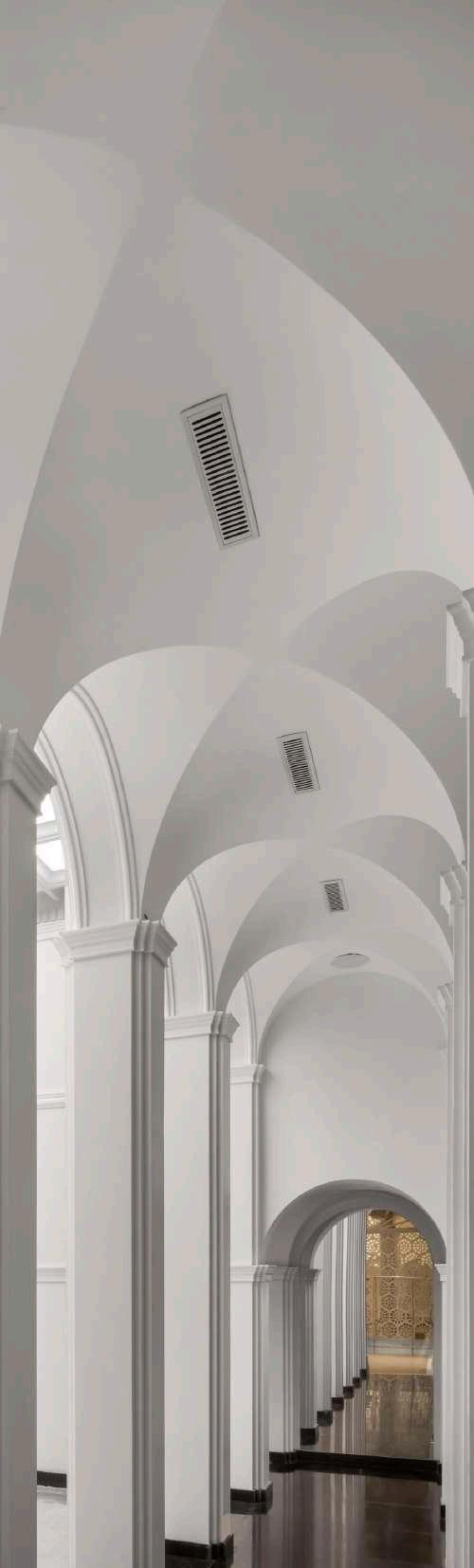

The central space, inspired by traditional Indian courtyards, brings a sense of openness and cohesion to the layout. This design choice creates a focal point that unifies the various sections of the store while maintaining a connection to traditional architectural elements. The design language continues seamlessly on the first floor, where the office space is located. From the first-floor corridor, there is a clear view of the courtyard below, ensuring a strong visual connection to the central architectural feature. This design allows natural light to flow through the space, enriching the entire environment. Throughout the store, the use of brass elements, geometric ceiling features, and dynamic metal sheets creates visual continuity. These elements tie together the varied themes of each section, ensuring a cohesive aesthetic experience. The design also incorporates a mix of earthy and avant-garde materials, striking a balance between heritage and contemporary aesthetics. This thoughtful material selection reflects the duality of tradition and modernity that defines the store’s overall design.

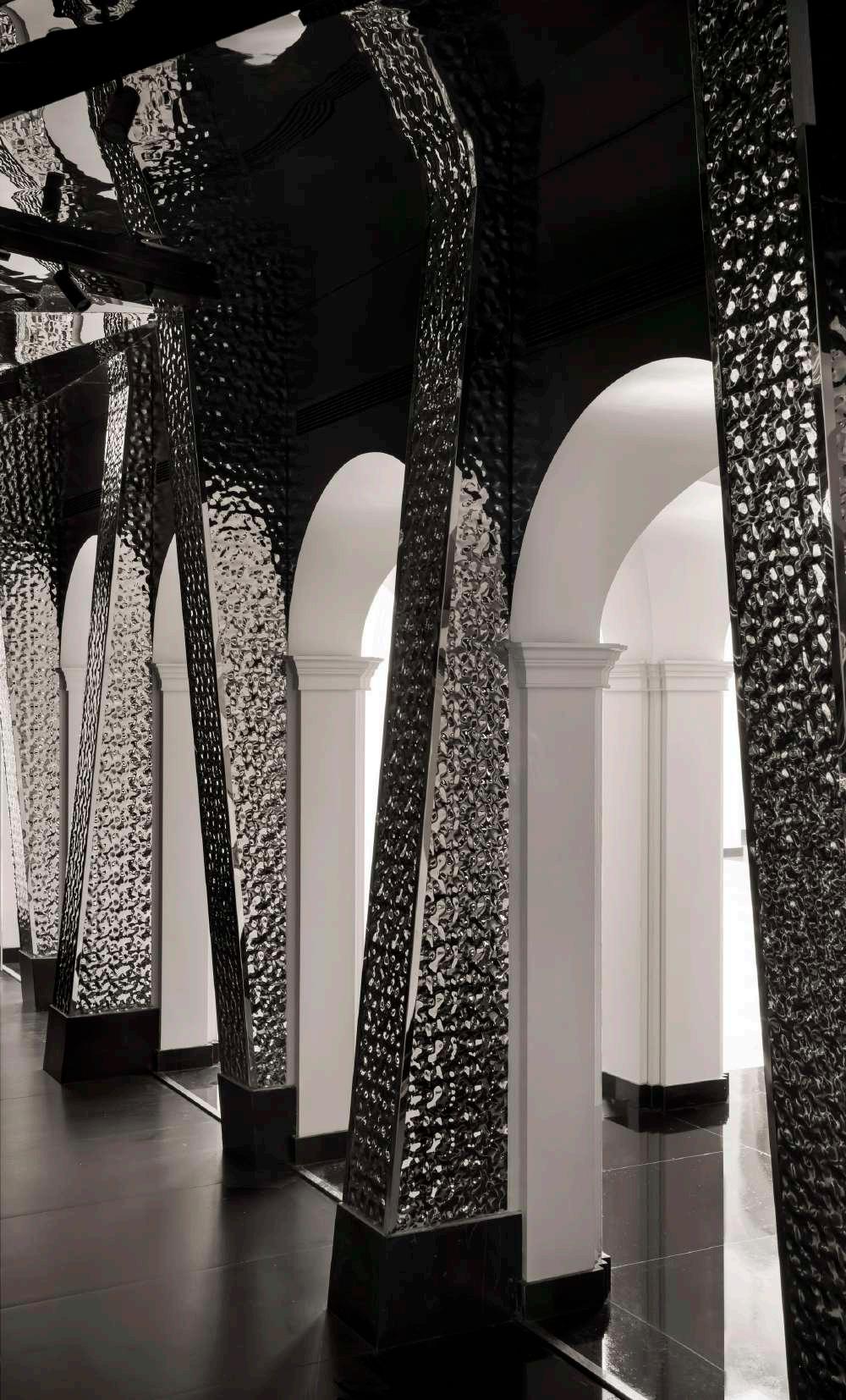

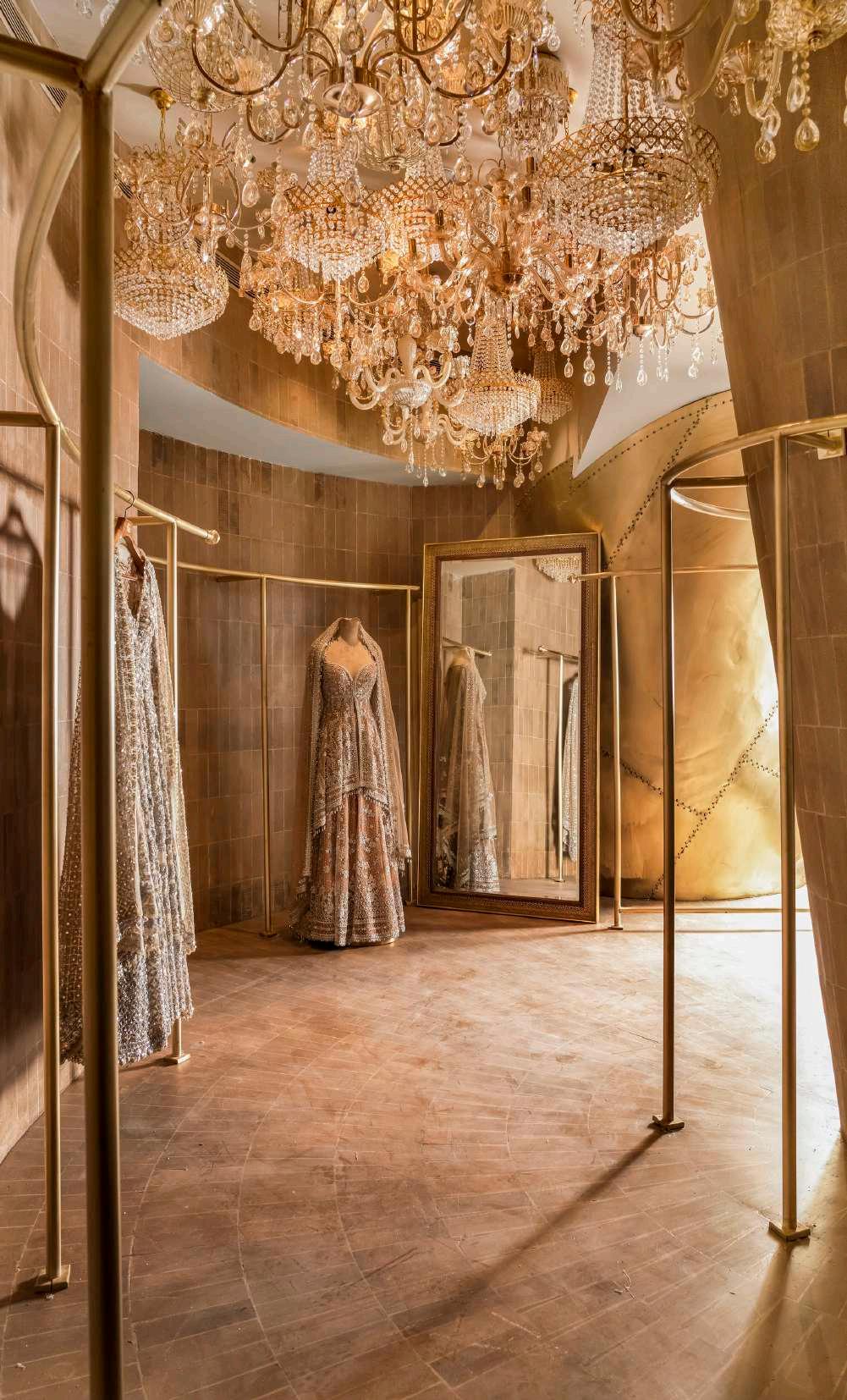

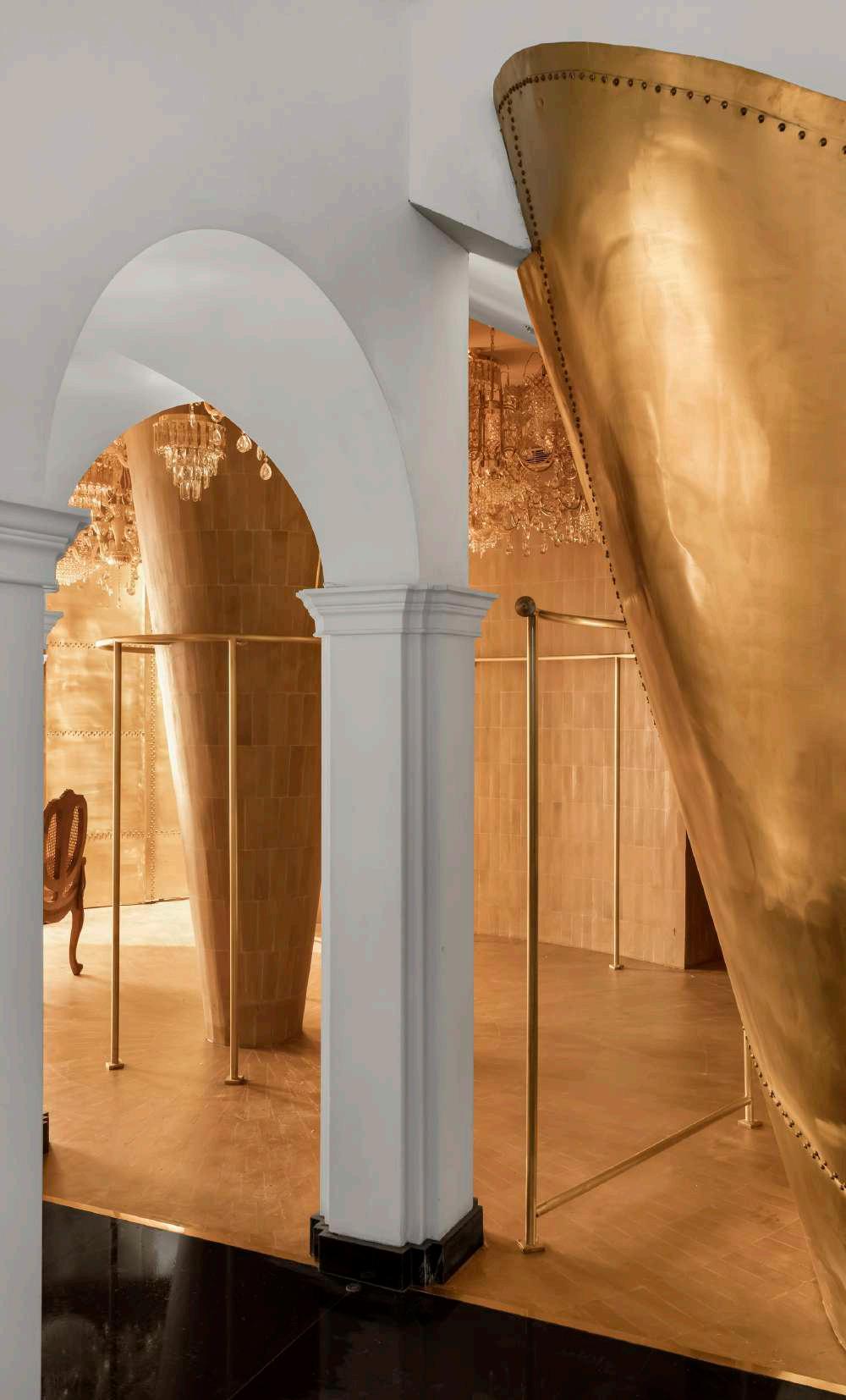

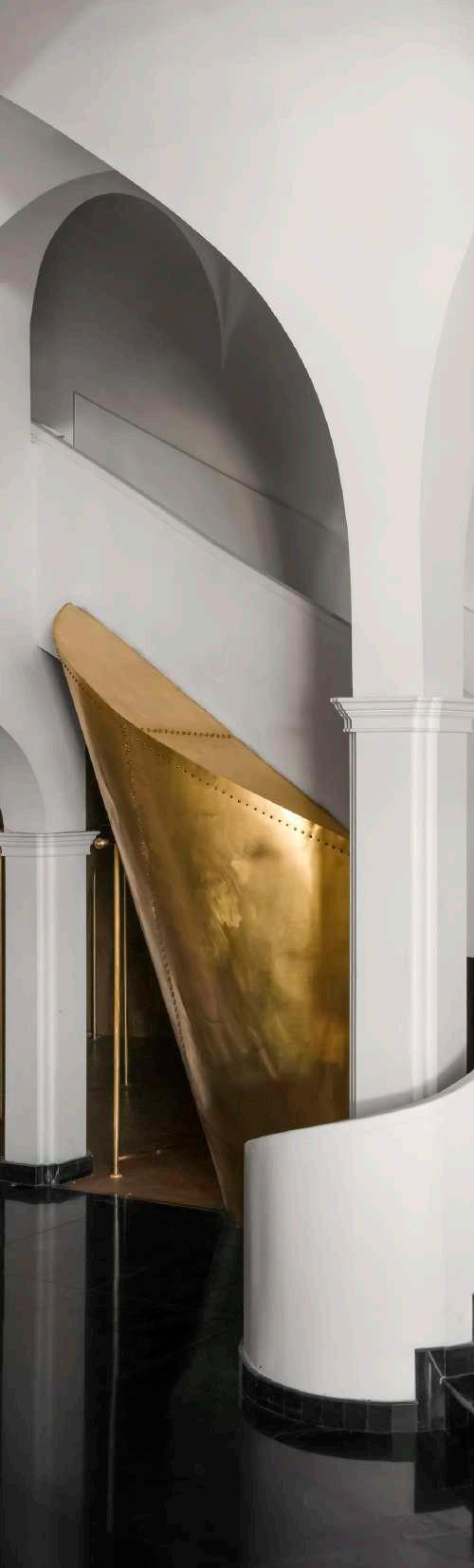

SAREE AREA: THE BRASS CLEAT

3 Villa Asitas

Morni Hills, Haryana

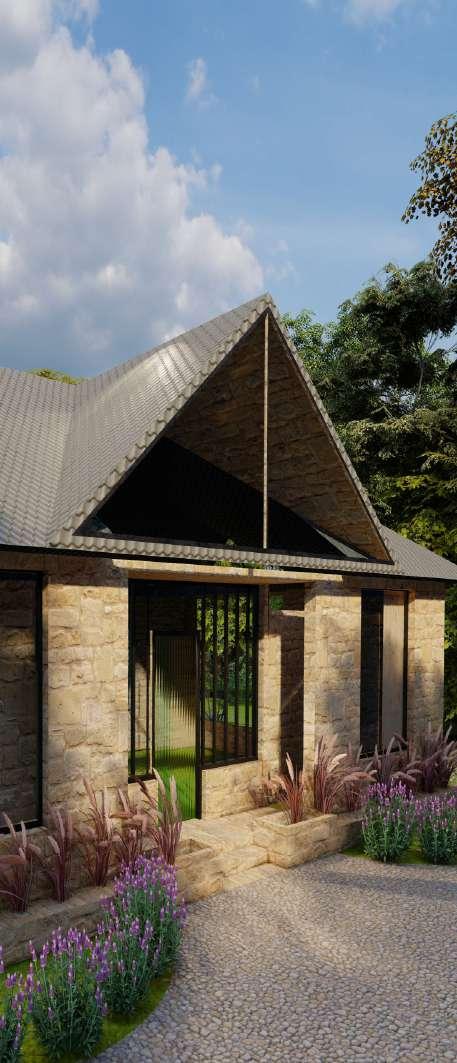

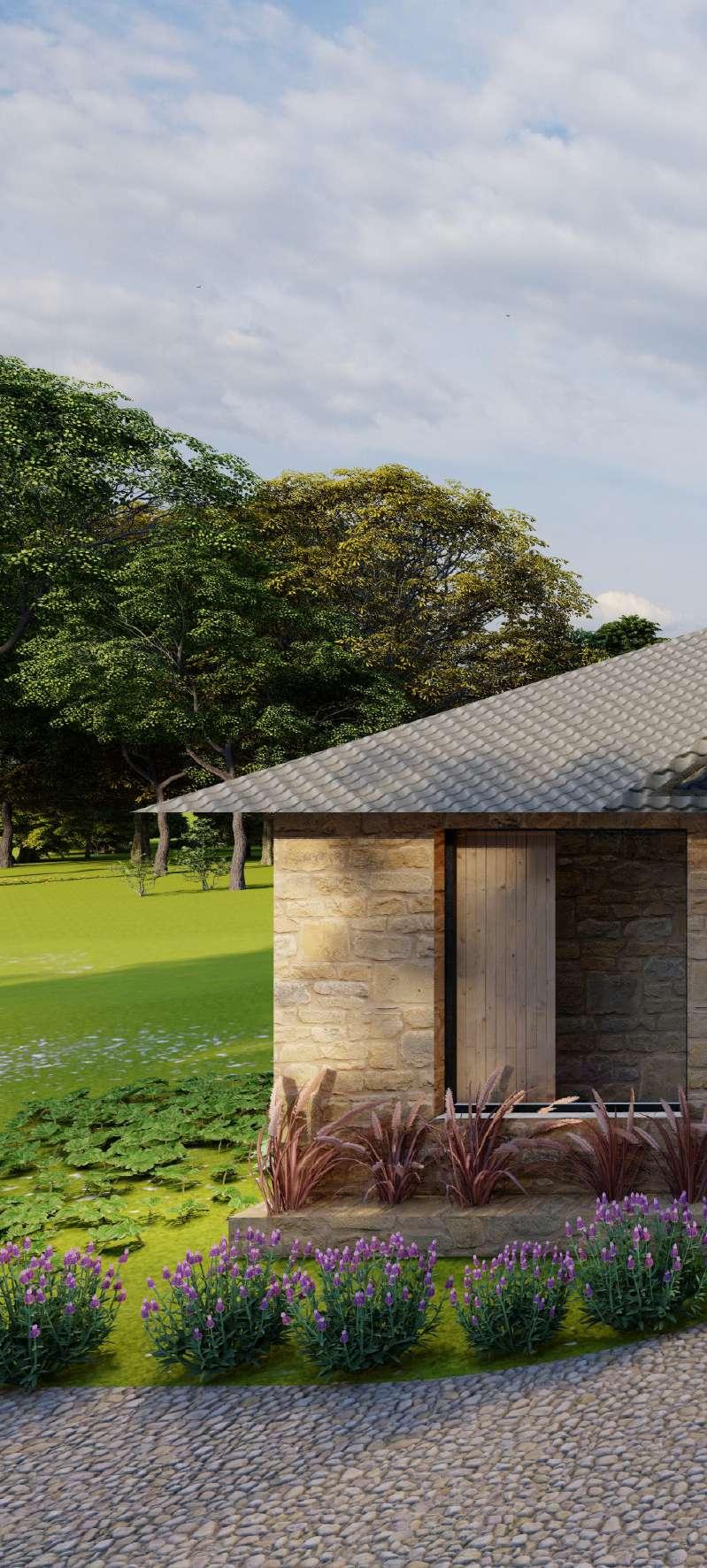

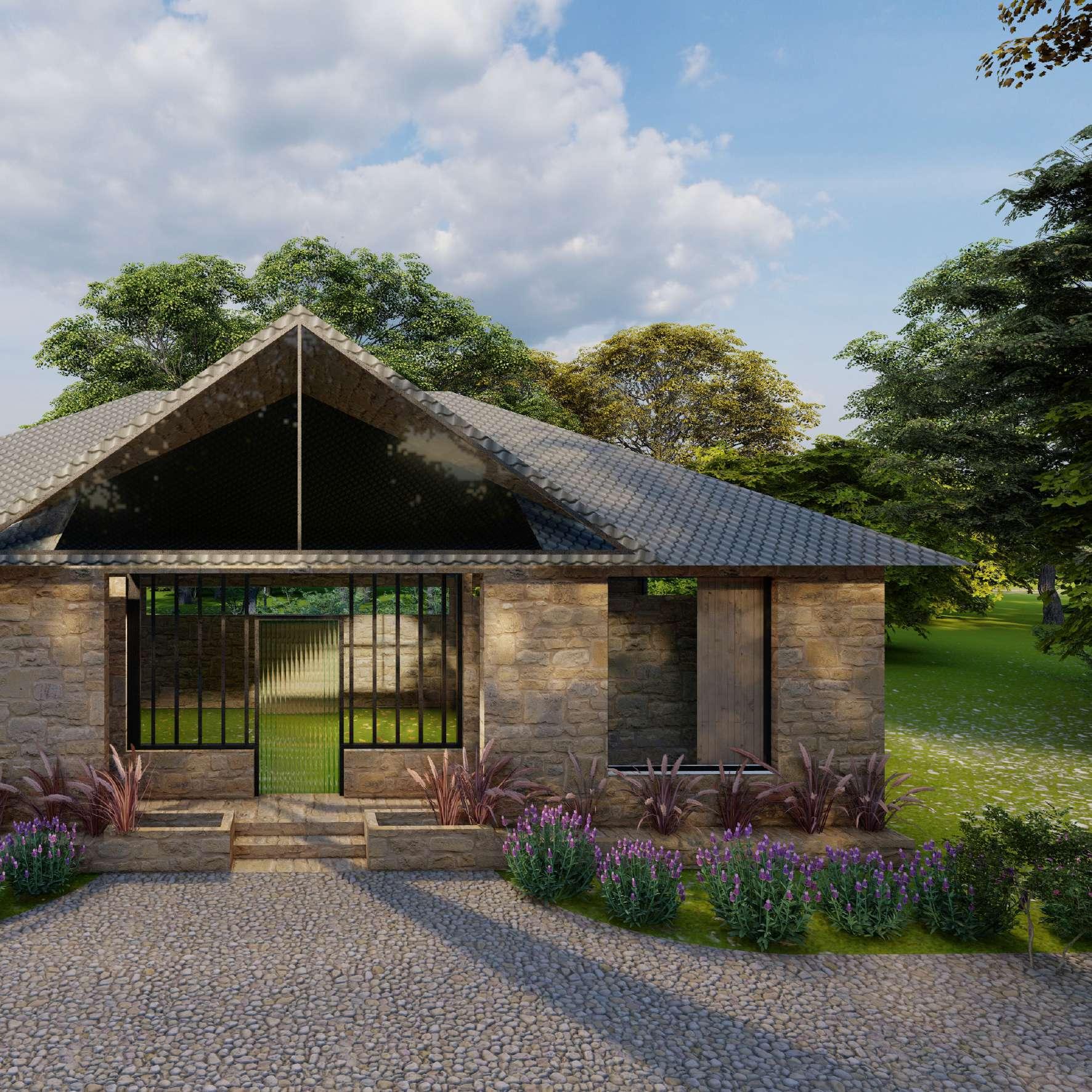

ViLLA ASitAS iS A 2.3 AcRE

RESoRt LocAtED iN MoRNi hiLLS, hARYANA.

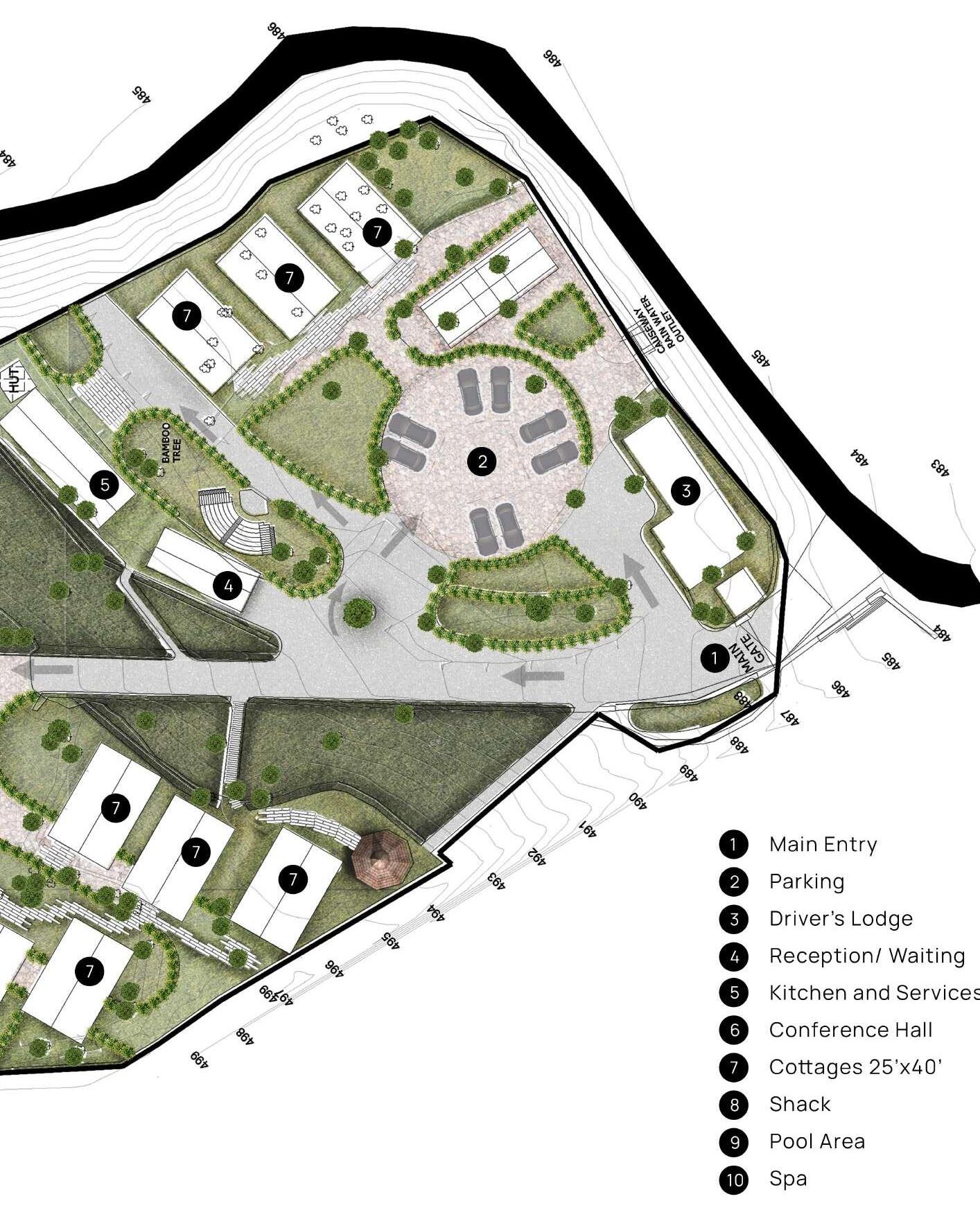

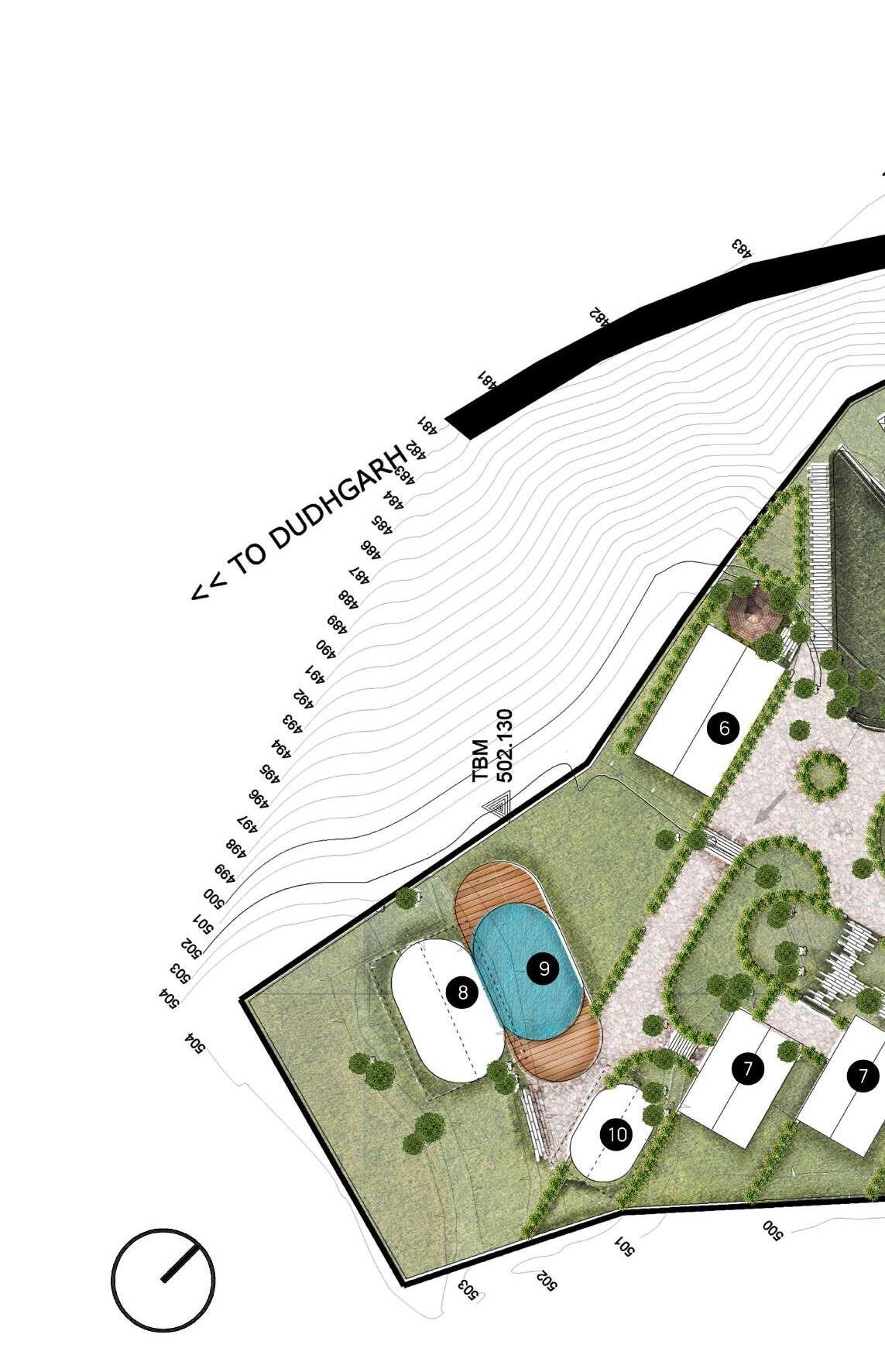

SitE RESpoNSiVE pLANNiNG

WAS AchiEVED bY kEEpiNG iN MiND thE NAtURE oF thE tERRAiN AND REtAiNiNG AS MUch oF thE oRiGiNAL coNtoURS AS poSSibLE.

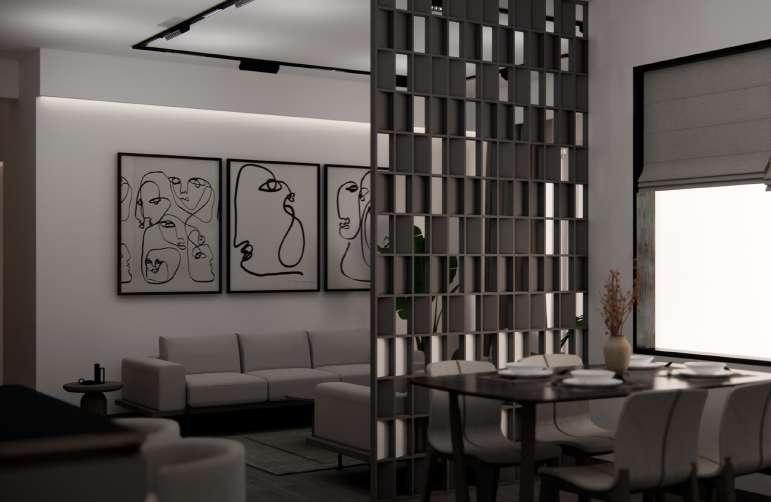

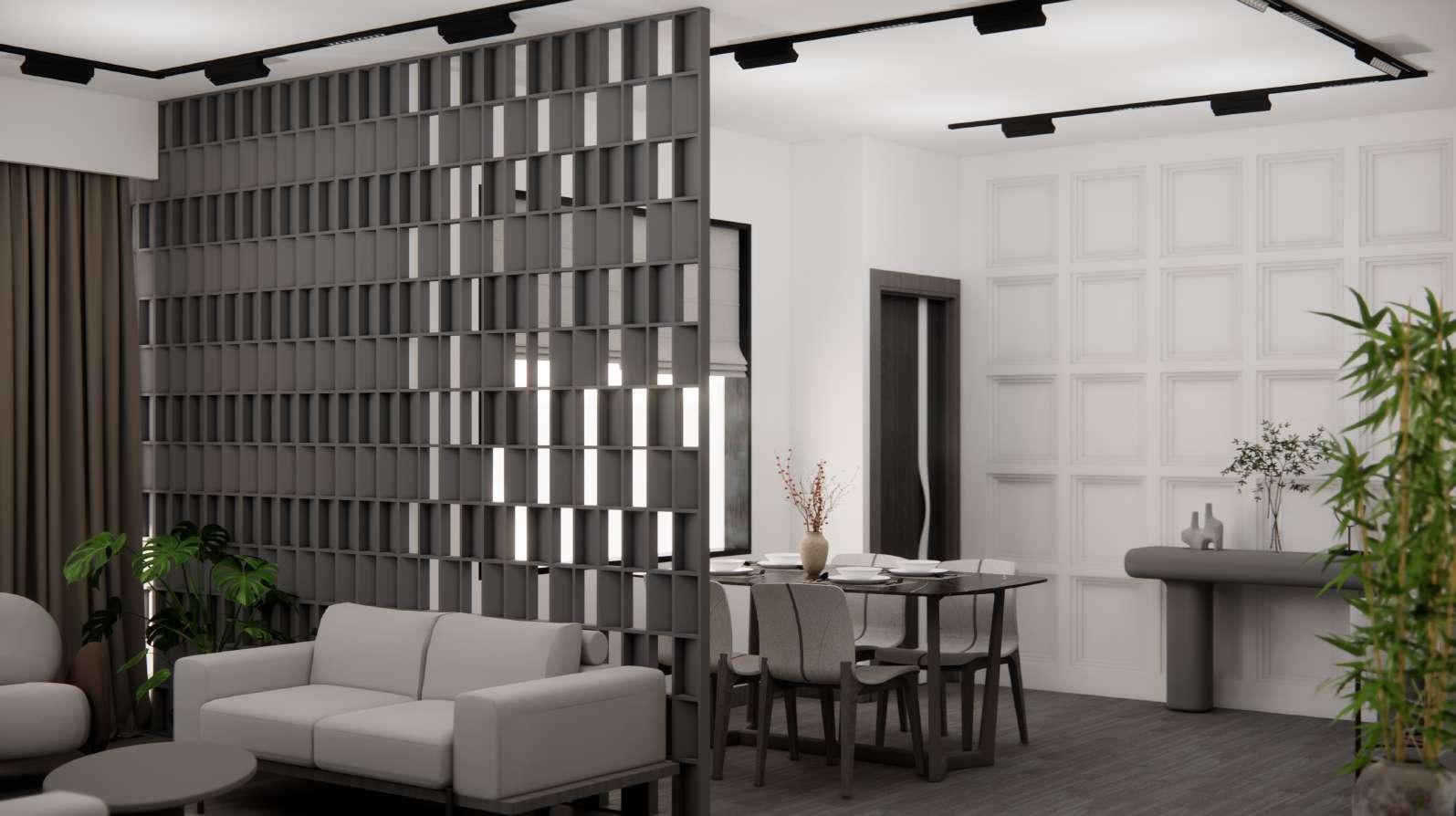

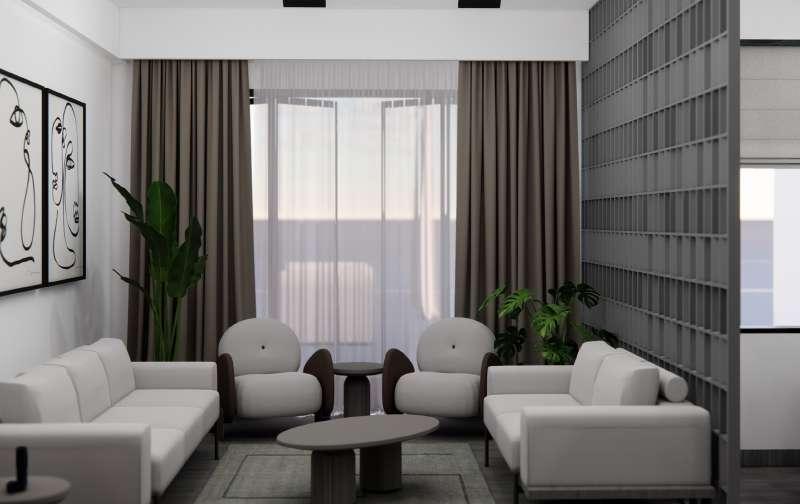

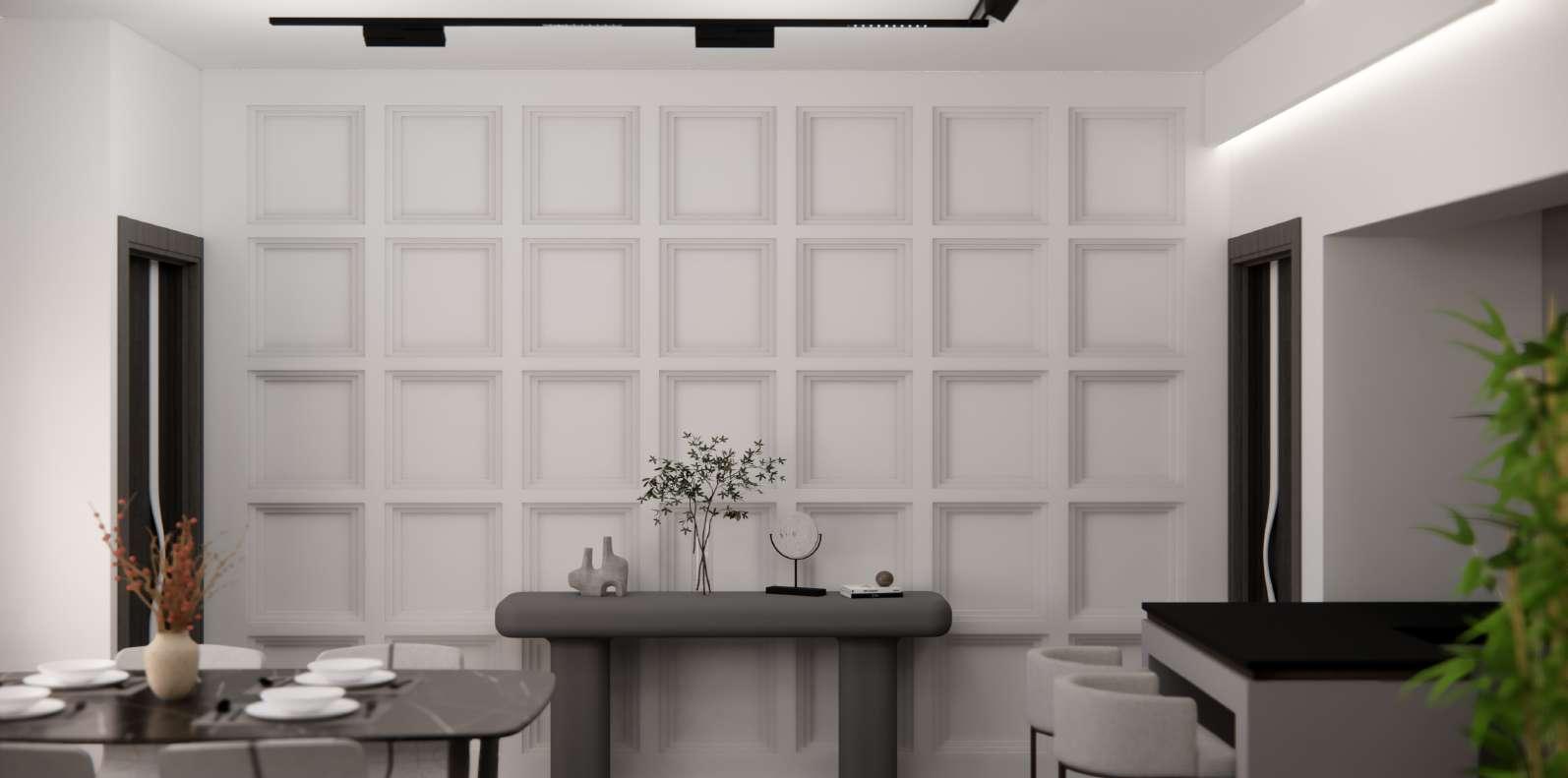

4 JVT-601

Interiors

Kharar, Punjab

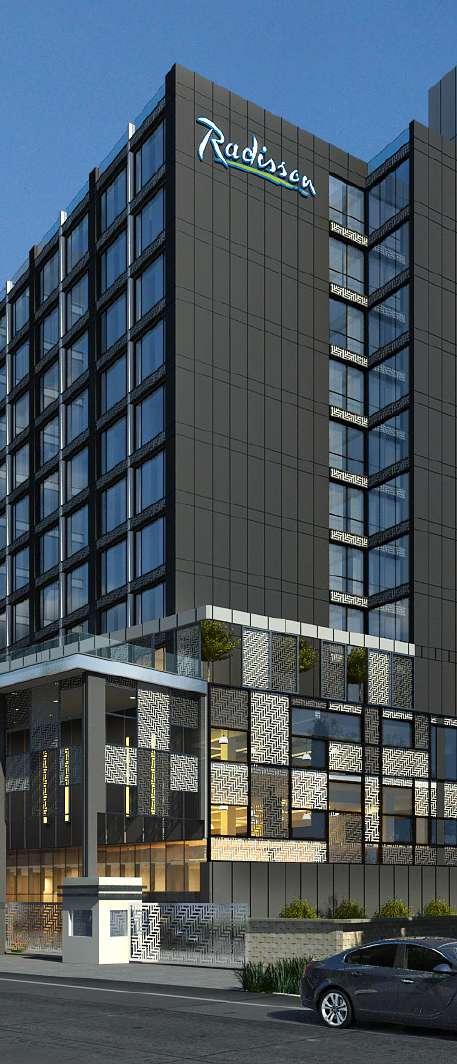

5 Radisson Blu

Gorakhpur, UP

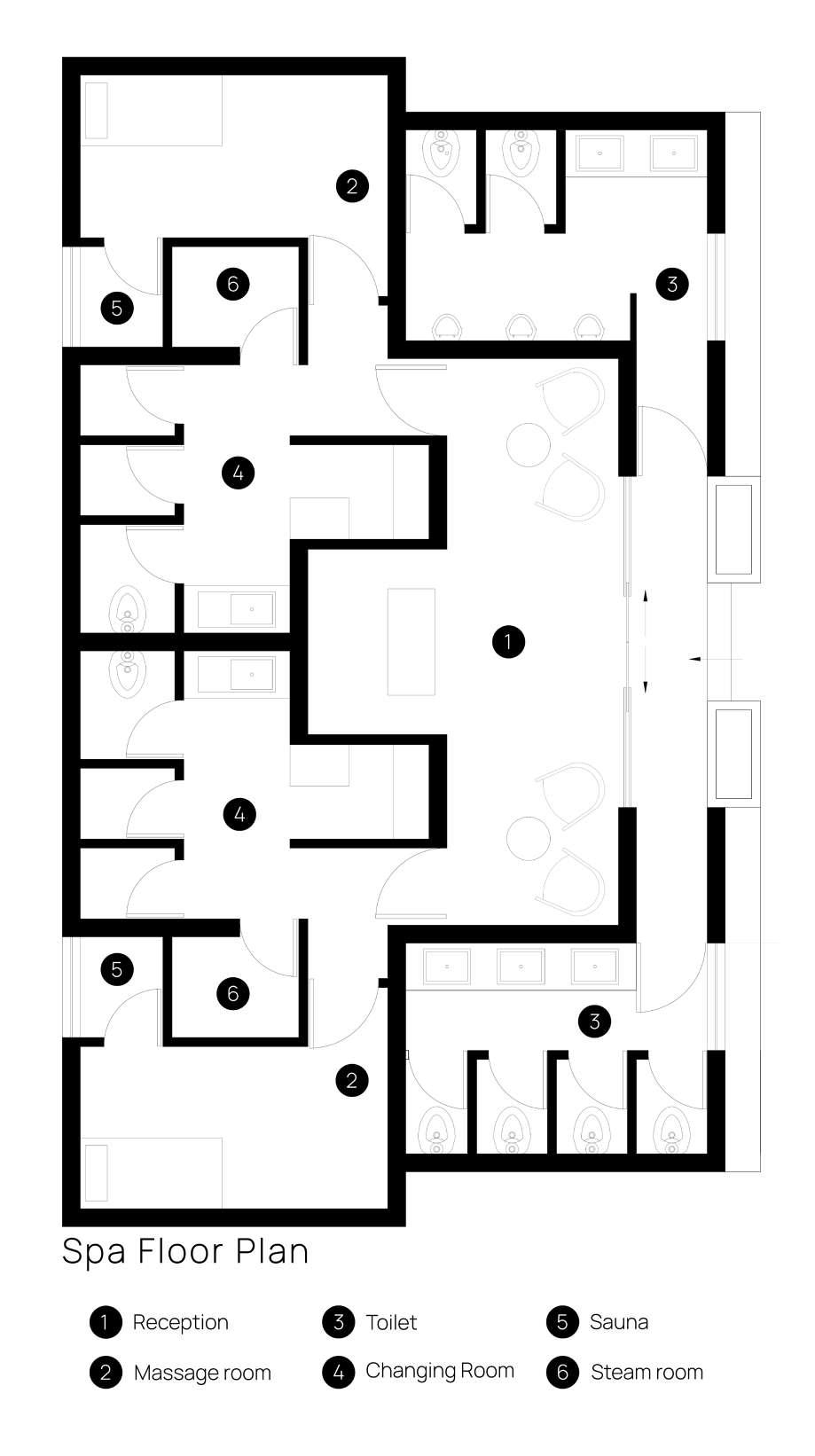

Plans for the extention Building of Radisson Blu Gorakhpur.

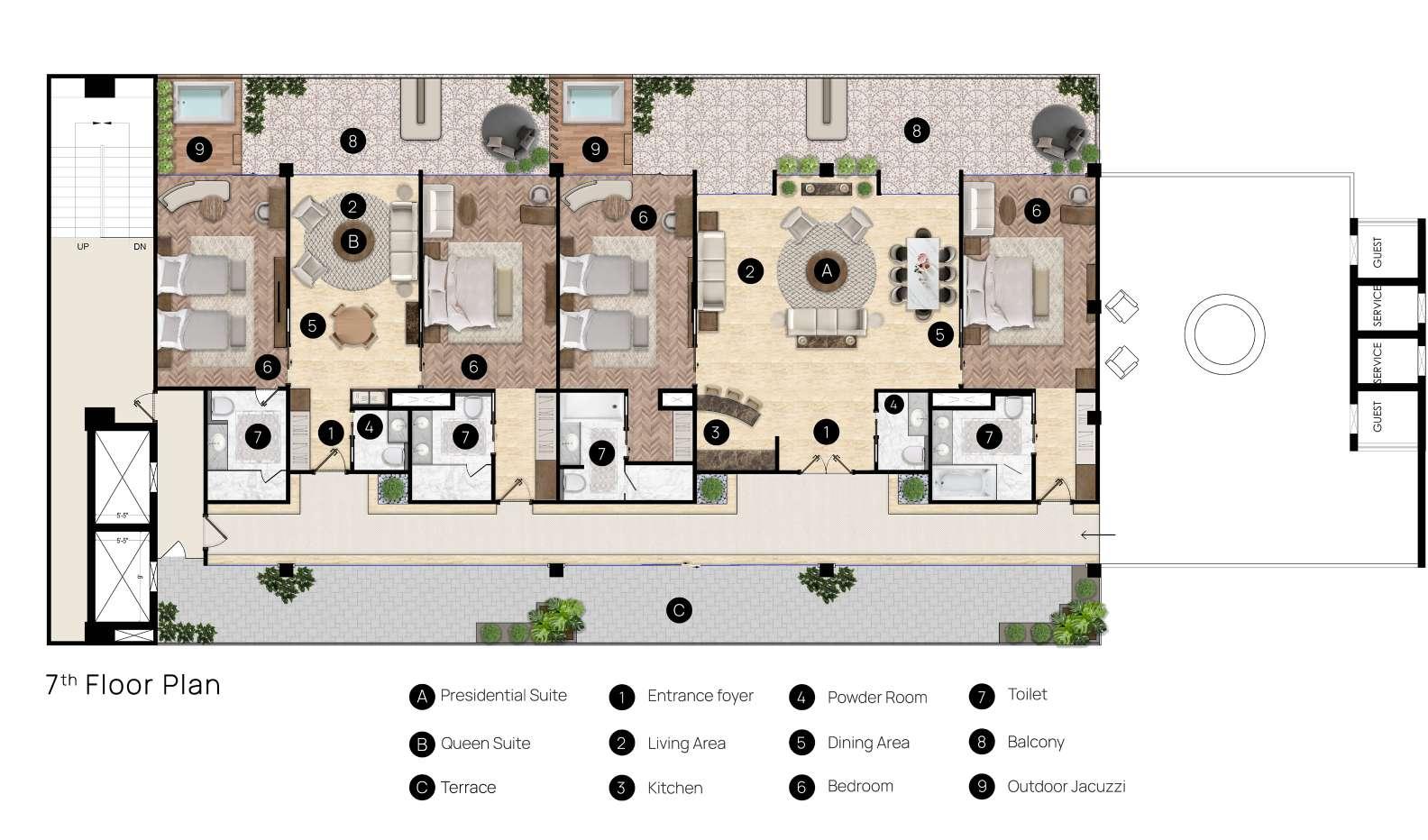

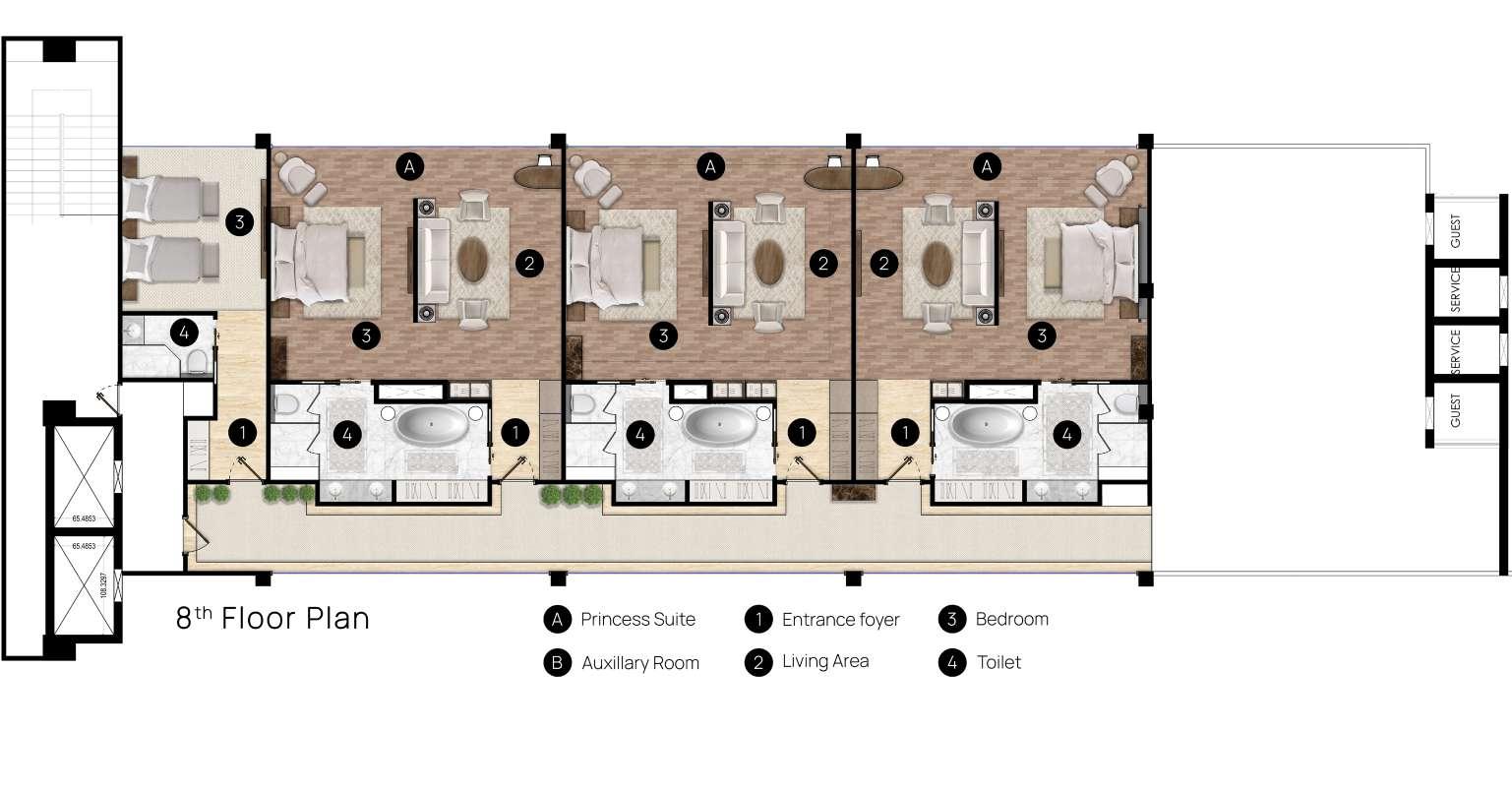

Designed the floor plans of the floors which included:-

-Presidential Suite

-Queen Suite

-Princess Suite

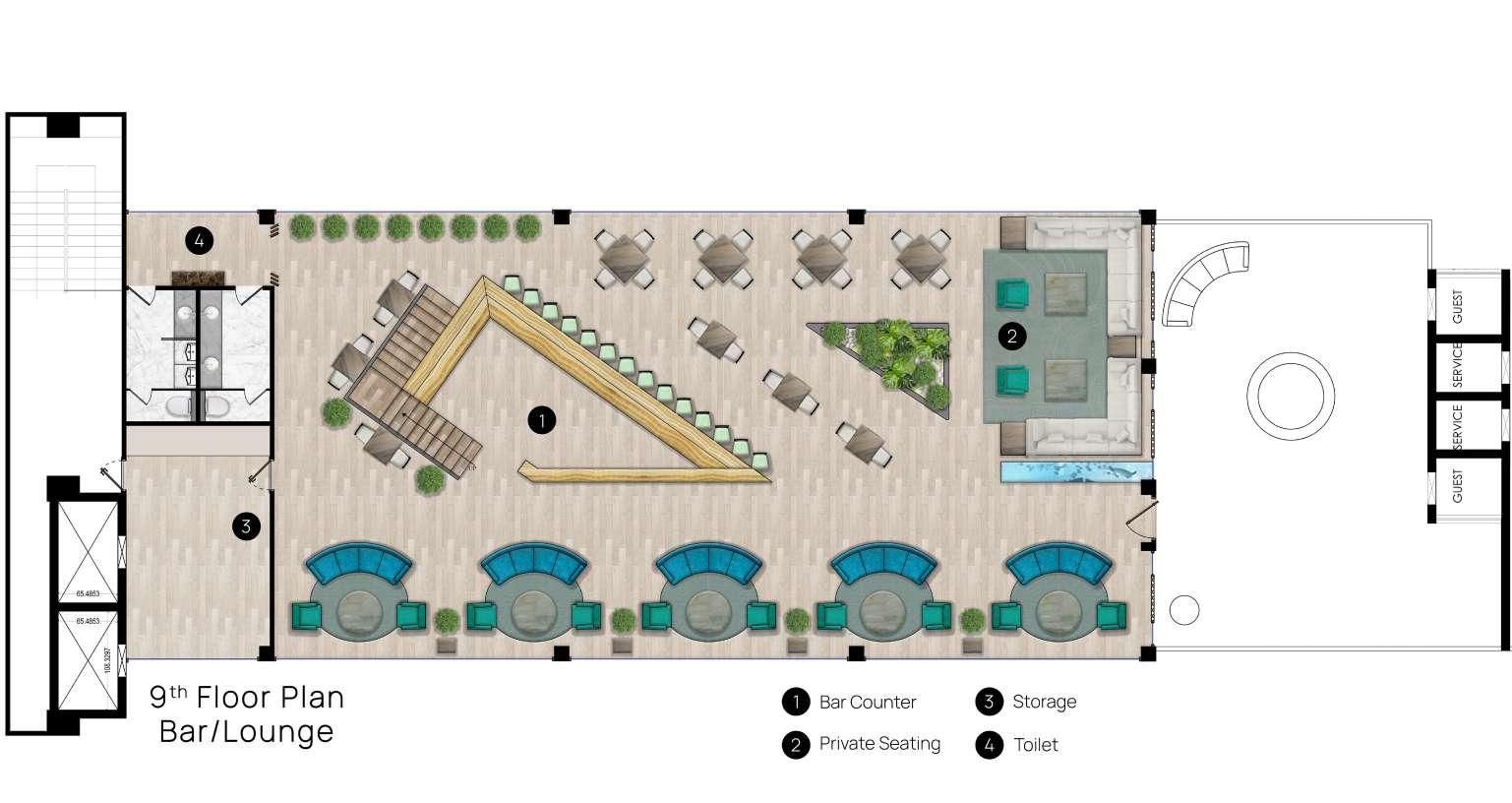

-BAr and lounge

6 Working Drawings

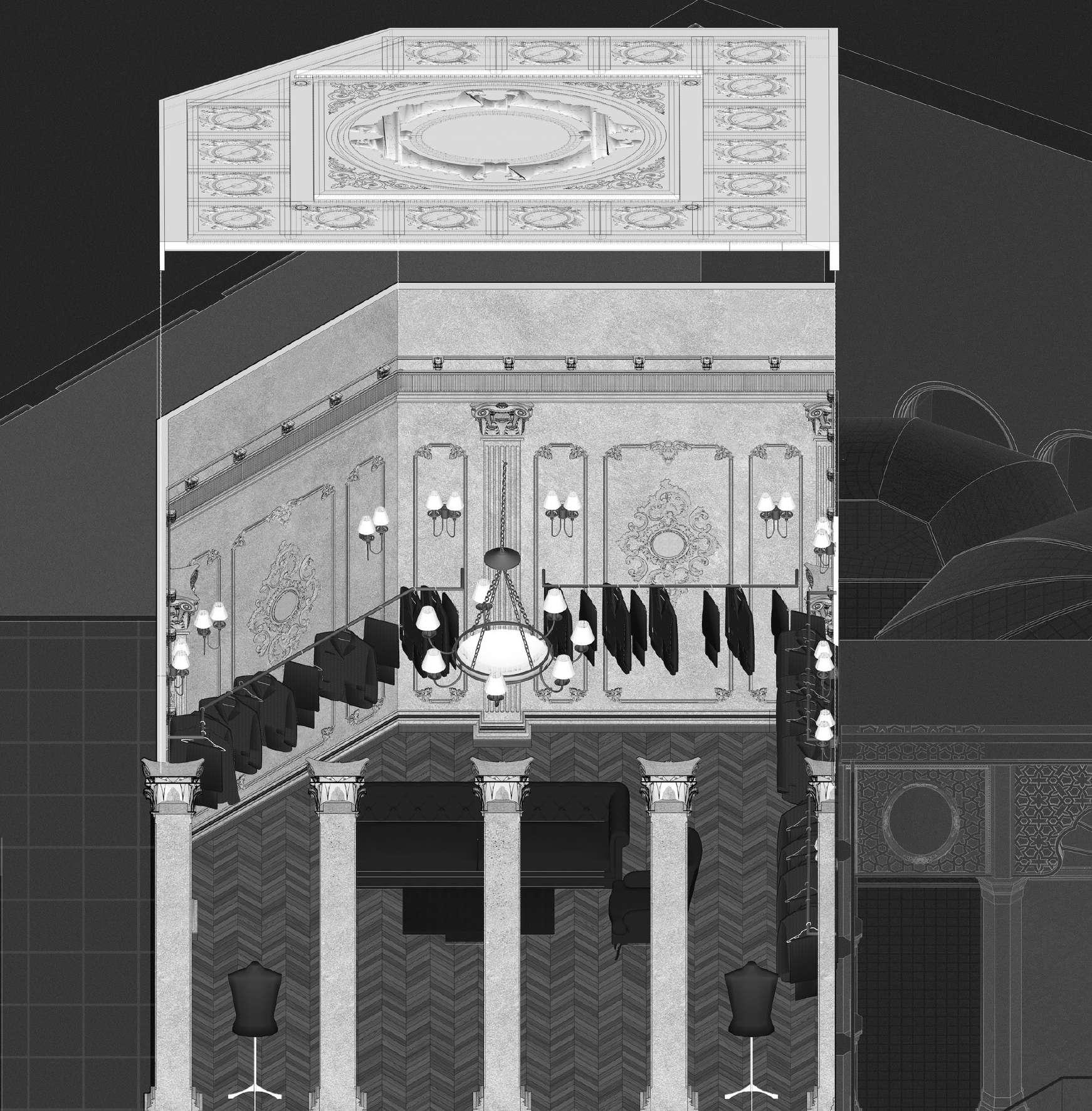

ELEVATION-AB

COLUMN CAPITAL (as/detail) (To be texture painted) (Paint as/selection)

MOULDING (DETAIL-12) (To be texture painted) (Paint as/selection)

MOULDING (DETAIL-13) (To be texture painted) (Paint as/selection)

BRACKET (DETAIL-14) (To be texture painted) (Paint as/selection)

B.O.F.C / T.O. BRACKET LVL + 13'-9"

B.O. MOULDING (DETAIL-13) LVL + 13'-8"

B.O. BRACKET (DETAIL-14) LVL + 13'-2"

B.O. MOULDING (DETAIL-12) LVL + 13'-1"

B.O. FLUTING (DETAIL-11) LVL + 12'-6"

B.O. MOULDING (DETAIL-10) LVL + 11'-11"

T.O. MOULDING (DETAIL-7) LVL + 11'-61 2

MDF FLUTING (DETAIL-11) (To be texture painted) (Paint as/selection)

T.O. MOTIF (DETAIL-4) LVL + 9'-1"

WALL MOUNTED LAMPS (as/selection) LVL + 8'-6"

All walls to be texture painted (Paint as/selection)

COLUMN SHAFT (as/detail) (To be texture painted) (Paint as/selection)

MOTIF (DETAIL-8) (To be texture painted) (Paint as/selection)

Moulding (DETAIL-5) (To be texture painted) (Paint as/selection)

B.O. MOTIF (DETAIL-4) LVL + 3'-10"

MOULDING (DETAIL-3) (To be texture painted) (Paint as/selection)

WOODEN FLOORING (as/selection)

WOODEN SKIRTING (as/selection)

B.O. MOULDING (DETAIL-7) LVL + 1'-11 2 "

T.O. MOULDING (DETAIL-6) LVL + 0'-91 2 "

ELEVATION-CD

(Paint as/selection)

(DETAIL-14) (To be texture painted)

B.O.F.C / T.O. BRACKET LVL + 13'-9"

B.O. MOULDING (DETAIL-13) LVL + 13'-8"

B.O. BRACKET (DETAIL-14) LVL + 13'-2"

B.O. MOULDING (DETAIL-12) LVL + 13'-1"

B.O. FLUTING (DETAIL-11) LVL + 12'-6"

B.O. MOULDING (DETAIL-10) LVL + 11'-11"

T.O. MOULDING (DETAIL-7) LVL + 11'-61 2

MDF FLUTING (DETAIL-11) (To be texture painted) (Paint as/selection)

T.O. MOTIF (DETAIL-4) LVL + 9'-1"

WALL MOUNTED LAMPS (as/selection) LVL + 8'-6"

COLUMN SHAFT (as/detail) (To be texture painted) (Paint as/selection)

SKIRTING LVL + 0'-4" All walls to be texture painted (Paint as/selection) DETAIL-3 DETAIL-13

KEY-PLAN

NOTE

1.THE SHOWN MOULDINGS AND MOTIFS ARE INDICATIVE THUS ALL OF THEM NEED TO BE APPROVED BEFORE STARTING THE WORK.

2.JUNCTION OF DETAIL-3 & DETAIL-5 TO BE SHOWN IN A SAMPLE.

3.SELECTED PAINT SHADE TO BE SAMPLED AT SITE.

4.SAMPLE OF PANEL "A" TO BE SHOWN BEFORE COMMENCING THE WHOLE JOB.

5.LEVELS TO BE ADJUSTED AS/SITE IF NEEDED BUT ONLY AFTER APPROVAL BY THE ARCHITECT.

B.O. MOTIF (DETAIL-4) LVL + 3'-10"

MOULDINGS (as/detail) (To be texture painted) (Paint as/selection) MOTIF (DETAIL-8) (To be texture painted) (Paint as/selection) Moulding (DETAIL-5) (To be texture painted) (Paint as/selection)

WOODEN FLOORING (as/selection)

WOODEN SKIRTING (as/selection)

B.O. MOULDING (DETAIL-7) LVL + 1'-11 2

T.O. MOULDING (DETAIL-6) LVL + 0'-91

+ 0'-4"

FLOOR
