ARCHITECTURE
POR TFO LIO
MIKE ANGELO B. TAGAYOM
202�
CONTENTS RODRIGUEZ RESIDENCE GEAR UP RCC RETAIL STORE ARCHITECTURAL DRAWINGS ARCO SHELVES VISUALIZATION MENDOZA CONDO DALMAN RESIDENCE CIEL DE CLARK HOTEL & RESORT EL RENACIMIENTO COLLEGE THESIS o1|2019 04|2019 08|2022 202� 05|2020 06|2020 07|2021 02|2021 03|2019 04 26 42 28 30 36 12 22
RODRIGUEZ
RESIDENCE
Studio: Model Space Design Locale
Role: Project Lead
Scope: Schematic Design | Design Development | Contract Documents | Bidding Phase
Rural Spirit
The design concept was derived from: rural, natural and home grown. The main inspiration of this rest house is the emotion of living in a rural area that livens the spirit after a week in the urban city.
4
Lightweight
An environment where all the heavy elements are non-existent, creating a calm, airy and gentle mood.
Homegrown In Rural
The retrospective experience of being in a provincial domestic lifestyle where tradition and nature dominates the way of life.
Relaxing Accomodation
An abode designed to provide a hotel-like vacation experience complete with thoughtful details that makes you sit-back and unwind.
5 Indang, Cavite 2019
6 RODRIGUEZ RESIDENCE | 2019

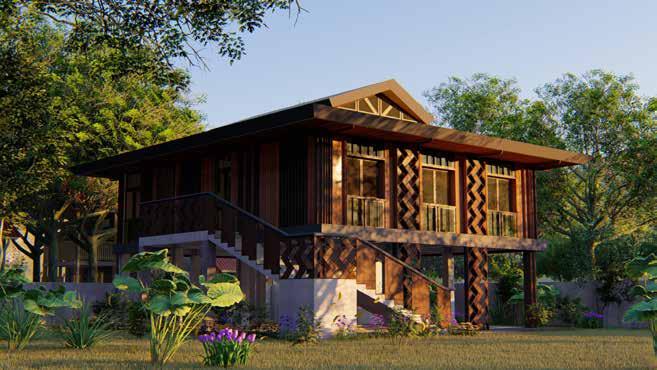

Exterior Render
Exterior Design
Initial Sketch
7 RODRIGUEZ RESIDENCE | 2019

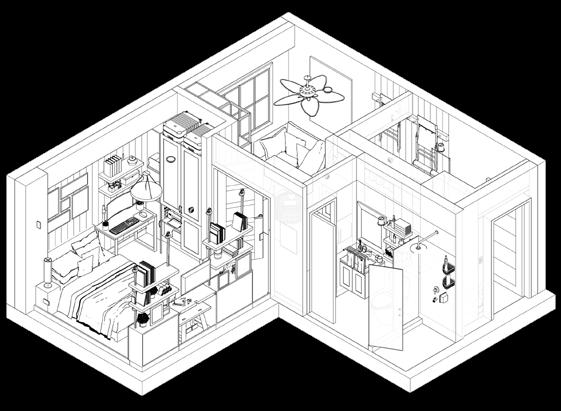

Axonometric
View Living Area
Guest Area
Masters Bed-

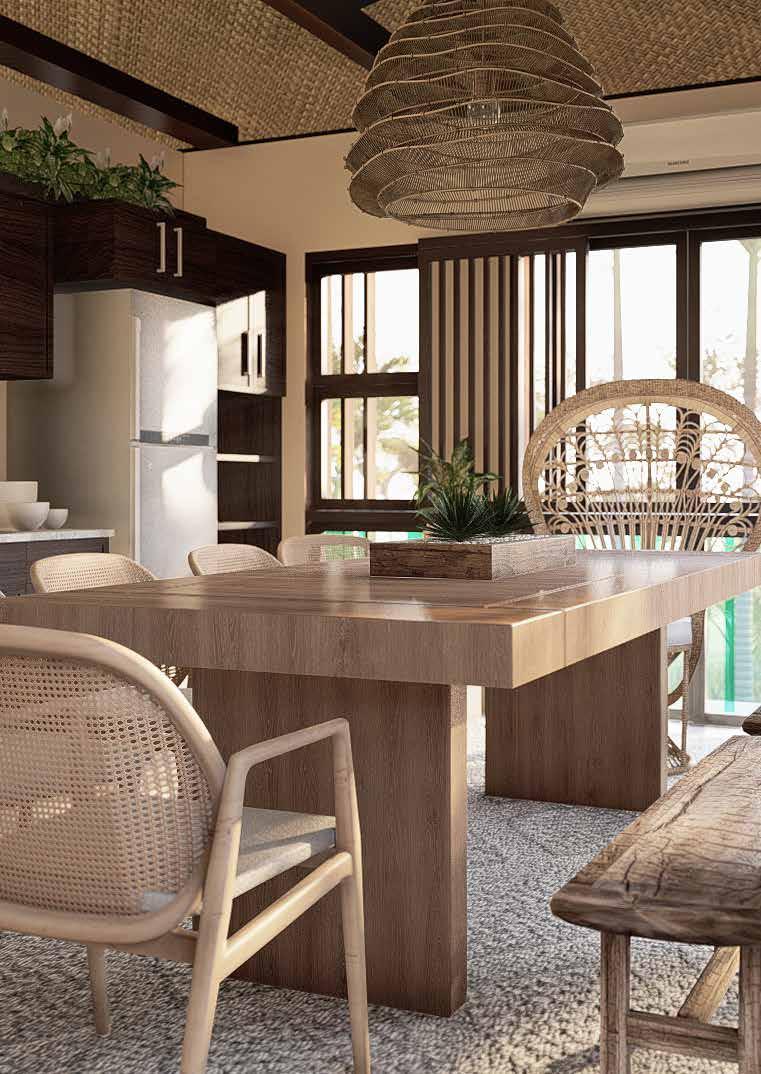

Dining Area
Kitchen
Common Bedroom
T&B
8 RODRIGUEZ RESIDENCE | 2019
9 RODRIGUEZ RESIDENCE | 2019
10 RODRIGUEZ RESIDENCE | 2019
11 RODRIGUEZ RESIDENCE | 2019
CIEL DE CLARK HOTEL & RESORT
Studio: Model Space Design Locale
Role: Project Lead
Scope: Schematic Design | Design Development
The proposed project is composed of Commercial Places - with restaurants, cafe and offices, Villascomplete with the essentials for a weekend stay, and Hotel Building - designed to cater different volume of users.
Tons of ideas have been poured throughout the design phase of the project. Started off with a simple commercial + villa & resort accomodation to a full commercial + hotel & resort. Each of these spaces are designed to fully meet the clients’ concepts and requests.
12
Clark Freeport, Pampanga 2021

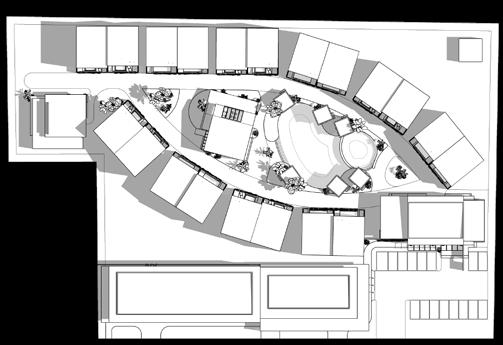

Initial Site Development Plan
Site Section

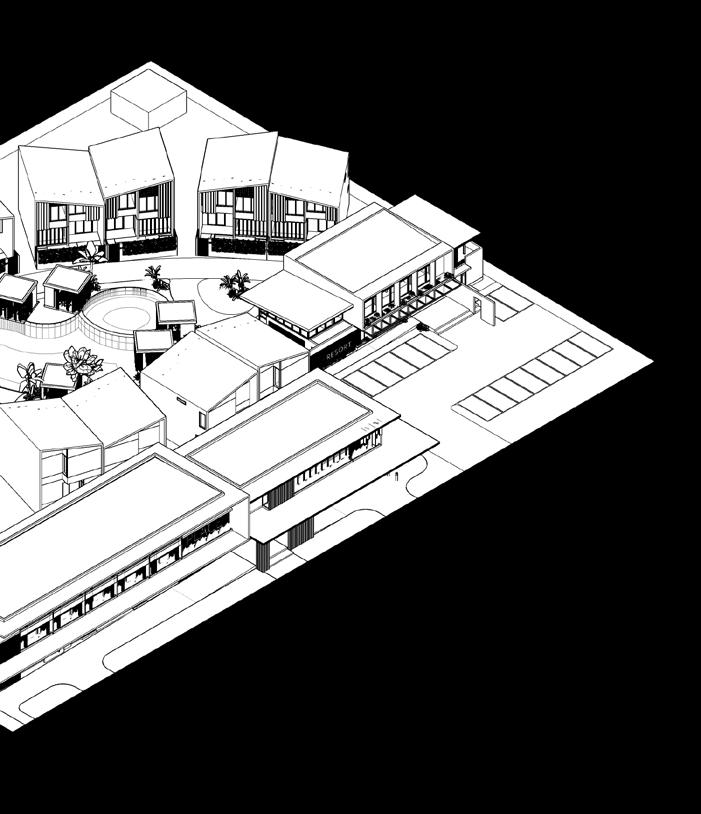

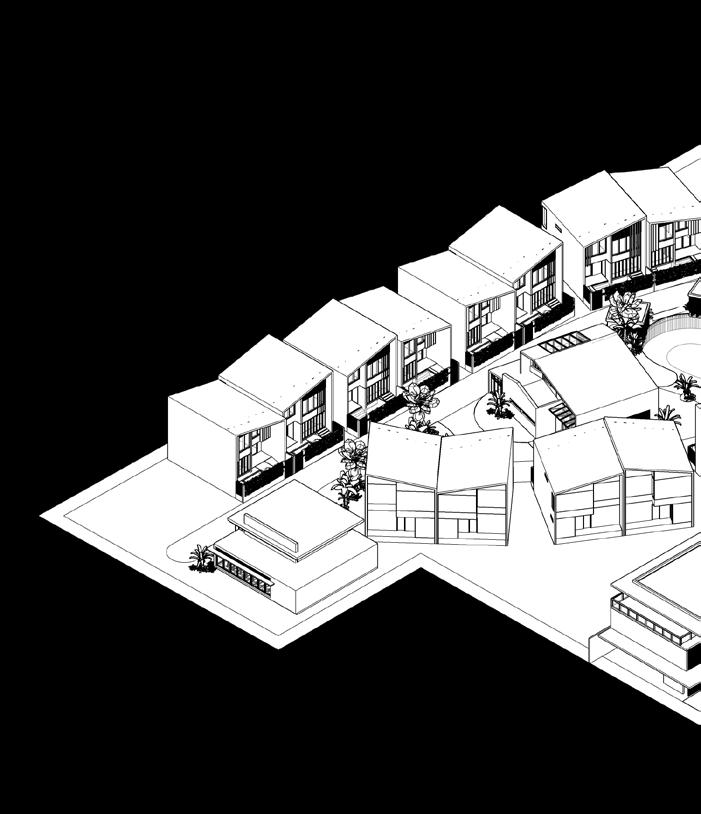

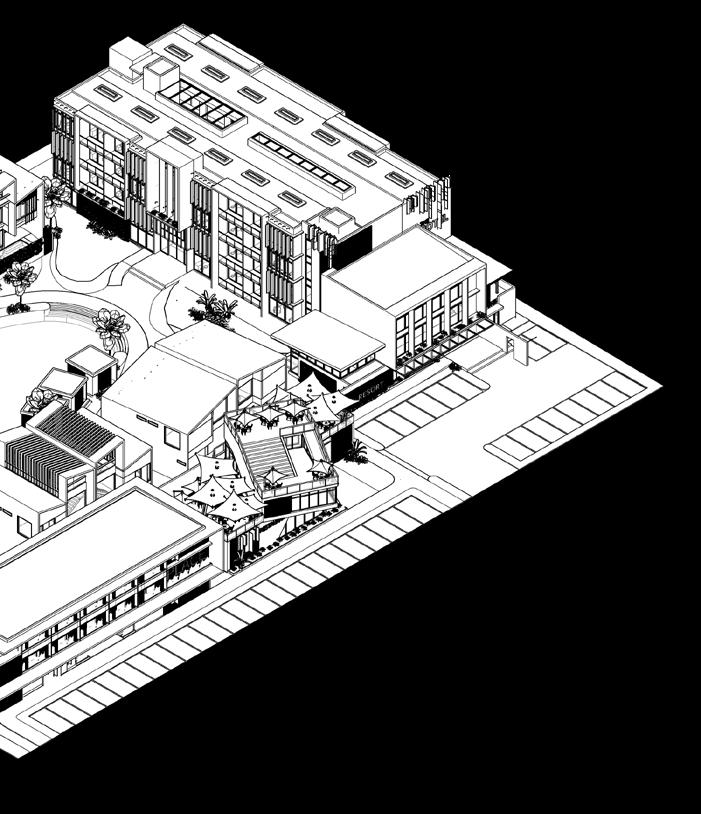

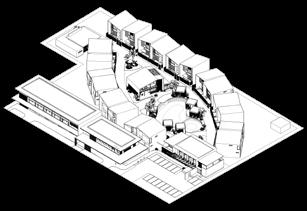

Site Axonometric View
13
Initial Proposal
Commercial Spaces + Resort
14 CIEL DE CLARK HOTEL & RESORT | 2021
Villas Villas
Resto Bar
Gym
15 CIEL DE CLARK HOTEL & RESORT | 2021 SITE
Commercial Building Visitors Hall
Cafe & Restaurant
Drop Off
Gazebo
Pool

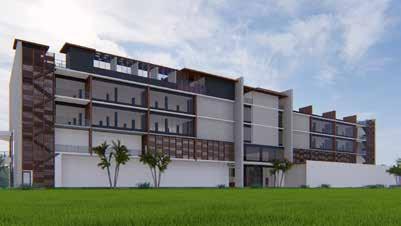

Revised Proposal
Commercial Spaces + Resort & Hotel
Open Areas
16 CIEL DE CLARK HOTEL & RESORT | 2021
Pool
Gazebo
Hotel Villas
17 SITE CIEL DE CLARK HOTEL & RESORT | 2021
Hotel
Visitors Hall
Cafe
Parking
Drop Off
Commercial Building
Commercial Building

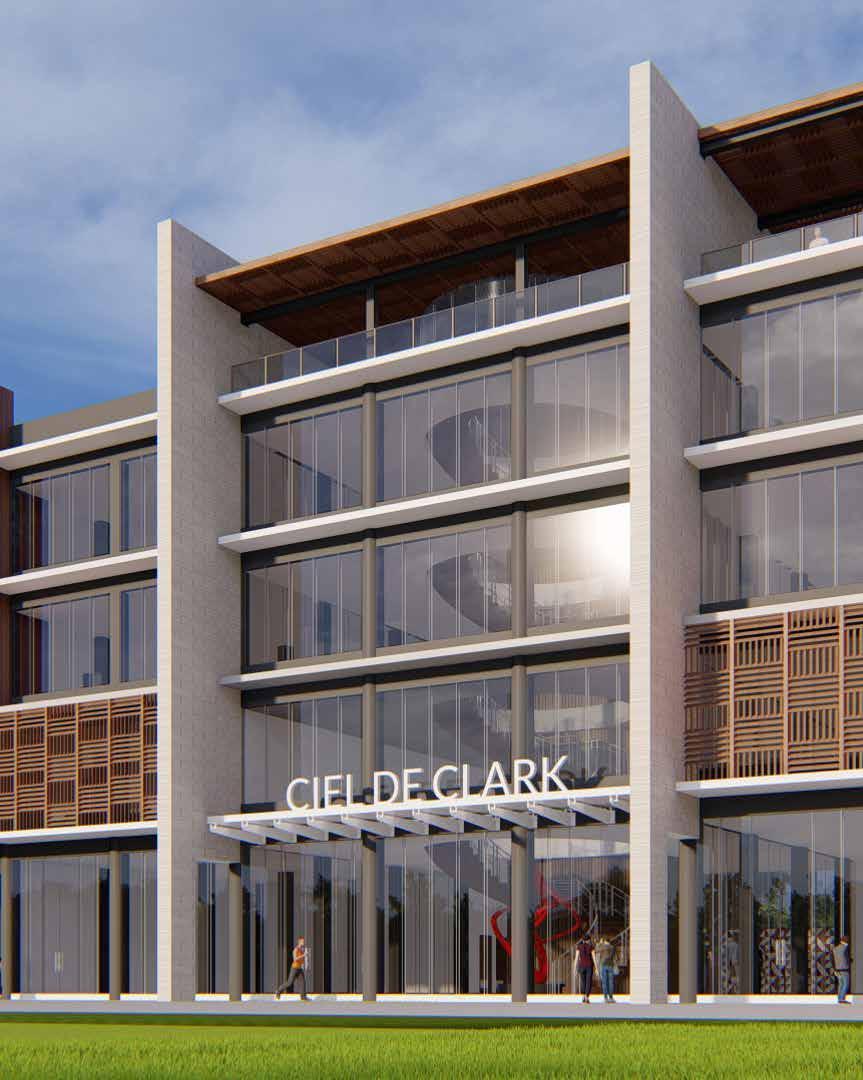

COMMERCIAL BUILDING
As the project progresses, proposals have also been revised a couple of times leading to the phasing of the project. The proposed commercial building, fronting the site, will cater retail stores, offices of the clients, cafe, spa, driving range, gym, and a resort at the roof deck.
18 CIEL DE CLARK HOTEL & RESORT | 2021
CIEL DE CLARK HOTEL & RESORT | 2021 19

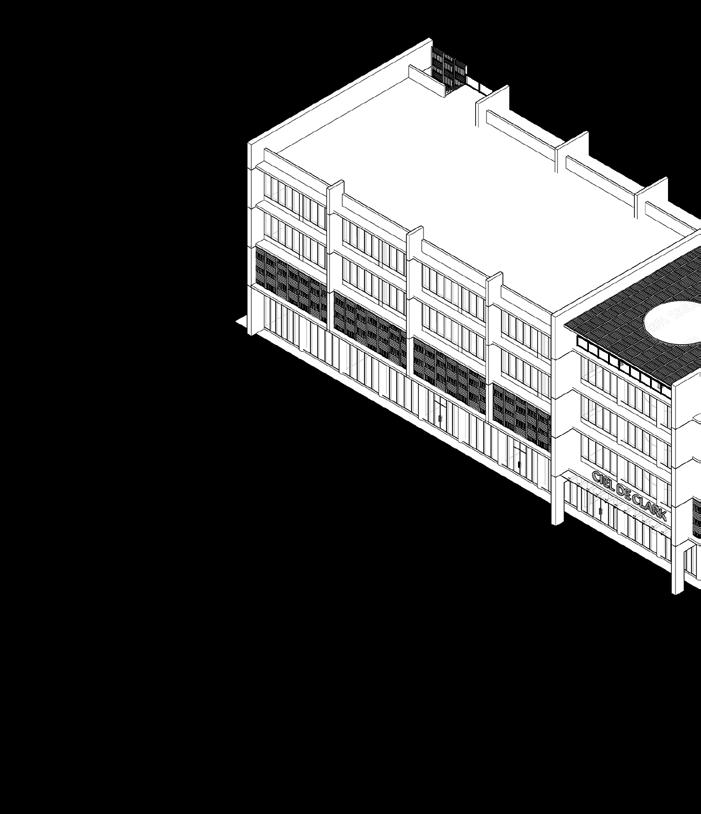

COMMERCIAL BUILDING
Roof Deck + Resort
Offices
Driving Range + Gym
Spa + Massage
Leasable Spaces
Commercial Spaces
20
CIEL DE CLARK HOTEL & RESORT | 2021
Sun Shading
Sun Shading Axonometric
Roof Deck
Cottages
Isometric View Cafe
21 CIEL DE CLARK HOTEL & RESORT | 2021
Sunken Cottage
Pool Aerial View
Pool Bar
Commercial Building
Elevator Lobby

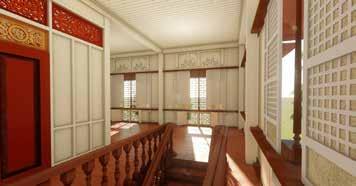

EL RENACIMIENTO COLLEGE THESIS
Partner: Bea Victoria Lizarondo
School: Lyceum of the Philippines University - Cavite

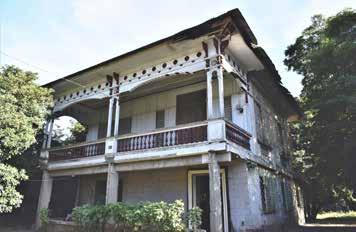

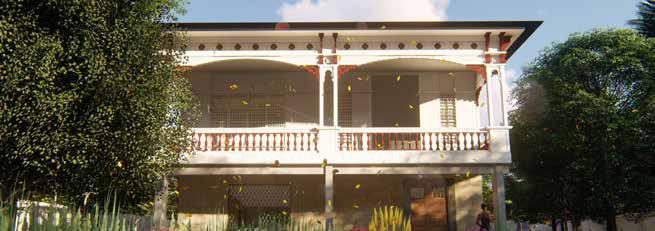

The study generally aims to provide an architectural documentation and comprehensive analysis of the heritage houses from Gapan City, Nueva Ecija with Spanish-Colonial influence manifested in its architecture.
Gapan, Nueva Ecija
The revival of the awareness to the heritage preservation is applied as concept to this study. It encourages students to look back on our heritage houses and try to understand the past architecture style we had.
22 2019

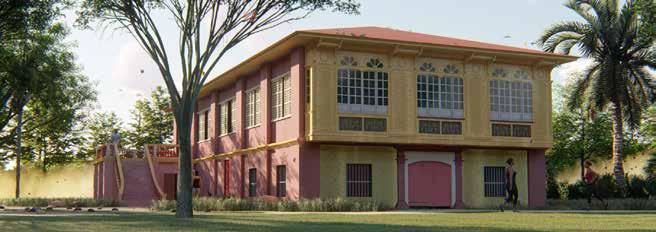

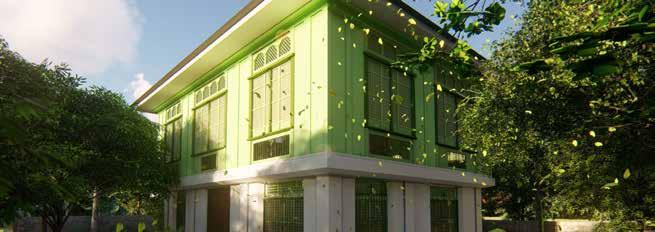

Payawal Ancestral House Axonometric View

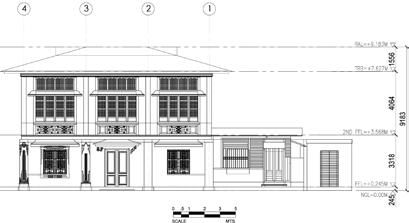

23 44 FRONT ELEVATION REAR ELEVATION 44 REAR ELEVATION 45 RIGHT ELEVATION LEFT ELEVATION 45 RIGHT ELEVATION LEFT ELEVATION Front Elevation Right Elevation Left Elevation Rear Elevation
24 EL RENACIMIENTO COLLEGE THESIS | 2019
25 EL RENACIMIENTO COLLEGE THESIS | 2019

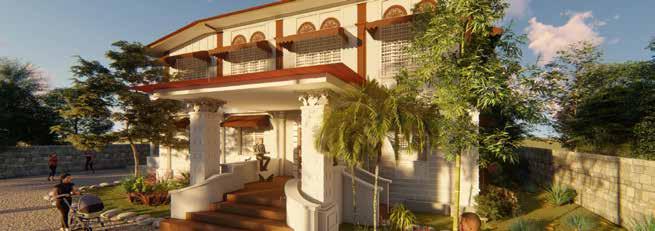

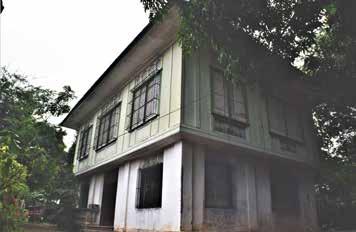

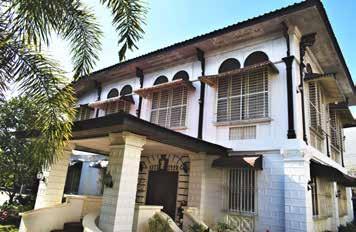

De Guzman Ancestral House
Governor Liuag Ancestral House
White House
Aryoso Mansion
GEAR UP RCC RETAIL STORE
Studio: Model Space Design Locale
Role: Project Support
Scope: Conceptualization | Modelling & Rendering
Pasig
26
Exterior Montage
City 2019
27
ARCO SHELVES VISUALIZATION
Studio: Model Space Design Locale + Ar. PJ Almera
Role: Project Lead
Scope: Conceptualization | Modelling & Rendering
28
2020
29
MENDOZA
Studio: Model Space Design Locale
Role: Project Lead
Scope: Schematic Design | Design Development | Contract Documents | Bidding Phase | Construction Phase
Coastal Breeze
A fresh interior driven by the reminisce of warm and soft wind mixed with the magnificent scenery of the beachside. A relaxing and airy atmosphere brought by the aura we can only find from the life on the beach.
Living Area
Dining Area
Bedroom
Soothing Invitation
A relax sensation as you go home leaving the stress out side as you enter the cozy and gentle space. Applying airy and raw colors of the coastal areas into our personal space.
T&B
Dynamic Space
Applying space saving ideas in a tight area to achieve an airy and cozy vibe. Maximizing the space through movable items without compromising the activities intended
30
Mandaluyong City 2020
CONDO

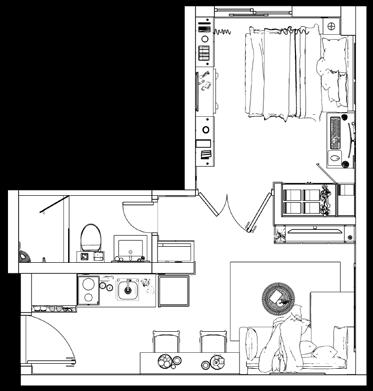

31 Floor Plan
32 MENDOZA CONDO | 2020
Design Elements
33 MENDOZA CONDO | 2020
Materials & Color Palette

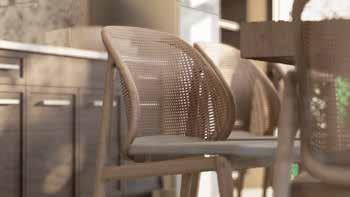

Dining Area

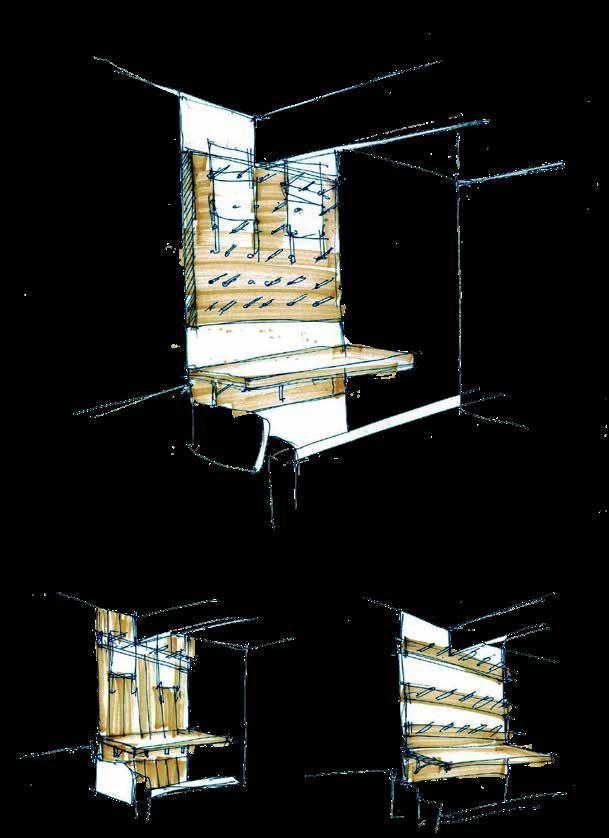

Initial Sketches
34 MENDOZA CONDO | 2020
35 MENDOZA CONDO | 2020
RESIDENCE
Studio: Model Space Design Locale
Role: Project Lead
Scope: Schematic Design | Design Development |
The hotel-like experience at the comfort of your own home had been the main inspiration of this project. Sleek lines combined with a good contrast of the materials used to achieve the high-end re-
36
DALMAN
Construction
Contract Documents | Bidding Phase |
Phase

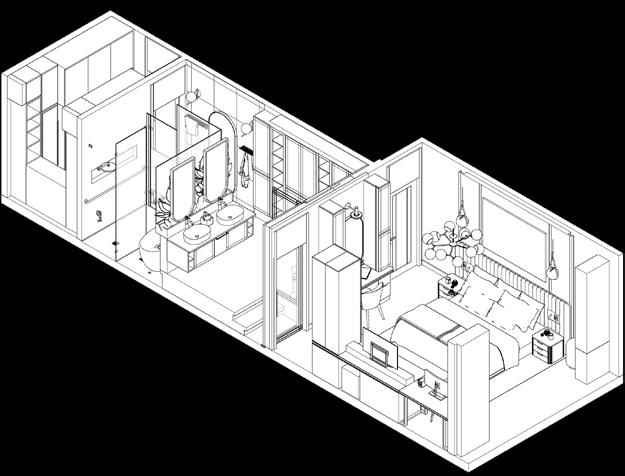

Bacoor, Cavite 2021 Axonometric View

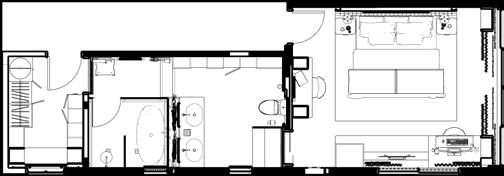

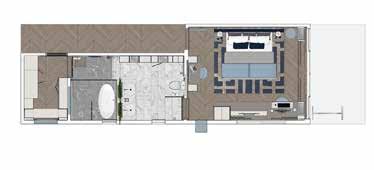

Floor Plan
Walk-In-Closet
T&B
Bedroom
37
38 DALMAN RESIDENCE | 2021

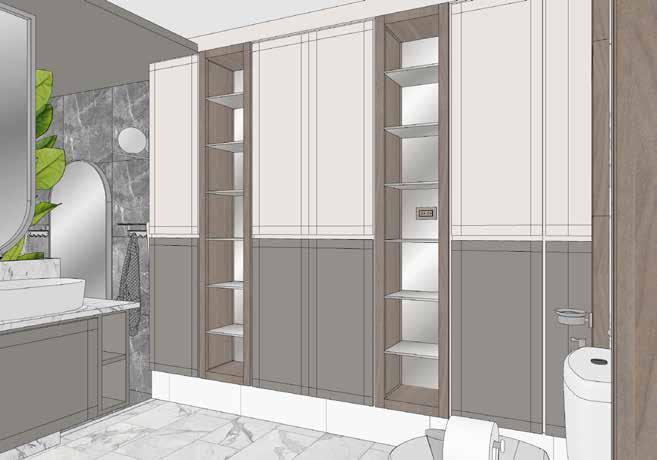

Walk-In-Closet
Cross Section
Toilet
Cross Section
Toilet
Cross Section
39 DALMAN RESIDENCE | 2021

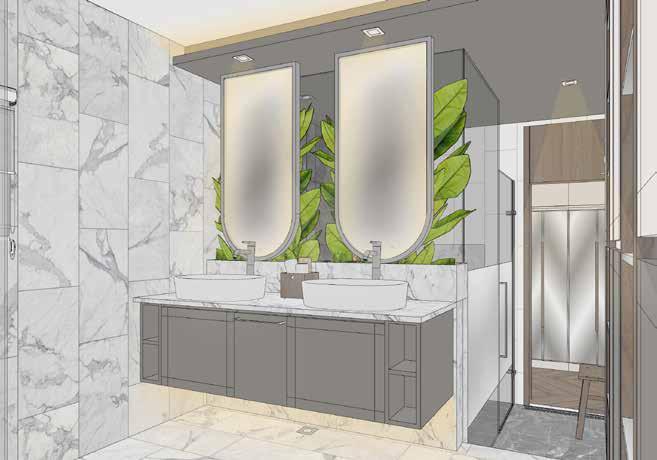

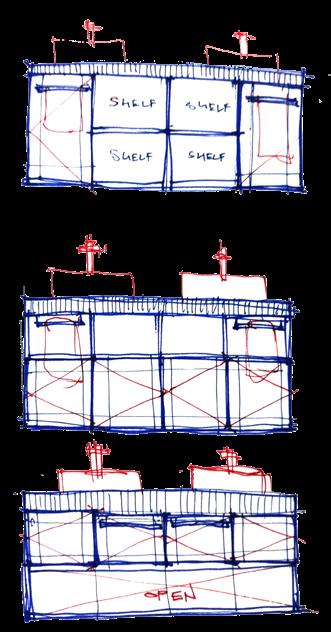

Lavatory Initial Sketches
40 DALMAN RESIDENCE | 2021
09 LAVATORY
DIMENSION:
173.30cmL x 60.00cmW x 50.00cmH
MATERIAL:
MARINE PLYWOOD DUCCO FINISH WITH GROOVES, (BOYSEN 0213 COASTAL FOG) WHITE MARBLE COUNTERTOP
NOTE: VERIFY SITE MEASUREMENTS
Lavatory Shop Drawing
DALMAN RESIDENCE
MS. MARGIE DALMAN
VISTA VERDE SOUTH EXECUTIVE VILLAGE
MAMBOG 4
BACOOR CAVITE MAT, AR 03112021
SHOP DRAWINGS
41
53.30cm 55.00 cm 10.00 cm 10.00 cm 2.50 cm 57.50 cm 60.00 cm 17.00 cm 43.00 cm 17.00 cm 2.00 cm 173.30 cm 43.85 cm 43.85 cm 87.60 cm 175.30 cm 175.30cm 60.00cm 50.00 cm 5.00 cm40.00 cm 60.00 cm 29.75 cm 5.00 cm 5.00 cm 30.25 cm 60.00 cm 7.00 cm 46.00 cm 7.00 cm 60.00 cm 2.50 cm 46.00 cm 40.00 cm 5.00 cm 5.00 cm 2.00 cm 50.00 cm 175.30cm 60.00cm A A B DOOR A DOOR B 2.00 cm 4.00 cm 7.54 cm 2.00 cm 45° 5.00 cm 5.00 cm 2.00 cm 2.00 cm 4.00 cm 175.30 cm 43.00 cm 17.00 cm 53.30 cm 43.00 cm 17.00 cm 60.00 cm 43.85 cm 43.85 cm 87.60 cm 7.00 cm LOCATION FOR MIRROR LIGHT SWITCH(RIGHT) LOCATION FOR MIRROR LIGHT SWITCH (LEFT) 10.00 cm 10.00 cm 10.00 cm 10.00 cm 2.00 cm 55.00cm 43.00cm 53.30cm 43.00cm 17.00cm 53.30 cm 43.00 cm 28.75 cm 57.50 cm 28.75 cm 28.75 cm WATER HEATER LOCATION 57.50 cm 60.00 cm DALMAN RESIDENCE | 2021
ARCHITECTURAL DRAWINGS
Studio: HQ+DS in affiliation with AFW Singapore
Role: Associate
Scope: Design Development | Contract Documents
India 2022-2023
42 FLL ST-01 LIFT LOBBY ST-02 LOBBY ST-03 PHE DG ELECTRICALROOM PRES PRESSTAIR EC E1 49380 EJ EE EG 26540 36520 WA W1 W2 W5A W8 WB WD WC WE WF WG 46880 11465 3830 9036 11020 3245 7555 2500 2500 3215 54310 WJ 7430 6815 10625 EK 8525 5125 9740 9400 3730 EA EB ED EJ EH EK EF 4830 8860 10695 3730 9740 E2 E3 E4 28985 830 11820 3830 13335 W7 W6 W3 6875 5450 10090 E6 22415 W1 W4 1470 WA WB WD WC WE WF WG 46880 11465 3830 9035 11020 3245 6815 1470 EH 50 WH WH WJ W5 10770 E5 LOW RISE BUILDINGSRESIDENTIAL EXISTING 5-STY BUILDING EXISTING 6-STY HOSPITAL EXISTING TEMPLE 3MWELLBUFFERZONE ROAD WIDENING GIFTED LAND GIFTEDLAND 9000 9000 9000 9000 9000 14000 9000 9000 TOTLOT- 597 SQM 9000 TOT LOT TOT LOT GREEN STRIP N 9000 6000 WAITING AREA ENTRY EXIT ENTRY MLCPRAMPUPTO 011:8.3 6000 DRIVEWAY 2105 LOUNGE 6000 6600 6600 6000 EXIT 6000 TENNISPRACTICE WALL 5500 9000 PARTYHALL FEMALE PRACTICECOURT ARTIFICIALLAWN PLAYGROUND SENIORS'S EXCERCISE CORNER FCC YARD RAMP DN TO RAMP DN TO MLCPRAMPUPTO 011:16 RMU YARD 8415 ELECROOM 6000 DG ELEC ROOM VOID CONSULTANT AND PROVIDE STRUCTURAL TO BE COORDINATED WITH LANDSCAPE 2050 8646 300 2845 5109 2315 2000 1685 280 150 1050 2850 2200 2470 TO LANDSCAPE ARCHITECT'S DETAIL AND SPECIFICATIONS TO LANDSCAPE ARCHITECT'S DETAIL AND SPECIFICATIONS TO LANDSCAPE ARCHITECT'S DETAIL AND SPECIFICATIONS TO LANDSCAPE AND SPECIFICATIONS SPORTS FACILITIES ARE INDICATIVE ONLY AND SUBJECT FOR FURTHER COORDINATION WITH THE LANDSCAPE ARCHITECT AND CLIENT PLAYGROUND FACILITIES ARE INDICATIVE ONLY AND SUBJECT FOR FURTHER COORDINATION WITH THE LANDSCAPE ARCHITECT AND CLIENT MALE FEMALE MALE SCALE CHECKED THE COPYRIGHT OF THIS DRAWING BELONGS TO 'Andy FORM WHATSOEVER, WITHOUT THE PERMISSION OF PROJECT NUMBER DRAWING NUMBER SUBJECT OF DRAWING: PROJECT MANAGER: STRUCTURAL ENGINEER: M & E: DATE OF FIRST ISSUE: DATE OF REV: 197 PROJECT SP RESIDENTIAL DEVELOPMENT ABIDS, HYDERABAD ARCHITECT: OWNER:Innotech Engineering Consult Pvt.Ltd Grune Designs Pvt Ltd.CONSTRUCTION DRAWING Northstar HomesDESIGN CONSULTANT: Andy Fisher workshop Singapore 159546 t: +65 6372 1695 www.afworkshop.com GROUND FLOOR PLAN 1 AR-050 GROUND FLOOR PLAN 1:250 TOWER B (EAST) PENDING AND COORDINATION
Floor Plan
43 1500 TOWER 2 TOWER 1 FIRE BREAK FLOOR FIRE BREAK FLOOR FIRE BREAK FLOOR FIRE BREAK FLOOR TOWER 3~5 ELEVATION LEFT SIDE 1 BOUNDARY 6 BASEMENT SETBACK VENTILATION SHAFT 7 300 3000 600 2400 1845 350 1550 800 1593 632 175 150 205 230 200 175 1150 1077 3515 1845 375 838 1077 B F 7 7 1 LH-607 VENTILATION STALL 1 - SECTION FOR DETAILS TO BASEMENT FLOORS, PLEASE REFER TO BUILDING/ARCHITECTURE DRAWINGS EXIST'G COMPOUND WALL NEW COMPOUND WALL ERECTED WITHIN BOUNDARY WOULD MEAN EXIST'G TREES CANNOT BE RETAINED FLAT ROOF BUILD UP WITH WATERPROOFING AND SCREED TO SLOPE SCUPPER DRAIN TO DETAIL AND SPECIFICATIONS RESIDUAL STONE FILL 50-75MM CROSS SECTION 100MM THICK MINIMUM TO SPECIALIST DETAIL PIPE CLAMP AS SPECIFIED BY SPECIALIST PIPE H0RIZONTAL RUN SLOPE 1:100 OR AS SPECIFIED BY SPECIALIST WATERPROOFING TO SPECIFICATIONS RWP FITTING SIZE AS SPECIFIED BY SPECIALIST RWP OUTLET FITTING SIZE AS SPECIFIED BY SPECIALIST LINE OF COLUMN BEYOND DOUBLE BANK LOUVERS BY SPECIALIST BUG MESH BEHIND LOUVERS BY SPECIALIST SLOT DRAIN W/ MATCHING COVER TOP OF WALL FFL +103.75 FFL +100.75 WATERPROOFING AR-WP 03 FFL +100.70 INTERNAL ROAD GRANITE CAPSTONE IN FLAMED HAMMERED FINISH LH-ST 06 FFL +101.35 FFL +100.72 NEIGHBOURING LEVEL PLANTER WALL GRANITE IN FLAMED HAMMERED FINISH LH-ST 06 1 LH-609 2 LH-609 TILE GROUT AR-GR 01 STONE COPING TOP AND SIDE FINISH TO MATCH WALL FINISH LH-ST 08 Elevation Landscape Section
THANK YOU matagayom@gmail.com 09454877483
