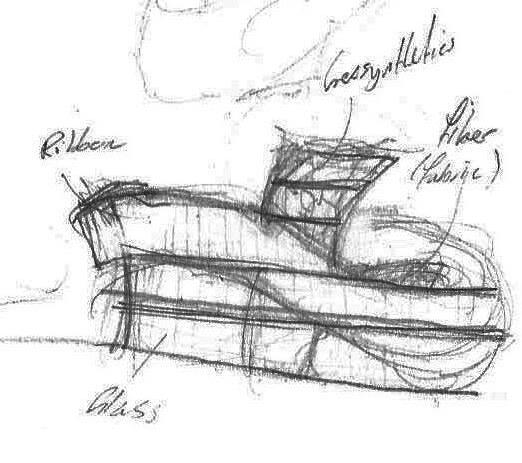

The Tallinn Nautical Recreation Center is a place for boat enthusiasts, athletes, and casual visitors alike. This “vessel” connects the entry of the site to the Tallinn Bay while it blends land and water on the inside.

SITE ENTRY (PEDESTRIAN)

SITE ENTRY (VEHICULAR)

RUNNING TRAIL BEACH BAY DOCKS

SITE ANALYSIS

DESIGN PRECEPTS

REDUCE AMOUNT OF WIND HITTING THE BUILDING

USE MATERIALS HIGH IN THERMAL MASS TO RADIATE HEAT INTO RTHE BUILDING

SLOPE ROOF TO ALLOW SAFE DRAINAGE AND RUNOFF

PRIMARY CIRCULATION

SECONDARY CIRCULATION

VERTICAL CIRCULATION

EGRESS

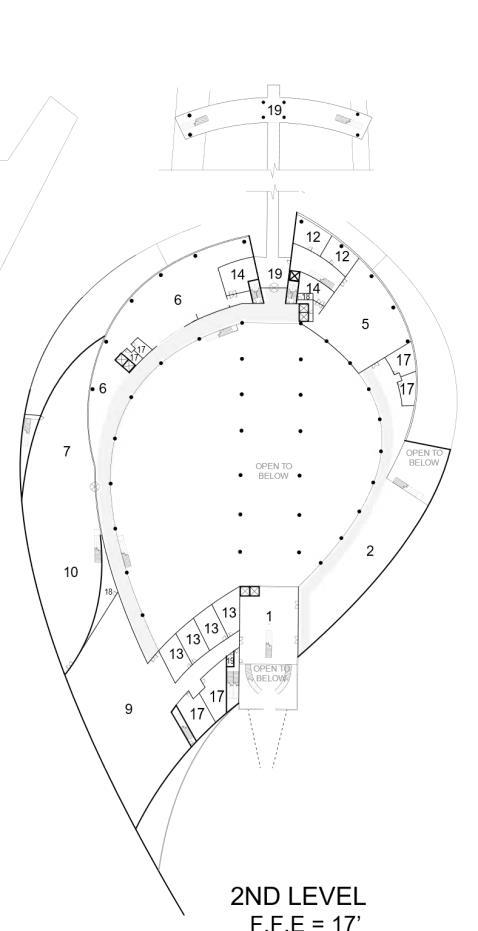

LEVEL 2 LEVEL 1

CIRCULATION DIAGRAM

SUPPLY

RETURN

MECHANICAL ROOM

LEVEL 1

HVAC SYSTEMS DIAGRAM

LEVEL 2

3. ACCESS CHAMBER

4.

5.

6.

7.

8.

9.

1. ELECTRICAL SERVICE DUCT

2. MDPE PIPED SUPPLY TO BUILDING

OVERFLOW FROM STORAGE TANK

INTEGRATED VORTEX FILTER

TANK AND ENCASEMENT

INLET CALMER

FLOATING SUCTION FILTER

SUBMERSIBLE PUMP

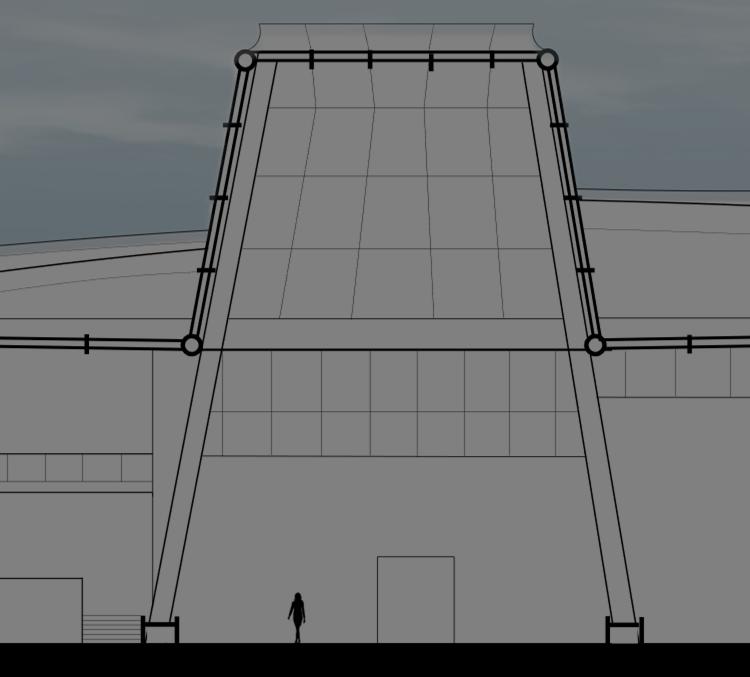

STEEL COLUMNS

STEEL TUBES

STEEL TUBE BRIDGE CONNECTION

CONCRETE

CONCRETE BEARING WALLS

STEEL TUBES

STEEL WIDE-FLANGE BEAMS

STEEL CHANNEL BEAMS

ENCLOSURE

CONCRETE

TRIPLE-PANED GLAZING

GREENROOF

SKYLITE SYSTEM

APPROACH| LINEAR COURTYARD

FRONT ENTRY LOBBY

MAIN AXIS| EXHIBIT SPACE

NORTH-EAST VIEW| LOOKOUT BRIDGE

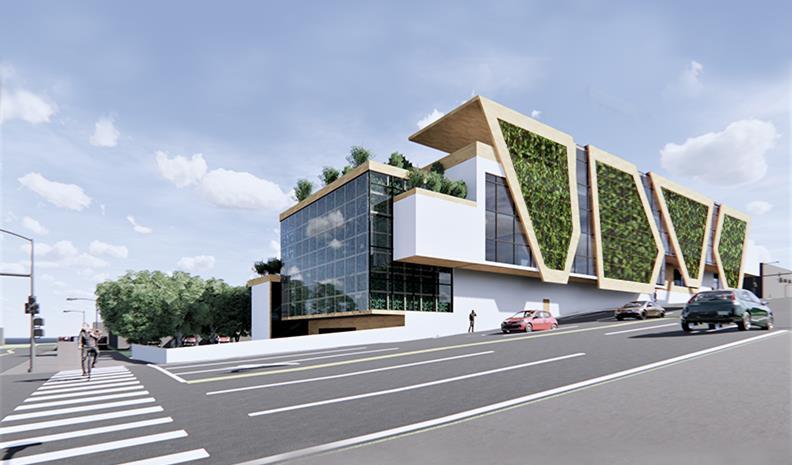

Environmental Learning and Research Center is a symbol of our growing awareness to environmental issues over time. The 35 foot wide “strips” that make up the exterior walls express the notion of the impact we can make, which can then set things in motion and start a movement. With a focus on sustainable design, the outer form acts as a protective shell for what provides the main functions of the building.

CONCEPT

GREENROOF / WATER COLLECTION

NATURAL VENTILATION

REDUCING SOLAR HEAT GAIN BURMING

1. LOBBY/ RECEPTION

CAFÉ

SHOP 5. LEARNING GARDEN 6. EDUCATION CENTER 7. SIMULATION CENTER 8. OFFICE SPACE 9. LECTURE ROOM

CONFERENCE SPACE

11. EXERCISE ROOM

12. WORK/ LEISURE GARDEN

13. ADMINISTRATION

14. RESTROOMS

15. COMPUTER SERVERS

16. STORAGE

17. MECHANICAL

18. JANITORIAL

19. SECURITY

20. PARKING

LEVEL 4-6 (STANDARD OFFICE SPACE)

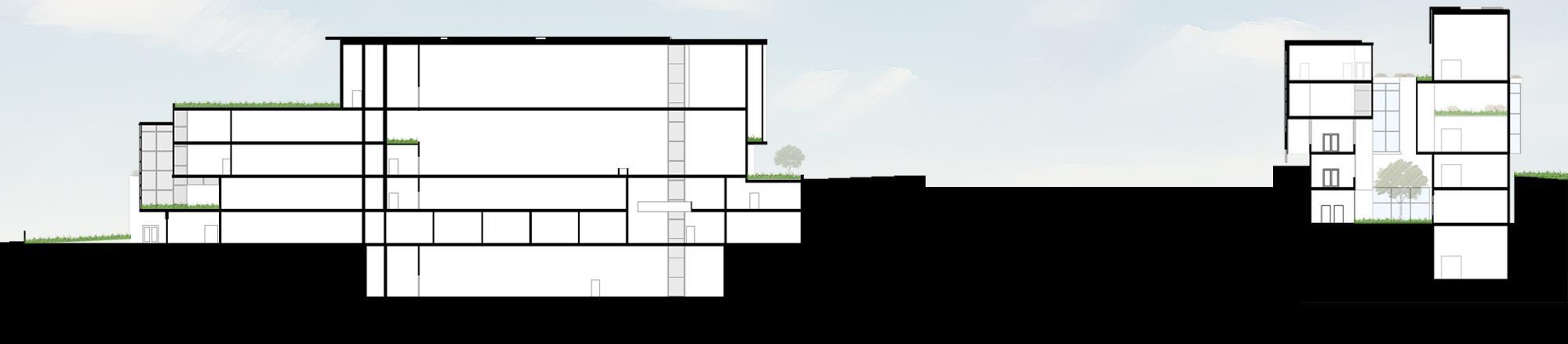

SECTION AA

SECTION BB

FILTER FABRIC

DRAINAGE LAYER

INSULATION LAYER

ROOT BARRIER

WATER CATCHMENT

GROWING MEDIUM

SQUARE STEEL FRAME TRUSS

WALL FINISH

WATER PIPE

STEEL PLATE

CONCRETE RETAINING WALL

CONCRETE FOOTING

ANCHOR BOLTS

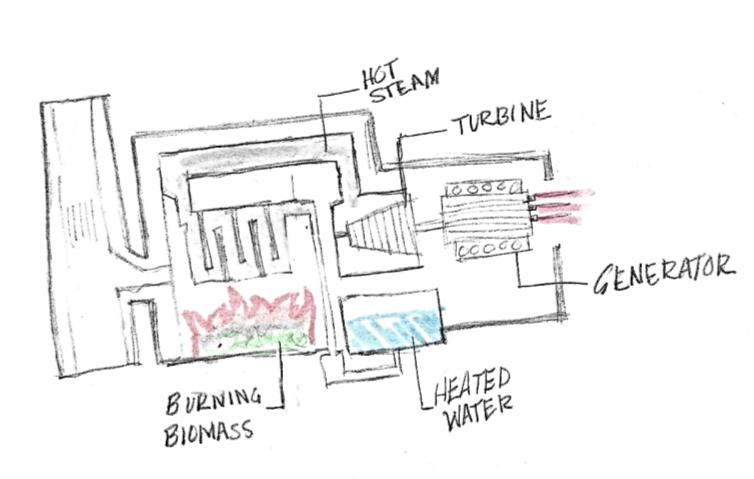

BIOMASS ENERGY SYSTEM

WALL/ FLOOR DETAIL

The Climate Awareness Center reflects the movement and shifting of the climate and environment around us as well as the daily movement of the busy city streets. Moving panels along with natural vegetation provide intensive shading while letting in daylight. Using sustainable design techniques, the building’s adaptive measures to respond to its environment is an expression of our efforts to not impose on the environment and support climate balance and health.

9AM- LOW SUN HITTING EAST

12PM- HIGH SUN HITTING SOUTHEAST

3PM- HIGH SUN HITTING SOUTHWEST

ENTRY LOBBY

HARNESSING RENEWABLE SOURCES

WEST FACING GREEN ROOFS

RAINWATER + SOLAR ENERGY

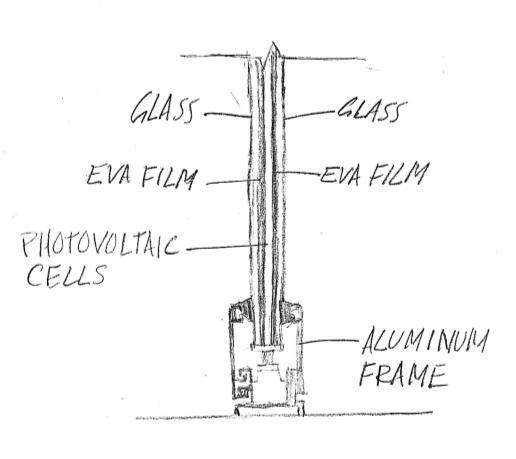

GREEN ROOF PVC GLAZING

GREENHOUSE BIOMASS

Sunbeam Library is a place for the people of Tallahassee to expand their horizons of knowledge. Suitable for those of all ages, this library offers an environment for everyone, including areas for computers, lounging, group work, light snacking, and outdoor space. The main challenge for this design was the gradual 40-foot slope running from the northeast corner of the site to the southwest corner. To take on this challenge, parts of the building are partially underground. These areas are places that wouldn’t be exposed to the general public and won’t require much sunlight. There are also spaces that can be accessed from outside underneath the library. Thinking of natural sunlight and how it effects one’s learning and overall mindset, the layout of the library draws inspiration from the radial concept of sun rays.

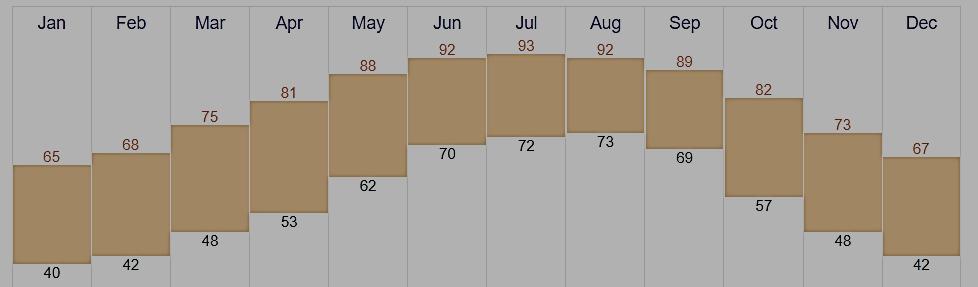

DRAINAGE DIRECTION SITE

COMPOSITION

The spaces hang diagonally off the linear main circulation space to create a radial effect for the overall composition of the library.

16% GRADE PERCENTAGE

North Bronough St.

North

Duval Street

7. ADULT READING AREA

LOBBY

8. CAFÉ

9. MULTI- PURPOSE SPACE

10. OUTDOOR SEATING 11. RESTROOM

NORTH ELEVATION EAST ELEVATION

SOUTH ELEVATION WEST ELEVATION

PRECAST CONCRETE WALL PANEL

CONCRETE

WOOD STUDS W/ INSULATION WALL FINISH

FLOOR FINISH

CONCRETE SLAB

PRECAST CONCRETE WALL PANEL

CONCRETE

CONCRETE FOOTING

ASPHALT SHINGLE ROOF

PRE-ENGINEERED RAFTERS CEILING FINISH

WOOD STUDS W/ INSULATION WALL FINISH

TYPICAL WALL DETAIL

OPEN WORKING AREA
