CONTENTS THE STATION _______________________________________ Recreational Center 3 THE MODULAR HOUSING UNIT FACTORY _________________ Pre-fab Housing Unit 8 THE SLOW SERENE ________________________________________________Rest Stop 14 EX-FILANDA _________________________________________________ Housing Proposal 18 COMMUNITY CENTER ________________________________ Community Center 23
THE STATION

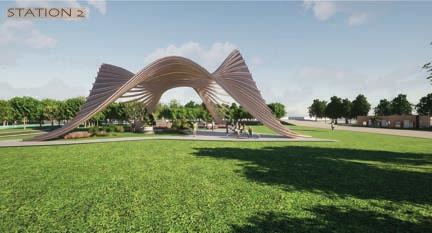

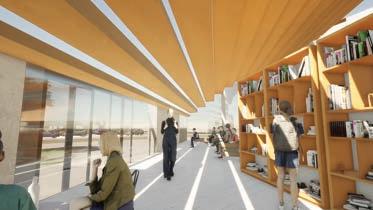

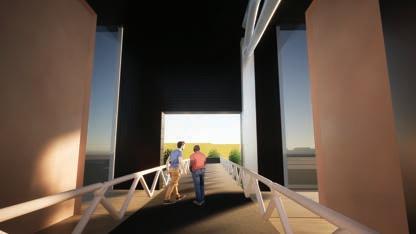

STATION 2

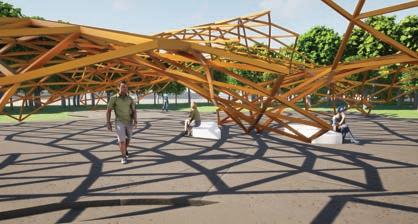

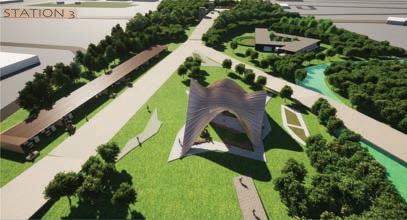

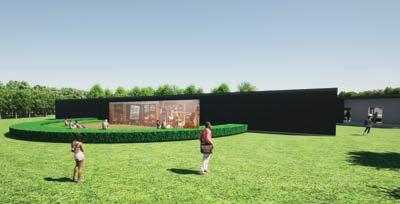

STATION 3

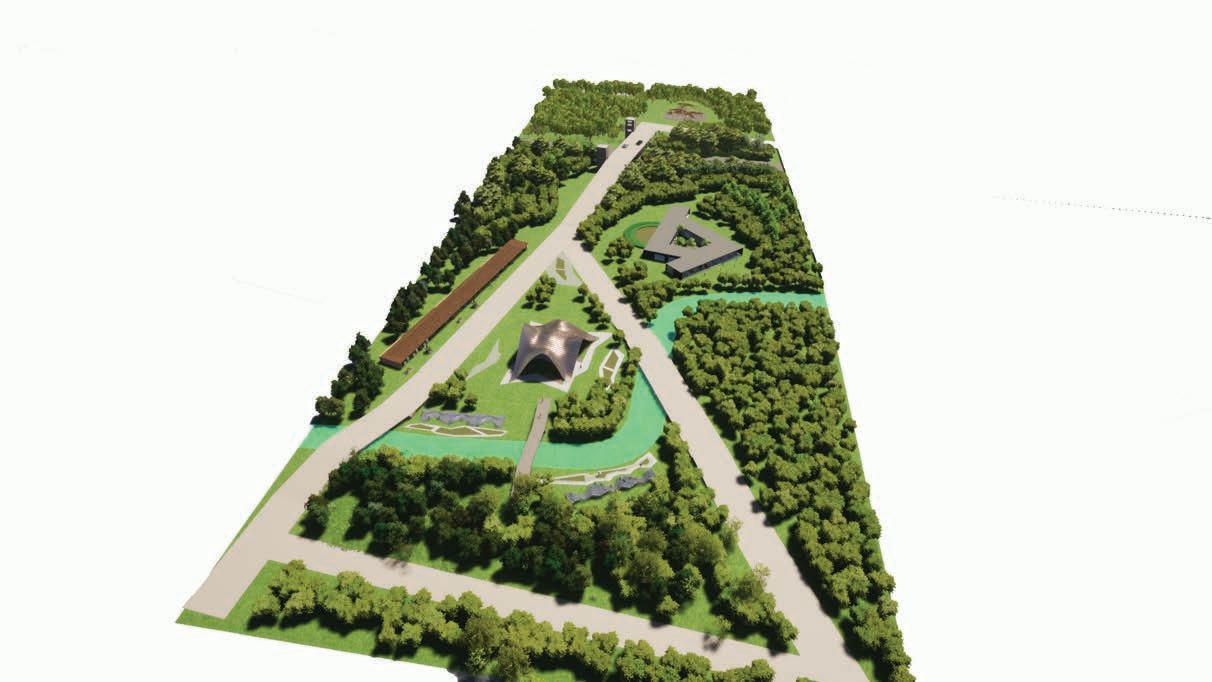

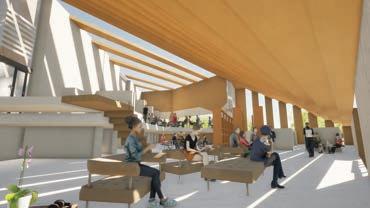

THE STATION l Coalport Trenton, NJ
The Station is a project made for the town of Coalport located in Trenton, NJ. The intention of this project after visitng this town and seeing that it is a “ghost” town it was valuable for me and my teamate to understand what this community needs. We decided to do sort of a recreational center/ job recreation with markets which was the main source of income we saw in the town. The decision to create paths for orientation and different zones or stations like we decided to call it was to create that sense of wonder and give back a little what this community desperately needs.

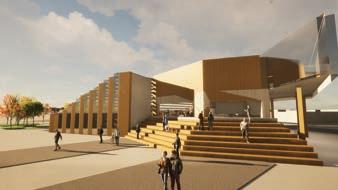

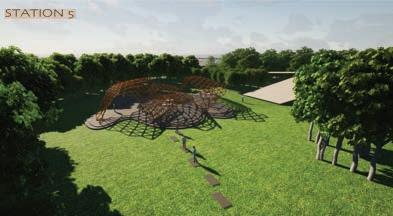

STATION 5

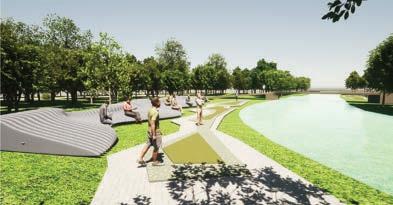

STATION 4

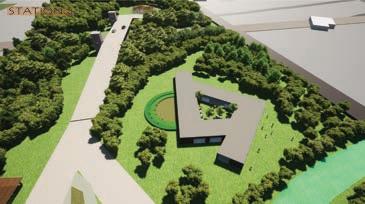

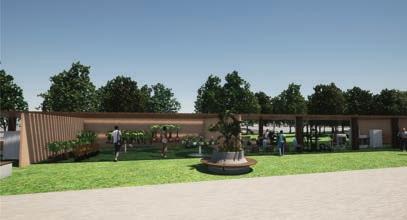

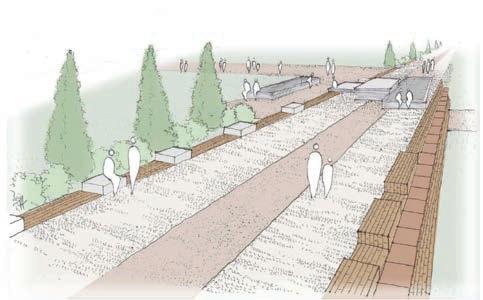

STATION 1
1

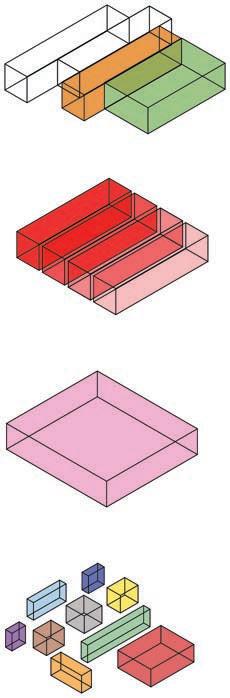

Permanent Program Temporary Programs Conectors Circulation

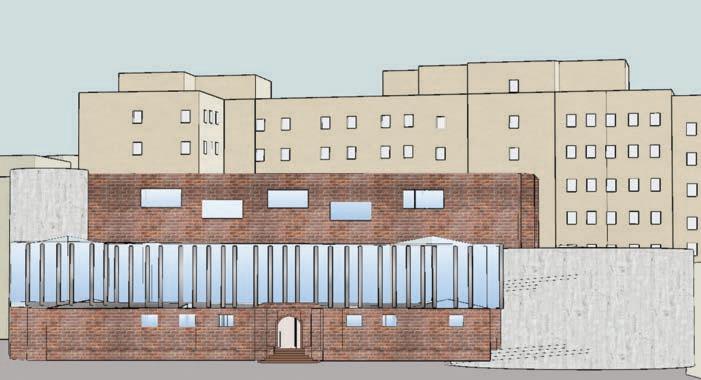

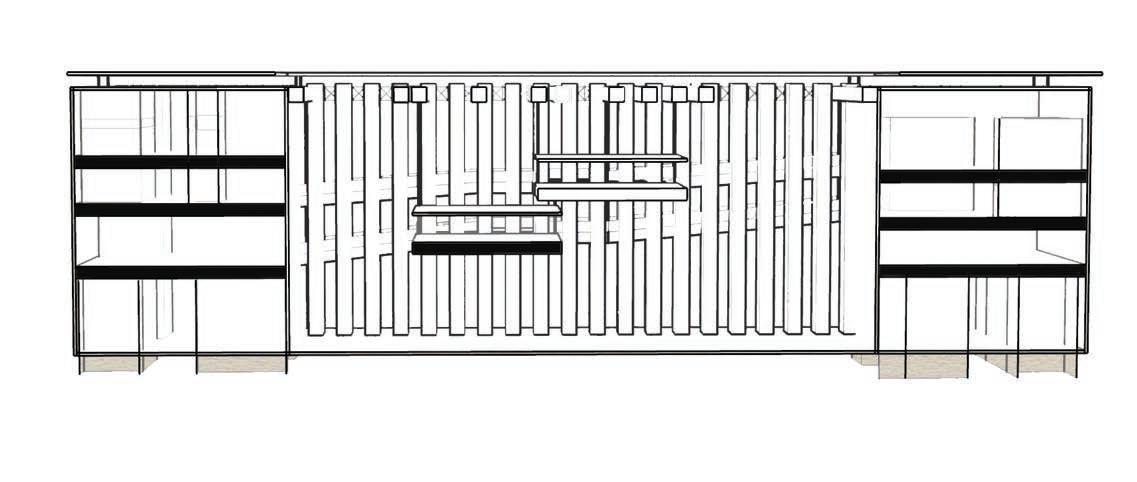

FRONT ELEVATION
SCALE: 1/16”=1’-0”

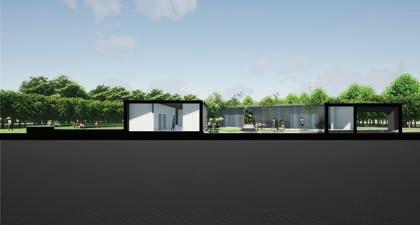

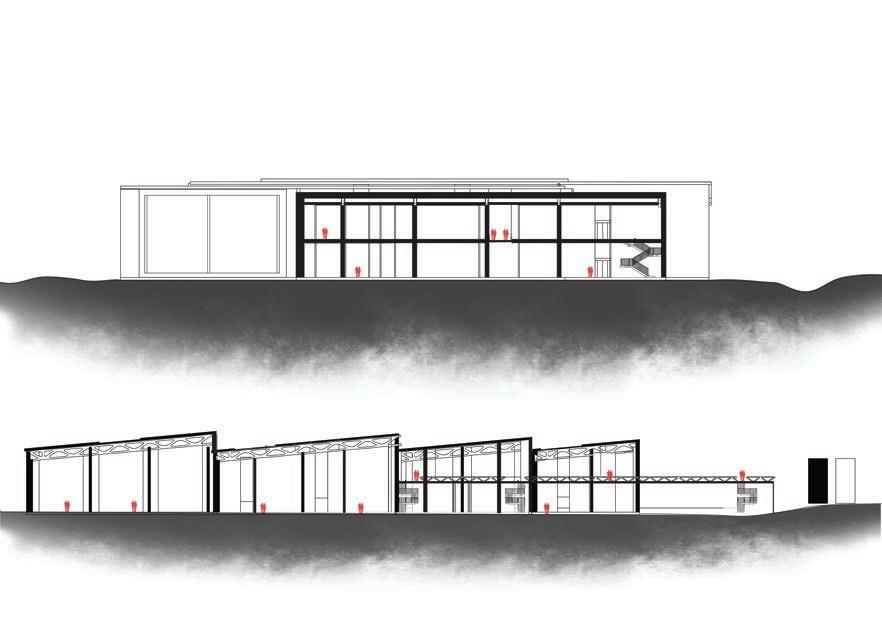

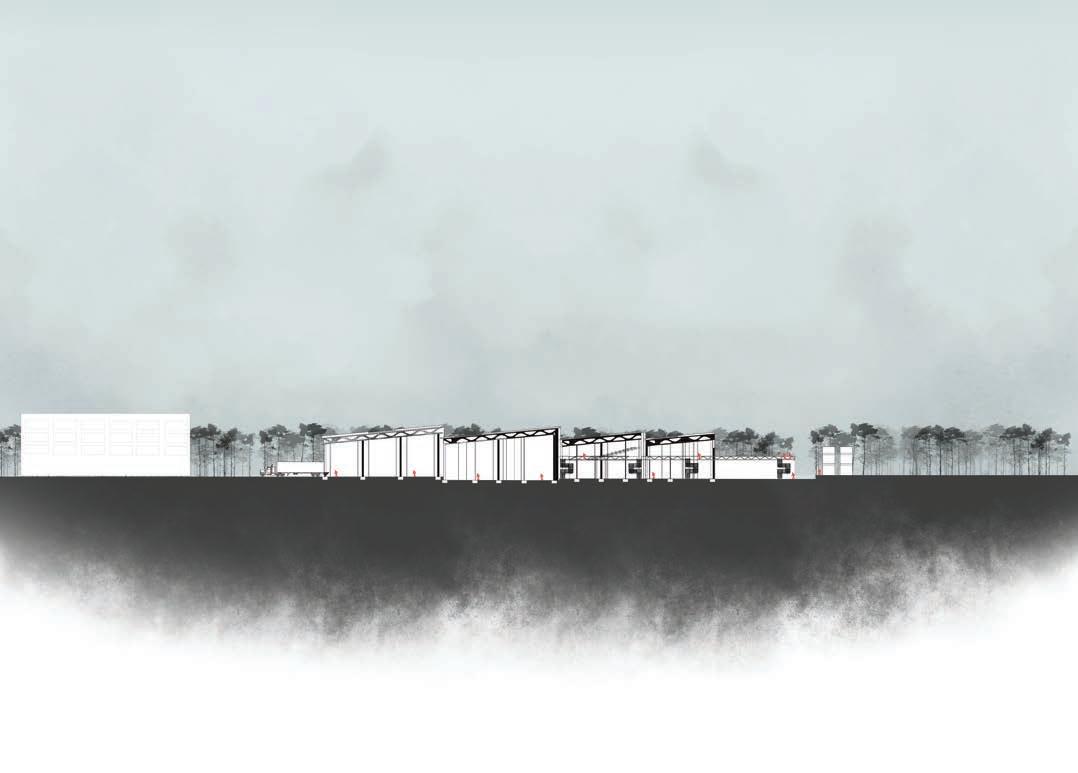

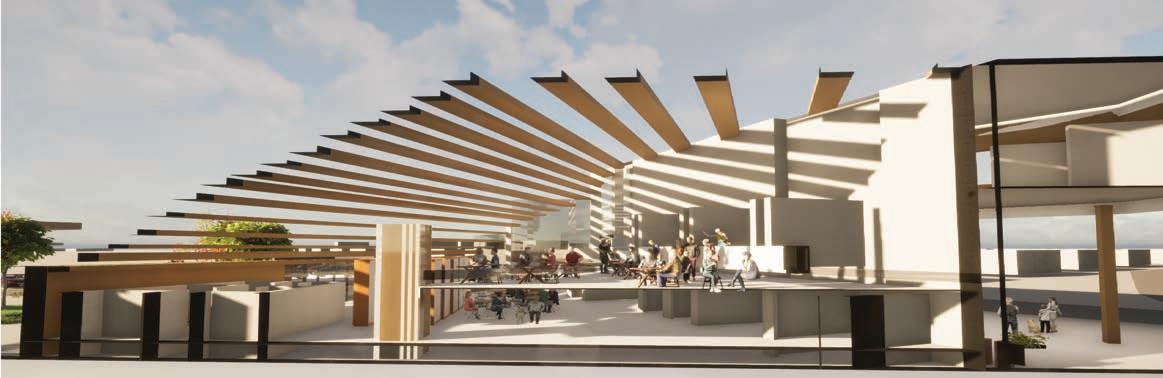

CROSS SECTION
SCALE: 1/16”=1’-0”
CROSS SECTION
FRONT ELEVATION
Public Permanent
open area
NEW FOUNDATION
NEW FOUNDATION

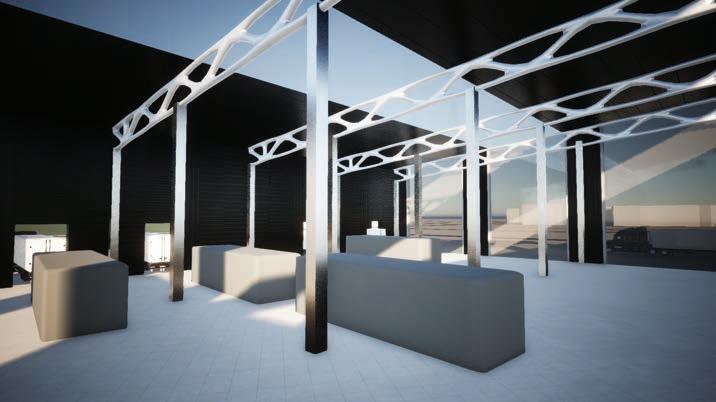

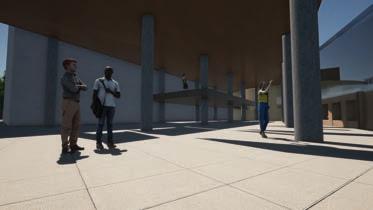

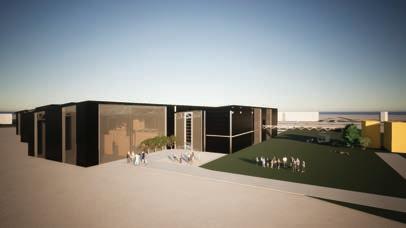

THE MODULAR HOUSING UNIT FACTORY l Coalport Trenton, NJ
The Station is a project made for the town of Coalport located in Trenton, NJ. The intention of this project after visitng this town and seeing that it is a “ghost” town it was valuable for me and my teamate to understand what this community needs. We decided to do sort of a recreational center/ job recreation with markets which was the main source of income we saw in the town. The decision to create paths for orientation and different zones or stations like we decided to call it was to create that sense of wonder and give back a little what this community desperately needs.
2
1 2 3 4
SKYLIGHTSSKYLIGHTS
TRUSSES
COLUMN
BRIDGE
WALLS
EGRESS STAIR
OFFICES EMPLOYEES AREA BRIDGE LOBBY TRAINING PUBLIC SPACES/ MEEYING AREAS SHOWROOM EMPLOYEES AREA STORAGE DELIVERY OF MATERIALS ASSEMBLY LINE ASSEMBLY LINE
PROGRAM ANALYSIS
30,000 SQ FT 16,000 SQ FT 12,000 SQ FT 3,000 SQ FT 4,000 SQ FT 4,000 SQ FT 7,000 SQ FT 1,000 SQ FT 1,200 SQ FT
78,200 SQ FT
plate plate plate column, base plate top flange channel sections fillet weld fillet weld fillet weld fillet weld holding-down bolts base plate 3mm fillet weld bolts foundation concrete grade composite slab column, concrete-filled non-shrink grouting bolt location tube and anchor plates ventilation hole
UP 12’ 5’- 9” 3’ 3’ 36” 12’ STRINGER RECTANGULAR SECTION HOLLOW METAL PROFILE

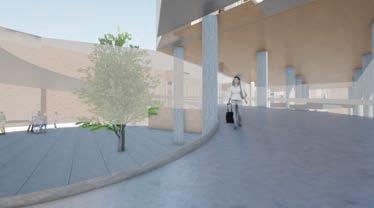

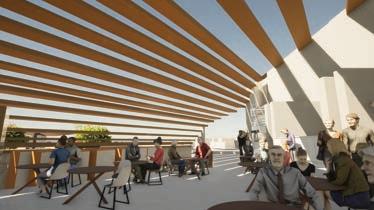

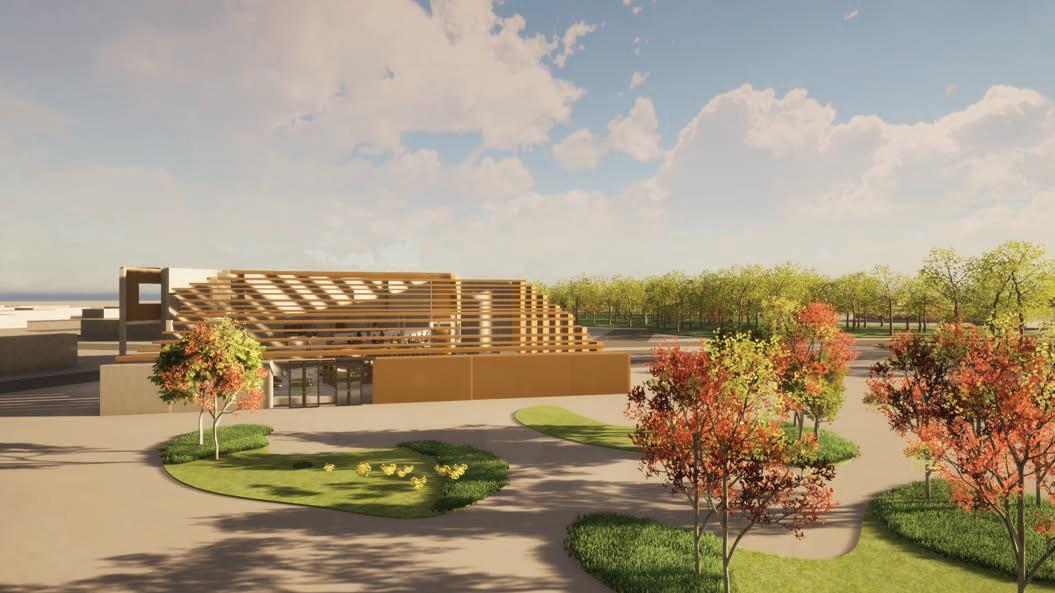

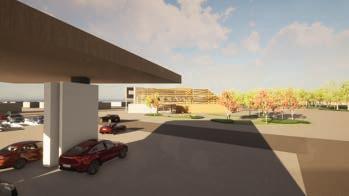

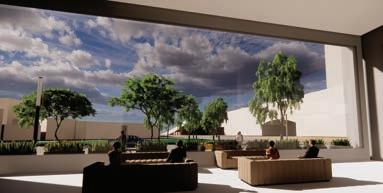

THE SLOW SERENE REST STOP l Milltown, NJ
The Slow Serene rest stop located in Milltown NJ is a completely different experience on how rest stops are not only designed but also the behind inetention of the design into the whole environment of the building. This three story building creates the ilusion that is ont big level because of the panel roof on top. Therefore, it is much more than that. The projection of the building is emphazided on the community of Milltown but also the people coming from the NJ Turnpike.
3

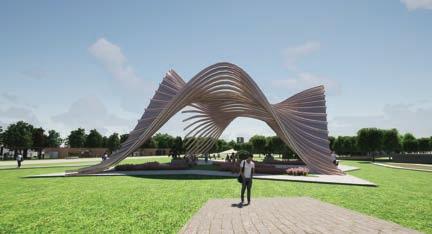

LEGEND

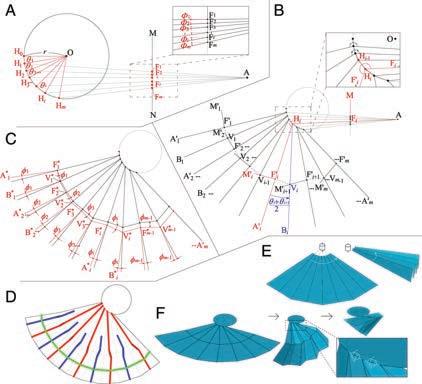

A. RADIOUS OF CIRCLE/ PERSPECTIVE LINES
B/C. ANGLE OF LINES/ PROJECTION AND SEPARATION OF LINES
D. FOUNDATION OF CUTTING POINTS
E/F. FOLDING LAYOUT IN DIFFERENT HEIGHT PERSPECTIVES
LEGEND NJ TURNPIKE SITE APROX. TIME 5 MIN. SCALE: 1/128”=1’0” ACME
CONCEPT IDEA
FORD AVE FLOOR
SCALE
N MAINST. FORD AVE FLOOR PLAN SCALE 1/16”=1’-0” N MAINST. FORD AVE FLOOR PLAN SCALE
N
MAINST.
PLAN
1/16”=1’-0”
1/16”=1’-0”
NOISE
SCHOOL & GREEN SPACES
CIVIC SPACES
SCHOOLS VS. PARKS/ PLAYGROUNDS
DENSE/ CLUSTER ENVIRONMENTS CALM/ RELAXING ENVIRONMENT RAMP/ CIRCULATORY SYSTEM BUILDING FEEL/ ENVIRONMENT COLLAGE

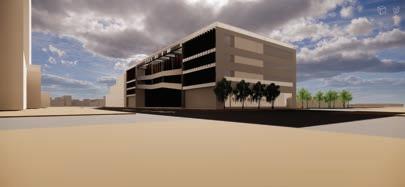

EX-FILANDA HOUSING PROPOSAL l Rome, Italy
The Ex-Filanda house proposal conveys historical elements of Rome into the projection and analysis into the design of the project itself. Itʼs importance is in the remembrance of the idenity of Rome. Certain characteristics of the building creates its cohesive and structural aspect of the building. The relationship between the different shapes of the building are directioned intentionally to pronuntiate important historical architecture of their surroundings. This specific proposal could be used as a prototype that could be repetitive into the city of Rome.
4
FRAMING THE URBAN CONTEXT

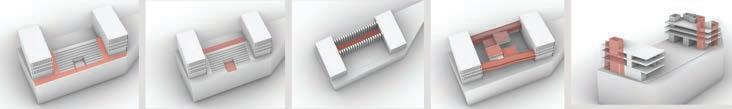

SKETCHES/MASSING MODELS
MASSINGS

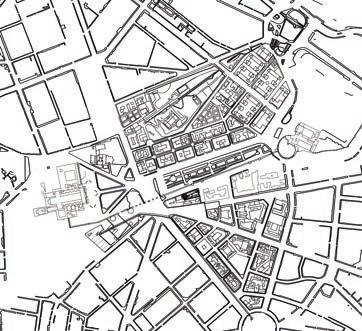

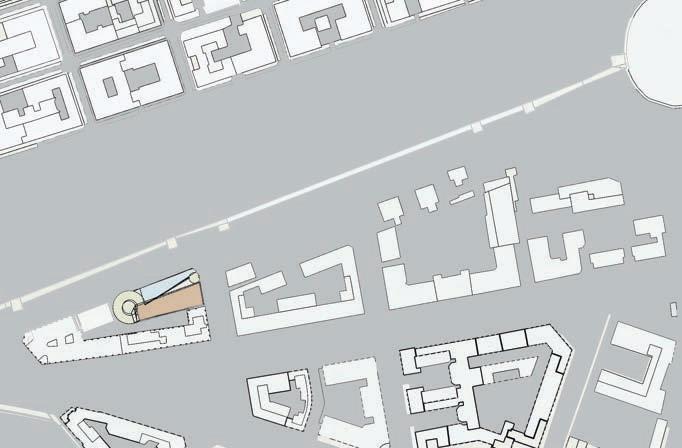

SITE PLAN SCALE: 1/62”=1’
CIRCULATORY SYSTEM
POSITIONS/ANGLE
1/12”=1’-0”
1/12”=1’-0”
1/12”=1’-0”
THIRD FLOOR PLAN FLOOR PLAN
SCALE: 1/12”=1’
SECOND MEZANINE FLOOR PLAN SCALE:
FIRST FLOOR PLAN SCALE:
VIALE CASTRENCE VIA ALTAMURA
VIALE CASTRENCE VIA ALTAMURA
1/12”=1’ SCALE:
VIALE CASTRENCE VIA ALTAMURA
SITE PLAN
SCALE: 1/32”=1’
SCALE: 1/12”=1’0”
SCALE: 1/12”=1’0”
RESIDENCES CIRCULATION
EX- FILANDA
COMMUNAL SPACES
PROGRAM DIAGRAM

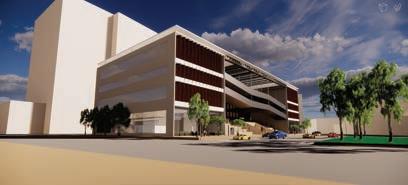

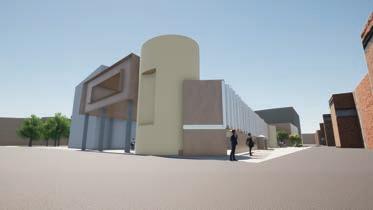

COMMUNITY CENTER l Newark, NJ
The community center located in North Ironbound in the city of Newark is a building designed specifically for the needs of this community. The purpose of it it not only function as a daycare and amenities to help people but also it is a source of new jobs. This building is designed in a way that each “box” is considered a program giving its privacy and personality taking in consideration how different the programs could be. The personality of the aesthetics of the building makes you feel at home and bring you in to explore it. Itʼs simplicity in materials also gave it a modern look giving it the purpose to serve the people of the town.
5
DESIGN CONCEPT FOR HOPE CENTER COMMON
UNIQUE SHIFTING SPACES
TWO TOWERS CONTAINIG, FUN ELEMENTS IN THE CENTER
USE OF AN OFFICE SPACE

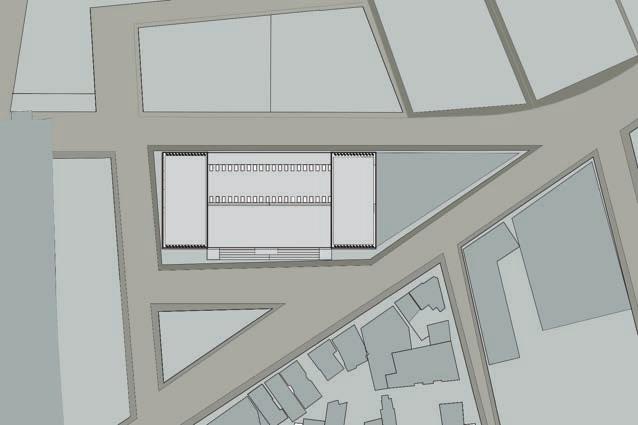

SITE PLAN 1” 128’ Site Immigration Center Parks Labor Union Daycare Potential sites Selection of potential sites Parks Water POTENTIAL SITE MAP LEGEND 1” 38” Ironbound Demographics Map Legend Demographics Map Parks Hispanic Black White Mixed Unknown No Residential 1’ 128’ SITE PLAN 1” 16’
STRUCTURE COMMUNITY SPACES
OFFICE SPACES
STAIRS
FLOOR PLATE

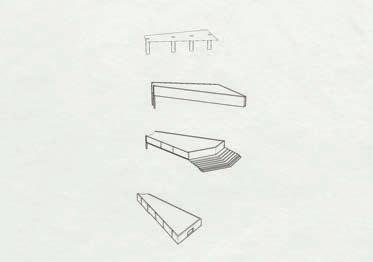

ELEMENTS DIAGRAM
SPACE First Floor Plan 0 16’ 64’ 32’ Third and Fourth Floor Plan 0 16’ 64’ 32’
ROOF
RAMPS
COLUMNS
MAIN
SPATIAL

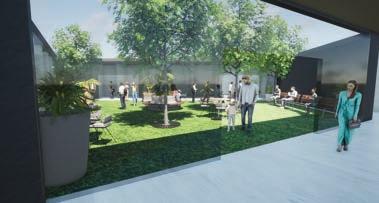

COURTYARD
Second Ground Floor Plan 384’ 0 128’ 1152’3456’ LONGITUDINAL SECTION
