Portfolio 2026 Michael Kim

michael kim portfolio 2026

MICHAEL KIM EDUCATION 2016 - 2025

EXPERIENCE 2025–Present

Email: michaelkim004@gmail.com Phone: 805-298-5100

California State Polytechnic University, Pomona

Bachelor of Architecture • GPA: 3.08 • President’s Honor List, 2024–2025 • Interim Student Exhibition Participant, 2018 & 2025

Architectural Intern / Designer

Design Concepts | 3340 Riverside Dr, Chino, CA 91710

• • •

Summers, 2020–2023

Produced architectural and MEP drawings across multiple projects, with experience across different phases of design and the ability to contribute at various stages of project development Coordinated with an overseas drafting team by defining scope, issuing clear direction and references, and reviewing drawings to ensure accuracy, consistency, and alignment with project standards, contributing to project coordination, quality control, and timely delivery Coordinated across architectural, structural, and engineering consultants by facilitating the exchange of technical information between disciplines, ensuring alignment of systems and reducing coordination conflicts during project development.

Shell Gas Station Attendant

Family Owned | 14562 Valley Blvd, La Puente, CA 91746

• • •

SKILLS

Handled daily operations including stocking inventory, running the register, and closing out transactions Helped streamline restocking by organizing backstock, making it easier to track inventory and avoid unnecessary reorders.

Developed customer service skills by handling cash, resolving issues, and serving a diverse clientele

Adobe Photoshop Adobe Illustrator Adobe InDesign Adobe Premiere Pro

Adobe Acrobat Rhino 3D AutoCAD Microsoft Office

3D Printing Laser Cutting Physical Modeling DaVinci Resolve Videography

TABLE OF CONTENTS

ACADEMIC WORK 01.....COMMERCE LAGOON: A BATHHOUSE/WATER TREATMENT FACILITY 02......................................ABSTRACTING CRAFT: A MAKERSPACE/MUSEUM 03.....................................................BETWEEN WORLDS: END-OF-LIFE CARE PROFESSIONAL WORK 04.................................................................................THE DOG CAMP HOTEL 05......................................................................................CLARKDALE HOMES 06......................................................RV STORAGE ACCESSORY STRUCTURE

c

a Cha

ngin

gR

oom

s

Bath

MECH

ELEC

Lobby Tasting Area

Labs Office

plan 1/32" = 1'

Storage

-01commerce lagoon:

water treatment/public bathing facilities

b

commerce, california

in collaboration with Chris Palominos

AC & Blower

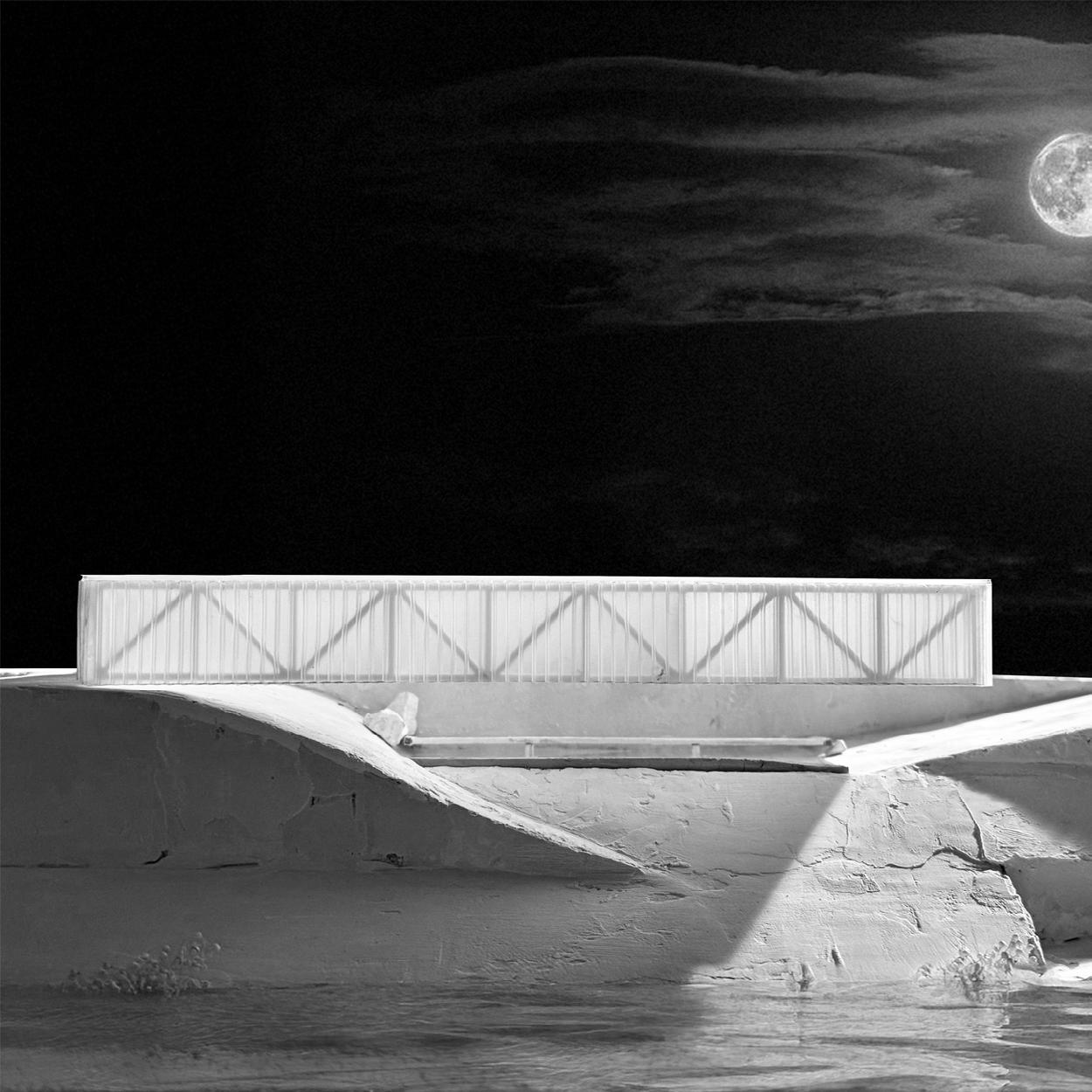

This project is a water treatment facility and bathhouse located in the City of Commerce. The city is mostly industrial, filled with warehouses and utility infrastructure that keep the region running but often overlook the small residential community nearby. The project looks for ways to reconnect these two worlds and give residents a stronger sense of connection to the systems that shape their city.

CTRL MECH Chem Utility

Indoor Equip Outdoor Equip

Electrical Room Mech Process

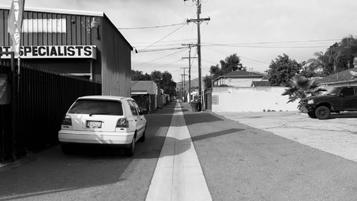

The site sits between three main elements: Veterans Memorial Park, the Laguna Bell Reservoir, and the Rio Hondo Bike Path.

The proposal transforms the bike path into a designed landscape and water treatment facility that extends the park and connects it to the reservoir. This creates a new continuous public space that blends infrastructure, recreation, and education.

A bathhouse is integrated into the facility to invite residents to engage with the process of water purification in a more personal way. The design is made up of five modular roof structures supported by steel trusses. Four contain the phases of water treatment including sedimentation, filtration, disinfection, and exhibition, while the fifth holds the bathhouse. The repeated geometry connects the project to its industrial setting, while the curving ground forms guide circulation and movement below.

The project turns a utilitarian process into a civic experience, showing how infrastructure can be both functional and human.

0

5

15

25

5' - 5" Mar. 2024 0' - 0" Jun. 2024

section a

1/16" = 1'

5' - 5" Mar. 2024 0' - 0" Jun. 2024

section a

section a

1/16" = 1'

site plan

0

50 100

250

section b

1/128" = 1'

section b

1/16" = 1'

5' - 5" Mar. 2024 0' - 0" Jun. 2024

5' - 5" Mar. 2024 0' - 0" Jun. 2024

0

5

15

0

5

25

15

25

5' - 5" Mar. 2024

-02abstracting craft:

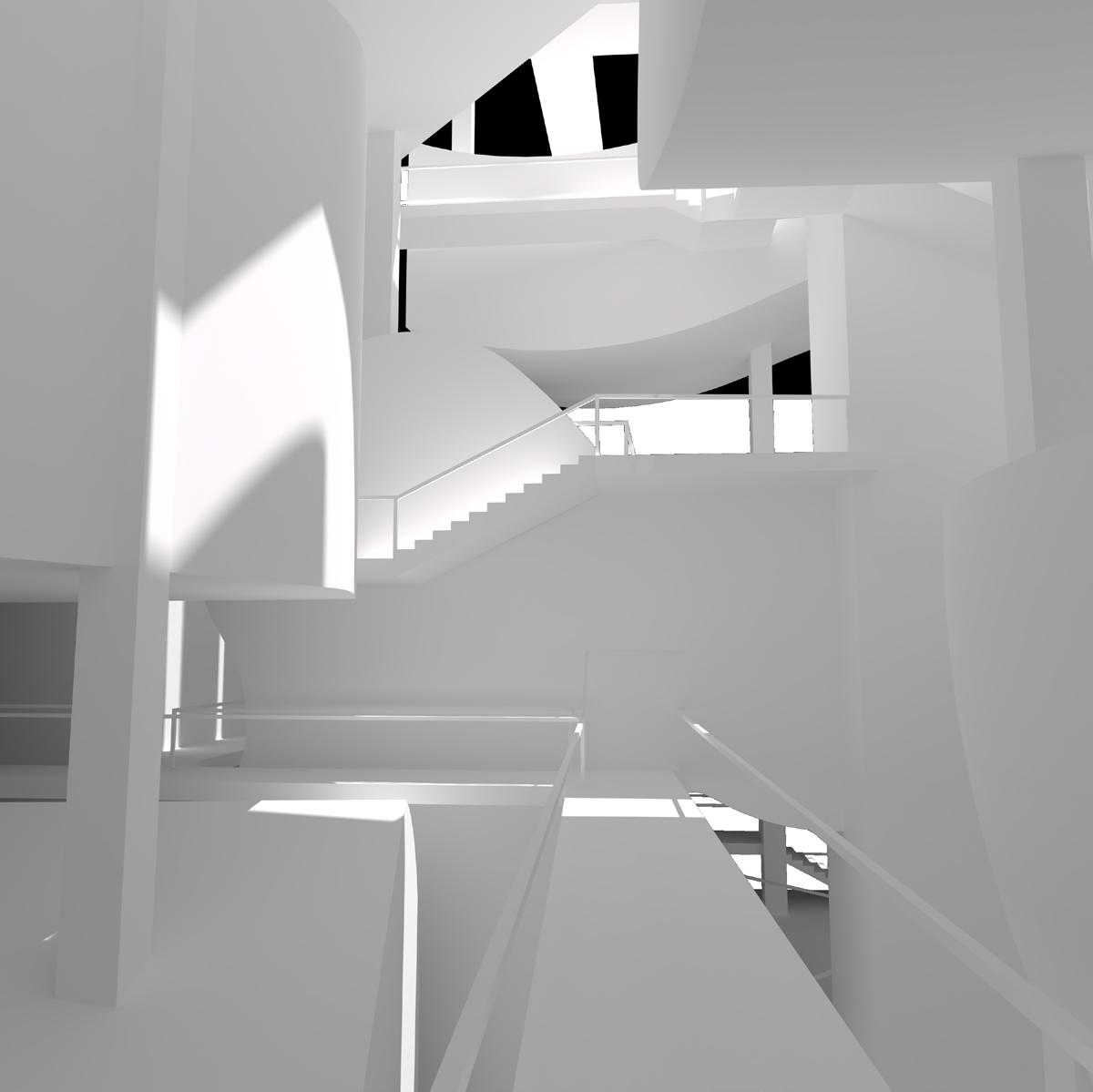

a makerspace/museum fashion district, los angeles This project is a makerspace and museum located on the west edge of the Fashion District in Los Angeles, right next to the 10 Freeway and near LATTC. The area’s background in technical education and craft informed the program of a makerspace intended to serve as a resource for students, hobbyists, artists, and makers in general.

The main idea for the project focuses on the relationship between analog and digital craft and how that relationship can be expressed through design. Today, digital tools and automated machines allow us to create precise and almost perfect objects.

The project reflects on this condition by exploring how the imperfections of analog craft can inform digital design and representation. In this sense, digital craft becomes an abstraction of analog craft, translating the gestures and irregularities of hand-making into spatial and representational form.

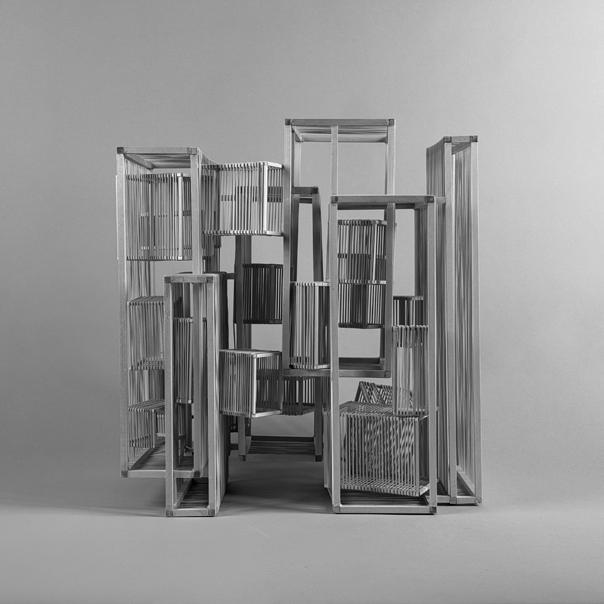

The design is composed of found objects, half of which are icons of product design and mass production, while the other half are artifacts of physical making, such as scrap, leftover, or imperfect pieces I collected from various makerspaces, woodshops, and metal shops. These objects are placed within a steel column grid structure, but they are intentionally misaligned and subtly rotated to evoke the feeling of something placed by hand. The imperfection is not found in the surface or texture of the objects themselves, but in how they are represented and arranged within the larger framework. The point is that although we now live in a digital world with tools that allow for extreme precision, those same tools carry the same potential for human error found in physical making.

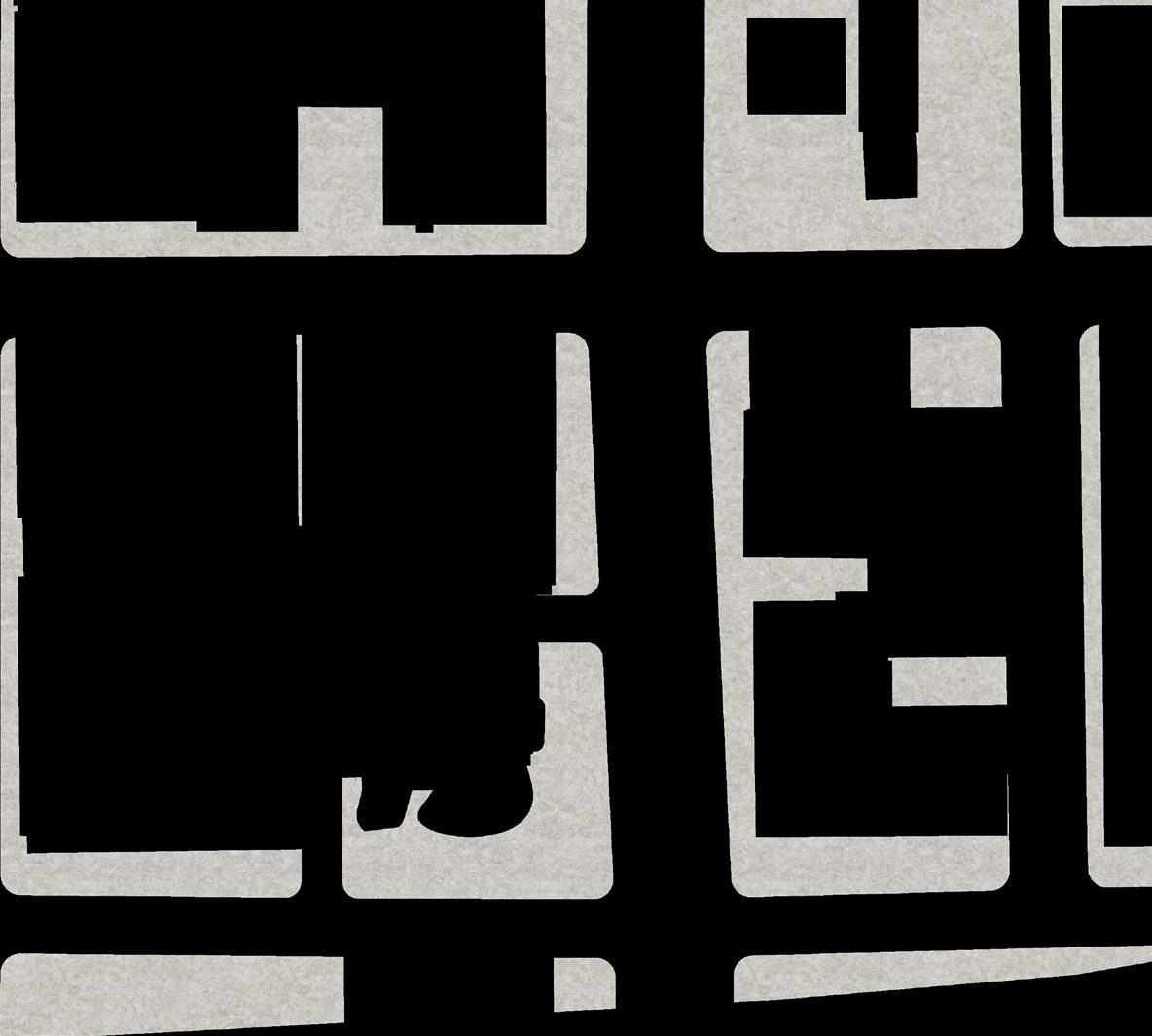

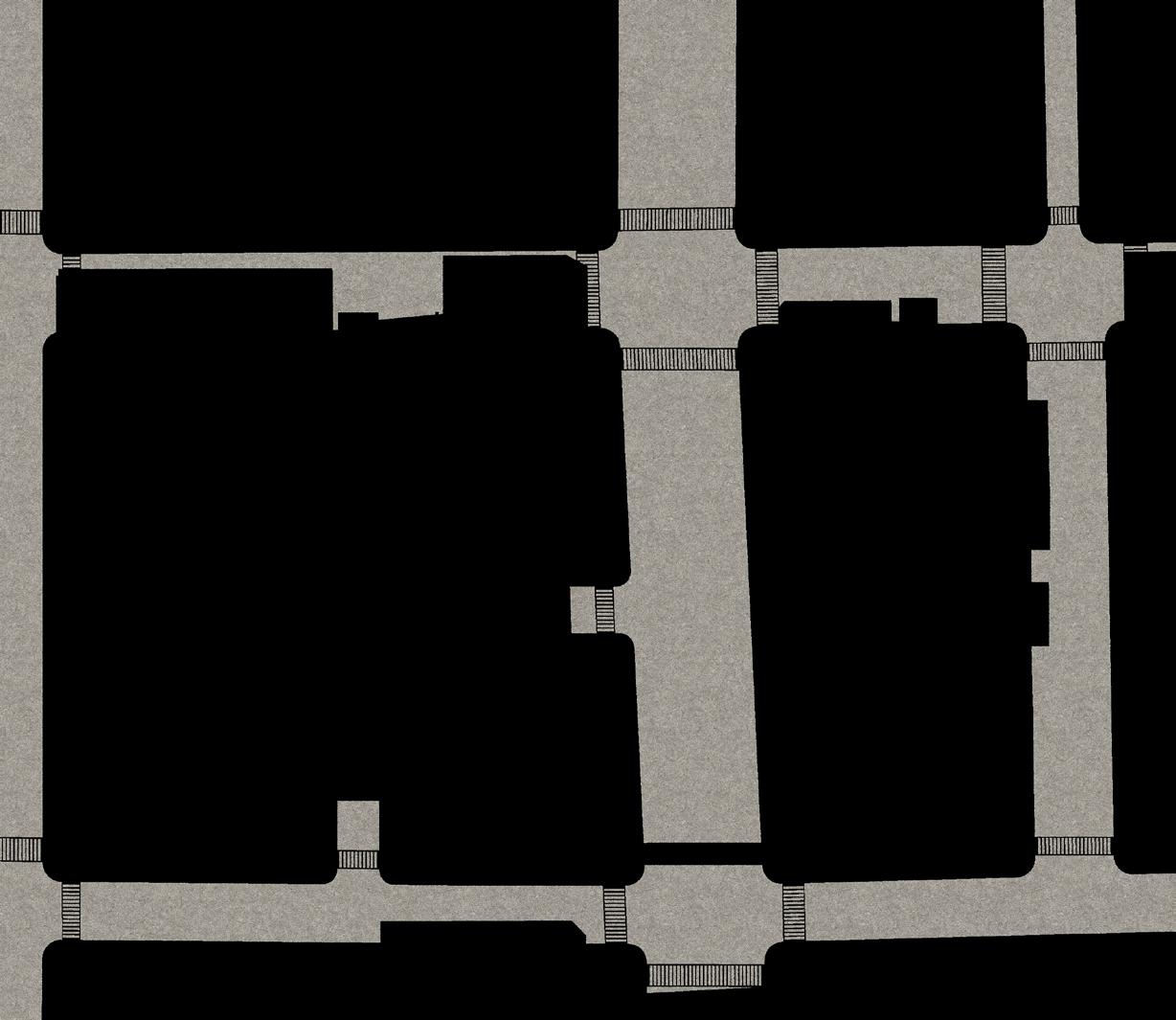

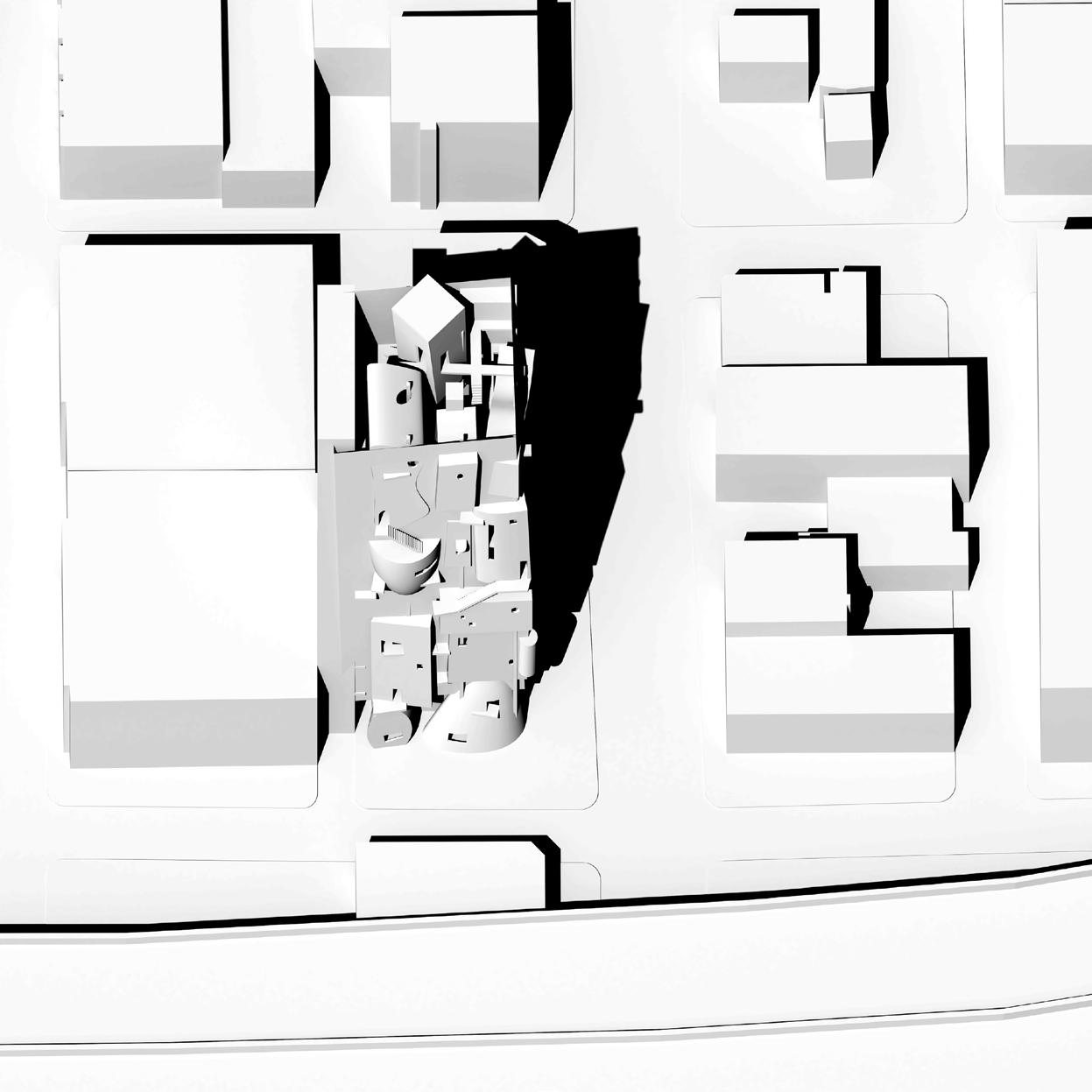

site plan

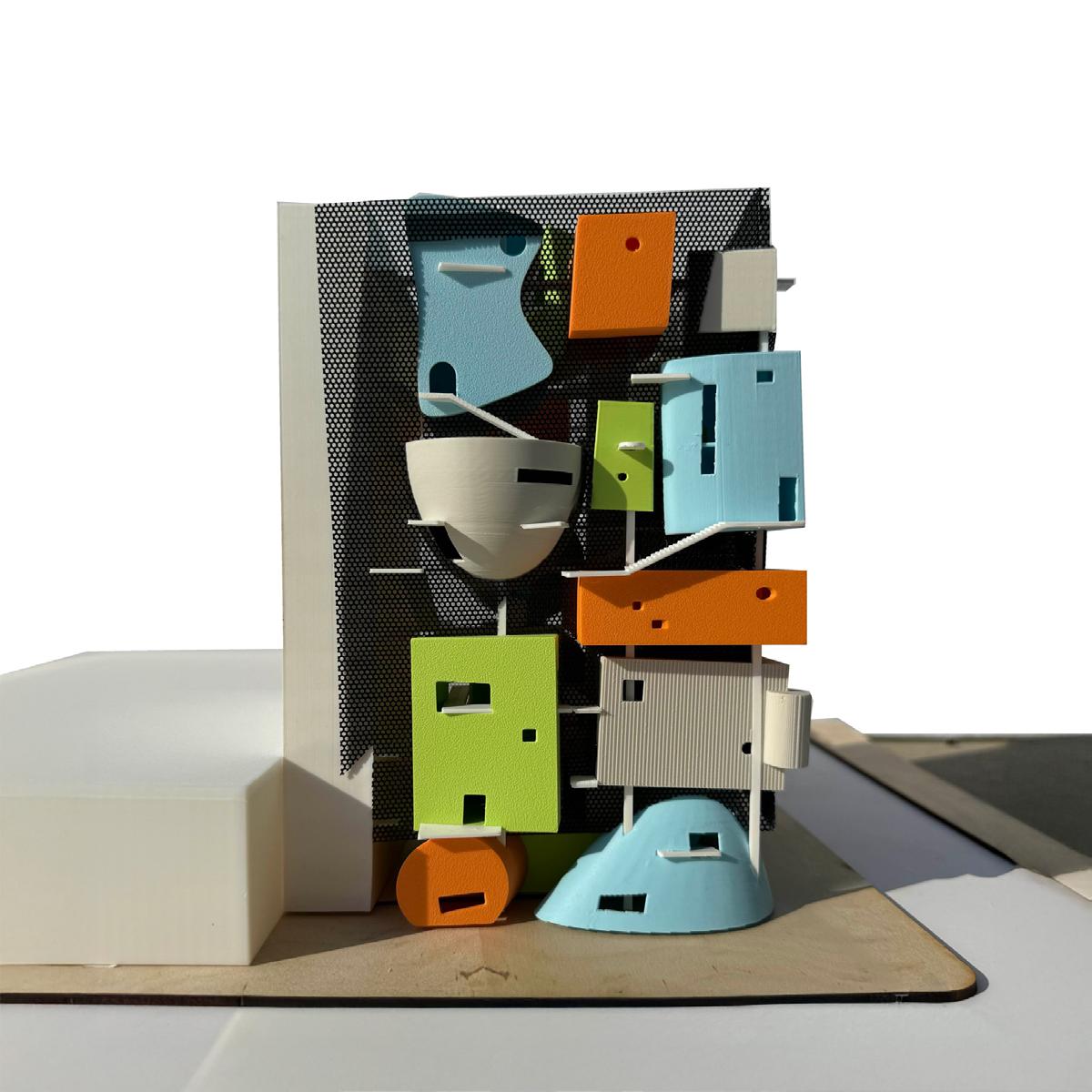

study model

Guhl Table / Object Gallery

Wood Block 1/ Fabrication Lab

Wood Block 2 / Finishing Room

Progetti Compiuti / Archive Gallery

3D Printed Half Egg / Assembly Lab

Wood Block 3/ Material Lab

Wood Block 4 / Painting Booth

Savoy Vase / Digital Gallery

3D Printed Semisphere / Cafe

3D printed cut cylinder / Metal Shop

NPK Mailbox / Object Gallery

Wood Block 5 / Woodshop

Plaster Block 1 / Process Gallery

Akari Lamp / Rotating Gallery

Acrylic Stool / Work Studio/Exhibition Room

Silicone Mold 1/ Tool Library

Guhl Table / Gift Shop

Silicone Mold 2 / Lobby

Plaster Block 2 / Gallery

Mesa Vida Table / Event Space

found objects catalog

a

b

floor plan

section a

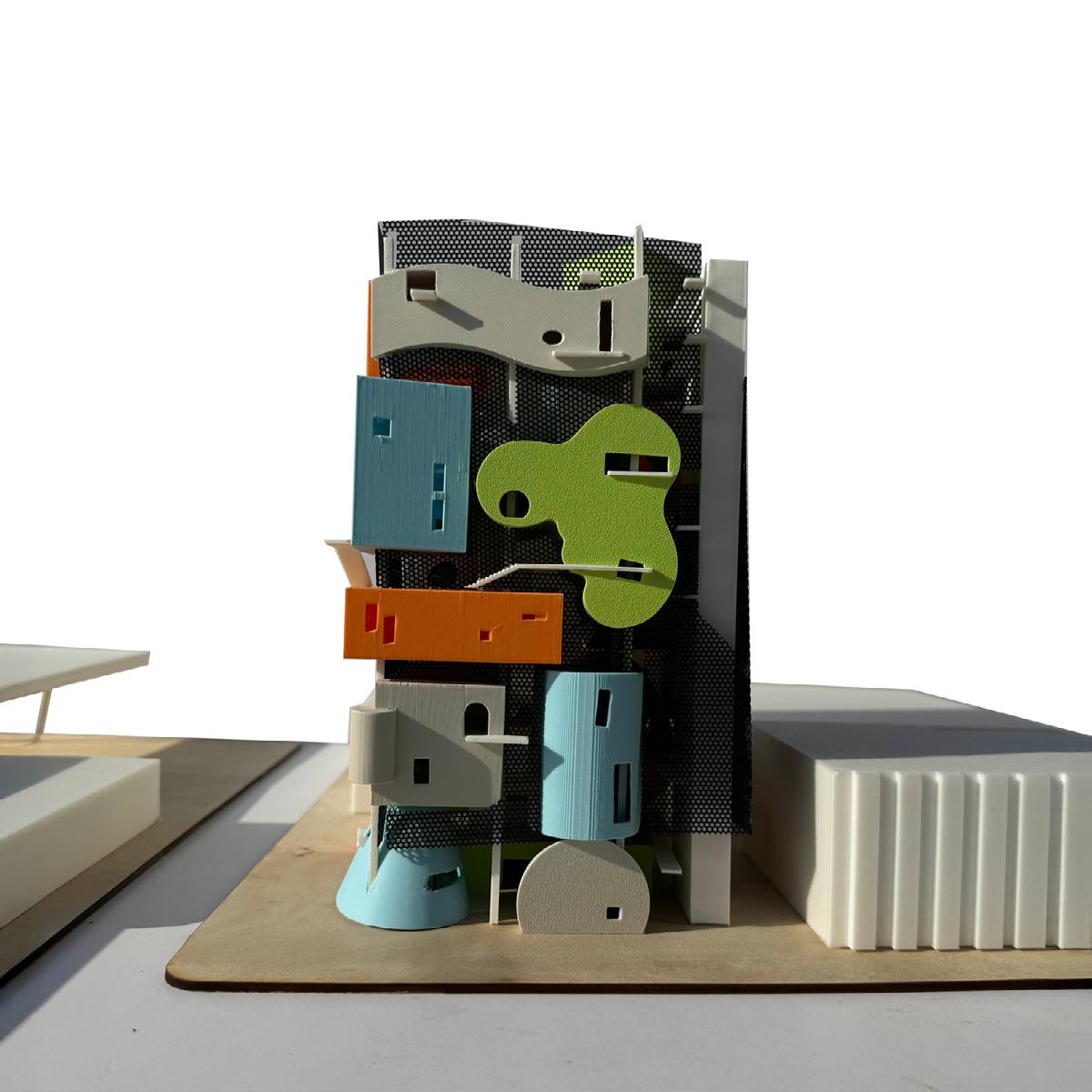

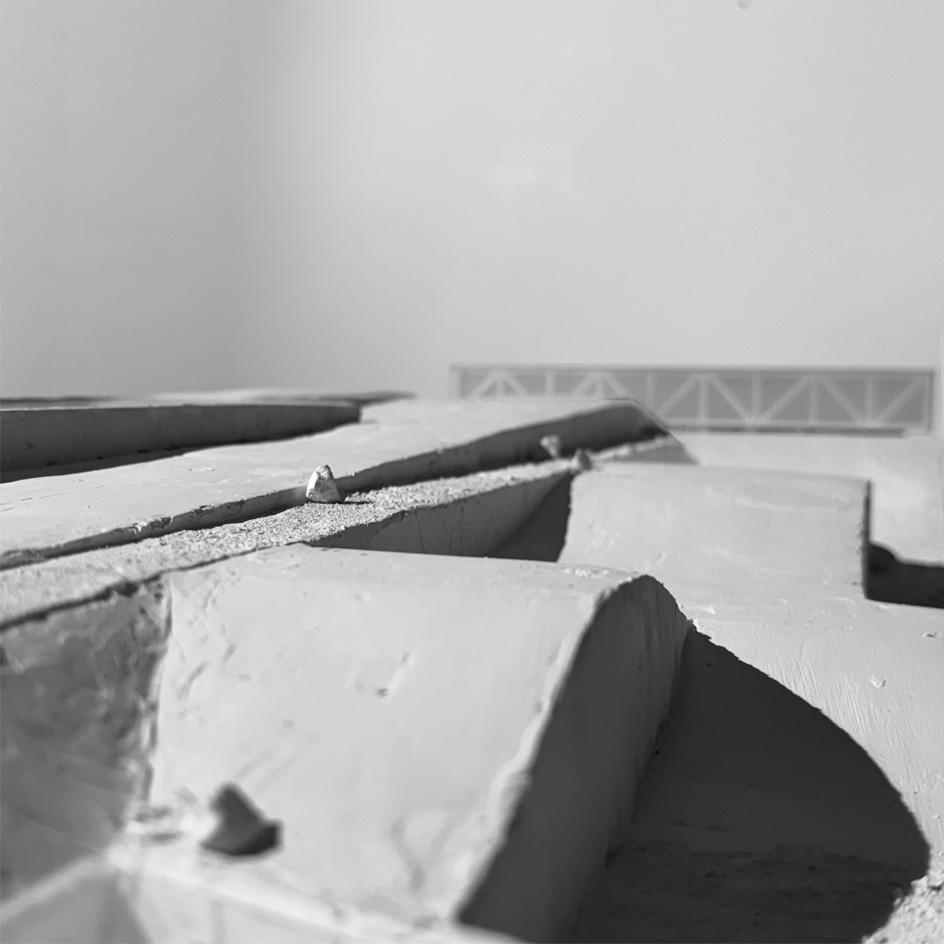

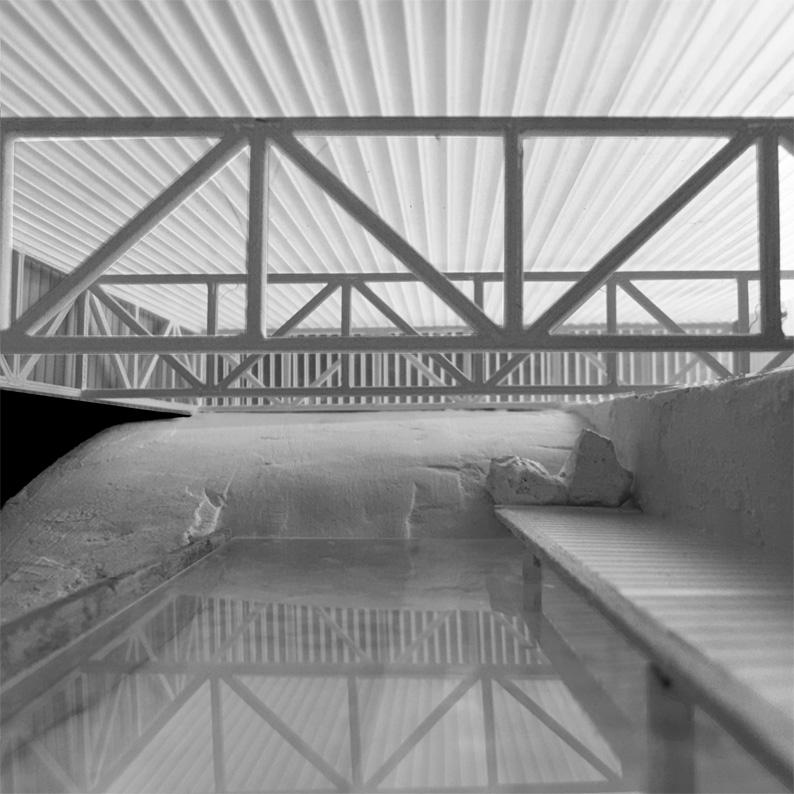

physical model

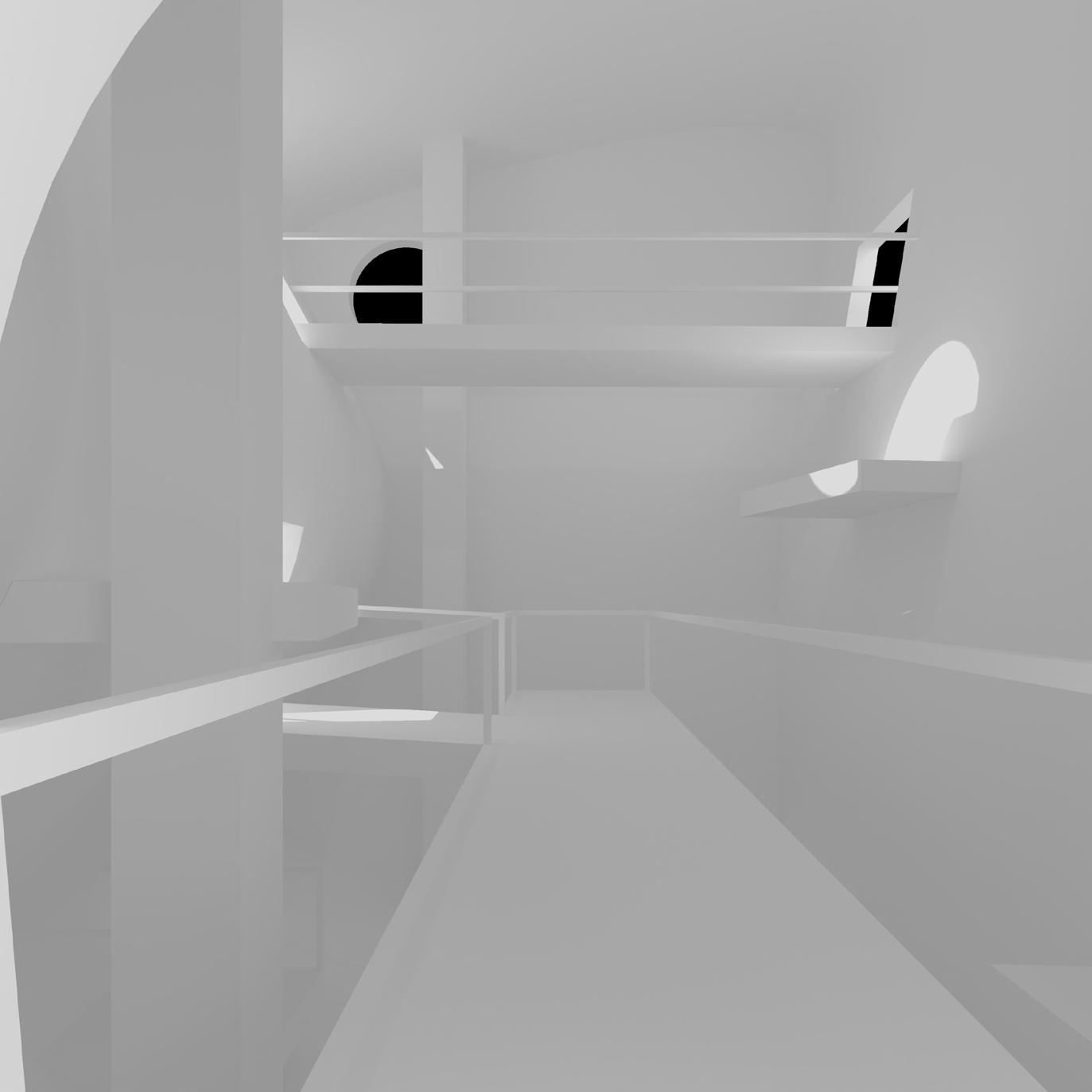

-03between worlds:

ALL ROADS LEAD TO

BECAUSE OF WHAT LIES

AHEAD

end-of-life care

little ethiopia, los angeles IMPRISONED BY FENCES

This project explores how architecture can express emotional transitions through form, rhythm, and atmosphere. It began with a short film that alternated between two emotional worlds, one light and one heavy.

As the film progressed, these shifts became faster until they collapsed into silence and stillness. That movement from chaos to calm became the foundation for the design.

LIBERATED BY THE GAME

IN ANOTHER WORLD

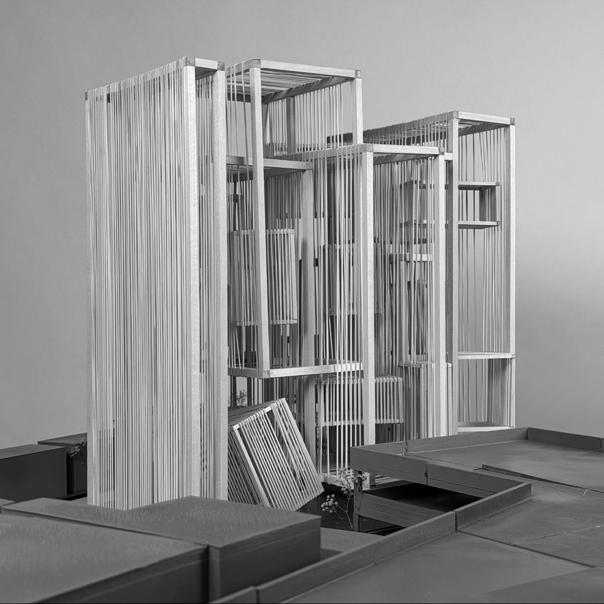

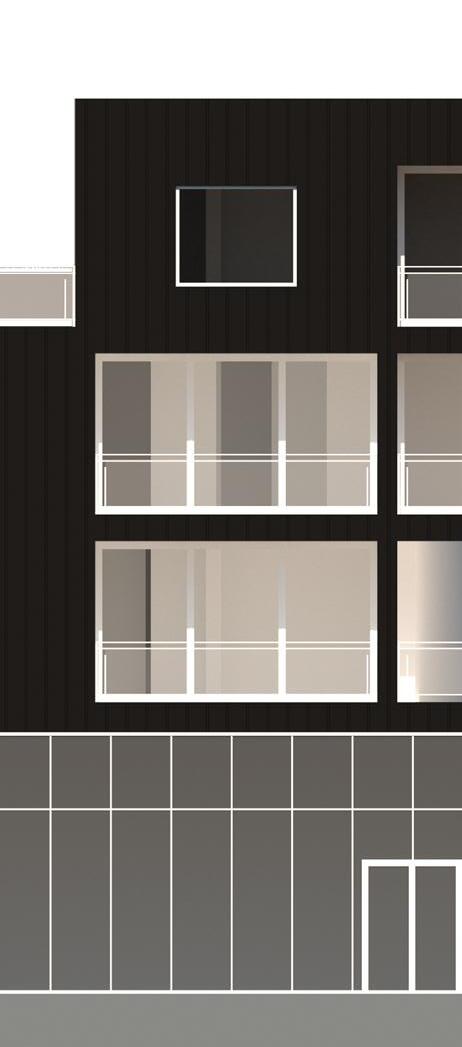

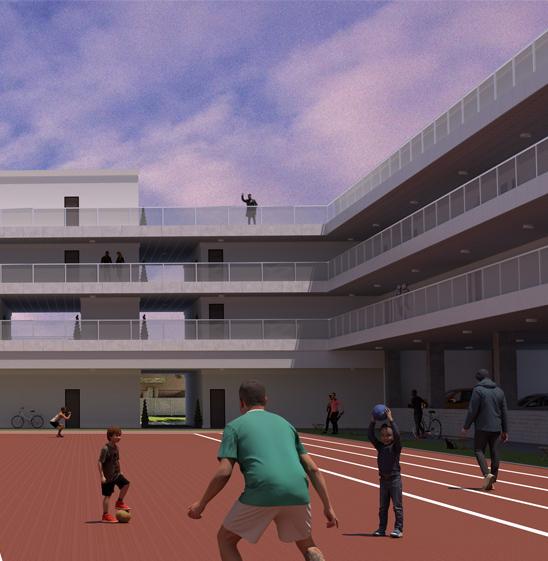

The building is composed of five staggered towers that hold the more active communal spaces such as dining, wellness, and administrative areas. Between these towers, smaller rotated volumes contain the private rooms for patients and caregivers. This arrangement creates a rhythm of movement and pause, mirroring the emotional sequence of the film.

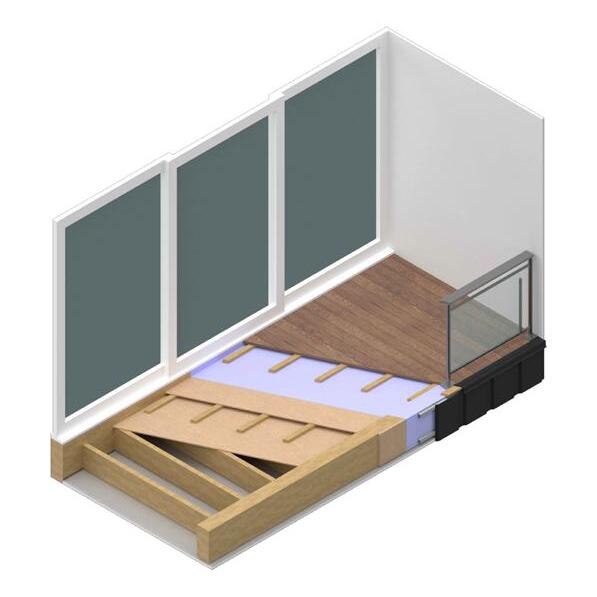

A material study using rubber bands helped guide the approach. When wrapped around wooden frames, the rubber bands produced a moiré effect that appeared to shift as the viewer moved past. This study became a way to think about movement and constant change, which shaped the overall design language of the project.

The architecture moves between communal and private spaces, between active and passive conditions, holding stillness and movement together in balance.

sequence of frames

BECAUSE IT DRAWS YOU IN

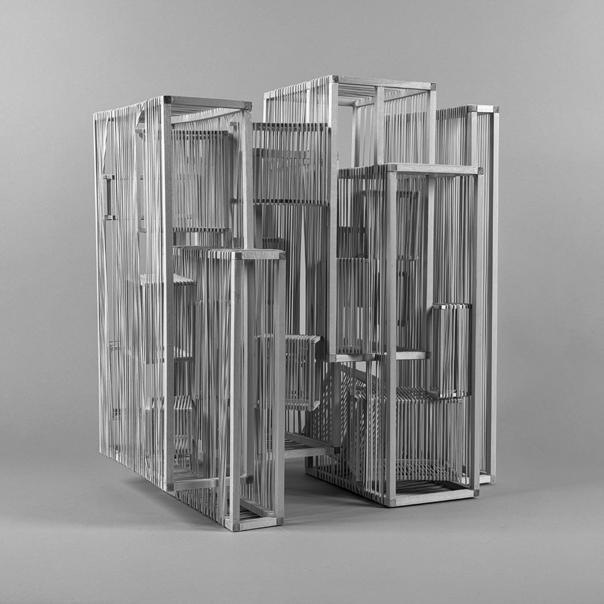

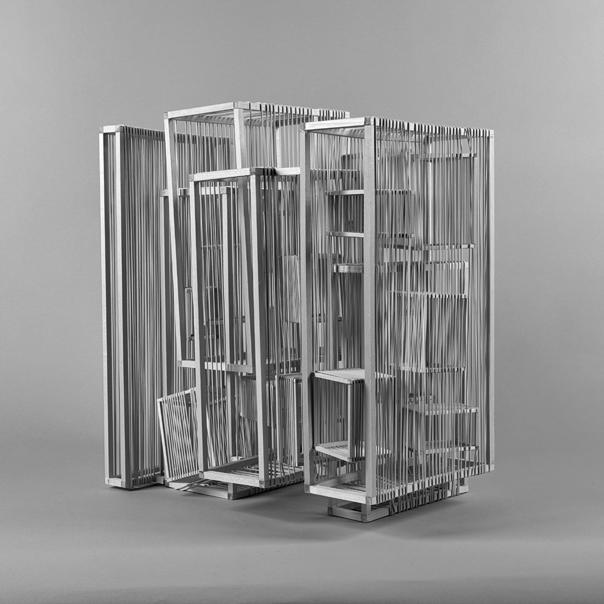

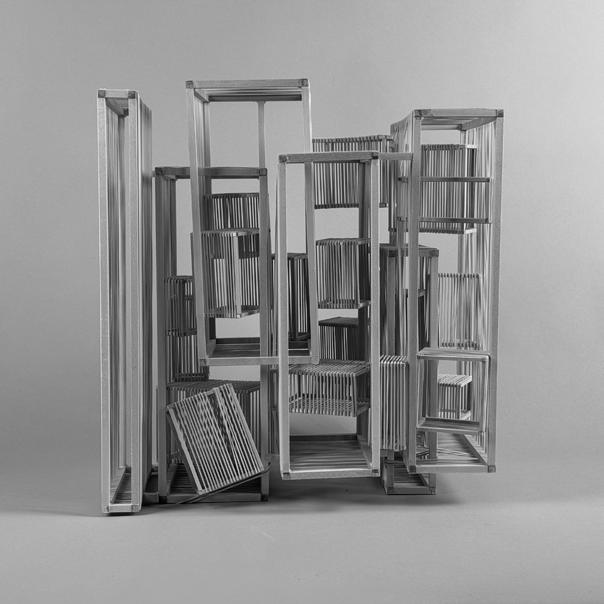

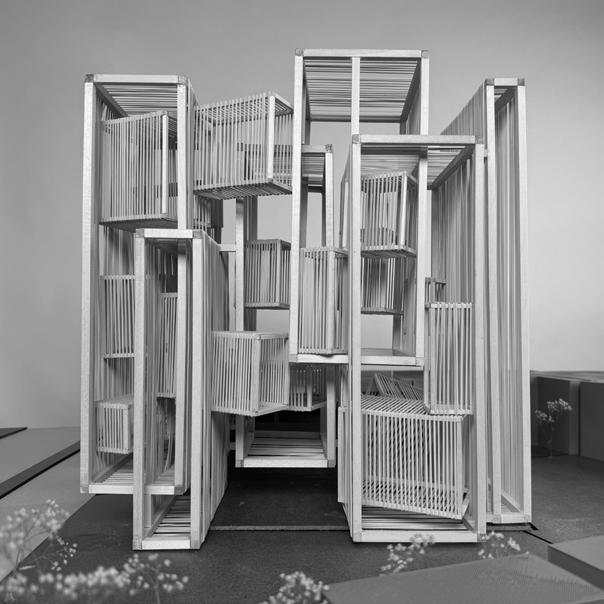

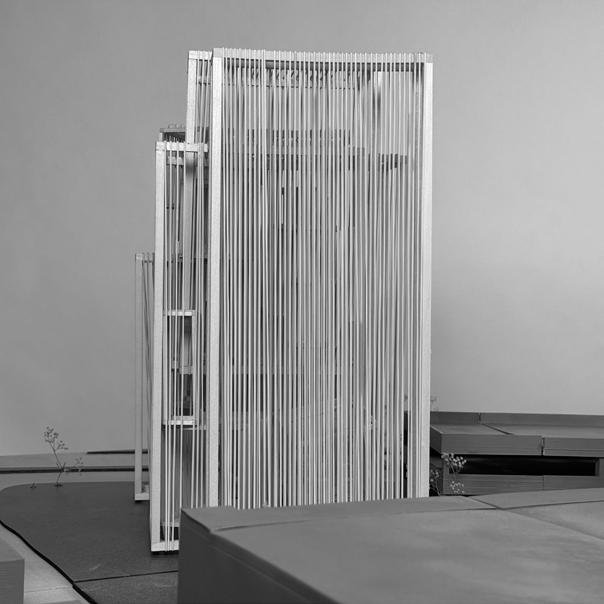

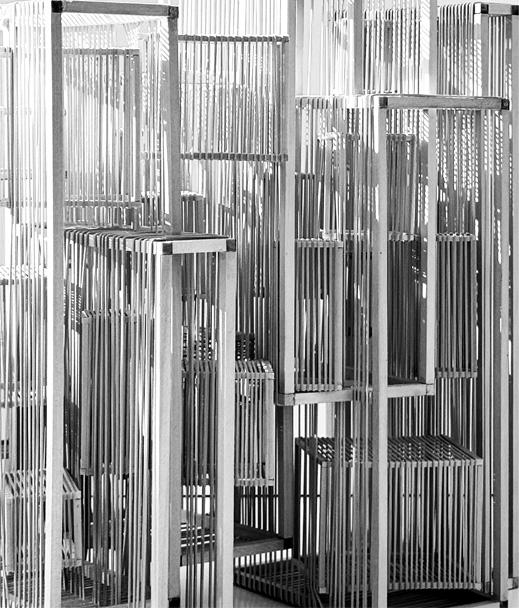

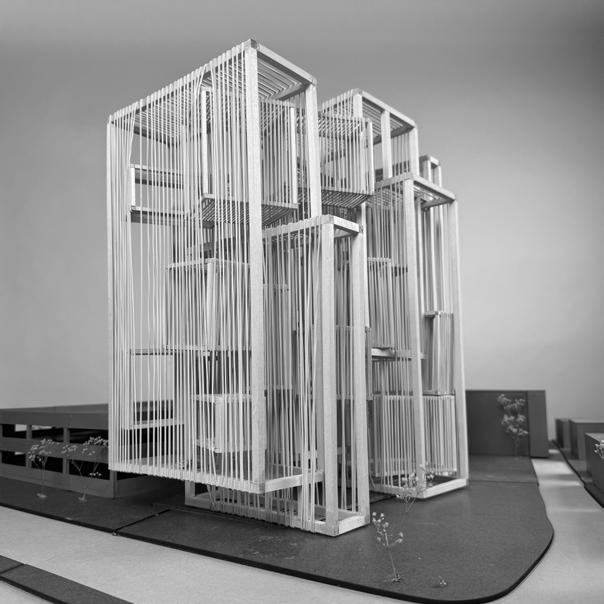

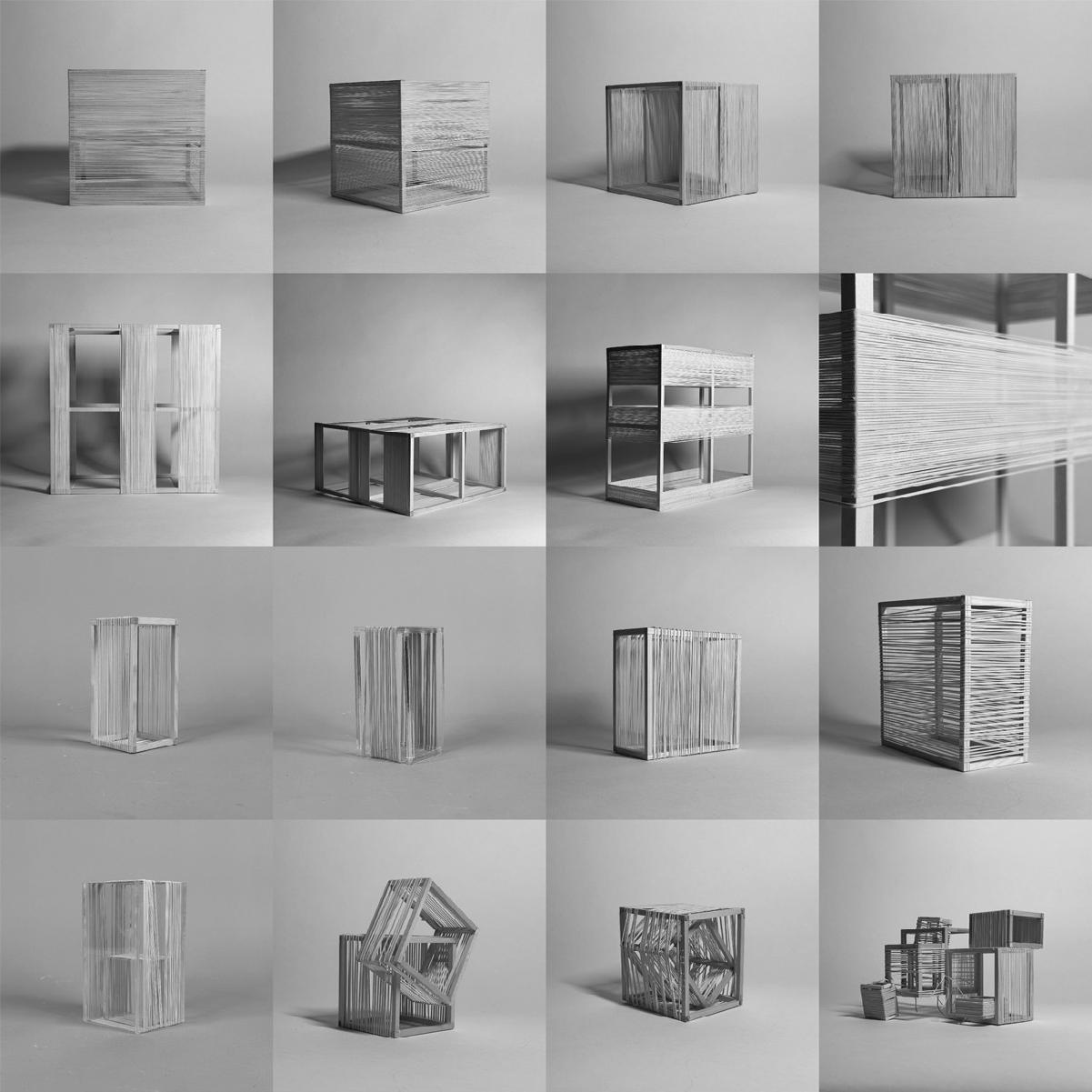

material study models

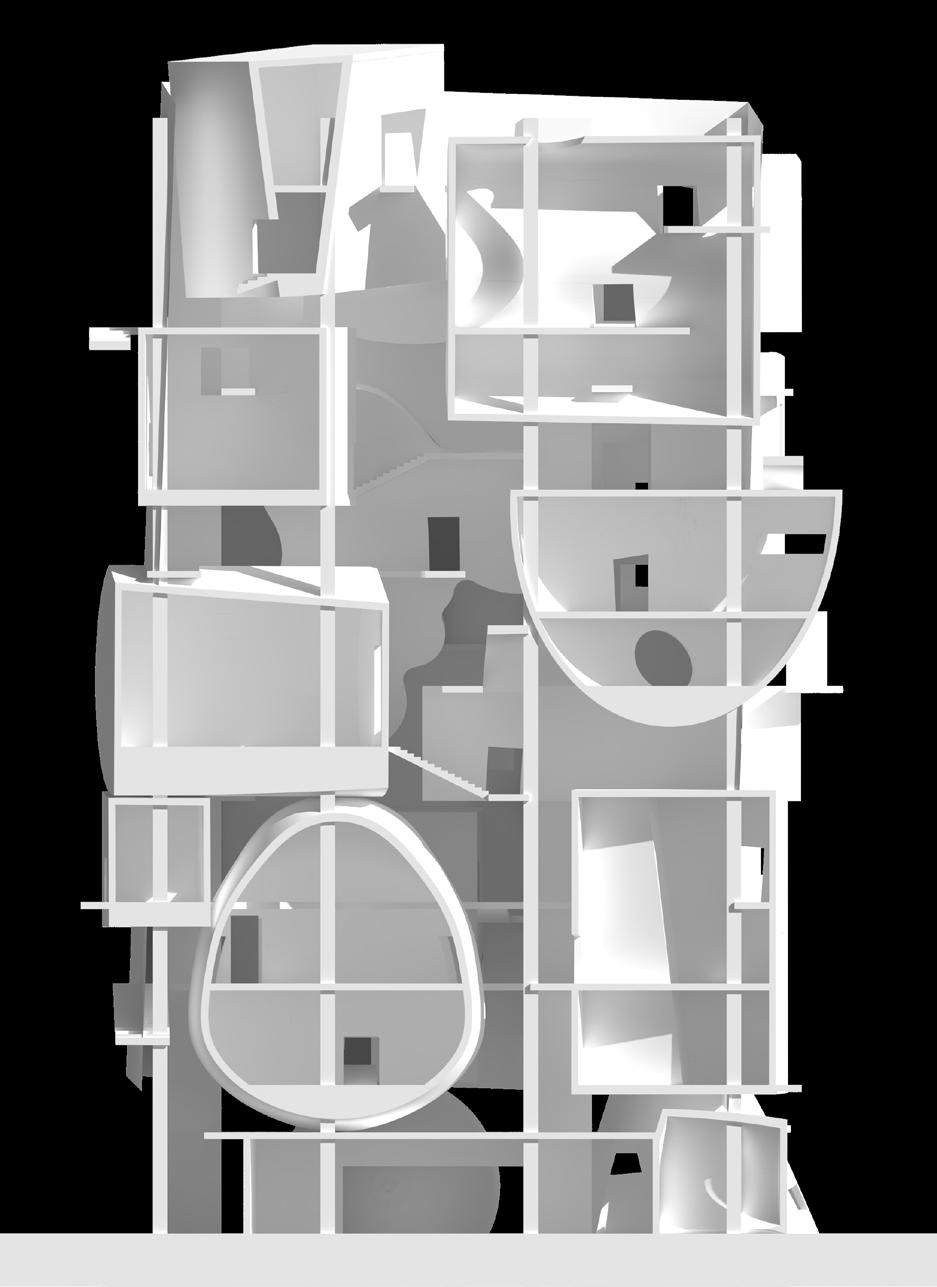

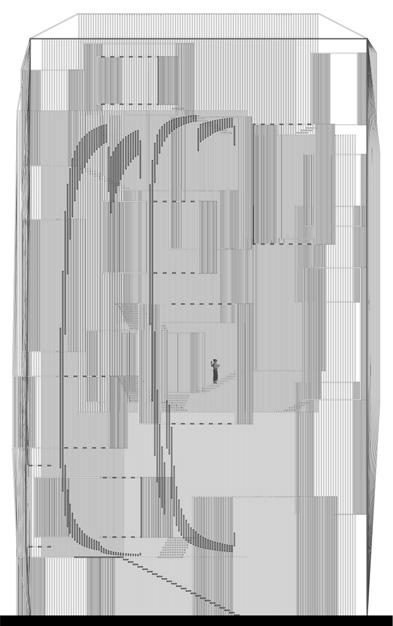

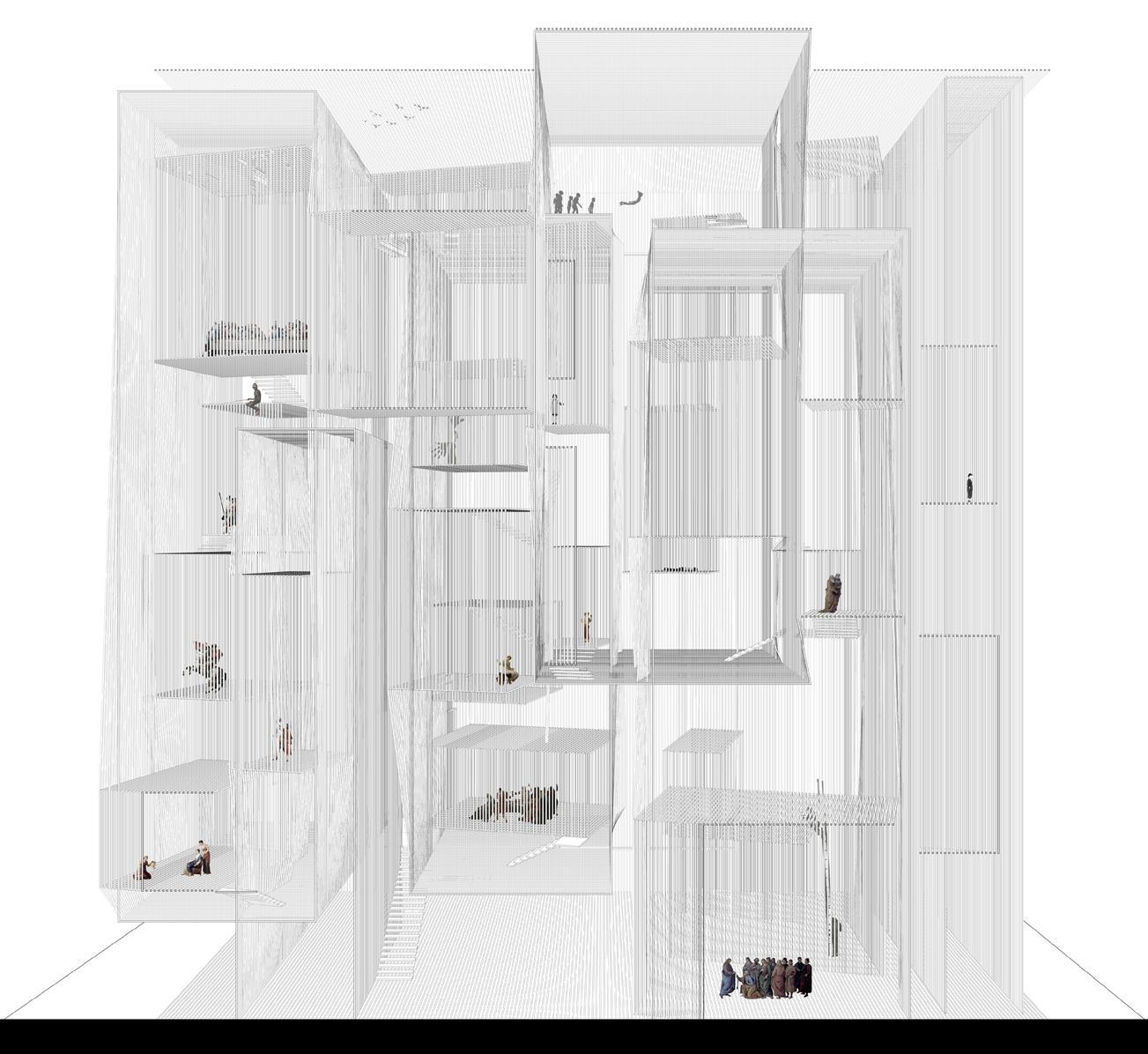

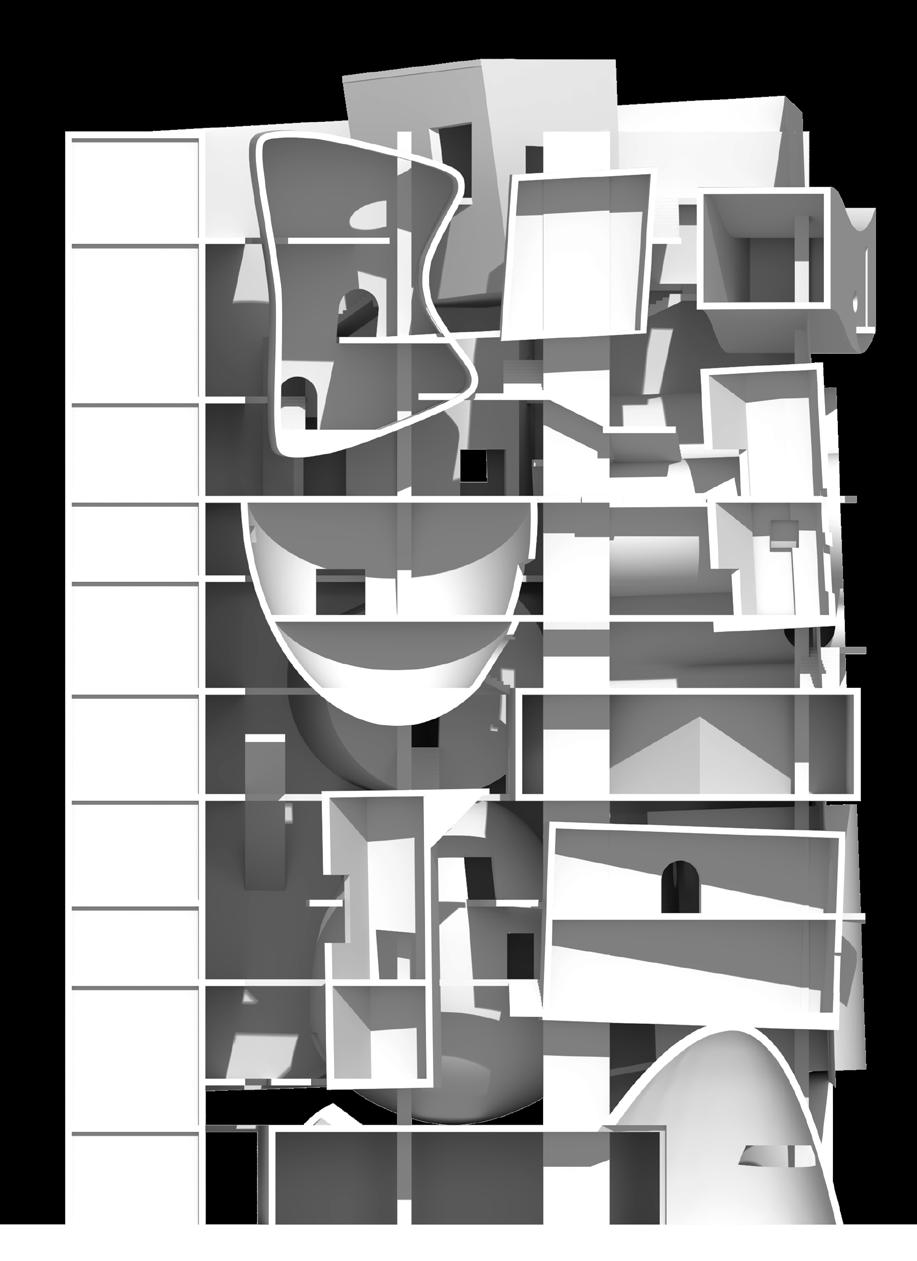

section a

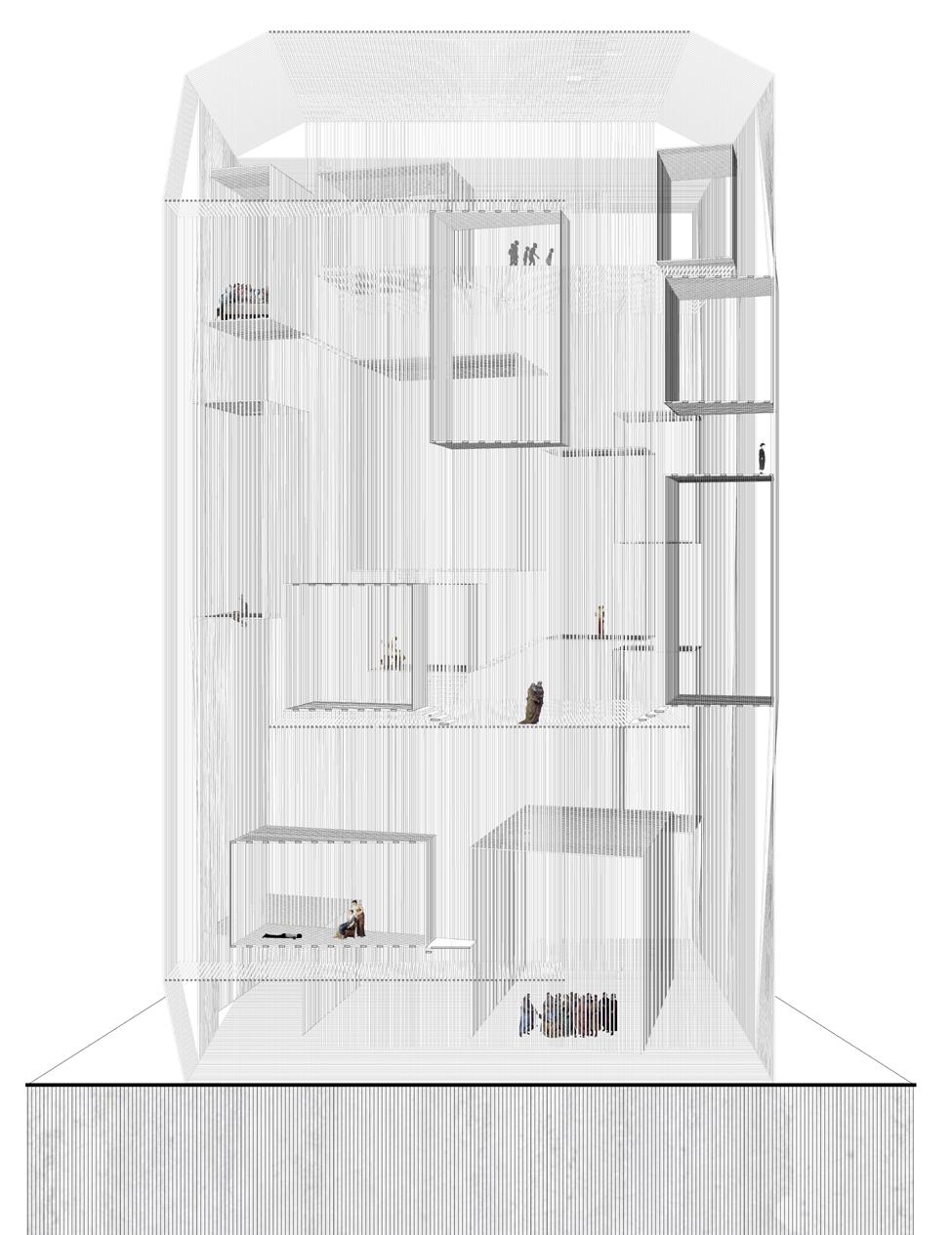

section b

2

3

HALLWAY

M

M

M

MED 4'6"x5'9" 2

2

SCOPE OF WORK AREA

M

3

2

M

M

M

M

1

7

8

2

7

2

2 GYP. BRD. CEILING OR SOFFIT. WITH 'ARMSTRONG' WOOD HAVEN NATURAL CHERRY PLANKS.

ISSUED

R

RECESSED LIGHT FIXTURE

5

DATE

BACK LIT INSET WALL FIXTURE

3 W/ DIFFUSER. PLACEMENT FOR HVAC RETURN REFERENCE ONLY, AVOID INTERFERING WITH RECOMMENDED TREATMENT ROOM LIGHTING & CEILING MOUNTED EQUIPMENT LOCATIONS.

LRG 9'x5'9"

SML 3'x5'

XLRG 9'x7'

5

L

L

4

L

S

3

S

CEILING MOUNTED LIGHT FIXTURE EXHAUST FAN VENTED TO OUTSIDE

2

DP-3

876 SQ. FT.

1

DP-4

580 SQ. FT.

02/05/26 PLAN CHECK

LRG 9'x5'9"

S

GYP. BRD. CEILING OR SOFFIT. CONFIRM WITH HENRY SCHEIN REP.

XL

XL

S

ROLL-UP

4

EXIT

EXIT SIGNS/ EGRESS LIGHTING W/ BATTERY BACK-UP EXIT SIGNS PER 2013 CBC WITH BUG EYE, HQM-LED (LITHONIA LIGHTING) WALL WASHER

6 INCH 12 WATT HALOGEN PENDANT

existing and proposed floor plan - phase 1 B

1 EXISTING & PROPOSED FLOOR PLAN - PHASE 1

6 INCH 12 WATT FLUORESCENT PENDANT

JOB ADDRESS 1448 INDUSTRIAL AVE, REDLAND, CA 92374

L

LOW-VOLTAGE ROPE LIGHTING

HVAC SUPPLY W/ DIFFUSER. PLACEMENT FOR REFERENCE ONLY, AVOID INTERFERING WITH RECOMMENDED TREATMENT ROOM LIGHTING & CEILING MOUNTED EQUIPMENT LOCATIONS.

JOB TITLE THE DOG CAMP HOTEL

RECESSED HALOGEN SPOT LIGHT FIXTURE

RL56 6 INCH 9.4 WATT LED RECESSED

SCALE: 3/32" = 1'-0"

1 8

SUSPENDED CEILING GRID 2x2 W/ SPLIT. PANELS - 'ARMSTRONG CIRRUS' 2ND LOOK V.3.

PRECLUDE CONCEAL T-GRID SYSTEM.

A

EXISTING ROOF PLAN

8

8

2

2 3

ADJACENT PROPERTY

M

M

SHIV TALWAR, ARCHITECT AIA

MOP SINK

GROOMING ROOM

(E) LOWER ROOF OVER COVERED WALKWAY

ADJACENT PROPERTY

3

LAUNDRY/ UTILITY

3340 RIVERSIDE DR. #M, CHINO, CA 91710 ADJACENT PROPERTY TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

3

DESIGN CONCEPTS

RECEPTION

NO.

FENCE AROUND DOG KENNEL 3'x5' The Dog Camp PARK Hotel is a 6,125 square foot tenant WINDOW TYPE NEW DOOR DOG improvement TO BE project in Redlands, California, M MEDIUM BUILT KENNEL 4'-6"x5'-9" converting an existing commercial shell into a EXISTING WINDOW DOG PLAY AREA TO BE REMOVED LARGE DOG dog day care, boarding, and grooming L facility.

KENNEL 9'x5'-9" NEW 2x6 WOOD FRAMED WALLS Developed and constructed in (D) two phases,X LARGE theDOG NEW FULL HEIGHT WALL (E) EXISTING DEMOLISH XL KENNEL 9'x7' W/STC 60 SOUND INSULATION project includes new kennel indoor NEW (N)areas, REMODEL dog parks, (R) grooming and utility spaces, and associated tenant improvements within the existing building envelope.

My role focused on revising and coordinating the project throughout permit and construction documentation.

Working directly with the client, I revised floor plans and interior layouts to accommodate evolving operational needs and improve spatial efficiency. I produced and coordinated drawing sets for permit submission, drafted reflected ceiling plans, conducted site ROOF OVER TENANT visits to document and verifyIMPROVEMENT existing conditions, coordinated with structural and MEP engineers through site documentation and existing-condition surveys, developed preliminary lighting and power layouts to support consultant coordination, and responded to the project’s first round of city plan check comments following initial submission.

P.O.S.

ADJACENT PROPERTY

SMALL DOG

P.O.S.

SML 3'x5'

S

3 3

NOTIFY ARCHITECT OF ANY DISCREPANCIES BETWEEN ARCHITECTURAL AND ELECTRICAL OR MECHANICAL DRAWINGS. OBTAIN CLARIFICATION FROM ARCHITECT IN WRITING BEFORE PROCEEDING WITH THE WORK IN QUESTION OR RELATED WORK. 2. LOCATIONS OF CEILING PENETRATIONS, SUCH AS AIR DIFFUSERS, GRILLS, LIGHT FIXTURES, ETC., SHALL BE AS SHOWN ON THE ARCHITECTURAL REFLECTED CEILING PLAN. ARCHITECTURAL PLANS GOVERN. 3. WHEN CEILING INTERRUPTIONS OCCUR, SUCH AS PARTITIONS, FURRED DOWNS ETC., CONTRACTOR STAGING AREA/DP-1 SHALL CHECK AND VERIFY THAT WORK IS BUILDABLE AS SHOWN BEFORE PROCEEDING WITH WAITING CONSTRUCTION. SHOULD THERE BE ANY QUESTIONS CONTRACTOR IS RESPONSIBLE FOR OBTAINING 387 SQ. FT. A CLARIFICATION FROM THE ARCHITECT IN WRITING BEFORE PROCEEDING WITH THE WORK IN QUESTION OR RELATED WORK. 4. ALL NEW CEILING FIXTURES, SWITCHES, AND MOTION SENSORS SHALL MATCH BUILDING STANDARD U.O.N. 5. LOCATE ALL LIGHT FIXTURES, SPEAKERS, ACCESS PANELS, SPRINKLERS, LIFE-SAFETY FIXTURES, ETC., IN STRAIGHT LINES AND IN CENTER OF CEILING TILES U.O.N. 6. THERE SHALL BE NO COMBUSTIBLE MATERIALS IN THE PLENUMS SPACE INCLUDING ALUMINUM FLEX, 2 ALUMINUM CONNECTORS SHALL BE STEEL. 2 7. BEFORE STARTING ANY WORK CONTRACTOR SHALL FIELD VERIFY EXISTING CONDITIONS, IF THERE XS FIXTURES XS XS XSBE INSTALLED XS XSWHERE ARE EXISTING BUILDING OBSTRUCTIONS AND CEILING CANNOT STAGING INDICATED, CONTRACTOR SHALL NOTIFY THE ARCHITECT AND SHALL OBTAIN CLARIFICATION FROM THE ARCHITECT IN WRITING BEFORE PROCEEDING PART3'x4' OF THE CEILING WORK OR MINI 2-TIER FOR DOG WITH ANY RELATED WORK. IF WORK IS PERFORMED PRIOR TO OBTAINING CLARIFICATION, CONTRACTOR SHALL KENNELS CORRECT CONFLICTING WORK AT HIS EXPENSE AND AT NO ADDITIONAL COST TO THE OWNER/TENANT OR THE ARCHITECT. 8. ALL NEW CONDUITS, BOXES, DUCTS, HVAC UNITS, PIPES ETC., SHALL BE INSTALLED AS HIGH AS POSSIBLE, NOT LOWER THAN 8" ABOVE LINE OF FINISH CEILING. 9. ALL NEW CEILING GRILLS, PERFORATED FACE PLATES, ACCESS PANELS, AIR BARS AND TRIMS SHALL BE FACTORY FINISHED TO MATCH THE COLOR OF ADJACENT FINISHED CEILING. 10. BUILDING STANDARD SUSPENDED CEILING GRID IS METALLIC SYSTEM 1200.15/16" METAL GRID WHITE FINISH BUILDING STANDARD. CEILING TILE IS 2'X4'X5/8" ARMSTRONG "CORTEGA" 768 REGULAR TYPE S S S S S S S TILE, COLOR "WHITE." SEE TYPICAL INSTALLATION DETAILS. 11. WHEN FIXTURES INTERRUPT MAIN RUNNERS, CUT AND REINFORCE AS REQUIRED. 12. ALL FLUORESCENT FIXTURE LAMPS SHALL BE IDENTICAL FROM ONE MANUFACTURER. SML 3'x5' 13. REQUIRED EXISTING FIRE LIFE SAFETY ALARM SYSTEM AS REQUIRED FOR NEW ROOM CONFIGURATIONS. S BY S S S S 14. PROVIDE EMERGENCY LIGHTING LEVELS AS S REQUIRED CODE. S 15. THE CONTRACTOR SHALL PROVIDE RECORD DOCUMENTS OF ALL WORK PREFORMED AND SHALL INDICATE ANY DEVIATIONS FROM THE DESIGN DOCUMENTS AS WELL AS THE LOCATION OF ALL WORK WHICH IS HIDDEN 3BY SUBSEQUENT CONSTRUCTION. THE RECORD DOCUMENTS SHALL BE GIVEN TO THE OWNER AT COMPLETION OF TENANT CONSTRUCTION PRIOR TO APPLICATION FOR FINAL PAYMENT. 16. REFER TO ELECTRICAL ENGINEERING DRAWINGS FOR LOCATION OF EMERGENCY LIGHTING AND EXIT SIGNS.

HALLWAY

MINI DOG KENNEL 3'x4' (2-TIER)

ADJACENT PROPERTY

XS

2

WAITING

OFFICE

redlands, california

DOOR TYPE

1.

EXIT

a commercial development LEGENDS EXISTING DOOR TO BE REMOVED

GENERAL NOTES

ENTRY 1

dog camp hotel:

EXISTING EXTERIOR CMU WALLS TO REMAIN

4

(E) COVERED WALKWAY

-04-

EXISTING WALLS TO BE DEMOLISH EXISTING WALLS TO REMAIN

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

1

EXISTING FLAT ROOF

DRAWING TITLE

ROOF PLAN KEYNOTES 1.

EXIT

(E) 8" CMU EXTERIOR WALL INDOOR DOG FENCE INDOOR DOG KENNEL(E) 6" DIAMETER STEEL COLUMN FULL HEIGHT WALLS W/ SOUND PROOFING EXISTING LOBBY FLOORING TO BE REMOVED (E) LINE OF COVERED CANOPY MANHOLE FOR SEWER LINE DOOR SWING TO BE FLIPPED ELECTRICAL PANEL SUB PANEL

EXISTING & PROPOSED FLOOR PLAN AND ROOF PLAN

FLOOR PLAN KEYNOTES 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

EXISTING AND

1.

CEILING PLA

EXISTING 58" TYPE 'X' GYPSUM B

WALL GRAZER

PROJECT NO. (TYP.).

2'x4' & 2'x2' LAY-IN LIGHT FIXTURE W/ ACRYLIC LENS (TYP.)

DWG. NO.

2.

1'x4' LAY-IN LIGHT FIXTURE W/ ACRYLIC LENS (TYP.)

SCALE: 3/16" = 1'-0"

2

A-1

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

2025-19 (N) SUSPENDED T-BAR CEILING

REPAIR ANY REVISION NO. DAMAGE CEILING A

EXIT SIGNS - SEE LEGEND. HVAC & VENTS - SEE MECHANIC EXISTING WOOD BEAM - CONTR EXISTING WOOD GIRDER - CON NEW LIGHT FIXTURES - SEE ELE EXHAUST FAN. EXISTING ROOF FRAMING - CON SUPPLY & RETURN VENTS - SE ELECTRICAL PANEL SUB PANEL

(E) COVERED WALKWAY

EXIT

CEILING OPEN TO (E) 12'-5" AFF ROOF STRUCTURE ABOVE

(E)

(E) 12'-5" AFF

STAGING AREA

WAITING

(N)

EXIT

387 SQ. FT.

WAITING

OFFICE

(E) B4-25

(N)

4

(N)

4

(N) (E) B4-19

(E) B4-25

XS

M

CEILING OPEN TO ROOF STRUCTURE ABOVE

6

D

(N) (E) B4-18

S

S

S

(N)

S

S

S

S

S

S

S

(N)

7

(E) B4-18

D (E) B4-20

4

M

M

M

M

M

(N)

MED 4'6"x5'9"

(E) B4-23

(E)

M

M

M

M

(N) (E) B4-23

D

9

LRG 9'x5'9"

S

SML 3'x5'

L

S

XL (N)

SCALE 3/16" = 1'-0"

1

NO.

DATE

(E) B4-23

GENERAL NOTES

S

NTRACTOR TO VERIFY IN FIELD EE MECHANICAL PLANS

BE

SCALE: 1/8" = 1'-0"

1.

THE ELECTRICAL CONTRACTOR SHALL REVIEW THE SUBMITTAL FOR CONFORMANCE TO THE CONTRACT DOCUMENTS, INCLUDING VOLTAGE, AMPAGE, BUS BRACING, DIMENSIONS, ETC.. ONCE THE CONTRACTOR IS SATISFIED WITH THE SUBMITTAL THEY SHALL STAMP AND SIGN EACH COPY OF THE SUBMITTAL, INDICATING THAT THEY HAVE REVIEWED AND ACCEPTED THE PRODUCTS, AS WELL AS THE LEAD TIME AND THE SCHEDULED DELIVERY OF THE PRODUCTS. AT THAT THE TIME, THE SUBMITTALS SHALL BE FORWARDED TO THE ARCHITECT / ENGINEER THROUGH NORMAL CHANNELS. IF THE SUBMITTAL HAS NOT BEEN REVIEWED BY THE ELECTRICAL CONTRACTOR, IT WILL BE RETURNED “REJECTED. CONTRACTOR REVIEW AND APPROVAL IS REQUIRED.”

1

HALLWAY

S

S

M

M

GROOMING ROOM

S

S

S

S

S

S

S

CEILING OPEN TO ROOF STRUCTURE ABOVE

M

M

M

M

M

MED 4'6"x5'9" M

M

M

D

S

CEILING OPEN TO ROOF STRUCTURE

DP-3

876 SQ. FT.

LRG 9'x5'9"

L

S

L

L

S

SML 3'x5'

L

XLRG 9'x7'

D

XL

XL

S

ROLL-UP

existing and proposed lighting plan - phase 1

EXISTING AND PROPOSED LIGHTING PLAN - PHASE 1 DRAWING TITLE

CAL PLANS. RACTOR TO VERIFY IN FIELD. NTRACTOR TO VERIFY IN FIELD. ECTRICAL PLANS.

XS

5

(E) B4-23

reflected ceiling plan - phase 1

D POWER PLAN - PHASE 1

S

LRG 9'x5'9"

BOARD CEILING IN RESTROOM - 8'-0" A.F.F.

G W/ 2'x4' LIGHT FIXTURES. CONTRACTOR TO AS NECESSARY.

S

D CEILING OPEN TO ROOF STRUCTURE ABOVE

D

D PROPOSED REFLECTED CEILING PLAN - PHASE 1

AN KEYNOTES

S

S

DP-4

4

XL (N)

(E)

EXIT

(E)

XLRG 9'x7'

L S

ROLL-UP

XS

SML 3'x5'

580 SQ. FT. ABOVE LRG 9'x5'9"

SML 3'x5' (E) 4'-4" AFF

XS

(E)

(E) B4-23

(E) B4-22

)

XS

MINI 3'x4' 2-TIER

MOP SINK

L

L

(N) (N)

S

LAUNDRY/ UTILITY

S

3

DP-3

876 SQ. FT.

4 9

(E) B4-22

ISSUED

(N)

9

HALLWAY

CEILING OPEN TO ROOF STRUCTURE ABOVE

9

7

M

XS

D

JOB ADDRESS 1448 INDUSTRIAL AVE, REDLAND, CA 92374

HALLWAY

JOB TITLE THE DOG CAMP HOTEL

(N)

(E) B4-20

XS

M

02/05/26 PLAN CHECK

(N)

(E) B4-20

2

(E) B4-18

1

(N)

(E) B4-18

EXISTING AND PROPOSED REFLECTED CEILING PLAN

(N)

(E) B4-25

ADJACENT PROPERTY

S

SML 3'x5'

SHIV TALWAR, ARCHITECT AIA

S

ADJACENT PROPERTY

S

ADJACENT PROPERTY

S (N) (E) B4-25

DESIGN CONCEPTS

5

STAGING FOR DOG KENNELS

RECEPTION

ADJACENT PROPERTY

XS

VS

XS

VS

XS

MINI 3'x4' 2-TIER

VS

XS

VS

XS

3340 RIVERSIDE DR. #M, CHINO, CA 91710 TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

STAGING FOR DOG KENNELS

RECEPTION

4

387 SQ. FT.

CEILING OPEN TO ROOF STRUCTURE ABOVE

M

10

(E) B4-18 (N) (E) B4-19

STAGING AREA

WAITING

SML 3'x5'

1

WAITING

(E) 8'-3" AFF

3

HALLWAY

(E) 12'-5" AFF

EXIT

E) 12'-5" AFF

(E) COVERED WALKWAY

ENTRY THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

ENTRY

LIGHTING PLAN KEYNOTES PROJECT NO.

1. NOT USED 2025-19 2. (E) SURFACE-MOUNTED LED LIGHT AND DWG. NO. FIXTURE REVISION NO. SENSORS AT EXISTING GYPSUM BOARD CEILING, A-3 EXISTING CIRCUITING TO BE REMAIN CONTRACTOR TO VERIFY ON FIELD NOTIFY ENGINEER IN CASE OF ANY DISCREPANCIES.

SCALE: 1/8" = 1'-0"

2

AL

21

21

21

22

22

22

22

LOT 2

LOT 1

LOT 4

LOT 3

PL

22

22

PL

PL

22

R:

OWNEY

22 21

21

22

21

21

21

21

21

21 21

21

MES, LLC

2

SIDEWALK

.COM

080043 ON 203

21

21

CL

21

CLARKDALE AVE.

CL

site plan

PROPOSED SITE PLAN RESIDENTIAL AREA TABULATION MAIN HOUSE

MAIN HOUSE LOT COVERAGE

MAIN HOUSE

MAIN HOUSE F.A.R

DRAWING INDEX

21

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

-05-

clarkdale homes:

a residential development

21

21

LOT 5

22

As one of the first projects I worked on professionally, my role focused on drafting, production, and document coordination, serving as an introduction to the documentation standards and workflows used within the office. While I was not directly involved in the project’s initial design phase, the project helped me develop an understanding of residential development standards such as setbacks, density, lot coverage, and site planning requirements. I assisted in developing and refining architectural drawings, assembling permit drawing sets, and preparing preliminary lighting and power layouts coordinated with engineering consultants throughout the permitting process.

22 21 21

21

CL

21

CL SCALE 1' - 0" = 1/16"

1

AR, ARCHITECT AIA

PL

CONCEPTS

22

E DR. #M, CHINO, CA 91710 939 Email: dsignconcepts@yahoo.com

Clarkdale Residential Development is a proposed residential tract development in Cerritos, California consisting of five two-story single-family residences, each paired with a detached one-story ADU. The project includes approximately 2,550–2,600 square foot homes with attached three-car garages and detached 1,000 square foot ADUs.

22

21

cerritos, california

THESE DRAWI SPECIFICATIO PROPERTY A THE ARCHITE BE USED ON A EXCEPT BY A THE ARCHITE DIMENSIONS PREFERENCE DIMENSIONS VERIFIED ON DISCREPANC BROUGHT TO ARCHITECT P COMMENCEM

46'-2"

4'-8"

12

8

16'-6"

23'-0"

5

3'-3" 5

12

12

5

3'-4"

3'-4"

12 5

1 8'-1"

12'-11" 8'-10"

21'-0"

7'-5" 25'-2"

1

PLAN 1 - 2ND FLOOR PLAN

SCALE 1' - 0" = 3/16"

2

NO.

DATE

ISSUED

second floor plan - type a

PLAN 1 - SECTION B-B

5

12

1 7

11/20/24 BUILDING DEPARTMENT SUBMITTAL

4.

1

5'-3"

5.

section bb - unit a

DWG. NO.

5

3

PROJECT NO.

17200 CLARKDALE AVE, CERRITOS CA 90703

SHIV TALWAR, ARCHITECT AIA

12'-11"

3.

4

21'-0"

DESIGN CONCEPTS

2.

clear headroom, with 10-in min thread depth and 7.75-in maximum riser height, and continuous Type I or II handrail at 34-in to 38-in above tread nosing. (R311.7) PLEASE REFER TO FLOOR PLANS & ARCHITECTURAL DETAILS Minimum 42-in high guards at the open-sided walking surfaces that are more than 30-in measured vertically to the floor or grade below at any point within 36-in horizontally to the edge of the open side and detail the base connection.(R312.1.1) (R312.1.2) PLEASE REFER TO FLOOR PLANS & ARCHITECTURAL DETAILS

PROPOSED RESIDENTIAL TRACT DEVELOPMENT

1

39'-6"

11'-4"

41'-6"

5.

6.

7.

8.

hard-wired "SMOKE ALARM" with battery backup in each sleeping room, immediate vicinity of the bedrooms, each additional story of dwelling, and not less than3-ft from the bathroom that contains bathtub or shower.

(R314) PLEASE REFER TO ELECTRICAL PLANS hard-wired carbon monoxide alarm with battery backup outside of each bedroom, and occupiable level if dwelling unit. (R315) PLEASE REFER TO ELECTRICAL PLANS location of 22-in x 30-in attic access with 30 in. minimum headroom for attic greater than 30-SF. (R807.1) PLEASE REFER TO ELECTRICAL PLANS Stairway shall be minimum 36-in clear width, 6-ft 8-in

3340 RIVERSIDE DR. #M, CHINO, CA 91710 TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

1.

18'-6"

4.

2

PLAN 1 - 2ND FLOOR PLAN

3

17'-0"

13'-4"

2.

3.

1

8'-1"

5'-8"

ISSUED DATE

ROOF OVER GARAGE - CONCRETE ROOF TILE: MF 108 INTERLOCKING FLAT (R) BY MCA. F40 NATURAL RED COLOR. ROOF OVER FIRST FLOOR - CONCRETE ROOF TILE: MF108 INTERLOCKING FLAT (R) TYPE F40 NATURAL RED COLOR BY MCA. PRE-FAB DECORATIVE STONE VENEER AND DECORATIVE CAP BY EL DORADO, ROUGHCUT, AUTUMN LEAF. STEEL SECTIONAL GARAGE DOOR WITH AUTOMATIC GARAGE OPENER. 26 GA. G.I. FLASHING AT WALL. 2x WD FASCIA. COLOR TO MATCH WITH ROOF. CONCRETE DRIVE - SEE SITE PLAN. LA HABRA EXTERIOR STUCCO - CLAY X-830 (40) BASE 100.

DECORATIVE LIGHT FIXTURES. SCALE 1' -(42) 0"BASE = 3/16" DECORATIVE 4" FOAM MOLDING POP-OUT W/ EXTERIOR PLASTER AT WINDOWS W/ TRABUCO X-278 200.

DECORATIVE 4" FOAM MOLDING POP-OUT W/ EXTERIOR PLASTER AT DOORS W/ TRABUCO X-278 (42) BASE 200.

PRE-FAB DECORATIVE FOAM MOLDING FINISH (DECORATIVE SYMBOL) W/ EXTERIOR PLASTER W/ TRABUCO X-278 (42) BASE 200.

STONE PLANTER TO MATCH EL DORADO, ROUGHCUT, AUTUMN LEAF.

FLOOR PLAN GENERAL NOTES

2

46'-2"

south elevation - unit a UNIT 1 ELEVATION KEYNOTES

NO.

1

55'-0"

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

25'-2"

DRAWING TITLE

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

PROPOSED SOUTH ELEVATION - PLAN 1

STUCCO SHALL BE INSTALLED IN ACCORDANCE WITH CHAPTER 25 OF THE CBC. WHEN STUCCO IS APPLIED OVER WOOD BASE SHEATHING TWO LAYERS OF GRADE PAPER SHALL BE APPLIED. MINIMUM NO. 26 GAGE CORROSION RESISTANT WEEP SCREED SHALL BE PROVIDED AT OR BELOW THE FOUNDATION PLATE LINE ON ALL EXTERIOR STUD WALLS. SCREED SHALL BE PLACED MINIMUM OF 4" ABOVE THE EARTH OR 2" ABOVE PAVED SCALE 1' - AREAS 0" = 3/16" 2.

IN R-2 AND R-3 OCCUPANCIES, WHERE WINDOW OPENINGS ARE >72" ABOVE GRADE, THEN THE LOWEST PART OF THE WINDOW OPENING SHALL BE AT LEAST 36" ABOVE THE 6'-8" FLOOR. SECTION 1013.8.

7'-5"

21'-0"

ELEVATION GENERAL NOTES 1.

16'-9"

8'-1"

12'-11"

JOB TITLE

1

11'-10"

first floor plan - type a

BATHROOM WINDOWS TO HAVE OBSCURE GLASS AND SHALL BE FIXED BELOW 5'-0" HEIGHT WINDOW 5'-0" ABOVE FF (SEE SHEET A-6) DECORATIVE CONCRETE PAVING DRIVE WAY TYP. DECORATIVE CONCRETE PAVING ENTRANCE TYP. EV CHARGING WATER HEATER 42" HIGH GUARD RAIL HANDRAIL 34" TO 38" ABOVE TREAD NOSING

5

3'-4"

4

25'-2"

1.

12

11/20/24 BUILDING DEPARTMENT SUBMITTAL

4'-8"

16'-6"

16'-1" 6'-1" 5'-0"

8'-10"

PLAN 1 - 1ST FLOOR PLAN

12

5

7'-5"

5

3'-4"

30'-0`

FLOOR PLAN KEYNOTES

8

8 4'-7"

3'-4"

12

12

16'-0"

3'-3"

1

12'-11" 23'-0"

5

5 3

39'-6"

11'-4"

41'-6" 5'-8"

7

1

2% SLOPE

2% SLOPE

1

43'-0"

41'-6"

12

22'-2"

5

3'-4"

5'-3"

PLAN 1 FLOOR PLANS FIRST AND SECOND FLOOR

21'-0"

DESIGN CONCEPTS

13'-4"

18'-6"

21'-2"

2 6

7'-8"

SHIV TALWAR, ARCHITECT AIA

1

4'-0"

3'-3"

3340 RIVERSIDE DR. #M, CHINO, CA 91710 TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

6'-8"

4

17'-0"

PROPOSED NORTH ELEVATION - PLAN 1

DINING

3'-6"

3'-6"

1

3'-6" 3'-2"

HOT HOT HOT

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH

18'-6"

2'-0"

5'-8"

JOB ADDRESS

16'-9"

HOT

9'-8"

15'-8"

8'-1"

23'-6"

2

46'-2"

5

6"

55'-0" 55'-0" 8'-10"

2024-73

REVISION NO.

A-1

SCALE 3/16" = 1'-0"

1

PL

3

2

A-7.1

A-7.1

6" DOWN LIGHT, WET LISTED SEMI SPECULER FINISH, 1500 LM.

18

120

0-10V

F2

LITHONIA LD6N

6" DOWNLIGHT, SPECULER FINISH, 1500 LM.

18

120

0-10V

F3

TBD

CEILING FAN WITH LIGHT

40

120

0-10V

TAG F4

MANUFACTURER LITHONIA ZL1N

DESCRIPTION LENSED LED STRIP LIGHT

WATTS 30

LITHONIA LD6N KICHLER 89090CG

6" DOWN LIGHT, WET LISTED SEMI EXTERIOR WALL SCONE SPECULER FINISH, 1500 LM.

HOT

HOT

HOT

HOT

HOT

HOT HOT

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH

1/2" GYPSYM BOARD W.P. (WATERPROOF)

4'-7"

120 120

0-10V 0-10V

F4

LITHONIA ZL1N

LENSED LED STRIP LIGHT

30

120

0-10V

F5

KICHLER 89090CG

EXTERIOR WALL SCONE

12

120

0-10V

5 F6

PRUDENTIAL WALL

2' LED VANITY LIGHTING FIXTURE

10

120

4'-0"

5

0-10V

40

120

0-10V

ALL LIGHTING SHALL BE LED HIGH EFFICACY PER TABLE 150.0-A SECTION 150.0(K)A.

2.

REFER TO ARCHITECTURAL INTERIOR ELEVATIONS TO COORDINATE EXACT PLACEMENT OF ALL DEVICES, FIXTURES AND SWITCHES. WITH OTHER SCALE 1' - 0" =COORDINATE 3/16 " DIVISIONS PRIOR TO ROUGH-IN ANYTHING.

ATTIC VENT. AREA PROVIDED

5

M

SECTION B-B PLAN 1 - FIRST FLOOR LIGHTING PLAN - LOT 1 PC/MS

CEPTACLE OUTLETS, SWITCHES AND BE LOCATED NO MORE THAN 48 ” MEASURED TLET BOX AND NOT LESS THAN 15” MEASURED THE OUTLET BOX ABOVE THE FINISH FLOOR.

PC/MS

PC/MS

PLAN 1 - FIRSTfirst FLOOR LIGHTING PLAN - LOT 1 floor lighting plan - type a

12

12

12

5

5

VS

SD

SD M

5

M

12

12

PL

5

M

LOT 2

LOT 1

PL

M VS

HS

LOT 2

LOT 1

VS

PL

HS

SECTION A-A

5

12

SCALE: 3/16" = 1'-0"

4

KEY PLAN 12

LOT 5

PL

L

AGING-IN-PLACE AND FALL PREVENTION DESIGN

PL

LOT 4

LOT 3

PL

PL

SCALE 1' - 0" = 3/16 "

SCALE 1' - 0" = 3/16 " 5

3 PLAN 1 - SECOND FLOOR LIGHTING PLAN - adu 4 KEY LOT 1section SCALE: aa 3/16" = 1'-0" - type a PLAN P

1. Reinforcement for grab bars at water closet, shower and bathtub 2. Electrical receptacle outlet, switch and control heights(15" to 48" maximum) 3. Doorbell button height. (48" maximum from exterior floor) a - AT LEAST 1 BATHROOM ON THE ENTRY LEVEL SHALL BE PROVIDED WITH REINFORCEMENT FOR GRAB BARS. WHERE

PL

PL

VS

2 ADU SOUTH ELEVATION 3 PLAN 1 - SECOND FLOOR LIGHTING PLAN - LOT 1

SCALE: 3/16" = 1'-0"

LOT 4

LOT 3

M M

5

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

PC/MS

5

HS

12

11.

12.

12

ISSUED

PC/MS

5

M

5

5.

6.

7.

8.

9.

10.

PC/MS

PC/MS

M

SD

DATE

SD

SD SD

LOT 5

PL

6

NO.

VS

12

PC/MS

4.

12

3.

. (48" maximum from exterior floor)

5'-0"

8'-0"

2

HS

5

PROJECT

DWG. NO.

5 N.T.S.

E-2.2

PROJECT

1 ADU WEST ELEVATION DWG. NO. N.T.S.

RAWING TITLE

2.

2

SCALE 1' - 0" = 1/4 "

5

utlet, switch and control heights(15" to 48" maximum)

SD

ADU ROOF PLAN

2

VS

VS

PL

rab bars at water closet, shower and bathtub

THROOM ON THE ENTRY LEVEL SHALL BE EINFORCEMENT FOR GRAB BARS. WHERE ROOM ON THE ENTRY LEVEL, AT LEAST 1 E 2ND OR 3RD FLOOR SHALL BE PROVIDED ENT. ORCEMENT LOCATED BETWEEN 32” AND 39.25" LOOR FLUSH WITH THE WALL FRAMING. T REINFORCEMENT SHALL BE INSTALLED ON E FIXTURE, OR 1SIDE WALL AND THE BACK 1 ALLOWS FLOOR MOUNTED OR FOLDAWAY S NO SIDE WALL).

FORCEMENT SHALL BE CONTINUOUS WHERE PROVIDED. COMBINATION BATHTUB/SHOWER HALL BE CONTINUOUS ON EACH END OF THE BACK WALL. ADDITIONALLY, BACK WALL OR LOWER GRAB BAR SHALL BE PROVIDED E NOT MORE THAN 6 ” ABOVE THE BATHTUB

M M ROOF OVER GARAGE - CONCRETE ROOF TILE: MF 108 INTERLOCKING FLAT (R) BY MCA. F40 NATURAL RED COLOR. CONCRETE ROOF TILE: MF108 INTERLOCKING FLAT (R) TYPE F40 12 5 NATURAL RED COLOR BY MCA. PRE-FAB DECORATIVE STONE VENEER AND DECORATIVE CAP BY EL M DORADO, ROUGHCUT, AUTUMN LEAF. SD STEEL SECTIONAL M M GARAGE DOOR WITH AUTOMATIC GARAGE OPENER. 26 GA. G.I. FLASHING AT WALL. 12 5 2x WD FASCIA. COLOR TO MATCH WITH ROOF. CONCRETE DRIVE - SEE SITE PLAN. LA HABRA EXTERIOR STUCCO - CLAY X-830 (40) BASE 100.

SD RAFTER DECORATIVE 4" FOAM MOLDING POP-OUT W/ EXTERIOR PLASTER AT WINDOWS W/ TRABUCO X-278 (42) BASE 200.

RIDGE BEAM PRE-FAB DECORATIVE FOAM MOLDING FINISH (DECORATIVE SYMBOL) W/ EXTERIOR PLASTER W/ TRABUCO X-278 (42) BASE 200.

R-38 ROOF ATTIC INSULATION R-15 WALL INSULATION SCALE 1' - 0" = 3/16 " 2X WD DBL TOP PLATE CONC PAVED WALKWAY SIDEYARD PROPERTY SCALE: LINE 3/16" = 1'-0" 6'-0" TALL 6" BLOCK WALL 4X4 KING POST ATTIC (SEE STRUCTURAL PLANS FOR ROOF & CEILING FRAMING) 2-STORY SINGLE FAMILY PRIMARY RESIDENCE (SFR) R-19 FLOOR INSULATION

E-2.2

5

OB ADDRESS

12

1.

PC/MS

= 6 x 98.75 = 592.5 SQ. IN. (> PROVIDE

ADU NORTH ELEVATION

M

M

E AND FALL PREVENTION DESIGN

3340 RIVERSIDE DR. #M, CHINO, CA 91710

1.

2

SD

3 TITLE DRAWING DRAWING TITLE NO. DATE ISSUED NO. DATE ISSUED ELECTRICAL LIGHTING ELECTRICAL & POWER FLOOR LIGHTING & POWER FLOOR 1 1 DEPARTMENT BUILDING SUBMITTAL DEPARTMENT SUBMITTAL 11/20/24 BUILDING 11/20/24 PLANS -4MAIN UNIT 1PLANS - MAIN UNIT 1

ROOF OVER ENTRY PORCH

= 3.53 SQ. FT. = 508.32 SQ. IN.

O'HAGIN'S, INC. MODEL: FLAT 'FIRE & ICE' LINE, NFVA: 98.75

OB TITLE

HS

11/20/24 PLANNING DEPARTMENT SUBMITTAL

VS

1

M

PROPOSED ADU FLOOR PLAN, ROOF PLAN & ELEVATIONS

12

CALCULATION

LIGHTING PLAN GENERAL NOTES

M

SD

SHIV TALWAR, ARCHITECT AIA

12

5

HS VS

LIGHTING PLAN KEYNOTES

200 AMP SUB PANEL UNDER CABINET LIGHTING (VERIFY WITH OWNER) EXHAUST FAN TANKLESS WATER HEATER ALL LIGHTING SHALL BE LED HIGH EFFICACY PER TABLE 150.0-A SECTION 150.0(K)A. EV CHARGING SOLAR TO PANEL REFER ARCHITECTURAL INTERIOR ELEVATIONS TO COORDINATE EXACT (CBC 1203.2 AND CRC R806) LEVITON DECORA 5 DEVICES, AMPS SINGLE POLE HUMIDITY SENSOR / FAN OVER CONTROL PLACEMENT OF ALL FIXTURES AND SWITCHES. COORDINATE WITH OTHER ATTIC VENTILATION ROOF 1ST FLOOR DIVISIONS PRIOR TO ROUGH-IN ANYTHING. 1. ATTIC VENT. AREA REQUIRED = 1060 SQ. FT. /300

adu west elevation - type a

SD

3'-0"

3'-6"

5/8" TYPE 'X' GYP BOARD (SMOOTH) PAINT

1/2" TYPE "X" GYPSYM BD. PAINT FINISH

5/8" TYPE 'X' GYP. BOARD (SMOOTH) PAINT

1/2" GYPSYM BOARD W.P. (WATER RESISTENT)

1/2" GYPSYM BD. PAINT FINISH

4 1/2" PINE

HARD WOOD

CERAMIC TILE

CARPET

CONCRETE

M

DESIGN CONCEPTS

2

A-7.1

HS

5

HOT HOT

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH HOT HOT

VS

SD

5

3'-0"

LIGHTING PLAN GENERALPLAN NOTES 1 ADU - ATTIC VENTILAT

1.

2.

3.

4.

1.

5.

6.

2.

7.

M

SD

PROVIDE GFCI PROTECTED OUTLETS FOR KITCHEN, DISHWASHER, GARAGE, 12 OUTDOORS AND WITHIN 6FT OF SINK (PER NEC 210.8(A)) BATHROOMS,

PROVIDE AT LEAST ONE 20 AMPERE CIRCUIT SUPPLYING ONLY BATHROOM (PER CEC ARTICLE 210.11(C)3).

1. RECEPTACLE 200 AMP SUB OUTLETS. PANEL IP 2. UNDER CABINET H LIGHTING (VERIFY WITH OWNER) 4.3. PROVIDE EXHAUSTWALL FAN RECEPTACLE WITHIN 36” OF EACH LAVATORY IN THE BATHROOM. (CEC 4. 210.52(D).

TANKLESS WATER HEATER 5. EV CHARGING 6. SOLAR PANEL 7. LEVITON DECORA 5 AMPS SINGLE POLE HUMIDITY SENSOR / FAN CONTROL

IP

HOT

9'-0" 9'-0" 9'-0" 9'-0"

2

M

SD

VS

HOT

SD

SCALE: 3/16" = 1'-0"

3'-0"

LIGHTING PLAN KEYNOTES

c.

3.

M

5

SECTION KEYNOTES

SD

2

2.44 KWdc PV SYSTEM SCALE: 3/16" = 1'-0"

TOP OF ROOF

1 ADU WEST ELEVATION

SCALE 1' - 0" = 3/16 "

SD

6'-0"

4. PROVIDE WALL RECEPTACLE WITHIN 36” OF EACH LAVATORY IN THE BATHROOM. (CEC b. 210.52(D).

PROVIDE ARC-FAULT PROTECTION FOR ALL OUTLETS LOCATED IN KITCHENS, FAMILY, LIVING, BEDROOMS, DINING, HALLS, ETC. (PER NEC 210.12(A)).

REMARKS

9'-0"

M

4

3. PROVIDE AT LEAST ONE 20 AMPERE CIRCUIT SUPPLYING ONLY BATHROOM a. RECEPTACLE TAMPER RESISTANT RECEPTACLES FOR ALL LOCATIONS DESCRIBED IN 210.52 (I.E., OUTLETS. (PER CEC ARTICLE 210.11(C)3).

ALL RECEPTACLES IN A DWELLING)

CEILING

1 PLAN 1 - SECOND FLOOR POWER 9'-0" PLAN - LOT 1 9'-0" 9'-0" 9'-0" 9'-0"

SCALE 1' -ALL 0" =OUTLETS 1/4" PROVIDE ARC-FAULT PROTECTION FOR LOCATED IN KITCHENS, FAMILY, LIVING, BEDROOMS, DINING, HALLS, ETC. (PER NEC 210.12(A)).

1. RECEPTACLE OUTLET LOCATIONS TO COMPLY WITH CEC ARTICLE 210.52.

1. "DECORATIVE CONCRETE ENTRANCE PAVING SCALE 1' - 0" = 3/16 c. PROVIDE GFCI PROTECTED OUTLETS FOR KITCHEN, DISHWASHER, GARAGE, WINDOWS TO HAVE OBSCURE GLASS AND 2. BATHROOM 2. FOR ELECTRICAL DEVICES INSTALLED IN6FT DWELLINGS THE FOLLOWING WILL APPLY: BATHROOMS, OUTDOORS AND WITHIN OF SINK (PER NEC 210.8(A)) SHALL BE FIXED BELOW 5'-0" HEIGHT CEC ARTICLE 210 & 406.

H

WITH MAIN HOUSE IN EACH LOT. DECORATIVE 4" FOAM MOLDING POP-OUT W/ EXTERIOR SCALE: 3/16" COLOR = 1'-0" AND STYLE TO MATCH PLASTER AT DOORS. WITH MAIN HOUSE IN EACH LOT. 7. PRE-FAB DECORATIVE FOAM MOLDING FINISH (DECORATIVE SYMBOL) W/ COLOR AND FINISH TO MATCH MAIN HOUSE IN EACH LOT. 8. CONCRETE STEPS. 9. STUCCO EXTERIOR TO MATCH THE MAIN HOUSE IN EACH LOT. 10. SDSTONE VENEER BY EL DORADO. COLOR AND STYLE TO MATCH WITH THE MAIN HOUSE IN EACH LOT.

M

SECTION A-A

WALLS

H VS HS IP

HOT

PC/MS

DINING

PC/MS

BASE

IP

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH

FLOOR

H

HOT

+ROOM HT.

TAMPER RESISTANT RECEPTACLES FOR ALL LOCATIONS DESCRIBED IN 210.52 (I.E., ALL RECEPTACLES IN A DWELLING)

POWER PLAN GENERAL 1 NOTES FLOOR PLAN KEYNOTES 3

ROOM NAME

a.

5

A-7.1

5

SD

12

12

ROOM FINISH SCHEDULE

PC/MS

DINING

POWER PLAN KEYNOTES

adu floor plan - type a

ADU NORTH ELEVATION

12

OAM MOLDING POP-OUT W/ EXTERIOR PLASTER AT ABUCO X-278 (42) BASE 200.

250 AMP SUB PANEL ULOFIN GARBAGE DISPOSAL F7 PENDENT LIGHTING FIXTURE G6BUZ2HD23545UM GFI OUTLETS +72" A.F.F. PROVIDE RECEPTACLE FOR EXHAUST FAN + 72" A.F.F. TANKLESS WATER HEATER EV CHARGING SOLAR PANEL

b.

1 PLAN 1 - SECOND FLOOR POWER PLAN5 12- LOT 1

6.

POWER PLAN KEYNOTES

POWER PLAN GENERAL NOTES

1/2" GYPSYM BOARD W.P. (WATERPROOF)

5

2.

3.

4.

5.

1.

2.

3.

4.

5.

6.

7.

WINDOW SCHEDULE

PROPOSED RESIDENTIAL DEVELOPMENT

5

TYPE A ADU FLOOR PLAN

12

PLAN 1 - FIRST FLOOR POWER PLAN - LOT 1

CTURAL PLANS FOR ROOF & CEILING FRAMING) FAMILY PRIMARY RESIDENCE (SFR) LATION

12

NEW ROOF TILES TO MATCH MAIN HOUSE IN EACH LOT. MCA TITLE. NEW FASCIA TO MATCH WITH MAIN HOUSE IN EACH LOT. SCALE: 3/16" = 1'-0" DECORATIVE LIGHT FIXTURE NOT IN USE DECORATIVE 4" FOAM MOLDING POP-OUT W/ EXTERIOR PL PLASTER AT WINDOWS. COLOR AND STYLE TO MATCH

first floor power plan - type a

ATIVE FOAM MOLDING FINISH (DECORATIVE RIOR PLASTER W/ TRABUCO X-278 (42) BASE 200.

INSULATION ATION LATE KWAY SIDEYARD

0-10V 0-10V

40 40

1. 250 AMP SUB PANEL 2. GARBAGE DISPOSAL 3. GFI OUTLETS +72" A.F.F. 1.4. RECEPTACLE OUTLET LOCATIONS TO COMPLY WITH CEC ARTICLE 210.52.

PROVIDE RECEPTACLE FOR EXHAUST FAN + 72" A.F.F. 5. TANKLESS WATER HEATER 2.6. FOR ELECTRICAL DEVICES INSTALLED IN DWELLINGS THE FOLLOWING APPLY: NOTE: WILL BATHROOM WINDOWS TO HAVE OBSCUR EV CHARGING ARTICLE 7. CEC SOLAR PANEL210 & 406.

ELEVATION KEYNOTES 1.

HING AT WALL. OLOR TO MATCH WITH ROOF. VE - SEE SITE PLAN. RIOR STUCCO - CLAY X-830 (40) BASE 100.

12

12

12

5

PLAN 1 - FIRST FLOOR POWER PLAN - LOT 1

CK WALL

5

GARAGE - CONCRETE ROOF TILE: MF 108 AT (R) BY MCA. F40 NATURAL RED COLOR. TILE: MF108 INTERLOCKING FLAT (R) TYPE F40 LOR BY MCA. TIVE STONE VENEER AND DECORATIVE CAP BY EL CUT, AUTUMN LEAF. AL GARAGE DOOR WITH AUTOMATIC GARAGE

5

DOOR OPENER

2 60 40

N KEYNOTES

12

3'-0"

12

5

2 60 40

DOOR OPENER

DOOR OPENER

0-10V

120 120

5

BY EL DORADO. COLOR AND STYLE TO E MAIN HOUSE IN EACH LOT.

12

5

9'-0" 9'-0" 9'-0" 9'-0"

DOOR OPENER

120

10 18

4'-6"

5/8" TYPE 'X' GYP BOARD (SMOOTH) PAINT

1/2" TYPE "X" GYPSYM BD. PAINT FINISH

4 1/2" PINE

1/2" GYPSYM BD. PAINT FINISH

HARD WOOD

CERAMIC TILE

CARPET

HOT HOT HOT HOT

CONCRETE

2'-0" 12

9'-0" 9'-0"

9'-0" 9'-0" 9'-0" 9'-0"

18 12

F6 F2

1

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH

CU UNIT

DINING

VOLT CONTROL 120 0-10V

PRUDENTIAL WALL 6" DOWNLIGHT, 2' LED VANITY LIGHTING FINISH, FIXTURE SPECULER 1500 LITHONIA LD6N LM. ULOFIN F7 PENDENT LIGHTING FIXTURE F3 TBD CEILING FAN WITH LIGHT G6BUZ2HD23545UM

F1 F5

A-7.1

OAM MOLDING POP-OUT W/ EXTERIOR DOWS. COLOR AND STYLE TO MATCH E IN EACH LOT. OAM MOLDING POP-OUT W/ EXTERIOR ORS. COLOR AND STYLE TO MATCH E IN EACH LOT. ATIVE FOAM MOLDING FINISH MBOL) W/ COLOR AND FINISH TO MATCH ACH LOT. S. OR TO MATCH THE MAIN HOUSE IN EACH

REMARKS

CEILING

5/8" TYPE 'X' GYP. BOARD (SMOOTH) PAINT

WALLS 1/2" GYPSYM BOARD W.P. (WATER RESISTENT)

BASE

VOLT CONTROL

HOT

CAUTION SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH

FLOOR

HP-1

1

TO MATCH MAIN HOUSE IN EACH LOT.

MATCH WITH MAIN HOUSE IN EACH LOT. HT FIXTURE

DINING

+ROOM HT.

A-7.1

ROOM NAME

CU UNIT

EXCEPT BY AGREEMENTEXCEPT WITH BY AGREEMENT WITH

WATTS

LITHONIA LD6N

DESIGN DESIGN CONCEPTS CONCEPTS

ROOM FINISH SCHEDULE

ON KEYNOTES

DESCRIPTION

F1

LIGHTING FIXTURES SCHEDULE

3'-0"

4'-7"

4'-0"

MANUFACTURER

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE THESE DRAWINGS AND THESE DRAWINGS AND SPECIFICATIONS SPECIFICATIONS ARE THE PREFERENCE OVER SCALED ARE THE PROPERTY AND COPYRIGHT PROPERTY OF AND COPYRIGHT OF DIMENSIONS AND SHALL BE THE ARCHITECT AND SHALL THENOT ARCHITECT AND SHALL NOT VERIFIED ON THE JOB SITE. ANY BE USED ON ANY OTHERBE WORK USED ON ANY OTHER WORK DISCREPANCY SHALL BE

TAG

HP-1

DOOR SCHEDULE

LIGHTING FIXTURES SCHEDULE

5'-1"

LEGALIZE UNPERMITTED ACCESSORY STRUCTURE RV STORAGE

NEW DETACHED ACCESSORY STRUCTURE RV STORAGE

APPLICATION FOR THE CONSTRUCTION OF A DETACHED PRE-FABRICATED RV STORAGE OF APPROXIMATELY 1,400 SF.

(E) LANDSCAPE

NOTE: 1. THE PROJECT IS APPROVED BY THE PLANNING DEPARTMENT. PROJECT #MA24001(SDP24002) 2. LEGALIZE UNPERMITTED CONSTRUCITON OF A DETACHED ACCESSORY STRUCTURE FOR RV PARKING AND STORAGE

SHIV TALWAR, ARCHITECT AIA

DESIGN CONCEPTS

ERIOR WALLS (PER CALIFORNIA RESIDENTIAL CODE)

52'-0"

TS A

OWNER: MR. MICHAEL EDWARD REDARD MRS. SHARON PAVON

(E) LANDSCAPE

PL

100'

(E) PARKWAY

CL

EXISTING SITE PLAN

existing site plan

SCALE: 1/16" = 1'-0"

1

4

28'-0"

(E) PARKWAY

JOB ADDRESS

EAM

51'-0"

BERKSHIRE DRIVE

ING FLOOR PLANS & SCHEDULE RIOR ELEVATIONS & SECTIONS

ORAGE DETAILS - HFX PANELS ING DETAILS - HFX PANELS R SYSTEM DETAILS - HFX DETAILS

32'-0"

(E) CONCRETE DRIVEWAY

(E) LANDSCAPE

GREEN BUILDING STANDARDS CODE GREEN BUILDING STANDARDS CODE

FRAMING & FOUNDATION PLAN FRAMING CTURAL DETAILS CTURAL DETAILS

200'

(E) CONCRETE WALKWAY

17'-0"

SHEET & EXISTING SITE PLAN

ER AND LIGHTING FIXTURES PLAN

ENT.

2

INDEX

EXISTING GARAGE 799 SQ.FT.

3

5,619 SQ. FT. (24%)

PL

1

3,335 SQ. FT. (17%)

CTURE: STOR. 1,400 SQ. FT.

(E) CONCRETE PAVING

EXISTING 2 -STORY SFR (NO CHANGE)

PROPOSED 1-STORY RV STORAGE

AGRICULTURE) (0.46 AC)

RES (NO CHANGE) INCLUDING: OOR) 2,536 SQ.FT. 799 SQ.FT.

(E) CONCRETE PAVING

JOB TITLE

YSIS

My role focused on documenting and coordinating the project for permit submission. I conducted site visits to measure and verify existing conditions, produced the architectural drawing set, and assembled documentation required for city submission. I also developed preliminary structural drawings and proposed structural additions for the existing metal structure through consultation with a structural engineer, with revisions currently being finalized by engineering. In addition, I am responsible for coordinating and responding to city plan check comments throughout the approval process.

2.

PL

PLAN CHECK

STORAGE), R (RESIDENTIAL)

EXISTING 6'-0" HIGH CMU WALL @ PROPERTY LINE EXISTING DECORATIVE WROUGHT IRON FENCE & GATE EXISTING WATER METER EXISTING LANDSCAPE EXISTING GAS METER EXISTING ELECTRICAL PANEL EXISTING COVERED PATIO EXISTING PLANTER WALL

ISSUED

(0.46 AC) PE: V-B (NON-SPRINKLERED)

RECORDED DECEMBER 2, 1902, IN BOOK 180 PAGE 45, OF DEEDS. THE LOCATION OF SAID EASEMENT CANNOT BE DETERMINED FROM THE PUBLIC RECORDS. AN EASEMENT TO THE UNION PACIFIC RAILROAD COMPANY TO DIVERT AND CONCENTRATE WATER FLOWING IN THE SAN SEVAINE WATERSHED AND CAUSE IT TO FLOW ACROSS SAID LAND & INCIDENTAL PURPOSES RECORDED MARCH 5, 1975, AS INSTRUMENT NO. 25975, OFFICIAL RECORDS. THE LOCATION OF SAID EASEMENT CANNOT BE DETERMINED FROM THE PUBLIC RECORDS.

1.

2.

3.

4.

5.

6.

7.

8.

NO.

RIPTION

5 FEET

58'-0"

0 HOURS

21'-0"

28'-0"

TED

52'-0"

200'

0 HOURS

> 5 FEET = 5 FEET

27'-0"

40'-0"

RENCE D

RV STORAGE)

(E) CONCRETE PAVING

MIN. FIRE

SEPARATION DISTANCE

5'-0"

MIN. FIRE-RESISTANCE RATING

3340 RIVERSIDE DR. #M, CHINO, CA 91710

(E) CONCRETE PAVING

DATE

RV Storage Legalization is a permitting and documentation CL CENTER LINE CONCRETE (E) project for the legalization of anEXISTING existing unpermitted LANDSCAPE NEW 1,400 square foot RV storage(N)structure in Jurupa Valley, PL PROPERTY LINE includes California. The project documentation of the existing light-gauge metal structure, code SITE analysis, PLAN KEYNOTES SITE EASEMENT NOTES and proposed structural improvements intended 1. ALL EASEMENT TO THE STEARNS RANCHO COMPANY OF SAN FRANCISCO, A to support the FOR legalization permitting process.

CORPORATION WATER DITCHES, PIPELINESand & INCIDENTAL PURPOSES

3'-3"

2/3/26

PROPOSED ACCESSORY RV / STORAGE

11'-0"

SCOPE OF WORK:

41'-4"

LEGEND

1.

40'-8"

2'-0" 3'-1"

THE FOLLOWING ARE UNDER SEPARATE PERMIT: 1. None

jurupa valley, california

(E) LANDSCAPE

40'-0"

SCOPE OF WORK legalizing unpermitted construction

NIA BUILDING CODE NIA RESIDENTIAL CODE NIA ELECTRICAL CODE NIA MECHANICAL CODE NIA PLUMBING CODE DE LDING STANDARDS CODE (CG) GY REGULATIONS E CITY OF JURUPA VALLEY MUNICIPAL CODE & OTHER DE MUNICIPAL CODES

13'-8"

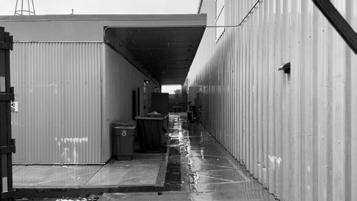

SITE PHOTO

(E) LANDSCAPE

TITLE SHEET & EXISTING SITE PLAN

YSIS

PL 100'

PROJECT SITE

SEPARATE PERMIT rv storage accessory structure:

SUMMARY

OPEN SPACE

18'-0"

OPEN SPACE

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE

SATELLITE MAP

DRAWING TITLE

PARCEL MAP

35'-0"

ALIZE UNPERMITTED ESSORY STRUCTURE RV STORAGE 8 BERKSHIRE DRIVE, UPA VALLEY, CA 92509 -06-

NEW CONCRETE FOOTING 1.

2.

3.

4.

5.

HSS BEAMS (E) HSS 4X4 POST HSS TRUSS 2X6 METAL STUD BRACING ATTACHED TO THE ROOF STRUCTURE AND EXTERIOR WALL FRAMING LINE OF METAL ROOF 4

5

EXISTING AND PROPOSED ROOF FRAMING PLAN 2 exsiting and proposed roof framing plan ROOF FRAMING PLAN KEYNOTES ISSUED

3

DR., JURUPA VALLEY

LEGEND 2

SCALE 1/4" = 1'-0"

SHIV TALWAR, ARCHITECT AIA

DESIGN CONCEPTS

40'-0"

10'-9" 12'-2"

6'-9"

6'-7"

6'-9"

4'-4"

C

4'-5"

1

5'-6" 1'-4"

17'-4" 5'-9"

4'-4" 5'-9"

4'-4" 5'-9"

1:12

1:12

4'-4" 4'-4"

5'-9"

A

4'-4" 4'-4"

2

1'-11" 1'-6"

5'-9"

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

2

40'-0"

1'-0"

7'-0"

1

6'-7"

RIDGE

3340 RIVERSIDE DR. #M, CHINO, CA 91710 TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

B

3

exsiting and proposed foundation plan

1

EXSITING AND PROPOSED FOUNDATION PLAN

PLAN CHECK

2 C

RY RV STORAGE

FOUNDATION PLAN KEYNOTES 7

DATE

1'-3"

2/3/26

1 B

12'-0" #

7'-2" HFX2

12'-0"

B

NO.

1'-3" 27'-10"

A

ND FOUNDATION PLAN

10'-0"

A

# 6'-0"

# 5'-8"

2'-2"

35'-0"

# 6'-0"

4'-5"

3

6'-0" #

12'-0" #

# 6'-0"

C 2'-2"

7'-0"

2

# 6'-0"

6'-0"

6'-0" #

# 6'-0"

(E) CONCRETE SLAB HSS 4X4 POST # 6'-0"

6'-11"

1 35'-0"

3

17'-4" 5'-9"

##

#

A

1:12

B

1:12

4'-4"

# 9'-8"

C

3 SCALE 1/4" = 1'-0"

1 1

BB

BB

A-3

A-3

2

3

2

1

35'-0" 5'-9"

5'-9"

A

A

17'-4" 5'-9"

5'-9"

5'-9"

DN

20'-5"

A

1'-4"

3'-2"

1'-11" 1'-6"

A

5'-9"

5'-9"

9'-9"

A

MEZZANINE F.F. +8' 0"

5'-6"

A

A

B

B

1'-4"

5'-9"

5'-6"

5'-9"

1'-11" 1'-6"

17'-4"

17'-4" 5'-9"

1

12'-0"

5'-9"

1'-11" 1'-6"

17'-4" 5'-9"

3

35'-0"

3'-2"

1

B

B

2

1

1

2

FIRST FLOOR PLAN

first floor plan

DOOR SCHEDULE

3

SCALE: 3/16"=1'-0"

A-3

6'-7"

6'-7"

OPEN TO BELOW

6'-9"

6'-9" 5

C

AA

40'-0"

6'-9"

A-3

6'-9"

RV PARKING/ STORAGE

A-3

AA

40'-0"

AA

6'-7"

6'-7"

3

1'-0"

B

1'-0"

4

C

C

C

1

2

3 MEZZANINE FLOOR PLAN mezzanine floor plan

FLOOR AND MEZZANINE PLAN KEYNOTES

1. LINE OF MEZZANINE 2. HSS 4X4 POST 3. MIN. 42" HIGH DECORATIVE WROUGHT IRON GUARDRAIL 4. LINE OF OVERHEAD METAL DOOR, 10'X14' 5. NOT IN USE 6. STEEL ROOF BEAM

3

SCALE: 3/16"=1'-0"

C

1

2 ROOF PLAN

ROOF PLAN K

1. CORRUGATED METAL RO

OOR

A

B

C

3'-2"

2

3

19'-2"

9'-4"

2 35'-0"

1

TYP. 3'-6"

1. OVERHEAD METAL DOOR, 10' X 12' 2. CORRUGATED METAL WALL PANEL 3. 4" THICK SLAB OVER COMPACT FILL - TYP. 4. PRE-FABRICATED METAL ROOFING SYSTEM - TYP. 3 10'X 10' 5. OVERHEAD METAL DOOR, 6. EXTERIOR SECURITY LIGHT FIXTURE 7. MEZZANINE FLOOR 8. CUT LINE, CMU WALL @PROPERTY LINE 9. 6'-0" HIGH CMU WALL @PROPERTY LINE

3'-9"

10'-0"

14'-0"

16'-0"

19'-2"

8'-0"

SHIV TALWAR, ARCHITECT AIA

F.F

F.F

north elevation

2 SOUTH

SCALE: 3

C

3'-2" 19'-2"

19'-2"

9'-4"

16'-7"

3'-9"

8'-0"

F.F

19'-2"

8'-7"

2'-9"

TYP.

2'-11"

3

B

8'-0"

C

A

8'-6"

1:12

SCALE: 3/16"=1'-0"

16'-0"

TOP OF ROOF LINE TOP OF DOOR FINISH FLOOR

2

F.F

NORTH ELEVATION EAST ELEVATION

F.F

B

C

F.F

F.F

2'-10"

section a

EAST ELEVATION 8'-4"

STEEL BEAMS STEEL COLUMN STEEL TRUSSES

A

2"

1.

2.

3.

PLAN CHECK

FRAMING PLAN KEYNOTES

OOFING SYSTEM

ISSUED

1

DATE

SCALE: 3/16"=1'-0"

2/3/26

roof plan

O.

KEYNOTES

T.O.R. T.O.D. F.F.

DESIGN CONCEPTS

LEGEND PLAN KEYNOTES

1:12

B

40'-8"

RIDGE

F.F

N ES

3340 RIVERSIDE DR. #M, CHINO, CA 91710 TEL: 909-591-3939 Email: dsignconcepts@yahoo.com

1:12

1:12

2'-11"

6'-0"

A

2'-0"

A-3

16'-0"

ELEVATION KEYNOTES

BB

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND COPYRIGHT OF THE ARCHITECT AND SHALL NOT BE USED ON ANY OTHER WORK 2'-9" EXCEPT BY AGREEMENT WITH THE ARCHITECT. WRITTEN DIMENSIONS SHALL TAKE PREFERENCE OVER SCALED 8'-6" DIMENSIONS AND SHALL BE VERIFIED ON THE JOB SITE. ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT PRIOR TO THE COMMENCEMENT OF ANY WORK.

TYP.

SCALE: 3/16"=1'-0"

4 WEST E
